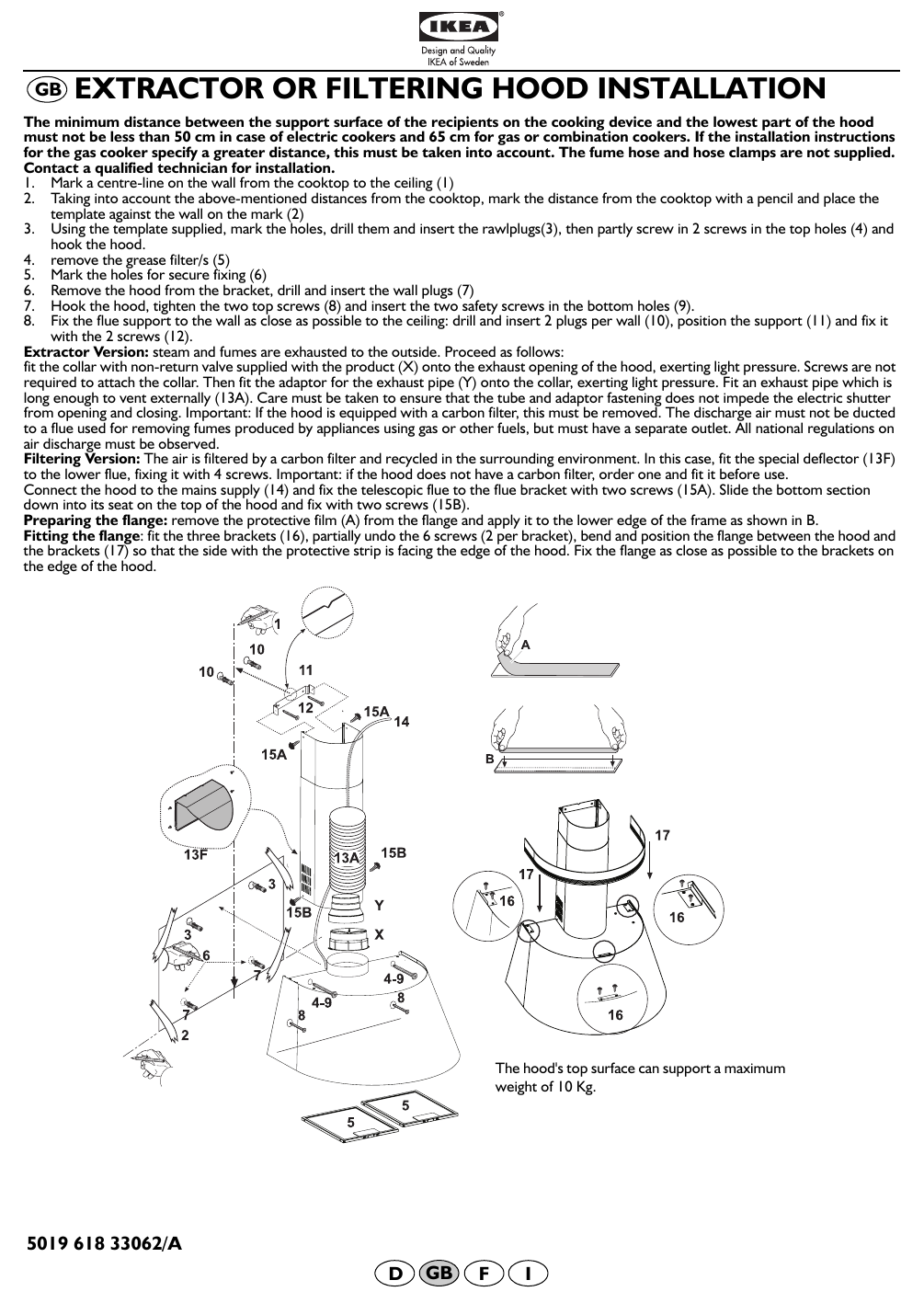

EXTRACTOR OR FILTERING HOOD INSTALLATION
The minimum distance between the support surface of the recipients on the cooking device and the lowest part of the hood
must not be less than 50 cm in case of electric cookers and 65 cm for gas or combination cookers. If the installation instructions
for the gas cooker specify a greater distance, this must be taken into account. The fume hose and hose clamps are not supplied.
Contact a qualified technician for installation.
1. Mark a centre-line on the wall from the cooktop to the ceiling (1)
2. Taking into account the above-mentioned distances from the cooktop, mark the distance from the cooktop with a pencil and place the
template against the wall on the mark (2)
3. Using the template supplied, mark the holes, drill them and insert the rawlplugs(3), then partly screw in 2 screws in the top holes (4) and
hook the hood.
4. remove the grease filter/s (5)
5. Mark the holes for secure fixing (6)
6. Remove the hood from the bracket, drill and insert the wall plugs (7)
7. Hook the hood, tighten the two top screws (8) and insert the two safety screws in the bottom holes (9).
8. Fix the flue support to the wall as close as possible to the ceiling: drill and insert 2 plugs per wall (10), position the support (11) and fix it
with the 2 screws (12).
Extractor Version: steam and fumes are exhausted to the outside. Proceed as follows:
fit the collar with non-return valve supplied with the product (X) onto the exhaust opening of the hood, exerting light pressure. Screws are not
required to attach the collar. Then fit the adaptor for the exhaust pipe (Y) onto the collar, exerting light pressure. Fit an exhaust pipe which is
long enough to vent externally (13A). Care must be taken to ensure that the tube and adaptor fastening does not impede the electric shutter
from opening and closing. Important: If the hood is equipped with a carbon filter, this must be removed. The discharge air must not be ducted
to a flue used for removing fumes produced by appliances using gas or other fuels, but must have a separate outlet. All national regulations on
air discharge must be observed.
Filtering Version: The air is filtered by a carbon filter and recycled in the surrounding environment. In this case, fit the special deflector (13F)
to the lower flue, fixing it with 4 screws. Important: if the hood does not have a carbon filter, order one and fit it before use.
Connect the hood to the mains supply (14) and fix the telescopic flue to the flue bracket with two screws (15A). Slide the bottom section
down into its seat on the top of the hood and fix with two screws (15B).
Preparing the flange: remove the protective film (A) from the flange and apply it to the lower edge of the frame as shown in B.
Fitting the flange: fit the three brackets (16), partially undo the 6 screws (2 per bracket), bend and position the flange between the hood and
the brackets (17) so that the side with the protective strip is facing the edge of the hood. Fix the flange as close as possible to the brackets on
the edge of the hood.
The hood's top surface can support a maximum
weight of 10 Kg.
5019 618 33062/A
D
GB
F
I
1.
2.
3.
4.
5.
CONTROL PANEL
Control panel
Grease filters
Grease filter handles
Light above cooker (depending on model)
Telescopic flue
Light switch.
The switch has two positions
(lights OFF - lights ON).
To switch on the lights: move the switch to the right.
Extraction speed selection switch.
The extraction speed switch has different settings,
depending on the amount of steam and fumes.
To increase the extraction speed: move the switch to the
right.
Fig.1
To clean the grease filter
Clean the grease filter once a month.
1. Disconnect the electrical power supply.
2. Remove the grease filters - Fig. 1:
a - push the handles backwards
b - and then downwards.
3. After cleaning the grease filter refit in reverse order,
making sure the entire extraction surface is covered.
Fitting or replacing the carbon filter:
Change the carbon filter every six months.
1. Disconnect the electrical power supply.
2. Remove the grease filters (Fig. 1 - a, b).
3. Fit the filters over the motor: make sure the pins R on the
manifold match the slots S, then turn clockwise until
locked.
4. Carry out in the reverse order to remove.
5. Refit the grease filters.
Fig.2
Cleaning the hood
Warning! Failure to remove oil/grease (at least
once a month) could lead to fire.
Use a soft cloth with a neutral detergent. Never use abrasive
substances or alcohol.
Before using the hood
Please read these instructions carefully and keep them for
future reference, in order to ensure best use of your hood.
Packaging materials (plastic bags, polystyrene, etc.) can be
dangerous for children and should be kept well out of their
reach.
Make sure the hood has not been damaged during transport.
Installation and electrical connections must be carried out by
a qualified technician in compliance with the current local
regulations.
Replacing bulbs
1. Disconnect the electrical power supply.
2. Remove the grease filters (Fig. 1 - a, b).
3. Remove the burnt-out bulb.
Replace using 40W max E14 bulbs only.
4. Refit the grease filters.
Halogen lamps:
Use a small screwdriver or other
suitable tool to prise off the cover. Refit
the cover.
5. Use only max 40 W E14 bulbs or max 20 W halogen
bulbs (depending on the
model), taking care not to
touch them with your hands.
5019 618 33062/A
D
GB
F
I
SAFEGUARDING THE ENVIRONMENT
1. Packing
Packing materials are 100% recyclable and are marked with
the recycling symbol .Comply with the local regulations for
disposal. The packing materials (plastic bags, polystyrene,
etc.) are a potential source of danger and must be kept out of
the reach of children.
2. Product
This appliance is marked in compliance with European
Directive 2002/96/EC, Waste Electrical and Electronic
Equipment (WEEE).
By ensuring that this appliance is correctly scrapped, the user
can help prevent potentially harmful consequences for the
environment and the health of people.
The symbol on the product or the accompanying
documentation indicates that this product should not be treated
as domestic waste but must be taken to a suitable collection
centre for the recycling of electrical and electronic equipment.
Disposal must be carried out in compliance with local
regulations on waste disposal.
For further information on the treatment, recovery and
recycling of this product, contact the competent local office,
the household waste collection service or the shop where
you purchased the appliance.
IMPORTANT INSTRUCTIONS FOR
SAFETY
WARNING: To reduce the risk of accidents, electric
shock, injury or damage, when using the hood comply with
the basic precautions, including the following.
1. Always disconnect the hood from the power supply
before carrying out any installation or maintenance
operation on the appliance.
2. Installation must be carried out by a specialised
technician, in compliance with the manufacturer’s
instructions and local safety regulations.
3. Earthing of the appliance is compulsory. (Not possible for
Class II hoods).
4. Never use multisockets and extension leads.
5. The electrical components must no longer be accessible
to the user after installation.
6. Do not touch the hood with wet parts of the body or use
it when barefoot.
7. Do not pull the appliance power cable to unplug it.
8. After-sales service – do not repair or replace any part of
the hood unless specifically indicated in the manual. All
other maintenance services must be carried out by a
specialised technician.
9. When drilling the wall, make sure not to damage the
electrical connections and/or pipes.
10. The ventilation ducts must always discharge to the
outside.
11. The Manufacturer declines any liability for improper use
or incorrect setting of the controls.
12. The appliance is not intended for use by children or
persons with limited physical, sensory or mental abilities
or without experience and knowledge of it, unless they
are under the supervision of or instructed in its use by a
person responsible for their safety.
13. Keep children away.
14. To reduce the risk of fire, only use a metal inlet duct.
15. Children must be supervised so that they do not play
with the appliance.
16. The product must be disposed of in compliance with
local regulations on waste disposal.
17. For further information on the treatment, recovery and
recycling of this product, contact the competent local
office, the household waste collection service or the shop
where you purchased the appliance.
18. Regular cleaning and maintenance is essential for correct
hood operation and good performance. Frequently clean
all encrustations from dirty surfaces to prevent the
accumulation of grease. Regularly clean or replace filters.
19. Do not “flambé” food under the hood. Naked flames
could cause a fire.
20. The room must have adequate ventilation when the hood
is used at the same time as appliances operating on gas or
other fuels.
21. The discharge air must not be eliminated in a duct used
to remove fumes produced by appliances operating on
gas or other fuels, but must have a separate outlet. All the
national regulations on air discharge envisaged by art.
7.12.1 of CEI EN 60335-2-31 must be observed.
22. If the hood is used together with other appliances
operating on gas or other fuels, the negative pressure in
the room must not exceed 4 Pa (4 x 10-5 bar). Therefore,
make sure the room is adequately ventilated.
23. Do not leave pans unattended when frying, since the
cooking oil could catch fire.
24. Make sure the lamps are cold before touching them.
25. The hood is not a shelf, therefore do not overload or
place objects on it.
26. Do not use or leave the hood without its lamps correctly
installed - risk of electric shock.
27. Wear work gloves for all installation and maintenance
operations.
28. The product is not suitable for outdoor use.
29. The air sucked by the hood must not be eliminated
through the same flue of the heating system or other
appliances using gas or other fuels.
5019 618 33062/A
D
GB
F
I
Electrical connection
The mains voltage must match that given on the rating plate
located inside the hood. If provided with a plug, connect the
hood to a socket complying with the current regulations and
located in an accessible area. If it does not have a plug (direct
connection to the power supply) or if the plug is not in an
accessible place, fit a suitable double-pole switch that ensures
complete disconnection from the power supply in category III
overvoltage conditions, complying with the installation rules.
WARNING: Before reconnecting the hood circuit to the
power supply and checking correct operation, always make
sure the power cable is correctly fitted and that it was NOT
crushed in its housing during installation. Make sure to have
this operation carried out by a specialised technician.
Cleaning the hood
WARNING: Failure to remove oil/grease (at least once a
month) could result in fire.
Use a soft cloth with a neutral detergent. Never use abrasive
substances or alcohol.
Before using the hood
Please read these instructions carefully and keep them for
future reference, in order to ensure best use of your hood.
The packing materials (plastic bags, polystyrene, etc.) are a
potential source of danger and must be kept out of the reach
of children.
Make sure the hood has not been damaged during transport.
AFTER-SALES SERVICE
Before calling the After-Sales Service
1. Check to see if you can fix the problem yourself
(see “Troubleshooting Guide”).
2. Switch the appliance off and then on again to check if the
problem has been eliminated.
3. If the problem persists, contact the After-Sales Service.
Specify:
• the type of fault,
• the product model given on the dataplate inside the
hood, visible on removing the grease filters,
• your full address,
• your telephone number and area code,
• the Service code (the number under the word SERVICE
on the dataplate inside the hood, behind the grease
filter).
If any repairs are necessary, contact an authorised Service
Centre (to ensure the use of original spare parts and correct
repair).
Failure to comply with these instructions can compromise
the safety and quality of the product.
Declaration of conformity
This product has been designed, manufactured and put on
the market in conformity with:
- safety objectives of the “Low Voltage” Directive
2006/95/EC (which replaces 73/23/EEC as amended)
- protection requirements of “EMC” Directive 89/336/EEC
amended by Directive 93/68/EEC.
Troubleshooting guide
If the hood does not work:
• Is the plug properly inserted in the power socket?
• Is there a power failure?
If the hood is not extracting enough:
• Is the right speed selected?
• Do the filters need cleaning or replacing?
• Are the air outlets blocked?
If the lamp does not work:
• Does the lamp need replacing?
• Is the lamp correctly fitted?
5019 618 33062/A
D
GB
F
I

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
