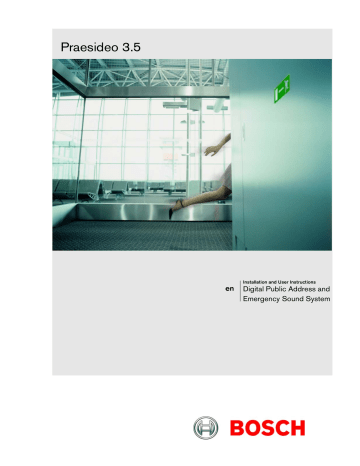

Praesideo 3.5
Installation and User Instructions
en
Digital Public Address and
Emergency Sound System
Praesideo 3.5 | Installation and User Instructions
Intentionally left blank.
Bosch Security Systems | 2011-02
en | 2
Praesideo 3.5 | Installation and User Instructions
Disclaimer
Although every effort has been made to ensure the
information and data contained in these Installation and
User Instructions is correct, no rights can be derived
from the contents.
Bosch Security Systems disclaim all warranties with
regard to the information provided in these instructions.
In no event shall Bosch Security Systems be liable for
any special, indirect or consequential damages
whatsoever resulting from loss of use, data or profits,
whether in action of contract, negligence or other
tortious action, arising out of or in connection with the
use of the information provided in these Installation and
User Instructions.
Important Safeguards
Prior to installing or operating this product, always read
the Important Safety Instructions which are available as
a separate document and are packed with all units that
can be connected to the mains.
FCC Requirements Class A
All Praesideo devices are verified to comply according
47 CFR subpart 15 B, Unintentional Radiators. Class A
Digital device, peripherals and external switching power
supplies.
(Pb)
X
X
X
O
X
X
O:
X:
Bosch Security Systems | 2011-02
(Hg)
O
O
O
O
O
O
(Cd)
O
X
X
O
X
X
en | 3
NOTE:
This equipment has been tested and found to comply with
the limits for a Class A digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when
the equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in
accordance with the instruction manual, may cause
harmful interference to radio communications. Operation
of this equipment in a residential area is likely to cause
harmful interference in which case the user will be
required to correct the interference at his own expense.
FCC Notice
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received,
including interference that may cause undesired
operation.
Modifications
Any modifications made to this device that are not
approved by the manufacturer may void the authority
granted to the user by the FCC to operate this
equipment.
Canada
This Class A digital apparatus complies with Canadian
ICES-003.
Cet appareil numérique de la classe A est conforme à la
norme NMB-003 du Canada.
(Cr6+)
O
X
X
O
X
X
(PBB's)
O
X
O
X
O
O
SJ/T11363-2006
SJ/T11363-2006
(PBDE's)
O
X
O
X
O
O
.
.
Praesideo 3.5 | Installation and User Instructions
Intentionally left blank.
Bosch Security Systems | 2011-02
en | 4
Praesideo 3.5 | Installation and User Instructions | 0 | Table of Contents
en | 5
Table of Contents
Disclaimer ...............................................................................................................................................................................3
Important Safeguards..........................................................................................................................................................3
FCC Requirements Class A ..............................................................................................................................................3
Table of Contents..................................................................................................................................................................5
Emergency Sound Systems............................................................................................................................................. 13
EN60849: 1998 compliancy checklist ............................................................................................................................ 15
EN54-16: 2008 compliancy checklist............................................................................................................................. 27
EN54-16: 2008 VACIE label.............................................................................................................................................. 59
EN54-16: 2008 products description ............................................................................................................................. 60
ISO7240-16: 2007 compliancy checklist....................................................................................................................... 61
Praesideo on board of ships........................................................................................................................................... 71
Part 2 - Introduction .......................................................................................................................................................... 73
1 About this manual .......................................................................................................................................................................... 75
1.1 Purpose of this manual ....................................................................................................................................................... 75
1.2 Intended audience ............................................................................................................................................................... 75
1.3 Related documentation ....................................................................................................................................................... 75
1.4 Alerts ....................................................................................................................................................................................... 75
1.5 Signs ....................................................................................................................................................................................... 75
2 System overview ............................................................................................................................................................................ 76
2.1 Introduction ............................................................................................................................................................................ 76
2.2 User-friendly software control ........................................................................................................................................... 76
2.3 Networked approach ........................................................................................................................................................... 76
2.4 Distributed control ............................................................................................................................................................... 76
2.5 Combination of functions ................................................................................................................................................... 76
2.6 Evacuation compliance ....................................................................................................................................................... 77
2.7 External interfaces ................................................................................................................................................................ 77
2.8 Reduced installation costs ................................................................................................................................................. 77
2.9 High system flexibility .......................................................................................................................................................... 77
3 Calls .................................................................................................................................................................................................. 78
3.1 Introduction ............................................................................................................................................................................ 78
3.2 Call attributes ........................................................................................................................................................................ 78
3.3 Types ....................................................................................................................................................................................... 79
4 Glossary ........................................................................................................................................................................................... 80
Part 3 - Control Equipment.............................................................................................................................................. 81
5 PRS-NCO-B Network Controller ............................................................................................................................................... 83
5.1 Introduction ............................................................................................................................................................................ 83
5.2 Controls, connectors and indicators ............................................................................................................................... 84
5.3 Connections .......................................................................................................................................................................... 87
5.4 Installation .............................................................................................................................................................................. 91
5.5 Using the configuration menu ........................................................................................................................................... 92
5.6 Configuration and operation .............................................................................................................................................. 96
5.7 Technical Data ....................................................................................................................................................................102
6 LBB4402/00 Audio Expander .................................................................................................................................................106
6.1 Introduction ..........................................................................................................................................................................106
6.2 Controls & connectors ......................................................................................................................................................106
6.3 Connections ........................................................................................................................................................................108
Bosch Security Systems | 2011-02
Praesideo 3.5 | Installation and User Instructions | 0 | Table of Contents
en | 6
6.4 Installation ............................................................................................................................................................................110
6.5 Using the configuration menu .........................................................................................................................................111
6.6 Configuration and operation ............................................................................................................................................114
6.7 Technical data .....................................................................................................................................................................116
7 LBB4404/00 CobraNet Interface ...........................................................................................................................................119
7.1 Introduction ..........................................................................................................................................................................119
7.2 Controls and connectors ..................................................................................................................................................120
7.3 Rear view ..............................................................................................................................................................................120
7.4 Connections ........................................................................................................................................................................120
7.5 Installation ............................................................................................................................................................................123
7.6 CobraNet Configuration ...................................................................................................................................................123
7.7 Using the configuration menu .........................................................................................................................................124
7.8 Configuration and operation ............................................................................................................................................127
7.9 Technical data .....................................................................................................................................................................129
Part 4 - Amplifiers ............................................................................................................................................................ 131
8 Power Amplifiers ..........................................................................................................................................................................133
8.1 Introduction ..........................................................................................................................................................................133
8.2 Controls, connectors and indicators .............................................................................................................................134
8.3 Connections ........................................................................................................................................................................136
8.4 Fan control ...........................................................................................................................................................................144
8.5 Installation ............................................................................................................................................................................145
8.6 Using the configuration menu .........................................................................................................................................146
8.7 Configuration and operation ............................................................................................................................................149
8.8 Technical data .....................................................................................................................................................................151
9 PRS-16MCI Multi Channel Interface ......................................................................................................................................157
9.1 Introduction ..........................................................................................................................................................................157
9.2 Controls, connections and indicators ............................................................................................................................158
9.3 Connectors ..........................................................................................................................................................................159
9.4 Installation ............................................................................................................................................................................162
9.5 Configuration and operation ............................................................................................................................................162
9.6 Technical data .....................................................................................................................................................................164
10 Basic Amplifiers ...........................................................................................................................................................................166
10.1 Introduction ..........................................................................................................................................................................166
10.2 Controls, connections and indicators ............................................................................................................................167
10.3 Connectors ..........................................................................................................................................................................169
10.4 Fan control ...........................................................................................................................................................................175
10.5 Installation ............................................................................................................................................................................177
10.6 Operation .............................................................................................................................................................................177
10.7 Technical data .....................................................................................................................................................................178
11 Single loudspeaker line supervision ........................................................................................................................................182
11.1 Introduction ..........................................................................................................................................................................182
11.2 Controls, connectors and indicators .............................................................................................................................183
11.3 Installation ............................................................................................................................................................................184
11.4 Technical data supervision-master .................................................................................................................................187
11.5 Technical data supervision-slave ....................................................................................................................................188
12 Multiple loudspeaker line supervision .....................................................................................................................................189
12.1 Introduction ..........................................................................................................................................................................189
12.2 Controls, connectors and indicators .............................................................................................................................190
12.3 Installation ............................................................................................................................................................................191
Bosch Security Systems | 2011-02
Praesideo 3.5 | Installation and User Instructions | 0 | Table of Contents
en | 7
12.4 Addressing ...........................................................................................................................................................................194
12.5 Technical data supervision control board .....................................................................................................................195
12.6 Technical data loudspeaker supervision board ...........................................................................................................196
12.7 Technical data EOL supervision board .........................................................................................................................197
13 LBB4446/00 Brackets ..............................................................................................................................................................198
14 LBC1256/00 EVAC Connection Adapter ............................................................................................................................199
14.1 Introduction ..........................................................................................................................................................................199
14.2 Installation ............................................................................................................................................................................199
14.3 Technical data .....................................................................................................................................................................199
Part 5 - Call Stations ....................................................................................................................................................... 201
15 LBB4430/00 Call Station Basic ..............................................................................................................................................203
15.1 Introduction ..........................................................................................................................................................................203
15.2 Controls, connectors and indicators .............................................................................................................................204
15.3 Connections ........................................................................................................................................................................204
15.4 Installation ............................................................................................................................................................................206
15.5 Operation .............................................................................................................................................................................206
15.6 Technical data .....................................................................................................................................................................207
16 LBB4432/00 Call Station Keypad ..........................................................................................................................................208
16.1 Introduction ..........................................................................................................................................................................208
16.2 Controls, connectors and indicators .............................................................................................................................208
16.3 Configuration .......................................................................................................................................................................209
16.4 Installation ............................................................................................................................................................................210
16.5 Operation .............................................................................................................................................................................211
16.6 Technical data .....................................................................................................................................................................211
17 PRS-CSNKP Numeric Keypad .................................................................................................................................................212
17.1 Introduction ..........................................................................................................................................................................212
17.2 Compatibility ........................................................................................................................................................................212
17.3 Controls, connectors and indicators .............................................................................................................................212
17.4 Bottom view .........................................................................................................................................................................212
17.5 Installation ............................................................................................................................................................................213
17.6 Operation .............................................................................................................................................................................214
17.7 Technical data .....................................................................................................................................................................215
18 LBB4433/00 Call Station Kit ...................................................................................................................................................216
18.1 Introduction ..........................................................................................................................................................................216
18.2 Controls, connectors and indicators .............................................................................................................................217
18.3 Installation ............................................................................................................................................................................224
18.4 Technical Data ....................................................................................................................................................................225
19 LBB4434/00 Call Station Keypad Kit ....................................................................................................................................226
19.1 Introduction ..........................................................................................................................................................................226
19.2 Controls, connectors and indicators .............................................................................................................................227
19.3 Installation ............................................................................................................................................................................231
19.4 Technical data .....................................................................................................................................................................232
20 PRS-CSR Remote Call Station ................................................................................................................................................233
20.1 Introduction ..........................................................................................................................................................................233
20.2 Controls, connectors and indicators .............................................................................................................................234
20.3 Connections ........................................................................................................................................................................234
20.4 Installation ............................................................................................................................................................................237
20.5 Operation .............................................................................................................................................................................237
20.6 Technical data .....................................................................................................................................................................238
Bosch Security Systems | 2011-02
Praesideo 3.5 | Installation and User Instructions | 0 | Table of Contents
en | 8
21 PRS-CSRK Remote Call Station Kit .......................................................................................................................................240
21.1 Introduction ..........................................................................................................................................................................240
21.2 Controls, connectors and indicators .............................................................................................................................241
21.3 Installation ............................................................................................................................................................................248
21.4 Technical Data ....................................................................................................................................................................249
22 PRS-CSI Call Station Interface ................................................................................................................................................250
22.1 Introduction ..........................................................................................................................................................................250
22.2 Controls, connectors and indicators .............................................................................................................................251
22.3 Connections ........................................................................................................................................................................252
22.4 Installation ............................................................................................................................................................................254
22.5 Operation .............................................................................................................................................................................255
22.6 Technical data .....................................................................................................................................................................255
23 PRS-CRF Call Stacker ...............................................................................................................................................................257
23.1 Introduction ..........................................................................................................................................................................257
23.2 Controls and indicators ....................................................................................................................................................258
23.3 Connections ........................................................................................................................................................................258
23.4 Installation ............................................................................................................................................................................258
23.5 Operation .............................................................................................................................................................................259
23.6 Technical data .....................................................................................................................................................................259
24 LBB4436/00 Key Covers .........................................................................................................................................................260
Part 6 - Installation Accessories .................................................................................................................................. 261
25 PRS-NSP Network Splitter .......................................................................................................................................................263
25.1 Introduction ..........................................................................................................................................................................263
25.2 Controls and connectors ..................................................................................................................................................263
25.3 Connections ........................................................................................................................................................................266
25.4 Installation ............................................................................................................................................................................267
25.5 Operation .............................................................................................................................................................................267
25.6 Technical data .....................................................................................................................................................................268
26 PRS-FIN, PRS-FINNA, PRS-FINS Fiber Interface ...............................................................................................................269
26.1 Introduction ..........................................................................................................................................................................269
26.2 Controls, connectors and indicators .............................................................................................................................269
26.3 Connections ........................................................................................................................................................................271
26.4 Installation ............................................................................................................................................................................274
26.5 Technical data .....................................................................................................................................................................275
27 LBB4416/xx Network Cables ...................................................................................................................................................276
27.1 Introduction ..........................................................................................................................................................................276
27.2 Connectors ..........................................................................................................................................................................276
27.3 Wiring ...................................................................................................................................................................................277
27.4 Custom-made cables ........................................................................................................................................................277
27.5 Technical data .....................................................................................................................................................................277
28 LBB4417/00 Network Connectors ........................................................................................................................................278
29 LBB4418 Cable-connector Tool Kit .......................................................................................................................................279
29.1 Introduction ..........................................................................................................................................................................279
29.2 Toolkit contents ..................................................................................................................................................................279
29.3 Connector components ....................................................................................................................................................281
29.4 Cable-connector installation ............................................................................................................................................282
30 LBB4419/00 Cable Couplers ..................................................................................................................................................292
Part 7 - System Hardware Installation ....................................................................................................................... 293
31 Cabling ...........................................................................................................................................................................................295
Bosch Security Systems | 2011-02
Praesideo 3.5 | Installation and User Instructions | 0 | Table of Contents
en | 9
31.1 Introduction ..........................................................................................................................................................................295
31.2 System bus ..........................................................................................................................................................................295
31.3 Dust caps .............................................................................................................................................................................296
31.4 Maximum distance .............................................................................................................................................................296
31.5 Maximum cable length ......................................................................................................................................................297
31.6 Bending and coiling ...........................................................................................................................................................298
32 Architecture ..................................................................................................................................................................................299
32.1 Introduction ..........................................................................................................................................................................299
32.2 Basic system .......................................................................................................................................................................299
32.3 Redundant cabling .............................................................................................................................................................299
32.4 Tap-offs .................................................................................................................................................................................300
32.5 Spare amplifiers ..................................................................................................................................................................300
32.6 CobraNet .............................................................................................................................................................................301
32.7 Failsafe ..................................................................................................................................................................................302
32.8 IP Addresses .......................................................................................................................................................................302
32.9 Connecting an alarm buzzer ............................................................................................................................................302
33 Power Consumption ...................................................................................................................................................................304
33.1 Introduction ..........................................................................................................................................................................304
33.2 Power consumption ...........................................................................................................................................................304
33.3 Battery capacity calculation .............................................................................................................................................304
33.4 Power sources ....................................................................................................................................................................305
33.5 Cooling capacity .................................................................................................................................................................306
34 Preventive maintenance .............................................................................................................................................................307
34.1 Clean air inlets ....................................................................................................................................................................307
34.2 Change battery ...................................................................................................................................................................307
Part 8 - Software .............................................................................................................................................................. 309
35 PRS-SW Praesideo Software DVD ........................................................................................................................................311
35.1 Introduction ..........................................................................................................................................................................311
35.2 Starting the DVD ................................................................................................................................................................311
35.3 Contents ...............................................................................................................................................................................311
36 Mandatory packages ..................................................................................................................................................................311
36.1 Introduction ..........................................................................................................................................................................311
36.2 Installation on PC ...............................................................................................................................................................311
36.3 Establishing connection ....................................................................................................................................................312
36.4 Upgrade system software ................................................................................................................................................313
36.5 Upgrade firmware ...............................................................................................................................................................314
36.6 Clear logging events .........................................................................................................................................................316
37 Recommended packages ..........................................................................................................................................................317
37.1 Introduction ..........................................................................................................................................................................317
37.2 Adobe reader ......................................................................................................................................................................317
37.3 Release notes .....................................................................................................................................................................317
37.4 Manuals ................................................................................................................................................................................317
38 Optional packages ......................................................................................................................................................................318
39 Troubleshooting ...........................................................................................................................................................................319
39.1 Introduction ..........................................................................................................................................................................319
39.2 Security settings .................................................................................................................................................................319
39.3 Connections ........................................................................................................................................................................319
Part 9 - System Configuration ...................................................................................................................................... 321
40 Configuration software ...............................................................................................................................................................323
Bosch Security Systems | 2011-02
Praesideo 3.5 | Installation and User Instructions | 0 | Table of Contents
en | 10
40.1 Introduction ..........................................................................................................................................................................323
40.2 Starting and logging on ....................................................................................................................................................323
40.3 Overview ..............................................................................................................................................................................323
40.4 Configure section ...............................................................................................................................................................324
40.5 Diagnose section ...............................................................................................................................................................327
40.6 Upgrade section .................................................................................................................................................................327
41 User management .......................................................................................................................................................................328
41.1 Introduction ..........................................................................................................................................................................328
41.2 Accounts ..............................................................................................................................................................................328
41.3 Add a user ...........................................................................................................................................................................329
41.4 Delete a user .......................................................................................................................................................................330
42 System definition .........................................................................................................................................................................331
42.1 Introduction ..........................................................................................................................................................................331
42.2 Serial numbers ....................................................................................................................................................................331
42.3 Network controller ..............................................................................................................................................................332
42.4 Power amplifier ...................................................................................................................................................................333
42.5 Call station ...........................................................................................................................................................................335
42.6 Audio expander ...................................................................................................................................................................335
42.7 Fiber interface .....................................................................................................................................................................336
42.8 CobraNet interface ............................................................................................................................................................336
42.9 TCP/IP device .....................................................................................................................................................................337
42.10 Multi Channel Interface ....................................................................................................................................................338
42.11 Call Stacker .........................................................................................................................................................................338
43 Equipment configuration ............................................................................................................................................................339
43.1 Introduction ..........................................................................................................................................................................339
43.2 Network controller ..............................................................................................................................................................339
43.3 Power amplifier ...................................................................................................................................................................346
43.4 Call station ...........................................................................................................................................................................352
43.5 Audio expander ...................................................................................................................................................................360
43.6 Fiber interface .....................................................................................................................................................................361
43.7 CobraNet interface ............................................................................................................................................................361
43.8 Multi Channel Interface .....................................................................................................................................................363
44 System wide settings .................................................................................................................................................................368
44.1 Introduction ..........................................................................................................................................................................368
44.2 Recorded messages .........................................................................................................................................................368
44.3 Message sets ......................................................................................................................................................................369
44.4 System settings ..................................................................................................................................................................371
45 Zone & amplifier ...........................................................................................................................................................................373
45.1 Introduction ..........................................................................................................................................................................373
45.2 Zone configuration .............................................................................................................................................................373
45.3 Zone Grouping ...................................................................................................................................................................377
45.4 Sparing .................................................................................................................................................................................377
45.5 BGM Channels ...................................................................................................................................................................379
46 Call characteristics ......................................................................................................................................................................381
46.1 Introduction ..........................................................................................................................................................................381
46.2 Call macro ............................................................................................................................................................................381
47 Action programming ...................................................................................................................................................................384
47.1 Introduction ..........................................................................................................................................................................384
47.2 Behavior ...............................................................................................................................................................................384
Bosch Security Systems | 2011-02
Praesideo 3.5 | Installation and User Instructions | 0 | Table of Contents
en | 11
47.3 Actions ..................................................................................................................................................................................386
48 Audio processing ........................................................................................................................................................................401
48.1 Introduction ..........................................................................................................................................................................401
48.2 Audio processing parameters .........................................................................................................................................401
48.3 AVC calibration ...................................................................................................................................................................403
49 Automatic volume control ..........................................................................................................................................................404
49.1 Introduction ..........................................................................................................................................................................404
49.2 Sensing microphones .......................................................................................................................................................404
49.3 Connection ..........................................................................................................................................................................404
49.4 Configuration .......................................................................................................................................................................404
50 Diagnose installation ...................................................................................................................................................................407
50.1 Introduction ..........................................................................................................................................................................407
50.2 Cable length margin ..........................................................................................................................................................407
50.3 Number of nodes ................................................................................................................................................................407
50.4 Optical network ..................................................................................................................................................................407
50.5 Loudspeaker supervision ..................................................................................................................................................408
50.6 Device information .............................................................................................................................................................408
50.7 Check configuration ..........................................................................................................................................................409
Part 10 - Events................................................................................................................................................................. 411
51 Overview ........................................................................................................................................................................................413
51.1 Introduction ..........................................................................................................................................................................413
51.2 General events ....................................................................................................................................................................413
51.3 Call events ...........................................................................................................................................................................413
51.4 Fault events .........................................................................................................................................................................413
52 General events list .......................................................................................................................................................................415
53 Call events list ..............................................................................................................................................................................418
54 Fault events list ............................................................................................................................................................................419
Part 11 - Optional Software .......................................................................................................................................... 433
55 CobraNet Discovery ...................................................................................................................................................................435
55.1 Introduction ..........................................................................................................................................................................435
55.2 Installation ............................................................................................................................................................................435
55.3 Network adapter configuration ........................................................................................................................................436
55.4 Operation .............................................................................................................................................................................436
55.5 Menus ...................................................................................................................................................................................438
55.6 Firmware Update dialog ..................................................................................................................................................438
55.7 Options dialog ....................................................................................................................................................................439
55.8 Column Chooser dialog ....................................................................................................................................................440
55.9 Report functions .................................................................................................................................................................441
55.10 CobraNet Control and Configuration ............................................................................................................................441
55.11 DiscoOptions ......................................................................................................................................................................445
56 Logging Server .............................................................................................................................................................................446
56.1 Introduction ..........................................................................................................................................................................446
56.2 Requirements ......................................................................................................................................................................446
56.3 Installation ............................................................................................................................................................................446
56.4 Start .......................................................................................................................................................................................447
56.5 Main window .......................................................................................................................................................................448
56.6 Stop .......................................................................................................................................................................................449
56.7 Configuration .......................................................................................................................................................................449
57 Logging Viewer ............................................................................................................................................................................454
Bosch Security Systems | 2011-02
Praesideo 3.5 | Installation and User Instructions | 0 | Table of Contents
en | 12
57.1 Introduction ..........................................................................................................................................................................454
57.2 Requirements ......................................................................................................................................................................454
57.3 Installation ............................................................................................................................................................................454
57.4 Start .......................................................................................................................................................................................454
57.5 Configuration .......................................................................................................................................................................455
57.6 Operation .............................................................................................................................................................................456
58 PC Call Server .............................................................................................................................................................................459
58.1 Introduction ..........................................................................................................................................................................459
58.2 Requirements ......................................................................................................................................................................459
58.3 Installation ............................................................................................................................................................................459
58.4 Start .......................................................................................................................................................................................460
58.5 Configuration .......................................................................................................................................................................460
58.6 Firewall ..................................................................................................................................................................................460
59 PC Call Server Configuration Client .......................................................................................................................................461
59.1 Introduction ..........................................................................................................................................................................461
59.2 Requirements ......................................................................................................................................................................461
59.3 Installation ............................................................................................................................................................................461
59.4 Start .......................................................................................................................................................................................461
59.5 Configuration .......................................................................................................................................................................461
60 PC Call Station Client ................................................................................................................................................................474
60.1 Introduction ..........................................................................................................................................................................474
60.2 Requirements ......................................................................................................................................................................474
60.3 Installation ............................................................................................................................................................................474
60.4 Licensing ..............................................................................................................................................................................474
60.5 Start .......................................................................................................................................................................................474
60.6 User Interface ......................................................................................................................................................................475
61 PC Telephone Interface Client .................................................................................................................................................480
61.1 Introduction ..........................................................................................................................................................................480
61.2 Requirements ......................................................................................................................................................................480
61.3 Installation ............................................................................................................................................................................480
61.4 Licensing ..............................................................................................................................................................................480
61.5 Start .......................................................................................................................................................................................480
61.6 Operation .............................................................................................................................................................................481
61.7 Voice response menu ........................................................................................................................................................481
61.8 Linksys SPA3102 configuration .....................................................................................................................................484
62 Open Interface .............................................................................................................................................................................486
62.1 Introduction ..........................................................................................................................................................................486
62.2 Scope ...................................................................................................................................................................................486
Part 12 - Appendices ....................................................................................................................................................... 487
A Tones ..............................................................................................................................................................................................489
A.1 Chimes...................................................................................................................................................................................489
A.2 Alarms ....................................................................................................................................................................................489
A.3 Test tones .............................................................................................................................................................................492
B Kycon KPP-4P connector ..........................................................................................................................................................493
B.1 Introduction...........................................................................................................................................................................493
B.2 Assembly ...............................................................................................................................................................................493
C Product index ...............................................................................................................................................................................494
Bosch Security Systems | 2011-02
Praesideo 3.5 | Installation and User Instructions | Emergency Sound Systems
en | 13
Emergency Sound Systems
Bosch Security Systems has made a great effort for the design and manufacturing of the components and also
supplies all documentation that enables the assembly of a safe and high quality emergency unit in accordance with
EN60849:1998, EN54-16:2008 and ISO7240-16:2007. Bosch Security Systems has made up this list of requirements,
based on the standard, which needs to be filled in and subsequently signed off by both parties. The signed paper has
the nature of a certificate and can have significant meaning in the case of a legal investigation of the liability issue for
personal injuries.
•
•
•
•
•
•
•
•
The safety of the system in accordance with EN60849:1998, EN54-16:2008 and
ISO7240-16:2007 in an alarm and emergency application does not only depend on component safety, but also
highly on the installation engineer and the operator. For example, the sound pressure level of the system depends
on the installation. Moreover, the system should only be installed and operated by qualified personnel.
Modifications of the system should only be executed by authorized persons in accordance with the safety
concept and need to be registered in the system documentation.
If third party components (not delivered by Bosch Security Systems) are added to the minimal configuration of
Praesideo, then the EN60849:1998, EN54-16:2008 and ISO7240-16:2007 certification becomes expired.
Only use Power Supply Equipment that is compliant to the current standards and legislation in combination with
the Praesideo system. Within Europe the Power Supply Equipment shall be EN54-4 compliant.
The end-user must maintain a journal for the system.
In case continuous event logging (beyond the possibilities and capacity provided by the Network Controller) is
required, the end-user/installer must use the Praesideo system in combination with a logging PC. In that case the
logging PC is considered as a basic element of the system.
The installer is responsible for security measures to prevent improper use of the system via the Internet and local
wired or wireless networks.
Bosch Security Systems refuses any liability for damage that might result from non-observance of these
instructions.
Herewith the undersigned states that he/she has processed for him/her applicable requirements, as specified in this
document, in an adequate way and has confirmed this fact by signing the rightmost column of each applicable
requirement.
Installer
Name:
Signature:
Date:
Place:
End-user
Name:
Signature:
Date:
Place:
Bosch Security Systems | 2011-02
Praesideo 3.5 | Installation and User Instructions | Emergency Sound Systems
List of authorized end-users
Name
Bosch Security Systems | 2011-02
Name
en | 14
Praesideo 3.5 | Installation and User Instructions | EN60849: 1998
en | 15
EN60849: 1998 compliancy checklist
EN60849 - 4. General system requirements
EN60849 - 4.1 Principal features
Requirement
Compliance
A sound system for emergency purposes shall permit
the broadcasting of intelligible information of measures
to be taken for the protection of lives within one or more
specified areas.
Compliant, if properly installed. Responsibility of the
installer.
The following criteria shall be fulfilled:
a
When any alarm is detected, the system shall
immediately disable any functions not connected
with its emergency role (such as paging, music or
general pre-recorded announcements being
broadcast to the loudspeaker zones requiring
emergency broadcasts).
Compliant.
b
Unless damaged as a result of the emergency, the
system shall be available for operation at all times
(or as required by the system specification).
Compliant, if installed with:
• Redundant ring network.
• Spare Power Amplifiers.
• Multiple loudspeaker circuits per zone and one
loudspeaker circuit per amplifier channel.
• Battery back-up / UPS back-up.
• Emergency Call Station in failsafe layout or
Emergency Call Station Kit in the failsafe layout.
c
The system shall be capable of broadcasting within
10 s after primary or secondary power is applied.
Compliant, if installed with failsafe layout. Responsibility
of the installer.
d
Except during the condition described in 4.1c), the
system shall be capable of broadcasting a first
attention-drawing signal within 3 s of being placed
in an emergency mode by the operator, or
automatically on receipt of a signal from a fire or
other detection system. In the latter case, the
period of 3 s includes the reaction time of the
detection system from the time the emergency is
first detected, to commanding the alarm broadcast.
Compliant.
e
The system shall be able to broadcast attentiondrawing signals and speech messages to one or
more areas simultaneously. There shall be at least
one appropriate attention-drawing signal
alternating with one or more speech messages for
this purpose.
Compliant, if attention-drawing signal is part of the prerecorded message. Responsibility of the installer.
f
At any time the system operator shall be able to
receive, by means of a monitoring system,
indications of the correct functioning or otherwise
of the relevant parts of the emergency system (see
also 5.2 and 5.3).
Compliant, indicated by call stations and/or by a control
output of the Network Controller (if properly installed).
Fault is also displayed by the Network Controller and
the Logging Viewer (optional).
g
Failure of a single amplifier or loudspeaker circuit
shall not result in total loss of coverage in the
loudspeaker zone served.
Compliant if installed with:
• Spare Power Amplifiers.
• Multiple loudspeaker circuits per zone and one
loudspeaker circuit per amplifier channel.
• Line Supervision set.
Responsibility of the installer.
NOTE 1 - The monitoring system specified
in 4.1f) should indicate the failure of an amplifier or of a
loudspeaker circuit.
Responsibility of the installer.
NOTE 2 - Particularly in small buildings, it may not be
necessary to install two separate loudspeaker circuits
in one loudspeaker zone. A decision on this matter
may be subject to local regulations.
h
An attention-drawing signal shall precede the first
message for 4 s to 10 s. Successive signals and
messages shall then continue until either changed
in accordance with the evacuation procedure, or
manually silenced. The interval between successive
messages shall not exceed 30 s and attentiondrawing signals shall be broadcast whenever
periods of silence might otherwise exceed 10 s.
Where more than one attention-drawing signal is
used, such as those used for different types of
emergency, each signal shall be clearly
distinguishable in character.
Bosch Security Systems | 2011-02
Compliant, if attention-drawing signal is part of the prerecorded message and call macro has been configured
properly. Responsibility of the installer.
Signature
Praesideo 3.5 | Installation and User Instructions | EN60849: 1998
Requirement
Compliance
i
All messages shall be clear, short, unambiguous
and as far as practicable, pre-planned.
Responsibility of the installer.
Where pre-recorded messages are used they shall
be held in a non-volatile form, preferably in a solidstate store, and be continuously monitored for
availability.
First 128 MB of compact flash card is continuously
monitored, which is equivalent to the first 25 minutes of
audio.
The system design shall make it inherently
impossible for an external source to corrupt or
derange the store or its contents.
Compliant.
NOTE - On grounds of reliability, it is preferable not
to use storage media depending on mechanical
devices.
Storage medium is a compact flash card. Proper
installation of the compact flash card is the
responsibility of the installer.
j
The language(s) used shall be specified by the
purchaser.
Responsibility of the installer.
k
The system shall be capable of being divided into
emergency loudspeaker zones if required by the
evacuation procedure. Such zones need not be the
same as other zones, for example emergency
detection zones or non-emergency loudspeaker
zones.
Compliant, if properly installed. Responsibility of the
installer.
l
In determining loudspeaker zones, the following
criteria shall apply:
1
the intelligibility of messages broadcast in one
zone shall not be reduced below the
requirement of 5.1 by the broadcasting of
messages in other zones or from more than one
source.
Compliant, if properly installed. Responsibility of the
installer.
2
no emergency detection zone shall contain
more than one emergency loudspeaker zone.
For non-emergency use, a loudspeaker zone
may be subdivided.
Compliant, if properly installed. Responsibility of the
installer.
m A secondary power source shall be available
(see 5.6).
en | 16
Signature
Compliant, if properly installed. Responsibility of the
installer.
EN60849 - 4.2 Responsible person
Requirement
Compliance
The person or body, having control of the premises
shall nominate a "responsible person", identified by
name or job title, who shall be responsible for ensuring
that the system is properly maintained and repaired so
as to continue to operate as specified.
Responsibility of the person or body having control of
the premises. Action to be taken care of by the installer.
Signature
EN60849 - 4.3 Priorities
EN60849 - 4.3.1 Classification of priorities
Requirement
Compliance
It is necessary to decide upon an order of priority for
the message distribution based upon:
a
Any automatic programmed response.
Compliant, if properly installed. Responsibility of the
installer.
b
The perceived risk to occupants, which may require
manual override of the programmed response.
Compliant, if properly installed. Responsibility of the
installer.
Events shall be given a level of priority according to
their urgency. The following primary levels are
recommended but there may be advantages in adding
further subgroups, depending on the operational
strategies of the site:
Compliant, if properly installed. Responsibility of the
installer.
a
Evacuate - potentially life-threatening situation
needing immediate evacuation.
Compliant, if properly installed. Responsibility of the
installer.
b
Alert - dangerous situation nearby requiring
warning of pending evacuation.
Compliant, if properly installed. Responsibility of the
installer.
c
Non-emergency - operational messages, e.g.
system test, etc.
Compliant, if properly installed. Responsibility of the
installer.
Bosch Security Systems | 2011-02
Signature
Praesideo 3.5 | Installation and User Instructions | EN60849: 1998
Requirement
Compliance
The use of these levels in descending order of priority
will ensure that appropriate alarm signals and
messages are provided first to the zones immediately at
risk.
Compliant, if properly installed. Responsibility of the
installer.
en | 17
Signature
EN60849 - 4.3.2 Operational priorities
Requirement
Compliance
Signature
If the voice alarm system is capable of operation in fully
automatic mode, a facility shall always be available to
control:
a
The type of pre-recorded message being
broadcast.
Compliant, if properly installed:
• Input contact configured to start a call with a prerecorded message.
• Running message can be overridden by higher
priority manually started messages.
b
The distribution of messages to different zones.
Compliant.
The numeric keypad PRS-CSNKP should not be used
for zone selection for emergency purposes in a system
that has to comply to EN60849:1998, because the
LCD does not have a self-test function to check for
correct operation.
c
Real-time instructions or information to occupants
via the emergency microphone (if any).
Compliant, if properly installed. Manual selection of
loudspeaker zones is supported. Adding or removing
zones from a running call is supported.
Means shall be provided for manual intervention to
override any automatically programmed functions. This
shall apply both to the nature of the message being
broadcast and to the distribution paths of the message.
Thus, manual controls shall be provided at the central
control point (and also at specified remote control
points) to allow:
a
Starting or stopping of pre-recorded alarm
messages.
Compliant, if properly installed. Running message can
be overridden by higher priority manually started
messages.
b
Selection of appropriate pre-recorded alarm
messages.
Compliant, if properly installed. Manual selection of prerecorded alarm messages is supported.
c
Switching on or off, of selected loudspeaker zones.
Compliant, if properly installed. Manual selection of
loudspeaker zones is supported. Adding or removing
zones from a running call is supported.
d
Broadcasting of live messages via the emergency
microphone (if any).
Compliant, if properly installed. Live calls from an
emergency call station are supported.
NOTE - The above controls may form part of an
emergency detection control panel.
The emergency control microphone shall have the
highest level of priority for access to the voice alarm
system, with provision to allow it to override all other
broadcasts.
Compliant, if properly installed.
The PC call station (PRS-CSC) should not be used to
make emergency announcements in a system that has
to comply to EN60849:1998, because a PC does not
comply to this standard for such use.
EN60849 - 4.4 Safety requirements
Requirement
Compliance
The safety requirements applying to emergency sound
systems are given in IEC60065 or other appropriate
IEC safety standards.
Compliant. Praesideo complies to IEC60065.
The mechanical construction of the system shall be
such that under the influence of internally generated
heat, explosion or implosion, however caused, no part
shall cause injury to any person.
Compliant.
Where any part of the system is installed in areas with
hazardous or explosive atmospheres, the relevant
safety requirements of IEC60079 shall be met.
Responsibility of the installer. The Praesideo equipment
itself does not comply to IEC60079.
Bosch Security Systems | 2011-02
Signature
Praesideo 3.5 | Installation and User Instructions | EN60849: 1998
en | 18
EN60849 - 5. System technical requirements
EN60849 - 5.1 Speech intelligibility
Requirement
Compliance
Signature
Unless otherwise specified, the following requirement
shall be satisfied:
The speech intelligibility over all of an area of coverage
(see 3.1) shall be greater than or equal to 0,7 on the
common intelligibility scale (CIS). See annexes A and B
for the conversion between CIS and other scales of
intelligibility. The noise level (see B.5) at the time of
measurement (but in the absence of the test signal)
and the test signal level shall be stated with the test
result.
Responsibility of the installer.
NOTE - If the persons who are required to understand
the messages are, or will be, reasonably familiar with
them through regular system tests, the effective
intelligibility tends to increase by approximately 0,05 on
the CIS if the intelligibility is in the range 0,6 to 0,7. This
may apply, for example, in an office building. However,
in a sports ground, for example, most of the messages
are likely to be relatively unfamiliar to the majority of
persons present, and no relaxation of the above
requirement should be considered.
The system specification may exclude from the area of
coverage, defined areas rarely or never occupied by
people.
Responsibility of the installer.
EN60849 - 5.2 Automatic status indication
Requirement
Compliance
Signature
A clear indication shall automatically be given at the
designated control locations of:
a
System availability.
Compliant. Indication on call stations if properly
installed.
b
Power supply availability.
Compliant. Indication on call stations if properly
installed.
c
Any fault condition.
Any fault is indicated by a control output of the Network
Controller, if properly installed.
d
(For systems having numerous loudspeaker zones),
which loudspeaker zones are selected and the
mode of operation of each zone, i.e. "evacuate" or
"alert" and pre-selection of emergency microphone.
Where different alarm messages are provided,
which are dependent on the evacuation
requirements, indication of which message is being
broadcast and into which zone, shall be displayed
by a suitable method. This information shall be
continuously displayed and kept up to date.
Compliant.
EN60849 - 5.3 Automatic fault monitoring
Requirement
Compliance
A clear indication shall automatically be given, at
specified locations, e.g. at main equipment locations,
of:
a
Short-circuit or disconnection or failure of the
primary power source.
Compliant, if properly installed. Responsibility of the
installer. (UPS should be monitored via control input.)
b
Short-circuit or disconnection or failure of the
standby power source.
Compliant, if properly installed. Responsibility of the
installer. (UPS should be monitored via control input.)
c
Short-circuit or disconnection or failure of any
battery charging equipment associated with the
primary or standby power sources.
Responsibility of the installer. Supervision of third party
charging equipment is via control inputs.
d
Rupture of any fuse or operation of circuit breaker,
isolator or protective device that may prevent an
emergency broadcast.
Compliant. Fault is indicated by a control output of the
Network Controller, if properly installed. Fault is also
displayed by the Network Controller and the Logging
Viewer (optional).
Bosch Security Systems | 2011-02
Signature
Praesideo 3.5 | Installation and User Instructions | EN60849: 1998
Requirement
Compliance
e
Failure of microphone, including capsule voice coil,
pre-amplifier and essential wiring to the rest of the
system.
Compliant. Fault is indicated by a control output of the
Network Controller, if properly installed. Fault is also
displayed by the Network Controller and the Logging
Viewer (optional).
f
Failure of critical signal paths through the
amplification chain, with individual amplifiers
separately identified.
Compliant. Fault is indicated by a control output of the
Network Controller, if properly installed. Fault is also
displayed by the Network Controller and the Logging
Viewer (optional).
g
Amplifiers or critical modules missing.
Compliant. Fault is indicated by a control output of the
Network Controller, if properly installed. Fault is also
displayed by the Network Controller and the Logging
Viewer (optional).
h
Failure of any standby amplifier.
Compliant. Fault is indicated by a control output of the
Network Controller, if properly installed. Fault is also
displayed by the Network Controller and the Logging
Viewer (optional).
i
Failure of emergency signal generators, including
emergency pre-recorded message stores.
Compliant. Fault is indicated by a control output of the
Network Controller, if properly installed. Fault is also
displayed by the Network Controller and the Logging
Viewer (optional). The chime generator is supervised by
a watchdog circuit. First 128 MB of compact flash card
(message store) is checked (first 25 minutes).
j
Failure of any loudspeaker circuit (open- and shortcircuit faults).
Compliant, if properly installed using single or multiple
line supervision. Responsibility of the installer. Fault is
indicated by a control output of the Network Controller,
if properly installed. Fault is also displayed by the
Network Controller and the Logging Viewer (optional).
k
Short-circuit or disconnection of visual alarm
devices.
Compliant, if properly installed. Responsibility of the
installer. Visual alarm device must provide feedback to
control input.
l
Failure of a processor to correctly execute its
software program.
Compliant, using the control outputs of the Network
Controller.
m Detection of any error during memory checking.
Compliant. Program memory is checked on correctness
via checksum during system start-up. Fault is indicated
by a control output of the Network Controller, if properly
installed. Fault is also displayed by the Network
Controller and the Logging Viewer (optional).
n
Cessation of any scanning or interrogation
process.
Compliant. Fault is indicated by a control output of the
Network Controller, if properly installed. Fault is also
displayed by the Network Controller and the Logging
Viewer (optional).
o
Failure of the interconnecting data or voice
communication links between parts of a distributed
system.
Compliant. Fault is indicated by a control output of the
Network Controller, if properly installed. Fault is also
displayed by the Network Controller and the Logging
Viewer (optional).
In addition to individual fault identification at these
locations, a common sounder shall sound for a
minimum of 0,5 s every 5 s. A fault shall cause the
sounder to operate in a latched mode and a visual
indicator to light, either steadily, or in a flashing mode.
Manual acceptance and reset switching shall be
included. When accepted, the sounder shall be
silenced and the indicator shall change to (or remain in)
steady illumination. The occurrence of a further fault
condition shall reactivate the sounder and the visual
indicator. When all the faults have been cleared, the
indicator shall be switched off, either automatically or
by operating a reset switch.
Compliant. Responsibility of the installer to install a
buzzer and a lamp using the control outputs of the
Network Controller. Acknowledge/Reset with Call
Station Keypad, if properly installed or in the Logging
Viewer.
The fault indication should be given within
100 s of the occurrence of the fault, regardless of
whether the voice alarm system is being used for nonemergency purposes, such as the transmission of
background music.
Compliant.
Bosch Security Systems | 2011-02
en | 19
Signature
Praesideo 3.5 | Installation and User Instructions | EN60849: 1998
en | 20
EN60849 - 5.4 Monitoring of software controlled equipment
Requirement
Compliance
Signature
The correct execution of the system software by any
microprocessor shall be monitored by internal selfchecking procedures and by an appropriate monitoring
circuit (e.g. "watch dog" circuit) complying with the
following:
a
The monitoring circuit and its associated indication
and signalling circuits shall not be prevented from
determining and signalling a fault condition by the
failure of any microprocessor or associated clock
circuits.
Compliant.
b
The monitoring circuit shall monitor the execution of
routines associated with the main program
elements (i.e. it shall not be solely associated with
"waiting" or other "housekeeping" routines).
Compliant. Indication on Call Station Basic and Call
Station Kit if properly installed.
c
In the event of a failure by a microprocessor to
execute its software correctly, the monitoring circuit
shall (in addition to initiating an audible and visual
fault warning) perform as follows:
Compliant. Fault are indicated by a control output of the
Network Controller, if properly installed. Responsibility
of the installer.
1
Compliant, both data and program are checked for the
Network Controller and the firmware in the units.
2
re-initialize the processor and attempt to restart
the program at a suitable point within 10 s of
the occurrence of the failure. The reinitialisation procedure shall verify that the
contents of memory, both program and data,
are not corrupted, and
either
i
record that a failure has occurred (using a
system capable of recording a minimum of
99 failures and re-settable only by an
operation restricted to authorized servicing
personnel) or
ii
automatically reset the equipment and give
an audible and visual warning that an
automatic reset has occurred.
Compliant.
EN60849 - 5.5 Interface with emergency detection system
Requirement
Compliance
The communication link between the emergency
detection system and the sound system shall be
continuously monitored for faults. This is normally
performed by the control equipment for the emergency
detection system, which gives an audible and visual
indication of a fault in the link between the two systems.
Compliant, if properly installed using supervised control
inputs. Responsibility of the installer.
The emergency detection system shall also be capable
of receiving information regarding faults in the sound
system and shall include a provision, usually at its
control and indicating equipment, for appropriate
audible and visual indication of such faults. As a
minimum, the sound system shall be capable of
transmitting to the emergency detection system one
general "Sound system fault" for any of the fault
conditions listed in 5.3 that may occur within the sound
system.
Compliant, if properly installed using control outputs.
Responsibility of the installer.
The link between a fire detection and alarm system and
the voice alarm system is of crucial importance in
maintaining the integrity of overall operation. It may be
desirable on larger systems, where distributed control
equipment is used, to provide a link at each control
equipment location rather than to rely on a central
location. Each link shall be monitored. The voice alarm
system shall be capable of continuing to broadcast
alarm messages, which have been initiated by the fire
detection and alarm system, even in the event of a
subsequent fault in the interconnecting link between
the two systems (i.e. the voice alarm system shall
"latch" on receipt of a signal from the fire detection and
alarm system). Interruption by higher priority broadcasts
shall still be possible.
Compliant, if properly installed. Responsibility of the
installer. Control input should be in toggle mode.
Bosch Security Systems | 2011-02
Signature
Praesideo 3.5 | Installation and User Instructions | EN60849: 1998
Requirement
Compliance
In complex buildings in which actions, such as initiation
of evacuation signals, silencing of alarm signals, etc.,
can be implemented at remote voice alarm equipment,
consideration shall be given to whether there is a need
for such actions to be indicated at any central fire
detection and alarm control and indicating equipment.
Responsibility of the installer.
en | 21
Signature
EN60849 - 5.6 Secondary power supply
Requirement
Compliance
If the building is to be evacuated following primary
power failure, a secondary power supply shall be
provided. This shall be capable of operating the system
in the emergency mode for a period equal to twice the
evacuation time determined by the appropriate
authority for the building. In any event, the secondary
power supply shall be capable of powering the system
for a minimum of 30 min.
Responsibility of the installer.
If the building is not to be evacuated following failure of
the principal power supply, the secondary power
supply shall be capable of operating the system for at
least 24 h, or 6 h if an emergency generator is
available, and then powering the system in emergency
mode for a minimum of 30 min. If a building remains
unoccupied for several days, provision should be made
to ensure that the voice alarm system is capable of
operation in emergency mode for 30 min. when the
building is re-occupied.
Responsibility of the installer.
Non-emergency functions within the system, such as
background music, shall not operate from the
secondary power supply if this will reduce the capacity
for emergency operation.
Compliant if properly installed. Responsibility of the
installer.
If batteries are used as a secondary power supply they
shall be of the secondary type, complete with automatic
charging facilities. Where lead-acid batteries are used
they shall be of the valve-regulated type unless
otherwise specified, and the charging system shall
incorporate charging current compensation for
changes in the ambient temperature, where this is
necessary to achieve the specified battery life.
Responsibility of the installer.
Batteries shall be used in accordance with the
manufacturer's recommendations in order to achieve
their specified life, which shall be not less than four
years. The end of life shall be taken as the time when
deterioration to less than 80% of the rated amperehour capacity (at the one-hour rate) has occurred.
Responsibility of the installer.
Automatic charging shall ensure that the batteries are
fully recharged to 80% of their maximum rated capacity
from the fully discharged state in a period of not more
than 24 h.
Responsibility of the installer.
Adequate ventilation and protection against corrosion
and dangers resulting from gases emitted by the
batteries shall be provided.
Responsibility of the installer.
Bosch Security Systems | 2011-02
Signature
Praesideo 3.5 | Installation and User Instructions | EN60849: 1998
en | 22
EN60849 - 5.7 Climate and environmental conditions
Requirement
Compliance
As all or part of the system may be installed inside or
outside buildings, under various climatic and
environmental conditions, and exposed to possible
mechanical damage, full information on the conditions
under which the system is required to operate shall be
included in the system specification. For tests, refer to
IEC60068-1 (environmental testing).
Praesideo specifications exceed the environmental
requirements given by EN60849:1998.
Signature
When not otherwise specified, equipment shall operate
in accordance with the system specification under the
following conditions:
a
b
Control and amplification equipment and
associated battery power supplies:
•
Ambient temperature -5 °C to + 40 °C.
•
Relative humidity 25% to 90%.
•
Air pressure 86 kPa to 106 kPa.
All other equipment:
•
Ambient temperature -20 °C to +55 °C.
•
Relative humidity 25% to 99%.
•
Air pressure 86 kPa to 106 kPa.
EN60849 - 5.8 Marking and symbols for marking
Requirement
Compliance
Equipment shall be permanently marked with
information regarding its function.
Compliant.
Terminals and controls shall be permanently marked
with information regarding their function, characteristics
and polarity.
Compliant.
The marking shall be such that it shall be possible to
adjust the user controls and to confirm their positions
accurately in conformity with the information given in
the user instructions.
Compliant.
Marking shall preferably include letter symbols, signs,
numbers and colors that are internationally
comprehensible. Reference is required to IEC60027
and IEC60417. Marking not included in these standards
shall be clearly explained in the user instructions.
Compliant.
Signature
EN60849 - 5.9 Electrical matching values
Requirement
Compliance
For the electrical matching values, reference is required
to IEC61938 unless otherwise specified.
Compliant (specified in Technical data sections).
Signature
EN60849 - 5.10 Connectors
Requirement
Compliance
Connectors shall comply with IEC60268-11 or
IEC60268-12. Requirements for fire resistance of
connectors may also be stipulated by the relevant
authorities.
Connectors comply to IEC60268-11 or IEC60268-12.
Additional requirements are the responsibility of the
installer.
Bosch Security Systems | 2011-02
Signature
Praesideo 3.5 | Installation and User Instructions | EN60849: 1998
en | 23
EN60849 - 6. Installation requirements
Requirement
Compliance
The system shall be installed in accordance with
IEC60364 or with mandatory national or local
standards.
Responsibility of the installer.
If the emergency sound system forms part of an
emergency detection and/or alarm system, the cabling
shall meet the requirements of mandatory national or
local, emergency and/or alarm system standards.
Where the application specifically excludes detection
and/or alarm, the cabling shall be of a standard suitable
for the application.
Responsibility of the installer.
Precautions shall be taken to prevent the spread of
hazardous effects via the wiring routes.
Responsibility of the installer.
When a sound system for emergency purposes is
installed in combination with an emergency detection
system, the installation standards for the sound system
shall comply as far as is applicable with the standards
required for that detection system.
Responsibility of the installer.
When additions and/or modifications are made to a
non-compliant system the existing system may require
to be upgraded to meet this standard. In all cases the
additions and/or modifications shall meet this standard.
Responsibility of the installer.
Bosch Security Systems | 2011-02
Signature
Praesideo 3.5 | Installation and User Instructions | EN60849: 1998
en | 24
EN60849 - 7. Instructions for use
EN60849 - 7.1 Instructions for operation
Requirement
Compliance
Instructions for the operation of the system, including
actions to be taken in accordance with established and
well-rehearsed procedures, shall be available for rapid
reference, preferably prominently and permanently
displayed, at each control station.
Responsibility of the installer.
As far as possible, graphic illustrations should be used:
where text is necessary this should be clearly legible
and in the preferred language(s).
Responsibility of the installer.
Updating of the instructions for operation shall be
carried out after additions to or modifications of the
system, or on the basis of practical experience, or
revised procedures.
Responsibility of the installer.
Signature
Instructions shall include:
•
The functional operation of the system.
Responsibility of the installer.
•
Action to be taken in the event of a system failure.
Responsibility of the installer.
A bound copy of the operational instructions shall be
provided.
Responsibility of the installer.
EN60849 - 7.2 Records to be kept
Requirement
Compliance
Installation, logbook and maintenance records shall be
kept by the end-user and/or maintenance company
contracted by the end-user in accordance with relevant
international and national standards. These shall
comprise as a minimum:
a
b
Installation
Responsibility of the installer.
1
details of the locations of all items of the
equipment.
Responsibility of the installer.
2
“as installed” performance measurements of
the system including:
Responsibility of the installer.
•measured loudspeaker loading per circuit in
emergency mode.
Responsibility of the installer.
•settings of any adjustable items within the
system, including the output level of power
amplifiers.
Responsibility of the installer.
•sound pressure levels.
Responsibility of the installer.
•intelligibility measurements.
Responsibility of the installer.
Log book
A stiff covered log book shall be kept, in which all
usage of the system and all fault occurrences
should be recorded, together with all available
automatically produced records, to include:
1
dates and times of usage of the system.
2
details of tests and routine checks carried out.
3
time and date of each fault occurrence.
4
details of the fault found and the circumstances
of it being found (for example during routine
maintenance).
5
action taken to rectify or remedy.
6
date, time and name of person in charge of the
system.
7
countersignature of the responsible person, if
any faults occurred or have been rectified.
Bosch Security Systems | 2011-02
Responsibility of the person nominated by the person or
body, having control of the premises (see 4.2). Action
to be taken care of by the installer.
Signature
Praesideo 3.5 | Installation and User Instructions | EN60849: 1998
en | 25
EN60849 - 7.3 Maintenance
EN60849 - 7.3.1 General
Requirement
Compliance
There shall be an established and documented
procedure for the scheduled maintenance and retesting
of the sound system and equipment as recommended
by the system designer in conjunction with the
equipment manufacturer and in accordance with
relevant international and national standards. It is
recommended that a minimum of two scheduled
maintenance inspections, by a competent person, be
made each year. A responsible person (see 4.2) shall
be nominated to ensure that the procedure continues
to be carried out correctly.
Responsibility of the installer to establish the
maintenance procedures using the manufacturer
documentation.
Signature
EN60849 - 7.3.2 Maintenance instructions
Requirement
Compliance
A stiff-covered maintenance manual should be available
giving details of all work required to maintain the
installation and equipment in proper working order,
consistent with specified performance criteria and any
other requirements of this standard and other relevant
international or national standards. This should state
clearly:
Responsibility of the installer to establish the
maintenance procedures using the manufacturer
documentation.
a
The method of maintenance.
b
Any sequence related to maintenance.
c
Identification of parts requiring maintenance, giving
reference to the location of items on drawings,
together with manufacturer’s reference numbers,
and the addresses, telephone and facsimile
numbers, of suppliers of materials and parts.
d
Original versions of equipment and materials
catalogues.
e
List and location of spare parts.
f
List and location of special tools.
The maintenance instructions should also include:
g
Test certificates as required to be examined by the
relevant authority.
h
A set of "as fitted" drawings.
Bosch Security Systems | 2011-02
Signature
Praesideo 3.5 | Installation and User Instructions | EN60849: 1998
Intentionally left blank.
Bosch Security Systems | 2011-02
en | 26
Praesideo 3.5 | Installation and User Instructions | EN54-16: 2008
en | 27
EN54-16: 2008 compliancy checklist
Clause / Requirement
Compliance
4 General requirements
4.1 General
Praesideo is compliant.
4.1.1 If an optional function with requirements is
included in the VACIE, then all the corresponding
requirements shall be met (see Annex B).
The following optional functions, with requirements, are included
in Praesideo from version 3.3 upwards:
• Audible warning (7.3)
• Phased evacuation (7.5)
• Manual silencing of the voice alarm condition (7.6.2)
• Manual reset of the voice alarm condition (7.7.2)
• Output to fire alarm devices (7.8)
• Voice alarm condition output (7.9)
• Indication of faults related to the transmission path to the
CIE (8.2.6)
• Indication of fault related to voice alarm zones (8.2.7)
• Voice alarm manual control (10)
• Interface to external control device(s) (11)
• Emergency microphone(s) (12)
• Microphone priority (12.2)
• Redundant power amplifiers (13.14)
The following optional functions with requirements are not
included in Praesideo:
• Delay(s) to entering the voice alarm condition (7.4)
• Disabled condition (9)
4.1.2 If functions other than those specified in this
European Standard are provided, they shall not
jeopardize compliance with any requirements of this
European Standard
Praesideo power amplifiers and basic amplifiers shall not be
configured to enter the power save mode when mains power
fails. Although this would save battery power, the amplifier
supervision and line/loudspeaker supervision is not active in this
mode, which is a necessity for systems operating in accordance
with EN54-16.
The Praesideo PC call station shall not be used as an emergency
call station in systems operating in accordance to EN54-16. A
PC does not comply with the requirements as set forward by this
standard.
4.2 Combined VACIE and CIE
When the VACIE and CIE are combined they may
share common indications, manual controls and
outputs (see Annex F). In this case, the following shall
apply:
a single fault in the CIE shall not adversely affect
the mandatory functions of the VACIE;
b indication(s) and manual control(s) of the voice
alarm condition shall be clearly identifiable, with
the exception of the optional audible warning.
This requirement is not applicable. In Praesideo, the Voice Alarm
Control and Indicating Equipment (VACIE) is not combined with
a fire alarm Control and Indicating Equipment (CIE).
4.3 Power supply
Praesideo is compliant.
Power supply equipment, external or included in the
VACIE, shall comply with the requirements of EN 54-4.
The installer must use power supplies and battery charging
equipment in accordance with EN54-4, e.g. the Bosch
PRS-48CH12, with separate wiring for mains (230Vac) and
battery backup (48Vdc) from the power supply to the Praesideo
system.
The power supply equipment must be installed in a separate
cabinet, not shared with the Praesideo system, unless the
combination of the actual power supply equipment and
Praesideo system elements in the same cabinet has been
certified.
The content of the EN54-16 certification is subject to change.
The most recent version of this certificate can be found on
www.boschsecurity.com.
The network controller and all amplifiers are supplied with a
mains supply and DC backup supply (48V) input. Switch over
between the both takes place automatically, without any
interruption or status change other than the power supply related
indications.
The installer must ensure that the output voltages of the power
supply equipment do not exceed the specifications of the mains
and battery inputs of the connected Praesideo equipment.
NOTE - The power supply may be shared with that of
the fire detection and fire alarm system.
Bosch Security Systems | 2011-02
The power supply may be shared with that of a fire detection
system, but when operated with a battery a new capacity
calculation is required.
Signature
Praesideo 3.5 | Installation and User Instructions | EN54-16: 2008
Clause / Requirement
Compliance
5 General requirements for indications
5.1 Display and functional conditions
Praesideo is compliant.
5.1.1 The VACIE shall be capable of unambiguously
indicating the following functional conditions, as described
in Clauses 6 to 9:
• quiescent condition;
• voice alarm condition;
• fault warning condition;
• disablement condition (option with requirements)
See Clauses 6 to 9.
5.1.2 The VACIE shall be capable of being simultaneously
in any combination of the following functional conditions on
different voice alarm zones:
The Praesideo system is capable of being simultaneously in
the voice alarm condition and in the fault warning condition.
•
The voice alarm condition is indicated per system on each
call station (system status LED) and on the display of the
network controller (emergency menu). This system wide
indication can be combined with the indication of the fault
warning condition: each call station uses a different LED
(power/fault LED) for indication of the fault warning
condition; therefore both conditions can be indicated
simultaneously. The display of the network controller can
indicate both the voice alarm condition and the fault
warning condition (note that it will only show one condition
automatically, the voice alarm condition has precedence;
the user is able to see the fault warning condition by
navigating through the menu if both conditions apply to the
system simultaneously).
voice alarm condition;
To indicate the voice alarm condition per zone, the installer
shall use a call station keypad kit with correctly connected
red LEDs (see clause 13.9.1) with configuration of the
‘Zone status’.
•
fault warning condition;
The fault warning condition is indicated per system on each
call station (power/fault LED) and on the display of the
network controller (faults menu). This system wide
indication can be combined with the indication of the voice
alarm condition: each call station uses a different LED
(system status LED) for indication of the voice alarm
condition; therefore both conditions can be indicated
simultaneously. The display of the network controller can
indicate both the voice alarm condition and the fault
warning condition (note that it will only show one condition
automatically, the voice alarm condition has precedence;
the user is able to see the fault warning condition by
navigating through the menu if the system is in both
conditions simultaneously).
The installer must configure zone names in a way that the
zone name is visible in the fault logging and network
controller display (see clause 8.2.7 for details). In this way
faults are indicated per zone.
•
disablement condition (option with requirements).
The optional disablement condition is not implemented in
Praesideo.
5.2 Indication display
Praesideo is compliant.
All mandatory indications shall be clearly identifiable, except
where otherwise specified in this European Standard.
The Praesideo system uses the following color coding for
indications throughout the system:
• Green: system ok
• Red: system/zone in voice alarm condition
• Yellow: system in fault warning condition
Bosch Security Systems | 2011-02
en | 28
Signature
Praesideo 3.5 | Installation and User Instructions | EN54-16: 2008
Clause / Requirement
Compliance
5.3 Indication on alphanumeric displays
Praesideo is compliant.
Where an alphanumeric display is used to display
indications relating to different functional conditions these
may be displayed at the same time. However, for each
functional condition there shall be only one window, in
which all of the information relating to that functional
condition is grouped.
The alphanumeric display of the network controller
indicates the voice alarm condition by means of the
emergency menu. The display indicates the fault warning
condition by means of the faults menu.
If a fault occurs in the system, the faults menu is displayed
automatically. If the system enters the voice alarm
condition, the emergency menu is displayed automatically.
The emergency menu has precedence over the faults
menu.
The faults menu has a submenu for each individual fault.
The user can scroll through the individual faults.
The logging application delivered with the Praesideo
system offers a graphical user interface for viewing events
(Logging Viewer). The Logging Viewer has three separate
tab pages: Fault Events (shows events related to the fault
warning condition), Call Events and General Events (shows
events related to the voice alarm condition).
5.4 Indication of the supply of power
Praesideo is compliant.
5.4.1 A visible indication shall be given by means of a
separate discrete light-emitting indicator while the VACIE is
supplied with power.
Each Praesideo system component either has a dedicated
power LED or a display with a backlight. For components
with a power LED, the LED is on when the component is
supplied with power. For components with a display, the
backlight of the display is on when the component is
supplied with power.
5.4.2 Where the VACIE is distributed in more than one
cabinet, an indication of supply of power to each distributed
cabinet shall be given at that point.
The Praesideo system can be distributed in more than one
cabinet, depending on the installation of the system. Many
system components can be mounted in a 19’’ rack. Each
cabinet will indicate supply of power independently if the
system is distributed in more than one cabinet.
5.5 Additional indications
Praesideo is compliant.
Where additional indications are provided, they shall be
clearly identifiable and shall not override the primary
indication of the VACIE.
For LEDs with multiple indication functions , all of the
additional indications are clearly identified (in the
Installation and User Instructions of the Praesideo system);
since the fault warning indication and the voice alarm
indication always have precedence over the additional
indications, the primary indications are not overridden.
The LED indicator belonging to a key of the call station
keypad is used for status indications. The status indications
depend on the function which has been assigned to the
programmable key. The Installation and User Instructions of
the Praesideo system clearly identifies the possible status
indications. These status indications do not override the
primary indication of the Praesideo system, since they are
separate LEDs.
The display of the network controller offers a menu that is
also used for other indications than indication of the voice
alarm and/or fault warning condition. The Installation and
User Instructions of the Praesideo system clearly identifies
the other indications of the menu. The other menus do not
override the emergency and faults menu; indication of the
faults menu and emergency menu has precedence (higher
priority) over indication of the other menus.
Bosch Security Systems | 2011-02
en | 29
Signature
Praesideo 3.5 | Installation and User Instructions | EN54-16: 2008
Clause / Requirement
Compliance
6 The quiescent condition
Any kind of system information may be displayed during the
quiescent condition. However, no indications shall be given
which could be confused with indications used in the
Praesideo is compliant.
•
voice alarm condition,
If the Praesideo system enters the voice alarm condition
each call station will show a red system status LED and the
emergency menu will pop up on the display of the network
controller. In the quiescent condition no red indicators are
used at all and the display of the network controller will
never automatically switch to the emergency menu.
•
fault warning condition,
If the Praesideo system enters the fault warning condition
each call station will show a yellow (blinking or on) power/
fault LED and the faults menu will pop up on the display of
the network controller. In the quiescent condition the
power/fault LED of each call station will be green and the
display of the network controller will never automatically
switch to the faults menu.
•
disablement condition (option with requirements).
The disablement condition is not implemented in
Praesideo.
Bosch Security Systems | 2011-02
en | 30
Signature
Praesideo 3.5 | Installation and User Instructions | EN54-16: 2008
Clause / Requirement
Compliance
7 The voice alarm condition
7.1 Reception and processing of fire signals
Praesideo is compliant.
7.1.1 The VACIE shall be capable of receiving and
processing alarm signals from the CIE or from manual
control on the VACIE or both, and causing the appropriate
voice alarm outputs to be activated within 3 s or on expiry of
any delay period (see 7.4).
Alarm signals from the CIE can be received from input
contacts and the Open Interface. Manual control is
possible via input contacts, the Open Interface and call
station (keypad) keys.
NOTE - See Annex E for additional information relating to
the interface between the VACIE and the CIE.
If input contacts are used for connection of the CIE to the
Praesideo system then the input contacts can be monitored
for short circuit and open line. If the Open Interface is used
for connection of the CIE to the VACIE, the communication
is monitored using keep-alive messaging.
7.1.2 The mandatory indications and or outputs shall not be
falsified by multiple alarm signals received simultaneously
from the CIE and/or manual controls.
The Praesideo system offers 32 discrete alarm priorities.
Correct configuration assures that mandatory indications
and or outputs behave consistently when multiple alarm
signals are received simultaneously from the CIE and/or
manual controls.
Higher priorities overrule lower priorities in case of
resource or destination conflicts. Calls with the same
priority operate on first come first serve basis, except in the
case of priority 255: calls with the same priority 255
overrule each other, so the latest becomes active. This
assures that high priority microphones that are left behind
in an active state will never block the system.
7.1.3 Where the VACIE and CIE are in separate cabinets,
failure of the transmission path between the CIE and the
VACIE shall not result in any loss of control or any change
of state of the VACIE.
The Praesideo system is an autonomous subsystem that
can operate without connection to the CIE. The effect of
the failure of the transmission path between the CIE and
the Praesideo system is limited to fault reporting and losing
interaction between the CIE and the Praesideo system.
7.2 Indication of the voice alarm condition
Praesideo is compliant.
7.2.1 The presence of a voice alarm condition shall be
indicated on the VACIE, without prior manual intervention,
by:
a
a visible indication by means of a separate discrete light
emitting indicator (the General Voice Alarm Activated
indicator);
A voice alarm condition is indicated on the Praesideo
system by:
• A red indicator on all call stations (the system
status LED).
• A textual indicator on the network controller display
(the ‘emergency menu’ that is automatically shown
when the system enters the voice alarm state).
• An output contact configured in the site specific
data as voice alarm activated indicator (Emergency
alarm indicator). This output contact can be used to
control the General Voice Alarm Activated
indicator.
• The installer must mount a red (flash) light to
indicate the voice alarm condition, clearly visible
from the front side of the rack, behind the glass
door of the rack.
b
a visible indication for each activated voice alarm zone
where manual controls are provided (see 10.2);
The keys on call station keypads can be configured to have
their key indicator show that an emergency is active for a
specific zone or group of zones. This is achieved by
configuring the action ‘Zone status’ for the key, and
configuring the lowest possible alarm priority (224) for that
action to ensure that for all alarm priorities (224 - 255) the
indicator will be activated.
NOTE - This may be by means of separate discrete
indicators or an alphanumeric display as specified in 13.8.
c
an optional audible indication, as specified in 7.3.
7.2.2 The audible warning shall be capable of being
silenced at access level 1 or 2.
Bosch Security Systems | 2011-02
An output contact of a Praesideo system component can
be configured in the site specific data as audible voice
alarm activated indicator (Emergency alarm buzzer). This
output contact can be connected to a buzzer. This way the
voice alarm condition is indicated audibly.
The connected buzzer (see 7.2.1.c) can be silenced by
acknowledging the voice alarm condition. The voice alarm
condition can be acknowledged by means of an input
contact, call station key, the front panel menu of the
network controller or via the Open Interface.
en | 31
Signature
Praesideo 3.5 | Installation and User Instructions | EN54-16: 2008
Clause / Requirement
Compliance
7.3 Audible warning (option with requirements)
An audible warning of the voice alarm condition might be
the same as that for the fault warning condition. If they are
different, the voice alarm condition warning shall have
priority.
Output contacts of the Praesideo system can be
configured in the site specific data as either Emergency
alarm buzzer or Fault alarm buzzer. A buzzer must always be
connected to the output contact to generate the actual
audible warning. A single buzzer can be used as audible
warning device for both the voice alarm condition and the
fault warning condition, by using a parallel connection of
the output contacts of the Emergency alarm buzzer and the
Fault alarm buzzer to control the actual buzzer.
The Praesideo system does not offer priority handling for
the Emergency alarm buzzer (i.e. the Fault alarm buzzer is
not automatically silenced when the Emergency alarm
buzzer is activated).
7.4 Delays to entering the voice alarm condition
(option with requirements)
The VACIE may be provided with a facility to introduce a
delay before entering the voice alarm condition. In this
case:
a
the operation of the delay shall be selectable at access
level 3;
b
the operation of the delay shall be in increments not
exceeding 1 min up to a maximum of 10 min;
c
the delay to one output signal shall not affect the delay
to other outputs;
d
it shall be possible to override the delay by a manual
operation at access level 1;
e
there shall be provision to switch on and switch off
delays by means of a manual operation at access
level 2 (see Annex A for information on access levels);
f
there may be provision to automatically switch on and/
or switch off delays by means of a programmable timer
which shall be configurable at access level 3;
g
a separate discrete light emitting indicator and/or a field
on the alphanumeric display shall be visible when a fire
signal is received and the delay activated. This
indication shall be suppressed when the VACIE enters
the voice alarm condition.
Since the Praesideo system does not process the fire
sensors, this functionality is better handled by the device
managing the fire sensors (the CIE). The Praesideo system
itself does not implement this requirement.
7.5 Phased evacuation (option with requirements)
Praesideo is compliant.
The VACIE may have a provision to phase the warning
signals to the emergency loudspeaker zones. The facility
shall be configurable at access level 3. There may be
provision to switch on and switch off the phased evacuation
sequence by means of a manual operation at access level 2
(see Annex A for information on access levels).
Phased evacuation can be accomplished by phased
triggering of input contacts that start the same voice alarm
call in different zones. The device managing the fire sensors
(CIE) is responsible for the phased triggering of the
contacts. Voice alarm calls can also be started via the
Open Interface, where the device managing the fire
sensors (CIE) is responsible for the phased invocation of
the necessary Open Interface methods.
The input contacts must be configured at access level 3.
Using the Open Interface requires access level 2.
Praesideo also offers the possibility to start up to 5 calls
simultaneously from a single input contact or key,
configured as ‘Call activation key’ or ‘Start’, where phasing
can be implemented using accurately defined periods of
silence in the call macros, preceding the actual tone or
message. The installer shall configure the calls correctly
using these chimes/messages (at access level 3) and use
call station keypad keys to switch on and off the chimes/
messages (at access level 2).
7.6 Silencing of the voice alarm condition
Praesideo is compliant.
7.6.1 Silencing of the voice alarm condition from the
CIE
7.6.1.1 Where the voice alarm condition has been triggered
from the CIE, the VACIE shall respond appropriately to a
silence instruction from the CIE.
Bosch Security Systems | 2011-02
Voice alarm calls triggered from the CIE can also be
stopped from the CIE. To reset the voice alarm condition an
Acknowledge Emergency and Reset Emergency action is
required.
en | 32
Signature
Praesideo 3.5 | Installation and User Instructions | EN54-16: 2008
Clause / Requirement
Compliance
7.6.1.2 The silencing procedure may allow for the
completion of messages in the process of being broadcast.
A voice alarm call that is stopped while not being finished
will still complete the running message. Praesideo also
offers the possibility to abort running calls in which case a
running message will not be completed.
Praesideo allows configuration of two different voice alarm
reset actions: one that can only reset a voice alarm
condition when all running alarm calls have been finished,
and one that aborts all still running alarm calls.
7.6.2 Manual silencing of the voice alarm condition
(option with requirements)
7.6.2.1 It shall be possible to manually silence the voice
alarm message from the VACIE at access level 2.
Praesideo offers the possibility to stop voice alarm calls by
de-activating the contact or key that started the call. Using
the ‘Stop’ action, also calls started by a ‘Start’ action from a
different key or contact can be aborted.
7.6.2.2 Following silencing, it shall be possible to
re-activate the voice alarm message at access level 2.
Voice alarm call can be re-activated by starting that call
again from a contact, a key or the Open Interface.
7.7 Reset of the voice alarm condition
Praesideo is compliant.
7.7.1 Reset of the voice alarm condition from the CIE
Where the voice alarm condition has been triggered from
the CIE, the VACIE shall respond appropriately to a reset
instruction from the CIE.
See 7.6.1.1.
7.7.2 Manual reset of the voice alarm condition
(option with requirements)
7.7.2.1 It shall be possible to reset the voice alarm condition
from the VACIE at access level 2 by means of a separate
manual control. This control shall be used only for reset and
may be the same as that used for reset from the fault
warning condition.
To reset the voice alarm condition an Acknowledge
Emergency and Reset Emergency action is required.
Praesideo allows configuration of two different voice alarm
reset (Emergency Reset) actions: one that can only reset a
voice alarm condition when all running alarm calls have
been finished, and one that aborts all still running alarm
calls.
7.7.2.2 Following a reset operation, the indication of the
correct functional condition corresponding to any received
signals shall either remain or be re-established within 20 s.
After a reset operation, the Praesideo system will
immediately indicate the functional condition it is currently
in. It will also immediately respond to received signals that
will bring it into another functional condition.
7.8 Output to fire alarm devices
(option with requirements)
Praesideo is compliant.
In addition to the voice alarm outputs the VACIE may have
provision for the automatic transmission of fire alarm signals
to fire alarm devices such as beacons and vibrating
devices. In this case, the following shall apply:
a
it shall be possible to de-activate the fire alarm devices
at access level 2;
Fire alarm devices can be activated from control outputs
that are assigned to zones, which themselves are assigned
to calls. If a call is started via a ‘Start’ action, the zone with
the associated control output can be added to that call by
means of an additional ‘Start’ action for the same call
macro. Then it can be de-activated also by de-activating
that ‘Start’ action, or using an associated 'Stop' action.
b
following de-activation, it shall be possible to
re-activate the fire alarm devices at access level 2;
Re-activating the ‘Start’ action, after being de-activated, will
add the zone with the associated control output to the call
again. The control output will activate the alarm device
again.
c
the fire alarm devices shall not be de-activated
automatically;
Using a 'Start' action with Momentary behavior, the fire
alarm devices will run in parallel with the original call to
which they are assigned. In case the fire alarm devices
should continue when the original call is stopped, then its
'Start' action should use Single-shot behavior to remain
activated until a 'Stop' action occurs.
d
it shall be possible to configure the VACIE at access
level 3 to automatically reactivate the fire alarm devices
if an alarm is reported in an other zone.
Praesideo allows multiple calls to be started simultaneously
from the same key or contact. An alarm in an other zone
that triggers the Praesideo system for action in that zone
may also start a call that activates or re-activates the alarm
device that is associated to a different zone.
Bosch Security Systems | 2011-02
en | 33
Signature
Praesideo 3.5 | Installation and User Instructions | EN54-16: 2008
Clause / Requirement
Compliance
7.9 Voice alarm condition output
(option with requirements)
Praesideo is compliant.
The VACIE may have provision for transmitting a signal that
is in the voice alarm condition. In this case, it shall activate
the output only in the voice alarm condition.
The Praesideo system transmits a signal that it is in the
voice alarm condition via control output contacts and the
Open Interface.
An output contact must be configured as voice alarm
activated indicator (Emergency alarm indicator). The
Praesideo system then activates the output contact when it
enters the voice alarm condition and deactivates the output
contact when it leaves the voice alarm condition (i.e. the
voice alarm condition is reset).
The Praesideo system also indicates this condition via the
Open Interface.
Bosch Security Systems | 2011-02
en | 34
Signature
Praesideo 3.5 | Installation and User Instructions | EN54-16: 2008
Clause / Requirement
Compliance
8 Fault warning condition
8.1 Reception and processing of fault signals
Praesideo is compliant.
8.1.1 The VACIE shall enter the fault warning condition
when signals are received which, after any necessary
processing, are interpreted as a fault.
When the Praesideo system receives a supervision fault
signal (i.e. detects a fault in the system), the fault warning
condition is entered until this state is explicitly reset.
8.1.2 The VACIE shall be capable of simultaneously
recognizing all of the faults specified in 8.2 and, if provided,
in 8.3 unless this is prevented by:
•
the presence of an alarm output signal on the same
voice alarm zone, and/or
All Praesideo system faults are handled (acknowledged
and reset) individually. Also, the Praesideo system is
capable of recognizing all of its system faults
simultaneously. The Praesideo system is able to recognize
faults in a voice alarm zone even when there is an alarm
output signal on the zone.
•
the disablement of the corresponding voice alarm zone
or function, and/or
Optional disablement of voice alarm zones or functions is
not implemented in Praesideo.
8.1.3 The VACIE shall enter the fault warning condition
within 100 s of the occurrence of any fault, or the reception
of a fault signal or within another time as specified in this
European Standard or in other parts of EN 54.
The Praesideo system recognizes and reports all faults
within 100 seconds.
8.2 Indication of faults in specified functions
Praesideo is compliant.
8.2.1 The presence of faults in specified functions shall be
indicated on the VACIE without prior manual intervention.
The fault warning condition is established when the
following are present:
a
a visible indication by means of a separate light emitting
indicator (the general fault warning indicator);
The Praesideo system provides a visible indication when it
is in the fault warning condition via the fault LED of the call
stations, output contacts, key indicators of call station keys,
the fixed fault output contact of the network controller and
the front panel menu of the network controller.
The installer must mount a yellow (flash) light to indicate the
fault warning condition, clearly visible from the front side of
the rack, behind the glass door of the rack.
b
a visible indication for each recognised fault as
specified in 8.2.3, 8.2.4, 8.3 (if provided), 8.4 (if
provided) and 8.5 and
The Praesideo system offers two ways of visual indication
of individual faults: via the front panel menu of the network
controller and via the Praesideo logging application.
c
an audible indication, as specified in 8.6.
The Praesideo system provides an audible fault indication
when it is in the fault warning condition via output contacts
and the fixed audible fault output contact of the network
controller.
8.2.2 If the indication is on an alphanumeric display, which
cannot simultaneously indicate all of the faults because of
its limited capacity, at least the following shall apply:
a
the presence of fault indications which have been
suppressed shall be indicated;
The network controller alphanumeric display is used to
indicate the fault warning condition and all individual faults.
The normal display information of the network controller is
automatically overruled when there are faults present, i.e.
when the system enters the fault warning state. The display
of the network controller indicates the number of faults
present.
b
suppressed fault indications shall be capable of being
displayed by means of a manual operation at access
level 1 or 2 which interrogates only fault indications.
The individual faults are presented in the ‘Faults’ menu of
the front panel menu of the network controller. Manual
operation is needed to display and navigate through the
individual faults. Each individual fault is shown in a
submenu of the ‘Faults’ menu.
8.2.3 The following faults shall be indicated by means of
separate light emitting indicators and/or an alphanumeric
display:
Faults of the supervised items are detected and reported
through the general fault warning indication. Additionally all
faults are reported individually as well and can be inspected
using the network controller front panel menu and the
logging application.
a
The mains and backup power of all Praesideo system
elements are supervised individually.
an indication at least common to any power supply fault
resulting from:
1
a short circuit or an interruption in a transmission
path to a power supply (item L of Figure 1 of
EN 54-1), where the power supply is contained in a
different cabinet from that of the VACIE, and
2
the power supply faults as specified in
EN 54-4;
Bosch Security Systems | 2011-02
en | 35
Signature
Praesideo 3.5 | Installation and User Instructions | EN54-16: 2008
Clause / Requirement
Compliance
b
an indication at least common to any earth fault of less
than 50 kΩ is capable of affecting a mandatory
function, and which is not otherwise indicated as a fault
of a supervised function;
All 100V lines of the Praesideo system can be supervised
individually for earth faults (i.e. connections to earth with a
leakage resistance of less than 50 k).
c
an indication of the rupture of any fuse within the
VACIE, or the operation of any protective device within
the VACIE which is capable of affecting a mandatory
function in the fire alarm condition;
Every rupture of a fuse or the operation of a protected
device that affects a mandatory function will result in a fault
since the mandatory functions are supervised. The reported
fault is as close to the located defect as possible. E.g. a
mains related fault is reported as a mains fault and an
amplifier defect is reported as defect for that amplifier
channel.
d
an indication of any short circuit or interruption, at least
common to all transmission paths between parts of the
VACIE contained in more than one cabinet, which is
capable of affecting a mandatory function and which is
not otherwise indicated as a fault of a supervised
function.
All network based transmission paths of the Praesideo
system are supervised using a keep-alive mechanism. The
CobraNet transmission path of the Praesideo system is
supervised by means of clock availability.
When the Praesideo system is used in a redundant loop
configuration, the loss of the redundant path is reported.
All control input contacts of the Praesideo system can be
supervised for shorts and interruptions.
Analog audio connections to external parties can be
supervised by pilot tone supervision.
The analog fail safe bypass input of the Praesideo multi
channel interface can be supervised by pilot tone
supervision.
These indications may be suppressed during the fire alarm
condition.
Praesideo fault indicators are not suppressed. There are
separate indicators for fault and voice alarm conditions. The
only exception is that the automatic indication of the voice
alarm condition has precedence over the automatic
indication of the number of present faults on the display of
the network controller.
8.2.4 The following faults shall be indicated at least by
means of the general fault warning indicator:
a
any short-circuit or interruption in a voice alarm
transmission path between parts of the VACIE
contained in more than one cabinet even where the
fault does not affect a mandatory function;
All network based transmission paths of the Praesideo
system are supervised using a keep-alive mechanism. The
CobraNet transmission path of the Praesideo system is
supervised by means of clock availability.
When the Praesideo system is used in a redundant loop
configuration, the loss of the redundant path is reported.
All control input contacts of the Praesideo system can be
supervised for shorts and interruptions.
Analog audio connections to external parties can be
supervised by pilot tone supervision.
The analog fail safe bypass input of the Praesideo multi
channel interface can be supervised by pilot tone
supervision.
b
any short-circuit or interruption in the voice alarm
transmission path to the emergency microphone
capsule, if provided;
The capsule of the Praesideo (emergency) call station
microphone can be supervised for both short-circuit and
interruption. This is configurable. Also the microphone
inputs on the power amplifiers supervise the connected
microphone.
c
any short-circuit or interruption in the voice alarm
transmission path between the VACIE and
loudspeakers even where the fault does not affect the
operation of loudspeakers.
The loudspeaker lines of the Praesideo system can be
supervised using a master-slave communication system
that uses the actual loudspeaker wiring for polling. The
communication is inaudible and not affected by audio
signals present.
Praesideo offers two options: single loudspeaker line
supervision (master-slave) and multiple loudspeaker line
supervision (master-multiple slaves) that detect shortcircuits and interruption of the loudspeaker lines.
The installer shall only use the 100 V outputs of the
Praesideo amplifiers.
Bosch Security Systems | 2011-02
en | 36
Signature
Praesideo 3.5 | Installation and User Instructions | EN54-16: 2008
Clause / Requirement
Compliance
d
any short-circuit or interruption in the transmission path
between the VACIE and fire alarm devices when used
(see 7.8).
The Praesideo system does not offer this functionality
directly: control inputs are supervised, but control outputs
are just voltage free relay contacts. The installer must
create a feedback signal (corresponding to the
transmission path status between the Praesideo system
and the fire alarm device) to a supervised input contact of
the Praesideo system.
e
failure of any power amplifier.
All Praesideo power amplifiers are supervised for overload,
overheating, short-circuit, ground short and amplifier
defect.
8.3 Indication of faults related to the transmission path to
the CIE (option with requirements)
The VACIE may have provision for an indication of faults
related to the transmission path to the CIE. In this case, the
short-circuit or interruption of the transmission path to the
CIE shall be indicated by means of a separate light emitting
indicator and/or an alphanumeric display.
All input contacts of the Praesideo system can be
supervised for short and interruption.
Open Interface connections are supervised through keepalive messaging.
Faults related to the transmission path to the CIE are
therefore individually reported and can be inspected using
the front panel menu of the network controller or the
logging application. The faults are also reported through
the general fault warning indication.
8.4 Indication of faults related to voice alarm zones (option
with requirements)
The VACIE may have provision for an indication of faults
related to voice alarm zones. In this case the short-circuit or
interruption of a voice alarm transmission path between the
VACIE and the loudspeakers in that zone shall be indicated
by means of a separate light emitting indicator per zone
and/or an alphanumeric display.
Faults that occur in the Praesideo system are reported per
defective input or output for fault allocation. When an
individual fault is reported the name of the event originator
(i.e. the location of the fault) is provided.
The installer must give audio outputs that are assigned to a
zone, clear names, identifying the zone. This way the event
originator field in the indication of the individual fault will
immediately show in which zone the fault has occurred.
Praesideo provides zone fault status indicators, assigned to
keypad kits. One or more zones can be configured to
control such an indicator.
8.5 System fault
Praesideo is compliant.
A system fault is a fault as specified in 14.4 Program
monitoring (see also Annex C)or 14.6 Monitoring of memory
contents in the case of software controlled VACIE. A
system fault may prevent requirements of this European
Standard, other than those specified below, from being
fulfilled. In the event of a system fault at least the following
shall apply:
14.4 Program monitoring (see also Annex C)
a
System faults are individually reported by the Praesideo
system and can be inspected using the front panel menu of
the network controller or the logging application.
a system fault shall be visibly indicated by means of the
general fault warning indicator and a separate light
emitting indicator on the VACIE. These indications shall
not be suppressed by any other functional condition of
the VACIE and shall remain until a manual reset and/or
another manual operation at access level 2 or 3;
Faults are also reported through a general fault warning
indicator, connected to a control output that is configured
as Fault alarm buzzer or visual Fault alarm indicator.
Both the individual fault indicator of each system fault and
the general fault warning indicator are not suppressed by
any other functional condition of the Praesideo system.
b
a system fault shall be audibly indicated. This indication
may be capable of being silenced.
A control output contact of a Praesideo system component
can be configured as Fault alarm buzzer. This output
contact can be connected to a buzzer. This way all faults,
including system faults, are indicated audibly.
The Fault alarm buzzer can be silenced by acknowledging
all faults via a key or control input that is configured as Fault
acknowledge key. The control output for the visual Fault
alarm indicator is only deactivated upon resolving and
resetting all fault conditions.
8.6 Audible indication
Praesideo is compliant.
8.6.1 The audible indication of faults required in 8.2 shall be
capable of being silenced manually at access level 1 or 2 at
the VACIE. The same manual operation may be used as for
silencing the voice alarm condition.
The Fault alarm buzzer can be silenced by acknowledging
all faults via a key or control input that is configured as Fault
acknowledge key. Individual faults can also be
acknowledged from the front panel menu of the network
controller or via the Open Interface.
Bosch Security Systems | 2011-02
en | 37
Signature
Praesideo 3.5 | Installation and User Instructions | EN54-16: 2008
Clause / Requirement
Compliance
8.6.2 The audible indication shall be silenced automatically
if the VACIE is automatically reset from the fault warning
condition.
Since the Praesideo system does not offer automatic reset
from the fault warning condition this requirement does not
need to be implemented.
8.6.3 If previously silenced, the audible indication shall
resound for each newly recognized fault.
After the audible indication has been silenced (by
acknowledging all faults) the Praesideo system will resound
the indication upon occurrence of a new fault or
reoccurrence of a previously resolved fault.
8.7 Reset of fault indications
Praesideo is compliant.
8.7.1 Indications of faults as required in 8.2 shall be
capable of being reset
a
automatically when faults are no longer recognized,
and/or
The Praesideo system does not offer automatic reset of
faults
b
by a manual operation at access level 2.
Faults can be manually reset by acknowledging and
resetting them individually or all in one action.
Acknowledging and/or resetting faults individually can be
done via the front panel menu of the Network Controller
and via the Open Interface. Acknowledging and/or
resetting all faults in one action can be done via the front
panel menu of the network controller, control input
contacts, call station keys or the Open Interface.
8.7.2 Following reset as specified in 8.7.1, the indication of
the correct functional conditions corresponding to any
received signals shall either remain or be re-established
within 20 s.
If any individual fault is reset while it is not actually resolved
in the system, the Praesideo system will report the fault
again within 20 seconds. If all faults are reset in one action,
all individual faults that are not actually resolved in the
system are reported again within 20 seconds.
8.8 Transmission of the fault warning condition
Praesideo is compliant.
The VACIE shall have provision for transmitting, by means
of at least general fault signal, all faults specified in 8. This
fault signal shall also be given if the VACIE is de-energized.
Output contact 5 of the Praesideo network controller is the
fixed Fault alarm indicator output. This relay output contact
indicates no fault when open (energized) and indicates a
fault when closed (de-energized). If the Praesideo system is
de-energized this output contact is closed, therefore the
fault signal will also be given.
Bosch Security Systems | 2011-02
en | 38
Signature
Praesideo 3.5 | Installation and User Instructions | EN54-16: 2008
Clause / Requirement
Compliance
9 Disablement condition (option with requirements)
Praesideo does not support the disablement condition.
9.1 General requirements
9.1.1 Disablements in accordance with the requirements of
9.4 shall inhibit all corresponding mandatory indications
and/or outputs but shall not prevent other mandatory
indications and/or outputs.
9.1.2 The VACIE shall have provision to independently
disable and re-enable the function specified in 9.4 by
means of manual operations at access level 2.
9.1.3 The VACIE shall be in the disabled condition while a
disablement in accordance with the requirements of 9.4
exists.
9.1.4 Disablement and re-enablement shall not be affected
by a reset from the voice alarm condition or from the fault
warning condition.
9.2 Indication of the disabled condition
The disabled condition shall be indicated visibly, by means
of
a
a separate light emitting indicator (the general
disablement indicator), and
b
an indication for each disablement, as specified in 9.3
and 9.4.
9.3 Indication of specific disablements
9.3.1 Disablements shall either be indicated within 2 s of
the completion of the manual operation or, where a
disablement cannot be completed within 2 s, it shall be
indicated within 2 s that the disabling process is running.
9.3.2 The same light-emitting indicator may be used as that
for the indication of the corresponding fault, although the
indication shall be distinguishable.
9.3.3 If the indication is on an alphanumeric display, which
cannot simultaneously indicate all of the disablements
because of its limited capacity, at least the following shall
apply:
a
the presence of disablement indications which have
been suppressed shall be indicated;
b
suppressed disablement indications shall be capable of
being displayed by means of a manual operation at
access level 1 or 2 which interrogates only disablement
indications.
9.4 Disablements and their indication
Voice alarm zones may be capable of being independently
disabled and re-enabled. In this case the disablements shall
be indicated by means of separate light emitting indicators
per zone and/or an alphanumeric display. The indications
shall not be suppressed during the voice alarm condition.
9.5 Transmission of the disablement condition
The VACIE shall have provision for transmitting, by means
of a general disablement signal, all disablement conditions
specified in this clause.
Bosch Security Systems | 2011-02
en | 39
Signature
Praesideo 3.5 | Installation and User Instructions | EN54-16: 2008
Clause / Requirement
Compliance
10 Voice alarm manual control
(option with requirements)
10.1 General requirements
Praesideo is compliant.
The VACIE may have provision for manually activating the
voice alarm output condition. If a voice alarm output control
facility is provided the following shall apply:
a
a manual control which causes a voice alarm output
condition to be given shall only be accessible at access
level 2;
The Praesideo system can enter the voice alarm output
condition manually via control input contacts, the Open
Interface and call station (keypad) keys, by starting a call
with a high enough priority.
b
it shall be possible to activate each voice alarm zone
individually and/or in group(s) of voice alarm zones;
A voice alarm priority call can be manually activated in one
or more individual zones or zone groups. Zone selection is
possible via call station keypad keys or via the Open
Interface (e.g. using a PC Call Station for graphical
representation of zones with mouse or touch screen
selection).
Zones can also be added to and removed from a running
voice evacuation call using the ‘Start’ action, even from
other call stations or control inputs on other system
elements. A separate ‘Stop’ action is available to stop such
a call from any location.
c
the manual activation of a voice alarm zone shall not
prevent the mandatory indications and outputs to other
voice alarm zones.
Praesideo uses the concept of audio output assignment to
a dedicated zone. Because different zones use different
amplifiers, the activation of an additional voice alarm zone
will not affect other voice alarm zones.
Praesideo can be configured to abort lower priority calls
and BGM (Background Music) if a voice alarm state is
present.
The mandatory zone related indications are based on the
priority of the active call in the voice alarm zones. This
means that the lower priority boundary of the Zone status
indicator for each zone should be set to include all priorities
of possible alarm calls into that zone. Using priority level
224 as lower boundary is a safe choice, because then the
Zone status indicator will cover all possible alarm priorities
(224-255).
10.2 Indication of the voice alarm zones in an activated
condition
Praesideo is compliant.
The indication for the voice alarm condition in the voice
alarm zone(s) associated with each manual control shall be
available without any manual action and shall not be
suppressed. This indication shall be by means of
a
a separate light emitting indicator (the General Voice
Alarm Output activated indicator), and
The voice alarm condition is indicated on the Praesideo
system by:
• A red indicator on all call stations (the system
status LED).
• A textual indicator on the network controller display
• An output contact configured as voice alarm
activated indicator (Emergency alarm indicator).
This output contact can be used to control the
General Voice Alarm Activated indicator.
b
a separate light emitting indicator and/or alphanumeric
display for each voice alarm zone and/or an indication
for group(s) of voice alarm zones.
The key-indicators on call station keypad kits (or regular
keypads) can be configured for ‘Zone status’, to show that
a (voice) alarm is active for a specific zone or group of
zones. The indication is based on the priority of the active
call in that zone, see 10.1. c.
NOTE - These indicators may not necessarily indicate
which emergency message is being broadcast in each
voice alarm zone.
10.3 Indication of the voice alarm zones in fault
condition
The indication for the fault condition which would prevent
the generation and transmission of the voice alarm signal to
the voice alarm zone(s) associated with each manual
control shall be available without any manual action and
shall not be suppressed. This indication shall be by
Bosch Security Systems | 2011-02
Praesideo is compliant.
en | 40
Signature
Praesideo 3.5 | Installation and User Instructions | EN54-16: 2008
Clause / Requirement
Compliance
a
The Praesideo system provides a visual indication when it is
in the fault warning condition via the fault LED of the call
stations, control output contacts, key indicators of call
station keys, the fixed fault output contact of the network
controller and the front panel menu of the network
controller.
a separate light emitting indicator (the general fault
indicator), and
All Praesideo call stations have a specific fault indicator, the
power/fault LED, which is blinking yellow for a system fault
and steady yellow when there is a fault in the call station or
the Praesideo network is not operational. The power/fault
LED is green when there is no fault in the system.
Control output contacts can be configured as ‘Fault alarm
indicator’. A visual indicator (e.g. a lamp) can be connected
to the output contact. The output contact is activated when
the system enters the fault warning condition. The output
contact is de-activated when the system leaves the fault
warning condition, i.e. when all faults are reset.
Call station keypad keys can be configured to the action
‘Reset fault’ or ‘Ack and reset fault’. The key indicator of
such a key will now light up when the system enters the
fault warning condition. The key indicator is turned off when
the system leaves the fault warning condition.
Output contact 5 of the network controller is the fixed Fault
alarm indicator output. Other control outputs can be
configured for the same function. If a visual indicator is
connected to this output contact it can be used as the
general fault warning indicator.
The network controller displays the number of present
faults. This fault indication overrules the normal display
information.
b
an indication for each voice alarm zone and/or an
indication for defined group(s) of zones.
The key-indicators on call station keypad kits (or regular
keypads) can be configured for ‘Zone status’, to show that
a (voice) alarm is active for a specific zone or group of
zones. A second key indicator for this ‘Zone status’ function
shows whether the zone is in fault state. The zone fault
state indicator is the visual representation of the collection
of all faults that may affect the voice alarm in that zone.
The zone fault state is also available on PC call stations,
connected to the Open Interface. Here the zone-icons on
the screen get a fault warning indication in case of a zone
fault.
More in general: all faults are visible on the front panel
menu of the Network Controller and via the Praesideo
logging application.
By configuring sensible names for the zones and amplifier
outputs contributing to these zones, fault indications
become clear and easy to understand. For instance, a zone
can have the name 'Floor_3' and output 4 of amplifier 'A6',
contributing to that zone may have the name 'Floor_3
A6_4'. A short circuit on that amplifier output will then be
shown including its name 'Floor_3 A6_4' and it will be clear
that the sound on Floor_3 will be affected.
10.4 Indication of the voice alarm zones in disablement
condition
The indication for the disablement condition in the voice
alarm zone(s) associated with each manual control shall be
available without any manual action and shall not be
suppressed. This indication shall be by
a
a separate light emitting indicator (the general
disablement indicator), and
b
an indication for each voice alarm zone and/or an
indication for defined group(s) of zones.
Bosch Security Systems | 2011-02
Praesideo does not support the optional disablement
condition.
en | 41
Signature
Praesideo 3.5 | Installation and User Instructions | EN54-16: 2008
Clause / Requirement
Compliance
11 Interface to external control device(s) (option with
the requirements)
The VACIE may have provision for interfacing to external
control device(s) such as standardized user interfaces
required by local regulations. In this case, the following
shall apply:
Praesideo is compliant.
a
Using the Open Interface requires access level 2. The
Open Interface functionality is limited to call and BGM
(Background Music) control as well as acknowledge/reset
of fault and emergency states.
the interface shall allow only access level 1 and 2
functions;
Praesideo provides control input contacts with supervision
and control output contacts for external control devices,
with extensive configurable functionality.
b
the mandatory functions of the VACIE shall not be
overridden;
c
any short-circuit , interruption or earth fault in the
transmission path to the external device(s) shall
The Praesideo system operates as an autonomous system.
All external activations are priority based to control
preference. By proper configuration system behavior is
tightly controlled and the mandatory functions of the VACIE
will not be overridden.
1
not prevent the mandatory function of the VACIE,
and
The Praesideo system operates as an autonomous system,
so its operation (functionality) is not affected by loss of
connection to an Open Interface client.
2
be indicated on the VACIE, at least by means of the
general fault warning indicator.
The connection to an Open Interface client is monitored by
means of a keep-alive mechanism; if the connection is lost
the general fault warning indicator is activated and a
specific fault is reported.
NOTE - The external control devices should comply with
available local or national standards.
Bosch Security Systems | 2011-02
en | 42
Signature
Praesideo 3.5 | Installation and User Instructions | EN54-16: 2008
Clause / Requirement
Compliance
12 Emergency microphone(s) (option with requirements)
The VACIE may have provision for emergency
microphone(s). In this case the emergency microphone(s)
shall have
The Praesideo system offers two types of emergency
microphones with microphone supervision:
• a call station can be configured to be of class
‘emergency’ which makes the microphone of the
call station an emergency microphone;
• if an audio input of the system is configured to the
auxiliary microphone function, a connected
microphone can act as emergency microphone.
a
The priority can be configured of a call stations’ ‘PTT’ key or
audio input that is activated from a control input defined in
a call macro. The emergency microphones must be
configured to have priorities in the range 224 to 255
(highest). Higher priorities overrule lower priorities in case
of resource or destination conflicts. Calls with the same
priority operate on first come first serve basis, except in the
case of priority 255: calls with the same priority 255
overrule each other, so the latest becomes active. This
assures that high priority microphones that are left behind
in an active state will never block the system.
priority over all inputs, including pre-recorded
messages,
Calls may contain pre-recorded messages. The
prerecorded messages then adopt the priority of that call.
b
an emergency microphone control to open the
microphone channel, at access level 2,
If the microphone of a call station is used as emergency
microphone, the microphone channel can be opened via:
• the ‘PTT’ key of the call station
• a call station keypad key or call station kit input
contact
If a microphone connected to an audio input is used as
emergency microphone, the microphone channel can be
opened via:
• a control input contact
• a call station keypad key
The actual way of operation is defined in the system and is
subject to configuration.
c
where a pre-announcement attention drawing signal is
provided, an indicator adjacent to the microphone shall
show when the signal has finished and live speech can
commence, and
A call station has a call status LED. This LED is blinking
green when a pre-announcement attention signal or prerecorded message is playing. The LED is steady green
when the live speech can commence. Pre-announcement
signals are also audible from the call stations’ monitor
loudspeaker, to alert the experienced user about the
progress.
For an emergency microphone connected to an audio
input, under control of a control input contact, no such
indicator exists; therefore such emergency microphones
should only be configured for calls that do not have preannouncement signals or messages.
The user interface of the Praesideo PC call station shows
the call progress in a progress bar on the screen with clear
indication when the speech can commence.
d
when the emergency microphone control is operated,
any audible indication that might interfere with the use
of the microphone shall be automatically muted.
The monitor speaker of the call station is muted during the
live speech phase. Other sources of interference should be
minimized by proper installation, e.g. keep HVAC
equipment and loudspeakers at a distance from the
microphone.
The installer must use the priority mechanism of Praesideo
for switching off non-relevant loudspeakers, either directly,
if the loudspeakers are connected to the Praesideo system,
or indirectly via control output contacts that interrupt an
external system or audio path. Other audible indications,
like audible fault warning or voice alarm indications, must
be muted by configuring an output contact that is wired in
series with the audible indications. .
If it is not possible to avoid interference from closely
mounted loudspeakers receiving the call, the call stacking
function of Praesideo allows for recording a call with
delayed playback after the spoken announcement has
finished.
Bosch Security Systems | 2011-02
en | 43
Signature
Praesideo 3.5 | Installation and User Instructions | EN54-16: 2008
Clause / Requirement
Compliance
e
Configuration of the emergency microphones is performed
via the web interface of the network controller. This web
interface requires access level 3.
where the VACIE has provision for the connection of
more than one emergency microphone, they shall be
configurable for priority at access level 3 or 4 and only
one emergency microphone shall be active at any one
time.
For emergency microphones 32 priority levels are available,
in the range 224 to 255 (highest). Higher priorities
overrule lower priorities in case of resource or destination
conflicts. Calls with the same priority operate on first come
first serve basis, except in the case of priority 255: calls
with the same priority 255 overrule each other, so the latest
becomes active. This assures that high priority
microphones that are left behind in an active state will never
block the system.
If multiple microphones are configured for the same priority
the Praesideo system prevents that they are audible in the
same zone at the same time. Only one microphone will be
active at any one time in the same zone.
Bosch Security Systems | 2011-02
en | 44
Signature
Praesideo 3.5 | Installation and User Instructions | EN54-16: 2008
Clause / Requirement
Compliance
13 Design requirements
13.1 General requirements and manufacturer's
declarations
Praesideo is compliant.
13.1.1 The VACIE shall comply with the design
requirements of this clause, where relevant to the
technology used. Some requirements can be verified by
testing. Others can only be verified by inspection of the
design and its accompanying documentation because of
the impracticability of testing all of the possible
combinations of functions and of establishing the long-term
reliability of the VACIE.
See the relevant clauses regarding testing and
documentation.
13.1.2 In order to assist the process of design inspection,
the manufacturer shall declare the following in writing:
a
that the design has been carried out in accordance with
a quality management system which incorporates a set
of rules for the design of all elements of the VACIE;
The Bosch Security Systems development department
responsible for development/maintenance of the Praesideo
system works according its own development process,
Standard Development Process or SDP, that is created
using the CMMI model. The SDP implements all process
areas at maturity level 2 of the CMMI model, and some
process areas at maturity level 3 of the CMMI model.
Rules for the design of all elements of the Praesideo
system can be found in the SDP repository. In the SDP
repository all process descriptions, process
implementation documents, templates, guidelines, etc. of
the development processes can be found.
The SDP repository is a version control system.
b
that the components of the VACIE have been selected
for the intended purpose and are expected to operate
within their specification when the environmental
conditions outside the cabinet of the VACIE comply
with Class 3k5 of EN 60721-3-3:1995 + A2:1997.
The components of the Praesideo system operate within
their specification within the specified environmental
conditions (Class 3k5 of EN 60721-3-3:1995 + A2:1997).
This is verified by means of testing and is documented in
the test reports. The 19"-racks for Praesideo are part of the
system and subject to certification. A rack must be selected
from the list of approved racks for this purpose.
13.2 Documentation
Praesideo is compliant.
13.2.1 The manufacturer shall prepare installation and user
documentation which shall be submitted to the testing
authority together with the VACIE. This shall comprise at
least the following:
The Praesideo Installation and User Instructions (IUI) are
provided as multilingual pdf-files on the DVD that contains
the software for installation and configuration. The IUI can
also be downloaded from Extranet.
a
The IUI contains a general description of the Praesideo
system. It includes an EN54-16 checklist, containing a list
of supported optional functions.
a general description of the equipment, including a list
of
It describes all Praesideo functions related to EN54-16 or
otherwise.
b
1
the optional functions with requirements of this
European Standard,
2
the functions relating to other parts of EN 54, and
3
the ancillary functions not required by this
European Standard;
technical specifications of the inputs and outputs of the
VACIE, sufficient to permit an assessment of the
mechanical, electrical, and software compatibility with
other components of the system (e.g. as described in
EN 54-1), including where relevant
See this checklist, clause 4.1.1.
The inputs and outputs for audio and control are described
in the IUI, including the technical data, system functions,
configuration instructions, compliancy to standards. This
includes the information as requested in 13.2.1 b) 1)..7).
The Open Interface is described in the ‘Open Interface
Programming Instructions’ (OIPI). This document is always
delivered together with the Praesideo system as a pdf-file
on the distribution DVD. This document gives enough
information for third party programmers to create
applications to control or display Praesideo functions.
1
the power requirements for recommended
operation,
2
the maximum number of voice alarm zones,
3
information concerning the connection of
emergency microphones,
4
the maximum and minimum electrical ratings for
each input and output,
Bosch Security Systems | 2011-02
en | 45
Signature
Praesideo 3.5 | Installation and User Instructions | EN54-16: 2008
Clause / Requirement
5
information on the communication parameters
employed on each transmission path,
6
recommended cable parameters for each
transmission path, and
7
fuse ratings;
Compliance
c
specified means to limit the consequences of fault (see
13.5.2);
The IUI describes the following means to limit the
consequences of fault:
• Switchover to spare (standby) amplifiers
• Audio/control input supervision
• Backup power supply
• Redundant network cabling
• Loudspeaker line supervision
• The ability of the emergency call station to make a ‘fail
safe’ call in case of a network controller defect
• A/B group wiring of loudspeakers
• The ability of the multi channel interface to bypass
routing in case of a fatal fault in the MCI
d
configuring and commissioning instructions;
Configuring and commissioning instructions are included in
the IUI.
e
operating instructions;
Operating instructions are included in the IUI.
f
maintenance information.
Maintenance information of the Praesideo system are
included in the IUI.
13.2.2 The manufacturer shall prepare design
documentation that shall be submitted to the testing
authority together with the VACIE. This documentation shall
include drawings, parts lists, block diagrams, circuit
diagrams and a functional description to such an extent that
compliance with this European Standard may be checked
and that a general assessment of the mechanical and
electrical design is made possible.
All of the mentioned design documentation is available as
TPD for inspection by testing authorities.
13.3 Mechanical design requirements
Praesideo is compliant.
13.3.1 The cabinet of the VACIE shall be of robust
construction consistent with the method of installation
recommended in the documentation. It shall meet at least
classification IP30 of EN 60529:1991+A1:2000.
The Praesideo call station product range, network splitter
and fiber interfaces comply with this requirement. The
installer must implement this requirement for 19”-units, by
means of using a correct 19”- frame, meeting at least
classification IP30 of EN 60529:1991+A1:2000. The EN
54-16 certification of Praesideo includes the 19"-rack. A
rack must be used from the list of approved racks.
13.3.2 All interconnections and settings inside the cabinet
shall be accessible at level 3.
The installer must ensure that the physical access to the
Praesideo system is restricted to access level 3, then
accessibility to all interconnections and settings inside the
cabinet (e.g. interconnections between the system
elements) is restricted to this access level.
13.3.3 The VACIE may be housed in more than one
cabinet. If the documentation shows that the cabinets may
be installed in locations distributed within the protected
premises, then all of the mandatory manual controls and
indicators shall be on one cabinet or on cabinets declared
to be only suitable for mounting adjacent to each other.
The IUI shows that the Praesideo cabinets may be installed
in locations distributed within the premises. One dedicated
Praesideo call station with call station keypad(s) or call
station kit with call station keypad kit(s) can then be used
for all of the mandatory controls and indicators. The installer
shall take care of proper installation in order to fulfill this
requirement.
13.3.4 All mandatory manual controls and light emitting
indicators shall be clearly labeled to indicate their purpose.
The labels shall be legible at 0.8 m distance in an ambient
light intensity from 100 lux to 500 lux.
The Praesideo call station keypad has a paper slot next to
each of its programmable keys. The installer must provide
proper labels that fit into these paper slots and implement
this requirement. Note that if the call station keypad kit is
used, the installer must provide custom-made call station
keypads, including the labels. A regular font with with
characters of 3 mm height offers sufficient readability in
case of high contrast between text color and background.
Lower contrast color selections will require bigger
characters.
13.3.5 The terminations for transmission paths and the
fuses shall be clearly labeled.
All terminations for transmission paths are clearly labeled
on all of the Praesideo system elements (near the relevant
connectors).
The mains fuse for each Praesideo system element that has
a mains connector is labeled on the rear plate of the
element.
Internal fuses have a parts code indication on the Printed
Circuit Board on which they are mounted. These fuses may
only be replaced by qualified service personnel having
access to the service documentation.
Bosch Security Systems | 2011-02
en | 46
Signature
Praesideo 3.5 | Installation and User Instructions | EN54-16: 2008
Clause / Requirement
Compliance
13.4 Electrical and other design requirements
Praesideo is compliant.
13.4.1 The processing of signals shall give the highest
priority to the voice alarm condition.
Calls within the Praesideo system have a configured
priority. In case of conflicting requirements, system
resources are assigned to the calls in order of priority.
Voice alarm call must be configured with a high priority
(priority 224-255). Many secondary functions of the system
can be configured to stop or pause in case calls above a
certain configured priority are present; this includes calls
below a certain configured priority.
13.4.2 Transitions between the main and the standby
power sources shall not change any indications and/or the
state of any outputs, except those relating to the power
supplies.
Transition between the main and standby power sources
does not change any of the indications and/or state of any
outputs of the Praesideo system, except for the fault
warning indication (global and individual) in order to report
the failure of a power source.
13.4.3 If the VACIE has provision for disconnecting or
adjusting the main or the standby power source, this shall
only be possible at access level 3 or 4.
The Praesideo system elements that have a mains and
backup power supply offer connectors for the main and
standby power source, a rear-mounted voltage selector
switch and on/off switch. The installer must ensure that
these items are only accessible at access level 3 or 4.
13.5 Integrity of transmission paths
Praesideo is compliant.
13.5.1 A fault in any voice alarm transmission path between
the VACIE and other components of the voice alarm system
shall not affect the correct functioning of the VACIE or of
any other voice alarm transmission path.
The Praesideo system has the following voice alarm
transmission paths between itself and other parts of the
voice alarm system:
• transmission path between CIE and Praesideo
system via input contact or Open Interface;
• transmission path between Praesideo system and
the loudspeaker(s).
If there is a fault in the transmission path between the CIE
and an input contact of the Praesideo system, the
configured action of the input contact will not be
automatically activated or de-activated. The correct
functioning of the Praesideo system or of any other voice
alarm transmission path is therefore not affected. The fault
will just be reported.
If there is a fault in the transmission path between the CIE
and the Ethernet connection of the network controller of the
Praesideo system (connection via Open Interface),
methods can no longer be invoked by the CIE and no
events can be notified to the CIE. However the fault will not
affect the correct functioning of the Praesideo system or
any other voice alarm transmission path. The fault will just
be reported.
If there is a fault in the transmission path between the
Praesideo system, i.e. the amplifier outputs and the
loudspeaker(s), the loudspeaker(s) will not be able to
produce the intended audio signal. However the fault will
not affect the correct functioning of the Praesideo system
or any other voice alarm transmission path. The fault will
just be reported.
13.5.2 A short circuit or an interruption in the transmission
path to the loudspeaker(s) shall not affect more than one
voice alarm zone for longer than 100 s following the
occurrence of the fault.
Bosch Security Systems | 2011-02
Each audio output of the Praesideo system can only be
assigned to one voice alarm zone by means of
configuration. The IUI specifies this clearly. Due to this, a
short circuit or interruption in the transmission path to the
loudspeaker(s) only affects the voice alarm zone it was
assigned to.
en | 47
Signature
Praesideo 3.5 | Installation and User Instructions | EN54-16: 2008
Clause / Requirement
Compliance
13.5.3 A single short circuit or an interruption in any voice
alarm transmission path between distributed cabinets of a
VACIE shall not prevent the activation of a voice alarm
output condition to more than one voice alarm zone for
longer than 100 s following the occurrence of the fault.
The voice alarm transmission path between distributed
cabinets of the Praesideo system is achieved by means of
the system bus.
A single interruption or short circuit in any data segment of
this system bus does not prevent proper functioning of the
system (including activation of a voice alarm output
condition to more than one voice alarm one) as long as the
system has redundant cabling.
The system bus also offers a power circuit. This power
circuit is used to provide power to system elements that do
not have its own main power supply. These elements are:
audio expander, CobraNet interface, multi channel
interface, call station basic with call station keypads, call
station kit with call station keypad kits, call station interface,
remote call station with call station keypads, remote call
station kit with call station keypad kits. A single interruption
or short circuit in the power circuit of the system bus can
affect these system elements, since they will lose their
power and therefore be turned off. However this can be
fixed by proper installation and configuration for the
following elements:
• multi-channel interface - this unit can be
configured to use a connected basic amplifier as its
power source (default setting) to share the main
and backup power supply of the basic amplifier.
• call station kit - a backup power supply can be
connected in order to power the call station
externally if the network power supply fails.
• call station interface - a backup power supply can
be connected in order to power the call station
interface externally if the network supply fails; this
back-up power supply can then power both the call
station interface and the connected remote call
station.
• remote call station - an external power supply can
be connected in order to power the call station
externally if the network power supply fails.
• remote call station kit - a backup power supply can
be connected in order to power the call station
externally if the network power supply fails.
The basic call station does not have a backup power supply
and should therefore not be used as voice evacuation call
station. The installer must take care of proper installation
and configuration of the system.
The audio expander and CobraNet interface units will not
prevent the activation of a voice alarm output condition to
more than one voice alarm zone as long as they do not
interrupt the system bus when the network power supply
fails. This can be achieved in two ways: either by installing
them on tap-off points in the network using a network
splitter or by ensuring all of these units are placed together
on the ring with no other type of units in between them. This
way they can never break the redundant ring. The installer
must deplory one of these solutions in the system
installation.
13.5.4 If the VACIE is designed to be used with a power
supply (item L of Figure 1 of EN 54-1) contained in a
separate cabinet, then an interface shall be provided for at
least two voice alarm transmission paths to the power
supply, such that a short circuit or an interruption in one
does not affect the other.
If a 19”-cabinet (rack) or adjacent cabinets provide enough
space for the battery and/or charger, the installer can install
the complete PSE (power supply equipment) as referred in
EN54-4 in one cabinet. In that case this requirement is not
applicable.
In case the installer installs the backup part of the PSE
(battery and charger) in a separate cabinet, Praesideo
provides a separate (monitored) DC-backup connection on
the Praesideo units. This implies that a Praesideo
installation will always have two separate voice alarm
transmission paths to the power supply: one for mains and
one for DC backup. Both will not influence each other.
The installer must take care that the installation complies
with this requirement.
Bosch Security Systems | 2011-02
en | 48
Signature
Praesideo 3.5 | Installation and User Instructions | EN54-16: 2008
Clause / Requirement
Compliance
13.6 Accessibility of indications and controls
Praesideo is compliant.
Four access levels shall be provided on the VACIE, from
access level 1 (most accessible) to access level 4 (least
accessible). Manual controls at a given access level shall
not be accessible at a lower access level.The following
shall apply:
The Praesideo system offers three types of user accounts
(with different access rights):
• User: user account type that offers operational
control of the system; meant for operational users
of the Praesideo system;
• Installer: user account type that offers operational
control, configuration and diagnosis of the
Praesideo system; meant for installers and/or
configurators of the Praesideo system;
• Administrator: user account type that offers full
control of the system including user management,
i.e. the ability to add and delete user accounts.
Access level 1 is intended for operational users of the
Praesideo system. It provides direct (unrestricted)
operational access to the Praesideo system via:
• A call station that does not have access control
(call station keys)
Access level 2 is intended for operational users of the
Praesideo system. It provides operational access to the
system after (some form of) identification. The Praesideo
system enforces logical identification for the following
access points:
• A call station with access control (via numeric
keypad); a pin code must be entered before the call
station can be used
• The open interface; a username and password are
needed to connect to the Praesideo system via the
Open Interface); the user of the Open Interface
must at least have a user account of type ‘user’ (i.e.
user, installer or administrator access rights)
Note that access level 2 can also be enforced for the
access level 1 access points by means of physical access
control, which restricts access to persons that possess the
physical access device (e.g. key, access card, et cetera).
This is applicable for:
• Input contacts with physical access control; the
system components offering the input contacts are
located in a room/cabinet that is not generally
accessible
• The front panel menu (with physical access
control); the system components that have a front
panel menu are located in a room/cabinet that is
not generally accessible
• A call station with physical access control; the call
station is located in a room/cabinet that is not
generally accessible
Access level 3 is intended for installers and/or
configurators of the Praesideo system. It provides access
for configuration and diagnosis of the Praesideo system
after logical and/or physical identification. This level of
access is offered through:
• The web interface offered by the web server of the
network controller. A user name and password
need to be provided to get access to this web
interface. The user must have at least a user
account of type ‘installer’ (i.e. Installer or
administrator access rights). The web interface can
be used for configuration and logical diagnosis of
the system.
• Physical access control by means of installing the
system elements in a restricted environment, such
as placing the 19”-units in a 19”-rack with key lock.
This type of access can be used for physical
diagnosis of the system, e.g. inspect
interconnections.
Access level 4 is intended for maintenance personnel of
the Praesideo system. It provides software/firmware
upgrade of the Praesideo system components after logical
identification. This level of access is offered through:
• The file transfer application of the Praesideo
system to transfer message sets to the network
controller and upgrade the system software. A user
name and password is needed to be able to use
the File Transfer Application and get access to the
network controller. The user must have at least a
user account of type ‘Installer’ (i.e. installer or
administrator access rights).
Bosch Security Systems | 2011-02
en | 49
Signature
Praesideo 3.5 | Installation and User Instructions | EN54-16: 2008
Clause / Requirement
Compliance
a
all mandatory indications shall be visible at access level
1 without prior manual intervention (e.g. the need to
open a door);
All indicators of the Praesideo system can be visible at
access level 1. The installer must ensure correct
implementation of this requirement.
b
manual controls at access level 1 shall be accessible
without special procedures;
Manual controls of the Praesideo system at access level 1
are accessible without special procedures.
c
indications and manual controls that are mandatory at
access level 1 shall also be accessible at access level
2;
All Praesideo indications (LEDs, equipment connected to
output contacts, front panel display) and manual controls
(input contacts, call station keys, front panel menus) that
are accessible at access level 1 are also accessible at
access level 2.
d
entry to access level 2 shall be restricted by a special
procedure;
Entry to access level 2 is restricted by a special procedure;
refer to clause13.6, access level 2 description for details.
e
entry to access level 3 shall be restricted by a special
procedure, differing from that for access level 2;
Entry to access level 3 is restricted by a special procedure,
see clause13.6, access level 3 description for details.
Correct configuration and installation (physical access
control) will ensure that the special procedure differs from
that of access level 2. The system administrator shall define
users of type ‘user’ for access level 2 and users of type
‘installer’ for access level 3. The installer shall ensure that
the physical access procedure differs from that of the
physical access procedure of access level 2.
f
the entry to access level 4 shall be restricted by special
means which are not part of the VACIE.
Entry to access level 4 is restricted by means of having to
use the File Transfer Application (FTA), see clause13.6,
access level 4 description for details. This FTA is only used
for access level 4 functions and is therefore not part of the
daily operation/configuration of the Praesideo system.
NOTE - Further access levels are permitted provided that
they are distinct from the access levels described in this
standard.
13.7 Indications by means of light-emitting indicators
Praesideo is compliant.
13.7.1 Mandatory indications from light emitting indicators
shall be visible in an ambient light intensity up to 500 lux, at
any angle up to 22.5° from a line through the indicator
perpendicular to its mounting surface
• at 3 m distance for the general indications of
functional condition,
• at 3 m distance for the indication of the supply of
power, and
• at 0.8 m distance for other indications.
All of the light emitting indicators of the Praesideo system
fulfill this requirement. When external light emitting
indicators are installed, such as LEDs connected to a call
station kit or call station keypad kit, or light emitting
indicators connected to output contacts, the installer shall
use indicators that fulfill this requirement.
13.7.2 If flashing indications are used, both the on period
and the off period shall be greater than or equal to 0.25 s,
and the frequencies of flash shall not be less than
• 1 Hz for voice alarm indications, and
• 0.2 Hz for fault indications.
The voice alarm indication does not flash; it is steady on
both call stations and on output contacts.
13.7.3 If the same light emitting indicators are used for the
indication of specific faults and disablements, fault
indications shall be flashing and disablement indications
shall be steady.
Disablement indication is not available in the Praesideo
system since Praesideo does not support the optional
disablement condition.
The fault indication on a call station flashes with a
frequency of 2 Hz (on and off period of 0.25 s) when there
is a fault in the system or is steady on when there is a fault
in the call station itself. The fault indication on output
contacts is always steady on.
13.8 Indications on alphanumeric displays
Praesideo is compliant.
13.8.1 If an alphanumeric display consists of elements or
segments, the failure of one of these shall not affect the
interpretation of the displayed information.
Praesideo system elements that have an alphanumeric
display all have a dot matrix LCD. If a single dot of such a
display fails the interpretation of the displayed information
is not affected.
13.8.2 If an alphanumeric display is used to display
mandatory indications, it shall be clear and unambiguous.
The display of the network controller is used to display
mandatory indications. Indication of the voice alarm
condition is by means of the text ‘Emergency’ and the name
of the key that activated the voice alarm condition.
Indication of the fault warning condition is by means of the
text ‘Faults’ and an indication of the number of active faults
in the system. Individual faults with details are shown in a
menu structure.
Bosch Security Systems | 2011-02
en | 50
Signature
Praesideo 3.5 | Installation and User Instructions | EN54-16: 2008
Clause / Requirement
Compliance
13.8.3 Mandatory indications on an alphanumeric display
shall be legible for at least one hour following the display of
a new indication of the voice alarm condition and at least
5 minutes for fault or disablement conditions, at 0,8 m
distance, in ambient light intensities from 5 to 500 lux, at
any angle from the normal to the plane of the display up to
• 22.5º when viewed from each side, and
• 15º when viewed from above and below.
If the Praesideo system enters the voice alarm condition the
display of the network controller will automatically show the
‘Emergency’ menu. This indication stays on as long as the
system is in the voice alarm condition (i.e. until the voice
alarm condition is reset).
If the Praesideo system enters the fault warning condition
the display of the network controller will automatically show
the ‘Faults’ menu with the current number of active faults.
This indication stays on until either the rotary knob of the
network controller is used to navigate through the menu, or
the system enters the voice alarm condition. The ‘Faults’
menu will always be present in the Network Controller
menu. Individual faults are present in this ‘Faults’ menu until
they are reset or until they are overwritten by newer faults
The menu can show up to 200 individual faults after which
the oldest faults are deleted when new faults occur.
The display of the Network Controller complies with the
legibility demands of this clause.
13.9 Indication colors
Praesideo is compliant.
13.9.1 The colors of the general and specific indications
from light emitting indicators shall be
a
red for indications of voice alarms;
The system status LED of Praesideo call stations is on
(red) when the system is in the voice alarm condition. The
installer must connect a red light emitting indicator to an
‘Emergency alarm indicator’ output contact of the
Praesideo system. The key of a call station keypad kit shall
be configured to the action ‘Zone status’. The installer must
connect a red LED to the appropriate control output
belonging to this key.
b
yellow for indications of
The Power/Fault LED of Praesideo call stations is yellow
(on or flashing) when the system is in the fault warning
condition. The installer must connect a yellow light emitting
indicator to the ‘Fault alarm indicator’ output contact (or
another output contact configured for this function). A call
station key indicator lights up yellow when the key is
configured to the action ‘Reset fault’ or ‘Ack and reset’ and
the system enters the fault warning condition.
1
2
fault warnings, and
disablements, or
Disablement indication is not available in the Praesideo
system since Praesideo does not support the optional
disablement condition.
c
green for the indication that the VACIE is supplied with
power.
All light emitting indicators of the Praesideo system that
indicate power supply are green.
NOTE - Where voice alarm automatic message status
indicators are provided, it may be advantageous to indicate
the difference between evacuation and alert messages. In
this case, red will be used for emergency messages and
yellow may be used for alert messages.
13.9.2 The use of different colors is not necessary for
indications on alphanumeric displays. However, if different
colors are used for different indications, the colors used
shall be as specified in 13.9.1.
The alphanumeric displays used in the Praesideo system
do not use different colors for indications.
13.10 Audible indications
Praesideo is compliant.
13.10.1 Audible indicators shall be part of the VACIE. The
same device may be used for voice alarm zone activated
and fault warning indications.
The installer must connect buzzers to output contacts
configured as ‘Emergency alarm buzzer’ or ‘Fault alarm
buzzer’. The installer may decide to connect both the voice
alarm activated output contact as well as the fault warning
condition activated output contact in parallel to the same
buzzer.
13.10.2 The minimum sound pressure level, measured
under anechoic conditions at a distance of 1 m, with any
access door(s) on the VACIE closed, shall be
• 60 dBA for the voice alarm condition, and
• 50 dBA for the fault warning condition.
The installer must connect the buzzer, provided with
Praesideo, that complies with this clause.
Bosch Security Systems | 2011-02
en | 51
Signature
Praesideo 3.5 | Installation and User Instructions | EN54-16: 2008
Clause / Requirement
Compliance
13.11 Indicator testing
Praesideo is compliant.
All mandatory visible and audible indicators shall be
testable by a manual operation at access level 1 or 2.
Praesideo provides an ‘Indicator test’ action that can be
configured for a key on a call station keypad or keypad kit.
When activated all indications on that call station and all its
connected keypads are switched on to visually check the
indicators. Bi-color indicators alternate between both
colors. The call station monitor loudspeaker will sound a
single tone chime with priority 223. If a numeric keypad is
connected to the call station, its LCD shows an alternating
test pattern to visually check all pixels.
The installer must take care that indicators that are
connected to control output contacts are testable.
13.12 Audio performance
Praesideo is compliant.
13.12.1 Output power
The VACIE output power shall be as declared by the
manufacturer.
The output power of the amplifier elements of the
Praesideo system (Power Amplifiers, Basic Amplifiers) are
specified in the data sheets and in the IUI.
13.12.2 Signal-to-noise ratio
The VACIE shall have an A-weighted signal-to-noise ratio of
at least 45 dB (see IEC 60268-1).
13.12.3 Frequency response
The frequency response of the VACIE shall fit within the
non-shaded area in Figure 1 for sound sources without
microphone(s) (e.g. message store) and Figure 2 for sound
sources with microphone(s).
Bosch Security Systems | 2011-02
The A-weighted signal-to-noise ratio of the Praesideo
amplifiers (Power Amplifiers and Basic Amplifiers) is
specified in the data sheets and in the IUI. The signal-tonoise ratio is above 85 dB. The complete signal chain from
microphone to loudspeaker is compliant to this clause.
en | 52
Signature
Praesideo 3.5 | Installation and User Instructions | EN54-16: 2008
Clause / Requirement
Compliance
The frequency response of all Praesideo sound paths that
do not include microphones is within the specified limits of
this clause, with the following remarks for the
LBB4428/00.
20
15
10
1
1
0
-1
0,125
2
0,4
4,0
1,0
8,0
20
-10
-15
-20
figure 1: VACIE frequency response limits without
microphone(s)
The frequency response of the LBB4428/00 power
amplifier shows some interaction with the attached load
impedance. For certain load conditions this causes a
resonance peak around 10-20 kHz, just exceeding the
+1 dB limit in the frequency band between 6 and 8kHz.
The installer shall use the built-in parametric equalizer of
this amplifier to flatten the frequency response of each
channel by activating the high frequency shelving filter, with
gain setting -2 dB at a corner frequency of 6.8 kHz. This
setting is valid for all rated load conditions.
A high pass filter at 68 Hz in the equalizer section is
enabled by default to decrease the risk of loudspeaker
transformer saturation for high level low frequency signals.
The high pass filter must remain enabled.
Key
1 - relative output signal level, with reference to 0 dB signal
level measured at 1 kHz (dB)
2 - 1/3 octave frequency band (Hz)
The frequency response of all Praesideo sound paths that
include microphones is within the specified limits of this
clause.
20
15
10
5
1
0
0,5 0,63
0,2
2
1,25
0,8
1,0
1,6
4,0
10
-5
-10
-15
-20
figure 2: VACIE frequency response limits with
microphone(s)
Key
1 - relative output signal level, with reference to 0 dB signal
level measured at 1 kHz (dB)
2 - 1/3 octave frequency band (Hz)
NOTE - The frequency response limits exclude
loudspeakers.
NOTE - A bandwidth of 400 Hz to 4 kHz is sufficient to
achieve acceptable intelligibility in some acoustic
environments. However, a higher frequency limit may be
necessary to achieve acceptable intelligibility in more
difficult acoustic environments due, for example, to the
masking effect caused by reverberation and/or ambient
noise.
13.13 Message store(s)
Praesideo is compliant.
Pre-recorded messages shall be stored in non-volatile
memory that retains the messages when all power sources
are removed.
The pre-recorded messages of the Praesideo system are
digitally stored on a Compact Flash card in uncompressed
format (linear PCM, 16-bit, 44.1kHz). This card retains the
messages when all power sources are removed.
NOTE - The use of tapes or magnetic or optical data disks
for the storage of emergency messages is not acceptable
at the time of drafting this European Standard (see
Annex C)
13.14 Redundant power amplifiers
(option with requirements)
Bosch Security Systems | 2011-02
Praesideo is compliant.
en | 53
Signature
Praesideo 3.5 | Installation and User Instructions | EN54-16: 2008
Clause / Requirement
Compliance
13.14.1 The VACIE may have provision for at least one
spare power amplifier. In this case:
Each power amplifier channel of the Praesideo system has
an input for connecting a spare amplifier channel. It also
contains a switch-over relay to switch the loudspeaker load
from the original amplifier output to the spare amplifier
output. A spare amplifier channel assignment is
configurable to multiple main amplifier channels.
a
After fault detection of an amplifier all loudspeaker lines are
switched automatically to the spare amplifier (if connected
and configured) within 10 s.
in the event of the failure of a power amplifier, the faulty
amplifier shall be capable of being replaced
automatically with a spare amplifier within 10 s of the
fault being detected;
NOTE - This can be achieved, for example, by switching or
by permanently connected parallel amplifiers.
b
the spare power amplifier(s) shall have at least the
same functionality and output power as the replaced
amplifier.
Each power amplifier channel of the Praesideo system has
a spare amplifier input. The installer shall take care of
proper installation and configuration of the amplifiers to
match amplifier power and number of channels per
amplifier. Praesideo takes care of input signal switching to
the spare amplifier channel, including adaptive sound
processing. This way the spare power amplifier(s) will have
the same functionality and output power as the replaced
amplifier.
13.14.2 Every fault of an amplifier shall be indicated by a
general fault warning indicator as specified in 8.2
All Praesideo power amplifiers are supervised for overload,
overheating, short-circuit, ground short and amplifier
defect. If any such fault is detected it is indicated both by
means of the general fault warning indicator and by means
of an individual fault report.
13.14.3 Supervision of the spare amplifier(s) shall be
maintained during the functional condition whilst the VACIE
is powered by either the mains or standby power supplies.
The spare amplifiers can be continuously supervised,
whether it is in idle or active state; this is configurable.
The supervision is active whilst the Praesideo system is
powered by either the mains or standby power supplies.
Bosch Security Systems | 2011-02
en | 54
Signature
Praesideo 3.5 | Installation and User Instructions | EN54-16: 2008
Clause / Requirement
Compliance
14 Additional design requirements for software
controlled VACIE
14.1 General requirements and manufacturer's
declarations
Praesideo is compliant.
In order to fulfill requirements of this European Standard the
VACIE may contain elements which are controlled by
software. In this case, the VACIE shall comply with the
requirements of Clause 13 Design requirements and this
clause where relevant to the technology used.
The Praesideo system is centrally controlled by the
software running on the network controller.
14.2 Software documentation
Praesideo is compliant.
14.2.1 The manufacturer shall prepare documentation that
gives an overview of the software design, which shall be
submitted to the testing authority together with the VACIE.
This documentation shall be in sufficient detail for the
design to be inspected for compliance with this European
Standard and shall comprise at least the following:
The software design documentation is available for testing
authorities. It is in sufficient detail for the design to be
inspected for compliance.
a
functional description, using a clear methodology
appropriate to the nature of the software, e.g. graphical
representations of the system design, data flows and
control flows and of the main program flow, including:
An extensive set of architecture documents and software
design documents are available and maintained.
1
a brief description of each module and the tasks it
performs,
Architecture documents are available.
2
the way in which the modules interact,
Architecture and design documents are available.
3
the way in which the modules are called, including
any interrupt processing, and
Architecture and design documents are available.
4
the overall hierarchy of the program;
Architecture documents are available.
b
a description of which areas of memory are used for the
various purposes (e.g. the program, site specific data
and running data);
Memory usage is described in the system architecture
document.
c
a description of how the software interacts with the
hardware of the VACIE.
Hardware software interaction is described in a set of
Hardware-Software Interface documentation.
Where dynamic memory management is employed, a
separation shall be implemented between the program, site
specific data and running data and this shall be described
in connection with the method of memory allocation.
The program is located in separate Flash EPROMs that are
reserved for the program executable.
The message data is stored on a separate Flash card.
The site specific configuration data is stored on the Flash
file system.
The running data (static variables, stacks and heap data) is
stored in RAM.
After loading the program executable from Flash EPROM
into RAM, the code space and the running data are
separated from each other: the code space is in the bottom
area of the RAM and the running data takes up the
remainder. Dynamic memory is allocated from the heap
using the VxWorks (first fit policy based) memory manager.
The file system that, apart from storing the site specific
data, also stores the logging information and configuration
web pages, is a Flash EPROM based DOS FAT file system
that is managed by the VxWorks Flash file system manager.
14.2.2 The manufacturer shall prepare and maintain
detailed design documentation. This need not be submitted
to the testing authority but shall be available for inspection
in a manner which respects the manufacturer's rights of
confidentiality. This documentation shall comprise at least
the following:
The software design documents contain detailed design
documentation. Furthermore code comments also contain
detailed design documentation.
a
a description of each module of the program, as it is
implemented in the source code of the program,
containing:
1 the name of the module, and
2 the identification of the author(s);
The Praesideo software component descriptions (module
descriptions) are available from the software architecture
documents. These documents contain the names of the
components. The author information can be obtained from
the version manager (Merant Version Manager) used for the
documentation.
b
the source code listing, including all global and local
variables, constants and labels used, and sufficient
comment for the program flow to be recognized;
All of the source code listing (including all global and local
variables, constants and labels used) can be obtained from
the version manager (Merant Version Manager) used for the
code. All of the Praesideo code is commented.
Bosch Security Systems | 2011-02
en | 55
Signature
Praesideo 3.5 | Installation and User Instructions | EN54-16: 2008
Clause / Requirement
Compliance
c
The list can be composed on request and contains
high level design tools, compilers for various processors,
syntax validation tools, build tools, test tools, performance
validation tools, version control tools, defect tracking tools.
details of any software tools used in the preparation of
the program (e.g. high level design tools, compilers,
assemblers).
14.3 Software design
Praesideo is compliant.
In order to ensure the reliability of the VACIE the following
requirements for software design shall apply:
a
the software shall have a modular structure;
The modular structure of the Praesideo software is
documented in the software architecture documents.
b
the design of the interfaces for manually and
automatically generated data shall not permit invalid
data to cause an error in the program execution;
The interfaces between the modules and to external
components are well defined and described in the design
documents and external interface documents (Open
Interface). Asserts are used to validate inputs on
component boundaries.
c
the software shall be designed to avoid the occurrence
of a deadlock in the program flow.
Design guidelines are in place to avoid deadlocks. Multi
threading within components is avoided where feasible and
components have an input command queue for safe
decoupling of threads.
14.4 Program monitoring (see also Annex C)
Praesideo is compliant.
14.4.1 The execution of the program shall be monitored as
under 14.4.2 or 14.4.3. If routines associated with the main
functions of the program are no longer executed, either or
both of the following shall apply:
a
the VACIE shall indicate a system fault (as in 8.3);
Upon activation of a watchdog, a fault is reported after
restart of the failing component indicating the failing unit
and processor. If a restart of the failing component is not
possible, a less detailed fault will be reported. A system
fault is indicated when entering the fault condition.
b
the VACIE shall enter the fault warning condition and
indicate faults of affected supervised functions (as in
8.2.3, 8.2.4, 8.3, 8.4 and 8.5), where only these
functions are affected.
Upon activation of a watchdog, a fault is reported after
restart of the failing component indicating the failing unit
and processor.
14.4.2 If the program executes in one processor, the
execution of the routines in 14.4.1, it shall be monitored by a
monitoring device as in 14.4.4.
All processors used in the Praesideo system are either
guarded by a hardware watchdog or are monitored by a
processor that is guarded by a hardware watchdog.
14.4.3 If the program executes in more than one processor,
the execution of the routines in 14.4.1 shall be monitored in
each processor. A monitoring device as in 14.4.4 shall be
associated with one or more processors, and at least one
such processor shall monitor the functioning of any
processor not associated with such a monitoring device.
All processors are either guarded by a hardware watchdog
or are monitored by a processor that is guarded by a
hardware watchdog:.
The network controller is responsible for monitoring all
processors in the system. Upon failure of one of the
processors, either due to a watchdog failure or due to a
communication failure a fault is generated. Failure of the
network controller itself will cause the system fault output
contact to be de-energized to indicate a system fault.
14.4.4 The monitoring device of 14.4.2 and 14.4.3 shall
have a time-base independent of that of the monitored
system. The functioning of the monitoring device, and the
signaling of a fault warning, shall not be prevented by a
failure in the execution of the program of the monitored
system.
All processors are either guarded by a hardware watchdog
or are monitored by a processor that is guarded by a
hardware watchdog.
Additionally the correct operation of the main processor of
all system elements is validated by adding execution
checks on relevant locations in the code. This to assure that
no important flow is excluded from execution.
The network controller multi-threaded environment is
validated on correct operation by monitoring the threads: all
relevant threads must report to a single thread that is
responsible for resetting the watchdog. If threads do not
report within a given time frame the watchdog feeding
process is halted. This monitoring thread itself is
supervised by a hardware watchdog.
14.4.5 In the event of a system fault as specified in 14.4.1
a) or 14.6, those parts of the VACIE affected shall enter a
safe state not later than the indication of the system fault.
This safe state shall not result in the false activation of
mandatory outputs.
Upon restart of a unit other than the Network Controller, the
unit will be reinitialized and reordered to its expected state.
Upon restart of the network controller and subsequent loss
of the audio and communication network, all units will
assume a safe state. The network controller orders the
units to their initialization state and is responsive to new
stimuli when restarted.
Information about errors and fatal errors (those resulting in
a reboot) are saved in SRAM for post mortem analysis.
Additionally to the display, a fault indicator can be supplied
that indicates the presence of a fault.
Bosch Security Systems | 2011-02
en | 56
Signature
Praesideo 3.5 | Installation and User Instructions | EN54-16: 2008
Clause / Requirement
Compliance
14.5 The storage of programs and data (see also
Annex C)
Praesideo is compliant.
14.5.1 All executable code and data necessary to comply
with this European Standard shall be held in memory that is
capable of continuous, unmaintained, reliable operation for
a period of at least 10 years.
All Praesideo programs (executable code and data) are
stored in Flash EEPROM.
14.5.2 For the program, the following requirements shall
apply:
a
the program shall be held in non-volatile memory, which
can only be written to at access level 4, and
Firmware (i.e. the program) can be replaced using the File
Transfer Application. Using the File Transfer Application
requires access level 4.
b
it shall be possible to identify the version reference or
references of the program at access level 3. The
version reference or references shall be in accordance
with the documentation of 14.2.1.
The version of the firmware of the units that have an LCD
(access level 3) is visible on the units and on the firmware
upgrade web page (that can be accessed via the web
interface of the network controller). The version of the
network controller software is visible on the network
controller display and the web start page. Getting access
to the web interface of the network controller requires
access level 3.
14.5.3 For site-specific data, including emergency
message(s), the following requirements shall apply:
a
the alteration of site specific data shall only be possible
at access level 3 or 4;
Alteration of site specific data can only be done via the web
pages offered by the web interface of the network
controller (configuration data) and via the File Transfer
Application (message sets). Getting access to the web
interface of the network controller requires access level 3.
Using the File Transfer Application requires access level 4.
b
the alteration of site specific data shall not affect the
structure of the program;
Configuration of the Praesideo system is implemented to
be data-driven and is not part of the program executable.
Also transferring message sets to the Praesideo system is
data-driven and is not part of the program executable.
Therefore alteration of the site specific data does not affect
the structure of the program.
c
if stored in read-write memory, there shall be a
mechanism which prevents the memory being written to
during normal operation at access level 1 or 2, such
that its contents are protected during a failure in
program execution;
Site specific data is stored in a Flash EEPROM based file
system. The file system is maintained by the VxWorks Flash
file system manager using a dedicated cyclic Flash-Write
program mechanism.
d
It shall be possible to either read or interrogate the site
specific data at access level 2 or 3, or the site specific
data shall be given a version reference that shall be
updated when each set of alterations is carried out.
Site specific data can be viewed and maintained from the
configuration web interface. Using the web interface
requires access level 3.
e
If the site specific data has a version reference, it shall
be possible to identify this at access level 2 or 3.
The site specific data of the Praesideo system does not
have a version reference.
14.6 Monitoring of memory contents
Praesideo is compliant.
The contents of the memories containing the site specific
data shall be automatically checked at intervals not
exceeding 1 h. The checking device shall signal a system
fault if a corruption of the memory contents is detected.
The message store is checked every 100 s using checksum
validation. Upon detecting corruption, a fault is reported
indicating a corrupt message store.
The configuration file is checked at intervals not exceeding
1 h using checksum validation. Upon detecting corruption,
a fault is reported indicating a corrupt configuration.
Bosch Security Systems | 2011-02
en | 57
Signature
Praesideo 3.5 | Installation and User Instructions | EN54-16: 2008
Clause / Requirement
Compliance
15 Marking
Praesideo is compliant.
en | 58
Signature
The VACIE shall be marked with the following information,
which shall be legible at access level 1:
a
the number of this European Standard;
The installer must mark the Praesideo system with the
number of this European standard (which is legible at
access level 1) since the installer must install and configure
the system properly in order to let the installation comply
with this standard.
b
the name or trademark of the manufacturer or supplier;
The name ‘Bosch’ is visible on each element of the
Praesideo system. The installer must ensure that this name
is legible at access level 1 for all system elements.
c
the type number or other designation of the VACIE.
The type number of each unit of the Praesideo system is
present on the unit itself. The installer imust ensure that this
type number is legible at access level 1.
It shall be possible to identify a code or number that
identifies the production period of the VACIE at access
level 1 or 2 or 3.
The hardware version and production data are visible on
the type number plate of each unit of the Praesideo system.
The installer must ensure that this type number plate is
identifiable at access level 1, 2 or 3.
Where Annex ZA.3 covers the same requirements as this
clause, the requirements of this clause are met.
Clause / Requirement
Compliance
16 Tests
All tests as asked for in the clauses of section 16 have been
carried out by an accredited certification body for EN54-16
compliancy.
The Praesideo system has been found compliant to
EN-54-16 and received a certification of compliancy.
Bosch Security Systems | 2011-02
Signature
Praesideo 3.5 | Installation and User Instructions | EN54-16: 2008
en | 59
EN54-16: 2008 VACIE label
The installer is only allowed to affix this VACIE label on the applied cabinet of a Praesideo system, wherein the
network controller (PRS-NCO-B) has been installed, after the installer has completed, dated and signed the
checklist for EN 54-16 or ISO 7240-16 and has clearly indicated on the VACIE label the year in which the VACIE
label actually has been affixed on the cabinet. The aforementioned checklists are available in the Installation and
User Instructions manual of Praesideo 3.5. The VACIE label shall be clearly visible without prior manual
intervention.
Bosch Security Systems | 2011-02
Praesideo 3.5 | Installation and User Instructions | EN54-16: 2008
en | 60
EN54-16: 2008 products description
EN 54-16 is a product standard governing 'Voice Alarm Control and Indicating Equipment' (VACIE) which is
issued by the European Union Construction Product Directive (CPD), also known as Directive 89/106/EEC.
This EU directive ensures that all products sold in the European Union are safe to use and install.
The CPD with number 560 - CPD - 10219002/AA/00, issued by a Notified Certification Body, is valid for the
products listed in the table below, which are part of the Praesideo Digital Public Address and Emergency Sound
System.
Main trademark
Main product description
Main type designation
Hardware
release
Software
release
3.5
Bosch
Network Controller
PRS-NCO-B
21/05
Bosch
Audio Expander
LBB4402/00
16/15
3.5
Bosch
Multichannel Interface
PRS-16MCI
04/10
3.5
Bosch
Network Splitter
PRS-NSP
03/15
3.5
Bosch
Fiber Interface
PRS-FIN
03/15
3.5
Bosch
Fiber Interface Non-Addressable
PRS-FINNA
03/15
3.5
3.5
Bosch
Fiber Interface Single-Mode
PRS-FINS
03/15
Bosch
Power Amplifier 8 x 60 W
LBB4428/00
04/05 & 05/05
3.5
Bosch
Power Amplifier 1 x 500 W
PRS-1P500
06/05
3.5
Bosch
Power Amplifier 2 x 250 W
PRS-2P250
06/05
3.5
Bosch
Power Amplifier 4 x 125 W
PRS-4P125
06/05
3.5
Bosch
Basic Amplifier 1 x 500 W
PRS-1B500
06/05
3.5
Bosch
Basic Amplifier 2 x 250 W
PRS-2B250
06/05
3.5
Bosch
Basic Amplifier 4 x 125 W
PRS-4B125
06/05
3.5
Bosch
Basic Amplifier 8 x 60 W
PRS-8B060
06/05
3.5
Bosch
Basic Call Station
LBB4430/00
06/15
3.5
Bosch
Call Station Keypad
LBB4432/00
01/18
3.5
Bosch
Numeric Keypad
PRS-CSNKP
01/18
3.5
Bosch
Call Station Interface
PRS-CSI
01/15
3.5
Bosch
Remote Call Station
PRS-CSR
01/15
3.5
Bosch
Supervision Control Board
LBB4440/00
01/05
3.5
Bosch
LSP Supervision Board
LBB4441/00
01/05
3.5
Bosch
Line Supervision Set
LBB4442/00
01/10
3.5
Bosch
EOL Supervision Board
LBB4443/00
01/05
3.5
Bosch
Call Stacker
PRS-CRF
01/10
3.5
This list of products is subject to change. The most recent version of this list can be found on
www.boschsecurity.com.
Certification of the Praesideo Digital Public Address and Emergency Sound System includes the cabinets (i.e. the
enclosed 19"-racks) in which the system elements are mounted. It is allowed to use one or more cabinets, depending
on the size of the Praesideo system. Within the same cabinet family, different heights are allowed up to a maximum
height that depends on the brand and type of the cabinet.
The following cabinets have been approved for use with Praesideo:
• Rittal TS8 series, with lockable glass door, side panels, temperature controlled top fans and a lockable swing
frame with a maximum height of 40 HU.
The list of approved cabinets is subject to change. The most recent version of this list can be found on
www.boschsecurity.com.
Bosch Security Systems | 2011-02
Praesideo 3.5 | Installation and User Instructions | ISO7240-16: 2007
en | 61
ISO7240-16: 2007 compliancy checklist
Clause / Requirement
Compliance
EN54-16 and ISO7240-16 are very similar standards. The
following list gives a summary of the differences between
the EN54-16 and the ISO7240-16 standards for voice
alarm control and indicating equipment. Only essential
differences are listed. Differences in phrasing between the
standards (that occur very frequently) are omitted. Also
similar clauses that have a different number in ISO7240-16
compared to EN54-16 are not listed. The changes are
divided into sections
• Additions: clauses in ISO7240-16 that do not exist in
EN54-16; the ISO7240-16 text is generally given.
• Changes: clauses in EN54-16 and ISO7240-16 that
are basically the same but differ in detail, the change is
given by using italic typeface.
• Exclusions: requirements that are in EN54-16 but are
not in ISO7240-16.
Responsibility of the installer. The installer must use the
checklist for EN54-16 before proceeding with this list for
ISO7240-16
Signature
Additional clauses
Clause / Requirement
Compliance
6 Quiescent condition
Any kind of system information may be displayed during the
quiescent condition. However, no indications shall be given
that can be confused with indications used in
• the test condition.
The optional test condition is not supported by the
Praesideo system.
7 Voice-alarm condition
7.1 Reception and processing of alarm signal
7.1.4 Where the s.s.c.i.e. is used for non-emergency
purposes, the voice-alarm condition shall disable or
override any functions not connected with the emergency
functions.
Upon entering the emergency mode Praesideo can be
configured to override non-emergency functions, based on
priority settings.
7.2 Alert signal - Optional function
7.2.1 The s.s.c.i.e. may produce one or more alert signals
complying with ISO 7731.
Praesideo offers various alert signals that comply with
ISO7731. Also prerecorded signals can be stored and
selected in Praesideo.
The installer must select and configure an alert signal that is
in compliance with ISO7731 from the list of available
signals that Praesideo offers. The preferred signal and
required sound pressure level depend on the the actual
application, as the parameters of the danger signal (signal
level, frequency spectrum, temporal pattern, etc.) shall be
designed to stand out from all other sounds in the
reception area and shall be distinctly different from any
other signals.
The sound pressure level shall be at least 65dBA at any
position in the signal reception area, while being at least
15dB above A-weighted ambient noise, but it may not
exceed 118dBA.
The danger signal shall include frequency components
between 500Hz and 2500Hz. Pulsating danger signals are
preferred to signals that are constant in time, while the
repetition frequencies shall be in the range from 0.5Hz to
4Hz.
Examples of compliant Praesideo tones are the ‘DIN alarm’
(sweeping signal from 1200Hz down to 500Hz in 1s,
repeating) and the ‘2-tone alarm 2’ (alternating frequencies
of 650Hz and 850Hz, every frequency lasts 500ms,
repeating).
Bosch Security Systems | 2011-02
Signature
Praesideo 3.5 | Installation and User Instructions | ISO7240-16: 2007
7.2.2 Where a voice signal is used as part of the alert
signal, the alert signal shall precede the first pre-recorded
voice message for 3 s to 10 s. Successive alert signals and
messages shall then continue until either automatically or
manually changed or silenced. The interval between
successive messages shall not exceed 30 s and alert
signals shall be broadcast whenever periods of silence
might otherwise exceed 10 s.
Praesideo offers this functionality via its call macros. The
installer must configure the call macros accordingly.
7.2.3 Where more than one alert signal is provided, each
signal shall be clearly distinguishable.
Praesideo offers a wide choice of independent alert and
alarm signals.
en | 62
7.3 Evacuate signal
7.3.1 The evacuate signal may be preceded by an alert
signal (see 7.2).
Praesideo offers the possibility to configure a call macro
with an evacuation signal or evacuation message only.
The use of an alert signal, together with an evacuate signal,
should be assessed as part of an emergency management
plan (see ISO 7240-19). For buildings and structures
where the plan requires the unassisted evacuation of
occupants, the s.s.e.p. may be configured to generate a
warning signal that does not incorporate an alert signal.
7.3.2 The evacuate signal shall include the tone signal and
pre-recorded voice messages, as specified in ISO 8201.
Manufacturers may implement other signal templates to
satisfy specific mandated national requirements.
The installer must configure one of the dedicated ISO8201
compliant evacuate signals that Praesideo offers. These
emergency signals have the temporal pattern as described
by ISO8201 and have a predefined name
‘Emg x ISO8201 C’, with x being a sequential number.
The installer must ensure that the sound pressure level of
the evacuate signal is at least 65dBA, or 75dBA if the
signal is intended to arouse sleeping occupants.
ISO8201 does not specify pre-recorded voice messages,
but Praesideo offers the possibility to store and select
custom voice messages to satisfy specific mandated
national requirements.
7.5 Audible warning - Optional function
7.5.3 The audible warning shall be silenced automatically
when the s.s.c.i.e. is reset from the voice alarm condition.
Praesideo silences the audible warning signal upon
acknowledge of the voice alarm condition. Acknowledge
and reset can be combined in a single action.
7.6 Delay before entering the voice-alarm condition Optional function
d
It shall be possible to override the delay by a manual
operation at access level 1 and/or by a signal from a
manual call point.
Since the Praesideo system does not process the fire
sensors, this functionality is better handled by the device
managing the fire sensors (the CIE). The Praesideo system
itself does not implement this requirement.
7.7 Phased evacuation - Optional function
c
When switching from phased evacuation to manual
mode, the phased evacuation sequence shall halt.
Praesideo has multiple priority levels to override (phased
evacuation) calls by manually activated calls.
d
When switching from manual mode to phased
evacuation, the phased evacuation sequence shall
resume from the point at which it was halted.
Praesideo will resume manually overruled calls without live
speech but with emergency priority, after the overruling call
has finished.
Clause / Requirement
Compliance
8 Fault-warning condition
8.1 Reception and processing of fault signals
8.1.2 The s.s.c.i.e. shall be capable of simultaneously
recognizing all of the faults specified in 8.2, and in 8.3 if
provided, unless this is prevented by
• the presence of voice-alarm signals in the same
emergency loudspeaker zone, and/or
• the disablement of the corresponding emergency
loudspeaker zone or function, and/or
• the testing of a corresponding zone or function.
In Praesideo supervision is always active.
8.2 Indication of faults in specified functions
8.2.2 If the indication is by means of separate light-emitting
indicators, these may be the same as those used to
indicate disablement and/or testing of the corresponding
emergency loudspeaker zones or functions.
Bosch Security Systems | 2011-02
Praesideo uses separate indicators for faults.
The optional disablement and test conditions are not
supported by the Praesideo system.
Signature
Praesideo 3.5 | Installation and User Instructions | ISO7240-16: 2007
8.6 Fault-warning condition output signal
The s.s.c.i.e. shall have an output to transmit the faultwarning condition specified in 8.2. The output signal shall
be given if the s.s.c.i.e. is de-energized.
The Praesideo network controller provides two predefined
control outputs for audible and visual fault indicators with
fail-safe behavior. When de-energized, the contacts of
these control outputs are closed (activated).
Clause / Requirement
Compliance
en | 63
Signature
9 Disabled condition - Optional function
9.3 Indication of specific disablements
9.3.1 Each emergency loudspeaker zone shall be indicated
by means of separate light-emitting indicators and/or an
alphanumeric display. The indications shall not be
suppressed during the voice-alarm condition.
The optional disablement condition is not supported by the
Praesideo system.
9.3.3 The same light-emitting indicator may be used as that
for the indication of the corresponding fault, although the
indication shall be distinguishable. The same light-emitting
indicator and the same indication may be used to indicate a
disabled emergency loudspeaker zone and an emergency
loudspeaker zone under test.
The optional disablement condition is not supported by the
Praesideo system.
Clause / Requirement
Compliance
10 Test condition - Optional function
The optional test condition is not supported by the
Praesideo system.
Clause / Requirement
Compliance
11 Manual mode control - Optional function
11.1.2 In the manual mode, the receiving and display of
signals shall not be inhibited.
Praesideo does not inhibit the receiving and display of
signals in the manual mode.
11.1.3 In the manual mode, any phased evacuation
sequence shall be halted. Returning the system to
automatic mode shall reinstate the phased evacuation
sequence as if it had not been halted.
Praesideo will resume manually overruled calls after the
overruling call has finished, providing that the overruled call
was without live speech and had emergency priority.
Bosch Security Systems | 2011-02
Signature
Signature
Praesideo 3.5 | Installation and User Instructions | ISO7240-16: 2007
Clause / Requirement
Compliance
13 Emergency microphone - Optional function
13.1 General
c The emergency microphone control shall mute alert and
evacuate signals within the selected emergency
loudspeaker zone.
If the configured call of the emergency microphone was
given a higher priority than the calls that generate alert and
evacuate signals within the same emergency loudspeaker
zone, these calls will be aborted and mute.
d
Use of the emergency microphone shall not reset an
existing functional condition. After the microphone is no
longer used, the functional condition shall be reestablished.
Praesideo will resume overruled calls after the overruling
call has finished, providing that the overruled call was
without live speech and had emergency priority.
The emergency state that was entered upon starting a call
with emergency priority, will remain until explicitly manually
reset.
e
Unless 13.3 applies, the microphone shall broadcast
voice messages to a pre-configured set of emergency
loudspeaker zones.
Praesideo allows for free assignment of emergency
loudspeaker zones to calls that may contain live speech or
prerecorded messages.
This assignment can be manually during operation or in
advance during configuration.
13.2 Microphone priority - Optional function
13.2.2 Where more than one microphone is configured at
each priority level, only one microphone shall be active at
any one time. If more than one microphone at the same
priority is activated, the most recently activated microphone
shall be enabled.
Praesideo allows more than one microphone to be
configured for calls with the same priority, but in that case
typically the most recently activated one will not be enabled
until the previous one has finished, i.e. first come, first
served. Only in case of the highest priority, 255, multiple
calls with this priority act on overruling basis, i.e. the most
recently activated microphone will be enabled.
Only one microphone will be active at any one time in the
same zone.
13.3 Microphone emergency loudspeaker zone
control - Optional function
The s.s.c.i.e. may be configurable to route microphone
messages to groups of emergency loudspeaker zones, with
each group containing at least one emergency loudspeaker
zone.
Bosch Security Systems | 2011-02
Praesideo allows for configuration of zone groups,
containing one or more emergency loudspeaker zones.
Calls can be made to a free selection of zones and zone
groups.
en | 64
Signature
Praesideo 3.5 | Installation and User Instructions | ISO7240-16: 2007
Clause / Requirement
Compliance
14 Design requirements
14.2 Documentation
14.2.1 The manufacturer shall prepare installation and user
documentation, which shall be submitted to the testing
authority together with the s.s.c.i.e. This shall comprise at
least the following:
b technical specifications of the inputs and outputs of the
s.s.c.i.e., sufficient to permit an assessment of the
mechanical, electrical, and software compatibility with
other components of the system (e.g. as described in
ISO 7240-1), including where relevant
3 the maximum number of alarm inputs from an
emergency detection system
The inputs and outputs for audio and control are described
in the IUI, including the technical data, system functions,
configuration instructions, compliancy to standards. This
includes the information as requested in 14.2.1 b 3.
c
The IUI contains all information as requested in 14.2.1 c
1-5.
installation information, including
1
the suitability for use in various environments,
2
how the requirements of 14.3.3 and 14.5.3 can be
met if the s.s.c.i.e. is contained in more than one
cabinet,
3
how the requirements of 14.3.3 and 14.5.4 can be
met if the s.s.c.i.e is designed to be used with
power-supply equipment contained in a separate
cabinet,
4
mounting instructions, and
5
instructions for connecting the inputs and outputs.
14.3.3 The s.s.c.i.e. may be housed in more than one
cabinet. If the documentation shows that the cabinets may
be installed in locations distributed within a site, then all of
the mandatory manual controls and indicators shall be on
one cabinet or on cabinets declared to be suitable only for
mounting adjacent to each other.
In case Praesideo is installed in multiple cabinets in
locations distributed within a site, the installer must arrange
that all mandatory manual controls and indicators are on the
same location, either by installing them on a single cabinet
or on adjacent cabinets that are mounted in physical
contact with each other.
NOTE For the purposes of 14.3.3, adjacent cabinets are
those that are mounted in physical contact with each other.
14.8 Indications on alphanumeric displays
14.8.2 Alphanumeric displays used for mandatory
indications shall have at least one clearly distinguishable
window, consisting of at least two clearly identifiable fields.
The display of the network controller is used to display
mandatory indications. It consists of two separate lines of
text, each representing a specific field, clearly identifiable.
14.8.3 If not included in the displayed information, the
purpose of each field shall be clearly labelled.
Indication of the voice alarm condition is by means of the
text 'Emergency' and the name of the key that activated the
voice alarm condition. Indication of the fault warning
condition is by means of the text 'Faults' and an indication
of the number of active faults in the system. Individual faults
with details are shown in a menu structure.
14.8.4 Where roman characters are used, a field shall be
capable of containing at least the following:
a
at least 16 characters where the display of a functional
condition uses a cross-reference to other information to
identify the location;
The display of the network controller consists of two lines
with 16 characters each. It uses a menu with rotary knob
navigation to select additional detailed information about
functional conditions.
b
at least 40 characters where the display is intended to
include the complete information on the location of a
functional condition.
Not applicable, see 14.8.4.a.
14.8.5 Where other characters are used, a field shall be
capable of containing at least the following:
a
at least 4 characters where the display of a functional
condition uses a cross-reference to other information to
identify the location;
b
at least 8 characters where the display is intended to
include the complete information on the location of a
functional condition.
Not applicable, see 14.8.4.
14.9 Colours of indications
14.9.1 The colours of the general and specific indications
from light-emitting indicators shall be as follows:
b
yellow for indications of
3
emergency loudspeaker zones in the test state.
Bosch Security Systems | 2011-02
The test condition is an optional function and is not
supported by Praesideo. See 10.
en | 65
Signature
Praesideo 3.5 | Installation and User Instructions | ISO7240-16: 2007
Clause / Requirement
Compliance
17 Tests
All tests as asked for in the clauses of section 17 have been
carried out by an accredited certification body for
ISO7240-16 compliancy.
en | 66
Signature
The Praesideo system has been found compliant to
ISO7240-16 and received a certification of compliancy.
Clause / Requirement
Compliance
18 Test report
The tester must take care of documenting the testing
programme and the results of the tests in a test report that
at least contains the information as listed in clause 18.
Signature
Changed clauses
Clause / Requirement
Compliance
4.3 Power supply
Power-supply equipment shall comply with the
requirements of ISO 7240-4 and may be internal or external
to the s.s.c.i.e. cabinet.
The installer must use power supplies and battery charging
equipment in accordance with ISO7240-4, with separate
wiring for mains (230Vac) and battery backup (48Vdc) from
the power supply to the Praesideo system.
The power supply may be shared with that of the
emergency detection system.
The power supply equipment must be installed in a
separate cabinet, not shared with the Praesideo system,
unless the combination of the actual power supply
equipment and Praesideo system elements in the same
cabinet has been certified.
Signature
The content of the ISO7240-16 certification is subject to
change. The most recent version of this certificate can be
found on www.boschsecurity.com.
The network controller and all amplifiers are supplied with a
mains supply and DC backup supply (48V) input. Switch
over between the both takes place automatically, without
any interruption or status change other than the power
supply related indications.
The installer must ensure that the output voltages of the
power supply equipment do not exceed the specifications
of the mains and battery inputs of the connected Praesideo
equipment.
Clause / Requirement
Compliance
Signature
8 Fault-warning condition
8.5 Reset of fault indications
8.5.2 Following the completion of the reset process, the
indication of the correct functional conditions
corresponding to any received signals shall either remain or
be re-established within 100 s.
If any individual fault is reset while it is not actually resolved
in the system, the Praesideo system will report the fault
again within 100 seconds. If all faults are reset in one
action, all individual faults that are not actually resolved in
the system are reported again within 100 seconds.
Clause / Requirement
Compliance
9 Disabled condition - Optional function
9.3 Indication of specific disablements
9.3.4 If the indication is on an alphanumeric display that
cannot simultaneously indicate all of the disablements
because of its limited capacity, at least the following shall
apply.
b
Suppressed disablement indications shall be capable
of being displayed, independently of other indications,
by means of a manual operation at access level 1 or 2,
which interrogates only the disablement indications.
Bosch Security Systems | 2011-02
Praesideo does not support the optional function disabled
condition. See 9.
Signature
Praesideo 3.5 | Installation and User Instructions | ISO7240-16: 2007
Clause / Requirement
Compliance
14 Design requirements
14.1 General requirements and manufacturer's
declarations
14.1.2 In order to assist the process of design inspection,
the manufacturer shall declare in writing that
a
the design has been carried out in accordance with a
quality management system that incorporates a set of
rules for the design of all elements of the s.s.c.i.e.
[e.g. ISO 9001].
14.8.6 Mandatory indications on an alphanumeric display
shall be legible for the lesser of 1 h or the duration of the
standby power source, following the display of a new
indication of a functional condition, at 0,8 m distance in
ambient light intensities from 5 lx to 500 lx and at any angle
from the normal to the plane of the display up to
• 22,5° when viewed from each side;
• 15° when viewed from above and below.
Following the lesser of 1 h or the duration of the standby
power source, the indications shall be legible at 100 lx to
500 lx at the above distance and angles. It shall be possible
to re-establish the legibility at 5 lx to 100 lx by means of a
manual operation at access level 1.
The Bosch Security Systems development department
responsible for development / maintenance of the
Praesideo system works according its own development
process, Standard Development Process or SDP, which is
created using the CMMI model. The SDP implements all
process areas at maturity level 2 of the CMMI model, and
some process areas at maturity level 3 of the CMMI model.
Rules for the design of all elements of the Praesideo
system can be found in the SDP repository. In the SDP
repository all process descriptions, process
implementation documents, templates, guidelines, etc. of
the development processes can be found.
The SDP repository is a version control system.
Bosch Security Systems is ISO9001 certified.
If the Praesideo system enters the voice alarm condition the
display of the network controller will automatically show the
'Emergency' menu. This indication stays on as long as the
system is in the voice alarm condition (i.e. until the voice
alarm condition is reset).
If the Praesideo system enters the fault warning condition
the display of the network controller will automatically show
the 'Faults' menu with the current number of active faults.
This indication stays on until either the rotary knob of the
network controller is used to navigate through the menu, or
the system enters the voice alarm condition. The 'Faults'
menu will always be present in the Network Controller
menu. Individual faults are present in this 'Faults' menu until
they are reset or until they are overwritten by newer faults
The menu can show up to 200 individual faults after which
the oldest faults are deleted when new faults occur.
The display of the Network Controller complies with the
legibility demands of this clause.
14.10 Audible indication
14.10.2 The minimum sound level, measured under
anechoic conditions, at a distance of 1 m with any access
door on the s.s.c.i.e. closed, shall be either
• 60 dBA for voice-alarm indications and 50 dBA for
fault-warning indications, or
• 85 dBA for voice-alarm indications and 70 dBA
for fault-warning indications.
The installer must connect the buzzer that is provided with
Praesideo and complies with the sound levels according to
the first option, or use a different buzzer with sound levels
according to the second option. The selection depends on
the background noise on the location where Praesideo is
installed or by national requirements.
NOTE The allowance for two sets of audible indications
contemplates some s.s.c.i.e. being installed in normally
occupied areas (such as a security room). The selection of
an appropriate sound level can be controlled by national
requirements.
14.12.3 Frequency response of s.s.c.i.e.
Bosch Security Systems | 2011-02
The frequency response requirements of ISO7240-16,
clause 14.12.3 are less stringent than required by EN54-16,
clause 13.12.3.
The Praesideo sound paths are within the specified limits of
this clause.
en | 67
Signature
Praesideo 3.5 | Installation and User Instructions | ISO7240-16: 2007
Clause / Requirement
Compliance
17 Tests
All tests as asked for in the clauses of section 17 have been
carried out by an accredited certification body for
ISO7240-16 compliancy.
The Praesideo system has been found compliant to
ISO7240-16 and received a certification of compliancy.
17.1 General
17.1.5 Mounting arrangements
The specimen shall be mounted by its normal means of
attachment in accordance with the manufacturer's
instructions. If these instructions describe more than one
method of mounting, then the method considered to be
the least favourable shall be chosen for each test.
17.2 Functional test
17.2.2.4 Test schedule - Disabled condition
Where a disablement function is provided, disable and
restore at least two emergency loudspeaker zones (unless
only one zone is provided).
Check that the operation of the disablement controls result
in the correct indication on the s.s.c.i.e., that only the
relevant parts of the system are disabled and that, on
restoration of the disablements, the function is restored.
17.3 Test schedule
17.3.4 Test for three specimens
If three specimens are supplied for environmental testing,
then one test specimen is subjected to all the operational
tests, which may be carried out in any order. The second
specimen shall be subjected to one of the endurance
tests, and the third specimen shall be subjected to the
other endurance test. Before and after each environmental
test, a functional test shall be carried out.
For the first specimen, the functional test after one
environmental test may be taken as the functional test
before the next environmental test.
17.4 Output power
17.4.2.2 State of the specimen during conditioning
Mount the specimen as specified in 17.1.5 and connect it to
suitable power-supply, monitoring and loading equipment,
as specified in 17.1.3.
The specimen shall be in the quiescent condition.
17.4.2.3 Conditioning
Apply the following severity of conditioning:
• temperature: 40 °C ± 2 °C.
Precondition the specimen at the conditioning temperature
(40 °C ± 2 °C) until temperature stability has been reached
to prevent the formation of water droplets on the specimen.
Terminate the s.s.c.i.e. output(s) with the minimum resistive
and maximum capacitive load representing the loudspeaker
lines and loudspeakers.
Adjust the power-supply equipment output to the nominal
primary power source level.
Apply the 1 kHz sinusoidal signal to the input of the
specimen and adjust the gain of the system until the rated
r.m.s. output power is achieved.
Maintain this gain for 1 min.
17.4.2.5 Final measurements
After 1 h recovery time at standard atmospheric
conditions, measure the frequency response of the
specimen in accordance with 17.6 or 17.7, as applicable.
Bosch Security Systems | 2011-02
Praesideo does not support the optional function disabled
condition. See 9.
en | 68
Signature
Praesideo 3.5 | Installation and User Instructions | ISO7240-16: 2007
en | 69
Excluded clauses
Clause / Requirement
Compliance
Signature
EN54-16, clause 12.1 Emergency microphone - option
with requirements.
c
Where a pre-announcement attention drawing signal is
provided, an indicator adjacent to the microphone shall
show when the signal has finished and live speech can
commence.
This clause is not part of ISO7240-16.
Clause / Requirement
Compliance
EN54-16, clause 13.4.1 Electrical and other design
requirements
The processing of signals shall give the highest priority to
the voice alarm condition.
This clause is not part of ISO7240-16.
EN54-16, clause 13.13 Message store(s)
Pre-recorded messages shall be stored in non-volatile
memory that retains the messages when all power sources
are removed.
The NOTE is not part of ISO7240-16.
NOTE The use of tapes or magnetic or optical data disks
for the storage of emergency messages is not acceptable
at the time of drafting this European Standard
(see Annex C)
Bosch Security Systems | 2011-02
Signature
Praesideo 3.5 | Installation and User Instructions | ISO7240-16: 2007
Intentionally left blank.
Bosch Security Systems | 2011-02
en | 70
Praesideo 3.5 | Installation and User Instructions | Praesideo on Ships
en | 71
Praesideo on board of ships
Guidelines for use of Praesideo equipment on board of ships, in accordance with Rules for Classification and
Construction VI-Part 7, GL 2001, Chapters 3 as published by Germanischer Lloyd, based on IACS E10 and
IEC 60945.
Type number
Product name
Bridge and deck
General power
Accommodation
zone
and distribution
zone
zone
PRS-NCO-B
Network Controller
No
Yes
Yes
LBB4402/00
Analog Audio Expander
Yes
Yes
Yes
LBB4404/00
CobraNet Interface
Yes
Yes
Yes
PRS-NSP
Network Splitter
Yes
Yes
Yes
PRS-FIN(NA)
Fiber Interface
Yes
Yes
Yes
PRS-FINS
PRS-1P500
Power Amplifier 1 x 500 W
Yes
Yes
Yes
PRS-2P250
Power Amplifier 2 x 250 W
Yes
Yes
Yes
PRS-4P125
Power Amplifier 4 x 125 W
Yes
Yes
Yes
LBB4421/xx
Power Amplifier 1 x 500 W
Yes
Yes
Yes
LBB4422/xx
Power Amplifier 2 x 250 W
Yes
Yes
Yes
LBB4424/xx
Power Amplifier 4 x 125 W
Yes
Yes
Yes
LBB4428/00
Power Amplifier 8 x 60 W
No
Yes
Yes
PRS-16MCI
Multi Channel Interface
Yes
Yes
Yes
PRS-1B500
Basic Amplifier 1 x 500 W
Yes
Yes
Yes
PRS-2B250
Basic Amplifier 2 x 250 W
Yes
Yes
Yes
PRS-4B125
Basic Amplifier 4 x 125 W
Yes
Yes
Yes
PRS-8B060
Basic Amplifier 8 x 60 W
Yes
Yes
Yes
LBB4430/00
Call Station Basic
Yes
Yes
Yes
LBB4432/00
Call Station Keypad
Yes
Yes
Yes
PRS-NKP
Call Station Numeric Keypad
Yes
Yes
Yes
PRS-CRF
Call Stacker
Yes
Yes
Yes
LBB4433/00
Call Station Kit
Yes
Yes
Yes
LBB4434/00
Call Station Keypad Kit
Yes
Yes
Yes
PRS-CSI
Call Station Interface
Yes
Yes
Yes
PRS-CSR
Remote Call Station
Yes
Yes
Yes
PRS-CSRK
Remote Call Station Kit
Yes
Yes
Yes
LBB4440/00
Supervision Control Board
Yes
Yes
Yes
LBB4441/00
Lsp Supervision Board
Yes
Yes
Yes
LBB4442/00
Line Supervision Set
Yes
Yes
Yes
LBB4443/00
Line Supervision Board
Yes
Yes
Yes
LBB4416/00
Network Cable 100 m
Applied as dedicated accessory of aforementioned products.
LBB4416/01
Network Cable Assy 0.5 m
Applied as dedicated accessory of aforementioned products.
LBB4416/02
Network Cable Assy 2 m
Applied as dedicated accessory of aforementioned products.
LBB4416/05
Network Cable Assy 5 m
Applied as dedicated accessory of aforementioned products.
LBB4416/10
Network Cable Assy 10 m
Applied as dedicated accessory of aforementioned products.
LBB4416/20
Network Cable Assy 20 m
Applied as dedicated accessory of aforementioned products.
LBB4416/50
Network Cable Assy 50 m
Applied as dedicated accessory of aforementioned products.
LBB4417/00
Set of Network Connectors
To be applied in combination with the LBB4416/00.
LBB4419/00
Set of Cable Couplers
To be applied in combination with the LBB4416/00.
Bosch Security Systems | 2011-01
Praesideo 3.5 | Installation and User Instructions | Praesideo on Ships
Intentionally left blank.
Bosch Security Systems | 2011-01
en | 72
2011-02 | Installation and User Instructions | 2 | Introduction
Part 2 - Introduction
Bosch Security Systems | 2011-02
en | 73
2011-02 | Installation and User Instructions | 2 | Introduction
Intentionally left blank.
Bosch Security Systems | 2011-02
en | 74
2011-02 | Installation and User Instructions | 2 | Introduction
1
About this manual
1.1
Purpose of this manual
This manual supplies an engineer with the information
required to install a Praesideo system.
Praesideo recognizes the following authorization levels:
• Administrator
Typically a person who is responsible for ensuring
that the system is properly maintained and repaired
so as to continue to operate as specified.
• Installer
Typically an installation engineer who installs the
system.
• User
Typically an end-user of the system.
1.2
Intended audience
This manual has been written with administrators and
installers in mind. To be able to make the right
judgements in error situations, it is preferred that you
have followed a general Praesideo training. User
instructions for the end-users must be provided by the
administrator(s) and installer(s).
Sections in this manual that carry a Caution, Warning or
Danger sign describe servicing instructions for use by
qualified service personnel only. To reduce the risk of
electric shock do not perform any servicing other than
that contained in the operating instructions unless you
are qualified to do so.
1.3
These alerts - from least severe effect to most severe
effect - are:
• Note
Alert containing additional information. Usually, not
observing a note alert does not result in damage to
the equipment or personal injuries.
• Caution
The equipment can be damaged if the alert is not
being observed.
• Warning
Persons can be (severely) injured or the equipment
can be seriously damaged if the alert is not being
observed.
• Danger
Not observing the alert can result in death.
1.5
Signs
Except for note alerts, the nature of the effect that can
be caused when the alert is not observed, is indicated
using a sign. For note alerts, the sign provides more
information about the note itself. In this manual, the
following signs are used in combination:
Note
General sign for notes.
Note
Consult the indicated source of information.
Related documentation
The following related documents are available:
• Release notes on the DVD
• Commercial Brochure on the website
(www.boschsecurity.com)
• Data Brochure on the website
(www.boschsecurity.com)
• Architect’s & Engineer’s Specification on the website
(www.boschsecurity.com)
1.4
en | 75
Alerts
In this manual, four types of alerts are used. The alert
type is closely related to the effect that may be caused
when it is not observed.
Bosch Security Systems | 2011-02
Caution, Warning, Danger
General sign for cautions, warnings and
dangers.
Caution, Warning, Danger
Risk of electric shock.
Caution, Warning, Danger
Risk for electrostatic discharges.
2011-02 | Installation and User Instructions | 2 | Introduction
2
2.1
System overview
Introduction
Praesideo is a fully digital public address system that
meets all the requirements placed by professional users
on a public address/emergency system. The system
brings highly innovative and advanced digital
technology to the public address market. The processing
and communication of both audio signals and control
data entirely in the digital domain makes the system a
superior public address and emergency sound system.
Digital signal processing allows significant
improvements in audio quality to be achieved. The
Praesideo system is designed for configuration from a
PC, which makes installation and setting of operating
parameters very simple and user-friendly.
The Praesideo system satisfies almost all public address
and voice alarm system requirements. All audio
processing is performed in the digital domain.
Communication between the units is via plastic fiber or
glass fiber cabling, depending on the distance between
the units. The cabling uses the daisy chain principle.
This makes the cabling and installation very quick,
simple and easy. The system cabling supports a closed
loop, which allows redundancy to be achieved. If
redundancy is not required, also branching is possible.
2.2
User-friendly software control
The system is supplied with user-friendly software for
system configuration. This allows all system functions to
be configured. The software is based on web
technology, which gives authorized users full freedom of
configuration in terms of time and location. The
simplified and accurate organization of the
programming features makes navigation highly userfriendly and fault-tolerant. The software also provides
clear indication of any parameters, which have not been
configured before exiting from any stage of the
configuration process.
Bosch Security Systems | 2011-02
en | 76
2.3
Networked approach
The system architecture is based on daisy-chaining of
units. It is possible to add or remove equipment
anywhere in the network without affecting the
performance of other units, provided that the network
connection is available. This makes the system easily
expandible by the customer, without adding any
additional electronics at the network controller unit.
Thanks to this network architecture, users can start with
a small system in the initial stage and expand the system
later simply by adding the required new units to the
existing network. The system can be configured for
redundant cabling using a ring cabling structure.
2.4
Distributed control
The system is designed for distributed control of various
system functions. The external interfaces which are
control inputs and outputs can be located anywhere in
the network. The processing of audio input and output
signals is located in each unit. This allows the network
controller to concentrate on other activities like routing
of announcements and taking actions on control inputs,
etc. As a result the response times are much shorter than
for systems with centralized processing of all signals.
2.5
Combination of functions
The Praesideo range of equipment has multiple
functions combined in a single unit. This feature
drastically reduces the number of different types of
equipment used in the system. Functions like audio
processing, audio delay, amplifier monitoring and
automatic amplifier change-over and receivers for
speaker line monitoring are provided in the power
amplifier unit itself. This makes the overall system
highly cost-effective. The flexible architecture of the
Praesideo range of equipment allows the customer to
locate any type of equipment anywhere in the building.
The configuration software enables the user to configure
all the functional parameters. No programming is
required at the equipment end, which drastically
reduces the installation and commissioning time.
2011-02 | Installation and User Instructions | 2 | Introduction
2.6
Evacuation compliance
The Praesideo range of equipment complies with the
various emergency standards which are applicable all
over the world. The network controller is capable of
monitoring all the units in the system, from the
microphone capsule of the call station to the
loudspeaker line. A built-in memory stores the last
200 fault messages. Any fault is reported back to the
network controller. The system also meets emergency
requirements for emergency call stations. The highly
open system concept, with the possibility for large
numbers of control inputs and outputs satisfies even
difficult emergency requirements.
2.7
External interfaces
The interfaces to the system can be audio, control input
or Ethernet. The Ethernet interface is provided at the
network controller. The audio and control inputs can be
anywhere in the system, for example at the power
amplifier, audio expander or network controller.
The system also accepts contact closures via the control
inputs. The configuration allows the user to configure
the input to initiate the desired actions in the system.
The flexibility to route any input from one system unit
to another makes it possible to use the Praesideo range
of products or a wide range of public address and
emergency sound system applications.
2.8
Reduced installation costs
The Praesideo architecture uses the daisy chain
principle with the possibility of branching for both data
and audio signals. This makes the system wiring very
cost-effective, using 2 fiber cores for data and audio
communication and a copper wire pair to supply power
to the units. Power supply for the system units can be
provided locally if the distances are very long.
Combining various functions in a single unit also makes
equipment more cost-effective than systems in which
separate units have to be purchased for all the specific
functions. This combination of functions also saves lot of
rack space and further reduces installation costs.
Bosch Security Systems | 2011-02
en | 77
2.9
High system flexibility
The Praesideo system is a highly versatile system which
gives the user a high degree of flexibility in the number
of zones, call stations, audio inputs and outputs, control
inputs and outputs, etc.
2011-02 | Installation and User Instructions | 2 | Introduction
3
3.1
Calls
Introduction
As Praesideo is a public address and emergency sound
system, it is used to distribute background music, live
speech and evacuation messages. All audio in the
system is distributed in the form of calls.
3.2
Call attributes
3.2.1
Introduction
A call always consists of the following attributes:
• Priority (see section 3.2.2)
• Call content (see section 3.2.3)
• Routing (see section 3.2.4)
• Timing (see section 3.2.5)
3.2.2
Priority
To each call, a priority is assigned. When two or more
calls are addressed to the same zone or need shared
resources (e.g. the message player), the system only
starts the call with the highest priority. The range of
priorities that is available for a call depends on the type
of call (see table 3.1).
Calls with the same priority operate on first come first
serve basis, except in the case of priority 255: calls with
the same priority 255 overrule each other, so the latest
becomes active. This assures that high priority
microphones that are left behind in an active state will
never block the system.
table 3.1: Priorities and call types
Priority
Call type
0 to 31
BGM calls
32 to 223
Normal calls
224 to 255
Emergency calls
3.2.3 Call content
The content of a BGM call typically consists of an audio
signal coming from a BGM source, such as a CD player
or a tuner. The content of normal calls and emergency
calls is defined by a call macro, which can consist of:
• A start chime
• Prerecorded message(s)
• Live speech
• An end chime
Bosch Security Systems | 2011-02
en | 78
3.2.4
Routing
The routing of the call is the set of zones to which the
call is intended to be addressed. Whether the call
actually is addressed to the selected zones depends on
the priority of the call (see section 3.2.2) and its routing
scheme.
Each call can have one of the following routing
schemes:
• Partial
• Non-partial
• Stacked
By definition, partial calls do not require the entire
routing to be available at the start of the call and during
the call. When a partial call is started and a part of the
routing is not available, the call is only distributed to the
available part of the routing. When a part of the routing
becomes unavailable during the call, the call continues
in the parts of the routing that are still available.
Non-partial calls are calls that require the entire routing
to be available at the start of the call and during the call.
When during the call a part of the routing becomes
unavailable, the call is aborted.
Note
Non-partial normal calls can only be started
when the entire routing is available. BGM and
emergency calls can be started when the entire
routing is not available.
Note
BGM calls and emergency calls without live
speech are started in the non available parts of
the routing as soon as these parts are released.
Stacked calls are calls that have been recorded for later
playback. This feature is only available in combination
with a call stacker (see chapter 23).
2011-02 | Installation and User Instructions | 2 | Introduction
3.2.5 Timing
Most calls are broadcast immediately, but calls can be
time-shifted for broadcasting after completion of the
original call. This avoids acoustic feedback between the
microphone and nearby loudspeakers. A time-shifted
call can also be pre-monitored to check the content
before it is broadcast and optionally cancelled. This
feature is only available in combination with a call
stacker (see chapter 23).
en | 79
3.3
Types
3.3.1
Introduction
As mentioned before, Praesideo uses the following types
of calls:
• BGM (background music) calls (see section 3.3.2).
• Normal calls (see section 3.3.3).
• Emergency calls (see section 3.3.4).
3.3.2
3.2.6 System size
The maximum size of a single Praesideo system is
limited by the maximum number of nodes in a system,
which is 63, and the maximum length of the system bus,
which depends on the actual number of nodes in use.
See section 31.4 and 31.5 for details.
The mandatory network controller occupies 3 nodes,
leaving 60 nodes for other system elements, such as
amplifiers and call stations. Different models of
Praesideo power amplifiers have 1 - 4 outputs per
occupied node and each output can serve an
independent voice alarm zone. This adds up to a
maximum of 240 voice alarm zones for a single system.
This number can be increased by coupling of multiple
subsystems, as indicated in section 32.6. Alternatively,
the maximum number of voice alarm zones can be
increased by using a combination of basic amplifiers
and multi channel interfaces, see section 9 and 10. A
multi channel interface occupies only 1 node and can
drive 14 independent voice alarm zones. For response
time reasons it is recommended not to use more than 20
multi channel interfaces in a system. Together with the
other power amplifiers and call stations, this yields a
practical limit of some 400 voice alarm zones in a single
system.
Bosch Security Systems | 2011-02
BGM calls
BGM (background music) calls are typically used to
distribute background music. Their content consists of
an audio signal from a BGM source, such as a CD
player or a tuner. By default, BGM calls are partial calls.
Zones can be added to the routing of a BGM call at any
time. If an added zone is already in use by another call
with the same priority or higher, the BGM call will not
be routed to that zone until it has been released by the
other call.
3.3.3
Normal calls
Normal calls typically contain live speech and
optionally chimes and prerecorded messages. The
content of normal calls is defined by a call macro (see
section 3.2.3). Normal calls can be partial, non-partial,
or stacked.
3.3.4
Emergency calls
Emergency calls are similar to normal calls (see
section 3.2.3). The major difference is that emergency
calls put the system in the emergency state and are
always partial. In the emergency state, Praesideo stops
all BGM calls and normal calls.
2011-02 | Installation and User Instructions | 2 | Introduction
4
Glossary
A
A/D
Analog-to-digital converter.
AEX
Audio expander.
AVC
Automatic volume control. This improves the
intelligibility of calls by adjusting the volume of a call
related to the measured ambient noise.
B
BAM
Basic amplifier.
BGM
Background music.
C
CST
Call station.
D
D/A
Digital-to-analog converter.
DCN NG
Digital Congress System Next Generation. Digital
congress system of Bosch Security Systems.
DSP
Digital signal processor.
E
ESD
Electrostatic discharge. This might damage electronic
components.
G
GOF
Glass optical fiber. Type of fiber that is used to cover
distances > 50 m in the Praesideo network.
Bosch Security Systems | 2011-02
en | 80
L
LCD
Liquid crystal display. Type of display.
LED
Light emitting diode. Electronic component frequently
used as indicator.
LSP
Loudspeaker.
LSZH
Low smoke, zero halogen.
M
MAC address
Media access control address. Unique hardware
address.
MCI
Multi channel interface
MTBF
Mean-time-between-failures.
N
NCO
Network controller.
NC
Normally closed. Control output behavior. When the
output is activated, the NC contact is opened.
NO
Normally open. Control output behavior. When the
output is activated, the NO contact is closed.
P
PAM
Power amplifier.
PCB
Printed circuit board.
POF
Plastic optical fiber. Type of fiber that is used to cover
distances < 50 m in the Praesideo network.
PTT key
Press-to-talk key. A key to start a call with a
predefined priority based on a call macro that will be
addressed to one or more predefined zones or zone
groups.
Praesideo 3.5 | Installation and User Instructions | 3 | Control Equipment
Part 3 - Control Equipment
Bosch Security Systems | 2011-02
en | 81
Praesideo 3.5 | Installation and User Instructions | 3 | Control Equipment
Intentionally left blank.
Bosch Security Systems | 2011-02
en | 82
Praesideo 3.5 | Installation and User Instructions | 3 | Control Equipment
5
en | 83
PRS-NCO-B Network
Controller
5.1
Introduction
The PRS-NCO-B, successor of the LBB4401/00
Network Controller, is the heart of the Praesideo
system.
The network controller controls up to 60 nodes and 28
audio channels. The network controller also provides
the power to the system and keeps the configuration for
all elements in the system. The network controller is the
interface to other systems.
See figure 5.1 for a block diagram of the network
controller.
Display + Control
Audio Inputs
A/D
D/A
Network
Processor
+
DSP
Control Inputs
I
O
Message
Manager
POF
Network
Redundancy
Switching
Audio Outputs
Control Outputs
Flash card
Ethernet
Microprocessor
POF
RS232
48V Back-up
Supply
Power Supply
figure 5.1: Block diagram of the network controller
Bosch Security Systems | 2011-02
Mains
Praesideo 3.5 | Installation and User Instructions | 3 | Control Equipment
5.2
5.2.1
Controls, connectors and
indicators
Front view
The front of the network controller (see figure 5.2)
contains the following:
1 Loudspeaker - A loudspeaker for audio
monitoring purposes. The loudspeaker is muted
when monitoring headphones are connected to the
monitoring headphones output (4).
2 Menu display - A 2x16 character LCD display
gives information about the network controller (see
section 5.5).
3 Menu button - A turn-and-push button to operate
the menu (see section 5.5).
4 Monitoring headphones output - A 3.5 mm
(0.14 inch) jack socket to connect headphones for
audio monitoring purposes. The loudspeaker (1) is
muted when headphones are connected.
Bosch Security Systems | 2011-02
5.2.2
en | 84
Rear view
The rear of the network controller (see figure 5.2)
contains the following:
5 Ground - A connection to electrically ground the
network controller.
6 Audio inputs - Four audio inputs for receiving
audio signals from analog audio sources. Two of the
audio inputs are selectable between microphone and
line. The other two audio inputs are fixed line inputs.
Each audio input has a XLR as well as a double
cinch connector (see section 5.3.6).
7 Audio outputs - Four audio outputs for extracting
analog audio signals. Each audio output has a XLR
as well as a double cinch connector (see
section 5.3.7).
8 Voltage selector - A switch to select the local
mains voltage (see section 5.3.2).
9 Mains on/off switch - A switch to switch the
network controller on and off (see section 5.3.2).
10 Fuse holder - A fuse holder with a fuse that
protects the power supply of the network controller
(see section 5.3.2).
11 System bus - Two system bus connectors to
connect the network controller to other Praesideo
equipment (see section 5.3.4).
12 Ethernet interface - An interface to connect the
network controller to external logging and
configuration devices/systems. This interface usually
will be used to connect a configuration PC (see
section 5.3.5) or an open interface client to the
Praesideo system.
13 Control inputs - The control inputs can be used to
receive signals from third party equipment that must
trigger actions in the Praesideo network (see
section 5.3.8).
14 RS232 interface - For factory/development use.
15 Control outputs - The control outputs can be used
to send signals to third party equipment to trigger
actions generated by the Praesideo network (see
section 5.3.9).
16 Battery 48V - Back-up battery supply (see section
5.3.3).
17 Mains inlet - A socket to connect the network
controller to the mains (see section 5.3.2).
Praesideo 3.5 | Installation and User Instructions | 3 | Control Equipment
1
3
2
6
5
Caution
Audio In 3
Risk of electric shock.
Do not open.
en | 85
7
Audio Out 3
4
6
Audio In 4
7
Audio Out 4
8
9
10
Mains
115/230~
Avis
Risk of electric shock.
Do not open.
230: 220-240V~ /50-60Hz
T2A H 250V
Control In
1
2
3
4
5
6
7
8
Network
O
Audio In 1
RS 232
Audio Out 1
Audio In 2
Audio Out 2
Battery 48V
Ethernet
1
2
I
115: 100-120V~/50-60Hz
T2.5A 250V
4A
Control Out
C NC NO C NC NO C NC NO C NC NO C NC NO
+
48V
48V
11
1
12 13 14 15
2
3
4
6
figure 5.2: Front and rear views of the network controller
Bosch Security Systems | 2011-02
0
5
7
6
7
16
17
Praesideo 3.5 | Installation and User Instructions | 3 | Control Equipment
5.2.3
Internal view
The interior of the network controller (see figure 5.3)
contains the following:
18 Ground jumper - A jumper that connects the
signal ground to the safety ground.
19 Compact flash card - A connector for a compact
flash card for storage of messages (see section 5.3.11).
A stored message set can hold up to 1024 messages.
The system can play up to four messages in the set
simultaneously, as part of a call. All of these calls
may use the same message, if required, time-shifted
or not.
18
figure 5.3: Internal view of the network controller
Bosch Security Systems | 2011-02
19
en | 86
Praesideo 3.5 | Installation and User Instructions | 3 | Control Equipment
5.3
Connections
5.3.1
Introduction
This section gives an overview of typical system
connections using the network controller.
• Connecting the mains (see section 5.3.2).
• Connecting the network (see section 5.3.4).
• Connecting a configuration PC (see section 5.3.5).
• Connecting audio inputs (see section 5.3.6).
• Connecting audio outputs (see section 5.3.9).
• Connecting control inputs (see section 5.3.8).
• Connecting control outputs (see section 5.3.9).
• Connecting the RS232 port (see section 5.3.10).
• Inserting a compact flash card (see section 5.3.11).
5.3.2
Warning
For safety reasons you must use an external
circuit breaker. Install in accordance with the
local Electrical and Building Code, e.g. for USA
and Canada in accordance with NEC/CEC and
for Germany in accordance with VDE0108-1.
To reduce the risk of electric shock do not
perform any servicing other than that contained
in the operating instructions unless you are
qualified to do so. See section 1.2 Intended
audience.
Connecting the mains
Proceed as follows to connect the network controller to
the mains:
1 Select the correct local mains voltage using the
voltage selector on the rear of the network controller
(see table 5.1).
table 5.1: Voltage selector and fuse
Selector Mains voltage Fuse
V(AC)
115
100 - 120
T2.5A 250V
(UL 248)
230
220 - 240
T2A H 250V
(IEC 60127)
2 Put the correct type of fuse in the network controller
(see table 5.1).
3 Connect the mains cord to the network controller.
4 Connect the mains cord to a locally approved mains
outlet.
5.3.3
en | 87
Note
When the network controller has a back-up
power supply connected, the network controller
cannot be switched off just by the mains on/off
switch (9). The battery connection must also be
removed.
Warning
Never ground the positive terminal of the
battery, as this will damage the Praesideo
equipment.
If the back-up power supply (battery) is
grounded, always connect the negative terminal
(0) first and the positive terminal (+) second.
Disconnect in reverse order: disconnect the
positive terminal first and the negative terminal
second. This avoids excessive ground loop
currents.
Connecting back-up power
Connect the back-up supply to the back-up power
connector on the back of the network controller. Refer
to figure 5.4.
Use the connector supplied with the unit. The fuse for
the back-up supply is inside the unit. The back-up
supply input is protected against voltage reversal.
The back-up voltage range is 43 to 56 V. The system
voltage from the system bus is a constant 48 V. The
power supply to the units that receive power from the
system bus is not affected by a changing back-up battery
voltage.
Bosch Security Systems | 2011-02
Battery 48V
+
figure 5.4: Back-up power supply
4A
0
Praesideo 3.5 | Installation and User Instructions | 3 | Control Equipment
5.3.4
Connecting the network
Connect the network controller to the Praesideo system
using the system bus connectors and LBB4416 network
cables. Both connectors are interchangeable.
5.3.5
en | 88
5.3.5.4 Via a network
If the configuration PC must be connected to the
network controller via a network, standard cables must
be used to connect both the network controller and the
configuration PC to the network.
Connecting a PC
5.3.5.1
Introduction
The network controller has one RJ45 socket to interface
with the Praesideo configuration PC. Using the
configuration PC, the Praesideo system can be
configured and diagnosed. Basically, there are two ways
to connect the configuration PC to the network
controller: directly (see section 5.3.5.3) or via a network
(see section 5.3.5.4).
5.3.5.2 Requirements
The configuration PC must meet the following
minimum requirements:
• Operating system:
Microsoft® Windows XP with Service Pack 1 or
Microsoft® Windows Vista or
Microsoft® Windows 7
• Network connection: 100 base-T
• 1 GB RAM
• Web browser installed, such as Internet Explorer of
Firefox
5.3.5.3 Direct connection
If the configuration PC must be connected directly to
the network controller, a crossover cable (Cat-5 cable)
must be used (see figure 5.5).
RJ 45
(male)
RJ 45
(male)
TX+
1
1
TX+
TX-
2
2
TX-
RX+
3
3
RX+
no sig. 4
4 no sig.
no sig. 5
5 no sig.
RX-
6
6
RX-
no sig. 7
7 no sig.
no sig. 8
8 no sig.
Network Controller
PC
Caution
Do not connect the network controller and
configuration PC to any network without
consulting the network administrator.
5.3.6
Connecting audio inputs
The network controller has 4 audio inputs to interface
with analog audio sources. Each audio input has two
connectors on the rear of the network controller; one
XLR connector (for balanced signals) and one double
cinch connector (for unbalanced signals). The network
controllers mixes stereo signals connected to the cinch
connectors of the same audio input into one single
mono signal.
The analog audio can be a line source as well as a
microphone. See table 5.2 for an overview of the input
types supported by each of the inputs.
Note
The microphone inputs should not be used to
connect emergency microphones. These inputs
do not provide microphone connection
supervision.
table 5.2: Audio input types
Audio Input
Microphone
(XLR only)
1
Yes
2
Yes
3
No
4
No
Line
Yes
Yes
Yes
Yes
figure 5.5: Direct connection to PC
Note
The maximum length of a crossover-cable is
100 m.
Bosch Security Systems | 2011-02
Note
The audio inputs can handle electret
microphones as well as dynamic microphones,
since the network controller can generate the
phantom supply for electret microphones.
Praesideo 3.5 | Installation and User Instructions | 3 | Control Equipment
en | 89
See figure 5.6 for details about the audio input sockets of
the network controller.
2
1
2
Audio Out
1
5
Audio In
4
5
4
3
figure 5.6: Audio input sockets
table 5.3: Audio input socket details
Pin
Socket
Definition Description
1
XLR
Xternal
Shield/ground
(female)
(phantom supply -)
2
Live
Positive
(phantom supply +)
3
Return
Negative
(phantom supply +)
4
Cinch
Right
Right channel in
5
Left
Left channel in
‘
5.3.7
Connecting audio outputs
The network controller has 4 audio outputs to route
analog audio signals to other equipment (e.g. a tape
deck to record a specific audio signal). Each audio
output has two connectors on the rear of the network
controller; one XLR connector (for balanced signals)
and one double cinch connector (for unbalanced
signals).
3
figure 5.7: Audio output sockets
table 5.4: Audio output socket details
Pin
Socket
Definition Description
1
XLR
Xternal
Shield/ground
(male)
2
Live
Positive
3
Return
Negative
4
Cinch
Right
Right channel out
5
Left
Left channel out
5.3.8
Connecting control inputs
The network controller has 8 control inputs. The control
inputs can receive signals from third party equipment
that must trigger actions in the Praesideo system. The
control inputs can be configured to act on contact make
or on contact break (see section 43.2). It is also possible
to supervise the cables for short-circuits and open
connections (see figure 5.8 and figure 5.9). Whether a
control input is actually supervised or not is defined in
the configuration.
Control In
1
2
3
4
5
6
7
Note
The right and left cinch connectors carry the
same mono signal.
10kΩ
See figure 5.7 for details about the audio output sockets
of the network controller.
10kΩ
figure 5.8: Supervised control input
Bosch Security Systems | 2011-02
8
Praesideo 3.5 | Installation and User Instructions | 3 | Control Equipment
en | 90
open (NO) depends on which action that has to take
place when the control output is active (see table 5.5).
Control In
1
2
3
4
5
6
7
8
figure 5.9: Non-supervised control input
Warning
Do not connect DC or AC signals to the control
inputs, otherwise the input circuit may be
damaged. Only use voltage-free contacts.
Note
Do not combine control input wires of multiple
control inputs (e.g. do not use a common return
wire).
5.3.9
Connecting control outputs
The network controller has 5 control outputs. The
control outputs can be used to send signals to third party
equipment to trigger actions. Each control output
connection has three pins (see figure 5.10).
Control Out
C NC NO C NC NO C NC NO C NC NO C NC NO
1
2
3
4
5
figure 5.10: Control outputs
The common (C) pin of the control output should
always be connected. Whether the other pin that is
connected is the normally closed (NC) or normally
Bosch Security Systems | 2011-02
table 5.5: Control outputs details
Connection Abbr.
Description
Normally
NC
By default, the NC
closed
contact is connected
with common contact C.
When the output is
activated, the NC contact
is opened.
Normally
NO
By default, the NO
open
contact is not connected
with common contact C.
When the output is
activated, the NO
contact is closed.
In the configuration, a purpose must be attached to the
control output that indicates the action to be taken when
it becomes active (see table 43.6). Control outputs 4 and
5 of network controllers of version HW15/xx and
higher already have a fixed purpose (see table 5.6).
table 5.6: Control outputs 4 and 5
Control output Purpose
4
Audible fault indicator
5
Visual fault indicator
Note
For fail-safe behavior, these fixed control outputs
are energized in the default (faultless) situation,
so NC is open and will be closed if a fault
occurs.
See section 32.9 for instructions about connecting an
audible indicator (buzzer) to the control outputs for fault
and emergency notifications.
5.3.10 Connecting RS232 port
The network controller has a RS232 connector for
production and development purposes. Do not use this
connector in installed Praesideo systems, with the
following exception. The PRS-NCO-B comes with a
dedicated buzzer for audible fault and voice alarm
notifications. This buzzer comes with a connector to
power it from the RS232 port. See section 32.9.
Praesideo 3.5 | Installation and User Instructions | 3 | Control Equipment
en | 91
5.3.11 Compact flash card
5.4
Praesideo stores digital audio messages on a type 1
compact flash card. Although flash cards up to 4 GB are
supported, only the first 128 MB are supervised and
suitable for emergency messages. This is equivalent to
the first 25 minutes of the message set. A 4 GB flash
card can store more than 13 hours of audio messages.
The network controller is suitable for either table-top or
19-inch rack installation. Four feet (for table-top use)
and two brackets (for rack installation) are supplied.
A specially selected compact flash card is supplied
together with the network controller. This card does
automatic refreshing of the data, permitting very
frequent reading of the content for the purpose of
supervision. Do not replace this card with just any
compact flash card, but contact the spare parts logistic
channel or your local Bosch contact person for a
selected new compact flash card.
Note
The electronics inside the network controller are
susceptible to electrostatic discharges. Wear an
anti-ESD bracelet during the installation of the
compact flash card.
Warning
To prevent the hazard of electric shocks, disconnect the mains cord from the network controller
before starting installing the compact flash card.
To reduce the risk of electric shock do not
perform any servicing other than that contained
in the operating instructions unless you are
qualified to do so. See section 1.2 Intended
audience.
Bosch Security Systems | 2011-02
Installation
Note
The center bracket positions can be used to
secure the unit on a table or shelf. They can also
be used to install the unit vertically to a wall.
figure 5.11: Installation
Caution
When mounting the brackets to the unit, use the
screws that are supplied with the brackets.
Screws with a length of >10 mm may touch or
damage internal parts of the unit.
Praesideo 3.5 | Installation and User Instructions | 3 | Control Equipment
5.5
Using the configuration menu
5.5.1
Overview
en | 92
A number of network controller settings are available
via an interactive menu, using a 2x16 LCD display and
a 'turn-and-push' menu button. The next figure gives an
overview of the menu structure.
Clock
VU meter
Emergency
<
1
Date/Time
2
Acknowledge
3
Reset
Back
1E Acknowledge/Reset
1D Status
1C Date/Time
Faults
<
Back
1B Detail
1A Serial Number
1
Fault
N
Fault
<
2G FW Version
2F SW Version
2E HW Version
N+1 Acknowledge All
2D Serial Number
Menu
N+2 Reset All
2C MAC Address
<
Back
2B TCP/IP Setup
Monitoring
1
2
2A Date &
Time
Setup
2Ba Address
2Bb Subnet Mask
2Bc Default Gateway
<
<
Back
figure 5.12: Structure of the network controller front panel menu
Bosch Security Systems | 2011-02
Back
Back
Praesideo 3.5 | Installation and User Instructions | 3 | Control Equipment
5.5.2
Navigate through the menu
Operating the menu is always a sequence of alternating
turns and pushes:
Turn the button to:
• Cycle through the menu items within a menu.
• Go to a settable option within a menu item (a
blinking cursor moves through the menu screen).
• Cycle through the available values for a settable
option (the value is blinking).
Push the button to:
• Confirm a chosen menu item (a blinking cursor
appears).
• Go to a submenu (the submenu item character starts
blinking).
• Confirm the selection of a settable option (the cursor
disappears, the option value starts blinking).
• Confirm a selected value for a settable option (the
value stops blinking, the cursor appears again).
Each menu is identified by a number or by a number
plus a character (see figure 5.13). The item identification
can be found at the start of the first line and is used to
navigate to and from the submenus. Most menu items
have one or more options. The value of an option can
be changed by selecting a value from a list of available
values.
main menu
item number
main item
title
1 Monitoring
Input 1
-10dB option values
figure 5.13: Menu item screen elements
Bosch Security Systems | 2011-02
en | 93
To navigate through the status screens:
1 Turn the button to move through the status screens
(i.e. the Clock, VU meter, Emergency ..., Faults ... and
Menu ... screens).
To navigate through the main menu:
1 Navigate in the status screens to Menu....
2 Push the button to go to the main menu. The menu
item number starts blinking.
3 Turn to select another menu item number.
4 Push to confirm the selection.
To jump to a submenu:
1 Navigate to an item with three dots (e.g. Setup...).
2 Push the button to go to the submenu. The submenu
item character starts blinking.
3 Turn to select another menu item number.
4 Push to confirm the selection.
To navigate through a submenu:
1 Turn the button to move the cursor to the submenu
item character.
2 Push the button. The item character and title starts
blinking.
3 Turn to select another submenu item character.
4 Push to confirm the selection.
To change option values:
1 Navigate to the applicable menu item.
2 Turn the button to move the cursor to the option
value you want to change.
3 Push the button to activate the option. The option
starts to blink.
4 Turn the button to select a new option value.
5 Push the button to confirm the new value. The
option value stops blinking.
6 Turn the button to move the cursor to another
settable option (when available) and repeat steps
3 to 5.
Praesideo 3.5 | Installation and User Instructions | 3 | Control Equipment
To jump back from a submenu to an item of the main
menu:
1 Turn the button to move the cursor to the main
menu item number.
2 Push the button. The item number starts blinking.
3 Turn to select another item number.
4 Push to confirm the selection.
OR
1 Turn the button to < Back.
2 Push to confirm.
4 Push the button to confirm:
2A Date & Time
2002/09/27 13:27
5 Turn the button to go to the TCP/IP Setup submenu:
2B TCP/IP Setup
...
6 Push the button to confirm:
To jump back from the main menu to the status
screens:
1 Jump back to the main menu.
2 Turn the button to < Back.
3 Push to confirm.
Example:
Set the IP address of the network controller. (This
example assumes you start from the default screen):
Netw Controller
2002/09/27 13:27
1 Turn the button to go to the Menu ... in the status
screens:
Menu...
2Ba Address
000.000.000.000
7 Push the button to confirm:
2Ba Address
000.000.000.000
8 Turn the button to move the cursor to the first part of
the IP address:
2Ba Address
000.000.000.000
9 Push the button to confirm:
2Ba Address
000.000.000.000
10 Turn the button to change the first part of the IP
address:
2 Push the button to confirm:
1 Monitoring
Off
2Ba Address
192.000.000.000
3 Turn the button to go to the Setup submenu:
2 Setup
...
Bosch Security Systems | 2011-02
en | 94
11 Push the button to confirm:
2Ba Address
192.000.000.000
Praesideo 3.5 | Installation and User Instructions | 3 | Control Equipment
12 Turn to move the cursor to the second part of the IP
address:
2Ba Address
192.000.000.000
en | 95
20 Push the button to confirm:
2Ba Address
192.168.000.015
21 Turn to move the cursor to the menu number:
13 Push the button to confirm:
2Ba Address
192.000.000.000
2Ba Address
192.168.000.015
22 Push the button to confirm:
14 Turn the button to change the second part of the IP
address:
2Ba Address
192.168.000.000
15 Push the button to confirm:
2Ba Address
192.168.000.000
16 Turn to move the cursor to the third part of the IP
address:
2Ba Address
192.168.000.000
17 Turn to move the cursor to the fourth part of the IP
address:
2Ba Address
192.168.000.000
18 Push the button to confirm:
2Ba Address
192.168.000.000
19 Turn the button to change the fourth part of the IP
address:
2Ba Address
192.168.000.015
Bosch Security Systems | 2011-02
2Ba Address
192.168.000.015
23 Turn to move to the < Back item:
< Back
24 Push the button to confirm:
Menu...
25 Turn the button to go to the default screen:
Netw Controller
2002/09/27 13:27
Praesideo 3.5 | Installation and User Instructions | 3 | Control Equipment
5.6
Configuration and operation
5.6.1
Introduction
The next sections give descriptions of the possible
configuration options. Each description is followed by
the relevant menu items with detailed instructions per
menu option. The default values are indicated by an
asterisk (*) when applicable.
5.6.2
Start-up
When the network controller is (re)started, the display
shows the name of the unit and the clock (first of the
status screens).
5.6.3
table 5.7: Status screens
Menu item
Description
Clock
Shows the name of the unit and
the time and date.
VU Meter
Visual indication of the signal
strengths on all audio inputs and
audio outputs of the network
controller.
5.6.4
Emergency menu
The Emergency ... item (see figure 5.12) provides access to
the emergency menu. This menu is automatically
activated when the system is put into the emergency
state. It changes automatically back to the Clock screen
when the emergency state is reset. The Emergency ...
menu screen itself shows the name of key that was used
to activate the emergency state or the IP address of the
open interface controller that activated the emergency
state. For example:
Emergency
CST-EM-PTT
...
In this example, Emergency indicates that the emergency
state is active and that it was activated by button
CST-EM-PTT.
Bosch Security Systems | 2011-02
The menu items in the emergency menu provide
additional information about the emergency state and
allow to acknowledge and reset the emergency state (see
table 5.8). When the emergency state is reset, all
emergency calls are aborted.
table 5.8: Emergency menu
Menu item
Description
1 Date/Time
Date and time on which the
emergency state was activated.
2 Acknowledge Acknowledges the emergency
state.
3 Reset
Resets the emergency state.
5.6.5
Status screens
The status screens (see table 5.7) provide general
information about the network controller.
en | 96
Faults menu
The Faults ... menu (see figure 5.12) provides access to
the faults menu. This menu is automatically activated
when there is a fault in the system. Because the number
of active faults in the system can vary, the item numbers
in this menu are not fixed. The youngest fault is the fault
with the lowest number. The maximum number of
faults is 200.
Note
When a new fault occurs while another fault is
being viewed, the item number of the fault that
is being viewed is automatically incremented.
For example, when 23 Overload is being viewed
while a new fault occurs, it becomes
automatically 24 Overload.
Note
When fault 200 is being viewed while a new
fault occurs, fault 200 is automatically deleted
and replaced by the next fault. For example,
fault 200 is 200 Overload and the next fault is
199 Gnd Short. Then 200 Overload
automatically becomes 200 Gnd Short when a
new fault occurs.
Praesideo 3.5 | Installation and User Instructions | 3 | Control Equipment
The Faults ... menu screen itself shows the number of
active faults in the system. For example:
Faults
27 faults
...
The numbered menus in the faults menu shows the
name of the fault and the unit that generated the fault.
For example:
23 Overload
PAM_01
In this case the fault is Overload, which was generated by
the unit named PAM_01. The menu items in the faults
menu provide additional information about the selected
fault and allow to acknowledge and reset faults (see
table 5.9).
Note
In the next table, n indicates the nth fault in the
faults menu, whereas N indicates the total
number of faults in the faults menu.
table 5.9: Faults menu
Menu item
Description
Shows the serial number of the
nA Serial Nr
unit that generated the fault n.
nB Detail
Shows the fault detail of fault n.
See table 5.11.
Shows the date and time on
nC Date/Time
which fault n occurred.
nD Status
Shows the status of fault n
See chapter 51
nE Acknowledge Acknowledge the selected fault.
See chapter 51.
nF Reset
Reset the selected fault. See
chapter 51.
Allows to acknowledge all faults
N+1 Ack All
in the system. See chapter 51.
N+2 Reset All
Resets all faults in the system.
See chapter 51.
Bosch Security Systems | 2011-02
en | 97
The faults and fault details displayed by the network
controller are closely related to the faults that are
displayed in the Logging Viewer (see chapter 57). In table
5.11, all faults that can be displayed by the network
controller are listed. Use this table in combination with
the information in chapter 54 to find out the cause of a
fault or the recommended action to take.
5.6.6
Main menu
The Menu ... item (see figure 5.12) provides access to the
main menu.
table 5.10: Main menus
Menu item
Description
1 Monitoring
Go to the Monitoring submenu.
See section 5.6.7.
2 Setup
Go to the Setup submenu. See
section 5.6.8 (and further).
Praesideo 3.5 | Installation and User Instructions | 3 | Control Equipment
table 5.11: Faults event table
Fault
Detail
A/B fault
(channel)
Amp missing
(channel)
Amp standby
Audio path
CobraNet
fault code
Config file
Not valid
Mismatch
Ctrl input
End of line
Failure
Fault input
Flashcard
Gnd short
Grp A fault
Grp B fault
HW Version
Internal
Keypad
Line input
Loop fault
Loudspeaker
Lsp Line
Memory
Mic input
Missing
Net pwr RCS
No mains
No sec pwr
Overheat
Overload
Error
(control input)
(channel)
(channel)
(channel)
(text)
Missing
Checksum
Message names
(channel)
(channel)
(channel)
Mismatch
Fault (number)
n/m mismatch
(audio input)
(channel)
(channel)
(channel)
EEPROM
FLASH
(audio input)
Proc reset
(channel)
(channel)
(channel)
MMP
CPU
CNM
SCB
RCS connect
Ring broken
SCB failure
System Network
Bosch Security Systems | 2011-02
en | 98
Logging message
Group A or B line fault
Amplifier missing
Amplifier initialization failure
Call station audio path fault
CobraNet network fault: fault code
No valid configuration file found; a new configuration file
will be created
Configuration file version mismatch: version x.xx found
y.yy expected
Configuration file error
Control input line failure
Loudspeaker line failure
Amplifier failure
Amplifier failure or overload
Fault input
Flash card missing
Flash card data error
Messages missing:
Amplifier ground short
Group A fault
Group B fault
Hardware version mismatch
Cobranet interface fault
Keypad mismatch
Line input failure
Class-A switchover
Loudspeaker failure
Amplifier loudspeaker line failure
Memory error
Microphone Failure
Unit missing
Network power supply failure remote call station
Mains power supply failure
Back up power supply failure
Amplifier overheat
Amplifier overload
Amplifier short circuit
Processor reset: MMP (network processor)
Processor reset: CPU (system processor)
Processor reset: CNM (CobraNet module)
Processor reset: SCB (supervision control board)
Remote call station connection failure
Redundant ring broken
Supervision Control Board failure
Praesideo 3.5 | Installation and User Instructions | 3 | Control Equipment
table 5.11: Faults event table
Fault
Detail
Sec pwr RCS
Supervision
(channel)
(channel)
Supply 24V
(channel)
Uncfgd unit
Unknwn unit
Bosch Security Systems | 2011-02
Logging message
Backup power supply failure remote call station
Pilot tone calibration
Line supervision master mismatch
Redundant supply 24V
Unit not configured
Unknown unit type
en | 99
Praesideo 3.5 | Installation and User Instructions | 3 | Control Equipment
5.6.7
en | 100
Set monitoring options
The Monitoring submenu is used to set which signal is
sent to the monitoring loudspeaker or headphones. It
can be one of the audio inputs, one of the audio outputs
or no signal at all. Furthermore, the screen provides
level meters for a visual identification of the actual
signal strength.
table 5.12: Monitoring submenu
Menu item
Option
1 Monitoring
Source:
- Input n
- Output n
Value 1
Value 2
Description
Input nr:
1 to 4
Volume:
-31 to 0 dB
Output nr:
1 to 4
Volume:
-31 to 0 dB
The signal from audio input n is
available on the monitoring
loudspeaker or headphones output.
The signal from audio output n is
available on the monitoring
loudspeaker or headphones output.
The monitoring loudspeaker or
headphones output is off during
normal operation.
- Off*
5.6.8
Set date and time
The Date & Time menu item is used to change the date
and time displayed by the network controller.
table 5.13: Date & Time menu item
Menu item
Option
2A Date & Time
5.6.9
Value 1
Date:
2000-01-01 to
2037-12-31
Value 2
Time
00:00 to
23.59
Description
The date is displayed in the
yyyy-mm-dd format, the time is
displayed in the hh:mm format.
Setup TCP/IP
The TCP/IP Setup submenu is used to set the TCP/IP
parameters of the network controller.
table 5.14: TCP/IP Setup submenu
Menu item
Value
2Ba Address
e.g. 192.168.000.015
2Bb Subnet Mask
e.g. 255.255.255.000
2Bc Def. Gateway
e.g. 192.168.000.050
Bosch Security Systems | 2011-02
Description
IP address of the network controller.
Subnet mask for the network controller.
Default gateway for the network controller.
Praesideo 3.5 | Installation and User Instructions | 3 | Control Equipment
en | 101
5.6.10 View MAC address
The MAC Address menu item can be used to view the
MAC address of the network controller. The MAC
address is a unique address that is factory-set and cannot
be changed. Within networks, it can be used to get
access to the unit.
table 5.15: MAC address menu item
Menu item
Value (read-only)
2C MAC address
e.g. 000463-004209
Description
Show the MAC address of the network controller.
5.6.11 View version information
The Serial Number, HW Version, SW version and
FW version menu items are used to obtain version
information about the network controller.
table 5.16: Version information menu items
Menu item
Value (read-only)
2D Serial Number
e.g. 11.0.008A4
2E HW Version
e.g. 15.00
2F SW Version
e.g. 2.10.1175
2G FW Version
e.g. 3.00.1419
Bosch Security Systems | 2011-02
Description
Shows the hexadecimal serial number.
Shows the hardware version.
Shows the version number of the Praesideo software.
Shows the version number of the firmware. This must be the same
for all units in the system.
Praesideo 3.5 | Installation and User Instructions | 3 | Control Equipment
5.7
Technical Data
5.7.1
Physical characteristics
Dimensions (H x W x D):
88 x 483 x 400 mm (19" installation, with brackets,
360 mm depth behind the brackets, 40 mm in front of
the brackets)
92 x 440 x 400 mm (table-top, with feet)
Weight:
7 kg
5.7.2
Climate conditions
Temperature:
-5 to +55 °C (operating)
-20 to +70 °C (non-operating)
Relative humidity:
15 to 90%, non-condensing (operating)
5 to 95%, non-condensing (non-operating)
Air pressure:
600 to 1100 hPa
5.7.3
EMC and Safety
Electromagnetic compatibility:
EN55103-1/FCC-47 part 15B
EN55103-2
EN50121-4
EN50130-4
(Compliancy to EN50130-4 requires an external mains
input filter, model Schaffner FN2080-6-06, for surge
immunity.)
Electrical safety:
IEC60065 (CB-scheme)
EN60065
Approvals:
CE marking
EN60849, EN54-16 and ISO7240-16
IEC60945
5.7.4
Mean time between failure
MTBF:
50,000 hours at +55 °C
(The MTBF doubles for every 10 °C decrease in
temperature.)
Bosch Security Systems | 2011-02
5.7.5
en | 102
System bus
Connector (rear side):
Proprietary connector
Preferred cable:
LBB4416/xx
Maximum cable length:
50 m (per system bus connector)
Data signal interface
Plastic optical fiber
Network power supply:
2 x 55 W (at network output)
5.7.6
Power supply mains
Connector (rear side):
IEC male power inlet with fuse holder
Preferred cable:
Mains cord meeting CE standard
Voltage selector (rear side)
115 V(AC)/230 V(AC)
Nominal input voltage range:
115 V (typical): 100 - 120 V(AC) at 50 - 60 Hz
230 V (typical): 220 - 240 V(AC) at 50 - 60 Hz
Input voltage limits:
115 V (typical): 90 - 132 V(AC) at 50 - 60 Hz
230 V (typical): 198 - 264 V(AC) at 50 - 60 Hz
On/Off switch:
Located at the rear
Power consumption:
14 W without network load,
160 W at maximum load
5.7.7
Power supply battery
Connector (rear side):
2 pole for removable screw connector
Input voltage:
48 V(DC)
Input voltage range:
43 to 56 V(DC)
Power consumption:
14 W without network load,
160 W at maximum load
Praesideo 3.5 | Installation and User Instructions | 3 | Control Equipment
5.7.8
Audio line inputs
Connector (rear side):
Female XLR and female stereo cinch socket per input.
The stereo signal from the cinch is internally converted
to a mono signal
Preferred cable:
Shielded
Maximum input signal level:
18 dBV ± 1 dB (XLR)
6 dBV ± 1 dB (cinch)
Input range:
-12 dB to 0 dB with respect to maximum input level
Input sensitivity setting:
Software
Frequency response:
-3 dB points at 20 Hz and 20 kHz (tolerance ± 1 dB)
Input impedance:
100 kohm (XLR)
12 kohm (cinch)
Signal/Noise ratio:
> 87 dBA at maximum level
Common mode rejection ratio:
> 40 dB
Input cross-talk:
> 75 dB at maximum level at 100 Hz, 1 kHz
and 10 kHz
Distortion:
< 0.05% at 1 kHz at -3 dB of the maximum input level
Bosch Security Systems | 2011-02
5.7.9
en | 103
Audio microphone inputs
(only input 1 and input 2)
Connector (rear side):
Female XLR per input
Preferred cable:
Shielded
Nominal input level:
-57 dBV based on 91 dBSPL for a microphone with
sensitivity of 2 mV/Pa, a male voice with normal
loudness and a speaker to microphone distance of
0.15 m
Headroom:
30 dB
Input range:
-7 to +8 dB with respect to nominal input level
(limiter threshold)
Input sensitivity setting:
Software
Frequency response:
-3 dB points at 300 Hz and 20 kHz (tolerance ± 1 dB)
First order, high-pass speech filter at 300 Hz
Input impedance:
1360 ohm
Signal/Noise ratio:
> 62 dBA with 25 dB headroom
Common mode rejection ratio:
> 55 dB at 100 Hz
> 65 dB at 1 kHz and 10 kHz
Phantom supply:
12 V ± 1 V (max. 15 mA)
Limiter:
Analog limiter, level -8 dB with respect to maximum.
• attack time: 1 ms
• decay time: 300 ms
• threshold at nominal input level
(Only for network controllers of version HW15/xx and
higher. Hardware information can be obtained using
the front panel menu.)
Praesideo 3.5 | Installation and User Instructions | 3 | Control Equipment
5.7.10 Audio outputs
Connector (rear side):
One XLR and one stereo (dual mono) cinch for each
output
Preferred cable:
Shielded
Maximum output level:
18 dBV ± 1 dB for XLR
6 dBV ± 1 dB for cinch
Output range:
-30 dB to 0 dB with respect to maximal output level
Output level setting:
Software
Frequency response:
-3 dB points at 20 Hz and 20 kHz (tolerance ± 1 dB)
Output impedance:
< 100 ohm
Signal/Noise ratio:
> 89 dBA at maximum level
Output cross-talk:
< -85 dB
Distortion:
< 0.05% at 1 kHz at -3 dB of the maximum input
signal
Bosch Security Systems | 2011-02
en | 104
5.7.11 Control inputs
Connector (rear side):
Removable screw connector
Total cable resistance:
< 1 kohm (with line supervision)
< 5 kohm (without line supervision)
Resistance detection (supervision enabled):
Cable short circuit
< 2.5 kohm
Contact closed
7.5 kohm to12 kohm
Contact open
17.5 kohm to 22 kohm
Cable broken
> 27 kohm
Resistance detection (supervision disabled):
Contact closed
< 12 kohm
Contact open
> 17.5 kohm
Maximum open voltage:
24 V(DC)
Internal pull-up current:
0.5 mA
External contacts:
Voltage-free closing or breaking contacts (relay
contacts, mechanical switches, mercury contacts
etc.)
Praesideo 3.5 | Installation and User Instructions | 3 | Control Equipment
5.7.12 Control outputs
5.7.13 RS232 interface
Connector (rear side):
Removable screw connector
Maximum cable length:
1 km
Contact type:
Relay contact, single pole, change-over contact
(SPDT)
Maximum switching power:
Refer to the graph.
Off state (unpowered):
C-NC is closed, C-NO is open
Fault contacts:
Network controllers of hardware version HW15/xx
have fixed purposes for control outputs 4 and 5.
Control output 4 is a audible fault indication contact
for audible fault indications (e.g. buzzer), whereas
control output 5 is a visual fault indication contact for
visual fault indications (e.g. lamp). (The hardware
information can be obtained from the front panel
menu)
Connector (rear side):
Female 9 pole SUB-D connector
Maximum cable length:
15 m
Signal levels:
According to EIA RS232-C interface specification
5.7.14 Ethernet
Medium:
Copper, 10 BASE-T/100 BASE-TX with 10/100 Mbps
auto-negotiation.
Connector (rear side):
RJ45 jack/receptacle with shield
Preferred cable:
UTP cable category 5
Maximum length:
100 m (point-to-point)
Signal levels:
According to IEEE 802.3
5.7.15 Headphones
Connector (front side):
3.5 mm stereo jack socket for headphones
Maximum output voltage:
6 dBV with volume control
Rated load impedance:
8 to 600 ohm
Signal/Noise ratio
> 80 dB (at maximum output level)
Distortion:
< 0.5%
2.0
Contact Current (A)
1.0
0.5
0.4
0.3
0.2
10
20
30
40 50
Contact Voltage (V)
figure 5.14: Maximum switching power
Bosch Security Systems | 2011-02
en | 105
100
200
Praesideo 3.5 | Installation and User Instructions | 3 | Control Equipment
6
en | 106
LBB4402/00 Audio
Expander
6.1
Introduction
The LBB4402/00 Audio Expander is used if the system
requires additional audio inputs and outputs. See
figure 6.1 for a block diagram of the audio expander.
Unlike the network controller, the audio expander has
transformer-isolated and balanced XLR inputs and
outputs for easy interfacing to other systems.
Furthermore, control inputs and outputs are available.
Display + Control
Audio inputs
A/D
D/A
Audio outputs
Network
processor
+
DSP
Control inputs
I
POF
POF
O
Network
redundancy
switching
figure 6.1: Block diagram of the audio expander
6.2
Controls & connectors
6.2.1
Front view
The front of the audio expander (see figure 5.2) contains
the following:
1 Menu display - A 2x16 character LCD display
gives information about the audio expander (see
section 6.5).
2 Menu button - A turn-and-push button to operate
the menu (see section 6.5).
3 Monitoring headphones output - A 3.5 mm
(0.14 inch) jack socket to connect headphones for
audio monitoring purposes.
Bosch Security Systems | 2011-02
Control outputs
Praesideo 3.5 | Installation and User Instructions | 3 | Control Equipment
6.2.2
Rear view
The rear of the audio expander (see figure 6.2) contains
the following:
4 Audio inputs - Four audio inputs for receiving
audio signals from analog audio sources. Two of the
audio inputs are selectable between microphone and
line. The other two audio inputs are fixed line inputs.
Each audio input has a XLR as well as a double
cinch connector (see section 6.3.3).
5 Audio outputs - Four audio outputs for extracting
analog audio signals. Each audio output has a XLR
as well as a double cinch connector (see
section 6.3.4).
6 Ground - A connection to electrically ground the
audio expander.
7 System bus - Two system bus connectors to
connect the audio expander to other Praesideo
equipment (see section 6.3.2).
8 Control inputs - The control inputs can be used to
receive signals from third party equipment that must
trigger actions in the Praesideo network (see
section 6.3.5).
9 Control outputs - The control outputs can be used
to send signals to third party equipment to trigger
actions generated by the Praesideo network (see
section 6.3.6).
2
1
4
Caution
Risk of electric shock.
Do not open.
en | 107
5
3
4
5
Audio In 3
Audio Out 3
Audio In 4
Audio Out 4
Audio In 1
Audio Out 1
Audio In 2
Audio Out 2
Avis
Risk of electric shock.
Do not open.
Control In
1
2
3
4
5
6
7
8
Network
1
2
Control Out
C NC NO C NC NO C NC NO C NC NO C NC NO
48V
48V
7
1
8
9
2
3
4
5
4
figure 6.2: Front and rear views of the audio expander
Bosch Security Systems | 2011-02
5
4
5
6
Praesideo 3.5 | Installation and User Instructions | 3 | Control Equipment
6.3
Connections
6.3.1
Introduction
This section gives an overview of typical system
connections using the audio expander.
• Connecting the network (see section 6.3.2).
• Connecting audio inputs (see section 6.3.4).
• Connecting audio outputs (see section 6.3.4).
• Connecting control inputs (see section 6.3.5).
• Connecting control outputs (see section 6.3.6).
6.3.2
en | 108
Note
The audio inputs can handle electret
microphones as well as dynamic microphones,
since the audio expander can generate the
phantom supply for electret microphones.
See figure 6.3 for details about the audio input sockets
Connecting the network
2
Connect the audio expander to the Praesideo system
using the system bus connectors and LBB4416 network
cables. Both connectors are interchangeable.
1
Audio In
5
This unit is powered by the network controller, via the
Praesideo system bus.
6.3.3
4
Connecting audio inputs
The audio expander has 4 audio inputs to interface with
analog audio sources. Each audio input has two
connectors on the rear of the audio expander; one XLR
connector (for balanced signals) and one double cinch
connector (for unbalanced signals). The audio expander
mixes stereo signals connected to the cinch connectors
of the same audio input into one single mono signal.
The analog audio can be a line source as well as a
microphone. See table 6.1 for an overview of the input
types supported by each of the inputs.
Note
The microphone inputs should not be used to
connect emergency microphones. These inputs
do not provide microphone connection
supervision.
table 6.1: Audio input types
Audio Input Microphone
(XLR only)
1
Yes
2
Yes
3
No
4
No
Bosch Security Systems | 2011-02
3
figure 6.3: Audio input sockets
table 6.2: Audio input socket details
Pin
Socket
Definition Description
1
XLR
Xternal
Shield/ground
(female)
(phantom supply -)
2
Live
Positive
(phantom supply +)
3
Return
Negative
(phantom supply +)
4
Cinch
Right
Right channel in
5
Left
Left channel in
6.3.4
Connecting audio outputs
The audio expander has 4 audio outputs to route analog
audio signals to other equipment (e.g. a tape deck to
record a specific audio signal). Each audio output has
two connectors on the rear of the audio expander; one
XLR connector (for balanced signals) and one double
cinch connector (for unbalanced signals).
Line
Yes
Yes
Yes
Yes
Note
The right and left cinch connectors carry the
same mono signal.
Praesideo 3.5 | Installation and User Instructions | 3 | Control Equipment
en | 109
See figure 6.4 for details about the audio output sockets.
Control In
1
2
1
2
3
4
5
6
7
8
Audio Out
5
4
10kΩ
3
figure 6.4: Audio output sockets
10kΩ
table 6.3: Audio output socket details
Pin
Socket
Definition Description
1
XLR
Xternal
Shield/ground
2
Live
Positive
(male)
3
Return
Negative
4
Cinch
Right
Right channel out
5
Left
Left channel out
6.3.5
figure 6.5: Supervised control input
Control In
1
2
3
4
5
6
7
8
Connecting control inputs
The audio expander has 8 control inputs. The control
inputs can receive signals from third party equipment
that must trigger actions in the Praesideo system. The
control inputs can be configured to act on contact make
or on contact break (see section 43.5). It is also possible
to supervise the cables for short-circuits and open
connections (see figure 6.5 and figure 6.6). Whether a
control input is actually supervised or not is defined in
the configuration.
figure 6.6: Non-supervised control input
Warning
Do not connect DC or AC signals to the control
inputs, otherwise the input circuit may be
damaged. Only use voltage-free contacts.
Note
Do not combine control input wires of multiple
control inputs (e.g. do not use a common return
wire).
Bosch Security Systems | 2011-02
Praesideo 3.5 | Installation and User Instructions | 3 | Control Equipment
6.3.6
Connecting control outputs
The audio expander has 5 control outputs. The control
outputs can be used to send signals to third party
equipment to trigger actions. Each control output
connection has three pins (see figure 6.7).
Control Out
C NC NO C NC NO C NC NO C NC NO C NC NO
1
2
3
4
6.4
en | 110
Installation
The audio expander is suitable for either table-top or
19-inch rack installation. Four feet (for table-top use)
and two brackets (for rack installation) are supplied.
Note
The center bracket positions can be used to
secure the unit on a table or shelf. They can also
be used to install the unit vertically to a wall.
5
figure 6.7: Control outputs
The common (C) pin of the control output should
always be connected. Whether the other pin that is
connected is the normally closed (NC) or normally
open (NO) depends on which action that take place
when the control output is active (see table 6.4).
table 6.4: Control outputs details
Connection Abbr.
Description
Normally
NC
By default, the NC
closed
contact is connected
with common contact
C. When the output is
activated, the NC
contact is opened.
Normally
NO
By default, the NO
open
contact is not
connected with
common contact C.
When the output is
activated, the NO
contact is closed.
In the configuration, a purpose must be attached to the
control output that indicates the action to be taken when
it becomes active (see table 43.6).
Bosch Security Systems | 2011-02
figure 6.8: Installation
Caution
When mounting the brackets to the unit, use the
screws that are supplied with the brackets.
Screws with a length of >10 mm may touch or
damage internal parts of the unit.
Praesideo 3.5 | Installation and User Instructions | 3 | Control Equipment
6.5
Using the configuration menu
6.5.1
Overview
en | 111
A number of audio expander settings are available via
an interactive menu, using a 2x16 LCD display and a
'turn-and-push' menu button. The next figure gives an
overview of the menu structure.
Name
VU meter
Menu
1
Monitoring
<
Back
2C FW Version
2B HW Version
2A Serial Number
2
Setup
<
Back
figure 6.9: Structure of the audio expander front panel menu
Bosch Security Systems | 2011-02
Praesideo 3.5 | Installation and User Instructions | 3 | Control Equipment
6.5.2
Navigate through the menu
en | 112
Operating the menu is always a sequence of alternating
turns and pushes:
To navigate through the status screens:
1 Turn the button to move through the status screens
(i.e. the Name, VU meter and Menu ... screens).
Turn the button to:
• Cycle through the menu items within a menu.
• Go to a settable option within a menu item (a
blinking cursor moves through the menu screen).
• Cycle through the available values for a settable
option (the value is blinking).
To navigate through the main menu:
1 Navigate in the status screens to Menu....
2 Push the button to go to the main menu. The menu
item number starts blinking.
3 Turn to select another menu item number.
4 Push to confirm the selection.
Push the button to:
• Confirm a chosen menu item (a blinking cursor
appears).
• Go to a sub-menu (the sub-menu item character
starts blinking).
• Confirm the selection of a settable option (the cursor
disappears, the option value starts blinking).
• Confirm a selected value for a settable option (the
value stops blinking, the cursor appears again).
To jump to a sub-menu:
1 Navigate to an item with three dots (e.g. Setup...).
2 Push the button to go to the sub-menu. The submenu item character starts blinking.
3 Turn to select another menu item number.
4 Push to confirm the selection.
Each menu is identified by a number or by a number
plus a character (see figure 6.10). The item identification
can be found at the start of the first line and is used to
navigate to and from the sub-menus. Most menu items
have one or more options. The value of an option can
be changed by selecting a value from a list of available
values.
main menu
item number
main item
title
1 Monitoring
Input 1
-10dB option values
figure 6.10: Menu item screen elements
Bosch Security Systems | 2011-02
To navigate through a sub-menu:
1 Turn the button to move the cursor to the sub-menu
item character.
2 Push the button. The item character and title starts
blinking.
3 Turn to select another sub-menu item character.
4 Push to confirm the selection.
To change option values:
1 Navigate to the applicable menu item.
2 Turn the button to move the cursor to the option
value you want to change.
3 Push the button to activate the option. The option
starts to blink.
4 Turn the button to select a new option value.
5 Push the button to confirm the new value. The
option value stops blinking.
6 Turn the button to move the cursor to another
settable option (when available) and repeat steps
3 to 5.
Praesideo 3.5 | Installation and User Instructions | 3 | Control Equipment
To jump back from a sub-menu to an item of the
main menu:
1 Turn the button to move the cursor to the main
menu item number.
2 Push the button. The item number starts blinking.
3 Turn to select another item number.
4 Push to confirm the selection.
OR
1 Turn the button to < Back.
2 Push to confirm.
To jump back from the main menu to the status
screens:
1 Jump back to the main menu.
2 Turn the button to < Back.
3 Push to confirm.
Example:
Set the output that is available on the headphones
output of the audio expander. (This example assumes
you start from the default screen):
Audio Expander
en | 113
4 Turn the button to the Monitoring option:
1 Monitoring
Off
5 Push the button to confirm:
1 Monitoring
Off
6 Turn the button to change the audio output you want
to listen to:
1 Monitoring
Output 3
0 dB
7 Push the button to confirm:
1 Monitoring
Output 3
0 dB
8 Turn to move the cursor to the menu number:
1 Monitoring
Output 3
0 dB
9 Push the button to confirm:
1 Turn to the button to go to the Menu ... in the status
screens:
1 Monitoring
Output 3
0 dB
Menu...
10 Turn to move to the < Back item:
2 Push the button to confirm:
1 Monitoring
Off
3 Push the button to confirm:
1 Monitoring
Off
< Back
11 Push the button to confirm:
Menu...
12 Turn the button to go to the default screen:
Audio Expander
Bosch Security Systems | 2011-02
Praesideo 3.5 | Installation and User Instructions | 3 | Control Equipment
6.6
Configuration and operation
6.6.1
Introduction
The next sections give descriptions of the possible
configuration options. Each description is followed by
the relevant menu items with detailed instructions per
menu option. The default values are indicated by an
asterisk (*) when applicable.
6.6.2
Start-up
When the audio expander is (re)started, the display
shows the name of the unit. If it shows Load Unit
Software, the unit does not contain any firmware or
contains DCN Next Generation firmware. DCN Next
Generation firmware must be replaced by Praesideo
firmware (see section 36.5).
6.6.3
Status screens
The status screens (see table 6.5) provide general
information about the status of the audio expander.
table 6.5: Status screens
Menu Item
Description
Name
Shows the name of the unit and
(possibly) its fault event status (see
section 6.6.4).
VU Meter
Visual indication of the signal strengths
on all audio inputs and audio outputs
of the audio expander.
Bosch Security Systems | 2011-02
6.6.4
en | 114
Fault status
If there is an active fault, the Name screen also shows the
fault status (see table 6.6). If there is more than one
active fault, only the most severe fault is shown. A fault
status only provides global information. The exact
source of a fault can be found out using the fault events
list in this manual (see chapter 52).
table 6.6: Fault status (high to low)
Fault status
Description
No network
The optical network is not
available.
Fault: Input CIn Fault in control input n.
(If n = +, faults in multiple control
inputs.)
Fault: Input AIn Fault in audio line input n.
(If n = +, faults in multiple audio
inputs.)
6.6.5
Main menu
The Menu ... item (see figure 6.9) provides access to the
main menu.
table 6.7: Main menus
Menu item
Description
1 Monitoring
Go to the Monitoring submenu.
See section 6.6.6.
2 Setup
Go to the Setup submenu. See
section 6.6.7 (and further).
Praesideo 3.5 | Installation and User Instructions | 3 | Control Equipment
6.6.6
en | 115
Set monitoring options
The Monitoring submenu is used to set which signal is
sent to the monitoring headphones. It can be one of the
audio inputs, one of the audio outputs or no signal at all.
Furthermore, the screen provides level meters for a
visual identification of the actual signal strength.
table 6.8: Monitoring submenu
Menu item
Option
1 Monitoring
Source:
- Input n
- Output n
Value 1
Value 2
Description
Input nr:
1 to 4
Output nr:
1 to 4
Volume:
-31 to 0 dB
Volume:
-31 to 0 dB
The signal from audio input n is
available on the headphones output.
The signal from audio output n is
available on the headphones output.
The headphones output is off during
normal operation.
- Off*
6.6.7
View version information
The Serial Number, HW Version and SW Version menu
items are used to obtain version information about the
audio expander.
table 6.9: Version information menu items
Menu item
Value (read-only)
2A Serial Number
e.g. 12.0.0030C
2B HW Version
e.g. 15.00
2C FW Version
e.g. 3.00.1419
Bosch Security Systems | 2011-02
Description
Shows the hexadecimal serial number.
Shows the hardware version.
Shows the version number of the firmware. This must be the same
for all units in the system.
Praesideo 3.5 | Installation and User Instructions | 3 | Control Equipment
6.7
Technical data
6.7.1
Physical characteristics
Dimensions (H x W x D):
88 x 483 x 400 mm (19" installation, with brackets,
360 mm depth behind the brackets, 40 mm in front of
the brackets)
92 x 440 x 400 mm (table-top, with feet)
Weight:
6.2 kg
6.7.2
Climate conditions
Temperature:
-5 to +55 °C (operating)
-20 to +70 °C (non-operating)
Relative humidity:
15 to 90%, non-condensing (operating)
5 to 95%, non-condensing (non-operating)
Air pressure:
600 to 1100 hPa
6.7.3
EMC and Safety
Electromagnetic compatibility:
EN55103-1/FCC-47 part 15B
EN55103-2
Electrical safety:
IEC60065 (CB-scheme)
EN60065
Approvals:
CE marking
EN60849, EN54-16 and ISO7240-16
IEC60945
6.7.4
Mean time between failure
MTBF:
50,000 hours at +55 °C
(The MTBF doubles for every 10 °C decrease in
temperature.)
Bosch Security Systems | 2011-02
6.7.5
en | 116
System bus
Connector (rear side):
Proprietary connector
Preferred cable:
LBB4416/xx
Maximum cable length:
50 m (per system bus connector)
Data signal interface:
Plastic optical fiber
Power supply via network:
27 to 56 V(DC)
Network power consumption:
9.0 W
6.7.6
Audio line inputs
Connector (rear side):
Female, galvanically separated XLR and female stereo
cinch socket per input. The stereo signal from the
cinch is internally converted to a mono signal
Preferred cable:
Shielded
Maximum input signal level:
18 dBV ± 1 dB (XLR)
6 dBV ± 1 dB (cinch)
Input range:
-12 dB to 0 dB with respect to maximum input level
Input sensitivity setting:
Software
Frequency response:
-3 dB points at 20 Hz and 20 kHz (tolerance ± 1 dB)
Input impedance:
100 kohm (XLR)
12 kohm (cinch)
Signal/Noise ratio:
87 dBA at maximum level
Common mode rejection ratio:
40 dB at 1 kHz
Input cross-talk:
75 dB at 100 Hz, 1 kHz and 10 kHz
Distortion:
< 0.05% at 1 kHz at -3 dB of the maximum input level
Praesideo 3.5 | Installation and User Instructions | 3 | Control Equipment
6.7.7 Audio microphone inputs (only
input 1 and input 2)
Connector (rear side):
Female galvanically separated XLR per input
Preferred cable:
Shielded
Nominal input level:
-57 dBV based on 91 dBSPL for a microphone with
sensitivity of 2 mV/Pa, a male voice with normal
loudness and a speaker to microphone distance of
0.15 m
Headroom:
30 dB
Input range:
-7 to +8 dB with respect to nominal input level
(limiter threshold)
Input sensitivity setting:
Software
Frequency response:
-3 dB points at 300 Hz and 20 kHz (tolerance ± 1 dB)
First order, high-pass speech filter at 300 Hz
Input impedance:
1360 ohm
Signal/Noise ratio
> 62 dBA with 25 dB headroom
Common mode rejection ratio:
> 55 dB at 100 Hz
> 65 dB at 1 kHz and 10 kHz
Phantom supply:
12 V ± 1 V (max. 15 mA)
Limiter:
Analog limiter, level -8 dB with respect to maximum
• attack time: 1 ms
• decay time: 300 ms
• threshold at nominal input level
(Only for audio expanders of version HW15/xx and
higher. Hardware information can be obtained using
the front panel menu.)
Bosch Security Systems | 2011-02
6.7.8
en | 117
Audio outputs
Connector (rear side):
One galvanically separated XLR and one stereo (dual
mono) cinch for each output
Preferred cable:
Shielded
Maximum output level:
+ 18 dBV ± 1 dB (XLR)
+ 6 dBV ± 1 dB (cinch)
Output range:
-30 dB to 0 dB with respect to maximal output level
Output level setting:
Software
Frequency response:
-3 dB points at 20 Hz and 20 kHz (tolerance ± 1 dB)
Output impedance:
< 100 ohm
Signal/Noise ratio:
> 89 dBA at maximum level
Output cross-talk:
< -85 dB
Distortion:
< 0.05% at 1 kHz at -3 dB of the maximum input
signal
Praesideo 3.5 | Installation and User Instructions | 3 | Control Equipment
Control inputs
Connector (rear side):
Removable screw connector
Total cable resistance:
< 1 kohm (with line supervision)
< 5 kohm (without line supervision)
Resistance detection (supervision enabled):
Cable short circuit
< 2.5 kohm
Contact closed
7.5 kohm to12 kohm
Contact open
17.5 kohm to 22 kohm
Cable broken
> 27 kohm
Resistance detection (supervision disabled):
Contact closed
< 12 kohm
Contact open
> 17.5 kohm
Maximum open voltage:
24 V(DC)
Internal pull-up current:
0.5 mA
External contacts:
Voltage-free closing or breaking contacts (relay
contacts, mechanical switches, mercury contacts
etc.)
6.7.10 Control outputs
Connector (rear side):
Removable screw connector
Maximum cable length:
1 km
Contact type:
Relay contact, single pole, change-over contact
(SPDT)
Maximum switching power:
Refer to the graph.
Off state (unpowered):
C-NC is closed, C-NO is open
2.0
1.0
Contact Current (A)
6.7.9
en | 118
0.5
0.4
0.3
0.2
10
20
30
40 50
100
Contact Voltage (V)
figure 6.11: Maximum switching power
6.7.11 Headphones
Connector (front side):
3.5 mm stereo jack socket for headphones
Maximum output voltage:
6 dBV with volume control
Rated load impedance:
8 to 600 ohm
Signal/Noise ratio:
> 80 dB (at maximum output level)
Distortion:
< 0.5%
Bosch Security Systems | 2011-02
200
Praesideo 3.5 | Installation and User Instructions | 3 | Control Equipment
7
LBB4404/00 CobraNet
Interface
7.1
Introduction
The LBB4404/00 CobraNet Interface is used to
interface between a CobraNet and Praesideo. The
CobraNet interface can convert up to 4 audio channels
from Praesideo to CobraNet and 4 audio channels from
CobraNet to Praesideo at the same time. See figure 7.1
for a block diagram of the CobraNet interface.
Note
CobraNetTM is a registered trademark of Peak
Audio, a division of Cirrus Logic, Inc.
en | 119
CobraNet is a combination of software, hardware and
network protocol which allows distribution of many
channels of real-time, high quality digital audio over an
Ethernet network. CobraNet is supported for switched
Ethernet variants. CobraNet uses standard Ethernet
packets and network infrastructure (controllers,
switches, cabling, etc.) that operate in compliance with
the IEEE 802.3u specification for Fast Ethernet. Fast
Ethernet distance limitations apply to CobraNet
installations: 100 meters over Cat-5 copper cable, 2
kilometers over multimode fiber. Proprietary Fast
Ethernet via single mode fiber solutions can reach even
further.
CobraNet can sent up to 64 channels of 48 kHz, 20-bit
audio over a single 100 Mbit link in each direction.
These channels are grouped in bundles.
See www.cobranet.info for information on CobraNet,
including network design, network installation, network
redundancy and troubleshooting.
Display + Control
CAT5
CAT5
Control inputs
POF
POF
CobraNet
Interface
Sample rate
conversion
D/A
Network
processor
+
DSP
O
I
Network
redundancy
switching
figure 7.1: Block diagram of the CobraNet interface
Bosch Security Systems | 2011-02
Control outputs
Praesideo 3.5 | Installation and User Instructions | 3 | Control Equipment
7.2
Controls and connectors
7.4
Connections
7.2.1
Front view
7.4.1
Introduction
The front of the CobraNet interface (see figure 7.2)
contains the following:
1 Menu display - A 2x16 character LCD display
gives information about the CobraNet interface (see
section 7.7).
2 Menu button - A turn-and-push button to operate
the menu (see section 7.7).
3 Monitoring headphones output - A 3.5 mm
(0.14 inch) jack socket to connect the headphones for
audio monitoring purposes.
7.3
Rear view
The rear of the CobraNet interface (see figure 7.2)
contains the following:
4 System bus - Two system bus connectors to
connect the CobraNet interface to other Praesideo
equipment (see section 7.4.2)
5 CobraNet interface - Two RJ45 sockets to
connect the CobraNet interface to the CobraNet
network (see section 7.4.3)
6 Control inputs - The control inputs can be used to
receive signals from third party equipment that must
trigger actions in the Praesideo network (see
section 7.4.4).
7 Control outputs - The control outputs can be used
to send signals to third party equipment to trigger
actions generated by the Praesideo network (see
section 7.4.5).
Bosch Security Systems | 2011-02
en | 120
This section gives an overview of typical system
connections using the CobraNet interface.
• Connecting the Praesideo network (see section 7.4.2).
• Connecting the CobraNet network (see
section 7.4.3).
• Connecting control inputs (see section 7.4.4).
• Connecting control outputs (see section 7.4.5).
7.4.2
Connecting the Praesideo
network
Connect the CobraNet interface to the Praesideo system
using the system bus connectors and LBB4416 network
cables. Both connectors are interchangeable.
This unit is powered by the network controller, via the
Praesideo system bus.
7.4.3
Connecting the CobraNet
network
Connect the CobraNet interface to the CobraNet
network using the Ethernet connectors and Cat-5
Ethernet cables. Use either one Cat-5 connection for a
normal Ethernet connection or two for a redundant
connection. Ethernet supports redundant connections
between switches using self-healing topologies. Each
connection has two indicators:
• The right indicator shows green for Ethernet link
and flashing green for Ethernet activity.
• The left indicator lights yellow on the port in use and
flashes yellow on the port in use if the interface is the
conductor.
Praesideo 3.5 | Installation and User Instructions | 3 | Control Equipment
en | 121
2
1
3
Network
1
2
Control In
1
48V
2
Control Out
3
4
5
6
7
8
48V
4
C NC NO C NC NO C NC NO C NC NO C NC NO
1
5
6
figure 7.2: Front and rear views of the CobraNet interface
Bosch Security Systems | 2011-02
2
3
7
4
5
Praesideo 3.5 | Installation and User Instructions | 3 | Control Equipment
7.4.4
en | 122
Connecting control inputs
The CobraNet interface has 8 control inputs. The
control inputs can receive signals from third party
equipment that must trigger actions in the Praesideo
system. The control inputs can be configured to act on
contact make or on contact break (see section 43.7). It
also possible to supervise the cables for short-circuits
and open connections (see figure 7.3 and figure 7.4).
Whether a control input is actually supervised or not is
defined in the configuration.
Control In
1
2
3
4
5
6
7
Note
Do not combine control input wires of multiple
control inputs (e.g. do not use a common return
wire).
7.4.5
Connecting control outputs
The CobraNet interface has 5 control outputs. The
control outputs can be used to send signals to third party
equipment to trigger actions. Each control output
connection has three pins (see figure 7.5).
8
Control Out
C NC NO C NC NO C NC NO C NC NO C NC NO
1
2
3
4
5
10kΩ
figure 7.5: Control outputs
The common (C) pin of the control output should
always be connected. Whether the other pin that is
connected is the normally closed (NC) or normally
open (NO) depends on which action that take place
when the control output is active (see table 7.1).
10kΩ
figure 7.3: Supervised control input
Control In
1
2
3
4
5
6
7
8
figure 7.4: Non-supervised control input
Warning
Do not connect DC or AC signals to the control
inputs, otherwise the input circuit may be
damaged. Only use voltage-free contacts.
Bosch Security Systems | 2011-02
table 7.1: Control outputs details
Connection Abbr.
Description
NC
By default, the NC
Normally
closed
contact is connected
with common contact
C. When the output is
activated, the NC
contact is opened.
Normally
NO
By default, the NO
open
contact is not
connected with
common contact C.
When the output is
activated, the NO
contact is closed.
In the configuration, a purpose must be attached to the
control output that indicates the action to be taken when
it becomes active (see table 43.6).
Praesideo 3.5 | Installation and User Instructions | 3 | Control Equipment
7.5
Installation
The CobraNet interface is suitable for either table-top or
19-inch rack installation. Four feet (for table-top use)
and two brackets (for rack installation) are supplied.
figure 7.6: Installation
Note
The center bracket positions can be used to
secure the unit on a table or shelf. They can also
be used to install the unit vertically to a wall.
Caution
When mounting the brackets to the unit, use the
screws that are supplied with the brackets.
Screws with a length of >10 mm may touch or
damage internal parts of the unit.
7.6
CobraNet Configuration
The CobraNet must be configured using the CobraNet
Discovery utility (see chapter 55). This application can be
run from any PC that is connected to the CobraNet
interfaces via an Ethernet network.
Bosch Security Systems | 2011-02
en | 123
Praesideo 3.5 | Installation and User Instructions | 3 | Control Equipment
7.7
Using the configuration menu
7.7.1
Overview
en | 124
A number of CobraNet interface settings are available
via an interactive menu, using a 2x16 LCD display and
a ‘turn-and-push’ menu button. The next figure gives an
overview of the menu structure.
Name
VU meter
Menu
1
Monitoring
<
Back
2C FW Version
2B HW Version
2A Serial Number
2
Setup
<
Back
figure 7.7: Structure of the CobraNet interface front panel menu
Bosch Security Systems | 2011-02
Praesideo 3.5 | Installation and User Instructions | 3 | Control Equipment
7.7.2
Navigate through the menu
en | 125
Operating the menu is always a sequence of alternating
turns and pushes:
To navigate through the status screens:
1 Turn the button to move through the status screens
(i.e. the Name, VU meter and Menu ... screens).
Turn the button to:
• Cycle through the menu items within a menu.
• Go to a settable option within a menu item (a
blinking cursor moves through the menu screen).
• Cycle through the available values for a settable
option (the value is blinking).
To navigate through the main menu:
1 Navigate in the status screens to Menu....
2 Push the button to go to the main menu. The menu
item number starts blinking.
3 Turn to select another menu item number.
4 Push to confirm the selection.
Push the button to:
• Confirm a chosen menu item (a blinking cursor
appears).
• Go to a sub-menu (the sub-menu item character
starts blinking).
• Confirm the selection of a settable option (the cursor
disappears, the option value starts blinking).
• Confirm a selected value for a settable option (the
value stops blinking, the cursor appears again).
To jump to a sub-menu:
1 Navigate to an item with three dots (e.g. Setup...).
2 Push the button to go to the sub-menu. The submenu item character starts blinking.
3 Turn to select another menu item number.
4 Push to confirm the selection.
Each menu is identified by a number or by a number
plus a character (see figure 7.8). The item identification
can be found at the start of the first line and is used to
navigate to and from the sub-menus. Most menu items
have one or more options. The value of an option can
be changed by selecting a value from a list of available
values.
main menu
item number
main item
title
1 Monitoring
Input 1
-10dB option values
figure 7.8: Menu item screen elements
Bosch Security Systems | 2011-02
To navigate through a sub-menu:
1 Turn the button to move the cursor to the sub-menu
item character.
2 Push the button. The item character and title starts
blinking.
3 Turn to select another sub-menu item character.
4 Push to confirm the selection.
To change option values:
1 Navigate to the applicable menu item.
2 Turn the button to move the cursor to the option
value you want to change.
3 Push the button to activate the option. The option
starts to blink.
4 Turn the button to select a new option value.
5 Push the button to confirm the new value. The
option value stops blinking.
6 Turn the button to move the cursor to another
settable option (when available) and repeat steps
3 to 5.
Praesideo 3.5 | Installation and User Instructions | 3 | Control Equipment
To jump back from a sub-menu to an item of the
main menu:
1 Turn the button to move the cursor to the main
menu item number.
2 Push the button. The item number starts blinking.
3 Turn to select another item number.
4 Push to confirm the selection.
OR
1 Turn the button to < Back.
2 Push to confirm.
To jump back from the main menu to the status
screens:
1 Jump back to the main menu.
2 Turn the button to < Back.
3 Push to confirm.
Example:
Set the output that is available on the headphones
output of the audio expander. (This example assumes
you start from the default screen):
Cobranet Interf
en | 126
4 Turn the button to the Monitoring option:
1 Monitoring
Off
5 Push the button to confirm:
1 Monitoring
Off
6 Turn the button to change the audio output you want
to listen to:
1 Monitoring
Output 3
0 dB
7 Push the button to confirm:
1 Monitoring
Output 3
0 dB
8 Turn to move the cursor to the menu number:
1 Monitoring
Output 3
0 dB
9 Push the button to confirm:
1 Turn to the button to go to the Menu ... in the status
screens:
1 Monitoring
Output 3
0 dB
Menu...
10 Turn to move to the < Back item:
2 Push the button to confirm:
1 Monitoring
Off
3 Push the button to confirm:
1 Monitoring
Off
< Back
11 Push the button to confirm:
Menu...
12 Turn the button to go to the default screen:
Cobranet Interf
Bosch Security Systems | 2011-02
Praesideo 3.5 | Installation and User Instructions | 3 | Control Equipment
7.8
Configuration and operation
7.8.1
Introduction
The next sections give descriptions of the possible
configuration options. Each description is followed by
the relevant menu items with detailed instructions per
menu option. The default values are indicated by an
asterisk (*) when applicable.
7.8.2
Start-up
When the CobraNet interface is (re)started, the display
shows the name of the unit. If it shows Load Unit
Software, the unit does not contain any firmware or
contains DCN Next Generation firmware. DCN Next
Generation firmware must be replaced by Praesideo
firmware (see section 36.5).
7.8.3
Status screens
7.8.4
en | 127
Fault status
If there is an active fault, the Name screen also shows the
fault status (see table 7.3). If there is more than one
active fault, only the most severe fault is shown. A fault
status only provides global information. The exact
source of a fault can be found out using the fault events
list in this manual (see chapter 45).
table 7.3: Fault status (severity: high to low)
Fault status
Description
No network
The optical network is not
available.
Fault:
Fault in the CobraNet network.
CobraNet
Fault: Internal
Fault in the CobraNet interface.
Fault: Input CIn Fault in control input n.
(If n = +, faults in multiple control
inputs.)
The status screens (see table 7.2) provide general
information about the status of the CobraNet interface.
7.8.5 Main menu
table 7.2: Status screens
Menu Item
Description
Name
Shows the name of the unit and
(possibly) its fault status (see
section 7.8.4)
VU Meter
Visual indication of the signal strengths
on all audio inputs and audio outputs
of the CobraNet interface.
Bosch Security Systems | 2011-02
The Menu ... item (see table 7.4) provides access to the
main menu.
table 7.4: Main menus
Menu item
Description
1 Monitoring
Go to the Monitoring submenu.
See section 7.8.6.
2 Setup
Go to the Setup submenu.
See section 7.8.7.
Praesideo 3.5 | Installation and User Instructions | 3 | Control Equipment
7.8.6
en | 128
Set monitoring options
The Monitoring submenu is used to set which signal is
sent to the monitoring headphones. It can be one of the
audio inputs, one of the audio outputs or no signal at all.
Furthermore, the screen provides level meters for a
visual identification of the actual signal strength.
table 7.5: Monitoring submenu
Menu item
Option
1 Monitoring
Source:
- Input n
- Output n
Value 1
Value 2
Description
Input nr:
1 to 4
Output nr:
1 to 4
Volume:
-31 to 0 dB
Volume:
-31 to 0 dB
The signal from audio input n is
available on the headphones output.
The signal from audio output n is
available on the headphones output.
The headphones output is off during
normal operation.
- Off*
7.8.7
View version information
The Serial Number, HW Version and SW Version menu
items are used to obtain version information about the
audio expander.
table 7.6: Version information menu items
Menu item
Value (read-only)
2A Serial Number
e.g. 1C.0.0030C
2B HW Version
e.g. 01.00
2C FW Version
e.g. 3.00.1419
Bosch Security Systems | 2011-02
Description
Shows the hexadecimal serial number.
Shows the hardware version.
Shows the version number of the firmware. This must be the same
for all units in the system.
Praesideo 3.5 | Installation and User Instructions | 3 | Control Equipment
7.9
Technical data
7.9.1
Physical characteristics
Dimensions (H x W x D):
88 x 483 x 400 mm (19" installation, with brackets,
360 mm depth behind the brackets, 40 mm in front of
the brackets)
92 x 440 x 400 mm (table-top, with feet)
Weight:
6 kg
7.9.2
Climate conditions
Temperature:
-5 to +55 °C (operating)
-20 to +70 °C (non-operating)
Relative humidity:
15 to 90%, non-condensing (operating)
5 to 95%, non-condensing (non-operating)
Air pressure:
600 to 1100 hPa
7.9.3
EMC and Safety
Electromagnetic compatibility:
EN55103-1/FCC-47 part 15B
EN55103-2
EN50121-4
EN50130-4
Fast transients immunity:
During fast transients bursts according to
EN61000-4-4, the Cobranet audio signal might be
lost. After the burst, this signal restores automatically.
Electrical safety:
IEC60065 (CB-scheme)
EN60065
Approvals:
CE marking
EN60849, EN54-16 and ISO7240-16
IEC60945
Bosch Security Systems | 2011-02
7.9.4
en | 129
Mean time between failure
MTBF:
50,000 hours at +55 °C
(The MTBF doubles for every 10 °C decrease in
temperature.)
7.9.5
System bus
Connector (rear side):
Proprietary connector
Preferred cable:
LBB4416/xx
Maximum cable length:
50 m (per system bus connector)
Data signal interface:
Plastic optical fiber
Network power consumption:
11 W
7.9.6
Control inputs
Connector (rear side):
Removable screw connector
Total cable resistance:
< 1 kohm (with line supervision)
< 5 kohm (without line supervision)
Resistance detection (supervision enabled):
Cable short circuit
< 2.5 kohm
Contact closed
7.5 kohm to12 kohm
Contact open
17.5 kohm to 22 kohm
Cable broken
> 27 kohm
Resistance detection (supervision disabled):
Contact closed
< 12 kohm
Contact open
> 17.5 kohm
Maximum open voltage:
24 V(DC)
Internal pull-up current:
0.5 mA
External contacts:
Voltage-free closing or breaking contacts (relay
contacts, mechanical switches, mercury contacts
etc.)
Praesideo 3.5 | Installation and User Instructions | 3 | Control Equipment
Intentionally left blank.
Bosch Security Systems | 2011-02
en | 130
Praesideo 3.5 | Installation and User Instructions | 4 | Amplifiers
Part 4 - Amplifiers
Bosch Security Systems | 2011-02
en | 131
Praesideo 3.5 | Installation and User Instructions | 4 | Amplifiers
Intentionally left blank.
Bosch Security Systems | 2011-02
en | 132
Praesideo 3.5 | Installation and User Instructions | 4 | Amplifiers
8
Power Amplifiers
8.1
Introduction
The PRS-1P500, PRS-2P250 and PRS-4P125 power
amplifiers are the successors of the LBB4421/10,
LBB4422/10 and LBB4424/10 power amplifiers. The
main difference is that the efficiency of the new
amplifiers is higher, so their power consumption is less
for the same output power. This is especially noticeable
in Idle mode and in Stand-by or Power save mode,
saving valuable battery power in situations where this is
allowed (not for EN54-16 compliant installations).
en | 133
switched mode power supply. The amplifiers are
protected against overload, overheat and short-circuits.
See figure 8.1 for a block diagram of the power
amplifier.
The power amplifiers have configurable audio
processing functions, like parametric equalization, audio
delay and the possibility for noise dependent automatic
volume control (AVC).
Note
The number of inputs, spare amplifier
connections, loudspeaker lines and control
outputs depends on the type of power amplifier.
The main function of the Power Amplifiers is the
amplification of audio signals for the loudspeakers. The
amplifiers are high-efficiency class D amplifiers with
Display + Control
Audio Inputs
D/A
(1..8)
A/D
Loudspeaker Out
Class D
(1..8)
Spare Amplifier
Network
Processor
+
DSP
Control Inputs
I
POF
POF
O
Control Outputs (1..8)
Network
Redundancy
Switching
Mains
Power Supply
48 V Back-up
figure 8.1: Block diagram of a power amplifier
Bosch Security Systems | 2011-02
Praesideo 3.5 | Installation and User Instructions | 4 | Amplifiers
8.2
Controls, connectors and
indicators
8.2.1 Front view
The front of the power amplifier (see figure 8.2) contains
the following:
1 Menu display - A 2x16 character LCD display
gives information about the power amplifier (see
section 8.6).
2 Menu button - A turn-and-push button to navigate
through the menu (see section 8.6).
3 Monitoring headphones output - A 3.5 mm
(0.14 inch) jack socket to connect headphones for
audio monitoring purposes.
Bosch Security Systems | 2011-02
en | 134
8.2.2 Rear view
The rear of the power amplifier (see figure 8.2) contains
the following:
4 Ground - A connection to electrically ground the
power amplifier.
5 Control inputs - The control inputs can be used to
receive signals from third party equipment that must
trigger actions in the Praesideo network (see
section 8.3.7).
6 Audio inputs - Audio inputs for receiving audio
signals from analog audio sources (see
section 8.3.6).
7 Back-up power - A socket for connecting a
back-up power supply (see section 8.3.8).
8 Mains on/off switch - A switch to switch the
mains of the power amplifier on and off (see
section 8.3.2).
9 Fuse holder - A fuse holder with a fuse that
protects the power supply of the power amplifier (see
section 8.3.2).
10 System bus - Two system bus connectors to
connect the power amplifier to other Praesideo
equipment.
11 Amplifier channels - Each power amplifier unit
contains 1 to 8 completely separated and
configurable amplifier channels. The number of
amplifier channels depends on the type of power
amplifier (see section 8.3.5).
12 Mains inlet - A mains socket to connect the power
amplifier to the mains (see section 8.3.2).
13 Signal Ground - A switch that connects the signal
ground to the safety ground (see section 8.3.4).
14 Voltage selector - A switch to select the local
mains voltage (see section 8.3.2).
Praesideo 3.5 | Installation and User Instructions | 4 | Amplifiers
en | 135
PRS-xPxxx, LBB4428/00
Power Amplifier
2
1
3
PRS-1P500, PRS-2P250, PRS-4P125
Power Amplifier
4
5
8 9
14 13
6
Mains
Audio In
Control In
1
115:
100-120V
T6.3A
230:
220-240V
T6.3A
2
3
4
5
6
7
8
1
2
+
0
– +
0
Floating
–
Network
Control Out
Spare In
2
Lsp Out
2
C NO NC
– –
0V 50V
Control Out
+ +
Spare In
C NO NC
– –
Control Out
1
Lsp Out
+ +
0V 50V
C NO NC
Spare In
– –
Lsp Out
0V 50V
+ +
Class 2
Wiring
48V
50-60Hz
250V
Signal Ground
Grounded
1
50-60Hz
250V
C NO NC
Spare In
– –
Lsp Out
0V 50V
3
+ +
Caution
Risq of electric shock
Do not open
12A
Avis
0
Risque de choc electrique.
Ne pas ouvrir
7
11
5
Control Out
48V
Battery
Non-isolated input +
48V
10
LBB4428/00
Power Amplifier
4
10
4
12
7
6
8 9
Network
1
Control In
1
2
2
3
4
5
6
7
8
Audio In
1
Battery
2
0
C
NO NC
Spare In
0V
Lsp Out
1
50V
Control Out
C
NO NC
Spare In
0V
Lsp Out
3
50V
Control Out
C
NO NC
Spare In
0V
Lsp Out
5
0
0
50V
Control Out
C
NO NC
48V
Mains
100-240V
4
0
48V
48V
Control Out
3
Spare In
0V
Lsp Out
7
0
+
50V
T6.3A H
250V
2
4
6
8
Caution
Risk of electric shock.
Do not open.
Avis
Risk of electric shock.
Do not open.
11
figure 8.2: Front and rear views of the power amplifier (all types)
Bosch Security Systems | 2011-02
12
Praesideo 3.5 | Installation and User Instructions | 4 | Amplifiers
8.3
Connections
8.3.1 Introduction
This section gives an overview of typical system
connections using the power amplifier.
• Connecting the mains (see section 8.3.2).
• Connecting the network (see section 8.3.3).
• Connecting to ground (see section 8.3.4).
• Connecting the amplifier channels (see
section 8.3.5).
• Connecting audio inputs (see section 8.3.6).
• Connecting control inputs (see section 8.3.7).
Connecting back-up power supply (see section 8.3.8)
8.3.2 Connecting the mains
Proceed as follows to connect the power amplifier to the
mains:
1 Put the correct type of fuse in the power amplifier
(see table 8.1 and table 8.2).
table 8.1: Voltage selector and fuse (PRS-xPxxx)
Selector Mains voltage Fuse
V(AC)
115
100 - 120
T6.3A H 250V
(IEC 60127 or UL 248)
230
220 - 240
T6.3A H 250V
(IEC 60127)
table 8.2: Voltage range and fuse (LBB4428/00)
Voltage range
Fuse
100 - 240 V(AC)
T6.3A H 250V
(IEC 60127 or UL 248)
2 Connect the mains cord to the power amplifier.
3 Connect the mains cord to a locally approved mains
outlet.
en | 136
8.3.4 Ground connection
LBB4428/00 only: A ground jumper can connect the
signal ground to the safety ground. This jumper is X3 on
the printed circuit board. Set the jumper to connect pins
2 and 3 to connect signal ground to the safety ground.
Set the jumper to connect pins 1 and 2 to isolate the
signal ground.
The manufacturers setting is as a floating ground with
the jumper connecting pins 1 and 2. If the audio line or
microphone input of the amplifier is used and the
connected audio source is not grounded, the jumper can
be connected between pins 2 and 3 to reduce the
susceptibility to external RF disturbances. If the audio
source already has the signal ground connected to a
safety ground, leave the jumper connected to pins 1 and
2 to avoid ground loops that can be a source of hum.
3
2
1
figure 8.3: Ground connector
For the PRS-1P500, PRS-2P250 and PRS-4P125: With
the rear switch (13 in fig 8.2) the signal ground can be
connected to safety ground.
8.3.3 Connecting the network
Connect the power amplifier to the Praesideo system
using the system bus connectors and LBB4416 network
cables. Both connectors are interchangeable.
Bosch Security Systems | 2011-02
Warning
To reduce the risk of electric shock do not
perform any servicing other than that contained
in the operating instructions unless you are
qualified to do so. See section 1.2 Intended
audience.
Praesideo 3.5 | Installation and User Instructions | 4 | Amplifiers
en | 137
8.3.5 Connecting the amplifier channels
8.3.5.1 Introduction
An amplifier channel (see figure 8.4) is a group of
outgoing signals that have been processed by the same
amplifier unit of the power amplifier. The number of
amplifier channels depends on the type of power
amplifier (see table 8.3).
table 8.3: Number of amplifier channels
Type
Amplifier channels
PRS-1P500
1
PRS-2P250
2
PRS-4P125
4
LBB4428/00
8
Control Out
C NO NC
Spare In
0V
Caution
After connecting wires to the amplifier channel
connectors, install the plastic safety bracket.
The plastic safety bracket makes sure that the
amplifier channel connectors cannot be
touched.
Lsp Out
50V
1
9
figure 8.4: Amplifier channel connector
table 8.4: Amplifier channel connector details
Pin
Description
1, 2, 3
Control outputs contacts. See
section 8.3.5.4.
4, 8
Spare amplifier. See section 8.3.5.5.
5, 9
Loudspeaker line. See section
8.3.5.2.
6, 7
Fixed 50 V line. See section 8.3.5.3.
Bosch Security Systems | 2011-02
Caution
To prevent the hazard of electric shocks, switch
off the power amplifiers and disconnect the
back up power supplies from the power
amplifiers before connecting loudspeaker lines
and spare amplifier connections.
Praesideo 3.5 | Installation and User Instructions | 4 | Amplifiers
8.3.5.2 Loudspeaker lines
Between the Lsp Out+ and Lsp Out- connections, the
loudspeakers must be connected. The voltage between
these connections (100 V, 70 V or 50 V) depends on the
position of the jumper on the output board (see figure
8.5).
It is possible to use the different voltages to reduce the
volume of the loudspeaker line. For example, if all
loudspeakers are suitable for 100 V, the maximum
output level is 40 dBV. If the loudspeaker line voltage is
set to 70 V, the maximum output level is reduced to
37 dBV (difference: -3 dB). If it is set to 50 V, it is
reduced to 34 dBV (difference: -6 dB).
PRS-1P500, PRS-2P250, PRS-4P125
Power Amplifier
en | 138
Caution
Check the specifications of the loudspeakers to
find out which maximum voltage can be
provided on the loudspeakers outputs of the
power amplifiers. To reduce the risk of electric
shock do not perform any servicing other than
that contained in the operating instructions
unless you are qualified to do so. See section
1.2 Intended audience.
LBB4428/00
Power Amplifier
4 8
100 V
70 V
50 V
figure 8.5: Top view of the power amplifier output boards
Bosch Security Systems | 2011-02
3 7
2 6
1 5
Praesideo 3.5 | Installation and User Instructions | 4 | Amplifiers
8.3.5.3 50 V output
The 50 V output provided by the amplifier channel is
actually a tap-off from the 50 V voltage for the
loudspeaker line. The availability of the 50 V line does
not depend on the selected loudspeaker voltage, since
the tap-off is situated in front of the jumper (see
figure 8.6).
Spare In +
100 V
Lsp Out +
70 V
50 V
50 V
50 V
Spare In -
50 V
100 V
Lsp Out -
0V
figure 8.6: 50 V output
If the 50 V is connected to ground, a ‘balanced’ output
for the loudspeaker voltage can be created. In that case,
the maximum voltage between the loudspeaker line and
ground is never more than 50 V (see figure 8.6). The
actual voltage between the loudspeaker line and ground
depends on the position of the jumper switch.
If the 50 V is connected to ground on purpose, the
ground supervision of the amplifier output should be
disabled using the configuration software (see
section 43.3.4).
8.3.5.4 Control outputs
Each amplifier channel has one control output. The
control output can be used to send signals to third party
equipment to trigger actions. Each control output has
three pins (see figure 8.4). The common (C) pin of the
control output should always be connected. Whether
the other pin that is connected is the normally closed
(NC) or normally open (NO) depends on which action
you want to take place when the control output is active
(see table 8.5).
Bosch Security Systems | 2011-02
en | 139
table 8.5: Control outputs details
Behavior
Abbreviation Description
Normally
NC
By default, the NC
closed
contact is connected
with common contact
C. When the output is
activated, the NC
contact is opened.
Normally
NO
By default, the NO
open
contact is not
connected with
common contact C.
When the output is
activated, the NO
contact is closed.
In the configuration, a purpose must be attached to the
control outputs that indicates the action to be taken
when it becomes active (see table 43.6). For example,
the power amplifier control outputs can be configured
as a Volume override output to create volume overrides.
8.3.5.5 Spare amplifiers
If a power amplifier has a defect, all loudspeaker lines
are switched automatically to a spare amplifier (if
connected and configured). See figure 8.7 for a
connection diagram. Keep the following in mind:
• The main and spare power amplifiers must be of the
same type. If the main power amplifier is a
PRS-4P125, the spare power amplifier must also be a
PRS-4P125
• The way the loudspeaker lines are connected to the
spare amplifier must be exactly the same as the way
they are connected to the main amplifier. For
example, if the loudspeaker lines use the fixed 50 V
output of the main amplifier, they also must be
connected to the fixed 50 V output of the spare
amplifier.
Praesideo 3.5 | Installation and User Instructions | 4 | Amplifiers
Spare In +
Main
1
Mains
115:
100-120V
50-60Hz
T6.3A 250V
230:
220-240V
50-60Hz
T6.3A 250V
Audio In
Control In
1
2
3
4
en | 140
5
6
7
1
8
2
0
– +
0
Floating
50 V
–
Control Out
1
Spare In
Lsp Out
2
C NO NC
– –
0V 50V
2
+ +
Control Out
Spare In
C NO NC
– –
Lsp Out
0V 50V
Control Out
1
+ +
C NO NC
Spare In
– –
Lsp Out
0V 50V
4
Control Out
+ +
C NO NC
Spare In
– –
Lsp Out
0V 50V
3
50 V
+ +
Class 2
Wiring
48V
Lsp Out +
70 V
Signal Ground
Grounded
+
Network
100 V
Spare In -
Caution
48V
Battery
Non-isolated input +
48V
12A
0
Risq of electric shock
Do not open
Avis
Risque de choc electrique.
Ne pas ouvrir
Lsp Out -
0V
Control Out
Spare In
C NO NC
– –
Lsp Out
0V 50V
1
+ +
1
2
100 V
Spare In +
Lsp Out +
70 V
50 V
50 V
Spare In Lsp Out -
0V
Spare
Mains
1
2
3
4
5
6
7
1
8
2
Signal Ground
Grounded
+
0
figure 8.8: Power amplifier, before spare switching
115:
100-120V
50-60Hz
T6.3A 250V
230:
220-240V
50-60Hz
T6.3A 250V
Audio In
Control In
– +
0
Network
Control Out
1
2
48V
48V
Floating
–
C NO NC
Spare In
– –
Lsp Out
0V 50V
+ +
2
Control Out
C NO NC
Spare In
– –
Lsp Out
0V 50V
1
+ +
Control Out
C NO NC
Spare In
– –
Lsp Out
0V 50V
4
Control Out
+ +
C NO NC
Spare In
– –
Lsp Out
0V 50V
3
+ +
Class 2
Wiring
Control Out
C NO NC
Caution
48V
Battery
Non-isolated input +
Spare In
– –
Lsp Out
0V 50V
12A
0
Risq of electric shock
Do not open
Avis
Risque de choc electrique. .
Ne pas ouvrir
1
+ +
2
figure 8.7: Connecting a spare amplifier
Note
It is allowed to connect one spare power
amplifier to more than one main power amplifier.
The actual spare switch is carried out by a relay. See
figure 8.8 for the situation before spare switching and
figure 8.9 for the situation after spare switching. As long
as the main power amplifier (1) functions correctly, this
relay is energized (see figure 8.8) and the audio is routed
to the loudspeaker line (Lsp Out+ and Lsp Outterminals). The spare amplifier (2) does not route any
audio, since it has no connection to any loudspeaker
line.
Bosch Security Systems | 2011-02
At the moment the main amplifier (1) goes down, the
relay is de-energized and the switches fall into their
default positions: Spare In - and Spare In + (see
figure 8.9). This means that the audio output of the
spare amplifier (2) is routed to the loudspeaker line
through the main amplifier (1). The configuration
settings (see section 43.3) of the audio outputs are
transferred from the main power amplifier to the spare
power amplifier. The configuration settings of the audio
inputs, control inputs and control outputs are not
transferred to the spare power amplifier.
If an LBB4428/00 amplifier has been taken over by a
spare power amplifier, the amplifier goes to standby and
audio and control inputs do not work. An AVC
microphone on the input is set to OFF and the call
volume goes to maximum for all the required zones.
If an PRS-1P500, PRS-2P250 or PRS-4P125 amplifier
has been taken over by a spare power amplifier, the
amplifier goes to stand-by; the audio inputs do not
work, but the control inputs and outputs remain active.
Praesideo 3.5 | Installation and User Instructions | 4 | Amplifiers
8.3.6
Spare In +
1
100 V
Lsp Out +
en | 141
Connecting audio inputs
The number of audio inputs depends on the type of
power amplifier.
70 V
50 V
50 V
Spare In Lsp Out -
0V
2
100 V
Spare In +
Lsp Out +
70 V
50 V
50 V
Spare In Lsp Out -
0V
figure 8.9: Power amplifier, after spare switching
Often, for each rack of main amplifiers, one spare
amplifier is used. To connect multiple main amplifiers
of the same type to a spare amplifier of the same type:
• Connect the loudspeaker output of the spare
amplifier to the spare inputs of the first main
amplifier.
• Loop-through the spare inputs of the first main
amplifier to the spare inputs of the other main
amplifiers. Please note that if the number of failing
main power amplifier increases, the loudspeaker
load of the spare power amplifier increases. This can
result in an overload of the power amplifier. Also
note that the audio distributed to the loudspeaker
lines of all failing power amplifiers depends on the
configuration settings of the first failing power
amplifier, since only the configuration settings of the
first failing power amplifier are transferred to the
spare power amplifier.
Bosch Security Systems | 2011-02
table 8.6: Number of audio inputs
Type
Audio inputs
PRS-1P500
2
PRS-2P250
2
PRS-4P125
2
LBB4428/00
4
The audio inputs are used to interface with analog audio
sources. Each audio input is selectable between line and
microphone.
It is possible to connect unbalanced signal as well as
balanced signals. Unbalanced signals can be connected
to the 0 (GND) and the + or - pins (see figure 8.10). The
remaining, non-connected pin do not have to be
connected to the 0 pin. A balanced signal should be
connected between the + and - pins of the audio input.
The 0 (GND) pin can be connected to the shielding of
the signal cable. However, this is not required.
Audio In
1
0
2
0
figure 8.10: Audio input connectors
Praesideo 3.5 | Installation and User Instructions | 4 | Amplifiers
8.3.7
en | 142
Connecting control inputs
Each type of power amplifier has 8 control inputs. The
control inputs can receive signals from third party
equipment that must trigger actions in the Praesideo
system. The control inputs can be configured to act on
contact make or on contact break (see section 43.3). It is
also possible to supervise the cables for short-circuits
and open connections (see figure 8.11 and figure 8.12).
Whether a control input is actually supervised or not is
defined in the configuration.
Control In
1
2
3
4
5
6
7
8
10kΩ
figure 8.11: Supervised control input
Control In
2
Note
Do not combine control input wires of multiple
control inputs (e.g. do not use a common return
wire).
Note
Even during amplifier faults, the control inputs
on PRS-xPxxx power amplifiers stay available as
long as mains or back-up power is available.
10kΩ
1
Warning
Do not connect DC or AC signals to the control
inputs, otherwise the input circuit may be
damaged. Only use voltage-free contacts.
3
4
5
6
7
8
figure 8.12: Non-supervised control input
Bosch Security Systems | 2011-02
Praesideo 3.5 | Installation and User Instructions | 4 | Amplifiers
8.3.8
Connecting back-up power
Connect the back-up power supply to the back-up
power connector on the back of the amplifier. Refer to
figure 8.13 and figure 8.14.
Mains
115:
100-120V
50-60Hz
T6.3A 250V
230:
220-240V
50-60Hz
T6.3A 250V
Audio In
Control In
1
2
3
4
en | 143
5
6
7
8
1
2
Signal Ground
Grounded
+
0
– +
Control Out
1
Spare In
2
Lsp Out
2
C NO NC
– –
0V 50V
Control Out
+ +
C NO NC
Spare In
– –
Lsp Out
0V 50V
Control Out
1
+ +
Spare In
C NO NC
– –
Lsp Out
0V 50V
+ +
4
Control Out
C NO NC
Spare In
– –
Class 2
Wiring
48V
Floating
–
0
Network
Lsp Out
0V 50V
3
+ +
Caution
48V
Battery
Non-isolated input +
48V
Risq of electric shock
Do not open
12A
Avis
0
Risque de choc electrique.
Ne pas ouvrir
15AT
Warning
Never ground the positive terminal of the
battery, as this will damage the Praesideo
equipment. If the back-up power supply
(battery) is grounded, always connect the
negative terminal (0) first and the positive
terminal (+) second.
Disconnect in reverse order: disconnect the
positive terminal first and the negative terminal
second. This avoids excessive ground loop
currents.
48V
48V
Battery
Non-isolated input +
12A
0
figure 8.13: Connecting power amplifier to ground (1)
Network
1
Control In
1
2
2
3
4
5
6
7
8
Audio In
1
Battery
2
0
C
NO NC
3
0
0
Spare In
0V
Lsp Out
1
50V
Control Out
C
NO NC
Spare In
0V
Lsp Out
3
Control Out
50V
C
NO NC
Spare In
0V
Lsp Out
5
50V
Control Out
C
NO NC
48V
Mains
100-240V
4
0
48V
48V
Control Out
Spare In
0V
Lsp Out
7
0
+
50V
T6.3A H
250V
2
4
6
8
Caution
Risk of electric shock.
Do not open.
Avis
Risk of electric shock.
Do not open.
15AT
Battery
48V
Mains
48V
0
+
figure 8.14: Connecting power amplifier to ground (2)
Bosch Security Systems | 2011-02
Warning
For safety reasons you must use an external
circuit breaker. Install in accordance with the
local Electrical and Building Code, e.g. for USA
and Canada in accordance with NEC/CEC and
for Germany in accordance with VDE0108-1.
To reduce the risk of electric shock do not
perform any servicing other than that contained
in the operating instructions unless you are
qualified to do so. See section 1.2 Intended
audience
If a back-up power supply is used, the PRS-xPxxx
amplifiers can switch to the Power-save mode to reduce
the load on the battery. This mode is not supported by
the LBB4428/00. See section 44.4.
When an amplifier is set to Power-save mode due to a
mains failure, the audio inputs, and control inputs and
outputs are still available for use. An ambient sensing
microphone will continue to operate if connected to the
amplifier for AVC.
Praesideo 3.5 | Installation and User Instructions | 4 | Amplifiers
8.4
Fan control
The PRS-1P500, PRS-2P250 and PRS-4P125 amplifiers,
from HW version 06/00 onwards, have a fan
monitoring circuit that detects the actual fan rotation.
This detection is needed for compliancy to the standards
UL864 and UL1711, for use in the USA. Additionally
the internal fans need to run at full speed for
compliancy to these standards. A jumper on the main
PCB selects between two positions:
• Normal (factory default) - The fans are temperature
controlled, normally running at low speed and
switching to high speed in case the temperature
exceeds a certain level. Fan monitoring is not
activated.
•
en | 144
Full speed - The fans run at full speed continuously.
Fan monitoring is activated. Do not enable Switch
amplifiers to standby (see section 44.4) for this
selection, because in standby the fans are stopped
and a fault would be generated.
The jumper is indicated on the PCB as X18; connection
1-2 selects Normal, connection 2-3 selects Full speed.
See figure 8.15.
PRS-1P500, PRS-2P250 and PRS-4P125
X18
3
2
1
figure 8.15: Jumper X18 provides fan control for PRS-1P500, PRS-2P250 and PRS-4P125
Bosch Security Systems | 2011-02
Praesideo 3.5 | Installation and User Instructions | 4 | Amplifiers
8.5
en | 145
Installation
The power amplifier is suitable for either table-top or
19-inch rack installation. Four feet (for table-top use)
and two brackets (for rack installation) are supplied.
Caution
Due to the weight of the power amplifiers, it
requires two persons to lift and install them in a
19-inch rack.
figure 8.16: Installation
Ensure there is enough space for the cool air flow to
enter and the warm air flow to leave the power
amplifier. Preferably, the power amplifiers are installed
in a closed 19" rack that has one cool air inlet protected
with a dust filter (see figure 8.17) to prevent dust from
entering the equipment.
figure 8.17: Air flow in a 19" rack
Bosch Security Systems | 2011-02
Caution
When mounting the brackets to the unit, use the
screws that are supplied with the brackets, four
longer ones and two shorter ones. Use two
screws of 7.5 mm thread length at the front side
of each bracket, use a short screw of 5.2 mm
thread length at the rear side of each bracket.
Do not use screws with a thread length of
>10 mm for the front positions or screws with a
thread length of >5.7 mm at the rear postion;
longer screws may touch or damage
internalparts of the unit.
Praesideo 3.5 | Installation and User Instructions | 4 | Amplifiers
8.6
Using the configuration menu
8.6.1
Overview
A number of power amplifier settings are available via
an interactive menu, using a 2x16 LCD display and a
'turn-and-push' menu button. The next figure gives an
overview of the menu structure.
Status
Menu
1
Monitoring
<
2C
Back
FW
Version
2B HW Version
2A Serial
Number
2
Setup
<
Back
figure 8.18: Structure of the power amplifier front panel menu
Bosch Security Systems | 2011-02
en | 146
Praesideo 3.5 | Installation and User Instructions | 4 | Amplifiers
8.6.2
Navigate through the menu
en | 147
Operating the menu is always a sequence of alternating
turns and pushes:
To navigate through the status screens:
1 Turn the button to move through the status screens
(i.e. the Status and Menu ... screens).
Turn the button to:
• Cycle through the menu items within a menu.
• Go to a settable option within a menu item (a
blinking cursor moves through the menu screen).
• Cycle through the available values for a settable
option (the value is blinking).
To navigate through the main menu:
1 Navigate in the status screens to Menu....
2 Push the button to go to the main menu. The menu
item number starts blinking.
3 Turn to select another menu item number.
4 Push to confirm the selection.
Push the button to:
• Confirm a chosen menu item (a blinking cursor
appears).
• Go to a sub-menu (the sub-menu item character
starts blinking).
• Confirm the selection of a settable option (the cursor
disappears, the option value starts blinking).
• Confirm a selected value for a settable option (the
value stops blinking, the cursor appears again).
To jump to a sub-menu:
1 Navigate in to an item with three dots (e.g. Setup...).
2 Push the button to go to the sub-menu. The
sub-menu item character starts blinking.
3 Turn to select another menu item number.
4 Push to confirm the selection.
Each menu is identified by a number or by a number
plus a character (see figure 8.19). The item identification
can be found at the start of the first line and is used to
navigate to and from the sub-menus. Most menu items
have one or more settable options. The value of an
option can be changed by selecting a value from a list of
available values.
main menu
item number
main item
title
1 Monitoring
Input 1
option value
figure 8.19: Menu item screen elements
Bosch Security Systems | 2011-02
To navigate through a sub-menu:
1 Turn the button to move the cursor to the sub-menu
item character.
2 Push the button. The item character and title starts
blinking.
3 Turn to select another sub-menu item character.
4 Push to confirm the selection.
To change option values:
1 Navigate to the applicable menu item.
2 Turn the button to move the cursor to the option
value you want to change.
3 Push the button to activate the option. The option
starts to blink.
4 Turn the button to select a new option value.
5 Push the button to confirm the new value.
The option value stops blinking.
6 Turn the button to move the cursor to another
settable option (when available) and repeat steps
3 to 5.
Praesideo 3.5 | Installation and User Instructions | 4 | Amplifiers
To jump back from a sub-menu to an item of the
main menu:
1 Turn the button to move the cursor to the main
menu item number.
2 Push the button. The item number starts blinking.
3 Turn to select another item number.
4 Push to confirm the selection.
en | 148
5 Push the button to confirm:
1 Monitoring
Off
6 Turn the button to change the audio output you want
to listen to:
1 Monitoring
Output 3
OR
1 Turn the button to < Back.
2 Push to confirm.
To jump back from the main menu to the status
screens:
1 Jump back to the main menu.
2 Turn the button to < Back.
3 Push to confirm.
Example:
Set the output that is available on the headphones
output of the power amplifier. (This example assumes
you start from the default screen)
Power Amp 4x125W
1_2_3_4_
7 Push the button to confirm:
1 Monitoring
Output 3
8 Turn to move the cursor to the menu number:
1 Monitoring
Output 3
9 Push the button to confirm:
1 Monitoring
Output 3
10 Turn to move to the < Back item:
1 Turn to the button to go to the Menu ... in the status
screens:
< Back
Menu...
11 Push the button to confirm:
2 Push the button to confirm:
1 Monitoring
Off
3 Push the button to confirm:
1 Monitoring
Off
4 Turn the button to the Monitoring option:
1 Monitoring
Off
Bosch Security Systems | 2011-02
Menu...
12 Turn the button to go to the default screen:
Power Amp 4x125W
1_2_3_4_
Praesideo 3.5 | Installation and User Instructions | 4 | Amplifiers
8.7
Configuration and operation
8.7.1
Introduction
The next sections give descriptions of the possible
configuration options. Each description is followed by
the relevant menu items with detailed instructions per
menu option. The default values are indicated by an
asterisk (*) when applicable.
8.7.2
Start-up
When the power amplifier is (re)started, the display
shows the name of the unit and the VU meters for the
outputs. If it shows Load Unit Software, the unit does not
contain any firmware or old firmware. By default, it is
delivered without firmware. See section 36.5 for
information about upgrading the firmware.
Bosch Security Systems | 2011-02
8.7.3
en | 149
Status screen
The Status screen (see figure 8.18) shows the name of the
power amplifier and provides general information about
its (fault) status (see table 8.7). If there is more than one
active fault, only the most severe fault is shown. A fault
status only provides global information. The exact
source of a fault can be found out using the fault events
list in this manual (see chapter 54).
table 8.7: Status (in order of severity: high to low)
Fault status
Description
No network
The optical network is not
available.
Fault: Channel n Fault in amplifier channel n.
(If n = +, faults in multiple
amplifier channels.)
Fault in loudspeaker line n.
Fault: Line Ch n
(If n = +, faults in multiple
loudspeaker lines.)
Fault: Lsp Ch n
Fault in a loudspeaker in line n.
(If n = +, loudspeakers on
multiple lines are failing).
Fault in control input n.
Fault: Input CIn
(If n = +, faults in multiple control
inputs.)
Fault: Input AIn
Fault in audio input n.
(If n = +, faults in multiple audio
inputs.)
Fault: Mains
Mains power supply failure.
Fault: Battery
Back-up power supply failure.
Idle
Spare power amplifier that is not
sparing at the moment.
Standby
Standby mode or disabled in
system configuration.
VU meters
Fully operational.
Praesideo 3.5 | Installation and User Instructions | 4 | Amplifiers
8.7.4
en | 150
Main menu
The Menu ... item provides access to the main menu.
table 8.8: Main menus
Menu item
Description
1 Monitoring
Go to the Monitoring submenu.
See section 8.7.5.
2 Setup
Go to the Setup submenu. See
section 8.7.6 (and further).
8.7.5
Set monitoring options
The Monitoring submenu is used to set which signal is
sent to the monitoring headphones. It can be one of the
audio outputs or no signal at all. It is not possible to set
the volume of the audio outputs on the monitoring
headphones. This means you always hear the audio
output at the monitoring headphones at the same
volume as it is broadcast.
table 8.9: Monitoring submenu
Menu item
Option
1 Monitoring
Source:
- Output n
Value 1
Description
Output nr:
1 to 8
The signal from audio output n is available
on the monitoring headphones output.
The monitoring headphones output is off.
- Off*
8.7.6
View version information
The Serial Number, HW Version and SW Version
submenus are used to obtain version information about
the power amplifier.
table 8.10: Version information menu items
Menu item
Value (read-only)
2A Serial Number e.g. 07.0.0025B
2B HW Version
e.g. 01.01
2C FW Version
e.g. 3.00.1419
Bosch Security Systems | 2011-02
Description
Shows the hexadecimal serial number.
Shows the hardware version.
Shows the version number of the firmware. This must be the same for
all units in the system.
Praesideo 3.5 | Installation and User Instructions | 4 | Amplifiers
8.8
Technical data
8.8.1
Physical characteristics
Dimensions (H x W x D):
88 x 483 x 400 mm (19" installation, with brackets,
360 mm depth behind the brackets, 40 mm in front of
the brackets)
92 x 440 x 400 mm (table-top, with feet)
Weight:
PRS-1P500
12.6 kg
PRS-2P250
13.6 kg
PRS-4P125
16.1 kg
LBB4428/00
14.5 kg
8.8.2
Climate conditions
Temperature:
-5 to +55 °C (operating)
-20 to +70 °C (non-operating)
Relative humidity:
15 to 90%, non-condensing (operating)
5 to 95%, non-condensing (non-operating)
Air pressure:
600 to 1100 hPa
8.8.3
EMC and Safety
Electromagnetic compatibility:
EN55103-1/FCC-47 part 15B
EN55103-2
EN50121-4
EN50130-4
Electrical safety:
IEC60065 (CB-scheme)
EN60065
Approvals:
CE marking
EN60849, EN54-16 and ISO7240-16
IEC60945
8.8.4
Mean time between failure
MTBF:
32,000 hours at +55 °C
(The MTBF doubles for every 10 °C decrease in
temperature.)
Bosch Security Systems | 2011-02
8.8.5
en | 151
System bus
Connector (rear side):
Female proprietary connector
Preferred cable:
LBB4416/xx
Maximum cable length:
50 m (per system bus connector)
Data signal interface:
Plastic optical fiber
Network power consumption:
0W
8.8.6
Power supply
Connector (rear side):
IEC male power inlet with fuse holder
Preferred cable:
Mains cord meeting CE standard
Voltage selector:
115 V(AC) / 230 V(AC) for PRS-xPxxx
Nominal input voltage range:
PRS-xPxxx
115 V (typical): 100 - 120 V(AC) at 50 - 60 Hz
230 V (typical): 220 - 240 V(AC) at 50 - 60 Hz
LBB4428/00
100 - 240 V(AC) at 50 - 60 Hz
Input voltage limits:
PRS-xPxxx
115 V (typical): 90 - 132 V(AC) at 50 - 60 Hz
230 V (typical): 198 - 264 V(AC) at 50 - 60 Hz
LBB4428/00
90 - 264 V(AC) at 50 - 60 Hz
On/Off switch:
Located at the rear
8.8.7
Back-up power
Connector (rear side):
2 pole for removable screw connector
Input voltage:
48 V(DC)
Input voltage range:
43.5 to 56 V(DC)
Input voltage range for rated output power:
53 to 56V (DC)
Maximum current:
12 A
Praesideo 3.5 | Installation and User Instructions | 4 | Amplifiers
8.8.8
Power consumption
Note
The power consumption on batteries depends
on the connected load, signal levels and type of
signal (alarm tone, duty cycle, speech). It is
recommended to measure the actual current
drawn from the batteries in power save mode,
idle mode and alarm tone mode to check the
calculated battery capacity. When calculating
the battery capacity, also take into account that
the capacity decreases during the lifetime of the
battery. Also see section 33.3.
8.8.8.1 Power consumption PRS-1P500
Load: 20 Ω / 250 nF per channel
Stand-by/Power save:
5 W, 48 V(DC); 15 W, 120/230 V(AC)
Idle, no pilot tone:
15 W, 48 V(DC); 24 W, 120/230 V(AC)
Idle, with pilot tone 15 V:
29 W, 48 V(DC); 39 W, 120/230 V(AC)
Pmax -6 dB with pilot tone 15 V:
173 W, 48 V(DC); 194 W, 120/230 V(AC)
Pmax -3 dB with pilot tone 15 V:
327 W, 48 V(DC); 353 W, 120/230 V(AC)
Pmax with pilot tone 15 V:
589 W, 54 V(DC);
680 W, 120/230 V(AC)
8.8.8.2 Power consumption PRS-2P250
Load: 40 Ω / 125 nF per channel
Stand-by/Power save:
5 W, 48 V(DC); 16 W, 120/230 V(AC)
Idle, no pilot tone:
19 W, 48 V(DC); 31 W, 120/230 V(AC)
Idle, with pilot tone 15 V:
30 W, 48 V (DC); 43 W, 120/230 V(AC)
Pmax -6 dB with pilot tone 15 V:
178 W, 48 V(DC); 195 W, 120/230 V(AC)
Pmax -3 dB with pilot tone 15 V:
327 W, 48 V(DC); 354 W, 120/230 V(AC)
Pmax with pilot tone 15 V:
546 W, 54 V(DC);
690 W, 120/230 V(AC)
8.8.8.3 Power consumption PRS-4P125
Load: 80 Ω / 62 nF per channel
Stand-by/Power save:
10 W, 48 V(DC); 20 W, 120/230 V(AC)
Idle, no pilot tone:
28 W, 48 V(DC); 40 W, 120/230 V(AC)
Idle, with pilot tone 15 V:
39 W, 48 V (DC); 54 W, 120/230 V(AC)
Pmax -6 dB with pilot tone 15 V:
188 W, 48 V(DC); 205 W, 120/230 V(AC)
Pmax -3 dB with pilot tone 15 V:
332 W, 48 V(DC); 350 W, 120/230 V(AC)
Pmax with pilot tone 15 V:
611 W, 54 V(DC);
670 W, 120/230 V(AC)
8.8.8.4 Power consumption LBB4428
Load: 166 Ω / 30 nF per channel
Stand-by:
22 W, 48 V(DC), 32 W, 120/230 V(AC)
Idle, no pilot tone:
59 W, 48 V(DC); 82 W, 120/230 V(AC)
Idle, with pilot tone 7 V:
63 W, 48 V(DC), 90 W, 120/230 V(AC)
Pmax -6 dB with pilot tone 7 V:
228 W, 48 V(DC); 258 W, 120/230 V(AC)
Pmax -3 dB with pilot tone 7 V:
397 W, 48 V(DC); 433 W, 120/230 V(AC)
Pmax with pilot tone 7 V:
700 W, 48 V(DC); 720 W, 54 V(DC);
800 W, 120/230 V(AC)
Bosch Security Systems | 2011-02
en | 152
Praesideo 3.5 | Installation and User Instructions | 4 | Amplifiers
8.8.9
Audio line inputs
Connector (rear side):
6 pole header (type ETB47-06-2-G1 (ECE)) for
removable screw connector
Preferred cable:
Twisted pair, shielded
Maximum input signal level:
6 dBV
Input range:
-12 to 0 dB with respect to maximum input level
Input sensitivity setting:
Software
Frequency response:
-3 dB points at 50 Hz and 20 kHz (tolerance ± 1 dB)
Input impedance:
22 kΩ
Signal/Noise ratio:
> 87 dB (rms unweigthed)
Common mode rejection ratio:
> 40 dB at 1 kHz
Input cross-talk:
< -80 dB at 1 kHz
<-70 dB at 10 kHz at -11 dBV input level
Distortion:
< 0.1%
Bosch Security Systems | 2011-02
en | 153
8.8.10 Audio microphone inputs
Connector (rear side):
6 pole header (type ETB47-06-2-G1 (ECE)) for
removable screw connector
Preferred cable:
Twisted pair, shielded
Nominal input signal level:
-57 dBV
Input range:
-7 to 8 dB with respect to nominal input level
Input sensitivity setting:
Software
Frequency response:
100 Hz to 16 kHz
Input impedance:
1360 Ω
Signal/Noise ratio:
> 60 dB (rms unweigthed at -60 dBV)
Common mode rejection ratio:
> 40 dB at 1 kHz
Input cross-talk:
< -80 dB at 1 kHz at -60 dBV input level
< -70 dB at 10 kHz at -60 dBV input level
Distortion:
< 0.1%
Phantom supply:
12 V ± 1 V (max. 15 mA)
Praesideo 3.5 | Installation and User Instructions | 4 | Amplifiers
8.8.11 Loudspeaker outputs and spare
inputs
Connector (rear side):
1 x 9 pole header (type ETB 43-09-2-G1 (ECE)) with
removable screw connector (shared with control
outputs)
Voltage:
100 V, 70 V, 50 V (jumper setting)
Max. unloaded voltage:
200 V peak
Rated load resistance:
@ 100/70/50 V output
PRS-1P500
20/10/5 ohm
PRS-2P250
40/20/10 ohm
PRS-4P125
80/40/20 ohm
LBB4428
166/83/42 ohm
Rated load capacitance:
@ 100/70/50 V output
PRS-1P500
250/500/1000 nF
PRS-2P250
125/250/500 nF
PRS-4P125
60/125/250 nF
LBB4428
30/60/120 nF
Rated output power:
@ a/b/c/d/e/f operating condition
PRS-1P500
1 x 500/425/275/185/185/125 W
PRS-2P250
2 x 250/210/150/105/105/60 W
PRS-4P125
4 x 125/105/65/60/60/30 W
LBB4428
8 x 60/50/40/30/30/15 W
Distortion:
< 0.3% at 1 kHz and 50% of the rated output power
< 1% at 100% of output power
Output regulation no load to full load:
<1.2 dB for 50, 70 and 100V output
Frequency response:
60 Hz to 19 kHz (-3 dB) at -10 dB with maximum
capacitive load and rated load resistance
Bosch Security Systems | 2011-02
en | 154
Power bandwidth:
60 Hz - 19 kHz (-3 dB, distortion < 1%) at 50% of the
rated output power
Signal/Noise ratio:
> 85 dBA with pilot tone off
Amplifier output limiting:
Soft clipping
Ground short detection resistance:
< 50 ohm
Acoustical noise level:
< NR35 at 1 m, fans at half speed, table-top
< NR40 at 1 m, fans at full speed, table-top
a Distortion < 1%, 1 kHz, nominal mains power or
battery >53V, max. 1 minute (acc. to IEC 60268-3).
b Distortion < 1%, 1 kHz, mains power or battery
>50V, max. 1 minute, ambient temperature 55 °C
(acc. to EN54-16).
c Distortion < 1%, 1 kHz, battery 48V, max. 1 minute,
ambient temperature 55 °C.
d Alarm tone level, distortion < 0.3%, 1 kHz, mains or
battery (>43.5V), max. 30 minutes, ambient
temperature 55 °C.
e Distortion < 0.3%, 1 kHz, mains or battery >43.5V,
continuous, ambient temperature 30 °C.
f Distortion < 0.3%, 1 kHz, mains or battery >43.5V,
continuous, ambient temperature 55 °C.
Praesideo 3.5 | Installation and User Instructions | 4 | Amplifiers
8.8.12 Derating
8.8.13 Control inputs
The graph shows the available continuous power used
for emergency tones, speech, etc. as function of the
ambient temperature.
55
Continuous Output Power
(% of Rated Output Power)
50
45
40
35
30
25
20
25
30
35
en | 155
40
45
50
55
60
T (°C)
figure 8.20: Output power derating
If the amplifier is loaded with loudspeakers up to its
rated output power (see section 8.8.12), you can still
play music and speech for an indefinite long period of
time at an ambient temperature of 55 °C, because of the
crest factor (or peak-to-average ratio) of the audio
signals. The crest factor of music and speech is typically
6 to 8 dB, which makes the required continuous power
25% or less of the rated output power. Alarm tones are
set to -3 dB maximum by Praesideo, resulting in a
required continuous power of 50% of the rated output
power. This can be delivered for at least 30 minutes at
55 °C ambient or continuously at 30 °C ambient.
Bosch Security Systems | 2011-02
Connector (rear side):
16 pole header (type Phoenix MC1,5/16-G-3,81) for
removable screw connector (MC1,5/16-SWT-3,81)
Total cable resistance:
< 1 kohm (with line supervision)
< 5 kohm (without line supervision)
Resistance detection (supervision enabled):
Cable short circuit
< 2.5 kohm
Contact closed
7.5 kohm to12 kohm
Contact open
17.5 kohm to 22 kohm
Cable broken
> 27 kohm
Resistance detection (supervision disabled):
Contact closed
< 12 kohm
Contact open
> 17.5 kohm
External contacts:
Voltage-free closing or breaking contacts (relay
contacts, mechanical switches, mercury contacts
etc.)
Praesideo 3.5 | Installation and User Instructions | 4 | Amplifiers
8.8.14 Control outputs
Connector (rear side):
1 x 9 pole header (type ETB 43-09-2-G1 (ECE)) with
removable screw connector (shared with loudspeaker
output and spare amplifier input)
Contact type:
Relay contact, single pole, change-over contact
(SPDT)
Maximum switching power:
Refer to the graph.
Off state (unpowered):
C-NC is closed, C-NO is open
2.0
Contact Current (A)
1.0
0.5
0.4
0.3
0.2
10
20
30
40 50
100
Contact Voltage (V)
figure 8.21: Maximum switching power
8.8.15 Headphones
Connector (front side):
3.5 mm stereo jack socket for headphones
Maximum output voltage:
6 dBV without volume control
Rated load impedance:
8 to 600 Ω
Signal/Noise ratio:
> 80 dB (at maximum output level)
Distortion:
< 0.5%
Bosch Security Systems | 2011-02
200
en | 156
Praesideo 3.5 | Installation and User Instructions | 4 | Amplifiers
9
PRS-16MCI Multi Channel
Interface
9.1
Introduction
The PRS-16MCI multi channel interface is the interface
between the basic amplifier channels and the Praesideo
system.
It can connect up to 14 amplifier channels to the
Praesideo network and 2 spare channels, providing 32
additional control inputs and 16 control outputs.
en | 157
The multi channel interface gives supervision to the
connected amplifier channels.
It can be used without connections to a basic amplifier.
The multi channel interface then gives the Praesideo
network 32 more control inputs and 16 more control
outputs.
LED Indicators
Bypass Audio Input
+ Loopthrough
Supervision
Fail
safe
Control Inputs (32)
I
POF
POF
D/A
Network
Processor
+
DSP
Network
Redundancy
Switching
figure 9.1: Block diagram of a multi channel interface
Bosch Security Systems | 2011-02
Audio Outputs
+ Control
+Supervision (16)
Control Outputs (16)
O
Praesideo 3.5 | Installation and User Instructions | 4 | Amplifiers
9.2
Controls, connections and
indicators
5 Control outputs - 16 Control outputs can be used
to send signals to trigger actions generated by the
Praesideo network (see section 9.3.6).
6 System bus - Two system bus connectors to
connect the multi channel interface to other
Praesideo equipment.
7 Bypass In - The multi channel interface bypass
input from the Network controller. See section 9.3.4.
8 Bypass Out - The multi channel interface bypass
output to next multi channel interface.
9 Amplifier connectors 1-14 - Connections to the
basic amplifier channels to give audio and control
signals and receive power and supervision
information (see section 9.3.2).
10 Amplifier connectors 15-16 - Connections to the
spare basic amplifier channels.
11 Ground - A connector to electrically ground the
unit (see section 9.3.7).
9.2.1 Front view
The front of the multi channel interface (see figure 9.2)
contains the following:
1 Amplifier channel status - Audio channels
indicators 1 to 14 gives the status of the connected
amplifier channels.
2 Spare channel status - Audio channel indicators
15 and 16 gives the status of the spare channels.
3 Network status - Status of the network.
9.2.2 Rear view
The rear of the multi channel interface (see figure 9.2)
contains the following:
4 Control inputs - 32 Control inputs can be used to
receive signals from third party equipment that must
trigger actions in the Praesideo network (see section
9.3.5).
1
2
3
4
5
6
7
3
en | 158
8
9
10
11
12
13
14
15
16
2
1
4
5
Control In
1-8
Control Out
9-16
Control Out
C NC NO C NC NO
C NC NO C NC NO
C NC NO C NC NO
C NC NO C NC NO
C NC NO C NC NO
C NC NO C NC NO
C NC NO C NC NO
C NC NO C NC NO
17-24 25-32
1
17
2
18
3
19
4
20
5
21
6
22
7
23
8
24
Bypass In
9
25
10
11
26
27
Bypass Out
12
28
13
29
14
30
15
31
1
16
32
2
1
3
2
3
4
4
5
5
6
6
7
7
8
9
8
9
10
10
12
11
11
12
13
13
14
14
15
15
16
16
Network
1
2
48V
48V
6
Praesideo Power Amplifiers Only
7
8
Praesideo Power Amplifiers Only
9
figure 9.2: Front and rear views of the multi channel interface
Bosch Security Systems | 2011-02
10
11
Praesideo 3.5 | Installation and User Instructions | 4 | Amplifiers
9.3
en | 159
Connectors
9.3.1 Introduction
This section gives an overview of typical system
connections using the multi channel interface.
• Connecting to the basic amplifiers (see section 9.3.2).
• Connecting to the network (9.3.3).
• Connecting the multi channel interface by-pass (see
section 9.3.4).
• Connecting the control inputs (see section 9.3.5).
• Connecting the control outputs (see section 9.3.6).
9.3.2 Connecting to the basic amplifier
The double amplifier connectors 1 to 14 are used for the
basic amplifier channels. The double amplifier
connectors 15 and 16 are available for two spare basic
amplifier channels.
The connection to the basic amplifier is made with two
modular (RJ45) connections.
The connections of the basic amplifier and the multi
channel interface have a triangle (top row) and a circle
(bottom row) symbol.
1 Connect the triangle symbol connector of the multi
channel interface to the triangle symbol connector of
the basic amplifier.
2 Connect the circle symbol connector of the multi
channel interface to the circle symbol connector of
the basic amplifier.
table 9.1 Basic amplifier interface connections
Top row, indicated with Bottom row, indicated
triangle
with circle
Pin
Signal
Pin
Signal
1
Relay A Out
1
Audio Out +
2
Relay B Out
2
Audio Out 3
Ground
3
Ground
4
DC Back-up
4
24 V supply In/
monitor In
Out
5
Mains monitor In 5
Spare relay Out
6
Stand by Out
6
Mute Out
7
100 V In +
7
Overheat In
8
100 V In 8
Ready In
Caution
Always use CAT-5 modular plugs with an empty
connector crimp part (refer to figure 9.3, part A).
Some (pre-)assembled CAT-5 modular plugs
have a connector crimp part that is filled with
plastic (refer to figure 9.3, part B). These
connectors do not give a reliable connection to
the modular (RJ45) connectors on the basic
amplifiers and multi channel interfaces and can
therefore cause unexpected fault events.
A
B
Caution
Do not connect the circle symbol connector of
the multi channel interface to the triangle symbol
connector of the power amplifier.
Caution
Do not connect the modular (RJ45) connectors
to any Telecom or Ethernet network. These
connectors are dedicated for the multi channel
interface and the basic amplifiers only.
Bosch Security Systems | 2011-02
figure 9.3: (pre-) assembled CAT-5 modular plugs
9.3.3
Connecting the network
Use the system bus connectors and LBB4416 network
cables to connect the multi channel interface to the
Praesideo system. Both connectors are interchangeable.
Normally the multi channel interface receives its power
from the connected amplifiers. This is the
recommended setting, but if it is not connected to an
Praesideo 3.5 | Installation and User Instructions | 4 | Amplifiers
9.3.4 Connecting the multi channel
interface by-pass
amplifier, the multi channel interface can receive its
power from the Praesideo system bus instead.
A jumper sets the source of the power supply. The
location of the jumper is shown in figure 9.4. The
jumper has two settings:
• Basic amplifier setting (default)
• Praesideo system bus setting
To receive power from the Praesideo system, set the
jumper to Network Power Supply as shown in figure
9.5.
1
figure 9.4: Jumper location
There are two methods to connect the bypass function
of the multi channel interface.
• Bypass from the network controller. If a fatal fault in
the multi channel interface occurs it will route all
audio signals from a network controller output
directly to all basic amplifier channels. During the
bypass routing of the multi channel interface, all
other functions of the multi channel interface are not
supported.
Make the connection as follows:
1 Connect an Audio Out connector from the network
controller to the Bypass In connector of the multi
channel interface.
2 Connect the Bypass Out connector of the multi
channel interface to the next multi channel interface
in the Praesideo system.
3 Make sure that the audio output from the network
controller is always activated as a zone as part of
emergency calls.
4 For supervision of the bypass connection, configure
the network controller to give a 20 kHz signal on the
Audio Out of the network controller. A separate 20
kHz pilot tone detector, connected to the last by-pass
out, can be used to supervise the interconnection of
the bypass connections.
•
Network Power
Supply
Bypass from an external source. If a fatal fault in the
multi channel interface occurs, an external audio
output can give an audio signal directly to the basic
amplifier channels. The external source can be a
local microphone that goes through a pre-amplifier.
9.3.5
Basic Amplifier
Power Supply
figure 9.5: Jumper settings
Warning
To reduce the risk of electric shock do not
perform any servicing other than that contained
in the operating instructions unless you are
qualified to do so. See section 1.2 Intended
audience.
Bosch Security Systems | 2011-02
en | 160
Connecting control inputs
The multi channel interface has 32 control inputs. The
control inputs can receive signals from third party
equipment that must trigger actions in the Praesideo
system (see section 47.3). The control inputs can be
configured to act on contact make or on contact break
(see section 43.5). It is also possible to supervise the
cables for short-circuits and open connections (see figure
9.6 and figure 9.7). Whether a control input is actually
supervised or not is defined in the configuration.
Praesideo 3.5 | Installation and User Instructions | 4 | Amplifiers
Control In
1-8
9-16
17-24 25-32
1
17
2
18
3
19
4
20
5
21
6
22
7
23
8
24
10kΩ
10kΩ
figure 9.6: Supervised control inputs 1 to 8
Control In
1-8
9-16
17-24 25-32
1
17
2
18
3
19
4
20
5
21
6
22
7
23
8
24
figure 9.7: Non-supervised control inputs 1 to 8
Warning
Do not connect DC or AC signals to the control
inputs, otherwise the input circuit may be
damaged. Only use voltage-free contacts.
Note
Do not combine control input wires of multiple
control inputs (e.g. do not use a common return
wire).
Bosch Security Systems | 2011-02
en | 161
Praesideo 3.5 | Installation and User Instructions | 4 | Amplifiers
en | 162
9.3.6 Connecting control outputs
9.4
Installation
The multi channel interface has 16 control outputs. The
control outputs can be used to send signals to third party
equipment to trigger actions. Each control output
connection has three pins (see figure 9.8).
The multi channel interface is suitable only for 19-inch
rack installation.
Control Out
C NC NO C NC NO
1
2
C NC NO C NC NO
3
C NC NO C NC NO
4
5
6
C NC NO C NC NO
7
8
figure 9.8: Control outputs
The common (C) pin of the control output should
always be connected. Whether the other pin that is
connected is the normally closed (NC) or normally
open (NO) depends on the required action (see table
9.2).
table 9.2: Control outputs details
Connection Abbr.
Description
Normally
NC
By default, the NC
closed
contact is connected
with common contact
C. When the output is
activated, the NC
contact is opened.
Normally
NO
By default, the NO
open
contact is not
connected with
common contact C.
When the output is
activated, the NO
contact is closed.
figure 9.9: Installation
Caution
When mounting the brackets to the unit, use the
screws that are supplied with the brackets.
Screws with a length of >10 mm may touch or
damage internal parts of the unit.
9.5
Configuration and operation
9.5.1 Overview
In the configuration, a function must be assigned to the
control output that indicates when it becomes active (see
table 43.6).
The multi channel interface has these functions:
• Changes the Bypass mode to Normal mode after the
multi channel interface starts. Refer to 9.5.2.
• Monitors the status of each basic amplifier.
Refer to 9.5.3.
• Monitors the power supply to the basic amplifiers.
• Monitors the line and loudspeaker supervision
devices.
• Makes the decision to make a spare amplifier
available if an amplifier channel fails. Refer to 9.5.3
• Changes the basic amplifier to Power saving mode if
necessary. See chapter 44.
9.3.7 Connecting the ground
9.5.2 Fail safe
Connect the ground connection of the unit (see figure
9.2) to the 19- inch rack, which is connected to the
safety ground. For good resistance to electrostatic
discharges (ESD), it is important that the ground
connections of the multi channel interface and the
connected basic amplifiers are interconnected with short
wires, directly or via the rack.
In default or unpowered state, the Bypass In is switched
to the basic amplifier channels. After power on and
when the network is present, the multi channel interface
goes to normal operation.
Bosch Security Systems | 2011-02
Praesideo 3.5 | Installation and User Instructions | 4 | Amplifiers
9.5.3 Multi channel interface and basic
amplifier co-operation
The multi channel interface monitors the functions of
the basic amplifier. Under certain conditions a fault with
a basic amplifier channel will set a spare amplifier
channel as a main amplifier channel.
The faulty main amplifier does not have to be in use for
the spare amplifier to be used as the main amplifier. The
software makes sure that the spare amplifier channel has
the same setting as the main amplifier channel that it
replaces. The spare amplifier channel does not become
main if a main amplifier channel is disabled in the
configuration.
A spare amplifier channel will not replace more than
one main amplifier channel. If a spare channel is
already being used as a main channel, and another main
channel reports a fault, the second main channel is put
on a waiting list for the spare amplifier channel. If more
than two main channels are connected to the same spare
channel, the first amplifier channel to report a fault will
receive the spare channel.
When the first amplifier channel becomes available for
use again, the spare channel takes over the functions of
the second main channel until the second main channel
becomes available.
Bosch Security Systems | 2011-02
en | 163
9.5.4 Front panel LED indication
The front panel of the multi channel interface has LED
indicators that show the status of the connected
amplifier channels and the network status. See table 9.3
and table 9.4 for the description of the status LEDs.
table 9.3: Status LEDs
Channel LED
Basic amplifier channel
Green
Channel enabled in configuration,
no fault
Yellow
Channel enabled in configuration,
fault present (solving the fault sets
the LED to green again, even if the
fault was not acknowledged or reset
by the operator)
Off
Channel disabled in configuration or
not configured
table 9.4: Network LED
Network LED
Multi channel interface
Green
Connected to the network
Yellow
Disconnected from the network
Off
Powered off
Praesideo 3.5 | Installation and User Instructions | 4 | Amplifiers
9.6
9.6.1
Technical data
Physical characteristics
Dimensions (H x W x D):
88 x 483 x 400 mm (19" installation, with brackets,
360 mm behind the brackets, 40 mm in front of the
brackets)
Weight:
7 kg
9.6.2
Climate conditions
Temperature:
-5 to +55 °C (operating)
-20 to +70 °C (non-operating)
Relative humidity:
15 to 90%, non-condensing (operating)
5 to 95%, non-condensing (non-operating)
Air pressure:
600 to 1100 hPa
9.6.3
EMC and Safety
Electromagnetic compatibility:
EN55103-1/FCC-47 part 15B
EN55103-2
EN50121-4 (only when the power for this unit is
supplied by basic amplifiers)
EN50130-4
Electrical safety:
IEC60065 (CB-scheme)
EN60065
Approvals:
CE marking
EN60849, EN54-16 and ISO7240-16
IEC60945
9.6.4
Mean time between failure
MTBF:
50,000 hours at +55 °C
(The MTBF doubles for every 10 °C decrease in
temperature.)
Bosch Security Systems | 2011-02
9.6.5
en | 164
Power supply
Multi channel interface power supply:
Supplied by either:
• the connected basic amplifier (default setting), or
• the Praesideo system bus (optional setting)
9.6.6
Power consumption
Power consumption (basic amplifier)
If the power is supplied by the basic amplifier:
• the power consumption of the basic amplifier is
increased by 12 W
• the power consumption of the network is 0 W
Power consumption (network)
If the power is supplied by the Praesideo system bus:
• the power consumption of the network is
increased by 12 W
• the power consumption of the basic amplifier is
0W
9.6.7
Control inputs
Connector (rear side):
Removable screw connector (4 x 16 positions)
Total cable resistance:
< 1 kohm (with line supervision)
< 5 kohm (without line supervision)
Resistance detection (supervision enabled):
Cable short circuit
< 2.5 kohm
Contact closed
7.5 kohm to12 kohm
Contact open
17.5 kohm to 22 kohm
Cable broken
> 27 kohm
Resistance detection (supervision disabled):
Contact closed
< 12 kohm
Contact open
> 17.5 kohm
Maximum open voltage:
12 V(DC)
Internal pull-up current:
0.5 mA
External contacts:
Voltage-free closing or breaking contacts (relay
contacts, mechanical switches, mercury contacts
etc.)
Praesideo 3.5 | Installation and User Instructions | 4 | Amplifiers
9.6.8
Control outputs
9.6.9
Maximum cable length:
1 km
Contact type:
Relay contact, single pole, change-over contact
(SPDT)
Maximum switching power:
Refer to the graph.
Off state (unpowered):
C-NC is closed, C-NO is open
en | 165
Audio Bypass
Connector audio in:
XLR-female with locking
Input signal level:
0 dBV nominal
10 dBV maximum
Connector audio out:
XLR-male
Output signal level:
Loopthrough of the by-pass audio input
9.6.10 Basic amplifier connections
Connector (rear side):
RJ45
Preferred cable:
CAT5, unshielded twisted pairs
Maximum cable length:
3m
Ground short detection resistance:
< 50 ohm
2.0
Contact Current (A)
1.0
0.5
0.4
0.3
0.2
10
20
30
40 50
Contact Voltage (V)
figure 9.10: Maximum switching power
Bosch Security Systems | 2011-02
100
200
Praesideo 3.5 | Installation and User Instructions | 4 | Amplifiers
10
Basic Amplifiers
en | 166
The basic amplifier is completely supervised and fault
events are reported via the multi channel interface to
the Praesideo network controller.
10.1 Introduction
The basic amplifier is available in these versions:
• PRS-1B500: 1 channel, 500 W.
• PRS-2B250: 2 channels, 2 x 250 W.
• PRS-4B125: 4 channels, 4 x 125 W.
• PRS-8B060: 8 channels, 8 x 60 W.
Loudspeaker lines and loudspeakers connected to a
basic amplifier channel can be supervised by using the
LBB4441 and LBB4443 supervision boards. The multi
channel interface acts as a supervision controller, so no
LBB4440 is required.
The basic amplifier is a high efficiency class-D power
amplifier for public address and emergency sound
systems and is designed as an extension to the Praesideo
system but can also work as a stand alone amplifier. If
not used as a stand alone amplifier, the basic amplifier is
used in conjunction with the multi channel interface
which provides the audio signals and control.
In contrast to the power amplifiers, the basic amplifiers
do no offer built-in audio processing functions as
equalization, delay and automatic volume control.
LED Indicators
Audio input
Multi Channel
Interface
Priority Switching
+ Supervision (2)
Class D
(2)
Audio input
Multi Channel
Interface
Mains
Priority Switching
+ Supervision (1)
Power Supply
48 V Back-up
figure 10.1: Block diagram of a basic power amplifier
Bosch Security Systems | 2011-02
Class D
(1)
Loudspeaker Out A
Loudspeaker Out B
Spare In
Loudspeaker Out A
Loudspeaker Out B
Spare In
Praesideo 3.5 | Installation and User Instructions | 4 | Amplifiers
10.2 Controls, connections and
indicators
10.2.1 Front
The front view of the basic amplifier (see figure 10.2)
contains the following:
1 Mains status - Shows the status of the mains power
connection and supply (see section 10.6).
2 Battery status - Shows the status of the battery
back-up supply (see section 10.6).
3 Amplifier status - Shows the audio level and status
of each audio output channel (see section 10.6).
10.2.2 Rear
The rear of the basic amplifier (see figure 10.2) contains
the following:
4 Audio in - Local audio input (see section 10.3.6).
5 Sensitivity control - Potentiometer for the local
audio input volume (see section 10.3.6).
6 MCI - 2 x RJ45 - 8 pin Multi channel interface
connection (see section 10.3.3).
7 Spare In - Spare switching input from a spare
amplifier channel (see section 10.3.5.3).
8 LSP out - A and B outputs to loudspeakers (see
section 10.3.5).
9 Supervision - Mains and battery supervision.
10 Signal Ground - A switch that connects the signal
ground to the safety ground (see section 10.3.4).
11 Back-up power - A socket for connecting a
back-up power supply (see section 10.3.7).
12 Mains inlet - A mains socket to connect the
amplifier to the mains (see section 10.3.2).
13 Voltage selector - A switch to select the local
mains voltage (see section 10.3.2).
14 Ground - A connector to electrically ground the
unit (see section 10.3.4).
Bosch Security Systems | 2011-02
en | 167
Praesideo 3.5 | Installation and User Instructions | 4 | Amplifiers
en | 168
PRS-xBxxx
Basic Amplifier
1
1
12
2
3
13
PRS-1B500, PRS-2B250
Basic Amplifier
14
115/230V
Mains
115:
100-120V
50-60Hz
T6.3A H 250V
230:
220-240V
50-60Hz
T6.3A H 250V
Class 2 wiring
MCI
Audio In
1
MCI
Audio In
1
2
Spare In
+–
2
Lsp Out
+–
Spare In
+–
+–
Signal Ground
Grounded Floating
Lsp Out
+–
+–
Supervision
Mains
Battery
On
+
0
48V
Battery
+
0
–
MCI Only
+
0
––
A
MCI Only
45 6
7
B
8
A
+
B
9 10
PRS-4B125
Basic Amplifier
7 8
45 6
figure 10.2: Front and rear views of the basic amplifier
Bosch Security Systems | 2011-02
11
12
13
9 10
PRS-8B060
Basic Amplifier
7 8
45 6
0
11
14
12
13
9 10
11
14
12
Praesideo 3.5 | Installation and User Instructions | 4 | Amplifiers
10.3 Connectors
en | 169
The mains supply can be supervised by the basic
amplifier (see figure 10.2, no. 9) and is available for the
multi channel interface.
10.3.1 Introduction
This section gives an overview of typical system
connections with the multi channel interface and
loudspeakers.
• Connecting the mains (see section 10.3.2).
• Connecting the multi channel interface (see
section 10.3.3).
• Connecting to ground (see section 10.3.4).
• Connecting the amplifier channels (see
section 10.3.5).
• Connecting the local audio input (see section 10.3.6
• Connecting the back-up power supply (see
section 10.3.7)
10.3.3 Connecting to the multi channel
interface
The connection to the multi channel interface (MCI) is
made with two Ethernet connections. The MCI
connections have a triangle and a circle symbol (see
figure 10.5).
Caution
Do not connect the circle symbol connector of
the multi channel interface to the triangle symbol
connector of the power amplifier.
10.3.2 Connecting to the mains
Proceed as follows to connect the basic amplifier to the
mains:
1 Select the correct local mains voltage using the
voltage selector on the rear of the basic amplifier (see
table 10.1).
Caution
Always use CAT-5 modular plugs with an empty
connector crimp part (refer to figure 10.4, part
A). Some (pre-)assembled CAT-5 modular plugs
have a connector crimp part that is filled with
plastic (refer to figure 10.4, part B). These
connectors do not give a reliable connection to
the Ethernet connectors on the basic amplifiers
and multi channel interfaces and can therefore
can cause unexpected fault events.
table 10.1: Voltage selector and fuse
Selector Mains voltage Fuse
V(AC)
115
100 - 120
T6.3A H 250V
(IEC 60127 or UL 248)
230
220 - 240
T6.3A H 250V
(IEC 60127)
2 Put the correct type of fuse in the basic amplifier.
The fuse is in the mains inlet. Note that the same
fuse value is used for both voltage ranges.
3 Connect the mains cord to the basic amplifier.
4 Connect the mains cord to a locally approved mains
outlet.
A
B
115/230V
Mains
115:
100-120V
50-60Hz
T10A 250V
230:
220-240V
50-60Hz
T6.3A H 250V
figure 10.4: (pre-) assembled CAT-5 modular plugs
Signal Ground
Grounded Floating
Supervision
Mains
Battery
On
+
0
48V
Battery
+
0
figure 10.3: Connecting mains power supply
Bosch Security Systems | 2011-02
Praesideo 3.5 | Installation and User Instructions | 4 | Amplifiers
Proceed as follows:
1 Connect the triangle symbol connector of the MCI
to the triangle symbol connector of the basic
amplifier.
2 Connect the circle symbol connector of the MCI to
the circle symbol connector of the basic amplifier.
Audio In
MCI
en | 170
1
2
Spare In
+–
Lsp Out
+–
+–
A
B
Spare In
+–
Lsp Out
+–
+–
A
B
Audio In
1
2
figure 10.6: Amplifier channel connectors
+
0
–
MCI Only
+
0
–
figure 10.5: MCI connections
10.3.4 Ground connection
Connect the ground connection of the unit (see figure
10.2) to the 19 inch rack, which is connected to the
safety ground. For good resistance to electrostatic
discharges (ESD), it is important that the ground
connections of the multi channel interface and the
connected basic amplifiers are interconnected with short
wires, directly or via the rack. Set the signal ground
switch to Grounded in case the audio source is not
grounded to reduce susceptibility to external RF
disturbances. If the audio source already has the signal
ground connected to a safety ground, set the switch to
Floating to avoid ground loops that can be a source of
hum.
10.3.5 Connecting the amplifier channels
10.3.5.1 Introduction
An amplifier channel (see figure 10.6) is a group of
outgoing signals that have been processed by the same
amplifier unit of the basic amplifier. The number of
amplifier channels depends on the type of basic
amplifier.
table 10.2: Number of amplifier channels
Type
Amplifier channels
PRS-1B500
1
PRS-2B250
2
PRS-4B125
4
PRS-8B060
8
Bosch Security Systems | 2011-02
table 10.3: Amplifier channel connector details
Pin
Description
1, 2
Spare amplifier input. See section
10.3.5.3.
3, 4
Loudspeaker line A. See section
10.3.5.2.
5, 6
Loudspeaker line B. See section
10.3.5.2.
Caution
To prevent the hazard of electric shocks, switch
off the basic amplifiers and disconnect the back
up power supplies from the basic amplifiers
before connecting loudspeaker lines and spare
amplifier connections.
Caution
After connecting wires to the amplifier channel
connectors, install the plastic safety bracket.
The plastic safety bracket makes sure that the
amplifier channel connectors cannot be
touched.
Praesideo 3.5 | Installation and User Instructions | 4 | Amplifiers
en | 171
10.3.5.2 Loudspeaker lines
Between the Lsp Out+ and Lsp Out- connections, the
loudspeakers must be connected. The voltage between
these connections (100 V, 70 V) depends on the
position of the jumper on the output board (see figure
10.7).
It is possible to use the different voltages to reduce the
volume of the loudspeaker line. For example, if all
loudspeakers are suitable for 100 V, the maximum
output level is 40 dBV. If the loudspeaker line voltage is
set to 70 V, the maximum output level is reduced to
37 dBV (difference: -3 dB).
Caution
Check the specifications of the loudspeakers to
find out which maximum voltage can be
provided on the loudspeakers outputs of the
power amplifiers.
To reduce the risk of electric shock do not
perform any servicing other than that contained
in the operating instructions unless you are
qualified to do so. See section 1.2 Intended
audience.
PRS-1B500, PRS-2B250
X100
R352
B
1
1
8
8
1
1
16
375
mA
R140
1
X101
X500
F250
375
mA
375
mA
F450
X1
1
375
mA
F451
1
9
X153
X300
+
1
+
X400
X3
F251
16
R190
9
X550
X103
1
1
X4
X151
1
-
1
X6
+
R356
B
2 1
S350
X155
2
+
1
1
70V
100V
X302
+
375
mA
100V
70V
X305
X404
X403
1
X304
+
X405
X402
+
X303
+
24
X5
-
+
X401
X301
+
+
-
-
100 V
70 V
B
+
B
375
mA
R305
+
-
+
+
6.3A
F50
R405
-
+
-
F400
F300
+
-
F750
+
+
+
+
-
+
2.5
A
X2
X651
X650
PRS-4B125
1
4
3
2
1
70 V
100 V
PRS-8B060
1
100 V
8
7
6
5
4
3
2
1
70 V
figure 10.7: Top view of the basic amplifier output boards
Bosch Security Systems | 2011-02
Praesideo 3.5 | Installation and User Instructions | 4 | Amplifiers
The loudspeaker lines can be connected in three
different ways depending on the level of supervision
and redundancy required.
If loudspeaker lines A and B are in the same area,
connect the loudspeaker lines as shown in figure 10.8.
Spare In
Pilot
EOL
en | 172
This method has no redundancy. Both A and B relays
are normally closed.
• If a line fault is detected by the supervision boards in
one of the groups, the group remains live.
• Only if an overload is detected, the affected group
will be switched off. A fault event is generated.
If loudspeaker lines A and B must form a class-A loop,
connect the loudspeaker lines as shown in figure 10.10
A
B
Spare In
EOL
A
B
Pilot
figure 10.8: Output A and B in the same area
This method has full supervision and redundancy. The
A and B relays are normally closed and supervision
boards (see sections 12.2.2 and 12.2.3, indicated with
EOL) are connected to both the A and B groups.
• If an amplifier overload occurs, then the multi
channel interface will control the A and B relays to
isolate the overload and keep the other group
working.
• If a line fault is detected by the supervision boards in
one of the groups, the affected group will be
switched off. A fault event for group A or group B
will be generated.
If loudspeaker lines A and B are in different locations,
connect the loudspeaker lines as shown in figure 10.9.
Spare In
Pilot
EOL
A
B
figure 10.9: Output A and B in separate areas
Bosch Security Systems | 2011-02
EOL
EOL
figure 10.10: Class-A loop from output A to B
Both A and B outputs use the same loudspeaker group.
The A relay is normally closed and B relay is normally
open.
• If a line fault occurs, detected by the supervision
board (EOL), the relay B closes and a fault event is
generated to indicate the switch over.
• If the cable is broken, the A output gives power to all
loudspeakers that are before the break, the B output
gives power to all loudspeakers to the other side of
the break.
• If a short-circuit or overload causes the line fault, the
amplifier generates a fault event.
Praesideo 3.5 | Installation and User Instructions | 4 | Amplifiers
en | 173
10.3.5.3 Spare amplifier channel
A spare amplifier channel can be made available as a
back-up channel for all channels of all basic amplifiers.
The only restriction is that all the basic amplifiers must
be connected to the same multi channel interface. The
connection from the spare amplifier channel can be
made as a loop through to all the channels of the basic
amplifiers.
Make sure that the power rating of the spare amplifier
channel is the same as or higher than the power rating
of the main channels.
Spare and main amplifier channels can be part of the
same amplifier. Use a back-up power supply to avoid
that the power supply is a single-point of failure.
A supervision board connected to the last Spare In
connection gives supervision to the spare channel.
If channel 2 in the figure 10.11 has a failure, the spare
channel becomes active and supports all settings of
channel 2. If Channel 1 in the figure 10.11 also has a
failure, the spare channel does not support channel 1,
but remains with channel 2.
To connect the spare channel to the basic amplifier
channels, proceed as follows:
1 Connect the + A Lsp Out from the spare amplifier
channel to the + Spare In connection of Channel N
of the basic amplifier.
2 Connect the - A Lsp Out from the Spare Amplifier
channel to the - Spare In connection Channel N of
the basic amplifier.
3 Make a loop through connection to all channels of
the basic amplifiers that need spare channel back-up.
4 Optional: connect a supervision board to the last
channel Spare In connection.
Channel 16
Spare input
A
Active spare channel
B
Channel 1
Spare input
A
EOL 1A
Channel 1
B
Channel 2
EOL 1B
Spare input
EOL S
A
EOL 2A
Channel 2
B
EOL 2B
Signal from active spare
figure 10.11: Spare amplifier and loudspeaker
connections
1
Spare In
+–
2
Lsp Out
+–
+–
A
B
Spare In
+–
Lsp Out
+–
+–
A
B
figure 10.12: Basic amplifier outputs and spare channel
inputs
Bosch Security Systems | 2011-02
Praesideo 3.5 | Installation and User Instructions | 4 | Amplifiers
en | 174
10.3.6 Connecting the local audio input
The basic amplifiers have a local audio input per
channel for a local signal source. This input has a low
priority and is controlled by the multi channel interface.
The local input signal is suppressed by any signal from
the Praesideo system to that channel (zone).
On the PRS-1B500 and PRS-2B250, the local audio
input can be set to balanced or stereo unbalanced. This
feature is not available on the PRS-4B125 and the
PRS-8B060. The input has line level sensitivity,
controlled with a sensitivity preset above the connector.
See figure 10.5 for details about the local audio input
socket and preset.
table 10.4: Audio input socket details
Socket
Balanced
Unbalanced
+
+ Signal
Right
0
Ground
Ground
- Signal
Left
Channel 2
Unbalanced input
Channel 2
Balanced input
Channel 1
Unbalanced input
Channel 1
Balanced input
figure 10.14: Jumper setting
Note
The wiring to the local audio inputs must be less
than 3m in length.
10.3.6.1 Balanced inputs
The jumper settings are set to balanced as default. See
table 10.4 for connections and figure 10.13 for the
jumper locations.
22
10.3.6.2 Stereo unbalanced input
On the PRS-1B500 and PRS-2B250, it is possible to
change the balanced input into an unbalanced mixing
stereo input for a e.g. CD player. Connect the right and
left channels according to table 10.4. Both channels are
added together into a mono signal. See figure 10.14 for
the jumper settings. Use a pair of tweezers to change the
jumper settings as the jumpers are difficult to reach.
10.3.6.3 Sensitivity control
Use the recessed sensitivity control to adjust the input
signal from a local audio device.
Use a small screw driver to adjust the potentiometer.
10.3.7 Connecting back-up power
Connect the back-up supply to the back-up power
connector on the back of the basic amplifier. Refer to
figure 10.15.
11
figure 10.13: Jumper location
Bosch Security Systems | 2011-02
Praesideo 3.5 | Installation and User Instructions | 4 | Amplifiers
Warning
For safety reasons you must use an external
circuit breaker. Install in accordance with the
local Electrical and Building Code, e.g. for USA
and Canada in accordance with NEC/CEC and
for Germany in accordance with VDE0108-1.
To reduce the risk of electric shock do not
perform any servicing other than that contained
in the operating instructions unless you are
qualified to do so. See section 1.2 Intended
audience.
Warning
Never ground the positive terminal of the
battery, as this will damage the Praesideo
equipment.
If the back-up power supply (battery) is
grounded, always connect the negative terminal
(0) first and the positive terminal (+) second.
Disconnect in reverse order: disconnect the
positive terminal first and the negative terminal
second. This avoids excessive ground loop
currents.
en | 175
The back-up supply can be supervised by the basic
amplifier (see figure 10.2, no. 9) and is available for the
multi channel interface.
10.4 Fan control
The PRS-1B500, PRS-2B250, PRS-4B125 and
PRS-8B060 amplifiers, from HW version 06/00
onwards, have a fan monitoring circuit that detects the
actual fan rotation. This detection is needed for
compliancy to the standards UL864 and UL1711, for
use in the USA. Additionally the internal fans need to
run at full speed for compliancy to these standards. A
jumper on the main PCB selects between two positions:
• Normal (factory default) - The fans are temperature
controlled, normally running at low speed and
switching to high speed in case the temperature
exceeds a certain level. Fan monitoring is not
activated.
• Full speed - The fans run at full speed continuously.
Fan monitoring is activated. Do not enable Switch
amplifiers to standby (see section 44.4) for this
selection, because in standby the fans are stopped
and a fault would be generated.
For the PRS-1B500, the jumper is indicated on the PCB
as X652; connection 1-2 selects Normal, connection 2-3
selects Full speed. See figure 10.16.
For the PRS-2B250, the jumper is indicated on the PCB
as X652 and X653 (one for each fan); connection 1-2
selects Normal, connection 2-3 selects Full speed. See
figure 10.16.
For the PRS-4B125, the jumper is indicated on the PCB
as X88 and X91 (one for each fan); connection 1-2
selects Normal, connection 2-3 selects Full speed. See
figure 10.16.
15AT
48V
48V
Battery
Non-isolated input +
12A
0
figure 10.15: Connecting back-up supply
Bosch Security Systems | 2011-02
For the PRS-8B060, the jumper is indicated on the PCB
as X88 and X91 (one for each fan); connection 1-2
selects Normal, connection 2-3 selects Full speed. See
figure 10.16.
Praesideo 3.5 | Installation and User Instructions | 4 | Amplifiers
en | 176
PRS-1B500
3
2
1
X652
PRS-2B250
3
2
1
X653
3
2
1
X652
PRS-4B125
3 2 1
3 2 1
X91
X88
PRS-8B060
1 2 3
1 2 3
X91
X88
figure 10.16: Top view of the output boards for jumpers providing fan control
Bosch Security Systems | 2011-02
Praesideo 3.5 | Installation and User Instructions | 4 | Amplifiers
10.5
Installation
The basic amplifier is suitable for only 19-inch rack
installation.
en | 177
10.6 Operation
The front panel of the amplifier has LED indicators that
show the status of the amplifier channels, battery
back-up, mains supply and supervision. See the table
10.5 and table 10.6 for the descriptions of the status
LEDs.
The LED indicators will show the fault status of the
mains supply and battery supply if supervision is
enabled with the supervision switches (9 in figure 10.2).
This status is always transferred to the multi channel
interface, even if the switches are in the Off-position.
The switches only control the LED indicators, e.g. for
stand-alone use.
figure 10.17: Installation
Ensure there is enough space for the cool air flow to
enter and the warm air flow to leave the basic amplifier.
table 10.5: Mains LED status
Mains
Mains
Mains supervision
LED
enabled
Green
Present
X
Yellow
Not present
Enabled
Off
Not present
Off
table 10.6: Battery LED status
Battery
DC back-up DC back-up superviLED
sion enabled
Green
Present
X
Yellow
Not present
Enabled
Off
Not present
Off
figure 10.18: Air flow in a 19" rack
Caution
When mounting the brackets to the unit, use the
screws that are supplied with the brackets, four
longer ones and two shorter ones. Use two
screws of 7.5 mm thread length at the front side
of each bracket, use a short screw of 5.2 mm
thread length at the rear side of each bracket.
Do not use screws with a thread length of
>10 mm for the front positions or screws with a
thread length of >5.7 mm at the rear postion;
longer screws may touch or damage internal
parts of the unit.
Bosch Security Systems | 2011-02
The amplifier channel LED indicators show the status of
each amplifier channel independently. Each channel
has four indicators, one yellow and three green. See
table 10.7 for the descriptions of the status LEDs for the
amplifier channels.
table 10.7: Channel LED status
Channel LED status
Output level
Yellow
0 dB / Fault *
Green
- 6 dB
Green
- 12 dB
Green
- 20 dB
Note
The yellow channel LED indicates clipping of
the signal when the green LEDs are also on,
otherwise it indicates a fault situation such as
overheat or a short circuit.
Praesideo 3.5 | Installation and User Instructions | 4 | Amplifiers
en | 178
10.7.4 Mean time between failure
Note
The first green LED is normally on when the pilot
tone is enabled in the multi channel interface.
MTBF:
50,000 hours at +55 °C
(The MTBF doubles for every 10 °C decrease in
temperature.)
10.7 Technical data
10.7.5 MCI connection
10.7.1 Physical characteristics
Dimensions (H x W x D):
88 x 483 x 400 mm (19" installation, with brackets,
360 mm depth behind the brackets, 40 mm in front of
the brackets)
Weight:
PRS-1B500
12 kg
PRS-2B250
14 kg
PRS-4B125
15 kg
PRS-8B060
13.7 kg
10.7.2 Climate conditions
Temperature:
-5 to +55 °C (operating)
-20 to +70 °C (non-operating)
Relative humidity:
15 to 90%, non-condensing (operating)
5 to 95%, non-condensing (non-operating)
Air pressure:
600 to 1100 hPa
10.7.3 EMC and Safety
Electromagnetic compatibility:
EN55103-1/FCC-47 part 15B
EN55103-2
EN50121-4
EN50130-4
Electrical safety:
IEC60065 (CB-scheme)
EN60065
Approvals:
CE marking
EN60849, EN54-16 and ISO7240-16
IEC60945
Bosch Security Systems | 2011-02
Connector (rear side):
2 x RJ45
Preferred cable:
2 x CAT5 straight
Maximum cable length:
3m
10.7.6 Power supply
Connector (rear side):
IEC male power inlet with fuse holder
Preferred cable:
Mains cord meeting CE standard
Voltage selector (rear side):
115 V(AC)/230 V(AC)
Nominal input voltage range:
115 V (typical): 100 - 120 V(AC) at 50 - 60 Hz
230 V (typical): 220 - 240 V(AC) at 50 - 60 Hz
Input voltage limits:
115 V (typical): 90 - 132 V(AC) at 50 - 60 Hz
230 V (typical): 198 - 264 V(AC) at 50 - 60 Hz
On/Off switch:
Located at the rear
10.7.7 Back-up power
Connector (rear side):
2 pole for removable screw connector
Input voltage:
48 V(DC)
Input voltage range:
43.5 to 56 V(DC)
Maximum current:
12 A
Praesideo 3.5 | Installation and User Instructions | 4 | Amplifiers
10.7.8 Power consumption
Note
The power consumption on batteries depends
on the connected load, signal levels and type of
signal (alarm tone, duty cycle, speech). It is
recommended to measure the actual current
drawn from the batteries in power save mode,
idle mode and alarm tone mode to check the
calculated battery capacity. When calculating
the battery capacity, also take into account that
the capacity decreases during the lifetime of the
battery. Also see section 33.3.
10.7.8.1 Power consumption PRS-1B500
Load: 20 Ω / 250 nF per channel
Stand-by/Power save:
6 W, 48 V(DC); 17 W, 120/230 V(AC)
Idle, no pilot tone:
13 W, 48 V(DC); 27 W, 120/230 V(AC)
Idle, with pilot tone 15 V:
34 W, 48 V(DC); 52 W, 120/230 V(AC)
Pmax -6 dB with pilot tone 15 V:
208 W, 48 V(DC); 240 W, 120/230 V(AC)
Pmax -3 dB with pilot tone 15 V:
365 W, 48 V(DC); 450 W, 120/230 V(AC)
Pmax with pilot tone 15 V:
430 W, 48 V(DC); 590 W, 54 V(DC);
(nominal input level) 715 W, 120/230 V(AC)
10.7.8.2 Power consumption PRS-2B250
Load 40: Ω / 125 nF per channel
Stand-by/Power save:
6 W, 48 V(DC); 18 W, 120/230 V(AC)
Idle, no pilot tone:
21 W, 48 V(DC); 30 W, 120/230 V(AC)
Idle, with pilot tone 15 V:
38 W, 48 V (DC); 46 W, 120/230 V(AC)
Pmax -6 dB with pilot tone 15 V:
206 W, 48 V(DC); 211 W, 120/230 V(AC)
Pmax -3 dB with pilot tone 15 V:
370 W, 48 V(DC); 378 W, 120/230 V(AC)
Pmax with pilot tone 15 V:
440 W, 48 V(DC); 510 W, 54 V(DC);
(nominal input level) 690 W, 120/230 V(AC)
Bosch Security Systems | 2011-02
en | 179
10.7.8.3 Power consumption PRS-4B125
Load 80: Ω / 62 nF per channel
Stand-by/Power save:
9 W, 48 V(DC); 16 W, 120/230 V(AC)
Idle, no pilot tone:
26 W, 48 V(DC); 38 W, 120/230 V(AC)
Idle, with pilot tone 15 V:
48 W, 48 V (DC); 62 W, 120/230 V(AC)
Pmax -6 dB with pilot tone 15 V:
210 W, 48 V(DC); 230 W, 120/230 V(AC)
Pmax -3 dB with pilot tone 15 V:
375 W, 48 V(DC); 395 W, 120/230 V(AC)
Pmax with pilot tone 15 V:
608 W, 48 V(DC); 680 W, 54 V(DC);
(nominal input level) 770/730 W, 120/230 V(AC)
10.7.8.4 Power consumption PRS-8B060
Load 166: Ω / 30 nF per channel
Stand-by/Power save:
10 W, 48 V(DC); 16 W, 120/230 V(AC)
Idle, no pilot tone:
42 W, 48 V(DC); 62 W, 120/230 V(AC)
Idle, with pilot tone 15 V:
62 W, 48 V (DC); 80 W, 120/230 V(AC)
Pmax -6 dB with pilot tone 15 V:
220 W, 48 V(DC); 240 W, 120/230 V(AC)
Pmax -3 dB with pilot tone 15 V:
385 W, 48 V(DC); 400 W, 120/230 V(AC)
Pmax with pilot tone 15 V:
665 W, 48 V(DC); 700 W, 54 V(DC);
(nominal input level) 760/710 W, 120/230 V(AC)
Praesideo 3.5 | Installation and User Instructions | 4 | Amplifiers
10.7.9 Audio line inputs
Connector (rear side):
3 pole header for removable screw connector
Preferred cable:
Twisted pair, shielded
Input signal level:
0 dBV nominal
18 dBV maximum
Input sensitivity setting:
< -40 to 0 dB with pre-set control
Frequency response:
-3 dB points at 50 Hz and 20 kHz (tolerance ± 1 dB)
Input impedance:
22 kohm
Signal/Noise ratio:
> 87 dB (rms unweigthed)
Common mode rejection ratio:
> 40 dB at 1 kHz
Input cross-talk:
< -70 dB at 1 kHz
Bosch Security Systems | 2011-02
en | 180
10.7.10 Loudspeaker outputs and spare
inputs
Connector (rear side):
1 x 6 pole header with removable screw connector
Voltage:
100 V, 70 V (jumper setting)
Max. unloaded voltage:
200 V peak
Rated load resistance:
@ 100/70 V output
PRS-1B500
20/10 ohm
PRS-2B250
40/20 ohm
PRS-4B125
80/40 ohm
PRS-8B060
166/83 ohm
Rated load capacitance:
@ 100/70 V output
PRS-1B500
250/500 nF
PRS-2B250
125/250 nF
PRS-4B125
60/125 nF
PRS-8B060
30/60 nF
Rated output power:
@ a/b/c/d/e/f operating condition
PRS-1B500
1 x 500/400/275/180/180/125 W
PRS-2B250
2 x 250/210/150/110/110/60 W
PRS-4B125
4 x 125/105/65/60/60/30 W
PRS-8B060
8 x 60/50/40/30/30/15 W
Distortion:
< 0.3% at 1 kHz and 50% of the rated output power
< 1% at 100% of output power
Output regulation no load to full load:
<1.2 dB for 70 and 100V output
Praesideo 3.5 | Installation and User Instructions | 4 | Amplifiers
en | 181
10.7.11
a Distortion < 1%, 1 kHz, nominal mains power or
battery >53V, max. 1 minute (acc. to IEC 60268-3).
b Distortion < 1%, 1 kHz, mains power or battery
>50V, max. 1 minute, ambient temperature 55 °C
(acc. to EN54-16).
c Distortion < 1%, 1 kHz, battery 48V, max. 1 minute,
ambient temperature 55 °C.
d Alarm tone level, distortion < 0.3%, 1 kHz, mains or
battery (>43.5V), max. 30 minutes, ambient
temperature 55 °C.
e Distortion < 0.3%, 1 kHz, mains or battery >43.5V,
continuous, ambient temperature 30 °C.
f Distortion < 0.3%, 1 kHz, mains or battery >43.5V,
continuous, ambient temperature 55 °C.
Bosch Security Systems | 2011-02
Derating
The graph shows the continuous power used for
emergency tones, speech, etc. as function of the ambient
temperature.
55
50
Continuous Output Power
(% of Rated Output Power)
Frequency response:
PRS-1B500, PRS-2B250, PRS-4B125
60 Hz to 19 kHz (-3 dB) at -10 dB with maximum
capacitive load and rated load resistance
PRS-8B060
80 Hz to 19 kHz (-3 dB) at -10 dB with maximum
capacitive load and rated load resistance
Power bandwidth:
60 Hz - 19 kHz (-3 dB, distortion < 1%) at 50% of the
rated output power
Signal/Noise ratio:
> 85 dBA with pilot tone off
Amplifier output limiting:
Soft clipping
Acoustical noise level:
< NR35 at 1 m, fans at half speed
< NR40 at 1 m, fans at full speed
45
40
35
30
25
20
25
30
35
40
45
50
55
60
T (°C)
figure 10.19: Maximum switching power
If the amplifier is loaded with loudspeakers up to its
rated output power (see section 10.7.10), you can still
play music and speech for an indefinite long period of
time at an ambient temperature of 55 °C, because of the
crest factor (or peak-to-average ratio) of the audio
signals. The crest factor of music and speech is typically
6 to 8 dB, which makes the required continuous power
25% or less of the rated output power. Alarm tones are
set to -3 dB maximum by Praesideo, resulting in a
required continuous power of 50% of the rated output
power. This can be delivered for at least 30 minutes at
55 °C ambient or continuously at 30 °C ambient.
Praesideo 3.5 | Installation and User Instructions | 4 | Amplifiers
11
Single loudspeaker line
supervision
11.1
en | 182
Introduction
Single loudspeaker line supervision is only available for
the PRS-xPxxx power amplifiers and not for the basic
amplifiers.
The LBB4442/00 Line Supervision Set contains a
supervision-master PCB and a supervision-slave PCB.
With this set, it is possible to supervise the end of a
loudspeaker line.
Note
Use multiple loudspeaker line supervision (see
chapter 12) to supervise the ends of branches in
loudspeaker lines and the loudspeakers
themselves.
The supervision-master PCB must be installed on the
output board of the amplifier channel that must be
supervised, whereas the supervision-slave must be
connected to the last loudspeaker in the loudspeaker
line that must be supervised.
So, for each loudspeaker line, one set is needed. The
supervision-slave is powered from the 20 kHz pilot tone
of the power amplifier and communicates inaudibly
with the supervision-master via the loudspeaker lines.
No additional wiring is required. Faults in the
loudspeaker lines are reported within 100 s.
Communication is not affected by the audio signals on
the loudspeaker lines.
The use of multi-wire cables is not recommended in
combination with line supervision because crosstalk
between audio channels may influence the line
supervision.
Bosch Security Systems | 2011-02
Note
For the line supervision set to work correctly it is
necessary to set the amplifiers to 70 V or 100 V
output. The 50 V setting is not allowed.
Because certification for the EN54-16 standard
has only been performed on the 100 V output of
the Praesideo amplifiers, the installer shall only
use the 100 V outputs of Praesideo for
emergency sound systems in Europe.
Praesideo 3.5 | Installation and User Instructions | 4 | Amplifiers
11.2
Controls, connectors and
indicators
en | 183
loudspeaker line (see figure 11.3). Usually, the
supervision-slave is installed at the end of the
loudspeaker line.
11.2.1 Supervision-master
The supervision-master contains the following:
1 Connector - A provision to connect the
supervision-master electrically to the output board of
the amplifier channel (see section 11.3.1).
X3
X1
1 2
figure 11.3: Supervision-slave connector
+
+
1
-
+
1
-
figure 11.1: Component side of supervision-master
11.2.2 Supervision-slave
-
The supervision-slave contains the following:
1 Connector - A provision to connect the
supervision-slave to the loudspeaker lines.
+
-
+
+
1
figure 11.2: Component side of supervision-slave
The supervision-slave provides a double connector that
allows the supervision-slave to be put anywhere in the
Bosch Security Systems | 2011-02
table 11.1: Supervision-slave connector details
Connector
Pin
Signal
X1
1
Loudspeaker line +
2
Loudspeaker line X3
1
Loudspeaker line +
2
Loudspeaker line -
Praesideo 3.5 | Installation and User Instructions | 4 | Amplifiers
11.3
en | 184
Installation
11.3.1 Supervision-master
Warning
To prevent the hazard of electric shocks,
disconnect the mains cord and the back-up
power supplies from the power amplifier before
starting installing the supervision-master.
Warning
The electronics inside the power amplifier and
on the supervision-master are susceptible to
electrostatic discharges. Wear an anti-ESD
bracelet during the installation of the
supervision-master.
Proceed as follows to install the supervision-master in
PRS-xPxxx Power Amplifiers:
1 Remove the lid from the power amplifier and locate
the output board (see figure 11.4).
2 Snap the supervision-master on the ‘table’ bracket.
3 Fit the supplied flat cable to the connector on the
output board and the supervision-master. Do not
twist the flat cable and fit the polarization pin of the
flat cable in the hole in the PCB next to the
connector.
Proceed as follows to install the supervision-master in
LBB4428/00 Power Amplifiers:
1 Remove the lid from the power amplifier and locate
the output board (see figure 11.4).
2 Remove the screws of the bracket and slide it out of
the holes in the output board.
3 Fit the supervision-master on the ‘slide’ bracket.
4 Slide the supervision-master and bracket assembly in
the holes in the output board.
5 Tighten the screw to fix the supervision-master and
bracket assembly to the output board.
6 Fit the supplied flat cable to the connector on the
output board and the supervision-master. Do not
twist the flat cable and fit the polarization pin of the
flat cable in the hole in the PCB next to the
connector.
Bosch Security Systems | 2011-02
Note
In the spare amplifiers also single line
supervision boards must be installed for those
channels that have single line supervision
boards in the corresponding main amplifier
channels. Otherwise, a Line supervision master
mismatch fault event is generated. Single and
multiple line supervision boards are not
compatible.
Praesideo 3.5 | Installation and User Instructions | 4 | Amplifiers
PRS-1P500, PRS-2P250, PRS-4P125
Power Amplifier
LBB4428/00
Power Amplifier
+
+
-
+
+
+
en | 185
+
+
4 8
1 3
2 4
figure 11.4: Supervision-master installation
Bosch Security Systems | 2011-02
3 7
2 6
1 5
Praesideo 3.5 | Installation and User Instructions | 4 | Amplifiers
11.3.2 Supervision-slave
Warning
To prevent the hazard of electric shocks, switch
the power amplifier and the back-up power
supplies off, before starting installing the
supervision-slave.
en | 186
For a correct operation of the supervision, it is
important that the loudspeaker line has the
characteristics that are listed in section 11.5.5. Also, the
minimum total loudspeaker impedance at 70 kHz is
important. This impedance depends on the quality of
the transformer in the loudspeaker and the number of
loudspeakers in the line. The loudspeakers of Bosch
Security Systems are designed with this impedance
criterion in mind.
To reduce the risk of electric shock do not
perform any servicing other than that contained
in the operating instructions unless you are
qualified to do so. See section 1.2 Intended
audience.
40
50
60
10
Warning
The supervision-slave is susceptible to
electrostatic discharges. Wear an anti-ESD
bracelet during the installation of the
supervision-slave.
3.1
5
5
70
40
80
figure 11.5: Supervision-slave PCB dimensions
Proceed as follows to install the supervision-slave in the
loudspeaker line:
1 Use the holes in the supervision-slave (see figure
11.5) to install it in a loudspeaker. The coils on the
supervision-slave PCB must be kept at a distance of
30 mm or more from the loudspeaker magnet and a
distance of 50 mm or more from the loudspeaker
transformer, otherwise the magnetic fields can
disturb the correct operation of the supervision-slave.
2 Connect the loudspeaker line signal to the
supervision-slave PCB (see section 11.2.2).
Bosch Security Systems | 2011-02
Praesideo 3.5 | Installation and User Instructions | 4 | Amplifiers
The loudspeakers listed in table 11.2 have a provision
for a supervision-slave.
table 11.2: Loudspeakers that have provision for a
supervision-slave
Speaker type
Provision for
Pre-wired, no
mounting
provision for
mounting
Ceiling speakers
LC1-WM06E
LC1-UM06E
LC1-UM12E
LC1-UM24E
LBC 3510/40
LBC 3520/40
LBC 3530/40
Cabinets
LBC 3011/41
LBC 3011/51
LB1-UM06E
LBC 3018/00
Columns
LBC 3210/00
LA1-UM20E
LA1-UM40E
Horns/Drivers
LBC 3403/16
LBC 3404/16
LBC 3405/16
LBC 3406/16
LH1-10M10E
LBC 3482/00
LBC 3483/00
LBC 3484/00
Sound projectors
LP1-BC10E
LP1-UC10E
LP1-UC20E
LBC 3432/01
LS1-OC100E
Note
The installer shall only use EN54-24 compliant
loudspeakers for emergency sound systems in
Europe.
Bosch Security Systems | 2011-02
11.4
en | 187
Technical data
supervision-master
11.4.1 Physical characteristics
Dimensions (H x W x D):
60 x 50 x 17 mm
Weight:
30 g
Connection:
20 pole flatband cable and connector
Installation:
Plastic brackets for horizontal or vertical installation
are delivered with the amplifier.
11.4.2 Climate conditions
Temperature:
-5 to 55 °C (operating)
-20 to 70 °C (non-operating)
Relative humidity:
15 to 90%, non-condensing (operating)
5 to 95%, non-condensing (non-operating)
Air pressure:
600 to 1100 hPa
11.4.3 EMC and Safety
Electromagnetic compatibility:
EN55103-1/FCC-47 part 15B
EN55103-2
EN50121-4
EN50130-4
Electrical safety:
IEC60065 (CB-scheme)
EN60065
Approvals:
CE marking
EN60849, EN54-16 and ISO7240-16
IEC60945
11.4.4 Mean time between failure
MTBF:
50,000 hours at +55 °C
(The MTBF doubles for every 10 °C decrease in
temperature.)
Praesideo 3.5 | Installation and User Instructions | 4 | Amplifiers
11.5
Technical data
supervision-slave
11.5.1 Physical characteristics
Dimensions (H x W x D):
80 x 60 x 16 mm
Weight:
50 g
Connection:
Screwable connector
11.5.2 Climate conditions
Temperature:
-5 to 55 °C (operating. guaranteed)
-15 to 55 °C (operating, sample tested)
-20 to 70 °C (non-operating)
Relative humidity:
15 to 90%, non-condensing (operating)
5 to 95%, non-condensing (non-operating)
Air pressure:
600 to 1100 hPa
11.5.3 EMC and Safety
Electromagnetic compatibility:
EN55103-1/FCC-47 part 15B
EN55103-2
EN50121-4
EN50130-4
Electrical safety:
IEC60065 (CB-scheme)
EN60065
Approvals:
CE marking
EN60849, EN54-16 and ISO7240-16
IEC60945
11.5.4 Mean time between failure
MTBF:
50,000 hours at +55 °C
(The MTBF doubles for every 10 °C decrease in
temperature.)
Bosch Security Systems | 2011-02
en | 188
11.5.5 Loudspeaker line characteristics
Preferred cable:
Single twisted pair, 0.75 mm2 to 1.5 mm2. The use of
multi-wire cables is not recommended. Cross talk of
communication signals affects the supervision
performance.
Maximum cable length:
1 km (max. 500 m adjacent to other supervised
loudspeaker cables)
Maximum cable loop resistance:
38 ohm
Maximum cable inductance:
750 μH
Minimum total loudspeaker impedance:
50 ohm @ 70 kHz (independent of amplifier power)
Maximum cable capacity:
300 nF. However, if the maximum load capacity for the
power amplifier output is less than this value, the
maximum load capacity of the power amplifier is
leading (see section 8.8).
Loudspeaker voltage:
70 V, 100 V
Note
The load of the loudspeakers in relation to the
line impedance should be such that the 20 kHz
pilot tone level is not less than 8 Vrms at the
position of the supervision boards.
Because certification for the EN54-16 standard
has only been performed on the 100 V output of
the Praesideo amplifiers, the installer shall only
use the 100 V outputs of Praesideo for
emergency sound systems in Europe.
Praesideo 3.5 | Installation and User Instructions | 4 | Amplifiers
12
Multiple loudspeaker line
supervision
12.1
Introduction
Multiple loudspeaker line supervision is available for
the amplifiers as follows:
• PRS-1P500 Power Amplifier
• PRS-2P250 Power Amplifier
• PRS-4P125 Power Amplifier
• PRS-1B500 Basic Amplifier
• PRS-2B250 Basic Amplifier
• PRS-4B125 Basic Amplifier
• PRS-8B060 Basic Amplifier
Use the LBB4440/00 Supervision Control Board,
LBB4441/00 Loudspeaker Supervision Board and
LBB4443/00 EOL Supervision Board for multiple
loudspeaker line supervision. With these boards, it is
possible to supervise up to 80 loudspeakers in a
loudspeaker line including the ends of the various
branches in the loudspeaker line.
Note
Multiple loudspeaker line supervision is not
possible in combination with LBB4428/00
Power Amplifiers.
The LBB4441/00 Loudspeaker Supervision Boards
check if loudspeakers are intact, whereas the
LBB4443/00 EOL (End of Line) Supervision Boards
check if the loudspeaker lines are intact. Both types of
boards are powered from the 20 kHz pilot tone of the
Power Amplifier and communicate inaudibly with the
LBB4440/00 Supervision Control Board, which controls
the communication between Praesideo and the
supervision boards. No additional wiring is required
Communication is not affected by the audio signals on
the loudspeaker lines. Faults in the loudspeakers and
loudspeaker lines can be reported within 100 s. The use
of multi-wire cables is not recommended in
combination with line supervision because crosstalk
between audio channels may influence the line
supervision.
Bosch Security Systems | 2011-02
en | 189
The Power Amplifiers have one Supervision Control
Board LBB4440/00 per channel. The addresses of the
connected EOL and loudspeaker supervision boards
must be unique for that channel.
Multiple loudspeaker line supervision for the basic
amplifiers PRS-xBxxx do not need the LBB4440/00
Supervision Control Board. The basic amplifiers work
in co-operation with the multi channel interface that
already contains the Supervision Control Board
function for all connected basic amplifiers. Use the
LBB4441/00 and the LBB4443/00 Supervision boards
as required. No Supervision Control Boards need to be
installed into the basic amplifiers.
For basic amplifiers, the addresses in the address range
are shared between all the connected amplifier channels
that use the same multi channel interface.
Make sure that all EOL and loudspeaker supervision
boards that are connected via the basic amplifiers to the
same multi channel interface have unique addresses.
Note
For the loudspeaker supervision board or EOL
supervision board to work correctly it is
necessary to set the amplifiers to 70 V or 100 V
output. The 50 V setting is not allowed.
Because certification for the EN54-16 standard
has only been performed on the 100 V output of
the Praesideo amplifiers, the installer shall only
use the 100 V outputs of Praesideo for
emergency sound systems in Europe.
Praesideo 3.5 | Installation and User Instructions | 4 | Amplifiers
12.2
Controls, connectors and
indicators
en | 190
12.2.2 Loudspeaker supervision board
12.2.1 Supervision control board
The supervision control board LBB4440/00 (see figure
12.1) contains the following:
X1 Connector - A provision to connect the
supervision control board electrically to the output
board of the amplifier channel.
X1
The loudspeaker supervision board LBB4441/00(see
figure 12.2) contains the following:
X10 Flying leads - Two flying leads (30 cm) with
high-temperature insulation to install the
loudspeaker supervision board in a loudspeaker
(see section 12.3.2).
X11 Faston connectors - Two faston connectors to
install the loudspeaker supervision board in the
loudspeaker (see section 12.3.2).
S700 Address selector - An address selector to set
the address of the loudspeaker supervision board
(see section 12.4).
S701 Address selector - An address selector to set
the address of the loudspeaker supervision board
(see section 12.4).
C540 Capacitor - A capacitor for factory adjustments.
Do not touch this capacitor.
R441 Resistor - A resistor for factory adjustments. Do
not touch this resistor.
X600
C540 R441
-
figure 12.1: Component side LBB4440/00
2
4
4
6
8
A
X11
figure 12.2: Component side LBB4441/00
Bosch Security Systems | 2011-02
S700
A
8
6
E
C
2
E
C
-
X10
S701
Praesideo 3.5 | Installation and User Instructions | 4 | Amplifiers
12.3
12.2.3 EOL supervision board
The EOL supervision board LBB4443/00(see figure
12.3) contains the following:
X10 Flying leads - Two flying leads (30 cm) with
high-temperature insulation to install the EOL
supervision board in a loudspeaker (see section
12.3.3).
S700 Address selector - An address selector to set
the address of the EOL supervision board (see
section 12.4).
S701 Address selector - An address selector to set
the address of the EOL supervision board (see
section 12.4).
C540 Capacitor - A capacitor for factory adjustments.
Do not touch this capacitor.
R441 Resistor - A resistor for factory adjustments. Do
not touch this resistor.
Installation
12.3.1 Supervision control board
Warning
To prevent the hazard of electric shocks,
disconnect the mains cord and the back-up
power supplies from the power amplifier before
starting installing the supervision control board.
To reduce the risk of electric shock do not
perform any servicing other than that contained
in the operating instructions unless you are
qualified to do so. See section 1.2 Intended
audience.
Warning
The electronics inside the power amplifier and
on the supervision control board are susceptible
to electrostatic discharges. Wear an anti-ESD
bracelet during the installation of the
supervision control board.
C540 R441
2
4
4
S700
A
8
6
A
8
6
E
C
2
E
C
-
X10
en | 191
figure 12.3: Component side LBB4443/00
S701
Proceed as follows to install the supervision control
board in the PRS-xPxxx Power Amplifiers:
1 Remove the lid from the power amplifier and locate
the output board (see figure 12.4).
2 Snap the supervision control board on the ‘table’
bracket (see figure 12.4).
3 Fit the supplied flat cable to the connector on the
output board and the supervision control board. Do
not twist the flat cable and fit the polarization pin of
the flat cable in the hole in the PCB next to the
connector.
Note
In the spare amplifiers also multiple line
supervision boards must be installed for those
channels that have multiple line supervision
boards in the corresponding main amplifier
channels. Otherwise, a Line supervision master
mismatch fault event is generated. Single and
multiple line supervision boards are not
compatible.
Bosch Security Systems | 2011-02
Praesideo 3.5 | Installation and User Instructions | 4 | Amplifiers
en | 192
12.3.2 Loudspeaker supervision board
PRS-1P500, PRS-2P250, PRS-4P125
Power Amplifier
Warning
To prevent the hazard of electric shocks, switch
the power amplifier and the back-up power
supplies off, before starting installing the
loudspeaker supervision board.
+
+
-
+
+
+
+
+
Warning
The electronics on the loudspeaker supervision
board are susceptible to electrostatic
discharges. Wear an anti-ESD bracelet during
the installation of the supervision board.
1 3
figure 12.4: Installation
Bosch Security Systems | 2011-02
2 4
The loudspeakers listed in table 12.1 have a provision
for installing a supervision board.
Praesideo 3.5 | Installation and User Instructions | 4 | Amplifiers
table 12.1: Loudspeakers that have a provision for
installing a supervision board
Speaker type
Provision for
Pre-wired, no
mounting
provision for
mounting
Ceiling speakers
LC1-WM06E
LC1-UM06E
LC1-UM12E
LC1-UM24E
LBC 3510/40
LBC 3520/40
LBC 3530/40
Cabinets
LBC 3011/41
LBC 3011/51
LB1-UM06E
LBC 3018/00
Columns
LBC 3210/00
LA1-UM20E
LA1-UM40E
Horns/Drivers
LBC 3403/16
LBC 3404/16
LBC 3405/16
LBC 3406/16
LH1-10M10E
LBC 3482/00
LBC 3483/00
LBC 3484/00
Sound projectors
LP1-BC10E
LP1-UC10E
LP1-UC20E
LBC 3432/01
LS1-OC100E
Note
The installer shall only use EN54-24 compliant
loudspeakers for emergency sound systems in
Europe.
Bosch Security Systems | 2011-02
en | 193
For a correct operation of the supervision, it is
important that the loudspeaker line has the
characteristics that are listed in section 12.6.5. Also, the
minimum total loudspeaker impedance at 70 kHz is
important. This impedance depends on the quality of
the transformer in the loudspeaker and the number of
loudspeakers in the line. The loudspeakers of Bosch
Security Systems are designed with this impedance
criterion in mind.
The power rating for any loudspeaker that is used with
the loudspeaker supervision must be between 0.75 W
and 60 W.
Proceed as follows to install the loudspeaker supervision
board in a loudspeaker:
Note
See the installation instructions of the
loudspeakers for more information.
Note
To install the board in, for example, a box, use
the universal brackets (LBB4446/00). Connect
the board to a bracket using the middle holes
(see figure 12.5).
1 Set the address of the board with the S700 and S701
address selectors (see section 12.4).
2 Use the corner holes in the board (see figure 12.5) to
install it in a loudspeaker. The coils on the PCB must
be kept at a distance of 30 mm or more from the
loudspeaker magnet and a distance of 50 mm or
more from the loudspeaker transformer, otherwise
the magnetic fields can disturb the correct operation
of the board.
Praesideo 3.5 | Installation and User Instructions | 4 | Amplifiers
en | 194
X10
X11
40
50
60
Lsp Out _
Lsp Out +
figure 12.6: Loudspeaker supervision connection
10
3.1
12.3.3 EOL supervision board
5
5
70
40
78
figure 12.5: Dimensions
The procedure for installing an EOL supervision board
is similar to the installation of a loudspeaker supervision
board (see section 12.3.2). However, the EOL
supervision board does not contain faston connectors
(see figure 12.7).
3 Connect the board to the loudspeaker with the flying
leads and the faston connectors (see figure 12.6).
Note
Use one of the faston cables inside the
loudspeaker and the supplied faston cable to
connect the board to the loudspeaker.
X10
Lsp Out _
Lsp Out +
figure 12.7: EOL supervision connection
Note
The board must be connected after the ceramic
terminal block with the thermal fuse. In case of a
fire, the thermal fuse will act and disconnect the
board from the loudspeaker line. The trip point
of the thermal fuse that is connected to the
ceramic block is lower than the melting point of
the solder on the board to prevent short-circuits
in the supervision board and the loudspeaker
line.
Note
When the loudspeaker does not contain a
ceramic block with a thermal fuse, use an
LBC1256/00 EVAC Connection Adapter (see
chapter 14).
Bosch Security Systems | 2011-02
12.4
Addressing
All LBB4441/00 Loudspeaker Supervision Boards and
LBB4443/00 EOL Supervision Boards must have an
address for communication purposes. All LBB4441/00
Loudspeaker Supervision Boards and LBB4443/00 EOL
Supervision Boards that are connected to the same
amplifier channel must have a different address. Use the
S700 and S701 switches to assign a (hexadecimal)
address in the range of 00 to 4F to the board. The S700
switch sets the right digit, whereas the S701 switch sets
the left digit of the address. Each switch has 16
hexadecimal positions (0 to F).
Praesideo 3.5 | Installation and User Instructions | 4 | Amplifiers
For example, the ID selectors in figure 12.8 show
address 2C.
12.5
en | 195
Technical data supervision
control board
12.5.1 Physical characteristics
E
2
C
4
A
E
2
C
6
8
4
A
6
8
S701
S700
figure 12.8: ID selectors
Make sure that the maximum number of EOL and
Loudspeaker Supervision boards is not exceeded.
• PRS-1P500 can have a maximum of 80 boards, of
which 16 can be LBB4443/00 EOL boards or
LBB4441/00 with line supervision enabled.
• PRS-2P250 can have a maximum of 40 boards per
channel, of which 16 can be LBB4443/00 EOL
boards or LBB4441/00 with line supervision
enabled.
• PRS-4P125 can have a maximum of 20 boards per
channel, of which 16 can be LBB4443/00 EOL
boards or LBB4441/00 with line supervision
enabled.
Note
The number of EOL supervision boards are
limited to 16 per channel as the boards are
polled more frequently than the loudspeaker
supervision boards to comply to the standards
for emergency sound systems.
•
The multi channel interface can have up to 16
supervision boards connected to each basic amplifier
channel of the multi channel interface. The
maximum number of boards in total across all
channels is 80, of which 64 can be LBB4443/00 EOL
boards or LBB4441/00 with line supervision
enabled. Do not to exceed the maximum number of
supervision boards related to the maximum output
power of the amplifier channel; see section 12.6.5.
Bosch Security Systems | 2011-02
Dimensions (H x W x D):
60 x 50 x 17 mm
Weight:
30 g
Connection:
20 pole flatband cable and connector
Installation:
Plastic brackets for horizontal or vertical installation
are delivered with the amplifier.
12.5.2 Climate conditions
Temperature:
-5 to 55 °C (operating)
-20 to 70 °C (non-operating)
Relative humidity:
15 to 90%, non-condensing (operating)
5 to 95%, non-condensing (non-operating)
Air pressure:
600 to 1100 hPa
12.5.3 EMC and Safety
Electromagnetic compatibility:
EN55103-1/FCC-47 part 15B
EN55103-2
EN50121-4
EN50130-4
Electrical safety:
IEC60065 (CB-scheme)
EN60065
Approvals:
CE marking
EN60849, EN54-16 and ISO7240-16
IEC60945
12.5.4 Mean time between failure
MTBF:
50,000 hours at +55 °C
(The MTBF doubles for every 10 °C decrease in
temperature.)
Praesideo 3.5 | Installation and User Instructions | 4 | Amplifiers
12.6
Technical data loudspeaker
supervision board
12.6.1 Physical characteristics
Dimensions (H x W x D):
78 x 60 x 22 mm
Weight:
70 g
Connection:
Screwable connector
12.6.2 Climate conditions
Temperature:
-5 to 55 °C (operating, guaranteed)
-15 to 55 °C (operating, sample tested)
-20 to 70 °C (non-operating)
Relative humidity:
15 to 90%, non-condensing (operating)
5 to 95%, non-condensing (non-operating)
Air pressure:
600 to 1100 hPa
12.6.3 EMC and Safety
Electromagnetic compatibility:
EN55103-1/FCC-47 part 15B
EN55103-2
EN50121-4
EN50130-4
Electrical safety:
IEC60065 (CB-scheme)
EN60065
Approvals:
CE marking
EN60849, EN54-16 and ISO7240-16
IEC60945
12.6.4 Mean time between failure
MTBF:
50,000 hours at +55 °C
(The MTBF doubles for every 10 °C decrease in
temperature.)
Bosch Security Systems | 2011-02
en | 196
12.6.5 Loudspeaker line characteristics
Preferred cable:
Single twisted pair, 0.75 mm2 to 1.5 mm2. The use of
multiwire cables is not recommended. Cross talk of
communication signals affects the supervision
performance.
Maximum cable length:
1 km (max. 300 m adjacent to other supervised
loudspeaker cables)
Maximum cable loop resistance:
38 ohm
Maximum cable inductance:
750 μH
Minimum total loudspeaker impedance:
50 ohm @ 70 kHz (independent of amplifier power)
Maximum cable capacity:
300 nF. However, if the maximum load capacity for the
power amplifier output is less than this value, the
maximum load capacity of the power amplifier is
leading (see section 8.8).
Maximum number of supervision boards
(LBB4441/00 and LBB4443/00) per amplifier
channel:
80 for a 500 W amplifier channel
40 for a 250 W amplifier channel
20 for a 125 W amplifier channel
10 for a 60 W amplifier channel (PRS-8B060 only)
Loudspeaker voltage:
70 V, 100 V
Note
The load of the loudspeakers in relation to the
line impedance should be such that the 20 kHz
pilot tone level is not less than 9 Vrms at the
position of the supervision boards.
Praesideo 3.5 | Installation and User Instructions | 4 | Amplifiers
12.7
Technical data EOL
supervision board
The technical data of the EOL supervision board are the
same as the technical data of the loudspeaker
supervision board (see section 12.6).
Bosch Security Systems | 2011-02
en | 197
Praesideo 3.5 | Installation and User Instructions | 4 | Amplifiers
13
LBB4446/00 Brackets
The LBB4446/00 Brackets (see figure 13.1) are used to
install supervision slave PCBs in junction boxes or in
loudspeaker housings. Each set contains 10 pieces of
aluminium brackets including screws and washers.
figure 13.1: Brackets
(11)
4x10= = 40=
6.5±0.1 (7x)
(6)
62
=50±0.1=
To install the supervision slave using a bracket:
1 Fix the bracket using its slots, the washers and
suitable screws.
2 Attach the supervision slave to the brackets using the
spacers on the brackets and the screws.
(22)
(7.5)
=16=
=60=
75
figure 13.2: Installation
Bosch Security Systems | 2011-02
en | 198
Praesideo 3.5 | Installation and User Instructions | 4 | Amplifiers
14
LBC1256/00 EVAC
Connection Adapter
14.1
en | 199
The EVAC connection block itself is a three pole screw
connector to which the loudspeaker can be connected
(see figure 14.2).
Lsp -
Introduction
Lsp +
Using an LBC1256/00 EVAC Connection Adapter,
loudspeakers that do not contain a ceramic block with a
thermal fuse can be upgraded to comply to evacuation
standards.
14.2
Installation
The EVAC connection adapter must be installed in an
enclosure with double-sided tape (see figure 14.1). The
cable between the loudspeaker and the EVAC
connection block must be short to make sure that the
temperature of the thermal fuse does not differ from the
temperature of the cable. Otherwise, the thermal fuse
will not blow before there is a short-circuit in the
loudspeaker line.
Lsp
Lsp +
figure 14.2: Circuit diagram
1
2
3
figure 14.1: Connection details
1 Double-sided tape
2 LBC1256/00
3 Enclosure
Bosch Security Systems | 2011-02
14.3
Technical data
Dimensions (H x W x D):
19 x 37 x 22 mm
Weight:
40 g
Thermal fuse:
150 °C
Material:
Ceramic
Type:
3-pole screw connector
Preferred cable:
Heat-resistant cable (e.g. cable with PTFE insulation)
Pack contents:
100 pieces
Praesideo 3.5 | Installation and User Instructions | 4 | Amplifiers
Intentionally left blank.
Bosch Security Systems | 2011-02
en | 200
2011-02 | Installation and User Instructions | 5 | Call Stations
Part 5 - Call Stations
Bosch Security Systems | 2011-02
en | 201
2011-02 | Installation and User Instructions | 5 | Call Stations
Intentionally left blank.
Bosch Security Systems | 2011-02
en | 202
2011-02 | Installation and User Instructions | 5 | Call Stations
15
en | 203
LBB4430/00 Call Station
Basic
15.1 Introduction
The LBB4430/00 Call Station Basic is used for making
live speech or pre-recorded announcements to any
pre-assigned zones or to execute any pre-defined
actions. This call station contains a built-in limiter and
speech filter for improved intelligibility. See figure 15.1
for a block diagram of the call station basic.
Headset
Keypad
Keypad
(max. 16)
Microphone
A/D
D/A
Network
Processor
+
DSP
PTT
I
Power/Fault
O
Call Status
System Status
POF
POF
figure 15.1: Block diagram
Bosch Security Systems | 2011-02
Network
Redundancy
Switching
2011-02 | Installation and User Instructions | 5 | Call Stations
15.2 Controls, connectors and
indicators
en | 204
15.3
Connections
15.3.1 Introduction
The call station basic (see figure 15.3 and figure 15.4)
contains the following:
1 Headset connection - A 3.5 mm (0.14 inch) jack
socket to connect a headset. The loudspeaker (5) and
the microphone are muted when a headset is
connected (see section 15.3.3).
2 Volume control - A control to adjust the volume
of the internal loudspeaker and the headset.
3 Press-to-talk (PTT) key - A key to start a call.
4 Status LEDs - Three bicolored status LEDs provide
information about the call station basic and the status
of the Praesideo system. (see section 15.5).
5 Loudspeaker - A loudspeaker for audio
monitoring purposes. The loudspeaker and
microphone are muted when a headset is connected
to the headset connection (1). Chimes and messages
activated by a PTT key or call activation key of the
call station or one of its keypads (see section 47.3.3)
are played via the loudspeaker of the call station.
Calls that are recorded for time-shifted broadcasting
with a call stacker can also be monitored.
6 System bus - Two system bus connectors to
connect the call station basic to other Praesideo
equipment (see section 15.3.2).
7 Interface connector - A flat cable connector to
connect the call station basic to a keypad.
This section gives an overview of typical system
connections using the call station basic.
• Connecting the network (see section 15.3.2).
• Connecting a headset (see section 15.3.3).
15.3.2 Connecting the network
Connect the call station basic to the Praesideo system
using the system bus connectors and LBB4416 network
cables. Both connectors are interchangeable.
This unit is powered by the network controller, via the
Praesideo system bus.
15.3.3 Connecting a headset
The next figure shows the signals that are available on
the headset connector and how they relate to the parts
of a 3.5 mm connector.
5V
2K2
microphone
headphone
GND
figure 15.2: Headset connector
Note
The wire of the headset may not be longer than
3 meter.
Bosch Security Systems | 2011-02
2011-02 | Installation and User Instructions | 5 | Call Stations
en | 205
4
5
1
2
3
figure 15.3: Front and rear views
7
figure 15.4: Bottom view
Bosch Security Systems | 2011-02
6
2011-02 | Installation and User Instructions | 5 | Call Stations
15.4
Installation
15.5
The call station basic is suitable for table-top use. Its
functionality can be expanded by connecting:
• Up to 16 call station keypads for pre-configured
actions (LBB4432/00 or LBB4434/00).
• Up to 15 call station keypads for pre-configured
actions (LBB4432/00 or LBB4434/00) and one
numeric keypad (PRS-CSNKP).
en | 206
Operation
The call station basic has three bi-color status LEDs that
provide information about the call station basic and the
status of the Praesideo system:
• Power/fault LED (left), see table 15.1.
• Call status LED (center), see table 15.2.
• System status LED (right), see table 15.3.
Note
By default, the call station is delivered with
factory firmware, which must be upgraded (see
section 36.5). If the call station contains no
firmware or damaged firmware (e.g. after an
interrupted firmware upgrade), all LEDs are on.
table 15.1: Power/Fault LED (left)
Color
State
--Off
Green
On
Yellow
Blinking
Yellow
On
table 15.2: Call status LED (center)
Color
State
--Off
Green
On
Green
Blinking
table 15.3: System status LED (right)
Color
State
--Off
Yellow
On
Yellow
Blinking
Red
On
Bosch Security Systems | 2011-02
Explanation
Power not available.
Power on and no system or call station basic faults.
Power on, but there is a fault in the system.
Power on, but there is a fault in the call station basic or the
Praesideo network is not operational.
Explanation
No call status to display.
Ready to talk/live announcement.
Chime on or pre-recorded message playing.
Explanation
No pre-defined or selected zones are in use or reserved by the
system, and no emergency announcement is being made.
Lower priority announcements are being made or are reserved to
all or some of the zones which are pre-assigned to the
press-to-talk key of the call station basic and selected zones of
the keypad (if fitted).
Announcements with higher or the same priority (not emergency)
are on or reserved to all or some of the zones which are
pre-assigned to the press-to-talk key of the call station basic and
selected zones of the keypad (if fitted).
An emergency announcement is being made.
2011-02 | Installation and User Instructions | 5 | Call Stations
15.6
Technical data
15.6.1 Physical data
Dimensions (H x W x D):
90 x 160 x 200 mm
Length (goose neck):
380 mm
Weight:
0.95 kg
15.6.2 Climate conditions
Temperature:
-5 to +45 °C (operating, guaranteed)
-15 to +45 °C (operating, sample tested)
-20 to +70 °C (non-operating)
Relative humidity:
15 to 90%, non-condensing (operating)
5 to 95%, non-condensing (non-operating)
Air pressure:
600 to 1100 hPa
15.6.3 EMC and Safety
Electromagnetic compatibility:
EN55103-1/FCC-47 part 15B
EN55103-2
EN50121-4
EN50130-4
Electrical safety:
IEC60065 (CB-scheme)
EN60065
Approvals:
CE marking
EN60849, EN54-16 and ISO7240-16
IEC60945
15.6.4 Mean time between failure
MTBF:
50,000 hours at +45 °C
(The MTBF doubles for every 10 °C decrease in
temperature.)
Bosch Security Systems | 2011-02
en | 207
15.6.5 System bus
Connector (rear side):
Female proprietary connector
Preferred cable:
LBB4416/xx
Maximum cable length:
50 m (per system bus connector)
Data signal interface:
Plastic optical fiber
Power supply via network:
18 to 56V (DC)
No fault reporting when >20V
Network power consumption:
4.4 W (excluding keypads)
15.6.6 Microphone
Input sensitivity:
83 dB(SPL)
Input sensitivity control range:
-7 to 8 dB
Signal/Noise ratio:
> 60 dB at 85 dB(SPL)
Bandwidth:
-3 dB at 340 Hz and 14 kHz with respect to 1 kHz
15.6.7 Loudspeaker
Signal/Noise ratio:
80 dB at max. output
Sound pressure level:
85 dB(SPL) at 0.5 m and 1 kHz
15.6.8 Headset
Connector:
3.5 mm (0.14 inch) jack
Electret impedance:
1 to 10 kohm
Microphone input sensitivity:
-47 to -32 dBV/Pa (tolerance ± 3 dB)
Signal/Noise ratio microphone:
60 dB at -38 dBV/Pa (tolerance ± 3 dB)
Earphone impedance:
32 ohm
Signal/Noise ratio earphone:
80 dB at max. output (tolerance ± 3 dB)
Cross-talk (earphone to microphone):
< 40 dB at -42 dBV/Pa and 1 kHz (tolerance ± 3 dB)
Output power:
1 mW
2011-02 | Installation and User Instructions | 5 | Call Stations
16
LBB4432/00 Call Station
Keypad
en | 208
16.2
Controls, connectors and
indicators
16.2.1 Top view
16.1
Introduction
The LBB4432/00 Call Station Keypad is used in
combination with (remote) call stations to make manual
or pre-recorded announcements to any assigned zones,
to select the zones or to execute pre-defined actions (see
figure 16.1).
call station or
previous keypad
The top of the call station keypad (see figure 16.2)
contains the following:
1 Paper slot - Each programmable key (3) has a
corresponding paper slot, which can contain a
descriptive label to identify where the programmable
key has been configured for. It can be snapped in
and out of the keypad.
next keypad
Note
The PRS-SW Praesideo Software DVD
contains a Microsoft® Word file
(Manuals/Keypad labels.doc), which can be
used to create labels.
Control
2 Key indicator - Each programmable key (3) has a
corresponding key indicator (see section 16.5).
3 Programmable key - Each programmable key
can be configured to perform a specific action when
it is pressed (see chapter 47). To protect keys from
being pushed accidentally (e.g. alarm or emergency
keys), key covers (LBB4436/00) can be put on them.
1
ID
figure 16.1: Block diagram
figure 16.2: Top view
Bosch Security Systems | 2011-02
2
3
2011-02 | Installation and User Instructions | 5 | Call Stations
en | 209
16.2.2 Bottom view
16.3
The bottom of the call station keypad (see figure 16.3)
contains the following:
4 Keypad connector - A connector to connect the
keypad to the next keypad.
5 ID selector - A selector to identify the call station
keypad to the (remote) call station (see section 16.3).
6 Keypad connector - A connector to connect the
keypad to the previous keypad or the (remote) call
station.
It is possible to connect:
• Up to 16 call station keypads for pre-configured
actions (LBB4432/00 or LBB4434/00) to a (remote)
call station.
• Up to 15 call station keypads for pre-configured
actions (LBB4432/00 or LBB4434/00) and one
numeric keypad (PRS-CSNKP) to a (remote) call
station.
For a correct communication between the call station
and its keypads, the correct ID must be assigned to each
keypad for pre-configured actions using the ID selector
(see figure 16.3, no. 5 and figure 16.4).
5
4
6
Configuration
The ID of a keypad for pre-configured actions depends
on its position in the array of keypads. The first keypad
for pre-configured actions has ID 0, the next 1, and so
on up to F for the sixteenth keypad for pre-configured
actions.
E
2
C
4
A
6
8
figure 16.4: ID selector
figure 16.3: Bottom view
Bosch Security Systems | 2011-02
2011-02 | Installation and User Instructions | 5 | Call Stations
en | 210
16.4 Installation
The keypad is suitable for table-top use. It can be
connected to a (remote) call station or to a keypad
which already has been connected to a (remote) call
station. Proceed as follows (see figure 16.5):
Caution
Disconnect the system cable from the (remote)
call station and back-up supplies before you are
going to connect a keypad to it. Connecting a
keypad to a powered (remote) call station can
damage the (remote) call station.
1 Remove the lid by sliding it to the left and snapping
it out of the keypad.
2 Connect the flat cable to the keypad connector and
assign the correct ID to the keypad. The short flat
cable is for keypad to keypad interconnection; the
long flat cable (that is supplied with the call station)
is for call station to keypad interconnection.
3 Slide the connecting plate into the bottom of the
keypad.
4 Fasten the connection plate using three screws.
5 Put the lid back by sliding it to the right and
snapping it into the keypad.
1
5
2
3
4
figure 16.5: Installation
Bosch Security Systems | 2011-02
2011-02 | Installation and User Instructions | 5 | Call Stations
16.5
Operation
The call station keypad has eight (software)
programmable keys. Each key has one 2-color LED that
is used for status indications (see table 16.1). However,
the status indications depend on the function which has
been assigned to the programmable key (see
section 43.4.8 and section 47.3):
• For keys that are configured as routing selectors (e.g.
Zone selection), the indicator is used for routing
selection indication.
• For keys that are configured for functions like
Priority, Call macro, etc., the indicator is used as
selection indicator. It is on as long as the selection is
valid.
• For keys that are configured for functions like Cancel,
Reset, Recall, BGM volume, etc., the indicator is used as
a key active indicator. It is on as long as the key is
pressed.
table 16.1: Routing selector LED indications.
Color
Status
Explanation
Yellow
On
The selected resources are
occupied by a lower-priority
announcement.
Yellow
Blinking The selected resources are
occupied by a higher or equal
priority announcement.
Green
On
The selected resource is
available.
16.6
Technical data
16.6.1 Physical dimensions
Dimensions (H x W x D):
70 x 95 x 200 mm
Weight:
0.3 kg
Max. flat cable length:
5 m (for all keypads together)
Bosch Security Systems | 2011-02
en | 211
16.6.2 Climate conditions
Temperature:
-5 to +45 °C (operating, guaranteed)
-15 to +45 °C (operating, sample tested)
-20 to +70 °C (non-operating)
Relative humidity:
15 to 90%, non-condensing (operating)
5 to 95%, non-condensing (non-operating)
Air pressure:
600 to 1100 hPa
16.6.3 EMC and Safety
Electromagnetic compatibility:
EN55103-1/FCC-47 part 15B
EN55103-2
EN50121-4
EN50130-4
Electrical safety:
IEC60065 (CB-scheme)
EN60065
Approvals:
CE marking
EN60849, EN54-16 and ISO7240-16
IEC60945
16.6.4 Mean time between failure
MTBF:
100,000 hours at +45 °C
(The MTBF doubles for every 10 °C decrease in
temperature.)
16.6.5 System bus
Power supply via network:
18 to 56V (DC)
No fault reporting when >20V
Network power consumption:
1.3 W
2011-02 | Installation and User Instructions | 5 | Call Stations
17
PRS-CSNKP Numeric
en | 212
17.3 Controls, connectors and
indicators
Keypad
17.3.1 Top view
17.1 Introduction
The PRS-CSNKP Numeric Keypad is used in
combination with a basic or remote call station. The call
station provides the microphone and press-to-talk key,
while the numeric keypad can be used for user access,
zone and zone group selection. The numeric keypad
works together with call station keypads for
pre-configured actions. The built-in LCD provides
feedback to the user.
The top of the numeric keypad (see figure 17.2) contains
the following:
1 Display - An LCD display that gives information
about user access and zone selection (see section
17.6).
2 Keys - Twelve keys to operate the (remote) call
station (see section 17.6).
1
2
17.2 Compatibility
The PRS-CSNKP can be used with the (new) PRS-CSR
remote call station or the PRS-CSRK remote call station
kit, but not with the (old) LBB4438/00 or LBB4439/00
remote call station (kit). It also works with the
LBB4430/00 or LBB4433/00 call station (kit).
call station or
previous keypad
next keypad
figure 17.2: Top view
LCD
Control
figure 17.1: Block diagram
Bosch Security Systems | 2011-02
17.4 Bottom view
The bottom of the numeric keypad (see figure 17.3)
contains the following:
3 Keypad connector - A connector to connect the
numeric keypad to the next call station keypad for
pre-configured actions (LBB4432/00 or
LBB4434/00).
4 Keypad connector - A connector to connect the
numeric keypad to the previous keypad or to the
(remote) call station (see section 17.5).
5 Contrast control - Adjusts the contrast of the
LCD.
2011-02 | Installation and User Instructions | 5 | Call Stations
en | 213
17.5 Installation
The keypad is suitable for table-top use. In most cases it
will be connected directly to the call station, but it can
also be positioned between a number of other call
station keypads. Proceed as follows (see figure 17.4):
5
3
Caution
Disconnect the system cable from the (remote)
call station and back-up supplies before you are
going to connect a keypad to it. Connecting a
keypad to a powered (remote) call station can
damage the (remote) call station.
4
1 Remove the lid by sliding it to the left and snapping
it out of the keypad.
2 Connect the flat cable from the keypad connector to
the (remote) call station, or the previous keypad. The
short flat cable is for keypad to keypad
interconnection; the long flat cable (that is supplied
with the call station) is for call station to keypad
interconnection.
3 Slide the connecting plate into the bottom of the
keypad.
4 Fasten the connection plate using three screws.
5 Put the lid back by sliding it to the right and
snapping it into the keypad.
figure 17.3: Bottom view (without lid)
1
5
2
3
4
figure 17.4: Installation
Bosch Security Systems | 2011-02
2011-02 | Installation and User Instructions | 5 | Call Stations
17.6 Operation
en | 214
17.6.3 Display
17.6.1 Introduction
The call station numeric keypad has a 12-key numeric
keypad, providing a telephone-like user interface with *,
# and 0 .. 9 keys. The numeric keypad can be
configured for the following functions:
• User access to the (remote) call station with user
number and PIN, configurable for multiple users,
with time-out and manual lock.
• Selecting zones and zone groups as destinations for
calls; up to eight zones and/or zone groups can be
entered into a string. Each zone (group) can consists
of up to 16 numbers.
table 17.2: Prompts
Prompt
Action
User:
Type your user ID with the number
keys and press #.
PIN:
Type your PIN (personal identification
number) with the number keys and
press #.
Zone:
Type the zone(s)/zone group(s) with
the number keys. Press # after each
zone (group).
BGM
No action. The (remote) call station is
used to configure BGM settings. The
numeric keypad cannot be used.
17.6.2 Keys
table 17.1: Keys
Symbol Action
0 .. 9
Press
*
Short press
(< 1 s)
Long press
(> 2 s)
#
Short press
(< 1 s)
Long press
(> 2 s)
Description
Numeric input
Delete current or last
entered zone
Delete all entered zones
Enter
Lock call station
Bosch Security Systems | 2011-02
The LCD gives feedback to the user about the selections
and the status of the selected zone and zone groups:
• If a zone (group) is occupied by a call with a higher
priority, the zone (group) is show between
parenthesis and flashing.
• If a zone (group) is occupied by a call with a lower
priority, the zone (group) is shown between
parenthesis.
2011-02 | Installation and User Instructions | 5 | Call Stations
17.7 Technical data
17.7.1
Physical dimensions
Dimensions (H x W x D):
70 x 95 x 200 mm
Weight:
0.4 kg
Max. flat cable length:
5 m (for all keypads together)
17.7.2
Climate conditions
Temperature:
-5 to +45 °C (operating, guaranteed)
-15 to +55 °C (operating, sample tested)
-20 to +70 °C (non-operating)
Relative humidity:
15 to 90%, non-condensing (operating)
5 to 95%, non-condensing (non-operating)
Air pressure:
600 to 1100 hPa
17.7.3
EMC and Safety
Electromagnetic compatibility:
EN55103-1/FCC-47 part 15B
EN55103-2
EN50121-4
EN50130-4
Electrical safety:
IEC60065 (CB-scheme)
EN60065
Approvals:
CE marking
EN60849, EN54-16 and ISO7240-16
IEC60945
17.7.4
Mean time between failure
MTBF:
100,000 hours at +45 °C
(The MTBF doubles for every 10 °C decrease in
temperature.)
17.7.5
System bus
Power supply via network:
18 to 56V (DC)
No fault reporting when >20V
Network power consumption:
1.6 W
Bosch Security Systems | 2011-02
en | 215
2011-02 | Installation and User Instructions | 5 | Call Stations
18
en | 216
LBB4433/00 Call Station
Kit
18.1
Introduction
The LBB4433/00 Call Station Kit contains a printed
circuit board (PCB) that can be used to make
custom-made call stations (e.g. an emergency call
station). This call station contains a built-in limiter and
speech filter for improved intelligibility. See figure 18.1
for a block diagram of the call station kit.
Headset
Keypad
Keypad
(max. 16)
Microphone
A/D
Network
Processor
+
DSP
PTT
Control Inputs
D/A
I
Power/Fault (2)
O
Call Status
System Status (2)
POF
POF
figure 18.1: Block diagram
Bosch Security Systems | 2011-02
Network
Redundancy
Switching
2011-02 | Installation and User Instructions | 5 | Call Stations
18.2
Controls, connectors and
indicators
en | 217
X143
The call station kit (see figure 18.2) contains the
following:
X4
Back-up supply/Control inputs - Besides
powering the call station kit via the system
network connector (X1, X2), it can also be
powered externally from a back-up power
supply (see section 18.2.1). The connector
provides also two control inputs to monitor the
back-up power supply.
X1, X2 System bus - Two system bus connectors to
connect the call station kit to other Praesideo
equipment. Both connectors are
interchangeable.
X70
X142
X11
X80
.
.
.
.
.
.
.
.
.
.
.
.
.
.
13
14
Keypad interface - The keypad interface is
used to connect up to 16 keypads to the call
station kit (see section 18.2.6).
Microphone - The microphone input is used
to connect a microphone (see section 18.2.3).
External Speaker - The external speaker is
meant for listening to chimes, pre-recorded
messages etc. (see section 18.2.5). Only chimes
and messages activated by a PTT key of the call
station or one of its keypads (see section 47.3.3)
are played via the loudspeaker of the call
station.
Headset - The headset connector provides the
possibility to connect a headset to the call
station kit (see section 18.2.2).
Control input/outputs - The control input
and five control outputs are used as
replacement for the PTT key and LEDs on the
LBB4430/00 Call Station Basic (see
section 18.2.4).
X80
1
2
+
+
+
-
+
C
A
1
-
1
+
X11
1.
.
.
.
.
6
X142
1.
.
.
.
.
6
X70
6.
.
.
.
.
1
1
+
1
C
A
+
+
+
-
+
+
+
. .
. .
. .
X4
+
8
7
-
-
2
1
+
+
+
+
A
1
C
X2
+
-
+
X1
+
C
A
+
-
16
15
.
.
.
.
.
.
.
2
1
figure 18.2: Component side
Bosch Security Systems | 2011-02
.
.
.
.
.
.
.
X143
2011-02 | Installation and User Instructions | 5 | Call Stations
Note
With the exception of the connection to X1 and
X2, the wiring of all other connectors must be
less than 3 meter in length..
en | 218
The control inputs can be configured to act on contact
make or on contact break (see section 42.5). It is also
possible to supervise the cables for short-circuits and
open connections (see figure 18.3 and figure 18.4).
Whether a control input is actually supervised or not is
defined in the configuration.
18.2.1 Back-up supply (X4)
The external interface for the back-up supply consists of
a pin header connector with 8 positions (see the PCB for
the pin numbering). The connector provides also two
control inputs. These can be used to receive signals
from other equipment. For example, signals from the
back-up supply that indicate its status such as mains
available, battery OK etc.
table 18.1: X4 connector details
Pin
Signal
1
GND
2
GND
3
Back-up supply
4
Back-up supply
5
GND
6
Control input 1
7
GND
8
Control input 2
table 18.2: X4 technical data
Backup voltage:
18 to 56 V(DC)
No fault reporting when > 20 V
Backup current:
max. 2 A
Control input 1 and control input 2
Resistance detection (supervision enabled):
Cable short circuit
< 2.5 kohm
Contact closed
7.5 kohm to12 kohm
Contact open
17.5 kohm to 22 kohm
Cable broken
> 27 kohm
Resistance detection (supervision disabled):
Contact closed
< 12 kohm
Contact open
> 17.5 kohm
Bosch Security Systems | 2011-02
GND
Control input
10kΩ
10kΩ
figure 18.3: Supervised control input
GND
Control input
figure 18.4: Non-supervised control input
Warning
Do not connect DC or AC signals to the control
inputs, otherwise the input circuit may be
damaged. Only use voltage-free contacts.
2011-02 | Installation and User Instructions | 5 | Call Stations
Note
Do not combine control input wires of multiple
control inputs (e.g. do not use a common return
wire).
en | 219
Note
If a volume control is not needed, pin 2 and 3
must be connected to each other. The volume
level of the earphone is then at its maximum.
18.2.2 Headset (X11)
The external interface for headsets consists of a pin
header connector with 6 positions (see the PCB for the
pin numbering).
table 18.3: X11 connector details
Pin
Signal
1
Mic
2
GND
3
Volume control voltage
4
3.3 V supply output
5
GND
6
Earphone
1
Microphone
2
3
R
Volume
Headset
4
5
Earphone
6
figure 18.5: Headset connection diagram
Note
The linear resistor R (typical value: 10 kohm) is
used to create a control voltage from the supply
voltage.
Bosch Security Systems | 2011-02
table 18.4: X11 technical data
Supervision limits for dynamic microphone:
180 to 1400 ohm
Mic. input sensitivity:
-50 dBV
Input sensitivity control range:
-7 to 8 dB
S/N:
60 dB +/- 3 dB at default sensitivity (mic.)
typical 80 dB +/- 3 dB (earphone)
Earphone impedance:
min. 16 ohm (typical 32 Ω)
Crosstalk (earphone to mic):
max. 40 dB ± 3 dB
Bandwidth:
340 to 14000 Hz
(-3 dB with respect to level at 1 kHz)
Output power:
0.1 to 30 mW (typical 1 mW)
Volume control voltage:
0 to 3.3 V
2011-02 | Installation and User Instructions | 5 | Call Stations
en | 220
18.2.3 Microphone (X70)
The external interface for microphones consists of a pin
header connector with 6 positions (see the PCB for the
pin numbering). The following microphones were
designed to be used in combination with the kit:
• LBB9081 Hand-held Dynamic Microphone
(including resistors for switch supervision).
• LBB9082 Gooseneck Dynamic Microphone.
table 18.5: X70 connector details
Pin
Signal
1
Mic2
GND
3
Mic+
4
--- not connected --5
PTT input contact
6
GND
10kΩ
blue
5
black
6
red
3
white
1
10kΩ
black
(thick)
2
figure 18.6: LBB9081 connection diagram
red
white
black
figure 18.7: LBB9082 connection diagram
Bosch Security Systems | 2011-02
3
1
2
table 18.6: X70 technical data
Microphone input sensitivity:
-50 dBV
Input control range:
-7 to 8 dB
S/N:
min. 60 dB at default sensitivity
Headroom:
min. 30 dB at default sensitivity
Bandwidth:
340 to 14000 Hz
(-3 dB with respect to level at 1 kHz)
2011-02 | Installation and User Instructions | 5 | Call Stations
en | 221
18.2.4 Control input/outputs (X80)
The call station kit provides an external interface for
one control input and five control outputs. This
external interface consists of a pin header with 14
positions (see the PCB for the pin numbering).
table 18.7: X80 connector details
Pin
Signal
1
PTT input contact
2
GND
3
Output 1, out (power indicator)
4
Output 1, in (power indicator)
5
Output 2, out (fault indicator)
6
Output 2, in (fault indicator)
7
Output 3, out (call indicator)
8
Output 3, in (call indicator)
9
Output 4, out (system priority indicator)
10
Output 4, in (system priority indicator)
11
Output 5, out (system emergency indicator)
12
Output 5, in (system emergency indicator)
13
GND
14
GND
Bosch Security Systems | 2011-02
table 18.8: X80 technical data
PTT input contact
Resistance detection (supervision enabled):
Cable short circuit
< 2.5 kohm
Contact closed
7.5 kohm to12 kohm
Contact open
17.5 kohm to 22 kohm
Cable broken
> 27 kohm
Resistance detection (supervision disabled):
Contact closed
< 12 kohm
Contact open
> 17.5 kohm
Internal output supply current:
max. 10 mA (per pin)
max. 30 mA
(in total max. 3 LEDs are simultaneously on)
Output type:
open collector/drain
Output voltage:
max. 56 V (per pin)
Output sink current:
max. 100 mA per output switch pin
2011-02 | Installation and User Instructions | 5 | Call Stations
It is possible to connect the following to the control
inputs/outputs connector:
• Press-to-talk (PTT) key. See figure 18.8 for a
connection diagram. The two resistors must be
placed in the circuit, because the contact is always
supervised by the system software.
• Internally powered lamp or LED. See figure 18.9 for
a connection diagram.
• Externally powered lamp or LED. See figure 18.9 for
a connection diagram.
• Externally powered relay. See figure 18.11 for a
connection diagram.
10 kΩ
5V
PTT Input
Contact
en | 222
I < 100 mA
Max. 56V
Output X, IN
GND
figure 18.10: Externally powered relay
I < 100 mA
10 kΩ
Max. 56V
10 kΩ
Output X, IN
GND
GND
figure 18.11: Externally powered relay
figure 18.8: Press-to-talk (PTT) key
+5V, 30 mA
R2
R2
3
R2
7
R2
9
11
R1
R1
R1
R1
R1
PI
FI
CI
SPI
SEI
4
62V
PI
FI
CI
SPI
SEI
R2
5
6
62V
= Power Indicator
= Fault Indicator
= Call Indicator
= System Priority Indicator
= System Emergency Indicator
figure 18.9: Internally powered LED
Bosch Security Systems | 2011-02
8
62V
10
62V
12
62V
R1 = 0 Ω, R2 = 330 Ω (HW07/04 and later)
R1 = 180 Ω, R2 = 150 Ω (HW07/00 to HW07/03)
R1 = 330 Ω, R2 = 0 Ω (before HW07/00)
2011-02 | Installation and User Instructions | 5 | Call Stations
The value of resistor R in figure 18.9 depends on the
voltage of the external source, the forward voltage of the
LED and the current flowing through the LED:
V source – V forward
R = --------------------------------------------I
For example, the voltage of the external source is 24 V,
the forward voltage of the LED is 2 V and the current
flowing through the LED is 10 mA, then:
24 – 2
- = 2200 ( Ω )
R = -------------------–3
10 ⋅ 10
Warning
Do not connect DC or AC signals to the control
inputs, otherwise the input circuit may be
damaged. Only use voltage-free contacts.
18.2.5 External speaker (X142)
The external interface for external speakers consists of a
pin header connector with 6 positions (see the PCB for
the pin numbering.) When using an external
loudspeaker, also connect a volume control (see section
18.2.2).
table 18.9: X142 connector details
Pin
Signal
1, 2, 3
Speaker +
4, 5, 6
Speaker table 18.10: X142 technical data
Impedance:
8 to 32 ohm
Signal/Noise ratio:
typical 80 dB ± 3 dB at max. output
Output power:
typical 100 mW, max. 300 mW
Bosch Security Systems | 2011-02
en | 223
18.2.6 Keypad interface (X143)
The external interface for the keypad (kits) consists of an
IDC connector with 16 positions. Keypads are
connected in series. That means there is only a direct
connection between the call station kit and the first
keypad. The second keypad is connected to the first, the
third to the second etc. using standard flat cables.
table 18.11: X143 connector details
Pin
Signal
1
Synchronization line.
2
GND
3
Interrupt line (INT)
4
GND
5
Data I2C (SDA)
6
GND
7
Clock I2C (SCL)
8
GND
9
Power
10
GND
11
Power
12
GND
13
Power
14
GND
15
Power
16
GND
2011-02 | Installation and User Instructions | 5 | Call Stations
18.3
Installation
The call station kit contains six holes for installation
purposes (see figure 18.12).
en | 224
To connect the wires to the shrink-contacts, use one of
the following pliers:
• Tyco AMP 169111-1 pliers (see figure 18.14)
• Tyco AMP Modu 4 169481-1 pliers (see figure 18.15)
130 +/- 0.2
4
2
5
3
1
5
4
figure 18.14: Tyco AMP 169111-1 pliers
60
3,2 +/- 0.1
(6x)
mm2
0.5-0.75
1
1.5
2.5
60
6
169111-1
0.03
0.09
MODU 4
0.2
0.56
5
5
108
118 +/- 0.2
figure 18.12: Installation
The kit is delivered together with Tyco AMP pin
headers and Tyco AMP 1-141708-1 shrink-contacts (see
figure 18.13) to facilitate the connection of wires to the
PCB. These pin headers are suitable for wires with a
cross-section from 0.2 to 0.56 mm2. It is possible to
solder the wires to the pin headers.
Note
If the call station kit is installed in a vibrating
surrounding (e.g. a ship), glue the pin header to
the PCB.
figure 18.13: Tyco AMP 1-141708-1 shrink-contact
Bosch Security Systems | 2011-02
figure 18.15: Tyco AMP Modu 4 169481-1 pliers
0.12
0.14
16 9 4 81 - 1
2011-02 | Installation and User Instructions | 5 | Call Stations
18.4
Technical Data
18.4.1 Physical characteristics
Dimensions (H x W x D):
130 x 118 x 20 mm
Weight:
120 g
18.4.2 Climate conditions
Temperature:
-5 to +55 °C (operating, guaranteed)
-15 to +55 °C (operating, sample tested)
-20 to +70 °C (non-operating)
Relative humidity:
15 to 90%, non-condensing (operating)
5 to 95%, non-condensing (non-operating)
Air pressure:
600 to 1100 hPa
18.4.3 EMC and Safety
Electromagnetic compatibility:
EN55103-1/FCC-47 part 15B
EN55103-2
Electrical safety:
IEC60065 (CB-scheme)
EN60065
Approvals:
CE marking
EN60849, EN54-16 and ISO7240-16
IEC60945
18.4.4 Mean time between failure
MTBF:
50,000 hours at +55 °C
(The MTBF doubles for every 10 °C decrease in
temperature.)
18.4.5 System bus
Power supply via network:
18 to 56V (DC)
No fault reporting when >20V
Network power consumption:
6.2 W (excluding keypads)
Bosch Security Systems | 2011-02
en | 225
2011-02 | Installation and User Instructions | 5 | Call Stations
19
LBB4434/00 Call Station
Keypad Kit
19.1
Introduction
The LBB4434/00 Call Station Keypad Kit contains a
printed circuit board (PCB) that can be used to make
custom-made call station keypads (e.g. for emergency
call stations). See figure 19.1 for a block diagram of the
call station keypad kit.
call station or
previous keypad
next keypad
Control
ID
figure 19.1: Block diagram
Bosch Security Systems | 2011-02
en | 226
2011-02 | Installation and User Instructions | 5 | Call Stations
19.2
Controls, connectors and
indicators
en | 227
S9
ID selector - A selector to identify the call
station keypad kit to the call station to which it
is connected (see section 19.2.4).
X5, X6 Keypad interface - The keypad interface is
used to connect up to 16 keypads to a (remote)
call station (see section 19.2.3).
X2
Jumper switch - Unused. However, the
jumper must be placed for correct operation.
The call station keypad kit (see figure 19.2) contains the
following:
X800 Control inputs - The control inputs are used
as replacement for the keys on the
LBB4432/00 Call Station Keypad (see
section 19.2.1).
X810 Control outputs - The control outputs are
used as replacement for the LEDs on the
LBB4432/00 Call Station Keypad (see
section 19.2.2).
E
A
C
16
. 15
.
.
.
. .
. .
. .
. .
. .
. .
. .
2 1
8
S9
4
2
6
X800
X2
X810
16
. 15
.
. .
. .
. .
. .
. .
. .
2 1
X6
X811
+
+
-
1
+
2.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
36
+
1.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
35
figure 19.2: Component side
Caution
Disconnect the system cable from the call
station (kit) and back-up supplies before you are
going to connect a keypad to it. Connecting a
keypad to a powered (remote) call station can
damage the (remote) call station.
Bosch Security Systems | 2011-02
-
X5
16
. 15
.
. .
. .
. .
. .
. .
. .
2 1
2011-02 | Installation and User Instructions | 5 | Call Stations
en | 228
19.2.1 Control inputs (X800)
19.2.2 Control outputs (X810)
The external interface for control inputs consists of a pin
header connector with 20 positions (see the PCB for the
pin numbering). These control inputs cannot be
supervised.
The external interface for control outputs consists of a
pin header connector with 40 positions (see the PCB for
the pin numbering).
table 19.1: X800 connector details
Pin
Signal
1
Input 1, in
2
Input 1, GND
3
Input 2, in
4
Input 2, GND
5
Input 3, in
6
Input 3, GND
7
Input 4, in
8
Input 4, GND
9
Input 5, in
10
Input 5, GND
11
Input 6, in
12
Input 6, GND
13
Input 7, in
14
Input 7, GND
15
Input 8, in
16
Input 8, GND
Input X, IN
Input X, GND
figure 19.3: Input connection diagram
table 19.2: X800 technical data
Cable length:
max. 5 m
Current (control inputs):
max. 0.5 mA
Voltage (control inputs):
max. 3.3 V with internal pull-up resistor of 10 kΩ
Bosch Security Systems | 2011-02
table 19.3: X810 connector details
Pin
Signal
1
GND
2
GND
3
Output 1, out (green)
4
Output 1, in (green)
5
Output 2, out (green)
6
Output 2, in (green)
7
Output 3, out (green)
8
Output 3, in (green)
9
Output 4, out (green)
10
Output 4, in (green)
11
Output 5, out (green)
12
Output 5, in (green)
13
Output 6, out (green)
14
Output 6, in (green)
15
Output 7, out (green)
16
Output 7, in (green)
17
Output 8, out (green)
18
Output 8, in (green)
19
Output 1, out (yellow)
20
Output 1, in (yellow)
21
Output 2, out (yellow)
22
Output 2, in (yellow)
23
Output 3, out (yellow)
24
Output 3, in (yellow)
25
Output 4, out (yellow)
26
Output 4, in (yellow)
27
Output 5, out (yellow)
28
Output 5, in (yellow)
29
Output 6, out (yellow)
30
Output 6, in (yellow)
31
Output 7, out (yellow)
32
Output 7, in (yellow)
33
Output 8, out (yellow)
34
Output 8, in (yellow)
35
GND
36
GND
2011-02 | Installation and User Instructions | 5 | Call Stations
It is possible to connect the following to the control
inputs/outputs connector:
• Internally powered lamp or LED. See figure 19.4 for
a connection diagram.
• Externally powered lamp or LED. See figure 19.5 for
a connection diagram.
• Externally powered relay. See figure 19.6 for a
connection diagram.
150 Ω Output X, OUT
3.3V
I < 22 mA
en | 229
The value of resistor R in figure 19.5 depends on the
voltage of the external source, the forward voltage of the
LED and the current flowing through the LED:
V source – V forward
R = --------------------------------------------I
For example, the voltage of the external source is 24 V,
the forward voltage of the LED is 2 V and the current
flowing through the LED is 10 mA, then:
24 – 2
- = 2200 ( Ω )
R = -------------------–3
10 ⋅ 10
Output X, IN
figure 19.4: Internally powered LED
I < 100 mA
R
Max. 30V
table 19.4: X810 technical data
Cable length:
max. 5 m
Current:
max. 100mA (via IN)
max. 64 mA (via all OUT terminals together)
Voltage:
max. 30 V
Output X, IN
Note
If the internal 3.3 V power supply is used to
power lamps or LEDs, then the maximum total
load for all control outputs together should be
<64 mA.
GND
figure 19.5: Externally powered LED
I < 100 mA
Max. 30V
Output X,
IN
GND
figure 19.6: Externally powered relay
Bosch Security Systems | 2011-02
2011-02 | Installation and User Instructions | 5 | Call Stations
en | 230
19.2.3 Keypad interface (X5, X6)
19.2.4 ID selector (S9)
The external interface for connecting the keypad to
other keypads or to a (remote) call station consists of a
IDC connector with 16 positions (see the PCB for the
pin numbering). Keypads are connected in series to a
call station. This means that there is only a direct
connection between the call station and the first keypad.
The second keypad is connected to the first, the third to
the second etc. using standard flat cables.
It is possible to connect:
• Up to 16 call station keypads for pre-configured
actions (LBB4432/00 or LBB4434/00) to a (remote)
call station.
• Up to 15 call station keypads for pre-configured
actions (LBB4432/00 or LBB4434/00) and one
numeric keypad (PRS-CSNKP) to a (remote) call
station.
table 19.5: X5 and X6 connector details
Pin
Signal
1
Synchronization line.
2
GND
3
Interrupt line (INT)
4
GND
5
Data I2C (SDA)
6
GND
7
Clock I2C (SCL)
8
GND
9
Power
10
GND
11
Power
12
GND
13
Power
14
GND
15
Power
16
GND
For a correct communication between the call station
and its keypads, the correct ID must be assigned to each
keypad for pre-configured actions using the ID selector
(see figure 19.2, no. S9 and figure 19.7).
The ID of a keypad for pre-configured actions depends
on its position in the array of keypads. The first keypad
for pre-configured actions has ID 0, the next 1, and so
on up to F for the sixteenth keypad for pre-configured
actions.
E
2
C
4
A
6
8
figure 19.7: ID selector
Bosch Security Systems | 2011-02
2011-02 | Installation and User Instructions | 5 | Call Stations
19.3
Installation
The call station keypad kit contains four holes for
installation purposes (see figure 19.8).
en | 231
To connect the wires to the shrink-contacts, use one of
the following pliers (see also the following figures):
• Tyco AMP 169111-1 pliers (see figure 19.10)
• Tyco AMP Modu 4 169481-1 pliers (see figure 19.11)
90
100
4
2
5
3
1
5
4
mm2
0.5-0.75
1
1.5
2.5
6
169111-1
figure 19.10: Tyco AMP 169111-1 pliers
MODU 4
0.2
0.56
16 9 4 81 - 1
figure 19.8: Installation
Note
If the call station keypad kit is installed in a
vibrating surrounding (e.g. a ship), glue the pin
header to the PCB.
figure 19.9: Tyco AMP 1-141708-1 shrink-contact
Bosch Security Systems | 2011-02
figure 19.11: Tyco AMP Modu 4 169481-1 pliers
0.12
0.14
90
The kit is delivered together with Tyco AMP pin
headers and Tyco AMP 1-141708-1 shrink-contacts (see
figure 19.9) to facilitate the connection of wires to the
PCB. These pin headers are suitable for wires with a
cross-section from 0.2 to 0.56 mm2. It is possible to
solder the wires to the pin headers.
0.03
0.09
80
2011-02 | Installation and User Instructions | 5 | Call Stations
19.4
Technical data
19.4.1 Physical characteristics
Dimensions (H x W x D):
100 x 90 x 20 mm
Weight:
55 g
Max. flat cable length:
5 m (for all keypads together)
19.4.2 Climate conditions
Temperature:
-5 to +55 °C (operating, guaranteed)
-15 to +55 °C (operating, sample tested)
-20 to +70 °C (non-operating)
Relative humidity:
15 to 90%, non-condensing (operating)
5 to 95%, non-condensing (non-operating)
Air pressure:
600 to 1100 hPa
19.4.3 EMC and Safety
Electromagnetic compatibility:
EN55103-1/FCC-47 part 15B
EN55103-2
Electrical safety:
IEC60065 (CB-scheme)
EN60065
Approvals:
CE marking
EN60849, EN54-16 and ISO7240-16
IEC60945
19.4.4 Mean time between failure
MTBF:
50,000 hours at +55 °C
(The MTBF doubles for every 10 °C decrease in
temperature.)
19.4.5 System bus
Power supply via network:
18 to 56V (DC)
No fault reporting when >20V
Network power consumption:
1.2 W
Bosch Security Systems | 2011-02
en | 232
2011-02 | Installation and User Instructions | 5 | Call Stations
20
en | 233
PRS-CSR Remote Call
Station
20.1
Introduction
The PRS-CSR Remote Call Station is used for making
live speech or pre-recorded announcements to any
pre-assigned zones or to execute any pre-defined
actions. The remote call station is connected to the
system through the PRS-CSI Call Station Interface with
a Cat-5 cable. This makes the remote call station
suitable to operate the system from remote sites. See
figure 20.1 for a block diagram of the remote call
station.
The PRS-CSR Remote Call Station is a successor to the
LBB4438/00 Remote Call Station. You can only use the
PRS-CSR in combination with the PRS-CSI Call Station
Interface. You cannot use the PRS-CSR in combination
with the (old) LBB4437/00 Call Station Interface. You
can only use the LBB4437/00 to connect LBB4438/00
and LBB4439/00 remote call stations to the system.
Headset
External
Power
Keypad
Keypad
(max. 16)
Microphone
A/D
Processor
+
DSP
PTT
Control Inputs
D/A
I
Power/Fault
O
Call Status
System Status
Cat-5
figure 20.1: Block diagram
Bosch Security Systems | 2011-02
Network
Interface
2011-02 | Installation and User Instructions | 5 | Call Stations
20.2
Controls, connectors and
indicators
en | 234
20.3
Connections
20.3.1 Introduction
The remote call station (see figure 20.3 and figure 20.4)
contains the following:
1 Headset connection - A 3.5 mm (0.14 inch) jack
socket to connect a headset. The loudspeaker (5) and
the microphone are muted when a headset is
connected (see section 20.3.3).
2 Volume control - A control to adjust the volume
of the internal loudspeaker and the headset.
3 Press-to-talk (PTT) key - A key to start a call.
4 Status LEDs - Three status LEDs provide
information about the remote call station and the
status of the Praesideo system (see section 20.5).
5 Loudspeaker - A loudspeaker for audio
monitoring purposes. The loudspeaker and
microphone are muted when a headset is connected
to the headset connection (1). Only chimes and
messages activated by a PTT key of the call station
or one of its keypads (see section 47.3.3) are played
via the loudspeaker of the call station.
6 External power supply/Control inputs - A
connection for an (optional) external power supply
and control inputs (see section 20.3.4 and section
20.3.5).
7 RJ45 connector - A connector to connect the
remote call station to a PRS-CSI Call Station
Interface via a straight Cat-5 cable (see section
20.3.2).
Caution
Do not connect the connector 7 to any Telecom
or Ethernet network. This connection is
dedicated for PRS-CSI only.
8 Service connector - A connector used for
manufacturing. Not for normal use.
9 Interface connector - A flat cable connector to
connect the remote call station to a call station
keypad.
Bosch Security Systems | 2011-02
This section gives an overview of typical system
connections using the remote call station.
• Connecting the network (see section 20.3.2).
• Connecting a headset (see section 20.3.3).
• Connecting an external power supply (see section
20.3.4).
• Connecting control inputs (see section 20.3.5).
20.3.2 Connecting the network
Connect the remote call station to the Praesideo system
using a PRS-CSI Call Station Interface (see chapter 22).
20.3.3 Connecting a headset
The next figure shows the signals that are available on
the headset connector and how they relate to the parts
of a 3.5 mm connector.
5V
2K2
microphone
headphone
GND
figure 20.2: Headset connector
Note
The wire of the headset may not be longer than
3 meter.
2011-02 | Installation and User Instructions | 5 | Call Stations
en | 235
4
5
1
2
3
figure 20.3: Front and rear views
6 7
8
20.3.4 Connecting a power supply
The remote call station is delivered with a separate
Kycon KPP4-P connector to connect an external power
supply to the remote call station. The Kycon KPP-4P
connector has four pins (see figure 20.5):
9
13
24
figure 20.5: Connection diagram (external view)
figure 20.4: Bottom view
Bosch Security Systems | 2011-02
table 20.1: Kycon KPP-4P connector details
Pin
Signal
1
Ground
2
External supply
3
Control input 1
4
Control input 2
2011-02 | Installation and User Instructions | 5 | Call Stations
Normally, the call station interface and the remote call
station are powered from the network. To make sure
that they receive power when the network is not
available, external power supplies can be connected to
the call station interface and the remote call station. See
section 22.3.3 for more information.
en | 236
GND
Control input
10kΩ
Warning
For safety reasons, you must use a current
limited external power supply complying with the
60065 standard for audio/video usage or
equivalent, with a maximum output current of 5A,
or you must use an external fuse (5 A max, slow)
in the wiring of the Kycon KPP-4P connector.
For application in emergency sound systems in
Europe, the installer must use a power supply
with EN54-4 certification.
Caution
For USA: only use a power supply of the type
Mean Well PLN-30-24, PLN-30-36, PLN-30-48,
PLN-60-24, PLN-60-36, PLN-60-48,
PLN-100-24, PLN-100-36 or PLN-100-48.
For CANADA: only use a power supply of the type
Mean Well PLN-30-24, PLN-30-36, PLN-60-24,
PLN-60-36, PLN-100-24 or PLN-100-36.
Other types of power supply are not tested with
Praesideo and may cause harm.
20.3.5 Connecting control inputs
The remote call station has 2 control inputs (refer to
figure 20.5 and table 20.1). The control inputs can
receive signals from third party equipment that must
trigger actions in the Praesideo system. The control
inputs can be configured to act on contact make or on
contact break (see section 43.4.4). The maximum length
of the connected cables is 3 meter.
It is also possible to supervise the cables for
short-circuits and open connections (see figure 20.6 and
figure 20.7). Whether a control input is actually
supervised or not is defined in the configuration.
Bosch Security Systems | 2011-02
10kΩ
figure 20.6: Supervised control input
GND
Control input
figure 20.7: Non-supervised control input
Warning
Do not connect DC or AC signals to the control
inputs, otherwise the input circuit may be
damaged. Only use voltage-free contacts.
2011-02 | Installation and User Instructions | 5 | Call Stations
20.4
Installation
20.5
The call station basic is suitable for table-top use. Its
functionality can be expanded by connecting:
• Up to 16 call station keypads for pre-configured
actions (LBB4432/00 or LBB4434/00).
• Up to 15 call station keypads for pre-configured
actions (LBB4432/00 or LBB4434/00) and one
numeric keypad (PRS-CSNKP).
table 20.2: Power/Fault LED (left)
Color
State
--Off
Green
On
Yellow
Blinking
Yellow
On
table 20.3: Call status LED (center)
Color
State
---Off
Green
On
Green
Blinking
table 20.4: System status LED (right)
Color
State
--Off
Yellow
On
Yellow
Blinking
Red
On
Bosch Security Systems | 2011-02
en | 237
Operation
The remote call station has three status LEDs that
provide information about the remote call station and
the status of the Praesideo system:
• Power/fault LED (left), see table 20.2.
• Call status LED (center), see table 20.3.
• System status LED (right), see table 20.4.
Explanation
Power not available.
Power on and no system or remote call station faults.
Power on, but there is a fault in the system.
Power on, but there is a fault in the remote call station or the
Praesideo network is not operational.
Explanation
No call status to display.
Ready to talk/live announcement.
Chime on or pre-recorded message playing.
Explanation
No pre-defined or selected zones are in use or reserved by the
system, and no emergency announcement is being made.
Lower priority announcements are being made or are reserved to
all or some of the zones which are pre-assigned to the
press-to-talk key of the remote call station and selected zones of
the keypad (if fitted).
Announcements with higher or the same priority (not emergency)
are on or reserved to all or some of the zones which are
pre-assigned to the press-to-talk key of the remote call station
and selected zones of the keypad (if fitted).
An emergency announcement is being made. Normal
announcements can be made to the zones which are not involved.
2011-02 | Installation and User Instructions | 5 | Call Stations
20.6
Technical data
20.6.1 Physical data
Dimensions (H x W x D):
90 x 160 x 200 mm
Length (goose neck):
380 mm
Weight:
0.95 kg
20.6.2 Climate conditions
Temperature:
-5 to +45 °C (operating, guaranteed)
-15 to +45 °C (operating, sample tested)
-20 to +70 °C (non-operating)
Relative humidity:
15 to 90%, non-condensing (operating)
5 to 95%, non-condensing (non-operating)
Air pressure:
600 to 1100 hPa
20.6.3 EMC and Safety
Electromagnetic compatibility:
EN55103-1/FCC-47 part 15B
EN55103-2
EN50121-4
EN50130-4
Electrical safety:
IEC60065 (CB-scheme)
EN60065
Approvals:
CE marking
EN60849, EN54-16 and ISO7240-16
IEC60945
20.6.4 Mean time between failure
MTBF:
50,000 hours at +45 °C (The MTBF doubles for every
10 °C decrease in temperature.)
Bosch Security Systems | 2011-02
en | 238
20.6.5 External power supply
Connector:
Kycon KPJ-4S
Input voltage range:
18 to 56V (DC)
No fault reporting when >20V
Power consumption:
2.9 W at 48 V (excluding keypads)
20.6.6 Call station interface
Connector (rear side):
RJ45
Cable type:
Cat-5 (4x twisted pair, straight)
Maximum cable length:
1000 m
Power supply via network:
18 to 56 V(DC)
No fault reporting when >20V
Network power consumption:
2.9 W at 48 V (excluding keypads)
20.6.7 Microphone
Input sensitivity:
83 dB(SPL)
Input sensitivity control range:
-7 to 8 dB
Signal/Noise ratio:
> 60 dB at 85 dB(SPL)
Bandwidth:
-3 dB at 340 Hz and 14 kHz with respect to 1 kHz
20.6.8 Loudspeaker
Signal/Noise ratio:
80 dB at max. output
Sound pressure level:
85 dB(SPL) at 0.5 m and 1 kHz
2011-02 | Installation and User Instructions | 5 | Call Stations
20.6.9 Headset
Connector:
3.5 mm (0.14 inch) jack
Electret impedance:
1 to 10 kohm
Microphone input sensitivity:
-47 to -32 dBV/Pa (tolerance ± 3 dB)
Signal/Noise ratio microphone:
60 dB at -38 dBV/Pa (tolerance ± 3 dB)
Earphone impedance:
32 ohm
Signal/Noise ratio earphone:
80 dB at max. output (tolerance ± 3 dB)
Cross-talk (earphone to microphone):
< 40 dB at -42 dBV/Pa and 1 kHz (tolerance ± 3 dB)
Output power:
1 mW
20.6.10 Control inputs
Total cable resistance:
< 1 kohm (with line supervision)
< 5 kohm (without line supervision)
Resistance detection (supervision enabled):
Cable short circuit
< 2.5 kohm
Contact closed
7.5 kohm to12 kohm
Contact open
17.5 kohm to 22 kohm
Cable broken
> 27 kohm
Resistance detection (supervision disabled):
Contact closed
< 12 kohm
Contact open
> 17.5 kohm
External contacts:
Voltage-free closing or breaking contacts (relay
contacts, mechanical switches, mercury contacts
etc.)
Bosch Security Systems | 2011-02
en | 239
2011-02 | Installation and User Instructions | 5 | Call Stations
21
en | 240
PRS-CSRK Remote Call
Station Kit
21.1
Introduction
The PRS-CSRK Remote Call Station Kit contains a
printed circuit board (PCB) that can be used to make
custom-made remote call stations (e.g. a remote
emergency call station). See figure 21.1 for a block
diagram of the remote call station kit.
The PRS-CSRK Remote Call Station kit replaces the
LBB4439/00 Remote Call Station kit. You can only use
the PRS-CSRK in combination with the PRS-CSI Call
Station Interface. You cannot use the PRS-CSRK in
combination with the (old) LBB4437/00 Call Station
Interface. You can only use the LBB4437/00 to connect
LBB4438/00 and LBB4439/00 remote call stations to
the system.
Headset
External
Power
Keypad
Keypad
(max. 16)
Microphone
A/D
Network
Processor
+
DSP
PTT
Control Inputs
D/A
I
Power/Fault
O
Call Status
System Status
Cat-5
figure 21.1: Block diagram
Bosch Security Systems | 2011-02
Network
Interface
2011-02 | Installation and User Instructions | 5 | Call Stations
21.2
Controls, connectors and
indicators
en | 241
X300
The remote call station kit (see figure 21.2) contains the
following:
X2
Back-up supply/Control inputs - Besides
powering the remote call station kit via the
system network connector (X908), it can also be
powered externally from a back-up power
supply (see section 21.2.1). The connector also
provides two input contact pairs.
X908 System bus - An RJ45 connector to connect
the remote call station kit to a call station
interface via a straight Cat-5 cable.
X301
X511
X501
Caution
Do not connect the connector X908 to any
Telecom or Ethernet network. This connection is
dedicated for PRS-CSI only.
X1
X107
Keypad interface - The keypad interface is
used to connect up to 16 keypads to the remote
call station kit (see section 21.2.6).
Microphone type selector - The
microphone type selector is used to select either
“dynamic” or “electret condenser” microphone
types.
Microphone - The microphone input is used
to connect a microphone (see section 21.2.3).
External Speaker - The external speaker is
meant for listening to chimes, pre-recorded
messages etc. (see section 21.2.5). Only chimes
and messages activated by a PTT key of the
remote call station or one of its keypads (see
section 47.3.3) are played via the loudspeaker of
the remote call station.
Headset - The headset connector provides the
possibility to connect a headset to the remote
call station kit (see section 21.2.2).
Control input/outputs - The control input
and five control outputs are used as
replacement for the PTT key and LEDs on the
PRS-CSR Remote Call Station (see section
21.2.4).
1 X107
2
.
.
.
.
.
.
.
.
.
.
.
.
.
.
13
14
8 X2
7
. .
. .
2
1
X501 1.
.
.
.
.
6
X511
16
15
.
.
.
.
.
.
.
2
X1 1
.
.
.
.
.
.
.
1. X908
.
.
.
.
8
figure 21.2: Component side
Bosch Security Systems | 2011-02
X300 3
.
1
1.
.
.
.
.
6
X301 6.
.
.
.
.
1
2011-02 | Installation and User Instructions | 5 | Call Stations
Note
With the exception of the connection to X908,
the wiring of all other connectors must be less
than 3 meter in length.
21.2.1 Power supply/input contacts
(X2)
en | 242
The control inputs can be configured to act on contact
make or on contact break (see section 42.5). It is also
possible to supervise the cables for short-circuits and
open connections (see figure 21.3 and figure 21.4).
Whether a control input is actually supervised or not is
defined in the configuration.
Control input
Negative
Positive
The external interface for the back-up supply consists of
a pin header connector with 8 positions (see the PCB for
the pin numbering). The connector provides also two
control inputs. These can be used to receive signals
from other equipment that must trigger actions in the
Praesideo network.
10kΩ
table 21.1: X2 connector details
Pin
Signal
1
GND
2
GND
3
Back-up supply
4
Back-up supply
5
Control input 1 (negative)
6
Control input 1 (positive)
7
Control input 2 (negative)
8
Control input 2 (positive)
figure 21.3: Supervised control input
table 21.2: X2 technical data
External voltage:
18 to 56 V
External current:
max. 2 A
Control input 1 and control input 2
Resistance detection (supervision enabled):
Cable short circuit
< 2.5 kohm
Contact closed
7.5 kohm to12 kohm
Contact open
17.5 kohm to 22 kohm
Cable broken
> 27 kohm
Resistance detection (supervision disabled):
Contact closed
< 12 kohm
Contact open
> 17.5 kohm
figure 21.4: Non-supervised control input
Bosch Security Systems | 2011-02
10kΩ
GND
Control input
Warning
Do not connect DC or AC signals to the control
inputs, otherwise the input circuit may be
damaged. Only use voltage-free contacts.
2011-02 | Installation and User Instructions | 5 | Call Stations
en | 243
21.2.2 Headset (X501)
The external interface for headsets consists of a pin
header connector with 6 positions (see the PCB for the
pin numbering).
table 21.3: X501 connector details
Pin
Signal
1
Mic
2
GND
3
Volume out
4
Volume max. in
5
GND
6
Earphone
1
Microphone
2
3
R
Volume
table 21.4: X501 technical data
Supervision limits:
180 to 1400 Ω (dynamic microphone)
0.2 to 4.8 mA (electret microphone)
Mic. input sensitivity:
-50 dBV
Input sensitivity control range:
-7 to 8 dB
S/N:
60 dB +/- 3 dB at default sensitivity (mic.)
typical 80 dB +/- 3 dB (earphone)
Earphone impedance:
min. 16 ohm (typical 32 ohm)
Crosstalk (earphone to mic):
max. 40 dB ± 3 dB
Bandwidth:
340 to 14000 Hz
(-3 dB with respect to level at 1 kHz)
Output power:
0.1 to 30 mW (typical 1 mW)
Headset
21.2.3 Microphone (X300 and X301)
4
5
Earphone
6
figure 21.5: Headset connection diagram
The volume control (R) between pins 2, 3 and 4 must be
a 10k logarithmic potentiometer.
Note
If a volume control is not needed, pin 3 and 4
must be connected to each other. The volume
level of the earphone is then at its maximum.
Bosch Security Systems | 2011-02
The external interface for microphones consists of a pin
header connector with 6 positions (see the PCB for the
pin numbering). The following microphones were
designed to be used in combination with the kit:
• LBB9081 Hand-held Dynamic Microphone
(including resistors for switch supervision).
• LBB9082 Gooseneck Dynamic Microphone.
table 21.5: X301 connector details
Pin
Signal
1
Mic2
GND
3
Mic+
4
--- not connected --5
PTT input contact
6
GND
2011-02 | Installation and User Instructions | 5 | Call Stations
en | 244
•
With the jumper on X300 the kit can be adapted to
the type of microphone.
With the jumper connecting pin 1 and pin 2 of X300,
a dynamic microphone can be connected to X301,
e.g. LBB9081 and LBB9082.
With the jumper connecting pin 2 and pin 3 of X300,
an electret condenser microphone can be connected
to X301. In this mode, pin 1 and pin 3 of X301 will
have a 12 V phantom power supply.
10kΩ
blue
5
•
black
6
•
red
3
white
1
10kΩ
black
(thick)
2
figure 21.6: LBB9081 connection diagram
red
white
black
figure 21.7: LBB9082 connection diagram
table 21.6: X301 technical data
Microphone input sensitivity:
-50 dBV
Input control range:
-7 to 8 dB
S/N:
min. 60 dB at default sensitivity
Headroom:
min. 30 dB at default sensitivity
Bandwidth:
340 to 14000 Hz
(-3 dB with respect to level at 1 kHz)
Bosch Security Systems | 2011-02
3
1
2
21.2.4 Control input/outputs (X107)
The remote call station kit provides an external
interface for one control input and five control outputs.
This external interface consists of a pin header with 14
positions (see the PCB for the pin numbering).
table 21.7: X107 connector details
Pin
Signal
1
PTT input contact
2
GND
3
Output 1, out (power indicator)
4
Output 1, in (power indicator)
5
Output 2, out (fault indicator)
6
Output 2, in (fault indicator)
7
Output 3, out (call indicator)
8
Output 3, in (call indicator)
9
Output 4, out (system priority indicator)
10
Output 4, in (system priority indicator)
11
Output 5, out (system emergency indicator)
12
Output 5, in (system emergency indicator)
13
GND
14
GND
2011-02 | Installation and User Instructions | 5 | Call Stations
table 21.8: X107 technical data
PTT input contact
Resistance detection (supervision enabled):
Cable short circuit
< 2.5 kohm
Contact closed
7.5 kohm to12 kohm
Contact open
17.5 kohm to 22 kohm
Cable broken
> 27 kohm
Resistance detection (supervision disabled):
Contact closed
< 12 kohm
Contact open
> 17.5 kohm
Current (PTT input):
0.5 mA
Voltage (PTT input):
3.3 V
Internal output supply current:
max. 10 mA (per pin)
max. 30 mA
(in total max. 3 LEDs are simultaneously on)
Output type:
open collector/drain
Output voltage:
max. 56 V (per pin)
Output sink current:
max. 100 mA per output switch pin
Bosch Security Systems | 2011-02
en | 245
2011-02 | Installation and User Instructions | 5 | Call Stations
It is possible to connect the following to the control
inputs/outputs connector:
• Press-to-talk (PTT) key. See figure 21.8 for a
connection diagram. The two resistors must be
placed in the circuit, because the contact is always
supervised by the system software.
• Internally powered lamp or LED. See figure 21.9 for
a connection diagram.
• Externally powered lamp or LED. See figure 21.10
for a connection diagram.
• Externally powered relay. See figure 21.11 for a
connection diagram.
10 kΩ
5V
PTT Input
Contact
en | 246
I < 100 mA
R
Max. 56V
Output X, IN
GND
figure 21.10: Externally powered LED
I < 100 mA
10 kΩ
Max. 56V
10 kΩ
Output X, IN
GND
GND
figure 21.8: Press-to-talk (PTT) key
figure 21.11: Externally powered relay
+5V, 30 mA
R
R
3
4
PI
FI
CI
SPI
SEI
= Power Indicator
= Fault Indicator
= Call Indicator
= System Priority Indicator
= System Emergency Indicator
figure 21.9: Externally powered LED
Bosch Security Systems | 2011-02
R = 330 Ω
11
SPI
8
62V
R
9
CI
6
62V
R
7
FI
PI
62V
R
5
SEI
10
62V
12
62V
2011-02 | Installation and User Instructions | 5 | Call Stations
The value of resistor R in figure 21.10 depends on the
voltage of the external source, the forward voltage of the
LED and the current flowing through the LED:
V source – V forward
R = --------------------------------------------I
For example, the voltage of the external source is 24 V,
the forward voltage of the LED is 2 V and the current
flowing through the LED is 10 mA, then:
24 – 2
- = 2200 ( Ω )
R = -------------------–3
10 ⋅ 10
en | 247
21.2.5 External speaker (X511)
The external interface for external speakers consists of a
pin header connector with 6 positions (see the PCB for
the pin numbering.) When using an external
loudspeaker, also connect a volume control (see section
21.2.2).
table 21.9: X511 connector details
Pin
Signal
1, 2, 3
Speaker +
4, 5, 6
Speaker table 21.10: X511 technical data
Impedance:
8 to 32 ohm
Signal/Noise ratio:
typical 80 dB ± 3 dB at max. output
Output power:
typical 100 mW, max. 300 mW
21.2.6 Keypad interface (X1)
Warning
Do not connect DC or AC signals to the control
inputs, otherwise the input circuit may be
damaged. Only use voltage-free contacts.
The external interface for the keypad (kits) consists of an
IDC connector with 16 positions. Keypads are
connected in series. That means there is only a direct
connection between the remote call station kit and the
first keypad. The second keypad is connected to the
first, the third to the second etc. using standard flat
cables.
table 21.11: X1 connector details
Pin
Signal
1
Synchronization line.
2
GND
3
Interrupt line (INT)
4
GND
5
Data I2C (SDA)
6
GND
7
Clock I2C (SCL)
8
GND
9
Power
10
GND
11
Power
12
GND
13
Power
14
GND
15
Power
16
GND
Bosch Security Systems | 2011-02
2011-02 | Installation and User Instructions | 5 | Call Stations
21.3
Installation
The remote call station kit contains six holes for
installation purposes (see figure 21.12).
en | 248
To connect the wires to the shrink-contacts, use one of
the following pliers:
• Tyco AMP 169111-1 pliers (see figure 21.14)
• Tyco AMP Modu 4 169481-1 pliers (see figure 21.15)
130 +/- 0.2
4
2
5
3
1
5
4
figure 21.14: Tyco AMP 169111-1 pliers
60
3,2 +/- 0.1
(6x)
mm2
0.5-0.75
1
1.5
2.5
60
6
169111-1
0.03
0.09
MODU 4
0.2
0.56
5
5
108
118 +/- 0.2
figure 21.12: Installation
The kit is delivered together with Tyco AMP pin
headers and Tyco AMP 1-141708-1 shrink-contacts (see
figure 21.13) to facilitate the connection of wires to the
PCB. These pin headers are suitable for wires with a
cross-section from 0.2 to 0.56 mm2. It is possible to
solder the wires to the pin headers.
Note
If the remote call station kit is installed in a
vibrating surrounding (e.g. a ship), glue the pin
header to the PCB.
figure 21.13: Tyco AMP 1-141708-1 shrink-contact
Bosch Security Systems | 2011-02
figure 21.15: Tyco AMP Modu 4 169481-1 pliers
0.12
0.14
16 9 4 81 - 1
2011-02 | Installation and User Instructions | 5 | Call Stations
21.4
Technical Data
21.4.1 Physical characteristics
Dimensions (H x W x D):
130 x 118 x 20 mm
Weight:
120 g
21.4.2 Climate conditions
Temperature:
-5 to +55 °C (operating, guaranteed)
-15 to +55 °C (operating, sample tested)
-20 to +70 °C (non-operating)
Relative humidity:
15 to 90%, non-condensing (operating)
5 to 95%, non-condensing (non-operating)
Air pressure:
600 to 1100 hPa
21.4.3 Electromagnetic compatibility
Electromagnetic compatibility:
EN55103-1/FCC-47 part 15B
EN55103-2
Electrical safety:
IEC60065 (CB-scheme)
EN60065
Approvals:
CE marking
EN60849, EN54-16 and ISO7240-16
IEC60945
21.4.4 Mean time between failure
MTBF:
50,000 hours at +55 °C
(The MTBF doubles for every 10 °C decrease in
temperature.)
21.4.5 External power supply
Connector:
Kycon KPJ-4S
Input voltage range:
18 to 56V (DC)
No fault reporting when >20V
Power consumption:
4 W at 48 V (excluding keypads)
Bosch Security Systems | 2011-02
en | 249
21.4.6 Call station interface
Connector:
RJ45
Cable type:
Cat-5 (4x twisted pair, straight)
Maximum cable length:
1000 m
Power supply via network:
18 to 56 V(DC)
No fault reporting when >20V
Network power consumption:
4 W at 48 V (excluding keypads)
2011-02 | Installation and User Instructions | 5 | Call Stations
22
en | 250
PRS-CSI Call Station
Interface
22.1
Introduction
The PRS-CSI Call Station Interface is used to connect
the PRS-CSR Remote Call Station or the PRS-CSRK
Remote Call Station Kit to the system. See figure 22.1
for a block diagram of the call station interface.
The PRS-CSI Call Station Interface replaces the
LBB4437/00 Call Station Interface. You can only use
the PRS-CSI in combination with the PRS-CSR(K)
remote call stations. You cannot use the PRS-CSI in
combination with the (old) LBB4438/00 and
LBB4439/00 remote call stations.
Fault
Control Inputs
External (back-up)
Power 18 - 56 V
POF
POF
figure 22.1: Block diagram
Bosch Security Systems | 2011-02
Power
I
Power
Supply
Network
Processor
+
DSP
Network
Redundancy
Switching
Cat.5
UTP
Interface
2011-02 | Installation and User Instructions | 5 | Call Stations
22.2
Controls, connectors and
indicators
en | 251
7
8
6
22.2.1 Exterior
The exterior of the call station interface (see figure 22.2)
contains the following:
1 System bus - A system bus connector to connect
the call station interface to other Praesideo
equipment (see section 22.3.2).
2 System bus - A system bus connector to connect
the call station interface to other Praesideo
equipment (see section 22.3.2).
3 Lid - A lid that provides access to the jumpers (see
section 22.2.2). The rear side of the lid contains a
label with explanation about the internal settings.
4 Fault LED - A yellow fault LED that provides
information about the status of the call station
interface (see section 22.5).
5 Power LED - A green power LED that provides
information about the status of the call station
interface (see section 22.5).
6 RJ45 connector - A connector to connect the call
station interface to a PRS-CSR Remote Call Station
or PRS-CSRK Remote Call Station Kit.
7 External power supply - A connection for an
(optional) external power supply (see section 22.3.3).
8 Service connector - A connector used for
manufacturing. Not for normal use.
3
4
5
Caution
Do not connect the connections 6 and 8 to any
Telecom or Ethernet network. These
connections are dedicated for PRS-CSR or
PRS-CSRK and service equipment.
1
figure 22.2: Exterior
Bosch Security Systems | 2011-02
2
2011-02 | Installation and User Instructions | 5 | Call Stations
en | 252
22.3
22.2.2 Interior
The interior of the call station interface (see figure 22.3
and figure 22.4) contains:
9 Power source - A set of jumpers that specify
whether the remote call station is powered via the
call station interface or uses its own external power
supply. See the label at the rear side of the lid for
information about the jumper settings..
Connections
22.3.1 Introduction
This section gives an overview of typical system
connections using the call station interface:
• Connecting the network (see section 22.3.2).
• Connecting the remote call station (see section
22.3.2).
• Connecting an external power supply (see section
22.3.3).
22.3.2 Connecting the network and
remote call stations
Use a straight Ethernet CAT-5 cable to connect a
remote call station to the call station interface, refer to
table 22.2 for the RJ45 pin definitions. For information
to connect the call station interface to the remote call
station and to the network refer to figure 22.5.
9
figure 22.3: Interior of the call station interface
Fault
Power
Call Station
Powerlink
Yes
table 22.2 Pin definition of RJ45 interface
Pin
Function
Symbol
1
Power supply
+48 V
2
Ground
0V
3
Transmit +
SX +
4
Receive +
SR +
5
Receive SR 6
Transmit SX 7
Ground
0V
8
Power supply
+48 V
No
figure 22.4: Jumper identification
18-56 V(DC),
optional
7
6
Note
Make sure that the jumper settings are
compatible with the chosen power concept
(refer to section 22.3.3).
table 22.1: Jumper settings
Power supply
Concept I
Concept II
Concept III
Powerlink setting
Yes
Yes
No
18-56 V(DC),
optional
2
1
Network
Ground
Network
figure 22.5: Connecting the network and call stations
Bosch Security Systems | 2011-02
2011-02 | Installation and User Instructions | 5 | Call Stations
en | 253
22.3.3 Connecting a power supply
Normally, the call station interface and the remote call
station are powered from the Praesideo network. It is
also possible to power the remote call station and the
call station interface from external power supplies. For
example, when:
• The call station interface is connected to a fiber
interface without external power supply.
• The cable between the remote call station and call
station interface is long and many call station
keypads are connected to the remote call station.
The following power concepts are supported:
•
•
•
Concept I
The call station interface takes the DC power from
the Praesideo network to power itself and the
connected remote call station. When the voltage on
the Praesideo network drops below 18 V(DC), the
call station interface and the remote call station take
the DC power from the external power supply of the
call station interface. The Jumper settings are
described in figure 22.4 and table 22.1.
Concept II
The call station interface takes the DC power from
the Praesideo network to power itself and the
connected remote call station. When the voltage on
the Praesideo network drops below 18 V(DC), the
call station interface and the remote call station take
the DC power from the external power supply of the
remote call station. The external power supply of the
remote call station is the back-up power supply for
both the remote call station and the call station
interface. The Jumper settings are described in figure
22.4 and table 22.1.
Concept III
The call station interface takes the DC power from
the Praesideo network to power itself. When the
voltage on the Praesideo network drops below 18
V(DC), the call station interface takes the DC power
from its external power supply. In this concept, the
remote call station always has its own external power
supply. The Jumper settings are described in figure
22.4 and table 22.1.
The remote call station and the call station interface are
delivered with a separate Kycon KPP4-P connector to
connect external power supplies.
Bosch Security Systems | 2011-02
13
24
figure 22.6: Connection diagram (external view)
table 22.3: Kycon KPP-4P connector details
Pin
Signal
1
Ground
2
Power from local power supply
(max. 48 V/1.2 A)
3
Input contact 1
4
Input contact 2
Note
The pin numbers are also indicated on the inside
of the connector. For detailed connector
assembly instructions, see appendix B.
Warning
For safety reasons, you must use a current
limited external power supply complying with the
60065 standard for audio/video usage or
equivalent, with a maximum output current of 5A,
or you must use an external fuse (5A max, slow)
in the wiring to the Kycon KPP-4P connector.
For application in emergency sound systems in
Europe, the installer must use a power supply
with EN54-4 certification.
Caution
For USA: only use a power supply of the type
Mean Well PLN-30-24, PLN-30-36,
PLN-30-48, PLN-60-24, PLN-60-36,
PLN-60-48, PLN-100-24, PLN-100-36 or
PLN-100-48.
For CANADA: only use a power supply of the
type Mean Well PLN-30-24, PLN-30-36,
PLN-60-24, PLN-60-36, PLN-100-24 or
PLN-100-36.
Other types of power supply are not tested with
Praesideo and may cause harm.
2011-02 | Installation and User Instructions | 5 | Call Stations
en | 254
22.3.4 Connecting control inputs
The call station interface has two control inputs (refer to
figure 22.6 and table 22.3). The control inputs can
receive signals from third party equipment that must
trigger actions in the Praesideo system. The control
inputs can be configured via the configuration webpage
of the remote call station (see section 43.4.4). The
maximum length of the connected cables is 3 meter.
It is also possible to supervise the cables fo short-circuits
and open connections (see figure 22.7 and figure 22.8).
Whether a control input is actually supervised or not is
defined in the configuration.
GND
Control input
Warning
Do not connect DC or AC signals to the control
inputs, otherwise the input circuit may be
damaged. Only use voltage-free contacts.
22.3.5 Connecting a ground
To reduce interference from electromagnetic fields and
electrostatic discharges, we recommend to connect the
housing to ground. Use the ground connector of the call
station interface. Refer to figure 22.5.
22.4
Installation
The call station interface can be attached to a wall or
any other flat surface using a bracket (see figure 22.9).
The distance (d) between the holes in the bracket is 40
mm.
10kΩ
10kΩ
figure 22.7: Supervised control input
GND
Control input
figure 22.8: Non-supervised control input
d
figure 22.9: Installation
Mounting of this bracket and the unit on a drywall sheet
construction requires screws with a minimum screw
Bosch Security Systems | 2011-02
2011-02 | Installation and User Instructions | 5 | Call Stations
length of 22 mm (7/8") and a minimum diameter of
2.5 mm (3/32"). Mounting was evaluated for use on a
drywall surface only.
22.5
Operation
table 22.4: Status LED indications
Yellow
Green
Status
(Fault)
(Power)
Off
Off
No power
Flash
Off
No connection to remote call
station or fault in the
connection to remote call
station.
On
Off
No network or network fault
Off
On
Functioning correctly
22.6
Technical data
22.6.1 Physical characteristics
Dimensions (H x W x D):
27 x 243 x 80 mm
Weight:
0.7 kg
22.6.2 Climate conditions
Temperature:
-5 to 55 °C (operating, guaranteed)
-15 to 55 °C (operating, sample tested)
-20 to 70 °C (non-operating)
Relative humidity:
15 to 90%, non-condensing (operating)
5 to 95%, non-condensing (non-operating)
Air pressure:
600 to 1100 hPa
en | 255
22.6.3 Electromagnetic compatibility
Electromagnetic compatibility:
EN55103-1/FCC-47 part 15B
EN55103-2
EN50121-4
EN50130-4
Electrical safety:
IEC60065 (CB-scheme)
EN60065
Approvals:
CE marking
EN60849, EN54-16 and ISO7240-16
IEC60945
22.6.4 Mean time between failure
MTBF:
50,000 hours at +55 °C
(The MTBF doubles for every 10 °C decrease in
temperature.)
22.6.5 System bus
Number of connections:
2x proprietary female connectors
Position:
Front side
Preferred cable:
LBB4416/xx
Maximum cable length:
50 m (per system bus connector)
Data signal interface:
Plastic optical fiber
Power supply via network:
18 to 56 V(DC)
No fault reporting when >20V
Network power consumption:
3.7 W at 48 V (excluding keypads)
22.6.6 External power supply
Connector:
Kycon KPP4-P
Input voltage range:
18 to 56V (DC)
No fault reporting when >20V
Power consumption:
3.7 W at 48 V (excluding keypads)
Bosch Security Systems | 2011-02
2011-02 | Installation and User Instructions | 5 | Call Stations
22.6.7 Call station interface
Connector:
RJ45
Cable type:
Cat-5 (4x twisted pair, straight)
Maximum cable length:
1000 m
Bosch Security Systems | 2011-02
en | 256
2011-02 | Installation and User Instructions | 5 | Call Stations
23
PRS-CRF Call Stacker
en | 257
The call stacker can also be used as time shifter to avoid
acoustic feedback from a loudspeaker to the active
microphone. The call is recorded and broadcast after
the recording has finished. The call can be
pre-monitored before broadcast with the option to
cancel the call. Time shifting and call stacking can be
combined.
23.1 Introduction
The Call Stacker is a small unit that records specific
calls that cannot be send to all required zones because
some are occupied by a higher priority call. The unit
can store up to 16 calls in high-quality format with a
maximum of three minutes for each call, including
chimes and pre-recorded messages. Playback of a call
can start while it is still being recorded. The unit can
record and/or playback up to eight calls simultaneously.
Logging of the call and all its playbacks is supported,
but the recorded calls do not survive a power down and
are not supervised, so the call stacker function should
not be relied upon for emergency calls.
More units can be added to a system in order to
increase the number of recordable calls. Units can be
connected to the Praesideo network at any place.
Fault
Power
Network
Processor
Message Manager
Message Recorder
(8x)
Message Player
(8x)
POF
POF
figure 23.1: Block diagram
Bosch Security Systems | 2011-02
Network
Redundancy
Switching
2011-02 | Installation and User Instructions | 5 | Call Stations
23.2 Controls and indicators
en | 258
23.3 Connections
The call stacker (see figure 23.2) contains the following:
1 Fault LED - A yellow fault LED that provides
information about the status of the call stacker (see
section 23.5).
2 Power LED - A green power LED that provides
information about the status of the call stacker (see
section 23.5).
3 System bus - Two system bus connectors to
connect the call stacker to other Praesideo
equipment (see section 23.3.1).
23.3.1 Connecting the network
Connect the call stacker to the Praesideo system using
the system bus connectors and LBB4416 network
cables. Both connectors are interchangeable.
23.4 Installation
The call stacker can be attached to a wall or any other
flat surface using a bracket (seefigure 22.3). The distance
(d) between the holes in the bracket is 40 mm.
1
2
d
figure 23.3: Installation
Mounting of this bracket and the unit on a drywall sheet
construction requires screws with a minimum screw
length of 22 mm (7/8") and a minimum diameter of
2.5 mm (3/32"). Mounting was evaluated for use on a
drywall surface only.
3
figure 23.2: Exterior
Bosch Security Systems | 2011-02
2011-02 | Installation and User Instructions | 5 | Call Stations
23.5 Operation
table 23.1: Status LED indications
Yellow
Green
Status
(Fault)
(Power)
Off
Off
No power
On
On
No network or network fault
Off
On
Functioning correctly
23.6 Technical data
23.6.1 Physical characteristics
Dimensions (H x W x D):
27 x 243 x 80 mm (without bracket)
34 x 243 x 84 mm (with bracket)
Weight:
0.7 kg
23.6.2 Climate conditions
Temperature:
-5 to +55 °C (operating, guaranteed)
-15 to 55 °C (operating, sample tested)
-20 to +70 °C (non-operating)
Relative humidity:
15 to 90%, non-condensing (operating)
5 to 95%, non-condensing (non-operating)
Air pressure:
600 to 1100 hPa
23.6.3 EMC and Safety
Electromagnetic compatibility:
EN55103-1/FCC-47 part 15B
EN55103-2
EN50121-4
EN50130-4
Electrical safety:
IEC60065 (CB-scheme)
EN60065
Approvals:
CE marking
EN60849, EN54-16 and ISO7240-16
IEC60945
Bosch Security Systems | 2011-02
en | 259
23.6.4 Mean time between failure
MTBF:
50,000 hours at +55 °C
(The MTBF doubles for every 10 °C decrease in
temperature.)
23.6.5 System bus
Number of connections:
2x proprietary female connectors
Position:
Front side
Preferred cable:
LBB4416/xx
Maximum cable length:
50 m
Power supply via network:
18 to 56 V(DC)
No fault reporting when >20V
Network power consumption:
4.2 W
23.6.6 Audio
Bandwidth:
20 Hz to 20 kHz (- 3 dB)
Data compression:
4:1 (subband coding)
Signal/Noise ratio:
> 85 dB
Crosstalk:
< -85 dB
2011-02 | Installation and User Instructions | 5 | Call Stations
24
LBB4436/00 Key Covers
The LBB4436/00 Key Covers are used to protect keys
from LBB4432/00 Call Station Keypads from being
pushed by accident (e.g. alarm or emergency keys). A
set of LBB4436/00 Key Covers consists of 10 key covers
and 10 replacement lenses.
figure 24.1: Key cover
To install an LBB4436/00 Key Cover on a LBB4432/00
Call Station Keypad key:
1 Snap the key cover in the replacement lens (see
figure 24.1 for the end result).
2 Remove the original lens from the LBB4432/00 Call
Station Keypad using a pair of pliers.
3 Snap the key cover and replacement lens assembly
in the LBB4432/00 Call Station Keypad.
4 Optionally, use cyano acrylate glue to fix the
LBB4436/00 Key Cover permanently to the
LBB4432/00 Call Station Keypad.
Bosch Security Systems | 2011-02
en | 260
Praesideo 3.5 | Installation and User Instructions | 6 | Installation Accessories
Part 6 - Installation Accessories
Bosch Security Systems | 2011-02
en | 261
Praesideo 3.5 | Installation and User Instructions | 6 | Installation Accessories
Intentionally left blank.
Bosch Security Systems | 2011-02
en | 262
Praesideo 3.5 | Installation and User Instructions | 6 | Installation Accessories
25
25.1
PRS-NSP Network
25.2
Splitter
25.2.1 Exterior
Introduction
The PRS-NSP Network Splitter is used to create
short-circuit proof tap-off points in the network. A
network may contain up to 10 network splitters.
This unit in metal housing is the successor of the
LBB4410/00 in plastic housing.
POF (tap-offs, 2x)
POF (main)
Network
Redundancy
Switching
POF (main)
Network
Processor
Fault Power External
Power
figure 25.1: Block diagram of the network splitter
Note
It is not allowed to connect more than two other
network splitters to a tap-off of a network splitter
that is located in the main loop of the network.
Bosch Security Systems | 2011-02
en | 263
Controls and connectors
The exterior of the network splitter (see figure 25.2)
contains the following:
1 External power supply - A connection for an
(optional) external power supply. The external power
supply only feeds the tap-offs (see section 25.3.3).
2 Tap-off 1 - A system bus connector for creating a
tap-off. The tap-off is protected against short-circuits
and has a maximum load of 2.5 A (see
sections 25.2.2 and 25.3.2).
3 System bus - A system bus connector for looping
through the main branch (see section 25.3.2).
4 Lid - A lid that provides access to the jumpers (see
section 25.2.2). The rear side of the lid contains a
label with explanation about the internal settings.
5 Fault LED - A yellow fault LED that provides
information about the status of the network splitter
(see section 25.5).
6 Power LED - A green power LED that provides
information about the status of the network splitter
(see section 25.5).
7 Tap-off 2 - A system bus connector for creating a
tap-off. The tap-off is protected against short-circuits
and has a maximum load of 2.5 A (see
sections 25.2.2 and 25.3.2).
8 System bus - A system bus connector for looping
through the main branch (see section 25.3.2).
Praesideo 3.5 | Installation and User Instructions | 6 | Installation Accessories
1
2
3
9
11
4
12
5
6
figure 25.3: Interior of the network splitter
7
en | 264
8
figure 25.2: Exterior of the network splitter
Bosch Security Systems | 2011-02
10
Praesideo 3.5 | Installation and User Instructions | 6 | Installation Accessories
en | 265
25.2.2 Interior
The interior of the network splitter (see figure 25.3 and
figure 25.4) contains the following:
Note
The numbering in figure 25.4 differs from the
numbering in figure 25.2 and figure 25.3.
9 Tap-off power source - A jumper that specifies
whether the tap-offs are powered from the main
network branch or use an external power supply
connected to the network splitter. See the label at the
rear side of the lid for information about the jumper
settings.
10 External power - On. (Use this setting for
Praesideo.)
11 Tap-off 2 limiter - A jumper that limits the current
for tap-off 2. If the tap-off asks for more current than
allowed, the tap-off is shut down. See the label at the
rear side of the lid for information about the jumper
settings.
12 Tap-off 1 limiter - A jumper that limits the current
for tap-off 1. If the tap-off asks for more current than
allowed, the tap-off is shut down. See the label at the
rear side of the lid for information about the jumper
settings.
Tap-off powered
from:
Tap off 1
9
10
Current limit
Tap-off 1
345
Current limit
Tap-off 2
External power
External
power
1
2
678
figure 25.4: Jumper identification
Bosch Security Systems | 2011-02
LED
Main network
External power
0.8 A
1.6 A
2.5 A
0.8 A
1.6 A
2.5 A
On
follows
Main network
Fault
Power
Main
network
12
1
2
3
4
5
6
7
8
9
10
11
12
Tap off 2
Main
network
11
Praesideo 3.5 | Installation and User Instructions | 6 | Installation Accessories
25.3
Connections
en | 266
25.3.3 Connecting a power supply
25.3.1 Introduction
This section gives an overview of typical system
connections using the network splitter:
• Looping through the main branch (see section 25.3.2).
• Creating tap-offs (see section 25.3.2).
• Connecting an external power supply (see
section 25.3.3).
25.3.2 Connecting the main branch and
creating tap-offs
See figure 25.5 for information about connecting the
main network and the tap-offs to the network splitter.
This unit is powered by the network controller, via the
Praesideo system bus. But the network splitter is
delivered with a separate Kycon KPP4-P connector to
connect an external power supply to the network
splitter.
Note
The external power supply can only feed the
tap-offs and not the main network branch.
Whether it really does depends on the jumper
settings inside the network splitter.
The Kycon KPP-4P connector has four pins (see
figure 25.6):
tap-off 1
main branch
13
2
3
24
figure 25.6: Connection diagram (external view)
7
tap-off 2
8
main branch
figure 25.5: Connecting the network splitter
Bosch Security Systems | 2011-02
table 25.1: Kycon KPP-4P connector details
Pin
Signal
1
Ground
2
Power from external power supply to the
PRS-NSP (max. 48 V / 5 A)
3
Output power from the system bus
(max. 48V / 2 A)
4
Not connected
Praesideo 3.5 | Installation and User Instructions | 6 | Installation Accessories
25.4
Note
The pin numbers are also indicated on the inside
of the connector.
For detailed connector assembly instructions,
see appendix B.
en | 267
Installation
The network splitter can be attached to a wall or any
other flat surface using a bracket (see figure 25.7). The
distance (d) between the holes in the bracket is 40 mm.
Warning
For safety reasons, you must use a current
limited external power supply complying with
the 60065 standard for audio/video usage or
equivalent, with a maximum output current of
5A, or you must use an external fuse (5A max,
slow) in the wiring to the Kycon KPP-4P
connector.
For application in emergency sound systems in
Europe, the installer must use a power supply
with EN54-4 certification.
Caution
For USA: only use a power supply of the type
Mean Well PLN-30-24, PLN-30-36,
PLN-30-48, PLN-60-24, PLN-60-36,
PLN-60-48, PLN-100-24, PLN-100-36 or
PLN-100-48.
For CANADA: only use a power supply of the
type Mean Well PLN-30-24, PLN-30-36,
PLN-60-24, PLN-60-36, PLN-100-24 or
PLN-100-36.
Other types of power supply are not tested with
Praesideo and may cause harm.
d
figure 25.7: Installation
Mounting of this bracket and the unit on a drywall sheet
construction requires screws with a minimum screw
length of 22 mm (7/8") and a minimum diameter of
2.5 mm (3/32"). Mounting was evaluated for use on a
drywall surface only.
25.5
Operation
table 25.2: Status LED indications
Yellow
Green
Status
(Fault)
(Power)
Off
Off
No power
On
Off
No network or network fault
Off
On
Functioning correctly
Bosch Security Systems | 2011-02
Praesideo 3.5 | Installation and User Instructions | 6 | Installation Accessories
25.6
Technical data
25.6.1 Physical characteristics
Dimensions (H x W x D):
27 x 243 x 80 mm (without bracket)
34 x 243 x 84 mm (with bracket)
Weight:
0.7 kg
25.6.2 Climate conditions
Temperature:
-5 to 55 °C (operating, guaranteed)
-15 to 55 °C (operating, sample tested)
-20 to 70 °C (non-operating)
Relative humidity:
15 to 90%, non-condensing (operating)
5 to 95%, non-condensing (non-operating)
Air pressure:
600 to 1100 hPa
25.6.3 EMC and Safety
Electromagnetic compatibility:
EN55103-1/FCC-47 part 15B
EN55103-2
EN50121-4
EN50130-4
Electrical safety:
IEC60065 (CB-scheme)
EN60065
Approvals:
CE marking
EN60849, EN54-16 and ISO7240-16
IEC60945
25.6.4 Mean time between failure
MTBF:
50,000 hours at +55 °C
(The MTBF doubles for every 10 °C decrease in
temperature.)
Bosch Security Systems | 2011-02
25.6.5 System bus
Number of connections:
4x proprietary female connectors
Position:
Front and rear sides
Preferred cable:
LBB4416/xx
Maximum cable length:
50 m (per system bus connector)
Data signal interface:
Plastic optical fiber
Power supply via network:
18 to 56 V(DC)
No fault reporting when >20V
Network power consumption:
3.9 W
25.6.6 External power supply
Connector:
Kycon KPP4-P
Input voltage:
48 V(DC)
Input voltage range:
18 to 56V (DC)
No fault reporting when >20V
Current:
5 A (peak, < 2 s)
2.5 A continuous
en | 268
Praesideo 3.5 | Installation and User Instructions | 6 | Installation Accessories
26
PRS-FIN, PRS-FINNA,
PRS-FINS Fiber Interface
26.1
Introduction
The PRS-FIN, PRS-FINNA or PRS-FINS Fiber
Interfaces are used to convert from plastic optical fiber
(POF) cable to glass optical fiber (GOF) cable and vice
versa for covering long distances. The following types
are available:
Type
PRS-FIN
PRS-FINNA
PRS-FINS
Description
Fiber Interface with control inputs
(multi mode)
Fiber Interface without control inputs
(multi mode)
Fiber Interface with control inputs
(single mode)
POF
GOF
Control Inputs
I
Network
Processor
Fault Power External
Power
figure 26.1: Block diagram of the fiber interface
The PRS-FINNA Fiber Interface only converts from
POF to GOF. It does not count as a node in the system
(see table 31.2) with respect to the maximum number of
nodes, 63, that can be in a system. It is intended for
systems in which otherwise the maximum number of
nodes would be exceeded. However, this unit does
influence the maximum cable length of the system as if
it was a normal node (see figure 31.5).
Bosch Security Systems | 2011-02
en | 269
In emergency sound systems, do not use this type of
fiber interface to power far-end units. Since it does not
have any control inputs, it is not possible to supervise its
external power supply (if connected). Using the
PRS-FINNA Fiber Interface as a near-end fiber interface
that is connected to the network controller is possible
though.
These units in metal housing are the successors of the
LBB4414/00, LBB4414/10 and PRS-FINMO in plastic
housing.
26.2
Controls, connectors and
indicators
The fiber interface (see figure 26.2) contains the
following:
1 External power supply - A connection for an
(optional) external power supply. The external power
supply feeds the Praesideo network (see section
26.3.3).
2 Control inputs - The control inputs can be used to
receive signals from third party equipment that must
trigger actions in the Praesideo network (see
section 26.3.4).
3 POF connector - A POF connector to connect the
fiber interface to a POF cable (see section 26.3.2).
4 Power LED - A green power LED that provides
information about the status of the fiber interface.
(see section 26.3.5).
5 Fault LED - A yellow fault LED that provides
information about the status of the fiber interface
(see section 26.3.5).
6 GOF connector - A GOF connector to connect
the fiber interface a GOF cable (see section 26.3.2).
Praesideo 3.5 | Installation and User Instructions | 6 | Installation Accessories
PRS-FIN, PRS-FINS
1
2
3
6
figure 26.2: Exterior of the fiber interface
Bosch Security Systems | 2011-02
en | 270
PRS-FINNA
1
3
4
4
5
5
6
Praesideo 3.5 | Installation and User Instructions | 6 | Installation Accessories
26.3
Connections
en | 271
The GOF connector (see figure 26.4) is an SC
connector, which uses invisible infra-red light
(1300 nm).
26.3.1 Introduction
This section gives an overview of typical system
connections using the fiber interface:
• Connecting the POF cable (see section 26.3.2).
• Connecting the GOF cable (see section 26.3.2).
• Connecting an external power supply
(see section 26.3.3).
Tx
Rx
figure 26.4: GOF connector
26.3.2 Connecting POF and GOF cables
Fiber interfaces convert from POF to GOF to connect
two pieces of equipment that are more than 50 m apart.
Usually, they are used in pairs. The first converts from
POF to GOF, whereas the second converts from GOF
back to POF (see figure 26.3).
POF
table 26.1: GOF connector pins
Pin
Description
Tx
Transmitter
Rx
Receiver
POF
3
3
figure 26.5: SC connector
26.3.3 Connecting a power supply
7
7
GOF ( > 50m)
figure 26.3: Connecting the fiber interface
This unit is powered by the network controller, via the
Praesideo system bus. But the fiber interface is delivered
with a separate Kycon KPP4-P connector to connect an
external power supply to the fiber interface. The Kycon
KPP-4P connector has four pins (see figure 26.6):
13
24
figure 26.6: Connection diagram (external view)
Bosch Security Systems | 2011-02
Praesideo 3.5 | Installation and User Instructions | 6 | Installation Accessories
table 26.2: Kycon KPP-4P connector details
Pin
Signal
1
Ground
2
Power from external power supply to the
PRS-FINxx (max. 48 V / 5 A)
3
Output power from the system bus
(max. 48V / 2 A)
4
Not connected
Note
The pin numbers are also indicated on the inside
of the connector.
For detailed connector assembly instructions,
see appendix B
Warning
For safety reasons, you must use a current limited external power supply complying with the
60065 standard for audio/video usage or equivalent, with a maximum output current of 5A, or
you must use an external fuse (5A max, slow) in
the wiring to the Kycon KPP-4P connector.
For application in emergency sound systems in
Europe, the installer must use a power supply
with EN54-4 certification.
Caution
For USA: only use a power supply of the type
Mean Well PLN-30-24, PLN-30-36,
PLN-30-48, PLN-60-24, PLN-60-36,
PLN-60-48, PLN-100-24, PLN-100-36 or
PLN-100-48.
For CANADA: only use a power supply of the
type Mean Well PLN-30-24, PLN-30-36,
PLN-60-24, PLN-60-36, PLN-100-24 or
PLN-100-36.
Other types of power supply are not tested with
Praesideo and may cause harm.
Bosch Security Systems | 2011-02
en | 272
Praesideo 3.5 | Installation and User Instructions | 6 | Installation Accessories
26.3.4 Connecting control inputs
The fiber interface has two control inputs (see
figure 26.7). The control inputs can be used to receive
signals from third party equipment that must trigger
actions within the Praesideo system. The control inputs
can be configured to act on contact make or on contact
break (see section 43.6).
en | 273
It is also possible to have the cables supervised for
short-circuits and open connections (see figure 26.8 and
figure 26.9). Whether a control input is actually
supervised or not is defined in the configuration.
1 2 3 4
10kΩ
figure 26.7: Control inputs connector
table 26.3: Control inputs connector details
Pin
Signal
1
Input Contact 1
2
Input Contact 1, ground
3
Input Contact 2
4
Input Contact 2, ground
table 26.4: Control inputs technical data
Control input 1 and control input 2
Resistance detection (supervision enabled):
Cable short circuit
< 2.5 kohm
Contact closed
7.5 kohm to12 kohm
Contact open
17.5 kohm to 22 kohm
Cable broken
> 27 kohm
Resistance detection (supervision disabled):
Contact closed
< 12 kohm
Contact open
> 17.5 kohm
10kΩ
figure 26.8: Supervised control input
Caution
Do not connect DC or AC signals to the control
inputs, otherwise the input circuit may be
damaged.
figure 26.9: Non-supervised control input
Bosch Security Systems | 2011-02
Praesideo 3.5 | Installation and User Instructions | 6 | Installation Accessories
en | 274
26.3.5Operation
26.4
Installation
The two LEDs on the fiber interface provide
information about the status of the fiber interface.
The fiber interface can be attached to a wall or any
other flat surface using a bracket (see figure 26.10). The
distance between the holes in the bracket is 40 mm.
table 26.5: Status LED indications
Yellow
Green
Status
(Fault) (Power)
Off
Off
Off; no external power
available.
On
Off
Stand-by; external power to
POF switched off.
On
On
Operating; external power to
POF switched on.
Off
On
Operating; no external power
available, but powered from the
POF side.
Off
Blink
Fault, no external power
available and no protocol
received.
On
Blink
Fault, external power available,
but no protocol received.
6
Note
The PRS-FINNA cannot detect if the correct
protocol is received. Therefore, its green LED
does not show the fault status of table 26.5.
d
figure 26.10: Installation
Mounting of this bracket and the unit on a drywall sheet
construction requires screws with a minimum screw
length of 22 mm (7/8") and a minimum diameter of
2.5 mm (3/32"). Mounting was evaluated for use on a
drywall surface only.
Bosch Security Systems | 2011-02
Praesideo 3.5 | Installation and User Instructions | 6 | Installation Accessories
26.5
Technical data
26.5.1 Physical characteristics
Dimensions (H x W x D):
27 x 243 x 80 mm (without bracket)
34 x 243 x 84 mm (with bracket)
Weight:
0.7 kg
26.5.2 Climate conditions
Temperature:
-5 to +55 °C (operating, guaranteed)
-15 to 55 °C (operating, sample tested)
-20 to +70 °C (non-operating)
Relative humidity:
15 to 90%, non-condensing (operating)
5 to 95%, non-condensing (non-operating)
Air pressure:
600 to 1100 hPa
26.5.3 EMC and Safety
Electromagnetic compatibility:
EN55103-1/FCC-47 part 15B
EN55103-2
EN50121-4
EN50130-4
Electrical safety:
IEC60065 (CB-scheme)
EN60065
Approvals:
CE marking
EN60849, EN54-16 and ISO7240-16
IEC60945
26.5.4 Mean time between failure
MTBF:
50,000 hours at +55 °C
(The MTBF doubles for every 10 °C decrease in
temperature.)
Bosch Security Systems | 2011-02
en | 275
26.5.5 System bus
Number of connections:
1x proprietary female connector (POF)
1x industry standard SC connector (GOF)
Position:
Front and rear sides
Preferred cable:
LBB4416/xx (POF)
Maximum cable length:
50 m (POF)
Power supply via network:
18 to 56 V(DC)
No fault reporting when >20V
Network power consumption:
4.6 W
26.5.6 External power supply
Connector:
Kycon KPP4-P
Input voltage:
48 V(DC)
Input voltage range:
18 to 56V (DC)
No fault reporting when >20V
Current:
5 A (peak, < 2 s)
2.5 A continuous
26.5.7 GOF connector
Connector:
SC
Interface:
PRS-FIN(NA): Avago AFBR-5803Z transceiver
PRS-FINS: Avago AFCT-5805BZ transceiver
Wavelength:
1300 nm
Preferred cable:
PRS-FIN(NA):
62.5/125 μm and 50/125 μm multimode GOF
PRS-FINS:
9/125 μm monomode GOF
Praesideo 3.5 | Installation and User Instructions | 6 | Installation Accessories
27
27.1
en | 276
LBB4416/xx Network
27.2
Cables
Except for LBB4416/00, all cables are terminated with
male, proprietary connectors on both ends of the cable.
See figure 27.3 for connector details.
Connectors
Introduction
BOSCH
All LBB4416/xx Network Cables contain two plastic
optical fibers for data communication and two copper
cores for the power supply. All cables (except for the
LBB4416/00) are supplied with the network connectors
fitted.
BOSCH
figure 27.2: Connector (with dust cap)
E1
E2
O1
O2
figure 27.3: Connector details
table 27.1: Connector details
Pin
Signal
E1
+48V(DC)
E2
GND
O1
Data
O2
Data
figure 27.1: Network cable
table 5.1: Network cables
Type number
LBB4416/00
LBB4416/01
LBB4416/02
LBB4416/05
LBB4416/10
LBB4416/20
LBB4416/50
Cable length
100 m
0.5 m
2m
5m
10 m
20 m
50 m
To connect extension cables to each other, cable
couplers (LBB4419/00) can be used.
Bosch Security Systems | 2011-02
Wire
Copper
Copper
Optical fiber
Optical fiber
Praesideo 3.5 | Installation and User Instructions | 6 | Installation Accessories
27.3
Wiring
27.5
See figure 27.4 for details about the wires inside the
extension cables.
4
2
5
7±0.1
figure 27.4: Cable details
table 27.2: Cable details
Number
Signal
1
Protective cloth
2
Insulation
3
Outer sheet
4
Stranded wire
5
Optical fiber
27.4
Custom-made cables
Use LBB4418/00 Cable-connector Tool Kit to create
custom-made cables out of LBB4416/00 Network
Cables and LBB4417/00 Network Connectors.
Bosch Security Systems | 2011-02
Technical data
Insulation:
LSZH (low smoke/zero halogen), black
Outer diameter:
7 mm
Power supply wires (2):
3
1
en | 277
Copper, stranded 1 mm2, red and brown insulation,
resistance < 0.018 ohm/m
Optical fibers (2):
• PMMA, 1 mm diameter including cladding 2 mm
diameter (black)
• Numeric aperture: 0.5
• optical attenuation < 0.17 dB/m @ 650 nm
• bending loss < 0.5 dB (r = 20 mm, 90°), according
to JIS C6861
Temperature range:
-40 to +65 °C
Pull force:
max. 150 N
UL-compliancy:
UL444 (60 °C/60 V),
Flame retardant:
according to IEC 60332-1 / 60 s
Halogen level:
according to IEC 60754-2, pH > 4.3 and
conductivity < 10 uS/mm
Smoke level:
according to IEC 61034-2, light transmittance > 60%
Praesideo 3.5 | Installation and User Instructions | 6 | Installation Accessories
28
LBB4417/00 Network
Connectors
The LBB4417/00 Network Connectors are used to
create custom-made cables in combination with
LBB4416/00 Network Cable (100 m) and the
LBB4418/00 Cable-connector Tool Kit.
figure 28.1: Connector
The type number LBB4417/00 contains parts for 10
pieces of network connectors, which is enough for 5
extension cables.
Bosch Security Systems | 2011-02
en | 278
Praesideo 3.5 | Installation and User Instructions | 6 | Installation Accessories
29
LBB4418 Cable-connector
29.2
en | 279
Toolkit contents
Tool Kit
29.1
Introduction
BOSCH
The LBB4418/00 Cable-connector Toolkit is intended
for creating optical network cables (see figure 29.1) out
of LBB4416/00 Network Cable (100 m) and LBB4417/
00 Network Connectors.
BOSCH
figure 29.2: Toolkit contents
figure 29.1: Optical network cable
Bosch Security Systems | 2011-02
table 29.1: Toolkit contents
No. Description
1
Spare cutting system
(with Allen key)
2
Cable cutter
3
Crimping tool
4
POF positioning/crimping tool
5
Stripping tool
6
POF cutter/stripping tool
7
Torx screwdriver
Number
600 004 0
600 015 36
642 509 3 23
618 071 69
607 202 69
600 003 - 1 39
C209 000077
Praesideo 3.5 | Installation and User Instructions | 6 | Installation Accessories
Toolkit supplier:
• Rennsteig Werkzeuge GmbH
Viernau, Thüringen, Germany
Supplier type number: 600 100 PHI
Note
Before using the POF cutter/stripping tool
(tool 6), release its blocking screw using the
Torx screwdriver (tool 7).
Note
After 1,260 cuts, the POF cutter/stripping tool
(tool 6) blocks automatically. In that case,
replace the cutting system with the spare
cutting system (tool 1) to ensure smooth cuts.
Additional spare cutting systems are available
as type number LBB4418/50.
Caution
Oil all tools regularly to avoid rusting.
Bosch Security Systems | 2011-02
en | 280
Praesideo 3.5 | Installation and User Instructions | 6 | Installation Accessories
29.3
en | 281
Connector components
Each optical network connector (LBB4417/00) consists
of 10 components (see figure 29.3 and figure 29.4).
8
7
6
5
4
3
1
2
figure 29.3: Connector assembly drawing
2
1
5
3
4
6
figure 29.4: Connector components
Bosch Security Systems | 2011-02
7
8
table 29.2: Connector components
No
Description
1
Dust cap
2
Torx screw
3
Front housing
4
Mounting block
5
Socket contacts
6
Ferrules
7
Crimping bush
8
Back housing
Praesideo 3.5 | Installation and User Instructions | 6 | Installation Accessories
29.4
Cable-connector installation
29.4.1 Introduction
This chapter contains a step-by-step description of the
cable-connector installation process. The procedure
consists of the following parts:
• Preparation (see section 29.4.3).
• Crimping the bush (see section 29.4.4).
• Stripping the copper wires (see section 29.4.5).
• Installing the socket contacts (see section 29.4.6).
• Stripping the optical fibers (see section 29.4.7).
• Installing the ferrules (see section 29.4.8).
• Assembling the connector (see section 29.4.9).
29.4.2 Cable types
There are two types of optical network cables:
• Type A cables in which the plastic optical fibers are
located next to each other (see figure 29.5, which
shows both cable ends).
• Type B cables in which the plastic optical fibers are
located opposite to each other (see figure 29.5, both
cable ends are identical).
R
29.4.3 Preparation
Proceed as follows:
1 Cut the optical network cable to the required length
using the cable cutter (tool 2).
Note
Due to light loss, the length of an optical
network cable must be less than 50 m.
2 Determine the cable type (see section 29.4.2), since
some steps in the cable-connector installation
procedure depend on the cable type.
3 Disassemble a network connector. A network
connector consists of 10 parts (see section 29.3).
4 Slide the back housing over the cable (see
figure 29.6).
B
B
figure 29.6: Back housing on cable
R
A
B
en | 282
R
B
5 Using the stripping tool (tool 5), strip the outer
sheath of the cable by pushing the cable to the
mechanical stop (see figure 29.7).
R = Red
B = Brown
A
figure 29.5: Cable types
figure 29.7: Stripping the cable
Bosch Security Systems | 2011-02
Praesideo 3.5 | Installation and User Instructions | 6 | Installation Accessories
29.4.4 Crimping bush
Proceed as follows:
6 Slide the crimping bush over the cable and position
it at the end of the outer sheath.
en | 283
7 Crimp the bush on the outer sheath using the
crimping tool (tool 3, see figure 29.9). The crimping
bush will prevent the cable from rotating in the
connector.
Note
In the next step, the circular shape of the cable
cross-section at the end of the outer sheath is
transformed into a hexagonal shape using the
crimping tool (tool 3) and the crimping bush.
Before crimping the bush, ensure that both
plastic optical fibers will be positioned parallel
to a flat side of the hexagonal cross-section
(see figure 29.8)
figure 29.9: Crimping the bush
R
B
B
29.4.5 Stripping copper wires
R
A
B
B
Proceed as follows:
8 Cut the copper wires at the required length using the
cable cutter (tool 2) and the stripping tool (tool 5). To
this end, position the crimping bush in position I and
cut the copper wires at position II (see figure 29.10).
I
R
R = Red
B = Brown
A
figure 29.8: Cross-section transformation
II
figure 29.10: Cutting a copper wire
Bosch Security Systems | 2011-02
Praesideo 3.5 | Installation and User Instructions | 6 | Installation Accessories
9 Strip the red and brown insulations from the copper
wires by pushing them to the mechanical stop of the
stripping tool (tool 5, see figure 29.11).
29.4.6 Installing socket contacts
Proceed as follows:
10 Put a socket contact in the crimping tool (tool 3, see
figure 29.12). The upper part of the crimping tool
contains a ridge for positioning the socket contact in
the tool (see figure 29.13).
figure 29.11: Stripping a copper wire
figure 29.12: Crimping a socket contact (1)
figure 29.13: Positioning a socket contact
Bosch Security Systems | 2011-02
en | 284
Praesideo 3.5 | Installation and User Instructions | 6 | Installation Accessories
11 Slide one of the stripped, copper wires into the
contact area of the socket contact and close the
crimping tool to crimp the socket contact onto the
copper wire (see figure 29.14).
29.4.7 Stripping fibers
Proceed as follows:
13 Slide the plastic optical fibers into the
POF cutter/stripping tool (tool 6). The fiber that is
going to be cut-off must be put in the small guiding
hole, whereas the other fiber must be put in the large
guiding hole (see figure 29.16). The crimping bush
must rest against the stop (see figure 29.17).
figure 29.14: Crimping a socket contact (2)
12 Repeat steps 10 and 11 for the other stripped, copper
wire. See figure 29.15 for the result of this part of the
cable-connector installation procedure.
figure 29.16: Cutting a fiber (1)
A
B
figure 29.15: Installed socket contacts
figure 29.17: Cutting a fiber (2)
Bosch Security Systems | 2011-02
en | 285
Praesideo 3.5 | Installation and User Instructions | 6 | Installation Accessories
14 Close the tool to fix the cable and pull the ‘trigger’ to
cut the fiber (see figure 29.18).
en | 286
17 Close the tool and pull the fiber out to strip the
sheath from it.
Note
Do not forget to remove the piece of sheath
from the tool.
18 Repeat steps 16 and 17 for the other fiber in the
cable. See figure 29.20 for the result of this part of
the cable-connector installation procedure.
figure 29.18: Cutting a fiber (3)
15 Repeat steps 13 and 14 for the other plastic optical
fiber in the cable. Both fibers now have the required
length.
16 Slide one of the fibers into the front part of the POF
cutter/stripping tool (tool 6, see figure 29.19).
A
figure 29.20: Stripped optical fibers
figure 29.19: Stripping a fiber
Bosch Security Systems | 2011-02
B
Praesideo 3.5 | Installation and User Instructions | 6 | Installation Accessories
29.4.8 Installing the ferrules
Proceed as follows:
19 Insert a ferrule into the spring-loaded stop of the
POF positioning/crimping tool (tool 4, see
figure 29.21).
en | 287
21 Insert a plastic optical fiber into the ferrule in the
spring-loaded stop of the POF positioning tool (see
figure 29.23).
figure 29.23: Crimping ferrules (1)
figure 29.21: Inserting a ferrule
20 Lock the ferrule with the small lever (see
figure 29.22).
22 Close the tool and open it again to crimp the ferrule
on the core of the fiber.
23 Repeat steps 19 to 22 for the other fiber in the cable.
The ferrules only have been crimped on the core of
the optical plastic fiber. Next, the ferrules are going
to be crimped on the sheaths of the fibers.
24 Put both ferrules in the crimping tool (tool 3, see
figure 29.24).
figure 29.22: Locking a ferrule
figure 29.24: Crimping ferrules (2)
Bosch Security Systems | 2011-02
Praesideo 3.5 | Installation and User Instructions | 6 | Installation Accessories
25 Crimp the ferrules on the sheath using the crimping
tool (tool 3, see figure 29.25). See figure 29.26 for the
result of this part of the cable-connector mounting
procedure.
en | 288
29.4.9 Assembling the connector
Before starting to assemble the connector, position the
copper wires and the plastic optical fibers for
installation. The copper wires will be installed in the
upper part of the connector, whereas the fibers will be
installed in the lower part of the connector (see figure
29.27).
Note
When replacing a connector, always first check
the wiring in the connector at the other end.
E1
E2
O1
O2
figure 29.25: Crimping ferrules (3)
figure 29.27: Front view of connector
A
figure 29.26: Ferrules on fibers
B
table 29.3: Optical network connector details
Pin
Signal
Wire
E1
+48V(DC)
Copper
E2
GND
Copper
O1
Data
Optical fiber
O2
Data
Optical fiber
Also, observe the wiring diagram (see figure 29.28). For
the practical implications of this diagram, see
figure 29.29 and figure 29.30).
E1
E2
RED
BROWN
E2
O1
O1
O2
O2
BLACK (2x)
figure 29.28: Wiring diagram
Bosch Security Systems | 2011-02
E1
Praesideo 3.5 | Installation and User Instructions | 6 | Installation Accessories
en | 289
E1
E2
R
B
E1
E2
R
A
B
O1
O2
R = Red
B = Brown
A
O1
O2
figure 29.29: Wiring diagram applied to type A optical network cables
E1
E2
R
B
E1
E2
R
B
B
O1
O2
R = Red
B = Brown
B
O1
O2
figure 29.30: Wiring diagram applied to type B optical network cables
Bosch Security Systems | 2011-02
Praesideo 3.5 | Installation and User Instructions | 6 | Installation Accessories
Where applicable, the way in which the connectors
must be assembled on both sides of the cables is shown
in the figures. Proceed as follows:
26 Check if the copper wires and the plastic optical
fibers have been positioned in the correct way (see
figure 29.31).
A
R
B
R
B
en | 290
28 Put the socket contacts in the mounting block (see
figure 29.33). In one of the connectors attached to a
type A cable, the red and brown copper wires must
cross to meet the wiring diagram (see figure 29.28).
A
R
B
R = Red
B = Brown
B
R
B
B
R A
A
B
R
R
B
R
B
B
B
R = Red
B = Brown
B
figure 29.33: Mounting block and back housing
figure 29.31: Positioning the copper wires and fibers
29 Put the mounting block in the back housing (see
figure 29.34)
27 Put the ferrules in the mounting block (see
figure 29.32)
A
B
figure 29.32: Mounting block and back housing
figure 29.34: Mounting block/back housing assembly
Bosch Security Systems | 2011-02
Praesideo 3.5 | Installation and User Instructions | 6 | Installation Accessories
30 Click the front housing on the mounting block/back
housing assembly (see figure 29.35).
en | 291
32 Tighten the Torx screw using the Torx screwdriver
(tool 7, see figure 29.37)
figure 29.35: Installing the front housing
31 Insert the Torx screw into the front housing (see
figure 29.36).
figure 29.37: Tightening the Torx screw
33 Put the dust cap on the connector to protect the
plastic optical fibers (see figure 29.38).
figure 29.36: Inserting the Torx screw
figure 29.38: Dust cap on connector
Bosch Security Systems | 2011-02
Praesideo 3.5 | Installation and User Instructions | 6 | Installation Accessories
30
LBB4419/00 Cable
Couplers
The LBB4419/00 Cable Couplers are used to connect
extension cables to each other. However, in each cable
coupler, a small a amount of light gets lost. Therefore,
each cable coupler limits the maximum distance of
between two pieces of equipment (normally 50 meters)
with 20 meters.
figure 30.1: Cable coupler
Cable couplers can also be used in combination with the
tap-off outlets of network splitters (PRS-NSP) to create
temporarily or easily detachable connections (e.g.
break-out boxes).
Bosch Security Systems | 2011-02
en | 292
Praesideo 3.5 | Installation and User Instructions | 7 | System Hardware Installation
Part 7 - System Hardware Installation
Bosch Security Systems | 2011-02
en | 293
Praesideo 3.5 | Installation and User Instructions | 7 | System Hardware Installation
Intentionally left blank.
Bosch Security Systems | 2011-02
en | 294
Praesideo 3.5 | Installation and User Instructions | 7 | System Hardware Installation
31
31.1
en | 295
Cabling
31.2
Introduction
A system bus cable (see figure 31.2) has two plastic
optical fiber (POF) ‘wires’ and two copper wires. The
POF wires can transport up to 28 simultaneous audio
channels and Praesideo control data, whereas the
copper wires transport power to feed the units.
The pieces of equipment in a Praesideo system form a
daisy chain. Therefore, all units are equipped with two
interchangeable system bus connectors (see figure 31.1).
Use one of these connectors to connect a unit to the
previous unit and the other to connect it to the next unit
in the chain.
System bus
l
Note
Both system connectors are identical.
Because the units are daisy-chained, it is possible to add
or remove equipment anywhere in the network without
affecting the performance of other units, provided that
the other network connection remains available.
l
Caution
Risk of electric shock.
Do not open.
Audio In 3
Audio Out 3
Audio In 4
Audio Out 4
Audio In 1
Audio Out 1
Audio In 2
Audio Out 2
Avis
Risk of electric shock.
Do not open.
Control In
1
2
Mains
3
4
5
6
7
8
O
RS 232
Network
I
Ethernet
1
2
48V
48V
230
Control Out
C NC NO C NC NO C NC NO C NC NO C NC NO
1
2
3
4
115: 100-120V~ 50-60Hz
230: 220-240V~ 50-60Hz
5
1
2
48V
48V
figure 31.1: Daisy chain
Bosch Security Systems | 2011-02
T2.5A 250V
T1.25A H 250V
E1
E2
O1
O2
figure 31.2: System bus connector
table 31.1: System bus cable details
Number Color
Material Description
E1
Red
Copper
Power, + (48V)
E2
Brown
Copper
Power, - (GND)
O1
Black
POF
Data
O2
Black
POF
Data
Praesideo 3.5 | Installation and User Instructions | 7 | System Hardware Installation
31.4
Note
During both installation and operation, the
temperature of the POF cabling may not exceed
65 °C. Higher temperatures can damage the
fibers.
en | 296
Maximum distance
Due to light loss, the maximum length of POF cabling
(and therefore also system bus cables) between two
pieces of equipment is 50 m. If the distance between two
units is more than 50 m, PRS-FIN(NA) or PRS-FINS
Fiber Interfaces and glass optical fibers (GOF) must be
used (see figure 31.4).
POF
Note
The POF part of the system bus connectors on
the Praesideo equipment are F05 and F07
compliant. This means that if only data has to be
transported, industry-standard F05 or F07
connectors can be used. If only POF cabling is
used between two units, no power is
transported between these pieces of
equipment.
31.3
POF
3
3
Dust caps
Protect the POF parts of the system cables and
connectors that are not in use with dust caps. Dust caps
also block the red light from the fiber optic interface,
which might be visible and disturbing.
7
7
GOF ( > 50m)
figure 31.4: Using fiber interfaces
If GOF cables are used, make sure that they:
• are multimode GOF cables (single mode GOF
cables are supported by the PRS-FINS);
• have a maximum attenuation of 2 dB/km;
• are suitable for light with a wavelength of 1300 nm;
• are terminated with standard SC connectors.
figure 31.3: Dust cap
Note
It is also possible to increase the distance
between units above 50 m by inserting
PRS-NSP Network Splitters every 50 m or less.
Although no tap-off may be required, the
network signal is regenerated in the network
splitter to cover another 50 m.
Bosch Security Systems | 2011-02
Praesideo 3.5 | Installation and User Instructions | 7 | System Hardware Installation
31.5
Maximum cable length
The maximum length of all optical fibers together (both
POF and GOF) in the system depends on the number of
nodes in the system. Each piece of equipment has been
assigned a number of nodes.
table 31.2: Nodes
Type no.
Description
LBB4402/00 Audio Expander
LBB4404/00 CobraNet Interface
PRS-NSP
Network Splitter
PRS-FIN(S)
Fiber Interface
PRS-FINNA
Fiber Interface
Power Amplifier 1x500 W
PRS-1P500
Power Amplifier 2x250 W
PRS-2P250
Power Amplifier 4x125 W
PRS-4P125
LBB4428/00 Power Amplifier 8x60 W
LBB4430/00 Call Station Basic
LBB4432/00 Call Station Keypad
PRS-CSNKP Numeric Keypad
LBB4433/00 Call Station Kit
LBB4434/00 Call Station Keypad Kit
PRS-CSI
Call Station Interface
PRS-CRF
Call Stacker
PRS-16MCI
Multi Channel Interface
PRS-NCO-B
Network Controller
en | 297
The graph (see figure 31.5) shows the relation between
the number of nodes in the system and maximum
optical fiber length in the system.
Note
A system may not contain more than 63 nodes.
Nodes
1
1
1
1
0/1
1
1
1
2
1
0
0
1
0
1
1
1
3
Note
The PRS-FINNA counts as 0 nodes for the
system limit of 63 nodes, but as 1 node for the
maximum optical fiber length. Therefore, the
dashed part of the line is only applicable to
systems with PRS-FINNA Fiber Interfaces.
2150
2050
1950
1850
Maximum cable length (m)
1750
1650
1550
1450
1350
1250
1150
1050
950
850
750
650
0
5
10
15
20
25
30
35
40
Number of nodes
figure 31.5: Maximum optical fiber length vs. number of nodes
Bosch Security Systems | 2011-02
45
50
55
60
65
70
75
80
Praesideo 3.5 | Installation and User Instructions | 7 | System Hardware Installation
31.6
Bending and coiling
en | 298
31.6.3 Coiling
The minimum coiling radius is 110 mm (see figure 31.8)
31.6.1 Introduction
The POF cable may be bend or coiled. However, the
rules in this chapter must be observed.
R=110 mm
31.6.2 Bending
The bend radius is 110 mm (see figure 31.6). The
maximum number of bends in a POF cable is 5.
figure 31.8: Coiling radius
R=110 mm
figure 31.6: Bend radius
A 180 degree bend equals two bends (see figure 31.7)
2
1
R=110 mm
figure 31.7: U curve
Bosch Security Systems | 2011-02
Praesideo 3.5 | Installation and User Instructions | 7 | System Hardware Installation
32
32.1
Architecture
32.3
Introduction
The basic system has no redundant cabling. If the cable
between the call station basic and the power amplifier
breaks, it becomes impossible to broadcast calls or
background music. This can be solved by creating a
redundant cabled system (see figure 32.2).
The exact layout of the Praesideo system depends on
the number and type of units that make up the system
This chapter contains some easy-to-follow examples of
(strongly simplified) Praesideo systems to illustrate the
possibilities.
32.2
en | 299
Redundant cabling
PRS-NCO-B
Network Controller
background music
Basic system
See figure 32.1 for an example of a basic system.
LBB4430
Call Station Basic
PRS-NCO-B
Network Controller
background music
LBB4430
Call Station Basic
PRS-4P125
Power
Amplifier
LBB4432
Call Station Keypad
figure 32.2: Redundant cabled basic system
LBB4432
Call Station Keypad
PRS-4P125
Power Amplifier
figure 32.1: Basic system
Note
In the remainder of this chapter, 'basic system'
refers to the system in figure 32.1.
Bosch Security Systems | 2011-02
Note
In the remainder of this chapter, 'basic
redundant system' refers to the system in
figure 32.2.
The only difference between the basic system and this
redundant cabled basic system is the connection
between the power amplifier and the network
controller. The equipment now forms a ring. If a cable
breaks, the system remains functional.
Praesideo 3.5 | Installation and User Instructions | 7 | System Hardware Installation
32.4
Tap-offs
32.5
The network splitter makes it possible to create tap-offs
(see figure 32.3). Please that tap-offs are never
redundant, because it is not possible to create a tap-off
ring. If the cable between the network splitter and the
call station B breaks, call station B is not functioning
anymore, hence the tap-off is not redundant.
en | 300
Spare amplifiers
Besides using redundant cabling it is also possible to add
spare amplifiers to the system (see chapter 8).
Spare amplifiers give back-up capacity if an amplifier
has a defect.
Refer to 8.3.5.5 for information about power amplifiers.
Refer to 10.3.5.3 for information about basic amplifiers.
Caution
Do not mix spare power amplifiers with spare
basic amplifiers. The amplifiers are not
compatible and the configuration software does
not support the assignment of a basic spare
amplifier channel to a main power amplifier or a
spare power amplifier to a main basic channel.
PRS-NCO-B
Network Controller
background music
PRS-NSP
Network Splitter
LBB4430
Call Station Basic
B
A
LBB4430
Call Station Basic
PRS-4P125
Power
Amplifier
figure 32.3: Redundant basic system with tap-off
Bosch Security Systems | 2011-02
LBB4432
Call Station Keypad
Praesideo 3.5 | Installation and User Instructions | 7 | System Hardware Installation
32.6
CobraNet
CobraNet is a standard for transporting multiple digital
uncompressed audio channels over Ethernet. Many
manufactures of public address and professional audio
equipment support this standard. CobraNet has all the
advantages of Ethernet: structured cabling using Cat-5
and GOF to cover long distances and cheap network
components. In Praesideo systems, the LBB4404/00
CobraNet Interface is used to interface between
Praesideo and CobraNet. These CobraNet interfaces
can be used to:
• Connect Praesideo systems (see figure 32.4 for an
example).
• Benefit from already existing Ethernet infrastructure.
• Transport audio over large distances.
en | 301
Because of delay variations, it is not allowed to connect
more than 7 switches in series.
Fast Ethernet distance limitations apply to CobraNet
installations: 100 meters over Cat-5 copper cable, 2
kilometers over multimode fiber. Proprietary Fast
Ethernet via single mode fiber solutions can reach even
further.
Note
The CobraNet interface does not transfer
control functions. These can only be transferred
over Ethernet using the Praesideo Open
Interface. Network controllers are always open
interface slaves, which must be controlled by an
open interface master, for example a PC Call
Station.
PC data such as Praesideo Open Interface data can
coexist with CobraNet on the same Ethernet network as
long as managed Ethernet switches are used. See:
http://www.cobranet.info/en/support/cobranet/design/
PC Call station
Praesideo
LBB4404/00
CobraNet Interface
LBB4404/00
CobraNet Interface
Ethernet
CobraNet
Ethernet
TCP/IP
Switch
Ethernet backbone
figure 32.4: Connecting systems
Bosch Security Systems | 2011-02
Ethernet
CobraNet
Switch
CAT-5/GOF (long distance)
Control
Praesideo
Control
PRS-NCO-B
Network Controller
Audio
PRS-NCO-B
Network Controller
Ethernet
TCP/IP
Ethernet
TCP/IP
Praesideo 3.5 | Installation and User Instructions | 7 | System Hardware Installation
32.7
Failsafe
32.7.1 Introduction
When the Praesideo system must be used as an
emergency sound system, the network layout must be
failsafe. A failsafe network allows to make calls even if
the network controller fails. To achieve this,
'emergency' call stations must be put in the system.
However, it is not possible to put them just anywhere in
the system.
32.7.2 Rules
When creating a failsafe layout, observe the following
rules:
1 Label the call station as an 'emergency' call station
using the configuration section of the web interface
(see table 43.11).
2 The emergency call station must have a supervised
back-up power supply. If the network controller fails,
it cannot provide power to the system bus anymore.
The call station, however, must remain functional
and therefore it must be powered by another power
source. So, connect the emergency call station to the
network using a fiber interface that uses a supervised
external power supply or use an externally powered
call station kit.
3 Do not put equipment between the emergency call
station(s) and the power amplifier(s) that:
• under normal circumstances uses power from the
system bus and
• has no back-up power supply connected.
Suppose the network controller fails, then these units
are not functioning anymore, because they are not
connected to any power source. As a result, it is not
possible for them to route signals and therefore they
may not be put between the emergency call
station(s) and the power amplifier(s).
4 Do not put the emergency call station(s) in a tap-off.
The emergency call stations must be in the main
network. This is the only way to ensure that calls can
be made to all zones.
5 It is not allowed to connect local volume control
systems to the loudspeakers even if they have a
volume override facility. If the network controller is
absent, the control outputs that activate the volume
override systems are not activated anymore (even if
the control outputs are located on power amplifiers
or audio expanders). Furthermore, a local volume
Bosch Security Systems | 2011-02
en | 302
control system disturbs the operation of the line
supervision. The line supervision set uses the
loudspeaker line. Any volume control in the line
would attenuate the 20 kHz pilot tone of the
supervision-master too much for the
supervision-slave to work correctly.
32.8 IP Addresses
In the Praesideo network do not use the following IP
addresses for network controllers, PCs with Praesideo
software (for example, Logging Server, Logging
Viewer), CobraNet Interface, etc.:
• All IP addresses of which the host part is 0. For
example, if the subnet mask is 255.255.255.0, do not
use the address x.x.x.0.
• All IP addresses of which the host part is 255. For
example, if the subnet mask is 255.255.255.0, do not
use the address x.x.x.255.
• 127.0.0.1
• 14.0.0.1 - 14.0.0.254
• 24.0.0.1 - 24.0.0.254
• 39.0.0.1 - 39.0.254
• 128.0.0.1 - 128.0.255.254
• 169.254.0.1 - 169.254.255.254
• 172.16.0.1 - 172.16.15.254
• 191.255.0.1 - 191.255.255.254
• 192.0.0.1 - 192.0.255.254
• 192.88.99.1 - 192.88.255.254
You can use the following IP addresses, but remember
that it is not possible to access the Internet with these
addresses:
• 10.0.0.1 - 10.255.255.254
• 172.16.16.1 - 172.31.255.254
• 192.168.0.1 - 192.168.255.254
• 224.0.0.1 - 239.255.255.254
If you enter IP addresses in the Praesideo software,
always omit leading zeroes, since they can cause
network problems. For example, type 192.68.0.10
instead of 192.068.000.010.
32.9 Connecting an alarm buzzer
Many Praesideo installations require the connection of
an alarm buzzer, providing an audible signal to indicate
a fault situation, an emergency situation, or both. This
buzzer is typically mounted in the main 19-inch rack in
a technical room, together with the Praesideo network
Praesideo 3.5 | Installation and User Instructions | 7 | System Hardware Installation
controller. The standard EN 54-16 requires a minimum
sound pressure level of 60 dB for the voice alarm
condition and 50 dB for the fault warning condition, on
1 m distance, even with the door of the rack closed.
The Praesideo PRS-NCO-B is delivered with a suitable
buzzer for these purposes. This buzzer needs a power
supply with backup. Although the system network
supply could be used for this purpose, the power supply
lines of the hybrid network cable are not easily
accessible. Another option is to use the RS232
service-connection on the rear of the network controller.
This connection is never used in an installed system, so
it is possible to take advanrtage of its availability. An
output voltage is available on pin 6 (DTR output) that
switches between -9V and +9V, while pin 5 provides a
GND connection. Using a high efficiency buzzer and a
rectifier bridge, the RS232 connection can provide
enough power to drive the buzzer to the required sound
pressure level. Control outputs are located on short
distance of the RS232 connector, to provide the
switching information. See the wiring diagram in figure
32.5.
In this arrangement, the voltage between the RS232
DTR and GND connections is rectified and wired to the
buzzer. The negative lead is interrupted by control
outputs 3 and 4, connected in parallel, configured as
follows:
•
•
NCO_CO4 is enabled and configured as Fault alarm
buzzer (by default, cannot be changed, see section
43.2.6)
NCO_CO3 is enabled and configured as Emergency
alarm buzzer (see section 43.2.6)
NCO_CO3 and NCO_CO4 are connected in parallel.
The C-terminals of both control outputs are
interconnected and the NO-terminal of NCO_CO3 is
connected to the NC-terminal of NCO_CO4 to switch
on the buzzer in case of an emergency alarm or fault
alarm. The NC-terminal of NCO_CO4 is used instead
of the NO-terminal because this control output is
operated in an opposite mode for fail safe reasons. The
unpowered (!) state represents the fault situation, as is
the case for NCO_CO5, the fixed control output for the
Fault alarm indicator.
Bosch Security Systems | 2011-02
en | 303
figure 32.5: Connecting an alarm buzzer to the
network controller
The buzzer supplied with the network controller is
connected to an RS232 connector, with build-in rectifier
bridge, by means of a 2 m long cable. This allows the
buzzer to be positioned in the 19-inch rack, on such a
location that the required audio levels are attained. The
RS232 connector also provides a short control cable
that can be connected to the NCO_CO3 and
NCO_CO4 contacts, as shown in the figure.
Praesideo 3.5 | Installation and User Instructions | 7 | System Hardware Installation
33
Power Consumption
33.1
Introduction
Note
All items with an * do not consume power
supplied by the Praesideo system.
To calculate the power consumption and power budget
in an easy way, the power consumption or power supply
of each unit is defined in Watt. A power load uses an
amount of Watt, whereas a power source provides a
number of Watts.
Note
The power for the multi channel interface can be
supplied by a connected basic amplifier or by
the system. Refer to 9.3.3.
If the multi channel interface receives power
from a connected basic amplifier, the power
load on the Praesideo system is 0 W.
If the multi channel interface receives power
from the Praesideo system, the power load is
12 W. Refer to table 33.1.
As long as the total number of Watt required by the
power loads in the system are equal or less than the total
amount of Watt provided by the power sources,
normally no external power supplies are needed to feed
additional power to the system.
33.2
Power consumption
See table 33.1 for a list of all power sinks in the
Praesideo system.
33.3
table 33.1: Power consumption
Type no.
Description
LBB4402/00
Audio Expander
LBB4404/00
CobraNet Interface
PRS-NSP
Network Splitter
PRS-FIN(S)
Fiber Interface
PRS-FINNA
Power Amplifier 1 x 500 W
PRS-1P500
Power Amplifier 2 x 250 W
PRS-2P250
Power Amplifier 4 x 125 W
PRS-4P125
Power Amplifier 8 x 60 W
LBB4428/00
PRS-1B500
Basic Amplifier 1 x 500 W
PRS-2B250
Basic Amplifier 2 x 250 W
PRS-4B125
Basic Amplifier 4 x 125 W
PRS-8B060
Basic Amplifier 8 x 60 W
PRS-16MCI
Multi Channel Interface
LBB4430/00
LBB4432/00
PRS-CSNKP
LBB4433/00
LBB4434/00
PRS-CSI
PRS-CSR
PRS-CSRK
PRS-CRF
Call Station Basic
Call Station Keypad
Numeric Keypad
Call Station Kit
Call Station Keypad Kit
Call Station Interface
Remote Call Station
Remote Call Station Kit
Call Stacker
Bosch Security Systems | 2011-02
Watt
9.0
11
3.9
4.6
0.0*
0.0*
0.0*
0.0*
0.0*
0.0*
0.0*
0.0*
0.0*/
12
4.4
1.3
1.6
6.2
1.2
3.7
2.9
4.0
4.2
en | 304
Battery capacity calculation
An essential part of an emergency sound system is the
backup power source. For compliancy with EN54-16, it
is required that the power source complies with EN54-4.
Often a battery pack with a charger is used as backup
power source. To calculate the required battery
capacity, an MS Excel sheet is provided on the
distribution DVD in the Tools folder, the Praesideo
Power Requirement Calculator. The accompanying
application note describes how to use this program.
If the Praesideo Power Requirement Calculator is not
used for battery capacity calculation, take the following
into consideration:
• In case the mains power fails, the battery capacity
should be sufficient to address all zones in case of an
emergency.
• BGM should be stopped while the system is in the
emergency state and/or is running on batteries, so
the batteries are not loaded unnecessarily.
• The current consumption of the amplifiers is the
main load for the batteries. Most standards require
that the battery capacity is sufficient for 24 hours of
idle use (no calls, no BGM), followed by emergency
announcements or tones for 30 minutes to all zones.
The power consumption of the amplifiers depends
on the level of the output signal and the connected
load. Because the amplifiers are Class D amplifiers
Praesideo 3.5 | Installation and User Instructions | 7 | System Hardware Installation
the power consumption scales with the output power
in an almost linear way.
• The idle power consumption is specified in the
amplifier section of the manual and should be
divided by 48V to get the idle supply current for that
amplifier, and then multiply by 24 hours to get the
required battery capacity in Ah for that amplifier in
idle state.
• For EN54-16 systems, the use of the amplifier power
save mode is not permitted.
• During emergency calls often an alarm tone is
broadcast. The maximum level of such a tone is
-3dB, corresponding to half the rated output power.
The -3dB power consumption of the amplifiers is
also specified in the technical data section. Divide by
48V and multiply by 0.5 to get the required battery
capacity in Ah for that amplifier for a maximum
level alarm tone during 30 minutes. In case the
amplifier is only partly loaded the battery capacity
can be reduced accordingly. In case live speech or
spoken messages are used instead of tones, the
capacity can be halved again because the rms output
level of speech is typically < -6dB for full output. In
case an alarm tone has less than 100% duty cycle (i.e.
contains a silence period) the capacity can be
reduced accordingly. In case the output level is less
than the maximum output level, again the capacity
can be reduced accordingly.
• For spare amplifiers only the idle current
consumption should be taken into account.
• The power consumption of all units that are powered
by the network controller is given in section 33.2.
Add up for all connected units, divide by 48V and
multiply bij 24.5 hours to get the required battery
capacity in Ah for these units.
• Take the sum of all calculated battery capacities and
multiply by 1.25, as a margin to compensate for
battery capacity loss due to aging of the batteries.
To reduce the risk of making errors, it is strongly
recommended to use the Praesideo Power Requirement
Calculator.
33.4
Note
If you create a redundant ring and you do not
use additional power supplies, you can connect
up to 55 Watt to the network controller. This is
to ensure that when there is a fault in the
network close to one of the system bus
connectors of the network controller, the other
system bus connector can still feed the entire
network.
If more power is needed, external power supplies must
be used to feed the system. The following units have a
provision for connecting external power supplies:
• PRS-NSP Network Splitter. An external power
supply that is connected to a network splitter only
adds power to the tap-offs.
• PRS-FIN(S), PRS-FINNA Fiber Interface. An
external power supply that is connected to a fiber
interface only adds power to the Praesideo system
bus.
• LBB4433/00 Call Station Kit. An external power
supply that is connected to a call station kit only
adds power to the call station kit.
• PRS-CSI Call Station Interface. An external power
supply that is connected to a call station interface
only adds power to call station interface and
optionally to the connected remote call station (kit).
• PRS-CSR Remote Call Station. An external power
supply that is connected to a remote call station only
adds power to the remote call station and optionally
to the connected call station interface.
• PRS-CSRK Remote Call Station Kit. An external
power supply that is connected to a remote call
station kit only adds power to the remote call station
kit and optionally to the connected call station
interface.
The amount of Watt provided by an external power
supply is calculated as follows:
Power sources
By default, the only power source in the system is the
network controller. Each system bus connector on the
rear of the network controller provides 55 Watt.
Bosch Security Systems | 2011-02
en | 305
P = U⋅I
Praesideo 3.5 | Installation and User Instructions | 7 | System Hardware Installation
P = power (W)
U = DC voltage (V)
I = DC current (A)
Because all the Praesideo units have built-in switched
mode power supplies, the power consumption is
virtually constant and within a certain range
independent of the supply voltage V. The lower V is,
the higher I will be.
33.5 Cooling capacity
A simple formula is used to calculate the required
cooling capacity of an air conditioner for a technical
room where Praesideo equipment is installed. It is based
on the fact that only power amplifiers and basic
amplifiers contribute to the heat generated in a room;
the contribution of other Praesideo equipment is
negligible. The maximum ambient temperature for
Praesideo rack-mounted equipment is 55 ºC.
Energy is power multiplied by time. The unit of energy
is Joule; a Joule is the same as a Watt*second.
Therefore, one Watt of dissipation inside the rack
during a period of one second results in one Joule of
energy.
The calculation is based on the LBB4428 amplifier,
since all other amplifiers are slightly more efficient. An
LBB4428 consumes 800 W during full power operation,
so with an output of 480 W (8 channels of 60 W), the
amplifier dissipates the difference (320 W). The
theoretical energy that is produced as heat inside the
unit is 320 Watt * 3600 seconds = 1,152 kJoule each
hour, or 27,648 kJ each day (24 hours). In reality,
however, the energy will be a lot less. The Praesideo
amplifiers are only allowed to be driven:
• at full power for 1 minute,
• at half power (-3dB) for 30 minutes for emergency
tones (these are generated at -3 dB level),
• continuously at quarter power (-6dB) for calls or
emergency announcements, or for BGM.
The continuous quarter power limitation gives enough
margin to use the amplifier well into the limiter, because
the crest factor of speech is around 8..10 dB, and for
music also at least 6 dB. So, this is a safe worst-case
margin.
Bosch Security Systems | 2011-02
en | 306
Based on this, the maximum heat energy generated in a
day (24 hrs) is:
(800 W - 480 W) * 1 minute + (397 W - 240 W) * 30
minutes + (228 W - 120 W) * 1400 minutes = 320 W *
60 s + 157 W * 1800 s + 108 W * 84,000 s = 9,373,800
Ws = 9,374 kJ.
This is equivalent to a light bulb of 110 W for a single
Praesideo amplifier of any type. The power dissipation
of the amplifiers should be summed. To calculate in
BTU (British Thermal Units), divide the amount of kJ
by 1.055. To calculate in kcal, divide the amount of kJ
by 4.184. To calculate the heat production per hour
instead of per day, divide by 24.
So 9,400 kJ/day = 9.4 MJ/day = 2,240 kcal/day = 8,900
BTU/day = 390 kJ/hr = 93 kcal/hr.
Praesideo 3.5 | Installation and User Instructions | 7 | System Hardware Installation
34 Preventive maintenance
The system requires minimum maintenance. To keep
the system in good condition, do the following:
34.1 Clean air inlets
The power amplifiers can collect dust as a result of the
internal fans. Once a year you should use a vacuum
cleaner to clean the air inlets of all units in the 19-inch
racks.
34.2 Change battery
The battery on the main board of the network controller
needs to be replaced before failure. Once every eight
years, change the battery. The battery is a 3.0 V type
CR2032. Unpower the unit before changing the battery.
After replacing the battery, the time and date settings of
the PRS-NCO-B will be lost and must be re-entered (see
section 5.6.8).
Bosch Security Systems | 2011-02
en | 307
Praesideo 3.5 | Installation and User Instructions | 7 | System Hardware Installation
Intentionally left blank.
Bosch Security Systems | 2011-02
en | 308
Praesideo 3.5 | Installation and User Instructions | 8 | Software
Part 8 - Software
Bosch Security Systems | 2011-02
en | 309
Praesideo 3.5 | Installation and User Instructions | 8 | Software
Intentionally left blank.
Bosch Security Systems | 2011-02
en | 310
Praesideo 3.5 | Installation and User Instructions | 8 | Software
35
PRS-SW Praesideo
Software DVD
35.1
Introduction
The PRS-SW Praesideo Software DVD contains the
Praesideo system software as well as the manuals and
freeware audio tools.
35.2
Starting the DVD
Put the PRS-SW Praesideo Software DVD in the DVD
drive of the configuration PC. If autorun is enabled for
the DVD drive, a screen similar to the one in figure 35.1
is opened in the web browser program. If the DVD
does not start automatically:
1 Go to Start > Run.
2 Enter X:\setup.exe. (Replace X with the character of
the DVD drive).
en | 311
36
Mandatory packages
36.1
Introduction
The mandatory software installation procedure consists
of the following steps:
1 Installation of all mandatory software packages on
the configuration PC (see section 36.2).
2 Establishing a connection between the configuration
PC and the network controller (see section 36.3).
3 Transferring system files from the configuration PC
to the network controller (see section 36.4).
4 Installing firmware on the network controller and
other system units (see section 36.5).
36.2
Installation on PC
36.2.1 Introduction
The following mandatory software packages must be
installed on the configuration PC:
• Praesideo core software (see section 36.2.2).
• SVG viewer (see section 36.2.3).
• Windows script (see section 36.3)
figure 35.1: Software installation page
35.3
Contents
35.3.1 Introduction
The software on the Praesideo DVD is divided in three
categories:
• Mandatory packages (see chapter 36).
• Recommended packages (see chapter 37).
• Optional packages (see chapter 38).
Bosch Security Systems | 2011-02
figure 36.1: Mandatory software packages page
Praesideo 3.5 | Installation and User Instructions | 8 | Software
en | 312
36.2.2 Praesideo core software
36.3
The Praesideo core software consists of the File Transfer
Application and all files that must be transferred to the
network controller and other units in the system.
Proceed as follows:
1 Start the PRS-SW Praesideo Software DVD (see
section 35.2). A screen similar to the one in figure
35.1 appears.
2 Go to Mandatory > Praesideo core x.yy.zzzz (where x.yy
is software release number and zzzz is the build
number). A File Download window appears.
3 Click the Run button to start the Praesideo core
software setup program.
4 Follow the instructions that are displayed on screen.
A notification is displayed when the installation is
finished.
After the mandatory software has been installed on the
configuration PC (see section 36.2), the configuration
PC must establish a connection with the network
controller to be able to transfer the system files to the
network controller and other units in the system (see
section 36.4). Proceed as follows:
1 If the network controller is connected to an existing
Ethernet, ask the network administrator for:
• An IP address for the network controller.
• A suitable subnet mask.
• The IP address of the default gateway for the
network controller.
2 Go to screen 2Ba of the menu display of the network
controller to set the IP address of the network
controller. See section 5.5 for the configuration
menu.
3 Go to screen 2Bb of the menu display of the network
controller to set the subnet mask of the network
controller.
4 Go to screen 2Bc of the menu display of the network
controller to set the default gateway for the network
controller.
5 Connect the network controller to an existing
Ethernet network or directly to the configuration PC.
6 On the configuration PC, go to Start > Run and enter
cmd to open a command prompt window.
7 Ping the network controller. For example, if the IP
address of the network controller is 192.168.0.15,
enter ping 192.168.0.15.
• If no connection is possible, a screen similar to
the one in figure 36.2 appears.
• If a connection can be established, a screen
similar to the one in figure 36.3 appears.
36.2.3 SVG viewer
The SVG viewer must be installed on the configuration
PC to be able to operate the audio processing part of the
web interface. Proceed as follows:
1 Start the PRS-SW Praesideo Software DVD (see
section 35.2). A screen similar to the one in figure
35.1 appears.
2 Go to Mandatory > SVG viewer. A File Download
window appears.
3 Click the Open button to start the SVG viewer setup
program. Follow the instructions that are displayed
on screen. A notification is displayed when the
installation is finished.
Establishing connection
Microsoft Windows 2000 [Version 5.00.2195]
(C) Copyright 1985-2000 Microsoft Corp.
C:\>ping 192.168.0.15
Pinging 192.168.0.15 with 32 bytes of data:
Request timed out
Request timed out
Request timed out
Request timed out
Ping statistics for 192.168.0.15:
Packets: Sent = 4, Received = 0, Loss = 4 (100% loss)
Approximate round trip in milli-seconds:
Minimum = 0 ms, Maximum = 0 ms, Average = 0 ms
figure 36.2: Incorrect communication
Bosch Security Systems | 2011-02
Praesideo 3.5 | Installation and User Instructions | 8 | Software
36.4
Upgrade system software
A number of the system files that have been installed on
the configuration PC (see section 36.2), must be
transferred to the network controller. Proceed as
follows:
Microsoft Windows 2000 [Version 5.00.2195]
(C) Copyright 1985-2000 Microsoft Corp.
C:\>ping 192.168.0.15
Pinging 192.168.0.15 with 32 bytes of data:
Reply from 192.168.0.15: bytes = 32 time<10 ms
Reply from 192.168.0.15: bytes = 32 time<10 ms
Reply from 192.168.0.15: bytes = 32 time<10 ms
Reply from 192.168.0.15: bytes = 32 time<10 ms
en | 313
TTL=128
TTL=128
TTL=128
TTL=128
Ping statistics for 192.168.0.15:
Packets: Sent = 4, Received = 4, Loss = 0 (0% loss)
1 Click the Upgrade system software button. A screen
similar to the one in figure 36.5 appears.
Approximate round trip in milli-seconds:
Minimum = 0 ms, Maximum = 0 ms, Average = 0 ms
figure 36.3: Correct communication
8 Go to Start > Programs > Bosch > Praesideo > FT
Application to start the Praesideo File Transfer
Application. A screen similar to the one in figure 36.4
appears.
figure 36.5: File transfer screen
2 Click the Upgrade now button. A notification is
displayed when the file transfer process is finished.
3 Switch the network controller off and then on to
restart.
figure 36.4: Connecting to the network controller
9 Enter the IP address of the network controller in the
NCO address field.
10 Enter the correct user name in the Username field and
the correct password in the Password field.
• If no software has been transferred to the network
controller before, the default user name is target
and the default password is password.
• If software has been transferred to the network
controller before, the default user name is admin
and the default password is admin.
11 Click the Connect to NC button to establish a
connection with the network controller. A
notification appears.
Bosch Security Systems | 2011-02
Praesideo 3.5 | Installation and User Instructions | 8 | Software
36.5
en | 314
Upgrade firmware
After the system files have been transferred to the
network controller (see section 36.4), the firmware files
must be installed on all units, including the network
controller. Installing new firmware will generate a fault
event (Unit Missing), since the units are temporarily
‘removed’ from the network. This fault is automatically
resolved and can be acknowledged and reset.
Note
All units must run the same firmware release.
Do not use the system or switch units on or off
while upgrading the firmware.
Proceed as follows:
1 On the configuration PC, start the web browser
program.
2 Enter the IP address of the network controller in the
address bar. Do not use leading zeros in the IP
address. For example, if the IP address that is
displayed on the network controller is
192.168.000.015, enter 192.168.0.15 in the address
bar. A screen similar to the one in figure 36.6
appears.
Note
If the network controller and PC are connected
to an existing Ethernet, which uses a proxy for
normal Internet traffic, it is possible that the
network controller cannot be reached. In that
case, disable the proxy server in Windows LAN
settings or add the name of the network
controller to the hosts file in the Windows
system directory and use this name for the
connection.
3 Select a language for the web interface at the bottom
of the page.
4 Click the Continue button to access the web interface.
A screen similar to the one in figure 36.7 pops up.
figure 36.7: Logon window
5 Enter the user name in the User Name field and the
password in the Password field and click OK to open
the web interface. A screen similar to the one in
figure 36.8 appears.
Note
The default user name is admin, the default
password is admin.
figure 36.6: Praesideo web interface home page.
Bosch Security Systems | 2011-02
Praesideo 3.5 | Installation and User Instructions | 8 | Software
en | 315
9 If the upgrade was not successful, try one or more of
the following actions:
• Restart the network controller.
• Power off/on the unit that failed.
• Refresh the webpage
• Upgrade unit firmware for all units in the Undefined
list.
• Upgrade unit firmware for all units with status
Incorrect version.
• Contact your local service department.
figure 36.8: Web interface start page.
6 Click the Upgrade unit firmware button in the
navigation bar to open the Upgrade unit firmware
menu. A screen similar to the one in figure 36.9
appears. The title of the page shows the release
number of the firmware that the system expects. The
release number of the firmware that is currently
running is shown in the Firmware version field.
Note
It is not possible to upgrade firmware within 5
minutes upon start-up of the network controller.
7 Click the Upgrade unit firmware buttons in the Upgrade
unit firmware field to upgrade the firmware of the
units. The progress of the upgrading process is
displayed in the Progress field.
Note
The PRS-FINNA Fiber Interface does not
contain firmware and is not recognized in the
system. Only PRS-FIN(S) Fiber Interfaces are
shown in the configuration pages.
8 In case of faults, click Undefined in the navigation
bar of the web interface to view a list of all units for
which the firmware upgrade failed. Disconnect and
connect these units again and refresh or reload the
Undefined page before retrying to upgrade the
software.
Bosch Security Systems | 2011-02
figure 36.9: Upgrade unit firmware page
Praesideo 3.5 | Installation and User Instructions | 8 | Software
36.6
Clear logging events
After the system has been configured with the
configuration software (see chapter 40), the File Transfer
Application can be used to delete all logging events from
the network controller in order to deliver a system with
a clean logging database to the customer. Proceed as
follows:
1 Click the Clear logging button in the navigation bar. A
screen similar to the one in figure 36.10 appears.
figure 36.10: Clear logging
2 If the fault events must be deleted from the network
controller, put a check mark in the Fault events check
box.
3 If the general events must be deleted from the
network controller, put a check mark in the General
events check box.
4 If the call events must be deleted from the network
controller, put a check mark in the Call events check
box.
5 Click the Apply button and restart the system to
delete the selected type of events from the network
controller.
Bosch Security Systems | 2011-02
en | 316
Praesideo 3.5 | Installation and User Instructions | 8 | Software
37
37.1
Recommended packages
Introduction
There is no specific installation procedure for the
recommended packages. However, it is advised to
install Adobe reader first (see section 37.2). The
recommended packages do not have to be installed on
the configuration PC; they can be installed on any PC.
37.2
Adobe reader
The Acrobat reader must be installed to view the release
notes and manuals. Proceed as follows:
1 Start the PRS-SW Praesideo Software DVD (see
section 35.2). A screen similar to the one in figure
35.1 appears.
2 Click the Recommended link. A screen similar to the
one in figure 37.1 appears.
figure 37.1: Recommended software packages page
3 Click the Acrobat reader x.x hyperlink (where x.x is the
version). A File Download window appears.
4 Click the Open button to start the Acrobat reader setup
program. Follow the instructions that are displayed
on screen. A notification is displayed when the
installation is finished.
37.3
Release notes
The release notes contain last minute changes and
remarks in the Adobe Portable Document Format (PDF). To
view the document, Acrobat Reader (see section 37.2) is
required.
Bosch Security Systems | 2011-02
37.4
en | 317
Manuals
The installation and user instructions are available as a
digital document in the Adobe Portable Document Format
(PDF). All references to pages, figures, tables, etc. in this
digital document contain hyperlinks to the referenced
location. To view the document, Acrobat reader (see
section 37.2) is required.
Praesideo 3.5 | Installation and User Instructions | 8 | Software
38
Optional packages
The optional packages (see figure 38.1) can be installed
on any PC that meets the requirements that are put on it
by the applications themselves. See chapter 55 and
further for more detailed descriptions of the optional
packages.
figure 38.1: Optional software packages page
Bosch Security Systems | 2011-02
en | 318
Praesideo 3.5 | Installation and User Instructions | 8 | Software
39 Troubleshooting
39.1 Introduction
Several web browser settings are relevant to the proper
functioning of the configuration web pages of the
Praesideo system. The most important ones are the
security settings and connections settings. Note that
these settings can also be modified or limited by the
network administrator, who is responsible for the
network and/or PC that is used for configuring the
Praesideo system.
39.2 Security settings
Security settings can prevent for example the execution
of the SVG viewer in Internet Explorer, which is
needed to display the equalizer response on the web
page. The preferable solution is to add the Praesideo
system to the list of the trusted sites, by entering the IPnumber of its network controller. This list can be found
via Start > Control Panel > Internet Options....> Security >
Sites. Here, you can also lower the protection level for
these trusted sites. The protection level for non-listed
sites is not affected.
39.3 Connections
The Local Area Network settings (Start > Control Panel >
Internet Options....> Connections > LAN Settings…) can
influence the ability to fully access the Praesideo system.
Because of security considerations Praesideo only
accepts one connection at the same time. When a Proxy
server is used, it can not be guaranteed that always the
same connection will be used. Therefore the address of
the Praesideo system should be defined as local address
in the Proxy server configuration. This is typically done
in the configuration script provided by the network
administrator, or the Proxy server should be disabled
altogether.
Other possible sources of problems are virus checkers,
popup blockers, anti spyware software and firewalls. Try
to disable this type of software during the Praesideo
configuration or configure it in such a way that it accepts
the Praesideo system as a trusted site.
Bosch Security Systems | 2011-02
en | 319
Praesideo 3.5 | Installation and User Instructions | 8 | Software
Intentionally left blank.
Bosch Security Systems | 2011-02
en | 320
Praesideo 3.5 | Installation and User Instructions | 9 | System Configuration
Part 9 - System Configuration
Bosch Security Systems | 2011-02
en | 321
Praesideo 3.5 | Installation and User Instructions | 9 | System Configuration
Intentionally left blank.
Bosch Security Systems | 2011-02
en | 322
Praesideo 3.5 | Installation and User Instructions | 9 | System Configuration
40
Configuration software
40.1
Introduction
The network controller is equipped with a web
interface. The web interface is accessible using the
configuration PC connected to the network controller
and can be used to configure and diagnose the
Praesideo system.
Note
The web interface is not factory installed on the
network controller. Putting the web interface on
the network controller is part of the software
installation process (see chapter 35).
40.2
en | 323
figure 40.2: Logon window
5 Enter the user name in the User Name field, enter the
password in the Password field and click OK to open
the web interface. A screen similar to the one in
figure 40.3 appears.
Starting and logging on
Proceed as follows to log on to the web interface:
1 Start a web browser program on the configuration
PC.
2 Enter the IP address of the network controller in the
address bar. A screen similar to the one in figure 40.1
appears.
figure 40.3: Web interface elements
Note
The default user name is admin, the default
password is admin. The password can be
changed by adding a new user with
administrator rights and then deleting the
default user (see section 41.3 and 41.4).
figure 40.1: Home page of the Praesideo web interface
3 Select a language for the web interface at the bottom
of the page.
4 Click the Continue button to access the web interface.
A screen similar to the one in figure 40.2 pops up.
Bosch Security Systems | 2011-02
40.3
Overview
The web interface (see figure 40.3) contains the
following elements:
• Configure - A button that opens the configuration
section of the web interface (see section 40.4).
• Diagnose - A button that opens the diagnostics
section of the web interface (see section 50).
Praesideo 3.5 | Installation and User Instructions | 9 | System Configuration
•
•
Upgrade - A button that opens the upgrade
firmware part of the web interface (see section 40.6).
Main frame - A frame that displays the requested
page. See chapter 41 to 48 for descriptions of the
screens in the Configure section and chapter 50 for a
description of the page in the Diagnose section.
•
•
•
40.4
Configure section
40.4.1 Introduction
Using the Configure section of the web interface, the
Praesideo system can be configured. The order of the
menu items in the Configure section, which is opened
when the Configure button is clicked (see figure 40.4),
represents the recommended workflow for configuring a
Praesideo system.
•
•
•
•
Configure
•
User management
System definition
Equipment configuration
System wide settings
Zone & amplifier
Call characteristics
Action programming
Audio processing
Save
figure 40.4: Configure section
40.4.2 Overview
The Configure section contains the following groups of
pages (see figure 40.4):
• On the User management pages, the accounts that
provide access to the Praesideo web interface can be
managed (see chapter 41).
Bosch Security Systems | 2011-02
en | 324
On the System definition pages, the equipment of
which the system consists can be registered (see
chapter 42).
On the Equipment configuration pages, each piece of
equipment that has been added using the System
definition pages can be configured (see chapter 43).
On the System wide settings pages, a number of
general, system wide settings can be configured (see
chapter 44).
On the Zone & amplifier pages, the zones and
amplifiers can be configured (see chapter 46).
On the Call characteristics pages, call macros can be
defined (see chapter 46).
On the Action programming pages, the keys of the
keypads and the control inputs can be configured.
(see chapter 47).
On the Audio processing pages, the audio processing
parameters of the audio inputs and outputs in the
system can be set (see chapter 48).
On the Save page, the current configuration can be
saved (see section 40.4.5).
40.4.3 Off-line configuration
It is possible to carry out the configuration of the
Praesideo system off-line or edit the existing
configuration off-line using the configuration PC:
1 Go to Start > (All) Programs > Bosch > Praesideo > FT
Application to start the Praesideo File Transfer
application.
2 Click the Offline Config button. A window appears in
which the configuration file that will be used for the
offline configuration, can be chosen. It is also
possible to create a new, empty configuration file.
The default subdirectory is <data
directory>\Bosch\Praesideo
<release>\Programs\FT Application, the default
filename is Praesideo.cfg. The location of the <data
directory> depends on the operating system. In an
English Windows XP, it is in Documents and
settings\<user>\My documents\ and in an English
Windows Vista or Windows 7, it is in
Users\<user>\Documents\.
After clicking the OK button, a screen similar to the one
in figure 40.1 appears. Logging on to the off-line version
of the web interface is similar to logging on to the ‘real’
web interface.
Praesideo 3.5 | Installation and User Instructions | 9 | System Configuration
en | 325
40.4.4 Submitting
Each page in the Configure section of the web interface
contains a Submit button. Always click this button after
making changes, otherwise the changes are lost.
Clicking the Submit button, however, does not mean
that the changes are saved (see section 40.4.5).
40.4.5 Saving
Proceed as follows to save the current configuration:
1 Go to Configure > Save. Then a (limited) confidence
check on the configuration is executed automatically.
Now there are three different possibilities:
• When there are no issues found, and the configuration is done on-line, three buttons are displayed to
enable the user to Save the configuration, Restart the system or Save the configuration and restart the system. See
figure 40.5. When the configuration file is saved to the
network controller, the configuration is not activated
until the network controller is restarted. If the new
configuration must be saved and activated, click the
Save the configuration and restart the system button.
figure 40.5: Save window
• When there are no issues found, and the configuration is done off-line, only one button is displayed to
enable the user to Save the configuration. Restarting the
system is not possible when off-line. In case of an
off-line configuration, by default the configuration file
is saved in the Program Files\Bosch\Praesideo\target\rfa\cfg
folder of the configuration PC, but other locations are
also possible. This file can be transferred to the network controller using the File Transfer application.
• When there are issues found, a message is displayed indicating there are configuration issues to be
resolved first. Still it is possible to ignore the errors
and save the configuration anyway to continue the
configuration at a later time. Only one button is displayed: Ignore errors and save configuration. See figure
40.6.
Bosch Security Systems | 2011-02
figure 40.6: Ignore errors and save configuration window
2 Click the Save Configuration and restart the system
button to activate the new configuration. The
network controller will be restarted.
The Save Configuration and restart the system button is
used for activating a new configuration that has been
made on-line. But if a new configuration file has
been made off-line and has been copied to the
network controller then the Save Configuration and
restart the system button should not be used because
the network controller would only reload the existing
(unchanged) configuration file. Instead click the
Restart the system button or switch the network
controller off and on again, then the network
controller will load the replaced configuration file.
Note
In Praesideo release 3.4 the processor reset
identification has been extended for compliancy
reasons. However this software modification will
flag a Processor reset fault for all connected
units when performing a Save the configuration
and restart the system. This will happen for
network controllers with a hardware release
version HW 20.00 or older. These faults do not
indicate a real fault, but are just the result of the
restart-action and can safely be acknowledged
and reset. From version HW 20.01 onwards, the
network controller contains a circuit
modification to prevent these unnecessary
Processor reset faults.
Praesideo 3.5 | Installation and User Instructions | 9 | System Configuration
en | 326
40.4.9 Undo changes
Note
Audio processing parameters are changed
immediately when the Submit Equalizer button
on the Audio Processing pages is clicked.
Although the changes are audible, it is important
to realize that they are not automatically saved. If
the changes are not saved they will be lost
when the network controller is reset.
Most pages of the Configure section contain a Cancel
button. By clicking the Cancel button, any changes made
on the pages are cancelled.
Note
Restart the network controller without saving
the changes. to undo all changes.
40.4.10 Enabled items
40.4.6 Allowed characters
When entering names for units, inputs, outputs,
messages, zones, zone groups, etc., make sure that only
the following characters are used:
• letters: A to Z and a to z
• numbers: 0 to 9
• special: # . ( ) [ ] _ - + : and <space>
Note
All other characters are not allowed.
40.4.7 Unique names
When entering names for units, inputs, outputs,
messages, zones, zone groups, etc., make sure that all
entered names are unique. It is not allowed to use a
name for more than one item. The name must not only
be unique within a group of items (e.g. unit names), but
also within the complete system configuration (e.g. zone
groups must have different names than zones). Names
that are not unique cause inconsistencies in the
configuration database. In turn, these inconsistencies
can result in unpredictable system behavior.
40.4.8 Initial values
When the value of a parameter of a configuration item
is <None>, the parameter has no value yet. For example,
when the Action programming page of a Call macro key is
opened for the first time (see section 47.3.7), the value in
the Call macro field is <None>.
Configuration items can be enabled and disabled with a
checkbox. If a configuration item is enabled, the system
is able to generate a fault event when a fault occurs. If a
configuration item is disabled, the system cannot
generate a fault event when a fault occurs. The web
interface puts disabled configuration items in brackets in
selection lists. For example, the disabled configuration
item AudioIn01 is displayed as (AudioIn01) in selection
lists.
40.4.11 Deleting items
When a configuration item is deleted, all configuration
items that are related to the deleted configuration item
are also deleted. For example, when a power amplifier
is deleted from the system definition (see section 42.4),
all audio outputs of the power amplifier are also no
longer part of the configuration.
40.4.12 Audio inputs and outputs
It is not allowed to use audio inputs and outputs for
more than one purpose, since this can cause
inconsistencies in the configuration database. In turn,
these inconsistencies can result in unpredictable system
behavior. For example:
• If an audio input is already part of a call macro (see
section 46.2), it is not allowed to use the audio input
in a BGM channel (see section 45.5).
• Audio outputs of a power amplifier cannot be
assigned to more than one zone.
40.4.13 Downloading configuration
When the value of a parameter of a configuration item
is <Default>, the parameter is set to its default value. For
example, if the audio input of a call macro (see section
46.2) is <Default>, the configured audio input is the
microphone of the call station that started the call
macro.
Bosch Security Systems | 2011-02
The configuration database can be downloaded to a PC
(see chapter 56).
Praesideo 3.5 | Installation and User Instructions | 9 | System Configuration
40.4.14 Configuration printing utility
The mandatory Praesideo software (see section 36.1)
also installs a configuration printing utility. This utility
can read information from configuration files of version
1.1 and higher. The configuration printing utility shows
the information on screen in a formatted way to check
and/or archive the configuration on paper.
figure 40.7: Configuration printing utility
40.5
Diagnose section
Using the Diagnose section, the system installation and
configuration consistency can be diagnosed (see chapter
50).
40.6
Upgrade section
Using the Upgrade unit software section, the firmware of
the units in the Praesideo system can be transferred
from the network controller to the units (see chapter
36.5).
Bosch Security Systems | 2011-02
en | 327
Praesideo 3.5 | Installation and User Instructions | 9 | System Configuration
41
41.1
User management
Introduction
On the User Management pages, the accounts can be
managed that provide access to the:
• Praesideo web interface
• Praesideo Open Interface
• File Transfer application
• Logging Viewer
• Call stations with numeric keypad
Using the User Management pages, it is possible to:
• Add a user (see section 41.3).
• Delete a user (see section 41.4).
User management
Add
Delete
figure 41.1: User management pages
Bosch Security Systems | 2011-02
41.2
en | 328
Accounts
To access the web interface, an account is needed. An
account consists of a user name, a password and an
authorization level. The authorization level defines to
which part of the web interface access is granted. The
web interface provides the following authorization
levels:
• Administrator
Administrators have access to all parts of the web
interface including the User Management part.
• Installer
Installers have access to all parts of the web interface
except the User Management part.
• User
Users have access to the Logging Viewer (see chapter
57).
Praesideo 3.5 | Installation and User Instructions | 9 | System Configuration
41.3
en | 329
Add a user
Proceed as follows to add a new user (i.e. create a new
account):
Note
Only Administrators can create new accounts.
1 Go to Configure > User management > Add. A screen
similar to the one in figure 41.2 appears in the main
frame of the web interface.
figure 41.3: Add user, step 2 - 4
5 Click the OK button to activate the new account. A
screen similar to the one in figure 41.4 appears in the
main frame of the web interface.
figure 41.2: Add user, step 1
2 Enter the user name for the new user in the User id
field. It can contain up to 16 characters. For example,
johndoe (see figure 41.3).
3 Select the authorization level for the new user in the
Group column. The authorization level defines to
which part of the Praesideo web interface access is
granted (see section 41.2).
4 Enter the password for the new user in the Password
field. It can contain up to 16 characters. For example,
password (see figure 41.3).
Note
Use a password of at least 5 characters. It is
important that a password is not easy to guess,
since it safeguards unauthorized access to the
system that could result in unsafe system
configuration.
Bosch Security Systems | 2011-02
figure 41.4: Add user, step 5
Note
If the user account is used to control access to
a call station that has a numeric keypad, the
user name and password can only contain digits
(0...9), because the keypad does not have
alphabetic keys (a...z).
Praesideo 3.5 | Installation and User Instructions | 9 | System Configuration
41.4
Delete a user
Proceed as follows to delete a user (i.e. delete an existing
account):
en | 330
2 Check the box in front of the account that has to be
deleted (see figure 41.6).
Note
Only Administrators can delete existing
accounts.
Note
An Administrator account cannot delete its own
account.
Note
For security reasons, it is advisable to first
create a new Administrator account and then
delete the default Praesideo Administrator
account (i.e. the admin/admin account).
figure 41.6: Delete user, step 2.
3 Click the Delete button to delete the account. A
screen similar to the one in figure 41.7 appears in the
main frame of the web interface. This screen does
not contain the deleted account anymore.
1 Go to Configure > User management > Delete. A screen
similar to the one in figure 41.5 appears in the main
frame of the web interface.
figure 41.7: Delete user, step 3
figure 41.5: Delete user, step 1
Bosch Security Systems | 2011-02
Praesideo 3.5 | Installation and User Instructions | 9 | System Configuration
42
42.1
en | 331
System definition
42.2
Introduction
Each Praesideo unit has a serial number, which is
needed to register the unit in the system. The serial
number is on the unit label on the unit (see figure 42.2).
On the System definition pages, the equipment of which
the system consists can be registered. Using the System
definition pages, it is possible to register (add) and
unregister (delete) the following pieces of equipment:
• Network controller (see section 42.3).
• Power amplifiers (see section 42.4).
• Call stations (see section 42.5).
• Audio expanders (see section 42.6).
• Fiber interfaces (see section 42.7).
• CobraNet interfaces (see section 42.8).
• TCP/IP devices (see section 42.9).
• Multi channel interface (see section 42.10).
• Call stacker (see section 42.11).
Note
Equipment that is not listed in the System
Definition pages, does not have to be
configured (e.g. network splitters).
System definition
Network controller
Power amplifier
Call station
Audio expander
Fiber interface
CobraNet interface
TCP/IP device
Multi channel interface
Call stacker
figure 42.1: System definition pages
Bosch Security Systems | 2011-02
Serial numbers
LBB4421/10
S-NR 0B002188
WK : 0640
100-240 V~ 50-60 Hz
800 VA 700 W
HW02/06
Made in Holland
figure 42.2: Unit label
Praesideo 3.5 | Installation and User Instructions | 9 | System Configuration
The hexadecimal serial number of a unit consists of 8
digits ranging from 0 to F. The combination of the first
and second digit identifies the type of unit.
table 42.1: Serial number ranges (addressable units)
Type no.
Description
ID
PRS-NCO-B
Network Controller
11
PRS-16MCI
Multi Channel Interface
1B
LBB4402/00
Audio Expander
12
LBB4404/00
CobraNet Interface
1C
PRS-NSP
Network Splitter
14
PRS-FIN(S)
Fiber Interface
15
PRS-FINNA
PRS-1P500
Power Amp. 1 x 500 W
0B
PRS-2P250
Power Amp. 2 x 250 W
0A
PRS-4P125
Power Amp. 4 x 125 W
09
LBB4428/00
Power Amp. 8 x 60 W
08
LBB4430/00
Call Station Basic
0C
LBB4433/00
Call Station Kit
0E
PRS-CSI
Remote Call Station
1D
(Call Station Interface)
PRS-CRF
Call Stacker
1F
Note
If the real serial number is not (yet) known, the
temporary serial number 0 can be used for all
units. In this way, most of the configuration can
be done off-line already. Communication with
actual units in the system is only possible when
the temporary serial numbers have been
replaced by the real serial numbers. Units in the
configuration with the serial number 0 are
ignored by the actual system in operation.
42.3
en | 332
Network controller
Proceed as follows to register the network controller:
1 Go to Configure > System definition > Network controller.
A screen similar to the one in figure 42.3 appears in
the main frame of the web interface.
figure 42.3: Register network controller, step 1
2 Enter a name for the network controller in the Name
field.
Note
The name is also shown on the display of the
network controller.
3 Enter the hexadecimal serial number of the network
controller in the Serial number field.
4 When the network controller is physically present, it
can be enabled by ticking the Enabled checkbox.
Note
The serial number itself is not checked.
However, the software checks that all entered
characters are hexadecimal characters and that
the serial number is 8 characters long or is 0.
5 Submit the changes. Note that the changes are not
permanent until the configuration is saved. (see
section 40.4.4 and section 40.4.5).
Bosch Security Systems | 2011-02
Praesideo 3.5 | Installation and User Instructions | 9 | System Configuration
42.4
Power amplifier
42.4.1 Add a power amplifier
Proceed as follows to add a power amplifier to the
system configuration:
1 Go to Configure > System definition > Power amplifier.
A screen similar to the one in figure 42.4 appears in
the main frame of the web interface.
figure 42.4: Add power amplifier, step 1
2 Click the Add button to add a new power amplifier to
the system. A screen similar to the one in figure 42.5
appears in the main frame of the web interface.
en | 333
3 Enter the data of the power amplifier (see figure 42.7
for an example).
• Enter a name for the power amplifier in the Name
field. The name may consist of up to 10
characters. The name is also shown on the
display of the power amplifier.
• Select the type of power amplifier from the Type
dropdown list.
• Select the purpose of the power amplifier from
the Purpose dropdown list (Main PAM for a main
amplifier, Spare PAM for a spare amplifier).
• Enter the hexadecimal serial number of the
power amplifier in the Serial number field. See
section 42.2 for information about serial
numbers.
Note
It is advised to include the name of the assigned
zone(s) in the naming of a power amplifier. By
doing so, error messages can be directly related
to the applicable power amplifiers.
Note
The serial number itself is not checked.
However, the software checks that all entered
characters are hexadecimal characters and that
the serial number is 8 characters long or is 0.
figure 42.5: Add power amplifier, step 2
figure 42.6: Add power amplifier, step 3
Bosch Security Systems | 2011-02
Praesideo 3.5 | Installation and User Instructions | 9 | System Configuration
4 Click the OK button to add the power amplifier to
the list of power amplifiers in the system. A screen
similar to the one in figure 42.7 appears in the main
frame of the web interface.
figure 42.7: Add power amplifier, step 4
5 When the power amplifier is physically present, it
can be enabled by ticking the Enabled checkbox.
6 Submit the changes. Note that the changes are not
permanent until the configuration is saved (see
section 40.4.4 and section 40.4.5).
en | 334
2 Click anywhere in the row of the power amplifier
that has to be deleted from the system definition.
The entire row is highlighted (see figure 42.9).
figure 42.9: Delete power amplifier, step 2
3 Click the Delete button. A screen similar to the one in
figure 42.10 appears in the main frame of the web
interface.
42.4.2Delete a power amplifier
Proceed as follows to delete a power amplifier from the
system definition:
Note
It is not recommended to delete a unit if its
inputs or outputs are being used in for example
the Zone & Amplifier or Action Programming
pages. However, if a unit is deleted, all of its
inputs and outputs will be removed from the
configuration (e.g. from macros and zones).
1 Go to Configure > System definition > Power amplifier.
A screen similar to the one in figure 42.8 appears in
the main frame of the web interface.
figure 42.10: Delete power amplifier, step 3
4 Click the OK button to delete the power amplifier
from the system definition. A pop-up window asks
for confirmation.
5 Click the OK button to confirm the pop-up message.
A screen similar to the one in figure 42.11 appears in
the main frame of the web interface. The deleted
power amplifier is no longer listed in the table.
figure 42.11: Delete power amplifier, step 5
figure 42.8: Delete power amplifier, step 1
Bosch Security Systems | 2011-02
Praesideo 3.5 | Installation and User Instructions | 9 | System Configuration
6 Submit the changes. Note that the changes are not
permanent until the configuration is saved (see
section 40.4.4 and section 40.4.5).
42.5
Call station
en | 335
42.5.2 Delete a call station
Deleting a call station from the system definition is
similar to deleting a power amplifier (see section 42.4.2).
Go to Configure > System definition > Call station, select
the call station that has to be deleted and click the Delete
button.
42.5.1 Add a call station
Adding a call station to the system definition is similar
to adding a power amplifier (see section 42.4.1). Go to
Configure > System definition > Call station, click the Add
button and:
• Enter a name for the call station in the Name field.
The name may consists of up to 16 characters.
• Select the type of call station from the Call station type
dropdown list (see table 42.2).
table 42.2: Call station types
Model
Type
LBB4430/00
Basic
LBB4433/00
Basic kit
PRS-CSR
Remote
PRS-CSRK
Remote kit
•
•
•
42.6 Audio expander
42.6.1 Add an audio expander
Adding an audio expander to the system definition is
similar to adding a power amplifier (see section 42.4.1).
Go to Configure > System definition > Audio expander, click
the Add button and:
• Enter a name for the audio expander in the Name
field. The name may consist of up to 16 characters.
The name is also shown on the display of the audio
expander.
• Enter the hexadecimal serial number of the audio
expander in the Serial number field.
If an numeric keypad is connected to the call station,
tick the Numeric keypad box.
Select the number of connected extensions (keypads)
from the extension dropdown list.
Enter the hexadecimal serial number of the call
station in the Serial number field. For the remote call
station or remote call station kit, enter the serial
number of the connected call station interface.
figure 42.13: Audio expander definition
42.6.2 Delete an audio expander
Deleting an audio expander from the configuration is
similar to deleting a power amplifier (see section 42.4.2).
Go to Configure > System definition > Audio expander,
select the audio expander that has to be deleted and
click the Delete button.
figure 42.12: Call station definition
Bosch Security Systems | 2011-02
Praesideo 3.5 | Installation and User Instructions | 9 | System Configuration
42.7
Fiber interface
42.8
en | 336
CobraNet interface
42.7.1 Add a fiber interface
42.8.1 Add a CobraNet interface
Adding a fiber interface to the system definition is
similar to adding a power amplifier (see section 42.4.1).
Go to Configure > System definition > Fiber interface, click
the Add button and:
Adding a CobraNet interface to the system definition is
similar to adding a power amplifier (see section 42.4.1).
Go to Configure > System definition > CobraNet interface,
click the Add button and:
• Enter a name for the CobraNet interface in the Name
field. The name may consist of up to 16 characters.
The name is also shown on the display of the
CobraNet interface.
• Enter the hexadecimal serial number of the
CobraNet interface in the Serial number field.
Note
Only PRS-FIN(S) Fiber Interfaces have to be
configured. PRS-FINNA Fiber Interfaces cannot
be configured.
•
•
Enter a name for the fiber interface in the Name field.
The name may consist of up to 16 characters.
Enter the hexadecimal serial number of the fiber
interface in the Serial number field.
figure 42.15: CobraNet interface definition
42.8.2 Delete a CobraNet interface
figure 42.14: Fiber interface definition
42.7.2 Delete a fiber interface
Deleting a fiber interface from the system definition is
similar to deleting a power amplifier (see section 42.4.2).
Go to Configure > System definition > Fiber interface, select
the fiber interface that has to be deleted and click the
Delete button.
Bosch Security Systems | 2011-02
Deleting a CobraNet interface from the system
definition is similar to deleting a power amplifier
(see section 42.4.2). Go to Configure > System definition >
Cobranet interface, select the CobraNet interface that has
to be deleted and click the Delete button.
Praesideo 3.5 | Installation and User Instructions | 9 | System Configuration
42.9
TCP/IP device
42.9.1 Add a TCP/IP device
TCP/IP devices can access the system through the open
interface. When a TCP/IP device is added to the system
definition, it becomes a part of the system and can be
supervised.
Note
Supervised TCP/IP devices must be active
when the system is active. Otherwise, the
system generates a fault event.
Adding a TCP/IP device to the system definition is
similar to adding a power amplifier (see section 42.4).
Go to Configure > System Definition > TCP/IP device, click
the Add button and:
• Enter a name for the TCP/IP device in the Name
field. The name may consist of up to 16 characters.
• Enter the IP address of the TCP/IP device in the IP
address fields.
• Use the Connection supervision list to specify if the
connection to the TCP/IP device must be supervised
(On) or not (Off).
figure 42.16: TCP/IP device definition
Bosch Security Systems | 2011-02
en | 337
TCP/IP devices that are not added to the system
definition can also connect to the Praesideo system
through the open interface when the Access permission for
non-configured TCP/IP devices is set to Yes (see section
44.4). However, the connection of such a TCP/IP
device to the system is not supervised.
Note
A maximum of 5 TCP/IP devices with an open
interface access (refer to chapter 54, Open
Interface) can be used with a network controller,
irrespective of being a system element,
supervised or neither. TCP/IP devices can be a
PC call server or a logging server. The
configuration web browser uses a different port
(port 80) for the connection and is not part of
this limitation.
42.9.2 Delete a TCP/IP device
Deleting a TCP/IP device from the system definition is
similar to deleting a power amplifier (see section 42.4.2).
Go to Configure > System definition > TCP/IP device, select
the TCP/IP device that has to be deleted and click the
Delete button.
Praesideo 3.5 | Installation and User Instructions | 9 | System Configuration
en | 338
42.10 Multi Channel Interface
42.11 Call Stacker
42.10.1 Add a multi channel interface
42.11.1 Add a call stacker
Adding a multi channel interface to the system
definition is similar to adding a power amplifier (see
section 42.4.1.). Go to Configure > System definition >
Multi ch interface, click the Add button and:
• Enter a name for the multi channel interface in the
Name field. The name may consists of up to 16
characters.
• Enter the hexadecimal serial number of the
Multi Channel Interface in the Serial number field.
Adding a call stacker to the system definition is similar
to adding a power amplifier (see section 42.4.1.). Go to
Configure > System definition > Call stacker, click the Add
button and:
• Enter a name for the call stacker in the Name field.
The name may consists of up to 16 characters.
• Enter the hexadecimal serial number of the call
stacker in the Serial number field.
figure 42.18: Call stacker definition
figure 42.17: Multi channel interface definition
42.11.2 Delete a call stacker
42.10.2 Delete a multi channel interface
Deleting a multi channel interface from the system
definition is similar to deleting a power amplifier (see
section 42.4.2). Go to Configure > System definition >
Multi ch interface, select the multi channel interface that
has to be deleted and click the Delete button.
Deleting a call stacker from the system definition is
similar to deleting a power amplifier (see section 42.4.2).
Go to Configure > System definition > Call stacker, select
the call stacker that has to be deleted and click the Delete
button.
Note
When the last call stacker is removed from a
configured system, all call macros that use a call
stacker for their routing and timing schemes will
be updated to the default schemes.
Bosch Security Systems | 2011-02
Praesideo 3.5 | Installation and User Instructions | 9 | System Configuration
43
Equipment configuration
43.1
Introduction
On the Equipment configuration pages, each piece of
equipment that has been added using the System
definition pages can be configured. Using the Equipment
configuration pages, it is possible to configure:
• Network controllers (see section 43.2).
• Power amplifiers (see section 43.3).
• Call stations (see section 43.4).
• Audio expanders (section 43.5).
• Fiber interfaces (see section 43.6).
• CobraNet interfaces (see section 43.7).
• Multi Channel Interfaces (see section 43.8).
Equipment configuration
Network controller
Power amplifier
43.2
en | 339
Network controller
43.2.1 Procedure
Proceed as follows to configure the network controller:
1 Go to Configure > Equipment configuration > Network
controller. A screen similar to the one in figure 43.2
appears in the main frame of the web interface.
figure 43.2: Configure network controller, step 1
2 Click the name of the network controller that must
be configured. A screen similar the one in figure 43.3
appears in the main frame of the web interface.
Call station
Audio expander
3
5
4
6
Fibre interface
Cobranet interface
Multi channel interface
figure 43.1: Equipment configuration pages
Bosch Security Systems | 2011-02
figure 43.3: Configure network controller, step 2
3 Open the General category to configure the power
supervision settings.
(see section 43.2.2).
4 Open the Audio inputs category to configure the
audio inputs of the network controller
(see section 43.2.3).
5 Open the Audio outputs category to configure the
audio outputs of the network controller
(see section 43.2.4).
6 Open the Control inputs category to configure the
control inputs of the network controller
(see section 43.2.5).
7 Open the Control outputs category to configure the
control outputs of the network controller
(see section 43.2.6).
Praesideo 3.5 | Installation and User Instructions | 9 | System Configuration
en | 340
8 Submit the changes. Note that the changes are not
permanent until the configuration is saved
(see section 40.4.4 and section 40.4.5).
43.2.2 General
3
4
5
6
figure 43.4: Configure network controller, step 3
table 43.1: General configuration
Item
Value
Mains power
On
supervision
Off
Back-up power
supervision
On
Off
Bosch Security Systems | 2011-02
Description
Specifies whether the mains power must be supervised.
When Mains power supervision is On and the mains
power is failing, a fault event is generated. Setting Mains
Power Supervision to Off when mains power is used,
results in a system that does not detect mains power
failures.
Specifies whether the back-up power must be supervised.
When Back-up power supervision is On and the back-up
power is failing, a fault event is generated. Setting
Back-up power supervision to Off when back-up power is
used, results in a system that does not detect back-up
power failures.
Praesideo 3.5 | Installation and User Instructions | 9 | System Configuration
en | 341
43.2.3 Audio inputs
figure 43.5: Configure network controller, step 4
Caution
Only set Phantom to On for condenser
microphones connected to the XLR connector
of the audio input.
table 43.2: Audio inputs configuration
Item
Value
Input
Audio type
Input gain
Input function
Line
Microphone
-8 to 7 dB (mic)
0 to 12 dB (line)
Auxiliary
AVC
Phantom
On, Off
Connection supervision
On, Off
Bosch Security Systems | 2011-02
Description
Unique name for the audio input. The input can be enabled
and disabled using the checkbox.
Sets the type of audio source. This is either line (Line) or
microphone (Microphone).
Sets the input gain for the XLR input and for the Cinch
input (line only), with reference to the nominal input level.
Sets the microphone function. Auxiliary microphones
(Auxiliary) can be used to make calls. AVC microphones
(AVC) are used to measure the ambient noise level. Note
that microphones that are connected to the network
controller or audio expander are not supervised. If
supervision is required, connect the microphone to a
power amplifier.
Specifies whether the microphone receives a phantom
supply (On) or not (Off). This item is only available if (2)
has been set to Microphone. The phantom supply is only
active when the microphone input is activated for a call.
Specifies whether the 20 kHz pilot tone detector of the
input is enabled (On) or disabled (Off). This function is only
available if the Audio type is set to Line. It provides cable
and connection supervision if the source uses a pilot tone.
Praesideo 3.5 | Installation and User Instructions | 9 | System Configuration
en | 342
43.2.4 Audio outputs
figure 43.6: Configure network controller, step 4
table 43.3: Audio outputs configuration
Item
Value
Output
Level
-18 to 12 dB
Pilot tone
On, Off
Pilot tone level
-38 to -18 dB
Bosch Security Systems | 2011-02
Description
Unique name for the audio output. The output can be
enabled and disabled using the checkbox.
Sets the output level for the XLR and Cinch output, with
reference to the nominal output level.
Switches the 20 kHz pilot tone on (On) or off (Off). The
pilot tone is used to supervise the analog audio
connection to another public address system or device.
The supervision and fault reporting should be done by that
subsequent system or device (e.g. Bosch Intellivox
loudspeaker).
Sets the level for the pilot tone, with reference to the
nominal output level.
Praesideo 3.5 | Installation and User Instructions | 9 | System Configuration
en | 343
43.2.5 Control inputs
figure 43.7: Configure network controller, step 5
table 43.4: Control inputs configuration
Item
Value
Input
Act on contact
Function
Break
Make
Various
Supervision
On, Off
Actions
1..5
Multiple calls can be started or stopped from a single
control input or keypad key.
• This applies to Call activation inputs/keys, Start
inputs/keys and Stop inputs/keys.
• Up to five calls can be started/stopped by a single
action, e.g. an evacuation message on one floor and
alert messages on lower and higher floors.
• The sub-calls can have different priorities and
zones/zone groups, but have the same activation
behavior (e.g. momentary).
Bosch Security Systems | 2011-02
Description
Unique name for the control input. The input
can be enabled and disabled using the
enable checkbox.
Sets the action of the control input. See
chapter 47.
Sets the action of the control input. See
chapter 47.
Switches supervision of the control input on
(On) or off (Off).
Selects the number of actions for this control
input if it is a Call activation key, Start or Stop
Praesideo 3.5 | Installation and User Instructions | 9 | System Configuration
en | 344
43.2.6 Control outputs
figure 43.8: Configure network controller, step 6
table 43.5: Control outputs configuration
Item
Value
Output
Mains power fault grace
time
0 h (default),
1 h, 2 h,
3 h ...8 h
Function
Bosch Security Systems | 2011-02
Description
Unique name for the control output. The output can be enabled and
disabled using the checkbox.
Selects whether control output 5 with the fixed function Fault alarm
indicator acts immediately on the occurrence of a mains power fault, or
that activation is suspended and will only happen if the mains power
fault is still present after the configured grace time. All other faults will
result in an immediate activation of this Fault alarm indicator. The
purpose of the grace time is to suspend a warning to an external
service center for systems in areas where short mains failures
frequently happen. The system backup power supply should at least
be able to provide power during the configured grace time. The Fault
alarm buzzer is not delayed in order to give a local warning immediately.
Sets the purpose of the control output. See table 43.6.
Praesideo 3.5 | Installation and User Instructions | 9 | System Configuration
en | 345
table 43.6: Control output types
Function
Description
Switch output
The control output is activated by a Switch trigger control input or keypad key. See
section 47.3.27.
Zone active output
The control output is activated when there is an active call in the associated zone (see
section 45.2.
Volume override output
The control output is activated when there is an active call with priority 32 or higher in
the associated zone. See section 45.2.
Fault alarm buzzer
The control output activates a fault alarm buzzer (e.g a connected buzzer) each time a
fault is detected in the system. It can only be deactivated by acknowledging all faults.
Fault alarm indicator
The control output activates a visual fault indicator (e.g. a lamp) each time a fault is
detected in the system. It can only be deactivated by resetting all faults.
System fault indicator
The control output activates a visual fault indicator (e.g. a lamp), each time a System
fault is detected in the system. System faults are a special category of faults, a subset
of all possible faults. System faults are: Configuration file error, Flash card data error,
Flash card missing, No valid configuration file found, Processor reset.
Emergency alarm buzzer The control output activates an emergency alarm buzzer (e.g a connected buzzer) each
time a call with priority 223 or higher is started (i.e. an emergency call). It can only be
deactivated by acknowledging the emergency state.
Emergency alarm
The control output activates a visual emergency indicator (e.g. a lamp) each time a call
indicator
with priority 223 or higher is started (i.e. an emergency call). It can only be deactivated
by resetting the emergency state.
Bosch Security Systems | 2011-02
Praesideo 3.5 | Installation and User Instructions | 9 | System Configuration
43.3
Power amplifier
43.3.1 Procedure
Proceed as follows to configure a power amplifier:
1 Go to Configure > Equipment configuration > Power
amplifier. A screen similar to the one in figure 43.9
appears in the main frame of the web interface.
figure 43.9: Configure power amplifier, step 1
2 Click the name of the power amplifier that must be
configured. A screen similar the one in figure 43.10
appears in the main frame of the web interface.
figure 43.10: Configure power amplifier, step 2
3 Open the General category to configure the general
settings of the power amplifier (see section 43.3.2).
4 Open the Audio inputs category to configure the
audio inputs of the power amplifier
(see section 43.3.3).
5 Open the Audio outputs category to configure the
audio outputs of the power amplifier
(see section 43.3.4).
6 Open the Control inputs category to configure the
control inputs of the power amplifier
(see section 43.3.6).
Bosch Security Systems | 2011-02
en | 346
7 Open the Control outputs category to configure the
control outputs of the power amplifier
(see section 43.3.7).
8 Submit the changes. Note that the changes are not
permanent until the configuration is saved
(see section 40.4.4 and section 40.4.5).
Praesideo 3.5 | Installation and User Instructions | 9 | System Configuration
en | 347
43.3.2 General
figure 43.11: Configure power amplifier, step 3
table 43.7: General configuration
Item
Value
Mains power
On
supervision
Off
Back-up power
supervision
On
Off
Bosch Security Systems | 2011-02
Description
Specifies whether the mains power must be supervised.
When Mains power supervision is On and the mains
power is failing, a fault event is generated. Setting Mains
Power Supervision to Off when mains power is used,
results in a system that does not detect mains power
failures.
Specifies whether the back-up power must be supervised.
When Back-up power supervision is On and the back-up
power is failing, a fault event is generated. Setting
Back-up power supervision to Off when back-up power is
used, results in a system that does not detect back-up
power failures.
Praesideo 3.5 | Installation and User Instructions | 9 | System Configuration
en | 348
43.3.3 Audio inputs
figure 43.12: Configure power amplifier, step 4
table 43.8: Audio inputs configuration
Item
Value
Input
Audio type
Input gain
Input function
Line
Microphone
-8 to 7 dB (mic)
0 to 12 dB (line)
Auxiliary
AVC
Phantom
On, Off
Supervision
On, Off
Connection supervision
On, Off
Bosch Security Systems | 2011-02
Description
Unique name for the audio input. The input can be enabled
and disabled using the checkbox.
Sets the type of audio source. This is either line (Line) or
(Microphone).
Sets the input gain of the audio input with reference to the
nominal value.
Sets the input function. Auxiliary inputs (Auxiliary) can be
used to make calls. AVC inputs (AVC) are used to
measure the ambient noise level.
Specifies whether the microphone receives a phantom
supply (On) or not. This option is only visible if (2) is set to
Microphone.
Switches supervision on (On) and off (Off) for the
microphone. This option is only visible if (2) is set to
Microphone. The phantom supply is only active when the
microphone input is active.
Specifies whether the 20 kHz pilot tone detector of the
input is enabled (On) or disabled (Off). This function is only
available if the Audio type is set to Line. It provides cable
and connection supervision if the source uses a pilot tone.
Praesideo 3.5 | Installation and User Instructions | 9 | System Configuration
43.3.4 Audio outputs
en | 349
taken over from the main amplifier that this spare
amplifier replaces when it becomes active. The output
configuration of a spare amplifier is only valid when it is
in spare state.
When the spare amplifier takes over a main amplifier,
the configuration of the main amplifier is copied.
Line/Lsp Supervision can be used to supervise the
interconnection between the spare amplifier and the
connected main amplifiers.
If the connected main amplifiers use Single Line/Lsp
Supervision, then the spare amplifier must not use
Multiple Line/Lsp Supervision, otherwise a conflict will
arise between both supervision slave boards when the
spare amplifiers takes over the from the main amplifier.
If the connected main amplifiers use the Multiple
Line/Lsp Supervision, then the spare amplifier can also
use Multiple Line/Lsp Supervision.
figure 43.13: Configure power amplifier, step 5
Power amplifiers that are configured as spare amplifiers
do not have the Delay (distance) setting. This setting is
table 43.9: Audio outputs configuration
Item
Value
Output
Delay
Amplifier supervision/
Pilot tone
0 to 95108 ms (PRS-1P500)
0 to 47554 ms (PRS-2P250)
0 to 23777 ms (PRS-4P125)
0 to 1479 ms (LBB4428/00)
On, Off
GND Supervision
On, Off
Line/LSP Supervision
None
PRS-SVSET (Single)
PRS-SVCO (Multiple)
Configure supervision
devices
Bosch Security Systems | 2011-02
Description
Unique name for the audio output. The output can be
enabled and disabled using the checkbox.
Sets the loudspeaker alignment time, also presented
as distance in meters and feet.
Switches the pilot tone to on (On,) and off (Off). The
pilot tone is used to supervise the amplifier channel for
failures and for supervision of the loudspeaker line and
loudspeakers.
If set to On, the pilot tone enables supervision and an
internal calibration keeps the pilot tone at an optimum
level. If the load on the line changes by the addition or
removal of loudspeakers, the pilot tone stays at the
optimum level.
Switches ground supervision of the loudspeaker line
on (On) and off (Off).
Sets the type of line or loudspeaker supervision.
Opens a screen to configure LBB4441 and LBB4443
supervision devices (see section 43.3.5).
Praesideo 3.5 | Installation and User Instructions | 9 | System Configuration
43.3.5 Line and loudspeaker
supervision
43.3.5.1 Adding supervision devices
Proceed as follows to add a supervision device to an
audio output of a power amplifier:
1 Click the Configure supervision devices button in the
Audio Outputs category of the applicable power
amplifier (see section 43.3.4). A screen similar to the
one figure 43.14 appears.
en | 350
3 Enter the data of the supervision device (see figure
43.16 for an example).
• Enter a name for the supervision device in the
Name field. The name may consist of up to 16
characters.
• Select the type of supervision device from the
Type dropdown list.
Note
When you want to use an LBB4441
(PRS-SVLSP) to supervise the loudspeaker line
as well, it is recommended that you install the
LBB4441 in the last loudspeaker in the line. To
enable loudspeaker line supervision, put a check
mark in the Line box. The LBB4441 will then be
polled more often.
•
Enter the address that was assigned to the
supervision device in the Address field (see figure
43.16).
figure 43.14: Add supervision device, step 1
2 Click the Add button to add a new supervision device
to the audio output. A screen similar to the one in
figure 43.15 appears.
Note
It is also possible to add multiple supervision
devices of the same type at the same time by
entering an address range in the Address field,
e.g. 1-6.
figure 43.15: Add supervision device, step 2
figure 43.16: Add supervision device, step 3
Bosch Security Systems | 2011-02
Praesideo 3.5 | Installation and User Instructions | 9 | System Configuration
4 Click the OK button to add the supervision device to
the audio output of the power amplifier. A screen
similar to the one in figure 43.17 appears.
en | 351
43.3.6 Control inputs
figure 43.17: Add supervision device, step 4
5 Submit the changes. Note that the changes are not
permanent until the configuration is saved (see
section 40.4.4 and section 40.4.5).
6 Click the Close button to close the window.
43.3.5.2 Supervision devices and spare amplifiers
It is possible to use one or more EOL Supervision
boards (LBB4443) to supervise the connection from
spare amplifier to main amplifiers. Note the following
limitations:
• The addresses of the configured supervision boards
do not conflict with the addresses of supervision
boards connected to any of the assigned main power
amplifiers on the same channel.
• The number of supervision boards connected to the
spare amplifier plus the number of supervision
boards connected to any of the assigned main power
amplifiers on the same channel, does not exceed the
maximum number of boards for the amplifier power
rating. This applies to both the total number of
supervision boards and the number of boards with
enabled line supervision functionality
(+Line check box). Refer to section 12.4.
Bosch Security Systems | 2011-02
figure 43.18: Configure power amplifier, step 6
The configuration page for power amplifier control
inputs is similar to the configuration page for network
controller control inputs (see section 43.2.5).
43.3.7 Control outputs
figure 43.19: Configure power amplifier, step 7
The configuration page for power amplifier control
outputs is similar to the configuration page for network
controller outputs of a network controller (see
section 43.2.6). The number of control outputs differ per
amplifier type, typically one per channel.
Praesideo 3.5 | Installation and User Instructions | 9 | System Configuration
43.4
Call station
•
43.4.1 Procedure
Proceed as follows to configure a call station:
1 Go to Configure > Equipment configuration > Call
station. A screen similar to the one in figure 43.20
appears in the main frame of the web interface.
4
5
6
figure 43.20: Configure call station, step 1
2 Click the name of the call station that must be
configured. A screen similar the one in figure 43.3
appears in the main frame of the web interface.
figure 43.21: Configure call station, step 2
Note
The system definition of the call station (see
42.5) determines whether a numeric keypad
category and/or keypad categories are available.
3 Open the General category to configure the general
settings of the call station.
• See section 43.4.2 for information about
configuring the general settings of a basic call
station (LBB4430/00)
Bosch Security Systems | 2011-02
7
8
en | 352
See section 43.4.3 for information about
configuring the general settings of a call station
kit (LBB4433/00).
• See section 43.4.4 for information about
configuring the general settings of a remote call
station (PRS-CSR) or remote call station kit
(PRS-CSRK).
Open the Audio Inputs category to configure the
audio inputs of the call station (see section 43.4.5).
When the call station has a numeric keypad, open
the Numeric keypad category to configure the numeric
keypad (see section 43.4.6).
When the call station has control inputs, open the
Control Inputs category to configure the control inputs
(see section 43.4.7). If the call station is a remote call
station or a remote call station kit, there is also a
category for configuring the control inputs of the call
station interface.
Open the Keypad categories to configure the keypads
connected to the call station (see
section 43.4.8).
Submit the changes. Note that the changes are not
permanent until the configuration is saved (see
section 40.4.4 and section 40.4.5).
Praesideo 3.5 | Installation and User Instructions | 9 | System Configuration
en | 353
43.4.2 General (LBB4430/00)
figure 43.22: Configure call station, step 3
table 43.10: General configuration settings (LBB4430/00)
Item
Value
Description
Class
Normal
Sets the priority range of the call station. This is either
Emergency
Normal for 32 to 223 or Emergency for 32 to 255. When
Class is Emergency the call station can make fail-safe
calls.
Clear selection after call Yes
Selects whether selections that are made on a keypad for
No
a call (zone selection, priority selection, tone selection and
message selection) will be cleared after the call has
finished or will be kept for a next call.
Bosch Security Systems | 2011-02
Praesideo 3.5 | Installation and User Instructions | 9 | System Configuration
en | 354
43.4.3 General (LBB4433/00)
figure 43.23: Configure call station, step 3
table 43.11: General configuration settings (LBB4433/00)
Item
Value
Description
Class
Normal
Sets the priority range of the call station. This is either Normal
Emergency
for 32 to 223 or Emergency for 32 to 255. When Class is
Emergency the call station can make fail-safe calls.
Clear selection after call Yes
Selects whether selections that are made on a keypad for a call
No
(zone selection, priority selection, tone selection and message
selection) will be cleared after the call has finished or will be
kept for a next call.
Network power
On
When Network power supervision is On and the network
supervision
Off
power is failing, a fault event is generated.
Back-up power
On
When Back-up power supervision is On and the back-up
supervision
Off
power is failing, a fault event is generated.
Bosch Security Systems | 2011-02
Praesideo 3.5 | Installation and User Instructions | 9 | System Configuration
en | 355
43.4.4 General (PRS-CSR and
PRS-CSRK)
figure 43.24: Configure call station, step 1
table 43.12: General configuration settings (PRS-CSR)
Item
Value
Description
Class
Normal
Sets the priority range of the call station. This is either Normal
Emergency
for 32 to 223 or Emergency for 32 to 255. When Class is
Emergency the call station can make fail-safe calls.
Clear selection after call Yes
Selects whether selections that are made on a keypad for a call
No
(zone selection, priority selection, tone selection and message
selection) will be cleared after the call has finished or will be
kept for a next call.
Remote call station
On
Selects whether the remote call station and its connection to
supervision
Off
the call station interface will be supervised or not. If set to No, it
is possible to disconnect and remove the remote call station
without generating a fault in the system. This can be
convenient for call stations that would otherwise remain
unattended. Emergency call stations should always be
supervised.
Remote call station
On
When Remote call station network power supervision is On
and the network power connection between the remote call
network power
Off
station interface and the remote call station is failing, a fault
supervision
event is generated.
On
When Remote call station back-up power supervision is On
Remote call station
back-up power
Off
and the external power supply that is connected to the remote
supervision
call station is failing, a fault event is generated.
Call station interface
On
When Call station interface network power supervision is On
network power
Off
and the network power connection between the call station
supervision
interface and the Praesideo network is failing, a fault event is
generated.
Call station interface
On
When Call station interface back-up power supervision is On
back-up power
Off
and the external power supply that is connected to the call
supervision
station interface is failing, a fault event is generated.
Bosch Security Systems | 2011-02
Praesideo 3.5 | Installation and User Instructions | 9 | System Configuration
en | 356
43.4.5 Audio inputs
figure 43.25: Configure call station, step 4
table 43.13: Audio inputs configuration settings
Item
Value
Input
Supervision
Input gain
On
Off
-8 to 7 dB
Bosch Security Systems | 2011-02
Description
Unique name for the microphone (audio input). The
microphone (audio input) can be enabled and disabled using
the checkbox.
Switches supervision of the microphone on (On) and off (Off).
Sets the input gain.
Praesideo 3.5 | Installation and User Instructions | 9 | System Configuration
en | 357
43.4.6 Numeric keypad
figure 43.26: Configure call station, step 5
table 43.14: Control inputs configuration settings
Item
Value
Access Control
No
Yes
Access time-out
No
Yes
Bosch Security Systems | 2011-02
Description
Specifies whether the numeric keypad is used for
access control (Yes) or not (No).
Specifies whether the numeric keypad is
automatically locked after the time-out has
elapsed.
The timeout period is set in the System wide
settings. See 44.4
Praesideo 3.5 | Installation and User Instructions | 9 | System Configuration
en | 358
43.4.7 Control inputs (LBB4433)
figure 43.27: Configure call station, step 6
table 43.15: Control inputs configuration settings
Item
Value
Input
Act on contact
Function
Supervision
Bosch Security Systems | 2011-02
Make
Break
Various
On
Off
Description
Unique name for the control input. The input can
be enabled and disabled using the checkbox.
Sets a part of the behavior of the control input.
See chapter 47.
Sets the action of the control input.
See chapter 47.
Switches supervision of the control input on (On)
and off (Off).
Praesideo 3.5 | Installation and User Instructions | 9 | System Configuration
en | 359
43.4.8 Keypad
figure 43.28: Configure call station, step 7
table 43.16: Extension (keypad) configuration settings
Item
Value
Key
Function
Various
Bosch Security Systems | 2011-02
Description
Unique name for the key. The key can be enabled and
disabled using the checkbox.
Sets the action of the key. See chapter 47.
Praesideo 3.5 | Installation and User Instructions | 9 | System Configuration
43.5
Audio expander
43.5.1 Procedure
Proceed as follows to configure an audio expander:
1 Go to Configure > Equipment configuration > Audio
expander. A screen similar to the one in figure 43.29
appears in the main frame of the web interface.
en | 360
7 Submit the changes. Note that the changes are not
permanent until the configuration is saved (see
section 40.4.4 and section 40.4.5).
43.5.2 Audio inputs
The configuration page for audio expander audio inputs
is similar to the configuration page for network
controller audio inputs (see section 43.2.3).
43.5.3 Audio outputs
The configuration page for audio expander audio
outputs is similar to the configuration page for network
controller audio outputs (see section 43.2.4).
43.5.4 Control inputs
figure 43.29: Configure audio expander, step 1
2 Click the name of the audio expander that must be
configured. A screen similar the one in figure 43.3
appears in the main frame of the web interface.
figure 43.30: Configure audio expander, step 2
3 Open the Audio inputs category to configure the
audio inputs of the audio expander (see
section 43.5.2).
4 Open the Audio outputs category to configure the
audio outputs of the audio expander (see
section 43.5.3).
5 Open the Control inputs category to configure the
control inputs of the audio expander (see
section 43.5.4).
6 Open the Control outputs category to configure the
control outputs of the audio expander (see
section 43.5.5).
Bosch Security Systems | 2011-02
The configuration page for audio expander control
inputs is similar to the configuration page for network
controller control inputs (see section 43.2.5).
43.5.5 Control outputs
The configuration page for audio expander control
outputs is similar to the configuration page for network
controller control outputs (see section 43.2.6).
Praesideo 3.5 | Installation and User Instructions | 9 | System Configuration
43.6
Fiber interface
43.6.1 Procedure
Proceed as follows to configure a fiber interface:
1 Go to Configure > Equipment configuration > Fiber
interface. A screen similar to the one in figure 43.31
appears in the main frame of the web interface.
en | 361
43.6.2 Control inputs
The configuration page for fiber interface control inputs
is similar to the configuration page for network
controller control inputs (see section 43.2.5).
43.7
CobraNet interface
Proceed as follows to configure a CobraNet interface:
1 Go to Configure > Equipment configuration > CobraNet
interface. A screen similar to the one in figure 43.33
appears in the main frame of the web interface.
figure 43.31: Configure fiber interface step 1
2 Click the name of the fiber interface that must be
configured. A screen similar the one in figure 43.32
appears in the main frame of the web interface.
figure 43.33: Configure CobraNet interface step 1
2 Click the name of the CobraNet interface that must
be configured. A screen similar to the one in
figure 43.34 appears in the main frame of the web
interface.
figure 43.32: Configure fiber interface, step 2
3 Configure the control inputs of the fiber interface
(see section 43.6.2).
4 Submit the changes. Note that the changes are not
permanent until the configuration is saved (see
section 40.4.4 and 40.4.5).
Bosch Security Systems | 2011-02
figure 43.34: Configure CobraNet interface step 2
3 Open the Audio inputs category to configure the
audio inputs of the CobraNet interface (see
section 43.7.1).
4 Open the Audio outputs category to configure the
audio outputs of the CobraNet interface (see
section 43.7.2).
5 Open the Control inputs category to configure the
control inputs of the CobraNet interface (see
section 43.7.3).
Praesideo 3.5 | Installation and User Instructions | 9 | System Configuration
6 Open the Control outputs category to configure the
control outputs of the CobraNet interface (see
section 43.7.4).
7 Submit the changes. Note that the changes are not
permanent until the configuration is saved (see
section 40.4.4 and section 40.4.5).
en | 362
43.7.3 Control inputs
43.7.1 Audio inputs
figure 43.35: Configure CobraNet interface step 3
Enter unique names for the audio inputs in the available
text boxes.
43.7.2 Audio outputs
figure 43.37: Configure CobraNet interface step 5
The configuration page for CobraNet interface control
inputs is similar to the configuration page for network
controller control outputs (see section 43.2.5).
43.7.4 Control outputs
figure 43.36: Configure CobraNet interface step 4
figure 43.38: Configure CobraNet interface step 4
Enter unique names for the audio outputs in the
available text boxes.
Bosch Security Systems | 2011-02
The configuration page for CobraNet interface control
outputs is similar to the configuration page for network
controller control outputs (see section 43.2.6).
Praesideo 3.5 | Installation and User Instructions | 9 | System Configuration
43.8
Multi Channel Interface
43.8.1 Procedure
This section describes the configuration of a multi
channel interface. The basic amplifiers, which are
connected to the multi channel interface, are not
configured directly by the configuration web pages, but
via the multi channel interface.
Configure the multi channel interface and connected
basic amplifiers as follows:
1 Go to Configure > Equipment configuration > Multi ch
interface. A screen similar to the one in figure 43.39
appears in the main frame of the web interface.
figure 43.39: Configure multi channel interface, step 1
2 Click the name of the multi channel interface to be
configured. A screen similar to the one in figure
43.40 appears in the main frame of the web interface
figure 43.40: Configure multi channel interface, step 2
3 Open the Audio Outputs category to configure the 14
main outputs of the multi channel interface. (See
section 43.8.2.)
4 Open the Spare Outputs category to configure the 2
spare outputs of the multi channel interface. (See
section).
Bosch Security Systems | 2011-02
en | 363
5 Open the Control Inputs category to configure the 32
control inputs of the multi channel interface. (See
section 43.8.4.
6 Open Control Outputs category to configure the 16
control outputs of the multi channel interface. (See
section 43.8.5.
7 Submit the changes. Note that the changes are not
permanent until the configuration is saved (see
section 40.4.4 and section 40.4.5).
Praesideo 3.5 | Installation and User Instructions | 9 | System Configuration
en | 364
43.8.2 Audio Outputs
43.8.3 Spare Outputs
The configuration page for multi channel interface
Audio outputs is similar to the configuration page for
the audio outputs for the power amplifier (see section
43.3.4).
Outputs 15 and 16 of the multi channel interface are
dedicated for spare basic amplifier channels. See table
43.18.
The outputs A and B refer to the outputs A and B of the
basic amplifier channel that is connected to the
Multi Channel Interface. See table 43.17.
figure 43.41: Configure multi channel interface, step 3
Bosch Security Systems | 2011-02
figure 43.42: Configure multi channel interface, step 4
Praesideo 3.5 | Installation and User Instructions | 9 | System Configuration
table 43.17: Audio outputs configuration
Item
Value
Output n
Pilot tone
On, Off
GND supervision
On, Off
Mains power
supervision
On, Off
Back-up power
supervision
On, Off
Lsp connection
Output A and B in same
area (redundant).
Line/Lsp supervision
en | 365
Description
Unique name for the audio output. The output can be
enabled and disabled using the check box.
Switches the pilot tone for loudspeaker monitoring on
(On) and off (Off). This pilot tone is used to monitor the
connected basic amplifier and the secondary side of its
transformer for short-circuits. It also supervises the
amplifier for failures and is used by the line supervision set.
Switches ground supervision of the loudspeaker line on
(On) and off (Off).
Specifies whether the mains power of the connected
basic amplifier must be supervised. When Mains power
supervision is On and the mains power is failing, a fault
event is generated. Setting Mains Power Supervision to
Off when mains power is used, results in a system that
does not detect mains power failures.
Specifies whether the back-up power of the connected
basic amplifier must be supervised. When Back-up power
supervision is On and the back-up power is failing, a fault
event is generated. Setting Back-up power supervision to
Off when back-up power is used, results in a system that
does not detect back-up power failures.
The outputs A and B each have loudspeakers that cover
the same area. Both outputs A and B are normally active. If
a line fault occurs on either output A or B, that output will
be switched off.
Output A and B in
separate areas (Not
redundant).
The outputs A and B each have loudspeakers that cover
different areas and are not close together. Both outputs A
and B are normally active. If a line fault occurs on either
output A or B, that output remains active. Only in case of
an overload or short circuit on either output A or B, that
output will be switched off.
Class-A loop from
output A to B.
The outputs A and B have connections to the same
loudspeakers. Output A is normally active, output B is
normally off. If a line fault occurs detected by a supervision
board, output B becomes active too.
Sets the line / loudspeaker supervision for group A or
group B.
Opens a screen to configure LBB4441 and LBB4443
supervision devices (see section 43.3.5) on group A.
Opens a screen to configure LBB4441 and LBB4443
supervision devices (see section 43.3.5) on group B.
On, Off
Configure supervision
devices A
Configure supervision
devices B
Bosch Security Systems | 2011-02
Praesideo 3.5 | Installation and User Instructions | 9 | System Configuration
table 43.18: Spare outputs configuration
Item
Value
Output n
Pilot tone
On, Off
GND supervision
On, Off
Mains power
supervision
On, Off
Back-up power
supervision
On, Off
Interconnection
supervision
Configure supervision
devices
Amplifier channel
selection
On, Off
Bosch Security Systems | 2011-02
en | 366
Description
Unique name for the audio output. The output can be
enabled and disabled using the check box.
Switches the pilot tone for loudspeaker monitoring on
(On) and off (Off). This pilot tone is used to monitor the
connected basic amplifier and the secondary side of its
transformer for short-circuits. It also supervises the
amplifier for failures and is used by the line supervision set.
Switches ground supervision of the loudspeaker line on
(On) and off (Off).
Specifies whether the mains power of the connected
basic amplifier must be supervised. When Mains power
supervision is On and the mains power is failing, a fault
event is generated. Setting Mains Power Supervision to
Off when mains power is used, results in a system that
does not detect mains power failures.
Specifies whether the back-up power of the connected
basic amplifier must be supervised. When Back-up power
supervision is On and the back-up power is failing, a fault
event is generated. Setting Back-up power supervision to
Off when back-up power is used, results in a system that
does not detect back-up power failures.
Sets the interconnection supervision between spare basic
amplifier channel and the main basic amplifier channels.
Opens a screen to configure LBB4441 and LBB4443
supervision devices (see section 43.3.5) on group B.
With the < and > buttons main amplifier channels can be
assigned to a spare amplifier channel.
Praesideo 3.5 | Installation and User Instructions | 9 | System Configuration
43.8.4 Control Inputs
figure 43.43: Control inputs for multi channel interface
The configuration page for the multi channel interface
control inputs is similar to the configuration page of the
network controller control inputs (see section 43.2.5).
43.8.5 Control Outputs
figure 43.44: Control outputs for multi channel interface
The configuration page for the multi channel interface
control outputs is similar to the configuration page of
the network controller control outputs (see section
43.2.6).
Bosch Security Systems | 2011-02
en | 367
Praesideo 3.5 | Installation and User Instructions | 9 | System Configuration
44
System wide settings
44.1
Introduction
en | 368
On the System wide settings pages, a number of general,
system wide settings can be configured. It is possible to:
• Register recorded messages (see section 44.2).
• Specify system settings (see section 44.4).
System wide settings
Recorded messages
System settings
figure 44.1: System wide settings pages
44.2
figure 44.3: Register message, step 2
3 Enter the name of the WAV file in the message set in
the Name field (see figure 44.4 for an example).
• The name must be exactly the same as the name
of the WAV file (including upper- and lowercase
characters). It may consist of up to 16 characters.
• The extension .wav must be omitted.
Recorded messages
44.2.1 Introduction
On the Recorded messages page, WAV files (audio files)
that have been transferred from the configuration PC to
the network controller in the form of a message set, can
be registered. See section 44.3 for information about
creating and transferring messages sets.
44.2.2 Register a recorded message
Proceed as follows to register a recorded message:
1 Go to Configure > System wide settings > Recorded
messages. A screen similar to the one in figure 44.2
appears in the main frame of the web interface.
figure 44.4: Register message, step 3
4 Click the OK button to add the recorded message to
the list of registered recorded messages. A screen
similar to the one in figure 44.5 appears in the main
frame of the web interface.
figure 44.2: Register message, step 1
figure 44.5: Register message, step 4
2 Click the Add button to add a recorded message. A
screen similar to the one in figure 44.3 appears in the
main frame of the web interface.
Bosch Security Systems | 2011-02
5 Submit the changes. Note that the changes are not
permanent until the configuration is saved (see
section 40.4.4 and 40.4.5).
Praesideo 3.5 | Installation and User Instructions | 9 | System Configuration
44.2.3 Unregister a recorded message
Proceed as follows to unregister a recorded message:
1 Go to Configure > System wide settings > Recorded
messages to open the Recorded messages page. A screen
similar to the one in figure 44.6 appears in the main
frame of the web interface.
en | 369
5 Submit the changes. Note that the changes are not
permanent until the configuration is saved (see
section 40.4.4 and 40.4.5).
44.3
Message sets
44.3.1 Introduction
Message sets are files that consist of one or more mono,
16-bit, 44.1 kHz WAV (audio) files. Message set files are
used to store WAV files at the compact flash card inside
the network controller. The message sets can be created
on a PC (see section 44.3.2) and transferred to the
network controller (see section 44.3.4) using the File
Transfer application.
figure 44.6: Unregister a message, step 1
2 Click anywhere in the row of the recorded message
that has to be deleted. The entire row becomes
highlighted (see figure 44.7).
A stored message set can hold up to 1024 messages. The
system can play up to four messages in the set
simultaneously, as part of a call. All of these calls may
use the same message, if required, time-shifted or not.
44.3.2 Creating a message set
Proceed as follows to create a message set:
1 Go to Start > (All) Programs > Bosch > Praesideo > FT
Application to start the Praesideo File Transfer
application.
2 In the File Transfer Application, click the Message Sets
button. A screen similar to the one in figure 44.9
appears.
figure 44.7: Unregister message, step 2
3 Click the Delete button. A pop-up window asks to
confirm this choice.
4 Click the OK button to confirm that the message
must be deleted from the list. A screen similar to the
one in the figure 44.8 appears in the main frame of
the web interface.
figure 44.9: Creating a message set
3 Click the New radio button.
figure 44.8: Register message, step 4
Bosch Security Systems | 2011-02
Praesideo 3.5 | Installation and User Instructions | 9 | System Configuration
en | 370
44.3.4 Transfer a message set
Note
Using the Message set mode radio buttons, the
message set screen of the File Transfer
application can also be put in the View mode
(for viewing existing message sets) or Edit (for
editing existing message sets.
4 Browse to the WAV file that has to be added to the
message set and select it.
5 Click the > button to add the WAV file to the
message set.
6 Repeat steps 4 and 5 to add additional WAV files to
the message set. The Up and Down buttons can be
used to change the order of the messages in the set.
7 Enter a name for the message set in the Message Set
field.
8 Click the Save Message Set as button to save the
message set on the configuration PC. The message
set has been created. For instruction about
transferring the message set to the network
controller, see section 44.3.4.
44.3.3 High efficiency alarm tones
Four different high-efficiency alarm tones are on the
distribution DVD in the folder \Tools\Audio Tools and
Sounds\High efficiency alarm tones. Because the tones are
too complex to be generated in real time as start tone or
end tone by the Praesideo system, these tones are
designed as special multi-sine wav-files and should be
used as messages in a call macro.
The tones are perceptually very loud and still have a
limited RMS value of -6 dBFS, so they can be played
back continuously without overheating the amplifiers.
Also power consumption of the amplifiers will be
reduced by 50% compared to normal sine alarm tones,
that are scaled to -3 dBFS in Praesideo. However,
although these high efficiency tones sound much louder
than normal sine waves, a dBSPL measurement will not
show this. This is because a normal dBSPL
measurement does not take the applied psycho-acoustic
factors into account. The high efficiency alarm tones are
particularly useful for situations with much background
noise, where a normal sine wave would be easily
masked
Bosch Security Systems | 2011-02
Proceed as follows to transfer a message:
1 In the File Transfer application, first log in and then
click the File Transfer button. A screen similar to the
one in figure 44.10 appears.
figure 44.10: Transferring a message set
2 Click the Message Set radio button.
3 Select the message set file in the Local PC box. The
file is highlighted and the > button becomes
available.
4 Click the > button to transfer the file from the PC to
the network controller. A screen pops up that
provides information about the file transfer progress.
5 When the file transfer is complete, the transferred
file is visible in the Network Controller box.
Praesideo 3.5 | Installation and User Instructions | 9 | System Configuration
44.4
System settings
A number of general, system wide parameters can be set
using the System wide settings page (see figure 44.11).
•
figure 44.11: System settings
•
•
•
•
•
•
Redundant ring network - Specifies whether
the Praesideo network forms a redundant ring (Yes)
or not (No). If set to yes, cable breaks are reported.
Message FLASH card available - Specifies
whether the network controller contains a compact
flash card (Yes) or not (No). If set to yes, the
availability of the flash card is monitored.
Key timeout - After this time, the selection that
was made using a (remote) call station is
automatically cancelled if the selection has not been
executed. The key timeout also determines the timeout
for locking the call stations when the call stations are
used with a numeric pad and the access timeout has
been set (see section 43.4.6).
Allow access by non-configured TCP/IP
devices - Specifies whether TCP/IP devices that are
not part of the system definition can access the
system (Yes) or not (No). If set to No, all TCP/IP
devices that access the system must be added to the
system definition (see section 42.9).
Activate new tone set - Imports a new tone set
into the configuration. If the system has been
upgraded from a previous software version, select
Yes. New software versions include tones that are not
available in other versions or tones that have
improved tone characteristics. New installations will
automatically use the new tone set.
Emergency Mode: disable calls below
priority level - Calls with a priority lower than the
specified priority are disabled if the system is in the
Bosch Security Systems | 2011-02
en | 371
emergency mode. The system is automatically put in
the emergency mode when an emergency call is
started.
Back-up Power mode:
• Disable calls below priority level - BGM
and calls with a priority lower than the specified priority are disabled if the system is in the back-up
power mode. Use the Back-up power mode action to
put the complete system in the back-up power mode.
See section 47.3.25. Individual power amplifiers and
basic amplifiers go to back-up power mode if the
mains power of that unit disappears. Then BGM and
calls with a priority lower than the specified priority
are only routed to amplifiers (zones) that are not in
back-up power mode.
• Switch amplifiers to standby - Power save
mode. During use of the back-up power supply, the
amplifiers are set to standby if Yes is selected here.
When a call that has a higher priority level than that
set in the Disable calls below priority level
field, the required amplifiers are made active, and
the call is broadcast. The Power-save mode extends
the period of time that the battery back-up power
supply is able to provide power to the Basic and
power amplifiers. Power save mode is only available
during the time that the back-up power supply is in
use.
Note
When Power-save mode is set, a spare amplifier
that is not in use also goes to Power-save
mode. A main or spare amplifier that is in
Power-save mode is not supervised and will not
report any faults.
Any faults that do occur during Power-save
mode are secondary faults, the mains failure is
the primary fault. In most cases, it is allowed that
secondary faults are not reported.
•
•
Release call station fault indicator after - The
yellow power/fault LED (see table 15.1) is released
after a fault has been acknowledged or after a fault
has been reset. It is not necessary to resolve a fault
before acknowledging it.
Reactivate silenced fault alarm buzzer - A
timeout period can be configured after which a fault
Praesideo 3.5 | Installation and User Instructions | 9 | System Configuration
•
•
alarm buzzer is reactivated when the faults have
been acknowledged but not yet resolved and reset.
Report loudspeaker line fault (PRS-SVCO) Specifies whether LBB4440 Supervision Control
Boards that are used for line supervision (see also
section 43.3.5) must report faults immediately
(Immediate report) or must check again before
reporting faults (Recheck before fault reporting). When
the system must comply to evacuation standards,
select Immediate report to make sure that faults are
reported within 100 s. In systems with long
loudspeaker lines and many supervision boards, the
chance of getting a false (not valid) supervision fault
event can be reduced by rechecking before the fault
will be reported. Then the system is less sensitive to
disturbances in the communication caused by
external noise sources or crosstalk between wires.
Disable network controller on internal fault
- This function is intended for systems that contain a
redundant network controller. If an internal fault in
the master network controller occurs (e.g., a flash
card error), the master network controller is disabled
and the spare network controller takes over the tasks
of the disabled network controller. If the system
contains only one network controller, select No.
Bosch Security Systems | 2011-02
en | 372
Praesideo 3.5 | Installation and User Instructions | 9 | System Configuration
45
Zone & amplifier
45.1
Introduction
On the Zone & amplifier pages, the zones and amplifiers
can be configured. It is possible to:
• Configure zones (see section 43.2).
• Configure zone groups (see section 45.3).
• Assign spare amplifiers to main amplifiers (see
section 45.4).
• Configure BGM channels (see section 45.5).
Zone & amplifier
Zone configuration
45.2
en | 373
Zone configuration
45.2.1 Introduction
On the Zone configuration page, zones can be built. A
zone is a group of audio outputs that, for example, go to
the same geographical area. For example, consider
multi-channel interfaces PRS-MCI with basic amplifiers
that are part of a Praesideo system on an airport:
• Audio outputs (MCI_01_AMP1) and (MCI_01_AMP2)
go to departure hall 1.
• Audio outputs (MCI_02_AMP1) and (MCI_02_AMP2)
go to departure hall 2.
Then, a zone can be created called Departure 1 to group
the loudspeaker lines that go to departure hall 1 and a
zone called Departure 2 to group the loudspeaker lines
that go to departure hall 2.
Zone grouping
Sparing
BGM channels
figure 45.1: Zone & amplifier pages
Note
An audio output cannot be part of more than
one zone. After an audio output has been
assigned to a zone, it is not allowed to assign
the audio output to another zone (group).
To control external devices during the audio phase of a
call, it is possible to include Zone active output and Volume
override output control outputs in a zone. A Zone active
output control outputs is activated when a call starts and
deactivated when a call ends in the zone of which it is
part. A Volume override output control output performs the
same action for calls with priority 32 or higher.
Note
A control output cannot be part of more than
one zone. After a control output has been
assigned to a zone, it is not allowed to assign
the control output to another zone.
Bosch Security Systems | 2011-02
Praesideo 3.5 | Installation and User Instructions | 9 | System Configuration
en | 374
45.2.2 Overview
The Zone configuration page (see figure 45.2) contains the
following:
• Name - Shows the name of the zone
• Available outputs - Shows the available audio and
control outputs. Use the dropdown list to choose the
types of outputs that are shown.
• Assigned outputs - Shows the outputs assigned to
the zone shown in (1).
• Add/Remove buttons - Using the > and <
buttons, selected outputs can be added to or
removed from Assigned outputs.
• Volume settings - Open the Volume settings
category to configure the volume settings of the zone
(see section 45.2.4).
• AVC settings- Open the AVC settings category to
configure the AVC settings of the zone (see chapter
49).
• Add - Using this button a new zone can be added to
the system configuration.
• Delete - Using this button an existing zone can be
deleted from the system configuration.
• Submit - Using this button changes are submitted to
the network controller.
• Rename - Using this button an existing zone can be
renamed. Automatically this name is replaced
everywhere in the configuration where this zone is
used.
Note
A zone can contain audio outputs as well as
control outputs.
A zone cannot be empty, but e.g. even a single
control output assigned to a zone is a valid
configuration.
Audio output names and control output names
between brackets indicate that these outputs
are not yet enabled in the configuration.
Disabled outputs can be assigned but will not
work.
Note
A zone with only a control output assigned to it
allows a call to activate an external alarm (e.g. a
siren) in a zone.
45.2.3 Create a zone
Proceed as follows to create a new zone:
1 Go to Configure > Zone & amplifier > Zone
configuration. A screen similar to the one in
figure 45.3 appears in the main frame of the web
interface.
figure 45.3: Add zone, step 1
figure 45.2: Zone configuration, overview
2 Click the Add button and enter a name for the new
zone in the textbox at the bottom of the page. For
example, Departure 2 (see figure 45.4). It may consist
of up to 16 characters.
Bosch Security Systems | 2011-02
Praesideo 3.5 | Installation and User Instructions | 9 | System Configuration
en | 375
45.2.4 Volume settings
figure 45.4: Add zone, step 2
3 Click the OK button.
4 Select the output that must be added to the zone
from the left box. For example, MCI_02_AMP1.
5 Double click the selected output or click the >
button to add the output to the zone (see figure 45.5).
In the Volume settings category (see figure 45.6) of the
zone configuration page, it is possible to:
• Set the maximum BGM volume (Maximum BGM
volume). It is not possible to adjust the BGM volume,
for example from a call station keypad, to a higher
level than the maximum BGM volume.
• Set the initial, start-up BGM volume (Initial BGM
volume).
• Schedule BGM volume attenuation (scheduled BGM
volume adjustment). These functions can be used to
automatically decrease the BGM volume during
certain periods of time (for example, in the evening).
During the periods of time that both functions are
active, the attenuations add up.
• Schedule call volume attenuation (scheduled call
volume adjustment). With this function the call volume
can be automatically decreased during a certain
period of time (for example, in the evening).
figure 45.5: Add zone, step 5
6 Repeat steps 4 and 5 to add additional outputs to the
zone.
7 Open the Volume settings category to do the volume
settings (see section 45.2.4).
8 Open the AVC settings category to do the AVC
settings (see chapter 49).
9 Submit the changes. Note that the changes are not
permanent until the configuration is saved (see
section 40.4.4 and section 40.4.5).
Bosch Security Systems | 2011-02
figure 45.6: Volume settings
Praesideo 3.5 | Installation and User Instructions | 9 | System Configuration
en | 376
45.2.5 Delete a zone
45.2.6 Rename a zone
Proceed as follows to delete a zone:
1 Go to Configure > Zone & Amplifier > Zone
configuration. A screen similar to the one in
figure 45.7 appears.
Proceed as follows to rename a zone:
1 Go to Configure > Zone & Amplifier > Zone
configuration.
2 Select the zone that must be renamed from the Name
dropdown list.
3 Click the Rename button to rename that zone. A
screen similar to the one in
figure 45.8 appears.
figure 45.7: Delete zone, step 1
figure 45.8: Rename a zone, step 3
2 Select the zone that must be deleted from the Name
dropdown list. For example, Departure 2.
3 Click the Delete button to delete the zone. A pop-up
window asks to confirm this choice.
4 Click the OK button to confirm that the zone has to
be deleted. The deleted zone is no longer available in
the Name dropdown list. It will also be removed from
all occasions where it i used in the configuration.
5 Submit the changes. Note that the changes are not
permanent until the configuration is saved (see
section 40.4.4 and section 40.4.5).
Bosch Security Systems | 2011-02
4 Change the name in the edit field (the name may
consist of up to 16 characters) and click the OK
button. The name of the zone will be changed on all
occasions where it is used in the configuration.
5 Submit the changes. Note that the changes are not
permanent until the configuration is saved (see
section 40.4.4 and section 40.4.5).
Praesideo 3.5 | Installation and User Instructions | 9 | System Configuration
45.3
en | 377
Zone Grouping
45.3.1 Introduction
On the Zone grouping page, zone groups can be built. A
zone group is a group of zones that, for example, go to
the same geographical area.
For example, Consider a small airport with four zones:
Departure 1, Departure 2, Arrival 1 and Arrival 2. The
zones Departure 1 and Departure 2 contain loudspeaker
lines that go to departure hall 1 and departure hall 2
respectively. The zones Arrival 1 and Arrival 2 contain
loudspeaker lines that go to arrival hall 1 and arrival
hall 2 respectively.
Then, a zone group can be created called Departure Halls
to group the zones that go to the departure halls and a
zone group called Arrival Halls to group the zones that
go to the arrival halls.
45.3.2 Overview
The Zone grouping page (see figure 45.9) contains the
following:
• Name - Shows the name of the zone group.
• Available zones - Shows the available audio
zones. Zones can be created at the Zone configuration
page (see section 45.2).
• Assigned zones - Shows the zones that have been
assigned to the zone group shown in (1)
• Add/Remove buttons - Using the > and <
buttons, selected zones can be added to or removed
from Assigned zones.
• Add - Using this button a new zone group can be
added to the system.
• Delete - Using this button an existing zone group
can be deleted from the system.
• Submit - Using this button changes are submitted to
the network controller.
• Rename - Using this button an existing zone group
can be renamed. Automatically this name is replaced
everywhere in the configuration where this zone
group is used.
Bosch Security Systems | 2011-02
figure 45.9: Zone grouping, overview
45.3.3 Add a zone group
The procedure for creating a zone group is similar to the
procedure for creating a zone (see section 45.2.3).
45.3.4 Delete a zone group
The procedure for deleting a zone group is similar to the
procedure for deleting a zone (see section 45.2.5).
45.3.5 Rename a zone group
The procedure for renaming a zone group is similar to
the procedure for renaming a zone (see section 45.2.6).
45.4 Sparing
45.4.1 Introduction
The sparing function is used to automatically replace
defective main amplifiers with a spare amplifiers when it
is useful. A spare amplifier replaces a complete main
amplifier, even if the main power amplifier is a
multi-channel unit and only one channel is defect. A
spare amplifier can be connected to more than one
main amplifier. However, only the first defective main
amplifier will be replaced by the spare amplifier.
Note
See section 8.3.5 about connecting spare
amplifiers.
Praesideo 3.5 | Installation and User Instructions | 9 | System Configuration
On the Spare power amplifier page, main amplifiers can
be assigned to spare amplifiers. For example, consider a
small airport with four LBB4424/10 Power Amplifiers (4
x 125 W). Two of these power amplifiers are main
amplifiers (PAM_01 and PAM_03), whereas the other
power amplifier are spare amplifiers (PAM_02 and
PAM_04). Then, PAM_04 can be configured as spare
amplifier for PAM_03.
en | 378
45.4.3 Procedure
Proceed as follows to assign a main amplifier to a spare
amplifier:
1 Go to Configure > Zone & amplifier > Sparing. A
screen similar to the one in figure 45.11 appears in
the main frame of the web interface.
45.4.2 Overview
The Spare power amplifier page (see figure 45.10) contains
the following:
• Name - Name of the spare amplifier to which a
main amplifier must be assigned.
• Main amplifiers - List of main amplifiers that can
be assigned to a spare amplifier.
• Assigned amplifiers - List of main amplifiers
assigned to the selected spare amplifier.
• Add/Remove buttons - Using the > and <
buttons, selected main amplifiers can be added to or
removed from Assigned amplifiers.
• Submit - Using this button changes are submitted to
the network controller.
figure 45.11: Sparing, step 1
2 Select the spare amplifier to which the main
amplifier must be assigned from the Power Amplifier
dropdown list. For example, PAM_04 (see
figure 45.12).
figure 45.12: Sparing, step 2
figure 45.10: Sparing, overview
3 Select the main amplifier that must be assigned to
the spare amplifier from the left box (see
figure 45.13).
figure 45.13: Sparing, step 3
Bosch Security Systems | 2011-02
Praesideo 3.5 | Installation and User Instructions | 9 | System Configuration
4 Double click the selected main amplifier or click the
> button to assign the main amplifier to the spare
amplifier. A screen similar to the one in figure 45.14
appears in the main frame of the web interface.
figure 45.14: Sparing, step 4
5 Submit the changes. Note that the changes are not
permanent until the configuration is saved (see
section 40.4.4 and section 40.4.5).
en | 379
audio outputs 5 to 8 and audio inputs 3 and 4 comprise
another unit. In this case, cross-feeding the BGM
channels will occupy a bus channel).
This allows for many local audio channels that will not
be routed over the Praesideo network.
Note
When a zone or zone group is already
connected to a BGM channel, do not connect
another BGM channel to it. Connecting zones
and zone groups to multiple BGM channels can
cause inconsistencies in the configuration
database when the system is switched on. In
turn, these inconsistencies can result in
unpredictable system behavior. The routing of
BGM channels can be changed with call station
keypads after the system has started up (see
chapter 47).
45.5 BGM Channels
45.5.1 Introduction
At the BGM channels page, background music (BGM)
channels can be built. A BGM channel refers to an
audio input in the system. Optionally, default zones and
or default zone groups can be connected to the channel.
When the system is switched on, then the specified
BGM is routed to the connected zones and zone groups.
You can specify a routing limit to a BGM channel. If the
the Limit routing checkbox is unticked, all available
zones or zone groups can be made part of the default
routing for the BGM channel. With Limit routing
enabled, you can make a sub-set of available zones and
zone groups and the BGM channel can not be routed
outside this subset. This function can be used for routing
of e.g. a licensed BGM channel to specific subscribers.
In this case the default zones for this BGM channel at
power on is again a sub-set of the specified routing limit.
Also, zones and zone groups that are not part of the
routing limit can not be added to the BGM channel
selection via call station keys.
The maximum number of BGM channels is 28, but if a
BGM channel uses an audio input on a certain unit, and
all the zones within the routing limit are part of that
particular unit only, none of the 28 system bus channels
will be used for this BGM channel (with the following
small exception for the LBB4428/00: audio outputs 1 to
4 and audio inputs 1 and 2 are considered a unit, just as
Bosch Security Systems | 2011-02
Note
Each BGM channel must have a unique audio
input.
45.5.2 Overview
The BGM channels page (see figure 45.15) contains the
following:
• Name - Name of the background music channel.
• Type - Select between zones and zone groups as
available destinations.
• Available destinations - The left column lists the
available zones and zone groups.
• Limit routing - Tick the checkbox to apply a
routing limit to the selected BGM channel or get
access to all destinations.
• Allowed destinations - The center column lists
the zones and zone groups that are allowed to
receive the BGM channel. This list is not visible if
the Limit routing checkbox is unticked.
• Add/Remove buttons - Using the > and <
buttons, selected outputs can be added to or
removed from Allowed destinations and Assigned
destinations.
• Assigned destinations - The right column lists
the zones and zone groups that are assigned to the
selected BGM channel at system startup.
Praesideo 3.5 | Installation and User Instructions | 9 | System Configuration
•
•
•
•
•
Audio input - Sets the audio input that provides
the background music. The same audio input may
not be assigned to different channels.
Add - Using this button a new BGM channel can be
added to the system.
Delete - Using this button an existing BGM channel
can be deleted from the system.
Submit - Using this button changes are submitted to
the network controller.
Rename - Using this button an existing BGM
channel can be renamed. Automatically this name is
replaced everywhere in the configuration where this
BGM channel is used.
figure 45.15: BGM channels, overview
45.5.3 Add a BGM channel
The procedure for creating a BGM channel is similar to
the procedure for creating a zone (see section 45.2.3).
45.5.4 Delete a BGM Channel
The procedure for deleting a BGM channel is similar to
the procedure for deleting a zone (see section 45.2.5).
45.5.5 Rename a BGM Channel
The procedure for renaming a BGM channel is similar
to the procedure for renaming a zone (see section
45.2.6).
Bosch Security Systems | 2011-02
en | 380
Praesideo 3.5 | Installation and User Instructions | 9 | System Configuration
46
Call characteristics
46.1
Introduction
en | 381
Using the Call characteristics pages, call macros can be
defined (see section 43.2).
Call characteristics
Call macro
figure 46.1: Call characteristics pages
46.2
Call macro
46.2.1 Introduction
On the Call macro page, call macros can be defined. Call
macros are used to make calls.
figure 46.3: Add call macro, step 2
3 Enter the name of the new call macro in the Name
field (see figure 46.4 for an example). It may consist
of up to 16 characters.
46.2.2 Create a call macro
Proceed as follows to create a new call macro:
1 Go to Configure > Call characteristics > Call macro. A
screen similar to the one in figure 46.2 appears in the
main frame of the web interface.
figure 46.4: Add call macro, step 3
4 Click the OK button to add the call macro to the list
of call macros in the system. A screen similar to the
one in figure 46.5 appears in the main frame of the
web interface.
figure 46.2: Add call macro, step 1
2 Click the Add button to add a new call macro. A
screen similar to the one in figure 46.3 appears in the
main frame of the web interface.
Bosch Security Systems | 2011-02
Praesideo 3.5 | Installation and User Instructions | 9 | System Configuration
•
•
•
figure 46.5: Add call macro, step 4
5 Configure the contents of the call macro:
• Select the priority of the call macro from the
Priority list.
• Select the routing scheme of the call macro from
the Routing Scheme list (see section 3.2.4 for more
information). If the routing scheme is set to
Stacked, the Time out (min.) and Forward on release
of controls appear. Time out sets the maximum
time the call will be kept in memory for later
broadcast. After this time it is deleted. Forward on
release of gives the option to select whether a
stacked call is forwarded to each zone individually
when it is available again, or to all remaining
zones at once.
• If the call must use a start tone, select a tone from
the Start tone dropdown list. See appendix A for a
list of available tones and chimes. Adjust the
attenuation to set the volume of the tone.
• If the call must contain recorded messages, select
them in the left box and click the > button to add
them to the Messages box of the call macro. Use
the Repetitions box to specify how many times the
recorded messages must be repeated. See
section 44.2 for information about recorded
messages. Adjust the attenuation to set the
volume of the messages.
• If the call must contain live speech, set the Live
speech option to Yes. If the call does not contain
live speech, set it to No. Adjust the attenuation to
set the volume of the live speech.
• If the call must use an end tone, select a tone
from the End tone dropdown list. See appendix A
Bosch Security Systems | 2011-02
•
en | 382
for a list of available tones and chimes. Adjust the
attenuation to set the volume of the tone.
If Live speech is set to Yes, use the Audio input list to
specify the input that must be inserted. Select
Default if the live speech is originating from a call
station.
If Schedule is set to Enabled, call scheduling is
enabled. Enter the start time of the first call in the
Start time field and the interval period in the
Interval field. After the End time, the call will not
be repeated. Specify also the days on which the
call scheduling is active.
If Live speech is set to Yes, use the Timing scheme list
to specify the timing scheme of the call (see section 3.2.5).
The timing scheme can be used to select Immediate broadcast of a call. If a call stacker is included
in the system, and Live speech is set to Yes,
Time-shifted broadcast or time-shifted with
Pre-monitor is also possible. A time-shifted call is
broadcast upon completion of the original call or
after the local pre-monitor phase has finished.
Note
When Live speech is set to Yes, call scheduling
is not possible and the fields for call scheduling
are not visible. When Live speech is set to No
the timing scheme is fixed to Immediate.
•
The maximum duration of a call can be configured by selecting one of the following options
from the Maximum call duration droplist: 10 s, 20 s,
40 s, 1 min, 2 min, 5 min, 10 min, 20 min, 30 min
and Unlimited (default).
A maximum call duration avoids blocking of
zones by a high priority call that was started but
not stopped, either by accident or because it contains e.g. infinitely looping messages.
Note
Do not limit the Maximum call duration when the
Routing scheme is set to Stacked or when the
Schedule is enabled.
Praesideo 3.5 | Installation and User Instructions | 9 | System Configuration
6 Submit the changes. Note that the changes are not
permanent until the configuration is saved (see
section 40.4.4 and section 40.4.5).
46.2.3 Delete a call macro
Proceed as follows to delete a call macro:
1 Go to Configure > Call characteristics > Call macro to
open the Call macro page.
2 Select the call macro that has to be deleted from the
Name dropdown list.
3 Click the Delete button to delete the call macro. A
pop-up window asks to confirm this choice.
4 Click the OK button to confirm that the call macro
must be deleted. The deleted call macro is no longer
available from the Name dropdown list.
5 Submit the changes. Note that the changes are not
permanent until the configuration is saved (see
section 40.4.4 and 40.4.5.
Bosch Security Systems | 2011-02
en | 383
Praesideo 3.5 | Installation and User Instructions | 9 | System Configuration
47
Action programming
47.1
Introduction
On the Action programming pages, the keys of the
keypads and the control inputs can be configured. The
process of configuring a key or control input consists of
two steps:
1 Assigning a behavior (see section 47.2).
2 Assigning an action (see section 47.3).
en | 384
47.2.2.2 Momentary with immediate abort
If the behavior is momentary with immediate abort, the
action coupled to the control input or key is active
during the time the external contact is closed. For an
example, see figure 47.2. When the external contact is
opened, the action is immediately aborted.
make
break
action
47.2
Behavior
47.2.1 Introduction
The behavior specifies how the control input deals with
incoming signals or how the key reacts when it is
pressed. The following behaviors are available:
• Momentary on break or make (see section 47.2.2).
• Single shot on break or make (see section 47.2.3).
• Toggle on break or make (see section 47.2.4).
47.2.2 Momentary behaviors
47.2.2.1 Momentary
If the behavior is momentary, the action coupled to the
control input or key is active during the time the
external contact is closed.
start/stop
start
call
abort
figure 47.2: Momentary with immediate abort
47.2.2.3 Momentary with phase completion and abort
on repress
If the behavior is momentary with phase completion
and abort on repress, the action coupled to the control
input or key is active during the time the external
contact is closed. For an example, see figure 47.3. When
the external contact is opened, the action is stopped
after the completion of the current phase
make
break
action
make
break
action
figure 47.1: Momentary behavior
start/stop
start
call
stop
figure 47.3: Momentary with phase completion and
abort on repress (1)
When the external contact is closed again while the
action is still running, the action is immediately aborted.
For an example, see figure 47.4.
make
break
action
start/stop
start
call
stop
abort
figure 47.4: Momentary with phase completion and
abort on repress (2)
Bosch Security Systems | 2011-02
Praesideo 3.5 | Installation and User Instructions | 9 | System Configuration
47.2.3 Single shot behaviors
47.2.3.1 Single shot
If the behavior is single shot, the action is started when
the external contact closes. The action can be stopped
with a single shot with immediate abort (see section
47.2.3.2) or single shot with phase completion (see
section 47.2.3.3).
en | 385
47.2.4.2 Toggle with immediate abort
If the behavior is toggle with immediate abort, the
action coupled to the control input or key is started
when the external contact closes and immediately
aborted when the external contact closes again. For an
example, see figure 47.7.
make
make
break
break
action
action
start/stop
start
start/stop
start
call
call
abort
figure 47.7: Toggle with immediate abort
figure 47.5: Single shot
Usually, the single shot behavior is used for triggering
events (for example, to cancel a selection) and actions
with a significant duration (for example, a call).
47.2.3.2 Single shot with immediate abort
If the behavior is single shot with immediate abort, the
action is stopped when the external contact closes. This
type of behavior is used for stopping actions that were
started with a single shot action (see section 47.2.3.1)
47.2.4.3 Toggle with phase completion and abort on
repress
If the behavior is toggle with phase completion and
abort on repress, the action coupled to the control input
or key is started when the external contact closes. For an
example, see figure 47.8. When the external contact
closes again, the action is stopped after the completion
of the current phase.
make
break
47.2.3.3 Single shot with phase completion
If the behavior is single shot with phase completion, the
action is stopped when the external contact closes. This
type of behavior is used for stopping actions that were
started with a single shot action (see section 47.2.3.1)
47.2.4 Toggle behaviors
47.2.4.1 Toggle
If the behavior is toggle, the action coupled to the
control input or key is started when the external contact
closes and stopped when the external contact closes
again (see figure 47.6).
action
start/stop
start
call
stop
figure 47.8: Toggle with phase completion and abort on
repress (1)
When the external is closed a third time while the action
is still running, the action is immediately aborted. For an
example, see figure 47.9.
make
break
action
make
break
action
figure 47.6: Toggle
Bosch Security Systems | 2011-02
start/stop
start
call
stop
abort
figure 47.9: Toggle with phase completion and abort on
repress (2)
Praesideo 3.5 | Installation and User Instructions | 9 | System Configuration
47.3
Actions
47.3.1 Introduction
The action determines which action is triggered if the
control input or key becomes active. The behavior that
can be assigned to a control input or key, depends on
the action type, since some combinations of actions and
behaviors are not useful (see section 47.3.2).
Note
The Action programming pages for a call station
basic or call station toolkit always contain a
General section and up to 16 Keypad sections.
In the General section, the properties of the PTT
key of the call station can be defined. This key
always has the Press-to-talk (PTT) action.
Bosch Security Systems | 2011-02
en | 386
Praesideo 3.5 | Installation and User Instructions | 9 | System Configuration
en | 387
47.3.2 Overview
Legend:
D : Default
Bosch Security Systems | 2011-02
D
D
D
D
D
D
D
D
D
D
D
D
D
D
D
D
D
D
D
D
D
D
D
D
D
not applicable
not applicable
not applicable
not applicable
not applicable
not applicable
: Other possible behaviors
Toggle with phase completion
and abort on repress
Toggle with immediate abort
Toggle
Single show with phase completion
Single shot with immediate abort
Single shot
Momentary with phase completion
and abort on repress
47.3.3
47.3.4
47.3.5
47.3.6
47.3.7
47.3.8
47.3.9
47.3.10
47.3.11
47.3.12
47.3.13
47.3.14
47.3.15
47.3.16
47.3.17
47.3.18
47.3.19
47.3.20
47.3.21
47.3.22
47.3.23
47.3.24
47.3.25
47.3.26
47.3.27
47.3.28
47.3.29
47.3.30
47.3.31
47.3.32
47.3.33
Momentary with immediate abort
Description, see:
PTT
Call activation key
Start
Stop
Call macro
Priority
Tones
Recorded message
Zone selection
Cancel selection
Recall
Cancel last
Cancel all
BGM source
BGM volume control
BGM on/off
Local BGM source
Local BGM volume control
Local BGM on/off
Fault input
Acknowledge/Reset
Indicator test
Back-up power mode
Synchronize time
Switch trigger
Switch output
Zone active output
Volume override output
System fault
Zone status
Zone priority status
Momentary
Action
table 47.1: Actions
Praesideo 3.5 | Installation and User Instructions | 9 | System Configuration
en | 388
47.3.3 Press-to-talk (PTT)
Using the PTT (Press-to-talk) action, a call with a
predefined priority based on a call macro can be started
in one or more predefined zones or zone groups. When
the activator of a PTT action is released, the call is
stopped after completion of the running phase of the
call. See figure 47.10 for an overview of the Action
programming page for a PTT key. Configuring a PTT
action is similar to configuring a Call activation key action
(see section 47.3.4).
figure 47.11: Call activation key
•
Note
If the system contains call stackers, use the
action type Toggle with abort on repress or
Momentary with abort on repress, since calls are
automatically deleted from the call stackers
when they are aborted immediately.
figure 47.10: PTT (Press-to-talk) key
The PTT keys of call stations and call station keypads
are linked to the status LEDs (see section 15.3 and
18.2.4). Only one PTT key can be active at the same
time.
•
•
47.3.4 Call activation key
Using the Call activation key action, a call with a
predefined priority based on a call macro can be started
in one or more predefined zones or zone groups. It is
also possible to activate a predefined control output.
When the activator of a Call activation key action is
released, the call is aborted. See figure 47.11 for an
overview of the Action programming page for a Call
activation key.
•
•
•
If more than one action (up to a maximum of 5) is
configured for a Call activation key, see section 43.2.5,
then also multiple sets of Call macro, Priority and Zones
can be configured here.
Note
This action can also be assigned to control
inputs.
Bosch Security Systems | 2011-02
Action type - Sets the type of action.
Call macro - Assigns a call macro to the key or
control input.
Priority - Sets the priority of the call. The ranges of
priorities offered depends on the type of call station
(normal: 32 to 223, emergency: 32 to 255). When
the priority of the Call activation key action must be
the same as the priority of the call macro, set Priority
to <Default>.
Available outputs - Shows the available zones,
zone groups and control outputs. Use the dropdown
list to choose the type of outputs that are shown.
Add/Remove buttons - Using the > and <
buttons, selected outputs can be added to or
removed from Assigned outputs.
Assigned outputs - Shows the outputs that have
been assigned to the key or control input.
Praesideo 3.5 | Installation and User Instructions | 9 | System Configuration
47.3.5
Start
The Start action is intended for making emergency calls
for phased evacuation. The Start action starts a call,
based on a call macro, in a pre-defined zone or zone
group. The priority of the call is the same as the priority
of the call macro and cannot be changed. See figure
47.12 for an overview of the Action programming page for
a Start key.
If more than one action (up to a maximum of 5) is
configured for a Start key or control input, see section
43.2.5, then also multiple sets of Call macro and Zones
can be configured here.
47.3.6 Stop
The Stop action is intended for aborting emergency calls
for phased evacuation. The Stop action aborts all calls
that are based on the defined call macro. See figure
47.13 for an overview of the Action programming page for
a Stop key.
If more than one action (up to a maximum of 5) is
configured for a Stop key or control input, see section
43.2.5, then also multiple Call macros can be configured
here.
figure 47.13: Stop action key
figure 47.12: Start action key
Typically, there will be multiple Start actions that use
the same call macro, but address other zones or zone
groups. In case of a phased evacuation, the different
Start actions then can be used to expand the area in
which the call is running.
When the activator of a Start action is released, the
running call is stopped in the zones or zone groups that
are associated to the action. In case of a phased
evacuation, releasing the different Start actions can be
used to reduce the area in which the call is running.
Bosch Security Systems | 2011-02
en | 389
Praesideo 3.5 | Installation and User Instructions | 9 | System Configuration
en | 390
47.3.7 Call macro
47.3.9 Tones
Using a Call macro key, a call macro can be selected. See
figure 47.14 for an overview of the Action programming
page for a Call macro key.
Using a Tones key, a tone can be selected. See
figure 47.16 for an overview of the Action programming
page for a Tones key.
figure 47.14: Call macro key
figure 47.16: Tones key
47.3.8 Priority
Using the Priority key, a priority can be selected. See
figure 47.15 for an overview of the Action programming
page for a Priority key.
Note
For information about available tones, see
appendix A.
47.3.10 Recorded message
Using the Recorded message action, a recorded message
can be selected. See figure 47.17 for an overview of the
Action programming page for a Recorded message key.
figure 47.15: Priority key
figure 47.17: Recorded message key
Bosch Security Systems | 2011-02
Praesideo 3.5 | Installation and User Instructions | 9 | System Configuration
en | 391
47.3.11 Zone selection
47.3.12 Cancel selection
Using a Zone selection key one or more zones and/or one
or more zone groups can be selected. See figure 47.18
for an overview of the Action programming page for a Zone
selection key.
The Cancel selection action is used to cancel selections
that have been made. See figure 47.19 for the Action
programming page for a Cancel selection key.
figure 47.19: Cancel selection key
figure 47.18: Zone selection
47.3.13 Recall
•
•
•
•
Action type - Sets the type of action.
Available outputs - Shows the available zones,
zone groups and control outputs. Use the dropdown
list to choose the type of outputs that are shown.
Add/Remove buttons - Using the > and <
buttons, selected outputs can be added to or
removed from Assigned outputs.
Assigned outputs - Shows the outputs that have
been assigned to the key.
The Recall action is used to recall selections that have
been made. See figure 47.20 for the Action programming
page for a Recall key.)
Note
For information about creating zones and zone
groups, see section 45.2.
figure 47.20: Recall key
Bosch Security Systems | 2011-02
Praesideo 3.5 | Installation and User Instructions | 9 | System Configuration
en | 392
47.3.14 Cancel last
47.3.15 Cancel all
The Cancel last action key is intended for cancelling the
last stacked call that originated from the call station. See
figure 47.21 for an overview of the Action programming
page for a Cancel last key.
The Cancel all action key is intended for cancelling all
stacked calls that originated from the call station. See
figure 47.22 for an overview of the Action programming
page for a Cancel all key.
The Cancel last function only works during the broadcast
replay phase, after the pre-monitor phase. To cancel a
call during the pre-monitor phase, configure the key that
starts the call with the abort on repress option, and use that
key.
figure 47.22: Cancel all action key
47.3.16 BGM source
figure 47.21: Cancel last action key
Using the BGM Source action, a BGM source can be
selected. When a BGM Source key is pushed, the LEDs
of the zone selection keys of the same call station show
the zones in which the selected BGM channel is playing.
Push the zone selection keys to add or remove zones.
See figure 47.23 for an overview of the Action
programming page for a BGM Source key.
figure 47.23: BGM source key
Bosch Security Systems | 2011-02
Praesideo 3.5 | Installation and User Instructions | 9 | System Configuration
en | 393
47.3.17 BGM volume control
47.3.18 BGM on/off
Using a BGM volume control action, the background
music volume can be controlled. The stepsize of the
volume change is 3 dB. See figure 47.24 for an overview
of the Action programming page for a BGM volume control
key.
The BGM on/off action is used to turn background music
on or off in preselected zones. See figure 47.25 for an
overview of the Action programming page for a BGM on/off
key.
figure 47.25: BGM on/off key
figure 47.24: BGM volume control key
The BGM volume in a certain zone can be changed by
selecting the zone using a zone key (see section 47.3.11)
and then pressing a BGM volume control key. If a BGM
source key is pressed, then the indicators of all zones
assigned to that source (if present) will light. In these
zones, the volume can be changed. It is also possible to
add zones to or remove zones from the selection before
changing the volume. If a BGM source selection partly
influences a zone group, the indicator of that zone group
will be yellow instead of green.
If a BGM source key is pressed and a numeric display is
connected to the same call station, its LCD will show
“BGM”, and the numeric keypad cannot be used (see
17.6.3).
Bosch Security Systems | 2011-02
Praesideo 3.5 | Installation and User Instructions | 9 | System Configuration
en | 394
47.3.19 Local BGM source
47.3.20 Local BGM volume control
The Local BGM source action is used to step through all
available BGM sources in the assigned zone (groups)
including an inserted ‘BGM off’ position. See figure
47.26 for an overview of the Action programming page for
a Local BGM source key.
The Local BGM volume control action is used to control
the volume of the BGM in the assigned zone (groups).
It can be changed in steps of 3 dB between -96 dB and
0 dB. See figure 47.26 for an overview of the Action
programming page for a Local BGM volume control key.
Note
This action can also be assigned to control
inputs.
Note
This action can also be assigned to control
inputs.
figure 47.26: Local BGM source key
•
•
•
•
Action type - Sets the action type.
Available outputs - Shows the available zones and
zone groups. Use the dropdown list to choose the
type of outputs that are shown.
Add/Remove buttons - Using the > and <
buttons, selected outputs can be added to or
removed from Assigned outputs.
Assigned outputs - Shows the outputs that have
been assigned to the key.
figure 47.27: Local BGM volume control key
•
•
•
•
•
Bosch Security Systems | 2011-02
Action type - Sets the action type.
Volume control - Sets the type of volume control.
To increase the volume, select Volume up. To decrease
the volume, select Volume down.
Available outputs - Shows the available zones and
zone groups. Use the dropdown list to choose the
type of outputs that are shown.
Add/Remove buttons - Using the > and <
buttons, selected outputs can be added to or
removed from Assigned outputs.
Assigned outputs - Shows the outputs that have
been assigned to the key.
Praesideo 3.5 | Installation and User Instructions | 9 | System Configuration
en | 395
47.3.21 Local BGM on/off
47.3.22 Fault input
The Local BGM on/off action is used to turn background
music on or off in predefined zones. See figure 47.28 for
the Action programming page for a Local BGM on/off key.
The Local BGM on/off action combines the Zone selection
(see section 47.3.11) and BGM on/off actions (see section
47.3.18). See figure 47.28 for an overview of the Action
programming page of for a Local BGM on/off key.
Using the Fault input action, a customized message can
be logged and the system is put in the fault state. See
figure 47.29 for an overview of the Action programming
page for a Fault input key.
Note
This action can also be assigned to control
inputs.
If the key is set to Acknowledge, then the indicator
functions as fault or emergency buzzer. If the key is set
to Reset then the indicator functions as fault or
emergency indicator.
Note
This action can also be assigned to control
inputs.
figure 47.28: Local BGM on/off key
•
•
•
•
•
Action type - Sets the action type.
BGM control - Sets the BGM control:
• On to switch BGM on
• Off to switch BGM off
• Toggle to toggle BGM on and off
Available outputs - Shows the available zones and
zone groups. Use the dropdown list to choose the
type of outputs that are shown.
Add/Remove buttons - Using the > and <
buttons, selected outputs can be added to or
removed from Assigned outputs.
Assigned outputs - Shows the outputs that have
been assigned to the key.
Bosch Security Systems | 2011-02
figure 47.29: Fault input key
Praesideo 3.5 | Installation and User Instructions | 9 | System Configuration
en | 396
47.3.23 Acknowledge/Reset
47.3.24 Indicator test
Using the Acknowledge/Reset action, faults can be
acknowledged and reset. See figure 47.30 for an
overview of the Action programming page for a
Acknowledge/Reset key.
The Indicator test action can be configured for a key on a
call station keypad or keypad kit. When activated all
indicators on that call station and all its connected
keypads are switched on to visually check the indicators.
Bi-color indicators alternate between both colors. The
call station loudspeaker will sound a single tone chime,
with priority 223. If a numeric keypad is connected to
the call station, its LCD shows a testpattern to visually
check all pixels.
It is possible to select fault or emergency status for this
action, and to select whether the action should
acknowledge, reset, or simultaneously acknowledge and
reset this status.
In case of Emergency Reset selection, an additional setting
becomes available: Reset aborts active emergency calls:
Yes/No. The default setting is No. This way, the
emergency state cannot be reset as long as emergency
calls are still ongoing; this is the preferred way of
operation and is even mandatory for EN54-16 and other
standards. The setting Yes is more a kind of engineers'
reset in technical rooms to force a reset after a building
has been evacuated and the system must be silenced.
NB The default setting from Praesideo version 3.3
onwards differs from previous versions, where an
Emergency Reset would abort running calls.
If the key is set to Acknowledge, then the indicator
functions as fault or emergency buzzer. If the key is set
to Reset then the indicator functions as fault or
emergency indicator.
Note
This action can also be assigned to control
inputs.
figure 47.30: Acknowledge/Reset key
Bosch Security Systems | 2011-02
Make sure that outputs of keypad kits that are used for
different purposes than visual indicators will not cause
unexpected behavior when activated by the Indicator
test.
figure 47.31: Indicator test key
Note
Outputs of keypads that are configured as zone
active output, volume override output or switch
output are excluded from the Indicator test, as
they are typically used to drive external relays
instead of panel indicators.
Praesideo 3.5 | Installation and User Instructions | 9 | System Configuration
en | 397
47.3.25 Back-up power mode
47.3.26 Synchronize time
The Back-up power mode action is used to put the system
in the back-up power mode. In this mode, all calls
below a specified priority (see section 44.4) are aborted.
See figure 47.32 for an overview of the Action
programming page for a Back-up power mode key.
The Synchronize time action is used to set the internal
clock of the network controller to the nearest minute to
synchronize the clock with a master. See figure 47.33 for
an overview of the Action programming page for a
Synchronize time key.
Note
This action can also be assigned to control
inputs.
figure 47.32: Back-up power mode key
Bosch Security Systems | 2011-02
Note
This action can also be assigned to control
inputs.
figure 47.33: Synchronize time key
Praesideo 3.5 | Installation and User Instructions | 9 | System Configuration
en | 398
47.3.27 Switch trigger
47.3.28 Switch output
The Switch trigger action is intended for activating Switch
output control outputs or Switch output keypad keys (see
section 47.3.28). See figure 47.34 for an overview of the
Action programming page for a Switch trigger key.
The Switch output action is intended for control outputs
and call station keypads or call station keypad kits. The
key/input itself is not used by this action; only the
indicator/output attached to the key is activated. The
Switch output action is activated using a Switch trigger
action (see section 47.3.27). See figure 47.35 for the
Action programming page for a Switch output key.
Note
This action can also be assigned to control
inputs.
figure 47.35: Switch output key
47.3.29 Zone active output
figure 47.34: Switch trigger key
•
•
•
•
•
Action type - Sets the action type.
Priority - Sets the priority of the activated output.
Available outputs - Shows the available Switch
output control outputs and keypad keys.
Add/Remove buttons - Using the > and <
buttons, selected outputs can be added to or
removed from Assigned outputs.
Assigned outputs - Shows the Switch output
control outputs and keypad keys that have been
assigned to the key.
The Zone active output action is intended for control
outputs and call station keypads or call station keypad
kits. The key/input itself is not used by this action; only
the indicator/output attached to the key is activated. A
Zone active output key can be assigned to a zone (see
section 45.2) and becomes active when a call or BGM is
sent to the zone. See figure 47.36 for an overview of the
Action programming page for a Zone active output key.
figure 47.36: Zone active output key
47.3.30 Volume override output
The Volume override output action is intended for control
outputs and call station keypads or call station keypad
kits. The key/input itself is not used by this action; only
the indicator/output attached to the key is activated. A
Bosch Security Systems | 2011-02
Praesideo 3.5 | Installation and User Instructions | 9 | System Configuration
Volume override output key can be assigned to a zone (see
section 45.2) and becomes active when a call with a
priority equal to or higher than 32 is sent to the zone.
See figure 47.37 for an overview of the Action
programming page for a Volume override output key.
figure 47.37: Volume override output key
47.3.31 System fault
The System fault action is intended for control outputs
and call station keypads or call station keypad kits. The
key/input itself is not used by this action; only the
second output or yellow indicator attached to the key is
activated while a system fault is present. System faults
are:
• Configuration file error
• Flash card data error
• Flash card missing
• No valid configuration file found
• Processor reset
47.3.32 Zone status
The Zone status action is intended for LBB4434/00 Call
Station Keypad Kits. The key/input itself is not used by
this action; only the indicators/outputs attached to the
key is activated. The Zone status action activates the
indicators/outputs belonging to the key if certain
conditions are met. It serves two purposes:
1 If a call is made to at least one of the configured
zones or zone groups with a priority higher than or
equal to the configured priority, then the second
output for this key indicator (normally a yellow LED)
is activated on an LBB4434/00 keypad kit. If it is
used to indicate an emergency call in these zones or
zone groups, then a red LED should be connected to
this output. Preferably a dedicated indicator per
emergency zone is used. The color red for this
purpose is defined in most emergency sound system
Bosch Security Systems | 2011-02
en | 399
standards, e.g. EN54-16. If the defined priority is set
to 224 the Zone status indicator lights if an emergency
call (priority equal to or higher than 224) is made to
that zone or zone group. See figure 47.31 for an
overview of the Action programming page for a Zone
status key.
2 If a fault is present in the zone that is configured for
this action, then the first output for this key indicator
(normally a green LED) is activated on an
LBB4434/00 keypad kit (flashing). This indicates that
one or more fault events are present for units or
connections that are associated with that zone. A
yellow LED should be connected to this output. This
color is defined in most emergency sound system
standards, e.g. EN54-16. A zone fault is a fault that
causes that (part of) a zone cannot be reached for
calls anymore. This indication is the collection of
16 different faults that may cause a problem to reach
a zone completely, like line faults, overheat and
overload faults. If a fault is internally solved by e.g. a
spare amplifier that takes over a defect amplifier, this
will not result in a zone related fault but only in a
more specific fault about the reason for the spare
amplifier switching. Also in case of redundant
loudspeaker line configuration, a single GroupAFault
or GroupBFault will not contribute to the zone fault
status, since the zone is still addressable with a level
of -3 dB. This assumes that the loudspeakers in that
zone are evenly divided between group A and group
B. The zone fault status is de-activated when all faults
that contribute to that zone fault status have been
resolved, even if they are not yet reset.
The following faults contribute to the Zone fault status
(see section 54, the Fault events list for details):
• Amplifier failure
• Amplifier failure or overload (for LBB4428/00
only)
• Amplifier initialization failure
• Amplifier loudspeaker line failure (for single
loudspeaker line supervision)
• Amplifier loudspeaker line failure (for multiple
loudspeaker line supervision)
• Amplifier missing
• Amplifier overheat: muted
• Amplifier overload
• Amplifier short circuit
Praesideo 3.5 | Installation and User Instructions | 9 | System Configuration
• Class-A switchover
• Group A fault
• Group A or B line fault
• Group B fault
• Incompatible hardware version
• Pilot tone calibration failure
• Unit missing
Loudspeaker faults are excluded from the list of zone
related faults that will activate the zone fault indicator,
so loudspeaker end-of-line supervision must be used
instead or additionaly to comply to EN54-16. This is
because in Praesideo loudspeaker faults are not assigned
to a specific amplifier output or zone, but only to the
loudspeaker itself, wherever it is.
It is also possible to configure this Zone status function on
an LBB4432/00 keypad, but then the second LED will
turn on for the active priority call, which is yellow. For a
zone fault the first LED will flash, which is green. In
most cases these colors are not acceptable, so better use
an LBB4434/00 with dedicated indicators. Also, on an
LBB4432/00 keypad these indicators cannot be
combined with the Zone selection key, which has its own
bi-color indicator. On a custom panel, using the
LBB4434/00 keypad kits, the indicators and switch of a
Zone selection key and the Zone status indicators can be
grouped together to give a clear overview of the
selection.
•
•
Add/Remove buttons - Using the > and <
buttons, selected outputs can be added to or
removed from Assigned outputs.
Assigned outputs - Shows the outputs that have
been assigned to the key.
47.3.33 Zone priority status
The Zone priority status action is intended for
LBB4434/00 Call Station Keypad Kits. The key/input
itself is not used by this action; only the indicator/output
attached to the key is activated. The Zone priority status
action activates the indicator/output belonging to the
key if there is a call made to the zone with a priority
equal to the defined priority. The purpose of this
function is to be able to build a custom display with
zone indicators that will show in which zones a call with
a specific priority is busy. In this way the indicators can
show whether a certain emergency or alert message is
running in a zone by setting the defined priority to the
priority of that message.
See figure 47.39 for an overview of the Action
programming page for a Zone priority status key.
Configuring a Zone priority status key is similar to
configuring a Zone status key (see section 47.3.32).
figure 47.39: Zone priority status key
figure 47.38: Zone status key
•
•
Priority - The action is activated if the priority is
equal to or higher than this specified priority.
Available outputs - Shows the available zones,
zone groups and control outputs. Use the dropdown
list to choose the type of outputs that are shown.
Bosch Security Systems | 2011-02
en | 400
Praesideo 3.5 | Installation and User Instructions | 9 | System Configuration
48
Audio processing
•
48.1
Introduction
48.2.2 Equalizer setting
On the Audio Processing pages, the audio processing
parameters of all normal audio inputs and outputs in the
system can be set (see section 48.2). Audio inputs that
are configured as AVC inputs must be calibrated using
the Audio Processing pages (see section 48.3).
Audio processing parameters are changed immediately
when the Submit Equalizer button on the Audio Processing
pages is clicked. Although the changes are audible, it is
important to realize that they are not automatically
saved. If the changes are not saved they will be lost
when the network controller is reset. See section 40.4.5
for information about saving configuration settings.
48.2
Audio processing parameters
en | 401
Low-pass filter - A low-pass filter with a fixed
quality factor and slope.
Proceeds as follows to configure a filter:
1 Select the frequency of the filter from the Freq
dropdown list. See table 48.1 for a list of available
frequencies.
2 Select the gain of the filter from the G dropdown list.
See table 48.1 for a list of available gains.
3 Select the quality factor of the filter from the Q
dropdown list. See table 48.1 for a list of available
quality factors.
4 Put a check mark in the Active box of the filter to
enable the filter.
5 Click the Submit Equalizer button to submit the
changes. The changes are immediately applied to the
audio input or output.
48.2.1 Equalizer
See figure 48.1 for an overview of an equalizer options
of normal audio inputs and outputs.
Note
The default values in table 48.1 are indicated by
asterisks (*) when applicable.
48.2.3 Volume setting
For the audio outputs, a parametric equalizer and a
volume button is available to change the volume of the
audio output. The multi channel interface does not
provide an equalizer for each output, but does provide a
volume control button for each enabled output to
control the volume of connected basic amplifiers.
48.2.4 Spare power amplifiers
figure 48.1: Audio processing - overview
From left to right in figure 48.1:
• High-pass filter - A high-pass filter with a fixed
quality factor and slope.
• Shelving filter - A shelving filter for low
frequencies with a fixed quality factor.
• Full parametric section - Three full parametric
sections with adjustable quality factors, gains and
frequencies.
• Shelving filter - A shelving filter for high
frequencies with a fixed quality factor.
Bosch Security Systems | 2011-02
Spare power amplifiers do not provide volume and
equalizer settings for the outputs. These settings are
automatically set to the same position as the main
amplifier that is replaced by the spare amplifier.
Spare power amplifiers do have general purpose audio
inputs with an equalizer or with an AVC calibration
button depending on the configured input function.
These audio inputs remain active also when the spare
power amplifier replaces a failing main power amplifier.
Praesideo 3.5 | Installation and User Instructions | 9 | System Configuration
en | 402
table 48.1: Audio processing parameters
Freq
(Hz)
G
(dB/Oct)
33
47
*68
100
150
220
330
-12
47
68
100
*150
220
330
470
-12
-10
-8
-6
-4
-2
*0
2
4
6
8
10
12
Q
*0.7
*1.0
Bosch Security Systems | 2011-02
68
100
150
*220
330
470
680
-12
-10
-8
-6
-4
-2
*0
2
4
6
8
10
12
0.2
0.4
0.6
0.8
1.0
*1.2
1.4
1.6
1.8
2.0
330
470
680
*1,000
1,500
2,200
3,300
-12
-10
-8
-6
-4
-2
*0
2
4
6
8
10
12
0.2
0.4
0.6
0.8
1.0
*1.2
1.4
1.6
1.8
2.0
1,500
2,200
3,300
*4,700
6,800
10,000
15,000
-12
-10
-8
-6
-4
-2
*0
2
4
6
8
10
12
0.2
0.4
0.6
0.8
1.0
*1.2
1.4
1.6
1.8
2.0
2,200
3,300
*4,700
6,800
10,000
15,000
-12
-10
-8
-6
-4
-2
*0
2
4
6
8
10
12
3,300
4,700
*6,800
10,000
15,000
-12
*0.7
*1.0
Praesideo 3.5 | Installation and User Instructions | 9 | System Configuration
48.3
AVC calibration
The Audio Processing page of an audio input that has been
configured as an AVC input shows a Start AVC
calibration button (see figure 48.2) after:
1 The audio input has been set to AVC.
2 The system has been restarted.
figure 48.2: AVC calibration button
The Start AVC calibration button starts the AVC
calibration (see chapter 49).
Note
Do not forget to submit the changes. The
changes are not permanent until the
configuration is saved (see section 40.4.4 and
section 40.4.5).
Note
The AVC calibration requires the Wobble tone
to be present in the tone set. If necessary, use
Activate new tone set (see section 44.4).
Bosch Security Systems | 2011-02
en | 403
Praesideo 3.5 | Installation and User Instructions | 9 | System Configuration
49
Automatic volume control
49.1
Introduction
Automatic volume control (AVC) improves the
intelligibility of calls and the audibility of BGM in noisy
environments. It changes the call volume in a zone to
compensate for ambient noise. The ambient noise is
measured by sensing microphones that can be
connected to any of the audio inputs on the power
amplifiers. Although it is possible to connect the
ambient sensing microphone to other inputs of the
system, only the power amplifier inputs provide
microphone supervision. Furthermore, the other inputs
have a built-in audio limiter that will interact with the
AVC, when the signal levels are relatively high, such as
when coming from an electret microphone..
49.2
Sensing microphones
49.2.1 Introduction
When AVC is enabled in a zone, a sensing microphone
continuously measures the ambient noise. The system
uses an averaging filter to derive the average ambient
noise level from the signal of the sensing microphone.
set to AVC range (see figure 49.1). To prevent
undesired supervision faults, make sure that:
• The supply current for condenser microphones is
between 0.5 mA and 5 mA.
• The microphone impedance of dynamic
microphones is between 120 Ω and 1300 Ω.
49.2.4 Installation
To make sure that the sensing microphone measures the
correct ambient noise level, install it in a place which
has a typical ambient noise level. Furthermore:
• Keep the cables of the sensing microphones and
high-power cables (e.g. mains cables) separated.
Interference can disturb the ambient noise
measurement.
• Do not install the sensing microphone near an
expected noise source. A loud and very local noise
can disturb the ambient noise measurement.
• Do not install the sensing microphone near an air
vent or air conditioning. Airflows can disturb the
ambient noise measurement.
• Do not attach the sensing microphone to any part of
a building. The vibrations of buildings can disturb
the ambient noise measurement.
49.3
Note
Between the start of a call and the end of a call,
the AVC function does not process the signal of
the sensing microphone.
49.2.2 Type
Use sensing microphones with high-quality cables,
because sensing microphones are often installed in
locations that are hard to reach. It is not required to use
high-quality microphones. The choice for a directional
or omni-directional microphone depends on the local
situation.
Bosch Security Systems | 2011-02
Connection
Sensing microphones can be connected to the unit that
contains the audio outputs of the AVC zone or to
another amplifier. When the sensing microphone is
connected to another amplifier and it is used in
combination with an AVC zone, it permanently
occupies a digital channel. As a result, the number of
digital audio channels that are available for calls
decreases.
Note
Spare amplifiers cannot take over the sensing
microphone from a failing main amplifier when
the signal of the sensing microphone is not
routed over the optical network.
49.2.3 Supervision
The connections between the system and the sensing
microphones can be supervised (see section 43.3.3).
When the sensing microphone of a zone fails, all calls in
the zone are distributed at the maximum volume to
comply with evacuation standards. When the sensing
microphone of a zone fails, the attenuation of BGM is
en | 404
49.4
Configuration
Before configuring AVC in a zone:
• Make sure that the ambient sensing microphone is
correctly connected to the system.
Praesideo 3.5 | Installation and User Instructions | 9 | System Configuration
•
•
•
Make sure that all loudspeakers are connected to the
system, set at the correct power level, are aimed (if
necessary) and are working.
Adjust the nominal output level of all audio outputs
in the zone to the level required to have the correct
speech intelligibility at maximum ambient noise
level.
Make sure that the the audio delay setting of the
applicable power amplifier outputs is set to a value
< 2 s. After the calibration the audio delay can be set
back to the correct value. Very long delay settings,
e.g. for tunnel applications, may cause wrong
calibration results.
Proceed as follows to configure AVC:
1 Go to the AVC settings category of the Zone
Configuration page. A screen similar to the one in
figure 49.1 appears in the main frame of the web
interface.
figure 49.1: AVC settings
2 Put a check mark in the Enabled checkbox to enable
AVC for calls. The ambient noise level that is used to
adjust the volume of the call, is measured just before
the start of the call.
Note
The AVC settings only apply to the audio
outputs of power amplifiers. It is not possible to
apply AVC to the audio outputs of basic
amplifiers or other units.
3 Normally the AVC works for calls. When the AVC
should also work for BGM, put a checkmark in the
BGM box. The ambient noise level that is used to
Bosch Security Systems | 2011-02
en | 405
adjust the volume of the BGM, is measured
continuously.
4 By default AVC also works for the emergency calls,
but if Control Emergency is disabled then emergency
calls will be broadcast at maximum (configured)
level.
Note
When AVC is enabled for BGM, make sure that
the sensing microphone is not near the
loudspeakers. If the sensing microphone is near
the loudspeakers, the BGM itself is seen as
ambient noise and the volume level of the BGM
will increase to the maximum volume level
(feedback).
5 Choose the audio input to which the sensing
microphone is connected from the Sense input
dropdown list.
6 Select the call margin from the Call margin
dropdown list. This is the threshold level of the AVC
function. When the ambient noise level is below the
call level by more than the call margin, the AVC
starts attenuating the call.
Note
A value of 12 dB is a practical value. A higher
value results in a bigger difference between the
volume levels of the calls and the ambient noise.
However, this requires more (or bigger)
loudspeakers and power amplifiers to reach the
high call volume when the volume level of the
ambient noise is high.
7 Select the release time from the Release time
dropdown list. This is the time between the end of
the call and the start of the ambient noise
measurement.
Note
A value of 6 s is a practical value. A short
release time combined with a long reverberation
time can cause a high call volume level.
Praesideo 3.5 | Installation and User Instructions | 9 | System Configuration
en | 406
8 Select the attenuation range from the AVC range
dropdown list.
Note
A value of 12 dB is a practical value. A higher
value will result in lower call volume levels when
the ambient noise volume level decreases.
9 Go to the Audio processing page of the audio input to
which the sensing microphone is connected. A
screen similar to the one in figure 49.2 appears.
figure 49.2: AVC calibration button
10 Click the Start AVC calibration button to start the
calibration of the AVC. This results in a loud wobble
tone (duration: 15 s) in the zones that use this audio
input to measure the ambient noise level. After the
wobble tone, there will be a silence (duration: 15 s).
Then a notification appears with the calibration
result. The zone is not available for calls during
calibration, because all audio outputs in the zone are
used to distribute the calibration tone.
Temporarily reset extremely long audio delay
settings (> 2 s) of the power amplifiers to a low value
to avoid that the wobble tone is not yet present when
calibration of the AVC starts.
Note
During the calibration, the system uses one
digital audio channel of the optical network to
distribute the calibration tone. This temporarily
decreases the number of available digital audio
channels in the system.
The following messages can appear during or after
calibration:
• AVC calibration running
Displayed during the calibration process.
• AVC calibration completed, range = x dB
Displayed after successful calibration. The range
shows the available AVC range in this situation. The
sum of the AVC range and the call margin that is
configured for a zone should be less than the
indicated available range.
• AVC calibration failed: sensing signal too high
Input overloaded by a ambient sensing signal that is
too high. Use a less sensitive microphone, use an
attenuation pad, or choose a different sensing
location.
• AVC calibration failed: available range too small
The difference between the measured ambient
sensing signal with and without calibration tone is
less than 6 dB. The available Praesideo output level
is too low compared to the existing ambient noise at
the sensing location.
• AVC calibration failed: ambient sensing input or its unit is
defect or disabled
AVC calibration and AVC is not possible with a
defect or disabled audio input for the ambient
sensing signal.
• AVC calibration failed: no AVC output is available
AVC calibration and AVC is not possible without a
zone being configured for AVC using this audio
input for sensing. The calibration tone cannot be
broadcast.
Note
The AVC calibration requires the Wobble tone
to be present in the tone set. If necessary, use
Activate new tone set (see section 44.4).
Bosch Security Systems | 2011-02
Praesideo 3.5 | Installation and User Instructions | 9 | System Configuration
50
Diagnose installation
50.1
Introduction
With the Installation page in the Diagnose section of the
web interface (see figure 50.1), the system installation
can be diagnosed.
en | 407
Safe means no action required, there is sufficient
margin. In a Critical situation the margin should be
checked at the highest expected temperature to make
sure that there is still a margin left. In an Unstable
situation, the system size should be reduced by
decreasing the number of nodes or the length of the
cable.
When a redundant loop topology is used, the cable
length should be checked with the shortest link between
two nodes removed. This is the worst case situation.
50.3 Number of nodes
The number of connected addressable nodes can be
checked if the network controller has hardware version
20.00 or higher. See table 31.2 for the number of nodes
per unit. The maximum number of nodes is 63.
50.4 Optical network
Proceed as follows to diagnose the optical network:
1 Check the optical power margin of all network
connections by reducing the optical level to Half
power.
2 Check for fault events with reduced level. If no
relevant faults are present, then resume normal
operation by restarting the network controller.
Otherwise, check for critical connections.
figure 50.1: Installation page
50.2 Cable length margin
The cable length margin can be checked if the network
controller has hardware version 20.00 or higher. As is
indicated in section 31.5, the maximum cable length
depends mainly on the number of nodes in the system.
For a system loop a certain maximum data delay is
permitted for proper operation. Most of the delay is the
propagation delay of the cable, but each node
introduces some additional delay that depends
somewhat on the temperature of the unit. A higher unit
temperature causes more delay and reduces the
maximum cable length. The network controller
measures the data delay and calculates the remaining
time. This time margin is then converted to the Cable
length margin, the length of cable that can be added to
the system. Due to the temperature dependance this
margin will change with temperature, dependent on the
number of nodes in the system. Therefore an additional
quality indication is given: Safe, Critical or Unstable.
Bosch Security Systems | 2011-02
Note
Although it is possible to resume normal
operation by selecting Full power, it is strongly
recommended to restart the network controller.
In case the power margin is nearly critical, the
unit may not accept the Full power command
anymore.
Praesideo 3.5 | Installation and User Instructions | 9 | System Configuration
50.5
Loudspeaker supervision
Proceed as follows to diagnose the loudspeaker
supervision:
1 Check the supervision of all loudspeakers and
loudspeaker lines by reducing the levels of the
communication (Communication) or the pilot tone
(Pilot tone).
2 Check for fault events with reduced level. If no
relevant faults are present, then resume normal
operation by restarting the network controller.
50.6 Device information
The Device information page in the Diagnose section (see
figure 50.2) can be used to check the hardware version
of the connected devices, their firmware version and
other relevant information. Because some system
functions are only supported for devices using relatively
new hardware and firmware, this page may be a
convenient source of information. For units with a front
panel LCD, most of this information is also availbale
from the LCD, but for units without LCD this page
provides the relevant information.
Note
This diagnose option only works for amplifiers
with multiple loudspeaker line supervision
boards installed and configured (see section
12).
Note
Checking takes up to 100 s for systems with
loudspeaker lines in the Immediate fault report
mode (see section 44.4). In the Recheck before
fault reporting mode or with individual
loudspeaker supervision, checking may take up
to 300 s.
figure 50.2: Check device information
Bosch Security Systems | 2011-02
en | 408
Praesideo 3.5 | Installation and User Instructions | 9 | System Configuration
50.7 Check configuration
The Configuration page in the Diagnose section can be
used to check the system configuration for
inconsistencies. Inconsistencies can cause strange or
unexpected system behavior.
The Configuration page shows the following errors:
• Outputs that are assigned to more than one zone.
• Inputs that are assigned to multiple BGM channels.
• Zones and zone groups that are assigned to multiple
BGM channels.
• Control outputs (other than configured as switch
outputs) that are assigned to a switch trigger input, a
call activation input, a PTT input or a call start input.
• Control outputs (other than configured as zone active
or volume override output outputs) that are assigned to
a zone.
• Main amplifiers that are assigned to more than one
spare amplifier.
• Main and spare amplifiers are not compatible types.
The web interface prevents most inconsistencies from
occurring by refusing to accept incorrect user data
during configuration, but some inconsistencies can still
occur. The Configuration page will display but not solve
any remaining inconsistencies. The installer should
modify the configuration.
figure 50.3: Check configuration page
Bosch Security Systems | 2011-02
en | 409
Praesideo 3.5 | Installation and User Instructions | 9 | System Configuration
Intentionally left blank.
Bosch Security Systems | 2011-02
en | 410
Praesideo 3.5 | Installation and User Instructions | 10 | Events
Part 10 - Events
Bosch Security Systems | 2011-02
en | 411
Praesideo 3.5 | Installation and User Instructions | 10 | Events
Intentionally left blank.
Bosch Security Systems | 2011-02
en | 412
Praesideo 3.5 | Installation and User Instructions | 10 | Events
51
Overview
51.1
Introduction
51.2
General events
General events contain information about special
situations. For example, the connection of a unit to the
system. See chapter 52 for a list of all general events.
51.3
Call events
Call events contain information about calls in the
system. For example, the start of a call. See chapter 53
for a list of all call events.
51.4
Fault events
51.4.1 Introduction
Fault events contain information about faults in the
system. For example, an overload of a power amplifier.
See chapter 54 for a list of all fault events.
51.4.2 Status
Each fault event has a status (see table 51.1).
table 51.1 Fault event statuses
Status
Description
New
The fault event is a new fault
event. All fault outputs are
activated.
Acknowledged
The new fault event is
acknowledged. If all faults in the
system have been
acknowledged, all fault alarm
buzzer outputs are deactivated.
Resolved
The acknowledged fault event is
resolved.
Reset
The resolved fault event is reset.
If all faults in the system have
been reset, all Fault alarm
indicator outputs are
deactivated.
Note
A fault output is a control output that has been
configured as an Fault alarm buzzer or as a
Fault alarm indicator (see table 43.6).
Bosch Security Systems | 2011-02
en | 413
51.4.3 Acknowledging fault events
51.4.3.1 Introduction
New fault events can be acknowledged:
• Using the network controller (see section 51.4.3.2).
• Using control inputs or keys (see section 51.4.3.3).
• Using the open interface (see section 51.4.3.4).
• Using the Logging Viewer (see chapter 57).
Note
When all faults are acknowledged, the Fault
alarm buzzer outputs are deactivated.
51.4.3.2 Network controller
New fault events can be acknowledged using the
Faults... menu of the network controller (see
section 5.6.5). Using this menu it is possible to
acknowledge individual fault events as well as all new
fault events in the system.
51.4.3.3 Control input or key
New fault events can be acknowledged using control
inputs or keys to which an Acknowledge/Reset action has
been assigned (see section 47.3.23). However, such a
control input or key acknowledges all new fault events
in the system. It is not possible to acknowledge
individual faults using a control input or key.
51.4.3.4 Open interface
New fault events can be acknowledged using the open
interface (see the Open Interface Programming
Instructions).
51.4.4 Resolving fault events
Before acknowledged fault events can be reset, they first
must be resolved. Most fault events are automatically
resolved by the system when the fault situation no
longer exists. Others need to be resolved manually.
Manual resolving is needed for faults whose presence is
not checked again after they occurred (for example, an
amplifier overload). After solving the problem, the fault
status of these fault events must be manually set to
Resolved. This is done by resetting the fault, after which
the system checks the presence of the fault again. If the
fault is not present anymore, the status of the fault event
is set to Resolved and then to Reset. If the fault is still
present, a new fault event is created.
Praesideo 3.5 | Installation and User Instructions | 10 | Events
The information about the fault events (see chapter 54)
describes how the fault events are resolved.
51.4.5 Resetting fault events
51.4.5.1 Introduction
Resolved fault events can be reset:
• Using the network controller (see section 51.4.5.2).
• Using control inputs or keys (see section 51.4.5.3).
• Using the open interface (see section 51.4.5.4).
• Using the Logging Viewer (see chapter 57).
Note
When all faults are reset, the Fault alarm
indicator outputs are deactivated.
51.4.5.2 Network controller
Resolved fault events can be reset using the Faults...
menu of the network controller (see section 5.6.5). Using
this menu it is possible to reset individual fault events as
well as all resolved fault events in the system.
51.4.5.3 Control input or key
Resolved fault events can be reset using control inputs
or keys to which an Acknowledge/Reset action has been
assigned (see section 47.3.23). However, such a control
input or key resets all resolved fault events in the
system. It is not possible to reset individual faults using a
control input or key.
51.4.5.4 Open interface
Resolved fault events can be reset using the open
interface (see the Open Interface Programming
Instructions).
Bosch Security Systems | 2011-02
en | 414
Praesideo 3.5 | Installation and User Instructions | 10 | Events
52
en | 415
General events list
General events in alphabetical order:
Event message:
Amplifier resumes operation
Originator:
Main power amplifier that resumes operation.
Extra information:
Serial number and name of the spare power amplifier.
Description:
Logs the switch of a spare power amplifier to a main
power amplifier.
Recommended action:
---Event message:
Amplifier spare switch
Originator:
Main power amplifier that stops operating.
Extra information:
Serial number and name of the spare power amplifier.
Description:
Logs the switch of a main power amplifier to a spare
power amplifier.
Recommended action:
Check the fault events of the main power amplifier and
try to solve these faults.
Event message:
Call logging events discarded due to logging queue
overflow
Originator:
---Extra information:
---Description:
The logging of call events is suspended due to an
overflow of the input queue inside the network
controller. This event is not shown on the display of
the network controller.
Recommended action:
Make less overriding calls.
Event message:
Device connected via Open Interface
Originator:
Open interface client that connects.
Extra information:
---Description:
Logs the connection of an open interface client to the
system.
Recommended action:
---Event message:
Device disconnected via Open Interface
Originator:
Open interface client that disconnects
Extra information:
---Description:
Logs the disconnection of an open interface client
from the system.
Recommended action:
----
Bosch Security Systems | 2011-02
Praesideo 3.5 | Installation and User Instructions | 10 | Events
en | 416
Event message:
Emergency state acknowledge
Originator:
Open interface client or unit that acknowledged the
emergency state.
Extra information:
---Description:
Logs the acknowledgement of the emergency state.
Recommended action:
----
Event message:
Logging of call events resumed
Originator:
---Extra information:
---Description:
The logging of call events is resumed. This event is
not shown on the display of the network controller.
Recommended action:
----
Event message:
Emergency state active
Originator:
Open interface client or unit that activated the
emergency state.
Extra information:
---Description:
Logs the activation of the emergency state.
Recommended action:
----
Event message:
Logging Server started
Originator:
---Extra information:
---Description:
Indicates startup of logging Server
Recommended action:
----
Event message:
Emergency state reset
Originator:
Open interface client or unit that reset the emergency
state.
Extra information:
---Description:
Logs the reset of the emergency state.
Recommended action:
----
Bosch Security Systems | 2011-02
Event message:
Logging Server stopped
Originator:
---Extra information:
---Description:
Indicates shutdown of logging Server
Recommended action:
---Event message:
Network connections set to half optical power
Originator:
---Extra information:
---Description:
Logs the start of the half power mode of the optical
network.
Recommended action:
----
Praesideo 3.5 | Installation and User Instructions | 10 | Events
en | 417
Event message:
Network connections reset to full optical power
Originator:
---Extra information:
---Description:
Logs the end of the half power mode of the optical
network.
Recommended action:
----
Event message:
User login failed
Originator:
Unit on which the log-in occurred.
Extra information:
---Description:
Logs when a log-in attempt via a numeric keypad with
Access control has failed.
Recommended action:
----
Event message:
System restarted
Originator:
Network controller that is started.
Extra information:
---Description:
Logs the start-up of a network controller.
Recommended action:
----
Event message:
User logout
Originator:
Unit on which the log-out occurred.
Extra information:
---Description:
Logs the user ID of the user who has logged out from
the system via a numeric keypad with Access control.
Recommended action:
----
Event message:
Unit connect
Originator:
Unit that connects.
Extra information:
This general event is not applicable to open interface
clients.
Description:
Logs the connection of a unit to the system.
Recommended action:
---Event message:
User login
Originator:
Unit on which the log-in occurred.
Extra information:
---Description:
Logs the user ID of the user who has logged in to the
system via a numeric keypad with Access control.
Recommended action:
----
Bosch Security Systems | 2011-02
Praesideo 3.5 | Installation and User Instructions | 10 | Events
53
en | 418
Call events list
Call events in alphabetical order:
Event message:
Call change
Originator:
Control input, Open Interface client or unit, that
caused the change..
Extra information:
Name(s) of the output(s) that were removed from the
routing and the name(s) of the output(s) that were
added to the routing.
Description:
Logs a change in the routing of a call.
Recommended action:
---Event message:
Call end
Originator:
Control input, Open Interface client or unit, that
caused the end of the call.
In case of an overruled call, or in case of lost
resources, or when the system decides to end the
call, the network controller is the originator.
Extra information:
In case the call has been stopped by the originator,
then it is shown which phase of the call was
completed.
In case the call has been aborted, then it is shown in
which phase of the call this happened and by whom.
Description:
Logs the end of a call.
Recommended action:
----
Bosch Security Systems | 2011-02
Event message:
Call start
Originator:
Control input, key, open interface client or unit that
started the call
Extra information:
In case the call is a replay, reference is made to the
original call by means of the Call ID of the original call.
The macro name for the call is displayed, followed by
the priority of the call, the routing scheme, the timing
scheme, the name of the start chime, the names of the
messages, the number of message repetitions,
'Speech' if the call has live speech, the name of the
end chime and finally the routing of the call.
Description:
Logs the start of a call. Please note that a
premonitored call is always non-partial even if the
broadcast call is partial, because it is only sent to the
monitor loudspeaker.
Recommended action:
---Event message:
Call timeout
Originator:
The network controller.
Extra information:
List of zones to which the stacked call was not
delivered.
Description:
Logs the timeout of a stacked call.
Recommended action:
----
Praesideo 3.5 | Installation and User Instructions | 10 | Events
54
en | 419
Fault events list
Fault events in alphabetical order:
Event message:
Amplifier failure
Originator:
Amplifier channel in which the fault occurred.
Extra information:
The LBB4428/xx Power Amplifier combines the
messages Amplifier failure and Amplifier overload.
Resetting of faults may take up to 20 seconds for the
LBB4428/00 Power Amplifier, because of the recalibration of the pilot tone. The LED of a fault reset
key on a call station keypad is not switched off until
the re-calibration is finished.
Description:
Logs the failure of an amplifier channel. This fault
event can only occur when the amplifier channel is
enabled with the configuration software.
Resolve:
When the unit disconnects or when the fault is
resolved manually.
Recommended action:
• Check the amplifier output load or disconnect the
loudspeaker lines.
• Switch the amplifier off and on again.
• Acknowledge and reset the fault.
• If the fault is persistent, replace the amplifier.
Bosch Security Systems | 2011-02
Event message:
Amplifier ground short
Originator:
Amplifier channel in which the fault occurred.
Extra information:
---Description:
Logs the short-to-ground of an amplifier channel. This
fault event can only occur when the amplifier channel
is enabled with the configuration software.
Resolve:
When the fault disappears or when the unit
disconnects.
Recommended action:
Check the cabling of the loudspeaker line and its
insulation. This event can, for example, be generated
when uninsulated parts of the cabling are in contact
with the housing of the unit or the 19” rack.
Event message:
Amplifier loudspeaker line failure
Originator:
Amplifier channel in which the fault occurred.
Extra information:
---Description:
Logs the end-of-line failure of an amplifier channel
(detected by LBB4442/00). This fault event can only
occur when the amplifier channel is enabled with the
configuration software.
Resolve:
When the fault disappears or when the unit
disconnects.
Recommended action:
Check the cabling of the loudspeaker line. If
necessary, repair it.
Praesideo 3.5 | Installation and User Instructions | 10 | Events
Event message:
Amplifier missing
Originator:
Amplifier channel of a basic amplifier in which the fault
occurred.
Extra information:
---Description:
Logs the absence of an amplifier channel (based on
missing battery and mains power supply).
Resolve:
When the fault disappears or when the unit
disconnects.
Recommended action:
Check whether both CAT-5 cables between the multi
channel interface and the basic amplifier channel are
correctly connected.
Event message:
Amplifier initialization failure
Originator:
Power amplifier channel in which the fault occurred.
Extra information:
---Description:
Logs the inability of a power amplifier to return from
the standby mode.
Resolve:
When the fault disappears or when the power
amplifier disconnects.
Recommended action:
Switch the power amplifier off and on again.
Bosch Security Systems | 2011-02
en | 420
Event message:
Amplifier overheat
Originator:
Amplifier channel in which the fault occurred.
Extra information:
This fault event cannot be generated by LBB4428/xx
Power Amplifiers.
Description:
Logs the overheat (> 85 °C) of an amplifier channel.
The system decreases the audio level with 3 dB. This
fault event can occur even when the power amplifier is
disabled with the configuration software.
Resolve:
When the fault disappears or when the power
amplifier disconnects. If this fault is
acknowledged/reset, any Redundant Supply 24V in
the same amplifier channel will also be
acknowledged/reset.
Recommended action:
Check if the fans of the power amplifier operate
correctly. Also check the ambient temperature of the
rack. If necessary, use forced cooling.
Event message:
Amplifier overheat: (amplifier channel) muted
Originator:
Amplifier channel in which the fault occurred.
Extra information:
This fault event cannot be generated by LBB4428/xx
Power Amplifiers.
Description:
Logs the overheat (> 90 °C) of an amplifier channel.
The system mutes all amplifier channels in the power
amplifier. This fault can occur even when the power
amplifier is disabled with the configuration software.
Resolve:
When the power amplifier disconnects or when the
fault is resolved automatically.
Recommended action:
Check if the fans of the power amplifier operate
correctly. Also check the ambient temperature of the
rack. If necessary, use forced cooling.
Praesideo 3.5 | Installation and User Instructions | 10 | Events
Event message:
Amplifier overload
Originator:
Amplifier channel in which the fault occurred.
Extra information:
This fault event cannot be generated by LBB4428/xx
Power Amplifiers.
Description:
Logs the overload of an amplifier channel. This fault
event can only occur when the power amplifier is
enabled with the configuration software.
Resolve:
When the power amplifier disconnects or when the
fault is resolved manually.
Recommended action:
• Decrease the number of loudspeakers connected
to the amplifier channel OR
• Decrease the loudspeaker line voltage. (This
influences the maximum volume of the
loudspeakers connected to the line).
Event message:
Amplifier short circuit
Originator:
Amplifier channel in which the fault occurred.
Extra information:
This fault event cannot be generated by LBB4428/xx
Power Amplifiers.
Description:
Logs a short-circuit of an amplifier channel. This fault
event can only occur when the power amplifier is
enabled with the configuration software.
Resolve:
When the fault disappears or when the unit
disconnects.
Recommended action:
Check the cabling of the loudspeaker line. If
necessary, repair the short circuit.
Bosch Security Systems | 2011-02
en | 421
Event message:
Back-up power supply failure
Originator:
Unit in which the fault occurred.
Extra information:
---Description:
Logs the failure of the back-up power supply of a unit.
This fault can only occur when the back-up supply of
the unit is enabled with the configuration software.
Resolve:
When the back-up power supply returns or when the
unit disconnects.
Recommended action:
Check the back-up power supply and its connections
to the unit that generated the event. If necessary,
repair them.
Event message:
Backup power supply failure remote call station
Originator:
Remote call station that detects the backup power
supply failure.
Extra information:
---Description:
Logs a failure of the backup power supply of a remote
call station.
Resolve:
When the call station interface disconnects or when
the fault is no longer present.
Recommended action:
Connect the backup power supply or disable the
backup power supervision in the configuration.
Praesideo 3.5 | Installation and User Instructions | 10 | Events
Event message:
Call station audio path fault
Originator:
Call station in which the fault occurred.
Extra information:
---Description:
Logs an audio path fault of a call station.
Resolve:
When the call station disconnects or when the fault is
resolved manually.
Recommended action:
Replace the call station.
Event message:
Class-A switchover
Originator:
Output channel of multi channel interface, connected
to a basic amplifier channel in which the fault
occurred.
Extra information:
---Description:
Logs the occurrence that, in class-A mode the second
(B) relay has closed.
Resolve:
When the unit disconnects or when the fault is
resolved manually.
Recommended action:
Check the loudspeaker connections in the loop from
output A to output B.
en | 422
Event message:
Cobranet interface fault OR
Cobranet network fault
Originator:
Unit in which the fault occurred.
Extra information:
Error code reported by the CobraNet interface
Description:
Internal fault in the LBB4404/00 CobraNet Interface
or CobraNet network fault. Most common faults are
network faults, such as reception and transmission
faults due to collisions, excessive network delay or
broadcast traffic. Other faults could be related to the
configuration.
Resolve:
When the error is no longer present or when another
CobraNet error occurs on the same unit)
Recommended action:
• Make sure that the CobraNet interface is not
connected to the Ethernet via a hub. Only use
(managed) Ethernet switches. Repeater networks
cause collisions.
• Make sure that the Ethernet network does not
contain any loops.
• Check the Ethernet connections and the lengths of
the Ethernet cables.
• If the Ethernet is also used to transport computer
data, configure a high priority on the switch for the
port that is used for CobraNet.
• Check if the bundle and channel numbers have
been assigned correctly. Also check that at least
one CobraNet device has a conductor priority
unequal to zero.
• Check for each bundle number if it is not used by
more than one transmitter.
• (Temporarily) disconnect other devices connected
to the network to check if these are causing faults
by transmitting corrupt packets.
For specialists only: the fault code is a reference to
the CobraNet fault description, which can be found in
the Error Code Reference part of the CobraNet
Technical Datasheet. This datasheet can be
downloaded from:
http://cobranet.info/en/pubs/manual/CobraNet_Progr
ammer_Manual_PM25.pdf
Bosch Security Systems | 2011-02
Praesideo 3.5 | Installation and User Instructions | 10 | Events
Event message:
Configuration file error
Originator:
---Extra information:
This fault event can only occur when the network
controller is started. This fault event aggregates to a
System fault.
Description:
Logs a consistency fault in the configuration file. (The
default configuration file will be loaded.)
Resolve:
Immediately after acknowledgement.
Recommended action:
• Open the configuration file with the Configuration
Printing Tool and check for errors.
• Create a new configuration file using the
information that is shown by the Configuration
Printing Tool.
Event message:
Configuration file version mismatch
Originator:
---Extra information;
Version of the configuration file, version of the system
software.
This fault event can only occur when the network
controller is started and the version number of the
configuration file is 1.4 or higher.
Description:
Logs the mismatch of the version number of the
configuration file and the version number of the
system software.
Resolve:
Immediately after acknowledgement.
Recommended action:
• Open the configuration file with the Configuration
Printing Tool and check for errors.
• Create a new configuration file using the
information that is shown by the Configuration
Printing Tool.
Bosch Security Systems | 2011-02
en | 423
Event message:
Control input line failure: (control input)
Originator:
Control input in which the fault occurred.
Extra information:
This fault event cannot be generated by LBB4430/00
Call Stations Basic and open interface clients.
Description:
Logs the failure of a supervised control input.
Resolve:
When the fault disappears or when the unit
disconnects.
Recommended action:
Check the control input and the cables that are
connected to it. If necessary, repair them.
Event message:
Fault input
Originator:
Control input, key or open interface client that
generated the fault event.
Extra information:
Description that is entered with the configuration
software.
Description:
Logs the activation of a control input or key that was
configured as a Fault input, or an open interface client
that generated a reportFault command.
Resolve:
• If the fault was generated by a control input or key:
when the Fault Input is deactivated or when the
unit disconnects.
• If the fault was generated by an open interface
client: when the open interface client reports that
the error is resolved or when the open interface
client disconnects.
Recommended action:
The recommended action depends on the purpose for
which the specified control input, key or open
interface client was configured.
Praesideo 3.5 | Installation and User Instructions | 10 | Events
Event message:
Flash card data error
Originator:
Unit in which the fault occurred.
Extra information:
This fault event aggregates to a System fault.
Description:
Logs a fault in the checksum of the flashcard. This
fault event can only occur when the availability of a
flash card is enabled with the configuration software
and the flashcard is not missing.
Resolve:
When the fault disappears.
Recommended action:
• Replace the message set on the flashcard using
the File Transfer application OR
• Replace the flashcard.
Event message:
Flash card missing
Originator:
Unit in which the fault occurred.
Extra information:
This fault event aggregates to a System fault.
Description:
Logs the absence of the flash card. This error can only
occur when the availability of a flash card is enabled
with the configuration software.
Resolve:
When the fault disappears and the network controller
restarts.
Recommended action:
Check if a flashcard has been installed in the unit. If
so, re-connect the flash card or replace it and restart
the network controller.
Bosch Security Systems | 2011-02
en | 424
Event message:
Group A fault
Originator:
Output channel of multi channel interface, connected
to a basic channel in which the fault occurred.
Extra information:
---Description:
Logs the failure in group A for audio outputs with A/B
switching or class-A wiring.
Resolve:
When the unit disconnects or when the fault is
resolved manually.
Recommended action:
Check the loudspeaker connections on the Group A
output of the basic amplifier channel.
Event message:
Group A or B line fault
Originator:
Output channel of multi channel interface, connected
to a basic amplifier channel in which the fault
occurred.
Extra information:
---Description:
Logs a loudspeaker line fault in group A/B wiring
mode while busy determining whether a Group A fault
or Group B fault must be generated.
Resolve:
When the unit disconnects, or when the fault is no
longer present, or when the actual cause of the fault is
known (and a Group A fault or Group B fault has been
generated).
Recommended action:
Wait for Group A fault or Group B fault and check the
corresponding loudspeaker lines.
Praesideo 3.5 | Installation and User Instructions | 10 | Events
Event message:
Group B fault
Originator:
Output channel of multi channel interface, connected
to a basic amplifier channel in which the fault
occurred.
Extra information:
---Description:
Logs the failure in group B for audio outputs with A/B
switching or class-A wiring.
Resolve:
When the unit disconnects or when the fault is
resolved manually.
Recommended action:
Check the loudspeaker connections on the Group B
output of the basic amplifier channel.
Event message:
Incompatible hardware version
Originator:
Unit in which the fault occurred.
Extra information:
The version number of the installed hardware and the
lowest version number that is required to use the
configured functionality.
Description:
Logs the mismatch of the version number of the unit
hardware and the required hardware version number.
The mismatch depends on the configured functionality
of the unit. This fault event only occurs when the
configured functionality cannot be handled by the
hardware. Typically, this event occurs when multiple
loudspeaker line supervision is used in combination
with /00 Power Amplifiers.
Resolve:
When the unit disconnects.
Recommended action:
• Use a newer version of the unit that caused the
fault OR
• Downgrade to a lower software version
Bosch Security Systems | 2011-02
en | 425
Event message:
Invalid Firmware version
Originator:
Unit that has an invalid firmware version.
Extra information:
Current firmware version number of the unit and the
minimal required version number of the firmware.
Description:
Logs the mismatch of the firmware version number of
the unit and the minimal required firmware version
number.
Resolve:
When the unit is upgraded.
Recommended action:
Update firmware. This action is available in the
configuration web pages.
Event message:
Keypad mismatch
Originator:
Call station in which the fault occurred.
Extra information:
KP: keypad, NKP: numeric keypad.
Description:
Logs the mismatch of the number of configured and
detected (numeric) keypads.
Resolve:
When the fault disappears or when the call station
disconnects.
Recommended action:
Make sure that the number of configured (numeric)
keypads is equal to the number of (numeric) keypads
that are connected to the call station.
Praesideo 3.5 | Installation and User Instructions | 10 | Events
Event message:
Line input failure
Originator:
Audio input that did not receive the pilot tone.
Extra information:
This fault can only occur on a network controller, audio
expander or power amplifier.
Description:
Logs the failure of a connection or cable to a
supervised audio line input on a unit.
Resolve:
When the error is no longer present or when the unit
disconnects.
Recommended action:
Check the audio connection to the line input that has
reported the fault. Check the source of the audio
signal and the level of the pilot tone.
Event message:
Line supervision master mismatch
Originator:
Amplifier channel in which the fault occurred.
Extra information:
---Description:
Logs the mismatch between the installed line
supervision devices and the configured line
supervision devices. This fault event can only occur
when the amplifier channel is enabled with the
configuration software.
Resolve:
When the installed and configured line supervision
devices match.
Recommended action:
Disable wireless line supervision for the specified
amplifier channel with the web interface or install
supervision-masters for all channels that use wireless
line supervision.
Bosch Security Systems | 2011-02
en | 426
Event message:
Loudspeaker failure
Originator:
Amplifier channel in which the fault occurred.
Extra information:
Address(es) and name(s) of loudspeaker supervision
board(s).
The system cannot attach the Resolved status to this
event immediately after the fault has been resolved,
because the system first must establish a
communication link with the supervision board. This
can take up to 300 s.
When this fault event is reset before the system has
attached the Resolved status to it, the status of the
fault event becomes Reset. Then, the same fault event
is raised again with status New.
Description:
Logs the supervision failure of one or more
LBB4441/00 Loudspeaker Supervision Boards. This
fault can only occur when the amplifier channel and
supervision boards are enabled with the configuration
software.
Resolve:
When the power amplifier disconnects or when the
fault is resolved manually.
Recommended action:
Check the loudspeaker connected to the loudspeaker
supervision board that has reported the fault. Also
check the loudspeaker line and the loudspeaker
supervision board itself.
Praesideo 3.5 | Installation and User Instructions | 10 | Events
Event message:
Loudspeaker line failure
Originator:
Amplifier channel in which the fault occurred.
Extra information:
Address(es) and name(s) of end of line supervision
board(s).
The system cannot attach the Resolved status to this
event immediately after the fault has been resolved,
because the system first must establish a
communication link with the supervision board. This
can take up to 100 s.
When this fault event reset before the system has
attached the Resolved status to it, the status of the
fault event becomes Reset. Then, the same fault event
is raised again with status New.
Description:
Logs the supervision failure of one or more
LBB4443/00 End of Line (EOL) Supervision Boards.
This fault can only occur when the amplifier channel
and supervision boards are enabled with the
configuration software.
Resolve:
When the power amplifier disconnects or when the
fault is resolved manually.
Recommended action:
Check the loudspeaker line connected to the EOL
supervision board that has reported the fault. Also
check the loudspeaker and the EOL supervision
board itself.
Bosch Security Systems | 2011-02
en | 427
Event message:
Mains power supply failure
Originator:
Unit in which the fault occurred.
Extra information:
---Description:
Logs the failure of the mains power supply.
Resolve:
When the mains power returns or when the unit
disconnects.
Recommended action:
Check the mains power supply and its connections to
the unit that generated the event.
Event message:
Memory error
Originator:
Unit in which the fault occurred.
Extra information:
Whether the flash memory is defective, whether the
EEPROM memory is defective.
This fault event cannot be generated by open
interface clients.
Description:
Logs a memory fault.
Resolve:
When the fault disappears or when the unit
disconnects.
Recommended action:
• Restart the network controller OR
• Switch off the unit in which the fault occurred OR
• Replace the unit in which the fault occurred.
Praesideo 3.5 | Installation and User Instructions | 10 | Events
Event message:
Messages missing
Originator:
Unit in which the fault occurred.
Extra information:
Name(s) of message(s) that are present in the
configuration, but are not present on the flash card.
Description:
Logs the mismatch of the configured and detected
messages in the flashcard. Can only occur when the
availability of a flash card is enabled with the
configuration software and restart the network
controller.
Resolve:
When the fault disappears.
Recommended action:
Check the file names. (These are case-sensitive.) If
the message names appear to be correctly
configured, upload the message set again and restart
the network controller.
Event message:
Microphone failure
Originator:
Audio input in which the fault occurred.
Extra information:
This fault event can only be generated by call stations
and power amplifiers.
Description:
Logs the failure of a microphone on or connected to a
unit.
Resolve:
When the fault disappears or when the unit
disconnects.
Recommended action:
Check the microphone and its connections to the
system. If necessary, repair them.
Bosch Security Systems | 2011-02
en | 428
Event message:
Network power supply failure remote call station
Originator:
Remote call station that detects the network power
supply failure.
Extra information:
---Description:
Logs a failure of the network power supply of a remote
call station.
Resolve:
When the call station interface disconnects or when
the fault is no longer present.
Recommended action:
Connect the network power supply or disable the
network power supervision in the configuration.
Praesideo 3.5 | Installation and User Instructions | 10 | Events
Event message:
No valid configuration file found; a new configuration
file will be created.
Originator:
This fault event aggregates to a System fault.
Extra information:
This fault event can only occur when the network
controller is started.
Description:
Logs the absence/corruption of the configuration file
(default configuration loaded).
Resolve:
Immediately after acknowledgement.
Recommended action:
Check the version number of the configuration file. A
version lower than 1.4 is not supported anymore.
Reconfigure the system.
Bosch Security Systems | 2011-02
en | 429
Event message:
Pilot tone calibration failure
Originator:
Amplifier channel in which the fault occurred.
Extra information:
---Description:
Logs the failure of the pilot tone calibration of an
amplifier channel. This fault can only occur when the
amplifier channel is enabled with the configuration
software.
Resolve:
When the fault disappears or when the unit
disconnect.
Recommended action:
Switch the unit that generated the event off and on
again to allow it to re-calibrate. If this does not solve
the fault, there is a failure in the loudspeaker line
connected to the specified amplifier channel (e.g. line
supervision master/slave mismatch, loudspeaker line
failure).
Praesideo 3.5 | Installation and User Instructions | 10 | Events
Event message:
Processor reset
Originator:
Unit in which the fault occurred.
Extra information:
The type of processor that caused the reset. This fault
event aggregates to a System fault.
Description:
Logs the watchdog reset of a processor.
This fault event can only be generated by units that
are started up. It cannot be generated by open
interface clients.
Resolve:
Immediately after acknowledgement.
Recommended action:
• In case this fault occurs for all connected units
when performing the action Save the configuration
and restart the system, this is probably caused by
using a network controller with HW version 20.00
or older in combination with Praesideo release 3.4
or later. See the Note in section 40.4.5. Just
acknowledge and reset these faults.
• Check for network faults. For example, units that
are reported to be missing or using the half power
mode (see section 50.4). Critical network
connections can be found by using the half power
mode in Diagnose\Installation
• Make sure that all units contain the correct
firmware.
• Check for faults that tell you that the configuration
file is corrupt (for example, Configuration file error
or Configuration file version mismatch).
Especially check for missing audio equalizer
settings that show up as question marks; then
create a new configuration file.
• Check for faults that tell you that the flash card is
corrupt.
• Then switch the unit off and on again or
disconnect and reconnect the unit.
Bosch Security Systems | 2011-02
Event message:
Redundant ring broken
Originator:
---Extra information:
---Description:
Logs a break in the redundant ring.
Resolve:
When the redundant ring is restored.
Recommended action:
• Restore the redundant ring OR
• On the System wide settings pages of the
configuration software, set Redundant ring
network to No.
en | 430
Praesideo 3.5 | Installation and User Instructions | 10 | Events
Event message:
Redundant supply 24V
Originator:
Amplifier channel in which the fault occurred.
Extra information:
---Description:
Logs the occurrence of a redundant power fault. If this
fault occurs, a redundant 24V internal power supply of
a basic amplifier (BAM) has failed. The BAM is
capable of functioning with the remaining 24V internal
power supply. Note that all BAM channels will report
this fault. This fault is masked by an active Amplifier
Overheat Mute fault, but both may be present if the
occurrence is: Redundant Supply 24V followed by an
Amplifier Overheat Mute fault.
Resolve:
When the fault is restored. If this fault is
acknowledged/reset, any Amplifier Overheat Mute
fault in the same amplifier channel will also be
acknowledged/reset.
Recommended action:
Check the CAT-5 connections between the multi
channel interface and indicated basic amplifier
channel.
Bosch Security Systems | 2011-02
en | 431
Event message:
Remote call station connection failure
Originator:
Call station interface that detects the connection
failure with the remote call station.
Extra information:
---Description:
Logs a connection failure between a call station
interface and a remote call station.
Resolve:
When the call station interface disconnects or when
the fault is no longer present.
Recommended action:
• Check the connection between the call station
interface and the remote call station.
• Make sure that all PRS-CSR(K) remote call
stations are connected to PRS-CSI Call Station
Interfaces.
• Make sure that all LBB4438/00 and LBB4439/00
remote call stations are connected to
LBB4437/00 Call Station Interfaces.
Praesideo 3.5 | Installation and User Instructions | 10 | Events
Event message:
SCB failure / Supervision Control Board failure
Originator:
The multi channel interface or the power amplifier
output in which the fault occurred.
Extra information:
---Description:
Logs the failure of a supervision control board, that is
part of a multi channel interface or that is mounted in a
power amplifier.
Resolve:
When the fault is no longer present and the unit has
been switched off and on again.
Recommended action:
Replace the failing supervision control board of the
power amplifier channel or replace the multi channel
interface.
Event message:
Unit missing
Originator:
Unit that is missing
Extra information:
The network controller detects missing units within 1
minute and missing Open Interface clients within 10
minutes.
Description:
Logs the absence of a configured unit.
Resolve:
When the unit reconnects.
Recommended action:
Disable the configured unit with the configuration
software or connect the missing unit to the system.
Bosch Security Systems | 2011-02
en | 432
Event message:
Unit not configured
Originator:
Unit that is not configured.
Extra information:
This fault event cannot be generated by open
interface clients.
Description:
Logs the connection of a unit that is not configured.
Resolve:
When the unit disconnects.
Recommended action:
Check the serial number and type of the unit that
generated the event. Use the configuration software
to configure and enable the unit.
Event message:
Unknown unit type
Originator:
Unit that was not recognized by the network
controller.
Extra information:
This fault event cannot be generated by open
interface clients.
Description:
Logs the connection of a unit of an unknown type.
Resolve:
When the unit disconnects.
Recommended action:
If the unit is not needed, disconnect it from the
system. If the unit is needed, upgrade to a software
version that supports the unit type. If the current
software version supports the unit type, the unit is
broken and must be repaired.
Praesideo 3.5 | Installation and User Instructions | 11 | Optional Software
Part 11 - Optional Software
Bosch Security Systems | 2011-02
en | 433
Praesideo 3.5 | Installation and User Instructions | 11 | Optional Software
Intentionally left blank.
Bosch Security Systems | 2011-02
en | 434
Praesideo 3.5 | Installation and User Instructions | 11 | Optional Software
55 CobraNet Discovery
55.1 Introduction
The Praesideo CD-ROMs prior to version 3.3 contained
a CobraNet Discovery program to assign
IP addresses to connected CobraNet Interface units, and
a program called CNConfig to change the value of
CobraNet parameters of connected CobraNet devices.
From version 3.3 onwards, Praesideo is delivered with a
later version of CobraNet Discovery that is also able to
change the value of CobraNet parameters, making
CNConfig redundant. Therefore it is not delivered
anymore with Praesideo. CobraNet Discovery is in
English only.
This manual applies to CobraNet Discovery
Version 3.4.4 and 3.4.5. CobraNet Discovery runs on a
Windows PC and communicates with a CobraNet
network through the PC's standard Ethernet network
interface card (NIC). CobraNet Discovery's primary
role is to discover and monitor status of CobraNet
devices. It can also be used to assign IP addresses to
devices, update firmware, control and monitor the
configuration of devices and generate status reports.
Note
Basic understanding of CobraNet networks and
technology is assumed to configure CobraNet
devices. The Praesideo DVD contains some
documents about CobraNet technology in the
folder \Manuals. More information can be found
on www.cobranet.info, where you can also find
the latest version of CobraNet Discovery. This
website is maintained by Cirrus Logic, the owner
of CobraNet.
Bosch Security Systems | 2011-02
en | 435
55.2 Installation
CobraNet Discovery is supported and tested under
Windows NT 4.0, 2000, XP and Vista. Operation under
Windows 95, 98 and ME is not supported. The PC
running CobraNet Discovery must contain a properly
configured Ethernet network interface card.
Because Discovery installs and uses a device driver to
send and receive CobraNet packets, administrative
privileges are required to install and run Discovery.
Install CobraNet Discovery on a PC, following the
Installshield Wizard. If previous versions of Discovery
were installed before, you may have to select the option
Remove all installed features first and then restart the setup
program.
Warning messages concerning removal of read-only
files during un-installation may be safely ignored. Some
previous versions of Discovery erroneously installed
system files in a read-only mode.
The Discovery installation creates a default program
folder C:\Program Files\Cirrus Logic\CobraNet Discovery, in
which you can also find specific Discovery release notes
and a more extensive manual.
Note
On networks with more than 20 CobraNet
devices it may be necessary to add a
"[configuration]Age To Die = 30000" entry in
your cndisco.ini file to stabilize the Discovery
display. This file is located in the program folder.
Praesideo 3.5 | Installation and User Instructions | 11 | Optional Software
55.3
en | 436
Network adapter configuration
Network adaptors on home or business PC networks are
normally configured to obtain an IP address
automatically from the network to which they are
connected. These address services are typically
provided by an internet gateway or a server computer
on the network. Although some sophisticated audio
networks may have these services, a dedicated
CobraNet network typically will not. Therefore, your
network adaptor should be manually assigned an IP
address in most cases.
55.3.1 IP address assignments
It is recommended to assign the following IP addresses
for CobraNet networks.
• 192.168.100.1 through 192.168.100.199 - CobraNet
devices (Default IP addresses assigned by CobraNet
Discovery)
• 192.168.100.200 through 192.168.100.219 - Network
switches and infrastructure.
• 192.168.100.220 through 192.168.100.254 Computers
When following the above recommendations, your
computer should be assigned an unused IP address in
the range 192.168.100.220 through 192.168.100.254.
See also section 32.8 about IP address limitations.
55.3.2 Manually assigning an IP address
1 From Control Panel, open Network Connections.
2 Right click on the Ethernet adaptor you will be using
for connection to the CobraNet network and select
Properties.
3 Find Internet Protocol (TCP/IP) in the list of services.
4 Press Properties button.
5 In the Internet Protocol (TCP/IP) Properties dialog,
select Use the following IP address.
6 Enter IP Address.
7 Enter 255.255.255.0 for Subnet mask.
8 Leave Default gateway blank.
9 Settings in the second half of the dialog box are
unimportant for Discovery operation. It is fine to
leave Preferred DNS server and Alternate DNS server
fields blank.
10 Click OK on all dialogs to save settings. On Windows
NT and 2000, you may be directed to reboot before
new settings will take effect.
Bosch Security Systems | 2011-02
Note
To restore settings to automatic assignment at a
later time, return to the Internet Protocol
(TCP/IP) Properties dialog and select Obtain
and IP address automatically.
55.4
Operation
Make sure that the PC on which you installed CobraNet
Discovery is connected to the CobraNet network, and is
not behind a firewall. On the PC, go to Start > Programs
> CobraNet Discovery > CobraNet Discovery. Upon starting
the program the PC shows the CobraNet Discovery
window (refer to figure 55.1 for an example). Only one
CobraNet Discovery program can be active at one time.
figure 55.1: CobraNet Discovery main window
The Discovery window is a dynamic display of devices
found on the network. When a CobraNet device is
added to the network, the device is added to the list. If a
device is removed from the network or powered down,
its status will change to off line but it will remain on the
list until the display is manually reset with the Display
Refresh (F5) operation or the application is restarted. If
Discovery is started for the first time the devices do not
show a valid IP address yet. Columns in the discovery
window may be resized by dragging the boundaries
between columns in the column heading area. Columns
may be reordered by dragging the text area in the
column heading area.
The discovery window contains default columns
S (Status), MAC Address and IP Address, that are always
present and cannot be hidden or removed.
The information in these columns is obtained by
passively monitoring communications on the network.
Praesideo 3.5 | Installation and User Instructions | 11 | Optional Software
55.4.1 S (Status)
Displays device status. A green checkmark indicates that
the device is active. A red cross indicates that the device
is not communicating or is no longer connected to the
network. Devices with an inactive status will be
removed from the list by a Display Refresh (F5)
operation.
55.4.2 MAC Address
Displays the globally unique (Ethernet MAC) address
for each discovered device. Ethernet MAC addresses
are assigned to devices at manufacture and do not
change.
55.4.3 IP Address
Displays the network (IP) address assigned to each
device. CobraNet devices initially have an IP address of
0.0.0.0. by default. CobraNet Discovery will assign
unique IP addresses to each device when Enable Auto
Assignment is checked in the Options dialog (see 55.7).
Once an IP address has been assigned to a device,
information in the SNMP columns (described below)
will be updated.
55.4.4 SNMP columns
Additional columns may be added to the Discovery
window by right-clicking on the column header and/or
by using the Column Chooser dialog. These columns
correspond to SNMP variables. The variables specified
are monitored on the CobraNet devices and updated in
real time in the Discovery display.
SNMP variables on CobraNet devices are described in
detail in the CobraNet Programmer's Reference
Manual. All SNMP variables described therein are
available for monitoring by entering the specified
Object Identifier (OID) in the Add dialog from Column
Chooser.
Some of the SNMP variables available for monitoring in
a default CobraNet Discovery installation are
documented below.
sysDescription
Displays the full name and firmware version of each
discovered device.
Bosch Security Systems | 2011-02
en | 437
errorCount
Displays the number of errors that have occurred on the
device since the CobraNet Discovery application was
started or the display manually reset. Some errors result
from normal operation, i.e. re-routing audio,
disconnecting/reconnecting Ethernet cables.
errorCode
Reason for the last error reported. errorCode values are
documented in the Error Codes section at the back of
the CobraNet Programmer's Reference Manual.
ifInErrors
Count of physical errors and packet data detected by
the Ethernet receiver. Physical errors are most
frequently the result of bad wiring.
Rx1 through Rx4
Bundle receiver status. CobraNet devices typically have
four bundle receivers. These four variables show the
status of each receiver.
Three metrics are displayed separated by slashes (/).
The three values are as follows:
• Bundle number (rxBundle)
• Receive status (rxStatus). Shows 1 if audio data is
being received, or 0 if not. The most common reason
for not receiving is that there is no transmitter
sending that bundle.
• Receive dropouts (rxDropouts). Counts the transitions
from receiving to not receiving. Ongoing dropouts
may indicate network problems although dropouts
also occur when audio is intentionally re-routed.
Tx1 through Tx4
Bundle transmitter status. CobraNet devices typically
have four bundle transmitters. These four variables
show the status of each transmitter.
Three metrics are displayed separated by slashes (/).
The three values are as follows:
• Bundle number (txBundle)
• Number of receivers being served by this transmitter
(txReceivers).
• Transmit dropouts (txDropouts). Counts the
transitions from transmitting to not transmitting.
Ongoing dropouts may indicate network problems
although dropouts also occur when audio is
intentionally interrupted and re-routed.
Praesideo 3.5 | Installation and User Instructions | 11 | Optional Software
55.5
Menus
55.5.4 Tools
The Discovery window contains a menu bar by which
additional functionality is accessed.
•
55.5.1 CobraNet
•
•
•
•
Update Firmware...
Updates the firmware on the selected CobraNet
device(s). Discovery will first upload the existing
firmware in order to identify it from a database of
known firmware versions. The Firmware Update
dialog is then displayed.
Firmware updates are conducted from binary files
located in the Database location.
CobraNet Discovery does not ship with firmware
files. Firmware must be obtained from the respective
CobraNet equipment manufacturer. For the
Praesideo CobraNet Interface the latest firmware
version can be found on the Praesideo DVD in
\Tools\CobraNet\Discovery\Firmware.
New IP Address...
Assigns a new IP address to the selected device. This
may be used to assign IP addresses when Auto
Assignment is disabled or to override the IP address
assignments given by the Auto Assign mechanism.
Close
Closes and exits the application.
55.5.2 Edit
•
•
Copy
Copies the contents of the Discovery window to the
clipboard as comma separated values. Information
may then be pasted into a text editing program,
saved with a .csv file extension, and then opened in a
spreadsheet application.
Select all
Selects (highlights) all devices in the Discovery
window. Selected devices are eligible for Update
Firmware, New IP Address and Report operations.
55.5.3 View
•
•
Refresh
Clears all data from the list and restarts the discovery
process. This causes all counter values to be reset
to 0. Any non-communicating devices (those with a
red X in their S column) will be removed from the
discovery window.
Column Chooser...
Opens the Column Chooser dialog.
Bosch Security Systems | 2011-02
en | 438
•
Options...
Opens the Options dialog used to set options for
configuring the CobraNet Discovery program.
Configure…
Opens the Configuration dialog used to control and
configure CobraNet interfaces. See the CobraNet
Control and Configuration section (55.10).
Report…
This is used to generate .cvs spreadsheet compatible
report files showing current status and configuration
of one or more CobraNet interfaces. See the Report
Functions section (55.9).
55.5.5 Help
•
About CobraNet Discovery…
Displays CobraNet Discovery copyright and version
information.
55.6 Firmware Update dialog
This dialog box is invoked from the CobraNet menu
bar. This function is seldom used for Praesideo
CobraNet Interfaces, as the unit is delivered with the
latest firmware installed. Therefore this function is not
described here. For more information, please check the
dedicated CobraNet Discovery user manual that can be
found in the CobraNet Discovery program folder after
installation (English only).
Praesideo 3.5 | Installation and User Instructions | 11 | Optional Software
en | 439
55.7 Options dialog
55.7.3 Database location
The Configuration dialog box is invoked by selecting
Tools > Options from the menu bar. This dialog contains
all of the controls required to customize the CobraNet
Discovery application.
This window displays the path to the directory where
CobraNet firmware files reside. By default, the firmware
sub-directory created during the CobraNet Discovery
installation process will be displayed in this window.
The firmware files obtained from CobraNet equipment
manufacturers must be manually placed in this
directory.
• Default
Pressing this button returns the Database Location
path statement to the default firmware directory.
This button is unavailable when Database Location
already specifies the default location. For a default
installation of Discovery, the default location is
C:\Program Files\Cirrus Logic\CobraNet
Discovery\firmware.
• Browser...
Specify an alternate firmware database location using
a file browser interface.
figure 55.2: Configuration dialog
55.7.1 Network adapter
Displays the Network Interface Card (NIC) used to
connect to the CobraNet network. For PCs containing
multiple NICs, this list box selects the card to serve as
the network adapter used in the discovery process.
55.7.2 IP address range
Enable Auto Assignment must be (temporarily) disabled to
adjust the IP address range.
• Enable auto assignment
When checked, CobraNet Discovery assigns IP
addresses to all discovered devices according to the
specified IP address range.
• Start
The first IP address to be assigned when Automatic
Assignment is enabled.
• End
The last IP address to be assigned when Automatic
Assignment is enabled.
• Default
Pressing this button will detect the IP address of the
selected network adapter and sets Start and End
accordingly.
Bosch Security Systems | 2011-02
Praesideo 3.5 | Installation and User Instructions | 11 | Optional Software
en | 440
55.8 Column Chooser dialog
55.8.4 Edit
The Column Chooser dialog box is invoked from the
View menu or by right-clicking on the column header
and selecting More... The Column Chooser allows
SNMP variables to be added to and/or removed from
the Discovery window and the SNMP polling list.
Edit an OID specification previously created with Add.
The same secondary dialog is shown with Object ID
and Column Names pre-filled with current values. Note
that an item can only be selected for editing when
displayed in the Available OID pane.
55.8.5 Delete
Allows previously-added, custom SNMP variables to be
removed from the list of Available OIDs. To delete a
variable from the Available OID list, simply select the
variable and press the Delete button. Note that the
default SNMP variables can not be deleted.
55.8.6 Default
Clicking this button moves all of the default SNMP
variables shown in the Available OID window into the
Watch List OID window.
figure 55.3: Column Chooser dialog
55.8.1 Available OID
A number of commonly-monitored SNMP variables are
displayed by default in the Available OID window.
55.8.2 lWatch list OID
This window displays the list of SNMP variables to be
monitored. Each of these will be shown as its own
column in the discovery window. Variables may be
added to this list by selecting the desired variable in the
Available OID window and then clicking the > button.
Similarly, variables may be removed from this list by
selecting the desired variable in the Watch List OID
window and clicking the < button.
55.8.3 Add
Allows SNMP variables other than those shown by
default in the Available OID window to be added to the
list of available OIDs. When Add is invoked a
secondary dialog with the following controls is
displayed.
• Object ID
Enter the full system object identifier (OID) of the
variable to be monitored.
• Column name
Enter the desired name to be displayed in the
column header for the OID specified.
Bosch Security Systems | 2011-02
Praesideo 3.5 | Installation and User Instructions | 11 | Optional Software
55.9 Report functions
The report function can be selected in two ways. Select
one or more CobraNet devices on the main Discovery
screen, then select Report… from the Tools menu in the
main menu bar or right click and select Report from the
pop-up menu.
A dialog will be displayed which allows selection of the
directory in which the report file(s) will be saved.
Report files are saved in Comma Separated Value (.csv)
format, which can be opened using most spreadsheet
applications. The report file contains all information
required to determine the current configuration and
status of a CobraNet interface. The report generator
automatically creates the file names based on either the
device's sysName or, if none exists, its MAC address.
After selecting a save directory, press the Write button to
begin generating report(s). The report data is read from
each CobraNet device via SNMP, labeled, formatted
and saved in a .csv file.
A report for a single device can also be optionally
generated from the main Configuration Dialog.
figure 55.4: Report function dialog
Bosch Security Systems | 2011-02
en | 441
55.10 CobraNet Control and
Configuration
55.10.1 Introduction
CobraNet Discovery can be used to change
configuration settings in a CobraNet device. One
CobraNet device at a time may be configured. Select
the device to be configured in the main CobraNet
Discovery window. Then either right click and select
Configure… or select Configure… from the Tools menu.
You may also double click on the device to invoke the
Configuration dialog.
The configuration dialogs allow the user to read and,
where appropriate, change configuration variables used
in defining the functionality of a CobraNet device.
Unlike the main CobraNet Discovery window, the
variable values displayed are not periodically updated.
The variables are read once using SNMP when the
dialog is invoked. Each dialog will have one or more of
the following buttons:
• Cancel
Exit the dialog without writing any changed values
to the CobraNet device.
• OK
Exit the dialog. For dialogs that allow changing
values, any values that were changed will be written
to the CobraNet device as the dialog is exited.
• Apply
Write any variables changed within the dialog to the
CobraNet device.
• Refresh
Re-read all values displayed within the dialog.
Praesideo 3.5 | Installation and User Instructions | 11 | Optional Software
en | 442
55.10.2 CobraNet Configuration dialog
55.10.3 Transmitter Configuration
This dialog shows each transmitter and receiver in the
device along with its bundle number assignment and
transmission or reception status. A non zero value in the
Status column indicates that the transmitter or receiver is
receiving or sending a bundle. In addition to transmitter
and receiver information, the dialog will also display the
IP address currently assigned to the device as well as its
conductor status: the Conductor check box will be
checked if the device is the conductor for the network.
The Transmitter configuration dialog is launched from
the main Configuration dialog by highlighting the line
containing the transmitter information and then pressing
the Configure button, or by double clicking on the line
containing the transmitter information.
figure 55.6: Transmitter configuration dialog
figure 55.5: CobraNet device configuration dialog
Six actions are supported from the main Configuration
dialog:
• Press the Configure button with a transmitter (Tx)
highlighted to launch the Transmitter Configuration
dialog.
• Press the Configure button with a receiver (Rx)
highlighted to launch the Receiver Configuration
dialog.
• Press the Report button to launch the single Report
Generation dialog.
• Press the Advanced button to launch the Advanced
dialog.
• Press the SNMP button to launch the Generic SNMP
R/W dialog. This Button is not displayed by default
and must be enabled using the Disco Options applet.
• Single click on a Bundle number to edit/change the
number.
You may also double click on a Tx or Rx line to invoke
the configuration dialog for that transmitter or receiver.
Bosch Security Systems | 2011-02
The Transmitter configuration dialog provides access to
the most useful configuration variables associated with a
transmitter. Please refer to the CobraNet Programmer's
Reference Manual for more detailed and up to date
information regarding the meaning and usage of these
variables. This manual is in the folder \Manuals\CobraNet
on the Praesideo DVD.
• Bundle
Allows assigning a bundle number to this
transmitter.
• SubMap
Defines the audio routing channel assigned to a
bundle channel. The Clear All button can be pressed
to assign a value of 0 (transmit nothing) to all
channels in the bundle. The Praesideo CobraNet
interface transmitter channels 1..4 correspond to
SubMap numbers 1..4.
• SubFormat
Normally the txSubFormat value contains
information defining the sample size, sample rate
and transmission latency. As sample rate and sample
latency must be in agreement with the current value
of the modeRateControl variable (settable from the
Praesideo 3.5 | Installation and User Instructions | 11 | Optional Software
•
•
•
Advanced dialog) this dialog only allows setting the
sample size and will insure that the sample rate and
latency portion of this variable will be in agreement
with the value of modeRateControl. Typically the
sample size will be the same for all channels in a
bundle so the All Same option can be checked to
assign the same value to all channels.
SubCount
This variable can be used to limit the number of
channels that will be transmitted in the bundle. The
default value is equal to 8 but can be set to any value
from 0 to 8 in order to minimize bandwidth
utilization when desired.
UnicastMode
This value can be used to override or modify the
normal unicast versus multicast implications of the
assigned bundle number. The normal default value
is Never Multicast. The available options are:
• Always Multicast
All bundles are sent multicast regardless of
Bundle number.
• Multicast over 1
If more than one receiver is set to receive this
bundle, it will be multicast, else it will be unicast.
• Multicast over 2
If more than two receivers are set to receive this
bundle, then it will be multicast, else it will be
unicast or multi-unicast.
• Multicast over 3
If more than three receivers are set to receive this
bundle, then it will be multicast, else it will be
unicast or multi-unicast.
• Multicast over 4
If more than four receivers are set to receive this
bundle, then it will be multicast, else it will be
unicast or multi-unicast.
• Never Multicast
Only a single bundle will be sent unicast.
MaxUnicast
This value can be set to limit the number of
multi-unicast bundles sent by this transmitter. The
default for this value is 1 with allowed values of 1
through 4.
Bosch Security Systems | 2011-02
en | 443
55.10.4 Receiver Configuration
The Receiver configuration dialog is launched from the
main Configuration dialog by highlighting the line
containing the receiver information and then pressing
the Configure button, or by double clicking on the line
containing the receiver information.
figure 55.7: Receiver configuration dialog
This Receiver configuration dialog provides access to
the most useful configuration variables associated with a
receiver. Please refer to the CobraNet Programmer's
Reference Manual for more detailed information
regarding the meaning and usage of these variables.
• Bundle
Allows assigning a bundle number to this receiver
• SubMap
Defines the audio routing channel assigned to an
audio channel within the bundle. The Praesideo
CobraNet interface receiver channels 1..4 correspond
to SubMap numbers 33..36.
• SubFormat
Status: read only. This show the status of the audio
received in a bundle. This will indicate Not Receiving
or will show the current sample rate, sample size and
transmission latency of the received audio. The
colored squares to the right of the rxSubFormat
display provide further status.
• Green
Indicates audio is being received and properly
decoded.
• Black
Indicates no audio is being received on this
channel.
Praesideo 3.5 | Installation and User Instructions | 11 | Optional Software
•
Red
Indicates audio is being received but cannot be
processed. This is usually due to receipt of audio
data that is formatted incompatibly with the
current operating mode of this receiving device,
i.e. the sample rate and/or latency settings of the
transmitting device are different than those of the
receiving device. If latency setting are
incompatible, it is normal to see the colored
indicators alternate between black and red with
periodic presses of the Refresh button.
55.10.5 Advanced Configuration
The Advanced dialog allows setting more advanced
variables not usually associated with bundle
management and which apply to the CobraNet device
globally. Care should be used when changing variables
in this dialog. Please refer to the CobraNet
Programmer's Reference Manual for more detailed
information regarding the meaning and usage of these
variables.
figure 55.8: Advanced configuration dialog
Bosch Security Systems | 2011-02
en | 444
Not all of variables that can be displayed in the
Advanced dialog are supported in all versions of
CobraNet firmware. Variables that are not supported
will be displayed as N.A. with a grey background color.
Variables that are supported but are read only and can
not be changed are also displayed with a grey
background color.
Praesideo 3.5 | Installation and User Instructions | 11 | Optional Software
55.11 DiscoOptions
55.11.2DiscoOptions dialog fields
DiscoOptions is an executable applet installed with
CobraNet Discovery and used to alter the operational
parameters of the Configuration functions.
•
•
•
•
figure 55.9: Discovery configuration dialog
•
55.11.1General usage
This applet provides a convenient way of changing the
operational parameters used by the Configuration
functions. The applet can be launched at any time, but
the values are only read by the Configuration dialog
when it is launched. Therefore, this applet should be
used when the Configuration dialog is not active.
The default values will allow proper operation in most
cases and should not require changing except in
specialized or extreme cases.
It may be useful to increase the Timeout or Retries
values when accessing devices on a very busy network
or devices that themselves are heavily loaded.
Changes are saved only when OK is pressed. Pressing
Cancel or closing the dialog will exit without saving
changes.
•
•
•
•
Bosch Security Systems | 2011-02
en | 445
Read Community
The SNMP read community. It should never have to
be changed. Default: public
Write Community
The SNMP write community. It should never have
to be changed. Default: private
Timeout
The amount of time to wait for an SNMP response
before aborting the operation. This value is specified
in milliseconds. The minimum allowable value is
150 (.15 seconds) and all values are automatically
rounded to the nearest 10 mS by the program.
Default: 1500
Retries
The maximum number of times an SNMP operation
will be retried in the event of a failure. Default: 2
Holdoff
The time in milliseconds to wait between SNMP
accesses. CobraNet interfaces require a holdoff
period. The default value of 10 should not have to be
changed except in very rare instances when the
device being accessed is very heavily loaded. The
value should NEVER be set below 10. A value
above 80 will be automatically reduced to 80.
Default: 10
Enable Config
Check this box to enable the Configuration functions
in general. The Configuration dialog can not be
launched from the main CobraNet Discovery dialog
when this box is unchecked. Default: Checked
Enable Report
Check this box to activate (make visible) the Report
button in the Configuration dialog. Default: Checked
Enable Advanced
Check this box to activate (make visible) the
Advanced button in the Configuration dialog. Default:
Checked
Enable SNMP
Check this box to activate (make visible) the SNMP
button in the Configuration dialog. Default:
Unchecked
Praesideo 3.5 | Installation and User Instructions | 11 | Optional Software
56
56.1
Logging Server
Introduction
With the Logging Server, the events generated by a
maximum of 64 systems can be logged. Typically, the
Logging Server runs on a PC that is connected to all
systems of which the events are logged. The Logging
Server stores the events in a database. The events in the
database can be viewed with up to 5 Logging Viewers (see
chapter 57).
56.2
56.3
en | 446
Installation
Proceed as follows:
1 Start the PRS-SW Praesideo Software DVD (see
section 35.2).
2 Click Optional > Logging Application Server. A File
Download window appears.
3 Click the Open button to start the setup program of
the Logging Server. A screen similar to the one in
figure 56.1 appears.
Requirements
The Logging Server can run on any PC that meets the
following minimum requirements:
• Operating system:
Microsoft® Windows XP with Service Pack 1 or
Microsoft® Windows Vista or
Microsoft® Windows 7
• Network connection: 100 base-T
• 1 GB RAM
• Free disk space: depends on the amount of events
that must be stored, but it is recommended to have at
least 10 GB of free disk space.
• It is good practice to keep the PC updated with the
latest Windows updates. This makes sure that the PC
contains the most recent version and service packs of
the Microsoft® Jet 4.0 database, which is used by the
Logging Server. (See http://support.microsoft.com/
common/international.aspx).
Bosch Security Systems | 2011-02
figure 56.1: Logging server setup
4 Follow the instructions that are displayed on screen.
A notification is displayed when the installation is
finished.
The interface for the Logging Server is available in
different languages. During installation of the Logging
Server a number of language file folders have been
installed in:
\Program Files\Bosch\Praesideo\Programs\Logging Server.
The language file folders have names according to the
international 2-letter language code (ISO 639), for
example; 'en' for English, 'ru' for Russian.
5 Check this folder to see if your language is available.
If a language folder exists for the language of the
installed Windows operating system, then that is the
language of the Logging Server. If a different
language is needed and a language folder exists for
that language, proceed as follows:
6 Add a language parameter to the Logging Server
program. The parameter is the 2-letter language
abbreviation, e.g. " fi", i.e. a space followed by the
language code. For the Logging Server, go to the
startup folder to add the parameter:
Start > Programs > Startup > Logging Server.
Praesideo 3.5 | Installation and User Instructions | 11 | Optional Software
7 Right click on the Logging Server, select properties
and select the tab shortcut.
8 Add the " fi" parameter to the target description that
ends with .exe", so after the double quote.
9 If the Logging Server has not been installed for
automatic startup and is not in the startup folder,
then create a shortcut for the program file, right click
on the shortcut (can be on the desktop too), click
properties and select the tab shortcut.
10 Add the " fi" parameter to the target description that
ends with .exe", so after the double quote. Use the
shortcut to start up the program. Of course,
replace " fi" with the language abbreviation of your
choice.
56.4
en | 447
Start
The PC automatically starts the Logging Server when
Windows is started. To indicate that the Logging Server
has been started and operates correctly, an icon appears
in the system tray of the taskbar of Windows (see figure
56.2).
figure 56.2: Logging Server icon (correct operation)
When the Logging Server has been started and faults have
occurred in the communication between Praesideo and
the logging system, the icon has a red cross (see figure
56.3).
figure 56.3: Logging Server icon (faults)
When the PC does not automatically start the Logging
Server, proceed as follows to start it manually:
1 Go to Start > Programs > Bosch > Praesideo.
2 Click Logging Server. A new icon appears in the
system tray of the taskbar of Windows (see figure
56.2 and figure 56.3).
Bosch Security Systems | 2011-02
Praesideo 3.5 | Installation and User Instructions | 11 | Optional Software
56.5
en | 448
Main window
56.5.1 Opening the main window
Proceed as follows:
1 Double click on the Logging Server icon (see figure
56.2). A screen similar to the one in figure 56.4
appears.
Note
When server authentication (see section 56.7.5)
is enabled, the Logging Server asks for a user
name and a password.
Message:
Logging Server has no connection with <system>
Description:
There is no connection with the specified system.
Recommended action:
Make sure that the specified system is running and
that the specified system has an Ethernet connection
with the Logging Server.
Message:
Network controller <system> refused connection due
to incorrect user name or password.
Description:
It is not possible to connect to the specified system,
because the network controller authentication failed.
Recommended action:
Make sure the specified system knows the user name
and password of the Logging Server (see section
56.7.5.3).
Message:
The Logging Server options are changed. Restart the
Logging Server to use the changed settings.
Description:
The configuration settings of the Logging Server were
changed. The changed settings are not used until the
Logging Server is restarted.
Recommended action:
Restart the Logging Server to use the new settings.
figure 56.4: Main window
56.5.2 Status messages
The main window displays the status of the Logging
Server.
Message:
The Logging Server is OK.
Description:
The Logging Server operates correctly.
Recommended action:
----
Bosch Security Systems | 2011-02
Praesideo 3.5 | Installation and User Instructions | 11 | Optional Software
56.6
Stop
Proceed as follows:
1 Open the main window (see section 56.5.1)
2 Go to File > Exit. The cross in the upper right hand
corner of the main windows does not stop the
Logging Server.
56.7
en | 449
Configuration
56.7.1 Introduction
1 Open the main window (see section 56.5.1).
2 Click File > Options. A screen similar to the one in
figure 56.5 appears.
Message:
The Logging Server database has reached its critical
size. Please decrease the logging expiration periods.
Description:
The database has reached its critical size.
Recommended action:
Enable and decrease the logging expiration periods to
move events to the overflow files (see section 56.7.3)
or flush the database (see section 56.7.4.4).
Message:
The Logging Server overflow files have reached their
critical size. Please clear or delete the overflow files.
Description:
One or more overflow files have reached the critical
size.
Recommended action:
The overflow files are comma separated value (*.csv)
files. They can be opened in an editor (e.g. Windows
Wordpad, Microsoft® Excel). When an overflow file
reaches its critical size, use an editor to delete data
from the overflow file and decrease its size.
Bosch Security Systems | 2011-02
figure 56.5: Options window
3 Go to the Connections tab to define the connections to
the systems of which the events must be logged (see
section 56.7.2).
4 Go to the Logging Expiration tab to specify the
expiration periods of the logged events (see section
56.7.3).
5 Go to the Database tab to define the properties of the
logging database (see section 56.7.4).
6 Go to the Security tab to change the security settings
of the logging server (see section 56.7.5).
Praesideo 3.5 | Installation and User Instructions | 11 | Optional Software
56.7.2 Connections
56.7.2.1 Introduction
The Logging Server can log the events generated by up to
64 systems. The connections to the systems must be
defined on the Connections tab.
56.7.2.2 Add a system
Proceed as follows:
1 Click in the Enabled field of the row that is marked
with an asterisk (*). A new row is added to the list of
systems (see figure 56.6).
en | 450
3 Click the System Name or IP Address field and enter the
IP address or the name of the network controller of
the system to which the Logging Server must connect.
For example, 192.168.0.18 (see figure 56.8).
Note
If the name of the network controller is used, the
IP address of the network controller must be
stored in the Windows hosts file
(WINNT\system32\drivers\etc.). This file can be
edited with Notepad.
figure 56.6: Add a system (1)
2 Click the System Name field and enter the name of the
system to which the Logging Server must connect. The
name may consist of up to 16 characters. For
example, System 4 (see figure 56.7).
figure 56.7: Add a system (2)
Bosch Security Systems | 2011-02
figure 56.8: Add a system (3)
56.7.2.3 Disable event logging for a system
To disable the event logging for a system, remove the
check mark from its Enabled check box.
Praesideo 3.5 | Installation and User Instructions | 11 | Optional Software
56.7.2.4 Delete a system
Proceed as follows:
1 Click the field in front of the row that contains the
system. For example, System 4 (see figure 56.9).
en | 451
56.7.3 Logging expiration
56.7.3.1 Overview
On the Logging Expiration tab (see figure 56.11), the
expiration periods of the logged events can be defined.
figure 56.9: Delete a system (1)
figure 56.11: Logging Expiration tab
2 On the keyboard of the PC on which the Logging
Server is running, press the Del key. The system is
removed from the list (see figure 56.10 for an
example).
figure 56.10: Delete a system (2)
56.7.3.2 Expiration periods
When expired events must automatically be moved to
an overflow file, put a check mark in the Move expired
events to overflow file field. Use the controls in the event
logging period rows to define the logging periods. All fault
that are older than the logging period are moved to an
overflow file.
56.7.3.3 Overflow file
The overflow files contain the expired events. Use the
controls in the Overflow File block to define:
• The location of the overflow files. This can either be
entered in the Folder field or selected from the file
system with the Browse button.
• The critical size of the overflow files in the Critical
size field. When the critical size is reached, the
Logging Server displays the following message (see
section 56.5.2): The Logging Server overflow files have
reached their critical size. Please clear or delete the overflow
files. When the overflow files have been deleted or
reduced in size, the Logging Server must be restarted
to remove this message.
Note
The overflow files are comma separated value
files (*.csv).
Bosch Security Systems | 2011-02
Praesideo 3.5 | Installation and User Instructions | 11 | Optional Software
56.7.4 Database
56.7.4.1 Overview
On the Database tab (see figure 56.12), the properties of
the logging database can be defined.
figure 56.12: Database tab
56.7.4.2 Recent events
Use the Recent events block to define the number of
recent events that is displayed in the Logging Viewer (see
section 57.6.2.3).
56.7.4.3 Database file
Use the controls in the Database file block to define:
• The location of the logging database. This can be
entered in the upper text box.
Note
For experts only: the logging database is a
Microsoft® Access file, which also can be
opened with Microsoft® Access. If for any
reason the database becomes corrupted and
the Logging Server is not able to access the
database, the database can be repaired with
Microsoft® Access.
Close the Logging Server application.
Open the database with Microsoft® Access.
Select: Tools > Database utilities > Compact
and Repair database.
•
The critical size of the logging database. When the
critical size is reached, the Logging Server displays the
following message (see section 56.5.2): The Logging
Bosch Security Systems | 2011-02
en | 452
Server database has reached its critical size. Please decrease
the logging expiration periods.
It is possible to make a back-up of the logging database
(even if the Logging Server is running). When a back-up
is made of a running Logging Server, it is advised to
wait for a moment at which a low number of events is
expected (i.e. when there are almost no running calls).
Events that occur while the back-up is made will not be
copied to the logging database. However, events that
occurred during the back-up process can be viewed with
the standard Windows Event Viewer (Start > Settings >
Control Panel > Administrative Tools > Event Viewer).
56.7.4.4 Flush events
Use the controls in the Flush events block to flush events
from the logging database. Proceed as follows:
1 If the fault events must be flushed from the logging
database, put a check mark in the Fault events check
box.
2 If the general events must be flushed from the
logging database, put a check mark in the General
events check box.
3 If the call events must be flushed from the logging
database, put a check mark in the Call events check
box.
4 Click the Flush now button to flush the selected types
of events from the logging database.
• If the Move expired events to overflow file field of the
selected type of events on the Logging Expiration
tab (see section 56.7.3) contains a check mark, the
selected type of events are flushed to an overflow
file.
• If the Move expired events to overflow file field of the
selected type of events on the Logging Expiration
tab (see section 56.7.3) does not contain a check
mark, the selected type of events are deleted from
the database.
Note
When the database is flushed and the Logging
Server is started again, the database is filled
with the events that are retrieved from the
enabled network controllers. Each enabled
network controller keeps an internal list of up to
200 events of each type. Use the File Transfer
application to clear the internal list (see section
36.6).
Praesideo 3.5 | Installation and User Instructions | 11 | Optional Software
56.7.5 Security
56.7.5.1 Overview
On the Security tab (see figure 56.13), the security
settings can be defined.
en | 453
56.7.5.3 Viewer/Network controller authentication
Use the controls in the Viewer/Network controller
authentication block to set the password and user name
that:
• Gives a Logging Viewer access to the Logging Server (see
section 57.6.2.5).
• Gives the Logging Server access to all connected
network controllers.
Note
Make sure that all systems have an account (see
section 40.2) that contains the user name and
password in the Viewer/Network controller
block. Otherwise, the Logging Server cannot
connect to the systems.
figure 56.13: Security tab
56.7.5.2 Server authentication
Use the controls in the Server authentication block to:
• Enable and disable server authentication with the
Use authentication box. When server authentication is
enabled, a user name and password must be entered
to get access to the main window (see section 56.5.1).
• Set the password and user name to get access to the
Logging Server with the Change User Name/Password
button. A password and user name can only be set
when server authentication is enabled. The
password must have at least five (5) characters. The
user name must have at least four (4) characters.
Bosch Security Systems | 2011-02
Praesideo 3.5 | Installation and User Instructions | 11 | Optional Software
57
Logging Viewer
57.1
Introduction
With the Logging Viewer, the events logged by the Logging
Server in a database, can be viewed. Typically, the
Logging Viewer runs on a PC that is connected to the PC
on which the Logging Server (see chapter 56) runs. The
database is located at the same PC as the Logging Server.
57.2
Requirements
The Logging Viewer can run on any PC that meets the
following minimum requirements:
• Operating system:
Microsoft® Windows XP with Service Pack 1 or
Microsoft® Windows Vista or
Microsoft® Windows 7
• Network connection: 100 base-T
• 1 GB RAM
57.3
Installation
Proceed as follows:
1 Start the PRS-SW Praesideo Software DVD (see
section 35.2).
2 Click Optional > Logging Application Viewer. A File
Download window appears.
3 Click the Open button to start the setup program of
the Logging Viewer. A screen similar to the one in
figure 57.1 appears.
en | 454
The Logging Viewer is able to show its user interface
and the logging events in different languages. During
installation of the Logging Viewer a number of language
file folders have been installed in:
\Program Files\Bosch\Praesideo\Programs\Logging Viewer.
The language file folders have names according to the
international 2-letter language code (ISO 639), e.g. 'en'
for English, 'ru' for Russian.
5 Check this folder to see if your language is available.
If a language folder exists for the language of the
installed Windows operating system, then the
Logging Viewer is in that language. If a different
language is needed and a language folder exists for
that language, proceed as follows:
6 Add a language parameter to the Logging Viewer
program. The parameter is the 2-letter language
abbreviation, e.g. " fi", i.e. a space followed by the
language code. For the Logging Viewer create a
short cut for the program file, then right click on the
short cut (can be on the desktop too), click properties
and select the tab short cut.
7 Add the " fi" parameter to the target description that
ended with .exe", so after the double quote. Use the
short cut to start up the program. Of course,
replace " fi" with the language abbreviation of your
choice.
57.4
Start
Proceed as follows:
1 Go to Start > Programs > Bosch > Praesideo.
2 Click Logging Viewer. A screen similar to the one in
figure 57.4 appears.
• When the Logging Viewer has been started and
faults have occurred, its icon shows the fault
condition (see figure 57.2).
figure 57.2: Logging Viewer icon (faults)
figure 57.1: Logging viewer setup
4 Follow the instructions that are displayed on screen.
A notification is displayed when the installation is
finished.
Bosch Security Systems | 2011-02
Note
In Windows Vista and Windows 7, the taskbar
buttons should be configured to ‘Never
combine’ similar taskbar buttons. Otherwise the
fault condition will not be shown in the tasbar.
Praesideo 3.5 | Installation and User Instructions | 11 | Optional Software
57.5
Configuration
Proceed as follows to configure the Logging Viewer:
1 Go to File > Options. A screen similar to the one in
figure 57.3 appears.
figure 57.3: Options window
2 Enter the IP address of the PC on which the Logging
Server is running to which the Logging Viewer must
connect.
A server host name can be used instead of an IP
address if the IP address was automatically provided
by a DNS server, or if the IP address of the PC is
stored in the Windows host file
(WINNT\system32\drivers\etc.). This file can be edited
using Notepad.
Note
If the name of the PC is used, the IP address of
the PC must be stored in the Windows hosts
file (WINNT\system32\drivers\etc.). This file
can be edited with Notepad.
Note
If the Logging Viewer is installed on the same
PC as the Logging Server, it is allowed to use
Localhost as server name in the Options
window.
Bosch Security Systems | 2011-02
en | 455
Praesideo 3.5 | Installation and User Instructions | 11 | Optional Software
57.6
Operation
57.6.1 Overview
The Logging Viewer (see figure 57.4) contains the
following:
• Menu bar - A menu bar that provides access to the
menus of the Logging Viewer (see section 57.6.2).
• Block buttons - Two buttons to select the next and
previous blocks of events (see section 57.6.4).
• Logging Status button - A button that opens a
window that shows the status of the Logging Viewer
(see section 57.6.3). When the Logging Server or
Logging Viewer does not operate correctly, the button
is red.
• Tabs - Use the tabs to select the type of events that
are shown by the Logging Viewer. See chapter 51 for
information about the events.
figure 57.4: Logging viewer
Bosch Security Systems | 2011-02
en | 456
Praesideo 3.5 | Installation and User Instructions | 11 | Optional Software
en | 457
57.6.2 Menu bar
57.6.2.1 Introduction
The menu bar contains the following menus:
• The File menu (see section 57.6.2.2)
• The View menu (see section 57.6.2.3).
• The System menu (see section 57.6.2.4).
• The Action menu (see section 57.6.2.5).
• The Help menu (see section 57.6.2.6).
57.6.2.2 File
The items in the File menu are used to export and print
events and to configure the Logging Viewer. It contains
the following items:
• Options
Opens the Options window that is used to configure
the Logging Viewer (see section 57.5).
• Export
Exports all events in the current event view to a
comma separated values file (*.csv). This file can be
opened with, for example, Microsoft® Excel.
• Print
Prints all events in the current event view or prints a
selected block of successive events. (To select a block
of events: click the first event and then hold the
<Shift> key and click the last event.)
• Exit
Closes the Logging Viewer.
57.6.2.3 View
The items in the View menu are used to set the event
viewing options. It contains the following items:
• Recent
Shows all recent events. The number of displayed
recent events is defined by the Logging Server window
(see section 56.7.4.2).
• Historical
Shows historical events. These are retrieved from the
logging database (see section 56.7.4). When this item
is selected, a calendar appears in which a start date
(Start Date) and an end date (End Date) can be
selected. When the number of historical events is
greater than 10000, the Logging Server delivers the
events in blocks to the Logging Viewer. Use the Next
Block and Prev Block buttons to scroll through the
blocks (see section 57.6.4).
• Refresh
Refreshes the list of events.
Bosch Security Systems | 2011-02
Note
New events are only shown in the Recent view.
The Historical view does not show new events.
57.6.2.4 System
The items in the System menu are used to select the
system from which the events are displayed. The list of
available systems is generated by the Logging Server to
which the Logging Viewer is connected (see section
56.7.2). When All is selected, the events from all
systems are displayed, including events from disabled
systems and events from non-configured systems.
Events generated by the Logging Server itself can be
selected separately.
57.6.2.5 Action
The items in the Action menu are used to acknowledge
and reset fault events. It contains the following items:
• Acknowledge All Fault Events
Acknowledges all new fault events in all systems that
are connected to the Logging Server. The user must log
on to the Logging Server to acknowledge fault events.
• Reset All Fault Events
Resets all acknowledged fault events in all systems
that are connected to the Logging Server. The user
must log on to the Logging Server to reset fault events.
• Log Off
Logs the user off from the Logging Server.
57.6.2.6 Help
The item in the Help menu provides version information
about the Logging Viewer.
Praesideo 3.5 | Installation and User Instructions | 11 | Optional Software
en | 458
57.6.3 Logging status button
The Logging Status window displays the status of the
Logging Viewer.
Message:
The Logging Server and Viewer are OK.
Description:
The Logging Server and Logging Viewer operate
correctly.
Recommended action:
---Message:
Logging Server has no connection with <system>
Description:
There is no connection with the specified system.
Recommended action:
Make sure that the specified system is running and
that the specified system has an Ethernet connection
with the Logging Server.
Message:
The Logging Viewer has lost contact with the
Logging Server
Description:
There is no connection with the Logging Server.
Recommended action:
Make sure that the Logging Server is running and that
the Logging Server has an Ethernet connection with
the Logging Viewer.
Message:
The Logging Server options are changed. Restart the
Logging Server to use the changed settings.
Description:
The configuration settings of the Logging Server were
changed. The changed settings are not used until the
Logging Server is restarted.
Recommended action:
Restart the Logging Server to use the new settings.
Bosch Security Systems | 2011-02
Message:
The Logging Server database has reached its critical
size. Please decrease the logging expiration periods.
Description:
The database has reached its critical size.
Recommended action:
Enable and decrease the logging expiration periods to
move events to the overflow files (see section 56.7.3)
or flush the database (see section 56.7.4.4).
Message:
The Logging Server overflow files have reached their
critical size. Please clear or delete the overflow files.
Description:
One or more overflow files have reached the critical
size.
Recommended action:
The overflow files are comma separated value (*.csv)
files. They can be opened in an editor (e.g. Windows
Wordpad, Microsoft® Excel). When an overflow file
reaches its critical size, use an editor to delete data
from the overflow file and decrease its size.
57.6.4 Blocks
When the current view is the Historical view (see section
57.6.2.3) and the number of historical events is greater
than 10000, the Logging Server delivers the events in
blocks to the Logging Viewer.
• If a next block is available, the Next Block button is
enabled. The next block contains events that are
newer than the events that are currently displayed.
• If a previous block is available, the Prev Block button
is enabled. The previous block contains events that
are older than the events that are currently displayed.
Praesideo 3.5 | Installation and User Instructions | 11 | Optional Software
en | 459
58 PC Call Server
58.1 Introduction
The PC Call Server is a Windows service, connected to
one or more configured network controllers. It handles
all operational requests from PC Call Station Clients and/
or a PC Telephone Interface Client. The PC Call Server is
configured by the PC Call Server Configuration Client,
which for security reasons runs on the same computer as
the PC Call Server. The PC Call Server does not have a
user interface of its own.
Note
Make sure that the software versions of the
Praesideo system and the versions of the PC
Call Server, PC Call Station Client and PC
Telephone Interface Client are always the same.
It is advised to update to the latest version.
figure 58.1: PC Call Server setup program
4 Follow the instructions that are displayed on screen.
A notification is displayed when the installation is
finished.
58.2 Requirements
The PC Call Server can run on any PC that meets the
following minimum requirements:
• Operating system:
Microsoft® Windows XP with Service Pack 1 or
Microsoft® Windows Vista or
Microsoft® Windows 7
• Network connection: 100 base-T
• 1 GB RAM
58.3 Installation
1 Start the PRS-SW Praesideo Software DVD (see
section 35.2).
2 Click Optional > PC call server. A File Download
window appears.
3 Click the Open button to start the setup program of
the PC Call Server. A screen similar to the one in
figure 58.1 appears.
Bosch Security Systems | 2011-02
Note
After installation, the PC Call Server will
automatically be registered to the Windows
Firewall to allow incoming and outgoing network
traffic. If the PC uses a different firewall than the
standard Windows firewall, the PC Call Server
must be manually registered to that firewall as
exception to avoid that the firewall blocks the
network traffic without notice. Blocked network
traffic causes the application to malfunction.
Praesideo 3.5 | Installation and User Instructions | 11 | Optional Software
en | 460
58.4 Start
Note
Make sure that the Windows options Network
discovery and File sharing are activated on the
system where the PC Call Server is running. If
not, the connection from a PC Call Server
Configuration Client, a PC Call Station Client or
a PC Telephone Interface Client may fail.
Access to these options differ between
Windows versions:
In Windows XP, no actions are required.
In Windows Vista, these options can be set via
Start > Control Panel > Network and Internet >
Network and Sharing Center > Sharing and
Discovery. Then turn on Network discovery and turn
on File sharing.
In Windows 7, these options can be set via Start
> Control Panel > All Control Panel Items >
Network and Sharing Center > Change advanced
sharing settings. Then select Turn on network
discovery and select Turn on file and printer
sharing.
Bosch Security Systems | 2011-02
The PC automatically starts the PC Call Server as a
service when Windows is started.
Important events will be logged to the Windows event
log:
• Startup and shutdown of the service
• Error messages about license validity
• Abnormal (fatal) errors that cause the service to shut
down
58.5 Configuration
Use the PC Call Server Configuration Client (see
chapter 59) to configure the PC Call Server.
58.6 Firewall
The PC Call Server and the related programs PC Call
Station Client and PC Telephone Interface Client use
port TCP 9452. In case a firewall is used, this port
should be enabled. If needed, this port number can also
be changed by editing the XML file <application
name>.exe.config, for each application separately. These
files are in the install path of the applications.
Praesideo 3.5 | Installation and User Instructions | 11 | Optional Software
59
en | 461
PC Call Server
Configuration Client
59.1 Introduction
With the PC Call Server Configuration Client, you can
configure the PC Call Server (see chapter 58).
On a PC with Windows Vista you must have
Administrator rights to run this application.
59.2 Requirements
The PC Call Server Configuration Client can run on any
PC that meets the following minimum requirements:
• Operating system:
Microsoft® Windows XP with Service Pack 1 or
Microsoft® Windows Vista or
Microsoft® Windows 7
• Network connection: 100 base-T
• 1 GB RAM
59.3 Installation
Proceed as follows:
1 Start the PRS-SW Praesideo Software DVD (see
section 35.2).
2 Click Optional > PC call server configuration client. A
File Download window appears.
3 Click the Open button to start the setup program of
the PC Call Server Configuration Client. A screen
similar to the one in figure 58.1 appears, but now for
the PC Call Server Configuration Client.
4 Follow the instructions that are displayed on screen.
A notification is displayed when the installation is
finished.
59.4 Start
Proceed as follows:
1 Go to Start > Programs > Bosch > Praesideo Vxx.yy.zzzz.
2 Click PC Call Server Configuration Client. A screen
similar to the one in figure 59.1 appears.
Bosch Security Systems | 2011-02
figure 59.1: PCCstConfig Login
3 Check or uncheck the Work offline checkbox.
• If checked, the application does not connect to
the PC Call Server. All items that require a
connection to the PC Call Server are unavailable.
• If unchecked, the application connects to the
PC Call Server that is running on the local system.
4 Type your password in the Password field. A
password does not have to be entered for first time
use.
5 Choose the language in which the application
presents itself from the Language list.
6 Press the OK button. The main configuration screen
appears that provides the status information of the
configured network controllers. When no
configuration is made yet, this screen is empty.
59.5 Configuration
59.5.1 Overview
The PC Call Server Configuration Client contains the
following:
1 Menu bar - A menu bar that provides access to the
menus of the PC Call Server Configuration Client (see
section 59.5.2).
2 Connections tab - Shows the status of the
connections to the network controllers, including
name, host name or IP address, software version,
license status and connection status.
Praesideo 3.5 | Installation and User Instructions | 11 | Optional Software
•
figure 59.2: Connections tab
3 Clients tab - Shows the status of the connections
from the PC Call Station Clients to the PC Call Server,
including login name or user of the clients, the host
name or IP address of the work station from which
the client connects, the connection status and the
date/time at which the client connected and (if
applicable) disconnected.
en | 462
Exit
Closes the application.
59.5.3.1 Workflow
To configure the PC Call Server with the PC Call Server
Configuration Client:
1 Create a new configuration file or open an existing
one.
2 Execute all Edit menu items in the order in which
they appear in the Edit menu. The order reflects the
configuration workflow.
3 Save the configuration file (File > Save).
4 Make the configuration file active (File > Make active).
59.5.4 Edit
The items in the Edit menu are used to configure the
PC Call Server. It contains the items that must be
configured.
figure 59.3: Clients tab
59.5.2 Menu bar
The menu bar contains the following menus:
• The File menu (see section 59.5.3).
• The Edit menu (see section 59.5.4).
• The Help menu (see section 59.5.5).
59.5.3 File
The items in the File menu are used to make and save
configuration files. It contains the following items:
• New
Creates a new configuration file.
• Open...
Opens an existing configuration file.
• Make active
Activates the current configuration file.
• Save
Saves the current configuration file.
• Save as...
Saves the current configuration file with another
name.
Bosch Security Systems | 2011-02
figure 59.4: Edit menu
59.5.4.1 Configure Network Controllers…
This item configures the network connections between
the PC Call Server and the different network
controllers. This option is not available when working
offline
Praesideo 3.5 | Installation and User Instructions | 11 | Optional Software
en | 463
.
figure 59.7: Get configuration
figure 59.5: Configure network controllers
59.5.4.3 Configure Interconnections…
This item configures the interconnections between the
different network controllers.
figure 59.6: Add new, Delete and Copy to new icons
Use the Add new icon to add a network controller, see
figure 59.6. Fill in the unique name and IP-address or
host name of the network controller and a valid user
name and password for that network controller. Use the
Delete icon to delete the network controller from the list
of network controllers. The Copy to new icon creates a
new copy of the current network controller for
subsequent editing.
59.5.4.2 Get Configuration
This item retrieves the relevant configuration data from
the configured network controllers, such as the names of
zones, messages, tones, inputs, etc. The progress of the
data retrieval is shown. When the transfer is completed
you can accept or reject the data. This data is needed for
further configuration. A warning is shown if the tone set
and message set are not the same on all network
controllers because this will limit the choice of tones and
messages for the connected clients, see section 59.5.4.4.
This option is not available when working offline.
Bosch Security Systems | 2011-02
figure 59.8: Configure interconnections
These interconnections are the actual hardware
connections for audio transfer between the systems, and
are needed to transfer a call from one Praesideo
subsystem to another. A connection is not necessarily
between network controllers but uses a configured zone
in one system as a source and an audio input in another
system as a destination. Zones can be line outputs on
e.g. a network controller or audio expander and inputs
can be line inputs on such units interconnected via XLR
cables, but it is also possible to use inputs and outputs of
CobraNet interfaces, interconnected via Ethernet. It is
not possible (and useful) to make interconnections
between inputs and outputs within the same subsystem.
Use the Add new and Delete icons to create new
Praesideo 3.5 | Installation and User Instructions | 11 | Optional Software
interconnections and give them a unique name for
reference purposes.
These interconnections are only used for normal calls
and emergency calls, not for BGM.
Outputs (zones) that are used for interconnections
cannot be selected anymore as zone outputs for layout
configuration, see section 59.5.4.7.
Inputs that are used for interconnections cannot be
selected anymore as audio input for live speech,
see section 59.5.4.4.
Note
Calls without live speech across multiple
subsystems use tones generated in each
subsystem individually and/or messages stored
in each subsystem. These tones and/or
messages are also logged as such. If these calls
include live speech, then only tones and/or
messages from the originating subsystem are
used and passed to all other subsystems, as
being live speech. This way, synchronization is
preserved but tones and messages broadcast
via the subsystems are not logged separately.
59.5.4.4 Configure PC Call Station Zone Groups...
This item configures the special PC Call Station zone
groups.
figure 59.9: Configure PC Call Station zone groups
PC Call Station zone groups exist only on the PC Call
Station, not on the connected NCOs. Normal zones or
zone goups that have been defined on an NCO can be
added to such a group. This allows a PC Call Station
zone group to contain zone groups from different
NCOs, even a multi-NCO All Call zone group is
possible. PC Call Station zone groups can be configured
Bosch Security Systems | 2011-02
en | 464
for predefined calls, just like normal zones and NCO
zone groups.
59.5.4.5 Configure Predefined Calls…
This item configures the predefined calls that can be
made from the PC Call Station Clients.
figure 59.10: Configure predefined calls
Use the Add new, Delete and Copy to new icons to create
new predefined calls and give them a unique name for
reference purposes. This name will appear on the screen
button of the PC Call Station Client for selecting this
predefined call. It is also shown here in a copy of a
PC Call Station Client button to check whether the name
fits.
The checkbox Use for PC TI defines whether this
predefined call can also be used by the PC Telephone
Interface Client. If this checkbox is checked, then a
Numerical alias must be entered for this predefined call.
This field only accepts numbers and the number must
be unique. This way users can call in to Praesideo, using
a telephone, and select a predefined call with the
numeric keypad of the telephone. See section 61.6.
Predefined calls are similar to call macros in Praesideo.
Each call must have a priority and can have a start tone,
end tone, messages that can be repeated, and a live
speech phase. The available tones and messages depend
on what information was retrieved from the network
controllers. It is important that all network controllers in
the system have the same tone set and message set,
because only tones and messages will be available for
selections that exist on all configured and connected
network controllers. In case of live speech an audio
input must be selected on a unit in one of the systems,
Praesideo 3.5 | Installation and User Instructions | 11 | Optional Software
controlled by one of the configured network controllers.
This can be a line or microphone input on a unit, but
also the microphone of a call station. Make sure that the
selected input or source is enabled in the web page
configuration of its network controller.
Then a set of zones, zone groups or special PC Call
Station zone groups can be selected for that predefined
call. These zones are automatically selected upon
selection of that predefined call in the PC Call Station
Client, but before starting that call it is also possible to
add zones or remove zones from that call. It is also
allowed to keep the list of zones and zone groups empty
in the predefined call and only select zones on the fly on
the PC Call Station Client.
The appearance of the actual button on the screen of the
PC Call Station Client depends on whether it is a normal
call or an emergency call (priority above 223).
59.5.4.6 Configure Layout Images…
This item configures the layout images that are used as
background for the different tabs in the PC Call Station
Clients, on which the zone icons and zone group icons
are positioned. This way a synoptic layout can be made
where zones and zone groups can be easily selected.
Use the Add new and Delete icons to create new layout
images and give them a unique name for reference. The
same image can be used more than once as a layout.
The image is not scaled to the dimensions of the
window, but scroll bars appear if it does not fit.
figure 59.11: Configure layout images
Bosch Security Systems | 2011-02
en | 465
59.5.4.7 Configure Layouts…
This item configures the position of the zone and zone
group icons on the layout images.
figure 59.12: Configure layouts
Use the Add new, Delete and Copy to new icons to create
new layouts and give them a unique name for reference.
This name will appear on the tab in the zone selection
pane of the PC Call Station Client for selecting this
layout. Create zone icons and zone groups icons on the
layout by dragging zones or zone groups from the list
into the layout with the mouse. The icons can be aligned
on a grid. You can give them a name that differs from
the default name, which is a combination of the network
controller name and the zone name in Praesideo, by
clicking on the label below the icon. The name can also
be deleted if the destination is clear already from the
layout image. It is possible to place the same zone or
zone group icons several times. Delete an icon by
right-clicking on it and then clicking on Remove, or by
selecting it and pressing the Delete key. Multiple icons
can be selected by pressing the Ctrl-key when selecting
icons. To select all occurrences of the same icon,
right-click on one of the icons and select Select all
occurrences to expand the selection to include all icons
that are a copy of the currently selected icon.
Praesideo 3.5 | Installation and User Instructions | 11 | Optional Software
59.5.4.8 Configure BGM Channels…
This item configures the background music channels
that can be selected from the PC Call Station Client.
en | 466
59.5.4.9 Configure PC Call Station Client Users…
This item configures the rights for all PC Call Station
Client users of the system.
figure 59.13: Configure BGM channels
figure 59.14: Configure PC Call Station Client users
Use the Add new and Delete, icons to create new BGM
channels and give them a unique name for reference
purposes. This name will appear on the BGM selection
buttons of the PC Call Station Client. In this
configuration window, it is also shown in a copy of the
screen icon, to check if the text fits.
Use the Select button to assign Praesideo BGM channels
on different network controllers to this channel as
sources. BGM audio is not transferred between network
controllers via the configured interconnections, so in
every subsystem with its own network controller a single
audio input should be assigned for that BGM channel
and configured on that network controller. Because
BGM channels are typically fixed and not dynamic, it is
possible to use fixed interconnections via XLR cables
between subsystems for BGM transfer or use CobraNet
interfaces for that purpose. These connections are then
configured in Praesideo via the configuration web pages
as usual.
Bosch Security Systems | 2011-02
Use the Add new, Delete, and Copy to new icons to create
users and give them a unique name for reference
purposes. This name is used by the user to log in to a
PC Call Station Client. A password can be created for
each user. Here you can configure the Start button
behavior for each user separately. The options are:
• Toggle with abort on repress
• Toggle without abort on repress
• Momentary with abort on repress
• Momentary without abort on repress
Note that for the toggle action the key activation is
performed on a mouse up event (mouse button release).
For momentary actions the key activation is performed
on both mouse down (mouse button click) and mouse
up events.
For each user a list of predefined calls and layouts can
be selected from the list of created predefined calls and
layouts. This way some users can be given a wider range
of choices than others. Press Select to open the
predefined call selection window to make a selection of
predefined calls. Use the Add and Remove buttons for
this, or just drag items from the list of available calls to
the list of selected calls. The order of the selected
predefined calls in the list determines the order in which
these calls are shown on the screen of the PC Call Station
Client. The order can be changed by dragging and
dropping predefined calls in the right-hand column to a
different position, using the mouse.
A Default call can be selected from the list of predefined
calls or <none>. The default call is automatically
Praesideo 3.5 | Installation and User Instructions | 11 | Optional Software
selected on expiry of the configured Timeout. A timeout
period between 10 s and 60 s can be selected. The
timeout timer is (re)started every time a predefined call
is selected or when a zone or zone group in the zone
selection pane is selected. While a selected predefined
call is being made, the timeout timer will not expire, but
it will expire 5 s after completion of the call. This allows
the user to quickly select the previous call again in case
something was forgotten. The timeout behavior is only
applicable to the Predefined call tab and is not influenced
by selecting the BGM tab for BGM control, nor by
BGM selections.
Selecting layouts per user is done in a similar way. The
order of the selected layouts in the list is the order of the
layout tabs in the PC Call Station Client view.
figure 59.15: Selection of predefined calls
en | 467
PC Telephone Interface Client is not installed, this menu is
still available but can be ignored.
figure 59.16: PC Telephone Interface Client
configuration
Select which country must be used as reference for the
telephone tones used. These tones will be based on what
is common for that country (busy tone, et cetera). If the
PC Telephone Interface Client is not installed this list is
empty.
Enter the VoIP extension number; this is the telephone
number that VoIP users should call to reach the
PC Telehone Interface Client. This extension has a
maximum length of 10 digits and may only contain
numbers. This VoIP extension number should match
the VoIP extension in the PSTN configuration. See
section 61.8.3.
Pressing Configure for the Zone (group) aliases brings up a
window (see figure 59.17) where numerical aliases can
be assigned to zones and zone groups. This way users
can call in to Praesideo, using a telephone, and select
zones or zone groups with the numeric keypad of the
telephone, even while the original zone and zone group
names are alphanumeric.
.
Additionally, you can give the user the authorization to
control BGM, to acknowledge and reset the emergency
state and to access other applications on the same PC
the PC Call Station Client is running on. In case this
access to other applications is disabled, the PC Call
Station Client will run full screen, the task bar will be
hidden and the application will try to run its main
window on top of other applications.
59.5.4.10 Configure PC Telephone Interface Client…
The general settings of the PC Telephone Interface Client,
that can be installed with the PC Call Server, can be
configured and managed via this menu. Even if the
Bosch Security Systems | 2011-02
figure 59.17: Zone (group) alias configuration
The list of available zones and zone groups shows all
zones and zone groups that are known to the PC Call
Praesideo 3.5 | Installation and User Instructions | 11 | Optional Software
Server. The names of these items consist of the
configured name of the NCO and the zone name, using
the format <Network Controller name>_<Zone (group)
name>. This list is read-only; therefore the navigation
bar does not have Add, Delete and Copy to new buttons.
The bar is only used for navigation through the list.
The Network Controller and Zone (group) fields are
read-only text fields that show the name of the zone or
zone group that is currently selected and the network
controller where it is defined.
The Numerical alias field is a text field with a maximum
length of 16 digits that contains a number that should
uniquely identify the zone or zone group. The field only
accepts numbers (other characters are ignored when
typed) and may be left empty.
Even if the original zone (group) name was already
numerical, still the Numerical alias should be filled in.
en | 468
the access rights can be made different for different
users (callers). The user can only make calls via
telephone based on one of the predefined calls that are
configured for this user. Only predefined calls that have
been configured for use by the PC Telephone Interface
Client with a Numerical alias (see section 59.5.4.4) can be
selected.
59.5.4.12 Configure SIP Users…
In this window the SIP users of the PC Telephone
Interface Client, using a VoIP connection (Voice over
IP) can be configured and managed. SIP (Session
Initiation Protocol) is a communication protocol for
VoIP.
59.5.4.11 Configure PC Telephone Interface Client
Users…
In this window the PC Telephone Interface Client users
can be configured and managed.
figure 59.19: SIP user configuration
figure 59.18: PC Telephone Interface Client user
configuration
The Personal number (similar to a user name) should
uniquely identify the user, who wants to access the
Praesideo system with a telephone. Only numbers, up to
16 digits, are accepted. Each user with a personal
number must have a PIN code (similar to a password).
The PIN code may not be empty. This code can be
added or changed via the Change button. The maximum
length of the PIN code is 16 digits, all numerical.
Pressing the Select button brings up a selection window
to create a list of predefined calls for this user. This way
Bosch Security Systems | 2011-02
Enter the SIP user name for this SIP account; up to 20
alphanumerical characters are accepted. Then a
password should be added. A password can be added or
changed via the Change button. The maximum length of
the password is 16 alphanumerical characters. An
empty password is also allowed (i.e. no password).
This SIP user name and password should match those in
the PSTN configuration. See section 61.8.3. Checking
the checkbox Direct access allows the user of this SIP
account to access the Praesideo system without having
to enter a personal number and PIN code. Identification
is then based on the SIP user name (and password, if
entered).
In practice many different users may use the same SIP
account for access to the Praesideo system.
Differentiation between user rights is then best
accomplished by using the personal numbers and PIN
Praesideo 3.5 | Installation and User Instructions | 11 | Optional Software
en | 469
codes of the users, with Direct access disabled. If Direct
access is enabled, then a TI user (Telephone Interface
user) must be selected from the list of configured users.
The predefined calls associated with this user are then
valid for all users with direct access to the system via
this SIP account. See section 59.5.4.11.
figure 59.22: Enter license key
59.5.4.13 Configure Time Synchronisation…
In this item you can enable (default) or disable time
synchronization of the connected and configured
network controllers. It uses the PC Call Server time as
master.
figure 59.20: Configure time synchronization
Pressing the Synchronize now button (only enabled when
the client has a connection with the PC Call Server) will
result in an immediate time synchronization of all
connected network controllers.
59.5.4.14 Change Configuration Password…
This item allows you to change the configuration
password. After installation of the PC Call Server the
default password is empty. The maximum length of the
password is 16 characters, there is no minimum. You
should fill in the old password and a new password,
which has to be confirmed. This option is not available
when working offline.
figure 59.21: Change configuration password
59.5.4.15 Enter License Key…
In this item you can enter the license key to enable the
full functionality of the application. This option is not
available when working offline.
Bosch Security Systems | 2011-02
The license key identifies the number of network
controllers that can be controlled and the major
software version number of the PC Call Server (that
matches the Praesideo core release).
The license key window shows the current software
version number ("-" when no valid key has been entered
in the past), the number of licensed network controllers
("0" when no valid key has been entered in the past) and
the serial number of the dongle that is currently
attached to the PC ("-"when no valid dongle is attached).
You can get the required license key from the Bosch
Security Systems registration website after registration of
the PC Call Server authorization number, the
authorization number for additional network controllers
(if the system contains more than one network
controller), the authorization number of the PC Call
Station Client and/or the authorization number of the PC
Telephone Interface Client. This key is linked to the unique
serial number of the dongle that comes with the PC Call
Server. That number is shown in this window and needs
to be entered on the registration website to make the
link.
The application is only fully functional if the correct
dongle is present in a USB port of the Call Server PC.
Unlicensed PC Call Station Clients can only monitor
ongoing calls in the system without the possibility to
make calls. If the dongle is removed from a licensed
system, a count down timer starts, and calls cannot be
started anymore from a PC Call Station Client after that
time. An unlicensed PC Telephone Interface Client can not
be used to make calls using a telephone. It will only give
a (voice) response to the caller that there is no valid
license.
Praesideo 3.5 | Installation and User Instructions | 11 | Optional Software
The figure 59.23 shows an example of one of these
certificates with authorization number.
Praesideo
PC Telephone Interface Client
en | 470
59.5.5 Help
59.5.5.1 Help
Shows the online help function.
59.5.5.2 About
The About box shows the software version and the
registered licenses.
TYPE PRS-TIC
NC F.01U.079.817
Authorization number:
xxx xxxxx xxxxx xxx
To register please visit
https://license.boschsecurity.com
F.01U.089.636 - Bosch Security Systems BV
All rights reserved by Robert Bosch GmbH
Printed in the Netherlands 27-8-2008
figure 59.23: Certificate
figure 59.24: PC Call Server Configuration Client
59.5.6 Customization
The shape and color of the icons in all different states of
selection and occupancy can be customized. The same
can be done for the selection buttons and indicators in
all operating states. Also a logo, specific for the
customer site, can be added to the PC Call Station Client
screens.
This information is stored in a file PCCstImages.png
which is located in both the folders
C:\Program Files\Bosch\Praesideo Vx.yy.zzzz\Programs\
PCCstConfgurationClient\Resources and
C:\Program Files\Bosch\Praesideo Vx.yy.zzzz\Programs\
PCCstCallClient\Resources.
The first instance of this file is used for generating
example buttons and icons in the PC Call Server
Configuration Client. The second instance of this file is
used for the PC Call Station Client icons, buttons and
logos. Different PC Call Station Clients on different PCs
connected to the same PC Call Server can have a
different GUI (Graphical User Interface) by using
diffferent versions of the PCCstImages.png file for each
PC. During installation of PC Call Station Clients on
different PCs, the default file is installed on each PC,
even if the version of this file on the PC Call Server was
already modified.
Bosch Security Systems | 2011-02
Praesideo 3.5 | Installation and User Instructions | 11 | Optional Software
The PCCstImages.png file can be edited in any good
drawing program that supports transparancy, e.g.
Paint.NET (http://www.getpaint.net/), which is excellent
for this purpose and completely free.
Note
In Windows Vista and Windows 7, administrator
rights are needed to modify these files, as they
are stored in the Program Files folder.
figure 59.25: PCCstImages.png
figure 59.26: PCCstImages.png references
Bosch Security Systems | 2011-02
en | 471
Praesideo 3.5 | Installation and User Instructions | 11 | Optional Software
en | 472
The table 59.1 describes the function of each item in this
file, with reference to figure 59.26.
table 59.1: Item list of PCCstImages
1A-C
Start button (normal, hot, pressed)
2A-C
Stop button (normal, hot, pressed)
3A-C
Abort button (normal, hot, pressed)
4A-C
Progress indicator (done, skip, open)
5A-G
Progress indicator (active-looped)
6A
Background color of selection pane Call
6B
Background color of control pane Call
6C
Background color of layout pane Call
7A
Background color of selection pane BGM
7B
Background color of control pane BGM
7C
Background color of layout pane BGM
8A
Color of button text
8B
Color of zone icon caption text
8C
Color of zone icon text BGM
10
Start tone icon for progress bar
11
Message icon for progress bar
12
Live speech icon for progress bar
13
End tone icon for progress bar
14
Bosch logo in layout pane
15A-C
Business call button inactive (normal, hot, pressed)
16A-C
Business call button selected (normal, hot, pressed)
17A-C
Business call button active (normal, hot, pressed)
18A-C
Emergency call button inactive (normal, hot, pressed)
19A-C
Emergency call button selected (normal, hot, pressed)
20A-C
Emergency call button active (normal, hot, pressed)
21A-C
Emergency state acknowledge button (normal, hot, pressed)
22A-C
Emergency state reset button (normal, hot, pressed)
23A-C
BGM volume up button (normal, hot, pressed)
24A-C
BGM volume down button (normal, hot, pressed)
25A-C
BGM channel button selected (normal, hot, pressed)
26A-C
BGM channel button (normal, hot, pressed)
27A-C
BGM volume button selected (normal, hot, pressed)
28A-C
BGM volume button (normal, hot, pressed)
29
Customer logo
30A-C
Zone status: free (unselected, selected for business call, selected for emergency call)
30F-H
Zone group status: free (unselected, selected for business call, selected for emergency call)
31A-C
Zone status: occupied by other business call (unselected, selected for business call, selected
for emergency call)
31F-H
Zone group status: occupied by other business call (unselected, selected for business call,
selected for emergency call)
32A-C
Zone status: occupied by other business call, no control possible (unselected, selected for
business call, selected for emergency call)
32F-H
Zone group status: occupied by other business call, no control possible (unselected, selected
for business call, selected for emergency call)
Bosch Security Systems | 2011-02
Praesideo 3.5 | Installation and User Instructions | 11 | Optional Software
en | 473
table 59.1: Item list of PCCstImages
33A/C
Zone status: occupied by other emergency call (unselected, selected for emergency call)
33F/H
Zone group status: occupied by other emergency call (unselected, selected for emergency call)
34A-C
Zone status: occupied by other emergency call, no control possible (unselected, selected for
business call, selected for emergency call)
34F-H
Zone group status: occupied by other emergency call, no control possible (unselected, selected
for business call, selected for emergency call)
35A-C
Zone status: free, no control possible (unselected, selected for business call, selected for
emergency call)
35F-H
Zone group status: free, no control possible (unselected, selected for business call, selected for
emergency call)
36B/C
Zone status: running own call (business, emergency)
36G/H
Zone group status: running own call (business, emergency)
37A/B
Zone status: BGM (unselected, selected)
37F/G
Zone group status: BGM (unselected, selected)
38A/B
Zone status: local BGM (unselected, selected)
38F/G
Zone group status: local BGM (unselected, selected)
39A
Zone status: BGM, no control possible
39F
Zone group status: BGM, no control possible
40A
Zone status: local BGM, no control possible
40F
Zone group status: local BGM, no control possible
41B
Zone status: occupied by selected BGM channel
41G
Zone group status: occupied by selected BGM channel
42A
Zone status: no status available due to communication error
42F
Zone group status: no status available due to communication error
43A
Zone status: icon overlay for zone fault
43F
Zone group status: icon overlay for zone fault
44F-H
Zone group status: partially occupied by other call, some control possible (unselected, selected
for business call, selected for emergency call)
45F-H
Zone group status: partially occupied by other call, no control possible (unselected, selected for
business call, selected for emergency call)
46G/H
Zone group status: running own partial call (business, emergency)
The file PCCstImageDef.xml, see figure 59.27, which is
located in the folders
C:\Program Files\Bosch\Praesideo
Vx.yy.zzzz\Programs\PCCstConfgurationClient\ and
C:\Program Files\Bosch\Praesideo
Vx.yy.zzzz\Programs\PCCstClient\ contains information
about the actual position and size of the buttons, icons
and indicators in the PCCstImages.png file. Making
changes to this xml-file allows for changing the size or
position of individual items of the PCCstImages.png file
because it is used as a reference for the coordinates of
the actual items in the png-file. The files
PCCstImageDef.xml and PCCstImages.png in the same path
belong to each other.
Bosch Security Systems | 2011-02
figure 59.27: PCCstImageDef.xml
Praesideo 3.5 | Installation and User Instructions | 11 | Optional Software
60 PC Call Station Client
60.1 Introduction
With the PC Call Station Client, you can connect to the
PC Call Server (see chapter 58) and start calls or control
the background music (BGM). The PC Call Station Client
acts as an operator panel on a PC, similar to a normal
call station. It offers some functions that are not
available on normal call stations, such as:
• The possibility to make calls to zones in different
subsystems, each having its own network controller.
• Easy control of multiple simultaneous calls (without
live speech).
• Accurate information about the status of the zones.
• Easy localization of zones on the screen using a
graphical background with multiple tabs.
• Accurate information about the BGM channel and
volume setting of BGM in each zone.
en | 474
it is intended for. Registration is done via the Bosch
registration website, where the application is coupled to
the PC Call Server and its dongle. See section 59.5.4.12.
60.5 Start
Proceed as follows:
1 Go to Start > Programs > Bosch > Praesideo Vxx.yy.zzzz.
2 Click PC Call Station Client. A screen similar to the
one in figure 60.1 appears.
60.2 Requirements
The PC Call Station Client can run on any PC that meets
the following minimum requirements:
• Operating system:
Microsoft® Windows XP with Service Pack 1 or
Microsoft® Windows Vista or
Microsoft® Windows 7
• Network connection: 100 base-T
• 1 GB RAM
60.3 Installation
Proceed as follows:
1 Start the PRS-SW Praesideo Software DVD (see
section 35.2).
2 Click Optional > PC call station client (see chapter 38).
A File Download window appears.
3 Proceed in the same way as for the PC Call Server
Configuration Client (see section 59.3).
It is possible to install and use multiple PC Call Station
Clients on different PCs simultaneously, all network
connected. There are no hard limits to the maximum
number of PC Call Station Clients, although the response
times will depend on the network speed and the
capabilities of the server PC.
60.4 Licensing
In order to use the PC Call Station Client, a license
must be obtained. By purchasing the PRS-CSC, one gets
a registration code that must be registered for the system
Bosch Security Systems | 2011-02
figure 60.1: PC Call Station Client Login
3 Type your login name in the Login Name field.
4 Type your password in the Password field.
Note
The login name and password are configured
with Configure Client Users item in the Edit menu
of the PC Call Server Configuration Client.
5 Type the IP address or host name of the PC that is
running the PC Call Server in the Host field.
6 Choose the language in which the application shows
from the Language list.
7 Press the OK button. A screen similar to the one in
figure 60.2 appears.
Praesideo 3.5 | Installation and User Instructions | 11 | Optional Software
Note
When the PC Call Station Client becomes
disconnected from the PC Call Server, a new
login is required after fixing the problem.
But when the PC Call Station Client starts up
while it is disconnected from the PC Call Server
(e.g. the network cable was disconnected or its
network switch was powered off), a warning is
given. After fixing the problem, the PC Call
Station Client must be closed now and restarted
in order to reconnect; there was not yet a remote
connection established that can be restored.
60.6 User Interface
60.6.1 Overview
The PC Call Station Client screen is divided in four areas
(panes):
1 Call/BGM selection pane - A pane that allows
you to select predefined calls or BGM channels.
There are two tabs in this pane, one for selection of
Predefined calls and one for selection and control of
BGM channels.
2 Zone selection pane - A pane that allows you to
select zones and zone groups. It shows the status of
the zones and zone groups using icon
representations.
3 Control pane - A pane that allows you to control
the predefined call or BGM channel that you
selected from the Call/BGM selection pane.
4 Status bar - Shows the status of the PC Call Station
Client.
60.6.2 Make a call
Use the following procedure to make a call:
1 Select tab Predefined to get a list of predefined calls
for this user.
2 Select a predefined call from this list in the call
selection pane.
3 Optionally add zones to or remove zones from the
selection in the zone selection pane. The selection
may also contain zone groups.
4 Start the call with the Start button in the control
pane. The button changes into a stop button so that
the call can be stopped. While the call runs, its
progress is shown in the progress bar in the control
pane: start tone, message(s), live speech and end
tone. A predefined call does not need to contain all
of these elements.
5 Stop the call. A call without live speech will finish
even if not stopped.
6 If the button has been configured for abort on repress
operation, it is possible to abort the call now. The
difference between stopping and aborting a call is
that a running message or tone is completed before a
call stops while it is aborted immediately in case a
call aborts.
The status bar may show a warning to the user in case of
licensing/dongle problems. Optionally, depending on
the user configuration, the list of predefined calls also
contains a button to acknowledge and subsequently
reset an emergency state.
60.6.2.1 Predefined call selection buttons
figure 60.3: Selection buttons
figure 60.2: Predefined calls tab
Bosch Security Systems | 2011-02
en | 475
Praesideo 3.5 | Installation and User Instructions | 11 | Optional Software
The figure 60.3 shows the (default) different
appearances of the predefined call selection buttons.
From top to bottom: Business call inactive, Business call
selected, Business call active, Emergency call inactive,
Emergency call selected, Emergency call active,
Emergency state acknowledge, Emergency state reset.
Even if a selected call is activated, its button still shows
the selected state until another button is selected. Then
it changes to the active state for as long as the call lasts.
60.6.2.2Call activation buttons
figure 60.4: Call activation buttons
The figure 60.4 shows the (default) different
appearances of the call activation button in the control
pane. From left to right: Start, Stop, Abort.
en | 476
The figure 60.6 shows the different states the call
progress bar elements can have. From top to bottom:
Phase to skip, Phase to be done, Phase is running, Phase
completed.
Which phase of a predefined call will be skipped is
defined in the predefined call itself, e.g. with or without
messages, see section 59.5.4.4.
Multiple calls without live speech can be started to run
simultaneously. By selecting on of the active predefined
call buttons, the progress of that selected call is shown.
60.6.2.4Zone status icons
Zone and zone groups are represented by icons in the
zone selection pane. The border of a zone icon indicates
its selection status, while the inside indicates its call
status. Layered copies of a zone icon are used to
indicate a zone group, see figure 60.7. Status indications
are the same as for an idividual zone. The number of
layers is fixed and does not represent the number of
included zones.
60.6.2.3Call progress bar
figure 60.7: Zone and zone group icons
figure 60.5: Call progress icons
The figure 60.5 shows the (default) different call
progress icons. From left to right: Start or end tone,
Message(s), Live speech. These icons are displayed
above the progress bar elements to inform the user
about the phase the call is in. When the progress bar
reaches the Live speech icon, the microphone is
switched on for the user to make a live announcement.
figure 60.8: Selected zone
The figure 60.8 shows how a zone icon appears on the
screen upon selection of that (free) zone by the PC Call
Station Client. Selection is indicated by a color change of
the selection border.
From left to right: Unselected, Selected by a business
call, Selected by an emergency call.
figure 60.9: No control of zone
figure 60.6: Call progress bar elements
Bosch Security Systems | 2011-02
The figure 60.9 shows how a zone icon changes upon
selection of that (free) zone by the PC Call Station Client
and no control is possible or allowed for that zone.
Normally this happens when it is occupied by a higher
Praesideo 3.5 | Installation and User Instructions | 11 | Optional Software
priority call (in which case it is also filled with color, see
figure 60.12), but in case a required audio
interconnection to the subsystem with this zone is not
available, see section 59.5.4.3, no control is possible
either. Such a zone can be selected but will not be
addressed when the call is started. No control is
indicated by cross hatching of the selection border.
From left to right: Unselected and no control possible,
Selected by a business call and no control possible,
Selected by an emergency call and no control possible.
figure 60.10: Disconnected zone
The figure 60.10 shows how a zone appears on the
screen when the network controller it belongs to is
disconnected form the PC Call Server. This is a fault
condition, although it does not mean that this zone
cannot be addressed by e.g. a call station which is
directly connected to the Praesideo network of that
zone. This icon only indicates that this zone cannot be
addressed by the PC Call Station Clients.
en | 477
From left to right: Internal business call selected and
running, Internal emergency call selected and running.
figure 60.13: Occupied zone
The figure 60.13 shows how a zone appears on the
screen when it is occupied by an external call, i.e. a call
that was not started as the currently predefined call from
this PC Call Station Client. A running external call is
indicated by a color filled square. In this case the
selected predefined call of the PC Call Station Client has
a higher priority than the active call in the occupied
zone, otherwise the selection border would have been
cross hatched, see figure 60.9, to indicate that this zone
cannot be taken over.
From left to right: Unselected and not occupied,
Occupied by external business call, Occupied by
external emergency call.
figure 60.11: Zonefault
The figure 60.11 shows how a zone and zone group
appear on the screen when a fault exists in this zone or
zone group. A warning triangle is visible on top of the
normal icon. This is a fault situation that causes that
(part of) a zone cannot be reached for calls anymore.
See section 47.3.32 for more details.
figure 60.12: Zone addressed by call
The figure 60.12 shows how a zone appears on the
screen when a selected internal call is running in that
zone, i.e. a predefined call that was started from this PC
Call Station Client and is still selected. A zone with a
running, internal and selected call is indicated by a color
filled circle.
Bosch Security Systems | 2011-02
figure 60.14: Partial status
Zone groups and PC Call Station zone groups can have
a partial status. This means that not all zones of a zone
group have the same status. Some can be available for a
call, while others are occupied by a lower or higher
priority call. This is indicated by a yellow square or
circle inside the icon.
A yellow square means that a zone group is partly
occupied. If the border is also hatched none of the zones
can be addressed. If the border is solid at least one zone
is still addressable. A yellow circle means that an
internal business or emergency call is running, but not
to all zones of that group. By adding separate zone icons
to the same view, it is possible to see what the individual
zone status is. The figure 60.14 shows in the first line
from left to right: Zone group unselected and partly
Praesideo 3.5 | Installation and User Instructions | 11 | Optional Software
occupied, Zone group selected for business call and
partly occupied, Zone group selected for emergency call
and partly occupied. The second line shows the same,
but now no control is possible for any of the zones in
the zone group. The third line shows zone groups in
which an internal business call or an emergency call is
active, but not to all zones in that group.
60.6.3 Change BGM settings
en | 478
60.6.3.1 BGM selection buttons
figure 60.16: Selection buttons
The figure 60.16 shows the (default) different
appearances of the BGM selection buttons.
From top to bottom: BGM channel selected, BGM
channel, BGM volume mode button selected, BGM
volume mode button.
60.6.3.2BGM volume buttons
figure 60.17: Volume up and down buttons
figure 60.15: BGM tab
Use the following procedure to make changes to the
BGM settings (only for authorized users):
1 Select tab BGM to get a list of BGM channels and the
button to change the BGM volume.
2 Select a BGM channel from the list. Now, all zones
and zone groups, where this BGM channel is active,
are indicated by their icon appearance in the zone
control pane.
3 Add zones to or remove zones from the selection for
that BGM channel in the zone selection pane. The
selection may also contain zone groups, but this is
not advised (see the note in section 60.6.3.3).
4 Use the volume up and down buttons in the control
pane to change the volume simultaneously for all
zones where this BGM channel is active. The volume
setting for each zone is indicated in the zone icon.
5 To change the volume of individual zones, unrelated
to a BGM channel, select the volume button in the
Call/BGM selection pane instead of one of the BGM
channels. Then select a zone in the zone selection
pane, and finally adjust the volume using the volume
up and down buttons in the control pane.
Bosch Security Systems | 2011-02
The figure 60.17 shows the (default) different
appearances of the BGM volume control buttons in the
control pane.
From top to bottom: BGM volume up, BGM volume
down.
60.6.3.3BGM zone status icons
figure 60.18: Zone with selected BGM channel
The figure 60.18 shows how a zone icon appears in the
zone selection pane when this zone is playing the BGM
channel that is currently selected.
figure 60.19: Selected zone
Praesideo 3.5 | Installation and User Instructions | 11 | Optional Software
The figure 60.19 shows how a zone icon appears in the
zone selection pane upon selection of that zone.
Selection is indicated by a color change of the selection
border. The name of the active BGM channel in that
zone is shown inside the icon, together with the actual
volume setting of that zone. If the BGM channel is a
local BGM channel, not distributed via the PC Call
Station Client, its name is unknown and a musical note
is displayed inside the icon instead of the name of the
BGM channel.
From left to right: Unselected, Unselected with local
BGM, Selected.
figure 60.20: No control of zone
The figure 60.20 shows how a zone icon appears on the
screen when the user is not authorized to control BGM,
see section 59.5.4.9. No BGM control is now possible
for these zones, which is indicated by cross hatching of
the selection border.
From left to right: Unselected zone and no control
possible, Unselected zone with local BGM and no
control possible.
Note
Zone group icons on the layout do not provide
information about BGM channels or volume
settings for zones that are part of that zone
group because the channel and volume setting
can be completely different for the individual
zones in that group. Nevertheless, a zone group
(with all its zones) can be added to a selected
BGM channel, so these zones will get that
BGM channel, but this will not be shown.
Likewise, if at least one zone of that zonegroup
was already playing the selected BGM channel,
selecting that zone group (again) will remove
that BGM channel from the zones of that zone
group, but this will not be clear from the icon
appearance. Because of this limitation it is
advised to control BGM via individual zones and
not via zone groups
Bosch Security Systems | 2011-02
en | 479
Praesideo 3.5 | Installation and User Instructions | 11 | Optional Software
61
PC Telephone Interface
Client
61.1 Introduction
The Praesideo PC Telephone Interface Client allows users
to call in to a Praesideo system using a telephone. The
telephone keypad is used for caller identification,
predefined call selection and zone and/or zone group
selection. The predefined call contains information
about priority, start and end tones, prerecorded
messages and initially selected zones. The user can then
add other zones via the telephone keypad. The call may
also include live speech, which will be recorded when
spoken into the telephone.
The PC Telephone Interface Client is a software client of
the Praesideo PC Call Server. It is installed on the same
PC as the PC Call Server and is also configured as part of
the PC Call Server configuration.
The PC Telephone Interface Client handles incoming
telephone calls from VoIP telephones (softphones or
hardphones), but also from POTS telephones (either
local or remote telephones) via an additional voice
gateway, such as the Linksys SPA3102. The PC running
the PC Telephone Interface Client sends the live speech
part of a call to the Praesideo system via an analog
audio link from the PC soundcard.
VoIP telephones can also call in to the PC Telephone
Interface Client via a WAN or via the Internet.
61.2 Requirements
The PC Telephone Interface Client can run on any PC that
meets the following minimum requirements:
• Operating system:
Microsoft® Windows XP with Service Pack 1 or
Microsoft® Windows Vista or
Microsoft® Windows 7
• Network connection: 100 base-T
• 1 GB RAM
Note
To avoid call interruptions, do not run other
processor-demanding applications on the PC of
the PC Telephone Interface Client.
Bosch Security Systems | 2011-02
en | 480
61.3 Installation
Proceed as follows:
1 Start the PRS-SW Praesideo Software DVD (see
section 35.2).
2 Click Optional > PC telephone interface
(see chapter section 38). A File Download window
appears.
3 Proceed in the same way as for the PC Call Server
Configuration Client (see section 59.3).
61.4 Licensing
In order to use the PC Telephone Interface Client, a license
must be obtained. By purchasing the PRS-TIC, one gets
a registration code that must be registered for the system
it is intended for. Registration is done via the Bosch
registration website, where the application is coupled to
PC Call Server and its dongle. See section 59.5.4.15.
61.5 Start
Similar to the PC Call Server, the PC automatically starts
the PC Telephone Interface Client as a service when
Windows is started. Important events will be logged to
the Windows event log:
• Startup and shutdown of the service
• Error messages about license validity
• Abnormal (fatal) errors that cause the service to shut
down
Praesideo 3.5 | Installation and User Instructions | 11 | Optional Software
en | 481
61.6 Operation
61.7 Voice response menu
Making calls via the PC Telephone Interface Client
requires the user to follow a voice response menu. The
PC Telephone Interface uses predefined calls defined in the
PC Call Server to select call properties. These calls are
always partial. The live speech phase of a PC Telephone
Interface call is recorded first and broadcast after the call
has been completed successfully.
The soundcard audio output of the PC running the
PC Telephone Interface is coupled to an audio input of the
Praesideo system if calls with live speech will be made.
Make sure that all predefined calls with live speech that
are to be used by telephone have this audio input
configured as live speech input.
This means that predefined calls that are to be used by
both PC Call Station Clients and PC Telephone Interface
Clients should not contain live speech, since these clients
use different Preaesideo audio inputs for live speech. If
this predefined call should contain live speech, then two
almost identical versions of this predefined call (with
different names) should be configured for the PC Call
Server, one for the PC Call Station Client with e.g. a call
station microphone as input, the other for the
PC Telephone Client with a line input configured as live
speech source and connected to the PC soundcard
output.
Configure port number 5060 for the PC Telephone
Interface Client for direct access via a softphone, like
ZoIPer (www.zoiper.com).
A voice response menu guides the caller to enter the
data, required to make a call. For this purpose a number
of different gsm-files are available in English. The
gsm-file format is typically used for this kind of
telephone applications. It is a compressed sound file
format. The user or installer can replace these sound
files with files that are more convenient for the intended
users, e.g. in the local language, more talkative or more
condensed. For this purpose sound file editors and
converters are available on the Praesideo distribution
DVD. With these editors (e.g. WavePad, Audacity) a
recording can be made in the uncompressed wav-file
format. Then these files can be normalised to maximum
level and/or optimised in other ways for good
intelligibility. It is recommended to use a high pass filter
to remove frequencies below 300 Hz, as these low
frequencies severely decrease intelligibility of the
gsm-files. Finally the files must be converted (using SoX
or WavePad) to the gsm-file format at 8kHz sample rate.
The names as indicated in table 61.1 should be used,
because the PC Telephone Interface Client expects to find
these. Do not translate or change these file names.
Command line conversion from wav-file format to
gsm-file format via SoX is as follows:
sox.exe "<Source filename>.wav" -r 8000 "<Destination
filename>.gsm"
Because the telephone interface is based on the Asterisk
telephony platform, which is designed to run on Linux,
a Cygwin environment is installed on MS Windows and
the sound files are located in the folder
\<AsteriskRoot>\var\lib\sounds. This is usually
C:\cygroot\asterisk\var\lib\sounds.
Bosch Security Systems | 2011-02
Praesideo 3.5 | Installation and User Instructions | 11 | Optional Software
table 61.1: Sound files
Voice response menu item
Busy
Welcome
Sound file
There is no dedicated
sound file for this tone.
The telephone busy tone,
typical for the configured
country, is used.
welcome.gsm
Enter personal number
enterpersonalnr.gsm
Enter pin code
enterpincode.gsm
Invalid personal number or
pin code
Enter predefined call
incorrect.gsm
Invalid predefined call
Enter zones and/or zone
groups
invalidpredefinedcall.gsm
enterzones.gsm
Invalid zone or zone group
Record live speech
message
invalidzone.gsm
recordlivespeech.gsm
Call successfully selected
callselected.gsm
Not licensed
notlicensed.gsm
Server not available
serverunavail.gsm
Bosch Security Systems | 2011-02
enterpredefinedcall.gsm
en | 482
Content
-
<Pause 0.5s> Welcome to the Praesideo public
address sound system.
<Pause 0.5s> Please enter your personal number,
followed by the hash or pound key.
<Pause 0.5s> Please enter your PIN code, followed
by the hash or pound key.
<Pause 0.5s> This personal number or PIN code is
not correct.
<Pause 0.5s> Please enter the number of the call, you
want to make, followed by the hash or pound key.
<Pause 0.5s> This call number does not exist.
<Pause 0.5s> Please enter the numbers of the zones
you want to address, press the star key after each zone
number and the hash or pound key after the last zone
number.
<Pause 0.5s> This zone number does not exist.
<Pause 0.5s> Please make your announcement after
the beep. When you're finished, press the hash or
pound key. <Pause 0.5s> {beep is added
automatically}
<Pause 0.5s> Your call will be processed. You may
hang up now or proceed with another call by entering
a new call number.
<Pause 0.5s> The Praesideo public address sound
system is not licensed for access by telephone.
<Pause 0.5s> The Praesideo public address sound
system service for access by telephone is not available
at the moment. Please try again later.
Praesideo 3.5 | Installation and User Instructions | 11 | Optional Software
The table 61.2 shows the general voice response flow
that the caller will follow. Not all the steps need to be
there. For instance, it can be configured that certain
SIP-users have direct access, see section 59.5.4.12. In
that case there is no need to enter a personal number
and PIN code. Also predefined calls may be configured
without live speech, in which case the voice response
menu will skip the recordlivespeech.gsm request. In case no
additional zones or zone groups need to be added to the
selected predefined call, the caller just presses #
immediately after the enterzones.gsm request, instead of
zone numbers separated by a * and pressing a # at the
end.
table 61.2: Voice response flow
Flow
Condition
Incoming call
<Free?>
No
Yes
<Call server available?>
No
<Client licensed?>
No
Yes
<Valid credentials?>
<Valid call number?>
<Valid zone (group)?>
<User entry: 0..9, #?>
No
Yes
No
Yes
No
Yes
The content description of the voice response files in
table 61.1 can be read to understand the required user
action.
Voice response
Action
[country specific busy tone]
"welcome.gsm"
("serverunavail.gsm")
("notlicensed.gsm")
{"enterpersonalnr.gsm"}
{"enterpincode.gsm"}
("incorrect.gsm")
"enterpredefinedcall.gsm
("invalidpredefinedcall.gsm")
"enterzones.gsm
("invalidzone.gsm")
{"recordlivespeech.gsm" + [beep]}
"callselected.gsm"
To: Hang up call
Yes
No
Hang up call
<…?> = Condition
[…] = Automatically generated tone
"…" = Voice response
("…") = Conditional voice response
{"…"} = Optional voice response, configuration
dependant
The Praesideo distribution DVD contains an alternative
set of gsm-files containing language independent tones.
Unlike spoken messages these tones are not
self-explaining, but have been designed to be at least
distinguishable. This set is located in the Audio tools and
sounds folder.
Bosch Security Systems | 2011-02
en | 483
To: Hang up call
To: Hang up call
User entry: 0..9, #
User entry: 0..9, #
To: "enterpersonalnr.gsm"
"User entry: 0..9, #
To: "enterpredefinedcall.gsm"
"User entry: 0..9, *, #
To: "enterzones.gsm"
User entry: speech, #
To: <Valid call number?>
To: Hang up call
Make call(s)
Praesideo 3.5 | Installation and User Instructions | 11 | Optional Software
en | 484
61.8 Linksys SPA3102 configuration
61.8.2 Network configuration
The Praesideo PC Telephone Interface Client connects
directly to VoIP networks. In case a connection should
be established to an analog telephone or PBX a
converter is needed.
Although the Linksys SPA3102 Voice Gateway is
certainly not the only device that can be used with the
Praesideo PC Telephone Interface Client to connect to
analog telephone lines (POTS), this unit is
recommended for its availability, price and ease of
configuration.
This section describes how to configure the Linksys
SPA3102 for use with the Telephone Interface. It covers
the device initialization, network configuration,
connection with the Telephone Interface and disconnect
detection.
The device will now be configured in such a way that
both configuration and telephone traffic will run
through the Internet port. This port is also the port used
to connect to the network containing the PC of the PC
Telephone Interface Client.
Connect the PC network adapter of a PC to the
Ethernet port of the SPA3102. Configure the PC
network adapter to dynamically acquire an IP address
(from the SPA3102). This will be in the 192.168.0.x
range. Once the IP address is acquired, start a web
browser and open http://192.168.0.1. The SPA3102
web configuration page opens.
Click 'Admin login' and click 'Advanced'. Make sure
both modes are active in order to access all
configuration fields.
Router → Wan Setup → Internet Connection Settings
Connection Type: Static IP
Router → Wan Setup → Static IP Settings
Static IP: <WAN IP address>
NetMask: <Network mask>
Router → Wan Setup → Remote Management
Enable WAN Web Server: yes
Click 'Submit all changes'
figure 61.1: Linksys SPA3102 Voice Gateway with
Router
Now, the Ethernet port is no longer required. The web
configuration is now accessible using the Internet port
and the WAN IP address.
61.8.1 Device initialization
To make sure that previous configuration settings do not
interfere with the flow of this configuration, first perform
the factory reset procedure. Remove all connectors from
the device. Connect a telephone to the Phone port.
Connect the power connector. Dial '****', wait for the
menu response, dial '73738#', dial '1', hang-up. The
device will now reset.
Note
The combination <WAN IP address> and
<Network mask> should be provided by the
network administrator to cover both the Linksys
unit and the network address of the PC that
runs the PC Telephone Interface Client.
61.8.3 PSTN configuration
Now the device will be configured to register itself on
the Telephone Interface server and to forward incoming
calls from the PSTN port directly to the Telephone
Interface server. Make sure that 'Admin Login' and
'Advanced' are active.
Voice → PSTN Line → Proxy and registration
Proxy: <Telephone Interface IP address>
Voice → PSTN Line → Subscriber Information
Bosch Security Systems | 2011-02
Praesideo 3.5 | Installation and User Instructions | 11 | Optional Software
Display Name: <SIP Username>
User ID: <SIP Username>
Password: <SIP Password>
Voice → PSTN Line → Dial Plans
Dial Plan 1: S0<:<VoIP extension>@<Telephone
Interface IP address>
Voice → PSTN Line → PSTN-To-VoIP Gateway Setup
PSTN Caller Default DP: 1
Voice → PSTN Line → FXO Timer Values (sec)
PSTN Answer Delay: 0
Click 'Submit all changes'.
61.8.4 Disconnect detection
Several telephone disconnect methods are used in
different countries. It is vital to configure the correct
method in order to use the device with the Telephone
Interface. Please consult your telephone provider for the
disconnect method. The Linksys SPA3102 supports the
following methods:
• CPC, a brief removal of the tip-and-ring voltage;
• Polarity Reversal;
• Long silence;
• Disconnect tone recognition.
Most telephone providers in Europe do not use the line
voltage or reversal methods. The SPA3102 must
recognize the disconnect tone in this region. E.g. in The
Netherlands, the disconnect tone consists of a 500ms
440Hz tone followed by 500ms of silence in a loop.
The configuration syntax for this tone is:
440@-30,440@-30;2(.5/.5/1+2).
Web configuration (make sure that 'Admin Login' and
'Advanced' are active):
Voice → PSTN Line → PSTN Disconnect Detection
Disconnect Tone: 440@-30,440@-30;2(.5/.5/1+2).
Click 'Submit all changes'.
Bosch Security Systems | 2011-02
en | 485
61.8.5 ISDN telephones
Digital ISDN telephones can also be used via a local
PBX that provides an analog line to the voice gateway.
In this case the local PBX must be configured to
generate DTMF tones upon reception of the
corresponding ISDN commands to indicated button
presses. These DTMF tones are required to identify the
user input on the telephone, such as call selection and
zone selection, to the Linksys SPA3102 voice gateway.
Note
The Linksys SPA3102 treats the sequence **#
as a special command to disconnect the PSTN
line. So this sequence should not be entered by
the user in the voice response flow (see
table 61.2). This could happen by mistake when
numeric keys are missed while entering zone
numbers because these are separated by a *
and a # is entered to complete the zone entry.
Praesideo 3.5 | Installation and User Instructions | 11 | Optional Software
62
62.1
Open Interface
Introduction
The Praesideo Open Interface is based on a Visual
Basic implementation and is based on the COM
technology (OLE automation subset), as described by
Microsoft.
It is preferred to use .NET to implement the Praesideo
Open Interface. .NET is the successor of COM, COM+
and DCOM and is comparable to these. Existing COM
interfaces can be used in a .NET environment. Many
programming languages recognize .NET, which makes
development of user interfaces by third parties easier.
At this moment, the Praesideo Open Interface is based
on COM to enable connections to existing systems that
are not built on .NET. Most current third party systems
support COM, but not yet .NET. However, in the future,
Bosch Security Systems will convert the COM interfaces
to .NET.
It may be convenient to develop third party applications
(e.g. PC call stations) in .NET already. These .NET
applications can communicate with the current COM
interface without any problems and will cause no
problems in the future when the interface is based on
.NET. If the application is developed in a COM
environment, it must be rewritten when the interface is
based on .NET.
The open interface connection (i.e. an Internet
connection) is regarded as an open connection that
requires extra safety precautions. For example, a
firewall to prevent unauthorized persons from (ab)using
the system. The system can also limit the access of TCP/
IP devices (see section 42.9).
Use of the open interface can lead to situations in which
the Praesideo system does not comply anymore to the
evacuation standards that have been verified by TÜV.
In that case, the TÜV certificate can be lapsed.
Bosch Security Systems | 2011-02
62.2
en | 486
Scope
As mentioned before, the Open Interface manual
describes how to use the Praesideo Open Interface in
combination with Visual Basic. To understand this
manual, knowledge in the following fields in necessary:
• The Visual Basic 6.0 programming language and its
development environment.
• The principle of COM interfaces and OLE
automation.
• The Praesideo system and its installation.
Note
The COM interface is not limited to Visual
Basic. It can also be used in other programming
languages that support COM. Visual Basic is
just used as an example here.
The Open Interface Manual is intended for users, who
want to use the Praesideo Open Interface. It is not
possible to derive any rights from this manual regarding
the programming interface. Extensions and
improvements on the open interface can be
implemented when new versions of Praesideo are
introduced. Since this manual is intended for
programmers, it is only available in English.
Although the open interface DLLs contain the previous
versions of the open interface (for backward
compatibility), only the open interface version 3.4 is
described in this manual. The interfaces in the DLL are
identified using a name extension. The original version
does not have a name extension.
Note
A maximum of 5 TCP/IP devices, such as the
PC Call Server or Logging Server, with Open
Interface access can be used with a network
controller. The configuration web browser uses
a different port (port 80) for the connection and
is not part of this limitation.
Praesideo 3.5 | Installation and User Instructions | 12 | Appendices
Part 12 - Appendices
Bosch Security Systems | 2011-02
en | 487
Praesideo 3.5 | Installation and User Instructions | 12 | Appendices
Intentionally left blank.
Bosch Security Systems | 2011-02
en | 488
Praesideo 3.5 | Installation and User Instructions | 12 | Appendices
A
Tones
A.1
Chimes
Name
1-tone chime
2-tone chime
2-tone chime L1
2-tone chime L2
3-tone chime - A
3-tone chime - B
4-tone chime - A
4-tone chime - B
4-tone chime - C
EMG chime
Normal chime
A.2
Description
Frequency 554 Hz.
Signal duration 1.5 s.
Frequencies 554 Hz, 440 Hz.
Time between start of chimes
700 ms. Total signal duration
2.2 s.
2-tone chime @ -16 dB followed
by a pause of 0.5 s and a 2-tone
chime @ -6 dB. Total signal
duration 4.9 s.
2-tone chime @ -21 dB followed
by a pause of 0.5 s and a 2-tone
chime of -6 dB. Total signal
duration 4.9 s.
Frequencies 392 Hz, 523 Hz,
659 Hz. Time between start of
chimes 700 ms. Total signal
duration 2.9 s.
Frequencies 659 Hz, 523 Hz,
392 Hz. Time between start of
chimes 700 ms. Total signal
duration 2.9 s.
Frequencies 554 Hz, 440 Hz,
493 Hz, 330 Hz. Time between
start of chimes 700 ms. Total
signal duration 3.6 s.
Frequencies 659 Hz, 523 Hz,
392 Hz, 330 Hz. Time between
start of chimes 700 ms. Total
signal duration 3.6 s.
Frequencies 196 Hz, 262 Hz,
330 Hz, 392 Hz. Time between
start of chimes 700 ms. Total
signal duration 3.6 s.
Frequencies 1350 Hz, 450 Hz,
3000 Hz, 1000 Hz. Time
between start of chimes 10 ms.
Total signal duration 1.0 s.
Frequencies 554 Hz, 440 Hz.
Time between start of chimes
1 s. Total signal duration 2.0 s.
Bosch Security Systems | 2011-02
en | 489
Alarms
Name
Fast whoop
Police alarm
Crash alarm
Fire repeating
Fire Dutch
Reference
440Hz
Reference
440Hz C
Din alarm
Din alarm C
2-tone alarm 1
2-tone alarm 1 C
End of alarm
Description
Sweeping signal from 700 Hz up
to 880 Hz in 400 ms, followed by
400 ms of silence and repeating.
Signal duration 4.8 s.
Alternating frequencies of
650 Hz and 850 Hz. Every
frequency lasts 500 ms,
repeating. Signal duration 5 s.
Up and down sweeping signal,
frequencies 500 Hz to 600 Hz
with sweep time of 500 ms up
and 500 ms down. Signal
duration 5 s.
Single tone of 1000 Hz. 300 ms
on, 200 ms off and repeating.
Signal duration 5 s.
2 times sweeping signal from
500 Hz up to 1200 Hz in 3.5 s,
followed by 500 ms of silence.
Signal according Dutch fire
regulations.
Single tone, 440 Hz. Signal
duration 60 s.
Single tone, 440 Hz. Continuous.
Sweeping signal from 1200 Hz
down to 500 Hz in 1 s and
repeating. Signal duration 60 s.
Sweeping signal from 1200 Hz
down to 500 Hz in 1 s.
Continuously repeating.
Alternating frequencies of
440 Hz and 554 Hz. Every
frequency lasts 1 s.
Signal duration 60 s.
Alternating frequencies of
440 Hz and 554 Hz. Every
frequency lasts 1 s. Continuously
repeating.
Sweeping signal from 100 Hz up
to 420 Hz in 5 s, holding that
frequency for 60 s, sweeping
down to 100 Hz in 5 s.
Praesideo 3.5 | Installation and User Instructions | 12 | Appendices
Fire alarm 3
All clear
All clear C
Fast whoop UK
Fast whoop UK
C
2-tone alarm 2
2-tone alarm 2 C
Crash UK
Crash UK C
Fire alarm 1
Fire alarm 1 C
Air raid
Sweeping signal from 100 Hz up
to 420 Hz in 3 s, holding that
frequency for 10 s, sweeping
down to 300 Hz in 3 s, holding
that frequency for 10 s and
repeating. Signal duration 52 s.
Sweeping signal from 1000 Hz
down to 650 Hz in 3 s, followed
by 2 s of silence and repeating.
Duration 60 s.
Sweeping signal from 1000 Hz
down to 650 Hz in 3 s, followed
by 2 s of silence. Continuously
repeating.
Sweeping signal from 700 Hz up
to 880 Hz in 400 ms, followed by
400 ms of silence and repeating.
Signal duration 60 s.
Sweeping signal from 700 Hz up
to 880 Hz in 400 ms, followed by
400 ms of silence. Continuously
repeating.
Alternating frequencies of
650 Hz and 850 Hz. Every
frequency lasts 500 ms,
repeating. Signal duration 60 s.
Alternating frequencies of
650 Hz and 850 Hz.
Every frequency lasts 500 ms.
Continuously repeating.
Sweeping signal from 500 Hz up
to 600 Hz in 500 ms, sweeping
down to 500 Hz in 500 ms and
repeating. Signal duration 60 s.
Sweeping signal from 500 Hz up
to 600 Hz in 500 ms, sweeping
down to 500 Hz in 500 ms.
Continuously repeating.
Single tone of 1000 Hz. 300 ms
on, 200 ms off and repeating.
Signal duration 60 s.
Single tone of 1000 Hz. 300 ms
on, 200 ms off. Continuously
repeating.
Sweeping signal from 900 Hz up
to 1000 Hz in 2.5 s, sweeping
down to 900 Hz in 2.5 s and
repeating. Signal duration 60 s.
Bosch Security Systems | 2011-02
Air raid C
Abandon
platform
Abandon C
F in morse
F in morse C
Slow whoop
Slow whoop C
NBC alarm
NBC alarm C
Mortar attack
Mortar attack C
Muster alarm
en | 490
Sweeping signal from 900 Hz up
to 1000 Hz in 2.5 s, sweeping
down to 900 Hz in 2.5 s.
Continuously repeating.
Single tone of 1000 Hz.
Signal duration 60 s.
Single tone of 1000 Hz.
Continuous.
1000 Hz tone 100 ms on,
100 ms off, 100 ms on, 100 ms
off, 300 ms on, 100 ms off,
100 ms on, 500 ms off.
Repeating signal, duration
60.2 s.
1000 Hz 100 ms on, 100 ms off,
100 ms on, 100 ms off, 300 ms
on, 100 ms off, 100 ms on,
500 ms off. Continuously
repeating.
Sweeping signal from 500 Hz up
to 1200 Hz in 3.5 s followed by
500 ms of silence and repeating.
Signal duration 60 s.
Sweeping signal from 500 Hz up
to 1200 Hz in 3.5 s followed by
500 ms of silence. Continuously
repeating.
Sweeping signal from 900 Hz up
to 1000 Hz in 2.5 s, sweeping
down to 900 Hz in 2.5 s and
repeating. Signal duration 60 s.
Sweeping signal from 900 Hz up
to 1000 Hz in 2.5 s, sweeping
down to 900 Hz in 2.5 s.
Continuously repeating.
Sweeping signal from
2000 Hz down to 1700 Hz in
300 ms and repeating.
Signal duration 60 s.
Sweeping signal from
2000 Hz down to 1700 Hz in
300 ms. Continuously repeating.
Single tone of 650 Hz. 7 times
1 s on, 1 s off, followed by
continuous signal of 650 Hz.
Signal duration 60 s.
Praesideo 3.5 | Installation and User Instructions | 12 | Appendices
Muster alarm C
Boat fire C
Catastrophy
General alarm
Fire alarm 2
Important Mesg
All clear 2
Immediate
danger
Immediate
danger short
H2S alarm C
Toxic gas alarm 1
C
DP alert C
Tick tone C
Muster alarm 2 C
General alarm C
Toxic gas alarm 2
C
Single tone of 650 Hz. 7 times
1 s on, 1 s off, followed by
continuous signal of 650 Hz.
Single tone of 800 Hz. 7 times
1 s on, 1 s off, followed by 2 s
on, 1 s off. Continuously
repeating.
Single tone of 440 Hz. 7 s on,
followed by 19 times 3 s off, 4 s
on. Signal duration 140 s.
Single tone of 440 Hz. Signal
duration 140 s.
Frequency 400 Hz. 25 s on,
10 s off. Continuously repeating.
Single tone of 600 Hz. 5 times
6 s on and 12 s off, followed by
6 s on. Signal duration 96 s.
Single tone of 600 Hz. Signal
duration 30 s.
Single tone of 600 Hz. 200 ms
on, 200 ms off.
Signal duration 60 s.
Single tone of 600 Hz. 200 ms
on, 200 ms off.
Signal duration 10 s.
Up and down sweeping signal
600 Hz to 782 Hz. Sweep time
100 ms up, 100 ms down, 50 ms
silence. Continuously repeating.
Up and down sweeping signal
500 Hz to 800 Hz. Sweep time
500 ms up, 500 ms down.
Continuously repeating.
Up and down sweeping signal
500 Hz to 800 Hz. 2 times 250
ms sweep up and 250 ms sweep
down, then followed by 1 s
silence. Continuously repeating.
Single tone 1800 Hz. 1 s on, 2 s
silence. Continuously repeating.
Sweeping signal 1200 Hz down
to 500 Hz in 1 s. Continuously
repeating.
Single tone of 1000 Hz. 1 s on,
1 s off. Continuously repeating.
Single tone of 1000 Hz. 5 times
100 ms on, 100 ms off.
Continuously repeating.
Bosch Security Systems | 2011-02
All clear 3 C
Abandon alarm C
Fire and gas 1 C
Fire and gas 2 C
Fire and gas 3 C
Emg 1 ISO8201
C
Emg 2 ISO8201
C
Emg 3 ISO8201
C
Emg 4 ISO8201
C
Emg 5 ISO8201
C
Silence period 2s
en | 491
Single tone of 2000 Hz. 3 times
500 ms on, 200 ms off, then
followed by 2.8 s silence.
Continuously repeating.
Bell tone, 4 chimes with
frequencies 6793 Hz, 2580 Hz,
3821 Hz and 1507 Hz.
Continuously repeating.
Bell tone, 4 chimes with
frequencies 6793 Hz, 2580 Hz,
3821 Hz and 1507 Hz. 1 s on,
1 s off. Continuously repeating.
Bell tone, 4 chimes with
frequencies 6793 Hz, 2580 Hz,
3821 Hz and 1507 Hz. 3 s on,
1 s off. Continuously repeating.
Bell tone, 4 chimes with
frequencies 6793 Hz, 2580 Hz,
3821 Hz and 1507 Hz. 1 s on,
1 s off, 1 s on, 3 s off.
Continuously repeating.
Sweeping signal from 700 to
800 Hz in 500 ms followed by
500 ms silence. Repeated
3 times followed by 1 s silence.
Continuously repeating.
Single tone of 554 Hz, duration
250 ms followed by a single tone
of 440 Hz, duration 250 ms
followed by 500 ms silence.
Repeated 3 times followed by 1 s
silence. Continuously repeating.
Single tone of 1 kHz followed by
500 ms silence. Repeated
3 times followed by 1 s silence.
Continuously repeating.
Single tone of 600 Hz followed
by 500 ms silence. Repeated
3 times followed by 1 s silence.
Continuously repeating.
Up and down sweeping signal,
500 Hz to 800 Hz ramp up in
250 ms and ramp down in
250ms, followed by 500 ms
silence. Repeated 3 times
followed by 1 s silence.
Continuously repeating.
Silence period of 2 s
Praesideo 3.5 | Installation and User Instructions | 12 | Appendices
Silence period 4s
Silence period C
Silence period
1m
Silence period
2m
Silence period
3m
Silence period
4m
Silence period
5m
A.3
Silence period of 4 s
Continuous silence
Silence period 1 minutes
Silence period 2 minutes
Silence period 3 minutes
Silence period 4 minutes
Silence period 5 minutes
Test tones
Name
Test chime
250Hz
Test chime 1kHz
Test chime 4kHz
Silence period
Wobble
Silence period 2
Description
1-tone chime,
frequency 250 Hz.
1-tone chime,
frequency 1000 Hz.
1-tone chime,
frequency 4000 Hz.
Silence period of 500 ms.
AVC calibration. Sweep 1 kHz to
2 kHz in 0.25 s, followed by
sweep 2 kHz to 1 kHz in 0.25 s.
Continuously repeating.
AVC calibration. Silence period
of 60 s.
Bosch Security Systems | 2011-02
en | 492
Praesideo 3.5 | Installation and User Instructions | 12 | Appendices
B
Kycon KPP-4P connector
B.1
Introduction
This appendix contains assembly instructions and a
connection diagram for the Kycon KPP-4P connector
that is used to connect the PRS-NSP Network Splitter,
the PRS-FIN(S), PRS-FINNA Fiber Interface, the PRSCSR Remote Control Station and the PRS-CSI Call
Station Interface to power supplies.
B.2
Assembly
The connector consists of the following (see figure B.1):
A Customer Cable
B Strain Relief
C Plastic Enclosure
D Metal Spring
E Plastic Guide
F Top Metal Cover
G Pin Mold
H Lower Metal Sleeve
I Plastic Coupling
B
C
D
E
semi-circular notch
F
G
H
I
arm
slot
'U' section
slotted cut-out
metal tabs
figure B.1: Assembly drawing
Bosch Security Systems | 2011-02
A
en | 493
Proceed as follows to assembly a Kycon KPP-4P
connector:
1 Attach Strain Relief (B) to Plastic Enclosure (C).
2 Pass Cable (A) through Strain Relief (B)/Plastic
Enclosure (C) assembly, Metal Spring (D) and Plastic
Guide Ring (E).
3 Solder cable wires to solder cups on Pin Mold (G).
4 Properly align Pin Mold (G) with Lower Metal
Sleeve (H). The slotted sections on the sides of the
Pin Mold (G) must line up with the slotted cut-outs
on the Lower Metal Sleeve (H) and the 3 semicircular notches around the perimeter of the Pin
Mold (G) must line up with the 3 metal tabs inside
the Lower Metal Sleeve (H).
5 Push Pin Mold (G) forward into the Lower Metal
Sleeve (H) until it locks into place.
6 Manually press the 3 metal tabs on the Lower Metal
Sleeve (H) into the notches in the Pin Mold (G).
7 Crimp 'U' section of Lower Metal Sleeve (H) onto
Cable (A).
8 Fit Plastic Ring Guide (E) into Lower Metal Sleeve
(H) by placing plastic arms into the appropriate slots
on the sides of the sleeve.
9 Attach Top Metal Cover (F) onto Lower Metal Sleeve
(H). Be sure to align all tabs and securely install
cover.
10 Push Metal Spring (D) onto the Top Metal Cover (F)/
Lower Metal Sleeve (H) assembly. This will help to
hold the assembly together.
11 Push Strain Relief (B)/Plastic Enclosure (C) assembly
onto the Top Metal Cover (F)/Lower Metal Sleeve
(H) assembly. The two assemblies must be properly
aligned as shown in the drawing. Be sure to check
that the Metal Spring (D) remains in place and does
not go underneath either the Plastic Enclosure (C) or
the Plastic Guide (E) or twists during assembly. A
significant amount of force may be necessary to lock
the two assemblies together.
12 Check to make sure that the Strain Relief (B)/Plastic
Enclosure (C) assembly is securely locked into place
over the Top Metal Cover (F)/Lower Metal Sleeve
(H) assembly. The two assemblies should not be able
to be pulled apart.
13 Properly align the new assembly with the Plastic
Coupling (I) as shown in the drawing. Push assembly
into Plastic Coupling (I) until it locks properly into
place. The entire plug assembly is now complete.
Praesideo 3.5 | Installation and User Instructions | 12 | Appendices
C
en | 494
Product index
table C.1: Product index
Type number Code
PRS-NCO-B
PRS-NCO-B
LBB4402/00
PRS-4AEX4
LBB4404/00
PRS-4CIN4
PRS-NSP
PRS-NSP
PRS-FIN
PRS-FIN
PRS-FINNA
PRS-FINNA
PRS-FINS
PRS-FINS
LBB4416/00
PRS-CB100
LBB4416/01
PRS-CA0M5
LBB4416/02
PRS-CA002
LBB4416/05
PRS-CA005
LBB4416/10
PRS-CA010
LBB4416/20
PRS-CA020
LBB4416/50
PRS-CA050
LBB4417/00
PRS-CBCON
LBB4418/00
PRS-CBTK
LBB4418/50
PRS-CBTKC
LBB4419/00
PRS-CBCPL
PRS-1P500
PRS-1P500
PRS-2P250
PRS-2P2500
PRS-4P125
PRS-4P125
LBB4428/00
PRS-8P060
PRS-1B500
PRS-1B500
PRS-2B250
PRS-2B250
PRS-4B125
PRS-4B125
PRS-8B060
PRS-8B060
PRS-16MCI
PRS-16MCI
LBB4430/00
PRS-CS
LBB4432/00
PRS-CSKP
PRS-CSNKP
PRS-CSNKP
LBB4433/00
PRS-CSK
LBB4434/00
PRS-CSKPK
LBB4436/00
PRS-CSKPC
PRS-CSI
PRS-CSI
PRS-CSR
PRS-CSR
PRS-CSRK
PRS-CSRK
PRS-CRF
PRS-CRF
LBB4440/00
PRS-SVCO
LBB4441/00
PRS-SVLSP
LBB4442/00
PRS-SVSET
LBB4443/00
PRS-SVLN
LBB4446/00
PRS-SVB
PRS-SW
PRS-SW
PRS-SWCS
PRS-SWCS
Bosch Security Systems | 2011-02
Product name
NETWORK CONTROLLER
AUDIO EXPANDER ANALOG
COBRANET INTERFACE
NETWORK SPLITTER
FIBER INTERFACE
FIBER INTERFACE NON-ADDRESSABLE
FIBER INTERFACE SINGLE MODE
NETWORK CABLE 100M
NETWORK CABLE ASSY 0.5M
NETWORK CABLE ASSY 2M
NETWORK CABLE ASSY 5M
NETWORK CABLE ASSY 10M
NETWORK CABLE ASSY 20M
NETWORK CABLE ASSY 50M
SET NETWORK CONN 20 PCS
CABLE/CONNECTOR TOOLKIT
SPARE CUTTING TOOL 2 PCS
SET CABLE COUPLERS 10 PCS
POWER AMPLIFIER 1X500W
POWER AMPLIFIER 2X250W
POWER AMPLIFIER 4X125W
POWER AMPLIFIER 8X60W
BASIC AMPLIFIER 1X500W
BASIC AMPLIFIER 2X250W
BASIC AMPLIFIER 4X125W
BASIC AMPLIFIER 8X60W
MULTI CHANNEL INTERFACE
CALLSTATION BASIC
CALLSTATION KEYPAD
NUMERIC KEYPAD
CALLSTATION KIT
CALLSTATION KEYPAD KIT
SET KEY COVERS 10 PCS
CALL STATION INTERFACE
CALL STATION REMOTE
CALL STATION REMOTE KIT
CALL STACKER
SUPERVISION CONTROL BOARD
LSP SUPERVISION BOARD
LINE SUPERVISION SET
LINE SUPERVISION BOARD
SET SV BRACKETS 10 PCS
PRAESIDEO SOFTWARE
PC CALL SERVER
Refer to
Page 83
Page 106
Page 119
Page 263
Page 269
Page 269
Page 269
Page 276
Page 276
Page 276
Page 276
Page 276
Page 276
Page 276
Page 278
Page 279
Page 292
Page 292
Page 133
Page 133
Page 133
Page 133
Page 166
Page 166
Page 166
Page 166
Page 157
Page 203
Page 208
Page 212
Page 216
Page 226
Page 257
Page 250
Page 233
Page 240
Page 257
Page 189
Page 189
Page 189
Page 189
Page 198
Page 323
Page 461
Praesideo 3.5 | Installation and User Instructions | 12 | Appendices
table C.1: Product index
PRS-SWCSL PRS-SWCSL
PRS-CSC
PRS-CSC
PRS-TIC
PRS-TIC
Bosch Security Systems | 2011-02
PC CALL SERVER NCO LICENSE
PC CALL STATION CLIENT
PC TELEPHONE INTERFACE CLIENT
en | 495
Page 461
Page 474
Page 480
Praesideo 3.5 | Installation and User Instructions | 12 | Appendices
Intentionally left blank.
Bosch Security Systems | 2011-02
en | 496
© Bosch Security Systems B.V.
Data subject to change without notice
2011-02
