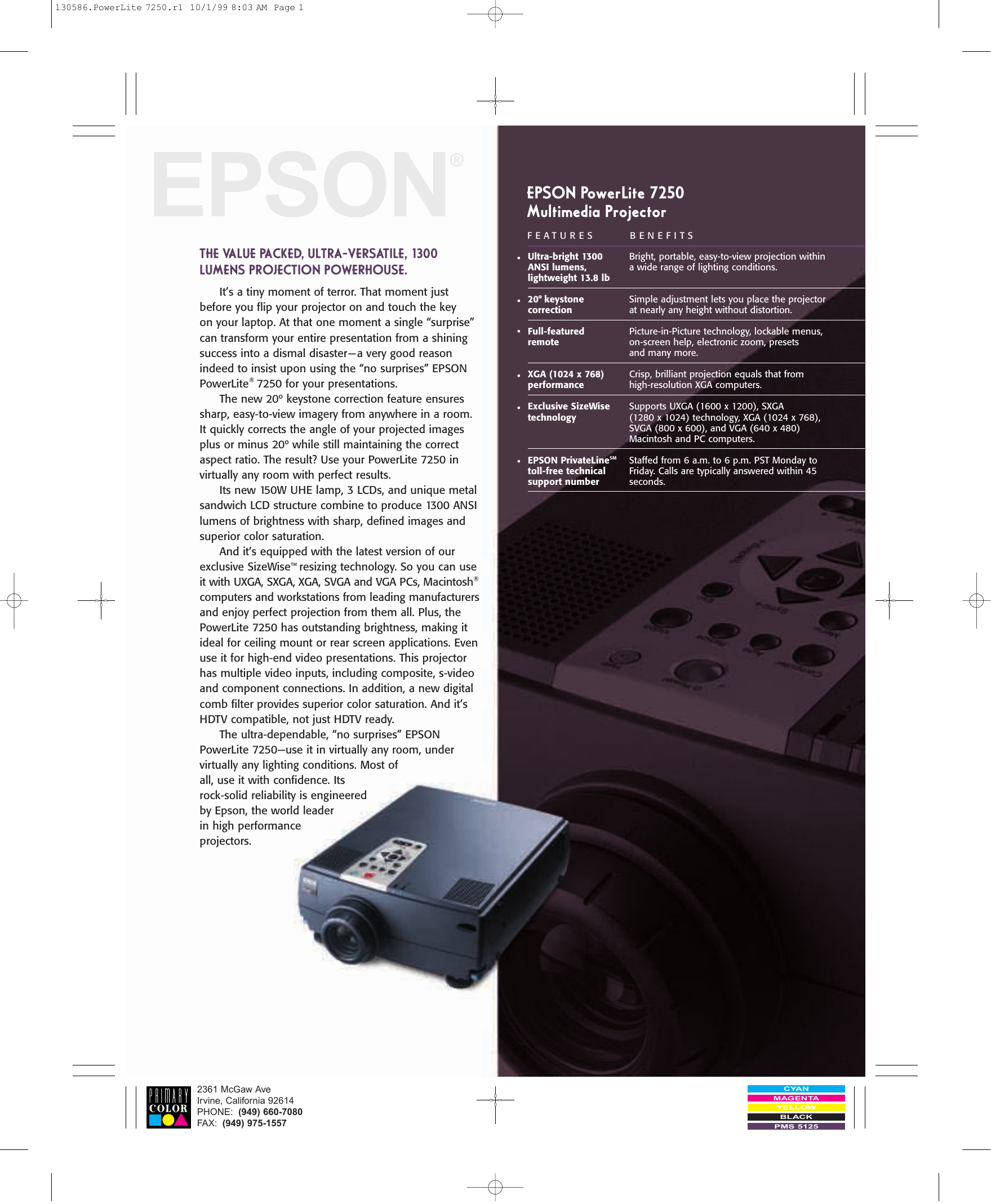

130586.PowerLite 7250.r1 10/1/99 8:03 AM Page 1
EPSON
®
THE VALUE PACKED, ULTRA-VERSATILE, 1300
LUMENS PROJECTION POWERHOUSE.
It’s a tiny moment of terror. That moment just
before you flip your projector on and touch the key
on your laptop. At that one moment a single “surprise”
can transform your entire presentation from a shining
success into a dismal disaster—a very good reason
indeed to insist upon using the “no surprises” EPSON
PowerLite® 7250 for your presentations.
The new 20º keystone correction feature ensures
sharp, easy-to-view imagery from anywhere in a room.
It quickly corrects the angle of your projected images
plus or minus 20º while still maintaining the correct
aspect ratio. The result? Use your PowerLite 7250 in
virtually any room with perfect results.
Its new 150W UHE lamp, 3 LCDs, and unique metal
sandwich LCD structure combine to produce 1300 ANSI
lumens of brightness with sharp, defined images and
superior color saturation.
And it’s equipped with the latest version of our
exclusive SizeWise™ resizing technology. So you can use
it with UXGA, SXGA, XGA, SVGA and VGA PCs, Macintosh®
computers and workstations from leading manufacturers
and enjoy perfect projection from them all. Plus, the
PowerLite 7250 has outstanding brightness, making it
ideal for ceiling mount or rear screen applications. Even
use it for high-end video presentations. This projector
has multiple video inputs, including composite, s-video
and component connections. In addition, a new digital
comb filter provides superior color saturation. And it’s
HDTV compatible, not just HDTV ready.
The ultra-dependable, “no surprises” EPSON
PowerLite 7250—use it in virtually any room, under
virtually any lighting conditions. Most of
all, use it with confidence. Its
rock-solid reliability is engineered
by Epson, the world leader
in high performance
projectors.
2361 McGaw Ave
Irvine, California 92614
PHONE: (949) 660-7080
FAX: (949) 975-1557
EPSON PowerLite 7250
Multimedia Projector
F E AT U R E S
BENEFITS
• Ultra-bright 1300
ANSI lumens,
lightweight 13.8 lb
Bright, portable, easy-to-view projection within
a wide range of lighting conditions.
• 20° keystone
correction
Simple adjustment lets you place the projector
at nearly any height without distortion.
• Full-featured
remote
Picture-in-Picture technology, lockable menus,
on-screen help, electronic zoom, presets
and many more.
• XGA (1024 x 768)
performance
Crisp, brilliant projection equals that from
high-resolution XGA computers.
• Exclusive SizeWise
technology
Supports UXGA (1600 x 1200), SXGA
(1280 x 1024) technology, XGA (1024 x 768),
SVGA (800 x 600), and VGA (640 x 480)
Macintosh and PC computers.
SM
• EPSON PrivateLine
toll-free technical
support number
Staffed from 6 a.m. to 6 p.m. PST Monday to
Friday. Calls are typically answered within 45
seconds.
CYAN
MAGENTA
YELLOW
BLACK
PMS 5125
VARNISH
130586.PowerLite 7250.r1 10/1/99 8:03 AM Page 2
EPSON
POWERLITE
7250
S P EC I F I C AT I O N S
Projection System
Power Requirements/Consumption
EPSON Original Prism technology
AC 100 to 120V/200 to 240V
± 10%, 50/60 Hz
LCD Panel
EPSON 1.32" Poly-Silicon TFT; Active-matrix
Multiple Aspect Ratio
5:4
4:3
16:9
Number of Pixels
2,359,296 pixels
(1024 x 768) x 3 panels
Lens
Signal level
Composite video
S-video
Manual zoom /manual focus
1:1.3 zoom, F = 2.0 - 2.3, f = 55 - 72mm
Interface Standards
Keystone Correction
NTSC
Stripe
Electronic +/- 20 degrees
PAL, PAL-M, PAL-N
Lamp
Ultra High Efficiency (UHE)
150W (user replaceable)
SECAM
Image Size
NTSC 4.43
23" - 300"
HDTV
Projection Distance
Input
Input voltage
Input impedance
Output
Output voltage
Output impedance
Color Reproduction
24 bit, 16.7 million colors
Brightness
1300 ANSI lumens (typical)
Contrast Ratio
NTSC, Chroma subcarrier
frequency 3.58 MHz
CCIR, Chroma subcarrier
frequency 4.43 MHz
CCIR, Carrier frequency
4.43 MHz
CCIR, Chroma frequency
4.43 MHz
480I, 480P, 720P, 1080I, 1080P
500 mVrms
47K Ω
0 - 500 mVrms
600 Ω
Physical Characteristics
200:1
11.8" x 15.8" x 5.1" (W x D x H); 13.8 lb
Illumination Ratio
Supplied Accessories
85% (typical)
Projection Methods
Front projection
Rear/ceiling mount
Yes
Yes
Audio
Built-in stereo speakers
3w + 3w stereo
Pixel Clock
13.5 - 230 MHz
H Sync
15 - 107 kHz
V Sync
43 - 85 Hz
Video Signal RGB (PC)
Sync. signal level
Separate H, V
Composite
Sync. on green
1Vp-p 75 Ω
Luminance .714Vp-p,
Chrominance 0.284Vp-p 75 Ω
Audio Signal
3.9' - 52' (1.2m - 15.7m)
Video signal level
Analog RGB
TM
Video
Pixel Arrangement
Diagonal
SXGA, UXGA
VGA, SVGA, XGA
Wide screen video
0.71Vp-p 75 Ω
TTL RGB*
AC cable, main cable, audio/video cable, Macintosh®
desktop adapter, Macintosh monitor adapter, remote
control, 2 AA batteries, Link IV software CD, user’s
manual, quick reference guide, PS/2 mouse cable,
serial mouse cable, Macintosh mouse cable, USB
mouse cable, PC serial cable, Macintosh serial cable
Product/Accessory Part Numbers
Epson PowerLite 7250
multimedia projector
Optional Accessories
Wheeled soft case for projector/laptop
Soft shell shoulder case projector/laptop
Molded hard shell carrying case
ATA shipping case
Replacement lamp unit
Long throw lens
Wide angle conversion lens
Remote control IR receiver
ELP communication cable set
ELP-7250
ELPKS18
ELPKS10
ELPKS17
ELPKS19
ELPLP09
ELPLL01
ELPCW01
ELPST02
ELPKC17
Warranty
TTL RGB*
TTL RGB*
0.286Vp-p 75 Ω
Standard one year limited warranty includes EPSON
Road Service Program and EPSON PrivateLine
dedicated toll-free support (U.S. and Canada only)
Operating Noise Level
Support - The Epson Connection
<42 dB
Pre-Sales Support U.S. & Canada
800-463-7766
Automated Technical Support
800-922-8911
Internet Website
http://www.epson.com
http://www.presentersonline.com
*accepts 3.3V output level
SM
Epson America, Inc.
3840 Kilroy Airport Way, Long Beach, CA 90806
Epson Canada, Ltd.
550 McNicoll, Willowdale, Ontario M2H 2E1
Epson Latin America, Inc.
6303 Blue Lagoon Drive, Miami, FL 33126
