Cisco 4G-LTE-ANTM-D, AIRANT2524DBR, ANT-2-4G2-O, LTE-ANTM-D Manual

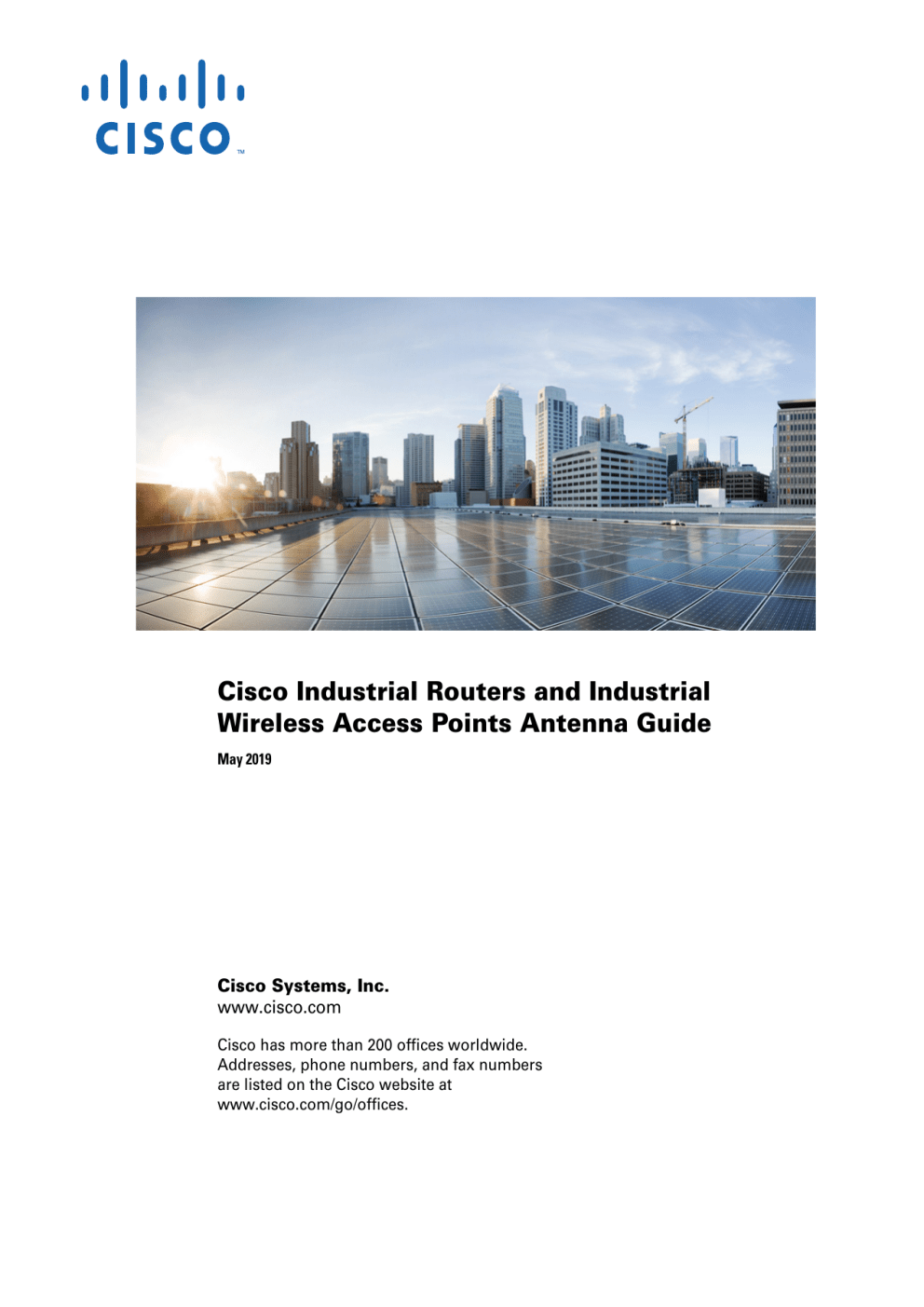

Cisco Industrial Routers and Industrial
Wireless Access Points Antenna Guide
May 2019
Cisco Systems, Inc.
www.cisco.com
Cisco has more than 200 offices worldwide.
Addresses, phone numbers, and fax numbers
are listed on the Cisco website at
www.cisco.com/go/offices.
Cisco and the Cisco logo are trademarks or registered trademarks of Cisco and/or its affiliates in the U.S. and other countries. To view a list of Cisco trademarks, go to this
URL: www.cisco.com/go/trademarks. Third-party trademarks mentioned are the property of their respective owners. The use of the word partner does not imply a partnership
relationship between Cisco and any other company. (1721R)
THE SPECIFICATIONS AND INFORMATION REGARDING THE PRODUCTS IN THIS MANUAL ARE SUBJECT
TO CHANGE WITHOUT NOTICE. ALL STATEMENTS, INFORMATION, AND RECOMMENDATIONS IN THIS
MANUAL ARE BELIEVED TO BE ACCURATE BUT ARE PRESENTED WITHOUT WARRANTY OF ANY KIND,
EXPRESS OR IMPLIED. USERS MUST TAKE FULL RESPONSIBILITY FOR THEIR APPLICATION OF ANY
PRODUCTS.
THE SOFTWARE LICENSE AND LIMITED WARRANTY FOR THE ACCOMPANYING PRODUCT ARE SET
FORTH IN THE INFORMATION PACKET THAT SHIPPED WITH THE PRODUCT AND ARE INCORPORATED
HEREIN BY THIS REFERENCE. IF YOU ARE UNABLE TO LOCATE THE SOFTWARE LICENSE OR LIMITED
WARRANTY, CONTACT YOUR CISCO REPRESENTATIVE FOR A COPY.
The following information is for FCC compliance of Class A devices: This equipment has been tested and
found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC rules. These limits
are designed to provide reasonable protection against harmful interference when the equipment is operated
in a commercial environment. This equipment generates, uses, and can radiate radio-frequency energy and,
if not installed and used in accordance with the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to cause harmful interference, in
which case users will be required to correct the interference at their own expense.
The following information is for FCC compliance of Class B devices: This equipment has been tested and
found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits
are designed to provide reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If the equipment causes interference to
radio or television reception, which can be determined by turning the equipment off and on, users are encouraged to try to correct the interference by using one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Modifications to this product not authorized by Cisco could void the FCC approval and negate your authority
to operate the product.
The Cisco implementation of TCP header compression is an adaptation of a program developed by the University of California, Berkeley (UCB) as part of UCB’s public domain version of the UNIX operating system.
All rights reserved. Copyright © 1981, Regents of the University of California.
NOTWITHSTANDING ANY OTHER WARRANTY HEREIN, ALL DOCUMENT FILES AND SOFTWARE OF
THESE SUPPLIERS ARE PROVIDED “AS IS” WITH ALL FAULTS. CISCO AND THE ABOVE-NAMED SUPPLIERS DISCLAIM ALL WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING, WITHOUT LIMITATION, THOSE
OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT OR ARISING
FROM A COURSE OF DEALING, USAGE, OR TRADE PRACTICE.
IN NO EVENT SHALL CISCO OR ITS SUPPLIERS BE LIABLE FOR ANY INDIRECT, SPECIAL, CONSEQUENTIAL, OR INCIDENTAL DAMAGES, INCLUDING, WITHOUT LIMITATION, LOST PROFITS OR LOSS OR DAMAGE TO DATA ARISING OUT OF THE USE OR INABILITY TO USE THIS MANUAL, EVEN IF CISCO OR ITS
SUPPLIERS HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
Any Internet Protocol (IP) addresses and phone numbers used in this document are not intended to be actual
addresses and phone numbers. Any examples, command display output, network topology diagrams, and
other figures included in the document are shown for illustrative purposes only. Any use of actual IP addresses or phone numbers in illustrative content is unintentional and coincidental.
All printed copies and duplicate soft copies are considered un-Controlled copies and the original on-line version should be referred to for latest version.
Cisco has more than 200 offices worldwide. Addresses, phone numbers, and fax numbers are listed on the
Cisco website at www.cisco.com/go/offices.
© 2019 Cisco Systems, Inc. All rights reserved.
Cisco Industrial Routers and Industrial Wireless Access Points Antenna Guide . . . . . . . . . . . . . 22
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Antenna Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Optimum Performance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
General Installation Instructions for Mounting Antennas . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Unused Antenna Ports. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Obtaining Technical Assistance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Additional Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Antenna Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Product Specific Guides for Industrial Routers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cisco General Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
22
22
23
23
24
24
25
26
26
26
26
27
27
Antenna Selection Table. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Currently Supported Antennas . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cellular 2G/3G/4G Antennas . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
GPS/GNSS Antennas . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
WPAN, ISM, and LoRaWan Antennas . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Wi-Fi Antennas . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Single Band 2.4 GHz Antennas . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Single Band 5 GHz Antennas. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Dual Band 2.4 GHz + 5 GHz Antennas . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Planned EOS Antennas . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
EOS Antennas. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
28
29
32
35
35
37
37
39
41
42
Cisco RF Cables and Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cellular Antenna Extension Bases . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Other Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cellular Antenna Extension Bases . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
44
44
44
50
51
Cisco 4G Indoor Ceiling-Mount Omnidirectional Antenna (4G-ANTM-OM-CM) . . . . . . . . . . . 52
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation Notes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Obtaining Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4
52
55
80
80
81
82
84
Cisco.com. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
Cisco 4G/3G Omnidirectional Dipole Antenna (4G-LTE-ANTM-D) . . . . . . . . . . . . . . . . . . . . . . 86
Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
86
88
94
94
95
Cisco Dual LTE-Single GPS Multi-band Antenna Installation Guide (4G-LTE-ANTM-O-3-B) . 98
Overview of the 4G-LTE-ANTM-O-3-B Antenna. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
Parts List. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99
Features of the 4G-LTE-ANTM-O-3-B Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99
Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99
Supported Antennas . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108
Supported Antenna Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109
Antenna Options by Deployment Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109
Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109
Statement 1052—Installing and Grounding the Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110
Statement 1024—Ground Conductor. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110
Statement 1025—Use Copper Conductors Only . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110
Statement 1046—Installing or Replacing the Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110
Installation Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111
Deployment Scenarios . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112
Related Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114
Obtaining Documentation and Submitting a Service Request . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114
Cisco Aironet 2.4 GHz 13-dBi Directional Antenna (AIR-ANT2413P2M-N) . . . . . . . . . . . . . . 116
Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Site Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installing the Antenna. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tools and Equipment Required . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Mounting on a Pole . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installing the Optional Mounting Bracket Kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Mounting on a Vertical Surface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Antenna Cable Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Grounding the Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Obtaining Documentation and Submitting a Service Request . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
117
117
118
119
119
119
119
120
125
125
127
127
127
Cisco Aironet Omnidirectional Antennas AIR-ANT2450V-N, AIR-ANT2450VG-N,
AIR-ANT2450V-N-HZ, and AIR-ANT2450HG-N . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130
5
Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Radiation Patterns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
AIR-ANT2450V-N, AIR-ANT2450VG-N, and AIR-ANT2450V-N-HZ . . . . . . . . . . . . . . .
AIR-ANT2450HG-N . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation Notes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Choosing a Mounting Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tools and Equipment Required . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Mounting the Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Obtaining Documentation and Submitting a Service Request . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
131
131
132
133
133
133
134
134
134
134
134
Cisco Aironet 6.5-dBi Diversity Patch Antenna (AIR-ANT2465P-R) . . . . . . . . . . . . . . . . . . . . 136
Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation Guidelines. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Site Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installing the Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tools and Equipment Required . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Mounting on a Vertical Surface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Outdoor Installations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Suggested Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Grounding the Antenna. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Communications, Services, and Additional Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cisco Bug Search Tool . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
137
137
138
139
139
140
140
140
141
141
141
141
142
Cisco Aironet 8-dBi Omni-Directional Antenna (AIR-ANT2480V-N) . . . . . . . . . . . . . . . . . . . 144
Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation Notes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Choosing a Mounting Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tools and Equipment Required . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Mounting the Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Communications, Services, and Additional Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
145
147
147
147
148
148
148
149
Cisco Aironet Four-Port Dual-Band Polarization-Diverse Antenna (AIR-ANT2513P4M-N) . . 152
Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2.4 GHz Antenna Radiation Patterns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5 GHz Antenna Radiation Patterns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Antenna and Bracket Dimensions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6
153
153
154
155
System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Choosing a Mounting Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installing the Antenna. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Contents of Antenna Bracket Kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tools and Equipment Required . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Mounting on a Wall or Ceiling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Mounting on a Pole or Mast. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Suggested Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Painting the Antenna. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Obtaining Documentation and Submitting a Service Request . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
157
157
158
158
158
158
159
160
162
162
162
163
Cisco Aironet Four-Element, MIMO, Dual-Band Ceiling Mount Omni-Directional Antenna
(AIR-ANT2524V4C-R) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 164
Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Choosing a Mounting Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installing the Antenna. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tools and Equipment Required . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installing the Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Mounting the Antenna on a Ceiling Tile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Suggested Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Obtain Documentation and Submit a Service Request. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
165
167
167
168
169
169
169
169
170
171
171
Cisco Aironet Dual-Band MIMO Wall-Mounted Omnidirectional Antenna (AIR-ANT2544V4M-R)
174
Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Choosing a Mounting Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installing the Antenna. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tools and Equipment Required . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Mounting on a Vertical Surface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Outdoor Installations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Mounting on a Ceiling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Mounting on a Mast . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Suggested Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Obtain Documentation and Submit a Service Request. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
175
177
178
178
179
179
179
180
183
183
184
185
185
Cisco Aironet Dual-Band Omni-Directional Antenna (AIR-ANT2547V-N, AIR-ANT2547V-N-HZ,
7
and ANT2547VG-N) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 186
Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation Notes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Choosing a Mounting Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tools and Equipment Required . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Mounting the Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Obtaining Documentation and Submitting a Service Request . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
187
188
188
189
189
189
190
190
Cisco Aironet 2.4 GHz and 5 GHz Dual-Band Polarization-Diverse Directional Array Antenna
(AIR-ANT2566D4M-R). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 192
Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Azimuth and Elevation Radiation Patterns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation Notes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Contents of the Antenna and Bracket Kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Dimensions of the Antenna and Brackets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installing the Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Deciding on a Mounting Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tools and Equipment Required . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Mounting on a Wall or Ceiling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Mounting on a Pole or Mast . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Flush Mounting on a Wall Without Mount Brackets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Recommended Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Painting the Antenna. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Obtain Documentation and Submit a Service Request . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
193
194
194
195
196
196
199
200
200
200
205
207
208
209
209
Cisco Aironet 2.4-GHz/5-GHz MIMO 4-Element Patch Antenna (AIR-ANT2566P4W-R) . . . 210
Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation Notes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Choosing a Mounting Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installing the Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tools and Equipment Required . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Mounting on a Vertical Surface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Outdoor Installations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Suggested Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Obtain Documentation and Submit a Service Request . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
211
213
213
214
215
215
215
215
216
216
216
Cisco Aironet Dual-Band Omni-Directional Antenna (AIR-ANT2568VG-N) . . . . . . . . . . . . . . 218
8
Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Choosing a Mounting Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tools and Equipment Required . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Mounting the Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Communications, Services, and Additional Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
219
221
221
221
222
222
222
222
Cisco Aironet 2.4-GHz/5-GHz 8-dBi Directional Antenna (AIR-ANT2588P3M-N) . . . . . . . . . 224
Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Azimuth and Elevation Radiation Patterns. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Site Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installing the Antenna. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tools and Equipment Required . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Mounting on a Pole . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Mounting on a Vertical Surface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Antenna Cable Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Grounding the Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
224
226
227
227
228
228
229
229
229
233
235
235
Cisco Aironet 5-GHz 13-dBi Directional Antenna (AIR-ANT5114P2M-N) . . . . . . . . . . . . . . . . 238
Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Elevation and Azimuth Plane Patterns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Site Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installing the Antenna. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Required Tools and Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Mounting on a Pole . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installing the Optional Mounting Bracket Kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Mounting on a Vertical Surface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Antenna Cable Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Grounding the Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Obtain Documentation and Submit a Service Request. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
239
240
240
240
241
242
242
242
242
247
247
249
249
249
Cisco Aironet Omnidirectional Antennas AIR-ANT5150VG-N and AIR-ANT5150HG-N . . . . 252
Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 253
System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 255
Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 255
9
Installation Notes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Choosing a Mounting Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tools and Equipment Required . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Mounting the Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Obtaining Documentation and Submitting a Service Request . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
256
256
256
256
257
Cisco Aironet 8-dBi Omnidirectional Antenna (AIR-ANT5180V-N). . . . . . . . . . . . . . . . . . . . . 258
Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation Notes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Choosing a Mounting Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tools and Equipment Required . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Mounting the Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Communications, Services, and Additional Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cisco Bug Search Tool . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
259
259
260
260
261
261
261
263
263
Cisco Cellular 2-in-1 Vehicle Mount and Fixed Infrastructure Antenna (ANT-2-4G2-O) . . . . . 264
Antenna Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Antenna Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Antenna Model . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Antenna Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Radio Frequency Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Antenna Radiation Patterns. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
698 MHz Cellular Antenna Radiation Patterns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
880 MHz Cellular Antenna Radiation Patterns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
960 MHz Cellular Antenna Radiation Patterns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1470 MHz Cellular Antenna Radiation Patterns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1710 MHz Cellular Antenna Radiation Patterns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2170 MHz Cellular Antenna Radiation Patterns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2700 MHz Cellular Antenna Radiation Patterns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Environmental and Operational Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Mechanical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installing the Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Contents of the Antenna Kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Safety Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Safety Precautions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tools and Equipment Required . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Mounting the Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Connecting the Antenna to the Router . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
10
264
264
265
265
266
267
267
268
268
268
269
269
270
270
271
271
272
272
272
272
273
273
274
274
Obtaining Documentation and Submitting a Service Request . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 274
Cisco Dual Port, Dual Band Vehicle Mount and Fixed Infrastructure WLAN Antenna
(ANT-2-WLAN-D-O). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 276
Antenna Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Antenna Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Antenna Model. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Antenna Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Radio Frequency Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Antenna Radiation Patterns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2.46 GHz Antenna Radiation Patterns. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2.46 GHz Antenna Radiation Pattern-Horizontal Plane 280
2.46 GHz Antenna Radiation Patterns-Vertical Plane 280
4.9 GHz Antenna Radiation Pattern . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.9 GHz Antenna Radiation Pattern-Horizontal Plane 282
4.9 GHz Antenna Radiation Patterns-Vertical Plane 282
5.55 GHz Antenna Radiation Patterns. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5.55 GHz Antenna Radiation Pattern-Horizontal Plane 284
5.55 GHz Antenna Radiation Patterns-Vertical Plane 284
5.9 GHz Antenna Radiation Patterns. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5.9 GHz Antenna Radiation Pattern-Horizontal Plane 286
5.9 GHz Antenna Radiation Patterns-Vertical Plane 286
Environmental and Operational Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Mechanical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installing the Antenna. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Contents of the Antenna Kit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Safety Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tools and Equipment Required . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Mounting the Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Connecting the Antenna to the Router . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Obtaining Documentation and Submitting a Service Request . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
276
276
277
277
278
279
279
279
281
283
285
287
287
287
287
288
288
288
289
289
290
290
Cisco Cellular and GPS 3-in-1 Vehicle Mount and Fixed Infrastructure Antenna (ANT-3-4G2G1-O)
292
Antenna Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Antenna Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Antenna Model. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Antenna Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Radio Frequency Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
11
292
292
293
293
294
295
Environmental Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Mechanical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Antenna Radiation Patterns. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
698 MHz Cellular Antenna Radiation Patterns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
880 MHz Cellular Antenna Radiation Patterns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
960 MHz Cellular Antenna Radiation Patterns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1470 MHz Cellular Antenna Radiation Patterns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1710 MHz Cellular Antenna Radiation Patterns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2170 MHz Cellular Antenna Radiation Patterns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2700 MHz Cellular Antenna Radiation Patterns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
GPS Antenna Radiation Patterns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1575 MHz GPS Antenna Radiation Patterns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installing the Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Contents of the Antenna Kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Safety Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Safety Precautions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tools and Equipment Required . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Mounting the Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Connecting the Antenna to the Router . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Obtaining Documentation and Submitting a Service Request . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
297
297
297
297
298
299
299
299
300
300
301
301
301
302
302
302
303
304
304
304
304
Cisco Multiband Panel Outdoor 3G Antenna (ANT-3G-PNL-OUT-N) . . . . . . . . . . . . . . . . . . . 306
Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
RF Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Mechanical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Contents of the Antenna Kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Safety Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Safety Precautions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Antenna Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tools and Equipment Required . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installing the Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Connecting the Lightning Arrestor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Connecting the Antenna to the Router . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Obtaining Documentation and Submitting a Service Request . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
306
307
307
308
308
309
310
310
310
315
315
315
Cisco Multiband Indoor 4G Volcano Antenna (ANT-4G-CM-IN-TNC) . . . . . . . . . . . . . . . . . . 318
Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
RF Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Mechanical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Radiation Patterns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Contents of the Antenna Kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
12
318
319
319
320
321
Installation Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Antenna Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Optimum Performance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Safety Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Antenna Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tools and Equipment Required . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installing the Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Obtaining Documentation and Submitting a Service Request . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
322
322
322
323
323
324
324
324
325
Cisco Indoor Swivel-mount Dipole Antenna (ANT-4G-DP-IN-TNC). . . . . . . . . . . . . . . . . . . . . 328
Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
RF Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Mechanical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Radiation Patterns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation Location. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Antenna Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
For Optimum Performance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Safety Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Antenna Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Obtaining Documentation and Submitting a Service Request . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
328
330
330
330
331
331
332
332
333
333
334
335
Cisco Outdoor Omnidirectional Antenna for 2G/3G/4G Cellular (ANT-4G-OMNI-OUT-N) . . 336
Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
RF Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Mechanical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Radiation Patterns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Antenna Kit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Safety Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Antenna Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tools and Equipment Required . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installing the Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Obtaining Documentation and Submitting a Service Request . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
336
337
339
339
342
342
343
343
344
344
345
Cisco Multiband Panel Outdoor 4G MIMO Antenna (ANT-4G-PNL-OUT-N) . . . . . . . . . . . . . 348
Antenna Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Antenna Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Antenna Model. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Antenna Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
13
348
348
349
349
349
Radio Frequency Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Antenna Radiation Patterns. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
698 MHz Antenna Radiation Pattern . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
698 MHz Antenna Radiation Pattern—Horizontal Plane 351
698 MHz Antenna Radiation Pattern—Vertical Plane 352
880 MHz Antenna Radiation Pattern . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
880 MHz Antenna Radiation Pattern—Horizontal Plane 353
880 MHz Antenna Radiation Pattern—Vertical Plane 353
960 MHz Antenna Radiation Pattern . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
960 MHz Antenna Radiation Pattern—Horizontal Plane 355
960 MHz Antenna Radiation Pattern—Vertical Plane 355
1710 MHz Antenna Radiation Pattern . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1710 MHz Antenna Radiation Pattern—Horizontal Plane 357
1710 MHz Antenna Radiation Pattern—Vertical Plane 357
1950 MHz Antenna Radiation Pattern . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1950 MHz Antenna Radiation Pattern—Horizontal Plane 359
1950 MHz Antenna Radiation Pattern—Vertical Plane 359
2170 MHz Antenna Radiation Pattern . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2170 MHz Antenna Radiation Pattern—Horizontal Plane 361
2170 MHz Antenna Radiation Pattern—Vertical Plane 361
2700 MHz Antenna Radiation Pattern . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2700 MHz Antenna Radiation Pattern—Horizontal Plane 363
2700 MHz Antenna Radiation Pattern—Vertical Plane 363
Environmental Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Mechanical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installing the Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Contents of the Antenna Kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Safety Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Safety Precautions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tools and Equipment Required . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Preparing the Antenna for Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Mounting the Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Connecting the Lightning Arrestor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Connecting the Antenna to the Router . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Obtaining Documentation and Submitting a Service Request . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
350
350
351
352
354
356
358
360
362
364
364
365
365
365
365
366
367
367
368
368
368
368
Cisco Integrated 4G Low-profile Outdoor Saucer Antenna (ANT-4G-SR-OUT-TNC) . . . . . . . 370
Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 370
RF Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 371
Mechanical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 371
14
Radiation Patterns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Antenna Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Optimum Performance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Safety Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Antenna Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tools and Equipment Required . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installing the Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Obtaining Documentation and Submitting a Service Request . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
372
373
373
374
375
375
375
376
376
377
Cisco 5-in-1 Vehicle Mount and Fixed Infrastructure Antenna (ANT-5-4G2WL2G1-O) . . . . . . 378
Antenna Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Antenna Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Antenna Model. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Antenna Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Radio Frequency Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Environmental and Operational Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Mechanical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Antenna Radiation Patterns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
698 MHz Cellular Antenna Radiation Patterns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
880 MHz Cellular Antenna Radiation Patterns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
960 MHz Cellular Antenna Radiation Patterns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1470 MHz Cellular Antenna Radiation Patterns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1710 MHz Cellular Antenna Radiation Patterns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2170 MHz Cellular Antenna Radiation Patterns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2700 MHz Cellular Antenna Radiation Patterns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
WLAN WiFi Antenna Radiation Patterns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2400 MHz WLAN Antenna Radiation Patterns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2500 MHz WLAN Antenna Radiation Patterns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4900 MHz WLAN Antenna Radiation Patterns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5150 MHz WLAN Antenna Radiation Patterns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5275 MHz WLAN Antenna Radiation Patterns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5875 MHz WLAN Antenna Radiation Patterns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
GPS Radiation Patterns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1575 MHz GPS Antenna Radiation Patterns. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installing the Antenna. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Contents of the Antenna Kit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Safety Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
15
378
378
379
379
380
381
383
383
384
384
385
385
385
386
386
387
387
388
388
388
389
389
390
390
391
391
391
392
392
392
Tools and Equipment Required . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Mounting the Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Connecting the Antenna to the Router . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Obtaining Documentation and Submitting a Service Request . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
393
393
394
394
Cisco Aironet Dual-band Dipole Antenna (AIR-ANT2524DB-R, AIR-ANT2524DG-R, and
AIR-ANT2524DW-R) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 396
Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installing the Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Obtain Documentation and Submit a Service Request . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
397
397
398
398
398
Cisco GPS Antenna (ANT-GPS-OUT-TNC). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 400
Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
RF Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Mechanical and Environmental Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Safety Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Safety Precautions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Antenna Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Mechanical Drawing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Obtaining Documentation and Submitting a Service Request . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
400
401
402
402
403
404
405
406
Cisco Outdoor 5 dBI Omni Antenna for 863-928 MHz WPAN, LoRaWan, and ISM
(ANT-LPWA-DB-O-N-5) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 408
Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Antenna Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tools and Equipment Required . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Mounting Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Antenna Radiation Patterns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Safety Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Safety Precautions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Obtaining Documentation and Submitting a Service Request . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
408
409
411
411
412
412
414
417
418
419
ANT-MP2-I-OUT-M and ANT-MP2-I-O-SS-M Antenna and Cable Kits . . . . . . . . . . . . . . . . . 420
Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
RF Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Mechanical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Radiation Patterns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Integrated Antenna Kits. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
16
420
421
422
422
426
Integrated Antenna Kit Inventory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Safety Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Antenna Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tools and Equipment Required . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Install the Antenna onto the CGR 1240 Router . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Obtaining Documentation and Submitting a Service Request . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
427
427
428
429
429
430
430
431
Cisco Multi-purpose Integrated Antenna (ANT-MP-INT-OUT-M). . . . . . . . . . . . . . . . . . . . . . . 432
Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
RF Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Mechanical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Radiation Patterns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Integrated Antenna Kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Integrated Antenna End Kit Inventory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Mounted Antenna End Kit Inventory. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Safety Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Antenna Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Install the Antenna onto the CGR 1240 Router . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Obtaining Documentation and Submitting a Service Request . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
432
433
434
434
444
445
445
445
446
447
447
448
449
Cisco Vandal Resistant Omni-directional Dome Antenna for 860-928 MHz ISM, WPAN and
LoRaWAN (ANT-UN-MP-OUT-QMA) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 450
Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Vandal Resistance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Dimensions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Antenna Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tools and Equipment Required . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Mounting Components. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Mounting the Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Using the McMaster Carr Stud Driven Hole Punch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Antenna Radiation Patterns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Safety Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Obtaining Documentation and Submitting a Service Request . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
450
451
453
453
454
454
455
455
456
457
462
462
463
Cisco WPAN Dipole Antenna (ANT-WPAN-OD-OUT-N). . . . . . . . . . . . . . . . . . . . . . . . . . . . . 464
Antenna Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 464
Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 465
17
RF Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Radiation Patterns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Environmental and Mechanical Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installing the Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Contents of the Antenna Kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Safety Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tools and Equipment Required . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Mounting the Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Obtaining Documentation and Submitting a Service Request . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
465
466
467
468
468
468
469
470
470
470
Cisco Outdoor Omni Antenna for 900 MHz WPAN (ANT-WPAN-OM-OUT-N). . . . . . . . . . . 472
Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
RF Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Mechanical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Safety Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Safety Precautions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Antenna Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tools and Equipment Required . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Attaching the Mounting Bracket. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installing the Module into the Router . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Obtaining Documentation and Submitting a Service Request . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
472
473
473
475
476
477
477
477
478
478
Cisco WPAN Yagi Antenna (ANT-WPAN-Y-OUT-N) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 480
Antenna Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
RF Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Radiation Patterns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
860 MHz Antenna Radiation Pattern . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
902 MHz Antenna Radiation Pattern . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
910 MHz Antenna Radiation Pattern . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
928 MHz Antenna Radiation Pattern . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
960 MHz Antenna Radiation Pattern . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Environmental and Mechanical Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installing the Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Contents of the Antenna Kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Safety Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tools and Equipment Required . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Preparing the Antenna for Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Mounting the Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Connecting the Lightning Arrestor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
18
480
481
481
481
482
484
486
488
490
491
491
492
492
493
493
494
494
494
Connecting the Antenna to the Router . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 494
Obtaining Documentation and Submitting a Service Request . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 494
Cisco Indoor/Outdoor Active GPS Antenna (GPS-ACT-ANTM-SMA) . . . . . . . . . . . . . . . . . . . 496
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 497
Installing the Cisco Active GPS Antenna. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 498
Installation Guidelines for the Cisco Active GPS Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 498
Mounting the Cisco Active GPS Antenna Without Bracket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 498
. . . . . . . . . . . . . . . . . . . . . . . . . . . . Mounting the Cisco Active GPS Antenna With the Bracket 499
Obtaining Documentation and Submitting a Service Request . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 499
Cisco 3G/4G LTE and LTEA Omnidirectional Dipole Antenna (LTE-ANTM-D) . . . . . . . . . . . 500
Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Antenna Radiation Patterns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Antenna Installation Warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Related Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Communications, Services, and Additional Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cisco Bug Search Tool . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
500
502
503
508
508
509
510
510
510
Cisco 4G LTEA, 4G LTE, and 3G Omnidirectional Dipole Antenna (LTE-ANTM-SMA-D) . . 512
Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Antenna Radiation Patterns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Antenna Installation Warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Related Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Communications, Services, and Additional Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cisco Bug Search Tool . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
512
513
515
520
520
521
522
522
522
Outdoor Panel Antenna for WiMAX 1.8, 2.5, and 3.8 GHz . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 524
WiMAX 1.8 GHz Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
RF Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Mechanical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
WiMAX 2.5 GHz Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
WiMAX 3.8 GHz Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Safety Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Antenna Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tools and Equipment Required . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installing the Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
19
524
525
525
525
527
528
529
529
529
530
Connecting the Antenna to the Router . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 534
Obtaining Documentation and Submitting a Service Request . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 534
20
21
Cisco Industrial Routers and Industrial
Wireless Access Points Antenna Guide
This document provides the descriptions and installation instructions for wireless antennas supported on the Cisco Industrial
Series Routers and Industrial Wireless Access Points. This guide is not intended to replace existing hardware installation guides,
software configuration guides, or other sources of information that are product specific. Instead, this guide is intended to
provide a single source of antenna information and supported platforms for the Industrial Routers and Industrial Wireless Access
Points.
This guide does not cover antenna or accessories compatibility with indoor enterprise products, although it does cover a number
of indoor use cases for industrial products.
Antennas might be installed into the host router prior to delivery or ordered separately as a field-replaceable unit. Please consult
your products Hardware Installation Guide for details.
This chapter covers the following topics:

Overview

Safety Precautions

Installation Requirements

General Installation Instructions for Mounting Antennas

Obtaining Technical Assistance

Additional Information
Overview
Deciding which antenna to use involves many factors such as coverage area, maximum distance, indoor location, outdoor
location, and antenna height.
When antennas are used indoors, the building geometry, construction materials, ceiling height, and internal obstructions must
be considered. In outdoor environments, obstructions such as trees, vehicles, buildings, and hills must be considered.
Safety Precautions
WARNING: Do not locate the outdoor antenna near overhead power lines or other electric light or power circuits, or where it can
come into contact with such circuits. When installing the antenna, take extreme care not to come into contact with such circuits,
as they may cause serious injury or death. For proper installation and grounding of the antenna, please refer to national and local
codes (for example, U.S.:NFPA 70, National Electrical Code, Article 810, Canada:Canadian Electrical Code, Section 54).
Statement 1052
Each year hundreds of people are killed or injured when attempting to install an antenna. In many of these cases, the victim was
aware of the danger of electrocution, but did not take adequate steps to avoid the hazard.
Cisco Systems, Inc.
22
www.cisco.com
Cisco Industrial Routers and Industrial Wireless Access Points Antenna Guide
WARNING: For your safety, and to help you achieve a good installation, please read and follow these safety precautions. They
may save your life!
For your safety, read and follow these safety precautions.

If you are installing an antenna for the first time, for your own safety as well as others, seek professional assistance. Your
Cisco sales representative can explain which mounting method to use for the size and type antenna you are about to install.

Before you install an antenna, contact your Cisco account representative to explain which mounting method to use for the
size and type of antenna that you are about to install.

Find someone to help you—installing an antenna is often a two-person job.

Select your installation site with safety, as well as performance, in mind. Remember that electric power lines and phone
lines look alike. For your safety, assume that any overhead line can kill you.

Contact your electric power company. Tell them your plans and ask them to come look at your proposed installation.

Plan your installation carefully and completely before you begin. Each person involved in an installation should be assigned
to a specific task, and should know what to do and when to do it. One person should be in charge of the operation to issue
instructions and watch for signs of trouble.

When installing your antenna, follow these guidelines:
—
Do not use a metal ladder.
—
Do not work on a wet or windy day.
—
Do dress properly—wear shoes with rubber soles and heels, rubber gloves, and a long-sleeved shirt or jacket.

If the assembly starts to drop, move away from it and let it fall. Because the antenna, mast, cable, and metal guy wires are
all excellent conductors of electrical current, even the slightest touch of any of these parts to a power line completes an
electrical path through the antenna and the installer.

If any part of the antenna system should come in contact with a power line, do not touch it or try to remove it yourself. Call
your local power company to have it removed safely.

If an accident should occur with the power lines, call for qualified emergency help immediately.
Installation Requirements
This section describes the factors to consider when planning an installation:

Installation Location

Antenna Connections

Optimum Performance
Installation Location
WARNING: Do not locate the outdoor antenna near overhead power lines or other electric light or power circuits, or where it can
come into contact with such circuits. When installing the antenna, take extreme care not to come into contact with such circuits,
as they may cause serious injury or death. For proper installation and grounding of the antenna, please refer to national and local
codes (for example, U.S.:NFPA 70, National Electrical Code, Article 810, Canada:Canadian Electrical Code, Section 54).
Statement 1052
The location of the antenna is important. Objects such as metal columns, walls, and so on, reduce efficiency. Best performance
is achieved when antennas are mounted at the same height and in a direct line of sight with no obstructions. If this is not possible
and reception is poor, you should try different mounting positions to optimize reception.
23
Cisco Industrial Routers and Industrial Wireless Access Points Antenna Guide
If the antenna is designed to create an omnidirectional broadcast pattern, the antenna should be mounted clear of any
obstructions to the sides of the radiating element.
Antenna installation and replacement should only be performed at one of the following, certified location types:

Cisco DF facility

Customer premises field depot
Before installing your antenna, determine the optimum location for safety and performance. Follow these steps to determine a
safe distance from wires, power lines, and trees:
1. Measure the height of your antenna.
2. Add this length to the length of your tower or mast, then double this total for the minimum safe clearance distance from
wires, power lines, and trees.
CAUTION: If you are unable to maintain this safe distance, stop and get professional technical assistance for a mounting
alternative.
Antenna Connections
Before you install or replace antennas, make sure the router is:

Powered off

Disconnected from all power sources

Removed from a pole-top installation
NOTE: Caps on the RF-connectors are installed to protect them from the environment. They must only be removed to install a
chassis-mounted antenna or external RF cable.
Optimum Performance
The higher your antenna is above the ground, the better it performs, generally. If your antenna is connected to the router with
external RF cables, it is good practice to install your antenna about 5 to 10 foot (1.5 to 3 meters) above the roof line and away
from all power lines and obstructions. If possible, find a mounting place directly above your wireless device so that the lead-in
cable can be as direct as possible.
Vehicle mounted antennas must be mounted on a flat surface on the roof away from any obstructions.
Antennas transmit and receive radio signals which are susceptible to RF obstructions and common sources of interference that
can reduce throughput and range of the device to which they are connected. Follow these guidelines to ensure the best possible
performance:

Install the antenna vertically and mount it with the cables pointing towards the ground.

Keep the antenna away from metal obstructions such as heating and air-conditioning ducts, large ceiling trusses, building
superstructures, and major power cabling runs. If necessary, use a rigid conduit to lower the antenna away from these
obstructions.

The density of the materials used in surrounding buildings’ construction impacts antenna signal strength. Consider the
following
—
Signals penetrate paper and vinyl walls with little change to signal strength.
—
Signals penetrate only one or two solid and pre-cast concrete walls without degrading signal strength.
24
Cisco Industrial Routers and Industrial Wireless Access Points Antenna Guide
—
Signals penetrate three or four concrete and wood block walls without degrading signal strength.
—
Signals penetrate five or six walls constructed of drywall or wood without degrading signal strength.
—
Signals are likely to reflect off a thick metal wall and not penetrate it at all.
—
Signals are likely to reflect off a chain link fence or a wire mesh with spaces of 1 to 1-1/2 in (2.5 to 3.8 cm).

Microwave ovens and 2-GHz cordless phones can cause signal interference because they operate in the same frequency
range as the WiFi radios.

Before installing the antenna according to the installation procedures in the following chapters, you must complete these
steps:
—
Remove any plug or connector that is installed in the antenna port.
—
Verify the correct antenna port for installation, based on the antenna model you are installing.

See the installation document for your router regarding the correct antenna port location. Antennas must be installed in the
correct antenna port for ease of installation and optimal performance.

Vehicle mounted antennas must be separated by at least 18 in (45 cm) to reduce interference between radios. A greater
separation is preferred.
General Installation Instructions for Mounting Antennas
CAUTION: For outside installations, make sure you do not mount the antenna upside down or block the bottom of the antenna
at the cable exit. The correct mounting position is with the cable pointing down (towards the ground) so that any moisture will
drain through the antenna drain holes. The antenna ships with a yellow mounting instruction label temporarily attached to the
antenna radome.
The following instructions are common to most mast mounted installations. For specific installation instructions for each
antenna, see the antenna data-sheet and the router hardware installation guide.
1. Assemble your new antenna on the ground or a level surface at the installation site.
2. Connect its coaxial cable while you are on the ground and attach the antenna to the mast.
3. Ensure that the mast does not fall as you raise or remove it. Use a durable non-conductive rope secured at each two foot
level as the mast is raised. Have an assistant tend the rope, ready to pull the mast clear of any hazards (such as power lines)
should it begin to fall.
4. Use the mounting bracket provided with the antenna.
5. If the installation will use guy wires:
a. Install guy anchor bolts.
b. Estimate the length of guy wire and cut it before raising the mast.
c. Attach guy wires to a mast using guy rings.
6. Carefully connect the antenna and mast assembly to its mounting bracket and tighten the clamp bolts.
In the case of a a guyed (tall, thin mast) installation, you must have at least one assistant to hold the mast upright while the
guy wires are attached and tightened to the anchor bolts.
7. Attach a “DANGER” label at eye level on the mast.
8. Install ground rods to remove any static electricity buildup and connect a ground wire to the mast and ground rod. Use
ground rods designed for that purpose, not a spare piece of pipe.
25
Cisco Industrial Routers and Industrial Wireless Access Points Antenna Guide
Unused Antenna Ports
Port plugs must be installed in any unused antenna ports.
The weatherproof caps on the connectors protect the router interior from environmental elements including water, heat, cold,
and dust. They are installed on unused ports before the router is shipped.
When you install a new antenna in a port with an N-connector:

Chassis-mounted antennas—Remove the weather proof cap before installing a chassis-mounted antenna.

External antennas—Remove weatherproof cap, then connect the supported Cisco cable to the connector.
Obtaining Technical Assistance
Cisco provides Cisco.com as a starting point for all technical assistance. Customers and partners can obtain documentation,
troubleshooting tips, and sample configurations from online tools by using the Cisco Technical Assistance Center (TAC) Web
Site. Cisco.com registered users have complete access to the technical support resources on the Cisco TAC Web Site.
Cisco.com is the foundation of a suite of interactive, network services that provides immediate, open access to Cisco
information, networking solutions, services, programs, and resources at any time, from anywhere in the world.
Cisco.com is a highly integrated Internet application and a powerful, easy-to-use tool that provides a broad range of features
and services to help you to:

Streamline business processes and improve productivity

Resolve technical issues with online support

Download and test software packages

Order Cisco learning materials and merchandise

Register for online skill assessment, training, and certification programs
You can self-register on Cisco.com to obtain customized information and service. To access Cisco.com, go to the following
URL: http://www.cisco.com
Additional Information
Antenna Information
For additional documentation, see the following:

For information about CGR modules, see:
www.cisco.com/go/cg-modules

For information on omnidirectional and directional antennas, see:
http://www.cisco.com/en/US/tech/tk722/tk809/technologies_tech_note09186a00807f34d3.shtml

Connected Grid Antennas Installation Guide
http://www.cisco.com/c/en/us/td/docs/routers/connectedgrid/antennas/installing/cg_antenna_install_guide.html
26
Cisco Industrial Routers and Industrial Wireless Access Points Antenna Guide

Cisco IW3702 Access Point Getting Started Guide
http://www.cisco.com/c/en/us/td/docs/wireless/outdoor_industrial/iw3702/hardware/install/guide/iw3702-gsg.html
Product Specific Guides for Industrial Routers

Cisco 807 Industrial Integrated Services Routers

Cisco 809 Industrial Integrated Services Routers

Cisco 829 Industrial Integrated Services Routers

Cisco IR1101 Industrial Integrated Services Routers

Cisco 1120 Connected Grid Router

Cisco 1240 Connected Grid Router

Cisco 1000 Series Connected Grid Routers

Cisco 500 Series WPAN Industrial Routers

Cisco 900 Series Industrial Routers

Cisco Industrial Wireless 3700 Series
Cisco General Information

Access the most current Cisco documentation at:
http://www.cisco.com/cisco/web/support/index.html

Access the Cisco website at:
http://www.cisco.com

Access international Cisco web sites at:
http://www.cisco.com/public/countries_languages.shtml
27
Antenna Selection Table
This section is designed to provide detailed information for each antenna that can be used for Cisco Industrial Routers and
Industrial Wireless Access Points. This document also contains selection tables for the Cisco antennas and accessories, as well
as basic compatibility information with Cisco Industrial Routers and Access Points Cisco antennas and accessories, as well as
installation scenarios, and technical specifications and diagrams of the available antennas. Read all of the safety precautions
before you begin installation.
The Antennas section is in three parts:

Currently Supported Antennas
These are the antennas that are currently fully supported for deployments.

Planned EOS Antennas
These are the antennas that are planned to reach their End Of Service. They are not recommended for new deployments.

EOS Antennas
These are antennas that have reached their End Of Service.
The following tables list the currently supported antennas, planned EOS, and EOS antennas for Cisco Industrial Routers and
Industrial Wireless Access Points.
Currently Supported Antennas
All of the currently supported antennas are broken down by functional groups. They are:

Cellular 2G/3G/4G Antennas

GPS/GNSS Antennas

WPAN, ISM, and LoRaWan Antennas

Wi-Fi Antennas
—
Single Band 2.4 GHz Antennas
—
Single Band 5 GHz Antennas
—
Dual Band 2.4 GHz + 5 GHz Antennas
Note: In all cases throughout this guide, Indoor Enterprise products are not listed.
Cisco Systems, Inc.
28
www.cisco.com
Antenna Selection Table
Cellular 2G/3G/4G Antennas
Part Number / Description
RF Connectors
Antenna Frequency Band
Support and Gain
Industrial Products Where
Supported
Cisco 5-in-1 Vehicle Mount and Fixed
Infrastructure Antenna
(ANT-5-4G2WL2G1-O).
2 x 4G LTE, TNC(m)
4G LTE 698-960,
1448-1511, 1710-2400,
2500-2700 MHz.
Good fit for IR829.
2 x 2.4/5 GHz WiFi,
RPTNC(plug)
Transportation omnidirectional 5-element
antenna for 2G, 3G, 4G cellular, GPS, and 1 x GPS SMA(m)
dual-band WiFi 2.4 GHz and 5 GHz.
4.2 dBi typical, 4.8 dBi max
1448-1511 MHz
Antenna has 2 ports for 2G, 3G, 4G, 2
ports for dual band 2.4 / 5.8 GHz WiFi,
and 1 port for GPS.
Cisco Cellular and GPS 3-in-1 Vehicle
Mount and Fixed Infrastructure Antenna
(ANT-3-4G2G1-O).
2.4 dBi typical, 2.9 dBi max
698-960 MHz
4.9 dBi typical, 6.5 dBi max
1710-2700 MHz
2 x 4G LTE, TNC(m)
1 x GPS SMA(m)
Cellular 3-in-1 Two port 2G, 3G, 4G and
1 port GPS Vehicle Mount and Fixed
Infrastructure Antenna, with three ports.
4G LTE 698-960,
1448-1511, 1710-2400,
2500-2700 MHz
2.6 dBi typical, 3.8 dBi max
698-960 MHz
3.8 dBi typical, 4.3 dBi max
1448-1551 MHz
4.6 dBi typical, 5.5 dBi max
1710-2700 MHz
Can be used with other
products such as IR809 or
IR807, but has extra WiFi
elements not required for
those products.
Instead consider
ANT-3-4G2G1-O for
products without WiFi.
IR807, IR809, and IR829
IR1101 with P-LTE cellular
module
C819HG-LTE and
C819HG-4G
CGM-3G and CGM-4G
modules with CGR1120
router
CGR1120 use case requires
adapters
Cisco Dual LTE-Single GPS Multi-band
Antenna Installation Guide
(4G-LTE-ANTM-O-3-B).
2 x 4G LTE, TNC(m)
2.5 dBi typical 698-960
MHz
2.5 dBi typical 1710-2700
MHz
Integrated indoor and outdoor Antenna
with three ports.
Two port 2G, 3G, and 4G antenna with
two elements.
This dual port LTE antenna does not have
an active GPS antenna (compared to
ANT-3-4G2G1-O which does), and is
useful for cases when there is no GPS
required, or when GPS is connected to a
completely separate GPS antenna.
IR1101 with P-LTE cellular
module
1 x GPS SMA(f)
Cellular 3-in-1 Two port for 2G, 3G, 4G
LTE and one port for GPS
Cisco Cellular 2-in-1 Vehicle Mount and
Fixed Infrastructure Antenna
(ANT-2-4G2-O).
4G LTE 698-960,
1710-2700 MHz
2 x 4G LTE, TNC(m)
4G LTE: 698-960,
1448-1511,
1710-2400,
2500-2700 MHz
IR807, IR809, and IR829
2.6 dBi typical, 3.8 dBi max
698-960 MHz
C819HG-LTE and
C819HG-4G
3.8 dBi typical, 4.3 dBi max
1448-1511 MHz
CGM-3G and CGM-4G
modules with CGR1120
router.
4.6 dBi typical, 5.5 dBi max
1710-2700 MHz
No GPS element and no
WiFi.
29
IR1101 with P-LTE cellular
module
CGR1120 use case requires
coax adapters
Antenna Selection Table
Part Number / Description
RF Connectors
Antenna Frequency Band
Support and Gain
Industrial Products Where
Supported
Cisco Outdoor Omnidirectional Antenna
for 2G/3G/4G Cellular
(ANT-4G-OMNI-OUT-N).
N-Type female
1.5 dBi 698-960 MHz
IR807, IR809, and IR829
2 dBi 1448-1511 MHz
IR1101 with P-LTE cellular
module
3.5 dBi 1710-2700 MHz
Outdoor Omnidirectional Antenna for
2G/3G/4G Cellular antenna is designed to
cover domestic
LTE700/Cellular/PCS/AWS/MDS, WiMAX
2300/2500, and
GSM900/GSM1800/UMTS/LTE2600
bands.
C819HG-LTE and
C819HG-4G
CGM-3G and CGM-4G
modules with CGR1120 and
CGR1240.
In most cases adapters or
cables are required.
Cisco Multiband Panel Outdoor 4G MIMO
Antenna (ANT-4G-PNL-OUT-N).
Dual type N female
direct connector
Multiband Panel Outdoor 4G MIMO
dual-port antenna designed to cover
cellular 4G bands.
Cisco Multiband Indoor 4G Volcano
Antenna (ANT-4G-CM-IN-TNC).
1 x TNC (m)
698-960 MHz 8.0-10.0 dBi IR807, IR809, and IR829
1710-2170 MHz 6.0-8.5
dBi
IR1101 with P-LTE cellular
module
2200-2400 MHz 6.5-9.5
dBi
C819HG-LTE and
C819HG-4G
2500-2700 MHz 8.5-9.5
dBi
CGM-3G and CGM-4G
modules with CGR1120 and
CGR1240.
Antenna is not designed to
operate in 1448-1511 MHz
Japan band. Does not have
high gain.
In most cases adapters or
cables are required.
1 dBi 698-960 MHz
IR807, IR809, and IR829
3 dBi 1710-2700 MHz
C819HG-LTE and
C819HG-4G
Multiband Indoor 4G Ceiling-mount
Volcano Antenna.
CGM-3G and CGM-4G
modules with CGR1120 and
CGR1240.
For CGM / CGR use case
adapters are required
ANT-MP2-I-OUT-M and
ANT-MP2-I-O-SS-M Antenna and Cable
Kits.
MCX jack
0.9 dBi typical, 2.8 dBi max
698-960 MHz
3.0 dBi typical, 4.3 dBi max
1710-2700 MHz
For 4G cellular use you need the
ANT-MP2-I-O-SS-M antenna kit. The kit
has qty 2 antennas and cables needed for
Main and Aux cellular ports.
4.0 dBi typical, 5.0 dBi max
2300-2700 MHz
Note: Degraded
performance in Japan
1448-1511 MHz band.
ANT-MP2-I-OUT-M is for 915 MHz
WPAN, and only has a single antenna and
cable in the kit.
Designed for direct mounting on the
CGR1240 and has an MCX connector.
30
ANT-MP2-I-O-SS-M kit is
compatible with CGM-3G
and CGM-4G in CGR1240
chassis.
The antennas are not
mechanically compatible with
the CGR1120 chassis.
Antenna Selection Table
Part Number / Description
RF Connectors
Antenna Frequency Band
Support and Gain
Industrial Products Where
Supported
Cisco Integrated 4G Low-profile Outdoor
Saucer Antenna
(ANT-4G-SR-OUT-TNC).
15 foot LMR 195
cable with TNC(m)
0.8 dBi 698-960 MHz
IR807, IR809, and IR829
0.5 dBi 1448-1511 MHz
C819HG-LTE and
C819HG-4G
0.2 dBi 1710-2700 MHz
Integrated 4G Low-profile Outdoor
Saucer Antenna.
CGM-3G and CGM-4G
modules with CGR1120 and
CGR1240.
For CGM / CGR use case
adapters are required.
Cisco 3G/4G LTE and LTEA
Omnidirectional Dipole Antenna
(LTE-ANTM-D).
1 x TNC(m)
2 dBi, 698-960 MHz
IR807, IR809, and IR829
2.8 dBi, 1447-1511 MHz
C819HG-LTE and
C819HG-4G
3.7 dBi, 1710-2690 MHz
LTE-ANTM-D is a high performance
indoor antenna for use in the 698-960,
1448-1511 and 1710-2690 MHz
frequency bands.
CGM-3G and CGM-4G
modules in CGR1120 (with
additional adapters & cable
accessories)
LTE-ANTM-D antennas have high
standalone efficiency, and maintain high
efficiency when directly installed on front
plate of a small or medium size Cisco
router. However, depending on chassis
size and a variety of other
electromagnetic considerations, installing
the antenna directly on the chassis is not
always recommended.
Cisco 4G LTEA, 4G LTE, and 3G
Omnidirectional Dipole Antenna
(LTE-ANTM-SMA-D).
LTE-ANTM-SMA-D is a high performance
indoor antenna for use in the 698-960,
1448-1511 and 1710-2690 MHz
frequency bands.
1 x SMA(m)
2 dBi, 698-960 MHz
2.8 dBi, 1447-1511 MHz
3.7 dBi, 1710-2690 MHz
LTE-ANTM-SMA-D antennas have high
standalone efficiency, and maintain high
efficiency when directly installed on front
plate of a small or medium size Cisco
router. However, depending on chassis
size and a variety of other
electromagnetic considerations, installing
the antenna directly on the chassis is not
always recommended.
31
IR1101 with P-LTE cellular
module
Antenna Selection Table
GPS/GNSS Antennas
Part Number / Description
RF Connectors
Antenna Frequency
Band Support and
Gain
Industrial Products Where
Supported
Cisco 5-in-1 Vehicle Mount and Fixed
Infrastructure Antenna (ANT-5-4G2WL2G1-O).
Cellular – TNC
male
1 dBi zenith, plus
27dB amplifier gain
Good fit for IR829.
Transportation omnidirectional 5-element antenna
for 2G, 3G, 4G cellular, GPS, and dual-band WiFi
2.4 GHz and 5 GHz.
WLAN - RP-TNC
male
4G LTE 698-960,
1448-1511,
1710-2400,
GPS – SMA male 2500-2700 MHz
The ANT-5-4G2WL2G1-O integrated GPS RF
front end is designed to reject collocated RF
interference.
Can be used with other
products such as IR809 or
IR807, but has extra WiFi
elements not required for those
products.
Plus 1 port GPS, and Instead consider
2 ports for dual band ANT-3-4G2G1-O for products
WiFi.
without WiFi.
Note: The ANT-5-4G2WL2G1-O antenna is listed
under multiple antenna guide sections due to
support of multiple technologies.
1575.42 +/- 1 MHz,
GPS L1
Cisco Cellular and GPS 3-in-1 Vehicle Mount and
Fixed Infrastructure Antenna (ANT-3-4G2G1-O).
Cellular – TNC
male
Three port antenna with two elements designed to
cover the 698-960, 1448-1511 and 1710-2700
MHz cellular bands and one GPS element.
GPS – SMA male Active GPS antenna,
1575.42 +/- 5 MHz
1 dBi zenith, plus
27dB amplifier gain
IR807, IR809, and IR829
IR1101 with P-LTE cellular
module
C819HG-LTE and C819HG-4G
CGM-3G and CGM-4G
modules with CGR1120 router
The ANT-3-4G2G1-O antenna is listed under
multiple antenna guide sections due to support of
multiple technologies.
CGR1120 use case requires
ANT-ADPTR-Q-TNC adapters,
as CGR1120 router has a
QMA(f) GPS connector, and
CGM-3G and CGM-4G
modules have QMA(f) cellular
connectors
The ANT-3-4G2G1-O integrated GPS RF front end
is designed to reject collocated RF interference.
32
Antenna Selection Table
Part Number / Description
RF Connectors
Antenna Frequency
Band Support and
Gain
Industrial Products Where
Supported
Cisco GPS Antenna (ANT-GPS-OUT-TNC).
Right-angle TNC
male
Active GPS antenna,
4.0 dBi min at
Zenith, 1575.42
MHz, plus 25dB
amplifier gain
CGR1120 router use case
requires ANT-ADPTR-Q-TNC
adapter. Router has a QMA(f)
GPS connector
Active GPS antenna, integrated 15' LMR-100
cable with RA-TNC(male).
The ANT-GPS-OUT-TNC integrated GPS RF front
end is designed to reject collocated RF
interference.
LoRaWAN gateways,
IXM-LPWA-800-16-K9IXM-L
PWA-900-16-K9 directly
attached. No adapter needed,
as IXM products have TNC(f)
GPS connector.
IR510 use case requires
LTE-ADPT-SM-TF adapter.
IR510 has SMA(f) GPS
connector
IR1101 with P-LTE cellular
module
C819HG-LTE and C819HG-4G
IR807, IR809, and IR829
All of these use cases require a
LTE-ADPT-SM-TF adapter as
these routers have a SMA(f)
GPS connector.
Instead of a standalone
ANT-GPS-OUT-TNC antenna
please consider using a
multi-element antenna that
combines LTE and GPS
antennas in a single antenna
product such as:
ANT-5-4G2WL2G1-O or
ANT-3-4G2G1-O
33
Antenna Selection Table
Part Number / Description
RF Connectors
Antenna Frequency
Band Support and
Gain
Industrial Products Where
Supported
Cisco Indoor/Outdoor Active GPS Antenna
(GPS-ACT-ANTM-SMA).
SMA male
Active GPS antenna,
4 dBi Zenith,
1575.42 MHz, plus
27dB amplifier gain
IR807, IR809, and IR829
Active GPS antenna that can be physically
connected to the Cisco Integrated Services
Routers (ISRs) and Cisco Enhanced High-Speed
WAN Interface Cards (EHWICs) to receive GPS
broadcasts from satellites.
IR1101 with P-LTE cellular
module
C819HG-LTE and C819HG-4G
GPS-ACT-ANTM-SMA has GPS filters, but all the
filters are after the LNA. Therefore, antenna may
not be suitable for co-location with strong RF
transmitters.
Cisco Dual LTE-Single GPS Multi-band Antenna
Installation Guide (4G-LTE-ANTM-O-3-B).
SMA-Male
2.5 dBi typical
698-960 MHz
Cellular 3-in-1 Two port for 2G, 3G, 4G LTE and
one port for GPS
2.5 dBi typical
1710-2700 MHz
Integrated indoor and outdoor Antenna with three
ports.
One port with GPS
element.
The 4G-LTE-ANTM-O-3-B integrated GPS RF
front end is designed to reject collocated RF
interference.
34
IR1101 with P-LTE cellular
module
Antenna Selection Table
WPAN, ISM, and LoRaWan Antennas
Part Number / Description
RF Connectors
Antenna Frequency
Band Support and
Gain
Industrial Products Where
Supported
Cisco Outdoor 5 dBI Omni Antenna for 863-928
MHz WPAN, LoRaWan, and ISM
(ANT-LPWA-DB-O-N-5).
Type N Female
5.2 dBi 860-876
MHz
IR509, IR510, IR529, and IR530
5.3 dBi 902-928
MHz
5 dBi Outdoor Omni-directional Antenna for the
Cisco WPAN, LoRaWan, ISM modules and routers.
WPAN CGM-WPAN-FSK-NA
and CGM-WPAN-OFDM-FCC
modules in CGR1240 and
CGR1120
LoRaWAN gateways,
IXM-LPWA-800-16-K9
IXM-LPWA-900-16-K9
Cisco WPAN Dipole Antenna
(ANT-WPAN-OD-OUT-N).
Type N male
WPAN 860-928
MHz.
Omnidirectional, vertically polarized single-port
antenna designed to cover the 860-928 MHz
frequency bands for worldwide ISM operation.
Cisco Vandal Resistant Omni-directional Dome
Antenna for 860-928 MHz ISM, WPAN and
LoRaWAN (ANT-UN-MP-OUT-QMA).
1.5 dBi max
IR509, IR510, IR529, and IR530
WPAN CGM-WPAN-FSK-NA
and CGM-WPAN-OFDM-FCC
modules in CGR1240 and
CGR1120
QMA (male),
right angle
1.5-2.0 dBi typical
860-928 MHz
IR509 and IR510
18” RG8 pigtail
with N female
connector
WPAN 860-928
MHz.
Advanced Range Extenders
only. IR529UBWP-915D/K9
and IR529UWP-915D/K9 only.
Vandal Resistant Omni-directional Dome Antenna
for ISM, WPAN and LoRaWAN routers.
Cisco WPAN Yagi Antenna
(ANT-WPAN-Y-OUT-N).
Directional, linearly polarized, mast mount Yagi
antenna with a pigtail with N female connector.
ANT-MP2-I-OUT-M and ANT-MP2-I-O-SS-M
Antenna and Cable Kits.
9 dBi typical, 10 dBi
max
MCX jack
0.9 dBi typical, 2.8
dBi max, 860-928
MHz
For 4G cellular use you need the
ANT-MP2-I-O-SS-M antenna kit. The kit has qty 2
antennas and cables needed for Main and Aux
cellular ports.
CGR1240
Connected Grid Modules
ANT-MP2-I-OUT-M kit is
compatible with CGM WPAN
modules for use with CGR1240
chassis.
ANT-MP2-I-OUT-M is for 915 MHz WPAN, and
only has a single antenna and cable in the kit.
The antennas are not
mechanically compatible with
the CGR1120 chassis.
Designed for direct mounting on the CGR1240 and
has an MCX connector.
Wi-Fi Antennas
NOTE: Cisco has the broadest selection of WiFi antennas in the industry. Not all combinations of antennas and routers are
supported or tested. For detailed information about antennas supported please check the documentation available for your
router or access point.
For easier reference, this guide splits the WiFi Antennas into 3 different categories:

Single Band 2.4 GHz Antennas
35
Antenna Selection Table

Single Band 5 GHz Antennas

Dual Band 2.4 GHz + 5 GHz Antennas
In addition to the information found in this guide, another detailed source for Cisco WiFi antennas, Access Points and
deployment considerations can be found here:
Cisco Aironet Antennas and Accessories Reference Guide
36
Antenna Selection Table
Single Band 2.4 GHz Antennas
Part Number / Description
RF Connectors
Antenna Frequency
Band Support and
Gain
Industrial Products Where
Supported
Cisco Aironet 2.4 GHz 13-dBi Directional Antenna
(AIR-ANT2413P2M-N).
Type N Male
WiFi 2.4 Ghz
IW3702 in FlexPort mode only
13 dBi
IW3702 use case requires
N-type cables.
2-Element Patch Array designed for outdoor use
with Cisco Industrial Wireless Access Points.
Supported on the IR829GW
family, not recommended for
the IR829-2LTE as the antenna
is single band.
IR829 use case requires cables
and adapters.
IW-6300, ESW-6300
IW/ESW-6300 must be
configured in single band
mode. Requires N-type cables.
Cisco Aironet Omnidirectional Antennas
AIR-ANT2450V-N, AIR-ANT2450VG-N,
AIR-ANT2450V-N-HZ, and AIR-ANT2450HG-N.
Type N Male
WiFi 2.4 GHz
5 dBi
Omnidirectional antennas designed for outdoor
use with Cisco Aironet Outdoor Access Points.
Cisco Aironet 8-dBi Omnidirectional Antenna
(AIR-ANT5180V-N).
Cisco Aironet 1552H, 1552S,
1552WU, IW-6300,
ESW-6300.
IW/ESW-6300 must be
configured in single band
mode.
Type N Male
Omnidirectional antenna designed for outdoor use.
Single Band 5 GHz Antennas
37
WiFi 2.4 GHz
IW-6300, ESW-6300
8 dBi
IW/ESW-6300 must be
configured in single band
mode.
Antenna Selection Table
Part Number / Description
RF Connectors
Antenna Frequency
Band Support and
Gain
Industrial Products Where
Supported
Cisco Aironet 5-GHz 13-dBi Directional Antenna
(AIR-ANT5114P2M-N).
Type N Male
WiFi 5 GHz
IW3702 in FlexPort mode only
13 dBi
IW3702 use case requires
N-type cables.
2-Port Directional antenna with N-type connectors
designed for use in outdoor environments.
Supported on the IR829GW
family, not recommended for
the IR829-2LTE as the antenna
is single band.
IR829 use case requires cables
and adapters.
IW-6300, ESW-6300
IW/ESW-6300 must be
configured in single band
mode. Requires N-type cables.
Cisco Aironet Omnidirectional Antennas
AIR-ANT5150VG-N and AIR-ANT5150HG-N.
Type N Male
WiFi 5 GHz
IW-6300, ESW-6300
5 dBi
IW/ESW-6300 must be
configured in single band
mode.
WiFi 5 GHz
IW-6300, ESW-6300
8 dBi
IW/ESW-6300 must be
configured in single band mode
Vertically and horizontally polarized
omnidirectional antennas designed for outdoor
use.
Cisco Aironet 8-dBi Omnidirectional Antenna
(AIR-ANT5180V-N).
Type N Male
Omnidirectional antenna designed for outdoor use.
38
Antenna Selection Table
Dual Band 2.4 GHz + 5 GHz Antennas
Part Number / Description
RF Connectors
Antenna Frequency
Band Support and
Gain
Industrial Products Where
Supported
Cisco Dual Port, Dual Band Vehicle Mount and
Fixed Infrastructure WLAN Antenna
(ANT-2-WLAN-D-O).
2 x 3 foot
WiFi 2.4G/5G
IR829
Dual Port, Dual Band Outdoor Vehicle Mount and
Fixed Infrastructure WLAN Antenna,
omnidirectional, vertically polarized, 2x2 MIMO,
integrated 3 foot long LMR-240 cables with
RP-TNC plug connectors.
RP-TNC(plug)
connectors
6.5 dBi typical, 7.0
dBi max 4900-5875
MHz
Cisco Aironet Four-Port Dual-Band
Polarization-Diverse Antenna
(AIR-ANT2513P4M-N).
Type N-Female
Bulkhead
WiFi 2.4G / 5G
IW3702, IW-6300, ESW-6300
13 dBi
Requires N-type cables
WiFi
IW3702
2.4 GHz band: 2 dBi
5 GHz band: 4 dBi
IW3702 use case requires
AIR-ACC370-NM-RF coaxial
adapters
WiFi
IW3702
2.4 GHz band: 4 dBi
5 GHz band: 4 dBi
IW3702 use case requires
AIR-ACC370-NM-RF coaxial
adapters
WiFi
IW3702, IW-6300, ESW-6300
4 dBi 2400–2483
MHz
IR829
LMR-240 cables
with
4.0 dBi typical, 5.1
dBi max 2400-2500
MHz
Four-port polarization-diverse patch array with an
articulating mount for use on flat surfaces and
masts, and is adjustable in both the horizontal and
vertical planes. Designed for use in indoor and
outdoor environments.
Cisco Aironet Four-Element, MIMO, Dual-Band
Ceiling Mount Omni-Directional Antenna
(AIR-ANT2524V4C-R).
RP-TNC
Four-element, dual-band antenna designed for
ceiling-mounting in an indoor environment.
Cisco Aironet Dual-Band MIMO Wall-Mounted
Omnidirectional Antenna (AIR-ANT2544V4M-R).
RP-TNC
Four port dual-band wall-mounted omnidirectional
antenna designed for indoor or outdoor use.
Cisco Aironet Dual-Band Omni-Directional
Antenna (AIR-ANT2547V-N,
AIR-ANT2547V-N-HZ, and ANT2547VG-N).
Type N-Male
Single port dual-band omni-directional antenna
designed to directly attach to an outdoor access
point or bulkhead N female connector.
Cisco Aironet 2.4-GHz/5-GHz MIMO 4-Element
Patch Antenna (AIR-ANT2566P4W-R).
7 dBi 5250–5875
MHz
RP-TNC
4-Element Patch Antenna designed for indoor and
outdoor use.
39
IR829 use case requires cables
and adapters.
WiFi 2.4G/5G
IW3702
6 dBi in both bands
IW3702 use case requires
AIR-ACC370-NM-RF coaxial
adapters
Antenna Selection Table
Part Number / Description
RF Connectors
Antenna Frequency
Band Support and
Gain
Industrial Products Where
Supported
Cisco 5-in-1 Vehicle Mount and Fixed
Infrastructure Antenna (ANT-5-4G2WL2G1-O).
Cellular – TNC
2 ports with dual
band WiFi 2.4G/5G.
IR829
Transportation omnidirectional 5-element antenna
for 2G, 3G, 4G cellular, GPS, and dual-band WiFi
2.4 GHz and 5 GHz.
WLAN - RP-TNC
Note: The ANT-5-4G2WL2G1-O antenna is listed
under multiple antenna guide sections due to
support of multiple technologies.
GPS – SMA male 4.8 dBi typical, 5.5
dBi max, 2400-2500
MHz
male
male
1 port GPS, and 2
ports for 700-2700
MHz cellular.
5.8 dBi typical, 7.0
dBi max, 4900-5875
MHz
Cisco Aironet Dual-band Dipole Antenna
(AIR-ANT2524DB-R, AIR-ANT2524DG-R, and
AIR-ANT2524DW-R).
RP-TNC plug
WiFi 2.4G/5G
IW3702
2 dBi 2.4 GHz
IW3702 use case requires
AIR-ACC370-NM-RF coaxial
adapters
4 dBi 5. GHz
High-performance, dual-band dipole antenna
designed for use with Cisco Aironet 2.4 GHz and 5
GHz radio products with dual-band
reverse-polarity TNC (RP-TNC) antenna ports.
Matching antenna color is the
white AIR-ANT2524DW-R
IR829
Matching antenna color is the
black AIR-ANT2524DB-R
Cisco Aironet 2.4 GHz and 5 GHz Dual-Band
Polarization-Diverse Directional Array Antenna
(AIR-ANT2566D4M-R).
RP-TNC (with
coupling ring)
2.4 GHz and 5 GHz
IW3702
6 dBi
IW3702 use case requires
AIR-ACC370-NM-RF coaxial
adapters
Four port dual-band polarization-diverse
directional array antenna. It operates over the 2.4
GHz and 5 GHz Wi-Fi bands. It ships with an
articulating mount for use on flat surfaces and
masts, and is adjustable in both horizontal and
vertical planes.
Cisco Aironet Dual-Band Omni-Directional
Antenna (AIR-ANT2568VG-N).
IR829
Type N-Male
IW-6300, ESW-6300
6 dBi 2400 – 2483
MHz
Single port dual-band omnidirectional antenna
designed to directly attach to an outdoor access
point or bulkhead N female connector.
Cisco Aironet 2.4-GHz/5-GHz 8-dBi Directional
Antenna (AIR-ANT2588P3M-N).
2.4 GHz and 5 GHz
8 dBi 5150 – 5925
MHz
Type N-Female
Bulkhead
Three port directional patch array with an
articulating mount for use on flat surfaces and
masts and is adjustable in both the horizontal and
vertical planes. Designed for use in indoor and
outdoor environments.
40
2.4 GHz and 5 GHz
IW-6300, ESW-6300
8 dBi in both bands
IW/ESW-6300 must be
configured in dual-band mode.
The middle port of the antenna
is unused. Requires N-type
cables.
Antenna Selection Table
Planned EOS Antennas
Table 1
Planned EOS Antennas
Part Number / Description
Cisco 4G Indoor Ceiling-Mount Omnidirectional
Antenna (4G-ANTM-OM-CM).
RF Connectors
Antenna Frequency
Band Support and
Gain
Industrial Products Where
Supported
TNC male
1 and 1.5 dBi
700–960 MHz
IR807, IR809, and IR829
Designed for indoor use with Cisco 3G cellular
Enhanced High-Speed WAN Interface Cards
(EHWICs) and is compatible with Cisco 3G cellular
products using a threaded Neill-Concelman (TNC)
Male connector.
2 dBi 1448-1511
MHz
1.7 and 3.2 dBi
1700–2200 MHz
IR1101 with P-LTE cellular
module
CGM-3G and CGM-4G
modules in CGR1120 (with
additional adapters & cable
accessories)
3 and 4 dBi
2500–2700 MHz
Cisco 4G/3G Omnidirectional Dipole Antenna
(4G-LTE-ANTM-D).
Articulated TNC
male connector
The 4G-LTE-ANTM-D omnidirectional dipole
antenna is designed for indoor use with Cisco 4G
and Cisco 3G wireless Integrated Services Routers
Generation 2 (ISRs G2) and Enhanced High-Speed
WAN Interface Cards (EHWICs).
Cisco Indoor Swivel-mount Dipole Antenna
(ANT-4G-DP-IN-TNC).
TNC male
Indoor Swivel-mount Dipole 3G/4G Antenna
supported on the Connected Grid Router 1120 and
is designed to support Cellular/PCS/AWS/MDS,
WiMAX 2100/2300/2500/2600 and global
GSM900/GSM1800/UMTS/LTE2600 bands.
Cisco Aironet 6.5-dBi Diversity Patch Antenna
(AIR-ANT2465P-R).
4G LTE 698-960,
1710-2170,
2500-2700 MHz.
IR800
2 dBi
Connected Grid Modules
4G LTE 698-960,
1710-2400,
2500-2700 MHz
IR800
0.5 dBi 698-960
MHz)
Connected Grid Modules
CGR 1000
CGR 1000
2.2 dBi 1710-2700
MHz
RP-TNC
WiFi 2.4G
6.5 dBi
(AEOS date 04/30/2019)
Diversity patch antenna designed for use with
Cisco Aironet access points and bridges but can
be used with any 2.4 GHz Cisco Aironet radio
device that utilizes an RP-TNC connector.
41
IR829
Antenna Selection Table
EOS Antennas
Table 2
EOS Antennas
Part Number / Description
Outdoor Panel Antenna for WiMAX 1.8, 2.5, and
3.8 GHz.
RF Connectors
Antenna Frequency
Band Support and
Gain
Industrial Products Where
Supported
N female (x2)
WiMAX 1.8, 2.5, 3.8
GHz.
CGR 1000
Connected Grid Modules
Outdoor Panel Antenna for WiMAX 1.8, 2.5, and
3.8 GHz
ANT-WM-INT-OUT-M
16 +/- 1 dBi
MCX jack
3.3-3.8 GHz
(Similar to ANT-MP2-I-O-SS-M, except covering
3.3-3.6 GHz)
Cisco Multiband Panel Outdoor 3G Antenna
(ANT-3G-PNL-OUT-N).
WiMax CGM module only.
N/A
Type N female
3G
CGM-3G modules only
10 dBi 806-960 MHz
Multiband Panel Outdoor 3G antenna designed to
cover cellular 3G bands.
Cisco Multi-purpose Integrated Antenna
(ANT-MP-INT-OUT-M).
11 dBi 1710-2170
MHz
MCX jack
3G
2.8 dBi 806-960
MHz
Multi-purpose integrated monopole antenna,
chassis-mounted, omnidirectional, includes
non-integrated coaxial cable. No cable (option
class).
3.5 dBi 1710-2170
MHz
CGM-3G only in CGR1240
chassis.
This antenna is not
mechanically compatible with
CGR1120 chassis
4 dBi 2300-2700
MHz
Cisco Outdoor Omni Antenna for 900 MHz WPAN
(ANT-WPAN-OM-OUT-N).
Type N female
Outdoor Omnidirectional Antenna for the 900 MHz
WPAN module.
Note: Antenna will eventually be obsoleted in favor
of the dual band 5 dBi, ANT-LPWA-DB-O-N-5
42
WPAN 902-928 MHz IR509, IR510, and IR529 as
only
well as WPAN
CGM-WPAN-FSK-NA and
4 dBi
CGM-WPAN-OFDM-FCC
modules in CGR1240 and
CGR1120
Antenna Selection Table
43
Cisco RF Cables and Accessories
The following is a list of some of the more commonly used cables and accessories with the industrial routers and industrial
wireless access points.
Cables
The following tables provide information for the cables supported by Cisco.

N(m) to N(m) RF cables

N(m) to QMA(m) RF cables

N(m) to RPTNC(jack) RF cables

N(m) to RPTNC(plug) RF cables

RPTNC(plug)-STR to RPTNC(jack)-STR

N(m) to TNC(m) RF cable

TNC(m) to TNC(f) RF cable

TNC(m) to SMA(m) RF cables
Cellular Antenna Extension Bases
The following tables provide information for the Extension Bases supported by Cisco.

Extension Bases
Other Accessories
The following table provides information for other accessories supported by Cisco.

Cisco Lightning Arrestors

Cisco Coaxial Adapters
Cisco Systems, Inc.
44
www.cisco.com
Cisco RF Cables and Accessories
Table 1
N(m) to N(m) RF cables
Antenna Cable Type
Description
RF Loss
AIR-CAB002L240-N
N(m)-STR to N(m)-RA
LMR-240, 2 foot RF cable
Type: Indoor Interconnect.
Not DB, CMR or CMP
0.2dB
0.3dB
0.4dB
0.5dB
0.8dB
@
@
@
@
@
0.7
1.0
1.7
2.4
5.8
GHz
GHz
GHz
GHz
GHz
AIR-CAB005LL-N
N(m)-STR to N(m)-RA
LMR-400, 5 foot RF cable
Type: outdoor DB (direct burial)
0.2dB
0.3dB
0.4dB
0.5dB
0.8dB
@
@
@
@
@
0.7
1.0
1.7
2.4
5.8
GHz
GHz
GHz
GHz
GHz
CAB-L400-5-N-N
N(m)-STR to N(m)-RA
LMR-400, 5 foot RF cable
Type: outdoor DB (direct burial)
0.2dB @ 0.7 GHz
0.3dB @ 1.0 GHz
0.4dB @ 1.7 GHz
0.5dB @ 2.4 GHz
0.8dB @ 5.8 GHz
CAB-L400-5-N-NS
N(m)-STR to N(m)-STR
LMR-400, 5 foot RF cable
Type: outdoor DB (direct burial)
0.2dB
0.3dB
0.4dB
0.5dB
0.8dB
AIR-CAB010LL-N
N(m)-STR to N(m)-RA
LMR-400, 10 foot RF cable
Type: outdoor DB (direct burial)
0.4dB @ 0.7 GHz
0.5dB @ 1.0 GHz
0.7dB @ 1.7 GHz
0.9dB @ 2.4 GHz
1.5dB @ 5.8 GHz
CAB-L400-20-N-N
N(m)-STR to N(m)-RA
LMR-400, 20 foot RF cable
Type: outdoor DB (direct burial)
0.8dB @ 0.7 GHz
1.0dB @ 1.0 GHz
1.3dB @ 1.7 GHz
1.6dB @ 2.4 GHz
2.5dB @ 5.8 GHz
AIR-CAB025HZ-N
N(m)-STR to N(m)-STR
LMR-400, 25 foot RF cable
Type: outdoor DB (direct burial) with additional resistance to petrochemicals
and oils
1.0dB @ 0.7 GHz
1.2dB @ 1.0 GHz
1.6dB @ 1.7 GHz
2.0dB @ 2.4 GHz
3.1dB @ 5.8 GHz
CAB-L600-30-N-N
N(m)-STR to N(m)-RA
LMR-600, 30 foot RF cable
Type: outdoor DB (direct burial)
0.8dB @ 0.7 GHz
0.9dB @ 1.0 GHz
1.3dB @ 1.7 GHz
1.6dB @ 2.4 GHz
2.6dB @ 5.8 GHz
45
@
@
@
@
@
0.7
1.0
1.7
2.4
5.8
GHz
GHz
GHz
GHz
GHz
Cisco RF Cables and Accessories
Table 2
N(m) to QMA(m) RF cables
Antenna Cable Type
Description
RF Loss
CAB-L240-10-Q-N
N(m)-STR to QMA(m)-RA
LMR-240, 10 foot RF cable
Type: FR/CMR (Communication Cable Riser)
0.8dB @ 0.7 GHz
0.9dB @ 1.0 GHz
1.2dB @ 1.7 GHz
1.5dB @ 2.4 GHz
2.4dB @ 5.8 GHz
CAB-L240-15-Q-N
N(m)-STR to QMA(m)-RA
LMR-240, 15 foot RF cable
Type: FR/CMR (Communication Cable Riser)
1.1dB @ 0.7 GHz
1.4dB @ 1.0 GHz
1.8dB @ 1.7 GHz
2.2dB @ 2.4 GHz
3.5dB @ 5.8 GHz
CAB-L240-20-Q-N
N(m)-STR to QMA(m)-RA
LMR-240, 20 foot RF cable
Type: FR/CMR (Communication Cable Riser)
1.5dB @ 0.7 GHz
1.8dB @ 1.0 GHz
2.4dB @ 1.7 GHz
2.9dB @ 2.4 GHz
4.7dB @ 5.8 GHz
Table 3
N(m) to RPTNC(jack) RF cables
Antenna Cable Type
Description
RF Loss
CAB-L240-10-N-R
N(m)-RA to RPTNC(jack)-STR
LMR-240, 10 foot RF cable
Type: outdoor DB (direct burial)
1.5dB @ 2.4 GHz
2.4dB @ 5.8 GHz
CAB-L400-20-N-R
N(m)-RA to RPTNC(jack)-STR
LMR-400, 20 foot RF cable
Type: outdoor DB (direct burial)
1.6dB @ 2.4 GHz
2.5dB @ 5.8 GHz
Table 4
N(m) to RPTNC(plug) RF cables
Antenna Cable Type
Description
RF Loss
AIR-CAB005LL-R-N
N(m)-RA to RPTNC(plug)-STR
LMR-240, 5 foot RF cable
Type: outdoor DB (direct burial)
0.5dB @ 2.4 GHz
0.8dB @ 5.8 GHz
Table 5
RPTNC(plug)-STR to RPTNC(jack)-STR
Antenna Cable Type
Description
RF Loss
AIR-CAB005PL-R
RPTNC (plug)-STR to RPTNC (jack)-STR
LMR-195, 5 foot RF cable
Type: Plenum
1.1dB @ 2.4 GHz
1.8dB @ 5.8 GHz
AIR-CAB005LL-R
RPTNC (plug)-STR to RPTNC (jack)-STR
LMR-400, 5 foot RF cable
Type: outdoor DB (direct burial)
0.5dB @ 2.4 GHz
0.8dB @ 5.8 GHz
CAB-L400-10-R
RPTNC (plug)-RA to RPTNC (jack)-STR
LMR-400, 10 foot RF cable
Type: outdoor DB (direct burial)
0.8dB @ 2.4 GHz
1.4dB @ 5.8 GHz
AIR-CAB020LL-R
RPTNC (plug)-STR to RPTNC (jack)-STR
LMR-400, 20 foot RF cable
Type: outdoor DB (direct burial)
1.3dB @ 2.4 GHz
2.5dB @ 5.8 GHz
46
Cisco RF Cables and Accessories
Antenna Cable Type
Description
RF Loss
AIR-CAB050LL-R
RPTNC (plug)-STR to RPTNC (jack)-STR
LMR-400, 50 foot RF cable
Type: outdoor DB (direct burial)
3.4dB @ 2.4 GHz
5.75dB @ 5.8 GHz
AIR-CAB100ULL-R
RPTNC (plug)-STR to RPTNC (jack)-STR
LMR-600, 100 foot RF cable
Type: outdoor DB (direct burial)
4.4dB @ 2.4 GHz
7.25dB @ 5.8 GHz
47
Cisco RF Cables and Accessories
Table 6
N(m) to TNC(m) RF cable
Antenna Cable Type
Description
RF Loss
CAB-L400-20-TNC-N
TNC(m)-RA to N(m)-STR
LMR-400, 20 foot RF cable
Type: outdoor DB (direct burial)
0.8dB @ 0.7 GHz
1.0dB @ 1.0 GHz
1.3dB @ 1.7 GHz
1.6dB @ 2.4 GHz
CAB-L400-50-TNC-N
TNC(m)-RA to N(m)-STR
LMR-400, 50 foot RF cable
Type: outdoor DB (direct burial)
1.9dB @ 0.7 GHz
2.3dB @ 1.0 GHz
3.1dB @ 1.7 GHz
3.8dB @ 2.4 GHz
Table 7
TNC(m) to TNC(f) RF cable
Antenna Cable Type
Description
RF Loss
4G-CAB-LMR400-10
TNC(m)-RA to TNC(f)-STR
LMR-400, 10 foot RF cable
Type: outdoor DB (direct burial)
0.4dB @ 0.7 GHz
0.5dB @ 1.0 GHz
0.7dB @ 1.7 GHz
0.8dB @ 2.4 GHz
4G-CAB-ULL-20
TNC(m)-RA to TNC(f)-STR
LMR-400, 20 foot RF cable
Type: Plenum
0.8dB @ 0.7 GHz
1.0dB @ 1.0 GHz
1.3dB @ 1.7 GHz
1.6dB @ 2.4 GHz
4G-CAB-LMR240-25
TNC(m)-RA to TNC(f)-STR
LMR-240, 25 foot RF cable
Type: Plenum
1.9dB @ 0.7 GHz
2.3dB @ 1.0 GHz
3.0dB @ 1.7 GHz
3.6dB @ 2.4 GHz
4G-CAB-LMR240-50
TNC(m)-RA to TNC(f)-STR
LMR-240, 50 foot RF cable
Type: Plenum
Note: The cable is not recommended for longer distance links due to high
loss of 50 foot LMR240 at most cellular frequencies. The customer may need
to do a site survey to validate whether the cable allows sufficient
signal-to-noise ratio to or from cell tower.
3.7dB @ 0.7 GHz
4.5dB @ 1.0 GHz
5.9dB @ 1.7 GHz
7.2dB @ 2.4 GHz
4G-CAB-ULL-50
TNC(m)-RA to TNC(f)-STR
LMR-400, 50 foot RF cable
1.9dB @ 0.7 GHz
2.3dB @ 1.0 GHz
3.1dB @ 1.7 GHz
3.8dB @ 2.4 GHz
Type: Plenum
4G-CAB-LMR240-75
TNC(m)-RA to TNC(f)-STR
LMR-240, 75 foot RF cable
Type: Plenum
Note: The cable is not recommended for high throughput or longer distance
links due to high loss of 75 foot LMR240 at most cellular frequencies. The
customer may need to do a site survey to validate whether the cable allows
sufficient signal-to-noise ratio to or from cell tower.
48
5.5dB @ 0.7 GHz
6.7dB @ 1.0 GHz
8.8dB @ 1.7 GHz
10.7dB @ 2.4 GHz
Cisco RF Cables and Accessories
Table 8
TNC(m) to SMA(m) RF cables
Antenna Cable Type
Description
RF Loss
CAB-L240-10-SM-TM
SMA(m)-STR to TNC(m)-STR
LMR-240, 10ft RF cable
Type: outdoor DB (direct burial)
0.8dB
0.9dB
1.2dB
1.5dB
1.6dB
@
@
@
@
@
0.7
1.0
1.7
2.4
2.7
GHz
GHz
GHz
GHz
GHz
CAB-L240-15-SM-TM
SMA(m)-STR to TNC(m)-STR
LMR-240, 15ft RF cable
Type: outdoor DB (direct burial)
1.1dB
1.4dB
1.8dB
2.2dB
2.3dB
@
@
@
@
@
0.7
1.0
1.7
2.4
2.7
GHz
GHz
GHz
GHz
GHz
CAB-L240-20-SM-TM
SMA(m)-STR to TNC(m)-STR
LMR-240, 20ft RF cable
Type: outdoor DB (direct burial)
1.5dB
1.8dB
2.4dB
2.9dB
3.1dB
@
@
@
@
@
0.7
1.0
1.7
2.4
2.7
GHz
GHz
GHz
GHz
GHz
49
Cisco RF Cables and Accessories
Cellular Antenna Extension Bases
The following tables provide information for the Extension Bases supported by Cisco.
Table 9
Extension Bases
Extension Base PID
Description
RF Loss
4G-AE010-R
TNC(m)-STR to TNC(f)-STR
LMR-195, 10 foot RF cable
Type: Plenum
Antenna extension bases
1.1dB @ 0.7 GHz
1.4dB @ 1.0 GHz
1.8dB @ 1.7 GHz
2.1dB @ 2.4 GHz
2.3dB @ 2.7 GHz
4G-AE015-R
TNC(m)-STR to TNC(f)-STR
LMR-195, 15 foot RF cable
Type: Plenum
Antenna extension bases
1.7dB @ 0.7 GHz
2.0dB @ 1.0 GHz
2.6dB @ 1.7 GHz
3.2dB @ 2.4 GHz
3.4dB @ 2.7 GHz
LTE-AE-MAG-SMA
TNC(f)-STR to SMA(f)-STR
LMR-195, 1ft RF cable
Type: Plenum
Antenna extension bases
0.2dB
0.2dB
0.3dB
0.3dB
0.3dB
50
@
@
@
@
@
0.7
1.0
1.7
2.4
2.7
GHz
GHz
GHz
GHz
GHz
Cisco RF Cables and Accessories
Accessories
Table 10
Cisco Lightning Arrestors
Cisco PID
Connectors Type
Arrestor Type and Frequency Range (MHz)
CGR-LA-NM-NF
N(m)-STR to N(f)-STR
DC to 6000 MHz
GDT type
Supports active GNSS antennas, passes DC
ACC-LA-H-NM-NF
N(m)-STR to N(f)-STR
698 to 2700 MHz
High power, ultra low shunt impedance, HPF
type
Does not pass DC, no support for active GNSS
antennas
CGR-LA-NF-NF
N(f)-STR to N(f)-STR
DC to 6000 MHz
GDT type
Supports active GNSS antennas, passes DC
AIR-ACC245LA-R
RPTNC(jack)-STR to RPTNC(jack)-STR
DC to 6000 MHz
GDT type
Passes DC, but the RPTNC connectors are not
commonly used with GNSS.
4G-ACC-OUT-LA
TNC(f)-STR to TNC(m)-STR
698 to 2700 MHz
HPF type, medium power
Does not pass DC, no support for active GNSS
ACC-LA-G-TM-TF
TNC(f)-STR to TNC(m)-STR
DC to 6000 MHz
GDT type
Supports active GNSS antennas, passes DC
ACC-LA-G-TF-TF
TNC(f)-STR to TNC(f)-STR
DC to 6000 MHz
GDT type
Supports active GNSS antennas, passes DC
Table 11
Cisco Coaxial Adapters
Cisco PID
Connectors Type
AIR-ACC370-NM-RF
N(m)-STR to RPTNC(jack)-STR
AIR-ACC370-NF-NF
N(f)-STR to N(f)-STR
ANT-ADPTR-Q-TNC
QMA(m)-STR to TNC(f)-STR
LTE-ADPT-SM-TF
SMA(m)-STR to TNC(f)-STR
51
Cisco 4G Indoor Ceiling-Mount
Omnidirectional Antenna
(4G-ANTM-OM-CM)
This document outlines the specifications and describes the 4G-ANTM-OM-CM multiband omnidirectional ceiling-mount
antenna and contains the following sections:

Overview

System Requirements

Installation Notes

Safety Instructions

Installation Instructions

Obtaining Documentation
Overview
The 4G-ANTM-OM-CM antenna is a ceiling-mount omnidirectional antenna that operates in any of the 3G or 4G bands. These
bands cover the following frequencies: 700, 800, 900, 1700, 1800, 1900, 2100,and 2600 MHz.
This antenna is designed for use with Cisco 3G cellular Enhanced High-Speed WAN Interface Cards (EHWICs) and is compatible
with Cisco 3G cellular products using a threaded Neill-Concelman (TNC) Male connector.
Cisco Systems, Inc.
52
www.cisco.com
Running H/F 1
Running H/F 2
Figure 1 shows a front view of the 4G-ANTM-OM-CM antenna. The green circle around the Cisco logo means that this is a 4G
antenna.
Cisco 4G-ANTM-OM-CM Antenna (Front View)
281565
Figure 1
53
Running H/F 1
Running H/F 2
Figure 2 shows a side view of the 4G-ANTM-OM-CM antenna.
Cisco 4G-ANTM-OM-CM Antenna (Side View)
1
3
2
4
5
6
7
8
245636
Figure 2
1
Mounting screws and anchors (#6 x 1-1/4”)
for mounting on a hard ceiling
5
Mounting nut
2
Self-adhesive screw covers
6
Antenna cable
3
Flat washer (wide series)
7
TNC male connector
4
Curved spring washer
8
Thread (3/4”-16)
54
Running H/F 1
Running H/F 2
Figure 3 shows a top view of the 4G-ANTM-OM-CM antenna.
Cisco 4G-ANTM-OM-CM Antenna (Top View)
245635
Figure 3
Technical Specifications
The following table lists the technical specifications for the 4G-ANTM-OM-CM antenna.
55
Running H/F 1
Running H/F 2
Antenna type
Low profile, ceiling-mount omnidirectional
Operating frequency range

698–806 MHz

824–894 MHz

925 –960 MHz

1575 MHz

1710–1885 MHz

1920–1980 MHz

2110–2170 MHz

2500–2690 MHz
Nominal Impedance
50 Ohms
Voltage Standing Wave Ratio (VSWR) 
Gain
Radiation Pattern:
Vertical plane (-3 dB beam-width)
2.0:1

3.01:1 or less for GPS

700–960 MHz (1 and 1.5 dBi)

1700–2200 MHz (1.7 and 3.2 dBi)

2500–2700 MHz (3 and 4 dBi)

700–960 MHz (80 and 95 degrees)

1700 MHz (80 and 90 degrees)

1800 MHz (75 and 95 degrees)

1900 MHz (65 and 90 degrees)

2100 MHz (50 and 65 degrees)

2500–2700 MHz (50 and 65 degrees)
Azimuth plane ripple
3.5 dB over all frequencies
Efficiency
70-85% over all supported frequencies
Connector type
TNC-Male
Polarization
Linear (vertical)
Power withstanding
3W
Weight
0.7 lb (0.34 kg)
Color
White
Flammability
UL94 V0
Environment
Indoor
Mounting
Nut, flat washer, curved spring washer, #6 x 1-1/4” mounting
screws and anchors to be used for mounting to a hard ceiling,
self adhesive screw covers.
Operating temperature
–22° to 158°F (–30° to 70°C)
Storage temperature
–40° to 185°F (–40° to 85°C)
56
Running H/F 1
Running H/F 2
Figure 4 shows the azimuth plane patterns for the 700 MHz band for the 4G-ANTM-OM-CM antenna.
Figure 4
Azimuth Plane Patterns for the 700 MHz Band
57
Running H/F 1
Running H/F 2
Figure 5 shows the azimuth plane patterns for the 800 MHz band for the 4G-ANTM-OM-CM antenna.
Figure 5
Azimuth Plane Patterns for the 800 MHz Band
58
Running H/F 1
Running H/F 2
Figure 6 shows the azimuth plane patterns for the 900 MHz band for the 4G-ANTM-OM-CM antenna.
Figure 6
Azimuth Plane Patterns for the 900 MHz Band
59
Running H/F 1
Running H/F 2
Figure 7 shows the azimuth plane patterns for the 1700 MHz band for the 4G-ANTM-OM-CM antenna.
Figure 7
Azimuth Plane Patterns for the 1700 MHz Band
60
Running H/F 1
Running H/F 2
Figure 8 shows the azimuth plane patterns for the 1800 MHz band for the 4G-ANTM-OM-CM antenna.
Figure 8
Azimuth Plane Patterns for the 1800 MHz Band
61
Running H/F 1
Running H/F 2
Figure 9 shows the azimuth plane patterns for the 1900 MHz band for the 4G-ANTM-OM-CM antenna.
Figure 9
Azimuth Plane Patterns for the 1900 MHz Band
62
Running H/F 1
Running H/F 2
Figure 10 shows the azimuth plane patterns for the 2100 MHz band for the 4G-ANTM-OM-CM antenna.
Figure 10
Azimuth Plane Patterns for the 2100 MHz Band
63
Running H/F 1
Running H/F 2
Figure 11 shows the azimuth plane patterns for the 2600 MHz band for the 4G-ANTM-OM-CM antenna.
Figure 11
Azimuth Plane Patterns for the 2600 MHz Band
64
Running H/F 1
Running H/F 2
Figure 12 shows the elevation plane patterns (Phi = 0 degree plane cut) for the 700 MHz band for the 4G-ANTM-OM-CM
antenna.
Figure 12
Elevation Plane Patterns (Phi = 0 degree Plane Cut) for the 700 MHz Band
65
Running H/F 1
Running H/F 2
Figure 13 shows the elevation plane patterns (Phi = 0 degree plane cut) for the 800 MHz band for the 4G-ANTM-OM-CM
antenna.
Figure 13
Elevation Plane Patterns (Phi = 0 degree Plane Cut) for the 800 MHz Band
66
Running H/F 1
Running H/F 2
Figure 14 shows the elevation plane patterns (Phi = 0 degree plane cut) for the 900 MHz band for the 4G-ANTM-OM-CM
antenna.
Figure 14
Elevation Plane Patterns (Phi = 0 degree Plane Cut) for the 900 MHz Band
67
Running H/F 1
Running H/F 2
Figure 15 shows the elevation plane patterns (Phi = 0 degree plane cut) for the 1700 MHz band for the 4G-ANTM-OM-CM
antenna.
Figure 15
Elevation Plane Patterns (Phi = 0 degree Plane Cut) for the 1700 MHz Band
68
Running H/F 1
Running H/F 2
Figure 16 shows the elevation plane patterns (Phi = 0 degree plane cut) for the 1800 MHz band for the 4G-ANTM-OM-CM
antenna.
Figure 16
Elevation Plane Patterns (Phi = 0 degree Plane Cut) for the 1800 MHz Band
69
Running H/F 1
Running H/F 2
Figure 17 shows the elevation plane patterns (Phi = 0 degree plane cut) for the 1900 MHz band for the 4G-ANTM-OM-CM
antenna.
Figure 17
Elevation Plane Patterns (Phi = 0 degree Plane Cut) for the 1900 MHz Band
70
Running H/F 1
Running H/F 2
Figure 18 shows the elevation plane patterns (Phi = 0 degree plane cut) for the 2100 MHz band for the 4G-ANTM-OM-CM
antenna.
Figure 18
Elevation Plane Patterns (Phi = 0 degree Plane Cut) for the 2100 MHz Band
71
Running H/F 1
Running H/F 2
Figure 19 shows the elevation plane patterns (Phi = 0 degree plane cut) for the 2600 MHz band for the 4G-ANTM-OM-CM
antenna.
Figure 19
Elevation Plane Patterns (Phi = 0 degree Plane Cut) for the 2600 MHz Band
72
Running H/F 1
Running H/F 2
Figure 20 shows the elevation plane patterns (Phi = 90 degree plane cut) for the 700 MHz band for the 4G-ANTM-OM-CM
antenna.
Figure 20
Elevation Plane Patterns (Phi = 90 degree Plane Cut) for the 700 MHz Band
73
Running H/F 1
Running H/F 2
Figure 21 shows the elevation plane patterns (Phi = 90 degree plane cut) for the 800 MHz band for the 4G-ANTM-OM-CM
antenna.
Figure 21
Elevation Plane Patterns (Phi = 90 degree Plane Cut) for the 800 MHz Band
74
Running H/F 1
Running H/F 2
Figure 22 shows the elevation plane patterns (Phi = 90 degree plane cut) for the 900 MHz band for the 4G-ANTM-OM-CM
antenna.
Figure 22
Elevation Plane Patterns (Phi = 90 degree Plane Cut) for the 900 MHz Band
75
Running H/F 1
Running H/F 2
Figure 23 shows the elevation plane patterns (Phi = 90 degree plane cut) for the 1700 MHz band for the 4G-ANTM-OM-CM
antenna.
Figure 23
Elevation Plane Patterns (Phi = 90 degree Plane Cut) for the 1700 MHz Band
76
Running H/F 1
Running H/F 2
Figure 24 shows the elevation plane patterns (Phi = 90 degree plane cut) for the 1800 MHz band for the 4G-ANTM-OM-CM
antenna.
Figure 24
Elevation Plane Patterns (Phi = 90 degree Plane Cut) for the 1800 MHz Band
77
Running H/F 1
Running H/F 2
Figure 25 shows the elevation plane patterns (Phi = 90 degree plane cut) for the 1900 MHz band for the 4G-ANTM-OM-CM
antenna.
Figure 25
Elevation Plane Patterns (Phi = 90 degree Plane Cut) for the 1900 MHz Band
78
Running H/F 1
Running H/F 2
Figure 26 shows the elevation plane patterns (Phi = 90 degree plane cut) for the 2100 MHz band for the 4G-ANTM-OM-CM
antenna.
Figure 26
Elevation Plane Patterns (Phi = 90 degree Plane Cut) for the 2100 MHz Band
79
Running H/F 1
Running H/F 2
Figure 27 shows the elevation plane patterns (Phi = 90 degree plane cut) for the 2600 MHz band for the 4G-ANTM-OM-CM
antenna.
Figure 27
Elevation Plane Patterns (Phi = 90 degree Plane Cut) for the 2600 MHz Band
System Requirements
The 4G-ANTM-OM-CM antenna requires a Cisco 3G EHWIC that uses a TNC-Male connector.
Installation Notes
NOTE: This antenna is designed to be mounted indoors on a ceiling. The antenna is mountable to ceiling tiles less than 1” thick
or to hard ceilings with the included installation accessories.
Follow these guidelines to ensure the best possible performance:
The antenna must be mounted to a ceiling to maximize its omnidirectional propagation characteristics. Mounting it on a wall may
noticeably decrease the antenna range and overall performance.

Wherever possible, mount the EHWIC and antenna where the wireless devices would be within sight and avoid physical
obstructions. Barriers along the line of sight between antenna and EHWIC degrades the wireless radio signals.
80
Running H/F 1
Running H/F 2

The density of the materials used in a building’s construction determines the number of walls the signal must pass through
and still maintain adequate coverage. Consider the following before choosing the location to install your antenna:
—
Paper and vinyl walls have very little effect on signal penetration.
—
Solid and precast concrete walls limit signal penetration to one or two walls without degrading coverage.
—
Concrete and wood block walls limit signal penetration to three or four walls.
—
A signal can penetrate five or six walls constructed of drywall or wood.
—
A thick metal wall or wire-mesh stucco walls causes signals to reflect back and cause poor penetration.

Avoid mounting the antenna next to a column or vertical support that could create a shadow zone and reduce the coverage
area.

Keep the antenna away from reflective metal objects such as heating and air-conditioning ducts, large ceiling trusses,
building superstructures, and major power cabling runs. If necessary, use an extension cable to relocate the antenna away
from these obstructions.
CAUTION: Install the EHWIC and any antennas away from appliances that share the same frequency bands. Microwave ovens,
cordless telephones, and security monitors can temporarily interfere with wireless performance.
CAUTION: We recommend you avoid installing wireless antennas in or near rack-mounted installations that include networking
equipment and computer servers whose radiated noise emissions can severely degrade radio performance.
Safety Instructions
Follow these safety instructions when installing your antenna:

Plan your installation procedure carefully and completely before you begin.

If you are installing an antenna for the first time, for your own safety as well as that of others, seek professional assistance.
Consult your dealer, who can explain which mounting method to use for the location where you intend to install the antenna.

Choose your installation site with safety as well as performance in mind. Remember that electric power cables and
telephone lines look alike. For your safety, assume that any line is an electric power line until determined otherwise.

Call your local power company or building maintenance organization if you are unsure about cables close to your mounting
location.

When installing your antenna, do not use a metal ladder. Do dress properly: shoes with rubber soles and heels, rubber
gloves, and a long-sleeved shirt or jacket.

If an accident or emergency occurs with the power lines, call for qualified emergency help immediately.
WARNING: In order to comply with FCC radio frequency (RF) exposure limits, antennas should be located at a minimum of 7.9
inches (20 cm) or more from the body of all persons. Statement 332
CAUTION: Do not work on the system or connect or disconnect cables during periods of lightning activity. Statement 1001
CAUTION: This equipment must be grounded. Never defeat the ground conductor or operate the equipment in the absence of
a suitably installed ground conductor. Contact the appropriate electrical inspection authority or an electrician if you are uncertain
that suitable grounding is available. Statement 1024
CAUTION: Only trained and qualified personnel should be allowed to install, replace, or service this equipment. Statement 1030
CAUTION: Do not use this product near water; for example, near a bath tub, wash bowl, kitchen sink or laundry tub, in a wet
basement, or near a swimming pool. Statement 1035
81
Running H/F 1
Running H/F 2
CAUTION: Never install telephone jacks in wet locations unless the jack is specifically designed for wet locations. Statement
1036
CAUTION: Never touch uninsulated telephone wires or terminals unless the telephone line has been disconnected at the
network interface. Statement 1037
CAUTION: To report a gas leak, do not use a telephone in the vicinity of the leak. Statement 1039
CAUTION: Do not locate the antenna near overhead power lines or other electric light or power circuits, or where it can come
into contact with such circuits. When installing the antenna, take extreme care not to come into contact with such circuits,
because they may cause serious injury or death. For proper installation and grounding of the antenna, please refer to national
and local codes (for example, U.S.:NFPA 70, National Electrical Code, Article 810, Canada: Canadian Electrical Code, Section
54). Statement 1052
CAUTION: This product is not intended to be directly connected to the Cable Distribution System. Additional regulatory
compliance and legal requirements may apply for direct connection to the Cable Distribution System. This product may connect
to the Cable Distribution System ONLY through a device that is approved for direct connection. Statement 1078
Installation Instructions
To install the Cisco 4G-ANTM-OM-CM antenna on a ceiling:
1. Drill a 3/4” diameter hole in the ceiling where you want to mount the antenna.
2. (Optional) Drill three pilot holes and insert the supplied screw anchors.
NOTE: You can secure the antenna in place using only the mounting nut. However, for additional support, you can also use
the supplied mounting screws. To use the mounting screws, you must first drill three pilot holes and insert the supplied
screw anchors in place.
a. Insert the antenna’s cable and thread through the hole you drilled in Step 1 until the base of the antenna is flush with
the ceiling.
b. Using a pencil or pen, mark the screw positions on the ceiling.
c. Remove the antenna from the ceiling.
d. Using a 3/16” drill bit, drill three holes for the screw anchors.
e. Properly insert the three screw anchors into the pilot holes.
3. Insert the antenna’s cable and thread through the hole you drilled in Step 1 until the base of the antenna is flush with the
ceiling.
4. From above the ceiling:
a. Thread the supplied flat washer through the antenna’s cable and thread.
b. Thread the supplied spring washer through the antenna’s cable and thread.
c. Thread the supplied mounting nut through the antenna’s cable.
d. Attach the mounting nut to the antenna’s thread by manually turning the nut clockwise until the antenna is secured in
place.
e. (Optional) Insert the mounting screws, then cover them with the white screw covers.
5. Connect the antenna’s cable to one of the supported extension cables.
82
Running H/F 1
Running H/F 2
To extend the coaxial cable included with your antenna, we recommend an ultra-low-loss coaxial cable for installation flexibility
without a significant loss in range. The following table lists insertion loss information about ULL extension coaxial cables
available from Cisco.
Cisco Product Number
Cable Length
Frequency Range
Insertion Loss
3G-CAB-ULL-20
20 foot (6 m)
500-2000 MHz
–1.50 dB, maximum
3G-CAB-ULL-50
50 foot (15 m)
500-2000 MHz
–3.50 dB, maximum
3G-CAB-LMR240-25
25 foot (7.5 m)
2200 MHz
–3.50 dB, maximum
3G-CAB-LMR240-50
50 foot (15 m)
2200 MHz
–6.90 dB, maximum
3G-CAB-LMR240-75
75 foot (23 m)
2200 MHz
–10.50 dB, maximum
83
Running H/F 1
Running H/F 2
Figure 28 shows the installation instructions. The callouts in this figure correspond to the steps in Installation Instructions.
Figure 28
Installation Instructions for the Cisco 4G-ANTM-OM-CM Antenna
Router
7
6
4
2
1
5
245906
3
Obtaining Documentation
Cisco documentation and additional literature are available on Cisco.com. Cisco also provides several ways to obtain technical
assistance and other technical resources. These sections explain how to obtain technical information from Cisco Systems.
84
Running H/F 1
Running H/F 2
Cisco.com
You can access the most current Cisco documentation at this URL:
http://www.cisco.com/univercd/home/home.htm
You can access the Cisco website at this URL:
http://www.cisco.com
You can access international Cisco websites at this URL:
http://www.cisco.com/public/countries_languages.shtml
Cisco and the Cisco logo are trademarks or registered trademarks of Cisco and/or its affiliates in the U.S. and other countries. To view a list of Cisco trademarks, go to this URL:
www.cisco.com/go/trademarks. Third-party trademarks mentioned are the property of their respective owners. The use of the word partner does not imply a partnership relationship
between Cisco and any other company. (1721R)
Any Internet Protocol (IP) addresses and phone numbers used in this document are not intended to be actual addresses and phone numbers. Any examples, command display output,
network topology diagrams, and other figures included in the document are shown for illustrative purposes only. Any use of actual IP addresses or phone numbers in illustrative
content is unintentional and coincidental.
85
Cisco 4G/3G Omnidirectional Dipole
Antenna (4G-LTE-ANTM-D)
This document outlines the specifications, describes the Cisco 4G/3G Omnidirectional Dipole Antenna (4G-LTE-ANTM-D), and
contains the following sections:

Overview, page 86

Specifications, page 88

System Requirements, page 94

Installation Notes, page 94

Safety Instructions, page 95
Overview
The 4G-LTE-ANTM-D omnidirectional dipole antenna is designed for indoor use with Cisco 4G and Cisco 3G wireless Integrated
Services Routers Generation 2 (ISRs G2) and Enhanced High-Speed WAN Interface Cards (EHWICs).
The 4G-LTE-ANTM-D antenna is marked with a green band and the product ID (PID) to indicate that it supports 4G Long Term
Evolution (LTE) networks. It has the following hardware features:

Articulating Joint—It can be rotated 360 degrees and is capable of maneuvering into three stop positions: 0 degrees, 45
degrees, and 90 degrees.

Male threaded Neill-Concelman (TNC) Connector—It lets you directly mount the antenna to any Cisco 4G and Cisco 3G
wireless Integrated Services Router (ISR) EHWIC with a TNC connector (Figure 1). The threads on the connector must
comply with the ANSI 7/16-28 UNEF 2B thread specification.
Cisco Systems, Inc.
86
www.cisco.com
Cisco 4G/3G Omnidirectional Dipole Antenna (4G-LTE-ANTM-D)
Cisco 4G-LTE-ANTM-D Ominidirectional Dipole Antenna, TNC Connector, and Articulation Joint
4G-LTE-ANTM-D
7
4
3
6
2
1
245831
Figure 1
1
0 degree position
5
TNC connector
2
45 degree position
6
Green band
3
90 degree position
7
Product ID
4
Articulating joint
87
Cisco 4G/3G Omnidirectional Dipole Antenna (4G-LTE-ANTM-D)
Specifications
Table 1
Figure 2
Specifications for Cisco 4G-LTE-ANTM-D Antenna
Specification
Description
Maximum input power
3W
Connector
TNC male
VSWR
2.5:1 or less
Characteristic impedance
50 ohm
Antenna base and radome color
Cisco Raven Black
Antenna dimensions
9 (L) x 1.2 (W) x 7/16 in (D)
(229 x 30.5 x 11 mm)
Operating temperature
–22° to 158°F (–30° to 70°C)
Operating frequency ranges

698–806 MHz

824–894 MHz

925–960 MHz

1710–1885 MHz

1920–1980 MHz

2110–2170 MHz

2500–2690 MHz
Efficiency
Antennas were designed and tested to high RF
efficiency in all supported cellular bands. Detailed
technical specifications can be obtained through
your Cisco authorized partner or Cisco account
representative.
Maximum Peak Gain
2 dBi
Elevation Cut (AMPS) Phi 0 Degree Plane for Cisco 4G-LTE-ANTM-D
88
246653
Cisco 4G/3G Omnidirectional Dipole Antenna (4G-LTE-ANTM-D)
89
Cisco 4G/3G Omnidirectional Dipole Antenna (4G-LTE-ANTM-D)
Elevation Cut (AMPS) Phi 90 Degree Plane for Cisco 4G-LTE-ANTM-D
246654
Figure 3
90
Cisco 4G/3G Omnidirectional Dipole Antenna (4G-LTE-ANTM-D)
Azimuth Cut (AMPS) for Cisco 4G-LTE-ANTM-D
246652
Figure 4
91
Cisco 4G/3G Omnidirectional Dipole Antenna (4G-LTE-ANTM-D)
Elevation Cut (PCS) Phi 0 Degree Plane for Cisco 4G-LTE-ANTM-D
246656
Figure 5
92
Cisco 4G/3G Omnidirectional Dipole Antenna (4G-LTE-ANTM-D)
Elevation Cut (PCS) Phi 90 Degree Plane for Cisco 4G-LTE-ANTM-D
246657
Figure 6
93
Cisco 4G/3G Omnidirectional Dipole Antenna (4G-LTE-ANTM-D)
Azimuth Cut (PCS) for Cisco 4G-LTE-ANTM-D
246655
Figure 7
System Requirements
The Cisco 4G/3G omnidirectional dipole antenna is designed to be used with any Cisco 4G and Cisco 3G wireless ISRs G2 and
EHWICs with a TNC antenna connector. The threads on this connector must comply with ANSI 7/16-28 UNEF 2B thread
specification. The antenna is designed to be used only indoors.
Installation Notes
This antenna is designed to be mounted directly to any Cisco 4G and Cisco 3G wireless ISR and EHWIC with a TNC connector
by simply threading it onto the mating connector. Mount and deploy the antenna at the 0-degree position, 45-degree position,
or the 90-degree position, and then change that position at will. The rotation of the antenna into the proper position can take
place while the antenna is still loose on the mating connector. No software is required for this installation.
Caution: Do not install this antenna in an outdoor environment.
In addition to the antenna orientation, the installation location of the wireless EHWIC plays a significant role in determining overall
network performance with respect to all the wireless clients. Clients at the farthest coverage points might have 10 to 50 percent
of the bandwidth available to clients close to the antenna. Wireless network coverage in one area or location might need to be
lowered to improve the performance for clients in other areas or locations.
Because antennas both transmit and receive radio signals, their performance can be adversely affected by the surrounding
environment, including physical obstructions or radio frequency (RF) interference.
94
Cisco 4G/3G Omnidirectional Dipole Antenna (4G-LTE-ANTM-D)
Follow these guidelines to ensure the best possible performance:

When used on an EHWIC, always mount the antenna on an appropriate extension cable and antenna stand. The antenna
performance will not be optimal if mounted directly to an EHWIC. Mounting directly to a fixed router (without an EHWIC) is
allowed.

Space multiple antennas apart by at least 17 inches (43 cm). Interference may occur when placed closely together.

Observe the radiation patterns in Figures 2 through 7 to position the antennas for best coverage.

Wherever possible, mount the EHWIC and antenna where the wireless devices are within sight and without physical
obstructions. Barriers along the line of sight between the device and the local base station will degrade the wireless radio
signals. EHWICs and antennas should be installed above floor level in office environments or near the ceiling for better
performance because most obstructions tend to be near floor level.

The density of the materials used in a building’s construction determines the number of walls the signal must pass through
while still maintaining adequate coverage. Consider the following before choosing the location for installing your antenna:
—
Paper and vinyl walls have very little effect on signal penetration.
—
Solid and precast concrete walls limit signal penetration to one or two walls without degradation of coverage.
—
Concrete and wood block walls limit signal penetration to three or four walls.
—
A signal can penetrate five or six walls constructed of drywall or wood.
—
A thick metal wall or wire-mesh stucco wall causes signals to reflect back and causes poor penetration.

Avoid mounting the antenna next to a column or vertical support that could create a shadow zone and reduce the coverage
area.

Keep the antenna away from reflective metal objects such as heating and air-conditioning ducts, large ceiling trusses,
building superstructures, and major power cabling runs. If necessary, use an extension cable to relocate the antenna away
from these obstructions.
Caution: Install the EHWIC and any antennas away from appliances that share the same frequency bands. Microwave ovens,
cordless telephones, and security monitors can temporarily interfere with wireless performance.
Caution: We recommend avoiding installing wireless antennas in or near rack-mounted equipment that include networking
equipment and computer servers whose radiated noise emissions can severely degrade radio performance.
Note: If the desired installation site has a marginally acceptable level of radiated noise emissions, consider using a
remote-mounted antenna, such as a wall-mount or ceiling-mount antenna, for better radio performance and coverage.
Safety Instructions
Follow these safety instructions when installing your antenna.
Warning: In order to comply with FCC radio frequency (RF) exposure limits, antennas should be located at a minimum of
7.9 inches (20 cm) or more from the body of all persons. Statement 332
Warning: This equipment must be connected to an indoor antenna only. Statement 373

Plan your installation procedure carefully and completely before you begin.

If you are installing an antenna for the first time, for your own safety as well as that of others, seek professional assistance.
Consult your dealer, who can explain which mounting method to use for the location where you intend to install the antenna.

Choose your installation site with both safety and performance in mind.
95
Cisco 4G/3G Omnidirectional Dipole Antenna (4G-LTE-ANTM-D)
Caution: Remember that electric power cables and telephone lines look alike. For your safety, assume that any line is an electric
power line until determined otherwise.

Call your local power company or building maintenance organization if you are unsure about cables close to your mounting
location.

When installing your antenna, do not use a metal ladder. Do dress properly: wear shoes with rubber soles and heels, rubber
gloves, and a long-sleeved shirt or jacket.

If an accident or emergency occurs with the power lines, call for qualified emergency help immediately.
96
Cisco 4G/3G Omnidirectional Dipole Antenna (4G-LTE-ANTM-D)
97
Cisco Dual LTE-Single GPS Multi-band
Antenna Installation Guide
(4G-LTE-ANTM-O-3-B)
This document provides the description, supported features, and installation instructions of the Cisco Dual LTE-Single GPS
Multi-band (4G-LTE-ANTM-O-3-B) Antenna.
Caution: Read the information in Safety Precautions before installing or replacing antennas.
This document contains the following sections:

Overview of the 4G-LTE-ANTM-O-3-B Antenna

Supported Antennas

Supported Antenna Accessories

Antenna Options by Deployment Type

Safety Precautions

Installation Instructions

Deployment Scenarios

Related Documentation

Obtaining Documentation and Submitting a Service Request
Overview of the 4G-LTE-ANTM-O-3-B Antenna
Deciding which antenna to use involves multiple factors, such as coverage area, maximum distance, indoor location, outdoor
location, and antenna height.
When an antenna is used indoors, the building construction, ceiling height, and internal obstructions must be considered. In
outdoor environments, obstructions such as trees, vehicles, buildings, and hills must be considered. Distance is the primary
factor when using outdoor-wireless communications. However, coverage area also becomes important when you use wireless
client devices to communicate with a wireless device.
4G-LTE-ANTM-O-3-B antenna is an integrated 3-in-1- indoor and outdoor antenna. It comes with two Long Term Evolution
(LTE) antennas and one Global Positioning System (GPS) antenna in a single radome. Figure 1 shows the 4G-LTE-ANTM-O-3
antenna.
Cisco Systems, Inc.
98
www.cisco.com
Cisco Dual LTE-Single GPS Multi-band Antenna Installation Guide (4G-LTE-ANTM-O-3-B)
Figure 1
4G-LTE-ANTM-O-3 Antenna
Parts List
The shipment of your antenna includes the following items:

One Antenna Unit

Two SMA-Female to TNC-Male Adapters

Installation Guide
Features of the 4G-LTE-ANTM-O-3-B Antenna
The 4G-LTE-ANTM-O-3-B antenna supports the following features:

No tune, multiband coverage, dual 4G LTE, and GPS L1 frequencies.

Metal 5/8-inch stud mount with serrated face nut provides single cable exit for easier installation or antenna replacement.

Attractive low-profile housing for added overhead clearance.

IP67-compliant design provides maximum protection against water or dust under severe environmental conditions.

High-performance, low-loss cable, and high-quality connectors for maximum Radio Frequency (RF) system efficiency.

UV-resistant red, blue, black, or white radome.
Technical Specifications
Table 1 lists the specifications for the RF antenna.
99
Cisco Dual LTE-Single GPS Multi-band Antenna Installation Guide (4G-LTE-ANTM-O-3-B)
.
Table 1
Specifications of RF antenna
Operating Frequencies
698-960 MHz
1710-2700 MHz
Polarization
Vertical, linear
Nominal Impedance
50 Ohms
Gain1 (Typical)
2.5 dBi
Maximum Power
3 Watts
VSWR
2
< 2.5:1
Elevation Plane (3 dB Beamwidth)
30° (nominal)
Azimuth Plane (3 dB Beamwidth)
Omni-directional
Connector type
SMA-Male
Cable
4 foot RG174 VW-1 compliant
Height
90 mm
Base Diameter
137 mm
Color
White, Black, Red or Blue
Flammability
UL-94 V0
Environment
Indoor and outdoor
Mounting
5/8 inch lug with serrated face nut, optional
adhesive backing (peel-off), 17 sq. inches area
(minimum) on a flat smooth surface, 5/8 inch
diameter hole through mounting surface
Operating and storage temperature
Ingress Protection
3
-40 to +85 degree C
IP67
1. Total gain, free space test when mounted on a 1-foot diameter ground plane with unused ports
loaded.
2. Free space Voltage Standing Wave Ratio (VSWR) over all operating frequency ranges when
mounted on a 1-foot diameter ground plane with unused ports loaded.
3. When mounted per installation instructions.
Table 2 lists the specifications for the GPS Antenna.
100
Cisco Dual LTE-Single GPS Multi-band Antenna Installation Guide (4G-LTE-ANTM-O-3-B)
Table 2
Specifications of the GPS Antenna
Frequency Band
1575.42 MHz (GPS L1)
Amplifier Gain
26 dBc ± 3 dB
Nominal Impedance
50 Ohms
Output VSWR
1.5:1 typical
DC Current
20 mA nominal; < 30 mA @ -40°C to +85° C
DC Voltage
3.3-5 V
Noise Figure
1.8 dB typical
Filtering
> 40 dB rejection @ ± 50 MHz from center
frequency
Figure 2 shows the parts of 4G-LTE-ANTM-O-3-B Antenna.
Figure 2
Parts of 4G-LTE-ANTM-O-3-B Antenna
2
1
3
372740
4
5
1
GPS and 2 LTE antennas inside
4
Mounting stud
2
Radome available in 4 colors: White, Black,
Red or Blue (Indoor or Outdoor)
5
Cables
3
Gasket
Figure 3 shows the antenna with cable labels.
101
Cisco Dual LTE-Single GPS Multi-band Antenna Installation Guide (4G-LTE-ANTM-O-3-B)
The Antenna with Cable Labels
1
LTE
372914
GPS
3
LTE
2
MPN
07-01329-01
Figure 3
1
MPN LABEL
3
GPS ID LABEL
2
LTE-ID LABEL 2EA
Figure 4 shows the Low Band 698-960 MHz EL (PHI=0).
102
Cisco Dual LTE-Single GPS Multi-band Antenna Installation Guide (4G-LTE-ANTM-O-3-B)
Low band 698-960 MHz EL (PHI=0)
372742
Figure 4
Figure 5 shows the Low Band 698-960 MHz EL (PHI=90).
103
Cisco Dual LTE-Single GPS Multi-band Antenna Installation Guide (4G-LTE-ANTM-O-3-B)
Low band 698-960 MHz EL (PHI=90)
372743
Figure 5
Figure 6 shows the Low Band 698-960 MHz AZ (THETA=90).
104
Cisco Dual LTE-Single GPS Multi-band Antenna Installation Guide (4G-LTE-ANTM-O-3-B)
Low Band 698-960 MHz AZ (THETA=90)
372744
Figure 6
Figure 7 shows High Band 1710-2700 MHz EL (PHI=0).
105
Cisco Dual LTE-Single GPS Multi-band Antenna Installation Guide (4G-LTE-ANTM-O-3-B)
High Band 1710-2700 MHz EL (PHI=0)
372745
Figure 7
Figure 8 shows High Band 1710-2700 MHz EL (PHI=90).
106
Cisco Dual LTE-Single GPS Multi-band Antenna Installation Guide (4G-LTE-ANTM-O-3-B)
High Band 1710-2700 MHz EL (PHI=90)
373009
Figure 8
Figure 9 shows High Band 1710-2700 MHz AZ (THETA=90).
107
Cisco Dual LTE-Single GPS Multi-band Antenna Installation Guide (4G-LTE-ANTM-O-3-B)
High Band 1710-2700 MHz AZ (THETA=90)
373010
Figure 9
Supported Antennas
Table 3 lists the supported antennas.
Table 3
Supported Antennas
Part Number
Description
4G-LTE-ANTM-O-3-W
Indoor or outdoor low-profile antenna with 4-foot
dongle, white radome.
4G-LTE-ANTM-O-3-B
Indoor or outdoor low-profile antenna with 4-foot
dongle, black radome.
4G-LTE-ANTM-O-3-R
Indoor or outdoor low-profile antenna with 4-foot
dongle, red radome.
ANT-4G-SR-OUT-TNC
Multiband low-profile saucer outdoor 4G Antenna
4G-LTE-ANTM-O-3-C
Indoor or outdoor low-profile antenna with 4-foot
dongle, blue radome.
108
Cisco Dual LTE-Single GPS Multi-band Antenna Installation Guide (4G-LTE-ANTM-O-3-B)
Supported Antenna Accessories
Table 4 lists the supported antenna accessories.
Table 4
Supported Antenna Accessories
Part Number
Cable Length
Maximum Insertion Loss
4G-CAB-LMR240-25
25 foot (7.5 m)
2.1 dB @ 700 MHz
4.0 dB @ 2.6 GHz
4G-CAB-LMR240-50
50 foot (15 m)
4.1 dB @ 700 MHz
7.4 dB @ 2.6 GHz
4G-CAB-LMR240-75
75 foot (23 m)
6.1 dB @ 700 MHz
11.0 dB @ 2.6 GHz
4G-CAB-ULL-20
20 foot (6 m)
0.90 dB @ 700 MHz
1.8 dB @ 2.6 GHz
4G-CAB-ULL-50
50 foot (15 m)
2.2 dB @ 700 MHz
4.3 dB @ 2.6 GHz
Antenna Options by Deployment Type
Table 5 lists the antenna options by deployment type.
Table 5
Antenna Options by Deployment Type
Deployment Type
Description
Indoor
The antenna is installed indoors on a None
grounded metal surface and
attached directly to a router.
Indoor, with extension
The antenna is installed on a
grounded metal surface and
attached to a router with extension
cables.
Outdoor flush
Antenna Accessories
Required
The antenna is installed outdoors to
a grounded metal surface and
attached directly to a router
mounted indoors.

4G-CAB-LMR240-25

4G-CAB-LMR240-50

4G-CAB-LMR240-75

4G-CAB-ULL-20

4G-CAB-ULL-50
None
Safety Precautions
This section contains the following warning statements. A warning means danger. You are in a situation that could cause bodily
injury. Before working on an equipment, be aware of the hazards involved with electrical circuitry and standard safety practices
to prevent accidents.
109
Cisco Dual LTE-Single GPS Multi-band Antenna Installation Guide (4G-LTE-ANTM-O-3-B)
Statement 1052—Installing and Grounding the Antenna
Warning: Do not locate the outdoor antenna near overhead power lines or other electric light or power circuits, or where it can
come into contact with such circuits. When installing the antenna, take extreme care not to come into contact with such circuits,
as they may cause serious injury or death. For proper installation and grounding of the antenna, refer to national and local codes
(for example, U.S.:NFPA 70, National Electrical Code, Article 810, Canada:Canadian Electrical Code, Section 54).
Statement 1024—Ground Conductor
Warning: This equipment must be grounded. Never defeat the ground conductor or operate the equipment in the absence of a
suitably installed ground conductor. Contact the appropriate electrical inspection authority or an electrician if you are uncertain
that suitable grounding is available.
Statement 1025—Use Copper Conductors Only
Warning: Use copper conductors only.
Statement 1046—Installing or Replacing the Unit
Warning: When installing or replacing the unit, the ground connection must always be made first and disconnected last.
Caution: For your physical safety, and to help you install your antenna successfully, follow these safety precautions.

If you are installing an antenna for the first time, for your own safety as well as others, seek professional assistance. Your
Cisco sales representative can explain which mounting method to use for the size and type of antenna you are about to
install.

Before you install an antenna, contact your Cisco account representative to explain which mounting method to use for the
size and type of antenna that you are about to install.

Find someone to help you—installing an antenna is often a two-person job.

Select your installation site with safety, as well as performance, in mind. Remember that electric power lines and phone
lines look alike. For your safety, assume that any overhead line can kill you.

Contact your electric power company. Tell them your plans and ask them to come and look at your proposed installation.

Plan your installation carefully and completely before you begin. Each person involved in an installation should be assigned
to a specific task, and should know what to do and when to do it. One person should be in charge of the operation to issue
instructions and watch for signs of trouble.

When installing your antenna, follow these guidelines:
—
Do not use a metal ladder.
—
Do not work on a wet or windy day.
—
Do dress properly—wear shoes with rubber soles and heels, rubber gloves, and a long-sleeved shirt or jacket.

If the assembly starts to drop, move away from it and let it fall. Because the antenna, mast, cable, and metal guy wires are
all excellent conductors of electrical current, even the slightest touch of any of these parts to a power line completes an
electrical path through the antenna and the installer.

If any part of the antenna system should come in contact with a power line, do not touch it or try to remove it yourself. Call
your local power company to have it removed safely.

If an accident should occur with the power lines, call for qualified emergency help immediately.
110
Cisco Dual LTE-Single GPS Multi-band Antenna Installation Guide (4G-LTE-ANTM-O-3-B)
Installation Instructions
The following section contains steps for installing the 4G-LTE-ANTM-O-3-B antenna:
1. While choosing the location, keep the following in mind:
—
Attempt to center the antenna on a flat plane.
—
Attempt to position the antenna so that it has 8 inches of flat plane in any given direction.
—
Attempt to space at least 16 inches from an adjacent antenna or metallic structure and choose a location with gentle
surface curves to ensure proper sealing.
—
Ensure that there is a space that is 2 inches deep and 2 inches in diameter below the mounting surface to allow
sufficient clearance for the mounting stud, hardware, and cables.
—
Ensure that the diameter of the hole is 5/8 inch.
2. Drill a hole through the mounting surface where the center of the antenna is located, as shown in Figure 10.
Note: Ensure that the hole is deburred of sharp edges to prevent cable damage during installation.
Drill the Mounting Surface
372748
Figure 10
3. Clean the mounting surface around the hole. The surface must be free of any debris, which would otherwise prevent the
antenna's inner foam gasket from adhering to or the outer rubber gasket from forming a seal.
4. Remove the nut from the mounting stud and cables one by one.
5. Insert the mounting stud through the hole and then thread the cables through the serrated face nut one by one.
Warning: It is important that the orientation of the serrated face nut should be correct. Otherwise, the serrated part of the
lock nut will not bite into the mounting stud.
Figure 11 shows the bottom view of the antenna.
111
Cisco Dual LTE-Single GPS Multi-band Antenna Installation Guide (4G-LTE-ANTM-O-3-B)
Figure 11
Bottom View of the Antenna
4G-LTE-ANTM-O-3-B
1
4G LTE 3 in 1 outdoor Black
antenna 700MHZ
www.cisco.com/go/4g
SN: 14300881
3
2
INSTALLATION
TORQUE 4.5Nm
10
MPN: 07-01329-01
RoHs
Complaint
372915
Made in: CN
1
Product ID and Serialization Label
3
Liner
2
MPN and Torque Label
6. Position the antenna onto the mounting surface and tighten the nut hand-tight, as shown in Figure 12. Tighten it further
using a wrench until the antenna is fully seated. Visually inspect the outer rubber antenna gasket to ensure that it has been
compressed and sealed tightly against the mounting surface and radome.
Tighten the Nut after the Antenna is fully seated
372753
Figure 12
Deployment Scenarios
Figure 13 shows the deployment of the 4G-LTE-ANTM-O-3-B antenna on an ATM with a single router.
Note: All the three antenna cables are SubMiniature version A (SMA-male) connectors, but the MAIN and the Diversity (DIV) of
the router has the Threaded Neill–Concelman (TNC-female) connectors, and the GPS has an SMA-female connector. In this
case, an SMA-female to TNC-male adapter needs to be used to connect the SMA-male connectors to the MAIN and DIV of the
router because they cannot be connected to the SMA-male connectors directly.
112
Cisco Dual LTE-Single GPS Multi-band Antenna Installation Guide (4G-LTE-ANTM-O-3-B)
Figure 13
Deployment of an Antenna with One Router
Router
SIM
MODEM
MAIN
DIV
GPS
Power
Adapter
AC or DC input
option available
372746
+5V
Figure 14 shows the deployment of 4G-LTE-ANTM-O-3-B on an ATM with dual routers.
113
Cisco Dual LTE-Single GPS Multi-band Antenna Installation Guide (4G-LTE-ANTM-O-3-B)
Figure 14
Deployment of an Antenna with Dual Routers
SIM
MODEM
Router A
MAIN
DIV
GPS
RF Splitter
Power
Adapter
+5V
SIM
MODEM
MAIN
DIV
Router B
RF Splitter
GPS
Power
Adapter
AC or DC
power adapters
are available
372747
+5V
Related Documentation

For information about antennas and modules, see:
www.cisco.com/go/cg-modules

For information about omnidirectional and directional antennas, see:
http://www.cisco.com/en/US/tech/tk722/tk809/technologies_tech_note09186a00807f34d3.shtml
Obtaining Documentation and Submitting a Service Request
For information on obtaining documentation, submitting a service request, and gathering additional information, see the monthly
What’s New in Cisco Product Documentation, which also lists all new and revised Cisco technical documentation, at:
http://www.cisco.com/en/US/docs/general/whatsnew/whatsnew.html
114
Cisco Dual LTE-Single GPS Multi-band Antenna Installation Guide (4G-LTE-ANTM-O-3-B)
Subscribe to the What’s New in Cisco Product Documentation as a Really Simple Syndication (RSS) feed and set content to be
delivered directly to your desktop using a reader application. The RSS feeds are a free service and Cisco currently supports
RSS version 2.0.
This document is to be used in conjunction with the documents listed in the “Related Documentation” section.
Cisco and the Cisco logo are trademarks or registered trademarks of Cisco and/or its affiliates in the U.S. and other countries.
To view a list of Cisco trademarks, go to this URL: www.cisco.com/go/trademarks. Third-party trademarks mentioned are the
property of their respective owners. The use of the word partner does not imply a partnership relationship between Cisco and
any other company. (1110R)
@2018 Cisco Systems, Inc. All rights reserved.
115
Cisco Aironet 2.4 GHz 13-dBi Directional
Antenna (AIR-ANT2413P2M-N)
This document outlines the specifications for the Cisco Aironet AIR-ANT2413P2M-N 2.4 GHz 13-dBi 2-Port Directional antenna
with N-type connectors and provides instructions for mounting it. The antenna operates in the 2.4 GHz frequency band and is
designed for use in outdoor environments.
The following information is provided in this document.

Technical Specifications

System Requirements

Safety Precautions

Installation Guidelines

Installing the Antenna
Cisco Systems, Inc.
116
www.cisco.com
Cisco Aironet 2.4 GHz 13-dBi Directional Antenna (AIR-ANT2413P2M-N)
Antenna type
2-Element Patch
Array
Operating frequency range
2400 to 2500 MHz
Nominal input impedance
50 Ohms
Peak gain
13 dBi
Polarization
Linear, Dual
Elevation plane 3-dB
beamwidth
30°
Azimuth plane 3-dB
beamwidth
30°
Sidelobe level
< –20 dBc
Front-to-back ratio
> 25 dB
Cable length and type
30 in. (76.2 cm)
outdoor rated Coax
Connector type
N Male
Length
7.8 in. (19.8 cm)
Width
7.8 in. (19.8 cm)
Height
1.2 in. (3 cm)
Weight
21.6 oz. (0.61 kg)
Operating temperature
range
–40°F to 131°F
(–40°C to 55°C)
334576
Technical Specifications
Elevation and Azimuth Plane Patterns
System Requirements
This antenna is designed for use with Cisco Aironet access points and bridges but can be used with any 2.4-GHz Cisco Aironet
radio device that uses an N-male connector.
117
Cisco Aironet 2.4 GHz 13-dBi Directional Antenna (AIR-ANT2413P2M-N)
Safety Precautions
WARNING: Installation of this antenna near power lines is dangerous. For your safety, follow the installation directions.
WARNING: This warning symbol means danger. You are in a situation that could cause bodily injury. Before you work on any
equipment, be aware of the hazards involved with electrical circuitry and be familiar with standard practices for preventing
accidents.
WARNING: In order to comply with international radio frequency (RF) exposure limits, dish antennas should be located at a
minimum of 8.7 inches (22 cm) or more from the bodies of all persons. Other antennas should be located a minimum of 7.9
inches (20 cm) or more from the bodies of all persons.
WARNING: Do not work on the system or connect or disconnect cables during periods of lightning activity.
WARNING: This equipment must be grounded. Never defeat the ground conductor or operate the equipment in the absence of
a suitably installed ground conductor. Contact the appropriate electrical inspection authority or an electrician if you are uncertain
that suitable grounding is available.
WARNING: Do not locate the antenna near overhead power lines or other electric light or power circuits, or where it can come
into contact with such circuits. When installing the antenna, take extreme care not to come into contact with such circuits, as
they may cause serious injury or death. For proper installation and grounding of the antenna, please refer to national and local
codes (e.g. U.S.:NFPA 70, National Electrical Code, Article 810, in Canada: Canadian Electrical Code, Section 54).
Each year hundreds of people are killed or injured when attempting to install an antenna. In many of these cases, the victim was
aware of the danger of electrocution but did not take adequate steps to avoid the hazard.
For your safety, and to help you achieve a good installation, please read and follow these safety precautions. They may save
your life!
1. If you are installing an antenna for the first time, for your own safety as well as others, seek professional assistance. Your
Cisco sales representative can explain which mounting method to use for the size and type antenna you are about to install.
2. Select your installation site with safety, as well as performance in mind. Remember, electric power lines and phone lines
look alike. For your safety, assume that any overhead line can kill you.
3. Call your electric power company. Tell them your plans and ask them to come look at your proposed installation. This is a
small inconvenience considering your life is at stake.
4. Plan your installation carefully and completely before you begin. Successful raising of a mast or tower is largely a matter of
coordination. Each person should be assigned to a specific task and should know what to do and when to do it. One person
should be in charge of the operation to issue instructions and watch for signs of trouble.
5. When installing your antenna, remember:
a. Do not use a metal ladder.
b. Do not work on a wet or windy day.
c. Do dress properly—shoes with rubber soles and heels, rubber gloves, long sleeved shirt or jacket.
6. If the assembly starts to drop, get away from it and let it fall. Remember, the antenna, mast, cable, and metal guy wires are
all excellent conductors of electrical current. Even the slightest touch of any of these parts to a power line complete an
electrical path through the antenna and the installer: you!
7. If any part of the antenna system should come in contact with a power line, do not touch it or try to remove it yourself.
Call your local power company. They will remove it safely.
8. If an accident should occur with the power lines call for qualified emergency help immediately.
118
Cisco Aironet 2.4 GHz 13-dBi Directional Antenna (AIR-ANT2413P2M-N)
Installation Guidelines
Because the antennas transmit and receive radio signals, they are susceptible to RF obstructions and common sources of
interference that can reduce throughput and range of the device to which they are connected. Follow these guidelines to ensure
the best possible performance:

Mount the antenna as high as possible to take advantage of its propagation characteristics.

Keep the antenna away from metal obstructions such as heating and air-conditioning ducts, large ceiling trusses, building
superstructures, and major power cabling runs. If necessary, use a rigid conduit to lower the antenna away from these
obstructions.

The density of the materials used in a building’s construction determines the number of walls the signal must pass through
and still maintain adequate coverage. Consider the following before choosing the location in which to install your antenna:

—
Paper and vinyl walls have very little affect on signal penetration.
—
Solid and pre-cast concrete walls limit signal penetration to one or two walls without degrading coverage.
—
Concrete and wood block walls limit signal penetration to three or four walls.
—
A signal can penetrate five or six walls constructed of drywall or wood.
—
A thick metal wall causes signals to reflect, causing poor penetration.
Install the antenna away from 5-GHz cordless phones. These products can cause signal interference because they operate
in the same frequency range as the device your antenna is connected to.
Site Selection
Before attempting to install your antenna, determine where you can best place the antenna for safety and performance.
Follow these steps to determine a safe distance from wires, power lines, and trees.
1. Measure the height of your antenna.
2. Add this length to the length of your tower or mast and then double this total for the minimum recommended safe distance.
CAUTION: If you are unable to maintain this safe distance, stop and get professional help.
3. Generally, the higher an antenna is above the ground, the better it performs. Good practice is to install your antenna about
5 to 10 feet (1.5 to 3 m) above the roof line and away from all power lines and obstructions. If possible, find a mounting
place directly above your wireless device so that the lead-in cable can be as short as possible.
Installing the Antenna
You can install the antenna on a pole from 1.63” to 2.3” pipe O.D. The mounting options allow the antenna to be vertically or
horizontally polarized.
Tools and Equipment Required
An installation kit is shipped with the antenna and consists of the panel antenna with adjustable mount and hardware, including:

Antenna mount bracket

Elevation adjustable bracket

Azimuth adjustable bracket
119
Cisco Aironet 2.4 GHz 13-dBi Directional Antenna (AIR-ANT2413P2M-N)

Four 1/4-in. 20x3/4 carriage bolts

Six 1/4-in. 20 hex nuts

Six 1/4-in. 20 spring lock washers

Six 1/4-in. 20 flat washers

Two pipe clamps
To attach the mount to the antenna and secure it to the pole, you need the following tools and equipment, which are not
provided.

7/16-in wrench

5/16-in nut driver or flat head screwdriver for pipe clamps
The following sections contain typical procedures for installing the antenna on a pole. Your installation may vary. Before you
begin, you may want to refer to Figure 1.
Mounting on a Pole
Follow these steps to mount your antenna on a pole.
1. Remove antenna and mount kit from packaging.
2. Attach antenna mount bracket to the back of the antenna as shown applying a maximum nut-tightening torque of 55 in-lbf
(6.2 Nm).
120
Cisco Aironet 2.4 GHz 13-dBi Directional Antenna (AIR-ANT2413P2M-N)
Figure 1
Attaching Antenna Mount Bracket
4
3
2
334630
1
1
Antenna mount bracket
3
1/4-in. spring lock washer
2
1/4-in. flat washer
4
1/4-in. 20 hex nut
3. Attach elevation adjustable bracket as shown and loosely secure hardware. The carriage bolt square holes must be on the
inside.
121
Cisco Aironet 2.4 GHz 13-dBi Directional Antenna (AIR-ANT2413P2M-N)
Figure 2
Attaching Elevation Adjustable Bracket
5
4
3
2
1
2
4
5
334631
3
1
Elevation adjustable bracket
4
1/4-in. spring lock washer
2
1/4-in. 20x3/4 carriage bolt
5
1/4-in. 20 hex nut
3
1/4-in. flat washer
4. Attach azimuth adjustable bracket to pipe routing band clamps as shown. Tighten the pipe clamps to a torque of 43-51
in-lbf (4.9-5.8 Nm).
122
Cisco Aironet 2.4 GHz 13-dBi Directional Antenna (AIR-ANT2413P2M-N)
Figure 3
Attaching Azimuth Adjustable Bracket
1
2
334635
2
1
2
Azimuth adjustable bracket
5. Attach antenna assembly to azimuth bracket on pipe.
123
Pipe clamps
Cisco Aironet 2.4 GHz 13-dBi Directional Antenna (AIR-ANT2413P2M-N)
Figure 4
Attaching Antenna Assembly
3
2
5
1
4
1
5
334638
2
3
1
1/4-in. flat washer
4
Elevation adjustable bracket
2
1/4-in. spring lock washer
5
1/4-in. 20x3/4 carriage bolt
3
1/4-in. 20 hex nut
6. Adjust the position of the antenna to the desired azimuth and elevation angles and tighten all pivot hardware (4 places) to
a maximum torque of 55 in-lbf (6.2 Nm). The bracket allows the antenna position to be adjustable to +/–45 degrees azimuth
and +/–60 degrees elevation.
124
Cisco Aironet 2.4 GHz 13-dBi Directional Antenna (AIR-ANT2413P2M-N)
Adjusting Antenna Position
334640
Figure 5
NOTE: Cisco recommends grounding the antenna. See the Grounding the Antenna for details.
Installing the Optional Mounting Bracket Kit
Using an optional antenna mounting bracket kit, the AIR-ANT2413P2M-N antenna can be mounted directly on an access point
in a strand mount or pole mount environment. The antenna bracket kit contains four bracket sections and fasteners that you can
assemble in multiple configurations to position and aim the directional antenna in a range of positions. For more information on
mounting the antenna with the optional mounting bracket, refer to Installing Antenna Brackets on Cisco 1550 Series Outdoor
Mesh Access Points.
Mounting on a Vertical Surface
The antenna can be wall mounted. Hardware is not included for wall-mount installation.
Follow these steps to mount your antenna on a vertical surface.
1. Remove antenna and mount kit from packaging.
2. Attach antenna mount bracket to the back of the antenna as shown in Figure 1, applying a maximum nut-tightening torque
of 55 in-lbf (6.2 Nm).
3. Attach elevation adjustable bracket as shown in Figure 2 and loosely secure hardware. The carriage bolt square holes must
be on the inside.
4. Using the appropriate customer-supplied anchors and screws, attach the azimuth adjustable bracket to the wall as shown:
125
Cisco Aironet 2.4 GHz 13-dBi Directional Antenna (AIR-ANT2413P2M-N)
Wall Mounting
334653
Figure 6
Figure 7 shows, in inches, the distance between the bracket mounting holes.
Figure 7
Distance Between Bracket Mounting Holes
2.40
347802
2.40
5. Attach antenna assembly to azimuth bracket, as shown in Figure 4.
126
Cisco Aironet 2.4 GHz 13-dBi Directional Antenna (AIR-ANT2413P2M-N)
6. Adjust the position of the antenna to the desired azimuth and elevation angles and tighten all pivot hardware (4 places) to
a maximum torque of 55 in-lbf (6.2 Nm). The bracket allows the antenna position to be adjustable to +/–45 degrees azimuth
and +/–60 degrees elevation.
NOTE: Cisco recommends grounding the antenna. See the Grounding the Antenna for details.
Antenna Cable Information
If the antenna is used with the Cisco 1552CU or 1552EU access point, the port A of the antenna must be connected to port 4
of the access point, port B of the antenna must be connected to port 6 of the access point, and port 5 of the access point must
be capped with the cap enclosed with the antenna.
NOTE: Coaxial cable loses efficiency as the frequency increases, resulting in signal loss. The cable should be kept as short as
possible because cable length also causes signal loss (the longer the run, the greater the loss).
NOTE: The antenna cable has a 0.5 in. (12.7 mm) bend radius. Sharply bending or crimping the cable may cause a degradation
in performance.
The antenna terminates with an N-male plug after a short, 2.5- foot (0.76-m) cable. The mating connector to the antenna is an
appropriate N-female jack. The connector on the opposite end will vary according to the type of equipment used.
After the cable is attached to the antenna, make sure that the connections are sealed (if outdoors) to prevent moisture and other
weathering elements from affecting performance. Cisco recommends using a coax seal (such as CoaxSeal) for outdoor
connections. Silicone sealant or electrical tape are not recommended for sealing outdoor connections.
Grounding the Antenna
Follow these steps to ground the antenna in accordance with national electrical code instructions.
1. Use No. 10 AWG copper or No. 8 or larger copper-clad steel or bronze wire as ground wires for both mast and lead-in.
Securely clamp the wire to the bottom of the mast.
2. Secure the lead-in wire to an antenna discharge unit and the mast ground wire to the building with stand-off insulators
spaced from 4 foot (1.2 m) to 8 foot (2.4 m) apart.
3. Mount the antenna discharge unit as close as possible to where the lead-in wire enters the building.
4. Drill a hole in the building’s wall as close as possible to the equipment to which you will connect the lead-in cable.
5. There may be wires in the wall. Make sure your drilling location is clear of any obstructions or other hazards.
6. Pull the cable through the hole and form a drip loop close to where it enters the building.
7. Thoroughly waterproof the lead-in area.
8. Install a lightning arrestor.
9. Connect the lead-in cable to the equipment.
Obtaining Documentation and Submitting a Service Request
For information on obtaining documentation, submitting a service request, and gathering additional information, see the monthly
What’s New in Cisco Product Documentation, which also lists all new and revised Cisco technical documentation, at:
http://www.cisco.com/en/US/docs/general/whatsnew/whatsnew.html
Subscribe to the What’s New in Cisco Product Documentation as an RSS (Really Simple Syndication) feed, and set it so content
is delivered directly to your desktop using a reader application. The RSS feeds are a free service and Cisco currently supports
RSS Version 2.0.
127
Cisco Aironet 2.4 GHz 13-dBi Directional Antenna (AIR-ANT2413P2M-N)
Cisco and the Cisco Logo are trademarks of Cisco Systems, Inc. and/or its affiliates in the U.S. and other countries. A listing of Cisco's trademarks can be found at
www.cisco.com/go/trademarks. Third party trademarks mentioned are the property of their respective owners. The use of the word partner does not imply a partnership relationship
between Cisco and any other company. (1005R)
128
Cisco Aironet 2.4 GHz 13-dBi Directional Antenna (AIR-ANT2413P2M-N)
129
Cisco Aironet Omnidirectional Antennas
AIR-ANT2450V-N, AIR-ANT2450VG-N,
AIR-ANT2450V-N-HZ, and
AIR-ANT2450HG-N
This document describes the Cisco Aironet AIR-ANT2450V-N, AIR-ANT2450VG-N, AIR-ANT2450V-N-HZ, and
AIR-ANT2450HG-N omnidirectional antennas and provides instructions for mounting. The antennas are designed for outdoor
use with Cisco Aironet Outdoor Access Points (hereafter referred to as access points) with radios operating in the 2.4 GHz
frequency band.
These antennas are functionally the same, and will be referred to as a singular antenna throughout the rest of this guide. The
antennas are:
Table 1
Antenna SKUs
AIR-ANT2450V-N
White-Vertical polarization
AIR-ANT2450VG-N
Gray-Vertical polarization
AIR-ANT2450HG-N
Gray-Horizontal polarization
AIR-ANT2450V-N-HZ
White-Vertical polarization, Hazardous Locations
The following information is provided in this document:

Technical Specifications

System Requirements

Safety Precautions

Installation Notes

Obtaining Documentation and Submitting a Service Request
Cisco Systems, Inc.
130
www.cisco.com
Cisco Aironet Omnidirectional Antennas AIR-ANT2450V-N, AIR-ANT2450VG-N, AIR-ANT2450V-N-HZ, and
Technical Specifications
Antenna Type
Omnidirectional
Operating Frequency Range
2400-2500 MHz
VSWR
2:1
Nominal Input Impedance
50 Ω
Gain
5 dBi
Polarization
AIR-ANT2450VG-N: Vertical
AIR-ANT2450HG-N: Horizontal
Azimuth Plane Ripple
2 dB (Max)
Elevation Plane 3 dB Beamwidth
30° (2400 - 2483 MHz)
Azimuth Plane 3 dB Beamwidth
Omnidirectional
Length
12.9 in (328.5 mm)
Diameter
1.5 in (38.1 mm)
Weight
AIR-ANT2450VG-N: 5.3 oz. (0.15 kg)
AIR-ANT2450HG-N: 6.4 oz. (0.18 kg)
Connector
N-Male
Operational Temperature
-40° to +158°F (-40°C to +70°C)
Storage Temperature
-40° to +185°F (-40°C to +85°C)
Water/Foreign Body Ingress
IP67
Wind Rating (Operational)
100 mph (161 kph)
Radiation Patterns
The AIR-ANT2450V-N, AIR-ANT2450VG-N, and AIR-ANT2450V-N-HZ, share the same radiation patterns. The
AIR-ANT2450HG-N has a different pattern.
131
Cisco Aironet Omnidirectional Antennas AIR-ANT2450V-N, AIR-ANT2450VG-N, AIR-ANT2450V-N-HZ, and
AIR-ANT2450V-N, AIR-ANT2450VG-N, and AIR-ANT2450V-N-HZ
Figure 1
Azimuth Radiation Pattern
Figure 2
Elevation Radiation Pattern
132
Cisco Aironet Omnidirectional Antennas AIR-ANT2450V-N, AIR-ANT2450VG-N, AIR-ANT2450V-N-HZ, and
AIR-ANT2450HG-N
System Requirements
This antenna is designed for use with the Cisco Aironet outdoor access points.
Safety Precautions
WARNING: Do not locate the antenna near overhead power lines or other electric light or power circuits, or where it can come
into contact with such circuits. When installing the antenna, take extreme care not to come into contact with such circuits, as
they may cause serious injury or death. For proper installation and grounding of the antenna, please refer to national and local
codes (e.g. U.S.: NFPA 70, National Electrical Code, Article 810, Canada: Canadian Electrical Code, Section 54). Statement 280
For your safety, read and follow these safety precautions.
1. Before you install an antenna, contact your Cisco account representative to explain which mounting method to use for the
size and type of antenna that you are about to install.
2. Find someone to help you—installing an antenna is often a two-person job.
3. Select your installation site with safety, as well as performance, in mind. Remember that electric power lines and phone
lines look alike. For your safety, assume that any overhead line can kill you.
4. Contact your electric power company. Tell them your plans and ask them to come look at your proposed installation.
5. Plan your installation carefully and completely before you begin. Each person involved in an installation should be assigned
to a specific task and should know what to do and when to do it. One person should be in charge of the operation to issue
instructions and watch for signs of trouble.
6. When installing your antenna, follow these guidelines:
a. Do not use a metal ladder.
b. Do not work on a wet or windy day.
c. Do dress properly—wear shoes with rubber soles and heels, rubber gloves, and a long-sleeved shirt or jacket.
133
Cisco Aironet Omnidirectional Antennas AIR-ANT2450V-N, AIR-ANT2450VG-N, AIR-ANT2450V-N-HZ, and
7. If the assembly starts to drop, move away from it and let it fall. Because the antenna, mast, cable, and metal guy wires are
all excellent conductors of electrical current, even the slightest touch of any of these parts to a power line completes an
electrical path through the antenna and the installer.
8. If any part of the antenna system should come in contact with a power line, do not touch it or try to remove it yourself. Call
your local power company to have it removed safely.
9. If an accident should occur with the power lines, call for qualified emergency help immediately.
Installation Notes
The antenna is designed to connect to a dedicated antenna port on the access point. No special tools are required to install the
antenna.
The antenna is resistant to the full range of outdoor environments. After the antenna is attached to the access point, seal the
connections to prevent moisture and other weathering elements from affecting performance. Cisco recommends using a coax
seal (such as CoaxSeal) for outdoor connections. Silicone sealant or electrical tape are not recommended for sealing outdoor
connections.
Choosing a Mounting Location
The antenna is designed to create an omnidirectional broadcast pattern. To achieve this pattern, the access point should be
mounted clear of any obstructions to the sides of the radiating element. If the mounting location is on the side of a building or
tower, the antenna pattern is degraded on the building or tower side.
Generally, the higher an antenna is above the ground, the better it performs. A practice is to install your antenna about 5 to 10
foot (1.5 to 3 m) above the roof line and away from all power lines and obstructions.
Tools and Equipment Required
No tools are required to mount the antenna to the access point. However, you may need a ¾-in. (19-mm) open end or
combination wrench (or adjustable wrench) to remove the antenna port covers.
For information about tools required to mount the access point, see the appropriate access point documentation.
Mounting the Antenna
To connect the antenna to the access point, follow these steps:
1. If necessary, remove the antenna port cover.
2. Align the antenna’s N connector with the appropriate antenna port.
3. Gently push the antenna into the port.
4. Hand-tighten the antenna.
Obtaining Documentation and Submitting a Service Request
For information on obtaining documentation, submitting a service request, and gathering additional information, see the monthly
What’s New in Cisco Product Documentation, which also lists all new and revised Cisco technical documentation, at:
http://www.cisco.com/c/en/us/td/docs/general/whatsnew/whatsnew.html.
134
Cisco Aironet Omnidirectional Antennas AIR-ANT2450V-N, AIR-ANT2450VG-N, AIR-ANT2450V-N-HZ, and
Subscribe to the What’s New in Cisco Product Documentation as a Really Simple Syndication (RSS) feed and set content to be
delivered directly to your desktop using a reader application. The RSS feeds are a free service and Cisco currently supports
RSS Version 2.0.
Cisco and the Cisco Logo are trademarks of Cisco Systems, Inc. and/or its affiliates in the U.S. and other countries. A listing of
Cisco's trademarks can be found at www.cisco.com/go/trademarks. Third party trademarks mentioned are the property of their
respective owners. The use of the word partner does not imply a partnership relationship between Cisco and any other
company. (1005R)
© 2019 Cisco Systems, Inc. All rights reserved.
135
Cisco Aironet 6.5-dBi Diversity Patch
Antenna (AIR-ANT2465P-R)
This describes the AIR-ANT2465P-R 6-dBi patch antenna specifications and mounting instructions. The antenna
operates in the 2.4-GHz frequency range and is designed for use in both indoor and outdoor environments.
These topics are discussed.

Technical Specifications

System Requirements

Installation Guidelines

Installing the Antenna

Communications, Services, and Additional Information
Cisco Systems, Inc.
136
www.cisco.com
Cisco Aironet 6.5-dBi Diversity Patch Antenna (AIR-ANT2465P-R)
Technical Specifications
Technical Specifications
Antenna type
Diversity patch
Operating frequency range
2400 – 2484 MHz
Nominal input impedance
50 Ohms
2:1 VSWR bandwidth
2400 – 2484 MHz
Peak gain
6.5 dBi
Polarization
Linear, vertical
E-plane 3-dB beamwidth
65°
H-plane 3-dB beamwidth
75°
Front-to-back ratio
15 dB
Cross-pol discrimination
15 dB
Cable length and type
36 in. (91.4 cm)
Times AA-9303 or equivalent (plenum
rated)
Connector type
RP-TNC
Length
4.4 in. (11.1 cm)
Width
6.6 in. (16.7 cm)
Height
1 in. (2.5 cm)
Operating temperature range
–22°F to 158°F (–30°C to 70°C)
Storage temperature range
–40°F to 185°F (–40°C – 85°C)
Environment
Indoor/outdoor
Left Antenna Azimuth and Elevation Pattern
Right Antenna Azimuth and Elevation Pattern
System Requirements
This antenna is designed for use with Cisco Aironet access points and bridges but can be used with any 2.4-GHz Cisco
Aironet radio device that utilizes an RP-TNC connector.
137
Cisco Aironet 6.5-dBi Diversity Patch Antenna (AIR-ANT2465P-R)
Safety Precautions
Safety Precautions
Translated versions of the following safety warnings are provided in the Safety Warnings for Cisco Aironet Antennas,
which is available at http://www.cisco.com.
Warning: This warning symbol means danger. You are in a situation that could cause bodily injury. Before you work
on any equipment, be aware of the hazards involved with electrical circuitry and be familiar with standard practices
for preventing accidents. Use the statement number provided at the end of each warning to locate its translation in
the translated safety warnings that accompanied this device. Statement 1071
SAVE THESE INSTRUCTIONS
Warning: In order to comply with RF exposure limits established in the ANSI C95.1 standards, it is recommended
when using a laptop with a PC card client adapter that the adapter’s integrated antenna is positioned more than 2
inches (5 cm) from your body or nearby persons during extended periods of transmitting or operating time. If the
antenna is positioned less than 2 inches (5 cm) from the user, it is recommended that the user limit exposure time.
Statement 254
Warning: Do not work on the system or connect or disconnect cables during periods of lightning activity. Statement
1001
Warning: Do not locate the antenna near overhead power lines or other electric light or power circuits, or where it
can come into contact with such circuits. When installing the antenna, take extreme care not to come into contact
with such circuits, because they may cause serious injury or death. For proper installation and grounding of the
antenna, please refer to national and local codes (for example, U.S.:NFPA 70, National Electrical Code, Article 810,
Canada: Canadian Electrical Code, Section 54). Statement 1052
Each year hundreds of people are killed or injured when attempting to install an antenna. In many of these cases, the
victim was aware of the danger of electrocution, but did not take adequate steps to avoid the hazard.
For your safety, and to help you achieve a good installation, please read and follow these safety precautions. They may
save your life!
1. If you are installing an antenna for the first time, for your own safety as well as others, seek professional assistance.
Your Cisco sales representative can explain which mounting method to use for the size and type antenna you are
about to install.
2. Select your installation site with safety, as well as performance in mind. Remember: electric power lines and phone
lines look alike. For your safety, assume that any overhead line can kill you.
3. Call your electric power company. Tell them your plans and ask them to come look at your proposed installation. This
is a small inconvenience considering your life is at stake.
4. Plan your installation carefully and completely before you begin. Successful raising of a mast or tower is largely a
matter of coordination. Each person should be assigned to a specific task, and should know what to do and when
to do it. One person should be in charge of the operation to issue instructions and watch for signs of trouble.
5. When installing your antenna, remember:
a. Do not use a metal ladder.
b. Do not work on a wet or windy day.
c. Dress properly—shoes with rubber soles and heels, rubber gloves, long sleeved shirt or jacket.
6. If the assembly starts to drop, get away from it and let it fall. Remember, the antenna, mast, cable, and metal guy
wires are all excellent conductors of electrical current. Even the slightest touch of any of these parts to a power line
complete an electrical path through the antenna and the installer: you!
138
Cisco Aironet 6.5-dBi Diversity Patch Antenna (AIR-ANT2465P-R)
Installation Guidelines
7. If any part of the antenna system should come in contact with a power line, do not touch it or try to remove it
yourself. Call your local power company. They will remove it safely.
8. If an accident should occur with the power lines call for qualified emergency help immediately.
Installation Guidelines
Because the antenna transmits and receives radio signals, they are susceptible to RF obstructions and common sources
of interference that can reduce throughput and range of the device to which they are connected. Follow these guidelines
to ensure the best possible performance:

Mount the antenna to utilize its propagation characteristics. One way to do this is to orient the antenna vertically and
mount it as high as possible.

Keep the antenna away from metal obstructions such as heating and air-conditioning ducts, large ceiling trusses,
building superstructures, and major power cabling runs. If necessary, use a rigid conduit to lower the antenna away
from these obstructions.

The density of the materials used in the building construction determines the number of walls the signal must pass
through and still maintain adequate coverage. Consider the following before choosing the location to install your
antenna:
—
Paper and vinyl walls have very little affect on signal penetration.
—
Solid and pre-cast concrete walls limit signal penetration to one or two walls without degrading coverage.
—
Concrete and wood block walls limit signal penetration to three or four walls.
—
A signal can penetrate five or six walls constructed of drywall or wood.
—
A thick metal wall causes signals to reflect off, causing poor penetration.
—
A chain link fence or wire mesh spaced between 1 and 1 1/2 in. (2.5 and 3.8 cm) acts as a harmonic reflector
that blocks a 2.4-GHz radio signal.

Install the antenna away from microwave ovens and 2-GHz cordless phones. These products can cause signal
interference because they operate in the same frequency range as the device your antenna is connected to.

Install the antenna in a vertical orientation to maximize signal propagation.
Site Selection
Before attempting to install your antenna, determine where you can best place the antenna for safety and performance.
Follow these steps to determine a safe distance from wires, power lines, and trees.
1. Measure the height of your antenna.
2. Add this length to the length of the structure on which you are mounting the antenna and then double this total for
the minimum recommended safe distance.
Caution: If you are unable to maintain this safe distance, stop and get professional help.
Generally, the higher an antenna is above the ground, the better it performs. Good practice is to install your antenna about
5 to 10 foot (1.5 to 3 m) above the roof line and away from all power lines and obstructions. If possible, find a mounting
place directly above your wireless device so that the lead-in cable can be as short as possible.
139
Cisco Aironet 6.5-dBi Diversity Patch Antenna (AIR-ANT2465P-R)
Installing the Antenna
Installing the Antenna
You can install the antenna on any flat indoor or outdoor vertical surface. Hardware for mounting the antenna on drywall
is provided. If you intend to install your antenna on another surface, you must provide the appropriate hardware.
Note: Four mounting screws are provided to mount the antenna. To ensure a safe, reliable, and long-standing installation,
you must use all four screws to mount the antenna.
Tools and Equipment Required
A mounting installation kit is shipped with the antenna and consists of the following hardware:

Four #8 x ¾ screws

Four #8 plastic anchors

Four end caps
You need the following tools and equipment, which are not provided.

A Phillips screwdriver

A drill

A #29 ((0.136-in (3.45 mm)) drill bit (For drywall installation, other surfaces may require a different size.)

A pencil

A small mallet or hammer
Mounting on a Vertical Surface
This procedure describes mounting the antenna on a drywall surface. If you are mounting the antenna on any other type
of surface, your procedure may vary slightly.
To mount your antenna on a vertical surface:
1. Determine the location where you will mount the antenna.
2. Use the antenna as a template to mark the locations of the four mounting holes.
3. Use a drill and #29 drill bit to drill four holes at the locations you marked in Step 2.
4. Start a plastic anchor into each hole.
5. Use a mallet or small hammer to seat the anchors into the wall.
6. Align the antenna’s mounting holes with the anchors.
7. Start a #8 x ¾ screw into each antenna mounting hole.
8. Use a Phillips screwdriver to secure the antenna to the wall. Do not overtighten.
9. Install the end caps into the antenna mounting holes.
10. Remove the yellow outdoor installation warning label from the antenna radome.
140
Cisco Aironet 6.5-dBi Diversity Patch Antenna (AIR-ANT2465P-R)
Communications, Services, and Additional Information
Outdoor Installations
You can mount this antenna outdoors. If you mount the antenna outdoors, you must provide the mounting hardware. For
outdoor installations, Follow the instructions printed on the back of the antenna.
Caution: An orientation arrow is printed on the back of the antenna that indicates the orientation for outdoor
installations. You must install the antenna with the orientation arrow pointing down to prevent any water intrusion
and to provide a drain for any moisture that may accumulate inside the antenna.
Suggested Cable
Cisco recommends a high-quality, low-loss cable for use with the antenna.
Note: Coaxial cable loses efficiency as the frequency increases, resulting in signal loss. The cable should be kept as short
as possible because cable length also determines the amount of signal loss (the longer the run, the greater the loss).
The antenna terminates with a RP-TNC plug after a short, 3 foot (0.91-m) cable. The mating connector to the antenna
is an appropriate RP-TNC jack. The connector on the opposite end will vary according to the type of equipment used.
After the cable is attached to the antenna, ensure that the connections are sealed (if outdoors) to prevent moisture and
other weathering elements from affecting performance. Cisco recommends using a coax seal (such as CoaxSeal) for
outdoor connections. Silicon sealant or electrical tape are not recommended for sealing outdoor connections.
Grounding the Antenna
Follow these steps to ground the antenna in accordance with national electrical code instructions.
1. Use No. 10 AWG copper or No. 8 or larger copper-clad steel or bronze wire as a ground wire.
2. Secure the ground wire to a static discharge unit (lightning arrestor, Cisco Aironet AIR-ACC245LA-R or equivalent)
and then to a suitable building ground. If possible, route the ground wire from the discharge unit to the ground using
stand-off insulators spaced from 4 foot (1.2 m) to 8 foot (2.4 m) apart.
3. Mount the antenna discharge unit as close as possible to where the antenna cable enters the building.
4. Drill a hole in the building’s wall as close as possible to the access point to which you will connect the antenna cable.
Caution: There may be wires in the wall. Ensure that your drilling location is clear of any obstructions or other
hazards.
5. Pull the cable through the hole and form a drip loop close to where it enters the building.
6. Thoroughly waterproof the lead-in area.
7. Connect the antenna cable to the access point.
Communications, Services, and Additional Information

To receive timely, relevant information from Cisco, sign up at Cisco Profile Manager.

To get the business impact you’re looking for with the technologies that matter, visit Cisco Services.

To submit a service request, visit Cisco Support.

To discover and browse secure, validated enterprise-class apps, products, solutions and services, visit Cisco
Marketplace.

To obtain general networking, training, and certification titles, visit Cisco Press.
141
Cisco Aironet 6.5-dBi Diversity Patch Antenna (AIR-ANT2465P-R)
Cisco Bug Search Tool

To find warranty information for a specific product or product family, access Cisco Warranty Finder.
Cisco Bug Search Tool
Cisco Bug Search Tool (BST) is a web-based tool that acts as a gateway to the Cisco bug tracking system that maintains
a comprehensive list of defects and vulnerabilities in Cisco products and software. BST provides you with detailed defect
information about your products and software.
THE SPECIFICATIONS AND INFORMATION REGARDING THE PRODUCTS IN THIS MANUAL ARE SUBJECT TO CHANGE
WITHOUT NOTICE. ALL STATEMENTS, INFORMATION, AND RECOMMENDATIONS IN THIS MANUAL ARE BELIEVED TO
BE ACCURATE BUT ARE PRESENTED WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED. USERS MUST TAKE
FULL RESPONSIBILITY FOR THEIR APPLICATION OF ANY PRODUCTS.
THE SOFTWARE LICENSE AND LIMITED WARRANTY FOR THE ACCOMPANYING PRODUCT ARE INCORPORATED
HEREIN BY THIS REFERENCE. IF YOU ARE UNABLE TO LOCATE THE SOFTWARE LICENSE OR LIMITED WARRANTY,
CONTACT YOUR CISCO REPRESENTATIVE FOR A COPY.
The following information is for FCC compliance of Class A devices: This equipment has been tested and found to comply
with the limits for a Class A digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio-frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a
residential area is likely to cause harmful interference, in which case users will be required to correct the interference at
their own expense.
The following information is for FCC compliance of Class B devices: This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If the equipment causes interference to radio or television reception, which can be determined by turning the
equipment off and on, users are encouraged to try to correct the interference by using one or more of the following
measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.
Modifications to this product not authorized by Cisco could void the FCC approval and negate your authority to operate
the product.
The Cisco implementation of TCP header compression is an adaptation of a program developed by the University of
California, Berkeley (UCB) as part of UCB’s public domain version of the UNIX operating system. All rights reserved.
Copyright © 1981, Regents of the University of California.
NOTWITHSTANDING ANY OTHER WARRANTY HEREIN, ALL DOCUMENT FILES AND SOFTWARE OF THESE SUPPLIERS
ARE PROVIDED “AS IS” WITH ALL FAULTS. CISCO AND THE ABOVE-NAMED SUPPLIERS DISCLAIM ALL WARRANTIES,
EXPRESSED OR IMPLIED, INCLUDING, WITHOUT LIMITATION, THOSE OF MERCHANTABILITY, FITNESS FOR A
PARTICULAR PURPOSE AND NONINFRINGEMENT OR ARISING FROM A COURSE OF DEALING, USAGE, OR TRADE
PRACTICE.
142
Cisco Aironet 6.5-dBi Diversity Patch Antenna (AIR-ANT2465P-R)
Cisco Bug Search Tool
IN NO EVENT SHALL CISCO OR ITS SUPPLIERS BE LIABLE FOR ANY INDIRECT, SPECIAL, CONSEQUENTIAL, OR
INCIDENTAL DAMAGES, INCLUDING, WITHOUT LIMITATION, LOST PROFITS OR LOSS OR DAMAGE TO DATA ARISING
OUT OF THE USE OR INABILITY TO USE THIS MANUAL, EVEN IF CISCO OR ITS SUPPLIERS HAVE BEEN ADVISED OF
THE POSSIBILITY OF SUCH DAMAGES.
Any Internet Protocol (IP) addresses and phone numbers used in this document are not intended to be actual addresses
and phone numbers. Any examples, command display output, network topology diagrams, and other figures included in
the document are shown for illustrative purposes only. Any use of actual IP addresses or phone numbers in illustrative
content is unintentional and coincidental.
All printed copies and duplicate soft copies of this document are considered uncontrolled. See the current online version
for the latest version.
Cisco has more than 200 offices worldwide. Addresses, phone numbers, and fax numbers are listed on the Cisco website
at www.cisco.com/go/offices.
© 2015 Cisco Systems, Inc. All rights reserved.
143
Cisco Aironet 8-dBi Omni-Directional
Antenna (AIR-ANT2480V-N)
This describes the Cisco Aironet AIR-ANT2480V-N 8 dBi Omni-directional Antenna, and provides specifications and mounting
instructions. The antenna operates in the 2400 MHz frequency range and is designed for outdoor use with Cisco Aironet 1500
Series Lightweight Outdoor Mesh Access Points.
These topics are discussed:

Technical Specifications, page 145

System Requirements, page 147

Safety Precautions, page 147

Installation Notes, page 147

Communications, Services, and Additional Information, page 149
Cisco Systems, Inc.
144
www.cisco.com
Cisco Aironet 8-dBi Omni-Directional Antenna (AIR-ANT2480V-N)
Technical Specifications
Specifications
Antenna type
Omni-directional
(collinear array)
Operating frequency range
2400–2484 MHz
VSWR
< 1.7:1
Gain
8 dBi
Polarization
Linear, vertical
Horizontal half-power
beamwidth
10 degrees
Vertical half-power
beamwidth
Omni-directional
Length
19-1/2 in. (49.5
cm)
Tube diameter
3/4 in. (1.91 cm)
Cable length and type
none
Connector
N-male
Operating temperature
–22 to 158° F
(–30 to +70° C)
Wind rating
100 mph
operational,
165 mph gusts
230540
Table 1
(160–265 km/h)
Azimuth Radiation Pattern
Elevation Radiation Pattern
Table 2 on page 146 lists the minimum required attenuation between the access point radio and the antenna when using the
lowest RF power setting. Using a higher RF power setting will require additional attenuation (for a given antenna).
145
Cisco Aironet 8-dBi Omni-Directional Antenna (AIR-ANT2480V-N)
The attenuation can be in the form of an attenuator, coax cable loss, or both. This attenuation is required for the system to meet
the regulatory requirements of the indicated country. Failure to install the minimum amount of attenuation shown results in
non-compliant operation. Table 2 on page 146 shows the required attenuation in dB.
Note: X indicates that the antenna is not authorized for use in that country.
Table 2
Required Attenuation in dB
2.4 GHz Antennas (802.11 B /G)
5 GHz Antennas (802.11 A)
AIR-ANT2480
V-N
2.4 GHZ
8 dBi Omni
AIR-ANT2410
Y-R
2.4 GHZ
10 dBi Yagi
AIR-ANT2414
S-R
2.4 GHZ
14 dBi Sector
AIR-ANT58G1
0SSA-N
5 GHz
9.5 dBi Sector
AIR-ANT5114
P-N
4.9–5.8 GHz
14 dBi Patch
AIR-ANT5117
S-N
4.9–5.8 GHz
17 dBi Sector
Australia
None
None
None
None
–1
–4
China
None
None
None
None
–1
–4
Hong Kong
None
None
None
None
–1
–4
Asia
India
None
None
None
X
X
X
Japan
None
X
X
X
X
X
Korea
X
X
X
X
X
X
New Zealand
None
None
None
None
–1
–4
Singapore
None
–1
–5
None
–1
–4
Taiwan
None
X
X
None
X
X
Thailand
None
–1
–5
X
X
X
Belgium
None
–1
–5
None
–2
–5
Denmark
None
–1
–5
None
–2
–5
Finland
None
–1
–5
None
–2
–5
France
None
–1
–5
None
–2
–5
Germany
None
–1
–5
None
–2
–5
Italy
None
–1
–5
None
–2
–5
Netherlands
None
–1
–5
None
–2
–5
Norway
None
–1
–5
None
–2
–5
Spain
None
–1
–5
None
–2
–5
Sweden
None
–1
–5
None
–2
–5
Switzerland
None
–1
–5
None
–2
–5
United Kingdom
None
–1
–5
None
–2
–5
United States
None
X
X
None
None
None
Canada
None
X
X
None
None
None
Mexico
None
None
None
None
–1
–4
None
None
None
None
–1
–4
EU
North America
South America
Brazil
146
Cisco Aironet 8-dBi Omni-Directional Antenna (AIR-ANT2480V-N)
System Requirements
This antenna is designed for use with Cisco Aironet access points and bridges but can be used with any Cisco Aironet radio
device that uses an N-connector.
Safety Precautions
Warning: Installation of this antenna near power lines is dangerous. For your safety, follow the installation directions.
Each year hundreds of people are killed or injured when attempting to install an antenna. In many of these cases, the victim was
aware of the danger of electrocution but did not take adequate steps to avoid the hazard.
For your safety, and to help you achieve a good installation, please read and follow these safety precautions. They may save
your life!
1. If you are installing an antenna for the first time, for your own safety as well as others, seek professional assistance. Your
Cisco sales representative can explain which mounting method to use for the size and type antenna you are about to install.
2. Select your installation site with safety, as well as performance in mind. Remember: electric power lines and phone lines
look alike. For your safety, assume that any overhead line can kill you.
3. Call your electric power company. Tell them your plans and ask them to come look at your proposed installation. This is a
small inconvenience considering your life is at stake.
4. Plan your installation carefully and completely before you begin. Successful raising of a mast or tower is largely a matter of
coordination. Each person should be assigned a specific task, and should know what to do and when to do it. One person
should be in charge of the operation to issue instructions and watch for signs of trouble.
5. When installing your antenna, remember:
a. Do not use a metal ladder.
b. Do not work on a wet or windy day.
c. Dress properly—shoes with rubber soles and heels, rubber gloves, long sleeved shirt or jacket.
6. If the assembly starts to drop, get away from it and let it fall. Remember, the antenna, mast, cable, and metal guy wires are
all excellent conductors of electrical current. Even the slightest touch of any of these parts to a power line completes an
electrical path through the antenna and the installer: You!
7. If any part of the antenna system should come in contact with a power line, do not touch it or try to remove it yourself.
Call your local power company. They will remove it safely.
8. If an accident should occur with the power lines call for qualified emergency help immediately.
Installation Notes
The antenna is designed to mount on a dedicated mounting panel on the access point. No special tools are required.
The antenna is resistant to the full range of outdoor environments. Therefore, Cisco does not recommend using cable or antenna
waterproofing materials. Using such materials may cause important drainage holes to be blocked. The antenna base has four
drain holes.
There are also drain holes located under the cap at the top of the antenna. These holes allow proper drainage if the antenna is
deployed with the cap pointing towards the ground.
Note: Ensure that the cap is not damaged.
Figure 1 on page 148 shows the location of the drain holes in both the antenna base and under the antenna cap.
147
Cisco Aironet 8-dBi Omni-Directional Antenna (AIR-ANT2480V-N)
Figure 1
Antenna Drain Hole Locations
1
2
232095
2
232096
2
1
Antenna drain hole under the cap
2
Antenna drain holes at the base
Choosing a Mounting Location
The antenna is designed to create an omni-directional broadcast pattern. To achieve this pattern, the access point should be
mounted clear of any obstructions to the sides of the radiating element. If the mounting location is on the side of a building or
tower, the antenna pattern is degraded on the building or tower side.
Generally, the higher an antenna is above the ground, the better it performs. Good practice is to install your antenna about 5 to
10 ft (1.5 to 3 m) above the roof line and away from all power lines and obstructions.
Tools and Equipment Required
No tools are needed to secure the antenna on the 2.4 GHz antenna mounting panel on the access point.
For information about the tools required to mount the access point, reference your access point documentation.
Mounting the Antenna
To mount the antenna on the access point, position the antenna below the antenna connector on the access point and thread
it hand tight, as shown in Figure 2 on page 149.
148
Cisco Aironet 8-dBi Omni-Directional Antenna (AIR-ANT2480V-N)
Figure 2
Antenna Mounting
3
4
2
1
142393
5
1
2.4-GHz antenna
4
Antenna mounting panel
2
5-GHz antenna
5
Access point
3
5-GHz antenna connector
Communications, Services, and Additional Information

To receive timely, relevant information from Cisco, sign up at Cisco Profile Manager.

To get the business impact you’re looking for with the technologies that matter, visit Cisco Services.

To submit a service request, visit Cisco Support.

To discover and browse secure, validated enterprise-class apps, products, solutions and services, visit Cisco Marketplace.

To obtain general networking, training, and certification titles, visit Cisco Press.

To find warranty information for a specific product or product family, access Cisco Warranty Finder.
The following information is for FCC compliance of Class A devices: This equipment has been tested and found to comply with
the limits for a Class A digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial environment. This equipment
generates, uses, and can radiate radio-frequency energy and, if not installed and used in accordance with the instruction
manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to
cause harmful interference, in which case users will be required to correct the interference at their own expense.
The following information is for FCC compliance of Class B devices: This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular installation. If the equipment
causes interference to radio or television reception, which can be determined by turning the equipment off and on, users are
encouraged to try to correct the interference by using one or more of the following measures:

Reorient or relocate the receiving antenna.
149
Cisco Aironet 8-dBi Omni-Directional Antenna (AIR-ANT2480V-N)

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.
Modifications to this product not authorized by Cisco could void the FCC approval and negate your authority to operate the
product.
The Cisco implementation of TCP header compression is an adaptation of a program developed by the University of California,
Berkeley (UCB) as part of UCB’s public domain version of the UNIX operating system. All rights reserved. Copyright © 1981,
Regents of the University of California.
NOTWITHSTANDING ANY OTHER WARRANTY HEREIN, ALL DOCUMENT FILES AND SOFTWARE OF THESE SUPPLIERS ARE
PROVIDED “AS IS” WITH ALL FAULTS. CISCO AND THE ABOVE-NAMED SUPPLIERS DISCLAIM ALL WARRANTIES, EXPRESSED
OR IMPLIED, INCLUDING, WITHOUT LIMITATION, THOSE OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND
NONINFRINGEMENT OR ARISING FROM A COURSE OF DEALING, USAGE, OR TRADE PRACTICE.
IN NO EVENT SHALL CISCO OR ITS SUPPLIERS BE LIABLE FOR ANY INDIRECT, SPECIAL, CONSEQUENTIAL, OR INCIDENTAL
DAMAGES, INCLUDING, WITHOUT LIMITATION, LOST PROFITS OR LOSS OR DAMAGE TO DATA ARISING OUT OF THE USE OR
INABILITY TO USE THIS MANUAL, EVEN IF CISCO OR ITS SUPPLIERS HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH
DAMAGES.
Any Internet Protocol (IP) addresses and phone numbers used in this document are not intended to be actual addresses and
phone numbers. Any examples, command display output, network topology diagrams, and other figures included in the
document are shown for illustrative purposes only. Any use of actual IP addresses or phone numbers in illustrative content is
unintentional and coincidental.
All printed copies and duplicate soft copies of this document are considered uncontrolled. See the current online version for
the latest version.
Cisco has more than 200 offices worldwide. Addresses, phone numbers, and fax numbers are listed on the Cisco website at
www.cisco.com/go/offices.
© 2015-2019 Cisco Systems, Inc. All rights reserved.
150
Cisco Aironet 8-dBi Omni-Directional Antenna (AIR-ANT2480V-N)
151
Cisco Aironet Four-Port Dual-Band
Polarization-Diverse Antenna
(AIR-ANT2513P4M-N)
This document describes the AIR-ANT2513P4M-N antenna and provides electrical specifications and mounting instructions.
The antenna is a four-port polarization-diverse patch array that operates over the 2.4-GHz and 5-GHz Wi-Fi bands. It ships with
an articulating mount for use on flat surfaces and masts and is adjustable in both the horizontal and vertical planes. The radome
is paintable using commonly available non-conductive spray paints, such as Krylon or Rust-Oleum. The antenna is designed for
use in indoor and outdoor environments with Cisco Aironet 3702P and 1570 series access points.
The following information is provided in this document:

Technical Specifications,

System Requirements

Safety Instructions

Installation Notes

Choosing a Mounting Location

Installing the Antenna

Painting the Antenna

Obtaining Documentation and Submitting a Service Request
Cisco Systems, Inc.
152
www.cisco.com
Cisco Aironet Four-Port Dual-Band Polarization-Diverse Antenna (AIR-ANT2513P4M-N)
Technical Specifications
Antenna Type
Dual-Band Polarization Diverse Patch Array
Operating Frequency Ranges
2.4-2.5 GHz
5.15-5.925 GHz
Nominal Input Impedance
50 Ohms
50 Ohms
VSWR
1.6:1
1.5:1 (above 5.7 GHz to 5.9 GHz)
2:1 (from 5.15 GHz to 5.7 GHz)
Peak Gain
13 dBi
13 dBi
Polarization (Ports A & C)
Vertical
Vertical
Polarization (Ports B & D)
Horizontal
Horizontal
Nominal Elevation Plane 3-dB Beamwidth
33 Degrees
27 Degrees
Nominal Azimuth Plane 3-dB Beamwidth
31 Degrees
31 Degrees
V-Pol Maximum Sidelobe Level
-15 dBc
-12 dBc
H-Pol Maximum Sidelobe Level
-10 dBc
-12 dBc
Front-to-Back Ratio
> 30 dB
> 30 dB
Connector Type
N-Female Bulkhead
Length
14.5 in. (36.8 cm)
Width
20 in. (50.7 cm)
Height
0.8 in. (2.11 cm)
Weight
81.1 oz. (2.3 kg)
Water/Foreign Body Ingress
IP67
Operational Wind
100 MPH
Operating Temperature Range
-40° C to 85° C
Figure 1
ANT2513P4M-N front high view
2.4 GHz Antenna Radiation Patterns
153
Cisco Aironet Four-Port Dual-Band Polarization-Diverse Antenna (AIR-ANT2513P4M-N)
2.4 GHz Ports A&C Azimuth Plane
2.4 GHz Ports A&C Elevation Plane
2.4 GHz Ports B&D Azimuth Plane
2.4 GHz Ports B&D Elevation Plane
5 GHz Antenna Radiation Patterns
154
Cisco Aironet Four-Port Dual-Band Polarization-Diverse Antenna (AIR-ANT2513P4M-N)
5 GHz Ports A&C Azimuth Plane
5 GHz Ports A&C Elevation Plane
5 GHz Ports B&D Azimuth Plane
5 GHz Ports B&D Elevation Plane
Antenna and Bracket Dimensions
Figure 2 and Figure 3 show the overall dimensions of the antenna and bracket.
155
Cisco Aironet Four-Port Dual-Band Polarization-Diverse Antenna (AIR-ANT2513P4M-N)
Figure 2
Antenna and Bracket Dimensions (in millimeters)
Figure 3
Rear View of Antenna (dimensions in millimeters)
156
Cisco Aironet Four-Port Dual-Band Polarization-Diverse Antenna (AIR-ANT2513P4M-N)
System Requirements
This antenna is designed for use with Cisco Aironet 3702P and 1570 series access points. The antenna can be mounted on a
wall, a ceiling, or a pole with a maximum diameter of 5 inches (12.7 cm).
Safety Instructions
WARNING: IMPORTANT SAFETY INSTRUCTIONS This warning symbol means danger. You are in a situation that could cause
bodily injury. Before you work on any equipment, be aware of the hazards involved with electrical circuitry and be familiar with
standard practices for preventing accidents. Use the statement number provided at the end of each warning to locate its
translation in the translated safety warnings that accompanied this device. Statement 1071
WARNING: SAVE THESE INSTRUCTIONS Only trained and qualified personnel should be allowed to install, replace, or service
this equipment.Statement 1030
Follow these safety instructions when installing your antenna.

Plan your installation procedure carefully and completely before you begin.

If you are installing an antenna for the first time, for your own safety as well as others, seek professional assistance. Consult
your dealer, who can explain which mounting method to use for the location where you intend to install the antenna.

Select your installation site with safety, as well as performance, in mind. Remember that electric power cables and
telephone lines look alike. For your safety, assume that any line is an electric power line until determined otherwise.
157
Cisco Aironet Four-Port Dual-Band Polarization-Diverse Antenna (AIR-ANT2513P4M-N)

Call your local power company or building maintenance organization if you are unsure about cables close to your mounting
location.

When installing your antenna, do not use a metal ladder. Do dress properly: shoes with rubber soles and heels, rubber
gloves, and a long sleeved shirt or jacket.

If an accident or emergency occurs with the power lines, call for qualified emergency help immediately.
Installation Notes
Because antennas transmit and receive radio signals, they are susceptible to RF obstructions and common sources of
interference that can reduce throughput and range of the device to which they are connected. Follow these guidelines to ensure
the best possible performance:

Mount the antenna to utilize its propagation characteristics. This antenna is designed to radiate energy in a somewhat
narrow beam from the front of the antenna. It should be aimed into the intended coverage area.

Keep the antenna away from metal obstructions such as heating and air-conditioning ducts, large ceiling trusses, building
superstructures, and major power cabling runs. If necessary, use a rigid conduit to lower the antenna away from these
obstructions.

The density of the materials used in a building’s construction determines the number of walls the signal must pass through
and still maintain adequate coverage. Consider the following before choosing the location to install your antenna:

—
Signals penetrate paper, vinyl and drywall the easiest. A signal can penetrate five or six walls constructed of drywall or
wood.
—
Signals are more heavily attenuated passing through concrete and solid-wood walls.
—
Signals often reflect off thick metal walls and may not penetrate at all.
Install the antenna away from microwave ovens and 2-GHz cordless phones. These products can cause signal interference
because they operate in the same frequency range as the device to which your antenna is connected.
Choosing a Mounting Location
The antenna should be mounted clear of any obstructions to the side or front of the enclosure. Keep in mind that this antenna
should be aimed into the intended coverage area, so you should mount the antenna so that the desired mechanical tilt can be
achieved. If possible, mount the antenna near the access point so you can use the shortest possible connecting cables.
Installing the Antenna
You can install the antenna on any flat surface or on a pole with a minimum diameter of 2 inches (5.08 cm) and a maximum
diameter of 5 inches (12.7 cm). The antenna and one mounting flange are connected together when shipped. When mounting
the antenna you need to assemble the bracket hardware, connect the antenna and bracket to the mounting surface, and adjust
the antenna orientation.
Contents of Antenna Bracket Kit
Figure 4 shows the parts included with the antenna bracket.
158
Cisco Aironet Four-Port Dual-Band Polarization-Diverse Antenna (AIR-ANT2513P4M-N)
Figure 4
Antenna Bracket Kit Contents
1
Mounting flange
5
Flat washers
2
Mounting arm
6
Lock washers
3
Arm attachment bolts (5/16-18 x 1-5/8")
7
Arm attachment nuts (5/16-18)
4
Serrated washers
8
Hose clamps (50 – 135 mm adjustment)
NOTE: One flange (not pictured here) ships attached to the antenna. The flange pictured here is the one that you attach to the
wall or the pole.
Tools and Equipment Required
You will need these tools to loosen and tighten the adjustment bolts on the bracket:

A 1/2 in. (13-mm) wrench or socket
To mount the antenna on a wall or ceiling, you will need these supplies:

Four mounting screws or bolts and wall anchors
NOTE: The fasteners and mounting surface should be capable of maintaining a minimum pullout force of 150 pounds (68 kg) to
support the weight of the antenna and bracket plus the potential wind loading on the antenna.
To mount the antenna on a pole or mast, you will need either or both of these supplies:
159
Cisco Aironet Four-Port Dual-Band Polarization-Diverse Antenna (AIR-ANT2513P4M-N)

Slotted screwdriver to tighten the screws on the hose clamps

A 5/16 in. (8mm) socket or box wrench
NOTE: The pole or mast must be rigid enough to hold the weight of the antenna plus the associated forces produced by wind
loads. In addition, the pole or mast must be structurally strong enough to withstand the clamping force of the hose clamps.
You may need the following tools and equipment, which are not provided:

A drill and drill bit

A pencil
Mounting on a Wall or Ceiling
Follow these steps to mount your antenna on a wall or ceiling.
1. Remove the antenna and bracket hardware from the shipping container.
2. Determine the mounting location for the antenna.
NOTE: The fasteners and mounting surface should be capable of maintaining a minimum pullout force of 150 pounds (68
kg) to support the weight of the antenna plus the potential wind loading on the antenna.
3. Attach the mounting bracket to the wall or ceiling using four screws or bolts and anchors through the holes on the bracket.
Figure 5 shows the wall-mount bracket.
Figure 5
Wall-Mount Bracket and Dimensions (in millimeters)
4 slotted holes
for hose clamps
4. Assemble the bracket hardware as shown in Figure 6.
160
Cisco Aironet Four-Port Dual-Band Polarization-Diverse Antenna (AIR-ANT2513P4M-N)
Figure 6
Assembling the Bracket Hardware
5. Make sure you orient the antenna correctly (note the arrow on the back of the antenna that indicates the top of the antenna).
Use a 1/2 in. (13-mm) wrench to loosen the elevation adjustment bolt and the elevation pivot bolt.
6. Adjust the azimuth (side-to-side position) and elevation (up-and-down position) of the antenna. Loosen the adjustment
bolts slightly to allow for adjustment. Azimuth angle can be adjusted ±25 degrees and elevation can be adjusted ±60
degrees. You can use the azimuth and elevation markings on the mounting arm and the wall flange as a guide.
7. After you adjust the antenna position, tighten the adjustment bolts and the pivot bolts. Tighten all bolts to 18.7 +/- 5 lb-ft
(25.4 Nm).
8. Connect the antenna cables to the access point. The antenna ports are labeled A through D, from left to right.
—
On the AP3702P, connect the antenna port A to connector A on the access point, antenna port B to connector B, and
so on.
—
On the AP1570, connect antenna port A to Port 1 on the AP, antenna port B to port 2 on the AP, and so on.
See the Suggested Cable section for cable recommendations.
161
Cisco Aironet Four-Port Dual-Band Polarization-Diverse Antenna (AIR-ANT2513P4M-N)
Mounting on a Pole or Mast
The antenna can be mounted on a pole or mast using two hose clamps.
NOTE: The pole or mast must be rigid enough to hold the weight of the antenna plus the associated forces produced by wind
loads. In addition, the mast must be structurally strong enough to withstand the clamping force of the hose clamps.
To mount the antenna on a pole or mast, follow these steps.
1. Follow steps 1 and 2 from the Mounting on a Wall or Ceiling section.
2. Position and mount the mounting flange (Figure 4) onto the pole or mast using the hose clamps provided in the kit. The
hose clamps should pass through the slots on the mounting flange (Figure 5).
3. Tighten the clamps only enough to hold the flange and antenna in place until the antenna is positioned to its final position.
4. Assemble the antenna and bracket to the flange as shown in Figure 6.
5. Position the antenna, mounting bracket, and hose clamps on the mast.
6. Tighten the hose clamps until the antenna is fully secure on the mast. Ensure that the antenna cannot rotate about the mast.
7. After the antenna is secured on the mast, adjust the azimuth and elevation.
To adjust the azimuth and elevation, use a 1/2 in. (13-mm) wrench to loosen the adjustment bolts. Azimuth can be adjusted
±25 degrees and elevation can be adjusted ±60 degrees.
8. After you adjust the antenna position, tighten the adjustment bolts. Tighten all bolts to 18.7 +/- 5 lb-ft (25.4 Nm).
9. Connect the antenna cables to the access point. The antenna ports are labeled A through D, from left to right. Connect the
antenna port A to connector A on the access point, antenna port B to connector B on the access point, and so on. See the
Suggested Cable section for cable recommendations.
Suggested Cable
Cisco recommends a high-quality, low-loss cable for use with the antenna, such as Cisco AIR-CAB005LL-R-N= (5 foot low-loss
cable with RP-TNC and N-type connectors) for AP3702P, or AIR-CAB005LL-N= or AIR-CAB010LL-N= (5 foot and 10 foot
N-type connectors, respectively) for AP1570. Four cables are required.
NOTE: Coaxial cable loses efficiency as the frequency increases, resulting in signal loss. The cable should be kept as short as
possible because cable length also determines the amount of signal loss (the longer the run, the greater the loss).
Painting the Antenna
Painting the antenna and the bracket does not affect its performance if you use standard exterior-grade, oil-based or latex paint.
Do not use metallic or metallic-flake paints, which will degrade antenna performance.
NOTE: Before painting the antenna, cover the pressure-release vent on the rear, lower-left of the antenna with masking tape to
prevent clogging (Figure 3).
Cisco recommends Krylon Fusion for Plastic or Rust-Oleum for Plastic (which might require a primer coat). For best results,
follow the surface preparation suggestions from the paint manufacturer.
162
Cisco Aironet Four-Port Dual-Band Polarization-Diverse Antenna (AIR-ANT2513P4M-N)
Obtaining Documentation and Submitting a Service Request
For information on obtaining documentation, submitting a service request, and gathering additional information, see the monthly
What’s New in Cisco Product Documentation, which also lists all new and revised Cisco technical documentation, at:
http://www.cisco.com/c/en/us/td/docs/general/whatsnew/whatsnew.html
Subscribe to the What’s New in Cisco Product Documentation as a Really Simple Syndication (RSS) feed and set content to be
delivered directly to your desktop using a reader application. The RSS feeds are a free service and Cisco currently supports
RSS Version 2.0.
Cisco and the Cisco logo are trademarks or registered trademarks of Cisco and/or its affiliates in the U.S. and other countries.
To view a list of Cisco trademarks, go to this URL: www.cisco.com/go/trademarks. Third-party trademarks mentioned are the
property of their respective owners. The use of the word partner does not imply a partnership relationship between Cisco and
any other company. (1721R)
Any Internet Protocol (IP) addresses and phone numbers used in this document are not intended to be actual addresses and
phone numbers. Any examples, command display output, network topology diagrams, and other figures included in the
document are shown for illustrative purposes only. Any use of actual IP addresses or phone numbers in illustrative content is
unintentional and coincidental.
© 2013-2019 Cisco Systems, Inc. All rights reserved.
163
Cisco Aironet Four-Element, MIMO,
Dual-Band Ceiling Mount Omni-Directional
Antenna (AIR-ANT2524V4C-R)
This describes the AIR-ANT2524V4C-R antenna, and provides specifications and mounting instructions. The antenna is a
four-element, MIMO, dual-band antenna that operates in the 2.4 and 5 GHz frequency ranges. The antenna is designed for
ceiling-mounting in an indoor environment.
These topics are discussed:

Technical Specifications

System Requirements

Safety Instructions

Installation Notes

Choosing a Mounting Location

Installing the Antenna

Obtain Documentation and Submit a Service Request
Cisco Systems, Inc.
164
www.cisco.com
Cisco Aironet Four-Element, MIMO, Dual-Band Ceiling Mount Omni-Directional Antenna (AIR-ANT2524V4C-R)
Technical Specifications
Antenna type
4-Element,
Dual-band, Low
Profile Omni
Operating frequency
ranges
2400–2484 MHz
5150–5850 MHz
VSWR
2:1 or less in both
bands
Peak gain
2.4-GHz band: 2 dBi
5-GHz band: 4 dBi
Polarization
Linear
Azimuth plane 3 dB
beamwidth
Omni-directional
Elevation plane 3 dB
beamwidth
2.4 GHz band: 69°
5 GHz band: 60°
Length
7.25 in (18.4 cm)
Width
7.25 in (18.4 cm)
Depth
1 in (2.5 cm)
Weight
1.3 lb (0.59 kg)
Cable
3 foot (91.4 cm)
plenum rated, UV
stable
Connector
RP-TNC
Environment
Indoor
Temperature range
32–133°F
(0–56°C)
330578
Figure 1
165
Cisco Aironet Four-Element, MIMO, Dual-Band Ceiling Mount Omni-Directional Antenna (AIR-ANT2524V4C-R)
2.4 GHz Element 1 Azimuth and Elevation Plane
Patterns
5 GHz Element 1 Azimuth and Elevation Plane
Patterns
2.4 GHz Element 2 Azimuth and Elevation Plane
Patterns
5 GHz Element 2 Azimuth and Elevation Plane
Patterns
166
Cisco Aironet Four-Element, MIMO, Dual-Band Ceiling Mount Omni-Directional Antenna (AIR-ANT2524V4C-R)
2.4 GHz Element 3 Azimuth and Elevation Plane
Patterns
5 GHz Element 3 Azimuth and Elevation Plane
Patterns
2.4 GHz Element 4 Azimuth and Elevation Plane
Patterns
5 GHz Element 4 Azimuth and Elevation Plane
Patterns
System Requirements
This antenna is for indoor use with any Cisco Aironet radio device with dual-band (2.4 and 5 GHz) RP-TNC antenna ports. The
antenna can be mounted on suspended ceiling tiles having a thickness between ½ in. (1.27 cm) and 1 in. (2.54 cm).
Safety Instructions
Follow these safety instructions when installing your antenna.
167
Cisco Aironet Four-Element, MIMO, Dual-Band Ceiling Mount Omni-Directional Antenna (AIR-ANT2524V4C-R)

Plan your installation procedure carefully and completely before you begin.

If you are installing an antenna for the first time, for your own safety as well as others, seek professional assistance. Consult
your dealer, who can explain which mounting method to use for the location where you intend to install the antenna.

Select your installation site with safety, as well as performance, in mind. Remember that electric power cables and
telephone lines look alike. For your safety, assume that any line is an electric power line until determined otherwise.

Call your local power company or building maintenance organization if you are unsure about cables close to your mounting
location.

When installing your antenna:

—
Do not use a metal ladder.
—
Dress properly: shoes with rubber soles and heels, rubber gloves, and a long sleeved shirt or jacket.
If an accident or emergency occurs with the power lines, call for qualified emergency help immediately.
Installation Notes
Because antennas transmit and receive radio signals, they are susceptible to RF obstructions and common sources of
interference that can reduce throughput and range of the device to which they are connected. Follow these guidelines to ensure
the best possible performance:

Mount the antenna to utilize its propagation characteristics. A way to do this is to orient the antenna horizontally as high as
possible at or near the center of its coverage area.

Keep the antenna away from metal obstructions such as heating and air-conditioning ducts, large ceiling trusses, building
superstructures, and major power cabling runs. If necessary, use a rigid conduit to lower the antenna away from these
obstructions.

The density of the materials used in a building’s construction determines the number of walls the signal must pass through
and still maintain adequate coverage. Consider the following before choosing the location to install your antenna:
—
Paper and vinyl walls have very little affect on signal penetration.
—
Solid and pre-cast concrete walls limit signal penetration to one or two walls without degrading coverage.
—
Concrete and wood block walls limit signal penetration to three or four walls.
—
A signal can penetrate five or six walls constructed of drywall or wood.
—
A thick metal wall causes signals to reflect off, causing poor penetration.
—
A wire mesh spaced between 1 and 1 1/2 in. (2.54 and 3.81 cm) acts as a harmonic reflector that blocks a 2.4 GHz
radio signal.

Install the antenna away from microwave ovens and 2-GHz cordless phones. These products can cause signal interference
because they operate in the same frequency range as the device to which your antenna is connected.

Install the antenna horizontally to maximize signal propagation.
168
Cisco Aironet Four-Element, MIMO, Dual-Band Ceiling Mount Omni-Directional Antenna (AIR-ANT2524V4C-R)
Choosing a Mounting Location
Mount the antenna mounted clear of obstructions to the sides of the radiating elements. Generally, the higher an antenna is
above the floor, the better it performs. If possible, mount the antenna on the ceiling panel within 12 in. (30.5 cm) of the access
point so you can connect its cables directly to the access point. If you must mount the antenna farther away from the access
point, try to make the distance as short as possible.
Installing the Antenna
You can install the antenna on a ceiling tile having a thickness between ½ in. (1.27 cm) and 1 in. (2.54 cm).
Tools and Equipment Required
The following tools and equipment are not provided:

1" (2.54 cm) hole saw to create a hole in the suspended ceiling tile.

A step ladder high enough to access your ceiling safely.
Installing the Antenna
The antenna is installed to a suspended ceiling tile with a supplied 1 in. (2.54 cm) plastic nut. See Ceiling Tile Mounting Details
for details.
The antenna cables terminate with a straight RP-TNC plug connector after a 36 in. (91.44 cm) cable. The mating connector to
the antenna on the access point is an RP-TNC jack.
169
Cisco Aironet Four-Element, MIMO, Dual-Band Ceiling Mount Omni-Directional Antenna (AIR-ANT2524V4C-R)
Mounting the Antenna on a Ceiling Tile
Figure 2
Ceiling Tile Mounting Details
Nut
330750
Ceiling Tile
To mount the antenna on a suspended ceiling tile:
1. Mark the mounting location on the ceiling tile.
2. Remove the ceiling tile from the ceiling grids.
3. Use a 1" (2.54 cm) hole saw to cut a hole in the ceiling tile.
4. Insert the antenna cables, one at a time, through the hole in the ceiling tile.
5. Insert the antenna cables, one at a time, through the hole in the plastic nut as shown in Ceiling Tile Mounting Details.
170
Cisco Aironet Four-Element, MIMO, Dual-Band Ceiling Mount Omni-Directional Antenna (AIR-ANT2524V4C-R)
Note: Do not use the rubber gasket when you mount the antenna on a ceiling tile. The gasket is not required for ceiling tile
installations.
6. Ensure that the antenna is properly positioned on the ceiling tile and then tighten the plastic nut hand-tight.
7. Reinstall the ceiling tile.
8. Connect the antenna cables to the access point.
Note: The 5 GHz antenna cables are identified by a orange collar near the connectors. Ensure that you connect these cables
to the 5 GHz antenna connection on the access point.
Suggested Cable
We recommend using a high-quality, low-loss cable with the antenna.
Note: Coaxial cable loses efficiency as the frequency increases, resulting in signal loss. Keep the cable as short as possible as
cable length determines the amount of signal loss (the longer the run, the greater the loss).
Obtain Documentation and Submit a Service Request
For information on obtaining documentation, using the Cisco Bug Search Tool (BST), submitting a service request, and gathering
additional information, see What’s New in Cisco Product Documentation.
To receive new and revised Cisco technical content directly to your desktop, you can subscribe to the What’s New in Cisco
Product Documentation RSS feed. The RSS feeds are a free service.
THE SPECIFICATIONS AND INFORMATION REGARDING THE PRODUCTS IN THIS MANUAL ARE SUBJECT TO CHANGE
WITHOUT NOTICE. ALL STATEMENTS, INFORMATION, AND RECOMMENDATIONS IN THIS MANUAL ARE BELIEVED TO BE
ACCURATE BUT ARE PRESENTED WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED. USERS MUST TAKE FULL
RESPONSIBILITY FOR THEIR APPLICATION OF ANY PRODUCTS.
THE SOFTWARE LICENSE AND LIMITED WARRANTY FOR THE ACCOMPANYING PRODUCT ARE INCORPORATED HEREIN BY
THIS REFERENCE. IF YOU ARE UNABLE TO LOCATE THE SOFTWARE LICENSE OR LIMITED WARRANTY, CONTACT YOUR
CISCO REPRESENTATIVE FOR A COPY.
The following information is for FCC compliance of Class A devices: This equipment has been tested and found to comply with
the limits for a Class A digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial environment. This equipment
generates, uses, and can radiate radio-frequency energy and, if not installed and used in accordance with the instruction
manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to
cause harmful interference, in which case users will be required to correct the interference at their own expense.
The following information is for FCC compliance of Class B devices: This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular installation. If the equipment
causes interference to radio or television reception, which can be determined by turning the equipment off and on, users are
encouraged to try to correct the interference by using one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.
171
Cisco Aironet Four-Element, MIMO, Dual-Band Ceiling Mount Omni-Directional Antenna (AIR-ANT2524V4C-R)
Modifications to this product not authorized by Cisco could void the FCC approval and negate your authority to operate the
product.
The Cisco implementation of TCP header compression is an adaptation of a program developed by the University of California,
Berkeley (UCB) as part of UCB’s public domain version of the UNIX operating system. All rights reserved. Copyright © 1981,
Regents of the University of California.
NOTWITHSTANDING ANY OTHER WARRANTY HEREIN, ALL DOCUMENT FILES AND SOFTWARE OF THESE SUPPLIERS ARE
PROVIDED “AS IS” WITH ALL FAULTS. CISCO AND THE ABOVE-NAMED SUPPLIERS DISCLAIM ALL WARRANTIES, EXPRESSED
OR IMPLIED, INCLUDING, WITHOUT LIMITATION, THOSE OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND
NONINFRINGEMENT OR ARISING FROM A COURSE OF DEALING, USAGE, OR TRADE PRACTICE.
IN NO EVENT SHALL CISCO OR ITS SUPPLIERS BE LIABLE FOR ANY INDIRECT, SPECIAL, CONSEQUENTIAL, OR INCIDENTAL
DAMAGES, INCLUDING, WITHOUT LIMITATION, LOST PROFITS OR LOSS OR DAMAGE TO DATA ARISING OUT OF THE USE OR
INABILITY TO USE THIS MANUAL, EVEN IF CISCO OR ITS SUPPLIERS HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH
DAMAGES.
Any Internet Protocol (IP) addresses and phone numbers used in this document are not intended to be actual addresses and
phone numbers. Any examples, command display output, network topology diagrams, and other figures included in the
document are shown for illustrative purposes only. Any use of actual IP addresses or phone numbers in illustrative content is
unintentional and coincidental.
All printed copies and duplicate soft copies are considered un-Controlled copies and the original on-line version should be
referred to for latest version.
Cisco has more than 200 offices worldwide. Addresses, phone numbers, and fax numbers are listed on the Cisco website at
www.cisco.com/go/offices.
172
Cisco Aironet Four-Element, MIMO, Dual-Band Ceiling Mount Omni-Directional Antenna (AIR-ANT2524V4C-R)
173
Cisco Aironet Dual-Band MIMO
Wall-Mounted Omnidirectional Antenna
(AIR-ANT2544V4M-R)
This document outlines the specifications for the Cisco Aironet 2.4-GHz/5-GHz Dual-Band MIMO Wall-Mounted
Omnidirectional Antenna (AIR-ANT2544V4M-R) and provides instructions for mounting it. The antenna operates in the 2.4- and
5-GHz frequency ranges and is designed for indoor or outdoor use.
The following information is provided in this document.

Technical Specifications

System Requirements

Safety Precautions

Installation Notes

Installing the Antenna

Suggested Cable

Obtain Documentation and Submit a Service Request
Cisco Systems, Inc.
174
www.cisco.com
Cisco Aironet Dual-Band MIMO Wall-Mounted Omnidirectional Antenna (AIR-ANT2544V4M-R)
Technical Specifications
Antenna type
4-element MIMO
omnidirectional
Operating frequency
range
2400–2484 MHz
Nominal input
impedance
50 Ohms
VSWR
2:1 or less
Peak gain
2.4-GHz band: 4 dBi
5150–5850 MHz
5-GHz band: 4 dBi
Polarization
Linear, vertical
Azimuth plane
(3 dB beamwidth)
Ominidirectional
Elevation plane
(3 dB beamwidth
2.4-GHz band: 60°
Length
8.6 in (21.8 cm)
Diameter
6.3 in (16 cm)
Weight
Antenna: 1.48 lb.
(671.5 g);
Cable
3 foot (91.4 cm) plenum
Connector
RP-TNC
Environment
Indoor/outdoor
Temperature range
-22° F to 158° F
(-30° C to 70° C)
332312
5-GHz band: 33°
The figures below show the azimuth plane patterns (indicated by red lines) and elevation plane patterns (indicated by blue lines)
for each element in the antenna.
175
Cisco Aironet Dual-Band MIMO Wall-Mounted Omnidirectional Antenna (AIR-ANT2544V4M-R)
2.4-GHz Antenna 1 Azimuth and Elevation Plane
Patterns
5-GHz Antenna 1 Azimuth and Elevation Plane
Patterns
2.4-GHz Antenna 2 Azimuth and Elevation Plane
Patterns
5-GHz Antenna 2 Azimuth and Elevation Plane
Patterns
176
Cisco Aironet Dual-Band MIMO Wall-Mounted Omnidirectional Antenna (AIR-ANT2544V4M-R)
2.4-GHz Antenna 3 Azimuth and Elevation Plane
Patterns
5-GHz Antenna 3 Azimuth and Elevation Plane
Patterns
2.4-GHz Antenna 4 Azimuth and Elevation Plane
Patterns
5-GHz Antenna 4 Azimuth and Elevation Plane
Patterns
System Requirements
This antenna is designed for indoor and outdoor use with any Cisco Aironet radio device with dual-band (2.4- and 5-GHz)
RP-TNC connectors.
177
Cisco Aironet Dual-Band MIMO Wall-Mounted Omnidirectional Antenna (AIR-ANT2544V4M-R)
Safety Precautions
CAUTION: Do not locate the antenna near overhead power lines or other electric light or power circuits, or where it can come
into contact with such circuits. When installing the antenna, take extreme care not to come into contact with such circuits, as
they may cause serious injury or death. For proper installation and grounding of the antenna, please refer to national and local
codes (e.g. U.S.: NFPA 70, National Electrical Code, Article 810, Canada: Canadian Electrical Code, Section 54). Statement 280
For your safety, read and follow these safety precautions.
1. Before you install an antenna, contact your Cisco account representative to explain which mounting method to use for the
size and type of antenna that you are about to install.
2. Find someone to help you—installing an antenna is often a two-person job.
3. Select your installation site with safety, as well as performance, in mind. Remember that electric power lines and phone
lines look alike. For your safety, assume that any overhead line can kill you.
4. Contact your electric power company. Tell them your plans and ask them to come look at your proposed installation.
5. Plan your installation carefully and completely before you begin. Each person involved in an installation should be assigned
to a specific task, and should know what to do and when to do it. One person should be in charge of the operation to issue
instructions and watch for signs of trouble.
6. When installing your antenna, follow these guidelines:
a. Do not use a metal ladder.
b. Do not work on a wet or windy day.
c. Do dress properly—wear shoes with rubber soles and heels, rubber gloves, and a long-sleeved shirt or jacket.
7. If the assembly starts to drop, move away from it and let it fall. Because the antenna, mast, cable, and metal guy wires are
all excellent conductors of electrical current, even the slightest touch of any of these parts to a power line completes an
electrical path through the antenna and the installer.
8. If any part of the antenna system should come in contact with a power line, do not touch it or try to remove it yourself. Call
your local power company to have it removed safely.
9. If an accident should occur with the power lines, call for qualified emergency help immediately.
Installation Notes
Antennas transmit and receive radio signals which are susceptible to RF obstructions and common sources of interference that
can reduce throughput and range of the device to which they are connected. Follow these guidelines to ensure the best possible
performance:

Install the antenna vertically and mount it with the cables pointing towards the ground.

Keep the antenna away from metal obstructions such as heating and air-conditioning ducts, large ceiling trusses, building
superstructures, and major power cabling runs. If necessary, use a rigid conduit to lower the antenna away from these
obstructions.

The density of the materials used in a building’s construction determines the number of walls the signal can pass through
and still maintain adequate signal strength. Consider the following before choosing the location for your antenna:
—
Signals penetrate paper and vinyl walls with little change to signal strength.
—
Signals penetrate only one or two solid and pre-cast concrete walls without degrading signal strength.
178
Cisco Aironet Dual-Band MIMO Wall-Mounted Omnidirectional Antenna (AIR-ANT2544V4M-R)

—
Signals penetrate three or four concrete and wood block walls without degrading signal strength.
—
Signals penetrate five or six walls constructed of drywall or wood without degrading signal strength.
—
Signals will likely reflect off a thick metal wall and may not penetrate it at all.
—
Signals will likely reflect off a chain link fence or wire mesh spaced between 1 and 1 1/2 in. (2.5 and 3.8 cm). The fence
acts as a harmonic reflector that blocks the signal.
Install the antenna away from microwave ovens and 2-GHz cordless phones. These products can cause signal interference
because they operate in the same frequency range as the device to which your antenna is connected.
Choosing a Mounting Location
The antenna should be mounted clear of any obstructions to the sides of the radiating elements. Generally, the higher an antenna
is above the floor, the better it performs. If possible, find a mounting place directly above your wireless device to ensure the
lead-in cable can be as short as possible.
Installing the Antenna
You can install the antenna on any flat vertical surface, on a pole, or on a ceiling. All hardware for mounting the antenna on a
wall or ceiling is provided. If you intend to install your antenna on another surface, you must provide the appropriate hardware.
Tools and Equipment Required
A mounting installation kit is included with the antenna and consists of the following hardware:

Mount interface bracket

Mount base

Wall bracket

One 1/4–20 x ½-in. cap screw

One 1/4–20 wing screw

Two #10 x ¾-in. screws

Two #10 x ½-in. screws

One screen mesh washer

One spherical washer

3/16 allen wrench

Rubber gasket

Jam nut
You may need the following tools and equipment, which are not provided.

A #2 Phillips screwdriver

A drill and drill bit

A pencil

Two hose clamps
179
Cisco Aironet Dual-Band MIMO Wall-Mounted Omnidirectional Antenna (AIR-ANT2544V4M-R)
Mounting on a Vertical Surface
Follow these steps to mount your antenna on a vertical surface.
1. Attach the antenna bracket to the antenna using the jam nut provided (Figure 1).
Figure 1
Antenna Bracket
2. With the screen mesh washer between the two brackets, attach the antenna bracket to the mounting bracket using the
spherical washer and wing bolt provided (Figure 2).
180
Cisco Aironet Dual-Band MIMO Wall-Mounted Omnidirectional Antenna (AIR-ANT2544V4M-R)
Figure 2
Antenna Bracket Attached to Mounting Bracket
3. Determine the mounting location for the antenna.
4. Attach the wall bracket to the wall using the two screws provided (Figure 3).
181
Cisco Aironet Dual-Band MIMO Wall-Mounted Omnidirectional Antenna (AIR-ANT2544V4M-R)
Figure 3
Wall Mounting
5. Slide the mounting bracket onto the wall bracket and secure it in place (optional) with the two screws provided (Figure 4).
Figure 4
Attaching Mounting Bracket to Wall Bracket
Once the antenna is secured on the wall, you can adjust the azimuth and elevation.
6. To adjust the azimuth and elevation, loosen the bolt that attaches the antenna bracket to the mounting bracket (Figure 5).
Azimuth can be adjusted ±90 degrees. Elevation can be adjusted +15 degrees and -35 degrees.
182
Cisco Aironet Dual-Band MIMO Wall-Mounted Omnidirectional Antenna (AIR-ANT2544V4M-R)
Figure 5
Azimuth and Elevation Adjustment
Outdoor Installations
You can mount this antenna outdoors. If you mount the antenna outdoors, you must ensure that the antenna cables exit from
the bottom to prevent any water intrusion and to provide a drain for any moisture that may accumulate inside the antenna.
Mounting on a Ceiling
To mount the antenna on a ceiling, follow these steps:
1. Drill a hole in the ceiling approximately 1.25 in. in diameter.
2. Fit the rubber gasket onto the bottom of the antenna.
3. Insert the antenna shaft through the hole in the ceiling.
4. Thread the jam nut onto the antenna shaft and tighten.
Figure 6 shows the ceiling mount process.
183
Cisco Aironet Dual-Band MIMO Wall-Mounted Omnidirectional Antenna (AIR-ANT2544V4M-R)
Figure 6
Mounting on a Ceiling
Mounting on a Mast
The antenna can be mounted on a mast rather than on a wall using two 1/2 inch-wide hose clamps (not provided).
To mount the antenna on a mast, follow these steps:
1. Follow Steps 1 and Step 2 from the Mounting on a Vertical Surface.
2. Position the antenna, mounting bracket, and hose clamps on the mast.
3. Tighten the hose clamps until the antenna is secure on the mast.
Once the antenna is secured on the mast, you can adjust the azimuth and elevation.
4. To adjust the azimuth and elevation, loosen the bolt that attaches the antenna bracket to the mounting bracket (Figure 5).
Azimuth can be adjusted ±90 degrees. Elevation can be adjusted +15 degrees and -35 degrees.
184
Cisco Aironet Dual-Band MIMO Wall-Mounted Omnidirectional Antenna (AIR-ANT2544V4M-R)
Suggested Cable
Cisco recommends a high-quality, low-loss cable for use with the antenna.
NOTE: Coaxial cable loses efficiency as the frequency increases, resulting in signal loss. The cable should be kept as short as
possible because cable length also determines the amount of signal loss (the longer the run, the greater the loss).
Obtain Documentation and Submit a Service Request
For information on obtaining documentation, using the Cisco Bug Search Tool (BST), submitting a service request, and gathering
additional information, see What’s New in Cisco Product Documentation.
To receive new and revised Cisco technical content directly to your desktop, you can subscribe to the What’s New in Cisco
Product Documentation RSS feed. The RSS feeds are a free service.
Cisco and the Cisco logo are trademarks or registered trademarks of Cisco and/or its affiliates in the U.S. and other countries. To view a list of Cisco trademarks, go to this URL:
www.cisco.com/go/trademarks. Third-party trademarks mentioned are the property of their respective owners. The use of the word partner does not imply a partnership relationship
between Cisco and any other company. (1721R)
Any Internet Protocol (IP) addresses and phone numbers used in this document are not intended to be actual addresses and phone numbers. Any examples, command display output,
network topology diagrams, and other figures included in the document are shown for illustrative purposes only. Any use of actual IP addresses or phone numbers in illustrative
content is unintentional and coincidental.
185
Cisco Aironet Dual-Band Omni-Directional
Antenna (AIR-ANT2547V-N,
AIR-ANT2547V-N-HZ, and
ANT2547VG-N)
This describes the Cisco Aironet AIR-ANT2547V-N, AIR-ANT2547V-N-HZ, and ANT2547VG-N dual-band omni-directional
antennas and provides specifications and mounting instructions. These antennas are designed for outdoor use with Cisco
Aironet Outdoor Access Points with radios operating in the 2.4 GHz and 5 GHz frequency bands.
These three antennas are functionally the same, and will be referred to as a singular antenna throughout the rest of this guide.
The three antennas are:
Table 1
Antenna SKUs
AIR-ANT2547V-N
White
AIR-ANT2547VG-N
Gray
AIR-ANT2547V-N-HZ
White, Hazardous Locations
These topics are discussed:

Technical Specifications

System Requirements

Safety Precautions

Installation Notes
Cisco Systems, Inc.
186
www.cisco.com
Cisco Aironet Dual-Band Omni-Directional Antenna (AIR-ANT2547V-N, AIR-ANT2547V-N-HZ, and ANT2547VG-N)
Technical Specifications
Antenna type
Omni-directional colinear
array
Operating frequency range
2400–2483 MHz; 5150–5875
MHz
2:1 VSWR bandwidth
2400–2483 MHz; 5150–5875
MHz
Nominal input impedance
50 Ohms
Gain (2400–2483 MHz)
4-dBi
Gain (5250–5875 MHz)
7-dBi
Polarization
Linear
E-plane 3-dB beamwidth
2.4 GHz: 30° for
5 GHz 14°
H-plane 3-dB bandwidth
Omni-directional
Length
11.1 in. (28.2 cm)
Diameter
1.25 in. (3.17 cm)
Weight
6.0 oz. (170.0 g)
Connector type
N-Male
Mounting
To mast mount the antenna you
must purchase the U-bolt
bracket from a third party
Operating temperature
-40–185°F
(-40–85°C)
Water/Foreign Body Ingress
IP66, IP67
Wind rating
100 mph (161 kph) operational
165 mph (265 kph) survival
231296
Table 2
187
Cisco Aironet Dual-Band Omni-Directional Antenna (AIR-ANT2547V-N, AIR-ANT2547V-N-HZ, and ANT2547VG-N)
Table 2
Azimuth Radiation Pattern (2.4 GHz)
Elevation Radiation Pattern (2.4 GHz)
Azimuth Radiation Pattern (5 GHz)
Elevation Radiation Pattern (5 GHz)
System Requirements
This antenna is designed for use with the Cisco Aironet Outdoor Access Points, specifically Cisco Aironet 1550 Series Outdoor
Access Points.
Safety Precautions
WARNING: Do not locate the antenna near overhead power lines or other electric light or power circuits, or where it can come
into contact with such circuits. When installing the antenna, take extreme care not to come into contact with such circuits, as
they may cause serious injury or death. For proper installation and grounding of the antenna, please refer to national and local
codes (e.g. U.S.: NFPA 70, National Electrical Code, Article 810, Canada: Canadian Electrical Code, Section 54). Statement 280
188
Cisco Aironet Dual-Band Omni-Directional Antenna (AIR-ANT2547V-N, AIR-ANT2547V-N-HZ, and ANT2547VG-N)
For your safety, read and follow these safety precautions.
1. Before you install an antenna, contact your Cisco account representative to explain which mounting method to use for the
size and type of antenna that you are about to install.
2. Find someone to help you—installing an antenna is often a two-person job.
3. Select your installation site with safety, as well as performance, in mind. Remember that electric power lines and phone
lines look alike. For your safety, assume that any overhead line can kill you.
4. Contact your electric power company. Tell them your plans and ask them to come look at your proposed installation.
5. Plan your installation carefully and completely before you begin. Each person involved in an installation should be assigned
to a specific task and should know what to do and when to do it. One person should be in charge of the operation to issue
instructions and watch for signs of trouble.
6. When installing your antenna, follow these guidelines:
a. Do not use a metal ladder.
b. Do not work on a wet or windy day.
c. Dress properly: wear shoes with rubber soles and heels, rubber gloves, and a long-sleeved shirt or jacket.
7. If the assembly starts to drop, move away from it and let it fall. Because the antenna, mast, cable, and metal guy wires are
all excellent conductors of electrical current, even the slightest touch of any of these parts to a power line completes an
electrical path through the antenna and the installer.
8. If any part of the antenna system should come in contact with a power line, do not touch it or try to remove it yourself.
Call your local power company to have it removed safely.
9. If an accident should occur with the power lines, call for qualified emergency help immediately.
Installation Notes
The antenna is designed to connect to a dedicated antenna port on the access point. No special tools are required to install the
antenna directly to the access point. The antenna can also be mounted on a mast. To mast mount the antenna, you must
purchase a suitable U-bolt bracket from a third party.
The antenna is resistant to the full range of outdoor environments. After the antenna is attached to the access point, seal the
connections to prevent moisture and other weathering elements from affecting performance. Cisco recommends using a coax
seal (such as CoaxSeal) for outdoor connections. Silicone sealant or electrical tape are not recommended for sealing outdoor
connections.
Choosing a Mounting Location
The antenna is designed to create an omni-directional broadcast pattern. To achieve this pattern, mount the access point clear
of obstructions to the sides of the radiating element. If the mounting location is on the side of a building or tower, the antenna
pattern is degraded by the building or tower side. Generally, the higher an antenna is above the ground, the better it performs.
Install your antenna about 5 to 10 foot (1.5 to 3 m) above the roof line and away from all power lines and obstructions.
Tools and Equipment Required
No tools are required to mount the antenna directly to the access point. However, you may need a ¾-in. (19-mm) open end or
combination wrench (or adjustable wrench) to remove the antenna port covers. To mast mount the antenna, you must purchase
the U-bolt bracket from a third party.
For information about tools required to mount the access point, see the appropriate access point documentation.
189
Cisco Aironet Dual-Band Omni-Directional Antenna (AIR-ANT2547V-N, AIR-ANT2547V-N-HZ, and ANT2547VG-N)
Mounting the Antenna
To connect the antenna to the access point:
1. If necessary, remove the antenna port cover.
2. Align the antenna’s N connector with the appropriate antenna port.
3. Gently push the antenna into the port.
4. Tighten the antenna hand tight.
Obtaining Documentation and Submitting a Service Request
For information on obtaining documentation, using the Cisco Bug Search Tool (BST), submitting a service request, and gathering
additional information, see What’s New in Cisco Product Documentation.
To receive new and revised Cisco technical content directly to your desktop, you can subscribe to the What’s New in Cisco
Product Documentation RSS feed. The RSS feeds are a free service.
THE SPECIFICATIONS AND INFORMATION REGARDING THE PRODUCTS IN THIS MANUAL ARE SUBJECT TO CHANGE
WITHOUT NOTICE. ALL STATEMENTS, INFORMATION, AND RECOMMENDATIONS IN THIS MANUAL ARE BELIEVED TO BE
ACCURATE BUT ARE PRESENTED WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED. USERS MUST TAKE FULL
RESPONSIBILITY FOR THEIR APPLICATION OF ANY PRODUCTS.
THE SOFTWARE LICENSE AND LIMITED WARRANTY FOR THE ACCOMPANYING PRODUCT ARE SET FORTH IN THE
INFORMATION PACKET THAT SHIPPED WITH THE PRODUCT AND ARE INCORPORATED HEREIN BY THIS REFERENCE. IF YOU
ARE UNABLE TO LOCATE THE SOFTWARE LICENSE OR LIMITED WARRANTY, CONTACT YOUR CISCO REPRESENTATIVE FOR
A COPY.
The following information is for FCC compliance of Class A devices: This equipment has been tested and found to comply with
the limits for a Class A digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial environment. This equipment
generates, uses, and can radiate radio-frequency energy and, if not installed and used in accordance with the instruction
manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to
cause harmful interference, in which case users will be required to correct the interference at their own expense.
The following information is for FCC compliance of Class B devices: This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular installation. If the equipment
causes interference to radio or television reception, which can be determined by turning the equipment off and on, users are
encouraged to try to correct the interference by using one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.
Modifications to this product not authorized by Cisco could void the FCC approval and negate your authority to operate the
product.
190
Cisco Aironet Dual-Band Omni-Directional Antenna (AIR-ANT2547V-N, AIR-ANT2547V-N-HZ, and ANT2547VG-N)
The Cisco implementation of TCP header compression is an adaptation of a program developed by the University of California,
Berkeley (UCB) as part of UCB’s public domain version of the UNIX operating system. All rights reserved. Copyright © 1981,
Regents of the University of California.
NOTWITHSTANDING ANY OTHER WARRANTY HEREIN, ALL DOCUMENT FILES AND SOFTWARE OF THESE SUPPLIERS ARE
PROVIDED “AS IS” WITH ALL FAULTS. CISCO AND THE ABOVE-NAMED SUPPLIERS DISCLAIM ALL WARRANTIES, EXPRESSED
OR IMPLIED, INCLUDING, WITHOUT LIMITATION, THOSE OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND
NONINFRINGEMENT OR ARISING FROM A COURSE OF DEALING, USAGE, OR TRADE PRACTICE.
IN NO EVENT SHALL CISCO OR ITS SUPPLIERS BE LIABLE FOR ANY INDIRECT, SPECIAL, CONSEQUENTIAL, OR INCIDENTAL
DAMAGES, INCLUDING, WITHOUT LIMITATION, LOST PROFITS OR LOSS OR DAMAGE TO DATA ARISING OUT OF THE USE OR
INABILITY TO USE THIS MANUAL, EVEN IF CISCO OR ITS SUPPLIERS HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH
DAMAGES.
Any Internet Protocol (IP) addresses and phone numbers used in this document are not intended to be actual addresses and
phone numbers. Any examples, command display output, network topology diagrams, and other figures included in the
document are shown for illustrative purposes only. Any use of actual IP addresses or phone numbers in illustrative content is
unintentional and coincidental.
All printed copies and duplicate soft copies are considered un-Controlled copies and the original on-line version should be
referred to for latest version.
Cisco has more than 200 offices worldwide. Addresses, phone numbers, and fax numbers are listed on the Cisco website at
www.cisco.com/go/offices.
© 2013-2019 Cisco Systems, Inc. All rights reserved.
191
Cisco Aironet 2.4 GHz and 5 GHz
Dual-Band Polarization-Diverse Directional
Array Antenna (AIR-ANT2566D4M-R)
This document describes the Cisco Aironet 2.4 GHz and 5 GHz Dual-Band Polarization-Diverse Directional Array Antenna
(AIR-ANT2566D4M-R), and provides electrical specifications and mounting instructions.
The AIR-ANT2566D4M-R antenna is a four-port polarization-diverse array that operates over the 2.4 GHz and 5 GHz Wi-Fi
bands. It ships with an articulating mount for use on flat surfaces and masts, and is adjustable in both horizontal and vertical
planes. The radome can be painted using commonly available non-conductive spray paints, such as Krylon or Rust-Oleum.
The antenna is designed for use in indoor and outdoor environments with an approved Cisco Aironet access point that requires
four dual-band antennas.
The following information is provided in this document:

Technical Specifications

Azimuth and Elevation Radiation Patterns

Safety Precautions

Installation Notes

Contents of the Antenna and Bracket Kit

Dimensions of the Antenna and Brackets

Installing the Antenna

Obtain Documentation and Submit a Service Request
Cisco Systems, Inc.
#
www.cisco.com
Cisco Aironet 2.4 GHz and 5 GHz Dual-Band Polarization-Diverse Directional Array Antenna (AIR-ANT2566D4M-R)
Obtain Documentation and Submit a Service Request
Technical Specifications
Antenna Type
Dual-Band Polarization-Diverse Directional Array
Operating Frequency Ranges
2.4–2.5 GHz
5.15–5.925 GHz
Nominal Input Impedance
50 Ohms
50 Ohms
Voltage Standing Wave Ratio (VSWR)
2:1
2:1
Peak Gain
6 dBi
6 dBi
Polarization (Ports A & C)
Vertical
Vertical
Polarization (Ports B & D)
Horizontal
Horizontal
Nominal Elevation Plane 3-dB Beamwidth
65°
60°
Nominal Azimuth Plane 3-dB Beamwidth
65°
55°
Front-to-Back Ratio
> 12 dB
> 20 dB
Port-to-Port Isolation
> 30 dB
> 30 dB
> or = to 30º Elevation Peak Gain
3 dBi
Connector Type
RP-TNC (with coupling ring)
Cable Length
3 foot
Length
10 in. (25.4 cm)
Width
10 in. (25.4 cm)
Height
1.61 in. (4.1 cm)
Weight
2.5 lbs. (1.13 kg)
Water/Foreign Body Ingress
IP-67
Operational Wind
100 MPH
Operating Temperature Range
-40° C to 70° C
Storage Temperature Range
-40° C to 85° C
481
Cisco Aironet 2.4 GHz and 5 GHz Dual-Band Polarization-Diverse Directional Array Antenna (AIR-ANT2566D4M-R)
Azimuth and Elevation Radiation Patterns
Safety Precautions
WARNING: Installation of this antenna near power lines is dangerous. For your safety, follow the installation directions.
Each year, hundreds of people are killed or injured when attempting to install an antenna. In many of these cases, the victim was
aware of the danger of electrocution, but did not take adequate steps to avoid the hazard.
For your safety, and to help you achieve a good installation, read and follow these safety precautions. They may save your life!

If you are installing an antenna for the first time, for your own safety as well as that of others, seek professional assistance.
Your Cisco sales representative can explain which mounting method to use for the size and type of antenna you are about
to install.
482
Cisco Aironet 2.4 GHz and 5 GHz Dual-Band Polarization-Diverse Directional Array Antenna (AIR-ANT2566D4M-R)
Obtain Documentation and Submit a Service Request

Select your installation site with safety as well as performance in mind. Remember that electric power lines and phone lines
look alike. For your safety, assume that any overhead line can kill you.

Call your electric power company. Tell them your plans and ask them to come and look at your proposed installation. This
is a small inconvenience considering your life is at stake.

Plan your installation carefully and completely before you begin. Successful raising of a mast or tower is largely a matter of
coordination. Each person should be assigned a specific task, and should know what to do and when to do it. One person
should be in charge of the operation to issue instructions and watch for signs of trouble.

When installing your antenna, remember:
—
Do not use a metal ladder.
—
Do not work on a wet or windy day.
—
Do dress properly—shoes with rubber soles and heels, rubber gloves, long sleeved shirt or jacket.

If the assembly starts to drop, get away from it and let it fall. Remember, the antenna, mast, cable, and metal guy wires are
all excellent conductors of electrical current. Even the slightest touch of any of these parts to a power line completes an
electrical path through the antenna and the installer: You!

If any part of the antenna system should come in contact with a power line, don’t touch it or try to remove it yourself. Call
your local power company. They will remove it safely.

If an accident occurs with the power lines, call for qualified emergency help immediately.
For a listing of all the warning statements and their translations, see Translated Safety Warnings for Cisco Aironet Access Points
at:
http://www.cisco.com/c/en/us/td/docs/wireless/access_point/warnings/reference/guide/ap_warn1.html
Installation Notes
Antennas transmit and receive radio signals that are susceptible to RF obstructions and common sources of interference that
can reduce throughput and the range of the device to which they are connected. Follow these guidelines to ensure the best
possible performance:

Install the antenna vertically and mount it with the cables pointing towards the ground.

Keep the antenna away from metal obstructions such as heating and air-conditioning ducts, large ceiling trusses, building
superstructures, and major power cabling runs. If necessary, use a rigid conduit to lower the antenna away from these
obstructions.

The density of the materials used in a building’s construction determines the number of walls the signal can pass through
and still maintain adequate signal strength. Consider the following before choosing the location for your antenna:
—
Signals penetrate paper and vinyl walls with little change to signal strength.
—
Signals penetrate only one or two solid and precast concrete walls without degrading signal strength.
—
Signals penetrate three or four concrete and wood block walls without degrading signal strength.
—
Signals penetrate five or six walls constructed of drywall or wood without degrading signal strength.
—
Signals are likely to reflect off a thick metal wall and may not penetrate it at all.
—
Signals are likely to reflect off a chain link fence or wire mesh spaced between 1 and 1 1/2 inch. (2.5 and 3.8 cm). The
fence acts as a harmonic reflector that blocks the signal.
481
Cisco Aironet 2.4 GHz and 5 GHz Dual-Band Polarization-Diverse Directional Array Antenna (AIR-ANT2566D4M-R)

Install the antenna away from microwave ovens and 2-GHz cordless phones. These products can cause signal interference
because they operate in the same frequency range as the device to which your antenna is connected.
Contents of the Antenna and Bracket Kit
Figure 1
Contents of the Antenna Bracket Kit
2
7 2X
2X 4
2X 6
5 2X
353895
1
3 2X
1
One of two articulating mount flanges required for the
installation. The other flange comes attached to the back
of the antenna.
5
1/4-inch split-lock washers. Two are included in the kit.
2
Articulating mount arm.
6
1/4-20 Hex nuts. Two are included in the kit.
3
1/4 20 x 1.25-inch stainless steel screws. Two are
included in the kit.
7
one of two worm-gear type hose clamps. Each has a
range of 50–135mm
4
1/4 inch flat washers. Two are included in the kit.
Dimensions of the Antenna and Brackets
The dimensions noted in the following illustrations are all in mm, unless noted otherwise.
482
Cisco Aironet 2.4 GHz and 5 GHz Dual-Band Polarization-Diverse Directional Array Antenna (AIR-ANT2566D4M-R)
Obtain Documentation and Submit a Service Request
Dimensions of the Antenna with Brackets and Cables
217.0
254.0
41.0
240.0
176.0
254.0
240.0
4X
4.50
THRU ALL
36" 1"
FROM BOTTOM
EDGE OF RADOME
353893
Figure 2
481
Cisco Aironet 2.4 GHz and 5 GHz Dual-Band Polarization-Diverse Directional Array Antenna (AIR-ANT2566D4M-R)
Locations of Screw Holes and Pressure Vent at the Back of the Antenna
62.0
CL
83.1
CL
PRESSURE RELEASE
VENT
4X M4x0.7 THREADED
INSERT
353894
Figure 3
482
Cisco Aironet 2.4 GHz and 5 GHz Dual-Band Polarization-Diverse Directional Array Antenna (AIR-ANT2566D4M-R)
Obtain Documentation and Submit a Service Request
Figure 4
Locations of the Screw Holes on the Articulating Mount Flange
4X
4.50
83.1
353897
62.0
Installing the Antenna
You can install the antenna on a wall or ceiling (must be a flat surface), or on a pole with a minimum diameter of 2 inches
(5.08 cm) and a maximum diameter of 5 inches (12.7 cm). The antenna and one mounting flange are connected together when
shipped.
To install the antenna:
1. Decide on a mounting location. See the Deciding on a Mounting Location.
2. Ensure that you have the requisite tools and fasteners ready. See the Tools and Equipment Required.
3. Proceed with mounting the antenna. When mounting the antenna, assemble the bracket hardware, connect the antenna
and bracket to the mounting surface, and adjust the antenna orientation.
The mounting options available are:
1. Mounting on a Wall or Ceiling.
2. Mounting on a Pole or Mast.
3. Flush Mounting on a Wall Without Mount Brackets.
4. (Optional) Paint the antenna. See Painting the Antenna.
481
Cisco Aironet 2.4 GHz and 5 GHz Dual-Band Polarization-Diverse Directional Array Antenna (AIR-ANT2566D4M-R)
Deciding on a Mounting Location
The antenna should be mounted clear of any obstructions to the side or front of the enclosure, which contains the radiating
elements. Keep in mind that this antenna should be aimed at the intended coverage area. Therefore, you should mount the
antenna such that the desired mechanical tilt is achieved. If possible, mount the antenna near the access point so that you can
use the shortest possible connecting cables.
CAUTION: For outdoor installations, install the antenna with cables exiting downward. This will help prevent water from
accumulating around the cable exit points.
Tools and Equipment Required
WARNING: The fasteners and the mounting surface should be capable of maintaining a minimum pullout force of 150 pounds
(68 kg) to support the weight of the antenna and bracket along with the potential wind loading on the antenna.
WARNING: The pole or mast must be rigid enough to hold the weight of the antenna along with the associated forces produced
by wind loads. Also, the pole or mast must be structurally strong enough to withstand the clamping force of the hose clamps.
Before you start with mounting the antenna, go through the mounting procedure for each kind of installation and ensure that you
have all tools and fasteners mentioned therein ready. The following is a general list of fasteners and tools which are not included
in the antenna and brackets kit.

To loosen and tighten the adjustment bolts on the brackets, you need a flat-blade screwdriver.

To mount the antenna on a wall or ceiling, you need four mounting 4 mm or #8 screws or bolts and wall anchors.

To mount the antenna on a pole or mast, you will need either or both of these supplies:

—
Slotted screwdriver to tighten the screws on the hose clamps
—
A 5/16 inch (8mm) socket or box wrench
You may also need the following tools and equipment, which are not provided as part of the kit:
—
A drill and drill bit
—
A pencil
—
A small mallet or hammer, to hammer
—
A Phillips screwdriver
Mounting on a Wall or Ceiling
1. The fasteners and mounting surface should be capable of maintaining a minimum pullout force of 150 pounds (68 kg) to
support the weight of the antenna along with the potential wind loading on the antenna.
2. Determine the mounting location for the antenna.
3. Attach the free articulating mount flange to the wall or ceiling using four 4 mm or #8 screws and fasteners, through the
holes on the bracket.
One of the two required articulating mount flange brackets come attached to the back of the antenna (see Figure 1). The other
flange bracket, included in the kit, is the one used in this step.
1. Assemble the bracket hardware, as shown in Figure 5. Use a flat blade screwdriver to tighten the 1/4 20 x 1.25" screws
on the brackets.
482
Cisco Aironet 2.4 GHz and 5 GHz Dual-Band Polarization-Diverse Directional Array Antenna (AIR-ANT2566D4M-R)
Obtain Documentation and Submit a Service Request
2. Orient the antenna correctly (note the arrow on the back of the antenna that indicates the top of the antenna). Use a
flat-blade screwdriver to loosen or tighten the fasteners at the azimuth and elevation- adjustment pivots.
3. Adjust the azimuth (side-to-side position) and elevation (up-and-down position) of the antenna. Loosen the adjustment
pivot bolts slightly to allow for adjustment.
The azimuth angle can be adjusted ±90 degrees (Figure 7) and elevation can be adjusted ±55 degrees (Figure 8).
Use the azimuth and elevation markings on the articulating mounting arm and the flange brackets as a guide. See Figure 6.
1. After adjusting the antenna position, tighten the pivot bolts. Tighten all the bolts to not more than 30 lbf.in. (3.4 Nm).
2. Connect the antenna cables to the access point. The antenna ports are labeled A through D. Connect the antenna port A
to connector A on the access point, antenna port B to connector B on the access point, and so on.
For the recommended cable type, see Recommended Cable.
481
Cisco Aironet 2.4 GHz and 5 GHz Dual-Band Polarization-Diverse Directional Array Antenna (AIR-ANT2566D4M-R)
Figure 5
Exploded View of Antenna and Bracket Hardware Assembly
1
2
3
353896
4
1
The articulating mount flange bracket that comes
attached to the back of the antenna.
3
The end of the articulating mount arm, which attaches to
the flange bracket fixed to the wall or ceiling.
2
The azimuth adjustment pivot.
4
The elevation adjustment pivot.
Here, a 1/4 20 x 1.25-inch stainless steel screw, a
1/4-inch split-lock washer, a 1/4-inch flat washer, and a
1/4-20 Hex nut (in that order) fasten the articulating
mount arm to the flange bracket at the back of the
antenna.
Here, a 1/4 20 x 1.25-inch stainless steel screw, a
1/4-inch split-lock washer, a 1/4-inch flat washer, and a
1/4-20 Hex nut (in that order) fasten the articulating
mount arm to the flange bracket fixed to the wall or
ceiling.
482
Cisco Aironet 2.4 GHz and 5 GHz Dual-Band Polarization-Diverse Directional Array Antenna (AIR-ANT2566D4M-R)
Obtain Documentation and Submit a Service Request
Close-Up View of the Azimuth and Elevation-Adjustment Pivots
ANGULAR MARKINGS
EVERY 5 , LABELS AT
30 & 60
353898
Figure 6
ANGULAR DETENTS
EVERY 5
481
Cisco Aironet 2.4 GHz and 5 GHz Dual-Band Polarization-Diverse Directional Array Antenna (AIR-ANT2566D4M-R)
Azimuth Adjustment
90°
ADJUSTMENT
MAST
AZIMUTH ADJUSTMENT
353901
Figure 7
482
Cisco Aironet 2.4 GHz and 5 GHz Dual-Band Polarization-Diverse Directional Array Antenna (AIR-ANT2566D4M-R)
Obtain Documentation and Submit a Service Request
Figure 8
Elevation Adjustment
55°
ADJUSTMENT
MAST
353899
ELEVATION ADJUSTMENT
Mounting on a Pole or Mast
NOTE: The pole or mast must be rigid enough to hold the weight of an antenna along with the associated forces produced by
wind loads. In addition, the mast must be structurally strong enough to withstand the clamping force of the hose clamps.
1. Determine the mounting location for the antenna on the pole or mast.
2. Position and mount the mounting flange bracket on to the pole or mast using the hose clamps provided in the kit. The hose
clamps should pass through the slots on the free mounting flange bracket.
One of the two required articulating mount flange brackets come attached to the back of the antenna (see Figure 1). The other
flange bracket, included in the kit, is the one used in this step.
3. Tighten the hose clamps only to the extent that they can hold the flange bracket and the antenna in place until the antenna
is positioned at its final position. Use a slotted screwdriver to tighten the screws on the hose clamps.
4. Assemble the antenna and bracket to the flange bracket. See Figure 5.
5. Position the antenna, mounting bracket, and hose clamps on the mast. See Figure 9 for reference.
6. Tighten the hose clamps until the antenna is fully secure on the mast. Ensure that the antenna cannot rotate about the mast.
481
Cisco Aironet 2.4 GHz and 5 GHz Dual-Band Polarization-Diverse Directional Array Antenna (AIR-ANT2566D4M-R)
7. After the antenna is secured on the mast, adjust the azimuth (side-to-side position) and elevation (up-and-down position)
of the antenna. Loosen the adjustment pivot bolts slightly to allow for adjustment.
Azimuth angle can be adjusted ±90 degrees (Figure 7) and elevation can be adjusted ±55 degrees (Figure 8).
You can use the azimuth and elevation markings on the articulating mounting arm and the flange brackets as a guide. See
Figure 6.
8. After you adjust the antenna position, tighten the adjustment bolts. Tighten all the bolts to not more than 30 lbf.in. (3.4 Nm).
9. Connect the antenna cables to the access point. The antenna ports are labeled A through D. Connect the antenna port A
to connector A on the access point, antenna port B to connector B on the access point, and so on.
For the recommended cable type, see Recommended Cable.
Figure 9
Antenna Bracket Hose Clamp Assembly for Pole Mounting
1
2
3
353900
4
5
1
Articulating mount flange attached to the back of the
antenna.
4
Worm-gear-type hose clamp (50–135mm) for mounting
the assembly on a pole or mast.
2
Articulating mount arm.
5
Cables connecting the antenna to an access point.
3
Articulating mount flange that is fastened to the pole or
mast using hose clamps.
482
Cisco Aironet 2.4 GHz and 5 GHz Dual-Band Polarization-Diverse Directional Array Antenna (AIR-ANT2566D4M-R)
Obtain Documentation and Submit a Service Request
Flush Mounting on a Wall Without Mount Brackets
You can flush mount the antenna on a wall. For this, you will need to discard the articulating mount flange brackets from the
installation.
NOTE: The following procedure describes how to mount the antenna on a drywall. If you intend to install your antenna on another
surface other than a drywall, the following procedure may vary slightly and you should procure the necessary hardware.
1. Remove the articulating mount flange bracket that comes attached to the back of the antenna.
2. Determine the location where you will mount the antenna.
3. Use the antenna as a template to mark the location of the four mounting holes. See Figure 10 for the locations of the holes.
4. Using a drill and #29 drill bit, drill four holes at the locations you have marked in 3.. For drywall installations a #29 (0.136 inch
or 45 mm) drill bit is enough. Other surfaces may require a different size.
5. Insert 8-inch plastic wall anchors into each hole.
6. Using a mallet or small hammer, properly seat the plastic anchors into the wall.
7. Align the antenna's mounting holes with the anchors.
8. Insert an 8 x 1¼-inch screw, through each mounting hole and into its anchor.
9. Tighten the screws using a Phillips screwdriver. Do not overtighten.
10. Connect the antenna cables to the access point. The antenna ports are labeled A through D. Connect the antenna port A
to connector A on the access point, antenna port B to connector B on the access point, and so on.
For the recommended cable type, see Recommended Cable.
481
Cisco Aironet 2.4 GHz and 5 GHz Dual-Band Polarization-Diverse Directional Array Antenna (AIR-ANT2566D4M-R)
Figure 10
Back of the Antenna with Flush Mounting Screw-Holes Locations
1
2
1
354039
3
1
Screw holes for flush mounting on a wall. Each hole takes
an 8 x 1¼-inch screw.
3
Pressure release vent.
See Figure 2 for the distances between these holes.
2
Spot where the preinstalled articulating flange mount was
removed from.
Recommended Cable
This antenna comes with four 3 foot long cables with RP-TNC connectors. If you need a longer cable reach, use
AIR-CAB005LL-R= to extend the length by an additional 5 feet.
482
Cisco Aironet 2.4 GHz and 5 GHz Dual-Band Polarization-Diverse Directional Array Antenna (AIR-ANT2566D4M-R)
Obtain Documentation and Submit a Service Request
NOTE: A coaxial cable loses efficiency as the frequency increases, resulting in signal loss. The cable should be kept as short as
possible because cable length also determines the amount of signal loss (the longer the cable, the greater the loss).
Painting the Antenna
Painting the antenna and the bracket does not affect its performance if you use standard exterior-grade, oil-based, or latex
paint. Do not use metallic or metallic-flake paints, which will degrade antenna performance.
NOTE: Before painting the antenna, cover the pressure-release vent on the rear, lower-left of the antenna with masking tape to
prevent clogging. Ensure that you remove the tape afterwards.
We recommend that you use Krylon Fusion for Plastic or Rust-Oleum for Plastic (which might require a primer coat). For best
results, follow the surface preparation suggestions from the paint manufacturer.
Obtain Documentation and Submit a Service Request
For information on obtaining documentation, using the Cisco Bug Search Tool (BST), submitting a service request, and gathering
additional information, see What’s New in Cisco Product Documentation.
To receive new and revised Cisco technical content directly to your desktop, you can subscribe to the What’s New in Cisco
Product Documentation RSS feed. The RSS feeds are a free service.
Cisco and the Cisco logo are trademarks or registered trademarks of Cisco and/or its affiliates in the U.S. and other countries. To view a list of Cisco trademarks, go to this URL:
www.cisco.com/go/trademarks. Third-party trademarks mentioned are the property of their respective owners. The use of the word partner does not imply a partnership relationship
between Cisco and any other company. (1721R)
© 2017 Cisco Systems, Inc. All rights reserved.
481
Cisco Aironet 2.4-GHz/5-GHz MIMO
4-Element Patch Antenna
(AIR-ANT2566P4W-R)
This document outlines the specifications for the Cisco Aironet 2.4-GHz/5-GHz MIMO 4-Element Patch Antenna
(AIR-ANT2566P4W-R) and provides mounting instructions. The antenna operates in both the 2.4-GHz and 5-GHz frequency
ranges and is designed for indoor and outdoor use.
The following information is provided in this document.

Technical Specifications

System Requirements

Safety Precautions

Installation Notes

Installing the Antenna

Obtain Documentation and Submit a Service Request
Cisco Systems, Inc.
210
www.cisco.com
Cisco Aironet 2.4-GHz/5-GHz MIMO 4-Element Patch Antenna (AIR-ANT2566P4W-R)
Technical Specifications
Antenna type
4-element dual-band
MIMO
Operating frequency
range
2400 to 2484 MHz
VSWR
2:1 or less
Gain
6 dBi in both bands
Polarization
Linear, vertical
Azimuth Plane 3-dB
Beamwidth
2.4 GHz band: 105°
Elevation Plane 3-dB
Beamwidth
2.4 GHz band: 65°
Length
6.3 in. (16 cm)
Width
11 in. (27.9 cm)
Depth
1.2 in. (3.05 cm)
Weight
1.4 lbs
Cable length and type
3 foot (91.4 cm)
plenum rated
Connector
RP-TNC
Environment
Indoor/outdoor
Water/Foreign Body
Ingress
IP54
Operating temperature
range
-40° to 158° F
5150–5850 MHz
5 GHz band: 110°
-40° to 70° C
211
330381
5 GHz band: 55°
Cisco Aironet 2.4-GHz/5-GHz MIMO 4-Element Patch Antenna (AIR-ANT2566P4W-R)
Figure 1
Azimuth and Elevation Radiation Patterns - 2.4 GHz Band
212
Cisco Aironet 2.4-GHz/5-GHz MIMO 4-Element Patch Antenna (AIR-ANT2566P4W-R)
Figure 2
Azimuth and Elevation Radiation Patterns - 5 GHz Band
System Requirements
This antenna is designed for indoor and outdoor use with any Cisco Aironet access point that requires four (4) dual-band
antennas.
Safety Precautions
Translated versions of the following safety warnings are provided in the Safety Warnings for Cisco Aironet Antennas, which is
available at http://www.cisco.com.
WARNING: Installation of this antenna near power lines is dangerous. For your safety, follow the installation directions.
Each year hundreds of people are killed or injured when attempting to install an antenna. In many of these cases, the victim was
aware of the danger of electrocution but did not take adequate steps to avoid the hazard.
WARNING: For your safety, and to help you achieve a good installation, please read and follow these safety precautions. They
may save your life!
1. If you are installing an antenna for the first time, for your own safety as well as others, seek professional assistance. Your
Cisco sales representative can explain which mounting method to use for the size and type antenna you are about to install.
213
Cisco Aironet 2.4-GHz/5-GHz MIMO 4-Element Patch Antenna (AIR-ANT2566P4W-R)
2. Select your installation site with safety as well as performance in mind. Remember: electric power lines and phone lines
look alike. For your safety, assume that any overhead line can kill you.
3. Call your electric power company. Tell them your plans and ask them to come look at your proposed installation. This is a
small inconvenience considering your life is at stake.
4. Plan your installation carefully and completely before you begin. Successful raising of a mast or tower is largely a matter of
coordination. Each person should be assigned a specific task, and should know what to do and when to do it. One person
should be in charge of the operation to issue instructions and watch for signs of trouble.
5. When installing your antenna, remember:
a. Do not use a metal ladder.
b. Do not work on a wet or windy day.
c. Do dress properly—shoes with rubber soles and heels, rubber gloves, long sleeved shirt or jacket.
6. If the assembly starts to drop, get away from it and let it fall. Remember, the antenna, mast, cable, and metal guy wires are
all excellent conductors of electrical current. Even the slightest touch of any of these parts to a power line completes an
electrical path through the antenna and the installer: You!
7. If any part of the antenna system should come in contact with a power line, don’t touch it or try to remove it yourself. Call
your local power company. They will remove it safely.
8. If an accident occurs with the power lines, call for qualified emergency help immediately.
Installation Notes
Antennas transmit and receive radio signals which are susceptible to RF obstructions and common sources of interference that
can reduce throughput and range of the device to which they are connected. Follow these guidelines to ensure the best possible
performance:

Install the antenna vertically and mount it with the cables pointing towards the ground.

Keep the antenna away from metal obstructions such as heating and air-conditioning ducts, large ceiling trusses, building
superstructures, and major power cabling runs. If necessary, use a rigid conduit to lower the antenna away from these
obstructions.

The density of the materials used in a building’s construction determines the number of walls the signal can pass through
and still maintain adequate signal strength. Consider the following before choosing the location for your antenna:

—
Signals penetrate paper and vinyl walls with little change to signal strength.
—
Signals penetrate only one or two solid and pre-cast concrete walls without degrading signal strength.
—
Signals penetrate three or four concrete and wood block walls without degrading signal strength.
—
Signals penetrate five or six walls constructed of drywall or wood without degrading signal strength.
—
Signals will likely reflect off a thick metal wall and may not penetrate it at all.
—
Signals will likely reflect off a chain link fence or wire mesh spaced between 1 and 1 1/2 in. (2.5 and 3.8 cm). The fence
acts as a harmonic reflector that blocks the signal.
Install the antenna away from microwave ovens and 2-GHz cordless phones. These products can cause signal interference
because they operate in the same frequency range as the device to which your antenna is connected.
214
Cisco Aironet 2.4-GHz/5-GHz MIMO 4-Element Patch Antenna (AIR-ANT2566P4W-R)
Choosing a Mounting Location
The antenna should be mounted clear of any obstructions to the sides of the radiating elements. Generally, the higher an antenna
is above the floor, the better it performs. If possible, find a mounting place directly above your wireless device to ensure the
lead-in cable can be as short as possible.
Installing the Antenna
You can install the antenna on any wall. If you intend to install your antenna on another surface, you must provide the appropriate
hardware.
NOTE: Four mounting screws are provided to mount the antenna. To ensure a safe, reliable, and long-standing installation, you
must use all four screws to mount the antenna.
Tools and Equipment Required
A mounting installation kit is shipped with the antenna and consists of the following hardware:

Four #8 x 1¼ screws

Four #8 plastic anchors

Four end caps
You may need the following tools and equipment, which are not provided.

A Phillips screwdriver

A drill

A #29 (0.136-in. (s.45 mm)) drill bit (for drywall installation, other surfaces may require a different size).

A pencil

A small mallet or hammer
Mounting on a Vertical Surface
Follow these steps to mount your antenna on a vertical surface. This procedure describes mounting the antenna on a drywall
surface. If you are mounting the antenna on any other type of surface, your procedure may vary slightly.
1. Determine the location where you will mount the antenna.
2. Use the antenna as a template to mark the location of the four mounting holes.
3. Use a drill and #29 drill bit to drill four holes at the locations you marked in 2..
4. Start a plastic anchor into each hole.
5. Use a mallet or small hammer to seat the anchors into the wall.
6. Align the antenna’s mounting holes with the anchors.
7. Start a #8 x 1¼ screw into each antenna mounting hole.
8. Use a Phillips screwdriver to secure the antenna to the wall. Do not overtighten.
9. Install the end caps into the antenna mounting holes.
215
Cisco Aironet 2.4-GHz/5-GHz MIMO 4-Element Patch Antenna (AIR-ANT2566P4W-R)
10. Remove the yellow outdoor installation warning label from the antenna radome.
Outdoor Installations
You can mount this antenna outdoors. If you mount the antenna outdoors, you must provide the mounting hardware. For outdoor
installations, follow the instructions printed on the back of the antenna.
CAUTION: An orientation arrow is printed on the back of the antenna that indicates the proper orientation for the antenna for
outdoor installations. You must install the antenna so the arrow points up to prevent any water intrusion and to provide a drain
for any moisture that may accumulate inside the antenna.
Suggested Cable
Cisco recommends a high-quality, low-loss cable for use with the antenna.
NOTE: Coaxial cable loses efficiency as the frequency increases, resulting in signal loss. The cable should be kept as short as
possible, because cable length also determines the amount of signal loss (the longer the run, the greater the loss).
Obtain Documentation and Submit a Service Request
For information on obtaining documentation, using the Cisco Bug Search Tool (BST), submitting a service request, and gathering
additional information, see What’s New in Cisco Product Documentation.
To receive new and revised Cisco technical content directly to your desktop, you can subscribe to the What’s New in Cisco
Product Documentation RSS feed. The RSS feeds are a free service.
Cisco and the Cisco logo are trademarks or registered trademarks of Cisco and/or its affiliates in the U.S. and other countries. To view a list of Cisco trademarks, go to this URL:
www.cisco.com/go/trademarks. Third-party trademarks mentioned are the property of their respective owners. The use of the word partner does not imply a partnership relationship
between Cisco and any other company. (1721R)
216
Cisco Aironet 2.4-GHz/5-GHz MIMO 4-Element Patch Antenna (AIR-ANT2566P4W-R)
217
Cisco Aironet Dual-Band Omni-Directional
Antenna (AIR-ANT2568VG-N)
This describes the Cisco Aironet AIR-ANT2568VG-N dual-band omni-directional antenna, and provides specifications
and mounting instructions. The antenna is designed for outdoor use with Cisco Aironet Outdoor Access Points with
radios operating in the 2.4 GHz and 5 GHz frequency bands.
These topics are discussed:

Technical Specifications, page 219

System Requirements, page 221

Safety Precautions, page 221

Installation Notes, page 221
Cisco Systems, Inc.
1
www.cisco.com
Cisco Aironet Dual-Band Omni-Directional Antenna (AIR-ANT2568VG-N)
Communications, Services, and Additional Information
Technical Specifications
Antenna Type
Omni-directional
Operating Frequency Range
2400–2483 MHz; 5150–5925 MHz
VSWR
1.5:1 (2400–2483 MHz)
2:1 (5150–5925 MHz)
Nominal Input Impedance
50 Ohms
Gain
6 dBi (2400–2483 MHz)
8 dBi (5150–5925 MHz)
Polarization
Vertical
Azimuth Plane Ripple
2 dB (Max)
Elevation Plane 3 dB Beamwidth
24° (2400–2483 MHz)
11° (5150–5925 MHz)
Azimuth Plane 3 dB Beamwidth
Omni-directional
Length
14.8 in (377 mm)
Diameter
1.25 in (31.75 mm)
Weight
7.2 oz. (204.1 g)
Connector
N-Male
Operational Temperature
-22–158°F (-30–70°C)
Storage Temperature
-40–185°F (-40–85°C)
Water/Foreign Body Ingress
IP67
Wind Rating (Operational)
100 mph (161 kph)
Wind Rating (Survival)
136 mph (218 kph)
4
Cisco Aironet Dual-Band Omni-Directional Antenna (AIR-ANT2568VG-N)
Communications, Services, and Additional Information
Azimuth Radiation Pattern (2.4 GHz)
Elevation Radiation Pattern (2.4 GHz)
Azimuth Radiation Pattern (5 GHz)
Elevation Radiation Pattern (5 GHz)
5
Cisco Aironet Dual-Band Omni-Directional Antenna (AIR-ANT2568VG-N)
Communications, Services, and Additional Information
System Requirements
This antenna is designed for use with the Cisco Aironet Outdoor Access Points.
Safety Precautions
Warning: Do not locate the antenna near overhead power lines or other electric light or power circuits, or where it
can come into contact with such circuits. When installing the antenna, take extreme care not to come into contact
with such circuits, as they may cause serious injury or death. For proper installation and grounding of the antenna,
please refer to national and local codes (e.g. U.S.: NFPA 70, National Electrical Code, Article 810, Canada: Canadian
Electrical Code, Section 54). Statement 280
For your safety, read and follow these safety precautions.
1. Before you install an antenna, contact your Cisco account representative to explain which mounting method to use
for the size and type of antenna that you are about to install.
2. Find someone to help you—installing an antenna is often a two-person job.
3. Select your installation site with safety, as well as performance, in mind. Remember that electric power lines and
phone lines look alike. For your safety, assume that any overhead line can kill you.
4. Contact your electric power company. Tell them your plans and ask them to come look at your proposed installation.
5. Plan your installation carefully and completely before you begin. Each person involved in an installation should be
assigned to a specific task and should know what to do and when to do it. One person should be in charge of the
operation to issue instructions and watch for signs of trouble.
6. When installing your antenna, follow these guidelines:
a. Do not use a metal ladder.
b. Do not work on a wet or windy day.
c. Dress properly: wear shoes with rubber soles and heels, rubber gloves, and a long-sleeved shirt or jacket.
7. If the assembly starts to drop, move away from it and let it fall. Because the antenna, mast, cable, and metal guy
wires are all excellent conductors of electrical current, even the slightest touch of any of these parts to a power line
completes an electrical path through the antenna and the installer.
8. If any part of the antenna system should come in contact with a power line, do not touch it or try to remove it yourself.
Call your local power company to have it removed safely.
9. If an accident should occur with the power lines, call for qualified emergency help immediately.
Installation Notes
The antenna is designed to connect to a dedicated antenna port on the access point. No special tools are required to
install the antenna.
The antenna is resistant to the full range of outdoor environments. After the antenna is attached to the access point, seal
the connections to prevent moisture and other weathering elements from affecting performance. Cisco recommends
using a coax seal (such as CoaxSeal) for outdoor connections. Silicone sealant or electrical tape are not recommended
for sealing outdoor connections.
4
Cisco Aironet Dual-Band Omni-Directional Antenna (AIR-ANT2568VG-N)
Communications, Services, and Additional Information
Choosing a Mounting Location
The antenna is designed to create an omni-directional broadcast pattern. To achieve this pattern, the access point should
be mounted clear of any obstructions to the sides of the radiating element. If the mounting location is on the side of a
building or tower, the antenna pattern is degraded on the building or tower side.
Generally, the higher an antenna is above the ground, the better it performs. A practice is to install your antenna about 5
to 10 ft (1.5 to 3 m) above the roof line and away from all power lines and obstructions.
Tools and Equipment Required
No tools are required to mount the antenna to the access point. However, you may need a ¾ in. (19 mm) open end or
combination wrench (or adjustable wrench) to remove the antenna port covers.
For information about tools required to mount the access point, see the appropriate access point documentation.
Mounting the Antenna
To connect the antenna to the access point:
1. If necessary, remove the antenna port cover.
2. Align the antenna N connector with the appropriate antenna port.
3. Gently push the antenna into the port.
4. Tighten the antenna hand tight.
Communications, Services, and Additional Information

To receive timely, relevant information from Cisco, sign up at Cisco Profile Manager.

To get the business impact you’re looking for with the technologies that matter, visit Cisco Services.

To submit a service request, visit Cisco Support.

To discover and browse secure, validated enterprise-class apps, products, solutions and services, visit Cisco
Marketplace.

To obtain general networking, training, and certification titles, visit Cisco Press.

To find warranty information for a specific product or product family, access Cisco Warranty Finder.
The following information is for FCC compliance of Class A devices: This equipment has been tested and found to comply
with the limits for a Class A digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio-frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a
residential area is likely to cause harmful interference, in which case users will be required to correct the interference at
their own expense.
The following information is for FCC compliance of Class B devices: This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a particular
5
Cisco Aironet Dual-Band Omni-Directional Antenna (AIR-ANT2568VG-N)
Communications, Services, and Additional Information
installation. If the equipment causes interference to radio or television reception, which can be determined by turning the
equipment off and on, users are encouraged to try to correct the interference by using one or more of the following
measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.
Modifications to this product not authorized by Cisco could void the FCC approval and negate your authority to operate
the product.
The Cisco implementation of TCP header compression is an adaptation of a program developed by the University of
California, Berkeley (UCB) as part of UCB’s public domain version of the UNIX operating system. All rights reserved.
Copyright © 1981, Regents of the University of California.
NOTWITHSTANDING ANY OTHER WARRANTY HEREIN, ALL DOCUMENT FILES AND SOFTWARE OF THESE SUPPLIERS
ARE PROVIDED “AS IS” WITH ALL FAULTS. CISCO AND THE ABOVE-NAMED SUPPLIERS DISCLAIM ALL WARRANTIES,
EXPRESSED OR IMPLIED, INCLUDING, WITHOUT LIMITATION, THOSE OF MERCHANTABILITY, FITNESS FOR A
PARTICULAR PURPOSE AND NONINFRINGEMENT OR ARISING FROM A COURSE OF DEALING, USAGE, OR TRADE
PRACTICE.
IN NO EVENT SHALL CISCO OR ITS SUPPLIERS BE LIABLE FOR ANY INDIRECT, SPECIAL, CONSEQUENTIAL, OR
INCIDENTAL DAMAGES, INCLUDING, WITHOUT LIMITATION, LOST PROFITS OR LOSS OR DAMAGE TO DATA ARISING
OUT OF THE USE OR INABILITY TO USE THIS MANUAL, EVEN IF CISCO OR ITS SUPPLIERS HAVE BEEN ADVISED OF
THE POSSIBILITY OF SUCH DAMAGES.
Any Internet Protocol (IP) addresses and phone numbers used in this document are not intended to be actual addresses
and phone numbers. Any examples, command display output, network topology diagrams, and other figures included in
the document are shown for illustrative purposes only. Any use of actual IP addresses or phone numbers in illustrative
content is unintentional and coincidental.
All printed copies and duplicate soft copies of this document are considered uncontrolled. See the current online version
for the latest version.
Cisco has more than 200 offices worldwide. Addresses, phone numbers, and fax numbers are listed on the Cisco website
at www.cisco.com/go/offices.
© 2013-2019 Cisco Systems, Inc. All rights reserved.
4
Cisco Aironet 2.4-GHz/5-GHz 8-dBi
Directional Antenna
(AIR-ANT2588P3M-N)
This describes the Cisco Aironet AIR-ANT2588P3M-N 2.4/5-GHz 8-dBi 3-port directional antenna with N-connectors,
and provides specifications and mounting instructions. The antenna operates in both the 2.4 GHz and 5 GHz frequency
bands and is designed for outdoor use.
These topics are discussed:

Technical Specifications, page 224

Azimuth and Elevation Radiation Patterns, page 226

System Requirements, page 227

Safety Precautions, page 227

Installation Guidelines, page 228

Installing the Antenna, page 229
Technical Specifications
Cisco Systems, Inc.
224
www.cisco.com
Cisco Aironet 2.4-GHz/5-GHz 8-dBi Directional Antenna (AIR-ANT2588P3M-N)
Technical Specifications
Antenna type
3-element dual-polarized patch
Operating frequency range
2400–2500 MHz
Nominal input impedance
50 Ohms
VSWR
2:1 or less
Peak gain
8 dBi (both bands)
Polarization
Linear, Dual
Elevation Plane 3-dB Beamwidth
30°
Azimuth Plane 3-dB Beamwidth
120°
Sidelobe level
< –20 dBc
Front-to-back ratio
> 10 dB
Length
12 in. (30.48 cm)
Width
7 in. (17.78 cm)
Height
1.1 in. (2.79 cm)
Weight
16 oz. (0.45 kg)
Connector type
N-Female Bulkhead (x3)
Operating temperature range
-40–131° F
334574
5150–5900 MHz
(-40–55° C)
Environment rating
IP67
225
Cisco Aironet 2.4-GHz/5-GHz 8-dBi Directional Antenna (AIR-ANT2588P3M-N)
Azimuth and Elevation Radiation Patterns
Azimuth and Elevation Radiation Patterns
2.4 GHz Band - Horizontal Polarization
5 GHz Band - Horizontal Polarization
2.4 GHz Band - Vertical Polarization
5 GHz Band - Vertical Polarization
226
Cisco Aironet 2.4-GHz/5-GHz 8-dBi Directional Antenna (AIR-ANT2588P3M-N)
System Requirements
System Requirements
This antenna is designed for outdoor use with any Cisco Aironet access point that requires three (3) dual-band antennas.
Safety Precautions
Translated versions of the following safety warnings are provided in the Safety Warnings for Cisco Aironet Antennas,
which is available at http://www.cisco.com.
Warning: Installation of this antenna near power lines is dangerous. For your safety, follow the installation
directions.
Warning: This warning symbol means danger. You are in a situation that could cause bodily injury. Before you work
on any equipment, be aware of the hazards involved with electrical circuitry and be familiar with standard practices
for preventing accidents.
Warning: In order to comply with international radio frequency (RF) exposure limits, dish antennas should be
located at a minimum of 8.7 inches (22 cm) or more from the bodies of all persons. Other antennas should be
located a minimum of 7.9 inches (20 cm) or more from the bodies of all persons.
Warning: Do not work on the system or connect or disconnect cables during periods of lightning activity.
Warning: This equipment must be grounded. Never defeat the ground conductor or operate the equipment in the
absence of a suitably installed ground conductor. Contact the appropriate electrical inspection authority or an
electrician if you are uncertain that suitable grounding is available.
Warning: Do not locate the antenna near overhead power lines or other electric light or power circuits, or where it
can come into contact with such circuits. When installing the antenna, take extreme care not to come into contact
with such circuits, as they may cause serious injury or death. For proper installation and grounding of the antenna,
please refer to national and local codes (e.g. U.S.:NFPA 70, National Electrical Code, Article 810, in Canada:
Canadian Electrical Code, Section 54).
Each year hundreds of people are killed or injured when attempting to install an antenna. In many of these cases, the
victim was aware of the danger of electrocution but did not take adequate steps to avoid the hazard.
For your safety, and to help you achieve a good installation, please read and follow these safety precautions. They may
save your life!
1. If you are installing an antenna for the first time, for your own safety as well as others, seek professional assistance.
Your Cisco sales representative can explain which mounting method to use for the size and type antenna you are
about to install.
2. Select your installation site with safety as well as performance in mind. Remember, electric power lines and phone
lines look alike. For your safety, assume that any overhead line can kill you.
3. Call your electric power company. Tell them your plans and ask them to come look at your proposed installation. This
is a small inconvenience considering your life is at stake.
4. Plan your installation carefully and completely before you begin. Successful raising of a mast or tower is largely a
matter of coordination. Each person should be assigned a specific task and should know what to do and when to do
it. One person should be in charge of the operation to issue instructions and watch for signs of trouble.
5. When installing your antenna, remember:
a. Do not use a metal ladder.
b. Do not work on a wet or windy day.
c. Do dress properly: wear shoes with rubber soles and heels, rubber gloves, long sleeved shirt or jacket.
227
Cisco Aironet 2.4-GHz/5-GHz 8-dBi Directional Antenna (AIR-ANT2588P3M-N)
Installation Guidelines
6. If the assembly starts to drop, get away from it and let it fall. Remember, the antenna, mast, cable, and metal guy
wires are all excellent conductors of electrical current. Even the slightest touch of any of these parts to a power line
completes an electrical path through the antenna and the installer: You!
7. If any part of the antenna system should come in contact with a power line, do not touch it or try to remove it
yourself. Call your local power company. They will remove it safely.
8. If an accident occurs with the power lines, call for qualified emergency help immediately.
Installation Guidelines
Because the antennas transmit and receive radio signals, they are susceptible to RF obstructions and common sources
of interference that can reduce throughput and range of the device to which they are connected. Follow these guidelines
to ensure the best possible performance:

Mount the antenna as high as possible to take advantage of its propagation characteristics.

Keep the antenna away from metal obstructions such as heating and air-conditioning ducts, large ceiling trusses,
building superstructures, and major power cabling runs. If necessary, use a rigid conduit to lower the antenna away
from these obstructions.

The density of the materials used in a building’s construction determines the number of walls the signal must pass
through and still maintain adequate coverage. Consider the following before choosing the location in which to install
your antenna:

—
Paper and vinyl walls have very little affect on signal penetration.
—
Solid and pre-cast concrete walls limit signal penetration to one or two walls without degrading coverage.
—
Concrete and wood block walls limit signal penetration to three or four walls.
—
A signal can penetrate five or six walls constructed of drywall or wood.
—
A thick metal wall causes signals to reflect, causing poor penetration.
Install the antenna away from 5 GHz cordless phones. These products can cause signal interference because they
operate in the same frequency range as the device your antenna is connected to.
Site Selection
Before attempting to install your antenna, determine where you can best place the antenna for safety and performance.
To determine a safe distance from wires, power lines, and trees:
1. Measure the height of your antenna.
2. Add this length to the length of your tower or mast and then double this total for the minimum recommended safe
distance.
Caution: If you are unable to maintain this safe distance, stop and get professional help.
Generally, the higher an antenna is above the ground, the better it performs. Good practice is to install your antenna about
5 to 10 ft (1.5 to 3 m) above the roof line and away from all power lines and obstructions. If possible, find a mounting
place directly above your wireless device so that the lead-in cable can be as short as possible.
228
Cisco Aironet 2.4-GHz/5-GHz 8-dBi Directional Antenna (AIR-ANT2588P3M-N)
Installing the Antenna
Installing the Antenna
You can install the antenna on a pole from 1.63" to 2.3" pipe O.D. The mounting options allow the antenna to be vertically
or horizontally polarized.
Tools and Equipment Required

Antenna mount bracket

Elevation adjustable bracket

Azimuth adjustable bracket

Two 1/4 in. 20 azimuth and elevation adjustment bolts and nuts with 1/4 in. flat washers and lock washers

Two pipe clamps
The following tools and equipment are not provided:

5/16 in wrench

1/4 in flat head screwdriver

5/16 in nut driver or flat head screwdriver for pipe clamps
Mounting on a Pole
To mount your antenna on a pole:
1. Remove antenna and mount kit from packaging.
2. Attach antenna mount bracket to the back of the antenna as shown applying a maximum nut-tightening torque of 12
in lbf (1.1 Nm).
229
Cisco Aironet 2.4-GHz/5-GHz 8-dBi Directional Antenna (AIR-ANT2588P3M-N)
Installing the Antenna
Figure 1
Attaching Antenna Mount Bracket
2
2
1
2
334672
3
2
1
Antenna
2
Stud nut
3
Antenna mount bracket
3. Attach elevation adjustable bracket as shown and loosely secure hardware.
230
Cisco Aironet 2.4-GHz/5-GHz 8-dBi Directional Antenna (AIR-ANT2588P3M-N)
Installing the Antenna
Figure 2
Attach elevation adjustable bracket
1
2
3
4
334673
5
1
Elevation adjustable bolt
4
Elevation adjustable bracket
2
Lock washer
5
Hex nut
3
1/4-in. flat washer
4. Attach azimuth adjustable bracket to pipe routing band clamps as shown. Tighten the pipe clamps to a torque of
35–45 in lbf (4.0–5.1 Nm).
231
Cisco Aironet 2.4-GHz/5-GHz 8-dBi Directional Antenna (AIR-ANT2588P3M-N)
Installing the Antenna
Figure 3
Attaching Azimuth Adjustable Bracket
1
2
334674
1
1
Pipe clamps
2
Azimuth adjustable bracket
5. Attach the antenna assembly to the azimuth adjustable bracket on pipe.
232
Cisco Aironet 2.4-GHz/5-GHz 8-dBi Directional Antenna (AIR-ANT2588P3M-N)
Installing the Antenna
Figure 4
Attaching Antenna Assembly
3
2
1
334675
4
1
Azimuth adjustment bolt
3
1/4-in. flat washer
2
Lock washer
4
Hex nut
6. Adjust the position of the antenna to the desired azimuth and elevation angles and tighten all pivot hardware (2
places) to a maximum torque of 30 in-lbf (3.4 Nm). The bracket allows the antenna position to be adjustable to +/–45
degrees azimuth and +/–60 degrees elevation.
Note: Cisco recommends grounding the antenna. See Grounding the Antenna, page 235.
Mounting on a Vertical Surface
The antenna can be wall mounted. Hardware is not included for wall-mount installation.
To mount your antenna on a vertical surface:
1. Remove antenna and mount kit from packaging.
2. Attach antenna mount bracket to the back of the antenna as shown in Figure 1, applying a maximum nut-tightening
torque of 12 in. lbf (1.1 Nm).
3. Attach elevation adjustable bracket as shown in Figure 2 and loosely secure hardware.
4. Using the appropriate customer-supplied anchors and screws, attach the azimuth adjustable bracket to the wall as
shown:
233
Cisco Aironet 2.4-GHz/5-GHz 8-dBi Directional Antenna (AIR-ANT2588P3M-N)
Installing the Antenna
Wall Mounting
334676
Figure 5
Figure 6 shows, in inches, the distance between the bracket mounting holes.
Figure 6
Distance Between Bracket Mounting Holes
2.44
347801
3.27
5. Attach antenna assembly to azimuth bracket, as shown in Figure 4.
6. Adjust the position of the antenna to the desired azimuth and elevation angles and tighten all pivot hardware (two
places) to a maximum torque of 30 in. lbf (3.4 Nm). The bracket allows the antenna position to be adjustable to +/–45
degrees azimuth and +/–60 degrees elevation.
234
Cisco Aironet 2.4-GHz/5-GHz 8-dBi Directional Antenna (AIR-ANT2588P3M-N)
Installing the Antenna
Note: Cisco recommends grounding the antenna. See Grounding the Antenna, page 235.
Antenna Cable Information
The antenna is to be used with the Cisco 1552E access point. The port-to-port designations are as follows: port A of
the antenna must be connected to port 4 of the access point, port B of the antenna must be connected to port 6 of the
access point, and port C of the antenna must be connected to port 5 of the access point.
Note: Coaxial cable loses efficiency as the frequency increases, resulting in signal loss. The cable should be kept as short
as possible, because cable length also determines the amount of signal loss (the longer the run, the greater the loss).
Cisco offers low-loss 5 ft. and 10 ft. coaxial cables, parts AIR-CAB005LL-N and AIR-CAB010LL-N, respectively, for
connection from the antenna to the access point. These cables have one straight male type-N connector and one right
angle male type-N connector. To use all of the ports on the AIR-ANT2588P3M-N three cables will be needed.
After the cable is attached to the antenna, make sure that the connections are sealed (if outdoors) to prevent moisture
and other weathering elements from affecting performance. Cisco recommends using a coax seal (such as CoaxSeal)
for outdoor connections. Silicone sealant or electrical tape are not recommended for sealing outdoor connections.
Grounding the Antenna
Follow these steps to ground the antenna in accordance with national electrical code instructions.
1. Use No. 10 AWG copper or No. 8 or larger copper-clad steel or bronze wire as ground wires for both mast and
lead-in. Securely clamp the wire to the bottom of the mast.
2. Secure the lead-in wire to an antenna discharge unit and the mast ground wire to the building with stand-off
insulators spaced from 4 ft (1.2 m) to 8 ft (2.4 m) apart.
3. Mount the antenna discharge unit as close as possible to where the lead-in wire enters the building.
4. Drill a hole in the building’s wall as close as possible to the equipment to which you will connect the lead-in cable.
Caution: There may be wires in the wall. Ensure that your drilling location is clear of obstruction or other hazards.
5. Pull the cable through the hole and form a drip loop close to where it enters the building.
6. Thoroughly waterproof the lead-in area.
7. Install a lightning arrestor.
8. Connect the lead-in cable to the equipment.
THE SPECIFICATIONS AND INFORMATION REGARDING THE PRODUCTS IN THIS MANUAL ARE SUBJECT TO CHANGE
WITHOUT NOTICE. ALL STATEMENTS, INFORMATION, AND RECOMMENDATIONS IN THIS MANUAL ARE BELIEVED TO
BE ACCURATE BUT ARE PRESENTED WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED. USERS MUST TAKE
FULL RESPONSIBILITY FOR THEIR APPLICATION OF ANY PRODUCTS.
THE SOFTWARE LICENSE AND LIMITED WARRANTY FOR THE ACCOMPANYING PRODUCT ARE INCORPORATED
HEREIN BY THIS REFERENCE. IF YOU ARE UNABLE TO LOCATE THE SOFTWARE LICENSE OR LIMITED WARRANTY,
CONTACT YOUR CISCO REPRESENTATIVE FOR A COPY.
The following information is for FCC compliance of Class A devices: This equipment has been tested and found to comply
with the limits for a Class A digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio-frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a
residential area is likely to cause harmful interference, in which case users will be required to correct the interference at
their own expense.
235
Cisco Aironet 2.4-GHz/5-GHz 8-dBi Directional Antenna (AIR-ANT2588P3M-N)
Installing the Antenna
The following information is for FCC compliance of Class B devices: This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If the equipment causes interference to radio or television reception, which can be determined by turning the
equipment off and on, users are encouraged to try to correct the interference by using one or more of the following
measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.
Modifications to this product not authorized by Cisco could void the FCC approval and negate your authority to operate
the product.
The Cisco implementation of TCP header compression is an adaptation of a program developed by the University of
California, Berkeley (UCB) as part of UCB’s public domain version of the UNIX operating system. All rights reserved.
Copyright © 1981, Regents of the University of California.
NOTWITHSTANDING ANY OTHER WARRANTY HEREIN, ALL DOCUMENT FILES AND SOFTWARE OF THESE SUPPLIERS
ARE PROVIDED “AS IS” WITH ALL FAULTS. CISCO AND THE ABOVE-NAMED SUPPLIERS DISCLAIM ALL WARRANTIES,
EXPRESSED OR IMPLIED, INCLUDING, WITHOUT LIMITATION, THOSE OF MERCHANTABILITY, FITNESS FOR A
PARTICULAR PURPOSE AND NONINFRINGEMENT OR ARISING FROM A COURSE OF DEALING, USAGE, OR TRADE
PRACTICE.
IN NO EVENT SHALL CISCO OR ITS SUPPLIERS BE LIABLE FOR ANY INDIRECT, SPECIAL, CONSEQUENTIAL, OR
INCIDENTAL DAMAGES, INCLUDING, WITHOUT LIMITATION, LOST PROFITS OR LOSS OR DAMAGE TO DATA ARISING
OUT OF THE USE OR INABILITY TO USE THIS MANUAL, EVEN IF CISCO OR ITS SUPPLIERS HAVE BEEN ADVISED OF
THE POSSIBILITY OF SUCH DAMAGES.
Any Internet Protocol (IP) addresses and phone numbers used in this document are not intended to be actual addresses
and phone numbers. Any examples, command display output, network topology diagrams, and other figures included in
the document are shown for illustrative purposes only. Any use of actual IP addresses or phone numbers in illustrative
content is unintentional and coincidental.
All printed copies and duplicate soft copies of this document are considered uncontrolled. See the current online version
for the latest version.
Cisco has more than 200 offices worldwide. Addresses, phone numbers, and fax numbers are listed on the Cisco website
at www.cisco.com/go/offices.
© 2019 Cisco Systems, Inc. All rights reserved.
236
Cisco Aironet 2.4-GHz/5-GHz 8-dBi Directional Antenna (AIR-ANT2588P3M-N)
Installing the Antenna
237
Cisco Aironet 5-GHz 13-dBi Directional
Antenna (AIR-ANT5114P2M-N)
This describes the Cisco Aironet AIR-ANT5114P2M-N 5-GHz 13-dBi 2-Port Directional antenna with N-type connectors, and
provides specifications and mounting instructions. The antenna operates in the 5 GHz frequency band and is designed for use
in outdoor environments.
These topics are discussed:

Technical Specifications

Elevation and Azimuth Plane Patterns

System Requirements

Safety Precautions

Installation Guidelines

Installing the Antenna

Obtain Documentation and Submit a Service Request
Cisco Systems, Inc.
238
www.cisco.com
Cisco Aironet 5-GHz 13-dBi Directional Antenna (AIR-ANT5114P2M-N)
Technical Specifications
Table 1
2-Element Patch Array
Operating frequency range
5150–5900 MHz
Nominal input impedance
50 Ohms
Peak gain
13 dBi (see note below)
Polarization
Linear, Dual
Elevation plane 3-dB beamwidth
30°
Azimuth plane 3-dB beamwidth
30°
Sidelobe level
< –15 dBc
Front-to-back ratio
> 25 dB
Cable length and type
30 in. (76.2 cm)
outdoor rated Coax
Connector type
N Male
Length
7.8 in. (19.8 cm)
Width
7.8 in. (19.8 cm)
Height
1.2 in. (3 cm)
Weight
21.6 oz. (0.61 kg)
Operating temperature range
-40–131°F
(-40–55°C)
334576
Antenna type
Note: The AIR-ANT5114P2M-N antenna may be referred to as a +14 dBI antenna in variety of Cisco documents. The actual
gain of the AIR-ANT5114P2M-N product is +13 dBI, confirmed over many samples of the AIR-ANT5114P2M-N antenna. The
gain of the raw antenna element inside AIR-ANT5114P2M-N is just under 14 dBI, but due to 1dB RF loss of the integrated 30"
length coaxial RF cable, the actual gain of the AIR-ANT5114P2M-N antenna product is 13 dBI maximum.
239
Cisco Aironet 5-GHz 13-dBi Directional Antenna (AIR-ANT5114P2M-N)
Elevation and Azimuth Plane Patterns
System Requirements
This antenna is designed for use with Cisco Aironet access points and bridges, but can be used with any 5 GHz Cisco Aironet
radio device that uses an N-male connector.
Safety Precautions
WARNING: Installation of this antenna near power lines is dangerous. For your safety, follow the installation directions.
WARNING: The warning means danger. You are in a situation that could cause bodily injury. Before you work on any equipment,
be aware of the hazards involved with electrical circuitry and be familiar with standard practices for preventing accidents.
WARNING: In order to comply with international radio frequency (RF) exposure limits, dish antennas should be located at a
minimum of 8.7 inches (22 cm) or more from the bodies of all persons. Other antennas should be located a minimum of 7.9
inches (20 cm) or more from the bodies of all persons.
WARNING: Do not work on the system or connect or disconnect cables during periods of lightning activity.
WARNING: This equipment must be grounded. Never defeat the ground conductor or operate the equipment in the absence of
a suitably installed ground conductor. Contact the appropriate electrical inspection authority or an electrician if you are uncertain
that suitable grounding is available.
WARNING: Do not locate the antenna near overhead power lines or other electric light or power circuits, or where it can come
into contact with such circuits. When installing the antenna, take extreme care not to come into contact with such circuits, as
they may cause serious injury or death. For proper installation and grounding of the antenna, please refer to national and local
codes (e.g. U.S.:NFPA 70, National Electrical Code, Article 810, in Canada: Canadian Electrical Code, Section 54).
WARNING: Each year hundreds of people are killed or injured when attempting to install an antenna. In many of these cases,
the victim was aware of the danger of electrocution but did not take adequate steps to avoid the hazard.
240
Cisco Aironet 5-GHz 13-dBi Directional Antenna (AIR-ANT5114P2M-N)
WARNING: For your safety, and to help you achieve a good installation, please read and follow these safety precautions. They
may save your life!
1. If you are installing an antenna for the first time, for your own safety as well as others, seek professional assistance. Your
Cisco sales representative can explain which mounting method to use for the size and type antenna you are about to install.
2. Select your installation site with safety, as well as performance in mind. Remember, electric power lines and phone lines
look alike. For your safety, assume that any overhead line can kill you.
3. Call your electric power company. Tell them your plans and ask them to come look at your proposed installation. This is a
small inconvenience considering your life is at stake.
4. Plan your installation carefully and completely before you begin. Successful raising of a mast or tower is largely a matter of
coordination. Each person should be assigned to a specific task and should know what to do and when to do it. One person
should be in charge of the operation to issue instructions and watch for signs of trouble.
5. When installing your antenna, remember:
a. Do not use a metal ladder.
b. Do not work on a wet or windy day.
c. Dress properly: wear shoes with rubber soles and heels, rubber gloves, long sleeved shirt or jacket.
6. If the assembly starts to drop, get away from it and let it fall. Remember, the antenna, mast, cable, and metal guy wires are
all excellent conductors of electrical current. Even the slightest touch of any of these parts to a power line complete an
electrical path through the antenna and the installer: you!
7. If any part of the antenna system should come in contact with a power line, do not touch it or try to remove it yourself.
Call your local power company. They will remove it safely.
8. If an accident should occur with the power lines call for qualified emergency help immediately.
Installation Guidelines
Because the antennas transmit and receive radio signals, they are susceptible to RF obstructions and common sources of
interference that can reduce throughput and range of the device to which they are connected. Follow these guidelines to ensure
the best possible performance:

Mount the antenna as high as possible to take advantage of its propagation characteristics.

Keep the antenna away from metal obstructions such as heating and air-conditioning ducts, large ceiling trusses, building
superstructures, and major power cabling runs. If necessary, use a rigid conduit to lower the antenna away from these
obstructions.

The density of the materials used in the building construction determines the number of walls the signal must pass through
and still maintain adequate coverage. Consider the following before choosing the location in which to install your antenna:

—
Paper and vinyl walls have very little affect on signal penetration.
—
Solid and pre-cast concrete walls limit signal penetration to one or two walls without degrading coverage.
—
Concrete and wood block walls limit signal penetration to three or four walls.
—
A signal can penetrate five or six walls constructed of drywall or wood.
—
A thick metal wall causes signals to reflect, causing poor penetration.
Install the antenna away from 5-GHz cordless phones. These products can cause signal interference because they operate
in the same frequency range as the device your antenna is connected to.
241
Cisco Aironet 5-GHz 13-dBi Directional Antenna (AIR-ANT5114P2M-N)
Site Selection
Before attempting to install your antenna, determine where you can best place the antenna for safety and performance.
To determine a safe distance from wires, power lines, and trees:
1. Measure the height of your antenna.
2. Add this length to the length of your tower or mast and then double this total for the minimum recommended safe distance.
Caution: If you are unable to maintain this safe distance, stop and get professional help.
Generally, the higher an antenna is above the ground, the better it performs. Good practice is to install your antenna about 5 to
10 foot (1.5 to 3 m) above the roof line and away from all power lines and obstructions. Mount place your wireless device as
close to the antenna as possible, so that the lead-in cable is as short as possible.
Installing the Antenna
You can install the antenna on a pole from 1.63" to 2.3" pipe O.D. The mounting options allow the antenna to be vertically or
horizontally polarized.
Required Tools and Equipment
An installation kit is shipped with the antenna and consists of the panel antenna with adjustable mount and hardware, including:

Antenna mount bracket

Elevation adjustable bracket

Azimuth adjustable bracket

Four 1/4 in. 20x3/4 carriage bolts

Six 1/4 in. 20 hex nuts

Six 1/4 in. 20 spring lock washers

Six 1/4 in. 20 flat washers

Two pipe clamps
The following tools and equipment are not provided:

7/16 in wrench

5/16 in nut driver or flat head screwdriver for pipe clamps
The following sections contain typical procedures for installing the antenna on a pole. Your installation may vary. Before you
begin, refer to Figure 1.
Mounting on a Pole
To mount your antenna on a pole:
1. Remove antenna and mount kit from packaging.
2. Attach antenna mount bracket to the back of the antenna as shown applying a maximum nut-tightening torque of 55 in lbf
(6.2 Nm).
242
Cisco Aironet 5-GHz 13-dBi Directional Antenna (AIR-ANT5114P2M-N)
Figure 1
Attaching Antenna Mount Bracket
4
3
2
334630
1
1
Antenna mount bracket
3
1/4-in. spring lock washer
2
1/4-in. flat washer
4
1/4-in. 20 hex nut
3. Attach elevation adjustable bracket as shown and loosely secure hardware. The carriage bolt square holes must be on the
inside.
243
Cisco Aironet 5-GHz 13-dBi Directional Antenna (AIR-ANT5114P2M-N)
Figure 2
5
Attaching Elevation Adjustable Bracket
4
3
2
1
2
4
5
334631
3
1
Elevation adjustable bracket
4
1/4 in. spring lock washer
2
1/4 in. 20x3/4 carriage bolt
5
1/4 in. 20 hex nut
3
1/4 in. flat washer
4. Attach azimuth adjustable bracket to pipe routing band clamps as shown. Tighten the pipe clamps to a torque of 43-51 in
lbf (4.9-5.8 Nm).
244
Cisco Aironet 5-GHz 13-dBi Directional Antenna (AIR-ANT5114P2M-N)
Figure 3
Attaching Azimuth Adjustable Bracket
1
2
334635
2
1
Azimuth adjustable bracket
2
Pipe clamps
5. Attach antenna assembly to azimuth bracket on pipe.
245
Cisco Aironet 5-GHz 13-dBi Directional Antenna (AIR-ANT5114P2M-N)
Figure 4
Attaching Antenna Assembly
3
5
2
1
4
1
2
334638
5
3
1
1/4 in. flat washer
4
Elevation adjustable bracket
2
1/4 in. spring lock washer
5
1/4 in. 20x 3/4 carriage bolt
3
1/4 in. 20 hex nut
6. Adjust the position of the antenna to the desired azimuth and elevation angles and tighten all pivot hardware (4 places) to
a maximum torque of 55 in lbf (6.2 Nm). The bracket allows the antenna position to be adjustable to +/–45 degrees azimuth
and +/–60 degrees elevation.
246
Cisco Aironet 5-GHz 13-dBi Directional Antenna (AIR-ANT5114P2M-N)
Adjusting Antenna Position
334640
Figure 5
NOTE: We recommend grounding the antenna. See Grounding the Antenna.
Installing the Optional Mounting Bracket Kit
Using an optional antenna mounting bracket kit, the AIR-ANT5114P2M-N antenna can be mounted directly on an access point
in a strand mount or pole mount environment. The antenna bracket kit contains four bracket sections and fasteners that you can
assemble in multiple configurations to position and aim the directional antenna in a range of positions. For more information on
mounting the antenna with the optional mounting bracket, refer to Installing Antenna Brackets on Cisco 1550 Series Outdoor
Mesh Access Points.
Mounting on a Vertical Surface
The antenna can be wall mounted. Hardware is not included for wall-mount installation.
To mount your antenna on a vertical surface:
1. Remove antenna and mount kit from packaging.
2. Attach antenna mount bracket to the back of the antenna as shown in Figure 1, applying a maximum nut-tightening torque
of 55 in lbf (6.2 Nm).
3. Attach elevation adjustable bracket (B) as shown in Figure 2 and loosely secure hardware. The carriage bolt square holes
must be on the inside.
4. Using the appropriate customer-supplied anchors and screws, attach the azimuth adjustable bracket to the wall as shown:
247
Cisco Aironet 5-GHz 13-dBi Directional Antenna (AIR-ANT5114P2M-N)
Wall Mounting
334653
Figure 6
Figure 7 shows, in inches, the distance between the bracket mounting holes.
Figure 7
Distance Between Bracket Mounting Holes
2.40
347802
2.40
5. Attach antenna assembly to azimuth bracket, as shown in Figure 4.
248
Cisco Aironet 5-GHz 13-dBi Directional Antenna (AIR-ANT5114P2M-N)
6. Adjust the position of the antenna to the desired azimuth and elevation angles and tighten all pivot hardware (4 places) to
a maximum torque of 55 in lbf (6.2 Nm). The bracket allows the antenna position to be adjustable to +/–45 degrees azimuth
and +/–60 degrees elevation.
NOTE: We recommend grounding the antenna. See Grounding the Antenna.
Antenna Cable Information
If the antenna is used with the Cisco 1552CU or 1552EU access point, the port A of the antenna must be connected to port 1
of the access point, port B of the antenna must be connected to port 3 of the access point, and port 2 of the access point must
be capped with the cap enclosed with the antenna.
Note: Coaxial cable loses efficiency as the frequency increases, resulting in signal loss. Keep the cable as short as possible
because cable length also causes signal loss (the longer the run, the greater the loss).
Note: The antenna cable has a 0.5 in. (12.7 mm) bend radius. Sharply bending or crimping the cable may cause a degradation
in performance.
The antenna terminates with an N-male plug after a short, 2.5 foot (0.76 m) cable. The mating connector to the antenna is an
appropriate N-female jack. The connector on the opposite end will vary according to the type of equipment used.
After the cable is attached to the antenna, ensure that the connections are sealed (if outdoors) to prevent moisture and other
weathering elements from affecting performance. Cisco recommends using a coax seal (such as CoaxSeal) for outdoor
connections. Silicone sealant or electrical tape are not recommended for sealing outdoor connections.
Grounding the Antenna
To ground the antenna in accordance with national electrical code instructions:
1. Use No. 10 AWG copper or No. 8 or larger copper-clad steel or bronze wire as ground wires for both mast and lead-in.
Securely clamp the wire to the bottom of the mast.
2. Secure the lead-in wire to an antenna discharge unit and the mast ground wire to the building with stand-off insulators
spaced from 4 foot (1.2 m) to 8 foot (2.4 m) apart.
3. Mount the antenna discharge unit as close as possible to where the lead-in wire enters the building.
4. Drill a hole in the building wall as close as possible to the equipment to which you will connect the lead-in cable.
Caution: There may be wires in the wall. Ensure that your drilling location is clear of obstruction or other hazards.
5. Pull the cable through the hole and form a drip loop close to where it enters the building.
6. Thoroughly waterproof the lead-in area.
7. Install a lightning arrestor.
8. Connect the lead-in cable to the equipment.
Obtain Documentation and Submit a Service Request
For information on obtaining documentation, using the Cisco Bug Search Tool (BST), submitting a service request, and gathering
additional information, see What’s New in Cisco Product Documentation.
To receive new and revised Cisco technical content directly to your desktop, you can subscribe to the What’s New in Cisco
Product Documentation RSS feed. The RSS feeds are a free service.
249
Cisco Aironet 5-GHz 13-dBi Directional Antenna (AIR-ANT5114P2M-N)
THE SPECIFICATIONS AND INFORMATION REGARDING THE PRODUCTS IN THIS MANUAL ARE SUBJECT TO CHANGE
WITHOUT NOTICE. ALL STATEMENTS, INFORMATION, AND RECOMMENDATIONS IN THIS MANUAL ARE BELIEVED TO BE
ACCURATE BUT ARE PRESENTED WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED. USERS MUST TAKE FULL
RESPONSIBILITY FOR THEIR APPLICATION OF ANY PRODUCTS.
THE SOFTWARE LICENSE AND LIMITED WARRANTY FOR THE ACCOMPANYING PRODUCT ARE SET FORTH IN THE
INFORMATION PACKET THAT SHIPPED WITH THE PRODUCT AND ARE INCORPORATED HEREIN BY THIS REFERENCE. IF YOU
ARE UNABLE TO LOCATE THE SOFTWARE LICENSE OR LIMITED WARRANTY, CONTACT YOUR CISCO REPRESENTATIVE FOR
A COPY.
The following information is for FCC compliance of Class A devices: This equipment has been tested and found to comply with
the limits for a Class A digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial environment. This equipment
generates, uses, and can radiate radio-frequency energy and, if not installed and used in accordance with the instruction
manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to
cause harmful interference, in which case users will be required to correct the interference at their own expense.
The following information is for FCC compliance of Class B devices: This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular installation. If the equipment
causes interference to radio or television reception, which can be determined by turning the equipment off and on, users are
encouraged to try to correct the interference by using one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.
Modifications to this product not authorized by Cisco could void the FCC approval and negate your authority to operate the
product.
The Cisco implementation of TCP header compression is an adaptation of a program developed by the University of California,
Berkeley (UCB) as part of UCB’s public domain version of the UNIX operating system. All rights reserved. Copyright © 1981,
Regents of the University of California.
NOTWITHSTANDING ANY OTHER WARRANTY HEREIN, ALL DOCUMENT FILES AND SOFTWARE OF THESE SUPPLIERS ARE
PROVIDED “AS IS” WITH ALL FAULTS. CISCO AND THE ABOVE-NAMED SUPPLIERS DISCLAIM ALL WARRANTIES, EXPRESSED
OR IMPLIED, INCLUDING, WITHOUT LIMITATION, THOSE OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND
NONINFRINGEMENT OR ARISING FROM A COURSE OF DEALING, USAGE, OR TRADE PRACTICE.
IN NO EVENT SHALL CISCO OR ITS SUPPLIERS BE LIABLE FOR ANY INDIRECT, SPECIAL, CONSEQUENTIAL, OR INCIDENTAL
DAMAGES, INCLUDING, WITHOUT LIMITATION, LOST PROFITS OR LOSS OR DAMAGE TO DATA ARISING OUT OF THE USE OR
INABILITY TO USE THIS MANUAL, EVEN IF CISCO OR ITS SUPPLIERS HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH
DAMAGES.
Any Internet Protocol (IP) addresses and phone numbers used in this document are not intended to be actual addresses and
phone numbers. Any examples, command display output, network topology diagrams, and other figures included in the
document are shown for illustrative purposes only. Any use of actual IP addresses or phone numbers in illustrative content is
unintentional and coincidental.
All printed copies and duplicate soft copies are considered un-Controlled copies and the original on-line version should be
referred to for latest version.
Cisco has more than 200 offices worldwide. Addresses, phone numbers, and fax numbers are listed on the Cisco website at
www.cisco.com/go/offices.
250
Cisco Aironet 5-GHz 13-dBi Directional Antenna (AIR-ANT5114P2M-N)
251
Cisco Aironet Omnidirectional Antennas
AIR-ANT5150VG-N and
AIR-ANT5150HG-N
This document describes the Cisco Aironet AIR-ANT5150VG-N and AIR-ANT5150HG-N Omnidirectional Antennas and
provides instructions for mounting. The antennas are designed for outdoor use with Cisco Aironet Outdoor Access Points
(hereafter referred to as access points) with radios operating in the 5 GHz frequency band.
The following information is provided in this document:

Technical Specifications, page 253

System Requirements, page 255

Safety Precautions, page 255

Installation Notes, page 256

Obtaining Documentation and Submitting a Service Request, page 257
Cisco Systems, Inc.
252
www.cisco.com
Cisco Aironet Omnidirectional Antennas AIR-ANT5150VG-N and AIR-ANT5150HG-N
Figure 1
Cisco Aironet AIR-ANT5150 Series Antenna
Technical Specifications
AIR-ANT5150VG-N
AIR-ANT5150HG-N
Antenna Type
Omnidirectional
Omnidirectional
Operating Frequency Range
5150 - 5925 MHz
5150 - 5925 MHz
Maximum VSWR
2:1
2:1
Gain
5 dBi
5 dBi
Polarization
Vertical
Horizontal
Maximum Azimuth Plane Ripple
3.3 dB
3.3 dB
Elevation Plane 3 dB Beamwidth
33°
35°
Azimuth Plane 3 dB Beamwidth
Omnidirectional
Omnidirectional
Length
7.88 in (200.2 mm)
7.88 in (200.2 mm)
Diameter
1.0 in (25.4 mm)
1.0 in (25.4 mm)
Weight
3.5 oz. (0.1 kg)
3.5 oz. (0.1 kg)
Connector
N-Male
N-Male
Operational Temperature
-40° to +158°F (-40°C to +70°C)
-40° to +158°F (-40°C to +70°C)
Storage Temperature
-40° to +185°F (-40°C to +85°C)
-40° to +185°F (-40°C to +85°C)
Water/Foreign Body Ingress
IP67
IP67
Wind Rating (Operational)
100 mph (161 kph)
100 mph (161 kph)
253
Cisco Aironet Omnidirectional Antennas AIR-ANT5150VG-N and AIR-ANT5150HG-N
254
Cisco Aironet Omnidirectional Antennas AIR-ANT5150VG-N and AIR-ANT5150HG-N
System Requirements
This antenna is designed for use with the Cisco Aironet Outdoor Access Points.
Safety Precautions
WARNING: Do not locate the antenna near overhead power lines or other electric light or power circuits, or where it can
come into contact with such circuits. When installing the antenna, take extreme care not to come into contact with such
circuits, as they may cause serious injury or death. For proper installation and grounding of the antenna, please refer to
national and local codes (e.g. U.S.: NFPA 70, National Electrical Code, Article 810, Canada: Canadian Electrical Code,
Section 54). Statement 280
For your safety, read and follow these safety precautions.
1. Before you install an antenna, contact your Cisco account representative to explain which mounting method to use for the
size and type of antenna that you are about to install.
2. Find someone to help you—installing an antenna is often a two-person job.
3. Select your installation site with safety, as well as performance, in mind. Remember that electric power lines and phone
lines look alike. For your safety, assume that any overhead line can kill you.
255
Cisco Aironet Omnidirectional Antennas AIR-ANT5150VG-N and AIR-ANT5150HG-N
4. Contact your electric power company. Tell them your plans and ask them to come look at your proposed installation.
5. Plan your installation carefully and completely before you begin. Each person involved in an installation should be assigned
to a specific task and should know what to do and when to do it. One person should be in charge of the operation to issue
instructions and watch for signs of trouble.
6. When installing your antenna, follow these guidelines:
a. Do not use a metal ladder.
b. Do not work on a wet or windy day.
c. Do dress properly—wear shoes with rubber soles and heels, rubber gloves, and a long-sleeved shirt or jacket.
7. If the assembly starts to drop, move away from it and let it fall. Because the antenna, mast, cable, and metal guy wires are
all excellent conductors of electrical current, even the slightest touch of any of these parts to a power line completes an
electrical path through the antenna and the installer.
8. If any part of the antenna system should come in contact with a power line, do not touch it or try to remove it yourself. Call
your local power company to have it removed safely.
9. If an accident should occur with the power lines, call for qualified emergency help immediately.
Installation Notes
The antenna is designed to connect to a dedicated antenna port on the access point. No special tools are required to install the
antenna.
The antenna is resistant to the full range of outdoor environments. After the antenna is attached to the access point, seal the
connections to prevent moisture and other weathering elements from affecting performance. Cisco recommends using a coax
seal (such as CoaxSeal) for outdoor connections. Silicone sealant or electrical tape are not recommended for sealing outdoor
connections.
Choosing a Mounting Location
The antenna is designed to create an omnidirectional broadcast pattern. To achieve this pattern, the access point should be
mounted clear of any obstructions to the sides of the radiating element. If the mounting location is on the side of a building or
tower, the antenna pattern is degraded on the building or tower side.
Generally, the higher an antenna is above the ground, the better it performs. A practice is to install your antenna about 5 to 10
ft (1.5 to 3 m) above the roof line and away from all power lines and obstructions.
Tools and Equipment Required
No tools are required to mount the antenna to the access point. However, you may need a ¾-in. (19-mm) open end or
combination wrench (or adjustable wrench) to remove the antenna port covers.
For information about tools required to mount the access point, see the appropriate access point documentation.
Mounting the Antenna
To connect the antenna to the access point, follow these steps:
1. If necessary, remove the antenna port cover.
2. Align the antenna’s N connector with the appropriate antenna port.
256
Cisco Aironet Omnidirectional Antennas AIR-ANT5150VG-N and AIR-ANT5150HG-N
3. Gently push the antenna into the port.
4. Hand-tighten the antenna.
Obtaining Documentation and Submitting a Service Request
For information on obtaining documentation, submitting a service request, and gathering additional information, see the monthly
What’s New in Cisco Product Documentation, which also lists all new and revised Cisco technical documentation, at:
http://www.cisco.com/c/en/us/td/docs/general/whatsnew/whatsnew.html.
Subscribe to the What’s New in Cisco Product Documentation as a Really Simple Syndication (RSS) feed and set content to be
delivered directly to your desktop using a reader application. The RSS feeds are a free service and Cisco currently supports
RSS Version 2.0.
Cisco and the Cisco Logo are trademarks of Cisco Systems, Inc. and/or its affiliates in the U.S. and other countries. A listing of
Cisco's trademarks can be found at www.cisco.com/go/trademarks. Third party trademarks mentioned are the property of their
respective owners. The use of the word partner does not imply a partnership relationship between Cisco and any other
company. (1005R)
© 2017-2019 Cisco Systems, Inc. All rights reserved.
257
Cisco Aironet 8-dBi Omnidirectional
Antenna (AIR-ANT5180V-N)
This document describes the Cisco Aironet AIR-ANT5180V-N 8-dBi Omnidirectional Antenna and provides instructions for
mounting it. The antenna operates in the 5-GHz frequency range and is designed for outdoor use with the Cisco Aironet 1520
Series Outdoor Mesh Access Point (hereafter referred to as the access point).
The following information is provided in this document.

Technical Specifications, page 259

System Requirements, page 259

Safety Precautions, page 260

Installation Notes, page 260
Cisco Systems, Inc.
258
www.cisco.com
Cisco Aironet 8-dBi Omnidirectional Antenna (AIR-ANT5180V-N)
Technical Specifications
Omnidirectional
colinear array
Operating frequency range
4900–5850 MHz
1.7:1 VSWR bandwidth
4900–5850 MHz
Nominal input impedance
50 Ohms
Gain (4900–5000 MHz)
7-dBi
Gain (5400–5850 MHz)
8-dBi
Polarization
Linear
E-plane 3-dB beamwidth
16°
H-plane 3-dB bandwidth
Omnidirectional
Length
11.0 in. (27.9 cm)
Diameter
1.0 in. (2.54 cm)
Weight
6.0 oz. (160.0 g)
Connector type
N-Male
Operating temperature
–22°F - 158°F
(–30°C - 70°C)
Wind rating
125 mph (201 kmh)
operational
165 mph (265 kmh)
survival
Azimuth Radiation Pattern
231296
Antenna type
Elevation Radiation Pattern
System Requirements
This antenna is designed for use with the Cisco Aironet 1520 Outdoor Mesh Access Points. The antenna is compatible with
Cisco Aironet 1505 and 1510 Outdoor Mesh Access Points.
259
Cisco Aironet 8-dBi Omnidirectional Antenna (AIR-ANT5180V-N)
Safety Precautions
Each year hundreds of people are killed or injured when attempting to install an antenna. In many of these cases, the victim was
aware of the danger of electrocution but did not take adequate steps to avoid the hazard.
For your safety, and to help you achieve a good installation, please read and follow these safety precautions. They may save
your life!
1. If you are installing an antenna for the first time, for your own safety as well as others, seek professional assistance. Your
Cisco sales representative can explain which mounting method to use for the size and type antenna you are about to install.
2. Select your installation site with safety, as well as performance in mind. Remember: electric power lines and phone lines
look alike. For your safety, assume that any overhead line can kill you.
3. Call your electric power company. Tell them your plans and ask them to come look at your proposed installation. This is a
small inconvenience considering your life is at stake.
4. Plan your installation carefully and completely before you begin. Successful raising of a mast or tower is largely a matter of
coordination. Each person should be assigned to a specific task, and should know what to do and when to do it. One person
should be in charge of the operation to issue instructions and watch for signs of trouble.
5. When installing your antenna, remember:
a. Do not use a metal ladder.
b. Do not work on a wet or windy day.
c. Do dress properly—shoes with rubber soles and heels, rubber gloves, long sleeved shirt or jacket.
6. If the assembly starts to drop, get away from it and let it fall. Remember, the antenna, mast, cable, and metal guy wires are
all excellent conductors of electrical current. Even the slightest touch of any of these parts to a power line completes an
electrical path through the antenna and the installer: You!
7. If any part of the antenna system should come in contact with a power line, don’t touch it or try to remove it yourself. Call
your local power company. They will remove it safely.
8. If an accident should occur with the power lines call for qualified emergency help immediately.
Installation Notes
The antenna is designed to connect to a dedicated antenna port on the access point. No special tools are required to install the
antenna.
The antenna is resistant to the full range of outdoor environments. Therefore, Cisco does not recommend using cable or antenna
waterproofing materials. Using such materials may cause important drainage holes to be blocked. Two drain holes are located
on the antenna base.
Three drain holes are also located under the cap at the top of the antenna. These holes allow for proper drainage if the antenna
is deployed with the cap pointing towards the ground.
Note: Ensure that the cap is not damaged.
Figure 1 shows the location of the drain holes in both the antenna base and under the antenna cap.
260
Cisco Aironet 8-dBi Omnidirectional Antenna (AIR-ANT5180V-N)
Figure 1
Antenna Drain Hole Locations
1
2
232095
2
232096
2
1
Antenna drain hole under the cap
2
Antenna drain holes at the base
Choosing a Mounting Location
The antenna is designed to create an omnidirectional broadcast pattern. To achieve this pattern, the access point should be
mounted clear of any obstructions to the sides of the radiating element. If the mounting location is on the side of a building or
tower, the antenna pattern is degraded on the building or tower side.
Generally, the higher an antenna is above the ground, the better it performs. Good practice is to install your antenna about 5 to
10 ft (1.5 to 3 m) above the roof line and away from all power lines and obstructions.
Tools and Equipment Required
No tools are required to mount the antenna to the access point. However, you may need a ¾-in. (19-mm) open end or
combination wrench (or adjustable wrench) to remove the antenna port covers.
For information about tools required to mount the access point, see the appropriate access point documentation.
Mounting the Antenna
Figure 2 identifies and shows the locations of the antenna ports when looking at the access point from the hinged cover side.
261
Cisco Aironet 8-dBi Omnidirectional Antenna (AIR-ANT5180V-N)
Figure 2
Antenna Port Locations
Installing the antennas depends on which type access point you are using. Two configurations are available: cable strand mount
and pole mount. Table 1 shows the antenna port usage for these configurations.
Table 1
Antenna Port Usage Table
Antenna Port
Product Configuration
Cable Strand Mount
(Two Antenna Receive MRC Access and
One Backhaul)
Pole Mount
(Three Antenna Receive MRC Access and
One Backhaul)
1
2.4-GHz receive only
5-GHz receive and transmit
2
5-GHz transmit and receive
No connection
3
2.4-GHz transmit and receive
2.4-GHz receive only
4
No connection
2.4-GHz receive only
5
No connection
No connection
6
No connection
2.4-GHz transmit and receive
Follow these steps to connect the antenna to the access point.
1. If necessary, remove the antenna port covers.
2. Using Table 1 as a guide, align the antenna’s N connector with the appropriate 5-GHz antenna port.
3. Gently push the antenna into the port.
4. Tighten the antenna hand tight.
262
Cisco Aironet 8-dBi Omnidirectional Antenna (AIR-ANT5180V-N)
Communications, Services, and Additional Information

To receive timely, relevant information from Cisco, sign up at Cisco Profile Manager.

To get the business impact you’re looking for with the technologies that matter, visit Cisco Services.

To submit a service request, visit Cisco Support.

To discover and browse secure, validated enterprise-class apps, products, solutions and services, visit Cisco Marketplace.

To obtain general networking, training, and certification titles, visit Cisco Press.

To find warranty information for a specific product or product family, access Cisco Warranty Finder.
Cisco Bug Search Tool
Cisco Bug Search Tool (BST) is a web-based tool that acts as a gateway to the Cisco bug tracking system that maintains a
comprehensive list of defects and vulnerabilities in Cisco products and software. BST provides you with detailed defect
information about your products and software.
Cisco and the Cisco logo are trademarks or registered trademarks of Cisco and/or its affiliates in the U.S. and other countries. To view a list of Cisco trademarks, go to this URL:
www.cisco.com/go/trademarks. Third-party trademarks mentioned are the property of their respective owners. The use of the word partner does not imply a partnership relationship
between Cisco and any other company. (1721R)
Any Internet Protocol (IP) addresses and phone numbers used in this document are not intended to be actual addresses and phone numbers. Any examples, command display output,
network topology diagrams, and other figures included in the document are shown for illustrative purposes only. Any use of actual IP addresses or phone numbers in illustrative
content is unintentional and coincidental.
© 2019 Cisco Systems, Inc. All rights reserved.
263
Cisco Cellular 2-in-1 Vehicle Mount and
Fixed Infrastructure Antenna
(ANT-2-4G2-O)
This chapter describes the technical specifications and installation instructions for the Cisco Cellular 2-in-1 Vehicle Mount and
Fixed Infrastructure Antenna, hereafter referred to as the antenna. The antenna is a two port antenna with two elements
designed to cover the 698-960, 1448-1511, and 1710-2700 MHz cellular bands. The antenna can be mounted on the roof of
a vehicle or fixed structure. The antenna meets or exceeds a variety of environmental ruggedization specifications for
transportation applications.
CAUTION: Read the information in Safety Precautions before installing or replacing antennas.
The topics included are:

Antenna Overview

Technical Specifications

Installing the Antenna

Obtaining Documentation and Submitting a Service Request
Antenna Overview

Antenna Features

Antenna Model

Antenna Assembly
Antenna Features
The antenna features:

Two cellular antenna elements within one radome

Outdoor and transportation ready

Roof mount installation

Dual cellular elements supporting 698-960, 1448-1511 and 1710-2700 MHz

—
Omnidirectional, vertically polarized, MIMO
—
Integrated 2 foot cables with TNC male connectors
LTE elements are interchangeable, either one can be connected to Main or Aux.
Cisco Systems, Inc.
264
www.cisco.com
Cisco Cellular 2-in-1 Vehicle Mount and Fixed Infrastructure Antenna (ANT-2-4G2-O)
The antenna may require RF extension cables. A shorter 2 foot cable length was selected on LTE WAN to allow you to optimize
LTE WAN performance and wireless range. If you require a cable length longer than 2 foot with the antenna, then you would
need to select RF extension cables of appropriate length and type.
Thicker RF cables, such as LMR-600, LMR-400, or LMR-240, result in lower loss, higher RF performance and longer range of
wireless network than thinner cables such as LMR-195, LMR-200. The trade-off is that thicker cables are more difficult to bend
and route.
For optimal performance, the length of thin cables needs to be kept as short as possible. For example, 2 foot and 10 foot lengths
of LMR-195 cable at 2700 MHz frequency would have losses of 0.5dB and 2.3dB respectively. In this example at 2700 MHz the
area covered by the wireless system with the 10 foot cable is reduced by 34% compared to 2 foot cable. Radius of
communication is degraded by 20% in 10 foot vs 2 foot case.
NOTE: Loss with the 17 foot GPS cable is compensated by the gain of the active GPS antenna and has little impact on GPS
performance.
Antenna Model
Antenna Model
Description
ANT-2-4G2-O
Cisco Cellular 2-in-1 Vehicle Mount and Fixed Infrastructure Antenna
Antenna Assembly
Figure 1
Cisco ANT-2-4G2-O Antenna
265
Cisco Cellular 2-in-1 Vehicle Mount and Fixed Infrastructure Antenna (ANT-2-4G2-O)
Figure 2
Cisco ANT-2-4G2-O Mechanical Details
Note: All dimensions are in millimeters [inches] unless explicitly stated otherwise in the drawing.
Technical Specifications

Radio Frequency Specifications

Antenna Radiation Patterns

Environmental and Operational Specifications

Mechanical Specifications

Power Specifications
266
Cisco Cellular 2-in-1 Vehicle Mount and Fixed Infrastructure Antenna (ANT-2-4G2-O)
Radio Frequency Specifications
Figure 3
Cellular Antenna Radio Frequency Specification
Specification
Description
Antenna type
Dual element, omnidirectional, 2x2 MIMO
Frequency

698 to 960 MHz

1448 to 1511 MHz

1710 to 2700 MHz
Nominal impedance
50 ohms
VSWR

2.1:1 maximum-698 to 960 MHz

2.4:1 maximum at 1448 MHz edge, 2.2:1
typical 1448-1511 MHz

2.0:1 maximum-1710 to 2700 MHz
Gain
The gain values (dBi) for each frequency range
are:

2.6 dBi typical, 3.8 dBi maximum-698 to 960
MHz

3.8 dBI typical, 4.3 dBI maximum 1448 to
1511 MHz

4.6 dBi typical, 5.5 dBI5 dBI maximum-1710
to 2700 MHz
Isolation

15 dB minimum - 698 to 960 MHz
Cellular to cellular

20 dB minimum - 1448 to 1511 MHz
(Main to Aux)

20 dB minimum - 1710 to 2700 MHz
Efficiency
Antennas were designed and tested to high RF
efficiency in all supported cellular bands. Detailed
technical specifications can be obtained through
your Cisco authorized partner or Cisco account
representative.
Polarization
Linear, Vertical
Radiation Pattern
Omnidirectional
Antenna Radiation Patterns

698 MHz Cellular Antenna Radiation Patterns

880 MHz Cellular Antenna Radiation Patterns

960 MHz Cellular Antenna Radiation Patterns

1470 MHz Cellular Antenna Radiation Patterns

1710 MHz Cellular Antenna Radiation Patterns

2170 MHz Cellular Antenna Radiation Patterns

2700 MHz Cellular Antenna Radiation Patterns
267
Cisco Cellular 2-in-1 Vehicle Mount and Fixed Infrastructure Antenna (ANT-2-4G2-O)
698 MHz Cellular Antenna Radiation Patterns
Line Color
Description
Blue (—)
Port 1
Red (—)
Port 2
880 MHz Cellular Antenna Radiation Patterns
Line Color
Description
Blue (—)
Port 1
Red (—)
Port 2
960 MHz Cellular Antenna Radiation Patterns
Figure 4
960 MHz Cellular Antenna Radiation Patterns
268
Cisco Cellular 2-in-1 Vehicle Mount and Fixed Infrastructure Antenna (ANT-2-4G2-O)
Line Color
Description
Blue (—)
Port 1
Red (—)
Port 2
1470 MHz Cellular Antenna Radiation Patterns
Figure 5
1470 MHz Cellular Antenna Radiation Patterns
Line Color
Description
Blue (—)
Port 1
Red (—)
Port 2
1710 MHz Cellular Antenna Radiation Patterns
Figure 6
1710 MHz Cellular Antenna Radiation Patterns
269
Cisco Cellular 2-in-1 Vehicle Mount and Fixed Infrastructure Antenna (ANT-2-4G2-O)
Line Color
Description
Blue (—)
Port 1
Red (—)
Port 2
2170 MHz Cellular Antenna Radiation Patterns
Figure 7
2170 MHz Cellular Antenna Radiation Patterns
Line Color
Description
Blue (—)
Port 1
Red (—)
Port 2
2700 MHz Cellular Antenna Radiation Patterns
Figure 8
2700 MHz Cellular Antenna Radiation Patterns
270
Cisco Cellular 2-in-1 Vehicle Mount and Fixed Infrastructure Antenna (ANT-2-4G2-O)
Line Color
Description
Blue (—)
Port 1
Red (—)
Port 2
Environmental and Operational Specifications
Table 1
Environmental and Operational Specifications for the Cisco ANT-2-4G2-O Antenna
Specification
Description
Operating temperature range
-40 to 158°F (-40 to 70°C)
Storage temperature range
-40 to 185°F (-40 to 85°C)
Altitude
15,000 feet. (4.5 km)
Humidity
5 to 95%
Vibration, Shock, Thermal, Corrosion, Seismic Outdoor IP67.
Tested to a variety of appropriate industrial, vehicular,
transportation, and mil-spec standards.
Mechanical Specifications
Table 2
Mechanical Specifications for the Cisco ANT-2-4G2-O Antenna
Specification
Description
Mount style
Roof mount, bulkhead
Location
Outdoor
Connector
TNC male
Cable type
RG-58
Cable length
2 foot. (61 cm)
Dimensions
7.1 in. (18.0 cm) diameter, 2.4 in. (6.05 cm) height
Weight
1.48 lbs (0.67 kg)
IP rating
IP67
Radome
Polycarbonate, UV resistant, black
Material substance compliance
ROHS compliant
271
Cisco Cellular 2-in-1 Vehicle Mount and Fixed Infrastructure Antenna (ANT-2-4G2-O)
Power Specifications
Table 3
Power Specifications for the Cisco ANT-2-4G2-O Antenna
Specification
Description
Nominal Impedance
50 ohms
Maximum input power per port
5 watts
Installing the Antenna
The antenna installation includes the following procedures:

Contents of the Antenna Kit

Safety Warnings

Safety Precautions

Tools and Equipment Required

Mounting the Antenna

Connecting the Antenna to the Router
Contents of the Antenna Kit
The antenna kit contains:

1 x Cisco ANT-2-4G2-O antenna
Safety Warnings
WARNING: Avoid using or servicing any equipment that has outdoor connections during an electrical storm.
There may be a risk of electric shock from lightning. Statement 1088
WARNING: Do not work on the system, or connect or disconnect cables, during periods of lightning activity. Statement 1001
WARNING: Do not locate the outdoor antenna near overhead power lines or other electric light or power circuits, or where it can
come into contact with such circuits. When installing the antenna, take extreme care not to come into contact with such circuits,
as they may cause serious injury or death. For proper installation and grounding of the antenna, please refer to national and local
codes (for example, U.S.:NFPA 70, National Electrical Code, Article 810, Canada:Canadian Electrical Code, Section 54).
Statement 1052
WARNING: This equipment must be grounded. Never defeat the ground conductor or operate the equipment in the absence of
a suitably installed ground conductor. Contact the appropriate electrical inspection authority or an electrician if you are uncertain
that suitable grounding is available. Statement 1024
WARNING: Only trained and qualified personnel should be allowed to install, replace, or service this equipment. Statement 1030
WARNING: To report a gas leak, do not use a telephone in the vicinity of the leak. Statement 1039
WARNING: This warning symbol means danger. You are in a situation that could cause bodily injury. Before you work on any
equipment, be aware of the hazards involved with electrical circuitry and be familiar with standard practices for preventing
accidents. Use the statement number provided at the end of each warning to locate its translation in the translated safety
warnings that accompanied this device. Statement 1071. SAVE THESE INSTRUCTIONS.
272
Cisco Cellular 2-in-1 Vehicle Mount and Fixed Infrastructure Antenna (ANT-2-4G2-O)
WARNING: This product is not intended to be directly connected to the Cable Distribution System. Additional regulatory
compliance and legal requirements may apply for direct connection to the Cable Distribution System. This product may connect
to the Cable Distribution System ONLY through a device that is approved for direct connection. Statement 1078
Safety Precautions
WARNING: Installation of this antenna near power lines is dangerous. For your safety, follow the installation directions.
Each year hundreds of people are killed or injured when attempting to install an antenna. In many of these cases, the victim was
aware of the danger of electrocution, but did not take adequate steps to avoid the hazard.
For your safety, and to help you achieve a good installation, please read and follow these safety precautions. They may save
your life!
For your safety, read and follow these safety precautions.

If you are installing an antenna for the first time, for your own safety as well as others, seek professional assistance. Your
Cisco sales representative can explain which mounting method to use for the size and type antenna you are about to install.

Before you install an antenna, contact your Cisco account representative to explain which mounting method to use for the
size and type of antenna that you are about to install.

Find someone to help you—installing an antenna is often a two-person job.

Select your installation site with safety, as well as performance, in mind. Remember that electric power lines and phone
lines look alike. For your safety, assume that any overhead line can kill you.

Contact your electric power company. Tell them your plans and ask them to come look at your proposed installation.

Plan your installation carefully and completely before you begin. Each person involved in an installation should be assigned
to a specific task, and should know what to do and when to do it. One person should be in charge of the operation to issue
instructions and watch for signs of trouble.

When installing your antenna, follow these guidelines:
—
Do not use a metal ladder.
—
Do not work on a wet or windy day.
—
Do dress properly—wear shoes with rubber soles and heels, rubber gloves, and a long-sleeved shirt or jacket.

If the assembly starts to drop, move away from it and let it fall. Because the antenna, mast, cable, and metal guy wires are
all excellent conductors of electrical current, even the slightest touch of any of these parts to a power line completes an
electrical path through the antenna and the installer.

If any part of the antenna system should come in contact with a power line, do not touch it or try to remove it yourself. Call
your local power company to have it removed safely.

If an accident should occur with the power lines, call for qualified emergency help immediately.
Tools and Equipment Required
In addition to the parts included in the antenna kit described in the section Contents of the Antenna Kit, you must provide the
following tool to install the antenna on the router:

Open-ended wrench

Electric drill
NOTE: This list does not include the tools and equipment required to assemble and erect the tower, mast, or other structure you
intend to mount your antenna on.
273
Cisco Cellular 2-in-1 Vehicle Mount and Fixed Infrastructure Antenna (ANT-2-4G2-O)
Mounting the Antenna
NOTE: A clean, flat surface at least 20 x 20 cm (8 x 8 in.) in area is required for mounting the antenna.
Follow these instructions to mount the antenna:
1. Mark the desired location where you plan to mount the antenna and create a hole through the surface The diameter of the
hole must be at least 0.75 in. (1.91 cm).
2. Thread the cables through the hole and insert the aluminum stud on the underside of the antenna into the hole. Ensure that
the foam gasket on the underside of the antenna sits flush against the mounting surface.
3. Inside the vehicle, place the rubber sealing washer around the stud. Then place the metal washer and the metal nut onto
the stud. Tighten the nut.
Connecting the Antenna to the Router
To attach the router-end of the cable to your router, please see the respective hardware guide for your router.
NOTE: Coaxial cable loses efficiency as the frequency increases, resulting in signal loss. The cable should be kept as short as
possible because cable length also determines the amount of signal loss—the longer the cable length or run, the greater the
loss).
Obtaining Documentation and Submitting a Service Request
For information on obtaining documentation, submitting a service request, and gathering additional information, see the monthly
What’s New in Cisco Product Documentation, which also lists all new and revised Cisco technical documentation, at:
http://www.cisco.com/en/US/docs/general/whatsnew/whatsnew.html
Subscribe to the What’s New in Cisco Product Documentation as an RSS (Really Simple Syndication) feed, and set it so content
is delivered directly to your desktop using a reader application. The RSS feeds are a free service and Cisco currently supports
RSS Version 2.0.
Cisco and the Cisco Logo are trademarks of Cisco Systems, Inc. and/or its affiliates in the U.S. and other countries. A listing of Cisco's trademarks can be found at
www.cisco.com/go/trademarks. Third party trademarks mentioned are the property of their respective owners. The use of the word partner does not imply a partnership relationship
between Cisco and any other company. (1005R)
274
Cisco Cellular 2-in-1 Vehicle Mount and Fixed Infrastructure Antenna (ANT-2-4G2-O)
275
Cisco Dual Port, Dual Band Vehicle Mount
and Fixed Infrastructure WLAN Antenna
(ANT-2-WLAN-D-O)
This chapter describes the technical specifications and installation instructions for the Cisco Dual Port, Dual Band Outdoor
Vehicle Mount and Fixed Infrastructure WLAN Antenna, hereafter referred to as the antenna. The antenna is a dual-port antenna
designed to cover 2.4 GHz and 5 GHz WLAN bands. The antenna can be mounted on the roof of a vehicle or fixed structure.
The antenna meets or exceeds a variety of environmental ruggedization specifications for transportation applications.
CAUTION: Read the information in Safety Precautions before installing or replacing antennas.
The topics included are:

Antenna Overview

Technical Specifications

Installing the Antenna

Obtaining Documentation and Submitting a Service Request
Antenna Overview

Antenna Features

Antenna Model

Antenna Assembly
Antenna Features
The antenna features:

2.4 and 5 GHz dual band support

Omnidirectional, vertically polarized, 2x2 MIMO

Outdoor and transportation ready

Roof mount installation

Integrated 3 foot long LMR-240 cables with RP-TNC plug connectors

The two WiFi elements are interchangeable.
Cisco Systems, Inc.
276
www.cisco.com
Cisco Dual Port, Dual Band Vehicle Mount and Fixed Infrastructure WLAN Antenna (ANT-2-WLAN-D-O)
Antenna Model
Antenna Model
Description
ANT-2-WLAN-D-O
Cisco Dual Port, Dual Band Vehicle Mount and Fixed Infrastructure WLAN
Antenna
Antenna Assembly
Figure 1
Cisco ANT-2-WLAN-D-O Antenna
Details for the ANT-2-WLAN-D-O are shown in Figure 2.
277
Cisco Dual Port, Dual Band Vehicle Mount and Fixed Infrastructure WLAN Antenna (ANT-2-WLAN-D-O)
Figure 2
ANT-2-WLAN-D-O Mechanical Details
Note: All dimensions are in millimeters [inches] unless explicitly stated otherwise in the drawing.
Technical Specifications

Radio Frequency Specifications

Antenna Radiation Patterns

Environmental and Operational Specifications

Mechanical Specifications

Power Specifications
278
Cisco Dual Port, Dual Band Vehicle Mount and Fixed Infrastructure WLAN Antenna (ANT-2-WLAN-D-O)
Radio Frequency Specifications
Figure 3
Antenna Radio Frequency Specification
Specification
Description
Antenna type
Dual element, omnidirectional, 2x2 MIMO
Connectors and cables
Quantity: 2 x 3foot LMR-240 cables with
RP-TNC(plug) connectors
Frequency
2400 to 2500 MHz
4900 to 5875 MHz
Nominal impedance
50 ohms
VSWR
2.0:1 Maximum
Gain
The gain values (dBi) for each frequency range
are:
4.0 dBi typical, 5.1 dBi maximum at 2400 to 2500
MHz
6.5 dBi typical, 7.0 dBi maximum at 4900 to 5875
MHz
3 dB beamwidth (vertical plane)
40 degrees-2400 to 2500 MHz
30 degrees-4900 to 5875 MHz
3 dB beamwidth (horizontal plane)
Omnidirectional
Isolation
15 dB minimum at 2400 to 2500 MHz
15 dB minimum at 4900 to 5875 MHz
Polarization
Linear, Vertical
Radiation Pattern
Omnidirectional
Antenna Radiation Patterns

2.46 GHz Antenna Radiation Patterns

4.9 GHz Antenna Radiation Pattern

5.55 GHz Antenna Radiation Patterns

5.9 GHz Antenna Radiation Patterns
2.46 GHz Antenna Radiation Patterns

2.46 GHz Antenna Radiation Pattern-Horizontal Plane, page 280

2.46 GHz Antenna Radiation Patterns-Vertical Plane
279
Cisco Dual Port, Dual Band Vehicle Mount and Fixed Infrastructure WLAN Antenna (ANT-2-WLAN-D-O)
2.46 GHz Antenna Radiation Pattern-Horizontal Plane
Figure 4
2.46 GHz Antenna Radiation Pattern-Horizontal Plane
Line Color
Description
Blue (—)
Port 1
Red (—)
Port 2
2.46 GHz Antenna Radiation Patterns-Vertical Plane
Figure 5
2.46 GHz Antenna Radiation Patterns-Vertical Plane
280
Cisco Dual Port, Dual Band Vehicle Mount and Fixed Infrastructure WLAN Antenna (ANT-2-WLAN-D-O)
Line Color
Description
Blue (—)
Port 1
Red (—)
Port 2
4.9 GHz Antenna Radiation Pattern

4.9 GHz Antenna Radiation Pattern-Horizontal Plane

4.9 GHz Antenna Radiation Patterns-Vertical Plane
281
Cisco Dual Port, Dual Band Vehicle Mount and Fixed Infrastructure WLAN Antenna (ANT-2-WLAN-D-O)
4.9 GHz Antenna Radiation Pattern-Horizontal Plane
Figure 6
4.9 GHz Antenna Radiation Pattern-Horizontal Plane
Line Color
Description
Blue (—)
Port 1
Red (—)
Port 2
4.9 GHz Antenna Radiation Patterns-Vertical Plane
Figure 7
4.9 GHz Antenna Radiation Patterns-Vertical Plane
282
Cisco Dual Port, Dual Band Vehicle Mount and Fixed Infrastructure WLAN Antenna (ANT-2-WLAN-D-O)
Line Color
Description
Blue (—)
Port 1
Red (—)
Port 2
5.55 GHz Antenna Radiation Patterns

5.55 GHz Antenna Radiation Pattern-Horizontal Plane

5.55 GHz Antenna Radiation Patterns-Vertical Plane
283
Cisco Dual Port, Dual Band Vehicle Mount and Fixed Infrastructure WLAN Antenna (ANT-2-WLAN-D-O)
5.55 GHz Antenna Radiation Pattern-Horizontal Plane
Figure 8
5.55 GHz Antenna Radiation Pattern-Horizontal Plane
Line Color
Description
Blue (—)
Port 1
Red (—)
Port 2
5.55 GHz Antenna Radiation Patterns-Vertical Plane
Figure 9
5.55 GHz Antenna Radiation Patterns-Vertical Plane
284
Cisco Dual Port, Dual Band Vehicle Mount and Fixed Infrastructure WLAN Antenna (ANT-2-WLAN-D-O)
Line Color
Description
Blue (—)
Port 1
Red (—)
Port 2
5.9 GHz Antenna Radiation Patterns

5.9 GHz Antenna Radiation Pattern-Horizontal Plane

5.9 GHz Antenna Radiation Patterns-Vertical Plane
285
Cisco Dual Port, Dual Band Vehicle Mount and Fixed Infrastructure WLAN Antenna (ANT-2-WLAN-D-O)
5.9 GHz Antenna Radiation Pattern-Horizontal Plane
Figure 10
5.9 GHz Antenna Radiation Pattern-Horizontal Plane
Line Color
Description
Blue (—)
Port 1
Red (—)
Port 2
5.9 GHz Antenna Radiation Patterns-Vertical Plane
Figure 11
5.9 GHz Antenna Radiation Patterns-Vertical Plane
286
Cisco Dual Port, Dual Band Vehicle Mount and Fixed Infrastructure WLAN Antenna (ANT-2-WLAN-D-O)
Line Color
Description
Blue (—)
Port 1
Red (—)
Port 2
Environmental and Operational Specifications
Table 1
Environmental and Operational Specifications for the Cisco ANT-2-WLAN-D-O Antenna
Specification
Description
Operating temperature range
-40 to 176°F (-40 to 80°C)
Storage temperature range
-40 to 185°F (-40 to 85°C)
Altitude
15,000 feet. (4.5 km)
Humidity
5 to 95%
Vibration, Shock, Thermal, Corrosion, Seismic Outdoor IP67.
Tested to a variety of appropriate industrial, vehicular,
transportation, and mil-spec standards.
Mechanical Specifications
Table 2
Mechanical Specifications for the Cisco ANT-2-WLAN-D-O Antenna
Specification
Description
Mount style
Roof mount, bulkhead
Location
Outdoor
Connector
Reverse Polarity TNC (RP-TNC) plug
Cable type
RG-58
Cable length
2 foot. (61 cm)
Dimensions
5.0 in. (12.7 cm) diameter, 1.5 in. (3.9 cm) height
Weight
0.584 lbs (0.265 kg)
IP rating
IP67
Radome
Polycarbonate, UV resistant, black
Material substance compliance
ROHS compliant
Power Specifications
Table 3
Power Specifications for the Cisco ANT-2-WLAN-D-O Antenna
Specification
Description
Nominal Impedance
50 ohms
Maximum input power per port
25 watts
Installing the Antenna
The antenna installation includes the following procedures:
287
Cisco Dual Port, Dual Band Vehicle Mount and Fixed Infrastructure WLAN Antenna (ANT-2-WLAN-D-O)

Contents of the Antenna Kit

Safety Warnings

Safety Precautions

Tools and Equipment Required

Mounting the Antenna

Connecting the Antenna to the Router
Contents of the Antenna Kit
The antenna kit contains:

1 x Cisco ANT-2-WLAN-D-O antenna
Safety Warnings
WARNING: Avoid using or servicing any equipment that has outdoor connections during an electrical storm.
There may be a risk of electric shock from lightning. Statement 1088
WARNING: Do not work on the system, or connect or disconnect cables, during periods of lightning activity. Statement 1001
WARNING: Do not locate the outdoor antenna near overhead power lines or other electric light or power circuits, or where it can
come into contact with such circuits. When installing the antenna, take extreme care not to come into contact with such circuits,
as they may cause serious injury or death. For proper installation and grounding of the antenna, please refer to national and local
codes (for example, U.S.:NFPA 70, National Electrical Code, Article 810, Canada:Canadian Electrical Code, Section 54).
Statement 1052
WARNING: This equipment must be grounded. Never defeat the ground conductor or operate the equipment in the absence of
a suitably installed ground conductor. Contact the appropriate electrical inspection authority or an electrician if you are uncertain
that suitable grounding is available. Statement 1024
WARNING: Only trained and qualified personnel should be allowed to install, replace, or service this equipment. Statement 1030
WARNING: To report a gas leak, do not use a telephone in the vicinity of the leak. Statement 1039
WARNING: This warning symbol means danger. You are in a situation that could cause bodily injury. Before you work on any
equipment, be aware of the hazards involved with electrical circuitry and be familiar with standard practices for preventing
accidents. Use the statement number provided at the end of each warning to locate its translation in the translated safety
warnings that accompanied this device. Statement 1071. SAVE THESE INSTRUCTIONS.
WARNING: This product is not intended to be directly connected to the Cable Distribution System. Additional regulatory
compliance and legal requirements may apply for direct connection to the Cable Distribution System. This product may connect
to the Cable Distribution System ONLY through a device that is approved for direct connection. Statement 1078
Safety Precautions
WARNING: Installation of this antenna near power lines is dangerous. For your safety, follow the installation directions.
Each year hundreds of people are killed or injured when attempting to install an antenna. In many of these cases, the victim was
aware of the danger of electrocution, but did not take adequate steps to avoid the hazard.
For your safety, and to help you achieve a good installation, please read and follow these safety precautions. They may save
your life!
288
Cisco Dual Port, Dual Band Vehicle Mount and Fixed Infrastructure WLAN Antenna (ANT-2-WLAN-D-O)
For your safety, read and follow these safety precautions.

If you are installing an antenna for the first time, for your own safety as well as others, seek professional assistance. Your
Cisco sales representative can explain which mounting method to use for the size and type antenna you are about to install.

Before you install an antenna, contact your Cisco account representative to explain which mounting method to use for the
size and type of antenna that you are about to install.

Find someone to help you—installing an antenna is often a two-person job.

Select your installation site with safety, as well as performance, in mind. Remember that electric power lines and phone
lines look alike. For your safety, assume that any overhead line can kill you.

Contact your electric power company. Tell them your plans and ask them to come look at your proposed installation.

Plan your installation carefully and completely before you begin. Each person involved in an installation should be assigned
to a specific task, and should know what to do and when to do it. One person should be in charge of the operation to issue
instructions and watch for signs of trouble.

When installing your antenna, follow these guidelines:
—
Do not use a metal ladder.
—
Do not work on a wet or windy day.
—
Do dress properly—wear shoes with rubber soles and heels, rubber gloves, and a long-sleeved shirt or jacket.

If the assembly starts to drop, move away from it and let it fall. Because the antenna, mast, cable, and metal guy wires are
all excellent conductors of electrical current, even the slightest touch of any of these parts to a power line completes an
electrical path through the antenna and the installer.

If any part of the antenna system should come in contact with a power line, do not touch it or try to remove it yourself. Call
your local power company to have it removed safely.

If an accident should occur with the power lines, call for qualified emergency help immediately.
Tools and Equipment Required
In addition to the parts included in the antenna kit described in the section Contents of the Antenna Kit, you must provide the
following tool to install the antenna on the router:

Open-ended wrench

Electric drill
NOTE: This list does not include the tools and equipment required to assemble and erect the tower, mast, or other structure you
intend to mount your antenna on.
Mounting the Antenna
NOTE: A clean, flat surface at least 15 x 15 cm (6 x 6 in.) in area is required for mounting the antenna.
Follow these instructions to mount the antenna:
1. Mark the desired location where you plan to mount the antenna and create a hole through the surface The diameter of the
hole must be at least 0.75 in. (1.91 cm).
2. Thread the cables through the hole and insert the aluminum stud on the underside of the antenna into the hole. Ensure that
the foam gasket on the underside of the antenna sits flush against the mounting surface.
289
Cisco Dual Port, Dual Band Vehicle Mount and Fixed Infrastructure WLAN Antenna (ANT-2-WLAN-D-O)
3. Inside the vehicle, place the rubber sealing washer around the stud. Then place the metal washer and the metal nut onto
the stud. Tighten the nut.
Connecting the Antenna to the Router
To attach the router-end of the cable to your router, please see the respective hardware guide for your device.
NOTE: Coaxial cable loses efficiency as the frequency increases, resulting in signal loss. The cable should be kept as short as
possible because cable length also determines the amount of signal loss—the longer the cable length or run, the greater the
loss).
Obtaining Documentation and Submitting a Service Request
For information on obtaining documentation, submitting a service request, and gathering additional information, see the monthly
What’s New in Cisco Product Documentation, which also lists all new and revised Cisco technical documentation, at:
http://www.cisco.com/en/US/docs/general/whatsnew/whatsnew.html
Subscribe to the What’s New in Cisco Product Documentation as an RSS (Really Simple Syndication) feed, and set it so content
is delivered directly to your desktop using a reader application. The RSS feeds are a free service and Cisco currently supports
RSS Version 2.0.
Cisco and the Cisco Logo are trademarks of Cisco Systems, Inc. and/or its affiliates in the U.S. and other countries. A listing of Cisco's trademarks can be found at
www.cisco.com/go/trademarks. Third party trademarks mentioned are the property of their respective owners. The use of the word partner does not imply a partnership relationship
between Cisco and any other company. (1005R)
290
Cisco Dual Port, Dual Band Vehicle Mount and Fixed Infrastructure WLAN Antenna (ANT-2-WLAN-D-O)
291
Cisco Cellular and GPS 3-in-1 Vehicle
Mount and Fixed Infrastructure Antenna
(ANT-3-4G2G1-O)
This chapter describes the technical specifications and installation instructions for the Cisco Cellular 3-in-1 Vehicle Mount and
Fixed Infrastructure Antenna, hereafter referred to as the antenna. The antenna is a three port antenna with two elements
designed to cover the 698-960, 1448-1511 and 1710-2700 MHz cellular bands and one GPS element. The antenna can be
mounted on the roof of a vehicle or fixed structure. The antenna meets or exceeds a variety of environmental ruggedization
specifications for transportation applications.
CAUTION: Read the information in Safety Precautions before installing or replacing antennas.
The topics included are:

Antenna Overview

Technical Specifications

Installing the Antenna

Obtaining Documentation and Submitting a Service Request
Antenna Overview

Antenna Features

Antenna Model

Antenna Assembly
Antenna Features
The antenna features:

Three antenna elements within one radome: two cellular and one GPS

Outdoor and transportation ready

Roof mount installation

Dual cellular elements supporting 698-960, 1448-1511 and 1710-2700 MHz

—
Omnidirectional, vertically polarized, MIMO
—
Integrated 2 foot cables with TNC male connectors
—
LTE elements are interchangeable, either one can be connected to Main or Aux
Active GPS antenna has integrated 17 foot cable with SMA male connector
Cisco Systems, Inc.
292
www.cisco.com
Cisco Cellular and GPS 3-in-1 Vehicle Mount and Fixed Infrastructure Antenna (ANT-3-4G2G1-O)
The antenna may require RF extension cables. A shorter 2 foot cable length was selected on LTE WAN to allow you to optimize
LTE WAN performance and wireless range. If you require a cable length longer than 2 feet with the antenna, then select RF
extension cables of appropriate length and type.
Thicker RF cables, such as LMR-600, LMR-400, or LMR-240 result in lower loss, higher RF performance and longer range of
wireless network than thinner cables such as LMR-195, LMR-200. The trade-off is that thicker cables are more difficult to bend
and route.
For optimal performance, the length of thin cables needs to be kept as short as possible. For example, 2 foot and 10 foot lengths
of LMR-195 cable at 2700 MHz frequency would have losses of 0.5dB and 2.3dB respectively. In this example at 2700 MHz the
area covered by the wireless system with the 10 foot cable is reduced by 34% compared to 2 foot cable. Radius of
communication is degraded by 20% in 10 foot vs 2 foot case.
Antenna Model
Antenna Model
Description
ANT-3-4G2G1-O
Cisco Cellular and GPS 3-in-1 Vehicle Mount and Fixed Infrastructure
Antenna
Antenna Assembly
Figure 1
Cisco ANT-3-4G2G1-O Antenna
NOTE: GPS cable (center) is 17 feet. It is shown shorter in the Figure for illustration purposes.
293
Cisco Cellular and GPS 3-in-1 Vehicle Mount and Fixed Infrastructure Antenna (ANT-3-4G2G1-O)
Figure 2
Cisco ANT-3-4G2G1-O Mechanical Details
Note: All dimensions are in millimeters [inches] unless explicitly stated otherwise in the drawing.
Technical Specifications

Radio Frequency Specifications

Environmental Specifications

GPS Antenna Radiation Patterns

Environmental Specifications

Mechanical Specifications

Power Specifications
294
Cisco Cellular and GPS 3-in-1 Vehicle Mount and Fixed Infrastructure Antenna (ANT-3-4G2G1-O)
Radio Frequency Specifications
Table 1
Cellular Antenna Radio Frequency Specification
Specification
Description
Antenna type
Dual element, omnidirectional, 2x2 MIMO
Frequency

698 to 960 MHz

1448 to1511 MHz

1710 to 2700 MHz
Nominal impedance
50 ohms
VSWR

2.1:1 maximum at 698 to 960 MHz

2.4:1 maximum at 1448 MHz edge, 2.2:1
typical 1455 to 1511 MHz

2.0:1 maximum at 1710 to 2700 MHz
Gain
Table 2
The gain values (dBi) for each frequency range
are:

2.6 dBi typical, 3.8 dBi maximum-698 to 960
MHz

3.8 dBi typical, 4.3 dBi maximum-1448 to
1551 MHz

4.6 dBi typical, 5.5 dBi maximum-1710 to
2700 MHz
Isolation

14 dB minimum-698 to 960 MHz
cellular to cellular (Main to Aux)

20 dB minimum-1448 to 1551 MHz

20 dB minimum-1710 to 2700 MHz
Polarization
Linear, Vertical
Efficiency
Antennas were designed and tested to high RF
efficiency in all supported cellular bands. Detailed
technical specifications can be obtained through
your Cisco authorized partner or Cisco account
representative.
Radiation Pattern
Omnidirectional
GPS Antenna Radio Frequency Specifications
Specification
Description
Antenna type
Patch
Frequency
1575.42 ± 1 MHz (GPS L1)
Nominal impedance
50 ohms
VSWR
2.0:1 maximum
Amplifier Gain
27 dB
DC current
20 mA maximum
DC voltage
2.7 to 12 V
295
Cisco Cellular and GPS 3-in-1 Vehicle Mount and Fixed Infrastructure Antenna (ANT-3-4G2G1-O)
Specification
Description
Isolation, cellular to GPS
10 dB minimum. 1574.42 to 1576.42 MHz.
Cellular coexistence tested over multiple bands,
GPS includes coexistence filters.
Polarization
RHCP
Radiation pattern
Hemispherical
296
Cisco Cellular and GPS 3-in-1 Vehicle Mount and Fixed Infrastructure Antenna (ANT-3-4G2G1-O)
Environmental Specifications
Table 3
Environmental Specifications for the Cisco ANT-3-4G2G1-O Antenna
Specification
Description
Operating temperature range
-40 to 158°F (-40 to 70°C)
Storage temperature range
-40 to 185°F (-40 to 85°C)
Altitude
15,000 feet. (4.5 km)
Humidity
5 to 95%
Vibration, Shock, Thermal, Corrosion, Seismic Outdoor IP67.
Tested to a variety of appropriate industrial, vehicular,
transportation, and mil-spec standards.
Mechanical Specifications
Table 4
Mechanical and Operational Specifications for the Cisco ANT-3-4G2G1-O Antenna
Specification
Description
Mount style
Roof mount, bulkhead
Location
Outdoor
Connector
Cellular – TNC male
GPS – SMA male
Cable type
Cellular – RG-58
GPS – RG-174
Cable length
Cellular – 2 foot. (61 cm)
GPS – 17 foot. (518 cm)
Dimensions
7.1 in. (18.0 cm) diameter, 2.4 in. (6.05 cm) height
Weight
1.48 lbs (0.67 kg)
IP rating
IP67
Radome
Polycarbonate, UV resistant, black
Material substance compliance
ROHS compliant
Power Specifications
Table 5
Power Specifications for the Cisco ANT-3-4G2G1-O Antenna
Specification
Description
Nominal Impedance
50 ohms
Maximum input power per port
5 watts
Antenna Radiation Patterns

698 MHz Cellular Antenna Radiation Patterns

880 MHz Cellular Antenna Radiation Patterns
297
Cisco Cellular and GPS 3-in-1 Vehicle Mount and Fixed Infrastructure Antenna (ANT-3-4G2G1-O)

960 MHz Cellular Antenna Radiation Patterns

1470 MHz Cellular Antenna Radiation Patterns

1710 MHz Cellular Antenna Radiation Patterns

2170 MHz Cellular Antenna Radiation Patterns

2700 MHz Cellular Antenna Radiation Patterns

1575 MHz GPS Antenna Radiation Patterns
698 MHz Cellular Antenna Radiation Patterns
298
Cisco Cellular and GPS 3-in-1 Vehicle Mount and Fixed Infrastructure Antenna (ANT-3-4G2G1-O)
Line Color
Description
Blue (—)
Port 1
Red (—)
Port 2
880 MHz Cellular Antenna Radiation Patterns
Line Color
Description
Blue (—)
Port 1
Red (—)
Port 2
960 MHz Cellular Antenna Radiation Patterns
Figure 3
960 MHz Cellular Antenna Radiation Patterns
Line Color
Description
Blue (—)
Port 1
Red (—)
Port 2
1470 MHz Cellular Antenna Radiation Patterns
299
Cisco Cellular and GPS 3-in-1 Vehicle Mount and Fixed Infrastructure Antenna (ANT-3-4G2G1-O)
Figure 4
1470 MHz Cellular Antenna Radiation Patterns
Line Color
Description
Blue (—)
Port 1
Red (—)
Port 2
1710 MHz Cellular Antenna Radiation Patterns
Figure 5
1710 MHz Cellular Antenna Radiation Patterns
Line Color
Description
Blue (—)
Port 1
Red (—)
Port 2
2170 MHz Cellular Antenna Radiation Patterns
Figure 6
2170 MHz Cellular Antenna Radiation Patterns
300
Cisco Cellular and GPS 3-in-1 Vehicle Mount and Fixed Infrastructure Antenna (ANT-3-4G2G1-O)
Line Color
Description
Blue (—)
Port 1
Red (—)
Port 2
2700 MHz Cellular Antenna Radiation Patterns
Figure 7
2700 MHz Cellular Antenna Radiation Patterns
Line Color
Description
Blue (—)
Port 1
Red (—)
Port 2
GPS Antenna Radiation Patterns
1575 MHz GPS Antenna Radiation Patterns
Figure 8
1575 MHz GPS Antenna Radiation Patterns
301
Cisco Cellular and GPS 3-in-1 Vehicle Mount and Fixed Infrastructure Antenna (ANT-3-4G2G1-O)
Line Color
Description
Blue (—)
Port 1
Red (—)
Port 2
Installing the Antenna
The antenna installation includes the following procedures:

Contents of the Antenna Kit

Safety Warnings

Safety Precautions

Tools and Equipment Required

Mounting the Antenna

Connecting the Antenna to the Router
Contents of the Antenna Kit
The antenna kit contains:

1 x Cisco ANT-3-4G2G1-O antenna
Safety Warnings
WARNING: Avoid using or servicing any equipment that has outdoor connections during an electrical storm.
There may be a risk of electric shock from lightning. Statement 1088
WARNING: Do not work on the system, or connect or disconnect cables, during periods of lightning activity. Statement 1001
302
Cisco Cellular and GPS 3-in-1 Vehicle Mount and Fixed Infrastructure Antenna (ANT-3-4G2G1-O)
WARNING: Do not locate the outdoor antenna near overhead power lines or other electric light or power circuits, or where it can
come into contact with such circuits. When installing the antenna, take extreme care not to come into contact with such circuits,
as they may cause serious injury or death. For proper installation and grounding of the antenna, please refer to national and local
codes (for example, U.S.:NFPA 70, National Electrical Code, Article 810, Canada:Canadian Electrical Code, Section 54).
Statement 1052
WARNING: This equipment must be grounded. Never defeat the ground conductor or operate the equipment in the absence of
a suitably installed ground conductor. Contact the appropriate electrical inspection authority or an electrician if you are uncertain
that suitable grounding is available. Statement 1024
WARNING: Only trained and qualified personnel should be allowed to install, replace, or service this equipment. Statement 1030
WARNING: To report a gas leak, do not use a telephone in the vicinity of the leak. Statement 1039
WARNING: This warning symbol means danger. You are in a situation that could cause bodily injury. Before you work on any
equipment, be aware of the hazards involved with electrical circuitry and be familiar with standard practices for preventing
accidents. Use the statement number provided at the end of each warning to locate its translation in the translated safety
warnings that accompanied this device. Statement 1071. SAVE THESE INSTRUCTIONS.
WARNING: This product is not intended to be directly connected to the Cable Distribution System. Additional regulatory
compliance and legal requirements may apply for direct connection to the Cable Distribution System. This product may connect
to the Cable Distribution System ONLY through a device that is approved for direct connection. Statement 1078
Safety Precautions
WARNING: Installation of this antenna near power lines is dangerous. For your safety, follow the installation directions.
Each year hundreds of people are killed or injured when attempting to install an antenna. In many of these cases, the victim was
aware of the danger of electrocution, but did not take adequate steps to avoid the hazard.
For your safety, and to help you achieve a good installation, please read and follow these safety precautions. They may save
your life!
For your safety, read and follow these safety precautions.

If you are installing an antenna for the first time, for your own safety as well as others, seek professional assistance. Your
Cisco sales representative can explain which mounting method to use for the size and type antenna you are about to install.

Before you install an antenna, contact your Cisco account representative to explain which mounting method to use for the
size and type of antenna that you are about to install.

Find someone to help you—installing an antenna is often a two-person job.

Select your installation site with safety, as well as performance, in mind. Remember that electric power lines and phone
lines look alike. For your safety, assume that any overhead line can kill you.

Contact your electric power company. Tell them your plans and ask them to come look at your proposed installation.

Plan your installation carefully and completely before you begin. Each person involved in an installation should be assigned
to a specific task, and should know what to do and when to do it. One person should be in charge of the operation to issue
instructions and watch for signs of trouble.

When installing your antenna, follow these guidelines:
—
Do not use a metal ladder.
—
Do not work on a wet or windy day.
—
Do dress properly—wear shoes with rubber soles and heels, rubber gloves, and a long-sleeved shirt or jacket.
303
Cisco Cellular and GPS 3-in-1 Vehicle Mount and Fixed Infrastructure Antenna (ANT-3-4G2G1-O)

If the assembly starts to drop, move away from it and let it fall. Because the antenna, mast, cable, and metal guy wires are
all excellent conductors of electrical current, even the slightest touch of any of these parts to a power line completes an
electrical path through the antenna and the installer.

If any part of the antenna system should come in contact with a power line, do not touch it or try to remove it yourself. Call
your local power company to have it removed safely.

If an accident should occur with the power lines, call for qualified emergency help immediately.
Tools and Equipment Required
In addition to the parts included in the antenna kit described in the section Contents of the Antenna Kit, you must provide the
following tool to install the antenna on the router:

Open-ended wrench

Electric drill
NOTE: This list does not include the tools and equipment required to assemble and erect the tower, mast, or other structure you
intend to mount your antenna on.
Mounting the Antenna
NOTE: A clean, flat surface at least 20 x 20 cm (8 x 8 in.) in area is required for mounting the antenna.
Follow these instructions to mount the antenna:
1. Mark the desired location where you plan to mount the antenna and create a hole through the surface The diameter of the
hole must be at least 0.75 in. (1.91 cm).
2. Thread the cables through the hole and insert the aluminum stud on the underside of the antenna into the hole. Ensure that
the foam gasket on the underside of the antenna sits flush against the mounting surface.
3. Inside the vehicle, place the rubber sealing washer around the stud. Then place the metal washer and the metal nut onto
the stud. Tighten the nut.
Connecting the Antenna to the Router
To attach the router-end of the cable to your router, please see the Hardware Installation Guide for your particular device.
NOTE: Coaxial cable loses efficiency as the frequency increases, resulting in signal loss. The cable should be kept as short as
possible because cable length also determines the amount of signal loss—the longer the cable length or run, the greater the
loss).
Obtaining Documentation and Submitting a Service Request
For information on obtaining documentation, submitting a service request, and gathering additional information, see the monthly
What’s New in Cisco Product Documentation, which also lists all new and revised Cisco technical documentation, at:
http://www.cisco.com/en/US/docs/general/whatsnew/whatsnew.html
Subscribe to the What’s New in Cisco Product Documentation as an RSS (Really Simple Syndication) feed, and set it so content
is delivered directly to your desktop using a reader application. The RSS feeds are a free service and Cisco currently supports
RSS Version 2.0.
304
Cisco Cellular and GPS 3-in-1 Vehicle Mount and Fixed Infrastructure Antenna (ANT-3-4G2G1-O)
Cisco and the Cisco Logo are trademarks of Cisco Systems, Inc. and/or its affiliates in the U.S. and other countries. A listing of Cisco's trademarks can be found at
www.cisco.com/go/trademarks. Third party trademarks mentioned are the property of their respective owners. The use of the word partner does not imply a partnership relationship
between Cisco and any other company. (1005R)
305
Cisco Multiband Panel Outdoor 3G
Antenna (ANT-3G-PNL-OUT-N)
The Multiband Panel Outdoor 3G antenna is designed to cover cellular 3G bands. This document provides the antenna
specifications and mounting instructions.
Caution: Read the information in Safety Warnings before installing or replacing antennas.
This chapter covers the following topics:

Technical Specifications

Contents of the Antenna Kit

Safety Warnings

Antenna Installation

Connecting the Lightning Arrestor

Connecting the Antenna to the Router

Obtaining Documentation and Submitting a Service Request
Technical Specifications
The Multiband Panel Outdoor 3G directional panel antenna features the following:

Flame retardant

Low-profile housing

Indoor and outdoors

Adjustable mounting brackets

Type N female connector
Cisco Systems, Inc.
306
www.cisco.com
Cisco Multiband Panel Outdoor 3G Antenna (ANT-3G-PNL-OUT-N)
Multiband Panel Outdoor 3G Antenna
300643
Figure 1
RF Specifications
Specification
Description
Frequency range

806 to 960 MHz

1710 to 2170 MHz

10 dBi (806 to 960 MHz)

11 dBi (1710 to 2170 MHz)

40 degrees (806 to 960 MHz)

30 degrees (1710 to 2170 MHz)

52 degrees (806 to 960 MHz)

66 degrees (1710 to 2170 MHz)
Nominal gain
3 dB horizontal beamwidth
3 dB vertical beamwidth
Polarization
Linear
Nominal impedance
50 ohms
Nominal VSWR
< 1.8:1
Front to back ratio
>/= 25
Radiation Pattern
Directional
Mechanical Specifications
Specification
Description
Type
Directional panel
Mount style
Pipe or wall mount, adjustable mount
Environment
Outdoor
Connector
Type N female
Antenna length (height)
14.5” x 1” (36.8 cm x 2.45 cm)
Weight
3.5 lbs (1.6 kg)
Dimensions (height x outside dimensions)
14.5” x 14.5” x 1.75” (340 x 340 x 30 mm)
Temperature Range (Operating)
-40 to 185-degrees F (-40 to 85-degrees C)
Storage temperature
-40 to 185-degrees F (-40 to 85-degrees C)
Maximum Power
20 watts
Radome material
UL94-V0 ASA radome
307
Cisco Multiband Panel Outdoor 3G Antenna (ANT-3G-PNL-OUT-N)
The Multiband Panel Outdoor 3G antenna has Azimuth radiation patterns:
Outdoor 3G Antenna Radiation Patterns
300673
Figure 2
Contents of the Antenna Kit
The contents of the multi-purpose integrated antenna are listed in the following table:
Quantity
Description
1
Antenna-mount bracket
1
Elevation adjustable bracket
1
Azimuth adjustable bracket
4
1/4”-20x3/4 carriage bolt
6
1/4”-20 hex nut
6
1/4”-20 spring lock washer
6
1/4”-20 flat washer
2
Pipe clamps
ANT-4G-SR-OUT-TNC
Multiband low-profile saucer outdoor 4G Antenna
Safety Warnings
WARNING: Avoid using or servicing any equipment that has outdoor connections during an electrical storm.
There may be a risk of electric shock from lightning. Statement 1088
308
Cisco Multiband Panel Outdoor 3G Antenna (ANT-3G-PNL-OUT-N)
WARNING: Do not work on the system, or connect or disconnect cables, during periods of lightning activity. Statement 1001
WARNING: Do not locate the outdoor antenna near overhead power lines or other electric light or power circuits, or where it can
come into contact with such circuits. When installing the antenna, take extreme care not to come into contact with such circuits,
as they may cause serious injury or death. For proper installation and grounding of the antenna, please refer to national and local
codes (for example, U.S.:NFPA 70, National Electrical Code, Article 810, Canada:Canadian Electrical Code, Section 54).
Statement 1052
WARNING: This equipment must be grounded. Never defeat the ground conductor or operate the equipment in the absence of
a suitably installed ground conductor. Contact the appropriate electrical inspection authority or an electrician if you are uncertain
that suitable grounding is available. Statement 1024
WARNING: Only trained and qualified personnel should be allowed to install, replace, or service this equipment. Statement 1030
WARNING: To report a gas leak, do not use a telephone in the vicinity of the leak. Statement 1039
WARNING: This warning symbol means danger. You are in a situation that could cause bodily injury. Before you work on any
equipment, be aware of the hazards involved with electrical circuitry and be familiar with standard practices for preventing
accidents. Use the statement number provided at the end of each warning to locate its translation in the translated safety
warnings that accompanied this device. Statement 1071. SAVE THESE INSTRUCTIONS.
WARNING: This product is not intended to be directly connected to the Cable Distribution System. Additional regulatory
compliance and legal requirements may apply for direct connection to the Cable Distribution System. This product may connect
to the Cable Distribution System ONLY through a device that is approved for direct connection. Statement 1078
WARNING: This warning symbol means danger. You are in a situation that could cause bodily injury. Before you work on any
equipment, be aware of the hazards involved with electrical circuitry and be familiar with standard practices for preventing
accidents.
Safety Precautions
Installation of this antenna near power lines is dangerous. For your safety, follow the installation directions.
Each year hundreds of people are killed or injured when attempting to install an antenna. In many of these cases, the victim was
aware of the danger of electrocution, but did not take adequate steps to avoid the hazard.
WARNING: For your safety, and to help you achieve a good installation, please read and follow these safety precautions. They
may save your life!
For your safety, read and follow these safety precautions.

If you are installing an antenna for the first time, for your own safety as well as others, seek professional assistance. Your
Cisco sales representative can explain which mounting method to use for the size and type antenna you are about to install.

Before you install an antenna, contact your Cisco account representative to explain which mounting method to use for the
size and type of antenna that you are about to install.

Find someone to help you—installing an antenna is often a two-person job.

Select your installation site with safety, as well as performance, in mind. Remember that electric power lines and phone
lines look alike. For your safety, assume that any overhead line can kill you.

Contact your electric power company. Tell them your plans and ask them to come look at your proposed installation.

Plan your installation carefully and completely before you begin. Each person involved in an installation should be assigned
to a specific task, and should know what to do and when to do it. One person should be in charge of the operation to issue
instructions and watch for signs of trouble.

When installing your antenna, follow these guidelines:
—
Do not use a metal ladder.
309
Cisco Multiband Panel Outdoor 3G Antenna (ANT-3G-PNL-OUT-N)
—
Do not work on a wet or windy day.
—
Do dress properly—wear shoes with rubber soles and heels, rubber gloves, and a long-sleeved shirt or jacket.

If the assembly starts to drop, move away from it and let it fall. Because the antenna, mast, cable, and metal guy wires are
all excellent conductors of electrical current, even the slightest touch of any of these parts to a power line completes an
electrical path through the antenna and the installer.

If any part of the antenna system should come in contact with a power line, do not touch it or try to remove it yourself. Call
your local power company to have it removed safely.

If an accident should occur with the power lines, call for qualified emergency help immediately.
Antenna Installation
The antenna installation includes the following procedures:

Tools and Equipment Required

Installing the Antenna
Tools and Equipment Required
In addition to the parts included in the antenna kit described in the section Contents of the Antenna Kit, you must provide the
following tool to install the antenna on the router:

A flathead screwdriver

3/4 in. open-end wrench

LMR-400 with male end-to-end RF cable (weatherized)

Coax seal
Note: This list does not include the tools and equipment required to assemble and erect the tower, mast, or other structure you
intend to mount your antenna on.
Installing the Antenna
Follow these instructions to install the antenna:
1. Choose the mounting polarization configuration that you prefer.
310
Cisco Multiband Panel Outdoor 3G Antenna (ANT-3G-PNL-OUT-N)
300675
1
1
Drain-hole locations
Note: Your connector type, location and quantity might differ from what is shown.
2. Attach the antenna mount bracket to the back of the antenna by using two sets of flat washers, lock washers, and hex nuts.
Tighten the nut to a torque rating of 55 in-lbf (6.2 Nm).
1
2
3
300676
4
1
1/4”-20 hex nut
2
1/4”20 spring lock washer
3
1/4”-20 flat washer
4
Antenna mount bracket
3. Attach the elevation adjustable bracket to the mount bracket using two sets of carriage bolts, washers, lock washers, and
hex nuts. Position the bolts so the carriage bolt square holes are positioned on the inside. Do not tighten fully. Allow the
bracket to move freely.
311
Cisco Multiband Panel Outdoor 3G Antenna (ANT-3G-PNL-OUT-N)
1
4
2
3
5
300677
6
1
1/4”-20 hex nut
2
1/4”-20 spring lock washer
3
1/4”-20 flat washer
4
Elevation adjustable bracket
5
Antenna-mount bracket
6
1/4”-20x3/4 carriage bolt
4. Position the azimuth adjustable (pipe) bracket to the pipe with the flanges away from the pipe. Secure each bracket to the
pipe first by routing the band clamps around the pipe, then through the two holes. Tighten to a maximum torque rating.
312
Cisco Multiband Panel Outdoor 3G Antenna (ANT-3G-PNL-OUT-N)
2
300678
1
1
Azimuth adjustable bracket
2
Pipe clamps
5. Attach the antenna assembly to the installed azimuth bracket. Position each of the two flanges on elevation adjustable
bracket (on the antenna) over the flanges on the azimuth (pipe) bracket.
313
Cisco Multiband Panel Outdoor 3G Antenna (ANT-3G-PNL-OUT-N)
5
6
1
300679
2
3
4
1
1/4”-20x3/4 carriage bolt
2
1/4”-20 flat washer
3
1/4”-20 spring lock washer
4
1/4”-20 hex nut
5
Elevation adjustable bracket
6
Panel antenna
6. Adjust to the desired azimuth and elevation angles. Tighten all nuts and bolts to a torque rating of 55 in-lbf.
7. Attach the lightning arrestor to the router.
8. Attach the RF cable to the antenna by connecting the ends of the LMR-400 cables to the two receptacles on the rear of
the antenna panel.
NOTE: The 3G panel has only one connector per antenna.
314
Cisco Multiband Panel Outdoor 3G Antenna (ANT-3G-PNL-OUT-N)
1
2
300684
3
1
N-connector: torque to 6 to 7 ft-lbs
2
3
Ports must have either an antenna, connector,
or plug installed.
Plug: torque to 6 to 7 ft-lbs
9. Seal the cable connections on the router and the back of the antenna by using weatherproof sealing tape (coax seal) at the
connector junction. Start wrapping at the top of the antenna connector, wrap downward 3 times and end about 2 inches
downward from the center of the connecter junction. Then wrap upwards another 3 times to reach the top of the antenna
connector.
10. To attach the router-end of the cable to your device, please refer to the appropriate Hardware Installation Procedures for
the model of hardware you are installing. Links to hardware installation guides and other information may be found in
Chapter 1, “Additional Information”.
Connecting the Lightning Arrestor
To install a lightning-protection device, please refer to the appropriate Hardware Installation Procedures for the model of
hardware you are installing. Links to hardware installation guides and other information may be found in Chapter 1, “Additional
Information”.
Connecting the Antenna to the Router
To attach the router-end of the cable to your device, please refer to the appropriate Hardware Installation Procedures for the
model of hardware you are installing. Links to hardware installation guides and other information may be found in Chapter 1,
“Additional Information”.
Obtaining Documentation and Submitting a Service Request
For information on obtaining documentation, submitting a service request, and gathering additional information, see the monthly
What’s New in Cisco Product Documentation, which also lists all new and revised Cisco technical documentation, at:
http://www.cisco.com/en/US/docs/general/whatsnew/whatsnew.html
Subscribe to the What’s New in Cisco Product Documentation as an RSS (Really Simple Syndication) feed, and set it so content
is delivered directly to your desktop using a reader application. The RSS feeds are a free service and Cisco currently supports
RSS Version 2.0.
315
Cisco Multiband Panel Outdoor 3G Antenna (ANT-3G-PNL-OUT-N)
Cisco and the Cisco Logo are trademarks of Cisco Systems, Inc. and/or its affiliates in the U.S. and other countries. A listing of Cisco's trademarks can be found at
www.cisco.com/go/trademarks. Third party trademarks mentioned are the property of their respective owners. The use of the word partner does not imply a partnership relationship
between Cisco and any other company. (1005R)
316
Cisco Multiband Panel Outdoor 3G Antenna (ANT-3G-PNL-OUT-N)
317
Cisco Multiband Indoor 4G Volcano
Antenna (ANT-4G-CM-IN-TNC)
This document describes the Cisco Multiband Indoor 4G Ceiling-mount Volcano Antenna. It supports frequencies of 698 to 960
MHz, 1575 MHz, and 1710 to 2700 MHz for the GSM, DCS, UMTS, and LTE/WiMAX frequency bands. In addition, this document
provides the antenna specifications and mounting instructions of the antenna.
CAUTION: Read the information in Overview before installing or replacing antennas.
This chapter covers the following topics:

Technical Specifications

Contents of the Antenna Kit

Installation Requirements

Safety Warnings

Antenna Installation

Obtaining Documentation and Submitting a Service Request
Technical Specifications
The 4G Volcano Antenna features the following:

Indoor ceiling mount

Radiation pattern shaped to perform optimally for a ceiling-mount antenna

Low-profile, aesthetically neutral housing

Performance optimized using proprietary RF optimization tools

Excellent flame rating
Cisco Systems, Inc.
318
www.cisco.com
Cisco Multiband Indoor 4G Volcano Antenna (ANT-4G-CM-IN-TNC)
4G Volcano Antenna
281565
Figure 1
RF Specifications
Specification
Description
Frequency range
698 to 960 MHz
1575 MHz
1710 to 2700 MHz
Peak gain
VSWR

1 dBi (698 to 960 MHz)

2 dBi (1575 MHz)

3 dBi (1710 to 2700 MHz)

2.0:1 (698 to 960 MHz)

2.5:1 (1575 MHz)

2.0:1 (1710 to 2700 MHz)
H-plane (3 dB beamwidth)
Omnidirectional
Efficiency
Antennas were designed and tested to high RF efficiency in all
supported cellular bands. Detailed technical specifications
can be obtained through your Cisco authorized partner or
Cisco account representative.
Polarization
Linear, vertical
Mechanical Specifications
319
Cisco Multiband Indoor 4G Volcano Antenna (ANT-4G-CM-IN-TNC)
Specification
Description
Type
Omnidirectional
Mount Style
Ceiling mount
Environment
Indoor
Dimensions
Diameter 199 mm x height 86 mm
RF connector
TNC (m)
Cable
305 mm, plenum rated
Enclosure
PC/ABS, UV stable
Antenna weight
0.34 kg
Power
3 watts
Mounting
Ceiling mount (flush), screws, anchors, threaded stem
Nominal impedance
50 ohm
Operational temperature
-22 to 158 degrees F (-30 to 70 degrees C)
Storage temperature
-40 to 185 degrees F (-40 to 85 degrees C)
Material substance compliance
RoHS 6/6
Flammability rating
UL-94V0 materials
Radiation Patterns
The following graphics show the radiation patterns of the Volcano antenna for the supported frequency.
320
Cisco Multiband Indoor 4G Volcano Antenna (ANT-4G-CM-IN-TNC)
4G Volcano Antenna Radiation Patterns
300687
Figure 2
Contents of the Antenna Kit
The Cisco Multiband Indoor 4G Ceiling-mount Volcano Antenna Kit contains the following items:

Ceiling-mount Volcano antenna, with integrated TNC cable
321
Cisco Multiband Indoor 4G Volcano Antenna (ANT-4G-CM-IN-TNC)

Antenna bracket

Flat washer

Curved spring washer

Mounting nut

Three #6 x 1-1/4” mounting screws with anchors

Three self-adhesive screw covers
Installation Requirements
Antenna Connections
Before you install or replace antennas, make sure the router is:

Powered off

Disconnected from all power sources

Disconnected from the Field Area Network (FAN)

Removed from a pole-top installation
Optimum Performance
Antennas transmit and receive radio signals which are susceptible to RF obstructions and common sources of interference that
can reduce throughput and range of the device to which they are connected. Follow these guidelines to ensure the best possible
performance:

Keep the antenna away from metal obstructions such as heating and air-conditioning ducts, large ceiling trusses, building
superstructures, and major power cabling runs. If necessary, use a rigid conduit to lower the antenna away from these
obstructions.

The density of the materials used in surrounding buildings’ construction impacts antenna signal strength. Consider the
following
—
Signals penetrate paper and vinyl walls with little change to signal strength.
—
Signals penetrate only one or two solid and pre-cast concrete walls without degrading signal strength.
—
Signals penetrate three or four concrete and wood block walls without degrading signal strength.
—
Signals penetrate five or six walls constructed of drywall or wood without degrading signal strength.
—
Signals are likely to reflect off a thick metal wall and not penetrate it at all.
—
Signals are likely to reflect off a chain link fence or a wire mesh with spaces of 1 to 1-1/2 in. (2.5 to 3.8 cm). The fence
acts as a harmonic reflector that blocks the signal.

Microwave ovens and 2-GHz cordless phones can cause signal interference because they operate in the same frequency
range as the device to which your antenna is connected.

For instructions on installing or replacing a Cisco Connected Grid module, see the corresponding installation and
configuration guide for each module.
322
Cisco Multiband Indoor 4G Volcano Antenna (ANT-4G-CM-IN-TNC)


For detailed instructions on opening the door, see the installation guide of your router. Before installing the antenna
according to the Installing the Antenna, you must complete these steps:
—
Open the router chassis door.
—
Remove any plug or connector that is installed in the antenna port.
—
Verify the correct antenna port for installation, based on the antenna model you are installing.
See the installation document for your router regarding the correct antenna port location. Antennas must be installed in the
correct antenna port for ease of installation and optimal performance.
NOTE: Ensure that you are able to access the antenna port from inside the router. If an installed module prevents you from
reaching the antenna port, you might have to remove the module before installing the antenna, then reinstall the module. See
the corresponding module installation and configuration guide for each module.
Safety Warnings
WARNING: Do not work on the system, or connect or disconnect cables, during periods of lightning activity. Statement 1001
WARNING: Do not locate the outdoor antenna near overhead power lines or other electric light or power circuits, or where it can
come into contact with such circuits. When installing the antenna, take extreme care not to come into contact with such circuits,
as they may cause serious injury or death. For proper installation and grounding of the antenna, please refer to national and local
codes (for example, U.S.:NFPA 70, National Electrical Code, Article 810, Canada:Canadian Electrical Code, Section 54).
Statement 1052
WARNING: This equipment must be grounded. Never defeat the ground conductor or operate the equipment in the absence of
a suitably installed ground conductor. Contact the appropriate electrical inspection authority or an electrician if you are uncertain
that suitable grounding is available. Statement 1024
WARNING: Only trained and qualified personnel should be allowed to install, replace, or service this equipment. Statement 1030
WARNING: To report a gas leak, do not use a telephone in the vicinity of the leak. Statement 1039
WARNING: This warning symbol means danger. You are in a situation that could cause bodily injury. Before you work on any
equipment, be aware of the hazards involved with electrical circuitry and be familiar with standard practices for preventing
accidents. Use the statement number provided at the end of each warning to locate its translation in the translated safety
warnings that accompanied this device. Statement 1071. SAVE THESE INSTRUCTIONS.
WARNING: This product is not intended to be directly connected to the Cable Distribution System. Additional regulatory
compliance and legal requirements may apply for direct connection to the Cable Distribution System. This product may connect
to the Cable Distribution System ONLY through a device that is approved for direct connection. Statement 1078
WARNING: This warning symbol means danger. You are in a situation that could cause bodily injury. Before you work on any
equipment, be aware of the hazards involved with electrical circuitry and be familiar with standard practices for preventing
accidents.
Safety Precautions
For your safety, and to help you achieve a good installation, please read and follow these safety precautions. They may save
your life!
For your safety, read and follow these safety precautions.

If you are installing an antenna for the first time, for your own safety as well as others, seek professional assistance. Your
Cisco sales representative can explain which mounting method to use for the size and type antenna you are about to install.

Before you install an antenna, contact your Cisco account representative to explain which mounting method to use for the
size and type of antenna that you are about to install.
323
Cisco Multiband Indoor 4G Volcano Antenna (ANT-4G-CM-IN-TNC)

Find someone to help you—installing an antenna is often a two-person job.

Plan your installation carefully and completely before you begin. Each person involved in an installation should be assigned
to a specific task, and should know what to do and when to do it. One person should be in charge of the operation to issue
instructions and watch for signs of trouble.
Antenna Installation
The antenna installation includes the following procedures:

Tools and Equipment Required

Installing the Antenna
Tools and Equipment Required
In addition to the parts included in the antenna kit described in the section Contents of the Antenna Kit, you must provide the
following tool to install the antenna on the router:

Phillips screwdriver

Open-end wrench

Drill

Marker or pencil
Installing the Antenna
Follow these instructions to install the antenna:
1. Determine where on the ceiling you want to install the antenna.
2. Create the center hole to accommodate the 3/4”-16 threaded center rod on the Volcano antenna.
3. Position the Volcano antenna onto the ceiling. Mark on the ceiling the location of the three holes.
4. Remove the antenna and drill the three holes. Place the screw anchors into the holes.
5. Position the antenna in place. Secure the antenna onto the ceiling with the 3 screws using a Phillips #2 screwdriver.
6. From inside the ceiling space, place, in order, the flat washer and curved spring washer onto the center rod. Secure the
antenna with the mounting nut.
324
Cisco Multiband Indoor 4G Volcano Antenna (ANT-4G-CM-IN-TNC)
2
3
4
10
1
7
8
5
9
300686
6
1
Mounting anchors for hard ceiling (3)
2
Mounting nut
3
Curved spring washer
4
Flat washer (wide series)
5
#6 1-1/4” mounting screws (3)
6
Self-adhesive screw covers (3)
7
50.8 mm
8
86.0 +/- 1.0 mm
9
75.0 +/- 1.0
10 Ceiling, hard wall material
7. Place the self-adhesive screw covers (3) over the screw holes on the antenna.
8. Attach the cable to the antenna connector.
9. Attach the router-end of the cable to your router.
Obtaining Documentation and Submitting a Service Request
For information on obtaining documentation, submitting a service request, and gathering additional information, see the monthly
What’s New in Cisco Product Documentation, which also lists all new and revised Cisco technical documentation, at:
http://www.cisco.com/en/US/docs/general/whatsnew/whatsnew.html
325
Cisco Multiband Indoor 4G Volcano Antenna (ANT-4G-CM-IN-TNC)
Subscribe to the What’s New in Cisco Product Documentation as an RSS (Really Simple Syndication) feed, and set it so content
is delivered directly to your desktop using a reader application. The RSS feeds are a free service and Cisco currently supports
RSS Version 2.0.
Cisco and the Cisco Logo are trademarks of Cisco Systems, Inc. and/or its affiliates in the U.S. and other countries. A listing of Cisco's trademarks can be found at
www.cisco.com/go/trademarks. Third party trademarks mentioned are the property of their respective owners. The use of the word partner does not imply a partnership relationship
between Cisco and any other company. (1005R)
326
Cisco Multiband Indoor 4G Volcano Antenna (ANT-4G-CM-IN-TNC)
327
Cisco Indoor Swivel-mount Dipole Antenna
(ANT-4G-DP-IN-TNC)
This document provides the antenna specifications and mounting instructions for the Cisco Indoor Swivel-mount Dipole 3G/4G
Antenna supported on the Connected Grid Router 1120 and is designed to support Cellular/PCS/AWS/MDS,
WiMAX 2100/2300/2500/2600 and global GSM900/GSM1800/UMTS/LTE2600 bands.
CAUTION: Read the information in Safety Warnings before installing or replacing antennas.
This chapter covers the following topics:

Technical Specifications

Installation Requirements

Safety Warnings

Antenna Installation

Obtaining Documentation and Submitting a Service Request
Swivel-mount Indoor Dipole Antenna
135068
Figure 1
Technical Specifications

Low-profile blade style sheath

Applicable for both 3G and 4G solutions
Cisco Systems, Inc.
328
www.cisco.com
Cisco Indoor Swivel-mount Dipole Antenna (ANT-4G-DP-IN-TNC)

Domestic LTE 700 and global LTE 2600 bands

Domestic cellular and global GSM

Conformance to RoHS

Complete cellular and 3G/4G data communications in a single antenna

Articulating arm that allows antenna positioning to provide maximal coverage
329
Cisco Indoor Swivel-mount Dipole Antenna (ANT-4G-DP-IN-TNC)
RF Specifications
Specification
Description
Frequency ranges
698 to 806 MHz
824 to 894 MHz
880 to 960 MHz
1710 to 1880 MHz
1850 to 1990 MHz
1920 to 2170 MHz
2100 to 2500 MHz
2500 to 2690 MHz
Peak gain (dBi)
0.5 dBi (698 to 960 MHz)
2.2 dBi (1710 to 2700 MHz)
Efficiency
Antennas were designed and tested to high RF efficiency in all
supported cellular bands. Detailed technical specifications can be
obtained through your Cisco authorized partner or Cisco account
representative.
VSWR
< 2.5:1
Nominal impedance
50 ohms
Polarization
Linear
Mechanical Specifications
Specification
Description
Type
Dipole
Size (L x W x D)
229 mm x 30.5 mm x 15 mm
Mount style
Direct mount
Environment
Indoor
RF Connector
TNC (m)
Antenna weight
49 g
Operational temperature
-31 to 158 degrees F (-35 to +70 degrees C)
Maximum input power
3 watts
Material substance compliance
RoHS compliant
Radiation Patterns
Figure 2
Swivel-mount Dipole Antenna Radiation Patterns
330
300649
Cisco Indoor Swivel-mount Dipole Antenna (ANT-4G-DP-IN-TNC)
Installation Requirements
Installation Location
331
Cisco Indoor Swivel-mount Dipole Antenna (ANT-4G-DP-IN-TNC)
Antenna installation and replacement should only be performed at one of the following, certified location types:

Utility maintenance and repair depot

Cisco DF facility

Customer premises field depot
Antenna Connections
Before you install or replace antennas, make sure the router is:

Powered off

Disconnected from all power sources

Disconnected from the Field Area Network (FAN)

Removed from a poletop installation
For Optimum Performance
Antennas transmit and receive radio signals which are susceptible to RF obstructions and common sources of interference that
can reduce throughput and range of the device to which they are connected. Follow these guidelines to ensure the best possible
performance:

Install the antenna vertically and mount it with the cables pointing towards the ground.

Keep the antenna away from metal obstructions such as heating and air-conditioning ducts, large ceiling trusses, building
superstructures, and major power cabling runs. If necessary, use a rigid conduit to lower the antenna away from these
obstructions.

The density of the materials used in surrounding buildings’ construction impacts antenna signal strength. Consider the
following
—
Signals penetrate paper and vinyl walls with little change to signal strength.
—
Signals penetrate only one or two solid and pre-cast concrete walls without degrading signal strength.
—
Signals penetrate three or four concrete and wood block walls without degrading signal strength.
—
Signals penetrate five or six walls constructed of drywall or wood without degrading signal strength.
—
Signals are likely to reflect off a thick metal wall and not penetrate it at all.
—
Signals are likely to reflect off a chain link fence or a wire mesh with spaces of 1 to 1-1/2 in. (2.5 to 3.8 cm). The fence
acts as a harmonic reflector that blocks the signal.

Microwave ovens and 2-GHz cordless phones can cause signal interference because they operate in the same frequency
range as the device to which your antenna is connected.

For instructions on installing or replacing a Cisco Connected Grid module, see the corresponding installation and
configuration guide for each module.

Before installing the antenna according to the Antenna Installation, you must complete these steps:
—
Remove any plug or connector that is installed in the antenna port.
—
Verify the correct antenna port for installation, based on the antenna model you are installing.
332
Cisco Indoor Swivel-mount Dipole Antenna (ANT-4G-DP-IN-TNC)

See the instatllation document for your router regarding the correct antenna port location. Antennas must be installed in the
correct antenna port for ease of installation and optimal performance.
NOTE: Ensure that you are able to access the antenna port from inside the router. If an installed module prevents you from
reaching the antenna port, you might have to remove the module before installing the antenna, then reinstall the module. See
the corresponding module installation and configuration guide for each module.
Safety Warnings
WARNING: Do not work on the system, or connect or disconnect cables, during periods of lightning activity. Statement 1001
WARNING: Do not locate the outdoor antenna near overhead power lines or other electric light or power circuits, or where it can
come into contact with such circuits. When installing the antenna, take extreme care not to come into contact with such circuits,
as they may cause serious injury or death. For proper installation and grounding of the antenna, please refer to national and local
codes (for example, U.S.:NFPA 70, National Electrical Code, Article 810, Canada:Canadian Electrical Code, Section 54).
Statement 1052
WARNING: This equipment must be grounded. Never defeat the ground conductor or operate the equipment in the absence of
a suitably installed ground conductor. Contact the appropriate electrical inspection authority or an electrician if you are uncertain
that suitable grounding is available. Statement 1024
WARNING: Only trained and qualified personnel should be allowed to install, replace, or service this equipment. Statement 1030
WARNING: To report a gas leak, do not use a telephone in the vicinity of the leak. Statement 1039
WARNING: This warning symbol means danger. You are in a situation that could cause bodily injury. Before you work on any
equipment, be aware of the hazards involved with electrical circuitry and be familiar with standard practices for preventing
accidents. Use the statement number provided at the end of each warning to locate its translation in the translated safety
warnings that accompanied this device. Statement 1071. SAVE THESE INSTRUCTIONS.
WARNING: This product is not intended to be directly connected to the Cable Distribution System. Additional regulatory
compliance and legal requirements may apply for direct connection to the Cable Distribution System. This product may connect
to the Cable Distribution System ONLY through a device that is approved for direct connection. Statement 1078
WARNING: IMPORTANT SAFETY INSTRUCTIONS
This warning symbol means danger. You are in a situation that could cause bodily injury. Before you work on any equipment, be
aware of the hazards involved with electrical circuitry and be familiar with standard practices for preventing accidents. Use the
statement number provided at the end of each warning to locate its translation in the translated safety warnings that
accompanied this device. Statement 1071
WARNING: SAVE THESE INSTRUCTIONS
Safety Precautions
WARNING: Installation of this antenna near power lines is dangerous. For your safety, follow the installation directions.
Each year hundreds of people are killed or injured when attempting to install an antenna. In many of these cases, the victim was
aware of the danger of electrocution, but did not take adequate steps to avoid the hazard.
For your safety, and to help you achieve a good installation, please read and follow these safety precautions. They may save
your life!
For your safety, read and follow these safety precautions.

If you are installing an antenna for the first time, for your own safety as well as others, seek professional assistance. Your
Cisco sales representative can explain which mounting method to use for the size and type antenna you are about to install.
333
Cisco Indoor Swivel-mount Dipole Antenna (ANT-4G-DP-IN-TNC)

Before you install an antenna, contact your Cisco account representative to explain which mounting method to use for the
size and type of antenna that you are about to install.

Find someone to help you—installing an antenna is often a two-person job.

Select your installation site with safety, as well as performance, in mind. Remember that electric power lines and phone
lines look alike. For your safety, assume that any overhead line can kill you.

Contact your electric power company. Tell them your plans and ask them to come look at your proposed installation.

Plan your installation carefully and completely before you begin. Each person involved in an installation should be assigned
to a specific task, and should know what to do and when to do it. One person should be in charge of the operation to issue
instructions and watch for signs of trouble.

When installing your antenna, follow these guidelines:
—
Do not use a metal ladder.
—
Do not work on a wet or windy day.
—
Do dress properly—wear shoes with rubber soles and heels, rubber gloves, and a long-sleeved shirt or jacket.

If the assembly starts to drop, move away from it and let it fall. Because the antenna, mast, cable, and metal guy wires are
all excellent conductors of electrical current, even the slightest touch of any of these parts to a power line completes an
electrical path through the antenna and the installer.

If any part of the antenna system should come in contact with a power line, do not touch it or try to remove it yourself. Call
your local power company to have it removed safely.

If an accident should occur with the power lines, call for qualified emergency help immediately.
Antenna Installation
This antenna is designed to be mounted directly to the access point. For information about orienting the dipole antenna, see
the hardware installation guide for your access point.
In addition to antenna orientation, wireless access point installation location with respect to all wireless clients plays a significant
role in determining overall network performance. Clients at the furthest coverage points might have 10% to 50% of the
bandwidth of clients close to it. Wireless network coverage in one area or location might need to be lowered to improve the
performance of other clients.
Because antennas transmit and receive radio signals, their performance can be adversely affected by the surrounding
environment including distance between access point and client, physical obstructions, or radio frequency (RF) interference.
Follow these guidelines to ensure the best possible performance:

Wherever possible, mount the AP HWIC and antenna where the wireless devices would be within sight and avoid physical
obstructions. Barriers along the line of sight between client and access point will degrade the wireless radio signals. AP
HWICs and antennas can be installed above floor level in office environments or near the ceiling for better performance
since most obstructions tend to be near floor level.

The density of the materials used in a building's construction determines the number of walls the signal must pass through
and still maintain adequate coverage. Consider the following before choosing the location to install your antenna:
—
Paper and vinyl walls have very little effect on signal penetration.
—
Solid and precast concrete walls limit signal penetration to one or two walls without degrading coverage.
—
Concrete and wood block walls limit signal penetration to three or four walls.
334
Cisco Indoor Swivel-mount Dipole Antenna (ANT-4G-DP-IN-TNC)
—
A signal can penetrate five or six walls constructed of drywall or wood.
—
A thick metal wall or wire-mesh stucco walls causes signals to reflect back and cause poor penetration.

Avoid mounting the antenna next to a column or vertical support that could create a shadow zone and reduce the coverage
area.

Keep the antenna away from reflective metal objects such as heating and air-conditioning ducts, large ceiling trusses,
building superstructures, and major power cabling runs. If necessary, use an extension cable to relocate the antenna away
from these obstructions.
CAUTION: Install the AP HWIC and any antennas away from appliances that share the same frequency bands. Microwave ovens,
cordless telephones, and security monitors can temporarily interfere with wireless performance.
CAUTION: We recommend you avoid installing wireless antennas in or near rack-mounted installations that include networking
equipment and computer servers whose radiated noise emissions can severely degrade radio performance.
NOTE: If the desired installation site has a marginally acceptable level of radiated noise emissions, consider using a
remote-mounted antenna, such as a wall-mount or ceiling-mount antenna, for better radio performance and coverage.
Obtaining Documentation and Submitting a Service Request
For information on obtaining documentation, submitting a service request, and gathering additional information, see the monthly
What’s New in Cisco Product Documentation, which also lists all new and revised Cisco technical documentation, at:
http://www.cisco.com/en/US/docs/general/whatsnew/whatsnew.html
Subscribe to the What’s New in Cisco Product Documentation as a Really Simple Syndication (RSS) feedand set content to be
delivered directly to your desktop using a reader application. The RSS feeds are a free service and Cisco currently supports
RSS Version 2.0.
Cisco and the Cisco Logo are trademarks of Cisco Systems, Inc. and/or its affiliates in the U.S. and other countries. A listing of Cisco's trademarks can be found at
www.cisco.com/go/trademarks. Third party trademarks mentioned are the property of their respective owners. The use of the word partner does not imply a partnership relationship
between Cisco and any other company. (1005R)
335
Cisco Outdoor Omnidirectional Antenna for
2G/3G/4G Cellular
(ANT-4G-OMNI-OUT-N)
The Cisco Outdoor Omnidirectional Antenna for 2G/3G/4G Cellular antenna is designed to cover domestic
LTE700/Cellular/PCS/AWS/MDS, WiMAX 2300/2500, and GSM900/GSM1800/UMTS/LTE2600 bands. This document provides
the antenna specifications and mounting instructions.
CAUTION: Read the information in Safety Warnings before installing or replacing antennas.
This chapter covers the following topics:

Technical Specifications

Antenna Kit

Safety Warnings

Antenna Installation

Obtaining Documentation and Submitting a Service Request
Technical Specifications
The Outdoor Omnidirectional antenna features the following:

UV stable radome

Mast mount bracket

Covers all cellular 2G, 3G and 4G LTE bands in the following frequency ranges: 698-960 MHz, 1448-1511 MHz and
1710-2700 MHz
Cisco Systems, Inc.
336
www.cisco.com
Cisco Outdoor Omnidirectional Antenna for 2G/3G/4G Cellular (ANT-4G-OMNI-OUT-N)
Figure 1
Outdoor Omnidirectional Antenna
25.7
249
300661
25.4 0.3
1
1
2x drain slot
RF Specifications
Specification
Description
Frequency ranges

698 to 960 MHz

1480 to 1511 MHz

1710 to 2170 MHz

2300 to 2700 MHz

698 to 960 MHz: 1.5 dBi

1448 to 1511 MHz: 2 dBI

1710 to 2700 MHz: 3.5 dBi

698 to 960 MHz: 81 degrees

1480 to 1511 MHz: 78 degrees

1710 to 2170 MHz: 75 degrees

2300 to 2700 MHz: 100 degrees
Nominal gain (dBi)
3 dB beamwidth (E plane)
3 dB beamwidth (H plane)
360 degrees, omnidirectional
337
Cisco Outdoor Omnidirectional Antenna for 2G/3G/4G Cellular (ANT-4G-OMNI-OUT-N)
Specification
Description
Efficiency
Antennas were designed and tested to high RF efficiency in
all supported cellular bands. Detailed technical
specifications can be obtained through your Cisco
authorized partner or Cisco account representative.
Polarization
Vertical, linear
Normal impedance
50 ohms
VSWR

< 2.5:1 (698 to 960 MHz)

< 1.5:1 (1448 to 1511 MHz)

< 2.0:1 (1710 to 2690 MHz)
Radiation Pattern
Omnidirectional
338
Cisco Outdoor Omnidirectional Antenna for 2G/3G/4G Cellular (ANT-4G-OMNI-OUT-N)
Mechanical Specifications
Specification
Description
Mount style
Mast mount, upright position only, connector on
bottom (due to drain holes located only on antenna
bottom)
Environment
Outdoor IP55 with drain holes
Connector
N-Type female
Antenna length (height)
9.8” x 1” (24.9 cm x 2.45 cm)
Weight
1.5 lbs (.68 kg)
Dimensions (height x outside dimensions)
9.8” x 1” (248 x 24.5 mm)
Operating temperature range
-22 to 158-degrees F (-30 to +70-degrees C)
Storage temperature
-40 to 185 degrees F (-40 to 85 degrees C)
Maximum power
10 watts
Radome
Polycarbonate, UV, white
Material substance compliance
ROHS compliant
Radiation Patterns
339
Cisco Outdoor Omnidirectional Antenna for 2G/3G/4G Cellular (ANT-4G-OMNI-OUT-N)
340
Cisco Outdoor Omnidirectional Antenna for 2G/3G/4G Cellular (ANT-4G-OMNI-OUT-N)
341
Cisco Outdoor Omnidirectional Antenna for 2G/3G/4G Cellular (ANT-4G-OMNI-OUT-N)
Antenna Kit
The contents of the multi-purpose integrated antenna are listed in Table 1:
Table 1
Antenna Kit Contents
Quantity
Description
1
Antenna-mount bracket
4
1/4”-20x3/4 carriage bolt
6
1/4”-20 hex nut
6
1/4”-20 spring lock washer
6
1/4”-20 flat washer
2
Pipe clamps
1
ANT-4G-OMNI-OUT-N Antenna
Safety Warnings
WARNING: Avoid using or servicing any equipment that has outdoor connections during an electrical storm.
There may be a risk of electric shock from lightning. Statement 1088
WARNING: Do not work on the system, or connect or disconnect cables, during periods of lightning activity. Statement 1001
WARNING: Do not locate the outdoor antenna near overhead power lines or other electric light or power circuits, or where it can
come into contact with such circuits. When installing the antenna, take extreme care not to come into contact with such circuits,
as they may cause serious injury or death. For proper installation and grounding of the antenna, please refer to national and local
codes (for example, U.S.:NFPA 70, National Electrical Code, Article 810, Canada:Canadian Electrical Code, Section 54).
Statement 1052
WARNING: This equipment must be grounded. Never defeat the ground conductor or operate the equipment in the absence of
a suitably installed ground conductor. Contact the appropriate electrical inspection authority or an electrician if you are uncertain
that suitable grounding is available. Statement 1024
WARNING: Only trained and qualified personnel should be allowed to install, replace, or service this equipment. Statement 1030
342
Cisco Outdoor Omnidirectional Antenna for 2G/3G/4G Cellular (ANT-4G-OMNI-OUT-N)
WARNING: To report a gas leak, do not use a telephone in the vicinity of the leak. Statement 1039
WARNING: This warning symbol means danger. You are in a situation that could cause bodily injury. Before you work on any
equipment, be aware of the hazards involved with electrical circuitry and be familiar with standard practices for preventing
accidents. Use the statement number provided at the end of each warning to locate its translation in the translated safety
warnings that accompanied this device. Statement 1071. SAVE THESE INSTRUCTIONS.
WARNING: This product is not intended to be directly connected to the Cable Distribution System. Additional regulatory
compliance and legal requirements may apply for direct connection to the Cable Distribution System. This product may connect
to the Cable Distribution System ONLY through a device that is approved for direct connection. Statement 1078
Safety Precautions
WARNING: Installation of this antenna near power lines is dangerous. For your safety, follow the installation directions.
Each year hundreds of people are killed or injured when attempting to install an antenna. In many of these cases, the victim was
aware of the danger of electrocution, but did not take adequate steps to avoid the hazard.
For your safety, and to help you achieve a good installation, please read and follow these safety precautions. They may save
your life!
For your safety, read and follow these safety precautions.

If you are installing an antenna for the first time, for your own safety as well as others, seek professional assistance. Your
Cisco sales representative can explain which mounting method to use for the size and type antenna you are about to install.

Before you install an antenna, contact your Cisco account representative to explain which mounting method to use for the
size and type of antenna that you are about to install.

Find someone to help you—installing an antenna is often a two-person job.

Select your installation site with safety, as well as performance, in mind. Remember that electric power lines and phone
lines look alike. For your safety, assume that any overhead line can kill you.

Contact your electric power company. Tell them your plans and ask them to come look at your proposed installation.

Plan your installation carefully and completely before you begin. Each person involved in an installation should be assigned
to a specific task, and should know what to do and when to do it. One person should be in charge of the operation to issue
instructions and watch for signs of trouble.

When installing your antenna, follow these guidelines:
—
Do not use a metal ladder.
—
Do not work on a wet or windy day.
—
Do dress properly—wear shoes with rubber soles and heels, rubber gloves, and a long-sleeved shirt or jacket.

If the assembly starts to drop, move away from it and let it fall. Because the antenna, mast, cable, and metal guy wires are
all excellent conductors of electrical current, even the slightest touch of any of these parts to a power line completes an
electrical path through the antenna and the installer.

If any part of the antenna system should come in contact with a power line, do not touch it or try to remove it yourself. Call
your local power company to have it removed safely.

If an accident should occur with the power lines, call for qualified emergency help immediately.
Antenna Installation
The antenna installation includes the following procedures:
343
Cisco Outdoor Omnidirectional Antenna for 2G/3G/4G Cellular (ANT-4G-OMNI-OUT-N)

Tools and Equipment Required

Installing the Antenna
Tools and Equipment Required
In addition to the parts included in the antenna kit described in the section Antenna Kit, you must provide the following tool to
install the antenna on the router:

A flathead screwdriver

3/4 in. open-end wrench
NOTE: This list does not include the tools and equipment required to assemble and erect the tower, mast, or other structure you
intend to mount your antenna on.
Installing the Antenna
The antenna is provided with a mounting kit consisting of a mounting bracket and hose clamp. This kit allows you to mount the
antenna to masts from 1.25 inches (3.2 centimeters) to 2 inches (5.1 cm). Cisco recommends that a 1.5 inch (3.8 centimeter)
or larger tubing mast be used.
The antenna is vertically polarized. Since the antenna has vertical gain, it is very important to mount the antenna in a vertical
(not leaning) position for optimal performance.
Follow these steps to mount the antenna onto a mast:
1. Place the connector end of the antenna through the hole in the antenna bracket.
344
Cisco Outdoor Omnidirectional Antenna for 2G/3G/4G Cellular (ANT-4G-OMNI-OUT-N)
1
2
8
7
3
6
4
300642
6
5
6
1
Outdoor omnidirectional antenna
2
Aluminum pipe/mast—31.8 mm to 54.0 mm mast
diameter. (For optimum performance, mast height
should sit lower than aluminum tube)
3
Antenna bracket
4
Flat washer
5
Lock washer
6
Hex nut
7
Carriage bolt
8
Pipe clamps
2. Place the pipe clamps into the grooves on the bracket.
3. Attach the bracket to the top of the mast. The top surface of the mounting mast must not exceed the top surface of the
mounting bracket. Securely tighten hose clamps.
4. Route the cable to the router and attach the cable to the antenna port of the router.
Obtaining Documentation and Submitting a Service Request
For information on obtaining documentation, submitting a service request, and gathering additional information, see the monthly
What’s New in Cisco Product Documentation, which also lists all new and revised Cisco technical documentation, at:
http://www.cisco.com/en/US/docs/general/whatsnew/whatsnew.html
Subscribe to the What’s New in Cisco Product Documentation as an RSS (Really Simple Syndication) feed, and set it so content
is delivered directly to your desktop using a reader application. The RSS feeds are a free service and Cisco currently supports
RSS Version 2.0.
345
Cisco Outdoor Omnidirectional Antenna for 2G/3G/4G Cellular (ANT-4G-OMNI-OUT-N)
Cisco and the Cisco Logo are trademarks of Cisco Systems, Inc. and/or its affiliates in the U.S. and other countries. A listing of Cisco's trademarks can be found at
www.cisco.com/go/trademarks. Third party trademarks mentioned are the property of their respective owners. The use of the word partner does not imply a partnership relationship
between Cisco and any other company. (1005R)
346
Cisco Outdoor Omnidirectional Antenna for 2G/3G/4G Cellular (ANT-4G-OMNI-OUT-N)
347
Cisco Multiband Panel Outdoor 4G MIMO
Antenna (ANT-4G-PNL-OUT-N)
This chapter describes the technical specifications and installation instructions for the Cisco Multiband Panel Outdoor 4G MIMO
antenna, hereafter referred to as the antenna. The antenna is a dual-port antenna designed to cover cellular 4G bands. The
supported bands are:

LTE700/Cellular/PCS/AWS/MDS

Global GSM900/GSM1800/UMTS/LTE2600

WiMAX 2300/2500
CAUTION: Read the information in Safety Precautions before installing or replacing antennas.
The topics included are:

Antenna Overview

Technical Specifications

Installing the Antenna

Obtaining Documentation and Submitting a Service Request
Antenna Overview

Antenna Features

Antenna Model

Antenna Assembly
Antenna Features
The antenna features:

3G, 4G, and WiMAX 2300/2500 operation

698–960, 1710–2700 MHz band support

4G directional panel, dual-polarized/MIMO

Indoor or outdoor location

Wall mount or mast mount installation

Dual type N female connector
Cisco Systems, Inc.
348
www.cisco.com
Cisco Multiband Panel Outdoor 4G MIMO Antenna (ANT-4G-PNL-OUT-N)
Antenna Model
Figure 1
Cisco Multiband Panel Outdoor 4G MIMO antenna
Antenna Model
Description
ANT-4G-PNL-OUT-N
Cisco Multiband Panel Outdoor 4G MIMO antenna
Antenna Assembly
Figure 2
Cisco ANT-4G-PNL-OUT-N Antenna
Technical Specifications

Radio Frequency Specifications

Antenna Radiation Patterns

Environmental Specifications

Mechanical Specifications

Power Specifications
349
Cisco Multiband Panel Outdoor 4G MIMO Antenna (ANT-4G-PNL-OUT-N)
Radio Frequency Specifications
Figure 3
Antenna Radio Frequency Specification
Specification
Description
Antenna type
4G directional panel, dual-polarized/MIMO
Frequency

698 to 960 MHz

1710 to 2700 MHz
Nominal impedance
50 ohms
VSWR
2.0:1 Maximum
Gain
The gain values (dBi) for each frequency range
are:
3 dB beamwidth (vertical plane)
3 dB beamwidth (horizontal plane)
F/B ratio

698 to 960 MHz—8.0 to 10.0 dBi

1710 to 2170 MHz—6.0 to 8.5 dBi

2200 to 2400 MHz—6.5 to 9.5 dBi

2500 to 2700 MHz—8.5 to 9.5 dBi

55 to 70 degrees—698 to 960 MHz

53 to 98 degrees—1710 to 2200 MHz

60 to 70 degrees—2200 to 2500 MHz

55 to 70 degrees—2500 to 2700 MHz

55 to 70 degrees—698 to 960 MHz

50 to 90 degrees—1710 to 2200 MHz
> 15 dB, typical 20 dB—698 to 960 MHz
> 17 dB, typical 23 dB—1700 to 2700 MHz
Isolation
> 30 dB
Efficiency
Antennas were designed and tested to high RF
efficiency in all supported cellular bands. Detailed
technical specifications can be obtained through
your Cisco authorized partner or Cisco account
representative.
Polarization
Slant +/- 45 degrees
Radiation Pattern
Directional
Antenna Radiation Patterns

698 MHz Antenna Radiation Pattern

880 MHz Antenna Radiation Pattern

960 MHz Antenna Radiation Pattern

1710 MHz Antenna Radiation Pattern
350
Cisco Multiband Panel Outdoor 4G MIMO Antenna (ANT-4G-PNL-OUT-N)

1950 MHz Antenna Radiation Pattern

2170 MHz Antenna Radiation Pattern

2700 MHz Antenna Radiation Pattern, page 362
698 MHz Antenna Radiation Pattern

698 MHz Antenna Radiation Pattern—Horizontal Plane

698 MHz Antenna Radiation Pattern—Vertical Plane
698 MHz Antenna Radiation Pattern—Horizontal Plane
698 MHz Antenna Radiation Pattern—Horizontal Plane
0
10
5
0
5
10
15
20
25
30
330
300
270
30
60
90
240
120
210
150
180
351
349220
Figure 4
Cisco Multiband Panel Outdoor 4G MIMO Antenna (ANT-4G-PNL-OUT-N)
Line Color
Description
Blue (—)
Port 1
Red (—)
Port 2
698 MHz Antenna Radiation Pattern—Vertical Plane
Figure 5
698 MHz Antenna Radiation Pattern—Vertical Plane
0
10
5
0
5
10
15
20
25
30
330
300
270
30
60
90
120
210
150
180
Line Color
Description
Blue (—)
Port 1
Red (—)
Port 2
880 MHz Antenna Radiation Pattern

880 MHz Antenna Radiation Pattern—Horizontal Plane

880 MHz Antenna Radiation Pattern—Vertical Plane
352
349221
240
Cisco Multiband Panel Outdoor 4G MIMO Antenna (ANT-4G-PNL-OUT-N)
880 MHz Antenna Radiation Pattern—Horizontal Plane
Figure 6
880 MHz Antenna Radiation Pattern—Horizontal Plane
0
10
5
0
5
10
15
20
25
30
330
300
270
30
60
90
120
210
150
180
Line Color
Description
Blue (—)
Port 1
Red (—)
Port 2
880 MHz Antenna Radiation Pattern—Vertical Plane
Figure 7
880 MHz Antenna Radiation Pattern—Vertical Plane
353
349222
240
Cisco Multiband Panel Outdoor 4G MIMO Antenna (ANT-4G-PNL-OUT-N)
0
10
5
0
5
10
15
20
25
30
330
300
270
30
60
90
120
210
150
180
Line Color
Description
Blue (—)
Port 1
Red (—)
Port 2
960 MHz Antenna Radiation Pattern

960 MHz Antenna Radiation Pattern—Horizontal Plane

960 MHz Antenna Radiation Pattern—Vertical Plane
354
349223
240
Cisco Multiband Panel Outdoor 4G MIMO Antenna (ANT-4G-PNL-OUT-N)
960 MHz Antenna Radiation Pattern—Horizontal Plane
Figure 8
960 MHz Antenna Radiation Pattern—Horizontal Plane
0
10
5
0
5
10
15
20
25
30
330
300
270
30
60
90
240
210
150
180
Line Color
Description
Blue (—)
Port 1
Red (—)
Port 2
960 MHz Antenna Radiation Pattern—Vertical Plane
Figure 9
960 MHz Antenna Radiation Pattern—Vertical Plane
355
349224
120
Cisco Multiband Panel Outdoor 4G MIMO Antenna (ANT-4G-PNL-OUT-N)
0
10
5
0
5
10
15
20
25
30
330
300
270
30
60
90
120
210
150
180
Line Color
Description
Blue (—)
Port 1
Red (—)
Port 2
1710 MHz Antenna Radiation Pattern

1710 MHz Antenna Radiation Pattern—Horizontal Plane

1710 MHz Antenna Radiation Pattern—Vertical Plane
356
349225
240
Cisco Multiband Panel Outdoor 4G MIMO Antenna (ANT-4G-PNL-OUT-N)
1710 MHz Antenna Radiation Pattern—Horizontal Plane
Figure 10
1710 MHz Antenna Radiation Pattern—Horizontal Plane
0
10
5
0
5
10
15
20
25
30
330
300
270
30
60
90
120
210
150
180
Line Color
Description
Blue (—)
Port 1
Red (—)
Port 2
1710 MHz Antenna Radiation Pattern—Vertical Plane
Figure 11
1710 MHz Antenna Radiation Pattern—Vertical Plane
357
349226
240
Cisco Multiband Panel Outdoor 4G MIMO Antenna (ANT-4G-PNL-OUT-N)
0
10
5
0
5
10
15
20
25
30
330
300
270
30
60
90
120
210
150
180
Line Color
Description
Blue (—)
Port 1
Red (—)
Port 2
1950 MHz Antenna Radiation Pattern

1950 MHz Antenna Radiation Pattern—Horizontal Plane

1950 MHz Antenna Radiation Pattern—Vertical Plane
358
349227
240
Cisco Multiband Panel Outdoor 4G MIMO Antenna (ANT-4G-PNL-OUT-N)
1950 MHz Antenna Radiation Pattern—Horizontal Plane
Figure 12
1950 MHz Antenna Radiation Pattern—Horizontal Plane
0
10
5
0
5
10
15
20
25
30
330
300
270
30
60
90
210
150
180
Line Color
Description
Blue (—)
Port 1
Red (—)
Port 2
1950 MHz Antenna Radiation Pattern—Vertical Plane
Figure 13
1950 MHz Antenna Radiation Pattern—Vertical Plane
359
349228
120
240
Cisco Multiband Panel Outdoor 4G MIMO Antenna (ANT-4G-PNL-OUT-N)
0
10
5
0
5
10
15
20
25
30
330
300
270
30
60
90
210
150
180
Line Color
Description
Blue (—)
Port 1
Red (—)
Port 2
2170 MHz Antenna Radiation Pattern

2170 MHz Antenna Radiation Pattern—Horizontal Plane

2170 MHz Antenna Radiation Pattern—Vertical Plane
360
349229
120
240
Cisco Multiband Panel Outdoor 4G MIMO Antenna (ANT-4G-PNL-OUT-N)
2170 MHz Antenna Radiation Pattern—Horizontal Plane
Figure 14
2170 MHz Antenna Radiation Pattern—Horizontal Plane
0
10
5
0
5
10
15
20
25
30
330
300
270
30
60
90
210
150
180
Line Color
Description
Blue (—)
Port 1
Red (—)
Port 2
2170 MHz Antenna Radiation Pattern—Vertical Plane
Figure 15
2170 MHz Antenna Radiation Pattern—Vertical Plane
361
349230
120
240
Cisco Multiband Panel Outdoor 4G MIMO Antenna (ANT-4G-PNL-OUT-N)
0
330
300
270
10
5
0
5
10
15
20
25
30
30
60
90
240
210
150
180
Line Color
Description
Blue (—)
Port 1
Red (—)
Port 2
2700 MHz Antenna Radiation Pattern

2700 MHz Antenna Radiation Pattern—Horizontal Plane

2700 MHz Antenna Radiation Pattern—Vertical Plane
362
349231
120
Cisco Multiband Panel Outdoor 4G MIMO Antenna (ANT-4G-PNL-OUT-N)
2700 MHz Antenna Radiation Pattern—Horizontal Plane
Figure 16
2700 MHz Antenna Radiation Pattern—Horizontal Plane
0
330
300
270
10
5
0
5
10
15
20
25
30
30
60
90
120
240
150
180
Line Color
Description
Blue (—)
Port 1
Red (—)
Port 2
2700 MHz Antenna Radiation Pattern—Vertical Plane
Figure 17
2700 MHz Antenna Radiation Pattern—Vertical Plane
363
349232
210
Cisco Multiband Panel Outdoor 4G MIMO Antenna (ANT-4G-PNL-OUT-N)
0
10
5
0
5
10
15
20
25
30
330
300
270
30
60
90
120
240
150
180
Line Color
Description
Blue (—)
Port 1
Red (—)
Port 2
349233
210
Environmental Specifications
Table 1
Environmental Specifications for the Cisco ANT-4G-PNL-OUT-N Antenna
Specification
Description
Operating temperature range
-40 to 158°F (-40 to 70°C)
Storage temperature range
-40 to 185°F (-40 to +85°C)
Mechanical Specifications
Table 2
Mechanical Specifications for the Cisco ANT-4G-PNL-OUT-N Antenna
Specification
Description
Mount style
Wall or mast mount
Location
Indoor or outdoor
Connector
Dual type N female direct connect
Dimensions (width x length x height)
11.61 x 11.61 x 3.23 in. (29.5 x 29.5 x 82 cm)
Weight
3.22 lbs (1.46 kg)
364
Cisco Multiband Panel Outdoor 4G MIMO Antenna (ANT-4G-PNL-OUT-N)
Table 2
Mechanical Specifications for the Cisco ANT-4G-PNL-OUT-N Antenna (continued)
Specification
Description
Wind rating
160 km/hr (93 mph)
IP rating
IP55
Radome
Polycarbonate, UV resistant, white
Material substance compliance
ROHS compliant
Power Specifications
Table 3
Power Specifications for the Cisco ANT-4G-PNL-OUT-N Antenna
Specification
Description
Maximum Voltage
2.0:1
Nominal Impedance
50 ohms
Maximum input power per port
10 watts
Installing the Antenna
The antenna installation includes the following procedures:

Contents of the Antenna Kit

Safety Warnings

Safety Precautions

Tools and Equipment Required

Preparing the Antenna for Installation

Mounting the Antenna

Connecting the Lightning Arrestor

Connecting the Antenna to the Router
Contents of the Antenna Kit
The antenna kit contains:

1 x Cisco ANT-4G-PNL-OUT-N antenna

1 x mounting bracket
Safety Warnings
WARNING: Avoid using or servicing any equipment that has outdoor connections during an electrical storm.
There may be a risk of electric shock from lightning. Statement 1088
WARNING: Do not work on the system, or connect or disconnect cables, during periods of lightning activity. Statement 1001
365
Cisco Multiband Panel Outdoor 4G MIMO Antenna (ANT-4G-PNL-OUT-N)
WARNING: Do not locate the outdoor antenna near overhead power lines or other electric light or power circuits, or where it can
come into contact with such circuits. When installing the antenna, take extreme care not to come into contact with such circuits,
as they may cause serious injury or death. For proper installation and grounding of the antenna, please refer to national and local
codes (for example, U.S.:NFPA 70, National Electrical Code, Article 810, Canada:Canadian Electrical Code, Section 54).
Statement 1052
WARNING: This equipment must be grounded. Never defeat the ground conductor or operate the equipment in the absence of
a suitably installed ground conductor. Contact the appropriate electrical inspection authority or an electrician if you are uncertain
that suitable grounding is available. Statement 1024
WARNING: Only trained and qualified personnel should be allowed to install, replace, or service this equipment. Statement 1030
WARNING: To report a gas leak, do not use a telephone in the vicinity of the leak. Statement 1039
WARNING: This warning symbol means danger. You are in a situation that could cause bodily injury. Before you work on any
equipment, be aware of the hazards involved with electrical circuitry and be familiar with standard practices for preventing
accidents. Use the statement number provided at the end of each warning to locate its translation in the translated safety
warnings that accompanied this device. Statement 1071. SAVE THESE INSTRUCTIONS.
WARNING: This product is not intended to be directly connected to the Cable Distribution System. Additional regulatory
compliance and legal requirements may apply for direct connection to the Cable Distribution System. This product may connect
to the Cable Distribution System ONLY through a device that is approved for direct connection. Statement 1078
Safety Precautions
WARNING: Installation of this antenna near power lines is dangerous. For your safety, follow the installation directions.
Each year hundreds of people are killed or injured when attempting to install an antenna. In many of these cases, the victim was
aware of the danger of electrocution, but did not take adequate steps to avoid the hazard.
For your safety, and to help you achieve a good installation, please read and follow these safety precautions. They may save
your life!
For your safety, read and follow these safety precautions.

If you are installing an antenna for the first time, for your own safety as well as others, seek professional assistance. Your
Cisco sales representative can explain which mounting method to use for the size and type antenna you are about to install.

Before you install an antenna, contact your Cisco account representative to explain which mounting method to use for the
size and type of antenna that you are about to install.

Find someone to help you—installing an antenna is often a two-person job.

Select your installation site with safety, as well as performance, in mind. Remember that electric power lines and phone
lines look alike. For your safety, assume that any overhead line can kill you.

Contact your electric power company. Tell them your plans and ask them to come look at your proposed installation.

Plan your installation carefully and completely before you begin. Each person involved in an installation should be assigned
to a specific task, and should know what to do and when to do it. One person should be in charge of the operation to issue
instructions and watch for signs of trouble.

When installing your antenna, follow these guidelines:
—
Do not use a metal ladder.
—
Do not work on a wet or windy day.
—
Do dress properly—wear shoes with rubber soles and heels, rubber gloves, and a long-sleeved shirt or jacket.
366
Cisco Multiband Panel Outdoor 4G MIMO Antenna (ANT-4G-PNL-OUT-N)

If the assembly starts to drop, move away from it and let it fall. Because the antenna, mast, cable, and metal guy wires are
all excellent conductors of electrical current, even the slightest touch of any of these parts to a power line completes an
electrical path through the antenna and the installer.

If any part of the antenna system should come in contact with a power line, do not touch it or try to remove it yourself. Call
your local power company to have it removed safely.

If an accident should occur with the power lines, call for qualified emergency help immediately.
Tools and Equipment Required
In addition to the parts included in the antenna kit described in the section Contents of the Antenna Kit, you must provide the
following tool to install the antenna on the router:

Phillips screwdriver

Open-ended wrench

Electric drill
NOTE: This list does not include the tools and equipment required to assemble and erect the tower, mast, or other structure you
intend to mount your antenna on.
Preparing the Antenna for Installation
NOTE: Before mounting the antenna on a mast or wall:
- the antenna must be attached to the mounting bracket.
- the signal cable must be attached to the antenna.
To prepare the antenna for installation:
1. Attach the antenna to the mounting bracket.
2. To attach the signal cable to the antenna:
a. Loosely hand-tighten the antenna nut so that the cable can be attached with ease.
b. Attach the cable to the antenna.
c. Hand tighten the N-connector to the antenna.
d. Tighten the antenna nut securely after the cable is installed.
e. Use weatherproof sealing tape (coax seal) at the connector junction. Start wrapping at the top of the antenna connector,
wrap downward 3 times and end about 2 inches downward from the center of the connector junction. Then wrap
upwards another 3 times to reach the top of the antenna connector.
3. Decide if the antenna is to be mounted on a wall or mast. Perform the following steps where relevant:
a. If the antenna is going to be mast mounted, install the clamps provided in the mounting bracket. Align the antenna so
the top of the metal bracket is even with or slightly above the top of the mast tubing.
b. If the antenna is to be wall mounted, use the screws provided.
c. Use both clamps and screws for extra security if required.
367
Cisco Multiband Panel Outdoor 4G MIMO Antenna (ANT-4G-PNL-OUT-N)
Mounting the Antenna
Follow these instructions to mount the antenna:
1. Mark the desired location where you plan to mount the antenna and create a hole to receive the antenna.
NOTE: The rubber washer is not required for ceiling tile installations.
2. Make sure that the antenna is properly positioned, then tighten the washer and plastic nut to secure the antenna.
Connecting the Lightning Arrestor
To install a lightning-protection device, please refer to the appropriate Hardware Installation Procedures for the model of
hardware you are installing. Links to hardware installation guides and other information may be found in Chapter 1, “Additional
Information”.
Connecting the Antenna to the Router
To attach the router-end of the cable to your device, please refer to the appropriate Hardware Installation Procedures for the
model of hardware you are installing. Links to hardware installation guides and other information may be found in Chapter 1,
“Additional Information”.
NOTE: Coaxial cable loses efficiency as the frequency increases, resulting in signal loss. The cable should be kept as short as
possible because cable length also determines the amount of signal loss—the longer the cable length or run, the greater the
loss).
Obtaining Documentation and Submitting a Service Request
For information on obtaining documentation, submitting a service request, and gathering additional information, see the monthly
What’s New in Cisco Product Documentation, which also lists all new and revised Cisco technical documentation, at:
http://www.cisco.com/en/US/docs/general/whatsnew/whatsnew.html
Subscribe to the What’s New in Cisco Product Documentation as an RSS (Really Simple Syndication) feed, and set it so content
is delivered directly to your desktop using a reader application. The RSS feeds are a free service and Cisco currently supports
RSS Version 2.0.
Cisco and the Cisco Logo are trademarks of Cisco Systems, Inc. and/or its affiliates in the U.S. and other countries. A listing of Cisco's trademarks can be found at
www.cisco.com/go/trademarks. Third party trademarks mentioned are the property of their respective owners. The use of the word partner does not imply a partnership relationship
between Cisco and any other company. (1005R)
368
Cisco Multiband Panel Outdoor 4G MIMO Antenna (ANT-4G-PNL-OUT-N)
369
Cisco Integrated 4G Low-profile Outdoor
Saucer Antenna (ANT-4G-SR-OUT-TNC)
This document describes the Cisco Integrated 4G Low-profile Outdoor Saucer Antenna. It supports frequencies of 698 to 960
MHz, 1575 MHz, and 1710 to 2700 MHz for the GSM, DCS, UMTS, and LTE/WiMAX frequency bands. In addition, this document
provides the antenna specifications and mounting instructions of the antenna.
CAUTION: Read the information before installing or replacing antennas.
This chapter covers the following topics:

Technical Specifications

Installation Requirements

Safety Warnings

Antenna Installation

Obtaining Documentation and Submitting a Service Request
Technical Specifications
The Integrated 4G Low-profile Outdoor Saucer Antenna features the following:

Applicable for both 3G and 4G solutions

Domestic LTE 700 band and Global LTE 2600 band

Domestic Cellular and Global GSM

Weatherproof UV stable radome

Performance optimized

Excellent flame rating
Cisco Systems, Inc.
370
www.cisco.com
Cisco Integrated 4G Low-profile Outdoor Saucer Antenna (ANT-4G-SR-OUT-TNC)
Low-Profile Saucer Antenna
300637
Figure 1
RF Specifications
Specification
Description
Frequency range
698 to 960 MHz
1448 to 1511 MHz
1710 to 2700 MHz
Peak gain w/15 foot cable
0.8 dBi (698 to 960 MHz)
0.5 dBI (1448 to 1511 MHz)
0.2 dBi (1710 to 2700 MHz)
Average efficiency w/15 foot cable
60 percent (698 to 960 MHz)
50 percent (1448 to 1511 MHz
40 percent (1710 to 2700 MHz)
Polarization
Linear, vertical
Nominal impedance
50 ohms
VSWR (maximum)
2.0:1 (698 to 960 MHz)
1.9:1 (1448 to 1511 MHz)
2.0:1 (1710 to 2700 MHz)
H-plane (3 dB beamwidth)
Omnidirectional
Mechanical Specifications
371
Cisco Integrated 4G Low-profile Outdoor Saucer Antenna (ANT-4G-SR-OUT-TNC)
Specification
Description
H-plane 3 dB beamwidth
Omnidirectional
Polarization
Linear, vertical
Nominal impedance
50 ohm
Power
3 watts
Cable
15 foot LMR 195
RF connector
TNC(m)
Mount Style
Stud mount, 5/8-18-NF mounting stud, mount on the roof or
suitable flat surface
Radome
PC/ABS, UV stable, black
Material substance compliance
RoHS compliant
Operational temperature
-22 to 158 degrees F (-40 to 70 degrees C)
Storage temperature
-40 to 185 degrees F (-40 to 85 degrees C)
Environment
Outdoor, IP67, IK-08
Dimensions (ht x OD)
3.4 inches x 7.9 inches (87 mm x 200 mm)
Weight
0.75kg
Radiation Patterns
The following graphics show the radiation patterns of the saucer antenna.
372
Cisco Integrated 4G Low-profile Outdoor Saucer Antenna (ANT-4G-SR-OUT-TNC)
Low-profile Saucer Antenna Radiation Patterns
300636
Figure 2
Installation Requirements
Antenna Connections
373
Cisco Integrated 4G Low-profile Outdoor Saucer Antenna (ANT-4G-SR-OUT-TNC)
Before you install or replace antennas, make sure the router is:

Powered off

Disconnected from all power sources

Disconnected from the Field Area Network (FAN)

Removed from a pole-top installation
Optimum Performance
Antennas transmit and receive radio signals which are susceptible to RF obstructions and common sources of interference that
can reduce throughput and range of the device to which they are connected. Follow these guidelines to ensure the best possible
performance:

Keep the antenna away from metal obstructions such as heating and air-conditioning ducts, large ceiling trusses, building
superstructures, and major power cabling runs. If necessary, use a rigid conduit to lower the antenna away from these
obstructions.

The density of the materials used in surrounding buildings’ construction impacts antenna signal strength. Consider the
following
—
Signals penetrate paper and vinyl walls with little change to signal strength.
—
Signals penetrate only one or two solid and pre-cast concrete walls without degrading signal strength.
—
Signals penetrate three or four concrete and wood block walls without degrading signal strength.
—
Signals penetrate five or six walls constructed of drywall or wood without degrading signal strength.
—
Signals are likely to reflect off a thick metal wall and not penetrate it at all.
—
Signals are likely to reflect off a chain link fence or a wire mesh with spaces of 1 to 1-1/2 in. (2.5 to 3.8 cm). The fence
acts as a harmonic reflector that blocks the signal.

Microwave ovens and 2-GHz cordless phones can cause signal interference because they operate in the same frequency
range as the device to which your antenna is connected.

For instructions on installing or replacing a Cisco Connected Grid module, see the corresponding installation and
configuration guide for each module.

For detailed instructions on opening the door, see the installation guide of your router. Before installing the antenna
according to the Installing the Antenna, you must complete these steps:

—
Open the router chassis door.
—
Remove any plug or connector that is installed in the antenna port.
—
Verify the correct antenna port for installation, based on the antenna model you are installing.
See the installation document for your router regarding the correct antenna port location. Antennas must be installed in the
correct antenna port for ease of installation and optimal performance.
NOTE: Ensure that you are able to access the antenna port from inside the router. If an installed module prevents you from
reaching the antenna port, you might have to remove the module before installing the antenna, then reinstall the module. See
the corresponding module installation and configuration guide for each module.
374
Cisco Integrated 4G Low-profile Outdoor Saucer Antenna (ANT-4G-SR-OUT-TNC)
Safety Warnings
WARNING: Avoid using or servicing any equipment that has outdoor connections during an electrical storm.
There may be a risk of electric shock from lightning. Statement 1088
WARNING: Do not work on the system, or connect or disconnect cables, during periods of lightning activity. Statement 1001
WARNING: Do not locate the outdoor antenna near overhead power lines or other electric light or power circuits, or where it can
come into contact with such circuits. When installing the antenna, take extreme care not to come into contact with such circuits,
as they may cause serious injury or death. For proper installation and grounding of the antenna, please refer to national and local
codes (for example, U.S.:NFPA 70, National Electrical Code, Article 810, Canada:Canadian Electrical Code, Section 54).
Statement 1052
WARNING: This equipment must be grounded. Never defeat the ground conductor or operate the equipment in the absence of
a suitably installed ground conductor. Contact the appropriate electrical inspection authority or an electrician if you are uncertain
that suitable grounding is available. Statement 1024
WARNING: Only trained and qualified personnel should be allowed to install, replace, or service this equipment. Statement 1030
WARNING: To report a gas leak, do not use a telephone in the vicinity of the leak. Statement 1039
WARNING: This warning symbol means danger. You are in a situation that could cause bodily injury. Before you work on any
equipment, be aware of the hazards involved with electrical circuitry and be familiar with standard practices for preventing
accidents. Use the statement number provided at the end of each warning to locate its translation in the translated safety
warnings that accompanied this device. Statement 1071. SAVE THESE INSTRUCTIONS.
WARNING: This product is not intended to be directly connected to the Cable Distribution System. Additional regulatory
compliance and legal requirements may apply for direct connection to the Cable Distribution System. This product may connect
to the Cable Distribution System ONLY through a device that is approved for direct connection. Statement 1078
Safety Precautions
WARNING: For your safety, and to help you achieve a good installation, please read and follow these safety precautions. They
may save your life!
For your safety, read and follow these safety precautions.

If you are installing an antenna for the first time, for your own safety as well as others, seek professional assistance. Your
Cisco sales representative can explain which mounting method to use for the size and type antenna you are about to install.

Before you install an antenna, contact your Cisco account representative to explain which mounting method to use for the
size and type of antenna that you are about to install.

Find someone to help you—installing an antenna is often a two-person job.

Plan your installation carefully and completely before you begin. Each person involved in an installation should be assigned
to a specific task, and should know what to do and when to do it. One person should be in charge of the operation to issue
instructions and watch for signs of trouble.
Antenna Installation
The antenna installation includes the following procedures:

Tools and Equipment Required

Installing the Antenna
375
Cisco Integrated 4G Low-profile Outdoor Saucer Antenna (ANT-4G-SR-OUT-TNC)
Tools and Equipment Required
In addition to the parts included in the antenna kit, you must provide the following tool to install the antenna on the router:

Phillips screwdriver

Open-end wrench

Drill

Marker or pencil
Installing the Antenna
Follow these instructions to install the antenna:
NOTE: The following example is for a CGR 1120 router with a CGM cellular module.
1. Determine the installation location on the wall of the utility cabinet.
2. Create the center hole to accommodate the threaded center rod and the three mounting holes of the saucer antenna.
Secure the antenna onto the ceiling with the 3 screws using a Phillips #2 screwdriver.
3. From inside the utility cabinet space, secure the antenna.
376
Cisco Integrated 4G Low-profile Outdoor Saucer Antenna (ANT-4G-SR-OUT-TNC)
1
2
3
300913
4
1
Saucer antenna
2
Wall of utility cabinet
3
LMR-195 cable
4
TNC (m) connector
4. Connect the TNC (m) connector end of the antenna cable to the TNC(f)-to-QMA(m) connector adapter
(ANT-ADPTR-Q-TNC).
5. Attach the adapter to the QMA (f) connector of the CGR 1120 port.
Obtaining Documentation and Submitting a Service Request
For information on obtaining documentation, submitting a service request, and gathering additional information, see the monthly
What’s New in Cisco Product Documentation, which also lists all new and revised Cisco technical documentation, at:
http://www.cisco.com/en/US/docs/general/whatsnew/whatsnew.html
Subscribe to the What’s New in Cisco Product Documentation as an RSS (Really Simple Syndication) feed, and set it so content
is delivered directly to your desktop using a reader application. The RSS feeds are a free service and Cisco currently supports
RSS Version 2.0.
Cisco and the Cisco Logo are trademarks of Cisco Systems, Inc. and/or its affiliates in the U.S. and other countries. A listing of Cisco's trademarks can be found at
www.cisco.com/go/trademarks. Third party trademarks mentioned are the property of their respective owners. The use of the word partner does not imply a partnership relationship
between Cisco and any other company. (1005R)
377
Cisco 5-in-1 Vehicle Mount and Fixed
Infrastructure Antenna
(ANT-5-4G2WL2G1-O)
This chapter describes the technical specifications and installation instructions for the Cisco 5-in-1 Vehicle Mount and Fixed
Infrastructure Antenna, hereafter referred to as the antenna. The antenna is a five port antenna with two elements designed to
cover the 698-960, 1448-1511and 1710-2700 MHz cellular bands, two elements designed to cover the 2.4-2.5 and 4.9-5.85
GHz WLAN bands and one GPS element. The antenna can be mounted on the roof of a vehicle or fixed structure. The antenna
meets or exceeds a variety of environmental ruggedization specifications for transportation applications.
CAUTION: Read the information in Safety Precautions before installing or replacing antennas.
The topics included are:

Antenna Overview

Technical Specifications

Installing the Antenna

Obtaining Documentation and Submitting a Service Request
Antenna Overview

Antenna Features

Antenna Model

Antenna Assembly
Antenna Features
The antenna features:

Five antenna elements within one radome: two cellular, two WLAN and one GPS

Outdoor and transportation ready

Roof mount installation

Dual cellular elements supporting 698-960, 1448-1511 and 1710-2700 MHz

—
Omnidirectional, vertically polarized MIMO
—
Integrated 2 foot cables with TNC male connectors
—
LTE elements are interchangeable, either one can be connected to Main or Aux.
Dual WLAN elements supporting 2400-2500 and 4900-5875 MHz
Cisco Systems, Inc.
378
www.cisco.com
Cisco 5-in-1 Vehicle Mount and Fixed Infrastructure Antenna (ANT-5-4G2WL2G1-O)

—
Omnidirectional, vertically polarized, 2x2 MIMO
—
WiFi elements are interchangeable.
—
Integrated 2 foot cables with RP-TNC plug connectors
Active GPS element has integrated 17 foot cable with SMA male connector
The antenna may require RF extension cables. A shorter 2 foot cable length was selected on LTE WAN and WiFi WLAN to allow
you to optimize LTE WAN and WiFi WLAN RF performance and wireless range. If you require a cable length longer than 2 feet
with the antenna, you will need to select RF extension cables of appropriate length and type. Thicker RF cables, such as
LMR-600, LMR-400, or LMR-240 result in lower loss, higher RF performance and longer range of wireless network than thinner
cables such as LMR-195, LMR-200. The trade-off is that thicker cables are more difficult to bend and route. For optimal
performance, the length of thin cables needs to be kept as short as possible.
For example, 2 foot and 10 foot lengths of LMR-195 cable at 2700 MHz frequency would have losses of 0.5dB and 2.3dB
respectively. In this example at 2700 MHz the area covered by the wireless system with the 10 foot cable is reduced by 34%
compared to the 2 foot cable. Radius of communication is degraded by 20% in 10 foot vs. the 2 foot case. At 5825 MHz WiFi
frequency, 2 foot and 10 foot lengths of LMR-195 would have losses of 0.8dB and 3.4dB respectively. In this example at 5825
MHz, the area covered by the wireless system with the 10 foot cable is reduced by 45% compared to the 2 foot cable. Radius
of communication is degraded by 26% in the 10 foot vs. the 2 foot case.
NOTE: Loss of the 17foot GPS cable is compensated by the gain of the active GPS antenna, and has little impact on GPS
performance.
Antenna Model
Antenna Model
Description
ANT-5-4G2WL2G1-O
Cisco 5-in-1 Vehicle Mount and Fixed Infrastructure Antenna
Antenna Assembly
Figure 1
Cisco ANT-5-4G2WL2G1-O Antenna
NOTE: The GPS cable (center in the diagram) is 17 feet long. It is shown shorter for illustration purposes.
379
Cisco 5-in-1 Vehicle Mount and Fixed Infrastructure Antenna (ANT-5-4G2WL2G1-O)
Figure 2
Cisco ANT-5-4G2WL2G1-O Mechanical Details
Note: All dimensions are in millimeters [inches] unless explicitly stated otherwise in the drawing.
Technical Specifications

Radio Frequency Specifications

Power Specifications

WLAN WiFi Antenna Radiation Patterns

Installing the Antenna

Mechanical Specifications

Installing the Antenna
380
Cisco 5-in-1 Vehicle Mount and Fixed Infrastructure Antenna (ANT-5-4G2WL2G1-O)
Radio Frequency Specifications
Table 1
Cellular Antenna Radio Frequency Specification
Specification
Description
Antenna type
Dual element, omnidirectional, 2x2 MIMO
Frequency

698 to 960 MHz

1448 to1511 MHz

1710 to 2700 MHz
Nominal impedance
50 ohms
VSWR

2.1:1 maximum at 698 to 960 MHz

2.4:1 maximum at 1448 MHz edge, 2.2:1
typical at 1448-1511 MHz

2.0:1 maximum at 1710 to 2700 MHz
Gain
The gain values (dBi) for each frequency range
are:
Isolation, cellular to cellular (Main to Aux)
Isolation, WLAN to cellular

2.4 dBi typical, 2.9 dBi maximum at 698 to
960 MHz

4.2 dBI typical, 4.8 dBI maximum at
1448-1511 MHz

4.9 dBi typical, 6.5 dBi maximum at 1710 to
2700 MHz

14 dB minimum-698 to 960 MHz

20 dB minimum-1448-1511 MHz

20 dB minimum-1710 to 2700 MHz

25 dB minimum-698 to 960 MHz

20 dB minimum-1448 to 1511 MHz

15 dB minimum-1710 to 2700 MHz
Efficiency
Antennas were designed and tested for high RF
efficiency in all supported cellular bands. Detailed
technical specifications can be obtained through
your Cisco authorized partner or Cisco account
representative.
Polarization
Linear, Vertical
Radiation Pattern
Omnidirectional
381
Cisco 5-in-1 Vehicle Mount and Fixed Infrastructure Antenna (ANT-5-4G2WL2G1-O)
Table 2
WLAN Antenna Radio Frequency Specifications
Specification
Description
Antenna type
Dual element, omnidirectional, 2x2 MIMO
Frequency

2400 to 2500 MHz

4900 to 5875 MHz
Nominal impedance
50 ohms
VSWR
2.0:1 maximum
Gain

4.8 dBi typical, 5.5 dBi maximum at 2400 to
2500 MHz

5.8 dBi typical, 7.0 dBi maximum at 4900 to
5875 MHz

20 dB minimum-2400 to 2500 MHz

20 dB minimum-4900 to 5875 MHz

15 dB minimum-1710 to 2700 MHz

18 dB minimum-2400 to 2500 MHz

20 dB minimum-1448 to 1511 MHz

25 dB minimum-4900 to 5875 MHz

25 dB minimum-698 to 960 MHz
Isolation, WLAN to WLAN
Isolation, cellular to WLAN
Polarization
Linear, Vertical
Radiation pattern
Omnidirectional
382
Cisco 5-in-1 Vehicle Mount and Fixed Infrastructure Antenna (ANT-5-4G2WL2G1-O)
Table 3
GPS Antenna Radio Frequency Specifications
Specification
Description
Antenna type
Patch
Frequency
1575.42 ± 1 MHz (GPS L1)
Nominal impedance
50 ohms
VSWR
2.0:1 maximum
Amplifier Gain
27 ± 3 dB
DC currant
20 mA maximum
DC voltage
2.7 to 12 V
Isolation, Cellular to GPS
10 dB minimum—1574.42 to 1576.42 MHz
Cellular coexistence tested over multiple bands,
GPS includes coexistence filters.
Polarization
RHCP
Radiation pattern
Hemispherical
Environmental and Operational Specifications
Table 4
Environmental and Operational Specifications for the Cisco ANT-5-4G2WL2G1-O Antenna
Specification
Description
Operating temperature range
-40 to 158°F (-40 to 70°C)
Storage temperature range
-40 to 185°F (-40 to 85°C)
Altitude
15,000 feet. (4.5 km)
Humidity
5 to 95%
Vibration, Shock, Thermal, Corrosion, Seismic Outdoor IP67.
Tested to a variety of appropriate industrial, vehicular,
transportation, and mil-spec standards.
Mechanical Specifications
Table 5
Mechanical Specifications for the Cisco ANT-5-4G2WL2G1-O Antenna
Specification
Description
Mount style
Roof mount, bulkhead
Connector

Cellular – TNC male

WLAN - RP-TNC male

GPS – SMA male

Cellular – RG-58

WLAN – RG-58

GPS – RG-174
Cable type
383
Cisco 5-in-1 Vehicle Mount and Fixed Infrastructure Antenna (ANT-5-4G2WL2G1-O)
Table 5
Mechanical Specifications for the Cisco ANT-5-4G2WL2G1-O Antenna
Specification
Description
Cable length

Cellular – 2 foot. (61 cm)

WLAN – 2 foot. (61 cm)

GPS – 17 foot. (518 cm)
Dimensions
7.1 in. (18.0 cm) diameter, 2.48 in. (6.3 cm) height
Weight
1.48 lbs (0.67 kg)
IP rating
IP67
Radome
Polycarbonate, UV resistant, black
Material substance compliance
ROHS compliant
Power Specifications
Table 6
Power Specifications for the Cisco ANT-5-4G2WL2G1-O Antenna
Specification
Description
Nominal Impedance
50 ohms
Maximum input power per port
5 watts
Antenna Radiation Patterns

698 MHz Cellular Antenna Radiation Patterns

880 MHz Cellular Antenna Radiation Patterns

960 MHz Cellular Antenna Radiation Patterns

1470 MHz Cellular Antenna Radiation Patterns

1710 MHz Cellular Antenna Radiation Patterns

2170 MHz Cellular Antenna Radiation Patterns

2700 MHz Cellular Antenna Radiation Patterns

2400 MHz WLAN Antenna Radiation Patterns

2500 MHz WLAN Antenna Radiation Patterns

4900 MHz WLAN Antenna Radiation Patterns

5150 MHz WLAN Antenna Radiation Patterns

5275 MHz WLAN Antenna Radiation Patterns

5875 MHz WLAN Antenna Radiation Patterns

GPS Radiation Patterns
384
Cisco 5-in-1 Vehicle Mount and Fixed Infrastructure Antenna (ANT-5-4G2WL2G1-O)
698 MHz Cellular Antenna Radiation Patterns
Line Color
Description
Blue (—)
Port 1
Red (—)
Port 2
880 MHz Cellular Antenna Radiation Patterns
Line Color
Description
Blue (—)
Port 1
Red (—)
Port 2
960 MHz Cellular Antenna Radiation Patterns
Figure 3
960 MHz Cellular Antenna Radiation Patterns
385
Cisco 5-in-1 Vehicle Mount and Fixed Infrastructure Antenna (ANT-5-4G2WL2G1-O)
Line Color
Description
Blue (—)
Port 1
Red (—)
Port 2
1470 MHz Cellular Antenna Radiation Patterns
Figure 4
1470 MHz Cellular Antenna Radiation Patterns
Line Color
Description
Blue (—)
Port 1
Red (—)
Port 2
1710 MHz Cellular Antenna Radiation Patterns
Figure 5
1710 MHz Cellular Antenna Radiation Patterns
386
Cisco 5-in-1 Vehicle Mount and Fixed Infrastructure Antenna (ANT-5-4G2WL2G1-O)
Line Color
Description
Blue (—)
Port 1
Red (—)
Port 2
2170 MHz Cellular Antenna Radiation Patterns
Figure 6
2170 MHz Cellular Antenna Radiation Patterns
Line Color
Description
Blue (—)
Port 1
Red (—)
Port 2
2700 MHz Cellular Antenna Radiation Patterns
Figure 7
2700 MHz Cellular Antenna Radiation Patterns
387
Cisco 5-in-1 Vehicle Mount and Fixed Infrastructure Antenna (ANT-5-4G2WL2G1-O)
Line Color
Description
Blue (—)
Port 1
Red (—)
Port 2
WLAN WiFi Antenna Radiation Patterns
2400 MHz WLAN Antenna Radiation Patterns
Figure 8
2400 MHz WLAN Antenna Radiation Patterns
Line Color
Description
Blue (—)
Port 1
Red (—)
Port 2
2500 MHz WLAN Antenna Radiation Patterns
Figure 9
2500 MHz WLAN Antenna Radiation Patterns
388
Cisco 5-in-1 Vehicle Mount and Fixed Infrastructure Antenna (ANT-5-4G2WL2G1-O)
Line Color
Description
Blue (—)
Port 1
Red (—)
Port 2
4900 MHz WLAN Antenna Radiation Patterns
Figure 10
4900 MHz WLAN Antenna Radiation Patterns
Line Color
Description
Blue (—)
Port 1
Red (—)
Port 2
5150 MHz WLAN Antenna Radiation Patterns
Figure 11
5150 MHz WLAN Antenna Radiation Patterns
389
Cisco 5-in-1 Vehicle Mount and Fixed Infrastructure Antenna (ANT-5-4G2WL2G1-O)
Line Color
Description
Blue (—)
Port 1
Red (—)
Port 2
5275 MHz WLAN Antenna Radiation Patterns
Figure 12
5275 MHz WLAN Antenna Radiation Patterns
Line Color
Description
Blue (—)
Port 1
Red (—)
Port 2
5875 MHz WLAN Antenna Radiation Patterns
Figure 13
5875 MHz WLAN Antenna Radiation Patterns
390
Cisco 5-in-1 Vehicle Mount and Fixed Infrastructure Antenna (ANT-5-4G2WL2G1-O)
Line Color
Description
Blue (—)
Port 1
Red (—)
Port 2
GPS Radiation Patterns
1575 MHz GPS Antenna Radiation Patterns
Figure 14
1575 MHz GPS Antenna Radiation Patterns
Installing the Antenna
The antenna installation includes the following procedures:

Contents of the Antenna Kit
391
Cisco 5-in-1 Vehicle Mount and Fixed Infrastructure Antenna (ANT-5-4G2WL2G1-O)

Safety Warnings

Safety Precautions

Tools and Equipment Required

Mounting the Antenna

Connecting the Antenna to the Router
Contents of the Antenna Kit
The antenna kit contains:

1 x Cisco ANT-5-4G2WL2G1-O antenna
Safety Warnings
WARNING: Avoid using or servicing any equipment that has outdoor connections during an electrical storm.
There may be a risk of electric shock from lightning. Statement 1088
WARNING: Do not work on the system, or connect or disconnect cables, during periods of lightning activity. Statement 1001
WARNING: Do not locate the outdoor antenna near overhead power lines or other electric light or power circuits, or where it can
come into contact with such circuits. When installing the antenna, take extreme care not to come into contact with such circuits,
as they may cause serious injury or death. For proper installation and grounding of the antenna, please refer to national and local
codes (for example, U.S.:NFPA 70, National Electrical Code, Article 810, Canada:Canadian Electrical Code, Section 54).
Statement 1052
WARNING: This equipment must be grounded. Never defeat the ground conductor or operate the equipment in the absence of
a suitably installed ground conductor. Contact the appropriate electrical inspection authority or an electrician if you are uncertain
that suitable grounding is available. Statement 1024
WARNING: Only trained and qualified personnel should be allowed to install, replace, or service this equipment. Statement 1030
WARNING: To report a gas leak, do not use a telephone in the vicinity of the leak. Statement 1039
WARNING: This warning symbol means danger. You are in a situation that could cause bodily injury. Before you work on any
equipment, be aware of the hazards involved with electrical circuitry and be familiar with standard practices for preventing
accidents. Use the statement number provided at the end of each warning to locate its translation in the translated safety
warnings that accompanied this device. Statement 1071. SAVE THESE INSTRUCTIONS.
WARNING: This product is not intended to be directly connected to the Cable Distribution System. Additional regulatory
compliance and legal requirements may apply for direct connection to the Cable Distribution System. This product may connect
to the Cable Distribution System ONLY through a device that is approved for direct connection. Statement 1078
Safety Precautions
WARNING: Installation of this antenna near power lines is dangerous. For your safety, follow the installation directions.
Each year hundreds of people are killed or injured when attempting to install an antenna. In many of these cases, the victim was
aware of the danger of electrocution, but did not take adequate steps to avoid the hazard.
For your safety, and to help you achieve a good installation, please read and follow these safety precautions. They may save
your life!
For your safety, read and follow these safety precautions.
392
Cisco 5-in-1 Vehicle Mount and Fixed Infrastructure Antenna (ANT-5-4G2WL2G1-O)

If you are installing an antenna for the first time, for your own safety as well as others, seek professional assistance. Your
Cisco sales representative can explain which mounting method to use for the size and type antenna you are about to install.

Before you install an antenna, contact your Cisco account representative to explain which mounting method to use for the
size and type of antenna that you are about to install.

Find someone to help you—installing an antenna is often a two-person job.

Select your installation site with safety, as well as performance, in mind. Remember that electric power lines and phone
lines look alike. For your safety, assume that any overhead line can kill you.

Contact your electric power company. Tell them your plans and ask them to come look at your proposed installation.

Plan your installation carefully and completely before you begin. Each person involved in an installation should be assigned
to a specific task, and should know what to do and when to do it. One person should be in charge of the operation to issue
instructions and watch for signs of trouble.

When installing your antenna, follow these guidelines:
—
Do not use a metal ladder.
—
Do not work on a wet or windy day.
—
Do dress properly—wear shoes with rubber soles and heels, rubber gloves, and a long-sleeved shirt or jacket.

If the assembly starts to drop, move away from it and let it fall. Because the antenna, mast, cable, and metal guy wires are
all excellent conductors of electrical current, even the slightest touch of any of these parts to a power line completes an
electrical path through the antenna and the installer.

If any part of the antenna system should come in contact with a power line, do not touch it or try to remove it yourself. Call
your local power company to have it removed safely.

If an accident should occur with the power lines, call for qualified emergency help immediately.
Tools and Equipment Required
In addition to the parts included in the antenna kit described in the section Contents of the Antenna Kit, you must provide the
following tool to install the antenna on the router:

Open-ended wrench

Electric drill
NOTE: This list does not include the tools and equipment required to assemble and erect the tower, mast, or other structure you
intend to mount your antenna on.
Mounting the Antenna
NOTE: A clean, flat surface at least 20 x 20 cm (8 x 8 in.) in area is required for mounting the antenna.
Follow these instructions to mount the antenna:
1. Mark the desired location where you plan to mount the antenna and create a hole through the surface The diameter of the
hole must be at least 0.75 in. (1.91 cm).
2. Thread the cables through the hole and insert the aluminum stud on the underside of the antenna into the hole. Ensure that
the foam gasket on the underside of the antenna sits flush against the mounting surface.
3. Inside the vehicle, place the rubber sealing washer around the stud. Then place the metal washer and the metal nut onto
the stud. Tighten the nut.
393
Cisco 5-in-1 Vehicle Mount and Fixed Infrastructure Antenna (ANT-5-4G2WL2G1-O)
Connecting the Antenna to the Router
To attach the router-end of the cable to your router, please see the Cisco 800 Series Industrial Integrated Services Routers page
and view the respective Hardware Installation Guide.
NOTE: Coaxial cable loses efficiency as the frequency increases, resulting in signal loss. The cable should be kept as short as
possible because cable length also determines the amount of signal loss—the longer the cable length or run, the greater the
loss).
Obtaining Documentation and Submitting a Service Request
For information on obtaining documentation, submitting a service request, and gathering additional information, see the monthly
What’s New in Cisco Product Documentation, which also lists all new and revised Cisco technical documentation, at:
http://www.cisco.com/en/US/docs/general/whatsnew/whatsnew.html
Subscribe to the What’s New in Cisco Product Documentation as an RSS (Really Simple Syndication) feed, and set it so content
is delivered directly to your desktop using a reader application. The RSS feeds are a free service and Cisco currently supports
RSS Version 2.0.
Cisco and the Cisco Logo are trademarks of Cisco Systems, Inc. and/or its affiliates in the U.S. and other countries. A listing of Cisco's trademarks can be found at
www.cisco.com/go/trademarks. Third party trademarks mentioned are the property of their respective owners. The use of the word partner does not imply a partnership relationship
between Cisco and any other company. (1005R)
394
Cisco 5-in-1 Vehicle Mount and Fixed Infrastructure Antenna (ANT-5-4G2WL2G1-O)
395
Cisco Aironet Dual-band Dipole Antenna
(AIR-ANT2524DB-R,
AIR-ANT2524DG-R, and
AIR-ANT2524DW-R)
This describes the Cisco Aironet high-performance, dual-band dipole antenna, and provides specifications and mounting
instructions. The antenna operates in both the 2.4 GHz and 5 GHz frequency bands, and is designed for use with Cisco Aironet
2.4 GHz and 5 GHz radio products with dual-band reverse-polarity TNC (RP-TNC) antenna ports. The antenna has a nominal
gain of 2 dBi in the 2.4 GHz frequency band and 4 dBi in the 5 GHz frequency band. The three antennas covered in this document
are electrically the same. They differ physically by the color of the radome, which is specified by the product part number shown
in Table 1.
Table 1
Antenna Radome Colors
Antenna Part Numbers
Radome Color
AIR-ANT2524DB-R
Black
AIR-ANT2524DG-R
Gray
AIR-ANT2524DW-R
White
These topics are discussed:

Technical Specifications

System Requirements

Features

Installing the Antenna

Obtain Documentation and Submit a Service Request
Cisco Systems, Inc.
396
www.cisco.com
Cisco Aironet Dual-band Dipole Antenna (AIR-ANT2524DB-R, AIR-ANT2524DG-R, and AIR-ANT2524DW-R)
Technical Specifications
Table 2
AIR-ANT2524Dx-R Series Dual-band Dipole Specifications
Parameter
Specification
Antenna type
Dual-band dipole
Operating frequency
range
2400 to 2500 MHz
Nominal input impedance
50 Ohms
VSWR
Less than 2:1
Peak Gain @ 2.4. GHz
2 dBi
Peak Gain @ 5 GHz
4 dBi
Elevation plane 3dB
beamwidth @2.4 GHz
63 degrees
Elevation plane 3dB
beamwidth @ 5 GHz
39 degrees
Connector type
RP-TNC plug
Antenna length
6.63 in. (168.5 mm)
Antenna width
0.83 in (21 mm)
Radome length
4.88 in. (124 mm)
Weight
1.3 oz
Operating temperature
–4° to 140°F
(–20°C to 60°C)
Storage temperature
–40°F to 185°F
(–40°C to 85°C)
Environment
Indoor, office
5150 to 5850 MHz
Azimuth and Elevation Plane Patterns for 2.4 GHz
Azimuth and Elevation Plane Patterns for 5 GHz
System Requirements
This antenna is designed for use with Cisco Aironet access points that support simultaneous operation in the 2.4 GHz band and
397
Cisco Aironet Dual-band Dipole Antenna (AIR-ANT2524DB-R, AIR-ANT2524DG-R, and AIR-ANT2524DW-R)
the 5 GHz band and that have dual-band antenna ports, labeled in orange text.
Features
The antenna has an articulated base that can be rotated 360 degrees at the connection point and from 0 to 90 degrees at its
joint.
Installing the Antenna
CAUTION: The AIR-ANT2524Dx-R series of antennas are dual-band antennas, meaning that they operate in both the 2.4 GHz
and 5 GHz frequency bands. The AIR-ANT2524Dx-R series antennas have an orange ID band on them to indicate their
dual-band functionality. Connect these antennas only to dual-band antenna ports, which are identified with orange text on Cisco
Aironet access points. Using these antennas on Cisco Aironet access points that employ single-band antennas might result in
lower performance.
To install the antenna:
1. Verify that the connector to which you are connecting the antenna is a dual-band antenna port, identified by orange text on
the access point.
2. Align the antenna connector with the RP-TNC connector on the access point.
3. Engage the antenna connector threads with the RP-TNC connector on the access point.
4. Tighten the antenna by hand. Do not use a wrench or any other tool to tighten the antenna.
5. Adjust the antenna articulating joint to the desired position.
Obtain Documentation and Submit a Service Request
For information on obtaining documentation, using the Cisco Bug Search Tool (BST), submitting a service request, and gathering
additional information, see What’s New in Cisco Product Documentation.
To receive new and revised Cisco technical content directly to your desktop, you can subscribe to the What’s New in Cisco
Product Documentation RSS feed. The RSS feeds are a free service.THE SPECIFICATIONS AND INFORMATION REGARDING
THE PRODUCTS IN THIS MANUAL ARE SUBJECT TO CHANGE WITHOUT NOTICE. ALL STATEMENTS, INFORMATION, AND
RECOMMENDATIONS IN THIS MANUAL ARE BELIEVED TO BE ACCURATE BUT ARE PRESENTED WITHOUT WARRANTY OF ANY
KIND, EXPRESS OR IMPLIED. USERS MUST TAKE FULL RESPONSIBILITY FOR THEIR APPLICATION OF ANY PRODUCTS.
THE SOFTWARE LICENSE AND LIMITED WARRANTY FOR THE ACCOMPANYING PRODUCT ARE INCORPORATED HEREIN BY
THIS REFERENCE. IF YOU ARE UNABLE TO LOCATE THE SOFTWARE LICENSE OR LIMITED WARRANTY, CONTACT YOUR
CISCO REPRESENTATIVE FOR A COPY.
The following information is for FCC compliance of Class A devices: This equipment has been tested and found to comply with
the limits for a Class A digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial environment. This equipment
generates, uses, and can radiate radio-frequency energy and, if not installed and used in accordance with the instruction
manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to
cause harmful interference, in which case users will be required to correct the interference at their own expense.
The following information is for FCC compliance of Class B devices: This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio
398
Cisco Aironet Dual-band Dipole Antenna (AIR-ANT2524DB-R, AIR-ANT2524DG-R, and AIR-ANT2524DW-R)
communications. However, there is no guarantee that interference will not occur in a particular installation. If the equipment
causes interference to radio or television reception, which can be determined by turning the equipment off and on, users are
encouraged to try to correct the interference by using one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.
Modifications to this product not authorized by Cisco could void the FCC approval and negate your authority to operate the
product.
The Cisco implementation of TCP header compression is an adaptation of a program developed by the University of California,
Berkeley (UCB) as part of UCB’s public domain version of the UNIX operating system. All rights reserved. Copyright © 1981,
Regents of the University of California.
NOTWITHSTANDING ANY OTHER WARRANTY HEREIN, ALL DOCUMENT FILES AND SOFTWARE OF THESE SUPPLIERS ARE
PROVIDED “AS IS” WITH ALL FAULTS. CISCO AND THE ABOVE-NAMED SUPPLIERS DISCLAIM ALL WARRANTIES, EXPRESSED
OR IMPLIED, INCLUDING, WITHOUT LIMITATION, THOSE OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND
NONINFRINGEMENT OR ARISING FROM A COURSE OF DEALING, USAGE, OR TRADE PRACTICE.
IN NO EVENT SHALL CISCO OR ITS SUPPLIERS BE LIABLE FOR ANY INDIRECT, SPECIAL, CONSEQUENTIAL, OR INCIDENTAL
DAMAGES, INCLUDING, WITHOUT LIMITATION, LOST PROFITS OR LOSS OR DAMAGE TO DATA ARISING OUT OF THE USE OR
INABILITY TO USE THIS MANUAL, EVEN IF CISCO OR ITS SUPPLIERS HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH
DAMAGES.
Any Internet Protocol (IP) addresses and phone numbers used in this document are not intended to be actual addresses and
phone numbers. Any examples, command display output, network topology diagrams, and other figures included in the
document are shown for illustrative purposes only. Any use of actual IP addresses or phone numbers in illustrative content is
unintentional and coincidental.
All printed copies and duplicate soft copies of this document are considered uncontrolled. See the current online version for
the latest version.
Cisco has more than 200 offices worldwide. Addresses, phone numbers, and fax numbers are listed on the Cisco website at
www.cisco.com/go/offices.
399
Cisco GPS Antenna
(ANT-GPS-OUT-TNC)
The Cisco GPS Antenna is designed to cover a domestic frequency of 1575 MHz.
This antenna is compatible with any Cisco device that uses GPS, and is compatible with active GPS antennas with DC
specifications given below. Connector adapters may be required from TNC(m) to the required interface. The antenna is a rugged
outdoor antenna, and is IP67 rated.
CAUTION: Read the information in Overview before installing or replacing antennas.
This chapter covers the following topics:

Technical Specifications

Safety Warnings

Antenna Installation

Obtaining Documentation and Submitting a Service Request
Technical Specifications
The GPS antenna features the following:

Outdoor

Low-profile housing

Integrated LMR-100 cable with right-angle TNC(m) male connector
Cisco Systems, Inc.
400
www.cisco.com
Cisco GPS Antenna (ANT-GPS-OUT-TNC)
Figure 1
GPS Antenna
5
1
6
2
3
300639
4
1
GPS antenna
2
Mounting bracket
3
LMR-100 cable(15’)
4
Right-angle TNC male connector
5
Pipe (mast)
6
U-bolt connected to U-bracket
RF Specifications
The following is a summary of the antenna radio frequency (RF) specifications:
401
Cisco GPS Antenna (ANT-GPS-OUT-TNC)
Specification
Cisco GPS Antenna (ANT-GPS-OUT-TNC)
Type
Patch, active
Operating frequency range
1575.42 MHz +/- 5 MHz
Impedance
50 ohm, nominal
VSWR
2.0 max. in band
Gain
4.0 dBi min. @ Zenith
Minimum gain
1 dBi @ 10-degrees elevation
Pattern type
Hemispherical
Polarization
Circular RHCP
LNA gain
25 dB +/-2 dB
Front end GPS filter
This antenna features a GPS RF filter in front of the LNA to enable
co-location with other radios.
Out-of-band attenuation
20 dB min. at 1575 +/- 50 MHz
DC voltage
3 to 5 VDC
Current draw
20 mA max. @ 3.3 VDC +/- .3 VDC
Mechanical and Environmental Specifications
The following is a summary of the mechanical and environmental antenna specifications:
Specification
Cisco GPS Antenna (ANT-GPS-OUT-TNC)
Environment
Outdoor (IP67)
Height
0.87 in. (2.21 cm)
Diameter (maximum, at
base)
2.0 in. (5.0 cm)
Connector
Right-angle TNC(m)
Cable
LMR-100A, 15ft (4.57m)
Operating temperature
-40 to 185 degrees Fahrenheit (-40 to 85 degrees Centigrade)
Wind speed rating
165 MPH
Compliance
ROHS
Safety Warnings
WARNING: Avoid using or servicing any equipment that has outdoor connections during an electrical storm.
There may be a risk of electric shock from lightning. Statement 1088
WARNING: Do not work on the system, or connect or disconnect cables, during periods of lightning activity. Statement 1001
WARNING: Do not locate the outdoor antenna near overhead power lines or other electric light or power circuits, or where it can
come into contact with such circuits. When installing the antenna, take extreme care not to come into contact with such circuits,
as they may cause serious injury or death. For proper installation and grounding of the antenna, please refer to national and local
codes (for example, U.S.:NFPA 70, National Electrical Code, Article 810, Canada:Canadian Electrical Code, Section 54).
Statement 1052
402
Cisco GPS Antenna (ANT-GPS-OUT-TNC)
WARNING: This equipment must be grounded. Never defeat the ground conductor or operate the equipment in the absence of
a suitably installed ground conductor. Contact the appropriate electrical inspection authority or an electrician if you are uncertain
that suitable grounding is available. Statement 1024
WARNING: Only trained and qualified personnel should be allowed to install, replace, or service this equipment. Statement 1030
WARNING: To report a gas leak, do not use a telephone in the vicinity of the leak. Statement 1039
WARNING: This warning symbol means danger. You are in a situation that could cause bodily injury. Before you work on any
equipment, be aware of the hazards involved with electrical circuitry and be familiar with standard practices for preventing
accidents. Use the statement number provided at the end of each warning to locate its translation in the translated safety
warnings that accompanied this device. Statement 1071. SAVE THESE INSTRUCTIONS.
WARNING: This product is not intended to be directly connected to the Cable Distribution System. Additional regulatory
compliance and legal requirements may apply for direct connection to the Cable Distribution System. This product may connect
to the Cable Distribution System ONLY through a device that is approved for direct connection. Statement 1078
Safety Precautions
WARNING: Installation of this antenna near power lines is dangerous. For your safety, follow the installation directions.
Each year hundreds of people are killed or injured when attempting to install an antenna. In many of these cases, the victim was
aware of the danger of electrocution, but did not take adequate steps to avoid the hazard.
For your safety, and to help you achieve a good installation, please read and follow these safety precautions. They may save
your life!
For your safety, read and follow these safety precautions.

If you are installing an antenna for the first time, for your own safety as well as others, seek professional assistance. Your
Cisco sales representative can explain which mounting method to use for the size and type antenna you are about to install.

Before you install an antenna, contact your Cisco account representative to explain which mounting method to use for the
size and type of antenna that you are about to install.

Find someone to help you—installing an antenna is often a two-person job.

Select your installation site with safety, as well as performance, in mind. Remember that electric power lines and phone
lines look alike. For your safety, assume that any overhead line can kill you.

Contact your electric power company. Tell them your plans and ask them to come look at your proposed installation.

Plan your installation carefully and completely before you begin. Each person involved in an installation should be assigned
to a specific task, and should know what to do and when to do it. One person should be in charge of the operation to issue
instructions and watch for signs of trouble.

When installing your antenna, follow these guidelines:
—
Do not use a metal ladder.
—
Do not work on a wet or windy day.
—
Do dress properly—wear shoes with rubber soles and heels, rubber gloves, and a long-sleeved shirt or jacket.

If the assembly starts to drop, move away from it and let it fall. Because the antenna, mast, cable, and metal guy wires are
all excellent conductors of electrical current, even the slightest touch of any of these parts to a power line completes an
electrical path through the antenna and the installer.

If any part of the antenna system should come in contact with a power line, do not touch it or try to remove it yourself. Call
your local power company to have it removed safely.

If an accident should occur with the power lines, call for qualified emergency help immediately.
403
Cisco GPS Antenna (ANT-GPS-OUT-TNC)
Antenna Installation
Follow these steps to install the GPS antenna onto the router:
NOTE: These installation steps are for the CGR1120 router.
1. Mount the antenna in its proper location by using the provided antenna bracket.
1
9
1
8
2
10
2
3
3
6
4
5
4
300688
7
4
1
GPS antenna
2
Mounting L-bracket
3
LMR-100 cable
4
Right-angle TNC (m) connector
5
Adapter, TNC connector (f)
6
Building entry panel
7
Adapter, N-connector (f) to router
8
VHT adhesive tape
9
2” (outside dimension) pipe/mast
10 U-bolt
2. Route and connect the LMR-100 cable to the TNC-to-N-connector adapter installed at the building entry panel.
3. At the inside of the entry panel, install the LMR-100 cable to the N-connector on the adapter.
4. Route the cable to the router and attach to the antenna connector.
404
Cisco GPS Antenna (ANT-GPS-OUT-TNC)
Mechanical Drawing
Figure 2
Mechanical Drawing for the ANT-GPS-OUT-TNC Antenna
Note: All Dimensions are in millimeters (mm).
405
Cisco GPS Antenna (ANT-GPS-OUT-TNC)
Figure 3
Tolerance Table
Obtaining Documentation and Submitting a Service Request
For information on obtaining documentation, submitting a service request, and gathering additional information, see the monthly
What’s New in Cisco Product Documentation, which also lists all new and revised Cisco technical documentation, at:
http://www.cisco.com/en/US/docs/general/whatsnew/whatsnew.html
Subscribe to the What’s New in Cisco Product Documentation as an RSS (Really Simple Syndication) feed, and set it so content
is delivered directly to your desktop using a reader application. The RSS feeds are a free service and Cisco currently supports
RSS Version 2.0.
Cisco and the Cisco Logo are trademarks of Cisco Systems, Inc. and/or its affiliates in the U.S. and other countries. A listing of Cisco's trademarks can be found at
www.cisco.com/go/trademarks. Third party trademarks mentioned are the property of their respective owners. The use of the word partner does not imply a partnership relationship
between Cisco and any other company. (1005R)
406
Cisco GPS Antenna (ANT-GPS-OUT-TNC)
407
Cisco Outdoor 5 dBI Omni Antenna for
863-928 MHz WPAN, LoRaWan, and ISM
(ANT-LPWA-DB-O-N-5)
This document describes the 5 dBI Outdoor Omni-directional Antenna for the Cisco WPAN, LoRaWan, ISM modules and routers
operating in frequency ranges between 863-928 MHz, such as 863-876 MHz ETSI, or 902-928 MHz ISM bands. In addition,
this document provides the antenna specifications and mounting instructions for the antenna.
CAUTION: Read the information in Safety Warnings before installing or replacing antennas.
This chapter covers the following topics:

Technical Specifications

Antenna Installation

Antenna Radiation Patterns

Safety Warnings

Obtaining Documentation and Submitting a Service Request
Technical Specifications
The Outdoor Omni-directional Antenna features the following:

UV-resistant fiberglass radome

Heavy duty mounting bracket

Gold anodized sleeve and top cap with N (female) connector

DC-grounded for ESD protection
NOTE: Antenna data sheets often claim lightning protection, while in reality only providing a DC ground path for ESD protection.
Cisco recommends use of a lightning arrestor for all antennas potentially exposed to lightning strikes.
Cisco Systems, Inc.
408
www.cisco.com
Cisco Outdoor 5 dBI Omni Antenna for 863-928 MHz WPAN, LoRaWan, and ISM (ANT-LPWA-DB-O-N-5)
Figure 1
Outdoor Omni-directional Antenna
Specifications
Table 1 provides RF and Mechanical Specification.
Table 1
Specifications
Specification
Description
Frequency Bands
863-876 MHz
902-928 MHz
Peak Gain (dBi) Typical
5.2 dBi
5.4 dBi
Peak Gain (dBi) Max
5.3 dBi
5.6 dBi
Efficiency
74%-81%
75%-83%
VSWR (Avg)
1.5:1
1.5:1
VSWR (Max)
1.65:1
1.65:1
Azimuth 3 dB Beam width
360°
360°
409
Cisco Outdoor 5 dBI Omni Antenna for 863-928 MHz WPAN, LoRaWan, and ISM (ANT-LPWA-DB-O-N-5)
Specification
Description
Elevation 3 dB Beam width
28°-30°
27°-29°
Azimuth Ripple (Max), dB
0.6
0.8
Nominal Impedance
50 Ohms
Polarization
Vertical
Anti-Static Protection
DC Grounded
Max Power (Ambient 25°C)
10 Watts
Antenna Dimension (H x Diameter)
692 x 33.3 mm (27.2” x 1.3”)
Connector
Type N Female
Weight
0.79 kg (1.7 lbs)
Antenna Color
White
Radome
Fiberglass
Wind Operational
161 km/h (100 mph)
Wind Survival
266 km/h (165 mph)
Operating Temperature
-40°C to +70°C (-40°F to +158°F)
Storage Temperature
-40°C to +85°C (-40°F to +185°F)
Ingression Protection
IP67
Material Substance Compliance
RoHS
Environmental Testing
Antenna passed extensive environmental and mechanical tests appropriate for mast
mount applications.
NOTE: Antenna must be mounted vertically to obtain omni-directional coverage horizontally. Please see antenna radiation
pattern.
410
Cisco Outdoor 5 dBI Omni Antenna for 863-928 MHz WPAN, LoRaWan, and ISM (ANT-LPWA-DB-O-N-5)
Dimensions
Figure 2 shows the Antenna Dimensions.
Figure 2
Dimensions
NOTE: Antenna dimensions are shown in Millimeters.
Antenna Installation
The antenna installation includes the following procedures:

Tools and Equipment Required

Mounting Components
411
Cisco Outdoor 5 dBI Omni Antenna for 863-928 MHz WPAN, LoRaWan, and ISM (ANT-LPWA-DB-O-N-5)
Tools and Equipment Required
In addition to the parts included in the antenna kit, you must provide the following tools to install the antenna on the router:

1/2” & 7/16” open-end wrench
NOTE: This list does not include the tools and equipment required to assemble and erect the tower, mast, or other structure you
intend to mount your antenna on.
Mounting Components
The antenna can be mounted on a 1-1/2” to 2-1/2” (3.81 to 6.35 cm) pole, extension arm, or mast:
412
Cisco Outdoor 5 dBI Omni Antenna for 863-928 MHz WPAN, LoRaWan, and ISM (ANT-LPWA-DB-O-N-5)
Figure 3
Antenna Mounting Components
Item Number
Description
Quantity
1
External Bracket, AL,FOR FM2
2
2
V-Bolt Clamp,1/4-20,ST,NF
2
Fits a 1-1/2” to 2-1/2” (3.81 to 6.35 cm) pole.
3
Flat Washer,1/4in,SS,PA
4
4
Split-lock Washer, 1/4
4
5
Hex Nut, [1/4-20], SS, PA
4
6
Hex Bolt,5/16-18x1/2,SS,NF
2
413
Cisco Outdoor 5 dBI Omni Antenna for 863-928 MHz WPAN, LoRaWan, and ISM (ANT-LPWA-DB-O-N-5)
Antenna Radiation Patterns
The following sequence of illustrations show the different antenna radiation patterns.The azimuth radiation plane is shown on
the left, and elevation plane pattern is shown on the right.
414
Cisco Outdoor 5 dBI Omni Antenna for 863-928 MHz WPAN, LoRaWan, and ISM (ANT-LPWA-DB-O-N-5)
Figure 4
863 MHz Radiation Pattern
Figure 5
869 MHz Radiation Pattern
Figure 6
876 MHz Radiation Pattern
415
Cisco Outdoor 5 dBI Omni Antenna for 863-928 MHz WPAN, LoRaWan, and ISM (ANT-LPWA-DB-O-N-5)
Figure 7
902 MHz Radiation Pattern
Figure 8
914 MHz Radiation Pattern
416
Cisco Outdoor 5 dBI Omni Antenna for 863-928 MHz WPAN, LoRaWan, and ISM (ANT-LPWA-DB-O-N-5)
Figure 9
928 MHz Radiation Pattern
Safety Warnings
WARNING: Avoid using or servicing any equipment that has outdoor connections during an electrical storm.
There may be a risk of electric shock from lightning. Statement 1088
WARNING: Do not work on the system, or connect or disconnect cables, during periods of lightning activity. Statement 1001
WARNING: Do not locate the outdoor antenna near overhead power lines or other electric light or power circuits, or where it can
come into contact with such circuits. When installing the antenna, take extreme care not to come into contact with such circuits,
as they may cause serious injury or death. For proper installation and grounding of the antenna, please refer to national and local
codes (for example, U.S.:NFPA 70, National Electrical Code, Article 810, Canada:Canadian Electrical Code, Section 54).
Statement 1052
WARNING: This equipment must be grounded. Never defeat the ground conductor or operate the equipment in the absence of
a suitably installed ground conductor. Contact the appropriate electrical inspection authority or an electrician if you are uncertain
that suitable grounding is available. Statement 1024
417
Cisco Outdoor 5 dBI Omni Antenna for 863-928 MHz WPAN, LoRaWan, and ISM (ANT-LPWA-DB-O-N-5)
WARNING: Only trained and qualified personnel should be allowed to install, replace, or service this equipment. Statement 1030
WARNING: To report a gas leak, do not use a telephone in the vicinity of the leak. Statement 1039
WARNING: This warning symbol means danger. You are in a situation that could cause bodily injury. Before you work on any
equipment, be aware of the hazards involved with electrical circuitry and be familiar with standard practices for preventing
accidents. Use the statement number provided at the end of each warning to locate its translation in the translated safety
warnings that accompanied this device. Statement 1071. SAVE THESE INSTRUCTIONS.
WARNING: This product is not intended to be directly connected to the Cable Distribution System. Additional regulatory
compliance and legal requirements may apply for direct connection to the Cable Distribution System. This product may connect
to the Cable Distribution System ONLY through a device that is approved for direct connection. Statement 1078
Safety Precautions
WARNING: Installation of this antenna near power lines is dangerous. For your safety, follow the installation directions.
Each year hundreds of people are killed or injured when attempting to install an antenna. In many of these cases, the victim was
aware of the danger of electrocution, but did not take adequate steps to avoid the hazard.
For your safety, and to help you achieve a good installation, please read and follow these safety precautions. They may save
your life!
For your safety, read and follow these safety precautions.

If you are installing an antenna for the first time, for your own safety as well as others, seek professional assistance. Your
Cisco sales representative can explain which mounting method to use for the size and type antenna you are about to install.

Before you install an antenna, contact your Cisco account representative to explain which mounting method to use for the
size and type of antenna that you are about to install.

Find someone to help you—installing an antenna is often a two-person job.

Select your installation site with safety, as well as performance, in mind. Remember that electric power lines and phone
lines look alike. For your safety, assume that any overhead line can kill you.

Contact your electric power company. Tell them your plans and ask them to come look at your proposed installation.

Plan your installation carefully and completely before you begin. Each person involved in an installation should be assigned
to a specific task, and should know what to do and when to do it. One person should be in charge of the operation to issue
instructions and watch for signs of trouble.

When installing your antenna, follow these guidelines:
—
Do not use a metal ladder.
—
Do not work on a wet or windy day.
—
Do dress properly—wear shoes with rubber soles and heels, rubber gloves, and a long-sleeved shirt or jacket.

If the assembly starts to drop, move away from it and let it fall. Because the antenna, mast, cable, and metal guy wires are
all excellent conductors of electrical current, even the slightest touch of any of these parts to a power line completes an
electrical path through the antenna and the installer.

If any part of the antenna system should come in contact with a power line, do not touch it or try to remove it yourself. Call
your local power company to have it removed safely.

If an accident should occur with the power lines, call for qualified emergency help immediately.
418
Cisco Outdoor 5 dBI Omni Antenna for 863-928 MHz WPAN, LoRaWan, and ISM (ANT-LPWA-DB-O-N-5)
Obtaining Documentation and Submitting a Service Request
For information on obtaining documentation, submitting a service request, and gathering additional information, see the monthly
What’s New in Cisco Product Documentation, which also lists all new and revised Cisco technical documentation, at:
http://www.cisco.com/en/US/docs/general/whatsnew/whatsnew.html
Subscribe to the What’s New in Cisco Product Documentation as an RSS (Really Simple Syndication) feed, and set it so content
is delivered directly to your desktop using a reader application. The RSS feeds are a free service and Cisco currently supports
RSS Version 2.0.
Cisco and the Cisco Logo are trademarks of Cisco Systems, Inc. and/or its affiliates in the U.S. and other countries. A listing of Cisco's trademarks can be found at
www.cisco.com/go/trademarks. Third party trademarks mentioned are the property of their respective owners. The use of the word partner does not imply a partnership relationship
between Cisco and any other company. (1005R)
419
ANT-MP2-I-OUT-M and
ANT-MP2-I-O-SS-M Antenna and Cable
Kits
The Cisco ANT-MP2-I-OUT-M and ANT-MP2-I-O-SS-M antennas and cable kits are designed to cover frequencies from 698
to 960 MHz and 1710 to 2700 MHz.
The antennas are designed for direct mounting on the CGR1240 and have an MCX connector.
CAUTION: Read the information in Overview before installing or replacing antennas.
This chapter covers the following topics:

Technical Specifications

Integrated Antenna Kits

Safety Warnings

Antenna Installation

Obtaining Documentation and Submitting a Service Request
Technical Specifications
The Multi-purpose Integrated Antenna features the following:

Indoors and outdoors operation, IP67 rated

Low-profile housing

Supports 3G and 4G, 915 MHz ISM, and 2.4 GHz WiFi and other bands

High performance 698-960, 1710-2700 MHz antenna
Cisco Systems, Inc.
420
www.cisco.com
ANT-MP2-I-OUT-M and ANT-MP2-I-O-SS-M Antenna and Cable Kits
Figure 1
Monopole Antenna
RF Specifications
The following is a summary of the monopole Radio Frequency (RF) antenna specifications:
421
ANT-MP2-I-OUT-M and ANT-MP2-I-O-SS-M Antenna and Cable Kits
Specification
Cisco Connected Grid Monopole
Antennas
Operating frequency range
698 to 960 MHz
1710 to 2170 MHz
2300 to 2700 MHz
VSWR
2:1 max
Peak gain 698 to 960 MHz
2.8 dBi
Peak gain 1710 to 2170 MHz
4.3 dBi
Peak gain 2300 to 2700 MHz
5.0 dBi
Average gain @15 degrees elevation 698 to 960 MHz
0.9 dBi +/- 1.0 dB
Average gain @15 degrees elevation 1710 to 2170 MHz
3.0 dBi +/- 1.0 dB
Average gain @15 degrees elevation 2300 to 2700 MHz
4.0 dBi +/- 1.0 dB
Efficiency 698 to 960/1710 to 2170/2300 to 2700 MHz:
minimum 75%
Polarization
Vertical
HPBW Horizontal plane @15 degrees
Omni, 360 degree
HPBW Vertical plane 698 to 960 MHz
66 degrees average
HPBW Vertical plane 1710 to 2170 MHz
47 degrees average
HPBW Vertical plane 2300 to 2700 MHz
42 degrees average
Power handling, CW
10 W
Connector type
MCX jack
Mechanical Specifications
The following is a summary of the monopole antenna specifications:
Specification
Description
Plastic radome
PC/polyester blend, .110 thick min.
Flammability
UL94 V-0
Color
Cisco gray
Ingress protection
IP67
Weight
90 g
Wind-loading
165 MPH
Overall length
3.04 inches
Installation torque
6 to 9 ft/lbs
Installation tool
Recommended strap wrench, similar to McMaster Car P/N: 5448A31
Operating temperature
-40 to 185 degrees F (-40 to 85 degrees C)
Radiation Patterns
All radiation patterns, gain, and VSWR were measured with the antenna mounted at the center of a 12-by-12-inch ground
plane.
422
ANT-MP2-I-OUT-M and ANT-MP2-I-O-SS-M Antenna and Cable Kits
Figure 2
Radiation Pattern—Vertical Plane
Figure 3
Radiation Pattern—Vertical Plane
Figure 4
Radiation Pattern—Vertical Plane
423
ANT-MP2-I-OUT-M and ANT-MP2-I-O-SS-M Antenna and Cable Kits
Figure 5
Radiation Pattern—Horizontal Plane
Figure 6
Radiation Pattern—Horizontal Plane
424
ANT-MP2-I-OUT-M and ANT-MP2-I-O-SS-M Antenna and Cable Kits
Figure 7
Radiation Pattern—Horizontal Plane
Figure 8
VSWR
425
ANT-MP2-I-OUT-M and ANT-MP2-I-O-SS-M Antenna and Cable Kits
Figure 9
Peak Gain
Figure 10
Efficiency
Integrated Antenna Kits
Antennas are only sold as antenna + cable kits. The kit will contain one or more antennas, gaskets, and coaxial cables. See
Figure 11.
426
ANT-MP2-I-OUT-M and ANT-MP2-I-O-SS-M Antenna and Cable Kits
Figure 11
Antenna Kit (Antenna, Gasket and Cable)
Integrated Antenna Kit Inventory
The antenna and other items contained in all of the kits are identical. Quantity changes depending on the kit selected.
—
Antenna
—
Coax seal
—
Tie wrap
Antenna
quantity
Gasket quantity 10.5” RF Cable
quantity
Tie Wrap
quantity
ANT-MP2-I-OUT-M
1
1
1
1
ANT-MP2-I-O-SS-M
2
2
2
2
Safety Warnings
WARNING: Avoid using or servicing any equipment that has outdoor connections during an electrical storm.
There may be a risk of electric shock from lightning. Statement 1088
WARNING: Do not work on the system, or connect or disconnect cables, during periods of lightning activity. Statement 1001
WARNING: Do not locate the outdoor antenna near overhead power lines or other electric light or power circuits, or where it can
come into contact with such circuits. When installing the antenna, take extreme care not to come into contact with such circuits,
as they may cause serious injury or death. For proper installation and grounding of the antenna, please refer to national and local
codes (for example, U.S.:NFPA 70, National Electrical Code, Article 810, Canada:Canadian Electrical Code, Section 54).
Statement 1052
WARNING: Do not work on the system or connect or disconnect cables during periods of lightning activity. Statement 1001
WARNING: This equipment must be grounded. Never defeat the ground conductor or operate the equipment in the absence of
a suitably installed ground conductor. Contact the appropriate electrical inspection authority or an electrician if you are uncertain
that suitable grounding is available. Statement 1024
WARNING: Only trained and qualified personnel should be allowed to install, replace, or service this equipment. Statement 1030
427
ANT-MP2-I-OUT-M and ANT-MP2-I-O-SS-M Antenna and Cable Kits
WARNING: To report a gas leak, do not use a telephone in the vicinity of the leak. Statement 1039
WARNING: This warning symbol means danger. You are in a situation that could cause bodily injury. Before you work on any
equipment, be aware of the hazards involved with electrical circuitry and be familiar with standard practices for preventing
accidents. Use the statement number provided at the end of each warning to locate its translation in the translated safety
warnings that accompanied this device. Statement 1071. SAVE THESE INSTRUCTIONS.
WARNING: This product is not intended to be directly connected to the Cable Distribution System. Additional regulatory
compliance and legal requirements may apply for direct connection to the Cable Distribution System. This product may connect
to the Cable Distribution System ONLY through a device that is approved for direct connection. Statement 1078
Safety Instructions
Each year hundreds of people are killed or injured when attempting to install an antenna. In many of these cases, the victim was
aware of the danger of electrocution, but did not take adequate steps to avoid the hazard.
For your safety, and to help you achieve a good installation, please read and follow these safety precautions. They may save
your life!
For your safety, read and follow these safety precautions.
WARNING: In order to comply with FCC radio frequency (RF) exposure limits, antennas should be located at a minimum of 7.9
inches (20 cm) or more from the body of all persons. Statement 332

If you are installing an antenna for the first time, for your own safety as well as others, seek professional assistance. Your
Cisco sales representative can explain which mounting method to use for the size and type antenna you are about to install.

Plan your installation procedure carefully and completely before you begin.

Choose your installation site with safety performance in mind. Remember that electric power cables and telephone lines
look alike. For your safety, assume that any line is an electric power line until determined otherwise.

Call your local power company or building maintenance organization if you are unsure about cables close to your mounting
location.

When installing your antenna, do not use a metal ladder. Dress in rubber soled shoes and heels, rubber gloves, and a
long-sleeved shirt or jacket.

If an accident or emergency occurs with the power lines, call for qualified emergency help immediately.

Before you install an antenna, contact your Cisco account representative to explain which mounting method to use for the
size and type of antenna that you are about to install.

Find someone to help you—installing an antenna is often a two-person job.

Select your installation site with safety, as well as performance, in mind. Remember that electric power lines and phone
lines look alike. For your safety, assume that any overhead line can kill you.

Contact your electric power company. Tell them your plans and ask them to come look at your proposed installation.

Each person involved in an installation should be assigned to a specific task, and should know what to do and when to do
it. One person should be in charge of the operation to issue instructions and watch for signs of trouble.

If the assembly starts to drop, move away from it and let it fall. Because the antenna, mast, cable, and metal guy wires are
all excellent conductors of electrical current, even the slightest touch of any of these parts to a power line completes an
electrical path through the antenna and the installer.

If any part of the antenna system should come in contact with a power line, do not touch it or try to remove it yourself. Call
your local power company to have it removed safely.
428
ANT-MP2-I-OUT-M and ANT-MP2-I-O-SS-M Antenna and Cable Kits

If an accident occurs with the power lines, call for qualified emergency help immediately.
Antenna Installation
This section covers the following topics:

Installation Notes

Tools and Equipment Required

Install the Antenna onto the CGR 1240 Router
Installation Notes
This Cisco Multi-purpose Integrated Antenna is designed to be mounted directly onto the router.
In addition to antenna orientation, wireless access point installation location with respect to all wireless clients plays a significant
role in determining overall network performance.
Because antennas transmit and receive radio signals, their performance can be adversely affected by the surrounding
environment including distance between the Field Area Router (FAR) and cellular base station, physical obstructions, or radio
frequency (RF) interference.
Follow these guidelines to ensure the best possible performance:

Install the router with antenna without physical obstructions. Barriers along the line of sight between the FAR and cellular
base station degrade the wireless radio signals.

The density of the materials used in a building's construction determines the number of walls the signal must pass through
and still maintain adequate coverage. Consider the following before choosing the location to install your antenna:
—
Paper and vinyl walls have very little effect on signal penetration.
—
Solid and precast concrete walls limit signal penetration to one or two walls without degrading coverage.
—
Concrete and wood block walls limit signal penetration to three or four walls.
—
A signal can penetrate five or six walls constructed of drywall or wood.
—
A thick metal wall or wire-mesh stucco walls causes signals to reflect back and cause poor penetration.

Avoid mounting the antenna next to a column or vertical support that could create a shadow zone and reduce the coverage
area.

Keep the antenna away from reflective metal objects such as heating and air-conditioning ducts, large ceiling trusses,
building superstructures, and major power cabling runs. If necessary, use an extension cable to relocate the antenna away
from these obstructions.
CAUTION: Install the router and antenna away from appliances that share the same frequency bands. Microwave ovens,
cordless telephones, and security monitors can temporarily interfere with wireless performance.
CAUTION: Avoid installing wireless antennas in or near rack-mounted installations that include networking equipment and
computer servers whose radiated noise emissions can severely degrade radio performance.
NOTE: If the desired installation site has a marginally acceptable level of radiated noise emissions, consider using a
remote-mounted antenna, such as a wall-mount or ceiling-mount antenna, for better radio performance and coverage.
429
ANT-MP2-I-OUT-M and ANT-MP2-I-O-SS-M Antenna and Cable Kits
Tools and Equipment Required
In addition to the parts included in the antenna kit described in the section Integrated Antenna Kits, you must provide the
following tool to install the antenna on the router:

Strap wrench

13 mm socket wrench
Install the Antenna onto the CGR 1240 Router
Follow these steps to install the antenna onto the router:
1. Remove the plug on the antenna connector if one is present.
2. Attach the monopole antenna to your desired antenna port. Do not tighten the antenna completely—stop tightening so that
the antenna is not fully installed.
Insert Base of Antenna into Router Antenna Port
300648
Figure 12
3. From the chassis interior, the antenna MCX jack should be visible in the plug. With one hand, position the right-angle end
of the antenna cable to the antenna’s MCX jack. With your other hand, push the cable end so it inserts into the MCX jack
of the antenna.
430
ANT-MP2-I-OUT-M and ANT-MP2-I-O-SS-M Antenna and Cable Kits
1
2
4
3
300646
5
1
Antenna base
2
3
Connected Grid module coaxial connectors 4
(QMA-female)
5
QMA end
Antenna-to-router coaxial antenna cable (with
QMA-male connector)
MCX end
4. From the exterior of the router, tighten the antenna using the torque wrench. Tighten to 6 to 7 ft-lbs.
5. From the interior of the router, install the coaxial end of the cable to the appropriate connector on your installed module.
The antenna and module ports should be the same color (red, yellow, or green).
NOTE: Some modules require two antennas: a main antenna and a diversity antenna. These modules have two antenna
connectors on the front panel, labeled MAIN and DIV. Be sure to connect the main and diversity antennas to the correct module
connectors.
Obtaining Documentation and Submitting a Service Request
For information on obtaining documentation, submitting a service request, and gathering additional information, see the monthly
What’s New in Cisco Product Documentation, which also lists all new and revised Cisco technical documentation, at:
http://www.cisco.com/en/US/docs/general/whatsnew/whatsnew.html
Subscribe to the What’s New in Cisco Product Documentation as an RSS (Really Simple Syndication) feed, and set it so content
is delivered directly to your desktop using a reader application. The RSS feeds are a free service and Cisco currently supports
RSS Version 2.0.
Cisco and the Cisco Logo are trademarks of Cisco Systems, Inc. and/or its affiliates in the U.S. and other countries. A listing of Cisco's trademarks can be found at
www.cisco.com/go/trademarks. Third party trademarks mentioned are the property of their respective owners. The use of the word partner does not imply a partnership relationship
between Cisco and any other company. (1005R)
431
Cisco Multi-purpose Integrated Antenna
(ANT-MP-INT-OUT-M)
The Cisco Multipurpose Integrated Antenna is designed to cover domestic frequencies from 806 to 960 MHz and 1710 to 2700
MHz.
This antenna is designed for direct mounting on the CGR1240 and has an MCX connector.
CAUTION: Read the information in Safety Warnings before installing or replacing antennas.
This chapter covers the following topics:

Technical Specifications

Integrated Antenna Kit

Safety Warnings

Antenna Installation

Obtaining Documentation and Submitting a Service Request
Technical Specifications
The Multi-purpose Integrated Antenna features the following:

Indoors and outdoors

Low-profile housing

Adjustable mounting brackets

Supports 3G and 4G
Cisco Systems, Inc.
432
www.cisco.com
Cisco Multi-purpose Integrated Antenna (ANT-MP-INT-OUT-M)
Monopole Antenna
300670
Figure 1
RF Specifications
The following is a summary of the monopole Radio Frequency (RF) antenna specifications:
433
Cisco Multi-purpose Integrated Antenna (ANT-MP-INT-OUT-M)
Specification
Cisco Connected Grid Monopole
Antennas
Operating frequency range
806 to 960 MHz
1710 to 2170 MHz
2300 to 2700 MHz
VSWR
2:1 max
Peak gain 806 to 960 MHz
2.8 dBi
Peak gain 1710 to 2170 MHz
3.5 dBi
Peak gain 2300 to 2700 MHz
4.0 dBi
Average gain @15 degrees elevation 806 to 960 MHz
0.0 dBi +/- 1.0 dB
Average gain @15 degrees elevation 1710 to 2170 MHz
1.0 dBi +/- 1.0 dB
Average gain @15 degrees elevation 2300 to 2700 MHz
2.5 dBi +/- 1.0 dB
Efficiency 806 to 960/1710 to 2170/2300 to 2700 MHz:
60% minimum
Polarization
Vertical -3 dB beamwidth
Horizontal plane
Omni
Vertical plane 806 to 960 MHz
59 degrees average
Vertical plane 1710 to 2170 MHz
46 degrees average
Vertical plane 2300 to 2700 MHz
40 degrees average
Power withstanding
10 W
Connector type
MCX jack
Mechanical Specifications
The following is a summary of the monopole antenna specifications:
Specification
Description
Plastic radome
PC/polyester blend, Makroblend EL 703, .110 think min.
Flammability
UL94 V-0
Color
Cisco gray
Ingress protection
IP67
Weight
90 g
Wind-loading
165 MPH
Overall length
3.04 inches
Installation torque
6 to 9 ft/lbs
Installation tool
Recommended strap wrench, similar to McMaster Car P/N: 5448A31
Operating temperature
-40 to 185 degrees F (-40 to 85 degrees C)
Radiation Patterns
All radiation patterns, gain, and VSWR are measured with the antenna mounted at the center of a 12-by-12-inch ground plane.
434
Cisco Multi-purpose Integrated Antenna (ANT-MP-INT-OUT-M)
Radiation Pattern—Vertical Plane
Figure 3
Radiation Pattern—Vertical Plane
300658
Figure 2
435
300659
Cisco Multi-purpose Integrated Antenna (ANT-MP-INT-OUT-M)
Figure 4
Radiation Pattern—Vertical Plane
436
300660
Cisco Multi-purpose Integrated Antenna (ANT-MP-INT-OUT-M)
Figure 5
Radiation Pattern—Horizontal Plane
437
300651
Cisco Multi-purpose Integrated Antenna (ANT-MP-INT-OUT-M)
Figure 6
Radiation Pattern—Horizontal Plane
438
300652
Cisco Multi-purpose Integrated Antenna (ANT-MP-INT-OUT-M)
Figure 7
Radiation Pattern—Horizontal Plane
439
300653
Cisco Multi-purpose Integrated Antenna (ANT-MP-INT-OUT-M)
Figure 8
Radiation Pattern—Horizontal Plane
440
300654
Cisco Multi-purpose Integrated Antenna (ANT-MP-INT-OUT-M)
441
Cisco Multi-purpose Integrated Antenna (ANT-MP-INT-OUT-M)
Radiation Pattern—VSWR
300656
Figure 9
442
Cisco Multi-purpose Integrated Antenna (ANT-MP-INT-OUT-M)
Radiation Pattern—Peak Gain
300655
Figure 10
443
Cisco Multi-purpose Integrated Antenna (ANT-MP-INT-OUT-M)
Radiation Pattern—Efficiency
300650
Figure 11
Integrated Antenna Kit
The multi-purpose integrated antenna is shown here but the kit is identical for all antenna models.
444
Cisco Multi-purpose Integrated Antenna (ANT-MP-INT-OUT-M)
Antenna Kit
1
2
3
x1
x1
x1
300647
Figure 12
1
Module antenna, with integrated coaxial cable
3
Cable
2
Rubber gasket
Integrated Antenna End Kit Inventory
The multi-purpose integrated antenna kit is identical for all antenna models.
—
Antenna-to-module coaxial cable (MCX-to-QMA, 10.5”)
—
Coax seal
—
Tie wrap
Mounted Antenna End Kit Inventory
—
N-connector
—
Weather-proof coaxial seal
—
Electrical joint compound
—
Universal MCX-to-QMA cable (10.5”)
—
Tie wraps
—
Cap
Safety Warnings
WARNING: Avoid using or servicing any equipment that has outdoor connections during an electrical storm.
There may be a risk of electric shock from lightning. Statement 1088
WARNING: Do not work on the system, or connect or disconnect cables, during periods of lightning activity. Statement 1001
445
Cisco Multi-purpose Integrated Antenna (ANT-MP-INT-OUT-M)
WARNING: Do not locate the outdoor antenna near overhead power lines or other electric light or power circuits, or where it can
come into contact with such circuits. When installing the antenna, take extreme care not to come into contact with such circuits,
as they may cause serious injury or death. For proper installation and grounding of the antenna, please refer to national and local
codes (for example, U.S.:NFPA 70, National Electrical Code, Article 810, Canada:Canadian Electrical Code, Section 54).
Statement 1052
WARNING: Do not work on the system or connect or disconnect cables during periods of lightning activity. Statement 1001
WARNING: This equipment must be grounded. Never defeat the ground conductor or operate the equipment in the absence of
a suitably installed ground conductor. Contact the appropriate electrical inspection authority or an electrician if you are uncertain
that suitable grounding is available. Statement 1024
WARNING: Only trained and qualified personnel should be allowed to install, replace, or service this equipment. Statement 1030
WARNING: To report a gas leak, do not use a telephone in the vicinity of the leak. Statement 1039
WARNING: This warning symbol means danger. You are in a situation that could cause bodily injury. Before you work on any
equipment, be aware of the hazards involved with electrical circuitry and be familiar with standard practices for preventing
accidents. Use the statement number provided at the end of each warning to locate its translation in the translated safety
warnings that accompanied this device. Statement 1071. SAVE THESE INSTRUCTIONS.
WARNING: This product is not intended to be directly connected to the Cable Distribution System. Additional regulatory
compliance and legal requirements may apply for direct connection to the Cable Distribution System. This product may connect
to the Cable Distribution System ONLY through a device that is approved for direct connection. Statement 1078
Safety Instructions
Each year hundreds of people are killed or injured when attempting to install an antenna. In many of these cases, the victim was
aware of the danger of electrocution, but did not take adequate steps to avoid the hazard.
WARNING: For your safety, and to help you achieve a good installation, please read and follow these safety precautions. They
may save your life!
For your safety, read and follow these safety precautions.
WARNING: In order to comply with FCC radio frequency (RF) exposure limits, antennas should be located at a minimum of 7.9
inches (20 cm) or more from the body of all persons. Statement 332

If you are installing an antenna for the first time, for your own safety as well as others, seek professional assistance. Your
Cisco sales representative can explain which mounting method to use for the size and type antenna you are about to install.

Plan your installation procedure carefully and completely before you begin.

Choose your installation site with safety performance in mind. Remember that electric power cables and telephone lines
look alike. For your safety, assume that any line is an electric power line until determined otherwise.

Call your local power company or building maintenance organization if you are unsure about cables close to your mounting
location.

When installing your antenna, do not use a metal ladder. Dress in rubber soled shoes and heels, rubber gloves, and a
long-sleeved shirt or jacket.

If an accident or emergency occurs with the power lines, call for qualified emergency help immediately.

Before you install an antenna, contact your Cisco account representative to explain which mounting method to use for the
size and type of antenna that you are about to install.

Find someone to help you—installing an antenna is often a two-person job.
446
Cisco Multi-purpose Integrated Antenna (ANT-MP-INT-OUT-M)

Select your installation site with safety, as well as performance, in mind. Remember that electric power lines and phone
lines look alike. For your safety, assume that any overhead line can kill you.

Contact your electric power company. Tell them your plans and ask them to come look at your proposed installation.

Each person involved in an installation should be assigned to a specific task, and should know what to do and when to do
it. One person should be in charge of the operation to issue instructions and watch for signs of trouble.

If the assembly starts to drop, move away from it and let it fall. Because the antenna, mast, cable, and metal guy wires are
all excellent conductors of electrical current, even the slightest touch of any of these parts to a power line completes an
electrical path through the antenna and the installer.

If any part of the antenna system should come in contact with a power line, do not touch it or try to remove it yourself. Call
your local power company to have it removed safely.

If an accident occurs with the power lines, call for qualified emergency help immediately.
Antenna Installation
This section covers the following topics:

Installation Notes

Tools and Equipment Required

Install the Antenna onto the CGR 1240 Router
Installation Notes
This Cisco Multi-purpose Integrated Antenna is designed to be mounted directly onto the router.
In addition to antenna orientation, wireless access point installation location with respect to all wireless clients plays a significant
role in determining overall network performance.
Because antennas transmit and receive radio signals, their performance can be adversely affected by the surrounding
environment including distance between the Field Area Router (FAR) and cellular base station, physical obstructions, or radio
frequency (RF) interference.
Follow these guidelines to ensure the best possible performance:

Install the router with antenna without physical obstructions. Barriers along the line of sight between the FAR and cellular
base station degrade the wireless radio signals.

The density of the materials used in a building's construction determines the number of walls the signal must pass through
and still maintain adequate coverage. Consider the following before choosing the location to install your antenna:

—
Paper and vinyl walls have very little effect on signal penetration.
—
Solid and precast concrete walls limit signal penetration to one or two walls without degrading coverage.
—
Concrete and wood block walls limit signal penetration to three or four walls.
—
A signal can penetrate five or six walls constructed of drywall or wood.
—
A thick metal wall or wire-mesh stucco walls causes signals to reflect back and cause poor penetration.
Avoid mounting the antenna next to a column or vertical support that could create a shadow zone and reduce the coverage
area.
447
Cisco Multi-purpose Integrated Antenna (ANT-MP-INT-OUT-M)

Keep the antenna away from reflective metal objects such as heating and air-conditioning ducts, large ceiling trusses,
building superstructures, and major power cabling runs. If necessary, use an extension cable to relocate the antenna away
from these obstructions.
CAUTION: Install the router and antenna away from appliances that share the same frequency bands. Microwave ovens,
cordless telephones, and security monitors can temporarily interfere with wireless performance.
CAUTION: Avoid installing wireless antennas in or near rack-mounted installations that include networking equipment and
computer servers whose radiated noise emissions can severely degrade radio performance.
NOTE: If the desired installation site has a marginally acceptable level of radiated noise emissions, consider using a
remote-mounted antenna, such as a wall-mount or ceiling-mount antenna, for better radio performance and coverage.
Tools and Equipment Required
In addition to the parts included in the antenna kit described in the section Integrated Antenna Kit, you must provide the following
tool to install the antenna on the router:

Strap wrench

13 mm socket wrench
Install the Antenna onto the CGR 1240 Router
Follow these steps to install the antenna onto the router:
1. Remove the plug on the antenna connector if one is present.
2. Attach the monopole antenna to your desired antenna port. Do not tighten the antenna completely—stop tightening so that
the antenna is not fully installed.
Insert Base of Antenna into Router Antenna Port
300648
Figure 13
3. From the chassis interior, the antenna MCX jack should be visible in the plug. With one hand, position the right-angle end
of the antenna cable to the antenna’s MCX jack. With your other hand, push the cable end so it inserts into the MCX jack
of the antenna.
448
Cisco Multi-purpose Integrated Antenna (ANT-MP-INT-OUT-M)
1
2
4
3
300646
5
1
Antenna base
2
3
Connected Grid module coaxial connectors 4
(QMA-female)
5
QMA end
Antenna-to-router coaxial antenna cable (with
QMA-male connector)
MCX end
4. From the exterior of the router, tighten the antenna using the torque wrench. Tighten to 6 to 7 ft-lbs.
5. From the interior of the router, install the coaxial end of the cable to the appropriate connector on your installed module.
The antenna and module ports should be the same color (red, yellow, or green).
NOTE: Some modules require two antennas: a main antenna and a diversity antenna. These modules have two antenna
connectors on the front panel, labeled MAIN and DIV. Be sure to connect the main and diversity antennas to the correct module
connectors.
Obtaining Documentation and Submitting a Service Request
For information on obtaining documentation, submitting a service request, and gathering additional information, see the monthly
What’s New in Cisco Product Documentation, which also lists all new and revised Cisco technical documentation, at:
http://www.cisco.com/en/US/docs/general/whatsnew/whatsnew.html
Subscribe to the What’s New in Cisco Product Documentation as an RSS (Really Simple Syndication) feed, and set it so content
is delivered directly to your desktop using a reader application. The RSS feeds are a free service and Cisco currently supports
RSS Version 2.0.
Cisco and the Cisco Logo are trademarks of Cisco Systems, Inc. and/or its affiliates in the U.S. and other countries. A listing of Cisco's trademarks can be found at
www.cisco.com/go/trademarks. Third party trademarks mentioned are the property of their respective owners. The use of the word partner does not imply a partnership relationship
between Cisco and any other company. (1005R)
449
Cisco Vandal Resistant Omni-directional
Dome Antenna for 860-928 MHz ISM,
WPAN and LoRaWAN
(ANT-UN-MP-OUT-QMA)
This document describes the Vandal Resistant Omni-directional Dome Antenna for 860-928 MHz ISM, WPAN and LoRaWAN
routers. In addition, this document provides the antenna specifications and mounting instructions for the antenna.
CAUTION: Read the information in Safety Warnings before installing or replacing antennas.
This chapter covers the following topics:

Technical Specifications, page 450

Antenna Installation, page 454

Antenna Radiation Patterns, page 457

Safety Warnings, page 462

Obtaining Documentation and Submitting a Service Request, page 463
Technical Specifications
This section covers the following topics:

Specifications, page 451

Vandal Resistance, page 453

Dimensions, page 453
Cisco Systems, Inc.
450
www.cisco.com
Cisco Vandal Resistant Omni-directional Dome Antenna for 860-928 MHz ISM, WPAN and LoRaWAN (ANT-UN-MP-OUT-QMA)
Figure 1
Vandal Resistant Omni-directional Dome Antenna
Specifications
Table 1 provides the RF Specifications.
Table 2 provides the Mechanical, Environmental, and Other Specifications.
Note: While many antenna datasheets emphasize peak gain, in most outdoor applications gain at horizon is much more
important. For low profile antennas from any vendor, it is important to evaluate gain at horizon prior to selecting the antenna for
deployment.
451
Cisco Vandal Resistant Omni-directional Dome Antenna for 860-928 MHz ISM, WPAN and LoRaWAN (ANT-UN-MP-OUT-QMA)
Table 1
RF Specifications
Specification
Description
Nominal Operating Frequency Range, MHz
863-876 MHz ETSI
902-928 MHz ISM
(See Note 1)
No Ground
Plane
With 2 foot
diameter
Ground Plane
No Ground
Plane
With 2 foot
diameter
Ground Plane
Peak Gain (dBi) Typical
(See Note 2)
+1.7
+3
+1.5
+1.9
Gain on Horizon (dBi) Average
+0.1
-1.2
+0.6
-1.4
Gain on Horizon (dBi) Minimum
(See Note 3)
-2.0
-2.0
-2.0
-3.5
Efficiency
65%
76%
67%
69%
VSWR (Worst Case)
1.7:1
1.2:1
1.5:1
1.5:1
Elevation 3 dB Beamwidth (HPBW), degrees
65
66
75
72
Azimuth 3 dB Beamwidth (HPBW), degrees
360
Nominal Impedance, ohms
50 ohms
Polarization
Vertical
RF Cable Length (ft)
5 foot
(See Note 4)
RF Connector
QMA (male), right angle
Max RF Power (at 25°C), Watts
10 Watts
Note 1: Antenna has been designed and tested to have excellent performance with and without a ground plane over the full
860-928 MHz frequency range. It can be installed on a metallic or non-metallic surface. RF parameters in the table are provided
for both cases of ground plane vs no ground plane.
Note 2: Peak gain of monopole antennas installed on a finite size ground plane will not be at horizon, and will be elevated above
the horizon. In contrast, typical terrestrial radio deployments with omni-directional antennas involve communications near the
horizon. Therefore, in the most common deployment scenarios the gain at horizon is a more useful parameter than peak gain.
Note 3: The minimum horizon gain specification shows whether an antenna has radiation nulls in azimuth. Nulls are directions
in which the antenna has poor gain (e.g. -6 dBI, -10 dBI, -20 dBI or worse), and nulls often result in severe transmit and receive
signal loss in the direction of the null. The ANT-UN-MP-OUT-QMA antenna has a smooth horizon or azimuth radiation pattern,
and does not have azimuth pattern nulls. When evaluating omni-directional antennas, it is important to ensure that the antenna
pattern does not have nulls in azimuth, to ensure good transmission and reception signal quality in all directions at horizon.
Note 4: All provided RF specifications include the RF loss of the integrated 5 foot cable.
452
Cisco Vandal Resistant Omni-directional Dome Antenna for 860-928 MHz ISM, WPAN and LoRaWAN (ANT-UN-MP-OUT-QMA)
Table 2
Mechanical, Environmental, and Other Specifications
Specification
Description
Anti-Static Protection
DC Grounded
(See Note 1)
Antenna Dimensions (Diameter x Height), mm, inch
147mm x 47mm, 5.8"x1.85"
Weight, kg (lbs)
0.6kg (1.35 lb)
Antenna Radome Color
Electrical utility box green color
UV resistance
UV resistant, UV stable material
Wind Operational & Survival
150mph minimum
Operating Temperature
-40 to +70C (-40 to +158F)
Storage Temperature
-40 to +85C (-40 to +185F)
Ingression Protection
IP67 when properly mounted to a flat surface
Material Substance Compliance
ROHS
Impact Resistance
Higher than IK10 or IK10+
Environmental Testing
Antenna passed extensive environmental and mechanical tests
appropriate for deployment on an outdoor electrical utility box.
Note 1: Antenna data sheets often claim lightning protection, while in reality only providing a DC ground path for ESD protection.
Cisco recommends use of a dedicated, high quality lightning arrestor for all antennas potentially exposed to lightning strikes.
Vandal Resistance
Antenna has been specifically designed to withstand opportunistic direct impacts from all angles, from more commonly carried
vandalism objects or tools, such as aluminum or wooden baseball bats, skateboards, scooters, small knives and similar objects,
assuming proper installation of the antenna on a flat surface.
Antenna is not resistant to damage caused by intentional or unintentional tampering with professional tools used in isolation or
in combination, such as long (e.g. 40") steel crowbars or pry bars, power drills, welding torches, axes, chainsaws, heavy duty
sledge hammers and similar.
Additionally, while the antenna is resistant to occasional, opportunistic, impulsive vandalism with common items - it should be
understood that a persistent, skilled and focused individual with the right common tools and given enough time will be able to
damage or tamper with the antenna.
Dimensions
Figure 2 shows the Antenna Dimensions.
453
Cisco Vandal Resistant Omni-directional Dome Antenna for 860-928 MHz ISM, WPAN and LoRaWAN (ANT-UN-MP-OUT-QMA)
Figure 2
Dimensions
NOTE: Antenna Dimensions are shown in millimeters, except where explicitly specified in inches denoted by " or [ ].
Antenna Installation
The antenna installation includes the following procedures:

Tools and Equipment Required

Mounting Components
Tools and Equipment Required
In addition to the parts included in the antenna kit, you must provide the following tools to install the antenna on the router:

1-5/16" (1.3125"), or 33.34mm open-end wrench. Recommended torque is 50-65 ft-lb or 68-88 Nm.

McMaster Carr Double-D Hole Punch P/N 3449A85 or equivalent. Alternatively, you can drill or use a circular hole punch to
create a 0.91" diameter hole.
454
Cisco Vandal Resistant Omni-directional Dome Antenna for 860-928 MHz ISM, WPAN and LoRaWAN (ANT-UN-MP-OUT-QMA)
Mounting Components
Table 3
Antenna Mounting Components
Item Number
Description
Quantity
1
HEX NUT, THIN, 7/8-14, SS, PA
1
2
WASHER, EXT SERRATED, 7/8", SS, PA
1
Figure 3
Mounting Nut and Washer
Mounting the Antenna
A clean, flat surface at least 15 x 15 cm (6 x 6 in.) in area is required for mounting the antenna. Antenna mounting stud has a
Double-D cross-section compatible with the McMaster Carr Double-D Hole Punch P/N 3449A85. The Double-D prevents
antenna from rotating while the mounting nut is torqued. It also provides additional vandal resistance by not allowing the antenna
to rotate around the axis.
Follow these instructions to mount the antenna. See Figure 4 for a conceptual mounting illustration.
1. Mark the desired location where you plan to mount the antenna, and create a hole through the surface using a McMaster
Carr Double-D Hole Punch P/N 3449A85, or equivalent punch tool. Alternatively, it is possible to drill a circular hole 0.91"
in diameter.
2. Thread the cables through the hole and insert the Double-D mounting stud into the hole. Ensure that the gasket on the
underside of the antenna sits flush against the mounting surface.
3. Place the metal washer and the metal nut onto the stud. Tighten the nut to a torque of 50-65 ft-lb or 68-88 Nm.
Figure 4 shows the vandal resistant antenna mounted to a matching color outdoor electrical utility enclosure of a simple
rectangular box shape. Many outdoor enclosures come in much more complicated shapes, with a number of rectangular boxes
and compartments joined together. In general, it is recommended that the antenna be installed on the highest surface of the
electrical enclosure box. In this manner, the radiation in the upper hemisphere is not obstructed by other nearby geometrical
features of the enclosure.
In many deployments the nodes need to communicate to other nodes located near horizon. Placing the antenna on the highest
enclosure surface is a good way to ensure that horizon communication is not obstructed. If it is not possible or feasible to place
the antenna on the highest surface of the enclosure, please contact your Cisco account representative for support or 3rd party
qualified RF (radio-frequency) professional with experience in antenna installation and siting.
455
Cisco Vandal Resistant Omni-directional Dome Antenna for 860-928 MHz ISM, WPAN and LoRaWAN (ANT-UN-MP-OUT-QMA)
Figure 4
Antenna Placement on Electrical Enclosures
Using the McMaster Carr Stud Driven Hole Punch
This section describes the McMaster Carr Stud Driven Hole Punch for 0.76" Long, 0.91" Wide Double-D Shape. Information in
this section is adapted by Cisco and published with written permission from McMaster Carr Supply Company. In duplicating the
information Cisco seeks to achieve an antenna datasheet that is standalone, and seeks to ensure that if the 3449A85 McMaster
product is changed or discontinued, a copy of the original information is available with the ANT-UN-MP-OUT-QMA antenna
datasheet.
Note: Cisco is providing 3449A85 information for reference purposes only, and does not sell, distribute or provide technical
support for the 3449A85 punch tool. For technical support and the most up to date information please contact McMaster Carr,
and reference the information located in the McMaster Carr 3449A8 datasheet.
Also known as chassis punches, these tools cut through sheet metal to create holes for installing switches and instruments.
They have an automatic centering design for accurate alignment. Drill pilot holes slightly larger than the size of the stud. All
punches can be used with a manual wrench or hydraulic driver, but require a stud adapter (sold separately) when used with a
hydraulic driver.
456
Cisco Vandal Resistant Omni-directional Dome Antenna for 860-928 MHz ISM, WPAN and LoRaWAN (ANT-UN-MP-OUT-QMA)
Figure 5
McMaster Carr Stud Driven Hole Punch
Table 4
Tool Details
Punching Action
Stud Driven
Shape
Double-D Shape
Hole Length
0.76"
Hole Width
0.91
Maximum Steel Thickness
1/16"
Tool Material
Steel
For Use On
Aluminum, Brass, Copper, Steel
Pilot Hole Required
Yes
Kit Includes
Punch, Die, Stud, Nut
Individual/Set
Individual
Related Products
Hydraulic Driver Stud Adapter 3449A172
11-Ton Straight Hydraulic Driver 3448A1
8-Ton Straight Hydraulic Driver 3484A15
8-Ton Right-Angle Hydraulic Driver 3490A21
Antenna Radiation Patterns
The following sequence of illustrations show the different antenna radiation patterns.
Note: The pattern plots that follow show measurements for two different samples of the antenna, labeled S1 (Sample 1) and
S2 (Sample 2).
457
Cisco Vandal Resistant Omni-directional Dome Antenna for 860-928 MHz ISM, WPAN and LoRaWAN (ANT-UN-MP-OUT-QMA)
Figure 6
863 MHz Radiation Pattern - No Ground Plane
Figure 7
863 MHz Radiation Pattern - With Ground Plane
458
Cisco Vandal Resistant Omni-directional Dome Antenna for 860-928 MHz ISM, WPAN and LoRaWAN (ANT-UN-MP-OUT-QMA)
Figure 8
876 MHz Radiation Pattern -No Ground Plane
Figure 9
876 MHz Radiation Pattern -With Ground Plane
Figure 10
902 MHz Radiation Pattern - No Ground Plane
459
Cisco Vandal Resistant Omni-directional Dome Antenna for 860-928 MHz ISM, WPAN and LoRaWAN (ANT-UN-MP-OUT-QMA)
Figure 11
902 MHz Radiation Pattern - With Ground Plane
Figure 12
915 MHz Radiation Pattern - No Ground Plane
460
Cisco Vandal Resistant Omni-directional Dome Antenna for 860-928 MHz ISM, WPAN and LoRaWAN (ANT-UN-MP-OUT-QMA)
Figure 13
915 MHz Radiation Pattern - With Ground Plane
Figure 14
928 MHz Radiation Pattern - No Ground Plane
Figure 15
928 MHz Radiation Pattern - With Ground Plane
461
Cisco Vandal Resistant Omni-directional Dome Antenna for 860-928 MHz ISM, WPAN and LoRaWAN (ANT-UN-MP-OUT-QMA)
Safety Warnings
WARNING: Avoid using or servicing any equipment that has outdoor connections during an electrical storm.
There may be a risk of electric shock from lightning. Statement 1088
WARNING: Do not work on the system, or connect or disconnect cables, during periods of lightning activity. Statement 1001
WARNING: Do not locate the outdoor antenna near overhead power lines or other electric light or power circuits, or where it can
come into contact with such circuits. When installing the antenna, take extreme care not to come into contact with such circuits,
as they may cause serious injury or death. For proper installation and grounding of the antenna, please refer to national and local
codes (for example, U.S.:NFPA 70, National Electrical Code, Article 810, Canada:Canadian Electrical Code, Section 54).
Statement 1052
WARNING: This equipment must be grounded. Never defeat the ground conductor or operate the equipment in the absence of
a suitably installed ground conductor. Contact the appropriate electrical inspection authority or an electrician if you are uncertain
that suitable grounding is available. Statement 1024
WARNING: Only trained and qualified personnel should be allowed to install, replace, or service this equipment. Statement 1030
WARNING: To report a gas leak, do not use a telephone in the vicinity of the leak. Statement 1039
WARNING: This warning symbol means danger. You are in a situation that could cause bodily injury. Before you work on any
equipment, be aware of the hazards involved with electrical circuitry and be familiar with standard practices for preventing
accidents. Use the statement number provided at the end of each warning to locate its translation in the translated safety
warnings that accompanied this device. Statement 1071. SAVE THESE INSTRUCTIONS.
WARNING: This product is not intended to be directly connected to the Cable Distribution System. Additional regulatory
compliance and legal requirements may apply for direct connection to the Cable Distribution System. This product may connect
to the Cable Distribution System ONLY through a device that is approved for direct connection. Statement 1078
Safety Precautions
WARNING: Installation of this antenna near power lines is dangerous. For your safety, follow the installation directions.
Each year hundreds of people are killed or injured when attempting to install an antenna. In many of these cases, the victim was
aware of the danger of electrocution, but did not take adequate steps to avoid the hazard.
For your safety, and to help you achieve a good installation, please read and follow these safety precautions. They may save
your life!
For your safety, read and follow these safety precautions.

If you are installing an antenna for the first time, for your own safety as well as others, seek professional assistance. Your
Cisco sales representative can explain which mounting method to use for the size and type antenna you are about to install.

Before you install an antenna, contact your Cisco account representative to explain which mounting method to use for the
size and type of antenna that you are about to install.

Find someone to help you—installing an antenna is often a two-person job.

Select your installation site with safety, as well as performance, in mind. Remember that electric power lines and phone
lines look alike. For your safety, assume that any overhead line can kill you.

Contact your electric power company. Tell them your plans and ask them to come look at your proposed installation.

Plan your installation carefully and completely before you begin. Each person involved in an installation should be assigned
to a specific task, and should know what to do and when to do it. One person should be in charge of the operation to issue
instructions and watch for signs of trouble.
462
Cisco Vandal Resistant Omni-directional Dome Antenna for 860-928 MHz ISM, WPAN and LoRaWAN (ANT-UN-MP-OUT-QMA)

When installing your antenna, follow these guidelines:
—
Do not use a metal ladder.
—
Do not work on a wet or windy day.
—
Do dress properly—wear shoes with rubber soles and heels, rubber gloves, and a long-sleeved shirt or jacket.

If the assembly starts to drop, move away from it and let it fall. Because the antenna, mast, cable, and metal guy wires are
all excellent conductors of electrical current, even the slightest touch of any of these parts to a power line completes an
electrical path through the antenna and the installer.

If any part of the antenna system should come in contact with a power line, do not touch it or try to remove it yourself. Call
your local power company to have it removed safely.

If an accident should occur with the power lines, call for qualified emergency help immediately.
Obtaining Documentation and Submitting a Service Request
For information on obtaining documentation, submitting a service request, and gathering additional information, see the monthly
What’s New in Cisco Product Documentation, which also lists all new and revised Cisco technical documentation, at:
http://www.cisco.com/en/US/docs/general/whatsnew/whatsnew.html
Subscribe to the What’s New in Cisco Product Documentation as an RSS (Really Simple Syndication) feed, and set it so content
is delivered directly to your desktop using a reader application. The RSS feeds are a free service and Cisco currently supports
RSS Version 2.0.
Cisco and the Cisco Logo are trademarks of Cisco Systems, Inc. and/or its affiliates in the U.S. and other countries. A listing of
Cisco's trademarks can be found at www.cisco.com/go/trademarks. Third party trademarks mentioned are the property of their
respective owners. The use of the word partner does not imply a partnership relationship between Cisco and any other
company. (1005R)
463
Cisco WPAN Dipole Antenna
(ANT-WPAN-OD-OUT-N)
This chapter describes the technical specifications and installation instructions for the Cisco WPAN dipole antenna. The antenna
is a single-port antenna designed to cover the 863-928 MHz frequency bands for worldwide ISM operation.
CAUTION: Read the information in Safety Warnings before installing or replacing antennas.
This chapter covers the following topics:

Antenna Overview

Technical Specifications

Installing the Antenna

Obtaining Documentation and Submitting a Service Request
Antenna Overview
The Cisco WPAN Dipole antenna (ANT-WPAN-OD-OUT-N) has the following features:

863 - 928 MHz support

Omnidirectional, vertically polarized

Indoor or outdoor location

Direct chassis-mount installation

Type N male connector
Cisco Systems, Inc.
464
www.cisco.com
Cisco WPAN Dipole Antenna (ANT-WPAN-OD-OUT-N)
Figure 1 shows the Antenna Assembly.
Figure 1
Cisco ANT-WPAN-OD-OUT-N Antenna
Technical Specifications
This section contains the following:

RF Specifications

Radiation Patterns

Environmental and Mechanical Specifications
RF Specifications
The following are the Radio Frequency (RF) antenna specifications for the Cisco ANT-WPAN-OD-OUT-N Antenna:
465
Cisco WPAN Dipole Antenna (ANT-WPAN-OD-OUT-N)
Specification
Description
Antenna Type
Dipole
Operating frequency range
863 to 928 MHz
Nominal impedance
50 ohms
VSWR
2.0:1 maximum
Gain
1.5 dBi maximum
3 dB beamwidth (vertical plane)
84 degrees
3 dB beamwidth (horizontal plane)
360 degrees
Polarization
Linear, vertical
Radiation Pattern
Omnidirectional
Maximum input power
20 Watts
Radiation Patterns
The following diagrams illustrate the radiation patterns for the Cisco ANT-WPAN-OD-OUT-N Antenna:
466
Cisco WPAN Dipole Antenna (ANT-WPAN-OD-OUT-N)
Figure 2
Radiation Pattern — Vertical Plane
Figure 3
Radiation Pattern — Horizontal Plane
Environmental and Mechanical Specifications
467
Cisco WPAN Dipole Antenna (ANT-WPAN-OD-OUT-N)
The following are the Environmental and Mechanical Specifications for the Cisco ANT-WPAN-OD-OUT-N Antenna:
Specification
Description
Operating temperature range
-40 to 185°F (-40 to 85°C)
Mount style
Direct chassis or bulkhead mount
Location
Outdoor
Connector
Type N male
Dimensions
7.70 in. length x 1.02 in. diameter
(19.56 cm length x 2.60 cm diameter)
Weight
0.26 lbs (120 g)
Wind rating
265 km/hr (165 mph)
IP rating
IP67
Radome
Polyester/Fiberglass, UV resistant,
white
Material substance compliance
RoHS compliant
Installing the Antenna
This section contains the following:

Contents of the Antenna Kit

Safety Warnings

Safety Instructions

Tools and Equipment Required

Mounting the Antenna
Contents of the Antenna Kit
The antenna kit contains:

1 x Cisco ANT-WPAN-OD-OUT-N Antenna
Safety Warnings
WARNING: Avoid using or servicing any equipment that has outdoor connections during an electrical storm.
There may be a risk of electric shock from lightning. Statement 1088
WARNING: Do not work on the system, or connect or disconnect cables, during periods of lightning activity. Statement 1001
WARNING: Do not locate the outdoor antenna near overhead power lines or other electric light or power circuits, or where it can
come into contact with such circuits. When installing the antenna, take extreme care not to come into contact with such circuits,
as they may cause serious injury or death. For proper installation and grounding of the antenna, please refer to national and local
codes (for example, U.S.:NFPA 70, National Electrical Code, Article 810, Canada:Canadian Electrical Code, Section 54).
Statement 1052
468
Cisco WPAN Dipole Antenna (ANT-WPAN-OD-OUT-N)
WARNING: This equipment must be grounded. Never defeat the ground conductor or operate the equipment in the absence of
a suitably installed ground conductor. Contact the appropriate electrical inspection authority or an electrician if you are uncertain
that suitable grounding is available. Statement 1024
WARNING: Only trained and qualified personnel should be allowed to install, replace, or service this equipment. Statement 1030
WARNING: To report a gas leak, do not use a telephone in the vicinity of the leak. Statement 1039
WARNING: This warning symbol means danger. You are in a situation that could cause bodily injury. Before you work on any
equipment, be aware of the hazards involved with electrical circuitry and be familiar with standard practices for preventing
accidents. Use the statement number provided at the end of each warning to locate its translation in the translated safety
warnings that accompanied this device. Statement 1071. SAVE THESE INSTRUCTIONS.
WARNING: This product is not intended to be directly connected to the Cable Distribution System. Additional regulatory
compliance and legal requirements may apply for direct connection to the Cable Distribution System. This product may connect
to the Cable Distribution System ONLY through a device that is approved for direct connection. Statement 1078
Safety Instructions
WARNING: Installation of this antenna near power lines is dangerous. For your safety, follow the installation directions.
Each year hundreds of people are killed or injured when attempting to install an antenna. In many of these cases, the victim was
aware of the danger of electrocution, but did not take adequate steps to avoid the hazard.
For your safety, and to help you achieve a good installation, please read and follow these safety precautions. They may save
your life!
For your safety, read and follow these safety precautions.

If you are installing an antenna for the first time, for your own safety as well as others, seek professional assistance. Your
Cisco sales representative can explain which mounting method to use for the size and type antenna you are about to install.

Plan your installation procedure carefully and completely before you begin.

Choose your installation site with safety performance in mind. Remember that electric power cables and telephone lines
look alike. For your safety, assume that any line is an electric power line until determined otherwise.

Call your local power company or building maintenance organization if you are unsure about cables close to your mounting
location.

When installing your antenna, do not use a metal ladder. Dress in rubber soled shoes and heels, rubber gloves, and a
long-sleeved shirt or jacket.

If an accident or emergency occurs with the power lines, call for qualified emergency help immediately.

Before you install an antenna, contact your Cisco account representative to explain which mounting method to use for the
size and type of antenna that you are about to install.

Find someone to help you—installing an antenna is often a two-person job.

Select your installation site with safety, as well as performance, in mind. Remember that electric power lines and phone
lines look alike. For your safety, assume that any overhead line can kill you.

Contact your electric power company. Tell them your plans and ask them to come look at your proposed installation.

Each person involved in an installation should be assigned to a specific task, and should know what to do and when to do
it. One person should be in charge of the operation to issue instructions and watch for signs of trouble.

If the assembly starts to drop, move away from it and let it fall. Because the antenna, mast, cable, and metal guy wires are
all excellent conductors of electrical current, even the slightest touch of any of these parts to a power line completes an
electrical path through the antenna and the installer.
469
Cisco WPAN Dipole Antenna (ANT-WPAN-OD-OUT-N)

If any part of the antenna system should come in contact with a power line, do not touch it or try to remove it yourself. Call
your local power company to have it removed safely.

If an accident occurs with the power lines, call for qualified emergency help immediately.
Tools and Equipment Required
No tools are required to install the antenna. This does not include the tools and equipment required to install the router or to
assemble the tower, mast, or other structure you intend to mount the router and antenna on.
Mounting the Antenna
Follow these instructions to mount the antenna.

If installing the antenna on an IR529UWP-915S/K9 or IR529UBWP-915S/K9, screw the antenna’s N male connector onto
the N female connector on the chassis. Ensure that the connection is tight. See Single Antenna Advanced Range
Extender—Direct Connect Antenna Configuration in the Cisco IR500 Series WPAN Gateway and WPAN Range Extender
Installation and Configuration Guide.

If installing the antenna to a bulkhead adapter or lightning arrestor, install the lightning arrestor or adapter to the side of the
enclosure first, then screw the antenna onto the N female connector of the lightning arrestor or adapter. See Gateway
Enclosure Mounted Antenna Configuration in the Cisco IR500 Series WPAN Gateway and WPAN Range Extender Installation
and Configuration Guide.
NOTE: Coaxial cable loses efficiency as the frequency increases, resulting in signal loss. If a cable is used it should be kept as
short as possible because cable length also determines the amount of signal loss—the longer the cable length or run, the greater
the loss.
Obtaining Documentation and Submitting a Service Request
For information on obtaining documentation, submitting a service request, and gathering additional information, see the monthly
What’s New in Cisco Product Documentation, which also lists all new and revised Cisco technical documentation, at:
http://www.cisco.com/en/US/docs/general/whatsnew/whatsnew.html
Subscribe to the What’s New in Cisco Product Documentation as an RSS (Really Simple Syndication) feed, and set it so content
is delivered directly to your desktop using a reader application. The RSS feeds are a free service and Cisco currently supports
RSS Version 2.0.
Cisco and the Cisco Logo are trademarks of Cisco Systems, Inc. and/or its affiliates in the U.S. and other countries. A listing of Cisco's trademarks can be found at
www.cisco.com/go/trademarks. Third party trademarks mentioned are the property of their respective owners. The use of the word partner does not imply a partnership relationship
between Cisco and any other company. (1005R)
470
Cisco WPAN Dipole Antenna (ANT-WPAN-OD-OUT-N)
471
Cisco Outdoor Omni Antenna for 900 MHz
WPAN (ANT-WPAN-OM-OUT-N)
This document describes the Outdoor Omnidirectional Antenna for the 900 MHz WPAN module. In addition, this document
provides the antenna specifications and mounting instructions of the antenna.
The Omnidirectional Outdoor Antenna is compatible with only the 900 MHz WPAN module that uses a N-connector and requires
a mast-mounted outdoor antenna.
CAUTION: Read the information in Overview before installing or replacing antennas.
This chapter covers the following topics:

Technical Specifications

Safety Warnings

Antenna Installation

Obtaining Documentation and Submitting a Service Request
Technical Specifications
The Outdoor Omnidirectional Antenna features the following:

UV-resistant pultruded fiberglass radome

Heavy duty mounting bracket

Thick-walled aluminum mounting base

DC-grounded for ESD protection
Cisco Systems, Inc.
472
www.cisco.com
Cisco Outdoor Omni Antenna for 900 MHz WPAN (ANT-WPAN-OM-OUT-N)
Figure 1
Outdoor Omnidirectional Antenna
1
300663
2
RF Specifications
Specification
Description
Frequency range
902 to 928 MHz
Nominal gain (dBi)
4 dBi
Vertical beamwidth
30 degrees
Horizontal beamwidth
360 degrees
Normal impedance
50 ohms
Polarization
Vertical, linear
VSWR
1.5 typical, 2.0 max
Radiation pattern
Omnidirectional
Mechanical Specifications
Specification
Description
Mount style
Adjustable mast or wall mount
Environment
Outdoor
Connector
Type N female
Antenna length
23.25” (59.1 cm)
Weight
1.5 lbs (.68 kg)
Temperature range
-40 to 185-degrees F (-40 to 85 degrees C)
Bending moment at rated wind
4.7 lbf
Equivalent flat plate area
.12 sf
473
Cisco Outdoor Omni Antenna for 900 MHz WPAN (ANT-WPAN-OM-OUT-N)
Specification
Description
Rated wind
125 mph
Maximum power
150 watts
474
Cisco Outdoor Omni Antenna for 900 MHz WPAN (ANT-WPAN-OM-OUT-N)
Outdoor Omnidirectional Antenna Frequency Pattern
Figure 3
Outdoor Omnidirectional Antenna Radiation Pattern
300662
300665
Figure 2
Safety Warnings
475
Cisco Outdoor Omni Antenna for 900 MHz WPAN (ANT-WPAN-OM-OUT-N)
WARNING: Avoid using or servicing any equipment that has outdoor connections during an electrical storm.
There may be a risk of electric shock from lightning. Statement 1088
WARNING: Do not work on the system, or connect or disconnect cables, during periods of lightning activity. Statement 1001
WARNING: Do not locate the outdoor antenna near overhead power lines or other electric light or power circuits, or where it can
come into contact with such circuits. When installing the antenna, take extreme care not to come into contact with such circuits,
as they may cause serious injury or death. For proper installation and grounding of the antenna, please refer to national and local
codes (for example, U.S.:NFPA 70, National Electrical Code, Article 810, Canada:Canadian Electrical Code, Section 54).
Statement 1052
WARNING: This equipment must be grounded. Never defeat the ground conductor or operate the equipment in the absence of
a suitably installed ground conductor. Contact the appropriate electrical inspection authority or an electrician if you are uncertain
that suitable grounding is available. Statement 1024
WARNING: Only trained and qualified personnel should be allowed to install, replace, or service this equipment. Statement 1030
WARNING: To report a gas leak, do not use a telephone in the vicinity of the leak. Statement 1039
WARNING: This warning symbol means danger. You are in a situation that could cause bodily injury. Before you work on any
equipment, be aware of the hazards involved with electrical circuitry and be familiar with standard practices for preventing
accidents. Use the statement number provided at the end of each warning to locate its translation in the translated safety
warnings that accompanied this device. Statement 1071. SAVE THESE INSTRUCTIONS.
WARNING: This product is not intended to be directly connected to the Cable Distribution System. Additional regulatory
compliance and legal requirements may apply for direct connection to the Cable Distribution System. This product may connect
to the Cable Distribution System ONLY through a device that is approved for direct connection. Statement 1078
Safety Precautions
WARNING: Installation of this antenna near power lines is dangerous. For your safety, follow the installation directions.
Each year hundreds of people are killed or injured when attempting to install an antenna. In many of these cases, the victim was
aware of the danger of electrocution, but did not take adequate steps to avoid the hazard.
For your safety, and to help you achieve a good installation, please read and follow these safety precautions. They may save
your life!
For your safety, read and follow these safety precautions.

If you are installing an antenna for the first time, for your own safety as well as others, seek professional assistance. Your
Cisco sales representative can explain which mounting method to use for the size and type antenna you are about to install.

Before you install an antenna, contact your Cisco account representative to explain which mounting method to use for the
size and type of antenna that you are about to install.

Find someone to help you—installing an antenna is often a two-person job.

Select your installation site with safety, as well as performance, in mind. Remember that electric power lines and phone
lines look alike. For your safety, assume that any overhead line can kill you.

Contact your electric power company. Tell them your plans and ask them to come look at your proposed installation.

Plan your installation carefully and completely before you begin. Each person involved in an installation should be assigned
to a specific task, and should know what to do and when to do it. One person should be in charge of the operation to issue
instructions and watch for signs of trouble.

When installing your antenna, follow these guidelines:
—
Do not use a metal ladder.
476
Cisco Outdoor Omni Antenna for 900 MHz WPAN (ANT-WPAN-OM-OUT-N)
—
Do not work on a wet or windy day.
—
Do dress properly—wear shoes with rubber soles and heels, rubber gloves, and a long-sleeved shirt or jacket.

If the assembly starts to drop, move away from it and let it fall. Because the antenna, mast, cable, and metal guy wires are
all excellent conductors of electrical current, even the slightest touch of any of these parts to a power line completes an
electrical path through the antenna and the installer.

If any part of the antenna system should come in contact with a power line, do not touch it or try to remove it yourself. Call
your local power company to have it removed safely.

If an accident should occur with the power lines, call for qualified emergency help immediately.
Antenna Installation
The antenna installation includes the following procedures:

Tools and Equipment Required

Attaching the Mounting Bracket
Tools and Equipment Required
In addition to the parts included in the antenna kit, you must provide the following tool to install the antenna on the router:

A #2 Phillips screwdriver

A hose clamp (shipped with your antenna)

3/4 in. open-end wrench
NOTE: This list does not include the tools and equipment required to assemble and erect the tower, mast, or other structure you
intend to mount your antenna on.
Attaching the Mounting Bracket
The antenna is provided with a mounting kit consisting of a mounting bracket and hose clamp. This kit allows you to mount the
antenna to masts from 1.25 inches (3.2 centimeters) to 2 inches (5.1 cm). Cisco recommends that a 1.5 inch (3.8 centimeter)
or larger tubing mast be used.
The antenna is vertically polarized. Since the antenna has vertical gain, it is very important to mount the antenna in a vertical
(not leaning) position for optimal performance.
Follow these steps to mount the antenna onto a mast:
1. Place the connector end of the antenna through the hole in the antenna bracket.
477
Cisco Outdoor Omni Antenna for 900 MHz WPAN (ANT-WPAN-OM-OUT-N)
1
300663
2
1
Outdoor Omnidirectional Antenna
2
Bracket
2. Place the pipe clamps into the grooves on the bracket.
3. Attach the bracket to the top of the mast. The top surface of the mounting mast must not exceed the top surface of the
mounting bracket. Securely tighten hose clamps.
4. Attach the cable to the antenna connector.
Installing the Module into the Router
If the corresponding module is not already installed in the router, install it according to the installation and configuration guide
for the module.
Obtaining Documentation and Submitting a Service Request
For information on obtaining documentation, submitting a service request, and gathering additional information, see the monthly
What’s New in Cisco Product Documentation, which also lists all new and revised Cisco technical documentation, at:
http://www.cisco.com/en/US/docs/general/whatsnew/whatsnew.html
Subscribe to the What’s New in Cisco Product Documentation as an RSS (Really Simple Syndication) feed, and set it so content
is delivered directly to your desktop using a reader application. The RSS feeds are a free service and Cisco currently supports
RSS Version 2.0.
Cisco and the Cisco Logo are trademarks of Cisco Systems, Inc. and/or its affiliates in the U.S. and other countries. A listing of Cisco's trademarks can be found at
www.cisco.com/go/trademarks. Third party trademarks mentioned are the property of their respective owners. The use of the word partner does not imply a partnership relationship
between Cisco and any other company. (1005R)
478
Cisco Outdoor Omni Antenna for 900 MHz WPAN (ANT-WPAN-OM-OUT-N)
479
Cisco WPAN Yagi Antenna
(ANT-WPAN-Y-OUT-N)
This chapter describes the technical specifications and installation instructions for the Cisco WPAN Yagi antenna. The antenna
is a single-port antenna designed to cover the 860 – 876 and 902 – 928 MHz ISM bands.
CAUTION: Read the information in Safety Warnings before installing or replacing antennas.
This chapter covers the following topics:

Antenna Overview

Technical Specifications

Installing the Antenna

Obtaining Documentation and Submitting a Service Request
Antenna Overview
The Cisco WPAN Yagi antenna (ANT-WPAN-Y-OUT-N) has the following features:

860 - 960 MHz operation

Directional, linearly polarized

Outdoor location

Mast mount installation

Pigtail with N female connector
Figure 1 shows the Antenna Assembly.
Cisco Systems, Inc.
480
www.cisco.com
Cisco WPAN Yagi Antenna (ANT-WPAN-Y-OUT-N)
Figure 1
Cisco ANT-WPAN-Y-OUT-N Antenna
Technical Specifications
This section contains the following:

RF Specifications

Radiation Patterns

Environmental and Mechanical Specifications
RF Specifications
The following are the Radio Frequency (RF) antenna specifications for the Cisco ANT-WPAN-Y-OUT-N Antenna:
Specification
Description
Antenna Type
Yagi antenna
Operating frequency range
860 to 960 MHz
Nominal impedance
50 ohms
VSWR
1.5:1 maximum
Gain
9 dBi typical, 10 dBi maximum
3 dB beamwidth (vertical plane)
76 degrees
3 dB beamwidth (horizontal plane)
57 degrees
Polarization
Linear
Radiation Pattern
Directional
Maximum input power
100 Watts
Radiation Patterns
The following diagrams illustrate the radiation patterns for the Cisco ANT-WPAN-Y-OUT-N Antenna:

860 MHz Antenna Radiation Pattern
481
Cisco WPAN Yagi Antenna (ANT-WPAN-Y-OUT-N)

902 MHz Antenna Radiation Pattern

910 MHz Antenna Radiation Pattern

928 MHz Antenna Radiation Pattern

960 MHz Antenna Radiation Pattern
860 MHz Antenna Radiation Pattern
Figure 2
860 MHz Antenna Radiation Pattern — Horizontal Plane
482
Cisco WPAN Yagi Antenna (ANT-WPAN-Y-OUT-N)
Figure 3
860 MHz Antenna Radiation Pattern — Vertical Plane
483
Cisco WPAN Yagi Antenna (ANT-WPAN-Y-OUT-N)
902 MHz Antenna Radiation Pattern
Figure 4
902 MHz Antenna Radiation Pattern — Horizontal Plane
484
Cisco WPAN Yagi Antenna (ANT-WPAN-Y-OUT-N)
Figure 5
902 MHz Antenna Radiation Pattern — Vertical Plane
485
Cisco WPAN Yagi Antenna (ANT-WPAN-Y-OUT-N)
910 MHz Antenna Radiation Pattern
Figure 6
910 MHz Antenna Radiation Pattern — Horizontal Plane
486
Cisco WPAN Yagi Antenna (ANT-WPAN-Y-OUT-N)
Figure 7
910 MHz Antenna Radiation Pattern — Vertical Plane
487
Cisco WPAN Yagi Antenna (ANT-WPAN-Y-OUT-N)
928 MHz Antenna Radiation Pattern
Figure 8
928 MHz Antenna Radiation Pattern — Horizontal Plane
488
Cisco WPAN Yagi Antenna (ANT-WPAN-Y-OUT-N)
Figure 9
928 MHz Antenna Radiation Pattern — Vertical Plane
489
Cisco WPAN Yagi Antenna (ANT-WPAN-Y-OUT-N)
960 MHz Antenna Radiation Pattern
Figure 10
960 MHz Antenna Radiation Pattern — Horizontal Plane
490
Cisco WPAN Yagi Antenna (ANT-WPAN-Y-OUT-N)
Figure 11
960 MHz Antenna Radiation Pattern — Vertical Plane
Environmental and Mechanical Specifications
The following are the Environmental and Mechanical Specifications for the Cisco ANT-WPAN-Y-OUT-N Antenna:
Specification
Description
Operating temperature range
-40 to 158°F (-40 to 70°C)
Mount style
Mast mount
Location
Outdoor
Connector
18” RG8 pigtail with N female connector
Dimensions
19.7 x 11.61 x 3.23 in. (50 x 29.5 x 82 cm)
Weight
2.4 lbs (1.1 kg)
Wind rating
201 km/hr (125 mph)
IP rating
IP67
Material substance compliance
RoHS compliant
Installing the Antenna
This section contains the following:

Contents of the Antenna Kit
491
Cisco WPAN Yagi Antenna (ANT-WPAN-Y-OUT-N)

Safety Warnings

Safety Instructions

Tools and Equipment Required

Preparing the Antenna for Installation

Mounting the Antenna

Connecting the Lightning Arrestor

Connecting the Antenna to the Router
Contents of the Antenna Kit
The antenna kit contains:

1 x Cisco ANT-WPAN-Y-OUT-N Antenna

1 x Mounting bracket with washers and nuts

2 x U-bolts with washers and nuts

1 x Weatherproofing kit
Safety Warnings
WARNING: Avoid using or servicing any equipment that has outdoor connections during an electrical storm.
There may be a risk of electric shock from lightning. Statement 1088
WARNING: Do not work on the system, or connect or disconnect cables, during periods of lightning activity. Statement 1001
WARNING: Do not locate the outdoor antenna near overhead power lines or other electric light or power circuits, or where it can
come into contact with such circuits. When installing the antenna, take extreme care not to come into contact with such circuits,
as they may cause serious injury or death. For proper installation and grounding of the antenna, please refer to national and local
codes (for example, U.S.:NFPA 70, National Electrical Code, Article 810, Canada:Canadian Electrical Code, Section 54).
Statement 1052
WARNING: This equipment must be grounded. Never defeat the ground conductor or operate the equipment in the absence of
a suitably installed ground conductor. Contact the appropriate electrical inspection authority or an electrician if you are uncertain
that suitable grounding is available. Statement 1024
WARNING: Only trained and qualified personnel should be allowed to install, replace, or service this equipment. Statement 1030
WARNING: To report a gas leak, do not use a telephone in the vicinity of the leak. Statement 1039
WARNING: This warning symbol means danger. You are in a situation that could cause bodily injury. Before you work on any
equipment, be aware of the hazards involved with electrical circuitry and be familiar with standard practices for preventing
accidents. Use the statement number provided at the end of each warning to locate its translation in the translated safety
warnings that accompanied this device. Statement 1071. SAVE THESE INSTRUCTIONS.
WARNING: This product is not intended to be directly connected to the Cable Distribution System. Additional regulatory
compliance and legal requirements may apply for direct connection to the Cable Distribution System. This product may connect
to the Cable Distribution System ONLY through a device that is approved for direct connection. Statement 1078
492
Cisco WPAN Yagi Antenna (ANT-WPAN-Y-OUT-N)
Safety Instructions
WARNING: Installation of this antenna near power lines is dangerous. For your safety, follow the installation directions.
Each year hundreds of people are killed or injured when attempting to install an antenna. In many of these cases, the victim was
aware of the danger of electrocution, but did not take adequate steps to avoid the hazard.
For your safety, and to help you achieve a good installation, please read and follow these safety precautions. They may save
your life!
For your safety, read and follow these safety precautions.

If you are installing an antenna for the first time, for your own safety as well as others, seek professional assistance. Your
Cisco sales representative can explain which mounting method to use for the size and type antenna you are about to install.

Plan your installation procedure carefully and completely before you begin.

Choose your installation site with safety performance in mind. Remember that electric power cables and telephone lines
look alike. For your safety, assume that any line is an electric power line until determined otherwise.

Call your local power company or building maintenance organization if you are unsure about cables close to your mounting
location.

When installing your antenna, do not use a metal ladder. Dress in rubber soled shoes and heels, rubber gloves, and a
long-sleeved shirt or jacket.

If an accident or emergency occurs with the power lines, call for qualified emergency help immediately.

Before you install an antenna, contact your Cisco account representative to explain which mounting method to use for the
size and type of antenna that you are about to install.

Find someone to help you—installing an antenna is often a two-person job.

Select your installation site with safety, as well as performance, in mind. Remember that electric power lines and phone
lines look alike. For your safety, assume that any overhead line can kill you.

Contact your electric power company. Tell them your plans and ask them to come look at your proposed installation.

Each person involved in an installation should be assigned to a specific task, and should know what to do and when to do
it. One person should be in charge of the operation to issue instructions and watch for signs of trouble.

If the assembly starts to drop, move away from it and let it fall. Because the antenna, mast, cable, and metal guy wires are
all excellent conductors of electrical current, even the slightest touch of any of these parts to a power line completes an
electrical path through the antenna and the installer.

If any part of the antenna system should come in contact with a power line, do not touch it or try to remove it yourself. Call
your local power company to have it removed safely.

If an accident occurs with the power lines, call for qualified emergency help immediately.
Tools and Equipment Required
In addition to the parts included in the antenna kit described in the Contents of the Antenna Kit, you must provide the following
tool to install the antenna on the router:

Open-ended wrench
NOTE: This list does not include the tools and equipment required to assemble and erect the tower, mast, or other structure you
intend to mount your antenna on.
493
Cisco WPAN Yagi Antenna (ANT-WPAN-Y-OUT-N)
Preparing the Antenna for Installation
NOTE: Before mounting the antenna on a mast or pole, the antenna must be attached to the mounting bracket.
To prepare the antenna for installation:

Attach the bracket to the antenna support beam. Tighten the four nuts tight enough to stabilize the antenna. Torque to 45
in.-lbs. (5.1 N-m). The bracket should be toward the back of the antenna support beam.
Mounting the Antenna
Follow these instructions to mount the antenna.
1. Attach the antenna assembly to the pole using the two U-bolts provided. The antenna elements should be vertical for
vertical polarization.
2. Tighten the nuts evenly and enough to secure the antenna on the pole. Torque the nuts to 60 in.-lbs. (6.8 N-m).
3. Connect the RF cable to the pigtail and weatherproof the connection. Be sure to secure the cable to the pole using UV
resistant tie wraps.
Connecting the Lightning Arrestor
To attach the router-end of the cable to your router, see the Dual Antenna Advanced Range Extender—Dual Antenna
Configuration section of the Cisco IR500 Series WPAN Gateway and WPAN Range Extender Installation and Configuration
Guide.
Connecting the Antenna to the Router
To attach the router-end of the cable to your router, see the Dual Antenna Advanced Range Extender—Dual Antenna
Configuration section of the Cisco IR500 Series WPAN Gateway and WPAN Range Extender Installation and Configuration
Guide.
NOTE: Coaxial cable loses efficiency as the frequency increases, resulting in signal loss. The cable should be kept as short as
possible because cable length also determines the amount of signal loss—the longer the cable length or run, the greater the
loss).
Obtaining Documentation and Submitting a Service Request
For information on obtaining documentation, submitting a service request, and gathering additional information, see the monthly
What’s New in Cisco Product Documentation, which also lists all new and revised Cisco technical documentation, at:
http://www.cisco.com/en/US/docs/general/whatsnew/whatsnew.html
Subscribe to the What’s New in Cisco Product Documentation as an RSS (Really Simple Syndication) feed, and set it so content
is delivered directly to your desktop using a reader application. The RSS feeds are a free service and Cisco currently supports
RSS Version 2.0.
Cisco and the Cisco Logo are trademarks of Cisco Systems, Inc. and/or its affiliates in the U.S. and other countries. A listing of Cisco's trademarks can be found at
www.cisco.com/go/trademarks. Third party trademarks mentioned are the property of their respective owners. The use of the word partner does not imply a partnership relationship
between Cisco and any other company. (1005R)
494
Cisco WPAN Yagi Antenna (ANT-WPAN-Y-OUT-N)
495
Cisco Indoor/Outdoor Active GPS Antenna
(GPS-ACT-ANTM-SMA)
The Cisco indoor/outdoor, active GPS antenna (GPS-ACT-ANTM-SMA) can be physically connected to the Cisco Integrated
Services Routers (ISRs) and Cisco Enhanced High-Speed WAN Interface Cards (EHWICs) to receive GPS broadcasts from
satellites.

Specifications

Installing the Cisco Active GPS Antenna

Obtaining Documentation and Submitting a Service Request
Cisco Systems, Inc.
496
www.cisco.com
Cisco Indoor/Outdoor Active GPS Antenna (GPS-ACT-ANTM-SMA)
Specifications
Figure 1
Specifications for the Cisco GPS-ACT-ANTM-SMA Antenna
Specification
Description
Maximum RF input power
1W
Power Supply
3-5VDC,
20mA typical @3V
30mA typical @5V
Amplifier Gain
27dB typical @25C
Amplifier Filter Topology
Antenna-LNA1-BPF1-LNA2-cable-SMA(m)
connector.
Due to a topology without front end filter
immediately following the antenna, antenna has
the benefit of lower noise figure, but may not be
suitable for collocation with a high power wireless
transceiver.
Connector
VSWR
SMA male
1
2:1 or less
Noise Figure
1.5dB typical @25C
Amplifier Filter Topology
Antenna-LNA1-BPF1-LNA2-cable-SMA(m)
connector.
Due to a topology without front end filter
immediately following the antenna, the antenna
has the benefit of a lower noise figure, but may not
be suitable for collocation with a high power
wireless transceiver.
Characteristic impedance
50 Ohm
Antenna base and radome color
Black
Antenna dimensions
1.7 (L) x 1.4 (W) x 0.55 (H) in.
(44 x 36 x 14mm)
Operating temperature
–40° to 185°F (–40° to 85°C)
Operating frequency ranges
1574.42-1576.42 MHz
Polarization
RHCP2
Maximum peak gain (at Boresight)
4 dBic
Shocks
50G
Drop test
10x3 axis / 1 meter drop 6 axis
Cable Length
17 foot (5.18 meters)
Mount Bracket
Metal
Anchor
1 inch. The anchor drill size is 3/16.
Screws
3 stainless-steel screws that are self-drilling pan
head #2 Phillips.
1. VSWR = voltage standing wave ratio.
2. RHCP = right hand circularly polarized.
497
Cisco Indoor/Outdoor Active GPS Antenna (GPS-ACT-ANTM-SMA)
Installing the Cisco Active GPS Antenna

Installation Guidelines for the Cisco Active GPS Antenna

Mounting the Cisco Active GPS Antenna Without Bracket

Mounting the Cisco Active GPS Antenna With the Bracket
Installation Guidelines for the Cisco Active GPS Antenna

The antenna must be placed so that the radome has a clear site to just above the horizon and a clear view of the horizon.

Antenna performance can be adversely affected by the surrounding environment such as physical obstructions or radio
frequency (RF) interference.

Avoid mounting the antenna next to a column or vertical support that could create a shadow zone and reduce the coverage
area.

Keep the antenna away from reflective metal objects that block cellular signal and make reception poor, such as heating
and air conditioning ducts, large ceiling trusses, building superstructures, and major power cabling runs. If necessary, use
an extension cable to relocate the antenna away from these obstructions.

If installing the antenna indoors, make sure it is near a window.
NOTE: The Cisco logo and product ID are printed onto the GPS-ACT-ANTM-SMA antenna radome. Position the antenna as
shown in the Figure 2.
Figure 2
Wall-Mounted Antenna
347855
17’
Mounting the Cisco Active GPS Antenna Without Bracket
Attach the antenna radome to any magnetic metal surface or stick the antenna radome onto a non-metalic surface using the
sticky back.
498
Cisco Indoor/Outdoor Active GPS Antenna (GPS-ACT-ANTM-SMA)
Mounting the Cisco Active GPS Antenna With the Bracket
1. Use the supplied metal bracket, screws and wall anchors (if necessary) to mount the antenna to a wall, as shown in Figure 3.
2. Insert the cable through the hole on top of the bracket and seat the antenna radome on the bracket as shown in Figure 3.
Figure 3
Attaching the Antenna Wall-mount
1
2
4
347858
3
Obtaining Documentation and Submitting a Service Request
For information on obtaining documentation, submitting a service request, and gathering additional information, see the monthly
What’s New in Cisco Product Documentation, which also lists all new and revised Cisco technical documentation:
http://www.cisco.com/en/US/docs/general/whatsnew/whatsnew.html
Subscribe to the What’s New in Cisco Product Documentation as an RSS feed and set content to be delivered directly to your
desktop using a reader application. The RSS feeds are a free service. Cisco currently supports RSS Version 2.0.
Cisco and the Cisco logo are trademarks or registered trademarks of Cisco and/or its affiliates in the U.S. and other countries. To view a list of Cisco trademarks, go to this URL:
www.cisco.com/go/trademarks. Third-party trademarks mentioned are the property of their respective owners. The use of the word partner does not imply a partnership relationship
between Cisco and any other company. (1110R)
Any Internet Protocol (IP) addresses and phone numbers used in this document are not intended to be actual addresses and phone numbers. Any examples, command display output,
network topology diagrams, and other figures included in the document are shown for illustrative purposes only. Any use of actual IP addresses or phone numbers in illustrative
content is unintentional and coincidental.
499
Cisco 3G/4G LTE and LTEA Omnidirectional
Dipole Antenna (LTE-ANTM-D)
First Published: 2017-02-17
Last Updated: 2017-12-05
This document provides the description, supported features, and installation instructions for the Cisco 3G/4G LTE and
LTEA Omnidirectional Dipole Antenna (LTE-ANTM-D).
Caution: Read the information in Safety Instructions, page 508 before installing or replacing antennas.
This document contains the following sections:

Overview, page 500

Specifications, page 502

Antenna Radiation Patterns, page 503

Safety Instructions, page 508

Installation Instructions, page 509

Related Documentation, page 510
Overview
The LTE-ANTM-D omnidirectional dipole antenna is designed for indoor use with Cisco 4G Long Term Evolution (LTE) and Long
Term Evolution Advanced (LTEA) Network Interface Modules (NIMs), 4G and 4G LTE Enhanced High-Speed WAN Interface
Cards (EHWICs) as well as Cisco 4G and 3G Integrated Service Routers (ISRs).
The LTE-ANTM-D antenna is marked with a dual green band to indicate that it supports Cisco LTEA routers and modules.
This antenna has the following features:

Support for frequencies of 698-960, 1448-1511, and 1710-2690 MHz.

Standalone antenna peak gain of less than 3.7 dBi in the supported frequency bands.

Articulating joint that can maneuver into three stop positions: 0°, 45°, and 90°.

Male Threaded Neill-Concelman (TNC) connector that allows direct mounting of the antenna to any Cisco supported router
with a female TNC connector.
For optimal performance, we strongly recommend that you use two antennas to take full advantage of MIMO technology on all
Cisco cellular routers that support MIMO (4G LTE and later releases).
Cisco Systems, Inc.
500
www.cisco.com
Cisco 3G/4G LTE and LTEA Omnidirectional Dipole Antenna (LTE-ANTM-D)
Figure 1
Cisco LTE-ANTM-D Omnidirectional Dipole Antenna, TNC Connector and Articulating Joint:
LTE-ANTM-D
7
4
3
6
2
5
501295
1
1
0° position
5
TNC(m) connector
2
45° position
6
Dual green band
3
90° position
7
Product ID
4
Articulating joint
501
Cisco 3G/4G LTE and LTEA Omnidirectional Dipole Antenna (LTE-ANTM-D)
Specifications
Table 1
Specifications of the LTE-ANTM-D antenna:
Operating Frequencies
698-960 MHz
1447-1511 MHz
1710-2690 MHz
Polarization
Vertical, linear
Nominal Impedance
50 Ohms
Peak Gain
2.0 dBi (698-960 MHz)
2.8 dBi (1447-1511 MHz)
3.7 dBi (1710-2690 MHz)
Note: The standalone antenna peak gain numbers are provided above. When you
install an antenna close to metallic objects or directly on chassis, the peak gain will
be affected. We recommend that you keep antennas away from very large chassis
and metallic objects. You can install antennas directly on smaller or medium size
chassis. In all cases, we recommend that you keep different antennas away from each
other and from various known sources of electromagnetic radiation.
VSWR
≤ 2.5:1 (698-960 MHz)
≤ 2.5:1 (1447-1511 MHz)
≤ 2.0:1 (1710-2690 MHz)
Maximum RF Input Power
5W
DC Power
No DC power required for LTE-ANTM-D antenna operation.
Dimensions
9” (L) x 1.46” (W) x 0.43” (D) (229 x 37 x 11 mm)
Weight
56.8 grams
Efficiency
LTE-ANTM-D antennas have high standalone efficiency, and maintain high efficiency
when directly installed on front plate of a small or medium size Cisco router. However,
depending on chassis size and a variety of other electromagnetic considerations,
installing the antenna directly on the chassis is not always recommended.
Temperature Range
-30°C to + 70°C (Operating)
-40°C to + 85°C (Storage)
502
Cisco 3G/4G LTE and LTEA Omnidirectional Dipole Antenna (LTE-ANTM-D)
Antenna Radiation Patterns
Figure 2
698, 824, 960 MHz Cellular Antenna Radiation Pattern (dBi), Azimuth
XY Plane
0
5
X
0
330
30
698MHz
-5
Avg (dBi) = 0.72
Peak (dBi) = 1.31
Avg -3 (deg) = 360
-10
-15
300
60
-20
824MHz
Avg (dBi) = -1.37
Peak (dBi) = 0.02
Avg -3 (deg) = 235
-25
-35
90
-40
Y
270
960MHz
Avg (dBi) = -0.87
Peak (dBi) = 0.52
Avg -3 (deg) = 305
120
240
150
210
180
Phi Angle (°)
698MHz
824MHz
503
960MHz
366531
Gain (dBi)
-30
Cisco 3G/4G LTE and LTEA Omnidirectional Dipole Antenna (LTE-ANTM-D)
Figure 3
698, 824, 960 MHz Cellular Antenna Radiation Pattern (dBi), Elevation, Phi = 0
ZX Plane
0
5
0
330
Z
30
698MHz
-5
Avg (dBi) = -5.08
Peak (dBi) = 1.35
Avg -3 (deg) = 140
-10
-15
300
60
824MHz
-20
Avg (dBi) = -5.14
Peak (dBi) = 1.28
Avg -3 (deg) = 120
-25
-30
960MHz
90
-40
X
270
Avg (dBi) = -5.22
Peak (dBi) = 1.42
Avg -3 (deg) = 95
120
240
150
210
180
Theta Angle (°)
698MHz
504
824MHz
960MHz
366532
Gain (dBi)
-35
Cisco 3G/4G LTE and LTEA Omnidirectional Dipole Antenna (LTE-ANTM-D)
Figure 4
698, 824, 960 MHz Cellular Antenna Radiation Pattern (dBi), Elevation, Phi = 90
YZ Plane
0
5
0
330
Z
698MHz
30
Avg (dBi) = -5.14
Peak (dBi) = 1.45
Avg -3 (deg) = 125
-5
-10
-15
300
824MHz
60
Avg (dBi) = -5.38
Peak (dBi) = 1.31
Avg -3 (deg) = 105
-20
-25
-30
960MHz
90
-40
270
Y
Avg (dBi) = -6.08
Peak (dBi) = 1.51
Avg -3 (deg) = 95
120
240
150
210
180
Theta Angle (°)
698MHz
824MHz
505
960MHz
366533
Gain (dBi)
-35
Cisco 3G/4G LTE and LTEA Omnidirectional Dipole Antenna (LTE-ANTM-D)
Figure 5
1710, 2170, 2690 MHz Antenna Radiation Pattern (dBi), Azimuth
XY Plane
0
5
0
330
X
1710MHz
30
Avg (dBi) = -3.45
Peak (dBi) = -0.89
Avg -3 (deg) = 230
-5
-10
-15
300
2170MHz
60
Avg (dBi) = -2.26
Peak (dBi) = -0.77
Avg -3 (deg) = 295
-20
-25
2690MHz
-35
90
-40
270
Avg (dBi) = -1.54
Peak (dBi) = 0.64
Avg -3 (deg) = 250
Y
120
240
150
210
180
Phi Angle (°)
1710MHz
2170MHz
506
2690MHz
366534
Gain (dBi)
-30
Cisco 3G/4G LTE and LTEA Omnidirectional Dipole Antenna (LTE-ANTM-D)
Figure 6
1710, 2170, 2690 MHz Antenna Radiation Pattern (dBi), Elevation, Phi = 0
ZX Plane
0
5
Z
30
0
330
1710MHz
Avg (dBi) = -2.36
Peak (dBi) = 1.23
Avg -3 (deg) = 185
-5
-10
-15
300
60
2170MHz
-20
Avg (dBi) = -2.90
Peak (dBi) = 2.1
Avg -3 (deg) = 155
-25
2690MHz
-35
Avg (dBi) = -3.26
90
Peak (dBi) = 2.8
Avg -3 (deg) = 125
-40
X
270
120
240
150
210
180
Theta Angle (°)
1710MHz
2170MHz
507
2690MHz
366535
Gain (dBi)
-30
Cisco 3G/4G LTE and LTEA Omnidirectional Dipole Antenna (LTE-ANTM-D)
Figure 7
1710, 2170, 2690 MHz Antenna Radiation Pattern (dBi), Elevation, Phi = 90
YZ Plane
0
5
Z
0
330
30
1710MHz
Avg (dBi) = -4.53
Peak (dBi) = 2.10
Avg -3 (deg) = 125
-5
-10
-15
300
60
2170MHz
-20
Avg (dBi) = -4.42
Peak (dBi) = 1.83
Avg -3 (deg) = 95
-25
-30
2690MHz
Gain (dBi)
-35
90
-40
Y
270
Avg (dBi) = -4.65
Peak (dBi) = 1.88
Avg -3 (deg) = 110
120
240
150
210
1710MHz
Theta Angle (°)
2170MHz
2690MHz
366536
180
Safety Instructions
Warning: IMPORTANT SAFETY INSTRUCTIONS
A warning means danger. You are in a situation that could cause bodily injury. Before you work on any equipment, be aware
of the hazards involved with electrical circuitry and be familiar with standard practices for preventing accidents.
SAVE THESE INSTRUCTIONS
Follow these safety instructions when installing the antenna.
Antenna Installation Warning
Warning: In order to comply with FCC radio frequency (RF) exposure limits, antennas should be located at a minimum of
7.9 inches (20 cm) or more from the body of all persons.
Warning: When installing or replacing the unit, the ground connection must always be made first and disconnected last.
508
Cisco 3G/4G LTE and LTEA Omnidirectional Dipole Antenna (LTE-ANTM-D)
Caution: Do not install the antenna in an outdoor environment.
Caution: For your physical safety, and to help you install your antenna successfully, follow these safety
precautions.

Plan your installation procedure carefully and completely before you begin.

Choose your installation site with both safety and performance in mind.

If you are installing an antenna for the first time, for your own safety as well as others, seek professional assistance. Your
Cisco sales representative can explain which mounting method to use for the size and type of antenna you are about to
install.

Before you install an antenna, contact your Cisco account representative to explain which mounting method to use for the
size and type of antenna that you are about to install.
Installation Instructions
The following section contains information for installing the LTE-ANTM-D antenna:
This antenna is designed to be mounted either directly or on an antenna extension stand to any Cisco 3G/4G wireless ISR, LTE
and LTEA NIMs and 3G/4G EHWICs with a TNC connector by threading it onto the mating connector. Refer to the routers
technical documentation for recommendations of direct mounting of antenna to the router versus installing the antenna on an
antenna extension stand. Mount and deploy the antenna at the 0° position, 45° position, or the 90° position, and then change
that position at will. The rotation of the antenna into the proper position can take place while the antenna is still loose on the
mating connector. No software is required for this installation.
In addition to the antenna orientation, the installation location of 4G routers wireless EHWIC plays a significant role in determining
overall network performance. Routers located at the farthest coverage points might have 10 to 50 percent of the bandwidth
available compared to routers located closer to the cellular base station tower.
Because antennas transmit and receive radio signals, their performance can be adversely affected by the surrounding
environment, including physical obstructions. Radio frequency (RF) interference may occur between wireless systems located
close to each other, especially if the antennas of these systems are located close to each other.
Follow these guidelines to ensure the best possible performance:

When used on a modular router with an EHWIC or a NIM module, always mount the antenna on an appropriate extension
cable and antenna stand. The antenna performance, and hence that of the router, will not be optimal if mounted directly to
an EHWIC or NIM module.

Mounting of the antenna directly to smaller physical size routers is allowed.

For optimal performance, space multiple antennas apart by at least 17 inches (43 cm).

Wherever possible, mount the EHWIC (or NIM) and antenna where the cellular base station or tower are within sight and
without physical obstructions. Barriers along the line of sight between the device and the local base station will degrade
the wireless radio signals. EHWICs, NIMs and antennas should be installed above floor level in office environments or near
the ceiling for better performance because most obstructions tend to be near floor level.

The density of the materials used in a building’s construction determines the number of walls the signal must pass through
while still maintaining adequate coverage. Consider the following before choosing the location for installing your antenna:
—
Paper and vinyl walls have very little effect on signal penetration.
—
Solid and precast concrete walls limit signal penetration to one or two walls without degradation of coverage.
—
Concrete and wood block walls limit signal penetration to three or four walls.
—
A signal can penetrate five or six walls constructed of drywall or wood.
509
Cisco 3G/4G LTE and LTEA Omnidirectional Dipole Antenna (LTE-ANTM-D)
—
A thick metal wall or wire-mesh stucco wall causes signals to reflect back and causes poor penetration.

Avoid mounting the antenna next to a column or vertical support that could create a shadow zone and reduce the coverage
area.

Keep the antenna away from reflective metal objects such as heating and air-conditioning ducts, large ceiling trusses,
building superstructures, and major power cabling runs. If necessary, use an extension cable to relocate the antenna away
from these obstructions.
Related Documentation

For information about antennas and modules, see:
http://www.cisco.com/go/cg-modules

For information about omnidirectional and directional antennas, see:
http://www.cisco.com/en/US/tech/tk722/tk809/technologies_tech_note09186a00807f34d3.shtml
Communications, Services, and Additional Information

To receive timely, relevant information from Cisco, sign up at Cisco Profile Manager.

To get the business impact you’re looking for with the technologies that matter, visit Cisco Services.

To submit a service request, visit Cisco Support.

To discover and browse secure, validated enterprise-class apps, products, solutions and services, visit Cisco Marketplace.

To obtain general networking, training, and certification titles, visit Cisco Press.

To find warranty information for a specific product or product family, access Cisco Warranty Finder.
Cisco Bug Search Tool
Cisco Bug Search Tool (BST) is a web-based tool that acts as a gateway to the Cisco bug tracking system that maintains a
comprehensive list of defects and vulnerabilities in Cisco products and software. BST provides you with detailed defect
information about your products and software.
Cisco and the Cisco logo are trademarks or registered trademarks of Cisco and/or its affiliates in the U.S. and other countries. To view a list of Cisco trademarks, go to this URL:
www.cisco.com/go/trademarks. Third-party trademarks mentioned are the property of their respective owners. The use of the word partner does not imply a partnership relationship
between Cisco and any other company. (1721R)
Any Internet Protocol (IP) addresses used in this document are not intended to be actual addresses. Any examples, command
display output, and figures included in the document are shown for illustrative purposes only. Any use of actual IP addresses in
illustrative content is unintentional and coincidental.
© 2017 Cisco Systems, Inc. All rights reserved.
510
Cisco 3G/4G LTE and LTEA Omnidirectional Dipole Antenna (LTE-ANTM-D)
511
Cisco 4G LTEA, 4G LTE, and 3G
Omnidirectional Dipole Antenna
(LTE-ANTM-SMA-D)
Last Updated: 2/12/2018
This document provides the description, supported features, and installation instructions for the Cisco 3G/4G LTE and
LTEA Omnidirectional Dipole Antenna (LTE-ANTM-SMA-D).
Caution: Read the information in Safety Instructions, page 520 before installing or replacing antennas.
This document contains the following sections:

Overview, page 512

Specifications, page 513

Antenna Radiation Patterns, page 515

Safety Instructions, page 520

Installation Instructions, page 521

Related Documentation, page 522
Overview
The LTE-ANTM-SMA-D omnidirectional dipole antenna is designed for indoor use with Cisco 4G Long Term Evolution (LTE) and
Long Term Evolution Advanced (LTEA) Service Routers (ISRs) and Pluggable Modules with an SMA connector.
The LTE-ANTM-SMA-D antenna is marked with a dual green band to indicate that it supports Cisco LTEA routers and modules.
This antenna has the following features:

Support for frequencies of 698-960, 1448-1511, and 1710-2690 MHz.

Standalone antenna peak gain of less than 3.7 dBi in the supported frequency bands.

Articulating joint that can maneuver into three stop positions: 0°, 45°, and 90°.

Male SubMiniature A connector that allows direct mounting of the antenna to any Cisco supported router or Pluggable
Module with an SMA connector.

The SMA connector design has added rotational frictional torque to ensure the SMA interface stays properly mated, and to
reduce chances of a disconnect. The design is also more finger friendly compared to a classic SMA hex nut design.
For optimal performance, we strongly recommend that you use two antennas to take full advantage of MIMO technology on all
Cisco cellular routers that support MIMO (4G LTE and later releases).
Cisco Systems, Inc.
512
www.cisco.com
Cisco 4G LTEA, 4G LTE, and 3G Omnidirectional Dipole Antenna (LTE-ANTM-SMA-D)
Figure 1
Cisco LTE-ANTM-SMA-D Omnidirectional Dipole Antenna, SMA Connector and Articulating Joint:
1
0° position
5
SMA connector
2
45° position
6
Dual green band
3
90° position
7
Product ID
4
Articulating joint
Specifications
Table 1
Specifications of the LTE-ANTM-SMA-D antenna:
Operating Frequencies
698-960 MHz
1447-1511 MHz
1710-2690 MHz
Polarization
Vertical, linear
Nominal Impedance
50 Ohms
Peak Gain
2.0 dBi (698-960 MHz)
2.8 dBi (1447-1511 MHz)
3.7 dBi (1710-2690 MHz)
Note: The standalone antenna peak gain numbers are provided above. When you
install an antenna close to metallic objects or directly on chassis, the peak gain will
be affected. We recommend that you keep antennas away from very large chassis
and metallic objects. You can install antennas directly on smaller or medium size
chassis. In all cases, we recommend that you keep different antennas away from each
other and from various known sources of electromagnetic radiation.
513
Cisco 4G LTEA, 4G LTE, and 3G Omnidirectional Dipole Antenna (LTE-ANTM-SMA-D)
Table 1
Specifications of the LTE-ANTM-SMA-D antenna:
VSWR
≤ 2.5:1 (698-960 MHz)
≤ 2.5:1 (1447-1511 MHz)
≤ 2.0:1 (1710-2690 MHz)
Maximum RF Input Power
5W
DC Power
No DC power required for LTE-ANTM-SMA-D antenna operation.
Dimensions
9” (L) x 1.46” (W) x 0.43” (D) (229 x 37 x 11 mm)
Weight
56.8 grams
Efficiency
LTE-ANTM-SMA-D antennas have high standalone efficiency, and maintain high
efficiency when directly installed on front plate of a small or medium size Cisco router.
However, depending on chassis size and a variety of other electromagnetic
considerations, installing the antenna directly on the chassis is not always
recommended.
Temperature Range
-30°C to + 70°C (Operating)
-40°C to + 85°C (Storage)
514
Cisco 4G LTEA, 4G LTE, and 3G Omnidirectional Dipole Antenna (LTE-ANTM-SMA-D)
Antenna Radiation Patterns
Figure 2
698, 824, 960 MHz Cellular Antenna Radiation Pattern (dBi), Azimuth
XY Plane
0
5
X
0
330
30
698MHz
-5
Avg (dBi) = 0.72
Peak (dBi) = 1.31
Avg -3 (deg) = 360
-10
-15
300
60
-20
824MHz
Avg (dBi) = -1.37
Peak (dBi) = 0.02
Avg -3 (deg) = 235
-25
-35
90
-40
Y
270
960MHz
Avg (dBi) = -0.87
Peak (dBi) = 0.52
Avg -3 (deg) = 305
120
240
150
210
180
Phi Angle (°)
698MHz
824MHz
515
960MHz
366531
Gain (dBi)
-30
Cisco 4G LTEA, 4G LTE, and 3G Omnidirectional Dipole Antenna (LTE-ANTM-SMA-D)
Figure 3
698, 824, 960 MHz Cellular Antenna Radiation Pattern (dBi), Elevation, Phi = 0
ZX Plane
0
5
0
330
Z
30
698MHz
-5
Avg (dBi) = -5.08
Peak (dBi) = 1.35
Avg -3 (deg) = 140
-10
-15
300
60
824MHz
-20
Avg (dBi) = -5.14
Peak (dBi) = 1.28
Avg -3 (deg) = 120
-25
-30
960MHz
90
-40
X
270
Avg (dBi) = -5.22
Peak (dBi) = 1.42
Avg -3 (deg) = 95
120
240
150
210
180
Theta Angle (°)
698MHz
516
824MHz
960MHz
366532
Gain (dBi)
-35
Cisco 4G LTEA, 4G LTE, and 3G Omnidirectional Dipole Antenna (LTE-ANTM-SMA-D)
Figure 4
698, 824, 960 MHz Cellular Antenna Radiation Pattern (dBi), Elevation, Phi = 90
YZ Plane
0
5
0
330
Z
698MHz
30
Avg (dBi) = -5.14
Peak (dBi) = 1.45
Avg -3 (deg) = 125
-5
-10
-15
300
824MHz
60
Avg (dBi) = -5.38
Peak (dBi) = 1.31
Avg -3 (deg) = 105
-20
-25
-30
960MHz
90
-40
270
Y
Avg (dBi) = -6.08
Peak (dBi) = 1.51
Avg -3 (deg) = 95
120
240
150
210
180
Theta Angle (°)
698MHz
824MHz
517
960MHz
366533
Gain (dBi)
-35
Cisco 4G LTEA, 4G LTE, and 3G Omnidirectional Dipole Antenna (LTE-ANTM-SMA-D)
Figure 5
1710, 2170, 2690 MHz Antenna Radiation Pattern (dBi), Azimuth
XY Plane
0
5
0
330
X
1710MHz
30
Avg (dBi) = -3.45
Peak (dBi) = -0.89
Avg -3 (deg) = 230
-5
-10
-15
300
2170MHz
60
Avg (dBi) = -2.26
Peak (dBi) = -0.77
Avg -3 (deg) = 295
-20
-25
2690MHz
-35
90
-40
270
Avg (dBi) = -1.54
Peak (dBi) = 0.64
Avg -3 (deg) = 250
Y
120
240
150
210
180
Phi Angle (°)
1710MHz
2170MHz
518
2690MHz
366534
Gain (dBi)
-30
Cisco 4G LTEA, 4G LTE, and 3G Omnidirectional Dipole Antenna (LTE-ANTM-SMA-D)
Figure 6
1710, 2170, 2690 MHz Antenna Radiation Pattern (dBi), Elevation, Phi = 0
ZX Plane
0
5
Z
30
0
330
1710MHz
Avg (dBi) = -2.36
Peak (dBi) = 1.23
Avg -3 (deg) = 185
-5
-10
-15
300
60
2170MHz
-20
Avg (dBi) = -2.90
Peak (dBi) = 2.1
Avg -3 (deg) = 155
-25
2690MHz
-35
Avg (dBi) = -3.26
90
Peak (dBi) = 2.8
Avg -3 (deg) = 125
-40
X
270
120
240
150
210
180
Theta Angle (°)
1710MHz
2170MHz
519
2690MHz
366535
Gain (dBi)
-30
Cisco 4G LTEA, 4G LTE, and 3G Omnidirectional Dipole Antenna (LTE-ANTM-SMA-D)
Figure 7
1710, 2170, 2690 MHz Antenna Radiation Pattern (dBi), Elevation, Phi = 90
YZ Plane
0
5
Z
0
330
30
1710MHz
Avg (dBi) = -4.53
Peak (dBi) = 2.10
Avg -3 (deg) = 125
-5
-10
-15
300
60
2170MHz
-20
Avg (dBi) = -4.42
Peak (dBi) = 1.83
Avg -3 (deg) = 95
-25
-30
2690MHz
Gain (dBi)
-35
90
-40
Y
270
Avg (dBi) = -4.65
Peak (dBi) = 1.88
Avg -3 (deg) = 110
120
240
150
210
1710MHz
Theta Angle (°)
2170MHz
2690MHz
366536
180
Safety Instructions
Warning: IMPORTANT SAFETY INSTRUCTIONS
A warning means danger. You are in a situation that could cause bodily injury. Before you work on any equipment, be aware
of the hazards involved with electrical circuitry and be familiar with standard practices for preventing accidents.
SAVE THESE INSTRUCTIONS
Follow these safety instructions when installing the antenna.
Antenna Installation Warning
Warning: In order to comply with FCC radio frequency (RF) exposure limits, antennas should be located at a minimum of
7.9 inches (20 cm) or more from the body of all persons.
Warning: When installing or replacing the unit, the ground connection must always be made first and disconnected last.
520
Cisco 4G LTEA, 4G LTE, and 3G Omnidirectional Dipole Antenna (LTE-ANTM-SMA-D)
Caution: Do not install the antenna in an outdoor environment.
Caution: For your physical safety, and to help you install your antenna successfully, follow these safety
precautions.

Plan your installation procedure carefully and completely before you begin.

Choose your installation site with both safety and performance in mind.

If you are installing an antenna for the first time, for your own safety as well as others, seek professional assistance. Your
Cisco sales representative can explain which mounting method to use for the size and type of antenna you are about to
install.

Before you install an antenna, contact your Cisco account representative to explain which mounting method to use for the
size and type of antenna that you are about to install.
Installation Instructions
The following section contains information for installing the LTE-ANTM-SMA-D antenna:
This antenna is designed to be mounted either directly or on an antenna extension stand to any Cisco 3G/4G wireless ISR, LTE
and LTEA router with an SMA(f) connector by threading it onto the mating connector. Refer to the routers technical
documentation for recommendations of direct mounting of antenna to the router versus installing the antenna on an antenna
extension stand. Mount and deploy the antenna at the 0° position, 45° position, or the 90° position, and then change that
position at will. The rotation of the antenna into the proper position can take place while the antenna is still loose on the mating
connector. No software is required for this installation.
In addition to the antenna orientation, the installation location of 4G routers and cellular modules play a significant role in
determining overall network performance. Routers located at the farthest coverage points might have 10 to 50 percent of the
bandwidth available compared to routers located closer to the cellular base station tower.
Because antennas transmit and receive radio signals, their performance can be adversely affected by the surrounding
environment, including physical obstructions. Radio frequency (RF) interference may occur between wireless systems located
close to each other, especially if the antennas of these systems are located close to each other.
Follow these guidelines to ensure the best possible performance:

When you use the antenna on a modular router with an LTE pluggable module, always mount the antenna on an appropriate
extension cable and antenna stand. The antenna performance, and therefore that of the router, will not be optimal if
mounted directly to the pluggable module.

Mounting of the antenna directly to smaller physical size routers is allowed.

For optimal performance, space multiple antennas apart by at least 17 inches (43 cm).

The lowest LTE frequency of 700 MHz 17 inches represents 1 wavelength. Spacing of 0.5 wavelength or 8.5 inch (22.5cm)
results in good performance.

Spacing of less than 8.5 inch may result in significantly reduced MIMO performance.

Spacing antennas close to each other (e.g. 3") results in antennas detuning from their original designed performance due
to antenna coupling.

Wherever possible, mount the ISR cellular router or the pluggable LTE module and antenna where the cellular base station
or tower are within sight and without physical obstructions. Barriers along the line of sight between the device and the local
base station will degrade the wireless radio signals. Install ISR cellular routers, pluggable modules and antennas above floor
level in office environments or near the ceiling for better performance because most obstructions tend to be near the floor
level.
521
Cisco 4G LTEA, 4G LTE, and 3G Omnidirectional Dipole Antenna (LTE-ANTM-SMA-D)

The density of the materials used in a building’s construction determines the number of walls the signal must pass through
while still maintaining adequate coverage. Consider the following before choosing the location for installing your antenna:
—
Paper and vinyl walls have very little effect on signal penetration.
—
Solid and precast concrete walls limit signal penetration to one or two walls without degradation of coverage.
—
Concrete and wood block walls limit signal penetration to three or four walls.
—
A signal can penetrate five or six walls constructed of drywall or wood.
—
A thick metal wall or wire-mesh stucco wall causes signals to reflect back and causes poor penetration.

Avoid mounting the antenna next to a column or vertical support that could create a shadow zone and reduce the coverage
area.

Keep the antenna away from reflective metal objects such as heating and air-conditioning ducts, large ceiling trusses,
building superstructures, and major power cabling runs. If necessary, use an extension cable to relocate the antenna away
from these obstructions.
Related Documentation

For information about antennas and modules, see:
http://www.cisco.com/go/cg-modules

For information about omnidirectional and directional antennas, see:
http://www.cisco.com/en/US/tech/tk722/tk809/technologies_tech_note09186a00807f34d3.shtml
Communications, Services, and Additional Information

To receive timely, relevant information from Cisco, sign up at Cisco Profile Manager.

To get the business impact you’re looking for with the technologies that matter, visit Cisco Services.

To submit a service request, visit Cisco Support.

To discover and browse secure, validated enterprise-class apps, products, solutions and services, visit Cisco Marketplace.

To obtain general networking, training, and certification titles, visit Cisco Press.

To find warranty information for a specific product or product family, access Cisco Warranty Finder.
Cisco Bug Search Tool
Cisco Bug Search Tool (BST) is a web-based tool that acts as a gateway to the Cisco bug tracking system that maintains a
comprehensive list of defects and vulnerabilities in Cisco products and software. BST provides you with detailed defect
information about your products and software.
Cisco and the Cisco logo are trademarks or registered trademarks of Cisco and/or its affiliates in the U.S. and other countries. To view a list of Cisco trademarks, go to this URL:
www.cisco.com/go/trademarks. Third-party trademarks mentioned are the property of their respective owners. The use of the word partner does not imply a partnership relationship
between Cisco and any other company. (1721R)
Any Internet Protocol (IP) addresses used in this document are not intended to be actual addresses. Any examples, command
display output, and figures included in the document are shown for illustrative purposes only. Any use of actual IP addresses in
illustrative content is unintentional and coincidental.
© 2018 Cisco Systems, Inc. All rights reserved.
522
Cisco 4G LTEA, 4G LTE, and 3G Omnidirectional Dipole Antenna (LTE-ANTM-SMA-D)
523
Outdoor Panel Antenna for WiMAX 1.8,
2.5, and 3.8 GHz
The Outdoor Panel Antenna for WiMAX is designed to cover frequencies from 1.8 to 3.x GHz and support the Cisco CGR 1240
and the 1120 routers. This document provides the antenna specifications and mounting instructions.

WiMAX 1.8 GHz is designed to cover frequencies from 1.8 to 1.83GHz (ANT-1.8-PNL-OUT-N)

WiMAX 2.5 GHz is designed to cover frequencies from 2.3 to 2.7 GHz (ANT-2.X-PNL-OUT-N)

WiMAX 3.x GHz is designed to cover frequencies from 3.3 to 3.8 GHz (ANT-3.X-PNL-OUT-N)
This chapter covers the following topics:

WiMAX 1.8 GHz Technical Specifications

WiMAX 2.5 GHz Technical Specifications

WiMAX 3.8 GHz Technical Specifications

Safety Warnings

Antenna Installation

Connecting the Antenna to the Router

Obtaining Documentation and Submitting a Service Request
Flat Panel WiMAX Antenna
300643
Figure 35-1
WiMAX 1.8 GHz Technical Specifications
The WiMAX 1.8 GHz antenna features the following:

Low profile

Wall mount, pipe mount

Indoor and outdoors
Cisco Systems, Inc.
524
www.cisco.com
Outdoor Panel Antenna for WiMAX 1.8, 2.5, and 3.8 GHz

Panel mounted type N female connector

Adjustable mounting brackets for outdoor installations
This section lists the technical information for the Flat Panel Outdoor WiMAX Antenna.
RF Specifications
Specification
Description
Frequency
1.8 to 1.83 GHz
VSWR
< 1.5
Nominal gain
16 +/- 1 dBi
3 dB horizontal beamwidth
22’
3 dB vertical beamwidth
22’
F/B ratio total power
> 20 dB
Polarization
Dual linear (vertical and horizontal) or slant +/- 45 degrees
Nominal impedance
50 ohms
Radiation pattern
Directional
Mechanical Specifications
Specification
Description
Type
Directional panel
Polarization
Dual linear
Mount style
Wall or pipe mount (adjustable mount included)
Environment
Outdoor
Termination
N female (x2)
Antenna size
14.5 x 14.5 x 1.75 in. (36.8 x 36.8 x 4.4 cm)
Weight
3.5 lbs (1.6 kg)
Temperature range (operating)
-40 to 185-degrees F (-40 to 85-degrees C)
Maximum input power
20 Watts
Radome material
UL94-V0 ASA radome
Material substance compliance
ROHS compliant
WiMAX 2.5 GHz Technical Specifications
The WiMAX 2.5 antenna Panel Outdoor 3G directional panel antenna features the following:

Low profile

Wall mount, pipe mount

Indoor and outdoors

2 x type N female connector
525
Outdoor Panel Antenna for WiMAX 1.8, 2.5, and 3.8 GHz
This section lists the technical information for the Flat Panel Outdoor WiMAX Antenna.
Specification
Description
Type
Directional panel
Frequency
2.3 to 2.7 GHz
Nominal gain
16 dBi, (2.3 to 2.4 GHz)
18 dBi (2.4 to 2.7 GHz)
Polarization
Dual linear (vertical and horizontal) or slant +/- 45 degrees
Maximum input power
25 Watts
Antenna
14.5 x 14.5 x 1.75 in. (36.8 x 36.8 x 4.4 cm)
Weight
3.5 lbs (1.6 kg)
Connector
Dual type N female
Mount style
Wall or pipe mount
Environment
Outdoor
Temperature range (operating)
-40 to 185-degrees F (-40 to 85-degrees C)
Radiation pattern
Directional
The Flat Panel Outdoor WiMAX Antenna has Azimuth radiation patterns:
526
Outdoor Panel Antenna for WiMAX 1.8, 2.5, and 3.8 GHz
Flat Panel WiMAX Antenna Radiation Patterns—Low Band
300685
Figure 2
WiMAX 3.8 GHz Technical Specifications
The WiMAX 3.8 GHz antenna features the following:

Low profile

Wall mount, pipe mount

Indoor and outdoors

2 x type N female connector
This section lists the technical information for the Flat Panel Outdoor WiMAX Antenna.
527
Outdoor Panel Antenna for WiMAX 1.8, 2.5, and 3.8 GHz
Specification
Description
Type
Directional panel
Frequency
3.3 to 3.8 GHz
Nominal gain
18 dBi
Polarization
Dual linear (vertical and horizontal) or slant +/- 45 degrees
Maximum input power
25 Watts
Antenna size
14.5 x 14.5 x 1.75 in. (36.8 x 36.8 x 4.4 cm)
Weight
3.5 lbs (1.6 kg)
Connector
Dual type N female
Mount Style
Wall or pipe mount
Environment
Outdoor
Temperature range (operating)
-40 to 185-degrees F (-40 to 85-degrees C)
Radiation pattern
Directional
Safety Warnings
WARNING: Avoid using or servicing any equipment that has outdoor connections during an electrical storm.
There may be a risk of electric shock from lightning. Statement 1088
WARNING: Do not work on the system, or connect or disconnect cables, during periods of lightning activity. Statement 1001
WARNING: Do not locate the outdoor antenna near overhead power lines or other electric light or power circuits, or where it can
come into contact with such circuits. When installing the antenna, take extreme care not to come into contact with such circuits,
as they may cause serious injury or death. For proper installation and grounding of the antenna, please refer to national and local
codes (for example, U.S.:NFPA 70, National Electrical Code, Article 810, Canada:Canadian Electrical Code, Section 54).
Statement 1052
WARNING: This equipment must be grounded. Never defeat the ground conductor or operate the equipment in the absence of
a suitably installed ground conductor. Contact the appropriate electrical inspection authority or an electrician if you are uncertain
that suitable grounding is available. Statement 1024
WARNING: Only trained and qualified personnel should be allowed to install, replace, or service this equipment. Statement 1030
WARNING: To report a gas leak, do not use a telephone in the vicinity of the leak. Statement 1039
WARNING: This warning symbol means danger. You are in a situation that could cause bodily injury. Before you work on any
equipment, be aware of the hazards involved with electrical circuitry and be familiar with standard practices for preventing
accidents. Use the statement number provided at the end of each warning to locate its translation in the translated safety
warnings that accompanied this device. Statement 1071. SAVE THESE INSTRUCTIONS.
WARNING: This product is not intended to be directly connected to the Cable Distribution System. Additional regulatory
compliance and legal requirements may apply for direct connection to the Cable Distribution System. This product may connect
to the Cable Distribution System ONLY through a device that is approved for direct connection. Statement 1078
WARNING: This warning symbol means danger. You are in a situation that could cause bodily injury. Before you work on any
equipment, be aware of the hazards involved with electrical circuitry and be familiar with standard practices for preventing
accidents.
528
Outdoor Panel Antenna for WiMAX 1.8, 2.5, and 3.8 GHz
Safety Precautions
WARNING: Installation of this antenna near power lines is dangerous. For your safety, follow the installation directions.
WARNING: Each year hundreds of people are killed or injured when attempting to install an antenna. In many of these cases,
the victim was aware of the danger of electrocution, but did not take adequate steps to avoid the hazard.
WARNING: For your safety, and to help you achieve a good installation, please read and follow these safety precautions. They
may save your life!
For your safety, read and follow these safety precautions.

If you are installing an antenna for the first time, for your own safety as well as others, seek professional assistance. Your
Cisco sales representative can explain which mounting method to use for the size and type antenna you are about to install.

Before you install an antenna, contact your Cisco account representative to explain which mounting method to use for the
size and type of antenna that you are about to install.

Find someone to help you—installing an antenna is often a two-person job.

Select your installation site with safety, as well as performance, in mind. Remember that electric power lines and phone
lines look alike. For your safety, assume that any overhead line can kill you.

Contact your electric power company. Tell them your plans and ask them to come look at your proposed installation.

Plan your installation carefully and completely before you begin. Each person involved in an installation should be assigned
to a specific task, and should know what to do and when to do it. One person should be in charge of the operation to issue
instructions and watch for signs of trouble.

When installing your antenna, follow these guidelines:
—
Do not use a metal ladder.
—
Do not work on a wet or windy day.
—
Do dress properly—wear shoes with rubber soles and heels, rubber gloves, and a long-sleeved shirt or jacket.

If the assembly starts to drop, move away from it and let it fall. Because the antenna, mast, cable, and metal guy wires are
all excellent conductors of electrical current, even the slightest touch of any of these parts to a power line completes an
electrical path through the antenna and the installer.

If any part of the antenna system should come in contact with a power line, do not touch it or try to remove it yourself. Call
your local power company to have it removed safely.

If an accident should occur with the power lines, call for qualified emergency help immediately.
Antenna Installation
The antenna installation includes the following procedures:

Tools and Equipment Required

Installing the Antenna
Tools and Equipment Required
In addition to the parts included in the antenna kit, you must provide the following tool to install the antenna on the router:

A flathead screwdriver
529
Outdoor Panel Antenna for WiMAX 1.8, 2.5, and 3.8 GHz

3/4 in. open-end wrench

LMR-400-DB RF coaxial cable with N (m) to N (m) connectors

Coax seal
NOTE: This list does not include the tools and equipment required to assemble and erect the tower, mast, or other structure you
intend to mount your antenna on.
Installing the Antenna
Follow these instructions to install the antenna:
1. Choose the mounting configuration that you prefer.
300675
1
1
Drain-hole locations
NOTE: Your connector type, location and quantity might differ from what is shown.
2. Attach the antenna mount bracket to the back of the antenna by using two sets of flat washers, lock washers, and hex nuts.
Tighten the nut to a torque rating of 55 in-lbf (6.2 Nm).
530
Outdoor Panel Antenna for WiMAX 1.8, 2.5, and 3.8 GHz
1
2
3
300676
4
1
1/4”-20 hex nut
2
1/4”20 spring lock washer
3
1/4”-20 flat washer
4
Antenna mount bracket
3. Attach the elevation adjustable bracket to the mount bracket using two sets of carriage bolts, washers, lock washers, and
hex nuts. Position the bolts so the carriage bolt square holes are positioned on the inside. Do not tighten fully. Allow the
bracket to move freely.
1
4
2
3
5
300677
6
1
1/4”-20 hex nut
2
1/4”-20 spring lock washer
3
1/4”-20 flat washer
4
Elevation adjustable bracket
5
Antenna-mount bracket
6
1/4”-20x3/4 carriage bolt
4. Position the azimuth adjustable (pipe) bracket to the pipe with the flanges away from the pipe. Secure each bracket to the
pipe first by routing the band clamps around the pipe, then through the two holes. Tighten to a maximum torque rating.
531
Outdoor Panel Antenna for WiMAX 1.8, 2.5, and 3.8 GHz
2
300678
1
1
Azimuth adjustable bracket
2
Pipe clamps
5. Attach the antenna assembly to the installed azimuth bracket. Position each of the two flanges on elevation adjustable
bracket (on the antenna) over the flanges on the azimuth (pipe) bracket.
532
Outdoor Panel Antenna for WiMAX 1.8, 2.5, and 3.8 GHz
5
6
1
300679
2
3
4
1
1/4”-20x3/4 carriage bolt
2
1/4”-20 spring lock washer
3
1/4”-20 flat washer
4
Elevation adjustable bracket
5
Elevation adjustable bracket
6
1/4”-20 hex nut
6. Adjust to the desired azimuth and elevation angles. Tighten all nuts and bolts to a torque rating of 55 in-lbf.
7. Attach the lightning arrestor to the router.
8. Attach the two RF cables to the antenna by connecting the ends of the LMR-400 (male) cables to the two receptacles on
the rear of the antenna panel.
533
Outdoor Panel Antenna for WiMAX 1.8, 2.5, and 3.8 GHz
1
2
3
300664
4
1
Lightning arrestor
2
N-connector: torque to 6 to 7 ft-lbs
3
Plug: torque to 6 to 7 ft-lbs
4
Ports must have either an antenna, connector, or plug
installed.
9. Seal the cable connections on the router and the back of the antenna by using weatherproof sealing tape (coax seal) at the
connector junction. Start wrapping at the top of the antenna connector, wrap downward 3 times and end about 2 inches
downward from the center of the connecter junction. Then wrap upwards another 3 times to reach the top of the antenna
connector.
10. Attach the router-end of the cable to your router.
Connecting the Antenna to the Router
To attach the router-end of the cable to your device, please refer to the appropriate Hardware Installation Procedures for the
model of hardware you are installing. Links to hardware installation guides and other information may be found in Chapter 1,
“Additional Information”.
Obtaining Documentation and Submitting a Service Request
For information on obtaining documentation, submitting a service request, and gathering additional information, see the monthly
What’s New in Cisco Product Documentation, which also lists all new and revised Cisco technical documentation, at:
http://www.cisco.com/en/US/docs/general/whatsnew/whatsnew.html
Subscribe to the What’s New in Cisco Product Documentation as an RSS (Really Simple Syndication) feed, and set it so content
is delivered directly to your desktop using a reader application. The RSS feeds are a free service and Cisco currently supports
RSS Version 2.0.
534
Outdoor Panel Antenna for WiMAX 1.8, 2.5, and 3.8 GHz
Cisco and the Cisco Logo are trademarks of Cisco Systems, Inc. and/or its affiliates in the U.S. and other countries. A listing of Cisco's trademarks can be found at
www.cisco.com/go/trademarks. Third party trademarks mentioned are the property of their respective owners. The use of the word partner does not imply a partnership relationship
between Cisco and any other company. (1005R)
