Bosch HEIP056U Benchmark 30-in Smooth Surface 5 Elements 4.6-cu ft Self-Cleaning Convection Oven Slide-In Electric Range Dimensions Guide

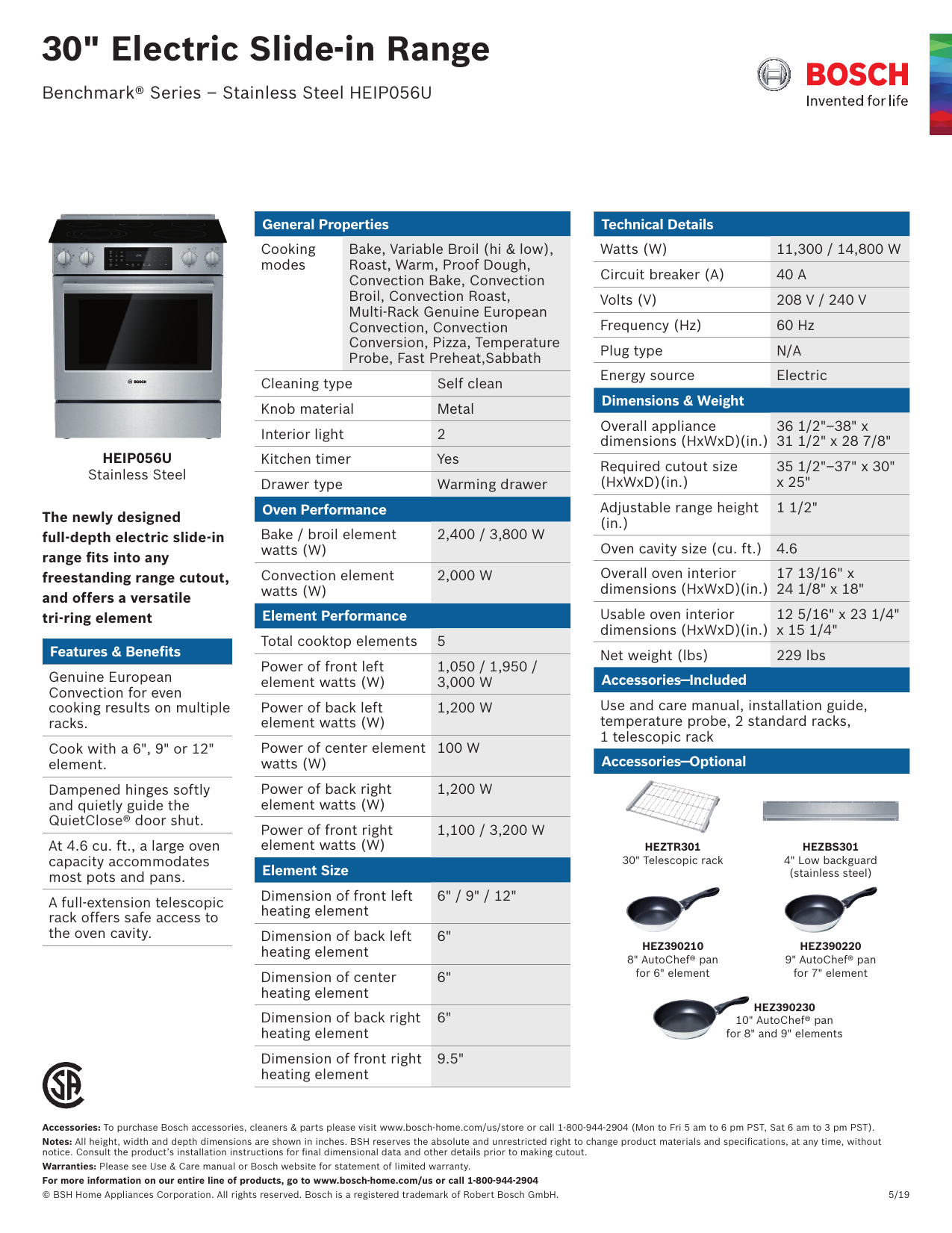

30" Electric Slide-in Range
Benchmark® Series – Stainless Steel HEIP056U
HEIP056U
Stainless Steel
The newly designed
full-depth electric slide-in
range fits into any
freestanding range cutout,
and offers a versatile
tri-ring element
Features & Benefits
Genuine European
Convection for even
cooking results on multiple
racks.
General Properties
Technical Details
Cooking
modes
Watts (W)
11,300 / 14,800 W
Circuit breaker (A)
40 A
Volts (V)
208 V / 240 V
Frequency (Hz)
60 Hz
Plug type
N/A
Energy source
Electric
Bake, Variable Broil (hi & low),
Roast, Warm, Proof Dough,
Convection Bake, Convection
Broil, Convection Roast,
Multi-Rack Genuine European
Convection, Convection
Conversion, Pizza, Temperature
Probe, Fast Preheat,Sabbath
Cleaning type
Self clean
Knob material
Metal
Interior light
2
Kitchen timer
Yes
Drawer type
Warming drawer
Oven Performance
Bake / broil element
watts (W)
2,400 / 3,800 W
Convection element
watts (W)
2,000 W
Element Performance
Total cooktop elements
5
Power of front left
element watts (W)
1,050 / 1,950 /
3,000 W
Power of back left
element watts (W)
1,200 W
Cook with a 6", 9" or 12"
element.
Power of center element 100 W
watts (W)
Dampened hinges softly
and quietly guide the
QuietClose® door shut.
Power of back right
element watts (W)
1,200 W
Power of front right
element watts (W)
1,100 / 3,200 W
At 4.6 cu. ft., a large oven
capacity accommodates
most pots and pans.
A full-extension telescopic
rack offers safe access to
the oven cavity.
Element Size
Dimension of front left
heating element
6" / 9" / 12"
Dimension of back left
heating element
6"
Dimension of center
heating element
6"
Dimension of back right
heating element
6"
Dimension of front right
heating element
9.5"
Dimensions & Weight
Overall appliance
36 1/2"–38" x
dimensions (HxWxD)(in.) 31 1/2" x 28 7/8"
Required cutout size
(HxWxD)(in.)
35 1/2"–37" x 30"
x 25"
Adjustable range height
(in.)
1 1/2"
Oven cavity size (cu. ft.)
4.6
Overall oven interior
17 13/16" x
dimensions (HxWxD)(in.) 24 1/8" x 18"
Usable oven interior
12 5/16" x 23 1/4"
dimensions (HxWxD)(in.) x 15 1/4"
Net weight (lbs)
229 lbs
Accessories—Included
Use and care manual, installation guide,
temperature probe, 2 standard racks,
1 telescopic rack
Accessories—Optional
HEZTR301
30" Telescopic rack
HEZBS301
4" Low backguard
(stainless steel)
HEZ390210
8" AutoChef® pan
for 6" element
HEZ390220
9" AutoChef® pan
for 7" element
HEZ390230
10" AutoChef® pan
for 8" and 9" elements
Accessories: To purchase Bosch accessories, cleaners & parts please visit www.bosch-home.com/us/store or call 1-800-944-2904 (Mon to Fri 5 am to 6 pm PST, Sat 6 am to 3 pm PST).
Notes: All height, width and depth dimensions are shown in inches. BSH reserves the absolute and unrestricted right to change product materials and specifications, at any time, without
notice. Consult the product’s installation instructions for final dimensional data and other details prior to making cutout.
Warranties: Please see Use & Care manual or Bosch website for statement of limited warranty.
For more information on our entire line of products, go to www.bosch-home.com/us or call 1-800-944-2904
© BSH Home Appliances Corporation. All rights reserved. Bosch is a registered trademark of Robert Bosch GmbH.
5/19
30" Electric Slide-in Range
Benchmark® Series – Stainless Steel HEIP056U
Installation Details
Accessories: To purchase Bosch accessories, cleaners & parts please visit www.bosch-home.com/us/store or call 1-800-944-2904 (Mon to Fri 5 am to 6 pm PST, Sat 6 am to 3 pm PST).
Notes: All height, width and depth dimensions are shown in inches. BSH reserves the absolute and unrestricted right to change product materials and specifications, at any time, without
notice. Consult the product’s installation instructions for final dimensional data and other details prior to making cutout.
Warranties: Please see Use & Care manual or Bosch website for statement of limited warranty.
For more information on our entire line of products, go to www.bosch-home.com/us or call 1-800-944-2904
© BSH Home Appliances Corporation. All rights reserved. Bosch is a registered trademark of Robert Bosch GmbH.
5/19
