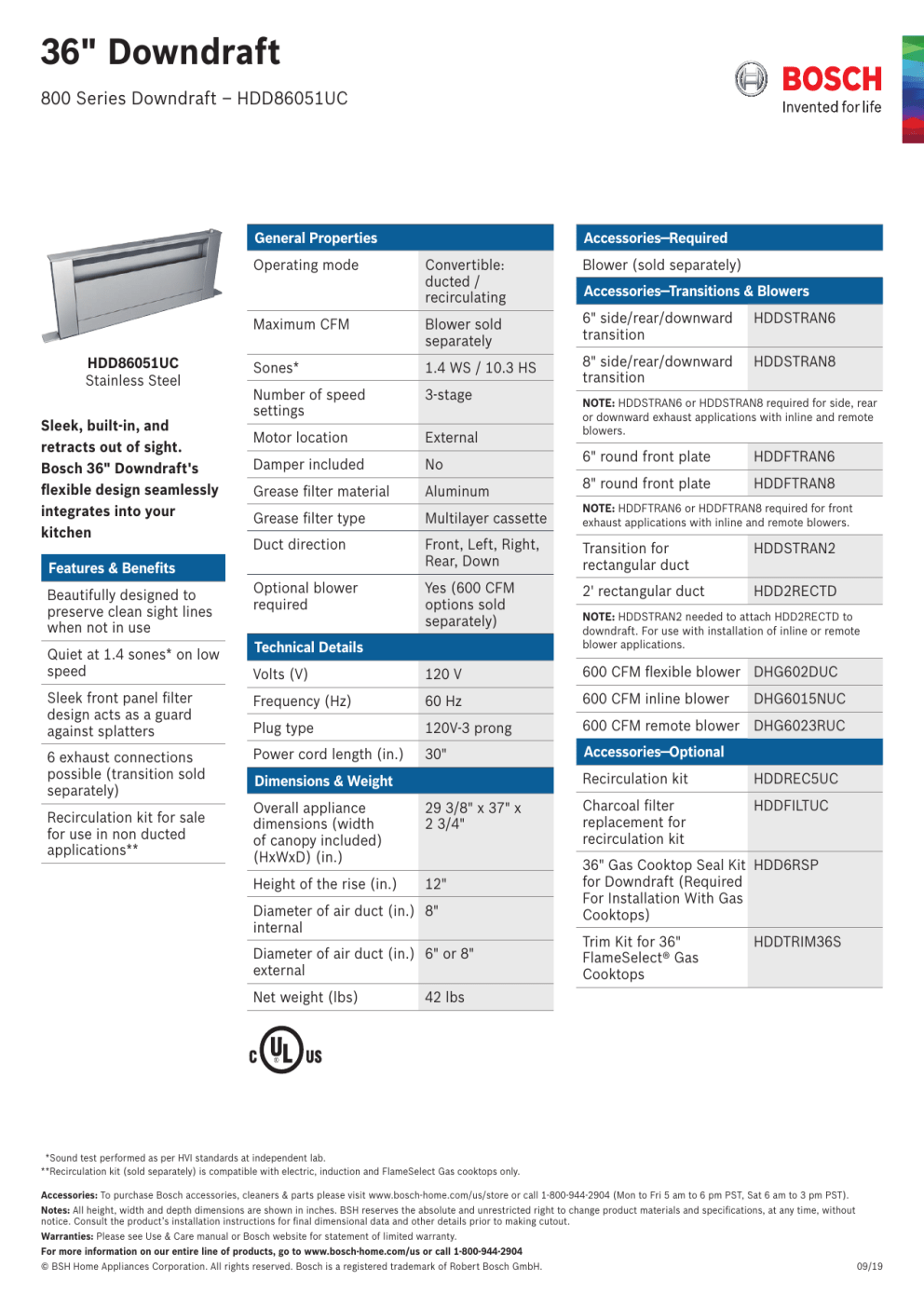

Bosch HDD86051UC 800 36-in Telescoping Stainless Steel Downdraft Range Hood Dimensions Guide

36" Downdraft
800 Series Downdraft – HDD86051UC
General Properties
Operating mode
HDD86051UC
Stainless Steel
Sleek, built-in, and
retracts out of sight.
Bosch 36" Downdraft's
flexible design seamlessly
integrates into your
kitchen
Accessories—Required
Convertible:
ducted /
recirculating
Blower (sold separately)
Maximum CFM
Blower sold
separately
6" side/rear/downward
transition
HDDSTRAN6
Sones*
1.4 WS / 10.3 HS
HDDSTRAN8
Number of speed
settings
3-stage
8" side/rear/downward
transition
Motor location
External
Damper included
No
Grease filter material
Aluminum
Accessories—Transitions & Blowers
NOTE: HDDSTRAN6 or HDDSTRAN8 required for side, rear
or downward exhaust applications with inline and remote
blowers.
6" round front plate
HDDFTRAN6
8" round front plate
HDDFTRAN8
Grease filter type
Multilayer cassette
NOTE: HDDFTRAN6 or HDDFTRAN8 required for front
exhaust applications with inline and remote blowers.
Duct direction
Front, Left, Right,
Rear, Down
Transition for
rectangular duct
HDDSTRAN2
Beautifully designed to
preserve clean sight lines
when not in use
Optional blower
required
Yes (600 CFM
options sold
separately)
2' rectangular duct
HDD2RECTD
Quiet at 1.4 sones* on low
speed
Technical Details
Volts (V)
120 V
600 CFM flexible blower DHG602DUC
Sleek front panel filter
design acts as a guard
against splatters
Frequency (Hz)
60 Hz
600 CFM inline blower
DHG6015NUC
Plug type
120V-3 prong
600 CFM remote blower
DHG6023RUC
6 exhaust connections
possible (transition sold
separately)
Power cord length (in.)
30"
Accessories—Optional
Features & Benefits
Recirculation kit for sale
for use in non ducted
applications**
Dimensions & Weight
NOTE: HDDSTRAN2 needed to attach HDD2RECTD to
downdraft. For use with installation of inline or remote
blower applications.
Recirculation kit
HDDREC5UC
HDDFILTUC
Overall appliance
dimensions (width
of canopy included)
(HxWxD) (in.)
29 3/8" x 37" x
2 3/4"
Charcoal filter
replacement for
recirculation kit
Height of the rise (in.)
12"
36" Gas Cooktop Seal Kit HDD6RSP
for Downdraft (Required
For Installation With Gas
Cooktops)
Diameter of air duct (in.) 8"
internal
Diameter of air duct (in.) 6" or 8"
external
Net weight (lbs)
Trim Kit for 36"
FlameSelect® Gas
Cooktops
HDDTRIM36S
42 lbs
*Sound test performed as per HVI standards at independent lab.
* *Recirculation kit (sold separately) is compatible with electric, induction and FlameSelect Gas cooktops only.
Accessories: To purchase Bosch accessories, cleaners & parts please visit www.bosch-home.com/us/store or call 1-800-944-2904 (Mon to Fri 5 am to 6 pm PST, Sat 6 am to 3 pm PST).
Notes: All height, width and depth dimensions are shown in inches. BSH reserves the absolute and unrestricted right to change product materials and specifications, at any time, without
notice. Consult the product’s installation instructions for final dimensional data and other details prior to making cutout.
Warranties: Please see Use & Care manual or Bosch website for statement of limited warranty.
For more information on our entire line of products, go to www.bosch-home.com/us or call 1-800-944-2904
© BSH Home Appliances Corporation. All rights reserved. Bosch is a registered trademark of Robert Bosch GmbH.
09/19
36" Downdraft
800 Series Downdraft – HDD86051UC
Installation Details
PRODUCT
CLEARANCES
Downdraft
electrical cable
is 30" long
Accessories: To purchase Bosch accessories, cleaners & parts please visit www.bosch-home.com/us/store or call 1-800-944-2904 (Mon to Fri 5 am to 6 pm PST, Sat 6 am to 3 pm PST).
Notes: All height, width and depth dimensions are shown in inches. BSH reserves the absolute and unrestricted right to change product materials and specifications, at any time, without
notice. Consult the product’s installation instructions for final dimensional data and other details prior to making cutout.
Warranties: Please see Use & Care manual or Bosch website for statement of limited warranty.
For more information on our entire line of products, go to www.bosch-home.com/us or call 1-800-944-2904
© BSH Home Appliances Corporation. All rights reserved. Bosch is a registered trademark of Robert Bosch GmbH.
09/19
36" Downdraft
800 Series Downdraft – HDD86051UC
Installation Details – Cutouts
GAS
Template
2-1/8" (54)
24-11/16" (628)
22-5/16" (567)
Downdraft cutout width:
30" (762) is 27-1/16" (687)
36" (914) is 33-1/16" (840)
19-1/8" (486)
1-1/16"
(27)
BT
MIN.
1/2"
(13)
Cooktop cutout width
1-7/8" (48)
ELECTRIC AND INDUCTION
25-7/16" - 25-9/16"
(646 - 649)
Template
2-1/8" (54)
22-11/16" - 22-13/16"
(576 - 579)
Downdraft cutout width:
30" (762) is 27-1/16" (687)
36" (914) is 33-1/16" (840)
19-7/8" - 20"
(505 - 508)
11/16"
(17)
BT
MIN.
1/2"
(13)
Cooktop cutout width
2-1/4" (57)
Accessories: To purchase Bosch accessories, cleaners & parts please visit www.bosch-home.com/us/store or call 1-800-944-2904 (Mon to Fri 5 am to 6 pm PST, Sat 6 am to 3 pm PST).
Notes: All height, width and depth dimensions are shown in inches. BSH reserves the absolute and unrestricted right to change product materials and specifications, at any time, without
notice. Consult the product’s installation instructions for final dimensional data and other details prior to making cutout.
Warranties: Please see Use & Care manual or Bosch website for statement of limited warranty.
For more information on our entire line of products, go to www.bosch-home.com/us or call 1-800-944-2904
© BSH Home Appliances Corporation. All rights reserved. Bosch is a registered trademark of Robert Bosch GmbH.
09/19
36" Downdraft
800 Series Downdraft – HDD86051UC
Accessories – Transitions
SIDE/REAR TRANSITIONS FOR DOWNDRAFT
ROUND FRONT PLATES FOR DOWNDRAFT
6" Round transition enable ducting to be at
sides, rear or below downdraft for flexible
configurations to maximize your kitchen design
HDDSTRAN6
6" Side/Rear/
Downward Transition
for Downdraft
Flexible transition design allows for left,
right, rear or downward venting
Front rough-in plate may be used with a
6" round duct or elbow
Ability to use with DHG6015NUC inline or
DHG6023RUC remote blowers
Some blower positions may need deeper
cabinets. See installation guide
6" Front rough-in plate enable ducting to be
at front of downdraft, for use with inline and
remote blower applications
HDDFTRAN6
6" Round Front Plate
for Downdraft
8" Round transition enable ducting to be at
sides, rear or below downdraft for flexible
configurations to maximize your kitchen design
HDDSTRAN8
8" Side/Rear/
Downward Transition
for Downdraft
Flexible transition design allows for left,
right, rear or downward venting
For DHG602DUC flexible downdraft blower
used as inline installation
Some blower positions may need deeper
cabinets. See installation guide
NOTE: HDDSTRAN6 or HDDSTRAN8 side/rear/downward transition required
for side, rear or downward exhaust applications with inline and remote
blowers.
F
ront rough-in plate design allows for front
venting
F
ront rough-in plate may be used with a 6"
round duct or elbow
A
bility to use with DHG6015NUC inline or
DHG6023RUC remote blowers
8" Front rough-in plate enable ducting to be
at front of downdraft, for use with inline and
remote blower applications
HDDFTRAN8
8" Round Front Plate
for Downdraft
F
ront rough-in plate design allows for front
venting
F
ront rough-in plate may be used with a 8"
round duct or elbow
F
or DHG602DUC flexible downdraft blower
used as inline installation
NOTE: HDDFTRAN6 or HDDFTRAN8 front plate required for front exhaust
applications with inline and remote blowers.
Accessories: To purchase Bosch accessories, cleaners & parts please visit www.bosch-home.com/us/store or call 1-800-944-2904 (Mon to Fri 5 am to 6 pm PST, Sat 6 am to 3 pm PST).
Notes: All height, width and depth dimensions are shown in inches. BSH reserves the absolute and unrestricted right to change product materials and specifications, at any time, without
notice. Consult the product’s installation instructions for final dimensional data and other details prior to making cutout.
Warranties: Please see Use & Care manual or Bosch website for statement of limited warranty.
For more information on our entire line of products, go to www.bosch-home.com/us or call 1-800-944-2904
© BSH Home Appliances Corporation. All rights reserved. Bosch is a registered trademark of Robert Bosch GmbH.
09/19
36" Downdraft
800 Series Downdraft – HDD86051UC
Accessories – Transitions
TRANSITION FOR RECTANGULAR DUCT FOR DOWNDRAFT
2' RECTANGULAR DUCT FOR DOWNDRAFT
2' Rectangular duct can be used as extension
to exhaust through a cabinet or wall while
maximizing cabinet storage space
Rectangular duct transition required to
connect 2’ rectangular duct to downdraft
HDDSTRAN2
Transition for
Rectangular Duct
for Downdraft
HDD2RECTD
2' Rectangular Duct
Downdraft
D
uct can be used as an extension to
exhaust through a cabinet or wall
M
ay be attached to sides or rear of
downdraft housing
H
DDRECTRN transition needed to connect
HDD2RECTD to downdraft housing
F
or use with remote or inline blowers
Accessories: To purchase Bosch accessories, cleaners & parts please visit www.bosch-home.com/us/store or call 1-800-944-2904 (Mon to Fri 5 am to 6 pm PST, Sat 6 am to 3 pm PST).
Notes: All height, width and depth dimensions are shown in inches. BSH reserves the absolute and unrestricted right to change product materials and specifications, at any time, without
notice. Consult the product’s installation instructions for final dimensional data and other details prior to making cutout.
Warranties: Please see Use & Care manual or Bosch website for statement of limited warranty.
For more information on our entire line of products, go to www.bosch-home.com/us or call 1-800-944-2904
© BSH Home Appliances Corporation. All rights reserved. Bosch is a registered trademark of Robert Bosch GmbH.
09/19
36" Downdraft
800 Series Downdraft – HDD86051UC
Accessories – 600 CFM Blowers
600 CFM inline blower
DHG6015NUC
600 CFM Inline
Blower
or use with Bosch downdrafts
F
Inline blowers can be mounted remotely to
minimize blower noise in the cooking area
Designed to be mounted inline with the
ducting installation.
Blower is mounted on roof of exterior wall
depending on application needs.
6" transition required
600 CFM flexible blower can mount to
downdraft or be used as an inline blower,
and can be rotated to exhaust downward
or to sides
DHG602DUC
600 CFM Flexible
Integral Blower –
HDD Downdrafts
C
apable up to 600 CFM in performance
B
lower is able to mount to downdraft or
be used as an inline blower
B
lower can be rotated to exhaust
downward or toward sides
A
dditional accessories may be required
for installation, see manual
600 CFM remote blower
DHG6023RUC
600 CFM Remote
Blower
or use with Bosch downdrafts
F
Can be mounted on the exterior of the home
to minimize noise in the cooking area.
Blower is mounted on roof of exterior wall
depending on application needs.
6" transition required
Accessories: To purchase Bosch accessories, cleaners & parts please visit www.bosch-home.com/us/store or call 1-800-944-2904 (Mon to Fri 5 am to 6 pm PST, Sat 6 am to 3 pm PST).
Notes: All height, width and depth dimensions are shown in inches. BSH reserves the absolute and unrestricted right to change product materials and specifications, at any time, without
notice. Consult the product’s installation instructions for final dimensional data and other details prior to making cutout.
Warranties: Please see Use & Care manual or Bosch website for statement of limited warranty.
For more information on our entire line of products, go to www.bosch-home.com/us or call 1-800-944-2904
© BSH Home Appliances Corporation. All rights reserved. Bosch is a registered trademark of Robert Bosch GmbH.
09/19
36" Downdraft
800 Series Downdraft – HDD86051UC
Accessories – Optional
Maintain performance of Bosch downdraft
recirculation kit with timely replacement of
charcoal filter to capture and filter odors
When ducting to the exterior is not feasible,
downdraft recirculation kit allows filtered air to
reenter the kitchen while cooking
HDDREC5UC
Recirculation Kit
for Downdraft
When ducting is not feasible, kit eliminates
need to exhaust outside
Air is filtered through charcoal filter, then
re-enters kitchen
Includes recirculation module, filter and
metal grille vent plate
Designed to work with both 30" and 36"
bosch downdrafts, HDD series
Use with induction/electric cooktops only
HDDFILTUC
Charcoal Filter
Replacement for
Recirculation Kit
for Downdraft
Installation Details
R
eplacement charcoal filter for HDDREC5UC
recirculation kit
Q
uality charcoal filter effectively captures
and filters odors
R
eplace charcoal filter every 6 months
depending on usage
36" gas cooktop seal kit required for installation
with 36" gas cooktops
Includes trim, seal, metal grill, and fasteners
R
equired for installation with gas cooktops
HDD6RSP
36" Gas Cooktop Seal
Kit for Downdraft
36" trim kit for installation with
36" FlameSelect® gas cooktops
HDDTRIM36S
Trim Kit for 36"
FlameSelect® Gas
Cooktops
Includes trim kit and installation tool
R
equired for installation with 36"
FlameSelect® gas cooktops
Accessories: To purchase Bosch accessories, cleaners & parts please visit www.bosch-home.com/us/store or call 1-800-944-2904 (Mon to Fri 5 am to 6 pm PST, Sat 6 am to 3 pm PST).
Notes: All height, width and depth dimensions are shown in inches. BSH reserves the absolute and unrestricted right to change product materials and specifications, at any time, without
notice. Consult the product’s installation instructions for final dimensional data and other details prior to making cutout.
Warranties: Please see Use & Care manual or Bosch website for statement of limited warranty.
For more information on our entire line of products, go to www.bosch-home.com/us or call 1-800-944-2904
© BSH Home Appliances Corporation. All rights reserved. Bosch is a registered trademark of Robert Bosch GmbH.
09/19
36" Downdraft
800 Series Downdraft – HDD86051UC
Flexible Blower Installation – Front Exhaust Example
Application
• Flexible
blower attached can rotate for left, right or downward discharge
• Front
downward application with flexible blower
• Requires space under floor line for ductwork*
• Can
be used with optional Recirculation Kit, sold separately
• Elbow, ductwork, blower support structure frame not included
Required Blower
DHG602DUC
600 CFM Flexible Integral Blower
600 CFM flexible blower can mount
to downdraft or be used as an
inline blower, and can be rotated to
exhaust downward or to sides
Optional Accessories
HDDREC5UC
Recirculation Kit for Downdraft
When ducting to the exterior is not
feasible, downdraft recirculation
kit allows filtered air to reenter the
kitchen while cooking
HDDFILTUC
Charcoal Filter Replacement for Recirculation Kit
for Downdraft
Maintain performance of Bosch downdraft
recirculation kit with timely replacement of
charcoal filter to capture and filter odors
HDD6RSP
36" Gas Cooktop Seal Kit for Downdraft
36" gas cooktop seal kit required for installation
with 36" gas cooktops
*For only front downward ducting applications, electrical panel must be remotely mounted. Electrical panel can still be remotely mounted in other exhaust configurations if desired. Electrical
panel interconnect cable length is 5-ft. long.
Accessories: To purchase Bosch accessories, cleaners & parts please visit www.bosch-home.com/us/store or call 1-800-944-2904 (Mon to Fri 5 am to 6 pm PST, Sat 6 am to 3 pm PST).
Notes: All height, width and depth dimensions are shown in inches. BSH reserves the absolute and unrestricted right to change product materials and specifications, at any time, without
notice. Consult the product’s installation instructions for final dimensional data and other details prior to making cutout.
Warranties: Please see Use & Care manual or Bosch website for statement of limited warranty.
For more information on our entire line of products, go to www.bosch-home.com/us or call 1-800-944-2904
© BSH Home Appliances Corporation. All rights reserved. Bosch is a registered trademark of Robert Bosch GmbH.
09/19
36" Downdraft
800 Series Downdraft – HDD86051UC
Flexible Blower Installation – Front Exhaust with Flexible Blower
Used as an Inline Option Example
Application
• Side
exhaust with flexible blower used as inline option if ducting is more
convenient with this configuration
• Requires
at least 18" of clearance to fit the blower and transition
• Blower must be accessible for maintenance
• Elbow, ductwork, blower support structure frame not included
Required Blower
DHG602DUC
600 CFM Flexible Integral Blower
600 CFM flexible blower can mount
to downdraft or be used as an
inline blower, and can be rotated to
exhaust downward or to sides
Required Accessories
HDDFTRAN8
8" Round Front Plate for
Downdraft
8" Front rough-in plate
enable ducting to be at front
of downdraft, for use with
inline and remote blower
applications
NOTE: HDDFTRAN8 front plate
required for front exhaust
applications with inline and
remote blowers.
Optional Accessories
HDD6RSP
36" Gas Cooktop Seal Kit for Downdraft
36" gas cooktop seal kit required for installation
with 36" gas cooktops
NOTE: Some applications may require deeper cabinets. Side and rear exhaust require at least 18" of clearance to fit the blower and / or ductwork. Refer to installation instructions.
Accessories: To purchase Bosch accessories, cleaners & parts please visit www.bosch-home.com/us/store or call 1-800-944-2904 (Mon to Fri 5 am to 6 pm PST, Sat 6 am to 3 pm PST).
Notes: All height, width and depth dimensions are shown in inches. BSH reserves the absolute and unrestricted right to change product materials and specifications, at any time, without
notice. Consult the product’s installation instructions for final dimensional data and other details prior to making cutout.
Warranties: Please see Use & Care manual or Bosch website for statement of limited warranty.
For more information on our entire line of products, go to www.bosch-home.com/us or call 1-800-944-2904
© BSH Home Appliances Corporation. All rights reserved. Bosch is a registered trademark of Robert Bosch GmbH.
09/19
36" Downdraft
800 Series Downdraft – HDD86051UC
Flexible Blower Installation – Side Exhaust Example
Application
• Side
exhaust option if ducting is more convenient with this configuration
• Requires
at least 18" of clearance to fit the blower and transition
• Can be used with optional Recirculation Kit, sold separately
• Elbow, ductwork, blower support structure frame not included
Required Blower
DHG602DUC
600 CFM Flexible Integral
Blower
600 CFM flexible blower can
mount to downdraft or be used
as an inline blower, and can be
rotated to exhaust downward
or to sides
Left Side Exhaust
Optional Accessories
HDDREC5UC
Recirculation Kit for Downdraft
When ducting to the exterior is not
feasible, downdraft recirculation kit
allows filtered air to reenter
the kitchen while cooking
Right Side Exhaust
Required Accessories
HDDSTRAN8
8" Side/Rear/Downward
Transition for Downdraft
8" Round transition enable
ducting to be at sides,
rear or below downdraft
for flexible configurations
to maximize your kitchen
design
NOTE: HDDSTRAN8 side/rear/
downward transition required for
side, rear or downward exhaust
applications with inline and
remote blowers.
HDDFILTUC
Charcoal Filter Replacement for Recirculation Kit
for Downdraft
Maintain performance of Bosch downdraft
recirculation kit with timely replacement of
charcoal filter to capture and filter odors
HDD6RSP
36" Gas Cooktop Seal Kit for Downdraft
36" gas cooktop seal kit required for installation
with 36" gas cooktops
NOTE: Some applications may require deeper cabinets. Side and rear exhaust require at least 18" of clearance to fit the blower and / or ductwork. Refer to installation instructions.
Accessories: To purchase Bosch accessories, cleaners & parts please visit www.bosch-home.com/us/store or call 1-800-944-2904 (Mon to Fri 5 am to 6 pm PST, Sat 6 am to 3 pm PST).
Notes: All height, width and depth dimensions are shown in inches. BSH reserves the absolute and unrestricted right to change product materials and specifications, at any time, without
notice. Consult the product’s installation instructions for final dimensional data and other details prior to making cutout.
Warranties: Please see Use & Care manual or Bosch website for statement of limited warranty.
For more information on our entire line of products, go to www.bosch-home.com/us or call 1-800-944-2904
© BSH Home Appliances Corporation. All rights reserved. Bosch is a registered trademark of Robert Bosch GmbH.
09/19
36" Downdraft
800 Series Downdraft – HDD86051UC
Flexible Blower Installation – Side Exhaust with Slim 2' Rectangular Duct Example
Application
• Side
exhaust option if ducting is more convenient with this configuration
•A
slim 2' rectangular duct is available to place flexible blower in areas such as
unused corner in island or peninsula applications
•C
an be used with optional Recirculation Kit, sold separately
•E
lbow, ductwork, blower support structure frame not included
Required Blower
DHG602DUC
600 CFM Flexible Integral
Blower
600 CFM flexible blower can
mount to downdraft or be used
as an inline blower, and can be
rotated to exhaust downward
or to sides
Required Accessories
HDD2RECTD
2' Rectangular
Duct Downdraft
2' Rectangular duct can
be used as extension to
exhaust through a cabinet
or wall while maximizing
cabinet storage space
HDDSTRAN2
Transition for Rectangular
Duct for Downdraft
Optional Accessories
HDDREC5UC
Recirculation Kit for Downdraft
When ducting to the exterior is not
feasible, downdraft recirculation kit
allows filtered air to reenter
the kitchen while cooking
Rectangular duct transition
required to connect
2' rectangular duct to
downdraft
HDDSTRAN8
8" Side/Rear/Downward
Transition for Downdraft
8" Round transition enable
ducting to be at sides,
rear or below downdraft
for flexible configurations
to maximize your kitchen
design
NOTE: HDDSTRAN8 side/rear/
downward transition required
for side, rear or downward
exhaust applications with
inline and remote blowers.
HDDFILTUC
Charcoal Filter Replacement for Recirculation
Kit for Downdraft
Maintain performance of Bosch downdraft
recirculation kit with timely replacement
of charcoal filter to capture and filter odors
HDD6RSP
36" Gas Cooktop Seal Kit for Downdraft
36" gas cooktop seal kit required for installation
with 36" gas cooktops
NOTE: Some applications may require deeper cabinets. Side and rear exhaust require at least 18" of clearance to fit the blower and / or ductwork. Refer to installation instructions.
Accessories: To purchase Bosch accessories, cleaners & parts please visit www.bosch-home.com/us/store or call 1-800-944-2904 (Mon to Fri 5 am to 6 pm PST, Sat 6 am to 3 pm PST).
Notes: All height, width and depth dimensions are shown in inches. BSH reserves the absolute and unrestricted right to change product materials and specifications, at any time, without
notice. Consult the product’s installation instructions for final dimensional data and other details prior to making cutout.
Warranties: Please see Use & Care manual or Bosch website for statement of limited warranty.
For more information on our entire line of products, go to www.bosch-home.com/us or call 1-800-944-2904
© BSH Home Appliances Corporation. All rights reserved. Bosch is a registered trademark of Robert Bosch GmbH.
09/19
36" Downdraft
800 Series Downdraft – HDD86051UC
Flexible Blower Installation – Rear Exhaust Example
Application
• Rear
exhaust option is possible if ducting is more convenient with this
configuration
• Requires
at least 18" of clearance to fit the blower and transition
• Blower must be accessible for maintenance
• Can be used with optional Recirculation Kit, sold separately
• Elbow, ductwork, blower support structure frame not included
Required Blower
DHG602DUC
600 CFM Flexible Integral Blower
600 CFM flexible blower can mount
to downdraft or be used as an
inline blower, and can be rotated to
exhaust downward or to sides
Required Accessories
HDDSTRAN8
8" Side/Rear/Downward
Transition for Downdraft
8" Round transition enable
ducting to be at sides, rear or
below downdraft for flexible
configurations to maximize
your kitchen design
NOTE: HDDSTRAN8 side/rear/
downward transition required for
side, rear or downward exhaust
applications with inline and
remote blowers.
Optional Accessories
HDDREC5UC
Recirculation Kit for Downdraft
When ducting to the exterior is not
feasible, downdraft recirculation kit
allows filtered air to reenter
the kitchen while cooking
HDDFILTUC
Charcoal Filter Replacement for Recirculation Kit
or Downdraft
Maintain performance of Bosch downdraft
recirculation kit with timely replacement of charcoal
filter to capture and filter odors
HDD6RSP
36" Gas Cooktop Seal Kit for Downdraft
36" gas cooktop seal kit required for installation
with 36" gas cooktops
NOTE: Some applications may require deeper cabinets. Side and rear exhaust require at least 18" of clearance to fit the blower and / or ductwork. Refer to installation instructions.
Accessories: To purchase Bosch accessories, cleaners & parts please visit www.bosch-home.com/us/store or call 1-800-944-2904 (Mon to Fri 5 am to 6 pm PST, Sat 6 am to 3 pm PST).
Notes: All height, width and depth dimensions are shown in inches. BSH reserves the absolute and unrestricted right to change product materials and specifications, at any time, without
notice. Consult the product’s installation instructions for final dimensional data and other details prior to making cutout.
Warranties: Please see Use & Care manual or Bosch website for statement of limited warranty.
For more information on our entire line of products, go to www.bosch-home.com/us or call 1-800-944-2904
© BSH Home Appliances Corporation. All rights reserved. Bosch is a registered trademark of Robert Bosch GmbH.
09/19
36" Downdraft
800 Series Downdraft – HDD86051UC
Flexible Blower Installation – Downward Exhaust Example
Application
•D
ownward exhaust option if ducting is more convenient with this
configuration
• Requires
at least 18" of clearance to fit the blower and transition
• Can be used with optional Recirculation Kit, sold separately
• Elbow, ductwork, blower support structure frame not included
• Blower must be accessible for maintenance
• Can also be installed with inline and remote blowers
Required Blower
DHG602DUC
600 CFM Flexible Integral
Blower
600 CFM flexible blower can
mount to downdraft or be used
as an inline blower, and can be
rotated to exhaust downward
or to sides
Required Accessories
HDDSTRAN8
8" Side/Rear/Downward
Transition for Downdraft
8" Round transition enable
ducting to be at sides,
rear or below downdraft
for flexible configurations
to maximize your kitchen
design
NOTE: HDDSTRAN8 side/rear/
downward transition required for
side, rear or downward exhaust
applications with inline and
remote blowers.
Optional Accessories
HDDREC5UC
Recirculation Kit for Downdraft
When ducting to the exterior is not
feasible, downdraft recirculation kit
allows filtered air to reenter
the kitchen while cooking
HDDFILTUC
Charcoal Filter Replacement for Recirculation Kit
for Downdraft
Maintain performance of Bosch downdraft
recirculation kit with timely replacement of
charcoal filter to capture and filter odors
HDD0RSP
30" Gas Cooktop Seal Kit for Downdraft
30" gas cooktop seal kit required for installation
with 30" gas cooktops
Accessories: To purchase Bosch accessories, cleaners & parts please visit www.bosch-home.com/us/store or call 1-800-944-2904 (Mon to Fri 5 am to 6 pm PST, Sat 6 am to 3 pm PST).
Notes: All height, width and depth dimensions are shown in inches. BSH reserves the absolute and unrestricted right to change product materials and specifications, at any time, without
notice. Consult the product’s installation instructions for final dimensional data and other details prior to making cutout.
Warranties: Please see Use & Care manual or Bosch website for statement of limited warranty.
For more information on our entire line of products, go to www.bosch-home.com/us or call 1-800-944-2904
© BSH Home Appliances Corporation. All rights reserved. Bosch is a registered trademark of Robert Bosch GmbH.
09/19
36" Downdraft
800 Series Downdraft – HDD86051UC
Flexible Blower Installation – Recirculation Example
Application
• Allows
for non-ducted downdraft installation by eliminating the need to
exhaust to the exterior of the home
• Mount
to toe kick or base of a cabinet and attach directly to flexible blower
•R
ecirculation module and metal grill vent plate placement can be rotated for
flexible exhaust placement
• Elbow, ductwork, blower support structure frame not included
Required Blower
DHG602DUC
600 CFM Flexible Integral
Blower
600 CFM flexible blower can
mount to downdraft or be used
as an inline blower, and can be
rotated to exhaust downward
or to sides
Required Accessories
HDDREC5UC
Recirculation Kit for Downdraft
When ducting to the exterior is not
feasible, downdraft recirculation
kit allows filtered air to reenter
the kitchen while cooking
Optional Accessories
HDDFILTUC
Charcoal Filter Replacement for Recirculation Kit
for Downdraft
Maintain performance of Bosch downdraft
recirculation kit with timely replacement
of charcoal filter to capture and filter odors
EXHAUST
THROUGH
CABINET
SIDE
EXHAUST
THROUGH
CABINET
SIDE
14 1/2”
(368)
ON BOX
14 1/2”
(368)
n of exhaust.
nd recirculation box inlet will align. 15”
(380) 3 1/2" (89) x 14 1/4" (362)
o opening in cabinet base.
EXHAUST OPENING
insert exhaust end down into opening.
n toe space, rear, or side of cabinet.
ng.
EXHAUST
THROUGH
CABINET
BACK
decorative grille.
g in cabinet
base.
Measurements
” (83) x 14”
extension (not
in (356)
inchesduct
(mm).
on box outlet to decorative grille
uminum tape to make them secure and
DECORATIVE
GRILLE
15”
(380) 3 1/2" (89) x 14 1/4" (362)
EXHAUST OPENING
14 1/2"
GRILLE
15"
(380)
15"
(380)
3 1/2" (89) x 14 1/4" (362)
EXHAUST OPENING
16”legs
p of recirculation box and attach
(406)
75” screws.
8”
DECORATIVE
GRILLE
14 1/2"
(368)
t blower exhaust
to recirculation box
DECORATIVE
minum tape to make them secure and
36" gas cooktop seal kit required for
installation with 36" gas cooktops
EXHAUST
THROUGH
CABINET
BACK
(368)
Measurements
in inches (mm).
ure recirculation box to cabinet base.
HDD6RSP
36" Gas Cooktop Seal Kit for Downdraft
3 1/2" (89) x 14 1/4" (362)
DECORATIVE
EXHAUST OPENING
GRILLE DIMENSIONS
16”
(406)
17 1/2”
(445)
16”
DIMENSIONS
16”
(406)
17 1/2”
Accessories:
To(203)
purchase Bosch accessories, cleaners
& parts please(406)
visit www.bosch-home.com/us/store
or call 1-800-944-2904 (Mon to Fri 5 am to 6 pm PST, Sat 6 am to 3 pm PST).
4 1/2”
(445)
8”
Notes:(114)
All height, width and depth dimensions are(203)
shown in inches. BSH reserves the absolute and unrestricted right to change product materials and specifications, at any time, without
4
1/2”
OPTIONALnotice.
REMOTE
BLOWER
MOUNT
3 1/4”
Consult
the
product’s installation(114)
instructions
for final dimensional data and other details prior to making cutout.
(83)
Blower mounted
to
3 1/4” warranty.
Warranties:
Please
see Use & Care manual or Bosch website
6
1/2”
3 3/4” for statement of limited
(83)
framing in remote
(165)
more information
on our entire line14”of products, go(95)
to www.bosch-home.com/us or call 1-800-944-2904
location -For
using
6 1/2”
3 3/4”
(356)
12 1/4”Corporation. All
(95)of Robert Bosch GmbH.
© BSH
Home Appliances
rights(165)
reserved. Bosch is a registered
trademark
09/19
mounting brackets.
Measurements
14”
(311)
15”
(356)
12 1/4”
in inches (mm).
Blower outlet and
Measurements
(380)
BLOWER
(311)
15”
recirculation box
in inches (mm).
16”
(380)

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
