Guia do usuário do Sun Ray Connector for Windows OS 2.2
Guia do usuário do Sun Ray Connector for Windows OS
2.2
Guia do usuário do Sun Ray Connector for Windows OS 2.2
Conteúdo
Como iniciar uma sessão no Windows
Como iniciar uma sessão do Windows no Java Desktop System (JDS)
Como bloquear uma sessão no Windows
Como configurar o acesso à página do comando man uttsc
Como configurar o acesso aos comandos do SRWC
Como configurar um atalho de área de trabalho para iniciar uma sessão do Windows
Mapeamento de unidades de disco locais
Troubleshooting Windows Session Connection
Problem: Unexpected Time Zone Value
Connection Error Messages
Uso (todos os tópicos)
Como iniciar uma sessão no Windows
Depois do software Sun Ray Windows Connector ter sido instalado, é possível iniciar uma sessão no Windows em uma DTU a partir do sistema
Windows.
1. Faça logon em uma DTU.
2. Inicie uma sessão do Windows em um sistema Windows.
% /opt/SUNWuttsc/bin/uttsc <options> <hostname.domain>
Se o sistema Windows estiver no mesmo domínio que a área de trabalho Sun Ray, não é necessário especificar o nome do domínio. No
entanto, se preferir, você pode especificar o endereço IP completo em vez de <hostname.domain>.
A publicação do comando uttsc sem opções, apenas com o nome ou endereço de um sistema Windows, exibe uma sessão do Windows na
DTU Sun Ray, conforme ilustrado na figura a seguir.
3
Guia do usuário do Sun Ray Connector for Windows OS 2.2
O tamanho padrão da tela é 640 x 480 pixels.
Para exibir a sessão em modo de tela inteira ou modificá-la de outra forma, consulte a página do comando man uttsc(1).
Para exibir uma sessão em vários monitores com o comando uttsc, você deve ativar o XINERAMA na DTU Sun Ray.
Como iniciar uma sessão do Windows no Java Desktop System (JDS)
O pacote de integração JDS (Java Desktop System) da Sun para o sistema operacional Solaris oferece uma CLI denominada uttscwrap, que
melhora a integração do Sun Ray Windows Connector com a área de trabalho JDS no Solaris 10. O pacote de integração JDS está incluído na
pasta Supplemental da imagem do software Sun Ray Windows Connector.
Utilize uttscwrap quando iniciadores de menu ou de área de trabalho estiverem definidos para iniciar sessões ou aplicativos do Windows em
vários sistemas Windows.
uttscwrap fornece uma caixa de diálogo de logon que permite introduzir credenciais para autenticação baseada em senha (
username/domain/password). As credenciais podem ser salvas na caixa de diálogo para utilização posterior. No próximo início de sessão, a
caixa de diálogo exibirá as credenciais.
Nota
uttscwrap foi concebido para armazenar em cache as credenciais somente para a autenticação baseada em senha. Ele não
pode ser utilizado com a autenticação por cartão inteligente. Para a autenticação por cartão inteligente, utilize diretamente o
Sun Ray Windows Connector (/opt/SUNWuttsc/bin/uttsc).
As credenciais são salvas separadamente para cada combinação de servidor e aplicativo do Windows. Essa convenção permite salvar credenciais
diferentes das seguintes maneiras:
para aplicativos distintos no mesmo servidor;
para aplicativos distintos em servidores diferentes;
para sessões de servidor distintas sem aplicativos iniciados.
As novas credenciais salvas para um servidor ou aplicativo substituem as credenciais salvas anteriormente.
4
Guia do usuário do Sun Ray Connector for Windows OS 2.2
Etapas
Para iniciar o Sun Ray Windows Connector com uttscwrap, especifique, na linha de comando uttscwrap, os mesmos parâmetros utilizados
na linha de comando uttsc.
1. Faça logon em uma DTU.
2. Inicie uma sessão do Windows em um sistema Windows.
% /opt/SUNWuttscwrap/bin/uttscwrap <options> <hostname.domain>
Se o sistema Windows estiver no mesmo domínio que a área de trabalho Sun Ray, não é necessário especificar o nome do domínio. No
entanto, se preferir, você pode especificar o endereço IP completo em vez de <hostname.domain>.
Como bloquear uma sessão no Windows
Este procedimento descreve como bloquear uma sessão do Windows quando a sessão de um usuário sair de uma DTU Sun Ray específica.
Nota
A implementação desse recurso depende de tecnologia não disponível em interfaces padrão e não públicas do Sun Ray, bem
como do uso de determinadas interfaces públicas do Sun Ray para outros fins diferentes da sua finalidade. Por essa razão, este
recurso não é oferecido como um recurso suportado.
Um método comumente usado para implementar o bloqueio de sessão é enviar os pressionamentos de teclas de bloqueio de tela para a sessão
do Windows usando xvkbd, que é chamado por utaction.
Você pode chamar utaction em um script Xsession.d ou xinitrc.d da seguinte maneira:
#!/bin/sh
XVKBD=/usr/openwin/bin/xvkdb
/opt/SUNWut/bin/utaction -d "$XVKBD -text '\Ml'" &
Como xvkbd não está disponível por padrão, você deve modificar a configuração de XVKBD no exemplo para que identifique corretamente o
local de instalação do xvkbd.
Nota
A sequência de pressionamentos de teclas \Ml ativa o bloqueio do Windows para sessões do Windows 2003/XP. Talvez seja
necessário substituir a sequência de pressionamentos de teclas em outras versões do Windows.
Como configurar o acesso à página do comando man uttsc
Para que os usuários possam acessar o comando man diretamente, adicione a seguinte entrada à variável MANPATH:
/opt/SUNWuttsc/man
Se o pacote de integração JDS (Java Desktop System) (somente Solaris) tiver sido instalado, então a seguinte entrada deveria ser adicionada:
/opt/SUNWuttscwrap/man
Os usuários poderão, assim, exibir uma página de comando man digitando o comando seguinte:
% man uttsc
5
Guia do usuário do Sun Ray Connector for Windows OS 2.2
Como configurar o acesso aos comandos do SRWC
Para que os usuários possam acessar os comandos do SRWC diretamente, adicione a seguinte entrada à variável PATH:
/opt/SUNWuttsc/bin, /opt/SUNWuttsc/sbin, /opt/SUNWuttscwrap/bin
O caminho /opt/SUNWuttscrap/bin é necessário somente se os seus usuários estiverem usando o pacote de integração JDS.
Como configurar um atalho de área de trabalho para iniciar uma sessão do Windows
No momento, não existe nenhuma interface gráfica do usuário disponível para o Sun Ray Windows Connector. No entanto, é possível configurar
iniciadores para que os usuários possam usar ícones de área de trabalho ou itens de menu para se conectar à sessão do Windows.
Para obter detalhes sobre como configurar os iniciadores, consulte a documentação sobre a área de trabalho do seu sistema operacional.
Mapeamento de unidades de disco locais
Qualquer arquivo pode ser montado e mapeado do ambiente Sun Ray para o ambiente Windows. Os sistemas de arquivos dos dispositivos de
mídia removíveis, como unidades flash, conectados às portas USB do servidor Sun Ray podem ser mapeados para o ambiente Windows usando o
comando utstoraged, onde aparecem como unidades montadas localmente.
Nota
Os nomes de arquivos do Windows não podem conter os seguintes caracteres: :*?"<>|. Certifique-se de que as pastas UNIX
redirecionadas não contenham nomes de arquivos que utilizem esses caracteres.
Para que os usuários possam acessar dispositivos USB conectados a uma DTU Sun Ray a partir de suas sessões do Windows, consulte About USB
Device Redirection.
Troubleshooting Windows Session Connection
Problem: Unexpected Time Zone Value
uttsc only considers time zones listed in /usr/share/lib/zoneinfo/tab/zone_sun.tab (for Solaris) and
/usr/share/zoneinfo/zone.tab (for Linux), as valid zones that can be converted into the equivalent time zones in the Windows session.
If the time zone is set to a value other than those defined in these files, then the time zone value in the Windows session can be unexpected.
Connection Error Messages
Message
Comments
Error (%d): Unable to establish data store
connection.
The Sun Ray Windows Connector was unable to open a connection to the Sun Ray data store.
Ensure that the SRDS has been configured for Sun Ray software and is reachable. Also, ensure
that the Sun Ray Windows Connector has been successfully configured before launching it.
Error(%d): Unable to determine SRSS version.
SRWC could not determine SRSS version information. Ensure that SRSS 4.2 or above is installed
and configured successfully.
Error(%d): Unable to launch Sun Ray
Connector. Only SRSS 4.2 and above are
supported.
SRWC 2.2 is supported only on SRSS 4.2 and above. Ensure that the correct version of SRSS is
installed.
Sun Ray session is not connected, please try
again.
Ensure that SRWC is being launched from a valid connected Sun Ray session.
Cannot obtain DTU MAC address.
SRWC was unable to contact the Sun Ray Authentication Manager to retrieve the DTUs MAC
address. Ensure that this daemon is reachable.
6
Guia do usuário do Sun Ray Connector for Windows OS 2.2
Error: Sun Ray Token ID cannot be
determined. Sun Ray Connector can only be
launched from a Sun Ray session.
SRWC was launched from a non-Sun Ray session (for example, telnet or console). It can only
be launched from a connected DTU session.
Unable to create new audio device. Using
default audio device.
utaudio failed to create a new audio device. Check the messages logged by utaudio for
more information. SRWC will try to use the default audio device for the session.
Device <device_name> is not allocated.
Audio will not work in this session.
Continuing..
On Solaris Trusted Extensions platforms, if the default audio device is not allocated, then
SRWC will not be able to use any new audio device or the default audio device. In this case,
the SRWC session will proceed but without audio support.
Warning. Printer preferences will not be
stored. Please run uttscadm to complete
configuration before launching Sun Ray
Connector.
If uttscadm has not been run before the Sun Ray Windows Connector is launched, the
printer preferences as sent by the Windows system will not be stored and hence cannot later
be reused. This error is not fatal. The session will continue to be launched.
Unable to connect to Sun Ray Connector
Proxy. Please ensure uttscadm has been
run before launching the Sun Ray
Connector.
Make sure the proxy daemon (uttscpd) is up and running. If the Sun Ray Windows
Connector is launched before uttscadm has been run to configure it, then the Sun Ray
Windows Connector Proxy is not reachable. This message occurs only on Solaris systems.
Unable to launch Sun Ray Connector.
Please ensure utconfig has been run
before launching the Sun Ray Connector.
If Sun Ray Windows Connector is launched without having configured Sun Ray data store
using utconfig (from Sun Ray Server Software), then the connector cannot be used.
Glossary
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
V
W
X
Y
Z
If you would like to add a term to the list, use the Add Comment link at the bottom of the page.
A
Term
Description
AAC
Advanced Audio Coding, a "lossy" compression format capable of delivering relatively high quality at relatively low bit rates.
alias token
An alias token that enables a card owner to access the same Sun Ray session with more than one physical token. This token
can be useful when a user needs a duplicate smart card.
ALP
The Sun Appliance Link Protocol, a suite of network protocols that enable communication between Sun Ray servers and
DTUs.
AMGH
Automatic Multigroup Hotdesking. See regional hotdesking.
AH
Authentication headers used as part of an IPSec implementation.
authentication
policy
The Authentication Manager uses the selected authentication module to determine what tokens are valid and which users, as
token owners, have access to the system and sessions.
authentication
token
Although all tokens are used by the Authentication Manager to grant or deny access to Sun Ray sessions, this term usually
refers to a user's smart card token. See token.
B
Term
Description
backplane
bandwidth
Sometimes also referred to as "switch fabric." A switch's backplane is the pipe through which data flows from an input port to
an output port. Backplane bandwidth usually refers to the aggregate bandwidth available among all ports within a switch.
7

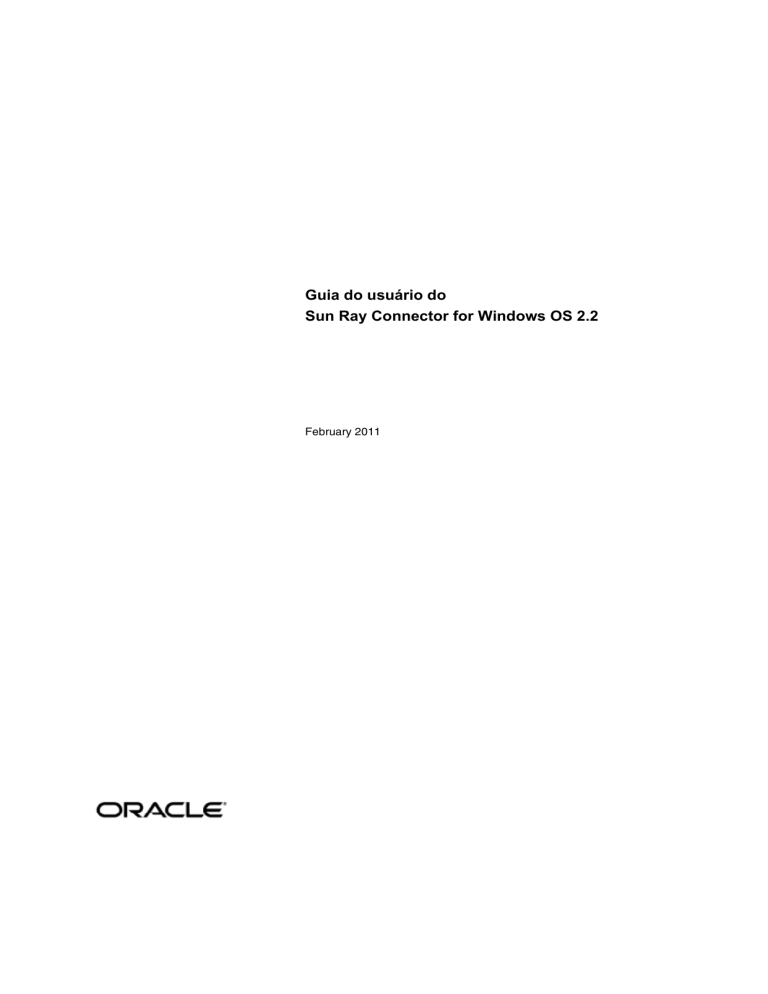

Guia do usuário do Sun Ray Connector for Windows OS 2.2
barrier
mechanism
To prevent clients from downloading firmware that is older than the firmware that is already installed, the administrator can set
a barrier mechanism. The barrier mechanism symbol BarrierLevel is defined by default in the DHCP table of Sun Ray servers
running version 2.0 or later of Sun Ray Server Software.
bpp
Bits per pixel.
C
Term
Description
CABAC
Context-adaptive binary arithmetic coding, a "lossless" entropy coding technique used in H.264/MPEG-4 AVC video encoding.
CAM
Controlled Access Mode, also known as kiosk mode. As of SRSS 4.0, the CAM module was replaced by a rewritten Kiosk
module.
card reader
See token reader.
category 5
The most common type of wiring used in LANs. It is approved for both voice and data at up to 100 Mhz. Also called "cat 5."
client-server
A common way to describe network services and the user processes (programs) of those services.
codec
A device or program capable of encoding or decoding a digital data stream or signal.
cold restart
Pressing the Cold Restart button terminates all sessions on a given server before restarting Sun Ray services. See restart.
cut-through
switch
The switch begins forwarding the incoming frame onto the outbound port as soon as it reads the MAC address while
continuing to receive the remainder of the frame.
D
Term
Description
DHCP
Dynamic Host Configuration Protocol, a means of distributing IP addresses and initial parameters to the DTUs.
domain
A set of one or more system boards that acts as a separate system capable of booting the OS and running independently of any
other board.
DTU
Desktop Terminal Units, the original name of Sun Ray desktop units. These units are also referred to as Sun Ray thin clients, Sun Ray
ultra-thin clients, and Sun Ray virtual display terminals.
E
Term
Description
ESP
Encapsulating Security Payloads, used as part of IPSec.
Ethernet
Physical and link-level communications mechanism defined by the IEEE 802.3 family of standards.
Ethernet
address
The unique hardware address assigned to a computer system or interface board when it is manufactured. See MAC
address.
Ethernet switch
A unit that redirects packets from input ports to output ports. It can be a component of the Sun Ray interconnect fabric.
F
Term
Description
failover
The process of transferring processes from a failed server to a functional server.
failover
group
Two or more Sun Ray servers configured to provide continuity of service in the event of a network or system failure. Sometimes
abbreviated as FOG or HA (for high availability). The term high availability refers to the benefit of this type of configuration; the
term failover group refers to the functionality.
8
Guia do usuário do Sun Ray Connector for Windows OS 2.2
filling
station
Any private network configured for Sun Ray services or any shared network in which the Sun Ray DHCP server is the only DHCP
server. When a DTU's firmware is downgraded to an earlier version because it connects to a server running the earlier version, it
needs to be connected to a filling station so that it can download newer firmware.
firmware
barrier
See barrier mechanism.
FOG
See failover group.
fps
Frames per second.
frame
buffer
Video output device that drives the video display. See virtual frame buffer.
G
Term
Description
GEM
Gigabit Ethernet.
group-wide
Across a failover group.
H
Term
Description
H.264
A standard for video compression developed by MPEG and VCEG for a wide range of bit rates and resolutions. Also known as
MPEG-4 AVC (Advanced Video Coding) and MPEG-4 Part 10.
HA
High availability. Sun Ray HA groups have traditionally been called failover groups.
head
Colloquial term for a screen, or display, or monitor, especially in a context where more than one is used in conjunction with
the same keyboard and mouse, as in "multihead" feature.
high
availability
See failover. The term high availability refers to a benefit of this type of configuration. The term failover group refers to the
functionality.
hotdesking
The ability for a user to remove a smart card, insert it into any other DTU within a server group, and have the user's session
available for instantaneous access to the user's windowing environment and current applications from multiple DTUs.
hot key
A predefined keyboard shortcut used to trigger certain activities either on the DTU or within the Sun Ray session running on
the Sun Ray server. A hot key is used to bring up the Settings screen on the Sun Ray DTU.
hot-pluggable
A property of a hardware component that can be inserted into or removed from a system that is powered on. USB devices
connected to Sun Ray DTUs are hot-pluggable.
I
Term
Description
idle session
A session that is running on a Sun Ray server but to which no user (identified by a smart card token or a pseudo-token) is
logged in.
IKE
Internet Key Exchange, a component of IPSec.
interconnect
fabric
All the cabling and switches that connect a Sun Ray server's network interface cards to the Sun Ray DTUs.
intranet
A private network that uses internet protocols and is confined to an organization.
IP address
A unique number that identifies each host or other hardware system on a network. An IP address is composed of four integers
separated by periods. Each decimal integer must be in the range 0-255 (for example, 129.144.0.0).
9
Guia do usuário do Sun Ray Connector for Windows OS 2.2
IP address
lease
The assignment of an IP address to a computer system for a specified length of time, rather than permanently. IP address
leasing is managed by the Dynamic Host Configuration Protocol (DHCP). The IP addresses of Sun Ray DTUs are leased.
IPSec
The Internet Protocol (Security) set of protocols seeks to secure IP communications by encoding data packets through
authentication headers (AH) and encapsulating security payloads (ESP) and by providing a key exchange mechanism (IKE).
K
Term
Description
kiosk
mode
A facility to run sessions under an anonymous user account without a UNIX login. Kiosk sessions provide a preconfigured, usually
restricted, software environment. The term kiosk mode was used interchangeably with CAM in earlier versions of SRSS. As of SRSS 4.0,
this module was completely rewritten and is now officially called kiosk mode.
L
Term
Description
LAN
Local Area Network. A group of computer systems in close proximity that can communicate with one another through connecting
hardware and software.
layer
2
The data link layer. The OSI (Open Standards Interconnection) model contains seven layers. Layer 2 is concerned with procedures and
protocols for operating the communication lines between networks as well as clients and servers. Layer 2 also has the ability to detect
and correct message errors.
local
host
The CPU or computer on which a software application is running.
local
server
From the DTU's perspective, the most immediate server in the LAN.
M
Term
Description
MAC
address
Media Access Control. A MAC address is a 48-bit number programmed into each local area network interface card (NIC) at the
time of manufacture. LAN packets contain destination and source MAC names and can be used by bridges to filter, process,
and forward packets. 8:0:20:9e:51:cf is an example of a MAC address. See also Ethernet address
managed
object
An object monitored by the Sun Management Center software.
mobile
token
If mobile sessions are enabled, this pseudo-token enables a user to log in to an existing session from different locations
without a smart card, in which case the user name is associated with the session. This type of pseudo-token is called a mobile
token.
mobility
For the purposes of the Sun Ray Server Software, the property of a session that enables it to follow a user from one DTU to
another within a server group. On the Sun Ray system, mobility requires the use of a smart card or other identifying
mechanism.
modules
Authentication modules are used to implement various site-selectable authentication policies.
MPPC
Microsoft Point-to-Point Compression protocol.
MTU
Maximum Transmission Unit, used to specify the number of bytes in the largest packet a network can transmit.
multicasting
The process of enabling communication between Sun Ray servers over their Sun Ray network interfaces in a failover
environment.
multihead
See head.
multiplexing
The process of transmitting multiple channels across one communications circuit.
10
Guia do usuário do Sun Ray Connector for Windows OS 2.2
N
Term
Description
NAT
See network address translation.
namespace
A set of names in which a specified ID must be unique.
network address
The IP address used to specify a network.
network address
translation
Network address translation (NAT) typically involves the mapping of port numbers to allow multiple machines (Sun Ray
DTUs, but not Sun Ray servers) to share a single IP address.
network
interface
An access point to a computer system on a network. Each interface is associated with a physical device. However, a
physical device can have multiple network interfaces.
network
interface card
Abbreviated as NIC. The hardware that links a workstation or server to a network device.
network latency
The time delay associated with moving information through a network. Interactive applications such as voice, video
displays, and multimedia applications are sensitive to these delays.
network mask
A number used by software to separate the local subnet address from the rest of a given Internet protocol address. An
example of a network mask for a class C network is 255.255.255.0.
network
protocol stack
A network suite of protocols, organized in a hierarchy of layers called a stack. TCP/IP is an example of a Sun Ray protocol
stack.
NIC
Network interface card.
non-smart card
mobility
A mobile session on a Sun Ray DTU that does not rely on a smart card. NSCM requires a policy that allows pseudo-tokens.
NSCM
See non-smart card mobility.
O
Term
Description
OSD
On-screen display. The Sun Ray DTU uses OSD icons to alert the user of potential start-up or connectivity problems.
P
Term
Description
PAM
Pluggable Authentication Module. A set of dynamically loadable objects that gives system administrators the flexibility of
choosing among available user authentication services.
PAM session
A single PAM handle and runtime state associated with all PAM items, data, and the like.
patch
A collection of files and directories that replace or update existing files and directories that prevent proper execution of the
software on a computer system. The patch software is derived from a specified package format and can be installed only if
the package it fixes is already present.
PCM
Pulse Code Modulation.
policy
See authentication policy.
Pop-up GUI
A mechanism that enables configuration parameters for a Sun Ray DTU to be entered from the attached keyboard.
port
(1) A location for passing data in and out of a computer system. (2) The abstraction used by Internet transport protocols to
distinguish among multiple simultaneous connections to a single destination host.
POST
Power-on self test.
power cycling
Using the power cord to restart a DTU.
11
Guia do usuário do Sun Ray Connector for Windows OS 2.2
pseudo-session
A Sun Ray session associated with a pseudo-token rather than a smart card token.
pseudo-token
A user accessing a Sun Ray session without a smart card is identified by the DTU's built-in type and MAC address, known as a
pseudo-token. See token.
R
Term
Description
RDP
Microsoft Remote Desktop Protocol.
regional
hotdesking
Originally known as Automatic Multigroup Hotdesking (AMGH), this SRSS feature enables users to access their sessions across
wider domains and greater physical distances than was possible in earlier versions of SRSS. Administrators enable this feature by
defining how user sessions are mapped to an expanded list of servers in multiple failover groups.
RDS
Remote Desktop Services. Formally known as Terminal Services. See Windows Terminal Services.
RHA
Remote Hotdesk Authentication, a security enhancement that requires SRSS authentication before users can reconnect to an
existing session. RHA does not apply to Kiosk sessions, which are designed for anonymous access without authentication. RHA
policy can be administered either through a GUI option or with the utpolicy command.
restart
Sun Ray services can be restarted either from the utrestart command or with the Warm Restart or Cold Restart options
through the GUI. A a cold restart terminates all Sun Ray sessions; a warm restart does not.
S
screen flipping
The ability on a Sun Ray DTU with a single head to pan to individual screens that were originally created by a multihead
group.
server
A computer system that supplies computing services or resources to one or more clients.
service
For the purposes of the Sun Ray Server Software, any application that can directly connect to the Sun Ray DTU. It can
include audio, video, Xservers, access to other machines, and device control of the DTU.
session
A group of services associated with an authentication token. A session may be associated with a token embedded on a
smart card. See token.
session mobility
The ability for a session to "follow" a user's login ID or a token embedded on a smart card.
smart card
Generically, a plastic card containing a microprocessor capable of making calculations. Smart cards that can be used to
initiate or connect to Sun Ray sessions contain identifiers such as the card type and ID. Smart card tokens may also be
registered in the Sun Ray Data Store, either by the Sun Ray administrator or, if the administrator chooses, by the user.
smart card token
An authentication token contained on a smart card. See token.
SNMP
Simple Network Management Protocol
spanning tree
An intelligent algorithm that enables bridges to map a redundant topology and eliminates packet looping in Local Area
Networks (LANs).
store-and-forward
switches
The switch reads and stores the entire incoming frame in a buffer, checks it for errors, reads and looks up the MAC
addresses, and then forwards the complete good frame out onto the outbound port.
subnet
A working scheme that divides a single logical network into smaller physical networks to simplify routing.
system
The Sun Ray system consists of Sun Ray DTUs, servers, server software and the physical networks that connect them.
T
TCP/IP
Transmission Control Protocol/Internet Protocol (TCP/IP) is a networking protocol that provides communication across
interconnected networks between computers with diverse hardware architectures and operating systems.
thin
client
Thin clients remotely access some resources of a computer server, such as compute power and large memory capacity. The Sun Ray
DTUs rely on the server for all computing power and storage.
12
Guia do usuário do Sun Ray Connector for Windows OS 2.2
tick
The time interval since a specific network event. It is defined as 1/100th of a second, which is the usual SNMP convention.
timeout
value
The maximum allowed time interval between communications from a DTU to the Authentication Manager.
token
The Sun Ray system requires each user to present a token, which the Authentication Manager uses to allow or deny access to the
system and to sessions. A token consists of a type and an ID. If the user uses a smart card, the smart card's type and ID are used as
the token. If the user is not using a smart card, the DTU's built-in type and ID (the unit's Ethernet, or MAC, address) are used
instead as a pseudo-token. If mobile sessions are enabled, a user can log in to an existing session from different locations without a
smart card, in which case the user name is associated with the session. A pseudo-token used for mobile sessions is called a mobile
token. Alias tokens can also be created to enable users to access the same session with more than one physical token.
token
reader
A Sun Ray DTU that is dedicated to reading smart cards and returning their identifiers, which can be associate with card owners
(users).
trusted
server
Servers in the same failover group that "trust" one another.
U
URI
Uniform Resource Identifier, the generic term for all types of names and addresses that refer to objects on the World Wide
Web.
user
session
A session that is running on a Sun Ray server and to which a user (identified by a smart card token or a pseudotoken) is logged
in.
V
VC-1
Informal name of the SMPTE 421M video codec standard, now a supported standard for Blu-ray Discs and Windows Media
Video 9.
virtual
desktop
A virtual machine containing a desktop instance that is executed and managed within the virtual desktop infrastructure,
usually a Windows XP or Vista desktop accessed through RDP.
virtual frame
buffer
A region of memory on the Sun Ray server that contains the current state of a user's display.
W
Term
Description
warm
restart
See restart.
WMA
Windows Media Audio data compression file format and codec developed by Microsoft.
work group
A collection of associated users who exist in near proximity to one another. A set of Sun Ray DTUs that are connected to a Sun
Ray server provides computing services to a work group.
Windows
system
Throughout the SRWC documentation, "Windows system" indicates a Windows OS that can be accessed from a Sun Ray DTU
using SRWC. A Windows Terminal Server is one example of a Windows system.
Windows
Terminal
Server
A server running Windows Server software with Windows Terminal Services enabled.
Windows
Terminal
Service
A Microsoft Windows component that makes Windows applications and desktops accessible to remote users and clients.
Depending on the Windows release, this feature may be called Terminal Services, Remote Desktop Services, or Remote Desktop
Connection.
X
13
Guia do usuário do Sun Ray Connector for Windows OS 2.2
Term
Description
Xnewt
The new default Xserver for Sun Ray Server Software 4.1 and later on Solaris.
Xserver
A process which controls a bitmap display device in an X window system. It performs operations on request from client applications.
Sun Ray Server Software contains two Xservers: Xsun, which was the default Xserver in previous versions of SRSS, and Xnewt, which
is the default Xserver for SRSS 4.1 and later. Xnewt enables the latest multimedia capabilities.
Y
Term
Description
YUV
Simple, lossless mechanism to store images or a sequence of images.
14
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement

Languages
