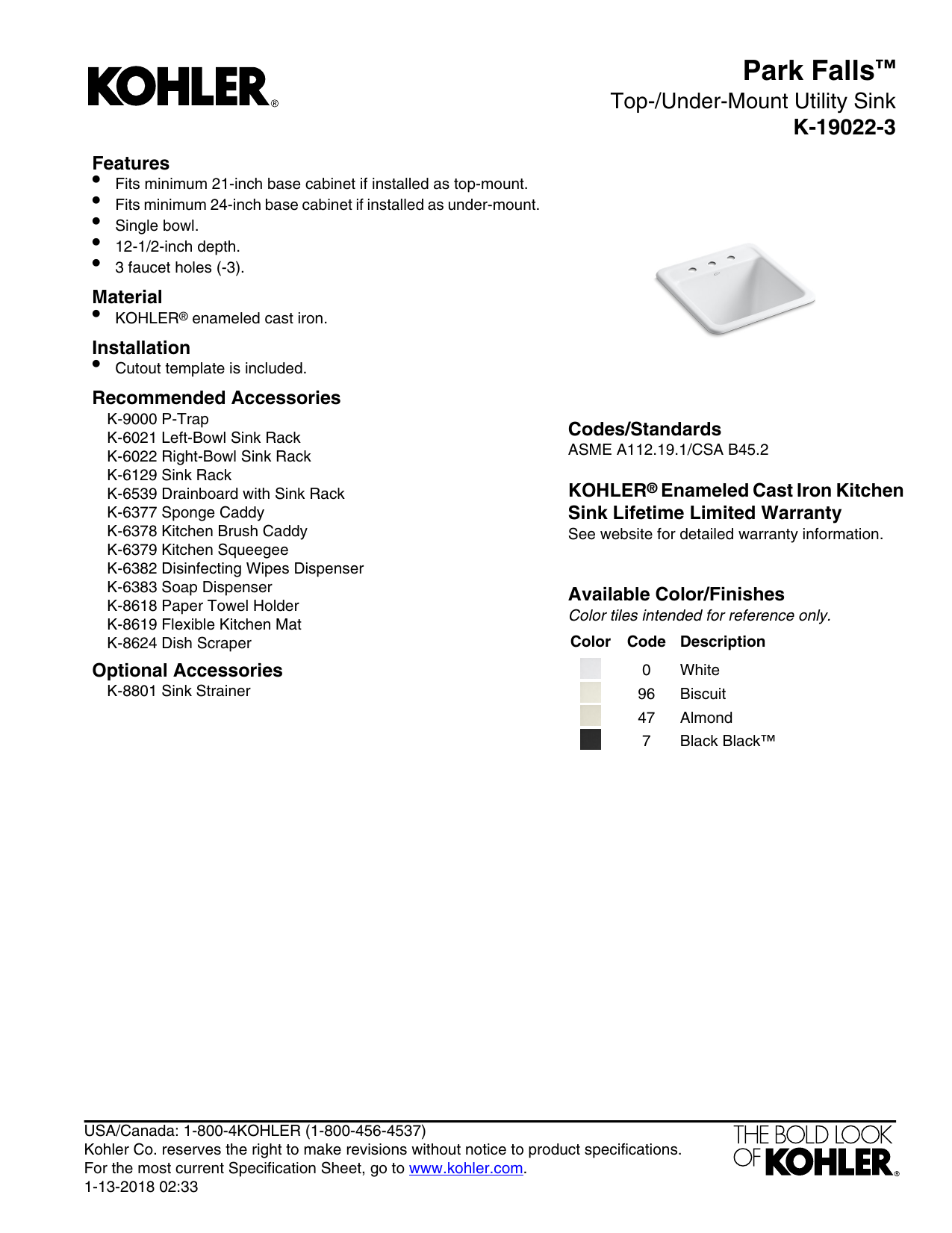

Park Falls™
Top-/Under-Mount Utility Sink
K-19022-3
Features
•
•
•
•
•
Fits minimum 21-inch base cabinet if installed as top-mount.
Fits minimum 24-inch base cabinet if installed as under-mount.
Single bowl.
12-1/2-inch depth.
3 faucet holes (-3).
Material
•
KOHLER® enameled cast iron.
Installation
•
Cutout template is included.
Recommended Accessories
K-9000 P-Trap
K-6021 Left-Bowl Sink Rack
K-6022 Right-Bowl Sink Rack
K-6129 Sink Rack
K-6539 Drainboard with Sink Rack
K-6377 Sponge Caddy
K-6378 Kitchen Brush Caddy
K-6379 Kitchen Squeegee
K-6382 Disinfecting Wipes Dispenser
K-6383 Soap Dispenser
K-8618 Paper Towel Holder
K-8619 Flexible Kitchen Mat
K-8624 Dish Scraper
Optional Accessories
K-8801 Sink Strainer
Codes/Standards
ASME A112.19.1/CSA B45.2
KOHLER® Enameled Cast Iron Kitchen
Sink Lifetime Limited Warranty
See website for detailed warranty information.
Available Color/Finishes
Color tiles intended for reference only.
Color
Code Description
0
White
96
Biscuit
47
Almond
7
Black Black™
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
1-13-2018 02:33
Park Falls™
Top-/Under-Mount Utility Sink
K-19022-3
10-1/2"
Technical Information
All product dimensions are nominal.
Bowl configuration:
Single
Installation:
Top-mount, Under-mount
Bowl area (Only)
Length: 17-1/2" (445 mm)
Width: 15-3/16" (386 mm)
Bowl depth: 12-1/2" (318 mm)
Water depth: 12-1/2" (318 mm)
Number of deck holes: 3
Faucet hole(s):
1-3/8" (35 mm)
Drain hole:
3-7/8" (98 mm)
Template:
1079985-7, required, included
Notes
Install this product according to the installation
instructions.
USA/Canada: 1-800-4KOHLER (1-800-456-4537)
Kohler Co. reserves the right to make revisions without notice to product specifications.
For the most current Specification Sheet, go to www.kohler.com.
1-13-2018 02:33
