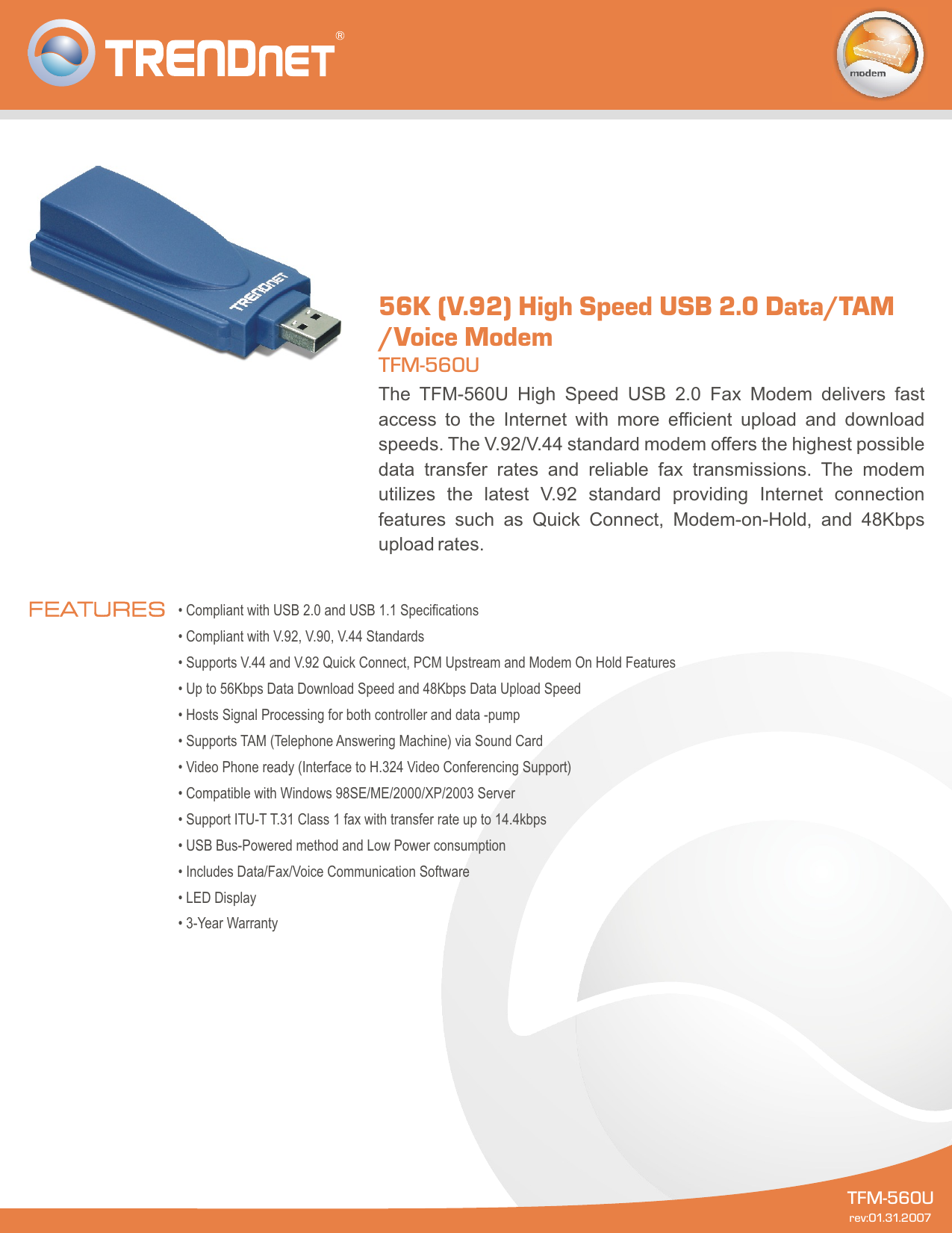

TRENDnet TFM-560U - DATA SHEETS Specifications

56K (V.92) High Speed USB 2.0 Data/TAM
/Voice Modem
TFM-560U
The TFM-560U High Speed USB 2.0 Fax Modem delivers fast
access to the Internet with more efficient upload and download
speeds. The V.92/V.44 standard modem offers the highest possible
data transfer rates and reliable fax transmissions. The modem
utilizes the latest V.92 standard providing Internet connection
features such as Quick Connect, Modem-on-Hold, and 48Kbps
upload rates.
FEATURES
• Compliant with USB 2.0 and USB 1.1 Specifications
• Compliant with V.92, V.90, V.44 Standards
• Supports V.44 and V.92 Quick Connect, PCM Upstream and Modem On Hold Features
• Up to 56Kbps Data Download Speed and 48Kbps Data Upload Speed
• Hosts Signal Processing for both controller and data -pump
• Supports TAM (Telephone Answering Machine) via Sound Card
• Video Phone ready (Interface to H.324 Video Conferencing Support)
• Compatible with Windows 98SE/ME/2000/XP/2003 Server
• Support ITU-T T.31 Class 1 fax with transfer rate up to 14.4kbps
• USB Bus-Powered method and Low Power consumption
• Includes Data/Fax/Voice Communication Software
• LED Display
• 3-Year Warranty
TFM-560U
rev:01.31.2007
56K (V.92) High Speed USB 2.0 Data/TAM/Voice Modem
TFM-560U
SPECIFICATIONS
Hardware
Standard
• USB 2.0
• USB 1.1
Interface
• 1 x USB 2.0 /1.1 (Type A), 1 x RJ-11 Port (Phone Line)
Data Mode
• V.92 & V.90, V.34, V.32(bis), V.22(bis), V.22, V.23, V.21, Bell 212A, Bell 103
Error Correction
Data Compression
• V.42, LAPM & MNP 2-4
• V.44, V.42(bis) & MNP5
Fax Mode
• ITU-T V.17, V.29, V.27ter and V.21 ch2, ITU-T T.31 Class1 Fax
Power Management
• USB Bus-Powered
Power Consumption (Input 3.3VDC)
• Idle Mode: 65mW, Operating Mode: 134mW
Dimensions
• 100 x 35 x 23mm (3.94 x 1.38 x 0.91in.)
Weight
• 25g (0.88oz.)
Temperature
• Operating: 0°C~ 40°C (32°F~ 104°F)
Humidity
• 10%~90% (non-condensing)
Certifications
• FCC, CE
NETWORKING SOLUTIONS
• Storage: -20°C~ 60°C (-4°F~140°F)
PACKAGE CONTENTS
• TFM-560U
Workstation with 56K (V.92)
USB 2.0 Data/Fax/Voice Modem
(TFM-560U)
• Multi-Language QIG
• Driver CD-ROM
• RJ-11 Telephone Cable
