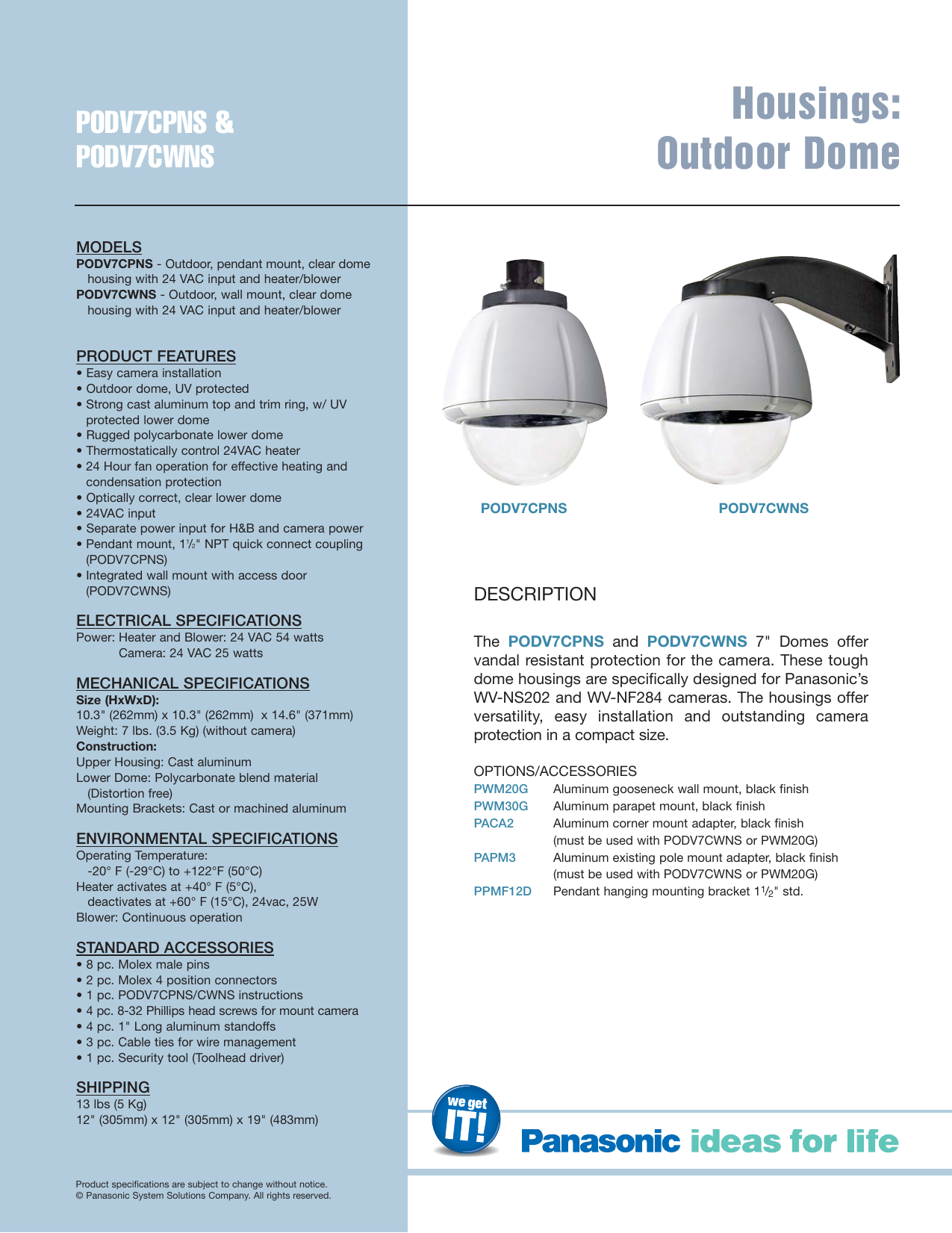

Panasonic PODV7CPNS Specifications

Housings:
Outdoor Dome
PODV7CPNS &
PODV7CWNS
MODELS
PODV7CPNS - Outdoor, pendant mount, clear dome
housing with 24 VAC input and heater/blower
PODV7CWNS - Outdoor, wall mount, clear dome
housing with 24 VAC input and heater/blower
PRODUCT FEATURES
• Easy camera installation
• Outdoor dome, UV protected
• Strong cast aluminum top and trim ring, w/ UV
protected lower dome
• Rugged polycarbonate lower dome
• Thermostatically control 24VAC heater
• 24 Hour fan operation for effective heating and
condensation protection
• Optically correct, clear lower dome
• 24VAC input
• Separate power input for H&B and camera power
• Pendant mount, 11/2" NPT quick connect coupling
(PODV7CPNS)
• Integrated wall mount with access door
(PODV7CWNS)
PODV7CPNS
PODV7CWNS
DESCRIPTION
ELECTRICAL SPECIFICATIONS
Power: Heater and Blower: 24 VAC 54 watts
Camera: 24 VAC 25 watts
MECHANICAL SPECIFICATIONS
Size (HxWxD):
10.3" (262mm) x 10.3" (262mm) x 14.6" (371mm)
Weight: 7 lbs. (3.5 Kg) (without camera)
Construction:
Upper Housing: Cast aluminum
Lower Dome: Polycarbonate blend material
(Distortion free)
Mounting Brackets: Cast or machined aluminum
The PODV7CPNS and PODV7CWNS 7" Domes offer
vandal resistant protection for the camera. These tough
dome housings are specifically designed for Panasonic’s
WV-NS202 and WV-NF284 cameras. The housings offer
versatility, easy installation and outstanding camera
protection in a compact size.
OPTIONS/ACCESSORIES
PWM20G
PWM30G
PACA2
ENVIRONMENTAL SPECIFICATIONS
Operating Temperature:
-20° F (-29°C) to +122°F (50°C)
Heater activates at +40° F (5°C),
deactivates at +60° F (15°C), 24vac, 25W
Blower: Continuous operation
STANDARD ACCESSORIES
•
•
•
•
•
•
•
8 pc. Molex male pins
2 pc. Molex 4 position connectors
1 pc. PODV7CPNS/CWNS instructions
4 pc. 8-32 Phillips head screws for mount camera
4 pc. 1" Long aluminum standoffs
3 pc. Cable ties for wire management
1 pc. Security tool (Toolhead driver)
SHIPPING
13 lbs (5 Kg)
12" (305mm) x 12" (305mm) x 19" (483mm)
Product specifications are subject to change without notice.
© Panasonic System Solutions Company. All rights reserved.
PAPM3
PPMF12D
Aluminum gooseneck wall mount, black finish
Aluminum parapet mount, black finish
Aluminum corner mount adapter, black finish
(must be used with PODV7CWNS or PWM20G)
Aluminum existing pole mount adapter, black finish
(must be used with PODV7CWNS or PWM20G)
Pendant hanging mounting bracket 11/2" std.
PODV7CPNS
& PODV7CWNS
BID SPECIFICATIONS
The vandal resistant outdoor dome camera
housing shall be a Panasonic model
PODV7CPNS, PODV7CWNS or equivalent.
These models are designed for the
WV-NS202 and WV-NF284 cameras. The
product should available with a 11/2" pendant
mount or an integrated wall mount with an
access door for wiring. The housing top and
mounting bracket shall be manufactured
from durable cast aluminum. The dome shall
be made of an injection molded, optically
clear, polycarbonate blend material. The
dome shall be held in place with a minimum
of (3) fasteners, and a safety cable shall be
provided to hold the dome while servicing.
DISTRIBUTED BY:
Access to the enclosure shall be from below
with (3) captive fasteners. A twist-off feature
shall allow for the final removal of the dome.
The product shall also be equipped with 24
VAC input blowers and thermostatically
controlled heaters. The blower shall draw
2W continuous power. The 50W heaters
shall turn on at 60°F (15°C) and turn off at
80°F (25°C). The housing shall support a
temperature range of -20°F (-29°C) to 122°F
(50°C). PODV7CPNS & PODV7CWNS will
include a 24VAC to 12VDC power supply
built into the housing.
