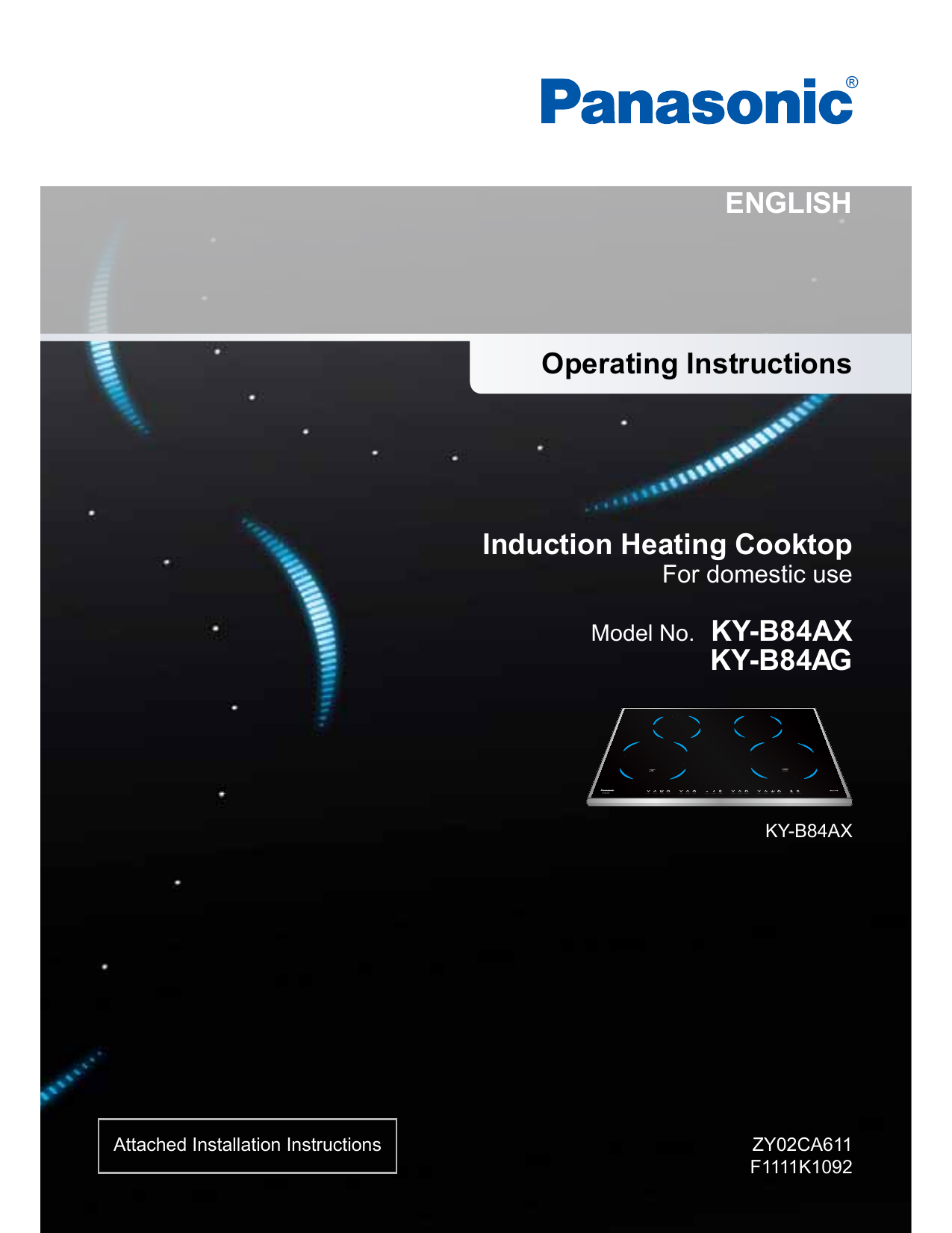

Panasonic KY-B84AG, KY-B84AX Operating Instructions Manual

®
ENGLISH
Operating Instructions
Induction Heating Cooktop
For domestic use
Model No.
KY-B84AX
KY-B84AG
KY-B84AX
Attached Installation Instructions
ZY02CA611
F1111K1092
Thank you for purchasing this Panasonic appliance.
Please read these instructions carefully before using the
appliance.
Main Features
■■ Safe, clean, highly efficient
Keep Operating Instructions, Installation Instructions and
Warranty Certificate for future use.
Flameless
Contents
Main Features ....................................................................... 3
Safety Precautions ................................................................ 4
General Precautions .............................................................. 7
Parts Identification ................................................................. 8
Types of Cookware that Can be Used ................................. 10
IH Cooking ........................................................................... 12
Guide on Heat Level Adjustment ......................................... 17
Guide on Temperature Adjustment ...................................... 18
Cleaning .............................................................................. 19
Troubleshooting ................................................................... 20
Error Indications .................................................................. 23
Specifications ...................................................................... 25
■■ IH cooking mechanism
IH (Induction Heating) refers to
electromagnetic induction heating.
Eddy current
Bottom of cookware
itself is heated.
If electricity flows in the magnetic
coils underneath the top plate,
magnetic lines of force are
Top plate
produced.
When the magnetic lines of force
pass through metallic cookware,
an eddy current is induced, and
the heat that is generated by
the electrical resistance of the
cookware is used for heating.
2
Magnetic force
generating coil
Flat top plate is
easy to care for
Efficient heating
is provided
Home-friendly For insulated homes and island kitchens
Earth-friendlyEmits zero carbon dioxide in homes and is
energy-saving
■■ IR sensor technology of Panasonic
Magnetic lines
of force
The IR sensor of Panasonic (Temperature control
system) regulates set temperatures by quickly
detecting the temperatures on the bottom of the
cookware, so it is easy to prepare delicious food.
-- Pan frying temperature control sensor
-- Deep frying temperature control sensor, etc.
IR sensor
3
Safety Precautions
Please fully observe the following safety precautions.
WARNING: Failure to follow these instructions may cause
death or serious injury.
-- This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.
-- Children should be supervised to make sure that they do not
play with the appliance. Also, keep the appliance out of reach
of infants.
-- Do not place combustible materials near the appliance. They
may cause fire.
-- Observe the following warnings to keep the IR sensor
functioning properly.
-- Make sure that cookware completely covers the IR sensor
(
).
-- Select and use the left front IH heater with the Deep frying
temperature control sensor (
) for deep-frying. Do not
use the other IH heater for deep-frying. Make sure to follow
instructions for amounts and depths of oil.
Amount: minimum 200 g (0.22 L)
Depth: minimum 1 cm
-- Wipe water off the top plate and the insides and outsides of
cookware.
If these warnings are not observed, the IR sensor may not
function properly and cause oil overheating resulting in fire.
-- For stir-frying and pan-frying, set the heat level for preheating
as follows.
For front IH heaters: between
to
For rear IH heaters: between
to
-- Do not leave the appliance unattended while cooking.
-- Stir liquids, such as soup and stewed food, before heating.
Otherwise, liquids may splatter and cause burns or injuries, or pot
may jump and damage the top plate.
-- Do not place explosive objects, such as portable gas burners,
steel cylinders and canned goods, on or near the appliance.
If they are mistakenly heated, they may explode.
-- Do not let metallic objects, such as knives, forks, spoons,
lids, aluminum foil/tray, retort pouch, magnetic rings, watches
or accessories, be placed on or near the top plate, or touch
the cookware while the IH heater is operating. They may get
hot and cause burns or injuries.
-- Do not apply high pressure to or drop things on the top plate.
The top plate may crack and cause an electric shock.
WARNING
If the top plate is cracked, do not touch it and turn
off the main power switch to avoid the possibility
of electric shock. Contact the dealer where you
purchased the appliance for repair.
-- Do not disassemble, repair, or modify the appliance. For
repairs, contact the dealer where you purchased the
appliance.
-- After use, use the controls to turn off the appliance (main
power switch) and do not rely on the pot detector (safety
features). When the appliance will not be used for a long
period of time, turn off the breaker.
-- In case of malfunction or breakdown, immediately stop using
the appliance. Turn off the main power switch and breaker,
and then contact the service agent. Failure to do this may
cause smoke, burns, and electric shock.
Breakdown examples:
-- Smells of something burning come from the appliance.
-- Can feel electricity when touching the top plate.
-- The top plate is cracked.
-- The power cord overheats.
-- The electricity shuts off when the power cord is moved.
If the power cord is damaged, it must be replaced by the
manufacturer or its service agent or a similar qualified person
in order to avoid a hazard.
-- Do not touch the top plate or top frame during or after use.
Be especially careful when the high temperature caution
) lights up, or
flashes on any IH heater display.
light (
4
5
Safety Precautions
CAUTION: Failure to follow these instructions may cause
injury or property damage.
-- If the oil emits oily smoke, immediately turn off the main
power switch. Otherwise, it may catch fire.
-- Beware of spattering hot oil. Do not let your face get near the
cookware. This may cause burns.
-- Do not use oil preheated by other appliances, such as a gas
range. Otherwise, the “oil temperature control system” will not
work properly and may cause fire.
-- Do not use high heat level for preheating in the following
cases.
-- When small quantity of oil is used
-- When small or light pans are used
-- When thin-bottomed or curved-bottomed pans are used
Pans may turn red-hot or deform.
-- If you are wearing a medical device (such as a pacemaker),
consult your doctor. The operation of the appliance may affect a
medical device.
-- Keep cookware stable. Dropped cookware may cause injuries or
burns.
-- Do not place paper or dish towels under the cookware.
They may get scorched due to the heat of the cookware.
6
General Precautions
-- The appliance is not intended to be operated by means of an
external timer or separate remote-control system.
-- The appliance emits magnetic lines of force. Do not place
anything affected by magnetism close to the appliance.
-- Radios, TVs, hearing aids, for example, may get noise
interference.
-- Cassette tapes, automatic turnstile tickets, or bank cards, for
example, may be erased or damaged.
-- Do not use other IH cooking appliances, such as IH rice
cooker or portable IH cooktop, on the top plate. Electro
magnetic waves generated by these appliances may damage the
IH heater.
-- Do not place seasoning or food in the cabinet below the
appliance. They may be spoiled by the exhaust heat.
-- If the top plate or top frame is stained by acidic foods, such
as vinegar, jam, or lemon juice, immediately wipe it off.
Otherwise, the top plate or top frame may be discolored.
-- Do not scratch the top frame with the bottom of the
cookware, or put a hot cookware on it. The top frame may be
damaged.
-- Do not put water on or place anything on the operation panel.
The operation panel keys may get malfunction.
-- Do not heat empty cookware or overheat ingredients.
The ingredients may burn and the cookware may be damaged.
-- Do not clog up the intake or exhaust vent. The filter clog
detection for the intake and exhaust vents may be activated and
thereby automatically shut off the main power.
-- Do not use the appliance for purposes other than cooking.
This may cause overheating or malfunction resulting in fire.
-- Since the heat level
for the front IH heaters is strong,
check and adjust the heat level frequently.
7
■■ General controls
Parts Identification
High temperature caution light
-- The light lights up when the top plate turns hot.
-- Even after the main power is turned off,
stay lit
while the top plate is still hot and
flashes on the
operation panels showing which IH heaters are hot.
■■ Main unit and operation panel
Top frame
Cooking zone
IR sensor
Left rear
IH heater
Luminous circle
Top plate
Main power switch and light
-- The main power light lights up when the main power
is turned on.
-- If 1 minute has elapsed without any operation since
the main power switch was turned on, the main
power automatically turns off.
Right rear
IH heater
Child safety lock key and light
-- The key is used to lock all heater operations to
prevent mischief and erroneous operations.
-- After turning on the main power, touch and hold the
key for 3 seconds. To deactivate, touch and hold the
key again for 3 seconds.
Right front
IH heater
Left front
IH heater
Timer
-- Timer can be used with Heating menu of all IH
heaters.
-- However, timer cannot be used with the Pan frying
temperature control sensor or Deep frying
temperature control sensor.
-- For more details on how to set timer, see page 16.
Model: KY-B84AX
Keys and
indicators
■■ Cooking areas
Deep frying
temperature
control sensor
(See page 14.)
Pre-heating
indicator
(See page 15.)
Heating menu (See page 13.)
Available for all IH heaters.
8
Timer
(See page 16.)
Pan frying
temperature
control sensor
(See page 14.)
Cooking zone
KY-B84AX
Front : ø210 mm
Rear : ø150 mm
Pre-heating
indicator
(See page 14.)
Use dotted white lines
as guidelines.
Luminous circle
(KY-B84AX only)
KY-B84AG
Front : ø210 mm
Rear : ø150 mm
Use areas printed in
white as guidelines.
When the main power switch is turned on, luminous
circles glow blue. The luminous circles glow brighter
around any IH heaters that are in use.
9
Types of Cookware that Can be Used
Material
Compatible cookware
Iron/Cast iron
Enameled iron
Magnetic stainless
steel (Magnets stick
to the bottom.)
* The heating power may not be as strong for some stainless
steel cookware.
Incompatible cookware
-- Aluminum/Copper
-- Heat-resistant glass
-- Ceramic and earthenware
-- Nonmagnetic stainless steel
(Magnets do not stick to the bottom.)
*S
ome nonmagnetic stainless steel cookware can be used.
Shape of the
bottom
Compatible cookware
The bottom is flat and uniformly contacts with the top plate.
Incompatible cookware
Round-bottomed
cookware
Curved-bottomed
cookware
Size (Bottom
diameter)
10
Cookware with legs
or protrusions
Thin-bottomed
cookware
* Do not use curved-bottomed cookware
curved 3 mm or over, as the safety
features may not activate properly,
heating power may be diminished, or the
cookware may not be heated.
Compatible cookware
For front IH heaters: 14.5 cm or over
For rear IH heaters: 12 cm or over
* Use the cookware that fits the size of the
cooking zone.
CAUTION
-- Do not heat and scorch empty enameled cookware. Enameled
bottom may melt and damage the top plate.
-- Do not use ceramic and earthenware cookware even if it is made for
induction heating.
-- Depending on the shape, some ceramic and earthenware cookware
may damage the IH heater.
-- When the IH heater reaches a high temperature, the heating power
will be controlled to reduce the heat level and cooking will not be done
properly, thereby affecting cooking performance. And heating may
automatically stop due to safety features.
NOTE
When using the Deep frying temperature control sensor or Pan
frying temperature control sensor, the following situations may occur
depending on the type, material, and shape and size of the bottom of
cookware.
-- Actual oil temperature varies from the set oil temperature.
-- The preheating time gets longer.
-- The cookware does not get heated due to a detected abnormality.
■■ How to check IH heater cookware compatibility
1. Place cookware filled with about 1 cup of water
on an IH heater.
2. Touch to turn on the main power.
3. Touch the key of the IH heater to be used and
check the power indicator.
(In case of the left front IH heater)
-- If the cookware is compatible, power indicator will stay lit.
-- If the cookware is incompatible, power indicator will flash.
4. Touch the key touched in step 3 to turn off the IH heater.
(In case of the left front IH heater)
11
■■ Heating menu
IH Cooking
■■ Preparing
1. Place the cookware on the center of the IH heater.
-- For the front IH heaters, cover the IR sensors with
the cookware.
-- For stir-frying and pan-frying, wipe water or stains
off of the top plate and insides and outsides of
cookware so that the temperature on the bottom of
the cookware can be detected correctly.
* The IR sensor detects and regulates the temperatures on the bottom of
the cookware. It prevents overheating and returns the temperature to
the set one after the temperature reduces if ingredients are added.
2. Touch (slightly hold) to turn on the main power.
If 1 minute has elapsed without any operation, the main power
automatically turns off.
If this happens, turn on the main power again.
3. Perform the desired operation.
-- For Heating menu, see page 13.
-- For Pan-frying menu, see page 14.
-- For Deep-frying menu, see page 14.
NOTE
When heating longer than 45 minutes, use timer function to prevent
“Forgotten-Off auto shutoff” from activating. For more details on how to
set the timer, see page 16.
Safety features for these situations
I was careless!
-- Undetected pot auto shutoff
(See page 23.)
-- Small object auto shutoff
(See page 23.)
-- Empty pot auto shutoff
(See page 24.)
-- Main power switch auto shutoff
(See page 20.)
-- Forgotten-OFF auto shutoff
(See page 20.)
12
It is overheated!
-- Overheating prevention
function (See page 21.)
Top plate is hot!
-- High temperature caution light
(See page 9.)
I want to prevent mischief and
erroneous operations.
-- Child safety lock (See page 9.)
For simmering, boiling, heating, steaming, stir-frying, and pan-frying
Available for all IH heaters.
WARNING
-- Stir liquids before heating. Otherwise, ingredients may suddenly erupt
or pot may jump, and you may get burned or injured.
-- For stir-frying and pan-frying, set the heat level for preheating as
follows.
For front IH heaters: between
to
For rear IH heaters: between
to
CAUTION
Do not use high heat level for preheating in the following cases.
-- When small quantity of oil is used
-- When small or light pans are used
-- When thin-bottomed or curved-bottomed pans are used
Pans may turn red-hot or deform.
1. Touch the key of the IH heater to be used to start heating.
(In case of the left front IH heater)
Default heat level:
2. Touch to adjust heat level.
(Left: decrease, right: increase)
It can be adjusted to 18 levels. (See page 17.)
Touch and hold the key to change the heat level rapidly.
* For more details on how to set timer, see page 16.
3. Touch the key touched in step 1 to turn off the IH heater.
(In case of the left front IH heater)
NOTE
Do not stir-fry a large quantity of food at one time. If scorching is
anticipated, lift the pan or move it away from the IH heater.
13
IH Cooking
■■ Pan-frying menu
with the Pan frying temperature control sensor
Available for the right front IH heater.
3. When the preheating indicator (
The appliance beeps.
1. Touch to turn on the Pan frying
temperature control sensor.
Default temperature: 200 oC
4. Touch to turn off the Pan frying temperature control sensor.
NOTE
The timer cannot be used with the “Pan frying temperature control
sensor”.
■■ Deep-frying menu
with the Deep frying temperature control sensor
Available for the left front IH heater.
WARNING
When deep-frying, use a minimum of 200 g of oil and it should be at
least 1 cm deep. Otherwise, it may cause fire.
14
NOTE
-- The timer cannot be used with the “Deep frying temperature control
sensor”.
-- The “Deep frying temperature control sensor” and the left rear IH
heater cannot be used simultaneously.
) disappears, add ingredients.
When the right rear IH heater is used simultaneously, the preheating time
will be longer.
1. Touch to turn on the Deep frying
temperature control sensor.
Default temperature: 180 oC
) disappears, add ingredients.
4. Touch to turn off the Deep frying temperature control sensor.
2. Touch to adjust temperature.
(Left: decrease, right: increase)
Temperature adjustable range: 140 oC to 230 oC (See page 18.)
The actual temperature at the pan bottom may vary from the set temperature
depending on the pan. Adjust the temperature with these keys.
3. When the preheating indicator (
The appliance beeps.
2. Touch to adjust temperature.
(Left: decrease, right: increase)
Temperature adjustable range: 140 oC to 200 oC (See page 18.)
The actual oil temperature may vary from the set temperature depending
on the cookware. Adjust the temperature with these keys.
To keep the Deep frying temperature control sensor
functioning properly
-- Make sure to follow instructions for amounts and depths of oil.
Amount: 200 g to 800 g (0.22 L to 0.9 L)
Depth: minimum 1 cm
-- Place the pot on the center of the left front IH heater.
-- Do not use hot oil, brown-colored oil, murky oil, or oil filled with food
sediment.
-- Be careful of the type, material, and shape and size of the bottom of the
pot. (See page 10.)
-- Remove all stains from the top plate and bottom of the pot.
-- Do not cook when the top plate is hot.
) disappears.
-- Do not add ingredients before preheating indicator (
(Heating may stop due to a detected abnormality.)
-- Once preheating has started, do not add oil or move the pot to another IH
heater.
To minimize the splattering of oil
-- Do not put oil in a pot that is wet on the inside.
-- Do not add ingredients before the oil temperature has reached the suitable
temperature. If the oil overheats, it may splatter.
15
Guide on Heat Level Adjustment
Timer is convenient when simmering for a
long time.
Available for any IH heaters that have started
heating.
General heating
Power
consumption
in W (approx.)
1. Touch to turn on the main power switch.
Stewing
pasta sauce
1 1. 2 2. 3 3. 4 4. 5 5. 6 6. 7 7. 8 8. 9 9.
Stewing beef
Simmering
) to select the IH heater.
flashes when the corresponding IH heater is selected.
Fond
Thick soup
Light soup
Rice pudding
Bouillon, Stew
Bechamel sauce
Timer setting range: 1 minute to 99 minutes
-- Touch and hold the key to change the time rapidly.
-- If you touch
first, the time decrease from
.
-- To cancel, touch the key until
is displayed.
, the appliance beeps and automatically turns
Pan-frying
Heating
up
Boiling
4. Touch to set time.
When the time reaches
off.
Front IH
heaters
Heat level
2. Perform the Heating menu operation.
For Heating menu, see page 13.
3. Keep touching the timer key (
Rear IH
heaters
70
90
120
150
190
230
280
330
400
500
600
700
800
900
1000
1200
1500
1800
■■ Timer
70
110
135
160
190
250
300
380
460
570
700
850
1000
1300
1500
1800
2600
3300
IH Cooking
Meat, Vegetables
Pasta
Heating water
Melting butter,
chocolate
Milk, Soup
Steak, Bacon,
Pork chops, Meunière
Fried eggs
Surface grilling
of steak
Crêpes
Heat level
1 1. 2 2. 3 3. 4 4. 5 5. 6 6. 7 7. 8 8. 9 9.
* These heat levels are based on when using the front IH heaters.
The heat values for cookware vary according to its material. Check and adjust the heat
levels frequently. Heat values in descending order as per the following.
Iron cookware → enameled iron cookware → stainless steel cookware
16
17
Guide on Temperature Adjustment
Cleaning
Pan frying temperature control sensor (5 levels)
°C
140
160
180
230
Pork sauté
Crêpes,
Buckwheat galettes
Sauteed chicken thighs with bones
Broiled
salmon
Hamburger steaks,
Milano cutlets, Fried eggs,
Croque-monsieurs
French toast
Potato
galettes,
Spanish
omelettes
Suggested
menus
200
Italian
omelettes
Soft
omelettes
CAUTION
-- Before cleaning, turn off the main power switch. Clean the top plate
after waiting for it to cool down.
-- Do not use a steam cleaner. Water may get into the electrical
components and cause a malfunction.
Always keep and use the appliance in clean condition.
If splattered food or oil become scorched to the appliance, it will be very
difficult to remove.
■■ Top plate and operation panel
Light stains:
Wipe off with a damp cloth.
Oil stains:
-- Wipe off with a cloth dampened in diluted neutral detergent.
-- Do not use strong acidic or alkaline detergents, such as
bleach, synthetic housing detergents.
They may cause discoloration.
Heavy stains: Apply cream cleanser to the top plate
or operation panel and scrape off any
stains with crumpled plastic wrap.
Deep frying temperature control sensor (7 levels)
°C
140
Suggested
menus
Potato
chips
18
150
160
170
180
190
200
Homemade croquettes
Croutons
Frozen foods (frozen fried
potatoes, etc.)
Fried chicken
Fried foods
Fritters, Donuts
Piroshki, Parsley
NOTE
Do not forget to remove stains from the bottom of cookware. Otherwise,
the stains will get burned into the top plate.
■■ Top frame
Wipe sauce stains from the top frame immediately.
Otherwise, they will be unremovable.
19
Troubleshooting
Sounds and noises
Check the following information before making inquiries or requesting service.
Power source
Symptom
Probable cause
The IH cooktop cannot
be turned ON.
-- The main power switch has not been turned ON.
The power switch was designed so that it will not be easily
turned on if it is mistakenly touched.
Touch the main power switch a little longer.
-- The “Child safety lock” has been activated.
Main power switch auto shutoff
If 1 minute has elapsed without any operation since the main
power switch was turned on, the main power automatically
turns off.
Turn on the main power switch again.
The “Deep frying temperature control sensor” and the left
rear IH heater cannot be used simultaneously.
The IH heater turned
itself off while being
used.
Forgotten-OFF auto shutoff
If no key is touched for approx. 45 minutes while an IH
heater is in operation, a buzzer will sound and the IH heater
is automatically turned off.
Touch the key again.
* The timer is recommended for simmering.
Symptom
Probable cause
Noise is heard during
heating.
Various resonant sounds may be heard depending on the
type of cookware. You may feel a small vibration when you
hold the handle and the cookware may slightly move.
This is not a malfunction. Moving the cookware slightly or
replacing it may be able to get rid of the sound.
If the cookware is removed while being heated, a short
metallic sound may be heard.
The level of the
noise from the main
unit increases and
decreases.
Even after the main
While the inside of the main unit is still hot, the cooling fan
power switch is turned
operates.
off, noise from the fan is (When the temperature decreases, it will automatically stop.)
still heard.
Heat power
Symptom
Probable cause
The heating power of
the IH heater seems to
be weaker.
Overheating prevention function
If the bottom of the cookware overheats, for example, when
preheating too long, the heating power will automatically
decrease without the power indication changing.
(The function ends after the appliance cools down.)
Operation panel
Symptom
Probable cause
Key operation is
disabled.
-- Your fingertips are covered or have bandages on them.
-- You performed the operation while holding the cookware
handle.
-- The operation panel is stained.
Turn off the main power switch and remove any foreign
objects. Then, turn on the main power switch again.
* Remove after cooking when deep-frying.
Keys react even when
only their vicinity is
touched.
20
Water is on or around the keys, for example.
It is the noise from the cooling fan inside the main unit. The
level of the noise changes according to the heat level and
the material the cookware is made of.
(When the heat level is increased, the fan will operate at high
speed and generate more noise.)
Cookware, such as ceramic and earthenware pots, which
cause the IH heater to overheat are used.
Do not use ceramic and earthenware pots even if they are
for induction heating.
When several IH
heaters are used
simultaneously,
-- The heating power
decreases.
-- The power indicator
automatically
decreases.
-- The heat level does
not increase.
The heat level is automatically controlled so that overall
power consumption does not exceed the limit. (See page
25.)
* The power indicator for an IH heater may decrease on its
own. Even after touching
, it may not increase and the
appliance may beep.
21
Error Indications
Troubleshooting
For the following error indications, check the
cause and deal with it.
Heating automatically resumes after the cause
are eliminated.
Pan-frying
Symptom
Probable cause
-- Preheating time takes
too long.
-- The actual
temperature is
different from the set
temperature.
-----
The pan has been moved away from the IR sensor.
The pan bottom or top plate is stained.
Water, oil, or food was added during preheating.
The temperature on the bottom of the pan may vary from
the set temperature depending on the type of pan.
* If the actual temperature is incorrect adjust the
. (See page 14.)
temperature with
Indication
Probable cause
The indicator lights up or flashes -- There is water or foreign objects on or around
the operation panel, or water or ingredients have
boiled over.
-- In case of left or right front
Remove water or foreign objects. (If the
IH heater
IH heater was turned off, perform the key
operation again.)
-- The top plate has been touched for 3 seconds
-- In case of left or right rear
or more. (Except operations which keys must be
IH heater
touched and held for 3 seconds or more, such as
rapid change of timer)
Operation keys error
detection
The indicator flashes.
Deep-frying
22
Symptom
Probable cause
-- Preheating time takes
too long.
-- The actual
temperature is
different from the set
temperature.
-----
The pot has been moved away from the IR sensor.
The pot bottom or top plate is stained.
More than 800 g of oil has been added.
Hot oil, brown-colored oil, murky oil, or oil filled with food
sediment is used.
-- The oil temperature may vary from the set temperature
or the preheating time may take longer depending on the
type, material, and shape and size of the bottom of the pot.
* If the actual oil temperature is incorrect adjust the
. (See page 15.)
temperature with
Undetected pot auto shutoff
Small object auto shutoff
------
No pot placed on the IH heater.
The pot being heated has been removed.
The pot is not centered on the IH heater.
An incompatible pot is used. (See page 10.)
A metal kitchen tool, such as a knife or a spoon, is
on the top plate.
If they are not removed, the display goes out after a
minute then the main power turns off.
23
Error Indications
For the following error indications, check the
cause and deal with it. Then, touch the key of the
or
) to
front right or front left IH heater (
clear an error indication.
Specifications
KY-B84AX
Indication
Power supply
Probable cause
Filter clog detection
(for filter of intake vent
or exhaust vent)
-- In case of left or right front
IH heater
-- In case of left or right rear
IH heater
Empty pot auto shutoff
Inadequate pot auto shutoff
(for deep-frying)
Slipping pot auto shutoff
(for deep-frying)
* You can also clear the
You can also clear the
-- The intake or exhaust vent is clogged.
-- Dirt has accumulated in the intake or exhaust
vent.
Remove any blockages.
or
.
errors with
.
NOTE
For the service center contact list, refer to the Warranty Certificate.
773 mm / 536 mm / 83 mm
Weight (approx.)
16.0 kg
15.8 kg
Luminous circle
Included
Not included
Oil was mistakenly preheated by “Heating menu”.
error with
and
0.2 W
* When the main power is off
Dimensions (approx.): width / depth / height
Heat adjustment
(approx.)
-- The pot is not in the proper position.
-- More than 800 g of oil has been added.
-- Ingredients were added while the preheating
indicator was displayed.
After dealing with the error, you can touch the key
again to resume preheating.
7,200 W
Standby power consumption (approx.)
Maximum heat level
If you cannot resolve the above-mentioned problems, or any
error appears,
contact the service center.
Turn off the main power switch and breaker, and contact the dealer you purchased
the appliance from or service agent for details concerning the 2-digit number following
an “H”.
24
Power consumption
An empty pot has been heated.
* The amount of time taken for the IH heaters to turn
off varies according to the type of pot.
* This function may not be activated properly
depending on the type of pot, or if the heat level is
low.
Put the ingredients into the pot and touch the key
again.
-- Some pots are incompatible depending on the
shape and size of the bottom, type, and material.
(See page 10.)
-- More than 800 g of oil has been added.
KY-B84AG
Single phase 240 V ~ 60 Hz
Deep-frying
temperature
adjustment (approx.)
Pan-frying
temperature
adjustment (approx.)
Cooking timer
3,300 W
1,800 W
18-level adjustment
Equivalent to 70 W to 3,300 W
18-level adjustment
Equivalent to 70 W to 1,800 W
7-level
adjustment
140 °C to
200 °C
—
—
—
—
5-level
adjustment
140 °C to
230 °C
—
—
1 minute to 99 minutes
If the IH heaters in the same group, i.e. right front and right
rear IH heaters, or the left front and left rear IH heaters, are
used simultaneously, the heating power of the IH heaters
are regulated as follows in order to restrict overall power
consumption.
-- The power indicator does not change but the heating
power weakens.
-- The heat level is automatically reduced by one or several
levels.
-- The heating power cannot be increased.
If high heat levels are required, do not simultaneously use
the front and rear heaters, or reduce the heat level of one
of the IH heaters in the same group.
Left IH
heaters
group
Right IH
heaters
group
25
Panasonic Canada Inc.
5770 Ambler Drive, Mississauga,
Ontario, L4W 2T3
www.panasonic.ca
© Panasonic Corporation 2011
Printed in Japan

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
