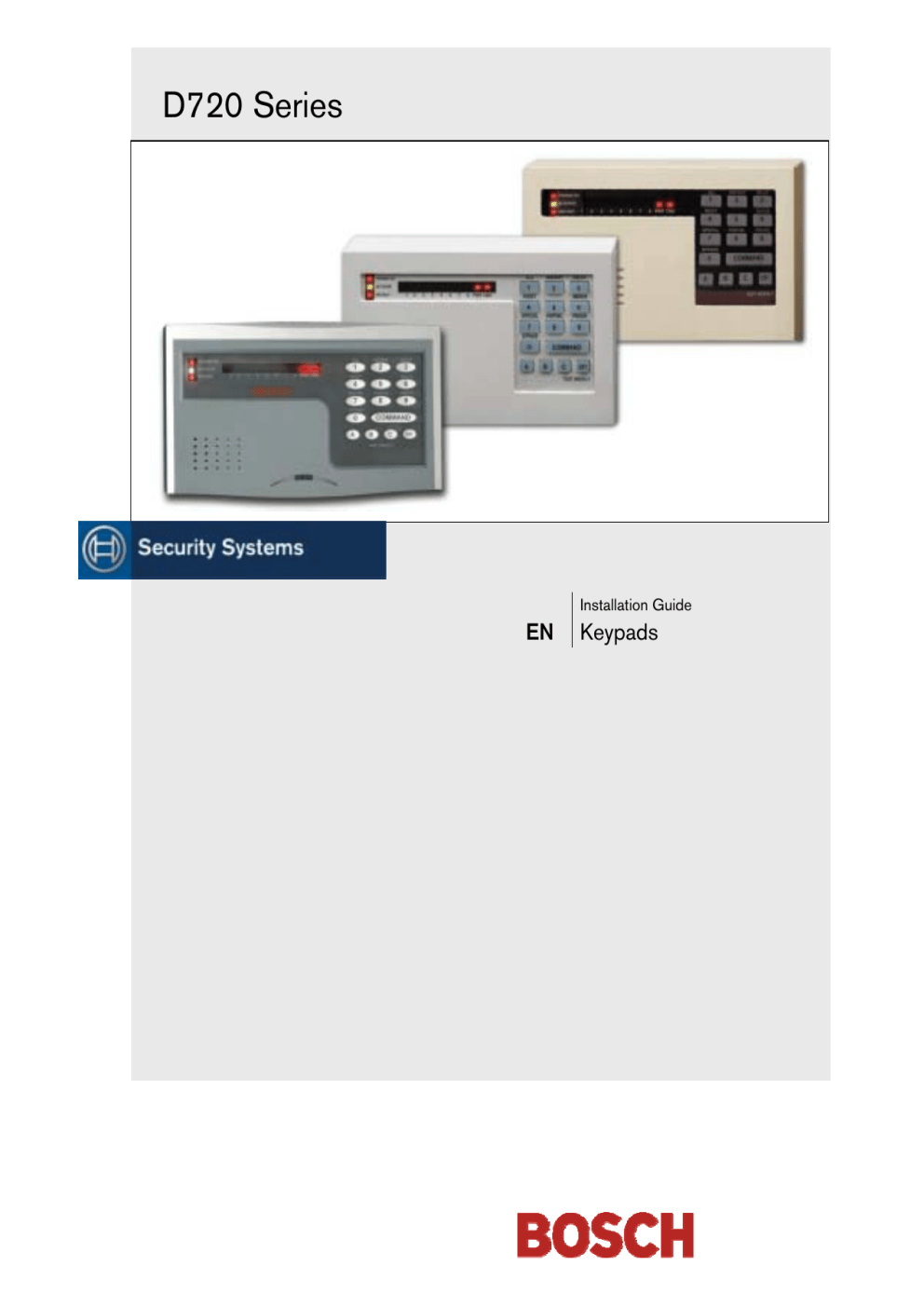

Bosch D9124 Installation Manual

D720 Series
Installation Guide
EN
Keypads
D720 Series | Installation Guide | 1.0
Description
1.0 Description
The D720 Series Keypads (D720, D720W, and D720B)
are low profile surface mount, four–wire units which
can annunciate up to eight protective points on its LED
display. They have a [COMMAND] bar, an [ENT]
(ENTER) key, and number keys from [0] to [9]. The
keys are used to enter personal passcodes and
command functions. When a key is pressed, the
keypad is backlit and the keypad emits a short beep to
indicate that the buffer has stored the entry.
When a passcode is completed, the [ENT] key must be
pressed to enter the passcode. If the [ENT] key is not
pressed, the passcode is ignored by the control panel.
The [ENT] key is not required to enter [COMMAND]
bar functions.
The keypad has a time window for accepting key
entries. After one key is pressed, the next key in the
passcode must be pressed within five seconds. After
five seconds have expired from the last key entry, the
entire entry is cleared and the passcode must be
restarted.
The D720 Series is compatible with the following
control panels:
Table 1: Compatible control panels
D9412G
D7412G
D7212G
D9412
D7412
D7212
D9112
D9124
2.0 Function Keys
The D720 Series Keypad has three programmable
function keys labeled [A], [B], and [C]. Each key can be
programmed to perform many command functions of
the control panel. This enables the user to press one
button to perform command functions instead of
memorizing the command combination. For complete
details concerning the programming of the function
keys, refer to Section 7.3 Custom Functions on page 6.
3.0 Response Tones
The keypad contains a sounder used to annunciate
several system conditions and area conditions. The
response tones are as follows:
Table 2: D720 Series Response tones
Tone
Entry/Exit Delay
Keystroke Entry
Faulted Point
Protest
Watch Tone
System Trouble
Tone
Alarm Tones
2
Description
The keypad beeps during the entry/exit delay period to remind the user to disarm the security system. This
is a programmable function.
As each key is touched the keypad emits a short beep to indicate that the entry has been stored in the
keypad buffer. This feature can be disabled using the dip switch on the D720 Series.
Protective points may be programmed to sound the area keypad buzzer after an arming command is
entered, to indicate that a point is faulted.
The keypad sounder emits a short beep when a watch point is faulted during watch mode.
Some points may be programmed to sound a service tone when they are faulted. To silence the sounder
enter an arm/disarm passcode for that area, or enter [COMMAND][4].
Some points, such as fire points, may be programmed so the sounder cannot be silenced until
the point fault is corrected. For additional programming information, refer to the appropriate
program entry guide (refer to Table 5 on page 5).
When a fire point activates, the keypad emits a fast, pulsating, high-pitched tone. When a burglary point
activates while the system is armed, the keypad emits a steady burglary tone.
Bosch Security Systems | 8/04 | 74-06918-000-F
D720 Series | Installation Guide | 4.0 Display
4.0 Display
The display annunciates four different types of status: armed, point, AC and battery power, and command mode
(Figure 1).
Figure 1: D720 Series Keypads
D720/D720W
1
4
5
6
3
2
1
2
3
4
5
6
7
8
9
0
COMMAND
A
B
C
7
8
ENT
39882E
9
5
1
6
7
PERIMETER
INTERIOR
INSTANT
1
2
3
4
5
6
7
8
PWR CMD
4
8
3
2
A
B
C
4998152978B
D720B
1 - Armed status
indicators
2 - Sounder
4.1
3 - A, B, C function
keys
4 - Point status
indicators
Armed status indicators
Armed Status Indicators show the armed condition of
the area to which the keypad has been assigned.
(Keypads are assigned to areas in the Cmd Cntr
Assignment section of the panel program). Three
different indicators show the area armed status:
• Perimeter – When this indicator is lit, the area
perimeter points are armed. During exit delay
time, this indicator flashes slowly.
• Interior – When this indicator is lit, the area’s
interior points are armed. During exit delay time,
this indicator flashes slowly.
• Instant – When this indicator is lit, the area is
armed without entry/exit delay time.
Bosch Security Systems | 8/04 | 74-06918-000-F
9
5 - Power status
indicator
6 - Command mode
indicator
4.2
7 - Digital keypad
8 - Command bar
9 - ENT key
Point status indicators
The keypad contains eight numbered indicator lights,
which are used to annunciate the condition of the
area’s protective points (Item 4 in Figure 1).
•
•
•
Point Fault – While a point is faulted, its indicator
lights steadily. When the point is restored to
normal, the indicator goes “off.”
Point Alarm Memory – A point alarm memory
condition causes the indicator light to flash “on”
and “off” rapidly. The indicator continues to flash
rapidly until the system is next armed or
[COMMAND][4] is entered.
Bypassed Point – When a point is bypassed, the
point’s indicator flashes “on” and “off” slowly. The
indicator continues to flash slowly until the system
is disarmed, or with some systems, the point may
be unbypassed.
3
D720 Series | Installation Guide |
Protective points may be programmed as
invisible. When programmed invisible, the
status of the point is not displayed for
alarm conditions.
4.3
Command mode indicator
When the [COMMAND] bar is pressed, the command
mode indicator is lit approximately 15 seconds or until
the command is completed.
4.4
Power Indicator
Table 3: Power indicator status
Indicator
OFF
ON
SLOW
FAST
*
AC
NO
YES
YES or NO
YES
BATT
YES*
GOOD
LOW
MISSING
If AC is not present and the battery becomes depleted, the
keypad will give no indication at all.
The Power (PWR) indicator is “on” when AC power is
present and the battery is good. The Power ([PWR])
indicator is “off” when AC power is not present. The
Power ([PWR]) indicator blinks slowly when battery
power is low and AC is present. The Power ([PWR])
indicator blinks quickly when battery power is missing
and AC is present.
5.0 Setting the Keypad Address
Switches 1 to 4 on the D720 Series assign an address (1 to 8) to the keypad (refer to Figure 2 below and Table 4 on
page 5). The address determines the area to which the keypad is assigned. Switch 5 allows you to enable or
disable the keystroke entry tone, and switch 6 allows you to enable or disable keypad backlighting. The Slide
Switches can only be set while power is removed from the keypad. If the switch positions are reset while the
keypad is powered up, the changes will have no effect on the subsequent performance of the keypad.
Figure 2: D720 Series internal arrangement
1
2
3
4
5
6
7
8
9
1
COMMAND
0
A
B
C
ENT
2
1 2 3 4 5 6
ON
OFF
1 - Serial data wiring connector
4
2-
Wire opening
3
3 - DIP switches
Bosch Security Systems | 8/04 | 74-06918-000-F
D720 Series | Installation Guide | 6.0 Installing the D720 Series
Table 4: Keypad address settings
6.0 Installing the D720 Series
Address #
To mount the unit, the front cover must be removed
from the base, exposing the mounting holes. Follow the
directions below for mounting.
Address #1
Address #2
Address #3
Address #4
Address #5
Address #6
Address #7
Address #8
*
Switches
1
2
3
4
5
6
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
ON
OFF
OFF
ON
ON
OFF
OFF
ON
ON
ON
ON
OFF
OFF
OFF
OFF
ON
ON
ON
ON
ON
ON
ON
ON
*
*
*
*
*
*
*
*
#
#
#
#
#
#
#
#
Do not mount the keypad in a location
exposed to direct sunlight. Direct sunlight
makes the display less visible and may
also cause damage to the keypad
electrical components.
1.
Refer to Section 5.1 Silencing the keystroke entry tone
# Refer to Section 5.2 Enabling constant keypad backlighting.
5.1
Silencing the keystroke entry tone
2.
Switch 5 on the D720 Series allows you to enable or
disable the keystroke entry tone. Put the switch in the
ON position to enable the tone, OFF to disable the
entry tone.
5.2
Enabling constant keypad
backlighting
Switch 6 on the D720 Series allows you to enable or
disable keypad backlighting. Put the switch in the ON
position to enable backlighting on key presses, OFF to
enable constant backlighting.
Remove the front cover from the enclosure base.
Use a small flat bladed screwdriver to gently push
two bottom cover tabs back. As the tabs are
pushed back, lift the bottom of the cover away
from the base. Remove the cover.
Route the four wire flying leads through the wiring
opening in the back of the enclosure base and plug
into the serial data wiring connector. Connect
wiring as described in the appropriate Operation
and Installation Guide (refer to Table 5 for panel
specific literature).
The D720 Series is wired the same as the
D1255 Keypad.
Table 5: Related documentation
Document
D7212G Operation and Installation
Guide
D7212G Program Entry Guide
D9124 Operation and Installation Guide
D9412G/D7412G Operation and
Installation Guide
D9412G/D7412G Program Entry Guide
3.
4.
5.
Bosch Security Systems | 8/04 | 74-06918-000-F
Part Number
4998138544
4998138538
39352
43488
47775
Place the enclosure base on the wall in the desired
location. Use a center punch or a pencil to mark
the locations of the mounting holes. (The enclosure
base can be mounted to a single–gang wall box if
desired. Two mounting screw holes on the base are
positioned for standard single–gang boxes.) Secure
the enclosure base to the wall or gang box.
Align the top two tabs of the enclosure cover with
the top two tab slots in the enclosure base. Slide
the top of the cover into the base. Gently push the
bottom of the cover down on the base until it snaps
into place.
Push each key on the keypad towards the top of
the enclosure to ensure proper mating with the
openings in the top cover.
5
D720 Series | Installation Guide | 7.0
7.0
Control panel programming
Control panel programming
If you haven’t created a program for the control panel,
review the appropriate program entry guide (refer to
Table 5 on page 5). Check to be certain you have all the
required accessory modules installed for the features
you want to use. Use the D5200 Programmer or the
RAM IV (RPS) remote programming software to load
your custom program into the panel.
7.1
•
•
•
•
7.2
•
Keypad Addresses. There is no unique
programming required for the D720 Series. The
keypads may be used on any one of the keypad’s
addresses. Bosch Security Systems recommends
not mixing D720 Series and other types of keypads
on the same address. The “keystrokes” used to
control the security system differ slightly between
keypad types, so that if two different types are on
the same address the end user could become
confused. For example, the user could become
confused by starting a Walk Test with one type of
keypad and then viewing untested points from
another type of keypad.
Supervision. Multiple D720 Series can be
installed on the same address when supervision is
set to NO. Only one D720 Series can be put at the
keypad address when supervision is set to YES.
Scope. The keypad scope must be set to “Area
Wide.” The D720 Series does not support
“accounts” or “panel wide” scope selection.
Area Assignment. The D720 Series can be
assigned to any area.
Area Text
Custom Functions
The D720 Series “A,” “B,” and “C” keys will
execute custom function numbers “128,” “129,”
and “130,” respectively:
The D9112 Program Entry Guide
(P/N: 71-06145-000) and D7212G Program Entry
Guide (P/N: 4998138538) explain the procedures
for proper programming of the “keystrokes” for
use with custom functions. There are some
differences between executing keystroke sequences
on a D720 Series as opposed to a D1255. The
keypad’s [A],[B], and [C] keys execute custom
functions as if they were being executed from a
D1255.
Cmd Cntr Assignment
All programming within this section is not used by the
D720 Series.
6
7.3
•
The D720 Series does not have a Menu key to
bring up the “Command Menu.”
No program entries are necessary in the
“Command Menu” section.
•
Point Assignment: The D720 Series’ eight point
LEDs will be associated with the first eight points
assigned to the area in numerical sequence (not
including invisible points):
For example, if a D720 Series is to be used in area
3, and point numbers 21 through 28 are assigned
to area 3, then the D720 Series keypad LED #1
will reflect the state of point #21, LED #2 will
reflect the state of point #22, and so on.
•
Troubleshooting:
• Do not program more than eight points to any
area using a D720 Series for control. If more
than eight points are assigned to an area
controlled by a D720 Series, there will be no
indication of the ninth (or above) point in this
area.
• Invisible points are not associated with any
LEDs.
• If a point is one of the first eight assigned to an
area, and the point does not have a point
index number assigned, the LED will not light
for a fault or trouble, although the sounder will
annunciate the condition.
Bosch Security Systems | 8/04 | 74-06918-000-F
D720 Series | Installation Guide | 8.0 How to customize User’s Guide for System Owner
7.4
System Commands Supported by
the D720 Series
The following commands are supported by the D720
Series:
Table 6: Keypad supported commands
Function
Bypass a Point
Unbypass a Point
Master Arm
Master Arm Instant
Perimeter Instant
Perimeter Delay
Send Report
Remote Program
Walk Test
Reset Sensors
Delete Passcode
Change Passcode
Fire Test
Watch Mode
User Command 7
Perimeter Partial
User Command 9
Command
CMD 0
CMD 00
CMD 1
CMD 11
CMD 2
CMD 3
CMDs 41 & 42
CMD 43
CMD 44
CMD 47
CMD 53
CMD 55
CMD 58
CMD 6
CMD 7
CMD 8
CMD 9
9.0 Specifications
Table 7: D720 Series Specifications
Operating
Voltage
Current
Requirements
Dimensions
(H x W x D)
Wiring
Operating
Temperature
Non-condensing
Relative Humidity
Nominal 12 VDC
Keypad Idle
20 mA
Maximum
100 mA
4.6 in. x 8.2 in. x 0.8 in.
(11.7 cm x 20.8 cm x 20.8 cm)
A four-conductor, quick-connect, plugin cable is provided for interfacing with
the compatible control panels (refer to
Table 1)
+32°F to +122°F
(0°C to +50°C)
5% to 85% @ +86°F (+30°C)
8.0 How to customize User’s
Guide for System Owner
In the D720 Series User’s Guide (P/N: 71-06898-000),
check the appropriate boxes on the pages describing
system commands so the end user knows
a. whether a function is available and
b. whether a passcode is required for the
function.
Bosch Security Systems | 8/04 | 74-06918-000-F
7
Bosch Security Systems
130 Perinton Parkway
Fairport, NY 14450-9199
Customer Service: (800) 289-0096
Technical Support: (888) 886-6189
© 2004 Bosch Security Systems
74-06918-000-F

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
