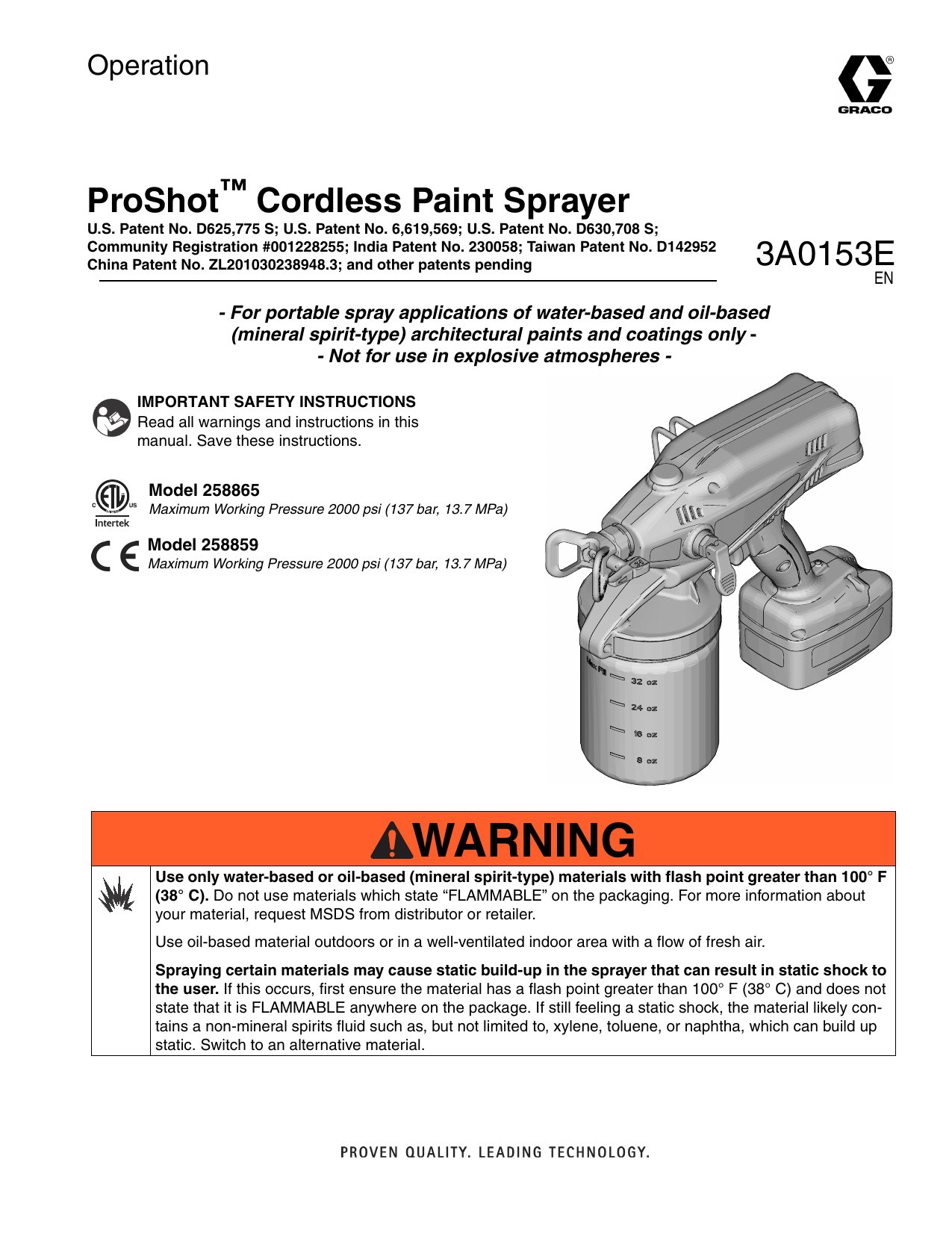

Graco 258865 Paint Sprayer User manual

Operation
ProShot™ Cordless Paint Sprayer
U.S. Patent No. D625,775 S; U.S. Patent No. 6,619,569; U.S. Patent No. D630,708 S;
Community Registration #001228255; India Patent No. 230058; Taiwan Patent No. D142952
China Patent No. ZL201030238948.3; and other patents pending
3A0153E
EN
- For portable spray applications of water-based and oil-based
(mineral spirit-type) architectural paints and coatings only - Not for use in explosive atmospheres IMPORTANT SAFETY INSTRUCTIONS
Read all warnings and instructions in this
manual. Save these instructions.
Model 258865
Maximum Working Pressure 2000 psi (137 bar, 13.7 MPa)
Model 258859
Maximum Working Pressure 2000 psi (137 bar, 13.7 MPa)
ti14773a
WARNING
WARNING
Use only water-based or oil-based (mineral spirit-type) materials with flash point greater than 100° F
(38° C). Do not use materials which state “FLAMMABLE” on the packaging. For more information about
your material, request MSDS from distributor or retailer.
Use oil-based material outdoors or in a well-ventilated indoor area with a flow of fresh air.
Spraying certain materials may cause static build-up in the sprayer that can result in static shock to
the user. If this occurs, first ensure the material has a flash point greater than 100° F (38° C) and does not
state that it is FLAMMABLE anywhere on the package. If still feeling a static shock, the material likely contains a non-mineral spirits fluid such as, but not limited to, xylene, toluene, or naphtha, which can build up
static. Switch to an alternative material.
Table of Contents
Table of Contents
Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Component Identification . . . . . . . . . . . . . . . . . . . . . . . . . 5
Common Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Pressure Relief Procedure . . . . . . . . . . . . . . . . . . . . . . 6
Trigger Lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Spray Tip Position . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Prime/Relief Valve Position . . . . . . . . . . . . . . . . . . . . . 6
Charging the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Charger Status Indicator Lights . . . . . . . . . . . . . . . . . . 7
Sprayer Status Indicator . . . . . . . . . . . . . . . . . . . . . . . . 7
Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Suction Tube Selection . . . . . . . . . . . . . . . . . . . . . . . . . 8
Spraying Stains or Clear Coats (Fine-Finish Optimizer) 9
Sprayer Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Materials . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Install Tip/Guard Assembly
(if not installed) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Getting Started with Basic Techniques . . . . . . . . . . . . .
Triggering Sprayer . . . . . . . . . . . . . . . . . . . . . . . . . . .
Aiming Sprayer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Unclogging Spray Tip/Guard Assembly . . . . . . . . . . . .
Shutdown and Cleaning . . . . . . . . . . . . . . . . . . . . . . . . .
Flushing Sprayer . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cleaning Sprayer Exterior . . . . . . . . . . . . . . . . . . . . .
Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Replacement Parts and Kits . . . . . . . . . . . . . . . . . . . . . .
ProShot Repair Kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Outlet Valve Fitting . . . . . . . . . . . . . . . . . . . . . . . . . . .
Alternate Priming Method . . . . . . . . . . . . . . . . . . . . . . . .
Inlet Valve Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . .
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Graco Standard Warranty . . . . . . . . . . . . . . . . . . . . . . . .
11
11
11
12
13
13
15
15
15
16
17
17
18
19
20
23
24
Important User Information
Read this before using your sprayer. See the Operation Manual provided with
your sprayer for complete instructions on proper use and safety warnings.
DO NOT RETURN THIS SPRAYER TO THE STORE!
If you experience problems, contact Graco Customer Service at www.graco.com.
Congratulations! You have purchased a high-quality paint sprayer made by Graco Inc. This sprayer is designed to
provide superior spray performance with water-based and oil-based (mineral spirit-type) architectural paints and
coatings. This user information sheet is intended to help you understand the types of materials that can and cannot be
used with your sprayer.
Before using this equipment, be sure to read and follow the information on your container label and ask for a Material
Safety Data Sheet (MSDS). The container label and MSDS will explain the contents of the material and the specific
precautions related to it.
Paints, coatings and clean-up materials generally fit into one of the following 3 basic categories:
WATER-BASED: The container label should indicate that the material can be cleaned up with soap and
water. Your sprayer is compatible with this type of material. Your sprayer is NOT compatible with harsh
cleaners such as chlorine bleach.
OIL-BASED: The container label should indicate that the material is combustible and can be cleaned up with
mineral spirits or paint thinner. The MSDS must indicate that the flash point of the material is above 100° F.
Your sprayer is compatible with this type of material. Use oil-based material outdoors or in a well-ventilated
indoor area with a flow of fresh air. See the safety warnings in your Operation Manual.
FLAMMABLE: This type of material contains flammable solvents such as xylene, toluene, naphtha, MEK,
lacquer thinner, acetone, denatured alcohol, and turpentine. The container label should indicate that this
material is FLAMMABLE. This type of material is NOT compatible with your sprayer and CANNOT be used.
2
3A0153E
Warnings
Warnings
The following warnings are for the setup, use, maintenance, and repair of this equipment. The exclamation point symbol alerts you
to a general warning and the hazard symbols refer to procedure-specific risks. When these symbols appear in the body of this
manual, refer back to these Warnings. Product-specific hazard symbols and warnings not covered in this section may appear
throughout the body of this manual where applicable.
WARNING
WARNING
FIRE AND EXPLOSION HAZARD
Flammable fumes, such as solvent and paint fumes, in work area can ignite or explode. To help prevent fire
and explosion:
•
Sprayer generates sparks. Do not spray or flush with flammable liquids.
•
Use only water-based or oil-based (mineral spirit-type) materials with a flash point greater than
100° F (38° C).
•
Keep spray area well-ventilated. Keep a good supply of fresh air moving through the area.
•
Use oil-based material outdoors or in a well-ventilated indoor area with a flow of fresh air.
•
Do not spray or flush with combustible materials near an open flame or sources of ignition.
•
Paint or solvent flowing through the equipment is able to result in static electricity. Static electricity creates
a risk of fire or explosion in the presence of paint or solvent fumes. Keep sprayer at least 10 cm away from
objects while spraying or flushing.
•
Do not smoke in the spray area.
•
Do not operate light switches, engines, or similar spark producing products in the spray area.
•
Keep area clean and free of paint or solvent containers, rags, and other flammable materials.
•
Know the contents of the paints and solvents being sprayed. Read all Material Safety Data Sheets (MSDS)
and container labels provided with the paints and solvents. Follow the paint and solvents manufacturer’s
safety instructions.
•
Fire extinguisher equipment shall be present and working.
SKIN INJECTION HAZARD
High-pressure spray is able to inject toxins into the body and cause serious bodily injury. In the event that
injection occurs, get immediate surgical treatment.
•
Do not aim the sprayer at, or spray any person or animal.
•
Keep hands and other body parts away from the discharge. For example, do not try to stop leaks with any
part of the body.
•
Always engage the trigger lock when not spraying. Verify the trigger lock is functioning properly.
•
Always use the nozzle tip guard. Do not spray without nozzle tip guard in place.
•
Use caution when cleaning and changing nozzle tips. In the case where the nozzle tip clogs while spraying, follow the Pressure Relief Procedure for turning off the unit and relieving the pressure before removing the nozzle tip to clean.
•
Do not leave the unit energized or under pressure while unattended. When the unit is not in use, turn off
the unit and follow the Pressure Relief Procedure for turning off the unit.
•
Check parts for signs of damage. Replace any damaged parts.
•
This system is capable of producing 2000 psi. Use replacement parts or accessories that are rated a minimum of 2000 psi.
•
Do not carry the tool with a finger on the trigger.
•
Verify that all connections are secure before operating the unit.
•
Know how to stop the unit and bleed pressure quickly. Be thoroughly familiar with the controls.
EQUIPMENT MISUSE HAZARD
Misuse can cause death or serious injury.
•
Always wear appropriate gloves, eye protection, and a respirator or mask when painting.
•
Do not operate or spray near children. Keep children away from equipment at all times.
•
Do not overreach or stand on an unstable support. Keep effective footing and balance at all times.
•
Stay alert and watch what you are doing.
•
Do not operate the unit when fatigued or under the influence of drugs or alcohol.
•
Use only in dry locations. Do not expose to water or rain.
•
Use in well-lit areas.
3A0153E
3
Warnings
WARNING
WARNING
BATTERY HAZARD
The battery may leak, explode, cause burns, or cause an explosion if mishandled. Contents of an open battery
can cause severe irritation and/or chemical burns. If on skin, wash with soap and water. If in eyes, flush with
water for at least 15 minutes and seek immediate medical attention.
•
Do not short-circuit the terminals of the battery.
•
Keep the battery away from fire.
•
Charge only with Graco approved charger as listed in this manual.
•
Do not expose to heat above 170° F (80° C).
•
Do not expose battery to water or rain.
•
Do not disassemble, crush, or penetrate the battery.
•
Follow local ordinances and/or regulations for disposal.
CHARGER ELECTRIC SHOCK, FIRE AND EXPLOSION HAZARD
Improper setup or usage can cause electric shock, fire, and explosion.
•
Charge only Graco 18V Lithium Ion batteries; other batteries may burst.
•
Use only in dry locations. Do not expose to water or rain.
•
If the supply cord is damaged, it must obtained from the manufacturer to avoid a hazard.
•
Ensure that the outside surface of the battery is clean and dry before plugging into the charger.
•
Do not attempt to charge non-rechargeable batteries.
•
Place charger on flat non-flammable surfaces and keep away from flammable materials or fumes when
recharging battery.
PRESSURIZED ALUMINUM PARTS HAZARD
Use of fluids that are incompatible with aluminum in pressurized equipment can cause serious chemical
reaction and equipment rupture. Failure to follow this warning can result in death, serious injury, or property
damage.
• Do not use 1,1,1-trichloroethane, methylene chloride, other halogenated hydrocarbon solvents or fluids
containing such solvents.
• Many other fluids may contain chemicals that can react with aluminum. Contact your material supplier for
compatibility.
MOVING PARTS HAZARD
Moving parts can pinch or amputate fingers and other body parts.
•
Keep clear of moving parts.
•
Do not operate equipment with protective guards or covers removed.
•
Pressurized equipment can start without warning. Before checking, moving, or servicing equipment, follow
the Pressure Relief Procedure in this manual. Disconnect power.
TOXIC FLUID OR FUMES HAZARD
Toxic fluids or fumes can cause serious injury or death if splashed in the eyes or on skin, inhaled, or swallowed.
•
Read MSDS’s to know the specific hazards of the fluids you are using.
•
Store hazardous fluid in approved containers, and dispose of it according to applicable guidelines.
PERSONAL PROTECTIVE EQUIPMENT
You must wear appropriate protective equipment when operating, servicing, or when in the operating area of
the equipment to help protect you from serious injury, including eye injury, hearing loss, inhalation of toxic
fumes, and burns. This equipment includes but is not limited to:
• Protective eyewear, and hearing protection.
• Respirators, protective clothing, and gloves as recommended by the fluid and solvent manufacturer.
4
3A0153E
Component Identification
Component Identification
A
B
C
Y
D
Z
W
T
S
E
R
Fa
K
ti15479a
M
D
J
P
G
N
H
Fb
Fa
L
A
ProShot Cordless Paint Sprayer
K
Material Cup (32 oz)
B
Sprayer Hook
L
Power Cord Converter (258859 only)
C
Outlet Valve Repair Access
M
Prime/Relief Valve
D
ProShot Spray Tip/Guard Assembly
(411, 515 included)
N
Lithium Ion Premium Power Battery Charger
P
Material Cup Liners (5 included)
E
Tip Filter (*Reverse Threaded)
R
Lithium Ion Premium Power Battery (2 included)
Fa
Standard Suction Tube (sprays ceilings and walls)
S
Battery Release Button
Fb
Specialized Suction Tube (sprays floors)
T
Battery Status Indicator Light
G
Pump Armor Concentrate (4 oz.)
W
Sprayer Trigger
H
Fine-Finish Optimizer with Storage/Cleaning Tool
Y
Sprayer Trigger Lock
J
Material Cup Cover and Seal
Z
ProShot Case
*NOTE: Filter assembly is reverse-threaded. Turn left (or counter-clockwise) to tighten,
turn right (or clockwise) to loosen.
3A0153E
5
Common Procedures
Common Procedures
Spray Tip Position
Pressure Relief Procedure
Do not operate or spray near children. Do not aim the
sprayer at, or spray any person or animal. Keep hands
and other body parts away from the front of the sprayer.
For example, do not try to stop the paint flow with any
part of the body.
This sprayer builds up an internal pressure of 2,000 psi
during use. Follow this Pressure Relief Procedure
whenever you stop spraying and before cleaning,
checking, servicing, or transporting equipment to
prevent serious injury.
1. Engage trigger lock.
Always perform Pressure Relief Procedure before
adjusting spray tip position.
ti14985a
Tip Forward
(SPRAY position)
ti14991a
Tip Reversed
(UNCLOG position)
ti15510a
Prime/Relief Valve Position
2. Put prime/relief valve UP to release pressure.
ti14999a
ti14999a
UP position
(Releases pump pressure)
ti15425a
DOWN position
(Ready to spray)
Trigger Lock
Always engage the trigger lock when you stop spraying
to prevent the sprayer from being triggered accidentally
by hand, or if dropped or bumped.
ti14994a
ti14995a
Trigger Locked
6
Trigger Unlocked
(red ring is visible)
3A0153E
Charging the Battery
Charging the Battery
Batteries may leak, explode, cause burns or cause an
explosion if mishandled.
Batteries are initially 50% charges to provide optimum
battery life and require charging before first use. It takes
approximately 45 minutes to charge a dead battery to
80%, at which point it can be used.It will take approximately 75 minutes to fully charge a dead battery.
1. Slide battery into charger as shown (light will turn on
within 5 seconds).
To reduce the risk of electric shock, only use Graco
batteries with the Graco charger. Do not insert any
foreign objects into the adapter cup.
NOTE: The amount sprayed with each battery varies
depending on material, tip size, battery charge, and battery temperature. 1 battery fully charged will spray
approximately 1 gallon when using the 515 tip with latex
paint. You will get less when using a smaller tip or thinner material.
NOTE: The charger supplied with model 258859 comes
with a power cord adapter connected to the power cord.
To switch from the AS3112 connector to the 2-pin Euro
CEE7 connector, pull off the adapter.
NOTICE
Do not place a wet battery in the charger. Damage to
equipment will occur.
ti14990
NOTE: Batteries can remain in the charger, which
automatically switches to maintenance mode. It is not
recommended to store the battery in the charger for
longer than one week.
Charger Status Indicator Lights
Label
Appearance
Description
Solid green light
Indicates a full charge. Use the battery or leave it in the charger.
The automatic Maintenance Mode holds the batteries at full charge.
Flashing green light
Battery is charging, indicates 80% charge.
Battery can be used.
Flashing red light
Battery is charging, indicates less than 80% charge.
Do NOT use battery.
Solid red light
Battery is too hot or too cold to charge and must cool down or warm up
before charging. Leave battery in charger.
Sprayer Status Indicator
Light
Appearance
Description
No light
Normal operation.
Solid red
Battery is low on power and needs to be charged, or battery
is too cold and must warm up before spraying.
Flashing red
Battery temperature is too high, or tip is clogged.
See Troubleshooting, page 20.
NOTE: The indicator light is only visible when sprayer trigger is engaged. You must squeeze and hold the trigger to
see the Sprayer Status Indicator.
3A0153E
7
Setup
Setup
When spraying ceilings, the inlet of the suction tube
should be aimed at the back of the material cup
(towards the trigger).
Use only water-based or oil-based (mineral
spirit-type) materials with flash point greater than
100° F (38° C). Do not use materials which state
“FLAMMABLE” on the packaging. For more information
about your material, request MSDS from distributor or
retailer.
Spraying certain materials may cause static
build-up in the sprayer that can result in static
shock to the user. If this occurs, first ensure the material has a flash point greater than 100° F (38° C) and
does not state that it is FLAMMABLE anywhere on the
package. If still feeling a static shock, the material likely
contains a non-mineral spirits fluid such as, but not limited to, xylene, toluene, or naphtha, which can build up
static. Switch to an alternative material.
Use oil-based material outdoors or in a well-ventilated
indoor area with a flow of fresh air.
Keep spray area well-ventilated. Keep a good supply
of fresh air moving through the area.
NOTICE
ti15475a
Specialized Suction Tube (sprays floors):
When spraying floors, the inlet of the suction tube
should be aimed at the front of the material cup (towards
Spray Tip/Guard Assembly).
ti15477a
NOTE: If the sprayer is angled or tilted too far, the
suction tube will lose contact with the material and
the sprayer will stop spraying.
Your sprayer is NOT compatible with harsh cleaners
such as chlorine bleach. Using these cleaners will
cause damage to the sprayer.
Suction Tube Selection
This sprayer comes with two different suction tubes.
Standard Suction Tube (sprays ceilings and walls):
When spraying walls, the inlet of the suction tube should
be aimed at the front of the material cup.
ti15511a
ti15476a
8
3A0153E
Setup
Spraying Stains or Clear Coats
(Fine-Finish Optimizer)
The Fine-Finish Optimizer should be installed and used
when spraying thin material such as stain or clear coats.
The Fine-Finish Optimizer restricts the material flow
resulting in a finer quality finish.
2. Put prime/relief valve to UP position, then hold trigger in for 10 seconds.
ti14999a
3. Put prime/relief valve DOWN to spray position.
Installation
1. Remove material cup and suction tube.
ti15425a
4. Reverse spray tip to UNCLOG position and trigger
sprayer into a waste area.
2. Push Fine-Finish Optimizer into pump inlet until
completely engaged and re-install suction tube.
i15491
5. Engage trigger lock and put prime/relief valve UP to
release pressure.
Cleanup/Storage
Be sure to remove and clean the Fine-Finish Optimizer
immediately after use. Store the Fine-Finish Optimizer
on the Storage/cleaning Tool supplied to keep the hole
clear of dried material.
ti14999a
ti14994a
6. Unscrew and remove material cup.
7. Disengage trigger lock, put prime/relief valve
DOWN, hold sprayer slightly above material cup,
and pull trigger to discharge fluid from pump.
Sprayer Setup
This sprayer arrives from the factory with a small
amount of test material in the system. It is important
that you flush this material from the sprayer before
using it for the first time:
1. Fill material cup with water and thread onto sprayer.
ti15478a
8. Discard material in cup.
ti14992a
3A0153E
9
Setup
Materials
2. Use the Fine-Finish Optimizer cleaning tool to lightly
push on inlet valve to make sure it moves up and
down freely.
Use only water-based or oil-based (mineral
spirit-type) materials with flash point greater than
100° F (38° C). Do not use materials which state
“FLAMMABLE” on the packaging. For more information
about your material, request MSDS from distributor or
retailer.
Spraying certain materials may cause static
build-up in the sprayer that can result in static
shock to the user. If this occurs, first ensure the material has a flash point greater than 100° F (38° C) and
does not state that it is FLAMMABLE anywhere on the
package. If still feeling a static shock, the material likely
contains a non-mineral spirits fluid such as, but not limited to, xylene, toluene, or naphtha, which can build up
static. Switch to an alternative material.
3. Install material cup liner, fill with material, and
thread onto sprayer.
ti15474a
Use oil-based material outdoors or in a well-ventilated
indoor area with a flow of fresh air.
Keep spray area well-ventilated. Keep a good supply
of fresh air moving through the area.
•
When spraying water-based materials, flush the
sprayer thoroughly with water.
•
When spraying non-water-based materials, flush
the sprayer thoroughly with mineral spirits or compatible, oil-based flushing fluid.
Starting a New Job (or Refilling the Cup)
1.
Engage trigger lock and put prime/relief valve UP to
release pressure.
4. To prime pump, disengage trigger lock and trigger
sprayer for 10 seconds. Then release trigger and
put prime/relief valve DOWN to spray position.
ti14995a
5. Reverse spray tip to UNCLOG position and spray
into waste area for five seconds. Then rotate tip
back to SPRAY position. NOTE: Failure to perform
this operation could result in poor spray pattern.
ti14991a
ti14994a
ti15425a
ti15418a
ti15491a
ti14985a
ti14999a
NOTE: If sprayer fails to prime, follow Alternative
Priming Method (page 18) and/or Inlet Valve
Cleaning (page 19).
10
3A0153E
Install Tip/Guard Assembly (if not installed)
Install Tip/Guard Assembly
(if not installed)
Getting Started with Basic
Techniques
Reversible Tip Selection Chart
Use a piece of scrap cardboard to practice these basic
spraying techniques before you begin spraying the
surface.
MATERIALS
*Thin
Medium
Thin stains,
Enamels, solid
semi-transparent stains stains, thin latex
211, 411
213, 413
Heavy
•
Heavy latex
Hold sprayer 10 in. (25 cm) from surface and aim
straight at surface. Tilting sprayer to direct spray angle
causes an uneven finish.
(25 cm)
10 in.
315, 515, 517
*Install Fine-Finish Optimizer, see page 9.
thick
even
finish
thin
1.
Engage trigger lock and put prime/relief valve UP to
release pressure. Then remove Tip/Guard Assembly.
•
2.
ti1478
Flex wrist to keep sprayer pointed straight. Fanning
sprayer to direct spray at angle causes uneven
finish.
even finish
ti14994a
uneven
finish
thin
thick
thin
ti14999a
Install filter to Spray Tip/Guard Assembly (make sure
filter is fully installed into sprayer). NOTE: Filter assembly is reverse-threaded. Turn left (or counter-clockwise) to install. Turn right (or clockwise) to remove.
NOTE: How fast you move the sprayer will affect spray
application. If material is pulsating, you are moving too fast.
If material drips, you are moving too slow. See Troubleshooting, page 20.
Triggering Sprayer
Pull trigger after starting stroke. Release trigger before end
of stroke. Sprayer must be moving when trigger is pulled
and released.
ti14775a
NOTICE
Make sure filter is completely screwed into the Tip/Guard
Assembly to avoid damage to the filter.
ti14988a
3. Screw Tip/Guard Assembly onto sprayer. Tighten
retaining nut until completely engaged with sprayer.
Start Moving
Pull Trigger
Release Trigger
Aiming Sprayer
Aim tip of sprayer at bottom edge of previous stroke, overlapping each stroke by half.
ti14997a
NOTICE
The tip is a permanently attached to the Tip/Guard
Assembly. Removal will result in damage.
3A0153E
ti14782a
11
Unclogging Spray Tip/Guard Assembly
Unclogging Spray
Tip/Guard Assembly
5. Disengage trigger lock, put prime/relief valve DOWN
to spray position, and resume spraying.
ti14995a
Do not operate or spray near children. Do not aim the
sprayer at, or spray any person or animal. Keep hands
and other body parts away from the discharge. For
example, do not try to stop leaks with any part of the
body.
ti15425a
6. If tip is still clogged, you may have to repeat steps
1 - 5 and rotate the tip from SPRAY to UNCLOG
several times. Repeat step 1 to release pressure,
remove and clean filter, or replace with new tip
assembly.
1. To unclog tip obstruction, engage trigger lock and
pull relief valve UP to release pressure.
ti14989a
ti14999a
ti14994a
NOTE: Filter assembly is reverse-threaded:
Turn left (or counter-clockwise) to install.
Turn right (or clockwise) to remove.
2. Reverse spray tip to UNCLOG position.
7. If obstruction is cleared, engage trigger lock and
rotate arrow-shaped handle back to SPRAY
position.
ti14991a
3. Aim sprayer at waste area, disengage trigger lock,
and put prime/relief valve DOWN to spray position.
Pull trigger to clear clog.
ti14994a
ti14985a
ti14995a
ti15425a
4. Engage trigger lock. Put prime/relief valve UP to
release pressure and rotate spray tip back to
SPRAY position.
ti14994a
ti14999a
ti14985a
12
3A0153E
Shutdown and Cleaning
Shutdown and Cleaning
2. Remove material cup and properly dispose cup liner
or excess material.
NOTICE
Failure to properly clean sprayer after each use will result
in hardened materials, damage to the sprayer, and the
warranty will no longer be valid.
Flushing Sprayer
ti15000a
Use only water-based or mineral spirit-type materials
with flash point greater than 100° F (38° C). Do not use
materials which state “FLAMMABLE” on the packaging.
For more information about your material, request MSDS
from distributor or retailer.
Spraying certain materials may cause static build-up
in the sprayer that can result in static shock to the
user. If this occurs, first ensure the material has a flash
point greater than 100° F (38° C) and does not state that it
is FLAMMABLE anywhere on the package. If still feeling a
static shock, the material likely contains a non-mineral
spirits fluid such as, but not limited to, xylene, toluene, or
naphtha, which can build up static. Switch to an alternative material.
3. Remove and clean sprayer intake tube and screen
with water (or flushing fluid) and a brush every time
you flush the sprayer. Reconnect intake tube.
ti15002a
4. Clean cup if not using a liner, and fill with water or
appropriate flushing fluid.
Use oil-based material outdoors or in a well-ventilated
indoor area with a flow of fresh air.
Keep spray area well-ventilated. Keep a good supply of
fresh air moving through the area.
ti15001a
NOTICE
Protect the internal parts of this sprayer from water.
Do not submerge the sprayer in cleaning fluid. Openings
in shroud allow cooling of mechanical parts and electronics inside. If water gets into these openings, the sprayer
could malfunction or become permanently damaged.
5. Reconnect material cup and shake sprayer to move
clean water around and clean all areas inside of
cup.
1. Engage trigger lock and pull relief valve UP to
release pressure.
ti14994a
3A0153E
ti14999a
ti15441a
13
Shutdown and Cleaning
6. Disconnect trigger lock and trigger sprayer for
approximately 15 seconds. Engage trigger lock.
10. Engage trigger lock and put prime/relief valve UP to
release pressure.
ti14994a
ti14994a
11. Remove material cup and discard used fluid.
7. Discard contaminated fluid and refill with appropriate flushing fluid.
8. Disengage trigger lock, reverse tip to UNCLOG
position, and pull trigger for 5 seconds to prime
sprayer.
12. Use a soft brush to clean the black rubber inlet seal.
If the vent holes become clogged, use the Fine Finish optimizer cleaning tool or a paper clip to clear
the holes.
ti14995a
ti14991a
9. Put prime/relief valve DOWN to spray position.
Trigger sprayer into waste area until no paint
appears in water or flushing fluid.
ti15425a
ti15491a
To avoid serious injury or damage to equipment, do not
expose the sprayer electronics to flushing solvents.
Keep sprayer at least 10 in. above the rim of the container when flushing.
13. Remove Spray Tip/Guard Assembly and clean with
water or flushing fluid. A soft brush can be used to
loosen and remove dried material if needed.
ti15003a
NOTICE
The tip is permanently attached to the guard. Removing
the tip from the guard will result in damage to the tip
assembly.
14. Replace tip assembly.
ti15529a
Keep spray area well-ventilated. Keep a good supply of
fresh air moving through the area.
14
15. If you used the Fine-Finish Optimizer, remove and
clean optimizer with water (or flushing fluid) and a
brush. Reconnect intake tube.
3A0153E
Storage
Cleaning Sprayer Exterior
•
Wipe paint off outside of sprayer using a soft cloth
moistened with water or flushing fluid.
Do NOT submerge the sprayer.
3. Reverse spray tip to UNCLOG position, put
prime/relief valve DOWN to spray position, and aim
sprayer into waste area. Pull trigger for 1-2 seconds.
ti15425a
ti14991a
ti15418a
4. Properly dispose of used Pump Armor mixture from
material cup and rinse cup with water.
Tips
•
Tips will require replacement depending on
abrasiveness of paint.
•
Do not spray with worn tip. See Troubleshooting,
page 20.
Storage
ti15001a
5. Store sprayer indoors in a cool, dry place. Store in
an upright position only.
NOTICE
Failure to store with sprayer with Pump Armor will
result in operational problems the next time you spray.
Always circulate Pump Armor through the sprayer
after cleaning. Water left in the sprayer will corrode
and damage the pump.
1. Dilute 4 oz. bottle of Pump Armor Concentrate with
an additional 4 oz. of water in material cup.
ti15438a
4 oz
NOTE: For prolonged battery life, lithium batteries
should be stored at half charge in an environment
below 90° F (32° C).
ti15442a
2. Thread cup into sprayer, put prime/relief valve to UP
position and squeeze sprayer trigger for approximately 10 seconds.
3A0153E
15
Replacement Parts and Kits
Replacement Parts and Kits
19
1
21
6
13
13a
20
23
24
4
17
11
22
9
8
13
7
3
12
10
13a
16
14
5
18
2
15
Ref. Part
1
262367
2
3
16D562
24F045
4
5
6
243103
24F042
16D563
7
PST211
PST213
PST315
PST411
PST413
PST515
PST517
8
9
24E376
24F039
24F044
10
24F043
11
16D558
16
Description
Sprayer, replacement (no tip, battery, suction
tube, or material cup)
Liner, replacement (10 pack)
Fine Finish Optimizer (with Cleaning Tool)
2-Pack
Pump Armor (32 oz.)
Storage Case
Repair Kit
(includes inlet/outlet valve wrench)
ProShot Tip/Guard Assembly
211
213
315
411 (included with sprayer)
413
515 (factory-installed on sprayer)
517
Tip Filter
Kit, 1-pack
Kit, 3-pack
Specialized Suction Tube with screens and
o-rings (for spraying floors)
Standard Suction Tube with screens and o-rings
(for walls and ceilings)
Lithium Ion Premium Power Battery
Ref.
12
13
13a
14
19
20
21
22
Part
16E403
24D425
16C650
16D559
16G615
▲24E609
▲24H616
16D560
16D561
24E377
106553
262602
262437
262601
262677
23
24
16E119
16E964
15
16
17
18
ti16473c
ti15497a
Description
Sprayer Cup Seal
Cover with seal (included in 16 and 17)
Material Cup Cover Seal (included in 16 and 17)
Lithium Ion Battery Charger (120 VAC)
Lithium Ion Battery Charger (240 VAC)
Warning Labels Kit (ENG/FRA/SPA)
Warning Labels Kit (SPA/POR/ITA)
Material Cup (32 oz) cover and seal
Material Cup (48 oz) cover and seal
Shoulder Strap
Suction Tube o-ring (not shown)
Inlet Valve Kit
Needle Assembly Kit
Prime Valve Handle
Enclosure, replacement, kit (Includes
enclosure with hook, screws, cup gasket, status
indicator lens, air filter, Made-In-USA label, and
access plug) product labels NOT included
Label, brand, ProShot
Label, brand, Hand Held
▲ Replacement Danger and Warning labels, tags, and cards are
available at no cost.
3A0153E
ProShot Repair Kit
ProShot Repair Kit
4. Use tool (supplied) to loosen and remove outlet
valve fitting.
Outlet Valve Fitting
NOTE: Before doing any repair to pump, perform
Flushing Sprayer procedure, page 13.
ti15506a
Removal
Installation
1. Engage trigger lock and pull relief valve UP to
release pressure.
ti14994a
1. Screw outlet valve fitting into threads. Use tool (supplied) and tighten to 8 ft-lb.
ti14999a
2. Remove battery.
ti15508a
2. Press new pump outlet cap into place.
ti14996a
3. Remove pump outlet cap.
ti15507a
ti15503a
3A0153E
17
Alternate Priming Method
Alternate Priming Method
4. Hold sprayer above sink or waste area, disengage
the trigger lock, and quickly trigger sprayer until
material comes out of the drain tube.
1. Engage trigger lock and put prime/relief valve UP to
release pressure.
ti14995a
ti14991a
ti14994a
ti14999a
2. Remove material cup and fill with flushing material.
3. With sprayer in prime mode, turn sprayer
upside-down, remove strainer and slowly pour flushing material into the intake tube until full.
NOTE: Material can shoot out of the drain tube
when performing this procedure. Be sure to wear
appropriate safety equipment and point drain tube
away from yourself when pulling the trigger,
5. Thread the material cup back onto sprayer.
6. Trigger the gun for 10 seconds then release the trigger and put the prime/relief valve DOWN to spray
position.
ti15425a
7. Reverse spray tip to UNCLOG position and spray
into waste area for five seconds to ensure sprayer
has primed.
ti14995a
ti14991a
8. Sprayer is now ready to spray. Follow Starting New
Job instructions on page 10.
18
3A0153E
Alternate Priming Method
Inlet Valve Cleaning
Removal
Installation
1. Engage trigger lock and pull relief valve UP to
release pressure.
NOTE: Before installing, make sure o-ring (c) is installed
on inlet valve (b).
1. Place inlet valve (b) with spring (a) on top of inlet fitting (d). Push inlet fitting up into pump cavity.
a
ti14994a
ti14999a
b
c
2. Remove material cup and suction tube.
d
ti15502a
2. Hold inlet in place and turn sprayer upside-down.
Remove inlet fitting and visually check to see that
inlet valve has seated correctly.
3. Hold sprayer upside-down and use wrench or
socket to loosen and remove inlet fitting, inlet valve,
and spring.
ti15500a
3. Replace inlet fitting and use wrench and socket to
tighten to 10 ft-lb.
ti15505a
NOTE: Make sure the spring also comes out. Use
needle-nose pliers to remove if needed. Inlet cavity
should be completely empty (as shown below).
ti15530a
NOTICE
Do NOT over-tighten inlet fitting. Damage to the
equipment will occur.
4. Use the Fine-Finish Optimizer cleaning tool to lightly
push on inlet valve to make sure it moves up and
down freely.
ti15509a
4. Clean as much excess material from pump cavity as
possible. Make sure you also clean spring (a), o-ring
(c), and top of inlet fitting (d).
3A0153E
19
Troubleshooting
Troubleshooting
Check everything in this Troubleshooting Table before
you bring the sprayer to an authorized service center.
Problem
Cause
ProShot makes no sound when Trigger is locked.
trigger is pulled
Status Indicator Light is solid RED
when triggering, indicating that the
battery charge is low or the battery is
too cold.
ProShot makes sound but no
material is sprayed when trigger is pulled
Solution
Disengage trigger lock. See page 6.
Replace with charged battery and place old battery in charger or allow battery to warm up.
Status Indicator Light is flashing RED
when triggering, indicating that the
battery is too hot to operate.
Allow battery to cool.
Status Indicator Light does not light
when sprayer is triggered.
Battery is not installed or is
damaged.
Sprayer is not primed.
Prime the pump. See Starting a new Job (or
Refilling the Cup), page 10. If sprayer fails to
prime, follow the Inlet Valve Cleaning procedure, page 19 and/or Alternate Priming
Method, page 18.
Prime/relief valve is in UP position.
Pull valve DOWN to spray position.
Suction Tube is missing or improperly
installed.
Make sure Suction Tube is properly installed.
Inlet valve is stuck from material
residue left in sprayer.
Use a pencil or thin rod to lightly push on inlet
valve to make sure it moves up and down freely.
See Inlet Valve Cleaning, page 19.
Tip is not in SPRAY position.
Turn tip to SPRAY position.
Tip is clogged.
See Unclogging Tip/Guard
Assembly, page 12.
Suction Tube screen is clogged or vent See Shutdown and Cleaning, page 13.
holes in black rubber inlet seal are
clogged.
Sprayer has been tilted too far and
suction tube has lost contact with
material.
Make sure cup is filled with material. Do not tilt
the cup too far. Prime the pump. See Starting a
new Job (or Refilling the Cup), page 10.
No or low material in cup.
Refill cup with material.
Tip filter is clogged.
Remove and clean tip filter. See Unclogging
Tip/Guard Assembly, page 12.
Fine Finish Optimizer is installed while Make sure compatible material is being used.
using an incompatible material.
See Reversible Tip Selection Chart, page 11.
Suction Tube o-rings are damaged or
missing.
Replace Suction Tube and o-rings.
Pump is clogged, frozen, or has debris See ProShot Repair, page 17.
inside.
Sprayer has reached maximum life.
ProShot only: purchase repair kit.
All other models should be replaced.
Material is leaking from hole in front of Replace sprayer.
sprayer.
20
3A0153E
Troubleshooting
Problem
Cause
ProShot sprays with poor
results
Solution
Tip is partially clogged
See Unclogging Tip/Guard Assembly, page
12.
Tip is not in correct position
Rotate tip to SPRAY position.
Incorrect tip for application of
material.
See Reversible Tip Selection Chart, page 11.
Tip filter is partially clogged
Clean or replace filter. See page 12.
Suction Tube screen is partially
clogged.
Clean or replace Suction Tube. See page 13.
Fine Finish Optimizer is partially
clogged.
Clean or replace Fine Finish Optimizer. See
page 9.
Fine Finish Optimizer is installed while Make sure compatible material is being used.
using an incompatible material.
See Reversible Tip Selection Chart, page 11.
Tip is worn or damaged
Replace tip. See Install Tip/Guard Assembly,
page 11.
Inlet or Outlet Valves are worn.
See ProShot Repair, page 17.
Paint leaks from sprayer trigger area.
Sprayer has reached its maximum life. Replace sprayer.
Battery is discharged but
charger still displays green
light when battery is inserted.
Damaged battery.
Replace battery.
Spray Pattern Diagnostics
Problem
Cause
Spray pattern is pulsating:
Solution
Fine Finish Optimizer is installed while using Make sure material is compatible. See
an incompatible material.
Reversible Tip Selection Chart, page 11.
Operator is moving too fast while spraying.
Slow speed of movement.
ti15524a
Spray pattern has tails:
Fine Finish Optimizer is installed while using Make sure compatible material is being used.
an incompatible material.
See Reversible Tip Selection Chart, page
11.
ti15526a
Spray pattern has dripping:
ti15522a
3A0153E
Fine Finish Optimizer is partially clogged.
Clean or replace Fine Finish Optimizer.
See page 9.
Material not compatible with sprayer.
Switch material.
Inlet or Outlet Valves are worn.
See ProShot Repair, page 17.
Sprayer is moving too slow for material.
Move sprayer faster while spraying.
Sprayer is too close to target surface.
Move sprayer away from surface (10 in).
Holding trigger while changing spray
direction.
Release trigger when changing directions.
Incorrect tip for application of
material.
See Reversible Tip Selection Chart, page
11.
Tip is worn or damaged.
Replace tip. See Install Tip/Guard Assembly,
page 11.
21
Troubleshooting
Problem
Cause
Spray pattern is too narrow:
Sprayer is too close to target surface.
Move sprayer away from surface (10 in).
Incorrect tip for application of material.
See Reversible Tip Selection Chart, page
11.
Tip is worn or damaged.
Replace tip. See Install Tip/Guard Assembly,
page 11.
ti15523a
Spray pattern is too wide:
Solution
Sprayer is too far away from target surface.
Move sprayer closer to surface.
Incorrect tip for application of material.
See Reversible Tip Selection Chart, page
11.
Excess material has accumulated on Spray
Tip/Guard Assembly.
See Shutdown and Cleaning, page 13.
Tip filter is partially clogged.
Clean or replace filter. See page 12.
Tip/Guard Assembly not threaded completely onto sprayer.
See Install Tip/Guard Assembly, page 11.
Seat is worn.
Replace Spray tip.
ProShot sprayer is worn out.
Replace sprayer.
ti15527a
Spray pattern “spits” at the
end:
ti15525a
Tip continues to drip or ooze
material after trigger is
released:
ti15528a
Spray pattern does not
adequately cover target
surface
Fine Finish Optimizer is installed while using Make sure compatible material is being used.
an incompatible material.
See Reversible Tip Selection Chart, page
11.
ProShot sprayer is worn out.
Replace sprayer.
22
3A0153E
Technical Data
Technical Data
258865
Sprayer:
Maximum working pressure
258859
2000 psi (137.8 bar, 13.7 MPa)
Weight
6.32 lb (2.87 kg)
Dimensions:
Length
13.25 in. (33.6 cm)
Width
5.0 in. (12.7 cm)
Height
10.375 in. (26.4 cm)
Storage temperature range ◆❖
32° to 122°F (0° to 50°C)
Operating temperature range ✔
40° to 90° F (4° to 32°C)
Storage Humidity Range
Sound Pressure Level
Vibration Level Acceleration
0% to 95% relative humidity, non-condensing
79.5 dBa† (for sound power level, add 11 dBa)
Less than 8.2 feet/s2 2.5 m/s2††
Charger:
Charging Time
Power Source
45 - 75 minutes
120 VAC
240 VAC
Battery:
Voltage
18 VDC, Lithium Ion
Capacity
2.4 Ah, 43.2 Wh
◆
❖
✔
†
††
Pump damage will occur if fluid freezes in pump.
Damage to plastic parts may result if impact occurs in low temperature conditions.
Changes in paint viscosity at very low or very high temperatures can affect sprayer performance.
per ISO 3744 measured at 3.1 feet (1m)
per ISO 5349, no load condition
3A0153E
23
Graco Standard Warranty
Graco warrants all equipment referenced in this document which is manufactured by Graco and bearing its name to be free from defects in
material and workmanship on the date of sale to the original purchaser for use. With the exception of any special, extended, or limited warranty
published by Graco, Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment determined by
Graco to be defective. This warranty applies only when the equipment is installed, operated and maintained in accordance with Graco’s written
recommendations.
This warranty does not cover, and Graco shall not be liable for general wear and tear, or any malfunction, damage or wear caused by faulty
installation, misapplication, abrasion, corrosion, inadequate or improper maintenance, negligence, accident, tampering, or substitution of
non-Graco component parts. Nor shall Graco be liable for malfunction, damage or wear caused by the incompatibility of Graco equipment with
structures, accessories, equipment or materials not supplied by Graco, or the improper design, manufacture, installation, operation or
maintenance of structures, accessories, equipment or materials not supplied by Graco.
This warranty is conditioned upon the prepaid return of the equipment claimed to be defective to an authorized Graco distributor for verification of
the claimed defect. If the claimed defect is verified, Graco will repair or replace free of charge any defective parts. The equipment will be returned
to the original purchaser transportation prepaid. If inspection of the equipment does not disclose any defect in material or workmanship, repairs will
be made at a reasonable charge, which charges may include the costs of parts, labor, and transportation.
THIS WARRANTY IS EXCLUSIVE, AND IS IN LIEU OF ANY OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED
TO WARRANTY OF MERCHANTABILITY OR WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE.
Graco’s sole obligation and buyer’s sole remedy for any breach of warranty shall be as set forth above. The buyer agrees that no other remedy
(including, but not limited to, incidental or consequential damages for lost profits, lost sales, injury to person or property, or any other incidental or
consequential loss) shall be available. Any action for breach of warranty must be brought within two (2) years of the date of sale.
GRACO MAKES NO WARRANTY, AND DISCLAIMS ALL IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE, IN CONNECTION WITH ACCESSORIES, EQUIPMENT, MATERIALS OR COMPONENTS SOLD BUT NOT
MANUFACTURED BY GRACO. These items sold, but not manufactured by Graco (such as electric motors, switches, hose, etc.), are subject to
the warranty, if any, of their manufacturer. Graco will provide purchaser with reasonable assistance in making any claim for breach of these
warranties.
In no event will Graco be liable for indirect, incidental, special or consequential damages resulting from Graco supplying equipment hereunder, or
the furnishing, performance, or use of any products or other goods sold hereto, whether due to a breach of contract, breach of warranty, the
negligence of Graco, or otherwise.
FOR GRACO CANADA CUSTOMERS
The Parties acknowledge that they have required that the present document, as well as all documents, notices and legal proceedings entered into,
given or instituted pursuant hereto or relating directly or indirectly hereto, be drawn up in English. Les parties reconnaissent avoir convenu que la
rédaction du présente document sera en Anglais, ainsi que tous documents, avis et procédures judiciaires exécutés, donnés ou intentés, à la suite
de ou en rapport, directement ou indirectement, avec les procédures concernées.
Graco Information
For the latest information about Graco products, visit www.graco.com.
TO PLACE AN ORDER, contact your Graco distributor or call to identify the nearest distributor.
Phone: 612-623-6926 or Toll Free: 1-800-690-2894 Fax: 612-623-6893 Toll Free Fax: 1-800-334-6955
All written and visual data contained in this document reflects the latest product information available at the time of publication.
Graco reserves the right to make changes at any time without notice.
Original instructions. This manual contains English. MM 3A0153
Graco Headquarters: Minneapolis
International Offices: Belgium, China, Japan, Korea
GRACO INC. AND SUBSIDIARIES • P.O. BOX 1441 • MINNEAPOLIS MN 55440-1441 • USA
Copyright 2011, Graco Inc. All Graco manufacturing locations are registered to ISO 9001.
www.graco.com
Revised 11/2011

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
