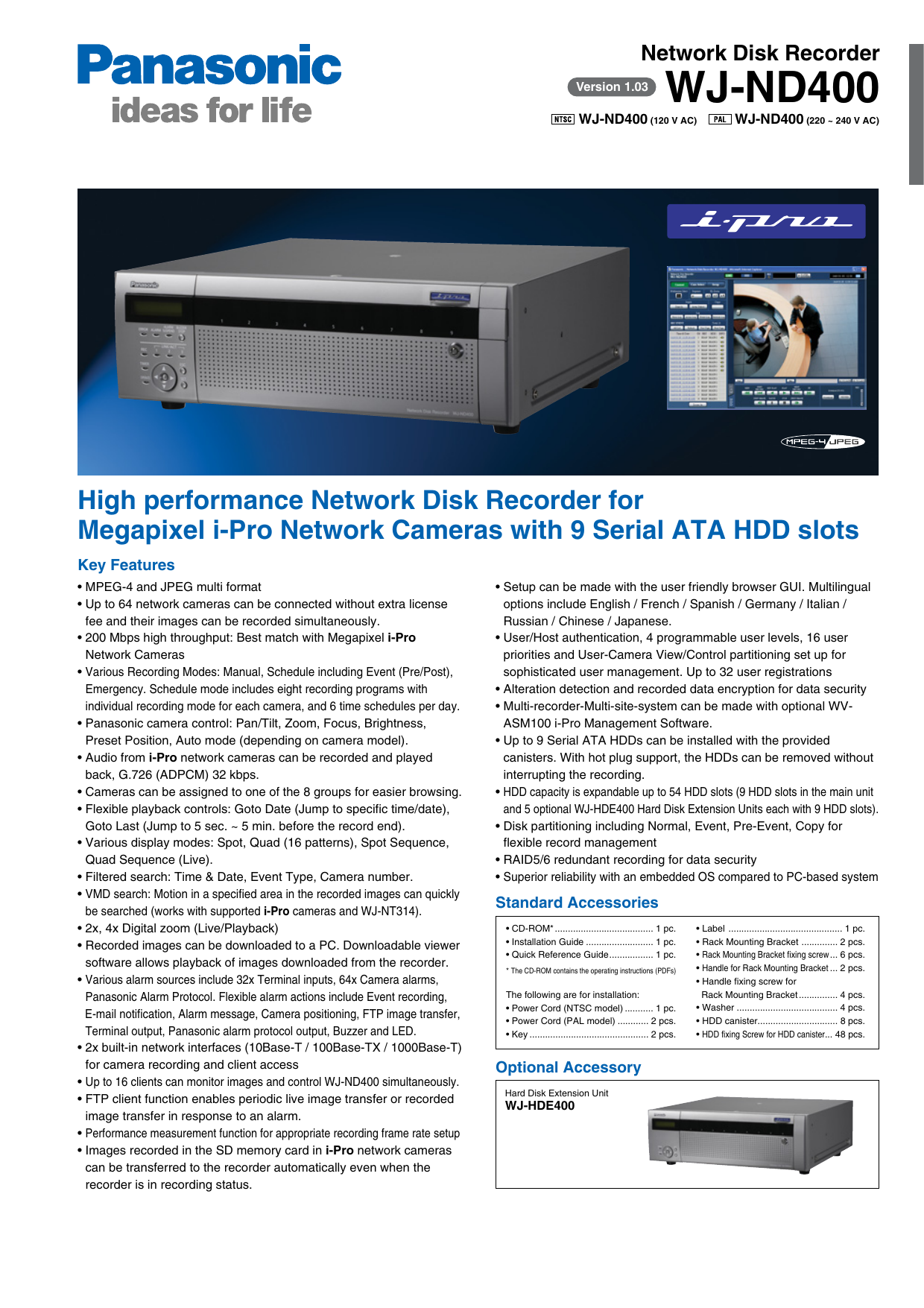

Network Disk Recorder
Version 1.03
WJ-ND400 (120 V AC)
WJ-ND400 (220 ~ 240 V AC)
High performance Network Disk Recorder for
Megapixel i-Pro Network Cameras with 9 Serial ATA HDD slots
Key Features
• MPEG-4 and JPEG multi format
• Up to 64 network cameras can be connected without extra license
fee and their images can be recorded simultaneously.
• 200 Mbps high throughput: Best match with Megapixel i-Pro
Network Cameras
• Various Recording Modes: Manual, Schedule including Event (Pre/Post),
Emergency. Schedule mode includes eight recording programs with
individual recording mode for each camera, and 6 time schedules per day.
• Panasonic camera control: Pan/Tilt, Zoom, Focus, Brightness,
Preset Position, Auto mode (depending on camera model).
• Audio from i-Pro network cameras can be recorded and played
back, G.726 (ADPCM) 32 kbps.
• Cameras can be assigned to one of the 8 groups for easier browsing.
• Flexible playback controls: Goto Date (Jump to specific time/date),
Goto Last (Jump to 5 sec. ~ 5 min. before the record end).
• Various display modes: Spot, Quad (16 patterns), Spot Sequence,
Quad Sequence (Live).
• Filtered search: Time & Date, Event Type, Camera number.
• VMD search: Motion in a specified area in the recorded images can quickly
be searched (works with supported i-Pro cameras and WJ-NT314).
• 2x, 4x Digital zoom (Live/Playback)
• Recorded images can be downloaded to a PC. Downloadable viewer
software allows playback of images downloaded from the recorder.
• Various alarm sources include 32x Terminal inputs, 64x Camera alarms,
Panasonic Alarm Protocol. Flexible alarm actions include Event recording,
E-mail notification, Alarm message, Camera positioning, FTP image transfer,
Terminal output, Panasonic alarm protocol output, Buzzer and LED.
• 2x built-in network interfaces (10Base-T / 100Base-TX / 1000Base-T)
for camera recording and client access
• Up to 16 clients can monitor images and control WJ-ND400 simultaneously.
• FTP client function enables periodic live image transfer or recorded
image transfer in response to an alarm.
• Performance measurement function for appropriate recording frame rate setup
• Images recorded in the SD memory card in i-Pro network cameras
can be transferred to the recorder automatically even when the
recorder is in recording status.
• Setup can be made with the user friendly browser GUI. Multilingual
options include English / French / Spanish / Germany / Italian /
Russian / Chinese / Japanese.
• User/Host authentication, 4 programmable user levels, 16 user
priorities and User-Camera View/Control partitioning set up for
sophisticated user management. Up to 32 user registrations
• Alteration detection and recorded data encryption for data security
• Multi-recorder-Multi-site-system can be made with optional WVASM100 i-Pro Management Software.
• Up to 9 Serial ATA HDDs can be installed with the provided
canisters. With hot plug support, the HDDs can be removed without
interrupting the recording.
• HDD capacity is expandable up to 54 HDD slots (9 HDD slots in the main unit
and 5 optional WJ-HDE400 Hard Disk Extension Units each with 9 HDD slots).
• Disk partitioning including Normal, Event, Pre-Event, Copy for
flexible record management
• RAID5/6 redundant recording for data security
• Superior reliability with an embedded OS compared to PC-based system
Standard Accessories
• CD-ROM* ...................................... 1 pc.
• Installation Guide .......................... 1 pc.
• Quick Reference Guide................. 1 pc.
* The CD-ROM contains the operating instructions (PDFs)
The following are for installation:
• Power Cord (NTSC model) ........... 1 pc.
• Power Cord (PAL model) ............ 2 pcs.
• Key .............................................. 2 pcs.
Optional Accessory
Hard Disk Extension Unit
• Label ............................................ 1 pc.
• Rack Mounting Bracket .............. 2 pcs.
• Rack Mounting Bracket fixing screw ... 6 pcs.
• Handle for Rack Mounting Bracket ... 2 pcs.
• Handle fixing screw for
Rack Mounting Bracket ............... 4 pcs.
• Washer ....................................... 4 pcs.
• HDD canister............................... 8 pcs.
• HDD fixing Screw for HDD canister... 48 pcs.
Part Names and Functions
Front View
Error Indicator
Alarm Indicator
Alarm Suspention Indicator
Buzzer Stop Button
HDD Indicators
Key Hole
Maintenance Port
Recording Indicator
Timer Indicator
Operate Indicator
Arrow Buttons
SET Button
Escape Button
Link Indicators
Front Cover
USE Button
HDD Unit
HDD Status Indicator
HDD Access Indicator
HDD Bay Slots
RAID Mode Switch
Removal Knob
Rear View
Handle for Maintenance
Alarm/Control Connector
Alarm Connector
Cable Clamp Fixing Holes
External Storage Connector
Client PC Port
Camera Port
Signal GND Terminal
Power Cord Inlet
Power Switch
372 (14-5/8")
126.4 (5")
(1/2") (2-1/2")
10.3 (3/8")
132 (5-3/16")
(13/16") (5-1/16")
480 (18-7/8")
465 (18-5/16")(Mounting Pitch)
430 (16-15/16")
267 (10-1/2")
400 (15-3/4")
Panasonic i-Pro series Network cameras (Contact Panasonic for BB series and Axis® cameras)
1,280 x 960, 960 x 720, 640 x 480, 320 x 240 (Depending on the camera)
G.726 (ADPCM) 32 kbps
Manual, Schedule including Event (Pre/Post), Emergency
Up to 15 minutes with dedicated HDD for Pre-Event.
Shorter Pre-Event recording is possible without dedicated HDD.
Scheduled Recording Mode 8 programs, 6 time zones/day, Independent setup for each day of the week
Up to 30 ips (Depending on the Camera)
Frame Rate/Camera
Pan/Tilt, Zoom, Focus, Brightness, Preset position call and program (up to 256), Auto mode
Browser Camera Control
REC/Playback Control REC, PLAY, Rev PLAY, Pause, Stop, FF, REW, Prev Record, Next Record,
Prev Image, Next image, Goto Date, Goto Last (5 sec. ~ 5 min.), Area select
Search Mode
Filtered search: Time date, Event type, Camera number
VMD search: one detection areas per search (works with supported i-Pro cameras and WJ-NT314)
Display Mode
Spot/Quad (16 patterns) / Spot Sequence / Quad Sequence (Sequence: Live only)
Camera Grouping
8 groups each with 16 characters title
Image Download
Recorded data of selected camera and time range can be downloaded
to a PC. Viewer software can be downloaded separately.
SD Memory Data
Images recorded in the SD card in the i-Pro series cameras can be
transferred to the recorder automatically.
Recorded data of selected cameras and time date range can be copied to the COPY partition.
Camera Title
On the browser, Up to 16 Characters
On the browser. Time: 12 H/24 H, Date: 3 formats (YY.MM.DD, MMM.DD.YY, DD.MMM.YY)
Clock Display
Alarm Control
Reset, Suspend
Digital Zoom
2x, 4x
System Log
Operator access (100), Network error (1,000), Error (100), Event (750)
System Setup
Setup page in English, French, Italian, Spanish, German, Russian, Chinese, Japanese
GUI Language
English, French, Italian, Spanish, German, Russian, Chinese, Japanese
Supported OS
Microsoft® Windows Vista® Bussiness 32 bit
Microsoft® Windows® XP Home Edition SP2 Microsoft® Windows® XP Professional SP2
The language of the OS must be same as selected GUI language.
Supported Browser
Windows® Internet Explorer® 7.0 Microsoft® Internet Explorer® 6.0 SP2
Alarm Source
32x Terminal inputs, 64x Camera alarms, Panasonic Alarm Protocol
Event Mode
Alarm / Activity / OFF
Alarm recording, e-mail notification, Alarm message, Camera positioning, FTP
Alarm Action
image transfer, Terminal output, Panasonic alarm protocol output, Buzzer, LED
Alarm Control
Reset, Suspend
Event log
Camera port: 10Base-T / 100Base-TX / 1000Base-T (RJ-45) Client port: 10Base-T /
Network Network Interface
100Base-TX / 1000Base-T (RJ-45) Maintenance port: 10Base-T (RJ-45)
Maximum Band Width Total 200 Mbps
Bandwidth Control (Client Port) 32 K / 64 k / 128 k / 256 k / 512 k / 1,024 k / 2 M / 5 M / 10 M (bps) and unlimited
Supported Protocol
Upon Alarm or Warning
FTP Client
Upon alarm or Periodic transfer
No. of Simultaneous Users 16
User Registration
Up to 32 users
User level
4 Levels (Programmable)
User - Camera (View only, View & Control, No Access)
Security Method
User authentication (ID and password), Host authentication (IP address),
Alteration detection, HTTP Port No. (1 ~ 65,535 except for reserved numbers),
FTP Port No. (1 ~ 65,535 except for reserved numbers)
Alarm Connector Alarm
Alarm input 1 ~ 7, 17 ~ 32*1
Interface (D-sub25pin)
Alarm input 8 ~ 16*1, 1x Alarm output*2, 1x Alarm reset input*1, 1x Alarm suspend input*1
Alarm/Control Alarm
Control Emergency recording input*1, Power outage detection input*1, External
recording mode switching*1, Power outage recovery completion output*3,
Time adjustment input/output*4, +5 V output*5
Network error output*2, Available disk space warning output*2,
Warning HDD error output*2, Camera error output*2, Error output*2
EXT Storage
High-speed serial interface 1.5 Gbps (theoretical value) Only for WJ-HDE400 Extension Unit
Time Synchronization
Terminal (Master or Slave), NTP (Server/Client)
Functions Summer Time
User definable (using menu setup)
1x 3.5 inch 500 GB Serial ATA HDD (Factory default), Up to 9x HDDs can be installed.
Maximum Capacity
54 HDD slots (with 5x WJ-HDE400 Extension Units, 9x HDDs installed in each unit)
RAID 5/6 supported
Normal / Event / Pre-Event / Copy
Play, Rev Play, Pause, FF, REW, Prev Record, Next Record, Prev Image, Next image
Playback Control
Software Additional Functions
Alteration detection, Save as JPEG, Two times zoom, Print
Supported OS, Language Same as browser GUI, Language of the software will be English
Safety/EMC Standard
UL (UL60065), FCC (Part15 ClassA), CE (EN60065, EN55022 ClassB,
C-UL (CAN/CSA C22.2 No.60065), EN55024), GOST (R 51558), C-Tick
DOC (ICES003 ClassA)
Power Source
120 V AC, 60 Hz
220 ~ 240 AC, 50 Hz
Power Consumption
approx. 170 W
Ambient Operating Temperature +5 °C ~ +45 °C (41 °F ~ 113 °F)
Ambient Operating Humidity 5 % ~ 90 % (no condensation)
Maximum Operating Altitude 2,000 m (6,500 feet) above sea level
430 mm (W) x 132 mm (H) x 400 mm (D)
(16-15/16" (W) x 5-3/16" (H) x 15-3/4" (D)) (excluding rubber feet and projections)
14 kg (30.9 lbs.) with 1 HDD (Factory default) 20 kg (44.15 lbs.) with 9 HDDs
*1: Non-voltage make contact, +5 V pull-up 150 Ω *2: Open collector output, 24 V max., –100 mA
*3: High (+5 V ~ +12 V, 6.3 mA maximum) *4: 52 kΩ, 5 V pull-up, –100 mA / make contact *5: 200 mA at maximum
33.5 (1-5/16")
TV System
Supported Supported Cameras
Cameras Supported Image Format
Supported Image Resolution
Supported Audio Format
Maximum Number of Cameras
Recording Recording Mode
Pre-Event Recording
57.1 (2-1/4")
(Mounting Pitch)
Trademarks and registered trademarks
– Microsoft, and Windows are registered trademarks of Microsoft Corporation in the U.S.
and other countries.
– Axis is a registered trademark of Axis Communications AB.
– "Super Dynamic", "SDII", "SDIII" and "i-Pro" logos are trademarks or registered
trademarks of Panasonic Corporation.
– Safety Precaution: carefully read the operating instructions and installation manual
before using this product.
– Panasonic can not be responsible for network performance and/or other manufacturer
products that reside on the network.
• All TV pictures are simulated.
• Weights and dimensions are approximate.
• Specifications are subject to change without notice.
• All product pictures are NTSC models.
Printed in Japan (2A-036BA)
Was this manual useful for you? Yes No
Thank you for your participation!

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project

Download PDF
