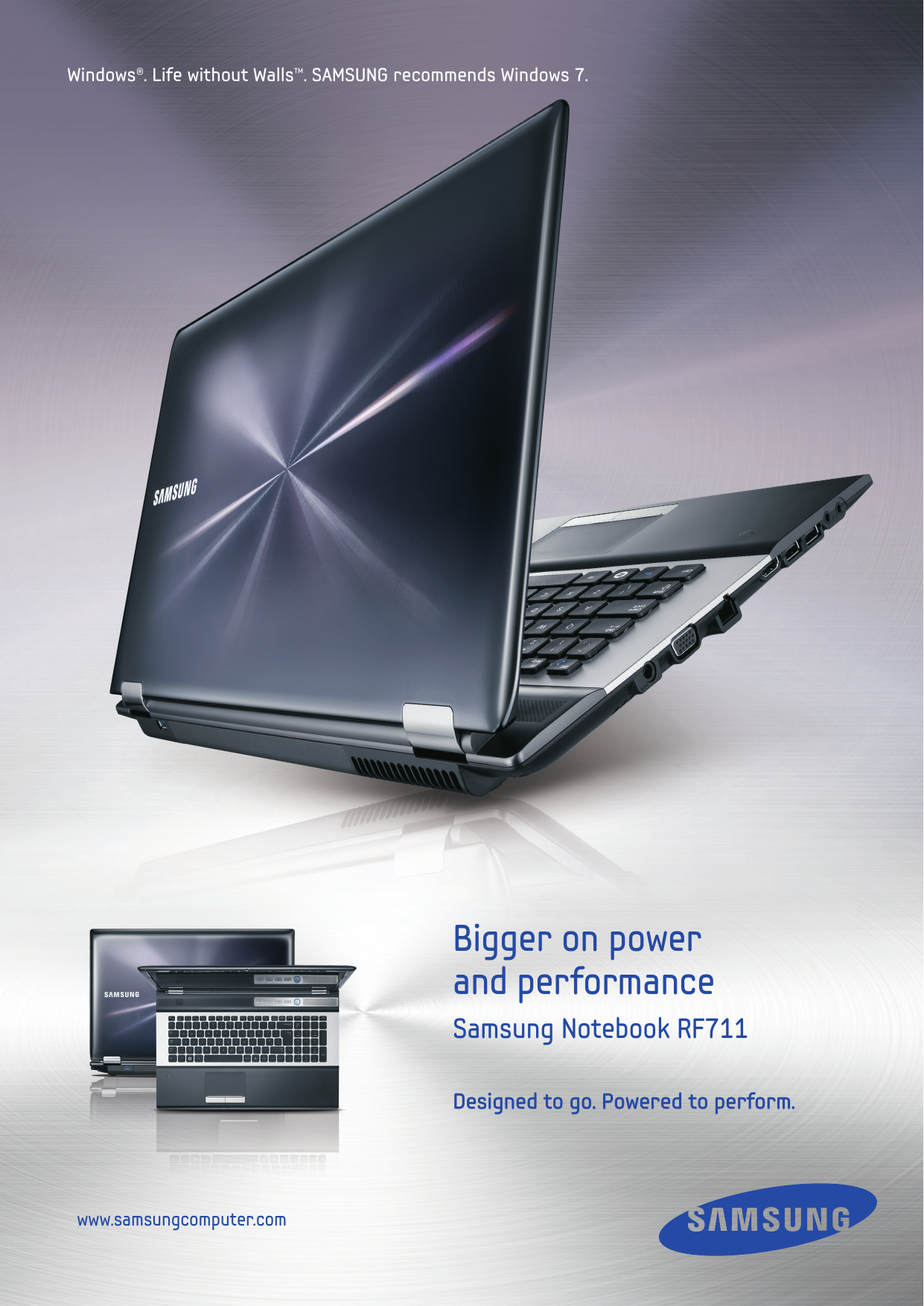

Windows®. Life without Walls™. SAMSUNG recommends Windows 7.
Bigger on power
and performance
Samsung Notebook RF711
Designed to go. Powered to perform.
www.samsungcomputer.com
Windows®. Life without Walls™. SAMSUNG recommends Windows 7.
Stylish design
17.3” HD+ LED backlit display
Island keyboard
Behind the Samsung RF711 notebook‘s stylish, yet minimalist looks lies a whole new world of rapid interactivity and stunning
multimedia. The combination of its 17.3’’ HD+ LED Backlit display, featuring 280nit brightness and 16 million colors, and a powerful nVIDIA graphics card* provides amazing image clarity and color intensity for an exceptional video and gaming experience. And
packed inside is a host of the most advanced mobile technology available today – like the intelligent processing of the latest Intel®
CoreTM i7/i5/i3 Processor*, the effortless multi-tasking of Windows® 7 Home Premium*and stunning audio reproduction of its innovative Enhanced Acoustic Chamber System. Also, with Samsung Fast Start, you can enjoy the RF711 anytime, anywhere, because it
wakes from sleep mode within seconds of opening the display or pressing the power button. Furthermore, with a huge data storage
capacity that’s expandable to over 1.5 Terabyte* using a dual bay the one thing you never have to be without is your music, movies
and pictures – just grab it and go!
Why Samsung PC?
A TRUSTED BRAND
Through a dedication to quality, performance, technology, design and service, Samsung has risen to become one of
the fastest growing PC vendors in the world. This has helped Samsung become the largest electronics company in
the world.
BETTER PERFORMANCE & BETTER TECHNOLOGY
Samsung PC products are continually celebrated by the world’s media for outstanding performance – including
“Product of the Year 2009” awards from Wired (US), Mikro PC (Finland), and PC World (China & Poland).
UNRIVALLED PRODUCT QUALITY
We manufacture the vast majority of our laptop components, so we can be certain they are world class. Our vigorous
quality assurance program and ISO standard manufacturing process, also ensure that only the best products make
it through to the customer.
DESIGNED TO TURN HEADS
Through worldwide design centers and partnerships with product designers, we have created laptops with style
that have won prestigious design awards such as the iF and IDEA Design awards and the Good Design 2009 “Gold
Award”.
WORRY-FREE SERVICE
We’re committed to providing the best, most timely customer service in the industry and proud to be recognized as
the leader in customer service satisfaction (ranked #1 for customer satisfaction in the notebook PC category by C’T
Magazine Germany in May2010).
Windows®. Life without Walls™. SAMSUNG recommends Windows 7.
Outstanding graphics
Multimedia performance
The RF711 brings movies, games and images bursting into life with its outstanding high definition, widescreen capability and exceptional picture quality.
The RF711 is designed to enhance your life on the move with its powerful
processor, brilliant graphics and comprehensive multimedia capability.
17.3” HD+ LED backlit display
Smarter and faster performance
High definition webcam
Hybrid graphics
The gloss LED backlit display produces the sharpest images and boldest colors display with and exceptional 280nit brightness and 16 million colors. Its 16:9
aspect ratio also ensures the most accurate, full screen representation of HD
movies and games, without annoying black bands.
A 1.3M HD webcam lets you record much clearer and smoother images
and play videoclips in widescreen high definition, so you can see more
of what’s going on.
Features the state-of-the-art Intel® Core™ i7 (up to Quad Core)/i5/i3
Processor*, which accelerates performance by dynamically allocating
processing power where it’s needed most using intelligent Turbo Boost
technology.
The NVIDIA® OptimusTM graphics card (incorporating NVIDIA GeForce GT 540M with up to 2GB memory)* delivers a great graphics
performance for intensive activities like gaming, but also seamlessly
extends battery life by automatically switching to only using the internal
Intel graphics for more basic applications.
Enhanced acoustic chamber system
SRS Premium SoundTM delivers more natural and realistic 3D sound for
music, movies and games with its bigger acoustic chambers. The RF711
provides enhanced bass, crystal clear dialog and better definition control
for maximum clarity at high frequency.
Enhanced usability
Extensive data storage
The RF711 includes a range of advanced tools and features to help you
stay in touch and get things done fast.
Fast Start
Don’t waste time waiting to power up. “Fast Start” lets you start your notebook and wake up from sleep mode within just seconds of opening the
display or pressing the power button. In this advanced sleep mode, data is
also saved on HDD as well as memory, so your content is ready, just as you
left it, even if power is suddenly lost or you change the battery.
Rapid data transfer
USB 3.0 ports lets you share pictures, movies and data with virtually any
modern device at speeds that are much faster than USB 2.0.
With a Hard Disc Drive (HDD) capacity that’s easily expandable up to over
1.5 Terabyte* and an I/O speed of 7200rpm** you can safely store and
quickly access all of your music, movies and pictures wherever you are,
without having to carry a separate external HDD.
Easy multimedia content sharing
Easy Content Share software, based on AllShareTM technology, makes
it easy to play multimedia content, including video, photos and music, in
multiple Samsung devices.
Peace of mind
The RF711 is the ideal choice if you like to play things safe and longer, as it is
designed to protect you and your data from the risks of everyday life.
Extensive wireless connectivity
PowerPlus battery
Easy file share
Simple data back up
Advanced communications technologies, including 802.11b/g/n (2x2)
wireless and Bluetooth 3.0 High Speed, provide high speed access to
the Internet and your data anytime and anywhere.
Quickly and securely copy files, images, music or share information
wirelessly with any other notebook, netbook or wireless-enabled Samsung PC via an ad-Hoc Wi-Fi connection. If you buy a new PC it also
makes it very easy to transfer all of your files.
Easy control button
Convenient multimedia control buttons lets you turn your wireless signal
on or off with one touch or instantly control your volume by muting it or
turning it up or down.
Delivers much greater long-term value and reliability with a significantly increased battery lifespan. There’s a “battery life extender mode”, so the battery
lasts up to 3 times longer than a conventional battery, and an “express charging mode” for shorter charging times. It also has an extensive battery life.
Samsung Recovery Solution automatically and regularly backs up your
data to the hard drive (or users can also back up to an external hard
drive), so it can easily be restored, giving you the peace of mind that
you’re always protected.
International warranty service
Samsung’s award-winning warranty service*** provides a fast track
collection repair and return service in order to minimize disruption and
get you going again as quickly as possible.
* Factory option.
** Supports 5400/7200rpm
***Warranty service availability and response times may vary from country to country and
may also be subject to registration requirements in the country of purchase.
Input / Output Ports
Left View
HDMI
DC-In
VGA
LAN
Front View
Headphone Out
2 x USB 2.0 Mic-in
ODD
Rear View
Multi Memory Card Slot
Kensington Lock
Right View
USB 3.0
USB 3.0
Windows®. Life without Walls™. SAMSUNG recommends Windows 7.
Specifications
Model
Model Name
RF711
Part Number
NP-RF711-S03UK
EAN Barcode
8806071358000
Operating System
Base
Genuine Windows® 7 Home Premium (64b)
Processor
Intel® CoreTM i5 Processor 2410M (2.3GHz, 6 MB)
Main Chipset
Memory
Display
Graphics
Intel HM65
System Memory
6GB (DDR3 / 4GB x 1 + 2GB x 1 )
Memory Slot
2 x SODIMM
LCD
17.3” LED HD+ (1600 x 900) 16:9 Gloss
Graphics Processor
NVIDIA GeForce GT540M (Optimus)
Graphic Memory
1GB DDR3 (Ext. Graphic) / 2GB DDR3 (Ext. Graphic)
Sound
Multimedia
HD (High Definition) Audio
Sound Effect
SRS Premium Sound Effect / Mic Noise Suppression
Speaker
3 W Stereo Speaker (1.5 W x 2)
Integrated Camera
Storage
1.3 MP HD Web Camera
HDD
1TB (5400 rpm S-ATA / 500GB *2)
ODD
BluRay (S-ATA) / Super Multi Dual Layer (S-ATA)
Modem
Communication
No
Wired Ethernet LAN
Gigabit LAN
Wireless LAN
802.11bg/n
Bluetooth
Bluetooth V3.0 High Speed
I/O Ports
VGA, HDMI, Headphone-out, Mic-in, Internal Mic, 2 x USB 2.0, 2 x UBS 3.0 (Chargable USB included)
Multi Card Slot (4-in-1 (SD, SDHC, SDXC, MMC)), RJ45 (LAN), DC-In (Power Port)
Security
Norton Internet Security (60day free), BIOS Boot Up Password, Kensington Lock Port, Samsung Recovery Solution
AC Adapter
120 Watt / 90 Watt*
Battery
Others
6 Cell
Dimension (WxDxH)
415.8 x 276.1 x 32.3 ~ 37.9 mm (16.3” x 10.8” x 1.27” ~ 1.49”)
Weight
2.9 Kg (6.39 lbs)
Warranty
International Warranty*
[Safety] S
amsung Recovery Solution, Samsung Support Center, Norton Internet Security (Free 60-day Trial), HDD Password
[Utility] Samsung Fast Start, E
asy Speedup Manager, Easy Network Manager, Battery Life Extender, Easy Display Manager,
Samsung Update Plus, Sleep-and-Charge USB, Easy File Share, Easy Content Share, Microsoft Office 2010 Starter
[Multimedia] CyberLink YouCam, Game Console
S/W
* Based on factory specifications. Product design specifications and colors are subject to change without notice and may vary from those shown. Errors and omissions excepted. Battery life based on BatteryMark test scores
that will vary based on configuration. Warranty service availability and response times may vary from country to country and may also be subject to registration requirements in the country of purchase. OS reveals lower HDD
capacity than the specification as the difference of the calculation way and recovery partition.
Accessories
To keep you going longer, the Samsung notebooks also come with a choice of practical extras that will enhance the way
you work and make your life more convenient.
Adapter
Power Adapter
Combo Adapter
Auto Adapter
Auto + Air Adapter Package
AA-PA1N90W
AA-PA3NC90
AA-PC0NCOM
AA-PC0N90W
Battery
Data Cable
ODD
AA-PB9NC6W
AA-EX1TSYN
AA-ES0PN21
HDD
AA-HE0P320
AA-HE0P500
AA-HE1P320
AA-HE1P500
AA-HE2P32L
AA-HE2P50L
International Warranty: 1 year warranty for the following areas : US, Canada, China, Hong Kong, Europe, New Zealand and Australia.
