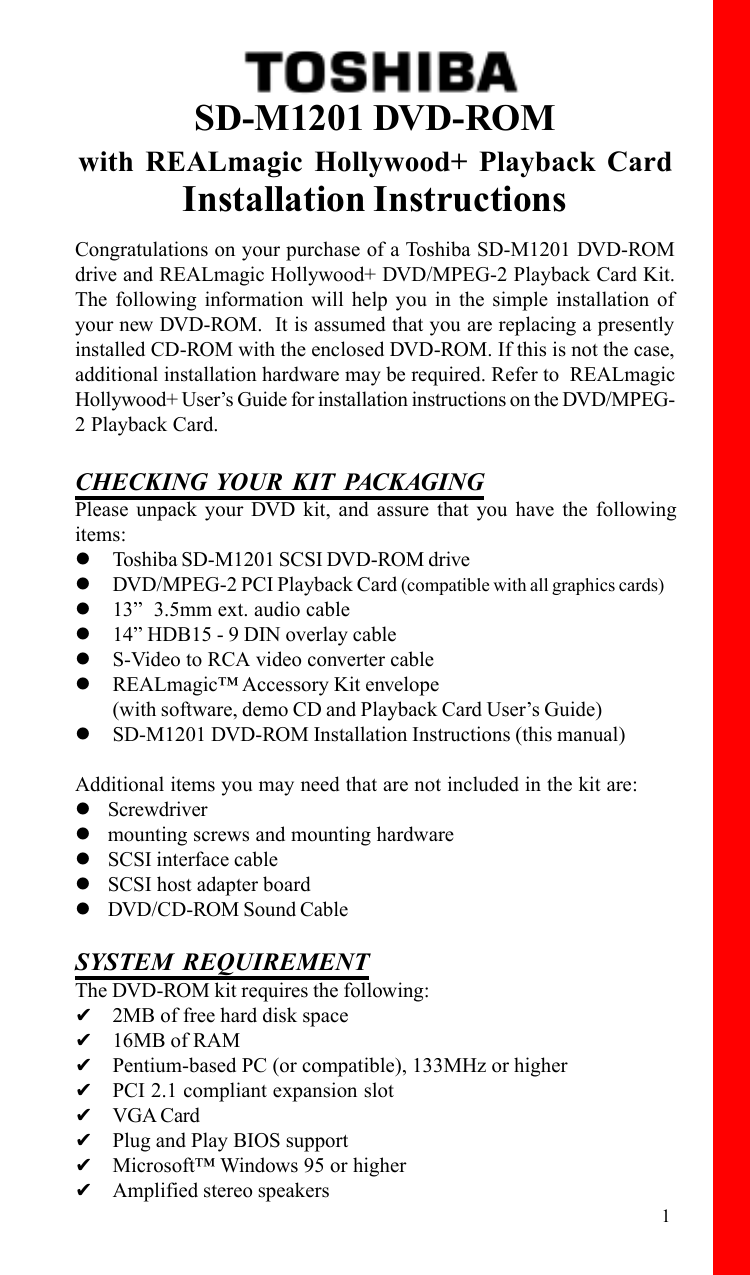

SD-M1201 DVD-ROM
with REALmagic Hollywood+ Playback Card
Installation Instructions
Congratulations on your purchase of a Toshiba SD-M1201 DVD-ROM
drive and REALmagic Hollywood+ DVD/MPEG-2 Playback Card Kit.
The following information will help you in the simple installation of
your new DVD-ROM. It is assumed that you are replacing a presently
installed CD-ROM with the enclosed DVD-ROM. If this is not the case,
additional installation hardware may be required. Refer to REALmagic
Hollywood+ User’s Guide for installation instructions on the DVD/MPEG2 Playback Card.
CHECKING YOUR KIT PACKAGING
Please unpack your DVD kit, and assure that you have the following
items:
l Toshiba SD-M1201 SCSI DVD-ROM drive
l DVD/MPEG-2 PCI Playback Card (compatible with all graphics cards)
l 13” 3.5mm ext. audio cable
l 14” HDB15 - 9 DIN overlay cable
l S-Video to RCA video converter cable
l REALmagic™ Accessory Kit envelope
(with software, demo CD and Playback Card User’s Guide)
l SD-M1201 DVD-ROM Installation Instructions (this manual)
Additional items you may need that are not included in the kit are:
l Screwdriver
l mounting screws and mounting hardware
l SCSI interface cable
l SCSI host adapter board
l DVD/CD-ROM Sound Cable
SYSTEM REQUIREMENT
The DVD-ROM kit requires the following:
✔ 2MB of free hard disk space
✔ 16MB of RAM
✔ Pentium-based PC (or compatible), 133MHz or higher
✔ PCI 2.1 compliant expansion slot
✔ VGA Card
✔ Plug and Play BIOS support
✔ Microsoft™ Windows 95 or higher
✔ Amplified stereo speakers
1
The follow steps must be performed to properly install your DVD-ROM.
l Set DVD-ROM drive jumper settings.
l Connect audio cable.
l Install SCSI host adapter board.
l Attach SCSI interface cable.
l Mount DVD-ROM.
SETTING JUMPERS
The block of mode select jumpers
are located on the rear of the DVDROM. If the jumper covers both
pins on the jumper block, it is ON;
if there is no jumper or only one of
the pins is covered, the jumper is
OFF. The jumper settings include
SCSI ID, Parity, Termination,
Eject, Test/Audio Playback, and
Power Supply.
SCSI ID - All SCSI devices attached to
your computer are assigned a SCSI-ID
number from 0 to 7. Your DVD-ROM’s
SCSI ID must be set so that its ID number does not conflict with any other
device’s SCSI-ID in your system. In
most cases, your DVD-ROM will be set
to SCSI ID 4 at the factory. Also note
that your SCSI interface card in most
cases has a SCSI ID of 7. This chart
below shows the jumper settings for the
eight possible ID numbers.
1 2 4
ID ID ID
1 2 4
ID ID ID
SCSI-ID
0
1 2 4
ID ID ID
SCSI-ID
1
1 2 4
ID ID ID
SCSI-ID
2
1 2 4
ID ID ID
SCSI-ID
4
(default)
1 2 4
ID ID ID
SCSI-ID
3
1 2 4
ID ID ID
SCSI-ID
5
1 2 4
ID ID ID
SCSI-ID
6
SCSI-ID
7
Parity - In the OFF mode, the parity bit check function on the SCSI data
bus is activated which enhances data bus reliability. Therefore, the
jumper should remain in the OFF mode.
Terminator ON/OFF - This jumper turns termination power ON or OFF. If
you are connecting more than one SCSI device to your system, and the
DVD-ROM is not at the end of the chain, then terminator jumper is not
required.
TERM ON/OFF
PRTY
ID1 ID2 ID4
2
PRV/ALW
TEST POWER
SUPPLY
PRV/ALW - This jumper is used to inhibit the drive’s EJECT button.
When the jumper is ON, the EJECT button will not operate.
Test - This setting selects the drive operation between normal CD-ROM
and CD-Audio player mode. When jumper is set to ON position, commands from the host computer are ignored. This jumper is for test purposes only and should be set to OFF for proper CD-ROM function.
Power Supply - Toshiba SCSI DVD-ROM drives can supply power to
other equipment on the SCSI BUS. When the jumper is ON, the drive will
supply termination power. If you’re not sure if any other device supplies
termination power, it is fine to leave the jumper ON.
PLACING DVD-ROM INSIDE YOUR COMPUTER
Now that you have set the jumpers, you are ready to install your DVDROM inside your computer.
IMPORTANT: Disconnect power from your computer system before
beginning installation.
Remove computer cover and faceplate if required. Refer to your computer system’s manual for removal information. If DVD-ROM is replacing
a CD-ROM, remove CD-ROM presently installed in your system.
The SD-M1202 DVD-ROM can be mounted horizontally or vertically in
any free half-height drive slot at the front of your computer.
Carefully start sliding the DVD-ROM into the opening with the disc tray
facing the front of the computer. Before you push the drive all the way in
you will need to connect the SCSI interface cable, audio cable, and the
power cable on the back of the drive.
Connecting Cables
SCSI Interface Cable (not supplied with kit) - The internal SCSI interface cable is connected to your SCSI host adapter card and fits into the
socket on the back of your
DVD-ROM. The stripe or
red-colored side of the ribbon cable connects to pin 1
on the drives’ SCSI connector which is found next to
the drive’s power connector.
Carefully push the SCSI
connector into the socket,
making sure it fits snugly.
3
If you are replacing your CD-ROM: connect DVD-ROM to the SCSI
interface connector that the CD-ROM was connected to.
If DVD-ROM is not replacing a CD-ROM or is an addition to a CD-ROM:
daisy-chain the DVD-ROM drive with a custom built SCSI interface cable
(not supplied with kit). See Daisy-Chaining Section on page 5 for more
information.
Power Cable - Connect an internal computer power supply cable to the
power socket at the back of the DVD-ROM. One side of the plug has
chamfered edges, so the power connector fits only one way. Push plug
completely into the socket making sure the plug fits correctly.
Audio Cable (optional) - If you have a sound card and speakers, and
would like to play audio CDs on your computer, you will need to get a
sound cable. Contact AMC, our small parts supplier, at 888/262-9700.
Sound cables are made for the sound card you are using and the DVDROM to which you are connecting. Make sure you have this information
when purchasing a sound cable. The sound cable connects to your sound
card at one end and the other
end connects to the digital
audio connector at the left rear
of the DVD-ROM (see DVDROM Back Panel photo on
page 7 for location). Refer to
the instructions which came
with your sound card for details on any sound-driver software required. Also refer to
the REALmagic Hollywood+
User’s guide for additional
audio connection options.
4
Daisy-Chaining - If the DVD-ROM you are installing is one of two or
more SCSI devices you are connecting to your system, you will need to
use a custom built SCSI interface cable. Remember that the terminator
jumper on the DVD-ROM drive must have the jumper installed when the
drive is the last device in the chain.
Host Computer
I/F Card
Interface
Connector
SCSI Cable
DVD-ROM
DRIVE
(see note 1)
Terminator
SD-M1201 CONNECTION (ONE DRIVE)
Host Computer
SCSI Cable
SD-M1201
INTERNAL DRIVE(S)
Interface Connector
I/F Card
DVD-ROM
DRIVE
#1
(see note 2)
Terminator
If connecting more
than three SCSI
devices, you need to
use a custom built
SCSI Interface Cable.
DVD-ROM
DRIVE
#2
(see note 2)
DVD-ROM
DRIVE
#N
(N < 7)
Install Terminator Jumper
only on the last drive of BUS
(see note 1)
SD-M1201 DAISY-CHAIN CONNECTION (MULTIPLE DRIVES)
Notes:
1. Terminator jumper must be jumpered when DVD-ROM is the last
or only device on the SCSI BUS.
2. Terminator jumper should be removed when DVD is in a "daisy-chain"
and is NOT the last drive.
5
COMPLETING INSTALLATION
After you have connected all the necessary cables, push the DVD-ROM
completely into the computer’s
drive slot. Mount drive accordMounting Screw
ing to your computer’s instrucM3
tions. The screw length should
Mounting frame of
not exceed 3±0.5mm (measured
host computer
from outside surface of side or
Surface of side or bottom
bottom of DVD-ROM to tip of
of DVD-ROM drive
screw). Replace computer cover
and all outer screws.
2.5 - 3.5mm
,,
,,
,
Software Driver: The Toshiba SD-M1202 DVD-ROM Drive is “plug n’
play.” When you apply power to your computer and boot-up, it should
recognize the new hardware and prompt you in the installation of the
SCSI driver. If you don’t have the SCSI driver, contact your SCSI host
adapter board manufacturer. After you have completed installing your
DVD-ROM, refer to REALmagic™ User’s Guide to install DVD/MPEG-2
Playback Card.
DVD-ROM FRONT PANEL
The photo illustrates the following features of the SD-M1202 DVD-ROM
front panel:
① DVD loading tray
② Headphone jack
③ Volume control
④ Busy light
⑤ Eject button
⑥ Emergency eject hole (insert solid bar into hole, i.e. paper clip, and
push until tray opens)
6
DVD-ROM BACK PANEL
The photo illustrates the following features of the SD-M1202 DVD-ROM
back panel:
① Analog audio out connector
② Mode select jumper
③ SCSI interface connector
④ Power connector
7
TECHNICAL SUPPORT
Technical support can be obtained by calling 949/455-0407.
Drivers are available on BBS at 949/837-8864 or on our web site at
http://www.toshiba.com
SD-M1201 SPECIFICATIONS
DVD
Data Capacity (bytes/block)
2,048
Rotational Speed (approx. rpm)
2,900
CD-ROM
mode 1
mode 2
2,048
2,336
13.8 ~ 32X: 6,900
8.6 ~ 20X: 4,300 (CD-RW)
4 ~ 5.7X: 1,200-2,000 (audio)
Sustained Data Transfer Rate
(kbytes/sec)
2,797 ~
mode 1
mode 2
6,760
2,069 ~
2,360 ~
4,800
5,475
Access Time (Typ.)
Avg. Random Access
135ms
95ms
Avg. Random Seek
105ms
90ms
Avg. Full Stroke Access
230ms
160ms
Data Buffer
256 kbytes
Power Supply
Dimensions
+5V, +12V
146mm x 41.5mm x 193mm (W x H x D)
Weight
0.98kg
MTBF
100,000 hours
FCC DECLARATION OF CONFORMITY
This equipment has been tested and found to comply with the limits for a class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy, and if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio
or television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
• Re-orient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for help.
This equipment has been certified to comply with the limits for a class B computing device, pursuant
to FCC Rules. In order to maintain compliance with FCC regulations, shielded cables must be used
with this equipment. Operation with non-approved equipment or unshielded cables is likely to
result in interference to radio and TV reception. The user is cautioned that changes and modifications
made to the equipment without the approval of the manufacturer could void the user's authority to
operate this equipment.
LASER CAUTION
This appliance contains a laser system and is classified as a "CLASS 1 LASER PRODUCT." To use this
model properly, read this Owner's Manual carefully and keep this manual for future reference. In case of
any trouble with this model, please contact your nearest "Authorized Repair Center." To prevent direct
exposure to the laser beam, do not try to open the enclosure.
460015-a0
P/N 460015-A0
8
