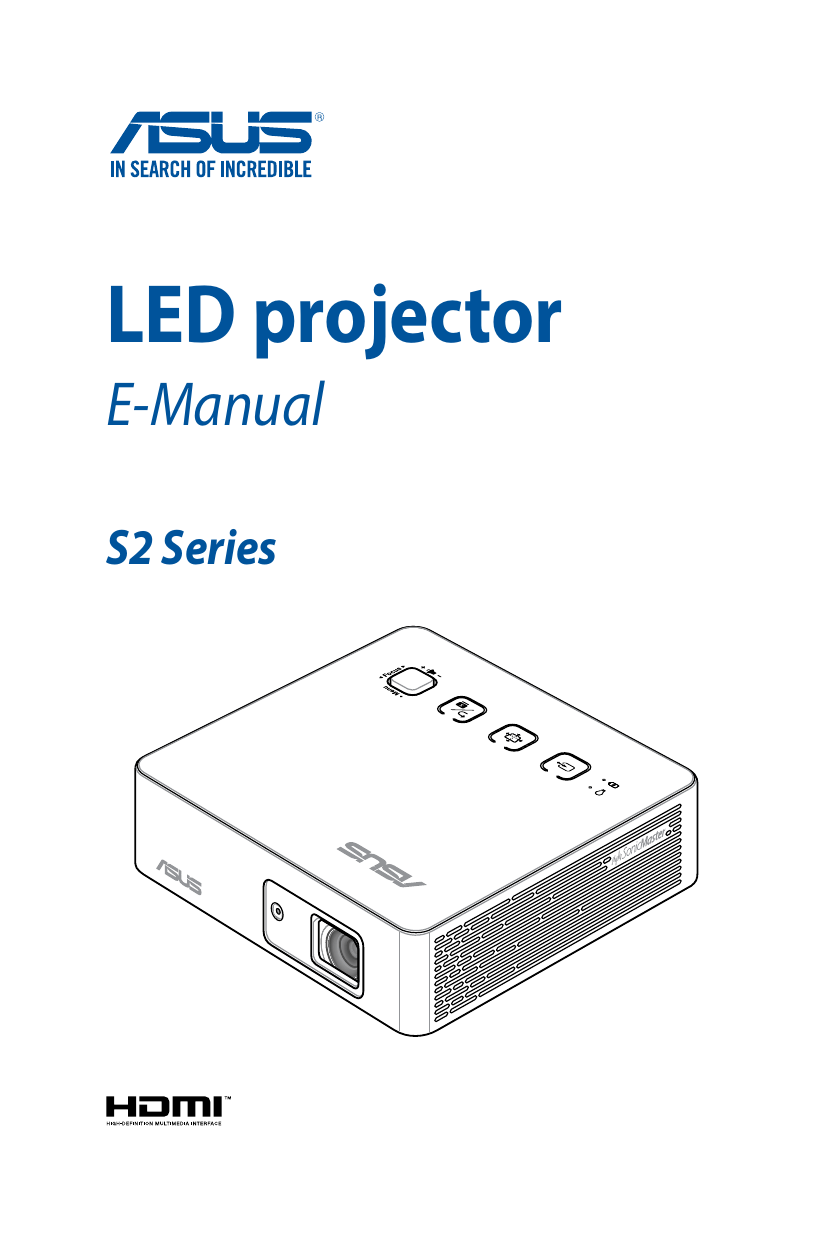

Asus S2 Series E-Manual

LED projector
E-Manual
S2 Series
E14596
First Edition
February 2019
COPYRIGHT AND WARRANTY INFORMATION
No part of this manual, including the products and software described in it, may be reproduced,
transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any
means, except documentation kept by the purchaser for backup purposes, without the express written
permission of ASUSTeK COMPUTER INC. (“ASUS”).
Product warranty or service will not be extended if: (1) the product is repaired, modified or altered, unless
such repair, modification of alteration is authorized in writing by ASUS; or (2) the serial number of the is
defaced or missing.
ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED,
INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY OR
FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS DIRECTORS, OFFICERS, EMPLOYEES
OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES
(INCLUDING DAMAGES FOR LOSS OF PROFITS, LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION
OF BUSINESS AND THE LIKE), EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES
ARISING FROM ANY DEFECT OR ERROR IN THIS MANUAL OR PRODUCT.
Products and corporate names appearing in this manual may or may not be registered trademarks or
copyrights of their respective companies, and are used only for identification or explanation and to the
owners’ benefit, without intent to infringe.
SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR INFORMATIONAL
USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE, AND SHOULD NOT BE
CONSTRUED AS A COMMITMENT BY ASUS. ASUS ASSUMES NO RESPONSIBILITY OR LIABILITY FOR ANY
ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS MANUAL, INCLUDING THE PRODUCTS AND
SOFTWARE DESCRIBED IN IT.
Copyright © 2019 ASUSTeK COMPUTER INC. All Rights Reserved.
LIMITATION OF LIABILITY
Circumstances may arise where because of a default on ASUS’ part or other liability, you are entitled to
recover damages from ASUS. In each such instance, regardless of the basis on which you are entitled to
claim damages from ASUS, ASUS is liable for no more than damages for bodily injury (including death) and
damage to real property and tangible personal property; or any other actual and direct damages resulted
from omission or failure of performing legal duties under this Warranty Statement, up to the listed contract
price of each product.
ASUS will only be responsible for or indemnify you for loss, damages or claims based in contract, tort or
infringement under this Warranty Statement.
This limit also applies to ASUS’ suppliers and its reseller. It is the maximum for which ASUS, its suppliers,
and your reseller are collectively responsible.
UNDER NO CIRCUMSTANCES IS ASUS LIABLE FOR ANY OF THE FOLLOWING: (1) THIRD-PARTY CLAIMS
AGAINST YOU FOR DAMAGES; (2) LOSS OF, OR DAMAGE TO, YOUR RECORDS OR DATA; OR (3) SPECIAL,
INCIDENTAL, OR INDIRECT DAMAGES OR FOR ANY ECONOMIC CONSEQUENTIAL DAMAGES (INCLUDING
LOST PROFITS OR SAVINGS), EVEN IF ASUS, ITS SUPPLIERS OR YOUR RESELLER IS INFORMED OF THEIR
POSSIBILITY.
SERVICE AND SUPPORT
Visit our multi-language web site at https://www.asus.com/support
2
LED projector E-Manual
Table of Contents
About this manual.............................................................................................. 5
Conventions used in this manual................................................................ 6
Typography.......................................................................................................... 6
Multi-language versions................................................................................. 6
Safety precautions.............................................................................................. 7
Using your LED projector................................................................................ 7
Servicing and replacement of parts........................................................... 7
Caring for your LED projector....................................................................... 8
Proper disposal................................................................................................... 8
Chapter 1: Knowing your LED projector
Features................................................................................................................10
Top view .............................................................................................................10
Front view...........................................................................................................13
Rear view............................................................................................................14
Left side .............................................................................................................16
Right side............................................................................................................17
Bottom view......................................................................................................18
Extended features...........................................................................................19
LED projector remote control.......................................................................21
Replacing the battery....................................................................................23
Chapter 2: Setting up
Operating your LED projector......................................................................26
Connect the LED projector to the power adapter...............................26
Connect the LED projector to your device.............................................29
Adjust the height of the LED projector....................................................34
Press the power button.................................................................................36
Adjust the image focus..................................................................................37
LED projector E-Manual
3
Chapter 3: Using the onscreen display menu
Using your LED projector for the first time..............................................40
Adjusting your LED projector's settings...................................................41
Onscreen display menu options..................................................................42
Display
Input
System
.............................................................................................................42
.............................................................................................................43
.............................................................................................................44
.............................................................................................................45
Turning off your LED projector.....................................................................46
Multi-language versions...............................................................................47
Appendices
Federal Communications Commission Statement..............................50
Regional notice for California......................................................................51
Global Environmental Regulation Compliance and Declaration ..52
ASUS Recycling/Takeback Services...........................................................52
Specifications for S2 series LED projector...............................................53
Support PC Timings........................................................................................55
4
LED projector E-Manual
About this manual
This manual provides information about the hardware and software
features of your LED projector through the following chapters:
Chapter 1: Knowing your LED Projector
This chapter details the parts of your LED projector and its
accompanying remote control.
Chapter 2: Setting up
This chapter shows you how to set up your LED projector and
use its parts for input device connection.
Chapter 3: Using the onscreen display menu
This chapter talks about the features of your LED projector’s
onscreen display menu and how to navigate it using the
control panel.
Appendices
This section includes safety notices for your LED projector.
LED projector E-Manual
5
Conventions used in this manual
To highlight key information in this manual, some text are presented
as follows:
IMPORTANT! This message contains vital information that must be
followed to complete a task.
NOTE: This message contains additional information and tips that
can help complete tasks.
WARNING! This message contains important information that must
be followed to keep you safe while performing tasks and prevent
damage to your LED projector's data and components.
Typography
Bold = This indicates a menu or an item that must be selected.
Italic = This indicates sections that you can refer to in this manual.
Multi-language versions
Download other language versions of this E-Manual via this website:
https://www.asus.com/support
6
LED projector E-Manual
Safety precautions
Using your LED projector
•
Refer to the manual and take note of the safety instructions
before operating your LED projector.
•
Follow the notes and warnings stated in the user manual.
•
Do not place your LED projector on uneven or unstable
surfaces.
•
Do not use your LED projector in smoky environments. Smoke
residue may cause build-up on critical parts and damage the
LED projector or decrease its performance.
•
Keep the LED projector’s plastic packages out of the reach of
children.
•
Do not block or place anything near the LED projector’s
ventilation holes. Doing so may cause internal heat build-up
that can degrade picture quality and damage the projector.
•
Ensure that the operating voltage of your LED projector
matches the voltage of your power source.
Servicing and replacement of parts
•
Do not disassemble or attempt to service this LED projector by
yourself. Contact your local ASUS service center for assistance.
•
When replacing parts of your LED projector, purchase items
as specified by ASUS and contact your local service center for
assistance.
LED projector E-Manual
7
Caring for your LED projector
•
Switch off then unplug the LED projector from the power outlet
before cleaning it.
•
When cleaning the LED projector’s housing, use a clean soft
cloth dampened with water or a mix of water and neutral
detergent. Wipe it dry using a soft dry cloth.
•
Ensure that the lens is cool before cleaning it. Gently wipe the
lens using a lens cleaning paper. Do not touch the lens with
your hands.
•
Do not use liquid or aerosol cleaners, benzene, or thinners on
your LED projector.
•
Never operate this LED projector immediately after moving
it from a cold location. When the LED projector is exposed
to a drastic change in temperature, moisture may condense
on the lens and its other internal parts. To prevent this, use
the unit two (2) hours after an extreme or sudden change in
temperature occurs.
Proper disposal
Do not throw your LED projector in municipal waste. This
product has been designed to enable proper reuse of parts
and recycling. The symbol of the crossed out wheeled bin
indicates that the product (electrical, electronic equipment
and mercury-containing button cell battery) should not
be placed in municipal waste. Check local regulations for
disposal of electronic products.
Do not throw the battery in municipal waste. The symbol
of the crossed out wheeled bin indicates that the battery
should not be placed in municipal waste.
8
LED projector E-Manual
Chapter 1:
Knowing your LED
projector
Chapter 1: Knowing your LED
projector
LED projector E-Manual
9
Features
Top view
10
LED projector E-Manual
Power indicator and battery status indicator
This LED indicator indicates the following scenarios for your
LED projector:
•
It lights up when the LED projector is powered on.
•
It lights up as either green or red depending on the
battery charge status.
For details on how this LED indicator functions as a battery
status indicator, refer to the following table:
Color
Status
Solid Green
The LED projector is either plugged to
a power source or running on battery
mode and the battery power is more
than 25%.
Solid Red
The LED projector is running on battery
mode only and the battery power is not
more than 25%.
Battery charge indicator
This LED indicator lights up when the LED projector is
plugged to a power source using its power adapter.
IMPORTANT! Use only the bundled power adapter to charge
the battery pack and supply power to your LED projector.
LED projector E-Manual
11
Control panel buttons
These buttons correspond to a specific LED projector setting
as indicated below.
Keystone
Input
Back/Splendid
Joystick
This joystick allows you to navigate the onscreen display
menu and select menu settings. This joystick also correspond
to specific LED projector settings as indicated below.
Open main menu/OK
Adjust focus
Adjust volume
(push center)
(move up or down) (move left or right)
NOTE: For more information on using your LED projector’s
settings, refer to the Using the onscreen display menu section
in this manual.
12
LED projector E-Manual
Front view
Auto focus camera
This camera helps the LED projector with the auto focus
feature.
Lens
The lens projects video or image files onscreen from your
input device.
WARNING! Do not touch the lens using your hands or any
sharp object.
LED projector E-Manual
13
Rear view
Audio output jack port
The audio output jack port allows you to connect your LED
projector to amplified speakers or headphones.
HDMI port
This port is for the HDMI (High-Definition Multimedia
Interface) connectors. This port is HDCP compliant for HD
DVD, Blu-ray, and other protected content playback.
USB Type-A power output port
This power output port provides up to 5V/1A of output
voltage and current. You can connect your mobile device
to this port to keep it charged while using it with your LED
projector.
14
LED projector E-Manual
USB 3.1 Gen 2 Type-C™ DisplayPort/Power Delivery
combo port
Use a USB Type-C™ adapter to connect your LED projector to
a compatible device to stream media contents. This Power
Delivery output port provides up to 5V/1.5A of output
voltage and current when a power source is connected to
the Power (DC) input port. You can connect your mobile
device to this port to keep it charged while using it with your
LED projector.
NOTE: Ensure to use USB cables certified by the USB-IF to be
compliant with USB 3.1 Gen 1 or above.
Manual reset hole
If your LED projector is unresponsive, insert a straightened
paper clip into this hole to turn off your LED projector, then
press the power button to turn on your LED projector again.
Remote sensor
The remote sensor detects signal from your LED projector’s
remote control, allowing you to access the LED projector’s
control panel from a distance of up to 8 meters and a
receiving angle of ±30 degrees.
Power button
Press this power button to turn on or turn off your LED
projector.
LED projector E-Manual
15
Left side
Power (DC) input port
Insert the bundled power adapter into this port to charge
the battery pack and supply power to your LED projector.
IMPORTANT! Use only the bundled power adapter to charge
the battery pack and supply power to your LED projector.
WARNING! The adapter may become warm to hot while in
use. DO NOT cover the adapter and keep it away from your
body while it is connected to a power source.
Air vents
The air vents allow cool air to enter and warm air to exit your
LED projector.
WARNING! Ensure that paper, books, clothing, cables,
or other objects do not block any of the air vents or else
overheating may occur.
16
LED projector E-Manual
Right side
Air vents
The air vents allow cool air to enter and warm air to exit your
LED projector.
WARNING! Ensure that paper, books, clothing, cables,
or other objects do not block any of the air vents or else
overheating may occur.
LED projector E-Manual
17
Bottom view
Tripod socket
Connect the LED projector to a tripod using this socket.
Built-in stand
This LED projector comes with a built-in stand that allows
you to adjust the height of the projector by either 4.5
degrees or 9.7 degrees.
18
LED projector E-Manual
Extended features
Your LED projector also have stand-alone features that are launched
by pressing the Back/Splendid button while your LED projector is
on battery mode.
Flashlight
The LED projector flashes a steady white light when you use this
feature.
Back/Splendid
button
To use your LED projector as a flashlight:
1.
Disconnect all peripherals from your LED projector then press
the power button to turn it on.
2.
Press
on the control panel of your LED projector to launch
the NO SIGNAL display.
3.
Press
repeatedly until the LED projector flashes a steady
white light.
IMPORTANT! Ensure that your LED projector is charged and can run
on battery mode before enabling this feature. Battery time varies
depending on usage.
LED projector E-Manual
19
Emergency light mode
The LED projector flashes a blinking white light when you use this
feature.
Back/Splendid
button
To use your LED projector as a flashlight:
1.
Disconnect all peripherals from your LED projector then press
the power button to turn it on.
2.
Press
on the control panel of your LED projector to launch
the NO SIGNAL display.
3.
Press
repeatedly until the LED projector flashes a blinking
white light.
IMPORTANT! Ensure that your LED projector is charged and can run
on battery mode before enabling this feature. Battery time varies
depending on usage.
NOTE: To turn off or switch between the flashlight and emergency
light feature of your LED projector, just press the Back/Splendid
button until your preferred lighting feature is disabled or enabled.
20
LED projector E-Manual
LED projector remote control
NOTE: Actual appearance may vary depending on model.
Battery compartment
The battery compartment allows you to use CR2025 lithium
coin batteries to power your LED projector’s remote control.
NOTE: For more details on using the battery compartment,
refer to the Replacing the battery section in this manual.
LED projector E-Manual
21
Remote control buttons
These additional buttons allow you to use the LED projector
from a distance of up to 8 meters.
Power - Press this button to turn your LED projector
on or off.
Auto focus - Press this button to automatically
focus the image.
Back - Press this button to go back to the previous
screen.
Keystone - Press this button to adjust the keystone
of your projection onscreen.
Input - Press this button to change the input source.
Volume down - Press this button to decrease the
volume.
Volume up - Press this button to increase the
volume.
Focus up/Up - Press this button to increase the
focus or move up.
Focus down/Down - Press this button to decrease
the focus or move down.
Left - Press this button to move left.
Right - Press this button to move right.
Menu/OK - Press this button to launch the menu or
confirm a menu selection.
NOTE: For more details on the onscreen display menu, refer to
the Using the onscreen display menu section in this manual.
22
LED projector E-Manual
Replacing the battery
A.
Move the battery compartment’s latch to the right to unlock
the battery holder.
B.
Pull down the battery holder and remove it completely out of
the battery compartment.
C.
Remove the old battery, then insert the new CR2025 lithium
coin battery into the battery holder with the positive side (+)
facing up.
LED projector E-Manual
23
D.
24
Slide the battery holder back into the battery compartment.
Push it all the way in until you hear a soft click, indicating that
the battery compartment is locked back in place.
LED projector E-Manual
Chapter 2:
Setting up
Chapter 2: Setting up
LED projector E-Manual
25
Operating your LED projector
This portable LED projector allows you to plug and play your
devices so you can easily open multimedia files and hear audio
straight from its built-in SonicMaster speakers.
For your safety and to maintain the quality of this unit, refer to the
following steps when operating your LED projector.
Connect the LED projector to the power adapter
A.
Connect the AC/DC power cord to the power adapter.
B.
Connect the AC power cord to a power source.
C.
Connect the DC power connector to your LED projector.
Power adapter information:
- Input voltage: 100-240Vac
- Input frequency: 50-60Hz
- Rating output current: 3.42A max. (65W)
- Rating output voltage: 19V
26
LED projector E-Manual
IMPORTANT!
•
Use only the bundled power adapter to charge the battery pack
and supply power to your LED projector.
•
Ensure that your LED projector is connected to the power adapter
before turning it on for the first time. We strongly recommend
that you use a grounded wall socket while using your LED
projector on power adapter mode.
•
The socket outlet must be easily accessible and near your LED
projector.
•
To disconnect your LED projector from its main power supply,
unplug your LED projector from the power socket.
WARNING!
Read the following precautions for your LED projector’s battery.
•
The battery used in this device may present a risk of fire or
chemical burn if removed or disassembled.
•
Follow the warning labels for your personal safety.
•
Risk of explosion if battery is replaced by an incorrect type.
•
Do not dispose of in fire.
•
Never attempt to short-circuit your LED projector’s battery.
•
Never attempt to disassemble and reassemble the battery.
•
Discontinue usage if leakage is found.
•
The battery and its components must be recycled or disposed of
properly.
•
Keep the battery and other small components away from
children.
LED projector E-Manual
27
AC power cord requirements
Use the correct AC plug type according to your current location.
IMPORTANT! Contact your sales dealer if the AC power cord bundled
with your LED projector does not match your local power source.
NOTE: We highly recommend that you use a video source device
that also uses a grounding type plug to prevent signal interference
due to voltage fluctuations.
For Australia and Mainland China For U.S.A., Canada, and Taiwan
For Continental Europe
28
For U.K.
LED projector E-Manual
Connect the LED projector to your device
A.
Audio output jack
LED projector E-Manual
29
B.
30
HDMI input
LED projector E-Manual
C.
Power output (5V/1A)
NOTE: The power output port is available when using the LED
projector in battery mode or charging mode.
LED projector E-Manual
31
D.
32
USB 3.1 Gen 2 Type-C™ DisplayPort input
LED projector E-Manual
E.
USB 3.1 Gen 2 Type-C™ Power Delivery output (5V/1.5A)
NOTE: The Power Delivery output port is only available when using
the LED projector in charging mode.
LED projector E-Manual
33
Adjust the height of the LED projector
Your LED projector comes with a built-in stand that helps adjust the
image height onscreen.
WARNING! Ensure that the built-in stand is fully retracted before
placing the LED projector inside the projector bag.
NOTE:
•
Place the LED projector on a stable flat surface.
•
Keep a space of 30 cm or more between the sides of the LED
projector.
•
Consult your dealer for special installation procedures like
suspending the LED projector from the ceiling.
4.5o
9.7o
34
LED projector E-Manual
Screen size and projection distance table
Adjust the LED projector’s distance from the screen using the table
below.
Screen size
LED projector
Projection distance
Screen Size
Screen
Diagonal
Horizontal
Vertical
Projection
Distance
inch
mm
inch
mm
inch
mm
inch
mm
60
1524
52.28
1328
29.41
747
59.06
1500
70
1778
61.02
1550
34.33
872
68.90
1750
80
2032
69.72
1771
39.21
996
78.74
2000
90
2286
78.43
1992
44.13
1121
88.58
2250
100
2540
87.17
2214
49.02
1245
98.43
2500
110
2794
95.87
2435
53.94
1370 108.27 2750
120
3048 104.61 2657
58.82
1494 118.11 3000
LED projector E-Manual
35
Press the power button
3s
36
LED projector E-Manual
Adjust the image focus
Push the focus button on the LED projector up or down, or press the
focus button on the remote control to adjust the image focus.
NOTE: Use a still image when adjusting the onscreen display.
OR
LED projector E-Manual
37
38
LED projector E-Manual
Chapter 3:
Using the onscreen
display menu
Chapter 3: Using the onscreen
display menu
LED projector E-Manual
39
NOTE: The following screenshots are for reference only and may be
updated without prior notice. Screenshots may also vary depending
on the LED projector model.
Using your LED projector for the
first time
Refer to the following steps when using your LED projector for the
first time.
NOTE: Ensure that your LED projector is connected to the
power adapter before turning it on for the first time. We strongly
recommend that you use a grounded wall socket while using your
LED projector on power adapter mode.
1.
Set up your LED projector then press the power button.
2.
Move the joystick left or right on your LED projector (or press
the Left or Right button on your remote control) to browse
through the available language options.
3.
After you have chosen your preferred language, press the
center of the joystick (or press the Menu/OK button on your
remote control) to set this language for use on your LED
projector.
4.
You may now start using your LED projector to display files
from your input device. The NO SIGNAL screen may appear if
no input device is connected or cannot be detected by the LED
projector.
40
LED projector E-Manual
Adjusting your LED projector's
settings
To adjust your LED projector settings:
1.
Press the center of the joystick on your LED projector (or press
the Menu/OK button on your remote control) to launch the
onscreen display menu.
2.
Move the joystick up or down (or press the
Focus up/Up or Focus down/Down button on your remote
control) to select the menu option you would like to adjust.
3.
Press the center of the joystick (or press the Menu/OK button
on your remote control) to open the selected option's settings.
4.
Move the joystick left or right (or press the Left or Right button
on your remote control) to adjust the settings according to
your preference.
5.
When finished, press the center of the joystick or press the
Menu/OK button on your remote control) to save the new
settings and go back to the home screen.
Remote control buttons
Joystick
LED projector E-Manual
41
Onscreen display menu options
The options under this menu allows you to adjust image options to
fine tune your image projection onscreen.
•
Splendid - This option allows you to select a Splendid mode for
your LED projector.
•
Brightness - Select this menu option to adjust the brightness
of your projection onscreen.
•
Contrast - Select this menu option to adjust the contrast of
your projection onscreen.
•
Saturation - Select this menu option to adjust the saturation of
your projection onscreen.
•
Sharpness - Select this menu option to adjust the sharpness of
your projection onscreen.
•
Tint - Select this menu option to adjust the tint of your
projection onscreen.
•
Wall Color - This option allows you to choose a proper color
according to the wall.
•
Gamma - Select this menu option to adjust the gamma of your
projection onscreen.
42
LED projector E-Manual
Display
The options under this menu allows you to adjust how the image
projection will be displayed.
•
Auto Focus - This option allows you to turn Auto Focus on or
off.
•
Projection Position - This option allows you to change the way
your projections are oriented onscreen based from the current
location of your LED projector.
•
Auto Ceiling Detection - This option allows you to turn Auto
Ceiling detection on or off.
•
Keystone - Select this menu option to adjust the keystone of
your projection onscreen.
•
Quick Corner - Select this menu option to adjust the corners of
your projection onscreen.
•
Aspect Ratio - Select this menu option to adjust the screen
ratio of your projection onscreen.
•
Digital Zoom - This option allows you to zoom in, zoom out,
and pan your projection onscreen.
LED projector E-Manual
43
Input
The options under this menu allows you to select the input source
for your LED projector.
•
Auto Source - This option allows you to turn Auto Source on or
off. Turn this option on to scan the connected devices to your
LED projector automatically.
•
HDMI - Select this menu option to project images from the
HDMI port.
•
USB-A - Select this menu option to charge your mobile device
connected to the USB Type-A power output port.
•
USB-C - Select this menu option to project images from the
USB 3.1 Gen 2 Type-C™ DisplayPort/Power Delivery combo
port.
•
Wireless Mirroring - Select this menu option to wirelessly
project images from a supported Android or Windows® 10
device.
44
LED projector E-Manual
System
The options under this menu allows you to configure system
settings for your LED projector.
•
OSD Timeout - This option allows you to set the number of
seconds before the onscreen display menu disappears from
your projection screen.
•
Sound - This option allows you to adjust the projector sound
settings.
•
Power Off Timeout - This option allows you to set the number
of minutes before your LED projector automatically shuts down
when not in use.
•
Language - This option allows you to select the language to
use on your LED projector’s onscreen display menu.
•
Information - Select this menu option to see an overview of
information about your LED projector.
•
Reset all - This option allows you to reset all the settings you
have currently set up for your LED projector.
•
System Update - This option allows you to update the LED
projector’s firmware.
NOTE: For the latest firmware and more information, visit
https://www.asus.com/Projectors/ASUS-ZenBeam-S2/
LED projector E-Manual
45
Turning off your LED projector
1.
Press the power button.
2.
When the following screen appears, press the power button
again to completely turn off your LED projector.
46
LED projector E-Manual
Multi-language versions
Download other language versions of this E-Manual via this website:
https://www.asus.com/support
LED projector E-Manual
47
48
LED projector E-Manual
Appendices
Appendices
Appendices
LED projector E-Manual
49
Federal Communications Commission Statement
This equipment has been tested and found to comply with the
limits for a class B digital device, pursuant to Part 15 of the Federal
Communications Commission (FCC) rules. These limits are designed
to provide reasonable protection against harmful interference in
a residential installation. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more
of the following measures:
•
Reorient or relocate the receiving antenna.
•
Increase the distance between the equipment and receiver.
•
Connect the equipment to an outlet on a different circuit than
that which the receiver is connected to.
•
Consult the dealer or an experienced radio/TV technician for
help.
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions:
1.
This device may not cause harmful interference, and
2.
This device must accept any interference that may cause
undesired operation.
50
LED projector E-Manual
Compliance Statement of Innovation, Science and
Economic Development Canada (ISED)
This device complies with Innovation, Science and Economic
Development Canada licence exempt RSS standard(s). Operation
is subject to the following two conditions: (1) this device may not
cause interference, and (2) this device must accept any interference,
including interference that may cause undesired operation of the
device.
CAN ICES-3(B)/NMB-3(B)
Déclaration de conformité de Innovation,
Sciences et Développement économique Canada
(ISED)
Le présent appareil est conforme aux CNR d’Innovation, Sciences
et Développement économique Canada applicables aux
appareils radio exempts de licence. L’exploitation est autorisée
aux deux conditions suivantes : (1) l’appareil ne doit pas produire
de brouillage, et (2) l’utilisateur de l’appareil doit accepter
tout brouillage radioélectrique subi, même si le brouillage est
susceptible d’en compromettre le fonctionnement.
CAN ICES-3(B)/NMB-3(B)
Regional notice for California
WARNING
Cancer and Reproductive Harm www.P65Warnings.ca.gov
LED projector E-Manual
51
Global Environmental Regulation Compliance and
Declaration
ASUS follows the green design concept to design and manufacture
our products, and makes sure that each stage of the product
life cycle of ASUS product is in line with global environmental
regulations. In addition, ASUS disclose the relevant information
based on regulation requirements.
Please refer to http://csr.asus.com/english/Compliance.htm for
information disclosure based on regulation requirements ASUS is
complied with:
Japan JIS-C-0950 Material Declarations
EU REACH SVHC
Korea RoHS
ASUS Recycling/Takeback Services
ASUS recycling and takeback programs come from our commitment
to the highest standards for protecting our environment. We believe
in providing solutions for you to be able to responsibly recycle our
products, batteries, other components as well as the packaging
materials. Please go to http://csr.asus.com/english/Takeback.htm for
detailed recycling information in different regions.
52
LED projector E-Manual
Specifications for S2 series LED projector
S2
Display
Projection
Lens
Video
Features
Audio
Features
Display Technology
0.3” DLP®
Light Source
R/G/B LED
Light Source Life
30,000 hours (Max)
True Resolution
(native)
HD 720p (1280 x 720)
Light Output (Max)
500 Lumens
Contrast Ratio
400:1 (typical)
4,000:1 (DCR)
Color Saturation
(NTSC)
24:00:00
Display Colors
16.7 Million Colors
Throw Ratio
1.12:1 (40” @ 1m) (@16:9 )
Projection Distance /
Size
1.5m ~ 3m
Projection Offset
60” ~ 120”
Zoom Ratio
Fixed
Focus
Power Focus
Picture Modes
4 modes (Presentation /
Standard / Theater / Eco)
Additional Modes
2 modes ( Flash light / SOS)
Keystone adjustment
2D(H/V) keystone
correction
Auto Keystone
Yes (Vertical)
Aspect Ratio
16:9 / 16:10 / 4:3
Projector Placement
Front Table, Rear Table, Rear
ceiling, Front ceiling
Built-in speakers
Yes, 2W speaker (ASUS
SonicMaster Audio
technology)
(continued on the next page)
LED projector E-Manual
53
Signal
Frequency
Digital Signal
Frequency
S2
37.8 ~ 79.9 KHz(H) / 50 ~ 60
Hz(V)
Power
Power On Mode
≤65 W
Standby Mode
<0.5 W
Noise
Interface
Standard mode ≤32dB
Signal Input
USB-C (DP Alt Mode), HDMI
Audio Output
Earphone out (3.5mm Minijack)
USB Port
Type-A 2.0 x 1 (5V/1A Power
output)
Wireless Projection Yes (Android, Windows® 10)
Mechanical Chassis Colors
Design
Tripod Socket
Dimension
Weight
Navy Blue / Ceramic White
Yes
Stand
(Two steps)
Ceiling Monut
Yes
Physical Dimension 120(W)x120(D)x35(H)mm
Box Dimension
224(W)x190(D)x142(H)mm
Net Weight (Esti.)
497g
Gross Weight (Esti.) 1500g
Operating Temperature
0 ~ 40o C
Operating Humidity
20 ~ 90%
Accessories
Carrying bag, HDMI Cable,
Adapter, Power Cord, Remote
Control, QSG, Warranty Card
* Specifications are subject to change without prior notice.
** Product availability may vary by region.
*** All brand and product names mentioned are trademarks of their
respective companies.
54
LED projector E-Manual
Support PC Timings
HDMI (PC)
Resolution
800 x 600
1024 x 768
1280 x 768
1280 x 800
1280 x 1024
1280 x 960
1440 x 900
1400X1050
1024x768@75Hz
1366x768
1680x1050
Mode
SVGA_60
SVGA_75
XGA_60
XGA_75
1280 x 768_60
WXGA_60
SXGA_60
SXGA_75
1280 x 960_60
WXGA+_60
SXGA+_60
MAC19
HD_60
WSXGA+_60
Refresh rate (Hz)
60.317
75
60.004
75.029
59.87
59.81
60.02
75.025
60
59.887
59.978
74.93
59.79
59.95
H-frequency (kHz)
37.879
46.875
48.363
60.023
47.776
49.702
63.981
79.976
60
55.935
65.317
60.241
47.71
62.29
Clock (MHz)
40
49.5
65
78.75
79.5
83.5
108
135
108
106.5
121.75
80
85.50
148.50
HDMI (Video)
Timing
720/50p
720/60p
1080/50P
1080/60P
1080/24P
Resolution
1280 x 720
1280 x 720
1920 x 1080
1920 x 1080
1920 x 1080
LED projector E-Manual
Vertical frequency (Hz)
50
60
50
60
24
H-frequency
(kHz)
37.5
45
56.25
67.5
Dot Clock
frequency (MHz)
74.25
74.25
148.5
148.5
55
56
LED projector E-Manual

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
