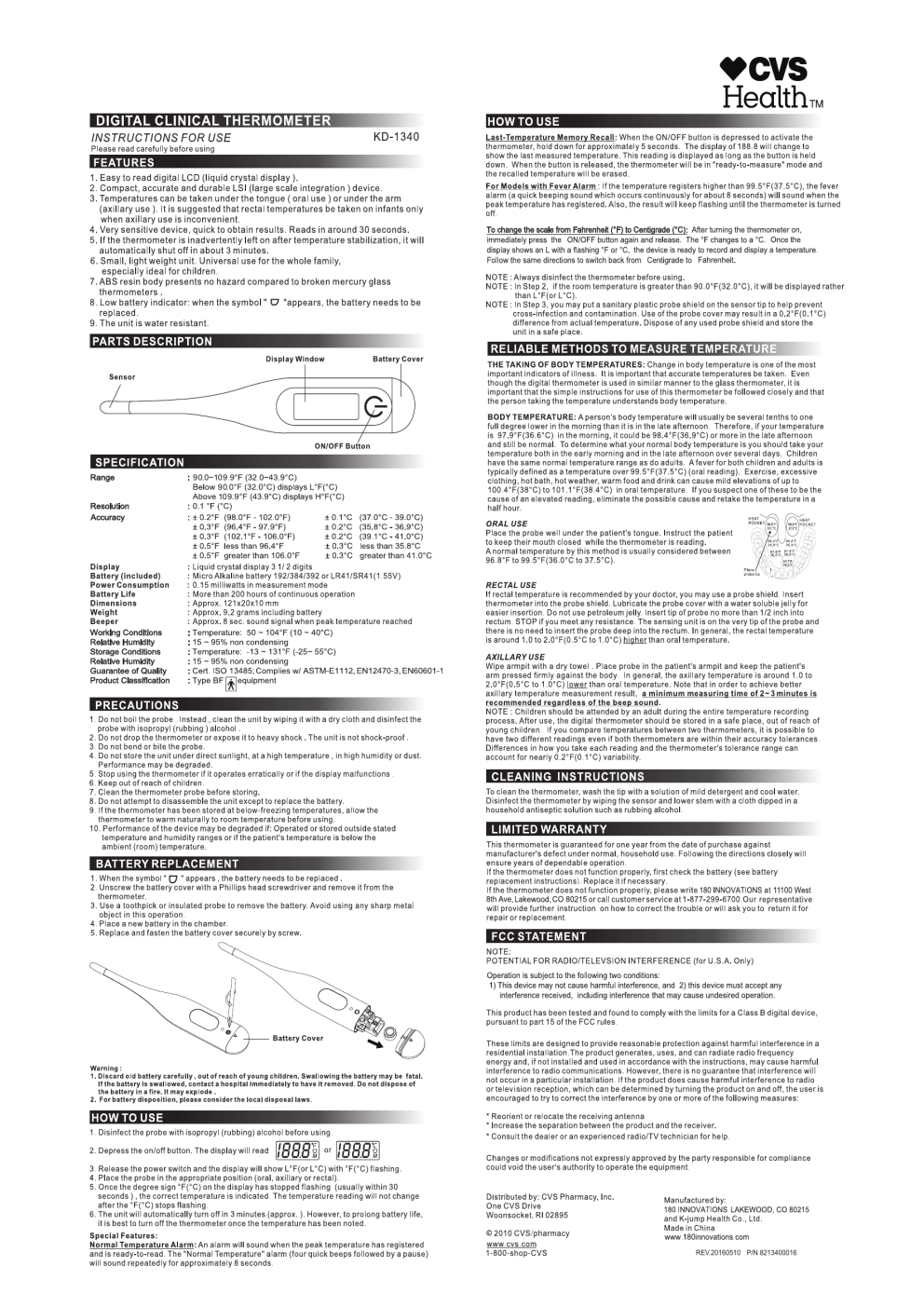

Thermometer Digital Clinical KD-1340 Instruction manual

DIGITAL CLINICAL THERMOMETER
INSTRUCTIONS FOR USE KD-1340
Please read carefully before using
FEATURES
1. Easy to read digital LCD (liquid crystal display ).
2. Compact, accurate and durable LSI (large scale integration ) device.
3. Temperatures can be taken under the tongue ( oral use ) or under the arm
(axillary use ). It is suggested that rectal temperatures be taken on infants only
when axillary use is inconvenient.
4. Very sensitive device, quick to obtain results. Reads in around 30 seconds.
5. If the thermometer is inadvertently left on after temperature stabilization, it will
automatically shut off in about 3 minutes.
6. Small, light weight unit. Universal use for the whole family,
especially ideal for children.
7. ABS resin body presents no hazard compared to broken mercury glass
thermometers .
8. Low battery indicator: when the symbol" U "appears, the battery needs to be
replaced.
9. The unit is water resistant.
PARTS DESCRIPTION
Display Window Battery Cover
Sensor A
=. € ©
Mn 7
/
ON/OFF Button
SPECIFICATION
Range : 90.0-109.9°F (32.0-43.9°C)
Below 90.0°F (32.0°C) displays L°F(°C)
Above 109.9°F (43.9°C) displays H°F(°C)
Resolution : 0.1 °F (°C)
Accuracy : +0.2°F (98.0°F - 102.0°F)
+ 0.3°F (96.4°F - 97.9°F)
+ 0.3°F (102.1°F - 106.0°F)
+ 0.5°F less than 96.4°F
+ 0.5°F greater than 106.0°F
Display : Liquid crystal display 3 1/ 2 digits
Battery (included) : Micro Alkaline battery 192/384/392 or LR41/SR41(1.55V)
Power Consumption : 0.15 milliwatts in measurement mode
Battery Life : More than 200 hours of continuous operation
Dimensions : Approx. 121x20x10 mm
Weight : Approx. 9.2 grams including battery
Beeper : Approx. 8 sec. sound signal when peak temperature reached
Working Conditions : Temperature: 50 ~ 104°F (10 ~ 40°C)
Relative Humidity : 15 ~ 95% non condensing
Storage Conditions : Temperature: -13 ~ 131°F (-25~ 55°C)
Relative Humidity : 15 ~ 95% non condensing
Guarantee of Quality : Cert. ISO 13485; Complies w/ ASTM-E1 112, EN12470-3, EN60601-1
Product Classification : Type BF [Ajeauipment
PRECAUTIONS
. Do not boil the probe . Instead , clean the unit by wiping it with a dry cloth and disinfect the
probe with isopropyl (rubbing ) alcohol .
. Do not drop the thermometer or expose it to heavy shock. The unit is not shock-proof .
. Do not bend or bite the probe.
. Do not store the unit under direct sunlight, at a high temperature, in high humidity or dust.
Performance may be degraded.
. Stop using the thermometer if it operates erratically or if the display malfunctions .
. Keep out of reach of children.
. Clean the thermometer probe before storing.
. Do not attempt to disassemble the unit except to replace the battery.
. lf the thermometer has been stored at below-freezing temperatures, allow the
thermometer to warm naturally to room temperature before using.
10. Performance of the device may be degraded if: Operated or stored outside stated
temperature and humidity ranges or if the patient's temperature is below the
ambient (room) temperature.
BATTERY REPLACEMENT
o
(37.0°C - 39.0°C)
(35.8°C - 36.9°C)
(39.1°C - 41.0°C)
less than 35.8°C
greater than 41.0°C
о
о
HR
00000
фм =
60000
o
—
(O 00 0 O1 E © N
1. When the symbol" (J " appears, the battery needs to be replaced.
2. Unscrew the battery cover with a Phillips head screwdriver and remove it from the
thermometer.
3. Use a toothpick or insulated probe to remove the battery. Avoid using any sharp metal
object in this operation.
4. Place a new battery in the chamber.
5. Replace and fasten the battery cover securely by screw.
Battery Cover
Warning:
1. Discard old battery carefully , out of reach of young children. Swallowing the battery may be fatal.
If the battery is swallowed, contact a hospital immediately to have it removed. Do not dispose of
the battery in a fire. It may explode.
2. For battery disposition, please consider the local disposal laws.
HOW TO USE
1. Disinfect the probe with isopropyl (rubbing) alcohol before using.
2. or 0005
[ СУ м
3. Release the power switch and the display will show L°F(or L°C) with °F(°C) flashing.
4. Place the probe in the appropriate position (oral, axillary or rectal).
5. Once the degree sign °F(°C) on the display has stopped flashing (usually within 30
seconds ), the correct temperature is indicated. The temperature reading will not change
after the °F(°C) stops flashing.
6. The unit will automatically turn off in 3 minutes (approx. ). However, to prolong battery life,
itis best to turn off the thermometer once the temperature has been noted.
Special Features:
Normal Temperature Alarm: An alarm will sound when the peak temperature has registered
and is ready-to-read. The "Normal Temperature" alarm (four quick beeps followed by a pause)
will sound repeatedly for approximately 8 seconds.
, ; | °F
Depress the on/off button. The display will read | 888 O
YCVS
Health.
HOW TO USE
Last-Temperature Memory Recall: When the ON/OFF button is depressed to activate the
thermometer, hold down for approximately 5 seconds. The display of 188.8 will change to
show the last measured temperature. This reading is displayed as long as the button is held
down. When the button is released, the thermometer will be in "ready-to-measure" mode and
the recalled temperature will be erased.
For Models with Fever Alarm : Ifthe temperature registers higher than 99.5°F(37.5°C), the fever
alarm (a quick beeping sound which occurs continuously for about 8 seconds) will sound when the
peak temperature has registered. Also, the result will keep flashing until the thermometer is turned
off.
To change the scale from Fahrenheit (°F) to Centigrade (°C): After turning the thermometer on,
immediately press the ON/OFF button again and release. The °F changes to a °C. Once the
display shows an L with a flashing °F or °C, the device is ready to record and display a temperature.
Follow the same directions to switch back from Centigrade to Fahrenheit.
NOTE : Always disinfect the thermometer before using.
NOTE: In Step 2, ifthe room temperature is greater than 90.0°F(32.0°C), it will be displayed rather
than L°F(or L°C).
NOTE : In Step 3, you may put a sanitary plastic probe shield on the sensor tip to help prevent
cross-infection and contamination. Use of the probe cover may result in a 0.2°F(0.1°C)
difference from actual temperature. Dispose of any used probe shield and store the
unit in a safe place.
RELIABLE METHODS TO MEASURE TEMPERAT
THE TAKING OF BODY TEMPERATURES: Change in body temperature is one of the most
important indicators of illness. It is important that accurate temperatures be taken. Even
though the digital thermometer is used in similar manner to the glass thermometer, it is
important that the simple instructions for use of this thermometer be followed closely and that
the person taking the temperature understands body temperature.
BODY TEMPERATURE: A person's body temperature will usually be several tenths to one
full degree lower in the morning than itis in the late afternoon. Therefore, if your temperature
is 97.9°F(36.6°C) in the morning, it could be 98.4°F(36.9°C) or more in the late afternoon
and still be normal. To determine what your normal body temperature is you should take your
temperature both in the early morning and in the late afternoon over several days. Children
have the same normal temperature range as do adults. Afever for both children and adults is
typically defined as a temperature over 99.5°F(37.5°C) (oral reading). Exercise, excessive
clothing, hot bath, hot weather, warm food and drink can cause mild elevations of up to
100.4*F(38*C) to 101.1°F(38.4°C) in oral temperature. If you suspect one of these to be the
cause of an elevated reading, eliminate the possible cause and retake the temperature in a
half hour.
ORAL USE
Place the probe well under the patient's tongue. Instruct the patient
to keep their mouth closed while the thermometer is reading.
A normal temperature by this method is usually considered between
96.8°F to 99.5°F(36.0°C to 37.5°C).
RECTAL USE
If rectal temperature is recommended by your doctor, you may use a probe shield. Insert
thermometer into the probe shield. Lubricate the probe cover with a water soluble jelly for
easier insertion. Do not use petroleum jelly. Insert tip of probe no more than 1/2 inch into
rectum. STOP if you meet any resistance. The sensing unit is on the very tip of the probe and
there is no need to insert the probe deep into the rectum. In general, the rectal temperature
is around 1.0 to 2.0°F(0.5°C to 1.0°C) higher than oral temperature.
AXILLARY USE
Wipe armpit with a dry towel . Place probe in the patient's armpit and keep the patient's
arm pressed firmly against the body. In general, the axillary temperature is around 1.0 to
2.0°F(0.5°C to 1.0°C) lower than oral temperature. Note that in order to achieve better
axillary temperature measurement result, a minimum measuring time of 2~3 minutes is
recommended regardless of the beep sound.
NOTE : Children should be attended by an adult during the entire temperature recording
process. After use, the digital thermometer should be stored in a safe place, out of reach of
young children. If you compare temperatures between two thermometers, it is possible to
have two different readings even if both thermometers are within their accuracy tolerances.
Differences in how you take each reading and the thermometer's tolerance range can
account for nearly 0.2°F(0.1°C) variability.
CLEANING INSTRUCTIONS
To clean the thermometer, wash the tip with a solution of mild detergent and cool water.
Disinfect the thermometer by wiping the sensor and lower stem with a cloth dipped ina
household antiseptic solution such as rubbing alcohol.
LIMITED WARRANTY
This thermometer is guaranteed for one year from the date of purchase against
manufacturer's defect under normal, household use. Following the directions closely will
ensure years of dependable operation.
If the thermometer does not function properly, first check the battery (see battery
replacement instructions). Replace it if necessary.
If the thermometer does not function properly, please write 180 INNOVATIONS at 11100 West
8th Ave, Lakewood, CO 80215 or call customer service at 1-877-299-6700. Our representative
will provide further instruction on how to correct the trouble or will ask you to return it for
repair or replacement.
FCC STATEMENT
NOTE:
POTENTIAL FOR RADIO/TELEVSION INTERFERENCE (for U.S.A. Only)
Operation is subject to the following two conditions:
1) This device may not cause harmful interference, and 2) this device must accept any
interference received, including interference that may cause undesired operation.
This product has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC rules.
These limits are designed to provide reasonable protection against harmful interference ina
residential installation. The product generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will
not occur in a particular installation. If the product does cause harmful interference to radio
or television reception, which can be determined by turning the product on and off, the user is
encouraged to try to correct the interference by one or more of the following measures:
* Reorient or relocate the receiving antenna
* Increase the separation between the product and the receiver.
* Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
Distributed by: CVS Pharmacy, Inc.
One CVS Drive
Woonsocket, RI 02895
Manufactured by:
180 INNOVATIONS LAKEWOOD, CO 80215
and K-jump Health Co., Ltd.
Made in China
© 2010 CVS/pharmacy www.180innovations.com
www.cvs.com
1-800-shop-CVS
REV.20160510 P/N 8213400016
