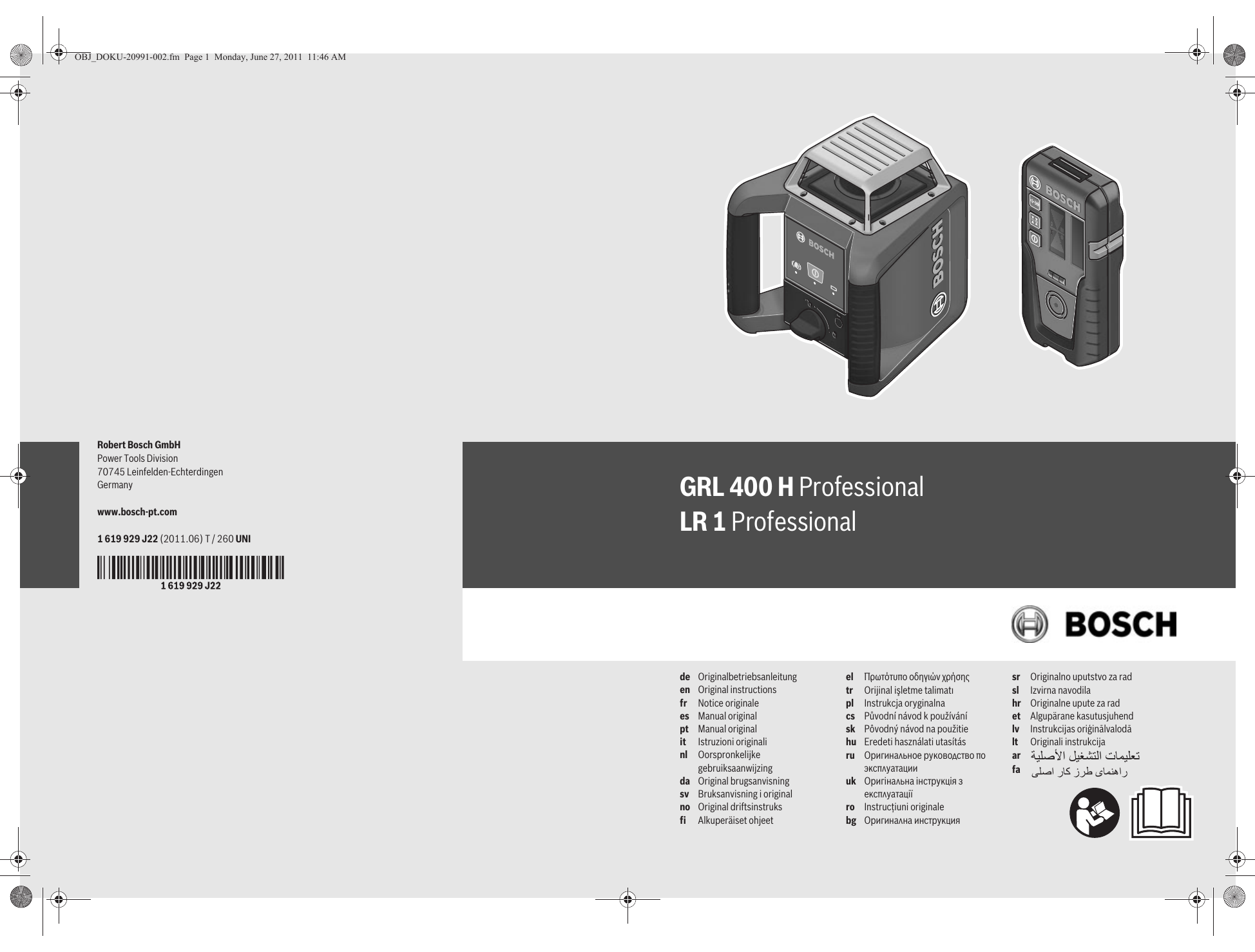

Bosch LR 1 Professional Original Instructions Manual

OBJ_DOKU-20991-002.fm Page 1 Monday, June 27, 2011 11:46 AM

Robert Bosch GmbH

Power Tools Division

70745 Leinfelden-Echterdingen

Germany www.bosch-pt.com

1 619 929 J22 (2011.06) T / 260 UNI

GRL 400 H

Professional

LR 1

Professional

de Originalbetriebsanleitung en Original instructions fr Notice originale es Manual original pt Manual original it Istruzioni originali nl Oorspronkelijke gebruiksaanwijzing da Original brugsanvisning sv Bruksanvisning i original no Original driftsinstruks fi Alkuperäiset ohjeet el Ðñùôüôõðï ïäçãéþí ÷ñÞóçò tr Orijinal işletme talimat pl Instrukcja oryginalna cs Původní návod k používání sk Pôvodný návod na použitie hu Eredeti használati utasítás ru Îðèãèíàëüíîå ðóêîâîäñòâî ïî

ýêñïëóàòàöèè uk Îðèã³íàëüíà ³íñòðóêö³ÿ ç

åêñïëóàòàö³¿ ro Instrucţiuni originale bg Îðèãèíàëíà èíñòðóêöèÿ sr Originalno uputstvo za rad sl Izvirna navodila hr Originalne upute za rad et Algupärane kasutusjuhend lv Instrukcijas oriģinālvalodā lt Originali instrukcija ar fa

ΔϴϠλϷ΍ ϞϴϐθΘϟ΍ ΕΎϤϴϠόΗ

̶Ϡλ΍ έΎ̯ ίήσ ̵ΎϤϨϫ΍έ

OBJ_BUCH-1179-002.book Page 3 Monday, June 27, 2011 1:17 PM

| 3

5

4

3

2

1

6

16

(UK)

16

(EU)

17

Bosch Power Tools

11

10

9

15 12

13

14 o beam e int

, 635 nm t star do no

IEC 60825-1:2007-03

7

8

GRL 400 H

Professional

1 619 929 J22 | (27.6.11)

OBJ_BUCH-1179-002.book Page 4 Monday, June 27, 2011 1:17 PM

4 |

21

20

19

18

22 b a c f d e g

23

24

25

26

28

LR 1

Professional

27

25

23

29

23

30

31

1 619 929 J22 | (27.6.11) Bosch Power Tools

OBJ_BUCH-1179-002.book Page 5 Monday, June 27, 2011 1:17 PM

A

33

32

31

29

34

35

C

B

| 5

Bosch Power Tools 1 619 929 J22 | (27.6.11)

OBJ_BUCH-1179-002.book Page 6 Monday, June 27, 2011 1:17 PM

6 |

31

GR 240:

0 601 094 100

36

1 608 M00 05B

37

1 608 M00 05C

30

BT 300 HD:

0 601 091 400

2 610 A13 717

(UK)

2 610 A13 716

(EU)

1 608 M00 05E

35

1 608 M00 05A

15

2 610 A13 782

38

1 608 M00 05F

7

1 608 M00 05G

1 619 929 J22 | (27.6.11) Bosch Power Tools

OBJ_DOKU-20994-002.fm Page 15 Monday, June 27, 2011 12:55 PM

Kundendienst und Kundenberatung

Der Kundendienst beantwortet Ihre Fragen zu Reparatur und

Wartung Ihres Produkts sowie zu Ersatzteilen. Explosionszeichnungen und Informationen zu Ersatzteilen finden Sie auch unter: www.bosch-pt.com

Das Bosch-Kundenberater-Team hilft Ihnen gerne bei Fragen zu Kauf, Anwendung und Einstellung von Produkten und Zubehören.

www.powertool-portal.de

, das Internetportal für Handwerker und Heimwerker.

www.ewbc.de

, der Informations-Pool für Handwerk und Ausbildung.

Deutschland

Robert Bosch GmbH

Servicezentrum Elektrowerkzeuge

Zur Luhne 2

37589 Kalefeld – Willershausen

Tel. Kundendienst: +49 (1805) 70 74 10*

Fax: +49 (1805) 70 74 11*

(*Festnetzpreis 14 ct/min, höchstens 42 ct/min aus Mobilfunknetzen)

E-Mail: [email protected]

Tel. Kundenberatung: +49 (1803) 33 57 99

(Festnetzpreis 9 ct/min, höchstens 42 ct/min aus Mobilfunknetzen)

Fax: +49 (711) 7 58 19 30

E-Mail: [email protected]

Österreich

Tel.: +43 (01) 7 97 22 20 10

Fax: +43 (01) 7 97 22 20 11

E-Mail: [email protected]

Schweiz

Tel.: +41 (044) 8 47 15 11

Fax: +41 (044) 8 47 15 51

Luxemburg

Tel.: +32 (070) 22 55 65

Fax: +32 (070) 22 55 75

E-Mail: [email protected]

Entsorgung

Rotationslaser, Ladegerät, Laserempfänger, Akkus,

Zubehör und Verpackungen sollen einer umweltgerechten Wiederverwertung zugeführt werden.

Werfen Sie Rotationslaser, Ladegerät, Laserempfänger und

Akkus/Batterien nicht in den Hausmüll!

Nur für EU-Länder:

Gemäß der europäischen Richtlinie

2002/96/EG müssen nicht mehr gebrauchsfähige Elektrogeräte und gemäß der europäischen Richtlinie 2006/66/EG müssen defekte oder verbrauchte Akkus/

Batterien getrennt gesammelt und einer umweltgerechten Wiederverwendung zugeführt werden.

English | 15

Nicht mehr gebrauchsfähige Akkus/Batterien können direkt abgegeben werden bei:

Deutschland

Recyclingzentrum Elektrowerkzeuge

Osteroder Landstraße 3

37589 Kalefeld

Schweiz

Batrec AG

3752 Wimmis BE

Akkus/Batterien:

Ni-MH: Nickel-Metallhydrid

Änderungen vorbehalten.

English

Safety Notes

Rotational Laser Level

Working safely with the measuring tool is possible only when the operating and safety information are read completely and the instructions contained therein are strictly followed. Never make warning labels on the measuring tool unrecognisable. SAVE

THESE INSTRUCTIONS.

f Caution – The use of other operating or adjusting equipment or the application of other processing methods than those mentioned here, can lead to dangerous radiation exposure. f The measuring tool is provided with a warning label in

English (marked with number 14 in the representation of the measuring tool on the graphics page).

IEC 60825-1:2007-03

<1mW, 635 nm f Do not direct the laser beam at persons or animals and do not stare into the laser beam yourself. This measuring tool produces laser class 2 laser radiation according to

IEC 60825-1. This can lead to persons being blinded.

f Do not use the laser viewing glasses as safety goggles.

The laser viewing glasses are used for improved visualisation of the laser beam, but they do not protect against laser radiation.

Bosch Power Tools 1 619 929 J22 | (27.6.11)

OBJ_DOKU-20994-002.fm Page 16 Monday, June 27, 2011 12:55 PM

16 | English f Do not use the laser viewing glasses as sun glasses or in traffic. The laser viewing glasses do not afford complete

UV protection and reduce colour perception.

f Have the measuring tool repaired only through qualified specialists using original spare parts. This ensures that the safety of the measuring tool is maintained.

f Do not allow children to use the laser measuring tool without supervision. They could unintentionally blind other persons or themselves.

f Do not operate the measuring tool in explosive environments, such as in the presence of flammable liquids, gases or dusts. Sparks can be created in the measuring tool which may ignite the dust or fumes.

f Do not open the battery pack. Danger of short-circuiting.

Protect the battery pack against heat, e.g., against continuous intense sunlight, fire, water, and moisture. Danger of explosion.

f Keep the battery pack not being used away from paper clips, coins, keys, nails, screws or other small metal objects that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.

f Under abusive conditions, liquid may be ejected from the battery pack; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritations or burns.

f Charge the battery pack only with the battery charger specified in these operating instructions. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.

f Use only original Bosch battery packs with the voltage listed on the nameplate of your measuring tool. When using other battery packs, e.g. imitations, reconditioned battery packs or other brands, there is danger of injury as well as property damage through exploding battery packs.

Keep the laser target plate 37 away from cardiac pacemakers. The magnets on the laser target plate generate a field that can impair the function of cardiac pacemakers.

f Keep the laser target plate 37 away from magnetic data medium and magnetically-sensitive equipment. The effect of the magnets on the laser target plate can lead to irreversible data loss.

Battery Charger

Read all safety warnings and all instructions.

Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Keep the battery charger away from rain or moisture. Penetration of water in the battery charger increases the risk of an electric shock.

f Do not charge other batteries with the battery charger.

The battery charger is only suitable for charging the Bosch

1 619 929 J22 | (27.6.11) battery/battery pack inserted in the rotational laser level.

Danger of fire and explosion when charging other batteries/battery packs.

f Keep the battery charger clean. Contamination can lead to danger of an electric shock.

f Before each use, check the battery charger, cable and plug. If damage is detected, do not use the battery charger. Never open the battery charger yourself.

Have repairs performed only by a qualified technician and only using original spare parts. Damaged battery chargers, cables and plugs increase the risk of an electric shock.

f Do not operate the battery charger on easily inflammable surfaces (e. g., paper, textiles, etc.) or surroundings. The heating of the battery charger during the charging process can pose a fire hazard.

f Under abusive conditions, liquid may be ejected from the battery pack; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritations or burns.

f Supervise children. This will ensure that children do not play with the charger.

f Children or persons that owing to their physical, sensory or mental limitations or to their lack of experience or knowledge, are not capable of securely operating the charger, may only use this charger under supervision or after having been instructed by a responsible person. Otherwise, there is danger of operating errors and injuries.

f Products sold in GB only : Your product is fitted with a

BS 1363/A approved electric plug with internal fuse

(ASTA approved to BS 1362).

If the plug is not suitable for your socket outlets, it should be cut off and an appropriate plug fitted in its place by an authorised customer service agent. The replacement plug should have the same fuse rating as the original plug.

The severed plug must be disposed of to avoid a possible shock hazard and should never be inserted into a mains socket elsewhere.

Laser Receiver

Read and observe all instructions. SAVE

THESE INSTRUCTIONS FOR FUTURE REF-

ERENCE.

Keep the measuring tool away from cardiac pacemakers. The magnet plate 22 generates a field that can impair the function of cardiac pacemakers.

f Keep the measuring tool away from magnetic data medium and magnetically-sensitive equipment. The effect of the magnet plate 22 can lead to irreversible data loss.

f Have the measuring tool repaired only through qualified specialists using original spare parts. This ensures that the safety of the measuring tool is maintained.

Bosch Power Tools

OBJ_DOKU-20994-002.fm Page 17 Monday, June 27, 2011 12:55 PM f Do not operate the measuring tool in explosive environments, such as in the presence of flammable liquids, gases or dusts. Sparks can be created in the measuring tool which may ignite the dust or fumes.

Product Description and

Specifications

Intended Use

Rotational Laser Level

The measuring tool is intended for determining and checking precise horizontal partitions. The measuring tool is not intended for vertical leveling.

The measuring tool is suitable for outdoor use.

Laser Receiver

The measuring tool is intended for swift finding of rotating laser beams in the wavelength listed in the “Technical Data”.

The measuring tool is suitable for indoor and outdoor use.

Product Features

The numbering of the product features refers to the illustration of the rotational laser level, battery charger and laser receiver on the graphics page.

Rotational laser level/Battery charger

1 Automatic levelling indicator

2 On/Off button / shock-warning button

3 Shock-warning indicator

4 Variable laser beam

5 Exit opening for laser beam

6 Charge-control indicator

7 Battery pack

8 Battery compartment

9 Locking knob of the battery compartment

10 Locking knob of the battery pack

11 Socket for charge connector

12 Tripod mount 5/8"

13 Serial number of the rotational laser level

14 Laser warning label

15 Battery charger

16 Mains plug of the battery charger

17 Charge connector

Laser receiver*

18 Latch of battery lid

19 On/Off button of laser receiver

20 Button for adjustment of the measuring accuracy

21 Audio signal button

22 Magnet plate

23 Centre mark

24 Reception area for the laser beam

25 Display

26 Laser receiver spirit level

Bosch Power Tools

English | 17

27 Serial number of laser receiver

28 Battery lid

29 Retainer openings for holder

32 Locking screw for holder

33 Holder upper edge

34 Fastening screw of holder

35 Holder

Indicator elements of laser receiver a “Medium” adjustment indicator b Battery low indicator c Direction indicator, up d Audio signal indicator e Centre indicator f “Fine” adjustment indicator g Direction indicator, down

Accessories/Spare parts

30 Tripod*

31 Construction laser measuring rod*

36 Laser viewing glasses*

37 Laser target plate*

38 Case

* The accessories illustrated or described are not included as standard delivery.

Technical Data

Rotational Laser Level

Article number

Working range (radius) 1)

– without laser receiver, approx.

– with laser receiver, approx.

Levelling Accuracy 1) 2)

Self-levelling range, typically

Levelling duration, typically

Rotational speed

GRL 400 H

Professional

3 601 K61 800

10 m

200 m

± 0.08 mm/m

± 8 % ( ± 5°)

15 s

600 min -1

Operating temperature

Storage temperature

Relative air humidity, max.

Laser class

Laser type

Laser beam Ø at the exit opening, approx.

1)

Tripod mount (horizontal)

–10 ... +50 °C

–20 ... +70 °C

90 %

2

635 nm, <1 mW

5 mm

5/8"-11

Batteries (NiMH)

Batteries (alkali-manganese)

1) at 20 °C

2 x 1.2 V HR20 (D) (9 Ah)

2 x 1.5 V LR20 (D)

2) alongside the axes

Please observe the article number on the type plate of your rotational laser level. The trade names of individual rotational laser levels may vary.

For clear identification of your rotational laser level, see the serial number 13 on the type plate.

1 619 929 J22 | (27.6.11)

OBJ_DOKU-20994-002.fm Page 18 Monday, June 27, 2011 12:55 PM

18 | English

Rotational Laser Level GRL 400 H

Professional

Operating life time, approx.

– Batteries (NiMH)

– Batteries (alkali-manganese)

Weight according to

EPTA-Procedure 01/2003

30 h

50 h

1.8 kg

Dimensions

(length x width x height)

Degree of protection

183 x 170 x 188 mm

IP 56 (protected against dust and powerful water jets)

1) at 20 °C

2) alongside the axes

Please observe the article number on the type plate of your rotational laser level. The trade names of individual rotational laser levels may vary.

For clear identification of your rotational laser level, see the serial number 13 on the type plate.

Battery Charger

Article number

Rated voltage

Frequency

Output voltage

Charging current

Allowable charging temperature range

Charging time

Number of battery cells

Rated voltage

(per battery cell)

Weight according to

EPTA-Procedure 01/2003

Protection class

V~

Hz

V=

A

°C h

V=

2 610 A13 782

100–240

50/60

7.5

1.0

0–45

14

2

1.2

kg 0.2

/ II

Laser Receiver

Article number

Receivable wavelength

Working range 3)

LR 1

Professional

3 601 K15 400

635–650 nm

200 m

Receiving angle

Receivable rotation speed

Measuring accuracy

– “Fine adjustment”

4)

– “Medium adjustment”

120°

>200 min -1

± 1 mm

± 3 mm

Operating temperature – 10 °C ... +50 °C

3) The working range (radius) can be reduced due to unfavourable ambient conditions (e. g. direct sunlight).

4) depends on clearance between laser receiver and rotational laser level

Please observe the article number on the type plate of your laser receiver. The trade names of individual laser receivers may vary.

For clear identification of your laser receiver, see the serial number 27 on the type plate.

1 619 929 J22 | (27.6.11)

Laser Receiver

Storage temperature

Battery

LR 1

Professional

– 20 °C ... +70 °C

1 x 9 V 6LR61

50 h Operating life time, approx.

Weight according to

EPTA-Procedure 01/2003 0.36 kg

Dimensions

(length x width x height) 148 x 73 x 30 mm

Degree of protection IP 65 (dust-proof and protected against powerful water jets)

3) The working range (radius) can be reduced due to unfavourable ambient conditions (e. g. direct sunlight).

4) depends on clearance between laser receiver and rotational laser level

Please observe the article number on the type plate of your laser receiver. The trade names of individual laser receivers may vary.

For clear identification of your laser receiver, see the serial number 27 on the type plate.

Assembly

Power Supply of the Rotational Laser Level

Operation with Batteries/Rechargeable Batteries

Using alkali-manganese or rechargeable batteries is recommended for operation of the measuring tool.

To open the battery compartment 8 , turn the locking knob 9 to position and pull out the battery compartment.

When inserting the batteries/rechargeable batteries, pay attention to the correct polarity according to the representation on the inside of the battery compartment.

Always replace all batteries/rechargeable batteries at the same time. Do not use different brands or types of batteries/ rechargeable batteries together.

Shut the battery compartment 8 and turn the locking knob 9 to the position.

In case the batteries/rechargeable batteries have been inserted incorrectly, the measuring tool cannot be switched on. Insert the batteries/rechargeable batteries with correct polarity.

f Remove the batteries/rechargeable batteries from the measuring tool when not using it for longer periods.

When storing for longer periods, the batteries/rechargeable batteries can corrode and discharge themselves.

Operation with Battery Pack

Charge the battery pack 7 before using for the first time. The battery pack can only be charged with the battery charger 15 intended for it.

f Observe the mains voltage! The voltage of the power source must correspond with the data on the type plate of the battery charger.

Insert the appropriate mains plug 16 for your mains supply into the battery charger 15 and allow it to engage.

Insert the charge plug 17 of the battery charger into the socket connector 11 of the battery pack. Connect the battery

Bosch Power Tools

OBJ_DOKU-20994-002.fm Page 19 Monday, June 27, 2011 12:55 PM charger to the mains supply. Charging the empty battery pack takes approx. 14 h. The battery charger and the battery pack are protected against overcharging.

A battery that is new or has not been used for a longer period does not develop its full capacity until after approx. 5 charging/discharging cycles.

Do not charge the battery pack 7 each time after using, otherwise its capacity will be reduced. Charge the battery pack only when the charge-control indicator 6 flashes or lights up continuously.

A considerably reduced operating period after charging indicates that the battery pack is used up and must be replaced.

If the battery pack is empty, the measuring tool can also be operated off of the battery charger 15 when connected to a power supply. Switch the measuring tool off, charge the battery pack for approx. 10 min and then switch the measuring tool on again with the battery charger connected.

To change the battery pack 7 , turn the locking knob 10 to position and pull out the battery pack 7 .

Insert a new battery pack and turn the locking knob 10 to the position.

f Remove the battery pack from the measuring tool when not using it for longer periods. When storing for longer periods, the rechargeable batteries can corrode and discharge themselves.

Charge-control Indicator

When the charge-control indicator 6 flashes red for the first time, the measuring tool can still be operated for approx. 2 h.

When the charge-control indicator 6 lights up red continuously, measurements are no longer possible. The measuring tool switches off automatically after 1 minute.

Power Supply of the Laser Receiver

Alkali-manganese batteries are recommended for the laser receiver.

Press the latch 18 of the battery lid outward and open the battery lid 28 .

When inserting the battery, pay attention to the correct polarity according to the representation on the inside of the battery compartment.

When the battery low indicator b appears for the first time on the display 25 , the laser receiver can still be operated for approx. 3 h.

f Remove the battery from the laser receiver when not using it for longer periods. When storing for longer periods, the battery can corrode and discharge itself.

Operation

Starting Operation of the Rotational Laser Level

f Protect the measuring tool against moisture and direct sun light.

f Do not subject the measuring tool to extreme temperatures or variations in temperature. As an example, do not leave it in vehicles for longer periods. In case of large varia-

English | 19 tions in temperature, allow the measuring tool to adjust to the ambient temperature before putting it into operation. In case of extreme temperatures or variations in temperature, the accuracy of the measuring tool can be impaired.

f Avoid heavy impact to or dropping down of the measuring tool. After severe exterior effects to the measuring tool, it is recommended to carry out an accuracy check

(see “Levelling Accuracy of the Rotational Laser Level”, page 21) each time before continuing to work.

Setting Up the Measuring Tool

Position the measuring tool on a firm surface or mount it to a tripod 30 .

Due to the high levelling accuracy, the measuring tool reacts sensitively to ground vibrations and position changes. Therefore, pay attention that the position of the measuring tool is stable in order to avoid operational interruptions due to re-levelling.

Switching On and Off f Do not direct the laser beam at persons or animals (especially not at their eye level), and do not stare into the laser beam yourself (not even from a distance.) Immediately after switching on, the measuring tool sends out the variable laser beam 4 .

For switching on the measuring tool, briefly press the On/Off button 2 . The indicators 3 , 1 and 6 light up briefly. The measuring tool immediately starts the automatic levelling. During the levelling, the levelling indicator 1 flashes green, the laser does not rotate and flashes.

The measuring tool is levelled in as soon as levelling indicator

1 lights up green continuously and the laser beam is steady.

After the levelling is completed, the measuring tool automatically starts in rotational operation.

The measuring tool exclusively operates with fixed rotational speed in rotational operation, which is also suitable for use of a laser receiver.

When factory set, the shock-warning function is automatically switched on, and the shock-warning indicator 3 lights up green.

To switch off the measuring tool, briefly press the On/Off button 2 . When the shock warning has actuated (shock-warning indicator 3 flashes red), briefly press the On/Off button once to restart the shock-warning function, and then again to switch off the measuring tool.

f Do not leave the switched on measuring tool unattended and switch the measuring tool off after use. Other persons could be blinded by the laser beam.

To save the batteries, the measuring tool is automatically switched off when not within the self-levelling range for more than 2 h or when the shock warning is actuated for more than

2 h (see “Automatic Levelling of the Rotational Laser Level”, page 20). Reposition the measuring tool and switch it on again.

Starting Operation of the Laser Receiver

f Protect the laser receiver against moisture and direct sun light.

Bosch Power Tools 1 619 929 J22 | (27.6.11)

OBJ_DOKU-20994-002.fm Page 20 Monday, June 27, 2011 12:55 PM

20 | English f Do not subject the laser receiver to extreme temperatures or variations in temperature. As an example, do not leave it in vehicles for longer periods. In case of large variations in temperature, allow the laser receiver to adjust to the ambient temperature before putting it into operation. In case of extreme temperatures or variations in temperature, the accuracy of the laser receiver can be impaired.

Position the laser receiver at least 50 cm away from the rotational laser level. Position the laser receiver in such a manner that the laser beam can reach the reception area 24 .

Switching On and Off f A loud audio signal sounds when switching on the laser receiver. “The A-weighted sound pressure level of the audio signal is up to 95 dB(A) at a distance of 0.2 m.” f Do not hold the laser receiver close to your ear! The loud audio signal can cause hearing defects.

To switch on the laser receiver, press the On/Off button 19 .

Two audio signals sound and all display indicators light up briefly.

To switch off the laser receiver, press the On/Off button 19 again.

When no button is pressed on the laser receiver for approx.

10 minutes and when no laser beam reaches the reception area 24 for 10 minutes, the laser receiver automatically switches off in order to save the battery. The switching off is indicated by an audio signal.

Selecting the Setting of the Centre Indicator

With button 20 , you can specify with which accuracy the position of the laser beam is indicated as central on the reception area:

– “Fine” adjustment, (indication f on the display),

– “Medium” adjustment, (indication a on the display).

An audio signal sounds when the accuracy setting is changed.

Whenever switching on the laser receiver, the accuracy level

“medium” is set.

Direction Indicators

The bottom g , centre e and top c indicators (both on the front and rear side of the laser receiver) indicate the position of the rotating laser beam in the reception area 24 . Additionally, the position can be indicated with an audio signal (see “Audio Signal for Indication of the Laser Beam”, page 20).

Laser receiver too low: When the laser beam runs through the top half of the reception area 24 , the bottom direction indicator g appears on the display.

When the audio signal is switched on, a slow-beat signal sounds.

Move the laser receiver upward in the direction of the arrow.

When approaching the centre mark 23 , only the tip of the direction indicator g is indicated.

Laser receiver too high: When the laser beam runs through the bottom half of the reception area 24 , the top direction indicator c appears on the display.

When the audio signal is switched on, a fast-beat signal sounds.

Move the laser receiver downward in the direction of the arrow. When approaching the centre mark 23 , only the tip of the direction indicator c is indicated.

1 619 929 J22 | (27.6.11)

Laser receiver in centre position: When the laser beam runs through the reception area 24 at the centre mark 23 , the centre indicator e lights up. When the audio signal is switched on, a continuous signal sounds.

Audio Signal for Indication of the Laser Beam

The position of the laser beam on the reception area 24 can be indicated via an audio signal.

After the laser receiver has been switched on, the audio signal is always switched off.

When switching on the audio signal, you can choose between two volume levels.

To switch on the audio signal or change the volume level, push the acoustic signal button 21 until the requested volume level is indicated. At medium volume level, the audio signal indicator d in the display flashes; at high volume level, the indicator is continuously lit. When the audio signal is set to off, the indicator goes out.

Automatic Levelling of the Rotational Laser Level

After switching on, the measuring tool checks the horizontal position and automatically compensates irregularities within the self-levelling range of approx. 8 % (5°).

When the measuring tool is inclined by more than 8 % after switching on or after a position change, levelling in is no longer possible. In this case, the rotor is stopped, the laser flashes and levelling indicator 1 continuously lights up red. Reposition the measuring tool and wait for it to re-level. Without repositioning, the laser is automatically switched off after

2 minutes and the measuring tool after 2 hours.

When the measuring tool is levelled in, it continuously checks the horizontal position. Automatic re-levelling takes place after position changes. To avoid faulty measurements, the rotor stops during the levelling process, the laser flashes and the levelling indicator 1 flashes green.

Shock-warning Function

The measuring tool has a shock-warning function; after position changes or shock to the measuring tool, or in case of ground vibrations, it keeps the measuring tool from levelling in at changed heights, and thus prevents vertical errors.

When factory set, the shock-warning function is activated after switching on the measuring tool (shock-warning indicator

3 lit). The shock warning is activated approx. 30 s after switching on the measuring tool or switching on the shockwarning function.

When the levelling-accuracy range is exceeded after a position change of the measuring tool or when heavy ground vibrations are detected, the shock-warning function is actuated: The rotation is stopped, the laser flashes, the levelling indicator 1 goes out and the shock-warning indicator 3 flashes red.

When the shock-warning function has actuated, briefly press the On/Off button 2 . The shock-warning function is restarted and the measuring tool starts the levelling. As soon as the measuring tool is levelled in (the levelling indicator 1 continuously lights up green), it automatically starts in rotation operation. Now, check the height of the laser beam with a reference point and correct the height, if required.

Bosch Power Tools

OBJ_DOKU-20994-002.fm Page 21 Monday, June 27, 2011 12:55 PM

English | 21

When, after the shock-warning function has actuated, the function is not restarted by pressing On/Off button 2 , the laser is automatically switched off after 2 minutes and the measuring tool after 2 hours.

To switch off the shock-warning function, press the On/Off button 2 for 3 seconds. When the shock-warning function has actuated (shock-warning indicator 3 flashes red), firstly press the On/Off button briefly, and then again for 3 seconds. When the shock-warning function is shut off, the shock-warning indicator goes out 3 .

To switch on the shock-warning function, press the On/Off button 2 for 3 seconds. The shock-warning indicator 3 continuously lights up green, and the shock-warning function is activated after 30 seconds.

The shock-warning function setting is stored when switching off the measuring tool.

Levelling Accuracy of the Rotational Laser Level

Influences on Accuracy

The ambient temperature has the greatest influence. Especially temperature differences occurring from the ground upward can divert the laser beam.

The deviations play a role in excess of approx. 20 m measuring distance and can easily reach two to four times the deviation at 100 m.

Because the largest difference in temperature layers is close to the ground, the measuring tool should always be mounted on a tripod when measuring distances exceeding 20 m. If possible, also set up the measuring tool in the centre of the work area.

Accuracy Check of the Measuring Tool

Apart from exterior influences, device-specific influences

(such as heavy impact or falling down) can lead to deviations.

Therefore, check the accuracy of the measuring tool each time before starting your work.

A free measuring distance of 20 m on a firm surface between two walls A and B is required for the check. A reversal measurement must be carried out over both axes X and Y (each positive and negative; 4 complete measurements).

– Mount the measuring tool onto a tripod, or place it on a firm and level surface close to wall A. Switch the measuring tool on.

A

20 m

B

– After the levelling, mark the centre of the laser beam on wall A (point I ).

A

180°

180°

B

– Rotate the measuring tool by 180°, allow it to level in and mark the centre point of the laser beam on the apposing wall B (point II ).

– Without turning the measuring tool, position it close to wall

B. Switch the measuring tool on and allow it to level in.

A

– Align the height of the measuring tool (using the tripod or by propping), so that the centre of the laser beam runs exactly against the previously marked point II on wall B.

A

B

B

– Rotate the measuring tool by 180° without changing the height. Allow it to level in and mark the centre point of the laser beam on wall A (point III ). Take care that point III is as vertical as possible above or below point I .

– The difference d of both marked points I and III on wall A amounts to the actual deviation of the measuring tool for the measured axis.

Repeat the measuring procedure for the other three axes. For this, turn the measuring tool prior to each measuring procedure by 90°.

On the measuring section of 2 x 20 m = 40 m, the maximum allowable deviation is:

40 m x ± 0.08 mm/m = ± 3.2 mm.

Consequently, the difference d between points I and III for each of the four individual measurements may not exceed

3.2 mm max.

Bosch Power Tools 1 619 929 J22 | (27.6.11)

OBJ_DOKU-20994-002.fm Page 22 Monday, June 27, 2011 12:55 PM

22 | English

If the measuring tool should exceed the maximum deviation in anyone of the four measuring procedures, have it checked at a Bosch after-sales service agent.

Working Instructions for the Rotational Laser

Level

f Always use the centre of the laser line for marking. The width of the laser line changes with the distance.

Laser Viewing Glasses (Accessory)

The laser viewing glasses filter out the ambient light. This makes the red light of the laser appear brighter for the eyes.

f Do not use the laser viewing glasses as safety goggles.

The laser viewing glasses are used for improved visualisation of the laser beam, but they do not protect against laser radiation.

f Do not use the laser viewing glasses as sun glasses or in traffic. The laser viewing glasses do not afford complete

UV protection and reduce colour perception.

Working with the Tripod (Accessory)

The measuring tool is equipped with a 5/8" tripod mount for horizontal operation on a tripod. Place the measuring tool via the tripod mount 12 onto the 5/8" male thread of the tripod and screw the locking screw of the tripod tight.

On a tripod 30 with a measuring scale on the elevator column, the height difference can be adjusted directly.

Working with the Laser Target Plate (Accessory)

Using the laser target plate 37 , it is possible to transmit the laser height onto a wall.

With the zero field and the scale, the offset or drop to the required height can be measured and projected at another location. This eliminates the necessity of precisely adjusting the measuring tool to the height to be projected.

The laser target plate 37 has a reflecting coating which improves the visibility of the laser beam from a larger distance or in case of strong sun rays. The luminosity can be recognized only if you look to the laser target plate in parallel to the laser beam.

Working with the Measuring Rod (Accessory)

For checking irregularities or projecting gradients, it is recommended to use the measuring rod 31 together with the laser receiver.

A relative millimeter scale ( ± 50 cm) is marked on the top of the measuring rod 31 . Its zero height can be preset at the bottom of the elevator column. This allows for direct reading of deviations from the specified height.

Working Instructions for the Laser Receiver

Marking

When the laser beam runs through the center of the reception area 24 , its height can be marked at the centre mark 23 right and left on the laser receiver. The centre mark is located

45 mm away from the top edge of the laser receiver.

Aligning with the Spirit Level

The laser receiver can be aligned vertically (plumb line) with the spirit level 26 . A laser receiver attached out-of-level leads to faulty measurements.

Attaching with the Holder (see figure A)

With the holder 35 , the laser receiver can be fastened to a construction laser measuring rod 31 (accessory) as well as to other auxiliary tools with a width of up to 65 mm.

Screw the holder 35 to the retainer opening 29 on the rear side of the measuring tool with fastening screw 34 .

Loosen the locking screw 32 , slide the holder onto the construction laser measuring rod 31 , for example, and retighten the locking screw 32 .

The upper edge 33 of the holder is located at the same height as the centre mark 23 and can be used for marking of the laser beam.

Attaching with the Magnet (see figure B)

When a positive-lock attachment is not absolutely required, the laser receiver can be attached to steel parts via the face side using the magnet plate 22 .

Work Examples

Checking the Depth of Building Pits (see figure C)

Position the measuring tool on a firm surface or mount it to a tripod 30 .

Working with tripod: Align the laser beam to the requested height. Project or check the height at the target location.

Working without tripod: Determine the height difference between the laser beam and the height at the reference point with the laser target plate 37 . Project or check the measured height difference at the target location.

When measuring over long distances, the measuring tool should always be set up in the centre of the work surface and on a tripod, in order to reduce interferences.

When working on unsafe ground, mount the measuring tool onto the tripod 30 . Take care that the shock-warning function is activated, in order to avoid faulty measurements in case of ground vibrations or shock to the measuring tool.

1 619 929 J22 | (27.6.11) Bosch Power Tools

OBJ_DOKU-20994-002.fm Page 23 Monday, June 27, 2011 12:55 PM

Overview of Indications

English | 23

Switching on the measuring tool (1 s self-check)

Levelling in or re-levelling

Measuring tool levelled in/ready for operation

Self-levelling range exceeded

Shock-warning function activated

Shock warning actuated

Battery voltage for ≤ 2 h operation

Battery empty

2x/s z

2x/s

2x/s

Maintenance and Service

Maintenance and Cleaning

Keep the rotational laser level, battery charger and laser receiver clean at all times.

Do not immerse the rotational laser level, battery charger and laser receiver into water or other fluids.

Wipe off debris using a moist and soft cloth. Do not use any cleaning agents or solvents.

Particularly clean the surfaces at the outlet opening of the rotational laser level regularly and pay attention for any lint.

If the rotational laser level, battery charger or laser receiver should fail despite the care taken in manufacture and testing, repair should be carried out by an authorised customer services agent for Bosch power tools. Do not open the rotational laser level, battery charger or laser receiver yourself.

In all correspondence and spare parts orders, please always include the 10-digit article number given on the type plate of the rotational laser level, battery charger and laser receiver.

After-sales Service and Customer Assistance

Our after-sales service responds to your questions concerning maintenance and repair of your product as well as spare parts. Exploded views and information on spare parts can also be found under: www.bosch-pt.com

Our customer service representatives can answer your questions concerning possible applications and adjustment of products and accessories.

2x/s

 z



 z



 green z

2x/s z red z green



Flashing frequency (twice per second)

Continuous operation

Function stopped z

Great Britain

Robert Bosch Ltd. (B.S.C.)

P.O. Box 98

Broadwater Park

North Orbital Road

Denham

Uxbridge

UB 9 5HJ

Tel. Service: +44 (0844) 736 0109

Fax: +44 (0844) 736 0146

E-Mail: [email protected]

Ireland

Origo Ltd.

Unit 23 Magna Drive

Magna Business Park

City West

Dublin 24

Tel. Service: +353 (01) 4 66 67 00

Fax: +353 (01) 4 66 68 88

Australia, New Zealand and Pacific Islands

Robert Bosch Australia Pty. Ltd.

Power Tools

Locked Bag 66

Clayton South VIC 3169

Customer Contact Center

Inside Australia:

Phone: +61 (01300) 307 044

Fax: +61 (01300) 307 045

Inside New Zealand:

Phone: +64 (0800) 543 353

Fax: +64 (0800) 428 570

Outside AU and NZ:

Phone: +61 (03) 9541 5555 www.bosch.com.au

red z

2x/s z

2x/s z

Bosch Power Tools 1 619 929 J22 | (27.6.11)

OBJ_DOKU-20994-002.fm Page 24 Monday, June 27, 2011 12:55 PM

24 | English

Republic of South Africa

Customer service

Hotline: +27 (011) 6 51 96 00

Gauteng – BSC Service Centre

35 Roper Street, New Centre

Johannesburg

Tel.: +27 (011) 4 93 93 75

Fax: +27 (011) 4 93 01 26

E-Mail: [email protected]

KZN – BSC Service Centre

Unit E, Almar Centre

143 Crompton Street

Pinetown

Tel.: +27 (031) 7 01 21 20

Fax: +27 (031) 7 01 24 46

E-Mail: [email protected]

Western Cape – BSC Service Centre

Democracy Way, Prosperity Park

Milnerton

Tel.: +27 (021) 5 51 25 77

Fax: +27 (021) 5 51 32 23

E-Mail: [email protected]

Bosch Headquarters

Midrand, Gauteng

Tel.: +27 (011) 6 51 96 00

Fax: +27 (011) 6 51 98 80

E-Mail: [email protected]

People’s Republic of China

China Mainland

Bosch Power Tools (China) Co., Ltd.

567, Bin Kang Road

Bin Jiang District 310052

Hangzhou, P.R.China

Service Hotline: 400 826 8484

Fax: +86 571 8777 4502

E-Mail: [email protected]

www.bosch-pt.com.cn

HK and Macau Special Administrative Regions

Robert Bosch Hong Kong Co. Ltd.

21st Floor, 625 King’s Road

North Point, Hong Kong

Customer Service Hotline: +852 (21) 02 02 35

Fax: +852 (25) 90 97 62

E-Mail: [email protected]

www.bosch-pt.com.hk

Indonesia

PT. Multi Mayaka

Kawasan Industri Pulogadung

Jalan Rawa Gelam III No. 2

Jakarta 13930

Indonesia

Tel.: +62 (21) 46 83 25 22

Fax: +62 (21) 46 82 86 45/68 23

E-Mail: [email protected]

www.bosch-pt.co.id

1 619 929 J22 | (27.6.11)

Philippines

Robert Bosch, Inc.

28th Floor Fort Legend Towers,

3rd Avenue corner 31st Street,

Fort Bonifacio Global City,

1634 Taguig City, Philippines

Tel.: +63 (2) 870 3871

Fax: +63 (2) 870 3870 [email protected]

www.bosch-pt.com.ph

Bosch Service Center:

9725-27 Kamagong Street

San Antonio Village

Makati City, Philippines

Tel.: +63 (2) 899 9091

Fax: +63 (2) 897 6432 [email protected]

Malaysia

Robert Bosch (S.E.A.) Pte. Ltd.

No. 8A, Jalan 13/6

G.P.O. Box 10818

46200 Petaling Jaya

Selangor, Malaysia

Tel.: +60 (3) 7966 3194

Fax: +60 (3) 7958 3838 [email protected]

Toll-Free: 1800 880 188 www.bosch-pt.com.my

Thailand

Robert Bosch Ltd.

Liberty Square Building

No. 287, 11 Floor

Silom Road, Bangrak

Bangkok 10500

Tel.: +66 (2) 6 31 18 79 – 18 88 (10 lines)

Fax: +66 (2) 2 38 47 83

Robert Bosch Ltd., P. O. Box 2054

Bangkok 10501, Thailand

Bosch Service – Training Centre

2869-2869/1 Soi Ban Kluay

Rama IV Road (near old Paknam Railway)

Prakanong District

10110 Bangkok

Thailand

Tel.: +66 (2) 6 71 78 00 – 4

Fax: +66 (2) 2 49 42 96

Fax: +66 (2) 2 49 52 99

Singapore

Robert Bosch (SEA) Pte. Ltd.

11 Bishan Street 21

Singapore 573943

Tel.: +65 6571 2772

Fax: +65 6350 5315 [email protected]

Toll-Free: 1800 333 8333 www.bosch-pt.com.sg

Bosch Power Tools
