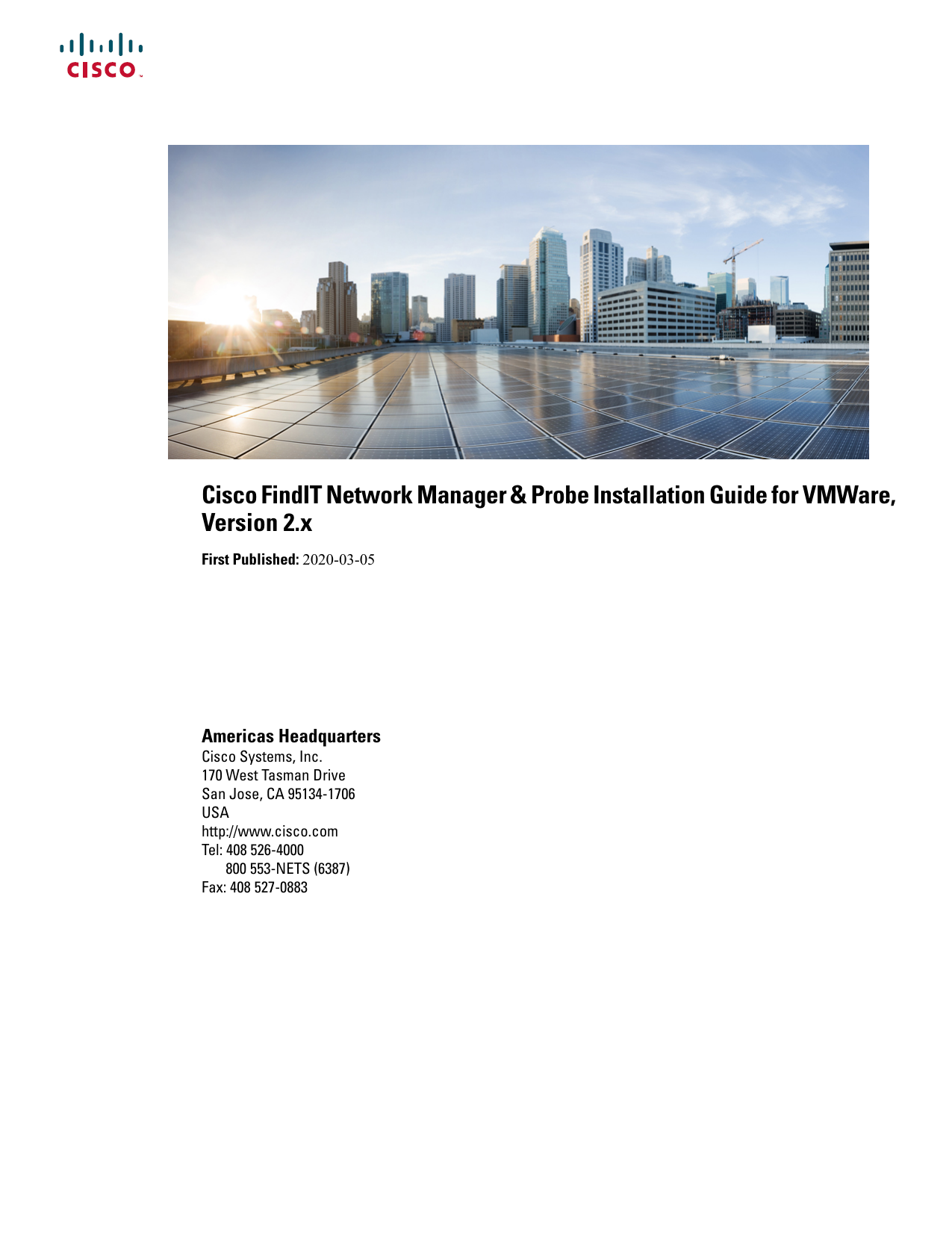

Cisco FindIT Network Manager & Probe Installation Guide for VMWare,
Version 2.x
First Published: 2020-03-05
Americas Headquarters
Cisco Systems, Inc.
170 West Tasman Drive
San Jose, CA 95134-1706
USA
http://www.cisco.com
Tel: 408 526-4000
800 553-NETS (6387)
Fax: 408 527-0883
THE SPECIFICATIONS AND INFORMATION REGARDING THE PRODUCTS IN THIS MANUAL ARE SUBJECT TO CHANGE WITHOUT NOTICE. ALL STATEMENTS,
INFORMATION, AND RECOMMENDATIONS IN THIS MANUAL ARE BELIEVED TO BE ACCURATE BUT ARE PRESENTED WITHOUT WARRANTY OF ANY KIND,
EXPRESS OR IMPLIED. USERS MUST TAKE FULL RESPONSIBILITY FOR THEIR APPLICATION OF ANY PRODUCTS.
THE SOFTWARE LICENSE AND LIMITED WARRANTY FOR THE ACCOMPANYING PRODUCT ARE SET FORTH IN THE INFORMATION PACKET THAT SHIPPED WITH
THE PRODUCT AND ARE INCORPORATED HEREIN BY THIS REFERENCE. IF YOU ARE UNABLE TO LOCATE THE SOFTWARE LICENSE OR LIMITED WARRANTY,
CONTACT YOUR CISCO REPRESENTATIVE FOR A COPY.
The Cisco implementation of TCP header compression is an adaptation of a program developed by the University of California, Berkeley (UCB) as part of UCB's public domain version of
the UNIX operating system. All rights reserved. Copyright © 1981, Regents of the University of California.
NOTWITHSTANDING ANY OTHER WARRANTY HEREIN, ALL DOCUMENT FILES AND SOFTWARE OF THESE SUPPLIERS ARE PROVIDED “AS IS" WITH ALL FAULTS.
CISCO AND THE ABOVE-NAMED SUPPLIERS DISCLAIM ALL WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING, WITHOUT LIMITATION, THOSE OF
MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT OR ARISING FROM A COURSE OF DEALING, USAGE, OR TRADE PRACTICE.
IN NO EVENT SHALL CISCO OR ITS SUPPLIERS BE LIABLE FOR ANY INDIRECT, SPECIAL, CONSEQUENTIAL, OR INCIDENTAL DAMAGES, INCLUDING, WITHOUT
LIMITATION, LOST PROFITS OR LOSS OR DAMAGE TO DATA ARISING OUT OF THE USE OR INABILITY TO USE THIS MANUAL, EVEN IF CISCO OR ITS SUPPLIERS
HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
Any Internet Protocol (IP) addresses and phone numbers used in this document are not intended to be actual addresses and phone numbers. Any examples, command display output, network
topology diagrams, and other figures included in the document are shown for illustrative purposes only. Any use of actual IP addresses or phone numbers in illustrative content is unintentional
and coincidental.
All printed copies and duplicate soft copies of this document are considered uncontrolled. See the current online version for the latest version.
Cisco has more than 200 offices worldwide. Addresses and phone numbers are listed on the Cisco website at www.cisco.com/go/offices.
Cisco and the Cisco logo are trademarks or registered trademarks of Cisco and/or its affiliates in the U.S. and other countries. To view a list of Cisco trademarks, go to this URL: www.cisco.com
go trademarks. Third-party trademarks mentioned are the property of their respective owners. The use of the word partner does not imply a partnership relationship between Cisco and any
other company. (1721R)
© 2020
Cisco Systems, Inc. All rights reserved.
The Java logo is a trademark or registered trademark of Sun Microsystems, Inc. in the U.S. or other countries.
© 2020
Cisco Systems, Inc. All rights reserved.
CONTENTS
CHAPTER 1
Cisco FindIT Network Management Overview 1
About Cisco FindIT Network Management
1
Audience 1
Related Documents 2
Terminology 2
System Requirements for Cisco FindIT Network Manager 3
System Requirements for Cisco FindIT Network Probe 4
CHAPTER 2
Installing Cisco FindIT Network Manager 7
Obtaining and Verifying FindIT Network Manager Software 7
Installing Cisco FindIT Network Manager with VMWare 7
CHAPTER 3
Installing Cisco FindIT Network Probe 9
Obtaining and Verifying FindIT Network Probe Software 9
Installing Cisco FindIT Network Probe with VMWare 9
Cisco FindIT Network Manager & Probe Installation Guide for VMWare, Version 2.x
v
Contents
Cisco FindIT Network Manager & Probe Installation Guide for VMWare, Version 2.x
vi
CHAPTER
1
Cisco FindIT Network Management Overview
This chapter contains the following sections:
• About Cisco FindIT Network Management , on page 1
• Audience, on page 1
• Related Documents, on page 2
• Terminology, on page 2
• System Requirements for Cisco FindIT Network Manager, on page 3
• System Requirements for Cisco FindIT Network Probe, on page 4
About Cisco FindIT Network Management
Cisco FindIT Network Management provides tools that help you monitor and manage your Cisco 100 to 500
Series network. FindIT Network Management automatically discovers your network, and allows you to
configure and monitor all supported Cisco 100 to 500 Series devices such as Cisco switches, routers, and
wireless access points. It also notifies you the availability of firmware updates, and about any devices that are
no longer under warranty or covered by a support contract.
FindIT Network Manager is a distributed application which is comprised of two separate components or
applications: one or more Probes referred to as FindIT Network Probe and a single Manager called FindIT
Network Manager.
An instance of FindIT Network Probe is installed at each site in the network, performs network discovery and
communicates directly with each Cisco device. A single instance of FindIT Network Manager is installed at
a convenient location in the network and each Probe is associated with the Manager. From the Manager
interface, you can get a high-level view of the status of all the sites in your network, or concentrate on a single
site or device to see information specific to that site or device.
Audience
This guide is primarily intended for network administrators who are responsible for Cisco FindIT Network
Management software installation and management.
Cisco FindIT Network Manager & Probe Installation Guide for VMWare, Version 2.x
1
Cisco FindIT Network Management Overview
Related Documents
Related Documents
The documentation for Cisco FindIT Network Manager & Probe is comprised of a number of separate guides.
These include:
• Installation Guides
The following table lists all the installation guides of FindIT software that can be deployed on different
platforms. Refer the path provided in the location column for details:
Supported Platforms
Location
VMWare vSphere,
This document
Workstation and Fusion
Ubuntu Linux (Manager Cisco FindIT Network Manager & Probe Installation Guide for Linux
and Probe) and
Raspbian Linux (Probe
only)
Amazon Web Services
Cisco FindIT Network Manager & Probe Installation Guide for Amazon Web
Services
Oracle VirtualBox
Cisco FindIT Network Manager & Probe Installation Guide for Oracle
VirtualBox
Microsoft Hyper-V
Cisco FindIT Network Manager & Probe Installation Guide for Microsoft
Hyper-V
• Quick Start Guide—This provides details on performing the initial setup for FindIT Network Manager
& Probe using the most commonly selected options. Refer to Cisco FindIT Network Manager and Probe
Quick Start Guide.
• Administration Guide—This is a reference guide that provides details about all the features and options
provided by the software and how they may be configured and used. Refer to Cisco FindIT Network
Manager and Probe Administration Guide.
Terminology
Term
Description
Hyper-V
A virtualization platform provided by Microsoft Corporation.
Open Virtualization Format (OVF)
A TAR archive containing one or more virtual machines in OVF
format. It is a platform-independent method of packaging and
distributing Virtual Machines (VMs).
Cisco FindIT Network Manager & Probe Installation Guide for VMWare, Version 2.x
2
Cisco FindIT Network Management Overview
System Requirements for Cisco FindIT Network Manager
Term
Description
Open Virtual Appliance or Application Package that contains the following files used to describe a virtual
(OVA) file
machine and saved in a single archive using .TAR packaging:
• Descriptor file (.OVF)
• Manifest (.MF) and certificate files (optional)
Raspberry Pi
A very low cost, single board computer developed by the Raspberry
Pi Foundation. For more information, see
https://www.raspberrypi.org/.
Raspbian
A Debian-based linux distribution optimized for the Raspberry Pi.
For more information, see https://www.raspbian.org/.
VirtualBox
A virtualization platform provided by Oracle Corporation.
Virtual Hard Disk (VHD)
Virtual hard disk is a disk image file format for storing the complete
contents of a hard drive.
Virtual Machine (VM)
A virtual computing environment in which a guest operating system
and associated application software can run. Multiple VMs can
operate on the same host system concurrently.
• VMWare ESXi
A virtualization platform provided by VMWare Inc.
• VMWare Fusion
• vSphere Server
• VMWare Workstation
vSphere Client
User interface that enables users to connect remotely to vCenter
Server or ESXi from any Windows PC. You can use the primary
interface for vSphere Client to create, manage, and monitor VMs,
their resources, and the hosts. It also provides console access to
VMs.
System Requirements for Cisco FindIT Network Manager
Cisco FindIT Network Manager is distributed as a virtual machine image in compressed OVF format suitable
for import into a hypervisor from the VMWare product family. The VMWare hypervisors supported by FindIT
Network Manager include:
• ESXi version 5.5 or above
• Fusion version 7 or above
• Workstation version 12 or above
The following table lists the compute resources required for FindIT Network Manager based on the number
of devices under management:
Cisco FindIT Network Manager & Probe Installation Guide for VMWare, Version 2.x
3
Cisco FindIT Network Management Overview
System Requirements for Cisco FindIT Network Probe
Table 1: FindIT Network Manager Compute Resource Requirements
#Device Supported
# vCPU
RAM
Disk Space
Up to 300
2
4GB
60GB
Up to 2500
12
24GB
60GB
FindIT Network Manager is administered through a web user interface. To use this interface, your browser
must be one of the following:
• Apple Safari version 11 (macOS only) or above
• Google Chrome version 72 (Recommended) or above
• Microsoft Edge version 42 or above
• Mozilla Firefox version 65 or above
Note
When using Safari, check that the certificate from FindIT Network Probe is set to Always Trust. Otherwise,
certain functions that depend on the use of secure websockets are expected to fail. This is a limitation of the
Safari web browser.
Your network must allow all instances of FindIT Network Probe to establish TCP connectivity with FindIT
Network Manager. For more details on the ports and protocols used, see Frequently Asked Questions in the
Cisco FindIT Network Manager and Probe Quick Start Guide.
System Requirements for Cisco FindIT Network Probe
Cisco FindIT Network Probe is distributed as a virtual machine image in compressed OVF format suitable
for import into a hypervisor from the VMWare product family. The VMWare hypervisors supported by FindIT
Network Manager include:
• ESXi version 5.5 or above
• Fusion version 7 or above
• Workstation version 12 or above
The compute resources required for FindIT Network Probe are as follows:
• CPU: 1x 64-bit Intel architecture
• Memory: 512MB
• Disk space: 5GB
FindIT Network Probe is administered through a web user interface. To use this interface, your browser must
be one of the following:
• Apple Safari version 11 (macOS only) or above
• Google Chrome version 72 (Recommended) or above
Cisco FindIT Network Manager & Probe Installation Guide for VMWare, Version 2.x
4
Cisco FindIT Network Management Overview
System Requirements for Cisco FindIT Network Probe
• Microsoft Edge version 42 or above
• Mozilla Firefox version 65 or above
FindIT Network Probe monitors and accesses the network devices that meet the following requirements:
• Must be in the same subnet as the PC that is running the FindIT Network Probe, or be directly attached
to a managed device and reachable via TCP/IP
• Must be a Cisco 100 to 500 Series device with the Bonjour service enabled
Cisco FindIT Network Manager & Probe Installation Guide for VMWare, Version 2.x
5
Cisco FindIT Network Management Overview
System Requirements for Cisco FindIT Network Probe
Cisco FindIT Network Manager & Probe Installation Guide for VMWare, Version 2.x
6
CHAPTER
2
Installing Cisco FindIT Network Manager
This chapter contains the following sections:
• Obtaining and Verifying FindIT Network Manager Software, on page 7
• Installing Cisco FindIT Network Manager with VMWare, on page 7
Obtaining and Verifying FindIT Network Manager Software
Cisco FindIT Network Manager is distributed as a virtual machine image packaged in the Distributed
Management Task Force’s Open Virtualization Format (OVF), suitable for import into a hypervisor from
the VMWare product family. The virtual machine image also contains the FindIT Network Probe application,
allowing a single VM to act as both Manager and Probe for a particular site. To obtain the virtual machine
image, navigate to https://www.cisco.com/go/findit-sw.
The virtual machine image has been cryptographically signed by Cisco to ensure that the software has not
been tampered with. Open Virtualization Format images have a well-defined mechanism for cryptographic
signing, and the majority of hypervisors will validate the signature as part of the import process. If the signature
is not valid, an error will be generated and the import will fail.
To manually validate the signature before importing, you can use a tool such as the VMWare OVF Tool.
The OVF Tool is available as a free download from the VMWare website. More information including a
download link can be found at https://www.vmware.com/support/developer/ovf/. To validate the image with
the OVF Tool, use the command ovftoolimage_filename. The tool will generate an error if the signature
is not valid.
Installing Cisco FindIT Network Manager with VMWare
Once you have obtained and verified the FindIT Network Manager software, you may install it using the
following steps:
1. Ensure you have a working VMWare virtualization environment available to host the virtual machine.
For assistance in setting up your environment, refer the VMWare documentation for your product. The
following links may provide a useful starting point:
• For VMWare Workstation—https://docs.vmware.com/en/VMware-Workstation-Pro/index.html
• For VMWare Fusion—https://docs.vmware.com/en/VMware-Fusion/index.html
• For VMWare vSphere—https://docs.vmware.com/en/VMware-vSphere/index.html
Cisco FindIT Network Manager & Probe Installation Guide for VMWare, Version 2.x
7
Installing Cisco FindIT Network Manager
Installing Cisco FindIT Network Manager with VMWare
2. Refer to the VMWare documentation for your product to determine the procedure for importing a virtual
machine. For example, if you are using VMWare Fusion, you would open the VMWare Fusion application
and select File > Import… and follow the prompts.
3. Select the downloaded ova file from your local directory and continue the import process.
4. Check that the network interface on the newly created virtual machine is connected and bridged to the
correct physical interface on the host machine.
5. Start the virtual machine.
The virtual machine will boot and automatically start the FindIT Network Manager application. Refer to the
Cisco FindIT Network Manager and Probe Quick Start Guide for details on how to access the application and
perform the initial setup.
Cisco FindIT Network Manager & Probe Installation Guide for VMWare, Version 2.x
8
CHAPTER
3
Installing Cisco FindIT Network Probe
An instance of FindIT Network Probe is required for each site in your network that you want to manage. The
Probe discovers the network, collects performance and configuration data from the discovered devices, and
reports that information back to the Manager.
This chapter contains the following sections:
• Obtaining and Verifying FindIT Network Probe Software, on page 9
• Installing Cisco FindIT Network Probe with VMWare, on page 9
Obtaining and Verifying FindIT Network Probe Software
FindIT Network Probe is distributed as a virtual machine image packaged in the Distributed Management
Task Force’s Open Virtualization Format (OVF), suitable for import into a hypervisor from the VMWare
product family. The Probe is also included as part of the FindIT Network Manager virtual machine image,
allowing a single VM to act as both Manager and Probe for a particular site. To obtain the FindIT Network
Probe software, navigate to https://www.cisco.com/go/findit-sw.
The virtual machine image has been cryptographically signed by Cisco to ensure that the software has not
been tampered with. Open Virtualization Format images have a well-defined mechanism for cryptographic
signing, and the majority of hypervisors will validate the signature as part of the import process. If the signature
is not valid, an error will be generated and the import will fail.
To manually validate the signature before importing, you can use a tool such as the VMWare OVF Tool. To
validate the image with the OVF Tool, use the command ovftoolimage_filename. The tool will generate
an error if the signature is not valid.
Installing Cisco FindIT Network Probe with VMWare
Once you have obtained and verified the FindIT Network Probe software, you may install it using the following
steps:
1. Ensure you have a working VMWare virtualization environment available to host the virtual machine.
For assistance in setting up your environment, refer the VMWare documentation for your product. The
following links may provide a useful starting point:
• For VMWare Workstation—https://docs.vmware.com/en/VMware-Workstation-Pro/index.html
• For VMWare Fusion—https://docs.vmware.com/en/VMware-Fusion/index.html
Cisco FindIT Network Manager & Probe Installation Guide for VMWare, Version 2.x
9
Installing Cisco FindIT Network Probe
Installing Cisco FindIT Network Probe with VMWare
• For VMWare vSphere—https://docs.vmware.com/en/VMware-vSphere/index.html
2. Refer to the VMWare documentation for your product to determine the procedure for importing a virtual
machine. For example, if you are using VMWare Fusion, you would open the VMWare Fusion application
and select File > Import… and follow the prompts.
3. Select the downloaded ova file from your local directory and continue the import process.
4. Check that the network interface on the newly created virtual machine is connected and bridged to the
correct physical interface on the host machine.
The network interface of the FindIT Network Probe should be connected to a VLAN containing the
management interfaces for at least one of the network devices. If the Probe is not directly connected to
at least one network device, it may be unable to fully discover the network.
5. Start the virtual machine.
The virtual machine will boot and automatically start the FindIT Network Manager application. Refer to the
Cisco FindIT Network Manager and Probe Quick Start Guide for details on how to access the application
and perform the initial setup.
Cisco FindIT Network Manager & Probe Installation Guide for VMWare, Version 2.x
10

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
