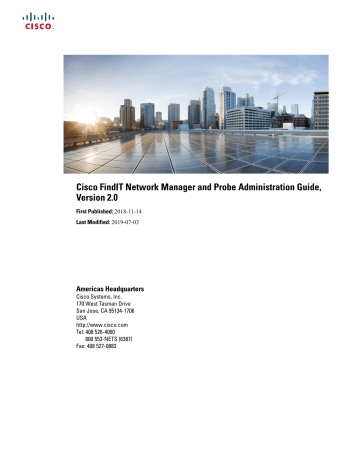

Cisco FindIT Network Probe Guide

Cisco FindIT Network Manager and Probe Administration Guide,
Version 2.0
First Published: 2018-11-14
Last Modified: 2019-07-03
Americas Headquarters
Cisco Systems, Inc.
170 West Tasman Drive
San Jose, CA 95134-1706
USA
http://www.cisco.com
Tel: 408 526-4000
800 553-NETS (6387)
Fax: 408 527-0883
THE SPECIFICATIONS AND INFORMATION REGARDING THE PRODUCTS IN THIS MANUAL ARE SUBJECT TO CHANGE WITHOUT NOTICE. ALL STATEMENTS,
INFORMATION, AND RECOMMENDATIONS IN THIS MANUAL ARE BELIEVED TO BE ACCURATE BUT ARE PRESENTED WITHOUT WARRANTY OF ANY KIND,
EXPRESS OR IMPLIED. USERS MUST TAKE FULL RESPONSIBILITY FOR THEIR APPLICATION OF ANY PRODUCTS.
THE SOFTWARE LICENSE AND LIMITED WARRANTY FOR THE ACCOMPANYING PRODUCT ARE SET FORTH IN THE INFORMATION PACKET THAT SHIPPED WITH
THE PRODUCT AND ARE INCORPORATED HEREIN BY THIS REFERENCE. IF YOU ARE UNABLE TO LOCATE THE SOFTWARE LICENSE OR LIMITED WARRANTY,
CONTACT YOUR CISCO REPRESENTATIVE FOR A COPY.
The Cisco implementation of TCP header compression is an adaptation of a program developed by the University of California, Berkeley (UCB) as part of UCB's public domain version of
the UNIX operating system. All rights reserved. Copyright © 1981, Regents of the University of California.
NOTWITHSTANDING ANY OTHER WARRANTY HEREIN, ALL DOCUMENT FILES AND SOFTWARE OF THESE SUPPLIERS ARE PROVIDED “AS IS" WITH ALL FAULTS.
CISCO AND THE ABOVE-NAMED SUPPLIERS DISCLAIM ALL WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING, WITHOUT LIMITATION, THOSE OF
MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT OR ARISING FROM A COURSE OF DEALING, USAGE, OR TRADE PRACTICE.
IN NO EVENT SHALL CISCO OR ITS SUPPLIERS BE LIABLE FOR ANY INDIRECT, SPECIAL, CONSEQUENTIAL, OR INCIDENTAL DAMAGES, INCLUDING, WITHOUT
LIMITATION, LOST PROFITS OR LOSS OR DAMAGE TO DATA ARISING OUT OF THE USE OR INABILITY TO USE THIS MANUAL, EVEN IF CISCO OR ITS SUPPLIERS
HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
Any Internet Protocol (IP) addresses and phone numbers used in this document are not intended to be actual addresses and phone numbers. Any examples, command display output, network
topology diagrams, and other figures included in the document are shown for illustrative purposes only. Any use of actual IP addresses or phone numbers in illustrative content is unintentional
and coincidental.
All printed copies and duplicate soft copies of this document are considered uncontrolled. See the current online version for the latest version.
Cisco has more than 200 offices worldwide. Addresses and phone numbers are listed on the Cisco website at www.cisco.com/go/offices.
Cisco and the Cisco logo are trademarks or registered trademarks of Cisco and/or its affiliates in the U.S. and other countries. To view a list of Cisco trademarks, go to this URL: www.cisco.com
go trademarks. Third-party trademarks mentioned are the property of their respective owners. The use of the word partner does not imply a partnership relationship between Cisco and any
other company. (1721R)
© 2019
Cisco Systems, Inc. All rights reserved.
The Java logo is a trademark or registered trademark of Sun Microsystems, Inc. in the U.S. or other countries.
© 2019
Cisco Systems, Inc. All rights reserved.
CONTENTS
CHAPTER 1
Cisco FindIT Network Management Overview 1
About Cisco FindIT Network Management
1
Audience 1
Related Documents 2
Terminology 2
System Requirements for Cisco FindIT Network Manager
3
System Requirements for Cisco FindIT Network Probe 4
CHAPTER 2
Using Cisco FindIT Network Manager and Probe 7
Using the Cisco FindIT Network Manager GUI 7
Using the Cisco FindIT Network Probe GUI 10
Upgrading FindIT Network Manager and Probe 13
CHAPTER 3
Dashboard 15
About Dashboard 15
Adding a Widget 16
Modifying a Widget 16
Deleting a Widget 16
Modifying the Dashboard Layout 16
CHAPTER 4
Network 17
About Network 17
About Network Detail 19
About Network View 19
Overview of the Topology Map and Tools 19
Viewing Basic Device Information 22
Cisco FindIT Network Manager and Probe Administration Guide, Version 2.0
v
Contents
Performing Device Actions 24
Accessing the Device Administration Interface 26
Viewing Detailed Device Information 26
Using Floor Plans 29
CHAPTER 5
Inventory 31
Viewing Device Inventory 31
CHAPTER 6
Port Management 33
About Port Management 33
CHAPTER 7
Network Configuration 35
About Network Configuration 35
Using the Wizard 35
Configuring Time Management 36
Configuring DNS Resolvers 36
Configuring Authentication 37
Configuring Virtual LANs 38
Configuring Wireless LANs 39
CHAPTER 8
Network Plug and Play 41
About Network Plug and Play 41
Network Requirements 41
Setting up Discovery using Plug and Play Connect 43
Configuring the Network Plug and Play Service 44
Monitoring Network Plug and Play 49
CHAPTER 9
Event Log 51
About the Event Log 51
CHAPTER 10
Reports 53
About Reports 53
Viewing the Lifecycle Report 53
Cisco FindIT Network Manager and Probe Administration Guide, Version 2.0
vi
Contents
Viewing the End of Life Report 54
Viewing the Maintenance Report 55
Viewing the Wireless Network Report 56
Viewing the Wireless Client Report 58
CHAPTER 11
Administration 61
About Administration 61
Managing Organizations 61
Managing Device Groups 64
Managing Device Credentials 65
Managing Users 66
Changing Notification Defaults 67
Viewing Login Attempts 68
Managing Report Settings 68
CHAPTER 12
System 69
About System 69
Managing Licenses 70
Managing Certificates 72
Managing Email Settings 73
Viewing API Usage 74
Backing Up and Restoring the Manager Configuration 75
Managing Platform Settings 75
Managing Privacy 77
Managing Logging Settings 79
Managing the Local Probe 79
CHAPTER 13
Notifications 81
About Notifications 81
Supported Notifications 81
Viewing and Filtering Current Device Notifications 82
Viewing and Filtering Historical Device Notifications 84
CHAPTER 14
Troubleshooting 85
Cisco FindIT Network Manager and Probe Administration Guide, Version 2.0
vii
Contents
Capturing Network Diagnostic Information 85
Managing Probe Log Settings 86
CHAPTER 15
Frequently Asked Questions 87
General FAQs 87
Discovery FAQs 87
Configuration FAQs 88
Security Consideration FAQs 88
Remote Access FAQs 91
Software Update FAQs 91
Cisco FindIT Network Manager and Probe Administration Guide, Version 2.0
viii
CHAPTER
1
Cisco FindIT Network Management Overview
This chapter contains the following sections:
• About Cisco FindIT Network Management , on page 1
• Audience, on page 1
• Related Documents, on page 2
• Terminology, on page 2
• System Requirements for Cisco FindIT Network Manager , on page 3
• System Requirements for Cisco FindIT Network Probe, on page 4
About Cisco FindIT Network Management
Cisco FindIT Network Management provides tools that help you monitor and manage your Cisco 100 to 500
Series network. FindIT Network Management automatically discovers your network, and allows you to
configure and monitor all supported Cisco 100 to 500 Series devices such as Cisco switches, routers, and
wireless access points. It also notifies you the availability of firmware updates, and about any devices that are
no longer under warranty or covered by a support contract.
FindIT Network Manager is a distributed application which is comprised of two separate components or
applications: one or more Probes referred to as FindIT Network Probe and a single Manager called FindIT
Network Manager.
An instance of FindIT Network Probe is installed at each site in the network, performs network discovery and
communicates directly with each Cisco device. A single instance of FindIT Network Manager is installed at
a convenient location in the network and each Probe is associated with the Manager. From the Manager
interface, you can get a high-level view of the status of all the sites in your network, or concentrate on a single
site or device to see information specific to that site or device.
Audience
This guide is primarily intended for network administrators who are responsible for Cisco FindIT Network
Management software installation and management.
Cisco FindIT Network Manager and Probe Administration Guide, Version 2.0
1
Cisco FindIT Network Management Overview
Related Documents
Related Documents
The documentation for Cisco FindIT Network Manager & Probe is comprised of a number of separate guides.
These include:
• Administration Guide (this document)—This is a reference guide that provides details about all the
features and options provided by the software and how they may be configured and used.
• Quick Start Guide—This guide provides details on performing the initial setup for FindIT Network
Manager & Probe using the most commonly selected options. For an overview of the basic tasks required
for managing a network, refer the Cisco FindIT Network Manager and Probe Quick Start Guide.
• Installation Guides
The following table lists all the installation guides of FindIT software that can be deployed on different
platforms. Refer the path provided in the location column for details:
Supported Platforms
Location
Amazon Web Services
Cisco FindIT Network Manager & Probe Installation Guide for Amazon Web
Services
Oracle VirtualBox
Cisco FindIT Network Manager & Probe Installation Guide for Oracle
VirtualBox
Microsoft Hyper-V
Cisco FindIT Network Manager & Probe Installation Guide for Microsoft
Hyper-V
VMWare vSphere,
Cisco FindIT Network Manager & Probe Installation Guide for VMWare
Workstation and Fusion
Ubuntu Linux (Manager Cisco FindIT Network Manager & Probe Installation Guide for Linux
and Probe) and
Raspbian Linux (Probe
only)
Terminology
Term
Description
Hyper-V
A virtualization platform provided by Microsoft Corporation.
Open Virtualization Format (OVF)
A TAR archive containing one or more virtual machines in OVF
format. It is a platform-independent method of packaging and
distributing Virtual Machines (VMs).
Cisco FindIT Network Manager and Probe Administration Guide, Version 2.0
2
Cisco FindIT Network Management Overview
System Requirements for Cisco FindIT Network Manager
Term
Description
Open Virtual Appliance or Application Package that contains the following files used to describe a virtual
(OVA) file
machine and saved in a single archive using .TAR packaging:
• Descriptor file (.OVF)
• Manifest (.MF) and certificate files (optional)
Raspberry Pi
A very low cost, single board computer developed by the Raspberry
Pi Foundation. For more information, see
https://www.raspberrypi.org/.
Raspbian
A Debian-based linux distribution optimized for the Raspberry Pi.
For more information, see https://www.raspbian.org/.
VirtualBox
A virtualization platform provided by Oracle Corporation.
Virtual Hard Disk (VHD)
Virtual hard disk is a disk image file format for storing the complete
contents of a hard drive.
Virtual Machine (VM)
A virtual computing environment in which a guest operating system
and associated application software can run. Multiple VMs can
operate on the same host system concurrently.
• VMWare ESXi
A virtualization platform provided by VMWare Inc.
• VMWare Fusion
• vSphere Server
• VMWare Workstation
vSphere Client
User interface that enables users to connect remotely to vCenter
Server or ESXi from any Windows PC. You can use the primary
interface for vSphere Client to create, manage, and monitor VMs,
their resources, and the hosts. It also provides console access to
VMs.
System Requirements for Cisco FindIT Network Manager
Cisco FindIT Network Manager is distributed as a virtual machine image, as an installer for use with the
Ubuntu Linux distribution, and is available for Amazon Web Services (AWS) through the AWS Marketplace
(https://aws.amazon.com/marketplace).
When running FindIT Network Manager in virtual machine, your hypervisor must be one of the following:
• Microsoft Hyper-V version 10.0 or above
• Oracle VirtualBox version 5.0.2 or above
• VMWare—It can be one of the following:
• ESXi version 5.5 or above
Cisco FindIT Network Manager and Probe Administration Guide, Version 2.0
3
Cisco FindIT Network Management Overview
System Requirements for Cisco FindIT Network Probe
• Fusion version 7 or above
• Workstation version 12 or above
To run FindIT Network Manager under Ubuntu Linux, your environment must be running Ubuntu version
16.04.x (Xenial Xerus) on a 64-bit Intel architecture platform. Cisco recommends using the Ubuntu server
distribution and only installing packages required by FindIT Network Manager.
Table 1 lists the compute resources required for FindIT Network Manager based on the number of devices
under management.
Table 1: FindIT Network Manager Compute Resource Requirements
#Device Supported
# vCPU
RAM
Disk Space
Up to 300
2
4GB
60GB
Up to 2500
12
24GB
60GB
To run FindIT Network Manager in AWS, you will need an AWS account. The following AWS instances
types are supported:
• t2.medium/t3.medium - up to 300 devices under management
• c4.4xlarge/c5.4xlarge - up to 2500 devices under management
FindIT Network Manager is administered through a web user interface. To use this interface, your browser
must be one of the following:
• Apple Safari version 11 (macOS only) or above
• Google Chrome version 72 (Recommended) or above
• Microsoft Edge version 42 or above
• Mozilla Firefox version 65 or above
Note
When using Safari, check that the certificate from FindIT Network Probe is set to Always Trust. Otherwise,
certain functions that depend on the use of secure websockets are expected to fail. This is a limitation of the
Safari web browser.
Your network must allow all instances of FindIT Network Probe to establish TCP connectivity with FindIT
Network Manager. For more details on the ports and protocols used, see Frequently Asked Questions.
System Requirements for Cisco FindIT Network Probe
Cisco FindIT Network Probe is distributed as a virtual machine image, and as installers for use with the
following operating systems:
• Ubuntu Linux distribution running on a PC
• Raspbian Linux distribution running on a Raspberry Pi
Cisco FindIT Network Manager and Probe Administration Guide, Version 2.0
4
Cisco FindIT Network Management Overview
System Requirements for Cisco FindIT Network Probe
FindIT Network Probe is also available as an embedded feature of select Cisco 100 to 500 series products.
To run FindIT Network Probe as a virtual machine, your environment must meet the following requirements:
• Hypervisor:
• Microsoft Hyper-V version 10.0 or above
• Oracle VirtualBox version 5.0.2 or above
• VMWare—It can be one of the following:
• ESXi version 5.5 or above
• Fusion version 7 or above
• Workstation version 12 or above
• Virtual machine resource requirements:
• CPU: 1x 64-bit Intel architecture
• Memory: 512MB
• Disk space: 5GB
To run FindIT Network Manager under Ubuntu Linux operating system, your environment must meet the
following requirements:
• Ubuntu version 16.04.x (Xenial Xerus)
• CPU: 1x 64-bit Intel architecture
• Memory: 512MB
• Disk space: 5GB
To run the FindIT Network Probe on a Raspberry Pi operating system, your environment must meet the
following requirements:
• Hardware: Raspberry Pi 3 Model B
• Disk space: 5GB
• OS: Raspbian Stretch
To run the FindIT Network Probe as an embedded application on a Cisco 100 to 500 series product, you must
have a supported product running a firmware version that supports the FindIT Network Probe feature. Consult
the Cisco FindIT Network Manager – Device Support List for details of hardware and version requirements.
Also consult the administration guide for the product to determine any additional platform-specific requirements.
FindIT Network Probe is administered through a web user interface. To use this interface, your browser must
be one of the following:
• Apple Safari version 11 (macOS only) or above
• Google Chrome version 72 (Recommended) or above
• Microsoft Edge version 42 or above
Cisco FindIT Network Manager and Probe Administration Guide, Version 2.0
5
Cisco FindIT Network Management Overview
System Requirements for Cisco FindIT Network Probe
• Mozilla Firefox version 65 or above
FindIT Network Probe monitors and accesses the network devices that meet the following requirements:
• Must be in the same subnet as the PC that is running the FindIT Network Probe, or be directly attached
to a managed device and reachable via TCP/IP
• Must be a Cisco 100 to 500 Series device with the Bonjour service enabled
Cisco FindIT Network Manager and Probe Administration Guide, Version 2.0
6
CHAPTER
2
Using Cisco FindIT Network Manager and Probe
This chapter contains the following sections:
• Using the Cisco FindIT Network Manager GUI, on page 7
• Using the Cisco FindIT Network Probe GUI, on page 10
• Upgrading FindIT Network Manager and Probe, on page 13
Using the Cisco FindIT Network Manager GUI
Overview of the Cisco FindIT Network Manager GUI with a description of the navigation pane links
Home window
Figure 1: Cisco FindIT Network Manager Home Page
Cisco FindIT Network Manager and Probe Administration Guide, Version 2.0
7
Using Cisco FindIT Network Manager and Probe
Using the Cisco FindIT Network Manager GUI
Table 2: Cisco FindIT Network Manager Home Page
Name
Description
Navigation pane
Provides access to the Cisco FindIT Network Manager features.
Work pane
Area where the feature interface is displayed.
When you click an option in the Navigation pane, its corresponding window opens
in this area.
Header toolbar
The header toolbar contains the following options:
• A toggle button for expanding and collapsing the navigation pane
• Header text
• A series of icons for functions such as language selection, notifications, task
activity, feedback, context sensitive help, and version information.
• The username of the user who has logged into the application
Navigation Pane Options
The Navigation pane provides options to access the major Cisco FindIT Network Manager features.
Table 3: Navigation Pane Options
Icon
Name
Description
Dashboard
The Dashboard allows you to monitor the performance of your
network over time. The dashboard allows you to monitor traffic
levels, connected device counts, and other details about the network.
Network
Displays an overview of all of the locations in the network as either
a map or a list. Contains different views of each network and the
devices discovered. Views include the network topology and a
floor-plan view that allows you to track the physical layout of the
network.
Inventory
The Inventory provides a list of all devices in the network, allows
you to view detailed information about the devices, and to perform
actions such as update firmware, backup configurations and reboot.
Port Management Port Management provides a front panel view of network devices
and allows you to view details about individual ports and make
configuration changes.
Network
Configuration
The Network Configuration page allows you to manage the
configuration profiles for in your network.
Cisco FindIT Network Manager and Probe Administration Guide, Version 2.0
8
Using Cisco FindIT Network Manager and Probe
Using the Cisco FindIT Network Manager GUI
Icon
Name
Description
Network Plug and Network Plug and Play enables zero-touch deployment of network
Play
devices, allowing them to automatically download firmware and
configuration files from FindIT Network Manager at the time of
install.
Event Log
The Event Log page provides a list of all the events that have
occurred in the network, and allows you to use filters to limit the
results to only events of interest.
Reports
Under the Reports heading, you will find a number of reports that
provide life-cycle information about your network devices, including
end of life bulletins, warranty information and service contract
details.
Administration
The Administration pages allow you to maintain the FindIT Network
Manager.
System
TheSystem pages are used to administer the FindIT Network
Manager application.
Header Toolbar Options
The Header toolbar provides access to other system functions and displays system notifications.
Table 4: Header Toolbar Options
Icon
Option
Description
Toggle button
Located on the top left of the header—This toggle button helps to
expand or collapse the navigation pane.
Language Selection This drop-down list allows you to select the language for the user
interface.
Notification Center This icon displays the number and severity of outstanding
notifications in FindIT Network Manager. Click this icon to display
the Notification panel. This panel provides capabilities to filter the
notification events that are displayed. For more details, see Viewing
and Filtering Current Device Notifications, on page 82 in this
guide.
Task Status
The Task Status and Task History for actions performed by FindIT
Network Manager. Click this icon to display tasks pending, in
progress, and completed.
Cisco FindIT Network Manager and Probe Administration Guide, Version 2.0
9
Using Cisco FindIT Network Manager and Probe
Using the Cisco FindIT Network Probe GUI
Icon
Option
Description
Feedback
Click to provide feedback about your experience using the Cisco
FindIT Network Manager and any suggestions for improvements.
Help
The online-help documentation for FindIT Network Manager.
About FindIT
Click on this icon to see information about FindIT Network
Manager, including the current version. If a new version is
available, a badge will be displayed on the icon, and a link to apply
the update will be available in the popup.
User Menu
This dropdown shows the currently logged in user. Click to see
the user role, and to open the user’s profile page or to logout.
Using the Cisco FindIT Network Probe GUI
Overview of the Cisco FindIT Network Probe GUI with a description of the navigation pane links.
In version 2.0 and above of FindIT Network Probe, the Probe user interface is limited to a minimal interface
sufficient for managing the Probe itself. All network management is performed through the FindIT Network
Manager user interface. In the case where the probe application is embedded in a network device such as a
switch or router, you should consult the documentation for that device for more information on managing the
probe application, and the probe user interface is typically integrated with the device administration interface
when the probe version is 2.0 or higher.
Home window
When you log into the Cisco FindIT Network Probe, the Home page appears.
Cisco FindIT Network Manager and Probe Administration Guide, Version 2.0
10
Using Cisco FindIT Network Manager and Probe
Using the Cisco FindIT Network Probe GUI
Figure 2: Cisco FindIT Network Probe Home Page
Table 5: Cisco FindIT Network Probe Home Page
Name
Description
Navigation pane
Provides access to the Cisco FindIT Network Probe
features.
Work pane
Area where the feature interface is displayed.
When you click an option in the Navigation pane,
its corresponding window opens in this area.
Header bar
The header toolbar contains the following options:
• A toggle button for expanding and collapsing the
navigation pane
• Header text including the site name of the Probe
• The username of the user who has logged into
the application
• Language selection drop-down
• A series of icons for functions such as
notifications, feedback, context sensitive help,
and logging out
Navigation Pane Options
The Navigation pane provides options to access the major Cisco FindIT Network Probe features.
Cisco FindIT Network Manager and Probe Administration Guide, Version 2.0
11
Using Cisco FindIT Network Manager and Probe
Using the Cisco FindIT Network Probe GUI
Table 6: Navigation Pane Options
Icon
Name
Description
Troubleshooting
Diagnostic tools that can help you identify problems with your
network may be found under the Troubleshooting section.
Administration
The Administration page allows you to maintain the FindIT
Network Probe network application.
Header Bar Options
The Header bar provides access to other system functions and displays system notifications.
Table 7: Header Bar Options
Icon
Option
Description
Toggle button
Located on the top left of the header—This toggle button helps to
expand or collapse the navigation pane.
Language Selection This drop-down list allows you to select the language for the user
interface.
Feedback
Click to provide feedback about your experience using the Cisco
FindIT Network Probe and any suggestions for improvements.
Help
The online-help documentation for the Cisco FindIT Network
Probe.
About FindIT
Click on this icon to see information about Cisco FindIT Network
Probe, including the current version. If a new version is available,
a badge will be displayed on the icon, and a link to apply the update
will be available in the popup.
Manager Status
The status of the connection between FindIT Network Manager
and the Probe. Click on this icon to open the Manager GUI.
Logout
Click to log out of FindIT Network Probe.
Cisco FindIT Network Manager and Probe Administration Guide, Version 2.0
12
Using Cisco FindIT Network Manager and Probe
Upgrading FindIT Network Manager and Probe
Upgrading FindIT Network Manager and Probe
From time to time, Cisco releases new versions and updates for FindIT Network Manager & Probe and posts
them to the Software Center on cisco.com. FindIT Network Manager periodically checks the Software Center
for updates and, if one is found, displays a badge on About FindIT in the header panel of the UI. You can
click to have the Manager download and apply the update, or you can choose to download the update yourself
and manually apply it.
To have the Manager download and apply the update, do the following:
1. Click About FindIT to open the About FindIT popup. If updates are available for the Manager or any
associated Probes, they will be listed here.
2. If an update is available for the Manager, select the radio button corresponding to that update and click
Upgrade.
The Manager will download and apply the update, and you may view the progress at any time on the
About FindIT popup. Once the update is complete, the Manager application will restart.
To apply a Manager update manually, do the following:
1. Download the FindIT Network Manager Linux installer file by navigating to www.cisco.com/go/findit
and selecting the Download Software for this Product link in the Support pane.
2. Copy the installer file to the Manager filesystem.
3. Execute the installer using the command sh <filename of installer>. For example sh
finditmanager-1.1.0-ubuntu-xenial-amd64.sh. If necessary, enter your password at the sudo prompt.
The Manager application will restart during this process.
You may also apply updates to all the Probes in the network from the Manager. You may update all Probes
in parallel, or you may update Probes individually.
To update all Probes in parallel from the Manager, do the following:
1. Click About FindIT to open the About FindIT popup. If updates are available for the Manager or any
of the associated Probes, they will be listed here.
2. If an update is available for the Manager, perform that update before upgrading the probes. If you try to
update the probes first, you will receive an error message.
3. Select the radio button next to the Probe update and click Upgrade.
4. You may view the progress of the update in the user interface of the Probe.
To update an individual Probe from the Manager, do the following:
1. If an update is available for the Manager, perform that update before upgrading any probes. If you try to
update a probe before updating the Manager, you will receive an error message.
2. Select Network in the navigation. Select the site to be updated in either the Map View or the List View.
3. In the Basic Info panel for the site, select the Actions tab.
4. Click Upgrade.
Cisco FindIT Network Manager and Probe Administration Guide, Version 2.0
13
Using Cisco FindIT Network Manager and Probe
Upgrading FindIT Network Manager and Probe
You may view the progress of the update in the user interface of the Probe.
Note
When using an embedded probe running on a network device, you should consult the documentation for that
device to perform an update. Some devices do not support the updating of the Probe application independently
of the device firmware.
Cisco FindIT Network Manager and Probe Administration Guide, Version 2.0
14
CHAPTER
3
Dashboard
This chapter contains the following sections:
• About Dashboard, on page 15
• Adding a Widget, on page 16
• Modifying a Widget, on page 16
• Deleting a Widget, on page 16
• Modifying the Dashboard Layout, on page 16
About Dashboard
The Dashboard page in the Cisco FindIT Network Manager lets you view the real-time performance of the
network and its devices and provides the data in a graphical format. The dashboard is a customizable
arrangement of user-selectable widgets. Following are the widgets included by default in the dashboard:
• Inventory Summary widget—Displays a breakdown of the devices discovered in the network.
• Device Health widget—Displays the overall health of the devices in the network
• WLAN Client Count widget—Displays the number of devices associated with the selected wireless
network
• Device Client Count widget—Displays the number of devices associated with the selected wireless
access point
• Wireless Top Ten widget – Displays the top ten wireless networks, access points, or clients based on
traffic or client count
• Traffic widget—Displays a graph of the traffic flowing through the selected interface
Controls on each of the widgets allows the data shown to be customized. The organization dropdown at the
top right of the Dashboard may be used to restrict the information displayed to a specific organization.
In the graphical widgets, you may click on the labels in the legend on the graph to toggle the display of each
set of data. This allows you to further refine the data being shown.
Cisco FindIT Network Manager and Probe Administration Guide, Version 2.0
15
Dashboard
Adding a Widget
Adding a Widget
This feature allows you to add one or more widgets to the existing default widgets displayed in the dashboard
to monitor tasks specific to a device or network you wish to view.
Step 1
Click the gear icon located on the top right of the dashboard window and select Add Widget.
Step 2
Select the type of widget to add from the pop-up list. The newly chosen widget appears in the dashboard.
Step 3
Drag the new widget to the desired location in the dashboard and resize if necessary.
Step 4
Click the gear icon again and select View Mode to preserve the changes.
Modifying a Widget
Step 1
Use the drop-down lists within the new widget to select the specific data you wish to display.
Step 2
Click the gear icon in the top right of the widget to modify parameters such as sample interval or thresholds. You may
also click the edit icon displayed on the widget when the dashboard is in Edit Mode to change the title of the widget.
Deleting a Widget
Step 1
Click the gear icon located at the top right of the dashboard window and select Edit Mode.
Step 2
Click the remove widget icon at the top right of the widget to be removed. Rearrange the remaining widgets as desired.
Step 3
Click the gear icon again and select View Mode to preserve the changes.
Modifying the Dashboard Layout
The Dashboard layout may be easily customized using the following steps:
Step 1
Click the gear icon located at the top right of the dashboard window and select Edit Mode.
Step 2
Click in the header of a widget and drag to move the widget in the Dashboard. Other widgets will adjust dynamically
to make room. Click and drag on the edge or corner of a widget to resize. As you rearrange the layout, the dashboard will
dynamically resize to fit in the available width.
Step 3
Click the gear icon again and select View Mode to preserve the changes.
Cisco FindIT Network Manager and Probe Administration Guide, Version 2.0
16
CHAPTER
4
Network
This chapter contains the following sections:
• About Network, on page 17
• About Network Detail, on page 19
• About Network View, on page 19
• Overview of the Topology Map and Tools, on page 19
• Viewing Basic Device Information, on page 22
• Performing Device Actions, on page 24
• Accessing the Device Administration Interface, on page 26
• Viewing Detailed Device Information, on page 26
• Using Floor Plans, on page 29
About Network
The Network page provides an overview of the network as either a geographic map showing the location and
status of each site in the network, or as a list of all sites. In the Map View, the number displayed on each
network icon indicates the number of outstanding notifications that exist for that site, and the color of the icon
indicates the highest severity level outstanding. In the List View, the same information can be seen in the last
column of the table. To see more information about a network, click on the network icon or on the table row
for that site.
When two or more network icons are positioned too closely on the map to be easily distinguished, they will
be replaced with a single cluster icon. Clicking on the cluster icon will automatically zoom the map to a level
where the networks in that cluster can be separated.
The Network Map offers the following controls:
• Map/List selection—Use this control to chose to view networks on a map or in a table.
• Add Network button—Use this button to create a new network record prior to deploying a probe for
that network.
• Organization drop-down—Select an individual organization from the drop-down to limit the networks
displayed.
• Search box—Enter all or part of the name, address or IP address of a network to locate that nework on
the map. Alternatively, enter all or part of the name, IP address, serial number or MAC address of a
device to identify the network where the device is located. As you type, a list of matches is displayed.
Cisco FindIT Network Manager and Probe Administration Guide, Version 2.0
17
Network
About Network
Hover over a match and the corresponding network will be highlighted. Select a match and the
corresponding network will be selected and centered in the view.
• Zoom controls—Use these controls to zoom in and out of the map. Click the (✚) plus sign to zoom in
and the (━) minus sign to zoom out.
• Fit-to-view button—This button automatically zooms out the map so that all network markers can be
displayed.
You may also click and drag anywhere in the map area to move the map in the Work pane.
In the List View, the following controls are available:
• Map/List selection—Use this control to chose to view networks on a map or in a table.
• Column Select icon—This icon allows you to select the columns to be displayed. You can click on the
column headings to sort the table.
• Add Network—Click the (✚) plus sign to add a new network prior to deploying a probe for that network.
• Refresh—Click the refresh button to update the table and display the most current information.
• Organization drop-down—Select an individual organization from the drop-down to limit the networks
displayed.
• Search box—Enter all or part of the name, address or IP address of a network to list only matching
networks in the table.
Clicking on a network icon or row brings up the Basic Info panel for that network. The Basic Info panel
contains the following information:
• Network name
• The organization the network belongs to.
• The physical address of the network
• The Probe IP address for the network and the IP subnet(s) discovered at the network
• The software version of the Probe
• The connection status
• The number of managed devices in this network
• A list of all current, unacknowledged notifications for this network
• A list of events that occurred for this network in the previous 24 hours
You may also carry out the following actions for a network from the Basic Info panel:
• Click Manage to view a detailed information about the network including the network topology and
floor plans
• Click Settings to display the Network Detail panel. See About Network Detail, on page 19 for more
information on the Network Detail panel
• Click on the Actions tab to display additional actions available for the network
• Click Remove to delete this network and all associated data from the manager
Cisco FindIT Network Manager and Probe Administration Guide, Version 2.0
18
Network
About Network Detail
• Click Upgrade to update the Probe software at this network
• Click Show Tech to generate a Network Show Tech archive for this network
About Network Detail
The Network Detail panel allows you to view and update information specific to that network. This information
includes:
• Key network parameters including the network name, description, organization and default device group
• The location of the network
• The credentials to use for the network when uploading inventory information to Cisco Active Advisor
• Logging configuration for the Probe in this network. See Managing Probe Log Settings, on page 86 for
more information on configuring Probe logs
About Network View
Click Manage in the network’s Basic Info panel, to display the Network View of that network. The Network
View offers multiple views of the network:
• Topology view—Displays a logical topology of all the discovered devices in the network. Information
about each device is displayed, and you may perform actions on selected Cisco products
• Floor Plan view—Lets you document the physical location of your network devices in your environment
Following are the additional controls provided in common for all the tasks that you perform in the Network
View:
• Organization and Network selection—These dropdowns allow you to switch between networks and
organizations without returning to the main network page. To view the topology or floorplan for a different
network, simply select that network using the dropdown
• Network Actions dropdown—This dropdown allows selected actions to be performed on all devices in
the network that support that action. For example, you may backup all network device configurations
with a single click. The Network Actions dropdown also allows you to restart the discovery process for
the network, and upload your inventory to Cisco Active Advisor at https://www.ciscoactiveadvisor.com.
For more information about Cisco Active Advisor, see https://help.ciscoactiveadvisor.com
Overview of the Topology Map and Tools
About the Topology Map
The FindIT Network Manager & Probe query discovered devices for network connectivity details and build
a graphical representation or topology from the information gathered. The data collected includes CDP &
LLDP neighbor information, MAC Address tables, and Associated Device tables from Cisco 100 to 500 Series
Cisco FindIT Network Manager and Probe Administration Guide, Version 2.0
19
Network
Overview of the Topology Map and Tools
switches, routers and wireless access points. This information is used to determine how the network is
constructed. When the network contains network infrastructure devices that are not manageable for any reason,
FindIT Network Manager & Probe will attempt to infer the topology based on the information that can be
collected.
You may click on devices or links in the topology to display the Basic Info panel for that device or link. The
Basic Info panel provides more detailed information about the device or link, and allows you to carry out
different actions on a device.
Clicking on Overlays in the Topology Map displays the Overlays & Filters panel. This panel allows you
to limit the devices displayed in the topology by device type or by tag. It also allows you to enhance the
topology to show additional information such as the traffic load on links or how a particular VLAN is configured
in the network.
Accessing the Topology Map
To access the Topology Map, first select Network from the Navigation, click the icon or table row for the
network you are interested in, then click View. The Topology Map for that network is displayed in the work
pane.
Topology Controls
The Topology Controls are located on the top left of the Topology Map.
Table 8: Topology Controls
Icon
Icon Name
Description
Zoom in
Adjusts the Topology window's view. Click the ✚ (plus)
icon on the menu bar to increase the size of the network
in the viewing area.
Zoom out
Adjusts the Topology window's view. Click the ━ (minus)
icon to reduce the size of the network in the viewing area.
Relayout Topology
Re-enable automatic layout of the topology after it has
been disabled by manual changes. Redraw the topology
using the automatic layout algorithm.
Zoom by selection
Click and drag to select an area to zoom in on.
Fit stage
Zoom until the entire network fills the viewing area.
Enter full screen mode
Fill the screen with the FindIT Network Manager user
interface.
Export Topology
Export the current topology view as an image in PNG
format. The image will be saved to the default download
location for the browser.
Cisco FindIT Network Manager and Probe Administration Guide, Version 2.0
20
Network
Overview of the Topology Map and Tools
Icon
Icon Name
Description
Topology Settings
Adjust the labels displayed for the topology icons.
Topology Icons
The following icons appear in the Topology window:
Table 9: Topology Icons
Icon
Network Element
Description
Access Point
Representation of a Wireless Access Point.
Cloud
Represents a network or part of a network that is not
managed by FindIT Network Probe.
Links
Links are connection lines between devices. Click a link
to display the target and the source device names and
other basic details such as speed and so on.
The thickness of the link represents the speed of the link,
with a thin line representing 100Mbps or below and a
thick line representing 1Gbps or above. A dashed line
represents a wireless connection.
Router
Represents a Router.
Switch
Represents a Switch.
Host
Represents a host attached to the network using a wired
connection.
Wireless Host
Represents a host attached to the network using a wireless
connection.
Overlays & Filters Panel
This panel appears on the right of the Topology map when Overlays is clicked. Overlays may be found at
the top-right of the Topology, next to the search box.
Cisco FindIT Network Manager and Probe Administration Guide, Version 2.0
21
Network
Viewing Basic Device Information
Table 10: Overlays & Filters Panel
Item
Description
Select Overlay
This feature enhances the Topology map with additional information based on the
view selection. It can be one of the following:
• Link Utilization View—Identifies current network performance by monitoring
the amount of traffic. This traffic is displayed using the color coded links in
the Topology map. The color coding changes based on the percentage
utilization of the link. Green represents links that are only moderately loaded,
while orange and red represent links that are approaching capacity limits.
Controls are provided to allow you to adjust the thresholds for different colors.
• VLAN View—Displays where a VLAN is enabled in the network. This can
be used to identify a partitioned VLAN or other misconfiguration.
On selecting VLAN View in the Overlay drop-down, a second drop-down
box appears below this field where you can select the VLAN ID to be
displayed.
• POE View—Highlights links in the topology map which indicates devices
that are currently being powered from a POE-enabled switch.
• L2 Path Trace—Shows the layer 2 path traffic between the two selected
devices takes through the network. Devices may be selected by typing the
hostname, MAC address or IP address in the fields provided, or by
shift-clicking on two devices in the topology map.
Select Tag
Specify a Device Tag in the text box below the Select Tag label to filter the
topology to show devices matching the specified tag. Device tags are assigned in
the Detailed Info panel.
Show only:
Check the check box against the devices in the list that you wish to view in the
Topology map. This feature helps you filter the devices you want to view in the
map and removes the ones that are unchecked in the device list.
• Routers
• Switches
• Wireless
• Hosts
• Others
Viewing Basic Device Information
Click on a network device such as a switch or a router, or a link connecting two devices, to view basic
information about the device including outstanding notifications, and actions that may be performed. The
Basic Info panel also provides access to more detailed information for a device, and allows you to directly
access the administration interface of the device.
Cisco FindIT Network Manager and Probe Administration Guide, Version 2.0
22
Network
Viewing Basic Device Information
Note
To view detailed information for a device, see Viewing Detailed Device Information, on page 26.
To view more information on accessing the device administration interface, see Accessing the Device
Administration Interface, on page 26.
The table in the following section provides the type of device details that are displayed. To view the basic
device information do the following:
Step 1
In the Network page, select a network and click Manage to display the topology.
Step 2
In the Topology map, click on a network device such as a switch or a router for which you want to view the details.
Step 3
In the Basic Info panel, the device details are displayed under the Overview tab. Each of these items are described in
the following table.
Table 11: Basic Device Information
Item Name
Description
Information Panel
Model
Model name of the device.
Description
Device or product description.
Firmware Version
The firmware version of the device.
PID VID
Product ID and the Version ID.
MAC Address
The Media Access Control (MAC) address is a standardized data link layer
address that is required for certain network interface types. These addresses are
specific and unique to each device and are not used by other devices in the
network.
Serial Number
The device serial number.
Status
The online / offline status of the device.
Domain
The domain name of the device.
Vendor
The manufacturer of the device.
Network
The name of the network where the device is located.
Organization
The organization to which the device belongs.
Notification Panel
Cisco FindIT Network Manager and Probe Administration Guide, Version 2.0
23
Network
Performing Device Actions
Item Name
Description
Notifications Panel Header—The notifications panel header shows summary counts of the outstanding notifications
for the device.
Notifications Panel Body—The body of the notifications panel lists the outstanding notifications for the device. To
view and filter a complete list of all device notifications, see Viewing and Filtering Current Device Notifications, on
page 82. Check the check box against a notification to acknowledge it and remove it from the list of notifications. You
may use notification filtering to display acknowledged notifications if needed..
Events Panel
The Events Panel shows a list of all notifications and other events that have occurred over the past 24 hours for this
device. To view and filter a complete list of all events for all devices, visit the Event Log on the Manager.
POE Panel
The POE Panel is displayed on POE enabled switches and provides a summary of the power usage across each of the
ports in the device.
Stack Information Panel
The Stack Information panel is displayed for switch stacks, and shows the hardware details for each member of the
stack, including model information, serial number and MAC address
Service
Lists the network services identified on the device.
Connected Device
Host devices include the Connected Device panel. This panel shows how the host is attached to the network, listing
the upstream network device and, where applicable, port that the host is connected to.
In addition to the Overview tab, the Basic Info panel also has an Actions tab that allows you to perform various operational
tasks on the device. For details, refer to Performing Device Actions, on page 24.
Performing Device Actions
Actions such as firmware update, configuration backup & restore and reboot are easily performed for devices
in the network. To perform these actions, do the following:
Step 1
On the Topology Map or Inventory page, click on a network device such as a switch or a router for which you want to
perform the action.
Step 2
In the Basic Info panel, select the Actions tab. Depending on the device capabilities one or more of the following actions
are displayed:
Cisco FindIT Network Manager and Probe Administration Guide, Version 2.0
24
Network
Performing Device Actions
Update firmware to latest
Allows you to apply the latest firmware update to the device. The Probe will
download the update from Cisco and then upload it to the device. The device will
reboot at the completion of the update.
Upgrade From Local
Allows you to upload a firmware upgrade file from your local drive. The Probe will
upload the file to the device, and the device will reboot at the completion of the
update.
Backup Configuration
Allows you to save a copy of the current device configuration on the Manager.
1. Click Backup Configuration.
2. In the Backup Configuration window, optionally, you may add a note in the
text box for the backup you wish to perform.
Note
This note is displayed whenever the backup is listed in the GUI.
3. Click Save Backup to complete this action or Cancel if you no longer wish to
proceed.
A backup configuration job is created and may be viewed in the Task Center.
Restore Configuration
Allows you to restore a previously backed up configuration to the device.
Click Restore Configuration.
The following backup configuration options are provided:
• Backups for device name—Lists all available backups to configure for a
specific device
• Backup for other device—Lists all available backups to configure other devices
of the same type or same Product ID
• Backup for other compatible device—Lists all available backups to configure
other devices in the series that are compatible with the selected device
To perform the backup configuration, do the following:
1. In the Restore Configuration window, select the backup you wish to restore
to the device.
Use the scroll bar to view all the available backups and click the corresponding
radio button. This enables the Restore Configuration button.
Alternatively, you may choose to upload a configuration file. To do so, drag
and drop the configuration file onto the target area, or click on the target area
to select a file from the file system.
2. Click Restore Configuration to complete this action.
A restore configuration job is created and may be viewed in the Task Center.
Reboot
Restarts the device.
Note
When you click this button, you will be prompted to click again to
confirm.
Cisco FindIT Network Manager and Probe Administration Guide, Version 2.0
25
Network
Accessing the Device Administration Interface
Save Running Configuration
For devices that support separate running and startup configurations, this action
copies the current running configuration to the startup configuration. This ensures
any configuration changes that are retained when the device next reboots.
Delete
Remove an offline device from the Topology and Inventory.
Accessing the Device Administration Interface
In some circumstances, you may need to access the administration interface of a network device directly. To
access the administration interface, do the following:
Step 1
On the Topology or Inventory page, click on a network device such as a switch or a router for which you want to access
the administration interface.
Step 2
In the Basic Info panel, click View at the upper right corner. A new window will open in your browser showing the
device administration interface
Note
When you access the administration interface by clicking View, your browser will connect to the device through
the Manager. This means that if you are accessing the network remotely, only the Manager needs to be directly
reachable from outside the site.
Because these connections all go through the same host - the Manager - cookies for one device will be presented
to other devices, and may be updated by other devices if the name is the same. A common symptom of this is
the browser session on the first device will be immediately logged out after connecting to a second device
because the session cookie has been updated.
Viewing Detailed Device Information
Step 1
On the Topology or Inventory page, click on a network device such as a switch or a router for which you want to view
detailed information.
Step 2
In the Basic Info panel, click More at the upper right corner.
Step 3
In the Detailed Info panel, you will find a detailed list of device information on the left, and additional functions under
the following tabs:
• Dashboard—Displays a series of dashboard widgets specific to the device
• Port Management—Allows you to manage the configuration of the switch ports
Note
This information is available only for devices with switch ports.
• Wireless LANs—Allows you to view the Wireless LANs configured on the device
Note
This information is available only for wireless devices.
Cisco FindIT Network Manager and Probe Administration Guide, Version 2.0
26
Network
Viewing Detailed Device Information
• Event Log—Provides a list of past actions and notifications for this device
• Config Backups—Allows you to view a list of backup configuration of the devices and perform actions such as
restore, save or delete configuration
Note
This information is available only for devices that support the Backup Configuration operation
• Pending Config—Compares the desired configuration based on the configuration profiles defined with the current
configuration on the device and highlights any differences.
Note
This panel is only displayed for devices supported for configuration operations where the current
configuration does not match the desired configuration.
Each of these are described in the following steps:
Step 4
A detailed list of information about the device is displayed on the left. This list contains the following information:
Table 12: Detailed Device Information
Item Name
Description
Hostname
Click Edit next to the device name to modify the device hostname. Click Save to save the
changes.
Model
Model name of the device.
MAC Address
The Media Access Control (MAC) address is a standardized data link layer address that is
required for certain network interface types. These addresses are specific and unique to each
device and are not used by other devices in the network.
Status
Displays the current status of the device. For example, online or offline.
Actions
The Actions dropdown and Open Device GUI icon allow you to act on the device from the
Detailed Info panel.
IP
The IP Addresses of the device.
Domain
The domain name of the device.
PID VID
Product ID and the Version ID.
Serial Number
The serial number of the device.
Vendor
The manufacturer of the device.
Description
Device or product description.
Device Group
The device group that this device belongs to.
Network
The network that this device belongs to.
Organization
The organization that this device belongs to.
PnP Parameters
The image and config file to be delivered to the device using Network Plug and Play. Click
the Edit icon to make changes, then click the Save icon to apply the changes or Cancel to
exit without saving.
Cisco FindIT Network Manager and Probe Administration Guide, Version 2.0
27
Network
Viewing Detailed Device Information
Item Name
Description
TAGs
In the TAGs field, enter any alphanumeric characters and then press Enter to create new tags
for this device. To delete an existing tag, click on the ✖ in the tag. Click Save to save the
changes.
Tags may be used to help identify devices with common characteristics. You may use tags
elsewhere in FindIT Network Probe to restrict views of the network to displaying a subset of
devices.
Firmware Version
The version of the firmware currently running on the device. If a later version is available,
then that version is displayed in parentheses beside the current version. Icons are also provided
to view the release note for the update, and to apply the same to the device.
Discovery Method
Displays the protocols and devices by which this device was discovered.
Pending Config
Displays the status of the device configuration and whether there are any differences between
the current config for the device and the expected config.
Step 5
Click Dashboard to display a set of widgets showing the current state of the device. For more details, see About
Dashboard.
Step 6
Click Port Management to view and manage the configuration of the switch ports on the device. A visual representation
of the device is displayed, similar to that shown in the Port Management page.
This window specifies the port details of the device in a visual representation. The model and serial number of the
device are displayed above the image and a tabular view of the ports is displayed underneath. For more details on the
operations, see About Port Management, on page 33.
Step 7
Click WLAN to view the radio settings and the Wireless LANs configured on this device.
Step 8
Click Event Log to see a list of historical notifications and other events that are recorded for this device. You can use
filters to limit the entries that are displayed. For more details, see About the Event Log.
Click Config Backups to view and manage configuration backups for this device. On this tab, you will see a table
listing each backup stored on the Probe, with the following details:
Step 9
Table 13: Config Backups
Item
Description
Timestamp
The date and time the configuration backup was taken.
Comment
The notes entered by the user at the time the backup was performed.
Backed up by
The user who performed the configuration.
Actions
Choose one of the following backup actions:
• Restore configuration to device—Restores the selected backup to the device
• Save configuration to PC—Saves the backup as a zip file to your local drive on your
PC
• Delete configuration—Removes the backup from the Probe
• View configuration—Helps view the contents of the configuration backup in the browser
Cisco FindIT Network Manager and Probe Administration Guide, Version 2.0
28
Network
Using Floor Plans
You may also trigger a config backup from the tab by clicking Backup Configuration.
Step 10
Click Pending Config to view a side-by-side comparison between the current device config and the expected
configuration based on the configuration profiles applied to the device. Configurations are represented in a
device-independent format and any differences are highlighted. You may use the buttons at the top of the page to apply
any outstanding changes, accept the current device configuration, or re-read the current device configuration.
Using Floor Plans
The Floor Plan view allows you to keep track of the physical locations of your network equipment. You may
upload a plan for each floor in the building(s) and position each of the network devices on the plan. This helps
you to easily locate devices if maintenance is required. The Floor Plan is similar in operation to the Topology
Map, and devices placed on the Floor Plan may be operated in the same way as devices in the Topology Map.
Creating a New Floor Plan
1. Navigate to Network View and click Floor Plan. If an existing floor plan is displayed, click the Home
icon at the top left of the floorplan.
2. If the building you wish to add a floor plan to has already been created, go to the next step. Otherwise,
enter a name for the building that houses the floor into the New Building field. Click the save icon.
3. Drag and drop an image file containing the floor plan onto the target area for the new floor, or click on
the target area to specify a file to upload. Supported image formats are png, gif, and jpg. Image
files can be a maximum of 500KB in size.
4. Enter a name for the floor into the New Floor field. Click the save icon.
5. Repeat steps 2 to 4 for each building and floor with network devices.
Placing Network Devices on a Floor Plan
1. Navigate to Network View and click Floor Plan. If the floor plan you are interested in is not already
displayed, then click on the floor plan.
2. Click Add Devices, and then use the search box at the bottom left to find the device you wish to place.
You may search by hostname, device type, or IP address. As you type, matching devices will be displayed
below the search box. Gray icons represent devices that have already been placed on a floor plan.
3. Click and drag a device to add it to the floor plan in the correct location. If you select a device that has
already been placed on another floor plan, it will be removed and added to this one.
4. Repeat steps 2 & 3 until all devices have been added to the floor plan.
Removing a Device from the Floor Plan
1. Navigate to Network View and click Floor Plan. If the floor plan you are interested in is not already
displayed, then click on the floor plan.
2. Identify the device you wish to remove and click to select it.
3. Click on the red cross that is displayed to remove the device from the floor plan.
Cisco FindIT Network Manager and Probe Administration Guide, Version 2.0
29
Network
Using Floor Plans
Changing the Floor Plan
1. Navigate to Network View and click Floor Plan. If an existing floor plan is displayed, click the Home
icon at the top left of the floorplan.
2. To change a building name, click the edit icon next to the name. Once the changes are complete, click
the save icon.
3. To change a floor plan, click the edit icon next to the floor plan name. You may change the floor plan by
dragging a new image file to the target area, or clicking on the target area to upload a new file from your
PC. You may also change the name of the floor plan. Once the changes are complete, click the save icon.
Removing a Floor Plan
1. Navigate to Network View and click Floor Plan. If an existing floor plan is displayed, click the Home
icon at the top left of the floorplan
2. Identify the floor plan you wish to remove, and click the delete icon at the top right corner of the image
target area.
3. If you wish to remove an entire building containing all the floor plans, click the delete icon next to the
building name.
Cisco FindIT Network Manager and Probe Administration Guide, Version 2.0
30
CHAPTER
5
Inventory
This chapter contains the following sections:
• Viewing Device Inventory, on page 31
Viewing Device Inventory
The Inventory page displays a complete list of the devices and their details in a tabular view. Additionally,
it also provides action buttons to perform configuration tasks and apply the latest firmware updates for
supported devices. The following table provides details of the information displayed:
Table 14: Inventory Details
Item
Description
Hostname
Displays the name of the device.
Type
The type of device such as a switch, router or wireless access point
(WAP).
Tags
Lists any tags associated with the device.
IP
The Internet Protocol (IP) addresses of the device.
MAC (hidden by default)
The Media Access Control (MAC) address is a standardized data link
layer address that is required for certain network interface types. These
addresses are specific and unique to each device and are not used by
other devices in the network.
Serial Number
The serial number for the device.
Version
The current firmware version of the device.
Model
Model name of the device.
Organization
The organization to which the device belongs.
Network
The network to which the device belongs
Notification
A count of the outstanding notifications for the device
Cisco FindIT Network Manager and Probe Administration Guide, Version 2.0
31
Inventory
Viewing Device Inventory
Item
Description
PnP Status (hidden by default)
The current Network Plug and Play status for the device. For more
information, see the Network Plug and Play pages.
The following additional controls are available on the Inventory page:
• Select columns button—Use this button located at the top left of the table to choose which columns to
display
• Filter Box—You may use the Filter box to limit the display by typing device names, device types, serial
numbers and so on. By default, the inventory is filtered to display only network devices
• Add icon—Click the (✚) plus icon to add new devices to the inventory prior to the device being
discovered. When manually adding a device to the inventory you can provide basic information about
the device including identity information, organization and device group, and PnP settings. Providing
this information ahead of time ensures the device will be correctly managed when it is connected to the
network
• Refresh button—Click this button to update the table to show the latest available information
• Actions buttons—The following action buttons allow you to perform actions on one or more selected
devices
• Download Latest Firmware
• Apply Firmware Upgrade From Local
• Backup Configuration
• Restore Configuration
• Reboot Device
• Save Running Configuration
• Delete
Action buttons are only displayed when one or more devices supporting actions are selected.
Note
For more details on these actions, see Performing Device Actions
Cisco FindIT Network Manager and Probe Administration Guide, Version 2.0
32
CHAPTER
6
Port Management
This chapter contains the following sections:
• About Port Management, on page 33
About Port Management
Port Management provides a front panel view of each device that includes switch ports that may be configured
by FindIT Network Manager. This page allows you to view the status of the ports including traffic counters,
and make changes to the port configuration. This page also lets you view and configure the Smartports role
for ports on devices that support Smartports. You may use the search box to limit the devices displayed. Type
in all or part of a device name, product ID, or serial number to find the desired device.
A list view of the same information is also provided to show all the switch ports in a tabular format. The front
panel view in Port Management presents two different views of the device:
• Physical—This view allows you to see the status and change the configuration of the port at the physical
layer. You may view or change settings for speed, duplex, flow control, Energy Efficient Ethernet (EEE),
Power over Ethernet (PoE), and VLANs. Each port is shown with a green LED indicating link and a
yellow LED indicating that power is being supplied to the attached device
• Smartports—This view allows you to see the current Smartports role for each port, and to change the
role. Each port is overlaid with an icon indicating the current role
Note
A Smartport is an interface to which a built-in (or user-defined) template may be applied. These templates
are designed to provide a means of quickly configuring the device to support the communication requirements
and utilize the features of various types of network devices.
To view the status of a port, click on the port in either the front panel view or list view. The Basic Info panel
for the port appears, showing a series of panels as follows:
• General— The General panel shows the physical layer status of the port
• Ethernet— Allows you to control speed and duplex settings
• VLAN — The VLAN panel shows the VLANs currently configured on the port. Click the Select VLAN
or Create VLAN buttons to modify this configuration
Cisco FindIT Network Manager and Probe Administration Guide, Version 2.0
33
Port Management
About Port Management
• POE—The POE panel is only displayed for POE-enabled ports, and allows you to configure the POE
settings for the port. You may also power-cycle an attached POE device by clicking the Toggle Power
button
• Green Ethernet—The Green Ethernet panel allows you to manage the Energy Efficient Ethernet (EEE)
configuration for the port
• Smartports—The Smartports panel shows the Smartports roles available for this port. Click on a role
to apply that configuration to the port. The currently configured role is highlighted.
To make changes to the port settings, click the edit icon in the top right of the pane containing that setting.
Once the changes have been made, click the Save icon.
Cisco FindIT Network Manager and Probe Administration Guide, Version 2.0
34
CHAPTER
7
Network Configuration
This chapter contains the following sections:
• About Network Configuration, on page 35
• Using the Wizard, on page 35
• Configuring Time Management, on page 36
• Configuring DNS Resolvers, on page 36
• Configuring Authentication, on page 37
• Configuring Virtual LANs, on page 38
• Configuring Wireless LANs, on page 39
About Network Configuration
The Network Configuration pages allow you to define various configuration parameters that typically apply
to some or all devices in the network. These parameters include configuration such as time settings, domain
name services, administrator authentication, and Virtual LANs and Wireless LANs. You may create
configuration profiles for each of these areas separately, or you may use the wizard to create profiles for each
area in a single workflow. The configuration profiles are applied to one or more device groups, and then
pushed out to the devices.
Using the Wizard
The wizard allows you to create configuration profiles for each of the Network Configuration elements and
assign those profiles to one or more device groups in a single workflow.
Using the Wizard
1. Navigate to Network Configuration > Wizard.
2. In the Device Group Selection screen, enter a profile name for this configuration, choose an organization
and select one or more device groups to be configured. Click Next.
3. In each of the screens that follow, select the configuration as required. For more details on these parameters,
see the following sections.
Cisco FindIT Network Manager and Probe Administration Guide, Version 2.0
35
Network Configuration
Configuring Time Management
4. Complete the configuration settings on each screen and click Next. If you do not wish to configure settings
on a particular screen for this profile, click Skip. Click Back to visit the previous screens or you may
click the headings on the left.
5. Complete the configuration and review the settings on the final screen. Click Finish to apply the
configuration to the selected devices.
Configuring Time Management
The Time Management page allows you to configure timezones, daylight saving, and NTP servers for the
network. The following sections provide you instructions on creating, modifying and deleting the Time Settings
configuration profile.
Creating a Time Management Configuration Profile
1. Navigate to Network Configuration > Time Management.
2. Click the ✚(plus) icon to add a new profile.
3. On the Device Group Selection section, enter a profile name for this configuration, choose an organization
and select one or more device groups to be configured.
4. In the Time Setting section, select an appropriate timezone from the drop-down list.
5. Optionally enable Daylight Saving by checking the check box, and then specify the parameters for daylight
saving in the fields provided. You may choose to specify fixed dates or a recurring pattern. You may also
specify the offset to be used.
6. Optionally enable the Network Time Protocol (NTP) in the Use NTP section for clock synchronization
by checking the check box. In the boxes provided specify at least one NTP server address.
7. Click Save.
Modifying a Time Management Configuration Profile
1. Select the radio button next to the profile to be changed, and click the edit icon.
2. Make the required changes to the profile settings and click Update.
Removing a Time Management Configuration Profile
1. Select the radio button next to the profile which needs to be removed.
2. Click the delete icon.
Configuring DNS Resolvers
The DNS Resolvers page allows you to configure the domain name and domain name servers for the network.
The following sections provide you instructions on creating, modifying and deleting the DNS resolvers
configuration profile.
Cisco FindIT Network Manager and Probe Administration Guide, Version 2.0
36
Network Configuration
Configuring Authentication
Creating a DNS Resolver Configuration Profile
1. Navigate to Network Configuration > DNS Resolvers.
2. Click the ✚(plus) icon to add a new profile.
3. On the Device Group Selection section, enter a profile name for this configuration, choose an organization
and select one or more device groups to be configured.
4. Specify the domain name for the network.
5. Specify at least one DNS server address.
6. Click Save.
Modifying a DNS Resolver Configuration Profile
1. Select the radio button next to the profile to be changed, and click the edit icon.
2. Make the required changes to the profile settings and click Update.
Removing a DNS Resolver Configuration Profile
1. Select the radio button next to the profile to be removed.
2. Click the delete icon.
Configuring Authentication
The Authentication page allows you to configure administrative user access to network devices. The following
sections provide you instructions on creating, modifying and deleting the authentication configuration profile.
Creating an Authentication Configuration Profile
1. Navigate to Network Configuration > Authentication.
2. Click the ✚(plus) icon to add a new profile.
3. On the Device Group Selection section, enter a profile name for this configuration, choose an organization
and select one or more device groups to be configured.
4. Specify at least one username and password combination for local user authentication. Additional users
may be added by clicking the ✚ (plus) icon.
5. You may also choose to require the use of complex passwords.
6. Click Save.
Modifying an Authentication Configuration Profile
1. Select the radio button next to the profile to be changed, and click the edit icon.
2. Make the required changes to the profile settings and click Update.
Cisco FindIT Network Manager and Probe Administration Guide, Version 2.0
37
Network Configuration
Configuring Virtual LANs
Removing an Authentication Configuration Profile
1. Select the radio button next to the profile which needs to be removed.
2. Click the delete icon.
Configuring Virtual LANs
The Virtual LANs page allows you to split your switch network into multiple virtual networks or VLANs.
You can find the existing VLANs in the network that were not configured by the Manager also displayed on
this page in a separate table. The following sections provide you instructions on creating, modifying and
deleting Virtual LAN configuration profiles.
Creating a Virtual LAN
1. Navigate to Network Configuration > Virtual LANs.
2. Click the ✚(plus) icon to add a new VLAN.
3. On the Device Group Selection section, enter a profile name for this configuration, choose an organization
and select one or more device groups to be configured.
4. Specify a descriptive name for the VLAN, and the VLAN ID to be used. The VLAN ID should be a
number in the range 1-4094.
5. You may create multiple VLANs using a single profile. If you want to create additional VLANs in this
profile, click Add Another and go back to step 4.
6. Click Save. The new VLAN will be created on all VLAN-capable devices in the selected groups.
If the VLAN ID of the newly created VLAN matches an existing VLAN already present on devices in the
device group, that VLAN will be adopted by the Manager and removed from the discovered Virtual LANs
table.
Modifying a VLAN
1. Check the radio button next to the VLAN to be changed, and click the edit icon.
2. Make the required changes to the VLAN settings and click Update.
Removing a VLAN
Check the radio button next to the VLAN to be removed, and click the delete icon.
Removing a VLAN not created by the Probe
In the table of discovered VLANs, click the delete icon next to the VLAN or VLANs to be removed.
Note
VLAN 1 may not be deleted.
Cisco FindIT Network Manager and Probe Administration Guide, Version 2.0
38
Network Configuration
Configuring Wireless LANs
Configuring Wireless LANs
The Wireless LANs page allows you to manage the wireless networks in your environment. You can find
the existing Wireless LANs in the network that were not configured by the Manager also displayed in a
separate table. The following sections provide you instructions on creating, modifying and deleting Wireless
LAN configuration profiles.
Creating a Wireless LAN
1. Navigate to Network Configuration > Wireless LANs.
2. Click the ✚(plus) icon to add a new Wireless LAN.
3. On the Device Group Selection section, enter a profile name for this configuration, choose an organization
and select one or more device groups to be configured.
4. Specify an SSID name for the Wireless LAN, and the VLAN ID that it should be associated with. The
VLAN ID should be a number in the range 1-4095, and if it does not already exist in the network, a new
VLAN will be created automatically.
5. Optionally change the Enable, Broadcast, Security and Radio settings to match your requirements.
6. You may create multiple Wireless LANs using a single profile. If you want to create additional Wireless
LANs in this profile, click Add Another and go back to step 3.
7. Depending on the security mode selected – Enterprise or Personal – specify either the RADIUS server
to be authenticated against, or a pre-shared key.
8. Click Save. The new WLAN will be created on all devices with wireless access point capabilities in the
selected groups.
If the Wireless LAN configuration of the newly created profile matches an existing Wireless LAN already
present on devices in the device group, that Wireless LAN will be adopted by the Manager and removed from
the discovered Wireless LANs table.
Modifying a Wireless LAN
1. Check the radio button next to the Wireless LAN to be changed, and click the edit icon.
2. Make the required changes to the Wireless LAN settings and click Update.
Removing a Wireless LAN
Select the radio button next to the Wireless LANs to be removed, and then click the delete icon.
Note
If a Virtual LAN was created automatically when creating the Wireless LAN, the Virtual LAN will not be
deleted when the Wireless LAN is deleted. The Virtual LAN may be deleted on the Virtual LANs page.
Cisco FindIT Network Manager and Probe Administration Guide, Version 2.0
39
Network Configuration
Configuring Wireless LANs
Removing a Wireless LAN Not Created By the Manager
In the table of discovered Wireless LANs, click the radio button for the Wireless LAN to be removed and
then click the delete icon. In some cases, a WLAN may not be able to be deleted from certain devices. In
these cases, it will be necessary to make changes to the device configuration directly.
Cisco FindIT Network Manager and Probe Administration Guide, Version 2.0
40
CHAPTER
8
Network Plug and Play
This chapter contains the following sections:
• About Network Plug and Play, on page 41
• Network Requirements, on page 41
• Setting up Discovery using Plug and Play Connect, on page 43
• Configuring the Network Plug and Play Service, on page 44
• Monitoring Network Plug and Play, on page 49
About Network Plug and Play
Network Plug and Play is a service that works in conjunction with Network Plug and Play enabled devices
to allow firmware and configuration to be managed centrally, and to allow zero-touch deployment of new
network devices. When installed, a Network Plug and Play enabled device will identify the Network Plug and
Play server through one of manual configuration, DHCP, DNS, or the Plug and Play Connect service. The
following sections provide more detail on the configuration of the Network Plug and Play service in Cisco
FindIT Network Manager.
Network Requirements
A Network Plug and Play device will automatically find the address of the Network Plug and Play server
using one of the following methods. Each method will be attempted in turn until an address is found or all
methods have failed. The methods used are, in order:
• Manual configuration—A Network Plug and Play enabled device may be manually configured with
the address of the server through the administration interface
• DHCP—The address of the server may be supplied to the device in the Vendor-specific Information
option
• DNS—If the DHCP Vendor-specific Information option has not been provided, then the device will
perform a DNS lookup for the server using a well-known hostname
• Plug and Play Connect Service—Finally, if no other method has been successful, the device will attempt
to contact the Plug and Play Connect service. This service will then redirect the device to your server
Cisco FindIT Network Manager and Probe Administration Guide, Version 2.0
41
Network Plug and Play
Network Requirements
Once the device has identified the server, it will contact the server and update firmware and configuration as
specified by the server.
Setting up Discovery using DHCP
To discover the server address using DHCP, the device will send a DHCP discover message with option 60
that contains the string “ciscopnp”. The DHCP server must send a response containing the Vendor-specific
Information option (option 43). The device extracts the server address from this option and uses this address
to contact the server. An example of an option 43 string containing the address of a Network Plug and Play
server is “5A1N;B2;K4;I172.19.45.222;J80”.
The option 43 string has the following components, delimited by semicolons:
• 5A1N—Specifies the DHCP sub-option for Plug and Play, active operation, version 1, no debug
information. It is not necessary to change this part of the string.
• B2—IP address type:
• B1 = hostname
• B2 = IPv4
• Ixxx.xxx.xxx.xxx—IP address or hostname of the server (following a capital letter i). In this example,
the IP address is 172.19.45.222.
• Jxxxx—Port number to use to connect to the server. In this example, the port number is 80. The default
is port 80 for HTTP and port 443 for HTTPS.
• K4—Transport protocol to be used between the Cisco Plug and Play IOS Agent and the server:
• K4 = HTTP (default)
• K5 = HTTPS
• TtrustpoolBundleURL—Optional parameter that specifies the external URL of the trustpool bundle if it
is to be retrieved from a different location than the server. For example, to download the bundle from a
TFTP server at 10.30.30.10, you would specify the parameter like this: Ttftp://10.30.30.10/ca.p7b
• If you are using trustpool security and you do not specify the T parameter, the device retrieves the trustpool
bundle from the server.
• Zxxx.xxx.xxx.xxx;—IP address of the NTP server. This parameter is mandatory when using trustpool
security to ensure that all devices are synchronized.
Consult the documentation for your DHCP server for details on how to configure DHCP options.
Setting up Discovery using DNS
If DHCP discovery fails to get the IP address of the server, the device falls back to a DNS lookup method.
Based on the network domain name returned by the DHCP server, the device constructs a fully qualified
domain name (FQDN) for the server, using the preset hostname “pnpserver”.
For example, if the DHCP server returns the domain name “example.com”, the device constructs the FQDN
“pnpserver.example.com”. It then uses the local name server to resolve the IP address for this FQDN.
Cisco FindIT Network Manager and Probe Administration Guide, Version 2.0
42
Network Plug and Play
Setting up Discovery using Plug and Play Connect
Certificate Requirements
When establishing a connection to a Network Plug and Play server, the client checks to ensure the certificate
presented by the server is valid and can be trusted. For the certificate to be acceptable and the connection to
proceed, the certificate must meet the following conditions:
• The certificate must be signed by a trusted Certificate Authority (CA), or the certificate itself must be
trusted by the client. A certificate downloaded from the TrustpoolBundleURL learned from DHCP, or
from the Plug and Play Connect service is trusted by the client
• If the server identity is discovered using manual configuration, DHCP or Plug and Play Connect, and is
an IP address, then either the Common Name field or the Subject-Alt-Name field must contain that IP
address
• If the server identity is discovered using manual configuration, DHCP or Plug and Play Connect, and is
a hostname, then either the Common Name field or the Subject-Alt-Name field must contain that
hostname
• If the server identity is discovered using DNS discovery, then either the Common Name field or the
Subject-Alt-Name field must contain the IP address corresponding to the well-known hostname
pnpserver.<local domain>
Note
Some of the older Network Plug and Play client implementations do not verify the presence of the server
identity in the certificate.
Setting up Discovery using Plug and Play Connect
Plug and Play Connect is a Cisco-provided service that is the last resort used by a Network Plug and
Play-enabled device to discover the server. To use Plug and Play Connect for server discovery, you must first
create a Controller Profile representing the Manager, and then register each of your devices with the Plug and
Play Connect Service.
Accessing the Plug and Play Connect Service
To access the Plug and Play Connect Service, do the following:
1. In your web browser, navigate to https://software.cisco.com
2. Click the Log In button at the top right of the screen. Log in with a cisco.com ID associated with your
Cisco Smart Account.
3. Select the Plug and Play Connect link under the Network Plug and Play heading. The main page for
the Plug and Play Connect service is displayed.
Creating a Controller Profile
To create a Controller Profile for the Manager, do the following:
1. Open the Plug and Play Connect web page in your browser. If necessary, select the correct Virtual Account
to use.
Cisco FindIT Network Manager and Probe Administration Guide, Version 2.0
43
Network Plug and Play
Configuring the Network Plug and Play Service
2. Select the Controller Profiles link, and then click the Add Profile button.
3. Select a Controller Type of PNP SERVER from the dropdown list. Then click Next.
4. Specify a name, and optionally a description for the profile.
5. Under the heading for Primary Controller, use the dropdown provided to select whether to specify the
server by name or IP address. Fill in the name or addresses of the server in the fields provided.
6. Select the protocol to use when communicating with the server. It is strongly recommended that HTTPS
be used to ensure the integrity of the provisioning process.
7. If the protocol selected is HTTPS, the certificate used by the server should be uploaded using the controls
provided. See Managing Certificates, on page 72 for details on downloading the certificate from the
Manager.
8. Optionally specify a Secondary Controller.
9. Click Next, and review the settings before clicking Submit.
Registering Devices
Certain products purchased directly from Cisco may be associated with your Cisco Smart Account at the time
of order, and these will automatically be added to Plug and Play Connect. However, the majority of Cisco
100 to 500 series Plug and Play-enabled products will need to be registered manually. To register devices
with Plug and Play Connect, do the following:
1. Open the Plug and Play Connect web page in your browser. If necessary, select the correct Virtual Account
to use.
2. Select the Devices link, and then click Add Devices. You may need to be approved to manually add
devices to your account. This is a one-time process, and, if it is required, you will be notified by email
once approval has been granted.
3. Choose whether to add devices manually, or to add multiple devices by uploading details in CSV format.
Click the link provided to download a sample CSV file. If you choose to upload a CSV file, click the
Browse button to select the file. Then click Next.
4. If you selected to add devices manually, click Identify Device. Specify the Serial Number and Product
ID for the device to be added. Select a Controller Profile from the dropdown. Optionally enter a description
for this device.
5. Repeat step 4 until you have added all your devices, then click Next.
6. Review the devices you have added, and then click Submit.
Configuring the Network Plug and Play Service
There are several tasks that you may need to perform when setting up the Network Plug and Play service for
your environment. These include uploading configurations and images, adding and configuring devices to
use Network Plug and Play, and managing devices that connect to the service when they have not previously
been registered with the service. The following sections describe these tasks in detail.
Cisco FindIT Network Manager and Probe Administration Guide, Version 2.0
44
Network Plug and Play
Configuring the Network Plug and Play Service
Using the Network Plug and Play Dashboard
The Network Plug and Play Dashboard provides an overview of the devices currently being provisioned
using Network Plug and Play. Three charts are displayed, showing device status broken down by device group,
by PnP enabled device, and by devices that are not already known by the Manager (unclaimed devices). Each
chart shows the number of devices or groups in each of the states listed. You may click on the state heading
on any of the charts to see a detailed list of devices or groups that fall into that category.
You may restrict the data displayed to a specific organization using the organization dropdown at the top right
of the page. When viewing device groups, type all or part of a group name in the search box to limit the groups
displayed in the table. Similarly, you may enter a device name, product ID or serial number in the search box
when viewing provisioning rules to display the current status of an individual device.
Note
The chart for unclaimed devices is only displayed to Administrators who are viewing data for All
Organizations.
Managing PnP Enabled Devices
PnP Enabled Devices are devices in the inventory that have been configured to use Network Plug and Play
or were previously discovered by FindIT Network Manager and have attempted to connect using Network
Plug and Play. To create a new PnP Enabled Device, do the following:
1. Navigate to Network Plug and Play > Enabled Devices.
2. Click the ✚(plus) icon to add a new PnP enabled device to the inventory
3. Fill out the form with the requested parameters, including identifying details for the device, the organization,
network and device group it should belong to, and select either or both of the desired firmware image and
configuration file to be used. If you choose Default for the firmware image, the device will use the image
designated as the default for that product ID at the time the device connects to the server.
4. Click save.
To edit an existing device, do the following:
1. Navigate to Network Plug and Play > Enabled Devices.
2. Select the radio button for the device to be modified and click Edit.
3. Change the image and/or configuration file as required and click Save.
Note
If the PnP settings are changed for a device that has already been provisioned, that device's state will reset to
pending, and the device will be re-provisioned the next time it checks in with the PnP server.
To remove a PnP Enabled Device, do the following:
1. Navigate to Network Plug and Play > Enabled Devices.
2. Select the radio button for the device to be deleted and click delete.
Cisco FindIT Network Manager and Probe Administration Guide, Version 2.0
45
Network Plug and Play
Configuring the Network Plug and Play Service
Note
If a PnP Enabled Device is deleted when that device is otherwise known to FindIT and the device is online,
only the PnP settings for that device will be removed. The device will remain in the inventory similar to any
other managed device. If a device subsequently connects to the Manager using PnP, a new entry will be added
to the PnP Enabled Devices table.
Unclaimed Devices
Note
The Unclaimed Devices page is only available to Administrators.
An unclaimed device is one that has connected to the service, but there is no device record in the inventory
that matches the device. To see a list of unclaimed devices, and to claim an unclaimed device so it can be
managed using Network Plug and Play, do the following:
1. Navigate to Network Plug and Play > Unclaimed Devices and select the Unclaimed tab.
2. Click the claim button for the device to be managed.
3. Fill out the form with the organization, network and device group the device should belong to, and select
either or both of the desired firmware image and configuration file to be used. If you choose Default for
the firmware image, the device will use the image designated as the default for that product ID at the time
the device connects to the server.
4. Click Save. A PnP Enabled Device entry will be created for the device and may be viewed on the Enabled
Devices page.
To remove a device from the Unclaimed list without provisioning it, do the following:
1. Navigate to Network Plug and Play > Unclaimed Devices and select the Unclaimed tab.
2. Click Ignore for the device you wish to remove from the list.
The devices will be moved to the Ignored list and no further action will be taken. To reclaim an ignored
device, do the following:
1. Navigate to Network Plug and Play > Unclaimed Devices and select the Ignored tab.
2. Click the Unignore button for the device to be reclaimed.
The devices will be moved to the Unclaimed list, and you may claim the devices as described above.
Auto Claiming Devices
Note
The Auto Claim page is only available to Administrators
Unclaimed devices may be automatically claimed and provisioned by the server by creating an Auto Claim
rule for that product ID. To create an Auto-Claim rule, do the following:
1. Navigate to Network Plug and Play > Auto Claim Devices.
Cisco FindIT Network Manager and Probe Administration Guide, Version 2.0
46
Network Plug and Play
Configuring the Network Plug and Play Service
2. Click the ✚(plus) icon to create a new Auto Claim rule.
3. Select the checkbox for the newly created rule and click edit.
4. Fill out the form with the requested parameters, including the product ID (PID) to automatically claim,
the organization network and device group matching devices should belong to, and select either or both
of the desired firmware image and configuration file to be used. If you choose Default for the firmware
image, the device will use the image designated as the default for that product ID at the time the device
connects to the server.
5. Click save.
New devices that are not present in the inventory will be compared against the list of Auto Claim rules. If
there is a match, a new device record will be created in the inventory with the image and configuration file
defined by the Auto Claim rule. The device will then be provisioned accordingly. If the device does not match
an Auto Claim rule, it will be added to the Unclaimed list and no further action will be taken.
Device Firmware Images
The Images page allows you to upload firmware images that may then be deployed to the devices. Firmware
images may be designated as the default image for different platforms, allowing you to update the firmware
across an entire family of devices very easily. Firmware images are specific to an organization and may only
be used for PnP Enabled Devices associated with the same organization.
To upload a firmware image, do the following:
1. Navigate to Network Plug and Play > Images.
2. Click the ✚(plus) icon.
3. Select the organization for the image from the dropdown.
4. Drag a firmware image from your PC and drop it on the target area of the Upload File window.
Alternatively, click the target area and select a firmware image to upload.
5. Click Upload.
You may designate an image as the default image for one or more device types. To designate an image as a
default image, do the following:
1. Navigate to Network Plug and Play > Images.
2. Select the radio button for the image in the Images table and click edit.
3. Enter a comma-separated list of product IDs into the Default Image for Product IDs field. Product IDs
can contain the wildcard characters ‘?’, representing a single character, and ‘*’, representing a string of
characters.
4. Click Save.
To remove an image, do the following:
1. Navigate to Network Plug and Play > Images.
2. Select the radio button for the image to be deleted and click delete.
Cisco FindIT Network Manager and Probe Administration Guide, Version 2.0
47
Network Plug and Play
Configuring the Network Plug and Play Service
Device Configuration Files
The Configurations page allows you to upload configuration files that may then be deployed to the devices.
Configuration files are specific to an organization and may only be used for PnP Enabled Devices associated
with the same organization. To upload a configuration file, do the following:
1. Navigate to Network Plug and Play > Configurations.
2. Click the ✚(plus) icon.
3. Select the organization for the configuration from the dropdown.
4. Drag a configuration file from your PC and drop it on the target area of the Upload File window.
Alternatively, click the target area and select a configuration file to upload.
5. Click Upload.
You can click on the filename of the uploaded configuration file to view the contents if you wish.
To remove a configuration, do the following:
1. Navigate to Network Plug and Play > Configurations.
2. Select the radio button for the configuration to be deleted and click delete.
Managing Settings
The Network Plug and Play Settings page allows you to control the operation of the Network Plug and Play
Protocol. The Check In Time Interval controls how frequently a device will connect to the Network Plug
and Play service after initial provisioning. To modify this parameter, do the following:
1. Navigate to Network Plug and Play > Settings.
2. Enter the desired interval between connections in the field provided. The time is in minutes, and the default
is 2880 minutes, or two days.
3. Click Save.
The Check In Time Interval is set for the system as a whole, but can be overridden at the organization level.
If no interval is set for the organization, then the system value is used.
Configuring the Certificate
The certificate automatically generated by FindIT Network Manager during first startup is a self-signed
certificate. In most cases, this will not be sufficient for the certificate to be accepted by the Network Plug and
Play client, and it will be necessary to generate a new certificate. When generating a new self-signed certificate
or certificate signing request (CSR), the Manager will include the contents of the Common Name field in
the Subject Alternative Name field in addition to any values specified in the Subject Alternative Name
field on the GUI.
For more information on configuring the Manager’s certificate, see Managing Certificates, on page 72.
Cisco FindIT Network Manager and Probe Administration Guide, Version 2.0
48
Network Plug and Play
Monitoring Network Plug and Play
Monitoring Network Plug and Play
Each device known to the Network Plug and Play service is shown on either the Enabled Devices page or
the Unclaimed Devices page with a status displayed. This status may also be viewed on the Inventory page
by enabling the display of the PnP Status column. The status field shows the current state of the device, and
will contain one of the values as listed in the following table. By clicking on the status field, you can see more
detail, including a history of the state changes for this device over time.
Table 15: Network Plug and Play - Device Status
Status
Description
PENDING
Device is defined but has not made contact with the
service.
PROVISIONING
The device has made the initial connection to the
service.
PROVISIONING_IMAGE
A firmware image is being applied by the device.
PROVISIONED_IMAGE_REBOOTING
The device is rebooting to run the new firmware.
PROVISIONED_IMAGE
New firmware has been applied successfully.
PROVISIONING_CONFIG
A configuration file is being applied to the device.
PROVISIONED_CONFIG
The configuration file has been successfully applied
to the device. Depending on the type of device, it may
reboot to apply the configuration.
ERROR
An error has occurred. Check log files for more
details.
PROVISIONED
The provisioning process for the device is complete.
Cisco FindIT Network Manager and Probe Administration Guide, Version 2.0
49
Network Plug and Play
Monitoring Network Plug and Play
Cisco FindIT Network Manager and Probe Administration Guide, Version 2.0
50
CHAPTER
9
Event Log
This chapter contains the following sections:
• About the Event Log, on page 51
About the Event Log
The Event Log provides an interface for searching and sorting through the events generated across the network.
You may use the filter controls provided to limit the events displayed based on any combination of the following
parameters:
• Time—Specify the start and end times for the period of interest. Only events occurring in this period
will be displayed.
• Severity—Select the severity level of events to display. You may also check the Higher checkbox to
include events with a higher severity level.
• Type—Select one or more event types to display. The types are arranged in a tree structure, and selecting
a type will automatically include all event types underneath the selected type in the tree.
• Network—Select one or more networks to display events for. As you type, matching sites will be
displayed.
• Device —Select one or more devices to display events for. As you type, matching devices will be
displayed. You may specify devices by name, IP address, or MAC address.
Events that match the filter conditions will be displayed in the table below. The table may be sorted by clicking
on the column headings.
Cisco FindIT Network Manager and Probe Administration Guide, Version 2.0
51
Event Log
About the Event Log
Cisco FindIT Network Manager and Probe Administration Guide, Version 2.0
52
CHAPTER
10
Reports
This chapter contains the following sections:
• About Reports, on page 53
• Viewing the Lifecycle Report, on page 53
• Viewing the End of Life Report, on page 54
• Viewing the Maintenance Report, on page 55
• Viewing the Wireless Network Report, on page 56
• Viewing the Wireless Client Report, on page 58
About Reports
The Reports option in the Cisco FindIT Network Manager provides a series of reports about your network.
The reports provided include:
• Lifecycle Report—Provides a summary of the lifecycle status of the devices in the network.
• End of Life Report—Shows any devices that have an End of Life bulletin published.
• Maintenance Report—Lists all devices and their warranty state and whether the device has an active
support contract.
• Wireless Network— Shows information about the wireless environment, including SSIDs, access points,
and spectrum usage.
• Wireless Client—Displays details about wireless clients seen on the network.
Viewing the Lifecycle Report
The Lifecycle Report provides a high level view of the status of the network devices, taking into account
both software and hardware lifecycle status. The following table describes the information provided:
Table 16: Lifecycle Report
Field
Description
Network Name
The name of the network in which the device is
located.
Cisco FindIT Network Manager and Probe Administration Guide, Version 2.0
53
Reports
Viewing the End of Life Report
Field
Description
Organization
The organization the device belongs to.
Hostname
The hostname of the device.
Device Type
The type of device.
Model
The model number of the device.
Week of Manufacture
The date of manufacture for the device, displayed as
week number and year.
Firmware Update Available
Displays the latest firmware version available for the
device, or states that the device firmware is currently
up to date.
Firmware Version
Displays the current firmware version running on the
device.
End of Life Status
Specifies if an End of Life bulletin has been published
for the device and the date of the next key milestone
in the End of Life process.
Maintenance Status
Specifies if the device is currently under warranty or
covered by a support contract.
The row in the table for a device that may require attention is color-coded to indicate the urgency. For example,
a device with a published End of Life bulletin will be colored orange if the End of Support milestone has not
been reached, and red if the device is no longer supported by Cisco.
The Search box located at the top of the report can be used to filter the results. Enter text in the Search box
to limit the number of entries that are displayed with the matching text. Results may be limited to a specific
organization using the Organization dropdown.
The column selection icon at the top left of the report can be used to customize the information displayed.
Click on the icon and then use the checkboxes that appear to select the columns you wish to include in the
report.
Viewing the End of Life Report
The End of Life Report lists any devices that have an End of Life bulletin published, along with key dates
in the End of Life process, and the recommended replacement platform. The following table describes the
information provided:
Table 17: End of Life Report
Field
Description
Network Name
The name of the network in which the device is
located.
Organization
The organization the device belongs to.
Cisco FindIT Network Manager and Probe Administration Guide, Version 2.0
54
Reports
Viewing the Maintenance Report
Field
Description
Product ID
The product ID or part number of the device.
Hostname
The hostname of the device.
Device Type
The type of device.
Current Status
The stage at which the End of Life process of the
product is at.
Date of Announcement
The date the End of Life bulletin was published.
Last Date of Sale
The date after which the product will no longer be
sold by Cisco.
Last Date of Software Releases
The date after which no more software versions will
be released for the product.
Last Date for New Service Contract
The last date for taking out a new support contract on
the device.
Last Date for Service Renewal
The last date for renewing an existing support contract
on the device.
Last Date of Support
The date after which Cisco will no longer provide
support for the product.
Recommended Replacement
The recommended replacement product.
Product Bulletin
The product bulletin number and a link to the bulletin
on the Cisco website.
Each row of the table is color-coded to indicate the stage of the End of Life process the device is at. For
example, a device that has past the Last Date of Sale but not yet reached the Last Date of Support will be
colored orange, and a device that is past the Last Date of Support is colored red.
The Search box located at the top of the report can be used to filter the results. Enter text in the Search box
to limit the number of entries that are displayed with the matching text. Results may be limited to a specific
organization using the Organization dropdown.
The column selection icon at the top left of the report can be used to customize the information displayed.
Click on the icon and then use the checkboxes that appear to select the columns you wish to include in the
report.
Viewing the Maintenance Report
The Maintenance Report lists all network devices which includes the warranty and support contract status
information for each of them. The following table describes the information provided:
Cisco FindIT Network Manager and Probe Administration Guide, Version 2.0
55
Reports
Viewing the Wireless Network Report
Table 18: Maintenance Report
Field
Description
Network Name
The name of the network in which the device is
located.
Organization
The organization the device belongs to.
Hostname
The hostname of the device.
Device Type
The type of device.
Model
Model number of the device.
Serial Number
The serial number for the device.
Status
The current support status of the device.
Coverage End Date
The date at which the current support contract will
expire.
Warranty End Date
The date at which the warranty for the device will
expire.
Each row of the table is color-coded to indicate the support status for the device. For example, a device that
is approaching the expiry date of the warranty or support contract will be colored orange, while a device that
is out of warranty and does not have a current support contract will be colored red.
The Search box located at the top of the report can be used to filter the results. Enter text in the Search box
to limit the number of entries that are displayed with the matching text. Results may be limited to a specific
organization using the Organization dropdown.
The column selection icon at the top left of the report can be used to customize the information displayed.
Click on the icon and then use the checkboxes that appear to select the columns you wish to include in the
report.
Viewing the Wireless Network Report
The Wireless Network Report shows details about the wireless network broken down by SSID, wireless
spectrum usage, and access point, and includes a list of rogue access points that have been detected. Reports
may be generated for time ranges from daily to yearly using the controls at the top of the page.
Several of the data sets include a graph that shows a breakdown over time for the selected row. You may click
on the labels in the legend on the graph to toggle the display of each set of data.
The following table describes the information provided in the different sections of the report:
Table 19: Wireless Network Report
Field
Description
Wireless Networks Table
Cisco FindIT Network Manager and Probe Administration Guide, Version 2.0
56
Reports
Viewing the Wireless Network Report
Field
Description
SSID
The wireless network name.
Network (hidden by default)
The network where the SSID is located.
Organization (hidden by default)
The organization the SSID belongs to.
Guest
Whether the SSID is configured for guest access.
Security
The security method configured for the SSID.
Client Count (Peak)
The maximum number of clients associated with the SSID
during the period covered by the report.
Client Count (Average)
The average number of clients associated with the SSID during
the period covered by the report.
Traffic (Peak)
The maximum aggregate traffic rate through the SSID during
the period covered by the report.
Traffic (Average)
The average aggregate traffic rate through the SSID during the
period covered by the report.
Spectrum Usage Table
Radio Freq
The radio frequency band in use – either 2.4GHz or 5GHz.
Network
The network the spectrum usage data displayed applies to.
Organization
The organization the spectrum usage data applies to.
Client Count (Peak)
The maximum number of clients using the frequency band
during the period covered by the report.
Client Count (Average)
The average number of clients using the frequency band during
the period covered by the report.
Traffic (Peak)
The maximum aggregate traffic rate through the frequency band
during the period covered by the report.
Traffic (Average)
The average aggregate traffic rate through the frequency band
during the period covered by the report.
Wireless Access Point Table
Access Point
The name of the access point.
Network (hidden by default)
The network where the access point is located.
Organization (hidden by default)
The organization the access point belongs to.
Model
The model of the access point.
Version
The firmware version running on the access point.
Cisco FindIT Network Manager and Probe Administration Guide, Version 2.0
57
Reports
Viewing the Wireless Client Report
Field
Description
Client Count (Peak)
The maximum number of clients associated with the access
point during the period covered by the report.
Client Count (Average)
The average number of clients associated with the access point
during the period covered by the report.
Traffic (Peak)
The maximum aggregate traffic rate through the access point
during the period covered by the report.
Traffic (Average)
The average aggregate traffic rate through the access point
during the period covered by the report.
Rogue Access Points Table
SSID
The SSID detected.
Network (hidden by default)
The network where the detecting access point is located.
Organization (hidden by default)
The organization the detecting access point belongs to.
MAC
The MAC address of the rogue access point.
First Seen
The time at which the rogue access point was first detected.
Last Seen
The time at which the rogue access point was last seen.
Total Time Visible
The total time that the rogue access point was online.
Channel
The wireless channel used by the rogue access point.
Average Signal Strength
The average signal strength of the rogue access point as seen
by the detecting access point.
Seen By
The access point(s) that detected the rogue access point.
Viewing the Wireless Client Report
The Wireless Client Report shows details about the wireless clients on the network. Reports may be generated
for time ranges from daily to yearly using the controls at the top of the page.
Each data sets includes graphs that shows a breakdown over time for the selected row. You may click on the
labels in the legend on the graph to toggle the display of each set of data.
The following table describes the information provided:
Table 20: Wireless Client Table
Wireless Clients Table
MAC
The MAC address of the client
Hostname
The hostname of the client, where available.
Cisco FindIT Network Manager and Probe Administration Guide, Version 2.0
58
Reports
Viewing the Wireless Client Report
Wireless Clients Table
Organization
The organization in which the client was last seen.
Network
The network where the client was last seen.
SSID
The SSID the client was last associated with.
802.11 Type
The 802.11 variant used by the client.
Frequency
The frequency band used by the client.
Max Data Rate
The maximum data rate used by the client.
Upload
The volume of data uploaded by the client.
Download
The volume of data downloaded by the client.
Total
The total volume of data sent and received by the client.
First Seen
The time at which the client was first detected.
Last Seen
The time at which the client was last seen.
Time Online
The total time that the client was online.
% Online Time
The percentage of time the client was online in the total time the client
was known to the network.
Table 21: Wireless Guests Table
Wireless Guests Table
MAC
The MAC address of the client.
Hostname
The hostname of the client, where available.
Username
The username entered by the client in the guest portal.
Organization
The organization in which the client was last seen.
Network
The network where the client was last seen.
SSID
The SSID the client was last associated with.
802.11 Type
The 802.11 variant used by the client.
Frequency
The frequency band used by the client.
Max Data Rate
The maximum data rate used by the client.
Upload
The volume of data uploaded by the client.
Download
The volume of data downloaded by the client.
Total
The total volume of data sent and received by the client.
Cisco FindIT Network Manager and Probe Administration Guide, Version 2.0
59
Reports
Viewing the Wireless Client Report
Wireless Guests Table
Note
First Seen
The time at which the client was first detected.
Last Seen
The time at which the client was last seen.
Time Online
The total time that the client was online.
% Online Time
The percentage of time the client was online in the total time the client
was known to the network.
First Seen and Last Seen timestamps are the time reported by the access point. It is recommended that all
network devices implement clock synchronization using a mechanism such as the Network Time Protocol
(NTP).
Cisco FindIT Network Manager and Probe Administration Guide, Version 2.0
60
CHAPTER
11
Administration
This chapter contains the following sections:
• About Administration, on page 61
• Managing Organizations, on page 61
• Managing Device Groups, on page 64
• Managing Device Credentials, on page 65
• Managing Users, on page 66
• Changing Notification Defaults, on page 67
• Viewing Login Attempts, on page 68
• Managing Report Settings, on page 68
About Administration
The Administration option in FindIT Network Manager allows you to control the operation of the application
at the organizational level. This option is divided into the following pages:
• Organizations—Create and maintain organizations in FindIT Network Manager.
• Device Groups—Allocate network devices into groups for easy management.
• Device Credentials—Enter credentials to be used when accessing network devices.
• Users— Define user access to FindIT Network Manager.
• Notification Defaults—Change the default notification behavior for FindIT Network Manager.
• Login Attempts—Provides a log of all user access to FindIT Network Manager.
• Report Settings—Change settings controlling how reports are generated.
Not all pages are visible to all roles. Operators cannot manage user settings. Notification Defaults and Report
Settings are only visible to Administrators.
Managing Organizations
Organizations are used in FindIT Network Manager to split networks, users, and devices into groups that are
typically administered separately. Each network or device belongs to an organization, and each user can
Cisco FindIT Network Manager and Probe Administration Guide, Version 2.0
61
Administration
Managing Organizations
manage one or more organizations. An organization might represent a customer or a department or a region
– whatever is most suitable for your company – but in all cases, the use of organizations allows more granular
control over who can view and manage the different parts of the network. A single organization is created by
default when the Manager is installed.
Creating a New Organization
To create a new organization, do the following:
1. Navigate to Administration > Organizations.
2. Click the ✚(plus) icon at the top of the table.
3. Specify a name for the organization and enter the required details.
4. Enter a name for a new device group that should be used as the default group for newly discovered devices.
The new device group will be created along with the organization.
5. Click Save.
6. Repeat the steps above for each organization you wish to create.
Modifying an Existing Organization
To modify an existing organization, do the following:
1. Navigate to Administration > Organizations.
2. Select the radio button for the organization to be modified and click the Edit icon
3. Make changes as required and click Save.
Deleting an Organization
To delete an organization, do the following:
1. Navigate to Administration > Organizations.
2. Select the radio button for the organization to be modified and click the Delete icon.
Managing Notification Settings for an Organization
Notification Settings allow you to control how the different types notifications are delivered. The settings
applied at the organization level will be applied across all networks in the organization.
To change the Notification Settings for an organization, do the following:
1. Navigate to Administration > Organizations.
2. Click the name of the organization to be modified and select the Notification Settings tab.
3. Set the checkboxes for the different types of notification to reflect how you want them to be handled.
Options are for notifications to be delivered as any combination of pop-ups in the GUI or as emails to the
specified email address.
You may also choose to follow the behavior defined at system level by checking the Inherit from
Notification Defaults checkbox.
Cisco FindIT Network Manager and Probe Administration Guide, Version 2.0
62
Administration
Managing Organizations
4. Click Save.
Note
See Notifications for more information about the types of notifications available and how to manage them.
See Changing Notification Defaults for details on changing notification settings at the system level.
Managing Users Associated with an Organization
Users with a role of Organization Administrator or lower must be explicitly associated with an organization
to be able to view or manage devices in that organization.
To associate a user with the organization, do the following:
1. Navigate to Administration > Organizations.
2. Click the name of the organization to be modified and select the Users tab.
3. Click the ✚(plus) icon. Select the user from the dropdown list.
Note
Administrator level users are implicitly associated with all organizations and will not appear in the dropdown
list.
To remove a user from the organization, do the following:
1. Navigate to Administration > Organizations.
2. Click the name of the organization to be modified and select the Users tab.
3. Click the Delete icon next to the user in the table.
Managing Networks Associated with an Organization
Every network in FindIT Network Manager belongs to a single organization. You can view a list of networks
associated with an organization by selecting the Networks tab on the Organization Detail page.
Associating a network with an organization is done when the network is first created. To change the organization
a network is associated with, do the following:
1. Navigate to Network and select the network that you wish to change. Click More to display the Network
Detail panel.
2. Click the Edit icon next to the network name.
3. Select the new organization from the dropdown list.
4. Click OK.
You may create new networks for an organization from this view. Click the ✚(plus) icon to create a new
network and fill in appropriate values in the form that is displayed.
Cisco FindIT Network Manager and Probe Administration Guide, Version 2.0
63
Administration
Managing Device Groups
Managing Device Groups
FindIT Network Manager uses device groups for performing most configuration tasks. Multiple network
devices are grouped together so that they may be configured in a single action.
Each device group can contain devices of multiple types, and when configuration is applied to a device group,
that configuration is only applied to devices in the group that support that feature. For example, if a device
group contains wireless access points, switches and routers, then configuration for a new wireless SSID will
be applied to the wireless access points, will not be applied to the switches, and will be applied to the routers
only if they are wireless routers.
Device groups may include devices from multiple networks, but all devices must belong to a single organization.
A device group may be designated as the default group for an organization or network, and any newly
discovered devices for that network or organization will be placed in the default device group.
Creating a New Device Group
To create a new Device Group, do the following:
1. Navigate to Administration > Device Groups.
2. Click on the ✚(plus) sign to create a new group.
3. Enter an organization, a name and a description for the group. Click Save.
4. Optionally, add devices to the device group by clicking the ✚(plus) icon and using the search box to select
devices to be added to the group. You may add devices individually or by network. If the selected device
is already a member of a different group, it will be removed from that group. Each device may only be a
member of a single group.
Modifying the Device Group
To change an existing Device Group, do the following:
1. Navigate to Administration > Device Groups.
2. Select the radio button next to the group to be changed and click the edit icon.
3. Change the name and description if necessary. Click Save.
4. Add and remove devices from the group as required. To remove a device that was previously added to
the group, click the trashcan icon next to the device. The device will be moved to the Default group for
the network or organization.
Note
You cannot delete a device from the Default group. To remove a device from the Default group you must
add it to a new group.
Deleting a Device Group
To delete a Device Group, do the following:
1. Navigate to Administration > Device Groups.
Cisco FindIT Network Manager and Probe Administration Guide, Version 2.0
64
Administration
Managing Device Credentials
2. Click the radio button for the device group to be removed, and then click the delete icon.
Note
You cannot delete a Default group.
Managing Device Credentials
For FindIT Network Manager to fully discover and manage the network, it needs credentials to authenticate
with the network devices. When a device is first discovered, the Probe will attempt to authenticate with the
device using the default username: cisco, password: cisco, and SNMP community: public. If this
attempt fails, a notification will be generated and valid credentials must be supplied by the user. To supply
valid credentials, do the following:
1. Navigate to Administration > Device Credentials. The first table on this page lists all the devices that
have been discovered that require credentials.
2. Enter valid credentials into any or all of the Username/Password fields, SNMP Community field, and
SNMPv3 credential fields. You may click the ✚(plus) icon next to the corresponding field to enter up to
three of each type of credential. Ensure that passwords are entered using plaintext.
Note
For SNMPv3 credentials, the supported authentication protocols are None, MD5, and SHA, and the supported
encryption protocols are None, DES, and AES
3. Click Apply. The Probes will test each credential against each device that requires that type of credential.
If the credential is valid, it will be stored for later use with that device.
4. Repeat steps 2 to 3 as necessary until every device has valid credentials stored.
To enter a single credential for a specific device, do the following:
1. Click the Edit icon shown against the device in the discovered devices table. A popup will appear prompting
you to enter a credential that corresponds to the Credential Type selected.
2. Enter a username and password or an SNMP credential in the fields provided.
3. Click Apply. To close the window without applying, click the ✖ on the top right corner of the popup.
Underneath the Add New Credential section is a table showing the identity for each device for which the
Probe has a valid credential stored and the time that credential was last used. To display the stored credential
for a device, you may click the Show Password icon next to the device. To hide the credentials again, click
the Hide Password icon. You may also show and hide credentials for all devices using the button at the top
of the table. You may also delete credentials that are no longer required. To delete stored credentials, do the
following:
1. Navigate to Administration > Device Credentials.
2. In the Saved Credentials table, select the check box against one or more sets of credentials to be deleted.
You may also select the checkbox at the top of the table to select all credentials.
3. Click Delete Selected Credentials.
Cisco FindIT Network Manager and Probe Administration Guide, Version 2.0
65
Administration
Managing Users
To delete a credential for a single device, you may also click the Delete icon next to the device.
Managing Users
The User Management page allows you to define users that can access FindIT Network Manager, and also
allows you to change settings that affect how those users interact with the Manager.
FindIT Network supports four types of users:
• Administrator—An Administrator has full access to the FindIT Network features including the ability
to maintain the system
• Organization Administrator—An Organization Administrator is limited to managing one or more
organizations, but cannot make changes to the system
• Operator—An Operator has similar power to an Organization Administrator, but cannot manage users
• Readonly—A Readonly user can only view network information, they cannot make any changes
When the FindIT Network Manager is first installed, a default Administrator is created with the username
and password both set to cisco.
Note
User settings can be managed by Administrators and Organization Administrators only.
Adding a New User
To add a new user, do the following:
1. Navigate to Administration > Users and select the Users tab.
2. Click the ✚ (plus) icon to create a new user.
3. In the fields provided, enter a username, display name, email address and password, and specify the user
type. You may also provide contact details for the user.
4. Click Save.
If the user is not an Administrator, then you must add the user to one or more organizations. To do so, select
the Organizations tab and click the ✚(plus) icon. Select the desired organization from the dropdown list.
Modifying a User
To modify an existing user, do the following:
1. Navigate to Administration > Users and select the Users tab.
2. Select the radio button next to the user that needs to be changed and click the Edit icon.
3. Make the modifications as required.
4. Click Save.
Cisco FindIT Network Manager and Probe Administration Guide, Version 2.0
66
Administration
Changing Notification Defaults
To add the user to a new organization, select the Organizations tab and click the ✚(plus) icon. Select the
desired organization from the dropdown list. To remove them from an organization, click the Delete icon next
to the organization in the table.
Deleting a User
To delete an existing user, do the following:
1. Navigate to Administration > Users and select the Users tab.
2. Select the radio button next to the user that needs to be deleted and click delete at the top of the table.
Changing password complexity
To enable or change password complexity requirements, do the following:
1. Navigate to Administration > Users and select the User Settings tab.
2. Modify the User Password Complexity settings as required and click Save.
Changing session timeouts
To change idle and absolute timeouts for user sessions, do the following:
1. Navigate to Administration > Users and select the User Settings tab .
2. Modify the User Session parameters as required and click Save. Hover over the help icons to see allowable
ranges for these parameters.
Changing Notification Defaults
Notification Settings allow you to control the different types of notifications that are delivered. Settings may
be applied at the organization level or at the system level. Organizations that choose to inherit system level
notification settings will have the behavior controlled by the Notification Defaults page.
To change the Notification Settings for the system, do the following:
1. Navigate to Administration > Notification Defaults.
2. Set the checkboxes for different types of notification to reflect how you want them to be handled. Options
are for notifications to be delivered as any combination of pop-ups in the GUI or as emails to the specified
email address.
3. Click Save.
If you use email notifications, you must ensure that the email settings are correctly configured. See Managing
Email Settings for more details. See About Notifications more information about the types of notifications
available and how to manage them. See Managing Organizations for details on changing notification settings
at the organization level.
Cisco FindIT Network Manager and Probe Administration Guide, Version 2.0
67
Administration
Viewing Login Attempts
Viewing Login Attempts
FindIT Network Manager keeps a log of every attempt made to log in and out of the system, both successful
and unsuccessful. To view the log, navigate to Administration > Login Attempts. The table displays the
following information:
Table 22: Login Attempts Table
Field
Description
Username
The username associated with the event.
Display Name
The display name for the user.
IP
The IP address of the device from which the user logged in.
Type
The type of event. Valid values include, LOGIN and LOGOUT.
Status
Indicates if the attempt succeeded or failed.
Timestamp
The date and time the event took place.
You may use the search box above the table to show only entries that match a particular user or IP address.
Managing Report Settings
The Report Settings page allows you to set the timezone that reports will be generated for. The start and end
times for the report period will be in the local time of the selected timezone.
Cisco FindIT Network Manager and Probe Administration Guide, Version 2.0
68
CHAPTER
12
System
This chapter contains the following sections:
• About System, on page 69
• Managing Licenses, on page 70
• Managing Certificates, on page 72
• Managing Email Settings, on page 73
• Viewing API Usage, on page 74
• Backing Up and Restoring the Manager Configuration, on page 75
• Managing Platform Settings, on page 75
• Managing Privacy, on page 77
• Managing Logging Settings, on page 79
• Managing the Local Probe, on page 79
About System
The System option in FindIT Network Manager allows you to manage the operation of the platform.
This option is divided into the following pages:
• License—Manage software licensing for the Manager
• Certificate—Manage security certificates on the Manager
• Email Settings—Set up email
• API Usage—Monitor the use of the FindIT Network Manager API
• Backup— Backup the configuration and other data for the Manager
• Restore—Restore the configuration and other data for the Manager
• Platform Settings—Manage network configuration for the Manager
• Privacy Settings—Control the data that can be shared with Cisco
• Log Settings—Change log settings for the Manager
• Local Probe—Manage a Probe hosted on the Manager
These pages are only available to Administrators.
Cisco FindIT Network Manager and Probe Administration Guide, Version 2.0
69
System
Managing Licenses
Managing Licenses
Note
This page is not present on the metered version of FindIT Network Manager for AWS.
The License page allows you to see the number and type of licenses required for your network, and allows
you to connect the Manager to the Cisco Smart Licensing system. On this page are two information panels:
• Smart Software Licensing Status— This panel shows the registration state of the Smart License client
and information about the Smart Account in use.
• Smart License Usage— This panel lists the quantities and types of license required based on the current
state of the network. This information will automatically update as the network changes, and the Manager
will update the number of licenses requested from the Smart Account. The Status field shows whether
the required number of licenses have been successfully obtained.
This page also contains controls allowing you to register and deregister the Manager from your Smart account.
If the Manager is running in Evaluation Mode, or is not able to obtain sufficient licenses to manage the network,
a message will be displayed in the header of the Manager’s user interface. If more than ten devices are in use
in Evaluation Mode, or the Manager cannot obtain sufficient licenses to operate, then you have 90 days to
correct the situation. If the problem is not addressed within 90 days, some functionality of the Manager will
be restricted until the problem is addressed, either by obtaining more licenses, or reducing the number of
devices being managed.
Registering the Manager to your Smart Account
To register the Manager with your Smart Account, do the following:
1. Log on to your Smart Account at https://software.cisco.com. Select the Smart Software Licensing link
located under the License section.
2. Select the Inventory page, and if necessary, change the selected virtual account from the default. Then
click on the General tab.
3. Create a new Product Instance Registration Token by clicking on the New Token… button. Optionally
add a description and change the Expire After time. Then click Create Token.
4. Copy the newly created token to the clipboard by selecting Copy from the Actions drop-down located at
the right of the token.
5. Navigate to the FindIT Network Manager user interface and select System > License.
6. Click the Register button and paste the token into the field provided. Click OK.
The Manager will register with Cisco Smart Licensing and request sufficient licenses for the number of network
devices being managed. If there are insufficient licenses available, a message will be displayed on the user
interface, and you will have 90 days to obtain sufficient licenses before system functionality is restricted.
Removing the Manager from your Smart Account
To remove the Manager from your Smart Account and return any licenses allocated back to the pool, do the
following:
Cisco FindIT Network Manager and Probe Administration Guide, Version 2.0
70
System
Managing Licenses
1. Navigate to the FindIT Network Manager user interface and select System > License.
2. Select Deregister… from the dropdown list located at the top right. Click Deregister in the popup to
confirm.
Immediately Check for Licenses
FindIT Network Manager checks daily to ensure there are still sufficient licenses available for the network,
and will update immediately if the number of licenses required decreases. However, if the number of licenses
required increases, or if licenses are added or removed from the pool, it may take up to a day before the
Manager will be updated. To force the Manager to update its license allocation immediately, do the following:
1. Navigate to the FindIT Network Manager user interface and select System > License.
2. Select ReCheck License Now… from the dropdown list located at the top right. The Manager will query
Cisco Smart Licensing immediately to ensure that there are sufficient licenses available for the FindIT
Network Manager to operate.
Renew Authorization Now
The Renew Registration Now action cause the Manager to refresh the certificates used to authenticate
communication with Cisco Smart Licensing. Typically, this will only be required at the request of Cisco
Support when rectifying an extended communications outage. To renew the registration, do the following:
1. Navigate to the FindIT Network Manager user interface and select System > License.
2. Select Renew Authorization Now… from the dropdown list located at the top right.
Renew Registration Now
The Renew Registration Now action causes the Manager to refresh the certificates used to authenticate
communication with Cisco Smart Licensing. Typically, this will only be required at the request of Cisco
Support when rectifying an extended communications outage. To renew the registration, do the following:
1. Navigate to the FindIT Network Manager user interface and select System > License.
2. Select Renew Registration Now… from the dropdown list located at the top right.
Transfer the Manager to a Different Account
Re-registering a Manager allows it to be moved from one Virtual Account to another. To move a Manager
between accounts, do the following:
1. Navigate to the FindIT Network Manager user interface and select System > License.
2. Select Reregister... from the dropdown list located at the top right.
3. Enter the new registration token in the box provided. If the Manager is currently registered to another
account, ensure the Reregister this product instance if it is already registered checkbox is selected,
then click OK.
Cisco FindIT Network Manager and Probe Administration Guide, Version 2.0
71
System
Managing Certificates
Managing Certificates
At the time of installation, FindIT Network Manager will generate a self-signed certificate to secure web and
other communication with the server. You may choose to replace this certificate with one signed by a trusted
certificate authority (CA). To do this, you will need to generate a certificate signing request (CSR) for signing
by the CA.
You may also choose to generate a certificate and the corresponding private key completely independent of
the Manager. If so, you can combine the certificate and private key into a PKCS#12 format file prior to upload.
Generating a Certificate Signing Request (CSR)
To generate a CSR, do the following:
1. Navigate to System > Certificate and select the CSR tab.
2. Enter appropriate values into the fields provided in the form that is displayed. These values will be used
to construct the CSR, and will be contained in the signed certificate you receive from the CA.
3. Click Create and the CSR will be automatically downloaded to your PC. Alternatively, you can download
the CSR at a later date by clicking Download next to the CSR label.
4. If necessary, you can modify the CSR by returning to step 2.
Uploading a New Certificate
To upload a new certificate, do the following:
1. Navigate to System > Certificate and select the Update Certificate tab.
2. Select Upload Cert radio button. The file containing the certificate can be dropped on the target area, or
you may click the target area to browse the file system. The file should be in PEM format.
You may also upload a certificate with the associated private key in PKCS#12 format by selecting the
Upload PKCS12 option instead. The password to unlock the file should be specified in the field provided.
3. Click Upload to upload the file and replace the current certificate.
Note
Some browsers may generate certificate warnings for certificates that have been signed by a well-known
certificate authority, while other browsers accept the certificate without any warning. Network Plug and Play
clients may also fail to accept the certificate. This is because the certificate authority has signed the certificate
with an intermediate certificate that is not included in the browser or PnP client's trusted authorities store. In
these circumstances, the certificate authority provides a bundle of certificates that must be concatenated with
the server certificate before uploading to the Manager. The server certificate must appear first in the
concatenated bundle.
Regenerating the Self-Signed Certificate
To regenerate the self-signed certificate, do the following:
1. Navigate to System > Certificate and select the Update Certificate tab.
Cisco FindIT Network Manager and Probe Administration Guide, Version 2.0
72
System
Managing Email Settings
2. Click Renew Self-Signed Cert. Enter appropriate values into the fields provided in the form that is
displayed. These values will be used to construct the certificate.
3. Click Save.
Viewing the Current Certificate
To view the current certificate, do the following:
1. Navigate to System > Certificate and select the Current Certificate tab.
2. The certificate is displayed in plain text format in your browser.
Downloading the Current Certificate
To download a copy of the current certificate, do the following:
1. Navigate to System > Certificate and select the Current Certificate tab.
2. Click Download at the bottom of the page. The certificate will be downloaded in PEM format by your
browser.
Managing Email Settings
The Email Settings page allows you to control how emails will be sent by FindIT Network Manager. This
page allows you to set the following parameters:
Table 23: Email Setting
Field
Description
SMTP Server
The domain name or IP address of the SMTP server
that will be used.
SMTP Port
The TCP port to use for sending mail.
Email Encryption
The encryption method to use.
Options include the following:
• None
• TLS
• SSL
Authentication
Enable or disable email authentication.
Username
The username to present if authentication is enabled.
Password
The password to present if authentication is enabled.
From Email Address
The email address to originate messages from.
Cisco FindIT Network Manager and Probe Administration Guide, Version 2.0
73
System
Viewing API Usage
To test the configuration, click Test Connectivity. This will prompt for a target email address and generate
a test email to the specified address.
Viewing API Usage
The API Usage page displays information about any external applications that have been integrated with the
FindIT Network Manager. This report is divided into the following three sections:
• The 15-minute Request Monitor—Displays the average and peak request rate over the last 15 minutes
• The Request History graph—Displays a graph of request activity over time. You may select time periods
of the last four hours, the last seven days, or all available information. You may then use the sliders
underneath the graph to narrow the focus of the graph to a particular period of interest.
• The API Client Information table—Lists all the clients that have used the API at least once. The
following table describes the information provided in the API Client Information table:
Table 24: The API Client Information Table
Field
Description
API Version
The version used by the client when accessing the API.
Client ID
The identifier for a particular instance of the client application.
Client IP
The IP address associated with this client. Also displays the callback URL to
which the Manager should post event notifications when the API version is v1
and notifications have been requested.
Client Module
The type of application associated with this client.
Client Version
The version of the application associated with this client.
Username
For clients using the v1 API, this field shows the username presented by the
application when authenticating to the Manager. For clients using the v2 API,
this field shows the Access Key ID used by the client and the username that key
is associated with.
Time Since Last
Access
The time since the last activity from this client.
# Subscribed
Networks
The number of networks where the application has requested event notifications.
This number is a link that, when clicked, displays the Subscribed Networks table
for this client. The Subscribed Networks table is described below.
# Subscribed
Licensed Devices
The number of managed devices for which event notifications will be sent to this
client.
To view information about the networks for which a client has requested notifications, click on the #
Subscribed Networks link for the client in the API Client Information table. TheSubscribed Networks
table will be displayed for the client containing a list of the networks the client has requested notification
for. The following table describes the information provided in the Subscribed Networks table:
Cisco FindIT Network Manager and Probe Administration Guide, Version 2.0
74
System
Backing Up and Restoring the Manager Configuration
Table 25: The Subscribed Networks Table
Field
Description
Network
The name of the network being monitored by the client.
# Subscribed
Licensed Devices
The number of managed devices in this network for which event notifications
will be sent
Backing Up and Restoring the Manager Configuration
The configuration and other data used by FindIT Network Manager can be backed up for disaster recovery
purposes, or to allow the Manager to be easily migrated to a new host. Backups are encrypted with a password
in order to protect sensitive data.
To perform a backup, do the following:
1. Navigate to System > Backup.
2. Enter a password to encrypt the backup in the Password and Confirm Password fields.
3. Click Backup & Download. A popup window will appear showing the progress of the backup. Larger
systems may require some time to complete the backup, so you may dismiss the progress meter and display
it again later with the View Status button.
When complete, the backup file will be downloaded to your PC.
To restore a configuration backup to the Manager, do the following:
1. Navigate to System > Restore.
2. Enter the password that was used to encrypt the backup in the Password field.
3. Click Upload & Restore to proceed. A popup will appear allowing you to upload a backup file from your
PC. You can drag and drop the backup file onto the target area provided, or click the target area to specify
a file in your PC's file system. Click Restore to proceed.
Managing Platform Settings
The Platform Settings page is only available when using the Cisco-provided virtual machine images. This
page allows you to modify key system settings without needing to directly access the operating system.
Changing the Hostname
Note
This does not apply to FindIT Network Manager for AWS.
The hostname is the name used by the operating system to identify the system, and is used by FindIT Network
Manager to identify the Manager when generating Bonjour advertisements. To change the hostname for the
Manager, do the following:
Cisco FindIT Network Manager and Probe Administration Guide, Version 2.0
75
System
Managing Platform Settings
1. Navigate to System > Platform Settings.
2. Specify a hostname for the Manager in the field provided.
3. Click Save.
Changing Port Settings
The Port Settings control the TCP ports the Manager’s user interface is hosted on. To change the default web
server ports, do the following:
1. Navigate to System > Platform Settings.
2. Change the ports used by the web server for the HTTP and HTTPS protocols.
3. Click Save.
Changing Network Settings
Note
This does not apply to FindIT Network Manager for AWS. To modify the network configuration, use the EC2
console in AWS.
To change the network configuration for the Manager, do the following:
1. Navigate to System > Platform Settings.
2. Select the method for IP address assignment. The available options are DHCP (default) and Static IP. If
you choose the Static IP option, then specify the address, subnet mask, default gateways and DNS servers
in the appropriate fields.
3. Click Save
Changing Time Settings
The Time Settings manage the system clock for the Manager. To adjust the system clock, do the following:
1. Navigate to System > Platform Settings.
2. Select the appropriate timezone for the Manager.
3. Select the method for time synchronization. The available options are NTP (default) and Local Clock.
If the NTP option is chosen, then optionally modify the NTP servers to use for synchronization.
If Local Clock is selected, the you may manually adjust the date and time using the controls provided.
Alternatively, click clock to synchronize the time with your PC.
4. Click Save.
Cisco FindIT Network Manager and Probe Administration Guide, Version 2.0
76
System
Managing Privacy
Note
If the virtual machine is configured to synchronize the local clock with the host machine, any changes to the
local clock done through the Platform Settings page will be overwritten by the hypervisor.
If the hypervisor in use is VirtualBox and the VirtualBox Guest Additions are installed in the VM, the NTP
service - timesyncd - will not operate.
Managing Privacy
Some of the features of FindIT Network Manager require the use of online services hosted by Cisco and result
in the sharing of certain information with Cisco. These services include:
• Cisco Active Advisor—FindIT Network Manager can upload network inventory information to the
Cisco Active Advisor service, https://www.ciscoactiveadvisor.com. This feature is disabled by default.
• Lifecycle Reporting—This feature includes the generation of the Lifecycle Report, End of Life Report
and Maintenance Report in FindIT Network Manager. Lifecycle Reporting is enabled by default.
• Software Updates— Notification of the availability of software updates for network devices, and the
ability to have those updates automatically applied. Software Updates are enabled by default.
• Product Improvement—This feature allows the Manager to send information about hardware and
software usage in the network for the purpose of further developing the Cisco product portfolio. Product
Improvement is enabled by default.
All of these features are subject to the Cisco Privacy Policy and you may enable or disable them at any time.
The Privacy Settings page is displayed during the initial setup of the Manager, allowing you to disable any
of the default enabled features prior to any network data being collected. More detail for each of these features
and the information shared may be found below.
Cisco Active Advisor
Cisco Active Advisor (CAA) is a cloud-based service that provides essential lifecycle information about your
network inventory. By enabling this feature, the Manager sends network inventory information to CAA and
you can view the lifecycle information in the CAA portal. Sensitive information such as usernames and
passwords is not sent.
Uploads may be performed automatically or on demand. To perform an on-demand upload, do the following:
1. Navigate to the Network page and select to view a network.
2. Select Upload to CAA from the Network Actions dropdown.
3. If prompted, provide your cisco.com credentials.
4. Optionally, select a label to be applied to the upload.
5. Click Upload. You may also click View inventory data before sending in order to inspect the data prior
to uploading.
Cisco FindIT Network Manager and Probe Administration Guide, Version 2.0
77
System
Managing Privacy
Note
The cisco.com credentials provided must be used to log on to the Cisco Active Advisor portal
(https://www.ciscoactiveadvisor.com) at least once prior to being used for upload.
To enable automatic uploads, do the following:
1. Navigate to the Network page, select a network and click More. Then select the CAA tab.
2. Enter your cisco.com credentials in the fields provided. Optionally, select a label to be applied to the
upload.
3. Ensure the Automatically upload newly discovered devices checkbox is checked.
4. Click Save. You may also view an example of the data to be uploaded by clicking the link on this page.
To disable automatic uploads, do the following:
1. Navigate to the Network page, select a network and click More. Then select the CAA tab.
2. Uncheck the Automatically upload newly discovered devices checkbox.
3. Click Save.
Lifecycle Reporting
FindIT Network Manager provides information on the lifecycle state of each of the Cisco devices in the
network. In order to do this, the Manager must provide Cisco with the product ID, serial number and hardware
and software versions for each Cisco device. The IP address of the Manager may also be recorded. No personal
or sensitive information will be intentionally collected during this process.
To disable the generation of lifecycle reports, do the following:
1. Navigate to System > Privacy Settings.
2. Uncheck the checkboxes for the reports you wish to disable.
3. Click Save.
Product Improvement
By enabling this feature, FindIT Network Manager periodically sends hardware and software product usage
information to Cisco. The IP address of the Manager may also be recorded. No personal or sensitive information
will be intentionally collected during this process.
To see an example of what information is sent, do the following:
1. Navigate to System > Privacy Settings.
2. Click the View a Sample link next to the Send product improvement data to Cisco checkbox. An
example of an upload with sample data will be displayed.
To disable the generation of product improvement data, do the following:
1. Navigate to System > Privacy Settings.
2. Uncheck the Send product improvement data to Cisco checkbox.
Cisco FindIT Network Manager and Probe Administration Guide, Version 2.0
78
System
Managing Logging Settings
3. Click Save.
Software Updates
Use of this feature requires FindIT to send the product ID and hardware and software version information for
each device to Cisco. Your local IP address may also be recorded. No personal or sensitive information will
be intentionally collected during this process.
To disable the use of automatic software updates, do the following:
1. Navigate to System > Privacy Settings.
2. Uncheck the checkboxes for both device firmware checks and FindIT application checks.
3. Click Save.
Managing Logging Settings
The Log Settings page allows you to control the amount of detail included in log files by the different software
modules. The default logging level is Info, but you can reduce the number of messages logged by selecting
Warn or Error, or view more detail by selecting Debug.
To change the log levels for the Manager, do the following:
1. Navigate to System > Log Settings.
2. Use the radio buttons to select the desired logging level for each software module
3. Click Save
The log files for the Manager may be found in the directory /var/log/findit/manager/ on the local
file-system. You may click Download Log File to download an archive of the contents of this directory. It
may take several minutes to collect all the data.
Managing the Local Probe
Note
This page is not present on FindIT Network Manager for AWS.
Cisco FindIT Network Probe may be installed on the same host as the Manager in order to manage devices
on the network local to the Manager, and the Cisco virtual machine image for the Manager does include the
Probe. If you do not wish to manage the network local to the Manager, you may disable the co-located Probe
using the following steps:
1. Navigate to System > Local Probe.
2. Click the toggle switch to disable the local Probe.
3. Click Save.
Cisco FindIT Network Manager and Probe Administration Guide, Version 2.0
79
System
Managing the Local Probe
To remove the Probe software entirely from the Manager, log on to the operating system and use the command
sudo apt-get --purge autoremove findit-probe. This removes the Probe software,
configuration and dependencies that are not required by any other application.
Cisco FindIT Network Manager and Probe Administration Guide, Version 2.0
80
CHAPTER
13
Notifications
This chapter contains the following sections:
• About Notifications, on page 81
• Supported Notifications, on page 81
• Viewing and Filtering Current Device Notifications, on page 82
• Viewing and Filtering Historical Device Notifications, on page 84
About Notifications
The FindIT Network Manager generates notifications when different events occur in the network. A notification
may generate an email or a pop-up alert that appears in the lower right corner of the browser, and all notifications
are logged for later review. Notifications may also be acknowledged when they are no longer of interest and
those notifications will be hidden from the Notification Center by default.
Supported Notifications
The following table lists the notifications supported by the FindIT Network Manager:
Table 26: Supported Notifications
Event
Level
Description
Clears Automatically?
Reachability/Device
Discovered
Information
A new device is detected on the Yes, 5 minutes after the
network.
device is discovered.
Reachability/Device
Unreachable
Warning
A device is known through a
discovery protocol, but is not
reachable using IP.
Reachability/Device
Offline
Alert
A device is no longer detectable Yes, when the device is
on the network
rediscovered.
Device Notifications
Yes, when the device is
reachable through IP again.
Cisco FindIT Network Manager and Probe Administration Guide, Version 2.0
81
Notifications
Viewing and Filtering Current Device Notifications
Event
Level
Description
Clears Automatically?
Credential
Required/SNMP
Warning
The Probe is unable to access the Yes, when the Probe
device due to an authentication authenticates.
error.
Credential
Required/User ID
Warning
The Probe is unable to access the Yes, when the Probe
device due to an authentication authenticates.
error.
Device Service/SNMP Warning
SNMP is disabled on the device. Yes, when SNMP is
enabled.
Device Service/Web
service
Warning
The web service is disabled on
the device.
Health
Warning/Alert
The device health level changes Yes, when the device health
to warning or alert.
returns to normal.
Yes, when web service API
is enabled
Cisco Support Notifications
Firmware
Information
A later version of firmware is
available on cisco.com
Yes, when the device is
updated to the latest version.
End of Life
Warning/Alert
An End of Life bulletin is found No
for the device or an End of Life
milestone has been reached.
Maintenance Expiry
Warning/Alert
The device is out of warranty
Yes, if a new maintenance
and/or does not have a currently contract is taken out.
active maintenance contract.
Device Health Notifications
CPU
Warning/Alert
Device CPU usage exceeds
maximum thresholds.
Yes, when the CPU usage
returns to a normal level.
Uptime
Warning/Alert
Device uptime is below minimum Yes, when the device uptime
thresholds.
exceeds minimum levels.
Connected Clients
Warning/Alert
The number of connected clients Yes, when the number of
exceeds maximum thresholds.
connected clients returns to
an acceptable level.
Viewing and Filtering Current Device Notifications
To view currently active notifications for a single device or all devices, do the following:
1. In the Home window, click Notification Center icon on the top right corner of the global tool bar. The
number badge on the icon specifies the total number of unacknowledged notifications outstanding, and
the color of the badge indicates the highest severity level currently outstanding.
Cisco FindIT Network Manager and Probe Administration Guide, Version 2.0
82
Notifications
Viewing and Filtering Current Device Notifications
Any notifications currently outstanding are listed below the icons in the Notification Center. The number
on the severity icon provides a total of the number of notifications in each of the following categories:
• Information (green circle icon)
• Warning (orange triangle icon)
• Alert (red inverted triangle icon)
2. In the Notification Center, you can perform the following actions:
• Acknowledge a notification—Check the check box against the notification to acknowledge it. You
may acknowledge all notifications in the display by checking the ACK All checkbox
• Filter the displayed notifications—Instructions for this action is provided in the following step
3. The Filter box limits the notifications displayed in the table. By default, notifications of all types and all
severity levels will be displayed. To change an existing filter, double click on that filter to change the
setting. To add a new filter, click on the Add Filter label and select a filter from the dropdown list. The
following filters are available:
Table 27: Available Filters
Filter
Description
Notification Type
The type of notification to be displayed. For example, to display notifications for
devices that are offline, choose Device Offline from the drop-down list.
Severity
The severity level of the notifications to be displayed. It can be one of the
following:
• Info
• Warning
• Alert
You may include higher severity levels by selecting the Higher checkbox.
Include Ack
Include notifications that have been acknowledged.
Network
Displays notifications for the specified network(s). Start typing in the filter and
matching networks will be listed in a dropdown. Click to select the desired
network.
You may include multiple networks in the filter.
Device
Displays notifications for the specified device(s). Start typing in the filter and
matching devices will be listed in a dropdown. Click to select the desired device.
You may include multiple devices in the filter.
Note
Notifications for individual devices may be seen in the Basic Info and the Detailed Info panels for the device.
Cisco FindIT Network Manager and Probe Administration Guide, Version 2.0
83
Notifications
Viewing and Filtering Historical Device Notifications
To control how you receive notifications, change the notification settings at the organization or system level.
For more information, see Managing Organizations or Changing Notification Defaults.
Viewing and Filtering Historical Device Notifications
The occurrence or change in state of any notification is recorded as an event on the Manager, and may be
viewed through the Event Log. A subset of the event log may be viewed through the Basic Info panel or the
Device Detail panel for individual devices. The Basic Info Panel shows only the last 24 hours’ worth of
events, while the Device Detail panel shows all historical data for the device that is available on the Probe.
Events on the Device Detail panel may be filtered to help isolate those events you are interested in. See About
the Event Log for more information on viewing and filtering historical events.
Cisco FindIT Network Manager and Probe Administration Guide, Version 2.0
84
CHAPTER
14
Troubleshooting
This chapter contains the following sections:
• Capturing Network Diagnostic Information, on page 85
• Managing Probe Log Settings, on page 86
Capturing Network Diagnostic Information
The Network Show Tech feature allows you to easily capture diagnostic information for your network in a
form which you can analyze later or send to a support engineer. A Network Show Tech can be generated
from the Manager UI or directly from the Probe UI in the event you are troubleshooting problems with the
Manager-Probe connection. To capture a Network Show Tech, do the following:
1. Navigate to Network and select the Network for which you want to collect diagnostic information. Select
the Actions tab and click Show Tech.
Alternatively, log on to the Probe UI and navigate to Troubleshooting > Network Show Tech.
2. Use the check boxes to control whether or not to exclude passwords and certificates from device
configurations, and where the diagnostic information should be sent. The following options are available:
• Attach the diagnostic information to an existing Cisco support case. To do this, enter the case number
in the field provided
• Send the diagnostic information using email. Enter a comma-separated list of email addresses in the
field provided
• Download the diagnostic information to your PC
If you are generating the Network Show Tech from the Probe, you do not have the options to email or
attach to a support case. You must download the diagnostic information to your PC.
3. Click Gather diagnostic data.
The diagnostic information is delivered as a zip file, and includes a basic webpage to help navigate the data
collected. To access the data, do the following:
1. Unzip the diagnostic information file to a convenient location on your PC.
2. Use a web browser to open the index.html file located in the directory created.
Cisco FindIT Network Manager and Probe Administration Guide, Version 2.0
85
Troubleshooting
Managing Probe Log Settings
Managing Probe Log Settings
Log Settings for a Probe can be managed from the Manager UI or directly from the Probe UI in the event
you are troubleshooting problems with the Manager-Probe connection. Log settings control what information
the Probe will retain in its log files. This information is of primary interest to support engineers diagnosing
problems with FindIT Network Management.
To change the log settings for a given network, navigate to Network and select the network for which you
want to change the settings. Click More to display the Network Detail panel and then select the Log Settings
tab. Alternatively, log on to the Probe UI and navigate to Administration > Log Settings.
The settings available include the following parameters:
Table 28: Log Settings
Field
Description
Log Level
The level of detail that should be logged. The following options are available:
• Error—Error level messages only
• Warning—Warnings and errors
• Info(default)—Informational messages and above
• Debug—all messages including low level debugging messages
Log Module
The module(s) for which messages should be logged. The following options are
available:
• All (default)—All modules
• Call-home Agent—Communication between the Probe and Manager
• Discovery—Device discovery events and topology discovery
• Northbound —Communication between the Manager and the Probe
• Services—Message translation between northbound and southbound
• Southbound—Low level communication between the Probe and devices
• System—Core system process not covered by any other module
You may select multiple modules as needed.
The Probe log files are included in the Network Show Tech content. For more details on Network Show
Tech option, see Capturing Network Diagnostic Information, on page 85 section.
Cisco FindIT Network Manager and Probe Administration Guide, Version 2.0
86
CHAPTER
15
Frequently Asked Questions
This chapter answers frequently asked questions about the Cisco FindIT Network Management features and
issues that may occur. The topics are organized into the following categories:
• General FAQs, on page 87
• Discovery FAQs, on page 87
• Configuration FAQs, on page 88
• Security Consideration FAQs, on page 88
• Remote Access FAQs, on page 91
• Software Update FAQs, on page 91
General FAQs
Q. What languages are supported by the FindIT Network Management?
A. FindIT Network Management is translated into the following languages:
• Chinese
• English
• French
• German
• Japanese
• Spanish
Discovery FAQs
Q. What protocols does FindIT use to manage my devices?
A. FindIT uses a variety of protocols to discover and manage the network. Exactly which protocols are
using for a particular device will vary between device types.
The protocols used include:
• Multicast DNS and DNS Service Discovery (aka Bonjour, see RFCs 6762 & 6763)
Cisco FindIT Network Manager and Probe Administration Guide, Version 2.0
87
Frequently Asked Questions
Configuration FAQs
• Cisco Discovery Protocol (CDP)
• Link Layer Discovery Protocol (see IEEE specification 802.1AB)
• Simple Network Management Protocol (SNMP)
• RESTCONF (See https://datatracker.ietf.org/doc/draft-ietf-netconf-restconf/)
• Private XML API for switch platforms
Q. How does FindIT discover my network?
A. The FindIT Network Probe builds an initial list of devices in the network from listening to CDP, LLDP,
and mDNS advertisements. The Probe then connects to each device using a supported protocol and
gathers additional information such as CDP & LLDP adjacency tables, MAC address tables, and associated
device lists. This information is used to identify additional devices in the network, and the process repeats
until all devices have been discovered.
Q. Does FindIT do network scans?
A. FindIT does not actively scan the network. The Probe will use the ARP protocol to scan the IP subnet it
is directly attached to, but will not attempt to scan any other address ranges. The Probe will also test each
discovered device for the presence of a webserver and SNMP server on the standard ports.
Configuration FAQs
Q. What happens when a new device is discovered? Will its configuration be changed?
A. New devices will be added to the default device group. If configuration profiles have been assigned to
the default device group, then that configuration will be applied to newly discovered devices.
Q. What happens when I move a device from one device group to another?
A. Any VLAN or WLAN configuration associated with profiles that are currently applied to the original
device group that are not also applied to the new device group will be removed, and VLAN or WLAN
configuration associated with profiles that are applied to the new group that are not applied to the original
group will be added to the device. System configuration settings will be overwritten by profiles applied
to the new group. If no system configuration profiles are defined for the new group, then the system
configuration for the device will not change.
Security Consideration FAQs
Q. What port ranges and protocols are required by FindIT Network Manager?
A. The following table lists the protocols and ports used by FindIT Network Manager:
Table 29: FindIT Network Manager - Protocols and Ports
Port
Direction
Protocol
Usage
TCP 22
Inbound
SSH
Command-line access to Manager.
SSH is disabled by default on the Cisco
virtual machine image
Cisco FindIT Network Manager and Probe Administration Guide, Version 2.0
88
Frequently Asked Questions
Security Consideration FAQs
Port
Direction
Protocol
Usage
TCP 80
Inbound
HTTP
Web access to Manager. Redirects to
secure web server (port 443)
TCP 443
Inbound
HTTPS
Secure web access to Manager
TCP 1069
Inbound
NETCONF/TLS
Communication between Probe and
Manager with release 1.x.
Used only in release 2.0 when release
1.x Probes are present.
TCP 50000 - 51000
Inbound
Device dependent
Remote access to devices
UDP 53
Outbound
DNS
Domain name resolution
UDP 123
Outbound
NTP
Time synchronization
UDP 5353
Outbound
mDNS
Multicast DNS service advertisements
to the local network advertising the
Manager
Q. What port ranges and protocols are required by FindIT Network Probe?
A. The following table lists the protocols and ports used by FindIT Network Probe:
Table 30: FindIT Network Probe - Protocols and Ports
Port
Direction
Protocol
Usage
TCP 22
Inbound
SSH
Command-line access to Probe. SSH
is disabled by default on the Cisco
virtual machine image.
TCP 80
Inbound
HTTP
Web access to Probe. Redirects to
secure web server (port 443).
TCP 443
Inbound
HTTPS
Secure web access to Probe.
UDP 5353
Inbound
mDNS
Multicast DNS service advertisements
from the local network. Used for
device discovery.
TCP 10000 - 10100
Inbound
Device dependent
Remote access to devices.
This range is only used by FindIT
Network Probe version 1.x.
UDP 53
Outbound
DNS
Domain name resolution.
UDP 123
Outbound
NTP
Time synchronization
TCP 80
Outbound
HTTP
Management of devices without secure
web services enabled.
Cisco FindIT Network Manager and Probe Administration Guide, Version 2.0
89
Frequently Asked Questions
Security Consideration FAQs
Port
Direction
Protocol
Usage
UDP 161
Outbound
SNMP
Management of network devices.
TCP 443
Outbound
HTTPS
Management of devices with secure
web services enabled. Access Cisco
web services for information such as
software updates, support status, and
end of life notices.
TCP 1069
Outbound
NETCONF/TLS
Communication between Probe and
Manager.
UDP 5353
Outbound
mDNS
Multicast DNS service advertisements
to the local network advertising the
Probe.
Q. How secure is the communication between FindIT Network Manager and FindIT Network Probe?
A. All communication between the Manager and the Probe is encrypted using a TLS 1.2 session authenticated
with client and server certificates. The session is initiated from the Probe to the Manager. At the time
the association between the Manager and Probe is first established, the user must log on to the Manager
from the Probe, at which point the Manager and Probe exchange certificates to authenticate future
communications.
Q. Does FindIT have ‘backdoor’ access to my devices?
A. No. When FindIT discovers a supported Cisco device, it will attempt to access the device using the
factory default credentials for that device with the username and password: cisco, or the SNMP
community:public. If the device configuration has been changed from the default, then it will be
necessary for the user to supply correct credentials to FindIT.
Q. How secure are the credentials stored in FindIT?
A. Credentials for accessing FindIT are irreversibly hashed using the SHA512 algorithm. Credentials for
devices and other services, such as the Cisco Active Advisor, are reversibly encrypted using the AES-128
algorithm.
Q. How do I recover a lost password for the web UI?
A. If you have lost the password for all the admin accounts in the web UI, you can recover the password
by logging on the console of the Probe and running the finditprb recoverpassword tool, or logging on
the console of the Manager and running the finditmgr recoverpassword tool. This tool resets the
password for the cisco account to the default of cisco, or, if the cisco account has been removed, it will
recreate the account with the default password. Following is an example of the commands to be provided
in order to recover the password using this tool.
cisco@findit-manager:~$ finditmgr recoverpassword
Are you sure? (y/n) y
Recovered the cisco account to default password
recoverpassword FindIT Manager successful!
cisco@findit-manager:~$
Note
When using FindIT Network Manager for AWS, the password will be set to the AWS instance ID.
Cisco FindIT Network Manager and Probe Administration Guide, Version 2.0
90
Frequently Asked Questions
Remote Access FAQs
Remote Access FAQs
Q. When I connect to a device’s administration interface from FindIT Network Management, is the session
secure?
A. FindIT Network Management tunnels the remote access session between the device and the user. The
protocol used between the Probe and the device will depend on the end device configuration, but FindIT
will always establish the session using a secure protocol if one is enabled (e.g. HTTPS will be preferred
over HTTP). If the user is connecting to the device via the Manager, the session will pass through an
encrypted tunnel as it passes between the Manager and the Probe, regardless of the protocols enabled on
the device. The connection between the user's web browser and the Manager will always be HTTPS.
Q. Why does my remote access session with a device immediately log out when I open a remote access
session to another device?
A. When you access a device via FindIT Network Manager, the browser sees each connection as being with
the same web server (FindIT) and so will present cookies from each device to every other device. If
multiple devices use the same cookie name, then there is the potential for one device’s cookie to be
overwritten by another device. This is most often seen with session cookies, and the result is that the
cookie is only valid for the most recently visited device. All other devices that use the same cookie name
will see the cookie as being invalid and will logout the session.
Q. Why does my remote access session fail with an error like the following? Access Error: Request Entity
Too Large HTTP Header Field exceeds Supported Size
A. After doing many remote access sessions with different devices, the browser will have a large number
of cookies stored for the Manager domain. To work around this problem, use the browser controls to
clear cookies for the domain and then reload the page.
Software Update FAQs
Q. How do I keep the Manager operating system up to date?
A. From version 1.1.0, the Manager uses the Ubuntu Linux distribution for an operating system. The packages
and kernel may be updated using the standard Ubuntu processes. For example, to perform a manual
update, log on to the console as the cisco user and enter the commands sudo apt-get update and
sudo apt-get upgrade. The system should not be upgraded to a new Ubuntu release, and it is
recommended that no additional packages should be installed beyond those included in the virtual machine
image supplied by Cisco, or those installed as part of a minimal Ubuntu install.
Q. How do I update Java on the Manager?
A. From version 1.1.0, FindIT Network Manager uses the OpenJDK packages from the Ubuntu repositories.
OpenJDK will automatically be updated as part of the updating the core operating system.
Q. How do I keep the Probe operating system up to date?
A. From version 1.1.0, the Probe uses the Ubuntu Linux distribution for an operating system. The packages
and kernel may be updated using the standard Ubuntu processes. For example, to perform a manual
update, log on to the console as the cisco user and enter the commands sudo apt-get update and
sudo apt-get upgrade. The system should not be upgraded to a new Ubuntu release, and it is
Cisco FindIT Network Manager and Probe Administration Guide, Version 2.0
91
Frequently Asked Questions
Software Update FAQs
recommended that no additional packages should be installed beyond those included in the virtual machine
image supplied by Cisco, or those installed as part of a minimal Ubuntu install.
Q. How do I keep the Probe operating system up to date when using a Raspberry Pi?
A. The Raspbian packages and kernel may be updated using the standard processes used for Debian-based
Linux distributions. For example, to perform a manual update, log on to the console as the cisco user
and enter the commands sudo apt-get update and sudo apt-get upgrade. The system
should not be upgraded to a new Raspbian major release. It is recommended that no additional packages
are installed beyond those installed as part of the 'Lite' version of the Raspbian distribution and those
that are added by the Probe installer.
Cisco FindIT Network Manager and Probe Administration Guide, Version 2.0
92

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
