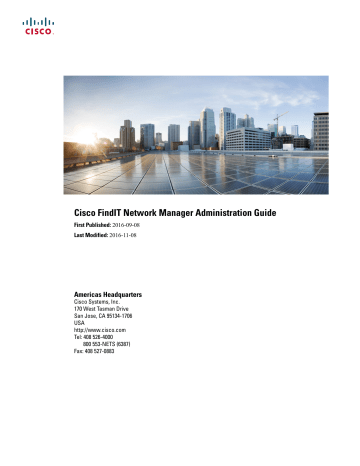

Cisco FindIT Network Manager Administration Guide
First Published: 2016-09-08
Last Modified: 2016-11-08
Americas Headquarters
Cisco Systems, Inc.
170 West Tasman Drive
San Jose, CA 95134-1706
USA
http://www.cisco.com
Tel: 408 526-4000
800 553-NETS (6387)
Fax: 408 527-0883
THE SPECIFICATIONS AND INFORMATION REGARDING THE PRODUCTS IN THIS MANUAL ARE SUBJECT TO CHANGE WITHOUT NOTICE. ALL STATEMENTS,
INFORMATION, AND RECOMMENDATIONS IN THIS MANUAL ARE BELIEVED TO BE ACCURATE BUT ARE PRESENTED WITHOUT WARRANTY OF ANY KIND,
EXPRESS OR IMPLIED. USERS MUST TAKE FULL RESPONSIBILITY FOR THEIR APPLICATION OF ANY PRODUCTS.
THE SOFTWARE LICENSE AND LIMITED WARRANTY FOR THE ACCOMPANYING PRODUCT ARE SET FORTH IN THE INFORMATION PACKET THAT SHIPPED WITH
THE PRODUCT AND ARE INCORPORATED HEREIN BY THIS REFERENCE. IF YOU ARE UNABLE TO LOCATE THE SOFTWARE LICENSE OR LIMITED WARRANTY,
CONTACT YOUR CISCO REPRESENTATIVE FOR A COPY.
The Cisco implementation of TCP header compression is an adaptation of a program developed by the University of California, Berkeley (UCB) as part of UCB's public domain version
of the UNIX operating system. All rights reserved. Copyright © 1981, Regents of the University of California.
NOTWITHSTANDING ANY OTHER WARRANTY HEREIN, ALL DOCUMENT FILES AND SOFTWARE OF THESE SUPPLIERS ARE PROVIDED “AS IS" WITH ALL FAULTS.
CISCO AND THE ABOVE-NAMED SUPPLIERS DISCLAIM ALL WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING, WITHOUT LIMITATION, THOSE OF
MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT OR ARISING FROM A COURSE OF DEALING, USAGE, OR TRADE PRACTICE.
IN NO EVENT SHALL CISCO OR ITS SUPPLIERS BE LIABLE FOR ANY INDIRECT, SPECIAL, CONSEQUENTIAL, OR INCIDENTAL DAMAGES, INCLUDING, WITHOUT
LIMITATION, LOST PROFITS OR LOSS OR DAMAGE TO DATA ARISING OUT OF THE USE OR INABILITY TO USE THIS MANUAL, EVEN IF CISCO OR ITS SUPPLIERS
HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
Any Internet Protocol (IP) addresses and phone numbers used in this document are not intended to be actual addresses and phone numbers. Any examples, command display output, network
topology diagrams, and other figures included in the document are shown for illustrative purposes only. Any use of actual IP addresses or phone numbers in illustrative content is unintentional
and coincidental.
Cisco and the Cisco logo are trademarks or registered trademarks of Cisco and/or its affiliates in the U.S. and other countries. To view a list of Cisco trademarks, go to this URL: http://
www.cisco.com/go/trademarks. Third-party trademarks mentioned are the property of their respective owners. The use of the word partner does not imply a partnership
relationship between Cisco and any other company. (1110R)
The Java logo is a trademark or registered trademark of Sun Microsystems, Inc. in the U.S. or other countries.
© 2016
Cisco Systems, Inc. All rights reserved.
CONTENTS
CHAPTER 1
Cisco FindIT Network Management Overview 1
About Cisco FindIT Network Management 1
Audience 2
Terminology 2
System Requirements for Cisco FindIT Network Manager 3
CHAPTER 2
Getting Started with Cisco FindIT Network Manager 5
Installing Cisco FindIT Network Manager 5
Performing the Initial Setup 6
CHAPTER 3
Using Cisco FindIT Network Manager 9
Using the Cisco FindIT Network Manager GUI 9
CHAPTER 4
Network Map 13
About the Network Map 13
CHAPTER 5
Reports 15
About Reports 15
Viewing the Summary Report 15
Viewing the EoX Report 16
Viewing the Maintenance Report 17
CHAPTER 6
Administration 19
About Administration 19
Managing Users 19
Changing Passwords 20
Backing Up and Restoring the Manager Configuration 20
Managing Platform Settings 21
Cisco FindIT Network Manager Administration Guide
iii
Contents
CHAPTER 7
Frequently Asked Questions 23
General FAQs 23
Discovery FAQs 24
Port Management FAQs 24
Configuration FAQs 24
Security Consideration FAQs 25
Remote Access FAQs 27
Software Update FAQs 28
Cisco FindIT Network Manager Administration Guide
iv
CHAPTER
1
Cisco FindIT Network Management Overview
This chapter contains the following sections:
• About Cisco FindIT Network Management , page 1
• Audience, page 2
• Terminology, page 2
• System Requirements for Cisco FindIT Network Manager, page 3
About Cisco FindIT Network Management
Cisco FindIT Network Management provides tools that help you monitor and manage your Cisco 100 to 500
Series network. FindIT Network Management automatically discovers your network, and allows you to
configure and monitor all supported Cisco 100 to 500 Series devices such as Cisco switches, routers, and
wireless access points. It also notifies you the availability of firmware updates, and about any devices that are
no longer under warranty or covered by a support contract.
FindIT Network Manager is a distributed application which is comprised of two separate components or
interfaces: one or more Probes referred to as FindIT Network Probe and a single Manager called FindIT
Network Manager.
An instance of FindIT Network Probe is installed at each site in the network, performs network discovery and
communicates directly with each Cisco device. In a single site network, you may choose to run a standalone
instance of FindIT Network Probe, but if your network comprises multiple sites, you may install FindIT
Network Manager at a convenient location and associate each Probe with the Manager. From the Manager
interface, you can get a high-level view of the status of all the sites in your network, and connect to the Probe
installed at a particular site when you wish to view a detailed information for that site.
FindIT Network Manager and FindIT Network Probe are each detailed in their respective administration
guides.
For more details on FindIT Network Manager, refer to the following sections in this user guide.
Cisco FindIT Network Manager Administration Guide
1
Cisco FindIT Network Management Overview
Audience
Audience
This guide is primarily intended for network administrators who are responsible for Cisco FindIT Network
Management software installation and management.
Terminology
Term
Description
Hyper-V
A virtualization platform provided by Microsoft Corporation.
Open Virtualization Format (OVF)
A TAR archive containing one or more virtual machines in OVF
format. It is a platform-independent method of packaging and
distributing Virtual Machines (VMs).
Open Virtual Appliance or Application Package that contains the following files used to describe a virtual
(OVA) file
machine and saved in a single archive using .TAR packaging:
• Descriptor file (.OVF)
• Manifest (.MF) and certificate files (optional)
VirtualBox
A virtualization platform provided by Oracle Corporation.
Virtual Hard Disk (VHD)
Virtual hard disk is a disk image file format for storing the complete
contents of a hard drive.
Virtual Machine (VM)
A virtual computing environment in which a guest operating system
and associated application software can run. Multiple VMs can
operate on the same host system concurrently.
• VMWare ESXi
A virtualization platform provided by VMWare Inc.
• VMWare Fusion
• vSphere Server
• VMWare Workstation
vSphere Client
Cisco FindIT Network Manager Administration Guide
2
User interface that enables users to connect remotely to vCenter
Server or ESXi from any Windows PC. You can use the primary
interface for vSphere Client to create, manage, and monitor VMs,
their resources, and the hosts. It also provides console access to
VMs.
Cisco FindIT Network Management Overview
System Requirements for Cisco FindIT Network Manager
System Requirements for Cisco FindIT Network Manager
Cisco FindIT Network Manager is distributed as a virtual machine image. To run FindIT Network Manager,
your environment must meet the following requirements:
• Hypervisor:
◦Microsoft Hyper-V version 10.0 or above
◦Oracle VirtualBox version 5.0.2 or above
◦VMWare—It can be one of the following:
◦ESXi version 5.5 or above
◦Fusion version 7 or above
◦Workstation version 12 or above
• CPU: 1x 64-bit Intel architecture
• Memory: 2GB
• Disk space: 20GB
FindIT Network Manager is administered through a web user interface. To use this interface, your browser
must be one of the following:
• Apple Safari version 9
• Google Chrome version 52
• Microsoft Edge version 38
• Microsoft Internet Explorer version 11
• Mozilla Firefox version 48
Your network must allow all instances of FindIT Network Probe to establish TCP connectivity with FindIT
Network Manager. For more details on the ports and protocols used, see Frequently Asked Questions.
Cisco FindIT Network Manager Administration Guide
3
Cisco FindIT Network Management Overview
System Requirements for Cisco FindIT Network Manager
Cisco FindIT Network Manager Administration Guide
4
CHAPTER
2
Getting Started with Cisco FindIT Network
Manager
This chapter contains the following sections:
• Installing Cisco FindIT Network Manager, page 5
• Performing the Initial Setup, page 6
Installing Cisco FindIT Network Manager
FindIT Network Manager is provided as a virtual machine image, packaged in both the Distributed Management
Task Force’s Open Virtualization Format (OVF), and as a zipped Microsoft Hyper-V virtual machine.
Each of these deployment instructions are discussed in the following sections:
Installing using VirtualBox
1 Download the FindIT Network Manager ova file by navigating to www.cisco.com/go/findit and selecting
the Download Software for this Product link in the Support pane.
2 Open VirtualBox and select File > Import Appliance...
3 Follow the prompts and make sure you have selected the downloaded file for the appliance to import .
4 Check that network adapter 1 is enabled and bridged to the correct physical interface on the host machine
5 Start the virtual machine
Installing using VMWare
1 Download the FindIT Network Manager ova file by navigating to www.cisco.com/go/findit and selecting
the Download Software for this Product link in the Support pane.
2 Consult the VMWare documentation for your product to determine the procedure for importing a virtual
machine. For example, if you are using VMWare Fusion, you would open the VMWare Fusion application
and select File > Import… and follow the prompts.
3 Select the downloaded ova file from your local directory and continue the import process.
Cisco FindIT Network Manager Administration Guide
5
Getting Started with Cisco FindIT Network Manager
Performing the Initial Setup
4 Check that the network interface on the newly created virtual machine is connected and bridged to the
correct physical interface on the host machine.
5 Start the virtual machine
Installing using Hyper-V
1 Download the FindIT Network Manager Hyper-V virtual machine archive by navigating to
www.cisco.com/go/findit and selecting the Download Software for this Product link in the Support
pane.
2 Unzip the archive to a convenient directory on your PC when asked for the location of the virtual machine
3 Open Hyper-V Manager and select Action > Import Virtual Machine ...
4 Follow the prompts and make sure you have selected the directory created when you extracted the archive
in step 2. Consider whether you want the VM files to be copied, moved, or left in place when you select
the import type
5 Check that the network adapter is connected to a virtual switch that is mapped to the correct external
network on the host machine
6 Start the virtual machine
Performing the Initial Setup
There are a few configuration tasks that should be performed to ensure that the Manager meets your
requirements.
Configuring Basic System Settings
To configure basic system settings such as IP addressing and time settings for the Manager, do the following:
1 Connect to the console of the Manager using the appropriate tools for your Hypervisor
2 Log in using the default username and password set to: cisco. You will be required to change the password
immediately after logging in. The new password should be a complex, non-dictionary word using a mixture
of character types.
3 Enter the command sudo config_vm to perform the initial configuration. When prompted, enter the
password for the cisco account. The config_vm utility will prompt you with a series of steps to change
the platform settings.
4 First you will be prompted to change the hostname for the Manager. The hostname is used to identify the
Manager in Bonjour advertisements and in the FindIT user interface. Choose a meaningful name here, or
you may skip this step to keep the default hostname.
5 Next you will be prompted to configure the network interface. The options here are static and dhcp (the
default). If you select static, you will be prompted for IP address information, default gateway, and DNS
server addresses. The network interface will be reset if you make changes here.
6 Finally, you will be prompted to configure the time settings for the Manager. You may opt to configure
one or more NTP servers for time synchronization (recommended), and you will be asked to select the
timezone.
Cisco FindIT Network Manager Administration Guide
6
Getting Started with Cisco FindIT Network Manager
Performing the Initial Setup
You may change these settings at any time by re-running the script, or through the web interface at
Administration > Platform Settings.
Launching the Manager User Interface
1 Launch a web browser, such as Microsoft Internet Explorer or Mozilla Firefox.
2 In the Address field, enter the IP address of the Manager and press Enter
3 Enter the default user name: cisco and password: cisco. Click Login.
4 You will be prompted to change the password for the cisco account. Ensure that the new password is at
least 8 characters in length using at least 3 different character classes.
The FindIT Network Manager user interface is displayed.
Creating Users and Changing Passwords
The Manager is initially set up with a single, default username and password.
To add new users, do the following:
1 Navigate to Administration > User Management
2 Click on the plus sign at the top of the Local Users table
3 In the Add User window that appears, specify the username and password to use. Also specify whether
this user is an Administrator or Operator. Administrators have access to all functionality, while Operators
do not have access to the User Management functions.
4 Click OK to create the new user
You may also set up password complexity restrictions on the User Management page. New passwords will
be required to meet these restrictions.
To change your password, do the following:
1 Navigate to Administration > Change Password
2 In the boxes provided, enter your current password, and the new password.
3 Click Save
Setting Up Licenses
License checking has not been implemented in the current version of FindIT Network Management. However,
it is the user's responsibility to ensure that they possess sufficient licenses for the number of network devices
being managed. Consult the FindIT Network Manager datasheet at www.cisco.com/go/findit for further details.
Reviewing Network Map
The Network Map provides you with a high-level view of your network. To access the network map, perform
the following steps:
1 Make sure you have associated your FindIT Network Probes with the Manager as described in the FindIT
Network Probe Administration Guide.
2 Click Network Map in the Manager navigation panel
Cisco FindIT Network Manager Administration Guide
7
Getting Started with Cisco FindIT Network Manager
Performing the Initial Setup
3 You may click and drag the map to reposition it, and use the plus and minus buttons to zoom in and out
4 Each site with a FindIT Network Probe installed will be displayed as an icon on the map. Each icon contains
a number showing the number of outstanding notifications for that site, and the color of the icon shows
the highest severity level outstanding. Click on an icon to see more details about that site.
5 When you click on a site icon, the Basic Info panel appears showing you more information about that
site. This information includes the site name and address, and a list of outstanding notifications for the
site.
6 You may click on the globe icon in the Basic Info panel to open the user interface for the FindIT Network
Probe at that site in a new window. Your connection to the Probe passes through a secure tunnel between
the Probe and the Manager. See Security Consideration FAQs for more information on security.
Cisco FindIT Network Manager Administration Guide
8
CHAPTER
3
Using Cisco FindIT Network Manager
This chapter contains the following sections:
• Using the Cisco FindIT Network Manager GUI, page 9
Using the Cisco FindIT Network Manager GUI
Home window
Figure 1: Cisco FindIT Network Manager Home Page
Cisco FindIT Network Manager Administration Guide
9
Using Cisco FindIT Network Manager
Using the Cisco FindIT Network Manager GUI
Table 1: Cisco FindIT Network Manager Home Page
Name
Description
Navigation pane
Provides access to the Cisco FindIT Network Manager features.
Work pane
Area where the feature interface is displayed.
When you click an option in the Navigation pane, its corresponding window opens
in this area.
Header toolbar
The header toolbar contains the following options:
• A toggle button for expanding and collapsing the navigation pane
• Header text including the site name of the Manager
• The username of the user who has logged into the application
• Language selection drop-down
• A series of icons for functions such as notifications, feedback, context sensitive
help, and logging out
Navigation Pane Options
The Navigation pane provides options to access the major Cisco FindIT Network Manager features.
Table 2: Navigation Pane Options
Icon
Name
Description
Network Map
Displays a geographic map showing the location and status of each
site in the network
Reports
Under the Reports heading, you will find a number of reports that
provide life-cycle information about your network devices, including
end of life bulletins, warranty information and service contract
details.
Administration
The Administration pages allow you to maintain the FindIT Network
Manager.
Cisco FindIT Network Manager Administration Guide
10
Using Cisco FindIT Network Manager
Using the Cisco FindIT Network Manager GUI
Header Toolbar Options
The Header toolbar provides access to other system functions and displays system notifications.
Table 3: Header Toolbar Options
Icon
Option
Description
Toggle button
Located on the top left of the header—This toggle button helps to
expand or collapse the navigation pane.
Language Selection This drop-down list allows you to select the language for the user
interface.
Feedback
Click to provide feedback about your experience using the Cisco
FindIT Network Manager and any suggestions for improvements.
Help
The online-help documentation for FindIT Network Manager.
About FindIT
The version information for FindIT Network Manager.
Logout
Click to log out of FindIT Network Manager.
Cisco FindIT Network Manager Administration Guide
11
Using Cisco FindIT Network Manager
Using the Cisco FindIT Network Manager GUI
Cisco FindIT Network Manager Administration Guide
12
CHAPTER
4
Network Map
This chapter contains the following sections:
• About the Network Map, page 13
About the Network Map
The Network Map provides a geographic map showing the location and status of each site in the network.
The number displayed on each site icon indicates the number of outstanding notifications that exist for that
site, and the color of the icon indicates the highest severity level outstanding. To see more information about
a site, click on the site icon.
The Network Map offers the following controls:
• Search box—Enter all or part of a device name, IP address, serial number or MAC address to locate
that device in the network. As you type, a list of matching devices is displayed. Hover over a device and
the corresponding site will be highlighted. Select a device and the corresponding site will be selected
and centered in the view.
• Zoom controls—Use these controls to zoom in and out of the map. Click the (✚) plus sign to zoom in
and the minus sign to zoom out.
• Map/Satellite controls—Use these controls to select your preferred view - a map, or aerial imagery
You may also click and drag anywhere in the map area to move the map in the Work pane. Clicking on a site
icon brings up the Basic Info panel for that site. The Basic Info panel contains the following information:
• Site name as defined in the Probe located at that site
• The Probe IP address for the site
• The physical address of the site
• The connection status
• A count of the outstanding notifications for the site and a list of the ten most recent notifications
You may also carry out the following actions for a site from the Basic Info panel:
Cisco FindIT Network Manager Administration Guide
13
Network Map
About the Network Map
• Click the globe icon to open the Probe user interface which displays the Probe installed at the site in a
new window. The connection to the Probe is tunneled through the Manager, so no additional firewall
rules are required at the site to allow access.
• Click on the Actions button to display additional actions available for the site, and then click Remove
to delete this site and all associated data from the manager.
Cisco FindIT Network Manager Administration Guide
14
CHAPTER
5
Reports
This chapter contains the following sections:
• About Reports, page 15
• Viewing the Summary Report, page 15
• Viewing the EoX Report, page 16
• Viewing the Maintenance Report, page 17
About Reports
The Reports option in the Cisco FindIT Network Manager provides a series of reports about your network
devices. The reports provided include:
• Summary Report—Provides a summary of the status of the devices in the network
• EoX Report—Shows any devices that have an End of Life bulletin published
• Maintenance Report—Lists all devices and their warranty state and whether the device has an active
support contract
The Search box located at the top of each report can be used to filter the results. Enter a text in the Search
box and click the search icon to limit the number of entries that are displayed with the matching text. The
results displayed in the table are updated automatically as you type.
The column selection icon at the top left of each report can be used to customize the information displayed.
Click on the icon and then use the checkboxes that appear to select the columns you wish to include in the
report.
Viewing the Summary Report
The Summary Report provides a high level view of the status of the network devices, taking into account
both software and hardware lifecycle status. The following table describes the information provided:
Cisco FindIT Network Manager Administration Guide
15
Reports
Viewing the EoX Report
Table 4: Summary Report
Field
Description
Site Name
The name of the site in which the device is located.
Hostname
The hostname of the device.
Device Type
The type of device.
Firmware Version
Displays the current firmware version running on the
device.
Firmware Update Available
Displays the latest firmware version available for the
device, or states that the device firmware is currently
up to date.
End of Life Status
Specifies if an End of Life bulletin has been published
for the device and the date of the next key milestone
in the End of Life process.
Maintenance Status
Specifies if the device is currently under warranty or
covered by a support contract.
The row in the table for a device that may require attention is color-coded to indicate the urgency. For example,
a device with a published End of Life bulletin will be colored orange if the End of Support milestone has not
been reached, and red if the device is no longer supported by Cisco.
Viewing the EoX Report
The EoX Report lists any devices that have an End of Life bulletin published, along with key dates in the
End of Life process, and the recommended replacement platform. The following table describes the information
provided:
Table 5: EoX Report
Field
Description
Product ID
The product ID or part number of the device.
Name
The hostname of the device.
Device Type
The type of device.
Current Status
The stage at which the End of Life process of the
product is at.
Date of Announcement
The date the End of Life bulletin was published.
Cisco FindIT Network Manager Administration Guide
16
Reports
Viewing the Maintenance Report
Field
Description
Last Date of Sale
The date after which the product will no longer be
sold by Cisco.
Last Date of Software Releases
The date after which no more software versions will
be released for the product.
Last Date for New Service Contract
The last date for taking out a new support contract on
the device.
Last Date for Service Renewal
The last date for renewing an existing support contract
on the device.
Last Date of Support
The date after which Cisco will no longer provide
support for the product.
Recommended Replacement
The recommended replacement product.
Product Bulletin
The product bulletin number and a link to the bulletin
on the Cisco website.
Each row of the table is color-coded to indicate the stage of the End of Life process the device is at. For
example, a device that has past the Last Date of Sale but not yet reached the Last Date of Support will be
colored orange, and a device that is past the Last Date of Support is colored red.
Viewing the Maintenance Report
The Maintenance Report lists all network devices which includes the warranty and support contract status
information for each of them. The following table describes the information provided:
Table 6: Maintenance Report
Field
Description
Name
The hostname of the device.
Device Type
The type of device.
Model
Model number of the device.
Serial Number
The serial number for the device.
Status
The current support status of the device.
Coverage End Date
The date at which the current support contract will
expire.
Cisco FindIT Network Manager Administration Guide
17
Reports
Viewing the Maintenance Report
Field
Description
Warranty End Date
The date at which the warranty for the device will
expire.
Each row of the table is color-coded to indicate the support status for the device. For example, a device that
is approaching the expiry date of the warranty or support contract will be colored orange, while a device that
is out of warranty and does not have a current support contract will be colored red.
Cisco FindIT Network Manager Administration Guide
18
CHAPTER
6
Administration
This chapter contains the following sections:
• About Administration, page 19
• Managing Users, page 19
• Changing Passwords, page 20
• Backing Up and Restoring the Manager Configuration, page 20
• Managing Platform Settings, page 21
About Administration
The Administration option in the FindIT Network Manager allows you to manage the Manager software.
This option is broken up into a number of pages:
• User Management —Define user access to FindIT Network Manager
• Change Password—Change the password for the currently logged in user
• Backup & Restore—Backup and restore the configuration and other data for the Manager
• Platform Settings—Manage network configuration for the Manager
Managing Users
The User Management page allows you to define users that can access FindIT Network, and also allows you
to implement password complexity requirements for those users.
FindIT Network supports two types of users: admin and operator. An admin has full access to the FindIT
Network features, while an operator can do everything except managing users. When the FindIT Network
Manager is first installed, a default admin user is created with the username and password both set to cisco.
Adding a New User
To add a new user, do the following:
Cisco FindIT Network Manager Administration Guide
19
Administration
Changing Passwords
1 Navigate to Administration > User Management.
2 Click the ✚(plus) icon to create a new user.
3 In the fields provided, enter a username, password, and specify the user type.
4 Click OK.
Modifying a User
To modify an existing user, do the following:
1 Navigate to Administration > User Management.
2 Select the radio button for the user to be changed, and then click the edit icon.
3 Change the user type and the password as required.
4 Click OK.
Deleting a User
To delete an existing user, do the following:
1 Navigate to Administration > User Management
2 Select the radio button for the user to be deleted, and click the delete icon. You will see a notification
confirming your action.
Changing password complexity
To enable or change password complexity requirements, do the following:
1 Navigate to Administration > User Management.
2 Modify the Local User Password Complexity settings as required.
Changing Passwords
To change the password for the currently logged in user, do the following:
1 Navigate to Administration > Change Password.
2 Specify the current password, new password, and confirm your new password in the appropriate fields.
3 Click Save.
Backing Up and Restoring the Manager Configuration
The configuration and other data used by FindIT Network Manager can be backed up for disaster recovery
purposes, or to allow the Manager to be easily migrated to a new host. Backups are encrypted with a password
in order to protect sensitive data.
To perform a backup, do the following:
Cisco FindIT Network Manager Administration Guide
20
Administration
Managing Platform Settings
1 Navigate to Administration > Backup & Restore
2 Enter a password to encrypt the backup in the Password and Confirm Password fields in the Backup
box
3 Click Backup. A popup window will appear showing the progress of the backup. Larger systems may
require some time to complete the backup, so you may dismiss the progress meter and display it again
later with the View Status button.
When complete, the backup file will be downloaded to your PC.
To restore a configuration backup to the Manager, do the following:
1 Enter the password that was used to encrypt the backup in the Password field of the Restore box.
2 Click Upload/Restore to proceed. A popup will appear allowing you to upload a backup file from your
PC. You can drag and drop the backup file onto the target area provided, or click the target area to specify
a file in your PC's file system. Click OK to proceed.
Managing Platform Settings
To change the network configuration for the Manager, do the following:
1 Navigate to Administration > Platform Settings.
2 Specify a hostname for the Manager in the field provided.
This hostname is used to identify the Manager when generating Bonjour advertisements
3 Select the method for IP address assignment. The available options are DHCP (default) and Static IP. If
you choose the Static IP option, then specify the address, subnet mask, default gateways and DNS servers
in the appropriate fields.
4 Select the method for time synchronization. The available options are NTP (default) and Local Clock. If
the NTP option is chosen, then optionally modify the NTP servers to use for synchronization
5 Click Save
Cisco FindIT Network Manager Administration Guide
21
Administration
Managing Platform Settings
Cisco FindIT Network Manager Administration Guide
22
CHAPTER
7
Frequently Asked Questions
This chapter answers frequently asked questions about the Cisco FindIT Network Management features and
issues that may occur. The topics are organized into the following categories:
• General FAQs, page 23
• Discovery FAQs, page 24
• Port Management FAQs, page 24
• Configuration FAQs, page 24
• Security Consideration FAQs, page 25
• Remote Access FAQs, page 27
• Software Update FAQs, page 28
General FAQs
Q. What languages are supported by the FindIT Network Management?
A. FindIT Network Management is translated into the following languages:
• Chinese
• English
• French
• German
• Japanese
• Spanish
Cisco FindIT Network Manager Administration Guide
23
Frequently Asked Questions
Discovery FAQs
Discovery FAQs
Q. What protocols does FindIT use to manage my devices?
A. FindIT uses a variety of protocols to discover and manage the network. Exactly which protocols are using
for a particular device will vary between device types.
The protocols used include:
• Multicast DNS and DNS Service Discovery (aka Bonjour, see RFCs 6762 & 6763)
• Cisco Discovery Protocol (CDP)
• Link Layer Discovery Protocol (see IEEE specification 802.1AB)
• Simple Network Management Protocol (SNMP)
• RESTCONF (See https://datatracker.ietf.org/doc/draft-ietf-netconf-restconf/)
Q. How does FindIT discover my network?
A. The FindIT Network Probe builds an initial list of devices in the network from listening to CDP, LLDP,
and mDNS advertisements. The Probe then connects to each device using a supported protocol and gathers
additional information such as CDP & LLDP adjacency tables, MAC address tables, and associated device
lists. This information is used to identify additional devices in the network, and the process repeats until
all devices have been discovered.
Q. Does FindIT do network scans?
A. FindIT does not actively scan the network address range(s). It uses a combination of passive monitoring
of certain network protocols and actively querying network devices for information.
Port Management FAQs
Q. Why doesn’t Port Management show stack ports?
A. The Port Management illustrations are drawn based on the list of ports provided by the device via the
management protocols. When in stacking mode, the stack ports are considered to be an internal connection
within the stack, so are not included by the device in the lists provided via the management protocols.
Configuration FAQs
Q. What happens when a new device is discovered? Will its configuration be changed?
Cisco FindIT Network Manager Administration Guide
24
Frequently Asked Questions
Security Consideration FAQs
A. New devices will be added to the default device group. If configuration profiles have been assigned to the
default device group, then that configuration will be applied to newly discovered devices.
Q. What happens when I move a device from one device group to another?
A. Any VLAN or WLAN configuration associated with profiles that are currently applied to the original
device group that are not also applied to the new device group will be removed, and VLAN or WLAN
configuration associated with profiles that are applied to the new group that are not applied to the original
group will be added to the device. System configuration settings will be overwritten by profiles applied to
the new group. If no system configuration profiles are defined for the new group, then the system
configuration for the device will not change.
Security Consideration FAQs
Q. What port ranges and protocols are required by FindIT Network Manager?
A. The following table lists the protocols and ports used by FindIT Network Manager:
Table 7: FindIT Network Manager - Protocols and Ports
Port
Direction
Protocol
Usage
TCP 22
Inbound
SSH
Command-line access to
Manager
TCP 80
Inbound
HTTP
Web access to Manager.
Redirects to secure web server
(port 443)
TCP 443
Inbound
HTTPS
Secure web access to Manager
TCP 1069
Inbound
NETCONF/TLS Communication between Probe
and Manager
TCP 9443
Inbound
HTTPS
Remote access to Probe GUI
TCP 50000 51000
Inbound
Device
dependent
Remote access to devices
UDP 53
Outbound
DNS
Domain name resolution
UDP 123
Outbound
NTP
Time synchronization
UDP 5353
Outbound
mDNS
Multicast DNS service
advertisements to the local
network advertising the
Manager
Cisco FindIT Network Manager Administration Guide
25
Frequently Asked Questions
Security Consideration FAQs
Q. What port ranges and protocols are required by FindIT Network Probe?
A. The following table lists the protocols and ports used by FindIT Network Probe:
Table 8: FindIT Network Manager - Protocols and Ports
Port
Direction
Protocol
Usage
TCP 22
Inbound
SSH
Command-line access to Probe
TCP 80
Inbound
HTTP
Web access to Manager. Redirects to
secure web server (port 443)
TCP 443
Inbound
HTTPS
Secure web access to Manager
UDP 5353
Inbound
mDNS
Multicast DNS service advertisements
from the local network. Used for device
discovery.
TCP 10000 - 10100
Inbound
Device dependent
Remote access to devices
UDP 53
Outbound
DNS
Domain name resolution
UDP 123
Outbound
NTP
Time synchronization
TCP 80
Outbound
HTTP
Management of devices without secure
web services enabled
UDP 161
Outbound
SNMP
Management of network devices
TCP 443
Outbound
HTTPS
Management of devices with secure
web services enabled. Access Cisco
web services for information such as
software updates, support status, and
end of life notices
TCP 1069
Outbound
NETCONF/TLS
Communication between Probe and
Manager
UDP 5353
Outbound
mDNS
Multicast DNS service advertisements
to the local network advertising the
Probe
Q. How secure is the communication between FindIT Network Manager and FindIT Network Probe?
A. All communication between the Manager and the Probe is encrypted using a TLS 1.2 session authenticated
with client and server certificates. The session is initiated from the Probe to the Manager. At the time the
association between the Manager and Probe is first established, the user must log on to the Manager from
the Probe, at which point the Manager and Probe exchange certificates to authenticate future communications.
Cisco FindIT Network Manager Administration Guide
26
Frequently Asked Questions
Remote Access FAQs
Q. Does FindIT have ‘backdoor’ access to my devices?
A. No. When FindIT discovers a supported Cisco device, it will attempt to access the device using the factory
default credentials for that device with the username and password: cisco, or the SNMP
community:public. If the device configuration has been changed from the default, then it will be necessary
for the user to supply correct credentials to FindIT.
Q. How secure are the credentials stored in FindIT?
A. Credentials for accessing FindIT are irreversibly hashed using the SHA512 algorithm. Credentials for
devices and other services, such as the Cisco Active Advisor, are reversibly encrypted using the AES-128
algorithm.
Q. How do I recover a lost password for the web UI?
A. If you have lost the password for all the admin accounts in the web UI, you can recover the password by
logging on the console of the Probe or Manager and running the recoverpassword tool. This tool resets
the password for the cisco account to the default of cisco, or, if the cisco account has been removed, it will
recreate the account with the default password. Following is an example of the commands to be provided
in order to recover the password using this tool.
cisco@FindITProbe:~# recoverpassword
Are you sure? (y/n) y
Reset the cisco account to default password
cisco@FindITProbe:~#
Remote Access FAQs
Q. When I connect to a device’s administration interface from FindIT Network Management, is the session
secure?
A. FindIT Network Management tunnels the remote access session between the device and the user. The
protocol used will depend on the end device configuration, but FindIT will always establish the session
using a secure protocol if one is enabled (e.g. HTTPS will be preferred over HTTP). If the user is connecting
to the device via the Manager, the session will pass through an encrypted tunnel as it passes between the
Manager and the Probe, regardless of the protocols enabled on the device.
Q. Why does my remote access session with a device immediately log out when I open a remote access session
to another device?
A. When you access a device via FindIT Network Management, the browser sees each connection as being
with the same web server (FindIT) and so will present cookies from each device to every other device. If
multiple devices use the same cookie name, then there is the potential for one device’s cookie to be
overwritten by another device. This is most often seen with session cookies, and the result is that the cookie
is only valid for the most recently visited device. All other devices that use the same cookie name will see
the cookie as being invalid and will logout the session.
Q. Why does my remote access session fail with an error like the following?
A. Access Error: Request Entity Too Large
Cisco FindIT Network Manager Administration Guide
27
Frequently Asked Questions
Software Update FAQs
HTTP Header Field exceeds Supported Size
A. After doing many remote access sessions with different devices, the browser will have a large number of
cookies stored for the Probe domain. To work around this problem, use the browser controls to clear cookies
for the domain and then reload the page.
Software Update FAQs
Q. How do I keep the Manager operating system up to date?
A. The Manager uses the CentOS Linux distribution for an operating system. The packages and kernel may
be updated using the standard CentOS processes. For example, to perform a manual update, log on to the
console as the cisco user and enter the command sudo yum –y update. The system should not be upgraded
to a new CentOS release, and no additional packages should be installed beyond those included in the
virtual machine image supplied by Cisco.
Q. How do I update Java on the Manager?
A. Updates to Java should be download from Oracle and manually installed using the following commands:
To download a new Java package directly to the Manager:
curl -L -O -H "Cookie: oraclelicense=accept-securebackup-cookie"
-k http://download.oracle.com/otn-pub/java/jdk/<version>-<build>/jre-<version>-linux-x64.rpm
For example:
curl -L -O -H "Cookie: oraclelicense=accept-securebackup-cookie"
-k “http://download.oracle.com/otn-pub/java/jdk/8u102-b14/jre-8u102-linux-x64.rpm”
To install the updated Java version:
1 Remove the old version with the command sudo yum –y remove jre1.8.0_102
2 Install the new version with the command sudo yum –y localinstall jre-<version>-linux-x64.rpm
Q. How do I keep the Probe operating system up to date?
A. The Probe uses OpenWRT for an operating system. Included packages may be updated using the opkg
tool. For example, to update all packages on the system, log on to the console as the cisco user and enter
the command update-packages. When necessary, kernel updates will be provided by Cisco as part of a new
version of the Probe. No additional packages should be installed beyond those included in the virtual
machine image supplied by Cisco.
Cisco FindIT Network Manager Administration Guide
28

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
