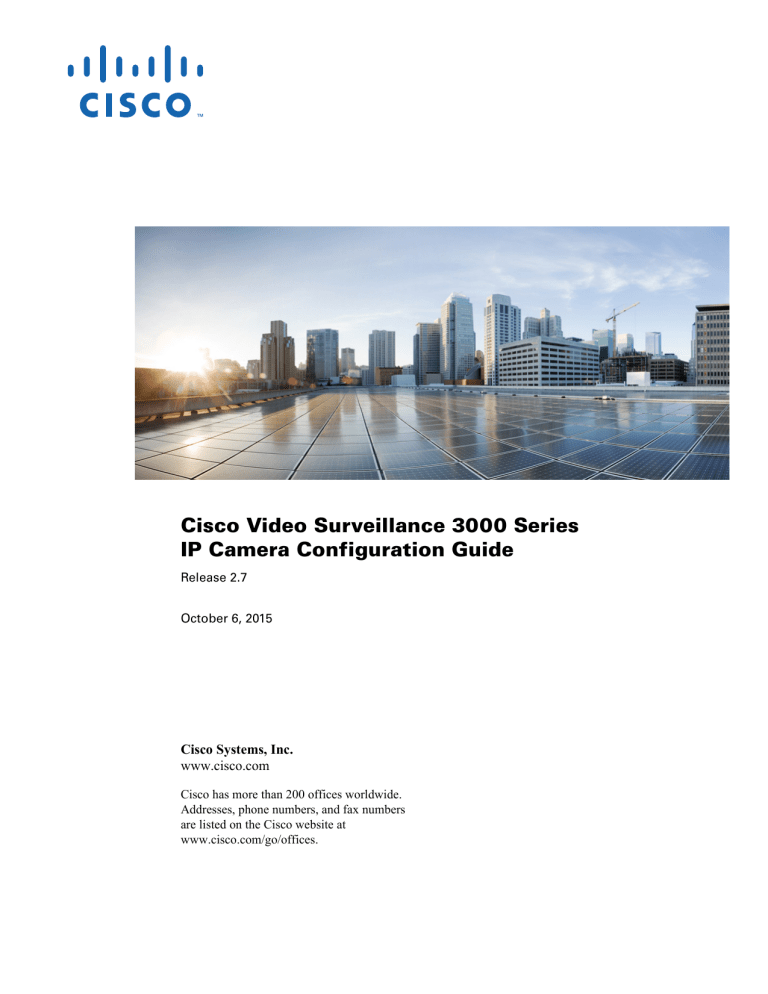

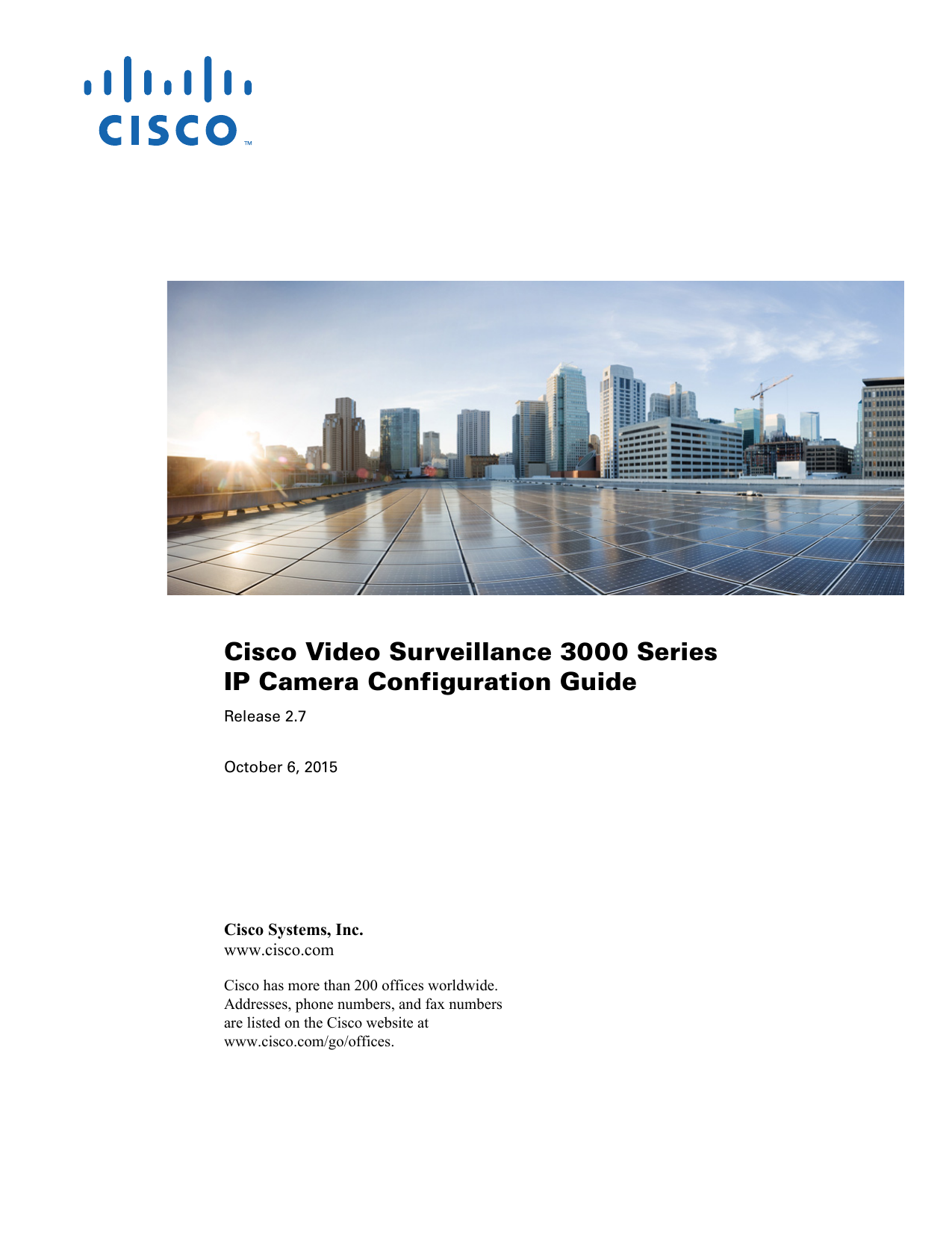

Cisco Video Surveillance 3000 Series IP Cameras Configuration Guide

Cisco Video Surveillance 3000 Series
IP Camera Configuration Guide
Release 2.7
October 6, 2015
Cisco Systems, Inc.
www.cisco.com
Cisco has more than 200 offices worldwide.
Addresses, phone numbers, and fax numbers
are listed on the Cisco website at
www.cisco.com/go/offices.
NOTICE. ALL STATEMENTS, INFORMATION, AND RECOMMENDATIONS IN THIS MANUAL ARE BELIEVED TO BE ACCURATE BUT ARE PRESENTED
WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED. USERS MUST TAKE FULL RESPONSIBILITY FOR THEIR APPLICATION OF ANY PRODUCTS.
THE SOFTWARE LICENSE AND LIMITED WARRANTY FOR THE ACCOMPANYING PRODUCT ARE SET FORTH IN THE INFORMATION PACKET THAT
SHIPPED WITH THE PRODUCT AND ARE INCORPORATED HEREIN BY THIS REFERENCE. IF YOU ARE UNABLE TO LOCATE THE SOFTWARE LICENSE
OR LIMITED WARRANTY, CONTACT YOUR CISCO REPRESENTATIVE FOR A COPY.
The Cisco implementation of TCP header compression is an adaptation of a program developed by the University of California, Berkeley (UCB) as part of UCB’s public
domain version of the UNIX operating system. All rights reserved. Copyright © 1981, Regents of the University of California.
NOTWITHSTANDING ANY OTHER WARRANTY HEREIN, ALL DOCUMENT FILES AND SOFTWARE OF THESE SUPPLIERS ARE PROVIDED “AS IS” WITH
ALL FAULTS. CISCO AND THE ABOVE-NAMED SUPPLIERS DISCLAIM ALL WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING, WITHOUT
LIMITATION, THOSE OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT OR ARISING FROM A COURSE OF
DEALING, USAGE, OR TRADE PRACTICE.
IN NO EVENT SHALL CISCO OR ITS SUPPLIERS BE LIABLE FOR ANY INDIRECT, SPECIAL, CONSEQUENTIAL, OR INCIDENTAL DAMAGES, INCLUDING,
WITHOUT LIMITATION, LOST PROFITS OR LOSS OR DAMAGE TO DATA ARISING OUT OF THE USE OR INABILITY TO USE THIS MANUAL, EVEN IF CISCO
OR ITS SUPPLIERS HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
Cisco and the Cisco logo are trademarks or registered trademarks of Cisco and/or its affiliates in the U.S. and other countries. To view a list of Cisco trademarks, go to this
URL: www.cisco.com/go/trademarks. Third-party trademarks mentioned are the property of their respective owners. The use of the word partner does not imply a partnership
relationship between Cisco and any other company. (1110R)
Cisco Video Surveillance 3000 Series IP Camera Configuration Guide
Copyright © 2015 Cisco Systems, Inc. All rights reserved.
CONTENTS
Preface
vii
Overview
vii
Organization
vii
Obtaining Documentation and Submitting a Service Request
ii-viii
ii-viii
CHAPTER
1
Overview
1-1
IP Camera Features
1-1
Accessing the IP Camera
Supported Browsers
1-2
1-4
Understanding the IP Camera User Interface
IP Camera Window Links 1-5
IP Camera Windows 1-5
CHAPTER
2
Performing the Initial Setup of the IP Camera
CHAPTER
3
Viewing Live Video
CHAPTER
4
Feature Setup
4-1
Camera Window
4-1
4-12
Video Overlay Window
IO Ports Window
4-15
4-17
Alert Notification Window
Alert Types 4-20
5
Events
2-1
3-1
Streaming Window
CHAPTER
1-4
4-18
5-1
Event Notification Window
History Settings Window
History Window
5-1
5-7
5-9
Cisco Video Surveillance 3000 Series IP Camera Configuration Guide
iii
Contents
CHAPTER
6
Local Storage
CHAPTER
7
Network Setup
6-1
7-1
Basic Window
7-1
IP Addressing Window
Time Window
7-5
Discovery Window
7-7
Medianet Window
7-7
SNMP Window
7-8
802.1x Window
7-10
IP Filter Window
QoS Window
CHAPTER
8
7-3
7-12
7-13
Application Manager
8-1
Configuration Window
App License Window
8-1
8-2
App Setup Window
8-3
Managing Apps 8-5
Installing a License for an App 8-5
Installing an App 8-6
Configuring an App 8-6
Configuring Event Triggering 8-7
Running an App 8-7
Stopping an App 8-8
Uninstalling an App 8-8
Restoring the Application Manager 8-8
CHAPTER
9
Administration
9-1
Initialization Window
User Window
9-1
9-3
Maintenance Window
Firmware Window
9-4
9-6
Device Processes Window
9-7
Password Complexity Window
CHAPTER
10
Log Configuration
9-8
10-1
Log Setup Window
10-1
Cisco Video Surveillance 3000 Series IP Camera Configuration Guide
iv
Contents
Local Log Window
10-4
INDEX
Cisco Video Surveillance 3000 Series IP Camera Configuration Guide
v
Contents
Cisco Video Surveillance 3000 Series IP Camera Configuration Guide
vi
Preface
Overview
This document, Cisco Video Surveillance 3000 Series IP Camera Configuration Guide, provides
information about installing and deploying the Cisco Video Surveillance 3000 Series IP Cameras.
See the Release Notes for Cisco Video Surveillance IP Cameras for the supported camera models and
other important information in this release.
Organization
This manual is organized as follows:
Chapter 1, “Overview”
Provides information about the IP camera features, instructions
for accessing the user interface, and information about the user
interface
Chapter 2, “Performing the Initial
Setup of the IP Camera”
Provides information and instructions about performing the
initial setup of the IP Camera
Chapter 3, “Viewing Live Video”
Provides information and instructions about viewing live video
Chapter 4, “Feature Setup”
Provides information and instructions for configuring IP camera
features, such as streaming, camera capabilities, video overlay,
I/O ports, and events
Chapter 5, “Events”
Provides information and instructions for configuring event
notification and history settings, and for viewing event logs.
Chapter 6, “Local Storage”
Provides information about enabling and configuring local
storage, which allows you to store video on a local SD or
MicroSD card.
Chapter 7, “Network Setup”
Provides information and instructions for configuring network
setting, such as IP addressing, time, discovery, IP filtering, and
Quality of Service (QoS)
Chapter 8, “Application Manager”
Provides information and instructions about using apps with the
IP camera
Cisco Video Surveillance 3000 Series IP Camera Configuration Guide
vii
Obtaining Documentation and Submitting a Service Request
Chapter 9, “Administration”
Provides information and instructions for performing
administrative tasks, such as IP camera initialization, user
management, maintenance, firmware upgrade, device processes
management, and password complexity
Chapter 10, “Log Configuration”
Provides information and instructions for configuring and
viewing logs
Obtaining Documentation and Submitting a Service Request
For information on obtaining documentation, using the Cisco Bug Search Tool (BST), submitting a
service request, and gathering additional information, see What’s New in Cisco Product Documentation
at: http://www.cisco.com/c/en/us/td/docs/general/whatsnew/whatsnew.html.
Subscribe to What’s New in Cisco Product Documentation, which lists all new and revised
Cisco technical documentation as an RSS feed and delivers content directly to your desktop using a
reader application. The RSS feeds are a free service.
Cisco Video Surveillance 3000 Series IP Camera Configuration Guide
viii
CHAPTER
1
Overview
This chapter provides information about the Cisco Video Surveillance 3000 Series IP camera features,
instructions for accessing the user interface, and information about the user interface. It includes the
following topics:
•
IP Camera Features, page 1-1
•
Accessing the IP Camera, page 1-2
•
Supported Browsers, page 1-4
•
Understanding the IP Camera User Interface, page 1-4
IP Camera Features
The Cisco Video Surveillance 3000 Series IP Cameras offer a feature-rich digital camera solution for a
video surveillance system. The camera provides high-definition (HD) video and simultaneous H.264 and
MJPEG compression, streaming up to 30 frames per second (fps) at 1080p (1280x800) resolution.
In addition, the IP camera provides networking and security capabilities, including multicast support,
hardware-based Advanced Encryption Standard (AES), and hardware-based Data Encryption
Standard/Triple Data Encryption Standard (DES/3DES) encryption. The camera can be powered through
an external power supply or by integrated Power over Ethernet (PoE).
The IP camera includes the following key features:
•
H.264 and MJPEG compression—The IP camera can generate H.264 and MJPEG streams
simultaneously.
•
Privacy regions—Up to four user-defined masking zones that can be used to provide regions of
privacy in the camera field of view. Video within privacy regions is not recorded in the camera, nor
sent in the video stream.
•
Progressive scan video—The IP camera captures each frame at its entire resolution using
progressive scan rather than interlaced video capture, which captures each field of video.
•
Analog video output—Supports analog video for all resolutions with 15 fps or lower with no
secondary stream.
•
Medianet—The IP camera supports the Auto Smartports feature of the Media Services Interface
(MSI). MSI enables a camera to participate as an endpoint in the Cisco medianet architecture when
connected to a medianet enabled switch.
•
Local Storage—Supports up to 32 GB of video data storage on a micro SD memory card when the
camera loses network connectivity.
Cisco Video Surveillance 3000 Series IP Camera Configuration Guide
1-1
Chapter 1
Overview
Accessing the IP Camera
•
Two-way audio communication—Audio can be encoded with the video. With the internal or
optional external microphone and optional external speaker, you can communicate with people at
the IP camera location while you are in a remote location and viewing images from the IP camera.
•
Day/night switch support—An IR-cut filter provides increased sensitivity in low-light conditions.
(Not supported on Cisco 3421v cameras.)
•
Multi-protocol support—Supports these protocols: DHCP, HTTP, HTTPS, NTP, RTP, RTSP,
SMTP, SSL/TLS, and TCP/IP.
•
Web-based management—You perform ongoing administration and management of the IP camera
through web-based configuration menus.
•
Motion detection—The IP camera can detect motion in user-designated fields of view by analyzing
changes in pixels and generate an alert if motion is detected.
•
Flexible scheduling—You can configure the IP camera to respond to events that occur within a
designated schedule.
•
Syslog support—The IP camera can send log data to a Syslog server.
•
IP address filter—You can designate IP addresses that can access the IP camera and IP addresses
that cannot access the IP camera.
•
User-definable HTTP/ HTTPS port number—Allows you to define the port that is used to
connect to the camera through the Internet.
•
DHCP support—The IP camera can automatically obtain its IP addresses in a network in which
DHCP is enabled.
•
Network Time Protocol (NTP) support—Allows the IP camera to calibrate its internal clock with
a local or Internet time server.
•
Power options—The IP camera can be powered with 12 volts DC or 24 volts AC, which is provided
through an optional external power adapter, or through PoE (802.3af), which is provided through a
supported switch.
•
Camera access control—You can control access to IP camera configuration windows and live video
by configuring various user types and log in credentials.
•
Open Network Video Interface Forum (ONVIF) 2.0—ONVIF is an open industry forum for the
development of a global standard for the interface of IP-based physical security products. The
following features are supported:
– Device Discovery Service
– Device Service
– Media Service
•
Apps—You can extend the functionality of a supported Cisco IP Camera by uploading and running
an app on the camera.
Accessing the IP Camera
After you perform the initial configuration as described in the Chapter 2, “Performing the Initial Setup
of the IP Camera,” follow the steps in this section each time that you want to access the IP camera
windows to make configuration settings, view live video, or perform other activities.
Cisco Video Surveillance 3000 Series IP Camera Configuration Guide
1-2
Chapter 1
Overview
Accessing the IP Camera
You access these windows by connecting to the IP camera from any PC that is on the same network as
the IP camera and that meets these requirements:
•
Operating system——Microsoft Windows 7 (32-bit or 64-bit) and 8 (32-bit or 64-bit)
•
Browser—Internet Explorer 9.0, 10.0, and 11.0 (32-bit only). See Supported Browsers, page 1-4 for
more information.
You need this information to access the IP camera windows:
•
IP address of the IP camera. By default, the IP camera attempts to obtain an IP address from a DHCP
server in your network. If the IP camera cannot obtain an IP address through DHCP within 90
seconds of powering up or resetting, it uses the default IP address of 192.168.0.100.
•
Port number, if other than the default value. Default port numbers for the IP camera are 443 for
HTTPS and 80 for HTTP. The IP camera administrator can configure an HTTPS port and an HTTP
port as described in the “Initialization Window” section on page 9-1.
•
Your user name and password for the IP camera. The IP camera administrator configures user names
and passwords as described in the “User Window” section on page 9-3.
To access the IP camera windows, perform the following these steps.
Before you Begin
The Microsoft .NET Framework version 2.0 or later must be installed on the PC that you use to connect
to the IP camera. You can download the .NET Framework from the Microsoft website.
Procedure
Step 1
Start Internet Explorer and enter the following in the address field:
protocol://ip_address:port_number
where:
•
protocol is HTTPS for a secure connection or HTTP for a non-secure connection. You can use
HTTP only if you configure the camera to accept non-secure HTTP connections as described in
Chapter 2, “Performing the Initial Setup of the IP Camera.”
•
ip_address is the IP address of the IP camera. The default IP address is 192.168.0.100.
•
port_number is the port number that is used for HTTPS or HTTP connections to the IP camera. You
do not need to enter a port number if you are connecting through the default HTTPS port 443 or the
default HTTP port 80.
For example,
•
Enter the following for a secure connection if the IP address is 192.168.0.100 and the HTTPS port
number is 443:
https://192.168.0.100
•
Enter the following for a secure connection if the IP address is 203.70.212.52 and the HTTPS port
number is 1024:
https://203.70.212.52:1024
•
Enter the following for a non-secure connection if the IP address is 203.70.212.52 and the HTTP
port number is 80:
http://203.70.212.52
•
Enter the following for a non-secure connection if the IP address is 203.70.212.52 and the HTTP
port number is 1024:
Cisco Video Surveillance 3000 Series IP Camera Configuration Guide
1-3
Chapter 1
Overview
Supported Browsers
http://203.70.212.52:1024
Step 2
Enter your IP camera user name and password in the Username and Password fields, then click Login.
To log in as the IP camera administrator, enter the user name admin (which is case sensitive) and the
password that is configured for the administrator. To log in as a user, enter the user name and password
that are configured for the user.
The Home window for the IP Camera appears.
Supported Browsers
Internet Explorer (IE)
Internet Explorer 9.0, 10.0, and 11.0 (32-bit only) are the fully supported web browsers. After upgrading
the camera firmware, clear the browser cache and reload the web page to ensure that the new features
display.
•
If ActiveX is not installed on your client PC, the View Video window and the Setup > Local Storage
window prompts you to install the Cisco Camera UI Control. This message can take some time to
display.
•
If ActiveX is not working properly after installation, close the browser and restart the machine.
Other Browsers
The following additional browsers can also be used to view video from IP camera by using either the
VLC Media Player or the QuickTime plug-in.
•
Windows—Chrome and Firefox browsers
•
MacOS X—Chrome, Firefox, and Safari browsers
These web browser support all Cisco IP camera features except motion detection, custom exposure
region, and privacy zone, which are available only using Internet Explorer.
Understanding the IP Camera User Interface
After you log in to the IP camera, you can access the IP camera windows and perform a variety of
administrative and user procedures.
The links and activities that you can see and access in the IP camera windows depend on your IP camera
privilege level. Privilege levels are configured as described in the “User Window” section on page 9-3
and include the following:
•
Administrator—Can access all IP camera windows, features, and functions.
•
Viewer—Can access the Camera Video & Control window with limited controls, and can access the
Refresh, Logout, About, and Help links from that window.
Cisco Video Surveillance 3000 Series IP Camera Configuration Guide
1-4
Chapter 1
Overview
Understanding the IP Camera User Interface
IP Camera Window Links
The IP Camera user interface includes links that you use to access various windows and perform other
activities. Table 1-1 describes each link and lists the IP camera privilege level that you must have to
access the link.
Table 1-1
Links in the IP Camera Windows
Link
Description
Privilege Level
Refresh
Updates the information in the window that is currently displayed. Administrator
User
Home
Displays the System Information window. For more information,
see Table 1-2.
Administrator
View Video
Displays the Camera Video & Control window.
Administrator
User
You may be prompted to install ActiveX controls when trying to
access this window for the first time. ActiveX controls are required
to view video from the IP camera. Follow the on-screen prompts to
install ActiveX controls.
Setup
Displays the Setup window and provides access to the configuration Administrator
menus for the IP camera.
Logout
Logs you out from the IP camera.
Administrator
User
About
Help
Displays a pop-up window with model, version, and copyright
information for the IP camera.
Administrator
Displays reference information for the window that is currently
displayed.
Administrator
User
User
IP Camera Windows
The IP camera user interface includes these main windows:
•
System Information window—Accessed by clicking the Home link. Displays the information that is
described in Table 1-2.
•
Camera Video & Control window—Accessed by clicking the View Video link. Displays live video
from the camera and lets you control a variety of camera and display functions. For detailed
information, see Chapter 3, “Viewing Live Video.”
•
Setup window—Accessed by clicking the Setup link. Provides access to the IP camera configuration
windows. For detailed information, see the following chapters:
– Chapter 4, “Feature Setup.”
– Chapter 7, “Network Setup.”
– Chapter 9, “Administration.”
– Chapter 10, “Log Configuration.”
Cisco Video Surveillance 3000 Series IP Camera Configuration Guide
1-5
Chapter 1
Overview
Understanding the IP Camera User Interface
Table 1-2
Home Window Information
Field
Description
General Information
ID
Identifier of the IP camera. To configure the ID, see the “Basic Window”
section on page 7-1.
Name
Name of the IP camera. To configure the name, see the “Basic Window”
section on page 7-1.
Current Time
Current date and time of the IP camera. To set the date and time, see the
“Time Window” section on page 7-5.
S/N
Serial number of the IP camera.
Firmware
Version of the firmware that is installed on the IP camera.
Part Number
Cisco manufacturing part number of the IP camera.
Top Assembly Revision Cisco assembly revision number.
Network Status
MAC Address
MAC address of the IP camera.
Configuration Type
Method by which the IP camera obtains its IP address. To configure this
method, see the “IP Addressing Window” section on page 7-3.
LAN IP
IP address of the LAN to which the IP camera is connected. To configure this
IP address, see the “IP Addressing Window” section on page 7-3.
Subnet Mask
Subnet mask of the LAN to which the IP camera is connected. To configure
the subnet mask, see the “IP Addressing Window” section on page 7-3.
Gateway Address
IP address of the gateway through which the IP camera is connected. To
configure this IP address, see the “IP Addressing Window” section on
page 7-3.
Primary DNS
IP address of the primary DNS server, if configured for the IP camera. To
configure a primary DNS server, see the “IP Addressing Window” section on
page 7-3.
Secondary DNS
IP address of the secondary DNS server, if configured for the IP camera. To
configure a secondary DNS server, see the “IP Addressing Window” section
on page 7-3.
IO Port Status
Input Port 1
Current state of input port 1 on the IP camera.
Output Port 1
Current state of output port 1 on the IP camera.
Stream 1 and Stream 2
User
IP camera user name of each user who is accessing the primary video stream
(Stream 1) or the secondary video stream (Stream 2) through a client PC or
a third-party device.
By default, users appear in order of start time. To display users in ascending
order of any information in any corresponding column, click the column
heading. Click a column heading again to reverse the display order.
IP Address
IP address of the client device.
Start Time
Time and date that the client accessed the video stream for this session.
Cisco Video Surveillance 3000 Series IP Camera Configuration Guide
1-6
Chapter 1
Overview
Understanding the IP Camera User Interface
Table 1-2
Home Window Information (continued)
Field
Description
Elapsed Time
Length of time that the client has been accessing the video stream.
Codec
Video codec (H.264 or MJPEG) being used for the stream,
Cisco Video Surveillance 3000 Series IP Camera Configuration Guide
1-7
Chapter 1
Understanding the IP Camera User Interface
Cisco Video Surveillance 3000 Series IP Camera Configuration Guide
1-8
Overview
CHAPTER
2
Performing the Initial Setup of the IP Camera
After you install the IP camera, or after you perform a factory reset procedure, you must access the IP
camera and make initial configuration settings. These settings include administrator and root passwords,
and whether the IP camera can be accessed through an HTTP connection in addition to the default
HTTPS (HTTP secure) connection.
To make these configuration settings, you connect to the IP camera from any PC that is on the same
network as the IP camera. The PC must meet these requirements:
•
Operating system—Microsoft Windows 7 Enterprise (32-bit or 64-bit)
•
Browser—Internet Explorer 9.0 (32-bit only)
In addition, you must know the IP address and default login credentials of the IP camera. By default,
when the IP camera powers on, it attempts to obtain an IP address from a DHCP server in your network.
If the camera cannot obtain an IP address through DCHP within 90 seconds, it uses a default IP address
of 192.168.0.100. The default login credentials (Username/Password) are admin/admin.
To connect to the IP camera for the first time and make initial configuration settings, perform the
following steps. You can change these configuration settings in the future as described in the Cisco Video
Surveillance 3000 Series IP Camera Configuration Guide.
Before you Begin
The Microsoft .NET Framework version 2.0 or later must be installed on the PC that you use to connect
to the IP camera. You can download the .NET Framework from the Microsoft website.
Procedure
Step 1
Start Internet Explorer, enter HTTPS://ip_address in the address field, and press Enter.
Replace ip_address with the IP address that the IP camera obtained through DHCP or, if the camera was
unable to obtain this IP address, enter 192.168.0.100.
The Login window appears.
Step 2
Enter the default login credentials:
Username: admin
Password: admin
The Initialization window appears.
Cisco Video Surveillance 3000 Series IP Camera Configuration Guide
2-1
Chapter 2
Step 3
Performing the Initial Setup of the IP Camera
In the Password and Confirm Password fields of the admin row, enter a password for the IP camera
administrator.
You must enter the same password in both fields. The password is case sensitive and must contain at least
eight characters, which can be letters, numbers, and special characters, but no spaces. Special characters
are: ! " # $ % & ' ( ) * + , - . : ; < = > ? @ [ \ ] ^ _ ` { | } ~.
Step 4
In the Password and Confirm Password fields of the Root row, enter a password that is used when
accessing the IP camera through a Secure Shell (SSH) connection.
You must enter the same password in both fields. The password is case sensitive and must contain at least
eight characters, which can be letters, numbers, and special characters, but no spaces. Special characters
are: ! " # $ % & ' ( ) * + , - . : ; < = > ? @ [ \ ] ^ _ ` { | } ~.
You use the root password if you need to troubleshoot the IP camera through a SSH connection with the
assistance of the Cisco Technical Assistance Center.
Step 5
In the Access Protocols area, check the Enable HTTP check box if you want to allow both HTTP and
HTTPS connections to the IP camera.
By default, only the Enable HTTPS check box is checked, which allows only HTTPS (secure)
connections to the IP camera.
Step 6
Click Apply.
The IP camera reboots and the Login window appears.
Step 7
After the IP camera reboots, start Internet Explorer and, in the Address field, enter the following:
protocol://ip_address
where:
Step 8
•
protocol is HTTPS or HTTP. (You can use HTTP only if you enabled it in Step 5.)
•
ip_address is the IP address that you used in Step 1.
If you are prompted to install ActiveX controls, which are required to view video from the IP camera,
follow the on-screen prompts to do so.
The Home window appears.
Cisco Video Surveillance 3000 Series IP Camera Configuration Guide
2-2
CHAPTER
3
Viewing Live Video
After you install and set up the Cisco Video Surveillance IP Camera, you can connect to the IP camera
through Internet Explorer and access the Camera Video & Control window to view live video from the
IP camera.
The Camera Video & Control window also provides for controlling the video display, configuring preset
positions, and controlling certain IP camera functions. Available controls depend on the privilege level
of the user.
To view live video, log in to the IP camera and click View Video in the IP camera Main window menu
bar. The Camera Video & Control window appears. This window displays live video from the camera
and lets you control a variety of camera and display functions.
The controls that you see in the Camera Video & Control window depend on your IP camera privilege
level and the configurations settings for the IP camera. Users with the Administrator privilege can access
all controls. Users with the Viewer privilege do not have access to the following controls:
•
Video Control
•
Camera Settings
•
Motion Detection
•
Privacy Zone
Table 3-1 describes the controls in the Camera Video & Control window.
Table 3-1
Camera Video & Control Window Controls
Control
Description
Video Control
Video Codec
drop-down list
Choose the codec for video transmission (H.264 or MJPEG).
Video Resolution
display
Displays the resolution for video transmission. The resolutions in this depends
on the video standard that you selected.
Cisco Video Surveillance 3000 Series IP Camera Configuration Guide
3-1
Chapter 3
Table 3-1
Viewing Live Video
Camera Video & Control Window Controls (continued)
Control
Description
Viewer
Video viewer
drop-down list
Choose the viewer to use for video. Options are:
•
ActiveX—Available only if you are using accessing the IP camera through
Microsoft Internet Explorer. Allows you to configure several IP camera
options, such as motion detection and privacy zone.
•
QuickTime—Allows viewing of H.264 streams only. Does not allow you
to configure several IP camera options, such as motion detection and
privacy zone.
•
VLC —Allows viewing of H.264 and MJPEG streams. Does not allow
you to configure several IP camera options, such as motion detection and
privacy zone.
The default video viewer value is ActiveX.
Image tools
Hotspot Zoom button Click this latch button to enables the digital zoom feature, which provides
five-step digital zooming in for the normal (not full screen) video display.
Click this button again to disable the digital zoom feature.
To perform a digital zoom, engage the Hotspot Zoom button and click the
video display. The first five clicks zoom the display. The sixth click returns to
unzoomed display.
Hotspot Pan+Tilt
button
Not supported.
Save Snapshot button Captures and saves a the current video image as a .gif file or a .jpg file in the
location of your choice and with the file name of your choice.
When you click this button, the Snapshot window appears. Click Save and
follow the on-screen prompts to save the image with the name and in the
location that you want.
Flip button
Rotates the video image that you view in your browser window by 180 degrees.
This button affects the viewed video only. The camera stores the video in the
original orientation. If you want the camera to store a flipped image, use the
Flip option as described in the Flip button row of this table.
Mirror button
Reverses the video image that you view in your browser window.
This button affects the viewed video only. The camera stores the video in the
original orientation. If you want the camera to store a mirrored image, use the
Mirror option as described in the Mirror button row of this table.
Restore button
Displays the default video image, which is not rotated and not reversed.
Full Screen button
Displays the video image in full screen mode.
To return to normal display mode, click the full screen image.
Cisco Video Surveillance 3000 Series IP Camera Configuration Guide
3-2
Chapter 3
Viewing Live Video
Table 3-1
Camera Video & Control Window Controls (continued)
Control
Description
Audio Control
Enable/Disable
Click the Disable Speaker button
to mute audio that is sent from the IP
Speaker toggle button
camera to the PC that you are using. The button changes to the Enable Speaker
button
.
Click the Enable Speaker button to unmute audio. The button changes to the
Disable button.
Mute/Un-Mute
Microphone toggle
button
Click the Mute Microphone button
to mute the audio stream that is
captured and sent to the IP camera from the internal or external microphone of
the PC that you are using. When you click this button, the speaker that is
attached to the IP camera does not play audio that is transmitted from your PC.
Note
If you are simultaneously accessing other IP cameras in different
browser sessions on the same PC, clicking this button in one browser
session does not mute the audio that the PC sends to the other IP
cameras.
When you click the Mute Microphone button, it changes to the Un-Mute
Microphone button
.
Click the Un-Mute Microphone button to unmute audio that is sent to the IP
camera. The button changes to the Mute Microphone button.
Restore button
Resets audio controls to their default values.
Speaker Volume slider When the speaker is unmuted, drag this slider to adjust the volume at which
your PC speakers play the audio from the IP camera, or enter a value from 0
through 100 in the field and press the Enter key.
The default value is 50.
Microphone
Sensitivity slider
Drag this slider to adjust the gain of the PC microphone (that is, how sensitive
it is to the audio that it picks up and that is sent to the IP camera), or enter a
value from 0 through 100 in the field and press the Enter key.
The default value is 50.
Cisco Video Surveillance 3000 Series IP Camera Configuration Guide
3-3
Chapter 3
Table 3-1
Viewing Live Video
Camera Video & Control Window Controls (continued)
Control
Description
Camera Settings controls
Note
To display these controls click the Expand icon
next to Camera Settings under the video
image. The icon changes to the Collapse icon . Click the Collapse icon to hide these controls.
If you make changes to any of the Camera Settings options, click the Save button to save the
changes.
Profile Controls
The following controls appear when you check the Enable Profiling check box in the Camera window
(see the “Camera Window” section on page 4-12).
Refresh button
Click this button to reset the Camera Settings options in the Picture
Adjustment, Exposure Controls, and Advanced Settings areas to their
last-saved values.
Profile options
You can configure different settings for day and night mode. Based on the day
or night mode, the respective profiles and settings are automatically selected
and applied on the IP camera sensor.
From the left drop-down list, choose one of the following options to designate
when the current profile (which consists of the Camera Settings options in the
Picture Adjustment, Exposure Controls, and Advanced Settings areas in the
View Video window) is applied:
•
Day—The profile is applied when the camera is in day mode
•
Night—The profile is applied when the camera is in night mode
From the right drop-down list, choose one of the following options to designate
option settings for a profile:
Save Day/
Save Night buttons
•
Indoor—Sets the Camera Settings options to a profile that is suitable for
indoor conditions
•
Outdoor—Sets the Camera Settings options to a profile that is suitable for
outdoor conditions
•
Lowlight—Sets the Camera Settings options to a profile that is suitable
for low light conditions
•
Custom—Indicates that Camera Settings are or will be configured to
values other than the values that the Indoor, Outdoor, or Lowlight profiles
specify
The Save Day button appears when you choose Day from the left Profile
drop-down list. Click this button to save the current Camera Settings options
as the Day profile to by applied when the camera is in day mode.
The Save Night button appears when you choose Night from the left Profile
drop-down list. Click this button to save the current Camera Settings options
as the Night profile to by applied when the camera is in day mode.
Cisco Video Surveillance 3000 Series IP Camera Configuration Guide
3-4
Chapter 3
Viewing Live Video
Table 3-1
Camera Video & Control Window Controls (continued)
Control
Description
Restore Day/
The Restore Day button appears when you choose Day from the left Profile
Restore Night buttons drop-down list. Click this button to set the Camera Settings options to their
factory default values for the Indoor Day profile.
The Restore Night button appears when you choose Night from the left Profile
drop-down list. Click this button to set the Camera Settings options to their
factory default values for the Indoor Night profile.
Picture Adjustments
Brightness slider
To control the brightness of the video image, drag the slider to select a value
from 1 through 10. A higher value increases the brightness and a lower value
decreases the brightness. For example, if the IP camera is facing a bright light
and the video appears too dark, you can increase the brightness.
The default value is 5.
Contrast slider
To control contrast of the video image, drag the slider to select a value from 1
through 10. A higher value increases the contrast and a lower value decreases
the contrast.
The default value is 5.
Sharpness slider
To control the sharpness of the video from the IP camera, drag the slider to
select a value from 1 through 100. A higher value increases the sharpness and
a lower value decreases the sharpness.
The default value is 50.
Saturation slider
To control the saturation of the video from the IP camera, drag the slider to
select a value from 1 through 100. A higher value increases the saturation and
a lower value decreases the saturation.
High saturation provides a vivid, intense color for a video image. With less
saturation, the video image appears more muted and gray.
The default value is 50.
Restore button
Resets brightness, contrast, sharpness, and saturation to their default values.
White Balance Mode
drop-down menu
Choose one the following white balance modes:
•
Auto—White balance automatically set by camera and suitable for most
conditions.
•
Manual—Choose this option if you want to set the white balance by
setting RGain (Red Gain) and BGain (Blue Gain) manually.
The default setting is Auto.
Exposure Control
Exposure level
drop-down menu
Choose a value to increase or decrease the exposure level of the video image.
Exposure mode
drop-down menu
Choose one of these options:
The default value is 0.0.
•
Manual—Choose this option if you want to set Exposure time and Gain
control manually.
•
Auto —Suitable for most conditions.
The default setting is Auto.
Cisco Video Surveillance 3000 Series IP Camera Configuration Guide
3-5
Chapter 3
Table 3-1
Viewing Live Video
Camera Video & Control Window Controls (continued)
Control
Description
Flickerless check box
Appears when you choose Manual from the Exposure mode drop-down menu.
Flickering can occur when a combination of indoor and outdoor light get to the
IP camera, due to a difference in capture frequency and actual indoor lighting
frequency. Check this check box to limit the range of exposure time, which
prevents flickering.
Exposure time slider
Appears when you choose Manual from the Exposure mode drop-down menu.
To control the minimum length of time in seconds that the IP camera keeps its
iris open for each frame, drag the left slider box. To control the maximum
length of time in seconds that the IP camera keeps its iris open for each frame,
drag the right slider box.
When capturing video, the IP camera automatically selects the optimum value
between the minimum and maximum values that you configure.
If the Flickerless check box is not checked, the minimum exposure value is
1/32000 and the maximum value is 1/5. If the Flickerless check box is checked,
the minimum exposure value is 1/120 and the maximum value is 1/5.
Gain control slider
Appears when you choose Manual from the Exposure mode drop-down menu.
To control the minimum gain of the IP camera, drag the left slider box. To
control the maximum gain, drag the right slider box. A value of 0 does not
boost the gain, so the image may appear darker in a darker environment. A
higher value increases the exposure of the image, which can cause the image
to look brighter, but can also cause the image to appear more noisy.
When capturing video, the IP camera automatically selects the optimum value
between the minimum and maximum values that you configure.
Iris mode drop down
menu
Appears only when you choose Auto from the Exposure mode drop-down
menu. Choose one of these options for the IP camera iris:
•
Indoor—Suitable for indoor conditions
•
Outdoor—Suitable for outdoor conditions
Note
This feature is not supported on Cisco 3421v cameras.
Cisco Video Surveillance 3000 Series IP Camera Configuration Guide
3-6
Chapter 3
Viewing Live Video
Table 3-1
Camera Video & Control Window Controls (continued)
Control
Description
Measurement Window Choose one of the following options to control how the IP camera calculates
exposure:
•
Full View—The entire IP camera image is considered for the exposure
calculation.
•
Custom—Lets you draw up to 4 Inclusion regions and up to 4 Exclusion
regions for the exposure calculation.
To designate regions, right-click the video image, choose Draw Region,
then hold down the left mouse button and draw the region, which is
indicated by a green rectangle.
A region is an Inclusion region by default.
To move a region, left-click it and drag its window to the desired area.
To resize a region, left-click it and drag an edge or corner of the region to
the desired size.
To remove a region, left-click it, then right-click it and choose Delete
Region.
•
Region Properties
BLC—Back Light Compensation causes only the middle part of the IP
camera image, indicated by a white dashed rectangle, to be considered for
the exposure calculation.
Appears when you click a custom region that you created.
To expand region properties information, click the + icon next to Region
Properties. The icon changes to a – icon, which you click to collapse region
properties information.
•
Location—X and Y coordinates, respectively, of the top left corner of the
selected custom region. To expand location information, lick the + icon
next to Location. The icon changes to a – icon, which you click to collapse
region location information.
•
Region Type—Type of the region (Inclusion or Exclusion). To change the
region type, left-click that region, click Region Type, then choose one of
the following values from the drop-down menu that appears on the Region
Type line. Alternatively, you can double-click Inclusion or Exclusion to
toggle between these values.
– Inclusion—The region is used to calculate the exposure value
– Exclusion—The region is ignored in the exposure value calculation
Advanced Settings
Enable Low Light
Compensation check
box
In a low-light environment, check this check box to reduce noise in the video
image.
Enable DRX check
box
In situations in which there is significant contrast between light and dark parts
of an image, check this check box to cause the IP camera to continually adjust
the image for optimal appearance.
Cisco Video Surveillance 3000 Series IP Camera Configuration Guide
3-7
Chapter 3
Table 3-1
Viewing Live Video
Camera Video & Control Window Controls (continued)
Control
Description
Sensitivity drop-down Appears when you check the Enable DRX check box.
menu
Choose Low or High to specify how quickly the IP camera adjusts the image
for optimal appearance.
Strength drop-down
menu
Appears when you check the Enable DRX check box.
Gamma Curve
Select a gamma curve value to adjust the monitor gray-scale for video from the
IP camera.
Flip button
Rotates the video image that appears in your browser by 180 degrees and
retains the flipped image on the camera.
Mirror button
Reverses the video image that appears in your browser and retains the reversed
image on the camera.
Choose Low, Medium, or High to specify the relative adjustment that the IP
camera makes between the light and dark parts of an image.
Motion Detection
Note
To display these controls click the Expand icon
next to Motion Detection under the video
image. The icon changes to the Collapse icon . Click the Collapse icon to hide these controls.
If you make changes to any of the Motion Detection options, click the Save button to save the
changes.
Enable Motion
Detection check box
Enables the motion detection feature.
When motion detection is enabled, the IP camera monitors activity in the video
field areas that you specify. If activity at a defined level occurs in any of these
areas, the IP camera generates an alert and takes the configured actions.
To designate regions, right-click the video image, choose Draw Region, then
hold down the left mouse button and draw the region, which is indicated by a
green rectangle (for an inclusion region) or a red rectangle (for an exclusion
region).
You can draw up to 4 Inclusion regions and up to 4 Exclusion regions for a total
of up to 8 regions.
To move a region, left-click it and drag its window to the desired area.
To resize a region, left-click it and drag an edge or corner of the region to the
desired size.
To remove a region, left-click it, then right-click it and choose Delete Region.
Cisco Video Surveillance 3000 Series IP Camera Configuration Guide
3-8
Chapter 3
Viewing Live Video
Table 3-1
Camera Video & Control Window Controls (continued)
Control
Description
Region Properties
To expand region properties information, click the + icon next to Region
Properties. The icon changes to a – icon, which you click to collapse region
properties information.
•
IsActive—To indicate whether the IP camera monitors a region for motion
detection, left-click that region, click IsActive, then choose True
(consider region) of False (do not consider region) from the drop-down
menu that appears on the IsActive line. Alternatively, you can double-click
True or False to toggle between these values.
•
Location—X and Y coordinates, respectively, of the top left corner of the
selected custom region. To expand location information, lick the + icon
next to Location. The icon changes to a – icon, which you click to collapse
region location information.
•
Name—Name of the region. By default, the system assigns the name
RegionX, where X is a number 1 through 8. To rename a region, click its
name (which appears in bold type on this line) and type a unique name of
up to 32 characters.
•
Region Type—Type of the region. To change the region type, left-click
that region, click Region Type, then choose one of the following values f
from the drop-down menu that appears on the Region Type line.
Alternatively, you can double-click Inclusion or Exclusion to toggle
between these values.
– Inclusion—The IP camera examines this region for motion
– Exclusion—The IP camera ignores motion in this area
Sensitivity slider
Becomes available when you left-click a motion detection region.
Designates the relative amount of activity that the IP camera must detect in the
area before it generates an alert. A lower value means that more, or faster,
activity is required to trigger an alert. A higher value means that less, or slower,
activity is required. The default value is 80.
Threshold slider
Becomes available when you left-click a motion detection region.
Designates the percentage of pixels that the IP camera must identify as
changed in the area before it generates an alert. The camera monitors for pixel
changes at the defined sensitivity level. The default threshold value is Low.
Cisco Video Surveillance 3000 Series IP Camera Configuration Guide
3-9
Chapter 3
Table 3-1
Viewing Live Video
Camera Video & Control Window Controls (continued)
Control
Description
Privacy Zone
Note
To display these controls click the Expand icon
next to Privacy Zone under the video image.
The icon changes to the Collapse icon
. Click the Collapse icon to hide these controls.
If you make changes to any of the Privacy Zone options, click the Save button to save the
changes.
Enable Privacy
Region check box
Enables the Privacy Zone feature.
You can create up to four user-defined masking zones that can used to provide
regions of privacy in the camera field of view. When the Privacy Zone feature
is enabled, video within privacy each region is not recorded in the camera, nor
sent in the video stream. Instead of the actual video, privacy regions display as
solid rectangles that you choose from the Region Color drop-down list.
To designate regions, right-click the video image, choose Draw Region, then
hold down the left mouse button and draw the region, which is indicated by a
green rectangle.
To move a region, left-click it and drag its window to the desired area.
To resize a region, left-click it and drag an edge or corner of the region to the
desired size.
To remove a region, left-click it, then right-click it and choose Delete Region.
Region Color
drop-down menu
Choose the color in which the system displays the zones that are defined by
privacy regions. You can choose Red, Green, Black, or Blue.
Privacy Zone
properties
To expand region properties information, click the + icon next to Privacy Zone
Properties. The icon changes to a – icon, which you click to collapse region
properties information.
•
Name—Name of the region. By default, the system assigns the name
RegionX, where X is a number 1 through 4. To rename a region, click its
name (which appears in bold type on this line) and type a unique name of
up to 32 characters .
•
IsActive—To indicate whether the IP camera displays a region as a privacy
mask, left-click that region, click IsActive, then choose True (mask the
region) of False (do not mask the region) from the drop-down menu that
appears on the IsActive line. Alternatively, you can double-click True or
False to toggle between these values.
Cisco Video Surveillance 3000 Series IP Camera Configuration Guide
3-10
CHAPTER
4
Feature Setup
The Feature Setup windows let you configure a variety of IP camera features and functions. The
following sections describe the Feature Setup windows in detail:
•
Streaming Window, page 4-1
•
Camera Window, page 4-12
•
Video Overlay Window, page 4-15
•
IO Ports Window, page 4-17
•
Alert Notification Window, page 4-18
Streaming Window
The Streaming window provides options for configuring audio and video streams from the IP camera.
You can configure settings for the primary and an optional secondary video stream.
Configuring a secondary stream is useful for providing a video stream that is at a lower resolution than
the primary stream to third-party devices or software.
Both streams support H.264 and MJPEG for video, and G.711 A-law and G.711 u-law for audio.
When configuring video streams, be aware of the following guidelines:
Note
•
The resolution of the primary stream must be higher than the resolution of the secondary stream.
•
You cannot configure a maximum frame rate of 30 for the primary stream if the secondary stream is
enabled.
•
Multiple secondary frame rates are supported. Table 4-1 shows the frame rate combinations of
primary and secondary streams with a 16:9 aspect ratio, and Table 4-2 shows the frame rate
combinations of primary and secondary streams with a 4:3 aspect ratio. If a secondary frame rate
that is not shown in this table is selected in Cisco Video Surveillance Manager, the IP camera uses
the closest available frame rate.
If you configure the camera for 768 x 432, 704 x 400, and 352 x 208 resolutions and then downgrade the
firmware, the camera might reboot. Before downgrading, change the resolution back to an older
resolution.
Cisco Video Surveillance 3000 Series IP Camera Configuration Guide
4-1
Chapter 4
Feature Setup
Streaming Window
Table 4-1
Cisco Video Surveillance 3000 Series IP Camera Video Stream Support for 16:9 Aspect Ratio
Secondary
(H264 or MJPEG)
FPS
Bit Rate
64K, 128K, 256K, 384K,
768K, 1M, 2M, 4M, 6M,
8M, 10M
–
–
–
10, 15
64K, 128K, 256K, 384K,
768K, 1M, 2M, 4M, 6M
–
–
–
1, 3, 5, 6, 8
64K, 128K, 256K, 384K,
768K, 1M, 2M, 4M
1024 x 576
10, 15
64K, 128K, 256K,
384K, 768K, 1M, 2M,
4M
1, 3, 5, 6, 8
64K, 128K, 256K,
384K, 768K, 1M, 2M
10, 15
64K, 128K, 256K,
384K, 768K, 1M, 2M,
4M
1, 3, 5, 6, 8
64K, 128K, 256K,
384K, 768K, 1M, 2M
10, 15
64K, 128K, 256K,
384K, 768K, 1M, 2M
1, 3, 5, 6, 8
64K, 128K, 256K,
384K, 768K, 1M
10, 15
64K, 128K, 256K,
384K, 768K, 1M, 2M
1, 3, 5, 6, 8
64K, 128K, 256K,
384K, 768K, 1M
10, 15
64K, 128K, 256K,
384K, 768K, 1M, 2M
1, 3, 5, 6, 8
64K, 128K, 256K,
384K, 768K, 1M
10, 15
64K, 128K, 256K,
384K, 768K
1, 3, 5, 6, 8
64K, 128K, 256K,
384K
10, 15
64K, 128K, 256K,
384K, 768K
1, 3, 5, 6, 8
64K, 128K, 256K,
384K
10, 15
64K, 128K, 256K
1, 3, 5, 6, 8
64K, 128K
10, 15
64K, 128K, 256K
1, 3, 5, 6, 8
64K, 128K
Primary (H264)
FPS
Bit Rate
1280 x 800
20, 25, 30
960 x 544
768 x 432
704 x 400
640 x 368
352 x 208
320 x 192
192 x 112
160 x 96
Cisco Video Surveillance 3000 Series IP Camera Configuration Guide
4-2
Chapter 4
Feature Setup
Streaming Window
Table 4-1
Cisco Video Surveillance 3000 Series IP Camera Video Stream Support for 16:9 Aspect Ratio (continued)
Primary (H264)
FPS
Bit Rate
1280 x 720
20, 25, 30
64K, 128K, 256K, 384K,
768K, 1M, 2M, 4M, 6M,
8M, 10M
10, 15
64K, 128K, 256K, 384K,
768K, 1M, 2M, 4M, 6M
1, 3, 5, 6, 8
64K, 128K, 256K, 384K,
768K, 1M, 2M, 4M
Secondary
(H264 or MJPEG)
FPS
Bit Rate
1024 x 576
10, 15
64K, 128K, 256K,
384K, 768K, 1M, 2M,
4M
1, 3, 5, 6, 8
64K, 128K, 256K,
384K, 768K, 1M, 2M
10, 15
64K, 128K, 256K,
384K, 768K, 1M, 2M,
4M
1, 3, 5, 6, 8
64K, 128K, 256K,
384K, 768K, 1M, 2M
10, 15
64K, 128K, 256K,
384K, 768K, 1M, 2M
1, 3, 5, 6, 8
64K, 128K, 256K,
384K, 768K, 1M
10, 15
64K, 128K, 256K,
384K, 768K, 1M, 2M
1, 3, 5, 6, 8
64K, 128K, 256K,
384K, 768K, 1M
10, 15
64K, 128K, 256K,
384K, 768K, 1M, 2M
1, 3, 5, 6, 8
64K, 128K, 256K,
384K, 768K, 1M
10, 15
64K, 128K, 256K,
384K, 768K
1, 3, 5, 6, 8
64K, 128K, 256K,
384K
10, 15
64K, 128K, 256K,
384K, 768K
1, 3, 5, 6, 8
64K, 128K, 256K,
384K
10, 15
64K, 128K, 256K
1, 3, 5, 6, 8
64K, 128K
10, 15
64K, 128K, 256K
1, 3, 5, 6, 8
64K, 128K
960 x 544
768 x 432
704 x 400
640 x 368
352 x 208
320 x 192
192 x 112
160 x 96
Cisco Video Surveillance 3000 Series IP Camera Configuration Guide
4-3
Chapter 4
Feature Setup
Streaming Window
Table 4-1
Cisco Video Surveillance 3000 Series IP Camera Video Stream Support for 16:9 Aspect Ratio (continued)
Primary (H264)
FPS
Bit Rate
1024 x 576
20, 25, 30
64K, 128K, 256K, 384K,
768K, 1M, 2M, 4M, 6M
10, 15
64K, 128K, 256K, 384K,
768K, 1M, 2M, 4M
1, 3, 5, 6, 8
64K, 128K, 256K, 384K,
768K, 1M, 2M
Secondary
(H264 or MJPEG)
FPS
Bit Rate
1024 x 576
10, 15
64K, 128K, 256K,
384K, 768K, 1M, 2M,
4M
1, 3, 5, 6, 8
64K, 128K, 256K,
384K, 768K, 1M, 2M
10, 15
64K, 128K, 256K,
384K, 768K, 1M, 2M,
4M
1, 3, 5, 6, 8
64K, 128K, 256K,
384K, 768K, 1M, 2M
10, 15
64K, 128K, 256K,
384K, 768K, 1M, 2M
1, 3, 5, 6, 8
64K, 128K, 256K,
384K, 768K, 1M
10, 15
64K, 128K, 256K,
384K, 768K, 1M, 2M
1, 3, 5, 6, 8
64K, 128K, 256K,
384K, 768K, 1M
10, 15
64K, 128K, 256K,
384K, 768K, 1M, 2M
1, 3, 5, 6, 8
64K, 128K, 256K,
384K, 768K, 1M
10, 15
64K, 128K, 256K,
384K, 768K
1, 3, 5, 6, 8
64K, 128K, 256K,
384K
10, 15
64K, 128K, 256K,
384K, 768K
1, 3, 5, 6, 8
64K, 128K, 256K,
384K
10, 15
64K, 128K, 256K
1, 3, 5, 6, 8
64K, 128K
10, 15
64K, 128K, 256K
1, 3, 5, 6, 8
64K, 128K
960 x 544
768 x 432
704 x 400
640 x 368
352 x 208
320 x 192
192 x 112
160 x 96
Cisco Video Surveillance 3000 Series IP Camera Configuration Guide
4-4
Chapter 4
Feature Setup
Streaming Window
Table 4-1
Cisco Video Surveillance 3000 Series IP Camera Video Stream Support for 16:9 Aspect Ratio (continued)
Primary (H264)
FPS
Bit Rate
960 x 544
20, 25, 30
64K, 128K, 256K, 384K,
768K, 1M, 2M, 4M, 6M
10, 15
64K, 128K, 256K, 384K,
768K, 1M, 2M, 4M
1, 3, 5, 6, 8
64K, 128K, 256K, 384K,
768K, 1M, 2M
Secondary
(H264 or MJPEG)
FPS
Bit Rate
960 x 544
10, 15
64K, 128K, 256K,
384K, 768K, 1M, 2M,
4M
1, 3, 5, 6, 8
64K, 128K, 256K,
384K, 768K, 1M, 2M
10, 15
64K, 128K, 256K,
384K, 768K, 1M, 2M
1, 3, 5, 6, 8
64K, 128K, 256K,
384K, 768K, 1M
10, 15
64K, 128K, 256K,
384K, 768K, 1M, 2M
1, 3, 5, 6, 8
64K, 128K, 256K,
384K, 768K, 1M
10, 15
64K, 128K, 256K,
384K, 768K, 1M, 2M
1, 3, 5, 6, 8
64K, 128K, 256K,
384K, 768K, 1M
10, 15
64K, 128K, 256K,
384K, 768K
1, 3, 5, 6, 8
64K, 128K, 256K,
384K
10, 15
64K, 128K, 256K,
384K, 768K
1, 3, 5, 6, 8
64K, 128K, 256K,
384K
10, 15
64K, 128K, 256K
1, 3, 5, 6, 8
64K, 128K
10, 15
64K, 128K, 256K
1, 3, 5, 6, 8
64K, 128K
10, 15
64K, 128K, 256K,
384K, 768K, 1M, 2M
1, 3, 5, 6, 8
64K, 128K, 256K,
384K, 768K, 1M
10, 15
64K, 128K, 256K,
384K, 768K, 1M, 2M
1, 3, 5, 6, 8
64K, 128K, 256K,
384K, 768K, 1M
10, 15
64K, 128K, 256K,
384K, 768K, 1M, 2M
768 x 432
704 x 400
640 x 368
352 x 208
320 x 192
192 x 112
160 x 96
768 x 432
20, 25, 30
64K, 128K, 256K, 384K,
768K, 1M, 2M, 4M
10, 15
64K, 128K, 256K, 384K,
768K, 1M, 2M
1, 3, 5, 6, 8
64K, 128K, 256K, 384K,
768K, 1M
768 x 432
704 x 400
640 x 368
Cisco Video Surveillance 3000 Series IP Camera Configuration Guide
4-5
Chapter 4
Feature Setup
Streaming Window
Table 4-1
Cisco Video Surveillance 3000 Series IP Camera Video Stream Support for 16:9 Aspect Ratio (continued)
Primary (H264)
FPS
Bit Rate
Secondary
(H264 or MJPEG)
352 x 208
320 x 192
192 x 112
160 x 96
704 x 400
20, 25, 30
64K, 128K, 256K, 384K,
768K, 1M, 2M, 4M
10, 15
64K, 128K, 256K, 384K,
768K, 1M, 2M
1, 3, 5, 6, 8
64K, 128K, 256K, 384K,
768K, 1M
704 x 400
640 x 368
352 x 208
320 x 192
192 x 112
160 x 96
640 x 368
20, 25, 30
64K, 128K, 256K, 384K,
768K, 1M, 2M, 4M
10, 15
64K, 128K, 256K, 384K,
768K, 1M, 2M
640 x 368
Cisco Video Surveillance 3000 Series IP Camera Configuration Guide
4-6
FPS
Bit Rate
1, 3, 5, 6, 8
64K, 128K, 256K,
384K, 768K, 1M
10, 15
64K, 128K, 256K,
384K, 768K
1, 3, 5, 6, 8
64K, 128K, 256K,
384K
10, 15
64K, 128K, 256K,
384K, 768K
1, 3, 5, 6, 8
64K, 128K, 256K,
384K
10, 15
64K, 128K, 256K
1, 3, 5, 6, 8
64K, 128K
10, 15
64K, 128K, 256K
1, 3, 5, 6, 8
64K, 128K
10, 15
64K, 128K, 256K,
384K, 768K, 1M, 2M
1, 3, 5, 6, 8
64K, 128K, 256K,
384K, 768K, 1M
10, 15
64K, 128K, 256K,
384K, 768K, 1M, 2M
1, 3, 5, 6, 8
64K, 128K, 256K,
384K, 768K, 1M
10, 15
64K, 128K, 256K,
384K, 768K
1, 3, 5, 6, 8
64K, 128K, 256K,
384K
10, 15
64K, 128K, 256K,
384K, 768K
1, 3, 5, 6, 8
64K, 128K, 256K,
384K
10, 15
64K, 128K, 256K
1, 3, 5, 6, 8
64K, 128K
10, 15
64K, 128K, 256K
1, 3, 5, 6, 8
64K, 128K
10, 15
64K, 128K, 256K,
384K, 768K, 1M, 2M
1, 3, 5, 6, 8
64K, 128K, 256K,
384K, 768K, 1M
Chapter 4
Feature Setup
Streaming Window
Table 4-1
Primary (H264)
Cisco Video Surveillance 3000 Series IP Camera Video Stream Support for 16:9 Aspect Ratio (continued)
FPS
Bit Rate
1, 3, 5, 6, 8
64K, 128K, 256K, 384K,
768K, 1M, 2M, 4M
Secondary
(H264 or MJPEG)
FPS
Bit Rate
352 x 208
10, 15
64K, 128K, 256K,
384K, 768K
1, 3, 5, 6, 8
64K, 128K, 256K,
384K
10, 15
64K, 128K, 256K,
384K, 768K
1, 3, 5, 6, 8
64K, 128K, 256K,
384K
10, 15
64K, 128K, 256K
1, 3, 5, 6, 8
64K, 128K
10, 15
64K, 128K, 256K
1, 3, 5, 6, 8
64K, 128K
10, 15
64K, 128K, 256K,
384K, 768K
1, 3, 5, 6, 8
64K, 128K, 256K,
384K
10, 15
64K, 128K, 256K,
384K, 768K
1, 3, 5, 6, 8
64K, 128K, 256K,
384K
10, 15
64K, 128K, 256K
1, 3, 5, 6, 8
64K, 128K
10, 15
64K, 128K, 256K
1, 3, 5, 6, 8
64K, 128K
10, 15
64K, 128K, 256K,
384K, 768K
1, 3, 5, 6, 8
64K, 128K, 256K,
384K
10, 15
64K, 128K, 256K
1, 3, 5, 6, 8
64K, 128K
10, 15
64K, 128K, 256K
1, 3, 5, 6, 8
64K, 128K
10, 15
64K, 128K, 256K
1, 3, 5, 6, 8
64K, 128K
10, 15
64K, 128K, 256K
1, 3, 5, 6, 8
64K, 128K
10, 15
64K, 128K, 256K
320 x 192
192 x 112
160 x 96
352 x 208
20, 25, 30
64K, 128K, 256K, 384K,
768K, 1M
10, 15
64K, 128K, 256K, 384K,
768K
1, 3, 5, 6, 8
64K, 128K, 256K, 384K
352 x 208
320 x 192
192 x 112
160 x 96
320 x 192
20, 25, 30
64K, 128K, 256K, 384K,
768K, 1M
10, 15
64K, 128K, 256K, 384K,
768K
1, 3, 5, 6, 8
64K, 128K, 256K, 384K
320 x 192
192 x 112
160 x 96
192 x 112
160 x 96
20, 25, 30
64K, 128K, 256K, 384K
10, 15
64K, 128K, 256K
1, 3, 5, 6, 8
64K, 128K
20, 25, 30
192 x 112
160 x 96
64K, 128K, 256K, 384K
160 x 96
Cisco Video Surveillance 3000 Series IP Camera Configuration Guide
4-7
Chapter 4
Feature Setup
Streaming Window
Table 4-1
Cisco Video Surveillance 3000 Series IP Camera Video Stream Support for 16:9 Aspect Ratio (continued)
Primary (H264)
Table 4-2
FPS
Bit Rate
10, 15
64K, 128K, 256K
1, 3, 5, 6, 8
64K, 128K
Secondary
(H264 or MJPEG)
FPS
Bit Rate
720 x 576
20, 25, 30
Secondary
(H264 or MJPEG)
64K, 128K
Bit Rate
64K, 128K, 256K, 384K, 720 x 576
768K, 1M, 2M, 4M
10, 15
64K, 128K, 256K,
384K, 768K, 1M, 2M
10, 15
64K, 128K, 256K, 384K,
768K, 1M, 2M
1, 3, 5, 6, 8
64K, 128K, 256K,
384K, 768K, 1M
1, 3, 5, 6, 8
64K, 128K, 256K, 384K, 704 x 576
768K, 1M
10, 15
64K, 128K, 256K,
384K, 768K, 1M, 2M
1, 3, 5, 6, 8
64K, 128K, 256K,
384K, 768K, 1M
10, 15
64K, 128K, 256K,
384K, 768K, 1M
1, 3, 5, 6, 8
64K, 128K, 256K,
384K, 768K
20, 25, 30
64K, 128K, 256K, 384K, 704 x 576
768K, 1M, 2M, 4M
10, 15
64K, 128K, 256K,
384K, 768K, 1M, 2M
10, 15
64K, 128K, 256K, 384K,
768K, 1M, 2M
1, 3, 5, 6, 8
64K, 128K, 256K,
384K, 768K, 1M
1, 3, 5, 6, 8
64K, 128K, 256K, 384K, 352 x 288
768K, 1M
10, 15
64K, 128K, 256K,
384K, 768K, 1M
1, 3, 5, 6, 8
64K, 128K, 256K,
384K, 768K
20, 25, 30
64K, 128K, 256K, 384K, 720 x 480
768K, 1M, 2M, 4M
10, 15
64K, 128K, 256K,
384K, 768K, 1M, 2M
10, 15
64K, 128K, 256K, 384K,
768K, 1M, 2M
1, 3, 5, 6, 8
64K, 128K, 256K,
384K, 768K, 1M
1, 3, 5, 6, 8
64K, 128K, 256K, 384K, 704 x 480
768K, 1M
10, 15
64K, 128K, 256K,
384K, 768K, 1M, 2M
1, 3, 5, 6, 8
64K, 128K, 256K,
384K, 768K, 1M
10, 15
64K, 128K, 256K,
384K, 768K, 1M
1, 3, 5, 6, 8
64K, 128K, 256K,
384K, 768K
352 x 240
Cisco Video Surveillance 3000 Series IP Camera Configuration Guide
4-8
1, 3, 5, 6, 8
FPS
352 x 288
720 x 480
Bit Rate
Cisco Video Surveillance 3000 Series IP Camera Video Stream Support
for 4:3 Aspect Ratios
Primary (H264)
704 x 576
FPS
Chapter 4
Feature Setup
Streaming Window
Table 4-2
Cisco Video Surveillance 3000 Series IP Camera Video Stream Support
for 4:3 Aspect Ratios
Primary (H264)
FPS
Bit Rate
704 x 480
20, 25, 30
352 x 240
352 x 288
Secondary
(H264 or MJPEG)
FPS
Bit Rate
64K, 128K, 256K, 384K, 704 x 480
768K, 1M, 2M, 4M
10, 15
64K, 128K, 256K,
384K, 768K, 1M, 2M
10, 15
64K, 128K, 256K, 384K,
768K, 1M, 2M
1, 3, 5, 6, 8
64K, 128K, 256K,
384K, 768K, 1M
1, 3, 5, 6, 8
64K, 128K, 256K, 384K, 352 x 240
768K, 1M
10, 15
64K, 128K, 256K,
384K, 768K, 1M
1, 3, 5, 6, 8
64K, 128K, 256K,
384K, 768K
20, 25, 30
64K, 128K, 256K, 384K, 352 x 240
768K, 1M, 2M
10, 15
64K, 128K, 256K,
384K, 768K, 1M
10, 15
64K, 128K, 256K, 384K,
768K, 1M
1, 3, 5, 6, 8
64K, 128K, 256K,
384K, 768K
1, 3, 5, 6, 8
64K, 128K, 256K, 384K,
768K
20, 25, 30
64K, 128K, 256K, 384K, 352 x 288
768K, 1M, 2M
10, 15
64K, 128K, 256K,
384K, 768K, 1M
10, 15
64K, 128K, 256K, 384K,
768K, 1M
1, 3, 5, 6, 8
64K, 128K, 256K,
384K, 768K
1, 3, 5, 6, 8
64K, 128K, 256K, 384K,
768K
To display the Streaming window, perform the following steps:
Procedure
Step 1
From the IP camera user interface, click the Setup link.
Step 2
Click Feature Setup to expand the menu.
Step 3
From the Feature Setup menu, click Streaming.
The Streaming window appears. If you change any options in this window, you must click the Save
button to save the changes. If you do not click this button, changes are not retained when you exit the
window. The Save button appears at the bottom of the window. You might need to scroll down to it.
Table 4-3 describes the options in the Streaming window.
Cisco Video Surveillance 3000 Series IP Camera Configuration Guide
4-9
Chapter 4
Feature Setup
Streaming Window
Table 4-3
Streaming Window Options
Option
Description
Current Stream Area
Stream
Choose the video stream (Stream 1 or Stream 2) to which the configuration
settings in the Streaming window apply. Stream 1 is the primary stream, and
Stream 2 is the secondary stream.
Enable Stream
Check this check box to cause the IP camera to send audio/video data on the
selected stream.
Streaming Area
Note
Each video stream uses its own set of streaming options. The settings shown in the Streaming
Area apply to the currently selected stream only.
RTSP Port
Transmission Control Protocol (TCP) port on which the IP camera receives
Real-Time Streaming Protocol (RTSP) commands. You must configure this
port if you want to allow third-party devices or software to access video
streams from the IP camera.
RTSP is a standard for connecting a client to control streaming data over the
web.
Valid values are 554 and 1024 through 65535. The default port is 554.
Video Source Port
Universal Datagram Protocol (UDP) port on which the IP camera transmits
Video Real-Time Transport Protocol (RTP) data.
Valid values are even numbers 1024 through 65534. The default port is 1024.
Audio Source Port
UDP port on which the IP camera transmits audio RTP data
Valid values are even numbers 1024 through 65534. The default value is
1026.
Max RTP Packet Size
Maximum number of bytes per data packets that are sent in each RTP
request.
Configure a lower number if you are streaming video to a cell phone that
requires smaller data packets.
Valid values are 400 through 1400. The default value is 1400.
Enable Multicast
Check this check box to send video and audio data as a multicast stream.
When multicast is enabled, the IP camera sends video and audio to the
multicast addresses that you designate. Multicast enables several devices to
receive the video signal from the IP camera simultaneously.
Multicast Address
Enter the multicast IP address on which the IP camera sends a multicast
audio/video stream.
Multicast Video Port
Enter the port on which the IP camera sends a multicast video stream.
Valid values are even numbers 1024 through 65532.
Multicast Audio Port
Enter the port on which the IP camera sends a multicast audio stream.
Valid values are even numbers 1024 through 65532.
Cisco Video Surveillance 3000 Series IP Camera Configuration Guide
4-10
Chapter 4
Feature Setup
Streaming Window
Table 4-3
Streaming Window Options (continued)
Option
Description
Time to Live
Enter the number of hops, which specifies the number of network devices
that an audio/video stream can pass before arriving at its destination or being
dropped.
Valid values are 1 through 255.
Video Area
Note
Each video stream uses its own set of video options. The settings shown in the Video Area
apply to the currently selected stream only.
Video Standard
Choose the system for video transmission: NTSC or PAL.
The setting that you make affects each channel that is enabled.
Video Codec
Choose the codec for video transmission: H.264 or MJPEG. Both options are
supported on the primary and secondary streams.
Video Resolution
Choose the resolution for video transmission. The resolutions in this
drop-down list depend on the video standard that you selected.
Maximum Frame Rate
Choose the maximum frame rate of the video stream.
Video Quality Control
Choose an option for the video quality of the video stream from the IP
camera:
•
Constant Bit Rate—Available for the primary stream only. Specifies
that the video stream is output at or close to the constant bit rate that you
choose.
You can select one of the Mbps values in the drop-down menu. The
default value is 4 Mbps. A higher bit rate provides better video quality
but consumes more bandwidth.
You can also select the Customized option to enter a rate within the valid
range, depending on resolution and frame rate.
•
Fixed Quality—Specifies that video is output at a fixed quality, which
ranges from Very High to Low. The bit rate may vary to maintain this
quality. The default fixed quality is Normal. A higher fixed quality
provides better video quality but consumes more bandwidth.
You can use these options to help manage bandwidth use in your network.
For example, if the IP camera is focused on an area with little movement,
such as an emergency exit, you can configure it with a low fixed quality.
Analog Video Area
Note
This option applies to the primary stream only.
Enable Analog Video
Port
Check this check box if you want the IP camera to enable analog video for
installation purposes. To enable analog video, the following settings are
required:
•
The primary video stream frame rate must be set to 15 fps or lower.
•
The secondary video stream must be disabled.
Audio Area
Enable Audio
Check this check box if you want to enable audio.
Cisco Video Surveillance 3000 Series IP Camera Configuration Guide
4-11
Chapter 4
Feature Setup
Camera Window
Table 4-3
Streaming Window Options (continued)
Option
Description
Audio Codec
Choose the audio codec to use for encoding audio:
•
G.711 A-Law—Encodes 14-bit signed linear PCM samples to
logarithmic 8-bit samples.
•
G.711 u-Law—Encodes 13-bit signed linear PCM samples to
logarithmic 8-bit samples.
Note
The G.711 A-law algorithm provides more quantization levels at
lower signal levels whereas the G.711 µ-law algorithm tends to give
more resolution to higher range signals.
Audio Sampling Rate
Display only. Indicates the sampling rate of the audio stream from the IP
camera
Audio Resolution
Display only. Indicates the resolution for audio transmission from the IP
camera.
Camera Window
The Camera window provides options for selecting a microphone, making certain video adjustments,
exposure control, and configuring the operation of the IP camera day and night filters.
A microphone captures audio at the camera location. This audio is sent to the PC that you use to view
video from the IP camera. You can listen to the audio when viewing video in the Camera Video & Control
window.
The IP camera day and night filters allow the IP camera to optimize its video image for various lighting
conditions. When the IP camera uses its day filter, it is operating in day mode. In this mode, the camera
displays video images in color. When the IP camera uses its night filter, it is in night mode. In this mode,
the camera displays video images in black and white.
To display the Camera window, perform the following steps:
Procedure
Step 1
From the IP camera user interface, click the Setup link.
Step 2
Click Feature Setup to expand the menu.
Step 3
From the Feature Setup menu, click Camera.
The Camera window appears. If you change any options in this window, you must click the Save button
to save the changes. If you do not click this button, changes are not retained when you exit the window.
The Save button appears at the bottom of the window. You might need to scroll down to it.
Table 4-4 describes the options in the Camera window.
Cisco Video Surveillance 3000 Series IP Camera Configuration Guide
4-12
Chapter 4
Feature Setup
Camera Window
Table 4-4
Camera Window Options
Option
Description
Microphone
Microphone Type
The Cisco IP camera supports only an external microphone. Audio is
captured by an optional external microphone, available from third-parties.
Day/Night Filter Area
Note
Cisco 3421v cameras do not support this feature.
Switch Mode
Choose the day/night mode for the IP camera:
•
Day—IP camera always remains in day mode.
•
Night—IP camera always remains in night mode.
•
Auto—IP camera automatically switches between day and night mode
based on the lighting condition threshold that you specify.
When the IP camera is in Auto mode, it attempts to avoid frequent or
unnecessary changes between day mode and night mode (such as can
occur when an IP camera is set up on a street where car headlights could
cause constant changes between these modes). When the IP camera
detects that a switch from day to night mode might be necessary, it
monitors the light level for 10 seconds. If the light level remains below
or above the configured Day to Night Threshold for the entire 10
seconds, the IP camera switches modes. Otherwise, the IP camera
remains in the current mode.
If the IP camera goes through 3 day/night mode transitions within a 60
second period, the camera stops detecting and implementing day/night
changes for a period of 5 minutes from the point of the third transition.
During these 5 minutes, the IP camera remains in the current day or
night mode.
•
Night External—IP camera switches to night mode based on external
Input port. It switches to day mode when the external Input port is not
in the triggered status. Check the external Input port of “Alarm I/O
Ports.” Output port is optional and can be used to trigger devices
connected externally.
•
Night Schedule—IP camera switches to and from Night mode based on
the Start and End times. Start Time - Enter the time, in 24 hour format,
when camera enters Night mode. End Time - Enter the time, in 24 hour
format, when camera exists Night mode.
Note
If you configure a Night Schedule, make sure that the time on the IP
camera is set correctly.
Day to Night Threshold The Day to Night Threshold option is available only when the Switch Mode
is set to Auto. Choose a value that specifies the relative light threshold at
which the IP camera switches from day to night mode. A lower value
designates that the IP camera switches from day to night mode in brighter
conditions. A higher value designated that the IP camera switches modes in
darker conditions.
The default value is 45.
Cisco Video Surveillance 3000 Series IP Camera Configuration Guide
4-13
Chapter 4
Feature Setup
Camera Window
Table 4-4
Camera Window Options (continued)
Option
Description
Night to Day Threshold The Night to Day Threshold option is available only when the Switch Mode
is set to Auto. Choose a value that specifies the relative light threshold at
which the IP camera switches from night to day mode. A lower value
designates that the IP camera switches from night to day mode in darker
conditions. A higher value designated that the IP camera switches modes in
lighter conditions.
The default value is 85.
Input
The Input option is available only when the Switch Mode is set to Night
External. Choose the Input port that is connected an external device that is
to trigger the switch to night mode.
Output
Choose the Output port that is connected to an external device that is to be
triggered.
This option is not when the Switch Mode is set to Day.
Start Time
The Start Time option is available only when the Switch Mode is set to Night
Schedule. Enter the time, in 24 hour format, when the camera enables its
night filter.
End Time
The Start Time option is available only when the Switch Mode is set to Night
Schedule. Enter the time, in 24 hour format, when the camera disables its
night filter.
Camera Tamper Area
Enable camera tamper
detection
Minimum duration
Check this check box to enable the camera tamper feature.
When enabled, this feature causes the IP camera to generate alerts when any
of the following events occur and persist for a designated period:
•
The IP camera view is changed
•
The IP camera view is blocked
•
The IP camera view is substantially out of focus
Enter the minimum length of time that a tamper event persists before a
tamper alert is generated. To prevent false alerts, the IP camera waits for this
period after detecting a tamper event before it generates an alert. If the
tamper event is resolved (the IP camera view is returned to its original
setting, the IP camera view blockage is removed, or the IP camera is put back
in focus), an alert is not generated.
Valid values are 10 to 600 seconds.
Enable Auto Clear
Tamper Alert
Check this option to cause the IP camera to clear a tamper alert automatically
according to the value that is configured in the Auto Clear Tamper Duration
field (see the next row in this table).
Cisco Video Surveillance 3000 Series IP Camera Configuration Guide
4-14
Chapter 4
Feature Setup
Video Overlay Window
Table 4-4
Camera Window Options (continued)
Option
Description
Auto Clear Tamper
Duration
If the Enable Auto Clear Tamper Alert option is enabled, enter the number
of minutes after the time that a tamper alert is generated at which the IP
camera clears the alert.
For example, if you check the Enable Auto Clear Tamper Alert check box
and set this Auto Clear Tamper Duration option to 90, the IP camera clears
a tamper alert 90 minutes after the alert is generated.
Valid values are 5 to 1440 minutes (5 minutes to 24 hours).
Advanced Settings
Enable Profiling
Check this check box to enable the profiling feature, which automatically
applies a profile to the IP camera. A profile is the set of options that you
configure in the Picture Adjustment, Exposure Controls, and Advanced
Settings areas in the View Video window. You can create separate day and
night profiles, which are applied when the camera is in day or night mode,
respectively.
For detailed information about configuring profiles, see the Camera Settings
controls rows in Table 3-1.
Video Overlay Window
The Video Overlay window provides options for configuring overlay text, an overlay image, or both that
appear on the video image in the Camera Video & Control window.
To display the Video Overlay window, perform the following steps:
Procedure
Step 1
From the IP camera user interface, click the Setup link.
Step 2
Click Feature Setup to expand the menu.
Step 3
From the Feature Setup menu, click Video Overlay.
The Video Overlay window appears. If you change any options in this window, you must click the Save
button to save the changes. If you do not click this button, changes are not retained when you exit the
window. The Save button appears at the bottom of the window. You might need to scroll down to it.
Table 4-5 describes the options in the Video Overlay window.
Cisco Video Surveillance 3000 Series IP Camera Configuration Guide
4-15
Chapter 4
Feature Setup
Video Overlay Window
Table 4-5
Video Overlay Window Options
Option
Description
Text Overlay Area
Overlay Placement
Choose whether the text overlay appears at the Top of Image or Bottom of
Image.
If you configure a placement that overlaps a privacy region, the part of the
text that overlaps the privacy region does not appear on the video image.
Enable date/time
display
Check this check box to display the time from the internal clock of the IP
camera as an overlay on the video image from the IP camera.
Date/Time Alignment in Appears if you enable date/time display. Choose whether the Date/Time is
Overlay
aligned to the Left, Center, or Right.
If you configure a placement that overlaps a privacy region, the part of the
text that overlaps the privacy region does not appear on the video image.
Enable text display
Check this check box to display the text that you enter in the Display Text
field as an overlay on the video image from the IP camera.
This option can be useful for identifying this IP camera in an installation
with several IP cameras.
Text Alignment in
Overlay
Appears if you enable text display. Choose whether the text is aligned to the
Left, Center, or Right.
If you configure a placement that overlaps a privacy region, the part of the
text that overlaps the privacy region does not appear on the video image.
Text Format
Appears if you enable text display. Specifies the text format to use for the
text overlay. Currently, English (ASCII) is the only available text format.
Display Text
Appears if you enable text display. If you check the Enable Text Display
check box, the text that you enter in this field appears as an overlay on the
video image from the IP camera.
The text can contain up to 26 characters, which can include letters, numbers,
spaces, and these characters: ! $ % ( ) + , - . / : = @ ^ _ ` { } ~
Image Overlay Area
Browse
Click this button and use the window that pops up to locate and select the
image to be used as the overlay.
The image must meet these requirements:
•
File format—24-bit BMP
•
Maximum image file size—6 MB
•
Image width and height—The width in pixels and hight in pixels must
each be evenly divisible by 4
•
Maximum image size:
– Width—1920 pixels
– Height—1080 pixels
•
Upload
Resolution—An image with a resolution that is greater than 160 x 96
pixels is automatically reduced to a resolution of 160 x 96 pixels
Click this button to upload the image that you selected to the IP camera.
Cisco Video Surveillance 3000 Series IP Camera Configuration Guide
4-16
Chapter 4
Feature Setup
IO Ports Window
Table 4-5
Video Overlay Window Options (continued)
Option
Description
Enable Image Overlay
Check this check box to display the image that you uploaded as an overlay
on the video image from the IP camera.
Image Overlay
Placement
Appears if you enable image overlay. Choose whether the image overlay
appears at the Top of Image or Bottom of Image.
If you configure a placement that overlaps a privacy region, the part of the
image that overlaps the privacy region does not appear on the video image.
Image Alignment in
Overlay
Appears if you enable image overlay. Choose whether the image is aligned
to the Left, Center, or Right.
If you configure a placement that overlaps a privacy region, the part of the
image that overlaps the privacy region does not appear on the video image.
IO Ports Window
The IO Ports window lets you configure various options for the two input and two output ports on the IP
camera. A state change of an input ports triggers a camera to take configured actions. Output ports send
signals that can control external devices, such as alarms or door switches.
The IP camera can trigger an action only when the input that is received on an input port comes from a
contact that is in a normally closed condition. The camera triggers the action when the contact changes
to an open condition.
To display the IO Ports window, perform the following steps:
Procedure
Step 1
From the IP camera user interface, click the Setup link.
Step 2
Click Feature Setup to expand the menu.
Step 3
From the Feature Setup menu, click IO Ports.
The IO Ports window appears. If you change any options in this window, you must click the Save button
to save the changes. If you do not click this button, changes are not retained when you exit the window.
The Save button appears at the bottom of the window. You might need to scroll down to it.
Table 4-6 describes the options in the IO Ports window.
Table 4-6
IO Ports Window Options
Option
Description
Input Ports Area
Port #
Display only. Indicates input port 1.
Current State
Display only. Indicates the current state (high or low) of the corresponding
port.
Cisco Video Surveillance 3000 Series IP Camera Configuration Guide
4-17
Chapter 4
Feature Setup
Alert Notification Window
Table 4-6
IO Ports Window Options (continued)
Option
Description
Event Trigger
Choose the state (Rising or Falling) that triggers designated camera actions.
When an input port changes to the configured state, the camera determines
that an event has occurred and takes the actions that you have configured.
Output Ports
Port #
Display only. Indicates output port 1 and output port 2.
Current State
Display only. Indicates the current state (high or low) of the corresponding
port.
Default State
Choose the state (low or high) to which the corresponding port is set when
the IP camera powers on or resets.
The port changes to this state when you click Save.
The default setting is High.
Event Action
Display only. Indicates the current state (high or low) to which the output
port changes when an event occurs.
Automatic Reset
Check this check box if you want the corresponding output port to go back
to its default state after an event occurs.
Duration
If you checked the Automatic Reset check box, enter the amount of time, in
milliseconds, that elapses before the port goes back to its default state after
an event changes it from the default state.
Alert Notification Window
Use the Alert Notification window to define the alert types that trigger actions, and to configure
notification actions.
The following alert types can trigger actions:
•
Health
•
Audit
•
Security
Actions include the following:
•
Email notification—Send an email message to designated recipients. This message provides
information about the alert.
•
Output port state change—Changes the state of an IP camera output port from low to high or from
high to low.
•
Syslog server message—Sends a notification message to the designated Syslog server.
•
HTTP notification—Sends notification to a remote system via HTTP. This message provides
information about the alert.
Procedure
Step 1
From the IP camera user interface, click the Setup link.
Step 2
Click Feature Setup to expand the menu.
Cisco Video Surveillance 3000 Series IP Camera Configuration Guide
4-18
Chapter 4
Feature Setup
Alert Notification Window
Step 3
From the Feature Setup menu, click Alert.
The Alert Notification window appears. If you change any options in this window, you must click the
Save button to save the changes. If you do not click this button, changes are not retained when you exit
the window. The Save button appears at the bottom of the window. You may need to scroll down to it.
Table 4-7 describes the options in the Alert Notification window.
Table 4-7
Alert Notification Window Options
Option
Description
Event Triggering
Triggered by
Check the Conditions check box and then check one of more of the
following check boxes to designate the alert types that generate actions:
•
Health—An action is generated when a Health alert occurs
•
Audit—An action is generated when an Audit alert occurs
•
Security—An action is generated when a Security event occurs
See the “Alert Types” section on page 4-20 for a descriptions of these alerts.
Actions
Check the desired check boxes to designate that actions that the IP camera
takes when the corresponding trigger occurs.
•
Email—Sends information about the alert in an email message to the
designated recipient. You design the recipient and configure other email
options in other fields in this window.
•
Output 1—Changes the state of the output 1 port on the IP camera as
defined in the Port window.
•
Syslog—Sends information about the alert to a designated Syslog
server.
•
HTTP—Sends information about the alert as an HTTP stream to a
remote system.
HTTP Notification Area
HTTP Server
Identify the server to which HTTP messages are sent by choosing IP
Address or Hostname from the drop-down list and entering the IP address
or host name in the corresponding field.
URL Base
Enter a string to be used as the prefix in the HTTP URL. The HTTP URL is
sent in this format:
http://<IP address>/<URL Base>?<system-provided-name-value-pairs>
where IP address is the IP address of the destination server, URL Base is the
string that you enter, and system-provided-name-value-pairs is information
about the event.
Port Number
Enter the port number that receives messages on the primary server to which
HTTP messages are sent.
User Name
If authentication is required on the primary server to which HTTP messages
are sent, enter the user name.
Cisco Video Surveillance 3000 Series IP Camera Configuration Guide
4-19
Chapter 4
Feature Setup
Alert Notification Window
Table 4-7
Alert Notification Window Options (continued)
Option
Description
Password
If authentication is required on the primary server to which HTTP messages
are sent, enter the password.
Note
HTTP Authentication
Blank characters and the following special characters are not valid:
[]\&|:";<>?,/+=*'%#
If authentication is required on the primary server to which HTTP messages
are sent, choose the authentication method from the drop-down list.
Email Notification Area
SMTP Server
Identify the SMTP server that is used for sending email by choosing IP
Address or Hostname from the drop-down list and entering the IP address
or host name in the corresponding field.
SMTP Port
Enter the port number for the SMTP server. The default SMTP port number
is 25.
POP Server
Identify the POP server that is used for sending email by choosing IP
Address or Hostname from the drop-down list and entering the IP address
or host name in the corresponding field.
This field is dimmed if you do not choose Requires POP Before SMTP in
the Authentication field that follows.
Authentication
If the SMTP server requires authentication to send email, choose the
appropriate authentication type from the drop-down list. The authentication
type typically is the same as that for the POP3 server that you use to receive
email.
Account Name
If the SMTP server requires authentication, enter the account name for the
server.
Password
If the primary SMTP server requires authentication, enter the account
password for the server.
Note
Send To
Blank characters and the following special characters are not valid:
[]\&|:";<>?,/+=*'%#
Enter an email address to which an email message is sent when an event
occurs.
Show From Address As Enter the email address to be shown in the From field for the email message
that is sent when an event occurs.
Subject
Enter the text to be shown in the Subject field for the email messages that the
IP camera sends when events occur. The subject can contain up to 118
characters, including spaces.
Alert Types
The following tables describe the types of alerts that can trigger actions:
•
Health alerts—Table 4-8
•
Audit alerts—Table 4-9
•
Security alert—Table 4-10
Cisco Video Surveillance 3000 Series IP Camera Configuration Guide
4-20
Chapter 4
Feature Setup
Alert Notification Window
Table 4-8
Health Alerts
Alert Name
Description
Severity
Category
Continuous
Recording
Failure
Continuous recording of IP camera video fails.
This alert is generated only when continuous
recording is enabled on the IP camera.
Critical/Info
Recording
Camera App
Health
Any application that crashed frequently affects the Critical/Info
IP camera health and is stopped.
Software
SD Card-Not
Read–Format
Required
The SD card is not ready for recording, and
formating is required.
Critical/Info
Recording
SD Card-In
Recovery
Mode
The SD card recording details do not match the IP Critical/Info
camera into which it has been inserted.
Recording
To start recording on the SD card, you must
perform a format of the SD card.
Note
Table 4-9
Copy all required data before performing a
format of the card.
Audit Alerts
Alert Name
Description
Severity
Category
SD Card State
The SD card is inserted or removed from the IP
camera.
Info
Hardware
SD Card
Formatted
The SD card is formatted successfully.
Info
Hardware
Camera Apps
Status
Any application changes its status, for example,
restarted, stopped, and so forth.
Info
Software
Table 4-10
Security Alert
Alert Name
Description
Severity
Category
Camera
Tamper
Camera view is changed or blocked. This alert is
generated only when the tamper detection is
enabled on the IP camera as described the
“Camera Tamper Area” rows in Table 4-4.
Critical/Info
Hardware
Camera Tamper alert is enabled automatically
when security alert is enabled. [from release notes,
but contradicts above.
Cisco Video Surveillance 3000 Series IP Camera Configuration Guide
4-21
Chapter 4
Alert Notification Window
Cisco Video Surveillance 3000 Series IP Camera Configuration Guide
4-22
Feature Setup
CHAPTER
5
Events
The Events windows let you configure event notification and history settings, and access event logs. The
following sections describe the Feature Setup windows in detail:
•
Event Notification Window, page 5-1
•
History Settings Window, page 5-7
•
History Window, page 5-9
Event Notification Window
The Event Notification window provides options for how the IP camera handles system triggers and
generates event notification. A system trigger is any of the following:
•
A change of state from low to high or from high to low on an input port of the IP camera. For related
information about input ports, see the “IO Ports Window” section on page 4-17.
•
Motion that the IP camera detects. For related information about motion detection, see the “Motion
Detection” rows in Table 3-1.
•
An activity that is defined by a camera app.
When a system trigger occurs, it causes the IP camera to take certain configured actions. Actions include
the following:
•
Email notification—The IP camera sends a notification email message to designated recipients. The
message can include a video clip or a snapshot of the activity that triggered the event.
This message includes the same information that is provided with HTTP notification.
•
Output port state change—Changes the state of an IP camera output port from low to high or from
high to low.
•
Syslog server message—The IP camera sends a notification message to the designated Syslog
server.
•
HTTP notification—The IP camera sends notification to a remote system via HTTP. This
information includes the following:
– Device ID—ID of the IP camera.
– Device name—Name of the IP camera.
– IP address—IP address of the IP camera.
– MAC address—MAC address of the IP camera.
Cisco Video Surveillance 3000 Series IP Camera Configuration Guide
5-1
Chapter 5
Events
Event Notification Window
– Channel ID—Channel identification number (1 for primary stream or 2 for secondary stream).
– Channel name—Name that is configured for the channel.
– Date and time—Date and time that the event occurred.
– Active post Count—Sequence number of the notification for this event.
– Event type—Type of event.
– Event state—Indicates whether the event is active or inactive at the time that the event was
detected for this notification.
– Event description—Description of the event.
– Input port ID—If the event was triggered by an input port state change, port ID of the port
– Region index—If the event was triggered by motion detection, identification number of the
region in which the IP camera detected motion.
– Sensitivity level—If the event was triggered by motion detection, sensitivity that is configured
for the region in which motion was detected.
– Detection threshold—If the event was triggered by motion detection, threshold that is
configured for the region in which motion was detected.
•
FTP notification—The IP camera to uploads a video clip or a snapshot of the activity that triggered
the event to an FTP server.
The Event Notification window also allows you to designate schedules. If an event takes place within a
designated schedule, the IP camera takes the actions that you configure.
To display the Event Notification window, perform the following steps:
Procedure
Step 1
From the IP camera user interface, click the Setup link.
Step 2
Click Events to expand the menu.
Step 3
From the Feature Setup menu, click Events.
The Event Notification window appears. If you change any options in this window, you must click the
Save button to save the changes. If you do not click this button, changes are not retained when you exit
the window. The Save button appears at the bottom of the window. You might need to scroll down to it.
Table 5-1 describes the options in the Event Notification window.
Cisco Video Surveillance 3000 Series IP Camera Configuration Guide
5-2
Chapter 5
Events
Event Notification Window
Table 5-1
Event Notification Window Options
Option
Description
Event Triggering Area
Triggered by
Actions
Interval
Check the desired check boxes to designate the events that trigger actions:
•
Input 1—Action is triggered when input port 1 on the IP camera
changes state from high to low
•
Motion Detection—Action is triggered when the camera detects
motion, if motion detection is configured as described the “Motion
Detection” rows in Table 3-1 on page 3-1.
•
App—Action is triggered by an activity that is defined by an app that is
running on the IP camera
Check the desired check boxes to designate that actions that the IP camera
takes when the corresponding trigger occurs.
•
Email—Sends information about the event in an email message to the
designated recipient. You design the recipient and configure other email
options in other fields in this window.
•
Output 1—Changes the state of the output 1 port on the IP camera as
defined in the IO Ports window.
•
Syslog—Sends information about the event to a designated Syslog
server.
•
HTTP—Sends information about the event as an HTTP stream to a
remote system.
•
FTP—Uploads a snapshot or video clip of the event to an FTP server.
Choose the time interval, in minutes, from the drop-down list to wait after an
event occurs before detecting the next event.
Event Scheduling Area
Scheduling Grid
Designate the times at which an event causes the IP camera to take the
designed actions. If an event occurs during a time that is not designated, the
IP camera does not take any action.
Each cell in this grid represents one hour on the corresponding day, starting
at 12:00 a.m. (0:00). To designate times, click the desired cells. Selected
cells appear shaded.
Set All button
Select all times in the scheduling grid.
Clear All button
Deselect all times in the scheduling grid.
Undo All button
Change the scheduling settings to the last saved configuration.
HTTP Notification Area
High Availability
Check this check box to send HTTP messages to both the primary and
secondary server that you configure for HTTP messages.
Primary HTTP Server
Identify the primary server to which HTTP messages are sent by choosing
IP Address or Hostname from the drop-down list and entering the IP
address or host name in the corresponding field.
Cisco Video Surveillance 3000 Series IP Camera Configuration Guide
5-3
Chapter 5
Events
Event Notification Window
Table 5-1
Event Notification Window Options (continued)
Option
Description
URL Base
Enter a string to be used as the prefix in the HTTP URL. The HTTP URL is
sent in this format:
http://IP address/URL Base?system-provided-name-value-pairs
where IP address is the IP address of the destination server, URL Base is the
string that you enter, and system-provided-name-value-pairs is information
about the event.
Port Number
Enter the port number that receives messages on the primary server to which
HTTP messages are sent.
User Name
If authentication is required on the primary server to which HTTP messages
are sent, enter the user name.
Password
If authentication is required on the primary server to which HTTP messages
are sent, enter the password.
Invalid characters are []\&|:";<>?,/+=*'%# space
HTTP Authentication
If authentication is required on the primary server to which HTTP messages
are sent, choose the MD5 Digest Authentication method from the drop-down
list.
Secondary HTTP Server Identify an optional secondary server to which HTTP messages are sent by
choosing IP Address or Hostname from the drop-down list and entering the
IP address or host name in the corresponding field.
URL Base
Enter a string to be used as the prefix in the HTTP URL for the secondary
server. The HTTP URL is sent in this format:
http://IP address/URL Base?system-provided-name-value-pairs
where IP address is the IP address of the destination server, URL Base is the
string that you enter, and system-provided-name-value-pairs is information
about the event.
Port Number
Enter the port number that receives messages on the secondary server to
which HTTP messages are sent.
User Name
If authentication is required on the secondary server to which HTTP
messages are sent, enter the user name.
Password
If authentication is required on the secondary server to which HTTP
messages are sent, enter the password.
Invalid characters are []\&|:";<>?,/+=*'%# space
HTTP Authentication
If authentication is required on the secondary server to which HTTP
messages are sent, choose the MD5 Digest Authentication method from the
drop-down list.
Email Notification Area
Primary SMTP Server
Identify the primary SMTP server that is used for sending email by choosing
IP Address or Hostname from the drop-down list and entering the IP
address or host name in the corresponding field.
Primary SMTP Port
Enter the port number for the primary SMTP server. The default SMTP port
number is 25.
Cisco Video Surveillance 3000 Series IP Camera Configuration Guide
5-4
Chapter 5
Events
Event Notification Window
Table 5-1
Event Notification Window Options (continued)
Option
Description
POP Server
Identify the primary POP server that is used for sending email by choosing
IP Address or Hostname from the drop-down list and entering the IP
address or host name in the corresponding field.
This field is dimmed if you do not choose Requires POP Before SMTP in
the Authentication field that follows.
Authentication
If the primary SMTP server requires authentication to send email, choose the
appropriate authentication type from the drop-down list. The authentication
type typically is the same as that for the POP3 server that you use to receive
email.
Account Name
If the primary SMTP server requires authentication, enter the account name
for the server.
Password
If the primary SMTP server requires authentication, enter the account
password for the server.
Secondary SMTP
Server
Identify an optional secondary SMTP server that is used for sending email
by choosing IP Address or Hostname from the drop-down list and entering
the IP address or host name in the corresponding field.
Secondary SMTP Port
Enter the port number for the secondary SMTP server. The default SMTP
port number is 25.
POP Server
Identify an optional secondary POP server that is used for sending email by
choosing IP Address or Hostname from the drop-down list and entering the
IP address or host name in the corresponding field.
This field is dimmed if you do not choose Requires POP Before SMTP in
the Authentication field that follows.
Authentication
If the secondary SMTP server requires authentication to send email, choose
the appropriate authentication type from the drop-down list. The
authentication type typically is the same as that for the POP3 server that you
use to receive email.
Account Name
If the secondary SMTP server requires authentication, enter the account
name for the server.
Password
If the secondary SMTP server requires authentication, enter the account
password for the server.
Send To
Enter an email address to which an email message is sent when a system
trigger occurs.
Show From Address As Enter the email address to be shown in the From field for the email message
that is sent when a system trigger occurs.
Subject
Enter the text to be shown in the Subject field for the email messages that the
IP camera sends when system triggers occur. The subject can contain up to
118 characters, including spaces.
Attach Video Streaming Check this check box to include in the email message body the URL from
URL Address
which the recipient can access the live video stream from the camera on
which the system trigger was detected.
Cisco Video Surveillance 3000 Series IP Camera Configuration Guide
5-5
Chapter 5
Events
Event Notification Window
Table 5-1
Event Notification Window Options (continued)
Option
Description
Attach Snapshot
Check this check box to include with the email message a still picture from
the beginning of the event. This snapshot is stored on the IP camera until the
message is sent.
This functionality is available only when the secondary video stream is
enabled.
Attach Video Clip
This option is available if the secondary video stream (H.264 only) is
enabled.
Check this check box and configure the following values to include with the
email message a video clip of the event:
•
Pre-Capture Length—Enter the amount of video, in seconds, before
the event to include in the video clip.
The maximum pre-capture length is 5 seconds.
•
Post-Capture Length—Enter the amount of video, in seconds, after the
event to include in the video clip.
The maximum combined pre-capture and post-capture length is 10
seconds.
This video clip is stored on the IP camera until the message is sent.
FTP Notification Area
Primary FTP Server
Identify the primary FTP server to which snapshots or video clips are
uploaded by choosing IP Address or Hostname from the drop-down list and
entering the IP address or host name in the corresponding field.
Primary FTP Port
Enter the port number that receives messages on the primary FTP server. The
default FTP port number is 21.
User Name
Enter the primary FTP server login user name.
Password
Enter the primary FTP server login password.
Enable Passive Mode
Check this check box to enable the passive mode feature of the primary FTP
server.
Secondary FTP Server
Identify an optional secondary FTP server to which snapshots or video clips
are uploaded by choosing IP Address or Hostname from the drop-down list
and entering the IP address or host name in the corresponding field.
Secondary FTP Port
Enter the port number that receives messages on the secondary FTP server.
The default FTP port number is 21.
User Name
Enter the secondary FTP server login user name.
Password
Enter the secondary FTP server login password.
Enable Passive Mode
Check this check box to enable the passive mode feature of the secondary
FTP server.
Upload Snapshot
This functionality is available only when the secondary video stream is
enabled.
Check this check box to upload a snapshot of the event that triggered the
action.
Cisco Video Surveillance 3000 Series IP Camera Configuration Guide
5-6
Chapter 5
Events
History Settings Window
Table 5-1
Event Notification Window Options (continued)
Option
Description
Upload Video Clip
This functionality is available only when the secondary video stream is
enabled.
Check this check box and enter the following values to upload a video clip
of the event that triggered the action:
•
Pre-Capture Length—Enter the amount of video, in seconds, before
the event to include in the video clip. The default pre-capture length is
0 seconds.
The maximum pre-capture length is 5 seconds.
•
Post-Capture Length—Enter the amount of video, in seconds, after the
event to include in the video clip. The default post-capture length is 5
seconds.
The maximum combined pre-capture and post-capture length is 10
seconds.
History Settings Window
The History Settings window provides options for how the IP camera stores and manages event histories.
An event history includes history, which is information about the event, and an optional recording, which
is captured video that is associated with the event.
A system trigger is any of the following:
•
A change of state from low to high or from high to low on an input port of the IP camera. For related
information about input ports, see the “IO Ports Window” section on page 4-17.
•
Motion that the IP camera detects. For related information about motion detection, see the “Motion
Detection” rows in Table 3-1 on page 3-1.
•
An activity that is defined by a camera app.
To display the History Settings window, perform the following steps:
Procedure
Step 1
From the IP camera user interface, click the Setup link.
Step 2
Click Events to expand the menu.
Step 3
From the Feature Setup menu, click History Settings.
The History Settings window appears. If you change any options in this window, you must click the Save
button to save the changes. If you do not click this button, changes are not retained when you exit the
window. The Save button appears at the bottom of the window. You might need to scroll down to it.
Table 5-2 describes the options in the History Settings window.
Cisco Video Surveillance 3000 Series IP Camera Configuration Guide
5-7
Chapter 5
Events
History Settings Window
Table 5-2
History Settings Window Options
Option
Description
Triggered by
Display only. Shows the triggering settings that are configured in the
Notification Settings window.
Actions
Check the desired check boxes to designate that actions that the IP camera
takes when the corresponding trigger occurs.
Event History Storage
Location
Pre-Capture Length
•
History—Sends information about the event in an email message to the
designated recipient. You design the recipient and configure other email
options in other fields in this window.
•
Recording—Changes the state of the output 1 port on the IP camera as
defined in the Port window.
Choose the location in which the IP camera stores event history that it
captures:
•
Internal Flash—Stores event history in the camera internal flash
memory
•
SD Memory Card—Stores event history on an SD or MicroSD card that
is installed in the camera
Enabled when at least one Recording action is checked and Event History
Storage location is configured as SD Memory Card.
Enter the amount of video, in seconds, before the event to include with the
stored history.
Valid values are integers 0 through 180.
Post-Capture Length
Enabled when at least one Recording action is checked and Event History
Storage location is configured as SD Memory Card.
Enter the amount of video, in seconds, after the event to include in the video
clip.
Valid values are integers 0 through 180. The sum of the Pre-Capture Length
and the Post-Capture Length values cannot exceed 360.
Maximum number of
Events
Enter the maximum number of event histories that the camera will store.
Valid values are:
•
Integers 1 through 1000 when the IP camera stores event history in its
camera internal flash memory
•
Integers 1 through 10000 when the IP camera stores event history on an
SD or MicroSD card
When the number of stored event histories reaches the configured maximum,
the IP camera deletes event histories, beginning with the oldest one, to make
room for new event histories.
Event Lifetime (days)
Enter the number of days that the camera stores an event history.
Valid values are integers 1 through 365.
When an event history reaches the last day of its configured lifetime limit,
the IP camera deletes it at the time that corresponds to the time that the event
was crated.
Cisco Video Surveillance 3000 Series IP Camera Configuration Guide
5-8
Chapter 5
Events
History Window
Table 5-2
History Settings Window Options (continued)
Option
Description
Storage Allocation for
Recording
Enter the percentage of the SD or MicroSD card that is allocated for storing
event history recordings.
Valid values are integers 0 through 95.
When the configured storage allocation is reached, the IP camera deletes
events histories, beginning with the oldest one, to make room for new event
histories.
History Window
The IP camera can capture and store information about events, including video that is associated with an
event. The History window lets you configure how the camera displays event history, see information
about events, and download video files that are associated with events.
To display the History window, perform the following steps:
Procedure
Step 1
From the IP camera user interface, click the Setup link.
Step 2
Click Events to expand the menu.
Step 3
From the Feature Setup menu, click History.
The History Settings window appears.
Table 5-3 describes the options in the History window.
Table 5-3
History Window Options
Option
Description
Display
Choose one of the following options to designate the time period in which
events that occurred are displayed:
•
Last 30 Minutes—Displays events that occurred within the past 30
minutes
•
Last 1 hour—Displays events that occurred within the past 60 minutes
•
Last 5 hours—Displays events that occurred within the past 5 hours
•
Last 8 hours—Displays events that occurred within the past 8 hours
•
Last 12 hours—Displays events that occurred within the past 12 hours
•
Last 24 hours—Displays events that occurred within the past 24 hours
•
Special Range—Displays the Start and End fields, which you can use
to specify display events that occurred within a specified date and time
range
Cisco Video Surveillance 3000 Series IP Camera Configuration Guide
5-9
Chapter 5
Events
History Window
Table 5-3
History Window Options (continued)
Option
Description
Start
Appears if you choose Special Range from the Display drop-down list.
In the left area of this field, enter the start date of a period in which events
that occurred are displayed. Enter this value in yyyy-mm-dd format. You can
click the date in this field to display a calendar from which you can choose
a date.
In the right area of this field, enter the start time of a period in which events
that occurred are displayed. Enter this value in hh-mm-ss format, using a
24-hour clock.
End
Appears if you choose Special Range from the Display drop-down list.
In the left area of this field, enter the end date of a period in which events
that occurred are displayed. Enter this value in yyyy-mm-dd format. You can
click the date in this field to display a calendar from which you can choose
a date.
In the right area of this field, enter the end time of a period in which events
that occurred are displayed. Enter this value in hh-mm-ss format, using a
24-hour clock.
Event Type
Choose one of the following options to designate the type of event that is
displayed:
•
All—Displays events that triggered any activity (input port 1 state
change, motion detection, or app activity)
•
I/O—Displays events that triggered input port 1 on the IP camera to
change state from high to low
•
Motion Detection—Displays events that triggered motion detection on
the IP camera
•
App—Displays events that triggered an activity that is defined by an app
that is running on the IP camera
Apply Filter
Click this button to update the event display according to the values in the
Display and Event Type fields.
Reset Filter
Click this button to set the Display and Event Type files to their default
values. The default value for the Display field is Last 24 Hours and the
default value for the Event Type field is All.
Cisco Video Surveillance 3000 Series IP Camera Configuration Guide
5-10
Chapter 5
Events
History Window
Table 5-3
History Window Options (continued)
Option
Description
Event List
Displays a list of events and their associated recordings and provides the
following information:
•
Event Type—Type of event (I/O, Motion Detection, or App).
•
Event Time (UTC)—Date and time that the event occurred, in UTC
format.
•
Recording—Displays VIDEO if a recording is associated with the
event. Displays N/A if no video is associated with the event.
•
Download From (UTC)—When you download a recording, by default
the recording includes video that starts before the event occurred
according to the Pre-Capture Length value that is defined in the History
Settings window. If you want the recording to include video that starts
at another time, enter that time in this field.
•
Duration—Enter the duration, in mm:ss format, of video that you want
the downloaded recording to include. The maximum duration is 6
minutes. The recording begins from the time that you entered in the
Download From (UTC) field and lasts for the time that you enter in this
Duration field.
•
Progress (%)—When a video is downloading, indicates the percentage
of the download that is complete.
•
Status—Displays Downloading when a video is downloading. On
Internet Explorer, displays Processing when the system coverts a
downloaded video to MP4 format.
Each event includes an associated check box, which allows to you select the
corresponding recording for downloading. See the Download row in this
table for more information.
Download
After checking the check box for each recording that you want to download,
click this button and follow the on-screen prompts to save the recording to
your local drive or a network drive.
When you download a recording:
Delete All
•
If you are using Internet Explorer, the system creates a directory called
Recordings_TimeStamp in the location that you choose and saves
recordings in that directory. The system saves recordings as mp4 files.
•
If you are using a browser other than Internet Explorer browser, the
system saves the recording in the Download folder of your user profile.
The system saves recordings as H.264 or MJPEG files, depending on
how the video stream is configured for the IP camera.
Click this button to delete all event history, including recordings that are
associated with event histories.
Note
Refresh
This operation deletes all event history even if you filtered the
display to show only certain events.
Click this button to update information in the event list with current
information
Cisco Video Surveillance 3000 Series IP Camera Configuration Guide
5-11
Chapter 5
Events
History Window
Table 5-3
History Window Options (continued)
Option
Description
Cancel
Appears when you are using Internet Explorer and a download is in process.
Click this button to cancel the download operation.
If you are using a browser other than Internet Explorer, you can cancel a
download operation by using the cancel option in that browser.
Previous
Click display the previous set of events in the event list.
Next
Click display the next set of events in the event list.
Cisco Video Surveillance 3000 Series IP Camera Configuration Guide
5-12
CHAPTER
6
Local Storage
The Local Storage window allows you to enable storing video on a local storage device in case of a
network loss. You can download these video recordings from the Local Storage window.
When you use local storage, be aware of the following:
•
You can configure the IP camera to save all recordings (continuous recording mode) to the SD or
MicroSD card, or to save only recording that are made when the IP camera looses network
connectivity (network loss mode).
•
The IP camera supports an SD or MicroSD card with a maximum storage capacity of 32 GB. For
efficiency and performance of the local storage feature, Cisco recommends that you use an SD or
MicroSD card with a storage capacity of 32 GB. Do not use an SD or MicroSD card with a storage
capacity of less than 8 GB.
•
1 GB of the storage capacity on an SD or MicroSD card is reserved for system use and is not
available to store recordings.
•
When you put an SD or MicroSD card in the IP camera for the first time, the card is formatted
automatically if the card does not have the ext2 file system and if the directory structure that is
required for recording is not present on the card. A card with a storage capacity of 32 GB can take
up to 15 minutes to format.
•
If you move an SD or MicroSD card from one IP camera to another, the IP camera to which you
moved the card does not format the card automatically. This feature allows you to manually recover
any video that is stored on the card by downloading the video from the IP camera user interface. You
must format the card before you enable recording for it in the new IP camera.
•
Do not partition an SD or MicroSD card. The card should be used as it is formatted by the IP camera.
•
If you are not using the IP camera with Cisco VSM, set the system time and time zone from the IP
camera user interface before you enable recording to an SD or MicroSD card. If you are using the
IP camera with Cisco VSM, enable recording through the Cisco VSM user interface, which
synchronizes the camera time with the NTP server. Changing the system time after recording starts
can cause issues.
•
The continuous recording feature enables VSM to “auto-merge” video archive that has gaps due to
network or other issues (assuming that camera was not affected), using camera storage as a
temporary archiving medium. It also enables archiving only video that is close to generated events.
Either the primary stream or secondary stream can recorded in this mode.
•
Grooming starts when continuous recording is enabled and operates as follows:
1.
Groom files that are marked as deleted.
2.
Groom the oldest files on the local SD or MicroSD card when available space on the card is less
than 1 GB.
Cisco Video Surveillance 3000 Series IP Camera Configuration Guide
6-1
Chapter 6
Local Storage
•
An IP camera has limited bandwidth for simultaneous reading from and writing to an SD or
MicroSD card, which can affect the amount of data that you can copy from the card when recording
to the card is enabled. For optimum performance of the IP camera, set the maximum bit rate for the
recorded stream to 6 Mbps or lower. At higher bit rates, video may not be copied from the card
before the video is groomed.
•
Recording MJPEG streams to an SD or MicroSD card is not recommended because the relatively
high bit rate of these streams can affect system performance. If you do record MJPEG streams, Cisco
recommends that you stop recording before you use the IP camera user interface to copy MJPEG
recordings from the card.
•
The system allows one active download of video from an SD card or MicroSD card at a time. If VSM
is copying data from a card (due to a user or system initiated copy operation), you cannot initiate
another download from the IP camera user interface until the VSM download completes. Similarly,
if you are using the IP camera user interface to download video from an SD or MicroSD card, video
cannot be downloaded from VSM until this download completes.
To display the Local Storage window, perform the following steps:
Procedure
Step 1
From the IP camera user interface, click the Setup link.
Step 2
Click Feature Setup to expand the menu.n
Step 3
From the Feature Setup menu, click Local Storage.
The Local Storage window appears. If you change any options in this window, you must click the Save
button to save the changes. If you do not click this button, changes are not retained when you exit the
window.
Table 6-1 describes the options in the Local Storage window.
Note
To use the features in the Recordings area, ActiveX must be installed on your client PC. If ActiveX is
not installed, the Recordings area displays a message with this information. To install ActiveX, From the
window IP camera web-based interface that instructs you to install the Cisco Camera UI Control, click
Install in the yellow banner. If a Security Warning dialog box appears, click Install.
Caution
To prevent corruption to data on an SD or MicroSD card or the inability of the IP camera to detect the
card again, before removing an SD or MicroSD card from an IP camera, stop recording to the card and
use the Unmount button (described in Table 6-1) to prepare the card for ejection. In addition, use care
when inserting, removing, and handling the card to avoid damaging the card.
Table 6-1
Option
Local Storage Window Options
Description
SD/MicroSD Information Area
Serial Number
Display only. Serial number of the SD or MicroSD card that is installed in
the IP camera.
Cisco Video Surveillance 3000 Series IP Camera Configuration Guide
6-2
Chapter 6
Local Storage
Table 6-1
Local Storage Window Options (continued)
Option
Description
Total Size
Display only. Total storage capacity in megabytes of the SD or MicroSD
card.
Free Space
Display only. Free storage space in megabytes of the SD or MicroSD card.
Model
Display only. Model number of the SD or MicroSD card.
Manufacturer
Display only. Manufacturer of the SD or MicroSD card.
Mount/Unmount
(toggle button)
Mount button—When you insert an SD or MicroSD card, the IP camera
typically mounts it automatically. If you see a message that indicates that the
card is not mounted, click this button to mount it.
Unmount button—Click on this button to prepare an SD or MicroSD card for
ejection from the IP camera.
Format
Formats an SD or MicroSD card.
Use this button to format a card if you switch recording modes or switch the
video stream configuration.
Quick Format
Click this button to permanently delete all data on an SD or MicroSD card.
This function us useful when you switch between recording modes.
(Recording mode options are Local Storage on Network Loss and
Continuous.)
Details
Displays the percentage of total memory on an SD or MicroSD that is
consumed by network loss recordings, continuous recordings, or event
records.
Settings Area
Enable recording to
Local Storage on
network loss
This options causes the IP camera to save video recordings to its local SD or
MicroSD card if the IP camera looses network connectivity. When the
network connectivity is restored, recording to the card stops.
This option and the Enable continuous recording option cannot be enabled
at the same time.
Enable Encryption
Available only if Enable recording to Local Storage on network loss is
enabled. Check to encrypt video that is recorded to the local SD or MicroSD
card during a loss of network connectivity.
Encryption Method
When encryption is enabled, choose one of the following encryption
methods:
Enable continuous
recording
•
AES 256
•
AES 128
•
RC2 64
This options causes the IP camera to save all recordings to its local SD or
MicroSD card.
This option and the Enable recording to Local Storage on network loss
option cannot be enabled at the same time.
Cisco Video Surveillance 3000 Series IP Camera Configuration Guide
6-3
Chapter 6
Table 6-1
Local Storage
Local Storage Window Options (continued)
Option
Description
Continuous recording
stream
Choose which video stream is recorded with continuous recording is
enabled. Options are:
Enable audio recording
•
Stream 1
•
Stream 2
When continuous recording is enabled, saves audio recordings to the camera
local SD or MicroSD card.
Note
Save
Audio-only recordings are not supported.
Click this button to save changes that you make in the Settings area.
Status Area
Video Recording
Display only. Displays whether video recording is on or off. On means that
the Enable continuous recording check box is checked in the Local Storage
> Settings window.
Audio Recording
Display only. Displays whether audio recording is on or off. On means that
the Enable Audio check box is checked on the Streaming window, and that
the Enable continuous recording and the Enable audio recording check boxes
are checked in the Local Storage > Settings window.
Storage Clean Up
Delete All Records For
To delete recordings from the camera SD or MicroSD card, click one of the
following radio buttons and then click Delete:
•
Network Loss—Deletes all recordings that relate to network loss
recording mode
•
Continuous—Deletes all recordings that relate to continuous recording
mode
•
Event History—Deletes all video recordings that relate to event history
Cisco Video Surveillance 3000 Series IP Camera Configuration Guide
6-4
Chapter 6
Local Storage
Table 6-1
Option
Local Storage Window Options (continued)
Description
Recordings Area (requires a supported version of Microsoft Internet Explorer)
Recordings list
Download
Displays a list of video recording on the local SD or MicroSD card and the
following information and options for each recording:
•
Select check box. Check the check box next to a recording to select that
recording for download or deletion.
•
Size—Size of the recording in MB.
•
Name—System-assigned name of the recording.
•
Start Time (UTC)—Start time of the recording in UTC format.
•
End Time (UTC)—End time of the recording in UTC format.
•
Download From (UTC)—To download a recording or part of a recording
to your local drive or a network drive, enter the time in UTC format that
the video that you want from the recording started.
•
Duration——To download a recording or part of a recording to your
local drive or a network drive, enter the duration of the video that you
want from the recording is in hh:mm:ss format. The recording begins
from the time that you entered in the Download From field and lasts for
the time that you enter in the Duration field.
•
Progress(%)—The percentage of a video file download operation that
has completed.
•
Status—The status of a video file download or delete operation.
To download a video recording to your local drive or a network drive, check
the Select check box for the recording that you want, then click the
Download button. Follow the on-screen prompts to save the recording.
When you save a recording, the system creates a directory called
Recordings_TimeStamp in the location that you choose and saves recordings
in that directory. If the recording that you download contains more than 10
minutes of video, the system divides the recording into separate files that
contains 10 minutes of video each.
Note
Delete
Network-loss recordings that are created on an IP camera that is
running firmware 2.0.0 cannot be downloaded with the 1.4.1 SD
utility.
To delete a video recording from the SD or MicroSD card in the IP camera,
check the Select check box for the recording that you want, then click the
Delete button.
You can quickly select all video recordings in the list by right-clicking in the
Recordings list and then choosing Select All.
Refresh
To refresh the list of video recording so that the list shows the latest
information about the recordings on the SD or MicroSD card in the IP
camera, click the Refresh button.
Cancel
This button appears when a video recording is downloading. To cancel the
download operation, click the Cancel button.
Cisco Video Surveillance 3000 Series IP Camera Configuration Guide
6-5
Chapter 6
Cisco Video Surveillance 3000 Series IP Camera Configuration Guide
6-6
Local Storage
CHAPTER
7
Network Setup
The Network Setup windows let you configure various network-related settings for the IP camera.
The following sections describe the Network Setup windows in detail:
•
Basic Window, page 7-1
•
IP Addressing Window, page 7-3
•
Time Window, page 7-5
•
Discovery Window, page 7-7
•
Medianet Window, page 7-7
•
SNMP Window, page 7-8
•
802.1x Window, page 7-10
•
IP Filter Window, page 7-12
•
QoS Window, page 7-13
Basic Window
The Basic window provides options for identifying the IP camera and controlling basic operations.
To display the Basic window, perform the following steps:
Procedure
Step 1
From the IP camera user interface, click the Setup link.
Step 2
Click Network Setup to expand the menu.
Step 3
From the Network Setup menu, click Basic.
The Basic window appears. If you change any options in this window, you must click the Save button to
save the changes. If you do not click this button, changes are not retained when you exit the window. The
Save button appears at the bottom of the window. You might need to scroll down to it.
Table 7-1 describes the options in the Basic window.
Cisco Video Surveillance 3000 Series IP Camera Configuration Guide
7-1
Chapter 7
Network Setup
Basic Window
Table 7-1
Basic Window Options
Option
Description
Basic Settings Area
ID
Enter a unique identification number for the IP camera, which is used to
identify the IP camera to various external applications.
The ID can be 0 through 999.
Name
Enter a name for the IP camera. This name appears in the IP camera log file
for information that is associated with this IP camera.
The name can contain up to 64 characters, which can include letters,
numbers, and these characters: - _ ~. Do not use spaces. We recommend that
you give each IP camera a unique name so that you can identify it easily.
Description
Enter a description of the IP camera. For example, enter the IP camera
location, such as “North Entrance Camera 1.”
The description can contain up to 128 characters, which can include letters,
numbers, spaces, and these characters: ! # $ % & ( ) * + , - . / : ; < >= ? @ [
] ^ _ ` { } | ~.
Location
Enter the physical location of the IP camera, such as “North Entrance.”
The location can contain up to 64 characters, which can include letters,
numbers, and these characters: ! $ % ( ) + , - . / = @ ^ _ ` { } ~. Do not use
spaces.
Contact
Enter system contact information for someone such as the system
administrator. For example, enter the email address of the system
administrator.
The contact can contain up to 64 characters, which can include letters,
numbers, and these characters: ! $ % ( ) + , - . / = @ ^ _ ` { } ~. Do not use
spaces.
Basic Operations Area
Enable LED
Check this check box if you want the Power LED on the back of the IP
camera to light.
If you do not check this check box, this LED does not light.
Disable Session ID
The following camera API mechanisms are available:
•
SessionID—Tracks each client session. Session IDs are required by
Cisco Video Surveillance Media Server (VSMS). For more information
about Cisco VSMS, refer to the documentation at:
http://www.cisco.com/en/US/customer/products/ps9152/tsd_products_
support_series_home.html
•
Basic Authentication—Requires a user ID and password to be passed
with every API command.
SessionID is enabled by default. To disable SessionID, and enable Basic
authentication, check this option.
Cisco Video Surveillance 3000 Series IP Camera Configuration Guide
7-2
Chapter 7
Network Setup
IP Addressing Window
Table 7-1
Basic Window Options (continued)
Option
Description
Enable ONVIF
Check this check box if you want the IP camera to work in Open Network
Video Interface Forum (ONVIF) mode.
The following features are supported:
•
Device Discovery Service
•
Device Service
•
Media Service
Enabling ONVIF disables SessionID as indicated by the informational
message that appears after you click the check box.
Click Save to be redirected to the login page. After login, ONVIF service
starts working. You can verify this service by using any ONVIF tool.
By default, ONVIF is disabled.
Note
We recommend that you do not enable ONVIF when using Cisco
VSM to avoid conflicts with configuration.
IP Addressing Window
The IP Addressing window provides options for configuring the IP address of the IP camera.
The IP camera supports the use IPv4 and optionally IPv6.
Note
IPv6 functionality is not supported for multicast events and alerts.
To display the IP Addressing window, perform the following steps:
Procedure
Step 1
From the IP camera user interface, click the Setup link.
Step 2
Click Network Setup to expand the menu.
Step 3
From the Network Setup menu, click IP Addressing.
The IP Addressing window appears. If you change any options in this window, you must click the Save
button to save the changes. If you do not click this button, changes are not retained when you exit the
window. The Save button appears at the bottom of the window. You might need to scroll down to it.
Cisco Video Surveillance 3000 Series IP Camera Configuration Guide
7-3
Chapter 7
Network Setup
IP Addressing Window
Table 7-2 describes the options in the IP Addressing window.
ë
Table 7-2
IP Addressing Window Options
Option
Description
IP Addressing
Configuration Type
Choose the method by which the IP camera obtains its IP address:
•
Dynamic—If your network includes a DHCP server for dynamic
allocation of IP addresses, choose this option if you want DHCP to
assign an IP address and subnet mask to the IP camera. Depending on
your router, the default gateway, primary DNS server, and secondary
DNS server may also be assigned. The DHCP server must be configured
to allocate static IP addresses based on MAC addresses so that the IP
camera always receives the same address.
•
Static—Choose this option if you want to manually enter an IP address,
subnet mask, default gateway, and DNS server IP addresses for the
camera.
IPv4
IP Address
If you configured the IP camera for a static IP address, enter that IPv4
address.
Subnet Mask
If you configured the IP camera for a static IP address, enter the IPv4 subnet
mask for the IP camera. Use the same value that is configured for the PCs on
your network.
Gateway Address
If you configured the IP camera for a static IP address, enter the IPv4
gateway for the IP camera. Use the same value that is configured for the PCs
on your network.
Primary DNS
Optional. Enter the IP address of the primary DNS server that is used in your
network for IPv4. Use the same value that is used for the PCs on your
network. Typically, your ISP provides this address.
This address is required if you use a host name instead of an IP address in
any configuration field in the IP camera configuration windows.
Secondary DNS
Optional. Enter the IP address of a secondary (backup) DNS server to use for
IPv4 if the primary DNS server is unavailable.
This address is required if you have a secondary DNS server and you use a
host name instead of an IP address in any configuration field in the IP camera
configuration windows.
IPv6 Area
Enable
Check this check box if you want to enable IPv6 for the IP camera.
IP Address
Enter the IPv6 address to use.
Subnet Prefix Length
Enter the length of the subnet prefix.
Gateway Address
Enter the address of the IPv6 gateway for the IP camera.
Primary DNS
Enter the IP address of the primary IPv6 DNS server that is used in your
network.
Secondary DNS
Enter the IP address of the secondary IPv6 DNS server that is used in your
network.
Cisco Video Surveillance 3000 Series IP Camera Configuration Guide
7-4
Chapter 7
Network Setup
Time Window
Table 7-2
IP Addressing Window Options (continued)
Option
Description
Network transmission Unit
MTU
Maximum transmission unit size in bytes for packets that the network
transmits. Cisco recommends that you use the default value of 1500 unless
there are special requirements for your network. If you experience
operational issues after changing this value, set this value back to 1500.
If you change this value, restart the IP camera after saving the change.
Valid values are 600 through 1500. The value 1500.
Time Window
The Time window provides options for setting and maintaining the time of the IP camera.
To display the Time window, perform the following steps:
Procedure
Step 1
From the IP camera user interface, click the Setup link.
Step 2
Click Network Setup to expand the menu.
Step 3
From the Network Setup menu, click Time.
The Time window appears. If you change any options in this window, you must click the Save button to
save the changes. If you do not click this button, changes are not retained when you exit the window. The
Save button appears at the bottom of the window. You might need to scroll down to it.
Table 7-3 describes the options in the Time window.
Table 7-3
Time Window Options
Option
Description
Set Time Mode Area
Manually Configure
Time
Choose this option if you want to set the time for the IP camera manually.
Use NTP Server to
Update Time
Choose this option if you want the IP camera to obtain its time from a
network time protocol (NTP) server.
If you check this check box, the camera contacts the designated NTP server
every 64 seconds and synchronizes its internal clock with the time of that
server.
Local Time Area
Note
These options do not apply if you choose the Use NTP Server to Update Time option.
Set Local Date
Enter a date for the IP camera. The camera is updated with this date when
you click Save.
Cisco Video Surveillance 3000 Series IP Camera Configuration Guide
7-5
Chapter 7
Network Setup
Time Window
Table 7-3
Time Window Options (continued)
Option
Description
Set Local Time
Enter a time for the IP camera. The camera is updated with this time when
you click Save.
Clone PC Time button
Click this button to update the IP camera date and time with the date and time
of the PC that you are using.
Time Zone and Daylight Saving Area
Time Zone
Choose the time zone in which the IP camera is located.
The time that appears when you view video from this IP camera reflects this
time zone.
Adjust for Daylight
Saving Time
Check this check box if you want the time of the IP camera to adjust
automatically for daylight saving time.
Edit Default Daylight
Saving Configuration
for Time Zone
Check this check box if you want the daylight saving time adjustment of the
IP camera to be different than the default adjustment for the selected time
zone.
Time Offset
If you choose to overwrite the default time zone configuration, enter the
number of minutes that the time of the camera adjusts when daylight saving
time starts.
The camera automatically adjusts its time back by this number of minutes
when daylight saving time ends.
Start Date
Start Time
End Date
End Time
If you choose to overwrite the default time zone configuration, enter the day
and time (in 24 hour format) that daylight saving time begins. At this day and
time, the time of the IP camera adjusts by the value in the Time Offset field.
If you choose to overwrite the default time zone configuration, enter the day
and time (in 24 hour format) that daylight saving time ends. At this day and
time, the time of the IP camera adjusts to the non-daylight saving time.
NTP Server Settings Area
Note
These options do not apply if you choose the Manually Configure Time option.
Primary NTP Server
If you configured the IP camera to obtain its time from an NTP server,
identify the primary NTP server by choosing IP Address or Hostname from
the drop-down list and entering the IP address or host name in the
corresponding field.
Primary NTP Server
Port
If you configured the IP camera to obtain its time from an NTP server, enter
the primary NTP server port number.
Valid values are 123 and 1024 through 65535. The default port is 123.
Secondary NTP Server
If you configured the IP camera to obtain its time from an NTP server,
identify the secondary NTP server by choosing IP Address or Hostname
from the drop-down list and entering the IP address or host name in the
corresponding field.
Secondary NTP Server
Port
If you configured the IP camera to obtain its time from an NTP server, enter
the optional secondary NTP server port number.
Valid values are 123 and 1024 through 65535. The default port is 123.
Cisco Video Surveillance 3000 Series IP Camera Configuration Guide
7-6
Chapter 7
Network Setup
Discovery Window
Discovery Window
The Discovery window provides options for configuring the IP camera to work with Cisco Discovery
Protocol or Bonjour. These applications facilitate monitoring and management of your network.
To display the Discovery window, perform the following steps:
Procedure
Step 1
From the IP camera user interface, click the Setup link.
Step 2
Click Network Setup to expand the menu.
Step 3
From the Network Setup menu, click Discovery.
The Discovery window appears. If you change any options in this window, you must click the Save
button to save the changes. If you do not click this button, changes are not retained when you exit the
window. The Save button appears at the bottom of the window. You might need to scroll down to it.
Table 7-4 describes the options in the Discovery window.
Table 7-4
Option
Discovery Window Options
Description
Cisco Discovery Protocol (CDP) Area
Show Neighbors button Displays a new window with information about CDP-enabled device
neighbors in your network.
Bonjour Area
Enable Bonjour
Check this check box if Bonjour is enabled in your network and you want the
IP camera to broadcast Bonjour discovery messages.
Cisco Video Surveillance Media Server (VSMS) Area
Enable Preferred Media Check this check box if you want the camera to send discovery messages to
Server List
the media server list.
Media Server IP address Enter the IP addresses for up to four VSMS to autodiscover your camera.
They are to be listed in order of preference, such that when VSMS 1 does not
respond to the camera's discovery request, the camera will send a registration
request to VSMS 2; and continue down the list until the camera is registered.
Medianet Window
The Media Services Interface (MSI) is a software component that is embedded in video endpoints and
collaboration applications. MSI ties the network to user devices and applications that enables an
end-to-end architecture called Cisco Medianet.
The Medianet window on the IP cameras contains the Enable Flow Meditate option. By default this
setting is enabled to allow metadata about the camera to be sent across the network and to the network
elements in the media path.
For more information about Medianet, refer to the Cisco Video Surveillance Operations Manager User
Guide at the following URL:
Cisco Video Surveillance 3000 Series IP Camera Configuration Guide
7-7
Chapter 7
Network Setup
SNMP Window
http://www.cisco.com/en/US/products/ps10818/products_user_guide_list.html
To display the Medianet window, perform the following steps:
Step 1
From the IP camera user interface, click the Setup link.
Step 2
Click Network Setup to expand the menu.
Step 3
From the Network Setup menu, click Medianet.
The Medianet window appears. If you change any options in this window, you must click the Save button
to save the changes. If you do not click this button, changes are not retained when you exit the window.
The Save button appears at the bottom of the window. You might need to scroll down to it.
Table 7-5 describes the options in the Medianet window.
Table 7-5
Medianet Window Options
Option
Description
Medianet Features Area
Enable Flow Metadata
Check this check box if Medianet is supported in your network. Flow
metadata is the data that describes flow in network.
Enabling this feature helps with sending metadata across the network and
network elements in the media path.
Note
This feature is enabled by default.
SNMP Window
The SNMP window provides options for configuring Simple Network Management Protocol (SNMP)
settings for the IP camera. These settings can help you manage complex networks by sending messages
to different devices on the network.
To display the SNMP window, perform the following steps:
Step 1
From the IP camera user interface, click the Setup link.
Step 2
Click Network Setup to expand the menu.
Step 3
From the Network Setup menu, click SNMP.
The SNMP window appears. If you change any options in this window, you must click the Save button
to save the changes. If you do not click this button, changes are not retained when you exit the window.
The Save button appears at the bottom of the window. You might need to scroll down to it.
Table 7-6 describes the options in the SNMP window.
Cisco Video Surveillance 3000 Series IP Camera Configuration Guide
7-8
Chapter 7
Network Setup
SNMP Window
Table 7-6
SNMP Window Options
Option
Description
SNMP v2c Area
Enable SNMP v2c
Check this check box to enable SNMP v2c.
Read Community String Enter the SNMP read community string, which identifies the valid read
community.
Trap Community String Enter the SNMP trap community string.
Primary Trap Receiver
Identify the primary trap receiver of the SNMP v2c manager by choosing IP
Address or Hostname from the drop-down list and entering the IP address
or host name in the corresponding field.
Secondary Trap
Receiver
Identify an optional secondary trap receiver of the SNMP v2c manager by
choosing IP Address or Hostname from the drop-down list and entering the
IP address or host name in the corresponding field.
SNMP v3 Area
Enable SNMP v3
Check this check box to enable SNMP v3.
Use Default Local
Engine ID
Click this radio button if you want to use the default local engine ID for
SNMP.
The default local engine ID is 8000000903<MAC>, where <MAC> is the
MAC address of the IP camera.
Manually Configure
Local Engine ID
Click this radio button if you want to enter a local engine ID manually, then
enter a unique local engine ID.
Enter this information in a standard format as defined in RFC3411. Valid
formats include (but are not limited to) the following:
•
8000000903<MAC>
where <MAC> is the MAC address of the IP camera. For example, if the
IP camera MAC address is 00:04:9F:11:22:33, enter
800000090300049F112233. This format is the default.
•
8000000901<IPv4_address_hex>
where <IPv4_address_hex> is the IPv4 address of the IP camera in
hexadecimal format. For example, if the IP camera IPv4 address is
192.168.0.100, enter 8000000901C0A80064.
•
8000000904<text>
where <text> is a string of up to 54 characters.
Primary Trap Receiver
Identify the primary trap receiver of the SNMP v3 manager by choosing IP
Address or Hostname from the drop-down list and entering the IP address
or host name in the corresponding field.
Secondary Trap
Receiver
Identify an optional secondary trap receiver of the SNMP v3 manager by
choosing IP Address or Hostname from the drop-down list and entering the
IP address or host name in the corresponding field.
User #
Display only. Lists the user number of each IP camera user who is configured
with the administrator privilege level.
User Name
Display only. Displays the name that is associated with the corresponding
user number
Cisco Video Surveillance 3000 Series IP Camera Configuration Guide
7-9
Chapter 7
Network Setup
802.1x Window
Table 7-6
SNMP Window Options (continued)
Option
Description
Authentication Method
Choose the authentication protocol for SNMP v3 messages that are sent on
behalf of the corresponding user.
Authentication
Password
Enter a password for the authentication protocol for SNMP v3 messages that
are sent on behalf of the corresponding user.
This password can contain from 8 to 63 characters, which can be letters,
numbers, and special characters, but no spaces. Special characters are: ! $ (
)-.@^_`{}~
Privacy Method
Choose DES if you want to use this privacy method for SNMP v3 messages
that are sent on behalf of the corresponding user.
If you do not want to use a privacy method, choose None.
Privacy Password
If you choose a privacy method, enter a password for SNMP v3 messages
that are sent on behalf of the corresponding user.
This password can contain from 8 to 63 characters, which can be letters,
numbers, and special characters, but no spaces. Special characters are: ! $ (
)-.@^_`{}~
802.1x Window
The 802.1x window provides options for configuring 802.1x authentication for the IP camera. These
settings require that RADIUS be configured on your network to provide the client authentication.
To display the 802.1x window, perform the following steps:
Step 1
From the IP camera user interface, click the Setup link.
Step 2
Click Network Setup to expand the menu.
Step 3
From the Network Setup menu, click 802.1x.
The 802.1x window appears. If you change any options in this window, you must click the Save button
to save the changes. If you do not click this button, changes are not retained when you exit the window.
The Save button appears at the bottom of the window. You might need to scroll down to it.
Table 7-7 describes the options in the 802.1x window.
Table 7-7
802.1x Window Options
Option
Description
802.1x Settings Area
Enable 802.1x
Check this check box to enable 802.1x authentication for the IP camera.
Cisco Video Surveillance 3000 Series IP Camera Configuration Guide
7-10
Chapter 7
Network Setup
802.1x Window
Table 7-7
802.1x Window Options (continued)
Option
Description
Protocol Type
Choose the protocol for 802.1x authentication. Options are
•
EAP-TLS
•
EAP-TTLS
•
EAP-PEAP
•
EAP-FAST
The remaining fields in this window change depending on the protocol type
that you choose.
EAP-TLS Configuration Options
Note
These options appear if you select the protocol type EAP-TLS.
User Name
Enter the user name that the IP camera uses to access the RADIUS server.
Device (Client)
Certificate
Path and folder where the device certificate for the IP camera is stored. You
can click Browse to find this location.
After you enter this information, click Upload to upload the certificate to
the IP camera.
Password (for Private
Key)
If the private key in the device certificate is password protected, enter the
password that is required to unlock the private key.
Root CA Certificate
Path and folder where the root certificate that is required for 802.1x
authentication is stored. You can click Browse to find this location.
After you enter this information, click Upload to upload the certificate to
the IP camera.
EAP-TTLS Configuration Options
Note
These options appear if you select the protocol type EAP-TTLS.
Inner Authentication
Choose an inner authentication method for EAP-TTLS. Options are
MS-CHAP, MS-CHAP v2, PEAP, and EAP-MDS.
User Name
Enter the user name that the IP camera uses to access the RADIUS server.
Password
Enter the password that the IP camera uses to access the RADIUS server.
Anonymous ID
Optional. Unsigned public identifier to be used instead of a user name for
logging in to the RADIUS server.
Validate Server
Certificate
Check this check box if you want the identity of the RADIUS server to be
validated.
Root CA Certificate
Path and folder where the root certificate that is required for 802.1x
authentication is stored. You can click Browse to find this location.
After you enter this information, click Upload to upload the certificate to
the IP camera.
EAP-PEAP Configuration Options
Note
These options appear if you select the protocol type EAP-PEAP.
Inner EAP Protocol
Choose an inner authentication method for EAP-PEAP.
User Name
Enter the user name that the IP camera uses to access the RADIUS server.
Password
Enter the password that the IP camera uses to access the RADIUS server.
Cisco Video Surveillance 3000 Series IP Camera Configuration Guide
7-11
Chapter 7
Network Setup
IP Filter Window
Table 7-7
802.1x Window Options (continued)
Option
Description
Anonymous ID
Optional. Anonymous identifier to be used instead of a user name for
logging in to the RADIUS server.
Root CA Certificate
Path and folder where the root certificate that is required for 802.1x
authentication is stored. You can click Browse to find this location.
After you enter this information, click Upload to upload the certificate to
the IP camera.
EAP-FAST Configuration Options
Note
These options appear if you select the protocol type EAP-FAST.
Inner EAP Protocol
Choose an inner authentication method for EAP-FAST.
User Name
Enter the user name that the IP camera uses to access the RADIUS server.
Password
Enter the password that the IP camera uses to access the RADIUS server.
Anonymous ID
Optional. Anonymous identifier to be used instead of a user name for
logging in to the RADIUS server.
IP Filter Window
The IP Filter window provides options for controlling access to the IP camera by designating up to 10
IP addresses or address ranges that are allowed or denied access to the IP camera.
To display the IP Filter window, perform the following steps:
Procedure
Step 1
From the IP camera user interface, click the Setup link.
Step 2
Click Network Setup to expand the menu.
Step 3
From the Network Setup menu, click IP Filtering.
The IP Filter window appears. If you change any options in this window, you must click the Save button
to save the changes. If you do not click this button, changes are not retained when you exit the window.
The Save button appears at the bottom of the window. You might need to scroll down to it.
Table 7-8 describes the options in the IP Filter window.
Table 7-8
IP Filter Window Options
Option
Description
IP Filter Area
Enable IP Filtering
Check this check box to cause the IP camera to allow or deny access to IP
addresses as configured in the IP Filtering window.
Filter Entries Area
#
Display only. Filter number.
Cisco Video Surveillance 3000 Series IP Camera Configuration Guide
7-12
Chapter 7
Network Setup
QoS Window
Table 7-8
IP Filter Window Options (continued)
Option
Description
Action
Choose an action for the corresponding IP address or address range:
IP Address/Bit Mask
•
Deny—IP address or address range cannot access the IP camera.
•
Allow—IP address or address range can access the IP camera.
Enter the IP address and bit mask to which the corresponding action applies.
Make these entries in Classless Inter-Domain Routing (CIDR) notation.
CIDR is defined in RFC 4632.
QoS Window
The QoS window provides options for configuring quality of service (QoS) settings for ado and video
streams.
To display the QoS window, perform the following steps:
Procedure
Step 1
From the IP camera user interface, click the Setup link.
Step 2
Click Network Setup to expand the menu.
Step 3
From the Network Setup menu, click QoS.
The QoS window appears. If you change any options in this window, you must click the Save button to
save the changes. If you do not click this button, changes are not retained when you exit the window. The
Save button appears at the bottom of the window. You might need to scroll down to it.
Table 7-9 describes the options in the QoS window.
Table 7-9
QoS Window Options
Option
Description
Class of Service (CoS) Area
Enable CoS for Video
Streaming
Check this check box to enable class of service (CoS) control for video
streams.
If you enable this option, the IP camera specifies a VLAN tag that appends
to an Ethernet MAC frame for video streaming data.
Video Priority
Value from 0 (lowest priority) through 7 (highest priority) that specifies the
CoS priority value for steaming video data.
Video VLAN ID
Enter the ID of the video VLAN to which CoS packets are directed.
Enable CoS for Audio
Streaming
Check this check box to enable class of service (CoS) control for audio
streams.
Audio Priority
Value from 0 (lowest priority) through 7 (highest priority) that specifies the
CoS priority value for steaming audio data.
Cisco Video Surveillance 3000 Series IP Camera Configuration Guide
7-13
Chapter 7
Network Setup
QoS Window
Table 7-9
QoS Window Options (continued)
Option
Description
Audio VLAN ID
Enter the ID of the audio VLAN to which CoS packets are directed.
Differentiated Services (DiffServ) Area
Enable DiffServ for
Video Streaming
Check this check box to enable Differentiated Services (DiffServ) for video
streams.
If you enable this option, the IP camera specifies the DSCP priority value
that appends to an IP header for video streaming packets.
Video DSCP Priority
Value
Value from 0 (lowest priority) through 63 (highest priority) that specifies the
DSCP priority value for steaming video data.
Enable DiffServ for
Audio Streaming
Check this check box to enable Differentiated Services (DiffServ) for audio
streams.
Audio DSCP Priority
Value
Value from 0 (lowest priority) through 63 (highest priority) that specifies the
DSCP priority value for steaming audio data.
Cisco Video Surveillance 3000 Series IP Camera Configuration Guide
7-14
CHAPTER
8
Application Manager
The Application Manager windows let you configure and manage apps for the IP camera. Apps let you
extend the functionality of a supported Cisco IP Camera. For related information, see Cisco IP Camera
Apps Reference Guide.
The following sections describe the Application Manager windows in detail:
Note
•
Configuration Window, page 8-1
•
App License Window, page 8-2
•
App Setup Window, page 8-3
•
Managing Apps, page 8-5
IP camera apps can also be managed using Cisco Video Surveillance Manager Release 7.6 and higher.
Use VSM to install and manage the apps on multiple cameras and to configure related items.
When camera apps are managed using VSM, you can only configure the app-specific settings through
the IP camera web UI described in this guide. You must use VSM to manage licenses, install, uninstall,
start or stop the apps. See Cisco Video Surveillance Operations Manager User Guide for more
information.
If camera apps are managed from VSM and you want to enable apps management from the IP camera
web UI, use the Delete All feature to remove the camera from VSM. If an IP camera is removed from
VSM without being deleted, perform a factory reset of the camera to enable apps management from the
IP camera web UI.
Configuration Window
The configuration window provides options enabling Apps on the IP camera, and for enabling audio and
video for apps that support these features.
To display the Configuration window, perform the following steps:
Procedure
Step 1
From the IP camera user interface, click the Setup link.
Step 2
Click Application Manager to expand the menu.
Cisco Video Surveillance 3000 Series IP Camera Configuration Guide
8-1
Chapter 8
Application Manager
App License Window
Step 3
From the Application Manager menu, click Configuration.
The Initialization window appears. If you change any options in this window, you must click the Save
button to save the changes. If you do not click this button, changes are not retained when you exit the
window. The Save button appears at the bottom of the window. You might need to scroll down to it.
Table 8-1 describes the options in the Configuration window.
Table 8-1
Configuration Window Options
Option
Description
Enable Applications
Check this check box if you want to allow apps to run on the IP camera.
Video Area
Enable Video
Check this check box to enable video for installed apps that support video.
Before you can enable video, Stream 2 and Analog Video must be disabled.
For Stream 1, Maximum Frame Rate should be set to a value of 15 fps or less
and Video Resolution should be set to a value of 1920x1080 or less, as
described in the “Streaming Window” section on page 4-1.
Resolution
Select the video resolution for installed apps that support video.
Audio Area
Enable Audio
Check this check box to enable audio for installed apps that support audio.
Before you can enable audio, Stream 2 and audio for Stream 1 must be
disabled.
Sampling Frequency
Display only. Sampling frequency of audio from the IP Camera for installed
apps that support audio (16 kHz).
App License Window
The App License window lets you install and uninstall licenses for apps, and provides information about
licenses that are installed on the IP camera.
The appropriate license must be installed on an IP camera before an app is installed on the camera.
Before you can install a license, obtain a valid license from Cisco and save the license file on your local
PC or on a PC that you can access from your local PC.
To display the App License window, perform the following steps:
Procedure
Step 1
From the IP camera user interface, click the Setup link.
Step 2
Click Application Manager to expand the menu.
Step 3
From the Application Manager menu, click App License.
Table 8-2 describes the options in the App License window.
Cisco Video Surveillance 3000 Series IP Camera Configuration Guide
8-2
Chapter 8
Application Manager
App Setup Window
Table 8-2
App License Window Options
Option
Description
License Installation Area
License File
To install a license file, use the Browse button to navigate to the file, select
the file to enter it in the License File field, and then click Install License
Installed License List Area
License list
Provides this information for each license that is installed on the IP camera:
Uninstall License
button
•
License Type—Name of the license
•
Total—Number of corresponding license types that are currently
installed
•
Used—Number of corresponding license types that are in use
•
Free—Number of corresponding license types that are available
To remove all instances of a license, click the radio button that corresponds
to the license, click Uninstall License, and then click OK in the
confirmation dialog box
App Setup Window
The App Setup window lets you install, uninstall, configure, start, and stop apps, and perform related
operations. You can also export the application configuration for use on another camera, or import the
configuration from a camera.
The appropriate license must be installed on an IP camera before you install the app (see the “App
License Window” section on page 8-2).
Some operations that you perform in the App Setup window can take several minutes to complete. Do
not turn off or restart the IP camera while an operation is in progress.
To display the App Setup window, perform the following steps:
Procedure
Step 1
From the IP camera user interface, click the Setup link.
Step 2
Click Application Manager to expand the menu.
Step 3
From the Application Manager menu, click App Setup.
Table 8-3 describes the options in the App Setup window.
Table 8-3
App License Window Options
Option
Description
Application Installation Area
Application package
Name of the application to install.
Cisco Video Surveillance 3000 Series IP Camera Configuration Guide
8-3
Chapter 8
Application Manager
App Setup Window
Table 8-3
App License Window Options (continued)
Option
Description
Browse button
Click to display a window that you can use to navigate to and choose the
application to install.
Install button
Click to install the application that is specified in the Application package
field.
Installed Application List Area
Application list
Run button
Provides this information for each app that is installed on the IP camera:
•
Select—Click the radio button that corresponds to an app to start, stop,
configure, or uninstall the app
•
Application—Name of the app
•
Version—Version of the app
•
Vendor—Provider of the app
•
Status—Operating status of the app (Running or Stopped)
•
Start on Boot?—To cause an app to run automatically each time the IP
camera restarts, click the radio button for the app, check this check box,
and then click Run
•
Installed On—Date and time that the app was installed on the IP camera
•
Started On—Date and time that a running app was last started
•
Package Detail—Name of the app package that was installed
To run an app, click the radio button in the Select column that corresponds
to the app, then click Run.
Depending on the complexity of an app, you may be able to run multiple
apps simultaneously on an IP camera, but you cannot run two audio apps or
two video apps at the same time.
Stop button
To stop an app that is running, click the radio button in the Select column
that corresponds to the app, click Stop, and then click OK in the
confirmation dialog box.
Configure button
To configure an app, click the radio button in the Select column that
corresponds to the app, then click Configure.
The configuration window for the app appears. The options in this window
depend on the app. For detailed information, see Cisco IP Camera Apps
Reference Guide.
If you configure an app that is running, you must stop and then restart the
app before the changes take effect.
Uninstall button
To permanently remove an app from the IP camera, click the radio button in
the Select column that corresponds to the app, Uninstall, and then click OK
in the confirmation dialog box.
You must stop a running app before you can uninstall it.
Import button
To import an application configuration, use the Browse button to navigate to
the file, select the file to enter it in the Application Config field, and then
click Import button.
Cisco Video Surveillance 3000 Series IP Camera Configuration Guide
8-4
Chapter 8
Application Manager
Managing Apps
Table 8-3
App License Window Options (continued)
Option
Description
Export button
Click the Export button to save the configuration file of currently selected
application.
When you click the Export button, the File Download window appears. Use
this window to save the configuration file.
You can then import this configuration information to other IP camera where
the same application is installed. This feature is useful for creating a backup
of the application configuration and for configuring same application on
other IP camera.
Maintenance Area
Restore button
Click this button to reset all app manager settings to their factory default
values and permanently remove all apps from the IP camera.
This button should be used only if the IP camera becomes unstable after an
app is installed or run.
Managing Apps
The following sections provide detailed instructions for managing apps on an IP camera:
•
Installing a License for an App, page 8-5
•
Installing an App, page 8-6
•
Configuring an App, page 8-6
•
Configuring Event Triggering, page 8-7
•
Running an App, page 8-7
•
Stopping an App, page 8-8
•
Uninstalling an App, page 8-8
•
Restoring the Application Manager, page 8-8
Installing a License for an App
The appropriate license must be installed on a camera before the corresponding app package is installed
on the camera.
To install a license on an IP camera, follow these steps:
Procedure
Step 1
Obtain a valid app license from Cisco for the app and save the license file on your local PC or on a PC
that you can access from your local PC.
Step 2
From the IP camera user interface, click the Setup link, click Application Manager to expand the menu,
then choose App License.
Step 3
Click Browse next to the License file field and navigate to the license file that you saved.
Cisco Video Surveillance 3000 Series IP Camera Configuration Guide
8-5
Chapter 8
Application Manager
Managing Apps
Step 4
Select the license file and click Install License.
Installing an App
Before you can run an app on an IP camera, the app must be installed on the IP camera. To install an app,
perform the following steps.
Before You Begin
Install the appropriate license for the app on the IP camera as described in the “Installing a License for
an App” section on page 8-5.
If you are installing an app cpk file that is 2 Mb or larger from the camera web UI or from VSM, stop
any video or audio app that is running on the camera. Otherwise, the installation fails.
Procedure
Step 1
From the IP camera user interface, click the Setup link, click Application Manager to expend the menu,
then choose App Setup.
If you have not yet enabled app support for the camera, a dialog box appears that says “Application
support is not enabled on this camera. You are redirected to Configuration window where you can enable
application support on camera.”
Step 2
Step 3
If the Application support dialog box appears, take these actions:
a.
Click OK to display the Configuration window.
b.
In the Configuration window, check the Enable Application check box.
c.
(Optional) Check the Enable Video check box and choose a resolution from the Resolution
drop-down list if you will run applications that use the video features of the camera.
d.
(Optional) Check the Enable Audio check box if you will run applications that use the audio
features of the camera.
e.
Click Save.
f.
Choose App Setup from the Application Manager drawer.
Click Browse in the Application Installation area and navigate to the app package that you want to
install.
The app file must have the extension .cpk.
Step 4
Select the app file and click Open.
Step 5
Click the Install button in the Application Installation area.
A dialog box informs you when the application is installed.
Configuring an App
After you install an app on an IP camera, you must configure its operation.
To configure the operation of an app on an IP camera follow these steps:
Cisco Video Surveillance 3000 Series IP Camera Configuration Guide
8-6
Chapter 8
Application Manager
Managing Apps
Procedure
Step 1
From the IP camera user interface, click the Setup link, click Application Manager to expend the menu,
then click App Setup.
Step 2
Click the radio button for the app that you want to configure.
Step 3
Click the Configure button.
Step 4
In the window that appears, make configuration settings as needed and click the Save button.
For detailed information about configuration settings for a particular app, see Cisco IP Camera Apps
Reference Guide.
Configuring Event Triggering
This section describes how to enable event triggering on an IP camera, which allows apps that support
triggers to cause the camera to take certain actions when an event occurs.
To enable the triggering of actions by apps that support triggers, follow these steps:
Step 1
From the IP camera user interface, click the Setup link, click Feature Setup to expend the menu, then
choose Event.
Step 2
In the Event Notification window, take these actions:
a.
Check the App check box in the Event Triggering area.
b.
Check one of more of the Actions check boxes for the App option in the Event Triggering area to
designate the action that the IP camera takes when it receives an event trigger.
c.
Click Set All in the Event Scheduling area.
d.
Click Save at the bottom of the window.
Step 3
From the Setup menu in the web-based interface of the camera, click Log to expend the menu, then
choose Setup.
Step 4
In the Log Setup window, take these actions:
a.
Check the Enable Syslog check box in the Syslog Settings area.
b.
Enter the IP address of the server on which to log events.
c.
Click Save at the bottom of the window.
Running an App
To run an app on an IP camera, follow these steps:
Procedure
Step 1
From the IP camera user interface, click the Setup link, click Application Manager to expend the menu,
then click App Setup.
Cisco Video Surveillance 3000 Series IP Camera Configuration Guide
8-7
Chapter 8
Application Manager
Managing Apps
Step 2
Click the radio button for the app that you want to run.
Step 3
Click the Run button.
Stopping an App
To stop an app that is running on an IP camera, follow these steps:
Procedure
Step 1
From the IP camera user interface, click the Setup link, click Application Manager to expend the menu,
then click App Setup.
Step 2
Click the radio button for the app that you want to stop.
Step 3
Click the Stop button.
Uninstalling an App
To uninstall an app from an IP camera, perform the following steps.
If the app is running, you must first stop it as described in the “Stopping an App” section on page 8-8.
Procedure
Step 1
From the IP camera user interface, click the Setup link, click Application Manager to expend the menu,
then click App Setup.
Step 2
Click the radio button for the app that you want to uninstall.
Step 3
Click the Uninstall button.
Step 4
Click OK in the confirmation window that appears.
If you do not want to uninstall the app , click Cancel.
Restoring the Application Manager
When you restore the application manager to the factory default condition, all apps that you uploaded to
the IP camera are removed from the camera.
This feature should be used only if the IP camera becomes unstable after an app is installed or run.
To restore the application manager on an IP camera, follow these steps:
Cisco Video Surveillance 3000 Series IP Camera Configuration Guide
8-8
Chapter 8
Application Manager
Managing Apps
Procedure
Step 1
From the IP camera user interface, click the Setup link, click Application Manager to expend the menu,
then click App Setup.
Step 2
Click the Restore button in the Maintenance area.
Step 3
Click OK in the confirmation window that appears.
If you do not want to restore the application manager, click Cancel.
Cisco Video Surveillance 3000 Series IP Camera Configuration Guide
8-9
Chapter 8
Managing Apps
Cisco Video Surveillance 3000 Series IP Camera Configuration Guide
8-10
Application Manager
CHAPTER
9
Administration
The Administrator windows let you perform several general administrative operations, including
enabling HTTP and HTTPS access to the IP camera, configuring users, resetting or rebooting the IP
camera, and updating firmware.
The following sections describe the Administration windows in detail:
•
Initialization Window, page 9-1
•
User Window, page 9-3
•
Maintenance Window, page 9-4
•
Firmware Window, page 9-6
•
Device Processes Window, page 9-7
•
Password Complexity Window, page 9-8
Initialization Window
The Initialization window provides options for configuring passwords for the IP camera default
administrator accounts, and for configuring which protocols can be used to access the IP camera.
The IP camera always has an HTTP/HTTPS administrator who can access the IP camera through an
HTTP or HTTPS connection. The name of this administrator is admin. The password is configurable.
If you want to access the IP camera through SSH, you must configure a password for an SSH
administrator. The name of this administrator is root. The password is configurable.
To display the Initialization window, perform the following steps:
Procedure
Step 1
From the IP camera user interface, click the Setup link.
Step 2
Click Administration to expand the menu.
Step 3
From the Administration menu, click Initialization.
The Initialization window appears. If you change any options in this window, you must click the Save
button to save the changes. If you do not click this button, changes are not retained when you exit the
window. The Save button appears at the bottom of the window. You might need to scroll down to it.
Cisco Video Surveillance 3000 Series IP Camera Configuration Guide
9-1
Chapter 9
Administration
Initialization Window
Table 9-1 describes the options in the Initialization window.
Table 9-1
Initialization Window Options
Option
Description
Administrator Accounts Area
Protocol
Display only. Indicates the protocol that the corresponding administrator can
use to access the IP camera: HTTP/HTTPS or SSH.
User Name
Display only. Indicates the default user name for the corresponding
administrator: admin or root
Password
Enter a password for the corresponding administrator. The password is case
sensitive and must contain from 8 to 32 characters, which can be letters,
numbers, and special characters, but no spaces. Special characters are: ! $ (
)-.@^_`{}~
Confirm password
Re-enter the password for the corresponding administrator.
Access Protocols Area
Enable HTTP
Check this check box if you want to allow HTTP connections to the IP
camera.
HTTP Port
Enter the HTTP port that is used to access the IP camera. Valid port numbers
are 80 and 1024 through 32767. The default port is 80.
If you configure the HTTP port to a value other than 80, you must specify
the port number in the URL for the IP camera when you access it through an
HTTP connection. For example, if the IP address of the IP camera is
192.168.1.100 and the HTTP port is 1024, enter this URL for the IP camera:
http://192.168.1.100:1024.
Enable HTTPS
Check this check box if you want to allow HTTPS connections to the IP
camera.
HTTPS Port
Enter the HTTPS port that is used to access the IP camera. Valid port
numbers are 443 and 1024 through 65535. The default port is 443.
If you configure the HTTPS port to a value other than 443, you must specify
the port number in the URL for the IP camera when you access it through an
HTTPS connection. For example, if the IP address of the IP camera is
192.168.1.100 and the HTTPS port is 1024, enter this URL for the IP
camera: https://192.168.1.100:1024.
Enable Secure Shell
(SSH)
Check this check box if you want to allow access to the camera through a
SSH connection.
Secure Shell (SSH) Port Enter the SSH port that is used to access the IP camera. Valid port numbers
are 22 and 1024 through 65535. The default port is 22.
Cisco Video Surveillance 3000 Series IP Camera Configuration Guide
9-2
Chapter 9
Administration
User Window
User Window
The User window lets you configure the following types of IP camera users:
•
Administrator—Can access all IP camera windows, features, and functions.
•
Viewer—Can access only the Camera Video & Control window and all features in that window
except:
– Video image controls
– Focus and Zoom controls
– Privacy Zone controls
– Set Current Preset as Home button
– Add Preset Position button
– Deleted Selected Preset button
– Pan/tilt speed controls
– Motion detection controls
There is always at least one user with Administrator privileges configured. The user name of this user is
“admin.” You can configure up to four additional users and assign privilege levels to each one.
When you configure users, follow these guidelines:
•
After you enter a name, password, and privilege level for a user, click Add next to the user
information to save your changes.
•
To change the password for an existing user, click Change next to the user name.
•
To remove a user, click Delete next to the user. If you delete a user who is logged into the IP camera,
the user remains logged in and can continue access the IP camera.
•
To change the name of a user, you must delete the user then create a new user.
To display the User window, perform the following steps:
Procedure
Step 1
From the IP camera user interface, click the Setup link.
Step 2
Click Administration to expand the menu.
Step 3
From the Administration menu, click Users.
The User window appears.
Table 9-2 describes the options in the User window.
Cisco Video Surveillance 3000 Series IP Camera Configuration Guide
9-3
Chapter 9
Administration
Maintenance Window
Table 9-2
User Window Options
Option
Description
User List Area
User Name
Enter a unique name for the user.
The user name is case sensitive and can include up to 32 letters, numbers,
and special characters, but no spaces. Special characters are: ! % ( ) + , - =
@_~
There is always one user named admin (all lower case), which cannot be
deleted.
Password
Enter a password for the user.
The password is case sensitive and must contain from 8 to 32 characters,
which can be letters, numbers, and special characters, but no spaces. Special
characters are: ! $ ( ) - . @ ^ _ ` { } ~
Confirm Password
Re-enter the password for the user.
Privilege Level
Select the desired privilege level for the user:
•
Administrator—Can access all IP camera windows, features, and
functions.
•
Viewer—Can access the Camera Video & Control window with limited
controls, and can access the Refresh, Logout, About, and Help links
from that window.
Change button
Click this button to change the password of the corresponding user.
Add button
Click this button to add the corresponding user. That user can then log in to
the IP camera.
Delete button
Click this button to remove the corresponding user. This user can no longer
log in to the IP camera.
Maintenance Window
The Maintenance window provides options for setting or restarting the IP camera, saving configuration
information from the IP camera, and uploading the configuration information to the IP camera.
Saving and uploading configuration is useful for these activities:
•
Configuring multiple IP cameras—If your network includes several IP cameras that should have
similar configurations, you can configure one IP camera, save that configuration, and upload it to
other IP cameras. Then, instead of manually configuring all options on each IP camera, you
manually configure only the options that are unique, such as the IP address, if not obtained from
DHCP.
•
Backing up configuration—If you save the configuration from the IP camera, you can upload it to
the IP camera to restore the configuration if it is lost, or if you can upload it to a replacement IP
camera, if needed.
To display the Maintenance window, perform the following steps:
Cisco Video Surveillance 3000 Series IP Camera Configuration Guide
9-4
Chapter 9
Administration
Maintenance Window
Procedure
Step 1
From the IP camera user interface, click the Setup link.
Step 2
Click Administration to expand the menu.
Step 3
From the Administration menu, click Maintenance.
The Maintenance window appears.
Table 9-3 describes the options in the Maintenance window.
Table 9-3
Maintenance Window Options
Option
Description
Factory Default Area
Restore button
Click the Restore button to reset all IP camera settings to their factory
default values.
To confirm the restore procedure, click OK in the confirmation pop-up
window. Otherwise, click Cancel.
This action has the same effect as pressing and holding the Reset button on
the IP camera for at least 15 seconds. After you perform this procedure,
follow the steps in the Chapter 2, “Performing the Initial Setup of the IP
Camera.”
Reset button
Click the Reset button to reset all IP camera settings except the static IP
address, gateway IP address, and log in credentials (user name and
password) to their factory default values.
To confirm the restore procedure, click OK in the confirmation pop-up
window. Otherwise, click Cancel.
Reboot Area
Reboot button
Click the Reboot button to reboot the software on IP camera.
To confirm the reboot procedure, click OK in the confirmation pop-up
window. Otherwise, click Cancel.
This action has the same effect as pressing and immediately releasing the
Reset button on the IP camera, or powering the IP camera down and then
powering it up.
Cisco Video Surveillance 3000 Series IP Camera Configuration Guide
9-5
Chapter 9
Administration
Firmware Window
Table 9-3
Maintenance Window Options (continued)
Option
Description
Device Configuration Area
Export Configuration
from Camera
Click the Export button to save the current IP camera configuration
information to a binary file.
Check the Exclude Network Basic and IP Addressing Setting check box if
you do not want the configuration to contain network basic configuration
information and the IP address of the camera.
When you click the Export button, the File Download window appears. Use
this window to save the configuration file.
You can then load this configuration information to any same-model IP
camera in the network. This feature is useful for creating a backup of this
configuration and for configuring other IP cameras based on this
configuration.
Import Configuration to Path and folder where a configuration file is stored. You can click Browse to
Camera
find this location. After you enter this information, click Import to load the
configuration file to the IP camera.
After you upload a configuration file to the IP camera, the IP camera restarts
automatically.
If you upload configuration from another IP camera that is active in your
network, make sure to configure this IP camera with a name, description, and
unique IP address (if not obtained through DHCP). To change these options,
see the “Basic Window” section on page 7-1 and the “IP Addressing
Window” section on page 7-3.
A configuration file that you upload includes the passwords that are
configured for the administrator and for users. If you change any passwords
after saving the configuration file, be aware that uploading the file overwrites
the new passwords with the saved ones.
Camera Logs Area
Export Logs from
Camera
Click the Export button to save the current IP camera log information in
.tar.gz format.
When you click this button, the File Download window appears. Use this
window to save the log file.
Depending on the size of logs it may take some time to download the logs.
Clear Logs from
Camera
Click the Clear button from the Camera Logs section to clear the camera log
information from the IP camera. Depending on the amount of log
information, it may take some time to clear the information.
Firmware Window
The Firmware window lets you view information about the firmware that is installed on the IP camera
and upgrade the firmware.
Before you upgrade firmware, download the firmware file to a PC that is accessible on your network and
unzip the file if it is zipped. To download firmware, go to this web page:
Cisco Video Surveillance 3000 Series IP Camera Configuration Guide
9-6
Chapter 9
Administration
Device Processes Window
http://www.cisco.com/en/US/products/ps6918/Products_Sub_Category_Home.html
After you upgrade firmware, the IP camera restarts automatically. It retains all configuration
information.
To display the Firmware window, perform the following steps:
Procedure
Step 1
From the IP camera user interface, click the Setup link.
Step 2
Click Administration to expand the menu.
Step 3
From the Administration menu, click Firmware.
The Firmware window appears.
Table 9-4 describes the options in the Firmware window.
Table 9-4
Firmware Window Options
Option
Description
Device Information Area
IP Address
Display only. IP address of the IP camera.
MAC Address
Display only. MAC address of the IP camera.
Device Name
Display only. ID of the IP camera, as configured in the Basic window. For
more information, see the “Basic Window” section on page 7-1.
Firmware Maintenance Area
Firmware Version
Version of the firmware that is installed on the IP camera.
Firmware Released
Date
Release date of the current firmware.
Details button
Click this button to display a pop-up window with additional information
about the firmware on the IP camera.
Firmware Upgrade
To upgrade the firmware on the IP camera, begin by entering the path and
folder where new firmware file for the IP camera is stored. The upgrade file
may be stored on another PC. You can click Browse to find this location.
Upgrade button
After entering the path and folder for the firmware file, click this button to
load the firmware upgrade on the IP camera.
Do not power down the IP camera during the upgrade procedure.
Device Processes Window
The Device Processes window displays the processes that occupy TCP or UDP ports, and lets you stop
any of these processes.
Note
To stop any process, click the Delete button that appears to the right of the process in the window.
Cisco Video Surveillance 3000 Series IP Camera Configuration Guide
9-7
Chapter 9
Administration
Password Complexity Window
Take care when stopping processes because some processes are required for the camera to operate
properly. Processes that you stop in this window can restart the next time that you log in to the IP camera.
If you delete a required process and the camera stops functioning, exit your web browser and then log
back in to the IP camera to restart the process. If the process does not restart, power the IP camera off
and then back on.
To display the Device Processes window, perform the following steps:
Procedure
Step 1
From the IP camera user interface, click the Setup link.
Step 2
Click Administration to expand the menu.
Step 3
From the Administration menu, click Device Processes.
The Device Processes window appears.
Table 9-5 describes the options in the Device Processes window. All options are for display only.
Table 9-5
Device Processes Window Options
Option
Description
Protocol
Port (tcp or udp) that the process occupies.
Local Address
IP address of the device to which the process is listening.
Foreign Address
IP address and port number of the client device that is connected for the
process.
State
State of the process.
Program Name
Name of the process.
Password Complexity Window
IP camera administrator and user passwords must always meet the requirements that are described in the
“User Window” section on page 9-3. The Password Complexity window provides options for
configuring additional requirements for the IP camera passwords.
To display the Password Complexity window, perform the following steps:
Procedure
Step 1
From the IP camera user interface, click the Setup link.
Step 2
Click Administration to expand the menu.
Step 3
From the Administration menu, click Password Complexity.
The Password Complexity window appears. If you change any options in this window, you must click
the Save button to save the changes. If you do not click this button, changes are not retained when you
exit the window. The Save button appears at the bottom of the window. You might need to scroll down
to it.
Cisco Video Surveillance 3000 Series IP Camera Configuration Guide
9-8
Chapter 9
Administration
Password Complexity Window
Table 9-6 describes the options in the Password Complexity window.
Table 9-6
Password Complexity Window Options
Option
Description
Password must contain
at least three of the
following: lower case
letters, upper case
letters, digits, and
special characters
Password must contain characters from at least 3 of these categories:
Password cannot
include any character
that occurs three or
more times
consecutively
Administrator password cannot include any character that occurs 3 or more
times in a row.
Password cannot be a
repeat or reverse of the
user name
Password cannot be the same as the user name either forward of reversed.
•
Lower case letters (a through z)
•
Upper case letters (A through Z)
•
Digits (0 through 9)
•
Special characters: ! " # $ % & ' ( ) * + , - . : ; < = > ? @ [ \ ] ^ _ ` { | } ~
Cisco Video Surveillance 3000 Series IP Camera Configuration Guide
9-9
Chapter 9
Password Complexity Window
Cisco Video Surveillance 3000 Series IP Camera Configuration Guide
9-10
Administration
CHAPTER
10
Log Configuration
The Log windows let you set up and view the IP camera log file, which captures information about the
IP camera and its activities.
The IP camera stores the log file in its internal SDRAM. If the SDRAM becomes full, the IP camera
begins to overwrite existing information. To avoid losing log information, you can configure the IP
camera to send log information to a Syslog server.
Caution
Because the logs are stored in the internal camera SDRAM, all existing logs in the camera are lost after
a camera reboot, power-up, or power-down.
The following sections describe the Log windows in detail:
•
Log Setup Window, page 10-1
•
Local Log Window, page 10-4
Log Setup Window
The Log Setup window provides options for configuring the log file and an optional Syslog server on
which to store log files.
To display the Log Setup window, perform the following steps:
Procedure
Step 1
From the IP camera user interface, click the Setup link.
Step 2
Click Log to expand the menu.
Step 3
From the Log menu, click Setup.
The Log Setup window appears. If you change any options in this window, you must click the Save
button to save the changes. If you do not click this button, changes are not retained when you exit the
window. The Save button appears at the bottom of the window. You might need to scroll down to it.
Table 10-1 describes the options in the Log Setup window.
Cisco Video Surveillance 3000 Series IP Camera Configuration Guide
10-1
Chapter 10
Log Configuration
Log Setup Window
Table 10-1
Log Setup Window Options
Option
Description
Local Log Settings Area
Minimum Log Severity
Choose the minimum severity of messages that the appear in the log file. The
system logs all messages of this severity and higher. Message severities,
from highest to lowest, are:
•
Emergency—The system is unusable.
•
Alert—A situation occurred that requires immediate action.
•
Critical—A situation occurred that requires action soon.
•
Error—An error occurred, but it does not necessarily affect the ability
of the system to function.
•
Warning—A undesirable condition occurred.
•
Notice—Notification about a system condition that is not necessarily an
error condition.
•
Informational—Information about a system activity.
•
Debug—Information about a system activity with detailed technical
information. Includes messages of every other severity.
The default severity is Informational.
Maximum Log Entries
Maximum number of entries that the log file maintains. When the log file
reaches this limit, it begins overwriting entries, starting with the oldest one.
The default value is 100.
Syslog Settings Area
Enable Syslog
Check this check box to send the log information to a designated Syslog
server. The selected information also is maintained on the IP camera until it
is overwritten.
This option is useful for consolidating logs in deployments with several
IP cameras and for retaining logs.
Primary Syslog Server
Identify the primary Syslog server by choosing IP Address or Hostname
from the drop-down list and entering the IP address or host name in the
corresponding field.
Primary Syslog Server
Port
Enter the primary Syslog server port number that receives the logs.
Facility
Enter the system facility that receives logs on the Syslog server.
Valid values are 514 and 1024 through 65535. The default Syslog port is 514.
Cisco Video Surveillance 3000 Series IP Camera Configuration Guide
10-2
Chapter 10
Log Configuration
Log Setup Window
Table 10-1
Log Setup Window Options (continued)
Option
Description
Minimum Log Severity
Choose the minimum severity of messages that are sent to the Syslog server.
The system sends all messages of this severity and higher. Message
severities, from highest to lowest, are:
•
Emergency—The system is unusable.
•
Alert—A situation occurred that requires immediate action.
•
Critical—A situation occurred that requires action soon.
•
Error—An error occurred, but it does not necessarily affect the ability
of the system to function.
•
Warning—A undesirable condition occurred.
•
Notice—Notification about a system condition that is not an error
condition.
•
Informational—Information about a system activity.
•
Debug—Information about a system activity with detailed technical
information. Includes messages of every other severity.
The default severity is Informational.
Secondary Syslog
Server
Identify an optional secondary Syslog server by choosing IP Address or
Hostname from the drop-down list and entering the IP address or host name
in the corresponding field.
Secondary Syslog
Server Port
Enter the port number that receives the logs on the secondary Syslog server.
Facility
Enter the system facility that receives logs on the Syslog server.
Minimum Log Severity
Choose the minimum severity of messages that are sent to the secondary
Syslog server. The system sends all messages of this severity and higher.
Message severities, from highest to lowest, are:
Valid values are 514 and 1024 through 65535. The default Syslog port is 514.
•
Emergency—The system is unusable.
•
Alert—A situation occurred that requires immediate action.
•
Critical—A situation occurred that requires action soon.
•
Error—An error occurred, but it does not necessarily affect the ability
of the system to function.
•
Warning—An undesirable condition occurred.
•
Notice—Notification about a system condition that is not an error
condition.
•
Informational—Information about a system activity.
•
Debug—Information about a system activity with detailed technical
information. Includes messages of every other severity.
Cisco Video Surveillance 3000 Series IP Camera Configuration Guide
10-3
Chapter 10
Log Configuration
Local Log Window
Local Log Window
The Local Log window lets you view the log file that is stored on the IP camera.
To display the Local Log window, perform the following steps:
Procedure
Step 1
From the IP camera user interface, click the Setup link.
Step 2
Click Log to expand the menu.
Step 3
From the Log menu, click Local Log.
The Local Log window appears. Table 10-2 describes the options in the Local Log window.
Table 10-2
Option
Local Log Window Options
Description
Log List Area
Rows per page
Choose the number of log entry rows to display per page and click the Go
button to the right of this option to update the display.
Filter
Choose the type of log message to include in the display.
To include messages of every severity, choose All.
Since
Choose the time period for which you want to view log messages.
Go button
Update the log display based on the values in the Filter and Since fields.
Severity
An icon in this column indicates the severity of the corresponding log
message:
—Emergency message
—Alert message
—Critical message
—Error message
—Warning message
—Notice message
—Informational message
—Debug message
To display log messages in order of severity with the least severity first, click
the Severity column heading. Click the heading again to reverse the display
order.
Date/Time
Date and time that the logged activity occurred.
By default, log messages appear in the order that the activity occurred with
the oldest message first. To reverse this display order, click the Date/Time
column heading.
Cisco Video Surveillance 3000 Series IP Camera Configuration Guide
10-4
Chapter 10
Log Configuration
Local Log Window
Table 10-2
Local Log Window Options (continued)
Option
Description
Description
Message that describes the logged activity. For detailed information about
log messages, see Table 10-3 on page 10-5.
Page controls
Let you move through the log file entries:
Page field—Enter a page number and press Enter.
—Go to first page
—Go to previous page
—Go to next page
—Go to last page
Table 10-3 describes the messages that can appear in the IP camera log file. When you view the log file,
each message includes the date and time that it was logged. In this table:
•
Messages appear in alphabetical order
•
Angle brackets (<>) indicate items that are replaced by appropriate information when the message
appears. Italic text describes these items.
•
Severity indicates the severity of the message:
– 0—Emergency (the system is unusable)
– 1—Alert (a situation occurred that requires immediate action)
– 2—Critical (a situation occurred that requires action soon)
– 3—Error (an error occurred, but it does not necessarily affect the ability of the system to
function)
– 4—Warning (an undesirable condition occurred)
– 5—Notice (notification about a system condition that is not an error condition)
– 6—Informational (information about a system activity)
– 7—Debug (information about a system activity with detailed technical information)
Table 10-3
Log Messages
Message Name
Description that Appears in Log File
Explanation
Severity
AUTHENTICATION_FAILED
Access authentication to <web server,
streaming server, or SSH server> by
user <user> <IP address or
hostname> failed.
An attempt to log in or authenticate to 3
the IP camera failed.
AUTHENTICATION_FAILED
Access authentication to <server type> The IP camera was unable to access an 4
server <server IP address or
SNTP, Syslog, DNS, SMTP, HTTP, or
hostname> failed.
802.1x server.
AUTHORIZATION_FAILED
Unauthorized address <IP address or
An attempt was made to access the IP 3
hostname> attempted to access camera. camera by using invalid user
credentials for from an IP address that
has been configured for no access.
Cisco Video Surveillance 3000 Series IP Camera Configuration Guide
10-5
Chapter 10
Log Configuration
Local Log Window
Table 10-3
Log Messages
Message Name
Description that Appears in Log File
CODEC_LOST
Connection to Codec/Sensor module
The IP camera codec/sensor module is 4
was lost. Internal module is either down not responding.
or not responding.
CONFIG_SAVE_FAILED
Saving configuration to user <user>
<IP address or hostname> failed.
A user attempt to save the IP camera
configuration failed.
CONFIG_SAVED
Configuration saved by user <user>
<IP address or hostname>.
The IP camera configuration was saved 5
by a user.
CONFIG_UPLOAD_FAILED
Uploading configuration failed from
A user attempt to import the IP camera 3
user <user> <IP address or hostname>. configuration failed.
CONFIG_UPLOADED
Configuration uploaded from user
<user> <IP address or hostname>.
DEFAULTS_FAILED
An attempt to reset the IP camera to its 3
Restoring factory defaults failed for
user <user> <IP address or hostname>. factory default configuration failed.
DEFAULTS_RESTORED
Factory defaults restored successfully
by user <user> <IP address or
hostname>.
The IP camera was reset to its factory
default configuration.
DEVICE_REBOOT_AUTO
Device rebooted.
The IP camera rebooted automatically. 5
DEVICE_REBOOT_MANUAL
Device was rebooted manually by user The IP camera was rebooted by a user. 5
<user> <IP address or hostname>.
DHCP_LEASE
DHCP lease renewal was successful.
The IP camera renewed its DHCP
lease.
DSP_ENCODING_HALTED
The Codec/Sensor module’s DSP
encoding was halted. Either the analog
image signal from the sensor has been
lost, or an internal encoding error has
occurred.
The DSP of the IP camera codec/sensor 2
module DSP stopped encoding. The
analog image signal from the sensor
may be lost or an internal encoding
error may have occurred.
EMAIL_TRIGGERED
Event triggered: email sent to
<email address>.
An event occurred and email
notification of the event was sent.
5
ETH_BER
Bit Error Rate (BER) exceeded
specified threshold of <threshold>.
The bit error rate (BER) exceeded the
specified threshold.
4
ETH_SIGNAL_DEGRADE
Ethernet signal degrading.
The IP camera detected a degrading
Ethernet signal.
4
FRAMES_DROPPED
Output frame rate does not match the
camera’s configured frame rate.
The IP camera is sending video at a
frame rate that does not match the
configured frame rate.
3
FW_UPGRADE_FAILED
Upgrading firmware failed from user
<user> <IP address or hostname>.
An attempt to upgrade the IP camera
firmware failed.
0
FW_UPGRADED
Firmware upgraded successfully from The IP camera firmware was updated.
user <user> <IP address or hostname>.
5
HTTP_TRIGGERED
Event triggered: notification sent to
HTTP server <IP address or
hostname>.
5
Cisco Video Surveillance 3000 Series IP Camera Configuration Guide
10-6
Explanation
The IP camera configuration was
imported by a user.
An event occurred, and HTTP
notification of the event was sent.
Severity
3
5
5
6
Chapter 10
Log Configuration
Local Log Window
Table 10-3
Log Messages
Message Name
Description that Appears in Log File
INPUT_ONE_CHANGED
Input port one changed to <high/low>. Input port 1 on the IP camera changed 5
state.
INPUT_ONE_RESET
Input port one reset to <high/low>.
INPUT_TWO_CHANGED
Input port two changed to <high/low>. Input port 2 on the IP camera changed 5
state.
INPUT_TWO_RESET
Input port two reset to <high/low>.
Input port 2 on the IP camera reset to
its default state.
5
IP_CONFLICT
IP Address conflict for <IP address>.
IP camera experienced an IP address
conflict.
4
IR_FILTER_DAY_AUTO
IR filter changed to day automatically.
The IP camera enabled its day filter
automatically.
6
IR_FILTER_DAY_MANUAL
IR filter manually changed to day by
The IP camera day filter was enabled
user <user> <IP address or hostname>. by a user.
6
IR_FILTER_NIGHT_AUTO
IR filter changed to night
automatically.
6
IR_FILTER_NIGHT_MANUAL IR filter changed to night by user
<user> <IP address or hostname>.
Explanation
Input port 1 on the IP camera reset to
its default state.
The IP camera enabled its night filter
automatically.
Severity
5
The IP camera night filter was enabled 6
by a user.
LOG_IN
User <user> <IP address or hostname> A user logged in to the IP camera.
logged in to <web server or SSH
server>.
5
LOG_OUT
User <user> <IP address or hostname> A user logged out of the IP camera.
logged out of <web server or SSH
server>.
5
MOTION_DETECTED
Motion detected in region <region
index>.
The IP camera detected motion in its
video field.
5
MOTION_STOPPED
Motion in region <region index>
stopped.
The IP camera stopped detecting
motion in its video field.
5
OUTPUT_ONE_RESET
Output port one reset to <high/low>.
Output port 1 on the IP camera reset to 5
its default state.
OUTPUT_ONE_TRIGGERED
Output port one triggered to
<high/low>.
Output port 1 on the IP camera
changed state.
OUTPUT_TWO_RESET
Output port two reset to <high/low>.
Output port 2 on the IP camera reset to 5
its default state.
OUTPUT_TWO_TRIGGERED
Output port two triggered to
<high/low>.
Output port 2 on the IP camera
changed state.
POWER_SUPPLY_FAILURE
DC power supply failure.
The DC power for the IP camera failed. 2
5
5
Cisco Video Surveillance 3000 Series IP Camera Configuration Guide
10-7
Chapter 10
Log Configuration
Local Log Window
Table 10-3
Log Messages
Message Name
Description that Appears in Log File
Explanation
SERVER_CONTACTED
Communication established with
<server type> server <server or
IP address>.
6
The IP camera established
communication with an SNTP, DHCP,
Syslog, DNS, SMTP, HTTP, or 802.1x
server.
SERVER_LOST
Communication lost with <server
type> server <server or IP address>.
The IP camera lost communication
with an SNTP, DHCP, Syslog, DNS,
SMTP, HTTP, or 802.1x server.
SERVER_UNREACHABLE
Failed to contact <server type> server
<server or IP address>.
The IP camera was unable to contact an 4
SNTP, DHCP, Syslog, DNS, SMTP,
HTTP, or 802.1x server or a gateway.
START_STREAM
Channel <channel ID> started
streaming to user <user> <IP address
or hostname>.
The IP camera began streaming video
to a user device.
6
STOP_STREAM
Channel <channel ID> stopped
streaming to user <user> <IP address
or hostname>.
The IP camera stopped streaming
video to a user device.
6
TEMP_THRESHOLD_T1
The internal temperature of the IP
Current temperature, <temperature>,
<exceeds/is below> <high temperature/ camera is lower than 59°F (15°C) or
higher than 149°F (65°C).
low_temperature> threshold.
2
TEMP_THRESHOLD_T2
The internal temperature of the IP
Current temperature, <temperature>,
<exceeds/is below> <high temperature/ camera is lower than 32°F (0°C) or
higher than 176°F (80°C).
low_temperature> threshold.
4
TEMP_THRESHOLD_T3
The internal temperature of the IP
Current temperature, <temperature>,
<exceeds/is below> <high temperature/ camera is lower than 5°F (–15°C) or
low_temperature> threshold.
higher than 194°F (90°C).
5
TIME_DST_SWITCH
Time switched to Daylight Savings
The IP camera internal clock switched 6
time with an offset of <offset> minutes. to daylight saving time.
TIME_REG_SWITCH
Time switched from Daylight Savings The IP camera internal clock switched 6
time with an offset of <offset> minutes. to standard time.
UNEXPECTED_EXCEPTION
Unexpected exception occurred. Could IP camera could not read or write
not <read/write> <to/from> repository information to its internal repository.
by user <user> <IP address or
hostname>.
Cisco Video Surveillance 3000 Series IP Camera Configuration Guide
10-8
Severity
4
2
INDEX
App Configuration window
Numerics
options
802.1x window
8-2
overview
8-1
EAP-FAST configuration
7-12
application manager, restoring
8-8
EAP-PEAP configuration
7-11
Application Manager windows
8-1
EAP-TTLS configuration
7-11
App License window
enable 802.1x
7-10
options
EPA-TLS configuration
overview
7-11
7-10
8-3
overview
8-2
App Setup window
options
8-3
overview
A
8-3
audio, settings
About link
1-5
action
triggered by event
4-18
action, triggered by event
ActiveX controls
5-1
1-5
B
backing up, configuration of IP camera
9-1, 10-1
options
alert
4-19
4-19
overview
7-7
3-5
4-18
configuring
8-6
description
8-1
C
camera settings, controls in Camera Video/Control
window 3-4
8-2
installing
Camera Settings window
8-6
license, installing
stopping
4-11
Bonjour, enabling on camera
brightness
app
enabling
7-1
bit rate, of video
Alert Notification window
options
7-2
overview
trigger types
9-4
Basic Settings window
Administration windows
running
4-11
options
4-13
overview
8-7
4-12
Camera Video & Control window
8-8
uninstalling
8-5
8-8
accessing
description
3-1
1-5
Cisco Video Surveillance 3000 Series IP Camera Configuration Guide
IN-1
Index
displaying
for the first time
1-5
configuration windows
802.1x window
accessing
PC requirements for
secure connection
7-10
contrast
1-2
Administration windows
4-18
App Configuration window
8-1
Basic Settings window
Device Processes window
9-7
configuring manually
7-7
Event Notification window
5-1
4-1
Firmware Settings window
mode
4-12
options
5-9
9-1
4-17
Differentiated Services (DiffServ)
7-3
Discovery Settings window
7-12
options
10-4
Local Storage window
9-7
DHCP, obtaining IP address through
IP Filter Settings window
7-7
overview
6-1
7-7
DNS server
Log Setup Settings window
10-1
primary
10-1
Maintenance Settings window
9-4
7-4
secondary
7-4
dual streaming
4-1
7-7
Network Setup windows
7-1
Password Complexity window
QoS Settings window
9-8
7-13
SNMP Settings window
E
email notification
7-8
Streaming Settings window
configuring
4-1
for alert
7-5
From field
User Settings window
9-3
recipients
4-15
configuring
app
4-20, 5-5
4-20, 5-5
event
actions
8-6
email notification
connecting, to the IP camera
after the first time
1-2
Cisco Video Surveillance 3000 Series IP Camera Configuration Guide
IN-2
5-3, 5-4
4-19, 4-20
Time Settings window
Video Overlay Settings window
7-6
9-8
overview
IP Addressing window
Medianet window
4-12
Device Processes window
5-7
IO Ports Settings window
Log windows
filter
daylight saving time, adjustment for
9-6
History Settings window
7-5
day
5-1
Feature Setup windows
7-5
updating through NTP server
Discovery Settings window
Local Log window
3-5
date and time
4-12
Initialization window
1-3
D
7-1
Camera Settings window
History window
1-3, 2-1
9-1
Alert Notification window
Events windows
2-1
FTP notification
5-1
5-2
2-1, 7-4
7-14
Index
HTTP notification
overview
4-18, 5-1
output port state change
syslog server message
Home window
4-18, 5-1
accessing
4-18, 5-1
notification
trigger types
1-4, 1-5
displaying
5-1
1-5
HTTP
5-3, 5-8
accessing camera through
Event Notification window
allowing access through
5-3
overview
1-2
description
from system trigger
options
5-9
default port
5-1
Events windows
port
5-1
event triggering, enabling for app
1-3
2-2, 9-2
9-2
9-2
HTTPS
8-7
accessing camera through
allowing access through
F
default port
factory default configurations, resetting
9-5
factory default configurations, restoring
9-5
Feature Setup windows
Local Storage
4-1
9-2
4-16, 4-17
Initialization window
9-6, 9-7
version in IP camera
options
9-7
Firmware Settings window
overview
9-2
image overlay, on video
upgrading
9-2
I
6-1
firmware
options
port
1-3
9-2
overview
9-1
input ports, state change
9-7
5-1, 5-7
installing
9-6
FTP notification, configuring
5-6
app
8-6
app license
8-5
IO Ports Settings window
G
options
gateway, for IP camera
4-17
overview
7-4
4-17
IP address
H
help, for IP camera windows
History Settings window
options
overview
5-8
5-7
History window
options
5-9
1-5
controlling access by
7-12
default for IP camera
1-3, 2-1
fixed
7-4
obtaining from DCHP server
obtaining through DHCP
static
2-1
7-4
7-4
IP Addressing window
options
overview
7-4
7-3
Cisco Video Surveillance 3000 Series IP Camera Configuration Guide
IN-3
Index
IP camera
options
accessing through a web browser
connecting to for the first time
controlling access to
day mode
overview
1-2, 2-1
connecting to after the first time
2-1
M
7-12
MAC address, of IP camera
1-4
1-5
options
MAC address
9-7
overview
7-2
4-12
overview
1-1
rebooting
9-5
restarting
9-5
overview
4-12
motion detection
9-5
7-6
controls
3-8, 3-10
enabling
3-8
sensitivity
IP Filter Settings window
3-9
multicast
7-12
overview
7-8
7-7
microphone, use
1-2, 1-5
options
9-4
Enable Flow Metadata
restoring factory default configurations
windows
9-5
Medianet window
night mode
time zone
9-7
Maintenance Settings window
logging out of
name
10-1
1-2
4-12
logging in to
10-2
address
7-12
4-10
enabling
port
4-10
4-10
L
N
live video
viewing through home window
3-1
viewing through third-party device or software
name, of IP camera
3-1
See also video
Local
Network Setup windows
filter
4-12
Local Log window
mode
4-12
10-4
overview
10-4
Local Storage window, overview
6-1
log file
storage of
10-2
10-1
P
10-4
log in, to IP camera
log out, of IP camera
1-4
1-5
Log Setup Settings window
Cisco Video Surveillance 3000 Series IP Camera Configuration Guide
IN-4
O
output ports, power on state
sending to Syslog server
viewing
7-1
night
6-1
options
7-2, 9-7
password
complexity
9-8
4-18
Index
configuring requirements for
for primary SMTP server
for secondary SMTP server
for SMTP server
for user
stopping processes
9-8
Setup window
5-5
description
5-5
sharpness
options
7-8
6-2, 7-8
overview
9-9
port number
3-5
SNMP Settings window
2-2, 9-4
Password Complexity window
overview
1-5
SNMP, configuring
9-8
requirements for
options
1-5
displaying
4-20
9-4
hardening
9-8
7-8
SNMP v2c
9-8
7-9
SNMP v3
1-3
processes
7-9
SSH
descriptions
stopping
allowing access through
9-8
alternative port
9-8
profile controls
default port
3-4
9-2
9-2
9-2
Streaming Settings window
options
Q
4-10
overview
subnet mask, of IP camera
QoS Settings window
options
Syslog server
7-13
overview
4-1
7-4
10-2
7-13
quality of service
7-13
T
text overlay, on video
R
4-16
Time Settings window
rebooting, IP camera
Refresh link
options
9-5
7-5
overview
1-5
resetting, factory default configurations
restarting, IP camera
9-5
7-5
time stamp, on video
time zone, of IP camera
9-5
restoring, factory default configurations
9-5
7-6
trigger
for alert
4-19
for event
S
system
saturation
4-16
5-3, 5-8
5-1, 5-7
3-5
secure connection
1-3
U
security
controlling processes
password hardening
9-8
9-8
uninstalling app
user, password
8-8
9-4
Cisco Video Surveillance 3000 Series IP Camera Configuration Guide
IN-5
Index
user name, requirements for
9-4
User Settings window
options
9-4
overview
9-3
V
video
bit rate
4-11
image, optimizing for lighting condition
image overlay
4-16, 4-17
primary stream
quality
4-12
4-1
4-11
secondary stream
text overlay
4-1
4-16
time stamp on
4-16
viewing live
through Home window
3-1
through third-party device or software
3-1
See also live video
video codec
controls in Camera Video/Control window
display in Streaming Settings window
3-1
4-11
Video Overlay Settings window
options
4-16
overview
4-15
video resolution
configuration guidelines
4-1
controls in Camera Video/Control window
View Video link
3-1
1-5
Cisco Video Surveillance 3000 Series IP Camera Configuration Guide
IN-6

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
