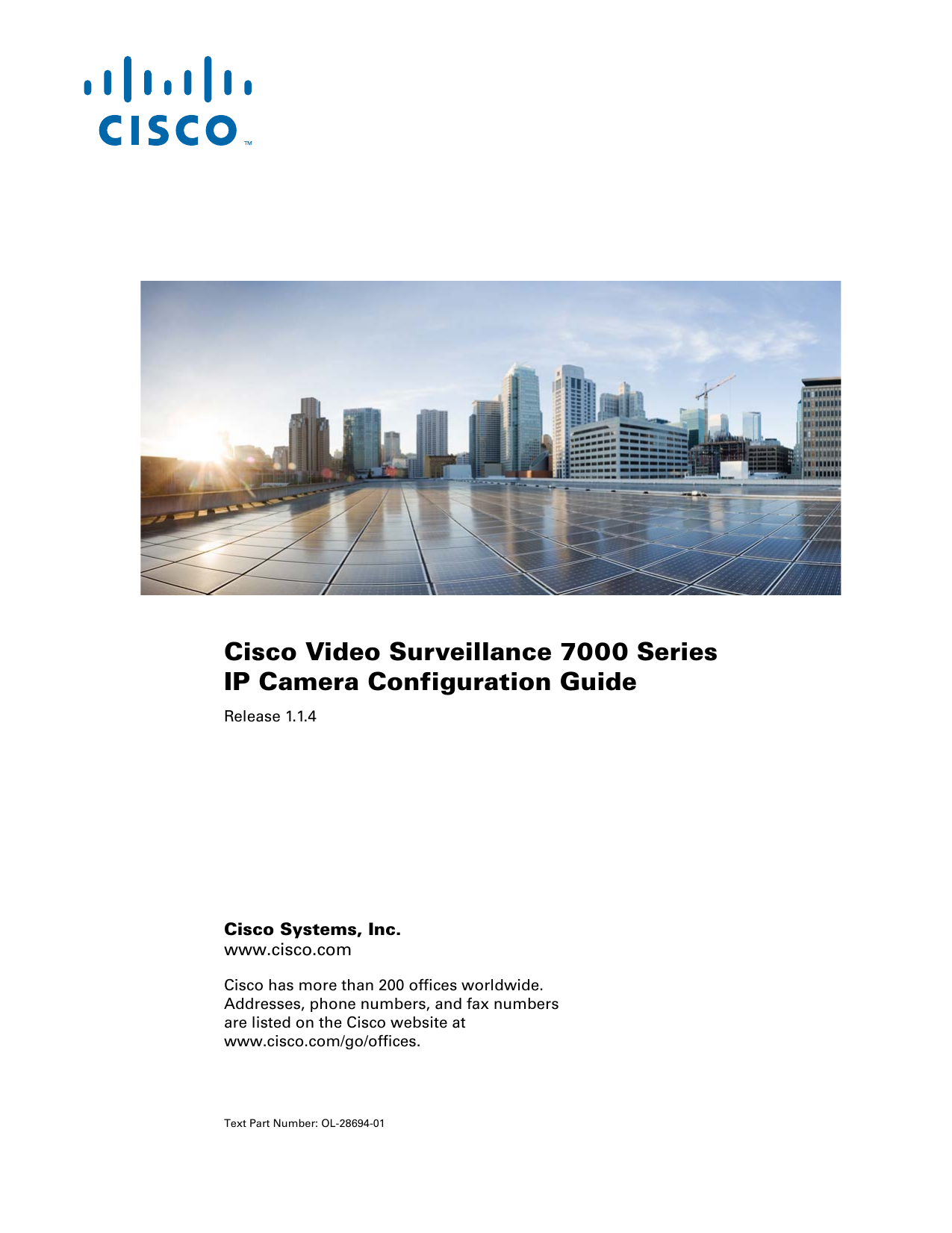

Cisco Video Surveillance 7000 Series IP Cameras Configuration Guide

Cisco Video Surveillance 7000 Series
IP Camera Configuration Guide
Release 1.1.4
Cisco Systems, Inc.
www.cisco.com
Cisco has more than 200 offices worldwide.
Addresses, phone numbers, and fax numbers
are listed on the Cisco website at
www.cisco.com/go/offices.
Text Part Number: OL-28694-01
NOTICE. ALL STATEMENTS, INFORMATION, AND RECOMMENDATIONS IN THIS MANUAL ARE BELIEVED TO BE ACCURATE BUT ARE PRESENTED
WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED. USERS MUST TAKE FULL RESPONSIBILITY FOR THEIR APPLICATION OF ANY PRODUCTS.
THE SOFTWARE LICENSE AND LIMITED WARRANTY FOR THE ACCOMPANYING PRODUCT ARE SET FORTH IN THE INFORMATION PACKET THAT
SHIPPED WITH THE PRODUCT AND ARE INCORPORATED HEREIN BY THIS REFERENCE. IF YOU ARE UNABLE TO LOCATE THE SOFTWARE LICENSE
OR LIMITED WARRANTY, CONTACT YOUR CISCO REPRESENTATIVE FOR A COPY.
The Cisco implementation of TCP header compression is an adaptation of a program developed by the University of California, Berkeley (UCB) as part of UCB’s public
domain version of the UNIX operating system. All rights reserved. Copyright © 1981, Regents of the University of California.
NOTWITHSTANDING ANY OTHER WARRANTY HEREIN, ALL DOCUMENT FILES AND SOFTWARE OF THESE SUPPLIERS ARE PROVIDED “AS IS” WITH
ALL FAULTS. CISCO AND THE ABOVE-NAMED SUPPLIERS DISCLAIM ALL WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING, WITHOUT
LIMITATION, THOSE OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT OR ARISING FROM A COURSE OF
DEALING, USAGE, OR TRADE PRACTICE.
IN NO EVENT SHALL CISCO OR ITS SUPPLIERS BE LIABLE FOR ANY INDIRECT, SPECIAL, CONSEQUENTIAL, OR INCIDENTAL DAMAGES, INCLUDING,
WITHOUT LIMITATION, LOST PROFITS OR LOSS OR DAMAGE TO DATA ARISING OUT OF THE USE OR INABILITY TO USE THIS MANUAL, EVEN IF CISCO
OR ITS SUPPLIERS HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
Cisco and the Cisco Logo are trademarks of Cisco Systems, Inc. and/or its affiliates in the U.S. and other countries. A listing of Cisco's trademarks can be found at
www.cisco.com/go/trademarks. Third party trademarks mentioned are the property of their respective owners. The use of the word partner does not imply a partnership
relationship between Cisco and any other company. (1005R)
Cisco Video Surveillance 7000 Series IP Camera Configuration Guide, Release 1.1.4
Copyright © 2013 Cisco Systems, Inc. All rights reserved.
CONTENTS
Preface
v
Overview
v
Organization
v
Obtaining Documentation, Obtaining Support, and Security Guidelines
CHAPTER
1
Overview
1-1
IP Camera Features
1-1
Accessing the IP Camera
1-2
Understanding the IP Camera User Interface
IP Camera Window Links 1-4
IP Camera Windows 1-5
CHAPTER
2
Performing the Initial Setup of the IP Camera
CHAPTER
3
Viewing Live Video
CHAPTER
4
Feature Setup
4-1
4-6
Video Overlay Window
IO Ports Window
4-9
4-10
Event Notification Window
Network Setup
4-11
5-1
Basic Window
5-1
IP Addressing Window
Time Window
5-3
5-4
Discovery Window
IP Filter Window
QoS Window
2-1
4-1
Camera Window
5
1-4
3-1
Streaming Window
CHAPTER
vi
5-6
5-6
5-7
Cisco Video Surveillance 7000 Series IP Camera Configuration Guide, Release 1.1.4
OL-28694-01
iii
Contents
CHAPTER
6
Administration
6-1
Initialization Window
User Window
6-1
6-3
Maintenance Window
Firmware Window
6-4
6-6
Device Processes Window
6-7
Password Complexity Window
CHAPTER
7
Log Configuration
6-8
7-1
Log Setup Window
7-1
Local Log Window
7-4
INDEX
Cisco Video Surveillance 7000 Series IP Camera Configuration Guide, Release 1.1.4
iv
OL-28694-01
Preface
Overview
This document, Cisco Video Surveillance 7000 Series IP Camera Configuration Guide, Release 1.1.4,
provides information about installing and deploying the Cisco Video Surveillance 7000 Series
IP Cameras.
Organization
This manual is organized as follows:
Chapter 1, “Overview”
Provides information about the IP camera features, instructions
for accessing the user interface, and information about the user
interface.
Chapter 2, “Performing the Initial
Setup of the IP Camera”
Provides information and instructions about performing the
initial setup of the IP Camera
Chapter 3, “Viewing Live Video”
Provides information and instructions about viewing live video.
Chapter 4, “Feature Setup”
Provides information and instructions for configuring IP camera
features, such as streaming, camera capabilities, video overlay,
I/O ports, and events.
Chapter 5, “Network Setup”
Provides information and instructions for configuring network
setting, such as IP addressing, time, discovery, IP filtering, and
Quality of Service (QoS).
Chapter 6, “Administration”
Provides information and instructions for performing
administrative tasks, such as IP camera initialization, user
management, maintenance, firmware upgrade, device processes
management, and password complexity.
Chapter 7, “Log Configuration”
Provides information and instructions for configuring and
viewing logs.
Cisco Video Surveillance 7000 Series IP Camera Configuration Guide, Release 1.1.4
OL-28694-01
v
Obtaining Documentation, Obtaining Support, and Security
Guidelines
For information about obtaining documentation, submitting a service request, and gathering additional
information, see the monthly What’s New in Cisco Product Documentation, which also lists all new and
revised Cisco technical documentation, at:
http://www.cisco.com/en/US/docs/general/whatsnew/whatsnew.html
Subscribe to the What’s New in Cisco Product Documentation as a Really Simple Syndication (RSS) feed
and set content to be delivered directly to your desktop using a reader application. The RSS feeds are a free
service and Cisco currently supports RSS version 2.0.
Cisco Video Surveillance 7000 Series IP Camera Configuration Guide, Release 1.1.4
vi
OL-28694-01
CH A P T E R
1
Overview
This chapter provides information about the Cisco Video Surveillance 7000 Series IP camera features,
instructions for accessing the user interface, and information about the user interface. It includes the
following topics:
•
IP Camera Features, page 1-1
•
Accessing the IP Camera, page 1-2
•
Understanding the IP Camera User Interface, page 1-4
IP Camera Features
The Cisco Video Surveillance 7000 Series IP Cameras offer a feature-rich digital camera solution for a
video surveillance system. They provide high-definition (HD) video and simultaneous H.264 and
MJPEG compression, streaming up to 30 frames per second (fps) at 1080p (up to 2560 x1920) resolution.
In addition, the 7000 Series IP cameras provide networking and security capabilities, including multicast
support, hardware-based Advanced Encryption Standard (AES), and hardware-based Data Encryption
Standard/Triple Data Encryption Standard (DES/3DES) encryption. The cameras can be powered
through an external power supply or by integrated Power over Ethernet (PoE).
The 7000 Series IP cameras include the following key features:
•
H.264 and MJPEG compression—The IP camera can generate H.264 and MJPEG streams
simultaneously.
•
Progressive scan video—The IP camera captures each frame at its entire resolution using
progressive scan rather than interlaced video capture, which captures each field of video.
•
Analog video output—Supports analog video for all resolutions with 15 fps or lower with no
secondary stream.
•
Medianet—The IP camera supports the Auto Smartports feature of the Media Services Interface
(MSI). MSI enables a camera to participate as an endpoint in the Cisco medianet architecture when
connected to a medianet enabled switch.
•
Day/night switch support—An IR-cut filter provides increased sensitivity in low-light conditions.
•
Multi-protocol support—Supports these protocols: DHCP, HTTP, HTTPS, NTP, RTP, RTSP,
SMTP, SNMP v2 and v3, SSL/TLS, and TCP/IP.
•
Web-based management—You perform ongoing administration and management of the IP camera
through web-based configuration menus.
Cisco Video Surveillance 7000 Series IP Camera Configuration Guide, Release 1.1.4
OL-28694-01
1-1
Chapter 1
Overview
Accessing the IP Camera
•
Remote Focus/Zoom Control—Built-in stepping motors allow you to remotely adjust the
IP camera focal length and zoom factor.
•
Motion detection—The IP camera can detect motion in user-designated fields of view by analyzing
changes in pixels and generate an alert if motion is detected.
•
Flexible scheduling—You can configure the IP camera to respond to events that occur within a
designated schedule.
•
Syslog support—The IP camera can send log data to a Syslog server.
•
IP address filter—You can designate IP addresses that can access the IP camera and IP addresses
that cannot access the IP camera.
•
User-definable HTTP/ HTTPS port number—Allows you to define the port that is used to
connect to the camera through the Internet.
•
DHCP support—The IP camera can automatically obtain its IP addresses in a network in which
DHCP is enabled.
•
Network Time Protocol (NTP) support—Allows the IP camera to calibrate its internal clock with
a local or Internet time server.
•
Support for C and CS mount lenses—The IP camera supports a variety of C and CS mount lenses.
•
Power options—The IP camera can be powered with 12 volts DC or 24 volts AC, which is provided
through an optional external power adapter, or through PoE (802.3af), which is provided through a
supported switch.
•
Camera access control—You can control access to IP camera configuration windows and live video
by configuring various user types and log in credentials.
Accessing the IP Camera
After you perform the initial configuration as described in the Chapter 2, “Performing the Initial Setup
of the IP Camera,” follow the steps in this section each time that you want to access the IP camera
windows to make configuration settings, view live video, or perform other activities.
You access these windows by connecting to the IP camera from any PC that is on the same network as
the IP camera and that meets these requirements:
•
Operating system—Microsoft Windows 7 (32-bit or 64-bit)
•
Browser—Internet Explorer 8.0 (32-bit only)
You need this information to access the IP camera windows:
•
IP address of the IP camera. By default, the IP camera attempts to obtain an IP address from a DHCP
server in your network. If the IP camera cannot obtain an IP address through DHCP within 90
seconds of powering up or resetting, it uses the default IP address of 192.168.0.100.
•
Port number, if other than the default value. Default port numbers for the IP camera are 443 for
HTTPS and 80 for HTTP. The IP camera administrator can configure an HTTPS port and an HTTP
port as described in the “Initialization Window” section on page 6-1.
•
Your user name and password for the IP camera. The IP camera administrator configures user names
and passwords as described in the “User Window” section on page 6-3.
Cisco Video Surveillance 7000 Series IP Camera Configuration Guide, Release 1.1.4
1-2
OL-28694-01
Chapter 1
Overview
Accessing the IP Camera
To access the IP camera windows, perform the following these steps.
Before you Begin
The Microsoft .NET Framework version 2.0 or later must be installed on the PC that you use to connect
to the IP camera. You can download the .NET Framework from the Microsoft website.
Procedure
Step 1
Start Internet Explorer and enter the following in the address field:
protocol://ip_address:port_number
where:
•
protocol is HTTPS for a secure connection or HTTP for a non-secure connection. You can use
HTTP only if you configure the camera to accept non-secure HTTP connections as described in
Chapter 2, “Performing the Initial Setup of the IP Camera.”
•
ip_address is the IP address of the IP camera. The default IP address is 192.168.0.100.
•
port_number is the port number that is used for HTTPS or HTTP connections to the IP camera. You
do not need to enter a port number if you are connecting through the default HTTPS port 443 or the
default HTTP port 80.
For example,
•
Enter the following for a secure connection if the IP address is 192.168.0.100 and the HTTPS port
number is 443:
https://192.168.0.100
•
Enter the following for a secure connection if the IP address is 203.70.212.52 and the HTTPS port
number is 1024:
https://203.70.212.52:1024
•
Enter the following for a non-secure connection if the IP address is 203.70.212.52 and the HTTP
port number is 80:
http://203.70.212.52
•
Enter the following for a non-secure connection if the IP address is 203.70.212.52 and the HTTP
port number is 1024:
http://203.70.212.52:1024
Step 2
Enter your IP camera user name and password in the Username and Password fields, then click Login.
To log in as the IP camera administrator, enter the user name admin (which is case sensitive) and the
password that is configured for the administrator. To log in as a user, enter the user name and password
that are configured for the user.
The Home window for the IP Camera appears.
Cisco Video Surveillance 7000 Series IP Camera Configuration Guide, Release 1.1.4
OL-28694-01
1-3
Chapter 1
Overview
Understanding the IP Camera User Interface
Understanding the IP Camera User Interface
After you log in to the IP camera, you can access the IP camera windows and perform a variety of
administrative and user procedures.
The links and activities that you can see and access in the IP camera windows depend on your IP camera
privilege level. Privilege levels are configured as described in the “User Window” section on page 6-3
and include the following:
•
Administrator—Can access all IP camera windows, features, and functions.
•
Viewer—Can access the Camera Video & Control window with limited controls, and can access the
Refresh, Logout, About, and Help links from that window.
IP Camera Window Links
The IP Camera user interface includes links that you use to access various windows and perform other
activities. Table 1-1 describes each link and lists the IP camera privilege level that you must have to
access the link.
Table 1-1
Links in the IP Camera Windows
Link
Description
Privilege Level
Refresh
Updates the information in the window that is currently displayed. Administrator
User
Home
Displays the System Information window. For more information,
see Table 1-2.
Administrator
View Video
Displays the Camera Video & Control window.
Administrator
User
You may be prompted to install ActiveX controls when trying to
access this window for the first time. ActiveX controls are required
to view video from the IP camera. Follow the on-screen prompts to
install ActiveX controls.
Setup
Displays the Setup window and provides access to the configuration Administrator
menus for the IP camera.
Logout
Logs you out from the IP camera.
Administrator
User
About
Help
Displays a pop-up window with model, version, and copyright
information for the IP camera.
Administrator
Displays reference information for the window that is currently
displayed.
Administrator
User
User
Cisco Video Surveillance 7000 Series IP Camera Configuration Guide, Release 1.1.4
1-4
OL-28694-01
Chapter 1
Overview
Understanding the IP Camera User Interface
IP Camera Windows
The IP camera user interface includes these main windows:
•
System Information window—Accessed by clicking the Home link. Displays the information that is
described in Table 1-2.
•
Camera Video & Control window—Accessed by clicking the View Video link. Displays live video
from the camera and lets you control a variety of camera and display functions. For detailed
information, see Chapter 3, “Viewing Live Video.”
•
Setup window—Accessed by clicking the Setup link. Provides access to the IP camera configuration
windows. For detailed information, see the following chapters:
– Chapter 4, “Feature Setup.”
– Chapter 5, “Network Setup.”
– Chapter 6, “Administration.”
– Chapter 7, “Log Configuration.”
Table 1-2
Home Window Information
Field
Description
General Information
ID
Identifier of the IP camera. To configure the ID, see the “Basic Window”
section on page 5-1.
Name
Name of the IP camera. To configure the name, see the “Basic Window”
section on page 5-1.
Current Time
Current date and time of the IP camera. To set the date and time, see the
“Time Window” section on page 5-4.
S/N
Serial number of the IP camera.
Firmware
Version of the firmware that is installed on the IP camera.
Part Number
Cisco manufacturing part number of the IP camera.
Top Assembly Revision Cisco assembly revision number.
Network Status
MAC Address
MAC address of the IP camera.
Configuration Type
Method by which the IP camera obtains its IP address. To configure this
method, see the “IP Addressing Window” section on page 5-3.
LAN IP
IP address of the LAN to which the IP camera is connected. To configure this
IP address, see the “IP Addressing Window” section on page 5-3.
Subnet Mask
Subnet mask of the LAN to which the IP camera is connected. To configure
the subnet mask, see the “IP Addressing Window” section on page 5-3.
Gateway Address
IP address of the gateway through which the IP camera is connected. To
configure this IP address, see the “IP Addressing Window” section on
page 5-3.
Primary DNS
IP address of the primary DNS server, if configured for the IP camera. To
configure a primary DNS server, see the “IP Addressing Window” section on
page 5-3.
Cisco Video Surveillance 7000 Series IP Camera Configuration Guide, Release 1.1.4
OL-28694-01
1-5
Chapter 1
Overview
Understanding the IP Camera User Interface
Table 1-2
Home Window Information (continued)
Field
Description
Secondary DNS
IP address of the secondary DNS server, if configured for the IP camera. To
configure a secondary DNS server, see the “IP Addressing Window” section
on page 5-3.
IO Port Status
Input Port
Current state of the input port(s) on the IP camera. To configure an input
port, see the “IO Ports Window” section on page 4-10.
Output Port
Current state of output port(s) on the IP camera. To configure an output port,
see the “IO Ports Window” section on page 4-10.
Stream 1 and Stream 2
User
IP camera user name of each user who is accessing the primary video stream
(Stream 1) or the secondary video stream (Stream 2) through a client PC or
a third-party device.
Be default, users appear in order of start time. To displays users in ascending
order of any information in any corresponding column, click the column
heading. Click a column heading again to reverse the display order.
IP Address
IP address of the client device.
Start Time
Time and date that the client accessed the video stream for this session.
Elapsed Time
Length of time that the client has been accessing the video stream.
Codec
Video codec (H.264 or MJPEG) being used for the stream.
Cisco Video Surveillance 7000 Series IP Camera Configuration Guide, Release 1.1.4
1-6
OL-28694-01
CH A P T E R
2
Performing the Initial Setup of the IP Camera
After you install the IP camera, or after you perform a factory reset procedure, you must access the IP
camera and make initial configuration settings. These settings include administrator and root passwords,
and whether the IP camera can be accessed through an HTTP connection in addition to the default
HTTPS (HTTP secure) connection.
To make these configuration settings, you connect to the IP camera from any PC that is on the same
network as the IP camera. The PC must meet these requirements:
•
Operating system—Microsoft Windows 7 Enterprise (32-bit or 64-bit)
•
Browser—Internet Explorer 8.0 (32-bit only)
In addition, you must know the IP address and default login credentials of the IP camera. By default,
when the IP camera powers on, it attempts to obtain an IP address from a DHCP server in your network.
If the camera cannot obtain an IP address through DCHP within 90 seconds, it uses a default IP address
of 192.168.0.100. The default login credentials (Username/Password) are admin/admin.
To connect to the IP camera for the first time and make initial configuration settings, perform the
following steps. You can change these configuration settings in the future as described in the Cisco Video
Surveillance 7000 Series IP Camera Configuration Guide.
Before you Begin
The Microsoft .NET Framework version 2.0 or later must be installed on the PC that you use to connect
to the IP camera. You can download the .NET Framework from the Microsoft website.
Procedure
Step 1
Start Internet Explorer, enter HTTPS://ip_address in the address field, and press Enter.
Replace ip_address with the IP address that the IP camera obtained through DHCP or, if the camera was
unable to obtain this IP address, enter 192.168.0.100.
The Login window appears.
Step 2
Enter the default login credentials:
Username: admin
Password: admin
The Initialization window appears.
Cisco Video Surveillance 7000 Series IP Camera Configuration Guide, Release 1.1.4
OL-28694-01
2-1
Chapter 2
Step 3
Performing the Initial Setup of the IP Camera
In the Password and Confirm Password fields of the admin row, enter a password for the IP camera
administrator.
You must enter the same password in both fields. The password is case sensitive and must contain at least
eight characters, which can be letters, numbers, and special characters, but no spaces. Special characters
are: ! " # $ % & ' ( ) * + , - . : ; < = > ? @ [ \ ] ^ _ ` { | } ~.
Step 4
In the Password and Confirm Password fields of the Root row, enter a password that is used when
accessing the IP camera through a Secure Shell (SSH) connection.
You must enter the same password in both fields. The password is case sensitive and must contain at least
eight characters, which can be letters, numbers, and special characters, but no spaces. Special characters
are: ! " # $ % & ' ( ) * + , - . : ; < = > ? @ [ \ ] ^ _ ` { | } ~.
You use the root password if you need to troubleshoot the IP camera through a SSH connection with the
assistance of the Cisco Technical Assistance Center.
Step 5
In the Access Protocols area, check the Enable HTTP check box if you want to allow both HTTP and
HTTPS connections to the IP camera.
By default, only the Enable HTTPS check box is checked, which allows only HTTPS (secure)
connections to the IP camera.
Step 6
Click Apply.
The IP camera reboots and the Login window appears.
Step 7
After the IP camera reboots, start Internet Explorer and, in the Address field, enter the following:
protocol://ip_address
where:
Step 8
•
protocol is HTTPS or HTTP. (You can use HTTP only if you enabled it in Step 5.)
•
ip_address is the IP address that you used in Step 1.
If you are prompted to install ActiveX controls, which are required to view video from the IP camera,
follow the on-screen prompts to do so.
The Home window appears.
Cisco Video Surveillance 7000 Series IP Camera Configuration Guide, Release 1.1.4
2-2
OL-28694-01
CH A P T E R
3
Viewing Live Video
After you install and set up the Cisco Video Surveillance IP Camera, you can connect to the IP camera
through Internet Explorer and access the Camera Video & Control window to view live video from the
IP camera.
The Camera Video & Control window also provides for controlling the video display, configuring preset
positions, and controlling certain IP camera functions. Available controls depend on the privilege level
of the user.
To view live video, log in to the IP camera and click View Video in the IP camera Main window menu
bar. The Camera Video & Control window appears. This window displays live video from the camera
and lets you control a variety of camera and display functions.
The controls that you see in the Camera Video & Control window depend on your IP camera privilege
level and the configuration settings for the IP camera. Users with the Administrator privilege can access
all controls. Users with the Viewer privilege do not have access to the following controls:
•
Video image controls
•
Motion detection controls
Table 3-1 describes the controls in the Camera Video & Control window.
Table 3-1
Camera Video & Control Window Controls
Control
Description
Video controls
Video Codec dropdown list
Choose the codec for video transmission (H.264 or MJPEG).
You can choose H.264 only if the primary video stream (channel 1) is enabled.
You can choose MJPEG only if the secondary video stream (channel 2) is
enabled.
For information about enabling and disabling video streams, see the “Streaming Window” section on page 4-1.
Cisco Video Surveillance 7000 Series IP Camera Configuration Guide, Release 1.1.4
OL-28694-01
3-1
Chapter 3
Table 3-1
Viewing Live Video
Camera Video & Control Window Controls (continued)
Control
Description
Video Resolution
drop-down list
Choose the resolution for video transmission. The resolutions in this dropdown list depend on the video standard that you selected.
The default value for H.264 is 1920 x 1080. The default value for MJPEG is
704 x 480.
You cannot configure a secondary stream if you configure this resolution for
1920 x 1080.
Note
Right Arrow toggle
button
Left Arrow toggle
button
You can also change the resolution for video transmission by changing
the value in the Video Resolution Type field, as described in the
“Streaming Window” section on page 4-1.
Click the Right Arrow to display the video image controls. The button changes
to the Left Arrow button.
Click the Left Arrow button to hide the video image controls. The button
changes to the Right Arrow button.
Video image controls
Note
These controls appear when you click the Right Arrow in the Video Control area.
Brightness slider
To control the brightness of the video image, drag the slider, or enter a value
from 1 through 10 and press the Enter key. A higher value increases the brightness, and a lower value decreases the brightness. For example, if the IP camera
is facing a bright light and the video appears too dark, you can increase the
brightness.
The default value is 5.
Contrast slider
To control contrast of the video image, drag the slider, or enter a value from 1
through 10 and press the Enter key. A higher value increases the contrast, and
a lower value decreases the contrast.
The default value is 5.
Sharpness slider
To control the sharpness of the video from the IP camera, drag the slider, or
enter a value from 1 through 100 and press the Enter key. A higher value
increases the sharpness, and a lower value decreases the sharpness.
The default value is 50.
Saturation slider
To control the saturation of the video from the IP camera, drag the slider, or
enter a value from 1 through 100 and press the Enter key. A higher value
increases the saturation, and a lower value decreases the saturation.
High saturation provides a vivid, intense color for a video image. With less saturation, the video image appears more muted and gray.
The default value is 50.
Restore button
Reset white balance, brightness, contrast, sharpness, saturation, and hue to
their default values.
Cisco Video Surveillance 7000 Series IP Camera Configuration Guide, Release 1.1.4
3-2
OL-28694-01
Chapter 3
Viewing Live Video
Table 3-1
Camera Video & Control Window Controls (continued)
Control
Description
Image tools
Hotspot Zoom button Click this latch button to enable the digital zoom feature, which provides
five-step digital zooming in for the normal (not full screen) video display.
Click this button again to disable the digital zoom feature.
To perform a digital zoom, engage the Hotspot Zoom button and click the
video display. The first five clicks zoom the display. The sixth click returns to
unzoomed display.
Hotspot Pan/Tilt
button
Click this latch button to enable the hotspot pan/tilt feature, which lets you pan
and tilt the IP camera toward a point that you click in the video display.
To perform a hotspot pan/tilt action, engage the Hotspot Pan/Tilt button, then
click the video image at the location toward which you want the IP camera to
pan and tilt.
This feature requires that the IP camera be installed with a pan/tilt mount that
supports the Pelco D protocol and that pan and tilt functions are enabled.
Save Snapshot button Capture and save the current video image as a .gif file or a .jpg file in the
location of your choice and with the file name of your choice.
When you click this button, the Snapshot window appears. Click Save and
follow the on-screen prompts to save the image with the name and in the
location that you want.
Flip button
Rotate the video image by 180 degrees.
Mirror button
Reverse the video image.
Restore button
Display the default video image, which is not rotated and not reversed.
Full Screen button
Display the video image in full screen mode.
To return to normal display mode, click the full screen image.
Motion detection
Up Arrow toggle
button
Down Arrow toggle
button
Click the Up Arrow to display the motion detection controls. The button
changes to the Down Arrow button.
Click the Down Arrow button to hide the motion detection controls. The button
changes to the Up Arrow button.
Cisco Video Surveillance 7000 Series IP Camera Configuration Guide, Release 1.1.4
OL-28694-01
3-3
Chapter 3
Table 3-1
Viewing Live Video
Camera Video & Control Window Controls (continued)
Control
Description
Motion detection controls
Note
These controls appear when you click the Up Arrow in the Motion Detection area and are
available only viewing the primary (H.264) stream.
Enable Motion
Detection check box
Enable the motion detection feature and display a grid over the video image.
When motion detection is enabled, the IP camera monitors activity in regions
of the video that you specify. If activity at a defined level occurs in any of these
areas, the IP camera generates an alert and takes the actions that are configured
as described in the “Event Notification Window” section on page 4-11.
After motion detection has been enabled, you create specific regions that the
IP camera monitors for activity. To create a motion detection region, rightclick on the video image, choose Draw Region, and then click and drag across
the motion detection grid to draw a green square or rectangle comprised of one
or more grid squares. Up to eight of the following regions can be drawn:
•
Motion inclusion regions—Designate areas to examine for motion. You
can draw up to four motion inclusion regions.
•
Motion Exclusion Regions—Designate areas to ignore for motion. You
can draw up to four motion exclusion regions.
For each region listed under the Region Properties area, you can configure the
following properties:
•
IsActive—Specifies whether the region is active (enabled) or not active
(disabled). Chose true to enable a region; choose False to disable a region.
•
Location—Specifies the grid coordinate (X, Y) for the upper left corner
of the region.
•
Name—You can enter a name of up to 12 characters for a region.
•
Region Type—Specifies whether the region is an inclusion or an
exclusion region. Choose Inclusion to have the region examine for
motion; choose Exclusion to have the region ignore motion.
•
Sensitivity—Designates the relative amount of activity that the IP camera
must detect in the area before it generates an alert. A lower value means
that more, or faster, activity is required to trigger an alert. A higher value
means that less, or slower, activity is required. The default value is 80.
•
Threshold—Designates the percentage of pixels that the IP camera must
identify as changed in the area before it generates an alert. The camera
detects pixel changes at the defined sensitivity level. The default threshold
value is 10.
To reset the sensitivity and threshold to their default values of 80 and 10
respectively, right-click on the region, and choose Restore Values.
To remove a region, right-click it, and choose Delete Region.
Save button
Save the current motion detection configuration.
Cisco Video Surveillance 7000 Series IP Camera Configuration Guide, Release 1.1.4
3-4
OL-28694-01
Chapter 3
Viewing Live Video
Table 3-1
Camera Video & Control Window Controls (continued)
Control
Description
Focus/Zoom
Up Arrow toggle
button
Down Arrow toggle
button
Click the Up Arrow to display the focus/zoom controls. The button changes to
the Down Arrow button.
Click the Down Arrow button to hide the focus/zoom controls. The button
changes to the Up Arrow button.
Focus/Zoom controls
These controls appear when you click the Up Arrow in the Focus/Zoom area.
Zoom slider
To control the field of view zoom factor, drag the slider left to zoom out (wide),
or drag the slider to the right to zoom in (telephoto).
Focus slider
To control the field of view focus, drag the slider left to focus on near objects,
or drag the slider to the right to focus on far objects.
Auto Focus button
Click to automatically focus the IP camera for the selected zoom.
Specify Region check Used in conjunction with the Auto Focus option. Check Specify Region check
box
box and click Auto Focus to focus the IP camera with priority to a selected
region in the field of view. The region is user configurable and can be moved
around the screen.
Reset button
Reset the lens position and slider control positions to their default values (full
wide and near).
Cisco Video Surveillance 7000 Series IP Camera Configuration Guide, Release 1.1.4
OL-28694-01
3-5
Chapter 3
Viewing Live Video
Cisco Video Surveillance 7000 Series IP Camera Configuration Guide, Release 1.1.4
3-6
OL-28694-01
CH A P T E R
4
Feature Setup
The Feature Setup windows let you configure a variety of IP camera features and functions. The
following sections describe the Feature Setup windows in detail:
•
Streaming Window, page 4-1
•
Camera Window, page 4-6
•
Video Overlay Window, page 4-9
•
IO Ports Window, page 4-10
•
Event Notification Window, page 4-11
Streaming Window
The Streaming window provides options for configuring video streams from the IP camera. You can
configure settings for the primary and an optional secondary video stream.
Configuring a secondary stream is useful for providing a video stream that is at a lower resolution than
the primary stream to third-party devices or software.
The primary stream supports H.264 for video. The secondary stream supports MJPEG for video.
When configuring video streams, be aware of the following guidelines:
•
You cannot configure a secondary stream (channel 2) if you configure the resolution of the primary
stream to 2560 x 1920, or 1920 x 1080 @ 20 FPS or higher
•
You cannot configure the resolution for the primary stream to 2560 x 1920, or 1920 x 1080 @ 20
FPS or higher if a secondary stream is enabled
•
The resolution of the primary stream must be higher than the resolution of the secondary stream
•
You cannot configure a maximum frame rate of 30 for the primary stream if the secondary stream is
enabled.
•
Multiple secondary frame rates are supported. Table 4-1 shows the frame rate combinations of
primary and secondary streams with a 16:9 aspect ratio, and Table 4-2 shows the frame rate
combinations of primary and secondary streams with a 4:3 aspect ratio. If a secondary frame rate
that is not shown in this table is selected in Cisco Video Surveillance Manager, the IP camera uses
the closest available frame rate.
Cisco Video Surveillance 7000 Series IP Camera Configuration Guide, Release 1.1.4
OL-28694-01
4-1
Chapter 4
Feature Setup
Streaming Window
Table 4-1
Cisco Video Surveillance 7000 Series IP Camera Video Stream Support
for 16:9 Aspect Ratio
Primary (H.264)
FPS
Secondary
Max. Bit Rate (H.264 or MJPEG) FPS
2560 x 1920
8, 5, 3
6M
-
1920 x 1080
20, 25, 30
15M
-
15
15M
1024 x 576
6, 8, 10
10M
960 x 544
640 x 368
1280 x 720
20, 25, 30
10M
10, 15
6M
1, 3, 5, 6, 8
4M
1024 x 576
960x544
640x368
1024 x 576
20, 25, 30
6M
10, 15
4M
1, 3, 5, 6, 8
2M
1024 x 576
960 x 544
640 x 368
960 x 544
640 x 368
20, 25, 30
6M
10, 15
4M
1, 3, 5, 6, 8
2M
20, 25, 30
4M
10, 15
2M
1, 3, 5, 6, 8
1M
960 x 544
640 x 368
640 x 368
Max. Bit Rate
10, 15
4M
1, 3, 5, 6, 8
2M
10, 15
4M
1, 3, 5, 6, 8
2M
10, 15
2M
1, 3, 5, 6, 8
1M
10, 15
4M
1, 3, 5, 6, 8
2M
10, 15
4M
1, 3, 5, 6, 8
2M
10, 15
2M
1, 3, 5, 6, 8
1M
10, 15
4M
1, 3, 5, 6, 8
2M
10, 15
4M
1, 3, 5, 6, 8
2M
10, 15
2M
1, 3, 5, 6, 8
1M
10, 15
4M
1, 3, 5, 6, 8
2M
10, 15
M
1, 3, 5, 6, 8
1M
10, 15
2M
1, 3, 5, 6, 8
1M
Cisco Video Surveillance 7000 Series IP Camera Configuration Guide, Release 1.1.4
4-2
OL-28694-01
Chapter 4
Feature Setup
Streaming Window
Table 4-2
Cisco Video Surveillance 7000 Series IP Camera Video Stream Support
for 4:3 Aspect Ratio
Primary (H.264)
FPS
Secondary
Max. Bit Rate (H.264 or MJPEG) FPS
Max. Bit Rate
720 x 576
20, 25, 30
4M
10, 15
2M
10, 15
2M
1, 3, 5, 6, 8
1M
1, 3, 5, 6, 8
1M
10, 15
2M
1, 3, 5, 6, 8
1M
10, 15
1M
1, 3, 5, 6, 8
768K
10, 15
2M
1, 3, 5, 6, 8
1M
10, 15
1M
1, 3, 5, 6, 8
768K
10, 15
2M
1, 3, 5, 6, 8
1M
10, 15
2M
1, 3, 5, 6, 8
1M
10, 15
1M
1, 3, 5, 6, 8
768K
10, 15
2M
1, 3, 5, 6, 8
1M
10, 15
1M
1, 3, 5, 6, 8
768K
10, 15
1M
1, 3, 5, 6, 8
768K
10, 15
1M
1, 3, 5, 6, 8
768K
720 x 576
704 x 576
352 x 288
704 x 576
720 x 480
20, 25, 30
4M
10, 15
2M
1, 3, 5, 6, 8
1M
20, 25, 30
4M
10, 15
2M
1, 3, 5, 6, 8
1M
704 x 576
352 x 288
720 x 480
704 x 480
352 x 240
704 x 480
352 x 240
352 x 288
20, 25, 30
4M
10, 15
2M
1, 3, 5, 6, 8
1M
20, 25, 30
2M
10, 15
1M
1, 3, 5, 6, 8
768K
20, 25, 30
2M
10, 15
1M
1, 3, 5, 6, 8
768K
704 x 480
352 x 240
352 x 240
352 x 288
Cisco Video Surveillance 7000 Series IP Camera Configuration Guide, Release 1.1.4
OL-28694-01
4-3
Chapter 4
Feature Setup
Streaming Window
To display the Streaming window, perform the following steps:
Procedure
Step 1
From the IP camera user interface, click the Setup link.
Step 2
Click Feature Setup to expand the menu.
Step 3
From the Feature Setup menu, click Streaming.
The Streaming window appears. If you change any options in this window, you must click the Save
Settings button to save the changes. If you do not click this button, changes are not retained when you
exit the window. Save Settings appears at the bottom of the window. You may need to scroll down to it.
Table 4-3 describes the options in the Streaming window.
Table 4-3
Streaming Window Options
Option
Description
Current Stream Area
Stream
Choose the video stream (Stream 1 or Stream 2) to which the configuration
settings in the Streaming window apply. Stream 1 is the primary stream, and
Stream 2 is the secondary stream.
Enable Stream
Check this check box to cause the IP camera to send video data on the
selected stream.
Note
Stream 2 can be enabled only if Stream 1 is set to a video resolution
lower than 1920 x 1080.
Streaming Area
Note
Each video stream uses its own set of streaming options. The settings shown in the Streaming
Area apply to the currently selected stream only.
Enable SRTP
Check this check box to enable Secure Real-time Transport Protocol (SRTP),
which provides encryption for the video stream from the IP camera.
Note
RTSP Port
SRTP is not supported in this release and is disabled in the UI.
Transmission Control Protocol (TCP) port on which the IP camera receives
Real-Time Streaming Protocol (RTSP) commands. You must configure this
port if you want to allow third-party devices or software to access video
streams from the IP camera.
RTSP is a standard for connecting a client to control streaming data over the
web.
Valid values are 554 and 1024 through 65535. The default port is 554.
Video Source Port
Universal Datagram Protocol (UDP) port on which the IP camera transmits
Video Real-Time Transport Protocol (RTP) data.
Valid values are even numbers 1024 through 65534. The default port is 1024.
Cisco Video Surveillance 7000 Series IP Camera Configuration Guide, Release 1.1.4
4-4
OL-28694-01
Chapter 4
Feature Setup
Streaming Window
Table 4-3
Streaming Window Options (continued)
Option
Description
Audio Source Port
UDP port on which the IP camera transmits audio RTP data.
Valid values are even numbers 1024 through 65534. The default value is
1026.
Note
Max RTP Packet Size
Audio is not supported in this release.
Maximum number of bytes per data packets that are sent in each RTP
request.
Configure a lower number if you are streaming video to a cell phone that
requires smaller data packets.
Valid values are 400 through 1400. The default value is 1400.
Enable Multicast
Check this check box to send video data as a multicast stream.
When multicast is enabled, the IP camera sends video to the multicast
addresses that you designate. Multicast enables several devices to receive the
video signal from the IP camera simultaneously.
Multicast Address
Enter the multicast IP address on which the IP camera sends a multicast
video stream.
Multicast Video Port
Enter the port on which the IP camera sends a multicast video stream.
Valid values are even numbers 1024 through 65532.
Multicast Audio Port
Enter the port on which the IP camera sends a multicast audio stream.
Valid values are even numbers 1024 through 65532.
Note
Time to Live
Audio is not supported in this release.
Enter the number of hops, which specifies the number of network devices
that a video stream can pass before arriving at its destination or being
dropped.
Valid values are 1 through 255.
Video Area
Note
Each video stream uses its own set of video options. The settings shown in the Video Area
apply to the currently selected stream only.
Video Standard
Choose the system for video transmission: NTSC or PAL.
The setting that you make affects each channel that is enabled.
Video Codec
Display only: Shows the codec for video transmission: H.264 for the primary
stream and MJPEG for the secondary stream.
Video Resolution
Choose the resolution for video transmission. The resolutions in this
drop-down list depend on the video standard that you selected.
You can also change the resolution for video transmission by using the Video
Resolution drop-down list in the Camera Video & Control window, as
described in Table 3-1.
Maximum Frame Rate
Choose the maximum frame rate of the video stream.
Cisco Video Surveillance 7000 Series IP Camera Configuration Guide, Release 1.1.4
OL-28694-01
4-5
Chapter 4
Feature Setup
Camera Window
Table 4-3
Streaming Window Options (continued)
Option
Description
Video Quality
Choose an option for the video quality of the video stream from the IP
camera:
•
Constant Bit Rate—Available for the primary stream only. Specifies
that the video stream is output at or close to the constant bit rate that you
choose. The default value is 4 Mbps. A higher bit rate provides better
video quality but consumes more bandwidth.
•
Fixed Quality—Specifies that video is output at a fixed quality, which
ranges from Very High to Low. The bit rate may vary to maintain this
quality. The default fixed quality is Normal. A higher fixed quality
provides better video quality but consumes more bandwidth.
You can use these options to help manage bandwidth use in your network.
For example, if the IP camera is focused on an area with little movement,
such as an emergency exit, you can configure it with a low fixed quality.
Analog Video Area
Note
This option applies to the primary stream only.
Enable Analog Video
Port
Check this check box if you if you want the IP camera to enable analog video
for installation purposes. To enable analog video, the following settings are
required:
•
The primary video stream frame rate must be set to 15 fps or lower.
•
The secondary video stream must be disabled.
Camera Window
The Camera window provides options for making certain video adjustments, exposure control, and
configuring the operation of the IP camera day and night filters.
The IP camera day and night filters allow the IP camera to optimize its video image for various lighting
conditions. When the IP camera uses its day filter, it is operating in day mode. In this mode, the camera
displays video images in color. When the IP camera uses its night filter, it is in night mode. In this mode,
the camera displays video images in black and white.
To display the Streaming window, perform the following steps:
Procedure
Step 1
From the IP camera user interface, click the Setup link.
Step 2
Click Feature Setup to expand the menu.
Step 3
From the Feature Setup menu, click Camera.
The Camera window appears. If you change any options in this window, you must click the Save
Settings button to save the changes. If you do not click this button, changes are not retained when you
exit the window. Save Settings appears at the bottom of the window. You may need to scroll down to it.
Table 4-4 describes the options in the Camera window.
Cisco Video Surveillance 7000 Series IP Camera Configuration Guide, Release 1.1.4
4-6
OL-28694-01
Chapter 4
Feature Setup
Camera Window
Table 4-4
Camera Window Options
Option
Description
Video Adjustments Area
White Balance Mode
Choose one the following White Balance modes from the drop-down list:
•
Manual—Choose this option if you want to set the white balance by
setting RGain (Red Gain) and BGain (Blue Gain) manually.
•
Auto—White balance is automatically set by camera, which is suitable
for most conditions.
The default setting is Auto.
RGain
The RGain option is available only when the White Balance mode is set to
Manual. This option adjusts the amount of red coloring in the video image.
Higher values increase the intensity of red coloring; lower values decrease
the intensity.
The default setting is 50%.
BGain
The BGain option is available only when the White Balance mode is set to
Manual. This option adjusts the amount of blue coloring in the video image.
Higher values increase the intensity of blue coloring; lower values decrease
the intensity.
The default setting is 50%.
Exposure Control Area
Exposure level
Increase or decrease the exposure level. For example, if you want to add light
(overexpose) to properly expose the image, set the value to +1. If you need
to underexposure the scene, set value to -1.
Default value is 0.0.
Exposure mode
Choose one of the following Exposure modes:
•
Auto—Automatically sets the exposure level, which is suitable for most
conditions.
•
Manual—Choose this option if you want to set Exposure time and Gain
control manually.
Default setting is Auto.
Exposure time
The Exposure time option is available only when the Exposure mode is set
to Manual. This option specifies the range of shutter speed settings to be
used by the IP camera. Shutter speed is measured in fractions of a second.
You can adjust both ends of the shutter speed range.
Default range is 1/5 sec to 1/32000 sec in Manual mode.
Gain control
The Gain control option is available only when the Exposure mode is set to
Manual. This option specifies the range of gain (amount of amplification
applied to pixel values) settings to be used by the IP camera. You can adjust
both ends of the gain control range.
Default range is to 0 to 100.
Cisco Video Surveillance 7000 Series IP Camera Configuration Guide, Release 1.1.4
OL-28694-01
4-7
Chapter 4
Feature Setup
Camera Window
Table 4-4
Camera Window Options (continued)
Option
Description
Iris mode
The Iris mode is available only when the Exposure mode is set to Auto.
Choose one of the following Iris modes:
•
Indoor—Suitable for Indoor conditions.
•
Outdoor—Suitable for Outdoor conditions.
Default mode is Indoor.
Day Night Filter Area
Switch Mode
Choose the day/night mode for the IP camera:
•
Day—IP camera always remains in day mode.
•
Night—IP camera always remains in night mode.
•
Auto—IP camera automatically switches between day and night mode
based on the lighting condition threshold that you specify.
•
Night External—IP camera switches to night mode based on an
external input port. It switches to day mode when the external input port
is not in the triggered status. Output port is optional and can be used to
trigger devices connected externally. For more information about input
and output ports, see the “IO Ports Window” section on page 4-10.
•
Night Schedule—IP camera switches to and from Night mode based on
the Start and End times. For the Start Time, enter the time, in 24 hour
format, when the camera enters Night mode. For the End Time, enter the
time, in 24 hour format, when the camera exists Night mode.
Note
If you configure a Night Schedule, make sure that the time on the IP
camera is set correctly.
Day to Night Threshold If the Switch Mode option is set to Auto, choose the value that specifies the
relative light threshold at which the IP camera switches from day to night
mode. A lower value designates that the IP camera switches from day to
night mode in brighter conditions. A higher value designates that the IP
camera switches modes in darker conditions.
The default value is 10.
Night to Day Threshold If the Switch Mode option is set to Auto, choose the value that specifies the
relative light threshold at which the IP camera switches from night to day
mode. A lower value designates that the IP camera switches from night to
day mode in darker conditions. A higher value designates that the IP camera
switches modes in lighter conditions.
The default value is 15.
Start Time
Enter the time, in 24 hour format, that the camera enables its night filter.
End Time
Enter the time, in 24 hour format, that the camera disables its night filter.
Enable IR LED
Check this check box to enable the infrared illuminator LEDs that enhance
the video image (effective up to 60 ft. [20 m]) when the IP camera is running
in night mode.
Cisco Video Surveillance 7000 Series IP Camera Configuration Guide, Release 1.1.4
4-8
OL-28694-01
Chapter 4
Feature Setup
Video Overlay Window
Video Overlay Window
The Video Overlay window provides options for configuring overlay information that appears on the
video image in the Camera Video & Control window.
To display the Video Overlay window, perform the following steps:
Procedure
Step 1
From the IP camera user interface, click the Setup link.
Step 2
Click Feature Setup to expand the menu.
Step 3
From the Feature Setup menu, click Video Overlay.
The Video Overlay window appears. If you change any options in this window, you must click the Save
Settings button to save the changes. If you do not click this button, changes are not retained when you
exit the window. Save Settings appears at the bottom of the window. You may need to scroll down to it.
Table 4-5 describes the options in the Video Overlay window.
Table 4-5
Video Overlay Window Options
Option
Description
Text Overlay Area
Enable Date/Time
Display
Check this check box to display the time from the internal clock of the IP
camera as an overlay on the video image from the IP camera.
Date/Time alignment in Choose whether the Date/Time is to be aligned to the Left, Center, or Right
Overlay
Enable Text Display
Check this check box to display the text that you enter in the Display Text
field as an overlay on the video image from the IP camera.
This option can be useful for identifying this IP camera in an installation
with several IP cameras.
Text Alignment in
Overlay
Choose whether the text overlay is to be aligned to the Left, Center, or
Right.
Text Format
Specifies the text format to use for the text overlay. Currently, English
(ASCII) is the only available text format.
Display Text
If you check the Enable Text Display check box, the text that you enter in
this field appears as an overlay on the video image from the IP camera.
The text can contain up to 26 characters, which can include letters, numbers,
spaces, and these characters: ! $ % ( ) + , - . / : = @ ^ _ ` { } ~
Overlay Placement
Choose whether the text overlay is to appear at the Top of Image or Bottom
of Image.
Cisco Video Surveillance 7000 Series IP Camera Configuration Guide, Release 1.1.4
OL-28694-01
4-9
Chapter 4
Feature Setup
IO Ports Window
IO Ports Window
The IO Ports window lets you configure various options for the input and output ports on the IP camera.
A state change of an input port triggers a camera to take a configured action. An output port sends signals
that can control external devices, such as alarms or door switches.
The IP camera can trigger an action only when input that is received on an input port comes from a
contact that is in a normally closed condition. The camera triggers the action when the contact changes
to an open condition.
To display the IO Ports window, perform the following steps:
Procedure
Step 1
From the IP camera user interface, click the Setup link.
Step 2
Click Feature Setup to expand the menu.
Step 3
From the Feature Setup menu, click IO Ports.
The IO Ports window appears. If you change any options in this window, you must click the Save
Settings button to save the changes. If you do not click this button, changes are not retained when you
exit the window. Save Settings appears at the bottom of the window. You may need to scroll down to it.
Table 4-6 describes the options in the IO Ports window.
Table 4-6
IO Ports Window Options
Option
Description
Input Ports Area
Port #
Display only. Indicates the input port numbers available on the IP camera.
Current State
Display only. Indicates the current state (high or low) of the corresponding
port.
Event Trigger
Choose the state (Rising or Falling) that triggers designated camera actions.
When an input port changes to the configured state, the camera determines
that an event has occurred and takes the actions that you have configured.
Output Ports
Port #
Display only. Indicates the output port numbers available on the IP camera.
Current State
Display only. Indicates the current state (high or low) of the corresponding
port.
Default State
Choose the state (low or high) that the corresponding port is set to when the
IP camera powers on or resets.
The port changes to this state when you click Save Settings.
The default setting is High.
Event Action
Display only. Indicates the current state (high or low) that the output port
changes to when an event occurs.
Automatic Reset
Check this check box if you want the corresponding output port to go back
to its default state after an event occurs.
Cisco Video Surveillance 7000 Series IP Camera Configuration Guide, Release 1.1.4
4-10
OL-28694-01
Chapter 4
Feature Setup
Event Notification Window
Table 4-6
IO Ports Window Options (continued)
Option
Description
Duration
If you checked the Automatic Reset check box, enter the amount of time, in
milliseconds, that elapses before the port goes back to its default state after
an event changes it from the default state.
Event Notification Window
The Event Notification window provides options for how the IP camera handles events. An event is any
of the following:
•
A change of state from low to high or from high to low on an input port of the IP camera. For related
information about input ports, see the “IO Ports Window” section on page 4-10.
•
Motion that the IP camera detects. For related information about motion detection, see the “Motion
detection controls” rows in Table 3-1.
•
Loss of video signal.
When an event occurs, it triggers the IP camera to take certain configured actions:
•
HTTP notification—IP camera sends notification to a remote system via HTTP. This information
includes the following:
– Device ID—ID of the IP camera
– Device name—Name of the IP camera
– IP address—IP address of the IP camera
– MAC address—MAC address of the IP camera
– Channel ID—Channel identification number (1 for primary stream or 2 for secondary stream)
– Channel name—Name that is configured for the channel
– Date and time—Date and time that the event occurred
– Active post Count—Sequence number of the notification for this event
– Event type—Type of event
– Event state—Indicates whether the event is active or inactive at the time that the event was
detected for this notification
– Event description—Description of the event.
– Input port ID—If the event was triggered by an input port state change, port ID of the port
– Region index—If the event was triggered by motion detection, identification number of the
region in which the IP camera detected motion
– Sensitivity level—If the event was triggered by motion detection, sensitivity that is configured
for the region in which motion was detected
– Detection threshold—If the event was triggered by motion detection, threshold that is
configured for the region in which motion was detected
•
Output port state change—Changes the state of an IP camera output port from low to high or from
high to low.
•
Syslog server message—Sends a notification message to the designated Syslog server.
Cisco Video Surveillance 7000 Series IP Camera Configuration Guide, Release 1.1.4
OL-28694-01
4-11
Chapter 4
Feature Setup
Event Notification Window
The Event Notification window also allows you to designate schedules. If an event takes place within a
designated schedule, the IP camera takes the actions that you configure.
Procedure
Step 1
From the IP camera user interface, click the Setup link.
Step 2
Click Feature Setup to expand the menu.
Step 3
From the Feature Setup menu, click Event.
The Event Notification window appears. If you change any options in this window, you must click the
Save Settings button to save the changes. If you do not click this button, changes are not retained when
you exit the window. Save Settings appears at the bottom of the window. You may need to scroll down
to it.
Table 4-7 describes the options in the Event Notification window.
Table 4-7
Event Notification Window Options
Option
Description
Event Triggering Area
Triggered by
Check the desired check boxes to designate the events that trigger actions:
Input port-number—Event is triggered when an input port on the IP camera
changes state from high to low.
Motion Detection—Event is triggered when the camera detects motion, if
motion detection is configured as described the “Motion detection controls”
rows in Table 3-1.
Video Loss—Event is triggered if the IP camera loses input to its codec
sensor module.
Actions
Check the desired check boxes to designate that actions that the IP camera
takes when the corresponding trigger occurs.
•
Email—Sends information about the event in an e-mail message to the
designated recipient. You designate the recipient and configure other
e-mail options in other fields in this window.
•
Output 1—Changes the state of the output 1 port on the IP camera as
defined in the IO Ports Window.
•
Syslog—Sends information about the event to a designated Syslog
server.
•
HTTP—Sends information about the event as an HTTP stream to a
remote system.
•
FTP—Uploads a snapshot or video clip of the event to an FTP server.
Note
Interval
FTP is not supported in this release and is disabled in the UI.
Choose the time interval (in minutes) from the drop-down list to wait after
an event occurs before detecting the next event.
Cisco Video Surveillance 7000 Series IP Camera Configuration Guide, Release 1.1.4
4-12
OL-28694-01
Chapter 4
Feature Setup
Event Notification Window
Table 4-7
Event Notification Window Options (continued)
Option
Description
Event Scheduling Area
Scheduling Grid
Designate the times at which an event causes the IP camera to take the
designed actions. If an event occurs during a time that is not designated, the
IP camera does not take any action.
Each cell in this grid represents one hour on the corresponding day, starting
at 12:00 a.m. (0:00). To designate times, click the desired cells. Selected
cells appear shaded.
To select all times, click the Set All button.
To deselect all times, click the Clear All button.
To change the scheduling settings to the last saved configuration, click
Undo.
Set All button
Selects all cells in the scheduling grid.
Clear All button
Deselects all cells in the scheduling grid.
Undo All button
Deselects cells in the scheduling grid that you selected since last saving
Event Notification window settings.
HTTP Notification Area
Primary HTTP Server
Identify the primary server to which HTTP messages are sent by choosing
IP Address or Hostname from the drop-down list and entering the IP
address or host name in the corresponding field.
URL Base
Enter a string to be used as the prefix in the HTTP URL. The HTTP URL is
sent in this format:
http://<IP address>/<URL Base>?<system-provided-name-value-pairs>
where IP address is the IP address of the destination server, URL Base is the
string that you enter, and system-provided-name-value-pairs is information
about the event.
Port Number
Enter the port number that receives messages on the primary server to which
HTTP messages are sent.
User Name
If authentication is required on the primary server to which HTTP messages
are sent, enter the user name.
Password
If authentication is required on the primary server to which HTTP messages
are sent, enter the password.
HTTP Authentication
If authentication is required on the primary server to which HTTP messages
are sent, choose the authentication method from the drop-down list.
Secondary HTTP Server Identify an optional secondary server to which HTTP messages are sent by
choosing IP Address or Hostname from the drop-down list and entering the
IP address or host name in the corresponding field.
Cisco Video Surveillance 7000 Series IP Camera Configuration Guide, Release 1.1.4
OL-28694-01
4-13
Chapter 4
Feature Setup
Event Notification Window
Table 4-7
Event Notification Window Options (continued)
Option
Description
URL Base
Enter a string to be used as the prefix in the HTTP URL for the secondary
server. The HTTP URL is sent in this format:
http://<IP address>/<URL Base>?<system-provided-name-value-pairs>
where IP address is the IP address of the destination server, URL Base is the
string that you enter, and system-provided-name-value-pairs is information
about the event.
Port Number
Enter the port number that receives messages on the secondary server to
which HTTP messages are sent.
User Name
If authentication is required on the secondary server to which HTTP
messages are sent, enter the user name.
Password
If authentication is required on the secondary server to which HTTP
messages are sent, enter the password.
HTTP Authentication
If authentication is required on the secondary server to which HTTP
messages are sent, choose the authentication method from the drop-down
list.
Email Notification Area
Primary SMTP Server
Identify the primary SMTP server that is used for sending e-mail by
choosing IP Address or Hostname from the drop-down list and entering the
IP address or host name in the corresponding field.
Primary SMTP Port
Enter the port number for the primary SMTP server. The default SMTP port
number is 25.
POP Server
Identify the primary POP server that is used for sending e-mail by choosing
IP Address or Hostname from the drop-down list and entering the IP
address or host name in the corresponding field.
This field is dimmed if you do not choose Requires POP Before SMTP in
the Authentication field that follows.
Authentication
If the primary SMTP server requires authentication to send e-mail, choose
the appropriate authentication type from the drop-down list. The
authentication type typically is the same as that for the POP3 server that you
use to receive e-mail.
Account Name
If the primary SMTP server requires authentication, enter the account name
for the server.
Password
If the primary SMTP server requires authentication, enter the account
password for the server.
Secondary SMTP
Server
Identify an optional secondary SMTP server that is used for sending e-mail
by choosing IP Address or Hostname from the drop-down list and entering
the IP address or host name in the corresponding field.
Secondary SMTP Port
Enter the port number for the secondary SMTP server. The default SMTP
port number is 25.
Cisco Video Surveillance 7000 Series IP Camera Configuration Guide, Release 1.1.4
4-14
OL-28694-01
Chapter 4
Feature Setup
Event Notification Window
Table 4-7
Event Notification Window Options (continued)
Option
Description
POP Server
Identify an optional secondary POP server that is used for sending e-mail by
choosing IP Address or Hostname from the drop-down list and entering the
IP address or host name in the corresponding field.
This field is dimmed if you do not choose Requires POP Before SMTP in
the Authentication field that follows.
Authentication
If the secondary SMTP server requires authentication to send e-mail, choose
the appropriate authentication type from the drop-down list. The
authentication type typically is the same as that for the POP3 server that you
use to receive e-mail.
Account Name
If the secondary SMTP server requires authentication, enter the account
name for the server.
Password
If the secondary SMTP server requires authentication, enter the account
password for the server.
Send To
Enter an e-mail address to which an e-mail message is sent when an event
occurs.
Show From Address As Enter the e-mail address to be shown in the From field for the e-mail message
that is sent when an event occurs.
Subject
Enter the text to be shown in the Subject field for the e-mail messages that
the IP camera sends when events occur. The subject can contain up to 118
characters, including spaces.
Attach Video Streaming Check this check box to include in the e-mail message body the URL from
URL Address
which the recipient can access the live video stream from the camera on
which the event was detected.
Attach Snapshot
Check this check box to include with the e-mail message a still picture from
the beginning of the event. This snapshot is stored on the IP camera until the
message is sent.
This functionality is available only when the secondary video stream is
enabled.
Attach Video Clip
Check this check box and enter the following values to include with the
e-mail message a video clip of the event:
•
Pre-Capture Length—Enter the amount of video (in seconds) before
the event to include in the video clip.
•
Post-Capture Length—Enter the amount of video (in seconds) after the
event to include in the video clip.
This video clip is stored on the IP camera until the message is sent.
FTP Notification Area
Note
FTP is not supported in this release and is disabled in the UI.
Primary FTP Server
Identify the primary FTP server to which snapshots or video clips are
uploaded by choosing IP Address or Hostname from the drop-down list and
entering the IP address or host name in the corresponding field.
Primary FTP Port
Enter the port number that receives messages on the primary FTP server. The
default FTP port number is 21.
Cisco Video Surveillance 7000 Series IP Camera Configuration Guide, Release 1.1.4
OL-28694-01
4-15
Chapter 4
Feature Setup
Event Notification Window
Table 4-7
Event Notification Window Options (continued)
Option
Description
User Name
Enter the primary FTP server login user name.
Password
Enter the primary FTP server login password.
Enable Passive Mode
Check this check box to enable the passive mode feature of the primary FTP
server.
Secondary FTP Server
Identify an optional secondary FTP server to which snapshots or video clips
are uploaded by choosing IP Address or Hostname from the drop-down list
and entering the IP address or host name in the corresponding field.
Secondary FTP Port
Enter the port number that receives messages on the secondary FTP server.
The default FTP port number is 21.
User Name
Enter the secondary FTP server login user name.
Password
Enter the secondary FTP server login password.
Enable Passive Mode
Check this check box to enable the passive mode feature of the secondary
FTP server.
Upload Snapshot
Check this check box to upload a snapshot of the activity that triggered the
event.
This functionality is available only when the secondary video stream is
enabled.
Upload Video Clip
Check this check box and enter the following values to upload a video clip
of the activity that triggered the event:
•
Pre-Capture Length—Enter the amount of video (in seconds) before
the event to include in the video clip. The default pre-capture length is
0 seconds (no pre-capture video).
•
Post-Capture Length—Enter the amount of video (in seconds) after the
event to include in the video clip. The default post-capture length is 5
seconds.
Cisco Video Surveillance 7000 Series IP Camera Configuration Guide, Release 1.1.4
4-16
OL-28694-01
CH A P T E R
5
Network Setup
The Network Setup windows let you configure various network-related settings for the IP camera.
The following sections describe the Network Setup windows in detail:
•
Basic Window, page 5-1
•
IP Addressing Window, page 5-3
•
Time Window, page 5-4
•
Discovery Window, page 5-6
•
IP Filter Window, page 5-6
•
QoS Window, page 5-7
Basic Window
The Basic window provides options for identifying the IP camera and controlling basic operations.
To display the Basic window, perform the following steps:
Procedure
Step 1
From the IP camera user interface, click the Setup link.
Step 2
Click Network Setup to expand the menu.
Step 3
From the Network Setup menu, click Basic.
The Basic window appears. If you change any options in this window, you must click the Save Settings
button to save the changes. If you do not click this button, changes are not retained when you exit the
window. Save Settings appears at the bottom of the window. You may need to scroll down to it.
Table 5-1 describes the options in the Basic window.
Cisco Video Surveillance 7000 Series IP Camera Configuration Guide, Release 1.1.4
OL-28694-01
5-1
Chapter 5
Network Setup
Basic Window
Table 5-1
Basic Window Options
Option
Description
Basic Settings Area
ID
Enter a unique identification for the IP camera, which is used to identify the
IP camera to various external applications.
The ID can contain up to 64 numbers.
Name
Enter a name for the IP camera. This name appears in the IP camera log file
for information that is associated with this IP camera.
The name can contain up to 64 characters, which can include letters,
numbers, spaces, and these characters: ! $ % ( ) + , - . / = @ ^ _ ` { } ~. We
recommend that you give each IP camera a unique name so that you can
identify it easily.
Description
Enter a description of the IP camera. For example, enter the IP camera
location, such as “North Entrance Camera 1.”
The description can contain up to 128 characters, which can include letters,
numbers, spaces, and these characters: ! $ % ( ) + , - . / = @ ^ _ ` { } ~
Location
Enter the physical location of the IP camera, such as “North Entrance.”
The location can contain up to 64 characters, which can include letters,
numbers, spaces, and these characters: ! $ % ( ) + , - . / = @ ^ _ ` { } ~
Contact
Enter system contact information for someone such as the system
administrator. For example, enter the e-mail address of the system
administrator.
The contact can contain up to 64 characters, which can include letters,
numbers, spaces, and these characters: ! $ % ( ) + , - . / = @ ^ _ ` { } ~
Basic Operation Area
Enable LED
Check this check box if you want the Power LED on the back of the IP
camera to light.
If you do not check this check box, this LED does not light.
Disable Session ID
The following camera API mechanisms are available:
•
SesionID—tracks each client session. Session IDs are required by Cisco
Video Surveillance Media Server (VSMS).
•
Basic Authentication—requires a user ID and password to be passed
with every API command.
SessionID is enabled by default. To disable SessionID, and enable Basic
authentication, check this option.
Cisco Video Surveillance 7000 Series IP Camera Configuration Guide, Release 1.1.4
5-2
OL-28694-01
Chapter 5
Network Setup
IP Addressing Window
IP Addressing Window
The IP Addressing window provides options for configuring the IP address of the IP camera.
To display the IP Addressing window, perform the following steps:
Procedure
Step 1
From the IP camera user interface, click the Setup link.
Step 2
Click Network Setup to expand the menu.
Step 3
From the Network Setup menu, click IP Addressing.
The IP Addressing window appears. If you change any options in this window, you must click the Save
Settings button to save the changes. If you do not click this button, changes are not retained when you
exit the window. Save Settings appears at the bottom of the window. You may need to scroll down to it.
Table 5-2 describes the options in the IP Addressing window.
Table 5-2
IP Addressing Window Options
Option
Description
IP Addressing Area
IP Version
Choose the IP version from the pull-down list. Currently, only IPv4 is
supported.
Configuration Type
Choose the method by which the IP camera obtains its IP address:
•
Dynamic—If your network includes a DHCP server for dynamic
allocation of IP addresses, choose this option if you want DHCP to
assign an IP address and subnet mask to the IP camera. Depending on
your router, the default gateway, primary DNS server, and secondary
DNS server may also be assigned. The DHCP server must be configured
to allocate static IP addresses based on MAC addresses so that the IP
camera always receives the same address.
•
Static—Choose this option if you want to manually enter an IP address,
subnet mask, default gateway, and DNS server IP addresses for the
camera.
IP Address
If you configured the IP camera for a static IP address, enter that IP address.
Subnet Mask
If you configured the IP camera for a static IP address, enter the subnet mask
for the IP camera. Use the same value that is configured for the PCs on your
network.
Gateway Address
If you configured the IP camera for a static IP address, enter the gateway for
the IP camera. Use the same value that is configured for the PCs on your
network.
Primary DNS
Optional. Enter the IP address of the primary the DNS server that is used in
your network. Use the same value that is used for the PCs on your network.
Typically, your ISP provides this address.
This address is required if you use a host name instead of an IP address in
any configuration field in the IP camera configuration windows.
Cisco Video Surveillance 7000 Series IP Camera Configuration Guide, Release 1.1.4
OL-28694-01
5-3
Chapter 5
Network Setup
Time Window
Table 5-2
IP Addressing Window Options (continued)
Option
Description
Secondary DNS
Optional. Enter the IP address of a secondary (backup) DNS server to use if
the primary DNS server is unavailable. Enter the DNS server to be used if
the primary DNS server is unavailable.
This address is required if you have a secondary DNS server an you use a
host name instead of an IP address in any configuration field in the IP camera
configuration windows.
Time Window
The Time window provides options for setting and maintaining the time of the IP camera.
To display the Time window, perform the following steps:
Procedure
Step 1
From the IP camera user interface, click the Setup link.
Step 2
Click Network Setup to expand the menu.
Step 3
From the Network Setup menu, click Time.
The Time window appears. If you change any options in this window, you must click the Save Settings
button to save the changes. If you do not click this button, changes are not retained when you exit the
window. Save Settings appears at the bottom of the window. You may need to scroll down to it.
Table 5-3 describes the options in the Time window.
Table 5-3
Time Window Options
Option
Description
Set Time Mode Area
Manually Configure
Time
Choose this option if you want to set the time for the IP camera manually.
Use NTP Server to
Update Time
Choose this option if you want the IP camera to obtain its time from a
network time protocol (NTP) server.
If you check this check box, the camera contacts the designated NTP server
every 64 seconds and synchronizes its internal clock with the time of that
server.
Local Time Area
Note
These options do not apply if you choose the Use NTP Server to Update Time option.
Set Local Date
Enter a date for the IP camera. The camera is updated with this date when
you click Save Settings.
Set Local Time
Enter a time for the IP camera. The camera is updated with this time when
you click Save Settings.
Cisco Video Surveillance 7000 Series IP Camera Configuration Guide, Release 1.1.4
5-4
OL-28694-01
Chapter 5
Network Setup
Time Window
Table 5-3
Time Window Options (continued)
Option
Description
Clone PC Time button
Click this button to update the IP camera date and time with the date and time
of the PC that you are using.
Time Zone and Daylight Saving Area
Time Zone
Choose the time zone in which the IP camera is located.
The time that appears when you view video from this IP camera reflects this
time zone.
Adjust for Daylight
Saving Time
Check this check box if you want the time of the IP camera to adjust
automatically for daylight saving time.
Edit Default Daylight
Saving Configuration
for Time Zone
Check this check box if you want the daylight saving time adjustment of the
IP camera to be different than the default adjustment for the selected time
zone.
Time Offset
If you choose to overwrite the default time zone configuration, enter the
number of minutes that the time of the camera adjusts when daylight saving
time starts.
The camera automatically adjusts its time back by this number of minutes
when daylight saving time ends.
Start Date
Start Time
End Date
End Time
If you choose to overwrite the default time zone configuration, enter the day
and time (in 24 hour format) that daylight saving time begins. At this day and
time, the time of the IP camera adjusts by the value in the Time Offset field.
If you choose to overwrite the default time zone configuration, enter the day
and time (in 24 hour format) that daylight saving time ends. At this day and
time, the time of the IP camera adjusts to the non-daylight saving time.
NTP Server Settings Area
Note
These options do not apply if you choose the Manually Configure Time option.
Primary NTP Server
If you configured the IP camera to obtain its time from an NTP server,
identify the primary NTP server by choosing IP Address or Hostname from
the drop-down list and entering the IP address or host name in the
corresponding field.
Primary NTP Server
Port
If you configured the IP camera to obtain its time from an NTP server, enter
the primary NTP server port number.
Valid values are 123 and 1024 through 65535. The default port is 123.
Secondary NTP Server
If you configured the IP camera to obtain its time from an NTP server,
identify the secondary NTP server by choosing IP Address or Hostname
from the drop-down list and entering the IP address or host name in the
corresponding field.
Secondary NTP Server
Port
If you configured the IP camera to obtain its time from an NTP server, enter
the optional secondary NTP server port number.
Valid values are 123 and 1024 through 65535. The default port is 123.
Cisco Video Surveillance 7000 Series IP Camera Configuration Guide, Release 1.1.4
OL-28694-01
5-5
Chapter 5
Network Setup
Discovery Window
Discovery Window
The Discovery window provides options for configuring the IP camera to work with Cisco Discovery
Protocol or Bonjour. These applications facilitate monitoring and management of your network.
To display the Discovery window, perform the following steps:
Procedure
Step 1
From the IP camera user interface, click the Setup link.
Step 2
Click Network Setup to expand the menu.
Step 3
From the Network Setup menu, click Discovery.
The Discovery window appears. If you change any options in this window, you must click the Save
Settings button to save the changes. If you do not click this button, changes are not retained when you
exit the window. Save Settings appears at the bottom of the window. You may need to scroll down to it.
Table 5-4 describes the options in the Discovery window.
Table 5-4
Option
Discovery Window Options
Description
Cisco Discovery Protocol (CDP) Area
Enable CDP
Check this check box if CDP is enabled in your network and you want the
IP camera to broadcast CDP discovery messages.
Show Neighbors button Displays a new window with information about CDP-enabled device
neighbors in your network.
Bonjour Area
Enable Bonjour
Check this check box if Bonjour is enabled in your network and you want the
IP camera to broadcast Bonjour discovery messages.
IP Filter Window
The IP Filter window provides options for controlling access to the IP camera by designating up to 10
IP addresses or address ranges that are allowed or denied access to the IP camera.
To display the IP Filter window, perform the following steps:
Procedure
Step 1
From the IP camera user interface, click the Setup link.
Step 2
Click Network Setup to expand the menu.
Step 3
From the Network Setup menu, click IP Filtering.
Cisco Video Surveillance 7000 Series IP Camera Configuration Guide, Release 1.1.4
5-6
OL-28694-01
Chapter 5
Network Setup
QoS Window
The IP Filter window appears. If you change any options in this window, you must click the Save
Settings button to save the changes. If you do not click this button, changes are not retained when you
exit the window. Save Settings appears at the bottom of the window. You may need to scroll down to it.
Table 5-5 describes the options in the IP Filter window.
Table 5-5
IP Filter Window Options
Option
Description
IP Filter Area
Enable IP Filtering
Check this check box to cause the IP camera to allow or deny access to IP
addresses as configured in the IP Filtering window.
Filter Entries Area
#
Display only. Filter number.
Action
Choose an action for the corresponding IP address or address range:
IP Address/Bit Mask
•
Deny—IP address or address range cannot access the IP camera.
•
Allow—IP address or address range can access the IP camera.
Enter the IP address and bit mask to which the corresponding action applies.
Make these entries in Classless Inter-Domain Routing (CIDR) notation.
CIDR is defined in RFC 4632.
QoS Window
The QoS window provides options for configuring quality of service (QoS) settings for video streams.
To display the QoS window, perform the following steps:
Procedure
Step 1
From the IP camera user interface, click the Setup link.
Step 2
Click Network Setup to expand the menu.
Step 3
From the Network Setup menu, click QoS.
The QoS window appears. If you change any options in this window, you must click the Save Settings
button to save the changes. If you do not click this button, changes are not retained when you exit the
window. Save Settings appears at the bottom of the window. You may need to scroll down to it.
Table 5-6 describes the options in the QoS window.
Cisco Video Surveillance 7000 Series IP Camera Configuration Guide, Release 1.1.4
OL-28694-01
5-7
Chapter 5
Network Setup
QoS Window
Table 5-6
QoS Window Options
Option
Description
Class of Service (CoS) Area
Enable CoS for Video
Streaming
Check this check box to enable class of service (CoS) control for video
streams.
If you enable this option, the IP camera specifies a VLAN tag that appends
to an Ethernet MAC frame for video streaming data.
Video Priority
Value from 0 (lowest priority) through 7 (highest priority) that specifies the
CoS priority value for steaming video data.
Video VLAN ID
Enter the ID of the video VLAN to which CoS packets are directed.
Enable CoS for Audio
Streaming
Check this check box to enable class of service (CoS) control for audio
streams.
Note
Audio Priority
Value from 0 (lowest priority) through 7 (highest priority) that specifies the
CoS priority value for steaming audio data.
Note
Audio VLAN ID
Audio is not supported in this release.
Audio is not supported in this release.
Enter the ID of the audio VLAN to which CoS packets are directed.
Note
Audio is not supported in this release.
Differentiated Services (DiffServ) Area
Enable DiffServ for
Video Streaming
Check this check box to enable Differentiated Services (DiffServ) for video
streams.
If you enable this option, the IP camera specifies the DSCP priority value
that appends to an IP header for video streaming packets.
Video DSCP Priority
Value
Value from 0 (lowest priority) through 63 (highest priority) that specifies the
DSCP priority value for steaming video data.
Enable DiffServ for
Audio Streaming
Check this check box to enable Differentiated Services (DiffServ) for audio
streams.
Note
Audio DSCP Priority
Value
Audio is not supported in this release.
Value from 0 (lowest priority) through 63 (highest priority) that specifies the
DSCP priority value for steaming audio data.
Note
Audio is not supported in this release.
Cisco Video Surveillance 7000 Series IP Camera Configuration Guide, Release 1.1.4
5-8
OL-28694-01
CH A P T E R
6
Administration
The Administrator windows lets you perform several general administrative operations, including
enabling HTTP and HTTPS access to the IP camera, configuring users, resetting or rebooting the IP
camera, and updating firmware.
The following sections describe the Administration windows in detail:
•
Initialization Window, page 6-1
•
User Window, page 6-3
•
Maintenance Window, page 6-4
•
Firmware Window, page 6-6
•
Device Processes Window, page 6-7
•
Password Complexity Window, page 6-8
Initialization Window
The Initialization window provides options for configuring passwords for the IP camera default
administrator accounts, and for configuring which protocols can be used to access the IP camera.
The IP camera always has an HTTP/HTTPS administrator who can access the IP camera through an
HTTP or HTTPS connection. The name of this administrator is admin. The password is configurable.
If you want to access the IP camera through SSH, you must configure a password for an SSH
administrator. The name of this administrator is root. The password is configurable.
To display the Initialization window, perform the following steps:
Procedure
Step 1
From the IP camera user interface, click the Setup link.
Step 2
Click Administration to expand the menu.
Step 3
From the Administration menu, click Initialization.
Cisco Video Surveillance 7000 Series IP Camera Configuration Guide, Release 1.1.4
OL-28694-01
6-1
Chapter 6
Administration
Initialization Window
The Initialization window appears. If you change any options in this window, you must click the Save
Settings button to save the changes. If you do not click this button, changes are not retained when you
exit the window. Save Settings appears at the bottom of the window. You may need to scroll down to it.
Table 6-1 describes the options in the Initialization window.
Table 6-1
Initialization Window Options
Option
Description
Administrator Accounts Area
Protocol
Display only. Indicates the protocol that the corresponding administrator can
use to access the IP camera: HTTP/HTTPS or SSH.
User Name
Display only. Indicates the default user name for the corresponding
administrator: admin or root
Password
Enter a password for the corresponding administrator. The password is case
sensitive and must contain from 8 to 32 characters, which can be letters,
numbers, and special characters, but no spaces. Special characters are: ! $ (
)-.@^_`{}~
Confirm password
Re-enter the password for the corresponding administrator.
Access Protocols Area
Enable HTTP
Check this check box if you want to allow HTTP connections to the IP
camera.
HTTP Port
Enter the HTTP port that is used to access the IP camera. Valid port numbers
are 80 and 1024 through 32767. The default port is 80.
If you configure the HTTP port to a value other than 80, you must specify
the port number in the URL for the IP camera when you access it through an
HTTP connection. For example, if the IP address of the IP camera is
192.168.1.100 and the HTTP port is 1024, enter this URL for the IP camera:
http://192.168.1.100:1024.
Enable HTTPS
Check this check box if you want to allow HTTPS connections to the IP
camera.
HTTPS Port
Enter the HTTPS port that is used to access the IP camera. Valid port
numbers are 443 and 1024 through 65535. The default port is 443.
If you configure the HTTPS port to a value other than 443, you must specify
the port number in the URL for the IP camera when you access it through an
HTTPS connection. For example, if the IP address of the IP camera is
192.168.1.100 and the HTTPS port is 1024, enter this URL for the IP
camera: https://192.168.1.100:1024.
Enable Secure Shell
(SSH)
Check this check box if you want to allow access to the camera through a
SSH connection.
Secure Shell (SSH) Port Enter the SSH port that is used to access the IP camera. Valid port numbers
are 22 and 1024 through 65535. The default port is 22.
Cisco Video Surveillance 7000 Series IP Camera Configuration Guide, Release 1.1.4
6-2
OL-28694-01
Chapter 6
Administration
User Window
User Window
The User window lets you configure the following types of IP camera users:
•
Administrator—Can access all IP camera windows, features, and functions.
•
Viewer—Can access only the Camera Video & Control window and all features in that window
except:
– Video image controls
– Set Current Preset as Home button
– Add Preset Position button
– Deleted Selected Preset button
– Pan/tilt speed controls
– Motion detection controls
There is always at least one user with Administrator privileges configured. The user name of this user is
“admin.” You can configure up to four additional users and assign privilege levels to each one.
When you configure users, follow these guidelines:
•
After you enter a name, password, and privilege level for a user, click Add next to the user
information to save your changes.
•
To change the password for an existing user, click Change next to the user name.
•
To remove a user, click Delete next to the user. If you delete a user who is logged into the IP camera,
the user remains logged in and can continue access the IP camera.
•
To change the name of a user, you must delete the user then create a new user.
To display the User window, perform the following steps:
Procedure
Step 1
From the IP camera user interface, click the Setup link.
Step 2
Click Administration to expand the menu.
Step 3
From the Administration menu, click Users.
The User window appears. If you change any options in this window, you must click the Save Settings
button to save the changes. If you do not click this button, changes are not retained when you exit the
window. Save Settings appears at the bottom of the window. You may need to scroll down to it.
Table 6-2 describes the options in the User window.
Cisco Video Surveillance 7000 Series IP Camera Configuration Guide, Release 1.1.4
OL-28694-01
6-3
Chapter 6
Administration
Maintenance Window
Table 6-2
User Window Options
Option
Description
User List Area
User Name
Enter a unique name for the user.
The user name is case sensitive and can include up to 64 letters, numbers,
and special characters, but no spaces. Special characters are: ! % ( ) + , - =
@_~
There is always one user named admin (all lower case), which cannot be
deleted.
Password
Enter a password for the user.
The password is case sensitive and must contain from 8 to 32 characters,
which can be letters, numbers, and special characters, but no spaces. Special
characters are: ! $ ( ) - . @ ^ _ ` { } ~
Confirm Password
Re-enter the password for the user.
Privilege Level
Select the desired privilege level for the user:
•
Administrator—Can access all IP camera windows, features, and
functions.
•
Viewer—Can access the Camera Video & Control window with limited
controls, and can access the Refresh, Logout, About, and Help links
from that window.
Change button
Click this button to change the password of the corresponding user.
Add button
Click this button to add the corresponding user. That user can then log in to
the IP camera.
Delete button
Click this button to remove the corresponding user. This user can no longer
log in to the IP camera.
Maintenance Window
The Maintenance window provides options for setting or restarting the IP camera, saving configuration
information from the IP camera, and uploading the configuration information to the IP camera.
Saving and uploading configuration is useful for these activities:
•
Configuring multiple IP cameras—If your network includes several IP cameras that should have
similar configurations, you can configure one IP camera, save that configuration, and upload it to
other IP cameras. Then, instead of manually configuring all options on each IP camera, you
manually configure only the options that are unique, such as the IP address, if not obtained from
DHCP.
•
Backing up configuration—If you save the configuration from the IP camera, you can upload it to
the IP camera to restore the configuration if it is lost, or if you can upload it to a replacement IP
camera, if needed.
To display the Maintenance window, perform the following steps:
Cisco Video Surveillance 7000 Series IP Camera Configuration Guide, Release 1.1.4
6-4
OL-28694-01
Chapter 6
Administration
Maintenance Window
Procedure
Step 1
From the IP camera user interface, click the Setup link.
Step 2
Click Administration to expand the menu.
Step 3
From the Administration menu, click Maintenance.
The Maintenance window appears. If you change any options in this window, you must click the Save
Settings button to save the changes. If you do not click this button, changes are not retained when you
exit the window. Save Settings appears at the bottom of the window. You may need to scroll down to it.
Table 6-3 describes the options in the Maintenance window.
Table 6-3
Maintenance Window Options
Option
Description
Factory Default Area
Restore button
Click the Restore button to reset all IP camera settings to their factory
default values.
To confirm the restore procedure, click OK in the confirmation pop-up
window. Otherwise, click Cancel.
This action has the same effect as pressing and holding the Reset button on
the IP camera for at least 15 seconds. After you perform this procedure,
follow the steps in the Chapter 2, “Performing the Initial Setup of the IP
Camera.”
Reset button
Click the Reset button to reset all IP camera settings except the static IP
address, gateway IP address, and log in credentials (user name and
password) to their factory default values.
To confirm the restore procedure, click OK in the confirmation pop-up
window. Otherwise, click Cancel.
Reboot Area
Reboot button
Click the Reboot button to reboot the software on IP camera.
To confirm the reboot procedure, click OK in the confirmation pop-up
window. Otherwise, click Cancel.
This action has the same effect as pressing and immediately releasing the
Reset button on the IP camera, or powering the IP camera down and then
powering it up.
Device Configuration Area
Export Configuration
from Camera
Click the Export button to save the current IP camera configuration
information to a binary file.
When you click this button, the File Download window appears. Use this
window to save the configuration file.
You can then load this configuration information to any same-model IP
camera in the network. This feature is useful for creating a backup of this
configuration and for configuring other IP cameras based on this
configuration.
Cisco Video Surveillance 7000 Series IP Camera Configuration Guide, Release 1.1.4
OL-28694-01
6-5
Chapter 6
Administration
Firmware Window
Table 6-3
Maintenance Window Options (continued)
Option
Description
Import configuration to
camera
Path and folder where a configuration file is stored. You can click Browse to
find this location. After you enter this information, click Import to load the
configuration file to the IP camera.
After you upload a configuration file to the IP camera, the IP camera restarts
automatically.
If you upload configuration from another IP camera that is active in your
network, make sure to configure this IP camera with a name, description, and
unique IP address (if not obtained through DHCP). To change these options,
see the “Basic Window” section on page 5-1 and the “IP Addressing
Window” section on page 5-3.
A configuration file that you upload includes the passwords that are
configured for the administrator and for users. If you change any passwords
after saving the configuration file, be aware that uploading the file overwrites
the new passwords with the saved ones.
Firmware Window
The Firmware window lets you view information about the firmware that is installed on the IP camera
and upgrade the firmware.
Before you upgrade firmware, download the firmware file to a PC that is accessible on your network and
unzip the file if it is zipped. To download firmware, go to this web page:
http://www.cisco.com/en/US/products/ps6918/Products_Sub_Category_Home.html
After you upgrade firmware, the IP camera restarts automatically. It retains all configuration
information.
To display the Firmware window, perform the following steps:
Procedure
Step 1
From the IP camera user interface, click the Setup link.
Step 2
Click Administration to expand the menu.
Step 3
From the Administration menu, click Firmware.
The Firmware window appears. If you change any options in this window, you must click the Save
Settings button to save the changes. If you do not click this button, changes are not retained when you
exit the window. Save Settings appears at the bottom of the window. You may need to scroll down to it.
Table 6-4 describes the options in the Firmware window.
Cisco Video Surveillance 7000 Series IP Camera Configuration Guide, Release 1.1.4
6-6
OL-28694-01
Chapter 6
Administration
Device Processes Window
Table 6-4
Firmware Window Options
Option
Description
Device Information Area
IP Address
Display only. IP address of the IP camera.
MAC Address
Display only. MAC address of the IP camera.
Device Name
Display only. ID of the IP camera, as configured in the Basic window. For
more information, see the “Basic Window” section on page 5-1.
Firmware Maintenance Area
Firmware Version
Version of the firmware that is installed on the IP camera.
Firmware Released
Date
Release date of the current firmware.
Details button
Click this button to display a pop-up window with additional information
about the firmware on the IP camera.
Firmware Upgrade
To upgrade the firmware on the IP camera, begin by entering the path and
folder where new firmware file for the IP camera is stored. The upgrade file
may be stored on another PC. You can click Browse to find this location.
Upgrade button
After entering the path and folder for the firmware file, click this button to
load the firmware upgrade on the IP camera.
Do not power down the IP camera during the upgrade procedure.
Device Processes Window
The Device Processes window displays the processes that occupy TCP or UDP ports, and lets you stop
any of these processes.
Note
To stop any process, click the Delete button that appears to the right of the process in the window.
Take care when stopping processes because some processes are required for the camera to operate
properly. Processes that you stop in this window can restart the next time that you log in to the IP camera.
If you delete a required process and the camera stops functioning, exit your web browser and then log
back in to the IP camera to restart the process. If the process does not restart, power the IP camera off
and then back on.
To display the Device Processes window, perform the following steps:
Procedure
Step 1
From the IP camera user interface, click the Setup link.
Step 2
Click Administration to expand the menu.
Step 3
From the Administration menu, click Device Processes.
Cisco Video Surveillance 7000 Series IP Camera Configuration Guide, Release 1.1.4
OL-28694-01
6-7
Chapter 6
Administration
Password Complexity Window
The Device Processes window appears. If you change any options in this window, you must click the
Save Settings button to save the changes. If you do not click this button, changes are not retained when
you exit the window. Save Settings appears at the bottom of the window. You may need to scroll down
to it.
Table 6-5 describes the options in the Device Processes window. All options are for display only.
Table 6-5
Device Processes Window Options
Option
Description
Protocol
Port (tcp or udp) that the process occupies.
Local Address
IP address of the device to which the process is listening.
Foreign Address
IP address and port number of the client device that is connected for the
process.
State
State of the process.
Program Name
Name of the process.
Password Complexity Window
IP camera administrator and user passwords must always meet the requirements that are described in the
“User Window” section on page 6-3. The Password Complexity window provides options for
configuring additional requirements for the IP camera passwords.
To display the Password Complexity window, perform the following steps:
Procedure
Step 1
From the IP camera user interface, click the Setup link.
Step 2
Click Administration to expand the menu.
Step 3
From the Administration menu, click Password Complexity.
The Password Complexity window appears. If you change any options in this window, you must click
the Save Settings button to save the changes. If you do not click this button, changes are not retained
when you exit the window. Save Settings appears at the bottom of the window. You may need to scroll
down to it.
Table 6-6 describes the options in the Password Complexity window.
Cisco Video Surveillance 7000 Series IP Camera Configuration Guide, Release 1.1.4
6-8
OL-28694-01
Chapter 6
Administration
Password Complexity Window
Table 6-6
Password Complexity Window Options
Option
Description
Password must contain
at least three of the
following: lower case
letters, upper case
letters, digits, and
special characters
Password must contain characters from at least 3 of these categories:
Password cannot
include any character
that occurs three or
more times
consecutively
Administrator password cannot include any character that occurs 3 or more
times in a row.
Password cannot be a
repeat or reverse of the
user name
Password cannot be the same as the user name either forward of reversed.
•
Lower case letters (a through z)
•
Upper case letters (A through Z)
•
Digits (0 through 9)
•
Special characters: ! " # $ % & ' ( ) * + , - . : ; < = > ? @ [ \ ] ^ _ ` { | } ~
Cisco Video Surveillance 7000 Series IP Camera Configuration Guide, Release 1.1.4
OL-28694-01
6-9
Chapter 6
Administration
Password Complexity Window
Cisco Video Surveillance 7000 Series IP Camera Configuration Guide, Release 1.1.4
6-10
OL-28694-01
CH A P T E R
7
Log Configuration
The Log windows let you set up and view the IP camera log file, which captures information about the
IP camera and its activities.
The IP camera stores the log file in its internal SDRAM. If the SDRAM becomes full, the IP camera
begins to overwrite existing information. To avoid losing log information, you can configure the IP
camera to send log information to a Syslog server.
Caution
Because the logs are stored in the internal camera SDRAM, all existing logs in the camera are lost after
a camera reboot, power-up, or power-down.
The following sections describe the Log windows in detail:
•
Log Setup Window, page 7-1
•
Local Log Window, page 7-4
Log Setup Window
The Log Setup window provides options for configuring the log file and an optional Syslog server on
which to store log files.
To display the Log Setup window, perform the following steps:
Procedure
Step 1
From the IP camera user interface, click the Setup link.
Step 2
Click Log to expand the menu.
Step 3
From the Log menu, click Setup.
The Log Setup window appears. If you change any options in this window, you must click the Save
Settings button to save the changes. If you do not click this button, changes are not retained when you
exit the window. Save Settings appears at the bottom of the window. You may need to scroll down to it.
Table 7-1 describes the options in the Log Setup window.
Cisco Video Surveillance 7000 Series IP Camera Configuration Guide, Release 1.1.4
OL-28694-01
7-1
Chapter 7
Log Configuration
Log Setup Window
Table 7-1
Log Setup Window Options
Option
Description
Local Log Settings Area
Minimum Log Severity
Choose the minimum severity of messages that the appear in the log file. The
system logs all messages of this severity and higher. Message severities,
from highest to lowest, are:
•
Emergency—The system is unusable.
•
Alert—A situation occurred that requires immediate action.
•
Critical—A situation occurred that requires action soon.
•
Error—An error occurred, but it does not necessarily affect the ability
of the system to function.
•
Warning—A undesirable condition occurred.
•
Notice—Notification about a system condition that is not necessarily an
error condition.
•
Informational—Information about a system activity.
•
Debug—Information about a system activity with detailed technical
information. Includes messages of every other severity.
The default severity is Informational.
Maximum Log Entries
Maximum number of entries that the log file maintains. When the log file
reaches this limit, it begins overwriting entries, starting with the oldest one.
The default value is 100.
Syslog Settings Area
Enable Syslog
Check this check box to send the log information to a designated Syslog
server. The selected information also is maintained on the IP camera until it
is overwritten.
This option is useful for consolidating logs in deployments with several
IP cameras and for retaining logs.
Primary Syslog Server
Identify the primary Syslog server by choosing IP Address or Hostname
from the drop-down list and entering the IP address or host name in the
corresponding field.
Primary Syslog Server
Port
Enter the primary Syslog server port number that receives the logs.
Facility
Enter the system facility that receives logs on the Syslog server.
Valid values are 514 and 1024 through 65535. The default Syslog port is 514.
Cisco Video Surveillance 7000 Series IP Camera Configuration Guide, Release 1.1.4
7-2
OL-28694-01
Chapter 7
Log Configuration
Log Setup Window
Table 7-1
Log Setup Window Options (continued)
Option
Description
Minimum Log Severity
Choose the minimum severity of messages that are sent to the Syslog server.
The system sends all messages of this severity and higher. Message
severities, from highest to lowest, are:
•
Emergency—The system is unusable.
•
Alert—A situation occurred that requires immediate action.
•
Critical—A situation occurred that requires action soon.
•
Error—An error occurred, but it does not necessarily affect the ability
of the system to function.
•
Warning—A undesirable condition occurred.
•
Notice—Notification about a system condition that is not an error
condition.
•
Informational—Information about a system activity.
•
Debug—Information about a system activity with detailed technical
information. Includes messages of every other severity.
The default severity is Informational.
Secondary Syslog
Server
Identify an optional secondary Syslog server by choosing IP Address or
Hostname from the drop-down list and entering the IP address or host name
in the corresponding field.
Secondary Syslog
Server Port
Enter the port number that receives the logs on the secondary Syslog server.
Facility
Enter the system facility that receives logs on the Syslog server.
Minimum Log Severity
Choose the minimum severity of messages that are sent to the secondary
Syslog server. The system sends all messages of this severity and higher.
Message severities, from highest to lowest, are:
Valid values are 514 and 1024 through 65535. The default Syslog port is 514.
•
Emergency—The system is unusable.
•
Alert—A situation occurred that requires immediate action.
•
Critical—A situation occurred that requires action soon.
•
Error—An error occurred, but it does not necessarily affect the ability
of the system to function.
•
Warning—An undesirable condition occurred.
•
Notice—Notification about a system condition that is not an error
condition.
•
Informational—Information about a system activity.
•
Debug—Information about a system activity with detailed technical
information. Includes messages of every other severity.
Cisco Video Surveillance 7000 Series IP Camera Configuration Guide, Release 1.1.4
OL-28694-01
7-3
Chapter 7
Log Configuration
Local Log Window
Local Log Window
The Local Log window lets you view the log file that is stored on the IP camera.
To display the Local Log window, perform the following steps:
Procedure
Step 1
From the IP camera user interface, click the Setup link.
Step 2
Click Log to expand the menu.
Step 3
From the Log menu, click Local Log.
The Local Log window appears. If you change any options in this window, you must click the Save
Settings button to save the changes. If you do not click this button, changes are not retained when you
exit the window. Save Settings appears at the bottom of the window. You may need to scroll down to it.
Table 7-2 describes the options in the Local Log window.
Table 7-2
Option
Local Log Window Options
Description
Log List Area
Rows per page
Choose the number of log entry rows to display per page and click the Go
button to the right of this option to update the display.
Filter
Choose the type of log message to include in the display.
To include messages of every severity, choose All.
Since
Choose the time period for which you want to view log messages.
Go button
Update the log display based on the values in the Filter and Since fields.
Severity
An icon in this column indicates the severity of the corresponding log
message:
—Emergency message
—Alert message
—Critical message
—Error message
—Warning message
—Notice message
—Informational message
—Debug message
To display log messages in order of severity with the least severity first, click
the Severity column heading. Click the heading again to reverse the display
order.
Cisco Video Surveillance 7000 Series IP Camera Configuration Guide, Release 1.1.4
7-4
OL-28694-01
Chapter 7
Log Configuration
Local Log Window
Table 7-2
Local Log Window Options (continued)
Option
Description
Date/Time
Date and time that the logged activity occurred.
By default, log messages appear in the order that the activity occurred with
the oldest message first. To reverse this display order, click the Date/Time
column heading.
Description
Message that describes the logged activity. For detailed information about
log messages, see Table 7-3 on page 7-5.
Page controls
Let you move through the log file entries:
Page field—Enter a page number and press Enter.
—Go to first page
—Go to previous page
—Go to next page
—Go to last page
Table 7-3 describes the messages that can appear in the IP camera log file. When you view the log file,
each message includes the date and time that it was logged. In this table:
•
Messages appear in alphabetical order
•
Angle brackets (<>) indicate items that are replaced by appropriate information when the message
appears. Italic text describes these items.
•
Severity indicates the severity of the message:
– 0—Emergency (the system is unusable)
– 1—Alert (a situation occurred that requires immediate action)
– 2—Critical (a situation occurred that requires action soon)
– 3—Error (an error occurred, but it does not necessarily affect the ability of the system to
function)
– 4—Warning (an undesirable condition occurred)
– 5—Notice (notification about a system condition that is not an error condition)
– 6—Informational (information about a system activity)
– 7—Debug (information about a system activity with detailed technical information)
Table 7-3
Log Messages
Message Name
Description that Appears in Log File
Explanation
Severity
AUTHENTICATION_FAILED
Access authentication to <web server,
streaming server, or SSH server> by
user <user> <IP address or
hostname> failed.
An attempt to log in or authenticate to 3
the IP camera failed.
AUTHENTICATION_FAILED
Access authentication to <server type> The IP camera was unable to access an 4
server <server IP address or
SNTP, Syslog, DNS, SMTP, HTTP, or
hostname> failed.
802.1x server.
Cisco Video Surveillance 7000 Series IP Camera Configuration Guide, Release 1.1.4
OL-28694-01
7-5
Chapter 7
Log Configuration
Local Log Window
Table 7-3
Log Messages (continued)
Message Name
Description that Appears in Log File
Explanation
AUTHORIZATION_FAILED
Unauthorized address <IP address or
An attempt was made to access the IP 3
hostname> attempted to access camera. camera by using invalid user
credentials from an IP address that has
been configured for no access.
CODEC_LOST
Connection to Codec/Sensor module
The IP camera codec/sensor module is 4
was lost. Internal module is either down not responding.
or not responding.
CONFIG_SAVE_FAILED
Saving configuration to user <user>
<IP address or hostname> failed.
A user attempt to save the IP camera
configuration failed.
CONFIG_SAVED
Configuration saved by user <user>
<IP address or hostname>.
The IP camera configuration was saved 5
by a user.
CONFIG_UPLOAD_FAILED
Uploading configuration failed from
A user attempt to import the IP camera 3
user <user> <IP address or hostname>. configuration failed.
CONFIG_UPLOADED
Configuration uploaded from user
<user> <IP address or hostname>.
DEFAULTS_FAILED
Restoring factory defaults failed for
An attempt to reset the IP camera to its 3
user <user> <IP address or hostname>. factory default configuration failed.
DEFAULTS_RESTORED
Factory defaults restored successfully
by user <user> <IP address or
hostname>.
The IP camera was reset to its factory
default configuration.
DEVICE_REBOOT_AUTO
Device rebooted.
The IP camera rebooted automatically. 5
DEVICE_REBOOT_MANUAL
Device was rebooted manually by user The IP camera was rebooted by a user. 5
<user> <IP address or hostname>.
DHCP_LEASE
DHCP lease renewal was successful.
The IP camera renewed its DHCP
lease.
DSP_ENCODING_HALTED
The Codec/Sensor module’s DSP
encoding was halted. Either the analog
image signal from the sensor has been
lost, or an internal encoding error has
occurred.
The DSP of the IP camera codec/sensor 2
module DSP stopped encoding. The
analog image signal from the sensor
may be lost or an internal encoding
error may have occurred.
EMAIL_TRIGGERED
Event triggered: email sent to <e-mail
address>.
An event occurred and e-mail
notification of the event was sent.
5
ETH_BER
Bit Error Rate (BER) exceeded
specified threshold of <threshold>.
The bit error rate (BER) exceeded the
specified threshold.
4
ETH_SIGNAL_DEGRADE
Ethernet signal degrading.
The IP camera detected a degrading
Ethernet signal.
4
FRAMES_DROPPED
Output frame rate does not match the
camera’s configured frame rate.
The IP camera is sending video at a
frame rate that does not match the
configured frame rate.
3
FW_UPGRADE_FAILED
Upgrading firmware failed from user
<user> <IP address or hostname>.
An attempt to upgrade the IP camera
firmware failed.
0
FW_UPGRADED
Firmware upgraded successfully from The IP camera firmware was updated.
user <user> <IP address or hostname>.
The IP camera configuration was
imported by a user.
Severity
3
5
5
6
5
Cisco Video Surveillance 7000 Series IP Camera Configuration Guide, Release 1.1.4
7-6
OL-28694-01
Chapter 7
Log Configuration
Local Log Window
Table 7-3
Log Messages (continued)
Message Name
Description that Appears in Log File
Explanation
Severity
HTTP_TRIGGERED
Event triggered: notification sent to
HTTP server <IP address or
hostname>.
An event occurred and HTTP
notification of the event was sent.
5
INPUT_ONE_CHANGED
Input port one changed to <high/low>. Input port 1 on the IP camera changed 5
state.
INPUT_ONE_RESET
Input port one reset to <high/low>.
INPUT_TWO_CHANGED
Input port two changed to <high/low>. Input port 2 on the IP camera changed 5
state.
INPUT_TWO_RESET
Input port two reset to <high/low>.
Input port 2 on the IP camera reset to
its default state.
5
IP_CONFLICT
IP Address conflict for <IP address>.
IP camera experienced an IP address
conflict.
4
IR_FILTER_DAY_AUTO
IR filter changed to day automatically.
The IP camera enabled its day filter
automatically.
6
IR_FILTER_DAY_MANUAL
IR filter manually changed to day by
The IP camera day filter was enabled
user <user> <IP address or hostname>. by a user.
6
IR_FILTER_NIGHT_AUTO
IR filter changed to night
automatically.
6
IR_FILTER_NIGHT_MANUAL IR filter changed to night by user
<user> <IP address or hostname>.
Input port 1 on the IP camera reset to
its default state.
The IP camera enabled its night filter
automatically.
5
The IP camera night filter was enabled 6
by a user.
LOG_IN
User <user> <IP address or hostname> A user logged in to the IP camera.
logged in to <web server or SSH
server>.
5
LOG_OUT
User <user> <IP address or hostname> A user logged out of the IP camera.
logged out of <web server or SSH
server>.
5
MOTION_DETECTED
Motion detected in region <region
index>.
The IP camera detected motion in its
video field.
5
MOTION_STOPPED
Motion in region <region index>
stopped.
The IP camera stopped detecting
motion in its video field.
5
OUTPUT_ONE_RESET
Output port one reset to <high/low>.
Output port 1 on the IP camera reset to 5
its default state.
OUTPUT_ONE_TRIGGERED
Output port one triggered to
<high/low>.
Output port 1 on the IP camera
changed state.
OUTPUT_TWO_RESET
Output port two reset to <high/low>.
Output port 2 on the IP camera reset to 5
its default state.
OUTPUT_TWO_TRIGGERED
Output port two triggered to
<high/low>.
Output port 2 on the IP camera
changed state.
POWER_SUPPLY_FAILURE
DC power supply failure.
The DC power for the IP camera failed. 2
5
5
Cisco Video Surveillance 7000 Series IP Camera Configuration Guide, Release 1.1.4
OL-28694-01
7-7
Chapter 7
Log Configuration
Local Log Window
Table 7-3
Log Messages (continued)
Message Name
Description that Appears in Log File
Explanation
Severity
SERVER_CONTACTED
Communication established with
<server type> server <server or
IP address>.
6
The IP camera established
communication with an SNTP, DHCP,
Syslog, DNS, SMTP, HTTP, or 802.1x
server.
SERVER_LOST
Communication lost with <server
type> server <server or IP address>.
The IP camera lost communication
with an SNTP, DHCP, Syslog, DNS,
SMTP, HTTP, or 802.1x server.
SERVER_UNREACHABLE
Failed to contact <server type> server
<server or IP address>.
The IP camera was unable to contact an 4
SNTP, DHCP, Syslog, DNS, SMTP,
HTTP, or 802.1x server or a gateway.
START_STREAM
Channel <channel ID> started
streaming to user <user> <IP address
or hostname>.
The IP camera began streaming video
to a user device.
6
STOP_STREAM
Channel <channel ID> stopped
streaming to user <user> <IP address
or hostname>.
The IP camera stopped streaming
video to a user device.
6
TEMP_THRESHOLD_T1
The internal temperature of the IP
Current temperature, <temperature>,
<exceeds/is below> <high temperature/ camera is lower than 59°F (15°C) or
higher than 149°F (65°C).
low_temperature> threshold.
2
TEMP_THRESHOLD_T2
The internal temperature of the IP
Current temperature, <temperature>,
<exceeds/is below> <high temperature/ camera is lower than 32°F (0°C) or
higher than 176°F (80°C).
low_temperature> threshold.
4
TEMP_THRESHOLD_T3
The internal temperature of the IP
Current temperature, <temperature>,
<exceeds/is below> <high temperature/ camera is lower than 5°F (–15°C) or
low_temperature> threshold.
higher than 194°F (90°C).
5
TIME_DST_SWITCH
Time switched to Daylight Savings
The IP camera internal clock switched 6
time with an offset of <offset> minutes. to daylight saving time.
TIME_REG_SWITCH
Time switched from Daylight Savings The IP camera internal clock switched 6
time with an offset of <offset> minutes. to standard time.
UNEXPECTED_EXCEPTION
Unexpected exception occurred. Could IP camera could not read or write
not <read/write> <to/from> repository information to its internal repository.
by user <user> <IP address or
hostname>.
4
2
Cisco Video Surveillance 7000 Series IP Camera Configuration Guide, Release 1.1.4
7-8
OL-28694-01
INDEX
configuration windows
A
accessing
About link
1-4
Account Initialization window
Account Initialization window
options
Administration windows
6-2
overview
1-2
Basic Settings window
6-1
6-1
5-1
Camera Settings window
action
4-6
Device Processes window
triggered by event
ActiveX controls
4-11
1-4
Administration windows
6-1, 7-1
6-7
Discovery Settings window
5-6
Event Notification window
4-11
Feature Setup windows
audio
4-1
Firmware Settings window
settings
4-6
6-6
IO Ports Settings window
IP Addressing window
4-10
5-3
IP Filter Settings window
B
Local Log window
backing up, configuration of IP camera
Log windows
Basic Settings window
options
7-1
7-1
Network Setup windows
5-1
bit rate, of video
QoS Settings window
5-6
5-1
C
Time Settings window
5-4
User Settings window
6-3
4-1
Video Overlay Settings window
after the first time
4-7
for the first time
4-6
description
displaying
1-2
2-1
PC requirements for
Camera Video & Control window
accessing
4-9
connecting, to the IP camera
Camera Settings window
overview
6-8
5-7
Streaming Settings window
3-2
options
6-4
Password Complexity window
4-6
Bonjour, enabling on camera
brightness
7-4
Maintenance Settings window
5-2
overview
5-6
Log Setup Settings window
6-4
6-1
secure connection
3-1
contrast
1-5
1-2, 2-1
1-3
3-2
1-4
CDP (Cisco Discovery Protocol), enabling on camera
5-6
Cisco Video Surveillance 7000 Series IP Camera Configuration Guide, Release 1.1.4
OL-28694-01
IN-1
Index
D
F
date and time
factory default configurations, resetting
6-5
factory default configurations, restoring
6-5
configuring manually
5-4
updating through NTP server
Feature Setup windows
5-4
day
4-1
firmware
filter
4-6
upgrading
mode
4-6
version in IP camera
daylight saving time, adjustment for
5-5
options
Differentiated Services (DiffServ)
accessing controls
2-1, 5-3
controls
5-8
Discovery Settings window
3-5
3-5
FTP notification
configuring
5-6
overview
6-6
focus/zoom
6-7
DHCP, obtaining IP address through
options
6-7
overview
6-8
overview
6-7
Firmware Settings window
Device Processes window
options
6-6, 6-7
4-15
5-6
DNS server
primary
G
5-3
secondary
5-4
dual streaming
4-1
gateway, for IP camera
5-3
H
E
help, for IP camera windows
e-mail notification
configuring
recipients
Home window
4-13, 4-14
From field
1-4
accessing
4-15
description
4-15
displaying
event
1-2
1-3, 1-5
1-4
HTTP
actions
accessing camera through
HTTP notification
4-11
output port state change
syslog server message
overview
4-11
trigger types
4-12
Event Notification window
options
4-12
overview
4-11
allowing access through
4-11
4-11
default port
port
1-3
2-2, 6-2
6-2
6-2
HTTPS
accessing camera through
allowing access through
default port
port
1-3
6-2
6-2
6-2
Cisco Video Surveillance 7000 Series IP Camera Configuration Guide, Release 1.1.4
IN-2
OL-28694-01
Index
I
L
input ports
live video
state change
viewing
4-11
IO Ports Settings window
options
through home window
through third-party device or software
4-10
overview
Local Log window
controlling access by
5-6
options
default for IP camera
1-2, 1-3, 2-1
overview
obtaining through DHCP
storage of
5-3
viewing
IP Addressing window
options
accessing through a web browser
connecting to after the first time
connecting to for the first time
controlling access to
overview
1-2, 2-1
2-1
1-3
options
6-7
overview
5-2
6-5
6-4
motion detection
night mode
overview
4-6
accessing controls
1-1
enabling
3-3
rebooting
6-5
restarting
6-5
restoring factory default configurations
3-3
3-4
Motion detection controls
3-4
multicast
address
6-5
enabling
3-3
port
4-5
4-5
4-5
5-5
1-2, 1-5
IP Filter Settings window
overview
6-7
Maintenance Settings window
MAC address
options
7-1
MAC address, of IP camera
1-4
windows
7-2
M
5-6
logging out of
time zone
1-4
1-2
4-6
logging in to
tilting
1-3
Log Setup Settings window
IP camera
panning
7-4
log out, of IP camera
5-3
day mode
7-2
7-1
log in, to IP camera
5-3
overview
name
7-4
sending to Syslog server
2-1
5-3
options
7-4
log file
5-3
obtaining from DCHP server
static
3-1
See also video
4-10
IP address
fixed
3-1
5-7
5-6
N
name, of IP camera
5-2, 6-7
Network Setup windows
5-1
Cisco Video Surveillance 7000 Series IP Camera Configuration Guide, Release 1.1.4
OL-28694-01
IN-3
Index
night
Refresh link
1-4
filter
4-6
resetting, factory default configurations
mode
4-6
restarting, IP camera
6-5
6-5
restoring, factory default configurations
6-5
O
S
output ports
power on state
saturation
4-10
3-2
secure connection
1-3
security
P
controlling processes
panning
6-7
password hardening
3-3
6-8
stopping processes
password
complexity
Setup window
6-8
configuring requirements for
for primary SMTP server
for secondary SMTP server
for user
description
6-8
displaying
4-14
4-15
sharpness
default port
options
6-8
overview
1-2
6-2
6-2
4-4
4-1
subnet mask, of IP camera
processes
descriptions
stopping
6-2
Streaming Settings window
6-9
port number
3-2
alternative port
2-2, 6-4
Password Complexity window
overview
1-4
allowing access through
6-8
requirements for
options
1-5
SSH
6-4
hardening
6-7
Syslog server
6-8
5-3
7-2
6-7
T
Q
text overlay, on video
tilting
QoS Settings window
options
options
5-7
quality of service
3-3
Time Settings window
5-8
overview
4-9
overview
5-7
5-4
5-4
time stamp, on video
4-9
time zone, of IP camera
R
trigger, for event
rebooting, IP camera
5-5
4-12
6-5
Cisco Video Surveillance 7000 Series IP Camera Configuration Guide, Release 1.1.4
IN-4
OL-28694-01
Index
zoom controls
U
user, password
3-5
6-4
user name, requirements for
6-4
User Settings window
options
overview
6-4
6-3
V
video
bit rate
4-6
primary stream
quality
4-1
4-6
secondary stream
text overlay
4-1
4-9
time stamp on
4-9
viewing live
through Home window
3-1
through third-party device or software
3-1
See also live video
video codec
controls in Camera Video/Control window
display in Streaming Settings window
3-1
4-5
video image
controls in Camera Video/Control window
optimizing for lighting condition
3-2
4-6
Video Overlay Settings window
options
overview
4-9
4-9
video resolution
configuration guidelines
4-1
controls in Camera Video/Control window
View Video link
3-2
1-4
Z
zoom
accessing controls
3-5
Cisco Video Surveillance 7000 Series IP Camera Configuration Guide, Release 1.1.4
OL-28694-01
IN-5
Index
Cisco Video Surveillance 7000 Series IP Camera Configuration Guide, Release 1.1.4
IN-6
OL-28694-01

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
