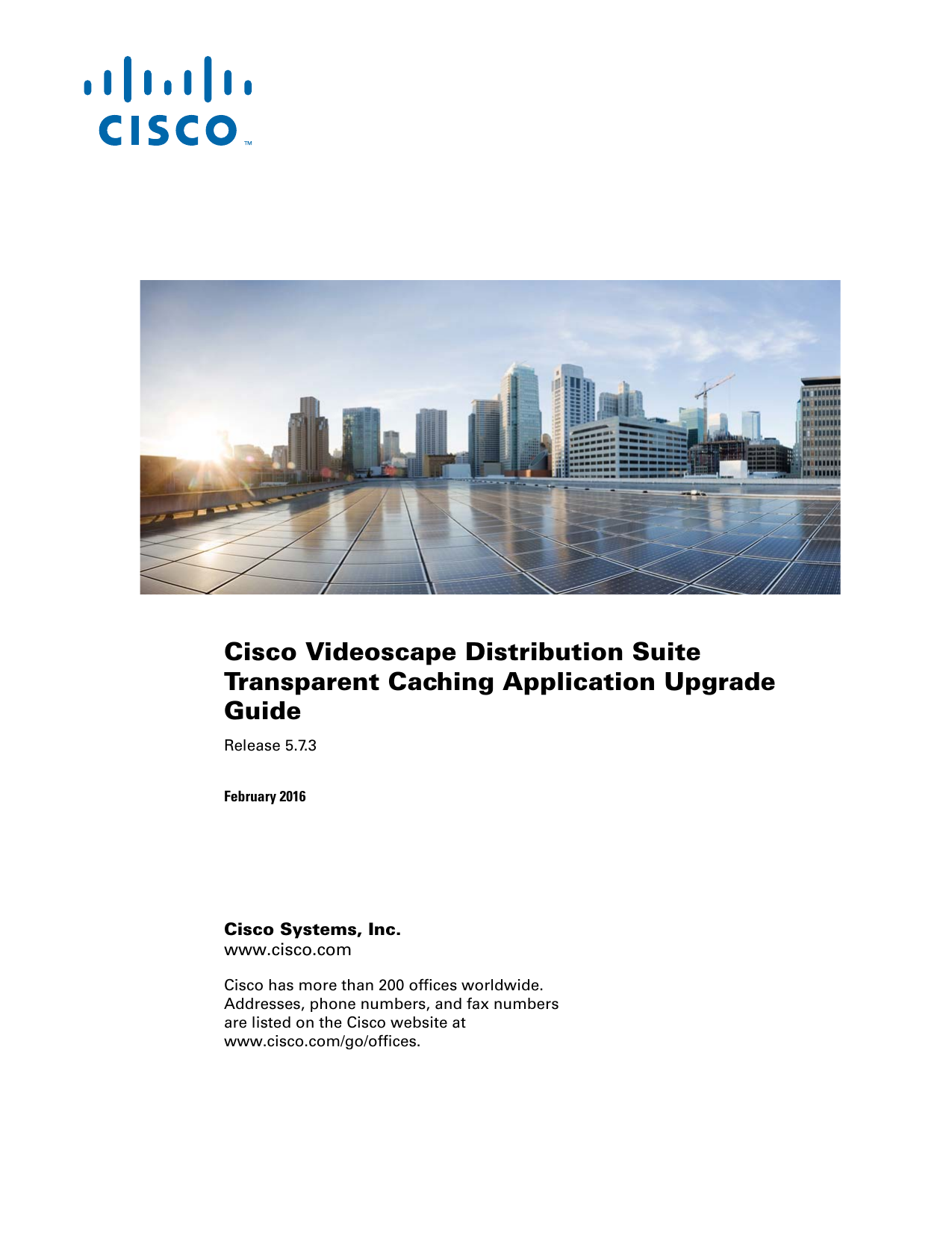

Cisco Videoscape Distribution Suite Transparent Caching Guide

Cisco Videoscape Distribution Suite
Transparent Caching Application Upgrade
Guide
Release 5.7.3
February 2016
Cisco Systems, Inc.
www.cisco.com
Cisco has more than 200 offices worldwide.
Addresses, phone numbers, and fax numbers
are listed on the Cisco website at
www.cisco.com/go/offices.
THE SPECIFICATIONS AND INFORMATION REGARDING THE PRODUCTS IN THIS MANUAL ARE SUBJECT TO CHANGE WITHOUT NOTICE. ALL
STATEMENTS, INFORMATION, AND RECOMMENDATIONS IN THIS MANUAL ARE BELIEVED TO BE ACCURATE BUT ARE PRESENTED WITHOUT
WARRANTY OF ANY KIND, EXPRESS OR IMPLIED. USERS MUST TAKE FULL RESPONSIBILITY FOR THEIR APPLICATION OF ANY PRODUCTS.
THE SOFTWARE LICENSE AND LIMITED WARRANTY FOR THE ACCOMPANYING PRODUCT ARE SET FORTH IN THE INFORMATION PACKET THAT
SHIPPED WITH THE PRODUCT AND ARE INCORPORATED HEREIN BY THIS REFERENCE. IF YOU ARE UNABLE TO LOCATE THE SOFTWARE LICENSE
OR LIMITED WARRANTY, CONTACT YOUR CISCO REPRESENTATIVE FOR A COPY.
The following information is for FCC compliance of Class A devices: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant
to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio-frequency energy and, if not installed and used in accordance with the instruction manual, may cause
harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case users will be required
to correct the interference at their own expense.
The following information is for FCC compliance of Class B devices: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If the equipment causes interference to radio or television reception, which can be
determined by turning the equipment off and on, users are encouraged to try to correct the interference by using one or more of the following measures:
•
•
•
•
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Modifications to this product not authorized by Cisco could void the FCC approval and negate your authority to operate the product.
The Cisco implementation of TCP header compression is an adaptation of a program developed by the University of California, Berkeley (UCB) as part of UCB’s public
domain version of the UNIX operating system. All rights reserved. Copyright © 1981, Regents of the University of California.
NOTWITHSTANDING ANY OTHER WARRANTY HEREIN, ALL DOCUMENT FILES AND SOFTWARE OF THESE SUPPLIERS ARE PROVIDED “AS IS” WITH
ALL FAULTS. CISCO AND THE ABOVE-NAMED SUPPLIERS DISCLAIM ALL WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING, WITHOUT
LIMITATION, THOSE OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT OR ARISING FROM A COURSE OF
DEALING, USAGE, OR TRADE PRACTICE.
IN NO EVENT SHALL CISCO OR ITS SUPPLIERS BE LIABLE FOR ANY INDIRECT, SPECIAL, CONSEQUENTIAL, OR INCIDENTAL DAMAGES, INCLUDING,
WITHOUT LIMITATION, LOST PROFITS OR LOSS OR DAMAGE TO DATA ARISING OUT OF THE USE OR INABILITY TO USE THIS MANUAL, EVEN IF CISCO
OR ITS SUPPLIERS HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
Cisco and the Cisco logo are trademarks or registered trademarks of Cisco and/or its affiliates in the U.S. and other countries. To view a list of Cisco trademarks, go to this
URL: www.cisco.com/go/trademarks. Third-party trademarks mentioned are the property of their respective owners. The use of the word partner does not imply a partnership
relationship between Cisco and any other company. (1110R)
Any Internet Protocol (IP) addresses and phone numbers used in this document are not intended to be actual addresses and phone numbers. Any examples, command display
output, network topology diagrams, and other figures included in the document are shown for illustrative purposes only. Any use of actual IP addresses or phone numbers in
illustrative content is unintentional and coincidental.
© 2016 Cisco Systems, Inc. All rights reserved.
CONTENTS
Preface
vii
Obtaining Documentation and Submitting a Service Request
CHAPTER
1
vii
Upgrading from VDS TC 5.2.1 or VDS TC 5.6.1 to VDS TC 5.7.3 for an Integrated Appliance
Installation 1-1
Preparing for the Upgrade 1-2
Confirming Correct BIOS, Firmware, and Software Versions
Confirming the BIOS Settings of the VDS TC Server 1-2
1-2
Obtaining the Required VDS TC 5.7.3 Files 1-7
Generating a License Request in VDS TC 5.2.1 or VDS TC 5.6.1
Uploading the Required VDS TC 5.7.3 Files
1-7
1-10
Performing the VDS TC Software Upgrade from VDS TC 5.2.1 or VDS TC 5.6.1 to VDS TC 5.7.3
CHAPTER
2
Downgrading an Integrated Appliance from VDS TC 5.7.3 to VDS TC 5.6.1 or VDS TC 5.2.1
Rolling Back the VDS TC Software
CHAPTER
3
4
2-1
2-1
Manually Downgrading an Integrated Appliance from VDS TC 5.7.3 to VDS TC 5.6.1 or VDS TC
5.2.1 3-1
Rolling Back the VDS TC Software
CHAPTER
1-10
3-1
Upgrading from VDS TC 5.2.1 or VDS TC 5.6.1 to VDS TC 5.7.3 for a C-Series Cluster Installation
4-1
Preparing for the Upgrade 4-2
Confirming Correct BIOS, Firmware, and Software Versions 4-2
Confirming the BIOS Settings of the VDS TC Management Server 4-3
Confirming the BIOS Settings of the VDS TC C-Series Cache Engines 4-8
Obtaining the Required VDS TC 5.7.3 Files 4-12
Generating a License Request in VDS TC 5.2.1 or VDS TC 5.6.1
Uploading the Required Files
4-12
4-15
Performing the VDS TC Software Upgrade from VDS TC 5.2.1 or VDS TC 5.6.1 to VDS TC 5.7.3
CHAPTER
5
4-15
Downgrading a C-Series Cluster Installation from VDS TC 5.7.3 to VDS TC 5.6.1 or VDS TC 5.2.1
Rolling Back the VDS TC Software
5-1
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
iii
5-1
Contents
CHAPTER
6
Manually Downgrading a C-Series Cluster Installation from VDS TC 5.7.3 to VDS TC 5.6.1 or VDS TC
5.2.1 6-1
Rolling Back the VDS TC Software
CHAPTER
7
6-1
Upgrading from VDS TC 5.6.1 to VDS TC 5.7.3 for a Blade Server Cluster Installation
Preparing for the Upgrade 7-2
Confirming Correct BIOS, Firmware, and Software Versions 7-2
Confirming the BIOS Settings of the VDS TC Management Server 7-3
Confirming the BIOS Settings of the VDS TC Blade Server Cache Engines
Obtaining the Required VDS TC 5.7.3 Files 7-7
Generating a License Request in VDS TC 5.6.1
Uploading the Required Files
7-1
7-7
7-8
7-8
Performing the VDS TC Software Upgrade from VDS TC 5.6.1 to VDS TC 5.7.3
7-9
Post Upgrade Steps 7-11
Importing the XML Configuration File 7-11
Copying the Configuration File to the VDS TC Management Server 7-19
Importing the VDS TC 5.7.3 License and Restarting Services 7-20
CHAPTER
8
Downgrading a Blade Server Cluster Installation from VDS TC 5.7.3 to VDS TC 5.6.1
Rolling Back the VDS TC Software
Importing the XML Configuration File
Finishing the Rollback
CHAPTER
9
8-3
Manually Downgrading a Blade Server Cluster Installation from VDS TC 5.7.3 to VDS TC 5.6.1
Importing the XML Configuration File
Finishing the Rollback
10
8-1
8-11
Rolling Back the VDS TC Software
CHAPTER
9-1
9-3
9-11
Upgrading from VDS TC 5.2.1 to VDS TC 5.7.3 for a Blade Server Cluster Installation
Preparing for the Upgrade 10-2
Confirming Correct BIOS, Firmware, and Software Versions 10-2
Confirming the BIOS Settings of the VDS TC Management Server 10-3
Confirming the BIOS Settings of the VDS TC Blade Server Cache Engines
Obtaining the Required VDS TC 5.7.3 Files 10-7
Generating a License Request in VDS TC 5.2.1
Uploading the Required Files
10-7
10-8
10-11
Performing the VDS TC Software Upgrade from VDS TC 5.2.1 to VDS TC 5.7.3
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
iv
8-1
10-11
10-1
9-1
Contents
Importing the Active-Active XML Configuration File 10-14
Running the Active-Active Script and Configuring the Cache Engines
10-21
Post Upgrade Steps 10-26
Updating the VDS TC Switch Configuration 10-26
Copying the Configuration File to the VDS TC Management Server 10-29
Importing the VDS TC 5.7.3 License and Restarting Services 10-30
CHAPTER
11
Downgrading a Blade Server Cluster Installation from VDS TC 5.7.3 to VDS TC 5.2.1
Rolling Back the VDS TC Software
11-1
11-1
Importing the XML Configuration File 11-3
Running the Network Update Script 11-11
Restoring the Switch Configuration
Finishing the Rollback
CHAPTER
12
11-16
11-17
Manually Downgrading a Blade Server Cluster Installation from VDS TC 5.7.3 to VDS TC 5.2.1
Rolling Back the VDS TC Software
12-1
12-1
Importing the XML Configuration File 12-4
Running the Network Update Script 12-11
Restoring the Switch Configuration
Finishing the Rollback
APPENDIX
A
12-16
12-16
Cisco VDS TC Specific UCS Blade Server Values
Values for the Equipment Tab A-1
Values for the LAN Tab A-1
Values for the Servers Tab A-13
A-1
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
v
Contents
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
vi
Preface
Created: February 2016
The Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide provides
information on how to upgrade the VDS TC software and license from VDS TC version 5.2.1 or 5.6.1
to VDS TC version 5.7.3. It also describes how to roll back to VDS TC version 5.2.1 or 5.6.1 if necessary.
Note
You can only upgrade to VDS TC version 5.7.3 from VDS TC version 5.6.1 or 5.2.1. To upgrade to VDS
TC 5.7.3 from any other version, you must first upgrade to either VDS TC version 5.6.1 or version 5.2.1.
For instructions on upgrading to VDS TC 5.2.1, please refer to the document Cisco Videoscape
Distribution Suite Transparent Caching Application Upgrade Guide Release 5.2.1 available at
http://www.cisco.com/c/dam/en/us/td/docs/video/videoscape/distribution_suite/vds/v5_2_1/VDS-TC_
5_2_1_app_upgrade_guide.pdf. For instructions on upgrading to VDS TC 5.6.1, please refer to the
document Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
Release 5.6.1 available at
http://www.cisco.com/c/dam/en/us/td/docs/video/videoscape/distribution_suite/vds/v5_6_1/VDS-TC_
5_6_1_appupgrade_guide.pdf.
Obtaining Documentation and Submitting a Service Request
For information on obtaining documentation, submitting a service request, and gathering additional
information, see the monthly What’s New in Cisco Product Documentation, which also lists all new and
revised Cisco technical documentation, at:
http://www.cisco.com/en/US/docs/general/whatsnew/whatsnew.html
Subscribe to the What’s New in Cisco Product Documentation as an RSS feed and set content to be
delivered directly to your desktop using a reader application. The RSS feeds are a free service. Cisco currently
supports RSS Version 2.0.
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
vii
Preface
Obtaining Documentation and Submitting a Service Request
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
viii
CH A P T E R
1
Upgrading from VDS TC 5.2.1 or VDS TC 5.6.1 to
VDS TC 5.7.3 for an Integrated Appliance
Installation
This chapter describes how to upgrade from VDS TC 5.2.1 or VDS TC 5.6.1 to VDS TC 5.7.3 for an
Integrated Appliance system. Use this chapter only if you are upgrading an Integrated Appliance from
VDS TC 5.2.1 or VDS TC 5.6.1. If you are upgrading a C-Series cluster installation, see Chapter 4,
“Upgrading from VDS TC 5.2.1 or VDS TC 5.6.1 to VDS TC 5.7.3 for a C-Series Cluster Installation”.
If you are upgrading a Blade server cluster installation, see Chapter 7, “Upgrading from VDS TC 5.6.1
to VDS TC 5.7.3 for a Blade Server Cluster Installation” or Chapter 10, “Upgrading from VDS TC 5.2.1
to VDS TC 5.7.3 for a Blade Server Cluster Installation”.
Note
You can only upgrade to VDS TC version 5.7.3 from VDS TC version 5.6.1 or 5.2.1. To upgrade to VDS
TC 5.7.3 from any other version, you must first upgrade to either VDS TC version 5.6.1 or version 5.2.1.
For instructions on upgrading to VDS TC 5.2.1, please refer to the document Cisco Videoscape
Distribution Suite Transparent Caching Application Upgrade Guide Release 5.2.1 available at
http://www.cisco.com/c/dam/en/us/td/docs/video/videoscape/distribution_suite/vds/v5_2_1/VDS-TC_
5_2_1_app_upgrade_guide.pdf. For instructions on upgrading to VDS TC 5.6.1, please refer to the
document Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
Release 5.6.1 available at
http://www.cisco.com/c/dam/en/us/td/docs/video/videoscape/distribution_suite/vds/v5_6_1/VDS-TC_
5_6_1_appupgrade_guide.pdf.
Note
If you need to roll back to version 5.2.1 or 5.6.1 after you perform the upgrade, you must perform this
roll back within 7 days of the upgrade.
This chapter contains the following sections:
Note
•
Preparing for the Upgrade
•
Obtaining the Required VDS TC 5.7.3 Files
•
Uploading the Required VDS TC 5.7.3 Files
•
Performing the VDS TC Software Upgrade from VDS TC 5.2.1 or VDS TC 5.6.1 to VDS TC 5.7.3
Because you will need to stop traffic redirection to the VDS TC system during the upgrade process, you
should perform the upgrade during a maintenance window.
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
1-1
Chapter 1
Upgrading from VDS TC 5.2.1 or VDS TC 5.6.1 to VDS TC 5.7.3 for an Integrated Appliance Installation
Preparing for the Upgrade
Preparing for the Upgrade
Confirming Correct BIOS, Firmware, and Software Versions
The following BIOS, firmware, and software versions are required for VDS TC 5.7.3:
Hardware Component
Model
Required Firmware Version and Image File
Integrated Appliance
Cisco UCS-C240-M3S
Firmware version: 2.0(6f)
Image file: ucs-c240-huu-2.0.6f.iso
Data switch
Cisco Catalyst 4948E
Cisco IOS Release 15.2.2E or later, with the
ENTERPRISE SERVICES W/O CRYPTO
If you need to perform a firmware upgrade for the Cisco UCS-C240-M3S, see the Cisco UCS C-Series
Rack-Mount Server BIOS Upgrade Guide document available at
http://www.cisco.com/en/US/docs/unified_computing/ucs/c/sw/bios/b_Upgrading_BIOS_Firmware.ht
ml.
If you need to perform an IOS upgrade on the Cisco Catalyst 4948E, see the “Upgrading Software
Images on Catalyst 4000/4500 Series Switch” at
http://www.cisco.com/c/en/us/support/docs/switches/catalyst-4000-series-switches/27848-179.html.
Confirming the BIOS Settings of the VDS TC Server
Follow these steps to use the CIMC to confirm, and configure if necessary, the BIOS settings of the VDS
TC server:
Step 1
Open a web browser and enter the management IP address of the CIMC. The CIMC login window
appears.
Step 2
Enter the username admin and the password for the admin account.
Step 3
The Cisco Integrated Management Controller: Server Summary window appears.
Step 4
From the Server tab, click BIOS.
Step 5
In the BIOS window, click Configure BIOS. The Configure BIOS Parameters window appears.
Step 6
Click the Advanced tab.
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
1-2
Chapter 1
Upgrading from VDS TC 5.2.1 or VDS TC 5.6.1 to VDS TC 5.7.3 for an Integrated Appliance Installation
Preparing for the Upgrade
Figure 1-1
Step 7
Note
Configure BIOS Parameters Window: Advanced Tab
From the Advanced BIOS Parameters table, confirm, and configure if necessary, the following settings
on the Advanced tab.
Parameters that are not listed in the following table should be left set to their default value.
Table 1-1
Advanced BIOS Parameters
Processor Configuration
State
Intel Hyper - Threading Technology
Enabled
Number Of Enabled Cores
All
Execute Disable
Enabled
Intel VT
Disabled
Intel VT-d
Disabled
Intel VT-d Coherency Support
Disabled
Intel VT-d ATS Support
Disabled
CPU Performance
High Throughput
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
1-3
Chapter 1
Upgrading from VDS TC 5.2.1 or VDS TC 5.6.1 to VDS TC 5.7.3 for an Integrated Appliance Installation
Preparing for the Upgrade
Hardware Prefetcher
Disabled
Adjacent Cache Line Prefetch
Disabled
DCU Streamer Prefetch
Disabled
DCU IP Prefetcher
Enabled
Direct Cache Access Support
Enabled
Power Technology
Disabled
Enhanced Intel Speedstep Technology
Enabled
Intel Turbo Boost Technology
Enabled
Processor Power State C6
Disabled
Processor Power State C1 Enhanced
Disabled
Frequency Floor Override
Disabled
P-STATE Coordination
HW ALL
Energy Performance
Performance
Memory Configuration
Status
Select Memory RAS
Maximum Performance
DRAM Clock Throttling
Performance
NUMA
Enabled
Low Voltage DDR Mode
Performance Mode
DRAM Refresh Rate
Auto
Channel Interleaving
Auto
Rank Interleaving
Auto
Patrol Scrub
Enabled
Demand Scrub
Enabled
Altitude
300 M
QPI Configuration
QPI Link Frequency Select
Onboard Storage
Onboard SCU Storage Support
USB Configuration
Status
Auto
Status
Disabled
Status
Legacy USB Support
Enabled
Port 60/40 Emulation
Enabled
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
1-4
Chapter 1
Upgrading from VDS TC 5.2.1 or VDS TC 5.6.1 to VDS TC 5.7.3 for an Integrated Appliance Installation
Preparing for the Upgrade
All USB Devices
Enabled
USB Port:Rear
Enabled
USB Port:Front
Enabled
USB Port:Internal
Enabled
USB Port:KVM
Enabled
USB Port:VMedia
Enabled
USB Port:SD Card
Disabled
PCI Configuration
Status
MMIO above 4GB
Disabled
ASPM Support
Disabled
VGA Priority
Onboard
MMCFG BASE
1GB
Serial Configuration
Status
Out-of-Band Mgmt Port
Enabled
Console Redirection
Disabled
Terminal Type
VT100+
Bits per Second
115200
Flow Control
None
Putty KeyPad
ESCN
Redirection After BIOS POST
Always Enable
LOM and PCIe Slots Configuration
Status
CDN Support for LOM
Disabled
CDN Support for VIC
Disabled
All Onboard LOM Ports
Enabled
LOM Port 0 OptionROM
Enabled
LOM Port 1 OptionROM
Enabled
LOM Port 2 OptionROM
Enabled
LOM Port 3 OptionROM
Enabled
All PCIe Slots OptionROM
Enabled
PCIe Slot:1 OptionROM
Enabled
PCIe Slot:2 OptionROM
Enabled
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
1-5
Chapter 1
Upgrading from VDS TC 5.2.1 or VDS TC 5.6.1 to VDS TC 5.7.3 for an Integrated Appliance Installation
Preparing for the Upgrade
PCIe Slot:3 OptionROM
Enabled
PCIe Slot:4 OptionROM
Enabled
PCIe Slot:5 Option ROM
Enabled
PCIe Mezzanine OptionROM
Enabled
PCIe Slot:1 Link Speed
GEN3
PCIe Slot:2 Link Speed
GEN3
PCIe Slot:3 Link Speed
GEN3
PCIe Slot:4 Link Speed
GEN3
PCIe Slot:5 Link Speed
GEN3
Step 8
If you made any changes, click Save Changes.
Step 9
From the Server tab, choose Power Policies. The Power Policies window appears.
Step 10
In the Power Policies window confirm, or configure if necessary, the following settings:
Step 11
•
From the Power Restore Policy drop-down list, choose Power On.
•
From the Power Delay Type drop-down list, choose Fixed.
•
In the Power Delay Value text box, enter 0.
•
From the Fan Policy drop-down list, choose Maximum Power.
If you made any changes, click Save Changes.
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
1-6
Chapter 1
Upgrading from VDS TC 5.2.1 or VDS TC 5.6.1 to VDS TC 5.7.3 for an Integrated Appliance Installation
Obtaining the Required VDS TC 5.7.3 Files
Figure 1-2
Power Policies Screen
Step 12
From the Server tab, choose Summary. In the Actions pane, click Hard Reset Server.
Step 13
From the Hard Reset Server dialog box, click OK to reset the server.
Obtaining the Required VDS TC 5.7.3 Files
To perform an upgrade to VDS TC 5.7.3, you must obtain the following files:
•
The VDS TC 5.7.3 upgrade image for an Integrated Appliance: Obtain the VDS TC upgrade
image from Cisco. The upgrade image filename for an Integrated Appliance upgrade will begin with
VDS-TC_GA and will have “Integrated_Appliance” in the filename, for example
VDS-TC_GA5.7.3b61_Integrated_Appliance.tar.gz. The numbers in the filename represent the
version number and build number.
•
VDS TC License file: You must obtain a new license that is valid for VDS TC 5.7.3. See the
following section, Generating a License Request in VDS TC 5.2.1 or VDS TC 5.6.1, for steps to
obtain this license file.
Generating a License Request in VDS TC 5.2.1 or VDS TC 5.6.1
Follow these steps to generate a license request from VDS TC 5.2.1 or 5.6.1:
Note
You should send this request a few days prior to when you want to schedule the upgrade.
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
1-7
Chapter 1
Obtaining the Required VDS TC 5.7.3 Files
Upgrading from VDS TC 5.2.1 or VDS TC 5.6.1 to VDS TC 5.7.3 for an Integrated Appliance Installation
Procedure
Step 1
In a web browser, enter the management IP address of the VDS TC appliance to connect to the VDS TC
Manager.
Step 2
Enter a username of padmin and the password that was provided by Cisco.
Step 3
From VDS TC Manager, in the left navigation pane, click Configuration > License Manager.
Figure 1-3
Step 4
Configuration > License Manager
Click the Generate license request button.
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
1-8
Chapter 1
Upgrading from VDS TC 5.2.1 or VDS TC 5.6.1 to VDS TC 5.7.3 for an Integrated Appliance Installation
Obtaining the Required VDS TC 5.7.3 Files
Figure 1-4
Configuration > License Manager
Step 5
The Open license-request dialog window appears.
Step 6
Click Save File and then OK to save the file request.
Step 7
Enter a name and location of the file to save. You must send this file to Cisco support to receive a license
file.
Step 8
Email the license-request.xml file that was generated in Step 7 to Cisco at [email protected]. Please
include the following information in the email:
•
Company name
•
Sales Order number (SO) or Purchase Order number (PO) if you are requesting a Release license
•
Indicate whether the license that is being upgraded from is a Evaluation license or a Release license
•
Indicate what VDS TC software version you are upgrading from
•
Specify the Forwarding capacity that is required per integrated appliance. This information is
imperative when a PO contains multiple clusters or integrated appliances.
Note
Step 9
Make sure that you are requesting the total forwarding capacity that is inline with the SO/PO.
After you receive the VDS TC license for Version 5.7.3 from Cisco, save the license file to a location
that you will be able to access while connected to the VDS TC server.
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
1-9
Chapter 1
Uploading the Required VDS TC 5.7.3 Files
Note
Upgrading from VDS TC 5.2.1 or VDS TC 5.6.1 to VDS TC 5.7.3 for an Integrated Appliance Installation
It may take a couple of days to receive the license from Cisco. Making sure to provide complete, clear,
and accurate information in the license request email will help expedite the process.
Uploading the Required VDS TC 5.7.3 Files
Follow these steps to upload the files that are needed to perform the upgrade to VDS TC 5.7.3:
Procedure
Step 1
Using SFTP software, such as WinSCP, connect to the management IP address that was assigned to the
VDS TC server. Log in using the user name padmin and the password that was provided by Cisco.
Step 2
Copy the VDS TC upgrade image file and the updated VDS TC license file to the /tftpboot folder. These
are the files that you obtained in the Obtaining the Required VDS TC 5.7.3 Files section. Make sure that
the previous VDS TC software version file is also in the /tftpboot folder in case you need to perform a
roll back.
Note
You must have a valid VDS TC license in the /tftpboot folder before you perform the following steps. If
you do not, the upgrade will fail.
Performing the VDS TC Software Upgrade from VDS TC 5.2.1 or
VDS TC 5.6.1 to VDS TC 5.7.3
Follow these steps to upgrade the VDS TC software from version 5.2.1 or version 5.6.1 to version 5.7.3
and to update the license file to a version that supports VDS TC 5.7.3.
Note
If you need to roll back to version 5.2.1 or version 5.6.1 after you perform the upgrade, you must perform
this roll back within 7 days of the upgrade.
Step 1
On the PBR routers, stop redirecting traffic to the VDS TC solution.
Step 2
Immediately after stopping the traffic redirection to the VDS TC solution, you must stop the VDS TC
caching service. Follow these steps to stop the VDS TC caching service:
a.
Using SSH software, such as Putty, open an SSH connection to the management IP address of the
VDS TC appliance.
b.
Log into the system using the username admin. The default password is the serial number of the
VDS TC Integrated Appliance, which can be found either by accessing the CIMC or by accessing
the Status > Hardware View page from VDS TC Manager. The serial number is displayed in the
Support Tag ID field in VDS TC Manager.
c.
From the VDS TC CLI prompt, enter the command enable. When prompted, enter the Enable mode
password and press Enter. You are now logged into Enable mode and the Enable prompt, console#,
should appear.
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
1-10
Chapter 1
Upgrading from VDS TC 5.2.1 or VDS TC 5.6.1 to VDS TC 5.7.3 for an Integrated Appliance Installation
Performing the VDS TC Software Upgrade from VDS TC 5.2.1 or VDS TC 5.6.1 to VDS TC 5.7.3
Note
By default, your system serial number is the password for the Enable mode, but this password may have
been changed.
d.
From the Enable mode prompt, enter the command oper service stop to stop the caching service.
e.
Wait a few minutes and then enter the command show status. Check to see if the Device State shows
“stopped.” For example:
console# show status
Operational state Device state Administrative state
disabled
stopped
unlocked
Caution
Do not proceed to the next step until the Device State shows “stopped.” You may need to repeat the show
status command several times before you see this status. Wait several minutes between executions of the
show status command.
Step 3
Close any open VDS TC Manager windows and ensure that no other administrators are connected to the
VDS TC Manager before proceeding.
Step 4
Back up the current cluster_conf.xml file before performing the upgrade, in case you need to perform a
roll back. To backup the exiting cluster_conf.xml file, enter the export tftp_server filename command,
where tftp_server is the IP address or the hostname of the TFTP server to which you want to export the
configuration and filename is the filename to create when exporting the current configuration file. You
should include the version of VDS TC in the filename to help differentiate it from the new cluster_conf
file that will be created during the upgrade process. For example, you could use the filename
cluster_conf_5.2.1b5_bkp.xml.
Step 5
From the VDS TC CLI and enter enable to go to Enable mode.
Step 6
From Enable mode, enter the command upgrade 127.0.0.1 filename, where filename is the name of the
software upgrade image file that you copied to the /tftpboot directory in the Uploading the Required
VDS TC 5.7.3 Files section.
Caution
Step 7
Note
If you are upgrading a VDS TC Cluster system, use the upgrade all 127.0.0.1 filename command.
To upgrade to VDS TC 5.7.3, a new license is required. The upgrade process will warn you to only
proceed with the upgrade if you already have a new license file for 5.7.3. This is the license file that you
copied to the /tftpboot directory in the Uploading the Required VDS TC 5.7.3 Files. If you upgrade the
system without this license file, the system will not start.
If you have not uploaded the VDS TC 5.7.3 license as instructed earlier, stop the upgrade process.
Perform the upgrade only after you obtain the VDS TC 5.7.3 license file.
Step 8
When the “Do you want to proceed with the upgrade?” prompt appears, enter Y and when prompted to
confirm, enter Y.
Step 9
The next step in the upgrade process is for the upgrade script to validate the VDS TC 5.7.x license file.
When prompted for the IP address of the TFTP server that contains the license file, enter 127.0.0.1 and
when prompted for the path to the 5.7.3 license file, enter the name of the license file.
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
1-11
Chapter 1 Upgrading from VDS TC 5.2.1 or VDS TC 5.6.1 to VDS TC 5.7.3 for an Integrated Appliance Installation
Performing the VDS TC Software Upgrade from VDS TC 5.2.1 or VDS TC 5.6.1 to VDS TC 5.7.3
Figure 1-5
Upgrade License Validation
Note
The license is only validated during the software upgrade script, it is not installed. You must install the
license file after the software upgrade process finishes.
Step 10
When the software upgrade has finished, you will see a “Succeeded” message and a reminder to import
and activate the new VDS TC 5.7.3 license before restarting the service, if required. You will perform
these steps next.
Figure 1-6
Software Upgrade Script Succeeded
Step 11
After upgrading the system, exit completely from the VDS TC CLI and log back into the CLI to access
the new software version.
Note
If you do not log out of the VDS TC CLI and log back in, you will receive the following error message
when you try to activate the new license: “License activation failed”.
Step 12
From the VDS TC prompt, enter the enable command. When prompted, enter the Enable mode password
and press Enter.
Step 13
From Enable mode, enter the command license import 127.0.0.1 filename, where filename is the name
of the new license file. For example, license import 127.0.0.1
0000000-5.7-CISCO_UCS240_XY-License_20151012_19862.xml
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
1-12
Chapter 1
Upgrading from VDS TC 5.2.1 or VDS TC 5.6.1 to VDS TC 5.7.3 for an Integrated Appliance Installation
Performing the VDS TC Software Upgrade from VDS TC 5.2.1 or VDS TC 5.6.1 to VDS TC 5.7.3
Step 14
Enter license activate to apply the license. When prompted with “Are you sure you want to activate this
license?” enter Y.
Figure 1-7
Note
License Activation
If you receive the error message “License activation failed”, repeat Steps 11 through Steps 14. If you
still receive the error message, contact Cisco support.
Step 15
After activating the license, exit completely from the VDS TC CLI.
Step 16
To confirm that the license is activated, log back into the CLI of the system using the username admin.
From the VDS TC CLI prompt, enter the command enable. When prompted, enter the Enable mode
password and press Enter. Enter the command show license to confirm that the license is activated.
Note
If you see the message “No valid license found”, make sure that you exit completely from the CLI of the
VDS TC system and repeat Step 16.
Step 17
From the Enable mode prompt, enter the command oper service start to start the caching service.
Step 18
Wait a few minutes and then enter the command show status. Do not proceed to the next step until you
see a Device Status of “Started.” For example:
console# show status
Operational state Device state Administrative state
enabled
started
unlocked
Step 19
Use VDS TC Manager to confirm the upgrade and version number. In a web browser, enter the
management IP address of the VDS TC appliance to connect to the VDS TC Manager. Enter a username
and password that was provided by Cisco.
Step 20
From the default web page that opens (Dashboard) you can confirm that the software has been upgraded.
The version number of the product appears in the upper-right hand corner of the window, below the
username. Confirm that you see the correct upgraded version.
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
1-13
Chapter 1 Upgrading from VDS TC 5.2.1 or VDS TC 5.6.1 to VDS TC 5.7.3 for an Integrated Appliance Installation
Performing the VDS TC Software Upgrade from VDS TC 5.2.1 or VDS TC 5.6.1 to VDS TC 5.7.3
Figure 1-8
Step 21
Confirm Version
On the PBR routers, start redirecting traffic to the VDS TC solution.
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
1-14
CH A P T E R
2
Downgrading an Integrated Appliance from VDS
TC 5.7.3 to VDS TC 5.6.1 or VDS TC 5.2.1
This chapter describes how to downgrade from VDS TC 5.7.3 to VDS TC 5.6.1 or VDS TC 5.2.1 for an
Integrated Appliance system if necessary. Only use these steps if you are downgrading an Integrated
Appliance system to VDS TC 5.6.1 or VDS TC 5.2.1. If you need to downgrade a C-Series cluster
installation to VDS TC 5.6.1 or VDS TC 5.2.1, see Chapter 5, “Downgrading a C-Series Cluster
Installation from VDS TC 5.7.3 to VDS TC 5.6.1 or VDS TC 5.2.1”. If you need to downgrade a Blade
Server cluster installation to VDS TC 5.6.1 or VDS TC 5.2.1, see Chapter 8, “Downgrading a Blade
Server Cluster Installation from VDS TC 5.7.3 to VDS TC 5.6.1” or Chapter 11, “Downgrading a Blade
Server Cluster Installation from VDS TC 5.7.3 to VDS TC 5.2.1”.
Note
Because you will need to stop traffic redirection to the VDS TC system during the downgrade process,
you should perform the downgrade during a maintenance window.
Rolling Back the VDS TC Software
Note
As part of the roll back process, you must also downgrade any firmware and operating system versions
that you upgraded on the Cisco UCS systems and the Catalyst 4948E switch. These must be downgraded
to the versions that are specified in the installation guides of the VDS TC version that you are
downgrading to. You will also need to roll back any of the configurations for the Cisco UCS systems and
Catalyst 4948E switch that were updated as part of the upgrade process.
Follow these steps to roll back the VDS TC software to the version that was installed before you
performed the upgrade.
Step 1
On the PBR routers, stop redirecting traffic to the VDS TC solution.
Step 2
Immediately after stopping the traffic redirection to the VDS TC solution, you must stop the VDS TC
caching service. Follow these steps to stop the VDS TC caching service:
a.
Using SSH software, such as Putty, open an SSH connection to the management IP address of the
VDS TC appliance.
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
2-1
Chapter 2
Downgrading an Integrated Appliance from VDS TC 5.7.3 to VDS TC 5.6.1 or VDS TC 5.2.1
Rolling Back the VDS TC Software
Note
b.
Log into the system using the username admin. The default password is the serial number of the
VDS TC Integrated Appliance, which can be found either by accessing the CIMC or by accessing
the Status > Hardware View page from VDS TC Manager. The serial number is displayed in the
Support Tag ID field in VDS TC Manager.
c.
From the VDS TC CLI prompt, enter the command enable. When prompted, enter the Enable mode
password and press Enter. You are now logged into Enable mode and the Enable prompt, console#,
should appear.
By default, your system serial number is the password for the Enable mode, but this password may have
been changed.
d.
From the Enable mode prompt, enter the command oper service stop to stop the caching service.
e.
Wait a few minutes and then enter the command show status. Check to see if the Device State shows
“stopped.” For example:
console# show status
Operational state Device state Administrative state
disabled
stopped
unlocked
Caution
Do not proceed to the next step until the Device State shows “stopped.” You may need to repeat the show
status command several times before you see this status. Wait several minutes between executions of the
show status command.
Step 3
Close any open VDS TC Manager windows and ensure that no other administrators are connected to the
VDS TC Manager before proceeding.
Step 4
Using SSH software, such as Putty, open an SSH connection to the management IP address of the VDS
TC appliance. Log in as padmin with the password provided by Cisco.
Step 5
Enter the command su root, and when prompted, enter the password provided by Cisco.
Step 6
To rollback the VDS TC Software to version 5.2.1, do the following:
Note
Step 7
Note
a.
Enter the command cd /opt/pang/mgmt/config to change directories.
b.
Enter the command ./downgrade_proc.sh -backup_dir /opt/5.2_back to run the downgrade
procedure.
c.
Go to Step 8.
If you receive the error message “Not found suitable backup files, cannot restore version 5.2 on this
system. Please refer to the manual downgrade procedure or contact support.” stop this roll back
procedure and refer to the manual roll back procedure in Chapter 6, “Manually Downgrading a C-Series
Cluster Installation from VDS TC 5.7.3 to VDS TC 5.6.1 or VDS TC 5.2.1”.
To rollback the VDS TC Software to version 5.6.1, enter the command
/opt/pang/mgmt/config/downgrade_proc.sh.
If you receive the error message “Not found suitable backup files, cannot restore version 5.6 on this
system. Please refer to the manual downgrade procedure or contact support.” stop this roll back
procedure and refer to the manual roll back procedure in Chapter 6, “Manually Downgrading a C-Series
Cluster Installation from VDS TC 5.7.3 to VDS TC 5.6.1 or VDS TC 5.2.1”.
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
2-2
Chapter 2
Downgrading an Integrated Appliance from VDS TC 5.7.3 to VDS TC 5.6.1 or VDS TC 5.2.1
Rolling Back the VDS TC Software
Step 8
Log into the VDS TC CLI prompt with the username admin and the password provided by Cisco.
Step 9
From the VDS TC CLI prompt, enter the enable command. When prompted, enter the Enable mode
password and press Enter. You are now logged into Enable mode and the Enable prompt, console#,
should appear.
Note
By default, your system serial number is the password for the Enable mode, but this password may have
been changed.
Step 10
Enter the command upgrade 127.0.0.1 filename, where filename is the filename of the upgrade package
for VDS TC 5.6.1 or VDS TC 5.2.1. For example:
upgrade 127.0.0.1 VDS-TC_GA_5.6.1b57_Integrated_Appliance.tar.gz
Step 11
Note
After upgrading the system, exit completely from the VDS TC CLI and log back into the CLI to access
the new software version.
If you do not log out of the VDS TC CLI and log back in, you will not see the current version.
Step 12
From the VDS TC prompt, enter the enable command. When prompted, enter the Enable mode password
and press Enter.
Step 13
Enter the command show version to confirm that the correct version is now installed.
Step 14
At the Enable mode prompt enter the command oper service start to start the caching service.
Step 15
Wait a few minutes and then enter the command show status. Do not proceed to the next step until you
see a Device Status of “Started.” For example:
console# show status
Operational state Device state Administrative state
enabled
started
unlocked
Step 16
On the PBR routers, start redirecting traffic to the VDS TC solution.
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
2-3
Chapter 2
Downgrading an Integrated Appliance from VDS TC 5.7.3 to VDS TC 5.6.1 or VDS TC 5.2.1
Rolling Back the VDS TC Software
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
2-4
CH A P T E R
3
Manually Downgrading an Integrated Appliance
from VDS TC 5.7.3 to VDS TC 5.6.1 or VDS TC 5.2.1
This chapter describes how to manually downgrade an Integrated Appliance from VDS TC 5.7.3 to VDS
TC 5.6.1 or VDS TC 5.2.1 if necessary. Only use these steps if the VDS-TC Rollback Procedure from
Chapter 2 failed with the error message “Not found suitable backup files, cannot restore version on this
system. Please refer to the manual downgrade procedure or contact support.” and you are downgrading
an Integrated Appliance to VDS TC 5.6.1 or VDS TC 5.2.1.
Caution
Running the Manual Rollback Procedure will remove all existing cache data storage and the VDS
TC version 5.7.3 CMDB because the storage will be formatted.
Note
Because you will need to stop traffic redirection to the VDS TC system during the downgrade process,
you should perform the downgrade during a maintenance window.
Rolling Back the VDS TC Software
Note
As part of the roll back process, you must also downgrade any firmware and operating system versions
that you upgraded on the Cisco UCS systems and the Catalyst 4948E switch. These must be downgraded
to the versions that are specified in the installation guides of the VDS TC version that you are
downgrading to. You will also need to roll back any of the configurations for the Cisco UCS systems and
Catalyst 4948E switch that were updated as part of the upgrade process.
Follow these steps to roll back the VDS TC software to the version that was installed before you
performed the upgrade.
Step 1
On the PBR routers, stop redirecting traffic to the VDS TC solution.
Step 2
Immediately after stopping the traffic redirection to the VDS TC solution, you must stop the VDS TC
caching service. Follow these steps to stop the VDS TC caching service:
a.
Using SSH software, such as Putty, open an SSH connection to the management IP address of the
VDS TC appliance.
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
3-1
Chapter 3
Manually Downgrading an Integrated Appliance from VDS TC 5.7.3 to VDS TC 5.6.1 or VDS TC 5.2.1
Rolling Back the VDS TC Software
Note
b.
Log into the system using the username admin. The default password is the serial number of the
VDS TC Integrated Appliance, which can be found either by accessing the CIMC or by accessing
the Status > Hardware View page from VDS TC Manager. The serial number is displayed in the
Support Tag ID field in VDS TC Manager.
c.
From the VDS TC CLI prompt, enter the command enable. When prompted, enter the Enable mode
password and press Enter. You are now logged into Enable mode and the Enable prompt, console#,
should appear.
By default, your system serial number is the password for the Enable mode, but this password may have
been changed.
d.
From the Enable mode prompt, enter the command oper service stop to stop the caching service.
e.
Wait a few minutes and then enter the command show status. Check to see if the Device State shows
“stopped.” For example:
console# show status
Operational state Device state Administrative state
disabled
stopped
unlocked
Caution
Do not proceed to the next step until the Device State shows “stopped.” You may need to repeat the show
status command several times before you see this status. Wait several minutes between executions of the
show status command.
Step 3
Close any open VDS TC Manager windows and ensure that no other administrators are connected to the
VDS TC Manager before proceeding.
Step 4
Using SSH software, such as Putty, open an SSH connection to the management IP address of the VDS
TC appliance. Log in as padmin with the password provided by Cisco.
Step 5
Enter the command su root, and when prompted, enter the password provided by Cisco.
Step 6
To clean up the storage and local disks from any VDS TC 5.7.3 CMDB copies, enter the command
/opt/pang/mgmt/config/wipe_old_database.sh.
Step 7
Enter the command /opt/pang/useful/format_disks.sh -format_all to format the storage.
Step 8
To restore the previous configuration for VDS TC 5.2.1, go to Step 9. To restore the previous
configuration for VDS TC 5.6.1, perform the following steps:
Caution
Step 9
After you perform these steps, any changes that were made after the upgrade to VDS TC 5.7.3 will be
lost.
a.
Enter the command cd /opt/5.6_backup.
b.
Enter the command cp -vf *.xml *.xsd *.xsl *.conf /opt/pang/mgmt/config &>/dev/null
c.
Go to Step 10.
To restore the previous configuration for VDS TC 5.2.1, perform the following steps:
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
3-2
Chapter 3
Manually Downgrading an Integrated Appliance from VDS TC 5.7.3 to VDS TC 5.6.1 or VDS TC 5.2.1
Rolling Back the VDS TC Software
Caution
Step 10
After you perform these steps, any changes that were made after the upgrade to VDS TC 5.7.3 will be
lost.
a.
Enter the command cd /opt/5.2_backup.
b.
Enter the command cp -vf *.xml *.xsd *.xsl *.conf /opt/pang/mgmt/config &>/dev/null
Next you must uninstall dnsmasq and install nscd. To do this, perform the following steps:
a.
Enter the command service dnsmasq stop &> /dev/null
b.
Enter the command /sbin/chkconfig dnsmasq off &> /dev/null
c.
Enter the command cat /etc/dnsmasq.conf|grep "^server=" |sed 's/server=/nameserver /g' >
/etc/resolv.conf
d.
Enter the command rpm -e dnsmasq &> /dev/null
e.
Enter the command sed -i 's/^#nsc/nsc/' /etc/inittab
f.
Enter the command init q
g.
Enter the command /sbin/chkconfig nscd on &>/dev/null
Step 11
To rename the backup directory for VDS TC 5.6.1, enter the command cp -r /opt/5.6_backup
/opt/5.6_backup.bak &>/dev/null. To rename the backup directory for VDS TC 5.2.1, enter the
command cp -r /opt/5.2_backup /opt/5.2_backup.bak &>/dev/null.
Step 12
Log into the VDS TC CLI prompt with the username admin and the password provided by Cisco.
Step 13
From the VDS TC CLI prompt, enter the enable command. When prompted, enter the Enable mode
password and press Enter. You are now logged into Enable mode and the Enable prompt, console#,
should appear.
Note
By default, your system serial number is the password for the Enable mode, but this password may have
been changed.
Step 14
From the VDS TC CLI in Enable mode, enter the command upgrade 127.0.0.1 filename, where filename
is the filename of the upgrade package for VDS TC 5.6.1 or VDS TC 5.2.1. For example:
upgrade 127.0.0.1 VDS-TC_GA_5.6.1b57_Integrated_Appliance.tar.gz
Step 15
Note
After upgrading the system, exit completely from the VDS TC CLI and log back into the CLI to access
the new software version.
If you do not log out of the VDS TC CLI and log back in, you will not see the current version.
Step 16
From the VDS TC prompt, enter the enable command. When prompted, enter the Enable mode password
and press Enter.
Step 17
Enter the command show version to confirm that the correct version is now installed.
Step 18
From Enable mode, enter the command license import 127.0.0.1 filename, where filename is the name
of the old license file. For example, license import 127.0.0.1
0000000-5.6-CISCO_UCS240_XY-License_20140814_19862.xml
Step 19
Enter license activate to apply the license. When prompted with “Are you sure you want to activate this
license?” enter Y.
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
3-3
Chapter 3
Manually Downgrading an Integrated Appliance from VDS TC 5.7.3 to VDS TC 5.6.1 or VDS TC 5.2.1
Rolling Back the VDS TC Software
Figure 3-1
Note
License Activation
If you receive the error message “License activation failed”, repeat Steps 15 through Steps 19. If you
still receive the error message, contact Cisco support.
Step 20
After activating the license, exit completely from the VDS TC CLI.
Step 21
To confirm that the license is activated, log back into the CLI of the system using the username admin.
From the VDS TC CLI prompt, enter the command enable. When prompted, enter the Enable mode
password and press Enter. Enter the command show license to confirm that the license is activated.
Note
If you see the message “No valid license found”, make sure that you exit completely from the CLI of the
VDS TC system and repeat Step 21.
Step 22
At the Enable mode prompt enter the command oper service start to start the caching service.
Step 23
Wait a few minutes and then enter the command show status. Do not proceed to the next step until you
see a Device Status of “Started.” For example:
console# show status
Operational state Device state Administrative state
enabled
started
unlocked
Step 24
On the PBR routers, start redirecting traffic to the VDS TC solution.
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
3-4
CH A P T E R
4
Upgrading from VDS TC 5.2.1 or VDS TC 5.6.1 to
VDS TC 5.7.3 for a C-Series Cluster Installation
This chapter describes how to upgrade from VDS TC 5.2.1 or VDS TC 5.6.1 to VDS TC 5.7.3 for a
C-Series cluster installation. Use this document only if you are upgrading a C-Series cluster installation
from VDS TC 5.2.1 or VDS TC 5.6.1. If you are upgrading an Integrated Appliance installation, see
Chapter 1, “Upgrading from VDS TC 5.2.1 or VDS TC 5.6.1 to VDS TC 5.7.3 for an Integrated
Appliance Installation”. If you are upgrading a Blade server cluster installation, see Chapter 7,
“Upgrading from VDS TC 5.6.1 to VDS TC 5.7.3 for a Blade Server Cluster Installation” or Chapter 10,
“Upgrading from VDS TC 5.2.1 to VDS TC 5.7.3 for a Blade Server Cluster Installation”.
Note
You can only upgrade to VDS TC version 5.7.3 from VDS TC version 5.6.1 or 5.2.1. To upgrade to VDS
TC 5.7.3 from any other version, you must first upgrade to VDS TC version 5.6.1 or 5.2.1. For
instructions on upgrading to VDS TC 5.2.1, please refer to the document Cisco Videoscape Distribution
Suite Transparent Caching Application Upgrade Guide Release 5.2.1 available at
http://www.cisco.com/c/dam/en/us/td/docs/video/videoscape/distribution_suite/vds/v5_2_1/VDS-TC_
5_2_1_app_upgrade_guide.pdf. For instructions on upgrading to VDS TC 5.6.1, please refer to the
document Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
Release 5.6.1 available at
http://www.cisco.com/c/dam/en/us/td/docs/video/videoscape/distribution_suite/vds/v5_6_1/VDS-TC_
5_6_1_appupgrade_guide.pdf.
Note
If you need to roll back to version 5.6.1 or 5.2.1 after you perform the upgrade, you must perform this
roll back within 7 days of the upgrade.
This chapter contains the following sections:
•
Preparing for the Upgrade
– Confirming Correct BIOS, Firmware, and Software Versions
– Confirming the BIOS Settings of the VDS TC Management Server
– Confirming the BIOS Settings of the VDS TC C-Series Cache Engines
•
Obtaining the Required VDS TC 5.7.3 Files
– Generating a License Request in VDS TC 5.2.1 or VDS TC 5.6.1
•
Uploading the Required Files
•
Performing the VDS TC Software Upgrade from VDS TC 5.2.1 or VDS TC 5.6.1 to VDS TC 5.7.3
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
4-1
Chapter 4
Upgrading from VDS TC 5.2.1 or VDS TC 5.6.1 to VDS TC 5.7.3 for a C-Series Cluster Installation
Preparing for the Upgrade
Note
Because you will need to stop traffic redirection to the VDS TC system during the upgrade process, you
should perform the upgrade during a maintenance window.
Preparing for the Upgrade
Confirming Correct BIOS, Firmware, and Software Versions
The following BIOS, firmware, and software versions are required for VDS TC 5.7.3 for a C-Series
cluster installation.
Hardware Component
Model
Required Firmware Version and Image File
Management Server
Cisco UCS C220-M3S
Cisco UCS C220-M3S:
or
•
Firmware version: 2.0(6f)
Cisco UCS-C240-M3S
•
Image file: ucs-c220-huu-2.0.6f.iso
Cisco UCS-C240-M3S:
Cache Engine
Storage enclosure
Cisco UCS C220-M3S
IBM DS3524
•
Firmware version: 2.0(6f)
•
Image file: ucs-c240-huu-2.0.6f.iso
Cisco UCS C220-M3S:
•
Firmware version: 2.0(6f)
•
Image file: ucs-c220-huu-2.0.6f.iso
IBM DS3524:
or
•
Controller BIOS version: 07.86.46.00
NetApp E2724
•
Controller Image file:
ibm_fw_ds3k_07864600_anyos_anycpu.zip
•
HDD BIOS version: 4.18
•
HDD Image file:
ibm_fw_ds3khdd_4.18_anyos_anycpu.zip
•
Storage Manager 10.86
(SM10.86_Linux_64bit_x86-64_SMIA-10.8
6.x5.43.tgz)
NetApp E2724:
•
Controller BIOS version: 08.20.05.00
•
Storage Manager 11.20.0A
(SMIA-LINUXX64-11.20.0A00.0015.bin)
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
4-2
Chapter 4
Upgrading from VDS TC 5.2.1 or VDS TC 5.6.1 to VDS TC 5.7.3 for a C-Series Cluster Installation
Preparing for the Upgrade
Hardware Component
Model
Required Firmware Version and Image File
Data switch
Cisco Catalyst 4500X
switch
Cisco IOS Release 03.4.4.SG, Universal image
(cat4500e-universal.SPA.03.04.04.SG.151-2.SG4
.bin) or later
Management switch
Cisco Catalyst 4948E
Switch
Cisco Catalyst 4948E:
•
or
Cisco Nexus 3172TQ
Switch
Note
or
Cisco IOS Release 15.2(2)E or later, with the
LAN BASE W/O CRYPTO feature set
The IP BASE W/O CRYPTO feature set
can also be used.
Cisco SG500 Switch
Cisco Nexus 3172TQ:
•
NX-OS Release 6.0(2)U5(1) or later
Cisco SG500:
•
Software version 1.4.0 or later
If you need to perform a firmware upgrade for the Cisco UCS-C220-M3S or Cisco UCS-C240-M3S
server, see the Cisco UCS C-Series Rack-Mount Server BIOS Upgrade Guide document available at
http://www.cisco.com/en/US/docs/unified_computing/ucs/c/sw/bios/b_Upgrading_BIOS_Firmware.ht
ml.
If you need to perform an IOS upgrade on the Cisco Catalyst 4500X or Cisco Catalyst 4948E, see the
“Upgrading Software Images on Catalyst 4000/4500 Series Switch” at
http://www.cisco.com/c/en/us/support/docs/switches/catalyst-4000-series-switches/27848-179.html.
If you need to perform an NX-OS software upgrade on the Cisco Nexus 3172TQ Switch, see the “Cisco
Nexus 3000 Series NX-OS Software Upgrade and Downgrade Guide, Release 6.x” guide at
http://www.cisco.com/c/en/us/td/docs/switches/datacenter/nexus3000/sw/upgrade/6_x/Cisco_n3k_Upg
rade_Downgrade_6x.html.
If you need to perform a firmware upgrade on the Cisco SG500 Switch, see the “Cisco 500 Series
Stackable Managed Switch Administration Guide” at
http://www.cisco.com/c/dam/en/us/td/docs/switches/lan/csbms/Sx500/administration_guide/Cisco_500
Sx_v1_4_AG.pdf.
Confirming the BIOS Settings of the VDS TC Management Server
Follow these steps to use the CIMC to confirm, and configure if necessary, the BIOS settings of the VDS
TC management server:
Step 1
Open a web browser and enter the management IP address of the CIMC. The CIMC login window
appears.
Step 2
Enter the username admin and the password for the admin account.
Step 3
The Cisco Integrated Management Controller: Server Summary window appears.
Step 4
From the Server tab, click BIOS.
Step 5
In the BIOS window, click Configure BIOS. The Configure BIOS Parameters window appears.
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
4-3
Chapter 4
Upgrading from VDS TC 5.2.1 or VDS TC 5.6.1 to VDS TC 5.7.3 for a C-Series Cluster Installation
Preparing for the Upgrade
Step 6
Click the Advanced tab.
Figure 4-1
Note
Step 7
Note
Configure BIOS Parameters Window: Advanced Tab
If you are using a Cisco UCS C240M3 NEBS, the Configure BIOS Parameters window may look
different than the one presented here.
From the Advanced BIOS Parameters table, confirm, and configure if necessary, the following settings
on the Advanced tab.
Parameters that are not listed in the following table should be left set to their default value.‘
Table 4-1 Cisco UCS 220 M3S Advanced BIOS Parameters
Processor Configuration
State
Hyper - Threading Technology
Disabled
Number Of Enabled Cores
All
Execute Disable
Enabled
Intel VT
Disabled
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
4-4
Chapter 4
Upgrading from VDS TC 5.2.1 or VDS TC 5.6.1 to VDS TC 5.7.3 for a C-Series Cluster Installation
Preparing for the Upgrade
Table 4-1 Cisco UCS 220 M3S Advanced BIOS Parameters (continued)
Intel VT-d
Disabled
Intel VT-d Coherency Support
Disabled
Intel VT-d ATS Support
Disabled
CPU Performance
High Throughput
Hardware Prefetcher
Disabled
Adjacent Cache Line Prefetch
Disabled
DCU Streamer Prefetch
Disabled
DCU IP Prefetcher
Enabled
Direct Cache Access Support
Enabled
Power Technology
Disabled
Enhanced Intel Speedstep Technology
Enabled
Intel Turbo Boost Technology
Disabled
Processor Power State C6
Disabled
Processor Power State C1 Enhanced
Disabled
Frequency Floor Override
Disabled
P-STATE Coordination
HW ALL
Energy Performance
Performance
Memory Configuration
Status
Select Memory RAS
Maximum Performance
DRAM Clock Throttling
Performance
NUMA
Enabled
Low Voltage DDR Mode
Performance Mode
DRAM Refresh rate
Auto
Channel Interleaving
Auto
Rank Interleaving
Auto
Patrol Scrub
Enabled
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
4-5
Chapter 4
Upgrading from VDS TC 5.2.1 or VDS TC 5.6.1 to VDS TC 5.7.3 for a C-Series Cluster Installation
Preparing for the Upgrade
Table 4-1 Cisco UCS 220 M3S Advanced BIOS Parameters (continued)
Demand Scrub
Enabled
Altitude
300 M
QPI Configuration
QPI Link Frequency Select
Onboard Storage
Status
Auto
Status
Onboard SCU Storage Support
Disabled
Onboard SCU Storage SW Stack
LSI SW RAID
USB Configuration
Status
Legacy USB Support
Enabled
Port 60/64 Emulation
Enabled
All USB Devices
Enabled
USB Port:Rear
Enabled
USB Port:Front
Enabled
USB Port:Internal
Enabled
USB Port:KVM
Enabled
USB Port:VMedia
Enabled
USB Port:SD Card
Disabled
PCI Configuration
Status
MMIO above 4GB
Disabled
ASPM Support
Disabled
VGA Priority
Onboard
Serial Configuration
Status
Out-of-Band Mgmt Port
Disabled
Console Redirection
Disabled
Terminal Type
VT100+
Bits per Second
115200
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
4-6
Chapter 4
Upgrading from VDS TC 5.2.1 or VDS TC 5.6.1 to VDS TC 5.7.3 for a C-Series Cluster Installation
Preparing for the Upgrade
Table 4-1 Cisco UCS 220 M3S Advanced BIOS Parameters (continued)
Flow Control
None
Putty KeyPad
ESCN
Redirection After BIOS POST
Always Enable
LOM and PCIe Slots Configuration
Status
All Onboard LOM Ports
Enabled
LOM Port 0 OptionROM
Enabled
LOM Port 1 OptionROM
Enabled
All PCIe Slots OptionROM
Enabled
PCIe Slot:1 OptionROM
Enabled
PCIe Slot:2 OptionROM
Enabled
PCIe Mezzanine OptionROM
Enabled
PCIe Slot:1 Link Speed
GEN3
PCIe Slot:2 Link Speed
GEN3
Step 8
If you made any changes, click Save Changes.
Step 9
From the Server tab, choose Power Policies. The Power Policies window appears.
Step 10
In the Power Policies window confirm, or configure if necessary, the following settings:
•
Step 11
From the Fan Policy drop-down list, choose Maximum Power.
If you made any changes, click Save Changes.
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
4-7
Chapter 4
Upgrading from VDS TC 5.2.1 or VDS TC 5.6.1 to VDS TC 5.7.3 for a C-Series Cluster Installation
Preparing for the Upgrade
Figure 4-2
Power Policies Screen
Step 12
From the Server tab, choose Summary. In the Actions pane, click Hard Reset Server.
Step 13
From the Hard Reset Server dialog box, click OK to reset the server.
Confirming the BIOS Settings of the VDS TC C-Series Cache Engines
Note
These settings apply only to the cache engines in a C-Series cluster install.
Follow these steps to use the CIMC to confirm, and configure if necessary, the BIOS settings of the VDS
TC management server:
Step 1
Open a web browser and enter the management IP address of the CIMC. The CIMC login window
appears.
Step 2
Enter the username admin and the password for the admin account.
Step 3
The Cisco Integrated Management Controller: Server Summary window appears.
Step 4
From the Server tab, click BIOS.
Step 5
In the BIOS window, click Configure BIOS. The Configure BIOS Parameters window appears.
Step 6
Click the Advanced tab.
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
4-8
Chapter 4
Upgrading from VDS TC 5.2.1 or VDS TC 5.6.1 to VDS TC 5.7.3 for a C-Series Cluster Installation
Preparing for the Upgrade
Figure 4-3
Note
Step 7
Note
Configure BIOS Parameters Window: Advanced Tab
If you are using a Cisco UCS C240M3 NEBS, the Configure BIOS Parameters window may look
different than the one presented here.
From the Advanced BIOS Parameters table, confirm, and configure if necessary, the following settings
on the Advanced tab.
Parameters that are not listed in the following table should be left set to their default value.
Table 4-2
Advanced BIOS Parameters
Processor Configuration
State
Hyper - Threading Technology
Enabled
Number Of Enabled Cores
All
Execute Disable
Enabled
Intel VT
Disabled
Intel VT-d
Disabled
Intel VT-d Coherency Support
Disabled
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
4-9
Chapter 4
Upgrading from VDS TC 5.2.1 or VDS TC 5.6.1 to VDS TC 5.7.3 for a C-Series Cluster Installation
Preparing for the Upgrade
Intel VT-d ATS Support
Disabled
CPU Performance
High Throughput
Hardware Prefetcher
Disabled
Adjacent Cache Line Prefetch
Disabled
DCU Streamer Prefetch
Disabled
DCU IP Prefetcher
Enabled
Direct Cache Access Support
Enabled
Power Technology
Disabled
Enhanced Intel Speedstep Technology
Enabled
Intel Turbo Boost Technology
Enabled
Processor Power State C6
Disabled
Processor Power State C1 Enhanced
Disabled
Frequency Floor Override
Disabled
P-STATE Coordination
HW ALL
Energy Performance
Performance
Memory Configuration
Status
Select Memory RAS
Maximum Performance
DRAM Clock Throttling
Performance
NUMA
Enabled
Low Voltage DDR Mode
Performance Mode
Channel Interleaving
Auto
Rank Interleaving
Auto
Patrol Scrub
Enabled
Demand Scrub
Enabled
Altitude
300 M
QPI Configuration
QPI Link Frequency Select
Onboard Storage
Onboard SCU Storage Support
USB Configuration
USB Port:SD Card
Status
Auto
Status
Disabled
Status
Disabled
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
4-10
Chapter 4
Upgrading from VDS TC 5.2.1 or VDS TC 5.6.1 to VDS TC 5.7.3 for a C-Series Cluster Installation
Preparing for the Upgrade
PCI Configuration
Status
MIMO above 4GB
Disabled
ASPM Support
Disabled
VGA Priority
Onboard
Serial Configuration
Status
Out-of-Band Mgmt Port
Disabled
Console Redirection
Disabled
Terminal Type
VT100+
Bits per Second
115200
Flow Control
None
LOM and PCIe Slots Configuration
Status
LOM Port 0 Legacy OptionROM
Enabled
LOM Port 1 Legacy OptionROM
Enabled
LOM Port 2 Legacy OptionROM
Enabled
LOM Port 3 Legacy OptionROM
Enabled
All PCIe Slots OptionROM
Enabled
PCIe Slot:1 OptionROM
Enabled
PCIe Slot:2 OptionROM
Enabled
PCIe Slot:3 OptionROM
Enabled
PCIe Slot:4 OptionROM
Enabled
PCIe Mezzanine OptionROM
Enabled
PCIe Slot:1 Link Speed
GEN3
PCIe Slot:2 Link Speed
GEN3
Step 8
If you made any changes, click Save Changes.
Step 9
From the Server tab, choose Power Policies. The Power Policies window appears.
Step 10
In the Power Policies window confirm, or configure if necessary, the following settings:
Step 11
•
From the Power Delay Type drop-down list, choose Fixed.
•
In the Power Delay Value text box, enter 0.
•
From the Fan Policy drop-down list, choose Maximum Power.
If you made any changes, click Save Changes.
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
4-11
Chapter 4
Upgrading from VDS TC 5.2.1 or VDS TC 5.6.1 to VDS TC 5.7.3 for a C-Series Cluster Installation
Obtaining the Required VDS TC 5.7.3 Files
Figure 4-4
Power Policies Screen
Step 12
From the Server tab, choose Summary. In the Actions pane, click Hard Reset Server.
Step 13
From the Hard Reset Server dialog box, click OK to reset the server.
Obtaining the Required VDS TC 5.7.3 Files
To perform an upgrade to VDS TC 5.7.3, you must obtain the following files:
•
The VDS TC 5.7.3 upgrade image for cluster installation: Obtain the VDS TC upgrade image
from Cisco. The upgrade image filename for a Cluster upgrade will begin with VDS-TC_GA and
will have “Server_Cluster” in the filename, for example
VDS-TC_GA_5.7.3b54_Server_Cluster.tar.gz. The numbers in the filename represent the version
number and build number.
•
VDS TC License file: You must obtain a new license that is valid for VDS TC 5.7.3. See the
following section, Generating a License Request in VDS TC 5.2.1 or VDS TC 5.6.1, for steps to
obtain this license file.
Generating a License Request in VDS TC 5.2.1 or VDS TC 5.6.1
Follow these steps to generate a license request from VDS TC 5.2.1 or VDS TC 5.6.1:
Note
You should send this request a few days prior to when you want to schedule the upgrade.
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
4-12
Chapter 4
Upgrading from VDS TC 5.2.1 or VDS TC 5.6.1 to VDS TC 5.7.3 for a C-Series Cluster Installation
Obtaining the Required VDS TC 5.7.3 Files
Procedure
Step 1
In a web browser, enter the management IP address of the VDS TC appliance to connect to the VDS TC
Manager.
Step 2
Enter a username of padmin and the password that was provided by Cisco.
Step 3
From VDS TC Manager, in the left navigation pane, click Configuration > License Manager.
Figure 4-5
Step 4
Configuration > License Manager
Click the Generate license request button.
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
4-13
Chapter 4
Upgrading from VDS TC 5.2.1 or VDS TC 5.6.1 to VDS TC 5.7.3 for a C-Series Cluster Installation
Obtaining the Required VDS TC 5.7.3 Files
Figure 4-6
Configuration > License Manager
Step 5
The Open license-request dialog window appears.
Step 6
Click Save File and then OK to save the file request.
Step 7
Enter a name and location of the file to save. You must send this file to Cisco support to receive a license
file.
Step 8
Email the license-request.xml file that was generated in Step 7 to Cisco at [email protected]. Please
include the following information in the email:
•
Company name
•
Sales Order number (SO) or Purchase Order number (PO) if you are requesting a Release license
•
Indicate whether the license that is being upgraded from is a Evaluation license or a Release license
•
Indicate what VDS TC software version you are upgrading from
•
Specify the Forwarding capacity that is required per integrated appliance. This information is
imperative when a PO contains multiple clusters or integrated appliances.
Note
Step 9
Make sure that you are requesting the total forwarding capacity that is inline with the SO/PO.
After you receive the VDS TC license for Version 5.7.3 from Cisco, save the license file to a location
that you will be able to access while connected to the VDS TC server.
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
4-14
Chapter 4
Upgrading from VDS TC 5.2.1 or VDS TC 5.6.1 to VDS TC 5.7.3 for a C-Series Cluster Installation
Uploading the Required Files
Note
It may take a couple of days to receive the license from Cisco. Making sure to provide complete, clear,
and accurate information in the license request email will help expedite the process.
Uploading the Required Files
Follow these steps to upload the files that are needed to perform the upgrade from VDS TC 5.2.1 or VDS
TC 5.6.1 to VDS TC 5.7.3:
Step 1
Using SFTP software, such as WinSCP, connect to the management IP address that was assigned to the
VDS TC management server. Log in using the user name padmin and the password that was provided
by Cisco.
Step 2
Copy the VDS TC upgrade image file and the updated VDS TC license file to the /tftpboot folder. These
are the files that you obtained in the Obtaining the Required VDS TC 5.7.3 Files section. Make sure that
the previous VDS TC software version file and previous VDS TC license file are also in the /tftpboot
folder in case you need to perform a roll back.
Performing the VDS TC Software Upgrade from VDS TC 5.2.1 or
VDS TC 5.6.1 to VDS TC 5.7.3
Follow these steps to upgrade the VDS TC software from version 5.6.1 or 5.2.1 to version 5.7.3 and to
update the license file to a version that supports VDS TC 5.7.x.
Note
If you need to roll back to version 5.6.1 or 5.2.1 after you perform the upgrade, you must perform this
roll back within 7 days of the upgrade.
Step 1
On the PBR routers, stop redirecting traffic to the VDS TC solution.
Step 2
Immediately after stopping the traffic redirection to the VDS TC solution, you must stop the VDS TC
caching service. Follow these steps to stop the VDS TC caching service:
Note
a.
Using SSH software, such as Putty, open an SSH connection to the management IP address of the
VDS TC appliance.
b.
Log into the system using the username admin. The default password is the serial number of the
VDS TC Integrated Appliance, which can be found either by accessing the CIMC or by accessing
the Status > Hardware View page from VDS TC Manager. The serial number is displayed in the
Support Tag ID field in VDS TC Manager.
c.
From the VDS TC CLI prompt, enter the command enable. When prompted, enter the Enable mode
password and press Enter. You are now logged into Enable mode and the Enable prompt, console#,
should appear.
By default, your system serial number is the password for the Enable mode, but this password may have
been changed.
d.
From the Enable mode prompt, enter the command oper service stop to stop the caching service.
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
4-15
Chapter 4 Upgrading from VDS TC 5.2.1 or VDS TC 5.6.1 to VDS TC 5.7.3 for a C-Series Cluster Installation
Performing the VDS TC Software Upgrade from VDS TC 5.2.1 or VDS TC 5.6.1 to VDS TC 5.7.3
e.
Wait a few minutes and then enter the command show status. Check to see if the Device State shows
“stopped.” For example:
console# show status
Operational state Device state Administrative state
disabled
stopped
unlocked
Caution
Do not proceed to the next step until the Device State shows “stopped.” You may need to repeat the show
status command several times before you see this status. Wait several minutes between executions of the
show status command.
Step 3
Close any open VDS TC Manager windows and ensure that no other administrators are connected to the
VDS TC Manager before proceeding.
Step 4
Back up the current cluster_conf.xml file before performing the upgrade, in case you need to perform a
roll back. To backup the exiting cluster_conf.xml file, enter the export tftp_server filename command,
where tftp_server is the IP address or the hostname of the TFTP server to which you want to export the
configuration and filename is the filename to create when exporting the current configuration file. You
should include the version of VDS TC in the filename to help differentiate it from the new cluster_conf
file that will be created during the upgrade process. For example, you could use the filename
cluster_conf_5.6.1b58_bkp.xml.
Step 5
From the VDS TC CLI prompt, enter the enable command. When prompted, enter the Enable mode
password and press Enter. You are now logged into Enable mode and the Enable prompt, console#,
should appear.
Step 6
From the Enable mode, enter the command upgrade all 127.0.0.1 filename, where filename is the name
of the VDS TC 5.7.3 software upgrade image file that you copied to the /tftpboot directory in the
Uploading the Required Files section.
Step 7
To upgrade to VDS TC 5.7.3, a new license is required. The upgrade process will warn you to only
proceed with the upgrade if you already have a new license file for 5.7.3. This is the license file that you
copied to the /tftpboot directory in the Uploading the Required Files section. If you upgrade the system
without this license file, the system will not start.
Note
If you have not uploaded the VDS TC 5.7.3 license as instructed earlier, stop the upgrade process.
Perform the upgrade only after you obtain the VDS TC 5.7.3 license file.
Step 8
When the “Do you want to proceed with the upgrade?” prompt appears, enter Y and when prompted to
confirm, enter Y.
Step 9
The next step in the upgrade process is for the upgrade script to validate the VDS TC 5.7.x license file.
When prompted for the IP address of the TFTP server that contains the license file, enter 127.0.0.1 and
when prompted for the path to the 5.7.3 license file, enter the name of the license file.
Figure 4-7
Upgrade License Validation
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
4-16
Chapter 4
Upgrading from VDS TC 5.2.1 or VDS TC 5.6.1 to VDS TC 5.7.3 for a C-Series Cluster Installation
Performing the VDS TC Software Upgrade from VDS TC 5.2.1 or VDS TC 5.6.1 to VDS TC 5.7.3
Note
The license is only validated during the software upgrade script, it is not installed. You must install the
license file after the software upgrade process finishes.
Step 10
When the “Continue installation of management software? [Y/n]” prompt appears, enter Y.
Step 11
When the software upgrade has finished, you will see a “Succeeded” message and a a reminder to import
and activate the new VDS TC 5.7.3 license before restarting the service, if required. You will perform
these steps next.
Figure 4-8
Software Upgrade Script Succeeded
Step 12
After upgrading the system, exit completely from the VDS TC CLI and log back into the CLI to access
the new software version.
Note
If you do not log out of the VDS TC CLI and log back in, you will receive the following error message
when you try to activate the new license: “License activation failed”.
Step 13
From the VDS TC prompt, enter the enable command. When prompted, enter the Enable mode password
and press Enter.
Step 14
From Enable mode, enter the command license import 127.0.0.1 filename, where filename is the name
of the new license file. For example, license import 127.0.0.1
0000000-5.7-CISCO_UCS220_XY-License_20151012_19862.xml
Step 15
Enter license activate to apply the license. When prompted with “Are you sure you want to activate this
license?” enter Y.
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
4-17
Chapter 4 Upgrading from VDS TC 5.2.1 or VDS TC 5.6.1 to VDS TC 5.7.3 for a C-Series Cluster Installation
Performing the VDS TC Software Upgrade from VDS TC 5.2.1 or VDS TC 5.6.1 to VDS TC 5.7.3
Figure 4-9
Note
License Activation
If you receive the error message “License activation failed”, repeat Steps 12 through Steps 15. If you
still receive the error message, contact Cisco support.
Step 16
After activating the license, exit completely from the VDS TC CLI.
Step 17
To confirm that the license is activated, log back into the CLI of the system using the username admin.
From the VDS TC CLI prompt, enter the command enable. When prompted, enter the Enable mode
password and press Enter. Enter the command show license to confirm that the license is activated.
Note
If you see the message “No valid license found”, make sure that you exit completely from the CLI of the
VDS TC system and repeat Step 17.
Step 18
From the Enable mode prompt, enter the command show cluster-bus-ip to determine whether the
management server and all cache engines are configured to use broadcast.
Step 19
Enter the show cluster-bus-ip command. If the management server or any of the cache engines are set
to use multicast instead of broadcast, do the following:
a.
Enter the command config to enter configuration mode. The configuration prompt, configuration#,
will appear.
b.
In configuration mode, enter the command cluster-bus-ip broadcast. For example:
configuration# cluster-bus-ip broadcast
Processing...
All the CEs are configured to work with Broadcast IP.
c.
Enter exit to exit from configuration mode and go back to Enable mode.
d.
Enter the command show cluster-bus-ip to confirm that the management server and all cache
engines are configured to use broadcast. For example:
console# show cluster-bus-ip
Processing...
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
4-18
Chapter 4
Upgrading from VDS TC 5.2.1 or VDS TC 5.6.1 to VDS TC 5.7.3 for a C-Series Cluster Installation
Performing the VDS TC Software Upgrade from VDS TC 5.2.1 or VDS TC 5.6.1 to VDS TC 5.7.3
MG-1: [Broadcast]
CE-1: [Broadcast]
CE-2: [Broadcast]
CE-3: [Broadcast]
CE-4: [Broadcast]
CE-5: [Broadcast]
CE-6: [Broadcast]
CE-7: [Broadcast]
CE-8: [Broadcast]
OK. All the CEs are configured to work with Broadcast IP.
Step 20
From the Enable mode prompt, enter the command oper service start.
Step 21
Wait a few minutes and then enter the command show status. Do not proceed to the next step until you
see a Device Status of “Started.” For example:
console# show status
Operational state Device state Administrative state
enabled
started
unlocked
Step 22
Use VDS TC Manager to confirm the upgrade and version number. In a web browser, enter the
management IP address of the VDS TC appliance to connect to the VDS TC Manager. Enter a username
and password that was provided by Cisco.
Step 23
From the default web page that opens (Dashboard) you can confirm that the software has been upgraded.
The version number of the product appears in the upper-right hand corner of the window, below the
username. Confirm that you see the correct upgraded version.
Figure 4-10
Step 24
Confirm Version
On the PBR routers, start redirecting traffic to the VDS TC solution.
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
4-19
Chapter 4 Upgrading from VDS TC 5.2.1 or VDS TC 5.6.1 to VDS TC 5.7.3 for a C-Series Cluster Installation
Performing the VDS TC Software Upgrade from VDS TC 5.2.1 or VDS TC 5.6.1 to VDS TC 5.7.3
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
4-20
CH A P T E R
5
Downgrading a C-Series Cluster Installation from
VDS TC 5.7.3 to VDS TC 5.6.1 or VDS TC 5.2.1
This chapter describes how to downgrade from VDS TC 5.7.3 to VDS TC 5.6.1 or VDS TC 5.2.1 if
necessary. Only use these steps if you are downgrading a C-Series cluster installation to VDS TC 5.6.1
or VDS TC 5.2.1. If you need to downgrade an Integrated Appliance to VDS TC 5.6.1 or VDS TC 5.2.1,
see Chapter 2, “Downgrading an Integrated Appliance from VDS TC 5.7.3 to VDS TC 5.6.1 or VDS TC
5.2.1”. If you need to downgrade a Blade server cluster installation, Chapter 8, “Downgrading a Blade
Server Cluster Installation from VDS TC 5.7.3 to VDS TC 5.6.1” or Chapter 11, “Downgrading a Blade
Server Cluster Installation from VDS TC 5.7.3 to VDS TC 5.2.1”.
Note
Because you will need to stop traffic redirection to the VDS TC system during the downgrade process,
you should perform the downgrade during a maintenance window.
Rolling Back the VDS TC Software
Note
As part of the roll back process, you must also downgrade any firmware and operating system versions
that you upgraded on the Cisco UCS systems, switches, and storage enclosures. These must be
downgraded to the versions that are specified in the installation guides of the VDS TC version that you
are downgrading to. You will also need to roll back any of the configurations for the Cisco UCS systems
and switches that were updated as part of the upgrade process.
Follow these steps to roll back the VDS TC software to the version that was installed before you
performed the upgrade.
Step 1
On the PBR routers, stop redirecting traffic to the VDS TC solution.
Step 2
Immediately after stopping the traffic redirection to the VDS TC solution, you must stop the VDS TC
caching service. Follow these steps to stop the VDS TC caching service:
a.
Using SSH software, such as Putty, open an SSH connection to the management IP address of the
VDS TC appliance.
b.
Log into the system using the username admin. The default password is the serial number of the
VDS TC Integrated Appliance, which can be found either by accessing the CIMC or by accessing
the Status > Hardware View page from VDS TC Manager. The serial number is displayed in the
Support Tag ID field in VDS TC Manager.
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
5-1
Chapter 5
Downgrading a C-Series Cluster Installation from VDS TC 5.7.3 to VDS TC 5.6.1 or VDS TC 5.2.1
Rolling Back the VDS TC Software
c.
Note
From the VDS TC CLI prompt, enter the command enable. When prompted, enter the Enable mode
password and press Enter. You are now logged into Enable mode and the Enable prompt, console#,
should appear.
By default, your system serial number is the password for the Enable mode, but this password may have
been changed.
d.
From the Enable mode prompt, enter the command oper service stop to stop the caching service.
e.
Wait a few minutes and then enter the command show status. Check to see if the Device State shows
“stopped.” For example:
console# show status
Operational state Device state Administrative state
disabled
stopped
unlocked
Caution
Do not proceed to the next step until the Device State shows “stopped.” You may need to repeat the show
status command several times before you see this status. Wait several minutes between executions of the
show status command.
Step 3
Close any open VDS TC Manager windows and ensure that no other administrators are connected to the
VDS TC Manager before proceeding.
Step 4
Using SSH software, such as Putty, open an SSH connection to the VDS TC management server. Log in
as padmin with the password provided by Cisco.
Step 5
Enter the command su root, and when prompted, enter the password provided by Cisco.
Step 6
To rollback the VDS TC Software to version 5.2.1, do the following:
Note
Step 7
Note
Step 8
a.
Enter the command cd /opt/pang/mgmt/config to change directories.
b.
Enter the command ./downgrade_proc.sh -backup_dir /opt/5.2_backup/ to run the downgrade
procedure.
c.
Go to Step 8.
If you receive the error message “Not found suitable backup files, cannot restore version 5.2 on this
system. Please refer to the manual downgrade procedure or contact support.” stop this roll back
procedure and refer to the manual roll back procedure in Chapter 6, “Manually Downgrading a C-Series
Cluster Installation from VDS TC 5.7.3 to VDS TC 5.6.1 or VDS TC 5.2.1”.
To rollback the VDS TC Software to version 5.6.1, enter the command
/opt/pang/mgmt/config/downgrade_proc.sh.
If you receive the error message “Not found suitable backup files, cannot restore version 5.6 on this
system. Please refer to the manual downgrade procedure or contact support.” stop this roll back
procedure and refer to the manual roll back procedure in Chapter 6, “Manually Downgrading a C-Series
Cluster Installation from VDS TC 5.7.3 to VDS TC 5.6.1 or VDS TC 5.2.1”.
Log into the VDS TC CLI prompt with the username admin and the password provided by Cisco.
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
5-2
Chapter 5
Downgrading a C-Series Cluster Installation from VDS TC 5.7.3 to VDS TC 5.6.1 or VDS TC 5.2.1
Rolling Back the VDS TC Software
Step 9
Note
Step 10
From the VDS TC CLI prompt, enter the enable command. When prompted, enter the Enable mode
password and press Enter. You are now logged into Enable mode and the Enable prompt, console#,
should appear.
By default, your system serial number is the password for the Enable mode, but this password may have
been changed.
Enter the command upgrade all 127.0.0.1 filename, where filename is the filename of the upgrade
package for VDS TC 5.6.1 or VDS TC 5.2.1. For example:
upgrade all 127.0.0.1 VDS-TC_GA_5.6.1b58_Server_Cluster.tar.gz
Step 11
Note
After upgrading the system, exit completely from the VDS TC CLI and log back into the CLI to access
the new software version.
If you do not log out of the VDS TC CLI and log back in, you will not see the current version.
Step 12
From the VDS TC prompt, enter the enable command. When prompted, enter the Enable mode password
and press Enter.
Step 13
Enter the command show version to confirm that the correct version is now installed.
Step 14
At the Enable mode prompt enter the command oper service start to start the caching service.
Step 15
Wait a few minutes and then enter the command show status. Do not proceed to the next step until you
see a Device Status of “Started.” For example:
console# show status
Operational state Device state Administrative state
enabled
started
unlocked
Step 16
On the PBR routers, start redirecting traffic to the VDS TC solution.
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
5-3
Chapter 5
Downgrading a C-Series Cluster Installation from VDS TC 5.7.3 to VDS TC 5.6.1 or VDS TC 5.2.1
Rolling Back the VDS TC Software
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
5-4
CH A P T E R
6
Manually Downgrading a C-Series Cluster
Installation from VDS TC 5.7.3 to VDS TC 5.6.1 or
VDS TC 5.2.1
This chapter describes how to manually downgrade a C-series cluster installation from VDS TC 5.7.3 to
VDS TC 5.6.1 or VDS TC 5.2.1 if necessary. Only use these steps if the VDS-TC Rollback Procedure
from Chapter 5 failed with the error message “Not found suitable backup files, cannot restore version on
this system. Please refer to the manual downgrade procedure or contact support.” and you are
downgrading a C-Series Cluster installation to VDS TC 5.6.1 or VDS TC 5.2.1.
Caution
Running the Manual Rollback Procedure will remove all existing cache data storage and the VDS
TC version 5.7.3 CMDB because the storage will be formatted.
Note
Because you will need to stop traffic redirection to the VDS TC system during the downgrade process,
you should perform the downgrade during a maintenance window.
Rolling Back the VDS TC Software
Note
As part of the roll back process, you must also downgrade any firmware and operating system versions
that you upgraded on the Cisco UCS systems, switches, and storage enclosures. These must be
downgraded to the versions that are specified in the installation guides of the VDS TC version that you
are downgrading to. You will also need to roll back any of the configurations for the Cisco UCS systems
and switches that were updated as part of the upgrade process.
Follow these steps to roll back the VDS TC software to the version that was installed before you
performed the upgrade.
Step 1
On the PBR routers, stop redirecting traffic to the VDS TC solution.
Step 2
Immediately after stopping the traffic redirection to the VDS TC solution, you must stop the VDS TC
caching service. Follow these steps to stop the VDS TC caching service:
a.
Using SSH software, such as Putty, open an SSH connection to the management IP address of the
VDS TC appliance.
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
6-1
Chapter 6
Manually Downgrading a C-Series Cluster Installation from VDS TC 5.7.3 to VDS TC 5.6.1 or VDS TC 5.2.1
Rolling Back the VDS TC Software
Note
b.
Log into the system using the username admin. The default password is the serial number of the
VDS TC Integrated Appliance, which can be found either by accessing the CIMC or by accessing
the Status > Hardware View page from VDS TC Manager. The serial number is displayed in the
Support Tag ID field in VDS TC Manager.
c.
From the VDS TC CLI prompt, enter the command enable. When prompted, enter the Enable mode
password and press Enter. You are now logged into Enable mode and the Enable prompt, console#,
should appear.
By default, your system serial number is the password for the Enable mode, but this password may have
been changed.
d.
From the Enable mode prompt, enter the command oper service stop to stop the caching service.
e.
Wait a few minutes and then enter the command show status. Check to see if the Device State shows
“stopped.” For example:
console# show status
Operational state Device state Administrative state
disabled
stopped
unlocked
Caution
Do not proceed to the next step until the Device State shows “stopped.” You may need to repeat the show
status command several times before you see this status. Wait several minutes between executions of the
show status command.
Step 3
Close any open VDS TC Manager windows and ensure that no other administrators are connected to the
VDS TC Manager before proceeding.
Step 4
Using SSH software, such as Putty, open an SSH connection to the VDS management server. Log in as
padmin with the password provided by Cisco.
Step 5
Enter the command su root, and when prompted, enter the password provided by Cisco.
Step 6
Follow these steps to clean up the storage and local disks from any 5.7.3 CMDB copies:
a.
Enter the command su - install
b.
Enter the command scp /opt/pang/mgmt/config/wipe_old_database.sh admin@ce-1:~
c.
Enter the command ssh -l admin ce-1 'sudo ~/wipe_old_database.sh'
d.
Enter exit
Step 7
To format the storage, enter the command su - install -c "ssh -l admin ce-1 'sudo
/opt/pang/useful/format_disks.sh -format_all'"
Step 8
To restore the previous configuration for VDS TC 5.2.1, go to Step 9. To restore the previous
configuration for VDS TC 5.6.1, perform the following steps:
Caution
Step 9
After you perform these steps, any changes that were made after the upgrade to VDS TC 5.7.3 will be
lost.
a.
Enter the command cd /opt/5.6_backup.
b.
Enter the command cp -vf *.xml *.xsd *.xsl *.conf /opt/pang/mgmt/config &>/dev/null
c.
Go to Step 10.
To restore the previous configuration for VDS TC 5.2.1, perform the following steps:
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
6-2
Chapter 6
Manually Downgrading a C-Series Cluster Installation from VDS TC 5.7.3 to VDS TC 5.6.1 or VDS TC 5.2.1
Rolling Back the VDS TC Software
Caution
Step 10
After you perform these steps, any changes that were made after the upgrade to VDS TC 5.7.3 will be
lost.
a.
Enter the command cd /opt/5.2_backup.
b.
Enter the command cp -vf *.xml *.xsd *.xsl *.conf /opt/pang/mgmt/config &>/dev/null
Next you must uninstall dnsmasq and install nscd. To do this, perform the following steps:
a.
Enter the command service dnsmasq stop &> /dev/null
b.
Enter the command /sbin/chkconfig dnsmasq off &> /dev/null
c.
Enter the command cat /etc/dnsmasq.conf|grep "^server=" |sed 's/server=/nameserver /g' >
/etc/resolv.conf
d.
Enter the command rpm -e dnsmasq &> /dev/null
e.
Enter the command sed -i 's/^#nsc/nsc/' /etc/inittab
f.
Enter the command init q
g.
Enter the command /sbin/chkconfig nscd on &>/dev/null
Step 11
To rename the backup directory for VDS TC 5.6.1, enter the command cp -r /opt/5.6_backup
/opt/5.6_backup.bak &>/dev/null. To rename the backup directory for VDS TC 5.2.1, enter the
command cp -r /opt/5.2_backup /opt/5.2_backup.bak &>/dev/null.
Step 12
Log into the VDS TC CLI prompt with the username admin and the password provided by Cisco.
Step 13
From the VDS TC CLI prompt, enter the enable command. When prompted, enter the Enable mode
password and press Enter. You are now logged into Enable mode and the Enable prompt, console#,
should appear.
Note
Step 14
By default, your system serial number is the password for the Enable mode, but this password may have
been changed.
From the VDS TC CLI in Enable mode, enter the command upgrade all 127.0.0.1 filename, where
filename is the filename of the upgrade package for VDS TC 5.6.1 or VDS TC 5.2.1. For example:
upgrade all 127.0.0.1 VDS-TC_GA_5.6.1b58_Server_Cluster.tar.gz
Step 15
Note
After upgrading the system, exit completely from the VDS TC CLI and log back into the CLI to access
the new software version.
If you do not log out of the VDS TC CLI and log back in, you will not see the current version.
Step 16
From the VDS TC prompt, enter the enable command. When prompted, enter the Enable mode password
and press Enter.
Step 17
Enter the command show version to confirm that the correct version is now installed.
Step 18
From Enable mode, enter the command license import 127.0.0.1 filename, where filename is the name
of the old license file. For example, license import 127.0.0.1
0000000-5.6-CISCO_UCS220_XY-License_20151014_19862.xml
Step 19
Enter license activate to apply the license. When prompted with “Are you sure you want to activate this
license?” enter Y.
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
6-3
Chapter 6
Manually Downgrading a C-Series Cluster Installation from VDS TC 5.7.3 to VDS TC 5.6.1 or VDS TC 5.2.1
Rolling Back the VDS TC Software
Figure 6-1
Note
License Activation
If you receive the error message “License activation failed”, repeat Steps 15 through Steps 19. If you
still receive the error message, contact Cisco support.
Step 20
After activating the license, exit completely from the VDS TC CLI.
Step 21
To confirm that the license is activated, log back into the CLI of the system using the username admin.
From the VDS TC CLI prompt, enter the command enable. When prompted, enter the Enable mode
password and press Enter. Enter the command show license to confirm that the license is activated.
Note
If you see the message “No valid license found”, make sure that you exit completely from the CLI of the
VDS TC system and repeat Step 21.
Step 22
At the Enable mode prompt enter the command oper service start to start the caching service.
Step 23
Wait a few minutes and then enter the command show status. Do not proceed to the next step until you
see a Device Status of “Started.” For example:
console# show status
Operational state Device state Administrative state
enabled
started
unlocked
Step 24
On the PBR routers, start redirecting traffic to the VDS TC solution.
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
6-4
CH A P T E R
7
Upgrading from VDS TC 5.6.1 to VDS TC 5.7.3 for a
Blade Server Cluster Installation
This chapter describes how to upgrade from VDS TC 5.6.1 to VDS TC 5.7.3 for a Blade Server cluster
installation. Use this document only if you are upgrading a Blade Server cluster installation from VDS
TC 5.6.1. If you are upgrading a Blade Server cluster installation from VDS TC 5.2.1, see Chapter 10,
“Upgrading from VDS TC 5.2.1 to VDS TC 5.7.3 for a Blade Server Cluster Installation”. If you are
upgrading an Integrated Appliance installation, see Chapter 1, “Upgrading from VDS TC 5.2.1 or VDS
TC 5.6.1 to VDS TC 5.7.3 for an Integrated Appliance Installation”. If you are upgrading a C-Series
server cluster installation, see Chapter 4, “Upgrading from VDS TC 5.2.1 or VDS TC 5.6.1 to VDS TC
5.7.3 for a C-Series Cluster Installation”.
Note
You can only upgrade to VDS TC version 5.7.3 from VDS TC version 5.6.1 or VDS TC version 5.2.1.
To upgrade to VDS TC 5.7.3 from any other version, you must first upgrade to VDS TC version 5.6.1 or
5.2.1. For instructions on upgrading to VDS TC 5.2.1, please refer to the document Cisco Videoscape
Distribution Suite Transparent Caching Application Upgrade Guide Release 5.2.1 available at
http://www.cisco.com/c/dam/en/us/td/docs/video/videoscape/distribution_suite/vds/v5_2_1/VDS-TC_
5_2_1_app_upgrade_guide.pdf. For instructions on upgrading to VDS TC 5.6.1, please refer to the
document Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
Release 5.6.1 available at
http://www.cisco.com/c/dam/en/us/td/docs/video/videoscape/distribution_suite/vds/v5_6_1/VDS-TC_
5_6_1_appupgrade_guide.pdf.
Note
If you need to roll back to version 5.6.1 after you perform the upgrade, you must perform this roll back
within 7 days of the upgrade.
This chapter contains the following sections:
•
Preparing for the Upgrade
– Confirming Correct BIOS, Firmware, and Software Versions
– Confirming the BIOS Settings of the VDS TC Management Server
– Confirming the BIOS Settings of the VDS TC Blade Server Cache Engines
•
Obtaining the Required VDS TC 5.7.3 Files
– Generating a License Request in VDS TC 5.6.1
•
Uploading the Required Files
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
7-1
Chapter 7
Upgrading from VDS TC 5.6.1 to VDS TC 5.7.3 for a Blade Server Cluster Installation
Preparing for the Upgrade
•
Performing the VDS TC Software Upgrade from VDS TC 5.6.1 to VDS TC 5.7.3
•
Post Upgrade Steps
– Copying the Configuration File to the VDS TC Management Server
– Importing the VDS TC 5.7.3 License and Restarting Services
Note
Because you will need to stop traffic redirection to the VDS TC system during the upgrade process, you
should perform the upgrade during a maintenance window.
Preparing for the Upgrade
Confirming Correct BIOS, Firmware, and Software Versions
The following BIOS, firmware, and software versions are required for VDS TC 5.7.3 for a Blade Server
Series cluster installation.
Hardware Component
Model
Required Firmware Version and Image File
Management Server
Cisco UCS C220-M3S
Cisco UCS-C220-M3S:
or
•
Firmware version: 2.0(6f)
Cisco UCS-C240-M3S
•
Image file: ucs-c220-huu-2.0.6f.iso
Cisco UCS-C240-M3S:
Cache Engine
Cisco UCS 5108 Blade
Chassis
Cisco UCS-B200-M3
Cisco UCS 6248 UP
Fabric Interconnect
•
Firmware version: 2.0(6f)
•
Image file: ucs-c240-huu-2.0.6f.iso
Cisco UCS-B200-M3:
•
Firmware version: 2.2.5b
•
Image file:
ucs-k9-bundle-b-series.2.2.5b.B.bin
Cisco UCS 6248 UP Fabric Interconnect:
•
Firmware version: 2.2.5.b
•
Image file: ucs-k9-bundle-infra.2.2.5b.A.bin
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
7-2
Chapter 7
Upgrading from VDS TC 5.6.1 to VDS TC 5.7.3 for a Blade Server Cluster Installation
Preparing for the Upgrade
Hardware Component
Model
Required Firmware Version and Image File
Storage enclosure
Any IBM DS3500
storage models
IBM DS3524:
or
•
BIOS version: 07.86.46.00
•
Controller image files:
ibm_fw_ds3k_07864600_anyos_anycpu.zip
•
HDD BIOS version: 4.18
•
HDD image file:
ibm_fw_ds3khdd_4.18_anyos_anycpu.zip
•
IBM Storage Manager version: 10.86
(SM10.86_Linux_64bit_x86-64_SMIA-10.8
6.x5.43.tgz)
NetApp E2724
NetApp E2724:
Data switch and
management switch
Nexus 7004
•
Controller BIOS version: 08.20.05.00
•
Storage Manager 11.20.0A
(SMIA-LINUXX64-11.20.0A00.0015.bin)
Cisco NX-OS version: 6.2(10) or later with
feature set K9
If you need to perform a firmware upgrade for the Cisco UCS-C220-M3S, see the Cisco UCS C-Series
Rack-Mount Server BIOS Upgrade Guide document available at
http://www.cisco.com/en/US/docs/unified_computing/ucs/c/sw/bios/b_Upgrading_BIOS_Firmware.ht
ml.
If you need to perform a firmware upgrade for either the Cisco UCS B200-M3 server or the Cisco UCS
6248 UP Fabric Interconnect, refer to the following documentation to perform the upgrade:
•
To upgrade from Cisco UCS Release 2.0 to Cisco UCS Release 2.2, see the Upgrading Cisco UCS
from Release 2.0 to Release 2.2 web page available at
http://www.cisco.com/c/en/us/td/docs/unified_computing/ucs/sw/upgrading/from2-0/to2-2/b_Upgr
adingCiscoUCSFrom2-0To2-2.html.
•
To upgrade from Cisco UCS Release 2.1 to Cisco UCS Release 2.2, see the Upgrading Cisco UCS
from Release 2.1 to Release 2.2 web page available at
http://www.cisco.com/c/en/us/td/docs/unified_computing/ucs/sw/upgrading/from2-1/to2-2/b_Upgr
adingCiscoUCSFrom2-1To2-2.html.
•
If you need to perform an NX-OX software upgrade on the Cisco Nexus 7004, see the “Cisco Nexus
7000 Series NX-OS Software Upgrade and Downgrade Guide, Release 6.x” guide at
http://www.cisco.com/c/en/us/td/docs/switches/datacenter/sw/6_x/nx-os/upgrade/guide/b_Cisco_
Nexus_7000_Series_NX-OS_Software_Upgrade_and_Downgrade_Guide_Release_6-x.html.
Confirming the BIOS Settings of the VDS TC Management Server
Follow these steps to use the CIMC to confirm, and configure if necessary, the BIOS settings of the VDS
TC management server:
Step 1
Open a web browser and enter the management IP address of the CIMC. The CIMC login window
appears.
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
7-3
Chapter 7
Upgrading from VDS TC 5.6.1 to VDS TC 5.7.3 for a Blade Server Cluster Installation
Preparing for the Upgrade
Step 2
Enter the username admin and the password for the admin account.
Step 3
The Cisco Integrated Management Controller: Server Summary window appears.
Step 4
From the Server tab, click BIOS.
Step 5
In the BIOS window, click Configure BIOS. The Configure BIOS Parameters window appears.
Step 6
Click the Advanced tab.
Figure 7-1
Note
Step 7
Note
Configure BIOS Parameters Window: Advanced Tab
If you are using a Cisco UCS C240M3 NEBS, the Configure BIOS Parameters window may look
different than the one presented here.
From the Advanced BIOS Parameters table, confirm, and configure if necessary, the following settings
on the Advanced tab.
Parameters that are not listed in the following table should be left set to their default value.‘
Table 7-1
Advanced BIOS Parameters
Processor Configuration
State
Hyper - Threading Technology
Disabled
Number Of Enabled Cores
All
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
7-4
Chapter 7
Upgrading from VDS TC 5.6.1 to VDS TC 5.7.3 for a Blade Server Cluster Installation
Preparing for the Upgrade
Execute Disable
Enabled
Intel VT
Disabled
Intel VT-d
Disabled
Intel VT-d Coherency Support
Disabled
Intel VT-d ATS Support
Disabled
CPU Performance
High Throughput
Hardware Prefetcher
Disabled
Adjacent Cache Line Prefetch
Disabled
DCU Streamer Prefetch
Disabled
DCU IP Prefetcher
Enabled
Direct Cache Access Support
Enabled
Power Technology
Disabled
Enhanced Intel Speedstep Technology
Enabled
Intel Turbo Boost Technology
Disabled
Processor Power State C6
Disabled
Processor Power State C1 Enhanced
Disabled
Frequency Floor Override
Disabled
P-STATE Coordination
HW ALL
Energy Performance
Performance
Memory Configuration
Status
Select Memory RAS
Maximum Performance
DRAM Clock Throttling
Performance
NUMA
Enabled
Low Voltage DDR Mode
Performance Mode
Channel Interleaving
Auto
Rank Interleaving
Auto
Patrol Scrub
Enabled
Demand Scrub
Enabled
Altitude
300 M
QPI Configuration
Status
QPI Link Frequency Select
Auto
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
7-5
Chapter 7
Upgrading from VDS TC 5.6.1 to VDS TC 5.7.3 for a Blade Server Cluster Installation
Preparing for the Upgrade
Onboard Storage
Status
Onboard SCU Storage Support
USB Configuration
Disabled
Status
USB Port:SD Card
PCI Configuration
Disabled
Status
MIMO above 4GB
Disabled
ASPM Support
Disabled
VGA Priority
Onboard
Serial Configuration
Status
Out-of-Band Mgmt Port
Disabled
Console Redirection
Disabled
Terminal Type
VT100+
Bits per Second
115200
Flow Control
None
LOM and PCIe Slots Configuration
Status
LOM Port 0 Legacy OptionROM
Enabled
LOM Port 1 Legacy OptionROM
Enabled
LOM Port 2 Legacy OptionROM
Enabled
LOM Port 3 Legacy OptionROM
Enabled
All PCIe Slots OptionROM
Enabled
PCIe Slot:1 OptionROM
Enabled
PCIe Slot:2 OptionROM
Enabled
PCIe Slot:3 OptionROM
Enabled
PCIe Slot:4 OptionROM
Enabled
PCIe Mezzanine OptionROM
Enabled
PCIe Slot:1 Link Speed
GEN3
PCIe Slot:2 Link Speed
GEN3
Step 8
If you made any changes, click Save Changes.
Step 9
From the Server tab, choose Power Policies. The Power Policies window appears.
Step 10
In the Power Policies window confirm, or configure if necessary, the following settings:
•
Step 11
From the Fan Policy drop-down list, choose Maximum Power.
If you made any changes, click Save Changes.
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
7-6
Chapter 7
Upgrading from VDS TC 5.6.1 to VDS TC 5.7.3 for a Blade Server Cluster Installation
Obtaining the Required VDS TC 5.7.3 Files
Figure 7-2
Power Policies Screen
Step 12
From the Server tab, choose Summary. In the Actions pane, click Hard Reset Server.
Step 13
From the Hard Reset Server dialog box, click OK to reset the server.
Confirming the BIOS Settings of the VDS TC Blade Server Cache Engines
Note
These settings apply only to the cache engines in a Blade Server cluster install.
Refer to Appendix A, “Cisco VDS TC Specific UCS Blade Server Values” to confirm the Blade Server
BIOS settings.
Obtaining the Required VDS TC 5.7.3 Files
To perform an upgrade to VDS TC 5.7.3, you must obtain the following files:
•
The VDS TC 5.7.3 upgrade image for cluster installation: Obtain the VDS TC upgrade image
from Cisco. The upgrade image filename for a Cluster upgrade will begin with VDS-TC_GA and
will have “Server_Cluster” in the filename, for example
VDS-TC_GA_5.7.3b54_Server_Cluster.tar.gz. The numbers in the filename represent the version
number and build number.
•
VDS TC License file: You must obtain a new license that is valid for VDS TC 5.7.3. See the
following section, Generating a License Request in VDS TC 5.6.1, for steps to obtain this license
file.
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
7-7
Chapter 7
Upgrading from VDS TC 5.6.1 to VDS TC 5.7.3 for a Blade Server Cluster Installation
Uploading the Required Files
Generating a License Request in VDS TC 5.6.1
Follow these steps to generate a license request from VDS TC 5.6.1:
Note
You should send this request a few days prior to when you want to schedule the upgrade.
Procedure
Step 1
In a web browser, enter the management IP address of the VDS TC appliance to connect to the VDS TC
Manager.
Step 2
Enter a username of padmin and the password that was provided by Cisco.
Step 3
From VDS TC Manager, in the left navigation pane, click Configuration > License Manager.
Step 4
Click the Generate license request button.
Step 5
The Open license-request dialog window appears.
Step 6
Click Save File and then OK to save the file request.
Step 7
Enter a name and location of the file to save. You must send this file to Cisco support to receive a license
file.
Step 8
Email the license-request.xml file that was generated in Step 7 to Cisco at [email protected]. Please
include the following information in the email:
•
Company name
•
Sales Order number (SO) or Purchase Order number (PO) if you are requesting a Release license
•
Indicate whether the license that is being upgraded from is a Evaluation license or a Release license
•
Indicate what VDS TC software version you are upgrading from
•
Specify the Forwarding capacity that is required per integrated appliance. This information is
imperative when a PO contains multiple clusters or integrated appliances.
Note
Step 9
Note
Make sure that you are requesting the total forwarding capacity that is inline with the SO/PO.
After you receive the VDS TC license for Version 5.7.3 from Cisco, save the license file to a location
that you will be able to access while connected to the VDS TC server.
It may take a couple of days to receive the license from Cisco. Making sure to provide complete, clear,
and accurate information in the license request email will help expedite the process.
Uploading the Required Files
Follow these steps to upload the files that are needed to perform the upgrade from VDS TC 5.6.1 to VDS
TC 5.7.3:
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
7-8
Chapter 7
Upgrading from VDS TC 5.6.1 to VDS TC 5.7.3 for a Blade Server Cluster Installation
Performing the VDS TC Software Upgrade from VDS TC 5.6.1 to VDS TC 5.7.3
Step 1
Using SFTP software, such as WinSCP, connect to the management IP address that was assigned to the
VDS TC management server. Log in using the user name padmin and the password that was provided
by Cisco.
Step 2
Copy the VDS TC upgrade image file and the updated VDS TC license file to the /tftpboot folder. These
are the files that you obtained in the Obtaining the Required VDS TC 5.7.3 Files section. Make sure that
the previous VDS TC software version file is also in the /tftpboot folder in case you need to perform a
roll back.
Performing the VDS TC Software Upgrade from VDS TC 5.6.1 to
VDS TC 5.7.3
Follow these steps to upgrade the VDS TC software from version 5.6.1 to version 5.7.3 and to update
the license file to a version that supports VDS TC 5.7.x.
Note
If you need to roll back to version 5.6.1 after you perform the upgrade, you must perform this roll back
within 7 days of the upgrade.
Step 1
On the PBR routers, stop redirecting traffic to the VDS TC solution.
Step 2
Immediately after stopping the traffic redirection to the VDS TC solution, you must stop the VDS TC
caching service. Follow these steps to stop the VDS TC caching service:
Note
a.
Using SSH software, such as Putty, open an SSH connection to the management IP address of the
VDS TC appliance.
b.
Log into the system using the username admin. The default password is the serial number of the
VDS TC Integrated Appliance, which can be found either by accessing the CIMC or by accessing
the Status > Hardware View page from VDS TC Manager. The serial number is displayed in the
Support Tag ID field in VDS TC Manager.
c.
From the VDS TC CLI prompt, enter the command enable. When prompted, enter the Enable mode
password and press Enter. You are now logged into Enable mode and the Enable prompt, console#,
should appear.
By default, your system serial number is the password for the Enable mode, but this password may have
been changed.
d.
From the Enable mode prompt, enter the command oper service stop to stop the caching service.
e.
Wait a few minutes and then enter the command show status. Check to see if the Device State shows
“stopped.” For example:
console# show status
Operational state Device state Administrative state
disabled
stopped
unlocked
Caution
Do not proceed to the next step until the Device State shows “stopped.” You may need to repeat the show
status command several times before you see this status. Wait several minutes between executions of the
show status command.
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
7-9
Chapter 7 Upgrading from VDS TC 5.6.1 to VDS TC 5.7.3 for a Blade Server Cluster Installation
Performing the VDS TC Software Upgrade from VDS TC 5.6.1 to VDS TC 5.7.3
Step 3
Close any open VDS TC Manager windows and ensure that no other administrators are connected to the
VDS TC Manager before proceeding.
Step 4
Back up the current cluster_conf.xml file before performing the upgrade, in case you need to perform a
roll back. To backup the exiting cluster_conf.xml file, enter the export tftp_server filename command,
where tftp_server is the IP address or the hostname of the TFTP server to which you want to export the
configuration and filename is the filename to create when exporting the current configuration file. You
should include the version of VDS TC in the filename to help differentiate it from the new cluster_conf
file that will be created during the upgrade process. For example, you could use the filename
cluster_conf_5.6.1b57_bkp.xml.
Step 5
From the VDS TC CLI prompt, enter the enable command. When prompted, enter the Enable mode
password and press Enter. You are now logged into Enable mode and the Enable prompt, console#,
should appear.
Step 6
From the Enable mode, enter the command upgrade all 127.0.0.1 filename, where filename is the name
of the VDS TC 5.7.3 software upgrade image file that you copied to the /tftpboot directory in the
Uploading the Required Files section.
Step 7
To upgrade to VDS TC 5.7.3, a new license is required. The upgrade process will warn you to only
proceed with the upgrade if you already have a new license file for 5.7.3. This is the license file that you
copied to the /tftpboot directory in the Uploading the Required Files section. If you upgrade the system
without this license file, the system will not start.
Note
If you have not uploaded the VDS TC 5.7.3 license as instructed earlier, stop the upgrade process.
Perform the upgrade only after you obtain the VDS TC 5.7.3 license file.
Step 8
When the “Do you want to proceed with the upgrade?” prompt appears, enter Y and when prompted to
confirm, enter Y.
Step 9
The next step in the upgrade process is for the upgrade script to validate the VDS TC 5.7.x license file.
When prompted for the IP address of the TFTP server that contains the license file, enter 127.0.0.1 and
when prompted for the path to the 5.7.3 license file, enter the name of the license file.
Figure 7-3
Note
Upgrade License Validation
The license is only validated during the software upgrade script, it is not installed. You must install the
license file after the software upgrade process finishes.
Step 10
When the “Continue installation of management software? [Y/n]” prompt appears, enter Y.
Step 11
When the software upgrade has finished, you will see a “Succeeded” message and a a reminder to import
and activate the new VDS TC 5.7.3 license before restarting the service, if required. You will perform
these steps in the Importing the VDS TC 5.7.3 License and Restarting Services section.
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
7-10
Chapter 7
Upgrading from VDS TC 5.6.1 to VDS TC 5.7.3 for a Blade Server Cluster Installation
Post Upgrade Steps
Figure 7-4
Software Upgrade Script Succeeded
Step 12
After upgrading the system, exit completely from the VDS TC CLI and log back into the CLI to access
the new software version.
Note
If you do not log out of the VDS TC CLI and log back in, you will receive the following error message
when you try to activate the new license: “License activation failed”.
Post Upgrade Steps
Perform the steps in this section to complete the upgrade to VDS TC 5.7.3. This section include steps to
import an XML file using the Cisco UCS Manager to configure the VDS TC Cache Engine servers, copy
a configuration file to the VDS TC Management Server, import the VDS TC 5.7.3 license, and re-enable
the VDS TC service.
Importing the XML Configuration File
You will import an XML file using the Cisco UCS Manager to configure the VDS TC Cache Engine
servers. Use the following procedure to configure the BIOS and Operating System using Cisco UCS
Manager.
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
7-11
Chapter 7
Upgrading from VDS TC 5.6.1 to VDS TC 5.7.3 for a Blade Server Cluster Installation
Post Upgrade Steps
Procedure
Step 1
To configure the BIOS for the VDS TC cache engines, you must obtain a copy of the XML configuration
file that configures the BIOS. The XML configuration file is provided in a .tgz file that is available from
the same location as the VDS TC ISO image file on www.cisco.com. Download the .tgz file to the
machine from which you will perform the following configuration steps and extract the files. You will
need to browse to the location of the files in a later step.
Step 2
Open a web browser and enter the IP address of the management port for the Fabric Interconnect. In a
redundant installation, enter the Cluster (virtual) IP address. These addresses were configured as part of
the initial installation and configuration of the Cisco UCS 6248 UP Fabric Interconnect. The Cisco UCS
Manager window appears.
Figure 7-5
Cisco UCS Manager Window
Step 3
Click Launch UCS Manager. Click OK to open the .jnlp file with Java(TM) Web Start Launcher.
Step 4
In the Cisco UCS Manager Login window that appears, enter the username admin and the password that
was configured during the initial system setup of the fabric interconnect, and then click Login.
Figure 7-6
Step 5
Cisco UCS Manager Login Window
From the Cisco Unified Computing System Manager window, click the Admin tab in the left pane, click
the General tab in the work pane, and then in the Actions area click Import Configuration.
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
7-12
Chapter 7
Upgrading from VDS TC 5.6.1 to VDS TC 5.7.3 for a Blade Server Cluster Installation
Post Upgrade Steps
Figure 7-7
Admin Tab Window
Step 6
The Import Configuration window appears. In this window, click Create Import Operation.
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
7-13
Chapter 7
Upgrading from VDS TC 5.6.1 to VDS TC 5.7.3 for a Blade Server Cluster Installation
Post Upgrade Steps
Figure 7-8
Step 7
Import Configuration Window
The Create Import Operation Window appears. Set the Admin State to Enabled, the Action to Replace,
and the Location of the Import File to Local File System, and then click Browse.
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
7-14
Chapter 7
Upgrading from VDS TC 5.6.1 to VDS TC 5.7.3 for a Blade Server Cluster Installation
Post Upgrade Steps
Figure 7-9
Create Import Operation Window
Step 8
From the Select File window, browse to the folder that you downloaded the XML file to in Step 1 in this
procedure. Choose the correct file to import based on the number of blade servers you have in your VDS
TC configuration and click Select. The filename should be
#blades_active_active_redundant_all_cfg_fw_2.2.5b.xml, where # is the number of blade servers in
your installation. So for example, you would use the file named
16blades_active_active_redundant_all_cfg_fw_2.2.5b.xml for a system that has 16 blade servers.
Caution
Importing the wrong configuration file could cause problems with the VDS TC installation and cause
problems with the VDS TC cache engines. If you are unsure of which file to use, contact your Cisco
representative.
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
7-15
Chapter 7
Upgrading from VDS TC 5.6.1 to VDS TC 5.7.3 for a Blade Server Cluster Installation
Post Upgrade Steps
Figure 7-10
Step 9
Select File Window
The file you selected will now appear in the Browse field of the Create Import Operation window. Click
OK to begin importing the file from your computer.
Figure 7-11
Create Import Operation Window
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
7-16
Chapter 7
Upgrading from VDS TC 5.6.1 to VDS TC 5.7.3 for a Blade Server Cluster Installation
Post Upgrade Steps
Step 10
Figure 7-12
After the file has finished importing to the system, you will be returned to the Import Configuration
window.
Import Configuration Window
Caution
Step 11
Before performing the next step, make sure that the file that appears in the Filename text box in the
Properties section of the Import Configuration window is the correct file for your VDS TC Blade Server
installation. Applying the wrong configuration file to your system could cause problems with the VDS
TC installation and cause problems with the VDS TC cache engines. If you are unsure of which file to
use, contact your Cisco representative.
Click Apply in the Import Configuration window. To view the status of the import, click FSM Details
to expand the FSM details section of the Import Configuration window.
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
7-17
Chapter 7
Upgrading from VDS TC 5.6.1 to VDS TC 5.7.3 for a Blade Server Cluster Installation
Post Upgrade Steps
Figure 7-13
FSM Details Section
Step 12
When the XML file is finished importing, click OK to close the Import Configuration window.
Note
Some configuration changes may cause the Blades to reboot automatically.
Note
After you import the XML configuration file to configure the VDS TC Cache Engine servers, you may
need to Acknowledge the chassis or re-acknowledge a specific server.
After you are finished configuring the BIOS and operating system of the VDS TC cache engines, the
following vNICs will be created for each cache engine:
Table 7-2
vNIC to VLAN Mapping
vNIC
VLAN
eth0
1,50
eth1
1,50
eth2
301, 302, 303, 304
eth3
301, 302, 303, 304
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
7-18
Chapter 7
Upgrading from VDS TC 5.6.1 to VDS TC 5.7.3 for a Blade Server Cluster Installation
Post Upgrade Steps
Table 7-2
Step 13
vNIC to VLAN Mapping
vNIC
VLAN
eth4
70
eth5
201
eth6
202
eth7
203
eth8
204
eth9
201
eth10
202
eth11
203
eth12
204
eth13
70
Proceed to the next section, Copying the Configuration File to the VDS TC Management Server.
Copying the Configuration File to the VDS TC Management Server
Part of the post upgrade steps is to copy a configuration file to the VDS TC Management Server. The
configuration file sets the environment variables and configuration for the VDS TC application. A
sample configuration file is provided in a .tgz file that is available from the same location as the VDS
TC ISO image file on www.cisco.com. In this section you will copy an example configuration file, edit
this file, and import the new configuration file to the VDS TC Management Server. For more information
about editing the configuration files in this section, see the Cisco Videoscape Distribution Suite
Transparent Caching Software Configuration Guide.
Step 1
Download the configurations .tgz file that is available from the same location as the VDS TC ISO image
file on www.cisco.com. In this .tgz file, locate the sample configuration file that matches the number of
VDS TC Cache Engines that are installed in your VDS TC Blade Server installation. This file should
have a name like cluster_conf_VDS-TC-<#>B-ACTIVE-ACTIVE.xml, where <#> is the number of
blade server cache engines that are in your installation. For example, you would use the file named
cluster_conf_VDS-TC-16B-ACTIVE-ACTIVE.xml for a system that has 16 blade server cache engines.
Step 2
Edit the sample configuration file that you located in Step 1 to make the required changes in the
following sections. For more information on editing the required parameters in the cluster_conf.xml file,
see the Cisco Videoscape Distribution Suite Transparent Caching Software Configuration Guide.
•
The <mgmt-config> controls the management IP environment section.
•
The <network> section controls the data network addresses.
•
The <service> section controls the cache out port configuration.
Step 3
Save your changes and rename the file cluster_conf.xml.
Step 4
Using SFTP software, such as WinSCP, connect to the management IP address that you assigned to the
VDS TC Management Server. Log in using the user name padmin and the password that was provided
by Cisco.
Step 5
Copy the example configuration file that you saved in Step 3 into the /tftpboot folder on the VDS TC
Management Server.
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
7-19
Chapter 7
Upgrading from VDS TC 5.6.1 to VDS TC 5.7.3 for a Blade Server Cluster Installation
Post Upgrade Steps
Step 6
From an SSH session that is connected to the VDS TC Management Server, enter the command su
admin. The Regular mode prompt, console>, appears.
Note
If you need to open a new SSH window to the VDS TC cache engine, enter the management IP address
of the VDS TC cache engine and log in using the username padmin and the password that was provided
by Cisco. Enter the command su root to change to the root user and when prompted, enter the password
for the root user that was provided by Cisco.
Step 7
To log into the Enable mode, you need the system ID to use for the password. Enter the command show
systemid to determine the system ID.
Step 8
Enter the command enable to switch to Enable mode. Enter the system ID discovered in Step 7 for the
password, excluding the leading *. The prompt changes to console#.
Step 9
To be able to import and apply the new configuration, enter the command config to switch to
Configuration mode.
Step 10
To import the edited configuration file, enter the command import 127.0.0.1 cluster_conf.xml.
Step 11
To confirm your changes to the configuration file, enter the command diff. The new configuration
parameters are indicated by a plus (+) sign as the first character on the line, while the current
configuration parameters are indicated by a minus (-) sign as the first character on the line. If there are
no proposed configuration changes to display, the command returns the message “Configurations are
identical”.
Step 12
To apply the imported configuration file, enter the command apply.
Importing the VDS TC 5.7.3 License and Restarting Services
Follow these steps to import the VDS TC 5.7.3 license:
Step 1
From the VDS TC prompt if you are not in enable mode, enter the enable command. When prompted,
enter the Enable mode password and press Enter.
Step 2
From Enable mode, enter the command license import 127.0.0.1 filename, where filename is the name
of the new license file. For example, license import 127.0.0.1
0000000-5.7-CISCO_UCS220_XY-License_20151012_19862.xml
Step 3
Enter license activate to apply the license. When prompted with “Are you sure you want to activate this
license?” enter Y.
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
7-20
Chapter 7
Upgrading from VDS TC 5.6.1 to VDS TC 5.7.3 for a Blade Server Cluster Installation
Post Upgrade Steps
Figure 7-14
Note
License Activation
If you receive the error message “License activation failed”, make sure to exit completely from the VDS
TC CLI and log back in. Then repeat Steps 1 through Steps 3. If you still receive the error message,
contact Cisco support.
Step 4
Exit completely from the VDS TC CLI and then log back into the VDS TC CLI.
Step 5
From the VDS TC CLI prompt, enter the command enable. When prompted, enter the Enable mode
password and press Enter.
Step 6
Enter the command show license to confirm that the license has been activated.
Step 7
From Enable mode, enter the command show cluster-bus-ip to determine whether the management
server and all cache engines are configured to use broadcast.
Step 8
Enter the show cluster-bus-ip command. If the management server or any of the cache engines are set
to use multicast instead of broadcast, do the following:
a.
Enter the command config to enter configuration mode. The configuration prompt, configuration#,
will appear.
b.
In configuration mode, enter the command cluster-bus-ip broadcast. For example:
configuration# cluster-bus-ip broadcast
Processing...
All the CEs are configured to work with Broadcast IP.
c.
Enter exit to exit from configuration mode and go back to Enable mode.
d.
Enter the command show cluster-bus-ip to confirm that the management server and all cache
engines are configured to use broadcast. For example:
console# show cluster-bus-ip
Processing...
MG-1: [Broadcast]
CE-1: [Broadcast]
CE-2: [Broadcast]
CE-3: [Broadcast]
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
7-21
Chapter 7
Upgrading from VDS TC 5.6.1 to VDS TC 5.7.3 for a Blade Server Cluster Installation
Post Upgrade Steps
CE-4: [Broadcast]
CE-5: [Broadcast]
CE-6: [Broadcast]
CE-7: [Broadcast]
CE-8: [Broadcast]
OK. All the CEs are configured to work with Broadcast IP.
Step 9
From the Enable mode prompt, enter the command oper service start.
Step 10
Wait a few minutes and then enter the command show status. Do not proceed to the next step until you
see a Device Status of “Started.” For example:
console# show status
Operational state Device state Administrative state
enabled
started
unlocked
Step 11
Use VDS TC Manager to confirm the upgrade and version number. In a web browser, enter the
management IP address of the VDS TC appliance to connect to the VDS TC Manager. Enter a username
and password that was provided by Cisco.
Step 12
From the default web page that opens (Dashboard) you can confirm that the software has been upgraded.
The version number of the product appears in the upper-right hand corner of the window, below the
username. Confirm that you see the correct upgraded version.
Figure 7-15
Step 13
Confirm Version
On the PBR routers, start redirecting traffic to the VDS TC solution.
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
7-22
CH A P T E R
8
Downgrading a Blade Server Cluster Installation
from VDS TC 5.7.3 to VDS TC 5.6.1
This chapter describes how to downgrade from VDS TC 5.7.3 to VDS TC 5.6.1 if necessary. Only use
these steps if you are downgrading a Blade Server cluster installation to VDS TC 5.6.1. If you need to
downgrade a Blade Server cluster installation to VDS TC 5.2.1, see Appendix 11, “Downgrading a Blade
Server Cluster Installation from VDS TC 5.7.3 to VDS TC 5.2.1”. If you need to downgrade an
Integrated Appliance to VDS TC 5.6.1, see Chapter 2, “Downgrading an Integrated Appliance from VDS
TC 5.7.3 to VDS TC 5.6.1 or VDS TC 5.2.1”. If you need to downgrade a C-Series cluster installation,
Chapter 5, “Downgrading a C-Series Cluster Installation from VDS TC 5.7.3 to VDS TC 5.6.1 or VDS
TC 5.2.1”.
Note
Because you will need to stop traffic redirection to the VDS TC system during the downgrade process,
you should perform the downgrade during a maintenance window.
Rolling Back the VDS TC Software
Note
As part of the roll back process, you must also downgrade any firmware and operating system versions
that you upgraded on the Cisco UCS systems, switches, and storage enclosures. These must be
downgraded to the versions that are specified in the installation guides of the VDS TC version that you
are downgrading to. Downgrade the firmware and operating system versions before you perform the
steps in this chapter. You will also need to roll back any of the configurations for the Cisco UCS systems
and switches that were updated as part of the upgrade process.
Follow these steps to roll back the VDS TC software to the version that was installed before you
performed the upgrade.
Step 1
On the PBR routers, stop redirecting traffic to the VDS TC solution.
Step 2
Immediately after stopping the traffic redirection to the VDS TC solution, you must stop the VDS TC
caching service. Follow these steps to stop the VDS TC caching service:
a.
Using SSH software, such as Putty, open an SSH connection to the management IP address of the
VDS TC appliance.
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
8-1
Chapter 8
Downgrading a Blade Server Cluster Installation from VDS TC 5.7.3 to VDS TC 5.6.1
Rolling Back the VDS TC Software
Note
b.
Log into the system using the username admin. The default password is the serial number of the
VDS TC Integrated Appliance, which can be found either by accessing the CIMC or by accessing
the Status > Hardware View page from VDS TC Manager. The serial number is displayed in the
Support Tag ID field in VDS TC Manager.
c.
From the VDS TC CLI prompt, enter the command enable. When prompted, enter the Enable mode
password and press Enter. You are now logged into Enable mode and the Enable prompt, console#,
should appear.
By default, your system serial number is the password for the Enable mode, but this password may have
been changed.
d.
From the Enable mode prompt, enter the command oper service stop to stop the caching service.
e.
Wait a few minutes and then enter the command show status. Check to see if the Device State shows
“stopped.” For example:
console# show status
Operational state Device state Administrative state
disabled
stopped
unlocked
Caution
Do not proceed to the next step until the Device State shows “stopped.” You may need to repeat the show
status command several times before you see this status. Wait several minutes between executions of the
show status command.
Step 3
Close any open VDS TC Manager windows and ensure that no other administrators are connected to the
VDS TC Manager before proceeding.
Step 4
Using SSH software, such as Putty, open an SSH connection to the VDS TC management server. Log in
as padmin with the password provided by Cisco.
Step 5
Enter the command su root, and when prompted, enter the password provided by Cisco.
Step 6
To rollback the VDS TC Software to version 5.6.1, enter the command
/opt/pang/mgmt/config/downgrade_proc.sh.
Note
If you receive the error message “Not found suitable backup files, cannot restore version 5.6 on this
system. Please refer to the manual downgrade procedure or contact support.” stop this roll back
procedure and refer to the manual roll back procedure in Chapter 9, “Manually Downgrading a Blade
Server Cluster Installation from VDS TC 5.7.3 to VDS TC 5.6.1”.
Step 7
Log into the VDS TC CLI prompt with the username admin and the password provided by Cisco.
Step 8
From the VDS TC CLI prompt, enter the enable command. When prompted, enter the Enable mode
password and press Enter. You are now logged into Enable mode and the Enable prompt, console#,
should appear.
Note
Step 9
By default, your system serial number is the password for the Enable mode, but this password may have
been changed.
Enter the command upgrade all 127.0.0.1 filename, where filename is the filename of the upgrade
package for VDS TC 5.6.1. For example:
upgrade all 127.0.0.1 VDS-TC_GA_5.6.1b58_Server_Cluster.tar.gz
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
8-2
Chapter 8
Downgrading a Blade Server Cluster Installation from VDS TC 5.7.3 to VDS TC 5.6.1
Importing the XML Configuration File
Step 10
Note
After upgrading the system, exit completely from the VDS TC CLI and log back into the CLI to access
the new software version.
If you do not log out of the VDS TC CLI and log back in, you will not see the current version.
Step 11
From the VDS TC prompt, enter the enable command. When prompted, enter the Enable mode password
and press Enter.
Step 12
Enter the command show version to confirm that the correct version is now installed.
Importing the XML Configuration File
You will import an XML file using the Cisco UCS Manager to configure the VDS TC Cache Engine
servers. Use the following procedure to configure the BIOS and Operating System using Cisco UCS
Manager.
Procedure
Step 1
To configure the BIOS for the VDS TC cache engines, you must obtain a copy of the XML configuration
file that configures the BIOS for VDS TC 5.6.1. The XML configuration file is provided in a .tgz file
that is available from the same location as the VDS TC ISO image file on www.cisco.com. Download
the .tgz file to the machine from which you will perform the following configuration steps and extract
the files. You will need to browse to the location of the files in a later step.
Step 2
Open a web browser and enter the IP address of the management port for the Fabric Interconnect. In a
redundant installation, enter the Cluster (virtual) IP address. These addresses were configured as part of
the initial installation and configuration of the Cisco UCS 6248 UP Fabric Interconnect. The Cisco UCS
Manager window appears.
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
8-3
Chapter 8
Downgrading a Blade Server Cluster Installation from VDS TC 5.7.3 to VDS TC 5.6.1
Importing the XML Configuration File
Figure 8-1
Cisco UCS Manager Window
Step 3
Click Launch UCS Manager. Click OK to open the .jnlp file with Java(TM) Web Start Launcher.
Step 4
In the Cisco UCS Manager Login window that appears, enter the username admin and the password that
was configured during the initial system setup of the fabric interconnect, and then click Login.
Figure 8-2
Step 5
Cisco UCS Manager Login Window
From the Cisco Unified Computing System Manager window, click the Admin tab in the left pane, click
the General tab in the work pane, and then in the Actions area click Import Configuration.
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
8-4
Chapter 8
Downgrading a Blade Server Cluster Installation from VDS TC 5.7.3 to VDS TC 5.6.1
Importing the XML Configuration File
Figure 8-3
Admin Tab Window
Step 6
The Import Configuration window appears. In this window, click Create Import Operation.
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
8-5
Chapter 8
Downgrading a Blade Server Cluster Installation from VDS TC 5.7.3 to VDS TC 5.6.1
Importing the XML Configuration File
Figure 8-4
Step 7
Import Configuration Window
The Create Import Operation Window appears. Set the Admin State to Enabled, the Action to Replace,
and the Location of the Import File to Local File System, and then click Browse.
Figure 8-5
Create Import Operation Window
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
8-6
Chapter 8
Downgrading a Blade Server Cluster Installation from VDS TC 5.7.3 to VDS TC 5.6.1
Importing the XML Configuration File
Step 8
From the Select File window, browse to the folder that you downloaded the XML file to in Step 1.
Choose the correct file to import based on the number of blade servers you have in your VDS TC
configuration and click Select. The filename should be
#blades_active_active_redundant_all_cfg_fw_2.2.3c.xml, where # is the number of blade servers in our
installation. So for example, you would use the file named
16blades_active_active_redundant_all_cfg_fw_2.2.3c.xml for a system that has 16 blade servers.
Caution
Importing the wrong configuration file could cause problems with the VDS TC installation and cause
problems with the VDS TC cache engines. If you are unsure of which file to use, contact your Cisco
representative.
Figure 8-6
Step 9
Select File Window
The file you selected will now appear in the Browse field of the Create Import Operation window. Click
OK to begin importing the file from your computer.
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
8-7
Chapter 8
Downgrading a Blade Server Cluster Installation from VDS TC 5.7.3 to VDS TC 5.6.1
Importing the XML Configuration File
Figure 8-7
Step 10
Create Import Operation Window
After the file has finished importing to the system, you will be returned to the Import Configuration
window.
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
8-8
Chapter 8
Downgrading a Blade Server Cluster Installation from VDS TC 5.7.3 to VDS TC 5.6.1
Importing the XML Configuration File
Figure 8-8
Import Configuration Window
Caution
Step 11
Before performing the next step, make sure that the file that appears in the Filename text box in the
Properties section of the Import Configuration window is the correct file for your VDS TC Blade Server
installation. Applying the wrong configuration file to your system could cause problems with the VDS
TC installation and cause problems with the VDS TC cache engines. If you are unsure of which file to
use, contact your Cisco representative.
Click Apply in the Import Configuration window. To view the status of the import, click FSM Details
to expand the FSM details section of the Import Configuration window.
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
8-9
Chapter 8
Downgrading a Blade Server Cluster Installation from VDS TC 5.7.3 to VDS TC 5.6.1
Importing the XML Configuration File
Figure 8-9
FSM Details Section
Step 12
When the XML file is finished importing, click OK to close the Import Configuration window.
Note
Some configuration changes may cause the Blades to reboot automatically.
Note
After you import the XML configuration file to configure the VDS TC Cache Engine servers, you may
need to Acknowledge the chassis or re-acknowledge a specific server.
After you are finished configuring the BIOS and operating system of the VDS TC cache engines, the
following vNICs will be created for each cache engine:
Table 8-1
vNIC to VLAN Mapping
vNIC
VLAN
eth0
1, 50
eth1
1, 50
eth2
301, 302, 303, 304
eth3
301, 302, 303, 304
eth4
70
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
8-10
Chapter 8
Downgrading a Blade Server Cluster Installation from VDS TC 5.7.3 to VDS TC 5.6.1
Finishing the Rollback
Table 8-1
vNIC to VLAN Mapping
vNIC
VLAN
eth5
201
eth6
202
eth7
203
eth8
204
eth9
301
eth10
302
eth11
303
eth12
304
eth13
70
Finishing the Rollback
Step 1
From the VDS TC CLI at the Enable mode prompt, enter the command oper service start to start the
caching service.
Step 2
Wait a few minutes and then enter the command show status. Do not proceed to the next step until you
see a Device Status of “Started.” For example:
console# show status
Operational state Device state Administrative state
enabled
started
unlocked
Step 3
On the PBR routers, start redirecting traffic to the VDS TC solution.
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
8-11
Chapter 8
Downgrading a Blade Server Cluster Installation from VDS TC 5.7.3 to VDS TC 5.6.1
Finishing the Rollback
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
8-12
CH A P T E R
9
Manually Downgrading a Blade Server Cluster
Installation from VDS TC 5.7.3 to VDS TC 5.6.1
This chapter describes how to manually downgrade a Blade Server cluster installation from VDS TC
5.7.3 to VDS TC 5.6.1 if necessary. Only use these steps if the VDS-TC Rollback Procedure from
Chapter 8 failed with the error message “Not found suitable backup files, cannot restore version 5.6 on
this system. Please refer to the manual downgrade procedure or contact support.” and you are
downgrading a Blade Server Cluster installation to VDS TC 5.6.1.
Caution
Running the Manual Rollback Procedure will remove all existing cache data storage and the VDS
TC version 5.7.3 CMDB because the storage will be formatted.
Note
Because you will need to stop traffic redirection to the VDS TC system during the downgrade process,
you should perform the downgrade during a maintenance window.
Rolling Back the VDS TC Software
Note
As part of the roll back process, you must also downgrade any firmware and operating system versions
that you upgraded on the Cisco UCS systems, switches, and storage enclosures. These must be
downgraded to the versions that are specified in the installation guides of the VDS TC version that you
are downgrading to. Downgrade the firmware and operating system versions before you perform the
steps in this chapter. You will also need to roll back any of the configurations for the Cisco UCS systems
and switches that were updated as part of the upgrade process.
Follow these steps to roll back the VDS TC software to the version that was installed before you
performed the upgrade.
Step 1
On the PBR routers, stop redirecting traffic to the VDS TC solution.
Step 2
Immediately after stopping the traffic redirection to the VDS TC solution, you must stop the VDS TC
caching service. Follow these steps to stop the VDS TC caching service:
a.
Using SSH software, such as Putty, open an SSH connection to the management IP address of the
VDS TC appliance.
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
9-1
Chapter 9
Manually Downgrading a Blade Server Cluster Installation from VDS TC 5.7.3 to VDS TC 5.6.1
Rolling Back the VDS TC Software
Note
b.
Log into the system using the username admin. The default password is the serial number of the
VDS TC Integrated Appliance, which can be found either by accessing the CIMC or by accessing
the Status > Hardware View page from VDS TC Manager. The serial number is displayed in the
Support Tag ID field in VDS TC Manager.
c.
From the VDS TC CLI prompt, enter the command enable. When prompted, enter the Enable mode
password and press Enter. You are now logged into Enable mode and the Enable prompt, console#,
should appear.
By default, your system serial number is the password for the Enable mode, but this password may have
been changed.
d.
From the Enable mode prompt, enter the command oper service stop to stop the caching service.
e.
Wait a few minutes and then enter the command show status. Check to see if the Device State shows
“stopped.” For example:
console# show status
Operational state Device state Administrative state
disabled
stopped
unlocked
Caution
Do not proceed to the next step until the Device State shows “stopped.” You may need to repeat the show
status command several times before you see this status. Wait several minutes between executions of the
show status command.
Step 3
Close any open VDS TC Manager windows and ensure that no other administrators are connected to the
VDS TC Manager before proceeding.
Step 4
Using SSH software, such as Putty, open an SSH connection to the VDS management server. Log in as
padmin with the password provided by Cisco.
Step 5
Enter the command su root, and when prompted, enter the password provided by Cisco.
Step 6
Follow these steps to clean up the storage and local disks from any 5.7.3 CMDB copies:
a.
Enter the command su - install
b.
Enter the command scp /opt/pang/mgmt/config/wipe_old_database.sh admin@ce-1:~
c.
Enter the command ssh -l admin ce-1 'sudo ~/wipe_old_database.sh'
d.
Enter exit
Step 7
To format the storage, enter the command su - install -c "ssh -l admin ce-1 'sudo
/opt/pang/useful/format_disks.sh -format_all'"
Step 8
To restore the previous configuration, perform these steps:
Caution
Step 9
After you perform these steps, any changes that were made after the upgrade to VDS TC 5.7.3 will be
lost.
a.
Enter the command cd /opt/5.6_backup.
b.
Enter the command cp -vf *.xml *.xsd *.xsl *.conf /opt/pang/mgmt/config &>/dev/null
Next you must uninstall dnsmasq and install nscd. To do this, perform the following steps:
a.
Enter the command service dnsmasq stop &> /dev/null
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
9-2
Chapter 9
Manually Downgrading a Blade Server Cluster Installation from VDS TC 5.7.3 to VDS TC 5.6.1
Importing the XML Configuration File
b.
Enter the command /sbin/chkconfig dnsmasq off &> /dev/null
c.
Enter the command cat /etc/dnsmasq.conf|grep "^server=" |sed 's/server=/nameserver /g' >
/etc/resolv.conf
d.
Enter the command rpm -e dnsmasq &> /dev/null
e.
Enter the command sed -i 's/^#nsc/nsc/' /etc/inittab
f.
Enter the command init q
g.
Enter the command /sbin/chkconfig nscd on &>/dev/null
Step 10
Enter the command cp -r /opt/5.6_backup /opt/5.6_backup.bak &>/dev/null to rename the backup
directory.
Step 11
Log into the VDS TC CLI prompt with the username admin and the password provided by Cisco.
Step 12
From the VDS TC CLI prompt, enter the enable command. When prompted, enter the Enable mode
password and press Enter. You are now logged into Enable mode and the Enable prompt, console#,
should appear.
Note
Step 13
By default, your system serial number is the password for the Enable mode, but this password may have
been changed.
From the VDS TC CLI in Enable mode, enter the command upgrade all 127.0.0.1 filename, where
filename is the filename of the upgrade package for VDS TC 5.6.1. For example:
upgrade all 127.0.0.1 VDS-TC_GA_5.6.1b58_Server_Cluster.tar.gz
Step 14
Note
After upgrading the system, exit completely from the VDS TC CLI and log back into the CLI to access
the new software version.
If you do not log out of the VDS TC CLI and log back in, you will not see the current version.
Step 15
From the VDS TC prompt, enter the enable command. When prompted, enter the Enable mode password
and press Enter.
Step 16
Enter the command show version to confirm that the correct version is now installed.
Importing the XML Configuration File
You will import an XML file using the Cisco UCS Manager to configure the VDS TC Cache Engine
servers. Use the following procedure to configure the BIOS and Operating System using Cisco UCS
Manager.
Procedure
Step 1
To configure the BIOS for the VDS TC cache engines, you must obtain a copy of the XML configuration
file that configures the BIOS for VDS TC 5.6.1. The XML configuration file is provided in a .tgz file
that is available from the same location as the VDS TC ISO image file on www.cisco.com. Download
the .tgz file to the machine from which you will perform the following configuration steps and extract
the files. You will need to browse to the location of the files in a later step.
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
9-3
Chapter 9
Manually Downgrading a Blade Server Cluster Installation from VDS TC 5.7.3 to VDS TC 5.6.1
Importing the XML Configuration File
Step 2
Open a web browser and enter the IP address of the management port for the Fabric Interconnect. In a
redundant installation, enter the Cluster (virtual) IP address. These addresses were configured as part of
the initial installation and configuration of the Cisco UCS 6248 UP Fabric Interconnect. The Cisco UCS
Manager window appears.
Figure 9-1
Cisco UCS Manager Window
Step 3
Click Launch UCS Manager. Click OK to open the .jnlp file with Java(TM) Web Start Launcher.
Step 4
In the Cisco UCS Manager Login window that appears, enter the username admin and the password that
was configured during the initial system setup of the fabric interconnect, and then click Login.
Figure 9-2
Step 5
Cisco UCS Manager Login Window
From the Cisco Unified Computing System Manager window, click the Admin tab in the left pane, click
the General tab in the work pane, and then in the Actions area click Import Configuration.
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
9-4
Chapter 9
Manually Downgrading a Blade Server Cluster Installation from VDS TC 5.7.3 to VDS TC 5.6.1
Importing the XML Configuration File
Figure 9-3
Admin Tab Window
Step 6
The Import Configuration window appears. In this window, click Create Import Operation.
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
9-5
Chapter 9
Manually Downgrading a Blade Server Cluster Installation from VDS TC 5.7.3 to VDS TC 5.6.1
Importing the XML Configuration File
Figure 9-4
Step 7
Import Configuration Window
The Create Import Operation Window appears. Set the Admin State to Enabled, the Action to Replace,
and the Location of the Import File to Local File System, and then click Browse.
Figure 9-5
Create Import Operation Window
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
9-6
Chapter 9
Manually Downgrading a Blade Server Cluster Installation from VDS TC 5.7.3 to VDS TC 5.6.1
Importing the XML Configuration File
Step 8
Caution
From the Select File window, browse to the folder that you downloaded the XML file to in Step 1.
Choose the correct file to import based on the number of blade servers you have in your VDS TC
configuration and click Select.
Importing the wrong configuration file could cause problems with the VDS TC installation and cause
problems with the VDS TC cache engines. If you are unsure of which file to use, contact your Cisco
representative.
Figure 9-6
Step 9
Select File Window
The file you selected will now appear in the Browse field of the Create Import Operation window. Click
OK to begin importing the file from your computer.
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
9-7
Chapter 9
Manually Downgrading a Blade Server Cluster Installation from VDS TC 5.7.3 to VDS TC 5.6.1
Importing the XML Configuration File
Figure 9-7
Step 10
Create Import Operation Window
After the file has finished importing to the system, you will be returned to the Import Configuration
window.
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
9-8
Chapter 9
Manually Downgrading a Blade Server Cluster Installation from VDS TC 5.7.3 to VDS TC 5.6.1
Importing the XML Configuration File
Figure 9-8
Import Configuration Window
Caution
Step 11
Before performing the next step, make sure that the file that appears in the Filename text box in the
Properties section of the Import Configuration window is the correct file for your VDS TC Blade Server
installation. Applying the wrong configuration file to your system could cause problems with the VDS
TC installation and cause problems with the VDS TC cache engines. If you are unsure of which file to
use, contact your Cisco representative.
Click Apply in the Import Configuration window. To view the status of the import, click FSM Details
to expand the FSM details section of the Import Configuration window.
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
9-9
Chapter 9
Manually Downgrading a Blade Server Cluster Installation from VDS TC 5.7.3 to VDS TC 5.6.1
Importing the XML Configuration File
Figure 9-9
FSM Details Section
Step 12
When the XML file is finished importing, click OK to close the Import Configuration window.
Note
Some configuration changes may cause the Blades to reboot automatically.
Note
After you import the XML configuration file to configure the VDS TC Cache Engine servers, you may
need to Acknowledge the chassis or re-acknowledge a specific server.
After you are finished configuring the BIOS and operating system of the VDS TC cache engines, the
following vNICs will be created for each cache engine:
Table 9-1
vNIC to VLAN Mapping
vNIC
VLAN
eth0
1, 50
eth1
1, 50
eth2
301, 302, 303, 304
eth3
301, 302, 303, 304
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
9-10
Chapter 9
Manually Downgrading a Blade Server Cluster Installation from VDS TC 5.7.3 to VDS TC 5.6.1
Finishing the Rollback
Table 9-1
vNIC to VLAN Mapping
vNIC
VLAN
eth4
70
eth5
201
eth6
202
eth7
203
eth8
204
eth9
301
eth10
302
eth11
303
eth12
304
eth13
70
Finishing the Rollback
Step 1
At the Enable mode prompt enter the command oper service start to start the caching service.
Step 2
Wait a few minutes and then enter the command show status. Do not proceed to the next step until you
see a Device Status of “Started.” For example:
console# show status
Operational state Device state Administrative state
enabled
started
unlocked
Step 3
On the PBR routers, start redirecting traffic to the VDS TC solution.
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
9-11
Chapter 9
Manually Downgrading a Blade Server Cluster Installation from VDS TC 5.7.3 to VDS TC 5.6.1
Finishing the Rollback
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
9-12
CH A P T E R
10
Upgrading from VDS TC 5.2.1 to VDS TC 5.7.3 for a
Blade Server Cluster Installation
This chapter describes how to upgrade from VDS TC 5.2.1 to VDS TC 5.7.3 for a Blade Server cluster
installation. Use this document only if you are upgrading a Blade Server cluster installation from VDS
TC 5.2.1. If you are upgrading an Integrated Appliance installation, see Chapter 1, “Upgrading from
VDS TC 5.2.1 or VDS TC 5.6.1 to VDS TC 5.7.3 for an Integrated Appliance Installation”. If you are
upgrading a C-Series server cluster installation, see Chapter 4, “Upgrading from VDS TC 5.2.1 or VDS
TC 5.6.1 to VDS TC 5.7.3 for a C-Series Cluster Installation”.
Note
You can only upgrade to VDS TC version 5.7.3 from VDS TC version 5.6.1 or VDS TC version 5.2.1.
To upgrade to VDS TC 5.7.3 from any other version, you must first upgrade to VDS TC version 5.6.1 or
5.2.1. For instructions on upgrading to VDS TC 5.2.1, please refer to the document Cisco Videoscape
Distribution Suite Transparent Caching Application Upgrade Guide Release 5.2.1 available at
http://www.cisco.com/c/dam/en/us/td/docs/video/videoscape/distribution_suite/vds/v5_2_1/VDS-TC_
5_2_1_app_upgrade_guide.pdf. For instructions on upgrading to VDS TC 5.6.1, please refer to the
document Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
Release 5.6.1 available at
http://www.cisco.com/c/dam/en/us/td/docs/video/videoscape/distribution_suite/vds/v5_6_1/VDS-TC_
5_6_1_appupgrade_guide.pdf.
Note
If you need to roll back to version 5.2.1 after you perform the upgrade, you must perform this roll back
within 7 days of the upgrade.
This chapter contains the following sections:
•
Preparing for the Upgrade
– Confirming Correct BIOS, Firmware, and Software Versions
– Confirming the BIOS Settings of the VDS TC Management Server
– Confirming the BIOS Settings of the VDS TC Blade Server Cache Engines
•
Obtaining the Required VDS TC 5.7.3 Files
– Generating a License Request in VDS TC 5.2.1
•
Uploading the Required Files
•
Performing the VDS TC Software Upgrade from VDS TC 5.2.1 to VDS TC 5.7.3
– Importing the Active-Active XML Configuration File
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
10-1
Chapter 10
Upgrading from VDS TC 5.2.1 to VDS TC 5.7.3 for a Blade Server Cluster Installation
Preparing for the Upgrade
– Running the Active-Active Script and Configuring the Cache Engines
•
Post Upgrade Steps
– Updating the VDS TC Switch Configuration
– Copying the Configuration File to the VDS TC Management Server
– Importing the VDS TC 5.7.3 License and Restarting Services
Note
Because you will need to stop traffic redirection to the VDS TC system during the upgrade process, you
should perform the upgrade during a maintenance window.
Preparing for the Upgrade
Confirming Correct BIOS, Firmware, and Software Versions
The following BIOS, firmware, and software versions are required for VDS TC 5.7.3 for a Blade Server
Series cluster installation.
Hardware Component
Model
Required Firmware Version and Image File
Management Server
Cisco UCS C220-M3S
Cisco UCS-C220-M3S:
or
•
Firmware version: 2.0(6f)
Cisco UCS-C240-M3S
•
Image file: ucs-c220-huu-2.0.6f.iso
Cisco UCS-C240-M3S:
Cache Engine
Cisco UCS 5108 Blade
Chassis
Cisco UCS-B200-M3
Cisco UCS 6248 UP
Fabric Interconnect
•
Firmware version: 2.0(6f)
•
Image file: ucs-c240-huu-2.0.6f.iso
Cisco UCS-B200-M3:
•
Firmware version: 2.2.5b
•
Image file:
ucs-k9-bundle-b-series.2.2.5b.B.bin
Cisco UCS 6248 UP Fabric Interconnect:
•
Firmware version: 2.2.5.b
•
Image file: ucs-k9-bundle-infra.2.2.5b.A.bin
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
10-2
Chapter 10
Upgrading from VDS TC 5.2.1 to VDS TC 5.7.3 for a Blade Server Cluster Installation
Preparing for the Upgrade
Hardware Component
Model
Required Firmware Version and Image File
Storage enclosure
Any IBM DS3500
storage models
IBM DS3524:
or
•
BIOS version: 07.86.46.00
•
Controller image files:
ibm_fw_ds3k_07864600_anyos_anycpu.zip
•
HDD BIOS version: 4.18
•
HDD image file:
ibm_fw_ds3khdd_4.18_anyos_anycpu.zip
•
IBM Storage Manager version: 10.86
(SM10.86_Linux_64bit_x86-64_SMIA-10.8
6.x5.43.tgz)
NetApp E2724
NetApp E2724:
Data switch and
management switch
Nexus 7004
•
Controller BIOS version: 08.20.05.00
•
Storage Manager 11.20.0A
(SMIA-LINUXX64-11.20.0A00.0015.bin)
Cisco NX-OS version: 6.2(10) or later with
feature set K9
If you need to perform a firmware upgrade for the Cisco UCS-C220-M3S or Cisco UCS-C240-M3S
server, see the Cisco UCS C-Series Rack-Mount Server BIOS Upgrade Guide document available at
http://www.cisco.com/en/US/docs/unified_computing/ucs/c/sw/bios/b_Upgrading_BIOS_Firmware.ht
ml.
If you need to perform a firmware upgrade for either the Cisco UCS B200-M3 server or the Cisco UCS
6248 UP Fabric Interconnect, refer to the following documentation to perform the upgrade:
•
To upgrade from Cisco UCS Release 2.0 to Cisco UCS Release 2.2, see the Upgrading Cisco UCS
from Release 2.0 to Release 2.2 web page available at
http://www.cisco.com/c/en/us/td/docs/unified_computing/ucs/sw/upgrading/from2-0/to2-2/b_Upgr
adingCiscoUCSFrom2-0To2-2.html.
•
To upgrade from Cisco UCS Release 2.1 to Cisco UCS Release 2.2, see the Upgrading Cisco UCS
from Release 2.1 to Release 2.2 web page available at
http://www.cisco.com/c/en/us/td/docs/unified_computing/ucs/sw/upgrading/from2-1/to2-2/b_Upgr
adingCiscoUCSFrom2-1To2-2.html.
•
If you need to perform an NX-OX software upgrade on the Cisco Nexus 7004, see the “Cisco Nexus
7000 Series NX-OS Software Upgrade and Downgrade Guide, Release 6.x” guide at
http://www.cisco.com/c/en/us/td/docs/switches/datacenter/sw/6_x/nx-os/upgrade/guide/b_Cisco_
Nexus_7000_Series_NX-OS_Software_Upgrade_and_Downgrade_Guide_Release_6-x.html.
Confirming the BIOS Settings of the VDS TC Management Server
Follow these steps to use the CIMC to confirm, and configure if necessary, the BIOS settings of the VDS
TC management server:
Step 1
Open a web browser and enter the management IP address of the CIMC. The CIMC login window
appears.
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
10-3
Chapter 10
Upgrading from VDS TC 5.2.1 to VDS TC 5.7.3 for a Blade Server Cluster Installation
Preparing for the Upgrade
Step 2
Enter the username admin and the password for the admin account.
Step 3
The Cisco Integrated Management Controller: Server Summary window appears.
Step 4
From the Server tab, click BIOS.
Step 5
In the BIOS window, click Configure BIOS. The Configure BIOS Parameters window appears.
Step 6
Click the Advanced tab.
Figure 10-1
Note
Step 7
Note
Configure BIOS Parameters Window: Advanced Tab
If you are using a Cisco UCS C240M3 NEBS, the Configure BIOS Parameters window may look
different than the one presented here.
From the Advanced BIOS Parameters table, confirm, and configure if necessary, the following settings
on the Advanced tab.
Parameters that are not listed in the following table should be left set to their default value.‘
Table 10-1 Advanced BIOS Parameters
Processor Configuration
State
Hyper - Threading Technology
Disabled
Number Of Enabled Cores
All
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
10-4
Chapter 10
Upgrading from VDS TC 5.2.1 to VDS TC 5.7.3 for a Blade Server Cluster Installation
Preparing for the Upgrade
Execute Disable
Enabled
Intel VT
Disabled
Intel VT-d
Disabled
Intel VT-d Coherency Support
Disabled
Intel VT-d ATS Support
Disabled
CPU Performance
High Throughput
Hardware Prefetcher
Disabled
Adjacent Cache Line Prefetch
Disabled
DCU Streamer Prefetch
Disabled
DCU IP Prefetcher
Enabled
Direct Cache Access Support
Enabled
Power Technology
Disabled
Enhanced Intel Speedstep Technology
Enabled
Intel Turbo Boost Technology
Disabled
Processor Power State C6
Disabled
Processor Power State C1 Enhanced
Disabled
Frequency Floor Override
Disabled
P-STATE Coordination
HW ALL
Energy Performance
Performance
Memory Configuration
Status
Select Memory RAS
Maximum Performance
DRAM Clock Throttling
Performance
NUMA
Enabled
Low Voltage DDR Mode
Performance Mode
Channel Interleaving
Auto
Rank Interleaving
Auto
Patrol Scrub
Enabled
Demand Scrub
Enabled
Altitude
300 M
QPI Configuration
Status
QPI Link Frequency Select
Auto
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
10-5
Chapter 10
Upgrading from VDS TC 5.2.1 to VDS TC 5.7.3 for a Blade Server Cluster Installation
Preparing for the Upgrade
Onboard Storage
Status
Onboard SCU Storage Support
USB Configuration
Disabled
Status
USB Port:SD Card
PCI Configuration
Disabled
Status
MIMO above 4GB
Disabled
ASPM Support
Disabled
VGA Priority
Onboard
Serial Configuration
Status
Out-of-Band Mgmt Port
Disabled
Console Redirection
Disabled
Terminal Type
VT100+
Bits per Second
115200
Flow Control
None
LOM and PCIe Slots Configuration
Status
LOM Port 0 Legacy OptionROM
Enabled
LOM Port 1 Legacy OptionROM
Enabled
LOM Port 2 Legacy OptionROM
Enabled
LOM Port 3 Legacy OptionROM
Enabled
All PCIe Slots OptionROM
Enabled
PCIe Slot:1 OptionROM
Enabled
PCIe Slot:2 OptionROM
Enabled
PCIe Slot:3 OptionROM
Enabled
PCIe Slot:4 OptionROM
Enabled
PCIe Mezzanine OptionROM
Enabled
PCIe Slot:1 Link Speed
GEN3
PCIe Slot:2 Link Speed
GEN3
Step 8
If you made any changes, click Save Changes.
Step 9
From the Server tab, choose Power Policies. The Power Policies window appears.
Step 10
In the Power Policies window confirm, or configure if necessary, the following settings:
•
Step 11
From the Fan Policy drop-down list, choose Maximum Power.
If you made any changes, click Save Changes.
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
10-6
Chapter 10
Upgrading from VDS TC 5.2.1 to VDS TC 5.7.3 for a Blade Server Cluster Installation
Obtaining the Required VDS TC 5.7.3 Files
Figure 10-2
Power Policies Screen
Step 12
From the Server tab, choose Summary. In the Actions pane, click Hard Reset Server.
Step 13
From the Hard Reset Server dialog box, click OK to reset the server.
Confirming the BIOS Settings of the VDS TC Blade Server Cache Engines
Note
These settings apply only to the cache engines in a Blade Server cluster install.
Refer to Appendix A, “Cisco VDS TC Specific UCS Blade Server Values” to confirm the Blade Server
BIOS settings.
Obtaining the Required VDS TC 5.7.3 Files
To perform an upgrade to VDS TC 5.7.3, you must obtain the following files:
•
The VDS TC 5.7.3 upgrade image for cluster installation: Obtain the VDS TC upgrade image
from Cisco. The upgrade image filename for a Cluster upgrade will begin with VDS-TC_GA and
will have “Server_Cluster” in the filename, for example
VDS-TC_GA_5.7.3b54_Server_Cluster.tar.gz. The numbers in the filename represent the version
number and build number.
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
10-7
Chapter 10
Upgrading from VDS TC 5.2.1 to VDS TC 5.7.3 for a Blade Server Cluster Installation
Obtaining the Required VDS TC 5.7.3 Files
•
The Cisco_network_updater_v_1.8.tgz file: Obtain this file from Cisco. This file should be
available in the same location as the VDS TC 5.7.3 upgrade image file. This file is needed to
correctly configure the cache engines for the Active- Active configuration that is supported by VDS
TC 5.7.3 on a Blade Server installation.
•
VDS TC License file: You must obtain a new license that is valid for VDS TC 5.7.3. See the
following section, Generating a License Request in VDS TC 5.2.1, for steps to obtain this license
file.
Generating a License Request in VDS TC 5.2.1
Follow these steps to generate a license request from VDS TC 5.2.1:
Note
You should send this request a few days prior to when you want to schedule the upgrade.
Procedure
Step 1
In a web browser, enter the management IP address of the VDS TC appliance to connect to the VDS TC
Manager.
Step 2
Enter a username of padmin and the password that was provided by Cisco.
Step 3
From VDS TC Manager, in the left navigation pane, click Configuration > License Manager.
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
10-8
Chapter 10
Upgrading from VDS TC 5.2.1 to VDS TC 5.7.3 for a Blade Server Cluster Installation
Obtaining the Required VDS TC 5.7.3 Files
Figure 10-3
Step 4
Configuration > License Manager
Click the Generate license request button.
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
10-9
Chapter 10
Upgrading from VDS TC 5.2.1 to VDS TC 5.7.3 for a Blade Server Cluster Installation
Obtaining the Required VDS TC 5.7.3 Files
Figure 10-4
Configuration > License Manager
Step 5
The Open license-request dialog window appears.
Step 6
Click Save File and then OK to save the file request.
Step 7
Enter a name and location of the file to save. You must send this file to Cisco support to receive a license
file.
Step 8
Email the license-request.xml file that was generated in Step 7 to Cisco at [email protected]. Please
include the following information in the email:
•
Company name
•
Sales Order number (SO) or Purchase Order number (PO) if you are requesting a Release license
•
Indicate whether the license that is being upgraded from is a Evaluation license or a Release license
•
Indicate what VDS TC software version you are upgrading from
•
Specify the Forwarding capacity that is required per integrated appliance. This information is
imperative when a PO contains multiple clusters or integrated appliances.
Note
Step 9
Make sure that you are requesting the total forwarding capacity that is inline with the SO/PO.
After you receive the VDS TC license for Version 5.7.3 from Cisco, save the license file to a location
that you will be able to access while connected to the VDS TC server.
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
10-10
Chapter 10
Upgrading from VDS TC 5.2.1 to VDS TC 5.7.3 for a Blade Server Cluster Installation
Uploading the Required Files
Note
It may take a couple of days to receive the license from Cisco. Making sure to provide complete, clear,
and accurate information in the license request email will help expedite the process.
Uploading the Required Files
Follow these steps to upload the files that are needed to perform the upgrade from VDS TC 5.2.1 to VDS
TC 5.7.3:
Step 1
Using SFTP software, such as WinSCP, connect to the management IP address that was assigned to the
VDS TC management server. Log in using the user name padmin and the password that was provided
by Cisco.
Step 2
Copy the VDS TC upgrade image file, the Cisco_network_updater_v_1.8.tgz file, and the updated VDS
TC license file to the /tftpboot folder. These are the files that you obtained in the Obtaining the Required
VDS TC 5.7.3 Files section. Make sure that the previous VDS TC software version file is also in the
/tftpboot folder in case you need to perform a roll back.
Step 3
Using SSH software, such as Putty, open an SSH connection to the management IP address of the VDS
TC management server.
Step 4
Log into the system using the username padmin and the password that was provided by Cisco.
Step 5
Enter the command su root and enter the password that was provided by Cisco for the root account.
Step 6
Enter the command cd /tftpboot.
Step 7
Enter the command ls Cisco_network_updater_v_1.8.tgz to confirm that the
Cisco_network_updater_v_1.8.tgz file is in the tftpboot folder. If it is not, repeat the Steps 1 and 2 to
upload the file.
Step 8
Enter the command for i in {1..y}; do scp Cisco_network_updater_v_1.8.tgz ce-$i:/tmp; done; where
y is the number of cache engines in your system.
Step 9
Enter exit to logout as root from the SSH session. Enter exit to close the SSH session.
Performing the VDS TC Software Upgrade from VDS TC 5.2.1 to
VDS TC 5.7.3
Follow these steps to upgrade the VDS TC software from version 5.2.1 to version 5.7.3 and to update
the license file to a version that supports VDS TC 5.7.x.
Note
Step 1
If you need to roll back to version 5.2.1 after you perform the upgrade, you must perform this roll back
within 7 days of the upgrade.
On the PBR routers, stop redirecting traffic to the VDS TC solution.
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
10-11
Chapter 10 Upgrading from VDS TC 5.2.1 to VDS TC 5.7.3 for a Blade Server Cluster Installation
Performing the VDS TC Software Upgrade from VDS TC 5.2.1 to VDS TC 5.7.3
Step 2
Note
Immediately after stopping the traffic redirection to the VDS TC solution, you must stop the VDS TC
caching service. Follow these steps to stop the VDS TC caching service:
a.
Using SSH software, such as Putty, open an SSH connection to the management IP address of the
VDS TC appliance.
b.
Log into the system using the username admin. The default password is the serial number of the
VDS TC Integrated Appliance, which can be found either by accessing the CIMC or by accessing
the Status > Hardware View page from VDS TC Manager. The serial number is displayed in the
Support Tag ID field in VDS TC Manager.
c.
From the VDS TC CLI prompt, enter the command enable. When prompted, enter the Enable mode
password and press Enter. You are now logged into Enable mode and the Enable prompt, console#,
should appear.
By default, your system serial number is the password for the Enable mode, but this password may have
been changed.
d.
From the Enable mode prompt, enter the command oper service stop to stop the caching service.
e.
Wait a few minutes and then enter the command show status. Check to see if the Device State shows
“stopped.” For example:
console# show status
Operational state Device state Administrative state
disabled
stopped
unlocked
Caution
Do not proceed to the next step until the Device State shows “stopped.” You may need to repeat the show
status command several times before you see this status. Wait several minutes between executions of the
show status command.
Step 3
Close any open VDS TC Manager windows and ensure that no other administrators are connected to the
VDS TC Manager before proceeding.
Step 4
Back up the current cluster_conf.xml file before performing the upgrade, in case you need to perform a
roll back. To backup the exiting cluster_conf.xml file, enter the export tftp_server filename command,
where tftp_server is the IP address or the hostname of the TFTP server to which you want to export the
configuration and filename is the filename to create when exporting the current configuration file. You
should include the version of VDS TC in the filename to help differentiate it from the new cluster_conf
file that will be created during the upgrade process. For example, you could use the filename
cluster_conf_5.2.1b5_bkp.xml.
Step 5
From the VDS TC CLI prompt, enter the enable command. When prompted, enter the Enable mode
password and press Enter. You are now logged into Enable mode and the Enable prompt, console#,
should appear.
Step 6
From the Enable mode, enter the command upgrade all 127.0.0.1 filename, where filename is the name
of the VDS TC 5.7.3 software upgrade image file that you copied to the /tftpboot directory in the
Uploading the Required Files section.
Step 7
To upgrade to VDS TC 5.7.3, a new license is required. The upgrade process will warn you to only
proceed with the upgrade if you already have a new license file for 5.7.3. This is the license file that you
copied to the /tftpboot directory in the Uploading the Required Files section. If you upgrade the system
without this license file, the system will not start.
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
10-12
Chapter 10
Upgrading from VDS TC 5.2.1 to VDS TC 5.7.3 for a Blade Server Cluster Installation
Performing the VDS TC Software Upgrade from VDS TC 5.2.1 to VDS TC 5.7.3
Note
If you have not uploaded the VDS TC 5.7.3 license as instructed earlier, stop the upgrade process.
Perform the upgrade only after you obtain the VDS TC 5.7.3 license file.
Step 8
When the “Do you want to proceed with the upgrade?” prompt appears, enter Y and when prompted to
confirm, enter Y.
Step 9
The next step in the upgrade process is for the upgrade script to validate the VDS TC 5.7.x license file.
When prompted for the IP address of the TFTP server that contains the license file, enter 127.0.0.1 and
when prompted for the path to the 5.7.3 license file, enter the name of the license file.
Figure 10-5
Note
Upgrade License Validation
The license is only validated during the software upgrade script, it is not installed. You must install the
license file after the software upgrade process finishes.
Step 10
When the “Continue installation of management software? [Y/n]” prompt appears, enter Y.
Step 11
When the software upgrade has finished, you will see a “Succeeded” message and a a reminder to import
and activate the new VDS TC 5.7.3 license before restarting the service, if required. You will perform
these steps in the Importing the VDS TC 5.7.3 License and Restarting Services section.
Figure 10-6
Software Upgrade Script Succeeded
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
10-13
Chapter 10 Upgrading from VDS TC 5.2.1 to VDS TC 5.7.3 for a Blade Server Cluster Installation
Performing the VDS TC Software Upgrade from VDS TC 5.2.1 to VDS TC 5.7.3
Step 12
After upgrading the system, exit completely from the VDS TC CLI and log back into the CLI to access
the new software version.
Note
If you do not log out of the VDS TC CLI and log back in, you will receive the following error message
when you try to activate the new license: “License activation failed”.
Importing the Active-Active XML Configuration File
You will import an XML file using the Cisco UCS Manager to configure the VDS TC Cache Engine
servers. Use the following procedure to configure the BIOS and Operating System using Cisco UCS
Manager.
Procedure
Step 1
To configure the BIOS for the VDS TC cache engines, you must obtain a copy of the XML configuration
file that configures the BIOS. The XML configuration file is provided in a .tgz file that is available from
the same location as the VDS TC ISO image file on www.cisco.com. The filename should be similar to
<#>blades_active_active_redundant_all_cfg_fw_2.2.5b.xml, where <#> is the number of blade server
cache engines in your installation. Download the .tgz file to the machine from which you will perform
the following configuration steps and extract the files. You will need to browse to the location of the files
in a later step.
Step 2
Open a web browser and enter the IP address of the management port for the Fabric Interconnect. In a
redundant installation, enter the Cluster (virtual) IP address. The Cisco UCS Manager window appears.
Figure 10-7
Cisco UCS Manager Window
Step 3
Click Launch UCS Manager. Click OK to open the .jnlp file with Java(TM) Web Start Launcher.
Step 4
In the Cisco UCS Manager Login window that appears, enter the username admin and the password that
was configured during the initial system setup of the fabric interconnect, and then click Login.
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
10-14
Chapter 10
Upgrading from VDS TC 5.2.1 to VDS TC 5.7.3 for a Blade Server Cluster Installation
Performing the VDS TC Software Upgrade from VDS TC 5.2.1 to VDS TC 5.7.3
Figure 10-8
Step 5
Figure 10-9
Cisco UCS Manager Login Window
From the Cisco Unified Computing System Manager window, click the Admin tab in the left pane, click
the General tab in the work pane, and then in the Actions area click Import Configuration.
Admin Tab Window
Step 6
The Import Configuration window appears. In this window, click Create Import Operation.
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
10-15
Chapter 10 Upgrading from VDS TC 5.2.1 to VDS TC 5.7.3 for a Blade Server Cluster Installation
Performing the VDS TC Software Upgrade from VDS TC 5.2.1 to VDS TC 5.7.3
Figure 10-10
Step 7
Import Configuration Window
The Create Import Operation Window appears. Set the Admin State to Enabled, the Action to Replace,
and the Location of the Import File to Local File System, and then click Browse.
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
10-16
Chapter 10
Upgrading from VDS TC 5.2.1 to VDS TC 5.7.3 for a Blade Server Cluster Installation
Performing the VDS TC Software Upgrade from VDS TC 5.2.1 to VDS TC 5.7.3
Figure 10-11
Create Import Operation Window
Step 8
From the Select File window, browse to the folder that you downloaded the XML file to in Step 1 in this
procedure. Choose the correct file to import based on the number of blade servers you have in your VDS
TC configuration and click Select. The filename should be
<#>blades_active_active_redundant_all_cfg_fw_2.2.5b.xml, where <#> is the number of blade server
cache engines in your installation. So for example, you would use the file named
16blades_active_active_redundant_all_cfg_fw_2.2.5b.xml for a system that has 16 blade servers.
Caution
Importing the wrong configuration file could cause problems with the VDS TC installation and cause
problems with the VDS TC cache engines. If you are unsure of which file to use, contact your Cisco
representative.
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
10-17
Chapter 10 Upgrading from VDS TC 5.2.1 to VDS TC 5.7.3 for a Blade Server Cluster Installation
Performing the VDS TC Software Upgrade from VDS TC 5.2.1 to VDS TC 5.7.3
Figure 10-12
Step 9
The file you selected will now appear in the Browse field of the Create Import Operation window. Click
OK to begin importing the file from your computer.
Figure 10-13
Step 10
Select File Window
Create Import Operation Window
After the file has finished importing to the system, you will be returned to the Import Configuration
window.
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
10-18
Chapter 10
Upgrading from VDS TC 5.2.1 to VDS TC 5.7.3 for a Blade Server Cluster Installation
Performing the VDS TC Software Upgrade from VDS TC 5.2.1 to VDS TC 5.7.3
Figure 10-14
Import Configuration Window
Caution
Step 11
Before performing the next step, make sure that the file that appears in the Filename text box in the
Properties section of the Import Configuration window is the correct file for your VDS TC Blade Server
installation. Applying the wrong configuration file to your system could cause problems with the VDS
TC installation and cause problems with the VDS TC cache engines. If you are unsure of which file to
use, contact your Cisco representative.
Click Apply in the Import Configuration window. To view the status of the import, click FSM Details
to expand the FSM details section of the Import Configuration window.
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
10-19
Chapter 10 Upgrading from VDS TC 5.2.1 to VDS TC 5.7.3 for a Blade Server Cluster Installation
Performing the VDS TC Software Upgrade from VDS TC 5.2.1 to VDS TC 5.7.3
Figure 10-15
FSM Details Section
Step 12
When the XML file is finished importing, click OK to close the Import Configuration window.
Note
Some configuration changes may cause the Blades to reboot automatically.
Note
After you import the XML configuration file to configure the VDS TC Cache Engine servers, you may
need to Acknowledge the chassis or re-acknowledge a specific server.
After you are finished configuring the BIOS and operating system of the VDS TC cache engines, the
following vNICs will be created for each cache engine:
Table 10-2
vNIC to VLAN Mapping
vNIC
VLAN
eth0
1,50
eth1
1,50
eth2
301, 302, 303, 304
eth3
301, 302, 303, 304
eth4
70
eth5
201
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
10-20
Chapter 10
Upgrading from VDS TC 5.2.1 to VDS TC 5.7.3 for a Blade Server Cluster Installation
Performing the VDS TC Software Upgrade from VDS TC 5.2.1 to VDS TC 5.7.3
Table 10-2
Step 13
vNIC to VLAN Mapping
vNIC
VLAN
eth6
202
eth7
203
eth8
204
eth9
201
eth10
202
eth11
203
eth12
204
eth13
70
Proceed to the next section, Running the Active-Active Script and Configuring the Cache Engines.
Running the Active-Active Script and Configuring the Cache Engines
Next you will configure new networks settings on the cache engines to support the Active-Active
configuration of VDS TC 5.7.3.
Step 1
Use VNC to connect from your local computer to the VDS TC Management Server using the IP address
that you configured, adding :1 to the end, for example 10.56.194.65:1. When prompted to enter a
password, enter the root password that was provided by Cisco. If you encounter problems opening a
VNC client connection to the VDS TC Management Server, you may need to restart VNC Server 1 on
the VDS TC Management Server. Follow these steps to restart this server:
a.
From an SSH connection to the VDS TC Management server where you are logged in with root
permissions, enter the command rm /tmp/.X11-unix/X1.
b.
Enter the command vncserver :1 to start the VNC Server.
Figure 10-16
Note
VNC Viewer
If you have problems restarting the VNC Server 1 instance, you can also start another VNC Server
instance by entering the command vncserver :2.
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
10-21
Chapter 10 Upgrading from VDS TC 5.2.1 to VDS TC 5.7.3 for a Blade Server Cluster Installation
Performing the VDS TC Software Upgrade from VDS TC 5.2.1 to VDS TC 5.7.3
Step 2
From the VNC console terminal window, enter the command java -version to check the current version
of java. If the version is not 1.8.0_66 or later, perform the following steps to download and install the
latest version of java:
a.
Go to www.oracle.com to download the most current version of java. From the main page that
appears, click Downloads. From the Top Downloads section, click Java SE. From the window that
appears, in the Java section, click Java SE. From the Java SE Downloads page, click the JRE
Download button. From the Java SE Runtime Environments page, click the Accept License
Agreement radio button and download the most current Linux X64 version with the extension of
tar.gz.
b.
Using SFTP software, such as WinSCP, connect to the VDS TC Management Server and copy the
file that you downloaded in Step a to the /tftpboot folder.
c.
Enter the command /opt/pang/useful/update_java.sh /tftpboot/filename where filename is the
name of the file you copied to the /tftpboot folder in Step b. For example:
/opt/pang/useful/update_java.sh /tftpboot/jre-8u72-linux-x64.gz
d.
Enter the command java -version to confirm that the java version has been updated. For example:
mg-1: # java -version
java version "1.8.0_72"
Java(TM) SE Runtime Environment (build 1.8.0_72-b17)
Java HotSpot(TM) 64-Bit Server VM (build 25.72-b17, mixed mode)
Note
If you need to downgrade to Java 1.6, perform the following steps. Only perform these steps if you need
to downgrade to Java 1.6.
Step 1: Enter the command rm -rf /root/.java
Step 2: Enter the command ln -sf /usr/lib64/jvm/jre-1.6.0-sun/bin/javaws /usr/bin/javaws
Step 3: Enter the command /usr/lib64/jvm/jre-1.6.0-sun/bin/ControlPanel
Step 4: From the General tab of the Control Panel window, in the Temporary Internet Files section, click
Settings.
Step 5: From the window that appears, click Delete Files.
Step 6: In the Delete Files and Applications window, make sure that the Trace and Log Files and the
Cached Applications and Applets check boxes are checked and click OK.
Step 7: Click OK to close the Temporary File Settings and then click OK to close the Java Control Panel
window.
Step 3
From the VNC console, enter the command firefox &.
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
10-22
Chapter 10
Upgrading from VDS TC 5.2.1 to VDS TC 5.7.3 for a Blade Server Cluster Installation
Performing the VDS TC Software Upgrade from VDS TC 5.2.1 to VDS TC 5.7.3
Figure 10-17
VNC Console
Step 4
In the Firefox window that opens, enter the Management port IP address for the fabric interconnect. In
a redundant installation, enter the Cluster (virtual) IP address.
Step 5
The Cisco UCS Manager window appears. From this window, click Launch KVM Manager. If you
receive a message that says “To view this page ensure that Adobe Flash Player version 10.0.0 or greater
is installed.” perform the following steps:
a.
Close Firefox.
b.
From the terminal window, enter the command su –
c.
Enter the command pkill -9 firefox
d.
Enter the command cd /root
e.
Enter the command mv .mozilla .mozilla.bak
f.
Enter the command firefox & to restart Firefox.
g.
In the Firefox window that opens, enter the Management port IP address for the fabric interconnect.
In a redundant installation, enter the Cluster (virtual) IP address.
h.
Repeat Step 5.
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
10-23
Chapter 10 Upgrading from VDS TC 5.2.1 to VDS TC 5.7.3 for a Blade Server Cluster Installation
Performing the VDS TC Software Upgrade from VDS TC 5.2.1 to VDS TC 5.7.3
Figure 10-18
Cisco UCS Manager
Step 6
The UCS - KVM Launch Manager login window appears. Enter the username admin and the password
that was configured during the initial system setup of the fabric interconnect (the default password is
password), and then click OK. The UCS - KVM Launch Manager window appears.
Step 7
Perform the following steps to configure the new network settings on each cache engine:
Note
You must complete all of the steps in Step 7 on every cache engine in the cluster.
a.
From the KVM Launch Manager window in the Launch KVM column, click the Launch button for
CE-X where X is the number of the cache engine you are configuring. When prompted, log in as
root with the password that was provided by Cisco.
b.
Enter the command cd /tmp.
c.
Enter the command tar –zxvf Cisco_network_updater_v_1.8.tgz to extract the package files.
d.
Enter the command cd Cisco_Network_Updater.
e.
Enter the command ./update_network_settings.sh.
f.
From the Welcome window, choose Yes, and press Enter.
Figure 10-19
g.
Welcome Window
From the Appliance Deployment window, choose Cache Engine, choose OK, and then press Enter.
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
10-24
Chapter 10
Upgrading from VDS TC 5.2.1 to VDS TC 5.7.3 for a Blade Server Cluster Installation
Performing the VDS TC Software Upgrade from VDS TC 5.2.1 to VDS TC 5.7.3
Figure 10-20
h.
In the Enter Cache Engine Number window, enter the number of the Cache Engine that you are
configuring (between 1-16), choose OK, and then press Enter. For example, if you are configuring
the first cache engine, enter 1.
Figure 10-21
i.
Cache Engine Window
From the Active-Active Fabric Interconnect window, choose Yes and press Enter.
Figure 10-22
Step 8
Appliance Deployment Window
Active-Active Fabric Interconnect Window
j.
From the Confirm Configuration window, confirm the Cache Engine configuration. If everything is
correct, choose Yes and press Enter. If there is a mistake, choose No and repeat Step f through Step
j.
k.
Enter the command reboot -f to reboot the cache engine. This will close your SSH connection to the
cache engine.
Repeat Step 7 for the remaining cache engines.
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
10-25
Chapter 10
Upgrading from VDS TC 5.2.1 to VDS TC 5.7.3 for a Blade Server Cluster Installation
Post Upgrade Steps
Post Upgrade Steps
Perform the steps in this section to complete the upgrade to VDS TC 5.7.3. This section include steps to
update the configuration on the Cisco Nexus 7000 Series Switch, copy a configuration file to the VDS
TC Management Server, import the VDS TC 5.7.3 license, and re-enable the VDS TC service.
Updating the VDS TC Switch Configuration
To support the Active Active function that was applied in Cisco UCS and VDS TC application, you must
update the configuration on the Cisco Nexus 7000 Series Switch.
Follow these steps to update the switch configuration to support the Active-Active configuration:
Step 1
Obtain a copy of the switch configuration files. You will use these configuration files to help you
configure the VDS TC switch. The configuration files are available in a .tgz file that is available from
the same location as the VDS TC upgrade image file on www.cisco.com.
Step 2
After you download the switch configuration file from cisco.com, unzip the file and locate the
appropriate configuration files for your VDS TC installation. The switch configuration files for the
Nexus 7000 Series Switches for a blade installation will typically be located in the following directory:
examples\B-Series\VDS-TC-XB\Switches_Configuration\Nexus7K
where X is the number of blade servers in your VDS TC installation. For example, for a VDS-TC-8B
installation, the directory path would be
examples\B-Series\VDS-TC-8B\Switches_Configuration\Nexus7K.
Note
If you have a multicluster VDS-TC-16B solution, the switch configuration files for this solution should
be located in the examples\B-Series\VDS-TC-MULTIGRID-2x16B\Switches_Configuration folder.
Which configuration files you should reference depends on how many blades are in your cluster
installation. For example, if you have a Cisco VDS-TC-8B, you would locate the configuration files
named VDS-TC-8B-MAIN-VDC-ITD.txt and VDS-TC-8B-DATA-VDC-ITD-IPV4.txt.
Caution
The configuration files for the Main (Admin) VDC (these files will contain the word MAIN in their
name) should only be used as a reference. These files should not be copied to the Admin VDC.
Step 3
Log into the CLI of the switch. You will need the username and password to access the CLI.
Step 4
Enter the command show vdc to view a list of VDCs on your switch. Find the name of the data VDC. It
should have a name like TC-XB-DATA, where X is the number of Blade Servers you have installed.
Step 5
Enter the command switchto vdc VDC_name, where VDC_name is the name of the data VDC that you
discovered in Step 4.
Step 6
Make a backup copy of the current configuration for the data VDC before you update the configuration.
To make a backup copy of the current switch configuration, use the copy command. Include vdstc521
in the filename.
Note
Do not proceed to the next steps until you have created a backup copy of the current data VDC
configuration. You will need this backup configuration if you need to roll back the upgrade.
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
10-26
Chapter 10
Upgrading from VDS TC 5.2.1 to VDS TC 5.7.3 for a Blade Server Cluster Installation
Post Upgrade Steps
Step 7
Next you will update the configuration of the data VDC. The data VDC configuration files for VDS TC
5.7.3 are contained in the configuration .tgz file that you obtained in Step 1. Using a text editor, such as
Notepad, open up the backup copy of the current data VDC configuration that you saved in Step 6 and
open the appropriate data VDC configuration file for VDS TC 5.7.3 (you should have two files open in
notepad at this point). Compare the two configuration files and make any changes that are necessary to
the VDS TC 5.7.3 data VDC configuration file that you obtained from Cisco that are appropriate for your
specific installation. Save the changes to the VDS TC 5.7.3 data VDC configuration file.
Note
Which data VDC configuration file you should use depends on how many Blade Servers you have in your
installation and if you have a VDS-TC-16B solution, whether that solution is a multicluster
configuration. For example, if you have 16 Blade Servers in an installation that is not multicluster, you
would use the file named VDS-TC-16B-DATA-VDC-ITD-IPV4.txt. If you have 16 Blade Servers in a
multicluster installation, you would use the files named TC_16B_DATA_01_VDC_ITD_IPv4.txt and
TC_16B_DATA_02_VDC_ITD_IPv4.txt. The multicluster switch configuration files will be in the
examples\B-Series\VDS-TC-MULTIGRID-2x16B folder If you are unsure of which files to use, contact
your Cisco representative.
Step 8
Enter the config t command to enter global configuration mode. The global configuration mode prompt,
switch(config)#, appears.
Step 9
Copy the content from the data VDC switch configuration file that you saved in Step 7 and paste them
into the global configuration mode prompt of the CLI connection to the Nexus 7000 Series Switch.
Note
It is recommended that you copy and paste just a few lines at a time to avoid any errors that the Nexus
CLI parser may generate.
Step 10
Enter exit to return to Privileged mode.
Step 11
Enter show running-config and validate that the complete configuration was successful.
Step 12
After you have confirmed the configuration, enter the command write or copy run start to save the
configuration to nvram.
Step 13
Enter the command show int status and confirm that all of the physical, port channel, and VLAN
interfaces that are used by the VDS TC installation have a status of “connected.” For any of these
interfaces that have a status of “disabled”, perform the following steps:
a.
Enter the config t command to enter global configuration mode.
b.
Enter the command interface int-type slot#/por# for an interface that needs to be enabled.
c.
Enter the command no shutdown to enable the interface.
d.
Repeat Steps b and c for any additional interfaces that need to be enabled.
e.
Enter exit to return to Privileged mode.
f.
Enter the command show int status and confirm that the status of the newly enabled interfaces is
“connected”.
Note
If any of the interfaces that are used by the VDS TC installation have a status of “notconnected”, check
the cabling and configuration of these ports.
Step 14
Enter the command show itd brief and confirm that the status of all of the ITD services is “Active.” Your
output should be similar to the following:
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
10-27
Chapter 10
Upgrading from VDS TC 5.2.1 to VDS TC 5.7.3 for a Blade Server Cluster Installation
Post Upgrade Steps
TC-16B-Data# sho itd brief
Name
Probe LB Scheme Interface Status
Buckets
-------------- ----- ---------- ---------- -------- -------internet-pbr1 ICMP dst-ip
Vlan102
ACTIVE
32
Device Group
VRF-Name
-------------------------------------------------- ------------cache-engines-pbr1
RTR-1
Node IP
Config-State Weight Status
Track_id Sla_id
------------------------- ------------ ------ ---------- --------- --------1
10.138.201.1
Active
1
OK
1
10001
2
10.138.201.2
Active
1
OK
3
10003
3
10.138.201.3
Active
1
OK
5
10005
4
10.138.201.4
Active
1
OK
7
10007
5
10.138.201.5
Active
1
OK
9
10009
6
10.138.201.6
Active
1
OK
11
10011
7
10.138.201.7
Active
1
OK
13
10013
8
10.138.201.8
Active
1
OK
15
10015
9
10.138.201.9
Active
1
OK
17
10017
10
10.138.201.10
Active
1
OK
19
10019
11
10.138.201.11
Active
1
OK
21
10021
12
10.138.201.12
Active
1
OK
23
10023
13
10.138.201.13
Active
1
OK
25
10025
14
10.138.201.14
Active
1
OK
27
10027
15
10.138.201.15
Active
1
OK
29
10029
16
10.138.201.16
Active
1
OK
31
10031
<output omitted>
Step 15
Step 16
Note
For any ITD services that do not have a status of “Active”, perform the following steps:
a.
Enter the config t command to enter global configuration mode.
b.
Enter the command itd itd_service_name, for example itd internet-pbr1.
c.
Enter the command no shutdown.
d.
Repeat Steps b and c for any other ITD services that need to be enabled.
e.
Enter exit to return to Privileged mode.
f.
Enter the command show itd brief and confirm that the ITD services all have a status of “Active.”
After all of the ITD services are enabled, you will enable the generation of statistics for the ITD services.
Do not enter the commands in this step until the ITD services are “Active”.
To enable the generation of statistics for a specific ITD service, in global configuration mode enter the
command itd statistics itd_service_name. Repeat this command for each ITD service. For a standard
VDS TC ITD configuration, there will be eight ITD services and the configuration will look similar to
the following:
(config)#
(config)#
(config)#
(config)#
(config)#
(config)#
(config)#
(config)#
itd
itd
itd
itd
itd
itd
itd
itd
statistics
statistics
statistics
statistics
statistics
statistics
statistics
statistics
internet-pbr1
internet-pbr2
internet-pbr3
internet-pbr4
subscribers-pbr1
subscribers-pbr2
subscribers-pbr3
subscribers-pbr4
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
10-28
Chapter 10
Upgrading from VDS TC 5.2.1 to VDS TC 5.7.3 for a Blade Server Cluster Installation
Post Upgrade Steps
Step 17
From Privileged mode, enter the command write or copy run start to save the configuration.
Step 18
Enter the switchback command to switchback to the main (admin) VDC.
Step 19
Enter the reload command to reload the Cisco Nexus 7000 Series Switch.
Caution
The reload command disrupts traffic on the device.
Copying the Configuration File to the VDS TC Management Server
Part of the post upgrade steps is to copy a configuration file to the VDS TC Management Server. The
configuration file sets the environment variables and configuration for the VDS TC application. A
sample configuration file is provided in a .tgz file that is available from the same location as the VDS
TC ISO image file on www.cisco.com. In this section you will copy an example configuration file, edit
this file, and import the new configuration file to the VDS TC Management Server. For more information
about editing the configuration files in this section, see the Cisco Videoscape Distribution Suite
Transparent Caching Software Configuration Guide.
Step 1
Download the configurations .tgz file that is available from the same location as the VDS TC ISO image
file on www.cisco.com. In this .tgz file, locate the sample configuration file that matches the number of
VDS TC Cache Engines that are installed in your VDS TC Blade Server installation. This file should
have a name like cluster_conf_VDS-TC-<#>B-ACTIVE-ACTIVE.xml, where <#> is the number of
blade server cache engines that are in your installation. For example, you would use the file named
cluster_conf_VDS-TC-16B-ACTIVE-ACTIVE.xml for a system that has 16 blade server cache engines.
Step 2
Edit the sample configuration file that you located in Step 1 to make the required changes in the
following sections. For more information on editing the required parameters in the cluster_conf.xml file,
see the Cisco Videoscape Distribution Suite Transparent Caching Software Configuration Guide.
•
The <mgmt-config> controls the management IP environment section.
•
The <network> section controls the data network addresses.
•
The <service> section controls the cache out port configuration.
Step 3
Save your changes and rename the file cluster_conf.xml.
Step 4
Using SFTP software, such as WinSCP, connect to the management IP address that you assigned to the
VDS TC Management Server. Log in using the user name padmin and the password that was provided
by Cisco.
Step 5
Copy the example configuration file that you saved in Step 3 into the /tftpboot folder on the VDS TC
Management Server.
Step 6
From an SSH session that is connected to the VDS TC Management Server, enter the command su
admin. The Regular mode prompt, console>, appears.
Note
If you need to open a new SSH window to the VDS TC cache engine, enter the management IP address
of the VDS TC cache engine and log in using the username padmin and the password that was provided
by Cisco. Enter the command su root to change to the root user and when prompted, enter the password
for the root user that was provided by Cisco.
Step 7
To log into the Enable mode, you need the system ID to use for the password. Enter the command show
systemid to determine the system ID.
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
10-29
Chapter 10
Upgrading from VDS TC 5.2.1 to VDS TC 5.7.3 for a Blade Server Cluster Installation
Post Upgrade Steps
Step 8
Enter the command enable to switch to Enable mode. Enter the system ID discovered in Step 7 for the
password, excluding the leading *. The prompt changes to console#.
Step 9
To be able to import and apply the new configuration, enter the command config to switch to
Configuration mode.
Step 10
To import the edited configuration file, enter the command import 127.0.0.1 cluster_conf.xml.
Step 11
To confirm your changes to the configuration file, enter the command diff. The new configuration
parameters are indicated by a plus (+) sign as the first character on the line, while the current
configuration parameters are indicated by a minus (-) sign as the first character on the line. If there are
no proposed configuration changes to display, the command returns the message “Configurations are
identical”.
Step 12
To apply the imported configuration file, enter the command apply.
Importing the VDS TC 5.7.3 License and Restarting Services
Follow these steps to import the VDS TC 5.7.3 license:
Step 1
From the VDS TC prompt if you are not in enable mode, enter the enable command. When prompted,
enter the Enable mode password and press Enter.
Step 2
From Enable mode, enter the command license import 127.0.0.1 filename, where filename is the name
of the new license file. For example, license import 127.0.0.1
0000000-5.7-CISCO_UCS220_XY-License_20151012_19862.xml
Step 3
Enter license activate to apply the license. When prompted with “Are you sure you want to activate this
license?” enter Y.
Figure 10-23
License Activation
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
10-30
Chapter 10
Upgrading from VDS TC 5.2.1 to VDS TC 5.7.3 for a Blade Server Cluster Installation
Post Upgrade Steps
Note
If you receive the error message “License activation failed”, make sure to exit completely from the VDS
TC CLI and log back in. Then repeat Steps 1 through Steps 3. If you still receive the error message,
contact Cisco support.
Step 4
Exit completely from the VDS TC CLI and then log back into the VDS TC CLI.
Step 5
From the VDS TC CLI prompt, enter the command enable. When prompted, enter the Enable mode
password and press Enter.
Step 6
Enter the command show license to confirm that the license has been activated.
Step 7
From Enable mode, enter the command show cluster-bus-ip to determine whether the management
server and all cache engines are configured to use broadcast.
Step 8
Enter the show cluster-bus-ip command. If the management server or any of the cache engines are set
to use multicast instead of broadcast, do the following:
a.
Enter the command config to enter configuration mode. The configuration prompt, configuration#,
will appear.
b.
In configuration mode, enter the command cluster-bus-ip broadcast. For example:
configuration# cluster-bus-ip broadcast
Processing...
All the CEs are configured to work with Broadcast IP.
c.
Enter exit to exit from configuration mode and go back to Enable mode.
d.
Enter the command show cluster-bus-ip to confirm that the management server and all cache
engines are configured to use broadcast. For example:
console# show cluster-bus-ip
Processing...
MG-1: [Broadcast]
CE-1: [Broadcast]
CE-2: [Broadcast]
CE-3: [Broadcast]
CE-4: [Broadcast]
CE-5: [Broadcast]
CE-6: [Broadcast]
CE-7: [Broadcast]
CE-8: [Broadcast]
OK. All the CEs are configured to work with Broadcast IP.
Step 9
From the Enable mode prompt, enter the command oper service start.
Step 10
Wait a few minutes and then enter the command show status. Do not proceed to the next step until you
see a Device Status of “Started.” For example:
console# show status
Operational state Device state Administrative state
enabled
started
unlocked
Step 11
Enter the command show volumes to confirm that all of the volumes are mounted. Do not proceed to the
next step until you see a State of “mounted” for each volume. For example:
console# show volumes
Licensed volumes : 48
Volume name
State
/mnt/vol1
mounted
/mnt/vol2
mounted
/mnt/vol3
mounted
/mnt/vol4
mounted
Owner
ce-1
ce-2
ce-2
ce-2
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
10-31
Chapter 10
Upgrading from VDS TC 5.2.1 to VDS TC 5.7.3 for a Blade Server Cluster Installation
Post Upgrade Steps
/mnt/vol5
/mnt/vol6
/mnt/vol7
/mnt/vol8
/mnt/vol9
/mnt/vol10
/mnt/vol11
/mnt/vol12
/mnt/vol13
/mnt/vol14
/mnt/vol15
/mnt/vol16
/mnt/vol17
/mnt/vol18
/mnt/vol19
/mnt/vol20
/mnt/vol21
/mnt/vol22
/mnt/vol23
/mnt/vol24
mounted
mounted
mounted
mounted
mounted
mounted
mounted
mounted
mounted
mounted
mounted
mounted
mounted
mounted
mounted
mounted
mounted
mounted
mounted
mounted
ce-2
ce-2
ce-2
ce-2
ce-2
ce-2
ce-2
ce-2
ce-1
ce-1
ce-1
ce-1
ce-1
ce-1
ce-1
ce-1
ce-1
ce-1
ce-2
ce-1
Step 12
Use VDS TC Manager to confirm the upgrade and version number. In a web browser, enter the
management IP address of the VDS TC appliance to connect to the VDS TC Manager. Enter a username
and password that was provided by Cisco.
Step 13
From the default web page that opens (Dashboard) you can confirm that the software has been upgraded.
The version number of the product appears in the upper-right hand corner of the window, below the
username. Confirm that you see the correct upgraded version.
Figure 10-24
Step 14
Confirm Version
On the PBR routers, start redirecting traffic to the VDS TC solution.
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
10-32
CH A P T E R
11
Downgrading a Blade Server Cluster Installation
from VDS TC 5.7.3 to VDS TC 5.2.1
This chapter describes how to downgrade from VDS TC 5.7.3 to VDS TC 5.2.1 if necessary. Only use
these steps if you are downgrading a Blade Server cluster installation to VDS TC 5.2.1. If you need to
downgrade an Integrated Appliance to VDS TC 5.2.1, see Chapter 2, “Downgrading an Integrated
Appliance from VDS TC 5.7.3 to VDS TC 5.6.1 or VDS TC 5.2.1”. If you need to downgrade a C-Series
cluster installation, Chapter 5, “Downgrading a C-Series Cluster Installation from VDS TC 5.7.3 to VDS
TC 5.6.1 or VDS TC 5.2.1”.
Note
Because you will need to stop traffic redirection to the VDS TC system during the downgrade process,
you should perform the downgrade during a maintenance window.
Rolling Back the VDS TC Software
Note
As part of the roll back process, you must also downgrade any firmware and operating system versions
that you upgraded on the Cisco UCS systems, switches, and storage enclosures. These must be
downgraded to the versions that are specified in the installation guides of the VDS TC version that you
are downgrading to. Downgrade the firmware and operating system versions before you perform the
steps in this chapter. You will also need to roll back any of the configurations for the Cisco UCS systems
and switches that were updated as part of the upgrade process.
Follow these steps to roll back the VDS TC software to the version that was installed before you
performed the upgrade.
Step 1
On the PBR routers, stop redirecting traffic to the VDS TC solution.
Step 2
Immediately after stopping the traffic redirection to the VDS TC solution, you must stop the VDS TC
caching service. Follow these steps to stop the VDS TC caching service:
a.
Using SSH software, such as Putty, open an SSH connection to the management IP address of the
VDS TC appliance.
b.
Log into the system using the username admin. The default password is the serial number of the
VDS TC Integrated Appliance, which can be found either by accessing the CIMC or by accessing
the Status > Hardware View page from VDS TC Manager. The serial number is displayed in the
Support Tag ID field in VDS TC Manager.
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
11-1
Chapter 11
Downgrading a Blade Server Cluster Installation from VDS TC 5.7.3 to VDS TC 5.2.1
Rolling Back the VDS TC Software
c.
Note
From the VDS TC CLI prompt, enter the command enable. When prompted, enter the Enable mode
password and press Enter. You are now logged into Enable mode and the Enable prompt, console#,
should appear.
By default, your system serial number is the password for the Enable mode, but this password may have
been changed.
d.
From the Enable mode prompt, enter the command oper service stop to stop the caching service.
e.
Wait a few minutes and then enter the command show status. Check to see if the Device State shows
“stopped.” For example:
console# show status
Operational state Device state Administrative state
disabled
stopped
unlocked
Caution
Do not proceed to the next step until the Device State shows “stopped.” You may need to repeat the show
status command several times before you see this status. Wait several minutes between executions of the
show status command.
Step 3
Close any open VDS TC Manager windows and ensure that no other administrators are connected to the
VDS TC Manager before proceeding.
Step 4
Using SSH software, such as Putty, open an SSH connection to the VDS TC management server. Log in
as padmin with the password provided by Cisco.
Step 5
Enter the command su root, and when prompted, enter the password provided by Cisco.
Step 6
Enter the command cd /tftpboot.
Step 7
Enter the command ls Cisco_network_updater_v_1.8.tgz to confirm that the
Cisco_network_updater_v_1.8.tgz file is in the tftpboot folder. If it is not, perform the following steps:
Step 8
a.
Obtain the Cisco_network_updater_v_1.8.tgz file from Cisco.com. This file should be available in
the same location as the VDS TC 5.6.1 upgrade image file.
b.
Using SFTP software, such as WinSCP, connect to the management IP address that was assigned to
the VDS TC management server. Log in using the user name padmin and the password that was
provided by Cisco.
c.
Copy the Cisco_network_updater_v_1.8.tgz file to the /tftpboot folder. Close the SFTP software.
Perform the following steps on each cache engine:
a.
From the SSH connection to the VDS TC management server, enter the command ssh ce-X “ls
/tmp/Cisco_network_updater_v_1.8.tgz”, where X is the # of the cache engine that you are
checking, to confirm that the Cisco_network_updater_v_1.8.tgz file still exists on the cache engine.
If not, enter the command scp Cisco_network_updater_v_1.8.tgz ce-1:/tmp to copy the file from
the management server to the cache engine.
Step 9
Repeat Step 8 for each remaining cache engine.
Step 10
To rollback the VDS TC Software to version 5.2.1, do the following:
a.
Enter the command cd /opt/pang/mgmt/config to change directories.
b.
Enter the command ./downgrade_proc.sh -backup_dir /opt/5.2_backup/ to run the downgrade
procedure.
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
11-2
Chapter 11
Downgrading a Blade Server Cluster Installation from VDS TC 5.7.3 to VDS TC 5.2.1
Importing the XML Configuration File
Note
If you receive the error message “Not found suitable backup files, cannot restore version 5.2 on this
system. Please refer to the manual downgrade procedure or contact support.” stop this roll back
procedure and refer to the manual roll back procedure in Chapter 6, “Manually Downgrading a C-Series
Cluster Installation from VDS TC 5.7.3 to VDS TC 5.6.1 or VDS TC 5.2.1”.
Step 11
Log into the VDS TC CLI prompt with the username admin and the password provided by Cisco.
Step 12
From the VDS TC CLI prompt, enter the enable command. When prompted, enter the Enable mode
password and press Enter. You are now logged into Enable mode and the Enable prompt, console#,
should appear.
Note
Step 13
By default, your system serial number is the password for the Enable mode, but this password may have
been changed.
Enter the command upgrade all 127.0.0.1 filename, where filename is the filename of the upgrade
package for VDS TC 5.2.1. For example:
upgrade all 127.0.0.1 VDS-TC_GA_5.2.1b6_Server_Cluster.tar.gz
Step 14
Note
After upgrading the system, exit completely from the VDS TC CLI and log back into the CLI to access
the new software version.
If you do not log out of the VDS TC CLI and log back in, you will not see the current version.
Step 15
From the VDS TC prompt, enter the enable command. When prompted, enter the Enable mode password
and press Enter.
Step 16
Enter the command show version to confirm that the correct version is now installed. For example:
VDS-TC Transparent Caching cli version 5.2.1b6
management VDS-TC Transparent Caching mgmt software version 5.2.1b6
ce-1 unavailable unavailable
ce-2 unavailable unavailable
ce-3 unavailable unavailable
ce-4 unavailable unavailable
ce-5 unavailable unavailable
ce-6 unavailable unavailable
ce-7 unavailable unavailable
ce-8 unavailable unavailable
ce-9 unavailable unavailable
ce-10 unavailable unavailable
Note
Please be aware that at this point of the rollback, the status of the cache engines will be “unavailable”.
The status of the cache engines will change after you perform the next configuration section.
Importing the XML Configuration File
You will import an XML file using the Cisco UCS Manager to configure the VDS TC Cache Engine
servers. Use the following procedure to configure the BIOS and Operating System using Cisco UCS
Manager.
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
11-3
Chapter 11
Downgrading a Blade Server Cluster Installation from VDS TC 5.7.3 to VDS TC 5.2.1
Importing the XML Configuration File
Procedure
Step 1
To configure the BIOS for the VDS TC cache engines, you must obtain a copy of the XML configuration
file that configures the BIOS for VDS TC 5.2.1. The XML configuration file is provided in a .tgz file
that is available from the same location as the VDS TC ISO image file on www.cisco.com. Download
the .tgz file to the machine from which you will perform the following configuration steps and extract
the files. You will need to browse to the location of the files in a later step.
Step 2
Open a web browser and enter the IP address of the management port for the Fabric Interconnect. In a
redundant installation, enter the Cluster (virtual) IP address. These addresses were configured as part of
the initial installation and configuration of the Cisco UCS 6248 UP Fabric Interconnect. The Cisco UCS
Manager window appears.
Figure 11-1
Cisco UCS Manager Window
Step 3
Click Launch UCS Manager. Click OK to open the .jnlp file with Java(TM) Web Start Launcher.
Step 4
In the Cisco UCS Manager Login window that appears, enter the username admin and the password that
was configured during the initial system setup of the fabric interconnect, and then click Login.
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
11-4
Chapter 11
Downgrading a Blade Server Cluster Installation from VDS TC 5.7.3 to VDS TC 5.2.1
Importing the XML Configuration File
Figure 11-2
Step 5
Figure 11-3
Cisco UCS Manager Login Window
From the Cisco Unified Computing System Manager window, click the Admin tab in the left pane, click
the General tab in the work pane, and then in the Actions area click Import Configuration.
Admin Tab Window
Step 6
The Import Configuration window appears. In this window, click Create Import Operation.
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
11-5
Chapter 11
Downgrading a Blade Server Cluster Installation from VDS TC 5.7.3 to VDS TC 5.2.1
Importing the XML Configuration File
Figure 11-4
Step 7
Import Configuration Window
The Create Import Operation Window appears. Set the Admin State to Enabled, the Action to Replace,
and the Location of the Import File to Local File System, and then click Browse.
Figure 11-5
Create Import Operation Window
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
11-6
Chapter 11
Downgrading a Blade Server Cluster Installation from VDS TC 5.7.3 to VDS TC 5.2.1
Importing the XML Configuration File
Step 8
Caution
From the Select File window, browse to the folder that you downloaded the XML file to in Step 1.
Choose the correct file to import based on the number of blade servers you have in your VDS TC
configuration and click Select.
Importing the wrong configuration file could cause problems with the VDS TC installation and cause
problems with the VDS TC cache engines. If you are unsure of which file to use, contact your Cisco
representative.
Figure 11-6
Step 9
Select File Window
The file you selected will now appear in the Browse field of the Create Import Operation window. Click
OK to begin importing the file from your computer.
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
11-7
Chapter 11
Downgrading a Blade Server Cluster Installation from VDS TC 5.7.3 to VDS TC 5.2.1
Importing the XML Configuration File
Figure 11-7
Step 10
Create Import Operation Window
After the file has finished importing to the system, you will be returned to the Import Configuration
window.
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
11-8
Chapter 11
Downgrading a Blade Server Cluster Installation from VDS TC 5.7.3 to VDS TC 5.2.1
Importing the XML Configuration File
Figure 11-8
Import Configuration Window
Caution
Step 11
Before performing the next step, make sure that the file that appears in the Filename text box in the
Properties section of the Import Configuration window is the correct file for your VDS TC Blade Server
installation. Applying the wrong configuration file to your system could cause problems with the VDS
TC installation and cause problems with the VDS TC cache engines. If you are unsure of which file to
use, contact your Cisco representative.
Click Apply in the Import Configuration window. To view the status of the import, click FSM Details
to expand the FSM details section of the Import Configuration window.
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
11-9
Chapter 11
Downgrading a Blade Server Cluster Installation from VDS TC 5.7.3 to VDS TC 5.2.1
Importing the XML Configuration File
Figure 11-9
FSM Details Section
Step 12
When the XML file is finished importing, click OK to close the Import Configuration window.
Note
Some configuration changes may cause the Blades to reboot automatically.
Note
After you import the XML configuration file to configure the VDS TC Cache Engine servers, you may
need to Acknowledge the chassis or re-acknowledge a specific server.
After you are finished configuring the BIOS and operating system of the VDS TC cache engines, the
following vNICs will be created for each cache engine:
Table 11-1
vNIC to VLAN Mapping
vNIC
VLAN
eth0
50
eth1
1
eth2
1
eth3
1
eth4
70
eth5
201
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
11-10
Chapter 11
Downgrading a Blade Server Cluster Installation from VDS TC 5.7.3 to VDS TC 5.2.1
Importing the XML Configuration File
Table 11-1
vNIC to VLAN Mapping
vNIC
VLAN
eth6
202
eth7
203
eth8
204
eth9
301
eth10
302
eth11
303
eth12
304
Running the Network Update Script
To configure the network settings in the Cache Engines for the downgrade, perform the following steps
for all the Cache Engines in the Cluster:
Step 1
Use VNC to connect from your local computer to the VDS TC Management Server using the IP address
that you configured, adding :1 to the end, for example 10.56.194.65:1. When prompted to enter a
password, enter the root password that was provided by Cisco. If you encounter problems opening a
VNC client connection to the VDS TC Management Server, you may need to restart VNC Server 1 on
the VDS TC Management Server. Follow these steps to restart this server:
a.
From an SSH connection to the VDS TC Management server where you are logged in with root
permissions, enter the command rm /tmp/.X11-unix/X1.
b.
Enter the command vncserver :1 to start the VNC Server.
Figure 11-10
Note
Step 2
VNC Viewer
If you have problems restarting the VNC Server 1 instance, you can also start another VNC Server
instance by entering the command vncserver :2.
From the VNC console, enter the command firefox &.
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
11-11
Chapter 11
Downgrading a Blade Server Cluster Installation from VDS TC 5.7.3 to VDS TC 5.2.1
Importing the XML Configuration File
Figure 11-11
VNC Console
Step 3
In the Firefox window that opens, enter the Management port IP address for the fabric interconnect. In
a redundant installation, enter the Cluster (virtual) IP address.
Note
If you receive a Java error, you may need to downgrade to Java 1.6. To downgrade to Java 1.6, perform
the following steps. Only perform these steps if you need to downgrade to Java 1.6.
Step 1: Enter the command rm -rf /root/.java
Step 2: Enter the command ln -sf /usr/lib64/jvm/jre-1.6.0-sun/bin/javaws /usr/bin/javaws
Step 3: Enter the command /usr/lib64/jvm/jre-1.6.0-sun/bin/ControlPanel
Step 4: From the General tab of the Control Panel window, in the Temporary Internet Files section, click
Settings.
Step 5: From the window that appears, click Delete Files.
Step 6: In the Delete Files and Applications window, make sure that the Trace and Log Files and the
Cached Applications and Applets check boxes are checked and click OK.
Step 7: Click OK to close the Temporary File Settings and then click OK to close the Java Control Panel
window.
Step 4
The Cisco UCS Manager window appears. From this window, click Launch KVM Manager. If you
receive a message that says “To view this page ensure that Adobe Flash Player version 10.0.0 or greater
is installed.” perform the following steps:
a.
Close Firefox.
b.
From the terminal window, enter the command su –
c.
Enter the command pkill -9 firefox
d.
Enter the command cd /root
e.
Enter the command mv .mozilla .mozilla.bak
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
11-12
Chapter 11
Downgrading a Blade Server Cluster Installation from VDS TC 5.7.3 to VDS TC 5.2.1
Importing the XML Configuration File
f.
Enter the command firefox & to restart Firefox.
g.
In the Firefox window that opens, enter the Management port IP address for the fabric interconnect.
In a redundant installation, enter the Cluster (virtual) IP address.
h.
Repeat Step 4.
Figure 11-12
Step 5
Cisco UCS Manager
The UCS - KVM Launch Manager login window appears. Enter the username admin and the password
that was configured during the initial system setup of the fabric interconnect (the default password is
password), and then click OK.
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
11-13
Chapter 11
Downgrading a Blade Server Cluster Installation from VDS TC 5.7.3 to VDS TC 5.2.1
Importing the XML Configuration File
Figure 11-13
Step 6
Note
UCS KVM Launch Manager Login Window
Perform the following steps to configure the new network settings on each cache engine:
You must complete all of the steps in Step 6 on every cache engine in the cluster.
a.
From the KVM Launch Manager window in the Launch KVM column, click the Launch button for
CE-X where X is the number of the cache engine you are configuring. When prompted, log in as
root with the password that was provided by Cisco.
b.
Enter the command cd /tmp.
c.
Enter the command tar –zxvf Cisco_network_updater_v_1.8.tgz to extract the package files.
d.
Enter the command cd Cisco_Network_Updater.
e.
Enter the command ./update_network_settings.sh.
f.
From the Welcome window, choose Yes, and press Enter.
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
11-14
Chapter 11
Downgrading a Blade Server Cluster Installation from VDS TC 5.7.3 to VDS TC 5.2.1
Importing the XML Configuration File
Figure 11-14
g.
From the Appliance Deployment window, choose Cache Engine, choose OK, and then press Enter.
Figure 11-15
h.
Welcome Window
Appliance Deployment Window
In the Enter Cache Engine Number window, enter the number of the Cache Engine that you are
configuring (between 1-16), choose OK, and then press Enter. For example, if you are configuring
the first cache engine, enter 1.
Figure 11-16
Cache Engine Window
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
11-15
Chapter 11
Downgrading a Blade Server Cluster Installation from VDS TC 5.7.3 to VDS TC 5.2.1
Restoring the Switch Configuration
i.
From the Active-Active Fabric Interconnect window, choose No and press Enter.
Figure 11-17
Active-Active Fabric Interconnect Window
j.
From the Confirm Configuration window, confirm the Cache Engine configuration. If everything is
correct, choose Yes and press Enter. If there is a mistake, choose No and repeat Step f through Step
i.
k.
Enter the command reboot -f to reboot the cache engine. This will close your SSH connection to the
cache engine.
Step 7
Repeat Step 6 for the remaining cache engines.
Step 8
From the VDS TC prompt, if not already in enable mode, enter the enable command. Enter the Enable
mode password when prompted and press Enter.
Step 9
Enter the command show version to confirm that the correct version is now installed and that all of the
cache engines are now available.
Restoring the Switch Configuration
You need to restore the configuration on the switch that was running with VDS TC 5.2.1. Follow these
steps to restore the configuration on the switch:
Step 1
Log into the CLI of the switch. You will need the username and password to access the CLI.
Step 2
Enter the command show vdc to view a list of VDCs on your switch. Find the name of the data VDC. It
should have a name like TC-XB-DATA, where X is the number of Blade Servers you have installed.
Step 3
Enter the command switchto vdc VDC_name, where VDC_name is the name of the data VDC that you
discovered in Step 2.
Step 4
Make a backup copy of the current configuration for the data VDC before you roll back the configuration
just in case there is a problem with the roll back. To make a backup copy of the current switch
configuration, use the copy command. Include vdstc572 in the filename.
Step 5
Use the copy command to copy the backup configuration for the VDC that you saved during the upgrade
procedure to the startup-configuration of the VDC. The filename should include vdstc521 in the
filename.
Step 6
Enter the command reload vdc to reload the data VDC and have the configuration take affect. Wait for
the VDC to reload and then continue on to the next section.
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
11-16
Chapter 11
Downgrading a Blade Server Cluster Installation from VDS TC 5.7.3 to VDS TC 5.2.1
Finishing the Rollback
Finishing the Rollback
Step 1
From the VDS TC CLI at the Enable mode prompt, enter the command oper service start to start the
caching service.
Step 2
Wait a few minutes and then enter the command show status. Do not proceed to the next step until you
see a Device Status of “Started.” For example:
console# show status
Operational state Device state Administrative state
enabled
started
unlocked
Step 3
Enter the command show volumes to confirm that all of the volumes are mounted. Do not proceed to the
next step until you see a State of “mounted” for each volume. For example:
console# show volumes
Licensed volumes : 48
Volume name
State
/mnt/vol1
mounted
/mnt/vol2
mounted
/mnt/vol3
mounted
/mnt/vol4
mounted
/mnt/vol5
mounted
/mnt/vol6
mounted
/mnt/vol7
mounted
/mnt/vol8
mounted
/mnt/vol9
mounted
/mnt/vol10
mounted
/mnt/vol11
mounted
/mnt/vol12
mounted
/mnt/vol13
mounted
/mnt/vol14
mounted
/mnt/vol15
mounted
/mnt/vol16
mounted
/mnt/vol17
mounted
/mnt/vol18
mounted
/mnt/vol19
mounted
/mnt/vol20
mounted
/mnt/vol21
mounted
/mnt/vol22
mounted
/mnt/vol23
mounted
/mnt/vol24
mounted
Step 4
Owner
ce-1
ce-2
ce-2
ce-2
ce-2
ce-2
ce-2
ce-2
ce-2
ce-2
ce-2
ce-2
ce-1
ce-1
ce-1
ce-1
ce-1
ce-1
ce-1
ce-1
ce-1
ce-1
ce-2
ce-1
On the PBR routers, start redirecting traffic to the VDS TC solution.
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
11-17
Chapter 11
Downgrading a Blade Server Cluster Installation from VDS TC 5.7.3 to VDS TC 5.2.1
Finishing the Rollback
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
11-18
CH A P T E R
12
Manually Downgrading a Blade Server Cluster
Installation from VDS TC 5.7.3 to VDS TC 5.2.1
This chapter describes how to manually downgrade a Blade Server cluster installation from VDS TC
5.7.3 to VDS TC 5.2.1 if necessary. Only use these steps if the VDS-TC Rollback Procedure from
Chapter 8 failed with the error message “Not found suitable backup files, cannot restore version 5.2 on
this system. Please refer to the manual downgrade procedure or contact support.” and you are
downgrading a Blad Server Cluster installation to VDS TC 5.2.1.
Caution
Running the Manual Rollback Procedure will remove all existing cache data storage and the VDS
TC version 5.7.3 CMDB because the storage will be formatted.
Note
Because you will need to stop traffic redirection to the VDS TC system during the downgrade process,
you should perform the downgrade during a maintenance window.
Rolling Back the VDS TC Software
Note
As part of the roll back process, you must also downgrade any firmware and operating system versions
that you upgraded on the Cisco UCS systems, switches, and storage enclosures. These must be
downgraded to the versions that are specified in the installation guides of the VDS TC version that you
are downgrading to. Downgrade the firmware and operating system versions before you perform the
steps in this chapter. You will also need to roll back any of the configurations for the Cisco UCS systems
and switches that were updated as part of the upgrade process.
Follow these steps to roll back the VDS TC software to the version that was installed before you
performed the upgrade.
Step 1
On the PBR routers, stop redirecting traffic to the VDS TC solution.
Step 2
Immediately after stopping the traffic redirection to the VDS TC solution, you must stop the VDS TC
caching service. Follow these steps to stop the VDS TC caching service:
a.
Using SSH software, such as Putty, open an SSH connection to the management IP address of the
VDS TC appliance.
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
12-1
Chapter 12
Manually Downgrading a Blade Server Cluster Installation from VDS TC 5.7.3 to VDS TC 5.2.1
Rolling Back the VDS TC Software
Note
b.
Log into the system using the username admin. The default password is the serial number of the
VDS TC Integrated Appliance, which can be found either by accessing the CIMC or by accessing
the Status > Hardware View page from VDS TC Manager. The serial number is displayed in the
Support Tag ID field in VDS TC Manager.
c.
From the VDS TC CLI prompt, enter the command enable. When prompted, enter the Enable mode
password and press Enter. You are now logged into Enable mode and the Enable prompt, console#,
should appear.
By default, your system serial number is the password for the Enable mode, but this password may have
been changed.
d.
From the Enable mode prompt, enter the command oper service stop to stop the caching service.
e.
Wait a few minutes and then enter the command show status. Check to see if the Device State shows
“stopped.” For example:
console# show status
Operational state Device state Administrative state
disabled
stopped
unlocked
Caution
Do not proceed to the next step until the Device State shows “stopped.” You may need to repeat the show
status command several times before you see this status. Wait several minutes between executions of the
show status command.
Step 3
Close any open VDS TC Manager windows and ensure that no other administrators are connected to the
VDS TC Manager before proceeding.
Step 4
Using SSH software, such as Putty, open an SSH connection to the VDS management server. Log in as
padmin with the password provided by Cisco.
Step 5
Enter the command su root, and when prompted, enter the password provided by Cisco.
Step 6
Enter the command cd /tftpboot and then enter the command ls Cisco_network_updater_v_1.8.tgz to
confirm that the Cisco_network_updater_v_1.8.tgz file is in the tftpboot folder. If it is not, perform the
following steps:
Step 7
a.
Obtain the Cisco_network_updater_v_1.8.tgz file from Cisco.com. This file should be available in
the same location as the VDS TC 5.7.3 upgrade image file.
b.
Using SFTP software, such as WinSCP, connect to the management IP address that was assigned to
the VDS TC management server. Log in using the user name padmin and the password that was
provided by Cisco.
c.
Copy the Cisco_network_updater_v_1.8.tgz file to the /tftpboot folder. Close the SFTP software.
Perform the following steps on each cache engine:
a.
From the SSH connection to the VDS TC management server, enter the command ssh ce-X "ls
/tmp/Cisco_network_updater_v_1.8.tgz", where X is the # of the cache engine that you are
checking, to confirm that the Cisco_network_updater_v_1.8.tgz file still exists on the cache engine.
If not, enter the command scp Cisco_network_updater_v_1.8.tgz ce-1:/tmp to copy the file from
the management server to the cache engine.
Step 8
Repeat Step 7 for each remaining cache engine.
Step 9
Follow these steps to clean up the storage and local disks from any 5.7.3 CMDB copies:
a.
Enter the command su - install
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
12-2
Chapter 12
Manually Downgrading a Blade Server Cluster Installation from VDS TC 5.7.3 to VDS TC 5.2.1
Rolling Back the VDS TC Software
b.
Enter the command scp /opt/pang/mgmt/config/wipe_old_database.sh admin@ce-1:~
c.
Enter the command ssh -l admin ce-1 'sudo ~/wipe_old_database.sh'
d.
Enter exit
Step 10
To format the storage, enter the command su - install -c "ssh -l admin ce-1 'sudo
/opt/pang/useful/format_disks.sh -format_all'"
Step 11
To restore the previous configuration, perform these steps:
Caution
Step 12
After you perform these steps, any changes that were made after the upgrade to VDS TC 5.7.3 will be
lost.
a.
Enter the command cd /opt/5.2_backup.
b.
Enter the command cp -vf *.xml *.xsd *.xsl *.conf /opt/pang/mgmt/config &>/dev/null
Next you must uninstall and dnsmasq and install nscd. To do this, perform the following steps:
a.
Enter the command service dnsmasq stop &> /dev/null
b.
Enter the command /sbin/chkconfig dnsmasq off &> /dev/null
c.
Enter the command cat /etc/dnsmasq.conf|grep "^server=" |sed 's/server=/nameserver /g' >
/etc/resolv.conf
d.
Enter the command rpm -e dnsmasq &> /dev/null
e.
Enter the command sed -i 's/^#nsc/nsc/' /etc/inittab
f.
Enter the command init q
g.
Enter the command /sbin/chkconfig nscd on &>/dev/null
Step 13
Enter the command cp -r /opt/5.2_backup /opt/5.2_backup.bak &>/dev/null to rename the backup
directory.
Step 14
Log into the VDS TC CLI prompt with the username admin and the password provided by Cisco.
Step 15
From the VDS TC CLI prompt, enter the enable command. When prompted, enter the Enable mode
password and press Enter. You are now logged into Enable mode and the Enable prompt, console#,
should appear.
Note
Step 16
By default, your system serial number is the password for the Enable mode, but this password may have
been changed.
From the VDS TC CLI in Enable mode, enter the command upgrade all 127.0.0.1 filename, where
filename is the filename of the upgrade package for VDS TC 5.2.1. For example:
upgrade all 127.0.0.1 VDS-TC_GA_5.2.1b6_Server_Cluster.tar.gz
Step 17
Note
Step 18
After upgrading the system, exit completely from the VDS TC CLI and log back into the CLI to access
the new software version.
If you do not log out of the VDS TC CLI and log back in, you will not see the current version.
From the VDS TC prompt, enter the enable command. When prompted, enter the Enable mode password
and press Enter.
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
12-3
Chapter 12
Manually Downgrading a Blade Server Cluster Installation from VDS TC 5.7.3 to VDS TC 5.2.1
Importing the XML Configuration File
Step 19
Enter the command show version to confirm that the correct version is now installed.
Importing the XML Configuration File
You will import an XML file using the Cisco UCS Manager to configure the VDS TC Cache Engine
servers. Use the following procedure to configure the BIOS and Operating System using Cisco UCS
Manager.
Procedure
Step 1
To configure the BIOS for the VDS TC cache engines, you must obtain a copy of the XML configuration
file that configures the BIOS for VDS TC 5.2.1. The XML configuration file is provided in a .tgz file
that is available from the same location as the VDS TC ISO image file on www.cisco.com. Download
the .tgz file to the machine from which you will perform the following configuration steps and extract
the files. You will need to browse to the location of the files in a later step.
Step 2
Open a web browser and enter the IP address of the management port for the Fabric Interconnect. In a
redundant installation, enter the Cluster (virtual) IP address. These addresses were configured as part of
the initial installation and configuration of the Cisco UCS 6248 UP Fabric Interconnect. The Cisco UCS
Manager window appears.
Figure 12-1
Cisco UCS Manager Window
Step 3
Click Launch UCS Manager. Click OK to open the .jnlp file with Java(TM) Web Start Launcher.
Step 4
In the Cisco UCS Manager Login window that appears, enter the username admin and the password that
was configured during the initial system setup of the fabric interconnect, and then click Login.
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
12-4
Chapter 12
Manually Downgrading a Blade Server Cluster Installation from VDS TC 5.7.3 to VDS TC 5.2.1
Importing the XML Configuration File
Figure 12-2
Step 5
Figure 12-3
Cisco UCS Manager Login Window
From the Cisco Unified Computing System Manager window, click the Admin tab in the left pane, click
the General tab in the work pane, and then in the Actions area click Import Configuration.
Admin Tab Window
Step 6
The Import Configuration window appears. In this window, click Create Import Operation.
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
12-5
Chapter 12
Manually Downgrading a Blade Server Cluster Installation from VDS TC 5.7.3 to VDS TC 5.2.1
Importing the XML Configuration File
Figure 12-4
Step 7
Import Configuration Window
The Create Import Operation Window appears. Set the Admin State to Enabled, the Action to Replace,
and the Location of the Import File to Local File System, and then click Browse.
Figure 12-5
Create Import Operation Window
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
12-6
Chapter 12
Manually Downgrading a Blade Server Cluster Installation from VDS TC 5.7.3 to VDS TC 5.2.1
Importing the XML Configuration File
Step 8
Caution
From the Select File window, browse to the folder that you downloaded the XML file to in Step 1.
Choose the correct file to import based on the number of blade servers you have in your VDS TC
configuration and click Select.
Importing the wrong configuration file could cause problems with the VDS TC installation and cause
problems with the VDS TC cache engines. If you are unsure of which file to use, contact your Cisco
representative.
Figure 12-6
Step 9
Select File Window
The file you selected will now appear in the Browse field of the Create Import Operation window. Click
OK to begin importing the file from your computer.
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
12-7
Chapter 12
Manually Downgrading a Blade Server Cluster Installation from VDS TC 5.7.3 to VDS TC 5.2.1
Importing the XML Configuration File
Figure 12-7
Step 10
Create Import Operation Window
After the file has finished importing to the system, you will be returned to the Import Configuration
window.
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
12-8
Chapter 12
Manually Downgrading a Blade Server Cluster Installation from VDS TC 5.7.3 to VDS TC 5.2.1
Importing the XML Configuration File
Figure 12-8
Import Configuration Window
Caution
Step 11
Before performing the next step, make sure that the file that appears in the Filename text box in the
Properties section of the Import Configuration window is the correct file for your VDS TC Blade Server
installation. Applying the wrong configuration file to your system could cause problems with the VDS
TC installation and cause problems with the VDS TC cache engines. If you are unsure of which file to
use, contact your Cisco representative.
Click Apply in the Import Configuration window. To view the status of the import, click FSM Details
to expand the FSM details section of the Import Configuration window.
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
12-9
Chapter 12
Manually Downgrading a Blade Server Cluster Installation from VDS TC 5.7.3 to VDS TC 5.2.1
Importing the XML Configuration File
Figure 12-9
FSM Details Section
Step 12
When the XML file is finished importing, click OK to close the Import Configuration window.
Note
Some configuration changes may cause the Blades to reboot automatically.
Note
After you import the XML configuration file to configure the VDS TC Cache Engine servers, you may
need to Acknowledge the chassis or re-acknowledge a specific server.
After you are finished configuring the BIOS and operating system of the VDS TC cache engines, the
following vNICs will be created for each cache engine:
Table 12-1
vNIC to VLAN Mapping
vNIC
VLAN
eth0
50
eth1
1
eth2
1
eth3
1
eth4
70
eth5
201
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
12-10
Chapter 12
Manually Downgrading a Blade Server Cluster Installation from VDS TC 5.7.3 to VDS TC 5.2.1
Importing the XML Configuration File
Table 12-1
vNIC to VLAN Mapping
vNIC
VLAN
eth6
202
eth7
203
eth8
204
eth9
301
eth10
302
eth11
303
eth12
304
Running the Network Update Script
To configure the network settings in the Cache Engines for the downgrade, perform the following steps
for all the Cache Engines in the Cluster:
Step 1
Use VNC to connect from your local computer to the VDS TC Management Server using the IP address
that you configured, adding :1 to the end, for example 10.56.194.65:1. When prompted to enter a
password, enter the root password that was provided by Cisco. If you encounter problems opening a
VNC client connection to the VDS TC Management Server, you may need to restart VNC Server 1 on
the VDS TC Management Server. Follow these steps to restart this server:
a.
From an SSH connection to the VDS TC Management server where you are logged in with root
permissions, enter the command rm /tmp/.X11-unix/X1.
b.
Enter the command vncserver :1 to start the VNC Server.
Figure 12-10
Note
Step 2
VNC Viewer
If you have problems restarting the VNC Server 1 instance, you can also start another VNC Server
instance by entering the command vncserver :2.
From the VNC console, enter the command firefox &.
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
12-11
Chapter 12
Manually Downgrading a Blade Server Cluster Installation from VDS TC 5.7.3 to VDS TC 5.2.1
Importing the XML Configuration File
Figure 12-11
VNC Console
Step 3
In the Firefox window that opens, enter the Management port IP address for the fabric interconnect. In
a redundant installation, enter the Cluster (virtual) IP address.
Note
If you receive a Java error, you may need to downgrade to Java 1.6. To downgrade to Java 1.6, perform
the following steps. Only perform these steps if you need to downgrade to Java 1.6.
Step 1: Enter the command rm -rf /root/.java
Step 2: Enter the command ln -sf /usr/lib64/jvm/jre-1.6.0-sun/bin/javaws /usr/bin/javaws
Step 3: Enter the command /usr/lib64/jvm/jre-1.6.0-sun/bin/ControlPanel
Step 4: From the General tab of the Control Panel window, in the Temporary Internet Files section, click
Settings.
Step 5: From the window that appears, click Delete Files.
Step 6: In the Delete Files and Applications window, make sure that the Trace and Log Files and the
Cached Applications and Applets check boxes are checked and click OK.
Step 7: Click OK to close the Temporary File Settings and then click OK to close the Java Control Panel
window.
Step 4
The Cisco UCS Manager window appears. From this window, click Launch KVM Manager. If you
receive a message that says “To view this page ensure that Adobe Flash Player version 10.0.0 or greater
is installed.” perform the following steps:
a.
Close Firefox.
b.
From the terminal window, enter the command su –
c.
Enter the command pkill -9 firefox
d.
Enter the command cd /root
e.
Enter the command mv .mozilla .mozilla.bak
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
12-12
Chapter 12
Manually Downgrading a Blade Server Cluster Installation from VDS TC 5.7.3 to VDS TC 5.2.1
Importing the XML Configuration File
f.
Enter the command firefox & to restart Firefox.
g.
In the Firefox window that opens, enter the Management port IP address for the fabric interconnect.
In a redundant installation, enter the Cluster (virtual) IP address.
h.
Repeat Step 4.
Figure 12-12
Step 5
Cisco UCS Manager
The UCS - KVM Launch Manager login window appears. Enter the username admin and the password
that was configured during the initial system setup of the fabric interconnect (the default password is
password), and then click OK.
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
12-13
Chapter 12
Manually Downgrading a Blade Server Cluster Installation from VDS TC 5.7.3 to VDS TC 5.2.1
Importing the XML Configuration File
Figure 12-13
Step 6
Note
UCS KVM Launch Manager Login Window
Perform the following steps to configure the new network settings on each cache engine:
You must complete all of the steps in Step 6 on every cache engine in the cluster.
a.
From the KVM Launch Manager window in the Launch KVM column, click the Launch button for
CE-X where X is the number of the cache engine you are configuring. When prompted, log in as
root with the password that was provided by Cisco.
b.
Enter the command cd /tmp.
c.
Enter the command tar –zxvf Cisco_network_updater_v_1.8.tgz to extract the package files.
d.
Enter the command cd Cisco_Network_Updater
e.
Enter the command ./update_network_settings.sh.
f.
From the Welcome window, choose Yes, and press Enter.
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
12-14
Chapter 12
Manually Downgrading a Blade Server Cluster Installation from VDS TC 5.7.3 to VDS TC 5.2.1
Importing the XML Configuration File
Figure 12-14
g.
From the Appliance Deployment window, choose Cache Engine, choose OK, and then press Enter.
Figure 12-15
h.
Welcome Window
Appliance Deployment Window
In the Enter Cache Engine Number window, enter the number of the Cache Engine that you are
configuring (between 1-16), choose OK, and then press Enter. For example, if you are configuring
the first cache engine, enter 1.
Figure 12-16
Cache Engine Window
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
12-15
Chapter 12
Manually Downgrading a Blade Server Cluster Installation from VDS TC 5.7.3 to VDS TC 5.2.1
Restoring the Switch Configuration
i.
From the Active-Active Fabric Interconnect window, choose No and press Enter.
Figure 12-17
Step 7
Active-Active Fabric Interconnect Window
j.
From the Confirm Configuration window, confirm the Cache Engine configuration. If everything is
correct, choose Yes and press Enter. If there is a mistake, choose No and repeat Step f through Step
i.
k.
Enter the command reboot -f to reboot the cache engine. This will close your SSH connection to the
cache engine.
Repeat Step 6 for the remaining cache engines.
Restoring the Switch Configuration
You need to restore the configuration on the switch that was running with VDS TC 5.2.1. Follow these
steps to restore the configuration on the switch:
Step 1
Log into the CLI of the switch. You will need the username and password to access the CLI.
Step 2
Enter the command show vdc to view a list of VDCs on your switch. Find the name of the data VDC. It
should have a name like TC-XB-DATA, where X is the number of Blade Servers you have installed.
Step 3
Enter the command switchto vdc VDC_name, where VDC_name is the name of the data VDC that you
discovered in Step 2.
Step 4
Make a backup copy of the current configuration for the data VDC before you roll back the configuration
just in case there is a problem with the roll back. To make a backup copy of the current switch
configuration, use the copy command. Include vdstc572 in the filename.
Step 5
Use the copy command to copy the backup configuration for the VDC that you saved during the upgrade
procedure to the startup-configuration of the VDC. The filename should include vdstc521 in the
filename.
Step 6
Enter the command reload vdc to reload the data VDC and have the configuration take affect. Wait for
the VDC to reload and then continue on to the next section.
Finishing the Rollback
Step 1
At the Enable mode prompt enter the command oper service start to start the caching service.
Step 2
Wait a few minutes and then enter the command show status. Do not proceed to the next step until you
see a Device Status of “Started.” For example:
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
12-16
Chapter 12
Manually Downgrading a Blade Server Cluster Installation from VDS TC 5.7.3 to VDS TC 5.2.1
Finishing the Rollback
console# show status
Operational state Device state Administrative state
enabled
started
unlocked
Step 3
On the PBR routers, start redirecting traffic to the VDS TC solution.
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
12-17
Chapter 12
Manually Downgrading a Blade Server Cluster Installation from VDS TC 5.7.3 to VDS TC 5.2.1
Finishing the Rollback
Cisco Videoscape Distribution Suite Transparent Caching Application Upgrade Guide
12-18
A P P E N D I X
A
Cisco VDS TC Specific UCS Blade Server Values
Revised: February 2016
This appendix provides information on the Cisco UCS Blade Server values that are specific for a Cisco
VDS TC Blade Server installation.
Note
Make sure to click Save Changes if you make any changes to the Blade Server BIOS settings.
Note
All Cache Engine servers must go through a reboot at the end of the configuration to apply all of the
changes.
Values for the Equipment Tab
Path
Parameter
Policies Tab > Global Policies Tab Chassis/FEX Discovery
Policy Section > Link
Group Preference
Value
Port Channel
Rack Server Discovery
Policy Section > Scrub
Policy
default
Path
Parameter
Value
LAN Cloud > Fabric A >
Port Channels > Port-Channel 1
Port Channel Name
To-N7K-PO1
Admin Speed
10 Gbps
Values for the LAN Tab
Ports
•
VDS-TC-16B: 1/17 – 1/32
•
VDS-TC-8B: 1/25 – 1/32
•
VDS-TC-4B: 1/27 – 1/30
Cisco Videoscape Distribution Suite Transparent Caching Software Blade Server Cluster Installation Guide
OL-31422-03
A-1
Appendix A
Cisco VDS TC Specific UCS Blade Server Values
Values for the LAN Tab (continued)
Path
Parameter
Value
LAN Cloud > Fabric B >
Port Channels > Port-Channel 1
Port Channel Name
To-N7K-PO1
Admin Speed
10 Gbps
Ports
LAN Cloud > QoS System Class > Enabled
Platinum
CoS
•
VDS-TC-16B: 1/17 – 1/32
•
VDS-TC-8B: 1/25 – 1/32
•
VDS-TC-4B: 1/27 – 1/30
Checked
5
Packet Drop
Checked
Weight
10
MTU
9120
Multicast Optimized
Checked
LAN Cloud > QoS System Class > Enabled
Gold
CoS
Checked
4
Packet Drop
Unchecked
Weight
9
MTU
9120
Multicast Optimized
Unchecked
LAN Cloud > QoS System Class > Enabled
Silver
CoS
Unchecked
2
Packet Drop
Checked
Weight
8
MTU
9120
Multicast Optimized
Unchecked
LAN Cloud > QoS System Class > Enabled
Bronze
CoS
Unchecked
1
Packet Drop
Checked
Weight
7
MTU
9120
Multicast Optimized
Unchecked
LAN Cloud > QoS System Class > Enabled
Best Effort
CoS
Checked
Any
Packet Drop
Checked
Weight
5
MTU
9120
Multicast Optimized
Unchecked
Cisco Videoscape Distribution Suite Transparent Caching Software Blade Server Cluster Installation Guide
A-2
OL-31422-03
Appendix A
Cisco VDS TC Specific UCS Blade Server Values
Values for the LAN Tab (continued)
Path
Parameter
LAN Cloud > QoS System Class > Enabled
Fibre Channel
CoS
Value
Checked
3
Packet Drop
Unchecked
Weight
5
MTU
fc
Multicast Optimized
N/A
Policies > root > QoS Policies
Name
DATA
Policies > root > QoS Policies >
QoS Policy DATA
Priority
Gold
Burst(Bytes)
10240
Rate(Kbps)
line-rate
Host Control
None
Policies > root > QoS Policies
Name
Mgmt
Policies > root > QoS Policies >
QOS Policy Mgmt
Priority
Platinum
Burst(Bytes)
20480
Rate(Kbps)
line-rate
Host Control
None
Policies > root > QoS Policies
Name
iSCSI
Policies > root > QoS Policies >
QOS Policy iSCSI
Priority
Platinum
Burst(Bytes)
10240
Rate(Kbps)
line-rate
Host Control
Full
CDP
Disabled
MAC Register Mode
Only Native VLAN
Action on Uplink Fail
Link Down
MAC Security
Allow
CDP
Enabled
MAC Register Mode
Only Native VLAN
Action on Uplink Fail
Link Down
MAC Security
Allow
Priority
Auto
Receive
Off
Send
Off
Policies > Appliances >
Network Control Policies >
default
Policies > root >
Network Control Policies >
default
Policies > root >
Flow Control Policies > default
Cisco Videoscape Distribution Suite Transparent Caching Software Blade Server Cluster Installation Guide
OL-31422-03
A-3
Appendix A
Cisco VDS TC Specific UCS Blade Server Values
Values for the LAN Tab (continued)
Path
Parameter
Value
LAN Cloud > VLANs >
VLAN default (1)
VLAN ID
1
Native VLAN
Yes
Multicast Policy Name
<not set>
Fabric ID
DUAL
If Type
Virtual
Transport Type
Ether
Locale
External
Sharing Type
None
VLAN ID
50
Native VLAN
No
Multicast Policy Name
<not set>
Fabric ID
DUAL
If Type
Virtual
Transport Type
Ether
Locale
External
Sharing Type
None
VLAN ID
70
Native VLAN
No
Multicast Policy Name
<not set>
Fabric ID
DUAL
If Type
Virtual
Transport Type
Ether
Locale
External
Sharing Type
None
VLAN ID
201
Native VLAN
No
Multicast Policy Name
<not set>
Fabric ID
DUAL
If Type
Virtual
Transport Type
Ether
Locale
External
Sharing Type
None
LAN Cloud > VLANs >
VLAN Mgmt (50)
LAN Cloud > VLANs >
VLAN iSCSI_DATA (70)
LAN Cloud > VLANs >
VLAN DATA_201 (201)
Cisco Videoscape Distribution Suite Transparent Caching Software Blade Server Cluster Installation Guide
A-4
OL-31422-03
Appendix A
Cisco VDS TC Specific UCS Blade Server Values
Values for the LAN Tab (continued)
Path
Parameter
Value
LAN Cloud > VLANs >
VLAN DATA_202 (202)
VLAN ID
202
Native VLAN
No
Multicast Policy Name
<not set>
Fabric ID
DUAL
If Type
Virtual
Transport Type
Ether
Locale
External
Sharing Type
None
VLAN ID
203
Native VLAN
No
Multicast Policy Name
<not set>
Fabric ID
DUAL
If Type
Virtual
Transport Type
Ether
Locale
External
Sharing Type
None
VLAN ID
204
Native VLAN
No
Multicast Policy Name
<not set>
Fabric ID
DUAL
If Type
Virtual
Transport Type
Ether
Locale
External
Sharing Type
None
VLAN ID
301
Native VLAN
No
Multicast Policy Name
<not set>
Fabric ID
DUAL
If Type
Virtual
Transport Type
Ether
Locale
External
Sharing Type
None
LAN Cloud > VLANs >
VLAN DATA_203 (203)
LAN Cloud > VLANs >
VLAN DATA_204 (204)
LAN Cloud > VLANs >
VLAN DATA_301 (301)
Cisco Videoscape Distribution Suite Transparent Caching Software Blade Server Cluster Installation Guide
OL-31422-03
A-5
Appendix A
Cisco VDS TC Specific UCS Blade Server Values
Values for the LAN Tab (continued)
Path
Parameter
Value
LAN Cloud > VLANs >
VLAN DATA_302 (302)
VLAN ID
302
Native VLAN
No
Multicast Policy Name
<not set>
Fabric ID
DUAL
If Type
Virtual
Transport Type
Ether
Locale
External
Sharing Type
None
VLAN ID
303
Native VLAN
No
Multicast Policy Name
<not set>
Fabric ID
DUAL
If Type
Virtual
Transport Type
Ether
Locale
External
Sharing Type
None
VLAN ID
304
Native VLAN
No
Multicast Policy Name
<not set>
Fabric ID
DUAL
If Type
Virtual
Transport Type
Ether
Locale
External
Sharing Type
None
Pools > root > IP Pools >
IP Pool ext-mgmt
Size
150
IP Addresses
10.11.80.100 – 10.11.80.249
Pools > root > MAC Pools >
MAC Pool Eth0
First MAC
00:25:B5:00:01:00
Size
256
Pools > root > MAC Pools >
MAC Pool Eth1
First MAC
00:25:B5:00:02:00
Size
256
Pools > root > MAC Pools >
MAC Pool Eth2
First MAC
00:25:B5:00:03:00
Size
256
Pools > root > MAC Pools >
MAC Pool Eth3
First MAC
00:25:B5:00:04:00
Size
256
Pools > root > MAC Pools >
MAC Pool Eth4
First MAC
00:25:B5:00:05:00
Size
256
LAN Cloud > VLANs >
VLAN DATA_303 (303)
LAN Cloud > VLANs >
VLAN DATA_304 (304)
Cisco Videoscape Distribution Suite Transparent Caching Software Blade Server Cluster Installation Guide
A-6
OL-31422-03
Appendix A
Cisco VDS TC Specific UCS Blade Server Values
Values for the LAN Tab (continued)
Path
Parameter
Value
Pools > root > MAC Pools >
MAC Pool Eth5
First MAC
00:25:B5:00:06:00
Size
256
Pools > root > MAC Pools >
MAC Pool Eth6
First MAC
00:25:B5:00:07:00
Size
256
Pools > root > MAC Pools >
MAC Pool Eth7
First MAC
00:25:B5:00:08:00
Size
256
Pools > root > MAC Pools >
MAC Pool Eth8
First MAC
00:25:B5:00:09:00
Size
256
Pools > root > MAC Pools >
MAC Pool Eth9
First MAC
00:25:B5:00:0A:00
Size
256
Pools > root > MAC Pools >
MAC Pool Eth10
First MAC
00:25:B5:00:0B:00
Size
256
Pools > root > MAC Pools >
MAC Pool Eth11
First MAC
00:25:B5:00:0C:00
Size
256
Pools > root > MAC Pools >
MAC Pool Eth12
First MAC
00:25:B5:00:0D:00
Size
256
Pools > root > MAC Pools >
MAC Pool Eth13
First MAC
00:25:B5:00:0E:00
Size
256
Policies > root > vNIC Templates > Fabric ID
CE_ETH0
Enable Failover
Fabric A
Unchecked
Adapter
Checked
VM
Unchecked
VLAN/Native VLAN
Mgmt/No
VLAN/Native VLAN
default/No
Template Type
Updating Template
MTU
9000
MAC Pool
Eth0
QoS Policy
Mgmt
Network Control Policy
default
Connection Policies
Dynamic vNIC
Cisco Videoscape Distribution Suite Transparent Caching Software Blade Server Cluster Installation Guide
OL-31422-03
A-7
Appendix A
Cisco VDS TC Specific UCS Blade Server Values
Values for the LAN Tab (continued)
Path
Parameter
Policies > root > vNIC Templates > Fabric ID
CE_ETH1
Enable Failover
Value
Fabric B
Unchecked
Adapter
Checked
VM
Unchecked
VLAN/Native VLAN
Mgmt/No
VLAN/Native VLAN
default/No
Template Type
Updating Template
MTU
9000
MAC Pool
Eth1
QoS Policy
Mgmt
Network Control Policy
default
Connection Policies
Dynamic vNIC
Policies > root > vNIC Templates > Fabric ID
CE_ETH2
Enable Failover
A
Unchecked
Adapter
Checked
VM
Unchecked
VLANs
DATA_301, DATA_302,
DATA_303, DATA_304
Native VLAN
No
Template Type
Updating Template
MTU
9000
MAC Pool
Eth2
QoS Policy
DATA
Network Control Policy
default
Connection Policies
Dynamic vNIC
Cisco Videoscape Distribution Suite Transparent Caching Software Blade Server Cluster Installation Guide
A-8
OL-31422-03
Appendix A
Cisco VDS TC Specific UCS Blade Server Values
Values for the LAN Tab (continued)
Path
Parameter
Policies > root > vNIC Templates > Fabric ID
CE_ETH3
Enable Failover
Value
Fabric B
Unchecked
Adapter
Checked
VM
Unchecked
VLAN
DATA_301, DATA_302,
DATA_303, DATA_304
Native VLAN
No
Template Type
Updating Template
MTU
9000
MAC Pool
Eth3
QoS Policy
DATA
Network Control Policy
default
Connection Policies
Dynamic vNIC
Policies > root > vNIC Templates > Fabric ID
CE_ETH4
Enable Failover
Fabric A
Unchecked
Adapter
Checked
VM
Unchecked
VLAN
iSCSI_DATA
Native VLAN
Yes
Template Type
Updating Template
MTU
9000
MAC Pool
Eth4
QoS Policy
iSCSI
Network Control Policy
default
Connection Policies
Dynamic vNIC
Cisco Videoscape Distribution Suite Transparent Caching Software Blade Server Cluster Installation Guide
OL-31422-03
A-9
Appendix A
Cisco VDS TC Specific UCS Blade Server Values
Values for the LAN Tab (continued)
Path
Parameter
Policies > root > vNIC Templates > Fabric ID
CE_ETH5
Enable Failover
Value
Fabric A
Unchecked
Adapter
Checked
VM
Unchecked
VLAN
DATA_201
Native VLAN
Yes
Template Type
Updating Template
MTU
9000
MAC Pool
Eth5
QoS Policy
DATA
Network Control Policy
default
Connection Policies
Dynamic vNIC
Policies > root > vNIC Templates > Fabric ID
CE_ETH6
Enable Failover
Fabric A
Unchecked
Adapter
Checked
VM
Unchecked
VLAN
DATA_202
Native VLAN
Yes
Template Type
Updating Template
MTU
9000
MAC Pool
Eth6
QoS Policy
DATA
Network Control Policy
default
Connection Policies
Dynamic vNIC
Policies > root > vNIC Templates > Fabric ID
CE_ETH7
Enable Failover
Fabric A
Unchecked
Adapter
Checked
VM
Unchecked
VLAN
DATA_203
Native VLAN
Yes
Template Type
Updating Template
MTU
9000
MAC Pool
Eth7
QoS Policy
DATA
Network Control Policy
default
Connection Policies
Dynamic vNIC
Cisco Videoscape Distribution Suite Transparent Caching Software Blade Server Cluster Installation Guide
A-10
OL-31422-03
Appendix A
Cisco VDS TC Specific UCS Blade Server Values
Values for the LAN Tab (continued)
Path
Parameter
Policies > root > vNIC Templates > Fabric ID
CE_ETH8
Enable Failover
Value
Fabric A
Unchecked
Adapter
Checked
VM
Unchecked
VLAN
DATA_204
Native VLAN
Yes
Template Type
Updating Template
MTU
9000
MAC Pool
Eth8
QoS Policy
DATA
Network Control Policy
default
Connection Policies
Dynamic vNIC
Policies > root > vNIC Templates > Fabric ID
CE_ETH9
Enable Failover
Fabric B
Unchecked
Adapter
Checked
VM
Unchecked
VLAN
DATA_201
Native VLAN
Yes
Template Type
Updating Template
MTU
9000
MAC Pool
Eth9
QoS Policy
DATA
Network Control Policy
default
Connection Policies
Dynamic vNIC
Policies > root > vNIC Templates > Fabric ID
CE_ETH10
Enable Failover
Fabric B
Unchecked
Adapter
Checked
VM
Unchecked
VLAN
DATA_202
Native VLAN
Yes
Template Type
Updating Template
MTU
9000
MAC Pool
Eth10
QoS Policy
DATA
Network Control Policy
default
Connection Policies
Dynamic vNIC
Cisco Videoscape Distribution Suite Transparent Caching Software Blade Server Cluster Installation Guide
OL-31422-03
A-11
Appendix A
Cisco VDS TC Specific UCS Blade Server Values
Values for the LAN Tab (continued)
Path
Parameter
Policies > root > vNIC Templates > Fabric ID
CE_ETH11
Enable Failover
Value
Fabric B
Unchecked
Adapter
Checked
VM
Unchecked
VLAN
DATA_203
Native VLAN
Yes
Template Type
Updating Template
MTU
9000
MAC Pool
Eth11
QoS Policy
DATA
Network Control Policy
default
Connection Policies
Dynamic vNIC
Policies > root > vNIC Templates > Fabric ID
CE_ETH12
Enable Failover
Fabric B
Unchecked
Adapter
Checked
VM
Unchecked
VLAN
DATA_204
Native VLAN
Yes
Template Type
Updating Template
MTU
9000
MAC Pool
Eth12
QoS Policy
DATA
Network Control Policy
default
Connection Policies
Dynamic vNIC
Policies > root > vNIC Templates > Fabric ID
CE_ETH13
Enable Failover
Fabric B
Unchecked
Adapter
Checked
VM
Unchecked
VLAN
iSCSI_DATA
Native VLAN
Yes
Template Type
Updating Template
MTU
9000
MAC Pool
Eth13
QoS Policy
iSCSI
Network Control Policy
default
Connection Policies
Dynamic vNIC
Cisco Videoscape Distribution Suite Transparent Caching Software Blade Server Cluster Installation Guide
A-12
OL-31422-03
Appendix A
Cisco VDS TC Specific UCS Blade Server Values
Values for the Servers Tab
Path
Parameter
Value
Policies > root > BIOS Policies >
VDS-TC_CE
Main Tab > Reboot on
BIOS settings change
Checked
Advanced Tab > Processor Enabled
Tab > Turbo Boost
Advanced Tab > Processor Disabled
Tab > Enhanced Intel
Speedstep
Advanced Tab > Processor Enabled
Tab > Hyper Threading
Advanced Tab > Processor All
Tab > Core Multi
Processing
Advanced Tab > Processor Platform Default
Tab > Execute Disabled
Bit
Advanced Tab > Processor Disabled
Tab > Virtualization
Technology (VT)
Advanced Tab > Processor Platform Default
Tab > Direct Cache Access
Advanced Tab > Processor Disabled
Tab > Processor C State
Advanced Tab > Processor Disabled
Tab > Processor C 1E
Advanced Tab > Processor Disabled
Tab > Processor C3 Report
Advanced Tab > Processor Disabled
Tab > Processor C6 Report
Advanced Tab > Processor Disabled
Tab > Processor C7 Report
Advanced Tab > Processor high-throughput
Tab > CPU Performance
Advanced Tab > Processor Platform Default
Tab > Max Variable
MTRR Setting
Advanced Tab > Processor Platform Default
Tab > Local X2 APIC
Advanced Tab > Intel
Directed IO Tab > VT for
Directed IO
Disabled
Cisco Videoscape Distribution Suite Transparent Caching Software Blade Server Cluster Installation Guide
OL-31422-03
A-13
Appendix A
Cisco VDS TC Specific UCS Blade Server Values
Values for the Servers Tab (continued)
Path
Parameter
Value
Policies > root > BIOS Policies >
VDS-TC_CE
Advanced Tab > Intel
Directed IO Tab >
Interrupt Remap
Platform Default
Advanced Tab > Intel
Directed IO Tab >
Coherency Support
Platform Default
Advanced Tab > Intel
Directed IO Tab > ATS
Support
Platform Default
Advanced Tab > Intel
Directed IO Tab > Pass
Through DMA Support
Platform Default
Advanced Tab > RAS
Memory Tab > Memory
RAS Config
maximum-performance
Advanced Tab > RAS
Memory Tab > NUMA
Platform Default
Advanced Tab > RAS
Memory Tab > LV DDR
Mode
performance-mode
Advanced Tab > RAS
Memory Tab > DRAM
Refresh Rate
Auto
Advanced Tab > Serial
Port Tab > Serial Port A
Platform Default
Advanced Tab > USB Tab Platform Default
> Make Device Non
Bootable
Advanced Tab > USB Tab Platform Default
> Legacy USB Support
Advanced Tab > USB Tab Platform Default
> USB System Idle Power
Optimizing Setting
Advanced Tab > USB Tab Platform Default
> USB Front Panel Access
Lock
Advanced Tab > PCI Tab > Platform Default
Max Memory Below 4G
Advanced Tab > PCI Tab > Platform Default
Memory Mapped IO
Above 4Gb Config
Advanced Tab > PCI Tab > Platform Default
VGA Priority
Cisco Videoscape Distribution Suite Transparent Caching Software Blade Server Cluster Installation Guide
A-14
OL-31422-03
Appendix A
Cisco VDS TC Specific UCS Blade Server Values
Values for the Servers Tab (continued)
Path
Parameter
Value
Policies > root > BIOS Policies >
VDS-TC_CE
Boot Options Tab > Boot
Option Retry
Platform Default
Boot Options Tab > Intel
Entry SAS RAID
Platform Default
Boot Options Tab > Intel
Entry SAS RAID Module
Platform Default
Boot Options Tab >
Onboard SCU Storage
Support
Platform Default
Server Management Tab > Platform Default
Assert Nmi on Serr
Server Management Tab > Platform Default
Assert Nmi on Perr
Server Management Tab > Platform Default
OS Boot Watchdog Timer
Server Management Tab > Platform Default
FRB-2 Timer
Server Management Tab > Platform Default
Console Redirection
Server Management Tab > Platform Default
Flow Control
Server Management Tab > Platform Default
BAUD Rate
Server Management Tab > Platform Default
Terminal Type
Server Management Tab > Platform Default
Legacy OS Redirect
Server Management Tab > Platform Default
Putty KeyPad
Cisco Videoscape Distribution Suite Transparent Caching Software Blade Server Cluster Installation Guide
OL-31422-03
A-15
Appendix A
Cisco VDS TC Specific UCS Blade Server Values
Values for the Servers Tab (continued)
Path
Parameter
Service Profile Templates > root > vNIC
Service Template CE_Unit >
vNICs
Value
ETH0, ETH1, ETH2,
ETH3, ETH4, ETH5,
ETH6, ETH7, ETH8,
ETH9, ETH10, ETH11,
ETH12, ETH13
Fabric ID for vNICs
ETH0, ETH2, ETH4,
ETH5, ETH6, ETH7,
ETH8
A
Fabric ID for vNICs
ETH1, ETH3, ETH9,
ETH10, ETH11, ETH12,
ETH13
B
Desired Placement
Any for all vNICs
Service Profile Templates > root > Adapter Policy
Service Template CE_Unit >
vNICS > vNIC#
Service Profile Templates > root > Boot Order Tab
Service Template CE_Unit
VDS_TC_CE
•
•
•
CD/DVD
Local Disk
LAN ETH0
Policies Tab > BIOS
Policy
VDS-TC_CE
Policies Tab > Firmware
Policies > Host Firmware
b200-2.1
Policies Tab > IPMI
Access Profile Policy
admin
Associated Server
sys/chassis-1/blade-1
Service Profile Template
CE_Unit
Associated Server
sys/chassis-1/blade-2
Service Profile Template
CE_Unit
Associated Server
sys/chassis-1/blade-3
Service Profile Template
CE_Unit
Associated Server
sys/chassis-1/blade-4
Service Profile Template
CE_Unit
Service Profiles > root > CE5
(In VDS-TC-8B and
VDS-TC-16B)
Associated Server
sys/chassis-1/blade-5
Service Profile Template
CE_Unit
Service Profiles > root > CE6
(In VDS-TC-8B and
VDS-TC-16B)
Associated Server
sys/chassis-1/blade-6
Service Profile Template
CE_Unit
Service Profiles > root > CE1
Service Profiles > root > CE2
Service Profiles > root > CE3
Service Profiles > root > CE4
Cisco Videoscape Distribution Suite Transparent Caching Software Blade Server Cluster Installation Guide
A-16
OL-31422-03
Appendix A
Cisco VDS TC Specific UCS Blade Server Values
Values for the Servers Tab (continued)
Path
Parameter
Value
Service Profiles > root > CE7
(In VDS-TC-8B and
VDS-TC-16B)
Associated Server
sys/chassis-1/blade-7
Service Profile Template
CE_Unit
Service Profiles > root > CE8
(In VDS-TC-8B and
VDS-TC-16B)
Associated Server
sys/chassis-1/blade-8
Service Profile Template
CE_Unit
Service Profiles > root > CE9
(In VDS-TC-16B)
Associated Server
sys/chassis-2/blade-1
Service Profile Template
CE_Unit
Service Profiles > root > CE10
(In VDS-TC-16B)
Associated Server
sys/chassis-2/blade-2
Service Profile Template
CE_Unit
Service Profiles > root > CE11
(In VDS-TC-16B)
Associated Server
sys/chassis-2/blade-3
Service Profile Template
CE_Unit
Service Profiles > root > CE12
(In VDS-TC-16B)
Associated Server
sys/chassis-2/blade-4
Service Profile Template
CE_Unit
Service Profiles > root > CE13
(In VDS-TC-16B)
Associated Server
sys/chassis-2/blade-5
Service Profile Template
CE_Unit
Service Profiles > root > CE14
(In VDS-TC-16B)
Associated Server
sys/chassis-2/blade-6
Service Profile Template
CE_Unit
Service Profiles > root > CE15
(In VDS-TC-16B)
Associated Server
sys/chassis-2/blade-7
Service Profile Template
CE_Unit
Service Profiles > root > CE16
(In VDS-TC-16B)
Associated Server
sys/chassis-2/blade-8
Service Profile Template
CE_Unit
Pools > root > UUID Suffix Pools > Prefix
Pool default
Size
Assignment order
CB984AB8-23FA-11E2
512
Default
Cisco Videoscape Distribution Suite Transparent Caching Software Blade Server Cluster Installation Guide
OL-31422-03
A-17
Appendix A
Cisco VDS TC Specific UCS Blade Server Values
Cisco Videoscape Distribution Suite Transparent Caching Software Blade Server Cluster Installation Guide
A-18
OL-31422-03

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
