Cisco Content Delivery System Manager User Guide

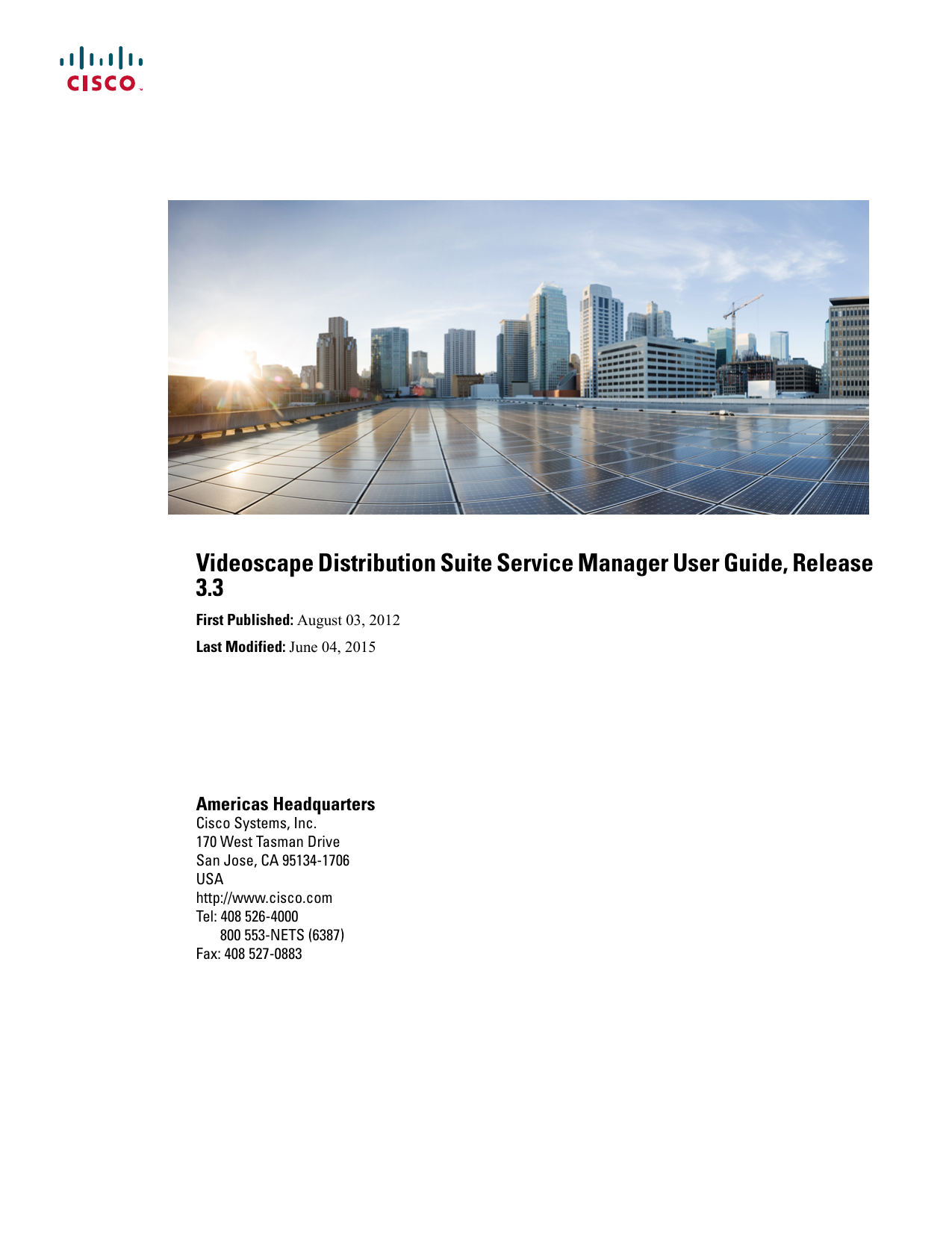

Videoscape Distribution Suite Service Manager User Guide, Release
3.3
First Published: August 03, 2012
Last Modified: June 04, 2015
Americas Headquarters
Cisco Systems, Inc.
170 West Tasman Drive
San Jose, CA 95134-1706
USA
http://www.cisco.com
Tel: 408 526-4000
800 553-NETS (6387)
Fax: 408 527-0883
THE SPECIFICATIONS AND INFORMATION REGARDING THE PRODUCTS IN THIS MANUAL ARE SUBJECT TO CHANGE WITHOUT NOTICE. ALL STATEMENTS,
INFORMATION, AND RECOMMENDATIONS IN THIS MANUAL ARE BELIEVED TO BE ACCURATE BUT ARE PRESENTED WITHOUT WARRANTY OF ANY KIND,
EXPRESS OR IMPLIED. USERS MUST TAKE FULL RESPONSIBILITY FOR THEIR APPLICATION OF ANY PRODUCTS.
THE SOFTWARE LICENSE AND LIMITED WARRANTY FOR THE ACCOMPANYING PRODUCT ARE SET FORTH IN THE INFORMATION PACKET THAT SHIPPED WITH
THE PRODUCT AND ARE INCORPORATED HEREIN BY THIS REFERENCE. IF YOU ARE UNABLE TO LOCATE THE SOFTWARE LICENSE OR LIMITED WARRANTY,
CONTACT YOUR CISCO REPRESENTATIVE FOR A COPY.
The Cisco implementation of TCP header compression is an adaptation of a program developed by the University of California, Berkeley (UCB) as part of UCB's public domain version
of the UNIX operating system. All rights reserved. Copyright © 1981, Regents of the University of California.
NOTWITHSTANDING ANY OTHER WARRANTY HEREIN, ALL DOCUMENT FILES AND SOFTWARE OF THESE SUPPLIERS ARE PROVIDED "AS IS" WITH ALL FAULTS.
CISCO AND THE ABOVE-NAMED SUPPLIERS DISCLAIM ALL WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING, WITHOUT LIMITATION, THOSE OF
MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT OR ARISING FROM A COURSE OF DEALING, USAGE, OR TRADE PRACTICE.
IN NO EVENT SHALL CISCO OR ITS SUPPLIERS BE LIABLE FOR ANY INDIRECT, SPECIAL, CONSEQUENTIAL, OR INCIDENTAL DAMAGES, INCLUDING, WITHOUT
LIMITATION, LOST PROFITS OR LOSS OR DAMAGE TO DATA ARISING OUT OF THE USE OR INABILITY TO USE THIS MANUAL, EVEN IF CISCO OR ITS SUPPLIERS
HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
Cisco and the Cisco logo are trademarks or registered trademarks of Cisco and/or its affiliates in the U.S. and other countries. To view a list of Cisco trademarks, go to this URL: http://
www.cisco.com/go/trademarks. Third-party trademarks mentioned are the property of their respective owners. The use of the word partner does not imply a partnership
relationship between Cisco and any other company. (1110R)
Any Internet Protocol (IP) addresses used in this document are not intended to be actual addresses. Any examples, command display output, and figures included in the document are shown
for illustrative purposes only. Any use of actual IP addresses in illustrative content is unintentional and coincidental.
Adobe Systems, Inc.
Adobe LiveCycle Data Services ES2.5, Copyright © 2010, Adobe Systems, Inc. All Rights Reserved
Oracle
Copyright ©2012, Oracle and/or its affiliates. All rights reserved.
Oracle is a registered trademark of Oracle Corporation and/or its affiliates. Other names may be trademarks of their respective owners.
Red Hat, Inc.
Red Hat and Red Hat Enterprise Linux are trademarks of Red Hat, Inc., registered in the United States and other countries.
Other product names, symbols, and phrases used throughout this document (if any) are property of their respective owners.
VDS Service Manager Analytics and Provisioning Portal User Guide
© 2015
Cisco Systems, Inc. All rights reserved.
CONTENTS
Preface
Preface xiii
Audience xiii
Document Conventions xiii
Document Organization xv
Reporting Problems xvi
Obtaining Documentation and Submitting a Service Request xvi
CHAPTER 1
Getting Started 1
Getting Started 1
Configuring Videoscape Distribution Suite Service Manager 2
Configuring CSV Files 3
Configuring VDS-IS for VDS-SM 4
Enabling Transaction Log 4
Enabling Session Tracking for ABR Services 8
Securing log transfer between VDS-IS and VDS-SM 9
Installing Certificates 10
Configuring Splunk for SSL 10
Validating Configurations 11
Verifying Log Ingestion in VDS-SM 11
Verifying Connectivity Between VDS-IS and VDS-SM 11
Checking for Data in VDS-SM 12
CHAPTER 2
Introduction to Videoscape Distribution Suite Service Manager Portal's User Interface 15
Videoscape Distribution Suite Service Manager Overview 15
Logging Into the User Interface 16
Changing Your Password 17
Alert Counter 17
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
iii
Contents
VDS-SM Portal's User Interface Overview 18
User Interface Components 19
Main Menu 21
About 21
Configuration Icons 22
Role Based Access Control 24
CHAPTER 3
Home 29
Home Overview 29
Using the Scorecards 29
Network 32
Throughput 33
Concurrent Active Sessions 34
Cache Hit Ratio 35
Response Status Codes 36
Storage Usage 37
Protocol 38
Volume Delivered by Protocol 39
Total Requests by Protocol 40
Response Codes by Protocol 41
Cache Hit Ratio by Protocol 42
ABR Session Bitrate by Protocol 43
4xx Errors by Protocol 44
Content 45
Content by Client Request 45
Content by Bytes Transferred 46
Average ABR Session Bitrate by Content 47
Top Content by Delivery Server 48
Top Content by City 49
Top Content by Client Type 50
Viewers 51
Unique Viewers 52
Viewers by Client Type 53
Viewers by City 54
Viewers by ISP and Net Speed 55
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
iv
Contents
Viewers by Download Size 56
Viewers by Session Duration 57
Content Origin 57
Enabling Ingest Transaction Log 58
Ingest Requests 58
Origin/Ingest Volume 59
Bytes Read by Protocol 60
Download Speed 61
Ingest Response Codes 62
Origin Server Failures 63
CHAPTER 4
Analytics 65
Analytics Overview 65
Analyze Metrics with Pivoting 65
Trends 67
Network 68
Volume 68
Throughput 68
Volume of Data Delivered 68
Delivery Services by Bytes Delivered 68
Origin/Ingest Volume 69
Average Download Speed 69
Predict Throughput 70
Caching 72
Cache Hit and Miss Rate by Request Count 72
% Cache Hit and Miss 73
Storage Usage 73
Cache Hit Ratio by Protocol 73
Request 74
Request Rate 74
Total Requests and Errors 75
Top Delivery Services by Request Count 75
Response 76
Response Count by Status Codes 76
Response Codes by Delivery Servers 76
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
v
Contents
Response Codes by Service Routers 77
Sorted Delivery Services by Client Errors on Delivery Servers 78
4xx Error Rate on Delivery Servers 79
4xx Error Rate on Service Routers 79
Total Rejections due to Quota Limits 80
4xx Errors 81
Sorted Delivery Services by Client Errors on Service Routers 81
Response Codes by Protocol 82
4xx Errors by Protocol 82
Streaming 82
Sessions 83
Concurrent Active Sessions 83
Total Sessions by Protocol 83
Session Download Size 84
ABR 84
Bitrate 84
Bitrate Oscillations 85
Total Requests 85
Request Rate 86
MobiTV Client Log Analysis 87
Viewers 87
Number of Unique Viewers 88
Viewers by Client Type 88
Viewer Density by Location 88
Top Viewers 89
Viewers by Session Duration 90
Viewers by ISP, Net Speed 90
Viewers by Protocol 90
Viewers by Download Size 91
Content 91
Content by Client Requests 91
Content by Bytes Transferred 91
Top Content by Delivery Server 91
Average ABR Session Bitrate by Content 91
Top Content by City 92
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
vi
Contents
Top Content by Client Type 92
Content Origin 92
Ingest Requests 92
Bytes Read 92
Download Speed 93
Ingest Response Codes 93
Origin Server Failures 94
Billing 94
95/5 Billing 94
Pay Go Billing 96
Reports 96
Daily 97
CDN Traffic [5 min Intervals] 97
Traffic Summary by Delivery Servers 97
Traffic Summary by Delivery Services 98
Delivery Server Traffic [5 min Intervals] 99
Delivery Service Traffic [5 min Intervals] 99
All Assets - Video 100
All Assets - Non-Video 101
Weekly 101
CDN Traffic [1 hour Intervals] 101
Traffic Summary by Delivery Servers 102
Traffic Summary by Delivery Services 103
Delivery Server Traffic [1 hour Intervals] 103
Delivery Service Traffic [1 hour Intervals] 104
All Assets - Video 105
All Assets - Non-Video 105
Monthly 105
CDN Traffic [1 day Intervals] 106
Traffic Summary by Delivery Servers 106
Traffic Summary by Delivery Services 107
Delivery Server Traffic [1 day Intervals] 108
Delivery Service Traffic [1 day Intervals] 108
All Assets - Video 109
All Assets - Non-Video 109
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
vii
Contents
Custom Searches and Reports 110
Creating a Custom Report 111
Deleting a Custom Report 112
Custom Dashboards 112
Adding a Custom Dashboard 112
Deleting a Custom Dashboard 115
Content 115
Analyze by Content Title 115
Viewership Report 128
Sessions 129
Analyze by Client IP 129
Session Report 130
Geo Analysis 131
Cache Hit Ratio by Location 131
Viewers Density by Location 132
Bytes Delivered by City 132
Average ABR Bitrate by City 133
4xx and 5xx Errors by City 134
North Bound Application Programming Interface 134
Generating CSV Files from Search Results (Gencsvfromsearch) 136
Configuring Search File 136
Run Shell Script 139
Run Python Script 140
CHAPTER 5
Monitor 141
Monitor Overview 141
CHAPTER 6
Alerts 147
Alerts Overview 147
Adding a Threshold Alert 147
Deleting a Threshold Alert 149
Customizing Threshold Metrics 149
Quota Violations 150
Bandwidth Alerts 150
Session Alerts 151
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
viii
Contents
Storage Alerts 151
CHAPTER 7
Configuration 153
VDS Manager Configuration 153
Multi-Tiered and Multi-Tenancy 153
Adding a CDN 154
Managing a VDS-IS CDN 155
Distribution Hierarchy Function Overview 157
Adding a Distribution Hierarchy 157
Modifying a Distribution Hierarchy 158
Cloning a Distribution Hierarchy 158
Deleting a Distribution Hierarchy 158
Delivery Servers 159
Modifying a Delivery Server 159
URL Signing 159
Creating URL Signature 162
Editing URL Signature 162
Deleting URL Signature 163
Delivery Services 164
Adding a Delivery Service 164
Deleting a Delivery Service 167
Reseller Function Overview 167
Adding a Reseller 167
Modifying a Reseller 169
Deleting a Reseller 169
Content Provider Function Overview 170
Adding a Content Provider 170
Mapping a Content Provider and Delivery Service 171
Assigning Multiple Content Providers to a Single Delivery Service 172
Modifying a Content Provider 173
Deleting a Content Provider 173
Services 174
Geo Fencing 176
Assigning a Geo/IP file to a Delivery Service 176
Disassociating a Geo/IP file from a Delivery Service 177
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
ix
Contents
Content Purging 178
Deleting Content 178
CHAPTER 8
Administration 181
System Load Dashboard 181
License Usage 183
Managing Users and Roles Overview 184
About User Accounts 184
Roles 185
Adding a User 185
Deleting a User 186
Global Configurations 186
Adding Global Configurations 187
Deleting Global Configurations 187
CDN Health 188
Enabling Service Monitor Transaction Log 188
Enabling Service Monitor (SE) Transaction Log 188
Enabling Service Monitor (SR) Transaction Log 188
Monitor 189
CPU Usage 190
Memory Usage 191
Disk Usage 192
CPU Usage by Protocol Engines 193
Memory Usage by Protocol Engines 194
Stopped Protocol Engines 195
Threshold Exceeded Protocol Engines 196
Trend 196
Service Engine 196
CPU Usage 197
Memory Usage 198
Disk Usage 199
CPU Usage by Protocol Engines 200
Memory Usage by Protocol Engines 201
TCP Server Connections 202
TCP Client Connections 203
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
x
Contents
Service Router 204
CPU Usage 204
Memory Usage 205
Disk Usage 206
CPU Usage for Service Routing 207
Memory Usage for Service Routing 208
TCP Server Connections 209
TCP Client Connections 210
Log Event Discrepancies 211
CHAPTER 9
Troubleshooting 213
Troubleshooting Analytics Dashboards 213
Troubleshooting Splunk Licensing Issues 214
Troubleshooting Splunk Forwarder Issues 215
Troubleshooting the Splunk Indexer 216
Troubleshooting the Analytics Search Head 217
Troubleshooting VDS-IS Provisioning 219
Deleting Summarized Data 219
Splunk License Violation 220
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
xi
Contents
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
xii
Preface
• Audience, page xiii
• Document Conventions, page xiii
• Document Organization, page xv
• Reporting Problems, page xvi
• Obtaining Documentation and Submitting a Service Request, page xvi
Audience
The Videoscape Distribution Suite Service Manager (VDS-SM) User Guide provides instructions to the
Operators and Administrators, who are responsible for the management, real-time analysis and monitoring,
business policy enforcement, and other critical network intelligence for Videoscape Distribution Suite Internet
Streaming (VDS-IS) and other 3rd party Content Delivery Networks (CDNs).
Document Conventions
This document uses the following conventions:
Table 1: Document Conventions
Convention
Description
^ or Ctrl
Both symbols represent the Control (Ctrl) key on the keyboard. For
example, the key combinations ^D or Ctrl-D means that you hold down
the Control key while you press D . (Keys are indicated in capital letters
but are not case sensitive.)
bold font
Commands, keywords, and user-entered text appear in bold font.
Italic font
Document titles, new or emphasized terms, and arguments for which you
need to enter values appear in italic font.
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
xiii
Preface
Document Conventions
Convention
Description
Courier font
Terminal sessions and information, which the system displays appear in
courier font.
Bold Courier font
Bold Courier font indicates the text that you must enter.
[x]
Elements in square brackets are optional.
...
An ellipsis (three consecutive non-bolded periods without spaces) after
a syntax element indicates that the element can be repeated.
|
A vertical line, called a pipe, indicates a choice within a set of keywords
or arguments.
[x | y]
Optional alternative keywords are grouped in brackets and separated by
vertical bars.
{x | y}
Required alternative keywords are grouped in braces and separated by
vertical bars.
[x {y | z}]
Nested set of square brackets or braces indicate optional or required
choices within optional or required elements. Braces and a vertical bar
within square brackets indicate a required choice within an optional
element.
string
A non-quoted set of characters. Do not use quotation marks around the
string or the string will include the quotation marks.
<>
Nonprinting characters such as passwords appear in angle brackets.
[]
Default responses to system prompts appear in square brackets.
!, #
An exclamation point (!) or a pound sign (#) at the beginning of a line
of code indicates a comment line.
Reader Alert Conventions
This document uses the following conventions for reader alerts:
Note
Tip
Means reader take note. Notes contain helpful suggestions or references to material, which is not covered
in the manual.
Means the following information will help you solve a problem.
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
xiv
Preface
Document Organization
Caution
Timesaver
Warning
Means reader needs to be careful. In this situation, you might do something that could result in equipment
damage or loss of data.
Means the described action saves time. You can save time by performing the action described in the
paragraph.
Means reader beware. In this situation, you might perform an action that could result in bodily injury.
Document Organization
This document is organized into the following chapters:
Table 2: Document Organization
Chapter
Description
Getting Started
Provides information on getting started with VDS-SM 3.3.
Introduction to VDS-SM Portal's Describes the VDS-SM user interface and general framework.
User Interface
Home
Displays various scorecards such as Network, Protocol, Content, Viewers,
and Content Origin.
Analytics
Displays various dashboards such as Analyze Metrics with Pivoting,
Trends, Reports, and Geo Analysis.
Monitor
Displays various dashboards such as Throughput, Cache Hit Ratio, and
Responses, which helps the CDN Operators to check the performance of
the network.
Alerts
Displays quota violations alerts which lists count of events that are
generated by the system, and provides details on how to manage threshold
alerts.
Configuration
Describes how to configure the CDN, Reseller and Content Providers.
Administration
Provides information on how to manage users and roles, an overview of
the global configuration parameters, and dashboards to monitor the CDN
health parameters.
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
xv
Preface
Reporting Problems
Reporting Problems
If you have any query or experience problems when installing the VDS Service Manager software, contact
your Cisco Technical representative.
Obtaining Documentation and Submitting a Service Request
For information on obtaining documentation, using the Cisco Bug Search Tool (BST), submitting a service
request, and gathering additional information, see What's New in Cisco Product Documentation, at: http://
www.cisco.com/c/en/us/td/docs/general/whatsnew/whatsnew.html.
Subscribe to What's New in Cisco Product Documentation, which lists all new and revised Cisco technical
documentation as an RSS feed and delivers content directly to your desktop using a reader application. The
RSS feeds are a free service.
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
xvi
CHAPTER
1
Getting Started
• Getting Started, page 1
• Configuring Videoscape Distribution Suite Service Manager , page 2
• Configuring CSV Files, page 3
• Configuring VDS-IS for VDS-SM, page 4
• Verifying Log Ingestion in VDS-SM, page 11
• Verifying Connectivity Between VDS-IS and VDS-SM, page 11
• Checking for Data in VDS-SM, page 12
Getting Started
The VDS-SM provides configuration, management, real-time analytics and monitoring, business policy
enforcement, and other critical network intelligence for VDS-IS. The solution installs on a VM infrastructure
and operates on a customer's traditional computing system or a Cisco UCS system. This allows more efficient
and focused use of computing resources, memory, and disk space; thus resulting in a more efficient ratio of
computing resources to application performance.
Before you begin, ensure that the following tasks are completed as part of installation:
• Run configure indexers script.
For details, see the section Adding an Analytics Indexer to VDS-SM, in the Software Installation
Guide.
If VDS-SM cluster setup is installed, see the section Adding an Analytics Indexer to VDS-SM Cluster,
in the Software Installation Guide.
• Schedule getCDStopology script in cron (for details, see the section Deploying CDS System Delivery
Server/Services in Analytics Node in the Software Installation Guide).
• Add the Splunk license.
To add the Splunk license, perform the following steps:
1 Copy the Splunk license file to your local machine, taking care to note the location, which will be used
later in this procedure.
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
1
Getting Started
Configuring Videoscape Distribution Suite Service Manager
2 Open the Splunk manager app in the Job Scheduler.
Example, http://<IP of Job Scheduler>:8000/en-us/manager (Username: Admin or admin Password:
Beaumaris1).
Note
Do not change the above mentioned Splunk credentials. In the Change Password dialog box, click Skip
and proceed.
3 Select Licensing.
4 Select Add License.
5 Browse your machine to the location where you copied the license file.
6 Select Install.
7 Return to the Licensing page and confirm whether the new license is added and is valid.
Note
Do not change the Splunk license filename.
Configuring Videoscape Distribution Suite Service Manager
VDS-SM discovers topology of Content Delivery Network (Service Engine, Service Router, and Distribution
Hierarchy) and Delivery Services through CDSM. To initiate the discovery, you need to register the CDSM
IP address along with the user credentials that is required to connect to CDSM.
To configure VDS-SM, perform the following steps:
Step 1
Login to VDS-SM using the link http://UInode IP/bnimgmt
Username: bniadmin and Password: admin
Step 2
From the main page, choose Configuration > CDN.
To add CDN, see Adding a CDN, on page 154
Synchronization between VDS-SM and CDSM occurs at an interval of five minutes. After synchronization, the status
will be displayed as ‘Synchronization Successful’.
After synchronization, you can select the CDN and verify whether the devices and services information have been
discovered.
Note
Only Distribution Hierarchy and Delivery Services can be added or modified in VDS-SM.
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
2
Getting Started
Configuring CSV Files
Configuring CSV Files
VDS-SM uses CSV files to map certain attributes with the log events. These CSV files need to be configured
optionally for filters and for certain dashlets to be reflected in the user interface. The CSV files are located in
the Job Scheduler node at the following location (Username: bnisplunk and Password: password):
/opt/splunk/etc/deployment-apps/appnormalize/lookups
delivery_server_capacity.csv
This CSV file is used to enter the Bandwidth Capacity and Storage Capacity values for the Delivery Server
that is being used.
These values will be reflected in Throughput and Storage Capacity dashlets (these charts are available in
Network scorecard and Trends).
provider_title.csv
This CSV file is used to map the Filename of the content played with its Title, Resolution, and Genre.
These values will be mapped under the respective filters in the Content scorecard.
useragent_device.csv
This CSV file is used to map the user agent by which the content is played to its meaningful name (user
defined).
These values will be reflected in the Top Content by Client Type dashlet (this chart is available in Viewers
scorecard and Trends). However, if this CSV is not updated manually, the dashlet will be displayed by fetching
the actual user agent of the client.
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
3
Getting Started
Configuring VDS-IS for VDS-SM
Configuring VDS-IS for VDS-SM
VDS-SM uses transaction logs that are generated by Service Router (SR) and Service Engine (SE) for analysis.
Therefore, you need to configure SR and SE to enable logging and export them to VDS-SM.
Important
We recommend you to use the following versions of VDS-IS:
• VDS-IS 3.3.1
• VDS-IS 4.0.0
• VDS-IS 4.1.1
Enabling Transaction Log
To enable and export transaction logs, perform the following steps:
Step 1
Step 2
Login to the CDSM UI.
Click Devices and select the required SE.
Step 3
In the right pane, choose Service Control > Transaction Logging.
Step 4
Check the Transaction Log Enable check box.
Step 5
From the Log File Format drop-down list, choose custom format for CDNM option.
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
4
Getting Started
Enabling Transaction Log
Step 6
From within Archive Settings, click every radio button and set the archive to 5 minutes (300 seconds).
Note
VDS-SM recommends that the archival time be set to 5 minutes. Exceeding this time interval would result in
missing events (logs), which might hinder the dashboards from being populated.
Step 7
From within Splunk UF Export Settings (scroll down using the scroll bar), check the Export Enable check box, and
check the type of logs that has to be logged (Snapshot Counter, FMS, Web Engine, ABR Session, WMT).
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
5
Getting Started
Enabling Transaction Log
Step 8
Enter the VDS-SM Forwarder IP in the Export Server field and click Submit.
The following steps are necessary to populate the network scorecards and other SR related dashlets in VDS-SM.
Step 9
Select Devices and select the required SR.
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
6
Getting Started
Enabling Transaction Log
Step 10
In the right pane, choose General Settings > Notification and Tracking > Transaction Logging.
Step 11
From within Archive Settings, click every radio button and set the archive to 5 minutes (300 seconds).
Step 12
From within Splunk UF Export Settings (scroll down using the scroll bar), check the Export Enable check box, and
check the type of logs that has to be logged (Snapshot Counter and Service Router).
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
7
Getting Started
Enabling Session Tracking for ABR Services
Enabling Session Tracking for ABR Services
VDS-SM uses ABR session logs to analyze ABR sessions. Although the ABR session log is enabled as part
of the previous step, the log will be generated only if session tracking is configured for the delivery services.
You can configure session tracking using CDSM as mentioned below:
1 Choose Services and select the required delivery service.
2 In the left pane, choose Location settings and enable the required protocol (HSS, HLS, and generic session
tracking).
For more information, refer General Settings Fields table (page 257) in the VDS-IS Software Configuration
Guide (http://www.cisco.com/c/en/us/td/docs/video/cds/cda/is/4_1/configuration-guide/SCG1.pdf)
CAVEAT: With VDS-IS, session tracking is supported only by SE at the edges. If SE from inner tiers are
used to deliver content, then session tracking cannot be enabled on those SEs and the sessions will not be
visible to VDS-SM.
Valid Rule File
A valid rule file must be present in CDSM to analyze the ABR protocols and bitrate fields. Choose System
> Configuration > Authorization File Registration (in the right pane).
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
8
Getting Started
Securing log transfer between VDS-IS and VDS-SM
Example
The following are rule file entries with fields for analyzing the ABR protocols:
<Rule_Allow matchGroup="grp1" protocol="http"/>
<Rule_SetAction name="Rule_DSConfig" matchGroup="grp1" protocol="http">
<SetParameter name="SessionResolveRule#1" value="(.*)m3u8(.*):none"/> //m3u8 is the extension of the
video played
<SetParameter name="GenericSessionPlay#1" value="(.*)ts(.*):none"/>
<SetParameter name="SessionProtocol#1" value="(.*):protocol=$generic_hls"/> //to map abr-protocol field
from the log
<SetParameter name="SessionBitrate#1" value="(.*)sample/(.*)/(.*):bitrate=$2"/> //to map the bit rate
fieldfrom the field
<SetParameter name="SessionProfile#1" value="(.*)sample/(.*)/(.*):profile=$2"/>
//HDS
<SetParameter name="SessionResolveRule#1" value="(.*)f4m(.*):none"/>
<SetParameter name="SessionProtocol#1" value="(.*)f4m|f4v|Frag(.*):protocol:HDS"/>
<SetParameter name="SessionBitrate#1" value="/sample1_(.*)kbps:bitrate=$1"/>
<SetParameter name="SessionProfile#1" value="/sample1_(.*)kbps/:profile=$1"/>
The following are sample log file entries that are mapped using the above rule file entries:
#Software: (CDS 3.2.0 b8)
client-ip abr-protocol session-id manifest-uri asset-id bytes-sent bytes-recvd status time-recvd time-to-serve
bitrate encryption session-tracking-mode status-code user-agent entry-gen-time mime-type profile
10.140.8.240 generic_hls 10f-I-617F44E4B4027469A848025065C227409629
http://hls.abr.com/sample/sample.m3u8 - 514515 1663 bitrate_shift [10/Jan/2013:05:52:53.710+0000]
Note
Make sure that proper quotas (Storage, Bandwidth, Session) are being allotted to Delivery Services in
CDSM.
Securing log transfer between VDS-IS and VDS-SM
The logs generated during content distribution are transferred from VDS-IS to VDS-SM for analytics through
TCP. The Splunk Universal Forwarder (UF)monitors the log files and forwards the events to VDS-SM in
real-time. The Lightweight Forwarder (LWF) present in VDS-SM aggregates events from multiple sources
and forwards them to Indexers. The communication between UFs (embedded in SEs and SRs) and LWF
(present in VDS-SM) is not secure. However, securing sensitive raw data helps to avoid security threats.
Turn on SSL encryption using either self-signed certificates or certificates signed by third Party CA. This
provides encryption and compression of raw data that flows from upstream forwarders into VDS-SM.
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
9
Getting Started
Securing log transfer between VDS-IS and VDS-SM
Note
• Cisco does not recommend usage of default certificates that are shipped with Splunk.
• By default secure log transfer feature will be turned off. You can turn on/off this feature as per your
needs.
When turning on secure transfer of log files, ensure the following:
• While generating Root Certificate using openssl, do not specify common name and challenge password.
• While generating Server Certificate, do not specify challenge password.
• When generating Server Certificate, note the common name as you have to use it when you configure
SSL on the forwarder.
• While generating Client Certificate, do not specify common name and challenge password.
Installing Certificates
To install the certificates in VDS-SM, you need to copy the certificates to the following directory:
/opt/splunkforwarder/etc/certificates/
To install the certificates in VDS-IS, refer VDS-IS User guide.
Configuring Splunk for SSL
To configure Splunk for SSL in VDS-SM, define the following code stanzas in inputs.conf file of the Job
Scheduler node. The inputs.conf file is available in the path:
$SPLUNK_HOME/etc/deployment-apps/CDN_UF/local/inputs.conf.
[SSL]
rootCA = $SPLUNK_HOME/etc/certificates/<root_certificate_name.pem>
serverCert = $SPLUNK_HOME/etc/certificates/<server_certificate.pem>
password = <server_key_password>
requireClientCert = false
sslVersions = <Required SSL Version>
cipherSuite = <Required ecdh cipherSuite String>
allowSslRenegotiation = true
ecdhCurveName = <ecdh_curve_name>
[splunktcp-ssl:9998]
Note
• In VDS-SM, the default configuration is to disable both [SSL] and [splunktcp-ssl:9998] by
commenting out the lines and enabling [splunktcp://:9998]. You have to comment [splunktcp://:9998]
and uncomment [SSL] & [splunktcp-ssl:9998] stanzas.
• If there are no sslVersions specific requirements, then comment the sslVersions line. The default
value for sslVersions is "*,-ssl2" (anything later than SSLv2).
• If there are no cipherSuite specific requirements, then comment the cipherSuite line. Otherwise
use the default cipher string.
For VDS-IS, refer VDS-IS User guide.
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
10
Getting Started
Verifying Log Ingestion in VDS-SM
Validating Configurations
To validate the configurations on VDS-SM, perform the following steps:
Step 1
Navigate to the following location:
$SPLUNK_HOME/var/log/splunk/splunkd.log
Step 2
In the logs, check for the following line:
INFO
INFO
TcpInputConfig - IPv4 port 9998 is reserved for splunk 2 splunk (SSL)
TcpInputConfig - IPv4 port 9998 will negotiate new-s2s protocol
Verifying Log Ingestion in VDS-SM
After enabling the export of log data using Splunk UF, SE and SR will connect to the VDS-SM Forwarder
node and start ingesting data. You can verify the data flow in the system as mentioned in the Verifying
Connectivity Between VDS-IS and VDS-SM, on page 11 section.
Verifying Connectivity Between VDS-IS and VDS-SM
You need to check whether the connection has been established or not between SE, SR, and the Forwarder
node.
To verify the connectivity between VDS-IS and VDS-SM, perform the following steps:
Step 1
SSH to VDS-SM Forwarder node.
Username: bnisplunk and Password: password
Step 2
Enter the command netstat -na | grep 9998
Connection must be established between SE, SR, and the Forwarder node.
If the connection is not established, verify the connectivity between VDS-SM Forwarder node and the nodes in CDN.
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
11
Getting Started
Checking for Data in VDS-SM
Checking for Data in VDS-SM
VDS-SM aggregates data at different intervals to compute metrics. Therefore, expect some delay for the data
to reflect in the dashboards.
Note
All the above steps need to be performed as a prerequisite before ingesting logs into VDS-SM.
The following table lists the different dashboards and the time they require to display the data:
Dashboard
Time Required
Monitor
Less than 15 minutes
Network Scorecard
1 Hour
Protocol Scorecard
1 Hour
Content Scorecard
1 Day
Viewers Scorecard
1 Day
Trends
1 Day
Content and Session
Analytics
1 Day
To check the data in VDS-SM, perform the following steps:
Step 1
Login to VDS-SM using the link http://UInode IP/bnimgmt
Username: bniadmin and Password: admin
Step 2
Choose Analytics > Custom Searches and Reports.
In the Search page, query for the respective index and check whether the data is indexed. After playing various video
formats, the corresponding dashboards will be populated in VDS-SM.
Monitor dashboard can be used to check the data flow into VDS-SM at real-time (with minimal delay).
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
12
Getting Started
Checking for Data in VDS-SM
Dashboard
Remarks
Network scorecard > 24 hours (default time)
Displays data for the last 24 hours.
Network Scorecard > 60 minutes
Displays data for the last 60 minutes (current time minus
10 minutes).
Network Scorecard > 7 days
Displays data for the last 7 days.
Protocol Scorecard > 60 minutes (default)
Displays data for the last 60 minutes (current time minus
10 minutes).
Protocol Scorecard > 24 hours
Displays data for the last 24 hours.
Protocol Scorecard > 7 days
Displays data for the last 7 days.
Content Scorecard > Previous day (default)
Displays the previous day's data.
Content Scorecard >7 days
Displays data for the last 7 days.
Viewers Scorecard > Previous day (default)
Displays the previous day's data.
Viewers Scorecard >7 days
Displays data for the last 7 days.
Monitor
Displays data for every 5 minutes with 1 minute delay.
Trends
Displays data for last 7 days by default.
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
13
Getting Started
Checking for Data in VDS-SM
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
14
CHAPTER
2
Introduction to Videoscape Distribution Suite
Service Manager Portal's User Interface
• Videoscape Distribution Suite Service Manager Overview, page 15
• VDS-SM Portal's User Interface Overview, page 18
• User Interface Components, page 19
• Role Based Access Control, page 24
Videoscape Distribution Suite Service Manager Overview
The VDS-SM provides configuration, management, real-time analytics and monitoring, business policy
enforcement, and other critical network intelligence for VDS-IS. CDN hosts different content, such as live
and archived, to viewers around the world. It helps the CDN Operators to quickly check the performance of
the network.
The VDS Manager software includes the following major components:
• Analytics—Creates a fast searchable index of CDN streaming device log files for centralized access.
• Provisioning—Provides the Administration team the rights to create new Delivery Services and to control
CDN from the same interface, which is used for analytics retrieval.
• Reporting—Provides a single interface for provisioning and reporting CDN solutions that may reside
in a single provider’s environment (for example, VDS-IS).
The application nodes that comprise the VDS-SM solution are Java applications deployed within a JBOSS
application server, and is separated into distinct “solutions”, each of which provides a specific set of services
for the overall application.
VDS-SM Application Nodes
The VDS-SM supports the following application nodes:
• Core Services
• User Interface
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
15
Introduction to Videoscape Distribution Suite Service Manager Portal's User Interface
Logging Into the User Interface
• CDN Manager
• Analytics
Core Services
The Core Services node includes the following:
• Management Interface—This interface provides service registry, and stores global configuration
parameters, for the management of solution nodes.
• Database—Hosts the MySQL database that is used to store the configuration information including
topology, solution tables, and registry information.
User Interface
Presents a User Interface where status, configuration, and analytics can be viewed by the Operator.
CDN Manager
Provides management services for CDN including Cisco VDS-IS.
Analytics
Analytics includes the following nodes:
• Search Head—Provides search and reporting functions.
• Forwarder—Manages the distribution of log data from CDN to Analytics Infrastructure for processing.
• Indexer—Processes log data to facilitate fast data retrieval and reporting.
• Job Scheduler—Provides job scheduling and functions as a deployment repository for the analytics
software.
Logging Into the User Interface
To log into the VDS-SM user interface, follow these steps:
1 Enter your Username and Password in the Login window.
By default, the username is bniadmin and the password is admin. If required, you can change the username
and password after initial log in.
Note
A Session Timeout popup window will be displayed if you are logging into the user interface using multiple
systems or different browsers.
2 To log out of the user interface, click Logout, located on the top-right corner of the window.
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
16
Introduction to Videoscape Distribution Suite Service Manager Portal's User Interface
Changing Your Password
Changing Your Password
To change your password, click the <User Profile> button, for example, bniadmin, located in the menu bar,
to open the User Info dialog box.
User Info Dialog
To increase security, we recommend that you use a combination of letters, numbers and characters.
Alert Counter
The Alert Manager, which is accessed from the Alerts function, allows you to view the recently triggered
alerts. It displays records of triggered alerts.
To access the Alerts function click Alerts, located in the top-right of the main page.
Following is a list of alerts:
• Application available–A service named in an alert has become available, meaning it has been recognized
as in service by the system.
• Application unavailable–A service named in an alert became unavailable, meaning it is no longer visible
on the network or is out of service.
• Delivery Service conflict–An alert is created when there is a conflict in the Device Service
• Device In Service–A topology device has transitioned to in service and is eligible to service requests,
if it is operational.
• Device Out of Service–A topology device has transitioned to out of service and is not eligible to service
requests, if it is operational.
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
17
Introduction to Videoscape Distribution Suite Service Manager Portal's User Interface
VDS-SM Portal's User Interface Overview
Note
Alert Counter is available only for the CDN Operators.
VDS-SM Portal's User Interface Overview
This section provides an overview of the VDS-SM Portal's user interface.
Note
Before you access the VDS-SM Portal's user interface, you must deploy, install, and configure, all nodes
in your network.
VDS-SM comprises the following functions:
Table 3: VDS-SM Functionalities & Description
Function
Description
Home
Displays the following scorecards:
• Network
• Protocol
• Content
• Viewers
• Content Origin
Analytics
Displays the following menus and submenus:
• Analyze Metrics with Pivoting
• Trends
• Reports
• Customs Searches and Reports
• Custom Dashboards
• Content–Analyze by Content Title and
Viewership Report
• Sessions–Analyze by Client IP and Session
Report
• Geo Analysis
Monitor
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
18
Helps the CDN Operators check the performance of
the network.
Introduction to Videoscape Distribution Suite Service Manager Portal's User Interface
User Interface Components
Function
Description
Alerts
Displays the following menus:
• Thresholds
• Quota Violations
Configuration
Displays the following menus and submenus:
• CDN
• Customers–Reseller and Content Provider
• Services
• Geo Fencing
• Content Purging
Administration
Displays the following menus:
• System Load Dashboard
• License Usage
• User Management
• Global Configurations
• CDN Health–Monitor and Trend
• Log Event Discrepancies
User Interface Components
The user interface components are explained in the following table:
Table 4: User Interface Components
Component
Description
User Profile
To change your password, click the <User Profile > button; for example,
bniadmin, located in the top-right corner of the window, to open the
User Info dialog box.
Note
Alert Counter
The button name displays the name of the user logged
in.
Lists the alert notifications.
Click Alerts, located next to User Profile. It displays the alerts you set
up.
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
19
Introduction to Videoscape Distribution Suite Service Manager Portal's User Interface
User Interface Components
Component
Description
About
Click About, located next to Alerts, to display the About dialog box.
Logout
Click Logout, located next to Help, to log out from the application.
Home
Displays the following scorecards:
• Network
• Protocol
• Content
• Viewers
• Content Origin
Analytics
Displays the following menus and submenus:
• Analyze Metrics with Pivoting
• Trends
• Reports
• Customs Searches and Reports
• Custom Dashboards
• Content–Analyze by Content Title and Viewership Report
• Sessions–Analyze by Client IP and Session Report
• Geo Analysis
Monitor
Displays the following dashlets:
• CDN Overview
• Throughput
• Cache Hit Ratio
• Concurrent Active Sessions
• Responses
• Bitrates
Alerts
Displays the following menus:
• Thresholds
• Quota Violations
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
20
Introduction to Videoscape Distribution Suite Service Manager Portal's User Interface
Main Menu
Component
Description
Configuration
Displays the following menus and submenus:
• CDN
• Customers–Reseller and Content Provider
• Services
• Geo Fencing
• Content Purging
Administration
Displays the following menus:
• System Load Dashboard
• License Usage
• User Management
• Global Configurations
• CDN Health–Monitor and Trend
• Log Event Discrepancies
Main Menu
The main menu bar displays all VDS-SM tabs. Click the menus to view the submenus.
About
The VDS-SM Portal's About option lists the following information:
• Product Version Number
• Product Name
• Build Timestamp
• Build Number
• Build Java Version
• Software Licenses
• End User Licenses Agreement
To access this, click About at the top right of the page.
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
21
Introduction to Videoscape Distribution Suite Service Manager Portal's User Interface
Configuration Icons
Note
Click the orange arrow next to the item to see more information.
Configuration Icons
VDS-SM portal provides various icons to perform configuration commands or to indicate operational status.
The following table lists all the icons included in the user interface.
Table 5: User Interface Icons
Icon
Description
Go to Detail page
Create or Add
Delete
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
22
Introduction to Videoscape Distribution Suite Service Manager Portal's User Interface
Configuration Icons
Icon
Description
Undo
Refresh
Disable
Enable
Clone
Import
Edit: in-line mode:
• Select: light gray
Edit: full-screen mode:
• Select: light gray
Edit: bulk mode:
• Select: light gray
• Deselect: dark gray
Edit: Item Selector
Information
Auto Refresh
Context Sensitive Help
Search; Filter
Notice
Normal
Added
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
23
Introduction to Videoscape Distribution Suite Service Manager Portal's User Interface
Role Based Access Control
Icon
Description
Deleted
Edited
View
Export
Add Volumes
Remove Volumes
Operational State: Up
Operational State: Down
Synchronization
Role Based Access Control
Role Based Access Control (RBAC) is implemented in VDS-SM. Delivery Services and Providers drop-down
lists are filtered, based on the user logged into the system.
The following figure shows the permissions granted for CDN Operator Admin, CDN Operator Viewer, Reseller
Admin, Reseller Viewer, Content Provider Admin, and Content Provider Viewer.
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
24
Introduction to Videoscape Distribution Suite Service Manager Portal's User Interface
Role Based Access Control
Access privileges are determined by the role assigned to the user. A user may be granted privileges for all or
some system configuration and management functions.
The CDN Operator Admin and CDN Operator Viewer have access to almost all the functions in VDS-SM
except for the following:
• CDN Operator Admin—Reseller Profile, Content Provider Profile, Monitor (Services page).
• CDN Operator Viewer—Reseller Profile, Content Provider Profile, System Load Dashboard, License
Usage, User Management, Monitor (Services page).
The following table lists the access privilege to Reseller Admin.
Main Menu and Navigation
Reseller Admin
Home > Scorecards
Delivery Service and Provider drop-down lists will
be filtered for the Reseller.
View results and Analyze data link will not be
available.
Analytics > Trends
Delivery Service and Provider drop-down lists will
be filtered for the Reseller.
Analytics > Reports
Delivery Service and Provider drop-down lists will
be filtered for the Reseller.
Analytics > Content > Analyze by Content Title
Delivery Service drop-down list will be filtered for
the Reseller.
Analytics > Content > Viewership Report
Delivery Service and Provider drop-down lists will
be filtered for the Reseller.
Analytics > Sessions > Analyze by Client IP
Delivery Service and Provider drop-down lists will
be filtered for the Reseller.
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
25
Introduction to Videoscape Distribution Suite Service Manager Portal's User Interface
Role Based Access Control
Main Menu and Navigation
Reseller Admin
Analytics > Sessions > Session Report
Delivery Service and Provider drop-down lists will
be filtered for the Reseller.
Configuration > Customers > Content Provider
Displays the list of Content Providers (assigned to
the Reseller) associated with the customer. A Reseller
Admin can create a Content Provider and assign
delivery services.
Configuration > Content Purging
Only the content deletion tasks will be displayed for
the Reseller Admin.
Administration > User Management
Delivery Service and Provider drop-down lists will
be filtered for the Reseller. A Reseller Admin has the
privilege to create a Reseller Viewer, Content
Provider Admin, and Content Provider Viewer roles.
Monitor > Monitor (Services page)
The data displayed in the screen is filtered, based on
the logged in user.
The following table lists the access privilege to Reseller Viewer.
Main Menu and Navigation
Reseller Viewer
Home > Scorecards
Delivery Service and Provider drop-down lists will
be filtered for the Reseller.
View results and Analyze data link will not be
available.
Analytics > Trends
Delivery Service and Provider drop-down lists will
be filtered for the Reseller.
Analytics > Reports
Delivery Service and Provider drop-down lists will
be filtered for the Reseller.
Analytics > Content > Analyze by Content Title
Delivery Service drop-down list will be filtered for
the Reseller.
Analytics > Content > Viewership Report
Delivery Service and Provider drop-down lists will
be filtered for the Reseller.
Analytics > Sessions > Analyze by Client IP
Delivery Service and Provider drop-down lists will
be filtered for the Reseller.
Analytics > Sessions > Session Report
Delivery Service and Provider drop-down lists will
be filtered for the Reseller.
Configuration > Customers > Content Provider
Displays the list of Content Providers (assigned to
the Reseller) associated with the customer.
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
26
Introduction to Videoscape Distribution Suite Service Manager Portal's User Interface
Role Based Access Control
Main Menu and Navigation
Reseller Viewer
Configuration > Content Purging
Only the content deletion tasks will be displayed for
the Reseller Viewer.
Monitor > Monitor (Services page)
The data displayed in the screen is filtered, based on
the logged in user.
The following table lists the access privilege to Content Provider Admin.
Main Menu and Navigation
Content Provider Admin
Home > Scorecards
Delivery Service and Provider drop-down lists will
be filtered for the Content Provider.
View results and Analyze data link will not be
available.
Analytics > Trends
Data will be filtered for the respective Content
Provider.
Analytics > Reports
Data will be filtered for the respective Content
Provider.
Analytics > Content > Analyze by Content Title
Delivery Service drop-down list will be filtered for
the respective Content Provider.
Analytics > Content > Viewership Report
Delivery Service and Provider drop-down lists will
be filtered for the respective Content Provider.
Analytics > Sessions > Analyze by Client IP
Delivery Service and Provider drop-down lists will
be filtered for the respective Content Provider.
Analytics > Sessions > Session Report
Delivery Service and Provider drop-down lists will
be filtered for the respective Content Provider.
Configuration > Content Purging
Option to choose Delivery Server is not available.
Content Provider Admin users can delete content from
Delivery Services associated to them.
Configuration > Geo Fencing
Delivery Service drop-down list will be filtered for
the respective Content Provider.
Administration > User Management
Data will be filtered for the respective Content
Provider. A Content Provider Admin has the Privilege
to create a Content Provider Viewer role.
Monitor > Monitor (Services page)
The data displayed in the screen is filtered, based on
the logged in user.
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
27
Introduction to Videoscape Distribution Suite Service Manager Portal's User Interface
Role Based Access Control
The following table lists the access privilege to Content Provider Viewer.
Main Menu and Navigation
Content Provider Viewer
Home > Scorecards
Delivery Service and Provider drop-down lists will
be filtered for the Content Provider.
View results and Analyze data link will not be
available.
Note
Analytics > Trends
Data will be filtered for the respective Content
Provider.
Analytics > Reports
Data will be filtered for the respective Content
Provider.
Analytics > Content > Analyze by Content Title
Delivery Service drop-down list will be filtered for
the respective Content Provider.
Analytics > Content > Viewership Report
Delivery Service and Provider drop-down lists will
be filtered for the respective Content Provider.
Analytics > Sessions > Analyze by Client IP
Delivery Service and Provider drop-down lists will
be filtered for the respective Content Provider.
Analytics > Sessions > Session Report
Delivery Service and Provider drop-down lists will
be filtered for the respective Content Provider.
Configuration > Content Purging
Only the content deletion tasks will be displayed for
the Content Provider Viewer.
Monitor > Monitor (Services page)
The data displayed in the screen is filtered, based on
the logged in user.
The delivery server and delivery server group filters are not available for the wholesale users.
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
28
CHAPTER
3
Home
• Home Overview, page 29
• Network, page 32
• Protocol, page 38
• Content, page 45
• Viewers, page 51
• Content Origin, page 57
Home Overview
The logs from VDS-IS are summarized and indexed in VDS-SM. The enormous information present in logs
are displayed in charts to help the operators understand their CDN network. This provides an holistic view
of a CDN.
On logging into the application, the Home page is displayed. It includes various scorecards. A scorecard is a
dashboard, which displays specific information about network, protocol, content, viewers, and content origin
data of managed CDN.
Home tab includes the following scorecards:
• Network
• Protocol
• Content
• Viewers
• Content Origin
Using the Scorecards
Using the scorecards, you can:
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
29
Home
Using the Scorecards
• Mouse hover a specific point within a chart, which displays additional information such as time and
parameters.
• View results
Each chart provides access to view the log information corresponding to the dashlets. Click View results,
located at the bottom left of each chart, to view the report.
From within the source report, you can choose a desired row to display the log details for the item.
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
30
Home
Using the Scorecards
• Analyze data
The chart in few scorecards contain data at a high-level. The CDN Operators have the option to drill
down the data in the chart at a granular level. Click Analyze data, located at the bottom right of the
chart, to view the details. Here, the CDN Operators can view the data plotted using various metrics over
different dimensions that are split by the required dimension.
You can also view the data represented in different charts, such as line, bar, area and pie, by clicking
the Chart type drop-down list, which appears after you click Analyze data.
Click Analyze, of, over, and split by drop-down lists and choose the required options. You can also
choose the stack mode from the Stack mode drop-down list.
Legend
Depending on the chart, if more than one data set is displayed, a legend is located below the chart.
Lookups
Lookup is a process, which replaces the raw data from the logs with meaningful information. In VDS-SM,
lookups are performed during summary index creation and chart rendition. CSV files and third party databases
are used in the lookup operations.
Following is the list of lookups:
Lookup
Name
Description
Title
The raw logs has the URL field, which contains the 'asset' information. Lookup is performed
on provider_title.csv file to get a meaningful Title name. This lookup is performed during
summarization.
Genre,
The raw logs do not contain any information on Genre and Resolution. Based on 'asset', the
Resolution Genre and Resolution are looked up from provider_title.csv file. This lookup is performed during
summarization.
Bitrate
The ABR traffic type's (HLS, HDS and MobiTV) raw logs have 'profile name' to indicate bitrate.
Lookup is performed on profilename_bitrate.csv to get the related bitrates for profile names.
This lookup is performed during summarization.
ISP, Net
Sped
The raw logs do not contain information on ISP and Net Speed. It has ClientIP. Lookup is
performed on Maxmind DB using ClientIP to get ISP and Net Speed. The Lookup works for
public IP addresses. This lookup is performed during summarization.
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
31
Home
Network
Lookup
Name
Description
City
The raw logs do not contain the City information. It has ClientIP. Lookup is performed on
Maxmind DB using ClientIP to get City. The Lookup works for public IP addresses. This lookup
is performed during chart rendition.
Client
Type
The raw logs has User Agent related information. Lookup is performed on useragent_device.csv
file using User Agent to get Client Type. This lookup is performed during summarization.
Capacity
The Bandwidth and Storage capacity of Delivery Servers are maintained in the
delivery_server_capacity.csv file. These capacity values are looked up and added to the summary
indexes during summarization.
Provider
When CP lookup is implemented, users extract CP ID from the URL. Lookup is performed on
content_provider.csv file using CP ID to get CP name. This lookup is performed during
summarization.
Server
Lookup is performed on the origin_server_topology.csv file to manage content origin dashboards.
Topology This lookup is performed during summarization.
Network
When you launch the application, by default, the Network tab is displayed in the Home page. This scorecard
displays charts that provides the users a quick overview on the overall performance of the network. By default,
the data for the last 24 hours is displayed in the scorecard.
The following metrics are displayed here:
• Throughput (Gbps)
• Concurrent Active Sessions
• Cache Hit Ratio
• Response Status Codes
• Storage Usage
Note
The Delivery Server Group filter grouping is based on the node locations.
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
32
Home
Throughput
Throughput
The following table describes the chart within this scorecard:
Table 6: Throughput Chart & Description
Note
Chart
Description
Throughput (Gbps)
Illustrates the bandwidth delivered by the network,
for the specified time interval.
Chart Information
The information within this chart is shown in a line
graph with Date/Time along the X-axis and Peak
Throughput, Average Throughput, and Capacity in
Gbps along the Y-axis. The legends are Peak,
Average, and Capacity.
Chart Formula
The formula used to derive the peak and average
throughput graph is: the maximum and mean
throughput for the specified time interval.
Chart Filters
This chart uses Time Range (Last 60 Minutes, Last
24 Hours, and Last 7 days), Delivery Server Group,
Delivery Server, Provider, and Delivery Service as
filters.
If requests are made directly to the service engine without the service router, this dashlet will not be
displayed.
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
33
Home
Concurrent Active Sessions
Concurrent Active Sessions
The following table describes the chart within this scorecard:
Table 7: Concurrent Active Sessions Chart & Description
Chart
Description
Concurrent Active Sessions
Illustrates the concurrent active sessions, for the
specified time interval.
Chart Information
The information within this chart is a line graph with
Date/Time along the X-axis and the Peak and Average
Count along the Y-axis. The legends representing the
graph are Peak and Average.
Chart Formula
The formula used to derive the graph is: calculate the
maximum and mean active sessions, for the specified
time interval.
Chart Filters
This chart uses Time Range (Last 60 Minutes, Last
24 Hours, and Last 7 days), Delivery Server Group,
Delivery Server, Provider, and Delivery Service as
filters.
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
34
Home
Cache Hit Ratio
Note
If requests are made directly to service engine without service router, this dashlet will not be populated.
Cache Hit Ratio
The following table describes the chart within this scorecard:
Table 8: Cache Hit Ratio Chart & Description
Chart
Description
Cache Hit Ratio
Provides client request cache hit and miss percentage,
for the specified time interval.
Chart Information
The information within this chart is shown in a
stacked area graph with Date/Time along the X-axis
and the cache hit and miss percentage in the Y-axis.
The legends representing the graph are Cache Hit and
Cache Miss.
Chart Formula
The formula used to derive the cache hit graph is: the
percentage of cache hit over total requests. The
formula used to derive the cache miss graph is: the
percentage of cache miss over total requests.
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
35
Home
Response Status Codes
Chart
Description
Chart Filters
This chart uses Time Range (Last 60 Minutes, Last
24 Hours, and Last 7 days), Delivery Server Group,
Delivery Server, Provider, and Delivery Service as
filters.
Response Status Codes
The following table describes the chart within this scorecard:
Table 9: Response Status Codes Chart & Description
Chart
Description
Response Status Codes
Provides response codes count and percentage, for
the specified time interval.
Chart Information
The information within this chart is shown in stacked
area with Date/Time along the X-axis with the
response count and percentage along the Y-axis. The
legends representing the graph are 2xx, 3xx, 4xx, and
5xx.
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
36
Home
Storage Usage
Chart
Description
Chart Formula
The status code from logs are grouped as 2xx, 3xx,
4xx, and 5xx. The count of each group is calculated
as the sum of individual status code counts. The
percentage of each group is derived by calculating
the percentage of group count over total responses.
Chart Filters
This chart uses Time Range (Last 60 Minutes, Last
24 Hours, and Last 7 days), Delivery Server Group,
Delivery Server, Provider, and Delivery Service as
filters.
To view the response status code in percentage and count, click the respective radio buttons located above
the chart.
Storage Usage
The following table describes the chart within this scorecard:
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
37
Home
Protocol
Table 10: Storage Usage Chart & Description
Chart
Description
Storage Usage
Illustrates the storage usage for the specified time
interval.
Chart Information
The information within this chart is shown in a
stacked area graph with the Date/Time along the
X-axis and the storage usage as Prepositioned,
Dynamic, and Available in GB along the Y-axis. The
legends representing the graph are Prepositioned,
Dynamic, and Available.
Chart Formula
The prepositioned and dynamic values are derived
by calculating the average of prepositioned and
dynamic data, for the specified time interval. The
available capacity is derived by calculating the
difference between the storage capacity (as specified
in the delivery_server_capacity.csv file) and the sum
of prepositioned plus dynamic data.
Chart Filters
This chart uses Time Range (Last 60 Minutes, Last
24 Hours, and Last 7 days), Delivery Server Group,
Delivery Server, Provider, and Delivery Service as
filters.
Protocol
This tab displays charts that provides an overview of the network at the protocol level. By default, the data
for the last 60 minutes is displayed in the scorecard.
To access this tab, choose Home > Protocol.
The following metrics are displayed here:
• Volume Delivered by Protocol
• Total Requests by Protocol
• Response Codes by Protocol
• Cache Hit Ratio by Protocol
• ABR Session Bitrate by Protocol
• 4xx Errors by Protocol
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
38
Home
Volume Delivered by Protocol
Volume Delivered by Protocol
The following table describes the chart within this scorecard:
Table 11: Volume Delivered by Protocol Chart & Description
Chart
Description
Volume Delivered by Protocol
Illustrates the volume delivered by each protocol, for
the specified time interval.
Chart Information
The information within this chart is shown in a
stacked area graph with Date/Time along the X-axis
and the volume delivered in GB along the Y-axis.
The legends representing the graph are protocols.
Chart Formula
The formula used to derive the graph is: Total of
CacheMissBytes, CacheHitBytes, and
NoCacheCodeBytes grouped by Protocol.
Chart Filters
This chart uses Time Range (Last 60 Minutes, Last
24 Hours, and Last 7 days), Delivery Server Group,
Delivery Server, Provider, and Delivery Service as
filters.
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
39
Home
Total Requests by Protocol
Total Requests by Protocol
The following table describes the chart within this scorecard:
Table 12: Total Requests by Protocol Chart & Description
Chart
Description
Total Requests by Protocol
Illustrates the number of requests received from each
protocol, for the specified time interval.
Chart Information
The information within this chart is shown in a
stacked area graph with Date/Time along the X-axis
and the request Count along the Y-axis. The legends
representing the graph are protocols.
Chart Formula
The formula used to derive the graph is: Total
Requests is the sum of all Status Code Counts grouped
by Protocol.
Chart Filters
This chart uses Time Range (Last 60 Minutes, Last
24 Hours, and Last 7 days), Delivery Server Group,
Delivery Server, Provider, and Delivery Service as
filters.
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
40
Home
Response Codes by Protocol
Response Codes by Protocol
The following table describes the chart within this scorecard:
Table 13: Response Codes by Protocol Chart & Description
Chart
Description
Response Codes by Protocol
Illustrates the response codes for each protocol.
Chart Information
The information within this chart is a stacked bar
graph with Count along the X-axis and Protocol along
the Y-axis. The legends represent individual response
codes.
Chart Formula
The formula used to derive the line graphs is: the
count of individual response codes grouped by the
response code and protocol.
Chart Filters
This chart uses Time Range (Last 60 Minutes, Last
24 Hours, and Last 7 days), Delivery Server Group,
Delivery Server, Provider, and Delivery Service as
filters.
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
41
Home
Cache Hit Ratio by Protocol
Cache Hit Ratio by Protocol
The following table describes the chart within this scorecard:
Table 14: Cache Hit Ratio by Protocol Chart & Description
Chart
Description
Cache Hit Ratio by Protocol
Illustrates the cache hit ratio for each protocol, for
the specified time interval.
Chart Information
The information within this chart is shown in a line
graph with Date/Time along the X-axis and cache hit
ratio (%) along the Y-axis. The legends representing
the graph are protocols.
Chart Formula
The formula used to derive the graph is: the
percentage of cache hit over total requests grouped
by the protocol.
Chart Filters
This chart uses Time Range (Last 60 Minutes, Last
24 Hours, and Last 7 days), Delivery Server Group,
Delivery Server, Provider, and Delivery Service as
filters.
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
42
Home
ABR Session Bitrate by Protocol
ABR Session Bitrate by Protocol
The following table describes the chart within this scorecard:
Table 15: ABR Session Bitrate by Protocol Chart & Description
Chart
Description
ABR Session Bitrate by Protocol
Provides HSS (HTTP smooth streaming), HLS (HTTP
live streaming), HDS (HTTP Dynamic Streaming)
and MobiTV average bitrate (Kbps).
Click the Protocol drop-down list and select the
respective protocol to choose HSS, HLS, HDS, and
MobiTV.
Chart Information
The information within this chart is shown in a line
graph with Date/Time along the X-axis and
maximum, minimum, and average bitrate (Kbps)
along the Y-axis. The legends representing the graph
are maximum, minimum, and average.
Chart Formula
The formula used to derive the line graphs is:
calculate the maximum, minimum, and average of
bitrate, for the specified time interval.
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
43
Home
4xx Errors by Protocol
Chart
Description
Chart Filters
This chart uses Time Range (Last 60 Minutes, Last
24 Hours, and Last 7 days), Delivery Server Group,
Delivery Server, Provider, and Delivery Service as
filters.
4xx Errors by Protocol
The following table describes the chart within this scorecard:
Table 16: 4xx Errors by Protocol Chart & Description
Chart
Description
4xx Errors by Protocol
Illustrates the number of 4xx errors for each protocol,
for the specified time interval.
Chart Information
The information within this chart is shown in a
stacked area graph with the Date/Time along the
X-axis and the Error Count along the Y-axis. The
legends representing the graph are protocol types.
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
44
Home
Content
Chart
Description
Chart Formula
The formula used to derive the graphs is: the count
of 4xx errors in each protocol, for the specified time
interval.
Chart Filters
This chart uses Time Range (Last 60 Minutes, Last
24 Hours, and Last 7 days), Delivery Server Group,
Delivery Server, Provider, and Delivery Service as
filters.
Content
This tab displays charts that provides an overview of the top content, based on different dimensions such as
content by client request, bytes transferred, and average ABR session bitrate. By default, the data for the
previous day is displayed in the scorecard.
To access this tab, click Home > Content.
The following metrics are displayed here:
• Content by Client Request
• Content by Bytes Transferred
• Average ABR Session Bitrate by Content
• Top Content by Delivery Server
• Top Content by City
• Top Content by Client Type
Content by Client Request
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
45
Home
Content by Bytes Transferred
The following table describes the chart within this scorecard:
Table 17: Content by Client Request Chart & Description
Chart
Description
Content by Client Request
Illustrates the most/least popular content, based on
the number of client requests received.
Chart Information
The information within this chart is shown in a bar
graph with Count along the X-axis and Title along
the Y-axis.
Chart Formula
The formula used to derive the graph is the most/least
viewed content titles by client session count, per day.
Chart Filters
This chart uses Time Range (Previous day and Last
7 days), Delivery Server Group, Delivery Server,
Provider, Service Type (Live and VOD), Delivery
Service, Resolution (HD and SD), and Genre as
filters.
To view the top 10 content by client request and the bottom 10 content by client request, click the respective
radio buttons located above the chart.
Content by Bytes Transferred
The following table describes the chart within this scorecard:
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
46
Home
Average ABR Session Bitrate by Content
Table 18: Content by Bytes Transferred Chart & Description
Note
Chart
Description
Content by Bytes Transferred
Illustrates the most/least popular content, based on
the download size.
Chart Information
The information within this chart is shown in a bar
graph as MB along the X-axis and Title along the
Y-axis.
Chart Formula
The formula used to derive the graph is the most/least
viewed content titles by bytes transferred to clients,
per day.
Chart Filters
This chart uses Time Range (Previous day and Last
7 days), Delivery Server Group, Delivery Server,
Provider, Service Type (Live and VOD), Delivery
Service, Resolution (HD and SD), and Genre as
filters.
To view the top 10 content by bytes transferred and the bottom 10 content by bytes transferred, click the
respective radio buttons located above the chart.
Average ABR Session Bitrate by Content
The following table describes the information in the tabular column:
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
47
Home
Top Content by Delivery Server
Table 19: Average ABR Session Bitrate by Content Table & Description
Note
Table
Description
Average ABR Session Bitrate by Content
Illustrates the content delivered with highest/lowest
bitrate.
Table Information
The information within this table are Title and
Average Bitrate.
Formula
The formula used is: the top/bottom content title by
average bitrate.
Filters
This table uses Time Range (Previous day and Last
7 days), Delivery Server Group, Delivery Server,
Provider, Service Type (Live and VOD), Delivery
Service, Resolution (HD and SD), and Genre as
filters.
To view the top 10 average ABR session bitrate by content and the bottom 10 average ABR session bitrate
by content, click the respective radio buttons located above the table.
Top Content by Delivery Server
The following table describes the information in the tabular column:
Table 20: Top Content by Delivery Server Table & Description
Table
Description
Top Content by Delivery Server
Illustrates the most popular content served by each
delivery server.
Table Information
The information within this table are Delivery Server,
Title, and Count.
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
48
Home
Top Content by City
Table
Description
Formula
The formula used is: the top content title (based on
count) by delivery server.
Filters
This table uses Time Range (Previous day and Last
7 days), Delivery Server Group, Delivery Server,
Provider, Service Type (Live and VOD), Delivery
Service, Resolution (HD and SD), and Genre as
filters.
Top Content by City
The following table describes the information in the tabular column:
Table 21: Top Content by City Table & Description
Table
Description
Top Content by City
Illustrates the most popular content viewed in a city.
Table Information
The information within this table are City, Title, and
Count.
Formula
The formula used is: the top content title (based on
count) by city.
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
49
Home
Top Content by Client Type
Table
Description
Filters
This table uses Time Range (Previous day and Last
7 days), Delivery Server Group, Delivery Server,
Provider, Service Type (Live and VOD), Delivery
Service, Resolution (HD and SD), and Genre as
filters.
To view the list of viewers accessing ISP and Net Speed network, click the respective radio buttons located
above the chart.
Note
The city will be resolved only for public IPs. IPs which cannot be resolved by MaxMind will not be
displayed.
Top Content by Client Type
The following table describes the information in the tabular column:
Table 22: Top Content by Client Type Table & Description
Table
Description
Top Content by Client Type
Illustrates the most popular content viewed in each
client (players and browsers that is used to request
the content).
Table Information
The information within this table are Client Type,
Title, and Count.
Formula
The formula used is: the top content title (based on
count) by client type.
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
50
Home
Viewers
Table
Description
Filters
This table uses Time Range (Previous day and Last
7 days), Delivery Server Group, Delivery Server,
Provider, Service Type (Live and VOD), Delivery
Service, Resolution (HD and SD), and Genre as
filters.
Viewers
This tab displays charts that explains the viewer density, based on different parameters such as city, ISP, Net
speed, session duration, and download size. By default, the data for the previous day is displayed in the
scorecard.
To access this tab, choose Home > Viewers.
The following metrics are displayed here:
• Unique Viewers
• Viewers by Client Type
• Viewers by City
• Viewers by ISP and Net Speed
• Viewers by Download Size
• Viewers by Session Duration
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
51
Home
Unique Viewers
Unique Viewers
The following table describes the chart within this scorecard:
Table 23: Unique Viewers Chart & Description
Table
Description
Unique Viewers
Illustrates the number of unique viewers per day.
Chart Information
The information within this chart is shown in a
column graph with the Date/Time along the X-axis
and the unique viewer Count along the Y-axis.
Formula
The formula used to derive the graph is the total
unique viewer, per day.
Filters
This chart uses Time Range (Previous Day and Last
7 Days), Delivery Server Group, Delivery Server,
Provider, Delivery Service, and Media Format as
filters.
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
52
Home
Viewers by Client Type
Viewers by Client Type
The following table describes the information in the tabular column:
Table 24: Viewers by Client Type Table & Description
Table
Description
Viewers by Client Type
Illustrates the number of viewers accessing the
network through each client.
Table Information
The information within this table are Client Type and
Count.
Formula
The formula used is: unique viewer by client type and
request count.
Filters
This table uses Time Range (Previous Day and Last
7 Days), Delivery Server Group, Delivery Server,
Provider, Delivery Service, and Media Format as
filters.
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
53
Home
Viewers by City
Viewers by City
The following table describes the information in the tabular column:
Table 25: Viewers by City Table & Description
Table
Description
Viewers by City
Illustrates the number of viewers accessing the
network in each city.
Table Information
The information within this table are City and Count.
Note
Viewers by city count appears in descending
order of views.
The formula used is: the number of unique viewers
in each city.
Formula
Filters
Note
The city will be resolved only for public IPs. IPs which cannot be resolved by MaxMind will not be
displayed.
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
54
This table uses Time Range (Previous Day and Last
7 Days), Delivery Server Group, Delivery Server,
Provider, Delivery Service, and Media Format as
filters.
Home
Viewers by ISP and Net Speed
Viewers by ISP and Net Speed
The following table describes the information in the tabular column:
Table 26: Viewers by ISP and Net Speed Table & Description
Table
Description
Viewers by ISP and Net Speed
Illustrates the number of viewers accessing the
network, grouped by Internet Service Provider (ISP)
or Net Speed.
Table Information
The information within this table are ISP or Net Speed
and Count.
The ISP and Net Speed count appear in
descending order of views.
The formula used is: the number of unique viewers
grouped by client ISP or Net Speed.
Note
Formula
Filters
This table uses Time Range (Previous Day and Last
7 Days), Delivery Server Group, Delivery Server,
Provider, Delivery Service, and Media Format as
filters.
To view the list of viewers accessing ISP and Net Speed network, click the respective radio buttons located
above the table.
Note
Other than public IPs, "unknown" value will be displayed.
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
55
Home
Viewers by Download Size
Viewers by Download Size
The following table describes the information in the tabular column:
Table 27: Viewers by Download Size Table & Description
Table
Description
Viewers by Download Size
Illustrates the number of viewers, based on the
download size.
Table Information
The information within this table are Download Size
and Count.
Formula
The formula used is: the number of viewers bucketed
by the download size in MB.
Filters
This table uses Time Range (Previous Day and Last
7 Days), Delivery Server Group, Delivery Server,
Provider, Delivery Service, and Media Format as
filters.
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
56
Home
Viewers by Session Duration
Viewers by Session Duration
The following table describes the information in the tabular column:
Table 28: Viewers by Session Duration Table & Description
Table
Description
Viewers by Session Duration
Illustrates the number of viewers, based on session
duration.
Table Information
The information within this table are Average Session
Duration (minutes) and Count.
Formula
The formula used is: the number of unique viewers
bucketed by the average session duration.
Filters
This table uses Time Range (Previous Day and Last
7 Days), Delivery Server Group, Delivery Server,
Provider, Delivery Service, and Media Format as
filters.
Content Origin
In VDS-IS, the ingest transaction logs are used to log details of every request sent to the upstream SEs and
origin servers. The Content Origin scorecard contains the metrics derived from the ingest transaction logs.
These metrics provide insights into the interactions between Content Acquirers and Origin Servers.
To access this tab, click Home > Content Origin.
The following metrics are displayed here:
• Ingest Requests
• Origin/Ingest Volume
• Bytes Read by Protocol
• Download Speed
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
57
Home
Enabling Ingest Transaction Log
• Ingest Response Codes
• Origin Server Failures
Enabling Ingest Transaction Log
Content Origin charts will be displayed only when the Ingest transaction log is forwarded from VDS-IS to
VDS-SM. To enable and export Ingest transaction log, perform the following steps:
Note
You can perform the below steps only if you have installed VDS-IS version that supports Ingest log
functionality.
Step 1
Step 2
Login to the CDSM UI.
Click Devices and select the required Service Engine.
Step 3
In the right pane, choose Service Control > Transaction Logging.
Step 4
From Monitors table, check the WMT Ingest and Web Engine Ingest check box.
Step 5
Click Submit.
Ingest Requests
The following table describes the chart within this dashlet:
Table 29: Ingest Requests Chart & Description
Chart
Description
Ingest Requests
Illustrates the total number of requests (cache miss
and revalidation) sent to origin server(s), for the
specified time interval..
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
58
Home
Origin/Ingest Volume
Note
Chart
Description
Chart Information
The information within this chart is shown in a
column graph with Date/Time along the X-axis and
ingest request Count along the Y-axis.
Formula
The formula used to derive the graph is: Count of
ingest requests from the content acquirer for the given
time frame.
Chart Filters
This chart uses Time Range, Origin Server, and
Content Acquirer as filters.
Revalidation-Request field is not applicable to WMT ingest logs.
Origin/Ingest Volume
The following table describes the chart within this scorecard:
Table 30: Origin/Ingest Volume Chart & Description
Chart
Description
Origin/Ingest Volume
Illustrates the comparison between Origin and Edge
Volume, for the specified time interval. Origin
Volume is the bytes read from the Origin Server(s).
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
59
Home
Bytes Read by Protocol
Chart
Description
Chart Information
The information within this chart is a line graph with
Date/Time along the X-axis and the Origin and Edge
Volume in GB along the Y-axis.
Chart Formula
The formulae used to derive the graph are:
Origin—Total bytes read from Origin Server(s).
Edge—Total bytes delivered from edge SEs.
Chart Filters
This chart uses Time Range, Origin Server, and
Content Acquirer as filters.
Note
The Edge is unaffected by Origin Server and
Content Acquirer filters.
Bytes Read by Protocol
The following table describes the chart within this dashlet:
Table 31: Bytes Read by Protocol Chart & Description
Chart
Description
Bytes Read by Protocol
Illustrates the total bytes read from Origin Server(s)
by traffic type, for the specified time interval.
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
60
Home
Download Speed
Chart
Description
Chart Information
The information within this chart is shown in a
stacked area graph with Date/Time along the X-axis
and bytes read in GB along the Y-axis. The legends
representing the graph are protocols.
Formula
The formula used to derive the graph is: Total bytes
read from Origin Server(s) split by traffic type.
Chart Filters
This chart uses Time Range, Origin Server, and
Content Acquirer as filters.
Download Speed
The following table describes the information in the tabular column:
Table 32: Download Speed Table & Description
Table
Description
Download Speed
Illustrates the number of data ingests based on the
download speed, for the specified time interval.
Table Information
The information within this table are Download Speed
(MB/s) and Count.
Formula
The formula used is: Number of ingests based on the
download speed.
Filters
This table uses Time Range, Origin Server, and
Content Acquirer as filters.
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
61
Home
Ingest Response Codes
Ingest Response Codes
The following table describes the chart within this dashlet:
Table 33: Ingest Response Codes Chart & Description
Chart
Description
Ingest Response Codes
Illustrates the ingest response by status codes, for the
specified time interval.
Chart Information
The information within this chart is shown in a bar
graph with response Count along the X-axis and
Protocol type along the Y-axis. The legends
representing the graph are status codes.
Formula
The formula used to derive the graph is: Count of
ingest requests by status codes.
Chart Filters
This chart uses Time Range, Origin Server, and
Content Acquirer as filters.
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
62
Home
Origin Server Failures
Origin Server Failures
The following table describes the chart within this dashlet:
Table 34: Origin Server Failures Chart & Description
Chart
Description
Origin Server Failures
Illustrates the count of ingest requests that failed due
to single server and all server, for the specified time
interval.
Chart Information
The information within this chart is shown in a
stacked area graph with Data/Time along the X-axis
and Count of all server and single server failures along
the Y-axis. The legends representing the graph are
All Server Failures and Single Server Failures.
Formula
The formulae used to derive the graph are:
Single Server Failures—Count of Server Failures
encountered while processing ingest requests.
All Server Failures—Origin Server(s) with backup
server(s) - All Origin Servers(s) failed.
Chart Filters
This chart uses Time Range, and Content Acquirer
as filters.
Note
This chart is unaffected by Origin Server
filter.
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
63
Home
Origin Server Failures
Note
FailoverAction field is not applicable to WMT ingest logs.
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
64
CHAPTER
4
Analytics
• Analytics Overview, page 65
Analytics Overview
This section provides an overview of the VDS-SM Analytics, which provides the ability to view and analyze
data that are collected about trends, reports, content, and sessions in textual and graphical form.
Data is pushed from various streaming devices to the Splunk Universal Forwarder, and then to the VDS-SM.
The data available is used to provide a multitude of historical search capabilities. Data is gathered using
predefined indexing metrics, designed to provide data that is monitored by service provider operators. The
data output is viewed in the form of a dashlet.
Analyze Metrics with Pivoting
This feature allows the CDN Operators to analyze the data at a granular level. The difference between the
Analyze data option on individual charts and generic pivoting is that, in pivoting, you need to select an option
to start the analysis. You can analyze the data for the following:
• Bandwidth Delivered
• Cache Efficiency
• Concurrent Active Sessions
• GigaBytes Delivered
• Requests
• Response Codes
• Storage Usage
• Viewers
You can view the data in the following ways:
• On clicking the Both tab, the data will be displayed, in a tabular column and chart.
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
65
Analytics
Analyze Metrics with Pivoting
• On clicking the Table tab, the data will be displayed in a tabular column.
• On clicking the Chart tab, the data will be displayed in a chart/graph.
You can view the same data in different charts and stack modes. For this, click the Chart type and Stack
mode drop-down lists respectively, and choose the required chart and stack mode. The different chart types
are column, bar, line, area, and pie. The different types of stack modes are stacked, none, and 100% stacked.
Note
When you choose an option other than Time in the over drop-down list and choose none in the split by
drop-down list, additional drop-down lists such as top/bottom and the number of results to be plotted are
displayed.
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
66
Analytics
Trends
To further enhance the analysis, three more dimensions namely Session Duration,Bytes Delivered, and City
are added to the Viewers Category under the over and split by drop-down lists in Cisco VDS-SM Release
3.3.
Note
We have assumed that the users are aware of selecting the relevant dimensions in both the drop-down lists
to view the desired result.
To access this feature, perform the following steps:
Step 1
Choose Analytics > Analyze Metrics with Pivoting.
Step 2
From the Pivot on: drop-down list, choose the category for which you need to analyze the data.
Step 3
From the Analyze, of, over, and split by drop-down lists, choose the required options.
Note
Make sure that you choose different options from over and split by drop-down
lists.
Trends
This feature allows you to view the historical data (more than 7 days), in a graph and tabular column. VDS-SM
Analytics gather historical data from different perspectives, such as the following:
• Network
• Streaming
• Viewers
• Content
• Content Origin
• Billing
When you click each of these categories, the respective subcategories are expanded. On further expanding
the subcategories, the respective dashlets are listed.
When each of these dashlets are selected, the corresponding charts and data (in a tabular column) are displayed
on the right pane. When you click View results option below the charts, the log information corresponding
to the dashlet is displayed.
Note
In the search field, which is located in the left pane, enter the dashlet name or part of the dashlet name as
a search string. This will display the receptive dashlet names.
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
67
Analytics
Trends
Network
Network trends dashboard provides an historical information on volume, caching, request, and response of
the managed CDN network.
To access this feature, perform the following:
1. From the main page, choose Analytics > Trends.
2. From the tree view, which appears in the left pane, select Network.
The following subcategories are displayed in Network:
• Volume
• Caching
• Request
• Response
Volume
This category includes data and charts for Throughput, Volume of Data Delivered, Delivery Services by Bytes
Delivered, Origin/Ingest Volume, Average Download Speed, and Predict Throughput.
Throughput
For details, see Throughput , on page 33
Note
This chart is available to the Wholesale users and CDN Operators.
Volume of Data Delivered
For details, see Volume Delivered by Protocol , on page 39
Note
This chart is available to the Wholesale users and CDN Operators.
Delivery Services by Bytes Delivered
The following table describes the chart within this dashlet:
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
68
Analytics
Trends
Table 35: Delivery Services by Bytes Delivered Chart & Description
Chart
Description
Delivery Services by Bytes Delivered
Illustrates the top delivery services, based on the
content delivered, for the specified time interval.
Chart Information
The information within this chart is a bar graph with
the bytes delivered in GB along the X-axis and
Delivery Service along the Y-axis.
Formula
The formula used to derive the graph is: Top 'n'
delivery services by total bytes delivered.
Chart Filters
This chart uses Delivery Server Group, Delivery
Server, Provider, Delivery Service, and the Time
Range Picker as filters.
Availability
This chart is available only to the CDN Operators.
You can also view the top delivery services, such as top 10 and top 20, by clicking the Sorting Criteria
drop-down list.
Origin/Ingest Volume
For details, see Origin/Ingest Volume, on page 59
Note
This chart is available only to the CDN Operators.
Average Download Speed
The following table describes the chart within this dashlet:
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
69
Analytics
Trends
Table 36: Average Download Speed Chart & Description
Chart
Description
Average Download Speed
Illustrates the average download speed of the content
providers, for the specified time interval.
Chart Information
The information within this chart is a line graph with
Date/Time along the X-axis and average download
speed in KB\s along the Y-axis. The legends
representing the graph are Content Providers.
Formula
The formula used to calculate average download
speed is:
1 Dividing total bytes delivered by total time to
serve.
2 Drop the lowest 15% of the download speeds and
then calculate the average per Content Provider.
Chart Filters
This chart uses Content Provider, and Time Range
Picker as filters.
Availability
This chart is available only to the CDN Operators.
Predict Throughput
The following table describes Predict Throughput - Seasonal chart within this dashlet:
Table 37: Predict Throughput - Seasonal Chart & Description
Chart
Description
Predict Throughput - Seasonal `
Illustrates the predicted bandwidth of the network
using the seasonal approach, for the specified time
interval.
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
70
Analytics
Trends
Chart
Description
Chart Information
The information within this chart is a line graph with
Date/Time along the X-axis and bandwidth in Gbps
along the Y-axis. The legends representing the graph
are Average Bandwidth, Ceiling, Floor, and Predicted
Bandwidth.
Formula
The formula used to derive the graph is: Take a series
of throughput numbers observed over time and then
apply Seasonal Local Level forecasting algorithm on
these previous throughput numbers.
Chart Filter
This chart uses Time Range Picker as filter.
Availability
This chart is available only to the CDN Operators.
The following table describes Predict Throughput - Trend chart within this dashlet:
Table 38: Predict Throughput - Trend Chart & Description
Chart
Description
Predict Throughput - Trend
Illustrates the predicted bandwidth of the network by
trend approach, for the specified time interval.
Chart Information
The information within this chart is a line graph with
Date/Time along the X-axis and bandwidth in Gbps
along the Y-axis. The legends representing the graph
are Average Bandwidth, Ceiling, Floor, and Predicted
Bandwidth.
Formula
The formula used to derive the graph is: Take a series
of throughput numbers observed over time and then
apply Local Level Trend forecasting algorithm on
these previous throughput numbers.
Chart Filter
This chart uses Time Range Picker as filter.
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
71
Analytics
Trends
Chart
Description
Availability
This chart is available only to the CDN Operators.
Caching
This category includes the data and charts for Cache Hit and Miss Rate by Request Count, % Cache Hit and
Miss, Storage Usage, and Cache Hit Ratio by Protocol.
Cache Hit and Miss Rate by Request Count
The following table describes the chart within this dashlet:
Table 39: Cache Hit and Miss Rate by Request Count Chart & Description
Chart
Description
Cache Hit and Miss Rate by Request Count
Illustrates the rate of cache hit and miss, for the
specified time interval.
Chart Information
The information within this chart is a line graph with
Date/Time along the X-axis and Requests per Second
along the Y-axis. The legends are Cache Hit and
Cache Miss.
Formula
The formula used to derive the graph is: the rate of
cache hit and cache miss requests per second.
Chart Filters
This chart uses Delivery Server Group, Delivery
Server, Provider, Delivery Service, and the Time
Range Picker as filters.
Availability
This chart is available to the Wholesale users and
CDN Operators.
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
72
Analytics
Trends
% Cache Hit and Miss
The following table describes the chart within this dashlet:
Table 40: % Cache Hit and Miss Chart & Description
Chart
Description
% Cache Hit and Miss
Illustrates the percentage of cache hits and cache miss,
based on the number of requests served and total bytes
delivered, for the specified time interval.
Chart Information
The information within this chart is a stacked area
graph with Date/Time along the X-axis and Cache
Hit and Cache Miss percentage along the Y-axis. The
legends are Cache Hit and Cache Miss.
Formula
The formula used to derive the requests served graph
is: percentage of cache hit and cache miss over total
requests.
The formula used to derive the bytes delivered graph
is: percentage of cache hit bytes and cache miss bytes
over total bytes delivered.
Chart Filters
This chart uses Delivery Server Group, Delivery
Server, Provider, Delivery Service, and the Time
Range Picker as filters.
Availability
This chart is available to the Wholesale users and
CDN Operators.
You can view the request served and bytes delivered by clicking the respective radio buttons.
Storage Usage
For details, see Storage Usage, on page 37
Note
This chart is available only to the CDN Operators.
Cache Hit Ratio by Protocol
For details, see Cache Hit Ratio by Protocol, on page 42
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
73
Analytics
Trends
Note
This chart is available only to the CDN Operators.
Request
This category includes data and charts for Request Rate, Total Requests and Errors, and Top Delivery Services
by Request Count.
Request Rate
The following table describes the chart within this dashlet:
Table 41: Request Rate Chart & Description
Chart
Description
Request Rate
Illustrates the number of requests per second, for the
specified time interval.
Chart Information
The information within this chart is a column graph
with Date/Time along the X-axis and Requests per
Second along the Y-axis.
Formula
The formula used to derive the graph is: the number
of requests per second.
Chart Filters
This chart uses Delivery Server Group, Delivery
Server, Provider, Delivery Service, and the Time
Range Picker as filters.
Availability
This chart is available to the Wholesale users and
CDN Operators.
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
74
Analytics
Trends
Total Requests and Errors
The following table describes the chart within this dashlet:
Table 42: Total Requests and Errors Chart & Description
Chart
Description
Total Requests and Errors
Illustrates the total requests and the number of errors
from the total requests, for the specified time interval.
Chart Information
The information within this chart is an area graph
with Date/Time along the X-axis and the
requests/error Count along the Y-axis. The legends
are Total Requests and Error Count.
Formula
The formula used to derive the graph is: the total
number of requests and errors (requests with status
codes 4xx or 5xx).
Chart Filters
This chart uses Delivery Server Group, Delivery
Server, Provider, Delivery Service, and the Time
Range Picker as filters.
Availability
This chart is available to the Wholesale users and
CDN Operators.
Top Delivery Services by Request Count
The following table describes the chart within this dashlet:
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
75
Analytics
Trends
Table 43: Top Delivery Services by Request Count Chart & Description
Chart
Description
Top Delivery Services by Request Count
Illustrates the top delivery services by request count,
for the specified time interval.
Chart Information
The information within this chart is a bar graph with
request count along the X-axis and the top Delivery
Services along the Y-axis.
Formula
The formula used to derive the graph is: the top 10
delivery services by the number of requests received
by them.
Chart Filters
This chart uses Delivery Server Group, Delivery
Server, Provider, Delivery Service, and the Time
Range Picker as filters.
Availability
This chart is available only to the CDN Operators.
Response
This category includes data and charts for Response Count by Status Codes, Response Codes by Delivery
Servers, Response Codes by Service Routers, Sorted Delivery Services by Client Errors on Delivery Servers,
4xx Error Rate on Delivery Servers, 4xx Error Rate on Service Routers, Total Rejections due to Quota Limits,
4xx Errors, Sorted Delivery Services by Client Errors on Service Routers, Response Codes by Protocol, and
4xx Errors by Protocol.
Response Count by Status Codes
For details, see Response Status Codes, on page 36
Note
This chart is available only to the CDN Operators.
Response Codes by Delivery Servers
The following table describes the chart within this dashlet:
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
76
Analytics
Trends
Table 44: Response Codes by Delivery Servers Chart & Description
Chart
Description
Response Codes by Delivery Servers
Illustrates the responses that are grouped by status
codes (such as success, client error, and server error:
status of a request), for a given delivery server.
Chart Information
The information within this chart is a stacked bar
graph with response Count along the X-axis and the
Delivery Server along the Y-axis. The legends are
the status codes.
Formula
The formula used to derive the graph is: the number
of responses grouped by the response codes for each
delivery server.
Chart Filters
This chart uses Delivery Server Group, Delivery
Server, Provider, Delivery Service, and the Time
Range Picker as filters.
Availability
This chart is available only to the CDN Operators.
Response Codes by Service Routers
The following table describes the chart within this dashlet:
Table 45: Response Codes by Service Routers Chart & Description
Chart
Description
Response Codes by Service Routers
Illustrates the responses that are grouped by status
codes (client and server errors), for a given service
router, for the specified time interval.
Chart Information
The information within this chart is a stacked area
graph with response code Count along the X-axis and
Service Router along the Y-axis.
Formula
The formula used to derive the graph is: the number
of responses grouped by the response codes for each
service router.
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
77
Analytics
Trends
Chart
Description
Chart Filters
This chart uses Service Router, Provider, Delivery
Service, and the Time Range Picker as filters.
Availability
This chart is available only to the CDN Operators.
Sorted Delivery Services by Client Errors on Delivery Servers
The following table describes the chart within this dashlet:
Table 46: Sorted Delivery Services by Client Errors on Delivery Servers Chart & Description
Chart
Description
Sorted Delivery Services by Client Errors on Delivery Illustrates the top 10 delivery services by client errors.
Servers
Chart Information
The information within this chart is a bar graph with
error Count along the X-axis and Delivery Service
along the Y-axis.
Formula
The formula used to derive the graph is: the top 10
delivery services by the number of 4xx errors.
Chart Filters
This chart uses Delivery Server Group, Delivery
Server, Provider, Delivery Service, and the Time
Range Picker as filters.
Availability
This chart is available only to the CDN Operators.
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
78
Analytics
Trends
4xx Error Rate on Delivery Servers
The following table describes the chart within this dashlet:
Table 47: 4xx Error Rate on Delivery Servers Chart & Description
Chart
Description
4xx Error Rate on Delivery Servers
Illustrates the number of 4xx errors per second for
each delivery server, for the specified time interval.
Chart Information
The information within this chart is a line graph with
Date/Time along the X-axis and 4xx Errors/Second
along the Y-axis. The legends are Delivery Servers.
Formula
The formula used to derive the graph is: the number
of errors per day for each delivery server.
Chart Filters
This chart uses Delivery Server Group, Delivery
Server, Provider, Delivery Service, and the Time
Range Picker as filters.
Availability
This chart is available only to the CDN Operators.
4xx Error Rate on Service Routers
The following table describes the chart within this dashlet:
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
79
Analytics
Trends
Table 48: 4xx Error Rate on Service Routers Chart & Description
Chart
Description
4xx Error Rate on Service Routers
Illustrates the number of 4xx errors per second for
each service router, for the specified time interval.
Chart Information
The information within this chart is a line graph with
Date/Time along the X-axis and Errors/Second along
the Y-axis. The legends are Service Routers.
Formula
The formula used to derive the graph is: the number
of errors per second for each service router.
Chart Filters
This chart uses Service Router, Provider, Delivery
Service, and the Time Range Picker as filters.
Availability
This chart is available only to the CDN Operators.
Total Rejections due to Quota Limits
The following table describes the chart within this dashlet:
Table 49: Total Rejections due to Quota Limits Chart & Description
Chart
Description
Total Rejections due to Quota Limits
Illustrates the number of sessions rejected due to
quota limits, for the specified time interval.
Chart Information
The information within this chart is a line graph with
Date/Time along the X-axis and Total Sessions and
Sessions Rejected along the Y-axis. The legends are
Total Sessions and Sessions Declined.
Formula
The formula used to derive the graph is: total requests
and requests with response code 453 or 499 plotted
over time.
Chart Filters
This chart uses Delivery Server Group, Delivery
Server, Provider, Delivery Service, and the Time
Range Picker as filters.
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
80
Analytics
Trends
Chart
Description
Availability
This chart is available to the Wholesale users and
CDN Operators.
4xx Errors
The following table describes the chart within this dashlet:
Table 50: 4xx Errors Chart & Description
Chart
Description
4xx Errors
Illustrates the number of 4xx errors for each delivery
service over a selected period of time.
Chart Information
The information within this chart is a line graph with
Date/Time along the X-axis and Count along the
Y-axis.
Formula
The formula used to derive the graph is: the number
of errors per day for each delivery service.
Chart Filters
This chart uses Provider, Delivery Service, and the
Time Range Picker as filters.
Availability
This chart is available only to the wholesale users.
Sorted Delivery Services by Client Errors on Service Routers
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
81
Analytics
Trends
The following table describes the chart within this dashlet:
Table 51: Sorted Delivery Services by Client Errors on Service Routers Chart & Description
Chart
Description
Sorted Delivery Services by Client Errors on Service Illustrates the top 10 delivery services by client errors
Routers
on service routers.
Chart Information
The information within this chart is a bar graph with
error Count along the X-axis and Delivery Services
along the Y-axis.
Formula
The formula used to derive the graph is: top 10
delivery services by the number of 4xx errors
occurring at the service router.
Chart Filters
This chart uses Service Router, Provider, Delivery
Service, and the Time Range Picker as filters.
Availability
This chart is available only to the CDN Operators.
Response Codes by Protocol
For details, see Response Codes by Protocol, on page 41
Note
This chart is available only to the CDN Operators.
4xx Errors by Protocol
For details, see 4xx Errors by Protocol, on page 44
Note
This chart is available only to the CDN Operators.
Streaming
Streaming trends dashboard provides an historical information on sessions and ABR of the managed CDN
network.
To access this feature, perform the following steps:
1 From the main page, choose Analytics > Trends.
2 From the tree view, which appears in the left pane, select Streaming.
The following subcategories are displayed in Streaming:
• Sessions
• ABR
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
82
Analytics
Trends
Sessions
This category includes data and charts for Concurrent Active Sessions, Total Sessions by Protocol, and Session
Download Size.
Concurrent Active Sessions
For details, see Concurrent Active Sessions, on page 34
Note
This chart is available only to the CDN Operators.
Total Sessions by Protocol
The following table describes the chart within this dashlet:
Table 52: Total Sessions by Protocol Chart & Description
Chart
Description
Total Sessions by Protocol
Illustrates the number of sessions by protocol, for the
specified time interval.
Chart Information
The information within this chart is a stacked area
graph with Date/Time along the X-axis and FMS,
HLS, HDS, HSS, PDL_WE, and WMS Count along
the Y-axis. The legends are FMS, HLS, HDS, HSS,
PDL_WE, and WMS.
Formula
The formula used to derive the graph is: number of
sessions grouped by protocol.
Chart Filters
This chart uses Delivery Server Group, Delivery
Server, Provider, Delivery Service, and the Time
Range Picker as filters.
Availability
This chart is available only to the CDN Operators.
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
83
Analytics
Trends
Session Download Size
The following table describes the chart within this dashlet:
Table 53: Session Download Size Chart & Description
Chart
Description
Session Download Size
Illustrates the maximum, minimum, and average bytes
delivered per session, for the specified time interval.
Chart Information
The information within this chart is a line graph with
Date/Time along the X-axis and the Maximum,
Minimum, and Average download size in MB along
the Y-axis. The legends are Maximum, Minimum,
and Average.
Formula
The formula used to derive the graph is: the
maximum, minimum, and average bytes delivered in
MB plotted over time.
Chart Filters
This chart uses Delivery Server Group, Delivery
Server, Provider, Delivery Service, and the Time
Range Picker as filters.
Availability
This chart is available only to the CDN Operators.
ABR
Bitrate
For details, see ABR Session Bitrate by Protocol, on page 43
Note
This chart is available only to the CDN Operators.
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
84
Analytics
Trends
Bitrate Oscillations
The following table describes the chart within this dashlet:
Table 54: Bitrate Oscillations Chart & Description
Chart
Description
Bitrate Oscillations
Illustrates the number of bitrate shifts for the specified
time interval.
Chart Information
The information within this chart is a line graph with
Date/Time along the X-axis and bitrate oscillation
Count along the Y-axis.
Formula
The formula used to derive the graph is: bitrate shifts
over time.
Chart Filters
This chart uses Delivery Server Group, Delivery
Server, Provider, Delivery Service, and the Time
Range Picker as filters.
Availability
This chart is available only to the CDN Operators.
Total Requests
The following table describes the chart within this dashlet:
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
85
Analytics
Trends
Table 55: Total Requests Chart & Description
Chart
Description
Total Requests
Illustrates the number of requests by traffic type (only
ABR), for the specified time interval.
Chart Information
The information within this chart is a stacked area
graph with Date/Time along the X-axis and the total
request Count along the Y-axis. The legends are HLS,
HDS, MobiTV, and HSS.
Formula
The formula used to derive the graph is: the number
of requests per ABR protocol.
Chart Filters
This chart uses Delivery Server Group, Delivery
Server, Provider, Delivery Service, and the Time
Range Picker as filters.
Availability
This chart is available only to the CDN Operators.
Request Rate
The following table describes the chart within this dashlet:
Table 56: Request Rate Chart & Description
Chart
Description
Request Rate
Illustrates the number of requests per second for each
traffic type (HLS, HDS, HSS and MobiTV), for the
specified time interval.
Chart Information
The information within this chart is a line graph with
Date/Time along the X-axis and the Requests per
Second along the Y-axis. The legends are HLS, HDS,
HSS, and MobiTV.
Formula
The formula used to derive the graph is: the number
of requests per second for each traffic type of ABR
protocol.
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
86
Analytics
Trends
Chart
Description
Chart Filters
This chart uses Delivery Server Group, Delivery
Server, Provider, Delivery Service, and the Time
Range Picker as filters.
Availability
This chart is available only to the CDN Operators.
MobiTV Client Log Analysis
The following table describes the chart within this dashlet:
Table 57: MobiTV Client Log Analysis Chart & Description
Chart
Description
MobiTV Client Log Analysis
Illustrates the number of MobiTV client log events
per category, for the specified time interval.
Chart Information
The information within this chart is a column graph
with Date/Time along the X-axis and the MobiTV
client event Count along the Y-axis. The legends are
MobiTV Client events.
Formula
The formula used to derive the graph is: the number
of events for the specified event category split by
events over time.
Chart Filters
This chart uses Event Type Categories and Time
Range Picker as filters.
Availability
This chart is available only to the CDN Operators.
Viewers
Viewers trends dashboard provides an historical information on the number of unique viewers, viewers by
client type, viewer density by location, top viewers, viewers by session duration, viewers by ISP and Net
speed, viewers by protocol, and viewers by download size on the managed CDN network.
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
87
Analytics
Trends
To access this feature, perform the following:
1. From the main page, choose Analytics > Trends.
2. From the tree view, which appears in the left hand pane, select Viewers.
Number of Unique Viewers
For details, see Unique Viewers, on page 52
Note
This chart is available to the Wholesale users and CDN Operators.
Viewers by Client Type
For details, see Viewers by Client Type, on page 53
Note
This chart is available to the Wholesale users and CDN Operators.
Viewer Density by Location
The following table describes the chart within this dashlet:
Table 58: Viewer Density by Location Chart & Description
Chart
Description
Viewer Density by Location
Illustrates the viewer density per city, for a specified
time interval.
Chart Information
The information within this table are City and Count.
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
88
Analytics
Trends
Chart
Description
Formula
The formula used to derive the table is: number of
viewers in each city.
Chart Filters
This table uses Delivery Server Group, Delivery
Server, Provider, Delivery Service, and the Time
Range Picker as filters.
Availability
This table is available to the Wholesale users and
CDN Operators.
Top Viewers
The following table describes the chart within this dashlet:
Table 59: Top Viewers Chart & Description
Chart
Description
Top Viewers
Illustrates the top viewers by total bytes delivered and
request count, for a specified time interval.
Chart Information
The information within this chart is a bar graph with
the Request Count/Bytes Delivered along the X- axis
and Client IP address along the Y-axis.
Formula
The formula used to derive the graph is: top 'n'
viewers of requests and bytes delivered.
Chart Filters
This chart uses Delivery Server Group, Delivery
Server, Provider, Delivery Service, and the Time
Range Picker as filters.
Availability
This chart is available to the Wholesale users and
CDN Operators.
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
89
Analytics
Trends
You can view the top viewers, such as top 10 and top 20, by choosing the respective options from the Sorting
Criteria drop-down list. You can also view the request count and bytes delivered by clicking the respective
radio buttons.
Viewers by Session Duration
For details, see Viewers by Session Duration, on page 57
Note
This chart is available to the Wholesale users and CDN Operators.
Viewers by ISP, Net Speed
For details, see Viewers by ISP and Net Speed, on page 55
Note
This chart is available to the Wholesale users and CDN Operators.
Viewers by Protocol
The following table describes the chart within this dashlet:
Table 60: Viewers by Protocol Chart & Description
Chart
Description
Viewers by Protocol
Illustrates the number of viewers per protocol, for the
specified time interval.
Chart Information
The information within this chart is a column graph
with Protocol along the X-axis and viewer Count
along the Y-axis.
Formula
The formula used to derive the graph is: number of
viewers grouped by protocol.
Chart Filters
This chart uses Delivery Server Group, Delivery
Server, Provider, Delivery Service, and the Time
Range Picker as filters.
Availability
This chart is available to the Wholesale users and
CDN Operators.
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
90
Analytics
Trends
Viewers by Download Size
For details, see Viewers by Download Size, on page 56
Note
This chart is available to the Wholesale users and CDN Operators.
Content
Content trends dashboard provides an historical information on content by client requests, content by bytes
transferred, top content by delivery server, average ABR session bitrate by content, top content by city, and
top content by client type on the managed CDN network.
To access this feature, perform the following:
1. From the main page, choose Analytics > Trends.
2. From the tree view, which appears in the left pane, select Content.
Content by Client Requests
For details, see Content by Client Request, on page 45
Note
This chart is available to the Wholesale users and CDN Operators.
Content by Bytes Transferred
For details, see Content by Bytes Transferred, on page 46
Note
This chart is available to the Wholesale users and CDN Operators.
Top Content by Delivery Server
For details, see Top Content by Delivery Server, on page 48
Note
This chart is available only to the CDN Operators.
Average ABR Session Bitrate by Content
For details, see Average ABR Session Bitrate by Content, on page 47
Note
This chart is available only to the CDN Operators.
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
91
Analytics
Trends
Top Content by City
For details, see Top Content by City, on page 49
Note
This chart is available to the Wholesale users and CDN Operators.
Top Content by Client Type
For details, see Top Content by Client Type, on page 50
Note
This chart is available to the Wholesale users and CDN Operators.
Content Origin
Content Origin trends dashboard provides historical information on ingest requests, bytes read, download
speed, ingest response codes, and origin server failures on the managed CDN network.
To access this feature, perform the following:
1. From the main page, choose Analytics > Trends.
2. From the tree view, which appears in the left pane, select Content Origin.
Note
Content Origin charts will be displayed only when the Ingest transaction log is forwarded from VDS-IS
to VDS-SM.
Ingest Requests
For details, see Ingest Requests, on page 58
Note
This chart is available only to the CDN Operators.
Bytes Read
For details, see Bytes Read by Protocol, on page 60
Note
This chart is available only to the CDN Operators.
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
92
Analytics
Trends
Download Speed
The following table describes the chart within this dashlet:
Table 61: Download Speed Chart & Description
Chart
Description
Download Speed
Illustrates the download speed of data ingest, for the
specified time interval.
Chart Information
The information within this chart is shown in a line
graph with Date/Time along the X-axis and the
download speed in MB/s along the Y-axis.
Formula
The formula used to derive the graph is: Total bytes
read by total download duration with respect to time
intervals.
Chart Filters
This chart uses Origin Server, Content Acquirer, and
Time Range picker as filters.
Availability
This chart is available only to the CDN Operators.
Ingest Response Codes
For details, see Ingest Response Codes, on page 62
Note
This chart is available only to the CDN Operators.
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
93
Analytics
Trends
Origin Server Failures
For details, see Origin Server Failures, on page 63
Note
This chart is available only to the CDN Operators.
Billing
Billing trends dashboard provides an historical information on 95/5 billing and Pay Go Billing on the managed
CDN network.
To access this feature, perform the following:
1. From the main page, choose Analytics > Trends.
2. From the tree view, which appears in the left hand pane, select Billing.
95/5 Billing
The following table describes the chart within this dashlet:
Table 62: 95/5 Billing Chart & Description
Chart
Description
95/5 Billing
Illustrates the billing data of previous months, which
uses the 95/5 billing method.
Chart Information
The information within this chart is an area graph
with Date/Time along the X-axis and Bandwidth in
Mbps along Y-axis.
Formula
The formula used to derive this is: The average
bandwidth from SR Snapshot log by hour. The red
line is the 95/5 high bandwidth within the whole
month.
Chart Filters
This chart uses Month and Delivery Service as filters.
Availability
This chart is available only to the CDN Operators.
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
94
Analytics
Trends
Billing Functionalities
By default, billing will be automatically generated daily at 21:30. It creates the billing csv file (detail, summary)
for the delivery services in the delivery_service_topology.csv file, which has the billing item.
The path to view the billing.csv is:
Go to LWF node and navigate to /home/bnisplunk/data/billing
Running billing manually
To run the billing manually, perform the following steps:
1 Login to the JS node and navigate to opt/splunk/etc/apps/CDN_JS/bin
2 In the above path, run ./hourlyDataCheck.sh -F YYYYMMDD (replace the date for which hourlyDataCheck
needs to be executed).
The above mentioned script, marks the status as FIXED for every hour of that date in the
"cdn_billing_session" index, which means there are NO missing logs.
To verify this, perform the following steps:
a) Login to JS node and navigate to /opt/splunk/bin
b) Run ./splunk search 'index=cdn_billing_session | table Status,TimeId.
c) Enter the username and password; Username: admin and Password: Beaumaris1
d) Check the status by verifying that the record is "FIXED YYYYMMDD". This implies that it is in FIXED
status for all 24 hours in date YYYYMMDD.
3 In the path mentioned in step 1, run nohup ./repeatCheck.sh -F YYYYMMDD & (replace the date for which
repeatCheck needs to be executed).
This will mark the status as FORCED for every hour of that date in the "cdn_billing_session" index. Also,
an "INDEXED" record for that day is created. This implies that all the logs of that date are indexed. You
can verify this by performing the following steps:
a) Login to the JS node and navigate to /opt/splunk/bin
b) Run ./splunk search 'index=cdn_billing_session | table Status,TimeId'
c) Enter the username and password; Username: admin and Password: Beaumaris1
d) Check the status by verifying that the record is "INDEXED YYYYMMDD. This implies that the date
YYYYMMDD is already indexed.
4 Login to the LWF node and navigate to opt/splunkforwarder/etc/apps/Billing/bin and run ./billing.sh. The
billing files will be generated under the dir "/home/bnisplunk/data/billing".
a) Login to the JS node and navigate to /opt/splunk/bin
b) Run ./splunk search 'index=cdn_billing_session | table Status,TimeId.
c) Enter the username and password; Username: admin and Password: Beaumaris1
d) Check the status by verifying that the record is "BILLED YYYYMMDD". This implies that billing
records have been generated for the date YYYYMMDD.
The generated CSV files will have the following fields:
Detailed csv
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
95
Analytics
Reports
Delivery_Service:<Delivery Service Name> FQDN:<fqdn> provider:<Provider Name> reseller:<Reseller
Name> StartTime,EndTime,ClientIP,ServerIP,URL,MB_Bytes_Delivered,error_code
Summary csv
Date,Total_GB_Bytes_Delivered,Total_Session_Declined_due_to_quota_limits,Total_Sessions_Delivered
Pay Go Billing
The following table describes the chart within this dashlet:
Table 63: Pay Go Billing Chart & Description
Chart
Description
Pay Go Billing
Illustrates the volume delivered, which is calculated
based on the pay as you go method of billing.
Chart Information
The information within this chart is a column graph
with Date/Time along the X-axis and volume
delivered in GB along the Y-axis.
Formula
The formula used to derive this chart is: flat traffic
volume is computed as trapezoid area over flat
throughput in a five minute slot.
Chart Filters
This chart uses Delivery Service, Time Range Picker,
and Span (5 minutes, 1 hour, 1 day) as filters.
Availability
This chart is available only to the CDN Operators.
Reports
This feature allows you to view the daily, weekly, and monthly reports for CDN traffic, traffic summary by
delivery servers, traffic summary by delivery services, delivery server traffic, delivery service traffic, all assets
- video, and all assets - non-video.
To access this feature, from the main page, choose Analytics > Reports.
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
96
Analytics
Reports
Daily
To view the daily reports, select Daily from the Reports main page.
CDN Traffic [5 min Intervals]
Table 64: CDN Traffic [5 min Intervals] Table & Description
Table
Description
CDN Traffic [5 min Intervals]
Illustrates CDN Traffic for the past day in 5 minute
intervals.
Table Information
The information within this table is: _time, peak
bandwidth, mean bandwidth, bandwidth peak mean
ratio, 95%ile bandwidth, total GB delivered, total GB
ingested, cache hits, cache misses, cache hit ratio,
mean sessions, peak sessions, sessions peak mean
ratio, 95%ile sessions, total requests, successful
requests, unsuccessful requests, 4xx errors, 5xx errors,
success %.
Traffic Summary by Delivery Servers
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
97
Analytics
Reports
Table 65: Traffic Summary by Delivery Servers Table & Description
Table
Description
Traffic Summary by Delivery Servers
Illustrates the traffic summary for the past day for
each delivery server.
Information
The information within this table is: delivery server,
peak bandwidth, mean bandwidth, bandwidth peak
mean ratio, 95%ile bandwidth, total GB delivered,
total GB ingested, cache hits, cache misses, cache hit
ratio, mean sessions, peak sessions, sessions peak
mean ratio, 95%ile sessions, total requests, successful
requests, unsuccessful requests, 4xx errors, 5xx errors,
success %.
Traffic Summary by Delivery Services
Table 66: Traffic Summary by Delivery Services Table & Description
Table
Description
Traffic Summary by Delivery Services
Illustrates the traffic summary for the past day for
each delivery service.
Information
The information within this table is: delivery service,
peak bandwidth, mean bandwidth, bandwidth peak
mean ratio, 95%ile bandwidth, total GB delivered,
total GB ingested, cache hits, cache misses, cache hit
ratio, mean sessions, peak sessions, sessions peak
mean ratio, 95%ile sessions, total requests, successful
requests, unsuccessful requests, 4xx errors, 5xx errors,
success %.
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
98
Analytics
Reports
Delivery Server Traffic [5 min Intervals]
Table 67: Delivery Server Traffic [5 min Intervals] Table & Description
Table
Description
Delivery Server Traffic [5 min Intervals]
Illustrates the delivery server traffic details for a
selected delivery server in 5 minute intervals
Information
The information within this table is: _time, peak
bandwidth, mean bandwidth, bandwidth peak mean
ratio, 95%ile bandwidth, total GB delivered, total GB
ingested, cache hits, cache misses, cache hit ratio,
mean sessions, peak sessions, sessions peak mean
ratio, 95%ile sessions, total requests, successful
requests, unsuccessful requests, 4xx errors, 5xx errors,
success %.
Choose the required delivery server from the Delivery Server drop-down list located above the chart.
Delivery Service Traffic [5 min Intervals]
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
99
Analytics
Reports
Table 68: Delivery Service Traffic [5 min Intervals] Table & Description
Table
Description
Delivery Service Traffic [5 min Intervals]
Illustrates the delivery service traffic details for a
selected delivery service in 5 minute intervals.
Information
The information within this table is: _time, peak
bandwidth, mean bandwidth, bandwidth peak mean
ratio, 95%ile bandwidth, total GB delivered, total GB
ingested, cache hits, cache misses, cache hit ratio,
mean sessions, peak sessions, sessions peak mean
ratio, 95%ile sessions, total requests, successful
requests, unsuccessful requests, 4xx errors, 5xx errors,
success %.
Choose the required delivery service from the Delivery Service drop-down list located above the chart.
All Assets - Video
Table 69: All Assets - Video Table & Description
Table
Description
All Assets - Video
Illustrates various metrics for video assets for the past
day.
Information
The information within this table is: URL, Plays,
UniqueUsers, Bytes, Minutes, MinutesPerPlay,
MinutesPerUser, and PlaysPerUser.
Choose the required delivery service from the Delivery Service drop-down list located above the chart.
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
100
Analytics
Reports
All Assets - Non-Video
Table 70: All Assets - Non-Video Table & Description
Table
Description
All Assets - Non-Video
Illustrates various metrics for non-video assets for
the past day.
Information
The information within this table is: URL, Bytes,
Requests, and UniqueUsers.
Choose the required delivery service from the Delivery Service drop-down list located above the chart.
Weekly
To view the daily reports, select Weekly from the Reports main page.
CDN Traffic [1 hour Intervals]
Table 71: CDN Traffic [1 hour Intervals] Table & Description
Table
Description
CDN Traffic [1 hour Intervals]
Illustrates CDN Traffic for the past week in 1 hour
intervals.
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
101
Analytics
Reports
Table
Description
Information
The information within this table is: _time, peak
bandwidth, mean bandwidth, bandwidth peak mean
ratio, 95%ile bandwidth, total GB delivered, total GB
ingested, cache hits, cache misses, cache hit ratio,
mean sessions, peak sessions, sessions peak mean
ratio, 95%ile sessions, total requests, successful
requests, unsuccessful requests, 4xx errors, 5xx errors,
success %.
Traffic Summary by Delivery Servers
Table 72: Traffic Summary by Delivery Servers Table & Description
Table
Description
Traffic Summary by Delivery Servers
Illustrates the traffic summary for the past week for
each delivery server.
Information
The information within this table is: delivery server,
peak bandwidth, mean bandwidth, bandwidth peak
mean ratio, 95%ile bandwidth, total GB delivered,
total GB ingested, cache hits, cache misses, cache hit
ratio, mean sessions, peak sessions, sessions peak
mean ratio, 95%ile sessions, total requests, successful
requests, unsuccessful requests, 4xx errors, 5xx errors,
success %.
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
102
Analytics
Reports
Traffic Summary by Delivery Services
Table 73: Traffic Summary by Delivery Services Table & Description
Chart
Description
Traffic Summary by Delivery Services
Illustrates the traffic summary for the past week for
each delivery service.
Information
The information within this table is: delivery service,
peak bandwidth, mean bandwidth, bandwidth peak
mean ratio, 95%ile bandwidth, total GB delivered,
total GB ingested, cache hits, cache misses, cache hit
ratio, mean sessions, peak sessions, sessions peak
mean ratio, 95%ile sessions, total requests, successful
requests, unsuccessful requests, 4xx errors, 5xx errors,
success %.
Delivery Server Traffic [1 hour Intervals]
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
103
Analytics
Reports
Table 74: Delivery Server Traffic [1 hour Intervals] Table & Description
Table
Description
Delivery Server Traffic [1 hour Intervals]
Illustrates the delivery server traffic details for a
selected delivery server in 1 hour intervals
Information
The information within this table is: _time, peak
bandwidth, mean bandwidth, bandwidth peak mean
ratio, 95%ile bandwidth, total GB delivered, total GB
ingested, cache hits, cache misses, cache hit ratio,
mean sessions, peak sessions, sessions peak mean
ratio, 95%ile sessions, total requests, successful
requests, unsuccessful requests, 4xx errors, 5xx errors,
success %.
Choose the required delivery server from the Delivery Server drop-down list located above the chart.
Delivery Service Traffic [1 hour Intervals]
Table 75: Delivery Service Traffic [1 hour Intervals] Table & Description
Table
Description
Delivery Service Traffic [1 hour Intervals]
Illustrates the delivery service traffic details for a
selected delivery service in 1 hour intervals.
Information
The information within this table is: _time, peak
bandwidth, mean bandwidth, bandwidth peak mean
ratio, 95%ile bandwidth, total GB delivered, total GB
ingested, cache hits, cache misses, cache hit ratio,
mean sessions, peak sessions, sessions peak mean
ratio, 95%ile sessions, total requests, successful
requests, unsuccessful requests, 4xx errors, 5xx errors,
success %.
Choose the required delivery service from the Delivery Service drop-down list located above the chart.
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
104
Analytics
Reports
All Assets - Video
Table 76: All Assets - Video Table & Description
Table
Description
All Assets - Video
Illustrates various metrics for video assets for the past
week.
Information
The information within this table is: URL, Plays,
UniqueUsers, Bytes, Minutes, MinutesPerPlay,
MinutesPerUser, and PlaysPerUser.
Choose the required delivery service from the Delivery Service drop-down list located above the chart.
All Assets - Non-Video
Table 77: All Assets - Non-Video Table & Description
Table
Description
All Assets - Non-Video
Illustrates various metrics for non-video assets for
the past week.
Information
The information within this table is: URL, Bytes,
Requests, and UniqueUsers.
Choose the required delivery service from the Delivery Service drop-down list located above the chart.
Monthly
To view the daily reports, select Monthly from the Reports main page.
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
105
Analytics
Reports
CDN Traffic [1 day Intervals]
Table 78: CDN Traffic [1 day Intervals] Table & Description
Table
Description
CDN Traffic [1 hour Intervals]
Illustrates CDN Traffic for the past month in 1 day
intervals.
Information
The information within this table is: _time, peak
bandwidth, mean bandwidth, bandwidth peak mean
ratio, 95%ile bandwidth, total GB delivered, total GB
ingested, cache hits, cache misses, cache hit ratio,
mean sessions, peak sessions, sessions peak mean
ratio, 95%ile sessions, total requests, successful
requests, unsuccessful requests, 4xx errors, 5xx errors,
success %.
Traffic Summary by Delivery Servers
Table 79: Traffic Summary by Delivery Servers Table & Description
Table
Description
Traffic Summary by Delivery Servers
Illustrates the traffic summary for the past month for
each delivery server.
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
106
Analytics
Reports
Table
Description
Information
The information within this table is: delivery server,
peak bandwidth, mean bandwidth, bandwidth peak
mean ratio, 95%ile bandwidth, total GB delivered,
total GB ingested, cache hits, cache misses, cache hit
ratio, mean sessions, peak sessions, sessions peak
mean ratio, 95%ile sessions, total requests, successful
requests, unsuccessful requests, 4xx errors, 5xx errors,
success %.
Traffic Summary by Delivery Services
Table 80: Traffic Summary by Delivery Services Table & Description
Table
Description
Traffic Summary by Delivery Services
Illustrates the traffic summary for the past month for
each delivery service.
Information
The information within this table is: delivery service,
peak bandwidth, mean bandwidth, bandwidth peak
mean ratio, 95%ile bandwidth, total GB delivered,
total GB ingested, cache hits, cache misses, cache hit
ratio, mean sessions, peak sessions, sessions peak
mean ratio, 95%ile sessions, total requests, successful
requests, unsuccessful requests, 4xx errors, 5xx errors,
success %.
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
107
Analytics
Reports
Delivery Server Traffic [1 day Intervals]
Table 81: Delivery Server Traffic [1 day Intervals] Table & Description
Table
Description
Delivery Server Traffic [1 hour Intervals]
Illustrates the delivery server traffic details for a
selected delivery server in 1 day intervals
Information
The information within this table is: _time, peak
bandwidth, mean bandwidth, bandwidth peak mean
ratio, 95%ile bandwidth, total GB delivered, total GB
ingested, cache hits, cache misses, cache hit ratio,
mean sessions, peak sessions, sessions peak mean
ratio, 95%ile sessions, total requests, successful
requests, unsuccessful requests, 4xx errors, 5xx errors,
success %.
Choose the required delivery server from the Delivery Server drop-down located above the chart.
Delivery Service Traffic [1 day Intervals]
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
108
Analytics
Reports
Table 82: Delivery Service Traffic [1 day Intervals] Table & Description
Table
Description
Delivery Service Traffic [1 hour Intervals]
Illustrates the delivery service traffic details for a
selected delivery service in 1 day intervals.
Information
The information within this table is: _time, peak
bandwidth, mean bandwidth, bandwidth peak mean
ratio, 95%ile bandwidth, total GB delivered, total GB
ingested, cache hits, cache misses, cache hit ratio,
mean sessions, peak sessions, sessions peak mean
ratio, 95%ile sessions, total requests, successful
requests, unsuccessful requests, 4xx errors, 5xx errors,
success %.
Choose the required delivery service from the Delivery Service drop-down list located above the chart.
All Assets - Video
Table 83: All Assets - Video Table & Description
Table
Description
All Assets - Video
Illustrates various metrics for video assets for the past
month.
Information
The information within this table is: URL, Plays,
UniqueUsers, Bytes, Minutes, MinutesPerPlay,
MinutesPerUser, and PlaysPerUser.
Choose the required delivery service from the Delivery Service drop-down list located above the chart.
All Assets - Non-Video
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
109
Analytics
Custom Searches and Reports
Table 84: All Assets - Non-Video Table & Description
Table
Description
All Assets - Non-Video
Illustrates various metrics for non-video assets for
the past month.
Information
The information within this table is: URL, Bytes,
Requests, and UniqueUsers.
Choose the required delivery service from the Delivery Service drop-down list located above the chart.
Custom Searches and Reports
This feature displays all the saved searches as reports. You can view both, public and private reports. However,
you cannot view the private reports saved by another user. In this feature, only the Delete and Refresh options
are available. You will not be able to modify any saved reports. To view custom reports, perform the following:
From the main page, choose Analytics > Custom Searches and Reports.
Note
• If you upgrade VDS-SM from version 3.1 to 3.3 or 3.2 to 3.3, then the public custom reports created
in earlier version will not be migrated to the upgraded version.
• If you have multiple reports, enter the search name in the filter, which is located in the left pane and
the particular saved search will be displayed.
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
110
Analytics
Custom Searches and Reports
Creating a Custom Report
To create custom reports, perform the following steps:
Step 1
Step 2
Step 3
Choose Analytics > Custom Searches and Reports.
In the Search field, enter the query for which you want to generate a report and click
, in the right pane.
Choose Save As > Report.
The Save As Report panel appears.
Step 4
Step 5
Step 6
Provide the report Title, and Description (optional).
Click the preferred Visualization button on how you want the report to appear.
Click Yes to add Time Range Picker, and click No to create a report without time range picker.
Step 7
Click Save.
The Your Report Has Been Created panel appears.
Step 8
Click View to see the created report.
Click Add to Dashboard to create a custom dashboard for given search query (see Adding a Custom Dashboard topic
in Custom Dashboards, on page 112), or click Continue Editing to navigate to the search page.
Remember
Created custom report will be added to the tree view only after clicking
pane.
in the left
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
111
Analytics
Custom Dashboards
Deleting a Custom Report
To delete a custom report, perform the following steps:
Step 1
Choose Analytics > Custom Searches and Reports.
Step 2
Step 3
From the left pane, select the custom report, which you want to delete and click
.
The delete confirmation dialog box appears.
Click Yes to permanently delete the custom report, or click No to cancel the deletion.
Custom Dashboards
This feature allows the CDN operators to create and save custom dashboards using the search application.
You can view the list of all custom dashboards created by you and other users.
To access this feature, from the main page, choose Analytics > Custom Dashboards. You can view the
custom dashboards in the left pane. Click the arrow next to My Dashboards and select the custom dashboard,
which you want to view. The details will be displayed in the right pane.
This feature allows you to create, delete, and refresh custom dashboards. By default, the custom dashboards
are grouped by username.
• If you manually modify the savedsearches.conf file in the JS node, the savedsearches.conf file under
the SH node will be updated and thereby, all the searches will be deleted.
Note
• If you upgrade VDS-SM from version 3.1 to 3.3 or 3.2 to 3.3, then the public custom dashboards
created in earlier version will not be migrated to the upgraded version.
Adding a Custom Dashboard
To add a custom dashboard, perform the following steps:
Step 1
Step 2
Step 3
Step 4
Choose Analytics > Custom Dashboards.
Click
.
In the right pane, enter the query in the Search field and click
Choose Save As > Dashboard Panel.
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
112
.
Analytics
Custom Dashboards
The Save As Dashboard Panel appears.
Step 5
To create a new custom dashboard, perform the following:
a) Click New.
b) Dashboard Title (Optional)—Enter the custom dashboard title.
Note
We recommend that you always start the custom dashboard names with the word Custom (or any word other
than dashboard). The usage of Custom helps the users to add panels to existing custom dashboard.
c) Dashboard ID—Enter the custom dashboard ID.
Note
The custom dashboard ID can contain only alpha numeric characters and underscores.
d) Dashboard Description (Optional)—Enter the custom dashboard description.
e) Dashboard Permissions—Select the custom dashboard permissions as Private or Shared in App.
• Private—You can only view and edit the custom dashboard.
• Shared in App—All users can view the created custom dashboard.
Note
You can edit the custom dashboard based on the
role.
The following table provides the role and permission details:
Table 85: Permission Details
Role1
Role based Permissions
Admin
User
Power
Can_delete
Splunk_System_Role
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
113
Analytics
Custom Dashboards
Admin
Edit, Delete, Edit Clone
Permissions and
Clone
User
Sharing option is not available
Power
Edit, Delete , Edit Clone
Permissions and
Clone
Can_delete
Search is not possible
Splunk_System_Role Edit, Delete , Edit Clone
Permissions and
Clone
1
Edit, Delete and
Clone
No
Edit, Delete , Edit
Permissions and
Clone
Edit, Delete , Edit No
Permissions and
Clone
Edit, Delete , Edit
Permissions and
Clone
Edit, Delete and
Clone
Edit, Delete , Edit
Permissions and
Clone
No
Refers to the role of the user who created the custom dashboard.
f) Panel Title (Optional)—Enter the panel title.
g) Panel Content—Select the panel content as Statistics or Column.
• Statistics—Displays data in table format.
• Column—Displays data as column chart.
h) Click Save.
Step 6
To add a panel in an existing custom dashboard, in the Save As Dashboard Panel dialog box perform the following:
a) Click Existing.
b) From the drop-down list, choose the required custom dashboard.
Note
You can only add panels to the custom dashboards that are created using the custom dashboard interface.
c) Panel Content—Select the panel content as Statistics or Column.
• Statistics—Displays data in table format.
• Column—Displays data as column chart.
d) Click Save.
Your Dashboard Panel Has Been Created dialog box appears.
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
114
Analytics
Content
Step 7
Click View Dashboard.
Remember
Note
Refresh the custom dashboards by clicking
in the left pane to view the created custom dashboard name
in the tree view.
The respective searches will be saved under Custom Searches and Reports.
Deleting a Custom Dashboard
To delete a custom dashboard, perform the following steps:
Step 1
Choose Analytics > Custom Dashboards.
Step 2
Step 3
From the left pane, select the custom dashboard, which you want to delete.
Choose Delete from the Edit drop-down list.
The Delete confirmation dialog box appears.
Click Delete.
Note
If you are deleting one or more searches that is being used by one or more custom dashboards, then those custom
dashboards will not work. Also, the search saved as part of custom dashboards will have to be deleted manually.
Step 4
Remember
Deleted custom dashboard will be removed from the tree view only after clicking
pane.
in the left
Content
In this feature, the users will be able to analyze the data, based on the content title. They can also generate
viewership report, based on various metrics.
Analyze by Content Title
This feature provides a platform for the users to analyze individual asset (content title), based on various
metrics such as Usage, Audience, QoS, and Errors.
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
115
Analytics
Content
To analyze the content title, perform the following steps:
Step 1
From the main page, choose Analytics > Content > Analyze by Content Title.
Step 2
Choose the desired delivery service and the time range from the respective drop-down lists, and enter the search asset
name in the Search Asset name field. Then, click Search.
Note
Entering certain search asset name values such as space and individual characters in the Search Asset Name
text box will display large results. This may impact the system's performance.
Step 3
From the list of unique content titles that are displayed in a tabular format, choose the desired Title.
Different tabs such as Usage, Audience, QoS, and Errors for that particular title are displayed. Click the respective tabs
to view the corresponding charts.
The different charts are explained in detail here.
Usage
Bytes Delivered
The following table describes the information in the chart:
Table 86: Bytes Delivered Chart & Description
Chart
Description
Bytes Delivered
Illustrates the bytes delivered (MB) over time for the given
content title.
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
116
Analytics
Content
Chart
Description
Chart Information
The information within this chart is shown in a column
graph with the Date/Time along the X-axis and the bytes
delivered in MB along the Y-axis.
Formula
The formula used to derive this graph is: the total bytes
delivered for the given content title plotted over time.
Filters
This chart uses Delivery Service, and Time Range (Previous
day and Last 7 days), as filters.
Bytes Delivered by Delivery Server
The following table describes the information in the tabular column:
Table 87: Bytes Delivered by Delivery Server Table & Description
Table
Description
Bytes Delivered by Delivery Server
Illustrates the bytes delivered (MB) per delivery server for
the given content title.
Information
The information within this table are Delivery Server and
MB.
Formula
The formula used is: total bytes delivered for the given
content title in each delivery server.
Filters
This table uses Delivery Service, and Time Range (Previous
day and Last 7 days), as filters.
Bytes Delivered by City
The following table describes the information in the tabular column:
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
117
Analytics
Content
Table 88: Bytes Delivered by City Table & Description
Table
Description
Bytes Delivered by City
Illustrates the bytes delivered (MB) per city for the given
content title.
Information
The information within this table are City and MB.
Formula
The formula used is: total bytes delivered for the given
content title in each city.
Filters
This table uses Delivery Service, and Time Range (Previous
day and Last 7 days), as filters.
Note
The city will be resolved only for public IPs. IPs which cannot be resolved by MaxMind will not be displayed.
Bytes Delivered by ISP and Net Speed
The following table describes the information in the tabular column:
Table 89: Bytes Delivered by ISP and Net Speed Table & Description
Table
Description
Bytes Delivered by ISP and Net Speed
Illustrates the bytes delivered (MB), grouped by ISP or Net
Speed for the given content title.
Table Information
The information within this table are ISP or Net Speed and
MB.
Formula
The formula used is: total bytes delivered for the given
content title grouped by the client ISP or Net Speed.
Filters
This table uses Delivery Service, and Time Range (Previous
day and Last 7 days), as filters.
Note
Other than public IPs, "unknown" value will be
displayed.
Bytes Delivered by Client Type
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
118
Analytics
Content
The following table describes the information in the tabular column:
Table 90: Bytes Delivered by Client Type Table & Description
Table
Description
Bytes Delivered by Client Type
Illustrates the bytes delivered per client type (MB) for the
given content title.
Table Information
The information within this table are Client Type and MB.
Formula
The formula used is: total bytes delivered for the given
content title grouped by the client type.
Filters
This table uses Delivery Service, and Time Range (Previous
day and Last 7 days), as filters.
Audience
Total Sessions
The following table describes the information in the chart:
Table 91: Total Sessions Chart & Description
Chart
Description
Total Sessions
Illustrates the number of sessions over time for the given
content title.
Chart Information
The information within this chart is shown in a column
graph with the Date/Time along the X-axis and the Total
Sessions Count along the Y-axis.
Formula
The formula used to derive this graph is: the total number
of sessions for a given content title plotted over time.
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
119
Analytics
Content
Chart
Description
Filters
This chart uses Delivery Service, and Time Range (Previous
day and Last 7 days), as filters.
Unique Viewers
The following table describes the information in the chart:
Table 92: Unique Viewers Chart & Description
Chart
Description
Unique Viewers
Illustrates the number of unique viewers over time for the
given content title.
Chart Information
The information within this chart is shown in a column
graph with the Date/Time along the X-axis and the Unique
Viewers count along the Y-axis.
Formula
The formula used to derive this graph is: the number of
unique viewers for the given content title plotted over time.
Filters
This chart uses Delivery Service, and Time Range (Previous
day and Last 7 days), as filters.
Viewers by Download Size and Session Duration
The following table describes the information in the tabular column:
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
120
Analytics
Content
Table 93: Viewers by Download Size and Session Duration Table & Description
Table
Description
Viewers by Download Size and Session Duration
Illustrates the number of sessions grouped by download
size or duration for the given content title.
Table Information
The information within this table are Download Size,
Session Duration, and Count.
Formula
The formula used is: the number of viewers bucketed by
the download size in MB, for the given content title. The
formula used for Duration is: the number of viewers
bucketed by the average session duration for the given
content title.
Filters
This table uses Delivery Service, and Time Range (Previous
day and Last 7 days), as filters.
Viewers by ISP and Net Speed
The following table describes the information in the tabular column:
Table 94: Viewers by ISP and Net Speed Table & Description
Table
Description
Viewers by ISP and Net Speed
Illustrates the number of sessions grouped by ISP and Net
Speed for the given content title.
Table Information
The information within this table are ISP, Net Speed and
the Viewer count.
Formula
The formula used is: the number of viewers grouped by
client ISP/Net Speed for the given content title.
Filters
This table uses Delivery Service, and Time Range (Previous
day and Last 7 days), as filters.
Note
Other than public IPs, "unknown" value will be
displayed.
Viewers by City
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
121
Analytics
Content
The following table describes the information in the tabular column:
Table 95: Viewers by City Table & Description
Table
Description
Viewers by City
Illustrates the number of viewers per city for the given
content title.
Table Information
The information within this table are City and Count.
Formula
The formula used is: the number of viewers in each city
for the given content title.
Filters
This table uses Delivery Service, and Time Range (Previous
day and Last 7 days), as filters.
Note
The city will be resolved only for public IPs. IPs which cannot be resolved by MaxMind will not be displayed.
QoS
Average ABR Session Bitrate
The following table describes the information in the chart:
Table 96: Average ABR Session Bitrate Chart & Description
Chart
Description
Average ABR Session Bitrate
Illustrates the average ABR session bitrate (Kbps) over
time for the given content title.
Chart Information
The information within this chart is shown in a column
graph with the Date/Time along the X-axis and the ABR
Session Bitrate (Kbps) along the Y-axis.
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
122
Analytics
Content
Chart
Description
Formula
The formula used to derive this graph is: the average bitrate
plotted over time for the given content title.
Filters
This chart uses Delivery Service, and Time Range (Previous
day and Last 7 days), as filters.
Bitrate Oscillations
The following table describes the information in the chart:
Table 97: Bitrate Oscillations Chart & Description
Chart
Description
Bitrate Oscillations
Illustrates the number of bitrate oscillations for the given
content title over time.
Chart Information
The information within this chart is shown in a column
graph with the Date/Time along the X-axis and oscillation
Count along the Y-axis.
Formula
The formula used to derive this graph is: the number of
bitrate shift events for a given content title.
Filters
This chart uses Delivery Service, and Time Range (Previous
day and Last 7 days), as filters.
Average ABR Session Bitrate by Client Type
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
123
Analytics
Content
The following table describes the information in the tabular column:
Table 98: Average ABR Session Bitrate by Client Type Table & Description
Table
Description
Average ABR Session Bitrate by Client Type
Illustrates the average ABR session bitrate (Kbps) per client
type for the given content title.
Table Information
The information within this table are Client Type and
Bitrate.
Formula
The formula used is: average ABR session bitrate (Kbps)
for the given content title, grouped by the client type.
Filters
This table uses Delivery Service, and Time Range (Previous
day and Last 7 days), as filters.
Average ABR Session Bitrate by City
The following table describes the information in the tabular column:
Table 99: Average ABR Session Bitrate by City Table & Description
Table
Description
Average ABR Session Bitrate by City
Illustrates the average ABR session bitrate (Kbps) per city
for the given content title.
Table Information
The information within this table are City and Bitrate.
Formula
The formula used is: average ABR session bitrate (Kbps)
for the given content title in each city.
Filters
This table uses Delivery Service, and Time Range (Previous
day and Last 7 days), as filters.
Note
The city will be resolved only for public IPs. IPs which cannot be resolved by MaxMind will not be displayed.
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
124
Analytics
Content
Average ABR Session Bitrate by ISP and Net Speed
The following table describes the information in the tabular column:
Table 100: Average ABR Session Bitrate by ISP and Net Speed Table & Description
Table
Description
Average ABR Session Bitrate by ISP and Net Speed
Illustrates the average ABR session bitrate (Kbps) grouped
by ISP and Net Speed for the given content title.
Table Information
The information within this table are Client ISP/Net Speed
and Bitrate.
Formula
The formula used is: average ABR session bitrate (Kbps)
for the given content title grouped by the client ISP and
Net Speed.
Filters
This table uses Delivery Service, and Time Range (Previous
day and Last 7 days), as filters.
Note
Other than public IPs, "unknown" value will be
displayed.
Errors
4xx and 5xx Errors
The following table describes the information in the chart:
Table 101: 4xx and 5xx Errors Chart & Description
Chart
Description
4xx and 5xx Errors
Illustrates the number of 4xx and 5xx (client and server)
errors over time for the given content title.
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
125
Analytics
Content
Chart
Description
Chart Information
The information within this chart is shown in a column
graph with the Date/Time along the X-axis and the Error
count along the Y-axis.
Formula
The formula used to derive this graph is: the number of
4xx and 5xx errors plotted over time for the given content
title.
Filters
This chart uses Delivery Service, and Time Range (Previous
day and Last 7 days), as filters.
4xx and 5xx Errors
The following table describes the information in the tabular column:
Table 102: 4xx and 5xx Errors Table & Description
Table
Description
4xx and 5xx Errors
Illustrates the number of 4xx and 5xx (client and server)
errors for the given content title.
Table Information
The information within this table are 4xx Errors, and 5xx
Errors.
Formula
The formula used is: the number of 4xx and 5xx errors
occurred for the given content title.
Filters
This chart uses Delivery Service, and Time Range (Previous
day and Last 7 days), as filters.
4xx and 5xx Errors by Device
The following table describes the information in the tabular column:
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
126
Analytics
Content
Table 103: 4xx and 5xx Errors by Device Table & Description
Table
Description
4xx and 5xx Errors by Device
Illustrates the number of 4xx and 5xx (client and server)
errors per device (delivery servers and service routers) for
the given content title.
Table Information
The information within this table are Device Name, 4xx,
and 5xx Errors.
Formula
The formula used is: the number of 4xx and 5xx errors
occurring in each device (delivery servers and service
routers) for the given content title.
Filters
This table uses Delivery Service, and Time Range (Previous
day and Last 7 days), as filters.
4xx and 5xx Errors by City
The following table describes the information in the tabular column:
Table 104: 4xx and 5xx Errors by City Table & Description
Table
Description
4xx and 5xx Errors by City
Illustrates the number of 4xx and 5xx (client and server)
errors per city for the given content title.
Table Information
The information within this table are City, 4xx, and 5xx
errors.
Formula
The formula used is: the number of 4xx and 5xx errors
occurring in each city for the given content title.
Filters
This table uses Delivery Service, and Time Range (Previous
day and Last 7 days), as filters.
4xx and 5xx Errors by Client Type
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
127
Analytics
Content
The following table describes the information in the tabular column:
Table 105: 4xx and 5xx Errors by Client Type Table & Description
Table
Description
4xx and 5xx Errors by Client Type
Illustrates the number of 4xx and 5xx (client and server)
errors grouped by client type for the given content title.
Table Information
The information within this table are Client Type, 4xx, and
5xx errors.
Formula
The formula used is: the number of 4xx and 5xx errors
occurring in each client type for the given content title.
Filters
This table uses Delivery Service, and Time Range (Previous
day and Last 7 days), as filters.
Viewership Report
This feature provides a platform for the users to generate viewership reports, based on various metrics such
as Delivery Server Group, Delivery Server, Provider, Service Type, Delivery Service, Resolution, and Genre.
To generate viewership report, perform the following steps:
Step 1
From the main page, choose Analytics > Content > Viewership Report.
Step 2
Choose the Delivery Server Group, Delivery Server, Provider, Service Type, Delivery Service, Resolution, Genre, and
Time Range Picker from the respective drop-down lists and click Filter.
The viewership report is displayed.
By clicking an asset name in the Viewership report, you will be navigated to the Analyze by Content Title page with the
selected asset name pre-populated in the search Asset Name field.
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
128
Analytics
Sessions
Sessions
In this feature, the users will be able to analyze the data, based on the session title. They can also generate
session report, based on various parameters.
Analyze by Client IP
This feature provides a platform for users to analyze the individual client IP, based on various parameters
such as sessions created for the IP, session duration, protocol used to serve the content, and title viewed during
the session.
To access this feature, perform the following steps:
Step 1
From the main page, choose Analytics > Sessions > Analyze by Client IP.
Step 2
Choose the desired delivery service, select the time range from the respective drop-down lists, and enter the client IP in
the search Client IP field. Click Search.
Note
In the search Client IP field, enter the exact client
IP.
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
129
Analytics
Sessions
Step 3
From the sessions counts chart that is displayed, click the desired column. The session details will be displayed below
the session count chart.
Session Report
This feature provides a platform for the users to generate session reports, based on various parameters such
as Delivery Server Group, Delivery Server, Provider, and Delivery Service.
To access this feature, perform the following steps:
Step 1
From the main page, choose Analytics > Sessions > Session Report.
Step 2
Choose the Delivery Server Group, Delivery Server, Provider, Delivery Service, and Time Range Picker from the
respective drop-down lists and click Filter.
The session report is displayed.
By clicking the client IP in the session report, you will be navigated to the Analyze by Client IP page with the selected
client IP pre-populated in the search Client IP field.
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
130
Analytics
Geo Analysis
Geo Analysis
This feature allows to analyze some core CDN metrics over geographic dimension.
To access this feature, from the main page, choose Analytics > Geo Analysis. You can view Geo Analysis
in the left pane. Click the arrow next to Geo Analysis and select the required map you want to view. The
details will be displayed in the right pane.
By default, the Cache Hit Ratio by Location map is displayed.
Cache Hit Ratio by Location
The Cache Hit Ratio by Location map displays the delivery server location as points. When you mouse over
a point (server location), the server name and its cache hit ratio will be displayed.
The Cache Hit Ratio by Location map uses Time Range, Delivery Server Group, Delivery Server, Provider,
and Delivery Service as filters.
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
131
Analytics
Geo Analysis
Viewers Density by Location
The Viewers Density by Location map displays the client locations as points. When you mouse over a point
(client location), the city name and the number of viewers from that particular city will be displayed.
The Viewers Density by Location map uses Time Range, Delivery Server Group, Delivery Server, Provider,
Delivery Service, and Media Format as filters.
Bytes Delivered by City
The Bytes Delivered by City map displays the client locations as points. When you mouse over a point (client
location), the city name and the number of bytes delivered (GB) to that particular city will be displayed.
The Bytes Delivered by City map uses Time Range, Delivery Server Group, Delivery Server, Provider,
Delivery Service, Resolution, and Genre as filters.
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
132
Analytics
Geo Analysis
Average ABR Bitrate by City
The Average ABR Bitrate by City map displays the client locations as points. When you mouse over a point
(client location), the city name and the average ABR bitrate (Kbps) in that particular city will be displayed.
The Average ABR Bitrate by City map uses Time Range, and Delivery Service as filters.
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
133
Analytics
North Bound Application Programming Interface
4xx and 5xx Errors by City
The 4xx and 5xx Errors by City map displays locations of the viewers who are receiving 4xx and 5xx errors.
When you mouse over a point (client location), the city name, count of 4xx (client) errors, and count of 5xx
(server) errors in that particular city will be displayed.
The 4xx and 5xx Errors by City map uses Time Range, and Delivery Service as filters.
North Bound Application Programming Interface
North Bound Application Programming Interface (NB API) is a programming interface for north bound
analytics systems to integrate with VDS-SM and leverage the data maintained in VDS-SM for higher level
aggregation and analysis. VDS-SM provides a RESTful Web Services API to query data from VDS-SM for
analytics. VDS-SM supports predefined queries/searches to query data corresponding to reports. Each predefined
query/search is identified by a name, which corresponds to a particular dashboard. You can query the data by
specifying the search name alone.
For example, in the CDN Traffic report, the search name is cdntraffic_daily.
To obtain the result for a query, you need to perform the HTTPS GET request using the following URL:
With Delivery Service Name
https://< UI
Node IP >:8443/bnimgmt/api/analytics/search/systemdefined/< searchname >?delsvc=<delivery
service name>
With Delivery Server Name
https://< UI
Node IP >:8443/bnimgmt/api/analytics/search/systemdefined/< searchname >?host=<delivery
server name>
Without Delivery Service or Delivery Server Name
https://< UI Node IP >:8443/bnimgmt/api/analytics/search/systemdefined/<searchName>
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
134
Analytics
North Bound Application Programming Interface
For example, to execute the search “cdntraffic_daily”, you need to perform GET request using the following
URL:
https://<UI Node IP>:8443/bnimgmt/api/analytics/search/systemdefined/
cdntraffic_daily
You need to specify the Username and Password (CDN Operator Admin and CDN Viewer) for authentication
in the “Authorization” header fields of the HTTPS GET request. For example, in command line tools such as
curl, provide the following command with credentials:
curl -k -u bniadmin:admin --request GET 'https:// <UI Node IP
>:8443/bnimgmt/api/analytics/search/
systemdefined/cdntraffic_daily
In the URL, you need to pass the delivery service name or delivery server name for a search and not any
special characters or space.
Note
The URL should be exactly the same as mentioned here and they should be entered in a single line. Also,
HTTPS is authenticated through self-signed OpenSSL certificate for NB API and NB API does not support
HTTP.
Result Format
Analytics API provides the results in CSV format. The first line is the header line with fields, followed by
the data. Following is an example of Console Output.
curl -k -u bniadmin:admin --request GET
'https://10.77.246.184:8443/bnimgmt/api/analytics/search/systemdefined/cdntraffic_weekly'
Supported Predefined Searches
Table 106: Search Name & Optional Parameters
Sl.
No.
Search Name
1
cdntraffic_daily
2
cdntraffic_weekly
Optional Parameters
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
135
Analytics
Generating CSV Files from Search Results (Gencsvfromsearch)
Sl.
No.
Search Name
Optional Parameters
3
cdntraffic_monthly
4
trafficsummary_by_deliveryservers_daily
5
trafficsummary_by_deliveryservers_weekly
6
trafficsummary_by_deliveryservers_monthly
7
trafficsummary_by_deliveryservices_daily
8
trafficsummary_by_deliveryservices_weekly
9
trafficsummary_by_deliveryservices_monthly
10
deliveryserver_traffic_daily
delivery_server_name
11
deliveryserver_traffic_weekly
delivery_server_name
12
deliveryserver_traffic_monthly
delivery_server_name
13
deliveryservice_traffic_daily
delivery_service_name
14
deliveryservice_traffic_weekly
delivery_service_name
15
deliveryservice_traffic_monthly
delivery_service_name
Generating CSV Files from Search Results (Gencsvfromsearch)
VDS-SM provides the capability to generate CSV files from search results. Specific dashboard searches with
default configurations and the search results are exported securely in CSV format through FTP, SFTP
password-based authentication, and SFTP key-based authentication.
Users can define multiple FTP/SFTP destination servers. If the server is the same, but has different destination
directories, then the user needs to define separate SFTP server configuration blocks in the configuration files.
To generate CSV files from search results, perform the following steps:
Step 1
Step 2
Configure the search file (search_spec.conf) based on the respective protocol (FTP/SFTP) parameters.
Run either the shell script (gencsvfromsearch.sh) or python script (gencsvfromsearch.py).
Configuring Search File
The search_spec.conf file specifies the searches for which the results will be exported to the server. The
search_spec.conf file must be updated for the respective protocol (FTP\SFTP) parameters.
The following table lists the parameters that need to be configured in search_spec.conf for FTP or SFTP
export:
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
136
Analytics
Generating CSV Files from Search Results (Gencsvfromsearch)
Table 107: Protocol Parameters
Parameter
Description
SFTPServer.SFTP.ip =
Defines the SFTP export server IP address.
SFTPServer.SFTP.port =
Defines the SFTP port number for exports. SFTP=22
(default port usage).
SFTPServer.SFTP.username =
Defines the SFTP export server username.
SFTPServer.SFTP.password =
Defines the SFTP export server password.
SFTPServer.SFTP.directory =
Defines the SFTP export location of the CSV files.
SFTPServer.SFTP.keyfile.location =
Defines the path to the private key file of the server.
SFTPServer.SFTP.keyfile. passcode =
Defines the password of the public key file (if
required).
SFTPServer.SFTP.keyfile.type =
Defines the type of the public key file, that is, RSA
or DSS.
FTPServer.FTP.ip =
Defines the FTP export server IP address.
FTPServer.FTP.port =
Defines the FTP port number for exports. FTP=21
(default port usage).
FTPServer.FTP.username =
Defines the FTP export server username.
FTPServer.FTP.password =
Defines the FTP export server password.
FTPServer.FTP.directory =
Defines the FTP export location of the CSV files.
To configure the search file, perform the following steps:
Step 1
Log in to Job scheduler node using the following credentials:
Username: bnisplunk
Password: <password>
Step 2
Navigate to the following location:
/opt/splunk/etc/deployment-apps/Gencsvfromsearch/bin/search_spec.conf
Step 3
Edit the search configuration file.
Note
Host can be host name or IP
address.
a) Add the values to the following parameters if you want to enable SFTP key-based authentication:
• SFTPServer.SFTP.ip =
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
137
Analytics
Generating CSV Files from Search Results (Gencsvfromsearch)
• SFTPServer.SFTP.port =
• SFTPServer.SFTP.username =
• SFTPServer.SFTP.directory =
• SFTPServer.SFTP.keyfile.location =
• SFTPServer.SFTP.keyfile. passcode =
• SFTPServer.SFTP.keyfile.type =
Note
When both options are specified (key-based parameter and password-based parameter), key-based
authentication is attempted. There will be no fall back to password-based authentication, if the key-based
authentication fails.
b) Add the values to the following parameters if you want to enable SFTP password-based authentication:
• SFTPServer.SFTP.ip =
• SFTPServer.SFTP.username =
• SFTPServer.SFTP.password =
• SFTPServer.SFTP.directory =
Note
The key file parameters must be empty for password-based authentication.
c) Add the values to the following parameters if you want to enable FTP authentication:
• [ftpserver]
• FTPServer.FTP.ip =
• FTPServer.FTP.port =
• FTPServer.FTP.username =
• FTPServer.FTP.password =
• FTPServer.FTP.directory =
Note
You must ensure that the same parameter values are available in the Secondary Job Scheduler's
search_spec.conf in case of ESX failover.
The results are exported for the following searches:
• HSSBitRate
• MobitvBitRate
• ABRNumberOfRequestPerSecond
• ClientRequests4xxErrorRateonDeliveryServers
• ResponseCodebyDeliveryServer
• RealtimeEdgeBandwidthUsage
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
138
Analytics
Generating CSV Files from Search Results (Gencsvfromsearch)
• ConcurrentClientSessions
• HistoricalEdgeBandwidthUsageForLastDay
• HistoricalEdgeBandwidthUsageForLast3Day
• HistoricalEdgeBandwidthUsageForLast7Day
• HSSBitrateOscillationRateForLastDay
• HSSBitrateOscillationRateForLast3Day
• HSSBitrateOscillationRateForLast7Day
• MobitvBitrateOscillationRateForLastDay
• MobitvBitrateOscillationRateForLast3Day
• MobitvBitrateOscillationRateForLast7Day
• ClientDensitybyNumberofRequestsForLastDay
• ClientDensitybyNumberofRequestsLast3Day
• ClientDensitybyNumberofRequestsForLast7Day
• HLSBitRate
• HLSBitrateOscillationRateForLastDay
• HLSBitrateOscillationRateForLast3Day
• HLSBitrateOscillationRateForLast7Day
Run Shell Script
The gencsvfromsearch.sh is a wrapper script which is used to execute gencsvfromsearch.py. You must execute
gencsvfromsearch.sh script from the Forwarder node.
Step 1
Log in to the Forwarder node using the following credentials:
Username: bnisplunk
Password: <password>
Step 2
Navigate to the following location:
/opt/splunkforwarder/etc/apps/Gencsvfromsearch/bin
Step 3
Execute the script using the following command:
sh gencsvfromsearch.sh <Searchname> <Protocol> <FTP/SFTPname>
Description of parameters in the above command are:
• Search name–This parameter is specified in search section of the search_spec.conf file.
• Protocol–This parameter sets the export protocol as FTP/SFTP.
• FTP/SFTP name–FTP name is specified in FTP server section and SFTP name is specified in SFTP server section
of the search_spec.conf file.
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
139
Analytics
Generating CSV Files from Search Results (Gencsvfromsearch)
Note
Depending on the protocol that will be used, you need to provide values for the respective section or stanza in
the conf file.
Example
./gencsvfromsearch.sh HSSBitRate SFTP SFTP1
Run Python Script
The gencsvfromsearch.py script searches from Splunk using the specified search query, generates the CSV
file, and then uploads the CSV to the specified SFTP server. You should execute gencsvfromsearch.py script
from the Forwarder node.
Step 1
Log in to the Forwarder node using the following credentials:
Username: bnisplunk
Password: <password>
Step 2
Navigate to the following location:
cd /opt/splunkforwarder/etc/apps/Gencsvfromsearch/bin
Step 3
Execute the script using the following command:
/opt/splunk/bin/splunk cmd python gencsvfromsearch.py <Searchname> <Protocol> <FTP/SFTPname>
Description of parameters in the above command are:
• Search name–This parameter is specified in search section of the search_spec.conf file.
• Protocol–This parameter sets the export protocol as FTP/SFTP.
• FTP/SFTP name–FTP name is specified in FTP server section and SFTP name is specified in SFTP server section
of the search_spec.conf file.
Example
/opt/splunk/bin/splunk cmd python gencsvfromsearch.py HSSBitRate SFTP SFTP1
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
140
CHAPTER
5
Monitor
• Monitor Overview, page 141
Monitor Overview
CDN hosts different content, such as live and archived, to viewers around the world. For the CDN Operators
to quickly check the performance of the network, real-time monitoring is performed on Throughput, Cache
Hit Ratio, Concurrent Active Sessions, and Responses.
Note
Only Throughput, Cache Hit Ratio, Concurrent Active Sessions, and Responses charts are refreshed
real-time (with minimum delay).
To access this feature, click Monitor from the main page.
The following categories are displayed in Monitor:
• CDN Overview
• Throughput
• Cache Hit Ratio
• Concurrent Active Sessions
• Responses
• Bitrates
These categories are explained in detail here.
CDN Overview
Displays the number of delivery services, delivery servers, and edge locations. These values are refreshed
every eight minutes.
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
141
Monitor
Monitor Overview
Throughput (Gbps)
The following table describes the Throughput chart:
Table 108: Throughput Chart & Description
Chart
Description
Throughput
Illustrates the data delivered by the network at
real-time.
Chart Information
The information within this chart is shown in a line
graph with Date/Time along the X-axis and the
throughput in Gbps along the Y-axis. The legends
representing the graph are maximum, minimum, and
average.
Chart Filters
This chart uses Delivery Server, and Delivery Service
as filters.
Cache Hit Ratio
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
142
Monitor
Monitor Overview
The following table describes the Cache Hit Ratio chart:
Table 109: Cache Hit Ratio Chart & Description
Chart
Description
Cache Hit Ratio
Provides client request cache hit and miss percentage
at real-time.
Chart Information
The information within this chart is shown in a
stacked area graph with Date/Time along the X-axis
and the cache hit/miss percentage in the Y-axis. The
legends representing the graph are Cache Hit and
Cache Miss.
Chart Filters
This chart uses Delivery Server, and Delivery Service
as filters.
Concurrent Active Sessions
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
143
Monitor
Monitor Overview
The following table describes the Concurrent Active Sessions chart:
Table 110: Concurrent Active Sessions Chart & Description
Chart
Description
Concurrent Active Sessions
Illustrates the concurrent client sessions at real-time.
Chart Information
The information within this chart is a line graph with
Date/Time along the X-axis and Maximum, Minimum
and Average count along the Y-axis. The legends
representing the graph are maximum, average, and
minimum.
Chart Filters
This chart uses Delivery Server, and Delivery Service
as filters.
Responses
The following table describes the Responses chart:
Table 111: Responses Chart & Description
Chart
Description
Responses
Provides response codes count or percentage at
real-time.
Chart Information
The information within this chart is shown in stacked
area with Date/Time along the X-axis with the
response count or percentage along the Y-axis. The
legends representing the graph are 2xx, 3xx, 4xx, and
5xx.
Chart Filters
This chart uses Delivery Server, and Delivery Service
as filters.
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
144
Monitor
Monitor Overview
Bitrates
The following table describes the Bitrates chart:
Table 112: Bitrates Chart & Description
Chart
Description
Bitrates
Illustrates the bitrate used to serve the content through
CDN.
Chart Information
The information within this chart is shown in a
column graph with Bitrate along the X-axis and Count
along the Y-axis. The bitrate values in the chart are
refreshed every minute.
Chart Filters
This chart uses Delivery Server, and Delivery Service
as filters.
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
145
Monitor
Monitor Overview
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
146
CHAPTER
6
Alerts
• Alerts Overview, page 147
• Adding a Threshold Alert, page 147
• Deleting a Threshold Alert, page 149
• Customizing Threshold Metrics, page 149
• Quota Violations, page 150
Alerts Overview
Alerts are sent in the form of emails and are designed based on the results of your scheduled searches. Alerts
highlight the exceptions that occur as a result of exceeding the configured threshold criteria.
Adding a Threshold Alert
To add a threshold alert, perform the following steps:
Step 1
From the Home page, choose Alerts > Thresholds.
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
147
Alerts
Adding a Threshold Alert
The Thresholds page appears.
Figure 1: Thresholds page
Step 2
Enter the following details in the Thresholds table:
Table 113: Adding a Threshold Alert–Field and Description
Field
Description
Alert Condition
Choose the condition for which the alert is to be triggered
and specify the value.
Alert Name
Enter the alert name.
Email Id
Enter the email ID(s) to which the alerts are to be sent.
Multiple email IDs can be added separated by commas.
Frequency
Specify the frequency for triggering the alert emails.
The alert will be sent at regular intervals based on the value
that you configure in the Frequency field.
Step 3
Click Create.
The newly added alert appears in the Threshold Alerts table and admin folder in the Custom Search and Reports.
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
148
Alerts
Deleting a Threshold Alert
Deleting a Threshold Alert
To delete a threshold alert, perform the following steps:
Step 1
Step 2
From the Home page, choose Alerts > Thresholds.
The Thresholds page appears.
In the Threshold Alerts table, click the Delete button next to the threshold alert that you want to delete.
Step 3
Click OK to permanently delete the threshold alert in the confirmation dialog box.
Step 4
Close the Success dialog box.
Customizing Threshold Metrics
VDS-SM provides an option to configure the list of threshold metrics. By default, the Thresholds page lists
five metrics such as Peak Throughput, Concurrent Active Sessions, Average Dynamic Storage, 4XX Errors,
and 5XX Errors. The CDN Operator can create a new metric and add scheduled alerts for that metric.
Note
All the alerts related changes are saved under
/opt/splunk/etc/apps/CDNAnalytics/local/savedsearches.conf file and related
metadata information are stored under
/opt/splunk/etc/apps/CDNAnalytics/metadata/local.meta file.
Before making any changes to the CDNAnalytics app, take backup of
/opt/splunk/etc/apps/CDNAnalytics/local/savedsearches.conf and
/opt/splunk/etc/apps/CDNAnalytics/metadata/local.meta files.
To create a Threshold metric, perform the following steps:
Step 1
Log in to the Search Head node using the following credentials:
Username: bnisplunk
Password: <password>
Step 2
Navigate to the following location:
/opt/splunk/etc/apps/CDNAnalytics/local/
Step 3
Open the thresholds_Alerts.conf file.
thresholds_Alerts.conf file contains a list of codes as stanzas corresponding to the metrics listed in the Thresholds page.
Step 4
Add the search query.
Provide the appropriate attributes such as alert_condition, search_15mnts, search_1hr and search_1day in the query.
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
149
Alerts
Quota Violations
Note
• In the search query, use the pattern "$%operator%$" instead of comparison operator and
"$%thresholdValue%$" instead of comparison value.
• You can add footer to the alert mails by replacing ". " with the custom message for footer_Text option, in
thresholds_alerts.conf file.
The newly added metric appears in the Thresholds page.
Note
After adding a new metric, replace the existing savedsearches.conf file with savedsearches.conf back up file
in the SH node.
Quota Violations
VDS-IS allows the Operator to set quota limits for Bandwidth, Storage, and Sessions at the delivery service
level. The CDN still caters the service to the providers when they exceed the quota limit (depending on buffer).
When the quota limit is exceeded, alerts are triggered.
From the main page, choose Alerts > Quota Violations. This displays the Bandwidth, Session, and Storage
alerts.
Bandwidth Alerts
Chart
Description
Bandwidth Alerts
Illustrates all bandwidth alerts that are triggered.
Filter
This chart uses Provider, Delivery Service, and the
Time Range Picker as filters.
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
150
Alerts
Session Alerts
Session Alerts
Chart
Description
Session Alerts
Illustrates all session alerts that are triggered.
Filter
This chart uses Provider, Delivery Service, and the
Time Range Picker as filters.
Storage Alerts
Chart
Description
Storage Alerts
Illustrates all storage alerts that are triggered.
Filter
This chart uses Provider, Delivery Service, and the
Time Range Picker as filters.
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
151
Alerts
Storage Alerts
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
152
CHAPTER
7
Configuration
• VDS Manager Configuration, page 153
• Adding a CDN, page 154
• Managing a VDS-IS CDN, page 155
• Distribution Hierarchy Function Overview, page 157
• Delivery Servers, page 159
• URL Signing, page 159
• Delivery Services, page 164
• Reseller Function Overview, page 167
• Content Provider Function Overview, page 170
• Services, page 174
• Geo Fencing, page 176
• Content Purging, page 178
VDS Manager Configuration
VDS Manager enables CDN Operators to deploy and manage the VDS-IS configuration such as delivery
services.
Multi-Tiered and Multi-Tenancy
The Operator can manage the simple profile (name, contact info, and quota) users for content providers (CP)
and Resellers. Once a CP or Reseller user is created, the newly created user can log in and view its own
dashboards. The VDS Operator can manage the hierarchical relationship among CDN, CP, and Services. The
CP or Reseller user can view dashboards at the Delivery Service level for all Delivery Services under its
domain.
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
153
Configuration
Adding a CDN
Services (1-to-1 with Delivery Service) are synchronized from the Content Delivery Service Manager (CDSM)
periodically. All Delivery Services should be synchronized from the CDSM to the VDS Manager, including
both live and VOD Content Delivery Services.
Adding a CDN
To deploy VDS-SM, you must configure CDN. CDN enables VDS-SM to gather topology information from
the Service and allows the service to be controlled by the VDS-SM solution.
To add a CDN, perform the following steps:
Step 1
Step 2
From the main page, choose Configuration > CDN.
The CDN page, listing all configured CDN devices and their status is displayed.
Click
to create a new CDN.
In the Create CDN popup, enter the appropriate CDN information for the VDS-IS CDSM as mentioned here.
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
154
Configuration
Managing a VDS-IS CDN
Table 114: Create CDN Field & Description
Field
Description
Name
A unique name for the device.
Provider
The content provider for this CDN.
Device Address
The IP address or Fully Qualified Domain Name (FQDN) of this device.
Control Port
A pre-existing port number specified for this device. Contact your System Administrator
for this information.
Location
The location to which this device is associated.
Service State
The service state of the service:
• In Service: Enables the service.
When a device is in this state, all read and write operations to this device are
allowed.
• Out of Service: Disables the service.
When a device is in this state, all write operations are not allowed. However, the
read operation is still allowed, whereby the periodic sync, operational state check,
and manual sync will still happen.
Username
The user name associated with the device.
Password/Confirm Password
The password associated with the username for this CDN service.
Description
Optional. User defined description for the CDN service.
Step 3
On completion, click Create. The CDN is created and a validation message is displayed.
Step 4
Click Close.
Step 5
From within the CDN screen, click Refresh to view the newly added CDN service.
Note that the CDN synchronization will take a few minutes.
Managing a VDS-IS CDN
To manage a VDS-IS CDN, perform the following steps:
Step 1
From the main page, choose Configuration > CDN.
Step 2
Click the arrow next to the name of the CDN you want to manage. The Distribution Hierarchy maps to the CDSM
location.
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
155
Configuration
Managing a VDS-IS CDN
The following table provides a description of the key elements contained within the selected CDN page.
Table 115: CDN - Field & Description
Element
Description
Distribution Hierarchy
The Distribution Hierarchy maps to CDSM locations (see Distribution Hierarchy
Function Overview, on page 157).
Service Routers
The VDS-SM Service Routers map to the CDSM devices (SRs).
Delivery Servers
The VDS-SM Delivery Servers map to the CDSM devices (SEs) (see Delivery
Servers, on page 159).
Delivery Services
The VDS-SM Delivery Services map to the CDSM Delivery Services (see
Delivery Services, on page 164).
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
156
Configuration
Distribution Hierarchy Function Overview
Distribution Hierarchy Function Overview
Adding a Distribution Hierarchy
To add a Distribution Hierarchy, perform the following steps:
Step 1
From the main page, choose Configuration > CDN.
Step 2
Select the CDN to which you want to add Distribution Hierarchy and click
Step 3
Step 4
.
In the Distribution Hierarchy tab, click
.
In the dialog box that appears in the right pane, enter the following details:
Table 116: Adding Distribution Hierarchy - Field & Description
Field
Description
Name
Specify the Server Group name.
Parent Server Group
Specify the Parent Server Group.
Topology Location
Specify the Topology Location.
Level
Specify the level to which the Delivery Server belongs.
Description
Optional. Additional information about the Distribution
Hierarchy.
Step 5
Click OK.
Step 6
Click Save.
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
157
Configuration
Modifying a Distribution Hierarchy
Modifying a Distribution Hierarchy
To modify a Distribution Hierarchy, perform the following steps:
Step 1
From the main page, choose Configuration > CDN.
Step 2
Select the CDN that you want to modify and click
.
Step 3
Step 4
From the Distribution Hierarchy tab, select the Distribution Hierarchy that you want to modify and click
Edit the details in the dialog box that appears on the right pane and click OK.
Step 5
Click Save.
.
Cloning a Distribution Hierarchy
This feature helps you to replicate an existing Distribution Hierarchy. This is helpful when you want to create
the same Distribution Hierarchy again.
To clone a distribution hierarchy, perform the following steps:
Step 1
From the main page, choose Configuration > CDN.
Step 2
Select the CDN that you want to clone and click
.
Step 3
From the Distribution Hierarchy tab, select the Distribution Hierarchy, which you want to clone and click
Step 4
Step 5
Click
.
and then click OK.
Click Save.
Deleting a Distribution Hierarchy
To delete a Distribution Hierarchy, perform the following steps:
Step 1
Step 2
From the main page, choose Configuration > CDN.
From the Distribution Hierarchy tab, select the Distribution Hierarchy that you want to delete and click
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
158
.
Configuration
Delivery Servers
You can also undo a task that you have just performed. This option is not feasible for an existing Delivery Hierarchy.
For example, you can undo a Distribution Hierarchy, immediately after it has been added. For this, select the task that
you want to undo (the task that you just performed), and click
.
Delivery Servers
Modifying a Delivery Server
To modify a Delivery Server, perform the following steps:
Step 1
From the main page, choose Configuration > CDN.
Step 2
Select the CDN that you want to modify and click
.
Step 3
Step 4
Step 5
In the Delivery Servers tab, select the Delivery Server that you want to modify and click
Edit the details and click OK.
.
Click Save.
Note
You can only edit the Description and Server Group fields.
URL Signing
Cisco Internet Streamer CDS provides the option for signing and validating content URLs, thus restricting
access to some users and limiting the viewing time. For signing and validating the URL, the CDS rely on a
set of one or more secret keys shared among the portal and the devices within CDS. This information needs
to be configured on the participating Service Engines by the CDN Operator.
To access this feature, perform the following steps:
Step 1
Step 2
Step 3
From the main page, choose Configuration > CDN. The CDN page is displayed.
Click
, which is located next to the CDN.
In the Delivery Servers tab, click
.
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
159
Configuration
URL Signing
Step 4
The following URL Signing page is displayed.
Table 117: URL Signing Parameters
Column Name
Description
Key Id Owner
Specify the ID number for the owner of this encryption
key. Valid entries are from 1 to 32.
Key Id Number
Specify the encryption key ID number. Valid entries are
from 1 to 16.
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
160
Configuration
URL Signing
Column Name
Description
Key
Field for Symmetric Key only. Enter a unique URL
signature key with up to 16 characters (excluding double
quotes at the beginning and end of the string). This field
accepts only 7-bit printable ASCII characters (alphabetic,
numerics, and others) and does not support a space or the
following special characters: pipe (|), question mark (?),
double quotes ("), and apostrophe (’). The following special
characters are allowed: {}!#$%&()*+,-./;:<=>@\~^[]_
Quoted and unquoted strings are allowed. Double quotes
(") are allowed at the beginning and end of the string only.
If you do not surround the key string with double quotes,
quotes are added when you click Submit.
Public Key URL
Field for Asymmetric Key only. The location of the public
key file. Only HTTP, HTTPS, or FTP addresses are
supported. The public/private key pair is stored in Privacy
Enhanced Mail (PEM) format.
Note
During Validation, the public key file is checked
if the file size exceeds 2000 bytes and if the file
starts with "-----BEGIN PUBLIC KEY-----" and
contains "-----END PUBLIC KEY-----" line
Private Key URL
Field for Asymmetric Key only. The location of the private
key file. Only HTTP, HTTPS, or FTP addresses are
supported. The public/private key pair is stored in Privacy
Enhanced Mail (PEM) format.
Note
During Validation, the private key file is checked
if the file size exceeds 2000 bytes and if the file
starts with "-----BEGIN EC PRIVATE KEY-----"
and contains "-----END EC PRIVATE KEY-----"
line
Symmetric Key
Field for Asymmetric Key only. A 16-byte American
Encryption Standard (AES) key used for AES encryption
of the signed URL.
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
161
Configuration
Creating URL Signature
Creating URL Signature
To create a URL Signature, perform the following steps:
Step 1
From the main page, choose Configuration > CDN. The CDN page is displayed.
Step 2
After navigating to the URL Signing page, click
Step 3
Enter the details as mentioned in the following table:
.
Field
Description
Cryptographic Algorithm
Choose either Symmetric Key or Asymmetric Key.
For all other field information, refer to the Table 117: URL Signing Parameters, on page
160.
Click Submit.
Note
Step 4
Editing URL Signature
To edit a URL Signature, perform the following steps:
Step 1
From the main page, choose Configuration > CDN. The CDN page is displayed.
Step 2
After navigating to the URL Signing page, select the URL Signature information, which you want to edit.
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
162
Configuration
Deleting URL Signature
Step 3
Step 4
Click
.
Enter the required changes and click Submit.
Note
For Asymmetric Key, only Private Key URL and Symmetric Key fields can be edited. For Symmetric Key,
only the Key field can be edited.
Deleting URL Signature
To delete a URL Signature, perform the following steps:
Step 1
From the main page, choose Configuration > CDN. The CDN page is displayed.
Step 2
Step 3
After navigating to the URL Signing page, select the URL Signature information, which you want to delete.
Step 4
Click
.
Click Yes in the Confirmation dialog box.
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
163
Configuration
Delivery Services
Delivery Services
Adding a Delivery Service
To add a Delivery Service, perform the following steps:
Step 1
From the main page, choose Configuration > CDN.
Step 2
Select the CDN to which you want to add a Delivery Service and click
Step 3
Step 4
On the Delivery Services tab, click
.
.
Enter the following details in the Create Delivery Service dialog box:
Table 118: Adding Delivery Service - Field & Description
Field
Description
Name
Specify the Delivery Service name.
Origin FQDN
Specify the FQDN of the Content Provider.
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
164
Configuration
Adding a Delivery Service
Field
Description
Preposition Storage Quota (MB)
Maximum content disk storage size for each SE, in
megabytes, for pre-fetched content and metadata, and
hybrid metadata for this delivery service. The default value
is zero, which means unlimited storage can be done for this
delivery service.
Note
The configured Preposition Storage Quota does
not affect cache content quota size; it only restricts
pre-fetched content storage for each SE. If the
total pre-fetched content storage size is less than
the configured quota, then the extra storage is used
for dynamic cache files.
Skip Encryption for Distribution
Specify whether you need to skip encryption for
distribution. Select No for encryption and Yes to skip
encryption.
Session Quota
Maximum number of concurrent sessions allowed for this
delivery service. The default value is zero, which means
unlimited sessions can be set for this delivery service.
Session Quota Augment Buffer (%)
Buffer, as a percentage, of the maximum number of
concurrent sessions allowed over the Session Quota. If this
threshold is exceeded, no new sessions are created until
the number of concurrent sessions is below this threshold.
The range is from 0 to 1000. The default is 10.
Bandwidth Quota (kbps)
Maximum bandwidth allowed for this delivery service. The
default value is zero, which means unlimited bandwidth
can be set for this delivery service.
Content Delivery QoS
This is automatically set as default.
Service Routing Domain
Specify the Service Routing Domain Name.
Bandwidth Quota Augment Buffer (%)
Buffer, as a percentage, of the maximum bandwidth
allowed over the Bandwidth Quota. If this threshold is
exceeded, no new sessions are created until the bandwidth
used is below this threshold. The range is from 0 to 1000.
The default is 10.
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
165
Configuration
Adding a Delivery Service
Field
Description
Is Live
When checked, creates a live program to distribute live or
scheduled programs to the SEs associated with this delivery
service and with the live program. This delivery service
does not have a related Manifest file and cannot be used
to distribute file-based content as regular delivery services
do. The live program learns about a live stream through a
program file that describes the attributes of the program.
Checking this check box disables the Delivery Service
Quota field and fields in the Acquisition and Distribution
Properties section.
Storage Priority Class
Choose the correct option from the drop-down list.
Note
This is configured in VDS-IS and is synced
automatically.
Content Provider
Associate the delivery service with the content provider.
Description
Optional. Additional information about the Delivery
Service.
Step 5
Click Create.
Step 6
Verify that the Delivery Service has been created successfully by selecting Delivery Services within the CDN page and
then verifying that the newly created Delivery Service is present.
Step 7
Click
next to the newly created delivery service to associate delivery servers to it.
Step 8
Step 9
Display a list of available delivery servers by clicking
.
Select one or multiple delivery servers that will be associated to the delivery service. Then, select the delivery server,
which will be the Content Acquirer, from the drop-down list and then click OK.
The Content Acquirer can be changed at any time from the main Delivery Service configuration page, using the Assign
Content Acquirer icon.
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
166
Configuration
Deleting a Delivery Service
Deleting a Delivery Service
To delete a delivery service, perform the following steps:
Step 1
From the main page, choose Configuration > CDN.
Step 2
Select the CDN that you want to delete and click .
In the Delivery Services tab, select the Delivery Service that you want to delete.
Step 3
Step 4
Click
and in the confirmation dialog box, click Yes to permanently delete the Delivery Service, and click No to
cancel the deletion.
Reseller Function Overview
A reseller is a user who buys delivery services from CDN and sells to the content providers. A reseller is
allocated a specific session bandwidth storage quota.
Adding a Reseller
To add a reseller, perform the following steps:
Step 1
Step 2
From the main page, choose Configuration > Customers > Reseller.
Click
to open the Create Reseller dialog box.
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
167
Configuration
Adding a Reseller
Adding a Reseller involves configuring or modifying the following fields:
Table 119: Adding a Reseller - Field & Description
Field
Description
Reseller Name
Specify a unique name for the reseller.
Reseller Id
Specify the ID for the reseller.
Address
Specify the IP address or FQDN of this reseller.
Phone
Specify the phone number for the reseller.
Email
Specify the email address for the reseller.
Website
Specify the web site URL for the reseller.
Description
Optional. Additional information about the reseller.
Preposition Storage Quota
(MB)
Specify the maximum data in MB that can be prepositioned for the reseller. The default
value is zero, which means unlimited storage can be done for this reseller.
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
168
Configuration
Modifying a Reseller
Step 3
Field
Description
Session Quota
Specify the maximum number of sessions that can be active for the reseller. The default
value is zero, which means unlimited sessions can be set for this reseller.
Bandwidth Quota (Kbps)
Specify the maximum bandwidth allowed for the reseller. The default value is zero,
which means unlimited bandwidth can be set for this reseller.
User Name
Specify a user name associated with the reseller.
Password
Specify the user's password associated with this reseller.
Confirm Password
Re-enter the user's password associated with this reseller.
Click Create to add the Reseller.
Modifying a Reseller
To modify a Reseller, perform the following steps:
Step 1
From the main page, choose Configuration > Customers > Reseller.
Step 2
Step 3
Select the Reseller that you want to modify and click
On the left pane, edit the details and click Save.
.
Deleting a Reseller
To delete a Reseller, perform the following steps:
Step 1
Step 2
Step 3
From the main page, choose Configuration > Customers > Reseller.
Select the Reseller that you want to delete and click
.
Click Yes to permanently delete the Reseller, and click No to cancel the deletion.
Note
• Ensure that you have deleted the Content Provider(s) associated with the Reseller before deleting the
Reseller.
• When you delete a Reseller, its corresponding user(s) will also be deleted.
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
169
Configuration
Content Provider Function Overview
Content Provider Function Overview
A content provider is a user who buys delivery services from CDN and serves the content.
Adding a Content Provider
To add a content provider, perform the following steps:
Step 1
Step 2
From the main page, choose Configuration > Customers > Content Provider.
Click
to open the Create Content Provider dialog box.
Adding a Content Provider involves configuring or modifying the following fields:
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
170
Configuration
Mapping a Content Provider and Delivery Service
Table 120: Adding a Content Provider - Field & Description
Field
Description
Provider Name
Specify a unique name for the content provider.
Provider Id
Specify the ID for the content provider.
Address
Specify the IP address or FQDN of this content provider.
Phone
Specify the phone number for this content provider.
Email
Specify the email address for this content provider.
Website
Specify the web site URL for this content provider.
Description
Optional. Additional information about the content provider.
Preposition Storage Quota
(MB)
Specify the maximum data in MB that can be prepositioned for the reseller. The default
value is zero, which means unlimited storage can be done for this content provider.
Session Quota
Specify the maximum number of sessions that can be active for the reseller. The default
value is zero, which means unlimited sessions can be set for this content provider.
Bandwidth Quota (Kbps)
Specify the maximum bandwidth allowed for the reseller. The default value is zero,
which means unlimited bandwidth can be set for this content provider.
User Name
Specify a user name associated with the content provider.
Password
Specify the user's password associated with this content provider.
Confirm Password
Re-enter the user's password associated with this content provider.
A Content Provider that is not a global Content Provider, will be available under the Reseller option. To view the Reseller
option, uncheck Global Content Provider. From the Reseller drop-down, choose the Reseller, which you want to associate
the Content Provider to.
Step 3
Click Create to add the Content Provider.
Mapping a Content Provider and Delivery Service
To map a Content Provider and Delivery Service, perform the following steps:
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
171
Configuration
Assigning Multiple Content Providers to a Single Delivery Service
Before You Begin
Before you map a Content Provider and Delivery Service, you need to first create the Delivery Service in
CDN. For this, you need to add a CDN (see Adding a CDN, on page 154). After you add a CDN, you need
to add a Delivery Service (see Adding a Delivery Service, on page 164).
Step 1
From the main page, choose Configuration > Customers > Content Provider.
Step 2
Select the Content Provider that you want to assign Delivery Service, and click
Step 3
Click
Step 4
Step 5
.
and select the Delivery Service that you need to map.
Select the CDN that you want to map and click
.
Click Save.
If you want to assign multiple Content Providers to a single Delivery Service, you must not map Content Provider and
Delivery Service.
Assigning Multiple Content Providers to a Single Delivery Service
This feature enables the user to set up multiple Content Providers to a single Delivery Service. This is feasible
by providing a custom Regex option, wherein the CDN Operator can provide the Regex for new field CP_ID.
This custom regex is used to extract CP_ID from the URL and then perform a lookup to get a meaningful CP
name. If the CDN Operator needs to use Asset ID to obtain meaningful CP name, then the Asset ID and CP_ID
will have the same Regex for token extraction from the URL. CDN Operators can either create or update
Regex for CP_ID extraction. Regex is maintained in props.conf, a Splunk configuration file.
To create or update Regex for CP_ID, perform the following steps:
Step 1
Log in to the analytics JS node using the following credentials:
Username: bnisplunk
Password: password
Step 2
Execute the script configure_regex.py using the following command to add/update:
$SPLUNK_HOME/bin/splunk cmd python $SPLUNK_HOME/etc/apps/CDN_JS/bin/configure_regex.py add
<sourcetype> <fieldname> "<regex>"
Where, <sourcetype> is the sourcetype for which the regex is provided.
The valid source types are: fms_disconnect, wmt_logplaystats, we_access, abr_session and sr_transaction
<regex>—regex to extract the Content Provider information from the log data
<fieldname>—the valid field names are CP_ID and Asset
Example:
For the following log file entry:
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
172
Configuration
Modifying a Content Provider
[28/Nov/2012:23:54:42.315+0000] 1799 74.126.71.217 TCP_HIT/206 2458 GET http://ccp-cmc-smooth-localpod02linear.cdn2.net/content/CP1/hls/file0/file_500.m3u8 application/x-mpegURL - hls 0 - 20121129100000000100000001
[29/Nov/2012:00:00:02.317+0000] External –
Case1: If you want to extract content/CP1 as CP_ID, then the Regex is:
(?i)^(?:[^ ]*( {1,2})){6}(?:[a-z]+://)(?:[^ /:]+[^ /]+/)(?P<CP_ID>[^ /]+/[^ /]+)
Case 2: If you want to extract CP1 as CP_ID, then the Regex is:
(?i)^(?:[^ ]*( {1,2})){6}(?:[a-z]+://)(?:[^ /:]+[^ /]+/[^ /]+/)?(?P<CP_ID>[^ /]+)
Case 3: If you want to extract file_500.m3u8 as Asset, then the Regex is:
(?i)^(?:[^ ]*( {1,2})){6}(?:[a-z]+://)(?:[^ /:]+[^ /]+/[^ /]+/[^ /]+/[^ /]+/[^ /]+/)(?P<Asset>[^ ]+)
Once this script is executed, redeployment of the server is initiated automatically.
To delete Regex for CP_ID, use the following command:
#$SPLUNK_HOME/bin/splunk cmd python configure_regex.py <remove> <sourcetype> <fieldname>
Modifying a Content Provider
To modify a Content Provider, perform the following steps:
Step 1
From the main page, choose Configuration > Customers > Content Provider.
Step 2
Step 3
Select the Content Provider that you want to modify and click
In the left pane, edit the details and click Save.
.
Deleting a Content Provider
To delete a Content Provider, perform the following steps:
Step 1
Step 2
Step 3
From the main page, choose Configuration > Customers > Content Provider.
Select the Content Provider that you want to delete and click
.
Click Yes to permanently delete the Content Provider, and click No to cancel deletion.
Note
When you delete a Content Provider, its corresponding user(s) will also be deleted.
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
173
Configuration
Services
Services
This feature provides a quick overview of the bandwidth, session, and storage quota for each reseller, content
provider, and delivery service in the CDN to the CDN Operator. These quotas need to be specified when you
create delivery service, content provider, and reseller.
To access this feature, from the main page, click Configuration > Services.
On the right pane, the overall CDN Operator allocation is displayed as a pie chart.
To view the bandwidth, session, and storage quota for each reseller, on the left pane, click the arrow next to
the CDN Operator. The resellers under the CDN Operator are displayed. Select a specific reseller to view the
allocation.
Note
For unlimited bandwidth, session, or storage quota, the pie chart will not be displayed.
To view the bandwidth, session, and storage quota of each content provider, on the left pane, click the arrow
next to the respective reseller. The content providers under the resellers are displayed. Select a specific content
provider to view the allocation.
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
174
Configuration
Services
To view the delivery services of each content provider, on the left pane, click the arrow next to the respective
content provider. The delivery services under the content providers are displayed.
Note
Utilization shown in the data grid is the actual CDN utilization.
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
175
Configuration
Geo Fencing
Geo Fencing
A Geo/IP file is an XML file that configures the delivery service to allow or deny client requests, based on
the client’s IP address or client’s geographic locations (country, state, city). Each Service Engine participating
in the Authorization Service must have Authorization Service enabled and the IP address and port of the
Geo-Location server specified. VDS-IS provides an option to apply Geo/IP file and restrict access to the
content, based on location. Geo Fencing enables the Content Providers and CDN Operators to assign a Geo
IP file to a delivery service or to disassociate a Geo IP file from a delivery service.
Assigning a Geo/IP file to a Delivery Service
To assign a Geo IP file to a delivery service, perform the following steps:
Step 1
From the main page, choose Configuration > Geo Fencing.
Step 2
Choose the CDN from the Select CDN drop-down list.
Step 3
Click Browse next to Geo/IP File Upload text box to select the Geo IP file. The Geo IP file is an XML file.
Step 4
Click Validate to validate the selected Geo IP file. This displays the details on the right pane.
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
176
Configuration
Disassociating a Geo/IP file from a Delivery Service
Step 5
Step 6
Step 7
The Destination File Name is auto populated when you select a Geo IP file. If the users want to edit, they can edit as
desired.
Choose the delivery service from the Apply to Delivery Service drop-down list to which the file needs to be assigned
to.
Click Submit. The Geo IP file will be associated with the delivery service successfully.
Disassociating a Geo/IP file from a Delivery Service
To disassociate a Geo IP file associated with a delivery service, perform the following steps:
Step 1
From the main page, choose Configuration > Geo Fencing.
Step 2
Choose the delivery service from the Apply to Delivery Service drop-down list.
Step 3
Click Delete. This will disassociate the Geo IP file from the selected delivery service and this deletes the file from the
system.
Note
To delete a Geo IP file, the file should not be associated with any delivery services.
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
177
Configuration
Content Purging
Content Purging
Content purging enables the wholesale users (both the Resellers and Content Providers) to delete the
dynamically cached content from the delivery servers that deliver content through the delivery services assigned
to them.
By default, all content deletion requests will be sent as synchronous requests. To send requests that have
wildcard characters in a URL as asynchronous, add the following configuration in Global Configurations after
choosing cdnmanager from the Property View drop-down list
Deleting Content
To delete the content, perform the following steps:
Step 1
From the main page, choose Configuration > Content Purging. This shows the deletion tasks table where the tasks for
deletion requests are created.
Table 121: Deletion Tasks Table
Column Name
Description
Created Date
Date on which content deletion request is created on
VDS-IS.
Type
Two types namely API and GUI.
• API—Tasks created through VDS-SM by using REST
APIs that are exposed by VDS-IS.
• CDSM GUI—Tasks created through VDS-IS GUI.
Total SEs
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
178
Total number of Service Engines to which the deletion
request is sent.
Configuration
Deleting Content
Completed SEs
Number of Service Engines in which the deletion request
is completed.
Status
Status of deletion task.
Comment
Comments given at the time of deletion request.
When you click
Step 2
Click
, the Task Result page is displayed. This displays the content deletion request details.
to open the Content Deletion dialog box.
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
179
Configuration
Deleting Content
Step 3
Choose the CDN from the Select CDN drop-down list.
Step 4
Enter the content URL in the Content URL text box. By entering the content URL, the Delivery Server(s) field will
be populated with the delivery servers associated with the delivery services that serve the given content URL.
Enter the comments in the Comments text box.
Step 5
Step 6
Step 7
Select the desired delivery server(s) from the Delivery Server(s) field from which the content needs to be deleted. If no
delivery servers are selected, then the content will be deleted from all delivery servers that are associated with the delivery
services that serve the given content.
Click Submit. The content from the selected delivery server(s) will be deleted successfully and the deletion details will
be included in the deletion tasks table.
By clicking the Refresh icon, the content deletion task table is refreshed.
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
180
CHAPTER
8
Administration
• System Load Dashboard, page 181
• License Usage , page 183
• Managing Users and Roles Overview, page 184
• About User Accounts, page 184
• Roles, page 185
• Global Configurations, page 186
• CDN Health, page 188
• Log Event Discrepancies, page 211
System Load Dashboard
Displays charts that represents Percent Load by Host, Percent Memory Used by Host , Disk Used by Host
and Volume, and Interface Throughput, across the nodes in the system.
To access System Load Dashboard, from the main page, choose Administration > System Load Dashboard.
Percent Load by Host
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
181
Administration
System Load Dashboard
Percent Memory Used by Host
Disk Used by Host and Volume
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
182
Administration
License Usage
Interface Throughput
License Usage
The License Usage dashboard displays the amount of logs indexed in the system.
To access the License Usage dashboard, from the main page, choose Administration > License Usage.
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
183
Administration
Managing Users and Roles Overview
The following table describes the chart available within this dashboard.
Table 122: License Usage Chart & Description
Chart
Description
License Usage Illustrates the amount of logs indexed in the system.
Chart
Information
The information within this chart is shown as a line graph with the Date/Time along the
X-axis and the License Usage in GB along the Y-axis. The legends representing the graph
are by total data Delivered and GB data indexed.
Chart Formula The formula used to derive the graph is: total log files indexed in the system vs. the total
data delivered within the CDN.
Chart Filters
Note
This chart uses Time Range Picker - Last 7 days, Last 30 days, Last 90 days, Last 365
days, and Custom time, as filters.
You can configure the group ID and label in the common.conf file according to your splunk license. The
common.conf file is available in the Job Scheduler node at the following location:
/opt/splunk/etc/deployment-apps/appnormalize/bin
Depending on the configuration made in the common.conf file, the License Quota value will vary.
Managing Users and Roles Overview
Administrators can create specific users and set their roles from the User Management page.
To access User Management, from the main page, choose Administration > User Management. In this
feature, you can add and delete a user.
About User Accounts
User accounts define user roles and access privileges to system configuration and management functional
areas.
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
184
Administration
Roles
The CDN Manager includes a default user profile with Cisco Administrator access privileges, to provide the
Network Administrator first-time access to the CDN Manager system.
Administrator privileges provide full rights to all system functions. You must have Administrator privileges
to define roles and grant access permissions to system functions.
Note
For added security, we recommend that you replace the Cisco Administrator account with a new
Administrator user account, specific to only your network management.
Roles
A user's role dictates the functional area and level of access that is granted to the user.
Following is a list of the supported roles:
• CDN Operator Administrator
• CDN Operator Viewer
• Reseller Administrator
• Reseller Viewer
• Content Provider Administrator
• Content Provider Viewer
Adding a User
Adding a user involves:
• Creating the user
• Defining the user's role
Note
You must have Administrator rights to add a user.
To add a user, perform the following steps:
Step 1
From the main page, choose Administration > User Management.
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
185
Administration
Deleting a User
Step 2
Step 3
Step 4
Step 5
Click
to add the user and define the user's role.
In the Create New User dialog, type the values in the fields or select an option from the drop-down list.
Add the user's name and password. By default, the role is set to Admin.
Click Create.
Deleting a User
To delete a user, perform the following steps:
Step 1
From the main page, choose Administration > User Management.
Step 2
Step 3
From the User Management page, select the user you want to delete.
Step 4
Click
.
Click Yes in the confirmation dialog box.
The user will be deleted.
Global Configurations
Configuration includes any settings that exist on an Appliance, which an end-user might modify in the following
ways:
• Using the Appliance Agent (rAPA) User Interface (UI) or Manager User Interface
• A manual edit to a specific file using a documented procedure; for example, file system modification
of jboss-log4j.xml or workflows
• By copying a modified file onto the appliance from elsewhere
Important! Modifying a Global Configuration can have a major impact on the running system. A parameter
change should only be made by a System Administrator who has a detailed understanding about the impact
of the change on the running system.
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
186
Administration
Adding Global Configurations
A baseline configuration is established at the conclusion of installing each appliance. Any parameters not
mentioned in this document (for example, tty device definitions) should be considered non-modifiable.
The following lists the configuration parameter elements:
• Configuration Elements: Kinds of configuration settings used by the system; for example, topology
or configuration database, workflow, and so on.
• Appliance Configuration Parameters: Summary of all parameters used in configuring appliances with
description, value type, and so on.
• Solution Node Settings: Settings recorded on each node, which define that node's specific role in the
overall solution.
• Global Configuration Settings: Globally visible configuration sections, each containing a description
of all parameters in the section, including the product defaults.
• System Topology: Topology data and its usage, import/export operations and the export schema.
• Configuration Files: Essential files for each appliance that contain the configuration for the appliance.
To access Global Configurations, choose Administration > Global Configurations.
Adding Global Configurations
To add global configurations, perform the following steps:
Step 1
Step 2
Step 3
From the main page, choose Administration > Global Configurations.
Click
to add global configurations.
Enter the details and click OK and then click Save.
Deleting Global Configurations
To delete global configurations, perform the following steps:
Step 1
From the main page, choose Administration > Global Configurations.
Step 2
Step 3
Select the Global configuration you want to delete.
Step 4
Click
.
Click OK and then click Save.
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
187
Administration
CDN Health
CDN Health
Monitoring the health of CDN network can help prevent the CDN network from getting to a state in which
your users cannot access the network or the data on it. VDS-SM provides an option to monitor the health of
the CDN network resources in real-time and as trends.
The following categories are displayed in CDN Health:
• Monitor
• Trend
Enabling Service Monitor Transaction Log
CDN Health charts will be displayed only when the Service Monitor transaction log is forwarded from VDS-IS
to VDS-SM.
Enabling Service Monitor (SE) Transaction Log
To enable and export Service Engine transaction log, perform the following steps:
Note
You can perform the below steps only if you have installed VDS-IS version that supports Service Monitor
functionality.
Step 1
Step 2
Login to the CDSM UI.
Click Devices and select the required Service Engine.
Step 3
In the right pane, choose Service Control > Transaction Logging.
Step 4
From Monitors table, check the Service Monitor check box.
Step 5
Click Submit.
Enabling Service Monitor (SR) Transaction Log
To enable and export Service Router transaction log, perform the following steps:
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
188
Administration
Monitor
Note
You can perform the below steps only if you have installed VDS-IS version that supports Service Monitor
functionality.
Step 1
Step 2
Login to the CDSM UI.
Click Devices and select the required Service Router.
Step 3
In the right pane, choose General Settings > Notification and Tracking > Transaction Logging.
Step 4
From Monitors table, check the Service Monitor check box.
Step 5
Click Submit.
Monitor
Monitor dashboard displays metrics indicating the health of system resources in real-time.
To access the Monitor dashboard, from the Home page, choose Administration > CDN Health > Monitor.
The following parameters are displayed in the Monitor dashboard:
• CPU Usage
• Memory Usage
• Disk Usage
• CPU Usage by Protocol Engines
• Memory Usage by Protocol Engines
• Stopped Protocol Engines
• Threshold Exceeded Protocol Engines
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
189
Administration
Monitor
CPU Usage
The following table describes the CPU Usage chart:
Table 123: CPU Usage Chart & Description
Chart
Description
CPU Usage
Illustrates the percentage of CPU consumed by a
delivery server in real-time.
Chart Information
The information within this chart is shown in an area
graph with Date/Time along the X-axis and the CPU
usage as Percentage along the Y-axis. The legend
representing the graph is Average.
Chart Filters
This chart uses Delivery Server as a filter.
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
190
Administration
Monitor
Memory Usage
The following table describes the Memory Usage chart:
Table 124: Memory Usage Chart & Description
Chart
Description
Memory Usage
Illustrates the percentage of memory consumed by a
delivery server in real-time.
Chart Information
The information within this chart is shown in an area
graph with Date/Time along the X-axis and the
memory usage as Percentage along the Y-axis. The
legend representing the graph is Average.
Chart Filters
This chart uses Delivery Server as a filter.
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
191
Administration
Monitor
Disk Usage
The following table describes the Disk Usage chart:
Table 125: Disk Usage Chart & Description
Chart
Description
Disk Usage
Illustrates the percentage of disk consumed by a
delivery server in real-time.
Chart Information
The information within this chart is shown in an area
graph with Date/Time along the X-axis and the disk
usage as Percentage along the Y-axis. The legend
representing the graph is Average.
Chart Filters
This chart uses Delivery Server as a filter.
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
192
Administration
Monitor
CPU Usage by Protocol Engines
The following table describes the CPU Usage by Protocol Engines chart:
Table 126: CPU Usage by Protocol Engines Chart & Description
Chart
Description
CPU Usage by Protocol Engines
Illustrates the percentage of CPU consumed by the
protocol engines of a delivery server in real-time.
Chart Information
The information within this chart is shown in a line
graph with Date/Time along the X-axis and the CPU
usage as Percentage along the Y-axis. The legends
representing the graph are protocol engines.
Chart Filters
This chart uses Delivery Server as a filter.
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
193
Administration
Monitor
Memory Usage by Protocol Engines
The following table describes the Memory Usage by Protocol Engines chart:
Table 127: Memory Usage by Protocol Engines Chart & Description
Chart
Description
Memory Usage by Protocol Engines
Illustrates the memory consumed by the protocol
engines of a delivery server in real-time.
Chart Information
The information within this chart is shown in a line
graph with Date/Time along the X-axis and the
memory usage as MB along the Y-axis. The legends
representing the graph are protocol engines.
Chart Filters
This chart uses Delivery Server as a filter.
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
194
Administration
Monitor
Stopped Protocol Engines
The following table describes the information in the table:
Table
Description
Stopped Protocol Engines
Illustrates whether the protocol engines were fully
functional without any stoppages in a given minute.
• Red—Protocol Engine stopped at least once.
• Green—Protocol Engine was fully functional.
Table Information
The information within this table are -time, and
protocol engines.
Table Filters
This table uses Delivery Server as a filter.
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
195
Administration
Trend
Threshold Exceeded Protocol Engines
The following table describes the information in the table:
Table
Description
Threshold Exceeded Protocol Engines
Indicates whether the protocol engines exceeded the
thresholds in a given minute.
• Red—Threshold exceeded at least once.
• Green—Below the threshold.
Table Information
The information within this table are -time, and
protocol engines.
Table Filters
This table uses Delivery Server as a filter.
Trend
This features allows you to view the health of system resources based on the historical data (up to seven days)
gathered. The following tabs are displayed in Trend:
• Service Engine
• Service Router
Service Engine
This tab displays charts that indicates the health of system resources at service engine level.
To access this tab, from the Home page, choose Administration > CDN Health > Trend > Service Engine.
The following metrics are displayed here:
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
196
Administration
Trend
• CPU Usage
• Memory Usage
• Disk Usage
• CPU Usage by Protocol Engines
• Memory Usage by Protocol Engines
• TCP Server Connections
• TCP Client Connections
CPU Usage
The following table describes the CPU Usage chart:
Table 128: CPU Usage Chart & Description
Chart
Description
CPU Usage
Illustrates the percentage of CPU consumed by a
delivery server for the specified time range.
Chart Information
The information within this chart is shown in an area
graph with Date/Time along the X-axis and the CPU
usage as Percentage along the Y-axis. The legend
representing the graph is Average.
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
197
Administration
Trend
Chart Formula
The formula used to derive the graph is: average of
CPU usage (%) for the given delivery server.
Chart Filters
This chart uses Time Range, Delivery Server Group,
and Delivery Server as filters.
Memory Usage
The following table describes the Memory Usage chart:
Table 129: Memory Usage Chart & Description
Chart
Description
Memory Usage
Illustrates the percentage of memory consumed by a
delivery server for the specified time range.
Chart Information
The information within this chart is shown in an area
graph with Date/Time along the X-axis and the
memory usage as Percentage along the Y-axis. The
legend representing the graph is Average.
Chart Formula
The formula used to derive the graph is: average of
memory usage (%) for the given delivery server.
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
198
Administration
Trend
Chart Filters
This chart uses Time Range, Delivery Server Group,
and Delivery Server as filters.
Disk Usage
The following table describes the Disk Usage chart:
Table 130: Disk Usage Chart & Description
Chart
Description
Disk Usage
Illustrates the percentage of disk consumed by a
delivery server for the specified time range.
Chart Information
The information within this chart is shown in an area
graph with Date/Time along the X-axis and the disk
usage as Percentage along the Y-axis. The legend
representing the graph is Average.
Chart Formula
The formula used to derive the graph is: average of
disk usage (%) for the given delivery server.
Chart Filters
This chart uses Time Range, Delivery Server Group,
and Delivery Server as filters.
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
199
Administration
Trend
CPU Usage by Protocol Engines
The following table describes the CPU Usage by Protocol Engines chart:
Table 131: CPU Usage by Protocol Engines Chart & Description
Chart
Description
CPU Usage by Protocol Engines
Illustrates the percentage of CPU consumed by a
protocol engine of a delivery server for the specified
time range.
Chart Information
The information within this chart is shown in a line
graph with Date/Time along the X-axis and the CPU
usage as Percentage along the Y-axis. The legends
representing the graph are Maximum, Minimum, and
Average.
Chart Formula
The formula used to derive the graph is:
• Maximum—Maximum of CPU usage (%) for
the given delivery server.
• Minimum—Minimum of CPU usage (%) for
the given delivery server.
• Average—Average of CPU usage (%) for the
given delivery server.
Chart Filters
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
200
This chart uses Protocol Engine, Time Range,
Delivery Server Group, and Delivery Server as filters.
Administration
Trend
Memory Usage by Protocol Engines
The following table describes the Memory Usage by Protocol Engines chart:
Table 132: Memory Usage by Protocol Engines Chart & Description
Chart
Description
Memory Usage by Protocol Engines
Illustrates the memory consumed by a protocol engine
of a delivery server for the specified time range.
Chart Information
The information within this chart is shown in a line
graph with Date/Time along the X-axis and the
memory usage as MB along the Y-axis. The legends
representing the graph are Maximum, Minimum, and
Average.
Chart Formula
The formula used to derive the graph is:
• Maximum—Maximum of memory usage (MB)
for the given delivery server.
• Minimum—Minimum of memory usage (MB)
for the given delivery server.
• Average—Average of memory usage (MB) for
the given delivery server.
Chart Filters
This chart uses Protocol Engine, Time Range,
Delivery Server Group, and Delivery Server as filters.
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
201
Administration
Trend
TCP Server Connections
The following table describes the TCP Server Connections chart:
Table 133: TCP Server Connections Chart & Description
Chart
Description
TCP Server Connections
Illustrates the number of TCP server connections
established in a delivery server for the specified time
range.
Chart Information
The information within this chart is shown in a line
graph with Date/Time along the X-axis and Count of
TCP server connections along the Y-axis. The legends
representing the graph are Maximum, Minimum, and
Average.
Chart Formula
The formula used to derive the graph is: maximum,
minimum, and average TCP server connections for
the given delivery server.
Chart Filters
This chart uses Time Range, Delivery Server Group,
and Delivery Server as filters.
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
202
Administration
Trend
TCP Client Connections
The following table describes the TCP Client Connections chart:
Table 134: TCP Client Connections Chart & Description
Chart
Description
TCP Client Connections
Illustrates the number of TCP client connections
established in a delivery server for the specified time
range.
Chart Information
The information within this chart is shown in a line
graph with Date/Time along the X-axis and Count of
TCP client connections along the Y-axis. The legends
representing the graph are Maximum, Minimum, and
Average.
Chart Formula
The formula used to derive the graph is: maximum,
minimum, and average TCP client connections for
the given delivery server.
Chart Filters
This chart uses Time Range, Delivery Server Group,
and Delivery Server as filters.
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
203
Administration
Trend
Service Router
This tab displays charts that indicates the health of system resources at service router level.
To access this tab, from the Home page, choose Administration > CDN Health > Trend > Service Router.
The following metrics are displayed here:
• CPU Usage
• Memory Usage
• Disk Usage
• CPU Usage for Service Routing
• Memory Usage for Service Routing
• TCP Server Connections
• TCP Client Connections
CPU Usage
The following table describes the CPU Usage chart:
Table 135: CPU Usage Chart & Description
Chart
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
204
Description
Administration
Trend
CPU Usage
Illustrates the percentage of CPU consumed by a
service router for the specified time range.
Chart Information
The information within this chart is shown in an area
graph with Date/Time along the X-axis and the CPU
usage as Percentage along the Y-axis. The legend
representing the graph is Average.
Chart Formula
The formula used to derive the graph is: average of
CPU usage (%) for the given service router.
Chart Filters
This chart uses Time Range, and Service Router as
filters.
Memory Usage
The following table describes the Memory Usage chart:
Table 136: Memory Usage Chart & Description
Chart
Description
Memory Usage
Illustrates the percentage of memory consumed by a
service router for the specified time range.
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
205
Administration
Trend
Chart Information
The information within this chart is shown in an area
graph with Date/Time along the X-axis and the
memory usage as Percentage along the Y-axis. The
legend representing the graph is Average.
Chart Formula
The formula used to derive the graph is: average of
memory usage (%) for the given service router.
Chart Filters
This chart uses Time Range, and Service Router as
filters.
Disk Usage
The following table describes the Disk Usage chart:
Table 137: Disk Usage Chart & Description
Chart
Description
Disk Usage
Illustrates the percentage of disk consumed by a
service router for the specified time range.
Chart Information
The information within this chart is shown in an area
graph with Date/Time along the X-axis and the disk
usage as Percentage along the Y-axis. The legend
representing the graph is Average.
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
206
Administration
Trend
Chart Formula
The formula used to derive the graph is: average of
disk usage (%) for the given service router.
Chart Filters
This chart uses Time Range, and Service Router as
filters.
CPU Usage for Service Routing
The following table describes the CPU Usage for Service Routing chart:
Table 138: CPU Usage for Service Routing Chart & Description
Chart
Description
CPU Usage for Service Routing
Illustrates the maximum, minimum, and average
percentage of CPU consumed by a service router for
the specified time range.
Chart Information
The information within this chart is shown in a line
graph with Date/Time along the X-axis and the CPU
usage as percentage along the Y-axis. The legends
representing the graph are Maximum, Minimum, and
Average
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
207
Administration
Trend
Chart Formula
The formula used to derive the graph is:
• Maximum—Maximum of CPU usage (%) for
the given service router.
• Minimum—Minimum of CPU usage (%) for
the given service router.
• Average—Average of CPU usage (%) for the
given service router.
Chart Filters
This chart uses Time Range, and Service Router as
filters.
Memory Usage for Service Routing
The following table describes the Memory Usage for Service Routing chart:
Table 139: Memory Usage for Service Routing Chart & Description
Chart
Description
Memory Usage for Service Routing
Illustrates the maximum, minimum, and average
memory consumed by a service router for the
specified time range.
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
208
Administration
Trend
Chart Information
The information within this chart is shown in a line
graph with Date/Time along the X-axis and the
memory usage as MB along the Y-axis. The legends
representing the graph are Maximum, Minimum, and
Average.
Chart Formula
The formula used to derive the graph is:
• Maximum—Maximum of memory usage (MB)
for the given service router.
• Minimum—Minimum of memory usage (MB)
for the given service router.
• Average—Average of memory usage (MB) for
the given service router.
Chart Filters
This chart uses Time Range, and Service Router as
filters.
TCP Server Connections
The following table describes the TCP Server Connections chart:
Table 140: TCP Server Connections Chart & Description
Chart
Description
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
209
Administration
Trend
TCP Server Connections
Illustrates the number of TCP server connections
established in a service router for the specified time
range.
Chart Information
The information within this chart is shown in a line
graph with Date/Time along the X-axis and Count of
TCP server connections along the Y-axis. The legends
representing the graph are Maximum, Minimum, and
Average.
Chart Formula
The formula used to derive the graph is: maximum,
minimum, and average TCP server connections for
the given service router.
Chart Filters
This chart uses Time Range, and Service Router as
filters.
TCP Client Connections
The following table describes the TCP Client Connections chart:
Table 141: TCP Client Connections Chart & Description
Chart
Description
TCP Client Connections
Illustrates the number of TCP client connections
established in a service router for the specified time
range.
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
210
Administration
Log Event Discrepancies
Chart Information
The information within this chart is shown in a line
graph with Date/Time along the X-axis and Count of
TCP client connections along the Y-axis. The legends
representing the graph are Maximum, Minimum, and
Average.
Chart Formula
The formula used to derive the graph is: maximum,
minimum, and average TCP client connections for
the given service router.
Chart Filters
This chart uses Time Range, and Service Router as
filters.
Log Event Discrepancies
The Log Event Discrepancies illustrates the data loss information for the specified time interval. The charts
related to Content and Viewer metrics will not get populated for the day(s) plotted in Log Event Discrepancies
chart.
You can drill down the data in the chart at granular level. Click on the graph to view the data loss reason and
count of missing events on that particular date. Click the corresponding row to view the missing file names.
To access the Log Event Discrepancies, from the main page, choose Administration > Log Event
Discrepancies.
The following table describes the chart available within this dashboard.
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
211
Administration
Log Event Discrepancies
Table 142: Log Event Discrepancies Chart & Description
Chart
Description
Log Event
Discrepancies
Illustrates the amount of data loss occurred while receiving the transaction log from the
universal forwarder.
Chart
Information
The information within this chart is shown as a column chart with Date/Time along the
X-axis and Count along the Y-axis. The legends representing the graph are reasons for data
loss.
Chart Formula The formula used to derive the graph is: total logs missed during log transaction.
Chart Filter
This chart uses Time Range Picker–Previous day, Last 7 days, Last 30 days, as filter.
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
212
CHAPTER
9
Troubleshooting
• Troubleshooting Analytics Dashboards, page 213
• Troubleshooting Splunk Licensing Issues, page 214
• Troubleshooting Splunk Forwarder Issues, page 215
• Troubleshooting the Splunk Indexer, page 216
• Troubleshooting the Analytics Search Head, page 217
• Troubleshooting VDS-IS Provisioning, page 219
• Deleting Summarized Data, page 219
• Splunk License Violation, page 220
Troubleshooting Analytics Dashboards
The analytics system is a critical tool for troubleshooting run-time issues, as well as providing trending
information that can be used for capacity planning and other purposes. If it is not properly operating, the
ability to use it for troubleshooting is lost.
The most commonly observed behavior of the analytics system that is not working, is a lack of data. If any
of the above functions are not operating properly, the Dashboards and Reports data may not appear, and the
message “no result found” is displayed.
The following list provides possible problems that could arise while using the VDS Analytics:
• Splunk licensing
• Splunk Forwarder not operating correctly
• Analytics Indexer not operating
• Search Head not operating
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
213
Troubleshooting
Troubleshooting Splunk Licensing Issues
Troubleshooting Splunk Licensing Issues
Depending on the browser being used, either Internet Explorer (IE) or Firefox, Splunk licensing issues may
cause different errors to appear.
The following are examples of a Splunk licensing errors.
• Splunk licensing issues in IE.
• Splunk licensing issues in Firefox. In Firefox, an insecurelogin file will start to download. For example:
To troubleshoot Splunk licensing issues, perform the following steps:
Step 1
Step 2
Copy the Splunk license file to your local machine, taking care to note the location, which will be used later in this
procedure.
Open the Splunk manager app on the Job Scheduler. Using the following:
Example:
http://<IP of Job Sched>:8000/en-us/manager
Username: Admin or admin
Example:
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
214
Troubleshooting
Troubleshooting Splunk Forwarder Issues
Password: Beaumaris1
Step 3
Choose Settings > Licensing.
Step 4
Select Add License.
Step 5
Browse your machine to the location where you copied the license file. Note: Do not change the filename.
Step 6
Select Install.
Step 7
Return to the Licensing page and confirm whether the new license is added and is valid.
Troubleshooting Splunk Forwarder Issues
To verify that the Splunk Forwarder is functioning correctly, ensure that the application node expected to
supply data, has an active forwarder.
To do this, perform the following steps:
Step 1
Step 2
SSH to the Forwarder.
Login to the Forwarder using, username: bninet and password: password.
Step 3
At the Forwarder prompt, enter the PS command to verify that the Splunk Forwarder is running. For example:
Example:
[ bninet@FW ~]$ ps eax | grep splunkd | grep 8088
2256 ? Sl 0:52 splunkd -p 8088 start CONSOLE=/ dev /console SELINUX_IN IT=YES SHELL=/bin/bash TERM=
linux USER= bninet INIT_VERSION=sysvinit-2.86 PATH=/h ome / bninet / splunkforwarder /bin:/ sbin :/ usr / sbin
:/bin:/ usr /bin _=/home/ bninet / splu nkforwarder /bin/ splunk runlevel =3 RUNLEVEL=3 PWD=/ LANG=en_US.UTF-8
previous=N P REVLEVEL=N SHLVL=3 HOME=/home/ bninet LOGNAME= bninet HOSTNAME=FW
SPLUNK_HOME=/ hom e/ bninet / splunkforwarder SPLUNK_DB=/home/ bninet / splunkforwarder / var /lib/ splunk
S PLUNK_SERVER_NAME= splunkforwarder SPLUNK_WEB_NAME= splunkweb LD_LIBRARY_PATH=/ hom
e/ bninet / splunkforwarder /lib LDAPCONF=/home/ bninet / splunkforwarder / etc / openldap / ldap.conf
2257 ? Ss 0:04 splunkd -p 8088 start CONSOLE=/ dev /console SELINUX_IN IT=YES SHELL=/bin/bash TERM=
linux USER= bninet INIT_VERSION=sysvinit-2.86 PATH=/h ome / bninet / splunkforwarder /bin:/ sbin :/ usr / sbin
:/bin:/ usr /bin _=/home/ bninet / splu nkforwarder /bin/ splunk runlevel =3 RUNLEVEL=3 PWD=/ LANG=en_US.UTF-8
previous=N P REVLEVEL=N SHLVL=3 HOME=/home/ bninet LOGNAME= bninet HOSTNAME=FW
SPLUNK_HOME=/ hom e/ bninet / splunkforwarder SPLUNK_DB=/home/ bninet / splunkforwarder / var /lib/ splunk
S PLUNK_SERVER_NAME= splunkforwarder SPLUNK_WEB_NAME= splunkweb LD_LIBRARY_PATH=/ hom
e/ bninet / splunkforwarder /lib LDAPCONF=/home/ bninet / splunkforwarder / etc / openldap / ldap.conf
[ bninet@FW ~]$
Step 4
If Splunk Forwarder is not running, restart it by using the following command. In the following example, a Splunk
Forwarder restart example is shown.
Example:
/ etc / init.d / splunkforwarder restart
Restarting Splunk ...
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
215
Troubleshooting
Troubleshooting the Splunk Indexer
Password:
Stopping splunkd ...
Shutting down. Please wait, as this may take a few minutes.
. [ OK ]
Stopping splunk helpers...
[ OK ]
Done.
Splunk > Needle. Haystack. Found.
Checking prerequisites...
Checking mgmt port [8088]: open
Checking conf files for typos...
All preliminary checks passed.
Starting splunk server daemon ( splunkd )...
[ OK ]
Done.touch : cannot touch `/ var /lock/ subsys / splunk ': Permission denied
If the nodes are forwarding, there should be constant updates in the splunkd log file located in
"/opt/splunkforwarder/var/log/splunk". If the processes are running and the log is not being updated, contact Cisco
Customer Support.
Troubleshooting the Splunk Indexer
Once the Analytic Forwarder is verified to be functioning properly, verify the operation of Splunk Indexer.
To do this, perform the following steps:
Step 1
Step 2
ssh into the IP address of the Indexer.
Using the netstat command, list the monitoring ports. For example:
Example:
[ bninet@IDX netstat -a 2>>/ dev /null | grep 8089t
tcp 0 0 *:8089 *:* LISTEN
[bninet@IDX ~]$
Step 3
If there are no jobscheduler processes listening on port 8089, then the indexer is not functioning. Restart the indexer.
For example:
Example:
[ bninet@IDX ~]$ sudo / etc / init.d / splunk restart
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
216
Troubleshooting
Troubleshooting the Analytics Search Head
Restarting Splunk ...
splunkweb is not running.
Stopping splunkd ...
Shutting down. Please wait, as this may take a few minutes.
....... [ OK ]
Stopping splunk helpers... [ OK ]
Done.
Splunk > The IT Search Engine.
Checking prerequisites...
Checking mgmt port [8089]: open
Checking configuration... Done.
Checking index directory...
Validated databases: _audit _ blocksignature _internal _ thefishbucket cdn-mgr cdnmanager cms dsm history main os
summary
Done
Bypassing local license checks since this instance is configured with a remote license master.
Success
Checking conf files for typos...
All preliminary checks passed.
Starting splunk server daemon ( splunkd )...
[ OK ]
Done.
Troubleshooting the Analytics Search Head
To verify that the Analytics Node (often referred to as the search head) is operating properly, perform the
following steps:
Step 1
Step 2
ssh into the IP address of the analytics node.
Using the netstat command, list the monitoring ports. For example:
Example:
[ bninet@IDX netstat -a 2>>/ dev /null | grep 8089
tcp 0 0 *:8089 *:* LISTEN
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
217
Troubleshooting
Troubleshooting the Analytics Search Head
[bninet@IDX ~]$
Step 3
If there are no analytics node processes listening on port 8089, then the nodes are not functioning. Restart Splunk. For
example:
Example:
[ bninet@IDX ~]$ sudo / etc / init.d / splunk restart
Restarting Splunk ...
splunkweb is not running.
Stopping splunkd ...
Shutting down. Please wait, as this may take a few minutes.
....... [ OK ]
Stopping splunk helpers... [ OK ]
Done.
Splunk > The IT Search Engine.
Checking prerequisites...
Checking mgmt port [8089]: open
Checking configuration... Done.
Checking index directory...
Validated databases: _audit _ blocksignature _internal _ thefishbucket cdn-mgr cdnmanager cms dsm history main os
summary
Done
Bypassing local license checks since this instance is configured with a remote license master.
Success
Checking conf files for typos...
All preliminary checks passed.
Starting splunk server daemon ( splunkd )...
[ OK ]
Done.
In addition, the command sudo /home/ bninet /splunk/bin/splunk search 'index= dsm | stats count' - auth
admin:changeme can be run to show that the analytics node is capable of processing data from the indexer, as shown
below. This command sends scrolling data to the screen, which is compressed in the output below:
Example:
[ bninet@Search ~]$ /home/bninet/splunk/bin/splunk search 'index= dsm | stats count' -auth admin:changeme
count
----0
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
218
Troubleshooting
Troubleshooting VDS-IS Provisioning
Troubleshooting VDS-IS Provisioning
The server.log file, located within the /home/bninet/jbossesb/server/default/log/ folder, can be used to
troubleshoot VDS-IS provisioning problems.
To access the server.log file, perform the following step:
ssh into the CDN Manager node and then enter the following command:
/home/bninet/jbossesb/server/default/log/server.log
Deleting Summarized Data
To delete the summarized data, perform the following steps:
Step 1
Step 2
Launch the JS node web interface http://<JSipaddress>:8000
Login to the Splunk web interface by providing the credentials; Username: admin and Password: Beaumaris1
Step 3
Select App and then select Search.
Step 4
Execute the search query [index=summary report="<Report Name>" host="<JS Host Name>" | delete]
Provide the appropriate report name and hostname in the query.
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
219
Troubleshooting
Splunk License Violation
Example:
Step 5
[index=summary report=mobitv_client_daily host= secondary-JS | delete]
Validate the count by issuing the search query [index=summary report=mobitv_client_daily]
Note
can_delete role is already added for Admin. However, the above query will not work in a normal search page.
Splunk License Violation
Violations occur when you exceed the maximum indexing volume allowed for your license. If you exceed
your licensed daily volume on any one calendar day, you will get a violation warning. The message persists
for 14 days. If you have 5 or more warnings on an Enterprise license or 3 warnings on a Free license in a
rolling 30-day period, you are in violation of your license and search will be disabled.
Note
Summary index volume is not counted against your license.
If you get a violation warning, you have until midnight (going by the time on the license master) to resolve
it before it counts against the total number of warnings within the rolling 30-day period.
During a license violation period:
• Splunk does not stop indexing your data. Splunk only blocks search while you exceed your license.
• Searches to the _internal index are not disabled. This means that you can still access the Indexing Status
dashboard or run searches against _internal to diagnose the licensing problem.
For any queries on licensing, contact the Cisco Accounting team.
Videoscape Distribution Suite Service Manager User Guide, Release 3.3
