6
5
Features
Features

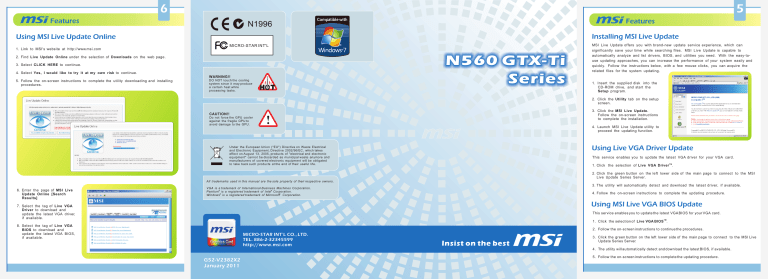

Installing MSI Live Update
Using MSI Live Update Online
MICRO-STAR INT'L
1. Link to MSI's website at http://www.msi.com
N560 GTX-Ti
Series
2. Find Live Update Online under the selection of Downloads on the web page.
3. Select CLICK HERE to continue.
4. Select Yes, I would like to try it at my own risk to continue.
WARNING!!
5. Follow the on-screen instructions to complete the utility downloading and installing
procedures.
DO NOT touch the cooling
system since it may produce
a certain heat while
processing tasks.
MSI Live Update offers you with brand-new update service experience, which can
significantly save your time while searching files. MSI Live Update is capable to
automatically analyze and list drivers, BIOS, and utilities you need. With the easy-touse updating approaches, you can increase the performance of your system easily and
quickly. Follow the instructions below, with a few mouse clicks, you can acquire the
related files for the system updating.
1. Insert the supplied disk into the
CD-ROM drive, and start the
Setup program.
2. Click the Utility tab on the setup
screen.
CAUTION!!
Do not force the GPU cooler
against the fragile GPU to
avoid damage to the GPU.
3. Click the MSI Live Update.
Follow the on-screen instructions
to complete the installation.
!
4. Launch MSI Live Update utility to
proceed the updating function.
Using Live VGA Driver Update
Under the European Union ("EU") Directive on Waste Electrical
and Electronic Equipment, Directive 2002/96/EC, which takes
effect on August 13, 2005, products of "electrical and electronic
equipment" cannot be discarded as municipal waste anymore and
manufacturers of covered electronic equipment will be obligated
to take back such products at the end of their useful life.
This service enables you to update the latest VGA driver for your VGA card.
1. Click the selection of Live VGA Driver TM.
2. Click the green button on the left lower side of the main page to connect to the MSI
Live Update Series Server.
All trademarks used in this manual are the sole property of their respective owners.
6. Enter the page of MSI Live
Update Online [Search
Results]
3. The utility will automatically detect and download the latest driver, if available.
VGA is a trademark of International Business Machines Corporation.
Pentium is a registered trademark of Intel Corporation.
Windows is a registered trademark of Microsoft Corporation.
R
R
R
4. Follow the on-screen instructions to complete the updating procedure.
R
Using MSI Live VGA BIOS Update
7. Select the tag of Live VGA
Driver to download and
update the latest VGA driver,
if available.
This service enables you to update the latest VGA BIOS for your VGA card.
1. Click the selection of Live VGA BIOS TM.
8. Select the tag of Live VGA
BIOS to download and
update the latest VGA BIOS,
if available.
2. Follow the on-screen instructions to continue the procedures.
MICRO-STAR INT'L CO., LTD.
TEL. 886-2-32345599
http://www.msi.com
Insist on the best
3. Click the green button on the left lower side of the main page to connect to the MSI Live
Update Series Server.
4. The utility will automatically detect and download the latest BIOS, if available.
G52-V2382X2
January 2011
5. Follow the on-screen instructions to complete the updating procedure.
1
Overview
3
2
Getting Started
Getting Started
Getting Started
Unpacking
1
1
Power Connectors
2
Fan Connector
2
3
3
4
5
2G GDDR5 memory or
1G GDDR5 memory or
768M GDDR5 memory
NVIDIA
GeForce GTX 560 Ti
Please check out the following items to make sure that you get the complete product:
VGA card
Disk: Drivers, documentation, and applications
Consult your dealer immediately if anything is missing or damaged.
System Requirements
To install the VGA card, your computer system needs to meet the following requirements:
PCI Express or PCI Express 2.0 - compliant motherboard with one dual-width x16 graphics
slot
Minimum 500W or greater system power supply (with a minimum 12V current rating of 30A) is
recommended.
Two 6-pin PCI-E supplementary power connector
CD-ROM / DVD-ROM for driver installation
Visiting MSI website for further information of operating system support
R
R
PCI Express Interface
4
6
SLI Interface
5
6
7
Mini HDMI Port
8
Dual DVI-I Ports
- HDMI supported
- HDCP supported
- Dual dual-link DVI
output supported
Card Features
For reference only
Microsoft Windows 7 Support
Windows 7 is a new generation operating system that will mark a dramatic improvement in
the way the OS takes advantage of the graphics processing unit (GPU) to provide a more
compelling user experience. By taking advantage of the GPU for both graphics and
computing, Windows 7 will not only make today's PCs more visual and more interactive but
also ensure that they have the speed and responsiveness customers want.
R
R
NVIDIA PhysX - Technology
Full support for NVIDIA PhysX technology,enabling a totally new class of physical gaming
interaction for a more dynamic and realistic experience with GeForce.
R
Microsoft DirectX 11 Support
DirectX 11 GPU with ShaderModel 5.0 support designed for ultra high performance in the
new API's key graphics feature, GPU-accelerated tessellation.
7
8
8
TM
NVIDIA SLI Technology
Industry leading NVIDIA SLI technology offers amazing performance scaling by implementing
AFR(Alternate frame Rendering) for the world's premier gaming solution under Windows 7 with
solid, state-of-the-are drivers.
PCI Express 2.0 Support
Designed for the new PCI Express 2.0 bus architecture offering the highest data transfer
speeds for the most bandwidth-hungry games and 3D applications, while maintaining backwards
compatibility with existing PCI Express motherboards for the broadest support.
R
The VGA card shown here
is for reference, and may
vary from the actual card.
For further information,
please visit msi website at
www.msi.com
Hardware
Hardware
Follow the steps below to
install the VGA card:
1. Remove the computer case.
2. Locate the expansion slot on your mainboard.
Warning: Inserting the VGA card into a wrong
slot may damage your card (refer to your
mainboard manual for more Information).
3. Put the card directly over the expansion slot
and press one end of the card into the slot first.
Gently but firmly press the other end until the
card is fully seated in the slot.
4. Secure the card with a bracket screw.
OpenCL Support
Full support for OpenCL GPU computing API.
5. Install all other cards and devices and connect
all the cables, and then install the case.
DirectCompute Support
Full support for DirectCompute, Microsoft's GPU computing API.
6. Connect the monitor. Now, you are ready to
install the software on your computer.
32x Anti-aliasing Technology
Lightning fast, high-quality anti-aliasing at up to 32x sample rates obliterates jagged edges.
Software
Dual-link DVI Support
Able to drive industry's largest and highest resolution flat-panel displays up to 2560x1600 and
with support for High-bandwidth Digital Content Protection (HDCP).
To install the driver of the VGAR card to your computer, please follow the steps below:
HDMI 1.4a Support
Fully integrated support for HDMI 1.4a including GPU accelerated Blu-ray 3D support, xvYCC,
HDMI Deep color and 7.1 digital surround sound.
2. Insert the CD into the CD-ROM drive.
The Autorun program
TM will start the
Setup program, and show the setup
screen as illustrated here.
NVIDIA PureVideo TM HD Technology
The combination of high-definition video decode acceleration and post-processing that delivers
unprecedented picture clarity, smooth video, accurate color, and precise image scaling for
movies and video.
R
R
Dual-link HDCP Capable
Designed to meet the output protection management (HDCP) and security specifications of the
Blu-ray Disc and HD DVD formats, allowing the playback of encrypted movie content on PCs
when connected to HDCP-compliant displays.
NVIDIA CUDA TM Technology
CUDA technology unlocks the power of the GPU's processing cores to accelerate the most
demanding tasks - such as video transcoding - delivering up to 7x performance over
traditional CPUs.
NVIDIA 3D VisionTM Surround Ready
Expand your games across three displays in full stereoscopic 3D for the ultimate "inside the
game" experience with the power of NVIDIA 3D Vision and SLI technologies. NVIDIA 3D
Vision Surround also supports triple screen gaming with non-stereo displays.
NVIDIA 3D Version surround requires (1) specific drivers released by NVIDIA, (2) two or
more graphic cards in NVIDIA SLI configuration, (3) 3D vision glasses, and (4) three
identical displays in support of 3D version. See www.nvidia.com/surround for more
information.
Quick Installation
OpenGL 4.1 Optimization and Support
Ensures top-notch compatibility and performance for OpenGL applications.
R
2
4
1. Turn on the computer.
Installing MSI
Live Update 3TM
3. Click the Driver icon. Follow the onscreen instructions to complete the
installation.
4. After finishing the installation, restart
the computer as instructed.
Tip: If, on your computer, the Autorun program does not execute automatically, please
1) enable the CD-ROM drive auto-detect function from Control Panel; or 2) find and
run the setup.exe file manually from the CD.
Enabling HDMI Output
Follow the steps below to enable HDMI Output function:
R
R
1. Find the DVI-to-HDMI adapter that comes with the
package, if provided. Consult your dealer to
purchase the adapter if it is not provided.
2. Attach the DVI-to-HDMI adapter to the DVI connector.
3. Ensure that the adapter is firmly installed.
