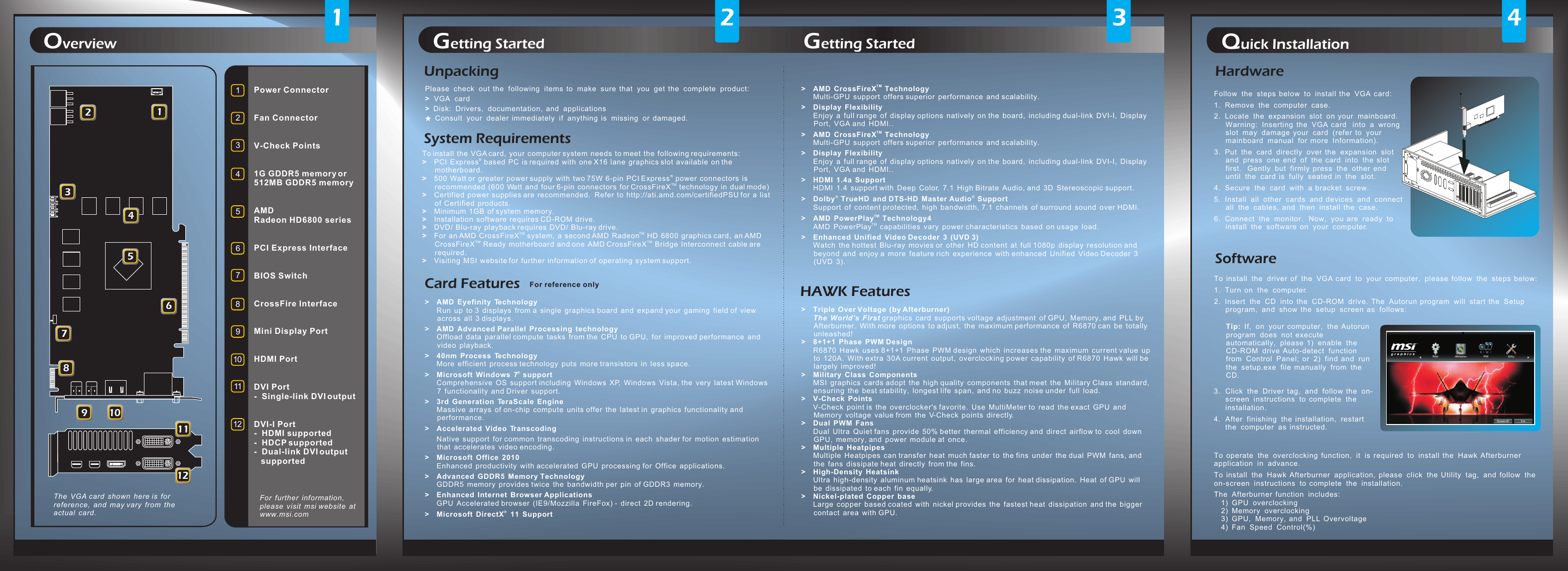

Overview
Getting Started
Getting Started
1
2
2
Fan Connector
V-Check Points
System Requirements
>
3
To install the VGA card, your computer system needs to meet the following requirements:
> PCI Express based PC is required with one X16 lane graphics slot available on the
motherboard.
> 500 Watt or greater power supply with two 75W 6-pin PCI Express power connectors is
recommended (600 Watt and four 6-pin connectors for CrossFireX TM technology in dual mode)
> Certified power supplies are recommended. Refer to http://ati.amd.com/certifiedPSU for a list
of Certified products.
> Minimum 1GB of system memory.
> Installation software requires CD-ROM drive.
> DVD/ Blu-ray playback requires DVD/ Blu-ray drive.
> For an AMD CrossFireXTM system, a second AMD RadeonTM HD 6800 graphics card, an AMD
CrossFireX TM Ready motherboard and one AMD CrossFireX TM Bridge Interconnect cable are
required.
> Visiting MSI website for further information of operating system support.
>
4
1G GDDR5 memory or
512MB GDDR5 memory
3
4
5
5
AMD
Radeon HD6800 series
6
PCI Express Interface
7
6
7
BIOS Switch
Card Features
8
CrossFire Interface
>
9
Mini Display Port
>
10
HDMI Port
>
11
DVI Port
- Single-link DVI output
8
>
9
>
10
11
12
DVI-I Port
- HDMI supported
- HDCP supported
- Dual-link DVI output
supported
12
The VGA card shown here is for
reference, and may vary from the
actual card.
>
Please check out the following items to make sure that you get the complete product:
> VGA card
> Disk: Drivers, documentation, and applications
Consult your dealer immediately if anything is missing or damaged.
Power Connector
>
>
>
For further information,
please visit msi website at
www.msi.com
>
>
Quick Installation
Hardware
Unpacking
1
4
For reference only
AMD Eyefinity Technology
Run up to 3 displays from a single graphics board and expand your gaming field of view
across all 3 displays.
AMD Advanced Parallel Processing technology
Offload data parallel compute tasks from the CPU to GPU, for improved performance and
video playback.
40nm Process Technology
More efficient process technology puts more transistors in less space.
Microsoft Windows 7 support
Comprehensive OS support including Windows XP, Windows Vista, the very latest Windows
7 functionality and Driver support.
3rd Generation TeraScale Engine
Massive arrays of on-chip compute units offer the latest in graphics functionality and
performance.
Accelerated Video Transcoding
Native support for common transcoding instructions in each shader for motion estimation
that accelerates video encoding.
Microsoft Office 2010
Enhanced productivity with accelerated GPU processing for Office applications.
Advanced GDDR5 Memory Technology
GDDR5 memory provides twice the bandwidth per pin of GDDR3 memory.
Enhanced Internet Browser Applications
GPU Accelerated browser (IE9/Mozzilla FireFox) - direct 2D rendering.
Microsoft DirectX 11 Support
>
AMD CrossFireXTM Technology
Multi-GPU support offers superior performance and scalability.
Display Flexibility
Enjoy a full range of display options natively on the board, including dual-link DVI-I, Display
Port, VGA and HDMI..
Follow the steps below to install the VGA card:
1. Remove the computer case.
2. Locate the expansion slot on your mainboard.
Warning: Inserting the VGA card into a wrong
slot may damage your card (refer to your
mainboard manual for more Information).
AMD CrossFireXTM Technology
Multi-GPU support offers superior performance and scalability.
Display Flexibility
Enjoy a full range of display options natively on the board, including dual-link DVI-I, Display
Port, VGA and HDMI..
HDMI 1.4a Support
HDMI 1.4 support with Deep Color, 7.1 High Bitrate Audio, and 3D Stereoscopic support.
4. Secure the card with a bracket screw.
>
Dolby TrueHD and DTS-HD Master Audio Support
Support of content protected, high bandwidth, 7.1 channels of surround sound over HDMI.
5. Install all other cards and devices and connect
all the cables, and then install the case.
>
AMD PowerPlayTM Technology4
AMD PowerPlayTM capabilities vary power characteristics based on usage load.
Enhanced Unified Video Decoder 3 (UVD 3)
Watch the hottest Blu-ray movies or other HD content at full 1080p display resolution and
beyond and enjoy a more feature rich experience with enhanced Unified Video Decoder 3
(UVD 3).
6. Connect the monitor. Now, you are ready to
install the software on your computer.
>
>
3. Put the card directly over the expansion slot
and press one end of the card into the slot
first. Gently but firmly press the other end
until the card is fully seated in the slot.
Software
To install the driver of the VGA card to your computer, please follow the steps below:
HAWK Features
>
>
>
>
>
>
>
>
Triple Over Voltage (by Afterburner)
The World's First graphics card supports voltage adjustment of GPU, Memory, and PLL by
Afterburner. With more options to adjust, the maximum performance of R6870 can be totally
unleashed!
8+1+1 Phase PWM Design
R6870 Hawk uses 8+1+1 Phase PWM design which increases the maximum current value up
to 120A. With extra 30A current output, overclocking power capability of R6870 Hawk will be
largely improved!
Military Class Components
MSI graphics cards adopt the high quality components that meet the Military Class standard,
ensuring the best stability, longest life span, and no buzz noise under full load.
V-Check Points
V-Check point is the overclocker's favorite. Use MultiMeter to read the exact GPU and
Memory voltage value from the V-Check points directly.
Dual PWM Fans
Dual Ultra Quiet fans provide 50% better thermal efficiency and direct airflow to cool down
GPU, memory, and power module at once.
Multiple Heatpipes
Multiple Heatpipes can transfer heat much faster to the fins under the dual PWM fans, and
the fans dissipate heat directly from the fins.
High-Density Heatsink
Ultra high-density aluminum heatsink has large area for heat dissipation. Heat of GPU will
be dissipated to each fin equally.
Nickel-plated Copper base
Large copper based coated with nickel provides the fastest heat dissipation and the bigger
contact area with GPU.
1. Turn on the computer.
2. Insert the CD into the CD-ROM drive. The Autorun program will start the Setup
program, and show the setup screen as follows:
Tip: If, on your computer, the Autorun
program does not execute
automatically, please 1) enable the
CD-ROM drive Auto-detect function
from Control Panel; or 2) find and run
the setup.exe file manually from the
CD.
3. Click the Driver tag, and follow the onscreen instructions to complete the
installation.
4. After finishing the installation, restart
the computer as instructed.
To operate the overclocking function, it is required to install the Hawk Afterburner
application in advance.
To install the Hawk Afterburner application, please click the Utility tag, and follow the
on-screen instructions to complete the installation.
The
1)
2)
3)
4)
Afterburner function includes:
GPU overclocking
Memory overclocking
GPU, Memory, and PLL Overvoltage
Fan Speed Control(%)
5
6
Features
Features
Using MSI Live Update Online
R6800
MICRO-STAR INT'L
MS-V251
1. Link to MSI's website at http://www.msi.com
HAW K S e ri e s
2. Find Live Update Online under the selection of Downloads on the web page.
3. Select CLICK HERE to continue.
4. Select Yes, I would like to try it at my own risk to continue.
Installing MSI Live Update
Hardware
MSI Live Update offers you with brand-new update service experience, which can
significantly save your time while searching files. MSI Live Update is capable to
automatically analyze and list drivers, BIOS, and utilities you need. With the easy-touse updating approaches, you can increase the performance of your system easily and
quickly. Follow the instructions below, with a few mouse clicks, you can acquire the
related files for the system updating.
WARNING!!
5. Follow the on-screen instructions to complete the utility downloading and installing
procedures.
DO NOT touch the cooling
system since it may produce
a certain heat while
processing tasks.
1. Insert the supplied disk into the
CD-ROM drive, and start the
Setup program.
2. Click the Utility tab on the setup
screen.
CAUTION!!
Do not force the GPU cooler
against the fragile GPU to
avoid damage to the GPU.
3. Click the MSI Live Update.
Follow the on-screen instructions
to complete the installation.
!
4. Launch MSI Live Update utility to
proceed the updating function.
Using Live VGA Driver Update
Under the European Union ("EU") Directive on Waste Electrical
and Electronic Equipment, Directive 2002/96/EC, which takes
effect on August 13, 2005, products of "electrical and electronic
equipment" cannot be discarded as municipal waste anymore and
manufacturers of covered electronic equipment will be obligated
to take back such products at the end of their useful life.
This service enables you to update the latest VGA driver for your VGA card.
1. Click the selection of Live VGA Driver TM.
2. Click the green button on the left lower side of the main page to connect to the MSI
Live Update Series Server.
All trademarks used in this manual are the sole property of their respective owners.
6. Enter the page of MSI Live
Update Online [Search
Results]
3. The utility will automatically detect and download the latest driver, if available.
VGA is a trademark of International Business Machines Corporation.
Pentium is a registered trademark of Intel Corporation.
Windows is a registered trademark of Microsoft Corporation.
R
R
R
4. Follow the on-screen instructions to complete the updating procedure.
R
Using MSI Live VGA BIOS Update
7. Select the tag of Live VGA
Driver to download and
update the latest VGA driver,
if available.
8. Select the tag of Live VGA
BIOS to download and
update the latest VGA BIOS,
if available.
This service enables you to update the latest VGA BIOS for your VGA card.
1. Click the selection of Live VGA BIOS TM.
2. Follow the on-screen instructions to continue the procedures.
MICRO-STAR INT'L CO., LTD.
TEL. 886-2-32345599
http://www.msi.com
Insist on the best
3. Click the green button on the left lower side of the main page to connect to the MSI Live
Update Series Server.
4. The utility will automatically detect and download the latest BIOS, if available.
G52-V2512X1
December 2010
5. Follow the on-screen instructions to complete the updating procedure.
