NAD CI 8-150 DSP Quick Setup Manual

®

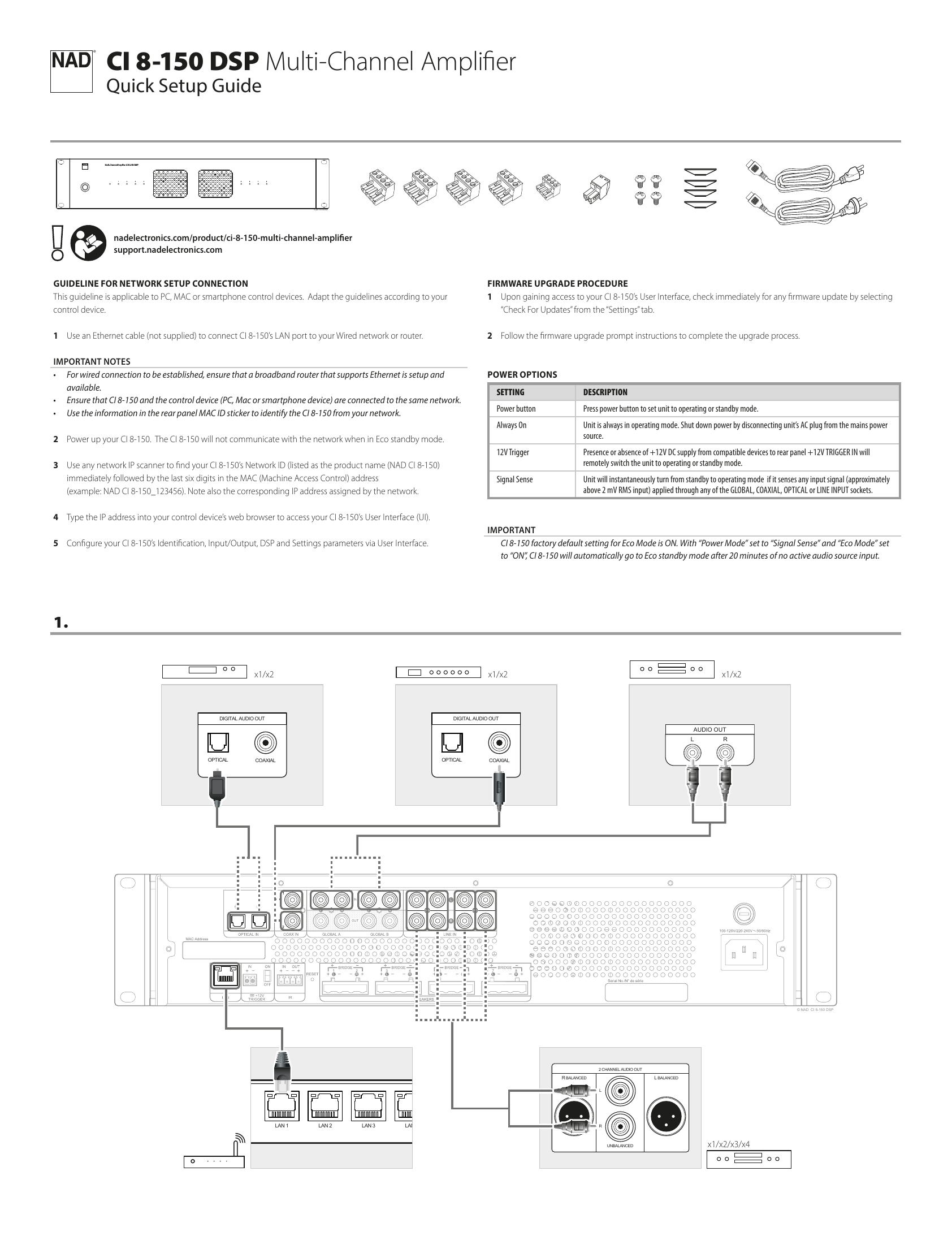

CI 8-150 DSP Multi-Channel Amplifier
Quick Setup Guide
© NAD CI 8-150 DSP
!
nadelectronics.com/product/ci-8-150-multi-channel-amplifier
support.nadelectronics.com
GUIDELINE FOR NETWORK SETUP CONNECTION
This guideline is applicable to PC, MAC or smartphone control devices. Adapt the guidelines according to your
control device.
FIRMWARE UPGRADE PROCEDURE
1 Upon gaining access to your CI 8-150’s User Interface, check immediately for any firmware update by selecting
“Check For Updates” from the “Settings” tab.
1 Use an Ethernet cable (not supplied) to connect CI 8-150’s LAN port to your Wired network or router.
2 Follow the firmware upgrade prompt instructions to complete the upgrade process.
IMPORTANT NOTES
• For wired connection to be established, ensure that a broadband router that supports Ethernet is setup and
available.
• Ensure that CI 8-150 and the control device (PC, Mac or smartphone device) are connected to the same network.
• Use the information in the rear panel MAC ID sticker to identify the CI 8-150 from your network.
POWER OPTIONS
SETTING
DESCRIPTION
Power button
Press power button to set unit to operating or standby mode.
Always On
Unit is always in operating mode. Shut down power by disconnecting unit’s AC plug from the mains power
source.
12V Trigger
Presence or absence of +12V DC supply from compatible devices to rear panel +12V TRIGGER IN will
remotely switch the unit to operating or standby mode.
Signal Sense
Unit will instantaneously turn from standby to operating mode if it senses any input signal (approximately
above 2 mV RMS input) applied through any of the GLOBAL, COAXIAL, OPTICAL or LINE INPUT sockets.
2 Power up your CI 8-150. The CI 8-150 will not communicate with the network when in Eco standby mode.
3 Use any network IP scanner to find your CI 8-150’s Network ID (listed as the product name (NAD CI 8-150)
immediately followed by the last six digits in the MAC (Machine Access Control) address
(example: NAD CI 8-150_123456). Note also the corresponding IP address assigned by the network.
4 Type the IP address into your control device’s web browser to access your CI 8-150’s User Interface (UI).
IMPORTANT
CI 8-150 factory default setting for Eco Mode is ON. With “Power Mode” set to “Signal Sense” and “Eco Mode” set
to “ON”, CI 8-150 will automatically go to Eco standby mode after 20 minutes of no active audio source input.
5 Configure your CI 8-150’s Identification, Input/Output, DSP and Settings parameters via User Interface.
1.
x1/x2
x1/x2
DIGITAL AUDIO OUT
x1/x2
DIGITAL AUDIO OUT
AUDIO OUT
L
OPTICAL
OPTICAL
COAXIAL
R
COAXIAL
© NAD CI 8-150 DSP
2 CHANNEL AUDIO OUT
R BALANCED
L BALANCED
L
DISPLAY
USB
USB
LAN 1
LAN 2
LAN 3
LAN 4
MODEM
USB
R
UNBALANCED
x1/x2/x3/x4
2.
BRIDGE
STEREO
+
-
-
+
-
x1/x2/x3/x4
+
x1/x2/x3/x4
© NAD CI 8-150 DSP
3.
2
1
© NAD CI 8-150 DSP
4.
STANDBY AND CHANNEL LED STATUS INDICATORS
POWER CONSUMPTION AND HEAT OUTPUT
DESCRIPTION
STANDBY LED STATUS
CHANNEL LED 1-8 STATUS
Operating mode
Blue
If there is a signal, corresponding channel
LED is solid blue or no light if no signal.
Standby mode
Amber
Off, no light
System reboot
Flashing amber
Off, no light
Overvoltage or under voltage
Red
Off, no light
AMP current error
Blue
Corresponding channel LED is red.
AMP DC error
Red
Off, no light.
CONDITION
Eco mode Standby Power at 8 ohms
Network Standby Power at 8 ohms
Idle power at 8 ohms
1/8 rated power
Output power at 8
1/3 rated power
ohms, all channels
1/2 rated power
driven
Full rated power
1/8 rated power
Output power at 4
1/3 rated power
ohms, all channels
1/2 rated power
driven
Full rated power
230V/50HZ
POWER
HEAT OUTPUT
CONSUMPTION (W)
(BTU/HR)
0.4
1.4
1.2
4.2
86
295
243
826
529
1799
758
2577
1512
5140
251
853
552
1877
790
2686
1540
5236
IMPORTANT
Visit nadelectronics.com/product/ci-8-150-multi-channel-amplifier or support.nadelectronics.com for further information and assistance.
©2020 NAD ELECTRONICS INTERNATIONAL, A DIVISION OF LENBROOK INDUSTRIES LIMITED
All rights reserved. NAD and the NAD logo are trademarks of NAD Electronics International, a division of Lenbrook Industries Limited.
No part of this publication may be reproduced, stored or transmitted in any form without the written permission of NAD Electronics International.
CI8-150DSP-QS-EN-v06 - 01/20
120V/60HZ
POWER
HEAT OUTPUT
CONSUMPTION (W)
(BTU/HR)
0.4
1.3
1.2
4.1
88
299
246
836
540
1836
781
2655
1557
5294
255
867
561
1907
813
2764
1600
5440
