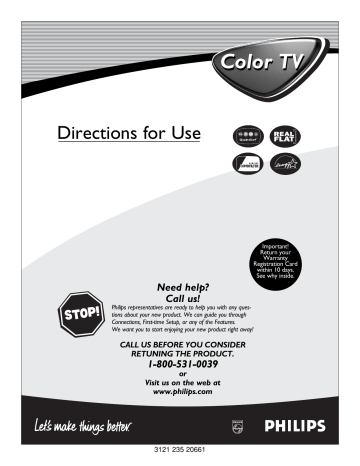

Philips 27PT633R Directions For Use Manual

Color TV
Directions for Use
Important!
Return your
Warranty
Registration Card
within 10 days.
See why inside.
Need help?
Call us!
Philips representatives are ready to help you with any questions about your new product. We can guide you through
Connections, First-time Setup, or any of the Features.
We want you to start enjoying your new product right away!
CALL US BEFORE YOU CONSIDER
RETUNING THE PRODUCT.
1-800-531-0039
or
Visit us on the web at
www.philips.com
3121 235 20661
Return your Warranty Registration card today to ensure you
receive all the benefits you’re entitled to.
Once your PHILIPS purchase is registered, you’re eligible to receive all the privileges
of owning a PHILIPS product. So complete and return the Warranty Registration
Card enclosed with your purchase at once. And take advantage of these important benefits.
Owner
Confirmation
Model
Registration
Registering your product within
10 days confirms your right to maximum protection under the terms and
conditions of your PHILIPS warranty.
Your completed Warranty
Registration Card serves as
verification of ownership in the
event of product theft or loss.
Returning your Warranty Registration
Card right away guarantees you’ll
receive all the information and special
offers which you qualify for as the
owner of your model.
REG
TION
N
!
y
r
r
Hu
A
I
T
YS
RA
DED W
Congratulations on your purchase,
and welcome to the “family!”
T
EE
IS
Warranty
Verification
HI
D
Dear PHILIPS product owner:
Thank you for your confidence in PHILIPS. You’ve selected one of the best-built, best-backed products available
today. And we’ll do everything in our power to keep you happy with your purchase for many years to come.
As a member of the PHILIPS “family,” you’re entitled to protection by one of the most comprehensive warranties and outstanding service networks in the industry.
What’s more, your purchase guarantees you’ll receive all the information and special offers for which you qualify, plus easy access to accessories from our convenient home shopping network.
And most importantly you can count on our uncompromising commitment to your total satisfaction.
All of this is our way of saying welcome–and thanks for investing in a PHILIPS product.
Sincerely,
Lawrence J. Blanford
President and Chief Executive Officer
t This “bolt of lightning” indicates uninsulated material within your unit may cause an elec-
Know these
safetysymbols
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS
INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
N 10
P.S. Remember, to get the most from your
PHILIPS product, you must return your
Warranty Registration Card within 10
days. So please mail it to us right now!
trical shock. For the safety of everyone in your household, please do not remove product covering.
s
The “exclamation point” calls attention to features for which you should read the
enclosed literature closely to prevent operating and maintenance problems.
WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE.
CAUTION: To prevent electric shock, match wide blade of plug to wide slot, and fully insert.
ATTENTION: Pour éviter les chocs électriques, introduire la lame la plus large de la fiche dans
la borne correspondante de la prise et pousser jusqu’au fond.
Visit our World Wide Web Site at http://www.philips.com
2
IMPORTANT SAFETY INSTRUCTIONS
Read before operating equipment
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
Do not use this apparatus near water.
Clean only with a dry cloth.
Do not block any of the ventilation openings. Install in accordance
with the manufacturers instructions.
Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce
heat.
Do not defeat the safety purpose of the polarized or groundingtype plug. A polarized plug has two blades with one wider than
the other. A grounding type plug has two blades and third grounding prong. The wide blade or third prong are provided for your
safety. When the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they
exit from the apparatus.
Only use attachments/accessories specified by the manufacturer.
Use only with a cart, stand, tripod, bracket, or table
specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving
the cart/apparatus combination to avoid injury from tip-over.
Unplug this apparatus during lightning storms or when unused for
long periods of time.
Refer all servicing to qualified service personnel. Servicing is
required when the apparatus has been damaged in any way, such
as power-supply cord or plug is damaged, liquid has been spilled
or objects have fallen into apparatus, the apparatus has been
exposed to rain or moisture, does not operate normally, or has
been dropped.
This product may contain lead and mercury. Disposal of these
materials may be regulated due to environmental considerations.
For disposal or recycling information, please contact your local
authorities or the Electronic Industries Alliance: www.eiae.org
Damage Requiring Service - The appliance should be serviced
by qualified service personnel when:
A. The power supply cord or the plug has been damaged; or
B.
17.
18.
19.
20.
21.
Objects have fallen, or liquid has been spilled into the appliance; or
C. The appliance has been exposed to rain; or
D. The appliance does not appear to operate normally or
exhibits a marked change in performance; or
E. The appliance has been dropped, or the enclosure damaged.
Tilt/Stability - All televisions must comply with recommended
international global safety standards for tilt and stability properties
of its cabinet design.
• Do not compromise these design standards by applying excessive pull force to the front, or top, of the cabinet which could ultimately overturn the product.
• Also, do not endanger yourself, or children, by placing electronic equipment/toys on the top of the cabinet. Such items could
unsuspectingly fall from the top of the set and cause product damage and/or personal injury.
Wall or Ceiling Mounting - The appliance should be mounted to
a wall or ceiling only as recommended by the manufacturer.
Power Lines - An outdoor antenna should be located away from
power lines.
Outdoor Antenna Grounding - If an outside antenna is connected to the receiver, be sure the antenna system is grounded so as to
provide some protection against voltage surges and built up static
charges.
Section 810 of the National Electric Code, ANSI/NFPA No. 701984, provides information with respect to proper grounding of
the mast and supporting structure, grounding of the lead-in wire to
an antenna discharge unit, size of grounding connectors, location
of antenna-discharge unit, connection to grounding electrodes, and
requirements for the grounding electrode. See Figure below.
Object and Liquid Entry - Care should be taken so that objects
do not fall and liquids are not spilled into the enclosure through
openings.
22. Battery Usage CAUTION - To prevent battery leakage that may
result in bodily injury, property damage, or damage to the unit:
• Install all batteries correctly, with + and - aligned as marked on
the unit.
• Do not mix batteries (old and new or carbon and alkaline, etc.).
• Remove batteries when the unit is not used for a long time.
Note to the CATV system installer: This reminder is provided to call the CATV system installer's attention to Article 820-40 of the NEC
that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the
building, as close to the point of cable entry as practical.
Example of Antenna Grounding
as per NEC - National Electric Code
GROUND CLAMP
ANTENNA LEAD IN WIRE
ANTENNA DISCHARGE UNIT (NEC SECTION 810-20)
GROUNDING CONDUCTORS (NEC SECTION 810-21)
GROUND CLAMPS
POWER SERVICE GROUNDING ELECTRODE SYSTEM (NEC ART 250, PART H)
ELECTRIC SERVICE EQUIPMENT
3
CONTENTS
Here are a few of the features built into your new Television:
QuadraSurf™ A remote control feature that allows you to
store and view up to ten of your favorite channels per button (4
buttons - 40 channels total). Can be set to hold movie, sports,
news channels, etc., or add the audio/video channels for a quick
source function to swap between your external accessory
devices.
AutoLock™ feature allows you to block the viewing of certain channels or external audio/video connections where you
might not want your children viewing inappropriate material.
Infrared Remote Control works your TV set and some
accessory devices which allows programming certain features
with the press of one button.
Standard broadcast (VHF/UHF) or Cable TV (CATV)
channel capability with stereo sound.
Closed Captioning allows the viewer to read TV program
dialogue or voice conversations as on-screen text.
Automatic Programming of Channels for quick and easy
selection of favorite stations available in your area.
On-screen Features (in either English or Spanish) show
helpful messages for setting of TV controls.
Audio/Video Jackpanel located on the back and side of the
television for direct connections when using audio/video accessory devices. these Jacks can provide improved quality TV picture and sound playback.
Introduction
Welcome/Registration of Your TV . . . . . . . . . . . . . . . . . . . .2
Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Table of Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Install Menu
How to use the Language Control . . . . . . . . . . . . . .5
How to use the Tuner Mode Control . . . . . . . . . . . . . . . . . .6
How to Auto Program TV Channels . . . . . . . . . . . . . . . . . . .7
How to Add or Delete Channels . . . . . . . . . . . . . . . . . . . . . .8
Picture Menu
How to use the Picture Adjustment Controls . . . . . .9
Sound Menu
How to Use the Sound Adjustment Controls . . . . .10
Features Menu
Using the Format (Expand 4:3) Control . . . . . . . . .11
Understanding the AutoLock™ Controls . . . . . . . . . . . . . .12
Setting up the AutoLock™ Access Code . . . . . . . . . . . . . .13
How to Block Channels . . . . . . . . . . . . . . . . . . . . . . . . . . .14
How to Clear All Blocked Channels at the Same Time . . .15
How to Block All Channels at the Same Time . . . . . . . . . .16
Blocking Programming Based on Movie Ratings . . . . . . .17
Blocking Programming Based on TV Ratings . . . . . . . . . .18
Other AutoLock™ Blocking Options . . . . . . . . . . . . . . . . .19
Expand 4:3 will allow you to expand the “letterbox” image
produced by certain DVD players to fill the entire TV screen.
Sleeptimer automatically turns the TV OFF at preset times.
AutoPicture™ allows you to set the picture color, tint, contrast, etc. for various types of programming such as Sports,
Movies, Personal, Weak Signals or Multi Media with the push
of one button.
AutoSound™ controls allow you to set the sound controls for
various types of listening programs such as Personal (sound
controls the way you set them), Theater, Music, or Voice with
the push of one button.
Treble Boost, Bass Boost, and Balance controls to
enhance the television’s sound.
Remote Control Use
Setting the Sleeptimer Control . . . . . . . . . . . . . . . .20
How to use the Closed Captioning Control . . . . . . . . . . . .21
Setting the AutoPicture™ Control . . . . . . . . . . . . . . . . . . .22
Setting the AutoSound™ Control . . . . . . . . . . . . . . . . . . . .23
Using the QuadraSurf™ Buttons (Alternate Channel) .24-25
Remote Use with Accessory Devices (Direct Method) . . .26
Remote Use with Accessory Devices (Code Entry) . . . . . .27
Remote Use with Accessory Devices (Search Method) . . .28
Remote Code Entry List . . . . . . . . . . . . . . . . . . . . . . . .29-31
Remote VCR Related Buttons . . . . . . . . . . . . . . . . . . . . . .32
NOTE: It is possible that this owner's manual may be used
with several different television models. Not all features
(and drawings) discussed in this manual will necessarily
match those found with your television system. This is normal and does not require you contacting your dealer or
requesting service.
General Information
Troubleshooting Tips . . . . . . . . . . . . . . . . . . . . . . .33
Cleaning and Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33
Glossary of Terms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34
Factory Service Location . . . . . . . . . . . . . . . . . . . . . . . . . .35
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36
END-OF-LIFE DISPOSAL
Your new television and its packing contain materials that can
be recycled and reused. Specialized companies can recycle your
product to increase the amount of reusable materials and minimize the amounts that need to be properly disposed.
Your product also uses batteries that should not be thrown away
when depleted, but should be handed in and disposed of as
small chemical waste.
When you replace your existing equipment, please find out
about the local regulations regarding disposal of your old television, batteries, and packing materials.
Auto Lock, Auto Picture, Auto Sound, QuadraSurf
are all registered trademarks of Philips Consumer Electronics Company.
Copyright © 2002 All rights reserved.
4
HOW
TO
USE
THE
LANGUAGE CONTROL
F
or our Spanish speaking TV owners an onscreen LANGUAGE option is present. With
the LANGUAGE control you can set the TV’s
on-screen menu to be shown in either English
or Spanish.
1
2
Press the MENU button on the
remote to show the on-screen menu.
3
4
Press the CURSOR RIGHT button to display the INSTALL menu
features.
5
6
Press the CURSOR RIGHT button repeatedly to select ENGLISH or ESPAÑOL (Spanish).
Main
Sound
Features
Install
Press the CURSOR UP or DOWN
■ buttons to scroll through the onscreen menu until the word INSTALL
is highlighted.
Press CURSOR UP or DOWN ■
buttons to scroll the Install features
until the word LANGUAGE is highlighted.
The Language control only makes the TV’s
on-screen MENU items appear in English
or Spanish text.
Main
Sound
Features
Install
2
4 6
1
Language
Tuner Mode
Auto Program
Channel Edit
Install
Language
Tuner Mode
Auto Program
Channel Edit
English
OR
When finished, press the STATUS
/EXIT button to remove the menu
from the TV’s screen.
HELPFUL HINT
Brightness
Color
Sharpness
Tint
More...
3
5
VOL
2
4
It does not change the other on-screen text
features such as Closed Caption (CC) TV
shows.
5
Instalar
Idioma
Sintonia
Auto Programa
Editar Canal
Espa ol
HOW
TO
USE
THE
TUNER MODE CONTROL
T
he TUNER MODE control allows you to
change the TV’s signal input to either
ANTENNA, CABLE or AUTO mode. It’s
important for the TV to know what type of
signal to look for. (From a Cable TV signal or
a normal Antenna signal.) In the AUTO
mode, when the AUTO PROGRAM feature is
activated, the TV will automatically choose
the correct mode.
1
2
Press the MENU button on the
remote to show the on-screen menu.
3
4
Press the CURSOR RIGHT button to display the INSTALL menu
features.
5
6
Press the CURSOR RIGHT button to select either ANTENNA,
CABLE, or AUTO mode.
Main
Sound
Features
Install
Brightness
Color
Sharpness
Tint
More...
Main
Sound
Features
Install
Language
Tuner Mode
Auto Program
Channel Edit
Press the CURSOR UP or DOWN
■ buttons to scroll through the onscreen menu until the word INSTALL
is highlighted.
Press CURSOR UP or DOWN ■
buttons to scroll the Install features
until the words TUNER MODE is
highlighted.
2
4 6
1
Install
Language
Tuner Mode
Auto Program
Channel Edit
English
Antenna
OR
When finished, press the STATUS
/EXIT button to remove the on-screen
menu from the TV’s screen.
3
5
VOL
2
4
HELPFUL HINT
Install
Language
Tuner Mode
Auto Program
Channel Edit
English
Cable
OR
When CABLE is selected, channels 1-125
are available.
Install
Language
Tuner Mode
Auto Program
Channel Edit
When ANTENNA is selected, channels 269 are available.
When AUTO is selected, the TV will automatically set itself to the correct mode
based on the type of signal it detects when
the AUTO PROGRAM feature is activated.
6
English
Auto
HOW
TO
AUTOMATICALLY PROGRAM CHANNELS
Y
our TV can automatically set itself for
local area (or Cable TV) channels. This
makes it easy for you to select only the TV
stations in your area when the CHANNEL
(+), (–) buttons are pressed.
Note: Make sure the antenna or cable signal
connection has been completed before AUTO
PROGRAM is activated.
1
2
Press the MENU button on the
remote to show the on-screen menu.
3
4
Press the CURSOR RIGHT button to display the INSTALL menu
features.
5
Press the CURSOR RIGHT button to start the Auto Program scanning of channels. Auto Programming
will store all available channels in the
TV’s memory then tune to the lowest
available channel when done.
6
When finished, press the STATUS
/EXIT button to remove the menu
from the TV’s screen.
Main
Sound
Features
Install
Brightness
Color
Sharpness
Tint
More...
Main
Sound
Features
Install
Language
Tuner Mode
Auto Program
Channel Edit
Press the CURSOR UP or DOWN
■ buttons to scroll through the onscreen menu until the word INSTALL
is highlighted.
Press CURSOR UP or DOWN ■
buttons to scroll the Install features
until the words AUTO PROGRAM
are highlighted.
2
4 6
1
3
5
VOL
2
4
HELPFUL HINT
When CABLE is selected, channels 1-125
are available.
When ANTENNA is selected, channels 269 are available.
When AUTO is selected, the TV will automatically set itself to the correct mode
based on the type of signal it detects when
the AUTO PROGRAM feature is activated.
7
Install
Language
Tuner Mode
Auto Program
Channel Edit
Auto Program
Channel
12
Auto Program
Channel
13
Auto Program
Channel
14
HOW
TO
ADD
OR
DELETE CHANNELS
C
hannel Edit makes it easy for you to ADD
or DELETE channels from the list of
channels stored in the TV’s memory.
1
2
Press the MENU button on the
remote to show the on-screen menu.
3
4
Press the CURSOR RIGHT button to display the INSTALL menu
features.
5
6
7
8
9
Main
Sound
Features
Install
Press the CURSOR UP or DOWN
■ buttons to scroll through the onscreen menu until the word INSTALL
is highlighted.
Press the CURSOR UP or DOWN
■ buttons to scroll the Install features
until the words CHANNEL EDIT are
highlighted.
Press the CURSOR RIGHT button to display the CHANNEL
EDIT options.
With the CHANNEL EDIT options
displayed, and CHANNEL NO. highlighted; enter the channel number (with
the NUMBERED or the CH + or –
buttons) you wish to add (Skipped
OFF), or delete (Skipped ON) from the
TV’s memory.
Using the CURSOR DOWN ■ button, scroll the menu to highlight the
word SKIPPED.
Brightness
Color
Sharpness
Tint
More...
Main
Sound
Features
Install
1
2
4 9
2
4
7
6
3
5
8
6
8
VOL
Now use the CURSOR RIGHT button to toggle between ON or OFF.
If ON is selected the channel is
skipped when scrolling channels with
the CH + or – buttons. If OFF is
selected the channel is not skipped
when scrolling channels with the CH +
or – buttons.
When finished, press the STATUS
/EXIT button to remove the menu
from the TV’s screen.
8
Install
Language
Tuner Mode
Auto Program
Channel Edit
Channel Edit
Channel No.
Skipped
Language
Tuner Mode
Auto Program
Channel Edit
Channel No.
Skipped
12
Channel Edit
Channel No.
Skipped
On
Channel Edit
Channel No.
Skipped
Off
HOW
TO
USE
THE
PICTURE ADJUSTMENT CONTROLS
T
o adjust your TV picture controls, select a
channel and follow the steps shown below:
1
2
3
4
5
6
7
Press the MENU button on the
remote to display the on-screen menu.
Main
Sound
Features
Install
Press the CURSOR UP or DOWN
■ buttons until the word PICTURE is
highlighted.
Press the CURSOR RIGHT button to display the PICTURE menu
features.
Press CURSOR UP or DOWN ■
buttons to scroll the Picture features
and highlight the control you wish to
adjust (Brightness, Color, Picture,
Sharpness, Tint, Color Temp., DNR, or
Contrast +).
Press the CURSOR RIGHT or
the CURSOR LEFT buttons to
adjust the selected control or to make
selections for the chosen control.
Press the CURSOR UP or DOWN
■ buttons to select and adjust other
Picture Menu controls.
When finished, press the STATUS
/EXIT button to remove the menu
from the TV’s screen.
HELPFUL HINT
BRIGHTNESS: Press the or buttons until darkest parts of the picture are
as bright as you prefer.
COLOR: Press the or buttons to
add or eliminate color.
PICTURE: Press the or buttons
until lightest parts of the picture show good
detail.
SHARPNESS: Press the or buttons to improve detail in the picture.
TINT: Press the or buttons to
obtain natural skin tones.
COLOR TEMP: Press the or buttons to select NORMAL, COOL, or
WARM picture preferences. (NORMAL will
keep the whites, white; COOL will make the
whites, bluish; and WARM will make the
whites, reddish.)
DNR: Press the or buttons to turn
DNR ON or OFF. Dynamic Noise Reduction
helps to eliminate “noise” from the picture.
Contrast +: Press the or buttons
to turn Contrast + ON or OFF. When ON,
this control will optimize the picture contrast
for improved picture clarity.
Brightness
Color
Sharpness
Tint
More...
Brightness
Color
Sharpness
Tint
Color Temp.
2
4
6 7
1
5
3
5
VOL
2
4
6
Brightness
Color
Sharpness
Tint
Color Temp.
Brightness
Color
Sharpness
Tint
DNR
9
0
On
Brightness
Color
Sharpness
Tint
Brightness
Color Temp.
Color
Sharpness
Tint
Color
Temp.
Brightness
Color
Sharpness
Tint
Color Temp.
Brightness
Color
Sharpness
Tint
Color Temp.
50
65
50
50
50
Brightness
Color
Sharpness
Tint
Color Temp.
Normal
Brightness
Color
Sharpness
Tint
Contrast +
On
HOW TO USE THE SOUND ADJUSTMENT CONTROLS
B
esides the normal volume level control,
your TV also has Treble, Bass, Balance,
AVL (automatic volume leveler), Incredible
Surround, Ultra Bass, and Sound (Stereo
/Mono) controls.
1
2
3
4
5
6
Main
Sound
Features
Install
Press the MENU button on the remote
to display the on-screen menu.
Brightness
Color
Sharpness
Tint
More...
Main
Sound
Features
Install
Press the CURSOR UP or CURSOR DOWN ■ button until the word
SOUND is highlighted.
Press the CURSOR RIGHT button to display the SOUND menu
features.
Press the CURSOR UP or CURSOR DOWN ■ button to scroll the
Sound menu features until the control
you wish to change is highlighted
(Treble, Bass, Balance, AVL, Incr.
Surround, Ultra Bass, or Sound).
1
Press the CURSOR RIGHT or
LEFT button to turn the adjust
or turn the control On or Off.
5
When finished, press the STATUS
/EXIT button to remove the menu
from the TV’s screen.
HELPFUL HINT
TREBLE: Press the Cursor Right or Left
buttons to adjust the control. The control
will enhance the high frequency sounds.
BASS: Press the Cursor Right or Left
buttons to adjust the control. The control
will enhance the low frequency sounds.
BALANCE: Press the Cursor Right or
Left buttons to adjust the level of sound
coming from the left and right speakers.
AVL: (Auto Volume Leveler) Press the
Cursor Right or Left buttons to turn the
control On or Off. When On, AVL will level
out the sound being heard when sudden
changes in volume occur during commercial
breaks or channel changes.
INCR. SURROUND: Press the Cursor
Right or Left buttons to select between
Incr. Surround or Stereo settings (If Stereo),
or select Spatial or Mono (If Mono).
ULTRA BASS: Press the Cursor Right or
Left buttons to turn Ultra Bass On or Off.
Ultra Bass will enhance the low frequency
sound.
SOUND: Press the Cursor Right or Left
buttons to select between Stereo or Mono
settings. Note: If Stereo is not present on a
selected show and the TV is placed in the
Stereo mode, the sound coming from the TV
will remain in the Mono mode.
2
4 6
3
5
VOL
2
4
Sound
Treble
Bass
Balance
AVL
Incr. Surround
Sound
Treble
Bass
Balance
AVL
Incr. Surround
Sound
Treble
Bass
Balance
L
AVL
Incr. Surround
Sound
Treble
Bass
Balance
AVL
Incr. Surround
Sound
Bass
Balance
AVL
Incr. Surround
Ultra Bass
10
On
On
Treble
Bass
Balance
AVL
Incr. Surround
50
50
R
Sound
Treble Boost
Bass Boost
Balance
AVL
Incr. Surround
Incr. Surround
Sound
Balance
AVL
Incr. Surround
Ultra Bass
Sound
Stereo
HOW TO USE THE FORMAT CONTROL (EXPAND 4:3)
M
any times while watching movies from a
DVD player the image is shown in “letter box” format. This is the format that is
shown in movie theaters. when shown on a
TV screen, the image will have areas of black
on top and bottom of the screen.
1
2
3
4
5
6
Main
Sound
Features
Install
Press the MENU button on the
remote to display the on-screen menu.
Brightness
Color
Sharpness
Tint
More...
Main
Sound
Features
Install
Press the CURSOR DOWN ▼ button until the word FEATURES is
highlighted.
Press the CURSOR RIGHT button to display the FEATURES menu
options (AutoLock or Format).
Press the CURSOR DOWN ▼ button until the word FORMAT is highlighted.
Press the CURSOR RIGHT or
CURSOR LEFT buttons to select
one of the two options 4:3 or Expand
4:3.
4:3 - Standard format for the TV.
Expand 4:3 - Enlarges the picture to
fill out the entire screen area, eliminating the “letter box” effect.
When finished, press the STATUS
/EXIT button to remove the menu
from the TV’s screen.
2 6
1
5
AutoLock
Format
Features
AutoLock
Format
4:3
OR
3
5
VOL
2
4
Features
AutoLock
Format
Expand 4:3
Note: The Expand 4:3 format can also be
activated using the CURSOR UP or DOWN
buttons when the onscreen menu is not being
displayed. Pressing these buttons will toggle
the standard 4:3 format and the Expand 4:3
format.
4:3
11
Expand 4:3
UNDERSTANDING THE AUTOLOCK™ CONTROLS
T
he AutoLock™ feature is an integrated circuit that receives and processes
data sent by broadcasters, or other program providers, that contain program content advisories. When programmed by the
viewer, a TV with AutoLock™ can respond
to the content advisories and block program content that may be found objectionable (such as offensive language, violence,
sexual situations, etc.). This is a great feature to censor the type of viewing children
may watch.
Over the next few pages you’ll learn how
to block channels and certain rated programming. Below is a brief explanation of
some terms and ratings you will find in the
AutoLock feature.
AutoLock™ offers various BLOCKING
controls from which to choose:
Access Code: An Access Code must be set
to prevent children from unblocking questionable programming.
Channel Block: Individual channels
including the A/V inputs can be blocked.
Clear All: Allows you clear all channels
being blocked from your viewing set with
the Channel Block Control.
Block All: Allows you to block ALL channels and A/V inputs at one time.
Movie Ratings: Block programming
based on ratings patterned by the Motion
Pictures Association of America.
TV Ratings: Block programming based
on standard TV ratings set by TV broadcasters.
To learn more about the Motion Picture
Ratings and the TV Ratings, refer to the
definitions listed on the columns to the
right.
Press the STATUS/EXIT button twice to
display the AutoLock review screen.
This screen shows what is activated within
the AutoLock settings.
Movie Rating
G
PG
PG-13
----
TV Rating
TV-Y
TV-Y7
TV-G
---Unrated
No Rating
Movie Rating
G
TV Rating
TV-Y
On
PG
PG-13
R
NC-17
X
On
TV-Y7
TV-G
TV-PG
TV-14
TV-MA
MOVIE RATINGS
TV PARENTAL GUIDELINES
(MOTION PICTURE ASSOCIATION OF AMERICA)
(TV BROADCASTERS)
G: General Audience - All ages admitted. Most parents would find this program suitable for all ages. This type of
programming contains little or no violence, no strong language, and little or
no sexual dialogue or situations.
PG: Parental Guidance Suggested This programming contains material that
parents may find unsuitable for younger
children.) It may contain one or more of
the following: Moderate violence, some
sexual situations, infrequent coarse language, or some suggestive dialogue.
PG-13: Parents Strongly Cautioned This programming contains material that
parents may find unsuitable for children
under the age of 13. It contains one or
more of the following: violence, sexual situations, coarse language, or suggestive
dialogue.
R: Restricted -This is programming is
specifically designed for adults. Anyone
under the age of 17 should only view this
programming with an accompanying parent or adult guardian. It contains one or
more of the following: intense violence,
intense sexual situations, strong coarse
language, or intensely suggestive dialogue.
NC-17: No one under the age of 17 will
be admitted. - This type of programming
should be viewed by adults only. It contains graphic violence, explicit sex, or
crude indecent language.
X: Adults Only - This type of programming contains one or more of the following: very graphic violence, very graphic
and explicit or indecent sexual acts, very
coarse and intensely suggestive language.
On
Off
12
TV TV-Y - (All children -- This pro-
gram is designed to be appropriate
for all children.) Designed for a
very young audience, including children
ages 2-6. This type of programming is not
expected to frighten younger children.
TV TV-Y7 - (Directed to Older
Children -- This program is
designed for children age 7 and
above.) It may be more appropriate for
children who have acquired the development skills needed to distinguish between
make-believe and reality. This programming may include mild fantasy and comic
violence (FV).
TV TV-G - (General Audience -- Most
parents would find this program
suitable for all ages.) This type of
programming contains little or no violence, no strong language, and little or no
sexual dialogue or situations.
TV TV-PG - (Parental Guidance
Suggested -- This program contains material that parents may
find unsuitable for younger children.) This
type of programming contains one or more
of the following: Moderate violence (V),
some sexual situations (S), infrequent
coarse language (L), or some suggestive
dialogue (D).
TV TV-14 - (Parents Strongly
Cautioned -- This program contains some material that many parents would find unsuitable for children
under 14 years of age.) This type of programming contains one or more of the following: intense violence (V), intense sexual situations (S), strong coarse language
(L), or intensely suggestive dialogue (D).
TV TV-MA - (Mature Audience Only
-- This program is specifically
designed to be viewed by adults
and therefore may be unsuitable for children under 17.) This type of programming
contains one or more of the following:
graphic violence (V), explicit sexual situations (S), or crude indecent language (L).
Y
Y7
G
PG
14
MA
SETTING UP AN AUTOLOCK™ ACCESS CODE
O
ver the next few pages you’ll learn how
to block channels and get a better understanding of the rating terms for certain programming.
Main
Sound
Features
Install
First, let’s start by learning how to set a personal access code:
1
2
3
4
5
6
Press the MENU button on the remote
to display the on-screen menu.
Main
Sound
Features
Install
Press the CURSOR UP or DOWN
■ button until the word FEATURES is
highlighted.
Press the CURSOR RIGHT button to display the FEATURES
menu options.
Using the NUMBERED buttons,
enter 0, 7, 1, 1. “XXXX” appears on
the Access Code screen as you press
the numbered buttons.
The screen will ask you to enter a
“New Code.” Enter a “new” 4 digit
code using the NUMBERED buttons.
The screen will then ask you to CONFIRM the code you just entered. Enter
your new code again. “XXXX” will
appear when you enter your new code
and then display the AutoLock menu
options.
Features
AutoLock
Format
VOL
2
4
Press the CURSOR RIGHT button. The screen will read,
“ACCESS CODE - - - - .”
AutoLock
Format
2
4
1
Press the CURSOR UP or DOWN
■ button until the words AUTOLOCK
are highlighted.
“INCORRECT CODE” will appear
on the screen, and you will need to
enter 0, 7, 1, 1 again.
7
Brightness
Color
Sharpness
Tint
More...
NOTE: The 0,7,1,1 access code shown
on this page is the default code or a
way to reset the code when the current
access code is not known.
Features
AutoLock
Format
Access Code
XXXX
Features
AutoLock
Format
Features
AutoLock
Format
New Code
----
Features
AutoLock
Format
3
5
6
7
Access Code
XXXX
Incorrect
New Code
XX - -
Features
AutoLock
Format
Access Code
----
Features
AutoLock
Format
Access Code
XX - -
Features
AutoLock
Format
Confirm Code
XXXX
Proceed to the next page to learn more...
HELPFUL HINT
Parents - it isn’t possible for your child to
unblock a channel without knowing your
access code or changing it to a new one. If
your code changes, and you didn’t change
it, then you know it’s been altered by someone else and blocked channels have been
viewed.
AutoLock
Block Channel
Setup Code
Clear All
Block All
Movie Rating
TV Rating
OffStop Time
Channel
Activate
Display
13
AutoLock
Block Channel
Setup Code
Clear All
Block All
Movie Rating
TV Rating
OffStop Time
Channel
Activate
Display
HOW TO BLOCK CHANNELS
A
fter your personal access code has been
set (see previous page), you are now
ready to select the channels you want to
block out or censor.
1
2
3
4
5
6
7
Press the NUMBERED (or CH +, –)
buttons to tune the channel you wish
to block or censor.
8
Press the CURSOR UP or
DOWN ■ buttons until the words
BLOCK CHANNELS are highlighted.
9
Press the CURSOR RIGHT button to turn blocking ON or OFF
for that channel. When ON is selected
the channel will be blocked.
10
Main
Sound
Features
Install
Brightness
Color
Sharpness
Tint
More...
Press the MENU button on the
remote to show the on-screen menu.
Main
Sound
Features
Install
Press the CURSOR UP or
DOWN ■ button until the word
FEATURES is highlighted.
Press the CURSOR RIGHT button to display the FEATURES
menu options.
2
Press the CURSOR UP or
DOWN ■ button until the words
AutoLock are highlighted.
Press the CH + or – button to select
other channels you wish to block.
Repeat step 9 to block the new channel.
Features
AutoLock
Format
VOL
10
3
5
8
Press the CURSOR RIGHT button. “ACCESS CODE” will
appear on the screen.
Enter the correct access code number. “XXXX” shows on the Access
Code display as you press the NUMBERED buttons. AutoLock menu
options will be displayed.
3
5 4
8 6
9
AutoLock
Format
NOTE: The 0,7,1,1 access code shown
on this page is the default code or a
way to reset the code when the current
access code is not known.
Features
AutoLock
Format
Access Code
XXXX
Channel 12
Blocked By AutoLock
Channel Blocking
Access Code
----
HELPFUL HINT
If you tune to a blocked channel and enter
your Access Code to view the channel, ALL
blocked channels will be viewable until the
TV has been turned off. When the TV is
powered back ON, the previously blocked
channels will be blocked again.
14
AutoLock
Block Channel
Setup Code
Clear All
Block All
Movie Rating
TV Rating
1
7
OffStop Time
Channel
Activate
Display
Features
AutoLock
Format
AutoLock
Block Channel
Setup Code
Clear All
Block All
Movie Rating
TV Rating
Access Code
----
OnStop Time
Channel
Activate
Display
Enter your Access Code to
view a tuned channel that is
blocked with Block Channel.
HOW TO CLEAR ALL BLOCKED CHANNELS AT THE SAME TIME
A
fter blocking specific channels there may
come a time when you want to clear all
the channels so they can be viewed. The following steps explain how to CLEAR ALL
blocked channels.
1
2
3
4
5
6
7
8
9
Main
Sound
Features
Install
Press the MENU button on the
remote to show the on-screen menu.
Brightness
Color
Sharpness
Tint
More...
Main
Sound
Features
Install
Press the CURSOR UP or DOWN
■ button until the word FEATURES
is highlighted.
2
4
7
Press the CURSOR RIGHT button to display the FEATURES
menu options.
1
Press the CURSOR UP or DOWN
■ button until the words AutoLock are
highlighted.
Press the CURSOR RIGHT button.
Enter the correct access code number. “XXXX” shows on the Access
Code display as you press the NUMBERED buttons. AutoLock menu
options will be displayed.
Press the CURSOR UP or DOWN
■ button until the words CLEAR
ALL are highlighted.
Press the CURSOR RIGHT button to clear all blocked channels.
The Clear All option will read,
“Cleared.”
2
4
7
NOTE: The 0,7,1,1 access code shown
on this page is the default code or a
way to reset the code when the current
access code is not known.
Access Code
XXXX
When finished, press the STATUS
/EXIT button to remove the menu
from the TV’s screen.
HELPFUL HINT
If you tune to a blocked channel and enter
your Access Code to view the channel, ALL
blocked channels will be viewable until the
TV is powered OFF and then turned back
ON. When the TV is powered back ON, the
previously blocked channels will be blocked
again.
CLEAR ALL will not work with the Movie
and TV Ratings. These options must be
reset individually.
9
3
5
8
6
VOL
Features
AutoLock
Format
AutoLock
Block Channel
Setup Code
Clear All
Block All
Movie Rating
TV Rating
AutoLock
Block Channel
Setup Code
Clear All
Block All
Movie Rating
TV Rating
OffStop Time
Channel
Activate
Display
ClearedStop Time
Channel
Activate
Display
The Clear All option when activated
will unblock ALL blocked channels. It
will not affect programming blocked
by the Movie or TV Rating options.
15
AutoLock
Format
Features
AutoLock
Format
Features
AutoLock
Format
AutoLock
Block Channel
Setup Code
Clear All
Block All
Movie Rating
TV Rating
Access Code
----
Clear ?
Channel 12
Blocked By AutoLock
Channel Blocking
Access Code
----
Or, enter your Access
Code to view a tuned
channel that is blocked
with Block Channel.
HOW TO BLOCK ALL CHANNELS AT THE SAME TIME
T
here may come a time when you want to
Block All the television’s channels. Maybe
you don’t want your children to watch TV for
a given time. With the Block All control, ALL
available channels (including the A/V Inputs)
can be set to block at the same time.
1
2
3
4
5
6
Main
Sound
Features
Install
Press the MENU button on the
remote to show the on-screen menu.
Brightness
Color
Sharpness
Tint
More...
Press the CURSOR UP or DOWN
■ button until the word FEATURES
is highlighted.
2
4
7
Press the CURSOR RIGHT button to display the FEATURES
menu options.
1
Press the CURSOR UP or DOWN
■ button until the words AutoLock are
highlighted.
Press the CURSOR RIGHT button.
Enter the correct access code number. “XXXX” shows on the Access
Code display as you press the NUMBERED buttons. AutoLock menu
options will be displayed.
7
8
Press the CURSOR UP or DOWN
■ button until the words BLOCK
ALL are highlighted.
9
When finished, press the
STATUS/EXIT button to remove the
menu from the screen.
Press the CURSOR RIGHT button to turn Block All ON or OFF.
When ON is selected, ALL available
channels will be blocked.
HELPFUL HINT
If you tune to a blocked channel and enter
your Access Code to view the channel, ALL
blocked channels will be viewable until the
TV has been turned off. When the TV is
powered back ON, the previously blocked
channels will be blocked again.
9
3
5
8
6
VOL
2
4
7
NOTE: The 0,7,1,1 access code shown
on this page is the default code or a
way to reset the code when the current
access code is not known.
Features
AutoLock
Format
Access Code
XXXX
Channel 12
Blocked By AutoLock
Channel Blocking
Access Code
----
16
Main
Sound
Features
Install
AutoLock
Block Channel
Setup Code
Clear All
Block All
Movie Rating
TV Rating
Off
Features
AutoLock
Format
Features
AutoLock
Format
AutoLock
Block Channel
Setup Code
Clear All
Block All
Movie Rating
TV Rating
AutoLock
Format
Timer
Start Time
Stop Time
Channel
Activate
Display
Access Code
----
On
Enter your Access Code to
view a tuned channel that is
blocked with Block Channel.
BLOCKING PROGRAMS BASED ON MOVIE RATINGS
T
here are two types of program ratings
within the AutoLock™ feature. One is
based on the Movie Industry ratings while the
other is based on the TV Industry ratings. Both
can be used to block or censor programming
that has been rated in either manner.
Main
Sound
Features
Install
Let’s first look at the Movie Rating options of
AutoLock™:
1
2
3
4
5
6
Press the MENU button on the remote
to display the on-screen menu.
7
8
9
Press the CURSOR UP or DOWN
■ button to highlight the words
MOVIE RATINGS.
10
Brightness
Color
Sharpness
Tint
More...
2
4
7
9
Press the CURSOR UP or DOWN
■ button until the word FEATURES is
highlighted.
Press the CURSOR RIGHT button to display the FEATURES menu
options.
1
Press the CURSOR UP or DOWN
■ button until AutoLock is highlighted.
2
4
7
9
Using the NUMBERED buttons on
the remote, enter your 4 digit Access
Code. The AutoLock menu options will
be displayed.
Press the CURSOR RIGHT button to display the MOVIE RATINGS
options (G, PG, PG-13, R, NC17, or X).
Features
AutoLock
Format
Access Code
XXXX
Press the CURSOR UP or DOWN
■ button to highlight any of the Movie
Ratings options. When highlighted, all
these options can be turned ON (which
will allow blocking) or OFF (which will
allow viewing).
Use the CURSOR RIGHT button on the remote to turn the rating
option ON or OFF.
3
5
8
10
VOL
Press the CURSOR RIGHT button. The screen will prompt you for
your Access Code.
Movie Rating
G
PG
PG-13
R
NC-17
X
6
AutoLock
Block Channel
Setup Code
Clear All
Block All
Movie Rating
TV Rating
G
PG
PG-13
R
NC-17
More...
On
HELPFUL HINT
When a rating is set to block, all higher ratings will be automatically blocked as well.
(Example: If the the PG-13 rating is set to
block, the R, NC-17, and X ratings will also
be blocked.
NOTE: The 0,7,1,1 access code shown
on this page is the default code or a
way to reset the code when the current
access code is not known.
17
Main
Sound
Features
Install
AutoLock
Format
Features
AutoLock
Format
Features
AutoLock
Format
Movie Rating
G
PG
PG-13
R
NC-17
X
Access Code
----
Off
Channel 12
OffStop Time
Blocked By AutoLock
Channel
Movie Rating
Activate
Display
Access Code
----
To view a program blocked by
the Movie Rating options, enter
your 4 digit access code. This
will disable all blocked Movie
Ratings until the TV is powered
off and on again. Then the blocking options will be restored.
BLOCKING PROGRAMS BASED ON TV RATINGS
T
his portion of the AutoLock™ features
cover program ratings based on the TV
Industry rating system. This is known as TV
Ratings within AutoLock™.
After selecting the Autolock™ feature and
entering your personal access code, the
AutoLock™ options screen appears;
1
2
3
4
5
6
Scroll the menu using the CURSOR
UP or DOWN ■ buttons until the
words TV RATINGS are highlighted.
Press the CURSOR RIGHT button to display the TV Ratings (TV-Y,
TV-Y7, TV-G, TV-PG, TV-14, or TVMA). When highlighted, the TV-Y and
TV-G can be turned ON (which will
allow blocking) or OFF (which will
allow viewing), of these rated programs.
The ratings of TV-Y7, TV-PG, TV-14,
TV-MA can be customized to block V
(violence), FV (fantasy violence), S
(sexual situations), L (coarse language), or D (suggestive dialogue).
Press the CURSOR UP or DOWN
■ button to highlight the desired rating.
Press the CURSOR RIGHT button on the remote to turn the TV-Y
or TV-G rating ON or OFF. Or, press
the CURSOR RIGHT button to
enter the sub-menus for the TV-Y7,
TV-PG, TV-14 or TV-MA ratings.
If the TV-Y7, TV-PG, TV-14 or TVMA sub-menu is accessed, press the
CURSOR UP or CURSOR
DOWN ■ button to select one of the
options (Block All, V, S, L, D, or FV).
To view a program
blocked by the TV
Rating options, enter
your 4 digit access
code. This will disable all blocked TV
Ratings until the TV
is powered off and
on again. Then the
blocking options will
be restored.
AutoLock
Block Channel
Setup Code
Clear All
Block All
Movie Rating
TV Rating
TV-Y
TV-Y7
TV-G
TV-PG
TV-14
TV-MA
TV Rating
TV-Y
TV-Y7
TV-G
TV-PG
TV-14
TV-MA
1
3
5
OffStop Time
Channel 12 Channel
Blocked By AutoLock
Activate
TV Rating Display
TV Rating
TV-Y
TV-Y7
TV-G
TV-PG
TV-14
TV-MA
Off
On
Access Code
----
2
4
6
VOL
1
3
5
TV Rating
TV-Y
TV-Y7
TV-G
TV-PG
TV-14
TV-MA
NOTE: The 0,7,1,1 access code shown
on this page is the default code or a
way to reset the code when the current
access code is not known.
TV Rating
TV-Y
TV-Y7
TV-G
TV-PG
TV-14
TV-MA
Block All
V
S
L
D
TV Rating
TV-Y
TV-Y7
TV-G
TV-PG
TV-14
TV-MA
TV Rating
TV-Y
TV-Y7
TV-G
TV-PG
TV-14
TV-MA
Block All
V
S
L
D
TV Rating
TV-Y
TV-Y7
TV-G
TV-PG
TV-14
TV-MA
Block All
FV
Off
Block All
V
S
L
TV Ratings and
Rating Sub-Menus
Press the CURSOR RIGHT button on the remote to turn the option
ON or OFF.
When a TV Rating is selected to block,
ALL higher ratings will be blocked also.
TV-Y - (All children -- This program is designed to be appropriate for all children.) Designed for a very young audience, including children ages 2-6. This type
of programming is not expected to frighten younger children.
TV-Y7 - (Directed to Older Children -- This program is designed for children age 7 and above.) It may be more appropriate for children who have acquired the
development skills needed to distinguish between make-believe and reality. This programming may include mild fantasy and comic violence (FV).
TV-G - (General Audience -- Most parents would find this program suitable for all ages.) This type of programming contains little or no violence, no strong
language and little or no sexual dialogue or situations.
TV-PG - (Parental Guidance Suggested -- This program contains material that parents may find unsuitable for younger children.)This type of programming
contains one or more of the following: some suggestive dialogue (D), infrequent coarse language (L), some sexual situations (S), or moderate violence (V).
TV-14 - (Parents Strongly Cautioned -- This program contains some material that many parents would find unsuitable for children under 14 years of age.) This
type of programming contains one or more of the following: intensely suggestive dialogue (D), strong coarse language (L), intense sexual situations (S), or
intense violence (V).
TV-MA - (Mature Audience Only -- This program is specifically designed to be viewed by adults and therefore may be unsuitable for children under 17.) This
type of programming contains one or more of the following: crude indecent language (L), explicit sexual situations (S), or graphic violence (V).
18
OTHER AUTOLOCK™ BLOCKING OPTIONS
A
utoLock™ offers the viewer other blocking features as well. With these Blocking
Options, the censoring can be turned ON or
OFF.
1
2
3
4
5
6
7
8
9
10
Main
Sound
Features
Install
Press the MENU button on the
remote to show the on-screen menu.
Brightness
Color
Sharpness
Tint
More...
Press the CURSOR UP or DOWN
■ button until the word FEATURES
is highlighted.
Press the CURSOR RIGHT button to display the FEATURES
menu options.
10
2
4
7
9
Press the CURSOR RIGHT button.
Enter the correct access code number. “XXXX” shows on the Access
Code display as you press the NUMBERED buttons. AutoLock menu
options will be displayed.
Press the CURSOR UP or DOWN
■ buttons until the words BLOCKING OPTIONS are highlighted.
Press the CURSOR RIGHT button to display the Blocking
Options (BLOCKING, UNRATED,
or NO RATING) menu.
3
5
8
10
VOL
6
NOTE: Remember, if you ever forget
your Access Code, the 0,7,1,1 access
code is the default code or a way to
reset the code when the current access
code is not known.
Features
AutoLock
Format
Access Code
XXXX
Press the CURSOR UP or DOWN
■ buttons to highlight the desired feature.
When highlighted, each feature can be
turned ON or OFF using the CURSOR RIGHT or LEFT buttons on the remote.
2
4
7
9
1
Press the CURSOR UP or DOWN
■ button until the words AutoLock
are highlighted.
Main
Sound
Features
Install
Blocking Options
Blocking
Unrated
No Rating
On
AutoLock
Block Channel
Setup Code
Clear All
Block All
Movie Rating
TV Rating
Blocking Options
Blocking
Unrated
No Rating
OffStop Time
Channel
Activate
Display
On
AutoLock
Format
Features
AutoLock
Format
Features
AutoLock
Format
Access Code
----
AutoLock
Setup Code
Clear All
Block All
Movie Rating
TV Rating
Blocking Options
Blocking Options
Blocking
Unrated
No Rating
On
BLOCKING OPTIONS:
BLOCKING: This is what might be called the “master switch” for AutoLock™. When in the ON position, ALL blocking/censoring
will take place. When in the OFF position, ALL blocking is disabled.
UNRATED: ALL unrated programs based on the Movie Ratings or Parental (TV) Guidelines can be blocked if this feature is set to
ON and the BLOCKING feature is set to OFF.
NO RATING: ALL programming with NO content advisory data can be blocked if this feature is set to ON and the BLOCKING feature is set to OFF.
19
SETTING THE SLEEPTIMER CONTROL
H
ave you ever fallen asleep in front of the
TV only to have it wake you up at two in
the morning with a test pattern screeching in
your ears? Well, your TV can save you all
that trouble by automatically turning itself off.
1
2
Press the SLEEP button on the
remote control and the SLEEP timer
display will appear on the screen.
15 Min
30 Min
Press the SLEEP button repeatedly to
pick the amount of time (15, 30, 45,
60, 90, 120, 180 or 240 minutes)
before the TV will turn itself off.
An on-screen count down will appear
during the last minute before the TV
shuts itself off.
45 Min
HELPFUL HINT
The on-screen menu will time out and disappear from the screen when you finish, or
you can press the STATUS/EXIT button to
clear the menu from the screen.
60 Min
VOL
1
2
90 Min
120 Min
During the last minute of a
Sleeptimer setting, an onscreen count down will be displayed. Pressing any button
during the last minute will
cancel the Sleeptimer.
During the last 10 seconds of
a Sleeptimer setting, an onscreen display will read
GOOD BYE.
180 Min
45 Sec
Good Bye
9 Sec
20
240 Min
HOW TO USE THE CLOSED CAPTIONING CONTROL
C
losed Captioning (CC) allows you to
read the voice content of television programs on the TV screen. Designed to help the
hearing impaired, this feature uses on-screen
“text boxes” to show dialogue and conversations while the TV program is in progress.
1
2
Press the CC button on the remote to
display the current Closed Caption setting.
3
When finished, press the STATUS
/EXIT button to remove the menu from
the TV’s screen or let the option time out
and disappear from the TV screen.
CC Off
Press the CC button repeatedly to
choose from the four Closed Caption
options (CC Off, CC 1, CC 2, CC
Mute). Dialogue (and descriptions) for
the action on the captioned TV program
will appear on-screen if the tuned program is broadcasting CC information.
CC 1
3
CC 2
HELPFUL HINT
Not all TV programs and product commercials are made with Closed Caption
(CC) information included. Neither are all
Closed Caption modes (CC1, or CC2) necessarily being used during the transmission
of a closed caption program. Refer to your
area's TV program listings for the stations
and times of Closed Caption shows.
VOL
1
2
CC Mute
NOTE: The CC MUTE option
can be used to set the TV to
turn the Closed Caption mode
“ON” whenever the MUTE button on the remote is pressed.
This activates the CC1 option.
21
SETTING THE AUTOPICTURE™ CONTROL
W
hether you’re watching a movie or a
sporting event, your TV has automatic
video control settings matched for your current program source or content. The
AutoPicture™ feature quickly resets your
TV’s video controls for a number of different
types of programs and viewing conditions you
may have in your home. Each AutoPicture™
setting is preset at the factory to automatically adjust the TV’s Brightness, Color, Picture,
Sharpness, Tint, Color Temperature, DNR and
Contrast+ levels.
Personal
Movies
1
Press the AUTO PICTURE button on
the remote control. The current Auto
Picture setting will appear in the middle
of the screen.
2
Press the AUTO PICTURE button
repeatedly to select either PERSONAL, MOVIES, SPORTS, WEAK SIGNAL, or MULTI MEDIA picture settings.
Note: The PERSONAL setting is the setting
that you setup using the PICTURE options
within the on-screen menu. This is the only
Auto Picture setting that can be changed. All
other settings are setup at the factory during
the time of production.
Sports
VOL
1
2
MOVIES - Preset picture options for watching Video Tapes, or DVDs.
SPORTS - Preset picture options for watching sporting events.
Weak Signal
WEAK SIGNAL - Preset picture options for
watching programs where the reception is not
at its best.
MULTI MEDIA - Preset picture options for
use with video gaming.
Multi Media
22
SETTING THE AUTOSOUND™ CONTROL
T
he AutoSound™ feature allows the listener to select between four different factory
set sound options. Personal (which can be set
by the user), Theatre (for movie viewing),
Music (for musical type programming) and
Voice (when the program is mainly dialogue).
These setting affect the Sound menu’s Bass,
Treble, AVL, and Incredible Surround controls
To select any of the options follow the directions below.
1
Press the AUTO SOUND button on
the remote control. The current Auto
Sound setting will appear in the middle
of the screen.
2
Press the AUTO SOUND button
repeatedly to toggle between the four
settings.
Note: Only the PERSONAL control can be
changed by the viewer. This changes the settings in the main on-screen menu's sound controls.
THEATRE - Preset sound options for watching movies.
MUSIC - Preset sound options for musical
programming where there is little dialogue.
Personal
Theatre
Music
1
2
VOL
VOICE - Preset sound options for programming where heavy dialogue is present.
Voice
23
USING THE QUADRASURF™ BUTTONS
A
“list” or series of previously viewed
channels can be selected with the
QuadraSurf™ (colored) buttons on your
remote control. With this feature you can easily switch between different TV programs that
currently interest you. The QuadraSurf™ control allows you set up four different personal
Surf lists using the colored buttons (on the
remote control), each holding up to ten channels in its quick viewing“list.”
1
2
3
Press the CHANNEL (+) or (–) buttons (or the NUMBER buttons) to
select a channel to add to one of the
SURF lists.
Press the SMILEY
button on the
remote control to ADD the channel to
one of the SURF lists.
Press the corresponding COLORED
(Red, Green, Yellow or Blue) button
to add the channel to that button’s Surf
list. (Up to ten channels per button can
be stored.)
Repeat steps 1 through 3 to add additional
channels (up to 10) to each of the the SURF
lists.
12
3
4
12
4
5
While the “Smiley” face channel
indicator is displayed, press the
FROWNIE
face button. The
screen will read, “Remove item? Press
.”
6
Press the FROWNIE
face button
again to confirm your decision to
remove the channel from the Surf list.
Added!
5
6
2
VOL
1
To remove a channel from one of the SURF
lists;
Press the COLORED QuadraSurf™
button until the desired channel
appears. The screen will display the
channel number with a colored
“Smiley” face to indicate the Colored
button it relates to.
Select List!
12
12
12
Repeat steps 4-6 to remove other channels
from Surf lists.
ALTERNATE CHANNEL
5
Your remote also has an A/CH (Alternate
Channel) button. Pressing this button will toggle between the Current and one previously
selected channel.
22
1
24
Remove Item? - Press
USING THE QUADRASURF™ BUTTONS
T
he QuadraSurf™ buttons on your remote
control allow you to store up to 10 channels per button (40 total). This is a great feature if you want to store all your favorite
Sports channels, Movie channels, or News
channels in one surf list. Family members can
have there own favorite list of channels. You
can even program the external A/V Input
jacks (Front channel) for one of the buttons
making it a “source” button for your external
accessory devices.
12
Assuming channels have now been added to
the four QuadraSurf™ lists (the four colored
buttons on the remote, see the previous page),
let’s review how the feature works.
12
18
1
2
3
Press one of the pre-programmed
COLORED buttons on the remote
(Red, Green, Yellow or Blue). The
screen will display a smiley face with the
first programmed channel for that surf
list.
While the colored “smiley” face still
appears on the screen, press the same
COLORED button on the remote to
tune the second channel programmed for
that specific surf list.
Repeatedly pressing the same COLORED button while the “smiley” face
appears will tune all the programmed
channels for that specific surf list. After
the last channel is tuned, pressing the
COLORED button again will return you
to the first channel in the list.
22
28
1
2
3
35
5
41
VOL
56
99
If the “smiley” face disappears from the
screen and the same COLORED button
is pressed, the surf channels will be displayed starting with the FIRST programmed channel again.
4
5
Repeat steps 1-3 for the other three
COLORED buttons (Surf lists) if
desired.
39
5
12
Remove Item? - Press
Any time the “smiley” face appears
with the channel number, pressing the
“frownie” face button will allow you
to remove it from the list (see the previous page for more details).
25
REMOTE CONTROL USE
WITH
ACCESSORY DEVICES - DIRECT METHOD
Y
our remote control is set to work your TV
and many infrared remote (IR) control
VCRs, Cable Boxes, Satellite Systems, DBS,
DVD, etc. However, an easy onetime step may
be necessary before the remote will work your
VCR.
Try this initial Direct Access Method to see if
going on to the following section is necessary.
1
2
1
Place the TV/VCR/ACC Mode
Switch in the proper position.
Point the remote control at the device
and press the POWER button.
VCR
Does the remote turn the device ON?
If YES, stop and try other function buttons on
the remote. If they also work the device, then
the remote is ready and no further steps are
needed.
If NO, continue...
3
First look up a THREE-DIGIT remote
control number for your brand of
Device before going through the simple
steps on the following page.
Satellite Receiver
Find your Three-Digit Code on
pages 29-31.
Cable Converter
2
HELPFUL HINT
If more than one number is listed, you may
have to try more than the first Three-Digit code
given in order to locate your Device’s remote
code.
VOL
NOTE: Setting up the remote is for use with
external accessory devices only and not for use
with other television brands.
26
REMOTE CONTROL USE WITH ACCESSORY DEVICES - CODE ENTRY METHOD
N
ow that you have looked up the threedigit Remote Code Number for your
brand of device, you are ready to follow the
four simple steps below.
Please read through steps 1-4 before beginning.
1
2
3
4
Place the TV/VCR/ACC Mode
Switch in the proper position.
5
Point the remote at the Device. Press
the POWER button on the remote to
turn the unit ON.
1
Press the VCR • RECORD button on
the remote control and release.
3
Press the AUTO SOUND button on
the remote within 30 seconds, then
release.
Enter the THREE-DIGIT REMOTE
CODE NUMBER (page 29-31) for
your desired device. The remote is now
ready to send commands to the unit.
HELPFUL HINT
VCR
Satellite Receiver
or DBS, DVD
2
4
Cable Converter
Remember, if this doesn’t work the first time,
repeat the steps using a different remote code
number.
5
After a second try and the remote does not
operate your device, see if there is another
three-digit code number (pages 29-31) listed
for your device and repeat the steps above
using the new number.
If after repeated attempts the code number
method does not work you device, try the
SEARCH METHOD on the next page.
VOL
NOTE: Setting up the remote is for use with
external accessory devices only and not for use
with other television brands.
27
VOL
REMOTE CONTROL USE
WITH
ACCESSORY DEVICES - SEARCH METHOD
Y
our TV remote can be set to work various
external devices such as VCRs, Cable
Boxes, Satellite Receivers, DBS, DVD, etc. by
what is called the search method of remote
control programming.
Satellite Receiver
07
If the “Remote Code” number method shown
on the previous page did not set your remote
to work your external device, then follow the
easy steps listed below.
08
09
VCR
Please read steps 1-4 before beginning.
1
2
3
4
Press the POWER button on the
device your are attempting to program
to turn it ON.
The device will begin to change channels after the remote identifies the correct code. When the channels start to
change release the VCR • RECORD
and AUTO SOUND buttons. The
remote should be ready to operate the
device.
HELPFUL HINT
This method can take up to two minutes to
perform.
Don’t let the device scan up more than five
channels. If you do the remote may pass up
the right code and another two minute search
cycle will have to be repeated.
If no channel change happens within two
minutes, repeat steps 1-4. Should a channel
change still not occur, the remote will not
work the desired device.
NOTE: Setting up the remote is for use with
external accessory devices only and not for use
with other television brands.
06
07
08
1
06
09
07
08
09
Place the TV/VCR/ACC Mode
Switch in the proper position.
Press the VCR • RECORD and the
AUTO SOUND buttons simultaneously and hold them down.
Cable Converter
4
2
3
3
28
VOL
REMOTE CONTROL DIRECT ENTRY CODES
VCR CODES
Admiral . . . . . . . . . . . . . . . . . 2027, 2052
Adventura . . . . . . . . . . . . . . . . . . . .2001
Aiko . . . . . . . . . . . . . . . . . . . . . . . . .2059
Aiwa . . . .2001, 2017, 2062, 2070, 2072
Akai . . . . .2021, 2029, 2038, 2060, 2063
Akiba . . . . . . . . . . . . . . . . . . . . . . . .2034
Alba . . . . . . . . . . . . . .2011, 2034, 2052,
. . . . . . . . . . . . . . . . . . .2059, 2063, 2072
Ambassador . . . . . . . . . . . . . . . . . . .2011
American Action . . . . . . . . . . . . . . .2059
American High . . . . . . . . . . . . . . . .2015
Amstrad . . . . . . .2001, 2059, 2067, 2068
Anam . . . . . . . . . . . . .2017, 2042, 2054,
. . . . . . . . . . . . . .2057, 2059, 2082, 2084
Anam National . . . . . .2042, 2054, 2087
Anitech . . . . . . . . . . . . . . . . . . . . . .2034
Asa . . . . . . . . . . . . . . . . . . . . .2017, 2035
Asha . . . . . . . . . . . . . . . . . . . . . . . . .2057
Asuka . . . . . . . . . . . . . . . . . . . . . . . .2017
Audiovox . . . . . . . . . . . . . . . . . . . . .2017
Baird . . . . . . . . .2001, 2021, 2037, 2039
Basic Line . . . . . . . . . .2011, 2034, 2059
Beaumark . . . . . . . . . . . . . . . . . . . . .2057
Bell & Howell . . . . . . . . . . . . . . . . .2037
Blaupunkt . . . . .2003, 2005, 2010, 2014,
. . . .2041, 2042, 2048, 2054, 2055, 2075
Brandt . . . . . . . . . . . . .2047, 2064, 2065
Brandt Electronic . . . . . . . . . . . . . . .2021
Broksonic 2002, 2040, 2046, 2052, 2078
Bush . . . . . . . . .2034, 2052, 2059, 2072
Calix . . . . . . . . . . . . . . . . . . . . . . . .2017
Canon . . . . . . . . . . . . . . . . . . . . . . . .2015
Capehart . . . . . . . . . . . . . . . . . . . . . .2011
Carver . . . . . . . . . . . . . . . . . . . . . . .2035
Catron . . . . . . . . . . . . . . . . . . . . . . .2011
CCE . . . . . . . . . . . . . . . . . . . .2034, 2059
CGE . . . . . . . . . . . . . . . . . . . . . . . . .2001
Cimline . . . . . . . . . . . . . . . . . . . . . .2034
Cineral . . . . . . . . . . . . . . . . . . . . . . .2059
Citizen . . . . . . . . . . . . . . . . . .2017, 2059
Clatronic . . . . . . . . . . . . . . . . . . . . .2011
Colt . . . . . . . . . . . . . . . . . . . . . . . . .2034
Combitech . . . . . . . . . . . . . . . . . . . .2072
Condor . . . . . . . . . . . . . . . . . . . . . . .2011
Craig . . . .2017, 2026, 2034, 2057, 2058
Crown . . . . . . . . . . . . .2011, 2034, 2059
Curtis Mathes . .2015, 2021, 2032, 2042
Cybernex . . . . . . . . . . . . . . . . . . . . .2057
Cyrus . . . . . . . . . . . . . . . . . . . . . . . .2035
Daewoo . .2011, 2024, 2025, 2059, 2083
Dansai . . . . . . . . . . . . . . . . . . . . . . .2034
Daytron . . . . . . . . . . . . . . . . . . . . . .2011
De Graaf . . . . . . . . . . . . . . . .2022, 2043
Decca . . . . . . . . . . . . . . . . . . .2001, 2035
Denon . . . . . . . . . . . . . . . . . . . . . . .2022
Dual . . . . . . . . . . . . . . . . . . . . . . . . .2021
Dumont . . . . . . . . . . . .2001, 2035, 2037
Dynatech . . . . . . . . . . . . . . . . . . . . .2001
Elbe . . . . . . . . . . . . . . . . . . . . . . . . .2018
Elcatech . . . . . . . . . . . . . . . . . . . . . .2034
Electrohome . . . . . . . . . . . . . . . . . . .2017
Electrophonic . . . . . . . . . . . . . . . . . .2017
Emerex . . . . . . . . . . . . . . . . . . . . . . .2012
Emerson . . . . . .2001, 2002, 2017, 2023,
. . . . . . . . . . . . . .2040, 2046, 2051, 2052,
. . . . . . . . . . . . . . . . . . .2059, 2078, 2083
ESC . . . . . . . . . . . . . . . . . . . .2057, 2059
Ferguson . . . . . .`2021, 2039, 2064, 2065
Fidelity . . . . . . . . . . . . . . . . . . . . . . .2001
Finlandia . . . . . . . . . . . . . . . .2035, 2037
Finlux . . . . . . . .2001, 2022, 2035, 2037
Firstline . .2017, 2023, 2024, 2034, 2052
Fisher . . . . . . . . .2025, 2026, 2030, 2037
Frontech . . . . . . . . . . . . . . . . . . . . . .2011
Fuji . . . . . . . . . . . . . . . . . . . . . . . . . .2015
Funai . . . . . . . . . . . . . . . . . . . . . . . .2001
Garrard . . . . . . . . . . . . . . . . . . . . . . .2001
GE . . . . . . . . . . .2015, 2027, 2032, 2057
GEC . . . . . . . . . . . . . . . . . . . . . . . . .2035
General . . . . . . . . . . . . . . . . . . . . . .2011
Go Video . . . . . . . . . . . . . . . .2077, 2081
Goldhand . . . . . . . . . . . . . . . . . . . . .2034
Goldstar . . . . . . .2017, 2018, 2053, 2079
Goodmans 2001, 2017, 2034, 2059, 2075
Gradiente . . . . . . . . . . . . . . . .2001, 2008
Graetz . . . . . . . .2005, 2021, 2037, 2057
Granada . . . . . . . . . . . .2025, 2035, 2037
Grandin . . . . . . . . . . . .2001, 2017, 2034
Grundig . . . . . .2003, 2005, 2007, 2010,
. . . . . . . . . . . . . .2034, 2035, 2048, 2050,
. . . . . . . . . . . . . .2054, 2069, 2071, 2075
Hanseatic . . . . . . . . . . . . . . . . . . . . .2017
Harley Davidson . . . . . . . . . . . . . . .2001
Harman/Kardon . . . . . . . . . . .2018, 2035
Harwood . . . . . . . . . . . . . . . . . . . . .2034
HCM . . . . . . . . . . . . . . . . . . . . . . . .2034
Headquarter . . . . . . . . . . . . . . . . . . .2025
Hinari . . . . . . . .2004, 2034, 2057, 2072
Hi-Q . . . . . . . . . . . . . . . . . . . . . . . . .2026
Hitachi . . . . . . . . . . . .2001, 2004, 2021,
. . . . . . . . . . . . . . . . . . .2022, 2043, 2057
Hughes Network Systems . . . . . . . .2022
Hypson . . . . . . . . . . . . . . . . . . . . . . .2034
Imperial . . . . . . . . . . . . . . . . . . . . . .2001
Ingersol . . . . . . . . . . . . . . . . . . . . . .2004
Interfunk . . . . . . . . . . . . . . . . . . . . .2035
ITT . . . . . . . . . .2005, 2021, 2025, 2037,
. . . . . . . . . . . . . . . . . . .2038, 2057, 2074
ITV . . . . . . . . . . . . . . . . . . . .2017, 2059
Jensen . . . . . . . . . . . . . . . . . . . . . . .2021
JVC . . . . . . . . . .2008, 2021, 2033, 2049,
. . . . . . . . . . . . . . . . . . .2050, 2074, 2080
Kaisui . . . . . . . . . . . . . . . . . . . . . . . .2034
KEC . . . . . . . . . . . . . . . . . . . .2017, 2059
Kendo . . . . . . . . . . . . . . . . . .2038, 2052
Kenwood . . . . . . . . . . .2018, 2021, 2033
KLH . . . . . . . . . . . . . . . . . . . . . . . . .2034
Kodak . . . . . . . . . . . . . . . . . .2015, 2017
Korpel . . . . . . . . . . . . . . . . . . . . . . .2034
Layco . . . . . . . . . . . . . . . . . . . . . . . .2034
Lenco . . . . . . . . . . . . . . . . . . . . . . . .2059
LG . . . . . . . . . . . . . . . . . . . . . . . . . .2079
29
Lloyd's . . . . . . . . . . . . . . . . . .2001, 2051
Loewe . . . . . . . .2004, 2005, 2017, 2035
Logik . . . . . . . . . . . . . .2004, 2034, 2057
Luxor . . . .2023, 2025, 2027, 2037, 2038
LXI . . . . . . . . . . . . . . . . . . . . . . . . .2017
M Electronic . . . . . . . . . . . . . . . . . .2001
Magnasonic . . . . . . . . . . . . . . . . . . .2059
Magnavox . . . . .2001, 2015, 2019, 2035
Magnin . . . . . . . . . . . . . . . . . . . . . . .2057
Manesth . . . . . . . . . . . . . . . . .2024, 2034
Marantz . . . . . . .2003, 2005, 2015, 2035
Marta . . . . . . . . . . . . . . . . . . . . . . . .2017
Matsui . . . . . . . . . . . . .2004, 2016, 2036,
. . . . . . . . . . . . . . . . . . .2052, 2070, 2072
Matsushita . . . . . . . . . .2015, 2042, 2055
Mei . . . . . . . . . . . . . . . . . . . . . . . . . .2015
Melectronic . . . . . . . . . . . . . . . . . . .2018
Memorex . . . . .2001, 2015, 2017, 2019,
. . . . . . . . .2025, 2026, 2027, 2037, 2052,
. . . . . . . . .2057, 2062, 2085, 2087, 2088
Memphis . . . . . . . . . . . . . . . . . . . . .2034
Metz . . . . . . . . . . . . . .2003, 2005, 2017,
. . . . . . . . . . . . . .2042, 2048, 2055, 2069
MGA . . . . . . . . . . . . . . . . . . .2023, 2057
MGN Technology . . . . . . . . . . . . . .2057
Mincrva . . . . . . . . . . . . . . . . . . . . . .2048
Minerva . . . . . . . . . . . .2005, 2010, 2048
Minolta . . . . . . . . . . . . . . . . . . . . . .2022
Mitsubishi 2023, 2027, 2033, 2035, 2045
Motorola . . . . . . . . . . . . . . . .2015, 2027
MTC . . . . . . . . . . . . . . . . . . .2001, 2057
Multitech . . . . . . . . . . . . . . . .2001, 2034
Murphy . . . . . . . . . . . . . . . . . . . . . .2001
NAD . . . . . . . . . . . . . . . . . . . . . . . .2031
National . . . . . . . . . . . . . . . . . . . . . .2054
NEC . . . . .2018, 2020, 2021, 2033, 2037
Neckermann . . . . . . . . . . . . . . . . . . .2035
Nesco . . . . . . . . . . . . . . . . . . . . . . . .2034
Nikko . . . . . . . . . . . . . . . . . . . . . . . .2017
Nikon . . . . . . . . . . . . . . . . . . . . . . . .2014
Noblex . . . . . . . . . . . . . . . . . . . . . . .2057
Nokia . . . . . . . . .2025, 2037, 2038, 2057
Nokia . . . .2021, 2025, 2037, 2038, 2057
Nordmende . . . . . . . . .2021, 2061, 2064,
. . . . . . . . . . . . . . . . . . . . . . . .2065, 2074
Oceanic . . . . . . . . . . . . . . . . .2001, 2021
Okano . . . . . . . . . . . . . . . . . .2063, 2070
Olympus . . . . . . . . . . . . . . . .2015, 2054
Optimus . . . . . . .2017, 2027, 2031, 2037,
. . . . . . . . .2042, 2077, 2086, 2087, 2088
Orion . . . . . . . .2002, 2004, 2016, 2036,
. . . . . . . . .2046, 2052, 2070, 2072, 2078
Osaki . . . . . . . . . . . . . .2001, 2017, 2034
Otto Versand . . . . . . . . . . . . . . . . . .2035
Palladium . . . . .2005, 2017, 2021, 2034
Panasonic . . . . . . . . . .2015, 2042, 2053,
. . . . . . . . . . . . . . . . . . .2054, 2055, 2087
Pathe Cinema . . . . . . . . . . . . . . . . . .2016
Pathe Marconi . . . . . . . . . . . . . . . . .2021
Penny . . . . . . . . . . . . .2015, 2017, 2018,
. . . . . . . . . . . . . . . . . . .2020, 2022, 2057
REMOTE CONTROL DIRECT ENTRY CODES
VCR CODES (continued)
Pentax . . . . . . . . . . . . . . . . . . . . . . .2022
Perdio . . . . . . . . . . . . . . . . . . . . . . . .2001
Philco . . . . . . . .2015, 2018, 2052, 2078
Philips . .2015, 2035 (DEFAULT VCR),
. . . . . . . . . . . . . . . . . . . . . . . .2074, 2075
Phonola . . . . . . . . . . . . . . . . . . . . . .2035
Pilot . . . . . . . . . . . . . . . . . . . . . . . . .2017
Pioneer . . . . . . . . . . . . .2031, 2033, 2035
Portland . . . . . . . . . . . . . . . . . . . . . .2011
Profex . . . . . . . . . . . . . . . . . . . . . . .2066
Profitronic . . . . . . . . . . . . . . . . . . . .2057
Proline . . . . . . . . . . . . . . . . . . . . . . .2001
Proscan . . . . . . . . . . . . . . . . . . . . . .2032
Protec . . . . . . . . . . . . . . . . . . . . . . . .2034
Pulsar . . . . . . . . . . . . . . . . . . . . . . . .2019
Pye . . . . . . . . . . . . . . . . . . . . . . . . . .2035
Quarter . . . . . . . . . . . . . . . . . . . . . . .2025
Quartz . . . . . . . . . . . . . . . . . . . . . . .2025
Quasar . . . . . . . . . . . . .2015, 2042, 2087
Quelle . . . . . . . . . . . . . . . . . . . . . . .2035
Radio Shack . . . . . . . . . . . . .2001, 2085
Radiola . . . . . . . . . . . . . . . . . . . . . . .2035
Radix . . . . . . . . . . . . . . . . . . . . . . . .2017
RCA 2015, 2022, 2027, 2032, 2038, 2057
Realistic . . . . . . . . . . .2001, 2015, 2017,
. . . . . . . . . . . . . .2025, 2026, 2027, 2037
REX . . . . . . . . . . . . . . . . . . . .2021, 2074
RFT . . . . . . . . . . . . . . . . . . . . . . . . .2075
Ricoh . . . . . . . . . . . . . . . . . . . . . . . .2014
Roadstar . . . . . .2017, 2034, 2057, 2059
Runco . . . . . . . . . . . . . . . . . . . . . . . .2019
Saba . . . . . . . .2021, 2049, 2050, 2061, 2
. . . . . . . . . . . . . . . . . . . .064, 2065, 2074
Saisho . . . . . . . .2004, 2016, 2036, 2052
Salora . . . . . . . . . . . . . .2023, 2025, 2038
Samsung . . . . . .2024, 2057, 2076, 2077
Sanky . . . . . . . . . . . . . . . . . . .2019, 2027
Sansui . . . . . . . . . . . . .2001, 2021, 2033,
. . . . . . . . . . . . . . . . . . .2052, 2058, 2078
Sanyo . . . . . . . . .2025, 2026, 2037, 2057
Saville . . . . . . . . . . . . . . . . . . . . . . .2072
SBR 2035
Schaub Lorenz . .2001, 2005, 2021, 2037
Schneider . . . . . . . . . . .2001, 2034, 2035
Scott . . . . . . . . .2023, 2024, 2040, 2046
Sears . . . . . . . . . . . . . .2001, 2015, 2017,
. . . . . . . . . . . . . .2022, 2025, 2026, 2037
SEG . . . . . . . . . . . . . . . . . . . .2057, 2066
SEI . . . . . . . . . . . . . . . . . . . . .2004, 2035
Seleco . . . . . . . . . . . . . . . . . . . . . . .2021
Semp . . . . . . . . . . . . . . . . . . . . . . . .2024
Sentra . . . . . . . . . . . . . . . . . . . . . . . .2011
Sharp . . . . . . . . . . . . . . . . . . .2027, 2073
Shintom . . . . . . . . . . . . . . . . .2034, 2037
Shogun . . . . . . . . . . . . . . . . . . . . . . .2057
Shorai . . . . . . . . . . . . . . . . . . . . . . . .2004
Silva . . . . . . . . . . . . . . . . . . . . . . . . .2017
Singer . . . . . . . . . . . . . . . . . .2024, 2034
Sinudyne . . . . . . . . . . . . . . . .2004, 2035
Solavox . . . . . . . . . . . . . . . . . . . . . .2011
Sonolor . . . . . . . . . . . . . . . . . . . . . .2025
Sontec . . . . . . . . . . . . . . . . . . . . . . .2017
Sony . . . .2001, 2012, 2013, 2014, 2015
STS . . . . . . . . . . . . . . . . . . . . . . . . .2022
Sunkai . . . . . . . . . . . . . . . . . . . . . . .2070
Sunstar . . . . . . . . . . . . . . . . . . . . . . .2001
Suntronic . . . . . . . . . . . . . . . . . . . . .2001
Sylvania . . . . . . .2001, 2015, 2023, 2035
Symhonic . . . . . . . . . . . . . . . . . . . . .2001
Tashiko . . . . . . . . . . . . . . . . . . . . . .2001
Tatung . . . . . . . . . . . . .2001, 2021, 2035
Teac . . . . . . . . . . . . . . . . . . . .2001, 2021
TEC . . . . . . . . . . . . . . . . . . . . . . . . .2011
Technics . . . . . . . . . . . .2015, 2042, 2054
Teknika . . . . . . .2001, 2015, 2007, 2017
Teleavia . . . . . . . . . . . . . . . . . . . . . .2021
Telefunken 2021, 2047, 2058, 2064, 2074
Tenosal . . . . . . . . . . . . . . . . . . . . . . .2034
Tensai . . . . . . . . . . . . . . . . . . .2001, 2066
Thomas . . . . . . . . . . . . . . . . . . . . . .2001
Thomson . . . . . . . . . . .2021, 2064, 2074
Thorn . . . . . . . . . . . . . .2016, 2021, 2037
TMK . . . . . . . . . . . . . . . . . . .2051, 2057
Toshiba . .2021, 2023, 2024, 2035, 2074
Totelevision . . . . . . . . . . . . . .2017, 2057
Towada . . . . . . . . . . . . . . . . . . . . . .2066
Uher . . . . . . . . . . . . . . . . . . . . . . . . .2057
Unitech . . . . . . . . . . . . . . . . . . . . . .2057
Universum . . . .2001, 2006, 2010, 2017,
. . . . . . . . .2035, 2038, 2048, 2057, 2067
Vector . . . . . . . . . . . . . . . . . . . . . . . .2024
Vector Research . . . . . . . . . . .2018, 2020
Victor . . . . . . . . . . . . . .2008, 2021, 2033
Video Concepts . . . . . . . . . . .2020, 2024
Videosonic . . . . . . . . . . . . . . . . . . . .2057
Wards . . . . . . . .2001, 2015, 2022, 2026,
. . . . . . . . .2027, 2032, 2034, 2035, 2057
White Westinghouse . . . . . . .2052, 2059
XR-1000 . . . . . . . . . . . . . . . . . . . . .2001
XR-1001 . . . . . . . . . . . . . . . . . . . . .2015
XR-1002 . . . . . . . . . . . . . . . . . . . . .2034
Yamaha . . . . . . . . . . . . . . . . . . . . . .2018
Yamishi . . . . . . . . . . . . . . . . . . . . . .2034
Yokan . . . . . . . . . . . . . . . . . . . . . . . .2034
Yoko . . . . . . . . . . . . . . . . . . . .2011, 2057
Zenith . . .2001, 2014, 2019, 2052, 2078
DIGITAL VIDEO DISC CODES
Akai . . . . . . . . . . . . . . . . . . . . . . . . .5316
Harman/Kardon . . . . . . . . . . . . . . . .5314
JVC . . . . . . . . . . . . . . . . . . . .5311, 5318
Kenwood . . . . . . . . . . . . . . . . . . . . .5307
Magnavox . . . . . . . . . . . . . . . . . . . .5302
Mitsubishi . . . . . . . . . . . . . . . . . . . .5303
Onkyo . . . . . . . . . . . . .5302, 5317, 5319
Panasonic . . . . . . . . . . . . . . . .5301, 5322
Philips . . .5302, 5308 (DEFAULT DVD)
Pioneer . . . . . . . . . . . . .5305, 5312, 5321
Proscan . . . . . . . . . . . . . . . . . . . . . .5304
RCA . . . . . . . . . . . . . . . . . . . . . . . . .5304
Samsung . . . . . . . . . . . . . . . . . . . . .5313
Sharp . . . . . . . . . . . . . . . . . . . . . . . .5320
Sony . . . . . . . . . . . . . . . . . . . . . . . . .5306
Technics . . . . . . . . . . . . . . . . . . . . . .5301
Theta Digital . . . . . . . . . . . . . . . . . .5312
Thomson . . . . . . . . . . . . . . . . . . . . .5310
Toshiba . . . . . . . . . . . . . . . . . . . . . .5302
Yamaha . . . . . . . . . . . . . . . . .5301, 5309
CABLE CODES
ABC . . . .3002, 3003, 3004, 3006, 3008
Andover . . . . . . . . . . . . . . . . . . . . . .3037
Bell & Howell . . . . . . . . . . . . . . . . .3006
Birgmingham Cable Communication . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .3020
British Telecom . . . . . . . . . . .3002, 3012
Cabletime . . . . .3016, 3019, 3025, 3029
Clyde . . . . . . . . . . . . . . . . . . . . . . . .3011
Contec . . . . . . . . . . . . . . . . . . . . . . .3009
Cryptovision . . . . . . . . . . . . . . . . . .3038
Daehan . . . . . . . . . . . . . . . . . . . . . . .3043
Daeryung . . . . . . . . . . . . . . . . . . . . .3003
Decsat . . . . . . . . . . . . . . . . . . . . . . .3027
Everquesst . . . . . . . . . . . . . . . . . . . .3007
Filmnet . . . . . . . . . . . . . . . . . . . . . . .3028
France Telecom . . . . . . . . . . . . . . . .3030
GEC . . . . . . . . . . . . . . . . . . . . . . . . .3011
Gemini . . . . . . . . . . . . . . . . . . . . . . .3007
General Instrument . . . . . . . .3004, 3020,
. . . . . . . . . . . . . . . . . . . . . . . .3031, 3046
Goldstar . . . . . . . . . . . . . . . . .3014, 3047
Grundig . . . . . . . . . . . . . . . . . . . . . .3035
Hitachi . . . . . . . . . . . . . . . . . . . . . . .3004
Jasco . . . . . . . . . . . . . . . . . . . . . . . .3007
30
Jerrold . . . . . . . .3002, 3004, 3005, 3006,
. . . . . . . . . . . . . .3007, 3020, 3031, 3046
LG Alps . . . . . . . . . . . . . . . . . . . . . .3044
Memorex . . . . . . . . . . . . . . . . . . . . .3001
Mnet . . . . . . . . . . . . . . . . . . .3009, 3028
Now . . . . . . . . . . . . . . . . . . . . . . . . .3041
Oak . . . . . . . . . . . . . . . . . . . . . . . . .3009
Pacific . . . . . . . . . . . . . . . . . . . . . . .3039
Panasonic . . . . . . . . . . . . . . . .3001, 3013
Paragon . . . . . . . . . . . . . . . . . . . . . .3001
Pioneer . . . . . . . . . . . . . . . . . .3014, 3036
Pulsar . . . . . . . . . . . . . . . . . . . . . . . .3001
REMOTE CONTROL DIRECT ENTRY CODES
CABLE CODES (continued)
PVP Stereo Visual Matrix . . . . . . . .3002
Quasar . . . . . . . . . . . . . . . . . . . . . . .3001
Radio Shack . . . . . . . . . . . . . . . . . . .3007
Rembrandt . . . . . . . . . . . . . . . . . . . .3004
Runco . . . . . . . . . . . . . . . . . . . . . . . .3001
Salora . . . . . . . . . . . . . . . . . . . . . . . .3026
Samsung . . . . . . . . . . . . . . . .3014, 3040
Satbox . . . . . . . . . . . . . . . . . . . . . . .3024
Scientific . . . . . . . . . . .3003, 3032, 3049
Scientific Atlanta . . . . .3003, 3008, 3021
Seawoo . . . . . . . . . . . . . . . . . . . . . .3045
Signal . . . . . . . . . . . . . . . . . . . . . . . .3007
Signature . . . . . . . . . . . . . . . . . . . . .3004
Starcom . . . . . . . . . . . . . . . . .3002, 3007
Stargate . . . . . . . . . . . . . . . . . . . . . .3007
Starquest . . . . . . . . . . . . . . . . . . . . .3007
STS . . . . . . . . . . . . . . . . . . . . . . . . .3015
Taihan . . . . . . . . . . . . . . . . . . . . . . .3043
Tele+1 . . . . . . . . . . . . . . . . . . . . . . .3028
Teleservice . . . . . . . . . . . . . . . . . . . .3022
Tocom . . . . . . . . . . . . . . . . . . . . . . .3005
Tongkook 3 . . . . . . . . . . . . . . . .042, 3048
Toshiba . . . . . . . . . . . . . . . . . . . . . .3001
Tudi . . . . . . . . . . . . . . . . . . . . . . . . .3023
Tusa . . . . . . . . . . . . . . . . . . . . . . . . .3007
United Cable . . . . . . . . . . . . . . . . . .3002
Videoway . . . . . . . . . . . . . . . . . . . . .3017
Visicable+ . . . . . . . . . . . . . . . . . . . .3033
Westminster . . . . . . . . . . . . . . . . . . .3012
Wolsey Gene . . . . . . . . . . . . . . . . . .3037
Zenith . . . . . . . . . . . . . . . . . .3001, 3034
SATELLITE CODES
Absat . . . . . . . . . . . . . . . . . . . . . . . .4006
Alba . . . . . . . . . .4029, 4034, 4037, 4052
Aldes . . . . . . . . . . . . . . . . . . . . . . . .4019
Amstrad . . . . . . . . . . .4003, 4016, 4025,
. . . . . . . . . . . . . . . . . . .4038, 4039, 4042
Ankard . . . . . . . .4013, 4019, 4030, 4044
Anttron . . . . . . . . . . . . . . . . .4009, 4034
Armstrong . . . . . . . . . . . . . . . . . . . .4015
AST . . . . . . . . . . . . . . . . . . . . . . . . .4027
Astra . . . . . . . . . . . . . . . . . . . . . . . .4005
Astro . . . . . . . . . . . . . .4008, 4039, 4045
Avalon . . . . . . . . . . . . . . . . . . . . . . .4031
Axis . . . . . . . . . . . . . . . . . . . .4030, 4046
Beko . . . . . . . . . . . . . . . . . . . . . . . . .4010
Best . . . . . . . . . . . . . . . . . . . . . . . . .4030
Blaupunkt . . . . . . . . . . . . . . . . . . . .4008
Boca . . . . . . . . . . . . . . . . . . . .4015, 4043
Brain Wave . . . . . . . . . . . . . . . . . . .4022
British Sky Broadcasting . . . . . . . . .4058
BT . . . . . . . . . . . . . . . . . . . . . . . . . .4053
Bush . . . . . . . . . . . . . . . . . . . . . . . . .4002
Cambridge . . . . . . . . . . . . . . . . . . . .4024
Canal Satellite . . . . . . . . . . . . . . . . .4059
Canal+ . . . . . . . . . . . . . . . . . . . . . . .4059
Channel Master . . . . . . . . . . . . . . . .4029
CNT . . . . . . . . . . . . . . . . . . . . . . . . .4045
Comlink . . . . . . . . . . . . . . . . . . . . . .4019
Connexions . . . . . . . . . . . . . . . . . . .4031
Crown . . . . . . . . . . . . . . . . . . . . . . .4015
Cyrus . . . . . . . . . . . . . . . . . . . . . . . .4011
D-Box . . . . . . . . . . . . . . . . . . . . . . .4054
DDC . . . . . . . . . . . . . . . . . . . . . . . . .4029
DNT . . . . . . . . . . . . . . . . . . . .4011, 4031
Echostar . . . . . . . . . . . .4031, 4036, 4061
Emanon . . . . . . . . . . . . . . . . . . . . . .4034
Ferguson . . . . . .4002, 4009, 4010, 4023
Fidelity . . . . . . . . . . . . . . . . . . . . . . .4016
Finlux . . . . . . . .4005, 4024, 4032, 4037
Fracarro . . . . . . . . . . . . . . . . . . . . . .4061
Freecom . . . . . . . . . . . . . . . . . . . . . .4034
FTE Humax . . . . . . . . . . . . . . . . . . .4060
Fube . . . . . . . . . . . . . . .4030, 4031, 4034
Galaxis . . . . . . . . . . . . .4019, 4057, 4060
General Instrument . . . . . . . . . . . . .4012
Gold Box . . . . . . . . . . . . . . . . . . . . .4059
Gooding . . . . . . . . . . . . . . . . . . . . . .4048
Goodmans . . . . . . . . . . . . . . . . . . . .4010
Grundig . . . . . . . . . . . .4008, 4010, 4048
G-sat . . . . . . . . . . . . . . . . . . . . . . . .4009
Hinari . . . . . . . . . . . . . . . . . . . . . . . .4009
Hirschimann . . . . . . . .4008, 4032, 4039,
. . . . . . . . . . . . . . . . . . . . . . . .4040, 4049
Hitachi . . . . . . . . . . . . . . . . . . . . . . .4037
Houston . . . . . . . . . . . . . . . . . . . . . .4053
Huth . . . . . . . . . .4013, 4015, 4019, 4026
Intervision . . . . . . . . . . . . . . . . . . . .4050
Invideo . . . . . . . . . . . . . . . . . . . . . . .4061
ITT . . . . . . . . . . . . . . . . . . . . . . . . . .4005
Johansson . . . . . . . . . . . . . . . . . . . . .4022
JVC . . . . . . . . . . . . . . . . . . . . . . . . .4048
Kathrein . . . . . . . . . . .4004, 4006, 4008,
. . . . . . . . . . . . . . . . . . .4011, 4035, 4041
Kreiselmeyer . . . . . . . . . . . . . . . . . . 4008
Kyostar . . . . . . . . . . . . . . . . . . . . . .4034
La Sat . . . . . . . . . . . . . . . . . .4043, 4045
Lenco . . . . . . . . . . . . . . . . . . . . . . . .4034
Lennox . . . . . . . . . . . . . . . . . . . . . . .4050
Lupus . . . . . . . . . . . . . . . . . . . . . . . .4030
Luxor . . . . . . . . . . . . . . . . . . .4005, 4049
Manhattan . . . . . . . . . .4037, 4045, 4050
Marantz . . . . . . . . . . . . . . . . . . . . . .4011
Maspro . . . . . . . . . . . . . . . . . .4004, 4023
Matsui . . . . . . . . . . . . . . . . . .4024, 4048
Mediamarkt . . . . . . . . . . . . . . . . . . .4015
Mediasat . . . . . . . . . . . . . . . . . . . . .4059
Minerva . . . . . . . . . . . . . . . . . . . . . .4048
Morgan's . . . . . . . . . . . . . . . .4015, 4043
Navex . . . . . . . . . . . . . . . . . . . . . . . .4022
Neuhaus . . . . . . . . . . . . . . . . . . . . . .4039
Neusat . . . . . . . . . . . . . . . . . . . . . . .4057
Newhaus . . . . . . . . . . . . . . . . . . . . .4013
Nokia . . . . . . . . . . . . .4005, 4032, 4037,
. . . . . . . . . . . . . . . . . . .4049, 4054, 4063
Nordmende . . . . . . . . . . . . . . . . . . .4029
Orbitech . . . . . . . . . . . . . . . . . . . . . .4039
Oxford . . . . . . . . . . . . . . . . . . . . . . .4024
Pace . . . . . . . . .4002, 4009, 4014, 4023,
. . . . . . . . . . . . . . . . . . .4037, 4055, 4058
Palladium . . . . . . . . . . . . . . . . . . . . .4048
Palsat . . . . . . . . . . . . . . . . . . . . . . . .4039
Panda . . . . . . . . . . . . . . . . . . . . . . . .4037
Philips . . . . . . . . . . . . .4007, 4011, 4020,
. . . . . . . . . . . . . . . . . . .4037, 4048, 4059
Phonotrend . . . . . . . . . . . . . .4019, 4050
31
Pioneer . . . . . . . . . . . . . . . . . .4021, 4059
Planet . . . . . . . . . . . . . . . . . . . . . . . .4061
Promax . . . . . . . . . . . . . . . . . . . . . . .4037
Prosat . . . . . . . . . . . . . . . . . . . . . . . .4019
Quadral . . . . . . . . . . . . . . . . .4029, 4044
Radiola . . . . . . . . . . . . . . . . . . . . . . .4011
Radix . . . . . . . . . . . . . . . . . . .4031, 4064
RFT . . . . . . . . . . . . . . .4011, 4013, 4019
Saba . . . . . . . . . . . . . . . . . . . .4023, 4045
Sabre . . . . . . . . . . . . . . . . . . . . . . . .4037
Sagem . . . . . . . . . . . . . . . . . . . . . . .4056
Salora . . . . . . . . . . . . . . . . . . . . . . . .4005
SAT . . . . . . . . . . . . . . . . . . . .4027, 4038
Satcom . . . . . . . . . . . . . . . . . .4026, 4051
Satec . . . . . . . . . . . . . . . . . . . . . . . .4009
Satmaster . . . . . . . . . . . . . . . . . . . . .4026
Satpartner . . . . .4022, 4034, 4040, 4045
Schwaiger . . . . . . . . . . . . . . .4009, 4041
Seemann . . . . . . . . . . . . . . . .4031, 4046
SEG . . . . . . . . . . . . . . . . . . . .4030, 4034
Siemens . . . . . . . . . . . . . . . . . . . . . .4008
Skymaster . . . . . . . . . .4019, 4044, 4051
Sony . . . . . . . . . . . . . . . . . . . .4017, 4018
Strong . . . . . . . . . . . . . . . . . . . . . . .4062
Sunstar . . . . . . . . . . . . . . . . . . . . . . .4043
Tantec . . . . . . . . . . . . . . . . . .4023, 4037
Techniland . . . . . . . . . . . . . . . . . . . .4026
Technisat . . . . . . . . . . . . . . . .4001, 4039
Telefunken . . . . . . . . . . . . . . . . . . . .4034
Teleka . . . . . . . . . . . . . . . . . .4015, 4052
Telesat . . . . . . . . . . . . . . . . . . . . . . .4051
Thomson . . . . . . . . . . . . . . . .4037, 4059
Tonna . . . . . . . . . . . . . . . . . . .4026, 4053
TPS . . . . . . . . . . . . . . . . . . . . . . . . .4056
Triad . . . . . . . . . . . . . . . . . . . . . . . .4027
Triasat . . . . . . . . . . . . . . . . . . . . . . .4040
Unitor . . . . . . . . . . . . . . . . . . . . . . . .4022
Universum . . . . . . . . . . . . . . .4008, 4049
Ventana . . . . . . . . . . . . . . . . . . . . . .4011
Vortec . . . . . . . . . . . . . . . . . . . . . . . .4034
Vtech . . . . . . . . . . . . . . . . . . . . . . . .4027
Winersat . . . . . . . . . . . . . . . . . . . . . .4022
Wisi . . . . . . . . . .4008, 4027, 4031, 4037
Xcom Multimedia . . . . . . . . . . . . . .4065
Xsat . . . . . . . . . . . . . . . . . . . .4006, 4065
Zehnder . . . . . . . . . . . . . . . . .4033, 4045
REMOTE CONTROL VCR RELATED BUTTONS
W
hen using the TV remote with a VCR,
first make certain it is set to control
your VCR (by the REMOTE CODE or
SEARCH method).
1
2
Set the TV/VCR/ACC mode switch
to VCR on the remote.
2
Point the top of the remote toward
the front of the VCR (remote sensor
window) when pressing the buttons.
1
POWER BUTTON
Press to turn the VCR ON and OFF.
VCR SYSTEM SWITCH
Set in the VCR position to send remote
commands to the VCR.
FAST FORWARD BUTTON Press to rapidly advance the tape. For
some VCR’s you may need to press
the STOP button first, then the FAST
FORWARD button. In playback mode
hold the button down to view the picture moving rapidly in the forward
direction.
PLAY BUTTON Press to begin playback of a video tape.
REWIND BUTTON Press to rewind tapes. For some VCR’s
the STOP button may have to be
pressed first, then REWIND. In playback mode hold down the button to
view picture moving rapidly in reverse.
STOP BUTTON ■
Press to stop the motion of a tape in
playback, rewind, fast forward, etc.
VOL
TV/VCR BUTTON
Press while in the VCR mode (VCR indicator on the front of the unit will light) to
view the playback of a tape. Press again to
place in the TV position (VCR indicator
light will go off) to view one program
while recording another program.
CHANNEL + & – BUTTONS
Press to scan up or down through the
VCR channel numbers.
PAUSE BUTTON II
Press to temporarily stop the tape during a playback or recording. Press
again to release Pause.
RECORD • BUTTON
Hold the VCR • RECORD button down to
begin a VCR recording.
NUMBER BUTTON
Press buttons for direct VCR channel
selections.
HELPFUL HINT
The VCR buttons on the remote will not operate your VCR if those features are not found on
your VCR remote control.
Note: All VCR functions (particularly Search,
Rewind, Fast Forward, etc.) will operate the
same as with the original VCR remote control
provided with the VCR.
32
TROUBLESHOOTING
No Power
• Check the TV power cord. Unplug the TV, wait 10 seconds,
then reinsert the plug into the outlet and push the POWER
button again.
• Check that the outlet is not on a wall switch.
• Be sure the fuse is not blown on the AC power strip, if one is
being used.
No Picture
• Check antenna connections. Are they properly secured to the
TV's ANT 75Ω plug?
• Check the TUNER MODE control for the correct tuner setting.
• Try running the Auto Program feature to find all available
channels.
• Press the AV button on the remote to make sure the correct
signal source is selected (FRONT or Current Channel).
No Sound
• Check the VOLUME buttons.
• Check the MUTE button on the remote control.
• If you’re attempting to hook up auxiliary equipment, check
the audio jack connections located on the front of the TV.
TV Only Produces MONO Sound
• If using a cable box with RF only type connections, the signal
coming from the cable box will be produced in MONO only.
• Check Sound control setting. Change setting to Stereo.
Remote Does Not Work
• Check the batteries. If necessary, replace them with AA
Heavy Duty (Zinc Chloride) or Alkaline batteries.
• Clean the remote control and the remote control sensor window on the TV.
• Check the TV power cord. Unplug the TV, wait 10 seconds,
then reinsert the plug into the outlet and push the POWER
button again.
• Be sure the fuse is not blown on the AC power strip, if one is
being used.
• Check to be sure the TV outlet is not on a wall switch.
TV Displays Wrong Channel or No Channels Above 13
• Repeat channel selection.
• Add the desired channel numbers (using the CHANNEL
EDIT control) into the TV’s memory.
• Check to be sure the TUNER MODES are set to the CABLE
option and run the Auto Program feature to find all available
channels.
33
CARE
AND
WARNING Concerning Stationary Images on the TV
Screen:
Do not leave stationary or letterbox images on screen
for extended periods of time. This can cause uneven
picture-tube aging.
Normal use of the TV should involve the showing of pictures
that contain constantly moving and changing images that fill the
screen. Be careful not to leave nonmoving images on screen for
extended periods of time, or to display the same images on
screen too frequently, because subtle ghost images can be left
on the picture tubes. Sources of stationary images may be DVD
disks, laser disks, video games, CD-i disks, videotapes, digital
television boxes, broadcast channels, cable channels, satellite
channels, and others. Here are some examples of stationary
images (this is not an all-inclusive list; you may encounter
others in your viewing):
• DVD menus—listings of DVD disk content
• Letterbox black bars—shown at the top and bottom of the
TV screen when a wide screen (16:9) movie is viewed on a
TV with standard (4:3) aspect ratio.
• Video-game images and scoreboards
• Television station logos—present a problem if they are
bright and stationary; moving or low-contrast graphics are
less likely to cause uneven aging of the picture tube
• Stock-market tickers—presented at the bottom of the TV
screen
• Shopping channel logos and pricing displays—bright
and shown constantly or repeatedly in the same location on
the TV screen.
CLEANING
PLACEMENT OF THE TV
• To avoid cabinet warping, cabinet color changes, and
increased chance of set failure, do not place the TV where
temperatures can become excessively hot; for example, in
direct sunlight or near a heating appliance.
• Be sure to allow a free flow of air to and from the perforated
back cover of the set.
CLEANING
• To avoid possible shock hazard, be sure the TV is unplugged
from the electrical outlet before cleaning.
• Regularly dust the TV with a dry, nonscratching duster to
keep the TV clean.
• When cleaning the TV, take care not to scratch or damage the
screen surface. Avoid wearing jewelry or using anything
abrasive. Do not use household cleaners. Wipe the front
screen with a clean cloth dampened with water. Use even,
easy, vertical strokes when cleaning.
• Gently wipe the cabinet surfaces with a clean cloth or sponge
dampened in a solution of cool, clear water and a mild soap
or detergent. Use a clean, dry cloth to dry the wiped surfaces.
• Occasionally vacuum the ventilation holes or slots in the back
cover of the set.
• Never use thinners, insecticide sprays, or other chemicals on
or near the cabinet, as they might cause permanent marring
of the cabinet finish.
34
GLOSSARY OF TERMS
Auto Programming • The procedure of adding or deleting
channel numbers into the Television’s memory circuits. In this
way the Television “remembers’’ only the locally available or
desired channel numbers and skips over any unwanted channel
numbers.
Coaxial Cable • A single solid antenna wire normally matched
with a metal plug (F-type) end connector that screws (or pushes)
directly onto a 75 Ohm input found on the Television or VCR.
Closed Caption • Broadcast standard which allows you to
read the voice content of television programs on the TV screen.
Designed to help the hearing impaired this feature uses onscreen "text boxes" to show dialogue and conversations while
the TV program is in progress.
Side Audio/Video Inputs • Located on the side of the TV
these connectors (phono type plug) are used for the input of
audio and video signals. Designed for easy use with VCRs or
cameras.
On Screen Displays (OSD) • Refers to the wording or messages generated by the television (or VCR) to help the user with
specific feature controls (color adjustment, programming, etc.).
Menu • An on-screen listing of feature controls shown on the
Television screen that are made available for user adjustments.
Quadra Surf • The feature that allows the programming of
four separate Surf lists holding up to 10 channels each.
Remote Sensor Window • A window or opening found on
the Television control panel through which infrared remote control command signals are received.
Status/Exit • Allows the user to quickly confirm what channel
number is currently being viewed. Status can also be used to
clear the Television of on screen displays or information (rather
than waiting for the displays to “time out” or automatically disappear from the screen).
Surf • The action of scanning specific channel in a limited
channel list.
Twin Lead Wire • The more commonly used name for the
two strand 300 Ohm antenna wire used with many indoor and
outdoor antenna systems. In many cases this type of antenna
wire requires an additional adapter (or balun) in order to connect to the 75 Ohm Input terminals designed into the more
recent Televisions and VCRs.
Tuner Mode • Feature control settings made by the TV.
Designed for first time set up and use. Settings for signal connections (antenna or cable TV), plus channel program memory
are held in the TV's memory (even if the set is unplugged and
moved to a new location.)
35
INDEX
Alternate Channel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
Auto Lock
Access Code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Block All Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Block Channels Control . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Blocking Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Clear All Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Explanation of Auto Lock . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Movie Rating Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
TV Rating Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Auto Picture Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
Auto Program Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Auto Sound Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
AVL Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Balance Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Bass Boost Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Brightness Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Care and Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33
Channel Edit Control (Add and Delete Channels) . . . . . . . . . . .8
Closed Caption Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
Color Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Color Temperature Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Contrast + Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Dynamic Noise Reduction (DNR) Control . . . . . . . . . . . . . . . .9
Factory Service Information . . . . . . . . . . . . . . . . . . . . . . . . . . .35
Format (Expand 4:3) Control . . . . . . . . . . . . . . . . . . . . . . . . . .11
Glossary of Terms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34
Language Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Picture Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Remote Control Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Remote Control Operation (Basic) . . . . . . . . . . . . . . . . . . . . . . .5
Remote Control Programming
Code Entry Method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
Direct Access Method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
Remote Code List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29-31
Search Method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
VCR Remote Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Sharpness Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Sleeptimer Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Surf/Quadra Surf Controls . . . . . . . . . . . . . . . . . . . . . . . . .24-25
Table of Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Tint Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Troubleshooting Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33
Treble Boost Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Tuner Mode Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36
Welcome/Registration Information . . . . . . . . . . . . . . . . . . . . . .2
36
FACTORY SERVICE LOCATIONS
NOTE: If you reside in one of our Philips Factory Service Branch areas (see directory on back), you can contact the nearest Service Branch to obtain
efficient and expedient repair for your product. If your product is In-Warranty, you should have proof-of-purchase to ensure No Charge Service. For
Out-of-Warranty service, call the location nearest you.
NOTA: Si vous résidez dans une des régions desservies par une succursale de service après vente du fabricant Philips (voir liste ci-dessous), vous
pourrez contacter la branche de service après vente la plus près de chez vous pour obtenir un service après vente rapide et efficace. Si le produit est
sous garantie, il suffira de présenter une preuve d`achat pour bénéficier d'un service sans frais. Pour les produits non couverts par la garantie, contactez le centre le plus près de chez vous.
NOTA: Si Ud. reside en una de nuestras zonas para sucursales Philips de servicio al de fábrica (ver directorio más abajo), Ud. puede comunicarse con
la sucursal de servicio más cercana para obtener una reparación oportuna y eficaz de su producto. Si su producto está todavía bajo garantía, Ud.
debe presentar comprobante de compra para no ocasionar ningunos cargos por servicio. Para servicio después del vencimiento de la garantía, llame
al lugar más cercano de los abajo indicados.
In Canada
How you can obtain efficient and expedient carry-in, mail-in, or in-home service for your product
Please contact Philips at
1-800-661-6162 (French speaking)
1-800-531-0039 (English or Spanish speaking)
Au Canada
Comment obtenir le service après-vente pour les produits apportés ou envoyés par la poste à notre centre de service ou le service à domicile
Veuillez contacter philips á:
1-800-661-6162 (Francophone)
1-800-531-0039 (Anglais ou Espagnol)
En el Canadá
Cómo recibir servicio efficiente para su producto, en persona, por correo o a domicillo
Favor de comunicarse con Philips al:
1-800-661-6162 (francófono)
1-800-531-0039 (Inglés o Español))
Rev. GG - 11/20/2002
37
FACTORY SERVICE LOCATIONS
QUALITY SERVICE IS AS CLOSE AS YOUR TELEPHONE! SIMPLY LOOK OVER THE LIST BELOW FOR THE NUMBER OF A FACTORY SERVICE CENTER
NEAR YOU. YOUR PRODUCT WILL RECEIVE EFFICIENT AND EXPEDIENT CARRY-IN, MAIL-IN, OR IN-HOME SERVICE, AND YOU WILL RECEIVE PEACE OF MIND,
KNOWING YOUR PRODUCT IS BEING GIVEN THE EXPERT ATTENTION OF PHILIPS’ FACTORY SERVICE.
COMMENT OBTENIR NOTRE SERVICE APRÈS VENTE RAPIDE ET EFFICACE SOIT PAR COURRIER, À DOMICILE, OU EN SE PRÉSENTANT À UN CENTRE DE SERVICE PHILIPS. PLUS DE 600 CENTRES DE
RÉCEPTION DE PRODUITS À RÉPARER À TRAVERS LE PAYS: CONTACTER LE CENTRE DE SERVICE AUX CONSOMMATEURS LE PLUS PROCHE POUR SAVOIR L’EMPLACEMENT DE CES DÉPÔTS DANS
UN RAYON DE 50 À 75 MILES (80 KM À 120 KM) DU CENTRE DE SERVICE LOCAL.
CÓMO OBTENER UN SERVICIO OPORTUNO Y EFICIENTE POR CORREO, EN CASA O EN PERSONA PARA SU PRODUCTO A TRAVÉS DE UN CENTRO PHILIPS DE SERVICIO. MAS DE 600 SITIOS POR
TODO EL PAIS PARA LA RECEPCION DE PRODUCTOS NECESITADOS DE REPARACIONES: COMUNICARSE CON EL CENTRO DE SERVICIO DE FABRICA MAS CERCANO PARA ESTOS LUGARES DENTRO
DE UN RADIO DE 80 A 120 KM (50 A 75 MILLAS) DEL CENTRO DE SERVICIO LOCAL.
ATLANTA
Philips Factory Service
550 Franklin Road., Suite F
Marietta, GA 30067
800-273-1501
CLEVELAND
Philips Factory Service
950 Keynote Circle
Brooklyn Heights, OH 44131
800-331-7037
CHICAGO
Philips Factory Service
1279 W. Hamilton Pkwy.
Itasca, IL 60143
800-531-2922
TAMPA
Philips Factory Service
1911 US Highway 301 North, Suite 100
Tampa, FL 33619
800-442-2027
DETROIT
Philips Factory Service
25173 Dequindre
Madison Heights, MI 48071
800-438-1398
KNOXVILLE
Philips Factory Service
One Philips Drive
Knoxville, TN 37914
800-821-1767
SAN FRANCISCO
Philips Factory Service
681 East Brokaw Rd.
San Jose, CA 95112
800-300-9013
DALLAS
Philips Factory Service
415 N. Main Street, #107
Euless, TX 76040
800-952-3254
PHILADELPHIA
Philips Factory Service
352 Dunks Ferry Rd.
Bensalem, PA 19020
800-847-9320
HOUSTON
Philips Factory Service
1110 N. Post Oak Rd., Suite 100
Houston, TX 77055
800-952-3254
LOS ANGELES
Philips Factory Service
20930 Bonita, Ste. V
Carson, CA 90746
800-300-9013
38
NOTES
39
LIMITED WARRANTY
COLOR TELEVISION
90 Days Free Labor
One Year Free Replacement of Parts (Two Years Free Replacement on Color Picture Tube)
This product can be repaired in home.
WHO IS COVERED?
MAKE SURE YOU KEEP...
You must have proof of purchase to receive warranty service. A sales
receipt or other document showing that you purchased the product is
considered proof of purchase.
Please keep your sales receipt or other document showing proof of
purchase. Attach it to this owner’s manual and keep both nearby.
Also keep the original box and packing material in case you need to
return your product.
WHAT IS COVERED?
Warranty coverage begins the day you buy your product. For 90 days
thereafter, all parts will be repaired or replaced free, and labor is free.
From 90 days to one year from the day of purchase, all parts will be
repaired or replaced free, but you pay for all labor charges. From one
to two years from the day of purchase, you pay for the replacement
or repair of all parts except the picture tube, and for all labor charges.
After two years from the day of purchase, you pay for the replacement
or repair of all parts, and for all labor charges.
All parts, including repaired and replaced parts, are covered only for
the original warranty period. When the warranty on the product
expires, the warranty on all replaced and repaired parts also expires.
WHAT IS EXCLUDED?
Your warranty does not cover:
• labor charges for installation or setup of the product, adjustment of
customer controls on the product, and installation or repair of
antenna systems outside of the product.
• product repair and/or part replacement because of misuse, accident, unauthorized repair or other cause not within the control of
Philips Consumer Electronics Company.
• reception problems caused by signal conditions or cable or antenna
systems outside the unit.
• a product that requires modification or adaptation to enable it to
operate in any country other than the country for which it was
designed, manufactured, approved and/or authorized, or repair of
products damaged by these modifications.
• incidental or consequential damages resulting from the product.
(Some states do not allow the exclusion of incidental or consequential damages, so the above exclusion may not apply to you. This
includes, but is not limited to, prerecorded material, whether copyrighted or not copyrighted.)
• a product used for commercial or institutional purposes.
WHERE IS SERVICE AVAILABLE?
Warranty service is available in all countries where the product is officially distributed by Philips Consumer Electronics Company. In countries where Philips Consumer Electronics Company does not distribute
the product, the local Philips service organization will attempt to provide service (although there may be a delay if the appropriate spare
parts and technical manual(s) are not readily available).
BEFORE REQUESTING SERVICE...
Please check your owner’s manual before requesting service.
Adjustments of the controls discussed there may save you a service
call.
TO GET WARRANTY SERVICE IN U.S.A.,
PUERTO RICO OR U.S. VIRGIN ISLANDS...
Contact a Philips factory service center (see enclosed list) or authorized service center to arrange repair.
(In U.S.A., Puerto Rico and U.S. Virgin Islands, all implied warranties,
including implied warranties of merchantability and fitness for a particular purpose, are limited in duration to the duration of this express
warranty. But, because some states do not allow limitations on how
long an implied warranty may last, this limitation may not apply to
you.)
TO GET WARRANTY SERVICE IN CANADA...
Please contact Philips at:
1-800-661-6162 if calling from Canada (French speaking)
1-800-531-0039 (English or Spanish speaking)
(In Canada, this warranty is given in lieu of all other warranties. No
other warranties are expressed or implied, including any implied warranties of merchantability or fitness for a particular purpose. Philips is
not liable under any circumstances for any direct, indirect, special, incidental or consequential damages, howsoever incurred, even if notified
of the possibility of such damages.)
REMEMBER...
Please record the model and serial numbers found on the product
below. Also, please fill out and mail your warranty registration card
promptly. It will be easier for us to notify you if necessary.
MODEL # ________________________________________________
SERIAL #
________________________________________________
This warranty gives you specific legal rights. You may have other rights which vary from state/province to state/province.
Philips, P.O. Box 520890, Miami, FL 33152,
Printed in U.S.A.
40
(402) 536-4171

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
