Toshiba JOURNE F800 Specifications

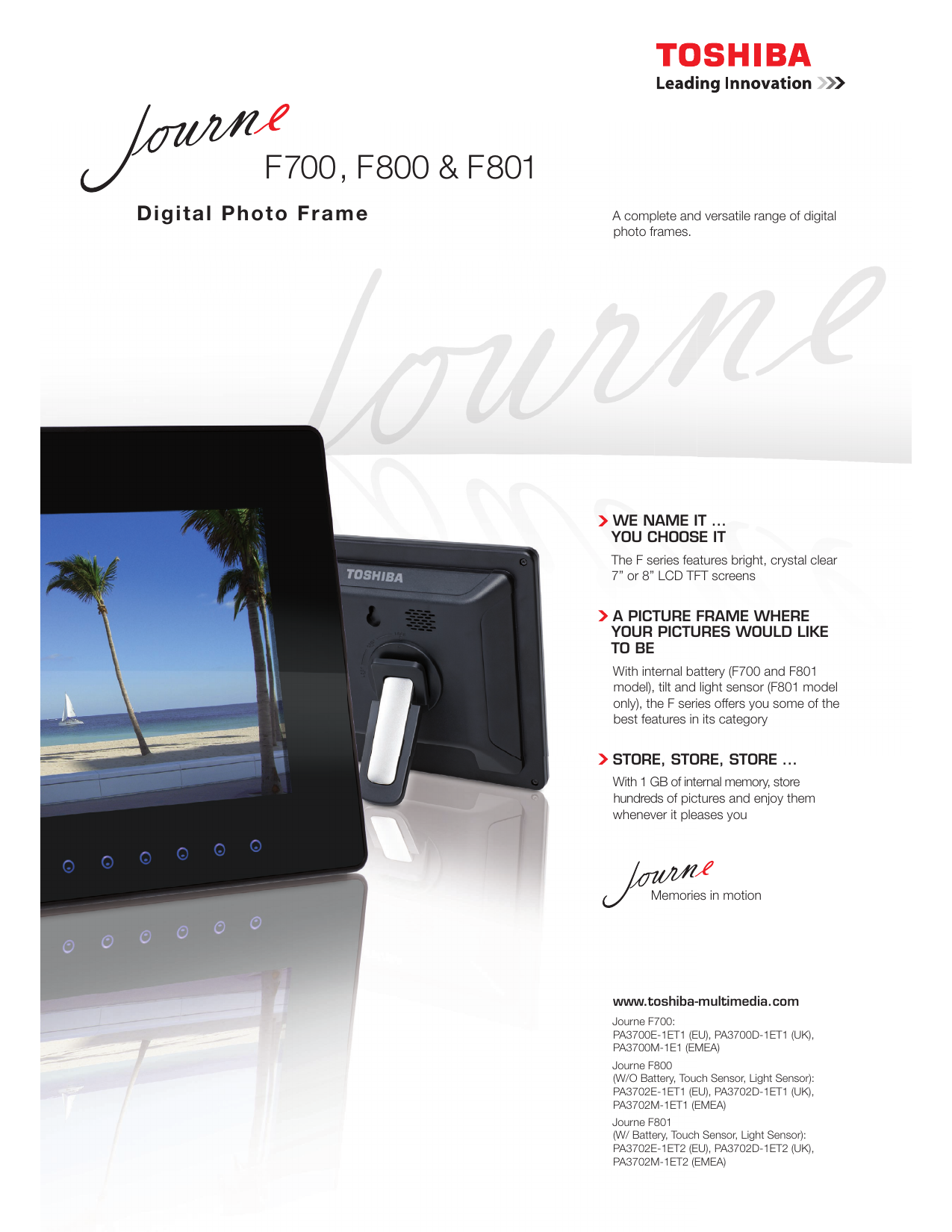

F700, F800 & F801
Di g it al P h o t o F r a m e
A complete and versatile range of digital
photo frames.
WE NAME IT ...
YOU CHOOSE IT
The F series features bright, crystal clear
7” or 8” LCD TFT screens
A PICTURE FRAME WHERE
YOUR PICTURES WOULD LIKE
TO BE
With internal battery (F700 and F801
model), tilt and light sensor (F801 model
only), the F series offers you some of the
best features in its category
STORE, STORE, STORE ...
With 1 GB of internal memory, store
hundreds of pictures and enjoy them
whenever it pleases you
Memories in motion
www.toshiba-multimedia.com
Journe F700:
PA3700E-1ET1 (EU), PA3700D-1ET1 (UK),
PA3700M-1E1 (EMEA)
Journe F800
(W/O Battery, Touch Sensor, Light Sensor):
PA3702E-1ET1 (EU), PA3702D-1ET1 (UK),
PA3702M-1ET1 (EMEA)
Journe F801
(W/ Battery, Touch Sensor, Light Sensor):
PA3702E-1ET2 (EU), PA3702D-1ET2 (UK),
PA3702M-1ET2 (EMEA)
BASIC SPECIFICATION
Panel Type:
Panel Size:
Display Area:
Brightness:
Contrast:
Viewing Angle:
Power Supply:
Battery:
Tilt Sensor & Light
Sensor:
Memory Cards
Support:
LED backlight panel
F700: 7’’ 800 (W) x 480 (V)
F800 / F801: 8’’ 800 (W) x 600 (V) - 4:3
F700: 7’’ 720 (W) x 480 (V)
F800 / F801: 8’’ 800 (W) x 600 (V)
200 nits (5 levels adjustable)
300:1 (5 levels adjustable)
400:1 (F800 & F801 model only)
50 / 65 / 65 / 65 degree (Top / Bottom / Left / Right)
AC/DC power adaptor
Internal 1100 mAh Li-polymer battery (30 minutes) –
F700 & F801 model
F801 model only
SD*, MMC, MS and MS Pro, xD
(*SDHC: supported up to 32 GB)
F700: With CF card slot.
F800/F810: Without CF card slot.
1 GB NAND Flash
Internal Memory:
Pictures: JPEG, BMP
Supported File
Audio: MP3
Format:
Video: Motion JPEG - F800 & F801 model only
Converting Software: Convert Audio/Video file to a different (compression) format
(F800 & F801 model only)
Converting format Audio: MP3
Video: Motion JPEG, MPEG 4, WMV, H.263, H.264 –
includes:
F800 & F801 model only
F700: 0.5 W Speaker*1 (Mono)
Speaker:
F800/F801: 0.5 W Speaker*2 (Stereo)
Blue light LED for Front cover Icon display
LED Indicator:
USB 2.0
USB Interface:
USB - Mini B Female type 90 cm
I/O:
Universal, Output: 5V/2A
Adaptor:
Dimension without F700: 205.90 (L) x 160.18 (W) x 31.3 (Thickness)
F800 / F801: 231.97 (L) x 191.47 (W) x 32.3 (Thickness)
Stand (mm):
F700: 443 g (With Stand)
Weight (g):
F800: 624 g (With Stand)
F801: 645 g (With Stand)
MAIN FEATURES
F700: 7” display (Panel: 800 x 480)
F800 / F801: 8” display - 4:3
(Panel: 800 x 600)
Touch sensor with LED light
Auto file re-sizing
Battery, Light Sensor, Tilt Sensor
(F801 model only)
Internal 1100 mAh Li-polymer battery
(F700 model only)
1 GB internal NAND Flash Memory
FUNCTIONAL MODES
Thumbnails
Slide Show (with Transition effect)
Audio Playback
Video Playback (F800 & F801
model only)
Calendar, Clock, Alarm
BOX CONTENT
Journe Digital Photo Frame & Stand
USB cable
AC adapter
Quick Start Guide
CD with software & User’s Manual
SYSTEM REQUIREMENTS
Microsoft ® Windows ® 2000 / XP / Vista®
CPU: 1 GHz+
RAM: 512 MB+
HD Space: 200 MB+
Video RAM: 64 MB+
CERTIFICATIONS
WEEE, CE, GOST, SASO, SABS
Dealer stamp:
Copyright © 2008 TOSHIBA Corporation. All Rights Reserved.
Product specifications, configurations, prices and component /
options availability are all subject to change without notice.
Product design, specifications and colours are subject to
change without notice and may vary from those shown. Error
and omissions excepted.
