Asus AP1710-E1 Servers & Workstation Owner's Manual

E1895

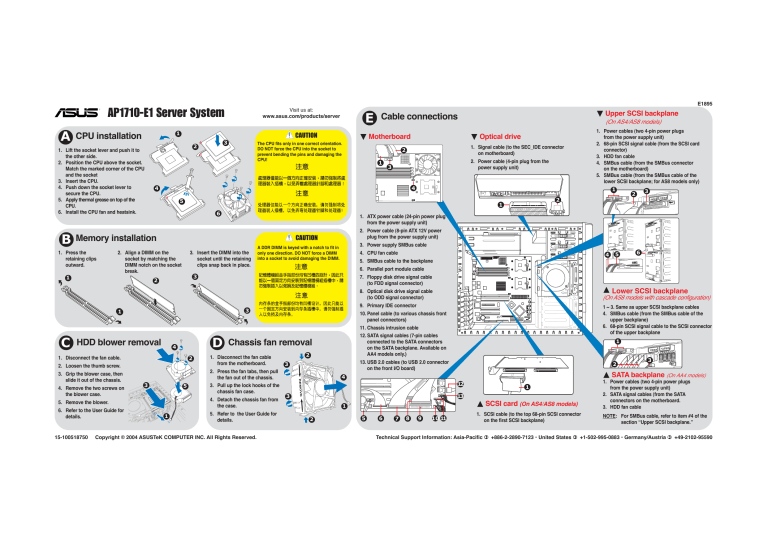

AP1710-E1 Server System
A
1
CPU installation
1. Lift the socket lever and push it to
the other side.
2. Position the CPU above the socket.
Match the marked corner of the CPU
and the socket
3. Insert the CPU.
4. Push down the socket lever to
secure the CPU.
5. Apply thermal grease on top of the
CPU.
6. Install the CPU fan and heatsink.
B
Visit us at:
www.asus.com/products/server
CAUTION
3
2
1
(On AS4/AS8 models)
Optical drive
1. Signal cable (to the SEC_IDE connector
on motherboard)
2
2. Power cable (4-pin plug from the
power supply unit)
3
4
5
1
4
6
1. ATX power cable (24-pin power plug
from the power supply unit)
2. Power cable (8-pin ATX 12V power
plug from the power supply unit)
CAUTION
3. Insert the DIMM into the
socket until the retaining
clips snap back in place.
3. Power supply SMBus cable
A DDR DIMM is keyed with a notch to fit in
only one direction. DO NOT force a DIMM
into a socket to avoid damaging the DIMM.
4. CPU fan cable
4
6. Parallel port module cable
Lower SCSI backplane
(On AS8 models with cascade configuration)
9. Primary IDE connector
3
1 ~ 3. Same as upper SCSI backplane cables
4. SMBus cable (from the SMBus cable of the
upper backplane)
6. 68-pin SCSI signal cable to the SCSI connector
of the upper backplane
10. Panel cable (to various chassis front
panel connectors)
11. Chassis intrusion cable
D
4
1. Disconnect the fan cable.
2
2. Loosen the thumb screw.
4. Remove the two screws on
the blower case.
3
5
6. Refer to the User Guide for
details.
15-100518750
1. Disconnect the fan cable
from the motherboard.
3. Pull up the lock hooks of the
chassis fan case.
4. Detach the chassis fan from
the case.
5. Remove the blower.
1
12. SATA signal cables (7-pin cables
connected to the SATA connectors
on the SATA backplane. Available on
AA4 models only.)
Chassis fan removal
2
5. Refer to the User Guide for
details.
Copyright © 2004 ASUSTeK COMPUTER INC. All Rights Reserved.
1
13. USB 2.0 cables (to USB 2.0 connector
on the front I/O board)
3
2. Press the fan tabs, then pull
the fan out of the chassis.
3. Grip the blower case, then
slide it out of the chassis.
6
7. Floppy disk drive signal cable
(to FDD signal connector)
1
1
HDD blower removal
5
5. SMBus cable to the backplane
3
2
3
2
2
1
8. Optical disk drive signal cable
(to ODD signal connector)
C
1. Power cables (two 4-pin power plugs
from the power supply unit)
2. 68-pin SCSI signal cable (from the SCSI card
connector)
3. HDD fan cable
4. SMBus cable (from the SMBus connector
on the motherboard)
5. SMBus cable (from the SMBus cable of the
lower SCSI backplane; for AS8 models only)
4
2. Align a DIMM on the
socket by matching the
DIMM notch on the socket
break.
1
Upper SCSI backplane
Cable connections
Motherboard
The CPU fits only in one correct orientation.
DO NOT force the CPU into the socket to
prevent bending the pins and damaging the
CPU!
Memory installation
1. Press the
retaining clips
outward.
E
2
SATA backplane (On AA4 models)
4
12
3
1
13
SCSI card (On AS4/AS8 models)
1
2
3
5
6
7
8
9
10 11
1. SCSI cable (to the top 68-pin SCSI connector
on the first SCSI backplane)
1. Power cables (two 4-pin power plugs
from the power supply unit)
2. SATA signal cables (from the SATA
connectors on the motherboard.
3. HDD fan cable
NOTE: For SMBus cable, refer to item #4 of the
section “Upper SCSI backplane.”
