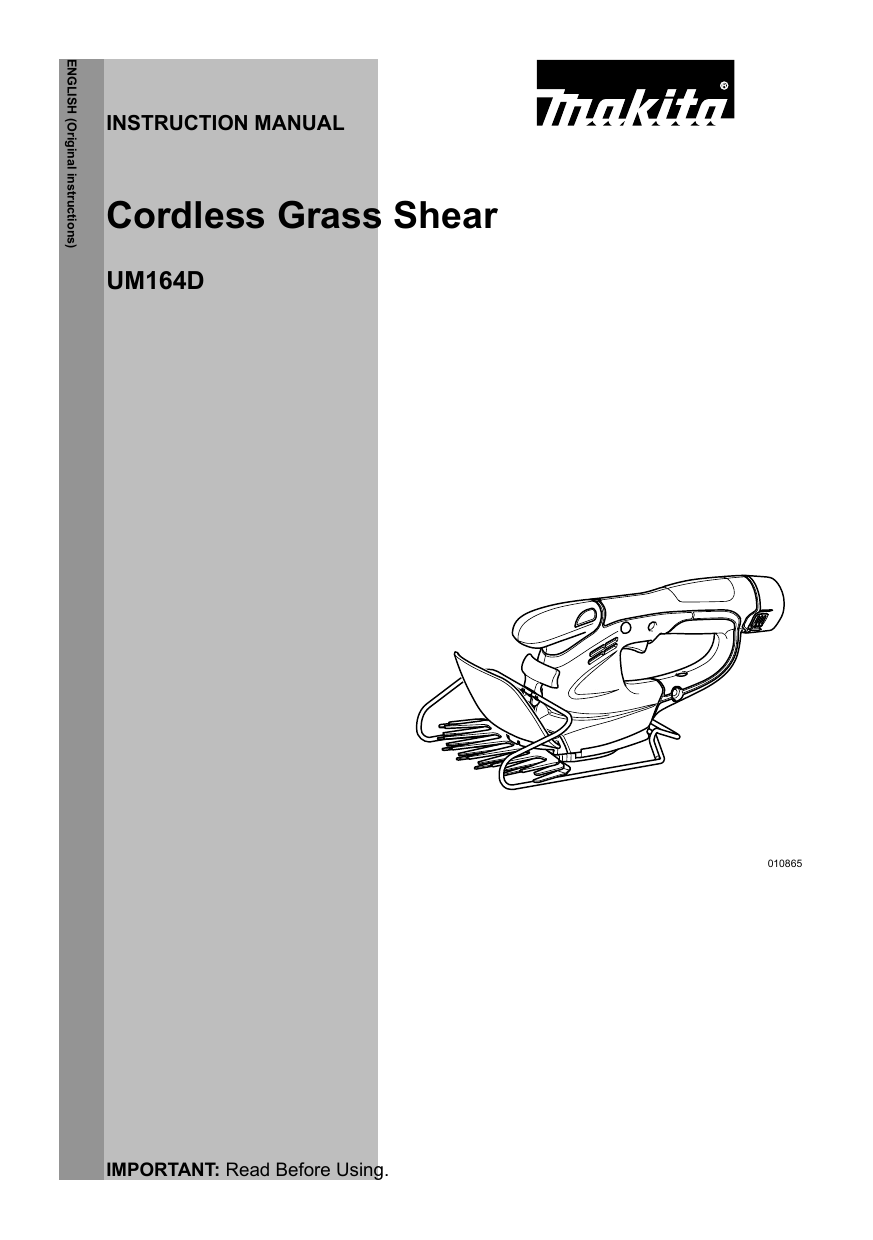

Makita UM164D Series Instruction Manual

ENGLISH (Original instructions)
INSTRUCTION MANUAL
Cordless Grass Shear
UM164D
010865
IMPORTANT: Read Before Using.
1
ENGLISH (Original instructions)
SPECIFICATIONS
Model
UM164D
Effective cutting width
160 mm
Stroke per minute (min-1)
1,250
Dimensions (L x W x H)
292 mm x 178 mm x 130 mm
Net weight
1.1 kg
Rated voltage
D.C. 10.8 V
• Due to our continuing programme of research and development, the specifications herein are subject to change without notice.
• Specifications may differ from country to country.
• Weight according to EPTA-Procedure 01/2003
END010-1
GEA006-2
Symbols
General Power Tool Safety
Warnings
The following show the symbols used for the equipment.
Be sure that you understand their meaning before use.
･ Take particular care and attention.
･
Read instruction manual.
･
Danger; be aware of thrown objects.
･
Keep bystanders away.
･
Cutting means continues to run after the
motor is switched off.
Do not expose to moisture.
･
Cd
Ni-MH
Li-ion
･
WARNING Read all safety warnings and all
instructions. Failure to follow the warnings and
instructions may result in electric shock, fire and/or
serious injury.
Save all warnings and
instructions for future reference.
The term "power tool" in the warnings refers to your
mains-operated (corded) power tool or battery-operated
(cordless) power tool.
Work area safety
1.
Keep work area clean and well lit. Cluttered or
dark areas invite accidents.
2.
Do not operate power tools in explosive
atmospheres, such as in the presence of
flammable liquids, gases or dust. Power tools
create sparks which may ignite the dust or fumes.
3.
Keep children and bystanders away while
operating a power tool. Distractions can cause
you to lose control.
Electrical safety
4.
Power tool plugs must match the outlet. Never
modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power
tools. Unmodified plugs and matching outlets will
reduce risk of electric shock.
5.
Avoid body contact with earthed or grounded
surfaces such as pipes, radiators, ranges and
refrigerators. There is an increased risk of
electric shock if your body is earthed or grounded.
6.
Do not expose power tools to rain or wet
conditions. Water entering a power tool will
increase the risk of electric shock.
7.
Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges or
Only for EU countries
Do not dispose of electric equipment or
battery pack together with household
waste material!
In observance of European Directive
2002/96/EC on waste electric and
electronic equipment, 2006/66/EC on
batteries and accumulators and waste
batteries and accumulators and their
implementation in accordance with
national laws, electric equipment and
battery pack that have reached the end
of their life must be collected separately
and returned to an environmentally
compatible recycling facility.
ENE015-1
Intended use
The tool is intended for cutting lawn edges or sprouts.
2
19.
Disconnect the plug from the power source
and/or the battery pack from the power tool
before making any adjustments, changing
accessories, or storing power tools. Such
preventive safety measures reduce the risk of
starting the power tool accidentally.
20. Store idle power tools out of the reach of
children and do not allow persons unfamiliar
with the power tool or these instructions to
operate the power tool. Power tools are
dangerous in the hands of untrained users.
21. Maintain power tools. Check for misalignment
or binding of moving parts, breakage of parts
and any other condition that may affect the
power tool’s operation. If damaged, have the
power tool repaired before use. Many accidents
are caused by poorly maintained power tools.
22. Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges
are less likely to bind and are easier to control.
23. Use the power tool, accessories and tool bits
etc. in accordance with these instructions,
taking into account the working conditions
and the work to be performed. Use of the power
tool for operations different from those intended
could result in a hazardous situation.
Battery tool use and care
24. Recharge only with the charger specified by
the manufacturer. A charger that is suitable for
one type of battery pack may create a risk of fire
when used with another battery pack.
25. Use power tools only with specifically
designated battery packs. Use of any other
battery packs may create a risk of injury and fire.
26. When battery pack is not in use, keep it away
from other metal objects, like paper clips,
coins, keys, nails, screws or other small metal
objects, that can make a connection from one
terminal to another. Shorting the battery
terminals together may cause burns or a fire.
27. Under abusive conditions, liquid may be
ejected from the battery; avoid contact. If
contact accidentally occurs, flush with water. If
liquid contacts eyes, additionally seek medical
help. Liquid ejected from the battery may cause
irritation or burns.
Service
28. Have your power tool serviced by a qualified
repair person using only identical replacement
parts. This will ensure that the safety of the power
tool is maintained.
29. Follow instruction for lubricating and
changing accessories.
30. Keep handles dry, clean and free from oil and
grease.
moving parts. Damaged or entangled cords
increase the risk of electric shock.
8.
When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use of
a cord suitable for outdoor use reduces the risk of
electric shock.
9.
If operating a power tool in a damp location is
unavoidable, use a ground fault circuit
interrupter (GFCI) protected supply. Use of an
GFCI reduces the risk of electric shock.
Personal safety
10. Stay alert, watch what you are doing and use
common sense when operating a power tool.
Do not use a power tool while you are tired or
under the influence of drugs, alcohol or
medication. A moment of inattention while
operating power tools may result in serious
personal injury.
11. Use personal protective equipment. Always
wear eye protection. Protective equipment such
as dust mask, non-skid safety shoes, hard hat, or
hearing protection used for appropriate conditions
will reduce personal injuries.
12. Prevent unintentional starting. Ensure the
switch is in the off-position before connecting
to power source and/or battery pack, picking
up or carrying the tool. Carrying power tools with
your finger on the switch or energising power tools
that have the switch on invites accidents.
13. Remove any adjusting key or wrench before
turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may
result in personal injury.
14. Do not overreach. Keep proper footing and
balance at all times. This enables better control
of the power tool in unexpected situations.
15. Dress properly. Do not wear loose clothing or
jewellery. Keep your hair, clothing, and gloves
away from moving parts. Loose clothes,
jewellery or long hair can be caught in moving
parts.
16. If devices are provided for the connection of
dust extraction and collection facilities,
ensure these are connected and properly used.
Use of dust collection can reduce dust-related
hazards.
Power tool use and care
17. Do not force the power tool. Use the correct
power tool for your application. The correct
power tool will do the job better and safer at the
rate for which it was designed.
18. Do not use the power tool if the switch does
not turn it on and off. Any power tool that cannot
be controlled with the switch is dangerous and
must be repaired.
3
GEB070-1
2.
SAFETY INSTRUCTIONS
Electrical and battery safety
WARNING! IMPORTANT READ CAREFULLY all
safety warnings and all instructions BEFORE USE .
Failure to follow the warnings and instructions may result
in electric shock, fire and/or serious injury.
1.
Save all warnings and
instructions for future reference.
2.
General instructions
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
3.
To ensure correct operation, user has to read this
instruction manual to make himself familiar with
the handling of the equipment. Users insufficiently
informed will risk danger to themselves as well as
others due to improper handling.
Never allow people unfamiliar with these
instructions, people (including children) with
reduced physical, sensory or mental capabilities,
or lack of experience and knowledge to use the
equipment. Local regulations can restrict the age
of the operator.
Use the equipment with the utmost care and
attention.
Operate the equipment only if you are in good
physical condition. Perform all work calmly and
carefully. Use common sense and keep in mind
that the operator or user is responsible for
accidents or hazards occurring to other people or
their property.
Never operate the machine while people,
especially children, or pets are nearby.
Never use the equipment after consumption of
alcohol or drugs, or if feeling tired or ill.
The motor is to be switched off immediately in
case that the equipment shows any problem or
abnormal sign.
Switch off and remove the battery cartridge when
resting and when leaving the equipment
unattended, and place it in a safe location to
prevent danger to others or damage to the
equipment.
Don't force the equipment. it will do the job better
and with less likelihood of a risk of injury at the rate
for which it was designed.
Don't overreach. Keep proper footing and balance
at all times.
4.
5.
6.
7.
Avoid dangerous environment. Don't use the
equipment in damp or wet locations or expose it to
rain. Water entering an equipment will increase
the risk of electric shock.
Recharge only with the charger specified by the
manufacturer. A charger that is suitable for one
type of battery pack may create a risk of fire when
used with another battery pack.
Use power tools only with specifically designated
battery packs. Use of any other battery packs may
create a risk of injury and fire.
When battery pack is not in use, keep it away from
other metal objects, like paper clips, coins, keys,
nails, screws or other small metal objects, that can
make a connection from one terminal to another.
Shorting the battery terminals together may cause
burns or a fire.
Under abusive conditions, liquid may be ejected
from the battery; avoid contact. If contact
accidentally occurs, flush with water. If liquid
contacts eyes, additionally seek medical help.
Liquid ejected from the battery may cause irritation
or burns.
Do not dispose of the battery(ies) in a fire. The cell
may explode. Check with local codes for possible
special disposal instructions.
Do not open or mutilate the battery(ies). Released
electrolyte is corrosive and may cause damage to
the eyes or skin. It may be toxic if swallowed.
Starting up the equipment
1.
2.
3.
Personal protective equipment
1.
Wear eye protection and stout shoes at all times
while operating the machine.
Dress Properly. The clothing worn should be
functional and appropriate, i.e. it should be
tight-fitting but not cause hindrance. Do not wear
either jewelry or clothing which could become
entangled. Wear protective hair covering to
contain long hair.
4
Make sure that there are no children or other
people nearby, also pay attention to any animals in
the working vicinity. Otherwise stop using the
equipment.
Before use always check that the equipment is
safe for operation. Check the security of the
cutting tool and the guard and the switch
trigger/lever for easy and proper action. Check for
clean and dry handles and test the function of the
start/stop.
Check damaged parts before further use of the
equipment. A guard or other part that is damaged
should be carefully checked to determine that it
will operate properly and perform its intended
function. Check for alignment of moving parts,
binding of moving parts, breakage of parts,
mounting, and any other condition that may affect
its operation. A guard or other part that is damaged
should be properly repaired or replaced by our
authorized service center unless indicated
elsewhere in this manual.
4.
5.
Switch on the motor only when the hands and feet
are away from the cutting tool.
Before starting make sure that the cutting tool has
no contact with any objects.
3.
4.
5.
Method of operation
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
Only use the equipment in good light and visibility.
During the winter season beware of slippery or wet
areas, ice and snow (risk of slipping). Always
ensure a safe footing.
Take care against injury to feet and hands from the
cutting tool.
Never stand on a ladder and run the equipment.
Never climb up into trees to perform cutting
operation with the equipment.
Never work on unstable surfaces.
Remove sand, stones, nails etc. found within the
working range. Foreign particles may damage the
cutting tool and can cause dangerous kick-backs.
Should the cutting tool hit stones or other hard
objects, immediately switch off the motor and
inspect the cutting tool.
Inspect the cutting tool at short regular intervals for
damage (detection of hairline cracks by means of
tapping-noise test).
Before commencing cutting, the cutting tool must
have reached full working speed.
The cutting tool has to be equipped with the
appropriate guard. Never run the equipment with
damaged guards or without guards in place!
All protective installations and guards supplied
with the equipment must be used during operation.
Always remove the battery cartridge from the
equipment:
−
whenever leaving the equipment unattended;
−
before clearing a blockage;
−
before checking, cleaning or working on the
equipment;
−
after striking a foreign object;
−
whenever the equipment starts vibrating
abnormally.
Always ensure that the ventilation openings are
kept clear of debris.
6.
7.
8.
KEEP FOR FUTURE REFERENCE
WARNING:
DO NOT let comfort or familiarity with product
(gained from repeated use) replace strict adherence
to safety rules for the subject product. MISUSE or
failure to follow the safety rules stated in this
instruction manual may cause serious personal
injury.
GEB062-2
CORDLESS HEDGE TRIMMER
SAFETY WARNINGS
1.
2.
3.
Cutting Tools
1.
Employ only the correct cutting tool for the job in
hand.
Maintenance instructions
1.
2.
Check loose fasteners and damaged parts such
as cracks in the cutting attachment.
Follow instructions for lubricating and changing
accessories.
When not in use, store the equipment indoors in
dry and high or locked-up place - out of the reach
of children. Clean and maintain before storage.
Use only the manufacturer's recommended
replacement parts and accessories.
Inspect and maintain the equipment regularly,
especially before/after use. Have the equipment
repaired only by our authorized service center.
Keep handles dry, clean and free from oil and
grease.
4.
The condition of the equipment, in particular of the
cutting tool of the protective devices must be
checked before commencing work.
Turn off the motor and remove the battery
cartridge before carrying out maintenance,
replacing cutting tools or cleaning the equipment
or cutting tool.
5.
5
Hold the power tool by insulated gripping
surfaces only, because the cutter blade may
contact hidden wiring. Cutter blades contacting
a "live" wire may make exposed metal parts of the
power tool "live" and could give the operator an
electric shock.
Keep all parts of the body away from the cutter
blade. Do not remove cut material or hold
material to be cut when blades are moving.
Make sure the switch is off when clearing
jammed material. A moment of inattention while
operating the hedge trimmer may result in serious
personal injury.
Carry the hedge trimmer by the handle with
the cutter blade stopped. When transporting
or storing the hedge trimmer always fit the
cutting device cover. Proper handling of the
hedge trimmer will reduce possible personal injury
from the cutter blades.
Do not use the hedge trimmer in the rain or in wet
or very damp conditions. The electric motor is not
waterproof.
First-time users should have an experienced
hedge trimmer user show them how to use the
trimmer.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
18.
19.
20.
The hedge trimmer must not be used by children
or young persons under 18 years of age. Young
persons over 16 years of age may be exempted
from this restriction if they are undergoing training
under the supervision of an expert.
Use the hedge trimmer only if you are in good
physical condition. If you are tired, your attention
will be reduced. Be especially careful at the end of
a working day. Perform all work calmly and
carefully. The user is responsible for all damages
to third parties.
Never use the trimmer when under the influence of
alcohol, drugs or medication.
Check to make sure that the voltage and
frequency of the power supply correspond to the
specifications given on the identification plate. We
recommend the use of a residual-current-operated
circuit breaker (ground-fault circuit interrupter) with
a tripping current of 30 mA or less, or an earth
leakage current protector.
Work gloves of stout leather are part of the basic
equipment of the hedge trimmer and must always
be worn when working with it. Also wear sturdy
shoes with anti-skid soles.
Before starting work check to make sure that the
trimmer is in good and safe working order. Ensure
guards are fitted properly. The hedge trimmer
must not be used unless fully assembled.
Make sure you have a secure footing before
starting operation.
Hold the tool firmly when using the tool.
Do not operate the tool at no-load unnecessarily.
Immediately switch off the motor and remove the
battery cartridge if the cutter should come into
contact with a fence or other hard object. Check
the cutter for damage, and if damaged repair
immediately.
Before checking the cutter, taking care of faults, or
removing material caught in the cutter, always
switch off the trimmer and remove the battery
cartridge.
Switch off the trimmer and remove the battery
cartridge before doing any maintenance work.
When moving the hedge trimmer to another
location, including during work, always remove the
battery cartridge. Never carry or transport the
trimmer with the cutter running. Never grasp the
cutter with your hands.
Clean the hedge trimmer and especially the cutter
after use, and before putting the trimmer into
storage for extended periods. Lightly oil the cutter
and put on the cover. The cover supplied with the
unit can be hung on the wall, providing a safe and
practical way to store the hedge trimmer.
Store the hedge trimmer with the cover on, in a dry
room. Keep it out of reach of children. Never store
the trimmer outdoors.
SAVE THESE INSTRUCTIONS.
WARNING:
DO NOT let comfort or familiarity with product
(gained from repeated use) replace strict adherence
to safety rules for the subject product. MISUSE or
failure to follow the safety rules stated in this
instruction manual may cause serious personal
injury.
ENC007-4
IMPORTANT SAFETY
INSTRUCTIONS
FOR BATTERY CARTRIDGE
1.
2.
3.
4.
5.
6.
7.
8.
9.
Before using battery cartridge, read all
instructions and cautionary markings on (1)
battery charger, (2) battery, and (3) product
using battery.
Do not disassemble battery cartridge.
If operating time has become excessively
shorter, stop operating immediately. It may
result in a risk of overheating, possible burns
and even an explosion.
If electrolyte gets into your eyes, rinse them
out with clear water and seek medical
attention right away. It may result in loss of
your eyesight.
Do not short the battery cartridge:
(1) Do not touch the terminals with any
conductive material.
(2) Avoid storing battery cartridge in a
container with other metal objects such as
nails, coins, etc.
(3) Do not expose battery cartridge to water
or rain.
A battery short can cause a large current
flow, overheating, possible burns and
even a breakdown.
Do not store the tool and battery cartridge in
locations where the temperature may reach or
exceed 50 ﾟ C (122 ﾟ F).
Do not incinerate the battery cartridge even if
it is severely damaged or is completely worn
out. The battery cartridge can explode in a fire.
Be careful not to drop or strike battery.
Do not use dropped or struck battery.
SAVE THESE INSTRUCTIONS.
6
Tips for maintaining maximum battery life
1.
Switch action
Charge the battery cartridge before completely
discharged.
Always stop tool operation and charge the
battery cartridge when you notice less tool
power.
Never recharge a fully charged battery
cartridge.
Overcharging shortens the battery service life.
Charge the battery cartridge with room
temperature at 10 ﾟ C - 40 ﾟ C (50 ﾟ F - 104 ﾟ F).
Let a hot battery cartridge cool down before
charging it.
2.
3.
1
2
010868
CAUTION:
Before inserting the battery cartridge into the tool,
always check to see that the switch trigger actuates
properly and returns to the "OFF" position when
released.
To prevent the switch trigger from being accidentally
pulled, a lock-off button is provided.
To start the tool, depress the lock-off button and pull the
switch trigger. Release the switch trigger to stop. The
lock-off button can be pressed from either right or left
side.
•
FUNCTIONAL DESCRIPTION
•
CAUTION:
Always be sure that the tool is switched off and the
battery cartridge is removed before adjusting or
checking function on the tool.
Installing or removing battery cartridge
1
1. Lock-off button
2. Switch trigger
1. Battery cartridge
2. Button
Indication lamp
1
1. Indication lamp
2
010866
•
•
•
•
Always switch off the tool before insertion or
removal of the battery cartridge.
To remove the battery cartridge, withdraw it from
the tool while pressing the buttons on both sides of
the cartridge.
To insert the battery cartridge, hold it so that the
battery cartridge front shape fits to that of the
battery installment opening and slip it into place.
Always insert it all the way until it locks in place with
a little click. If not, it may accidentally fall out of the
tool, causing injury to you or someone around you.
Do not use force when inserting the battery
cartridge. If the cartridge does not slide in easily, it
is not being inserted correctly.
010867
Running the tool allows the indication lamp to show the
battery cartridge capacity status.
When the tool is also overloaded and has stopped during
operation, the lamp lights up in red.
Refer to the following table for the status and action to be
taken for the indication lamp.
7
The lamp blinks in red
The lamp lights up in
red. (Note 1)
The lamp lights up in red.
(Note 1)
Action to be taken
Status
Indication lamp
This indicates the
appropriate time to
replace the battery
cartridge when the
battery power
becomes low.
Recharge the battery
cartridge as soon as
possible
This function works
when the battery
power is almost used
up. At this time, tool
stops immediately
Recharge the battery
cartridge.
Autostop due to
overload
Turn off the tool.
Note 1: The time at which the indication lamp lights up varies by the temperature
around the work area and the battery cartridge conditions.
010970
Adjusting the shearing height
Installing or removing blade cover
1. Change lever
2. Protrusion on
base frame
3. Base frame
1
•
CAUTION:
Be careful not to contact the shear blade when
installing or removing the blade cover. Contacting
the shear blade may cause personal injuries.
1. Shear blades
2. Base frame
3. Blade cover
1
2
3
010871
Changing the position of holding the change lever allows
three-stepped setting for sheared grass height (10 mm,
15 mm, 25 mm).
To change setting, tilt the change lever for the base frame
position and with the change lever tilted move it up or
down along the tool surface until the protrusion on base
frame fits in one of the holes in the tool and release it.
3
2
010869
ASSEMBLY
•
CAUTION:
Always be sure that the tool is switched off and the
battery cartridge is removed before carrying out
any work on the tool.
010870
Slide the blade cover from the tool's side until the shear
blade completely hides itself and then push in it lightly
8
towards the tool from the front.
To remove the blade cover, take the above installation
procedure in reverse.
For specific way of removing and installing shear
blades refer to the reverse of a package for
accessory shear blades.
•
Installing or removing base frame
•
•
2
1
010887
1. Groove
2. Base frame
Remove the base frame and place the tool upside down.
•
CAUTION:
Before placing the tool upside down, be sure to
remove the base frame.
1
010872
4
To remove the base frame, upset the tool and take it out
of the groove grabbing its bottom.
1
2
1. Blade cover
1
CAUTION:
Before installing or removing base frame, be sure
to install the blade cover.
When installing or removing base frame, take care
that your fingers are not be pinched between the
tool and base frame.
1. Change lever
2. Protrusion on
base frame
3. Base frame
1. Undercover
2. Locking lever
3. Press
4. Turn
2
3
010888
To remove the shear blade, press the locking lever and
with the locking lever pressed turn the undercover
counterclockwise until the symbol
on the undercover
is aligned with the symbol
on the locking lever.
3
010873
To install the base frame, fit the protrusion of base frame
near the change lever into the hole for the sheared grass
height setting. With the base frame so fitted, pull the
lower part of base frame and fit the other part of the base
frame in the groove in the tool.
1
2
Installing or removing grass shear blades
•
•
1. Undercover
2. Shear blade
3. Crank
CAUTION:
Always be sure that the tool is switched off and the
battery cartridge is removed before installing or
removing shear blades. Failure to switch off and
remove the battery cartridge from the tool may
result in serious injury from accidental start-up.
When replacing the shear blade, always wear
gloves without removing blade cover so that hands
and face does not directly contact the blade. Failure
to do so may cause personal injury.
3
010889
Take out the undercover, shear blade and crank in order
from the tool.
NOTE:
•
Do not wipe off grease from the gear and crank.
Failure to do so may cause damage to the tool.
9
1
2
3
3
1
4
2
1. Recessed part of
crank
2. Pins
3. Crank
4. Apply grease
010898
Fit the crank with its recessed part facing upwards onto
the pins. At this time, apply a small amount of grease to
the periphery of the crank using grease that the shear
blades as optional accessory are provided with or that
remains inside gear housing.
1. Crank
2. Undercover
3. Shear blades
010895
To install the grass shear blade, prepare the crank,
undercover and new grass shear blade
1
2
1. Blade cover
2. Shear blades
1
2
1. Base plate
2. Hole in the base
plate of shear
blades
3. Oval holes that
are overlapped
3
010899
Overlap the oval hole in the upper blade with that in the
lower one. Move the shear blades so that the hole in the
base plate of shear blades are positioned in the center of
these overlapped oval holes.
010896
Take out the blade cover from the old shear blades and fit
it onto the new ones for easy handling during the
replacement of blades.
1
2
010900
Turn the shear blades upside down and install it so that
the pins on the tool fit in the hole in the shear blades.
Make sure that the shear blades are set in place securely
as far as they reach the base plate.
1. Basic alignment line on the tool housing
2. Pins
1
2
1. Undercover
2. Locking lever
010897
Adjust the three pin position so that these pins are lined
up at right angle in relation to the basic alignment line on
the tool housing.
010901
Place the undercover so that the symbol
on the
undercover is aligned with the symbol
on the locking
10
lever.
Turn the tool on after adjusting the shearing height and
hold it so that the foot of the tool rest on the ground. Then
gently move the tool forward into the area to be cut.
010902
Press the undercover down and turn the undercover
clockwise while pressing it down until the symbol
on
the label is aligned with the symbol
on the locking
lever (the undercover is completely locked.).
010875
When trimming around curb, fence or trees, move the
tool along them. Be careful for the blade not to contact
them.
1. Groove in the
undercover
2. Locking lever
1
2
010903
At this time, make sure that the locking lever fits in the
groove in the undercover.
Remove the blade cover and then turn on the tool to
check it for proper movement.
010876
When trimming sprouts or foliage of a small tree, remove
the base frame from the tool and cut little by little.
Shear big branches to your desired height beforehand
using branch scissors before using this tool.
NOTE:
•
When the shear blades does not operate properly,
there is a poor fit between the blades and crank.
Redo from the beginning.
•
OPERATION
•
•
•
•
WARNING:
Keep hands away from blades.
•
CAUTION:
Smear the blade before and once per hour during
operation using machine oil or similars.
Avoid operating the tool under the scorching
sunlight as much as practicable. When operating
the tool, be careful of your physical conditions.
CAUTION:
When trimming twigs and foliage, do not attempt to
trim too much at a time. Proceed gently. Also do not
attempt to cut thick branches.
Do not let the shear blades contact the grounds
during operation. The blades will be dulled, causing
poor performance.
Do not trim wet grass or foliage of small trees
MAINTENANCE
•
CAUTION:
Always be sure that the tool is switched off and the
battery cartridge is removed before attempting to
perform inspection or maintenance.
Cleaning the tool
Clean out the tool by wiping off dust with a dry or
soap-dipped rag.
•
010874
11
CAUTION:
Never use gasoline, benzine, thinner, alcohol or the
like. Discoloration, deformation or cracks may
result.
To maintain product SAFETY and RELIABILITY, repairs,
any other maintenance or adjustment should be
performed by Makita Authorized Service Centers, always
using Makita replacement parts.
Shear blade maintenance
1. Brush
1
ACCESSORIES
CAUTION:
These accessories or attachments are recommended for
use with your Makita tool specified in this manual. The
use of any other accessories or attachments might
present a risk of injury to persons. Only use accessory or
attachment for its stated purpose.
If you need any assistance for more details regarding
these accessories, ask your local Makita Service Center.
•
Grass shear blade assembly
•
Grass shear blade cover
•
Base frame
•
Battery cartridge BL1013
•
Battery charger DC10WA
•
Long handle attachment
•
010971
1. Machine oil
1
010972
After operation, remove dust from both sides of the blade
with wired brush, wipe off it with a rag and then apply
enough low-viscosity oil, such as machine oil etc. and
spray-type lubricating oil.
•
•
For cordless hedge trimmer use
This tool can be used as a hedge trimmer by using the
hedge shear blade (optional accessory) and 2-way
change set (optional accessory).
To use this tool as a hedge trimmer, replacing the grass
shear blades with the hedge shear blades is required.
For removing the grass shear blades, refer to the
aforementioned section titled "Installing or removing
grass shear blades". For installing the hedge shear
blades, refer to the section below titled "Installing or
removing hedge shear blades".
•
Hedge shear blade assembly (for Hedge Trimmer)
•
2-way change set consisting of the following two
accessories
•
Hedge shear blade cover (for Hedge Trimmer)
•
Storage case (for blade bottom section)
CAUTION:
Do not wash the blades in water. Failure to do so
may cause rust or damage on the tool.
Dirt and corrosion cause excessive blade friction
and shorten the operating time per battery charge.
After use
To clean off the exterior of the tool, dampen a soft
cloth in a soapy water and wipe gently. Never use
thinner or benzine.
Do not store the tool in a place where volatile
materials are stored.
•
•
1
2
1. Hedge shear blade
2. Hedge shear blade cover
3. Storage case
011044
12
3
Chip receiver for hedge trimming (for Hedge
Trimmer)
•
1
Installing or removing hedge shear blades
•
•
2
CAUTION:
Before installing or removing shear blades, always
be sure that the tool is switched off and the battery
cartridge is removed.
When replacing the shear blades, always wear
gloves without removing blade cover so that hands
and face do not directly contact the blade. Failure to
do so may cause personal injury.
4
NOTE:
•
Do not wipe off grease from the gear and crank.
Failure to do so may cause damage to the tool.
•
For specific way of removing and installing shear
blades refer to the reverse of a package for
accessory shear blades.
Installing the hedge shear blades
1
3
1. Crank
2. Apply grease.
3. Pins
4. Recesed part of crank
010906
Fit the crank with its recessed part facing downward onto
the pins. At this time, apply a small amount of grease to
the periphery of the crank using grease that the shear
blades as optional accessory are provided with or that
remains inside gear housing.
2
3
1
2
3
1. Oval holes that are overlapped
2. Hole in the base plate of shear blades
3. Base plate
1. Crank
2. Undercover
3. Shear blades
010907
Overlap the oval hole in the upper blade with that in the
lower one. Move the shear blades so that the hole in the
base plate of shear blades are positioned in the center of
these overlapped oval holes.
010904
Prepare the crank, the undercover and new shear
blades.
1
2
1. Blade cover
1
010908
Take out the blade cover from the old shear blades and fit
it onto the new ones for easy handling during the
replacement of blades.
1. Basic alignment line on the tool housing
2. Pins
010905
Adjust the three pin position so that these three pins are
aligned with the basic alignment line on the tool housing.
13
1. Bent part of the
base plate of
shear blades
1. Groove in the
undercover
2. Locking lever
1
1
2
010909
010913
Turn the shear blades upside down and install it so that
pin on the tool fit in the hole in the shear blades. Fit the
bent part of the base plate of the shear blades to the
groove in the tool housing. Then make sure that the base
plate of the shear blades is set in place.
At this time, make sure that the locking lever fits in the
groove in the undercover.
CAUTION:
Never use the tool without installing the undercover
on it.
Remove the blade cover and then turn on the tool to
check it for proper movement.
•
1. Screws
1
NOTE:
•
When the shear blades does not operate properly,
there is a poor fit between the blades and crank.
Redo from the beginning.
Removing the hedge shear blades
010910
Tighten two screws with a coin or similars firmly.
1. Blade cover
1
1
2
1. Locking lever
2. Undercover
010890
CAUTION:
Install the blade cover before removing or installing
the shear blades.
Reverse the tool.
010911
•
Place the undercover so that the symbol
on the
undercover is aligned with the symbol
on the locking
lever.
1
4
2
3
1. Undercover
2. Locking lever
3. Press
4. Turn
010891
010912
To remove the shear blades, press the locking lever and
with the locking lever pressed turn the undercover
counterclockwise until the symbol
on the undercover
is aligned with the symbol
on the locking lever.
Press the undercover down and with the undercover
pressed down turn the undercover clockwise until the
symbol
on the label is aligned with the symbol
on
the locking lever (the undercover is completely locked.).
14
OPERATION
1. Undercover
1
Refer to the Important Safety Instructions before
operation.
•
•
010892
Take out the undercover from the tool.
1
•
1. Screws
CAUTION:
Be careful not to accidentally contact a metal fence
or other hard objects while trimming. The blade will
break and may cause serious injury.
Also, be careful for the shear blade not to contact
the ground.
Overreaching with a hedge trimmer, particularly
from a ladder, is extremely dangerous. Do not work
from anything wobbly or infirm.
010893
Loosen two screws with a coin and similars and remove
the shear blades.
010878
Do not attempt to cut branches thicker than 10 mm
diameter with this trimmer. These should first be cut with
shears down to the hedge trimming level.
NOTE:
•
Do not remove the screws. Without removing the
screws loosened, shear blades can be removed.
1. Crank
2. Shear blades
1
•
•
CAUTION:
Do not cut off dead trees or similar hard objects.
Failure to do so may damage the tool.
Do not trim the grass or weeds while using hedge
shear blade. The shear blade may entangle the
grass or weeds.
2
010894
Remove the crank from the shear blades.
NOTE:
•
The crank may remain in the tool.
1
2
1. Grass shear
blade cover
2. Grass shear
blade
3. Storage case
010879
Hold the trimmer with one hand, depress the lock-off
button and pull the switch trigger and then move it in front
of your body.
3
011045
NOTE:
•
In the 2-way usage, the removed grass shear
blades need to be sheared in the blade storage
case and stored for future use.
15
1. Trimming
direction
2. Tilt the blades
3. Hedge surface to
be trimmed
1
2
3
010880
010968
As a basic operation, tilt the blades towards the trimming
direction and move it calmly and slowly at the speed rate
of 3 - 4 seconds per meter.
Trim boxwood or rhododendron from the base toward the
top for a nice appearance and good job.
1
Installing or removing chip receiver
(accessory)
1. String
•
CAUTION:
Always be sure that the tool is switched off and the
battery cartridge is removed before installing or
removing chip receiver.
NOTE:
•
When replacing the chip receiver, always wear
gloves so that hands and face does not directly
contact the blade. Failure to do so may cause
personal injury.
•
When replacing the chip receiver, always be careful
not to contact the shear blades.
•
The chip receiver receives cut-off leaves and
alleviates collecting thrown-away leaves. This can
be installed on either side of the tool.
010881
To cut a hedge top evenly, it helps to tie a string at the
desired hedge height and to trim along it, using it as a
reference line.
1
2
010966
Attaching the chip receiver (accessory) on the tool when
trimming the hedge straight can avoid cut off leaves'
being thrown away.
3
4
1. Clamping nuts
2. Chip receiver
3. Screws on the
shear blades
4. Blade cover to
be always
installed before
installing the
chip receiver
010877
Place the chip receiver on the shear blades so that its
slits overlap with the screws on the shear blades and
secure it using two clamping nuts.
To remove the chip receiver, loosen and remove the two
clamping nuts and then take it out.
010967
To cut a hedge side evenly, it helps to cut from the bottom
upwards.
16
Storage
1. Hook hole
1
010914
The hook hole in the tool bottom is convenient for
hanging the tool from a nail or screw on the wall.
Put the blade cover on the shear blades so that the
blades are not exposed. Store the tool out of the reach of
children carefully.
Store the tool in the place not exposed to water and rain.
17
18
19
Makita Corporation
884947-4
