Installation Guide
Ceiling Flush Mount Bracket
Model No.
Indoor Use Only
BB-HCA10CE
Please read this document before using the product, and save this document for future reference.
Panasonic Network Camera Website: http://panasonic.co.jp/pcc/products/en/netwkcam/
Please read the Operating Instructions included with the camera before proceeding.
• This document (Installation Guide) explains how to install the BB-HCM527 Network Camera using the
Ceiling Flush Mount Bracket, and install the bracket in a ceiling.
Abbreviations
• The Ceiling Flush Mount Bracket is referred to as “the bracket” in this document.
• The Network Camera is referred to as “the camera” in this document.
Preparation
1.

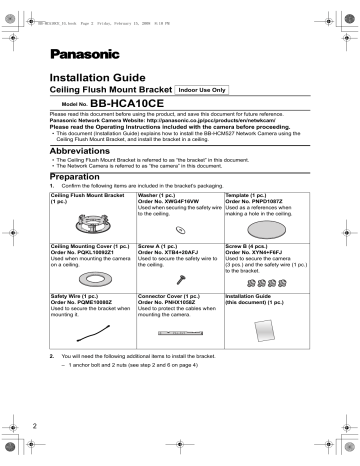

Confirm the following items are included in the bracket’s packaging.
Ceiling Flush Mount Bracket
(1 pc.)
Washer (1 pc.)
Order No. XWG4F16VW
Used when securing the safety wire
to the ceiling.
Template (1 pc.)
Order No. PNPD1087Z
Used as a references when
making a hole in the ceiling.
Ceiling Mounting Cover (1 pc.)
Order No. PQKL10092Z1
Used when mounting the camera
on a ceiling.
Screw A (1 pc.)
Order No. XTB4+20AFJ
Used to secure the safety wire to
the ceiling.
Screw B (4 pcs.)
Order No. XYN4+F6FJ
Used to secure the camera
(3 pcs.) and the safety wire (1 pc.)
to the bracket.
Safety Wire (1 pc.)
Order No. PQME10080Z
Used to secure the bracket when
mounting it.
Connector Cover (1 pc.)
Order No. PNHX1058Z
Used to protect the cables when
mounting the camera.
Installation Guide
(this document) (1 pc.)
2.
You will need the following additional items to install the bracket.
– 1 anchor bolt and 2 nuts (see step 2 and 6 on page 4)
2
BB-HCA10CE_IG.book
Page 3 Friday, February 15, 2008
8:10 PM
Important Information Regarding Camera Mounting
Please read the following information before mounting the camera. Consult an authorized dealer for mounting.
Note
• This product should only be used with the BBHCM527 Network Camera.
• If using an SD memory card, insert the card before
installing the camera in the bracket.
• Use screws that are appropriate for the material of
ceiling.
• The included screws are for use with wooden
ceilings only.
• To ensure that camera images are displayed
properly, do not mount the bracket on an incline.
• The camera’s MAC address and serial number are
printed on the bottom of the camera and are
needed in order for camera configuration and
maintenance. Make a note of both of them for
before mounting the camera.
• Mounting and cabling instructions described in
this document follow generally accepted
guidelines suitable for residential installations. In
some areas, commercial and industrial
installations are regulated by local or state
ordinances. For such installations, contact your
local building department or building inspector for
more details.
• Camera images can be viewed in relatively dark
areas, however, image quality decreases when
viewing dark images. We recommend using
supplemental lighting for best results.
• Prolonged exposure to direct sunlight or halogen
light may damage the camera’s image sensor.
Mount the camera appropriately.
• When mounting the camera, make sure to wrap
the AC adaptor cord (if used) and other cables
(external microphone or speaker cable, video
cable, etc.) around the hooks as shown to ensure
secure connections.
• Do not directly touch the lens cover. Clean the lens
cover with a dry and soft cloth if necessary.
• There must be at least 80 mm of space above the
ceiling board where this product will be installed.
• The ceiling board must be no more than 40 mm
thick.
English
Caution
• Make sure you attach the safety wire when mounting the bracket and the camera on a ceiling to prevent
them from falling.
At least 80 mm
Ceiling board: Max. 40 mm
• The illustration below is an example of a
completed installation, when looking at the rear of
the camera.
3
BB-HCA10CE_IG.book
Page 4 Friday, February 15, 2008
8:10 PM
Mounting the Bracket and the Camera
1.
5.
Using the included template as a guide, make a
hole (φ 240 mm) in the ceiling.
Tighten the 3 clamp screws (attached to the
bracket) and secure the bracket.
• The clamps tighten as the screws are
tightened.
Template
Clamp screw
Clamp
2.
Drive an anchor bolt (not included) into the
original ceiling and attach a nut (not included) to
the bolt.
• Drive the anchor bolt into the original ceiling
directly above the center of the hole made in
step 1.
• The end of the anchor bolt should be 47 mm
above the bottom of the ceiling board.
• The bottom of the nut should be 61 mm above
the bottom of the ceiling board.
Ceiling board
Clockwise
6.
Secure the bracket by attaching and tightening a
nut (not included) to the anchor bolt.
Nut
7.
Anchor bolt
Nut
47 mm 61 mm
Ceiling board
Bolt is above center of hole
3.
Secure the safety wire to the bracket using
screw B (included).
Secure the safety wire (included with the
camera) to the camera using screw B (included
with the camera) and washer B (included with
the camera).
• Make sure you attach the safety wire when
mounting the camera on a ceiling to prevent
the camera from falling.
Screw B
(Length: 10 mm,
Body diameter: 2.6 mm)
Screw B
Washer B
(Inside diameter: 2.6 mm)
Safety wire
Safety wire
Safety wire hole
4.
Insert the bracket into the hole in the ceiling.
• The camera will face the direction indicated by
the arrow on the bracket.
8.
Align the 2 round protrusions on the camera and
the holes on the ceiling plate (included with the
camera), tighten the screw to secure the ceiling
plate, then pass the safety wire through the
ceiling plate as shown. Make sure you do not
scratch the lens cover when performing this
procedure.
Screw A (2 pcs.) (Length: 20 mm,
Body diameter: 4.0 mm)
Holes
4
BB-HCA10CE_IG.book
9.
Page 5 Friday, February 15, 2008
8:10 PM
Recessed area
10. Attach the camera to the bracket in 3 places
using screw B (included).
• Align the arrows on the ceiling plate (included
with the camera) and the bracket when
attaching the camera.
Ceiling plate arrow
Camera direction
3 Turn the ceiling mounting cover clockwise
until the “ ” mark on the rear of the camera
and the “ ” mark on the ceiling mounting
cover are aligned as shown.
English
Attach the connector cover (included) and
connect the necessary cables to the camera.
• Align the “ ” of the connector cover with the
center of the recessed area of the bracket.
• Cut spaces in the connector cover to make
room for the cables that will be connected to
the camera. Cut along the perforated lines.
• Be careful not to nip the cables, cords, etc.
• To remove the ceiling mounting cover, turn it
counterclockwise until the “ ” mark on the rear
of the camera and on the ceiling mounting
cover are aligned, then lower the ceiling
mounting cover.
12. Secure the safety wire to the ceiling.
• Secure the bracket’s safety wire first, using
screw A and the washer (included with the
bracket), then secure the camera’s safety
wire, using screw A and washer A (both
included with the camera).
• Secure the safety wires to the ceiling about
160 mm from the center of the camera.
• Do not drive the screws into a soft material.
Drive the screws into a secure, 25 mm thick
area of the ceiling, such as a crossbeam,
otherwise the bracket and the camera may
fall. If there is no crossbeam, place a board on
the other side of the ceiling to make sure the
bracket and the camera are securely
mounted.
Washer
(Inside diameter:
4.0 mm)
Screw A
(Length: 20 mm,
Body diameter: 4.0 mm)
11. Secure the ceiling mounting cover (included) to
the bracket.
1 Pass the safety wire through the ceiling
mounting cover as shown.
Washer A
(Inside diameter: 4.0 mm)
Screw A
(Length: 20 mm,
Body diameter: 4.0 mm)
Specifications
Operating +0 °C to +40 °C
temperature
Dimension
(W×H×D)
Weight
About 270 mm × 77.5 mm × 270 mm
About 900 g
2 Align the “ ” marks on the rear of the camera
and on the ceiling mounting cover.
5
