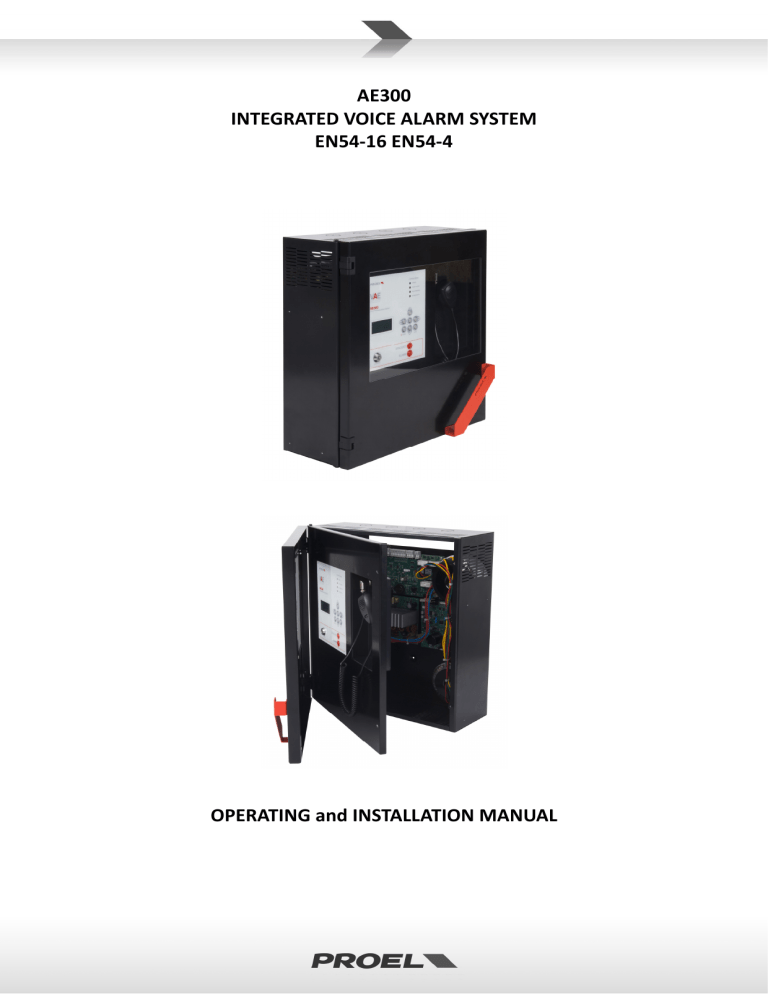

PROEL AE300 Operating And Installation Manual

AE300
INTEGRATED VOICE ALARM SYSTEM
EN54-16 EN54-4
OPERATING and INSTALLATION MANUAL
2
1. INTRODUCTION
The AE300 voice alarm system is a device for signalling in case of fire, designed according to EN Standards 54-16 and
54-4. It is an integrated, monolithic system with a single casing containing the voice alarm system blocks and the
power supply unit with backup batteries. The system can play back recorded alarm messages through the monitored
contact inputs, or an operator can speak directly through a microphone integrated in the front panel, or from a
remote emergency microphone workstation.
The system also has inputs for a service microphone workstation, background music diffusion, contacts for playing
back generic messages, as well as an Ethernet port.
Depending on the model, the system has (or does not have) a backup amplifier.
2.
SAFETY NOTES AND WARNINGS
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
This device must be installed in accordance with UNI Standard EN54-32:2015 and serviced only by qualified
personnel.
This manual must be read and understood before commissioning the device.
This device is set-up for operation using mains voltage within the 230 V +10% -15% range and 48V backup
batteries with 7.2A/h capacity.
It is necessary to strictly follow the instructions in Par. 4.p “Connection to the mains power supply and
earthing”
The device is protected by fuses on the main power supply (230V) and on the backup power supply (48V
battery). The fuses, respectively indicated as F1 and F2, are present on the power supply card. F1=T3.15AH,
F2=T8AH
All connections must be made with device off.
The end of a stranded conductor must not be terminated with a soft solder in the points in which the
conductor is subjected to a contact pressure (e.g. the header of the wirings which go to the cable seal
terminals must not be tin-plated but terminated with a crimping ferrule.)
The installer is responsible for setting up a 6A-C6 circuit breaker (in appropriate electrical panel) dedicated
to this device. The circuit breaker must be placed in an easily accessible position. The circuit breaker must
bear the words “VOICE ALARM SYSTEM – DO NOT SWITCH-OFF”
In order to avoid the risk of electric shocks, when accessing the inside of the device you must disconnect
the power supply network (230V). It is also necessary to disconnect the battery as there is a DANGEROUS
ENERGY LEVEL inside the machine (in particular to fastons J6 and J7).
Do not expose the device to humidity or rain or any other liquid. Keep the device away from objects or
containers with liquid that could be accidentally poured inside, through the ventilation slots.
Install the device in a cool, ventilated place and away from heat sources.
Install the device so as not to obstruct the ventilation slots.
Connect only batteries with the rated voltage and capacity described in this manual.
Do not reverse the polarity of the batteries.
The batteries must have a casing with flammability class HB or better
When installing the device, be very careful not to damage the electronic card with tools (pliers,
screwdrivers, etc...).
3
3.
MAIN FEATURES, FUNCTIONS WITH REQUIREMENT AND ACCESSORY FUNCTIONS.
Integrated, single-zone (1 zone max) voice alarm system, with class D power amplifiers and power supply unit with primary source
(230Vac network) and backup source (48V batteries).
ARM Cortex M3 processor, DSP 16bit 48Khz.
Controlled dynamic microphone on front panel; microphone capsule continuity monitoring, cable cut and short-circuit
Key or password to access the machine functional levels
Alarm and generic messages, recorded on uSD card. Contents monitored by system processor.
Class D power amplifiers, power 300W
2 Speaker lines (line A and line B) with 100V constant voltage with transformer coupling
Independent monitoring of the speaker lines (A+B) with direct measurement of AC voltage and current at 18Khz and FFT analysis.
2 Contact inputs with line monitored for alarm message activation (interruption and cable cut)
8 contact inputs (not monitored) to activate generic and service messages
3 open-collector outputs for reporting the machine status: alarm and fault. The open-collector outputs must only be connected to
circuits operating at SELV voltage.
Input for remote emergency microphone workstation with monitored connection.
Input for generic microphone workstation for service messages
RS485 port (reserved for future use)
Ethernet port for remote communication (reporting of status, configuration, audio streams).
Power supply unit according to Standard EN54-4 with main source (230Vac); backup source (48Vdc battery); temperature, battery
impedance and battery charger status monitoring.
Comprehensive user interface for a straightforward configuration
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
The following figure schematically shows the connections outside the system.
CallPostazione
di chiamata
workstation
Postazione
Emergency
di Emergenza
workstation
Sorgente
Sound
Source Sonora
A
LINELINEA
A
Alarm
Contact
Contatto
Allarme
FIRE-FIGHTING
CENTRALE
ANTI
STATION
INCENDIO
Evacuation
Contatto Contact
Evacuazione
B
LINELINEA
B
Fault/Alarm/Disablement
Contacts
Contatti Fault/Alarm/Disablement
AE300
VA
301
RS 485
Ethernet
8 Contacts
for generic
messages
8x Contatti
per messaggi
generici
4
SUBWOOFER
SUBWOOFER
Active
Attivo
Front panel
The front panel of the machine has the user interface through which you can manage the system and view its status.
At the top, the LEDs synthetically report the machine statuses:
• Green LED - POWER: indicates that the machine is on and operating
• Red LED – VOICE ALARM: indicates that a voice alarm or evacuation message is being played back
• Yellow LED – FAULT WARNING: indicates that the machine, a loudspeaker line or a connection to the system is faulty
• Yellow LED – DISABLEMENT : indicates that the monitoring of one or more machine functions has been deactivated
In the central part, the display shows the details on the machine status and, through the keyboard, you can access the internal menus.
Bottom-right of the user panel, the ALARM and WARNING buttons manually activate alarm or evacuation messages. To activate these alarm
messages, or access the machine functions in the menus, you must login at access level 2 with the key (bottom-left) or by entering a password in
the appropriate menu.
Finally, there is a PTT microphone on the machine front panel for issuing speakerphone alarm and evacuation messages. To activate the
microphone, you must login at access level 2 (with key or password), then press the key on the side of the microphone to speak.
5
4.
INSTALLATION AND MAINTENANCE
The system must be installed by qualified personnel and in accordance with UNI Standard EN54-30.
Unpack the device, loosen the two screws on the right of the front panel and rotate the door on the pins on the left side.
Inside are the machine electronics composed of three or four cards, depending on the model (with or without backup amplifier)
4.a Wall mounting
Fix the device to the wall with wall plugs and screw through the holes on the bottom of the container, indicated in the figure below by arrows:
MAINBOARD
POWER SUPPLY UNIT
Use suitable type wall plugs according to the characteristics of the wall and with load from 0.30 to 0.65 kN. The device must be fixed to the wall
by qualified personnel.
4.b Connection of the speaker lines
The terminals for connection to the speaker lines are located top-right on the main board, just below the fairlead window. Connect the
loudspeaker lines to 100V as shown in the figure. The overall load applied to the two lines must not exceed 300W.
When wiring the loudspeaker lines, be very careful not to short-circuit the two poles between them. If the loudspeaker lines are in shortcircuit, the system is not able to play back any alarm message, even if the fault is reported on the user interface.
LINE A
J9 – 100V LINE A
J10 – 100V LINE B
LINE B
J10 – Line A output
1 – 100V +
2 – 100V -
J10 – Line B output
1 – 100V +
2 – 100V -
6
Output at 100V constant voltage for loudspeaker line A
Power levels: 100Vac nom, 300Wrms nom, Rmin=34Ohm
Use cable with min section 1.5 mm, max 2.5 mm
Output at 100V constant voltage for loudspeaker line B
Power levels: 100Vac nom, 300Wrms nom, Rmin=34Ohm
Use cable with min section 1.5 mm, max 2.5 mm
4.c Subwoofer output
The system has a line output for an active subwoofer.
Connect the active subwoofer to the mainboard terminal shown in the figure. If the subwoofer is not used, leave this output disconnected.
J9 - Subwoofer
1 - Sub
LineLine
Sub
2 - GND
1
J9 – subwoofer line
output
1 – SUB OUT
2 - GND
Sub Line Sub
Lienea
2
SUBWOOFER
Active
Attivo
Ground
Massa
Line output to active subwoofer with roll-off at 120Hz. The output is only active during
playback of the background music applied to input J4 (line input) and is silenced during
the voice alarm status.
Power levels: 1.0Vrms, Ro=100ohm
Use shielded cable with min section 0.5 mm
4.d Status outputs
The system has three status signal outputs. These open collector outputs require a pull-up resistor that can be omitted if the pull-up is already
present inside the equipment to which these outputs are connected (e.g. smoke and fire signalling station)
The following figure shows the connection of the outputs to a smoke-fire signalling station with pull-up resistors.
+12V max
10 Komh
J8 - Output contacts
0,5A max open coll.
1 - GND
2 - ALARM
3 - FAULT
4 - DISABLE
4
GND
1
FIRE-FIGHTING
CENTRALE
STATION (Inputs)
ANTI-INCENDIO
(Ingressi)
J8 – Open-collector
status outputs
1 – GND
2 – ALARM
Each output supports up to 0.5Adc and voltage up to 12V
Do not directly connect the outputs to direct power supply!
Use cable with min section 0.5 mm, max 2.5 mm
3 – FAULT
4 – DISABLEMENT
7
4.e Generic messages activation contacts
The system has 8 unsupervised inputs for activating the generic and service messages recorded on uSD memory card. Each message is activated
by closing its ground input, as shown in the figure below.
The playback of the message is activated by a pulse. Releasing the contact after shorting it to ground has no effect, but the message will be
played till its end. When a message is being played, a second pulse will stop the player.
Generic messages have predefined priorities: message n has a priority over message n+1.
Example:
• When message 2 is played, the closing of contact 1 will stop message 2 and start message 1
• When message 2 is played, the closing of contact 2 will stop message 2
• When message 2 is played, the closing of contact 3 is ignored.
This said, message 8 will has the lowest priority, but message 1 has the highest.
Each contact is active only if an associated audio file is stored in the uSD card.
J7 – Generic messages activation
J7
Attivazione
1 –-Common
GNDmessaggi generici
12 -–Comune
Message GND
1
2 - messaggio 1
3 – Message 2
3 - messaggio 2
Message 3 3
44 -–messaggio
Message 4 4
55 -–messaggio
Message 5 5
66 -–messaggio
77 -–messaggio
Message 6 6
88 -–messaggio
Message 7 7
99 -–messaggio
Message 8 8
1
J7
–
Unmonitored
contact
inputs
for
service
messages
activation
1 – GND
2 – Message 1
3 – Message 2
4 – Message 3
5 – Message 4
6 – Message 5
7 – Message 6
8 – Message 7
9 – Message 8
8
9
Each input is active for closure to ground, protected up to +42V compared to GND
Use cable with min section 0.5 mm, max 2.5 mm
4.f Alarm messages activation monitored contacts
The system has two monitored dry contact inputs to trigger the EVACUATE and ALARM (alert) messages that are stored in the uSD
card. The connection foresees two resistors as described in the figure below. configuration of these inputs is described in the
dedicated menu. As a factory default, both inputs will trigger their respective message at the opening of the contact and the
playback will continue cyclically as long as the input is open. Playback will stop at the closing of the contact.
These inputs, that are typically activated by the fire alarm control panel are monitored against short circuit and cable cut: in this
case, the system will trigger a fault warning.
J6 – Monitored input
1-2 – Evacuation
3-4 - Alarm
J6 – Alarm messages
activation
monitored
contact input
EVACUATION
1 – CONT 1 P
2 – CONT1 N
ALARM
3 – CONT 2 P
Connect the resistors (supplied in the accessory bag) on each pair of contacts as shown in
the figure. The resistors must be placed at the end of the cable, from the smoke and fire
signalling station side.
Refer to the CONF ALARM INPUT MODE menu for the properties and configuration of the
input contacts.
The inputs of the alarm messages are, by default, configured for normally closed contacts.
Use cable with min section 0.5 mm, max 2.5 mm
4 – CONT2 N
If you do not intend to use the remote activation of messages, you cannot leave these terminals open without the device reporting a fault.
Therefore, connect two resistors directly on the mainboard terminal so that the device does not signal a connection fault.
2,2 Kohm
2,2 Kohm
J6 -– Ingresso
Monitored monitorati
input
J6
1-2 -– Evacuazione
Evacuation
1-2
3-4 -–Allarme
Alarm
3-4
1
4
9
4.g Generic announcement microphone workstation
The system has an input for a microphone workstation for generic announcements, that is not evacuation and voice alarm announcements. The
terminal shown in the figure has a balanced microphone input and a priority contact input.
The microphone input for generic announcements also has +48V phantom power supply that can be activated from the menu.
J5
microfonica
Paging
J5 -–Postazione
Paging microphone
workstation
Priority contact
11-–22Contatto
priority
Mic++
33-–Mic
Common
44-–Comune
Mic-55-–Mic
J5 – Mic paging input
1 – GND contact
1
5
Mic P
Mic Comune
Mic N
Priority
Mic
3 – MIC P
Input for microphone paging workstation for generic announcements. 48V Phantom
power supply that can be activated from menu: common mode on pin 1 and 3 compared
to pin 2.
4 – MIC GND
Power levels: 1.0Vrms max, Ri=600Ohm
2 – Priority
5 – MIC N
Active contact for closure to ground, protected up to +42V compared to GND
Use cable with 0.5 mm min and 2.5 mm max section on priority contact.
Use shielded cable with 0.5 mm min section on audio input.
10
4.h Music/line input
The system has a line input for connection to an audio source for background music diffusion.
You can connect both sources with balanced output and sources with unbalanced output. The following figures describe the connections.
J4
- Background
J4 –
Background music
1music
– Input +
12 -– Ingresso
Common +
23 -– Comune
Input 3 - Ingresso -
SORGENTE
AUDIO
AUDIO SOURCE
BALANCED OUTPUT
USCITA BILANCIATA
Audio P
Ground
Massa
Audio N
1
3
For the connection of audio sources with unbalanced output, connect the positive to terminal 1, the source ground to terminal three and leave
the central terminal free.
J4
J4 -– Background
Background music
1music
– Input +
12 -– Ingresso
Common +
Input 23 -– Comune
3 - Ingresso -
SORGENTE
AUDIO
AUDIO SOURCE
BALANCED OUTPUT
USCITA SBILANCIATA
J4 – Line input for audio
sources
3
Ground
Massa
Audio P
1
1 – Audio P
Balanced line input, transformer insulated. Used for background music diffusion.
2
–
Common/Ground
Power levels: 0.8Vrms @ 0dB, Ri=100Kohm
3 – Audio N
Use shielded cable with min section 0.5 mm
4.h Emergency microphone workstation
The system has a RJ45 input for connection to remote emergency microphone workstations and monitored according to Standard EN54-16.
Connect the microphone workstation to socket rJ45 through a UTP CAT5 cable. The connection between the two RJ45 pins to the cable end
must be 1-to-1.
CAT5
CAT5
headed
RJ45
intestato
RJ45
11
J3 – External emergency
mic workstation port
5 – +24Vdc
RJ45 Connector for connection to external emergency microphone workstation. This
connector carries both the audio signals and data link from and to the external
microphone workstation. Connection is monitored and the system reports a fault in case
the communication with the microphone workstation is lost due to short-circuit or cable
cutting.
Proprietary connection for connection to the dedicated microphone workstations only
6 – GND
Use 8-pole UTP CAT5 cable, 4 pairs. Head the RJ45 connectors 1-to-1
1 – Audio P
2 – Audio Gnd
3 – Audio N
4 – GND
7 – COMM P
C – COMM N
4.i RS485 Serial connection
The system implements an RS485 communication port for connection to remote devices with dialogue through protocol, described in the
specific manual. The following figure describes the connection between the AE300 and an external device, through RS485 port. The jumper to
terminate the line is located behind the terminal. With the jumper inserted, the line is terminated. With the jumper not inserted, the line is not
terminated.
DISPOSITIVO
REMOTO
REMOTE DEVICE
RS485 Port
B
Terminazione linea
A
LineJumper
Termination Jumper
J2 – RS485
3
J4 - Rs485 Bus
1 - Rs485 A
2 - Rs485 B
3 - GND
Massa
Ground
Porta RS485
1
1 – RS485 A
Port RS485 not insulated.
2 – RS485 B
Standard power levels ANSI TIA/EIA-485
3 - Ground
Use shielded cable with min section 0.5 mm
4.l Ethernet port
The ethernet port allows connecting the system to a company data network, or a dedicated data network, to remotely monitor the machine and
connect several machines in a hierarchical manner.
ETHERNET SWITCH 10:100
Ethernet port
Standard pinout
Ethernet port 10/100 Base T insulated with coupling to connector built-in transformers
Use UTP CAT5 cable
12
4.m Emergency microphone installation
The device is equipped with microphone for emergency announcements, located on the front panel of the device.
This microphone is monitored against faults (cable cutting, short-circuit and interruption of the microphone capsule)
Take the PTT microphone from the accessory bag, identify the round connector on the front panel. This connector is equipped with a key which
determines the direction of insertion (see photo below)
Insert the microphone connector and secure it to the machine body with the appropriate ring nut, then place the microphone on the
appropriate hook.
N.B. The device does not operate without the presence of the emergency microphone. If the emergency microphone is missing, the relevant
fault is signalled on the user interface.
4.n uSD memory card
The housing for the uSD memory card containing the recorded messages is located on the left side of the mainboard. Before extracting or
inserting the card, activate the appropriate DISABLEMENT function of the uSD from the menu.
The port-card connector is of a push-push type: to extract the card, push the uSD fully into the connector until you hear a “click”, then release
and extract the card.
Insert the card with the contacts facing down and push until you hear a “click.”
13
4.o Installing and connecting batteries
The system provides the use of 4 12V 7.2A/h batteries connected in series to achieve rated 48V. Install the batteries in the bottom space, on the
bottom of the container left of the toroidal transformer.
MAINBOARD
POWER SUPPLY UNIT
BATTERY
BATTERY
BATTERY
BATTERY
The following figure shows the battery connection to the electronic card of the power supply unit.
The power supply unit card is located bottom-right, between the two toroidal transformers.
The faston terminals + and - 48V are on the bottom of the card.
Connect the four batteries in SERIES (+ on -) with the faston-faston jumpers in the accessory bag.
Connect the negative terminal of the battery pack to faston – on the power supply unit card.
Take the anti-spark cable from the accessory bag and make sure that the two connectors are NOT engaged; the connection between the
batteries and the card must take place with this connector OPEN.
Connect one end to the battery positive terminal and the other to the +48V terminal on the power supply unit card.
Close the connector only after connecting the cable to the batteries and the card.
When closing the connector the machine remains in stand-by and does not turn on.
A two-pole white connector identified with “BATT TEMP PROBE” is located to the right of the fuse-holder. Engage the temperature probe in the
connector and apply it to one of the batteries using adhesive tape.
POWER
SUPPLY
UNIT CARD
SCHEDA
ALIMENTATORE
+
Probe
Morsetto
terminal
sonda
Anti-spark
Cavo cable
anti-spark
-
+
Battery
Battery
BATTERIA
BATTERIA
12V 7A/h
BATTERIA
BATTERIA
12V 7A/h
-
+
SondaTemperature
Temperatura Probe
Battery
Battery
BATTERIA
BATTERIA
12V 7A/h
BATTERIA
Battery
BATTERIA
12V 7A/h
-
+
14
Batterie
+
-
4.p Connection to the mains power supply and earthing
The terminal for the 230V mains power supply and earthing connection is located top-right, near the breakaway slot for cable inlet. The Figure
here below shows the LINE, EARTH and NEUTRAL connections.
L
N
ATTENTION: Make the mains and earthing connections as shown in the above figure.
For the connection to the power mains, provide a 6A-C6 circuit breaker dedicated to the equipment; this must be placed in an easily accessible
position.
Use cables with a section of 1.5 mm for both the mains power supply and earthing.
Make sure that the signal cables, and the low voltage cables in general, do not accidentally touch the mains voltage points. These are the
terminals for connection to the mains voltage, and the areas marked with the symbol inside the device
4.q Powering the system
After making and checking all connections, close the jumper on the anti-spark cable connecting the battery positive to the power supply unit
card (see 4.n), then activate the circuit breaker.
The system display indicates “POWER ON” and so begins the switch-on sequence.
4.r Monitor loudspeaker volume
The trimmer for adjusting the monitor loudspeaker volume on the front panel of the device is located on the bottom of the mainboard
(indicated by the arrow in the figure). Enable the playback of any message (see specific menu), then rotate the trimmer to obtain the desired
volume.
4.s Clock battery replacement
The battery-holder for the buffer battery of the internal clock and calendar is located on the bottom of the mainboard. Although these batteries
have a very long life, we recommend replacing them every 24 months.
To avoid having to reset date and time, you can replace the battery with the system on and powered.
Battery
Batteria
CR 2032
15
4.t Device maintenance
a)
b)
c)
d)
e)
f)
16
Periodically clean the device with a dry cloth
Periodically check that the ventilation openings are not obstructed
Periodically check the wiring and connections
Periodically check the efficiency of the earthing connection
Replace the Pb-Gel batteries every 4 years with units having the same voltage and capacity
Replace the CR2032 battery of the internal clock (see par. 4q) every 4 years
5. MENU DESCRIPTION
6.1 Status Description
The system is designed to manage different operating conditions which, according to Standard EN54, are identified in four statuses. The system
status is displayed by the LEDs on the front panel of the system and of the remote emergency microphone workstations.
QUIET Status:
Operating condition “at rest”, without faults, no playback of voice alarms and no active “disablements.” Only the
diffusion of background music or generic messages (not alarm ones) is allowed. When the system is in the quiet
status only the green LED is lit on the front panel of the unit, to indicate that the system is powered.
ALARM Status (VOICE ALARM):
Operating condition where a pre-recorded or speakerphone voice alarm is being issued from the emergency
microphone workstation. It can be activated via an external device connected to one of the supervised contacts, or
from an emergency microphone workstation. While a voice alarm is issued, the system turns on the red LED to
indicate the voice alarm status. The green LED remains on to indicate that the system is powered.
The display will show a POP-UP window indicating the source of the voice alarm in progress.
FAULT Status (FAULT WARNING):
Operating condition indicating the presence of at least one fault detected by the internal diagnostic system. The
status indication is accompanied by a fault intermittent acoustic signal (buzzer) and the yellow LED lighting up on
the unit panel. The green LED remains on to indicate that the system is powered.
The display will show a POP-UP window indicating the number of detected faults and a brief description.
DISABLEMENTS Status:
Operating condition in which the functions of one or more system sections are disabled.
Even the faults related to the disabled section are suspended since safety functions are deactivated. This condition
allows operating on the system without turning it off and without the fault condition (FAULT WARNIGS) being
activated.
The display will show a POP-UP window indicating the number of active “disablements” and a brief description of
the section(s).
NOTE: Operating conditions may also occur simultaneously. The LEDs corresponding to the active conditions will light up on the front panel and
the display will show a POP-UP window indicating which and how many events are active. If the number of events exceeds the number of rows
of the POP-UP window, indications will cyclically scroll on the display. In this case you can view entries using the UP and DOWN arrows.
17
6.2 Main Screen
In the absence of warnings, the main screen shows the following information:
• System time: shows the current system time; for the system events to be properly recorded, this should
be always updated. It is also important to verify that seconds are regularly counted, otherwise the system
CPU may be locked.
• Current access level: A key indicates the current access level 1, 2 or 3.
• System status: The “System OK” text indicates that the system is operating.
In case of a fault, a POP-UP window will appear indicating the number of active faults, the presence and
number of “disablements” and if an alarm message is in progress.
Icons
Current access level: a key positioned bottom-left of the display indicates the current access level: 1, 2 or 3.
Message playback with active repeat rules. In case alarm or evacuation messages are played back, an icon with
two alternate arrows may appear to indicate the presence of rules in the number of repetitions of the current
message. The rules impose a minimum number of reproductions and/or a maximum number of reproduction
cycles.
Fault of one of the two lines A or B with volume increase. In case of line fault with redundant A&B line, an icon
will appear to indicate that the “non-faulty” line is working with an indicated volume increase.
Mute on. With mute on, an icon with the loudspeaker crossed is displayed to indicate that the mute is active.
During the playback of a pre-recorded or voice message you can activate the “MUTE” function by pressing the
appropriate button on the front panel; when on, an icon with a crossed loudspeaker appears on the display.
To deactivate, simply press the appropriate button again and mute will be removed.
NOTE: as per EN54-16, when “Mute” is activated during the playback of a pre-recorded message, the output is
muted only at the end of the message itself to avoid compromising its intelligibility. Likewise, when mute is
removed, the message will be played back at the end of the reproduction cycle. Mute activation while an
emergency microphone is “speaking” is immediately effective.
Warning on In case of a system event, a flashing triangle appears to attract the user’s attention. The warning is
removed when you access the “System Logs” system event menu, which lists the system events.
18
6.3 Menu Description And Navigation
Using the keyboard on the front panel
From the home screen where the display shows the general status, press OK to access the menu
structure.
The OK key in the sub-menus is used to confirm the selection of the element pointed by the navigation
arrow.
Use the UP and DOWN keys to scroll the list of menus and sub-menus.
Press OK to access the menu or sub-menu pointed by the navigation arrow.
Press BACK to go back to the previous menu or cancel the selection of a function. Repeatedly pressing
the BACK key from any workstation returns to the main screen.
Alternatively, you can access the selected menu or sub-menu by pressing the RIGHT key, and go back to
the previous menu or sub-menu by pressing the LEFT key.
The main menu is structured in the form of a list in which the functional parts of the system are managed:
Menu tree
•
Line & Amplifiers
•
Power supply & Battery
Management of Diffuser lines and amplifiers
Management of primary power supply (220V) and secondary (Battery)
•
Fire microphone
Management of the emergency microphone workstations
•
Recorded messages & SD
Management of pre-recorded messages on micro-SD card
•
Input contacts
Management of contacts to launch messages
•
Ethernet
•
System status & Conf
Management of ethernet connection
System configuration
•
Volumes
•
Message Scheduler
Configuration of hourly programming of pre-recorded messages
•
System Logs
Display of system events
•
Access level login
Volumes configuration
User authentication
19
LINE & AMPLIFIERS Menu
The Line & Amplifiers menu allows you to view and manage the status of amplifiers
and speaker lines. They appear in the form of a list and can be scrolled using the UP
and DOWN arrows. Each amplifier and speaker line is linked to the summary status:
Status of the amplifiers:
DISABLED
 Disabled (Disablement)
ABSENT
 Not installed
FAULT
 Faulty
WARNING
 Pre-alarm condition
OK
 Running
Status of the lines:
DISABLED
 Disabled (Disablement)
NOT IN USE
 Not in use
NO CALIB
 Impedance not calibrated
FAULT
 Faulty
OK
 Running
The system works with a Main amplifier and a possible Backup amplifier. Both the
main amplifier and the backup amplifier, if installed, are monitored to ensure
effectiveness; in case of a faulty main amplifier, the backup amplifier automatically
takes over, if installed.
For details of the status of the amplifiers you can select from the list and press OK to
access the Main amplifier detail / Backup amplifier detail screen that indicates the
status in detail. In particular, the display shows the type of amplifier selected and its
operating status:
Func:
Connected / Active  Connected to the load and active
Connected / Powerdown
 Connected to the load and in energy saving
mode
Disconneted / Powerdown Disconnected from the load and in energy
saving mode
The system works with a single line of speakers that can be managed in single or
double mode, also called A&B mode. The content diffused via speakers is unique in
both single-line and double-line mode, A&B line. The difference between the two
modes is the possibility, in A&B mode, to manage a fault on the speaker line and
recover the lost sound pressure by transferring power on the line that is still operating.
In the event of a fault, e.g. short-circuit, of the single-mode speaker line (not A&B), the
system isolates the line to avoid damaging the amplifier, making it impossible to
diffuse any contents. On the contrary, if the line of speakers was wired in double
mode, alternating a line A speaker with a line B speaker and homogeneously
distributing the speakers on the surface to be sonorised; in the event of a fault on one
of the two lines, e.g. short-circuit, the system isolates the faulty line and increase the
volume of the remaining line so as to recover the lost sound pressure.
20
For details of the status of the lines, you can select from the list and press OK to access
the Line A detail / Line B detail screen that indicates the status in detail. In particular,
the display shows the status, operation and possible error for the selected line of
speakers.
The following errors can be managed:
Detail: GND SHORT
NO LOAD DETECTED
UNDERLOAD
OVERLOAD
BAD LOAD
LOAD SHORT
 Earthed speaker line
 Speaker line interrupted
 Loss of line load
 Increase of line load
 Line impedance not manageable
 Line in short-circuit
The speaker line can be connected or disconnected:
Func:
Connected
 Speaker line connected
Disconnected
Speaker line disconnected
To access the POP-UP where to insert or remove the “disablement” condition, you
must have access level 2, otherwise a screen is displayed where you are required to
login to carry out this operation.
From the POP-UP, with the section in “disablement” you can calibrate the line
impedance by selecting the “Calibrate line” command; execution is immediate and the
outcome is shown on the status detail screens of the line of speakers. This operation
measures the line impedance at 18KHz to continuously evaluate any changes denoting
a change in load.
NOTE: When the “Line & Amp” section is in “disablement,” all safety functions related
to the amplifiers and speaker lines are deactivated. Any “FAULTS” are also removed.
The “disablement” function allows working on the speaker lines without interrupting
the system operation and without generating “FAULTS.”
When the line calibration command is selected, the screen changes and a counter
appears indicating the time to wait for the procedure to be performed, at the end of
which a screen summarising the outcome appears.
Listed below is the status of the two amplifiers and of the two lines managed by the
system
• Main Amp:  Primary amplifier
• Backup Amp:  Backup amplifier
Status of the amplifiers:
ABSENT
 Not installed
FAULT
 Faulty
OVERTEMP
 Condition of overheating
OK
 Running
• Line A:  Speaker line A
• Line B:  Speaker line B
Speaker line status:
DISABLED
GND SHORT
NO LOAD DETECTED
UNDERLOAD
OVERLOAD
BAD LOAD
LOAD SHORT
 Not in use
 Earthed speaker line
 Speaker line interrupted
 Loss of line load
 Increase of line load
 Line impedance not manageable
 Line in short-circuit
21
POWER MANAGEMENT Menu
The Power supply unit menu allows you to view and manage the status of the system
power supply unit. All information is shown in 4 screens selectable with the UP and
DOWN arrows, the first of which summarises the status of the macros composing the
power supply section:
PSU global status  System power supply unit, consisting of all its components:
DISABLED
 “Disablement” section
CUT-OFF
 Imminent shutdown
FAULT
 At least one fault active
OK
 Operating properly
Main Power
 Main power supply connected to the primary power mains,
status can be OK or FAULT.
Backup Power
 Backup power supply connected to the buffer batteries, the
status can be OK or FAULT.
Charger status
 Buffer battery charger; its status can be OK or FAULT.
The second screen summarises the status of the main power supply unit, which draws
the primary power supply from the primary power mains.
Mains: PRESENT
Primary power mains connected and present
ABSENT
 Primary power mains disconnected and absent
Indicates the status of the system protection fuse from the primary power mains.
Fuse
OK
 Fuse intact
BLOW
 Fuse blown or removed
For completeness, the value in volt of the internal primary power supply distributed to
all system components (Amplifiers, Charger, etc.) is indicated
The third screen summarises the status of the backup power supply unit, which draws
the secondary power supply starting from the battery pack.
Batt:
PRESENT
 Battery pack present and connected
ABSENT
 Battery pack removed
SHORT
 Battery pack in short-circuit
OPEN
 Open wiring / battery pack disconnected
OVERTEMP
 The battery temperature is too high
UNDERTEMP
 The battery temperature is too low
The status of the battery protection fuse is indicated.
Fuse
OK
 Fuse intact
BLOW
 Fuse blown or removed
The value in volt of the battery pack read by the system and the temperature in
degrees centigrade are indicated.
Presence of the impedance status of the battery pack:
Impedence: OK
 Impedance of the battery pack detected and correct
NOT CALIB
 Impedance of the battery pack not calibrated
ERROR
 Impedance of the battery pack out of range, used
batteries or to be re-calibrated
WARNING
 Impedance of the battery pack near the fault
threshold
For completeness, the display indicates the measured impedance value and the
calibration value with the fault threshold in percentage.
22
The fourth screen summarises the operating status of the battery pack charger.
Charger: FAULT
 Faulty charger
OK
 Operating charger
It shows the details of the operating status:
Status: CIRCUIT FAIL
 Faulty charging circuit
OVERTEMP
 The charging circuit temperature is too high
IN CHARGE
 The charging circuit is operating and the charge is in
progress
IDLE
 The charging circuit is operating and the charge is not
in short-circuit
For completeness it indicates the charging circuit temperature in degrees centigrade.
To access the POP-UP where to insert or remove the “disablement” condition, you
must have access level 2, otherwise a screen is displayed where you are required to
login to carry out this operation.
From the POP-UP, with the section in “disablement” you can calibrate the battery pack
impedance by selecting the “Calibrate battery” command; execution is not immediate
and requires a few seconds; at the end the outcome is shown on the status detail
screens. This operation measures the battery pack impedance to continuously
evaluate any changes denoting a degradation.
NOTE: When the “Power supply unit” is in “disablement” all safety functions related to
the power supply are deactivated. Any “FAULTS” are also removed. The “disablement”
function allows working on the batteries without interrupting the system operation
and without generating “FAULTS.”
FIRE MICROPHONE Menu
The Fire microphone list menu allows you to view and manage the status of the
microphone workstations used to issue emergency messages both locally or via
microphone on the system front panel and remote bases connected by bus. They
appear in the form of a list and can be scrolled using the UP and DOWN arrows. Each
microphone workstation is linked to a summary status:
The local microphone workstation, with microphone on the system front panel:
Local Fire Mic:
DISABLED
 Disabled, in “disablement”
FAULT
 At least one fault active
OK
 Operating, no fault detected
Remote emergency microphone workstation:
Remote Fire Mic: DISABLED
 Disabled, in “disablement”
NOT IN USE
 Disabled, not connected
FAULT
 At least one fault active
OK
 Operating, no fault detected
For the details of the status of the emergency microphone workstations you can select
from the list and press OK to access the Local Fire microphone screen in case of local
microphone workstation, Remote Fire microphone in case of remote microphone
workstations, in both cases the status is shown in detail.
Details of the operating status for the local microphone workstation:
Fire Mic Status: DISABLED
 Disabled, in “disablement”
FAULT
 At least one fault active
OK
 Operating, no fault detected
Details the status of the microphone capsule:
23
Capsule:
OPEN
SHORT
OK
 Microphone capsule or wiring interrupted
 Microphone capsule or wiring in shortcircuit
 Microphone capsule and wiring intact
Details of the operating status for the remote microphone workstation:
Fire Mic Status: DISABLED
 Disabled, in “disablement”
FAULT
 At least one fault active
OK
 Operating, no fault detected
Details of the connection to the system for the remote workstation:
Communication: FAULT
 Communication error
OK
 Communication operating
Details the status of the microphone capsule:
Capsule:
OPEN
 Microphone capsule or wiring interrupted
SHORT
 Microphone capsule or wiring in shortcircuit
OK
 Microphone capsule and wiring intact
To access the POP-UP where to insert or remove the “disablement” condition, you
must have access level 2, otherwise a screen is displayed where you are required to
login to carry out this operation.
From the POP-UP, with the section in “disablement” you can replace the local
microphone without the system reporting the fault. It is also possible, from the
“disablement” condition, to remove a remote microphone workstation without the
system reporting the fault.
NOTE: When the “Fire microphone” section is in “disablement”, all functions linked to
the emergency microphone workstations are deactivated. Any “FAULTS” are also
removed.
Menu MESSAGES
The Messages list menu allows you to view and manage the status of the system
messages pre-recorded on uSD as file with .wav extension. They appear in the form of
a list and can be scrolled using the UP and DOWN arrows. Each message/file in the list
is linked to the summary status:
DISABLED
 Message in “disablement”
NO uSD
 No uSD or not detected
BAD uSD
 uSD unusable
NO IMPRINT
 File image not created / File not loaded
NO FILE
 File/message not present
FAULT
 File/message in error
OK
 File/message OK
11 messages can be managed:
EVAC
 Evacuation message (Controlled)
ALARM
 Generic alarm message (Controlled)
CHIME
 “Din-Don” message
Gp msg 1-8
 Generic message
The evacuation and alarm messages are continuously controlled to verify their
integrity.
Files format:
Evacuation message
 EVAC
 evac.wav
Generic alarm message ALARM
 alarm.wav
24
“Din-Don” message
 CHIME
 chime.wav
Generic message 1:8
 Gp msg 1:8
 msg1.wav / msg8.wav
Files must have the following characteristics: Format WAV, 48KHz, MONO, 16bit
Position of files: Files must be saved in the uSD root, that is not within sub-folders.
uSD formatting: To format the uSD, see the dedicated chapter
For details of the status of a message, you can select it from the list and press OK to
access the Message detail screen that indicates the status in detail. In particular, the
display shows the type of message, the file name, the status and the possible error.
Faults are as follows:
FILE CORRUPTED  File corrupted
UNREADABLE
 File unreadable
BAD FORMAT
 Incorrect file format
TOO BIG
 Excessive file size
To access the POP-UP where to insert or remove the “disablement” condition, you must have access level 2, otherwise a screen is
displayed where you are required to login to carry out this operation.
From the POP-UP you can listen to the selected message on the monitor loudspeaker, without playing it on the speakers.
By placing the whole section of messages in “disablement”, you can safely remove the uSD to add or remove messages/files.
File names are fixed and formats must be adhered to so that the system recognises the messages/files; if a file has a different name from
those expected, it is ignored.
For the system to create the image of the files, the section must be in “disablement”; insert the uSD with the messages/files in the correct
format, select the “Get uSD imprint” command and at the end of the validation process, still in disablement, you can verify the validation
result by scrolling the status of the messages/files in the detail screen. To activate new messages, remove “disablement.”
NOTE: When the uSD section is in “disablement” all system functions related to pre-recorded messages are deactivated; the uSD is off and
can be safely removed. Any “FAULTS” related to messages are also removed. The “disablement” function allows working on messages
without interrupting the system operation and without generating “FAULTS.”
25
INPUT CONTACTS Menu
The Digital input list menu allows you to view the status of the system digital inputs, in
the form of a list, and you can scroll them using the UP and DOWN arrows. Each input
in the list is linked to a summary status:
DISABLED  Input in “disablement”
FAULT  Faulty input
ACTIVE  Active input
IDLE
 Idle input
For an input status details, you can select it from the list and press OK to access the
Digital input detail screen that indicates the status in detail. In particular, the display
shows the name of the input, the condition, the status and the possible active error.
Faults are as follows:
CABLE CUT
 Cable cut, connector removed
CABLE SHORT
 Cable in short-circuit
CIRCUIT FAILURE  Faulty control circuit
To access the POP-UP where to insert or remove the “disablement” condition, you
must have access level 2, otherwise a screen is displayed where you are required to
login to carry out this operation.
By placing the whole section of inputs in “disablement”, you can work on the wiring,
preventing the system from reporting faults or accidentally launching a message.
At the end of the wiring operations, remove the “disablement” condition.
NOTE: When the input section is in “disablement”, all system functions related to the
input contacts are deactivated. Any “FAULTS” related to wiring are also removed. The
“disablement” function allows working on the wiring without interrupting the system
operation and without generating “FAULTS”.
ETHERNET Menu
The ETHERNET menu manages the network features. You can view the interface status
and configure the operating parameters. The functions are shown as a list and can be
browsed using the UP and DOWN arrows. When the desired selection is pointed by the
arrow, press OK to access the section.
ETH STATUS Sub-menu
The ETH STATUS menu displays the the network interface status of connection.
The System NET name view sub-menu allows you to view and configure the name of
the system network.
To change the network name simply press OK to access the System NET name conf
screen to enter the desired data, compose the name by changing one letter at a time
until you get the desired combination; use the right and left arrows to move between
letters and the up and down arrows to change the value of the selected letter. When all
letters coincide with the desired settings, simply press OK to save them; press BACK to
cancel the changes.
To change the network configuration you must have access level 2, if not a screen is
displayed where you are required to login to carry out this operation.
26
The DHCP View sub-menu allows you to view and configure the manual or automatic IP
address allocation via allocation from DHCP server. To change the option, simply press
OK to access the DHCP conf screen to set the DHCP ENABLED or DISABLED parameter.
To change the network configuration you must have access level 2, if not a screen is
displayed where you are required to login to carry out this operation.
The IP view sub-menu allows you to view and configure the system network
configuration parameters.
Configurable parameters are the IP network address, the Subnet Mask, the Gateway
address and the DNS address.
To change network parameters simply press OK to access the IP conf screen to enter
the desired data, compose the addresses by changing one digit at a time until you get
the desired combination; use the right and left arrows to move between digits and the
up and down arrows to change the value of the selected digit. When all digits coincide
with the desired settings, simply press OK to save them; press BACK to cancel the
changes.
To change the network configuration you must have access level 2, if not a screen is
displayed where you are required to login to carry out this operation.
SYSTEM CONF LIST Menu
The SYSTEM CONF LIST menu allows you to configure the system. Below the description and use of each section
In the DO INDICATOR TEST sub-menu, the System indicator test option allows you to
test all system indicators.
By pressing OK all indicators will turn on for 2 seconds - even the display will turn
completely white - and the acoustic indicators will emit a continuous beep. If an
indicator is off during this operation, or some pixels do not turn white, or no sound is
heard from the system, contact the service centre and report the fault.
The test can be run at access level 1
The CONF SYSTEM TIME sub-menu allows you to view and configure the system date
and time.
To change the system date and time simply press OK to access the Set system time
screen. Select the field to be changed with the RIGHT and LEFT arrows and select the
desired value with the UP and DOWN arrows.
To save the configuration, simply press OK, press BACK to cancel the changes.
To change the system date and time you must have access level 2, if not a screen is
displayed where you are required to login to carry out this operation.
27
The CONF LINE & AMP MODE sub-menu allows you to view and configure the backup
amplifier and the line operation in A&B mode.
The system provides the operation with or without backup amplifier:
Backup amplifier: DISABLED / ENABLED  Backup amplifier: NOT ACTIVE / ACTIVE
The system provides the operation with the speaker line in single or A&B mode:
Line A&B mode: DISABLED / ENABLED  A&B Line mode: NOT ACTIVE / ACTIVE
In case of ACTIVE A&B line mode, you can configure the volume delta to be applied, in
case of a line fault, to the one still working. In fact, the A&B mode allows you to
independently manage the line faults and, in case of a fault, isolate the faulty line and
simultaneously recover the lost sound pressure by transferring power on the line not
in error.
To change the operating parameters simply press OK to access the Line & Amp mode
config screen. Select the desired setting with the RIGHT and LEFT arrows and select
the desired value with the UP and DOWN arrows.
To save the configuration, simply press OK, press BACK to cancel the changes.
To change the backup amplifier configuration and the operation of the line in A&B
mode you must have access level 3, if not a screen is displayed where you are required
to login to carry out this operation.
NOTE: changing the operating mode of the line cancels the calibration values of the
line impedance and blocks the management of the line and amplifiers in the
disablement condition.
The CONF ALARM MESSAGE LOOP menu allows you to view and configure the
minimum and maximum number of repetitions of the pre-recorded alarm and
evacuation messages.
The minimum number establishes how many times the pre-recorded message is
played before accepting the stop command; the parameter can be disabled by setting
the value 0 = DISABLED.
The maximum number establishes how many times at most the pre-recorded message
is played before it is automatically terminated; the parameter can be disabled by
setting the value 0 = DISABLED.
The parameters of minimum and maximum number of message playback are only
applied to alarm and evacuation messages.
NOTE: if the configuration of minimum or maximum playback is active for presymbol.
recorded messages during playback, the main screen will display the
To change the operating parameters, simply press OK to access the Evac & Alarm msg
loop config screen. Select the desired setting with the RIGHT and LEFT arrows and
select the desired value with the UP and DOWN arrows.
To save the configuration, simply press OK, press BACK to cancel the changes.
To change the minimum and maximum number of alarm and evacuation pre-recorded
message playback, you must have access level 3, if not a screen is displayed where you
are required to login to carry out this operation.
The CONF ALARM INPUT MODE menu allows you to view and configure the operating
mode of the inputs associated to the alarm and evacuation pre-recorded messages.
28
An input can be active when closing or opening the contact and work on front lines or
on level.
Active: OPEN/CLOSE
Trigger: LEVEL/FRONT
 Active: OPENING / CLOSING
 Mode: LEVEL / FRONT
To change the operating parameters, simply press OK to access the Alarm inputs mode
config screen. Select the desired setting with the RIGHT and LEFT arrows and select
the desired value with the UP and DOWN arrows.
To save the configuration, simply press OK, press BACK to cancel the changes.
NOTE: If you configure the inputs in TRIGGER = FRONT mode the start and stop of the
message takes place during transition from OPENCLOSE contact or vice-versa; for
this reason when powered the system will not be able to detect an active contact.
Vice-versa, if you configure the inputs in TRIGGER = LEVEL mode the start and stop of
the message takes place following the status of the input which can be active CLOSED
or OPEN; for this reason, if the contact is active when the system is turned on and
after the start-up sequence, the message will be immediately launched.
To change the operating configuration of the inputs associated with the alarm and
evacuation pre-recorded messages, you must have access level 3, if not a screen is
displayed where you are required to login to carry out this operation.
The CONF SYSTEM PASSWORDS menu allows you to view and configure the system
access passwords. The current password to access level 2 and the password to access
level 3 are displayed.
To change them simply press OK to access the Sys password config screen; to enter the
password compose it by changing one digit at a time until you get the desired
combination; use the right and left arrows to move between digits and the up and
down arrows to change the value of the selected digit. When all digits coincide with
the password to be entered, simply press OK to save them; press BACK to cancel the
changes.
To change the system password you must have access level 3, if not a screen is
displayed where you are required to login to carry out this operation.
NOTE: if the passwords to access level 2 and 3 coincide, at the time of authentication
the system will authenticate the highest level, that is 3.
The MIC CONFIGURATION MODE menu allows you to view and configure the
operating parameters of the system microphones.
In particular, you can enable or disable the playback of the chime on the integrated
VVF microphone, on the remote VVF microphone and on the paging microphone.
It is also possible to activate or deactivate the phantom voltage output for the paging
microphone in order to power dynamic microphones.
For each item you can set the values:
DISABLED  Off or disabled / ENABLED  On or enabled
To change the parameter, simply press OK to access the MIC configuration mode
configuration screen. Select the desired setting with the RIGHT and LEFT arrows and
select the desired value with the UP and DOWN arrows. To confirm the configuration
press OK to cancel the changes press BACK. The configured values are applied at the
time of confirmation.
To change the microphone configuration you must have access level 3, if not a screen
is displayed where you are required to login to carry out this operation.
29
The CONF MASTER EQUALIZER menu allows you to view and configure the
equalisation parameters of the system audio output.
You can configure treble, medium and bass tones; configurable values are expressed in
decibels referred to 0dB.
The configurable values for each band are:
-15dB, -12 dB, -10 dB, -8 dB, -6 dB, -4 dB, -2 dB, -1 dB, 0 dB, +1 dB, +2 dB, +4 dB, +6 dB,
+8 dB, +10 dB, +12 dB, +15 dB
To configure an equalisation value, simply press OK to access the Master equalizer set
configuration screen.
Select the band to be changed with the RIGHT and LEFT arrows and select the desired
value with the UP and DOWN arrows. To confirm the configuration press OK; to cancel
the changes, press BACK. The configured values are applied in real time during
parameter editing.
To change the system equalisation you must have access level 2, if not a screen is
displayed where you are required to login to carry out this operation.
The DELETE SYSTEM LOGS menu allows you to delete all Logs system events; to
complete the operation, simply press OK; to cancel press BACK.
To perform this operation you must be logged in at access level 2, otherwise a POP-UP
will appear indicating the need to login at access level 2 to complete the operation.
NOTE: The deletion of all Logs will empty the list of recorded events and will write a
Log deletion event.
The SYSTEM INFO menu displays the system information:
Mfg:
 System manufacturer
EC Cert:  CE certificate number
Firmware:
Version of the uploaded software
Up-Time: On time (dd - days / hh - hours / mm - minutes)
30
SYSTEM VOLUMES Menu
The SYSTEM VOLUMES menu allows you to view and independently configure the
volume of each system sound source.
The volumes are displayed as a list and it is expressed in decibel referred to 0dB.
Configurable volumes are:
• Master volume

System master volume
• Local fire mic

Volume of the PTT emergency microphone
• Remote fire mic 
Volume of the remote emergency microphone
• Msg EVAC

Volume of the pre-recorded
evacuation message
• Msg ALARM

Volume of the pre-recorded alarm message
• Bgm Music

Volume of the background music
• Msg Chime

Volume of the pre-recorded announcement
message (Din-Don)
• Msg Gpo #

Volume of the pre-recorded generic message
(1-8)
To configure a volume simply select the source using the UP and DOWN arrows and
press OK, the pointed volume will be highlighted; using the UP and DOWN arrows, you
can change its value, pressing OK saves and applies the value. When configuring the
displayed value is applied in real time, press BACK to go back to the previous value.
The configurable volume values for each source are: MUTE, -60dB, -50 dB, -42 dB, -36
dB, -30 dB, -24 dB, -20 dB, -16 dB, -12 dB, -10 dB, -8 dB, -6 dB, -4 dB, -3 dB, -2 dB, -1 dB,
0 dB, +1 dB, +2 dB, +3 dB, +6 dB
To change the volumes of the machine emergency functions you must have access
level 2, if not a screen is displayed where you are required to login to carry out this
operation.
31
MESSAGE SCHEDULER Menu
The MESSAGE SCHEDULER menu allows you to view and configure the launching of a
pre-recorded message according to a repetitive time schedule. The system provides for
a maximum of 24 time schedules that are displayed in the form of a list. Each Task
programming is numbered (01-24) and indicates whether it is ENABLED or DISABLED.
You can view the details for each Task programming via the View schedule task xx
where, in the window title, xx indicates the number of the selected Task. If the Task is
disabled only the word DISABLED is displayed to indicate that that Task is not active.
If, on the contrary, the Task is active, the following information is displayed:
• Numeric identification of the pre-recorded message that will be
automatically launched.
• Days of the week when the message will be automatically launched
(Mon = Monda, Tue = Tuesday, Wed = Wednesday, Thu = Thursday, Fri =
Friday, Sat = Saturday, Sun = Sunday)
• Time when the message will be automatically launched (hh:mm)
To understand whether a weekday is active:
= NOT ACTIVE /
= ACTIVE
When the task is active, the display shows a cursor that highlights the editable field;
use the right and left arrows to move between editable fields. Use the UP and DOWN
arrows to edit the selected fields. Press OK to save changes. Press BACK to discard the
changes and the Task configuration is not modified.
NOTE: The identified message will be automatically launched every active day of the
week at the configured time; for multiple repetitions on the same weekday, you must
use multiple Tasks.
SYSTEM LOGS Menu
The SYSTEM LOGS menu displays the System events stored in Logs events. The number
of stored events can vary and is shown in the window title. (Example: if the Logs are
deleted the list will only contain a log indicating the deletion of all Logs). Both the
system events list screen Logs list xxx/zzz and the system event detail screen Logs
detail xxx/zzz display the number of the selected event and the total number of the
stored events Logs list XXX / ZZZ where XXX is the number of the selected Log and ZZZ
the total number of logs.
In the system Logs list screen you can chronologically browse the system events, the
first Log of the list (e.g. No.171/171) is the most recent event, using the DOWN arrow
you can view the Logs that took place before.
To view the details of an event simply select it from the list using the UP and DOWN
arrows and press OK. A new screen will appear showing all data relating to the
selected event: Text description on two rows, event Id: and source of the event Device:
.
Each event is accompanied by the date and time when it was recorded according to
the standard hh:mm:ss dd/mm/yyyy, where:
hh  hour(00-24) / mm  minutes (00-59) / ss  seconds (00-59) / dd day (0131) / mm  month (01-12) / yyyy  year (20xx)
The full list and related codes are detailed in the dedicated section.
32
ACCESS LEVEL LOGIN Menu
The ACCESS LEVEL LOGIN menu allows the user to login and obtain the desired access
rights. The system provides three access levels 1 – 2 – 3 where level 1 has the lowest
priority and level 3 has the highest priority. The screen displays the current access
level.
To login you must know the password of the desired access level. An incorrect
password takes the system to access level 1.
To enter the password you must compose it by changing one digit at a time until you
get the desired combination; use the right and left arrows to move between digits and
the up and down arrows to change the value of the selected digit. When all digits
coincide with the password to be entered, simply press OK to proceed with the
validation. If the password is incorrect, a POP-UP will appear indicating the new access
level obtained. If the password is incorrect, a POP-UP will appear indicating the new
access level of 1.
NOTE: if the passwords to access level 2 and 3 coincide, at the time of authentication
the system will authenticate the highest level, that is 3.
SYSTEM FAULT
The SYSTEM FAULT signal is achieved with a flashing indication on the frontpanel
display. In a normal operating condition, the system time will flash inside a frame. If for
any reason the time indicator stops flashing, the unit will be in a SYSTEM FAULT
condition. In that case, after 10 seconds, approximately, a watchdog timer will force a
reset that will reboot the unit.
6.
PROCEDURES and USING THE SYSTEM
7.1 Authentication
1)
Access the menu: press OK from the main screen and access the list of menus.
33
2)
Select “Access level login” in the menu list using the UP and DOWN keys, press OK to access the menu.
3)
Compose the password using the UP and DOWN keys to edit the digit highlighted by the cursor, use the RIGHT and LEFT keys to select
the digit to be modified moving the cursor.
4)
After the correct password has been composed with all digits, press OK to login. A POP-UP screen indicates the new access level; if the
password is incorrect the access level will be 1, if correct you can access at level 2 or 3 depending on the entered password.
5)
Exit the menu by pressing the BACK key repeatedly.
7.2 Speaker Line Calibration
1)
Access the menu: press OK from the main screen and access the list of menus.
To run the procedure you must be logged-in to access level 2
2)
Select “Line & Amplifiers” in the menu list using the UP and DOWN keys, press OK to access the
menu.
3)
Select “Main amplifier” in the list and press OK to access the menu
.
4)
In the “Main amplifier” screen press OK to access the POP-UP “Line & Amp commands” and press OK to place the section in
“disablement.”
5)
In the “Main amplifier” screen press OK to access the POP-UP “Line & Amp commands.”
34
6)
Select “Calibrate line” using the UP and DOWN keys and activate the calibration of the line of speakers by pressing the OK key.
7)
Select “Main amplifier” in the list and press OK to access the menu.
9)
In the “Main amplifier” screen press OK to access the POP-UP “Line & Amp commands” and press OK to remove the section from
“disablement.”
10) Exit the menu by pressing the BACK key repeatedly.
7.3 Battery Calibration
1)
Access the menu: press OK from the main screen and access the list of menus.
To run the procedure you must be logged-in to access level 2.
2)
Select “Power Supply Unit” in the menu list using the UP and DOWN keys, press OK to access the menu.
3)
In the “Power Supply Unit” screen press OK to access the POP-UP “Power supply commands” and press OK to place the power supply
section in “disablement.”
4)
In the “Power Supply Unit” press OK to access the POP-UP “Power supply commands.”
35
5)
Select “Calibrate battery” using the UP and DOWN keys and activate the calibration of the battery impedance by pressing the OK key.
The operation lasts for about twenty minutes during which a POP-UP screen will indicate the time remaining to the end of the
operation.
6)
In the “Power Supply Unit” screen press OK to access the POP-UP “Power supply commands” and press OK to remove the section from
“disablement.”
7)
Exit the menu by pressing the BACK key repeatedly.
7.4 Volume Setting
1)
Access the menu: press OK from the main screen and access the list of menus.
To run the procedure you must be logged-in to access level 2.
2)
Select “System volumes” in the menu list using the UP and DOWN keys, press OK to access the menu.
3)
Select the volume to be modified from the list using the UP and DOWN keys, press OK to modify the volume value.
4)
Modify the selected volume using the UP and DOWN keys until you reach the desired value, then press OK to save the change.
5)
Exit the menu by pressing the BACK key repeatedly.
36
7.
TABLE OF EVENTS, FAULTS and TROUBLESHOOTING
EVENT
SYS
LOG words
System power ON
SYS
System old rtc time
SYS
System new rtc time
SYS
System logs deleted
SYS
Auth access level 2
SYS
Auth access level 3
VOICE
ALARM
VOICE
ALARM
VOICE
ALARM
VOICE
ALARM
VOICE
ALARM
VOICE
ALARM
VOICE
ALARM
VOICE
ALARM
VOICE
ALARM
VOICE
ALARM
FAULT
WARNING
Local fire mike START
Local fire mike STOP
Remote fire mike START
Remote fire mike STOP
Eth alarm talk START
Eth alarm talk STOP
EVAC message START
EVAC message STOP
ALARM message START
ALARM message STOP
Line NOT calibrated
Line calibrated
Line calibration fault
Line cal resume
FAULT
WARNING
Main amp FAULT
Main amp RESUME
Main amp OVERTEMP
Main amp T RESUME
FAULT
WARNING
Backup amp FAULT
Backup amp RESUME
Backup amp OVERTEMP
Backup amp T RESUME
FAULT
WARNING
FAULT
WARNING
FAULT
WARNING
FAULT
WARNING
FAULT
WARNING
FAULT
WARNING
FAULT
WARNING
FAULT
WARNING
Line A GROUND SHORT
Line A GND SHORT
RESUME
Line A NO LOAD
Line A NO LOAD
RESUME
Line A UNDERLOAD
Line A UNDERLOAD
RESUME
Line A OVERLOAD
Line A OVERLOAD
RESUME
Line A BAD LOAD
Line A BAD LOAD
RESUME
Line A LOAD SHORT
Line A LD SHORT
RESUME
Line B GROUND SHORT
Line B GND SHORT
RESUME
Line B NO LOAD
LOG detail
System power ON
Startup successful
System time setup event
Log previous rtc time
System time setup event
Log new rtc time
All system logs
deleted by user
Authentication event
Current access level 2
Authentication event
Current access level 3
Alarm message START
Local fire mike
Alarm message STOP
Local fire mike
Alarm message START
Remote fire mike
Alarm message STOP
Remote fire mike
Alarm message START
From Ethernet
Alarm message STOP
From Ethernet
EVAC message START
From uSD Player
EVAC message STOP
From uSD Player
ALARM message START
From uSD Player
ALARM message STOP
From uSD Player
Line calibration FAULT
Line is not calibrated
Line calibration RESUME
Line is now calibrated
Line calibration FAULT
Unable to cal line
Line calibration RESUME
Line is correctly cal
Main amplifier FAULT
Amplifier is unusable
Main amplifier RESUME
Main amp is GOOD
Main amplifier OVERTEMP
Amplifier is overheating
Main ampl temp RESUME
Temperature range is OK
Backup amplifier FAULT
Amplifier is unusable
Backup amplifier RESUME
Backup amp is GOOD
Backup amp OVERTEMP
"Amplifier is overheating
Backup amp temp RESUME
Temperature range is OK
Line A GROUND SHORT
Line shorted to EARTH
Line A gnd short RESUME
Line A isolation is OK
Line A LOAD FAULT
Line A is OPEN
RESUME from open line A
Line A load is GOOD
Line A LOAD FAULT
Line A UNDERLOAD
RESUME from underload A
Line A load is GOOD
Line A LOAD FAULT
Line A OVERLOAD
RESUME from overload A
Line A load is GOOD
Line A LOAD FAULT
Line A BAD LOAD
RESUME from bad load A
Line A load is GOOD
Line A SHORT FAULT
Line A is SHORTED
RESUME from short lin A
Line A load is GOOD
Line B GROUND SHORT
Line shorted to EARTH
Line B gnd short RESUME
Line B isolation is OK
Line B LOAD FAULT
Line B is OPEN
POP-UP words
Event description
System on, the event is recorded at the end of the
start-up sequence.
Edit system date and time, the event is recorded with
the date and time prior to the change.
Edit system date and time, the event is recorded with
the date and time after the change.
Deletion of system events by user command. All LOG
have been deleted.
Authentication to access level 2
Action
Authentication to access level 3
Local fire microphone
Remote fire mic
ETH Alarm talk
Launch of an alarm message from integrated alarm
microphone.
Stop of an alarm message from integrated alarm
microphone.
Launch of an alarm message from remote alarm
microphone.
Stop of an alarm message from remote alarm
microphone.
Launch of an alarm message from ethernet.
Stop of an alarm message from ethernet.
Evac Message playback
Start playback of evacuation message from uSD.
Stop playback of evacuation message from uSD.
Alarm Message playback
Start playback of alarm message from uSD.
Stop playback of alarm message from uSD.
No line calibration
Error: Line not calibrated
Line calibration error
The event is stored at the end of the line calibration
procedure with positive outcome.
The event is stored at the end of the line calibration
procedure with negative outcome.
Error of uncalibrated line restored
Main amplifier fail
Primary amplifier fault.
Calibrate the line of speakers
Contact the technical service
centre.
Primary amplifier fault restored
Primary amplifier overheating.
Backup amplifier fail
The operating temperature of the primary amplifier
falls within the specification parameters.
Backup amplifier fault.
Check the System ventilation.
Contact the technical service
centre.
Backup amplifier fault restored
Line A short to GND
Backup amplifier overheating.
Check the System ventilation.
The operating temperature of the backup amplifier
falls within the specification parameters.
Speaker line A short-circuited to earth.
Check the speaker line A.
Fault of line A short-circuited to earth restored.
Line A no load
Complete loss of line A load.
Line A underload
Partial loss of line A load.
Check the speaker line A.
Fault of complete loss of line A load restored.
Check the speaker line A.
Fault of partial loss of line A load restored.
Line A overload
Increase of line A load.
Line A bad load
Load error: impedance of speaker line A is out of
specification.
Check the speaker line A.
Fault of increase of line A load restored.
Check that the impedance of
speaker line A falls within the
specification parameters.
Load error of speaker line A restore.
Line A load short
The speaker line A is in short-circuit.
Line B short to GND
Speaker line B short-circuited to earth.
Check the speaker line A.
Fault of short-circuited speaker line A restored.
Check the speaker line B.
Fault of short-circuited to earth line B restored.
Line B no load
Complete loss of line B load.
Check the speaker line B.
37
FAULT
WARNING
EVENT
FAULT
WARNING
FAULT
WARNING
FAULT
WARNING
FAULT
WARNING
Line B NO LOAD
RESUME
Line B UNDERLOAD
Line B UNDERLOAD
RESUME
LOG words
Line B OVERLOAD
Line B OVERLOAD
RESUME
Line B BAD LOAD
Line B BAD LOAD
RESUME
Line B LOAD SHORT
Line B LD SHORT
RESUME
Main power LOST
Main power RESTORED
FAULT
WARNING
Main power fuse BLOW
Main power fuse GOOD
FAULT
WARNING
Battery presence LOST
Battery presence OK
FAULT
WARNING
Battery fuse BLOW
Battery fuse GOOD
FAULT
WARNING
Batt temp probe SHORT
Batt temp probe GOOD
FAULT
WARNING
Batt temp probe CUT
Batt temp probe GOOD
Chrg temp probe SHORT
Chrg temp probe GOOD
FAULT
WARNING
Chrg temp probe CUT
Chrg temp probe GOOD
FAULT
WARNING
Battery charger FAIL
Battery charger GOOD
FAULT
WARNING
Batt charger OVERTEMP
Batt charger T RESUME
FAULT
WARNING
Battery OVERTEMP
Battery temp RESUME
FAULT
WARNING
Battery UDERTEMP
Battery temp RESUME
FAULT
WARNING
FAULT
WARNING
Battery impedance FAIL
Battery impedance
RESUME
Battery not calibrated
Battery calibrated
FAULT
WARNING
LOW POWER KILLING
UNIT
POWER KILL RESUME
FAULT
WARNING
PSU WATCHDOG RESET
FAULT
WARNING
PSU WATCHDOG
RESUME
PSU communication
FAIL
PSU comm. RESUME
FAULT
38
Local fire mike CUT
RESUME from open line B
Line B load is GOOD
Line B LOAD FAULT
Line B UNDERLOAD
RESUME from underload B
Line B load is GOOD
LOG detail
Line B LOAD FAULT
Line B OVERLOAD
RESUME from overload B
Line B load is GOOD
Line B LOAD FAULT
Line B BAD LOAD
RESUME from bad load B
Line B load is GOOD
Line B SHORT FAULT
Line B is SHORTED
RESUME from short lin B
Line B load is GOOD
Mains power FAULT
Mains power is LOST
Mains fault RESUME
Mains power RESTORED
Mains fuse FAULT
Mains fuse is BLOW
Mains fuse fault RESUME
Mains fuse is OK
Battery presence FAULT
Battery is UNCONNECTED
Battery pres RESUME
Battery is connected
Battery fuse FAULT
Battery fuse is BLOW
Batt fuse fault RESUME
Battery fuse is OK
Batt temp probe FAULT
Batt temp probe SHORT
Batt T probe flt RESUME
Batt temp probe is OK
Batt temp probe FAULT
Batt temp probe CUT
Batt T probe flt RESUME
Batt temp probe is OK
Chrg temp probe FAULT
Chrg temp probe SHORT
Chrg T probe flt RESUME
Chrg temp probe is OK
Chrg temp probe FAULT
Chrg temp probe CUT
Chrg T probe flt RESUME
Chrg temp probe is OK
Battery charger FAULT
Batt chrg is unusable
Batt chrg fault RESUME
Battery charger is OK
Battery charger FAULT
Batt charger OVERTEMP
Batt chrg fault RESUME
Batt charger temp is OK
Battery FAULT
Battery OVERTEMP
Battery fault RESUME
Battery temp is OK
Battery FAULT
Battery UDERTEMP
Battery fault RESUME
Battery temp is OK
Battery FAULT
Batt Z out of range
Battery fault REDUME
Battery Z is OK
Batt calibration FAULT
Batt is not calibrated
Batt cal fault RESUME
Battery is calibrated
LOW battery FAULT
LOW V. - KILLING UNIT
Low batt fault RESUME
Battery voltage is OK
Power Supply Unit FAULT
WATCHDOG RESET
Power Supply Unit RESUME
WATCHDOG RESET
PSU communication FAULT
No comm with PSU
PSU comm fault RESUME
Comm with PSU restored
Local fire mike FAULT
Fault of complete loss of line B load restored.
Line B underload
Partial loss of line B load.
Check the speaker line B.
Fault of partial loss of line B load restored.
POP-UP words
Line B overload
Event description
Increase of line B load.
Action
Check the speaker line B.
Fault of increase of line B load restored.
Line B bad load
Load error: impedance of speaker line B is out of
specification.
Check that the impedance of
speaker line B falls within the
specification parameters.
Load error of speaker line B restored.
Line B load short
The speaker line B is in short-circuit.
Check the speaker line B.
Fault of short-circuited speaker line B restored.
Main power loss
Absence of primary power supply
Check connection to the system
power mains.
Error of absence of primary power supply restored.
Mains fuse blow
Blown primary power supply fuse.
Replace the primary power supply
fuse
Error of blown primary power supply fuse restored.
Batt disconnected
Disconnected backup power supply source battery.
Batt fuse blow
Blown backup battery fuse.
Connect the battery pack as per the
specification.
Error of disconnected backup battery restored.
Replace the backup battery fuse.
Error of blown backup battery fuse restored
Batt temp probe short
Batt temp probe cut
PSU temp probe short
PSU temp probe cut
Charger failure
Faulty backup battery temperature probe: the
connection is short-circuited.
Fault of short-circuited backup battery temperature
probe restored.
Faulty backup battery temperature probe: the
connection is interrupted.
Fault of backup battery temperature probe
interrupted circuit restored.
Faulty backup battery charge circuit temperature
probe: the connection is short-circuited.
Fault of short-circuited backup battery charge circuit
temperature probe restored.
Faulty backup battery charge circuit temperature
probe: the connection is interrupted.
Fault of interrupted circuit backup battery charge
circuit temperature probe restored.
Faulty backup battery charge circuit.
Check the backup battery
temperature probe.
Check the backup battery
temperature probe.
Contact the technical service
centre.
Contact the technical service
centre.
Contact the technical service
centre.
Backup battery charge circuit fault restored.
Charger overtemp
Overheating of the battery charge circuit.
Check the System ventilation.
Battery over-temp
The operating temperature of the backup battery
charge circuit falls within the specification
parameters.
Overheating of the backup battery unit.
Check the System ventilation.
Battery under-temp
The operating temperature of the backup battery unit
falls within the specification parameters.
Temperature of the backup battery unit below the
minimum operating temperature.
Batt Z out of range
The operating temperature of the backup battery unit
falls within the specification parameters.
Excessive drift of the backup battery impedance.
Batt not calibrated
The impedance drift of the backup battery falls within
the specification parameters.
Calibration error of the backup battery impedance.
Batt Low CUT-OFF
PSU WATCHDOG RESET
PSU WATCHDOG RESUME
PSU communication loss
Int fire mic cut
Backup battery impedance calibration error
corrected.
System running on flat backup battery.
Imminent shutdown
Imminent shutdown condition restored.
Indicates a forced reset (WatchDog) of the power
supply unit processor.
Forced reset (Watch§Dog) of the power supply unit
processor restored.
Communication error between the power supply unit
and the main processor.
Communication between the power supply unit and
the main processor restored.
Removal/cut of local emergency microphone cable.
Check that the environmental
conditions are appropriate to the
installation specifications.
Replace the batteries and calibrate
the impedance.
Check the batteries and calibrate
the battery impedance.
Restore the primary power supply
immediately.
Contact the service centre
Check the power supply unit
connection flat-cable / contact the
service centre.
Monitor the phenomenon.
Check the local emergency
WARNING
Local fire mike RESUME
FAULT
WARNING
Local fire mike SHORT
Local fire mike RESUME
Remote fire mic MOUNT
EVENT
FAULT
WARNING
FAULT
WARNING
LOG words
Remote fire mic
UNMOUNT
Rem mic comm LOST
Rem mic comm
RESTORED
Rem mic caps CUT
Rem mic caps RESTORED
FAULT
WARNING
Rem mic caps SHORT
Rem mic caps RESTORED
FAULT
WARNING
uSD no imprint
uSD imprint done
FAULT
WARNING
uSD presence LOST
uSD presence RESUME
FAULT
WARNING
uSD filesystem FAULT
uSD filesystem RESUME
FAULT
WARNING
uSD player FAULT
uSD player RESUME
Cable CUT
Loc fire mic flt RESUME
Resume from cable-cut
Local fire mike FAULT
Cable SHORT
Loc fire mic flt RESUME
Resume from cable-short
Remote fire mike MOUNT
IDxx fire mike added
LOG detail
Remote fire mic UNMOUNT
IDxx fire mike removed
Remote mike comm FAULT
Communication ERROR
Remote mic comm RESUME
Communication restored
Remote mic FAULT
Capsule CUT
Remote mic fault RESUME
Capsule cut restored
Remote mic FAULT
Capsule SHORT
Remote mic fault RESUME
Capsule short restored
uSD imprint FAULT
uSD has no imprint
uSD impr fault RESUME
uSD imprint done
uSD presence FAULT
NO uSD was found
uSD pres fault RESUME
uSD is present
uSD filesystem FAULT
uSD is UNUSABLE
uSD filesys flt RESUME
uSD is back in use
uSD player FAULT
Cannot play stored msg
FAULT
WARNING
uSD ALARM message
CORRUPT
uSD player fault RESUME
Stored msg are playable
uSD ALARM message FAULT
ALARM msg is CORRUPTED
FAULT
WARNING
uSD ALARM message
RESUME
uSD EVAC message
CORRUPT
uSD ALARM msg flt RESUME
ALARM message playable
uSD EVAC message FAULT
EVAC msg is CORRUPTED
uSD EVAC message
RESUME
uSD EVAC msg flt RESUME
EVAC message playable
Dg.Input EVAC SHORT
Dg.Input FAULT
EVAC input SHORT
Dg.Input EVAC RESUME
Dg.Input fault RESUME
EVAC restored from short
Dg.Input FAULT
EVAC input CUT
FAULT
WARNING
FAULT
WARNING
Dg.Input EVAC CUT
Dg.Input EVAC RESUME
FAULT
WARNING
FAULT
WARNING
FAULT
WARNING
FAULT
WARNING
Dg.Input EVAC HW FAIL
Dg.Input EVAC HW
RESUME
Dg.Input ALARM SHORT
Dg.Input ALARM
RESUME
Dg.Input ALARM CUT
Dg.Input ALARM
RESUME
Dg.Innput ALARM HW
FAIL
Dg.Input ALARM HW
RESUME
Line disablement SET
Line disabl. REMOVED
PSU disablement SET
PSU disabl. REMOVED
Mic disablement SET
Mic disalb. REMOVED
Dg.Input fault RESUME
EVAC restored from cut
Dg.Input HARDWARE FAULT
EVAC input failure
Dg.In EVAC fault RESUME
EVAC input hardware OK
Dg.Input FAULT
ALARM input SHORT
Dg.Input fault RESUME
ALARM restored from short
Dg.Input FAULT
ALARM input CUT
Dg.Input fault RESUME
ALARM restored from cut
Dg.Input HARDWARE FAULT
ALARM input failure
Dg.In ALARM fault RESUME
ALARM input hardware OK
Disablement SET
Line DISABLED
Disablement REMOVED
Line NOT disabled
Disablement SET
Pwr management DISABLED
Disablement REMOVED
Pwr manag. NOT disabled
Disablement SET
Fire mike disabled
Disablement REMOVED
Fire mike NOT disabled
microphone connection / replace.
Int fire mic short
Fault of cut local emergency microphone cable
restored.
Short-circuit of the local emergency microphone.
Check the local emergency
microphone connection / replace.
Short-circuit fault of local emergency microphone
restored.
Added remote emergency microphone base.
POP-UP words
Ext fire mic com
Ext fire mic cut
Ext fire mic short
No uSD imprint
Event description
Removed remote emergency microphone base from
system
Communication error with remote emergency
microphone base
Communication error between remote emergency
microphone base and system restored.
Fault to microphone capsule of remote emergency
microphone base. Capsule interrupted.
Fault to microphone capsule of remote emergency
microphone base.
Fault to microphone capsule of remote emergency
microphone base. Capsule in short-circuit.
Fault to microphone capsule of remote emergency
microphone base.
Imprint of files on the uSD card not created
Action
Check the base connection with the
system.
Check the microphone / Contact the
service centre.
Check the microphone / Contact the
service centre.
Create the imprint of the uSD files.
Absence error of uSD file imprint restored.
uSD absent
uSD not detected.
uSD bad filesystem
uSD filesystem error.
Insert a uSD. See uSD preparation
procedure
uSD not detected error restored
Remove the uSD and repeat the
uSD preparation procedure /
Replace the uSD.
uSD filesystem error restored.
uSD player failure
uSD file playback error.
Remove the uSD and repeat the
uSD preparation procedure /
Replace the uSD
uSD file playback error restored.
uSD ALARM msg corrupt
The alarm pre-recorded message file is corrupt and
cannot be played.
Remove the uSD and repeat the
uSD preparation procedure /
Replace the uSD
Corrupted alarm file error restored.
uSD EVAC msg corrupt
The evacuation pre-recorded message file is corrupt
and cannot be played.
Remove the uSD and repeat the
uSD preparation procedure /
Replace the uSD
Corrupted evacuation file error restored.
EVAC dgi cable short
EVAC dgi cable cut
EVAC dgi hw failure
ALARM dgi cable short
ALARM dgi cable cut
ALARM dgi hw failure
Digital input associated with short-circuited
evacuation message.
Error of digital input associated with short-circuited
evacuation message restored.
Digital input associated with cut cable evacuation
message.
Error of digital input associated with cut cable
evacuation message restored.
Faulty circuitry of digital input associated with
evacuation message.
Error of faulty circuitry of digital input associated with
evacuation message restored.
Digital input associated with short-circuited alarm
message.
Error of digital input associated with short-circuited
alarm message restored.
Digital input associated with cut cable alarm
message.
Error of digital input associated with cut cable alarm
message restored.
Faulty circuitry of digital input associated with alarm
message.
Error of faulty circuitry of digital input associated with
alarm message restored.
Amplifiers and speaker line in “disablement”
management module.
Active amplifiers and speaker line (not in
“disablement”) management module.
Power supply in “disablement” management module.
Check the wiring of the input
associated with the evacuation
message
Check the wiring of the input
associated with the evacuation
message
Contact the service centre.
Check the wiring of the input
associated with the alarm message
Check the wiring of the input
associated with the alarm message
Contact the service centre.
Active power supply (not in “disablement”)
management module.
Emergency microphones in “disablement”
management module.
Active emergency microphones (not in
“disablement”) management module.
39
uSD disablement SET
uSD disabl. REMOVED
Dg.In. disablement SET
Dg.In. disabl. REMOVED
Eth disablement SET
Eth disabl. REMOVED
FAULT
WARNING
EVENT
DSP communication
FAIL
LOG words
DSP comm. RESUME
FAULT
WARNING
FAULT
WARNING
FAULT
WARNING
Log buffer ERROR
SYS WATCHDOG RESET
FLASH DATA FAILURE
FLASH DATA RESTORE
40
Disablement SET
uSD DISABLED
Disablement REMOVED
uSD NOT disabled
Disablement SET
Dig inputs DISABLED
Disablement REMOVED
Dig inputs NOT disabled
Disablement SET
Ethernet DISABLED
Disablement REMOVED
Ethernet NOT disabled
DSP communication FAULT
unable to comm with DSP
LOG detail
DSP comm RESUME
Comm with DSP restored
Log buffer FAULT
Buffer integrity error
System power ON
SYS RESET BY WATCHDOG
Data Flash Corrupted
CRC error
Data Flash restore
CRC OK
Pre-recorded messages on uSD in “disablement”
management module.
Pre-recorded messages on active uSD (not in
“disablement”) management module.
Digital inputs in “disablement” management module.
Log buffer error
Active digital inputs (not in “disablement”)
management module.
Ethernet network “disablement” management
module.
Active ethernet network (not in “disablement”)
management module.
Communication error between the main processor
and DSP audio processor.
Event description
Communication error between the main processor
and DSP audio processor restored.
Storage error of the Logs system events.
Contact the service centre
Watchdog system reset
Automatic restart after the system block.
Contact the service centre
Data Flash failure
The data stored in the internal “Flash” are corrupted,
the CRC calculation revealed an error.
The data stored in the internal “Flash” are intact, the
CRC calculation is correct
DSP communication loss
POP-UP words
Contact the service centre
Action
Contact the service centre
Warn the service centre
8.
TECHNICAL SPECIFICATIONS
AE300
Primary power supply
Backup power supply
Backup battery life
AC 230V +10% -15%; 50Hz; 350W; 1,72A
Fuse 3,15A
48V – integrated batteries (4x 12V 7.2°/h pb-gel)
Max output current in the absence of network power supply: 8,3A
Minimum absorption: 150mA (electronic cards self-consumption)
Fuse 8,0A
24h stand-by + 30min full power
Battery charger
Imax = 450mA – Vmax = 55.2V
Output power
Single zone 300W; Zmin= 33,5Ohm line 100V
Frequency response
100Hz – 18Khz @ -3dB
Signal/noise ratio
>90dB
Backup amplifier
YES
Redundant loudspeaker line
YES (Line A, Line B)
Loudspeaker line monitoring
Line A, line B independent monitoring. Impedance measurement via 18Khz tone and
FFT analysis. Detection of short-circuit, open circuit, earth leakage.
User interface
Status LEDs, display with dot matrix and keyboard for menu navigation. Keys to
directly activate alarm message.
Audio processing
DSP, 16bit-48Khz; 3-band equaliser, compressor on microphone inputs, pre-gain
controls, volume master, chime.
Audio inputs/outputs
Background music input, microphone balanced with phantom power supply, active
sub woofer output.
Front panel monitor
YES
Emergency microphone
Messages activation contacts
Message scheduler
Emergency messages activation inputs
PTT dynamic microphone with monitoring of the capsule.
RJ45 input for remote emergency workstation.
8 contact inputs for activation to ground for generic messages
YES – event structure based on internal clock and calendar
2 monitored inputs against cable cut and short-cut
Status outputs
3 open-collector outputs, max 12V. Requires external pull-up
Communication
RS485, USB-B, RJ45 10 BASE-T/100
Battery monitoring
Certifications and conformity
Access levels 2 and 3
Chassis, dimensions and weights
DC resistor measurement
EN54-16, EN54-4, BS-EN5839-8, 60849
Password key selector from menu
Powder coated steel – 12Kg excluding batteries
Width 440mm, Height 11 rack unit (490mm) – Depth 150mm
41
9.
FUNCTIONS WITH REQUIREMENT ACCORDING TO EN54-16: 2008
7.6.2
Manual silencing of the voice alarm condition
YES
7.9
Alarm condition output
YES
8.4
Indication of faults related to voice alarm zones
YES
9
Disablement condition
YES
10
Voice alarm manual control
YES
12
Emergency Microphones
YES
13.14
Redundant power amplifiers
YES
10. FUNCTIONS ACCORDING TO EN54-4: 2007
The AE300 device is equipped with a power supply unit in accordance with Standard EN54-4: 2007. The following table lists the main features
implemented.
4.2.1, 4.2.2,
The power supply unit accepts two power supply sources: electric network (primary) and battery (secondary)
4.2.3
4.2.6
The primary power supply source (electrical network) is the exclusive source for the system, in addition to the currents
associated with battery monitoring.
4.2.7, 4.2.10
In case of lack of main source, the device automatically switches to the backup source. When the primary source is
restored, the device automatically switches back to it.
Moreover, the power supply unit is built so as to ensure power supply to the system without outages in case of lack of
one of the two power supply sources (network or battery).
4.2.4, 5.3.1
Automatic battery charger able to charge the battery to at least 80% of its rated capacity in 24h and 100% in the
subsequent 48h
4.2.8
The lack of the primary source is indicated by appropriate “fault warning”.
5.4
The device recognises and reports the following faults
42
a)
Loss of primary power supply source
b)
Loss of backup power supply source
c)
Increase of the resistor (+25% compared to the calibrated value) inside the battery and associated circuitry
d)
Battery charger failure
e)
Blown fuses (network and battery)
43
CE Marking
Proel SpA maintains a policy of constant research and development, therefore we reserve the right to apply improvements to any
existing equipment at any time without prior notice.
REV: 136 / 19-18
44
45
46
47
PROEL S.p.A.
(World Headquarters - Factory)
Via alla Ruenia 37/43
64027 Sant’Omero (Te) – Italy
Tel: +39 0861 81241
Fax: +39 0861 887862
www.proel.com
48

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
