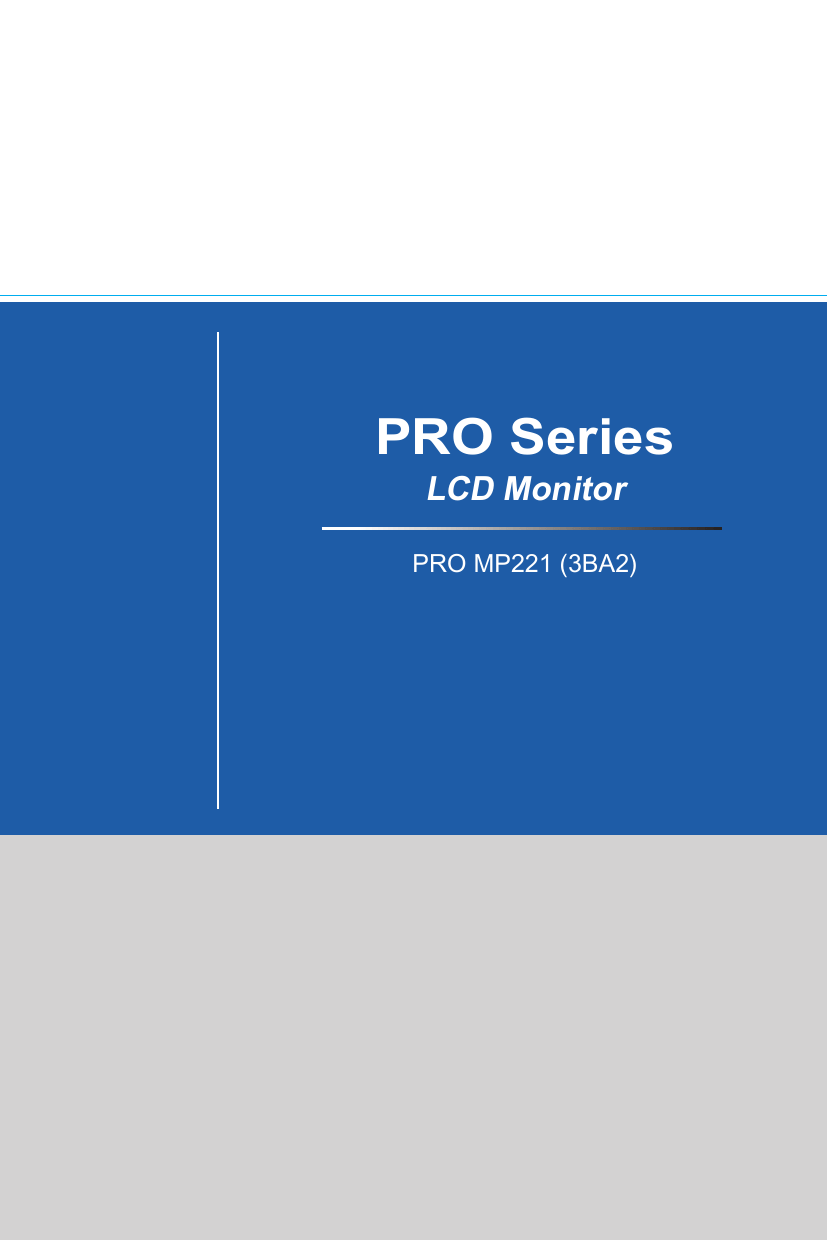

MSI MS-3BA2 PRO MP221 Owner's Manual

PRO Series
LCD Monitor
PRO MP221 (3BA2)
Contents
Copyright and Trademarks Notice��iii
Revision��iii
Technical Support��iii
Safety Instructions��iv
CE Conformity��vi
FCC-B Radio Frequency Interference Statement��vi
WEEE Statement��vii
Chemical Substances Information��vii
RoHS Statement��vii
Getting Started��1-1
Package Contents�� 1-2
Installing the Monitor Stand�� 1-3
Adjusting the Monitor �� 1-4
Monitor Overview�� 1-5
Connecting the Monitor to PC�� 1-6
ii
OSD Setup��2-1
OSD Key�� 2-2
OSD Setup Menu�� 2-3
Appendix��A-1
Specifications��A-2
Preset Display Modes��A-3
Troubleshooting��A-4
Preface
Copyright and Trademarks Notice
Copyright © Micro-Star Int’l Co., Ltd. All rights reserved. The MSI logo used is a registered
trademark of Micro-Star Int’l Co., Ltd. All other marks and names mentioned may be
trademarks of their respective owners. No warranty as to accuracy or completeness is
expressed or implied. MSI reserves the right to make changes to this document without
prior notice.
Revision
Revision
V1.0
Date
2019/08
Technical Support
If a problem arises with your product and no solution can be obtained from the user’s
manual, please contact your place of purchase or local distributor. Alternatively, please
visit https://www.msi.com/support/ for further guidance.
iii
Safety Instructions
◙◙
◙◙
◙◙
Read the safety instructions carefully and thoroughly.
All cautions and warnings on the device or user’s manual should be noted.
Refer servicing to qualified personnel only.
Keep the User’s Guide that comes with the package for future reference.
To prevent fire or shock hazard, keep this device away from humidity and high
temperature.
Lay this device on a reliable flat surface before setting it up.
iv
◙◙
◙◙
Make sure that the power voltage is within its safety range and has been
adjusted properly to the value of 100~240V before connecting the device to
the power outlet. Do not disable the protective earth pin from the plug. The
device must be connected to an earthed mains socket-outlet.
Always disconnect the power cord or switch the wall socket off if the device
would be left unused for a certain time to achieve zero energy consumption.
The ventilator on the device is used for air convection and to prevent the device
from overheating. Do not cover the ventilator.
Do not leave the device in an unconditioned environment with a storage
temperature above 60OC or below -20OC, which may damage the device.
NOTE: The maximum operating temperature is around 40OC.
When cleaning the device, be sure to remove the power plug. Use a piece of soft
cloth rather than industrial chemical to clean the device. Never pour any liquid
into the opening; that could damage the device or cause electric shock.
Preface
Place the power cord in a way that people are unlikely to step on it. Do not place
anything on the power cord.
Always keep strong magnetic or electrical objects away from the device.
If any of the following situations arises, get the device checked by service
personnel:
◙◙ The power cord or plug is damaged.
◙◙ Liquid has penetrated into the device.
◙◙ The device has been exposed to moisture.
◙◙ The device does not work well or you can not get it work according to user’s
manual.
◙◙ The device has dropped and damaged.
◙◙ The device has obvious sign of breakage.
Green Product Features
◙◙
◙◙
◙◙
◙◙
◙◙
◙◙
Reduced energy consumption during use and stand-by
Limited use of substances harmful to the environment and health
Easily dismantled and recycled
Reduced use of natural resources by encouraging recycling
Extended product lifetime through easy upgrades
Reduced solid waste production through take-back policy
Environmental Policy
◙◙
◙◙
◙◙
◙◙
The product has been designed to enable proper reuse of parts and
recycling and should not be thrown away at its end of life.
Users should contact the local authorized point of collection for recycling
and disposing of their end-of-life products.
Visit the MSI website and locate a nearby distributor for further recycling
information.
Users may also reach us at [email protected] for information regarding
proper disposal, take-back, recycling, and disassembly of MSI products.
★ Warning! Overuse of screens is likely to affect eyesight.
★ Recommendations:
1. Take a 10-minute break for every 30 minutes of screen time.
2. Children under 2 years of age should have no screen time. For children aged
2 years and over, screen time should be limited to less than one hour per day.
v
CE Conformity
This device complies with the requirements set out in the Council
Directive on the Approximation of the Laws of the Member States relating
to Electromagnetic Compatibility (2014/30/EU), Low-voltage Directive
(2014/35/EU), ErP Directive (2009/125/EC) and RoHS directive (2011/65/
EU). This product has been tested and found to comply with the harmonized standards
for Information Technology Equipment published under Directives of Official Journal of
the European Union.
FCC-B Radio Frequency
Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instruction manual, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur
in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the measures
listed below:
vi
￭￭ Reorient or relocate the receiving antenna.
￭￭ Increase the separation between the equipment and receiver.
￭￭ Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
￭￭ Consult the dealer or an experienced radio/television technician for help.
Notice 1
The changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
Notice 2
Shielded interface cables and AC power cord, if any, must be used in order to comply
with the emission limits.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
1. this device may not cause harmful interference, and
2. this device must accept any interference received, including interference that may
cause undesired operation.
MSI Computer Corp.
901 Canada Court, City of Industry, CA 91748, USA
(626)913-0828
www.msi.com
Preface
WEEE Statement
Under the European Union (“EU”) Directive on Waste Electrical and
Electronic Equipment, Directive 2012/19/EU, which takes effect on August
13, 2005, products of “electrical and electronic equipment” cannot be
discarded as municipal waste anymore and manufacturers of covered
electronic equipment will be obligated to take back such products at the end
of their useful life.
Chemical Substances Information
In compliance with chemical substances regulations, such as the EU REACH Regulation
(Regulation EC No. 1907/2006 of the European Parliament and the Council), MSI
provides the information of chemical substances in products at:
https://www.msi.com/html/popup/csr/evmtprtt_pcm.html
RoHS Statement
Japan JIS C 0950 Material Declaration
A Japanese regulatory requirement, defined by specification JIS C 0950, mandates
that manufacturers provide material declarations for certain categories of electronic
products offered for sale after July 1, 2006.
https://www.msi.com/html/popup/csr/cemm_jp.html
https://tw.msi.com/html/popup/csr_tw/cemm_jp.html
India RoHS
This product complies with the "India E-waste (Management and Handling) Rule 2011"
and prohibits use of lead, mercury, hexavalent chromium, polybrominated biphenyls
or polybrominated diphenyl ethers in concentrations exceeding 0.1 weight % and 0.01
weight % for cadmium, except for the exemptions set in Schedule 2 of the Rule.
Turkey EEE Regulation
Conforms to the EEE Regulations of the Republic Of Turkey
Ukraine Restriction of Hazardous Substances
The equipment complies with requirements of the Technical Regulation, approved by
the Resolution of Cabinet of Ministry of Ukraine as of December 3, 2008 № 1057,
in terms of restrictions for the use of certain dangerous substances in electrical and
electronic equipment.
Vietnam RoHS
As from December 1, 2012, all products manufactured by MSI comply with Circular
30/2011/TT-BCT temporarily regulating the permitted limits for a number of hazardous
substances in electronic and electric products.
vii
1
Getting Started
This chapter provides you with the information on hardware setup procedures.
While connecting devices, be careful in holding the devices and use a
grounded wrist strap to avoid static electricity.
IMPORTANT
The illustrations are for reference only. Your monitor may vary in appearance.
Package Contents
1. Monitor
2. Stand with Base
3. Power Cord
4. HDMI Cable
5. D-Sub Cable
6. Quick Start Guide
7. Warranty Card
* Contact your place of purchase or local distributor if any of the items is damaged or
missing.
* Package contents may vary by country.
1-2
Getting Started
Installing the Monitor Stand
IMPORTANT
Place the monitor on a soft, protected surface to avoid scratching the display panel.
1. Align the latch of the stand with base to the monitor and push it.
2. When the stand with base is secured to the monitor, a click sound will be heard.
3.
2
1
1-3
4.
5.
IMPORTANT
The holes for installing the stand can be also used for wall mount. Please contact your
dealer for proper wall mount kit.
Adjusting the Monitor
This monitor is designed to maximize your viewing comfort with its adjustment
capabilities.
IMPORTANT
Avoid touching the display panel when adjusting the monitor.
-2
1-4
O
O
21
Getting Started
Monitor Overview
1
2
3
D-SUB
1-5
4
5
1
Power Jack
2
HDMI Port
3
D-Sub Port
4
OSD Keys
5
Power LED
6
Kensington Lock
6
Connecting the Monitor to PC
1. Turn off your computer.
2. Connect the HDMI/DisplayPort cable from the monitor to your computer.
3. Connect the power cord to the monitor power jack. (Figure A)
4. Plug the power cord into the electrical outlet. (Figure B)
5. Turn on the monitor. (Figure C)
6. Power on the computer then monitor will auto detect signal source.
C
1-6
A
B
2
OSD Setup
This chapter provides you with essential information on OSD Setup.
IMPORTANT
All information is subject to change without prior notice.
OSD Key
The monitor comes with a set of OSD Key that helps to control the On-Screen Display
(OSD) menu.
2-2
Without entering OSD menu, you can use these OSD keys as hot keys for quick
settings.
OSD Key
Function
Basic Operations
Input selection
■■ Press
button to enter this setting.
■■ Press
button again to select.
■■ Press
ECO Mode selection
button to confirm and exit.
■■ Press
button to enter this setting.
■■ Press
or
■■ Press
Image Ratio selection
■■ Press
■■ Press
■■ Press
button to select.
button to confirm and exit.
button to enter this setting.
or
button to select.
button to confirm and exit.
OSD Setup
OSD Setup Menu
Press
button to launch the On-Screen Display (OSD) main menu. In OSD
screen, use
buttons to tune the desired function to suit your
personal preferences.
These OSD keys operations are as follows.
OSD Key
Basic Operations
■■ Entering the submenus
■■ Confirming a selection or setting
■■ Selecting function menus and items
■■ Allowing upward adjustment in function values
■■ Selecting function menus and items
■■ Allowing downward adjustment in function values
■■ Exiting the current menu
2-3
hh Luminance
1st Level Menu
2nd/3rd Level Menu
0-100
Adjust contrast. This function is available in Standard
modes.
Brightness
0-100
Adjust brightness. This function is available in
Standard modes.
Eco Mode
Standard
Contrast
Description
Text
Internet
Game
Movie
Sports
DCR
On
Off
DCR enhances image quality by increasing the
contrast of images.
hh Image Setup
2-4
1st Level Menu
2nd/3rd Level Menu
Description
Clock
0-100
Adjust the clock to reduce Vertical-Line noise.
Phase
0-100
Adjust the phase to reduce Horizontal-Line noise.
H. Position
0-100
Adjust the horizontal position of the image.
V. Position
0-100
Adjust the vertical position of the image.
Image Ratio
Wide
Select the format for display.
4:3
hh Color Temp.
1st Level Menu
2nd/3rd Level Menu
Warm (6500K)
Select and preview mode effects.
Normal (7300K)
Cool (9300K)
User
R(0-100)
G(0-100)
B(0-100)
sRGB
Description
OSD Setup
hh OSD Setup
1st Level Menu
2nd/3rd Level Menu
H. Position
0-100
Adjust the horizontal position of the OSD.
V. Position
0-100
Adjust the vertical position of the OSD.
Timeout
5-100
Adjust the OSD timeout.
Language
English
Language is an independent setting. Users’ own
language setting will override the factory default.
When users set Reset to Yes, Language will not be
changed.
Español
Français
Português
Description
Русский
简体中文
繁體中文
한국어
(More languages
coming soon)
hh Extra
1st Level Menu
2nd/3rd Level Menu
Description
Input Select
D-Sub
Users can adjust Input Source in any Mode.
2-5
HDMI
Auto
DDC/CI
On
Enable or disable the DDC/CI function.
Off
Reset
YES
NO
Information
Resolution:
H. Frequency:
V. Frequency:
Users can reset and restore settings to original
OSD default.
Show the resolution and frequency. Read only.
2-6
A
Appendix
IMPORTANT
All information is subject to change without prior notice.
Specifications
Model
PRO MP221(3BA2)
Size
21.5 inch
Panel Type
TN
Resolution
1920 x 1080 @60Hz
Aspect Ratio
16:9
Brightness (nits)
250 cd/m2 (TYP)
Contrast Ratio
1000:1
Refresh Rate
60Hz
Response Time
5ms
Input Interface
■■ HDMI Port x1
■■ D-Sub Port x1
View Angles
170°(H) , 160°(V)
sRGB / DCI-P3 *
97.3% / 76.6%
Surface Treatment
Anti-glare, Haze 25%
Display Colors
A-2
16.7 Million
Power Type
Internal Power Adapter
Power Input
100-240VAC, 50/60Hz
Power Consumption (Typical)
Power On < 40W
Standby < 0.5W
Power Off < 0.5W
Adjustment (Tilt)
-2° ~ 21°
Kensington Lock
VESA Mounting
Yes
■■
■■
■■
■■
■■
Plate Type: 100 x 100mm
Screw Type: M4 x 10mm
Thread Diameter: 4mm
Thread Pitch: 0.7mm
Thread Length: 10mm
Dimension (W x H x D)
504.8 x 374.5 x 181.9mm
Weight
Environment
2.6kg
Operating
Temperture: 0°C to 40°C
Humidity: 10% to 85%, non-condensing
Altitude: 0 ~ 5000m
Storage
Temperture: -20°C to 60°C
Humidity: 10% to 90%, non-condensing
* Based on CIE1976 test standards.
Appendix
Preset Display Modes
Standard
VGA
Dos-Mode
SVGA
XGA
Resolution
HDMI
PRO MP221(3BA2)
640x480 @60Hz
V
640x480 @67Hz
V
640x480 @72Hz
V
640x480 @75Hz
V
720x400@70Hz
V
800x600 @56Hz
V
800x600 @60Hz
V
800x600 @72Hz
V
800x600 @75Hz
V
1024x768 @60Hz
V
1024x768 @70Hz
V
1024x768 @75Hz
V
1152x864 @75Hz
V
SXGA
1280x1024 @60Hz
V
1280x1024 @75Hz
V
WXGA+
1440x900 @60Hz
V
WSXGA+
1680x1050 @60Hz
V
Full HD
1920x1080 @60Hz
V
Video
Timing
Resolution
480P
V
576P
V
720P
V
1080i
V
1080P
V
D-Sub
A-3
Troubleshooting
The power LED is off.
■■ Press the monitor power button again.
■■ Check if the monitor power cable is properly connected.
No image.
■■ Check if the computer graphics card is properly installed.
■■ Check if the computer and monitor are connected to electrical outlets and
are turned on.
■■ Check if the monitor signal cable is properly connected.
■■ The computer may be in Standby mode. Press any key to activate the
monitor.
The screen image is not properly sized or centered.
Refer to Preset Display Modes to set the computer to a setting suitable for the
monitor to display.
No Plug & Play.
A-4
■■ Check if the monitor power cable is properly connected.
■■ Check if the monitor signal cable is properly connected.
■■ Check if the computer and graphics card are Plug & Play compatible.
The icons, font or screen are fuzzy, blurry or have color problems.
■■
■■
■■
■■
■■
Avoid using any video extension cables.
Adjust brightness and contrast.
Adjust RGB color or tune color temperature.
Check if the monitor signal cable is properly connected.
Check for bent pins on the signal cable connector.
The monitor starts flickering or shows waves.
■■ Change the refresh rate to match the capabilities of your monitor.
■■ Update your graphics card drivers.
■■ Keep the monitor away from electrical devices that may cause
electromagnetic interference (EMI).

Thank you for your participation!

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
