MSI DIGIVOX A/D II Owner's Manual

Chapter 4:HyperMedia Center User Manual

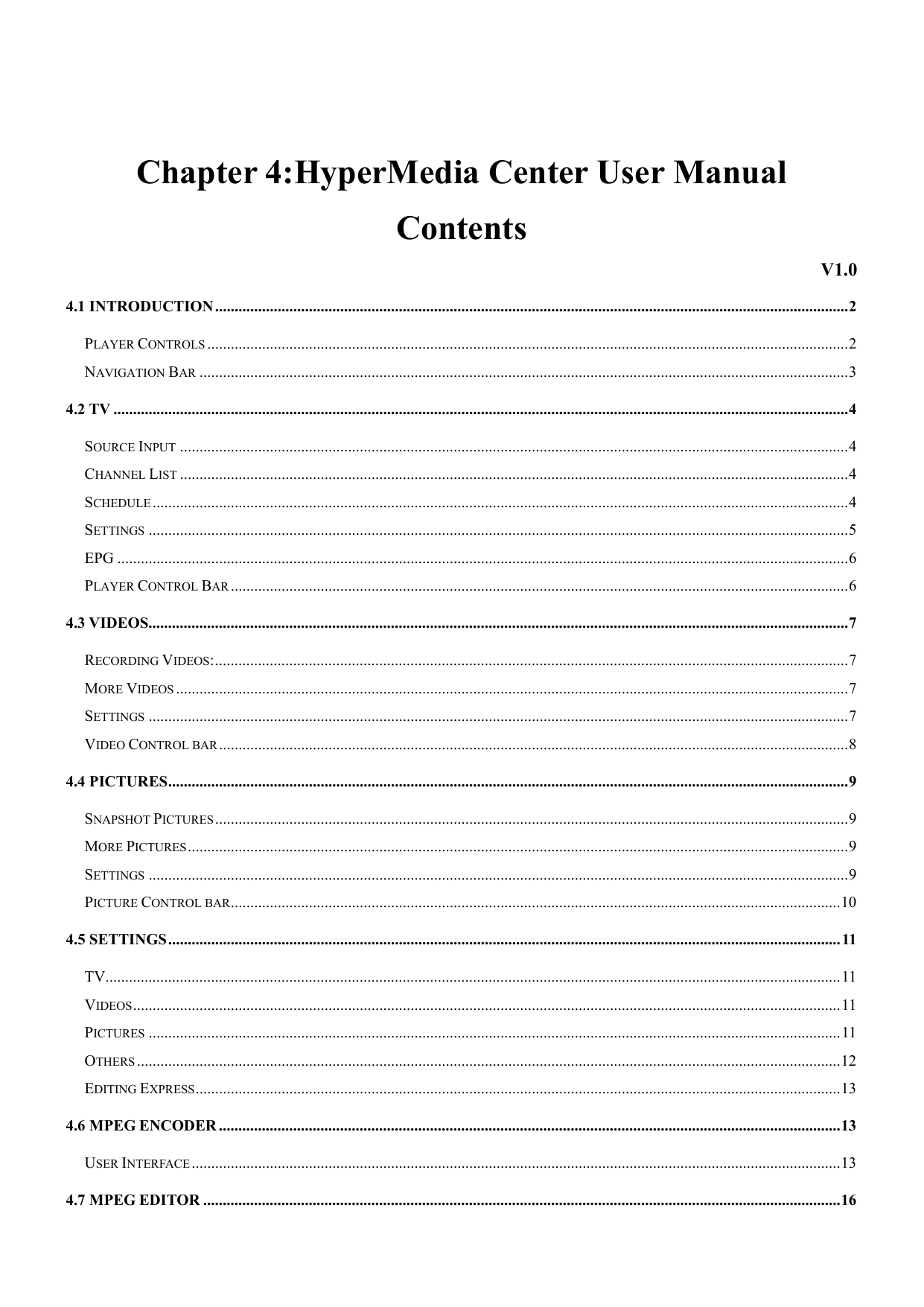

Contents
V1.0
4.1 INTRODUCTION ..................................................................................................................................................................2
PLAYER CONTROLS ....................................................................................................................................................................2
NAVIGATION BAR ......................................................................................................................................................................3
4.2 TV ............................................................................................................................................................................................4
SOURCE INPUT ...........................................................................................................................................................................4
CHANNEL LIST ...........................................................................................................................................................................4
SCHEDULE ..................................................................................................................................................................................4
SETTINGS ...................................................................................................................................................................................5
EPG ...........................................................................................................................................................................................6
PLAYER CONTROL BAR ..............................................................................................................................................................6
4.3 VIDEOS...................................................................................................................................................................................7
RECORDING VIDEOS:..................................................................................................................................................................7
MORE VIDEOS ............................................................................................................................................................................7
SETTINGS ...................................................................................................................................................................................7
VIDEO CONTROL BAR .................................................................................................................................................................8
4.4 PICTURES..............................................................................................................................................................................9
SNAPSHOT PICTURES ..................................................................................................................................................................9
MORE PICTURES .........................................................................................................................................................................9
SETTINGS ...................................................................................................................................................................................9
PICTURE CONTROL BAR............................................................................................................................................................10
4.5 SETTINGS............................................................................................................................................................................11
TV............................................................................................................................................................................................11
VIDEOS .....................................................................................................................................................................................11
PICTURES .................................................................................................................................................................................11
OTHERS ....................................................................................................................................................................................12
EDITING EXPRESS .....................................................................................................................................................................13
4.6 MPEG ENCODER ...............................................................................................................................................................13
USER INTERFACE ......................................................................................................................................................................13
4.7 MPEG EDITOR ...................................................................................................................................................................16
4.7.1 PLAY LIST EDITOR........................................................................................................................................................17
4.7.2 DISPLAY PANEL..............................................................................................................................................................18
Original Clips Display Window..........................................................................................................................................19
Edited Clips Display Window .............................................................................................................................................19
4.7.3 ORIGINAL AND STAGING CLIPS................................................................................................................................19
Original Clips .....................................................................................................................................................................20
Staging Clips.......................................................................................................................................................................20
4.7.4FRAME EDIT MODE .......................................................................................................................................................21
Frame Range Selection for Editing.....................................................................................................................................21
Video Frames Editing and Saving ......................................................................................................................................21
4.8 BURN DVD...........................................................................................................................................................................23
1
4.1 Introduction
HyperMedia Center is an integrated multimedia application that allows you to enjoy all
of your digital entertainment — TV, home videos and photos. HyperMedia Center
application turns your PC/Laptop into an entertainment center.
Player Controls
You can use several methods to control HyperMedia Center
• Keyboard
Control the application by using the Arrow keys, ESC, and Enter keys.
• Mouse
You can do left-clicks to select items and use the scroll wheel to scroll items.
2
Navigation Bar
Return to Home page
Return to previous page
Minimize HyperMedia Center to the task bar.
Switch between full screen and window mode.
Exit HyperMedia Center.
3
4.2 TV
You can watch and record TV programs. The first time you open HyperMedia Center,
the setup wizard will guide you to configure the TV settings.
Source Input
You can choose your TV signal source.
Channel List
You can get a channel list and select the TV program.
Schedule
You can set a new schedule to record the TV program. If you want to delete a schedule,
select the schedule and delete it.
4
Input Source: Select your TV signal source.
Channel: Select the channel you want to record
Scheduling interval: Select the recording rules. The default value is "Once only".
Starting Date: Set the recording date.
Starting/Ending Time: Set the Time to start/end recording (hour/minute).
Settings
You can change the TV signal, recording and display settings here.
5
Run Setup Wizard: There are a series of settings for TV function including TV tuner,
Region and automatic scan of TV channels
Recording Setting: Set the recording quality.
Display Setting: You can adjust the display settings (Brightness, Contrast, Saturation,
Hue, Sharpness or default setting)
EPG
You can receive information about the electric program guide of each channel.
Player Control Bar
Stop
Pause
Channel Up
Forward
Channel Down
Time-Shifting
Snapshot
Switch Source
Channel Preview
Capture
Mute
Volume Up
Volume Down
Backward
6
4.3 Videos
In the Videos page you can play video files stored on your computer.
Recording Videos:
Play the video files in a specific folder.
More Videos
Play more video files in other folders.
Settings
Set a specific folder to save the recorded video files.
7
Video Control bar
Backward
Pause
Forward
Exit
8
4.4 Pictures
In the Pictures page you can show pictures stored in any folder on your computer.
Snapshot Pictures
Click Snapshot Pictures button to show picture files you captured. In addition, you can
show pictures by a slideshow.
More Pictures
Show more picture files in other folders.
Settings
Set a specific folder you want to save pictures and set the timeframe of SlideShow.
9
Picture Control bar
Exit
Backward
Forward
Filmstrip
10
4.5 Settings
There are settings in HyperMedia Center to fine-tune its performance to your PC and
your personal preferences. The settings page is reached with the Settings button on the
Home Page or through the individual content pages.
TV
There are Run Setup Wizard, Recording Settings and Display Settings shown on TV
settings page. In the Run Setup Wizard page there are a series of settings for TV function
including TV tuner, Region and automatic scanning TV channels. Enter the Recording
settings page to set the recording rules. Move to Display settings to adjust some display
characters such as Brightness, Contrast, Saturation, Hue, Sharpness.
Videos
Set a specific folder to save the recorded video files.
Pictures
11
Set a specific folder to save pictures and set the timeframe of SlideShow.
Others
Click General Settings button to set Languages, background color and click About
HyperMedia Center button for more information.
12
Editing Express
4.6 MPEG Encoder
User Interface
is an example of how the main panel looks like when executing MPEG Encoder
Fig.1.1
13
The main panel is composed of four segments. Refer to1.1
Header Buttons
Add input files; Delete files; Edit options; Start and Stop transcoding.
Batch Process Display Window
Displays file name, encoding status, screen size and play time of files
to be transcoded.
Progress Display Window
Displays formatting information about the file being transcoded.
Preview Display Window
Displays the video of the file being transcoded.
Practice Streaming Video File Format Conversion
MPEG Encoder 5.0 transcodes multimedia files between
video formats. For multimedia files to be transcoded using
Encoder 5.0, they must be playable under Windows Media
Player. File formats that can be transcoded are: AVI,
DV-AVI, MPEG 1, MPEG 2, ASF, WMV, DivX, and DAT.
Fig.1.2
Fig.1.3
To add a multimedia file to be transcoded, click the "+" or "Add" button. This will open the "Browse"
dialog box. Browse to the directory/file wanted and click on "Open". (Another method of adding files to
the “Batch Process Display Window” is to simply highlight a file, then drag and drop it into the Batch
Process Display Window.) Refer to Fig. 1.3
Once the multimedia file is added to the “Batch Process Display Window,” the Option Selection Dialog
14
Box appears. This begins the process of selecting the output format for the transcoder to create. Choose
among four categories of formats: MPEG 1, MPEG 2; Category tabs appear at the top of the window.
After selecting a format category, choose a specific video format (and detailed options if necessary).
Please refer to Fig. 1.2
The output file will be created in the same directory as the original file unless a different path is manually
chosen. It will also maintain the original video file name and add a file extension matching the video
format of the output type selected. The file name can also be manually changed. Refer to Fig. 1.4
Fig. 1.4
Once the output video format and options are selected, click "OK", then the file will appear in the Batch
Process Display Window. Refer to Fig. 1.5
Fig. 1.5
The Batch Process Display Window shows three states of process in the Status column.
1. “Waiting” means that the media file displayed is queued for transcoding (compression and/or
translation). The transcoding of video files in the "Waiting" state begins when the Encoding button is
clicked.
2. “Exclusion” means that transcoding of that file will not occur.
3. “Done” means that the transcoding (compression and/or translation) is successfully completed.
To change a file's status between Waiting and Exclusion (and vice versa), double click on the file line.
The Waiting state will change to an Exclusion state and be reported as "Skip". Similarly, a file with a
"Skip" status when double-clicked, will change to "Waiting."
Fig. 1.5 shows the status Exclusion that changed status of previously added at above by double clicking
with mouse.
Although you push Encoding button in this status, it will not execute compression and translation process.
Change the status to “Waiting” by double clicking the mouse and click the “Encoding” button to execute
the conversion process.
15
Fig. 1.6
During Transcoding, the Status column changes to display the percentage of progress accomplished. Also,
once the transcoding process has begun the (right arrow) Encoding button changes to a Stop button. If the
Stop button is clicked-on during transcoding, the process will stop.
Once the transcoding process completes successfully, the status will change to “Done”. To transcode the
same file again. For example, double-click on the file in the Batch Process Display Window and the
Status will change to Waiting. To change the option again, highlight the file with a single mouse click and
then click on the Option or Edit button to execute the “Option Selection” dialog box.
To view the transcoded output video file, highlight the video file and click on the
“Output” Play button.
4.7 MPEG Editor
Fig. 2.1
16
Fig. 2.1 Shows how the “MPEG Editor” user interface looks like.
•
Menu Section : file open, file/video clip delete, video property, change skin color, minimize,
maximize, close and help.
•
Display panel : play original video clips, play edited video clips (preview), display saving progress
information.
•
Video Clip Staging Section : Original clips, Staging clips.
Frame Edit Section : mark frame range, sequence arrangement, merges multiple frames into one
video.
•
•
•
•
Title Edit Section : add title, font style, size, color, movement (straight line, curve line)
Audio Edit Section : add audio and create sound effect
Special Effect Section : use Color Effect, Filter Effect, Transition Effect, Transition In Effect,
Transition Out Effect, Noise Reduction Filter
4.7.1 Play List Editor
: Add files to play list
•
Support MPEG-1, 2 system file (Video and Audio),
AVI (DV-AVI).
•
Select a file and click Ok button.
: Clip/File delete
Delete clips registered in Original/Staging Clips.
Actual file on a hard disk is deleted when "Delete File" is
checked.
17
: Mpeg Properties Dialog
Displays your input mpeg file properties
4.7.2 Display Panel
Fig. 2.2
18
The very top of Fig. 2.2 displays the video files added to the play list. The four editing mode when the
“Effect” is selected in Fig. 2.2 is the mode to choose when adding special effects to the editing clips.
Original Clips Display Window
• Displays videos of Original Clips. (Double Click or Drag and Drop)
• Videos in Staging Clips cannot be displayed in this window.
• In Title editing mode, Title can be edited in this window.
• In Audio editing mode, it displays registered audio files.
• In Special Effect mode, it displays all available filters.
• Displays the progress information when final video is created.
Edited Clips Display Window
• Displays videos in Staging Clips. (Double Click or Drag and Drop)
• Videos in Original Clips can be displayed in this window.
• Preview function displays edited video in this window.
4.7.3 Original and Staging Clips
Fig. 3.3
The 4 editing mode where the “Audio” is selected in Fig. 3.3 is the mode to choose when editing the
audio of the editing clips.
19
Original Clips
z This is the area where video clips that need to be edited are added and managed.
z Video clips can be dragged and dropped into the Original Clips area.
z The sequence of video clips added can also be rearranged easily by drag and drop.
i)
Use the
How to add video clips
button in the “Menu” to browse and select video clips to add to the Original Clips area.
z Drag and Drop video files to the Original Clips area.
ii) How to view and manage video clips in the Original Clips area:
z To view a video clip in the Original Clips are, either double click on the video clip or drag and
drop the video clip from the Original Clips area on to the Original Video Display window.
z Clicking on the right mouse button will bring up a Popup Menu. This menu performs the
following functions: copy, delete and show property information.
Staging Clips
•
•
•
•
•
This is the area where video clips are added after frame ranges are specified.
Video clips can be managed for further editing in this area.
Editing, deletion and sequence arranging are done here.
File properties for each video clip can be obtained by right mouse clicking on the clip.
Video clips are acted upon and added to the Staging area using the four application buttons on
the left side of Video Editor. Those four buttons are "Cut", "Title", "Audio" and "Effect".
20
4.7.4Frame Edit Mode
Frame Range Selection for Editing
Fig.3.4
The 4 editing mode where the “Title” is selected in Fig. 3.4 is the mode to choose when adding titles
to the editing clips.
•
•
•
Specify frame range
To add an entire video clip, drag the clip from the Original Clips area and drop it in the Staging
Clips area.
To add portions of a video clip, drag the clip from the Original Clips area and drop it in the left
preview window. Then using the Mark-in/Mark-out button, cut the portion of the video clip to be
edited and then click the
button to transfer the clip to the Staging Clips area.
Users can repeat the above steps to add multiple video frames.
Fig. 3.5
Fig. 3.5 displays the list of the files chosen to be used for editing.
Video Frames Editing and Saving
A: Adding Video Clip
•
Click
to browse and select video clips to add to the original clips area.
21
•
•
•
Drag and drop video files to the original clips area.
Double click on added video clips in original clips area or drag and drop them to original video
Display Window to view and select frames for further editing.
B:Selecting frame ranges for video editing click “Mark-in” to specify the beginning of a clip and
mark-out to set the end of the clip. Next, click on the
button to move the clips from the auto
edit window to the Staging Clips area.
C:Editing video frames
• Select video frames in “Staging Clips” List.
• Rearrange the sequence of videos.
• Repeat the same scene by putting the same video frames multiple times.
• Delete sections of video they do not want.
• Confirm the video before final saving using preview function.
• Save the final video when editing is completed.
22
4.8 Burn DVD
Adding Files
Select format :
2
z
z
z
z
DVD: For DVD.
VCD: For Video CD.
SVCD: For Super VCD.
DATA: For multimedia data CD.
1
This dialog box shows up when the
is clicked. Video or photo files are displayed as
thumb nails on the screen (As shown below) after
being added.
Added files can be deleted. Click on the file to be
deleted and then click on the
3
When all necessary files are added, click on
to move to next step.
23
button.
Burning
: This button allows users to go back to the previous step and change selected files or selected
format.
1. Select DVD/CD burner to use.
2.
: Eject DVD/CD drive.
3.
: Erase all content on DVD/CD media.
4.
: Open option dialog box.
z
NTSC, PAL, Both: Select video type.
z
Support XVCD and XSVCD: Data rate is not checked in order to support XVCD and XSVCD.
z
Perform Writing Test before recording: Check to insure that the DVD/CD writer is
functioning correctly before actual burning.
z
Use Windows temporary directory: [Default] Uses Windows temporary directory as DVD
Maker's temporary directory.
z
Path: Allows DVD Maker to specify the temporary directory.
24

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
