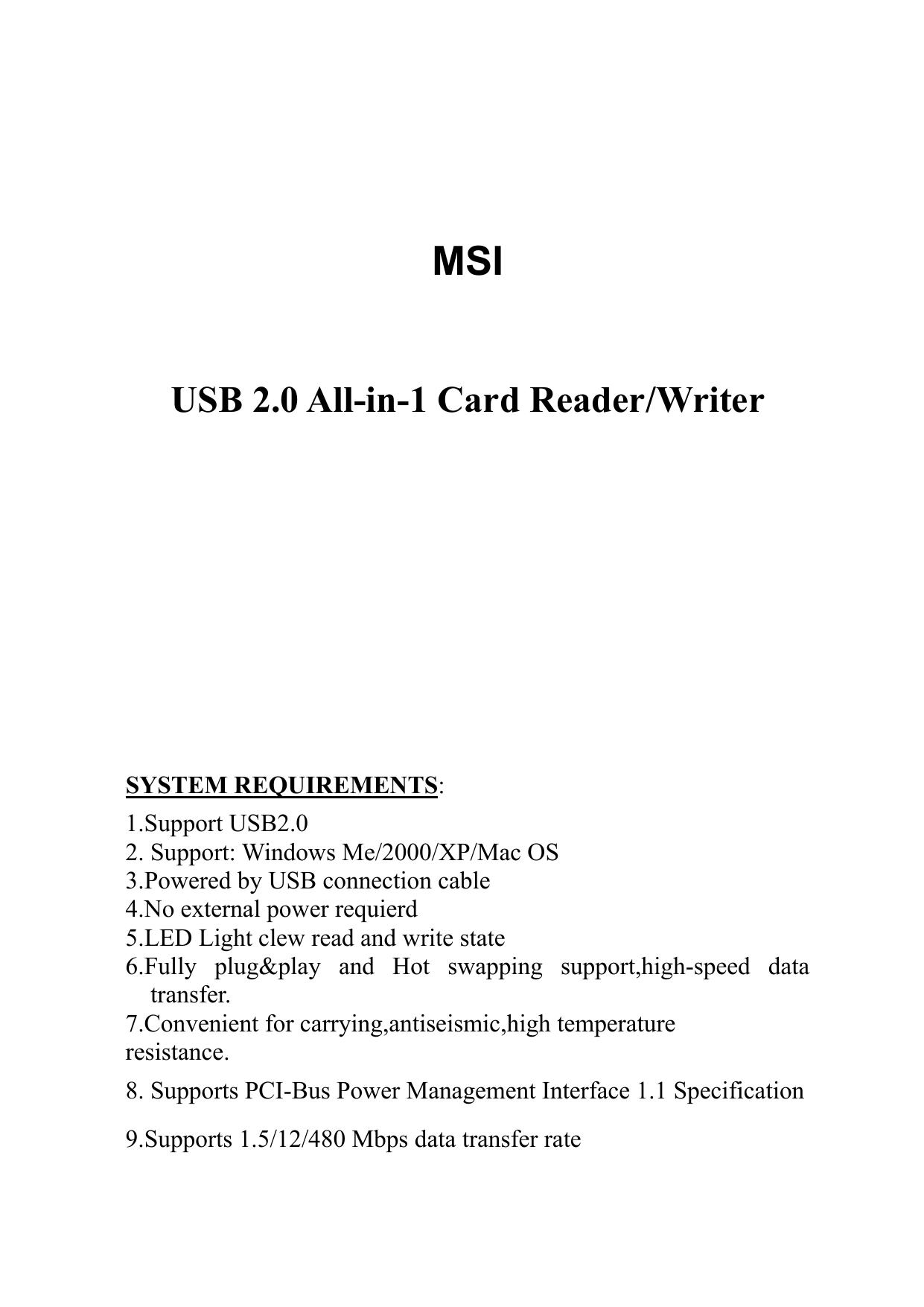

MSI StarReader Silver Owner's Manual

MSI
USB 2.0 All-in-1 Card Reader/Writer
SYSTEM REQUIREMENTS:
1.Support USB2.0
2. Support: Windows Me/2000/XP/Mac OS
3.Powered by USB connection cable
4.No external power requierd
5.LED Light clew read and write state
6.Fully plug&play and Hot swapping support,high-speed data
transfer.
7.Convenient for carrying,antiseismic,high temperature
resistance.
8. Supports PCI-Bus Power Management Interface 1.1 Specification
9.Supports 1.5/12/480 Mbps data transfer rate
O/S Support:
Windows 2000/XP/Vista
MAC OS 10.0 and above
Linux 2.4.X and above
Operating temperature: 0~70
Stock temperature: 10~90
Humidity: 10%~90% non-condensing
COMPATIBILITY:
1.CF/MD：
CompactFlash(CF),CFⅠ
CF-ultraⅡ
CF-pro,CF-proⅡ
CF Extreme,CF ExtremeⅢ
CF-pspⅡ,Microdrive .
2.MS/MSPro/MSPro DUO/MS DUO:
Memory Stick (MS)
Memory Stick Pro (MS Pro)
Memory Stick Pro DUO (MS Pro DUO)
Memory Stick DUO (MS DUO)
HS-MS-Pro(Magic Gate)
HS-MS-Pro-Duo(Magic Gate)
3. xD:
xD
4. SD/MMC /RS MMC:
Secure Digital (SD)
MultiMedia (MMC)
RS-MMC
5.SIM Card
6.T-Flash,MicroSD，MMc-mirco need the adaptor.
7.M2
If you need you read/writer the SIM card, your computer needs to
install the driver (CD supplied). For installation of the driver, please
see the following section.
INSTALLATION GUIDE:
1. Start up your computer.
2. Insert the CD software driver into your CD-ROM drive.
3. Click on the file “SIM .exe” to run the installation:
Click the “Next” button to continue.
Connect your card reader to the computer.
Click “OK”, then “Next” to continue.
Click “Finish” to complete the installation, then restart your
computer.
4. The following icons will show up in "My Computer”
