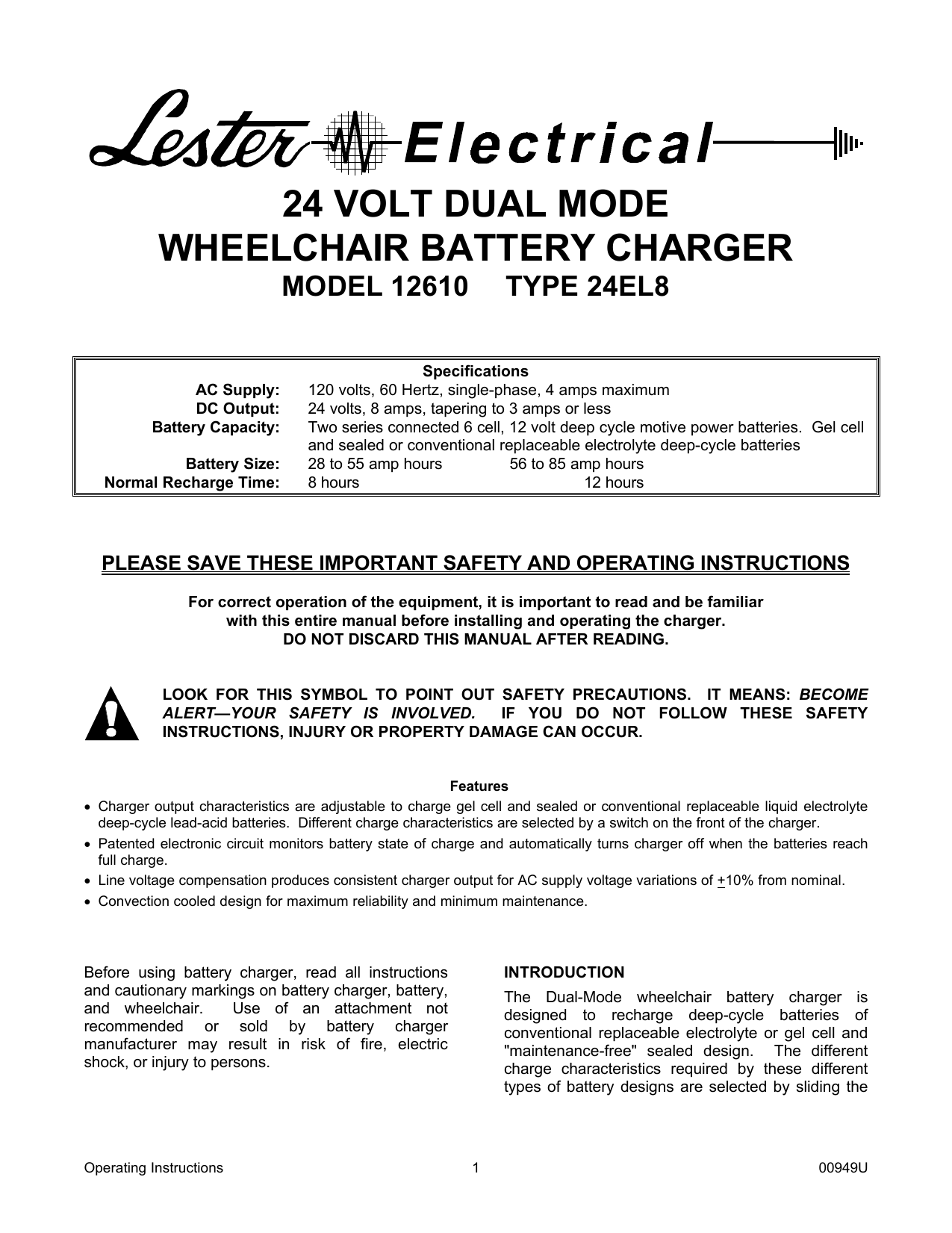

Lester 12610 Operating Instructions Manual

24 VOLT DUAL MODE
WHEELCHAIR BATTERY CHARGER
MODEL 12610
AC Supply:
DC Output:
Battery Capacity:
Battery Size:
Normal Recharge Time:
TYPE 24EL8
Specifications
120 volts, 60 Hertz, single-phase, 4 amps maximum
24 volts, 8 amps, tapering to 3 amps or less
Two series connected 6 cell, 12 volt deep cycle motive power batteries. Gel cell
and sealed or conventional replaceable electrolyte deep-cycle batteries
28 to 55 amp hours
56 to 85 amp hours
8 hours
12 hours
PLEASE SAVE THESE IMPORTANT SAFETY AND OPERATING INSTRUCTIONS
For correct operation of the equipment, it is important to read and be familiar
with this entire manual before installing and operating the charger.
DO NOT DISCARD THIS MANUAL AFTER READING.
LOOK FOR THIS SYMBOL TO POINT OUT SAFETY PRECAUTIONS. IT MEANS: BECOME
ALERT—YOUR SAFETY IS INVOLVED.
IF YOU DO NOT FOLLOW THESE SAFETY
INSTRUCTIONS, INJURY OR PROPERTY DAMAGE CAN OCCUR.
Features
• Charger output characteristics are adjustable to charge gel cell and sealed or conventional replaceable liquid electrolyte
deep-cycle lead-acid batteries. Different charge characteristics are selected by a switch on the front of the charger.
• Patented electronic circuit monitors battery state of charge and automatically turns charger off when the batteries reach
full charge.
• Line voltage compensation produces consistent charger output for AC supply voltage variations of +10% from nominal.
• Convection cooled design for maximum reliability and minimum maintenance.
Before using battery charger, read all instructions
and cautionary markings on battery charger, battery,
and wheelchair.
Use of an attachment not
recommended or sold by battery charger
manufacturer may result in risk of fire, electric
shock, or injury to persons.
Operating Instructions
INTRODUCTION
The Dual-Mode wheelchair battery charger is
designed to recharge deep-cycle batteries of
conventional replaceable electrolyte or gel cell and
"maintenance-free" sealed design. The different
charge characteristics required by these different
types of battery designs are selected by sliding the
1
00949U
BATTERY TYPE selector switch to the correct
setting. A patented electronic circuit turns the
charger ON and OFF automatically.
CAUTION: KEEP DRY; DO NOT EXPOSE TO
RAIN OR SPRAY.
FOR STORAGE, KEEP
CHARGER IN A BUILDING. REPLACE WORN,
CUT OR DAMAGED ELECTRICAL CORDS AND
PLUGS IMMEDIATELY.
Batteries used on wheelchairs are subjected to
severe deep-cycle duty on a daily basis. For this
reason, it is important that only Deep-Cycle batteries
be used.
GROUNDING INSTRUCTIONS
CAUTION: THIS CHARGER IS FOR USE
ONLY ON 12 CELL, 28-85 AMP-HR (20 HR.
RATE), 2.35-2.50 VOLTS PER CELL MAXIMUM
VOLTAGE
RECHARGEABLE,
DEEP-CYCLE
BATTERY SYSTEMS. THIS CHARGER IS FOR
USE ON REPLACEABLE ELECTROLYTE OR
GEL CELL AND SEALED DEEP-CYCLE
BATTERIES. "BATTERY TYPE" SWITCH MUST
BE SET TO THE PROPER TYPE OF BATTERY.
BATTERIES IMPROPERLY MATCHED WITH
CHARGER MAY BURST, CAUSING PERSONAL
INJURY AND DAMAGE TO BATTERIES OR
CHARGER.
This battery charger must be grounded to reduce
the risk of electric shock. It is equipped with an
electric cord having an equipment-grounding
conductor and a grounding-type plug. The plug
must be plugged into an appropriate outlet,
supplied with a ground fault interrupter, that is
properly installed and grounded in accordance with
the National Electrical Code and all local codes and
ordinances.
DANGER:
IMPROPER CONNECTION OF
THE EQUIPMENT-GROUNDING CONDUCTOR
CAN RESULT IN A RISK OF AN ELECTRIC
SHOCK.
DO NOT REMOVE GROUNDING
PRONG FROM PLUG.
INITIAL INSTALLATION
This battery charger is equipped with a grounding
plus as illustrated in Figure A, for use on a nominal
120 volt, 60 Hertz circuit. A temporary adapter, as
illustrated in Figures B and C may be used until a
properly grounded outlet can be installed by a
qualified electrician. The GREEN-colored rigid ear
extending from the adapter must be connected to a
permanent ground such as a properly grounded
outlet box.
Circuit breaker or fuse protection in the 120 volt AC
outlet into which the charger is to be plugged should
allow 5 amps per charger. Do not overload the
electric outlet. The use of an extension cord with
the charger should be avoided. The use of an
improper extension cord could result in a risk of an
electric shock. If an extension cord must be used,
use a three-conductor, No. 16 AWG (or larger) cord
with ground, properly wired, in good electrical
condition, and keep it as short as possible. Make
sure that the pins of the plug on the extension cord
are the same number, size, and shape as that of the
plug on the battery charger. Locate all cords so that
they will not be stepped on, tripped over, or
otherwise subjected to damage or stress. Do not
operate this charger with a damaged cord or plug.
Do not operate this charger if it has received a sharp
blow, was dropped or otherwise damaged in any
manner; refer to a qualified service agent.
DANGER: BEFORE USING THE ADAPTER
AS ILLUSTRATED, BE CERTAIN THAT THE
CENTER SCREW OF THE OUTLET PLATE IS
GROUNDED.
GROUNDING METHODS
Provide adequate ventilation for both batteries and
charger. The convection cooled design requires an
unobstructed flow of cooling air for proper operation.
Keep all charger ventilation openings at least two
inches (2") (5.08cm) away from walls and other
objects. Do not allow clothing, blankets, or other
material to cover charger. DO NOT place under
bed.
NOTE: Use of adapter shown in Figures B and C is
NOT permitted in Canada.
WARNING:
CHARGERS CAN IGNITE
FLAMMABLE MATERIALS AND VAPORS. DO
NOT USE NEAR FUELS, GRAIN DUST,
SOLVENTS,
THINNERS,
OR
OTHER
FLAMMABLES.
Operating Instructions
BATTERY TYPE
Battery manufacturers frequently use the same
battery cases for different battery types.
Conventional liquid electrolyte deep cycle batteries
2
00949U
have removable cell caps. Water electrolyzed by
discharging and charging the battery is replaced
through these openings.
CAUTION:
MAKE SURE THE BATTERY
PACK IS A 24 VOLT, 12 CELL, SERIES
CONNECTED, 28-85 AMP-HOUR (20 HR. RATE),
RECHARGEABLE
DEEP-CYCLE
BATTERY
SYSTEM. THE "GEL CELL AND SEALED DEEPCYCLE BATTERY" SETTING CHARGES TO A
MAXIMUM ON CHARGE VOLTAGE OF 2.35
VOLTS PER CELL.
THE "REPLACEABLE
ELECTROLYTE
DEEP-CYCLE
BATTERY"
SETTING HAS AN ON CHARGE VOLTAGE OF
AT LEAST 2.50 VOLTS PER CELL. VISUALLY
CHECK THAT THE "BATTERY TYPE" SWITCH IS
SET CORRECTLY FOR THE TYPE OF BATTERY
YOU ARE USING.
Gel cell and sealed "maintenance-free" batteries are
generally distinguished by non-removable cell caps.
The physical appearance of battery case is
frequently the same as that of a conventional liquid
electrolyte battery though the cell caps are generally
not removable.
Refer to the battery manufacturer’s information
panel on the battery case to determine the type
battery you have. If the information panel is missing
or not legible, do not use the battery. Refer to your
dealer if you do not understand what type of battery
you are using and have them set the BATTERY
TYPE switch accordingly.
DANGER: TO PREVENT ELECTRIC SHOCK,
DO NOT TOUCH UNINSULATED PARTS OF THE
CHARGER DC OUTPUT CONNECTOR, BATTERY
CONNECTOR, OR BATTERY TERMINALS.
MAKE SURE ALL ELECTRICAL CONNECTORS
ARE IN GOOD WORKING CONDITION. DO NOT
USE CONNECTORS THAT ARE CRACKED,
CORRODED OR DO NOT MAKE ADEQUATE
ELECTRICAL CONTACT. USE OF A DAMAGED
OR DEFECTIVE CONNECTOR MAY RESULT IN A
RISK OF OVERHEATING OR ELECTRIC SHOCK.
The BATTERY TYPE switch is a two-position slide
switch visible at the opening in the front panel of the
electronic timer assembly. Slide the switch from
one setting to the other through the opening. Take
care not to damage the switch when moving it to the
desired setting.
2. Connect the power supply cord to a properly
grounded, 120 volt, 60 Hertz single phase
outlet.
CHARGING
FAULT
YELLOW INDICATOR
LIGHT
RED INDICATOR
LIGHT
3. Move the POWER switch to "AUTO". The
ammeter needle may bounce initially and the
transformer should hum slightly.
SET HERE FOR
GEL CELL, SEALED OR
MAINT. FREE BATTERIES
WARNING: CHARGER IS NOT TO BE USED
WHILE THE EQUIPMENT IS OPERATING.
BATTERY TYPE
SWITCH
ATTENTION:
Ne pas utiliser le charger
pendant que l'equipment est en marche.
SET HERE FOR
CONVENTIONAL LIQUID
ELECTROLYTE BATTERIES
WARNING:
LEAD-ACID
BATTERIES
GENERATE
GASES
WHICH
CAN
BE
EXPLOSIVE.
TO PREVENT ARCING OR
BURNING
NEAR
BATTERIES,
DO
NOT
DISCONNECT DC CHARGING CORD FROM
BATTERIES
WHEN
THE
CHARGER
IS
OPERATING. IF THE CHARGE CYCLE MUST BE
INTERRUPTED, MOVE THE POWER SWITCH TO
"OFF", AND DISCONNECT THE CHARGER
POWER
SUPPLY
CORD
BEFORE
DISCONNECTING THE DC OUTPUT CORD
FROM THE BATTERIES.
KEEP SPARKS,
FLAME, AND SMOKING MATERIALS AWAY
FROM BATTERIES.
U.S. PAT. NO. 3,794,905
GR. BR. PAT. NO. 1,414,359
FR. PAT. NO. 2,203,199
W. GR. PAT. NO. 2,351,559
JAPAN PAT. NO. 33133/1978
NORMAL OPERATION
Instructions printed on cover of charger are for
daily reference.
1. Connect charger DC output cord to the
wheelchair charging receptacle. Do not connect
the DC plug unless the Power switch is in the
"OFF" position and the power supply cord is
disconnected.
Operating Instructions
3
00949U
batteries are fully charged, check to be sure all
ventilation openings are free from obstructions.
After charger cools down to a safe temperature,
it will automatically restart.
If charger
repeatedly overheats, refer to a qualified service
agent.
WARNING: ALWAYS SHIELD EYES WHEN
WORKING NEAR BATTERIES. DO NOT PUT
WRENCHES OR OTHER METAL OBJECTS
ACROSS BATTERY TERMINAL OR BATTERY
TOP.
ARCING OR EXPLOSION OF THE
BATTERY CAN RESULT!
5. Charger turns off automatically when batteries
are fully charged. Charge time varies with
battery size and depth of discharge. Allow 8
hours for normal charging. Larger batteries
(greater than 85 ampere-hours) or severely
discharged batteries may require up to 14 hours
to be properly charged and equalized. If the
charger operates for 14 hours and is unable to
fully charge the batteries, an internal timer turns
the charger off, extinguishes the YELLOW
charge light, and turns the RED fault light on.
Charger will turn ON one to three (1-3) seconds
after completion of the last of the above actions,
and the charger ammeter will indicate initial
charge current.
If the YELLOW light does not illuminate and the
POWER switch is in the "ON" position, the AC
outlet is not live or an open circuit exists in the
wheelchair’s internal circuitry. Test for a live AC
outlet by connecting a suitable household
appliance to the specific outlet. If the outlet
tests live, then the fault is in the wheelchair
wiring. Take the wheelchair to your dealer to
have the fault corrected (see Troubleshooting).
6. After the charger has turned off, move the
POWER switch to "OFF", disconnect AC cord
first, then the DC output cord from the
wheelchair charging receptacle.
4. Monitor ammeter for correct initial charge rate.
Correct initial charge rate should be between 7
and 9 amps.
As the battery reaches
approximately 70% of full charge, the charge
rate gradually decreases to a reading
determined by the "BATTERY TYPE" switch
setting and the condition of the batteries.
CAUTION: TO AVOID DAMAGE TO THE
CHARGER CORD AND BATTERY CONNECTOR,
DISCONNECT BY GRASPING THE PLUG
HANDLE AND PULLING IT STRAIGHT OUT OF
THE BATTERY CONNECTOR. DO NOT PULL
ON THE CHARGER CORD. DO NOT TWIST,
ROCK, OR PULL THE PLUG SIDEWAYS.
Replaceable Electrolyte Deep Cycle Batteries
With healthy batteries, the charging current will
decrease to between 2 and 4 amps and remain
there until the charger turns off. As replaceable
electrolyte deep cycle batteries lose capacity,
the charge rate may no longer decrease to this
reading. The charger will still determine when
the batteries are as charged as they are capable
of being and will turn off. When battery capacity
has decreased to where the charger is no longer
able to taper down to less than 4 amps, or the
batteries will no longer perform as desired, they
should be replaced.
WARNING:
TO PREVENT ARCING OR
BURNING NEAR THE BATTERIES, DO NOT
DISCONNECT THE OUTPUT CORD FROM THE
BATTERIES
WHILE
THE
CHARGER
IS
OPERATING. IF THE CHARGE CYCLE MUST BE
INTERRUPTED, FIRST SLIDE THE POWER
SWITCH TO "OFF", THEN DISCONNECT AC
CORD, AND FINALLY THE OUTPUT CORD
FROM THE BATTERIES.
KEEP SPARKS,
FLAME, AND SMOKING MATERIALS AWAY
FROM BATTERIES. NO SMOKING.
Gel Cell and Sealed Deep Cycle Batteries
The charging current will decrease to near zero
and remain there until the charger turns off. Gel
cell deep cycle batteries will still taper to near
zero charge current, even as they wear out and
lose capacity and range. As sealed deep-cycle
batteries lose capacity and range, the charge
current may no longer decrease to this low a
reading. The charger will still determine when
the batteries are as charged as they are capable
of being and turn off. When the batteries will no
longer perform as desired, they should be
replaced.
WARNING:
DO NOT LEAVE THE DC
OUTPUT CONNECTOR PLUGGED IN WHILE
UNATTENDED FOR MORE THAN TWO (2) DAYS.
SEVERE OVERCHARGING AND DAMAGE TO
THE BATTERIES MAY RESULT IF THE
CHARGER DOES NOT TURN OFF.
PROPER CARE OF MOTIVE POWER BATTERIES
Batteries used on wheelchairs are subjected to
severe deep-cycle duty on a daily basis. For this
reason, it is important that only deep-cycle batteries
be used. Although these batteries are designed to
withstand such duty, the following precautions must
Charger is equipped with a temperature sensor
which automatically turns the charger off if it
overheats. Should charger turn off before the
Operating Instructions
4
00949U
be observed to obtain good performance and
maximum cycle life.
PERSONAL PRECAUTIONS
1. Someone should be within the range of your
voice or close enough to come to your aid when
you work near a lead-acid battery.
CAUTION: ALWAYS WEAR PROTECTIVE
EYE
SHIELDS
AND
CLOTHING
WHEN
WORKING WITH BATTERIES.
BATTERIES
CONTAIN ACID WHICH CAN CAUSE BODILY
HARM. DO NOT PLACE WRENCHES OR OTHER
METAL OBJECTS ACROSS THE BATTERY
TERMINALS OR BATTERY TOP. ARCING OR
EXPLOSION OF THE BATTERY MAY RESULT.
SOMEONE SHOULD BE WITHIN THE RANGE OF
YOUR VOICE OR CLOSE ENOUGH TO COME TO
YOUR AID WHEN YOU WORK NEAR A LEADACID BATTERY. HAVE PLENTY OF FRESH
WATER AND SOAP NEARBY IN CASE BATTERY
ACID CONTACTS SKIN, CLOTHING, OR EYES.
2. Have plenty of fresh water and soap nearby in
case battery acid contacts skin, clothing, or
eyes.
3. Wear complete eye protection and clothing
protection. Avoid touching eyes while working
near battery.
4. If battery acid contacts skin or clothing, wash
immediately with soap and water. If acid enters
eye, immediately flood eye with running clod
water for at least 10 minutes and get medical
attention immediately.
5. NEVER smoke or allow a spark or flame in
vicinity of batteries.
WARNING: RISK OF EXPLOSIVE GASES.
WORKING IN VICINITY OF A LEAD-ACID
BATTERY IS DANGEROUS.
BATTERIES
GENERATE
EXPLOSIVE
GASES
DURING
NORMAL BATTERY OPERATION. FOR THIS
REASON, IT IS OF UTMOST IMPORTANCE THAT
EACH TIME BEFORE USING YOUR CHARGER,
YOU READ THIS MANUAL AND FOLLOW THE
INSTRUCTIONS EXACTLY.
6. Be extra cautious to reduce a risk of dropping a
metal tool onto battery. It might spark or shortcircuit battery or other electrical part that may
cause explosion.
1. New batteries should be given a full charge
before their first use because it is difficult to
know how long the batteries have been stored.
8. NEVER charge a frozen battery.
2. Limit use of new batteries for first 5 cycles. New
batteries are not capable of their rated output
until they have been discharged and charged a
number of times.
DUAL MODE WHEELCHAIR CHARGER
TROUBLESHOOTING
7. Remove personal metal items such as rings,
bracelets, necklaces, and watches when working
with a lead-acid battery. A lead-acid battery can
produce a short-circuit high enough to weld a
ring or the like to metal, causing a severe burn.
CAUTION: DO NOT DISASSEMBLE THE
CHARGER. TAKE IT TO A QUALIFIED SERVICE
AGENT WHEN SERVICE OR REPAIR IS
REQUIRED. INCORRECT REASSEMBLY MAY
RESULT IN A RISK OF ELECTRIC SHOCK OR
FIRE. THE FOLLOWING PROCEDURES ARE
INTENDED ONLY TO DETERMINE IF A
MALFUNCTION MAY EXIST IN THE CHARGER,
OR IN THE WHEELCHAIR AND BATTERIES.
3. Do not excessively discharge batteries.
Excessive discharge can cause polarity reversal
of individual cells resulting in complete failure
shortly thereafter. Limited use of new batteries
will minimize the risk of cell reversals.
4. CHECK THE LEVEL OF THE ELECTROLYTE
IN CONVENTIONAL LIQUID ELECTROLYTE
LEAD
ACID
BATTERIES
MONTHLY.
MAINTAIN THE PROPER ELECTROLYTE
LEVEL BY ADDING DISTILLED OR PURIFIED
WATER WHEN NECESSARY.
Electrolyte
levels fall during discharge and rise during
charge. Therefore, it is mandatory that water be
added to the cells ONLY when they are fully
charged; do not overfill. Old batteries require
more frequent additions of water than new
batteries.
DANGER: TO REDUCE RISK OF ELECTRIC
SHOCK, ALWAYS DISCONNECT BOTH THE
POWER SUPPLY CORD AND THE OUTPUT
CORD
BEFORE
ATTEMPTING
ANY
MAINTENANCE OR CLEANING.
CAUTION:
DO NOT OPERATE THE
CHARGER IF IT IS DAMAGED OR APPEARS TO
BE MALFUNCTIONING. PERSONAL INJURY OR
DAMAGE
TO
THE
CHARGER
AND/OR
BATTERIES MAY RESULT.
5. Keep tops of batteries clean and dry to prevent
excessive self-discharge.
Keep the battery
terminals reasonably tight.
Operating Instructions
5
00949U
is allowed to take place, it may be partially
reduced by returning, temporarily, to daily
charging.
1. If the YELLOW charging light does not
illuminate one to three (1-3) seconds after the
charger connections are completed, it indicates
one of the following and the charger is
prevented from turning on:
3. The decrease in equipment range where the
chair loses power earlier and earlier in the day
indicates one of the following:
a. Charger power switch is not in the AUTO
position.
a. The electrolyte level in conventional liquid
electrolyte lead-acid batteries was allowed
to drop below the top of the battery plates.
Add distilled water to just cover the top of
the plates immediately upon discovery and
fill to the proper level with distilled water at
the completion of the very next charge
cycle. Battery capacity lost in this matter is
permanent and is not recovered with
additional charge cycles.
b. Charger is not plugged into a live AC outlet.
c.
Fault in wheelchair wiring. Poor or open
connections in the wheelchair wiring that
connects to the batteries; corroded
terminals, loose or worn plugs and
receptacle, loose or worn fuseholders.
(Have your dealer repair the wheelchair.)
d. Battery connections in wheelchair are wrong
(reverse polarity).
b. Use of the wheelchair before the batteries
have been fully charged and the charger
turns off shortens battery life and hastens
the onset of reduced daily range. Battery
capacity lost in this manner is permanent
and is not recovered with additional charge
cycles.
e. One or both batteries no longer serviceable
(voltage below 13 volts for 24 volt system).
2. If the charger turns off before the batteries are
fully charged, it indicates one of the following:
a. Charger internal thermostat turned the
charger off due to overheating because
charger ventilation openings are blocked.
After the charger has cooled down to a safe
temperature, it will automatically restart. If
the charger repeatedly overheats, it may be
malfunctioning.
c.
4. The charger operates through 14 hours before
turning off. The YELLOW charge light turns off
and the RED fault light comes on.
This
indicates one of the following:
b. The AC power was interrupted during
charge.
c.
This is the normal wearout process for all
types of deep-cycle motive power batteries.
a. Batteries larger than 85 amp-hour capability
(20 hr rate) can require more than 14 hours
to charge.
The DC cord was accidentally disconnected
from the battery during charge.
d. Fault in wheelchair wiring. The wheelchair
charging circuit has high resistance,
corroded or loose connections; loose or
worn wheelchair charging receptacle, loose
or worn wheelchair fuseholders.
b. New batteries (5 cycles or less) can required
more than 14 hours to charge.
e. The battery has been allowed to sulfate.
Charge the battery no less frequently than
once every three (3) days when the
equipment is lightly utilized. Once sulfation
d. Several failed cells in the batteries that do
not allow the charge rate to taper below 4
amps.
Operating Instructions
c.
6
Very deeply discharged batteries (100%
discharged) can require more than 14 hours
to charge.
00949U
WIRING DIAGRAM
POWER
SWITCH
BLK
SHUNT RESISTOR
AMMETER
TRANSFORMER
P
4
SCR
WHT
GRN
WHITE
RED
WHITE
+
5
AC
INPUT
PLUG
1
BLUE
WHT
SCR
RED
WHITE
7
BROWN
6
P
YELLOW
BLACK
DC
OUTPUT
-
BLACK
RED
WHT
ORANGE
BR
OW
N
RED
ORANGE
BLUE
BLACK
WHITE
BLUE
2
YELLOW
BLUE
BROWN
3
BROWN
9
7
6
5
4
3
2
1
ELECTRONIC
TIMER
L2115S19
PARTS LIST
MODEL 12610 TYPE 24EL8
PART NO.
14432S
12600S
12245S
13811S
14308S
15184S
14341S
04275S
14444S
14421S
14422S
16626S
16671S
16672S
16612S
16221S
17219S
20838S
17219S
14419S
09942S
02957S
21667S
18034S
23014S
19974S
Operating Instructions
QTY.
1
1
1
1
1
1
1
2
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
DESCRIPTION
CASE ASSEMBLY
TRANSFORMER ASSEMBLY
ELECTRONIC TIMER ASSEMBLY
AMMETER, 10 AMP
CONTROL CABLE ASSEMBLY
SWITCH, SLIDE, SPST, 1225 VAC, 6 AMP
THYRISTOR ASSEMBLY
BUSHING, INSULATOR, 6N3-4, FOR CORDSETS
CORDSET, AC, 18/3, 102", MD PL
CORDSET, DC, 108", BLACK & RED POWERPOLE
CORDSET, DC, 108", YELLOW & WHITE POWERPOLE
CORDSET, DC, 108", WHITE & BLACK POWERPOLE
CORDSET, DC, 108", W/ ALLIGATOR CLIPS
CORDSET, DC, 108", W/ HIRSCHMANN PLUG
CORDSET, DC, 108", W/ CANNON PLUG
CORDSET, DC, 108", W/ REVERSE CANNON PLUG
CORDSET, DC, 108", W/ SB50 GRAY PLUG
CORDSET, DC, 108", W/ SB50 RED PLUG
CORDSET, DC, 108", W/ SB175 GRAY PLUG
CORDSET, DC, 108", NO PLUG
PLUG ASSEMBLY, FOR SB50 GRAY PLUG
PLUG ASSEMBLY, FOR SB175 GRAY PLUG
CORDSET, DC, 108", W/ 30 AMP POWERPOLE
CORDSET, DC, 108", W/ 15 AMP BEAU
CORDSET, DC, 82", W/ CANNON PLUG
CORDSET, DC, 108", W/ CANNON PLUG, AUSTRALIA
7
00949U
LIMITED
WARRANTY
Lester Electrical warrants each new Lester Battery Charger for defects in material and workmanship for a period of two
(2) years from the date of manufacture of the complete unit. Repairs can be made at the Lester factory. To do so, first
obtain a "Return Material Authorization" number by calling the Service Department of Lester Electrical (402 477-8988) or by
e-mailing [email protected] and send the defective unit with transportation charges prepaid to:
Lester Electrical
625 West A Street
Lincoln, NE 68522-1794 USA
Attention: Service Department
RMA #
For repairs made at other than the Lester factory, Lester will provide only the replacement parts. Defective parts should
be sent with transportation charges prepaid to the Lester factory at the address noted above.
If the unit or parts are found in the reasonable judgment of Lester to be defective in material or workmanship, repair or
replacement will be made by Lester without charge for parts or labor. Repair or replacement will be at the discretion of
Lester, with replacements being made using current models or parts performing the equivalent function. Labor charges other
than those incurred at the Lester factory are not covered under this warranty. All expenses associated with delivering
defective items to the Lester factory and the expense of returning repaired or replaced items from the Lester factory to the
owner will be paid for by the owner. All warranty work accomplished at the Lester factory will be completed with a reasonable
time after receipt of defective items.
This warranty does not cover any semiconductor parts, such as diodes, which are vulnerable to electrical overloads
beyond the control of Lester. Warranty on parts not manufactured by Lester, which include, but are not limited to, timers and
ammeters, is limited to the period specified in the original manufacturer's warranty.
This warranty does not cover any charger that has been subject to misuse, neglect, negligence, or accident, or operated
in any way contrary to instructions specified on the charger case and in the owner's manual. No claim of breach of warranty
shall be cause for cancellation of the contract of sale of any Lester charger. Lester assumes no responsibility for loss of time,
inconvenience, or other damage, consequential or otherwise, resulting from a defective charger. All implied warranties
(including merchantability) are limited in duration to the two years from date of manufacture warranty period.
Some states do not allow the exclusion or limitation of incidental or consequential damages; or limitations on how long an
implied warranty lasts, so the above limitations may not apply to you. This warranty gives you specific legal rights, and you
may also have other rights which vary from state to state.
Lester's obligation under this warranty is strictly and exclusively limited to the repair or replacement of defective items. Lester
issues this warranty in good faith and with full confidence in the workmanship and quality of Lester products.
Operating Instructions
8
00949U

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
