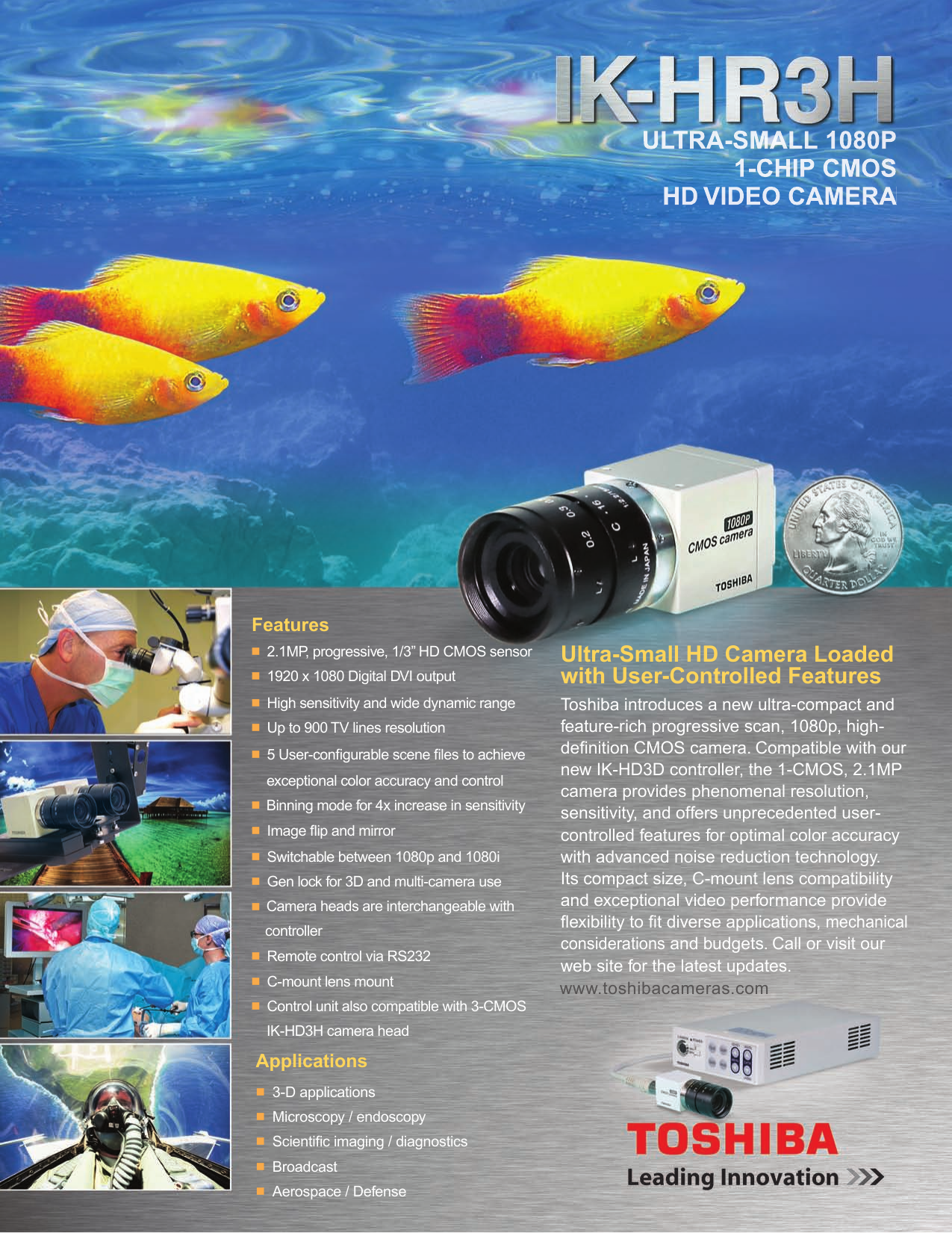

Toshiba IK-HR3H Camcorder Leaflet

ULTRA-SMALL 1080P
1-CHIP CMOS
HD VIDEO CAMERA
Features
 2.1MP, progressive, 1/3” HD CMOS sensor
 1920 x 1080 Digital DVI output
 High sensitivity and wide dynamic range
 Up to 900 TV lines resolution
 5 User-configurable scene files to achieve
exceptional color accuracy and control
 Binning mode for 4x increase in sensitivity
 Image flip and mirror
 Switchable between 1080p and 1080i
 Gen lock for 3D and multi-camera use
 Camera heads are interchangeable with
controller
 Remote control via RS232
 C-mount lens mount
 Control unit also compatible with 3-CMOS
IK-HD3H camera head
Applications
 3-D applications
 Microscopy / endoscopy
 Scientific imaging / diagnostics
 Broadcast
 Aerospace / Defense
Ultra-Small HD Camera Loaded
with User-Controlled Features
Toshiba introduces a new ultra-compact and
feature-rich progressive scan, 1080p, highdefinition CMOS camera. Compatible with our
new IK-HD3D controller, the 1-CMOS, 2.1MP
camera provides phenomenal resolution,
sensitivity, and offers unprecedented usercontrolled features for optimal color accuracy
with advanced noise reduction technology.
Its compact size, C-mount lens compatibility
and exceptional video performance provide
flexibility to fit diverse applications, mechanical
considerations and budgets. Call or visit our
web site for the latest updates.
www.toshibacameras.com
Performance Specifications 1-CMOS 1080P HD Camera
Camera Head Exterior Dimensions
Image Sensor
1-CMOS, 1/3 inch, 2.1MP progressive
Output Resolution
Horizontal : 1920, Vertical : 1080
Resolution : H
:V
900 TV lines standard
900 TV lines standard
Sensitivity
F7 standard (59.94 Hz setting)
F7.7 standard (50 Hz setting) (at 2000 lx, 3000 K)
Minimum Illumination
9.9 lx (59.94 Hz setting)
8.2 lx (50 Hz setting) at F2.2 , 20 dB, BINNING: ON
19.8 lx (59.94 Hz setting)
27.4 mm
16.3 lx (50 Hz setting) at F2.2, 20 dB, BINNING: OFF
27.4 mm
33 mm
[1.08”]
[1.3”
Front
56 dB standard
AGC: OFF, Gamma: OFF, Enhance: OFF
Ambient Temperature
0˚C to 40˚C / 32˚F to 104˚F
Ambient Humidity
Less than 90%
Weight
Approx. 34 g (1.2 oz)
Dimensions
W: 27.4 mm H: 27.4 mm D: 33 mm
(1.08” x 1.08” x 1.3”)
Protruding portion is not included
27.4 mm
[1.08”]
[1.08”]
S/N Ratio
IK-HD3D FRONT
FILE Button
DISP Button
POWER Switch
MENU UP
(SHD) Button
POWER LED
DATA DOWN
(ABB) Button
GAIN Button
MENU DOWN
Button
IK-HD3D REAR
DC IN 12V Terminal
REMOTE Terminal
EXT. SYNC Terminal
50
4
3
33 mm
5.8 mm
[1.3”]
[0.23”]
1080P
TOSHIBA
Power Supply
12V DC±10%
Power Consumption
11.4 W
Scanning System
Progressive / Interlaced (Selectable)
H: 67.433 kHz, V:59.94 Hz :1080p / 59.94 Hz
H: 56.250 kHz, V:50 Hz
:1080p / 50 Hz
H: 33.716 kHz, V:59.94 Hz : 1080i / 59.94 Hz
H: 28.125 kHz, V:50 Hz
: 1080i / 50 Hz
Scan Frequency
PAGE Button
1
2
TOSHI
CMOS camera
Side
DATA UP
(AWB) Button
CAMERA CABLE
CONNECTOR
Terminal
FORMAT Switch
CMOS came
IK-HD3D Controller Specifications
Controller Front and Back Panels
KEY LOCK Switch
108
27.4 mm
[1.08”]
Camera Head Specifications
SYNC OUT Terminal
DVI-D
1 2 3 4 5
DVI-D Terminal
6 7 8 9
Ambient Temperature
0˚C to 40˚C / 32˚F to 104˚F
Ambient Humidity
Less than 90%
Weight
Approx. 610 g (1.34 lbs.)
Dimensions
W: 110 mm, H: 40 mm, D: 186 mm
(4.33” x 1.58” x 7.32”)
Scene Files
5 User-configurable scene files
White Balance
Auto / Manual (Selectable)
Gain
Auto (0 - 20 dB); Manual (-3 - 20 dB), OFF
Output Signal
DVI-D
Electronic Shutter
Auto / Manual / OFF 1/60 - 1/10,000
Complies to FCC Part 15 Subpart B, Class A; EN61000-6-4, EN61000-6-2
Connection
Lens
System Components
(option)
For further details, contact your Toshiba ME/FA distributor.
CAMERA SYSTEM
IK-HR3H
CAMERA CONTROL UNIT
IK-HD3D
CAMERA CABLE
Model
EXC-3HD03
EXC-3HD06
EXC-3HD10
EXC-3HD15
Length
3m
6m
10 m
15 m
© 2013-2014 Toshiba America Information Systems, Inc. All rights reserved. All products and names mentioned
are the property of their respective owners. While Toshiba has made every effort at the time of publication to ensure
the accuracy of the information provided herein, product specifications, configurations, prices,
system/component/options availability are all subject to change without notice.
REFER TO OUR WEBSITE FOR THE LATEST UPDATES.
D
Camera Head
IK-HR3H
Digital HD
Camera Control Unit
Camera Cable
up to 15 m
Rear projection less than:
11mm (0.433") IKHR3H
DVI-D
IK-HD3D
Power supply 12V DC
(sold separately)
Toshiba America Information Systems, Inc.
Imaging Systems Division
9740 Irvine Boulevard, Irvine, California 92618
www.toshibacameras.com
IKHR3H 05-14 v2
