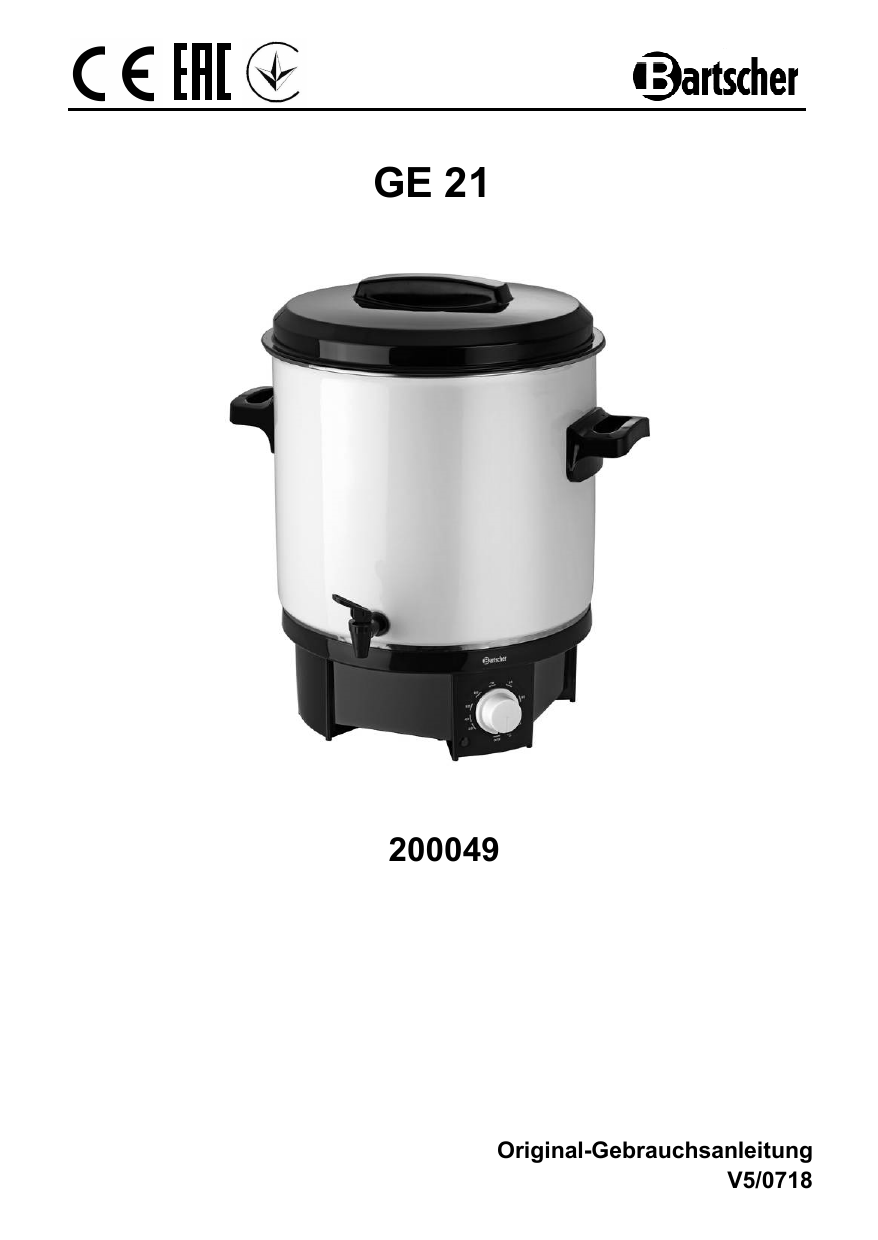

Bartscher 200049 Mulled wine pot,bl.w.canner GE 28 Operating instructions

GE 21
200049
Original-Gebrauchsanleitung
V5/0718
GB/UK
ENGLISH
Table of contents
1.Safety ........................................................................................................................ 20
1.1 Key to symbols ..................................................................................................... 20
1.2 Safety instructions ................................................................................................ 21
1.3 Proper use ............................................................................................................ 25
2. General information ................................................................................................ 26
2.1 Liability and Warrantees ....................................................................................... 26
2.2 Copyright protection ............................................................................................. 26
2.3 Declaration of conformity ...................................................................................... 26
3. Transport, packaging and storage......................................................................... 27
3.1 Delivery check ...................................................................................................... 27
3.2 Packaging............................................................................................................. 27
3.3 Storage ................................................................................................................. 27
4. Technical data ......................................................................................................... 28
4.1 Overview of parts ................................................................................................. 28
4.2 Technical specification ......................................................................................... 29
5. Installation and operation....................................................................................... 29
5.1 Installation ............................................................................................................ 29
5.2 Operation.............................................................................................................. 30
6. Cleaning and descaling .......................................................................................... 34
7. Waste disposal ........................................................................................................ 36
Bartscher GmbH
Franz-Kleine-Str. 28
33154 Salzkotten
Germany
phone: +49 5258 971-0
fax:
+49 5258 971-120
Service-Hotline: +49 5258 971-197
www.bartscher.com
- 19 -
Read this instruction manual before using and
keep them available at all times!
This instruction manual contains information about the installation, operation and
maintenance of the device and should be consulted as an important source of
information and reference guide.
Awareness of the safety instructions and instructions for use in this manual will ensure
the safe and correct use of the device.
In addition to the information given here, you should comply with any local Health and
safety Controls and generally applicable safety regulations.
The instruction manual forms part of the product and should be kept near the device
and easily accessible for anyone carrying out the installation, servicing, maintenance or
cleaning.
Please keep these instructions and give them to future owners of the device.
1.Safety
This device is designed in accordance with the presently applicable technological
standards. However, the device can pose a danger if handled improperly and
inappropriately.
All persons using the device must follow the recommendations and instructions
in this instruction manual.
1.1 Key to symbols
In this manual, symbols are used to highlight important safety instructions and any
advice relating to the device. The instructions should be followed very carefully to avoid
any risk of accident, personal injury or material damage.
WARNING!
This symbol highlights hazards which could lead to injury.
WARNING!
This symbol highlights dangerous situations which could lead to injury or death.
- 20 -
HOT SURFACE!
This symbol is a warning that the device surface is hot when in use.
Ignoring this warning may result in burns!
HOT STEAM!
This symbol indicates that during the operation the hot steam escapes from the
device. Risk of scalding if safety instructions are not observed!
CAUTION!
This symbol highlights dangerous situations which could lead to light
injuries, or damage, malfunction, and/or destruction of the device.
NOTE!
This symbol highlights recommendations and information aimed for effective
and trouble-free device operation.
1.2 Safety instructions




The device is not intended for use by individuals (including
children) with physical or mental disabilities, insufficient
experience, and/or insufficient knowledge unless such persons
are under the care of a person responsible for their safety or
have received instructions regarding appropriate use of the
device.
Children should be observed to ensure that they are not playing
with or starting the device.
Never leave the device unattended when in use.
Only use the device indoors.
- 21 -





The device must be operated in correct and safe technical
condition only. In case of operational problems disconnect the
device from the power supply (pull the plug from the socket) and
contact the service company.
Prevent access of children to the package materials like plastic
bags and foamed polystyrene elements. Suffocation hazard!
Only a qualified technician and using original spare parts and
accessories should carry out repairs and maintenance of the
device. Do not attempt to repair the device yourself.
Do not use any accessory or spare parts that have not been
recommended by the manufacturer. These can be dangerous
for the user or lead to damages of the device or personal injury,
and further, the warranty expires.
To prevent hazards and to ensure optimum efficiency, no
modifications or alterations to the device that are not explicitly
approved by the manufacturer may be undertaken.
DANGER! Electric shock hazard!
To avoid the hazard results please follow the safety instructions
below.


Never allow the power cable to come into contact with heat
sources or sharp edges. The power cable should not hang over
the side of the working surface. Ensure that no one can step on
or trip over the cable.
The power cable must not be folded, bent or tangled, and must
always remain fully unrolled. Never place the device or other
objects on the power cable.
- 22 -








Do not cover the cable. Keep away the cable from operating
range and do not immerse it into water.
Check the power cord regularly for damage. Do not use the
device if the power cord is damaged. If this cable is damaged,
it must be replaced by customer service or a qualified
electrician in order to avoid dangers.
The supply cable must be disconnected from the socket
only by pulling the plug.
Never carry or lift the device by the supply cable.
In any case do not open the device housing. In case of
electrical or mechanical modifications the electric shock
hazard will occur.
Do not use any acid agents and make sure no water ingresses
the device.
Never operate the device with moist hands or standing on wet
floor.
Remove the plug from its socket:
-
when the device is not used,
in case of anomalies during operation,
before cleaning.
HOT SURFACE! Burn hazard!
To avoid the hazard results please follow the safety instructions
below.

The device surface during operation is very hot! In order to
avoid burns of fingers and hands do not touch hot surfaces of
the device! During operation touch only handles and operational
elements designed for such purpose. Use the protective clothes
or gloves.
- 23 -

The devicel surface and liquids inside remain hot for some time
after turning off, so before cleaning or moving the device wait
until they cool down.
HOT STEAM! Hazard connected with contact with
hot steam and hot water!
To avoid the hazard results please follow the safety instructions
below.


Do not exceed the maximum filling level! In case of overfilling
the liquid may boil over or splash, leading to burns!
Never remove the lid during heating! Released hot steam may
cause burns of hands, arms, and face!
CAUTION!
In order to avoid any damages of the device follow the
instructions below.


Do not use any sharp objects or abrasive agents for cleaning
the surfaces.
Never turn on the device without liquid, it may lead to damages
of enamel coating and grate!
- 24 -
1.3 Proper use
The operational safety of the device is assured only in case of proper use, according
to the operation manual.
All technical activities like installation and maintenance must be performed by the
qualified service personnel only.
The device is suitable for permanent commercial use.
The mulled wine pot / boiling water canner is intended only for heating and
maintaining the temperature of beverages such as mulled wine, tea; for
preparing hot water and canning.
Do not use the mulled wine pot / boiling water canner for:
-
cooking food;
storing and heating of flammable, dangerous or volatile
liquids or substances.
CAUTION!
Any use going beyond the intended purpose and/or any different use of the
device is forbidden and is not considered as conventional.
Any claims against the manufacturer or his authorized representative as a
consequence of experiencing damages resulting from unconventional use
are impossible.
The operator is liable for all damages resulting from inappropriate use.
- 25 -
2. General information
2.1 Liability and Warrantees
All the information and instructions in this manual take into account standard safety
regulations, current levels of technical engineering as well as the expertise and
experience we have developed over the years.
The instruction manual was translated with all due care and attention. However, we do
not accept liability for any translation errors. The German version of this instruction
manual is definitive.
If the delivery consists of a special model, the actual scope of delivery may differ from
the descriptions and illustrations in this manual. This is also the case for special orders
or when the device has been modified in line with new technology.
CAUTION!
Read this manual carefully and thoroughly before any operation
of the device, and especially before turning it on!
Manufacturer is not liable for any damages or faults caused by:
-
violation of advice concerning operation and cleaning;
use other than designed;
alterations made by user;
use of inadequate spare parts.
We reserve the right to make technical changes for purposes of developing and improving
the useful properties.
2.2 Copyright protection
The instruction manual including any texts, drawings, images or other illustrations is
copyright. No part of this publication may be reproduced, transmitted or used in any
form or by any means without permission in writing from the manufacturer. Any person
who commits any unauthorized act in relation to this publication shall be liable to claims
for damages. All rights reserved.
NOTE!
The contents, texts, drawings, pictures and any other illustrations are
copyright and subject to other protection rights. Any person unlawfully
using this publication is liable to criminal prosecution.
2.3 Declaration of conformity
The device complies with the current standards and directives of the EU.
We certify this in the EC declaration of conformity. If required we will be
glad to send you the according declaration of conformity.
- 26 -
3. Transport, packaging and storage
3.1 Delivery check
Please check the delivery upon completeness and transport damage immediately
after receipt. In case of visible damage do not accept or accept the delivery with
reservation only.
Note the extent of damage on the carrier’s bill of delivery. Trigger off the complaint.
Hidden damages should be reclaimed immediately after notice, as claims for damages
can only be asserted within the effective period for complaints.
3.2 Packaging
Please do not throw away the covering carton of your device as it might be useful for
storage purposes, when moving or, in case of damages, when the device must be sent
back to a repair center. The outer and inner packing material should be removed
completely from the device before installation.
If you liked to dispose the packing, consider the regulations applicable
in your country. Supply re-usable packing materials to the recycling.
Please inspect the device upon completeness. In case any part is missing please
contact our customer service center immediately.
3.3 Storage
Keep the package closed until installation and under consideration of the outside
indicated positioning- and storage markings.
Packages should be stored under consideration of the following:
-
do not store outdoors,
keep it dry and dust-free,
do not expose it to aggressive media,
do not expose it to direct sunlight,
avoid mechanical shocks and vibration,
in case of longer storage (> 3 months) make sure you check the state
of the packaging and the parts regularly, if required refresh or renew.
- 27 -
4. Technical data
4.1 Overview of parts
1
2
2
2
3
7
6
4
9
5
1 Lid
2 Pot handles
3 Tank
4 Base with heating coil
5 Temperature dial
6 Heating control light (red)
7 Spout
8 Grid
9 Power cord storage
- 28 -
8
4.2 Technical specification
Name
Mulled wine pot / boiling water canner GE 21
Code No.:
200049
Material:
tank: scratch-resistant enamel layer,
base, spout, handles and lid: plastic
Content:
useful content 21 liters, content max. 28 liters
Power:
1.8 kW / 220-240 V 50 Hz
Temperature range:
30 °C - 100 °C
Dimensions:
W 370 x D 370 x H 500 mm
Weight:
5.4 kg
Accessories:
grid, Ø 320 mm
We reserve the right to make technical changes!
5. Installation and operation
5.1 Installation
Positioning

Unpack the device and remove all package materials according to the valid
environment protection regulations.
CAUTION!
Never remove the nameplate and warning signs from the device.

Place the device on top of an even, stable, dry, and water-resistant surface which
supports the weight of the device and is not heat sensitive.

Never place the device at the edge of a table to avoid accidents.

Never place the device in humid or wet environment.

Never place the device on the flammable surfaces.

Never use the device under hanging cupboards or shelves that may be damaged
by hot steam.

Place the device so that the plug is easily accessible and can be quickly removed
from its socket in case of necessity.
- 29 -
Connection
DANGER! Electric shock hazard!
The device can cause injuries due to improper installation!
Before installation and connecting the local power grid
specification should be compared with that of the device
(see rating plate). Connect the device only in case of
compliance!

The power supply circuit with the socket must be protected by the fuse of at least 16A.
Connect the device directly to a single grounded socket. Do not use any power bar or
multiple socket.
5.2 Operation
Preparation of the device

Remove all equipment elements from the device and completely unwind the
power cable.

Rotate the temperature controller knob to position „OFF“.

Due to hygienic reasons clean the device with boiling water before the first use. Fill
the device with approx. 6 litres of water and connect the plug to the earthed socket.
Boil water for approx. 5 minutes with use of highest temperature setting „MAX“.
Read instructions on section „Heating liquids“.

Then rotate the knob to position „OFF“ and disconnect the device from the socket (pull
the plug!) and wait until it cools down. Then drain water from the tank and rinse it with
clean water, drain it again.

Clean the device according to instructions in section 6 „Cleaning and descaling“.
Heating liquids

Drinkable liquids must always be in the container before the device is turned on.
Do not pour undrinkable liquids such as acids, bases, oils, nitrates etc. into the
device!

The device is equipped with an overheating/dry heating protection function. If the
device is accidentally left on with too little or no water, this function will be activated
and the device will turn off automatically.
- 30 -
Turn the temperature dial to the „OFF“ position, remove the device’s plug from its
socket and wait at least 30 minutes for it to cool. After cooling, refill the tank with fresh
water and resume using the device normally.

Before pouring liquids into the device, ensure that the spout is closed.

Pour a drinkable liquid into the tank of the mulled wine pot / boiling water canner.
Observe the „MIN“ and „MAX“ markings inside the device!
WARNING! Danger of electric shock!
Do not allow liquids to splash when the device is in use
to avoid damage to electronics systems. Users may be
electrocuted as a result.

Turn the temperature dial to the „OFF“ position.

Connect the device to a single grounded outlet.

Always place the lid on the tank before turning it on, and leave it there while the
device is heating.
HOT STEAM! Danger of burns!
When opening the lid there is a danger of burns from
steam and condensation. Carefully lift the lid so that
condensation flows into the tank.

The temperature dial can be used to set the
temperature within a range of 30 °C - 90 °C – MAX.
Set the desired temperature by turning the
temperature dial clockwise. The red heating
control light will come on. After the desired
temperature between 30 °C - 90 °C is reached
the device’s thermostat will be turned off
automatically by the thermostat.
If the liquid’s temperature falls the thermostat will
again resume heating, maintaining the liquid at
the desired temperature for long periods of time.
Temperature dial
Heating control light
- 31 -

If the desired temperature is 100 °C, turn the temperature dial clockwise to the
„MAX“ position. The water will remain at boiling, and the thermostat will not turn
the device off automatically.
NOTE!
Heating time depends on the amount and type of liquid.
Pouring liquid

To pour liquid, place an appropriate
container (glass, cup, mug) under the spout.

Press the spout lever down and hold it until
the desired amount of water is poured.

When finished pouring, release the spout
lever and the spout will close automatically.

After you have finished using the device, turn the temperature dial to the „OFF“
position, remove its plug from the socket, wait for the device to dry then pour out
the remaining liquid.
Canning

The device can also be used for preserving foodstuffs in jars. A maximum of 14 1-liter
jars with a diameter of 11.5 cm can fit stacked in two levels in the tank.

Before canning, turn the temperature dial to the „OFF“ position and remove the
device’s plug from its socket.

Prepare the jars with the desired foodstuffs. Ensure they are tightly closed before
being placed in the tank.

Place the included grid at the bottom of the tank to ensure better circulation of
water under and around the jars, heating them quicker.
CAUTION!
Use only the provided grid. Galvanized sieves or graded inserts are not
appropriate and may reduce circulation, reducing the device’s effectiveness.
- 32 -

Place the jars on the grid and pour enough water so that the jars are immersed to
approx. ¾ of their height. The water temperature should be close to the temperature
of the jars’ contents to save time and energy.
CAUTION!
When preserving jars which are stacked on two levels, ensure that the
bottom jars are sealed tightly to prevent water from getting inside.

Put the device’s lid on the tank.
Setting the canning temperature

Set the canning temperature depending on the product. Temperature and time
should be set in accordance with the information in the tables provided below or in
recipes.

Connect the device to a single grounded outlet.

When canning must be done at 100 °C , set the temperature dial to the „MAX“
position.
NOTE!
Heating time is not part of the canning time. Count canning time at
temperatures from 30 °C - 90 °C from the moment the red control light goes
off, and when the temperature is set to „MAX“ from the moment when the
water begins boiling.
Canning tables
Temp.
(°C)
Time
(min)
Apple soft/hard
85
30/40
Apple mousse
90
30
Apricot
85
30
Pear soft/hard
90
30/80
Strawberries
80
25
Rhubarb
95
30
Blackberry
85
25
Mushrooms
100
110
Fruit
Fruit
Raspberry,
gooseberry
Currant,
blueberry
Cherry
Plum
Temp.
(°C)
Time
(min)
80
30
90
25
80
30
90
30
- 33 -
Vegetable
Temp.
(°C)
Time
(min)
Temp.
(°C)
Time
(min)
Cauliflower
100
90
Red cabbage
100
110
Bean
100
Pea
100
120
Celery
100
110
120
Asparagus
100
120
Kohlrabi
100
95
Tomato
90
30
Carrot
Mushrooms
100
95
Pumpkin
90
30
100
110
Temp.
(°C)
Time
(min)
Pre-cooked roast
100
85
Meat broth
100
60
Goulash
100
75
Game, poultry
100
75
Sausage
100
110
Ground meat
100
110
Meat
Vegetable
NOTE!
The values given above are
approximate; follow instructions
given in recipes.

After finishing the canning process, turn the temperature dial to the „OFF“ position
and remove the device’s plug from its socket.

After canning, remove the jars from the tank as they will continue to cook if left inside
hot water.

Use the special handle to avoid burns while removing jars.

Empty the tank after the water has cooled.
6. Cleaning and descaling
WARNING!
Before cleaning, disconnect the device from the power
supply (unplug!) and leave to cool off.
Never clean the device with use of pressurized water jet.
Protect the device from the water penetration.
- 34 -
Regular cleaning
o Clean the device regularly after use and additionally as needed.
o Clean the device’s surface with a soft, moist cloth. In case of stubborn dirt a mild
cleaning agent can be used. Never use aggressive cleaning substances.
o Wipe the power cord and plug with a dry cloth.
o Wash the inside of the tank thoroughly, rinse with water then pour it out through the
spout.
o Wash the lid and grid with warm water and a mild cleaning agent. Rinse with clean
water, then dry thoroughly.
o Always use soft cloths, never use any abrasive cleaners that could scratch the
device.
o Do not use flammable cleaning substances such as ether alcohol, etc. as this
increases the risk of fire and explosions when the device is activated again.
Cleaning the spout
o When the device is used daily the spout should be thoroughly cleaned once a week,
or less often when the device is not in regular use.
o Unscrew the spout lever and wash it in warm water with a mild cleaning agent, then
rinse with clean water. Use a small brush for bottles to clean the inside of the spout,
then pour a small amount of water through it. Replace the lever on the spout.
Descaling
CAUTION!
Failure to conduct regular descaling in accordance with these instructions
may void the warranty and result in returns being rejected!
Descale the device regularly!
o Hard water may cause stone deposits to form in the water tank, lengthening the time
needed to heat water and possibly causing damage to the device. Use filtered water
if possible to avoid deposits forming!
- 35 -
o We recommend using citric acid or vinegar for ecological descaling. Prepare a
mixture of water with vinegar (proportion 3:1) or water with citric acid (2 tablespoons per 1 liter of water) and fill the tank. Wait for one hour then boil the water.
o Wait for the device to cool. After cooling, pour out the descaling solution and rinse the
device several times with clean water. Drain the clean water through the pour spout
to remove all leftovers.
o Follow manufacturer's instructions if you choose to use a commercially available
descaling product.
 After longer breaks in the device’s use, clean and descale it according to the
instructions given above. Store the power cord in the base of the device. Store
the device in a well-ventilated, dry, clean place safe from frost and sunlight,
inaccessible to children.
7. Waste disposal
Old devices
The electric devices are marked with this symbol. You must not
dispose of electric devices with household waste. When the
device may not be longer used each consumer is obliged to
dispose of the device at the dedicated local collection point,
separately from household waste.
NOTE!
Electric devices should be used and disposed of properly to prevent the impact on
the environment.

Disconnect the device from the power supply and remove the power cord from
the device.
Bartscher GmbH
Franz-Kleine-Str. 28
33154 Salzkotten
Germany
- 36 -
phone: +49 5258 971-0
fax:
+49 5258 971-120
Service-Hotline: +49 5258 971-197
www.bartscher.com

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
