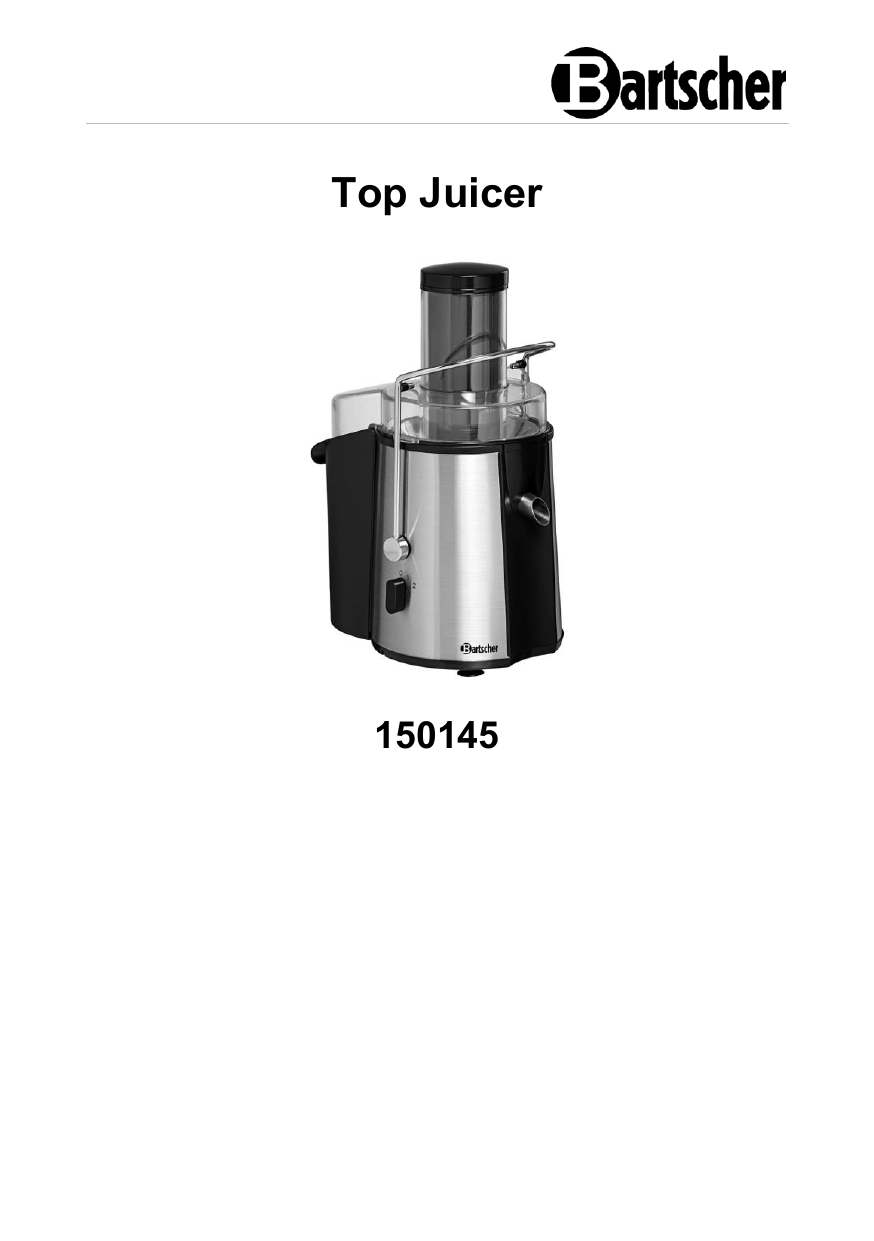

Bartscher 150145 Juicer Top Juicer Operating instructions

Top Juicer
150145
Bartscher GmbH
Franz-Kleine-Str. 28
D-33154 Salzkotten
Germany
Phone: +49 5258 971-0
Fax: +49 5258 971-120
Technical Support Hotline: +49 5258 971-197
www.bartscher.com
Version: 2.0
Date of preparation: 2020-12-14
EN
Original instruction manual
1
2
3
4
5
6
7
Safety ............................................................................................................ 2
1.1
Explanation of Signal Words .................................................................... 2
1.2
Safety instructions.................................................................................... 3
1.3
Intended Use ........................................................................................... 4
1.4
Unintended Use ....................................................................................... 5
General information ....................................................................................... 6
2.1
Liability and Warranty .............................................................................. 6
2.2
Copyright Protection ................................................................................ 6
2.3
Declaration of Conformity ........................................................................ 6
Transport, Packaging and Storage ................................................................ 7
3.1
Delivery Check ......................................................................................... 7
3.2
Packaging ................................................................................................ 7
3.3
Storage .................................................................................................... 7
Technical Data............................................................................................... 8
4.1
Technical Specifications .......................................................................... 8
4.2
List of Components of the Appliance ....................................................... 9
4.3
Functions of the Appliance ..................................................................... 10
Installation and operation ............................................................................ 11
5.1
Installation.............................................................................................. 11
5.2
Operation ............................................................................................... 12
Cleaning ...................................................................................................... 18
6.1
Safety Instructions for Cleaning ............................................................. 18
6.2
Cleaning................................................................................................. 18
Disposal ....................................................................................................... 20
150145
1 / 22
Safety
Diese Bedi enungsanlei tung besc hrei bt di e Installation, Bedi enung und Wartung des Geräts und gilt als wic htige Infor mationsquelle und N achschl agewer k. Di e Kenntnis aller enthaltenen Sic herheits hi nweis e und H andlungs anweisungen schafft die Vorauss etz ung für das sichere und s ac hger echte Ar beiten mit dem Gerät. D arüber hi naus müs sen die für den Ei ns atz ber eic h des Geräts geltenden ör tlichen Unfall verhütungs vorsc hriften und allgemeinen Sicherheits besti mmungen eing ehalten wer den. Dies e Bedi enungs anleitung is t Bes tandteil des Produkts und muss i n unmi ttelbarer N ähe des Ger äts für das In¬s tall ations-, Bedi enungs-, Wartungs- und R einigungspers onal jederzeit z ugänglich auf¬bewahrt werden. Wenn das Ger ät an eine dritte Pers on
weiterg egeben wird, muss die Bedi enungsanlei tung mit ausgehändigt wer den.
Read this instruction manual before using and keep it available
at all times!
This instruction manual contains information about installation, operation and
maintenance of the appliance and constitutes an important source of information
and reference guide. The knowledge of all operational and safety instructions
included in this manual is a prerequisite for safe and proper handling of the
appliance. Additionally, accident prevention, occupational health and safety, and
legal regulations in force in the area the appliance is used apply.
Before you start using the appliance, especially before turning it on, read this
instruction manual in order to avoid personal injuries and property damages.
Improper use may cause damage.
This instruction manual forms and integral part of the product and must be stored in
an immediate vicinity of the appliance and be available at all times. The instruction
manual should be transferred together with the appliance.
1
EN
Safety
This appliance has been manufactured in accordance with technical standards
currently in force. However, the appliance may be a source of hazards if used
improperly or contrary to its intended purpose. All persons using the appliance must
consider information included in this instruction manual and observe safety
instructions.
1.1
Explanation of Signal Words
Important safety instructions and warning information are indicated in this
instruction manual with appropriate signal words. You must strictly follow the
instructions, to prevent accidents, personal injuries and property damages.
DANGER!
The signal word DANGER warns against hazards that lead to severe
injuries or death if the hazards are not avoided.
WARNING!
The signal word WARNING warns against hazards that may lead to
moderate or severe injuries or death if the hazards are not avoided.
2 / 22
150145
Safety
CAUTION!
The signal word CAUTION warns against hazards that may lead to
light or moderate injuries if the hazards are not avoided.
, di e
IMPORTANT!
The signal word IMPORTANT indicates possible property damages,
which may occur if safety instructions are not observed.
NOTE!
The symbol NOTE indicates subsequent information and guidelines
for the user on usage of the appliance.
1.2
Safety instructions
Electrical Current
•
•
•
•
•
•
•
•
•
•
•
•
•
Too high a mains voltage or incorrect installation may cause electric shock.
The appliance may be connected only if data on the rating plate correspond with
the mains voltage.
To avoid short-circuit, the appliance should be kept dry.
If there are malfunctions during operation, disconnect the appliance from the
power supply.
Do not touch the appliance’s plug with wet hands.
Never take hold of the appliance if it has fallen into water. Immediately
disconnect the appliance from the power supply.
Any repairs or housing opening may be carried out by professionals and
relevant workshops only.
Do not transport the appliance, holding it by the power cord.
Do not allow the power cord to come into contact with heat sources or sharp
edges.
Do not bend, pinch nor knot the power cord.
Always completely unwind the power cord.
Never place the appliance or other objects on the power cord.
Always take hold of the plug to disconnect the appliance from the power supply.
150145
3 / 22
EN
Safety
•
Check the power cord regularly for damage. Do not use the appliance if the
power cord is damaged. If this cable is damaged, it must be replaced by
customer service or a qualified electrician in order to avoid dangers.
Operating personnel
•
•
This appliance is not intended to be used by persons (including children) with
limited physical, sensory or mental capabilities, nor by persons with limited
experience and/or limited knowledge.
Children should be supervised to ensure that they are not playing with or
switching the appliance on.
Supervised Usage only
•
•
Only supervised appliance may be used.
Always remain in an immediate vicinity of the appliance.
Improper Use
EN
•
•
•
•
•
•
Unintended or prohibited use may cause damage to the appliance.
The appliance may only be used when its technical condition is flawless and
allows for safe operation.
The appliance may only be used when all connections are executed according
to rules of law in force.
The appliance may only be used when it is clean.
Use only original spare parts. Never attempt to repair the appliance on your own.
Do not introduce any changes in the appliance nor modify it.
1.3
Intended Use
As described below, every use of the appliance for a purpose differing and/or
diverging from its intended standard use, is prohibited and considered to be an
unintended use.
The following is an intended use:
–
Making fruit and vegetable juices.
The appliance is intended for home use only.
4 / 22
150145
Safety
1.4
Unintended Use
An unintended use may lead to personal injuries or property damages caused by
hazardous voltage, fire or high temperature. The appliance may only be used to
perform tasks described in this instruction manual.
The following is an unintended use:
–
Processing of unsuitable food products.
EN
150145
5 / 22
General information
2
General information
2.1
Liability and Warranty
All information and instructions in this instruction manual account for legal
regulations in force, current level of technical engineering knowledge as well as our
expertise and experience, developed over the years. If special models or additional
options are ordered, or state-of-the-art technical solutions were implemented, the
actual scope of delivery of the appliance may, in some circumstances, differ from
descriptions and numerous drawings in this instruction manual.
The manufacturer is not liable for any damages nor faults stemming from:
– failure to observe instructions,
– unintended use,
– technical alterations introduced by the user,
– usage of unapproved spare parts.
We reserve the right to introduce technical modifications to the product, intended for
improvement of the appliance and its performance.
EN
2.2
Copyright Protection
This instruction manual, and texts, drawings and images included in it, as well as its
other components are copyright protected. It is prohibited to reproduce this
instruction manual (including its excerpts), in any form and by any means, and to
use and/or transfer its content to third parties without manufacturer’s written
permission. Violation of the above results in obligation to pay compensation. We
reserve the right to claim further damages.
2.3
Declaration of Conformity
The appliance meets the currently applicable standards and guidelines of the
European Union. We confirm the above in the EC Declaration of Conformity. We
may provide relevant Declaration of Conformity upon request.
6 / 22
150145
Transport, Packaging and Storage
3
3.1
Transport, Packaging and Storage
Delivery Check
Immediately upon reception, check the delivery for completeness and possible
shipping damage. In the case of visible transport damage refuse to accept the
appliance or accept it conditionally. Mark and note the scope of damage in shipping
documents/consignment list of the shipping company and lodge a complaint.
Concealed damage must be reported immediately upon its discovery, as
compensation claims may only be filed within applicable time limits.
If you find that parts or accessories missing, please contact our Customer Service
Department.
3.2
Packaging
Do not dispose of the appliance cardboard box. It may be used to store the
appliance when relocating or when shipping the appliance to our service point in the
case of any damages.
The packaging and its elements are made of recyclable materials. Particularly,
these are: plastic films and bags, cardboard box.
When disposing of the packaging, observe applicable domestic regulations.
Recyclable packaging materials should be recycled.
3.3
Storage
Leave the packaging closed until installation of the appliance; observe external
indications concerning method of placing and storage. Store the packaging in the
following conditions only:
– in closed rooms;
– in dry and dust-free surrounding;
– away from aggressive agents;
– in a location protected against sunlight;
– in a location protected against mechanical shocks.
In the case of extended storage (over three months), make sure you check the
condition of the packaging and the parts regularly. If needed, replace the packaging
with a new one.
150145
7 / 22
EN
Technical Data
4
Technical Data
4.1
EN
Technical Specifications
Name:
Juicer Top Juicer
Article number:
150145
Material:
stainless steel, plastic
Speed levels:
2
Rotational speed (RPMs), max.:
18000
Volume of pulp container, in l:
2
Diameter of filling shaft, in mm:
75
Connected load:
0,7 kW / 230 V / 50-60 Hz
Dimensions (W x D x H), in mm:
210 x 310 x 400
Weight, in kg:
4,4
We reserve the right to implement technical modifications.
Version / Characteristics
•
•
•
•
•
•
•
•
Designed for both hard and soft fruit and vegetables
ON/OFF switch
Control: knob
XXL filling shaft for whole fruits (e.g. apples) or vegetables
High-performance, low-noise motor
Fine stainless steel sieve
Individual parts are dishwasher-safe (except for base unit)
The set includes:
– 1 plastic beaker with splash-guard
– cleaning brush
8 / 22
150145
Technical Data
4.2
List of Components of the Appliance
EN
Fig. 1
1. Base unit / motor block
3. Pusher
5. Lid
7. Plastic beaker
9. Cleaning brush
11. Sieve base
13. Pulp container
150145
2. Locking bow with safety element
4. Filling shaft
6. Splash-guard
8. Sieve basket
10. Juice spout pipe
12. Speed level switch (0–1–2)
9 / 22
Technical Data
Description of the appliance
Top Juicer is an appliance that makes it possible to swiftly produce vitamin-rich fruit
and vegetable juice.
Very big filling shaft, integrated in the lid, with diameter of 75 mm reduces the
workload: you may squeeze juice out of whole fruit (e.g. apples) or vegetables,
without the need for prior slicing.
Powerful, 700 W motor with two speed levels provides for optimum results. Low
speed level '1' is optimal for soft fruit and vegetables, especially for those with high
water content, e.g. oranges or watermelons. High speed level '2' is ideal for hard
and fibrous fruit and vegetable, e.g. apples, ginger, celery, carrot.
2-littler pulp container makes it possible to produce high amounts of juice without
making breaks. When the pulp container is full, you may simply remove it and
empty, without the need to disassemble the entire appliance.
The lid is fixed with locking bow, which is equipped with safety element. This
element stops the appliance immediately, when the locking bow is released.
4.3
EN
Functions of the Appliance
The appliance is designed for efficient juice production. Powerful motor — in
connection with large filling shaft and pulp container — makes it possible to
effortlessly squeeze juice from whole fruit or vegetables.
10 / 22
150145
Installation and operation
5
Installation and operation
5.1
Installation
Unpacking / Positioning
•
Unpack the appliance, remove all external and internal packaging elements and
shipment safeguards.
CAUTION!
Choking hazard!
Prevent children from accessing package materials, for instance: plastic
bags and EPS.
•
•
•
•
•
If the appliance is covered with a protective film, remove it. Remove the film
slowly, so no glue residues are left. Remove any glue residues with the use of a
suitable solvent.
Be careful not to damage the rating plate and warning labels fixed on the
appliance.
Never place the appliance in humid or wet environment.
Place the appliance in a way making the connections easily accessible, so that
they may be quickly disconnected if such a need arises.
The appliance should be placed on surfaces that are:
– even, with sufficient bearing capacity, resistant to water, dry and resistant
to high temperatures;
– sufficiently large, and thus enabling usage of the appliance with no
problems;
– easily accessible;
– well ventilated.
•
Maintain sufficient clearance from table edges. The appliance might turn over
and fall down.
•
Leave at least 20 cm clearance from flammable walls and items.
150145
11 / 22
EN
Installation and operation
Power supply connection
•
•
•
Verify if technical data of the appliance (see rating plate) correspond with the
local electric power grid specification.
Connect the appliance to a single, properly grounded mains socket with
protective contact. Do not connect the appliance to a multi-socket.
The power cord should be laid in a way preventing anyone from threading on it
or tripping against it.
5.2
Operation
Preparation of Fruit and Vegetables
•
•
•
•
EN
•
•
•
•
•
•
•
When preparing fruit and vegetables, observe the following indications and data
in the below table.
Before squeezing juice, fruit and vegetables should be washed thoroughly, to
remove any traces of contamination and plant protective agents (pesticides).
To obtain better results and better taste, use only fresh fruit or fresh vegetables.
For processing with juicer, particularly suitable are: apples, pineapples, oranges,
grapes, melons, carrots, celery roots, beets and tomatoes.
Some food products, due to their compact texture, are not suitable for
processing with the juicer (e.g. coconuts).
There is no need to peel off the vegetables with thin peel. You may rub it
through with a sponge to remove possible soiling or wax films.
Fruit and vegetables with hard peel, e.g. melons, pineapples or citrus fruit
should be peeled off.
Remove thick skin off of, for example, lemons, oranges or pineapples.
Remove seeds and stones of stone fruit, like mango, papaya, etc., to avoid
damaging the blades in the sieve basket.
Some stones of citrus fruit may be bitter. Remove the stones in such fruit before
you proceed to squeezing the juice.
Cut the fruit and vegetables that are too large into smaller pieces. Conical
vegetables and fruits, such as carrots, introduce with a thin end first.
12 / 22
150145
Installation and operation
Fruit/Vegetables
Preparation
Carrots
Peal and leave in whole, introduce 2–3 pieces a time
Apples
Wash and leave in whole (remove leaf stalks and labels)
Beets
Wash, cut into suitable pieces
Strawberries
Remove leaf stalks
Grapes
Remove leaf stalks
Bananas
Remove skin
Mangos
Remove skin and stones
Pineapples
Remove skin and cut into pieces
Citrus fruit (oranges,
lemons, mandarins,
grapefruit)
Peal the skin off of all citrus fruit. Oranges and lemons
may be left in whole
Melons
Remove skin and cut into pieces
Celery roots
Cut into 6–7 cm pieces
Cucumbers
Remove skin, cut into approx. 15 cm pieces
Tomatoes
-
Fennel
Cut into 6–7 cm pieces
Cherries
Remove stones
Apricots
Remove stones
Peaches
Remove stones
Plums/European
plums
Remove stones
150145
EN
13 / 22
Installation and operation
Indications and tips
•
•
•
•
EN
•
•
•
•
When squeezing juice from various fruit and vegetables, it may be helpful to
create different variations/combinations, e.g. when squeezing apple and orange
juice, it is best to start with soft fruit (oranges) and then proceed with the hard
fruit (apples). Thus, the best juice yield will be obtained.
When squeezing juice from fresh herbs, for example, mint or parsley, they
should be processed in the so-called 'meantime', that is between squeezing
juice from fruit and vegetables, to obtained the possibly best yield. If the amount
of herbs is small, they should be squeezed together with a chunk of a fruit or
vegetable.
Fruit that contain starch (bananas, papaya, figs, avocado, mango, etc.) are
difficult to squeeze juice (the produced mousse may lead to clogging of the
sieve basket). It is best to prepare these types of fruit in a food processor or a
blender. If, however, a juice needs the banana taste, banana should be
squeezed first or second in the line. Thanks to blending with other juices, the
banana nectar may drip a bit easier. Though, there may be frothing present in
the process.
When squeezing juice from small fruit, for example, grapes or strawberries,
place them in the appliance in the handful size of portions and avoid throwing
them in one by one. This helps to obtain better results.
Please remember that red beets dye all other fruit and vegetables. When
producing many different juices, the red beet juice should be squeezed at the
end, to avoid dying all other juices.
The apple juice will quickly acquire a bronze colour in the open air; thus, add a
drop of lemon juice.
The juice is best served directly after preparation, as with time in the open air
juices lose their tastes and nutritional values.
Never put ice cubes nor frozen fruit in the hopper.
Before First Use
1. Prior to first use, clean all the removable components of the appliance
thoroughly, observing instructions in section 6 'Cleaning'.
2. Rinse the cleaned elements in fresh water and then wipe them with a linen-free
cloth or leave to dry in open air.
3. Wipe the motor block, base unit and supply cord with a soft, moistened cloth.
14 / 22
150145
Installation and operation
Assembly
CAUTION!
Please remember to disconnect the appliance from mains supply socket,
when it is not in use or some of its components are removed or
disassembled.
When assembling, follow figure 2.
1. Place the basic unit / motor block (1) on a
soft an even surface.
2. Press the base unit / motor block (1) firmly
to the surface, so that feet's suction cups
are well fixed.
3. Assemble the pulp container on a suitable
holder in the base unit / motor block.
In order to clean the pulp container easier,
you may fit it with a foil bag.
4. Insert the sieve base (11) onto the base
unit / motor block (1), so that the pulp
discharge is located over the pulp
container.
5. Insert the sieve basket (8) carefully in the
sieve base (11) and press it, until it
engages.
EN
Fig. 2
WARNING! Injury hazard!
Blades in the sieve basket are very sharp.
Exercise proper caution when inserting the sieve basket.
6. Next, insert the lid (5), making sure at the same time that the filling shaft (4) is
over the basket (8).
7. Then, pull the locking bow (2) over the lid (5). Latch it in nest at both sides of the
lid (5).
ATTENTION!
The appliance operates only when all components are correctly fitted, and
the locking bow with safety element is engaged with the lid.
150145
15 / 22
Installation and operation
Squeezing Fruit and Vegetable Juice
WARNING!
Risk of injury caused by rotating components
Never introduce hands into the filling shaft. Always use the enclosed
pusher to press food products towards the sieve basket.
During operation, hair, hands, clothing and kitchens utensils should be
kept away of rotating elements.
Never remove the lid until the motor and sieve basket are not stopped
completely.
ATTENTION!
Never operate the appliance, when accessories are assembled, but
there are no food products inside.
1. Place the plastic beaker (7) with splashguard (6) under the juice spout pipe (10)
(Fig. 1).
2. Connect the appliance to a single
grounded socket.
3. Rotate the speed level switch (12) to '1' or
'2' position.
Level '1' is used for squeezing juice from soft
fruit and vegetables, and level '2' — from hard
fruit and vegetables.
4. Fill the filling shaft (4) with the prepared
fruit and vegetables.
5. Insert the pusher (3) into the filling shaft
(4), paying attention to the hollow area in
the pusher, and the curve inside the filling
shaft.
EN
Fig. 3
6. Move the pusher slowly down, with a little pressure, to get a minimum amount of
juice.
When pressed too hard, the amount of the obtained juice is reduced, and the
appliance may be damaged.
16 / 22
150145
Installation and operation
The squeezed fruit or vegetable juice flows out of the juice spout pipe in the sieve
base and is collected in the plastic beaker. The pulp is separated and collected in
the pulp container.
Fruit or vegetables may be added provided that the plastic beaker or the pulp
container are not full.
7. Remember to place the plastic beaker with splash-guard under the juice spout
pipe in the sieve base when squeezing the juice.
8. Observe the filling level of the pulp container when squeezing the juice.
9. Switch the appliance off, when the pulp container is full.
10. Empty the pulp container.
ATTENTION!
Overfilled pulp container may cause the appliance cease to operate
correctly. The pulp excess that gets into the motor housing may be the
cause of damage.
Observe the condition of the pulp container and empty it regularly!
ATTENTION!
As a rule, the appliance should never be operated without breaks for more
than 3 minutes. After 3 minutes of continuous operation the appliance
should be left to cool down for approx. 20 minutes before subsequent
operation.
11. If the indicated time of 3 minutes is not enough to complete the squeezing of
juice, switch the appliance off (rotate the speed level switch to '0'). Leave the
appliance to cool down before the squeezing process is continued.
12. When the squeezing process is finished, switch the appliance off and disconnect
it from mains socket (pull the plug out).
150145
17 / 22
EN
Cleaning
6
Cleaning
6.1
•
•
•
•
•
Before cleaning, disconnect the appliance from the power supply.
Leave the appliance to cool down completely.
Make sure water does not enter the appliance. Do not immerse the appliance in
water or other liquids during cleaning. Do not clean the appliance with a
pressurized water jet.
Do not use any sharp or pointed, nor metal implements (knife, fork, etc.). Sharp
or pointed implements may damage the appliance, and when in contact with live
parts, they may cause electric shock.
For cleaning, do not use any scouring agents that contain solvents nor corrosive
cleaning agents. They may damage the surface.
6.2
EN
Safety Instructions for Cleaning
Cleaning
1. Clean the appliance after each use.
2. Immediately after use, disassemble the removable components for cleaning
purposes, observing the order of disassembly:
– remove the pulp container and remove the pulp
– release the locking bow of the lid
– remove the lid
– remove the sieve base with sieve basket through lifting it up from the
base unit / motor block
– remove the sieve basket carefully from the sieve base.
3. Clean the sieve base, lid, pulp container, pusher and plastic beaker with splashguard thoroughly in warm, running water.
WARNING! Injury hazard!
The blades of the appliance sieve are very sharp.
Use the enclosed dish-washing brush for cleaning the sieve basket.
4. Hold the sieve basket under running water and brush the external side of the
sieve basket first, using the enclosed brush.
5. Then brush the inside of the sieve basket with the brush, making movements in
counter-clockwise direction to remove the left over pulp.
18 / 22
150145
Cleaning
In order to check if the entire left over pulp, which blocked the openings of sieve
basket, was actually removed, the sieve basket should be held against a source of
light.
6. All the cleaned parts should be rinsed thoroughly with fresh water.
7. Leave the parts to dry in open air or dry with a linen-free cloth.
NOTE: All detachable elements of the appliance are dishwasher-safe.
WARNING!
Never attempt to immerse the base unit / motor block in water, neither
wash it under running water, nor in a dishwasher.
8. Clean the base unit / motor block and power cord with a soft, damp cloth only.
9. Then wipe the base unit / motor block and power cord dry with a soft cloth only.
10. Assemble all the parts after drying, and prior to subsequent use or storage of
the appliance.
EN
150145
19 / 22
Disposal
7
Disposal
Electrical Appliance
Electric appliances are marked with this symbol. Electrical
appliances must be disposed of and recycled in a correct
and environmentally friendly manner. You must not dispose
of electric appliances with household waste. Disconnect the
appliance from the power supply and remove power cord
from the appliance.
Electrical appliances should be returned to designated collection points.
EN
20 / 22
150145

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
