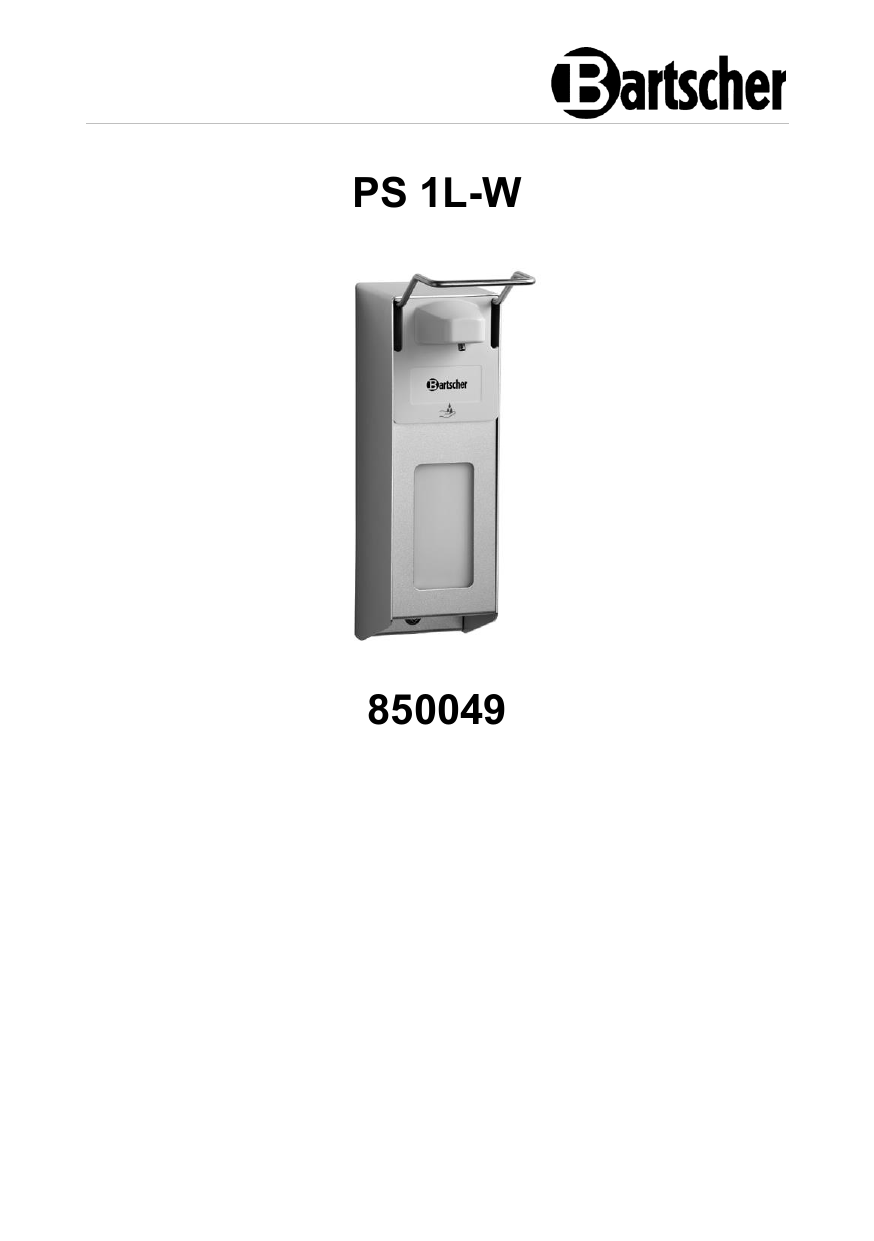

Bartscher 850049 Soap dispenser PS 1L-W Operating instructions

PS 1L-W
850049
Bartscher GmbH
Franz-Kleine-Str. 28
D-33154 Salzkotten
Germany
Phone: +49 5258 971-0
Fax: +49 5258 971-120
Service hotline: +49 5258 971-197
www.bartscher.com
Version: 1.0
Date of preparation: 2020-11-02
Original instruction manual
EN
Technical data
Name:
Soap dispenser PS 1L-W
Article number
850049
Material:
aluminium, polypropylene
Volume, in l:
1
Dosing per one pump stroke, in ml:
4
Dimensions (W x D x H), in mm:
93 x 200 x 325
Weight, in kg:
0,82
We reserve the right to implement technical modifications.
Version / Characteristics
•
•
•
•
•
•
•
•
•
Version: wall-mounting
Refillable
Filling level control: transparent plastic container
Operation:
– one-hand operation
– elbow operation
– manual
Dosing: pump system
Lockable
Features:
– cartridge-free
– user-friendly
– hygienic
– requires little maintenance
The set includes:
– 1 key
– 1 wall holder
– attachment material
The set does not include: filling
850049
EN
3/8
B
List of Components of the Appliance
EN
Fig. 1
1.
3.
5.
7.
Operating lever
Front guard
Lock
Dosing head
2.
4.
6.
8.
Housing
Soap container
Dosing pump
Dosing head cover
The soap dispenser was designed to keep optimal hygienic standards in public
utility buildings, restaurants, kitchens, laboratories, schools, etc. Touchless, elbowoperated soap dispenser is highly hygienic and user-friendly. The cartridge-free
pumping system may be easily re-filled and it requires almost no maintenance.
4/8
850049
Wall Mounting
1. Fix the soap dispenser in a required location.
2. Observe the following information during installation:
– space required above the disinfectant dispenser: 40 mm
– recommended installation height: 130–135 cm, measured from the floor
to the upper edge of the liquid dispenser.
3.
4.
5.
6.
Unlock the lock with the enclosed key.
Pull the front liquid dispenser cover down.
Slightly lift the soap container and remove it from the soap dispenser.
Press the locking button from the inside and pull the wall holder down from the
housing.
EN
Fig. 2
7. Using the openings in the wall
holder mark 3 spots to make holes
and bore them in the wall.
8. Insert studs into the bored holes.
Mount the wall holder with bolts.
850049
Fig. 3
9. Finally, slide the soap dispenser
housing onto the wall holder until
the locking button clicks.
5/8
Fig. 4
Fig. 5
10. Insert the tube into the filled-up soap 11. Fix the front cover on the soap
container and move it upwards until
dispenser.
it stands steadily on the shelf of the 12. Close the soap dispenser with a
housing.
key.
EN
Filling with Liquid Soap
1. The front cover sight glass makes it possible to verify the filling level of the soap
container.
2. To fill the soap container, remove it from the dispenser's housing.
3. Fill the soap container with a suitable liquid soap.
4. Introduce the tube into the soap container.
5. Move the soap container up, until it stands on the bottom shelf of the housing.
6. Fix the front cover on the housing.
7. Close the soap dispenser with a key.
6/8
850049
Liquid Soap Dispensing
1. Dispense the liquid soap from the soap container
as needed by pressing your elbow against the
operating lever and hold the other hand under the
dispensing head.
Information:
With the first time operation, press the operating
lever several times to the stop until the soap
dispenser starts dispensing. Hold your hand under
the dispensing head.
Cleaning and Disinfecting of Housing and Dosing Pump
EN
ATTENTION!
For cleaning, never use any scrubbing not acute cleaning agents,
neither cleaning agents that contain chlorine, as they may damage the
surface.
1. Regularly perform disinfecting cleaning by wiping external surfaces of the soap
dispenser.
2. Before each refilling of the soap dispenser thoroughly clean it manually.
3. Remove the soap container from the housing.
4. Wash the housing, dispensing head, dispensing pump with tube thoroughly
under hot running water.
5. Dry all cleaned surfaces thoroughly.
6. Finally, place the housing with the dosing pump onto the wall holder.
850049
7/8
7. Fill the soap container with a liquid soap.
8. Introduce the soap container into the housing.
9. Fix the front cover on the housing.
10. Close the soap dispenser with a key.
11. Pump the liquid soap a few times.
EN
8/8
