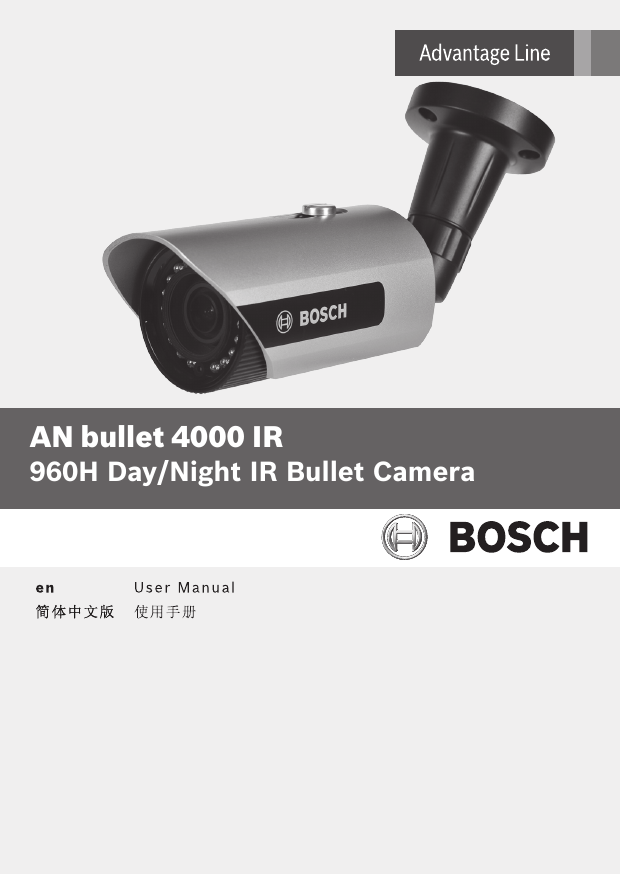

AN bullet 4000 IR

960H Day/Night IR Bullet Camera

2 en | Table of Contents

Table of Contents

1

2

3

4

5

Cautions

Important safety instruction

Features

Components

Camera parts

6

Installation

6.1

Mounting position

6.2

Monitor connection

6.3

Camera adjustment

7

OSD menu structure

8 Specification

8.1

Dimensions

960H Day/Night IR Bullet Camera

Bosch Security Systems User Manual 2012.11

960H Day/Night IR Bullet Camera

1 Cautions

Cautions | en 3

This device complies with Part 15 of the FCC Rules.

Operation is subject to the following two conditions;

1. This device may not cause harmful interference.

2. This device must accept any interference received,

including interference that may cause undesired operation.

Note!

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.”

WARNING

This is a class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.

CAUTION!

Any changes or modifications in construction of this devies which are not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

CAUTION!

1. A regulated DC12V 1A power supply is recommended for use with this camera for the best picture and the most stable operation.

An unregulated power supply can cause damage to the camera.

When unregulated power supply is applied, product warranty will be out of subject.

2. It is recommended that the camera is used with a monitor that has a CCTV quality 75 video impedance level. If your monitor is switched to high impedance then please adjust accordingly.

3. Do not attempt to disassemble the camera to gain access to the internal components. Refer servicing to your dealer.

4. Never face the camera towards the sun or any bright or reflective light, which may cause smear on the picture and possible damage to the CCD.

5. Do not remove the serial sticker for the warranty service.

6. Do not expose the camera to rain or other types of liquid.

7. The apparatus must be connected to a mains socket-outlet with a protective earthing connection.

Bosch Security Systems User Manual 2012.11

4 en | Cautions

960H Day/Night IR Bullet Camera

Correct Disposal of This Product

(Waste Electrical & Electronic Equipment)

(Applicable in the European Union and other European countries with separate collection systems)

This marking shown on the product or its literature, indicate that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources.

This product should not be mixed with other commercial wastes purchased this product, or their local government office, for details of where and how they can take item for environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of the purchase contract.

Household users should contact either the retailer where they for disposal.

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION:

TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE COVER(OR BACK). NO USER. SERVICING

TO QUALIFED SERVICE PERSONNEL.

This symbol is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient mangnitude to constitute a risk of electric shock to persons.

This symbol is intended to alert the user to the presence of important operating and maintenance(servicing) instruction in the literature accompanying the appliance.

CAUTION!

These servicing instructions are for use by qualified service personnel only. To reduce the risk of electric shock do not perform any servicing other than that contained in the operating instructions unless you are qualified to do so.

Use Class 2 Power Supply Only

Bosch Security Systems User Manual 2012.11

960H Day/Night IR Bullet Camera

2

Important safety instructions | en 5

Important safety instructions

1.

Read these instructions.

2.

Keep these instructions.

3.

Heed all warnings.

4.

Follow all instructions.

5.

Do not use this apparatus near water.

6.

Clean only with dry cloth.

7.

Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8.

Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9.

Do not defeat the safety purpose of the polarized or groundingtype plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/accessories specified by the manufacturer.

12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13. Unplug this apparatus during lightning storms or when unused for long periods of time.

14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

Bosch Security Systems User Manual 2012.11

6 en | Features/Components

3

960H Day/Night IR Bullet Camera

Features

The camera has the following features:

Ultra high resolution, 960H (1/3") Sensor.

2.8-12mm lens with True Day/Night filter for optimum performance in various lighting conditions.

720 TV Lines Horizontal Sensor Resolution.

Integrated IR LED's for discrete surveillance in dark environments.

Multi language On Screen Display (OSD) with joystick control.

2DNR.

4 Privacy Zones.

Motion Detection.

ATR(Adaptive Tone-curve Reproduction / Digital. WDR)

Cable managed bracket for secure and clean installation.

Vandal resistant. (IK08)

Outdoor rated. (IP66)

4 Components

Qty Description

1

VTI-4075-V3x1(C) camera with integrated mounting bracket

1

Video Output

Test Cable

3

Screws

(PH/1(SUS) 5x30)

1

Wrench

(M6 hex)

1 Guide Pattern

Bosch Security Systems User Manual

1

User Manual

(this booklet)

2012.11

960H Day/Night IR Bullet Camera

5 Camera parts

Camera parts | en 7

7

8

5

6

3

4

1

2

➏ ➐ ➎

Sunshield Fixing Bolt

Sunshield

Mounting Bracket

Housing Body

Housing Front

Photo cell

Lens

LED

OSD joystick

Rubber seal

Service cable connector

Bosch Security Systems User Manual

FAR

NEAR

TELE

WIDE

2012.11

8 en | Installation

960H Day/Night IR Bullet Camera

6 Installation

6.1 Mounting position

To prevent injury, this apparatus must be securely attached to the floor/wall in accordance with the installation instructions.

NOTICE! The image sensors in modern cameras are highly sensitive and require special care for proper performance and extended lifetime. Follow the guidelines for optimum results with your camera:

– Do not expose to direct sunlight or bright spotlights in operating and nonoperating conditions.

– Avoid bright lights in the field of view of the camera. Bright lights cause a “smearing” effect, which is visible as white lines above and below the highlight. Prolonged exposure to bright lights may cause bleaching of the sensor's color filters. This will be visible as colored spots in the picture and is irreversible.

WARNING! The mounting surface, mounting screws/plugs, and junction box must be stable and capable of supporting a maximum load of 4 kg (8.82 pounds).

Mounting to an improper surface or using improper mounting material can cause camera malfunction and is a potential safety hazard.

WARNING! Make sure that appropriate mounting screws and anchors are used for the surface to which the camera is mounted. The supplied universal mounting screws can be used with most plastic anchors, please confirm compatibility before mounting the camera.

CAUTION! To prevent humidity problems, the camera must be installed in dry conditions, and the cable leads should be sealed after they are connected.

360°

90°

* 1st Axis

* 2nd Axis

Bosch Security Systems

360°

* 3rd Axis

User Manual 2012.11

960H Day/Night IR Bullet Camera

6 Installation

6.2 Monitor connection

Installation | en 9

Camera

Terminal block

Screw

Terminal

Terminal block connector

"+","-" Indication

Female

BNC conector

Ground contact

Signal contact

10.16

(0.4)

18.2(0.71)

 2.6x3.2

(0.1x0.12)

Video In

TV Monitor

5.08(0.2) mm

(in.)

*Sold separately

6.3 Camera adjustment

CAUTION! To prevent humidity problems, the camera must be installed in dry conditions.

The housing front should never be removed in wet or moist conditions. Doing so could cause condensation on the inside of the camera window.

5.

6.

7.

1.

2.

3.

4.

Remove the housing front.

Connect service monitor. (optional)

Adjust zoom and focus.

Fasten the zoom and focus lever.

Adjust OSD settings. (refer to OSD section)

Disconnect service monitor cable. (optional)

Re-mount housing front. Include warning to (1) check rubber seal is in place. And (2) tighten housing front firmly to ensure protection against water ingress.

V X

Housing front fastened enough.

(No gap between housing front and housing body)

Protection against water ingress ensured.

Bosch Security Systems User Manual

Housing front not fastened enough.

(Gap between housing front and housing body)

Risk of water ingress.

2012.11

10 en | OSD menu structure

7 OSD menu structure

MAIN MENU 1st Sub 2nd Sub

MANUAL

TYPE

LENS

AUTO

AUTO

MODE

SPEED

RETURN

960H Day/Night IR Bullet Camera

3rd Sub

DC

AUTO, OPEN,

CLOSE

(000 ~ 255)

4th Sub

HIGH LUMINANCE

MODE

SHUT, AUTO IRIS

SHUT+AUTO IRIS,

BRIGHTNESS (000 ~ 255)

MODE AGC,OFF

LOW LUMINANCE

SHUTTER /

AGC

MANUAL

RETURN

MODE

SHUTTER

SHUT+AGC

1/50(PAL),1/120(PAL)

1/60(NTSC),1/100(NTSC)

1/250,1/500,1/1000,1/2000

1/4000,1/10000

6, 12, 18, 24, 30, 36, 42, 44.8

AGC

RETURN

* SHUT+IRIS: Both the Shutter and the Mechanical Iris are automatically

adjusted according to brightness.

* Auto Iirs(Default): The Shutter stays at the manually selected value

and only the Mechanical Iris adjusts brightness.

MAIN MENU 1st Sub

ATW

2nd Sub

SPEED

DELAY CNT

ATW FRAME

3rd Sub

(000 ~ 255)

4th Sub

(000 ~ 255) x0.50,x1.00,x1.50,x2.00

ENVIRONMENT INDOOR,OUTDOOR

RETURN

PUSH

WHITE BAL

USER1

USER2

B-GAIN

R-GAIN

RETURN

B-GAIN

R-GAIN

RETURN

(000 ~ 255)

(000 ~ 255)

(000 ~ 255)

(000 ~ 255)

ANTI CR

MANUAL

LEVEL

RETURN

NTSC:(30 ~ 115)

PAL:(28 ~ 134)

PUSH LOCK

BACK LIGHT OFF,BLC,HLC

Bosch Security Systems User Manual 2012.11

960H Day/Night IR Bullet Camera

7 OSD menu structure

MAIN MENU 1st Sub

MIRROR

2nd Sub

OFF,ON

PIC ADJUST

BRIGHTNESS (000 ~ 255)

CONTRAST (000 ~ 255)

SHARPNESS (000 ~ 255)

HUE

GAIN

RETURN

(000 ~ 255)

(000 ~ 255)

OSD menu structure | en 11

3rd Sub 4th Sub

OFF

ATR

ON

LUMINANCE LOW,MID,HIGH

CONTRAST

LOW,MIDLOW,MID,

MIDHIGH,HIGH

RETURN

* ATR (Adaptive Tone-Curve Reproduction)

The function provides gradation compensation to improve the contrast of subjects both low luminace areas and high luminance areas exist in the same picture

4th Sub MAIN MENU 1st Sub 2nd Sub

DETECT SENS

BLOCK DISP

3rd Sub

(000 ~ 127)

OFF, ON, ENABLE

(CONTROLER)

MONITOR AREA ON,OFF

1/4, 2/4, 3/4, 4/4

MOTION

DET

ON

AREA SEL

TOP

BOTTOM

LEFT

RIGHT

NTSC:000 ~ 244

PAL: 000 ~ 288

NTSC:(000 ~ 244)

PAL:(000 ~ 288)

NTSC:(000 ~ 474)

PAL:(000 ~ 468)

NTSC:(000 ~ 474)

PAL:(000 ~ 468)

RETURN

OFF

NEXT

EXIT

SAVE ALL

Bosch Security Systems User Manual 2012.11

12 en | OSD menu structure

7 OSD menu structure

MAIN MENU 1st Sub

PRIVACY

ON

OFF

2nd Sub

AREA SEL

COLOR

TRANSP

MOSAIC

RETURN

960H Day/Night IR Bullet Camera

3rd Sub

1/4, 2/4, 3/4, 4/4

4th Sub

TOP

BOTTOM

LEFT

RIGHT

1 ~ 8

0.00, 0.50, 0.75, 1.00

OFF,ON

NTSC:(000 ~ 244)

PAL:(000 ~ 288)

NTSC:(000 ~ 244)

PAL:(000 ~ 288)

NTSC:(000 ~ 474)

PAL:(000 ~ 468)

NTSC:(000 ~ 474)

PAL:(000 ~ 468)

MAIN MENU 1st Sub

AUTO

2nd Sub

BURST

3rd Sub

OFF,ON

DELAY CNT 0 ~ 255

DAY -> NIGHT 0 ~ 255

NIGHT -> DAY 0 ~ 255

RETURN

4th Sub

COLOR

DAY/NIGHT

BW

BURST

LEVEL

RETURN

OFF, ON

IR OPTIMIZER OFF, ON

MODE AUTO, CENTER

0 ~ 31

EXT1

EXT2

* IR Optimizer

If,when the night operation mode of the DAY/NIGHT function is established, the mode is used together with an external infrared LED light source, excessive front lighting may occur, resulting in overexposure.

The IR Optimizer function makes it possible to minimize this overexposure by optimizing the exposure control during Night operations.

* Important Note:

If user wants camera synchronize with camera mode and IR light, user must set DAY/NIGHT as EXT1

Bosch Security Systems User Manual 2012.11

960H Day/Night IR Bullet Camera

7 OSD menu structure

NR

NR MODE OFF, Y, C, Y/C

Y LEVEL (000 ~ 015)

C LEVEL (000 ~ 015)

RETURN

CAMERA ID

OFF

ON

EDIT MODE

RETURN

OSD menu structure | en 13

CAMERA RESET

BACK

EXIT

SAVE ALL

* Important Note:

- Any changes made to the camera settings must be saved prior to exiting the

OSD menu. Otherwise all changes will be discarded.

- By changing the lens option in the OSD from MANUAL to AUTO will

automatically change the SHUTTER/AGC setting from AUTO IRIS to

SHUT+AUTO IRIS.(Default:AUTO IRIS)

Bosch Security Systems User Manual 2012.11

14 en | Specification

960H Day/Night IR Bullet Camera

8 Specification

Model

Image Device

Scanning System

VTI-4075-V321(NTSC) VTI-4075-V311(PAL)

Ultra high resolution, 960H (1/3") Sensor

2 : 1 Interlace

Scanning Frequency 15.734 KHz(H),59.94 Hz(V) 15.625 KHz(H), 50 Hz(V)

H. Sensor Res.

Actual H. Res.

Total Pixels

Effective Pixels

S/N Ratio

Min. Illumination

Sync. System

Gamma

Video Output

Lens

Lens focal length

Aperture

Lens adjustment

Electronic Shutter

BLC

White Balance

720TVL

650TVL

1020(H)x508(V)

976(H)x494(V)

More than 50dB (AGC Off)

0 Lux (IR LED On)

Internal r = 0.45

1.0 Vp-p Composite (75Ω)

Varifocal Auto IRIS & DN Lens Built-in

2.8-12mm

F1.4~360

Internal

1/60 sec

OFF / BLC / HLC

1020(H)x596(V)

976(H)x582(V)

1/50 sec

2DNR

ATR

Function

Motion Detection

Privacy Masking

Language

Day & Night

OSD

OSD Control

IR LED [m(ft)]

ATW / PUSH / USER1 / USER2 /

ANTI CR / MANUAL / PUSH-LOCK

On / Off (Level Adjustable)

On / Off (Level Adjustable)

MIRROR / BRIGHTNESS / CONTRAST /

SHARPNESS / HUE / GAIN

Zone 4ea

Zone 4ea

English, Japanese, German, French, Russian,

Portuguese, Spanish, Simplified Chinese

True Day & Night with ICR Mechanism

Built-in

Internal

IR Angle H/V

IP Rating

850 nm, max 30m (100ft)

60/60 degrees

IP66 (Water resistant)

Operating Temperature -30 ºC to +50 ºC (-22 ºF to +122 ºF)

Storage Temperature -20˚C to +60˚C (-4˚F to +140˚F)

Power Consumption Dual : DC12V(±10%), Max. 430 mA /

AC24V(±10%), Max. 5.7 W

Yes Cable

Management Bracket

Video interface

Weight

Housing material

Paint color

Vandal resistant

Outdoor rated

1 standard BNC connector for analog output

Approx. 960g (including bracket)

Casted/machined Aluminium

Camera / bracket: Black RAL9017

Sunshield: Silver grey RAL9006

Yes (IK08)

Yes (IP66)

Bosch Security Systems User Manual 2012.11

960H Day/Night IR Bullet Camera

8-1 Dimensions

Dimensions | en 15

148(5.82)

Ø70(2.75)

120(4.72)

60(2.36)

Approx. 257(10.1)

(2EA)

Bosch Security Systems

Ø80(3.14)

User Manual

3-Ø6.0(0.23) mm

(in.)

2012.11

16 简体中文版|目录

目录

1

2

3

4

5

注意事项

重要安全指示

特性

组件

摄像机零件

6 安装

6.1

装配位置

6.2

连接监视器

6.3

摄像机调整

7 屏幕显示选单结构

8 规格

8.1

尺寸

室外日/夜红外子弹型摄像机

博世安防系统 使用手册 2012.11

室外日/夜红外子弹型摄像机

1 注意事项

注意事项|简体中文版 17

此装置符合FCC条例第15部分的规定。

操作需符合以下两种条件;

1. 此装置不会引起有害的干扰。

2. 此装置必须能够承受任何收到的干扰,包括可能引起意外操作的干扰。

注记!

根据FCC条例第15部分之规定,此装备经证实符合A类数字装置的限制规定。

这些限制的目的是为了在商业环境中操作本装备时,可提供适当防护,以

防止有害的干扰。本装备会产生、使用且能发射射频能量,若未依据操作

指南安装时,可能会对无线电通信产生有害干扰。在住宅区操作本装备时

可能造成有害干扰,此时,用户需自费矫正此干扰。

警告

此为A类产品。在家用环境下,此产品可能引发无线电干扰,在此情况

下,用户需采取适当措施。

注意!

装备的结构未经负责合规性的相关方明确许可的变更或修改,都可能致

使用户失去操作本装备的权利。

注意!

1.为了获得最佳图像且保持稳定操作,此摄像机建议采用稳压的12V 1A直流电源。

非稳压的供应电源可能造成摄像机受损。

采用非稳压电源供应时,产品将不在保固范围内。

2.建议应将此摄像机,与拥有CCTV品质75视频阻抗等级的监视器一起使用。

当监视器切换为高阻抗时,请相应调整。

3.请勿尝试拆解摄像机以接近内部组件。保修请洽询您的经销商。

4.请勿将摄像机直接朝向日光或任何强光或反射光线,以免图像模糊且可能致

使CCD(电荷耦合组件)受损。

5.请勿拆除保固服务的序号标签。

6.请勿让摄像机曝露在雨水或其它类型的液体中。

7.此装置必需连接到具有保护接地的主电源插座。

博世安防系统 使用手册 2012.11

18 简体中文版|注意事项 室外日/夜红外子弹型摄像机

正确弃置本产品

(废弃电器与电子设备)

(适用于欧盟及其它拥有分类回收制度的欧洲国家)

产品或其文件上显示此记号时,表示当其使用寿命结束时,不应以其它

家庭废弃物方式处理。

为避免由于未受控制的废弃物处理方式,对环境或人类健康产生可能的

伤害,请与其它类型废弃物分开并回收,让材料资源可持续再利用。

本产品不可与其它商业垃圾混合,有关环保回收项目的地点与方法的详

细信息,请向购买处所或您当地的政府办事处洽询。

企业用户应与其供货商联系,并确认其购买合同条款与条件。

家庭用户应向零售商洽询其处置方式。

注 意

触 电 危 险 请 勿 开 启

注意: 为了降低触电风险,用户请勿拆除外盖(或背盖)。请交由合格的

服务人员进行保修。

为了降低触电风险,用户请勿拆除外盖(或背盖)。请交由合格的

服务人员进行保修。

此符号是在提醒使用者,随附于装置的文件中,有重要的操作与

保养(服务)指南。

注意!

这些保修指南,仅供合格的服务人员使用。为了降低触电风险,除非您

具备资格,否则请勿执行任何操作指南所述以外的保修。

仅能采用等级2的电源供应

博世安防系统 使用手册 2012.11

室外日/夜红外子弹型摄像机

2 重要安全指示

重要安全指示|简体中文版 19

1.

详读这些指示。

2.

保存这些指示。

3.

注意所有警告事项。

4.

遵照所有指示。

5.

切勿在靠近水的地方使用本装置。

6.

只能以干布进行清洁。

7.

请勿妨碍所有通风口。依据制造商指南进行安装。

8.

请勿安装在像是散热器、通风温度调节设备、火炉或其它会产生热

量设备(含放大器)的任何热源附近。

9.

请勿破坏有安全作用的极化或接地型插头。极化插头有两个金属

片,其中一片比另一片为宽。接地型插头则有两个插片和第三支用

来接地的插脚。宽的金属片或第三支插脚,都是为了您的安全。若

所提供的插头不适用于您的插座时,请洽询合格电工更换老式插

座。

10.

保护电源线免被踩踏或挤压,特别是靠近插头、便捷插座及离开该

装置的地方。

11.

仅能采用制造商所指定的附件或配件。

12.

仅能采用制造商所指定或随设备出售的推车、支架、三脚架、托架

或桌子。使用推车时,移动推车/设备的组合时要特别小心,以免

翻倒受伤。

博世安防系统

13.

闪电暴风雨或是长期未使用,请将装置插头拔除。

14.

所有保修应交由合格的服务人员来进行。当设备已因任何方式损坏

时,都需要维修(如电源线或插头损坏、 液体溅入或有异物掉入设

备中、设备曾曝露于雨中或潮湿环境中、操作不正常或曾被摔落

等)。

使用手册 2012.11

20 简体中文版|特性/组件

3 特性

室外日/夜红外子弹型摄像机

此摄像机有以下特性

超高分辨率,960H(1/3”)感应器。

拥有真实日/夜滤镜,可提供各种照明条件下最佳性能的2.8-12mm镜头。

720电视线的水平感应器分辨率。

整合的红外 LED,以供黑暗环境下间断监测。

附游戏杆控制的多国语言屏幕显示(OSD)。

2DNR。

4个隐私区域。

动域检测。

ATR(自适应色阶再现/数字WDR)

电缆管理托架,以利安全与整齐的装设。

防破坏。(IK08)

室外级。(IP66)

4 组件

数量 说明

1

VTI-4075-V3x1(C)

含整合式装配托架的摄像机

博世安防系统 使用手册

1

视频输出

测试缆线

3

螺丝

(PH/1(SUS) 5x30)

1

扳手

(M6六角)

1 导引样式板

1

使用手册

(本手册)

2012.11

室外日/夜红外子弹型摄像机

5 摄像机零件

摄像机零件|简体中文版 21

7

8

5

6

3

4

1

2

➏ ➐

遮阳罩固定螺栓

遮阳罩

装配托架

外罩本体

外罩前端

光敏电阻

镜头

LED

➎ ➍

OSD摇杆

博世安防系统

保修缆线接头

橡胶密封垫

使用手册

望远

2012.11

22 简体中文版|安装

6 安装

室外日/夜红外子弹型摄像机

6.1 装配位置

为避免伤害,请依据安装指南,将装置紧密固定在地板/墙壁上。

意。请遵照指南,让您的摄像机获到最佳效果:

–不论操作或非操作状态下,都不要将它曝露在日光或聚光灯直射处。

–避免摄像机视野中有强光。强光将造成“拖影”,会在强光上方与下方形成白色线。

长期暴露在明亮的光线中,可能导致感应器彩色滤光片白化的情形。这样会在图片中

形成彩色斑点,且无法消除。

装配在不适当的表面,或使用了不当的装配材料时,可能造成摄像机故障,且也潜在

安全危险。

360°

* 第1个转轴

90°

* 第2个转轴

博世安防系统

360°

* 第3个转轴

使用手册 2012.11

室外日/夜红外子弹型摄像机

6 安装

6.2 连接监视器

安装|简体中文版 23

摄像机

端子台连接器

"+","-" 指示

BNC母接头

接地接点

信号接点

端子台

螺丝端子



2.6x3.2

(0.1x0.12)

10.16

(0.4)

18.2(0.71)

Video In

电视监视器

5.08(0.2) mm

(in.)

*分开销售

6.3 摄像机调整

注意!

为避免潮湿问题,摄像机需安装在干燥环境下。绝对不可以在潮湿状况下

将前端外罩拆除,否则可能导致摄像机窗口内部凝结水气。

1.

2.

3.

4.

5.

6.

7.

拆除前端外罩。

连接保修监视器(选购)。

调整缩放与对焦。

固定缩放与对焦控制杆。

调整屏幕显示的设定(请参照屏幕显示乙节)。

卸除保修屏幕缆线(选购)。

装回前端外罩。需特别注意(1)检查橡胶密封垫是否装妥,及(2)紧密锁紧前端外罩,

确保水气不会进入。

V X

博世安防系统

前端外罩充分锁紧。

(前端外罩与外罩本体之间无间隙)

可确保防止水气进入。

使用手册

前端外罩未充分锁紧。

(前端外罩与外罩本体之间有间隙)

有水气进入风险。

2012.11

24 简体中文版|屏幕显示选单结构

7 屏幕显示选单结构

主选单

镜头

快门 /自动

增益控制

室外日/夜红外子弹型摄像机

第1层子选单 第2层子选单 第3层子选单

手动

控制 DC

自动

模式

速度

返回

自动、关闭、开放

(000

~

255)

自动

手动

高辉度

低辉度

返回

模式

快门

自动增益

返回

模式

亮度

模式

亮度

第4层子选单

快门、自动光圈、

快门+自动光圈

(000

~

255)

自动增益控制、关闭 x0.25, x0.50, x0.75, x1.00

*快门+光圈:快门与机械光圈都会依据亮度自动调整。

*自动光圈(预设):快门会维持在手动所选择的位置,且只使用光圈来调整亮度。

主选单

白平衡

第1层子选单 第2层子选单

自动跟踪白平

第3层子选单 第4层子选单

速度

延迟控制

(000

~

(000

~

255)

255)

自动跟踪白平衡框 x0.50,x1.00,x1.50,x2.00

环境设置 室内、室外

返回

推进推进

用户1

用户2

B增益

R增益

返回

B增益

R增益

返回

(000

(000

~

~

255)

255)

(000

(000

~

~

255)

255)

抑制色滚

手动

等级

返回

NTSC:(30

PAL:(28

~

~

115)

134)

推进锁定

逆光补偿 关、逆光补偿、高亮度补偿

快门+自动增益

1/50(PAL),1/120(PAL)

1/60(NTSC),1/100(NTSC)

1/250,1/500,1/1000,1/2000

1/4000,1/10000

6, 12, 18, 24, 30, 36, 42, 44.8

博世安防系统 使用手册 2012.11

室外日/夜红外子弹型摄像机

7 屏幕显示选单结构

主选单

图像调整

第1层子选单

镜像

亮度

对比度

锐度

色调

增益

返回

屏幕显示选单结构|简体中文版 25

第2层子选单

关、开

(000

~

(000

~

(000

(000

(000

~

~

~

255)

255)

255)

255)

255)

第3层子选单 第4层子选单

自适应色阶

再现

辉度

对比度

返回

低、中、高

低、中等偏低、中、

中等偏高、高

* ATR (自适应色阶再现)

此功能提供了色调补偿,以提高存在同一个画面低亮度与高亮度等区域的主体

对比度。

主选单 第4层子选单

动域检测

第1层子选单 第2层子选单 第3层子选单

检测灵敏度

块状显示

(000

器)

~

127)

关、开、开启(控制

监视区域 开、关

1/4, 2/4, 3/4, 4/4

区域选择

NTSC:000

PAL:000

NTSC:000

PAL:000

~

~

NTSC:000

PAL:000

~

NTSC:000

PAL:000

~

~

~

~

244

244

288

474

468

~

474

468

返回

下一页

退出

全部储存

博世安防系统 使用手册 2012.11

26 简体中文版|屏幕显示选单结构

7 屏幕显示选单结构

主选单

隐私区域屏

室外日/夜红外子弹型摄像机

第1层子选单 第2层子选单 第3层子选单

1/4, 2/4, 3/4, 4/4

第4层子选单

区域选择

彩色

透明度

马赛克

返回

1

~

8

0.00, 0.50, 0.75,

1.00

关、开

NTSC:000

PAL:000

NTSC:000

PAL:000

NTSC:000

PAL:000

NTSC:000

PAL:000

~

~

~

~

244

244

288

474

468

~

474

468

自动

脉冲

延迟控制

日->夜

夜->日

返回

关、开

0

~

0

~

0

~

255

255

255

彩色

日/夜模式

黑白

脉冲 关、开

IR自动补偿 关、开

模式

等级

返回

自动、固定

0

~

31

外部1

外部2

* IR自动补偿

当已建立日/夜功能的夜间操作模式时,此模式会和外部红外LED光源一起使

用,可能会发生前端照明过度的情形,导致过度曝光。

IR自动补偿的功能,能藉由最佳化夜间操作曝光控制,以降低这种过度曝光的

情形。

* 重要注记

若用户想要让摄像机与摄像机模式及红外同步时,

必需将日/夜模式设定在外部1。

博世安防系统 使用手册 2012.11

室外日/夜红外子弹型摄像机

7 屏幕显示选单结构

屏幕显示选单结构|简体中文版 27

主选单

减噪

第1层子选单

减噪模式

Y等级

C等级

返回

第2层子选单

关, Y, C, Y/C

(000

(000

~

~

015)

015)

第3层子选单 第4层子选单

摄像机标示码

编辑模式

返回

英语、日本语、德语、法语、俄语、葡萄牙语、西班牙语、中文 语言

摄像机复位

上一页

退出

全部储存

* 重要注记:

- 退出屏幕显示选单前,需先储存所有在摄像机设定上所做的变更。

否则所有变更都将无效。

- 将屏幕显示中之镜头选项从手动改为自动,可以自动将快门/自动增益控制设定,

从自动光圈变为快门+自动光圈(默认值为自动)。

博世安防系统 使用手册 2012.11

28 简体中文版|规格

8 规格

室外日/夜红外子弹型摄像机

型式

图像装置

扫描系统

扫描频率

感应器水平分辨率

实际水平分辨率

总像素

有效像素

信噪(S/N)比

最低照度

同步系统

Gamma

伽玛值

VTI-4075-V321(NTSC)

720TVL

650TVL

1020(水平) x 508(垂直)

VTI-4075-V311(PAL)

超高分辨率,960H (1/3")感应器

2 : 1交错

15.734 KHz(H),59.94 Hz(V) 15.625 KHz(H), 50 Hz(V)

976(水平) x 494(垂直)

大于50dB(自动增益关闭)

0 Lux(红外LED开启)

内部 r = 0.45

1.0 Vp-p 复合(75Ω)

1020(水平) x 596(垂直)

976(水平) x 582(垂直)

视频输出

镜头

镜头焦距

镜头调整

电子快门

逆光补偿

白平衡

变焦自动光圈与内建式DN镜头

2.8-12 mm

F1.4

内部

~

360

1/60秒 1/50秒

关闭 / 逆光补偿 / 高亮度补偿

2DNR

自适应色阶再现

功能

动域检测

自动跟踪白平衡 / 推进 / 用户1 / 用户2 /

抑制色滚 / 手动 / 推进锁定

开/关(等级可调整)

开/关(等级可调整)

镜像 / 亮度 / 对比度 / 锐度 / 色调 / 增益

4个区域

隐私区域屏蔽

语言

日/夜

屏幕显示

4个区域

英语、日本语、德语、法语、俄语、葡萄牙语、西班牙语、

中文

真实日/夜转换,ICR

内建

屏幕显示控制 内部

红外LED照射距离[m(ft)] 850 nm,红外距离最高至30m (100ft)

红外LED照射角度H/V 60/60度

IP防护等级 IP66(防水)

操作温度 -30℃至+50℃(-22℉至+122℉)

储存温度

电力消耗

缆线管理托架

-20℃至+60℃(-4℉至+140℉)

双重:直流12V(±10%),最高430mA /

交流24V(±10%),最高5.7W

支持

视频接口

重量

外壳材料

油漆颜色

防破坏

室外等级

1个供模拟输出使用的标准BNC接头

约960g(含托架)

铸造 / 机械加工铝质

摄像机 / 托架:黑色RAL9017

遮阳罩:银灰色RAL9006

是(IK08)

是(IP66)

博世安防系统 使用手册 2012.11

室外日/夜红外子弹型摄像机

8-1 尺寸

尺寸|简体中文版 29

148(5.82)

Ø70(2.75)

博世安防系统

120(4.72)

60(2.36)

约.257(10.1)

(两个)

Ø80(3.14)

使用手册

(in.)

2012.11

MEMO

博世安防系统 使用手册 2012.11

Bosch Security Systems www.boschsecurity.com

(c) Bosch Security Systems, 2013

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement

Languages
