Acer FL8610 Projector User Manual

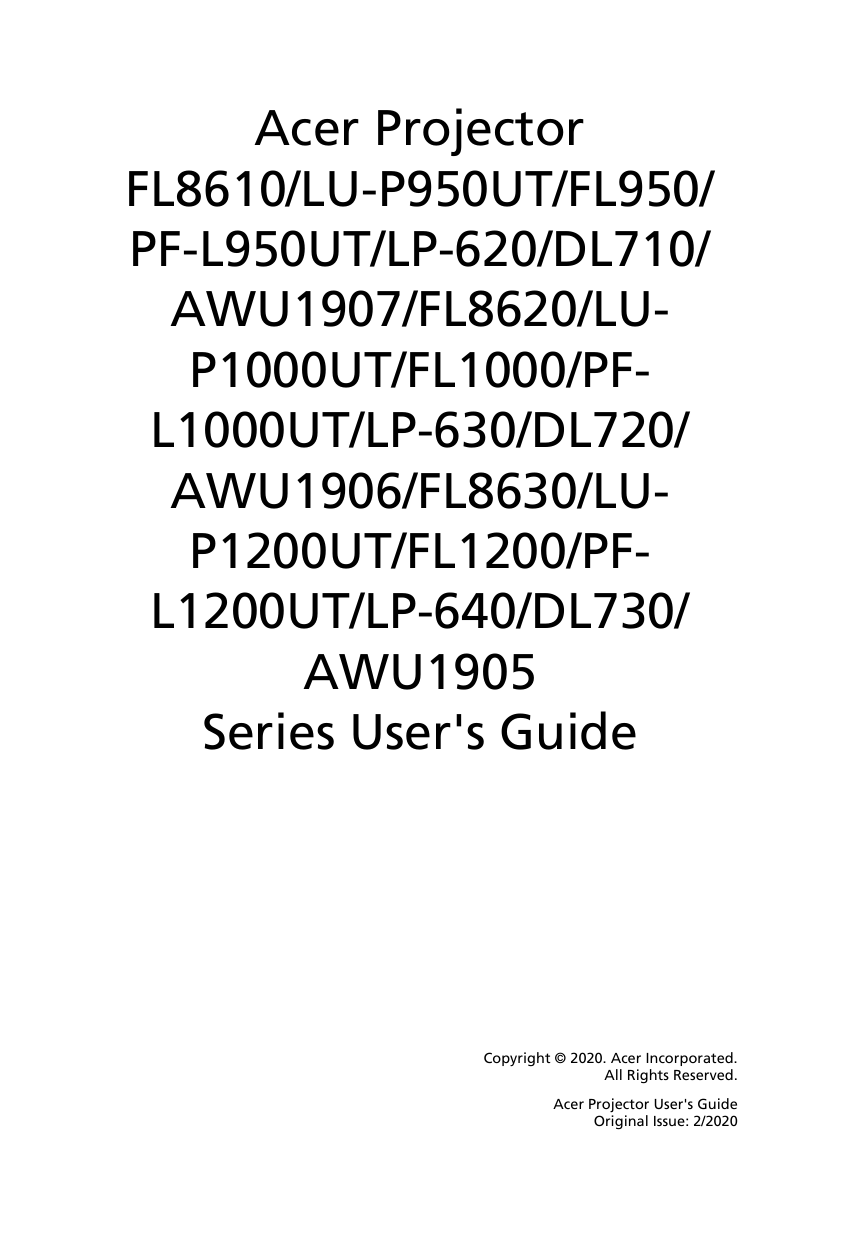

Acer Projector
FL8610/LU-P950UT/FL950/
PF-L950UT/LP-620/DL710/
AWU1907/FL8620/LUP1000UT/FL1000/PFL1000UT/LP-630/DL720/
AWU1906/FL8630/LUP1200UT/FL1200/PFL1200UT/LP-640/DL730/
AWU1905
Series User's Guide
Copyright © 2020. Acer Incorporated.
All Rights Reserved.
Acer Projector User's Guide
Original Issue: 2/2020
Changes may be made periodically to the information in this publication without obligation
to notify any person of such revisions or changes. Such changes will be incorporated in new
editions of this manual or supplementary documents and publications. This company makes
no representations or warranties, either expressed or implied, with respect to the contents
hereof and specifically disclaims the implied warranties of merchantability or fitness for a
particular purpose.
Record the model number, serial number, purchase date and place of purchase information in
the space provided below. The serial number and model number are recorded on the label
affixed to your projector. All correspondence concerning your unit should include the serial
number, model number and purchase information.
No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in
any form or by any means, electronically, mechanically, by photocopy, recording or otherwise,
without the prior written permission of Acer Incorporated.
Acer Projector
Model number: __________________________________
Serial number: ___________________________________
Date of purchase: ________________________________
Place of purchase: ________________________________
Acer and the Acer logo are registered trademarks of Acer Incorporated. Other companies'
product names or trademarks are used herein for identification purposes only and belong to
their respective companies.
"HDMITM, the HDMI logo and High-Definition Multimedia Interface are trademarks or
registered trademarks of HDMI Licensing LLC."
iii
Information for Your Safety and
Comfort
Read these instructions carefully. Keep this document for future reference.
Follow all warnings and instructions marked on the product.
Turning the product off before cleaning
Unplug this product from the wall outlet before cleaning. Do not use liquid
cleaners or aerosol cleaners. Use a damp cloth for cleaning.
Caution for plug as disconnecting device
Observe the following guidelines when connecting and disconnecting power to
the external power supply unit:
•
•
•
Install the power supply unit before connecting the power cord to the AC
power outlet.
Unplug the power cord before removing the power supply unit from the
projector.
If the system has multiple sources of power, disconnect power from the
system by unplugging all power cords from the power supplies.
Caution for Accessibility
Be sure that the power outlet you plug the power cord into is easily accessible
and located as close to the equipment operator as possible. When you need to
disconnect power to the equipment, be sure to unplug the power cord from the
electrical outlet.
Warnings!
•
•
•
Do not use this product near water.
Do not place this product on an unstable cart, stand or table. If the product
falls, it could be seriously damaged.
Slots and openings are provided for ventilation to ensure reliable
operation of the product and to protect it from overheating. These
openings must not be blocked or covered. The openings should never be
blocked by placing the product on a bed, sofa, rug or other similar surface.
This product should never be placed near or over a radiator or heat register, or
in a built-in installation unless proper ventilation is provided.
•
Never push objects of any kind into this product through cabinet slots as
they may touch dangerous voltage points or short-out parts that could
result in a fire or electric shock. Never spill liquid of any kind onto or into
the product.
iv
•
•
To avoid damage of internal components and to prevent battery leakage,
do not place the product on a vibrating surface.
Never use it under sporting, exercising, or any vibrating environment
which will probably cause unexpected short current or damage rotor
devices.
Using electrical power
•
•
•
•
•
This product should be operated from the type of power indicated on the
marking label. If you are not sure of the type of power available, consult
your dealer or local power company.
Do not allow anything to rest on the power cord. Do not locate this
product where people will walk on the cord.
If an extension cord is used with this product, make sure that the total
ampere rating of the equipment plugged into the extension cord does not
exceed the extension cord ampere rating. Also, make sure that the total
rating of all products plugged into the wall outlet does not exceed the fuse
rating.
Do not overload a power outlet, strip or receptacle by plugging in too
many devices. The overall system load must not exceed 80% of the branch
circuit rating. If power strips are used, the load should not exceed 80% of
the power strip's input rating.
This product's AC adapter is equipped with a three-wire grounded plug.
The plug only fits in a grounded power outlet. Make sure the power outlet
is properly grounded before inserting the AC adapter plug. Do not insert
the plug into a non-grounded power outlet. Contact your electrician for
details.
Warning! The grounding pin is a safety feature. Using a power outlet that is
not properly grounded may result in electric shock and/or injury.
Note: The grounding pin also provides good protection from unexpected
noise produced by other nearby electrical devices that may interfere with
the performance of this product.
•
Use the product only with the supplied power supply cord set. If you need
to replace the power cord set, make sure that the new power cord is
equivalent to the original supplied power cord. Please contact your local
dealer or Acer service center for details.
v
Product servicing
Do not attempt to service this product yourself, as opening or removing covers
may expose you to dangerous voltage points or other risks. Refer all servicing to
qualified service personnel.
Unplug this product from the wall outlet and refer servicing to qualified service
personnel when:
•
•
•
•
•
•
the power cord or plug is damaged, cut or frayed
liquid was spilled into the product
the product was exposed to rain or water
the product has been dropped or the case has been damaged
the product exhibits a distinct change in performance, indicating a need
for service
the product does not operate normally after following the operating
instructions
Note: Adjust only those controls that are covered by the operating
instructions, since improper adjustment of other controls may result in
damage and will often require extensive work by a qualified technician to
restore the product to normal condition.
Warning! For safety reasons, do not use non-compliant parts when adding
or changing components. Consult your reseller for purchase options.
Your device and its enhancements may contain small parts. Keep them out of
the reach of small children.
Additional safety information
•
•
•
•
•
Do not look into the lens while the light source is on. The strong light from
the light source may cause damage to your eyesight.
RG2 IEC 62471-5:20151
Do not place anything in front of the lens while the projector is operating.
Things placed in front of the lens may overheat and burn or start a fire. If
you want to temporarily stop the projected image, use the Blank key on
the remote control.
Do not remove any screws. Do not block or cover the vents.
Do not look into the lens. (For USA and Canada only).
Laser aperture warning: (For USA and Canada only).
•
•
•
CLASS 3R LASER PRODUCT-AVOID DIRECT EYE EXPOSURE
Do not look into the light source using optical instruments (such as magnifying
glasses and mirrors). Visual impairment could result.
When turning on the projector, make sure no one within projection range is
vi
looking at the lens.
•
•
Laser aperture warning: (For other countries).
•
•
•
Keep any items (magnifying glass etc.) out of the light path of the projector. The
light path being projected from the lens is extensive, therefore any kind of
abnormal objects that can redirect light coming out of the lens, can cause an
unpredictable outcome such as a fire or injury to the eyes.
CLASS 1 LASER PRODUCT - RISK GROUP 2
Do not stare into the beam, maybe harmful to the eyes.
Risk group 3: (Except USA and Canada) This projector may become RG3
when an interchangeable lens with throw ratio greater than the number
stated on the label.
•
•
•
As with any bright light source, do not stare into the beam.
RG2 IEC 62471-5:2015
No direct exposure to the beam shall be permitted. RG3 IEC 62471-5:2015
Operators shall control access to the beam within the hazard distance or install
the product at the height that will prevent spectators’ eyes from being in the
hazard distance.
•
Hazard distance
RG2
RG3
Hazard distance
RG2
RG3
Type name of lens
Acer FL8 series Ultra Short Throw Lens
Throw
ratio
0.377
Hazard
IEC62471-5:2015
distance
N/A
RG2
Acer FL8 series Ultra Short Throw Zoom Lens 0.76–0.95 N/A
RG2
Acer FL8 series Short Throw Zoom Lens
1.14–1.71 N/A
RG2
Acer FL8 series Standard Zoom Lens
1.61–2.42 N/A
RG2
Acer FL8 series Middle Throw Zoom Lens
2.37–3.6
RG2
Acer FL8 series Long Throw Zoom Lens
3.53–5.65 1550 mm RG3
N/A
Acer FL8 series Ultra Long Throw Zoom Lens 5.52–8.83 1370 mm RG3
•
Cinema projectors that have a hazard distance greater than 1 m and emit light
into an uncontrolled area where persons may be present should be positioned in
accordance with “the fixed projector installation” parameters, resulting in a
hazard distance that does not extend into the audience area unless the beam is
at least 2 m above the floor level.
vii
•
•
•
Turn on the projector first and then signal sources.
Do not place the product in the following environments:
•
•
Space that is poorly ventilated or confined. At least 50cm clearance from walls
and free flow of air around the projector are necessary.
Locations where temperatures may become excessively high, such as inside of a
car with all windows rolled up.
Locations where excessive humidity, dust, or cigarette smoke may contaminate
optical components, shorten the life span and darken the image.
Locations near fire alarms.
•
•
Locations with an ambient temperature above 40 ºC/104 ºF.
Locations where the altitudes are higher than 10000 feet.
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
In non-cinema, environments where unrestrained behaviour is reasonably
foreseeable, the minimum separation height should be greater than or equal to
3.0 m to prevent potential exposure, for example by an individual sitting on
another individual’s shoulders, within the hazard distance. For example, a
sufficiently large separation height may be achieved by mounting the projector
on the ceiling or through the use of physical barriers.
Unplug immediately if there is something wrong with your projector. Do
not operate if smoke, strange noise or odor comes out of your projector. It
might cause fire or electric shock. In this case, unplug immediately and
contact your dealer.
Do not keep using this product to break or drop it. In this case contact your
dealer for inspection.
Do not face the projector lens to the sun. It can lead to fire.
When switching the projector off, please ensure the projector completes
its cooling cycle before disconnecting power.
Do not frequently turn off the main power abruptly or unplug the
projector during operation. The best way is to wait for the fan to stop
before turning main power off.
Do not touch the air outlet grille and bottom plate which become hot.
Clean the air filter frequently. The temperature inside may rise and cause
damage when the filter/ventilation slots are clogged with dirt or dust.
Do not look into the air outlet grille when projector is operating. It may
hurt your eyes.
Always open the lens shutter or remove the lens cap when the projector is
on.
Do not block the projector lens with any object when the projector is
under operation as this could cause the object to become heated and
deformed or even cause a fire. To temporarily turn off the light, press
Blank on the remote control.
Do not attempt to disassemble this projector. There are dangerous high
voltages inside which may hurt you.
Do not stand the projector on end vertically. It may cause the projector to
fall over, causing injury or damage.
This product is capable of displaying inverted images for ceiling mount
installation. Only use acer ceiling mount kit for mounting the projector
and ensure it is securely installed.
viii
Caution for Listening
To protect your hearing, follow these instructions.
•
•
•
•
•
Increase the volume gradually until you can hear clearly and comfortably.
Do not increase the volume level after your ears have adjusted.
Do not listen to music at high volumes for extended periods.
Do not increase the volume to block out noisy surroundings.
Decrease the volume if you can't hear people speaking near you.
Disposal instructions
Do not throw this electronic device into the trash when discarding. To minimize
pollution and ensure utmost protection of the global environment, please
recycle. For more information on the Waste from Electrical and Electronics
Equipment (WEEE) regulations, visit http://www.acer-group.com/public/
Sustainability/index.htm
ix
First Thing First
Usage Notes
Do:
•
Turn off the product before cleaning.
•
Use a soft cloth moistened with mild detergent to clean the display
housing.
•
Disconnect the power plug from AC outlet if the product is not being used
for a long period of time.
Don't:
•
Block the slots and openings on the projector provided for ventilation.
•
Use abrasive cleaners, waxes or solvents to clean the unit.
•
Use under the following conditions:
•
•
•
•
In extremely hot, cold or humid environments.
In areas susceptible to excessive dust and dirt.
Near any appliance that generates a strong magnetic field.
Place in direct sunlight.
Precautions
Follow all warnings, precautions and maintenance as recommended in this
user's guide to maximize the life of your unit.
Warning:
•
•
Do not look into the projector's lens when the projector is on. The bright light may
hurt your eyes.
To reduce the risk of fire or electric shock, do not expose this product to rain or
moisture.
•
•
Please do not open or disassemble the product as this may cause electric shock.
•
•
Turn on the projector first and then the signal sources.
When switching the projector off, please ensure the projector completes its cooling
cycle before disconnecting power.
Do not use lens cap when projector is in operation.
iii
First Thing First
ix
Usage Notes
ix
Precautions
ix
Introduction
1
Product Features
1
Package Overview
2
Projector Overview
3
Projector Outlook
3
Control Panel
5
Remote Control Layout
6
MHL Feature Introduction
8
Getting Started
9
Installing the Projection Lens
9
Removing the Projection Lens
9
Connecting the Projector
Contents
Information for Your Safety and Comfort
10
Connecting Multiple Sources through HDBaseT Module (Optional)
11
Turning the Projector On/Off
13
Turning On the Projector
13
Turning Off the Projector
14
Adjusting the Projected Image
15
Adjusting the Height of the Projected Image
15
Optimizing Image Size and Distance
16
How to Get a Preferred Image Position by Adjusting Lens
Shift
20
User Controls
22
Onscreen Display (OSD) Menus
22
Image Adjustment
23
Display settings
25
Default Adjustment
28
Options
32
Appendices
35
Troubleshooting
35
LED & Alarm Definition Listing
39
Specifications
41
Compatibility Modes
44
Regulations and Safety Notices
49
English
1
Introduction
Product Features
This product is a single-chip DLP® projector, including the following
outstanding features:
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
DLP® technology
Enables projecting 3D content via DLP Link Technology: Blu-Ray 3D
supported
Acer ColorBoost technology delivers vivid, life-like images
High brightness and contrast ratio
Versatile display modes enable optimum performance in any situation
NTSC/PAL/SECAM compatible and HDTV (720p, 1080i, 1080p) supported
Lower power consumption and economy (ECO) mode extends projector life
Advanced keystone correction delivers optimum presentations
Multi-language Onscreen Display (OSD) menus
Extensive lens options with motorized focus/zoom and motorized lens shift
functions
Equipped with motorized dual color filter
Optional 3G-SDI module and HDBaseT module
360-degree projection allows you to project images from any angle
Microsoft® Windows® 2000, XP, 7, 8, 8.1,10, Vista®, Macintosh OS, Chrome
OS compliant
LAN settings enable remote management of projectors via a web browser
Crestron compliant
CEC (Consumer Electronics Control) function supported
3D VESA compatible
2
This projector comes with all the items shown below. Check to make sure you
have them all. Contact your dealer immediately if any thing is missing.
Projector
Security card
(optional)
Remote control
3G-SDI module
(optional)
HDBaseT module
(optional)
Power cord
VGA cable
Quick start guide
AAA Battery x 2
Note: Do not install 2 HDBaseT modules or 2 3G-SDI modules
simultaneously. The projector can only recognize one when that
happens.
Warning: Do not leave the optional extension board uncovered
during operation.
English
Package Overview
English
3
Projector Overview
Projector Outlook
Front/upper side
1
3
2
4
5
3
#
6
Description
#
Description
1
Security bar
4
Indicator LED
2
Projection lens (optional)
5
Power key
3
Remote control receiver
6
Control panel
Side
1
2 34 5
6
7 8 9
10 11 1213 14 1516
20
19
18
17
#
Description
17
#
Description
1
Wired remote control input connector 12 USB connector (Type A)
(DC 5V output)
Wired remote control output connector
2
RS232 input connector
3
RS232 output connector
4
S-Video input connector
5
Composite video input connector
6
BNC connectors
15 HDBaseT connector (Optional
extension board)
7
Analog RGB signal/HDTV/component
video input connector
16 3G-SDI input/output connector
(Optional extension board)
8
Monitor loop-through output
connector
17 Tilt adjusting wheel
9
HDMI (MHL) connector
18 Power socket
13 LAN (RJ45 port for 10/100M
Ethernet)
14 3D sync input/output
connectors
10 DVI-D input connector
19 12V DC output connectors
11 Mini USB connector
20 Kensington™ lock port
4
English
Bottom side
495 mm
1
1
2
2
2
2
450 mm
1
#
1
1
Description
#
Tilt adjusting wheel
2
Description
Ceiling mount holes (screw type: M6)
Dimensions
[A]
mm 552.5
mm
179.5
mm
548 mm
Note: [A] differs when different lens is installed.
Lens installed
Acer FL8 series Standard Zoom Lens
[A]
594.1
Acer FL8 series Ultra Short Throw Zoom Lens
609.9
Acer FL8 series Short Throw Zoom Lens
611.4
Acer FL8 series Middle Throw Zoom Lens
631.5
Acer FL8 series Long Throw Zoom Lens
631.5
Acer FL8 series Ultra Long Throw Zoom Lens
631.5
Acer FL8 series Ultra Short Throw Lens
612.1
189.5
mm
English
5
Control Panel
1
9
2
3
10
4
5
5
5
5
11
6
7
12
8
#
1
Function
Power key
Description
Refer to the "Turning the Projector On/Off" section.
2
PATTERN
Displays the test pattern.
3
MENU
Launches the Onscreen Display (OSD) menu, returns to
the previous step for the OSD menu operation or exits
the OSD menu.
4
ENTER
5
Four
directional
selection
keys
Confirms your selection of items.
Selects items or makes adjustments to your selection
6
BACK
Cancels your selection, or goes back to previous page.
7
FOCUS
Press "FOCUS" and the indicator below lights up. Use
to adjust the focus setting.
8
LENS SHIFT
Press "LENS SHIFT" and the indicator below lights up.
Use
9
LIGHT
to shift the projection lens.
Turns on or off the back light of the control panel.
10 SOURCE
Changes the active source.
11 RESYNC
Automatically synchronizes the projector to the input
source.
12 ZOOM
Press "ZOOM" and the indicator below lights up. Use
to adjust the zoom setting.
6
1
3
4
2
6
7
8
5
9
10
11
12
14
15
13
16
17
13
18
20
21
23
19
22
25
26
24
27
29
28
32
31
30
33
#
1
Function
Description
Refer to the "Turning the Projector On/Off" section.
ON
2
OFF
3
Video
4
VGA
To change source to VGA IN.
5
HDMI1
To change source to HDMI.
To change source to composite video.
6
BNC
To change source to BNC.
7
S-Video
To change source to S-Video.
8
DVI-D
To change source to DVI-D.
9
Selects items or makes adjustments to your selection.
Four
directional
selection
keys
10 ENTER
Confirms your selection of items.
11 Keystone
Displays the Keystone correction menu.
12 Menu
Launches the Onscreen Display (OSD) menu, returns to
the previous step for the OSD menu operation or exits
the OSD menu.
13 Back
Cancels the selection, or goes back to previous page.
14 Lens Shift
Press "Lens Shift" and the indicator below lights up. Use
to shift the projection lens.
English
Remote Control Layout
English
7
#
Function
15 Zoom
Description
Press "Zoom" and the indicator below lights up. Use
to adjust the zoom setting.
16 Focus
Press "Focus" and the indicator below lights up. Use
to adjust the focus setting.
17 Picture
Selects the preset picture mode.
18 Pattern
Displays the test pattern.
19 Blank
Press "Blank" to hide screen image; press again to
display the image.
20 Freeze
To pause the screen image.
21 Aspect
Chooses your desired aspect ratio.
22 ECO
Dims the projector light source which will lower power
consumption and extend the light source life.
23 Set
Set the code for this remote control. Press and hold
“Set”, and then press a number (01, 02, 03...99) to
designate an ID. You can control projector with the
matching ID set in the “Options” > “Control” >
“Projector ID” OSD.
Press and hold ”Set” and press “0” twice to cancel the
remote control code.
24 INFO
Displays the current projector related information.
25 Lens Lock
Displays the Lens Lock menu.
26 Lens
Displays the Lens menu.
27 Network
Displays the Network menu.
28 HSG
Displays the HSG menu.
29 Language
Displays the OSD language selection menu.
30 Security
Displays the Security menu.
31 3D
Press to open the 3D menu for adjusting 3D settings.
32 Source
Changes the active source.
33 Keypad 0~9
Inputs numbers.
8
Press "SOURCE" for one second to enter or leave the MHL control mode. After
entering the MHL control mode, press "RESYNC" to switch between the
navigation mode (default) and numeric mode.
Description
Function
Navigation mode
Numeric mode
SOURCE
Long press for one second to enter or leave the
MHL control mode.
RESYNC
After entering the MHL control mode, press to
switch between the navigation mode (default) and
numeric mode.
Four
directional
select keys
Up
Up
down down
(No function)
(No function)
Left
Left
(No function)
Right
Right
(No function)
Keypad 0~9
(No function)
Enters 0~9.
MENU
Goes to the root menu.
(No function)
ENTER
Selects or enters items.
(No function)
BACK
Exits current page.
(No function)
English
MHL Feature Introduction
English
9
Getting Started
Installing the Projection Lens
1
Remove the dust cap and upper lens cover.
2
Align the slot on the projection lens with the one on the projector to
insert the projection lens. (Illustration #1)
3
Turn the lever counterclockwise until you feel it click into place to lock
the lens in position. (Illustration #2)
4
Install the upper lens cover back. (Illustration #3)
1
3
2
3
Compatible projection lens
•
Acer FL8 series Standard Zoom Lens (MC.JNN11.001)
•
Acer FL8 series Ultra Short Throw Lens (MC.JNN11.00A)
•
Acer FL8 series Ultra Short Throw Zoom Lens (MC.JNN11.002)
•
Acer FL8 series Short Throw Zoom Lens (MC.JNN11.003)
•
Acer FL8 series Middle Throw Zoom Lens (MC.JNN11.004)
•
Acer FL8 series Long Throw Zoom Lens (MC.JNN11.005)
•
Acer FL8 series Ultra Long Throw Zoom Lens (MC.JNN11.006)
Removing the Projection Lens
1
Remove the upper lens cover. (Illustration #1)
2
Turn the lever clockwise to release the lens. (Illustration #2)
3
Pull out the projection lens. (Illustration #3)
1
2
3
10
RS232
English
Connecting the Projector
VGA/DVI/HDMI
Wired
remote
control
DVD player,
Set-top box,
HDTV
receiver
Video/
S-Video
Output
RCA
BNC
3
9
10
5
2
4
3D glasses
13
11
6
7
or
8
14
12
or
15
HDTV adapter
8
10
Smart
device
Display
1
#
Description
#
9
Description
1
Power cord
3 RCA component cable
2
Wired remote control
10 HDMI (MHL) cable
3
RS232 cable
11 DVI cable
4
S-Video cable
12 USB cable
5
Composite video cable
13 RJ45 cable
6
5-BNC cable
14 3D glasses
7
VGA cable
15 3G-SDI cable
8
VGA to component video/HDTV
adapter
English
11
Note: To ensure the projector works well with your computer,
please make sure the timing of the display mode is compatible
with the projector.
Note: Some smart devices require a converter (supplied by the
smart device maker) to enable the MHL function.
Connecting Multiple Sources through HDBaseT
Module (Optional)
HDBaseT is a connectivity standard for whole-house and commercial
distribution of uncompressed HD multimedia content. After installing the
HDBaseT module (optional) to the projector and using the HDBaseT switching
matrix (commercially available), you may connect multiple sources to your
projector with HDBaseT connection.
Note: The illustration below is for reference only, actual layout
may vary.
IR TX
VGA IN
YPbPr
RJ45
Lan
HDMI
RS232
RJ45
HD Connect
IR RX
Note: Use a shielded LAN cable up to 100 meters in length rated at
CAT5e or better.
Note: The maximum transmission distance is 100 m.However, it
may be shorter under some circumstances.
12
English
Note: Avoid using the LAN cable when it is coiled or bundled.
Note: Inserting or removing the LAN cable during projection may
cause noise.
Note: Connectivity with all HDBaseT transmitters on the market is
not guaranteed.
Note: Some HDBaseT transmitters may not enable correct
projection when used to connect source equipment to the
projector.
Note: Commands cannot be received through HDBaseT when the
projector is in standby mode.
English
13
Turning the Projector On/Off
Turning On the Projector
1
Ensure that the power cord and signal cable are securely connected.
The Power LED will light red.
2
Turn on the projector by pressing
(POWER) on the control panel or
on the remote control, and the Power indicator LED will turn blue.
3
Turn on your source (computer, notebook, video player, etc.). Select
your source. (The projector will detect your source automatically if
Auto Source is "On").
•
If the screen displays "No Signal", please make sure the signal cables
are securely connected.
•
If you connect to multiple sources at the same time, use "SOURCE" on
the control panel or remote control, or the direct source key on the
remote control to switch between inputs.
1&2
3
14
1
To turn the projector off, press the power button. This message
appears:
"Please press power button again to complete the shutdown process"
Press the power button again.
2
The LED Power indicator will turn solid red to indicate standby mode.
3
It is now safe to unplug the power cord.
English
Turning Off the Projector
English
15
Adjusting the Projected Image
Adjusting the Height of the Projected Image
The projector is equipped with two elevator feet for adjusting the image
height.
To raise the image:
1
Use the front Tilt adjusting wheels to raise the image to the desired
height and angle.
2
Use the rear Tilt adjusting wheels to fine-tune the display angle.
To lower the image:
1
Use the front Tilt adjusting wheels to lower the image to the desired
height angle.
2
Use the rear Tilt adjusting wheels to fine-tune the display angle.
Tilt adjusting wheel
Tilt adjusting wheel
16
English
Optimizing Image Size and Distance
Top view
Screen
Screen (W)
Width
Projection distance (D)
Height
Di
ag
on
a
l
Screen (H)
Screen
Side view
Offset (Hd)
Projection distance (D)
0.1W
[A]
0.1W
W
0.1W
W
0.1W
[A]
[A]
[A]
H
H
Only with the following lenses:
Acer FL8 series Standard Zoom Lens/
Acer FL8 series Middle Throw Zoom Lens/
Acer FL8 series Long Throw Zoom Lens/
Acer FL8 series Ultra Long Throw Zoom Lens
[A] differs when different lens is installed.
Lens installed
[A]
Acer FL8 series Standard Zoom Lens
0.6H
Acer FL8 series Ultra Short Throw Zoom Lens
0.5H
Acer FL8 series Short Throw Zoom Lens
0.6H
Acer FL8 series Middle Throw Zoom Lens
0.6H
Acer FL8 series Long Throw Zoom Lens
0.6H
Acer FL8 series Ultra Long Throw Zoom Lens
0.6H
Acer FL8 series Ultra Short Throw Lens
N/A
English
17
•
With Acer FL8 series Standard Zoom Lens
Diagonal
Screen Size W x H
Projection Distance (D)
length
(m)
(inch)
(m)
(feet)
(inch)
size of
16:10
Width Height Width Height Wide Tele Wide Tele
Screen
•
Offset (Hd)
(m)
(feet)
Min.
Max
Min.
Max
60
1.29
0.81
50.88
31.8
2.08
3.12
6.83
10.24
-0.4
0.08
-1.32
0.26
70
1.51
0.94
59.36
37.1
2.43
3.64
7.97
11.95
-0.47
0.09
-1.55
0.31
80
1.72
1.08
67.84
42.4
2.78
4.16
9.11
13.66
-0.54
0.11
-1.77
0.35
90
1.94
1.21
76.32
47.7
3.12
4.68
10.24 15.37
-0.61
0.12
-1.99
0.4
100
2.15
1.35
84.8
53
3.47
5.2
11.38 17.07
-0.67
0.13
-2.21
0.44
120
2.58
1.62
101.76
63.6
4.16
6.24
13.66 20.49
-0.81
0.16
-2.65
0.53
150
3.23
2.02
127.2
79.5
5.2
7.81
17.07 25.61
-1.01
0.2
-3.31
0.66
180
3.88
2.42
152.64
95.4
6.24
9.37
20.49 30.73
-1.21
0.24
-3.97
0.79
200
4.31
2.69
169.6
106
6.94
10.41 22.77 34.15
-1.35
0.27
-4.42
0.88
250
5.38
3.37
212
132.5
8.67
13.01 28.46 42.68
-1.68
0.34
-5.52
1.1
300
6.46
4.04
254.4
159
10.41 15.61 34.15 51.22
-2.02
0.4
-6.62
1.32
350
7.54
4.71
296.8
400
8.62
5.38
339.2
450
9.69
6.06
381.6
500
10.77
6.73
424
550
11.85
7.4
466.4
600
12.92
8.08
508.8
185.5 12.14 18.21 39.84 59.76
-2.36
0.47
-7.73
1.55
68.3
-2.69
0.54
-8.83
1.77
238.5 15.61 23.42 51.22 76.83
-3.03
0.61
-9.94
1.99
-3.37
0.67 -11.04 2.21
-3.7
0.74 -12.15 2.43
68.3 102.44 -4.04
0.81 -13.25 2.65
212
265
13.88 20.82 45.53
17.35 26.02 56.91 85.37
291.5 19.08 28.62
318
20.82 31.22
62.6
93.91
With Acer FL8 series Ultra Short Throw Zoom Lens
Diagonal
Screen Size W x H
Projection Distance (D)
length
(m)
(inch)
(m)
(feet)
(inch)
size of
16:10
Width Height Width Height Wide Tele Wide Tele
Screen
Offset (Hd)
(m)
(feet)
Min.
Max
Min.
Max
60
1.29
0.81
50.88
31.8
0.98
1.22
3.21
4.02
-0.4
0
-1.32
0
70
1.51
0.94
59.36
37.1
1.14
1.43
3.75
4.69
-0.47
0
-1.55
0
80
1.72
1.08
67.84
42.4
1.31
1.63
4.29
5.36
-0.54
0
-1.77
0
90
1.94
1.21
76.32
47.7
1.47
1.84
4.82
6.03
-0.61
0
-1.99
0
100
2.15
1.35
84.8
53
1.63
2.04
5.36
6.7
-0.67
0
-2.21
0
120
2.58
1.62
101.76
63.6
1.96
2.45
6.43
8.03
-0.81
0
-2.65
0
150
3.23
2.02
127.2
79.5
2.45
3.06
8.03
10.04
-1.01
0
-3.31
0
180
3.88
2.42
152.64
95.4
2.94
3.67
9.64
12.05
-1.21
0
-3.97
0
200
4.31
2.69
169.6
106
3.27
4.08
10.71 13.39
-1.35
0
-4.42
0
250
5.38
3.37
212
132.5
4.08
5.1
13.39 16.74
-1.68
0
-5.52
0
300
6.46
4.04
254.4
159
4.9
6.12
16.07 20.09
-2.02
0
-6.62
0
350
7.54
4.71
296.8
185.5
5.71
7.14
18.75 23.43
-2.36
0
-7.73
0
400
8.62
5.38
339.2
212
6.53
8.16
21.43 26.78
-2.69
0
-8.83
0
450
9.69
6.06
381.6
238.5
7.35
9.18
24.1
30.13
-3.03
0
-9.94
0
500
10.77
6.73
424
265
8.16
10.2
26.78 33.48
-3.37
0
-11.04
0
550
11.85
7.4
466.4
291.5
8.98
11.22 29.46 36.83
-3.7
0
-12.15
0
600
12.92
8.08
508.8
318
9.8
12.24 32.14 40.17
-4.04
0
-13.25
0
18
With Acer FL8 series Short Throw Zoom Lens
Diagonal
Screen Size W x H
Projection Distance (D)
length
(m)
(inch)
(m)
(feet)
(inch)
size of
16:10
Width Height Width Height Wide Tele Wide Tele
Screen
•
English
•
Offset (Hd)
(m)
(feet)
Min.
Max
Min.
Max
60
1.29
0.81
50.88
31.8
1.47
2.2
4.82
7.23
-0.4
0.08
-1.32
0.26
70
1.51
0.94
59.36
37.1
1.71
2.57
5.62
8.44
-0.47
0.09
-1.55
0.31
80
1.72
1.08
67.84
42.4
1.96
2.94
6.43
9.64
-0.54
0.11
-1.77
0.35
90
1.94
1.21
76.32
47.7
2.2
3.31
7.23
10.85
-0.61
0.12
-1.99
0.4
100
2.15
1.35
84.8
53
2.45
3.67
8.03
12.05
-0.67
0.13
-2.21
0.44
120
2.58
1.62
101.76
63.6
2.94
4.41
9.64
14.46
-0.81
0.16
-2.65
0.53
150
3.23
2.02
127.2
79.5
3.67
5.51
12.05 18.08
-1.01
0.2
-3.31
0.66
180
3.88
2.42
152.64
95.4
4.41
6.61
14.46 21.69
-1.21
0.24
-3.97
0.79
200
4.31
2.69
169.6
106
4.9
7.35
16.07
24.1
-1.35
0.27
-4.42
0.88
250
5.38
3.37
212
132.5
6.12
9.18
20.09 30.13
-1.68
0.34
-5.52
1.1
300
6.46
4.04
254.4
159
7.35
11.02
24.1
-2.02
0.4
-6.62
1.32
36.16
350
7.54
4.71
296.8
185.5
8.57
12.86 28.12 42.18
-2.36
0.47
-7.73
1.55
400
8.62
5.38
339.2
212
9.8
14.69 32.14 48.21
-2.69
0.54
-8.83
1.77
450
9.69
6.06
381.6
238.5 11.02 16.53 36.16 54.23
-3.03
0.61
-9.94
1.99
500
10.77
6.73
424
-3.37
0.67 -11.04 2.21
44.19 66.29
-3.7
0.74 -12.15 2.43
14.69 22.04 48.21 72.31
-4.04
0.81 -13.25 2.65
550
11.85
7.4
466.4
600
12.92
8.08
508.8
265
12.24 18.37 40.17 60.26
291.5 13.47
318
20.2
With Acer FL8 series Long Throw Zoom Lens
Diagonal
Screen Size W x H
Projection Distance (D)
length
(m)
(inch)
(m)
(feet)
(inch)
size of
16:10
Width Height Width Height Wide Tele Wide Tele
Screen
Offset (Hd)
(m)
(feet)
Min.
Max
Min.
Max
60
1.29
0.81
50.88
31.8
4.56
7.3
14.96
23.94
-0.4
0.08
-1.32
0.26
70
1.51
0.94
59.36
37.1
5.32
8.51
17.46
27.93
-0.47
0.09
-1.55
0.31
80
1.72
1.08
67.84
42.4
6.08
9.73
19.95
31.92
-0.54
0.11
-1.77
0.35
90
1.94
1.21
76.32
47.7
6.84
10.95
22.45
35.92
-0.61
0.12
-1.99
0.4
100
2.15
1.35
84.8
53
7.6
12.16
24.94
39.91
-0.67
0.13
-2.21
0.44
120
2.58
1.62
101.76
63.6
9.12
14.6
29.93
47.89
-0.81
0.16
-2.65
0.53
150
3.23
2.02
127.2
79.5
11.4
18.24
37.41
59.86
-1.01
0.2
-3.31
0.66
180
3.88
2.42
152.64
95.4
13.68 21.89
44.89
71.83
-1.21
0.24
-3.97
0.79
200
4.31
2.69
169.6
106
15.2
24.33
49.88
79.81
-1.35
0.27
-4.42
0.88
250
5.38
3.37
212
132.5 19.01 30.41
62.35
99.76
-1.68
0.34
-5.52
1.1
300
6.46
4.04
254.4
22.81 36.49
74.82 119.72 -2.02
0.4
-6.62
1.32
185.5 26.61 42.57
87.29 139.67 -2.36
0.47
-7.73
1.55
99.76 159.62 -2.69
0.54
-8.83
1.77
238.5 34.21 54.73 112.23 179.58 -3.03
0.61
-9.94
1.99
350
7.54
4.71
296.8
400
8.62
5.38
339.2
450
9.69
6.06
381.6
500
10.77
6.73
424
550
11.85
7.4
466.4
600
12.92
8.08
508.8
159
212
265
30.41 48.65
38.01 60.82 124.71 199.53 -3.37
291.5 41.81
318
66.9
137.18 219.48
0.67 -11.04 2.21
-3.7
0.74 -12.15 2.43
45.61 72.98 149.65 239.43 -4.04
0.81 -13.25 2.65
English
19
•
With Acer FL8 series Ultra Long Throw Zoom Lens
Diagonal
Screen Size W x H
Projection Distance (D)
length
(m)
(inch)
(m)
(feet)
(inch)
size of
16:10
Width Height Width Height Wide Tele Wide Tele
Screen
•
Offset (Hd)
(m)
(feet)
Min.
Max
Min.
Max
60
1.29
0.81
50.88
31.8
7.13
11.41
23.4
37.44
-0.4
0.08
-1.32
0.26
70
1.51
0.94
59.36
37.1
8.32
13.31
27.3
43.68
-0.47
0.09
-1.55
0.31
80
1.72
1.08
67.84
42.4
9.51
15.22
31.2
49.92
-0.54
0.11
-1.77
0.35
90
1.94
1.21
76.32
47.7
10.7
17.12
35.1
56.16
-0.61
0.12
-1.99
0.4
100
2.15
1.35
84.8
53
39
62.4
-0.67
0.13
-2.21
0.44
11.89 19.02
120
2.58
1.62
101.76
63.6
14.27 22.82
46.8
74.88
-0.81
0.16
-2.65
0.53
150
3.23
2.02
127.2
79.5
17.83 28.53
58.5
93.6
-1.01
0.2
-3.31
0.66
180
3.88
2.42
152.64
95.4
21.4
70.2
112.33 -1.21
0.24
-3.97
0.79
200
4.31
2.69
169.6
106
23.78 38.04
78
124.81 -1.35
0.27
-4.42
0.88
250
5.38
3.37
212
97.5
156.01 -1.68
0.34
-5.52
1.1
300
6.46
4.04
254.4
35.66 57.06 117.01 187.21 -2.02
0.4
-6.62
1.32
350
7.54
4.71
296.8
185.5 41.61 66.57 136.51 218.41 -2.36
1.55
400
8.62
5.38
339.2
450
9.69
6.06
381.6
500
10.77
6.73
424
550
11.85
7.4
466.4
600
12.92
8.08
508.8
34.24
132.5 29.72 47.55
159
0.47
-7.73
47.55 76.08 156.01 249.61 -2.69
0.54
-8.83
1.77
238.5 53.49 85.59 175.51 280.81 -3.03
0.61
-9.94
1.99
212
265
59.44
95.1
195.01 312.01 -3.37
291.5 65.38 104.61 214.51 343.22
318
0.67 -11.04 2.21
-3.7
0.74 -12.15 2.43
71.33 114.12 234.01 374.42 -4.04
0.81 -13.25 2.65
With Acer FL8 series Ultra Short Throw Lens
Diagonal
Screen Size W x H
Projection Distance (D)
length
(m)
(inch)
(m)
(feet)
(inch)
size of
16:10
Width Height Width Height Wide Tele Wide Tele
Screen
Offset (Hd)
(m)
(feet)
Min.
Max
Min.
Max
70
1.51
0.94
59.36
37.1
0.59
0.59
1.94
1.94
0.24
0.24
0.77
0.77
80
1.72
1.08
67.84
42.4
0.67
0.67
2.19
2.19
0.28
0.28
0.92
0.92
90
1.94
1.21
76.32
47.7
0.74
0.74
2.43
2.43
0.32
0.32
1.07
1.07
100
2.15
1.35
84.8
53
0.82
0.82
2.68
2.68
0.37
0.37
1.21
1.21
120
2.58
1.62
101.76
63.6
0.97
0.97
3.18
3.18
0.46
0.46
1.51
1.51
150
3.23
2.02
127.2
79.5
1.2
1.2
3.92
3.92
0.59
0.59
1.95
1.95
180
3.88
2.42
152.64
95.4
1.42
1.42
4.67
4.67
0.73
0.73
2.39
2.39
200
4.31
2.69
169.6
106
1.57
1.57
5.16
5.16
0.82
0.82
2.68
2.68
250
5.38
3.37
212
132.5
1.95
1.95
6.41
6.41
1.04
1.04
3.41
3.41
300
6.46
4.04
254.4
159
2.33
2.33
7.65
7.65
1.26
1.26
4.15
4.15
350
7.54
4.71
296.8
185.5
2.71
2.71
8.89
8.89
1.49
1.49
4.88
4.88
20
The projector is equipped with lens shift for adjusting the position of projected
image without requiring you to physically move the projector. To shift the lens,
use the control panel or remote control, or select "Display settings" > "Lens" on
the OSD and adjust the lens.
Note: The figures shown in this section are for reference only not
approximate value. The figures between units can be different
due to assembly tolerance.
The horizontal width can be adjusted between -10% and 10% of the image
width. The vertical height can be adjusted between 0% and 50% – 60%
(depending on the projection lens installed) of the image height.
The horizontal position
10% 1 image width
10%
English
How to Get a Preferred Image Position by Adjusting
Lens Shift
English
21
The vertical position
[B]
1 image height
Note: [B] differs when different lens is installed.
Lens installed
Acer FL8 series Standard Zoom Lens
[B]
60%
Acer FL8 series Ultra Short Throw Zoom
50%
Acer FL8 series Short Throw Zoom Lens
60%
Acer FL8 series Middle Throw Zoom Lens
60%
Acer FL8 series Long Throw Zoom Lens
60%
Acer FL8 series Ultra Long Throw Zoom Lens
60%
Acer FL8 series Ultra Short Throw Lens
83.2%
22
English
User Controls
Onscreen Display (OSD) Menus
The projector has multilingual Onscreen Display (OSD) menus that allow
you to make image adjustments and change a variety of settings.
Using the OSD menus
•
To open the OSD menu, press "MENU" on the control panel or remote
control.
•
When the OSD is displayed, use
to select an item in the main menu.
After selecting the desired main menu item, press
for feature setting.
•
Use
to enter a submenu
to select the desired item and adjust the settings by using
.
•
Select the next item to be adjusted in the submenu and adjust as described
above.
•
Press "MENU" on the control panel or remote control, the screen will
return to the main menu.
•
To exit the OSD menu, press "MENU" on the control panel or remote
control again. It will close and the projector will automatically save the
new settings.
Main menu
Setting
Submenu
Note: Some of the following OSD settings may not be available. Please refer
to the actual OSD of your projector.
English
23
Image Adjustment
There are many factory presets optimized for various types
of images.
Display Mode
•
Bright: For brightness optimization.
•
Standard: For common environment.
•
Video: For playing video in a bright environment.
•
sRGB: For sRGB standard.
•
DICOM SIM: For DICOM format files in simulation
mode, and not for actual diagnosis.
•
User: Memorize user’s settings.
Adjusts the brightness of the image.
Brightness
Contrast
•
Press
to darken the image.
•
Press
to lighten the image.
Controls the degree of difference between the lightest and
darkest parts of the picture. Adjusting the contrast changes
the amount of black and white in the image.
•
Press
to decrease the contrast.
•
Press
to increase the contrast.
Adjusts a video image from black and white to fully
saturated colors.
Saturation
•
Press
image.
to decrease the amount of color in the
•
Press
image.
to increase the amount of color in the
Adjusts the color balance of red and green.
Tint
•
Press
image.
to increase the amount of green in the
•
Press
to increase the amount of red in the image.
Adjusts the sharpness of the image.
Sharpness
Gamma
•
Press
to decrease the sharpness.
•
Press
to increase the sharpness.
Effects the representation of dark scenery. With greater
gamma value, dark scenery will look brighter.
24
Adjusts the color temperature. At higher color
temperatures, the screen looks colder; at lower color
temperatures, the screen looks warmer.
HSG
Use this function to enhance color and reproduce vivid
colors.
HSG settings
•
Color: Use
to enhance.
•
When selecting Red/Green/Blue/Cyan/Magenta/
Yellow, the following options are available.
- Hue: Use
selected color.
HSG
key to select a color that you wish
key to change the hue of the
- Saturation: Use
of the selected color.
key to change the saturation
- Gain: Use
key to change the contrast level of
the selected color.
•
When selecting White, the following options are
available.
- Red/Green/Blue: Use
key to change the level
of each color.
- Reset: Use this function to return the adjustments
and settings made above to the factory default values.
Wall Color Mode
Use this function to choose a proper color according to the
wall. There are several choices, including White, Light
Yellow, Light Blue, Pink and Dark Green. It will compensate
for the color deviation due to the wall color to show the
correct image tone.
Note: "Saturation" and "Tint" functions are not supported under computer
mode.
English
Color
Temperature
English
25
Display settings
Use this function to choose your desired aspect ratio.
•
Auto: Keeps the image with original width-height
ratio and maximizes the image to fit native horizontal
or vertical pixels.
•
4:3/16:9/16:10/1.88:1/2.35:1: The image will be scaled
to fit the screen and displayed using a 4:3/16:9/16:10/
1.88:1/2.35:1 ratio.
Aspect Ratio
Phase
Eliminates flicker from the image displayed. Use
key to adjust the value.
Frequency
Changes the projector’s refresh rate to match the
frequency of your computer’s graphics card. If you
experience a vertical flickering bar in the projected image,
use this function to correct it.
H. Position
V. Position
•
Press
to move the image left.
•
Press
to move the image right.
•
Press
to move the image down.
•
Press
to move the image up.
V. Keystone
Manually adjusts image distortion caused by tilting
projection.
Keystone
H. Keystone
Manually adjusts image distortion caused by tilting
projection.
Four Corners
Use
key to select which corner to adjust and press
the “ENTER” key to enter its submenu.
Use
key to adjust the setting.
26
Lens Lock: Selecting Yes will lock all the functions
provide in this menu and the Lens Centering menu.
You will not be able to change lens related settings.
•
Lens Shift: Press
to select Normal Speed or
Fine Tune to determine how fast you want the lens to
move. After selection, press ENTER to enable the lens
shift function, and use
projection position.
Lens
to adjust the
•
Focus: Adjusts the projector’s focus.
•
Zoom: Adjusts the size of the projected image.
•
Load Settings: Applys the settings that you previously
saved.
•
Save Settings: After making lens shift, zoom and focus
adjustments, you can choose a set of setting to
memorize current lens settings.
•
Clear Settings: Clears the settings.
Lens Centering
Returns the lens to the centered position.
RGB Input Range
Adjusts the color range of the HDMI image data to prevent
color display error.
•
Auto: Automatically adjusts the color range by
information from the player.
•
Limited Range: Processes the input image as limited
color range data.
•
Advanced
Full Range: Processes the input image as full color
range data.
Overscan
Use this function to conceal the poor picture quality in the
four edges.
Start-up Screen
Use this function to select your desired startup screen. If
you change the setting, it will take effect when you exit
the OSD menu.
Background on No Signal
Use this function to select a background image to be
displayed when no signal is detected.
English
Lens Settings
•
27
English
Screen Capture
Use this function to customize the startup screen. To
capture the image that you want to use as the startup
screen, follow the instructions below.
Before proceeding with the following steps, make
sure that the "Keystone" is set to the default value
"0".
Advanced
1
Project the image you want you capture.
2
Select "Screen Capture" and press "ENTER".
3
A dialog box appears to confirm the action. Choose
"Yes" to use the current image as your customized
startup screen. Choose "No" to cancel the screen
capture and exist the Onscreen Display (OSD).
4
A message appears stating that the screen capture is
in progress.
5
When the screen capture is finished, the message
disappears and the original display is shown.
6
If the screen capture failed, a “Screen Capture
FAILED!“ message will pop up. Your image size may
exceed the maximum capturing capacity of 8 MB.
Please change another image and try again.
7
To use this image as the startup screen, change the
"Start-up Screen" from the default setting to "User".
8
To use this image as signal searching screen, select
"User" in "Start-up Screen" and "User" in
"Background on No Signal".
Test Pattern
Displays the test pattern.
Closed Caption
Selects a preferred closed captioning mode from CC1, CC2,
CC3, CC4 (CC1 displays captions in the primary language in
your area). Select "Off" to turn off the captioning feature.
This function is only available when a composite video or SVideo input signal is selected and its system format is NTSC.
Note: "H. Position", "V. Position", and "Frequency" functions are not
supported under video mode.
Note: "RGB Input Range" is only available when the input signal is HDMI.
28
Language
Sets a language for the OSD menus. Use
your preferred language.
Menu Display
Time
Sets the length of time the On Screen Display will remain
active after your last key press.
Menu Position
Sets the On Screen Display menu position.
•
Projector
Installation
to select
Front Table: The factory default setting.
•
Front Ceiling: When you select this function, the
projector inverts the image for ceiling-mounted
projection.
•
Rear Table: When you select this function, the
projector reverses the image so that you can project
behind a translucent screen.
•
Rear Ceiling: When you select this function, the
projector reverses and inverts the image at same time.
You can project from behind a translucent screen with
ceiling mounted projection.
Auto Source
When this function is turned "On", the projector will
search for other signals if the current input signal is lost.
When this function is turned "Off", it will only search a
specified connection port.
Input Source
Use this option to enable/disable input sources. Press
"ENTER" to enter the sub menu and select which sources
you require. Press "ENTER" to finalize the selection. The
projector will only search for inputs that are enabled.
Power Settings
AC Power On
Selecting "On" enables the function. The projector will
automatically turn on when power is supplied via the
power cord.
IO Power On
Selecting “On“ to enables this function. The projector will
automatically turn on when a VGA signal is detected,
without pressing the power button.
Power Off Notice
When "On" is selected, a power off message will be
displayed after pressing the
button. When "Off" is
selected, the projector turns off after pressing the
button one time.
Date & Time
Sets the date and time for this projector.
Auto Power Off (min)
The projector will automatically shut down while there is
no signal input detected after the time you set.
Customize Power Off (Hours)
English
Default Adjustment
29
English
Schedules automatic shutdown of the projector.
VGA Out
Selecting "On" enables the function. The projector can
output a VGA signal when it is in standby mode and the
VGA IN (or VGA IN 1) and VGA OUT sockets are correctly
connected to the devices.
Enabling this function slightly increases the standby
power consumption.
Standby Settings
Network
Enables/Disables the network function.
DC 5V Out
Selecting "On" enables the function. Both micro USB cable
inside the projector and the DC 5V out port/USB A port (if
available) on the back of the projector can output 5V
power when it is in standby mode.
Enabling this function slightly increases the standby
power consumption.
HDBaseT IR Carrier
Use this function to enable HDBaseT IR Carrier.
Network
Status
Displays the network connection status.
DHCP
Select On to allow the projector to obtain an IP address
automatically from your network. Select "Off" to manually
assign IP, Subnet Mask and Gateway configuration.
IP Address
Set an IP address or display IP address provided from DHCP
server when DHCP is set to "On".
Subnet Mask
Set subnet mask number or display subnet mask number
provided from DHCP server when DHCP is set to "On".
Apply
Select "Yes" to apply the changes made in network
configuration settings.
MAC Address
Displays MAC address.
30
Reset
Press "ENTER" after choosing "Yes" to return the display
parameters on all menus to the factory default settings.
About Network Setting
Note 1 : An overview of the remote network operation page
To switch input
signals, click your
desired signal.
See Note 2 and
Note 3.
These buttons
function the
same as those
on the OSD
menus,
projector
control panel,
or remote
control.
Note 2 : An overview of the Tools page
You can
enter the
projector
information.
You can
adjust the
LAN control
settings.
You can set the
user password/
administrator
password to
prevent
unauthorized use
of the remote
network
operation/Tools
page.
English
Security Settings
Password Protection
Select "On" to use the security verification when the
turning on the projector. Select "Off" to be able to switch
on the projector without a password verification.
Change Password
Sets the password.
Lock to User Startup Screen
Use this function to lock the Startup Screen and it cannot
be changed by the "Start-up Screen" or "Screen Capture"
function.
English
31
Note 3: The Info page shows the projector information and status.
32
Sets the brightness mode.
Laser Mode
•
Normal: Increases the brightness.
•
Eco.: Dims the projector light source which will lower
power consumption and extend the light source life.
•
User: Memorize user’s settings.
User
Use
High Altitude
Mode
Choose "On" to turn on the High Altitude mode. When
this function is turned on, the projector fans operate at full
speed continuously to cool down the projector’s
temperature.
Status Display
When "On" is selected, the status will be displayed.
to adjust the brightness to your desired level.
HDMI CEC
Selecting "On" allows synchronized power ON/OFF
operation between the projector and a CEC-compatible
device connected to the HDMI/MHL port of the projector.
This function is only available for the HDMI/MHL
port.
Control
Projector ID
Sets the remote control ID for this projector. When
multiple adjacent projectors are in operation at the same
time, switching the remote control codes can prevent
interference from other remote controls. After the
Projector ID is set, switch to the same ID for the remote
control to control this projector.
Trigger Out
Sets the port to provide trigger out function.
English
Options
33
English
3D SYNC
Use this option to select the appropriate 3D function.
•
DLP Link: Choose "DLP Link" to use DLP Link 3D
Glasses.
•
External: Choose "External" to use VESA 3D emitter
and 3D Glasses.
3D SYNC Output
Use this option to select the appropriate 3D sync output
method.
•
3D
Normal: Choose "Normal" to output 3D sync to other
projector(s).
•
Pass Through: Choose "Pass Through" to receive 3D
sync and/or pass 3D sync to another projector.
3D Format
If the 3D content is not displayed correctly, you can select a
3D format that suits the 3D content you are viewing and
obtain the best result.
3D SYNC Invert
If you see a discrete or overlapping image while wearing
DLP 3D glasses, you may need to choose "On" to get best
match of left/right image sequence to get the correct
image (for DLP 3D).
Information
•
Source: Display the input source that is currently
connected to.
•
Resolution: Display the resolution setting of the
current input source.
•
Display Mode: Display current Display Mode.
•
Laser Mode: Display current Laser Mode.
•
Total Time: Display the light source hours.
•
Inlet Temp: Display the temperature of the intake
vent.
•
FW Version: Display the firmware version.
Note: Supported 3D signal timings:
Signal source type
Supported timing
Video/S-Video/Component
video
HQFS 3D (480i@60Hz), 576i@50Hz
VGA/HDMI (PC mode)
640 x 480@50/60/100/120Hz
800 x 600@50/60/100/120Hz
1024 x 768@50/60/100/120Hz
1280 x 800@50/60/100/120Hz (RB)
34
HQFS 3D (480i@60Hz), 576i@50Hz,
Frame Packing ([email protected]/24Hz,
720p@50/60Hz)
Side-by-Side Horizontal (1080i@50/60Hz,
1080p@50/60Hz)
Top-and-Bottom (720p@50/60Hz,
[email protected]/24Hz, 1080p@50/60Hz)
It needs correct settings on graphics card 3D application program for correct
3D display.
English
HDMI (Video mode)
English
35
Appendices
Troubleshooting
If you experience a problem with your Acer projector, refer to the following
troubleshooting guide. If the problem persists, please contact your local reseller
or service center.
Image Problems and Solutions
#
1
2
Problem
No image appears
onscreen
Partial, scrolling
or incorrectly
displayed image
(For PC)
Solution
•
Make sure all the cables are correctly connected as
described in the "Getting Started" section.
•
Ensure none of the connector pins are bent or
broken.
•
Make sure the projector is switched on.
•
Press "RESYNC" on the control panel or remote
control.
•
For an incorrectly displayed image:
•
Open "My Computer > Control Panel," and
then double-click the "Display" icon.
•
Select the "Settings" tab.
•
Verify that your display resolution setting is
lower than or equal to 1600 x 1200 or 1920 x
1080.
•
Click the "Advanced Properties" button.
If the problem still appears, change the monitor display
you are using and follow the steps below:
•
Verify that the resolution setting is lower than
or equal to 1600 x 1200 or 1920 x 1080.
•
Click the "Change" button under the
"Monitor" tab.
•
Click "Show all devices > Standard monitor
types" under the SP box, and choose the
resolution mode you need under the "Models"
box.
•
Verify that the resolution setting of the
monitor display is lower than or equal to 1600
x 1200 or 1920 x 1080.
36
Partial, scrolling
or incorrectly
displayed image
(For notebooks)
•
Press "RESYNC" on the control panel or remote
control.
•
For an incorrectly displayed image:
•
•
4
The screen of the
notebook
computer is not
displaying your
presentation
Follow the steps for item 2 (above) to adjust
the resolution of your computer.
Press the toggle output settings. Example:
[Fn]+[F4], Compaq [Fn]+[F4], Dell [Fn]+[F8],
Gateway [Fn]+[F4], IBM [Fn]+[F7], HP
[Fn]+[F4], NEC [Fn]+[F3], Toshiba [Fn]+[F5]
•
If you experience difficulty changing resolutions or
your monitor freezes, restart all equipment
including the projector.
•
If you are using a Microsoft® Windows® based
notebook: Some notebook PCs may deactivate their
own screens when a second display device is in use.
Each has a different way to be reactivated. Refer to
your computer's manual for detailed information.
•
If you are using an Apple® Mac® OS based
notebook: In System Preferences, open Display and
select Video Mirroring "On."
5
Image is unstable
or flickering
•
Change the display color setting on your computer.
6
Image has vertical
flickering bar
•
Use "Frequency" to make an adjustment. Refer to
the "Display settings" section for more information.
•
Check and reconfigure the display mode of your
graphics card to make it compatible with the
projector.
Image is out of
focus
•
•
Adjust the focus ring on the projector lens.
Image is stretched
when displaying a
"widescreen"
DVD title
When you play a DVD encoded in anamorphic or 16:9
aspect ratio you may need to adjust the following
settings:
•
If you play a 4:3 format DVD title, please change the
format to 4:3 with the projector OSD.
7
8
•
Make sure the projection screen is within the
required distance.
Refer to the "Optimizing Image Size and Distance"
section for more information.
If the image is still stretched, you will also need to
adjust the aspect ratio. Set up the display format to
16:9 (wide) aspect ratio on your DVD player.
English
3
English
37
9
10
11
Image is too small
or too large
Image has slanted
sides
Image is reversed
•
•
Adjust the zoom lever on the top of the projector.
•
Press "MENU" on the control panel or remote
control. Go to "Display settings" > "Aspect Ratio"
and try different settings.
•
If possible, reposition the projector so that it is
centered on the screen and below the bottom of the
screen.
•
•
Perform keystone correction (if available).
•
Select "Default Adjustment" > "Projector
Installation" on the OSD and adjust the projection
direction.
Move the projector closer to or further from the
screen.
Press "MENU" on the control panel or remote
control to open the OSD menu. Go to "Keystone" to
make adjustments.
Problems with the Projector
#
1
Condition
The projector stops responding
to all controls
Solution
If possible, turn off the projector, then
unplug the power cord and wait at least 30
seconds before reconnecting power.
38
#
Condition
1
Message
Message Reminder
Fan Fail - the system fan is not working.
Laser will automatically turn off soon.
Projector Overheated - the projector has exceeded its recommended
operating temperature and must be allowed to cool down before it
is used. Please also check the dust filters if they are installed. If the
dust filter is clogged with dust, please clean it.
Laser will automatically turn off soon.
Replace the liquid cooler
The water from liquid cooler is insufficient. Contact the service center for
replacement.
English
OSD Messages
English
39
LED & Alarm Definition Listing
LED Messages
Message
Power LED
Temp LED
Status1
LED
Status2
LED
Status3
LED
Red
Blue
Red
Red
Red
Red
--
V
--
--
--
--
Flashing
--
--
--
--
--
Start to move C0
position
V
--
Flashing
Flashing
Flashing
Flashing
C0 position ready
V
--
V
V
V
V
Power On (Normal)
V
--
--
--
--
--
Shutdown
processing (Cooling)
--
Flashing
--
--
--
--
Firmware Download
mode
--
V
V
V
V
V
Timer Backup
Error(Standby)
--
Quick
flashing
--
--
--
--
Laser (1 Bank fail)
V
--
--
V
--
--
Laser (2 Banks fail)
V
--
--
Laser (3 Banks fail)
V
--
--
Laser (4 Banks fail)
V
--
Laser (5 Banks fail)
V
--
Standby
Power up
processing
V
--
V
V
--
--
--
--
--
V
V
V
Laser (6 Banks fail)
V
--
--
--
V
Laser (7 Banks fail)
V
--
--
V
V
V
V
Laser (All Banks fail)
--
--
--
Flashing
Flashing
Flashing
Temperture 1 Error
--
--
V
--
--
--
Temperture 2 Error
--
--
V
V
--
--
Fan 1 Error
--
--
Flashing
--
--
--
Fan 2 Error
--
--
Flashing
V
--
--
Fan 3 Error
--
--
Flashing
--
V
--
Fan 4 Error
--
--
Flashing
V
V
--
Fan 5 Error
--
--
Flashing
--
--
V
Fan 6 Error
--
--
Flashing
V
--
V
Fan 7 Error
--
--
Flashing
--
V
V
Fan 8 Error
--
--
Quick
Flashing
--
--
--
Fan 9 Error
--
--
Quick
Flashing
V
--
--
Fan 10 Error
--
--
Quick
Flashing
--
V
--
Fan 11 Error
--
--
Quick
Flashing
V
V
--
Fan 12 Error
--
--
Quick
Flashing
--
--
V
40
Power LED
Temp LED
Status1
LED
Status2
LED
Status3
LED
Blue
Red
Red
Red
Red
Red
Fan 13 Error
--
--
Quick
Flashing
V
--
V
Fan 14 Error
--
--
Quick
Flashing
--
V
V
Fan Errors (more
than 2 fans)
--
--
Quick
Flashing
V
V
V
Color Wheel
--
--
--
--
--
Flashing
Phosphor Wheel 1
--
--
--
--
V
Flashing
Phosphor Wheel 2
--
--
--
V
--
Flashing
Liquid Pump 1
V
--
--
--
Flashing
--
Liquid Pump 2
V
--
--
V
Flashing
--
Liquid Pump 1&2
V
--
--
Flashing
Flashing
--
English
Message
English
41
Specifications
The specifications below are subject to change without notice. For final specs,
please refer to Acer's marketing documentation.
Projection system
DLP™
Resolution
Native: WUXGA (1920 x 1200)
Maximum: WUXGA (1920 x 1200) (supports reduce blanking
only)
Computer compatibility
Refer to the "Compatibility Modes" section for more
information.
Video compatibility
NTSC (3.58/4.43), PAL (M/N), PAL 60, SECAM, HDTV (720p,
1080i, 1080p), EDTV (480p, 576p), SDTV (480i, 576i)
Aspect ratio
Auto, 4:3, 16:9, 16:10, 1.88:1, 2.35:1
Displayable colors
1.07 billion colors
Projection lens
•
Standard zoom lens:
F = 1.6 – 2.0, f = 24.1 mm – 35.8 mm,
1:1.5 Motorized Zoom and Motorized Focus
•
Ultra short throw zoom lens:
F = 1.84 – 2.32, f = 11.3 mm – 14.1 mm,
1:1.25 Motorized Zoom and Motorized Focus
•
Short throw zoom lens:
F = 1.82 – 2.34, f = 17.2 mm – 25.5 mm,
1:1.5 Motorized Zoom and Motorized Focus
•
Middle throw zoom lens:
F = 1.8 – 2.23, f = 35.2 mm – 53.5 mm,
1:1.52 Motorized Zoom and Motorized Focus
•
Long throw zoom lens:
F = 1.8 – 2.2, f = 51.33 mm – 82.49 mm,
1:1.6 Motorized Zoom and Motorized Focus
•
Ultra long throw zoom lens:
F = 1.84 – 2.34, f = 79.18 mm – 125.95 mm,
1:1.6 Motorized Zoom and Motorized Focus
•
Ultra short throw lens:
F = 2.0, f = 5.64 mm,
Fixed Zoom and Motorized Focus
Projection screen size
(diagonal) with clear focus
60” – 600” (152 cm – 1524 cm)
Throw ratio
•
•
With standard zoom lens: 1.61 – 2.42 (98" @ 3.4 m)
•
•
•
•
With short throw zoom lens: 1.14 – 1.71 (98" @ 2.4 m)
•
With ultra short throw lens:0.377 (166" @ 1.31 m)
Horizontal scan rate
With ultra short throw zoom lens: 0.76 – 0.95 (98" @
1.6 m)
With middle throw zoom lens: 2.37 – 3.6 (98" @ 5.0 m)
With long throw zoom lens: 3.53 – 5.65 (98" @ 7.45 m)
With ultra long throw zoom lens: 5.52 – 8.83 (98" @
11.65 m)
15 – 100 KHz
42
24 – 120 Hz
Keystone correction
•
Standard zoom lens/Short throw zoom lens/Middle
throw zoom lens/Long throw zoom lens/Ultra long
throw zoom lens:
+/-30 Degrees (Vertical/Horizontal), Manual
•
Ultra short throw zoom lens:
+/-25 Degrees (Vertical/Horizontal), Manual
Digital zoom
N/A
Audio
N/A
Lens shift
Refer to the "How to Get a Preferred Image Position by
Adjusting Lens Shift" section for more information.
Weight
Approximate 26.5 kg (58.4 lbs.)
Dimensions
Refer to the "Dimensions" section for more information.
Power supply
Universal AC input 100 - 240 V, input frequency 50/60 Hz
Power consumption (typical) Standard mode: 1350 W @100 VAC; 1210 W @240 VAC
ECO mode: 1080 W @ 100 VAC; 980 W @240 VAC
Standby mode: < 0.5 W
Network standby mode: < 2 W
Operating temperature
0ºC to 40ºC / 32ºF to 104ºF
I/O connectors
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Power socket x 1
•
•
•
•
AC power cord x 1
•
•
•
Security card x 1
Standard package contents
Accessory (optional)
Wired remote input x 1
Wired remote output x 1
RS232 input x 1
RS232 output x 1
Composite video x 1
S-Video x 1
BNC connector x 5
VGA input x 1
VGA output x 1
HDMI/MHL x 1
DVI-D input x 1
USB Type mini B x 1
USB Type A (DC 5V output) x 1
RJ45 LAN input x 1
3D sync connector x 2
12V DC out x 2
HDBaseT x 1
3G-SDI x 1
Remote control x 1
AAA Battery x 2 (for the remote control)
Quick start guide x 1
HDBaseT module x 1
3G-SDI module x 1
English
Vertical refresh scan rate
English
43
Spare parts
•
•
Acer HDBaseT module for FL8 series (MC.JNM11.005)
Acer 3G-SDI module for FL8 series
* Design and specifications are subject to change without notice.
44
1
English
Compatibility Modes
VGA Analog - PC Signal
Mode
VGA
SVGA
XGA
Resolution
640 x 480
800 x 600
1024 x 768
1152 x 864
SXGA
1280 x 1024
V.Frequency [Hz]
H.Frequency
[KHz]
60
31.47
72
37.86
75
37.50
85
43.27
120
61.91
56
35.20
60
37.88
72
48.08
75
46.88
85
53.67
120
77.43
60
48.36
70
56.48
75
60.02
85
68.68
120
98.96
70
63.85
75
67.50
85
77.10
60
63.98
72
76.97
75
79.98
85
91.15
1280 x 960
60
60.00
1280 x 960
75
75.00
SXGA+
1400 x 1050
60
65.32
UXGA
1600 x 1200
60
75.00
640 x 480
60
31.50
640 x 480
66.6 (67)
35.00
QuadVGA
PowerBook G4
800 x 600
60
37.88
1024 x 768
60
48.36
1024 x 768
75
60.241
1152 x 870
75
68.681
English
45
1280 x 768
60
47.78
1280 x 768
75
60.29
1280 x 768
85
68.63
1280 x 720
60
45.00
1280 x 800
60
49.70
1280 x 800 - RB
120
101.6
1440 x 900
60
55.94
1680 x 1050
60
65.29
47.71
WXGA
HD 720
WXGA
WSXGA+
acer_16:9
HD 1080
2
1366 x 768
60
1920 x 1080-RB
60
66.60
1920 x 1080-EIA
60
67.50
WSVGA
1024 x 600
60
37.50
WUXGA
1920 x 1200-RB
59.95
74.04
HDMI - PC Signal
V.Frequency [Hz]
H.Frequency
[KHz]
VGA_60
59.94
31.469
VGA_72
72.809
37.861
Mode
VGA_75
Resolution
75
37.5
VGA_85
85.008
43.269
VGA_120
119.518
61.91
SVGA_56
56.25
35.156
SVGA_60
60.317
37.879
SVGA_72
72.188
48.077
75
46.875
SVGA_75
640 x 480
800 x 600
SVGA_85
85.061
53.674
SVGA_120
119.854
77.425
XGA_60
60.004
48.363
XGA_70
70.069
56.476
75.029
60.023
119.804
98.958
XGA_75
1024 x 768
XGA_120
SXGA_75
75
67.5
84.99
77.094
SXGA_60
60.02
63.981
SXGA_72
72
76.97
75.025
79.976
85.024
91.146
SXGA_85
SXGA_75
1152 x 864
1280 x 1024
SXGA_85
QuadVGA_75
1280 x 960
75
75
SXGA+_60
1400 x 1050
59.978
65.317
46
1600 x 1200
60
75
Mac G4
MAC13
640 x 480@60Hz
59.94
31.469
640 x 480@67Hz
66.667
35
Mac G4
800 x 600@60Hz
60.317
37.879
Mac G4
1024 x 768@60Hz
60.004
48.363
MAC19
1024 x 768@75Hz
75.02
60.241
MAC21
1152 x 870@75Hz
75.061
68.681
59.87
47.776
74.893
60.289
84.837
68.633
WXGA_60
WXGA_75
1280 x 768
WXGA_85
3
WXGA_60
1280 x 720
60
45
WXGA_60
1280 x 800
59.81
49.702
WXGA_120-RB
1280 x 800
119.909
101.563
WXGA+_60
1440 x 900
59.887
55.935
1680x1050_60
1680 x 1050
59.954
65.29
acer_16:9
1366 x 768
59.79
47.712
66.587
1920 x 1080_RB
1920 x1080
60
1920 x 1080_EIA
1920 x1080
60
67.5
1920 x 1200-RB
1920 x 1200
59.95
74.038
HDMI - Video Signal
Mode
Resolution
720 x 480
(1440 x 480)
V.Frequency [Hz]
H.Frequency [KHz]
60
15.73
480p
720 x 480
60
31.47
576i
720 x 576
(1440 x 576)
50
15.63
480i
576p
720 x 576
50
31.25
720p
1280 x 720
60
45.00
720p
1280 x 720
50
37.50
1080i
1920 x 1080
60
33.75
1080i
1920 x 1080
50
28.13
1080p
1920 x 1080
60
67.50
1080p
1920 x 1080
50
56.26
1080p
1920 x 1080
24
27.00
1080p
1920 x 1080
23.98
26.97
English
UXGA_60
English
47
4
MHL - Video Signal
Mode
Resolution
720 x 480
(1440 x 480)
V.Frequency [Hz]
H.Frequency [KHz]
60
15.73
480p
720 x 480
60
31.47
576i
720 x 576
(1440 x 576)
50
15.63
576p
720 x 576
50
31.25
720p
1280 x 720
60
45.00
720p
1280 x 720
50
37.50
1080i
1920 x 1080
60
33.75
1080i
1920 x 1080
50
28.13
1080p
1920 x 1080
24
27.00
1080p
1920 x 1080
23.98
26.97
1080p
1920 x 1080
30
33.75
Resolution
720 x 480
720 x 480
720 x 576
720 x 576
1280 x 720
1280 x 720
1920 x 1080
1920 x 1080
1920 x 1080
1920 x 1080
1920 x 1080
1920 x 1080
V.Frequency [Hz]
59.94
59.94
50.00
50.00
60.00
50.00
60.00
50.00
60.00
50.00
24.00
23.98
H.Frequency [KHz]
15.73
31.47
15.63
31.25
45.00
37.50
33.75
28.13
67.5
56.26
27.00
26.97
H.Frequency [KHz]
60
50
50
60
50
60
60
fsc (MHz)
3.58
4.43
4.25 or 4.41
3.58
3.58
4.43
4.43
480i
5
YPbPr Signal
Mode
480i
480p
576i
576p
720p
720p
1080i
1080i
1080p
1080p
1080p
1080p
6
Video, S-Video Signal
Mode
NTSC
PAL
SECAM
PAL-M
PAL-N
PAL-60
NTSC4.43
V.Frequency [Hz]
15.73
15.63
15.63
15.73
15.63
15.73
15.73
48
3D Timing
Input timing
1280 X 720P @ 50Hz
Top - and - Bottom
1280 X 720P @ 60Hz
Top - and - Bottom
HDMI 3D Input
1280 X 720P @ 50Hz
Frame packing
(with 3D Info
1280 X 720P @ 60Hz
Frame packing
Frame
1920 X 1080i @ 50 Hz
Side- by-Side (Half)
information)
1920 X 1080i @ 60 Hz
Side- by-Side (Half)
1920 X 1080P @ 24 Hz
Top - and – Bottom
1920 X 1080P @ 24 Hz
Frame packing
1920 x 1080i @ 50Hz
1920 x1080i @ 60Hz Side-by-Side SBS mode is
Input
1280 x 720P @ 50Hz
(Half)
on
HDMI 3D Input
1280 x 720P @ 60Hz
Resolutions
(without 3D Info
1920 x 1080i @ 50Hz
Frame
Top-and- TAB mode is
1920 x1080i @ 60Hz
information)
1280 x 720P @ 50Hz
Bottom
on
1280 x 720P @ 60Hz
480i
HQFS
800x600 @ 60Hz
SBS or TAB
1024x768 @ 60Hz
VGA (PC)
800x600 @ 120Hz
Frame Sequential
1024x768 @ 120Hz
Composite
NTSC
HQFS
S-Video
NTSC
HQFS
English
7
English
49
Regulations and Safety Notices
Declaration of Conformity for EU countries
Acer hereby, declares that this projector series is in compliance with the
essential requirements and other relevant provisions of Directive 1999/5/EC.
Compliant with Russian/Ukraine/Belarus regulatory certification
Radio device regulatory notice
Note: The regulatory information below is for models with
wireless LAN and/or Bluetooth only.
General
This product complies with the radio frequency and safety standards of any
country or region in which it has been approved for wireless use. Depending on
configurations, this product may or may not contain wireless radio devices (such
as wireless LAN and/or Bluetooth modules).
List of applicable countries
This device must be used in strict accordance with the regulations and constraints in the
country of use. For further information, please contact a local office in the country of use.
Please see http://ec.europa.eu/enterprise/rtte/implem.htm for the latest country list.
English
English
50
Acer Incorporated
8F, 88, Sec. 1, Xintai 5th Rd., Xizhi
New Taipei City 221, Taiwan
EU Declaration of Conformity
We,
Acer Incorporated
8F, 88, Sec. 1, Xintai 5th Rd., Xizhi, New Taipei City 221, Taiwan
And,
Acer Italy s.r.l.
Viale delle Industrie 1/A, 20020 Arese (MI), Italy
Tel: +39-02-939-921, Fax: +39-02-9399-2913
www.acer.it
Product:
Trade Name:
Model Number:
Marketing Name:
Projector
Acer
AWU1905/AWU1906/AWU1907
FL8630/LU-P1200UT/FL1200/PF-L1200UT/LP-640/
DL730/FL8620/LU-P1000UT/FL1000/PF-L1000UT/
LP-630/DL720/FL8610/LU-P950UT/FL950/PF-L950UT/
LP-620/DL710
We, Acer Incorporated, hereby declare under our sole responsibility that the product described
above is in conformity with the relevant Union harmonization legislations as below Directive
and following harmonized standards and/or other relevant standards have been applied:
EMC Directive: 2014/30/EU
EN EN 55032:2015+AC:2016-07, Class B
EN 55024:2010/A1:2015
EN 61000-3-2:2014
EN 61000-3-3:2013
LVD Directive: 2014/35/EU
EN 60950-1:2006/A11:2009/A1:2010/A12:2011/A2:2013
EN 60825-1:2014
EN 62471:2015
RoHS Directive: 2011/65/EU
EN 50581:2012
ErP Directive: 2009/125/EC
Regulation (EU) No. 617/ 2013
Regulation (EC) No. 1275/2008; EN 50564:2011
Regulation (EC) No. 278/2009; EN 50563:2011
Year to begin affixing CE marking 2020.
RU Jan/Sr. Manager
Acer Incorporated (Taipei, Taiwan)
Feb. 24, 2020
Date

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
