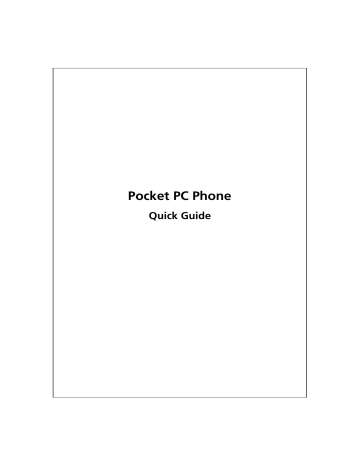

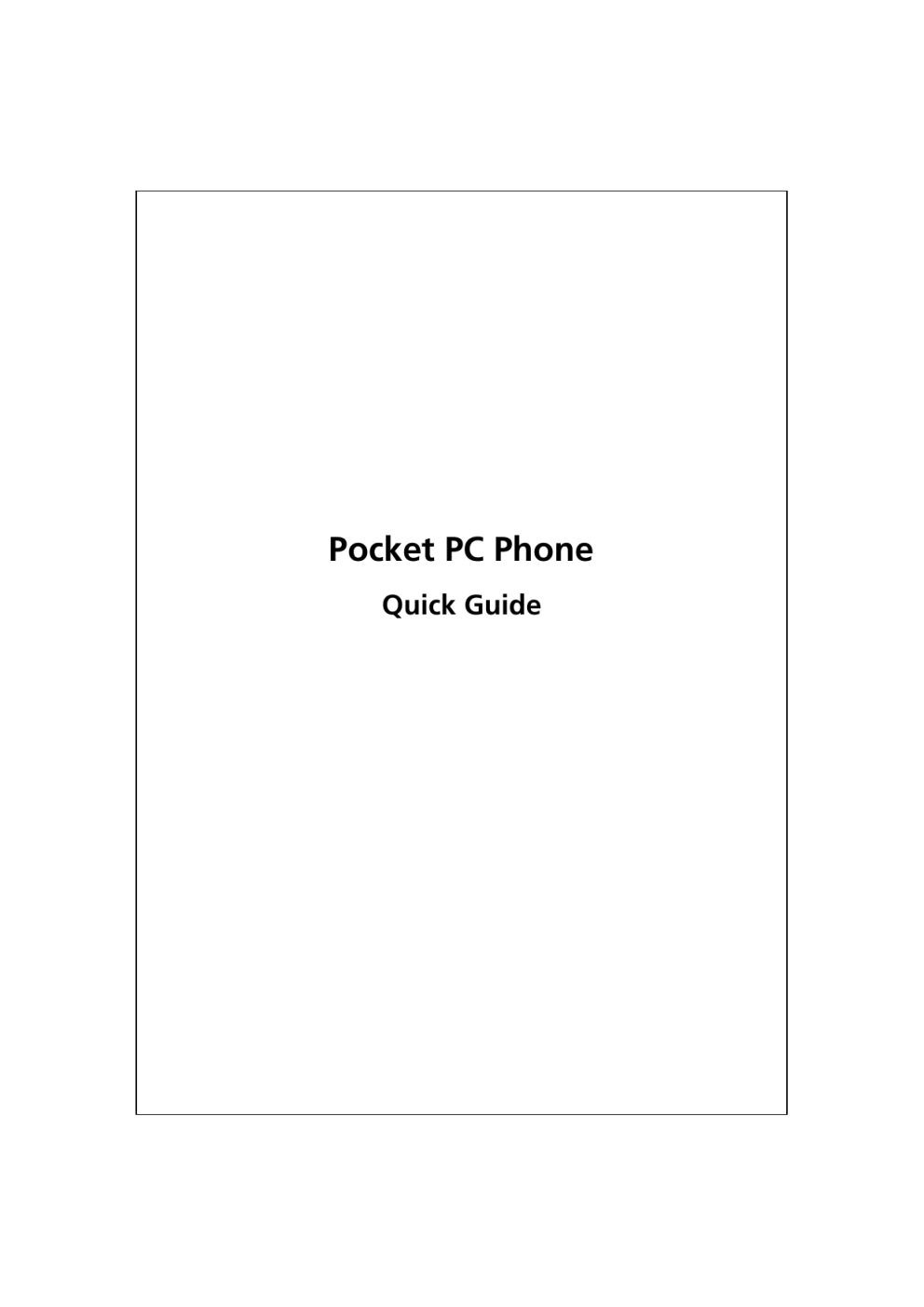

Acer DX650 Smartphone Quick Start Guide

Pocket PC Phone
Quick Guide
Copyright © 2009. Acer Incorporated.
All Rights Reserved.
Pocket PC Phone Quick Guide
Original Issue: 01/2009
Changes may be made periodically to the information in this publication without
obligation to notify any person of such revisions or changes. Such changes will
be incorporated in new editions of this manual or supplementary documents
and publications. This company makes no representations or warranties, either
expressed or implied, with respect to the contents hereof and specifically
disclaims the implied warranties of merchantability or fitness for a particular
purpose.
Record the model number, serial number, purchase date and place of purchase
information in the space provided below. The serial number and model number
are recorded on the label affixed to this product. All correspondence concerning
your unit should include the serial number, model number and purchase
information.
No part of this publication may be reproduced, stored in a retrieval system, or
transmitted, in any form or by any means, electronically, mechanically, by
photocopy, recording or otherwise, without the prior written permission of Acer
Incorporated.
Pocket PC Phone
Model number: __________________________________
Serial number: ___________________________________
Date of purchase: ________________________________
Place of purchase: ________________________________
Acer and the Acer logo are registered trademarks of Acer Incorporated. Other
companies' product names or trademarks are used herein for identification
purposes only and belong to their respective companies.
SAR Information
Your device contains a radio transmitter and receiver, and it is
designed, manufactured and tested not to exceed the radio
frequency exposure limitations recommended by international
guidelines.
For CE/NCC
Head
GSM
1.09 W/kg @10g
DCS
0.667 W/kg @10g
1
External views
2
Hardware hotkeys
Using the Pocket PC for the first time
4
5
Installing and removing the SIM card
5
Charging the battery
7
Re-installing or replacing the battery
9
Synchronization
10
Using the hadset
11
Using the camera
12
Using the navigation functions
13
Restarting the Pocket PC
15
Reset
16
Restore default settings
17
Cold boot
18
This document lists the functions, specifications and illustrations
for reference only. The actual purchased product should be
taken as the standard.
Contents
Package contents
1
English
Package contents
„ Pocket PC
„ Stylus
„ Battery
„ Getting Started CD
„ User Guide
„ Leather case
„ Headset
„ AC adapter
„ USB cable
„ USB Y-cable
(one plug to dual jacks)
n
o
q
p
r
t
n Pocket PC
o Stylus
p Battery
q Getting Started CD
s
r User Guide
s USB cable
t AC adapter
English
2
External views
3
2. Microphone 2
3. Jog dial
4. Record key
5. Strap holder
6. BT/WLAN/GPS LED indicator
7. Touch screen display
8.
9.
End key
11. Stylus
Send/Talk key
10. Speaker
12. Mini USB connector/headset
connector
13. Microphone 1
14. Power key
15. Volume control keys
16. MicroSD slot
17. Reset key
18. Camera hotkey
19. Phone receiver
20. Power/phone LED indicator
21. Camera lens
22. Phone display
23. Navigation keypad
24. Left softkey
25. Right softkey
26.
27.
End key
29. Battery cover
Send/Talk key
28. Numeric keypad
English
1. SIM card slot
English
4
Hardware hotkeys
q
r
s
n
o
Hardware
button
n
o
t
p
Press
Press and hold
Launch Voice Commander
Launch Notes
Launch Phone/dial/redial/
Put current call on hold
answer
p
„ End a call
„ Turn off phone if it is
„ Disconnect GPRS
on
„ Return to the Today screen „ Turn on phone if it is
while in other programs
q
r
s
q+s
off
Power key =
Turn the Pocket PC
Turn the screen on/off
on/off
Adjust volume
--
Reset key
--
Power key + Reset key =
--
Cold boot
t
Launch Camera or take a
--
5
If you are opening this product for the first time, the main battery
and the Pocket PC are packed separately inside the product
packaging.
Installing and removing the SIM card
1. Before installing the SIM card, launch Communication Manager,
then tap the
orange
button. When the color of the icon turns
, this indicates that the Pocket PC wireless
connection is disabled.
2. Press the Power key to turn the screen off.
3. Disconnect the USB cable or AC adapter if either of them is
connected to your Pocket PC. Removing the SIM card or battery
while the Pocket PC is connected to a USB cable or AC adapter
may damage your device.
English
Using the Pocket PC for the first time
6
English
4. To install the SIM card
Open the slot cover and insert the SIM card with its cut-off
corner facing toward the inside of the slot. Remember to close
the slot cover.
5. To remove the SIM card
Press the SIM card to pop it out of the slot.
6. To install the battery
7
English
Charging the battery
Do not remove the battery while charging.
n Connect the AC adapter plug to any household power outlet.
o Connect the AC adapter's other plug into the USB port. The
Pocket PC will start charging automatically.
p If you need to connect your Pocket PC to a computer, connect
the USB cable to the USB port. Then connect the other end of
the USB cable to a USB port on the computer. Your Pocket PC
will also be charged while connected.
n
o
p
8
English
1. It will take about eight hours to fully charge the battery the first
time. Subsequent charging will only take about three hours.
After charging, you can disconnect the AC adapter to take your
Pocket PC with you. To ensure smooth operation, charge the
battery regularly.
2. The battery icon
in the upper right corner of the screen
indicates remaining battery charge.
3. The LED indicator on the right of the Pocket PC indicates the
charging and function status.
Red: Device is charging.
Red
Red flashing every four seconds: Battery level low;
missed calls or unread messages.
Repeatedly flashing red twice: Battery level critical.
Green: Battery fully charged.
Green
Green flashing every four seconds: GSM is connected
and on line.
4. The LED indicator on the left of the Pocket PC indicates
connectivity status.
Blue
Flashing blue every four seconds: Bluetooth enabled
Amber
Flashing amber every four seconds: WLAN enabled
White
Flashing white every four seconds: GPS enabled
9
If the phone, GPRS or wireless LAN connection are already
activated, deactivate them first and then replace the battery.
1. Remove the battery cover.
2. Release the battery lock.
3. Replace the battery and secure it properly. When you remove
the battery, your Pocket PC will enter sleep mode.
4. Slide the battery cover into the groove and click it shut.
English
Re-installing or replacing the battery
10
English
Synchronization
If you use Outlook on your PC, you can synchronize e-mail, contacts,
calendar and more with your Pocket PC.
1. Install the synchronization tool on the PC.
Install the synchronization tool before connecting your Pocket
PC to your PC using the USB cable.
Install the software from the Getting Started CD or download it
from http://www.microsoft.com/downloads/ to install the
synchronization tool.
2. Set up a partnership
Connect your PC and Pocket PC with the USB cable and then
turn on your Pocket PC. When your PC detects your Pocket PC, it
will start the synchronization tool wzard. Follow the onscreen
instructions.
Once the wizard has finished, data synchronization will begin.
USB Port
11
p
n
o
q
n Microphone
o Earphone
p Phone receiver
q Microphone 1 (bottom of Pocket PC)
English
Using the headset
12
English
Using the camera
Press the
key to launch Camera.
„ Front and sides
n
o
p
q
r
s
t
„ Rear
u
n MicroSD card slot
r Switch to other camera or
camcorder modes
o Camera hotkey, camera
s Select the storage location
shutter, camcorder hotkey
p Quit Camera
t Select the environment
lighting
q Digital zoom
u Camera lens
13
n
o
n Pocket PC
o Car Charger (optional): When your Pocket PC is low on power,
recharge it by connecting one end to the car cigarette lighter/12
volt power outlet and the other end to the USB port at the
bottom of the Pocket PC.
English
Using the navigation functions
14
English
Installing the Pocket PC in a car
When using this device, please use with matching car mount. Affix
device securely to the car mount. Please be aware that installation
in the areas depicted below is forbidden and is strictly prohibited.
n
o p
q
n Do not place where it will obstruct driver vision
o Do not place over air bag
p Do not place where it can not be securely attached
q Do not place in path of activated air bag
15
You should restart your Pocket PC if it is unable to maintain normal
operation, does not response or if the screen is frozen.
You have three choices:
1. Reset
Resets the Pocket PC and retains all your
data and custom settings.
2. Restore default
settings
Use this when the touch screen is
functional. It will restore Windows Mobile
and factory-installed programs. You will
lose all your data and custom settings.
3. Cold Boot
Force a hardware cold boot: You have the
option of a simple reset or restoring the
default settings.
English
Restarting the Pocket PC
English
16
Reset
„ To reset your Pocket PC
Press the Reset key using the
stylus tip.
„ You should restart your Pocket PC if it is unable to maintain
normal operation, does not response or if the screen is frozen.
„ The Pocket PC will boot to the Today screen. This will retain
Microsoft Windows Mobile, factory-installed applications, your
data, other installed programs and custom settings.
17
English
Restore default settings
„ To restore the default settings
Tap
, Programs, Utilities, and then Default Settings.
1. If this application is
inadvertently accessed, please
select the
to exit, the
system will not be affected.
2. If you are certain that you wish
to perform this action, please
select the text box on the
right, and enter the
authorization code in the
block on the left. Then tap OK.
„ If the Pocket PC is unable to maintain normal operation, but the
touch screen is functional. Please refer to the instructions in this
section to troubleshoot.
„ This will reinstall Microsoft Windows Mobile and
factory-installed applications. Other settings such as your own
data, installed programs and other custom settings will be
erased.
English
18
Cold boot
„ To cold boot your Pocket PC
Hold the Power key with one
hand while using stylus tip to
push in the Reset key with the
other. Simultaneously release
both the Power key and Reset
key.
„ Only do this if you have already tried to reset using another
method, and your Pocket PC is still not operating normally, is not
responding or the screen is frozen.
„ There are two options for cold booting; please refer to the
information below, and decide which option you will try.
1. Don’t press any key after the cold boot and allow the Pocket PC
to boot to the Today screen. This is identical to the reset
described earlier.
2. If you have tried the previous methods, and they have not solved
the problem, then you may:
n Press and hold both Power key and Reset key for a while, then
release them simultaneously.
o Wait for a few seconds until the screen wakes up displaying the
model name, firmware version and firmware build date of your
device, immediately press and hold Record key.
p Continue pressing Record key and release it when you see an
inquiry box shown on the screen.
19
Yes [press CAMERA button]
This operation will delete all the data you stored on your device
and restore it to factory default settings.
„ If you press camera button upon seeing Yes [press CAMERA
button] at the bottom of screen, all the data you stored,
programs you installed and customized settings you made on
your Pocket PC will be cleared. Follow the onscreen instructions
to complete the resetting after the Pocket PC reboots.
„ If you do not press the camera button, the Pocket PC will wait a
few seconds and then cancel the procedure.
y Caution!
„ This will erase all your data, any programs you installed and
your settings. It will load Microsoft Windows Mobile and the
factory-installed programs.
„ If you want to retain your data, programs and settings you can
only:
1. Perform a reset.
2. Perform a clean boot, and don’t press any key when the system
inquiry screen is displayed.
English
ÁErase all data and load default?
English
20

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
