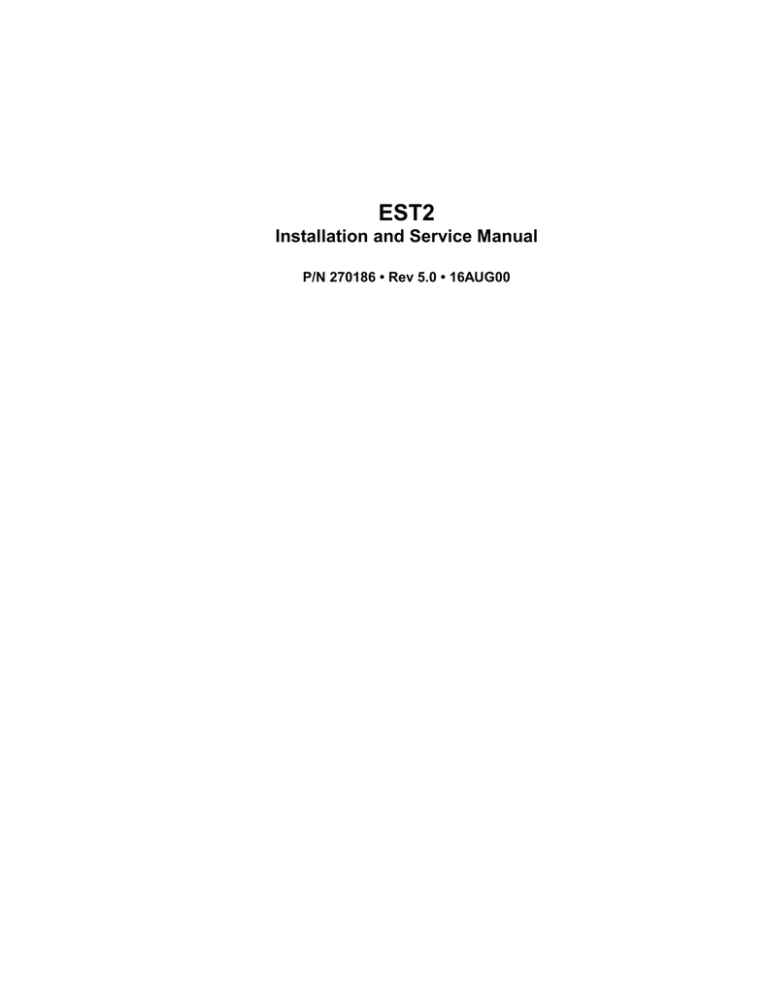

EST2
Installation and Service Manual
P/N 270186 • Rev 5.0 • 16AUG00
Contents
DEVELOPED BY
Edwards Systems Technology
6411 Parkland Drive
Sarasota, FL 34243
(941) 739-4300
COPYRIGHT NOTICE
Copyright © 2000 Edwards Systems Technology, Inc.
Edwards Systems Technology, Inc. (EST) owns the copyrights
to this manual and the products it describes. You may not
reproduce, translate, transcribe, or transmit any part of this
manual without express, written permission from EST.
This manual contains proprietary information intended for
distribution to authorized persons or companies for the sole
purpose of conducting business with EST. If you distribute any
information contained in this manual to unauthorized persons,
you have violated all distributor agreements and we may take
legal action.
IBM is a registered trademark of International Business
Machines Corporation.
TRADEMARKS
Microsoft and MS-DOS are registered trademarks, and
Microsoft Mouse and Windows are trademarks of Microsoft
Corporation.
Sound Blaster is a trademark of Creative Technology Ltd.
Scan-One is a trademark of Zebra Technologies VTI, Inc.
This manual was designed and written by the EST Technical
Services - Documentation Department, Sarasota.
CREDITS
DOCUMENT HISTORY
Date
Revision
Reason for change
31 May 1995
1.0
Initial Release.
01 August 1995
2.0
Revised: Figure 3.5; IOP-3 info; 2-MCM circuit resistance
specs.; misc. editorial corrections.
Added: Download ground fault note. DL2 Dialer
October 1995
2.5
Revised specification tables and LED/Switch Module
number switch settings.
December 1995
3.0
Added CMDN, SAN, and APSB Power Supply
information. Changed DL2 Information.
March 1997
3.5
Added information about CDR-3, 2-SMK, 2-CTM, and 2PPS/6A.
DOCUMENT HISTORY
Date
Revision
Reason for change
September 1997
4.0
Added: 2-WB3(R); 2-WB&(R); SIGA-APS; SIGAAA30;SIGA-AA50; 2-AAC; 2-MIC; 2-TEL; Audio NAC
calculation information; Initial & re-acceptance test
procedure; Personality code 18; compatible telephones
Revised: PL Wiring Information; DL2 Specifications;
Display DIP Switch settings
December 1997
4.1
Added: 2-LSRA
Revised: RACCR installation; Chapter 4 layout
16 August 2000
5.0
Included service information and updated content to
reflect programming changes.
Contents
Contents
Important information • iii
Getting the most out of this manual • vi
Chapter 1
Introduction • 1.1
Manual overview • 1.2
Documentation conventions • 1.4
Installation codes and standards • 1.6
Chapter 2
System overview • 2.1
System overview • 2.2
Control panels • 2.4
NAC configurations • 2.9
Chapter 3
System power up and testing • 3.1
Activating the system • 3.2
Testing the system • 3.3
Testing the control panel • 3.4
Testing RS-232 and RS-485 ports • 3.9
Testing Signature data circuits • 3.10
Testing NACs • 3.11
Testing reverse polarity modules • 3.12
Testing audio • 3.15
Testing detectors and modules • 3.19
Testing initiating devices • 3.22
Testing notification appliances • 3.24
Filling out a certificate of completion • 3.25
Chapter 4
System service procedures • 4.1
Recommended maintenance practices • 4.2
System faults • 4.4
Panel modules • 4.12
Remote alphanumeric annunciators • 4.25
Printers • 4.26
Cleaning detectors • 4.27
Fire alarm trouble and maintenance log • 4.29
Chapter 5
Isolating trouble conditions • 5.1
Isolating device faults • 5.2
Signature device problems • 5.7
Mapping errors • 5.9
Appendix A
Compatibility listings • A.1
Underwriters Laboratories, Incorporated (ULI) • A.2
Underwriters Laboratories of Canada (ULC) • A.9
Circuit compatibility listings • A.16
Appendix B
Calculations • B.1
Calculating wire lengths for Signature data circuits • B.2
Calculating wire lengths for 24 Vdc NACs • B.9
EST2 Installation and Service Manual
i
Contents
Calculating wire lengths for 25 or 70 Vrms NACs • B.11
Calculating wire lengths for addressable analog circuits • B.13
Calculating ampere-hour battery requirements • B.14
Appendix C
Special applications • C.1
Ditek surge protector module • C.2
Wiring the CDR-3 Bell Coder • C.4
Index • Z.1
ii
EST2 Installation and Service Manual
Contents
Important information
Limitation of liability
The content of this manual is proprietary in nature and is
intended solely for distribution to authorized persons,
companies, distributors and/or others for the sole purpose of
conducting business associated with Edwards Systems
Technology, Inc. The distribution of information contained
within this manual to unauthorized persons shall constitute a
violation of any distributor agreements and may result in
implementation of legal proceedings.
This product has been designed to meet the requirements of
NFPA Standard 72, 1996 Edition; Underwriters Laboratories,
Inc., Standard 864, 7th Edition; and Underwriters Laboratories
of Canada, Inc., Standard ULC S527. Installation in accordance
with this manual, applicable codes, and the instructions of the
Authority Having Jurisdiction is mandatory. EST, Inc. shall not
under any circumstances be liable for any incidental or
consequential damages arising from loss of property or other
damages or losses owing to the failure of EST, Inc. products
beyond the cost of repair or replacement of any defective
products. EST, Inc. reserves the right to make product
improvements and change product specifications at any time.
While every precaution has been taken during the preparation of
this manual to ensure the accuracy of its contents, EST assumes
no responsibility for errors or omissions.
FCC warning
This equipment can generate and radiate radio frequency energy.
If this equipment is not installed in accordance with this manual,
it may cause interference to radio communications. This
equipment has been tested and found to comply within the limits
for Class A computing devices pursuant to Subpart B of Part 15
of the FCC Rules. These rules are designed to provide
reasonable protection against such interference when this
equipment is operated in a commercial environment. Operation
of this equipment is likely to cause interference, in which case
the user at his own expense, is required to take whatever
measures may be required to correct the interference.
FCC information
1. The dialer complies with Part 68 of the FCC rules. The
Dialer’ FCC registration number and the Ringer Equivalence
Number (REN) are on the back of the dialer. This
EST2 Installation and Service Manual
iii
Contents
information must be provided to the telephone company, if
requested.
2. An FCC compliant telephone cord and modular plug cord is
supplied with the dialer. The dialer is designed to be
connected to the telephone network using the supplied cord
and an RJ31X or RJ38X jack, which must also comply with
FCC Part 68 rules.
3. The REN is used to determine the quantity of devices which
may be connected to the telephone line. Excessive RENs on
the telephone line may result in the devices not ringing in
response to an incoming call. In most, but not all areas, the
sum of RENs should not exceed five (5). To be certain the
number of devices that may be connected to a line, as
determined by the total RENs, contact the local telephone
company.
4. If the dialer causes harm to the telephone network, the
telephone company will notify you in advance that
temporary discontinuance of service may be required. If
advance notice isn’t practical, the telephone company will
notify you as soon as possible. You will also be advised of
your right to file a complaint with the FCC, if you believe it
is necessary.
5. The telephone company may make changes in it’s facilities,
equipment, operations, or procedures that could affect the
operation of the dialer. If this happens, the telephone
company will provide advance notice in order for you to
make necessary modifications to maintain uninterrupted
service.
6. If trouble is experienced with the dialer, for repair or
warranty information, contact Edwards Systems
Technology, 6411 Parkland Drive, Sarasota, Florida, USA
34243 Telephone: 1-800-655-4497. If the dialer is causing
harm to the telephone network, the telephone company may
request you disconnect the dialer until the problem is
resolved.
7. No repairs may be performed on the dialer by the user.
8. The dialer cannot be used on public coin phone or party line
service provided by the telephone company.
Canada DOC information
Note: The Industry Canada label identifies certified equipment.
This certification means that the equipment meets certain
telecommunications network protective, operational, and safety
requirements. The Department does not guarantee the equipment
will operate to the user’s satisfaction.
iv
EST2 Installation and Service Manual
Contents
Before installing this equipment, users should ensure that it is
permissible to be connected to the facilities of the local
telecommunications company. The equipment must also be
installed using an acceptable method of connection. The
customer should be aware that compliance with the above
conditions may not prevent degradation of service in some
situations.
Repairs to certified equipment should be made by an authorized
Canadian maintenance facility designated by the supplier. Any
repairs or alterations made by the user to this equipment, or
equipment malfunctions, may give the telecommunications
company cause to request the user disconnect the equipment.
Users should ensure for their own protection that the electrical
ground connections of the power utility, telephone lines, and
internal metallic water pipe system, if present, are connected
together. This precaution may be particularly important in rural
areas.
Caution: Users should not attempt to make such connections
themselves, but should contact the appropriate electric
inspection authority, or electrician, as appropriate
Note: The Load Number (LN) assigned to each terminal device
denotes the percentage of the total load to be connected to a
telephone loop which is used by the device, to prevent
overloading. The termination on a loop may consist of any
combination of devices subject only to the requirements that the
sum of the Load Numbers of all the devices does not exceed
100.
EST2 Installation and Service Manual
v
Contents
Getting the most out of this manual
Finding EST2 documentation
A library of related documents supports the EST2 product line.
Here is a complete list of the EST2 library:
•
•
•
•
•
•
•
EST2 Installation and Service Manual (P/N 270186)
EST2 Network Site Manual (P/N 270895)
EST2 Network Supplement Manual (P/N 270894)
EST2 System Operations Manual (P/N 270188)
EST2 System Programming Manual (P/N 270187)
EST2 Installation Sheets (P/N 3100060)
2-SDU Help (P/N180902)
Our technical writers constantly update the information in this
manual. Your comments during our training classes, technical
support phone calls, and field trips improve this document.
Finding related documentation
The Signature Series Intelligent Smoke and Heat Detectors
Applications Bulletin (P/N 270145) provides instructions and
illustrations for various arrays of smoke and heat detectors.
The Signature Series Component Installation Manual (P/N
270497) supports the installation of the Signature Series
detectors and modules.
The Serial Number Log Book (P/N 270267) provides a
convenient means for recording the serial number of each
Signature device installed in the fire alarm system.
The SAN Annunciator Installation Guide (P/N 250084) supports
the SAN annunciators mentioned in this manual.
The EST Speaker Application Guide (P/N 85000-0033) provides
information about the placement and layout of speakers for fire
alarm signaling and emergency voice communications.
The EST Strobe Applications Guide (P/N 85000-0049) provides
information for the placement and layout of strobes for fire
alarm signaling.
The Microline 182 Turbo Printer Handbook, by Okidata
provides all the necessary information for the maintenance and
configuration of the PT1-S Form Printer. The Okidata handbook
comes with the Form Printer.
vi
EST2 Installation and Service Manual
Chapter 1
Introduction
Summary
Chapter 1 describes the contents of the manual and lists relevant
codes and standards, which govern the installation of fire alarm
equipment.
Content
Manual overview • 1.2
System overview • 1.2
Testing procedures • 1.2
Servicing instructions • 1.2
Compatibility lists • 1.2
Calculations • 1.2
Special applications • 1.3
Documentation conventions • 1.4
Important notices • 1.4
System parameters • 1.4
Installation codes and standards • 1.6
National Fire Protection Association • 1.6
Underwriters Laboratories, Inc. • 1.6
Underwriters Laboratories of Canada • 1.7
Other requirements • 1.7
EST2 Installation and Service Manual
1.1
Introduction
Manual overview
The EST2 Installation and Service Manual provides an overview
of the EST2 fire alarm system and instructions for its
installation, testing, and servicing. This manual also contains
compatible device listings and calculations for batteries and
wiring.
System overview
The system overview presents the fire alarm system in several
variations. The size of the equipment enclosure, the wiring class,
and the components installed make up the configuration of the
system.
Testing procedures
The testing procedures will guide you through the activation and
testing of your system in the following progression:
1. Simulate off-normal conditions at the panel.
2. Simulate off-normal conditions at the devices.
The testing procedures conclude with instructions for
completing and posting a master copy of the Certificate of
Completion.
Servicing instructions
The servicing of the system entails everything from preventive
maintenance practices to troubleshooting difficult problems.
Preventive maintenance practices include the proper installation
and care of fire alarm components. For example, detectors
require periodic cleaning to avoid nuisance alarms.
Troubleshooting problems on the system requires an
understanding of the system fault messages, which appear on the
front panel display.
Compatibility lists
The compatibility lists include UL-approved initiating devices
that work with the fire alarm system. Initiating devices include
bells, horns, and strobes.
Calculations
The system wiring requires a calculation to prevent over
extension. Worksheets, along with instructions, provide a means
for determining the maximum wire length for your fire alarm
system. The batteries that power the fire alarm system in the
event of a power failure or brownout also require a special set of
1.2
EST2 Installation and Service Manual
Introduction
calculations. A set of procedures explains the steps for
calculating the ampere-hour requirement for the batteries.
Special applications
The system requires surge protection from one building to
another. The Ditek Surge Protection Module provides the
required surge protection.
Some applications require coded signals. The CDR-3 provides
march time and unique coded outputs for separate zones.
EST2 Installation and Service Manual
1.3
Introduction
Documentation conventions
Important notices
Notices throughout this manual inform the reader of practices
and conditions, which will affect physical safety, occupant
safety, equipment performance, and time consumption. Notices
appear as warnings, cautions, and notes.
Warnings
Warnings appear throughout the manual where injury or loss of
life may occur through the neglect of safe practices and
conditions. Warnings appear in the following format:
WARNING: Testing the system disables the alarm contact. The
system will not notify the fire department in the event of a fire
alarm condition during a test. See the system administrator for
detailed information.
Cautions
Cautions are posted in the manual to prevent damage to the
equipment. A typical caution concerns the prevention of
electrostatic discharge (ESD). Cautions appear in the following
format:
Caution: Observe static-sensitive handling practices.
Notes
Notes instruct the reader to avoid practices or conditions, which
may result in wasted time and effort. For example, a download
will not work unless the programmer disconnects the printer
from the RS-232 port on the 2-MCM. Notes appear in the
following format:
Note: Disconnect the printer when downloading to the 2-MCM.
System parameters
2-LCD keypad entries and fault messages require knowledge of
the system parameters.
Keypad entry parameters
To understand the parameters for 2-LCD keypad entries, see
Making keypad entries in the EST2 System Operations Manual.
1.4
EST2 Installation and Service Manual
Introduction
Fault message parameters
To understand the parameters for reading fault messages, see
System service procedures in the Installation and Service
Manual.
EST2 Installation and Service Manual
1.5
Introduction
Installation codes and standards
The Signature series fire detection devices are designed to meet
the requirements of NFPA Standard 72, 1996 Edition;
Underwriters Laboratories, Inc. Standard 864, 7th Edition and
Underwriters Laboratories of Canada, Inc. Standard ULC S527.
Other related codes and standards are listed below.
Information contained in this document is intended to serve as a
guide. Installation in accordance with the instruction sheets
(provided with Signature Series devices), applicable codes, and
the instructions of the Authority Having Jurisdiction is
mandatory.
National Fire Protection Association
NFPA®
National Fire Protection Association
(NFPA)
1 Batterymarch Park PO Box 9101
Quincy, MA 02269-9101
NFPA 70
National Electric Code
NFPA 72
National Fire Alarm Code
Underwriters Laboratories, Inc.
R
1.6
Underwriters Laboratories, Inc. (ULI)
333 Pfingsten Road
Northbrook, IL 60062-2096
UL 38
Manually Actuated Signaling Boxes
UL 217
Smoke Detectors, Single and Multiple
Station
UL 228
Door Closers/Holders for Fire Protective
Signaling Systems
UL 268
Smoke Detectors for Fire Protective
Signaling Systems
UL 268A
Smoke Detectors for Duct Applications
UL 346
Waterflow Indicators for Fire Protective
Signaling Systems
UL 464
Audible Signaling Appliances
UL 521
Heat Detectors for Fire Protective Signaling
Systems
UL 864
Standard for Control Units for Fire
Protective Signaling Systems
EST2 Installation and Service Manual
Introduction
R
Underwriters Laboratories, Inc. (ULI)
333 Pfingsten Road
Northbrook, IL 60062-2096
UL 1481
Power Supplies for Fire Protective Signaling
Systems
UL 1638
Visual Signaling Appliances
UL 1971
Visual Signaling Appliances
Underwriters Laboratories of Canada
Underwriters Laboratories of Canada
(ULC)
7 Crouse Road
Scarborough, Ontario M1R 3A9
R
ULC S527
Standard for Control Units for Fire Alarm
Systems
ULC S524
Standard for the Installation of Fire Alarm
Systems
ULC S536
Standard for the Inspection and Testing of
Fire Alarm Systems
ULC S537
Standard for the Verification of Fire Alarm
Systems
Other requirements
Other requirements that affect the installation of this system
include:
•
•
State and local building codes
Authority having jurisdiction (AHJ)
EST2 Installation and Service Manual
1.7
Introduction
1.8
EST2 Installation and Service Manual
Chapter 2
System overview
Summary
Chapter 2 provides a look at the layout of the fire alarm system
and its configuration.
Content
System overview • 2.2
Design • 2.2
Features • 2.2
Control panels • 2.4
Standard control panels • 2.4
Control panels with audio • 2.5
Option modules • 2.7
NAC configurations • 2.9
EST2 Installation and Service Manual
2.1
System overview
System overview
Design
The control panel consists of a multiplexed fire alarm system,
which supports up to 96 Signature series detectors and 94
Signature series modules on an addressable Signature Data
Circuit (SDC). Two hard-wired Notification Appliance Circuits
(NACs) are provided for audible and visual devices. An
Expander Loop Module may be added to the panel, providing
two more NACs and a second SDC, which supports an
additional 96 Signature detectors and 94 Signature modules.
The audio sub-system consists of a two-channel audio control
center, which provides a microphone, 15 available signal tones,
and firefighter paging capability. Audio amplifiers complement
the audio system.
Features
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
2.2
Autoprogramming
Advanced power management
Custom programmable
Transient-protected field wiring
User-friendly front panel
Emergency audio control center
Firefighter telephone system
30 and 50 Watt audio amplifiers
Optional dead-front construction
Class A (Style D) Initiating Device Circuits (IDC)
Class B (Style B) Initiating Device Circuits (IDC)
Ground fault detection LED
Monitor mode
Local and remote power supplies
Class A (Style Z) Notification Appliance Circuits (NACs)
Class B (Style Y) Notification Appliance Circuits (NACs)
Optional supplementary front panel led/switch modules
Optional expander loop module
March time module
Class A RS-485 external annunciator port
Class B RS-485 external annunciator port
Off-premises: Reverse Polarity Module or Dialer
RS-232 external peripheral device port
Form C alarm and trouble contacts
Form A supervisory contacts
EST2 Installation and Service Manual
System overview
Table 2-1: Minimum system requirements
NFPA 72 System classification
Required control equipment
Protected premises, local (Chapter 3)
2-WB(S)
Enclosure
2-MCM
Main Controller Module
2-PPS(/6A)
Primary Power Supply
2-LCD
LCD Annunciator
5 Ah batteries, minimum
Battery calculation
required
Auxiliary (Chapter 4-7)
Add RPM module to protected premises system.
Remote station (Chapter 4-5)
Add RPM or DL2 module (dialer) to protected
premises system.
Proprietary protected premises (Chapter
4-4)
Connect to a protected premises system. Connect a
listed printer with a 120 Vac uninterruptable power
supply.
EST2 Installation and Service Manual
2.3
System overview
Control panels
Standard control panels
A standard control panel (Figure 2-1) includes the following:
•
•
•
•
•
2-WBS surface mount or 2-WB semi-flush Wallbox
2-PPS/6A Primary Power Supply (6A)
2-MCM Main Controller Module
2-LCX Expander Loop Module
Backup batteries (24 Vdc @10 Ah)
[1] [6]
[2]
[3] [4]
RS-485
NACs
SDCs
Form printer
RS-232
[5]
RS-232
Download
IBM compatible PC
INST073.CDR
Notes
[1]
The RS-485 lines support SAN annunciators,
2-LSRA(-C)s, 2-CMDN(-C)s, and 2-SMDN(-C)s.
[2]
The 2-MCM and the 2-LCX have two NACs each for a total
of four NACs.
[3]
The 2-MCM and the 2-LCX have two SDCs each for a total
of four SDCs.
[4]
See the Signature Series Component Installation Manual
for information on specific detectors and modules.
[5]
Locate the form printer in the same room, within 50 feet of
the Main Controller Module.
[6]
Any wiring that exits one building and enters another
requires a Ditek Surge Protector Module at each end. See
Special Applications, in the Appendix, for more information.
Figure 2-1: 2-WBS(R) and 2-WB(R) wallboxes
2.4
EST2 Installation and Service Manual
System overview
Control panels with audio
A control panel with emergency audio includes the following:
•
•
•
•
•
•
•
•
2-WB3 (Figure 2-2) or 2-WB7 (Figure 2-3)
2-PPS/6A Primary Power Supply
SIGA-APS Auxiliary power supply
2-MCM Main Controller Module
2-LCX Expander Loop Module
2-AAC Audio Control Module
SIGA-AAXX Amplifiers
Backup batteries (24 Vdc @10 Ah)
[1] [7]
[2]
[3] [4]
RS-485
NACs
SDCs
Speaker risers
[5]
RS-232
[6]
Form printer
RS-232
Download
IBM compatible PC
INST074.CDR
Notes
[1]
The RS-485 lines support SAN annunciators,
2-LSRA(-C)s, 2-CMDN(-C)s, and 2-SMDN(-C)s.
[2]
The 2-MCM and the 2-LCX have two NACs each for a total
of four NACs.
[3]
The 2-MCM and the 2-LCX have two SDCs each for a total
of four SDCs.
[4]
See the Signature Series Component Installation Manual
for information on specific detectors and modules.
[5]
2-AAC Audio Control Module and SIGA-AAXX amplifiers
[6]
Locate the form printer in the same room, within 50 feet of
the Main Controller Module.
[7]
Any wiring that exits one building and enters another
requires a Ditek Surge Protector Module at each end. See
Special Applications, in the Appendix, for more information.
Figure 2-2: 2-WB3(R) Wallbox
EST2 Installation and Service Manual
2.5
System overview
[1] [7]
RS-485
[2]
NACs
[3] [4]
SDCs
[6]
Speaker risers
RS-232
[5]
Form printer
RS-232
Download
INST075.CDR
IBM compatible PC
Notes
[1]
The RS-485 lines support SAN annunciators,
2-LSRA(-C)s, 2-CMDN(-C)s, and 2-SMDN(-C)s.
[2]
The 2-MCM and the 2-LCX have two NACs each for a total
of four NACs.
[3]
The 2-MCM and the 2-LCX have two SDCs each for a total
of four SDCs.
[4]
See the Signature Series Component Installation Manual
for information on specific detectors and modules.
[5]
Locate the form printer in the same room, within 50 feet of
the Main Controller Module.
[6]
This control panel can support a fifth SIGA-AAXX instead
of an extra MCM. The amplifier must have a dedicated
output on the auxiliary power supply or power from another
cabinet.
[7]
Any wiring that exits one building and enters another
requires a Ditek Surge Protector Module at each end. See
Special Applications, in the Appendix, for more information.
Figure 2-3: 2-WB7(R) Wallbox
2.6
EST2 Installation and Service Manual
System overview
Option modules
Each control panel may house the following option modules:
•
•
•
•
•
•
•
•
•
CDR-3 Coder
DL2 Dialer
IOP-3A Isolation Module
MTM March Time Module
2-CTM City Tie Module
2-SMK Smoke Power Module
SIGA-MDM Digital Voice Message Module
SIGA-UIO2R Universal Input/Output Motherboard
SIGA-UIO6(R) Universal Input/Output Motherboard
Figure 2-4 shows the different locations and combinations of
system modules in the wallboxes and inner doors.
EST2 Installation and Service Manual
2.7
System overview
Wallboxes
Inner doors
RACCR
6
The RACCR does not
have an inner door.
5
5
Battery
2-WB/2-WBS
2-WBD(S)
1
A
B B B
A
B B B
2
3
Battery
2-WB3
2-WB3D(S)
1
2
C or D
3
4
5
Battery
INST076.CDR
2-WB7
1
6
2
2 or 5
3
5
4
5
5
5
Battery
Any combination of components 3,
4, and 5 is legal. For example, 1, 2,
4, 5, and 5 is a legal combination.
A
B B
B B B B
2-WB7D(R) upper half
A fifth SIGA-AAXX in the 2-WB7
requires a dedicated power supply
output from the SIGA-APS or power
supply in an external cabinet.
C or D
D
2-WB7D(R) lower half
Figure 2-4: Wallboxes and inner doors
Wallbox components
Inner door components
ID
component
ID
component
1
Primary Power Supply
A
Liquid Crystal Display
2
Main Controller Module
B
LED/Switch Module
3
Expander Loop Module (optional module)
C
Microphone Module
4
Audio Control Module (optional module)
D
Telephone Module
5
Audio Amplifier (up to 5 optional modules)
6
Auxiliary Power Supply
2.8
EST2 Installation and Service Manual
System overview
NAC configurations
The system supports the following NAC circuits:
•
•
•
Class B (Figure 2-5)
Class A (Figure 2-6)
Class A multiplexed-switched (Figure 2-7)
2 Pr.
2 Pr.
I
J
CR
J
2 Pr.
MM
F
J
R
Fire damper
F
MM
HVAC control
Area 3
Water level monitor
J
HVAC monitor
4 Pr.
4 Pr.
J
1 Pr.
F
J
J
MM
I
J
F
Critical process monitor
Area 2
F
4 Pr.
2 Pr.
4 Pr.
J
INST077.CDR
Signature
Data
Circuit
2 Pr.
Legend
MM
HVAC monitor
CR
HVAC control
F
F
R
J
Notification
Appliance
Circuits
Area 1
Control Panel
I
J
CR
F
J
I
Elevator capture
Waterflow switch
CT
Sprinkler supervisory
switch
CT
J
Manual pull station
CC
Signal module
Smoke detector with
relay base
CR
Control relay
module
CT
Input module
UM
Universal input/
output module
MM
Monitor module
Smoke detector with
isolator base
Smoke detector with
standard base
Junction box
Combination
horn/strobe
End-of-line resistor
Note: All wiring is one pair of appropriate sized conductors unless otherwise
noted. See the wire distance calculations in the Appendix to size the conductors
according to their application.
Figure 2-5: Typical Class B NAC wiring
EST2 Installation and Service Manual
2.9
System overview
4 Pr.
4 Pr.
Area 3
I
J
CR
J
4 Pr.
R
MM
F
J
Fire damper
F
MM
Water level monitor
J
HVAC control
HVAC monitor
4 Pr.
4 Pr.
J
2 Pr.
F
J
J
MM
I
J
F
Critical process monitor
Area 2
F
4 Pr.
4 Pr.
4 Pr.
J
INST078.CDR
Signature
Data
Circuit
4 Pr.
Legend
MM
HVAC monitor
CR
HVAC control
F
F
R
J
Notification
Appliance
Circuits
Area 1
Control Panel
I
J
CR
F
J
I
Elevator capture
Waterflow switch
Sprinkler supervisory
switch
CT
CT
J
Manual pull station
CC
Signal module
Smoke detector with
relay base
CR
Control relay
module
CT
Input module
UM
Universal input/
output module
MM
Monitor module
Smoke detector with
isolator base
Smoke detector with
standard base
Junction box
Combination
horn/strobe
End-of-line resistor
Note: All wiring is one pair of appropriate sized conductors unless otherwise
noted. See the wire distance calculations in the Appendix to size the conductors
according to their application.
Figure 2-6: Typical Class A NAC wiring
2.10
EST2 Installation and Service Manual
System overview
Horn supervision and control
CC2
Riser EOL
CC2
2 Pr.
Strobe supervision and control
J
I
2 Pr.
F
J
R
Fire damper
Area 3
2 Pr.
Horn supervision
and control
2 Pr.
CC2
J
CC2
2 Pr.
J
Strobe supervision
and control
I
MM
J
F
J
J
F
Critical process monitor
Area 2
F
2 Pr.
Horn supervision
and control
2 Pr.
CC2
J
CC2
2 Pr.
NAC used
as 24 Vdc
riser
J
Signature
Data
Circuit
INST079.CDR
Strobe supervision
and control
I
J
CR
F
Legend
F
F
R
J
I
Elevator Capture
Area 1
Waterflow switch
CT
Sprinkler supervisory
switch
CT
Control Panel
J
Manual pull station
CC
Signal module
Smoke detector with
relay base
CR
Control relay
module
CT
Input module
UM
Universal input/
output module
MM
Monitor module
Smoke detector with
isolator base
Smoke detector with
standard base
Junction box
Combination
horn/strobe
End-of-line resistor
Note: All wiring is one pair of appropriate sized conductors unless otherwise
noted. See the wire distance calculations in the Appendix to size the conductors
according to their application.
Figure 2-7: Typical multiplexed switched NAC wiring
EST2 Installation and Service Manual
2.11
System overview
2.12
EST2 Installation and Service Manual
Chapter 3
System power up and testing
Summary
Chapter 3 discusses the procedures for a thorough test of the fire
alarm system and filling out a Certificate of Completion.
Content
Activating the system • 3.2
Testing the system • 3.3
Initial acceptance test • 3.3
Re-acceptance test • 3.3
Test tools • 3.3
Testing the control panel • 3.4
Testing power supplies • 3.4
Testing the control functions • 3.5
Testing RS-232 and RS-485 ports • 3.9
Testing the RS-232 port • 3.9
Testing RS-485 ports • 3.9
Testing Signature data circuits • 3.10
Testing NACs • 3.11
Testing reverse polarity modules • 3.12
Testing city-tie configuration • 3.12
Testing single circuit (old style) configuration • 3.13
Testing three circuit configuration • 3.14
Testing audio • 3.15
Microphone paging test • 3.15
Firefighter telephone tests • 3.15
Amplifier test • 3.17
Testing detectors and modules • 3.19
Detectors • 3.19
Modules • 3.20
Testing initiating devices • 3.22
Testing notification appliances • 3.24
Filling out a certificate of completion • 3.25
EST2 Installation and Service Manual
3.1
System power up and testing
Activating the system
To activate the system:
1. Connect batteries to the power supply terminals.
2. Energize ac power at the primary and auxiliary power
supplies.
The 2-LCD and the system annunciators will indicate all offnormal conditions. See the System Operations Manual for
descriptions of the indicators and messages on the 2-LCD. The
Installation and Service Manual explains the faults messages
that appear on the 2-LCD in greater detail. Instructions for
finding and correcting power supply and battery problems also
appear in the Installation and Service Manual.
3.2
EST2 Installation and Service Manual
System power up and testing
Testing the system
Test all of the components as a system once it has been:
•
•
•
Wired
Programmed
Cleared of circuit faults
WARNING: Before you test the system, notify all areas that
receive alarm signals that testing is in progress. Inform any offpremises locations that receive alarm and trouble transmissions
of the test.
All of the procedures in this chapter apply to initial and reacceptance testing.
Initial acceptance test
The initial system check verifies that every component of the
system is installed and operating according to design.
Verification of the system design and installation requires the
testing of every aspect of the system. Test results that differ
from expected outcomes require corrective action.
Note: Records of all testing and maintenance shall be kept on
the protected premises for a period of at least five (5) years.
Re-acceptance test
A complete check of installed field wiring and devices should be
made at regular intervals, in accordance with NFPA 72 and ULC
524 requirements.
Test tools
Any test of the system requires the following tools:
•
•
•
•
Slotted screwdriver, insulated
Digital multi-meter
12-inch (30.5 cm) jumper lead with alligator clips
Panel door key
EST2 Installation and Service Manual
3.3
System power up and testing
Testing the control panel
Perform the test procedures listed on the equipment installed in
each cabinet connected to the system. These procedures will test
the installation of the hardware.
Note: Download the system configuration information into the
panel, using the 2-SDU, before you begin testing the system.
Before you test any power supply, verify that your system
conforms to:
•
•
•
•
Accepted installation practices
Job specifications
The battery capacity requirements for the application
Safe routing practices for power-limited and nonpowerlimited wires
Testing power supplies
Primary power supply
To test the primary power supplies:
1. Disconnect the batteries.
2. Connect the positive battery terminal to the positive
auxiliary output of the power supply to verify that it can
sustain its full alarm load without batteries.
3. Disconnect the positive battery terminal from the positive
auxiliary output of the power supply.
4. Reconnect the batteries.
5. Disconnect ac power to verify that the 2-LCD annunciates a
power supply trouble. The batteries should also sustain the
supply’s full alarm load.
6. Verify that the battery charger properly charges the batteries
connected to 80% capacity within 24 hours.
Auxiliary power supplies
To test the auxiliary supplies:
1. Disconnect the batteries to verify that the power supply can
sustain its full alarm load without the batteries connected.
2. Reconnect the batteries.
3. Disconnect ac power to verify that the 2-LCD annunciates a
power supply trouble. The batteries should also sustain the
supply’s full alarm load.
3.4
EST2 Installation and Service Manual
System power up and testing
4. Verify that the battery charger properly charges the batteries
connected to 80% capacity within 24 hours.
Testing the control functions
Testing the 2-LCD
To test the 2-LCD:
1. Verify that the 2-LCD is properly mounted and secured.
2. Verify the proper seating of the ribbon cable between the 2LCD and the Main Controller Module.
3. Verify that the 2-LCD displays the correct date and time and
that its Power LED is on.
4. Press the Trouble Silence and Alarm Silence switches
simultaneously to perform the lamp test function.
5. Verify that each function switch performs according to
specification.
Note: See the System Operations Manual for 2-LCD switch
functions.
Verifying the installation of panel components
To verify the proper installation of panel components:
1. Make sure that all ribbon cables are firmly seated in their
connectors and that all wiring is secure.
2. Verify that all components are installed according to the
specifications of the job.
Verifying 2-LCD message queues
During this phase of the system test, you will need to initiate
several off-normal conditions. The off-normal conditions will
test the 2-LCD’s handling of messages in its queue. The message
queue test requires:
•
•
•
•
4 Alarm tests
1 Monitor condition test
2 Supervisory condition tests
2 Trouble condition tests
EST2 Installation and Service Manual
3.5
System power up and testing
To run the first fire alarm test:
1. Initiate a fire alarm.
2. Check the 2-LCD to see if the internal buzzer sounds and the
Alarm LED flashes.
3. Verify that the 2-LCD message for the alarm matches the
programmed message in the 2-SDU.
4. Press the Local Silence switch to verify that it silences the
buzzer, stops the Alarm LED from flashing (but keeps it lit),
and turns on the Local Silence LED.
5. Press the Alarm Review switch to verify that you can scroll
through all the messages in the alarm queue.
6. Press the Alarm Silence switch to verify that it silences the
active notification appliances.
7. Print a history report to verify that all of the information
appears on the printer.
To run the second fire alarm test:
1. Initiate a second fire alarm.
2. Check the 2-LCD to see if the internal buzzer sounds and the
Alarm LED turns on.
3. Verify that the 2-LCD message for the alarm matches the
programmed message in the 2-SDU.
4. Press the Local Silence switch to verify that it silences the
buzzer, stops the Alarm LED from flashing (but keeps it lit),
and turns on the Local Silence LED.
5. Press the Alarm Review switch to verify that you can scroll
through all the messages in the alarm queue.
To run the third fire alarm test:
1. Initiate a third fire alarm.
2. Check the 2-LCD to see if the internal buzzer sounds and the
Alarm LED turns on.
3. Verify that the 2-LCD message for the alarm matches the
programmed message in the 2-SDU.
4. Press the Local Silence switch to verify that it silences the
buzzer, stops the Alarm LED from flashing (but keeps it lit),
and turns on the Local Silence LED.
5. Press the Alarm Review switch to verify that you can scroll
through all the messages in the alarm queue.
3.6
EST2 Installation and Service Manual
System power up and testing
6. Press the Reset switch.
7. Verify that all initiating devices reset and all panel
indicators clear except the green Power LED.
To run a monitor condition test:
1. Initiate a monitor condition.
2. Verify that the 2-LCD Monitor LED turns on.
3. Verify that the internal buzzer does not sound.
4. Restore the monitor point.
To run a trouble test:
1. Initiate an active trouble condition.
2. Check the 2-LCD to see if the internal buzzer sounds and the
Trouble LED flashes.
3. Verify that the 2-LCD message for the trouble condition
matches the programmed message in the 2-SDU.
4. Press the Local Silence switch to verify that it silences the
buzzer, stops the Trouble LED from flashing (but keeps it
lit), and turns on the Local Silence LED.
5. Press the Trouble Review switch to verify that you can
scroll through all the messages in the trouble queue.
6. Restore the trouble condition.
7. Press the Reset switch at the 2-LCD.
To complete the trouble test:
1. Initiate a second active trouble condition.
2. Verify that the second trouble message appears in the
display.
3. Restore the trouble point.
4. Press the Reset switch at the 2-LCD.
To run a supervisory test:
1
Initiate an active supervisory condition.
2. Check the 2-LCD to see if the internal buzzer sounds and the
Supervisory LED flashes.
3. Verify that the 2-LCD message for the supervisory condition
matches the programmed message in the 2-SDU.
EST2 Installation and Service Manual
3.7
System power up and testing
4. Press the Local Silence switch to verify that it silences the
buzzer, stops the Supervisory LED from flashing (but keeps
it lit), and turns on the Local Silence LED.
5. Press the Supervisory Review switch to verify that you can
scroll through all the messages in the supervisory queue.
6. Restore the supervisory condition.
7. Press the Reset switch at the 2-LCD.
To complete the supervisory test:
1. Initiate a second active supervisory condition.
2. Verify that the second supervisory message appears in the
display.
3. Restore the supervisory point.
4. Press the Reset switch at the 2-LCD.
To run the fourth fire alarm test:
1. Initiate a fourth fire alarm.
2. Check the 2-LCD to see if the internal buzzer sounds and the
Alarm LED turns on.
3. Verify that the 2-LCD message for the alarm matches the
programmed message in the 2-SDU.
4. Press the Local Silence switch to verify that it silences the
buzzer, stops the Alarm LED from flashing (but keeps it lit),
and turns on the Local Silence LED.
5. Press the Alarm Review switch to verify that you can scroll
through all the messages in the alarm queue.
6. Press the Reset switch.
7. Verify that all initiating devices reset and all panel
indicators clear except the green Power LED.
3.8
EST2 Installation and Service Manual
System power up and testing
Testing RS-232 and RS-485 ports
Testing the RS-232 port
This test will verify the operation of peripheral devices
connected to the Main Controller Module's RS-232 port.
To test the RS-232 Port:
1. Verify that the baud rate of the peripheral device matches
the setting in the 2-SDU.
2. Check the printer operation by generating a system report at
the 2-LCD keypad.
3. Check the laptop function by uploading data in the 2-SDU
Communication menu.
Testing RS-485 ports
Two RS-485 lines (Ch 0 and Ch 1) support the system in a Class
B (Style 4) or a Class A (Style 7) configuration. The RS-485
lines support annunciators like 2-LSRA(-C)s, 2-SMDN(-C)s,
and SAN annunciators.
To test the Class B (Style 4) RS-485 ports:
1. Verify that the 2-LCD indicates normal operations.
2. Use the System Status switch to verify that all connected
devices are communicating over the system.
3. Disconnect the RS-485 wiring from the Main Controller
Module (MCM).
4. Verify that all the other devices connected to the system
appear in the Trouble queue.
To test the Class A (Style 7) RS-485 ports:
1. Verify that the 2-LCD indicates normal operations.
2. Use the System Status switch to verify that all connected
devices are communicating over the system.
3. Disconnect the RS-485 wiring from the MCM, Ch 0.
4. Verify that the 2-LCD annunciates a Class A
communications fault.
5. Repeat step 2 to verify that all connected devices still
communicate over the RS-485 lines.
EST2 Installation and Service Manual
3.9
System power up and testing
Testing Signature data circuits
The signature data circuit (SDC) consists of Signature series
devices connected to the MCM on a data circuit. A complete test
of the SDC looks at:
•
•
•
Wiring on the circuit
Mapping in the 2-SDU
Messages on the 2-LCD
To verify the proper SDC mapping:
1. Visually inspect the wiring on the SDC to ensure proper
wiring practices.
2. In the 2-SDU, map the SDC by uploading device data from
the MCM.
3. Commit devices on the SDC as required.
4. Download the new data back to the MCM and upload it
again back into the 2-SDU.
5. In the 2-SDU, open the Signature data map to verify that
actual data matches the expected data.
To test the SDC:
1. With no map errors displayed, put an input device on the
SDC into the active mode.
2. Verify that the 2-LCD displays the appropriate message.
3. Put the input device into the Trouble mode.
4. Verify that the 2-LCD displays the appropriate Trouble
message.
3.10
EST2 Installation and Service Manual
System power up and testing
Testing NACs
To test NACs at the 2-LCD:
1. Verify that all components are installed according to the
specifications of the job.
2. Activate an output on the 2-LCD.
3. Verify that the devices activate properly.
4. Restore the circuit.
5. Disconnect the circuit or EOL resistor.
6. Verify that the appropriate trouble message appears on the
2-LCD.
To test NACs on site:
1. Verify that all components are installed according to the
specifications of the job.
2. Inspect each notification appliance to verify proper
operation.
3. Remove one leg of the notification appliance wiring.
4. Verify that the 2-LCD displays the appropriate trouble
message.
EST2 Installation and Service Manual
3.11
System power up and testing
Testing reverse polarity modules
SUPV
TRBL
ALRM
TRBL IN
RPM
CITY
BOX
REVERSE POLARITY
TRANSMITTERS
ALARM TROUBLE SUPV
JP1
1
COM
2
3
4
5
6
7 8
TB1
+24
INST103.CDR
Figure 3-1: Reverse Polarity Module
Note: See the MCM installation sheet for more details on the
RPM.
The Reverse Polarity Module (RPM) may support any one of
three different configurations:
•
•
•
City-tie configuration
Single circuit (old style) configuration
Three circuit configuration
Each of the configurations requires a different approach to
testing the RPM. Before you test the RPM in any configuration,
however, you have to ensure that the proper test conditions exist.
To ensure the proper test conditions:
1. Verify the proper wiring of the RPM.
2. If the RPM is connected to a municipal box or central
monitoring station, advise the appropriate parties of the
upcoming test.
Testing city-tie configuration
Note: You can temporarily substitute a 15 Ω, 2 W resistor for
the municipal box. If you activate the municipal box, it will
indicate Trouble until it is rewound.
To test for trouble conditions:
1. With the municipal box connected to TB1-1 and TB1-2,
open the circuit.
2. Verify that the open circuit activates the appropriate Trouble
message in the 2-LCD message queue.
3. Reconnect the circuit at the conclusion of the test.
3.12
EST2 Installation and Service Manual
System power up and testing
To test for fire alarms:
1. Initiate a fire alarm.
2. With a voltmeter, verify that 20 to 25 Vdc sits across TB1-1
(+) and TB1-2 (-) in the correct polarity.
3. Press the Reset switch and wait for the system to reset.
4. Verify the receipt of the alarm at the municipal receiving
station.
Testing single circuit (old style) configuration
To test for trouble conditions:
1. Make sure that JP1 is not installed.
2. With a voltmeter, verify that 20 to 25 Vdc sits across TB1-3
(+) and TB1-4 (-).
3. Create a Trouble condition on the panel.
4. With a voltmeter, verify that 0 Vdc sits across TB1-3 (+)
and TB1-4 (-).
5. Verify that the:
•
•
•
Panel’s trouble relay activates
2-LCD message queue displays the correct message
Municipal receiving station receives a trouble indication
6. Open the circuit wired between TB1-3 and TB1-4.
7. Verify that municipal receiving station receives a trouble
indication.
To test for fire alarms:
1. Initiate an active fire alarm.
2. With a voltmeter, verify that 20 to 25 Vdc sits across TB1-5
(+) and TB1-6 (-) and look for any polarity change.
3. Verify the receipt of the alarm at the municipal receiving
station.
EST2 Installation and Service Manual
3.13
System power up and testing
Testing three circuit configuration
To test for trouble conditions:
1. Make sure that JP1 is installed.
2. With a voltmeter, confirm that 20 to 25 Vdc (in the correct
polarity) sits across the following terminals:
•
•
•
TB1-3 (+) and TB1-4 (-)
TB1-5 (+) and TB1-6 (-)
TB1-7 (+) and TB1-8 (-)
3. Create a Trouble condition on the panel.
4. With a voltmeter, confirm that 20 to 25 Vdc sits across TB15 (+) and TB1-6 (-).
5. Verify that the:
•
•
•
Panel’s trouble relay activates
2-LCD message queue displays the correct message
Receiving station receives a trouble indication
6. See if the municipal receiving station receives a circuit fault
indication when you open the circuit wired between:
•
•
•
TB1-3 (+) and TB1-4 (-)
TB1-5 (+) and TB1-6 (-)
TB1-7 (+) and TB1-8 (-)
To test for fire alarms:
1. Initiate an active fire alarm.
2. With a voltmeter, verify that 20 to 25 Vdc sits across TB1-3
(+) and TB1-4 (-) and look for any polarity change.
3. Verify the receipt of the alarm at the municipal receiving
station.
To test for supervisory conditions:
1. Initiate a supervisory condition.
2. With a voltmeter, verify that 20 to 25 Vdc sits across TB1-7
(+) and TB1-8 (-) and look for any polarity change.
3. Verify the receipt of a supervisory condition at the
municipal receiving station.
3.14
EST2 Installation and Service Manual
System power up and testing
Testing audio
The audio system includes the following components:
•
•
•
•
2-AAC Audio Controller Module
SIGA-AAXX Audio Amplifier
2-MIC Microphone Module
2-TEL Firefighter Telephone
Note: Before any test, check all of the audio components against
the job specifications and the installation sheets. Ensure the
proper installation and wiring of each component.
WARNING: Inform building occupants of any fire alarm test
before you perform it.
Microphone paging test
To test the 2-AAC and the 2-MIC:
1. Disconnect the 2-MIC from the 2-AAC and make sure that
the 2-LCD displays the appropriate message.
2. Reconnect the 2-MIC to the 2-AAC.
3. Remove each audio riser from the 2-AAC and make sure
that the 2-LCD trouble queue displays the correct message.
4. Reconnect the audio risers.
5. At the 2-MIC, press the Page-to-Alarm switch.
6. At the front panel LED/Switch module, select all floors and
issue a page to verify that all locations receive the page.
Firefighter telephone tests
The firefighter telephone test consists of several phases because
telephone jacks are distributed throughout the building. In
addition, the 2-TEL comes with a 2-TEL option board, which
needs its own test.
Note: The CC1 wired to the 2-TEL should be programmed with
a personality code 6.
To test the first firefighter telephone circuit:
1. Take a firefighter telephone off the hook.
2. Plug a firefighter telephone into a firefighter telephone jack.
EST2 Installation and Service Manual
3.15
System power up and testing
3. Verify that an incoming call buzzer sounds, and that the
appropriate LED lights on the front panel LED/Switch
module.
4. Press the Call-in Silence switch and verify that the buzzer
silences.
5. Press the appropriate switch on the front panel LED/Switch
module to connect the incoming call.
6. Talk over the firefighter telephone connection to verify
clear, noise-free communications.
To test the second firefighter telephone circuit:
1. Take a second firefighter telephone, on a different branch
circuit, off the hook.
2. Verify that the incoming call buzzer re-sounds, and that the
appropriate LED lights on the front panel LED/Switch
module.
3. Press the Call-in Silence switch and verify that the buzzer
silences.
4. Press the appropriate switch on the front panel LED/Switch
module to connect the incoming call.
5. Talk over the firefighter telephone connection to verify
clear, noise-free communications.
To test multiple telephone jacks:
1. Connect five firefighter telephones at the same time.
2. Verify that the incoming call buzzer re-sounds, and that the
appropriate LEDs light on the front panel LED/Switch
module.
3. Press the Call-in Silence switch and verify that the buzzer
silences.
4. Press the appropriate switch on the front panel LED/Switch
module to connect each incoming call.
5. Talk over the firefighter telephone connection to verify
clear, noise-free communications.
6. Disconnect all but one firefighter telephone.
To test the Page by Phone switch:
1. Press the Page by Phone switch on the 2-MIC.
2. At the front panel LED/Switch module, select a page
destination.
3.16
EST2 Installation and Service Manual
System power up and testing
3. Speak into the telephone still connected to the circuit from
the last test.
4. Verify the distribution of the telephone’s audio throughout
the facility.
To test the telephone option board:
1. Disconnect each of the telephone risers from the 2-TEL
option board.
2. Verify that the 2-LCD displays the appropriate trouble
message.
3. Restore the connections.
To test the firefighter telephone jacks:
1. Disconnect each firefighter telephone jack/station.
2. Verify that the 2-LCD trouble queue displays the correct
message.
3. Restore the connections.
Amplifier test
The amplifier test will measure the responsiveness of the SIGAAA30 and SIGA-AA50 amplifiers.
To test the audio amplifiers:
1. Ensure that the wattage of any backup amplifier equals or
exceeds the wattage of any primary amplifier it will replace.
2. Create an alarm condition to verify that EVAC signal shows
up at the alarm output.
3. Create an amplifier fault to see if the backup amplifier takes
over.
To test Class B output configurations:
1. Disconnect the amplifier’s audio output wiring.
2. Verify that the 2-LCD trouble queue displays the correct
message.
3. Restore the connections.
To test Class A output configurations:
1. Disconnect the amplifier’s primary audio output wiring.
2. Verify that the 2-LCD trouble queue displays the correct
message.
EST2 Installation and Service Manual
3.17
System power up and testing
3. Verify that the amplifier output is available on Class A
wiring.
4. Restore the connections.
3.18
EST2 Installation and Service Manual
System power up and testing
Testing detectors and modules
These procedures are designed to test the application and
programming of detectors, input modules, and output modules
for initial approval and re-acceptance.
Note: Download the Signature data circuit (SDC) configuration
to the panel from the 2-SDU before you start testing.
Detectors
Signature detectors
Signature Series detectors and bases reside on an SDC, which is
controlled by a Main Controller Module (MCM) or an Expander
Loop Module (LCX).
To test Signature detectors:
1. Ensure that all the detectors are located and mounted
according to accepted installation practices and the
specifications of the job.
2. Activate each detector individually.
3. Verify that the device initiates the appropriate system
responses.
4. Check the 2-LCD for the appropriate circuit type and device
location message.
5. Remove the detector from its base.
6. Verify that the 2-LCD displays the appropriate trouble
message and location.
7. After you replace the detector, press the Reports switch on
the 2-LCD to run a sensitivity report.
If the detector is installed in a relay base, verify that the base’s
relay function operates according to design. If the detector is
installed in an isolator base, verify that the base isolates the
required circuit segments.
Conventional detectors
Conventional detectors and bases work in conjunction with
Signature series universal modules (UMs).
Note: Before you test conventional detectors, verify the
following:
•
•
A 2-SMK module is installed between the panel power
supply and the UM, terminal 9 (smoke power)
JP1, on each UM, jumps pins 1 and 2
EST2 Installation and Service Manual
3.19
System power up and testing
To test conventional detectors:
1. Ensure that all the detectors are located and mounted
according to accepted installation practices and the
specifications of the job.
2. Activate each detector individually.
3. Verify that the UM initiates the appropriate system
responses.
4. Check the 2-LCD for the appropriate circuit type and device
location message.
5. Remove the detector from its base.
6. Verify that the 2-LCD displays the appropriate trouble
message and location.
If the detector is installed in a relay base, verify that the base’s
relay function operates according to design. If the detector is
installed in an isolator base, verify that the base isolates the
required circuit segments.
Duct detectors
Test duct detectors to verify that they meet the minimum and
maximum airflow requirements.
See the following documents for detailed specifications and
instructions on Signature Series detectors:
•
•
•
Signature Series Technical Reference (P/N 270144)
Signature Series Component Installation Manual (P/N
270497)
Intelligent Smoke and Heat Detectors Applications Bulletin
(P/N 270145)
Modules
Input modules
To test input modules
1. Ensure that all the modules are located and mounted
according to accepted installation practices and the
specifications of the job.
2. Activate each module individually.
3. Verify that the device initiates the appropriate system
responses.
4. Check the 2-LCD for the appropriate circuit type and device
location message.
3.20
EST2 Installation and Service Manual
System power up and testing
5. Open the circuit.
6. Verify that the 2-LCD displays the appropriate trouble
message and location.
Output modules
To test output modules:
1. Ensure that all the modules are located and mounted
according to accepted installation practices and the
specifications of the job.
2. At the 2-LCD, activate each module individually with the
Activate Output command.
3. Verify that the device initiates the appropriate system
responses.
4. Check the 2-LCD for the appropriate circuit type and device
location message.
5
Open the circuit (for supervised output circuits).
6. Verify that the 2-LCD displays the appropriate trouble
message and location.
If the output is activated by one or more system inputs, activate
these inputs and verify that the output function operates
appropriately.
EST2 Installation and Service Manual
3.21
System power up and testing
Testing initiating devices
The procedures for testing initiating devices are the same for
initial and re-acceptance testing. These procedures test the
initiating devices and their programming. Initiating devices
include:
•
•
•
•
Manual pull stations
Non-restorable heat detectors
Restorable heat detectors
Waterflow switches
Caution: Do not test a nonrestorable heat detector.
Nonrestorable heat detectors activate only one time, and require
replacement afterwards.
Perform the tests along with the procedures for testing Signature
detectors and input modules.
To test manual pull stations:
1. Inspect the initiating device for visual indications of nonconformance.
2. Pull the lever to activate the pull station.
3. Verify that the device initiates the appropriate system
responses.
4. Check the 2-LCD for the appropriate circuit type and device
location message.
5. Open the circuit.
6. Verify that the 2-LCD displays the appropriate trouble
message and location.
To test restorable heat detectors:
1. Inspect the initiating device for visual indications of nonconformance.
2. Activate the detector.
3. Verify that the device initiates the appropriate system
responses.
4. Check the 2-LCD message for the appropriate circuit type
and device location.
5. Open the circuit.
6. Verify that the 2-LCD displays the appropriate trouble
message and location.
3.22
EST2 Installation and Service Manual
System power up and testing
To test waterflow switches:
1. Inspect the initiating device for visual indications of nonconformance.
2. Activate the sprinkler test valve.
3. Verify that the device initiates the appropriate system
responses.
4. Check the 2-LCD message for the appropriate circuit type
and device location.
5. Open the circuit.
6. Verify that the 2-LCD displays the appropriate trouble
message and location.
EST2 Installation and Service Manual
3.23
System power up and testing
Testing notification appliances
The procedures for testing notification appliances are the same
for initial and re-acceptance testing.
These procedures test the notification appliances and their
programming. Notification appliances include:
•
•
•
•
Visual devices
Speakers
Bells
Horns
The procedures for testing notification appliances are the same
for visual and audible devices. Perform the tests along with the
procedures for testing Signature detectors and output modules.
To test notification appliances:
1. Inspect the notification appliance for visual indications of
non-conformance.
2. Activate the circuit.
3. Verify that all indicating appliances operate according to
specification.
4. Open the circuit.
5. Verify that the 2-LCD displays the appropriate trouble
message and location.
3.24
EST2 Installation and Service Manual
System power up and testing
Filling out a certificate of completion
When you have tested the system and found it to operate
satisfactorily, it is time to submit a Certificate of Completion.
Note: Do not use the master copy to report your work.
To fill out a certificate of completion:
1. Reproduce the master copies of the Certificate of
Completion on the following pages (Figure 3-2 and Figure
3-3).
2. Supply the information requested on the Certificate of
Completion.
3. Give the Certificate of Completion to the building
representative.
EST2 Installation and Service Manual
3.25
System power up and testing
Fire Alarm System Certificate of Completion
Page 1 of 2
Protected Property
Name:
Authority Having Jurisdiction:
Address:
Address:
Representative:
Phone:
Phone:
Certificate of System Installation
This system has been installed in accordance with the NFPA standards listed below, was inspected by
on
, and includes the devices listed below, and has been in service since
.
NFPA 72, Ch 1 3 4 5 6 7 (Circle all that apply)
NFPA 70, National Electric Code, Article 760
Manufacturer's Instructions
Other (Specify)
Certificate of System Operation
All operational features and functions of this system were tested by
properly and in accordance with the requirements of:
Signed:
on
and found to be operating
NFPA 72, Ch 1 3 4 5 6 7 (Circle all that apply)
NFPA 70, National Electric Code, Article 760
Manufacturer's Instructions
Other (Specify)
Dated:
Organization:
System Software
System Firmware
Installed Revision:
Application Programming
Initial Program Installation:
Revisions & Reasons:
Checksum:
Date:
Date:
Date:
Date:
Date:
Programmed by (name):
Date of Programmer's Latest Factory Certification:
Data Entry Program Revision Used:
Maintenance
Frequency of routine tests and inspections, if other than in accordance with the referenced NFPA standards:
System deviations from the referenced standards are:
(signed) for Central Station or Alarm Service Company
(title)
(signed) for representative of the Authority Having Jurisdiction
(title)
(date)
(date)
INST038.CDR
Figure 3-2: Certificate of Completion, Page 1
3.26
EST2 Installation and Service Manual
System power up and testing
Figure 3-3: Certificate of Completion, Page 2
EST2 Installation and Service Manual
3.27
System power up and testing
3.28
EST2 Installation and Service Manual
Chapter 4
System service procedures
Summary
Chapter 4 provides detailed instructions for identifying system
faults on the 2-LCD and the system components.
Content
Recommended maintenance practices • 4.2
Electrical safeguards • 4.2
Preventive maintenance • 4.2
Documenting system service • 4.2
System faults • 4.4
Reading 2-LCD messages • 4.4
Checking LEDs on the 2-LCD • 4.9
Checking system status • 4.9
Panel modules • 4.12
2-PPS Primary Power Supply • 4.12
2-PPS/6A 6 Amp Primary Power Supply • 4.12
SIGA-APS Auxiliary Power Supply • 4.14
2-MCM Main Controller Module • 4.15
2-LCX Expander Loop Module • 4.16
2-LCD Display Module • 4.18
LED/Switch Modules • 4.19
DL2 Dialer • 4.19
CDR-3 Coder • 4.20
2-AAC Audio Controller Module • 4.21
2-MIC Microphone • 4.22
2-TEL Firefighter Telephone • 4.22
SIGA-AAXX amplifiers • 4.23
Remote alphanumeric annunciators • 4.25
Printers • 4.26
PT-1S(-220) form printer • 4.26
RSAN-PRT strip printer • 4.26
Cleaning detectors • 4.27
Fire alarm trouble and maintenance log • 4.29
EST2 Installation and Service Manual
4.1
System service procedures
Recommended maintenance practices
Electrical safeguards
Personal safety
WARNING: Disconnect ac power to the control panel before
installing or removing any components. Failure to remove ac
power may result in serious injury or loss of life.
Follow the recommendations for the routing of power-limited
and nonpower-limited wiring to avoid dangerous confusion of
wire types. See the wallbox installation sheets for the details.
Electro-static precautions
The components of the fire alarm control panel are extremely
sensitive to small amounts of static electricity. Make sure you
are properly grounded before you handle any module. Provide a
static-free storage environment for any module you remove from
the control panel.
Wire stripping
Strip 1/4 inch (6.4 mm) from the ends of all wires that connect to
the terminal blocks of the module. Exposing more than 1/4 inch
of wire may cause a ground fault. Exposing less than 1/4 inch of
wire may result in a faulty connection. Observe the wire
stripping whenever you perform maintenance on the system or
troubleshoot a problem.
Preventive maintenance
There are two standards you need to follow for preventive
maintenance. NFPA 72 (1996 edition) provides guidance for
inspection, testing, and maintenance in Chapter 7. The other
standard to follow is the authority having jurisdiction for your
municipality.
Documenting system service
Document your maintenance activities and any problems that
arise on the system. The more documentation you have, the
easier it is to track problems on the system. See, Documenting
system service, at the end of this chapter for a sample
maintenance log. Photocopy the sample and use it for system
maintenance activities.
Use the Reports menu in the 2-SDU to generate and print reports
on the configuration of the system for any changes. When
4.2
EST2 Installation and Service Manual
System service procedures
problems arise on the system, you will have a reliable record for
comparison.
EST2 Installation and Service Manual
4.3
System service procedures
System faults
Reading 2-LCD messages
The standalone system provides valuable data to help the
technician find and correct problems. Whenever a problem
arises, the 2-LCD indicates both audibly and visually that
something is wrong. See the System Operations Manual for
detailed information on the LED indications of the 2-LCD.
The 2-LCD also displays fault messages to locate and identify
the problem. Each fault message consists of a 4-digit address.
The first two digits represent the panel address. If the panel
address is 00, the last two digits will be pseudo-point IDs (01
through 99). If the panel address is 01 through 63, the last two
digits will represent the device address (01 through 96). Table
4-1 lists the system addresses. All devices and accessories
connected to the RS-485 circuit have four-digit addresses
between 10xx and 63xx.
Table 4-1: System addressing
Panel address
Function
Device addresses
References
00
Primary Power Supply and
system faults
0001 to 0014 System faults
Table 4-2
Table 4-6 (2-PPS)
Table 4-7 (2-PPS/6A)
01 and 02
0015 to 0019 2-MCM faults
0020 to 0024 2-LCX faults
0025 to 0029 DL2 faults
Main Controller Module
0101 to 0196 Signature detectors
See Signature device
problems.
0201 Dedicated NAC (default)
0202 Dedicated NAC (default)
0203 to 0296 Signature modules
03 and 04
Expander Loop Module
0301 to 0396 Signature detectors
See Signature device
problems.
0401 Dedicated NAC (default)
0402 Dedicated NAC (default)
0403 to 0496 Signature Modules
05
LED/switch modules
LEDs
Switches
1st module
0501 to 0516
(0501 to 0508)
2nd module
0517 to 0532
(0509 to 0516)
3rd module
0533 to 0548
(0517 to 0524)
th
0549 to 0564
(0525 to 0532)
th
0565 to 0580
(0533 to 0540)
th
0581 to 0596
(0541 to 0548)
4 module
5 module
6 module
4.4
Table 4-16
EST2 Installation and Service Manual
System service procedures
Table 4-1: System addressing
Panel address
Function
Device addresses
User-defined switch
0096
06, 07, 08, 09
Future use
41,
2-AAC Audio Control
Module
4110 to 4115, and 4197
References
Table 4-19
Table 4-20
Table 4-21
Table 4-22
42, 43
Not available
Fault messages also contain pre-programmed descriptions for the
conditions or events that prompt them.
Messages waiting
Current Time
Fault
12:49:07
MW036
Dev./line Fault
Message
Loop 2 wiring
@12:41
0020
Event time
Fault code
INST047.CDR
Figure 4-1: Typical fault message
The message in (Figure 4-1) indicates that the current time is
12:49 (PM) and the queue contains thirty-six messages. The
Expander Loop Module has a short circuit or open on its SDC,
which occurred at 12:41. Table 4-2 provides the meanings of
other messages that appear on the 2-LCD.
Table 4-2: System fault messages
Message
Description
0001 / Short fault, NAC power
Over-current condition at the 2-PPS(/6A) Primary Power
Supply NAC PWR terminal repaired by reducing the NAC
current load.
0002 / Short Fault, Smoke or
auxiliary power (Table 4-11)
Over-current condition at the 2-PPS(/6A) SMK/AUX PWR
terminal repaired by reducing the smoke power current
load.
0003 / Open Fault, Battery or
Wiring
Battery problem on the 2-PPS(/6A) caused by:
EST2 Installation and Service Manual
• Low or missing battery
• Open battery fuse (F2)
• Open or poor connection on battery leads
4.5
System service procedures
Table 4-2: System fault messages
Message
Description
0004 / Open fault, 2-PPS(/6A)
Brownout or loss of ac power caused by an:
• Input voltage below 85% of rating
• Open on the ac input fuse (F1)
0005 / Ground Fault, System
Ground
• Pinched wire between device and electrical box
• Nicked wire insulation
0006 / Internal Fault
Abnormal internal voltage due to a 2-PPS(/6A) failure.
0007 / Communications Fault,
Local Controller (See Table 4-12
for LED indications on the 2-MCM.)
Main Controller Module (2-MCM) not communicating with
the 2-PPS(/6A), caused by a:
• Loose or defective ribbon cable*
• Defective 2-MCM
* Check J1 on the 2-MCM and the 2-PPS(/6A).
0008 / Communications Fault,
Expansion Controller (See Table
4-13 for LED indications on the 2LCX.)
Expander Loop Module (2-LCX) not communicating with
the 2-PPS(/6A), caused by a:
• Loose or defective ribbon cable*
• Defective 2-LCX
*Check J1 on the 2-LCX and the 2-MCM.
0009 / Internal Fault, Watch-dog
Time-out
Watch-dog timer restart failure: 2-MCM failure
0010 / Internal Fault, LCD Display
Table 4-15
Communication failure between the 2-LCD and the
2-MCM, caused by a:
• Loose or defective ribbon cable*
• Defective 2-LCD
*Check J1 on the 2-LCD and J2 on the 2-MCM.
0011 / Internal Fault, Local
Annunciator
Front panel annunciator module not communicating with
the 2-MCM
0012 / Internal Fault, Dialer
Fault on dialer module or associated wiring caused by:
• Improper programming of the dialer
• Telephone line problems
0013 / Internal fault, printer or
external command port (ECP)
Problem on RS-232 port or device caused by:
0014 / Communication fault,
2-PPS(/6A)
Communication failure between the 2-MCM and the
2-PPS(/6A), caused by a:
• Off-line status of the printer or ECP
• Incorrect device wiring (Pins 2 and 3 on the printer
cable)
• Loose or defective ribbon cable*
• Defective 2-PPS(/6A)
*Check J1 on the 2-PPS(/6A) and the 2-MCM.
4.6
EST2 Installation and Service Manual
System service procedures
Table 4-2: System fault messages
Message
Description
0015 / Class A fault, Loop 1 Wiring
Open or short on one path of the 2-MCM Signature data
circuit (SDC)
0016 / Internal Fault, Loop 1
Device Mapping Error
The 2-MCM SDC is in the process of mapping the circuit.
This fault should clear itself when mapping is complete.
Mapping may take up to 30 minutes per circuit.
0017 / Internal Fault, L1 Dev.
Personality
A personality code mismatch exists on the 2-MCM SDC.
0018 / Internal Fault, Loop 1
autoconfigure
The 2-MCM SDC could not properly configure the circuit.
0019 / Internal Fault, Loop 1 Int.
Memory
A memory mismatch exists between the actual data from
the SDC and the expected data in the 2-MCM.
0020 / Class A fault, Expansion
Loop
Open or short on one path of the 2-LCX SDC.
0021 / Internal Fault, Loop 2
Device Mapping Error
The 2-LCX SDC is in the process of mapping the circuit.
This fault should clear itself when mapping is complete.
Mapping may take up to 30 minutes per circuit.
0022 / Internal Fault, L2 Dev.
Personality
A personality code mismatch exists on the 2-LCX SDC.
0023 / Internal Fault, Loop 2
autoconfigure
The 2-LCX SDC could not properly configure the circuit.
0024 / Internal Fault, Loop 2 Int.
Memory
A memory mismatch exists between the actual data from
the SDC and the expected data in the 2-LCX.
0025 / Dialer Internal Memory
Fault (See Table 4-17.)
An internal error has occurred. Turn the power off and on
again. Replace the DL2 if the fault remains.
0026 / Dialer Phone Line 1 fault
An electrical fault on telephone line 1 caused by:
• A bad connection between J1 and the telephone jack
• An inoperative telephone line
Note: The fault may take up to two minutes to clear after
the repair.
0027 / Dialer Phone Line 2 fault
An electrical fault on telephone line 2 caused by:
• A bad connection between J2 and the telephone jack
• An inoperative telephone line
• A configuration error*
*If the DL2 is configured for 1-line operation, this error
means J2 is connected to a good phone line. Disconnect
the line to clear the error. The fault may take up to two
minutes to clear after the repair.
EST2 Installation and Service Manual
4.7
System service procedures
Table 4-2: System fault messages
Message
Description
0028 / Call-out Not Completed By
Dialer
• The dialer reached the maximum number of call
attempts.
• The telephone company has technical problems.
• The receiver is down.
0029 / Dialer manually disabled
The dialer disconnect switch was pressed or:
• The dialer is new and needs programming
• The dialer is in the programming mode
See the DL2 installation sheet for programming instructions
on the DL2.
0030 / Test Mode Active
Someone initiated a test by pressing the 2-LCD Test
switch. The message will go away when the test ends. See
the System Operation Manual for more information.
0101 to 0196 - Device/line Fault or
Device communications fault
Trouble on Signature detector wired to the 2-MCM having
an address from 0101 to 0196
0201 and 0202 - Open fault (See
Table 4-14.)
An open on the 2-MCM NAC caused by:
0201 and 0202 - Short fault
2-MCM NAC shorted because of a:
• An incorrect or missing EOL resistor
• A miswired circuit or intermittent connections
• A broken conductor
• Polarized device reversed on the circuit
• Defective notification appliance
• Miswired circuit
0203 to 0296, Device/line Fault or
Device communications fault
Trouble on a Signature module wired to the 2-MCM having
an address from 0203 to 0296
0301 to 0396 - Device/line Fault or
Device communications fault
Trouble on Signature detector wired to the 2-LCX having an
address from 0301 to 0396
0401 and 0402 - Open fault
An open on the 2-LCX NAC caused by:
• An incorrect or missing EOL resistor
• A miswired circuit or intermittent connections
• A broken conductor
0401 and 0402 - Short fault
2-LCX NAC shorted because of a:
• Polarized device reversed on the circuit
• Defective notification appliance
• Miswired circuit
0403 to 0496 - Device/line fault or
Device communications fault
Trouble on Signature module wired to the 2-LCX having an
address from 0403 to 0496
XX97*
Comm Fault Primary Comm Channel (xx = 10-40 or 44-63)
XX98*
Comm Fault Secondary Comm Channel (xx = 10-40 or 4463)
4.8
EST2 Installation and Service Manual
System service procedures
Table 4-2: System fault messages
Message
Description
XX99*
Internal Fault Card/Supervision (xx = 10-40 or 44-63)
41XX 2-AAC Audio Controller
faults
See Table 4-19
Checking LEDs on the 2-LCD
The 2-LCD also indicates problems with LEDs and an internal
buzzer. The internal buzzer provides an audible indication that
the system has a problem. Table 4-3 lists the LEDs to look for
when the internal buzzer sounds.
Table 4-3: System fault messages
Fault
Possible Causes
AC Power LED off
The ac power is off or below 85% of the rated voltage.
TROUBLE LED on
The system has detected a problem with the wiring or a device on the
loop. Check the display for more details and look for other lit LEDs.
CPU FAIL LED on
• 2-MCM CPU watch-dog time-out
• LED/Switch module CPU watch-dog time-out
All LEDs off
The system has had an ac power failure and the batteries below
minimum allowable voltage
Another way of finding problems is to look for improper device
responses. For example, the disable function fails to disable the
desired Signature device or disables another one. An improper
device response may result from any of the following conditions:
•
•
•
•
•
Conflicting device types
Conflicting serial numbers
An incorrect personality code loaded into a module
Incorrect country code
An incorrect jumper setting on a Signature series universal
module (SIGA-UM)
Check the devices by looking at their LEDs and comparing their
serial numbers with the ones configured in the 2-SDU.
Checking system status
A level 1, 2, or 3 password is required to use the 2-LCD status
function. Press the STATUS switch to access the first status
screen, and follow its instructions (Figure 4-2).
EST2 Installation and Service Manual
4.9
System service procedures
Status Report.
[ent] key scrolls
[del] key terminates
INST048.CDR
Figure 4-2: First status screen
Press the ENTER switch a second time to advance the LCD
display to the general status screen (Figure 4-3).
INST043.CDR
Status Legend
Status:
(1=Fault)
485 Comm. Status
AC Power
ACp0
Gnd1
Ground Fault
Bat0
Ann0
MPw0
Prn0
SPw0
Dia0
Smoke Power
Dialer
NAC Power
Battery
Remote Annunciator
Printer/External Command Port
Figure 4-3: General status screen
The general status screen in Figure 4-3 indicates a ground fault
in the system. Table 4-4 lists the indications that appear on the
general status screen and the events they represent.
Table 4-4: General status legend
Indication
Event
ACp
Ac power
Gnd
Ground fault
Bat
Battery
Ann
Remote annunciator
MPw
NAC power
Prn
Printer
Spw
Smoke power
Dia
Dialer
Press the ENTER switch again to reveal the loop status screens.
4.10
EST2 Installation and Service Manual
System service procedures
INST041.CDR
Circuit ID
Communications
Programming
Loop 1 status:
1= flt/act, 0=ok/inact.
Res0
Bal0 Mpg0
Com0
Prg0
Gnd0
Lin0 Map1
Status Legend
Mapping in Progress
Map Fault
Balanced Map
Class A Line Fault
Circuit Reset
Circuit Ground Fault
Figure 4-4: Loop Status Screen
The loop status screen in (Figure 4-4) shows a map fault on the
SDC connected to the Main Controller Module (loop 1). The
next loop status screen displays the status of the SDC on the
Loop Expander Module. Table 4-5 lists the indications that
appear on the loop status screen the events they represent.
Table 4-5: Loop status legend
Legend
Cause
Com
Communications fault between loop electronics
and Main Controller Module
Res
SDC is resetting
BAL
SDC is balanced
Mpg
SDC is actively mapping
Prg
Writing to Signature memory
Gnd
Ground Fault on SDC
Lin
Class A fault on SDC
Map
Map fault on SDC
EST2 Installation and Service Manual
4.11
System service procedures
Panel modules
2-PPS Primary Power Supply
SMK/AUX SELECT
INST004.CDR
DS1 RXD
DS2 TXD
Figure 4-5: Primary Power Supply
Table 4-6: Primary Power Supply LEDs
LED
Color
Pattern
Indication
DS1
Amber
Flickering
The 2-PPS successfully receives data from the 2-MCM.
DS2
Amber
Flickering
The 2-PPS successfully transmits data to the 2-MCM.
2-PPS/6A 6 Amp Primary Power Supply
INST005.CDR
DS1 RXD
DS2 TXD
Figure 4-6: Primary Power Supply (6 Amp)
4.12
EST2 Installation and Service Manual
System service procedures
Table 4-7: 6 Amp Primary Power Supply LEDs
LED
Color
Pattern
Indication
DS1
Amber
Flickering
The 2-PPS/6A successfully receives data from the 2-MCM.
DS2
Amber
Flickering
The 2-PPS/6A successfully transmits data to the 2-MCM.
Table 4-8 lists the most common symptoms and causes of
primary power supply problems.
Table 4-8: Primary power supply problems
Problem
Cause(s)
RXD LED (DS1) off (Figure 4-5
and Figure 4-6)
A communication failure from the 2-MCM, caused by a:
• Loose or defective ribbon cable*
• Defective 2-MCM
*Check J1 on the 2-PPS(/6A) and the 2-MCM
TXD LED (DS2) off (Figure 4-5
and Figure 4-6)
A communication failure from the 2-MCM, caused by a:
• Loose or defective ribbon cable*
• Defective 2-PPS(/6A)
*Check J1 on the 2-PPS(/6A) and the 2-MCM
Voltage low at NAC PWR
An excessive load is causing the 2-PPS(/6A) to fold back
(3.6 A max).
Voltage low at SMK/AUX PWR
An excessive load is causing the 2-PPS(/6A) to fold back
(1 A max).
4-Wire smoke detectors will not
reset
The SMK/AUX SELECT jumper is installed.
Batteries will not charge
• The system is in the alarm mode.
• The 7 Amp battery fuse (F2) is open.
System will not operate on
batteries
• The batteries are low.
• The 7 Amp battery fuse (F2) is open.
Note: The system automatically turns off when batteries are
too low to operate system.
System ground fault
• Internal or field wiring is in contact with earth ground
• The download computer is feeding ground to the panel.
EST2 Installation and Service Manual
4.13
System service procedures
SIGA-APS Auxiliary Power Supply
INST006.CDR
DS1 RXD
DS2 TXD
Figure 4-7: Auxiliary Power Supply
Table 4-9: Auxiliary Power Supply LEDs
LED
Color
Pattern
Indication
DS1
Amber
Flickering
The SIGA-APS Auxiliary Power Supply successfully receives data
from the 2-AAC.
DS2
Amber
Flickering
The SIGA-APS successfully transmits data to the 2-AAC.
Table 4-10: Auxiliary power supply trouble conditions
Address
st
Low (1 zone)
High (2
nd
zone)
Status
Description
Open
AC failure or battery loss
Open
• NAC short
• Internal fault
• Ground fault
Table 4-11: Auxiliary power supply problems
Problem
Cause(s)
DS1 and DS2 do not flash and
the SDC does not communicate.
(See Figure 4-7 and Table 4-9.)
• Defective or poor connection on the SDC
• The SIGA-APS does not appear as a supervisory
SIGA-CT2 in the database
No ac power to the APS
• The ac power is turned off.
• The SIGA-APS is unplugged.
• The ac power cord is not connected.
(See Table 4-10)
Voltage low at NAC1 or NAC2
4.14
An excessive load is causing the 2-PPS(/6A) to fold back
(3.2 A max).
EST2 Installation and Service Manual
System service procedures
Table 4-11: Auxiliary power supply problems
Problem
Cause(s)
Batteries will not charge
• The installed battery is greater than the 10 Ah capacity.
• The 7 Amp battery fuse (F2) is open.
System will not operate on
batteries
• The batteries are low.
• The 7 Amp battery fuse (F2) is open.
Note: The system automatically turns off when batteries are
too low to operate system.
System ground fault
Internal or field wiring is in contact with earth ground.
2-MCM Main Controller Module
Note: See the 2-MCM installation sheet for detailed drawings
and information about terminals, cables, and wiring.
INST007.CDR
U16
DS4
U15
DS3
DS2
DS1
Seat the firmware chips with
index notches as shown here.
Figure 4-8: Main Controller Module
Reading 2-MCM LEDs
The lower RS-485 LED (Figure 4-8 and Table 4-12) should
flicker if the RS-485 port circuit has been configured for Class B
operation. The lower and upper RS-485 LEDs should flicker if
the RS-485 port circuit has been configured for Class A
operation.
EST2 Installation and Service Manual
4.15
System service procedures
Table 4-12: Main Controller Module LEDs
LED
Color
Pattern
Indication
DS1
Green
Flickering
Internal communications normal
DS2
Green
Flickering
RS-485 TX1 active
DS3
Green
Flickering
RS-485 TX0 active
DS4
Green
Flickering
Signature data circuit (SDC) active
Replacing 2-MCM firmware chips
Caution: Remove ac and battery power before installing the
chip. When handling the chips, observe all anti-static
precautions.
The EPROM firmware chips (U15 and U16) may be replaced
with upgrade firmware revisions.
To replace U15 and U16:
1. Remove ac and battery power to the Main Controller
Module.
2. Ground yourself to prevent electrostatic discharge.
3. Note the position of the index notches on U15 and U16.
4. Remove the old firmware chips.
5. Take the upgrade chips out of the static-protective bag.
6. Seat the upgrade chips with index notches in the same
position as the replaced firmware chips.
Substituting Main Controller Modules
You can substitute a dependable 2-MCM for a suspect 2-MCM,
but the substitute 2-MCM requires a download from the 2-SDU.
The substitute 2-MCM does not contain the original map
information, which it requires to watch the integrity of the
system loop(s). See the 2-SDU Help for complete instructions on
uploading and downloading to the 2-MCM.
2-LCX Expander Loop Module
Note: See the 2-LCX installation sheet for detailed drawings and
information about terminals, cables, and wiring.
4.16
EST2 Installation and Service Manual
System service procedures
Seat the firmware chip with index notch
as shown here.
DS3
U2
DS2
DS1
INST008.CDR
Figure 4-9: Expander Loop Module
Reading 2-LCX LEDs
Table 4-13: Expander Loop Module LEDs
LED
Color
Pattern
Indication
DS1
Green
Flickering
Internal communications normal (Figure 4-9)
DS2
Green
Flickering
½ on/off active LED
DS3
Green
Flickering
SDC activity
Replacing 2-LCX firmware chips
Caution: Remove ac and battery power before installing the
chip. When handling the chips, observe all anti-static
precautions.
The EPROM firmware chip (U2) may be replaced with upgrade
firmware revisions.
To replace U2:
1. Remove ac and battery power to the Expander Loop Module.
2. Ground yourself to prevent electrostatic discharge.
3. Note the position of the index notch on U2.
4. Remove the old firmware chip.
5. Take the upgrade chip out of the static-protective bag.
6. Seat the upgrade chip with index notch in the same position
as the replaced firmware chip.
Substituting the Expander Loop Module
You can substitute a dependable 2-LCX for a suspect 2-LCX,
but the substitute 2-LCX requires a download from the 2-SDU.
The substitute 2-LCX does not contain the original map
information, which it requires to watch the integrity of the
EST2 Installation and Service Manual
4.17
System service procedures
system loop(s). See the 2-SDU Help for complete instructions on
uploading and downloading to the 2-LCX.
Table 4-14: 2-MCM/2-LCX problems
Problem
Cause(s)
NAC open
• Incorrect or missing EOL resistor
• Miswired circuit or intermittent connections
• Broken conductor
NAC shorted
• A polarized device reversed on the circuit
• A defective notification appliance
• A miswired circuit
NAC ground fault
• A pinched wire between device and electrical box
• Nicked wire insulation
SDC open
•
•
•
•
•
Miswired circuit
Defective base
Broken conductor
Device not installed on the circuit
Class A configuration: circuit open
SDC shorted and the protection relay
keeps on cycling
•
•
•
•
Miswired circuit
Defective base
Nicked insulation
Class A or B: circuit shorted
SDC ground fault
• Pinched wire
• Nicked insulation
• Class A: one or both of the two circuits has a fault
RS-232 port inoperative (2-MCM only)
• TXD and RXD wires reversed
• Improper baud rate on the peripheral device
• Off-line or improperly configured peripheral device
RS-485 port inoperative (2-MCM only)
•
•
•
•
Positive and negative wires reversed
Improper circuit termination
Crossed channel 0 and Channel 1 circuits
Improper wire type
2-LCD Display Module
Note: See the 2-LCD installation sheet for detailed drawings and
information about terminals, cables, and wiring.
4.18
EST2 Installation and Service Manual
System service procedures
Table 4-15: 2-LCD problems
Problem
Cause(s)
The Power LED is off,
no characters appear
on the display, and the
switches do not work.
• No power to the panel
• Loose or defective ribbon cable between the 2-MCM and the
2-PPS(/6A)
• Loose or defective ribbon cable between the 2-LCD and the
2-MCM
• Defective 2-LCD
• Defective 2-MCM
LED/Switch Modules
Note: See the LED/Switch module installation sheet for detailed
drawings and information about terminals, cables, and wiring.
Table 4-16: LED/switch module problems
Problem
Possible Cause(s)
The module LEDs, the
module switches, and
the 2-LCD are
inoperative.
• No power to the panel
• Loose or defective ribbon cable between the 2-MCM and the
2-PPS(/6A)
• Loose or defective ribbon cable between the 2-LCD and the 2-MCM
• Loose or defective ribbon cable between the 2-LCD and the
LED/Switch modules
• Defective 2-LCD
• Defective 2-MCM
The 2-LCD works, but
the LED/Switch
modules do not work.
• Loose or defective ribbon cable between the 2-LCD and the
LED/Switch modules
• Incorrect setting of the module address switch
• LED/switch module(s) not defined in the 2-SDU
• Defective LED/switch module
Module 1 acts like
module 2 and module
2 acts like module 1.
Module 1's address switches were set to the module 2's address.
Module 2's address switches were set to the module 1's address.
DL2 Dialer
Note: See the DL2 installation sheet for detailed drawings and
information about terminals, cables, and wiring.
Verify the following for the DL2:
Central Monitoring Station
(CMS)
•
•
•
Incoming receiver phone numbers for the CMS
Site ID (account) codes
Proper entry of all information into the dialer
EST2 Installation and Service Manual
4.19
System service procedures
To verify information:
1. Press the “*” key and enter the respective programming item
number into the dialer using the programming phone.
2. Press the “#” key.
The phone will sound out the programming item’s contents. See
the DL2 installation sheet for more information (P/N387132).
Table 4-17: DL2 Dialer trouble conditions
Problem
Possible Cause
Status LED: single amber flash
• Phone Line problems: jack miswired
• Cable between dialer and wall jack open or shorted
• Telco line problems
Status LED: double amber flash
• Disconnect switch activated
• Module not completely programmed
• Awaiting entry of 24-hour test offset in programming
mode
Dialer not communicating with the
CMS
•
•
•
•
•
Incorrect phone numbers entered in the dialer
Incorrect site ID (account) numbers entered in the dialer
2-MCM not configured for dialer
Long distance prefix (1) not entered in phone number*
Incompatible receiver
*The long distance prefix is not always required.
Garbage signal received at the
CMS
• Incorrect protocol selected at receiver
• Defective dialer module
Telephone line problems
•
•
•
•
•
Loop start line not furnished
Line wired through PBX board
Line voltage less than 10 Vdc
T-tap on phone line before RJ31X jack
Dialer not wired to seize line upon operation
CDR-3 Coder
Note: See the CDR-3 installation sheet for detailed drawings and
information about terminals, cables, and wiring.
The Coder trouble contacts close approximately 3 minutes after a
CPU failure or a loss of RS-232 communications. The temporal
output on TB1-1 and 2 delivers a continuous tone. Table 4-18 lists
the CDR-3 LEDs and the their indications.
4.20
EST2 Installation and Service Manual
System service procedures
Table 4-18: CDR-3 LED Indications
LED
Color
Description
D1
Red
Bell code relay active
D2
Red
Temporal relay active
D3
Red
Duration relay active
D5
Yellow
Module trouble
D8
Green
Power on
2-AAC Audio Controller Module
Note: See the 2-AAC installation sheet for detailed drawings and
information about terminals, cables, and wiring.
Table 4-19 lists the 2-AAC fault messages that may appear on
the 2-LCD.
Table 4-19: 2-AAC troubles
Problem Link
Possible Cause
4110: 2-AAC pre-amp Ch 1 output
• Pre-amp output wiring open, shorted, or incorrect
• Incorrect or missing EOL resistor
4111: 2-AAC pre-amp Ch 2 output
• Pre-amp output wiring open, shorted, or incorrect
• Incorrect or missing EOL resistor
4114: Channel 1 is not functioning
properly.
•
•
•
•
Incorrect output wiring
Incorrect or missing EOL resistor
Incorrect setting of dip switches S1 or S2
Incorrect programming of Ch 1
4115: Channel 2 is not functioning
properly.
•
•
•
•
Incorrect output wiring
Incorrect or missing EOL resistor
Incorrect setting of dip switches S3 or S4
Incorrect programming of Ch 2
4197: The 2-AAC is unresponsive. DS1
is not flashing
• Incorrect RS-485 wiring at TB1
• Incorrect database definition for the 2-AAC*
• Power/data cable on J2 loose
*Program the 2-AAC as an audio panel at address 41.
Auxiliary 1 input not functioning properly
• Incorrect programming for output 4119
• Auxiliary source level too low (below 1 Vrms)
• Incorrect wiring at the auxiliary input (TB4)
Auxiliary 2 input not functioning properly
• Incorrect programming of output 4121
• Auxiliary source level too low (below 1 Vrms)
• Incorrect wiring at the auxiliary input (TB4)
Incorrect EVAC and Alert tones
• Incorrect setting of switches S1 or S3
• EVAC and Alert input or output wiring switched
EST2 Installation and Service Manual
4.21
System service procedures
Table 4-19: 2-AAC troubles
Problem Link
Possible Cause
No pre-announce tone
Dip switches S2 and/or S4 not set to mode 4
The supervisory tone pulses when the
system is inactive, and does not detect
missing EOL resistors.
Dip switches S2 and/or S4 set to mode 5
Low output level
• Driving in excess of 15 amplifiers per channel
• Short on riser wiring or incorrect EOL value
2-MIC Microphone
Note: See the 2-MIC installation sheet for detailed drawings and
information about terminals, cables, and wiring.
The 2-MIC requires the 2-AAC for operation. Table 4-20 lists
the possible causes of a 4112 error on the 2-LCD.
Table 4-20: 2-MIC troubles
Problem
Cause(s)
4112: 2-MIC trouble
•
•
•
•
•
Loose or defective ribbon cable*
Loose or open microphone connection to J2
Defective 2-MIC
Paging switch pressed in standby condition
Incorrect setting of mode 6 on the 2-AAC
*Check J1 on the 2-MIC and J1 on the 2-AAC.
2-TEL Firefighter Telephone
Note: See the 2-TEL installation sheet for detailed drawings and
information about terminals, cables, and wiring.
Table 4-21: 2-TEL problems
Problem
Cause(s)
4113: 2-TEL trouble
•
•
•
•
•
•
•
Improper seating of the 2-TEL option board on the 2-AAC
Loose or defective modular cable*
Defective 2-TEL
Defective 2-TEL option board
Open telephone riser wiring
Missing or wrong value EOL resistor on telephone riser
Incorrect setting of phone supervision jumper
*Check the RJ45 connector on the 2-TEL and J2 on the 2-TEL
option board.
4.22
EST2 Installation and Service Manual
System service procedures
SIGA-AAXX amplifiers
Note: See the SIGA-AAXX installation sheet for detailed
drawings and information about terminals, cables, and wiring.
R116 (Amplifier gain adjustment)
DS3
DS4
DS5
70 V
DS1
JP2
INST012.CDR
DS2
TB6
25 V
Figure 4-10: SIGA-AA30 or SIGA-AA50 Audio Amplifier
Reading LEDs
Table 4-22: SIGA-AAXX LEDs
LED
Color
Pattern
Indication
DS1
Green
Steady
Power amp disabled (Figure 4-10)
DS2
Yellow
Steady
Backup mode)
DS3
Green
Steady
Amplifier active
DS4
Green
Flashing
Normal communications (daughterboard)
DS5
Red
Flashing
Active condition (daughterboard)
Adjusting amplifier gain
To adjust the amplifier gain:
1. Connect the amplifier to the speaker load.
2. Connect 1 Vrms, 1 kHz tone to the amplifier input.
3. Set JP2 for 25 Vrms or 70 Vrms.
4. Adjust R116 to 25 Vrms or 70 Vrms (Figure 4-10).
If you use an oscilloscope to adjust levels, set it to the following
peak-to-peak voltage levels:
•
•
25 Vrms: 71 Vpp
70 Vrms: 200 Vpp
Note: The amplifier must be connected to a load to adjust it for
the proper gain. If the actual speaker circuit cannot be used, use
Table 4-23 to construct a dummy load. The wattage rating of the
EST2 Installation and Service Manual
4.23
System service procedures
dummy load must exceed the output power rating of the
amplifier.
Caution: Do not operate the amplifier with the speaker circuit
and the dummy load connected at the same time.
Table 4-23: Amplifier Dummy Load Values
Output Power
25 Vrms Output
70 Vrms Output
30 Watts
20.8 Ω @ 30W
163.3 Ω @ 30 W
50 Watts
12.5 Ω @ 50W
98.0 Ω @ 50 W
To keep the amplifier out of trouble during the gain
adjustment:
1. Connect a 47 kΩ EOL resistor across the NAC B output.
2. Connect the dummy load to the NAC A output.
Troubleshooting the amplifiers
Table 4-24 lists some common problems on the SIGA-AAXX
amplifiers and provides some of the causes.
Table 4-24: Audio amplifier troubleshooting
Problem
Cause(s)
No output
•
•
•
•
•
•
•
Backup 1 kHz tone sounding
Incorrect or missing input wiring
Low output
• 70 Vrms speakers with 25 Vrms jumper setting
• Overloaded circuit*
• Gain setting on R116 too low
24 Vdc power or input signal missing
Incorrect wiring of output circuits
Improper seating of Daughterboard
Incorrect database definition for the amplifier
In backup mode with backup amplifier/wiring problem
Incorrectly programming of branch circuits
Inoperative branch circuit control modules
*Too many SIGA-CC1s and SIGA-CC2s will cause the
amplifier to shut down.
4.24
EST2 Installation and Service Manual
System service procedures
Remote alphanumeric annunciators
Note: See the applicable installation sheets of the remote
alphanumeric annunciators for detailed drawings and
information about terminals, cables, and wiring.
The remote alphanumeric annunciators include the following
models:
•
•
•
2-CMDN(-C)
2-SMDN(-C)
2-LSRA(-C)
Troubleshooting remote alphanumeric annunciators
Table 4-25 lists problems common to all of the remote
alphanumeric annunciators. The table also lists problems unique
to each class of annunciator.
Table 4-25: Remote alphanumeric annunciator problems
Common problems
Possible cause(s)
Point is displayed without a message
• No message for the point in the database
• Routing set to all messages
No message when change of state
initiated
Incorrect setting of the display filter
Incorrect header type but correct
message
Wrong type selected for message
LCD display’s internal database
corrupted
Download process interrupted
2-CMDN(-C) and 2-SMDN(-C)
Possible cause(s)
Display indicates a fault at the control
panel
• Mismatched baud rate
• Faulty connection
• Improper wiring
Front panel switches inoperative
• Key switch in disable position
• Improper programming of the key switch filter
2-LSRA(-C)
Possible cause(s)
Garbled characters on the display
Mismatched baud rate
Front panel switches inoperative
• Key switch in disable position
• Improper programming of the key switch filter
• Password not entered
EST2 Installation and Service Manual
4.25
System service procedures
Printers
PT-1S(-220) form printer
Note: See the Microline 182 Turbo Printer Handbook, by
Okidata, for detailed technical information about the PT-1S(220). The handbook comes with the printer. See the 2-MCM
installation sheet for wiring the form printer to the Main
Controller Module.
RSAN-PRT strip printer
Note: See the RSAN-PRT (Strip Printer) installation sheet for
detailed drawings and information about terminals, cables,
FCOM cards, jumper settings, and wiring.
Table 4-26: Strip printer problems
Problem
Possible cause
Gibberish from printer
• Printer baud rate does not match the source’s baud rate
• Printer not defined as a strip printer in the 2-SDU
• Paper jammed in the printer
Printer not working at all
•
•
•
•
Paper Out LED on
• Out of paper
• Paper Out sensor out of adjustment
Trouble LED on
• Internal printer trouble
• Trouble on a printer downline
• Trouble on a communications circuit
Light printing
Old ribbon
Paper take-up reel inoperative
Take-up reel On/Off switch (top of take-up reel frame) in the
off position
4.26
Printer out of paper
24 Vdc off
FCOM card incorrectly installed/wired
FCOM jumpers incorrectly set
EST2 Installation and Service Manual
System service procedures
Cleaning detectors
Signature series detectors require periodic cleaning to ensure
reliable performance. The Detector Cleaning Tool, with a
conventional vacuum cleaner, provides the means for cleaning
the detectors. The tool creates a high velocity vortex scrubbing
action around the detector to remove loose dust and debris.
Caution: Disable the detector before you clean it to avoid false
alarms.
To clean a Signature series detector:
1. At the 2-LCD, disable the detector to prevent false alarms.
2. Vacuum cobwebs and other loose objects from the
immediate area of the detector.
3. Install the Detector Cleaning Tool on the vacuum hose
(Figure 4-11).
4. Place the Detector Cleaning Tool over the detector head for
approximately 1 minute.
5. When the detector is clean, restore it to proper operation.
6. At the 2-LCD, check the detector’s sensitivity to verify that
it is clean.
Note: See the System Operations Manual for instructions on
checking detectors sensitivity level.
EST2 Installation and Service Manual
4.27
System service procedures
Detector
INST016.CDR
Vacuum cleaner hose
nominal 1.5 in (3.8 cm)
Detector cleaning tool
(P/N 280037)
Figure 4-11: Detector cleaning tool
4.28
EST2 Installation and Service Manual
System service procedures
Fire alarm trouble and maintenance log
Date
Time
Event
EST2 Installation and Service Manual
Initials
4.29
System service procedures
4.30
EST2 Installation and Service Manual
Chapter 5
Isolating trouble conditions
Summary
Chapter 5 discusses the procedures for isolating several trouble
conditions.
Content
Isolating device faults • 5.2
Isolating open circuits • 5.2
Isolating short circuits • 5.4
Isolating ground faults • 5.5
Signature device problems • 5.7
Signature device LEDs • 5.7
Detectors • 5.7
Modules • 5.8
Mapping errors • 5.9
EST2 Installation and Service Manual
5.1
Isolating trouble conditions
Isolating device faults
Methods for isolating Signature device faults differ according to
the problem. Still, some tools may prove helpful in many
situations. An accurate and complete wiring diagram of the
Signature data circuit (SDC) will prove useful in all
circumstances. The 2-SDU features a mapping tool, which
provides valuable information about the condition of each circuit
and its devices. You can read about the mapping tool in the
2-SDU help. Your own documentation is another useful tool.
Document your maintenance activities and make the records
available. If you know the last thing that happened to a device or
the system, you may not have to spend a lot of time isolating a
problem.
Isolating open circuits
The most common electrical problems with fire alarm systems
are open circuits, short circuits, and ground faults (Figure 5-2).
An open circuit disrupts communications on the SDC.
Consequently, the 2-LCD will report an open circuit as a
communications fault (Figure 5-1).
Messages waiting
Current Time
Fault
Message
02:49:07
MW020
@02:41
Comm. Fault
0116
SMK_RM_423
FLR_4, North Corridor
Event time
Device address
INST046.CDR
Figure 5-1: 2-LCD message for an open condition
5.2
EST2 Installation and Service Manual
Isolating trouble conditions
In a trouble-free SDC, all devices
are properly:
Wired
Installed
Programmed
Maintained
Signature
Loop
Controller
2
+
_
1
7
3
8
6
13
15
12
14
Signature module
Signature detector
4
5
9
10
11
Improper device type or serial number
An open on the SDC may indicate:
A break in the line
A missing connection
A loose connection
A programming error
A poorly seated detector
An improper device
Signature
Loop
Controller
?
+
_
1
13
15
8
12
14
9
10
11
7
No connection
Broken line
3
6
Loose connection
5
4
Poorly seated detector
Defective device
A short on the SDC may indicate:
Reversed wiring
A defective device
A faulty wire
Signature
Loop
Controller
2
+
_
1
7
3
A ground fault on the SDC may
indicate that the circuit has:
Multiple ground references
Nicked wiring
Pinched wiring
Mixed wiring types
6
5
4
INST017.CDR
Signature
Loop
Controller
2
+
_
1
Multiple
ground
references
Nicked wire
13
+ _
Reversed wires
+ _
3
7
+
8
12
14
9
10
11
13
15
12
14
_ Pinched wire
Shielded wire
8
6
_
+
4
15
Nonshielded wire
5
9
10
11
Figure 5-2: SDC problems
To isolate an open circuit:
1. Read the fault message at the 2-LCD to find out which
devices are not communicating.
2. If your company has a maintenance log, check it for any
work recently performed on or around the suspect device.
3. Go to the device and examine it for the potential problems of
an open condition.
4. Check the device's LEDs for communications activity.
EST2 Installation and Service Manual
5.3
Isolating trouble conditions
5. Check the serial number of the device against the serial
number entered in the Serial Number Log Book.
6. Check the 2-SDU for other programming information about
the device to see if it matches the one in trouble.
Isolating short circuits
The 2-LCD reports a short circuit as a device/line fault because it
may arise from a problem with the line or the device (Figure
5-3).
Messages waiting
Current Time
Fault
12:49:07
MW036
Dev./line Fault
Message
Loop 2 wiring
@12:41
0020
Event time
Fault code
INST047.CDR
Figure 5-3: 2-LCD message for a short circuit
The 2-LCD also reports communications faults for every device
on the SDC. Listen for the constant clicking of a relay on the
primary power supply, which frequently accompanies a short
circuit.
Isolating a short circuit requires more patience than isolating an
open circuit. The 2-LCD provides indications of a short circuit,
but you may have to isolate portions of the circuit to find the
cause.
To isolate a short circuit:
1. Look for a device/line fault and several communication
faults on the 2-LCD.
2. Listen for a clicking relay at the Primary Power Supply.
3. If your company has a maintenance log, check it for any
work recently performed on or around the suspect device.
4. Isolate portions of the SDC to locate the cause (Figure 5-4).
5. Investigate the problem area for potential wiring or device
faults.
5.4
EST2 Installation and Service Manual
Isolating trouble conditions
Isolate a portion of the Signature
Data Circuit (SDC).
Signature
Loop
Controller
2
+
_
1
7
3
6
4
Isolate devices electrically further if
the isolation restored
communications to the SDC.
Signature
Loop
Controller
2
+
_
1
5
Signature
Loop
Controller
2
+
_
1
3
8
12
14
9
10
11
13
15
6
8
12
14
5
9
10
11
13
15
8
12
14
9
10
11
7
3
4
INST018.CDR
15
7
4
Isolate electrically closer devices if
communications were not restored
to the first half of the SDC.
13
6
5
Figure 5-4: Typical isolation procedure
Isolating ground faults
A ground fault occurs when a device or a line has more than one
ground reference. The 2-LCD indicates a ground fault condition
for the system and communication faults for every device on the
affected SDC (Figure 5-5).
Messages waiting
Current Time
Fault
22:16:07
MW036
Ground Fault
Message
System Ground
@22:13
0005
Event time
Fault code
INST049.CDR
Figure 5-5: 2-LCD message for a ground fault
As with short circuits, the cause of a ground fault may prove
elusive. The isolation procedure for short circuits also applies to
ground faults.
EST2 Installation and Service Manual
5.5
Isolating trouble conditions
To isolate a ground fault:
1. Look for a ground fault and several communication faults on
the 2-LCD.
3. If your company has a maintenance log, check it for any
work recently performed on or around the suspect device.
4. Isolate portions of the SDC to locate the cause (Figure 5-4).
5. Investigate the problem area for potential wiring or device
faults.
5.6
EST2 Installation and Service Manual
Isolating trouble conditions
Signature device problems
Signature device LEDs
Signature series detectors and modules feature LEDs that
indicate the status of the device. Table 5-1 provides a description
for each LED color and pattern.
Table 5-1: Signature device LEDs
LED
Device status
Green flashing
Normal communications
No flashing
No communications
Red flashing
Alarm/Active(either input of dual input modules)
Red and green steady
Standalone Alarm/Active (either input of dual input modules)
Detectors
Incorrect response
A detector may exhibit an incorrect response for the following
reasons:
•
•
•
Incorrect detector address
Detector not in database
Incorrect programming of device responses
Trouble condition
A detector may cause a trouble condition for the following
reasons:
•
•
•
•
Missing or incorrectly wired
Not in the database
Ground fault
Internal fault
Nuisance alarms
A detector may cause nuisance alarms or active conditions under
the following conditions:
•
•
•
Extremely high airflow*
High ambient smoke
Defective detector
*High airflow affects ionization detectors.
EST2 Installation and Service Manual
5.7
Isolating trouble conditions
Modules
Incorrect response
A module may exhibit an incorrect response for the following
reasons:
•
•
•
•
•
Wrong location
Incorrect address
Missing from the database
Wrong personality code
Ground fault on the SDC or negative side of the input/output
Incorrect module responses may also originate from issues
specific to personality codes. For example, modules with:
•
Personality codes 1, 2, 3, 4, 8, 13, 14, 16, and 18 will not
accept a personality code other than zero (0) for an unused
module address.
•
Personality code 8 will cause problems for the wrong setting
of setting of the jumper on dual channel modules.
•
Personality codes 13, 14, 18, 20, and 21 will have problems
if 24 Vdc for smoke power low or missing.
•
Personality codes 1, 2, 3, and 4 will have problems if inputs
1 and 2 are swapped.
•
Personality code 7 will fail if signal sources 1 and 2 are
swapped.
Trouble condition
A module may cause a trouble condition on the host controller
under the following circumstances
•
•
•
•
•
•
Wrong location
Incorrect address
Missing from the database
Ground fault on the SDC or negative side of the input/output
Output circuit open, short, or incorrectly wired
Polarized device installed in reverse
Note: An incorrect or missing EOL will also cause modules with
personality codes 1, 2, 3, 4, 7, 13, 14, 16, 18, 20, and 21 to
indicate a trouble condition to the host controller.
Nuisance alarm
A module may cause nuisance alarms or active conditions if the:
•
•
•
5.8
Initiating device has a short circuit
Initiating device was installed wrong
EOL resistor value is too low
EST2 Installation and Service Manual
Isolating trouble conditions
Mapping errors
Several things may cause mapping errors. Figure 5-6 shows how
the 2-LCD displays a mapping error.
Messages waiting
Current Time
Device
01:04:07
MW012
Dev./line Fault
Loop 1 Device
Problem
Mapping Error
Fault
@01:04
0016
Event time
Fault code
INST050.CDR
Figure 5-6: 2-LCD message for a mapping error
To isolate a mapping error:
1. Read the mapping error message on the 2-LCD to determine
which loop and device has the mapping error.
2. Check the maintenance log for any work recently performed
on the device or panel.
3. Go to the suspect device and examine it for the potential
problems of a mapping error.
4. Check the device's LEDs for communications activity.
5. Check the serial number of the device against the serial
number entered in the Serial Number Log Book.
6. Check the 2-SDU for other programming information about
the device to see if it matches the one in trouble.
EST2 Installation and Service Manual
5.9
Isolating trouble conditions
Table 5-2: Mapping errors
Problem
Cause(s)
Mapping error
•
•
•
•
•
•
Conflicts between actual and expected data*
Loose or defective ribbon cable**
Device ID entered incorrectly into database
More than 63 T-taps on an SDC
Excessive circuit resistance
Excessive circuit capacitance
*The 2-MCM's internal map does not reflect the devices actually
installed on the SDC (serial number, personality code, or device
type).
**Check J5 on the 2-MCM and J3 on the 2-LCX.
System continues to re-map
data circuit
• An intermittent connection*
• A defective device or detector base
*The intermittent connection will cause one or more devices to
loose then re-establish communication with the 2-LCX.
Device type error
5.10
A discrepancy between the device type recorded on the
2-MCM or 2-LCX internal map and the device installed on the
SDC
EST2 Installation and Service Manual
Appendix A
Compatibility listings
Summary
Appendix B presents compatibility lists for the EST2 system.
Content
Underwriters Laboratories, Incorporated (ULI) • A.2
Controllers and initiating devices • A.2
Notification appliances • A.3
System accessories • A.7
Underwriters Laboratories of Canada (ULC) • A.9
Controllers and initiating devices • A.9
Notification appliances • A.10
System accessories • A.15
Circuit compatibility listings • A.16
Circuit compatibility matrix • A.16
Circuit specifications • A.17
Recommended cable manufacturers • A.18
EST2 Installation and Service Manual
A.1
Compatibility listings
Underwriters Laboratories, Incorporated (ULI)
Controllers and initiating devices
Loop controllers include the 2-MCM and the 2-LCX.
Table A-1: ULI panel compatibility for loop controllers and Signature Series devices
Model
Description
Devices (1)
SIGA-IS (2)
Ionization smoke detector
96
SIGA-PS (2)
Photoelectric smoke detector
96
SIGA-PHS (2)
Combination photoelectric smoke and fixed temperature
detector
96
SIGA-IPHS (2)
Combination ionization, photoelectric smoke, and fixed
temperature detector
96
SIGA-HFS (2)
Fixed temperature detector
96
SIGA-HFS (2)
Combination fixed temperature and rate-of-rise heat detector
96
SIGA-IM
Isolator module
96
SIGA-AA30
Audio amplifier, 30 Watt
47
SIGA-AA50
Audio amplifier, 50 Watt
47
SIGA-APS
Auxiliary power supply
47
SIGA-CC1
Single input signal module
94
SIGA-CC2
Dual input signal module
47
SIGA-CT1
Single input module
94
SIGA-CT2
Dual input module
47
SIGA-CR
Control relay module
94
SIGA-CRR
Control reversing relay module
94
SIGA-MM1
Monitor module
94
SIGA-WTM
Waterflow/tamper module
47
SIGA-UM
Universal module
47
SIGA-MDM
Signature digital message module
47
Notes
(1) Maximum number of devices per Signature data circuit (SDC)
(2) Includes SB(4), RB(4), IB(4), and AB(4) detector bases
A.2
EST2 Installation and Service Manual
Compatibility listings
Notification appliances
Table A-2: ULI compatible notification appliances
Model
Description
202-3A-T
Strobe, self-synchronized
202-3A-TW
Strobe, self-synchronized
202-5A-T
Strobe, self-synchronized
202-5A-TW
Strobe, self-synchronized
202-6A-T
Strobe, self-synchronized
202-6A-TW
Strobe, self-synchronized
202-7A-T
Strobe, self-synchronized
202-7A-TW
Strobe, self-synchronized
202-8A-T
Strobe, self-synchronized
202-8A-TW
Strobe, self-synchronized
323D-10AW
AdaptaBel, single-stroke
323D-10AW-R
AdaptaBel, single-stroke
329D-AW
Chime with diode
403-3A-R
Bell/strobe Plate
403-5A-R
Bell/strobe Plate
403-7A-R
Bell/strobe Plate
403-8A-R
Bell/strobe Plate
405-3A-R
Strobe, self-synchronized
405-5A-R
Strobe, self-synchronized
405-7A-R
Strobe, self-synchronized
405-8A-R
Strobe, self-synchronized
405-6A-T
Strobe, self-synchronized
405-6A-TW
Strobe, self-synchronized
405-7A-T
Strobe, self-synchronized
405-7A-TW
Strobe, self-synchronized
405-8A-T
Strobe, self-synchronized
405-8A-TW
Strobe, self-synchronized
439D-6AW
Bell, vibrating
439D-6AW-R
Bell, vibrating
439D-10AW
Bell, vibrating
439D-10AW-R
Bell, vibrating
EST2 Installation and Service Manual
A.3
Compatibility listings
Table A-2: ULI compatible notification appliances
A.4
Model
Description
439DEX-6AW
Bell, explosion-proof
439DEX-8AW
Bell, explosion-proof
439DEX-10AW
Bell, explosion-proof
5520D-AW
Horn/siren, duotronic, diode-polarized
5522D-AW
Horn, explosion-proof duotronic
5523D-AW
Siren, explosion-proof duotronic
5524D-AW
Horn, explosion-proof duotronic
5525D-AW
Siren, explosion-proof duotronic
5530BD-AW
Signal, electronic, multi-tone
5533BD-AW
Signal, electronic, multi-tone, explosion-proof
5534BD-AW
Signal, electronic, multi-tone, explosion-proof
682-1A-HR
Mini-horn
682-1A-HW
Mini-horn
692-5A-HSR
Mini-horn/strobe
692-5A-HSW
Mini-horn/strobe
692-7A-HSR
Mini-horn/strobe
692-7A-HSW
Mini-horn/strobe
692-8A-HSR
Mini-horn/strobe
692-8A-HSW
Mini-horn/strobe
757-1A-C
Chime
757-1A-CW
Chime, white
757-1A-R25
Speaker, re-entrant type
757-1A-R25W
Speaker, re-entrant type
757-1A-R70
Speaker, re-entrant type
757-1A-R70W
Speaker, re-entrant type
757-1A-S25
Speaker, cone-type
757-1A-S25W
Speaker, cone-type
757-1A-S70
Speaker, cone-type
757-1A-S70W
Speaker, cone-type
757-1A-T
Horn, temporal, self-synchronized
757-1A-TW
Horn, temporal, self-synchronized
757-3A-CS
Chime/strobe
EST2 Installation and Service Manual
Compatibility listings
Table A-2: ULI compatible notification appliances
Model
Description
757-3A-CSW
Chime/strobe
757-3A-RS25
Speaker/strobe, re-entrant type
757-3A-RS25W
Speaker/strobe, re-entrant type
757-3A-RS70
Speaker/strobe, re-entrant type
757-3A-RS70W
Speaker/strobe, re-entrant type
757-3A-SS25
Speaker/strobe, cone-type
757-3A-SS25W
Speaker/strobe, cone-type
757-3A-SS70
Speaker/strobe, cone-type
757-3A-SS70W
Speaker/strobe, cone-type
757-3A-T
Horn/strobe, temporal
757-3A-TW
Horn/strobe, temporal
757-5A-CS
Chime/strobe
757-5A-CSW
Chime/strobe
757-5A-SS25
Speaker/strobe, cone-type
757-5A-SS25W
Speaker/strobe, cone-type
757-5A-SS70
Speaker/strobe, cone-type
757-5A-SS70W
Speaker/strobe, cone-type
757-5A-T
Horn, temporal/strobe
757-5A-TW
Horn, temporal/strobe
757-7A-CS
Chime/strobe
757-7A-CSW
Chime/strobe
757-7A-RS25
Speaker/strobe, re-entrant type
757-7A-RS25W
Speaker/strobe, re-entrant type
757-7A-RS70
Speaker/strobe, re-entrant type
757-7A-RS70W
Speaker/strobe, re-entrant type
757-7A-SS25
Speaker/strobe, cone-type
757-7A-SS25W
Speaker/strobe, cone-type
757-7A-SS70
Speaker/strobe, cone-type
757-7A-SS70W
Speaker/strobe, cone-type
757-7A-T
Horn/strobe, temporal
757-7A-TW
Horn/strobe, temporal
757-8A-CS
Chime/strobe
EST2 Installation and Service Manual
A.5
Compatibility listings
Table A-2: ULI compatible notification appliances
A.6
Model
Description
757-8A-CSW
Chime/strobe
757-8A-RS25
Speaker/strobe, re-entrant type
757-8A-RS25W
Speaker/strobe, re-entrant type
757-8A-RS70
Speaker/strobe, re-entrant type
757-8A-RS70W
Speaker/strobe, re-entrant type
757-8A-SS25
Speaker/strobe, cone-type
757-8A-SS25W
Speaker/strobe, cone-type
757-8A-SS70
Speaker/strobe, cone-type
757-8A-SS70W
Speaker/strobe, cone-type
757-8A-T
Horn/strobe, temporal
757-8A-TW
Horn/strobe, temporal
889D-AW
Horn, explosion-proof, diode-polarized
890RDA
Lamp station, supervised
890RDB-G5
Lamp station, supervised
890WDA-G5
Lamp station, supervised
890WDB-G5
Lamp station, supervised
964-1A-4RR
Cone speaker
964-1A-4RW
Cone speaker
964-1A-8RW
Cone speaker
964-1A-8SW
Cone speaker
964-5A-4RR
Cone speaker
964-5A-4RW
Cone speaker
964-5A-8RW
Cone speaker
964-5A-8SW
Cone speaker
964-7A-4RR
Cone speaker
964-7A-4RW
Cone speaker
964-7A-8RW
Cone speaker
964-7A-8SW
Cone speaker
964-8A-4RR
Cone speaker
964-8A-4RW
Cone speaker
964-8A-8RW
Cone speaker
964-8A-8SW
Cone speaker
EST2 Installation and Service Manual
Compatibility listings
Table A-2: ULI compatible notification appliances
Model
Description
965-1A-4RR
Speaker/strobe
965-1A-4RW
Speaker/strobe
965-1A-8RW
Speaker/strobe
965-1A-8SW
Speaker/strobe
965-5A-4RR
Speaker/strobe
965-5A-4RW
Speaker/strobe
965-5A-8RW
Speaker/strobe
965-5A-8SW
Speaker/strobe
965-7A-4RR
Speaker/strobe
965-7A-4RW
Speaker/strobe
965-7A-8RW
Speaker/strobe
965-7A-8SW
Speaker/strobe
965-8A-4RR
Speaker/strobe
965-8A-4RW
Speaker/strobe
965-8A-8RW
Speaker/strobe
965-8A-8SW
Speaker/strobe
97DEXC-GW
Strobe, explosion-proof
System accessories
Table A-3: ULI compatible accessories
Model
Description
MR-101/C
1-SPDT relay with LED in metal enclosure
MR-101/T
1-SPDT relay with LED in track mounting
MR-104/C
4-SPDT relay with LEDs in metal enclosure
MR-104/T
4-SPDT relay with LEDs in track mounting
MR-201/C
1-DPDT relay with LED in metal enclosure
MR-201/T
1-DPDT relay with LED in track mounting
MR-204/C
4-DPDT relay with LED in metal enclosure
MR-204/T
4-DPDT relay with LED in track mounting
PAM-1
1-SPDT relay with LED in adhesive tape mounting
EST2 Installation and Service Manual
A.7
Compatibility listings
Table A-4: ULI Compatible Receivers for the DL2 Dialer Module
Model
Manufacturer
Location
685
Alarm Device Manufacturing Co., Div. Of
Pittway Corp.
Syosett, NY 11791
CP220
Fire Burglary Instruments, Div. Of Pittway Corp.
Syosett, NY 11791
Quick Alert
Osborne – Hoffman
Point Pleasant Beach, NJ 08742
D6500
Radionics Inc.
Salinas, CA 93912
9000
Silent Knight Security Systems, Div. Of
Willknight Inc.
Maple Grove, MN 55369
Table A-5: 2-Wire Smoke Detector Compatibility
Manufacture: Edwards Systems Technology
Zone module
number
UL smoke
detector
compatibility ID
Electrical data
Standby
voltage at
detector
UM with 2-SMK
0.0
17.85 26.4 Vdc
Ripple
voltage
400 mV
Maximum standby
detector load
EOL
Style B
Style D
1.0 mA @
22.3 Vdc
1.0 mA @
22.3 Vdc
15KΩ
Table A-6: 2-Wire Smoke Detectors and Bases
Model
Type
6249B
Ionization
6250B
Ionization
6269B
Photoelectric
6270B
Photoelectric
6269B-003
Photo/Heat
6270B-003
Photo/Heat
6264B-001
Ionization
Base
UL Identifier
Max. qty/zone
001
50
001/001
50
001
45
001/001
45
001
45
6251B-001A
001/001
45
6251B-001A
001/001
50
001/001
45
6251B-001A
6251B-001A
[6260A1-100]
6266B-001
Photoelectric
6251B-001A
[6260A1-100]
A.8
EST2 Installation and Service Manual
Compatibility listings
Underwriters Laboratories of Canada (ULC)
Controllers and initiating devices
Loop controllers include the 2-MCM and the 2-LCX.
Table A-7: ULC panel compatibility for loop controllers and Signature Series devices
Model
Description
Devices (1)
SIGA-IS (2)
Ionization smoke detector
96
SIGA-PS (2)
Photoelectric smoke detector
96
SIGA-PHS (2)
Combination photoelectric smoke and fixed temperature
detector
96
SIGA-IPHS (2)
Combination ionization, photoelectric smoke, and fixed
temperature detector
96
SIGA-HFS (2)
Fixed temperature detector
96
SIGA-HFS (2)
Combination fixed temperature and rate-of-rise heat detector
96
SIGA-IM
Isolator module
96
SIGA-AA30
Audio amplifier, 30 Watt
47
SIGA-AA50
Audio amplifier, 50 Watt
47
SIGA-APS
Auxiliary power supply
47
SIGA-CC1
Single input signal module
94
SIGA-CC2
Dual input signal module
47
SIGA-CT1
Single input module
94
SIGA-CT2
Dual input module
47
SIGA-CR
Control relay module
94
SIGA-CRR
Control reversing relay module
94
SIGA-MM1
Monitor module
94
SIGA-WTM
Waterflow/tamper module
47
SIGA-UM
Universal module
47
SIGA-MDM
Signature digital message module
47
Notes
(1) Maximum number of devices per Signature data circuit (SDC)
(2) Includes SB(4), RB(4), IB(4), and AB(4) detector bases
EST2 Installation and Service Manual
A.9
Compatibility listings
Notification appliances
Table A-8: ULC compatible notification appliances
A.10
Model
Description
128D-AWC
Mini-horn
128D-AWCR
Mini-horn
200E-CULC-24
Strobe
200E-RULC-24
Strobe
200E1-CULC-24
Strobe
200E1-RULC-24
Strobe
202-3A-T
Strobe, self-synchronized
202-3A-TW
Strobe, self-synchronized
202-5A-T
Strobe, self-synchronized
202-5A-TW
Strobe, self-synchronized
202-6A-T
Strobe, self-synchronized
202-6A-TW
Strobe, self-synchronized
202-7A-T
Strobe, self-synchronized
202-7A-TW
Strobe, self-synchronized
202-8A-T
Strobe, self-synchronized
202-8A-TW
Strobe, self-synchronized
323D-10AW
AdaptaBel, single-stroke
323D-10AW-R
AdaptaBel, single-stroke
329D-AW
Chime with diode
333D-4G1
AdaptaBel, single-stroke bell, 4 inch
333D-6G1
AdaptaBel, single-stroke bell, 6 inch
333D-10G1
AdaptaBel, single-stroke bell, 10 inch
339D-G1
Chime
403-3A-R
Bell/strobe Plate
403-5A-R
Bell/strobe Plate
403-7A-R
Bell/strobe Plate
403-8A-R
Bell/strobe Plate
405-3A-R
Strobe, self-synchronized
405-5A-R
Strobe, self-synchronized
405-7A-R
Strobe, self-synchronized
405-8A-R
Strobe, self-synchronized
EST2 Installation and Service Manual
Compatibility listings
Table A-8: ULC compatible notification appliances
Model
Description
405-6A-T
Strobe, self-synchronized
405-6A-TW
Strobe, self-synchronized
405-7A-T
Strobe, self-synchronized
405-7A-TW
Strobe, self-synchronized
405-8A-T
Strobe, self-synchronized
405-8A-TW
Strobe, self-synchronized
439D-6AW
Bell, vibrating
439D-6AW-R
Bell, vibrating
439D-10AW
Bell, vibrating
439D-10AW-R
Bell, vibrating
439DEX-6AW
Bell, explosion-proof
439DEX-8AW
Bell, explosion-proof
439DEX-10AW
Bell, explosion-proof
5520D-AW
Horn/siren, duotronic, diode-polarized
5522D-AW
Horn, explosion-proof duotronic
5523D-AW
Siren, explosion-proof duotronic
5524D-AW
Horn, explosion-proof duotronic
5525D-AW
Siren, explosion-proof duotronic
5530BD-AW
Signal, electronic, multi-tone
5533BD-AW
Signal, electronic, multi-tone, explosion-proof
5534BD-AW
Signal, electronic, multi-tone, explosion-proof
682-1A-HR
Mini-horn
682-1A-HW
Mini-horn
692-5A-HSR
Mini-horn/strobe
692-5A-HSW
Mini-horn/strobe
692-7A-HSR
Mini-horn/strobe
692-7A-HSW
Mini-horn/strobe
692-8A-HSR
Mini-horn/strobe
692-8A-HSW
Mini-horn/strobe
732-7A-006
Strobe/chime
732-7A-106
Strobe/chime
732-8A-006
Strobe/chime
EST2 Installation and Service Manual
A.11
Compatibility listings
Table A-8: ULC compatible notification appliances
A.12
Model
Description
732-8A-106
Strobe/chime
757-1A-C
Chime
757-1A-CW
Chime
757-1A-R25
Speaker, re-entrant type
757-1A-R25W
Speaker, re-entrant type
757-1A-R70
Speaker, re-entrant type
757-1A-R70W
Speaker, re-entrant type
757-1A-S25
Speaker, cone-type
757-1A-S25W
Speaker, cone-type
757-1A-S70
Speaker, cone-type
757-1A-S70W
Speaker, cone-type
757-1A-T
Horn, temporal, self-synchronized
757-1A-TW
Horn, temporal, self-synchronized
757-3A-CS
Chime/strobe
757-3A-CSW
Chime/strobe
757-3A-RS25
Speaker/strobe, re-entrant type
757-3A-RS25W
Speaker/strobe, re-entrant type
757-3A-RS70
Speaker/strobe, re-entrant type
757-3A-RS70W
Speaker/strobe, re-entrant type
757-3A-SS25
Speaker/strobe, cone-type
757-3A-SS25W
Speaker/strobe, cone-type
757-3A-SS70
Speaker/strobe, cone-type
757-3A-SS70W
Speaker/strobe, cone-type
757-3A-T
Horn/strobe, temporal
757-3A-TW
Horn/strobe, temporal
757-5A-CS
Chime/strobe
757-5A-CSW
Chime/strobe
757-5A-SS25
Speaker/strobe, cone-type
757-5A-SS25W
Speaker/strobe, cone-type
757-5A-SS70
Speaker/strobe, cone-type
757-5A-SS70W
Speaker/strobe, cone-type
757-5A-T
Horn, temporal/strobe
EST2 Installation and Service Manual
Compatibility listings
Table A-8: ULC compatible notification appliances
Model
Description
757-5A-TW
Horn, temporal/strobe
757-7A-CS
Chime/strobe
757-7A-CSW
Chime/strobe
757-7A-RS25
Speaker/strobe, re-entrant type
757-7A-RS25W
Speaker/strobe, re-entrant type
757-7A-RS70
Speaker/strobe, re-entrant type
757-7A-RS70W
Speaker/strobe, re-entrant type
757-7A-SS25
Speaker/strobe, cone-type
757-7A-SS25W
Speaker/strobe, cone-type
757-7A-SS70
Speaker/strobe, cone-type
757-7A-SS70W
Speaker/strobe, cone-type
757-7A-T
Horn/strobe, temporal
757-7A-TW
Horn/strobe, temporal
757-8A-CS
Chime/strobe
757-8A-CSW
Chime/strobe
757-8A-RS25
Speaker/strobe, re-entrant type
757-8A-RS25W
Speaker/strobe, re-entrant type
757-8A-RS70
Speaker/strobe, re-entrant type
757-8A-RS70W
Speaker/strobe, re-entrant type
757-8A-SS25
Speaker/strobe, cone-type
757-8A-SS25W
Speaker/strobe, cone-type
757-8A-SS70
Speaker/strobe, cone-type
757-8A-SS70W
Speaker/strobe, cone-type
757-8A-T
Horn/strobe, temporal
757-8A-TW
Horn/strobe, temporal
889D-AW
Horn, explosion-proof, diode-polarized
890RDA
Lamp station, supervised
890RDB-G5
Lamp station, supervised
890WDA-G5
Lamp station, supervised
890WDB-G5
Lamp station, supervised
964-1A-4RR
Cone speaker
964-1A-4RW
Cone speaker
EST2 Installation and Service Manual
A.13
Compatibility listings
Table A-8: ULC compatible notification appliances
A.14
Model
Description
964-1A-8RW
Cone speaker
964-1A-8SW
Cone speaker
964-5A-4RR
Cone speaker
964-5A-4RW
Cone speaker
964-5A-8RW
Cone speaker
964-5A-8SW
Cone speaker
964-7A-4RR
Cone speaker
964-7A-4RW
Cone speaker
964-7A-8RW
Cone speaker
964-7A-8SW
Cone speaker
964-8A-4RR
Cone speaker
964-8A-4RW
Cone speaker
964-8A-8RW
Cone speaker
964-8A-8SW
Cone speaker
965-1A-4RR
Speaker/strobe
965-1A-4RW
Speaker/strobe
965-1A-8RW
Speaker/strobe
965-1A-8SW
Speaker/strobe
965-5A-4RR
Speaker/strobe
965-5A-4RW
Speaker/strobe
965-5A-8RW
Speaker/strobe
965-5A-8SW
Speaker/strobe
965-7A-4RR
Speaker/strobe
965-7A-4RW
Speaker/strobe
965-7A-8RW
Speaker/strobe
965-7A-8SW
Speaker/strobe
965-8A-4RR
Speaker/strobe
965-8A-4RW
Speaker/strobe
965-8A-8RW
Speaker/strobe
965-8A-8SW
Speaker/strobe
97DEXC-GW
Strobe, explosion-proof
EST2 Installation and Service Manual
Compatibility listings
Table A-8: ULC compatible notification appliances
Model
Description
MBG6-24-RULC
Bell, motor
MBG10-24-RULC
Bell, motor
MBSG6-24WHFR-ULC
Strobe/bell, motor
MBSG10-24WHFR-ULC
Strobe/bell, motor
System accessories
Table A-9: ULC Compatible Accessories
Model
Description
MR-101/C
1-SPDT relay with LED in metal enclosure
MR-101/T
1-SPDT relay with LED in track mounting
MR-104/C
4-SPDT relay with LEDs in metal enclosure
MR-104/T
4-SPDT relay with LEDs in track mounting
MR-201/C
1-DPDT relay with LED in metal enclosure
MR-201/T
1-DPDT relay with LED in track mounting
MR-204/C
4-DPDT relay with LED in metal enclosure
MR-204/T
4-DPDT relay with LED in track mounting
PAM-1
1-SPDT relay with LED in adhesive tape mounting
Table A-10: ULC Compatible Receivers for the DL2 Dialer Module
Model
Manufacturer
Location
685
Alarm Device Manufacturing Co., Div. Of
Pittway Corp.
Syosett, NY 11791
CP220
Fire Burglary Instruments, Div. of Pittway Corp.
Syosett, NY 11791
Quick Alert
Osborne - Hoffman
Point Pleasant Beach, NJ 08742
D6500
Radionics Inc.
Salinas, CA 93912
9000
Silent Knight Security Systems, Div. of
Willknight Inc.
Maple Grove, MN 55369
EST2 Installation and Service Manual
A.15
Compatibility listings
Circuit compatibility listings
Circuit compatibility matrix
Figure A-1 lists the restrictions for circuits that occupy the same
conduit. Check local codes for additional restrictions.
co
m
2
N
et
w
or
k
1
(R
S48
5)
Top note indicates
this circuit.
INST108.CDR
Bottom note indicates
this circuit.
24 Vdc power-limited
1
Network audio, digitized
2
Network com (RS-485)
2
25 Vrms audio
1
70 Vrms audio
1
Signature data circuit
1
Addressable analog "ZAS"
2
Traditional 2-wire IDC
1
R-232 peripheral data
2
Telephone
3
Fiber optic
1
1
1
1
1
1
1
1
1
1
1
1
1
2
2
2
2
1
2
1
2
2
2
2
2
2
2
2
2
2
3
1
1
2
2
2
2
1
2
1
2
2
2
2
2
2
2
2
2
2
3
2
1
1
2
2
2
2
1
2
1
2
3
2
1
1
2
2
2
2
2
2
2
2
3
2
1
2
2
2
2
1
2
1
2
3
1
2
2
2
2
2
2
2
2
2
3
2
1
2
2
2
2
1
2
1
2
3
1
1
1
1
1
1
1
1
1
1
1
1
1
2
2
2
2
1
2
1
2
2
2
2
2
2
2
2
2
2
3
1
1
2
2
2
2
1
2
1
2
3
2
1
1
1
1
1
1
1
1
1
1
1
1
1
2
2
2
2
1
2
1
2
2
2
2
2
2
2
2
2
2
3
1
1
2
2
3
3
1
2
1
2
3
2
1
3
3
3
3
3
3
3
3
3
3
3
1
2
2
2
1
1
2
1
2
3
1
1
1
1
1
1
1
1
1
1
1
1
Nonpower-limited circuits
AC main
1
25 Vrms audio
2
70 Vrms audio
2
Key
1
2
3
1
1
No restriction
2
Twisted pair
3
Twisted pair, Shielded
2
2
2
2
2
2
Caution: Do not run power-limited wiring in a conduit
with nonpower-limited wiring. Do not confuse powerlimited audio circuits with nonpower-limited audio
circuits.
Do not run together.
Figure A-1: Circuit compatibility matrix
A.16
EST2 Installation and Service Manual
Compatibility listings
Circuit specifications
Table A-11 lists the specifications for each type of powerlimited circuit in Figure A-1. Table A-12 lists the specifications
for each type of nonpower-limited circuit in Figure A-1.
Table A-11: Specifications for power-limited circuits
Circuit
Specifications(s)
24 Vdc
Size conductors per acceptable voltage drop.
Network audio, digitized
No T-taps
Maximum circuit resistance: 90 Ω
Maximum circuit capacitance: 0.3 µF
Network com (RS-485)
No T-taps
Maximum circuit resistance: 70 Ω
Maximum circuit capacitance: 0.07 µF
25 Vrms audio
Size conductors per acceptable voltage drop.
70 Vrms audio
Size conductors per acceptable voltage drop.
Signature data
No T-taps
Maximum circuit resistance: 76 Ω
Maximum circuit capacitance: 0.5 µF
Addressable analog “ZAS”
Maximum circuit resistance with RZB: 36 Ω
Maximum circuit resistance without RZB: 50 Ω
Maximum circuit capacitance: 0.2 µF
Traditional 2-wire IDC
Maximum circuit resistance: 100 Ω
RS-232 peripheral data
Maximum length: 50 ft (15.2 m) in the same room as the main
controller module if not connected to a modem
Telephone
Maximum distance: 4,000 ft (1,200 m) #18 AWG (0.75 mm )
Fiber optic cable
Jacket material must be rated for application.
2
Table A-12: Specifications for nonpower-limited circuits
Circuit
Specifications(s)
AC main
230 Vac, 20 A max.
25 Vrms audio
Size conductors per acceptable voltage drop.
70 Vrms audio
Size conductors per acceptable voltage drop.
EST2 Installation and Service Manual
A.17
Compatibility listings
Recommended cable manufacturers
Use the cable manufacturers listed in Table A-13.
Table A-13: Recommended cable manufacturers
Manufacturer
Address
Telephone/Fax
Atlas Wire & Cable Corp.
133 S. Van Norman Road
Montebello, CA 90640
(213) 723-2401
West Penn Wire Corp.
2833 West Chestnut Street
P.O. Box 762
Washington, PA 15301
(412) 222-7060
Belden Wire & Cable Corp.
P.O. Box 1980
Richmond, IN 47375
(317) 983-5200
BSCC
233 Florence Street
Leominster, MA 01453
(508) 537-9138
(508) 537-8392
Remee Product, Inc.
186 North Main Street
Florida, NY 10921
Not listed
A.18
EST2 Installation and Service Manual
Appendix B
Calculations
Summary
Appendix B provides worksheets for calculating system
parameters, such as wire distance, and battery capacity.
Content
Calculating wire lengths for Signature data circuits • B.2
Determining the maximum allowable branch length • B.2
Determining the total loop length • B.8
Calculating wire lengths for 24 Vdc NACs • B.10
Calculating wire lengths for 25 or 70 Vrms NACs • B.12
Calculating wire lengths for addressable analog circuits • B.14
Calculating ampere-hour battery requirements • B.15
EST2 Installation and Service Manual
B.1
Calculations
Calculating wire lengths for Signature data circuits
Circuit resistance and capacitance determines the maximum
length of a Signature data circuit. Circuit resistance affects the
wire length of the longest circuit branch. Circuit capacitance
affects the total amount of wire that can be used on the circuit.
Notes
The design of the Signature data circuit must not exceed either
of the two measurements.
There are no restrictions placed on the wiring used for the
Signature data circuit. Longer wire runs may be obtained using
standard (non-twisted, non-shielded) wire pairs.
Determining the maximum allowable branch
length
The maximum branch length is the wire distance measured from
the Signature controller module to the last device on the longest
circuit path as shown below.
Signature
Controller Module
5
1
6
10
12
[WIRECALC2.CDR]
Several factors influence the maximum allowable branch length:
•
Wire gauge and type
•
Number of Signature detectors and modules installed on the
branch
•
Number of SIGA-UMs configured for 2-wire smoke
detectors installed on the branch
Table B-1 through Table B-4 provide the maximum allowable
branch length for any detector, module, SIGA-UM, and wire
gauge combination. Using the wire distances specified in the
tables ensures that the circuit does not exceed the maximum
circuit resistance of the Signature data circuit.
B.2
EST2 Installation and Service Manual
Calculations
Note: To calculate the wire distance with respect to circuit
resistance, the tables assume that the circuit is end-loaded (all
devices are clustered more towards the end of the circuit) and
the circuit uses standard, non-shielded wire.
To determine the maximum allowable length of a Signature
data circuit branch:
1. Identify the device located farthest from the Signature
controller.
2. Determine the number of Signature detectors, modules, and
SIGA-UMs configured for 2-wire smokes that lie on the
same conductive path between the device identified in step 1
and the Signature controller.
3. Calculate the number of detector and module addresses.
Some Signature modules require two addresses.
4. Determine the size of the wire used to construct the circuit.
5. Find the maximum allowable wire distance for the longest
branch in the lookup tables as follows:
If no SIGA-UMs are installed, use Table B-1.
If 1–5 SIGA-UMs are installed, use Table B-2.
If 6–10 SIGA-UMs are installed, use Table B-3.
If 11–15 SIGA-UMs are installed, use Table B-4.
EST2 Installation and Service Manual
B.3
Calculations
Table B-1: Maximum branch length without SIGA-UMs configured for 2-wire smokes
Signature
detector
addresses
Signature
module
addresses
Maximum allowable wire distance
using non-twisted, non-shielded wire pairs
18 AWG
ft
16 AWG
m
ft
14 AWG
m
ft
m
1–25
0
7437
2267
11815
3601
13157
4010
26–50
0
7038
2145
11180
3408
13157
4010
51–75
0
6638
2023
10545
3214
13157
4010
76–96
0
6302
1921
10722
3268
13157
4010
0
1–25
7267
2215
11544
3519
13157
4010
1–25
1–25
6867
2093
10909
3325
13157
4010
26–50
1–25
6467
1971
10275
3132
13157
4010
51–75
1–25
6068
1849
9640
2938
13157
4010
76–96
1–25
5732
1747
9106
2776
13157
4010
0
26–50
6697
2041
10639
3243
13157
4010
1–25
26–50
6297
1919
10004
3049
13157
4010
26–50
26–50
5897
1798
9369
2856
13157
4010
51–75
26–50
5498
1676
8734
2662
13157
4010
76–96
26–50
5162
1593
8200
2499
13043
3975
0
51–75
5906
1800
9383
2860
13157
4010
1–25
51–75
5250
1600
8340
2542
13157
4010
26–50
51–75
4633
1412
7360
2243
11707
3568
51–75
51–75
4051
1235
6435
1961
10235
3120
76–96
51–75
3585
1093
5695
1736
9058
2761
0
76–94
4323
1318
6867
2093
10723
3329
1–25
76–94
3774
1150
5995
1827
9536
2906
26–50
76–94
3249
990
5162
1573
8210
2303
51–75
76–94
2747
837
4364
1330
6940
2115
76–96
76–94
2340
713
3717
1133
5913
1802
B.4
EST2 Installation and Service Manual
Calculations
Table B-2: Maximum branch length with 1–5 SIGA-UMs configured for 2-wire smokes
Signature
detector
addresses
Signature
module
addresses
Maximum allowable wire distance
using non-twisted, non-shielded wire pairs
18 AWG
ft
16 AWG
14 AWG
m
ft
m
ft
m
1–25
0
6778
2066
10768
3282
13157
4010
26–50
0
6131
1869
9741
2969
13157
4010
51–75
0
5501
1677
8739
2664
13157
4010
76–96
0
4982
1519
7915
2413
12589
3837
0
1–25
5353
1632
8504
2592
13157
4010
1–25
1–25
4720
1439
7498
2286
11926
3635
26–50
1–25
4100
1250
6513
1985
10359
3157
51–75
1–25
3491
1064
5546
1691
8821
2689
76–96
1–25
2988
911
4748
1447
7551
2302
0
26–50
3776
1151
5999
1829
9542
2908
1–25
26–50
3153
961
5009
1527
7966
2428
26–50
26–50
2539
774
4034
1230
6416
1956
51–75
26–50
1935
590
3075
937
4890
1491
76–96
26–50
1435
437
2280
695
3626
1105
0
51–75
2491
759
3957
1206
6293
1918
1–25
51–75
1868
569
2967
904
4720
1439
26–50
51–75
1254
382
1992
607
3168
966
51–75
51–75
648
198
1030
314
1638
499
76–96
51–75
145
44
231
70
368
112
0
76–84
2076
633
3298
1005
5245
1599
1–25
76–84
1453
443
2308
703
3670
1119
26–50
76–84
837
255
1330
405
2116
645
51–75
76–84
230
70
366
111
582
177
76–84
76–84
13
4
21
7
34
10
EST2 Installation and Service Manual
B.5
Calculations
Table B-3: Maximum branch length with 6–10 SIGA-UMs configured for 2-wire smokes
Signature
detector
addresses
Signature
module
addresses
Maximum allowable wire distance
using non-twisted, non-shielded wire pairs
18 AWG
16 AWG
14 AWG
ft
m
ft
m
ft
m
1–25
0
5045
1538
8015
2443
12748
3886
26–50
0
4494
1370
7139
2176
11355
3461
51–75
0
3950
1204
6275
1913
9981
3042
76–96
0
3499
1066
5559
1694
8841
2695
0
1–25
4106
1252
6523
1988
10375
3162
1–25
1–25
3542
1080
5627
1715
8950
2728
26–50
1–25
2985
910
4742
1445
7542
2299
51–75
1–25
2435
742
3868
1179
6152
1875
76–96
1–25
1978
603
3142
958
4997
1523
0
26–50
2869
874
4557
1389
7248
2209
1–25
26–50
2296
700
3648
1112
5802
1768
26–50
26–50
1730
527
2749
838
4372
1332
51–75
26–50
1170
357
1859
567
2957
901
76–96
26–50
705
215
1120
341
1781
543
0
51–74
1836
560
2914
2917
4639
1414
1–25
51–74
1255
382
1993
608
3171
966
26–50
51–74
680
207
1080
329
1717
323
51–75
51–74
110
34
175
53
279
85
76–79
51–74
20
6
31
10
50
15
B.6
EST2 Installation and Service Manual
Calculations
Table B-4: Maximum branch length with 11–15 SIGA-UMs configured for 2-wire smokes
Signature
detector
addresses
Signature
module
addresses
Maximum allowable wire distance
using non-twisted, non-shielded wire pairs
#18 AWG
#16 AWG
#14 AWG
ft
m
ft
m
ft
m
1–25
0
3931
1198
6245
1903
9932
3027
26–50
0
3427
1045
5444
1659
8659
2639
51–75
0
2928
892
4651
1418
7397
2255
76–96
0
2511
765
3989
1216
6345
1934
0
1–25
3247
990
5158
1572
8204
2501
1–25
1–25
2722
830
4324
1318
6878
2096
26–50
1–25
2202
671
3498
1066
5563
1696
51–75
1–25
1686
514
2678
816
4259
1298
76–96
1–25
1256
383
1995
608
3173
867
0
26–50
2204
672
3502
1067
5570
1698
1–25
26–50
1664
507
2644
806
4205
1282
26–50
26–50
1129
344
1793
547
2852
869
51–75
26–50
598
182
950
289
1511
460
76–96
26–50
155
47
246
75
392
119
0
51–64
1667
508
2648
807
4212
1284
1–25
51–64
1119
341
1778
542
2828
862
26–50
51–64
576
176
915
279
1456
444
51–75
51–64
37
11
59
18
94
29
76
51–64
16
5
25
8
40
12
EST2 Installation and Service Manual
B.7
Calculations
Determining the total loop length
The total loop length equals the sum length of all the wire
segments installed in the data circuit.
Signature
Controller Module
5
1
6
10
12
[WIRECALC3.CDR]
The total length of all the cable installed in the Signature data
circuit can not exceed the values listed below:
Wire type
14 AWG
16 AWG
18 AWG
ft
m
ft
m
ft
m
Twisted pair
13,157
4,010
13,888
4,233
20,000
6,096
Twisted-shielded pair
5,952
1,814
6,098
1,859
8,621
2,628
Non-twisted, non-shielded pair
20,000
6,096
20,000
6,096
20,000
6,096
If the cable manufacturer’s data indicates the capacitance per
foot of the cable, use the following method to determine the
maximum total loop length.
Note: In no case may the total loop length of a Signature data
circuit exceed 20,000 feet (6,096 meters).
LMax =
500,000
C pf / Ft
where:
•
•
B.8
LMax = maximum total cable length in feet
Cpf/Ft = Cable capacitance in picofarads per foot
EST2 Installation and Service Manual
Calculations
Note: Install SIGA-IM Isolator modules at strategic points in the
Signature data circuit to limit the effect of an electrical short.
EST2 Installation and Service Manual
B.9
Calculations
Calculating wire lengths for 24 Vdc NACs
The 24 Vdc notification appliance circuits (NACs) must be a
minimum of 18 AWG (0.75 mm2) pair. The maximum allowable
circuit resistance and cable manufacturer’s specifications
determine the limits for circuit length.
Table B-5: Wire resistance ratings
Wire size
Resistance per 1000 ft pair
2
18 AWG (0.75 mm )
2
16 AWG (1.0 mm )
2
14 AWG (1.50 mm )
2
12 AWG (2.5 mm )
13.0 Ω
8.0 Ω
5.2 Ω
3.2 Ω
The following restrictions apply to the calculation of wire sizes
for 24 Vdc NACs:
•
•
Minimum supply voltage available is 20.4 Vdc
Minimum required circuit voltage at any notification
appliance is 17.0 Vdc
According to Ohm’s Law, the maximum allowable NAC
resistance equals the voltage drop divided by the NAC current.
R Max =
Vdrop
I Max
where:
•
RMax = Maximum allowable NAC resistance
•
Vdrop = Maximum allowable voltage drop of 3.4 volts from
power supply to the last notification appliance (20.4 - 17)
•
IMax = Maximum NAC requirement (Total current of all
installed notification appliances. See Table B-6.)
The maximum permissible circuit resistance for a fully loaded
(3.5 A) NAC using 14 AWG wire is 0.97 Ω.
0.97Ω =
3.4V
3.5 A
Use Table B-5 to determine the maximum allowable distance
(D) of any listed wire gauge pair.
B.10
EST2 Installation and Service Manual
Calculations
D=
RMax
R/1000' PAIR
X1000
where:
•
•
•
D = Distance in feet
RMax = Maximum permissible wire resistance
R/1000 ft pair = Wire resistance per 1000 ft (305 m) pair
[Table B-5]
The maximum distance of a fully loaded (3.5 A) NAC using a
pair of 14 AWG wires is 187 ft (57 m).
187' =
0.97
× 1000
5.2
Use the same method to calculate other loads and wire sizes.
Table B-6 lists the allowable distances for selected current
draws and wire sizes.
Table B-6: Load vs Distance NAC (3.4V drop)
Maximum distance to last appliance
12 AWG
2
(2.50 mm )
14 AWG
2
(1.50 mm )
16 AWG
2
(1.00 mm )
18 AWG
2
(0.75 mm )
ft
m
ft
m
ft
m
ft
m
0.1 A
10,625
3,239
6,538
1,993
4,250
1296
2,615
797
0.25 A
4,250
1,296
2,615
797
1,700
518
1,046
319
0.5 A
2,125
648
1,308
399
850
259
523
159
0.75 A
1,406
429
865
264
563
172
346
105
1.0 A
1,062
324
654
199
425
130
262
80
2.0 A
531
162
327
100
213
65
131
40
3.0 A
353
108
217
66
141
43
87
27
3.5 A
303
92
187
57
121
37
75
23
Load current
EST2 Installation and Service Manual
B.11
Calculations
Calculating wire lengths for 25 or 70 Vrms NACs
The maximum allowable wire length is the greatest distance
from the amplifier to the last speaker on the NAC. The wire pair
must have no more than 0.5 dB loss over its entire length.
Calculating the maximum allowable wire length using this
method ensures that each speaker operates at its full potential.
Several factors influence the maximum allowable wire length:
•
•
•
Wire size
Output signal level of the amplifier driving the circuit
Number of speakers installed on the circuit
To calculate the maximum allowable wire length for a 0.5 dB
loss, use the following formula:
Max length =
59.25 X Amplifier output 2
Wire resistance X Circuit load
where:
•
Amplifier output is the signal level in Vrms supplied by the
amplifier driving the circuit
•
Circuit load is the total watts required by the audio circuit
•
Wire resistance is the resistance rating of the wire per 1000
ft pair (See Table B-5.)
For example, the maximum allowable wire length for an audio
circuit consisting of one 40-Watt (25 Vrms) amplifier, thirty 1Watt speakers, and 18-gauge wire equals 95 feet.
94.95 =
59.25 X 25
13 X 30
2
Use Table B-7 for amplifiers set for 25 Vrms output. Use Table
B-8 for amplifiers set for a 70 Vrms output.
B.12
EST2 Installation and Service Manual
Calculations
Table B-7: Maximum allowable length at 25 Vrms, 0.5 dB loss
Circuit load requirement
Wire Size
15 W
20 W
30 W
40 W
90 W
ft
120 W
ft
m
ft
m
ft
m
ft
m
m
ft
m
18 AWG
2
(0.75 mm )
190
58
142
43
95
29
71
22
Over max
current limit
Over max
current limit
16 AWG
2
(1.0 mm )
309
94
231
70
154
47
116
35
51
16
39
12
14 AWG
2
(1.5 mm )
475
145
356
109
237
72
178
54
79
24
59
18
12 AWG
2
(2.5 mm )
772
235
579
176
386
118
289
88
129
39
96
29
Table B-8: Maximum allowable length at 70 Vrms, 0.5 dB loss
Circuit load requirement
Wire Size
15 W
20 W
30 W
40 W
90 W
120 W
ft
m
ft
m
ft
m
ft
m
ft
m
ft
m
18 AWG
2
(0.75 mm )
1489
454
1117
340
744
227
558
170
248
76
186
57
16 AWG
2
(1.0 mm )
2420
738
1815
553
1210
369
907
276
403
123
302
92
14 AWG
2
(1.5 mm )
3722
1134
2792
851
1861
567
1396
426
620
189
465
142
12 AWG
2
(2.5 mm )
6049
1844
4537
1383
3024
922
2268
691
1008
307
756
230
EST2 Installation and Service Manual
B.13
Calculations
Calculating wire lengths for addressable analog circuits
Table B-9 lists the maximum wire distances allowed for
Addressable Analog circuits.
Notes
Maximum wire resistance can not exceed 50 Ω.
Maximum wire capacitance can not exceed 0.05 µF.
•
•
Table B-9: Maximum allowable wire distance for addressable analog circuits
Wire
gauge
18
16
14
B.14
Max loop
capacitance
Twisted,
non-shielded
Twisted,
shielded
ft
m
ft
0.01 µF
4000
1219
1724
0.02 µF
8000
2438
0.03 µF
12000
0.04 µF
Non-twisted,
non-shielded
m
ft
m
525
5000
1524
3448
1051
10000
3048
3658
5172
1576
15000
4572
16000
4877
6896
2102
20000
6096
0.05 µF
20000
6096
8620
2627
25000
7620
0.01 µF
2777
846
1219
372
5000
1524
0.02 µF
5555
1693
2439
743
10000
3048
0.03 µF
8333
2540
3658
1115
15000
4572
0.04 µF
11111
3387
4878
1487
20000
6096
0.05 µF
13888
4233
6097
1858
25000
7620
0.01 µF
2631
802
1190
363
5000
1524
0.02 µF
5263
1604
2380
725
10000
3048
0.03 µF
7894
2406
3571
1088
15000
4572
0.04 µF
10526
3208
4761
1451
20000
6096
0.05 µF
13157
4010
5952
1814
25000
7620
EST2 Installation and Service Manual
Calculations
Calculating ampere-hour battery requirements
Use the following method to calculate the minimum amperehour capacity of a battery required for the operation of a panel in
the absence of ac power. Perform battery calculations separately
for each cabinet in the system.
To calculate the ampere-hour capacity:
1. Determine the total amount of current in milliamps required
by all of the components that derive power from the battery
while the panel is in standby mode.
2. Multiply the total amount of standby current by the number
of hours that the panel is required to operate in standby
mode while on battery power.
3. Determine the total amount of current in milliamps required
by all of the components that derive power from the battery
while the panel is in alarm mode.
4. Multiply the total amount of alarm current by the number of
minutes that the panel is required to operate in alarm mode
while on battery power.
5. Divide the result by 60 to convert minutes to hours.
6. Add the total amount of standby current and the total
amount of alarm current then divide the result by 1000 to
convert to ampere-hours.
7. Multiply this number by 1.2 to add a 20% safety factor to
the calculations.
EST2 Installation and Service Manual
B.15
Calculations
B.16
EST2 Installation and Service Manual
Appendix C
Special applications
Summary
Chapter 6 illustrates the wiring of the Ditek Surge Protector
Module and the CDR-3 Bell Coder.
Content
Ditek surge protector module • C.2
Description • C.2
Wiring the surge protector module • C.2
Wiring the CDR-3 Bell Coder • C.4
EST2 Installation and Service Manual
C.1
Special applications
Ditek surge protector module
Description
Any time a wire exits a building and enters another, it must have
surge and amperage protection at each end. The Ditek surge
protector module (Figure C-1) provides protection to circuits,
fuses, and wiring. The surge protector is mounted in a standard
grounded metal electrical box and comes in a 2, 4, 6, or 8-wire
version. The following are part numbers for the Ditek surge
protectors:
•
•
•
•
2 Wire Protector: (P/N - DTK-1LVLPSCP)
4 Wire Protector: (P/N - DTK-2LVLPSCP)
6 Wire Protector: (P/N - DTK-3LVLPSCP)
8 Wire Protector: (P/N - DTK-4LVLPSCP)
These surge protectors can be ordered from Ditek at 12345-A
Starkey Road, Largo, Florida 34643. Ditek also has a toll-free
number (1-800-753-2345).
24 V
SURGE PROTECTOR
INST064.CDR
Figure C-1: Ditek Surge Protector Module
Wiring the surge protector module
Figure C-2 illustrates the typical application for surge protector
modules. Wiring must include a surge protector when it exits one
building and another surge protector when it enters the next
building.
C.2
EST2 Installation and Service Manual
Special applications
Inside
Building
Maximum Line Parameters:
0.44µF/100Ω
Outside
Inside
Next Building
TB6
+
Ch 0 _
RS-485
+
Ch 1 _
1
2
To Surge
Protector
3
4
To RS-485
port of
remote
annunciator
Main Controller Module
INST065.CDR
Wallbox
To RS-485 port of
remote annunciator
Figure C-2: Surge protector wiring
EST2 Installation and Service Manual
C.3
Special applications
Wiring the CDR-3 Bell Coder
Some applications require coded fire alarm signals. The CDR-3
Bell Coder provides march time or unique coded outputs for
separate zones. Figure C-3 illustrates the wiring for a typical
coded signal. Figure C-4 shows how to wire a CDR-3 to an
audio circuit. Figure C-5 pictures the wiring of a CDR-3 to
NACs on the Main Controller Module.
Note: See the CDR-3 installation sheet (P/N 3100023) for more
details about the installation and wiring of the bell coder.
CDR-3
INST105.CDR
CDR-3
Daugter board
Main board
UL/ULC listed 10 kΩ EOL (1/4W)
N/O in normal condition
1
1
2
3 4
5 6
7 8
9 10 11 12
2
3
4
5
6
7
TB1
TB1
UL/ULC listed
47 kΩ EOL
7 6 5
CT2
Primary
Power
Supply
NAC
PWR
8
4 3 2 1
TB3
+
_
Bell or
horn
circuit
TXD
RXD
RS-232
RTS
COM
14 13 12 11
UL/ULC
listed
47 kΩ EOL
Note: All
components except
for the bell or horn
circuit must be in the
same enclosure.
10 9
CC2
8 7
6
5
4 3 2
1
Main
Controller
Module
Figure C-3: Coded signal wiring
C.4
EST2 Installation and Service Manual
Special applications
2-AAC
Note: All components must be in the same enclosure.
TB3
AUX. input 1 AUX. input 2
TB4
INST104.CDR
CDR-3
Daughter board
Main board
1
1 2 3 4 5 6 7 8 9 10 11 12
TB1
2
3
4
5
6
7
TB1
To Monitor Module
24 Vdc
+
-
TXD
COM
To RS-232 port on Main Controller Module
Figure C-4: 2-AAC with coded tone auxiliary output
EST2 Installation and Service Manual
C.5
Special applications
Primary
Power
Supply
NAC
PWR
CDR-3 main board
TB3
Typical Area 1
1
+
_
2
3
TB1
4 5
6
7
Bell or horn circuit
2
_
_ +
_
+
+
NAC1/B NAC1/A SOURCE
TB1
Main Controller Module
Wiring connections provide
march time code after
completion of PSN1 code.
_
_
_
+
+
+
NAC1/B NAC1/A SOURCE
TB2
UL/ULC Listed 15 k Ω EOL resistor
UL/ULC listed
power supply
24 Vdc
1
Typical Area 2
+
_
2
Bell or Horn Circuit
16 15 14 13
3-2-1
12 11 10 9
UM
8 7 6 5
4 3 2 1
EXR or ARA-1
polarized relay
UL/ULC
Listed
47 kΩ
EOL
resistor
3
UL/ULC listed
power supply
24 Vdc
+
_
2
Bell or Horn Circuit
16 15 14 13
8 7 6 5
EXR or ARA-1
polarized relay
Typical Area 3
3-2-1
UM
12 11 10 9
4 3 2 1
3
UL/ULC
Listed
47 kΩ
EOL
resistor
UL/ULC Listed 15
kΩ EOL resistor
Notes
1
The CDR-3 must be in the same
enclosure as the audible circuit.
2
The circuit must be activated on all
system alarms.
3
Riser out to next device or to UL/ULC
listed EOL resistor
Figure C-5: Coded NAC risers
C.6
EST2 Installation and Service Manual
Z
Index
2
2-AAC • 4.21–4.22
2-CMDN(-C) • 4.25
2-LCD
LEDs • 4.9
messages on • 4.4–4.9
problems with • 4.18–4.19
testing of • 3.5–3.8
2-LCX • 4.16–4.18
2-LSRA(-C) • 4.25
2-MCM • 4.15–4.16, 4.18
2-MIC • 4.22
2-PPS(-220) • 4.12, 4.13
2-PPS/6A(-220) • 4.12–4.13
2-SMDN(-C) • 4.25
2-TEL • 4.22
2-WB(R) • 2.4, 2.8
2-WB3(R) • 2.5, 2.8
2-WB7(R) • 2.6, 2.8
2-WBS(R) • 2.4, 2.8
A
activating the system • 3.2
addresses, system • 4.4–4.5
adjustments, amplifier gain • 4.23–4.24
amplifiers, audio. See SIGA-AAXX
annunciators, remote alphnumeric. See 2CMDN(-C); 2-SMDN(-C)
appliances, notification
testing of • 3.24
ULC compatibility listings • A.10–A.15
ULI compatibility listings • A.3–A.7
audio control module. See 2-AAC
auxiliary power supplies. See SIGA-APS(220)
B
bell coder. See CDR-3
C
cabinets, system. See 2-WB(R); 2-WB3(R);
2-WB7(R); 2-WBS(R)
cable manufacturers • A.18
EST2 Installation and Service Manual
calculations
24 Vdc NACs • B.9–B.10
25 or 70 Vrms NACs • B.11–B.12
addressable analog data circuits • B.13
battery • B.14
Signature branch length • B.2–B.7
total loop length • B.8
CDR-3
LEDs • 4.21
wiring • C.4–C.6
certificate of completion • 3.25–3.27
circuit compatibility matrix • A.16
cleaning tool, detector • 4.27–4.28
coder, bell. See CDR-3
compatibility listings
circuit • A.16–A.17
ULC • A.9–A.15
ULI • A.2–A.8
configurations
control panel • 2.4–2.8
NAC • 2.9–2.11
controllers, loop. See 2-LCX; 2-MCM
D
detector cleaning tool • 4.27–4.28
detectors, conventional • 3.19–3.20
detectors, duct • 3.20
detectors, restorable heat • 3.22
detectors, Signature series
cleaning of • 4.27
problems with • 5.7
testing of • 3.19
devices, initiating • 3.22–3.23
dialer. See DL2
display, liquid crystal. See 2-LCD
Ditek surge protector module • C.2–C.3
DL2 • 4.19–4.20
documenting system service • 4.2–4.3. See
also Fire alarm trouble and maintenance
log
dummy load values • 4.24
E
enclosures. See 2-WB(R); 2-WB3(R); 2WB7(R); 2-WBS(R)
expander loop module. See 2-LCX
Z.1
Index
F
fault messages • 4.5–4.9
fire alarm tests • 3.6–3.7, 3.8
Fire alarm trouble and maintenance log •
4.29
firmware chip replacement
2-LCX • 4.17
2-MCM • 4.16
form printer. See PT-1S
G
gain adjustment, SIGA-AAXX • 4.23–4.24
general status screen • 4.10
ground faults • 5.5–5.6
H
handling static-sensitive devices • 4.2
I
indicators. See LEDs
initial acceptance test • 3.3
isolation procedures
for ground faults • 5.5
for mapping errors • 5.9
for open circuits • 5.3
for short circuits • 5.4
L
LED/switch modules • 4.19
LEDs (light emitting diodes)
on Signature devices • 5.7
on the 2-LCD • 4.9
on the 2-LCX • 4.17
on the 2-MCM • 4.15–4.16
on the 2-PPS(-220) • 4.12
on the 2-PPS/6A(-220) • 4.13
on the CDR-3 • 4.21
on the SIGA-AAXX • 4.23
on the SIGA-APS(-220) • 4.14
life safety remote annunciator. See 2LSRA(-C)
log, Fire alarm trouble and maintenance •
4.29
loop controllers. See 2-LCX; 2-MCM
loop status screen • 4.11
M
main controller module. See 2-MCM
maintenance, preventive • 4.2
mapping errors • 5.9
Z.2
matrix, circuit compatibility • A.16
messages, system fault • 4.5–4.9
microphone. See 2-MIC
module
audio control. See 2-AAC
Ditek surge protector • C.2–C.3
expander loop. See 2-LCX
front panel LED/switch. See 2-LCD
main controller. See 2-MCM
modules, Signature series
problems with • 5.8
testing of • 3.20–3.21
N
NACs (notification appliance circuits)
Class A wiring • 2.10
Class B wiring • 2.9
multiplexed switched wiring • 2.11
testing of • 3.11
nonpower-limited circuits • A.16–A.17
O
open circuits • 5.2–5.4
P
panel, control
configurations • 2.4–2.8
testing of • 3.4–3.8
phone, firefighter. See 2-TEL
points, supervisory • 3.7–3.8
ports, RS-232 and RS-485
inoperative • 4.18
testing of • 3.9
power supplies
auxiliary. See SIGA-APS(-220)
primary. See 2-PPS(-220); 2-PPS/6A(220)
power-limited circuits • A.16–A.17
precautions, electro-static • 4.2
preventive maintenance • 4.2
primary power supplies. See 2-PPS(-220);
2-PPS/6A(-220)
printers. See PT-1S; RSAN-PRT
problems
2-AAC • 4.21
2-CMDN(-C) • 4.25
2-LCD • 4.19
2-LCX • 4.18
2-LSRA(-C) • 4.25
2-MCM • 4.18
2-MIC • 4.22
2-PPS(-220) • 4.13
EST2 Installation and Service Manual
Index
problems (continued)
2-PPS/6A(-220) • 4.13
2-SMDN(-C) • 4.25
2-TEL • 4.22
DL2 • 4.20
ground faults • 5.5–5.6
LED/switch modules • 4.19
mapping errors • 5.9–5.10
open circuits • 5.2–5.4
PT-1S • 4.26
RS-232 • 4.18
RS-485 • 4.18
RSAN-PRT • 4.26
short circuits • 5.4–5.5
SIGA-AAXX • 4.24
SIGA-APS(-220) • 4.14–4.15
Signature data circuit • 4.18
Signature series detectors • 5.7
Signature series modules • 5.8
procedures, isolation
for ground faults • 5.5–5.6
for mapping errors • 5.9
for open circuits • 5.3
for short circuits • 5.4
PT-1S • 4.26
pull stations, manual • 3.22
R
re-acceptance test • 3.3
remote alphnumeric annunciators. See 2CMDN(-C); 2-SMDN(-C)
replacing firmware chips
on the 2-LCX • 4.17
on the 2-MCM • 4.16
requirements, system • 2.3
restorable heat detectors • 3.22
RS-232
problems with • 4.18
testing of • 3.9
RS-485
problems with • 4.18
testing of • 3.9
RSAN-PRT • 4.26
S
safety, personal • 4.2
screens, 2-LCD
general status • 4.10
ground faults • 5.5
loop status • 4.11
mapping errors • 5.9
open circuits • 5.2
short circuits • 5.4
EST2 Installation and Service Manual
screens, 2-LCD (continued)
system status • 4.10
SDC (Signature data circuit)
calculating branch length for • B.2–B.7
calculating total length for • B.8
problems with • 4.18
testing of • 3.10
short circuits • 5.4–5.5
SIGA-AAXX
dummy load values • 4.24
gain adjustment • 4.23–4.24
LEDs • 4.23
problems with • 4.24
SIGA-APS(-220) • 4.14–4.15
Signature series detectors
problems with • 5.7
testing of • 3.19
Signature series modules
problems with • 5.8
testing of • 3.20–3.21
specifications, circuit • A.17
strip printer. See RSAN-PRT
substitutes
2-LCX • 4.17–4.18
2-MCM • 4.16
supervisory points • 3.7–3.8
Surge Protector Module, Ditek • C.2–C.3
switches, waterflow • 3.23
system
activation of • 3.2
addresses • 4.4–4.5
fault messages • 4.5–4.9
requirements • 2.3
testing of • 3.3
system status screen • 4.9
T
telephone, firefighter. See 2-TEL
tests
2-LCD • 3.5–3.8
control panel • 3.4–3.8
conventional detectors • 3.19–3.20
duct detectors • 3.20
fire alarms • 3.6–3.7, 3.8
initial acceptance • 3.3
initiating devices • 3.22–3.23
manual pull stations • 3.22
notification appliance circuits • 3.11
notification appliances • 3.24
power supplies • 3.4–3.5
re-acceptance • 3.3
restorable heat detectors • 3.22
RS-232 ports • 3.9
RS-485 ports • 3.9
Z.3
Index
tests (continued)
Signature series detectors • 3.19
Signature series input modules • 3.20
Signature series output modules • 3.21
supervisory points • 3.7–3.8
system • 3.3
trouble conditions • 3.7
waterflow switches • 3.23
trouble conditions. See specific components
and conditions under problems
U
ULC compatibility listings
DL2 • A.15
notification appliances • A.10–A.15
Signature Series devices • A.9
system accessories • A.15
ULI compatibility listings
DL2 • A.8
notification appliances • A.3–A.7
Z.4
ULI compatibility listings (continued)
Signature Series devices • A.2
smoke detectors, 2-wire • A.8
system accessories • A.7
W
waterflow switches • 3.23
wire length calculations
24 Vdc NACs • B.9–B.10
25 or 70 Vrms NACs • B.11–B.12
addressable analog data circuits • B.13
SDC branch length • B.2–B.7
total loop length • B.8
wire stripping practices • 4.2
wiring
CDR-3 • C.4–C.6
Class A NAC • 2.10
Class B NAC • 2.9
Ditek surge protector module • C.2–C.3
multiplexed switched, NAC • 2.11
EST2 Installation and Service Manual
