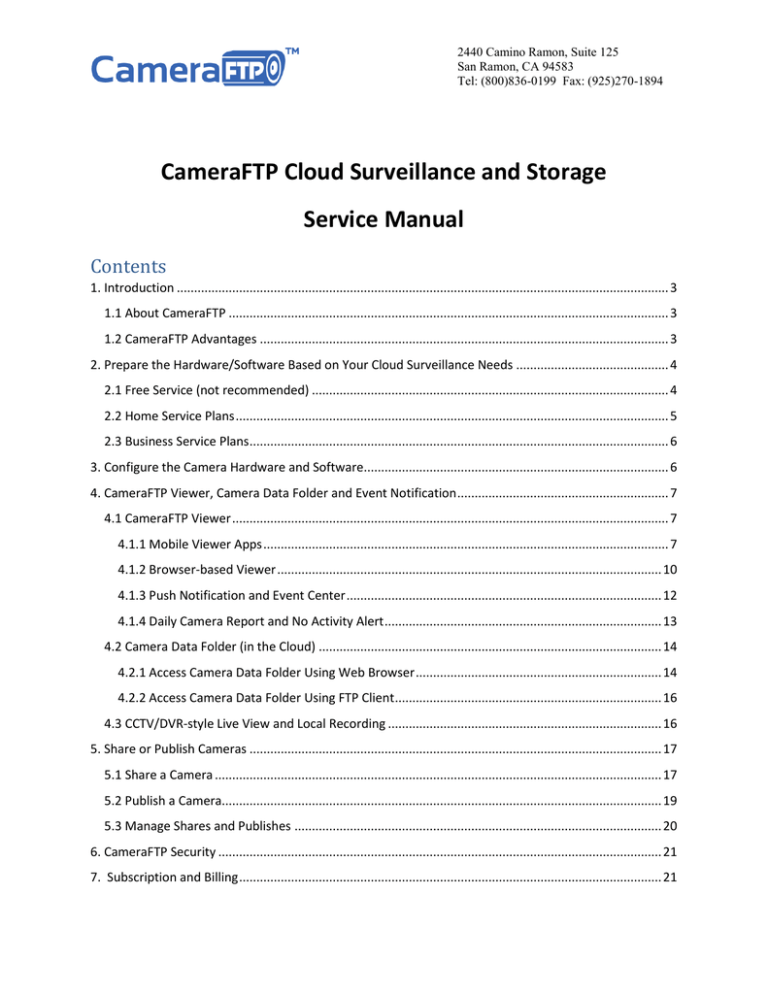

PDF version CameraFTP Service Manual
2440 Camino Ramon, Suite 125
San Ramon, CA 94583
Tel: (800)836-0199 Fax: (925)270-1894
CameraFTP Cloud Surveillance and Storage
1.1 About CameraFTP
CameraFTP is the leading cloud surveillance and storage service provider. We offer a broad range of security solutions for consumers, small businesses, large enterprises, and resellers.
CameraFTP is a subsidiary of DriveHQ in Silicon Valley. Founded in 2003, DriveHQ is one of the leading enterprise cloud IT solution providers, and also one of the largest FTP hosting solution providers.
Leveraging on DriveHQ’s FTP and cloud technologies, CameraFTP has developed the most powerful and scalable surveillance solution in the world.
1.2 CameraFTP Advantages
CameraFTP has a lot of advantages over traditional security services or CCTV systems:
Cloud-based offsite recording
Onsite recording is not secure as an intruder can easily destroy your footage. CameraFTP offers a cloud recording solution with far greater security. Your footage is automatically uploaded to our secure data center, and we use multiple levels of redundancies to protect your recorded footage. If local recording is required, we also offer the Virtual Security System (VSS) NVR solution.
Cloud-based playback and live view from anywhere at any time
Users can easily monitor a scene in real-time, or play back the recorded footage from anywhere on any device. CameraFTP, as a cloud-based solution, is optimized for remote viewing and playback.
A regular DVR stores data locally. It either does not support remote viewing, or requires complicated network setup.
CameraFTP service works with almost all IP cameras. A webcam, smart phone, or tablet can also be used as a security camera. You can setup a low-cost service, or order the highest-end IP cameras for the best quality surveillance service. We offer fully customizable service plans. You can customize your plan to best fit your budget and your quality requirements.
For large enterprises and resellers, managing a large number of regular IP cameras or DVRs/CCTVs in different locations can be very challenging. With CameraFTP, it is very easy to manage thousands of
IP cameras using our Group Account service. You can delegate cameras to different sub-users or share cameras to sub-users so only that particular sub-user can manage or view the camera footage.
Save on both hardware and service costs. You can buy the best-in-class IP cameras at a significantly lower price than other proprietary cameras. Our monthly service starts at only $1.50/camera for image surveillance and $2.50/camera for video surveillance. You save even more on service prices.
Easy setup and installation
If you want to use a webcam or mobile device as an IP camera, simply download our mobile camera app or VSS software .
If you use a regular IP camera, CameraFTP has very extensive documentation to help you configure the camera by yourself .
2. Prepare the Hardware/Software Based on Your Cloud Surveillance
CameraFTP offers a wide range of Cloud Surveillance service plans. Depending on your requirements, we have service plans starting at $1.50/camera/month (320x240, 1 image/3s with motion detection) up to an enterprise plan with hundreds of cameras and super high quality image or video resolution.
To get started with CameraFTP’s Cloud Surveillance service, the first step is to determine your security needs, and prepare your hardware and software accordingly.
2.1 Free Service (not recommended)
The Free Service Plan is designed for users (e.g. college students) who just want to keep an eye on something, but without a strong need for security. If you use a webcam or mobile device as an IP camera, then your hardware cost is $0 and the service can be setup instantly.
To use a mobile device as an IP camera, please download our mobile camera app. You can directly download our mobile apps from the App Store, Google Play Store or Windows Store, or visit our
Software page at: https://www.cameraftp.com/CameraFTP/Software.aspx
To use a webcam as an IP camera, please download our Virtual Security System software (VSS) from our software page. VSS can be used for consumers, though it is more optimized for large enterprises. For more detailed information, please read the VSS Service Manual: https://www.cameraftp.com/features/VirtualSecurityCamera.htm
The above two options are extremely simple. After you install the app, all you need to do is log on. If you do not have an account, please sign up for a free trial account.
Other than the above two free options, you will need to order an IP camera. A low-end indoor IP camera costs less than $50, and in most cases, it can offer more than adequate protection for a free service plan.
The free service plan is limited to 320x240 image/video resolution, 1 image/minute. Due to the obvious security limitation, we only recommend this plan for keeping an eye on something.
The free service plan may not be compatible with many regular IP cameras
Many IP cameras cannot be configured to upload less than 1 image/minute. If the IP camera cannot be configured to match this upload frequency, the camera will exceed the usage limit and eventually be blocked by our FTP server.
For the free service plan, we recommend that you use a webcam or a mobile device
For mobile devices, we support iOS, Android, Windows Phone, and Windows 8 tablets; for webcams, our
VSS software is supported on all versions of Windows.
2.2 Home Service Plans
For a complete home surveillance solution, we generally recommend that Home Service users have 2 to
5 IP cameras to monitor places like: the driveway, the front door, the backyard, the living room, and the stairs. A complete solution usually requires 1 to 2 outdoor IP cameras and 2 to 3 indoor IP cameras.
If you don’t have an IP camera, you can try our service by using a smart phone or webcam as an IP camera. In the meantime, you can visit our support page to find a supported camera model, then order the cameras based on your need.
If you would like to have features of a CCTV/DVR system, such as the local live view and local recording features, then you can use our VSS NVR solution. For more information about VSS NVR solution, please read the VSS NVR Service Manual: https://www.cameraftp.com/features/VirtualSecurityCamera.htm
A reference solution for Home Service Plans:
- Order 2 to 3 indoor cameras (D-Link 932L) and 1-2 outdoor cameras (Trendnet TP-310PI)
Configure the cameras to directly upload to CameraFTP, or if you need features of a CCTV/DVR, then just use our VSS with a computer.
2.3 Business Service Plans
Although the total number of cameras is dependent on the size of your business, most businesses need a minimum of 6 camera licenses. If you only want cloud recording, then you don’t need a DVR or other local storage device. Just buy a few supported IP cameras, then configure them to upload to CameraFTP directly.
For large enterprises that need to monitor multiple sites, CameraFTP offers the most scalable and secure solution. Unlike a regular DVR, you are no longer limited by the device’s capabilities. You can add as many IP cameras as needed, and manage them from the same cloud account. You can also delegate your cameras to sub-users.
If you need local recording and local live-view features like a CCTV/DVR system, use our CameraFTP VSS
NVR solution, which is much more powerful than a regular DVR/CCTV system.
A reference solution for Business Service Plans:
- Order 4 indoor cameras (D-Link 932L or DLink DCS-2132L or TrendNet TV-762IC) and 2 outdoor cameras (Trendnet TP310PI or Dlink7110);
Configure the cameras to directly upload to CameraFTP, or if you need features of a CCTV/DVR, then just use our VSS with a computer.
3. Configure the Camera Hardware and Software
After you have prepared the cameras, the next step is to configure them to connect to CameraFTP’s cloud service. CameraFTP provides detailed configuration documentation online that covers many popular IP camera models as well as our own VSS NVR solution: https://www.cameraftp.com/CameraFTP/Support/SupportedCameras.aspx
Even if you cannot find the documentation for your IP cameras, it is still very likely that your IP camera is supported. In fact, almost all IP cameras are compatible with CameraFTP, with the exception of devices
like Nest Cam (formerly Dropcam), which is locked down with its own service. For more information, please see the documentation for “ Configuring CameraFTP service with a Generic IP Camera ”.
If you don’t have a CameraFTP account yet, please visit www.cameraftp.com
and sign up for a free trial account. The free trial is valid for 3 days; you can test the service during the 3 days. Note you can only configure one camera at our lowest parameters (320x240, 3 images/s with motion detection; or for video plan, it is 320x240, 1 fps, with motion detection). If you just want to test other camera parameters, you can set the resolution and fps higher for a short period of time (less than 1 hour). Otherwise your camera will be blocked for exceeding the free service limit.
After 3 days, you must either order a paid subscription or cancel the service. If you wish to cancel the service, please make sure to delete the cameras from your account, and more importantly, please remove CameraFTP’s FTP server information from your camera’s configuration page. Otherwise, your camera will keep uploading data to our FTP server. While the requests will be blocked, it will continue using your own bandwidth and our bandwidth.
If you use CameraFTP’s mobile camera app or VSS software, after 3 days, you must order a subscription, or the service will be limited to our free service plan, which may not meet your security needs.
If you order a subscription, please make sure to configure your cameras based on your subscription plan.
4. CameraFTP Viewer, Camera Data Folder and Event Notification
4.1 CameraFTP Viewer
If you have configured your IP camera(s), or if you use our VSS NVR or mobile camera apps, you can view the recorded footage from anywhere very easily. CameraFTP Viewer supports playing image snapshots and video clips. In both cases, it can play them like a continuous video stream. It supports live view and playback. The live-view feature usually has 1 to 2 minutes of delay due to the buffering on both the camera side and the server side.
4.1.1 Mobile Viewer Apps
If you use a mobile device, you just need to visit the App Store, Google Play store or Windows Phone store, search for CameraFTP and install the CameraFTP Viewer apps. You can also find the apps by visiting our software download page at: https://www.cameraftp.com/CameraFTP/Software.aspx
The features on different platforms are mostly comparable. There are some minor differences, e.g. the .MKV video format is currently only supported on Android. Multi-camera viewer is only available on
Windows 8 or Windows 10 based tablets and iPads.
Below are a few screenshots of our mobile (and tablet) apps:
Camera List Motion Event List
Play back recorded footage
Multi-camera Player for iPad, Windows 8 and 10
Play back a camera
4.1.2 Browser-based Viewer
If you use a PC or Mac, simply log on to www.cameraftp.com
, click My Cameras, you will see a list of cameras in your account, followed by cameras shared to you. You can also view cameras published by other people. Below is a screenshot of My Cameras page. In this example, a business customer can even customize the website logo.
To view a camera, you just need to click on a camera thumbnail. It will launch a new player window as shown below:
If you need to quickly replay the recorded footage, you can check the Fast Play checkbox.
CameraFTP also has a unique feature of “multiple-window player”, which allows you to play a single camera with up to 16 windows. This way, if you need to replay 8 hours of footage, you can have 16 windows each playing half an hour of video. A screenshot of multiple-window player is shown below:
As shown in the above screenshot, each window is playing the same scene recorded at different times.
Compared with regular fast play / fast forward, this allows you to watch videos 16 times faster, without missing any detailed information.
4.1.3 Push Notification and Event Center
CameraFTP Viewer apps support Push Notification. The notification messages are integrated with the
Event Center feature on www.cameraftp.com
. If your camera detects a motion, it will send a notification message to your mobile device (if the viewer app is installed). You can then click it to view the video or image related with the event.
To view the events online, please log on to CameraFTP.com and click on the email icon on top of the web page as shown in the screenshot below:
You can click on the Play icon to pay the video related with the motion event.
If your account runs into a problem, for example, if you configured your camera with wrong parameters, or if you configured more cameras than the number of licenses you have ordered, or if you forgot to make a payment, you will also receive a notification message.
You can manually delete an event using a browser. However, you don’t have to delete any events as they will be automatically deleted after certain amount of time (i.e. your retention days).
4.1.4 Daily Camera Report and No Activity Alert
IP cameras are not always reliable. Occasionally, they may run into some glitches. The problems can be caused by power outage, Internet outage or software / hardware issues. If you have many cameras, you may not notice the problem for a long time. To prevent this from happening, CameraFTP has a daily report feature. When you add a new camera on CameraFTP.com, or edit an existing camera, you can turn on the daily report feature. Please see the screenshot below:
The system can send you an email if a camera has no activities for longer than certain hours; it can also send you the daily report of the camera. You can turn it on or off based on your needs.
4.2 Camera Data Folder (in the Cloud)
4.2.1 Access Camera Data Folder Using Web Browser
First, log on to www.cameraftp.com
and click My Cameras to view the cameras in your account; instead of clicking on a camera thumbnail, you can click on the folder icon to open the camera folder. Please see the screenshot below:
You will see a list of folders or files. Different cameras may create different folder structures. Navigate the subfolders and you will see a list of zip files (for image recording) or video clip files (for video / audio recording).
You can click the View button to toggle between the Thumbnail View and Detail View:
You can play individual files, or select a file and download it to your local PC; you can also select multiple files / folders and download them as a zip file.
4.2.2 Access Camera Data Folder Using FTP Client
If you need to download a large number of files, using FTP is the most efficient method. With an FTP client like FileZilla or Windows Explorer, you can download multiple files/folders using drag and drop.
Please visit Chapter 9.1.3 for more detailed information about using FileZilla and Windows Explorer.
If you need to delete a camera or files/folders, you must log on as your Camera Admin. If you only need to delete a few cameras or files, you can do so using a browser. If you need to delete a large number of cameras, files, or folders, you can use an FTP client like FileZilla or Windows Explorer. Please make sure to log on to our FTP server using your “Secure” password, which must be different from your regular password. If you delete a camera, you must also stop your IP camera from connecting to
CameraFTP by resetting the camera or clear the FTP server configuration.
4.3 CCTV/DVR-style Live View and Local Recording
Traditional CCTV surveillance systems often connect cameras with a large screen in the same site. The screen will display live views from one or more cameras. CameraFTP’s cloud-based solution supports live view from anywhere. Due to data buffering on both the client and server sides, usually there is a delay of 1-2 minutes.
To match CCTV’s local viewing quality and real-time performance, you can use our VSS NVR (Virtual
Security System Network Video Recorder) solution. VSS supports all CCTV and DVR features, plus it also supports cloud recording. The local recording and cloud recording can be configured with different parameters so that you can achieve best quality local recording and minimal bandwidth usage for cloud recording.
For more detailed information, please read our VSS NVR Manual at: https://www.cameraftp.com/CameraFTP/Support/CameraFTPNVRSolution.htm
5. Share or Publish Cameras
5.1 Share a Camera
Consumers may need to share cameras with friends or family members; enterprises may need to delegate surveillance duties to multiple employees. To accomplish this, CameraFTP leverages on
DriveHQ’s advanced User Access Control feature. Simply click the Share icon below a camera:
It will then display the following window:
In the “Share To” field, you can enter email addresses of the users who you want to share this camera with.
If you have a group account (or instant reseller account), you can also click the Group Member tab. You can then share this camera to your sub-users (or customers).
Click the Share button to finish sharing the camera. The system will create a share link. You can email the share link to other users for them to view the camera.
If the other user is a CameraFTP member, he/she can simply log on to CameraFTP.com, and the shared camera will be available in the account.
The users who you have shared your camera with can view your camera. They cannot delete your files or make any changes.
If you want the other user to be able to make changes to the camera or files, you must use our Group
Account service (i.e. Instant Reseller service). You need to create a sub-account and configure the camera using the sub-account info.
5.2 Publish a Camera
Publishing a camera is similar to sharing a camera, except you will make your camera viewable by any user. From My Cameras page, click on the Publish icon (next to the Share icon), you will see the following screen:
You just need to enter your publish name, description and accept our publish agreement. You can also optionally post your camera to our Published Camera Gallery. You shall not use our publish feature for posting any inappropriate or illegal contents.
Click “Publish”, and your camera will be published. The system will generate a publish URL for the camera. See the screenshot below:
You can link this URL from your own web page, or embed the camera using the “Embedded Code”.
For more advanced publishing features, please contact CameraFTP Support.
If you submit your camera to our Published Camera Gallery, then your camera will be displayed in the
“View Published Cameras” page. It will also be viewable from our mobile apps. If you have a scene that
you want to share with the public, please publish your camera and include it in our gallery.
5.3 Manage Shares and Publishes
After you have shared (published) a camera, you can edit the share (publish) or delete it. The steps are almost identical:
From My Cameras page, click Manage My Shares (Publishes), you will see a list of shares or publishes.
You can click the camera name to edit a share (publish), or select it and click delete to delete it.
6. CameraFTP Security
Leveraging on DriveHQ’s state-of-the-art cloud technologies and infrastructure, CameraFTP’s cloud surveillance and storage service is much more secure than regular IP cameras and DVRs; below are a few highlighted security features: o Offsite (cloud-based) recording.
Regular IP cameras/NVRs typically cannot record to the cloud (offsite). Without offsite recording, an intruder can easily steal your cameras and destroy your local data, thus you will have no protection. o Secure data center.
Your data on CameraFTP are stored in state-of-the-art data center facilities with 24/7 onsite security, surveillance cameras, redundant network connections, and redundant power supplies. o Data redundancy and backup.
CameraFTP uses multiple levels of redundancies to protect your data. You will not lose your data even if we have multiple disks fail at the same time. o Additional authentication required for deleting a camera or files in a camera folder.
If an intruder is tech-savvy and he has physical access to your IP cameras, it is possible for him to gain access to the saved FTP username and password. However, even if an intruded gains access to your username and password, your recorded data cannot be deleted without a second “secure” password (if the Secure Password is not the same as the Regular Password). o Camera access control/Group Account service
You can share your cameras with family members and friends. They will be able to view the shared cameras by simply clicking on the share link.
Large enterprise customers and resellers can create sub-accounts. They can share cameras to different sub-users so that each user can only see the cameras shared to their account; they can also configure cameras with a sub-account. In this case, the sub-user will have full control over the camera(s) in his account.
7. Subscription and Billing
Ordering a CameraFTP subscription is easy. You just need to log on to www.cameraftp.com
, go to My
Account page, and click Subscribe to order a subscription. The first step is to decide whether you want to order an image surveillance or video surveillance plan.
7.1 Choose Image or Video Surveillance Plan
If your IP camera supports uploading video clips, then for most cases, video surveillance is recommended over image surveillance. Please note many low-end IP cameras (and even some high-end
IP cameras) cannot upload video clips. In these cases, image surveillance is the only option. If you are not sure whether your camera can upload video clips or not, please check with your camera manufacturer, or read our setup guide documents online.
Image surveillance can also offer very good protection. If your camera is set to record 1 image every 1 or
2 seconds, usually it will not miss any events. CameraFTP viewer apps can play both recorded images and video clips. So the difference between image surveillance and video surveillance is small.
There are two major differences: o Image surveillance cannot record audio; video surveillance may include audio if the camera supports audio. o At a low frame rate, image surveillance can support much higher resolution than video surveillance.
In general, the resolution of video surveillance is limited to 720P or 1080P (1920x1080P or 2MP).
This is limited by both the hardware and the bandwidth requirements.
However, high-end (outdoor) IP cameras can support image resolutions of 3MP or even 6MP. Many construction companies use such IP cameras to monitor a large construction site. If the frame rate is low, the bandwidth requirement will be low.
7.2 Select a Service Plan
Once you have decided on an image or video surveillance plan, please click the corresponding tab in the
Subscribe page. You can then choose from the suggested popular plans, or customize a plan. The service price can be fully customized to match your budget and quality requirements.
Our pricing is based on the following parameters: o Image or video resolution. o 320x240 is typically sufficient to monitor a small scene (e.g. the front door). o 640x480 offers 4 times better quality than 320x240. o If you monitor a large scene, a higher resolution is recommended. o Upload frequency or frame rate. o For image surveillance, 1 image per 2 seconds is typically sufficient for home monitoring. To record more details, please choose a higher frequency. o For video surveillance, 1 to 5 fps is typically sufficient for home monitoring. To record more details, please choose a higher frequency. o Retention period.
o The retention period defines how long recorded footage will be kept in your account. o Motion detection. o Motion detection is strongly recommended for all users. Enabling motion detection will allow you to avoid sifting through empty footage, save your bandwidth, and will even reduce your subscription cost by up to 50%.
Note: If you monitor a busy scene such that your camera will be uploading for longer than
10 hours a day, then we recommend that you order a continuous recording plan, even if you enable motion detection. o Number of cameras. o The subscription price will be linear to the number of cameras. If you order more than 10 camera licenses, you will receive a 10% discount automatically.
7.3 Manage Your Subscriptions
7.3.1 Order, Upgrade, Downgrade or Cancel a Subscription
If you only have one subscription, then upgrading or downgrading your subscription will be very easy.
To upgrade your subscription, simply order a new subscription, and then cancel the old subscription.
If you downgrade your subscription, please make sure your account usage is below your new subscription plan. You may need to delete some cameras; you must also reconfigure your camera/software to match your new subscription level.
Canceling the old subscription(s) is necessary as CameraFTP supports multiple subscriptions on the same account. If you do not cancel your old subscription(s), then you will have multiple subscriptions and be charged for these subscriptions.
Ordering multiple subscriptions:
The current CameraFTP system can only set one retention day for each account. If you order multiple subscriptions, please make sure they all use the same retention days. If you want to order two subscriptions with different retention days, you must use our Group Account service. (Please read the support section)
Cancel a subscription
Canceling a subscription on CameraFTP is very easy. Please note you must cancel your subscription online if you do not want to renew your service.
To cancel a subscription, go to the Subscribe page, click Current Subscriptions and select a subscription to cancel. If you cancel all of your subscriptions, then you must also reconfigure your cameras so that they no longer connect to CameraFTP’s FTP server. If you do not clear the camera’s configuration, your camera will continue uploading files to CameraFTP’s FTP server, which will waste your bandwidth.
7.4 Service Billing Guide
Because CameraFTP is a subscription-based cloud surveillance and storage service, to avoid service interruptions, automatic debiting is enabled by default. (Otherwise, if a user forgot to make a payment on time, we would have to delete all recorded footage, which defeats the purpose of security service we offer.)
Regarding our service billing, please consider the following when ordering a subscription:
(1) Your monthly billing date is the day of month when you created the free trial account.
Contrary to common thinking, your monthly billing date is neither the 1 st
of each month, nor your order date. For example, if you signed up a free CameraFTP account on June 10 and you ordered a subscription on July 20. Your monthly billing date will always be the 10 th
of each month.
There are two reasons:
- If we bill all users on the same day, it will create too much load to our billing system on that day;
- We don’t bill on the order date because a user may have multiple subscriptions ordered on different dates, and may need to order more subscriptions or cancel a subscription. For instance, a user could create an account on the 10 th
, order a subscription on the 14 th
, and then order a second subscription on the 20 th
. Rather than bill the user on the 14 th
and again on the 20 th
, we simplified the billing process by setting the account creation date as the billing date. This way, you will not need to keep track of which subscription needs to be paid on what day.
(2) Your account cash balance and service coupon balance.
If you order an annual subscription, you will be charged for the annual service price up front; however, you will also receive credit back to your Service Coupon Balance. Internally, you are still billed monthly, on your billing date, at the discounted service price. (You save 2 months by ordering our annual service).
The money in your Service Coupon Balance is your service credit. It will be used to pay for your monthly service charge automatically. It cannot be transferred to another account.
If you deposit money into your CameraFTP account when your account balance is $0 (or if you deposit more than what you owe), the money will be added into your account cash balance. The money in your cash balance can be transferred to other CameraFTP users or DriveHQ users. It can also be used to order a new subscription or automatically pay for monthly service charges.
If you upgrade your service before the contract term, in general, you will not lose un-used service credit.
However, you may lose up to one month of service credit dependent on your monthly billing date and the current date. Our internal billing is done monthly on your billing date. If a monthly charge is applied, the system will not credit your account even if you cancel it right away.
If you order a monthly subscription, CameraFTP will charge you for the full month price up front, regardless of your monthly billing date. Remember your monthly billing date is your account’s creation date, not your order date. Our system will calculate the number of days in your current billing month and compare it with the total number of days in the billing month. If they are not the same, then the system will automatically credit a partial month service credit to your CameraFTP account.
For example, if your account creation date is June 10, and you ordered a $10/month subscription on July
20, your credit card/PayPal account will be charged for $10 upon ordering the subscription. However, since your billing date is on the 10 th
, your first partial month service charge is 21 / 31 * $10 = $6.77.
Since you are charged for the full month, you will receive $3.33 into your service coupon balance, which is used to pay for your ongoing service charges automatically. The net result is your next month’s service charge will be applied on Aug 10, which is 21 days (shorter than one month) for an amount of $6.77.
(3) How to renew your service.
Your service always automatically renews. If you do not want to renew your service, you must cancel it online and remove your CameraFTP info from your camera’s configuration page.
To continue the service, you just need to make a deposit into your account online; if you saved your billing info, then you don’t need to do anything. Please do not order a new subscription, as it will be added to your existing subscription, rather than replacing your existing subscription (you will have multiple subscriptions).
(4) How to update your credit card information.
CameraFTP does not directly save your credit card info. We use PayPal as our credit card processor. Your credit card info is only saved with PayPal. CameraFTP only saves a transaction reference ID. To update your credit card information, you need to make a deposit for a minimum of $1. Once the transaction is processed successfully, your billing info will be updated automatically.
8. The Group Account Service (or Instant Reseller Service)
8.1 The Group Admin Feature
The Group Account service is mainly designed for large enterprises and resellers. If you have a lot of cameras and if you need to delegate these cameras to different people, then you need a Group Account.
To become a Group Account, please visit www.CameraFTP.com
, click the Partnership tab, and then click
“Become an Instant Reseller”.
Once you become an instant reseller, you will have access to the Group Admin feature, see the screenshot below:
Click “Group Admin”, you will see the following screen:
You can click the “Create” button to create a new sub-user. To manage a sub-user, just select it and click on Edit or Delete.
The Group Admin or Group Owner has full control to all sub-users. You can edit, delete, disable or log on as a sub-user. Large enterprises that require a lot of sub-users and resellers who have a lot of customers can create sub-group administrators. A subgroup administrator can create more sub-users in his/her subgroup.
8.2 Group Account Service Billing
If you qualify for the Group Account service, then there is no charge to use our Group Account service.
The Group Account service may also be used if you need to order multiple subscriptions with different retention days. (Due to a system limitation, each account can have only one retention period).
There are two ways to setup cameras within a group account. In both cases, only the Group Owner
needs to pay for the service.
(1) Setup all cameras in the Group Owner’s account and share different cameras to different subusers.
If it is ok for all sub-users to have view-only access to the shared cameras, then this method will work perfectly fine. In this case, the Group Owner will order camera licenses in his own account.
Sub-users don’t need to order any camera licenses.
(2) Setup cameras in sub-accounts
If a sub-user needs full access to certain cameras, then the cameras must be setup with the subaccount. In this case, the Group Owner can log on to www.cameraftp.com
, then click on Group
Admin and log on the sub-user. He can then order a subscription while logged on as the subuser. By default, the sub-user does not need to pay for the service charge. Service charges are automatically debited to the Group Owner account.
9. CameraFTP Troubleshooting Guide
Setting up CameraFTP service is quite easy. If you run into any problems, please be sure to read our online documentation before contacting our customer support.
CameraFTP service works with almost all IP cameras; however, different IP cameras often work differently. Because CameraFTP does not make or sell IP cameras directly, our support is often limited to our own products and services.
For camera related questions, please contact the camera manufacturer directly. If you can provide the detailed screenshots of the camera’s configuration screen, our support staff might be able to offer some help. Phone support is not recommended, as our support staff will need to see the screenshots before they can provide any real support. Our phone support is only available to paid members.
9.1 Basic Guidelines
9.1.1 Linked Accounts Between DriveHQ and CameraFTP
If you created a CameraFTP account directly, you can skip this section unless you also want to use
DriveHQ’s Cloud IT service. If you have a DriveHQ account, please read the information below.
CameraFTP is a DriveHQ subsidiary; while it heavily leverages on DriveHQ’s technology and infrastructure, CameraFTP’s Cloud Surveillance service is a separate service from DriveHQ’s Cloud IT
Service. Existing DriveHQ users must create a separate CameraFTP account to use the service.
If you have a DriveHQ account and not a CameraFTP account, the system can automatically create a linked CameraFTP account when you log on at www.cameraftp.com
. In this case, if your DriveHQ username is USERNAME, then the linked account username will be: DHQ_USERNAME.
Once you have a linked CameraFTP account, you can log on to CameraFTP using your DriveHQ username and password. Internally, your DriveHQ username is mapped to the linked CameraFTP username. Please see the screenshot below:
Here we use Windows command-line FTP client to log on to CameraFTP’s FTP server. As you can see, the username we entered is a username on DriveHQ.com; but the actual CameraFTP username is
DHQ_USERNAME. The “DHQ_” prefix means the user originates from DriveHQ.
9.1.2 Where and How to Get Technical Support
CameraFTP offers a Cloud Surveillance and Storage service. We don’t make or sell IP cameras directly.
Because we use FTP protocol for recording data to the cloud, and FTP is a standard protocol in cloud recording, our service is compatible with almost all IP cameras. In the past few years, we have optimized our service for many different IP camera manufacturers. This being said, there are so many IP camera manufacturers and models, it is not possible for us to test our service on all IP camera models.
CameraFTP offers extensive documentation on how to configure IP cameras with our service. Please visit our support page online at: https://www.cameraftp.com/CameraFTP/Support/Support.aspx
If you can find documentation for your IP camera model, then please follow the documentation to set up your camera. If you cannot find the same model, but find a similar model from the same manufacturer, please read that documentation. If you cannot find a close match, then please read the documentation for Generic Video IP Cameras and Generic Image IP cameras .
CameraFTP is not a free service. CameraFTP does offer a 3-day free trial. After 3 days, if you want to continue using the service, you must order a paid subscription.
For camera related issues, please contact your camera’s manufacturer directly. Contact CameraFTP support only for cloud service related issues. If your camera manufacturer cannot provide good support, you can email us a copy of your camera manual, along with the screenshots of your camera’s configuration pages. With the detailed screenshots, our support staff might be able to offer some help on certain camera models that they have not tested. If you cannot provide screenshots and if you need us to help configure your camera remotely, we will offer to configure your camera remotely for
$29.99/camera. If we cannot configure your camera, then we will refund you.
9.1.3 Understanding FTP
FTP stands for File Transfer Protocol, a technology designed to transfer files over a network efficiently.
FTP has been around for over 40 years, and is widely used for downloading software and sharing large files with other users. Almost all IP cameras support FTP. They can upload files to an FTP server for offsite storage. Unfortunately, most FTP servers are not optimized to handle the kind of load generated by IP cameras. If an IP camera is configured to upload continuously, it will repeatedly connect to the FTP
server every few seconds, which can generate a load thousands of times larger than that generated by an average person.
DriveHQ is one of the largest FTP hosting solution providers; CameraFTP has optimized DriveHQ’s FTP core technology for IP cameras. Not only can CameraFTP handle the load of millions of IP cameras, but also many features specifically designed for cloud surveillance and playback have been added.
Troubleshooting FTP connection problems with FileZilla
You can use any FTP client program to test the FTP connection to CameraFTP’s FTP server.
One of the most popular free FTP clients is FileZilla. You can download it from here: https://filezilla-project.org/download.php?type=client
After you install the software, launch it, and then enter the following information:
(or you can also try 220.127.116.11)
Username and password: Your CameraFTP Username and Password.
Port: Leave empty or use the default port of 21.
By default, FileZilla uses Passive Mode FTP, which is usually the correct mode. Click Quick Connect. If there is no connection problem, then FileZilla will retrieve the file/folder list in the root folder. If it failed to logon, you can check the error message. Usually the error message can provide some very useful information, such as “Incorrect password”, “Account expired”, “Balance due”, etc. If the connection timed out, then please check if your Internet connection is reliable. It is also possible that CameraFTP server has blocked your IP address–usually this happens if you have exceeded your usage level for an extended amount of time. If this is the case, you need to stop your Camera for about 2 hours, and make sure your subscription level matches with your camera’s configuration, then restart your camera.
If you cannot solve the problem by looking at the FileZilla error log, you can email CameraFTP support the detailed error message.
Troubleshoot FTP connection problem using Windows Explorer
If you do not want to install any FTP client software, you can also use Windows Explorer as an FTP client.
Launch Windows Explorer (i.e. My Computer, Computer or Explorer, but not Internet Explorer) and enter the FTP URL as shown below:
This will log you on to ftp.cameraftp.com
as an anonymous user. Right click on the blank area as shown below, and select Login As.
This will open a logon dialog as shown below:
Enter your CameraFTP username and password (or DriveHQ username and password if you have a linked CameraFTP account). Click Log On. If it works fine, then it means the connection to our FTP server is fine.
Once you log on, you will see the camera folders on our FTP server as follows:
Double click on a camera folder to see the subfolders and files in it.
Use FTP client to batch download/delete recorded footage
An FTP client can be used for troubleshooting FTP connection issues, but it can also be used to batch download or delete recorded footage. As shown in the above screenshot, you can copy and paste, or drag and drop files/folders from our FTP server to your local drive.
Deleting files on CameraFTP is not authorized with your regular password. You must log on as your
Camera Admin by using your “Secure” password. A “secure” password is a second password used to protect your files from being deleted by a tech-savvy intruder. By default, it is set to be the same as your regular password. If you want to delete your files using FTP, you must change your secure password to be different from your regular password. If they are the same, then the FTP server will treat it as a regular logon instead of as a “Camera Admin logon”.
9.2 Troubleshoot CameraFTP Configuration Problems
To troubleshoot, please make sure your camera is connected to the Internet, and that you can sign into your camera’s browser-based configuration tool. If you have trouble accessing your camera’s configuration tool, please read the camera’s manual. You must be able to access the camera’s configuration page: otherwise, we cannot offer any technical support.
If your camera stopped working, typically it will just need to be rebooted. If your camera uses a Wi-Fi connection, check if your camera can still connect to the Wi-Fi access point. You can also connect the camera with your router using an Ethernet cable, and then access the camera’s configuration page. If you can access your camera’s configuration page, please check for the camera’s “event log / status log” to locate any error messages.
9.2.1 Troubleshoot Connection Problems
If you are setting up a new camera, and after setting up the camera you cannot connect to the FTP server, then please double check the following information: o Make sure you connect to the right FTP server: ftp.cameraftp.com
If your camera does not accept an FTP host name, please change it to 18.104.22.168.
Username and password are the same as your username and password for logging onto www.cameraftp.com
. Passwords are case sensitive.
The FTP mode should be set to Passive (or PASV). Setting it to Active usually will not work because many routers and firewalls block Active FTP connections.
FTP Connection problems can be tested with an FTP client program, such as FileZilla.
If your camera was setup and working, but suddenly stopped uploading, usually it is caused by exceeding the usage limit, or forgetting to pay for the service fees on time.
Please make sure that you have ordered enough camera licenses and that the camera parameters are correct. If you ordered an image plan, then your camera should upload image files only; if you ordered a video plan, then your camera should only upload video clips. Also, the image/video resolution, frames/images per second, and motion detection must be set based on the subscription plan.
To check if you have set incorrect parameters, please check your CameraFTP event center. You can access the Event Center by signing onto www.cameraftp.com
, and then clicking on the Event Center icon on the top-right corner of the web page (see below):
Another option is to visit your Account page, and then click Event Center on the side menu.
If you install CameraFTP Viewer on your smartphone, you can also easily access the Event Center as push notification messages.
You can also look at the files in your camera folder to check if you have exceeded the usage limit. To see your files and folder list, sign into www.cameraftp.com
, go to the My Cameras page, and then click on the folder icon to see the files and folder list. First, check to see if your camera has been uploading continuously. If you ordered a plan with motion detection enabled, then your camera must be configured with motion detection.
Second, check your image or video resolution. For a cameras that uploads image snapshots, you need to download one zip file, open it, and then open an image file in it. Check if the image resolution matches with your ordered plan. The upload frequency can also be calculated from the zip file. If a single zip file contains about 30 images, then your upload frequency is 1 image/2s.
For video surveillance, download a video clip file and play it locally. The frame rate can be found by using a video player that can display the detailed video info.
9.2.2 Camera Recording is Unreliable
If your camera drops a lot of images/video clips while recording, it usually means:
Your Internet connection is not reliable;
Your upload bandwidth is too low, causing lost frames. This is especially true if you ordered a high-resolution plan at a high upload frequency (frame rate). Most consumer grade Internet connection is asymmetric; the upload bandwidth is much less than the download bandwidth. For instance, regular ADSL connection usually has an upload bandwidth of less than 1Mbps, while cable modem’s upload bandwidth usually is limited at 1.5 Mbps to 10 Mbps.
You can test your Internet connection speed by visiting www.cameraftp.com
to see if the speed is acceptable. If not, there might be a connection issue, which usually resolves itself within a few minutes.
If the dropped images/video clips is because your cameras are using too much bandwidth, then you need to change your camera’s parameters. You can estimate your bandwidth usage online by visiting our pricing page and entering your camera parameters. You will receive an estimate on bandwidth requirement.
9.2.3 My Account Keeps Creating New Cameras
If your camera does not support FTP path (FTP directory, FTP folder or Upload path), CameraFTP’s server will automatically create a DefaultCamera folder to store files uploaded by that camera. With this option, you can only have one such camera per account. There is one potential problem with this solution. Most cameras create subfolders hourly or daily. Since the subfolder is created in the root folder, each subfolder will be treated as a camera, and use one camera license (even if you have not purchased a sufficient number of camera licenses).
CameraFTP has a unique feature that can completely solve the above problem. In your camera’s configuration page, you will enter your username as:
E.g. if your username is “mike,” and your camera name is “livingroom,” then you will enter into the username box: mike:Dlivingroom
9.2.4 The Camera is Configured Correctly, but the Camera Viewer Does Not Work
Usually this is due to the camera uploading files in an unsupported video format. For example, if you use a Foscam or Axis IP camera. The camera uploads a special “.MKV” video format, which is not supported on most platforms.
Currently, CameraFTP offers limited support to .MKV video format. If you use a web browser, you can download the .MKV files to your local PC; you can also use any FTP client software to batch download files. You can then use VLC Player to view the .MKV files locally.
If you have an Android phone or tablet, you can install our CameraFTP Viewer app; our Android Viewer supports .MKV video format.
On iPhone and Windows Phone, we support .MP4 and .AVI video formats. Most IP cameras support these two video formats.
If your camera uploads in other formats, you can still try our viewer on different platforms. If the video cannot be played, you can download the video files and play them locally. Another option is to use our image based surveillance service, which is compatible with our viewers on all platforms.
9.2.5 Order Multiple Subscriptions With Different Retention Periods
You cannot do so with a single CameraFTP account.
You can either create an additional account, or use our Group Account service. The group account service is optimized for large enterprise customers and resellers. However, it can be used to support multiple camera licenses with different retention periods. Visit our Partnership page and in the menu on the left find the “Become an instant reseller” tab. You will find a link at the bottom of the page to upgrade your account to a group account (or instant reseller account).
Once you have a Group Account, go to your Group Admin page. At the top of the page you will find a toolbar; one of the options is “Create” which can be used to create a sub-user. A sub-user is just like a regular user, except the Group Owner user has full control over it. Once the sub-user account is created, log on as the sub-user and order a subscription with a different retention period. The service fee will be automatically debited to the Group Owner account so you will not be billed separately.
9.2.6 I Upgraded My Subscription, But Now I am Being Charged for Two Subscriptions.
If you want to upgrade or downgrade your subscription, you will need to order a new subscription and then cancel your current subscription. Users can order multiple subscriptions on CameraFTP. Ordering a new subscription will not automatically cancel your existing subscription(s). To cancel your subscription, please sign into your CameraFTP account, go to your Account page, click Subscribe, and then click
Current Subscription. You will see a list of your subscriptions. Click the order item ID of the subscription you wish to cancel, and you will be taken to the order item page, where you will find the button to cancel your subscription. Please note that you can only cancel one subscription at a time. If you want to cancel multiple subscriptions, you must follow these instructions for each individual subscription.
9.2.7 How Do I Contact CameraFTP Technical Support?
If the problem is CameraFTP related (FTP server/cloud service related), please feel free to contact us and we will try to resolve it ASAP. We do appreciate if you email us the detailed information instead of calling us. Our phone support is only offered to paid members and users who plan to order our service.
If the problem is camera related, please read the documentation above. If you still cannot resolve the problem, please contact your camera manufacturer. In most cases, your camera manufacturer can provide better support because they can test our FTP service online, but we usually don’t have their camera.
If your camera manufacturer cannot resolve your problem, you can email the screenshots of your camera’s configuration pages to [email protected] We may be able to resolve the problem by looking at the screenshots, depending on the camera’s brand and model. If you have the camera’s manual, please email us a copy of the manual.
You can also consider using a webcam as a security camera by installing our Virtual Security System (VSS) software, or order one of our recommended IP camera models.
If we cannot solve the problem by looking at screenshots, or if you cannot provide screenshots, as a last resort, if you need our support engineer to remotely configure the camera for you, there will be a onetime fee of $29.99/camera. If we cannot configure your camera, we will refund you.
Please note: For us to support you using remote desktop, you must be able to connect your camera to the network and access your camera’s web-based configuration page by yourself.
