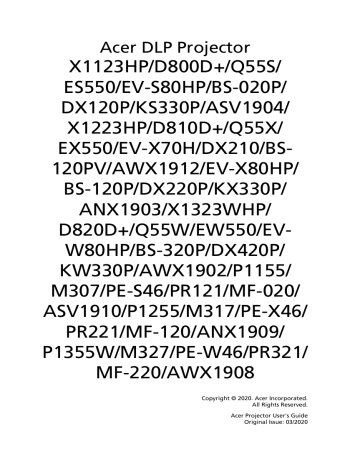

Acer DLP Projector
X1123HP/D800D+/Q55S/
ES550/EV-S80HP/BS-020P/
DX120P/KS330P/ASV1904/
X1223HP/D810D+/Q55X/
EX550/EV-X70H/DX210/BS120PV/AWX1912/EV-X80HP/
BS-120P/DX220P/KX330P/
ANX1903/X1323WHP/
D820D+/Q55W/EW550/EVW80HP/BS-320P/DX420P/
KW330P/AWX1902/P1155/
M307/PE-S46/PR121/MF-020/
ASV1910/P1255/M317/PE-X46/
PR221/MF-120/ANX1909/
P1355W/M327/PE-W46/PR321/
MF-220/AWX1908
Copyright © 2020. Acer Incorporated.
All Rights Reserved.
Acer Projector User's Guide
Original Issue: 03/2020
Changes may be made periodically to the information in this publication without obligation
to notify any person of such revisions or changes. Such changes will be incorporated in new
editions of this manual or supplementary documents and publications. This company makes
no representations or warranties, either expressed or implied, with respect to the contents
hereof and specifically disclaims the implied warranties of merchantability or fitness for a
particular purpose.
Record the model number, serial number, purchase date and place of purchase information in
the space provided below. The serial number and model number are recorded on the label
affixed to your projector. All correspondence concerning your unit should include the serial
number, model number and purchase information.
No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in
any form or by any means, electronically, mechanically, by photocopy, recording or otherwise,
without the prior written permission of Acer Incorporated.
Acer Projector
Model number: __________________________________
Serial number: ___________________________________
Date of purchase: ________________________________
Place of purchase: ________________________________
Acer and the Acer logo are registered trademarks of Acer Incorporated. Other companies'
product names or trademarks are used herein for identification purposes only and belong to
their respective companies.
"HDMITM, the HDMI logo and High-Definition Multimedia Interface are trademarks or
registered trademarks of HDMI Licensing LLC."
iii
Information for Your Safety and
Comfort
Read these instructions carefully. Keep this document for future reference.
Follow all warnings and instructions marked on the product.
Turning the product off before cleaning
Unplug this product from the wall outlet before cleaning. Do not use liquid
cleaners or aerosol cleaners. Use a damp cloth for cleaning.
Caution for plug as disconnecting device
Observe the following guidelines when connecting and disconnecting power to
the external power supply unit:
•
•
•
Install the power supply unit before connecting the power cord to the AC
power outlet.
Unplug the power cord before removing the power supply unit from the
projector.
If the system has multiple sources of power, disconnect power from the
system by unplugging all power cords from the power supplies.
Caution for Accessibility
Be sure that the power outlet you plug the power cord into is easily accessible
and located as close to the equipment operator as possible. When you need to
disconnect power to the equipment, be sure to unplug the power cord from the
electrical outlet.
Warnings!
•
•
•
Do not use this product near water.
Do not place this product on an unstable cart, stand or table. If the product
falls, it could be seriously damaged.
Slots and openings are provided for ventilation to ensure reliable
operation of the product and to protect it from overheating. These
openings must not be blocked or covered. The openings should never be
blocked by placing the product on a bed, sofa, rug or other similar surface.
This product should never be placed near or over a radiator or heat register, or
in a built-in installation unless proper ventilation is provided.
•
Never push objects of any kind into this product through cabinet slots as
they may touch dangerous voltage points or short-out parts that could
result in a fire or electric shock. Never spill liquid of any kind onto or into
the product.
iv
•
•
To avoid damage of internal components and to prevent battery leakage,
do not place the product on a vibrating surface.
Never use it under sporting, exercising, or any vibrating environment
which will probably cause unexpected short current or damage rotor
devices or lamp.
Using electrical power
•
•
•
•
•
This product should be operated from the type of power indicated on the
marking label. If you are not sure of the type of power available, consult
your dealer or local power company.
Do not allow anything to rest on the power cord. Do not locate this
product where people will walk on the cord.
If an extension cord is used with this product, make sure that the total
ampere rating of the equipment plugged into the extension cord does not
exceed the extension cord ampere rating. Also, make sure that the total
rating of all products plugged into the wall outlet does not exceed the fuse
rating.
Do not overload a power outlet, strip or receptacle by plugging in too
many devices. The overall system load must not exceed 80% of the branch
circuit rating. If power strips are used, the load should not exceed 80% of
the power strip's input rating.
This product's AC adapter is equipped with a three-wire grounded plug.
The plug only fits in a grounded power outlet. Make sure the power outlet
is properly grounded before inserting the AC adapter plug. Do not insert
the plug into a non-grounded power outlet. Contact your electrician for
details.
Warning! The grounding pin is a safety feature. Using a power outlet that is
not properly grounded may result in electric shock and/or injury.
Note: The grounding pin also provides good protection from unexpected
noise produced by other nearby electrical devices that may interfere with
the performance of this product.
•
Use the product only with the supplied power supply cord set. If you need
to replace the power cord set, make sure that the new power cord meets
the following requirements: detachable type, UL listed/CSA certified, VDE
approved or its equivalent, 4.5 meters (14.76 feet) maximum length.
v
Product servicing
Do not attempt to service this product yourself, as opening or removing covers
may expose you to dangerous voltage points or other risks. Refer all servicing to
qualified service personnel.
Unplug this product from the wall outlet and refer servicing to qualified service
personnel when:
•
•
•
•
•
•
the power cord or plug is damaged, cut or frayed
liquid was spilled into the product
the product was exposed to rain or water
the product has been dropped or the case has been damaged
the product exhibits a distinct change in performance, indicating a need
for service
the product does not operate normally after following the operating
instructions
Note: Adjust only those controls that are covered by the operating
instructions, since improper adjustment of other controls may result in
damage and will often require extensive work by a qualified technician to
restore the product to normal condition.
Warning! For safety reasons, do not use non-compliant parts when adding
or changing components. Consult your reseller for purchase options.
Your device and its enhancements may contain small parts. Keep them out of
the reach of small children.
Additional safety information
•
Do not look into the projector's lens when the lamp is on. The bright light
may hurt your eyes.
•
•
Turn on the projector first and then signal sources.
RG2 IEC 62471-5:2015
Do not place the product in the following environments:
•
•
•
•
•
Space that is poorly ventilated or confined. At least 50cm clearance from walls
and free flow of air around the projector are necessary.
Locations where temperatures may become excessively high, such as inside of a
car with all windows rolled up.
Locations where excessive humidity, dust, or cigarette smoke may contaminate
optical components, shorten the life span and darken the image.
Locations near fire alarms.
Locations with an ambient temperature above 40 ºC/104 ºF. Such environment
vi
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
may cause the fan(s) to operate in standby mode.
Locations where the altitudes are higher than 10000 feet.
Unplug immediately if there is something wrong with your projector. Do
not operate if smoke, strange noise or odor comes out of your projector. It
might cause fire or electric shock. In this case, unplug immediately and
contact your dealer.
Do not keep using this product to break or drop it. In this case contact your
dealer for inspection.
Do not face the projector lens to the sun. It can lead to fire.
When switching the projector off, please ensure the projector completes
its cooling cycle before disconnecting power.
Do not frequently turn off the main power abruptly or unplug the
projector during operation. The best way is to wait for the fan to stop
before turning main power off.
Do not touch the air outlet grille and bottom plate which become hot.
Clean the air filter frequently. The temperature inside may rise and cause
damage when the filter/ventilation slots are clogged with dirt or dust.
Do not look into the air outlet grille when projector is operating. It may
hurt your eyes.
Always open the lens shutter or remove the lens cap when the projector is
on.
Do not block the projector lens with any object when the projector is
under operation as this could cause the object to become heated and
deformed or even cause a fire. To temporarily turn off the lamp, press HIDE
on the remote control.
Do not operate lamps beyond the rated lamp life. It could cause it to break
on rare occasions.
Contact your local dealer or Acer service center when you need to change
the lamp.
The product will detect the life of the lamp itself. Please contact your local
dealer or Acer service center for changing the lamp, when lamp warning
message displays.
Do not attempt to disassemble this projector. There are dangerous high
voltages inside which may hurt you.
Do not stand the projector on end vertically. It may cause the projector to
fall over, causing injury or damage.
This product is capable of displaying inverted images for ceiling mount
installation. Only use acer ceiling mount kit for mounting the projector
and ensure it is securely installed.
The projector should be placed in a horizontal way by means of desktop or
ceiling mount mode only, and its tilt angles should not exceed 6 degrees,
otherwise it would cause dramatical decrease of lamp life or severe safety
concern of system malfunction.
6°
6°
vii
Caution for Listening
To protect your hearing, follow these instructions.
•
•
•
•
•
Increase the volume gradually until you can hear clearly and comfortably.
Do not increase the volume level after your ears have adjusted.
Do not listen to music at high volumes for extended periods.
Do not increase the volume to block out noisy surroundings.
Decrease the volume if you can't hear people speaking near you.
Disposal instructions
Do not throw this electronic device into the trash when discarding. To minimize
pollution and ensure utmost protection of the global environment, please
recycle. For more information on the Waste from Electrical and Electronics
Equipment (WEEE) regulations, visit http://www.acer-group.com/public/
Sustainability/index.htm
Mercury advisory
For projectors or electronic products containing an LCD/CRT monitor or display:
"Lamp(s) contain Mercury,
Dispose Properly."
Lamp(s) inside this product contain mercury and must be recycled or disposed of
according to local, state or federal laws. For more information, contact the
Electronic Industries Alliance at www.eiae.org. For lamp-specific disposal
information, check www.lamprecycle.org
viii
First Thing First
Usage Notes
Do:
•
Turn off the product before cleaning.
•
Use a soft cloth moistened with mild detergent to clean the display
housing.
•
Disconnect the power plug from AC outlet if the product is not being used
for a long period of time.
Don't:
•
Block the slots and openings on the projector provided for ventilation.
•
Use abrasive cleaners, waxes or solvents to clean the unit.
•
Use under the following conditions:
•
•
•
•
In extremely hot, cold or humid environments.
In areas susceptible to excessive dust and dirt.
Near any appliance that generates a strong magnetic field.
Place in direct sunlight.
Precautions
Follow all warnings, precautions and maintenance as recommended in this
user's guide to maximize the life of your unit.
Warning:
•
•
Do not look into the projector's lens when the lamp is on. The bright light may hurt
your eyes.
To reduce the risk of fire or electric shock, do not expose this product to rain or
moisture.
•
•
Please do not open or disassemble the product as this may cause electric shock.
•
When switching the projector off, please ensure the projector completes its cooling
cycle before disconnecting power.
•
•
•
Turn on the projector first and then the signal sources.
The product will detect the life of the lamp itself. Please contact your local dealer or
Acer service center for changing the lamp, when lamp warning message displays.
Do not use lens cap when projector is in operation.
When the lamp reaches the end of its life, it will burn out and may make a loud
popping sound. If this happens, the projector will not turn back on until the lamp
module has been replaced. To replace the lamp, contact your local dealer or Acer
service center.
First Thing First
iii
viii
Usage Notes
viii
Precautions
viii
Introduction
1
Product Features
1
Package Overview
2
Projector Overview
3
Projector Outlook
3
Control Panel
4
Remote Control Layout
5
MHL Feature Introduction
7
Getting Started
Connecting the Projector
Turning the Projector On/Off
8
8
10
Turning On the Projector
10
Turning Off the Projector
11
Adjusting the Projected Image
12
Adjusting the Height of the Projected Image
12
How to Get a Preferred Image Size by Adjusting
Distance and Zoom
13
User Controls
17
Installation Menu
17
Onscreen Display (OSD) Menus
18
Color
19
21
Setting
23
Management
28
Audio
29
3D
30
Language
31
Appendices
Troubleshooting
32
32
Contents
Information for Your Safety and Comfort
LED & Alarm Definition Listing
36
Ceiling Mount Installation
37
Specifications
40
Compatibility Modes
45
Regulations and safety notices
49
1
Product Features
This product is a single-chip DLP® projector, including the following
outstanding features:
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
DLP® technology
Enables projecting 3D content via DLP Link Technology: Blu-Ray 3D
supported
One-touch "3D" button on remote control allows quick and easy access to
the 3D functions
Acer ColorBoost technology delivers vivid, life-like images
High brightness and contrast ratio
Versatile display modes enable optimum performance in any situation
NTSC/PAL/SECAM compatible and HDTV (720p, 1080i, 1080p) supported
Lower power consumption and economy (ECO) mode extends lamp life
Dynamic Black / ExtremeEco functions help decrease lamp power
consumption and further extend lamp life.
- Dynamic Black: If turned on, the projector dynamically adjusts the power
consumption of the lamp according to the brightness of the image being
projected. When projecting darker images the power consumption will
be reduced and the contrast of the image will also be enhanced.
- ExtremeEco: The projector will decrease the power consumption of the
lamp by up to 70% when no input signal can be detected for 15 minutes.
Acer EcoProjection Technology delivers Intelligent power management
approach and physical efficiency improvement
Advanced keystone correction delivers optimum presentations
Multi-language Onscreen Display (OSD) menus
Manual focus/zoom projection lens
0.8 ~ 2X digital zoom and pan move function
Microsoft® Windows® 2000, XP, 7, 8, 8.1, 10, Vista®, Macintosh OS, Chrome
OS compliant
LAN settings enable remote management of projectors via a web browser
Crestron compliant
CEC (Consumer Electronics Control) function supported
LumiSense supported
BluelightShield function supported
English
Introduction
English
2
Package Overview
This projector comes with all the items shown below. Check to make sure you
have them all. Contact your dealer immediately if any thing is missing.
Projector
Power cord
VGA cable
(Optional)
HDMI cable
(Optional)
Security card
(Optional)
User’s guide (CDROM) (Optional)
Remote control
Quick start guide
AAA Battery x 2
Carrying case
(Optional)
WirelessHD dongle kit (MWIHD1)
(Optional)
Acer Projector Multi-media (CD-ROM) Acer Projector Multi-media quick start
(Optional)
guide (Optional)
Note: The package content may differ by regions.
3
English
Projector Overview
Projector Outlook
Front/upper side
1
3
4
5
2
6
#
Description
#
1
Control panel
4
2
Lens cap
5
3
Power key and Power indicator LED 6
Description
Zoom ring and Focus ring
Projection lens
Remote control receiver
Rear side
1
1
2
3
4
5 6 7 8 910
2
4
5 67 8
10
2
4
5 6 713 8 10
11
12
12
Note: Connector interface is subject to model's specifications.
#
Description
#
Description
1
Audio input connector
Audio output connector
6
RS232 connector
7
Mini USB connector
2
HDMI connector
8
Composite video input connector
3
HDMI (MHL) connector
9
USB A connector (DC 5V output)
4
Analog RGB signal/HDTV/
component video input connector
10 Kensington™ lock port
5
Monitor loop-through output
connector (from VGA IN 1 only)
12 Tilt adjusting wheel
11 Power socket
13 S-Video input connector
English
4
Control Panel
1
7
2
8
3
4
9
5
6
10
3
#
1
Function
LAMP
Description
Lamp indicator LED.
2
POWER
Power indicator LED
3
Keystone
Adjusts image distortion caused by tilting projection.
4
Power key
Refer to the "Turning the Projector On/Off" section.
5
ENTER
Confirms your selection of items.
6
BACK
Cancels your selection, or goes back to previous page.
7
TEMP
Temperature indicator LED.
8
SOURCE
Changes the active source.
9
Four directional
selection keys
Selects items or makes adjustments to your selection
10 MENU
Launches the Onscreen Display (OSD) menu, returns to
the previous step for the OSD menu operation or exits
the OSD menu.
5
1
2
22
11
11
12
13
12
13
1
2
3
14
11
1
2
22
14
4
4
14
4
or
or
5
15
5
15
5
15
6
7
8
9
8
10
16
17
18
19
18
20
21
6
7
8
9
8
10
16
17
18
19
18
20
21
6
7
8
9
8
10
16
17
18
19
18
20
21
Model No:T-2501
MC.JPQ11.003
#
Function
Model No:J-25030
MC.JMV11.007
Description
1
POWER
Refer to the "Turning the Projector On/Off" section.
2
RATIO
Chooses an aspect ratio.
3
Laser
Emits visible laser pointer light for presentation
purposes. This function is not available for the
projectors sold in Japan/China.
4
12
13
Keystone
Adjusts image distortion caused by tilting projection.
Selects items or makes adjustments to your selection.
Four
directional
selection
keys
ENTER
Confirms your selection of items.
Play/Pause
5
BACK
Cancels your selection, or goes back to previous page.
Stop
6
FREEZE
To pause the screen image.
English
Remote Control Layout
English
6
#
Function
Description
7
VGA
To change source to VGA. This connection supports
analog RGB, and YPbPr (480i/480p/576i/576p/720p/1080i/
1080p).
8
PgUp/PgDn
For computer mode only. Use this button to select the
next or previous page. This function is only available
when connected to a computer via a mini USB cable.
9
COMPONENT
(No function)
10 MEDIA
Opens MEDIA SETUP page. (for LAN/wireless
compatible models)
11 Infrared
transmitter
Sends signals to the projector.
12 3D
Press to open the 3D menu for adjusting 3D settings.
13 SOURCE
Changes the active source.
14 MODE
Chooses a display mode.
15 MENU
Launches the Onscreen Display (OSD) menu or exits the
OSD menu.
16 HIDE
Press "HIDE" to hide screen image; press again to
display the image.
17 HDMI/MHL
To change source to HDMI™ (or MHL). (for the model
with HDMI™ or MHL connector)
18 ZOOM IN/ZOOM Zooms the projector display in or out.
OUT
19 VIDEO
To change source to composite video.
20 LAN/WiFi
To change source to LAN/WiFi. (for LAN/wireless
compatible models)
21 Keypad 0~9
Press "0~9" to input a password in the "Setting" >
"Security" OSD.
22 MUTE
Mutes or unmutes the projector’s volume.
7
When your smart device is connected to the projector, you can use some
buttons on the remote control to control your smart device. Press "MODE" for
one second to enter or leave the MHL control mode. After entering the MHL
control mode, press "SOURCE" to switch between the navigation mode
(default), media mode and numeric mode.
Description
#
Function
Navigation
mode
Media mode
Numeric mode
14 MODE
Long press for one second to enter or leave the
MHL control mode.
13 SOURCE
After entering the MHL control mode, press to
switch between the navigation mode (default),
media mode and numeric mode.
4
Up
Up
Four
directional down down
select keys Left
Left
(No function)
(No function)
(No function)
(No function)
(No function)
(No function)
Right Right
(No function)
(No function)
21 Keypad 0~9
(No function)
(No function)
Enters 0~9.
15 MENU
Goes to the
root menu.
(No function)
(No function)
4
Selects or
enters items.
Plays/Pauses/
Stops the
playing of
media files.
(No function)
ENTER
Play/Pause
5
BACK
8
PgUp/PgDn
Stop
22 MUTE
Exits current
page.
(No function)
Use this button to select the
next or previous page.
(No function)
Mutes or unmutes the
projector’s volume.
(No function)
English
MHL Feature Introduction
English
8
Getting Started
Connecting the Projector
2
2
2
L
R
Speakers
3
3
10
Smart devices
11
3
5
HDTV adapter
6
4
RCA
5
Video Output
7
Display
8
9
12
13
14
15
Screen
1
Note: Connector interface is subject to model's
specifications.
9
Description
#
9
Description
Power cord
RS232 cable
2
Audio cable
10 WirelessHD dongle
3
HDMI (MHL) cable
11 Wireless dongle
4
VGA to component video/HDTV adapter 12 Wired remote control
5
VGA cable
13 RJ45 cable
6
3 RCA component cable
14 USB cable
7
S-Video cable
15 12V DC cable
8
Composite video cable
Note: To ensure the projector works well with your computer,
please make sure the timing of the display mode is compatible
with the projector.
Note: Some smart devices require a converter (supplied by the
smart device maker) to enable the MHL function.
Note: Compatible HDMI/MHL dongles: WirelessHD (MWIHD1),
MWA3, ChromecastTM.
English
#
1
English
10
Turning the Projector On/Off
Turning On the Projector
1
Ensure that the power cord and signal cable are securely connected.
The Power LED will light red.
2
Turn on the projector by pressing
(POWER) on the control panel or
remote control, and the Power indicator LED will turn blue.
3
Turn on your source (computer, notebook, video player, etc.). The
projector will detect your source automatically (when it is the first
time you turn on the projector or the Source Selection function is
"Auto").
•
If the screen displays "No Signal", please make sure the signal cables
are securely connected.
•
If you connect to multiple sources at the same time, use "SOURCE" on
the control panel or remote control, or the direct source key on the
remote control to switch between inputs.
11
1
To turn the projector off, press the power button. This message
appears:
"Please press power button again to complete the shutdown process"
Press the power button again.
2
The LED Power indicator will turn solid red to indicate standby mode.
3
It is now safe to unplug the power cord.
When Instant Resume is selected:
1
The LED Power indicator will turn RED and blink rapidly after the
projector is turned off, and the fan(s) will continue to operate for
about 2 minutes to ensure that the system cools properly.
2
As long as the power cord remains plugged in, you can press the
power button to turn the projector immediately back on anytime
during the 2-minute shutdown process.
3
Once the system has finished cooling, the LED Power indicator will
stop blinking and turn solid red to indicate standby mode.
4
It is now safe to unplug the power cord.
Warning indicators:
•
"Projector Overheated. Lamp will automatically turn off soon."
This onscreen message indicates that the projector has overheated.
The lamp will automatically turn off, the projector will automatically
shut down, and the LED Temp indicator will turn solid red. Contact
your local dealer or service center.
•
"Fan failed. Lamp will automatically turn off soon."
This onscreen message indicates that the fan has failed. The lamp will
automatically turn off, the projector will automatically shut down,
and the LED Temp indicator will blink. Contact your local dealer or
service center.
Note: Whenever the projector automatically shuts down and
the LED Temp indicator turns solid red, contact your local
reseller or service center.
English
Turning Off the Projector
English
12
Adjusting the Projected Image
Adjusting the Height of the Projected Image
The projector is equipped with two elevator feet for adjusting the image
height.
To raise the image:
1
Use the front Tilt adjusting wheel to raise the image to the desired
height and angle.
2
Use the rear Tilt adjusting wheel to fine-tune the display angle.
To lower the image:
1
Use the front Tilt adjusting wheel to lower the image to the desired
height and angle.
2
Use the rear Tilt adjusting wheel to fine-tune the display angle.
Tilt adjusting wheel
Tilt adjusting wheel
13
The table below shows how to achieve a desired image size by adjusting either
the position or the zoom ring.
•
SVGA/XGA series with a zoom ratio of 1.1x and a throw ratio of 1.96 – 2.15
To obtain an image size of 70", set the projector at a distance between 2.8 m
and 3.1 m from the screen and adjust the zoom level accordingly.
70"
Desired
image size
Height:
117 cm
From base
to top of
2.8 m
3.1 m
Desired Image Size
Diagonal (inch)
<A>
W (cm) x H (cm)
30
61 x 46
40
50
Desired distance
Distance (m)
Top (cm)
Max zoom
<B>
Min zoom
<C>
From base to top of
image < D >
1.3
50
81 x 61
1.6
1.7
67
102 x 76
2.0
2.2
84
60
122 x 91
2.4
2.6
101
70
142 x 107
2.8
3.1
117
80
163 x 122
3.2
3.5
134
90
183 x 137
3.6
3.9
151
100
203 x 152
4.0
4.4
168
120
244 x 183
4.8
5.2
201
150
305 x 229
6.0
6.6
251
180
366 x 274
7.2
7.9
302
200
406 x 305
8.0
8.7
335
250
508 x 381
10.0
10.9
419
300
610 x 457
11.9
Zoom Ratio: 1.1 x
503
English
How to Get a Preferred Image Size by Adjusting
Distance and Zoom
English
14
•
XGA series with a zoom ratio of 1.3x and a throw ratio of 1.51 – 1.97
To obtain an image size of 70", set the projector at a distance between 2.1 m
and 2.8 m from the screen and adjust the zoom level accordingly.
70"
Desired
image size
Height:
115 cm
From base
to top of
2.1 m
2.8 m
Desired Image Size
Diagonal (inch)
<A>
W (cm) x H (cm)
30
61 x 46
40
Desired distance
Distance (m)
Top (cm)
Max zoom
<B>
Min zoom
<C>
From base to top of
image < D >
1.2
49
81 x 61
1.2
1.6
66
50
102 x 76
1.5
2.0
82
60
122 x 91
1.8
2.4
98
70
142 x 107
2.1
2.8
115
80
163 x 122
2.5
3.2
131
90
183 x 137
2.8
3.6
147
100
203 x 152
3.1
4.0
164
120
244 x 183
3.7
4.8
197
150
305 x 229
4.6
6.0
246
180
366 x 274
5.5
7.2
295
200
406 x 305
6.1
8.0
328
250
508 x 381
7.7
10.0
410
300
610 x 457
9.2
Zoom Ratio: 1.3 x
491
15
WXGA series with a zoom ratio of 1.3x and a throw ratio of 1.21 – 1.57
To obtain an image size of 70" set the projector at a distance between 1.8 m
and 2.4 m from the screen and adjust the zoom level accordingly.
70"
Desired
image size
Height:
104 cm
From base
to top of
1.8 m
2.4 m
Desired Image Size
Diagonal (inch)
<A>
W (cm) x H (cm)
30
65 x 40
40
Desired distance
Distance (m)
Top (cm)
Max zoom
<B>
Min zoom
<C>
From base to top of
image < D >
1.0
44
86 x 54
1.0
1.4
59
50
108 x 67
1.3
1.7
74
60
129 x 81
1.6
2.0
89
70
151 x 94
1.8
2.4
104
80
172 x 108
2.1
2.7
118
90
194 x 121
2.3
3.0
133
100
215 x 135
2.6
3.4
148
120
258 x 162
3.1
4.1
178
150
323 x 202
3.9
5.1
222
180
388 x 242
4.7
6.1
267
200
431 x 269
5.2
6.8
296
250
538 x 337
6.5
8.5
370
300
646 x 404
7.8
Zoom Ratio: 1.3 x
444
English
•
English
16
•
WXGA series with a zoom ratio of 1.1x and a throw ratio of 1.55 – 1.7
To obtain an image size of 70" set the projector at a distance between 2.3 m
and 2.6 m from the screen and adjust the zoom level accordingly.
70"
Desired
image size
Height:
94 cm
From base
to top of
2.3 m
2.6 m
Desired Image Size
Diagonal (inch)
<A>
W (cm) x H (cm)
30
65 x 40
40
50
Desired distance
Distance (m)
Top (cm)
Max zoom
<B>
Min zoom
<C>
From base to top of
image < D >
1.1
40
86 x 54
1.3
1.5
54
108 x 67
1.7
1.8
67
81
60
129 x 81
2.0
2.2
70
151 x 94
2.3
2.6
94
80
172 x 108
2.7
2.9
108
90
194 x 121
3.0
3.3
121
100
215 x 135
3.3
3.7
135
120
258 x 162
4.0
4.4
162
150
323 x 202
5.0
5.5
202
180
388 x 242
6.0
6.6
242
200
431 x 269
6.7
7.3
269
250
538 x 337
8.3
9.2
337
300
646 x 404
10.0
Zoom Ratio: 1.1 x
404
17
English
User Controls
Installation Menu
The Installation menu provides an Onscreen Display (OSD) for projector
installation and maintenance. Use the OSD only when the message "No
signal" is displayed on the screen or when the projector searches for input
signal.
1
Turn on the projector by pressing
remote control.
(POWER) on the control panel or
2
Press "MENU" on the control panel or remote control to launch the
OSD for projector installation and maintenance.
3
The background pattern acts as a guide to adjusting the calibration
and alignment settings, such as screen size and distance, focus and
more.
Note: The OSD screenshot is for reference only and may differ from the
actual design.
4
The Installation menu includes several options.
Use the up and down arrow keys to select an option, the left and right arrow keys to
adjust selected option settings, and the right arrow key to enter a submenu for
feature setting. The new settings will be saved automatically upon exiting the menu.
5
Press "MENU" anytime to exit the menu and return to the Acer
welcome screen.
English
18
Onscreen Display (OSD) Menus
The projector has multilingual Onscreen Display (OSD) menus that allow
you to make image adjustments and change a variety of settings.
Using the OSD menus
•
To open the OSD menu, press "MENU" on the control panel or remote
control.
•
When the OSD is displayed, use
to select an item in the main menu.
After selecting the desired main menu item, press
for feature setting.
•
Use
to enter a submenu
to select the desired item and adjust the settings by using
.
•
Select the next item to be adjusted in the submenu and adjust as described
above.
•
Press "MENU" on the control panel or remote control, the screen will
return to the main menu.
•
To exit the OSD menu, press "MENU" on the control panel or remote
control again. It will close and the projector will automatically save the
new settings.
Main menu
Setting
Submenu
Note: Some of the following OSD settings may not be available. Please refer
to the actual OSD of your projector.
19
BluelightShield
This function protects your eyes from over-exposure to
blue light. The options are Off, Low, Medium, and High.
Choose a preferred setting to reduce the level of blue light
and get a comfortable viewing experience.
When this function is enabled, LumiSense will be
automatically set to "Off".
The projector can intelligently optimizes the brightness
and color saturation of projected image. The feature
greatly enhances dark detail visibility and color saturation.
•
Off: For normal mode.
•
Normal: For enhancing the details in the dark area.
•
Boost: For boosting brightness of the projected image.
•
Dynamic Black: automatically optimizes the display of
dark movie scenes enabling them to be shown in
incredible detail.
LumiSense
When this function is enabled, BluelightShield will
be automatically set to "Off".
LumiSense function is unavailable when 3D is set to
"On"
There are many factory presets optimized for various types
of images.
Display Mode
Color Profile
•
Bright: For brightness optimization.
•
Presentation: For meeting presentation with higher
brightness.
•
Standard: For common environment.
•
Video: For playing video in a bright environment.
•
Game: For game content.
•
Education: For education environment.
•
User 1/User 2: Memorize user’s settings.
Available when User 1/User 2 is selected in the Display
Mode menu. You can use one of the display modes as a
starting point and customize the settings. The below OSD
items can be adjusted and saved.
English
Color
English
20
Use this function to choose a proper color according to the
wall. There are several choices, including White, Light
Yellow, Light Blue, Pink and Dark Green. It will compensate
for the color deviation due to the wall color to show the
correct image tone.
Wall Color
Adjusts the brightness of the image.
Brightness
•
Press
to darken the image.
•
Press
to lighten the image.
Controls the degree of difference between the lightest and
darkest parts of the picture. Adjusting the contrast changes
the amount of black and white in the image.
Contrast
•
Press
to decrease the contrast.
•
Press
to increase the contrast.
Adjusts a video image from black and white to fully
saturated colors.
Saturation
•
Press
image.
to decrease the amount of color in the
•
Press
image.
to increase the amount of color in the
Adjusts the color balance of red and green.
Tint
•
Press
image.
to increase the amount of green in the
•
Press
to increase the amount of red in the image.
Color
Temperature
Adjusts the color temperature. At higher color
temperatures, the screen looks colder; at lower color
temperatures, the screen looks warmer.
Gamma
Effects the representation of dark scenery. With greater
gamma value, dark scenery will look brighter.
Rename
Available when User 1/User 2 is selected in the Display
Mode menu. You can change User 1/User 2 to your
preferred mode name in English letters.
Note: "Saturation" and "Tint" functions are not supported under computer
mode.
21
Projection
Mode
Projection
Location
•
Front: The factory default setting.
•
Rear: Reverses the image so you can project from
behind a translucent screen.
•
Auto: Automatically adjusts projection location of
image.
•
•
Desktop
Ceiling: Turns the image upside down for ceilingmounted projection.
Use this function to choose your desired aspect ratio.
•
Auto: Keeps the image with original width-height ratio
and maximizes the image to fit native horizontal or
vertical pixels.
•
Full (for WXGA/1080p models): The image will be
displayed making full use of the horizontal and vertical
pixels.
•
4:3: The image will be scaled to fit the screen and
displayed using a 4:3 ratio.
•
16:9: The image will be scaled to fit the screen and
displayed using a 16:9 ratio.
•
L.Box (for WXGA/1080p models): Keeps the original
signal aspect ratio and zooms in by 1.333 times.
Aspect Ratio
Auto V. Keystone
Automatically adjusts image distortion caused by tilting
projection.
V. Keystone
Manually adjusts image distortion caused by tilting
projection (±30 degrees).
H/V Keystone
H. Keystone
Manually adjusts image distortion caused by tilting
projection (±20 degrees).
English
English
22
Auto Keystone
Automatically adjusts image distortion caused by tilting
projection (±40 degrees).
Manually adjusts image distortion caused by tilting
projection (±40 degrees).
Manual
Keystone
This function is unavailable when Auto Keystone is set
to "On".
Manually adjusts the shape and size of an image that is
unevenly rectangular on all sides. Press "MODE" repeatedly
to select the corner that you wish to adjust. Press four
directional selection keys to adjust the image shape.
4 Corner
Correction
Please adjust 4-corner correction separately for each
aspect ratio, and its memory is allowed to save 4 sets of
settings only.
Sets the default size of the projected image. You can further
Digital Zoom
Out
zooms in or out the image by pressing
. Using the
functions of Digital Zoom Out and Image Shift together helps
you fit the projected image full screen without adjusting the
existing ceiling mount settings.
Shifts the projected image by pressing
Image Shift
Adjusts the sharpness of the image.
Sharpness
H. Position
(Horizontal
Position)
. When Native
Resolution is WUXGA, this functions is only available when
the setting of Digital Zoom Out (Install) is less than 1.0.
•
Press
to decrease the sharpness.
•
Press
to increase the sharpness.
•
Press
to move the image left.
•
Press
to move the image right.
23
•
Press
to move the image down.
•
Press
to move the image up.
Frequency
Changes the projector’s refresh rate to match the frequency
of your computer’s graphics card. If you experience a vertical
flickering bar in the projected image, use this function to
correct it.
Tracking
Synchronizes the signal timing of the display with the
graphics card. If you experience an unstable or flickering
image, use this function to correct it.
Adjusts the color range of the HDMI image data to prevent
color display error.
HDMI Color
Range
•
Auto: Automatically adjusts the color range by
information from the player.
•
Limited Range: Processes the input image as limited
color range data.
•
Full Range: Processes the input image as full color range
data.
Adjusts the overscan ratio of the HDMI image on screen.
•
Auto: Automatically adjusts the overscan ratio by
information from the player.
•
Underscan: Always no overscan on the HDMI image.
•
Overscan: Always keep overscan on the HDMI image.
HDMI Scan Info
Note: "H. Position", "V. Position", "Frequency" and "Tracking" functions
are not supported under video or HDMI mode.
Note: "HDMI Color Range" and "HDMI Scan Info" are only available when
the input signal is HDMI.
Setting
Startup Screen
Use this function to select your desired startup screen. If you
change the setting, it will take effect when you exit the OSD
menu.
•
Acer: The default startup screen of your Acer projector.
•
User: Use the memorized picture from the "Screen
Capture" function.
English
V. Position
(Vertical
Position)
24
English
Use this function to customize the startup screen. To capture
the image that you want to use as the startup screen, follow
the instructions below.
Notice
Before proceeding with the following steps, make sure that
the "Keystone" is set to the default value "0" and the
projector is in its native resolution.
Screen Capture
•
Select "Screen Capture" to customize the startup screen.
•
A dialog box appears to confirm the action. Choose
"Yes" to use the current image as your customized
startup screen. Choose "No" to cancel the screen capture
and exist the Onscreen Display (OSD).
•
A message appears stating that the screen capture is in
progress.
•
When the screen capture is finished, the message
disappears and the original display is shown.
•
Manual: When switching input signals, you need to press
"SOURCE" on the control panel or remote control, or
the direct source key on the remote control.
•
Auto: The projector will detect your source
automatically.
Source Selection
Closed Caption
DC 5V Out
Selects a preferred closed captioning mode from CC1, CC2,
CC3, CC4 (CC1 displays captions in the primary language in
your area). Select "Off" to turn off the captioning feature.
This function is only available when a composite video or SVideo input signal is selected and its system format is NTSC.
Selecting "On" enables the function. The MHL port(s) and the
DC 5V out port/USB A port (if available) on the projector can
output 5V power when the projector is turned on.
Only MHL port(s) will provide power output when
MHL port(s) and USB A port are both plugged.
USB 5V
(Standby)
Selecting "On" enables the function. The MHL port(s) and the
DC 5V out port/USB A port (if available) on the projector can
output 5V power when the projector is turned on or in
standby mode.
Only MHL port(s) will provide power output when
MHL port(s) and USB A port are both plugged.
25
Enabling this function increases the standby power
consumption.
HDMI CEC
Selecting "On" allows synchronized power ON/OFF operation
between the projector and a CEC-compatible device
connected to the HDMI/MHL port of the projector.
This function is only available for the HDMI/MHL port.
Security
This projector provides a useful security function for the
administrator to manage the projector.
Press
to change the "Security" setting. If the security
function is enabled, your must enter "Administrator
Password" first before changing the security setting.
Security
The factory default of "Administrator Password" is
"1234".
•
Select "On" to enable the security function. You have to
enter password depending on the "Security Mode".
Please refer to "User Password" section for details.
•
If "Off" is selected, you can switch on the projector
without password.
English
VGA OUT
(Standby)
Selecting "On" enables the function. The projector can
output a VGA signal when it is in standby mode and the VGA
IN (or VGA IN 1) and VGA OUT sockets are correctly
connected to the devices.
26
English
Timeout (Min.)
Once "Security" is set to "On", you can set timeout function.
•
Press
•
The range is from 10 to 990 minutes.
•
When time is up, the projector will request you to enter
the password again.
•
The factory default setting of "Timeout (Min.)" is "Off".
•
Once the security function is enabled, the projector will
request you to enter password when switching on the
projector. Both "User Password" and "Administrator
Password" can be accepted for this dialogue.
to select timeout duration.
User Password
Security
•
Press
•
Use the numerical keys on the remote control to set the
password and press "ENTER" to confirm.
•
To delete the digits, Press
•
Enter the password again when you see "Confirm
Password" displayed.
•
The password should be 4~8 digits in length.
•
If you select "Request password only after plugging
power cord", you are requested to input the password
every time the power cord is plugged. If you fail to enter
the correct password within 20 minutes upon request,
the projector will shut down automatically.
•
If you select "Always request password while projector
turns on", you are requested to input the password
every time the projector is turned on. If you fail to enter
the correct password within 20 minutes upon request,
the projector will shut down automatically.
to set up or change "User Password".
.
27
•
Press
to change "Administrator Password".
•
Security
The factory default of "Administrator Password" is
"1234".
If you forget your administrator password, do the following
to retrieve the administrator password:
•
Enter the unique 6-digit "Universal Password" which is
printed on the Security Card that came with your
projector. This unique password will be accepted by the
projector no matter what the administrator password is.
•
If the Security Card is lost, please contact your local Acer
service center.
Lock User Startup Screen
This function is set to "OFF" by default. If set to "ON", the
startup screen is locked and cannot be changed by the
"Startup Screen" and "Screen Capture" functions.
Reset
Press "ENTER" after choosing "Yes" to return the display
parameters on all menus to the factory default settings.
English
Administrator Password
You can enter "Administrator Password" when the "Enter
Administrator Password" or "Enter Password" dialogue box
displays.
English
28
Management
ECO Mode
Choose "On" to dim the projector lamp, which will also
lower the power consumption, reduce noise, and extend
the lamp life. Choose "Off" to return to the normal mode.
High Altitude
Choose "On" to turn on the High Altitude mode. When
this function is turned on, the projector fans operate at full
speed continuously to cool down the projector’s
temperature.
•
Standard: Enables you to turn off the projector with
fan cooling process by pressing the power button
twice.
•
Instant Resume: Enables you to restart the projector
immediately within 2 minutes after turning it off.
Turn Off Mode
Auto Shutdown
(Minutes)
The projector will automatically shut down while there is
no signal input detected after the time you set.
•
Menu Display
Time (Seconds)
5/15/30: Chooses the length of time the OSD menu
will remain active after your last key press.
•
Manual: The OSD menu remains active. The only way
to launch or exit the OSD menu is by pressing
"MENU".
AC Power On
Selecting "On" enables the function. The projector will
automatically turn on when power is supplied via the
power cord.
Control Panel
Lock
•
Off: Allows all keys on the control panel to operate
normally.
•
Child Lock: Disables the Power key on the control
panel when the projector is in standby mode to
prevent it from being accidentally turned on. To turn
the projector on, press and hold the Power key for 3
seconds.
•
Full Lock: Disables all keys on the control panel. If you
turn off the projector without disabling the Full Lock
function, the projector will still be in locked status the
next time it is turned on. To disable Full Lock function,
press and hold "POWER" on the control panel for 7
seconds and the Control Panel Lock will be set to
"Off". When the projector is in standby mode, press
and hold "POWER" on the control panel for 7 seconds
to turn the projector on and the Control Panel Lock
will be set to "Off".
29
Lamp Hour Elapse: Displays the lamp’s elapsed
operating time (in hours).
•
Lamp Reminding: Choose this function to show or
hide warning message when the changing lamp
message is displayed. The message will show up 30
hours before end of life.
•
Lamp Hour Reset: Press "ENTER" after choosing "Yes"
to reset the lamp hour counter to 0 hours.
Lamp
Information
Displays current status of this projector.
Audio
Volume
Mute
Power On/Off
Volume
Alarm Volume
•
Press
to decrease the volume.
•
Press
to increase the volume.
•
Choose "On" to turn mute on.
•
Choose "Off" to turn mute off.
Select this function to adjust the notification volume
when turning the projector on/off.
Select this function to adjust the volume of any
warning notifications.
English
•
English
30
3D
Selects "On" to enable the 3D function supported by DLP 3D
technology.
3D
•
On: Select this item while using DLP 3D glasses, quad
buffer (NVIDIA/ATI...) graphics card and HQFS format file
or DVD with corresponding SW player.
•
Off: Turns off the 3D mode.
3D Format
If the 3D content is not displayed correctly, you can select a
3D format that suits the 3D content you are viewing and
obtain the best result.
24P 3D
Choose 96Hz or 144Hz for 24p 3D.
3D L/R Invert
If you see a discrete or overlapping image while wearing DLP
3D glasses, you may need to execute "Invert" to get best
match of left/right image sequence to get the correct image
(for DLP 3D).
Choose "On" to display the 3D warning message.
3D Warning
Message
Note: Supported 3D signal timings:
Signal source type
Supported timing
Video/S-Video/Component
video
HQFS 3D (480i@60Hz), 576i@50Hz
VGA/HDMI (PC mode)
640 x 480@50/60/100/120Hz
800 x 600@50/60/100/120Hz
1024 x 768@50/60/100/120Hz
1280 x 800@50/60/100/120Hz (RB)
HDMI (Video mode)
HQFS 3D (480i@60Hz), 576i@50Hz,
Frame Packing ([email protected]/24Hz,
720p@50/60Hz)
Side-by-Side Horizontal (1080i@50/60Hz,
1080p@50/60Hz)
Top-and-Bottom (720p@50/60Hz,
[email protected]/24Hz, 1080p@50/60Hz)
It needs correct settings on graphics card 3D application program for correct
3D display.
Note: "3D L/R Invert" and "3D Format" are only available when "3D" is
enabled.
31
Language
Sets a language for the OSD menus. Use
select your preferred language.
to
English
Language
English
32
Appendices
Troubleshooting
If you experience a problem with your Acer projector, refer to the following
troubleshooting guide. If the problem persists, please contact your local reseller
or service center.
Image Problems and Solutions
#
1
2
Problem
No image appears
onscreen
Partial, scrolling
or incorrectly
displayed image
(For PC)
Solution
•
Make sure all the cables are correctly connected as
described in the "Getting Started" section.
•
Ensure none of the connector pins are bent or
broken.
•
Make sure the projector is switched on.
•
For an incorrectly displayed image:
•
Open "My Computer > Control Panel," and
then double-click the "Display" icon.
•
Select the "Settings" tab.
•
Verify that your display resolution setting is
lower than or equal to 1600 x 1200 or 1920 x
1080.
•
Click the "Advanced Properties" button.
If the problem still appears, change the monitor display
you are using and follow the steps below:
•
Verify that the resolution setting is lower than
or equal to 1600 x 1200 or 1920 x 1080.
•
Click the "Change" button under the
"Monitor" tab.
•
Click "Show all devices > Standard monitor
types" under the SP box, and choose the
resolution mode you need under the "Models"
box.
•
Verify that the resolution setting of the
monitor display is lower than or equal to 1600 x
1200 or 1920 x 1080.
33
4
5
6
7
8
Partial, scrolling
or incorrectly
displayed image
(For notebooks)
•
For an incorrectly displayed image:
•
•
Follow the steps for item 2 (above) to adjust
the resolution of your computer.
Press the toggle output settings. Example:
[Fn]+[F4], Compaq [Fn]+[F4], Dell [Fn]+[F8],
Gateway [Fn]+[F4], IBM [Fn]+[F7], HP
[Fn]+[F4], NEC [Fn]+[F3], Toshiba [Fn]+[F5]
•
If you experience difficulty changing resolutions or
your monitor freezes, restart all equipment
including the projector.
•
If you are using a Microsoft® Windows® based
notebook: Some notebook PCs may deactivate their
own screens when a second display device is in use.
Each has a different way to be reactivated. Refer to
your computer's manual for detailed information.
•
If you are using an Apple® Mac® OS based
notebook: In System Preferences, open Display and
select Video Mirroring "On."
•
Use "Tracking" to correct it. Refer to the "Image"
section for more information.
•
Change the display color setting on your computer.
•
Use "Frequency" to make an adjustment. Refer to
the "Image" section for more information.
•
Check and reconfigure the display mode of your
graphics card to make it compatible with the
projector.
Image is out of
focus
•
•
Adjust the focus ring on the projector lens.
Image is stretched
when displaying a
"widescreen"
DVD title
When you play a DVD encoded in anamorphic or 16:9
aspect ratio you may need to adjust the following
settings:
•
If you play a 4:3 format DVD title, please change the
format to 4:3 with the projector OSD.
The screen of the
notebook
computer is not
displaying your
presentation
Image is unstable
or flickering
Image has vertical
flickering bar
•
Make sure the projection screen is within the
required distance. (Refer to "Projection distance
with clear focus" section for more information.)
Refer to the "How to Get a Preferred Image Size by
Adjusting Distance and Zoom" section for more
information.
If the image is still stretched, you will also need to
adjust the aspect ratio. Set up the display format to
16:9 (wide) aspect ratio on your DVD player.
English
3
English
34
9
10
11
Image is too small
or too large
Image has slanted
sides
Image is reversed
•
•
Adjust the zoom lever on the top of the projector.
•
Press "MENU" on the control panel or remote
control. Go to "Image" > "Aspect Ratio" and try
different settings.
•
If possible, reposition the projector so that it is
centered on the screen and below the bottom of the
screen.
•
Press the Keystone correction keys on the control
panel or remote control until the image becomes
square.
•
Press "MENU" on the control panel or remote
control to open the OSD menu. Go to "Image" >
"Auto Keystone" or "Image" > "Manual Keystone"
to make adjustments.
•
Select "Image" > "Projection Mode", "Image" >
"Projection Location" on the OSD and adjust the
projection direction.
Move the projector closer to or further from the
screen.
Problems with the Projector
#
1
2
Condition
The projector stops responding
to all controls
Lamp burns out or makes a
popping sound
Solution
•
If possible, turn off the projector, then
unplug the power cord and wait at
least 30 seconds before reconnecting
power.
•
Make sure that the control panel lock
function is disabled.
When the lamp reaches the end of its useful
life, it will burn out and may make a loud
popping sound. If this happens, the projector
will not turn on until the lamp module has
been replaced. To replace the lamp, contact
your local dealer or Acer service center.
35
#
1
Condition
Message
Message Reminder
Fan Fail - the system fan is not working.
Fan Fail.
Lamp will automatically turn off soon.
Projector Overheated - the projector has exceeded its
recommended operating temperature and must be allowed to
cool down before it is used.
Projector Overheated.
Lamp will automatically turn off soon.
Replace the lamp - the lamp is about to reach its maximum
lifetime. Prepare to replace it soon.
Lamp is approaching the end of its useful life in full power operation.
Replacement suggested!
English
OSD Messages
English
36
LED & Alarm Definition Listing
LED Messages
Message
Power LED
LAMP LED
TEMP LED
Red
Blue
Red
Red
Standby
(Power cord plugged in)
V
--
--
--
Power on
--
V
--
--
Lamp retry
--
Quick
flashing
--
--
Turning off (Cooling
state)
Quick
flashing
--
--
--
Turning off (Cooling
completed)
V
--
--
--
Firmware download
V
--
V
V
Error (Thermal failure)
--
V
--
V
Error (Fan lock failure)
--
V
--
Quick
flashing
Error (Lamp breakdown)
--
V
V
--
Error (Color wheel
failure)
--
V
Quick
flashing
--
37
If you wish to install the projector using a ceiling mount, please refer to the
steps below:
1
Drill four holes into a solid, structurally sound part of the ceiling, and
secure the mount base.
2
Choose the length combination based on actual environment. (CM-01S
doesn’t include Type 2 and Type 3.)
Type 1
3
Type 2
Type 3
Type 1: For the standard size use three bracket screws to mount the
projector to the ceiling mount bracket.
English
Ceiling Mount Installation
38
English
Type 2 and Type 3: Alternatively, for the larger size, use the sliding
extensions for more supports.
Type 1
Type 3
Type 2
Note: It is recommended that you keep a reasonable space
between the bracket and the projector to allow for proper heat
distribution.
4
Connect the main body connector to the projector bracket (illustration 1),
and then screw up four screws (illustration 2).
Illustration 1
5
Illustration 2
Adjust the angle and positioning as necessary.
360°
39
Washer Type
Length (mm)
Large
Small
4
25
V
V
38.04
58.85
16.85
69.50
107.54
148.15
42
165
207
299.5
92.7
91.6
105.1
44.58
Unit: mm
English
Screw Type B
Diameter (mm)
English
40
Specifications
The specifications below are subject to change without notice. For final specs,
please refer to Acer's marketing documentation.
Projection system
DLP™
Computer compatibility
Refer to the "Compatibility Modes" section for more
information.
Video compatibility
NTSC (3.58/4.43), PAL (M/N), PAL 60, SECAM, HDTV
(720p, 1080i, 1080p), EDTV (480p, 576p), SDTV (480i,
576i)
Displayable colors
1.07 billion colors
Digital zoom
0.8 – 2 X
Weight
Approximate 2.4 kg (5.29 lbs.)
Dimensions (W x D x H)
299.5 x 220 x 91.6 mm (11.8" x 8.7"x 3.6")
299.5 x 220 x 105.1 mm (11.8" x 8.7"x 4.1") (with tilt
adjusting wheels)
Power supply
Universal AC input 100 - 240 V, input frequency 50/60
Hz
Operating temperature
0ºC to 40ºC / 32ºF to 104ºF
Standard package contents
•
•
•
•
AC power cord x 1
•
•
•
•
•
•
•
•
User's guide (CD-ROM) x 1
Accessory (optional)
Remote control x 1
Battery x 2 (for the remote control)
Quick start guide x 1
VGA cable x 1
HDMI cable x 1
Security card x 1
Carrying case x 1
WirelessHD dongle kit (MWIHD1) x 1
Acer Projector Multi-media (CD-ROM) x 1
Acer Projector Multi-media quick start guide x 1
41
Resolution
Native: SVGA (800 x 600)
Maximum: UXGA (1600 x 1200), 1080p (1920 x 1080),
WUXGA (1920 x 1200) (supports reduce blanking only)
Aspect ratio
Auto, 4:3 (native), 16:9
Projection lens
F = 2.56 – 2.68, f = 22.0 mm – 24.1 mm,
1:1.1 Manual Zoom and Manual Focus
Projection screen size (diagonal)
60" – 300" (152 cm – 762 cm)
Projection distance with clear
focus
W: 2.38 m – 7.15 m (7.8' – 23.5')
T: 2.62 m – 7.87 m (8.6' – 25.8')
Throw ratio
1.96 – 2.15 (78" + 3% @ 3.1 m)
Horizontal scan rate
15 – 100 KHz
Vertical refresh scan rate
24 – 120 Hz
Keystone correction
+/-40 Degrees (Vertical), Manual & Auto
Audio
3W speaker x 1
Power consumption
Standard mode: 260 W @100 VAC
ECO mode: 205 W @ 100 VAC
Standby mode: < 0.5 W
X1223HP/D810D+/Q55X/EX550/EV-X80HP/BS-120P/DX220P/
KX330P/EV-X70H/DX210/BS-120PV
Resolution
Native: XGA (1024 x 768)
Maximum: UXGA (1600 x 1200), 1080p (1920 x 1080),
WUXGA (1920 x 1200) (supports reduce blanking only)
Aspect ratio
Auto, 4:3 (native), 16:9
Projection lens
F = 2.56 – 2.68, f = 22.0 mm – 24.1 mm,
1:1.1 Manual Zoom and Manual Focus
Projection screen size (diagonal)
60" – 300" (152 cm – 762 cm)
Projection distance with clear
focus
W: 2.38 m – 7.15 m (7.8' – 23.5')
T: 2.62 m – 7.87 m (8.6' – 25.8')
Throw ratio
1.96 – 2.15 (78" + 3% @ 3.1 m)
Horizontal scan rate
15 – 100 KHz
Vertical refresh scan rate
24 – 120 Hz
Keystone correction
+/-40 Degrees (Vertical), Manual & Auto
Audio
3W speaker x 1
Power consumption
Standard mode: 260 W @100 VAC
ECO mode: 205 W @ 100 VAC
Standby mode: < 0.5 W
English
X1123HP/D800D+/Q55S/ES550/EV-S80HP/BS-020P/DX120P/
KS330P
English
42
X1323WHP/D820D+/Q55W/EW550/EV-W80HP/BS-320P/DX420P/
KW330P
Resolution
Native: WXGA (1280 x 800)
Maximum: UXGA (1600 x 1200), 1080p (1920 x 1080),
WUXGA (1920 x 1200) (supports reduce blanking only)
Aspect ratio
Auto, 4:3, 16:9, Full, L.Box
Projection lens
F = 2.56 – 2.68, f = 22.0 mm – 24.1 mm,
1:1.1 Manual Zoom and Manual Focus
Projection screen size (diagonal)
60" – 300" (152 cm – 762 cm)
Projection distance with clear
focus
W: 2 m – 6 m (6.6' – 19.7')
T: 2.2 m – 6.6 m (7.2' – 21.7')
Throw ratio
1.55 – 1.7 (87" + 3% @ 2.9 m)
Horizontal scan rate
15 – 100 KHz
Vertical refresh scan rate
24 – 120 Hz
Keystone correction
+/-40 Degrees (Vertical), Manual & Auto
Audio
3W speaker x 1
Power consumption
Standard mode: 260 W @100 VAC
ECO mode: 205 W @ 100 VAC
Standby mode: < 0.5 W
P1155/M307/PE-S46/PR121/MF-020
Resolution
Native: SVGA (800 x 600)
Maximum: UXGA (1600 x 1200), 1080p (1920 x 1080),
WUXGA (1920 x 1200) (supports reduce blanking only)
Aspect ratio
Auto, 4:3 (native), 16:9
Projection lens
F = 2.56 – 2.68, f = 22.0 mm – 24.1 mm,
1:1.1 Manual Zoom and Manual Focus
Projection screen size (diagonal)
60" – 300" (152 cm – 762 cm)
Projection distance with clear
focus
W: 2.38 m – 7.15 m (7.8' – 23.5')
T: 2.62 m – 7.87 m (8.6' – 25.8')
Throw ratio
1.96 – 2.15 (78" + 3% @ 3.1 m)
Horizontal scan rate
15 – 100 KHz
Vertical refresh scan rate
24 – 120 Hz
Keystone correction
+/-40 Degrees (Vertical), Manual & Auto
Audio
3W speaker x 1
Power consumption
Standard mode: 260 W @100 VAC
ECO mode: 205 W @ 100 VAC
Standby mode: < 0.5 W
43
Resolution
Native: XGA (1024 x 768)
Maximum: UXGA (1600 x 1200), 1080p (1920 x 1080),
WUXGA (1920 x 1200) (supports reduce blanking only)
Aspect ratio
Auto, 4:3 (native), 16:9
Projection lens
F = 2.59 – 2.87, f = 16.88 mm – 21.88 mm,
1:1.3 Manual Zoom and Manual Focus
Projection screen size (diagonal)
60" – 300" (152 cm – 762 cm)
Projection distance with clear
focus
W: 1.85 m – 5.54 m (6.1' – 18.2')
T: 2.40 m – 7.20 m (7.9' – 23.6')
Throw ratio
1.51 – 1.97 (78" + 3% @ 2.4 m)
Horizontal scan rate
15 – 100 KHz
Vertical refresh scan rate
24 – 120 Hz
Keystone correction
+/-40 Degrees (Vertical), Manual & Auto
Audio
10W speaker x 1
Power consumption
Standard mode: 260 W @100 VAC
ECO mode: 205 W @ 100 VAC
Standby mode: < 0.5 W
P1355W/M327/PE-W46/PR321/MF-220
Resolution
Native: WXGA (1280 x 800)
Maximum: UXGA (1600 x 1200), 1080p (1920 x 1080),
WUXGA (1920 x 1200) (supports reduce blanking only)
Aspect ratio
Auto, 4:3, 16:9, Full, L.Box
Projection lens
F = 2.59 – 2.87, f = 16.88 mm – 21.88 mm,
1:1.3 Manual Zoom and Manual Focus
Projection screen size (diagonal)
60" – 300" (152 cm – 762 cm)
Projection distance with clear
focus
W: 1.57 m – 4.71 m (5.2' – 15.5')
T: 2.04 m – 6.12 m (6.7' – 20.1')
Throw ratio
1.21 – 1.57 (87" + 3% @ 2.26 m)
Horizontal scan rate
15 – 100 KHz
Vertical refresh scan rate
24 – 120 Hz
Keystone correction
+/-40 Degrees (Vertical), Manual & Auto
Audio
10W speaker x 1
Power consumption
Standard mode: 260 W @100 VAC
ECO mode: 205 W @ 100 VAC
Standby mode: < 0.5 W
English
P1255/M317/PE-X46/PR221/MF-120
X1223HP/D810D+/
Q55X/EX550/EVX80HP/BS-120P/
DX220P/KX330P
X1323WHP/D820D+/
Q55W/EW550/EVW80HP/BS-320P/
DX420P/KW330P
P1155/M307/PE-S46/
PR121/MF-020
P1355W/M327/PEW46/PR321/MF-220
EV-X70H/DX210/BS120PV
V
V
V
V
V
V
V
DC 5V OUT
X
X
X
V
V
V
X
VGA IN 1
X
X
X
V
V
V
X
VGA IN 2
X
X
X
V
V
V
X
VGA IN
V
V
V
X
X
X
V
VGA OUT
V
V
V
V
V
V
V
I/O connectors
P1255/M317/PE-X46/
PR221/MF-120
X1123HP/D800D+/
Q55S/ES550/EVS80HP/BS-020P/
DX120P/KS330P
Power socket
English
44
RS232
V
V
V
V
V
V
V
AUDIO IN
V
V
V
V
V
V
X
AUDIO OUT
V
V
V
V
V
V
X
HDMI
V
V
V
X
X
X
V
HDMI 1
X
X
X
V
V
V
X
HDMI 2 / MHL
X
X
X
V
V
V
X
VIDEO
V
V
V
V
V
V
V
USB Ctrl
V
V
V
V
V
V
V
S-VIDEO
X
X
X
X
X
X
V
* Design and specifications are subject to change without notice.
45
1
English
Compatibility Modes
VGA Analog - PC Signal
Mode
VGA
SVGA
XGA
Resolution
640 x 480
800 x 600
1024 x 768
1152 x 864
SXGA
1280 x 1024
V.Frequency [Hz]
H.Frequency
[KHz]
60
31.47
72
37.86
75
37.50
85
43.27
120
61.91
56
35.20
60
37.88
72
48.08
75
46.88
85
53.67
120
77.43
60
48.36
70
56.48
75
60.02
85
68.68
120
98.96
70
63.85
75
67.50
85
77.10
60
63.98
72
76.97
75
79.98
85
91.15
1280 x 960
60
60.00
1280 x 960
75
75.00
SXGA+
1400 x 1050
60
65.32
UXGA
1600 x 1200
60
75.00
640 x 480
60
31.50
640 x 480
66.6 (67)
35.00
QuadVGA
PowerBook G4
800 x 600
60
37.88
1024 x 768
60
48.36
1024 x 768
75
60.241
1152 x 870
75
68.681
46
60
47.78
1280 x 768
75
60.29
1280 x 768
85
68.63
1280 x 720
60
45.00
1280 x 800
60
49.70
1280 x 800 - RB
120
101.6
1440 x 900
60
55.94
1680 x 1050
60
65.29
English
1280 x 768
WXGA
WSXGA+
acer_16:9
1366 x 768
60
47.71
1920 x 1080-RB
60
66.60
1920 x 1080-EIA
60
67.50
acer_timing
1024 x 600
60
37.50
WUXGA
1920 x 1200-RB
59.95
74.04
HD 1080
2
HDMI - PC Signal
V.Frequency [Hz]
H.Frequency
[KHz]
VGA_60
59.94
31.469
VGA_72
72.809
37.861
Mode
VGA_75
Resolution
75
37.5
VGA_85
85.008
43.269
VGA_120
119.518
61.91
SVGA_56
56.25
35.156
SVGA_60
60.317
37.879
SVGA_72
72.188
48.077
75
46.875
SVGA_75
640 x 480
800 x 600
SVGA_85
85.061
53.674
SVGA_120
119.854
77.425
XGA_60
60.004
48.363
XGA_70
70.069
56.476
75.029
60.023
119.804
98.958
XGA_75
1024 x 768
XGA_120
SXGA_75
75
67.5
84.99
77.094
SXGA_60
60.02
63.981
SXGA_72
72
76.97
75.025
79.976
85.024
91.146
75
75
SXGA_85
SXGA_75
1152 x 864
1280 x 1024
SXGA_85
QuadVGA_75
1280 x 960
47
1400 x 1050
59.978
UXGA_60
1600 x 1200
60
75
Mac G4
640 x 480@60Hz
59.94
31.469
MAC13
640 x 480@67Hz
66.667
35
Mac G4
800 x 600@60Hz
60.317
37.879
Mac G4
1024 x 768@60Hz
60.004
48.363
MAC19
1024 x 768@75Hz
75.02
60.241
MAC21
1152 x 870@75Hz
75.061
68.681
59.87
47.776
1280 x 768
74.893
60.289
84.837
68.633
WXGA_60
WXGA_75
WXGA_85
3
65.317
WXGA_60
1280 x 720
60
45
WXGA_60
1280 x 800
59.81
49.702
WXGA_120-RB
1280 x 800
119.909
101.563
55.935
WXGA+_60
1440 x 900
59.887
1680x1050_60
1680 x 1050
59.954
65.29
acer_16:9
1366 x 768
59.79
47.712
1920 x 1080_RB
1920 x1080
60
66.587
1920 x 1080_EIA
1920 x1080
60
67.5
acer_timing
1024 x 600
60
37.5
1920 x 1200-RB
1920 x 1200
59.95
74.038
HDMI - Video Signal
Mode
Resolution
720 x 480
(1440 x 480)
V.Frequency [Hz]
H.Frequency [KHz]
60
15.73
480p
720 x 480
60
31.47
576i
720 x 576
(1440 x 576)
50
15.63
480i
576p
720 x 576
50
31.25
720p
1280 x 720
60
45.00
720p
1280 x 720
50
37.50
1080i
1920 x 1080
60
33.75
1080i
1920 x 1080
50
28.13
1080p
1920 x 1080
60
67.50
1080p
1920 x 1080
50
56.26
1080p
1920 x 1080
24
27.00
1080p
1920 x 1080
23.98
26.97
1080p
1920 x 1080
30
33.75
English
SXGA+_60
English
48
4
MHL - Video Signal
Mode
480i
5
V.Frequency [Hz]
60
H.Frequency [KHz]
15.73
31.47
480p
720 x 480
60
576i
720 x 576 (1440 x 576)
50
15.63
576p
720 x 576
50
31.25
720p
1280 x 720
60
45.00
720p
1280 x 720
50
37.50
1080i
1920 x 1080
60
33.75
1080i
1920 x 1080
50
28.13
1080p
1920 x 1080
24
27.00
1080p
1920 x 1080
23.98
26.97
1080p
1920 x 1080
30
33.75
1080p
1920 x 1080
50
56.26
1080p
1920 x 1080
60
67.5
V.Frequency [Hz]
59.94
59.94
50.00
50.00
60.00
50.00
60.00
50.00
60.00
50.00
24.00
23.98
H.Frequency [KHz]
15.73
31.47
15.63
31.25
45.00
37.50
33.75
28.13
67.5
56.26
27.00
26.97
H.Frequency [KHz]
60
50
50
60
50
60
60
fsc (MHz)
3.58
4.43
4.25 or 4.41
3.58
3.58
4.43
4.43
YPbPr Signal
Mode
480i
480p
576i
576p
720p
720p
1080i
1080i
1080p
1080p
1080p
1080p
6
Resolution
720 x 480 (1440 x 480)
Resolution
720 x 480
720 x 480
720 x 576
720 x 576
1280 x 720
1280 x 720
1920 x 1080
1920 x 1080
1920 x 1080
1920 x 1080
1920 x 1080
1920 x 1080
Video, S-Video Signal
Mode
NTSC
PAL
SECAM
PAL-M
PAL-N
PAL-60
NTSC4.43
V.Frequency [Hz]
15.73
15.63
15.63
15.73
15.63
15.73
15.73
FCC notice
This device has been tested and found to comply with the limits for a Class B
digital device pursuant to Part 15 of the FCC rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This device generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this device does cause harmful interference to radio or television
reception, which can be determined by turning the device off and on, the
user is encouraged to try to correct the interference by one or more of the
following measures:
•
Reorient or relocate the receiving antenna.
•
Increase the separation between the device and receiver.
•
Connect the device into an outlet on a circuit different from that to which
the receiver is connected.
•
Consult the dealer or an experienced radio/television technician for help.
Notice: Shielded cables
All connections to other computing devices must be made using shielded cables
to maintain compliance with FCC regulations.
Notice: Peripheral devices
Only peripherals (input/output devices, terminals, printers, etc.) certified to
comply with the Class B limits may be attached to this equipment. Operation
with non-certified peripherals is likely to result in interference to radio and TV
reception.
Caution
Changes or modifications not expressly approved by the manufacturer could
void the user's authority, which is granted by the Federal Communications
Commission, to operate this device.
Operation conditions
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference,
and (2) this device must accept any interference received, including interference
that may cause undesired operation.
Notice: Canadian users
This Class B digital apparatus complies with Canadian ICES-003.
English
Regulations and safety notices
English
49
English
50
Remarque à l'intention des utilisateurs canadiens
Cet appareil numérique de la classe B est conforme a la norme NMB-003 du
Canada.
Compliant with Russian/Ukraine/Belarus regulatory certification
Radio device regulatory notice
Note: The regulatory information below is for models with
wireless LAN and/or Bluetooth only.
General
This product complies with the radio frequency and safety standards of any
country or region in which it has been approved for wireless use. Depending on
configurations, this product may or may not contain wireless radio devices (such
as wireless LAN and/or Bluetooth modules).
Canada — Low-power license-exempt radio
communication devices (RSS-247)
a
Common information
Operation is subject to the following two conditions:
1. This device may not cause interference, and
2. This device must accept any interference, including interference
that may cause undesired operation of the device.
b
Operation in 2.4 GHz band
To prevent radio interference to the licensed service, this device is
intended to be operated indoors and installation outdoors is subject
to licensing.
List of applicable countries
This device must be used in strict accordance with the regulations and constraints in the
country of use. For further information, please contact a local office in the country of use.
Please see http://ec.europa.eu/enterprise/rtte/implem.htm for the latest country list.
English
English
51
Acer Incorporated
8F, 88, Sec. 1, Xintai 5th Rd., Xizhi
New Taipei City 221, Taiwan
Declaration of Conformity
We,
Acer Incorporated
8F, 88, Sec. 1, Xintai 5th Rd., Xizhi, New Taipei City 221, Taiwan
And,
Acer Italy s.r.l
Viale delle Industrie 1/A, 20020 Arese (MI), Italy
