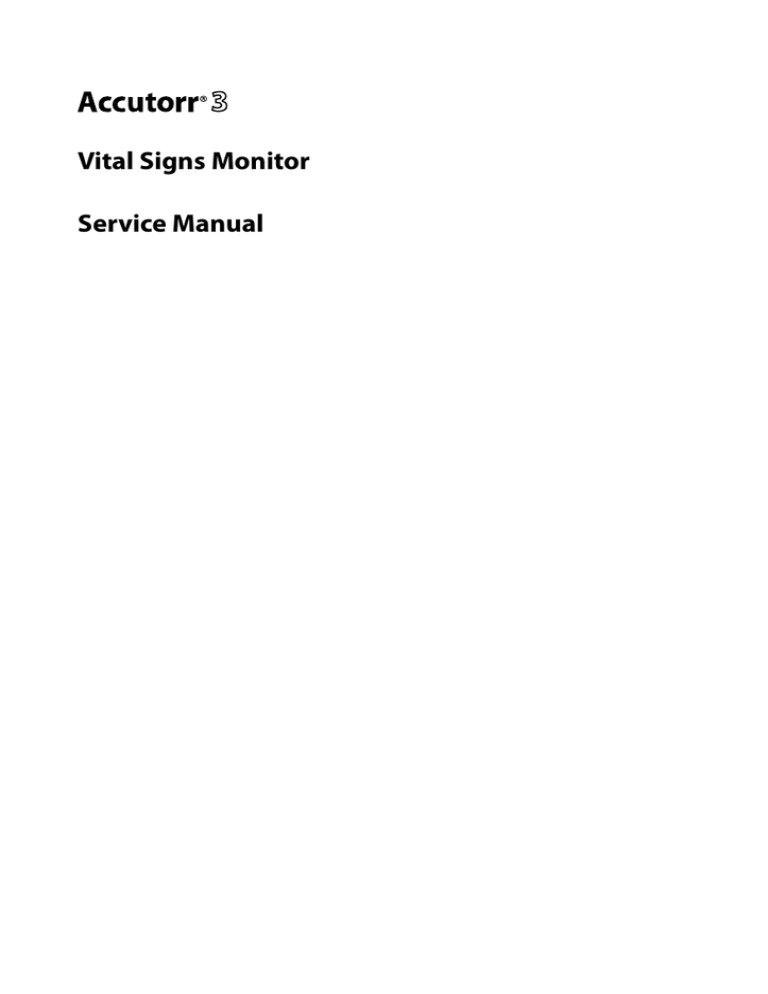

Accutorr 3 Service Manual

Vital Signs Monitor

Service Manual

Intellectual Property Statement

SHENZHEN MINDRAY BIO-MEDICAL ELECTRONICS CO., LTD. (hereinafter called Mindray) owns the intellectual property rights to this product and this manual. This manual may refer to information protected by copyrights or patents and does not convey any license under the patent rights of Mindray, nor the rights of others. Mindray does not assume any liability arising out of any infringements of patents or other rights of third parties.

Mindray intends to maintain the contents of this manual as confidential information.

Disclosure of the information in this manual in any manner whatsoever without the written permission of Mindray is strictly forbidden. Release, amendment, reproduction, distribution, rent, adaption and translation of this manual in any manner whatsoever without the written permission of Mindray is strictly forbidden.

, , and are the registered trademarks or trademarks owned by

Mindray in China and other countries. All other trademarks that appear in this manual are used only for editorial purposes without the intention of improperly using them. They are the property of their respective owners.

Contents of this manual are subject to changes without prior notice.

For this manual, the issued Date is November 2014 (Version 2.0).

© Copyright 2013-2014 Shenzhen Mindray Bio-Medical Electronics Co., Ltd. All rights reserved.

WARNING

Federal Law (USA) restricts this device to sale by or on the order of a physician.

NOTE

This manual describes all features and options. The equipment may not have all of them. Contact Mindray service department for any questions.

I

Manufacturer’s Responsibility

Contents of this manual are subject to changes without prior notice.

All information contained in this manual is believed to be correct. Mindray is not liable for errors contained herein nor for incidental or consequential damages in connection with the furnishing, performance, or use of this manual.

Mindray is responsible for the effects on safety, reliability and performance of this product, only if:

 all installation operations, expansions, changes, modifications and repairs of this product are conducted by Mindray authorized personnel;

 the electrical installation of the relevant room complies with the applicable national and local requirements;

 the product is used in accordance with the instructions for use.

Warranty

Mindray warrants that components within its products will be free from defects in workmanship and materials for a period of three years from the date of purchase except that disposable or one-time use products are warranted to be free from defects in workmanship and materials up to a date one year from the date of purchase or the date of first use, whichever is sooner.

This warranty does not cover consumable items such as, but not limited to, batteries, external cables, and sensors.

Mindray shall not be liable for any incidental, special, or consequential loss, damage, or expense directly or indirectly arising from the use of its products. Liability under this warranty and the buyer’s exclusive remedy under this warranty is limited to servicing or replacing the affected products, at Mindray’s option, at the factory or at an authorized distributor, for any product which shall under normal use and service appear to Mindray to have been defective in material or workmanship. Recommended preventative maintenance, as prescribed in the service manual, is the responsibility of the user and is not covered by this warranty.

No agent, employee, or representative of Mindray has any authority to bind Mindray to any affirmation, representation, or warranty concerning its products, and any affirmation, representation or warranty made by any agent, employee, or representative shall not be enforceable by buyer or user.

THIS WARRANTY IS EXPRESSLY IN LIEU OF, AND MINDRAY EXPRESSLY DISCLAIMS, ANY

OTHER EXPRESS OR IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF

MERCHANTABILITY, NON-INFRINGEMENT, OR FITNESS FOR A PARTICULAR PURPOSE, AND

OF ANY OTHER OBLIGATION ON THE PART OF MINDRAY.

Damage to any product or parts through misuse, neglect, accident, or by affixing any

II

non-standard accessory attachments, or by any customer modification voids this warranty.

Mindray makes no warranty whatsoever in regard to trade accessories, such being subject to the warranty of their respective manufacturers.

A condition of this warranty is that the equipment or accessories which are claimed to be defective be returned when authorized, freight prepaid to Mindray DS USA, Inc., Mahwah,

New Jersey 07430 or its authorized representative. Mindray shall not have any responsibility in the event of loss or damage in transit.

Exemptions

Mindray's obligation or liability under this warranty does not include any transportation or other charges or liability for direct, indirect or consequential damages or delay resulting from the improper use or application of the product or the use of parts or accessories not approved by Mindray or repairs by people other than Mindray authorized personnel.

This warranty does not extend to:

 Malfunction or damage caused by improper use or man-made failure.

 Malfunction or damage caused by unstable or out-of-range power input.

 Malfunction or damage caused by force majeure events, such as (i) flood, fire and earthquake or other similar elements of nature or acts of God; (ii) riots, war, civil disorders, rebellions, or revolutions in any country; or (iii) any other cause beyond the reasonable control of Mindray.

 Malfunction or damage caused by improper operation or repair by unqualified or unauthorized service people.

 Malfunction of the instrument or part whose serial number is not legible.

 Others not caused by instrument or part itself.

III

Contact Information

Manufacturer:

Shenzhen Mindray Bio-Medical Electronics Co., Ltd.

Address:

Mindray Building, Keji 12th Road South, Hi-tech Industrial Park,

Nanshan, Shenzhen 518057 P.R. China

Tel:

Fax:

Website:

+86 755 81888998

+86 755 26582680 www.mindray.com

Distributor:

Address:

Tel:

Website:

Mindray DS USA, Inc.

800 MacArthur Boulevard Mahwah, New Jersey 07430 USA

1.800.288.2121, 1.201.995.8000 www.mindray.com

IV

Preface

Manual Purpose

This manual provides detailed information about the assembling, dissembling, testing and troubleshooting of the equipment to support effective troubleshooting and repair. It is not intended to be a comprehensive, in-depth explanation of the product architecture or technical implementation.

Observance of the manual is a prerequisite for proper equipment maintenance and prevents equipment damage and personnel injury.

Intended Audience

This manual is for biomedical engineers, authorized technicians or service representatives responsible for troubleshooting, repairing and maintaining the equipment.

V

FOR YOUR NOTES

VI

Contents

1 Introduction .............................................................................................................. 1-1

1.1 Manual Information ................................................................................................................. 1-1

1.2 Safety Information .................................................................................................................... 1-1

1.2.1 Warnings ......................................................................................................................... 1-2

1.2.2 Cautions .......................................................................................................................... 1-2

1.2.3 Notes ................................................................................................................................ 1-2

1.3 Equipment Symbols ................................................................................................................ 1-3

2 Theory of Operation ................................................................................................. 2-1

2.1 Overview ...................................................................................................................................... 2-1

2.2 Connectors for Peripheral Devices ..................................................................................... 2-1

2.3 Main Unit ..................................................................................................................................... 2-2

2.4 Front Housing Assembly ........................................................................................................ 2-3

2.5 Rear Housing Assembly .......................................................................................................... 2-4

2.6 External Module ........................................................................................................................ 2-5

3 Equipment Installation ............................................................................................ 3-1

3.1 Unpacking the Equipment .................................................................................................... 3-1

3.2 Preparation for Installation ................................................................................................... 3-1

3.2.1 Preparation for Installation Site .............................................................................. 3-1

3.2.2 Environmental Requirements ................................................................................. 3-1

3.2.3 Electrical Requirements ............................................................................................ 3-2

3.3 Equipment Installation ........................................................................................................... 3-2

3.4 Preparation for Power on ....................................................................................................... 3-2

4 Testing and Maintenance ......................................................................................... 4-1

4.1 Introduction ................................................................................................................................ 4-1

4.2 Performance Tests .................................................................................................................... 4-2

4.2.1 Performance Test Frequencies ................................................................................ 4-2

4.2.2 Visual Inspection .......................................................................................................... 4-2

4.2.3 SpO

2

Test ......................................................................................................................... 4-2

4.2.4 NIBP Test ......................................................................................................................... 4-4

4.2.5 Temperature Test ......................................................................................................... 4-8

4.3 Electrical Safety and Other Tests ......................................................................................... 4-9

4.3.1 Electrical Safety and Other Test Frequencies ..................................................... 4-9

4.3.2 Electric safety tests ...................................................................................................... 4-9

4.3.3 Power-on Test................................................................................................................ 4-9

4.3.4 Battery Check ............................................................................................................. 4-10

4.4 Maintenance Mode ............................................................................................................... 4-10

1

4.4.1 Entering/Quitting Maintenance Mode ............................................................. 4-10

4.4.2 Checking Version Information ............................................................................. 4-12

4.4.3 Restoring Factory Default Configuration ........................................................ 4-13

5 Troubleshooting ....................................................................................................... 5-1

5.1 Overview ..................................................................................................................................... 5-1

5.2 Parts Replacement ................................................................................................................... 5-1

5.3 Troubleshooting Guide .......................................................................................................... 5-1

5.3.1 Power On/Off Failure ................................................................................................. 5-1

5.3.2 Display Failures ............................................................................................................ 5-2

5.3.3 Button Failures ............................................................................................................. 5-2

5.3.4 Battery Failures ............................................................................................................. 5-2

5.3.5 Module defective ........................................................................................................ 5-3

5.4 Error codes .................................................................................................................................. 5-3

6 Disassembly and Repair .......................................................................................... 6-1

6.1 Tools Required ........................................................................................................................... 6-1

6.2 Preparations for Disassembly .............................................................................................. 6-1

6.3 Disassembling the Main Unit ............................................................................................... 6-2

6.3.1 Disassembling the Temperature Module (Optional) ...................................... 6-2

6.3.2 Separating the Front and Rear Half of the Monitor ........................................ 6-2

6.3.3 Removing the Parameter Connector Panel Assembly ................................... 6-3

6.3.4 Disassembling the Main Bracket Assembly ....................................................... 6-4

6.3.5 Removing the Parameter Board (SpO

2

Optional) and Power Management

Board .......................................................................................................................................... 6-5

6.3.6 Disassembling Pumps and Valves ......................................................................... 6-6

6.3.7 Disassembling AC/DC Power Board and Battery Converter Board ........... 6-6

6.4 Disassembling the Front Housing Assembly ................................................................. 6-7

6.4.1 Removing the Main Board ....................................................................................... 6-7

6.4.2 Removing the Display ............................................................................................... 6-8

6.4.3 Removing the Keypad ............................................................................................... 6-8

6.5 Disassembling the Temperature Module (Optional) ................................................... 6-9

6.5.1 Removing the Temperature Module PCBA and Temperature Module Power

Board PCBA .............................................................................................................................. 6-9

6.5.2 Disassembling the Temperature On-Position Detection Board PCBA ..... 6-9

7 Parts .......................................................................................................................... 7-1

7.1 Introduction ............................................................................................................................... 7-1

7.2 Main Unit ..................................................................................................................................... 7-1

7.2.1 Exploded View .............................................................................................................. 7-1

7.2.2 Parts List ......................................................................................................................... 7-2

7.3 Front Housing Assembly........................................................................................................ 7-3

7.3.1 Exploded View .............................................................................................................. 7-3

2

7.3.2 Parts List .......................................................................................................................... 7-3

7.4 Main Bracket Assembly .......................................................................................................... 7-4

7.4.1 Exploded View .............................................................................................................. 7-4

7.4.2 Parts List .......................................................................................................................... 7-5

7.5 Power Management Board Assembly ............................................................................... 7-5

7.5.1 Exploded View .............................................................................................................. 7-5

7.5.2 Parts List .......................................................................................................................... 7-6

7.6 Parameter Connector Panel Assembly.............................................................................. 7-6

7.6.1 Exploded View .............................................................................................................. 7-6

7.6.2 Parts List .......................................................................................................................... 7-6

7.7 Predictive Temperature Assembly ...................................................................................... 7-7

7.7.1 Exploded View .............................................................................................................. 7-7

7.7.2 Parts List .......................................................................................................................... 7-7

8 Hardware and Software Upgrade ........................................................................... 8-1

8.1 Hardware Upgrade ................................................................................................................... 8-1

8.1.1 Upgrade Package ........................................................................................................ 8-1

8.1.2 Upgrading Parameter Modules .............................................................................. 8-1

8.1.3 Upgrading Temp .......................................................................................................... 8-2

8.1.4 Enabling Parameter Functions ............................................................................... 8-2

8.2 Software Upgrade .................................................................................................................... 8-2

A Electrical Safety Inspection .................................................................................... A-1

A.1 Power Cord Plug ..................................................................................................................... A-1

A.2 Device Enclosure and Accessories ................................................................................... A-2

A.3 Device Labeling ...................................................................................................................... A-2

3

FOR YOUR NOTES

4

1

Introduction

1.1 Manual Information

A detailed revision history of this manual is recorded in the table below:

1.0 New

2.0 Modify Temperature module test method, update parts list

1.2 Safety Information

WARNING

Indicates a potential hazard or unsafe practice that, if not avoided, will result in death or serious injury.

NOTE

CAUTION

Indicates a potential hazard or unsafe practice that, if not avoided, could result in minor personal injury or product/property damage.

Provides application tips or other useful information to ensure that you get the most from your product.

1-1

1.2.1 Warnings

WARNING

All installation operations, expansions, changes, modifications and repairs of this product are conducted by Mindray authorized personnel.

There is high voltage inside the equipment. Never disassemble the equipment before it is disconnected from the AC power source or the battery.

When you disassemble/reassemble a parameter module, a patient leakage current test must be performed before it is used again for monitoring.

The equipment must be connected to a properly installed power outlet with protective earth contacts only. If the installation does not provide for a protective earth conductor, disconnect it from the power line and operate it on battery power, if possible.

Disposal of the packaging material should observe the applicable waste control regulations and keeping it out of children’s reach.

1.2.2 Cautions

CAUTION

Make sure that no electromagnetic radiation interferes with the performance of the equipment when preparing to carry out performance tests. Mobile phone, X-ray equipment or MRI devices are a possible source of interference as they may emit higher levels of electromagnetic radiation.

Before connecting the receiver to the power line, check that the voltage and frequency ratings of the power line are the same as those indicated on the unit’s label or in this manual.

Protect the equipment from damage caused by drop, impact, strong vibration or other mechanical force during servicing.

1.2.3 Notes

NOTE

Refer to operator’s manual for detailed operation and other information.

1-2

1.3 Equipment Symbols

Some symbols may not appear on your equipment.

Caution

On/Off for a part of equipment

Clear key

Alternating current

Neonate

Pediatric

Adult

Equipotentiality

Input/Output

DATE OF

MANUAFACTURE

MANUFACTURER

Insertion Direction

No alarming system

Atmospheric pressure limitation

Battery indicator

DEFIBRILLATION –PROOF TYPE

CF APPLIED PART

NIBP Start/Stop key

Protection against fluid ingress

Serial number

Refer to instruction manual/ booklet

Temperature limit Humidity limitation

AUTHORISED REPRESENTATIVE

IN THE EUROPEAN COMMUNITY

CATALOGUE NUMBER

Interference may occur in the vicinity of equipment marked with this symbol

1-3

The product bears CE mark indicating its conformity with the provisions of the Council Directive 93/42/EEC concerning medical devices and fulfills the essential requirements of Annex I of this directive.

The following definition of the WEEE label applies to EU member states only.

This symbol indicates that this product should not be treated as household waste. By ensuring that this product is disposed of correctly, you will help prevent bringing potential negative consequences to the environment and human health. For more detailed information with regard to returning and recycling this product, please consult the distributor from whom you purchased it.

* For system products, this label may be attached to the main unit only.

The presence of this label indicates the machine was certified by ETL with the statement:

Conforms to AAMI Std. ES 60601-1, IEC Std. 60601-1-6, IEC Std.

80601-2-30, ISO Std. 80601-2-56, ISO Std. 80601-2-61.

Certified to CSA Std. C22.2 NO. 60601-1, NO. 60601-1-6, NO. 80601-2-30,

NO. 80601-2-56, NO. 80601-2-61.

1-4

2

Theory of Operation

2.1 Overview

The monitor is intended for spot-check monitoring physiologic parameters, including SpO

2

,

Pulse Rate, NIBP and Temperature, on adult, pediatric, and neonatal patients in healthcare facilities by clinical physicians or appropriate medical staff under the direction of physicians.

2.2 Connectors for Peripheral Devices

1

2

3

1. Input/Output connector (RS-232 connector)

This connector is used for software upgrade and DIAP communication.

2. AC power input

3. Equipotential grounding terminal:

When the equipment and other devices are to be used together, their equipotential grounding terminals should be connected together to eliminate the potential difference between them.

2-1

2.3 Main Unit

The main unit of the vital signs monitor consists of three parts:

 Front housing assembly, consisting of main board, segment-code display, and

Power On/Off keypad;

 Rear housing assembly: power module (AC/DC), power management and interface board (including SpO

2

isolation power), battery, NIBP module, and SpO

2 board; and,

 External module: Temperature module.

The following figure shows the main unit architecture of the vital signs monitor.

Front Housing Assembly

Segment-code display

Main board

Power On/Off keypad

(indicator)

Rear Housing Assembly

2600mAh battery

Power management and interface board

Pump

NIBP module

SpO

2 board

NIBP connector

SpO

2 receptacle

External module

Temperature module

Temperature probe

15V

AC-DC power module

AC-IN

External connector

RS232 port (for software upgrade and DIAP communications.)

2-2

2.4 Front Housing Assembly

Main Board

Keypad

Main Board

The main board is the control center of the equipment. It provides communication and display functions, including:

 Communication with SpO

2

board, and NIBP module through serial ports, starting parameter measurement, and reading measured results;

 Communication with Predictive temperature module through serial ports;

 Communication with power management board through serial ports;

 Extending an RS232 serial port;

 Control over the Segment-code LCD display through I2C;

 Providing backlight drive for segment-code display;

 Recognition of keypad actions, and providing corresponding response;

 Control over the beeper through IO port; and,

 Providing 24 hour timing via the internal real time clock.

Keypad

The keypad contains the power switch, function keys and AC Battery indicator etc.

2-3

2.5 Rear Housing Assembly

Power management and interface board

SpO

2

board

AC/DC power module

Battery compartment

NIBP module

Rear housing assembly consists of power module (AC/DC), power management and interface board (including SpO

2

isolation power), battery compartment, NIBP module, and

SpO

2

board.

AC/DC Power Module

The AC/DC power board transforms the input AC into DC power, and is the power source for all voltages in the equipment.

Power management and interface board

The power management interface board provides the following functions:

 Charge and discharge of battery and charge detection;

 DC/DC conversion: outputs 12V and 5V DC power;

 Control over power On/Off key and AC, BAT indicator;

 Communication transmission among parameter modules;

 Providing isolation power for the SpO

2

module; and,

 Providing external connectors, filter and protection for these connectors.

2-4

NIBP Module

The NIBP module consists of blood pressure measurement board and pump and valve assembly, providing measurement acquisition of blood pressure data. The main functions of the NIBP module are:

 NIBP measurement; and,

 Data exchange with the main board through the serial ports.

SpO

2

board

The SpO

2

board collects SpO

2

signals, processes SpO

2

algorithm and sends measurement results to the main board. The power management interface board provides isolation power for it.

2.6 External Module

An external Temperature module can be mounted on the monitor.

The independently developed Mindray Temperature module consists of an isolation power board, Temperature measurement board, and probes. The Temperature measurement board collects Temperature signals, processes algorithm and sends measurement results to the main board.

2-5

FOR YOUR NOTES

2-6

3

Equipment Installation

3.1 Unpacking the Equipment

Open the package and remove the packing list. Check that all the articles included in the packing list are available and the quantity and specification are correct. Make sure that:

 All the optional parts purchased by the customer have been received.

 Notify Mindray North America if your order is not correct or is incomplete. In case of damage during transportation, keep the packing material and notify the

Mindray North America immediately.

 Keep the packing material until all equipment is checked and accepted.

3.2 Preparation for Installation

3.2.1 Preparation for Installation Site

1. Ensure that the site meets all safety, environmental and power requirements.

2. Ensure that a network connector is available if the equipment is to be connected to network.

3.2.2 Environmental Requirements

To avoid explosion hazard, do not use the equipment in the presence of flammable anesthetics, vapors or liquids. The environment where the equipment will be used should be reasonably free from vibration, dust and corrosive substances. If these conditions are not met, the system may not function normally.

The environmental specification is as follows:

Main Unit

Item

Temperature ()

Relative humidity

(noncondensing)

Altitude (mmHg)

Operating environment

0 to 40 (without

Temperature module)

5 to 40 (with Temperature module)

15% to 95% 427.5 to 805.5

Storage environment

NOTE

-30 to 70 10% to 95% 120.0 to 805.5

The environmental specifications of unspecified parameters are the same as those of the main unit.

3-1

3.2.3 Electrical Requirements

Check that the system cables, power cords, and power plugs are not damaged, and that the pins are not loose. In case of any damage, remove it from use.

WARNING

Use only properly grounded power outlets.

Use the supplied power cord only!

Voltage

Current

100 to 240V AC

0.9 to 0.5A

3.3 Equipment Installation

Follow the procedure below to install the equipment:

1. Ensure the main unit and all accessories are not damaged.

2. Install the battery (optional). For detailed operations, please refer to the operator’s manual of the vital signs monitor.

3. Connect AC power.

4. Connect the accessories.

The vital signs monitor can be mounted on a wall bracket or on a trolley support. The wall bracket or trolley support can be ordered as an optional accessory. Each type of mounting bracket is delivered with a complete set of mounting hardware and instructions. For detailed installation information, please refer to Wall-mount Bracket Instructions for Use

(PN: 0010-20-42933) and Rollstand Instructions for Use (PN: 0010-20-42934).

CAUTION

Use only Mindray supplied or approved mounting solutions.

The mounting bracket should be installed by qualified service personnel.

3.4 Preparation for Power on

1. Before you start using the equipment, check for any mechanical damage and make sure that all external cables, plug-ins and accessories are properly connected.

2. Plug the power cord into the AC power source. If you run the equipment on battery power, ensure that the battery is sufficiently charged.

3. Press button on the front panel to turn on the equipment.

3-2

4

Testing and Maintenance

4.1 Introduction

The expected service life of the equipment is five years. To ensure the equipment always functions normally, qualified service personnel should perform regular inspection, maintenance and test. This chapter provides a checklist of the testing procedures for the equipment with recommended test equipment and frequency. The service personnel should perform the testing and maintenance procedures as required and use appropriate test equipment.

The testing procedures provided in this chapter are intended to verify that the equipment meets the performance specifications. If the equipment or a module fails to perform as specified in any test, repairs or replacements must be done to correct the problem. If you have any questions, contact Mindray Technical Support.

CAUTION

All tests should be performed by qualified service personnel only.

Service personnel should acquaint themselves with the test tools and make sure that test tools and cables are vailable.

4-1

4.2 Performance Tests

Performance test are designed to ensure that measurement results are accurate. The following sections provide a list of performance and accuracy tests and their recommended frequencies.

4.2.1 Performance Test Frequencies

Check/Maintenance Item

Visual Inspection

Recommended Frequency

When first installed or reinstalled.

SpO

2

test

NIBP test

Leakage test

Accuracy test

NIBP overpressure test

1. If the user suspects that the measurement is incorrect.

2. Following any repairs or replacement of relevant module.

3. Every two years.

Note: Per year is recommended for NIBP leakage and accuracy tests..

Temperature test

4.2.2 Visual Inspection

Perform an overall inspection on the appearance of the equipment. The test is passed if the equipment has no obvious signs of damage. Follow these guidelines when inspecting the equipment:

 Carefully inspect the case, display screen, buttons, and knob for obvious signs of damage.

 Inspect all external connections for loose connectors, bent pins or frayed cables.

 Inspect all connectors on the equipment for loose connectors or bent pins.

 Make sure that safety labels and data plates on the equipment are clearly legible.

4.2.3 SpO

2

Test

Test Method 1

Required Tool:

 None

Test Procedure:

1. Connect

2 sensor for adult to the SpO

2

connector of the monitor. Press the

button to set the patient category to Adult ( ).

2. Place the SpO

2

sensor on your finger.

3. Verify

2

Level and Pulse Rate are displayed.

4. Remove the SpO

2

sensor from your finger and verify the SpO

2

sensor off icon is displayed

4-2

Measurement validation

The SpO

2

accuracy has been validated in human studies against arterial blood sample reference measured with a CO-oximeter. Pulse oximeter measurements are statistically distributed, and only about two-thirds of the measurements can be expected to fall within the specified accuracy compared to CO-oximeter measurements.

NOTE

The SpO

2 simulator can only be used to verify that the pulse oximeter operates properly. It cannot be used to verify the accuracy of the pulse oximeter or the SpO

2

sensor. To verify the accuracy, clinical tests are required.

Test Method 2

Required Tool:

 SpO

2

simulator, Index-2 recommended

Test Procedures:

1. Connect the SpO

2

sensor to the SpO

2

simulator.

2. Selected the model and manufacturer of the SpO

2

module to be tested on the simulator, and set the simulator as follows: SpO

2

to 96% and Pulse Rate to 80 bmp.

3. Set the patient type to adult, pediatric and neonate respectively. Observe the monitor and make sure the displayed SpO

2

and PR value fall in the following range.

Manufacturer SpO

2

Pulse

Nellcor

96% ± 2% (Adult, Pediatric)

96% ± 3% (Neonate)

80 ± 3 bpm

Masimo

96% ± 2% (Adult, Pediatric)

96% ± 3% (Neonate)

80 ± 3 bpm

4-3

4.2.4 NIBP Test

4.2.4.1

Leakage Test

NOTE

Perform NIBP leakage test before any other NIBP test and calibration.

Tools required:

 Adult NIBP Cuff

 NIBP Hose

 Cylinder

Follow this procedure to perform the leakage test:

button to set the patient category to adult ( ).

2. Connect the NIBP cuff to the NIBP connector on the monitor.

3. Apply the cuff to the cylinder as shown below.

Cylinder

Monitor

Connector for NIBP cuff

NIBP Hose Cuff

4. Start the monitor. Within 10 s after you hear a beep, press and hold the button to enter the Maintenance mode.

5. Press button to enter the NIBP leakage test interface. In the PR parameter area, code 550 is displayed.

6. Press button to start leakage test. The real-time pressure is displayed at the top of the screen.

Pressing button with test in progress will terminate the leakage test.

4-4

7. When the NIBP leak test is completed, the cuff will deflate automatically.

If is displayed in the error code area, it indicates the NIBP leak test is passed and that the system has no leak. If is displayed, it indicates the system may have a leak. Check the tubing and connections for leakages. If you ensure that the tubing and connections are all correct, perform a leakage test again. If the problem persists, contact our Technical

Support Department.

You may also perform a manual leakage test:

1. Perform steps 1 - 4 as described in Section 0 .

2. Raise the pressure in the rigid vessel to 250 mmHg with the manometer bulb.

Then, wait for 5 seconds to allow the pressure to stabilize.

3. Record the current pressure value, wait 60 seconds, then record the pressure again.

4. Compare the two pressure values and make sure the difference is 6 mmHg or less.

4.2.4.2

NIBP Accuracy Test

Required Tool:

 T-shape connector

 Appropriate tubing

 Manometer bulb

 Rigid Vessel with volume 500±25 ml

 Reference manometer (calibrated, with accuracy equal to or better than 0.75 mmHg)

Follow this procedure to perform the accuracy test:

1. Connect the equipment as shown below.

Monitor

Standard sphygmomanometer

Connector for NIBP cuff

Appropriate tubing

Manometer bulb

Rigid Vessel

4-5

2. Before inflation, vent manometer bulb to atmosphere and verify manometer reads 0 mmHg..

3. Start the monitor. Within 10 s after you hear a beep, press and hold the button to enter the Maintenance mode. Then press the button to display the NIBP accuracy test interface. In the PR parameter area, the code 555 is displayed.

4. Press button to start accuracy test. The real-time pressure is displayed at the top of the screen.

Pressing button with the test in progress will terminate the current accuracy test. An invalid value will be displayed at the top of the screen.

5. Check the manometer values and the monitor values. Both should be 0 mmHg.

6. Raise the pressure in the metal vessel to 50 mmHg with the manometer bulb.

Then wait 10 seconds to allow the pressure to stabilize.

7. Compare the manometer values with the monitor values. The difference between the manometer and displayed values should be ± 3 mmHg. If it is greater than ± 3 mmHg, contact Mindray Technical Support.

8. Raise the pressure in the metal vessel to 200 mmHg with the manometer bulb.

Then wait 10 seconds to allow the pressure to stabilize. Repeat step 7.

If the difference between the manometer and displayed values is greater than 3 mmHg, contact our Technical Support Department.

NOTE

You can use an NIBP simulator to replace the manometer bulb and the reference manometer to perform the test.

4.2.4.3

NIBP Cuff Overpressure Test

Required Tool:

 T-shape connector

 Appropriate tubing

 Manometer bulb

 Rigid Vessel with volume 500±25 ml

 Reference manometer (calibrated, with accuracy equal to or better than 0.75 mmHg)

4-6

Follow this procedure to perform the NIBP cuff overpressure test:

1. Perform steps 1 to 2 in the 4.2.4.2 NIBP Accuracy Test.

2. Start the monitor. Within 10 s after you hear a beep, press and hold the button to enter the Maintenance mode. Then press the button to display the NIBP cuff overpressure test interface. In the PR parameter area, the code 520 is displayed.

3. Check the manometer values and the monitor values. Both should be 0 mmHg.

Press the button to set the patient category to adult ( ).

4. Raise the pressure in the metal vessel to 330 mmHg with the manometer bulb.

Then wait 10 seconds to allow the pressure to stabilize.

button to start the NIBP cuff overpressure test.

button to set the patient category to pediatric ( ).

7. Raise the pressure in the metal vessel to 330 mmHg with the manometer bulb.

Then wait 10 seconds to allow the pressure to stabilize.

button to start the NIBP cuff overpressure test.

button to set the patient category to neonate ( ).

10. Raise the pressure in the metal vessel to 165 mmHg with the manometer bulb.

Then wait 10 seconds to allow the pressure to stabilize.

button to start the NIBP cuff overpressure test.

If is displayed in the error code area, it indicates the NIBP cuff overpressure test is passed. If is displayed, the NIBP cuff overpressure test is failed. If the test is failed, contact Mindray our your service personnel.

NOTE

You can use an NIBP simulator to replace the manometer bulb and the reference manometer to perform the test.

4-7

4.2.5 Temperature Test

Required Tool:

 Thermostatic oil tank(HART 7102 recommended) or Water Bath and Precision

Thermometer for reference.

Test procedure:

1. Set the temperature of the oil tank or water bath to 37°C and conduct the test after the temperature stabilizes.

2. Set temperature unit to °C.

The monitor switches to from Predictive Mode to Monitor Mode when neither a measurement is taken nor the probe is not replaced in the probe well within 60 seconds after it has been withdrawn.

3. In Monitor Mode, remove the Temperature probe from the probe sheath, insert a probe cover, and place the probe into the oil tank or water bath.

NOTE

4. Wait till the Temp value displayed on the monitor stabilizes. Verify that the displayed value is ±0.1°C

of the oil bath thermostat setting or reference thermometer.

Contact our Technical Support Department if the Temperature test fails.

Due to the different application environment and the test object in vivo and vitro conditions, there is deviations in the measurement result. The

maximum deviation of 2.5 may exist in predictive Temperature

measurement by liquid bath techniques.

4-8

4.3 Electrical Safety and Other Tests

4.3.1 Electrical Safety and Other Test Frequencies

Check/Maintenance Item Recommended Frequency

Electric safety tests

Power-on test

1. Following any repair or replacement.

2. If monitor is physically damaged.

3. Every two years.

For details, refer to Appendix A Electrical Safety

Inspection.

1. When first installed or reinstalled.

2. Following any repairs or replacement of any main unit parts.

Functional test

1. When first installed.

2. Whenever a battery is replaced.

Battery check

Performance test

Once per year or if the battery run time reduced significantly.

4.3.2 Electric safety tests

For details about electric safety tests, refer to Appendix A Electrical Safety Inspection.

4.3.3 Power-on Test

This test is to verify that the equipment can power up correctly. This test is passed if the equipment starts up by following this procedure:

1. Insert the battery in the battery compartment, and connect the equipment to the

AC mains. The AC mains indicator and battery indicator light up.

2. Press button on the front panel to turn on the equipment. The work status indicator lights up inside the Power button.

3. The screen lights up.

4. The main interface is displayed. Now the equipment is correctly started.

4-9

4.3.4 Battery Check

Required Tool:

 None

Functional Test

1. If the equipment is installed with a battery, remove the battery first.

2. Verify that the equipment works correctly when running powered form an AC source.

3. Insert the battery per the procedures provided in the operator’s manual.

4. Remove the AC power cord and verify that the equipment still works correctly.

Performance Test

Perform the test by referring to the Battery chapter in the operator’s manual and verify the operating time of the battery meets the product specification.

4.4 Maintenance Mode

4.4.1 Entering/Quitting Maintenance Mode

1. Start the monitor. Within 10 seconds after you hear a beep, press and hold the

button to enter the Maintenance mode.

2. Press button to toggle among maintenance items, such as NIBP unit setup, Temperature unit setup, system time setup, NIBP leakage test, NIBP accuracy test, version information, restoring factory configuration, work time information, screen brightness adjustment and DIAP communication setup.

3. Press and hold the button to power off the monitor. The settings take effect after the monitor restarts.

Using Keys

In different modes, the key functions vary:

Mode Keys and Functions

: Press this key to change patient category.

Measurement Mode

: Start/stop NIBP measurements.

: Press to:

 Clear the parameter value displayed on the screen (such as NIBP, Temp value).

 Clear the error code.

 Clear NIBP cuff indicator.

4-10

Mode

Parameter Setup Mode

Maintenance Mode

(Refer to section 3.7 Maintenance

Mode in operators’ manual)

NIBP Unit Setup

Temperature Unit Setup

System Time Setup

NIBP Leakage Test

(PR parameter area displays

“550”)

NIBP Accuracy Test

(PR parameter area displays

“555”)

NIBP Cuff Overpressure test

(PR parameter area displays

“520”)

Software Version

Factory Default Configuration

(PR parameter area displays

“000”)

Keys and Functions

Clear the flashing SpO

2

sensor indicator.

 When a parameter label flashes due to the module failure, stop the flashing.

 Disable the Low Battery audio indicator.

: Press and hold for above 2 seconds to enter

Parameter Setup mode.

:

 Press and hold for more than 2 seconds to return to Measurement mode.

 Press to toggle among the parameters.

: Switch on/off pulse tone; toggle among

Temp measurement sites.

: Press to toggle among maintenance items.

: Toggle between mmHg and kPa.

: Toggle between °C and °F.

: Toggle among hour and minute digits.

: Add one number based on current value.

: Start/Stop leakage test.

: Start/Stop accuracy test.

: Start NIBP cuff overpressure calibration.

: View the version of each module.

: Toggle between ON and OFF

 ON: Restore the factory default configuration

 OFF: Keep current configuration

4-11

Mode

Working Time

Keys and Functions

Check the total working time.

: Decrease screen brightness.

Brightness Setup

: Increase screen brightness.

DIAP Communication Setup

(PR parameter area displays

“001”)

4.4.2 Checking Version Information

: Toggle between 9600 and 19200 bps.

1. Entering Maintenance mode.

2. Press button and switch to version information.

3. Press button to toggle version information.

The following information is displayed on the monitor:

System software version;

NIBP module version;

SpO

2

module version;

Temperature module version; and

Power management software version.

Examples of codes are listed below:

Version Screen display Indication of codes

System software version

“030 000” indicates version

03.00.00

NIBP module hardware version

“540” indicates version 05.04.00

SpO

2

module version “1210” indicates version 1.2.1.0

4-12

Temperature module version

“502” indicates version 5.0.2

Power management software version

“011” indicates version 01.01

4.4.3 Restoring Factory Default Configuration

1. Entering Maintenance mode.

2. Press button and switch to restore factory default configuration interface. In the PR parameter area, code 000 is displayed.

button to change settings. settings will be restored to the factory default configuration while indicates the current settings will be retained.

The default settings are:

 NIBP unit: mmHg

 Temperature unit: ℃

 Patient category: Adult

 Beat sound: On

 Temperature position: oral

 Brightness: 5

indicates that the current

4-13

FOR YOUR NOTES

4-14

5

Troubleshooting

5.1 Overview

In this chapter, equipment problems are listed along with possible causes and recommended corrective actions. Refer to the tables to check the monitor, identify and eliminate the troubles.

The troubles we list here are common difficulties and the actions we recommend can correct most problems. For more information on troubleshooting, contact our Technical

Support Department.

5.2 Parts Replacement

Printed circuit boards (PCBs), major parts and components in the monitor are replaceable.

Once you isolate a PCB you suspect defective, follow the instructions in chapter 6

Disassembly and Repair to replace the PCB with a known good one and check that the trouble disappears or the equipment passes all performance tests. If the trouble remains, exchange the replacement PCB with the original PCB and continue troubleshooting as directed in this chapter.

To obtain information on replacement parts or order them, refer to chapter 7 Parts.

5.3 Troubleshooting Guide

5.3.1 Power On/Off Failure

Symptoms

The monitor fails to start.

Possible Cause

AC mains not connected or battery too low

Cable defective

Troubleshooting

Check that AC mains is properly connected or battery capacity is sufficient.

1. Check that the cable between the keypad board and main board is correctly connected.

2. Check that the cable between the power board and power management board is correctly connected.

3. Check that the cable between the main board and power management board is correctly connected.

Replace the power board. Power board defective

Power management board defective

The main board failed.

Replace the power management board.

Replace the main board.

5-1

5.3.2 Display Failures

Symptoms Possible Cause

Cable defective

Troubleshooting

1. Check if the cable between the display and main board and the backlight cable are correctly connected.

2. Check that the cables and connectors are not damaged.

The display is blank or black.

Main board defective

Display defective

Images overlapped or distorted

Main board error

Cable defective

Replace the main board.

Replace the display.

Replace the main board, or upgrade the main board with the upgrade software.

Check if the cable between the display and main board and the backlight cable are correctly connected.

5.3.3 Button Failures

Symptoms Possible Cause Troubleshooting

Buttons do not work

Cable defective

Check that the cable between the keypad board and main board is correctly connected.

Keypad board failure Replace the keypad board.

5.3.4 Battery Failures

Symptoms Possible Cause Troubleshooting

Battery defective Replace the battery.

Cable defective

Check that the cable between the battery interface board and power management board is correctly connected.

Battery cannot be charged

Power management board defective

Replace the power management board.

Battery interface board defective

Replace the battery interface board.

5-2

NOTE

When the battery module has a failure, it may cause problems to other components. In this case, troubleshoot the battery module per the procedure described in the table above.

Components of the main unit are powered by the power module. In the event that a component malfunctions, check if the operating voltage is correct.

5.3.5 Module defective

Symptoms

Failed to load modules

Possible Cause

Module defective

Main unit defective

Troubleshooting

1. Check that the cable between the external converter board inside the module and the converter board is correctly connected.

2. Replace the converter board.

1. Check that the cable between the main board and power management board is correctly connected.

2. Replace the power management board.

3. Replace the main board.

Module loading succeeds but parameters do not function

Cable defective inside the module

Parameter module defective

Check the cables connecting the converter board and corresponding parameter module.

Replace the corresponding module.

Converter board defective inside the module

Replace corresponding converter board.

5.4 Error codes

Error codes are displayed on the monitor if a failure is detected. For detailed failure description, cause and solutions, please refer to Appendix C Error codes in the operator’s manual.

5-3

FOR YOUR NOTES

5-4

6

Disassembly and Repair

6.1 Tools Required

To disassemble and replace the parts and components, the following tools may be required:

 Philips screwdrivers

 Tweezers

 Sharp nose pliers

 Clamp

6.2 Preparations for Disassembly

Before disassembling the equipment, finish the following preparations:

 Stop monitoring, turn off the equipment, and disconnect all the accessories and peripheral devices.

 Disconnect the AC power source and remove the battery.

WARNING

Before disassembling the equipment, be sure to eliminate the static charges first. When disassembling the parts labeled with static-sensitive symbols, make sure you are wearing electrostatic discharge protection such as antistatic wristband or gloves to avoid damaging the equipment.

Properly connect and route the cables and wires when reassembling the equipment to avoid short circuit.

Select appropriate screws to assemble the equipment. If incorrect screws are tightened by force, the equipment may be damaged.

Follow correct sequence to disassemble the equipment.

Be sure to disconnect all the cables before disassembling any parts. Be sure not to damage any cables or connectors.

Place the screws and parts from the same module together to facilitate reassembling.

To reassemble the equipment, first assemble the assemblies, and then the main unit. Carefully route the cables.

Ensure all gaskets and seals are correctly installed during reassembly.

6-1

6.3 Disassembling the Main Unit

NOTE

To disassemble the equipment, place the equipment on a work surface free from foreign material, avoiding damaging the screen.

All the operations should be performed by qualified service personnel only.

Operations relating to optional parts may not apply to your equipment.

6.3.1 Disassembling the Temperature Module (Optional)

Lay the monitor on a table as shown below. Unscrew the two M3×6 screws, pull the Temperature module up, and disconnect the Temperature cable.

6.3.2 Separating the Front and Rear Half of the Monitor

1. Lay the monitor on a table as shown below. Unscrew the four M3 screws.

6-2

2. Stand the monitor and separate the front housing assembly and rear housing assembly with caution. Disconnect the cable between the main board and power management board and then remove the front panel.

NOTE

When reassembling the equipment, be sure to check if the front housing waterproof strip is correctly placed.

6.3.3 Removing the Parameter Connector Panel Assembly

Lay the rear housing assembly on the table, disconnect the SpO

2

cable and connector panel connecting tube, and then remove the parameter connector panel.

Parameter connector panel assembly

SpO

2 cable signal

Silicone tube

6-3

6.3.4 Disassembling the Main Bracket Assembly

Unscrew the four PT3×8 screws as indicated below. Then remove the main bracket assembly.

6-4

6.3.5 Removing the Parameter Board (SpO

2

Optional) and Power

Management Board

1. Unscrew the two M3×6 screws and two external hexagon screws, and remove the power management board assembly from the main bracket assembly.

2 M3 screws

2 external hexagon screws

2. Unscrew the two M3×4 screws and remove the parameter board from the power management board assembly.

2 M3 screws

Parameter Board

Power management board

3. Unscrew the two M3×6 screws and remove the power management board assembly.

6-5

6.3.6 Disassembling Pumps and Valves

1. Cut the two cable ties and remove the NIBP pump.

Cable tie

2. Unscrew the two M3×6 screws as indicated and remove the valve.

6.3.7 Disassembling AC/DC Power Board and Battery Converter Board

1. Unscrew the four M3×6 screws as indicated and remove the AC/DC power board.

6-6

2. Unscrew the two M3 nuts to remove the battery interface board.

6.4 Disassembling the Front Housing Assembly

NOTE

To disassemble the equipment, place the equipment on a work surface free from foreign material, avoiding damaging the screen.

Remember to install the screen support pad properly during reassembly.

Operations relating to optional parts may not apply to your equipment.

6.4.1 Removing the Main Board

Disconnect the cable between the main board and keypad board. Unscrew the four M3×6 screws and remove the main board, as shown below:

6-7

6.4.2 Removing the Display

Unscrew the four M3×8 screws as indicated below. Remove the display assembly. Then unscrew the four PT2×6 and remove the display.

4 M3 screws

Display

4 PT2 screws

6.4.3 Removing the Keypad

Unscrew the Two PT3×8 screws indicated below and remove the keypad.

Keypad

6-8

6.5 Disassembling the Temperature Module (Optional)

6.5.1 Removing the Temperature Module PCBA and Temperature

Module Power Board PCBA

Unscrew the 2 M3 screws indicated below and remove the metal sheet.

Disconnect the Temperature board cable and the cable between Temperature isolation power board and Temperature board. Unscrew the four M3×6 screws; you can remove the Temperature module PCBA. Then unscrew the three M3×6 screws, you can remove the Temperature module power board PCBA.

Cable between the isolation power board and Temperature board

Metal sheet

Screw for metal sheet

3 screws

Temperature board cable

Temperature module power board

PCBA

Temperature module PCBA

4 screws

6.5.2 Disassembling the Temperature On-Position Detection Board

PCBA

1. Unscrew the four M3×6 screws as indicated and remove the Temperature module housing.

6-9

2. Unscrew the four M2 screws as indicated below and remove the Temperature on-position detection board PCBA.

Temperature on-position detection board PCBA

NOTE

Remember to assemble the silicon button for the Temperature on-position detection switch during reassembly.

6-10

7

Parts

7.1 Introduction

This section contains the exploded views and parts lists of the main unit. It helps the engineer to identify the parts during disassembling the monitor and replacing the parts.

This manual is based on the maximum configuration. Your equipment may not have same parts and the quantity of the screws or stacking sleeves etc. may be different with those included in the parts lists.

NOTE

The part number listed in the Parts List is only for checking the FRU part number which is also included in the Parts List. Please provide the FRU parts number if you want to purchase the spare parts.

7.2 Main Unit

7.2.1 Exploded View

7-1

7.2.2 Parts List

Item

No.

Description FRU part number Remarks

115-018253-00 N/A

2

3

4

Parameter connector panel assembly

Power management board assembly

NIBP valve assembly

115-017681-00

115-017682-00

NIBP plus Masimo

SpO

2

NIBP plus Nellcor

SpO

2

With Nellcor SpO

2

115-018256-00

115-018257-00 With Masimo SpO

2

115-017679-00 N/A

030-000338-00 N/A

6

Screw, Pan Head W/Washer Phillips

M3X6

7 Pump

8

Shock absorption cushion for pump

M04-004012--- N/A

801-9261-00040-00 N/A

/

9

10

11

12

/

Accutorr 3 front housing assembly

Battery door assembly

Predictive Temperature module

Screw, pan head, Phillips M3X8

Cable between NIBP module and power management board

Cable between the main board and power management board

115-022920-00

115-018252-00

115-017687-00

M04-000605--- front housing assembly FRU

N/A

N/A

N/A

009-003238-00 N/A

009-003248-00 N/A

7-2

7.3 Front Housing Assembly

7.3.1 Exploded View

7.3.2 Parts List

Item

No.

Description

1

2

Waterproof strip for front and rear housing

Accutorr 3 Front housing

FRU part number

Remarks

115-022919-00 front cover

FRU

7

8

4

5

Keypad board cushion

Keypad board adjusting sleeve

Short poron cushion

Long poron cushion

7-3

115-020467-00

N/A

N/A

115-018251-00 N/A

Item

No.

Description

FRU part number

Remarks

12

13

Screw, pan head cross recessed M3X6

Main board PCBA

/ Accutorr 3 silicon buttons

7.4 Main Bracket Assembly

7.4.1 Exploded View

M04-004012---

051-001363-00

049-000606-00

N/A

N/A

N/A

7-4

2

3

4

7.4.2 Parts List

Item

No.

Description

1 6301 battery interface PCBA

Knob, Battery latch

AC input receptacle and cable

Power board shield

FRU part number

Remarks

115-018254-00

0380-00-0593

With cable

N/A

009-003241-00 N/A

047-010575-00 N/A

7 Power board insulator

/

Cable between the power management board and power board

7.5 Power Management Board Assembly

7.5.1 Exploded View

047-010364-00 N/A

009-003237-00 N/A

7-5

7.5.2 Parts List

Item

No.

Description

FRU part number

Remarks

1

PCBA, Power management/interface board

115-018256-00

115-018257-00

Power management board service kit (without Masimo receptacle)

Power management board service kit (with Masimo receptacle)

/

2 SpO

2

shield 047-010576-00

100-000106-00 Nellcor SpO

2

board (MDU)

3 SpO

2

board

040-000109-01 SpO

2

board, Masimo MS-2013

7.6 Parameter Connector Panel Assembly

7.6.1 Exploded View

7.6.2 Parts List

Item

No.

1

Description

Parameter receptacle cover

FRU part number Remarks

2 SpO

2

signal cable

009-003372-00 Masimo

009-003373-00 Nellcor

7-6

7.7 Predictive Temperature Assembly

7.7.1 Exploded View

7.7.2 Parts List

2

3

Item

No.

1

4

5

Description

Screw, Pan head w/washer

Predictive Temperature module power board PCBA

Predictive Temperature housing

Temperature on-position detection board PCBA

External compartment for Temperature module

FRU part number

M04-004012---

801-6006-00043-00

043-003327-01

051-001419-00

043-003312-01

049-000547-01

M09A-20-62064

7-7

/

Item

No.

8

9

10

/

/

Description

Screw, pan head cross recessed M2X6

Screw, Flat Head Phillips, M3X6

Predictive Temperature module PCBA

Predictive Temperature board cable

Cable between the Temperature module and power management board

Cable between the isolation power board and

Temperature board

FRU part number

M04-051003---

M04-005005---

051-001435-00

009-003368-00

009-003239-00

009-003240-00

7-8

8

Hardware and Software Upgrade

8.1 Hardware Upgrade

The vital signs monitor supports upgrade of NIBP, SpO

2

and Temperature functions.

8.1.1 Upgrade Package

Upgrade package

SpO

2

Description of upgrade package

Nellcor SpO

2

upgrade kit

PN of upgrade package

115-023200-00

115-018267-00

Note: measurement accessories are not included in the above upgrade packages.

8.1.2 Upgrading Parameter Modules

8.1.2.1

Upgrading Nellcor SpO

2

List of upgrade package:

 A Nellcor SpO

2

board; and,

 A connector panel assembly of the same SpO

2

board.

1. Disassemble the power management board and parameter connector panel assembly as described in section 6.3 Disassembling the Main Unit.

2. Remove the SpO

2

board from the disassembled power management board assembly as described in section 6.3.5Removing the Parameter Board (SpO2

Optional) and Power Management Board, and assemble the SpO

2

board in the upgrade kit.

3. Install the power management board assembly with the SpO

2

board and the connector panel assembly in the service kit into the main unit as described in section 6.3 Disassembling the Main Unit.

8.1.2.2

Upgrading Masimo SpO

2

List of upgrade package:

 A Power Management Board Assembly; and,

 A parameter connector panel assembly.

1. Remove the power management board assembly and connector panel assembly as described in section 6.3 Disassembling the Main Unit.

8-1

2. Install the power management board assembly and the connector panel assembly in the service kit into the main unit as described in section 6.3

Disassembling the Main Unit.

8.1.3 Upgrading Temp

List of upgrade package:

 A Temperature module with cables; and,

 Two M3×6 screws.

Remove the decorative cover from the Temperature module connector. Install the

Temperature module onto the main unit as described in section 6.5 Disassembling the

Temperature Module (Optional).

8.1.4 Enabling Parameter Functions

1. Turn on the monitor. Within 10 seconds after you hear a beep, press and hold the

and the buttons simultaneously, and the system starts to identify the currently configured modules.

The labels of parameters start to flash till the end of module identification. Then the results are displayed in corresponding parameter areas,

NIBP and Temperature parameter areas: means "this module is configured on this equipment" while means the contrary.

SpO

2

parameter area: Number”2” means Masimo SpO

2

module, “3” means

Nellcor SpO

2

module.

PR parameter area: equipment" while

2. Restart the monitor.

8.2 Software Upgrade

means "SpO

2

module is configured on this

means the contrary.

Software upgrades must be performed by Mindray, NA authorized service personnel. Call

Service Dispatch 1 800 288-2121 ext: 7875.

8-2

A

Electrical Safety Inspection

The following electrical safety tests are recommended as part of a comprehensive preventive maintenance program. They are a proven means of detecting abnormalities that, if undetected, could prove dangerous to either the patient or the operator. Additional tests may be required according to local regulations.

All tests can be performed using commercially available safety analyzer test equipment.

Please follow the instructions of the analyzer manufacturer.

The consistent use of a safety analyzer as a routine step in closing a repair or upgrade is emphasized as a mandatory step if an approved agency status is to be maintained. The safety analyzer also proves to be an excellent troubleshooting tool to detect abnormalities of line voltage and grounding, as well as total current loads.

A.1 Power Cord Plug

A.1.1 The Power Plug

Test Item

The power plug pins

The plug body

The power plug

The strain relief

The power cord

The power plug

Acceptance Criteria

No broken or bent pin. No discolored pins.

No physical damage to the plug body.

No physical damage to the strain relief. No plug warmth for device in use.

No loose connections.

No physical damage to the cord. No deterioration to the cord.

For devices with detachable power cords, inspect the connection at the device.

For devices with non-detachable power cords, inspect the strain relief at the device.

A-1

A.2 Device Enclosure and Accessories

A.2.1 Visual Inspection

Test Item

The enclosure and accessories

Acceptance Criteria

No physical damage to the enclosure and accessories.

No physical damage to meters, switches, connectors, etc.

No residue of fluid spillage (e.g., water, coffee, chemicals, etc.).

No loose or missing parts (e.g., knobs, dials, terminals, etc.).

A.2.2 Contextual Inspection

Test Item Acceptance Criteria

No unusual noises (e.g., a rattle inside the case).

The enclosure and accessories

No unusual smells (e.g., burning or smoky smells, particularly from ventilation holes).

No taped notes that may suggest device deficiencies or operator concerns.

A.3 Device Labeling

Check the labels provided by the manufacturer or the healthcare facility are present and legible.

 Main unit label

 Integrated warning labels

A-2

ELECTRICAL SAFETY INSPECTION FORM

Overall assessment

Scheduled inspection

Unopened repair type

Opened repair type, not replace the power part including transformer or patient circuit board

Opened repair type, replace the power part including transformer

Opened repair type, replace patient circuit board

Test item: 1, 2, 3, 4, 5, 6, 7

Test item: 1, 2, 3

Test item: 1, 2, 3, 4

Test item: 1, 2, 3, 4, 5

Test item: 1, 2, 3, 4, 6, 7

Location: Technician:

Manufacturer: Model: SN:

Measurement equipment /SN: Date of Calibration:

INSPECTION AND TESTING

1 Power Cord Plug

Pass/Fail Limit

2 Device Enclosure and Accessories

4

5

Protective Earth Resistance

Earth

Leakage

Normal condition(NC)

Single Fault condition(SFC)

Ω

____μA

____μA

Max 0.2 Ω

Max:

NC: 300μA(refer to

UL60601-1) *

NC: 500μA(refer to

IEC60601-1) *

SFC: 1000μA

6

Patient

Leakage

Current

Normal condition(NC)

Single Fault condition(SFC)

BF: ____μA

CF: ____μA

BF: ____μA

CF: ____μA

Max:

CF applied part:

NC:10μA, SFC: 50μA

BF applied part:

NC:100μA, SFC:

500μA

7 Mains on Applied Part Leakage

BF: ____μA

CF: ____μA

Max:

CF applied part:

50μA

BF applied part:

5000μA

Note: The equipment which sell to America shall comply with the requirement of

UL60601-1, others shall comply with the requirement of IEC60601-1.

Name/ Signature: __________________________ Date: _____________________________

A-3

FOR YOUR NOTES

A-4

PN: 046-005295-00 (2.0)
